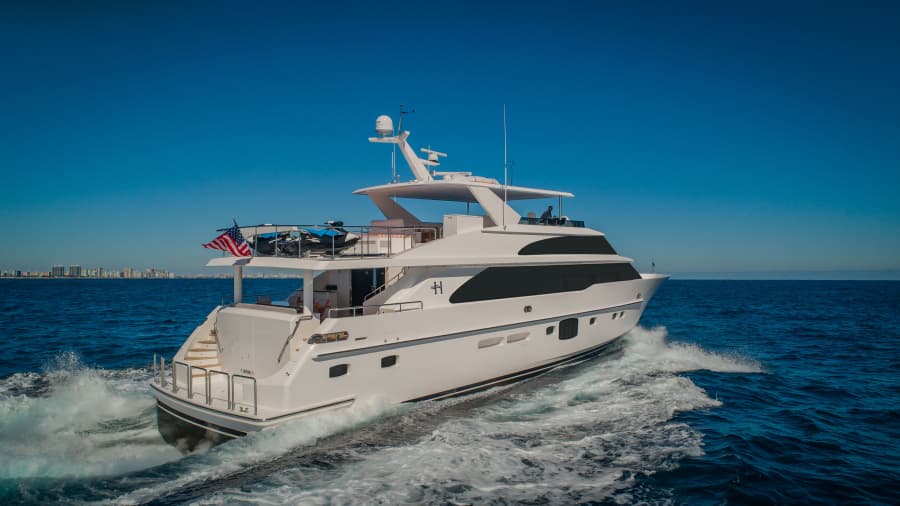

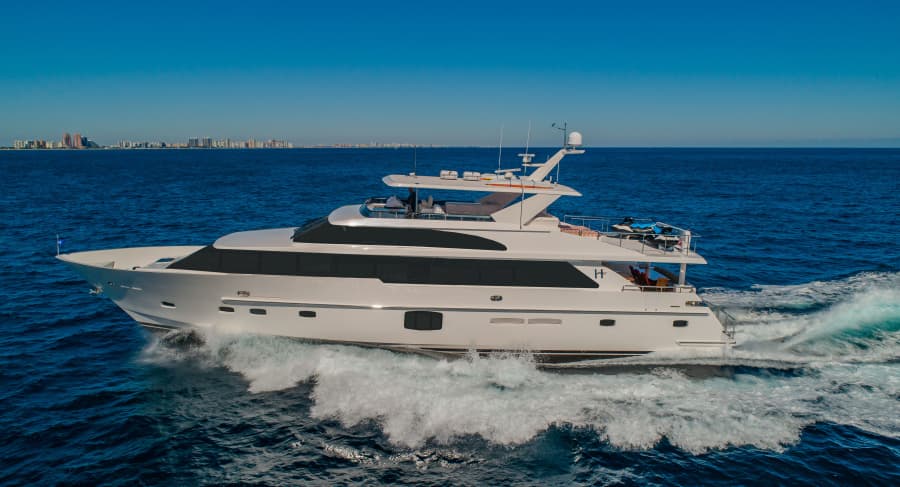

2028 Hargrave Raised Pilothouse

PRODUCTION ORDER DETAILED SPECIFICATIONS: - Section 1

2" Deckfills for fuel and water

600 Gallon Stainless Steel Water Tank

V-Shaped Keel w/ Longitudinal stringers

Fiberglass hand-laid hull & stringers vacuum bagged w/foam core reinforcement

Stringers bonded to hull encapsulated in several layers of glass cloth & resin

Deck & superstructure w/ foam-cored reinforcement under the fiberglass

FRP Bulkheads

Interior structural components bonded to hull including bulkheads and frames

Fiberglass swim platform w/ ladder

All handrails, stanchions, and fittings are made of stainless steel 316 alloy

1 1/2" Stainless Steel handrail w/ 1 1/4" stanchions

Stainless steel cleats (8) the 2 cleats on the aft deck to tow 7000lb boat

Stainless steel 316 plow anchor (150lb), w/ 300' chain and Nilsson V3500 24 volt windlass

Stainless Steel frame hatch on foredeck w/ grey Lexan cover

Built-in handheld shower on the swim platform

4" stainless steel shafts Aquamet 22

5 Blade endplate KCA propellers

Zincs on shafts, rudders, and transom as needed

Main bronze struts for 4" shaft

FRP stern tube for 4" shafts

Emergency tiller

Stainless steel rudders

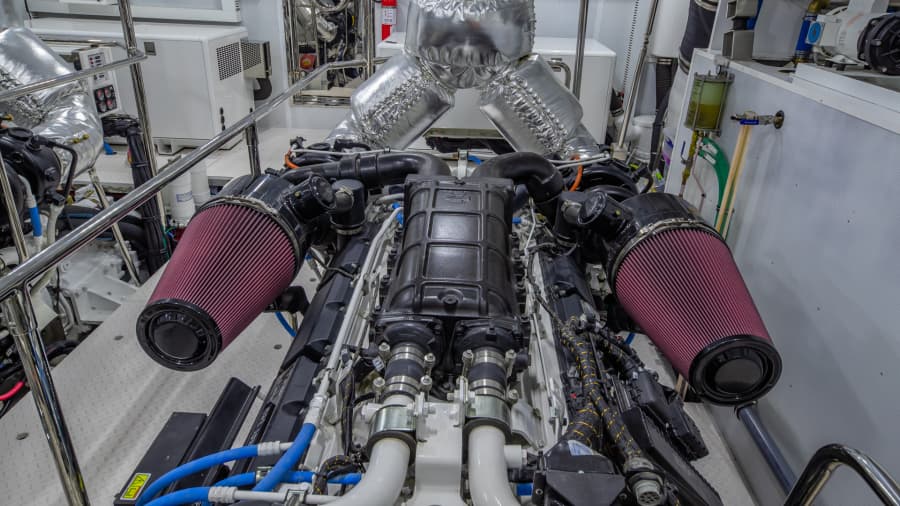

Fiberglass engine beds, bonded to hull w/ load distributed on steel channels

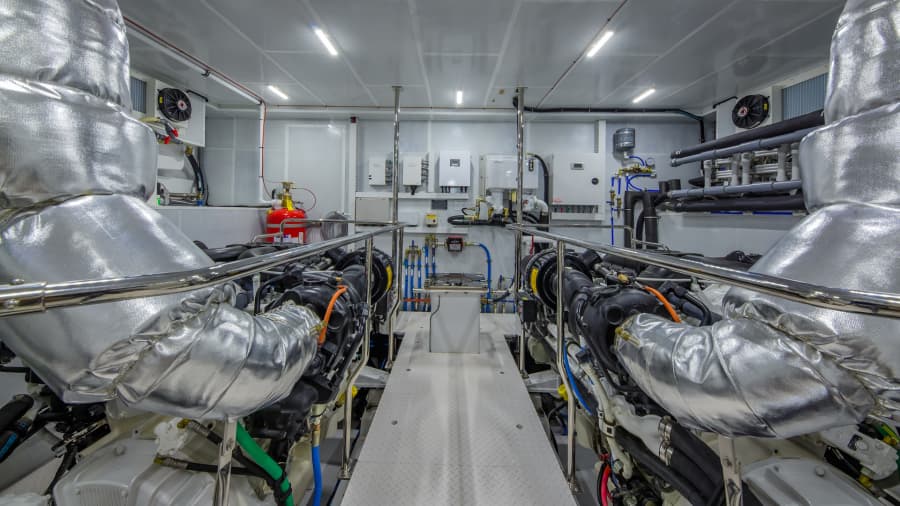

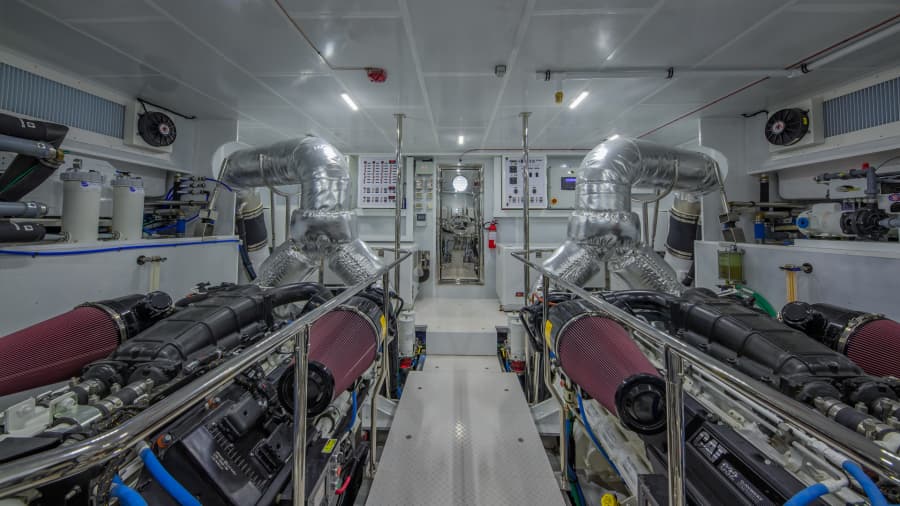

Sound and heat insulation in Engine room bulkhead forward, aft and ceiling

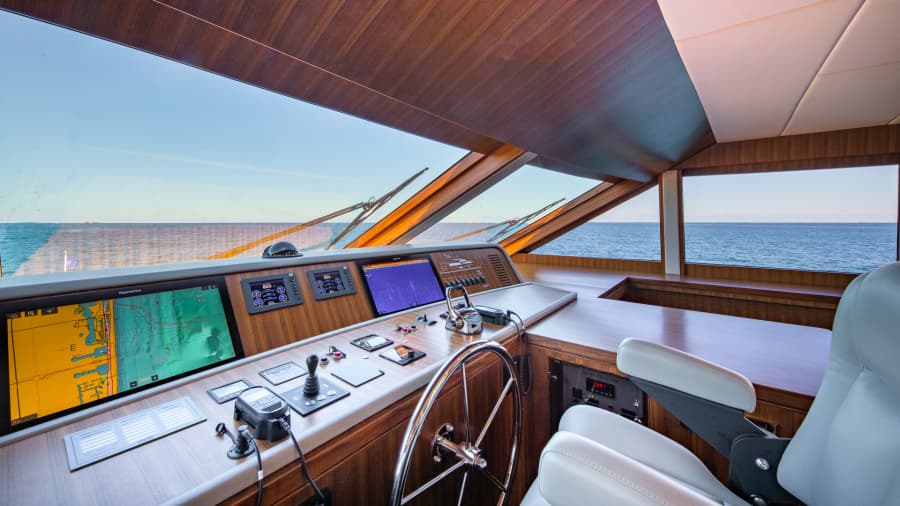

Easy access to all helm dashboard controls and gauges

Remote windlass operation from Flybridge

Racor 1000 FG fuel filter/water separator for each engine

Hydraulic Bow Thruster HPS-38hp

Hydraulic steering by Hynautic, adaptable to auto-pilot

Engine Alarm System for low pressure & high temperature supplied by CAT

24v lights (4) and (2) 110v power receptacles in Engine room

Custom underwater engine exhaust w/idle by-pass

100 Gallon Holding Tank w/ indicator and Headhunter waste treatment center 200gpd

Freshwater filling faucet in the Engine room

220v,110v and 60Hz Electrical System

Color-coded wiring throughout to ABYC standard

Helm Console with electronics as specified

Rule Sump Pumps (5) with acrylic covers

Y-Valve for dockside pump-out of holding tank

(8) 200 amp/hr batteries for engine & ship power

(3) Professional Mariner battery chargers

Separate 120 amp/hr batteries for generators

All batteries in FRP battery boxes

Main electrical panel w/ separate AC Power control and circuit breaker panel

110-volt duplex receptacles located throughout the vessel, including the engine room

Indirect rope lighting under valances in salon, staterooms, and galley

Italian door handle package (chrome)

Push/Pull German latches (chrome)

A removable white vinyl headliner panel system

Recessed Tray ceiling in the salon and over the dining area

Lights in closets on micro switches

Cantaloupe 24v ceiling lights (chrome)

Dual track segmented curtains or Roman Shades in each stateroom, main salon & galley

Bed on a pneumatic lift in Master and VIP

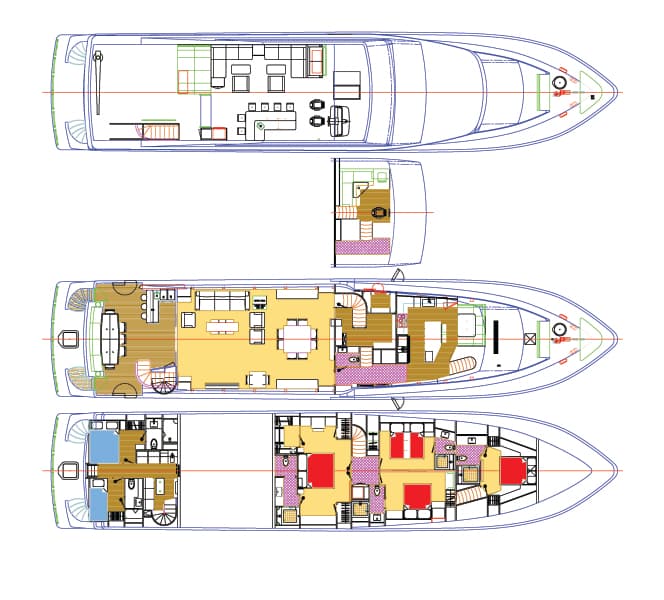

Layout per owner approved drawings

Large Storage areas forward deck

Boat panel indicator

Granite countertop in the galley

Marble or Granite countertop in all bathrooms

Full Walk-in Shower or Tub in master

Stainless steel aft deck door frame

Black Textile front window covers for flybridge windows

Flybridge Vinyl seat covers

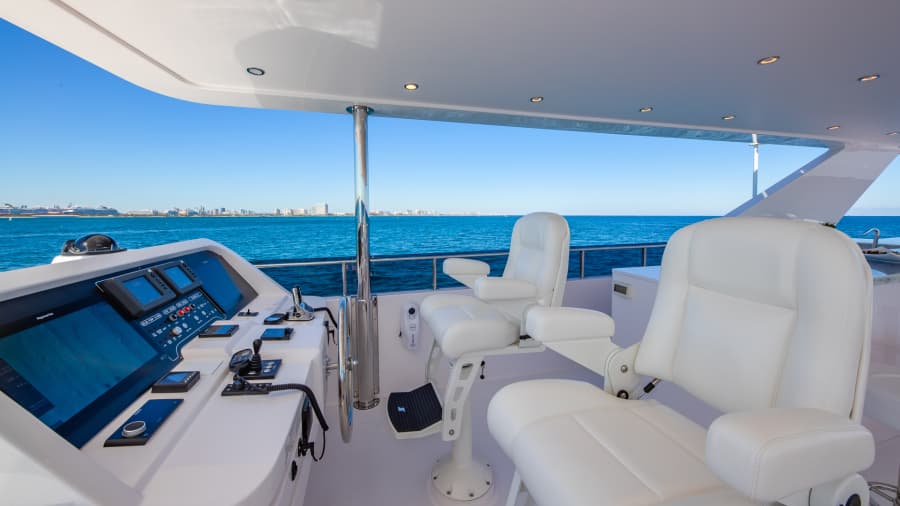

Helm on Fly Bridge and L shaped settee

(3) Freeman Hatches

Lexan hatch from the aft deck to Fly Bridge deck

Full Caterpillar instruments at the helm (Tach/Oil Pressure/Engine Temp/TransPressure/Hrs)

City water inlets (1)

TV / telephone inlet (1)

Add (1) city water inlet and (1) TV / telephone inlet in FRP cabinet at forward port bow deck

Freshwater washdown (3) three locations - Bow/aft deck / Flybridge

2 primer/sealer and 2 coats Black bottom paint

Sea Chest and Groco valves

White perforated insulation panels in Engine Room

(3) Windshield wipers with blades Exalto and wash system

100 AMP Galvanic Isolator x 2

Upgrade to (7) Rule 3700 Bilge pump

Custom FRP Oval portlights x 14 (13.8" x 28.55", 2 fixed and 2 openable)

Wet locker with drain and shelves access via Portside door from Port Hallway

Add (1) Freeman sliding door to Starboard side deck

MECHANICAL EQUIPMENT – Section 2

Upgrade to Aeroquip fuel hose

Stainless Steel 304 pipes including fuel transfer, fuel fill, and fuel vent pipes forward of the Engine Room

Two (2) 40 kW 60 Hz Northern Lights generators w/Soundshield and Start-Up

Add second steering pump on the engine

Additional sound insulation in the wall between VIP & Guest Staterooms

Additional sound insulation between the engine room and Guest Staterooms

Mastervolt Battery Charger 30AMP 12V + 30AMP 24V+ 80AMP

(2) 100 AMP Mastervolt AC/DC light transformer 110/24V

Double insulate the engine room

Watertight door to engine room with backlit Hargrave name

Watertight bulkheads in the engine room

Naiad stabilizer system Model 360 with 12 sq. ft. fin w/Datum control

Double stabilizer & bow thruster backup pump on the back of port & starboard engine

Upgrade to 16LHT 62hp hydraulic bow thruster

Laminated hull fairing parts

Add hydraulic noise suppressors for Naiad thruster & stabilizer system

4000 Gallons of fuel capacity

(4) Delta-T Filters and Delta-T Fans

Algae X fuel filter system x 2

Double Racor filters on main engines

Engine room Sea Fire w/manual pulls FM 200

Glendinning w/1 remote (3) fixed stations and bow and stern thruster controls at each station,

and a power on-off switch at each station for thruster

(1) Jabsco 6050-0003 AC bilge pumps on Engine Room floor with plumbing, (4) pickup

and overboard discharge

Oil change Reverso oil pump

Fuel change Oberdorfer oil pump w/ Fillrite flow meter

100 amp Cablemaster systems with 125’ cord out stern with easy access to breakers when

 they trip

Hot water circulating pump

Cruiseair Chilled Water System with a total of 12 Tons with soft starts & DC air handlers

Add Cruiseair Fresh Air Makeup System with one AU24HVZ-FC-1.5KW Unit with control box

Corner Hawsers w/Rollers

Spurs Shaft line cutters for 4" shaft

Add Stern Cleats to swim platform

Tide Seal Marine dripless shaft logs & rudder post

Provide watermaker through-hull and breaker 220 volt

Provide wiring and support for davit

Kahlenberg D-OA Stack Trumpet Air Horn

Add 1 Newmar 50 amp dc24 12volt converter

Run wires for the monitor, 4 cameras and 1 controller

Magnetic compass 5" in the upper helm

Security breaker switch for AC power

Install US-supplied ACME transformers with USA supplied booster switch to be located

 under the gens for easy access to booster switch

Safety rails around twin engines in ER

Two Additional Fluorescent lights in Engine Room

SeaFire Smoke Detection and Alarm System

(12) CO Detectors combining to SeaFire Detection System

(2) Torrid vertical 40 US Gallons water heater in white finish

Water Drop Exhaust to generators

Mufflers for Main Engine idle by-pass

Upgrade the freshwater system to (2) AQX-230 super silent constant pressure system pump

and mounting brackets for (2) pumps

Add (1) additional 200 US gallon capacity Stainless Steel freshwater tank

Add freshwater filters

Add two (2) Maxwell Stern VC200 DC24V electric Capstan with a footswitch on the bow deck

INTERIOR EQUIPMENT: - Section 3

Walnut wood interior and some painted surfaces

Install owner supplied wall upholstery

Standard headliner with foam backing throughout the boat

Vimar switches plus (12) dimmers

Additional decorator custom pillows (25)

(7) Headhunter toilets

Awl-Grip finish FRP shower walls (5) staterooms

Marble Foyer floor

TV lift recessed in the floor in Main Salon

Painted wood trim for ceiling soffit in Dining Area and Main Salon

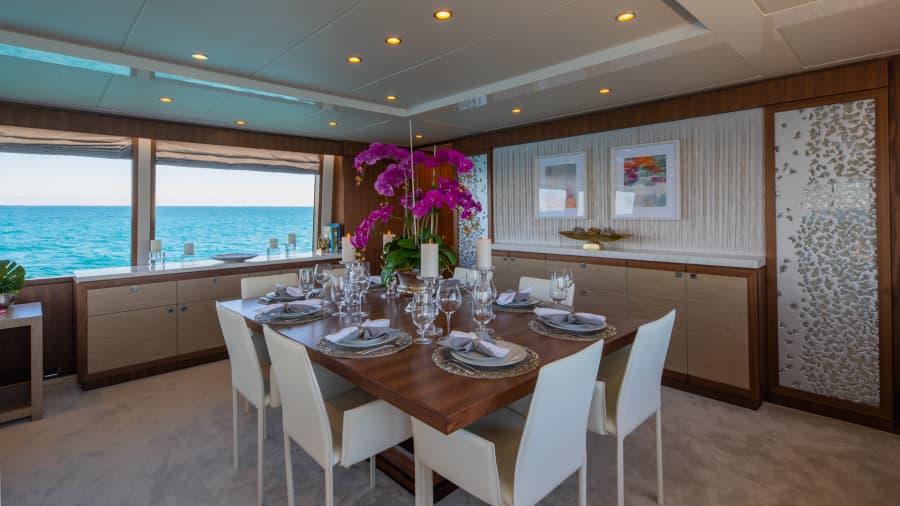

Marble tops for the Forward, Port and Starboard Dining Consoles in Main Salon

Clear acrylic shelves in china cabinet in Main Salon

(2) Silver flake decorative art glass backlight (dimmable) panel with frame for the Forward wall of

Dining Area in Main Salon

Mirror Ceiling in Dayhead

Full Height Marble backsplash on the Forward and Aft walls next to Sink Counter in Dayhead

Elysium Growing Fancy White Series Roman tile flooring in Dayhead

Marble wall behind the toilet in Dayhead

Marble cooktop backsplash in Galley

(8) Corner drawer pulls in Galley

All drawers constructed with full sides and full pull out extensions in Galley

Add Stainless Steel handrails next to the stairway to Flybridge from the Pilothouse

Brushed Aluminum M2022 Formica in Lower Foyer on wall upholstery in Pilothouse and Port

Hallway outboard and inboard

(3) drawers under Pilothouse seating

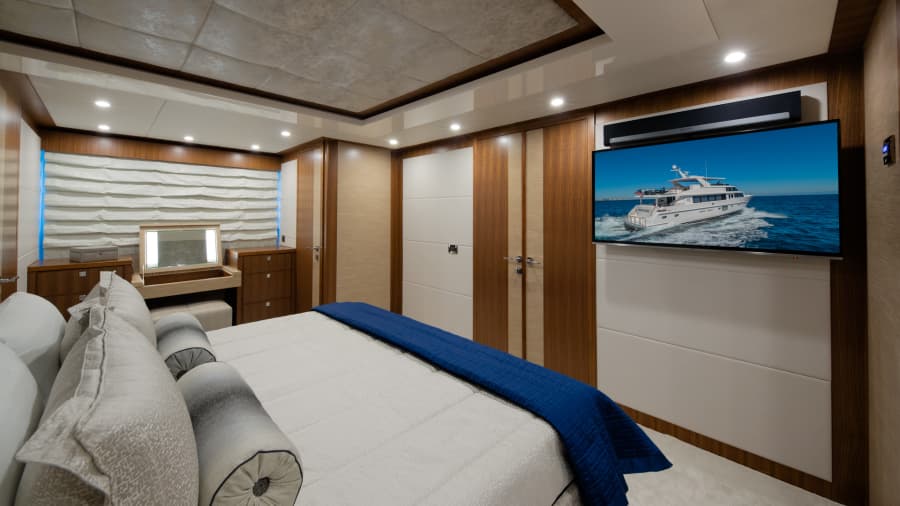

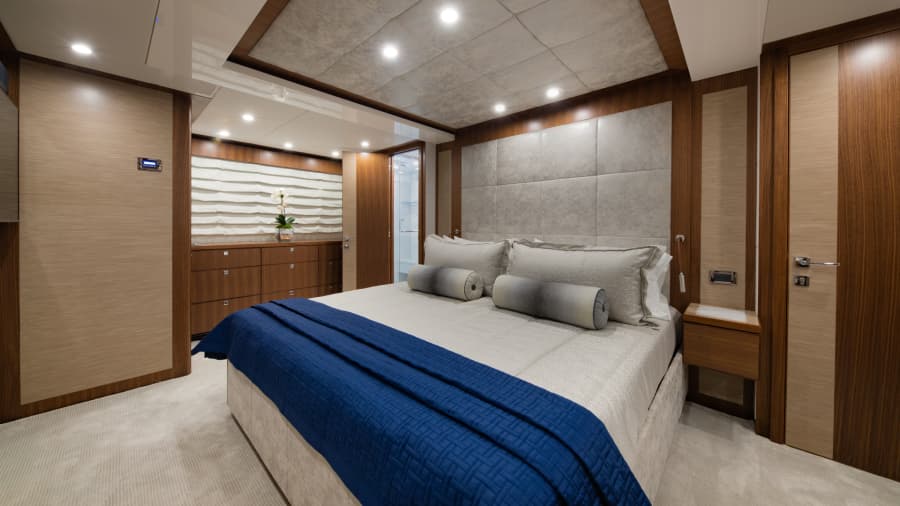

Custom ceiling soffit in Master Stateroom

Marble Nightstand tops in Master Stateroom

Two (2) hanging legal size file folder cabinets in Master Stateroom

Angled shoe racks in Master Stateroom

Pocket Door to access Master Head

Marble Shower walls and floor in Master

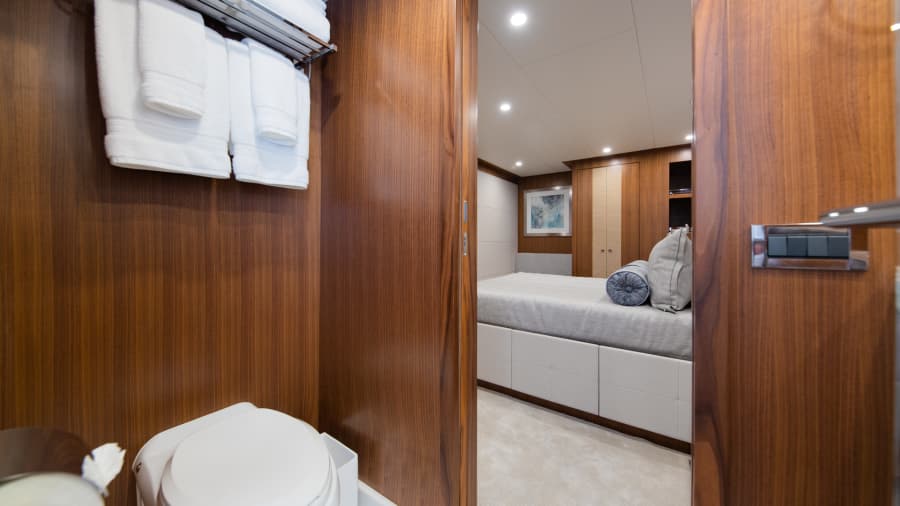

Marble bathroom floor in VIP

Marble bathroom floor in Port Guest

Marble bathroom floor in Starboard Guest

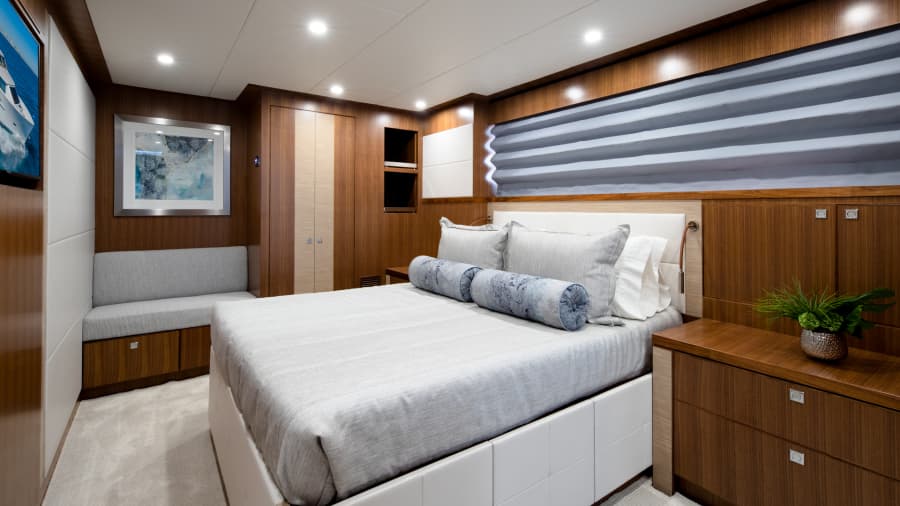

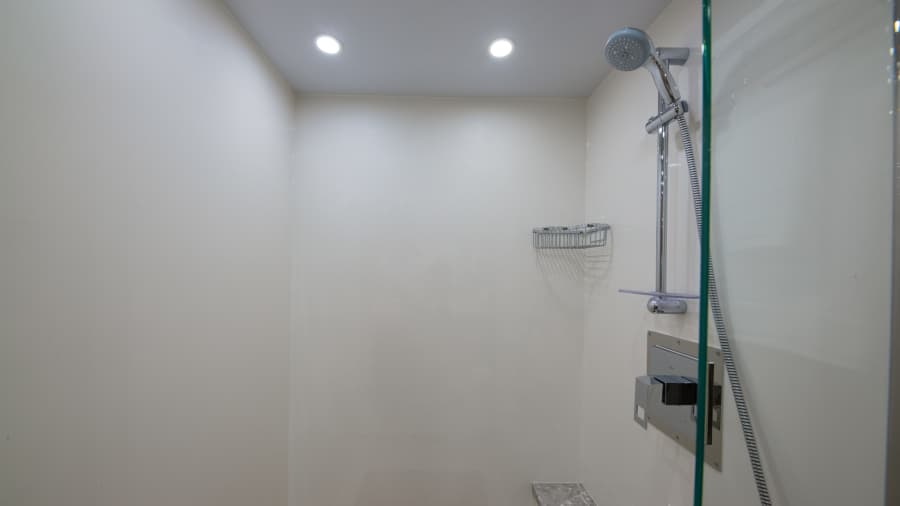

Marble shower seat in VIP

Marble shower seat in Port Guest

Marble shower seat in Starboard Guest

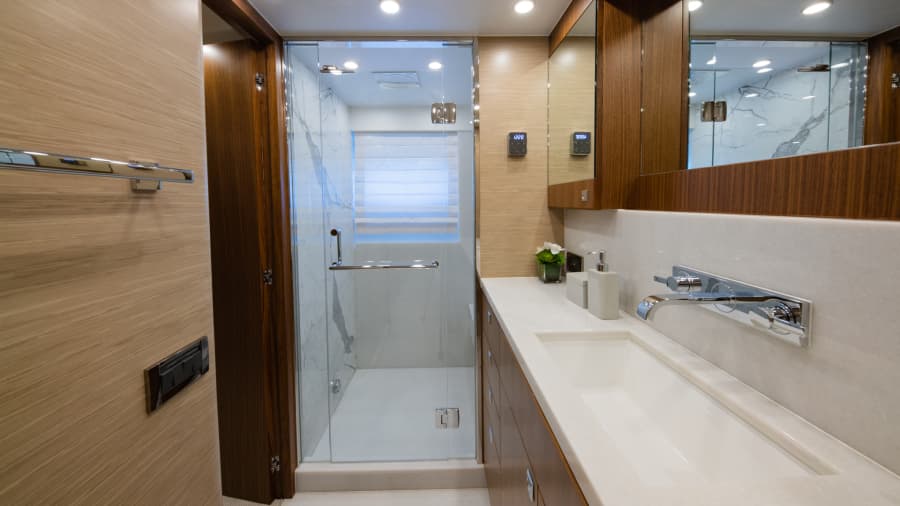

Frameless glass shower door in VIP, Port and Starboard Guest bathrooms

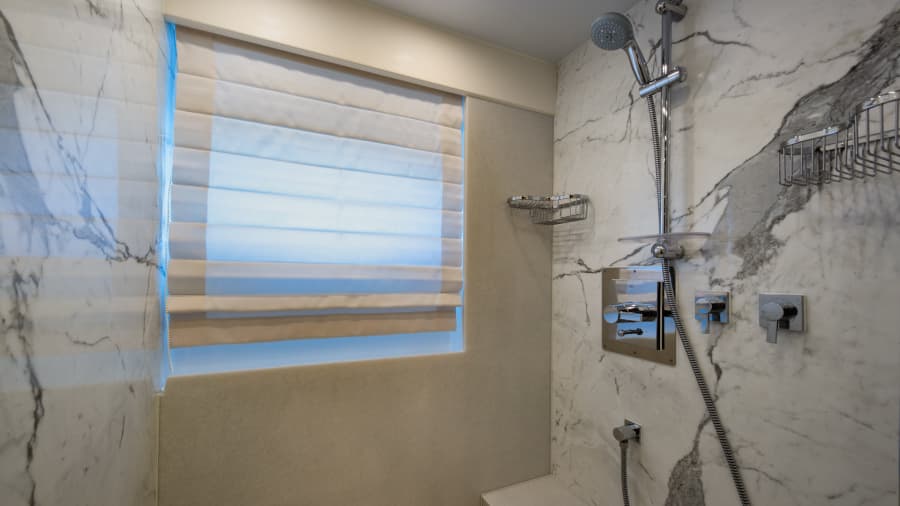

Grohe Rainshower F-Series 27468000 Shower System with Chrome Rain Head (flush mount) in Master

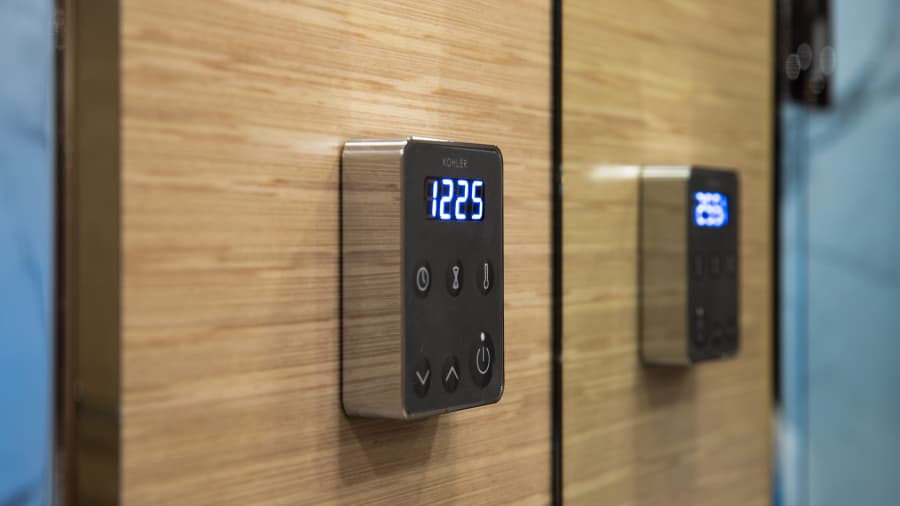

Kohler Invigoration Series K-5525-NA Steam Unit in Master

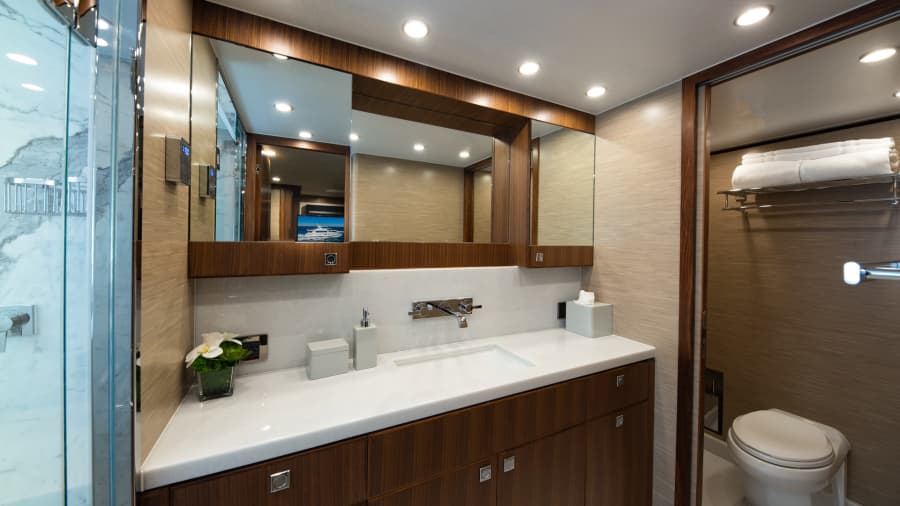

Grohe Allure - M 1938700A Chrome Sink Faucet (Wall mount single lever) in Master

Grohe Eurocube - M 23670000 Chrome Sink Faucet in VIP

CR Laurence MT 18" x 18" Chrome Shower door pull handle/Towel Bar in Port and Starboard Guests

and Master (6" Pull Handle /18" Towel Bar)

Gatco Elevate 4050 Chrome Towel Bar in Master (24" Towel Bar)

Gatco Square Modern 1488 Chrome Toilet Brush Holder in VIP, Port, and Starboard Guest, Master,

Captain and Crew Head

Gatco Elevate Minimalist 4057 Chrome Towel Rack in Master

Ginger Splashable 504L large corner basket Chrome shampoo caddy in Master

(8) Stainless Steel Rails - lift out style for a shelf in Port and Starboard Guest Staterooms and

Starboard Guest Bathroom

Frosted glass of Porthole in Port and Starboard Guest and Master

60" X 80" X 8" Queen mattress in VIP

30" X 78" X 8" Twin mattress in Port Guest

60" X 78" X 8" King Mattress in Starboard Guest

76" X 80" X 6" Mattress in Master

Pneumatic lift in Port and Starboard Guest

Pneumatic lift in Captain

Add a sliding mechanism to allow (1) single bed to slide in Port Guest Cabin

TV on the inboard wall in Crew Lounge

Formica Countertop in Crew Lounge

A lift-up Storage area in Crew Cabin

Add (1) sliding pocket door

EXTERIOR EQUIPMENT: - Section 4

Hard Top with a Hargrave designed mast for electronics

Floodlights under radar arch x 2

Extra 4" offset and 2 3/8” stainless steel oval hull banding w/wooden insert

(6) "U" shape stanchions at the swim platform

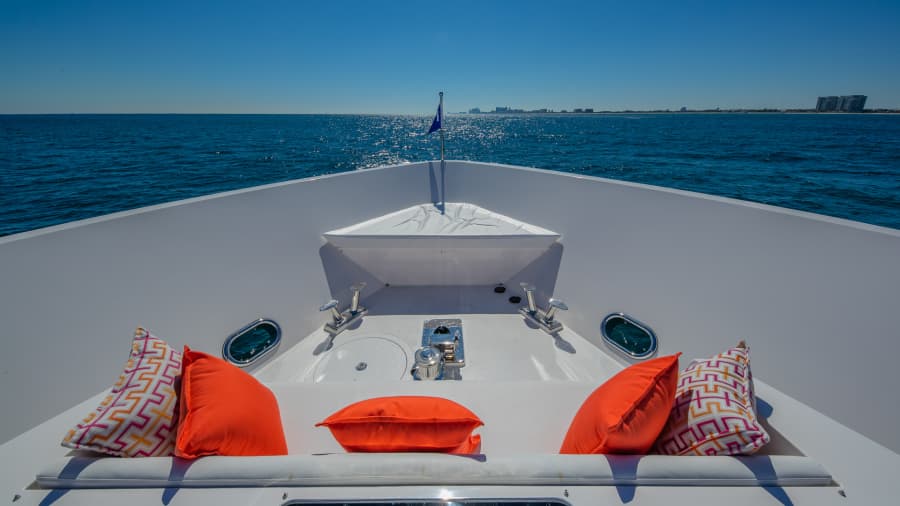

Enclosed FRP bow w/seat and non-skid finish for storage on bow

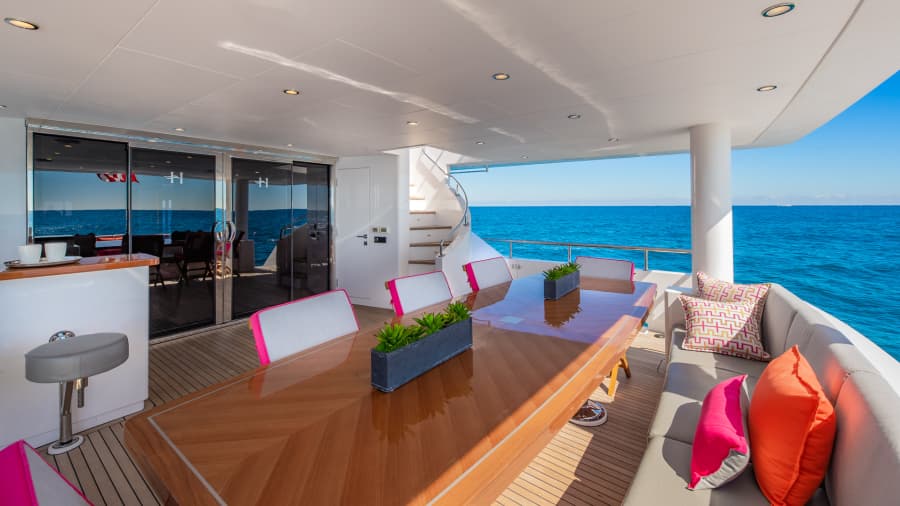

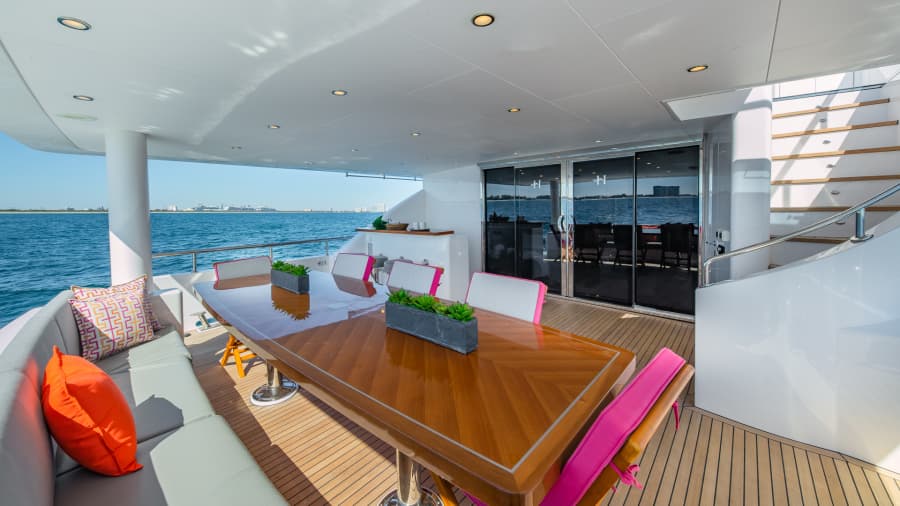

Aft deck bench seating

Aft deck teak chairs (6)

Aft deck teak table with gloss teak top and sliding mechanism

(3) Swing out bar stools with swing are stool base at Aft Deck

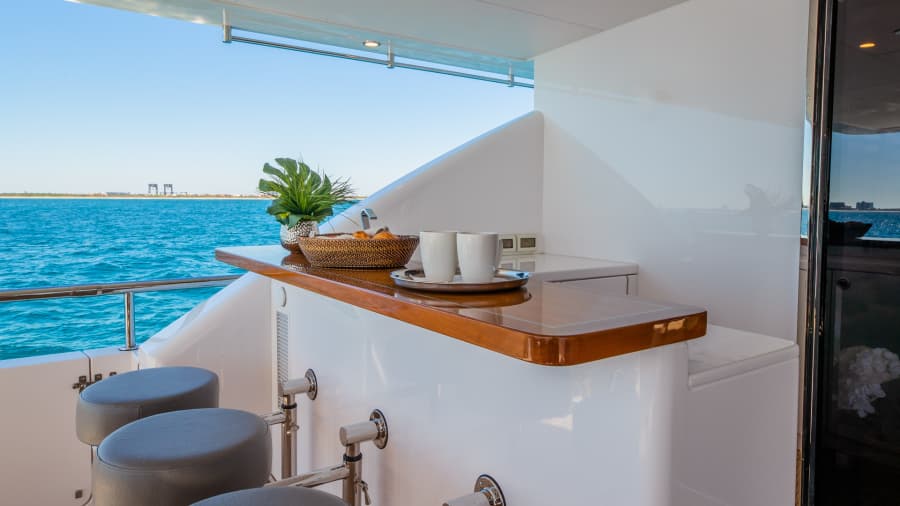

Custom Bar at Aft Deck

Custom GRP spiral stairway to access Flybridge and Aft crew area from aft deck with a weather

proof door and stainless steel rails

Upgrade to larger handrails for aft deck stairway to access Flybridge

(2) Handrails for step access to Boat deck

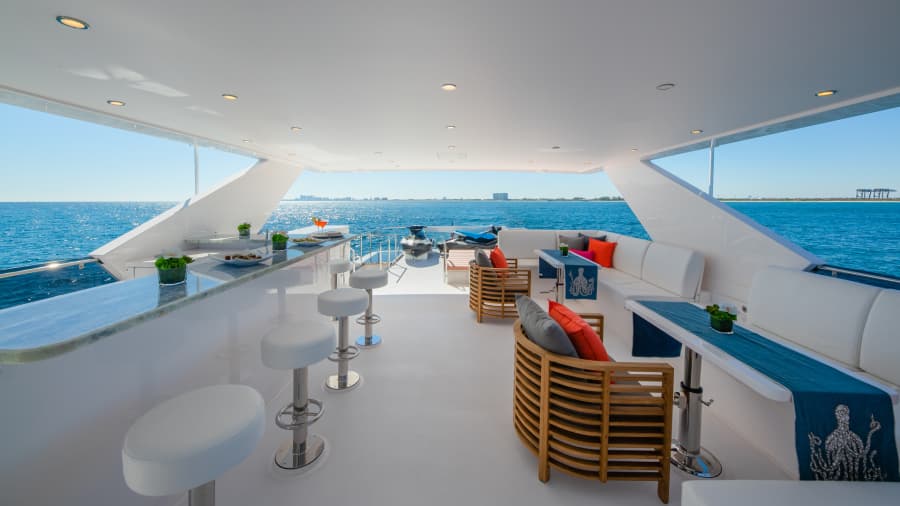

Custom FRP Bar for Fridge / Freezer on Flybridge

(2) Additional Bar stools for bar on Flybridge

(1) Custom FRPcabinet with seating on aft Fly Bridge

Port helmsman seat with a cushion on Flybridge

(1) Stainless Steel footrest for settee on Flybridge

Add (1) additional coffee table on stainless steel support on Flybridge

(2) Sliding mechanisms for tables on Flybridge

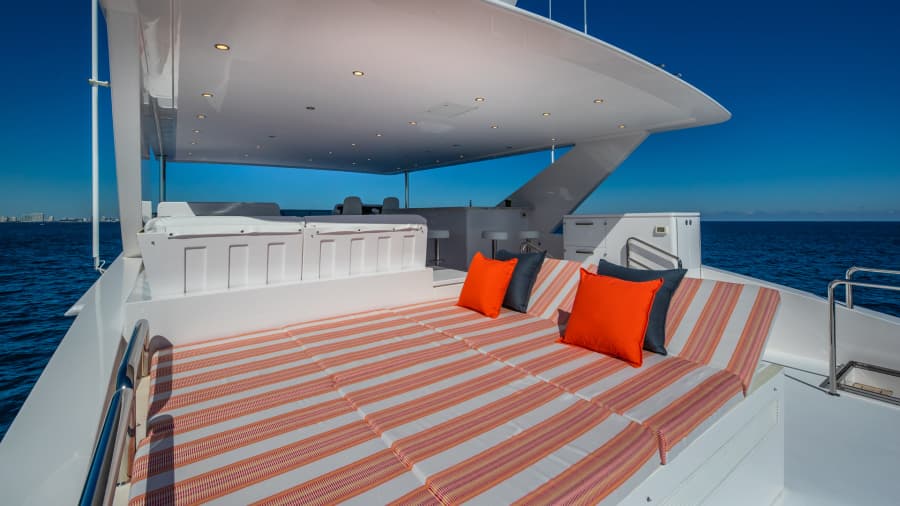

Custom Sunbed with hatch to access storage under

TV cable outlets x 3 located Aft Deck, Flybridge and helm areas

APPLIANCES: - Section 5

Lower Foyer :

GE WCVH4800KWW White Frontload Washer

GE DCVH480EKWW White Frontload Dryer

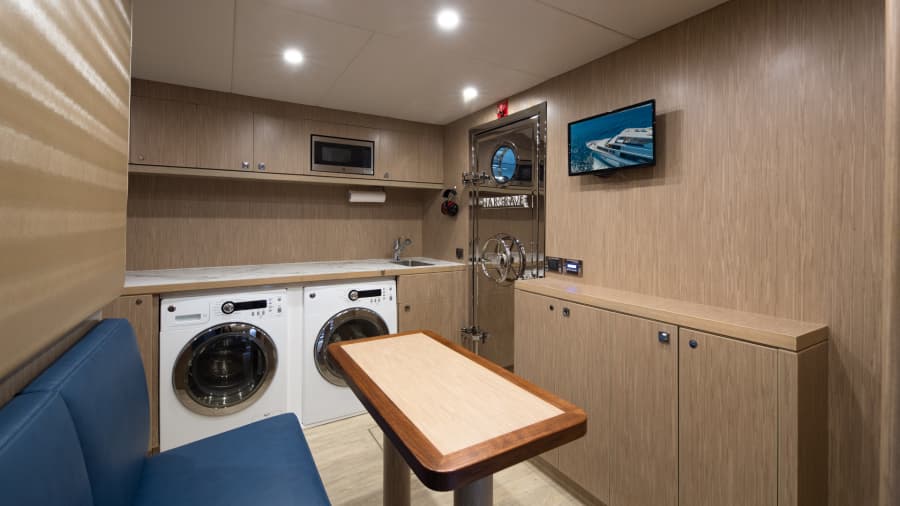

Crew Lounge

GE WCVH4800KWW White Frontload Washer

GE DCVH480EKWW White Frontload Dryer

U-Line U-1215RS-00B Stainless Steel Refrigerator

GE JES1072SHSS White Microwave

Franke KBX110-8 Stainless Steel Sink

Grohe Europlus 32946002 Chrome Sink Faucet

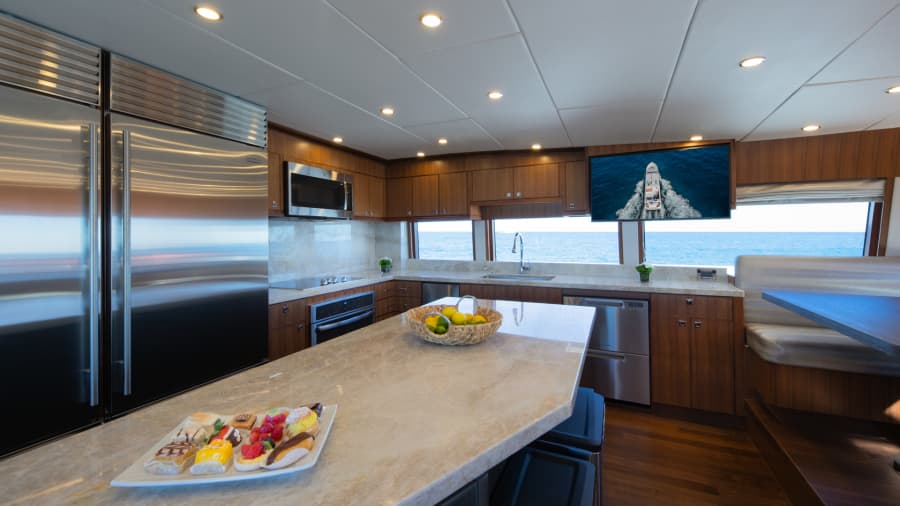

Galley

(2) Sub-Zero BI30U/S/TH Stainless Steel Refrigerator/Freezer (over and under)

Dual install kit with pro louvered grill for Sub-Zero BI30U

GE CP9530SJSS Black Cooktop (Rotary knob/not induction)

GE PT7050SFSS Stainless Steel Oven (Convection & traditional bake)

GE PVM9179SKSS Stainless Steel Microwave (Convection/duct outside)

Fisher Paykel DD24DZX9_N Stainless Steel Dishwasher

GE UCG1680LSS Stainless Steel Trash Compactor

Hoshizaki AM50BAJ Stainless Steel Ice Maker with drain pump

Franke KBX11028 Stainless Steel Sink

Franke KB28-36S Stainless Steel Sink gird drain rack (bottom grid)

Franke KB28-31S Stainless Steel Sink gird drain rack (shelf grid)

Blanco Altura 442207 Chrome Sink Faucet

GE GFC720V Black disposal with MT951 Polished Chrome Switch

Salon

Edgestar CWR262DZ Wine Cooler

Aft Deck

Hoshizaki AM50BAJ Stainless Steel Ice Maker with a drain pump

U-Line U-1215RS-00B Stainless Steel Refrigerator

Elkay DXUH1210 Stainless Steel Sink

Scandvik 16006 Chrome Sink Faucet (folding faucet)

Scandvik 14124 White shower box with sprayer and 13" hose

Scandvik 10650 Elbow shower holder (USA install)

Scandvik 10260 Mount

Flybridge

U-Line 1224RSOD-13A Stainless Steel Refrigerator (with lock)

Hoshizaki AM50BAJ Stainless Steel Ice Maker with a drain pump

Sub-Zero ID-24RO Refrigerator Drawer panel overlay (white fiberglass)

Sub-Zero 7025230 Stainless Steel tubular handles

(2) Frigibar Skipper white Freezer/Refrigerator (5 cubic feet)

(2) Frigibar dual control

Elkay DXUH1210 Stainless Steel Sink

Scandvik CANDVIK 16006 Chrome Sink Faucet (folding faucet)

AUDIO VISUAL EQUIPMENT PACKAGE: - Section 6

TV Equipment

TracVision HD7-USA for DirecTV mounted at Mast

KVH HD7/HD11 TracVision Expansion Kit - 16 Tuners

Edson 6' Vertical Vision Mount for KVH HD7

Concord TV Distribution Board

Flybridge

Fusion MS-RA770 A[p;;p 4.3" Capacitive Touch Glass LCD Color Display AM/FM Bluetooth/

Wi-Fi Audio Streaming/ Digital Optical Input/ USB Audio

JL Audio M770-CCX-CG-WH M Series 7.7" Marine Cockpit Coaxial System x 2

Aft Deck

Fusion MS-RA770 A[p;;p 4.3" Capacitive Touch Glass LCD Color Display AM/FM Bluetooth/

Wi-Fi Audio Streaming/ Digital Optical Input/ USB Audio

JL Audio M770-CCX-CG-WH M Series 7.7" Marine Cockpit Coaxial System x 2

Main Salon

Samsung UN75NU800 75" Premium Smart 4K UHD TV

Motivated Design Pop Up Lift + Remote

Large TV Mount

Binary Digital - Analog Converter

Sonos Playbar

Sonos Wall Mount Playbar

Sonos Sub

DirecTV HR24 DVR Satellite Receiver with Remote

Apple TV 4K 64GB

SmartPro Line-Interactive UPS 1U Rack

Niles RCA-HT2 Kit

Galley

Samsung UN40NU7100 40" Smart 4K UHD TV

Large TV Mount

DirecTV HR24 DVR Satellite Receiver with Remote

Tripplite SmartPro Line-Interactive UPS 1 U Rack

Master Stateroom

Samsung UN50NU7100 50" LED-LCD TV

Large TV Mount

Binary Digital - Analog Converter

Sonos Playbar

Sonos Wall Mount Playbar

Niles RCA-HT2 Kit

DirecTV HR24 DVR Satellite Receiver with Remote

Apple TV 4K 64GB

Port Guest

Samsung UN40NU7100 40" Smart 4K UHD TV

Large TV Mount

DirecTV HR24 DVR Satellite Receiver with Remote

Starboard Guest

Samsung UN40NU7100 40" Smart 4K UHD TV

Large TV Mount

DirecTV HR24 DVR Satellite Receiver with Remote

VIP Forward Guest

Samsung UN40NU7100 40" Smart 4K UHD TV

Large TV Mount

DirecTV HR24 DVR Satellite Receiver with Remote

Crew Cabin

HDTV LED TV - 19"

Small TV Mount

HD Satellite Receiver with Remote

Captain Cabin

LG 24" Class HD Smart LED TV with Built-In Wi-Fi & Ethernet Connectivity

Small TV Mount

DirecTV HR24 DVR Satellite Receiver with Remote

Battery Backup UPS

NAVIGATION EQUIPMENT PACKAGE: - Section 7

Radars/Chartplotters

Axiom XL 19 - 18.5" Multifunction Display Kit (includes RCR-SD, Alarm and cable) x 2

mounted at Pilothouse

Axiom XL 19 Rear Mount Kit x 2 mounted at Pilothouse

RMK-10 Portrait I Landscape Keypad Remote Control System mounted at Pilothouse

Auxin XL - 16 - 16.5" Multifunction Display Kit (includes RCR-SD, Alarm, and cable) x 2

mounted at Flybridge

Axiom XL 16 Rear Mount Kit x 2 mounted at Flybridge

RMK-10 Portrait I Landscape Keypad Remote Control System mounted at Flybridge

Magnum 12kW with 6ft Open Array and 15m RayNet Radar Cable

Magnum 4kW with 4ft Open Array and 15m RayNet Radar Cable

Raystar 150 GPS with Pole Mount

AIS System

AIS700 Class B with Splitter

500 Gold Series, 8ft 6dB Gain Marine VHF

VHF System

Ray90 VHF Black Box (includes Wired Handset, Passive Speaker and cable) x 2 mounted

1 at Flybridge and 1 at Pilothouse

Ray90 Wired 2nd Station Kit (includes Passive Speaker and Raymic Wired Handset x 2

mounted 1 at Flybridge and 7 at Pilothouse

PA-60/40 Hailer Horn x 2

532-VW 500 Gold Series, 16ft 10dB Gain Marine VHF

Depthsounder

CP370 ClearPulse 1KW Sonar Module

Airmar Bronze B260 D/T Broadband Through Hull Stem

Depth/ Speed/ Temp/ Wind

I70s System Pack Colour Instrument & Wind, DST Transducers

I70s Multifunction Colour Display

DST800 Through Hull Depth/ Speed/ Temperature Smart Transducer

Raystar 150 BPS with Pole Mount

XM Weather System

SR150 SiriusXM Weather Receiver with Antenna and cable

Autopilot System

EV-400 Power Autopilot with p70Rs Control Head and ACU-400, EV1 Sensor Core,

EV1 Cabling Kit (suitable for Type 2 & 3 drives)

P70Rs Autopilot Control Head (power)

Type 2/24v Hydraulic Pump

Cameras

CAM220 Eyeball CCTV Day and Night Video Camera x 4

HS-5 Network Switch x 2

4G Cellular System

MDS-242-A 4G LTE Advanced High-Speed Modem, Dual SIM Card Slots

Dockside WI-FI System

AN-7000 Dual-Band, High Power Marine Wi-Fi

SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rackmount

SX-24 Port Managed Switch with 8 PoE or Up to 4 PoE+

MAP-7 Dual Band Marine Access Point x 8

Searchlight

1MM Remote Control HID Searchlight includes URP-102 Point Pad & Master Controller

YB 9282.3 Point Pad Kit for Yacht Beam

Platinum + US Southeast Bahamas

USA INSTALLED EQUIPMENT: – Section 8

Safety Package - Life Jackets/Fenders/Fire Extinguishers/Dock Lines/Flares/

Dual plug phone/TV cord

Life Rafts

Quick Lift 2500lb Davit

(2) 1500 GPD BWD-Explorer Compact Watermaker

(3) Stidd 500N Low Back "Slimline" Admiral Chairs

UMT Sea Stairs Boarding Ladder

INTERIOR DECOR PACKAGE: - Section 9

For detailed information on the interior please request the detailed designer summary describing carpeting, drapes, spreads, couches, chairs, settee, stools, sinks, bowls, fixtures, lighting, door hardware, switches, as well as the scope of services provided by Yacht Interiors by Shelley of Fort Lauderdale

This information was taken from the actual production order and the delivered vessels may contain equipment and accessories supplied by the owner and are not reflected in these specifications.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
