2027 Princess Y72

DECK FITTINGS

• Teak-laid transom platform, cockpit deck, flybridge,flybridge stairway and steps to side decks

• Self-stowing 50kg/110lbs Delta anchor with 60m of chain

• Reversible electric anchor winch with foredeck, helm position and flybridge controls

• Stainless steel cleats, fairleads and handrails

• Twin electric-powered sternline mooring winches

• Freshwater deck/anchor wash

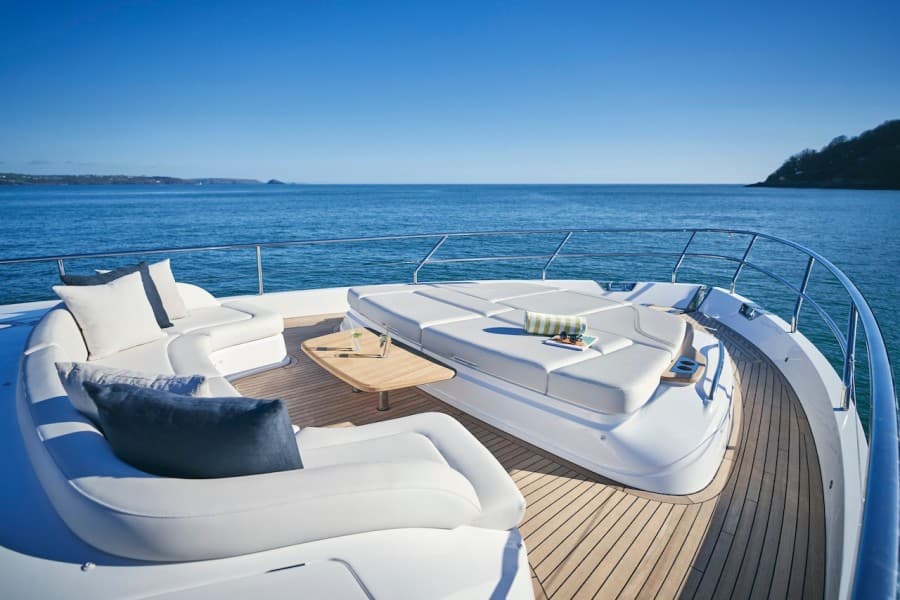

• Foredeck seating and sunbathing area

• Storage lockers for fenders and ropes

• LED deck level lighting

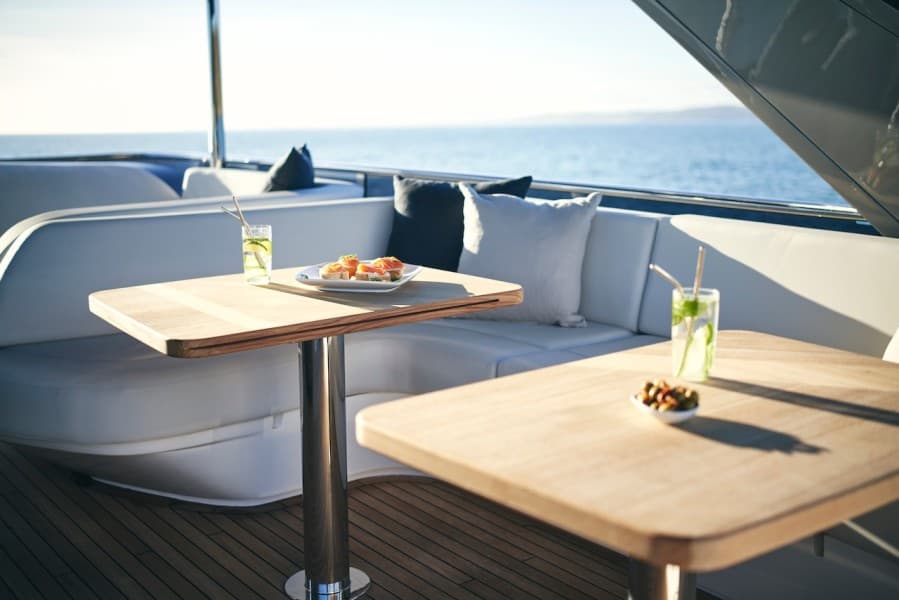

COCKPIT

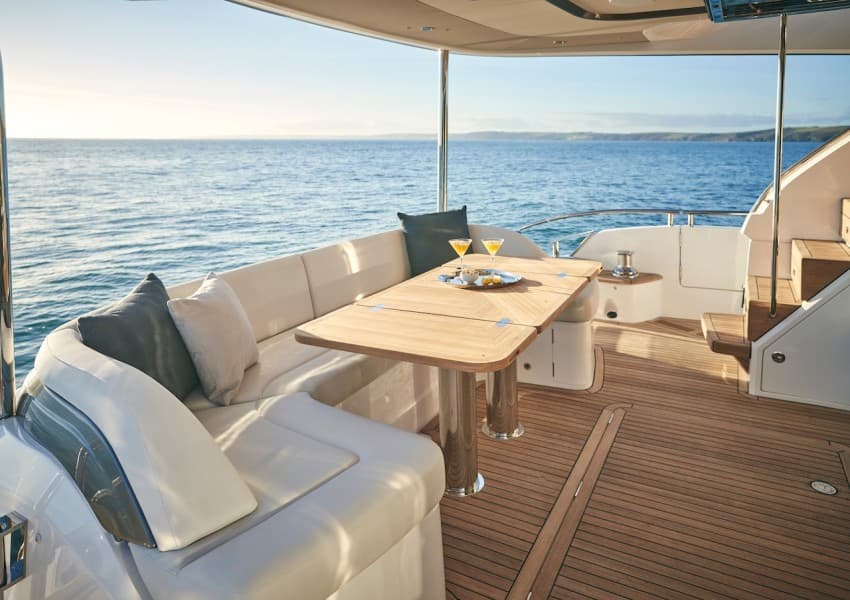

• U-shaped seating with folding teak table

• Twin transom gates leading to bathing platform with electro-hydraulic raise/lower mechanism, foldaway swimming ladder, hot and cold shower

• Transom seat with storage locker

• Lockable gas strut assisted hatch to engine room/lazarette

• Access to aft lazarette/optional crew cabin via transom door

• Liferaft storage locker

• Locker housing 220/240v shore support inlet

• Cockpit cover

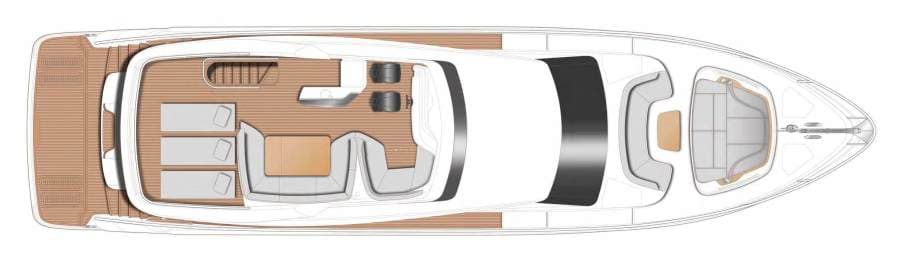

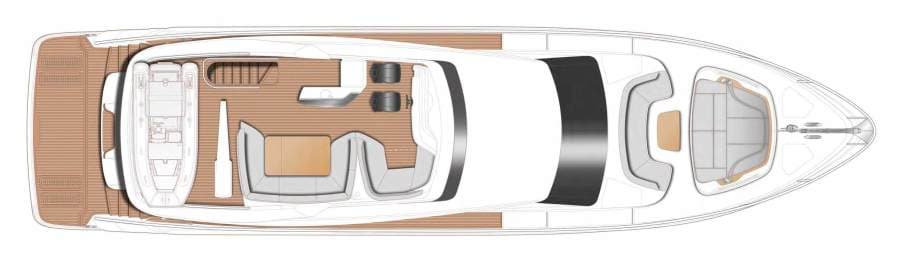

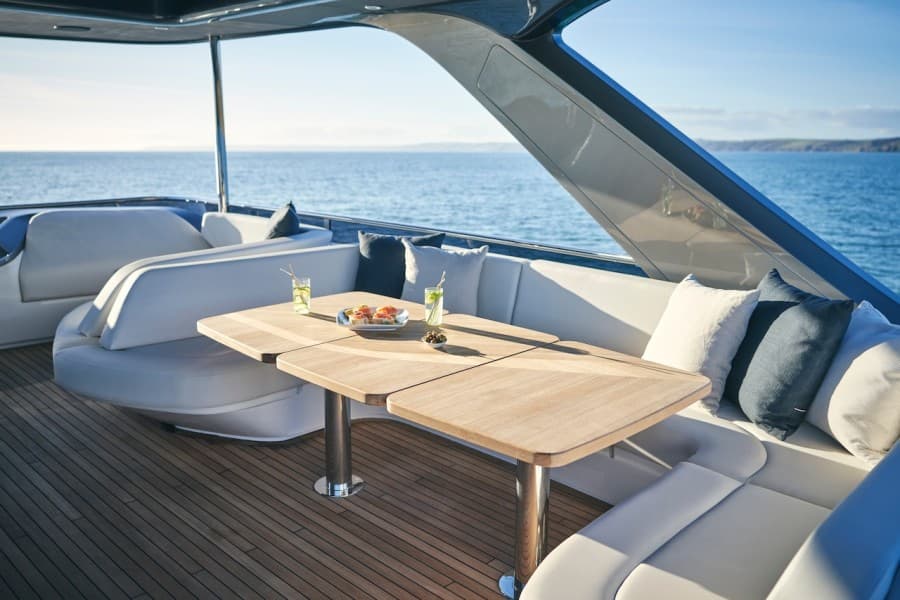

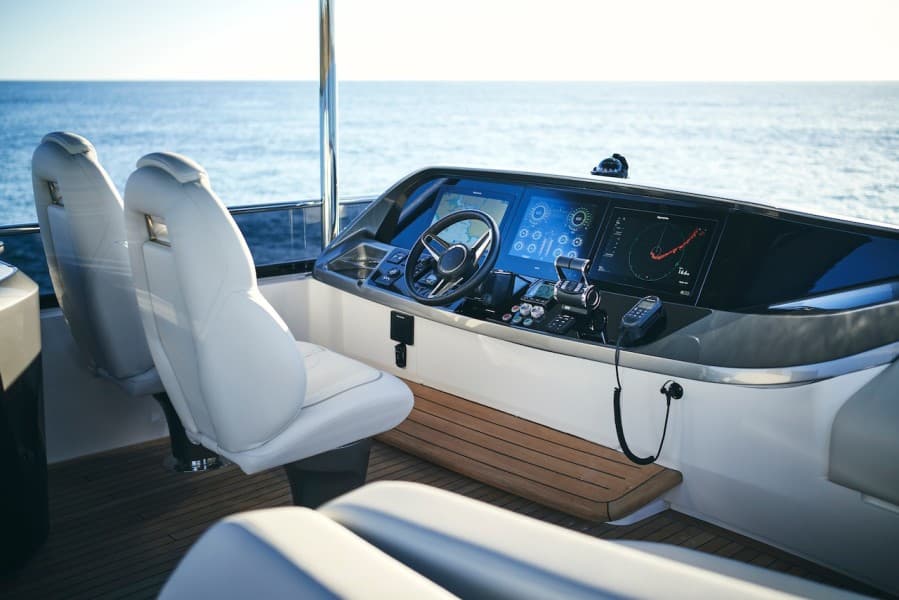

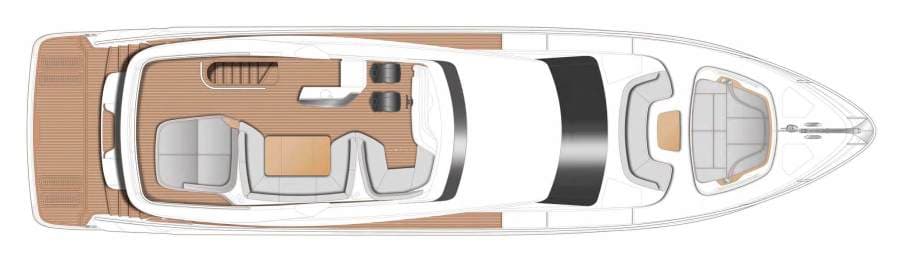

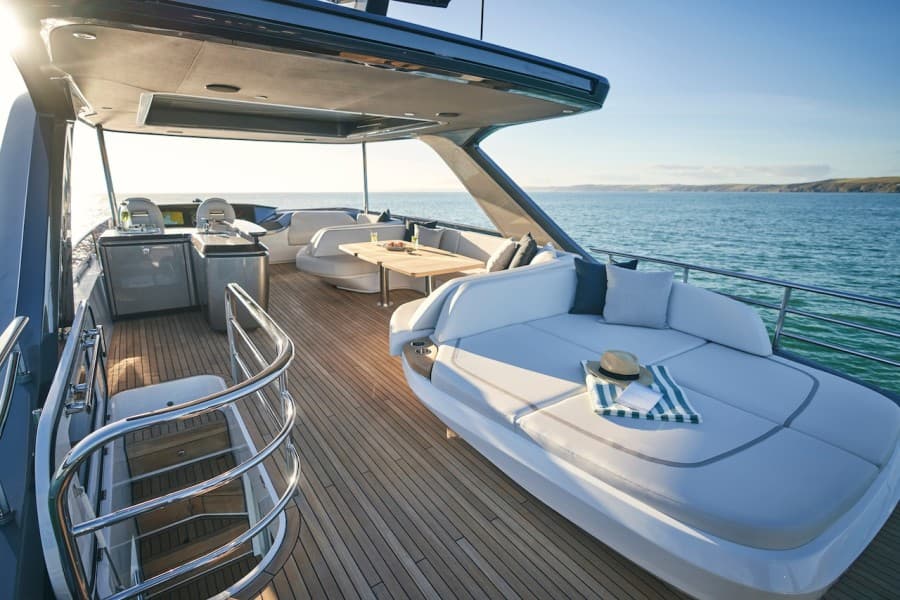

FLYBRIDGE

• Dual station instrumentation, controls and alarm system including VHF/RT, speed and distance log, echo sounder with alarm and autopilot

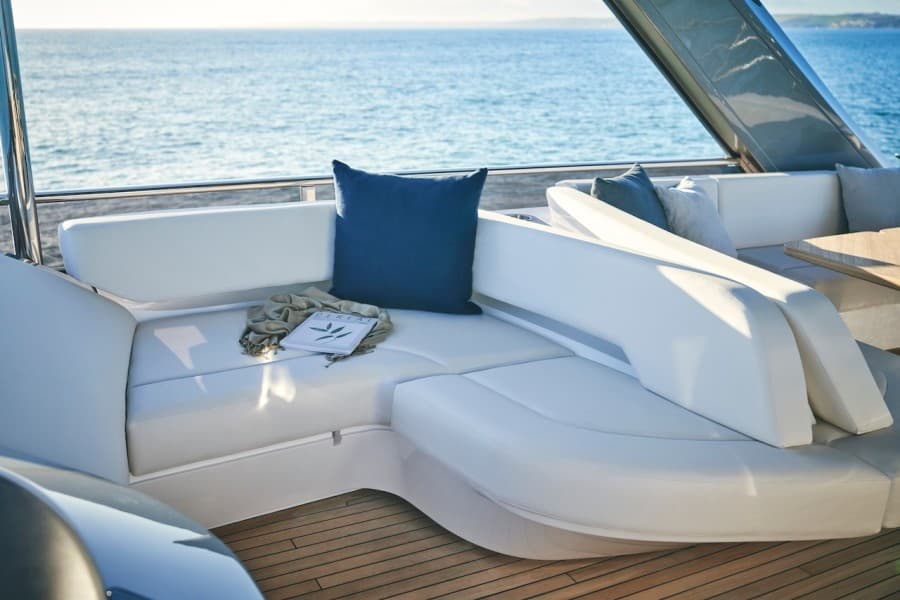

• Large U-shaped seating area with teak table

• L-shaped seat (converts to a sunbed)

• Sunpad aft with storage below

• Twin helm seats with fore and aft adjustment for helmsman

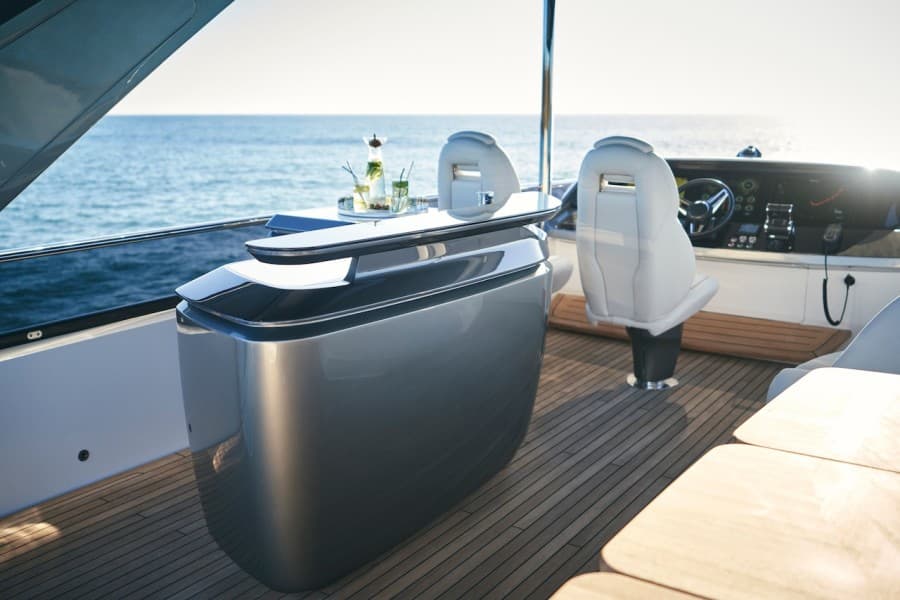

• Wetbar with barbecue, sink and drawer fridge

• Naim audio system with waterproof speakers

• Console, table and seat covers

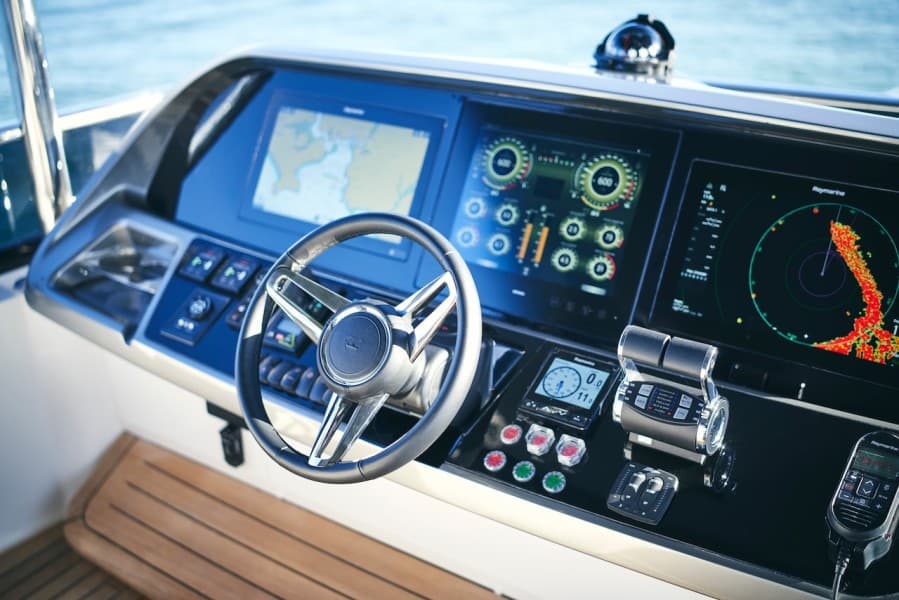

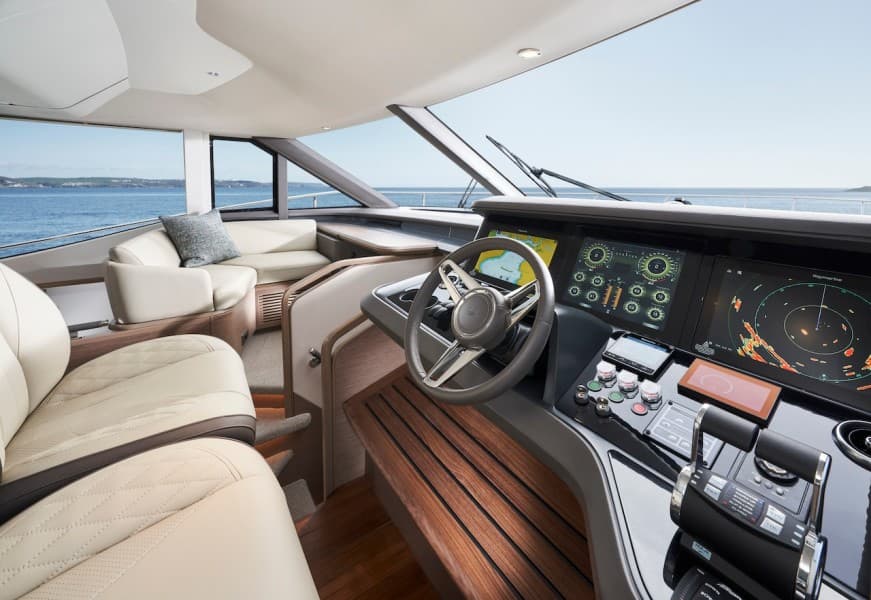

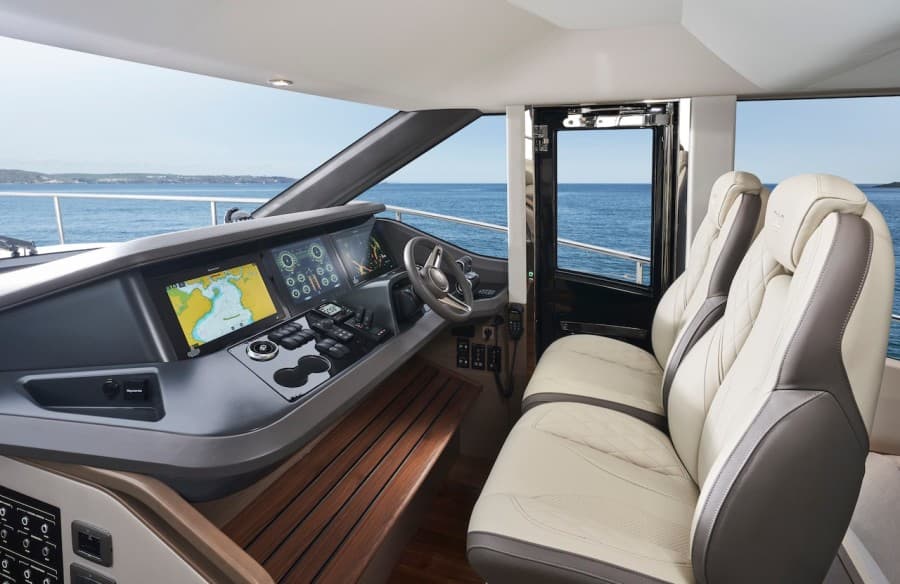

LOWER HELM POSITION

• Twin helm seats with fore and aft adjustment for helmsman

• Helmsman’s door to side deck

• Full engine instrumentation including fuel gauges, exhaust temperature and engine warning system and rudder position indicator

• Navigation system including colour radar, GPs and chartplotter, VHF/RT, speed and distance log, echo sounder with alarm, autopilot and high speed

magnetic compass

• Controls for bow thruster, windscreen wipers, bilge pump and Princess active ride control

• 24v and 240v control panel

• 12v outlet

• Red night lighting

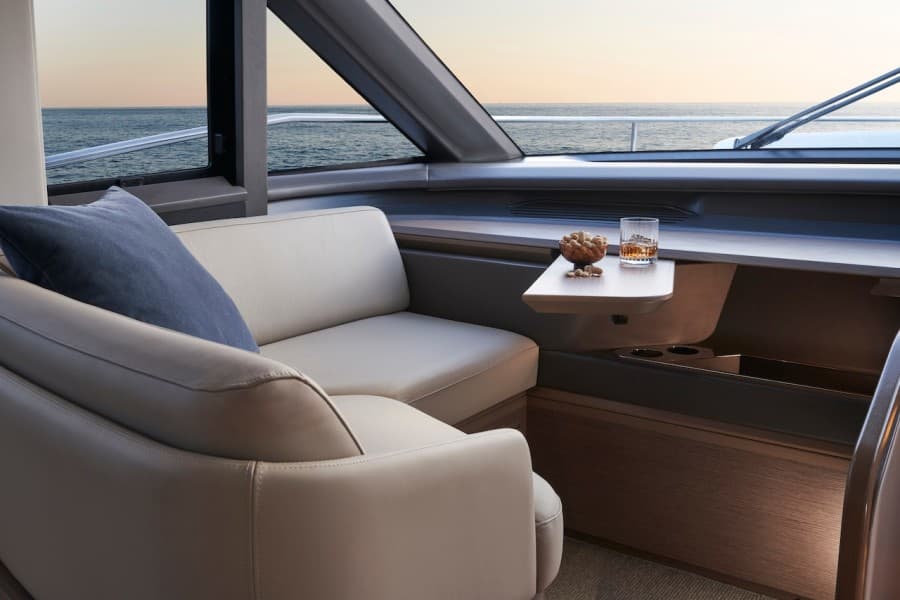

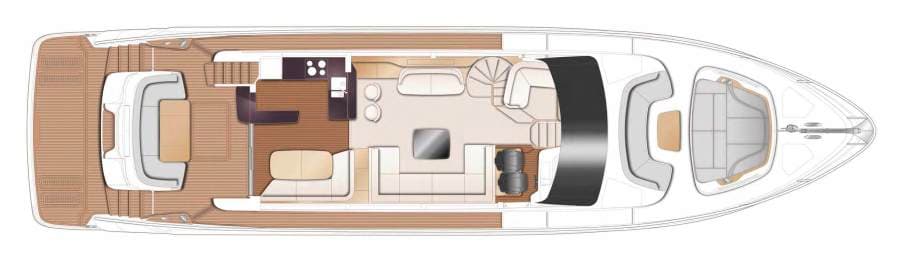

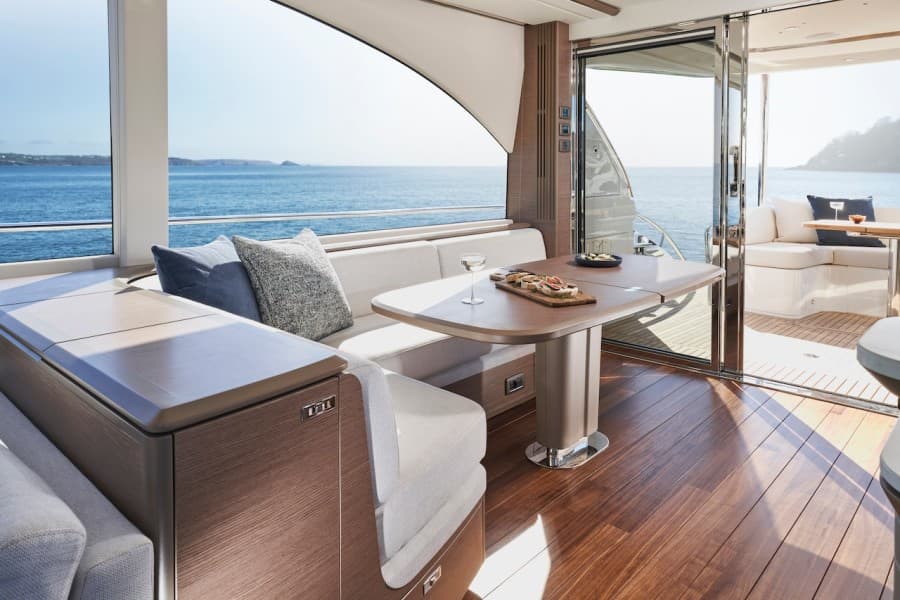

DECK SALOON

• Stainless steel framed sliding doors to aft cockpit with integrated opening window aft of galley

• U-shaped seating area with coffee table

• Two-seater sofa

• Entertainment center incorporating 49" UHD LED TV on electric raise/lower mechanism and audio system with streaming capability and Blu-ray player connected to speakers

• L-shaped sofa opposite helm area

• Sideboard unit with bottle and glass storage

• Refrigerator

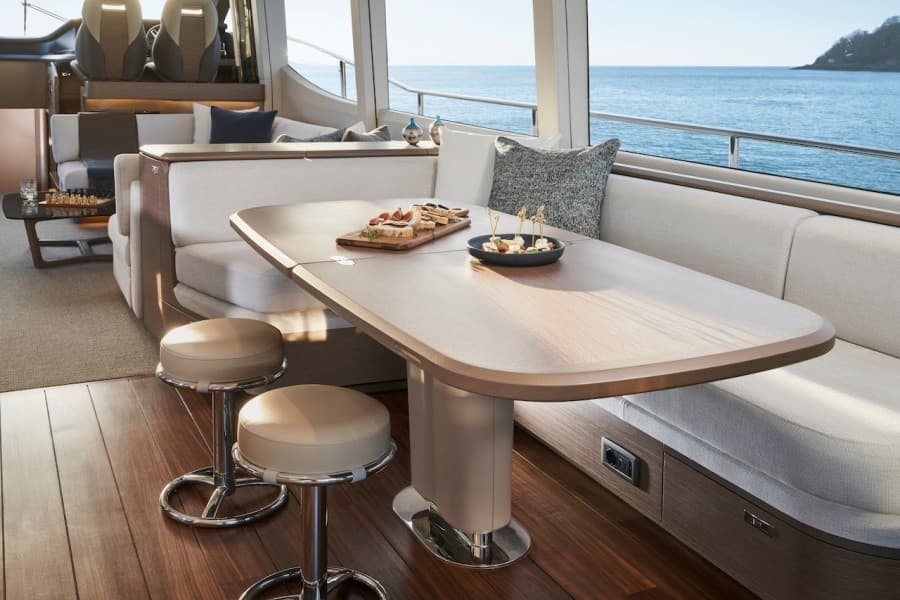

• Aft dining area

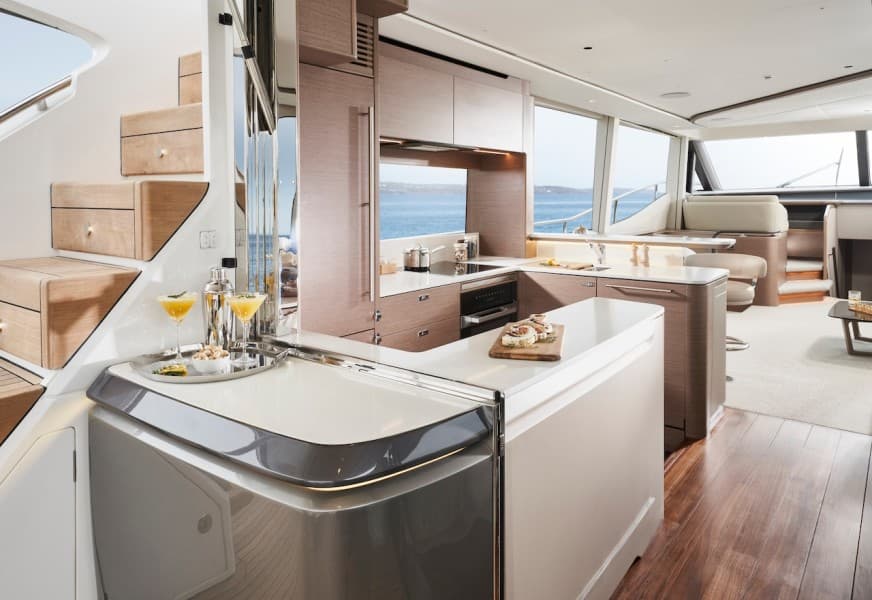

GALLEY

• 4-zone ceramic hob

• Hob extractor

• Combination microwave/convection oven with grill

• Twin stainless steel sink with mixer tab

• Full-height fridge/freezer

• Icemaker

• Dishwasher

• Storage cupboards, drawers and lockers

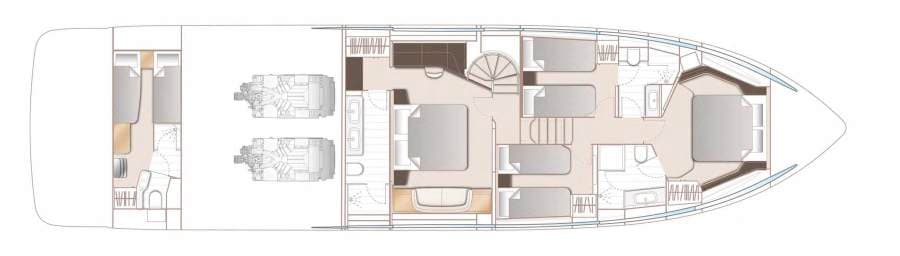

ACCOMMODATION

• All cabins and bathrooms feature opening portholes and air conditioning outlets

• All cabins feature 220/240v power points

• All mattresses pocket sprung (excluding crew)

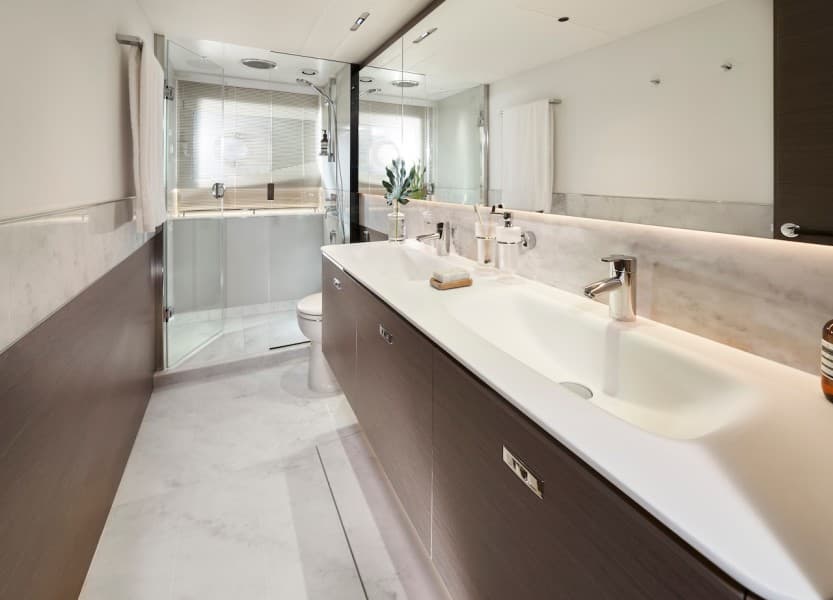

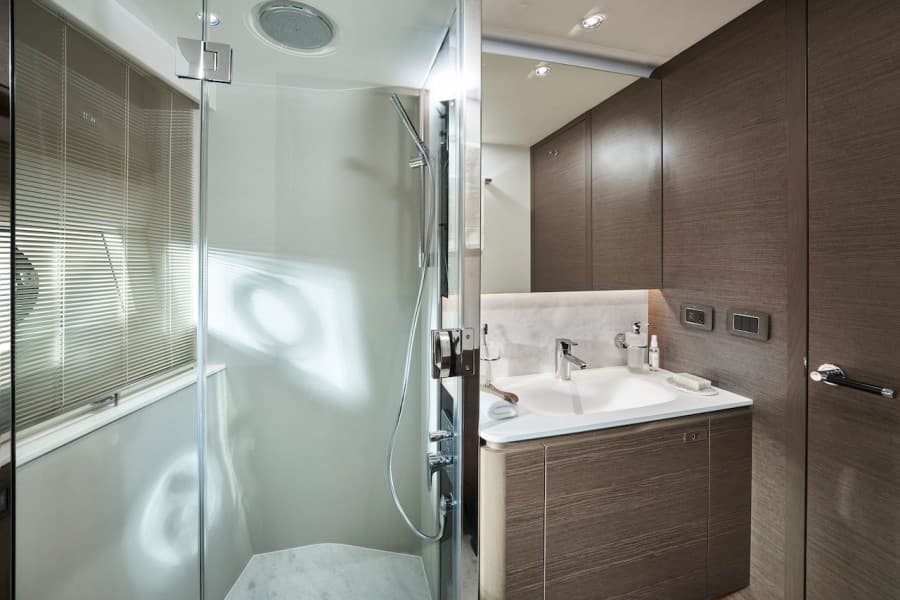

• All bathrooms feature full shower stalls, electric freshwater toilets, extractor fan and 240v shaver points

• A combination washer/dryer is fitted in the stateroom lobby

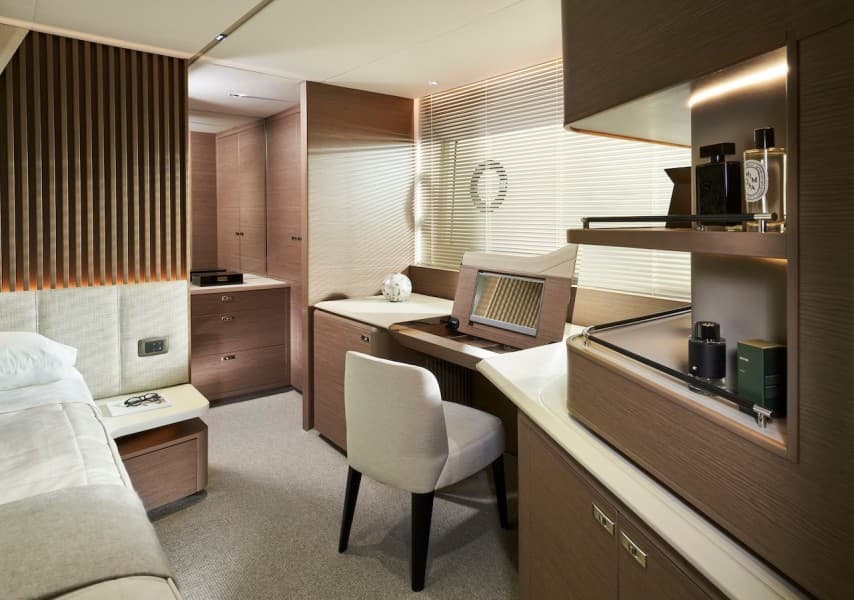

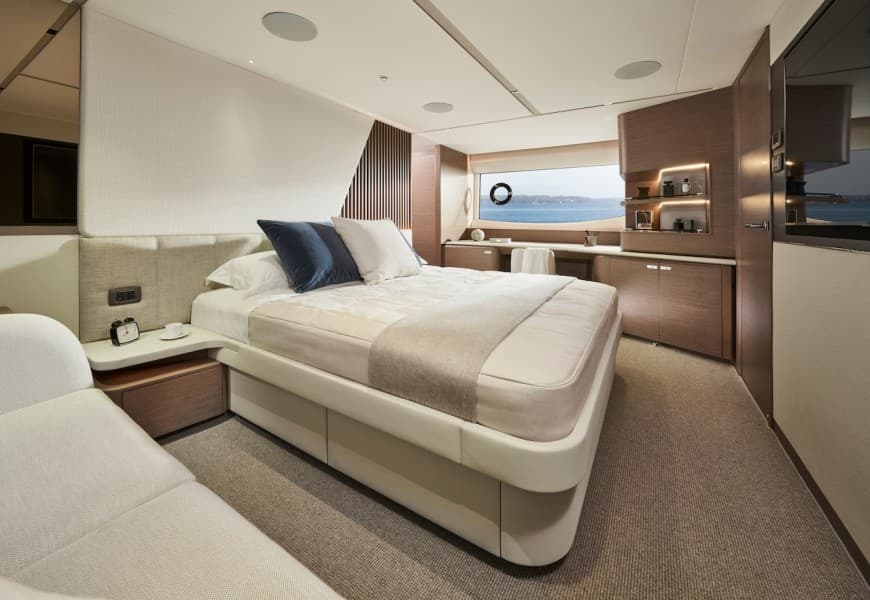

OWNER’S STATEROOM

• Large double bed with drawers below

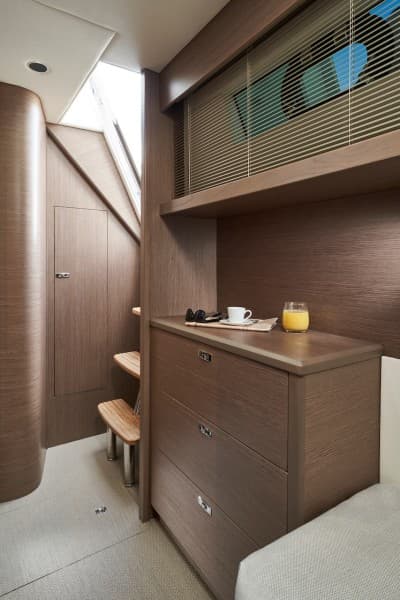

• Dressing area with wardrobes and drawer storage

• Dressing table with stool

• Sofa

• Built-in safe

• 49" UHD LED TV and DVD Blu-ray system with Naim audio system

• Storage lockers and drawers

• En suite bathroom

• Dedicated access with lobby area

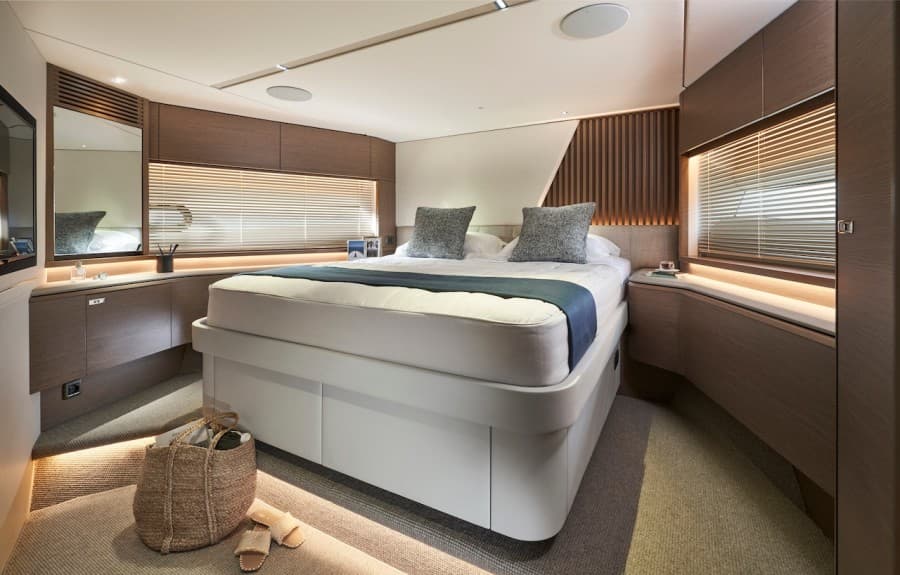

FORWARD GUEST CABIN

• Large double bed with drawers below

• Wardrobe with shelves

• Vanity unit

• Storage lockers and drawers

• Deck hatch

• En suite bathroom

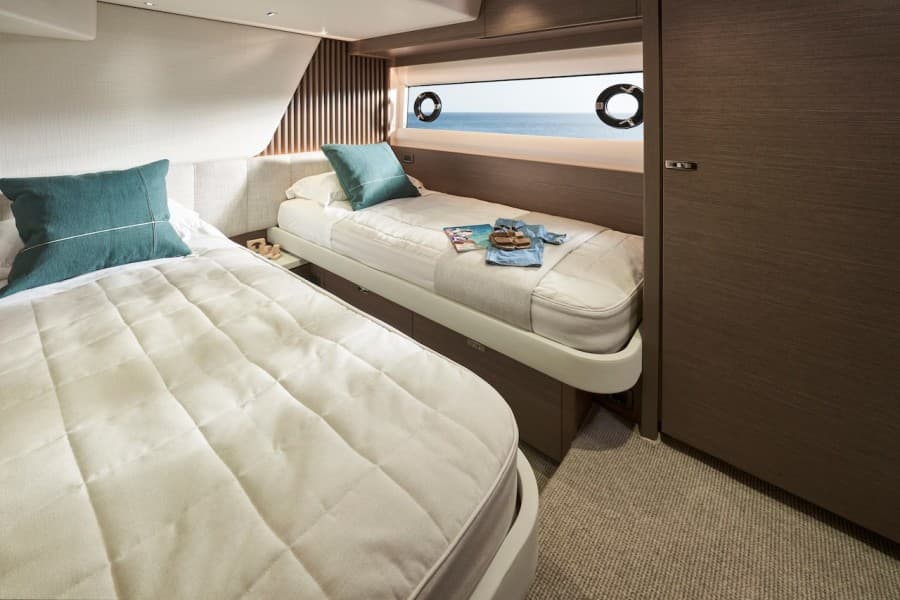

STARBOARD GUEST CABIN

• Two single beds with drawers below (with option of sliding berths)

• Wardrobe with shelves

• Storage lockers and drawers

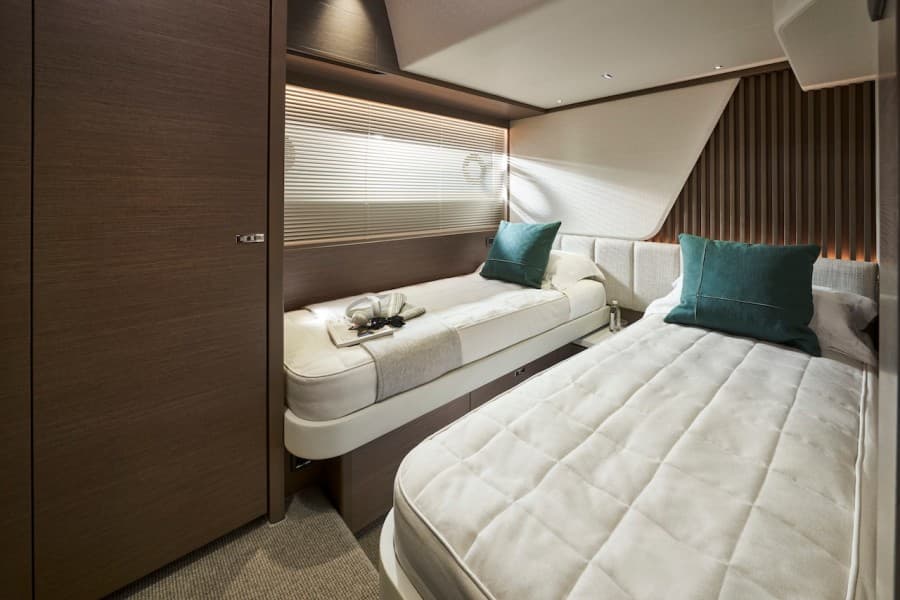

PORT GUEST CABIN

• Two single beds with drawers below (with option of

sliding berths)

• Wardrobe with shelves

• Storage lockers and drawers

• En suite bathroom (with day access)

CREW CABIN

• Two single berths with storage below

• Wardrobe with shelf

• En suite bathroom with stall shower

INTERIOR FINISH

• Furniture in Rovere Oak or alba Oak with a satin finish. Walnut or silver Oak available as an option

• Solid surface worktops and floors in all guest bathrooms

• Galley worktops in choice of granite or quartz

• Choice of high quality carpet and upholstery fabric from extensive range

• Blinds or sunscreens to all windows and portholes

• Timber-laid galley and helm floors

POWER AND DRIVE SYSTEMS

• 5-bladed propellers in nickel aluminum bronze

• Princess active ride control

• Bow thruster (250kgf/551lbf)

• Power-assisted electro-hydraulic steering system with hydraulic back-up

• Electronic engine and gear shift controls

• Electronic engine controls

• Dripless shaft seals

• Engine room extractor fan with electronic time delay

ELECTRICAL SYSTEMS

24 Volt:

• 4 x heavy duty batteries for engine starting

• 6 x heavy duty auxiliary batteries

• 2 x 60 amp battery charger charges both banks of batteries via an automatic switch charging system

• Remote battery master switches with control switch at main panel

• LED lighting throughout

220/240 Volt:

• 22.5kW diesel generator in own sound shield with water cooled specially silenced exhaust

• 63 amp shore support inlet

• Earth leakage safety trip, polarity check system, circuit breakers on all circuits

• Power points in all areas

FUEL SYSTEM

• Fuel tanks (in Ns8 marine grade alloy) with interconnection system giving 990 gal/

1,189 Us gal/4,500l capacity

• Fuel fillers on port and starboard side decks

• High capacity duplex fuel filters/water traps with audible and visual fuel contamination warning system

• Remote fuel isolation controls in cockpit locker

WATER SYSTEM

• 184 gal/221 Us gal/836l plus 16 gal/19 Us gal/73l hot water calorifier, heated by engines and 240v immersion heater

• Water level gauge

• Deck filler

• Electric freshwater WC system with 88 gal/106 Us gal/400l holding tank

FIRE EXTINGUISHERS

• Automatic/manual override fire extinguishers in engine room with warning system at both helm positions

• Hand-operated fire extinguishers in all cabins, galley and lower helm (6)

BILGE PUMPS

• Automatic electric bilge pumps (6)

• High capacity manual bilge pump with valve system and suction points in same areas

OTHER ITEMS SUPPLIED AS STANDARD

• Set of cutlery, crockery and glasses (8)

• Set of towels (8 large, 8 small)

• Ensign staff

• Fenders (6) and wraps (4)

• First aid kit

• Set of manuals

• Tool kit

2026 Princess Y72 Motor Yacht

Estimated Factory Completion: August 2025

**This boat is scheduled for the 2025 Fort Lauderdale International Boat Show**

Princess Y72 with twin MAN V12-1650 (2 x 1650mhp) engines

ENGINES & DRIVE:

Oil Changer for engines, transmissions, and generator

Third station controls in cockpit (engine controls, thruster controls, and engine emergency stops)

Extended range fuel tank (additional 211 gallons to give 1,400 gallons total)

HYDRAULICS

Hydraulic system consisting of separate engine driven hydraulic pumps allowing any system to be supplied with hydraulic power from either engine. Including hydraulic anchor winch and 320kgF hydraulic bow thruster (in place of standard) 240kgF stern thruster and hold function docking system. All with dual station controls

HULL COLOR

Engine air vent cover and deck house buttresses are finished in Onyx Black Metallic.

Transom face, canopy styling line, leading edge or arch and cockpit headlining finished in Graphite Grey Metallic.

Radar arch legs and exterior furniture where specified, are finished in Oyster Grey Metallic

White Hull (with dark grey waterline & black antifouling, hull & bathing platform fendering is white with stainless steel insert)

INTERIOR FURNITURE:

Walnut interior wood satin finish (galley, dinette and helm floors are V groove planked walnut as standard)

LAYOUT:

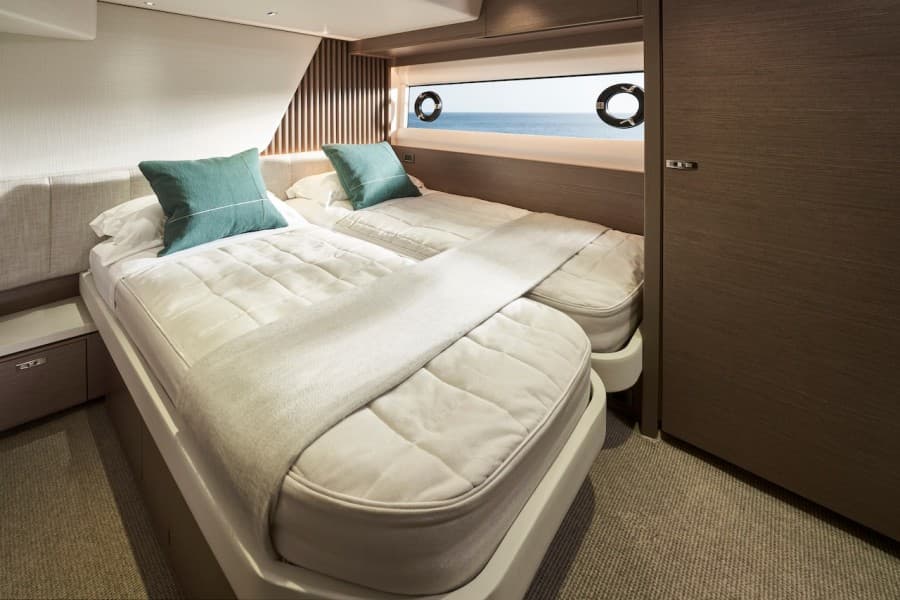

Starboard cabin to have double berth conversion with powered sliding mechanism on inboard berth

Port cabin to have double berth conversion with powered sliding mechanism on inboard berth

Bar stools (fixed to deck and with top load access to forward saloon port side sideboard unit)

Flip-up arm rests to flybridge helm & navigator seating

GALLEY:

Galley Quartz: Organic White

Garbage disposal

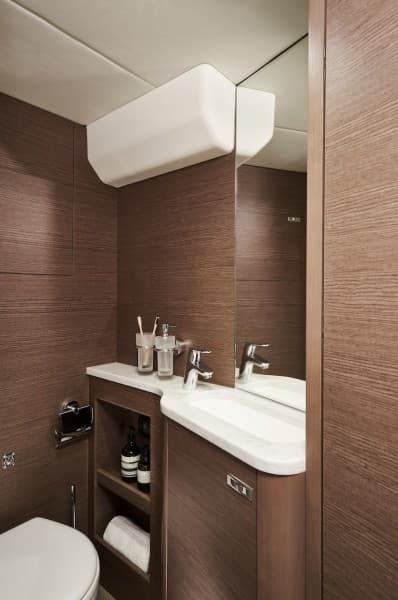

BATHROOMS

Bathroom countertops are Sylmar White Solid Surface (satin finish) with thermoformed basins. Floors are Solid Surface Carrara White (satin finish)

COLOR SCHEME

Color scheme can be selected from Quartz VIII / Milan X fabric and Quartz III carpet books as standard

DECK HARDWARE:

Note: The Princess Y72 has an up/down electro hydraulic transom platform with 550 kg (1212 lbs) safe working load (SWL) fitted as standard. The maximum recommended tender weight is 450 kg (992 lbs). A teak laid flybridge deck is standard on this craft

Electrically operated sun awning to aft end of hardtop in Anthracite Grey mesh

Side boarding gates to cockpit area

Additional 40m of 12mm anchor chain to give a total of 100 meters

Dinghy chocks on bathing platform

Teak coffee table for foredeck seating area (with fixing point)

Deck wash system, located in transom, foredeck and flybridge lockers

Plug in carbon pole transom shower and deck socket to bathing platform

GENERATOR

29 kW / 60 Hz primary generator fitted as standard Additional back up generator, 21.1 kW / 60 Hz

ELECTRICAL:

Separate washing machine and condenser dryer machine located in the passageway in the guest accommodation (in place of standard washer/dryer)

Icemaker in flybridge wetbar

Exterior lighting upgrade package

Included linear LED (x1) and fiber optic lighting to the cockpit pelmet and headlining and low level LED dock lighting (x28)

Interior lighting upgrade package

Additional fiber optics (to saloon & dining area)

Additional LED strip lights to blind pelmets - to lower accommodation

AGM 140Ah batteries in place of standard (for start & domestic)

CCTV cameras (2 x fixed cameras in engine room, 1 x pan/tilt camera in cockpit)

Buell air horns IPO electric

Glendinning Cablemaster and Energy Solutions 24kVa

Princess Connect Telemetry & Maintenance

AUDIO / VIDEO & COMMUNICATIONS:

Premium Audio System

Incorporates:

Deck saloon - 55" LED TV on power lift mechanism Naim Uniti Star audio system – Stream your music in high resolution, play, download, store and access your music library or tune in to your favorite radio stations via DAB & FM radio. Access a world of music with a host of streaming and media sources with intuitive app enabled features. Paired with Focal speakers (4) and subwoofer

Owners Stateroom - 55" LED TV Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2) and subwoofer

Forward Stateroom - 43" LED TV Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2)

Starboard guest cabin - 32" LED TV Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2)

Port guest cabin - 32" LED TV Naim Uniti Atom audio system with Bluetooth, multi-zone streaming capability and dedicated app. Paired with upgraded Focal speakers (2)

Flybridge - Naim Uniti Atom audio system with Bluetooth, multi streaming capability and dedicated app. Paired with Paired with JL Audio waterproof speakers (4) and subwoofer with amplifier

Foredeck seating walk-Naim Uniti Atom audio system with Bluetooth, multi streaming capability and dedicated app. Paired with Fusion waterproof speakers (2)

Cockpit seating area - Naim Uniti Atom audio system with Bluetooth multi streaming capability and dedicated app. Paired with JL Audio waterproof speakers (2)

System includes

• On board Ethernet and 4G internet capability

• On board WIFI network incorporating external WIFI and 3G/4G antenna for extended range. Enabling connectivity to onshore WIFI networks throughout the vessel. (mobile internet connectivity requires an activated mobile data SIM card)

• System is plug and play with external devices via HDMI in all areas, plus RJ45 sockets in saloon and stateroom

• 256GB SD card

• Combination inverter charger fitted, providing seamless transfer between generators/shore power and inverted battery power for saloon A/V & galley fridge.

NAVIGATIONAL EQUIPMENT:

Garmin Electronics Package in place of standard, to include:

1x Garmin GPSMAP 8616xsv multifunction display at lower helm

1x Garmin 8616 multifunction display at lower helm (in addition to xsv unit)

2x Garmin GPSMAP 8616 multifunction displays at upper helm

Garmin GMR Fantom 124 radar (6 kW / 4 ft open array scanner)

Garmin GMI20 multifunction instruments in place of std i70s

Garmin GHC50 autopilot (dual station) and Garmin VHF 315

External Garmin GPS antenna connected to Garmin backbone

Garmin AIS 800 Class B transponder

Chase tubes for later fitting of SAT TV

EXTERIOR UPHOLSTERY / CANVAS / COVERS:

Please note: Craft are supplied with cockpit, foredeck, and flybridge covers as standard.

Reticulated foam to all standard exterior cockpit, foredeck, and flybridge seating/sunpads is also standard (to improve drainage, excludes helm seats).

Cockpit Seating Cover

ACCESSORIES

8 place settings of China, Cutlery, & Glasses are supplied as standard.

SPARES/DELIVERY:

Bed linens not including crew

Water delivery kit

NET OPTIONS:

GRP flybridge hardtop featuring electric tilting louvres (including dimmable LED lighting) finished in white Gelcoat with painted Oyster Grey Metallic finish legs with reduced height aerials mounted on hardtop, NET

Sleipner Vector Fin stabilization system with VF800 fins. When underway fins are driven by an engine powered hydraulic motor and at zero speed by a generator powered electric motor. (NB Variable speed thruster(s) are recommended as fin and thruster controls are incorporated into one control at both helms

Underwater transom lights, Lumishore EOS THX803 (4x across the transom) (2x centered under port and starboard master window - 1 per side)

Lumishore STV2240i controller in cockpit

Stainless steel flybridge rail in place of standard teak

Supply and fit transom mounted shore water connection with Boning a auto-fill feature plumbed to freshwater tank with VSC-supplied hose fitting

Increase the freshwater lines to 22mm diameter supplying the washdown outlets (anchor locker, flybridge, and cockpit)

Fit VSC supplied Headhunter Mach 5 (M5-230/60) freshwater pump in place of standard

Hardtop main body and louvres in white hardtop legs in oyster grey

Smart Y adapter for 100 amp shorecord*

2x ElectroStrainer ES-150 Biofouling Prevention & Strainer System
