2027 McConaghy Boats MC75

McConaghy: A Legacy of Excellence Since 1967

With over 56 years of racing heritage, McConaghy is synonymous with composite excellence. We pride ourselves on delivering outstanding vessels on time and within budget, ensuring every project meets the highest standards.

As a trusted supplier of Olympic and America's Cup yachts and support vessels, our commitment to quality and performance is unmatched. Our track record includes multiple victories in the prestigious Rolex Sydney to Hobart Yacht Race, and McConaghy holds more Maxi Yacht Line wins than any other shipyard.

We are also proud to be part of groundbreaking projects, including James Cameron’s Deepsea Challenge, which explored the depths of the Mariana Trench.

Experience the McConaghy difference—where passion for sailing meets unparalleled craftsmanship.

Tempered safety glass sliding doors between salon and aft deck

Clear carbon off-center stair and handrail to flybridge with

illuminated steps on starboard aft side deck

Aft cockpit U-shape settee with table and cupboards outboard

Exterior downlights

Tramsom steps, port, and starboard, with discreet lighting

Outdoor aft deck rain shower recessed into flybridge structure,

hot/cold mixer tap

Telescopic swim ladder neatly housed in the transom

Electric sliding main saloon windows with safety locks

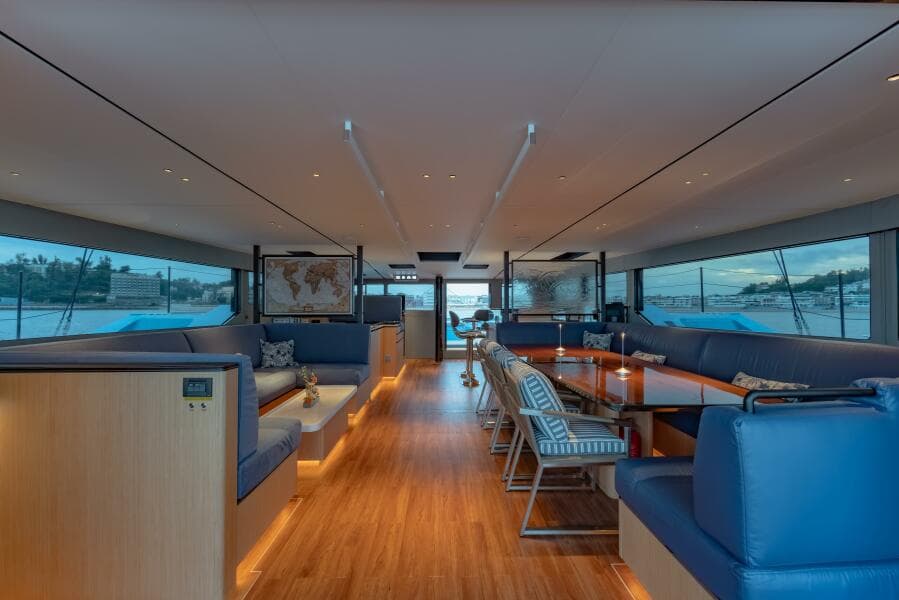

Two (2) U-shaped settees with bench seats, cushions

Coffee table with fold-out extensions on electric struts

Long overhead skylight

Under seating storage

Stairs to starboard hull

Choice of hull and headliners

Choice of wood soles

Overhead downlights, recessed lighting at floor level

Recessed courtesy lighting at floor level

110/230V AC and USB sockets

Clear carbon navigation and electronics panel

Remote battery switches

12/24V and USB sockets

110/230V AC sockets

Electric sliding main salon windows with safety locks

L-shaped settees with bench seats & cushions

Dining table

Expansive Corian countertop

Twin stainless steel sinks

Mixer tap hot / cold

Recessed lighting at floor level

Twin opening doors to salon

Port & Starboard sunbeds

Stairs to forward foredeck

Small cushions or sunbed on the centerline

Twin helm stations, layout to suit Owner's Nav / Electronics selections

Fixed helm seats

Twin McConaghy carbon fiber steering wheels, choice of styles

Red courtesy lights

Lounge area with wrap-around seating

Cushions for flybridge seating area - Sunbrella & Weathermax foam

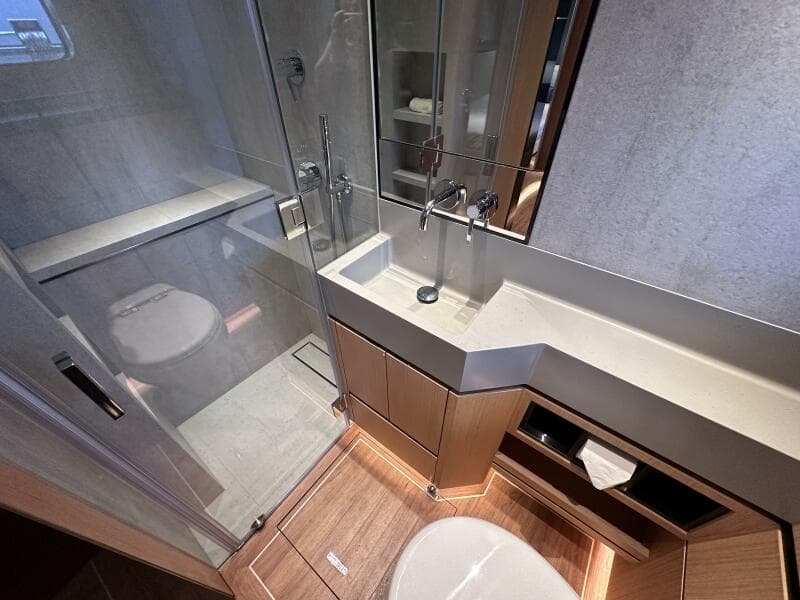

Large shower with quality fittings, Corian sole, and inboard hatch

Sink with cabinet and hot/cold mixer tap

Electric freshwater toilet

Hanging locker

Mirror

Overhead hatch

Seaward facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

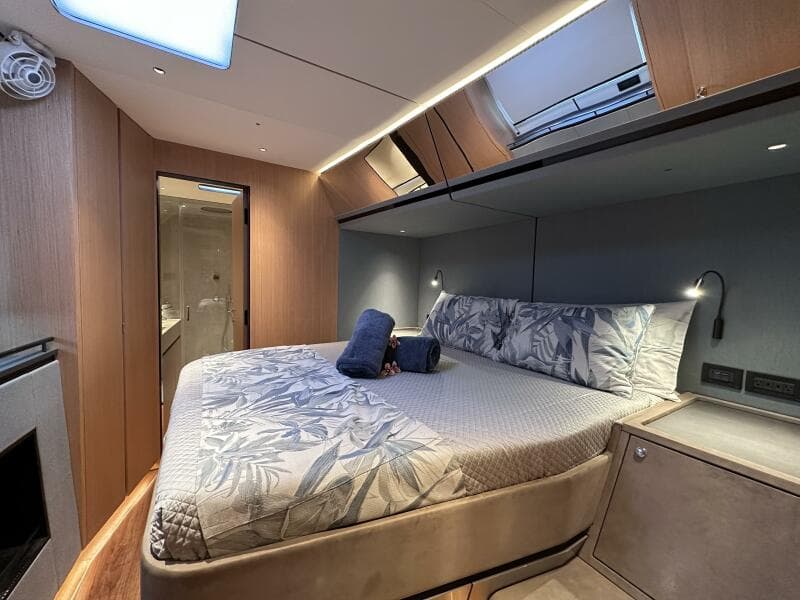

Underdeck seaward facing double berth

Storage under berth, raises on gas struts

Soft close drawers under and beside berth

Recessed courtesy lighting at floor level

Reading lights

Overhead hatch

Large seaward-facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

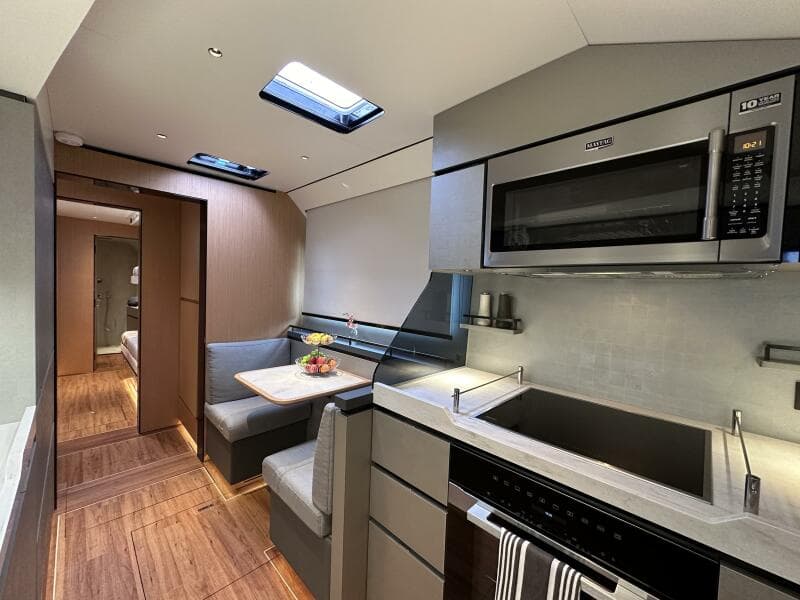

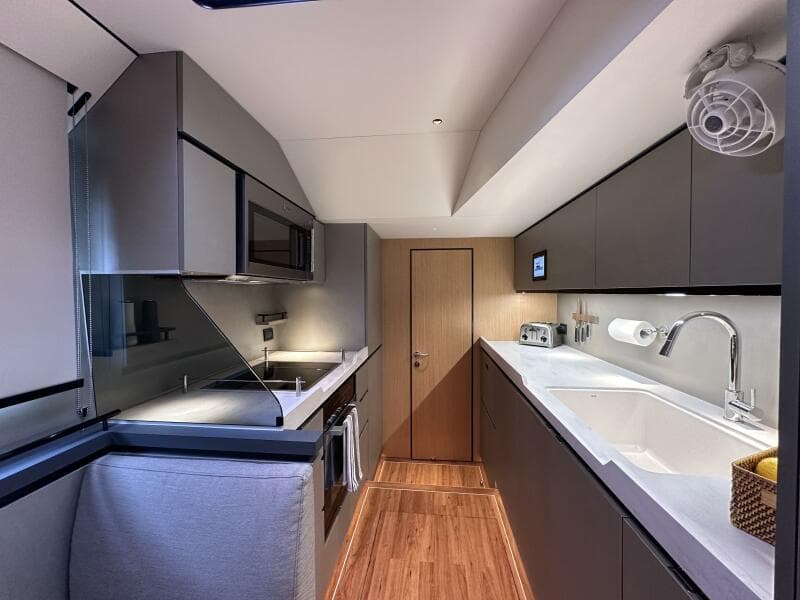

Stainless steel Isotherm 160L draw fridge

Stainless steel Isotherm 160L draw freezer

Electric oven and cooktop (Siemens / Bosch)

Storage under bench tops, cupboards, and drawers

Double trash cans

Overhead hatch

Large seaward-facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

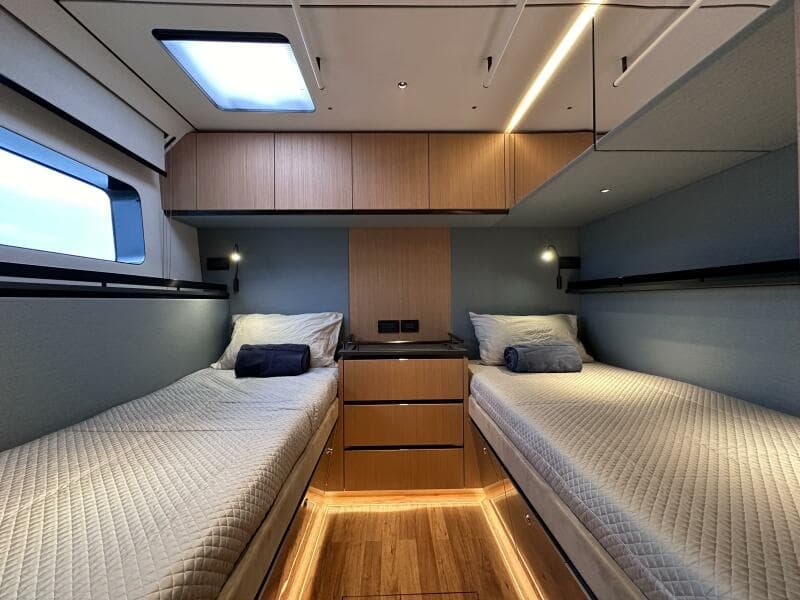

Twin single bunks

Single hanging locker and seat

Storage under bunk

Reading lights

Overhead hatch

Seaward facing windows

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB Sockets

Shower with quality fittings, Corian sole

Sink with cabinet and hot/cold mixer tap

Electric freshwater toilets

Mirror

Underdeck seaward facing double berth

Hanging lockers

Storage under berth

Reading lights

Overhead hatch

Seaward facing windows

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

Shower with quality fittings, Corian sole

Sink with cabinet and hot/cold mixer tap

Electric freshwater toilets

Mirror

Large shower with quality fittings, Corian sole, and inboard hatch

Sink with cabinet and hot/cold mixer tap

Electric freshwater toilet

Mirror

Overhead hatch

Seaward facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

Underdeck seaward facing double berth

Storage under berth, raises on gas struts

Soft close drawers under and beside berth

Recessed courtesy lighting at floor level

Reading lights

Overhead hatch

Large seaward-facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

Underdeck seaward facing double berth

Storage under berth, raises on gas struts

Soft close drawer sunder and beside berth

Hanging locker

Full-length desk with drawers

Recessed courtesy lighting at floor level

Reading lights

Overhead hatch

Large seaward-facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB Sockets

Large shower with quality fittings, Corian sole, and inboard hatch

Twin Sinks with cabinet and hot/cold mixer tap

Electric freshwater toilet

Mirror

Overhead hatch

Seaward facing side window

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

Double berth

Single hanging locker

Storage under berths and lockers above

Reading lights

Overhead hatch

Seaward facing windows

Choice of wood sole, hull, and headliners

Overhead downlights, recessed lighting at floor level

110/230V AC and USB sockets

Shower with quality fittings, Corian sole

Sink with cabinet and hot/cold mixer tap

Electric freshwater toilet

Mirror

Two (2) x 150hp Yanmar engines with V drives gearbox, propellers

Twin electronic throttle controls

Insulation in Engine rooms

Ventilation in engine rooms

Freshwater engine cooling system

Engine instrument panel at helm position

Two (2) Fuel tanks in total approx. 2600L

Two (2) Racor #75/500FGX dual fuel filters

Exhaust waterlocks

Water separator

Exhaust muffler

Two (2) day tanks in total approx 400L, includes fuel transfer pump, fuel polisher

Two (2) Fuel Level Sensors

Two (2) Deck Fillers

One (1) x Generator 27kW Onan

220k BTU Air conditioning (reverse cycle heat/cool)

Two (2) Rule automatic bilge pumps in each bilge compartment (2,000 GPM each)

Pressurized hot & cold water system

Two (2) Isotherm water heaters – 75 Liter tanks

One (1) Gianneschi 50lpm/2,2-3.5bar Pressure pump

Black water tanks approx.1200L

Fresh water tanks approx.1200L

Fresh Water Level Sensor

Holding tank sensor

Deck wash pump salt/fresh, outlet on aft deck and foredeck

Hydraulic Pump DC

Hydraulic Pump PTO

Valve block for centerboards

Valve block for windlass

Valve block for thruster

Valve block for headsail furler

Valve block for staysail furler

Valve block for A sail furler

48V with integral on both engines generators 9kw

Two (2) x 48/15000 220V/50hz Victron Combi

110-220V 50/60hz Power outlets

One (1) x 63A 50HZ Shore Power

Ten (10) x MG BATTERY 7.2KW Batteries

Two (2) 220 AH AMG mastervolt buffer battery

Two (2) scotty 3KW 48-24 bi-directional

Two (2) x 150 AH AMG start battery

AC Czone control conjunction box with auto start module and main interface

CZone DC Digital Switching System including touch screen, iPad compatible, voltage, tank, bilge, and fuse alarms, lighting (switches and dimmers), custom controls for centreboards and hydraulic transom (optional)

Reading lights

Downlights

Cockpit lights

Recessed lighting at floor level

One (1) red/white nav stn light (Hella 2XT 959 510 851)

One (1) all-round white nav.light (Hella 2LT 980 960-001)

One (1) stern light (Hella 2LT 959 909-001)

One (1) port light (Hella 2LT 959 900-001)

One (1) starboard light (Hella 2LT 959-908-001)

One (1) masthead light (Hella 2LT 959 940-201)

One (1) tank Sensor Monitor

Fusion entertainment system - Four (4) speakers

Balanced spade twin rudders

Self-aligning bearings

Hydraulic steering

Emergency tiller

Lewmar Hydraulic Bow thruster 300VRTTH 30CC 450 stroke

Nine (9) x Harken 48V Performa Electric: 9x 80.3STEP

Clutches: Sufficient for mainsail and jib

One (1) hydraulic forestay furler, One(1) hydraulic Code Zero furler

One (1) hydraulic staysail furler

Lewmar flush deck hatches drained to waterline

Composite hatches under sunbed seating

Flybridge Hatches/Pigeon holes under centerline winches

One (1) Lewmar hydraulic windlass

One (1) 80kg anchor, 100m chain (galvanized)

Eight (8) x Nomen folding cleats

McConaghy clear carbon composite stanchions

Clear carbon recessed coachroof handrails port & starboard

Load cell pin

Boarding side gates port & starboard

Two(2) carbon hanging steps for forward end of cabin top

Dyneema lifelines

Two (2) deck water fillers

Two (2) deck fuel fillers

Two (2) deck waste pump-out

Foredeck trampolines

Hybrid high + standard modulus carbon mast and boom, ultra-wide racks, standing rigging

Running rigging and deck equipment for main sail and headsail

All sails supplied by the Owner

Shipping Cradle - included as standard

Interiors theme from M2 Atelier

Constructed using a controlled vacuum infusion process and pressed panels of E-glass, carbon composite, and Corecell for lightweight strength and rigidity

Composite centreboards featuring push-button deployment with three pre-set positions. Flush with hull when retracted.

Fully deployed approx.: 4.5m

Mid-position approx.: 2.46m

Fully retracted approx.: 1.68m

Carbon composite Longeron with integrated anchoring system

Hull painted in high-quality two-pack polyurethane coating in solid light colour, non-metallic

Synthetic teak on aft cockpit, side decks, fwd cockpit and flybridge

Lewar hatches flush with deck, drained to waterline

Eight (8) Nomen folding cleats

Boat's name and country/port of registration painted on flybridge and/transom

Below waterline surfaces finished with epoxy primer

All joinery is custom-built and finished to McConaghy Boats' uncompromising high-quality standards and under the expert guidance of interior designers

The modern interior is constructed using a mix of hand-painted surfaces, lightweight veneer with compressed foam cores, and soft fabric liners

Blinds and screens pack (all side windows and overhead hatches, excluding forward-facing windows in salon and sliding doors)

Includes mosquito netting for all opening hatches

Complete list of General Options and costs available upon request to dealer
