2027 McConaghy Boats MC63p Tourer
Description

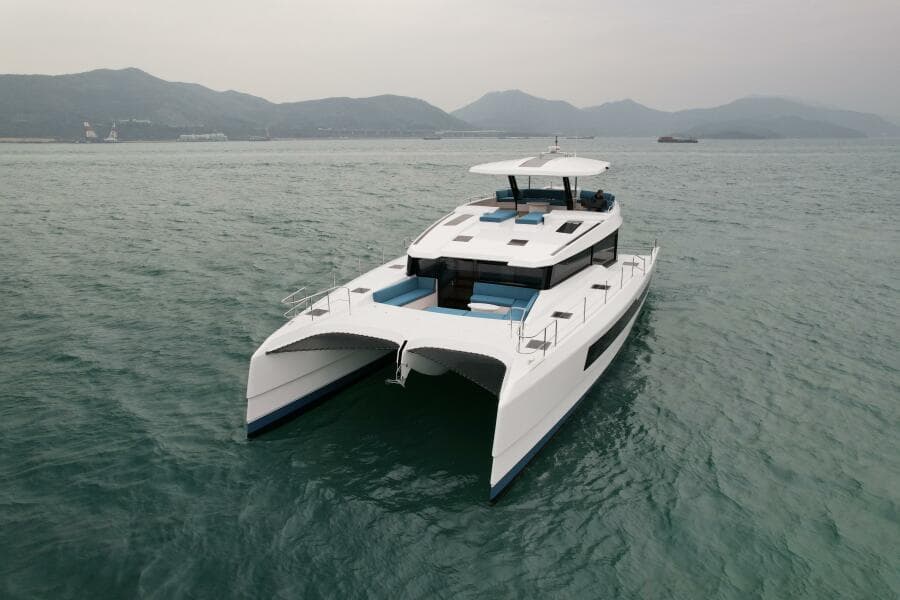

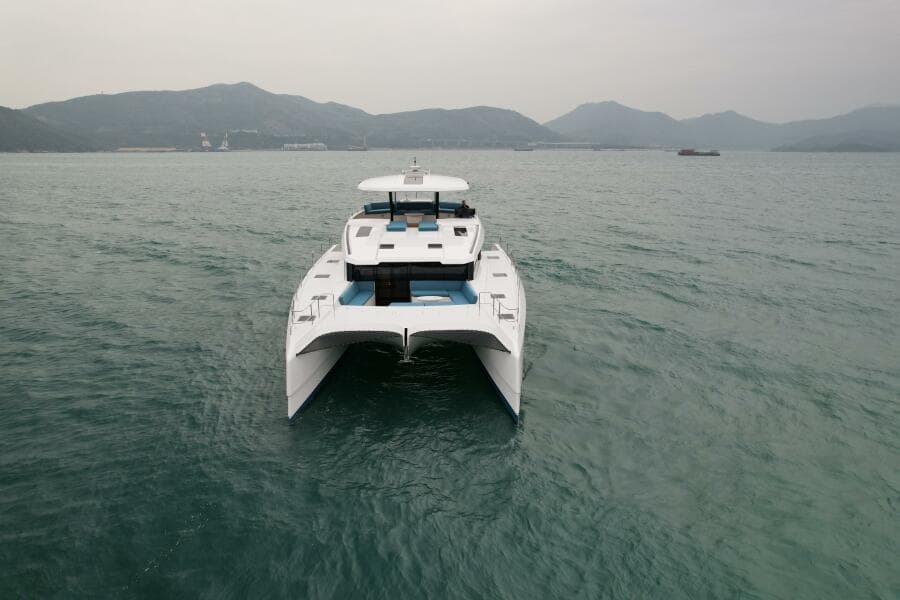

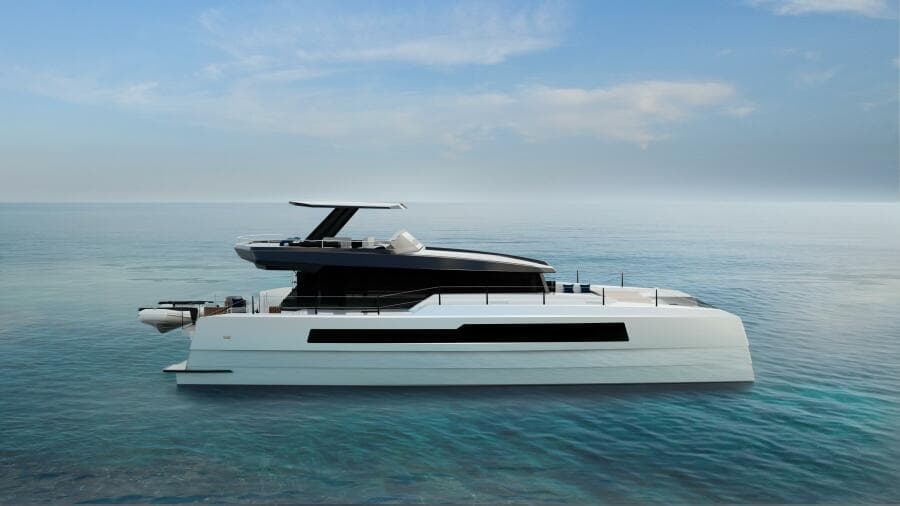

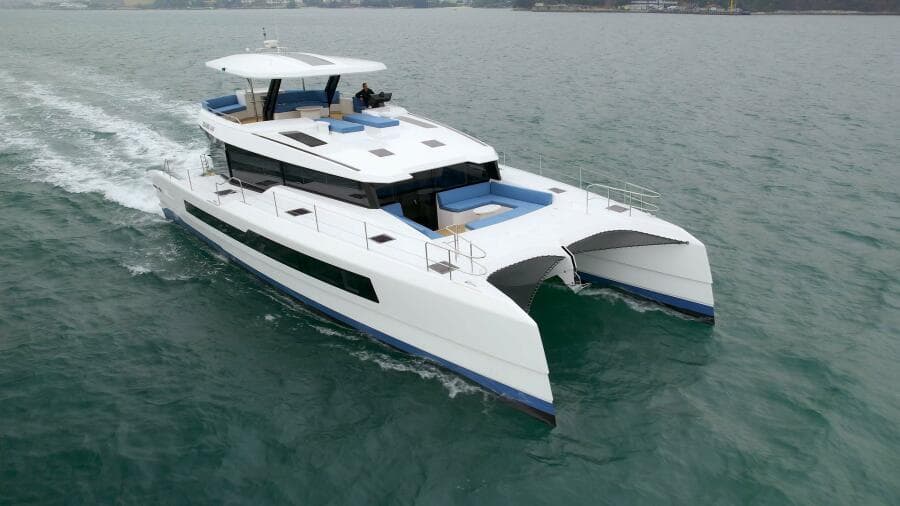

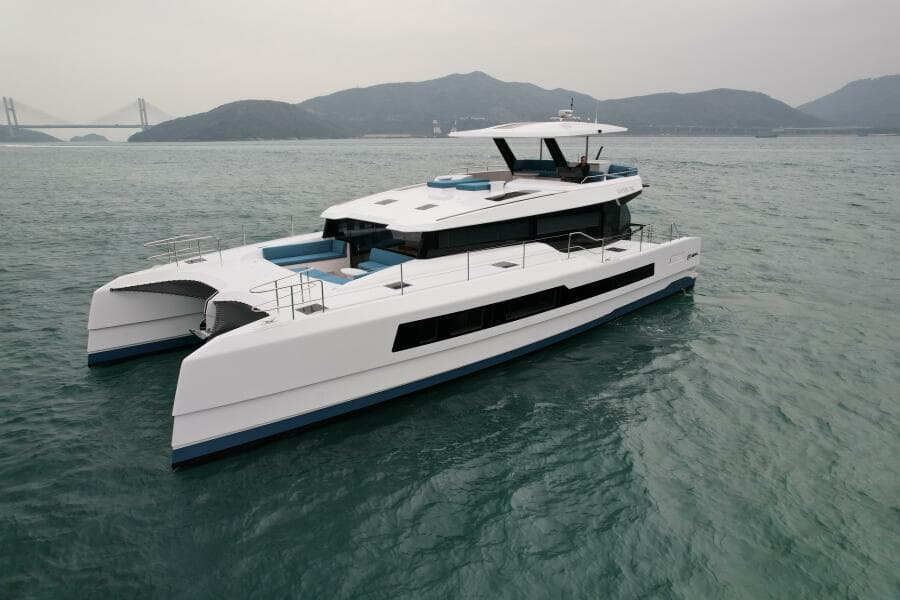

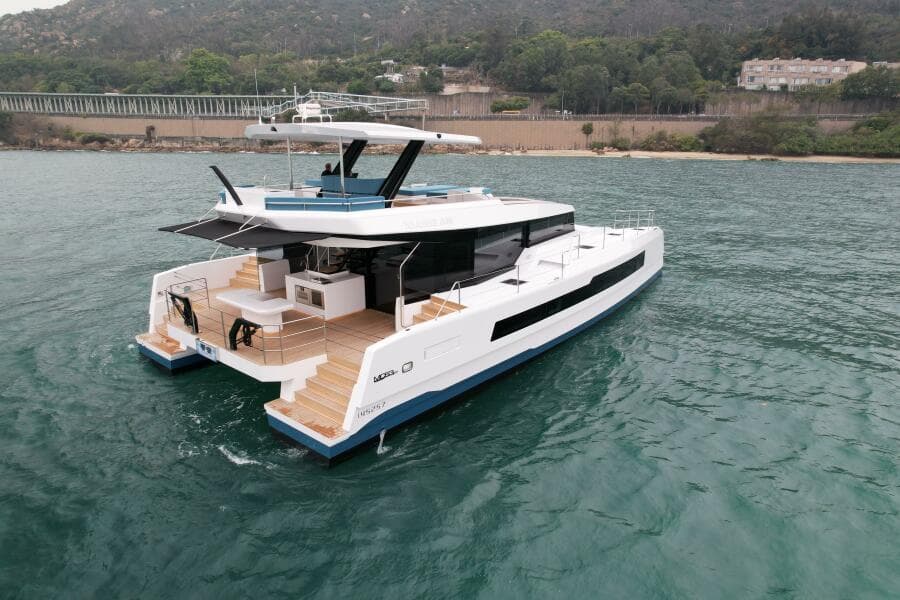

Introducing McConaghy Boats' MC63p Tourer
Lightweight, strong, and with contemporary, progressive lines, the MC63p Tourer is the power cat of the modern era.
McConaghy’s carefully considered use of carbon and precise hull forms makes for a particularly fuel-efficient vessel at the lower speeds, yet the MC63p Tourer can achieve top speeds well in excess of 20kts.

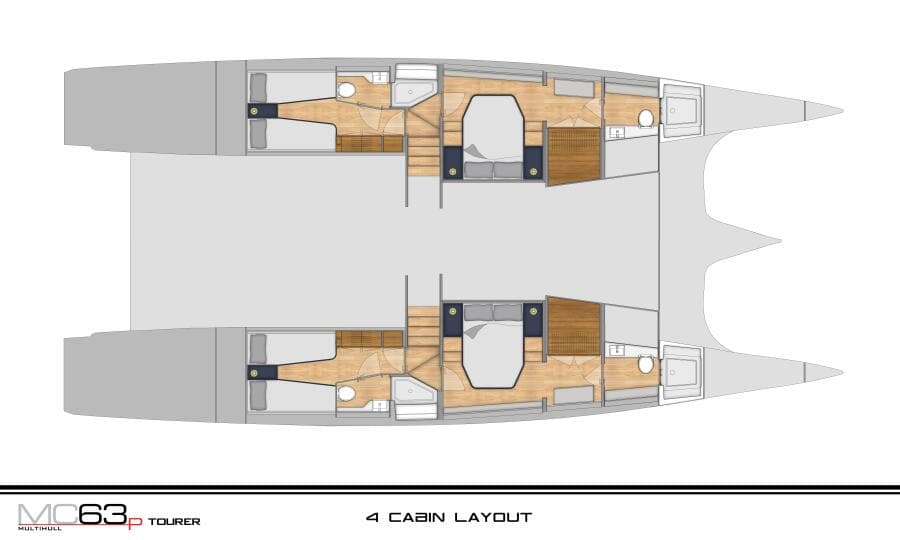

There are three versatile interior arrangements available, allowing for a three or four-cabin layout or an arrangement that positions the master suite on the main deck.
Interior styling comes from m2atelier. Their attention to detail and innovative storage solutions allow for living space to be maximized, making the MC63p Tourer a mini-superyacht with luxury and performance ability perfectly partnered.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Troyer Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Highlights
- Catamaran
- Coastal Cruiser
- New Construction
- Customizable
- 3 Interior Arrangement Options
Key Specifications
Weight & Measurements
Tankage
Engines
Full Details
Construction
Constructed using a controlled epoxy vacuum infusion process and pressed panels of E-glass, and core cell for lightweight strength and rigidity.
Exterior Finish
Hull and deck painted in high quality two pack polyurethane coating in solid light color, non-metallic
Non-skid areas on the side decks
All hatches drain to waterline
Six folding cleats
Boat’s name and country/port of registration painted on stern
Below waterline surfaces finished with epoxy primer
Interior Finish
All joinery is built and finished to McConaghy Boats' uncompromising high-quality standards
The modern interior is constructed using spray-painted surfaces, timber veneer lightweight ply, and soft fabric liners
Blinds and screens pack (all side windows and overhead hatches, excluding forward-facing windows in saloon and bi-fold doors). Includes mosquito netting for all opening hatches.

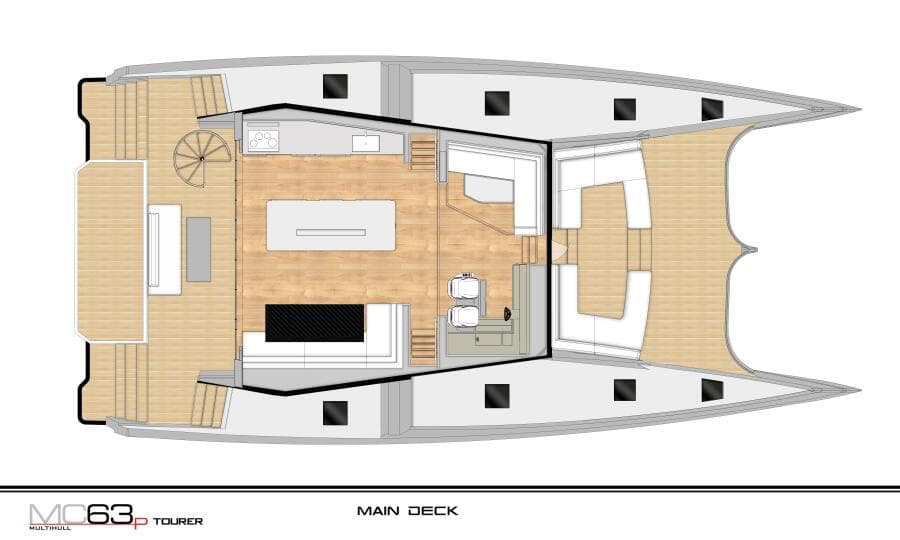

MAIN DECK

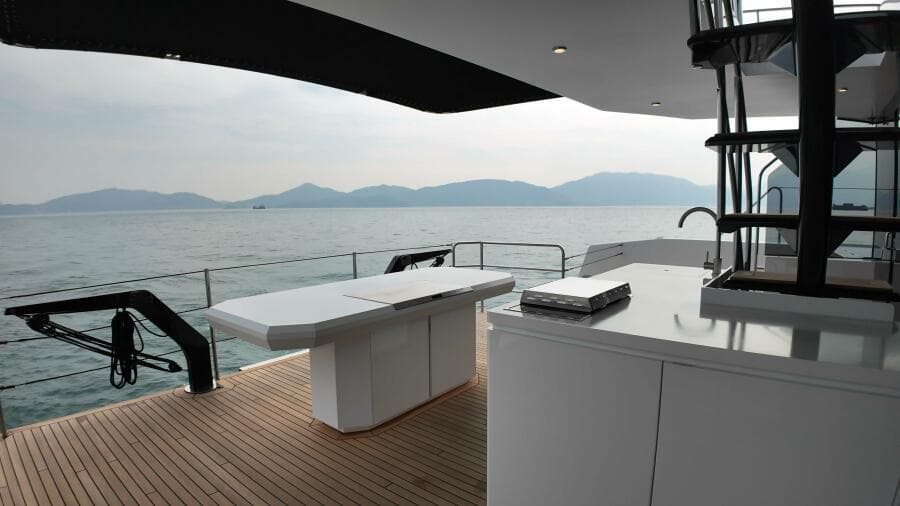

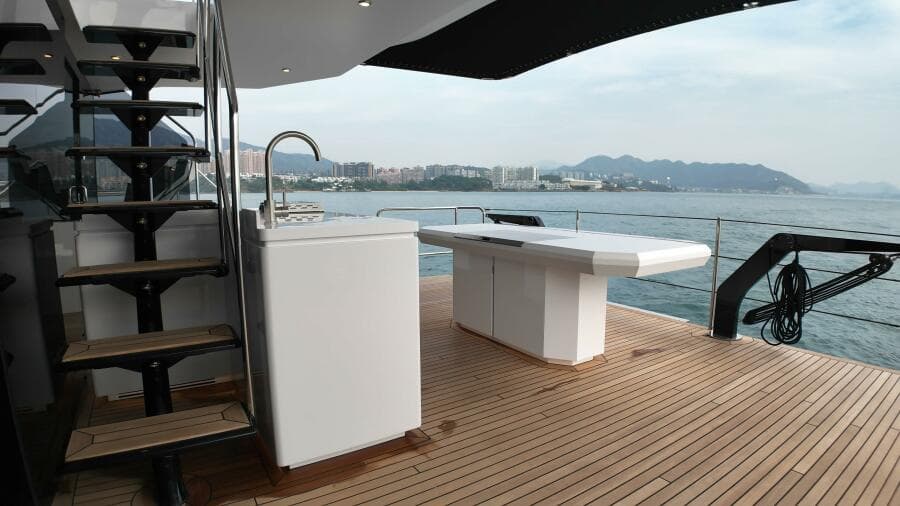

Aft Main Deck
Sliding tempered safety glass doors between saloon and aft deck
Clear carbon stairs and handrails to flybridge with illuminated steps
Tramsom steps, port and starboard, with discreet lighting
Aft deck bench seat with storage and cushions (Sunbrella and Weathermax foam)
Aft deck table with electric legs and controls to raise and lower table
Port side overhead rain shower recessed into flybridge structure, hot/cold mixer tap
Telescopic swim ladder discretely housed in the transom

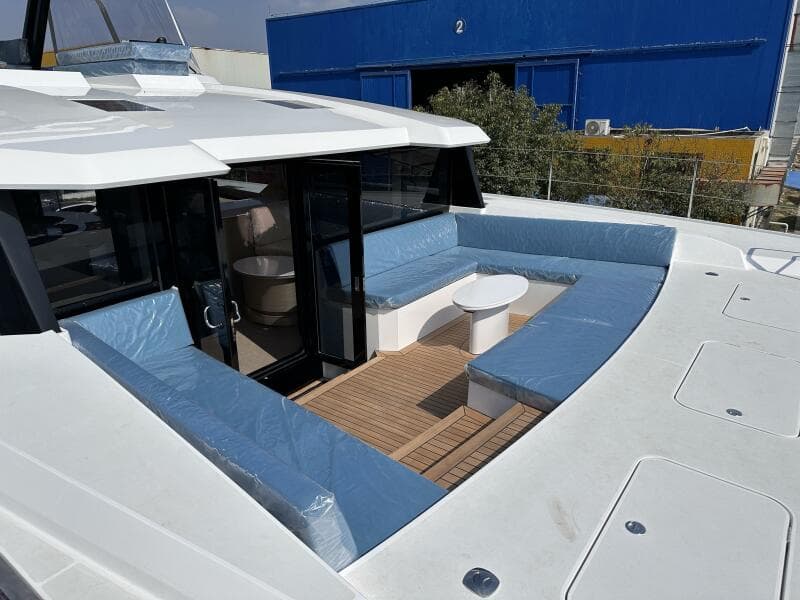

Forward Deck
Fwd cockpit door Fwd settee, table, and sunbed
Cushions for fwd settee & sunbed
Sunbrella & Weathermax foam

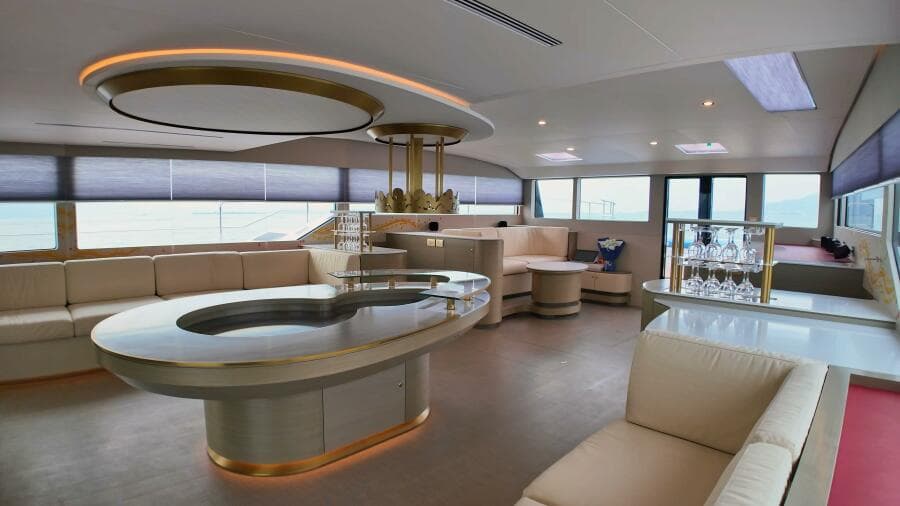

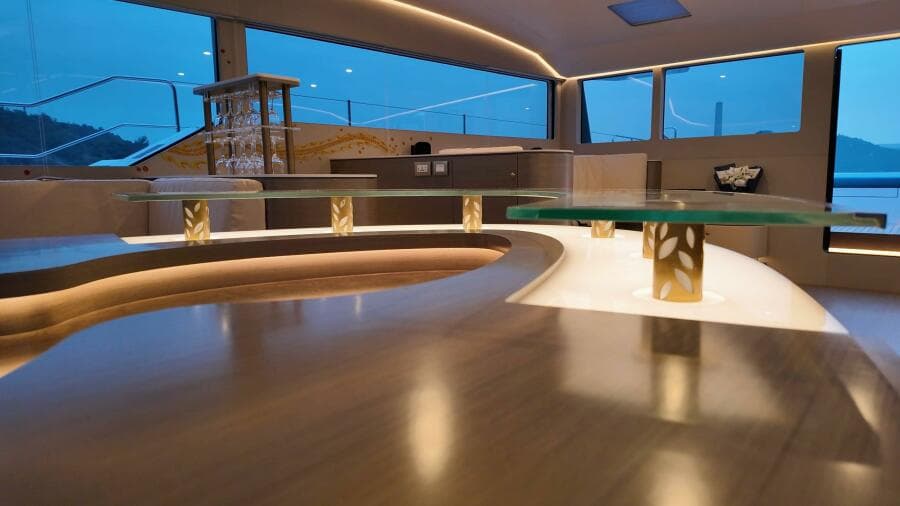

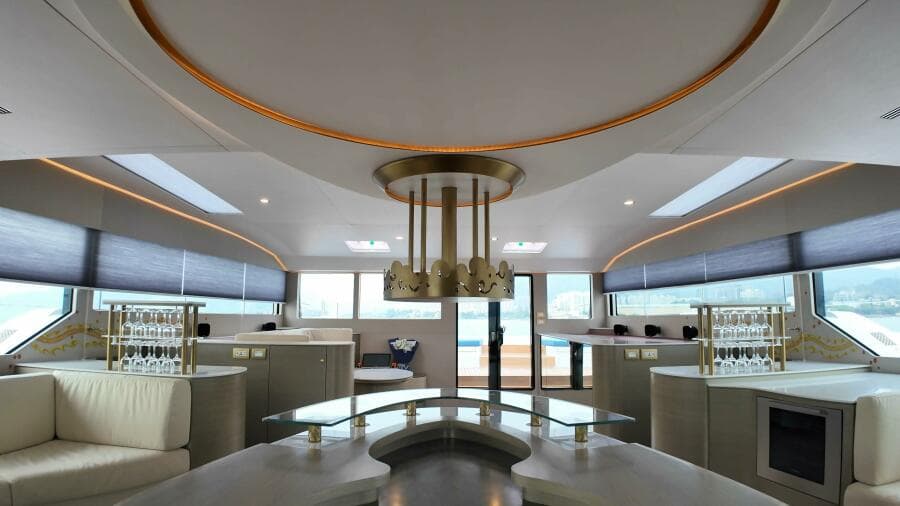

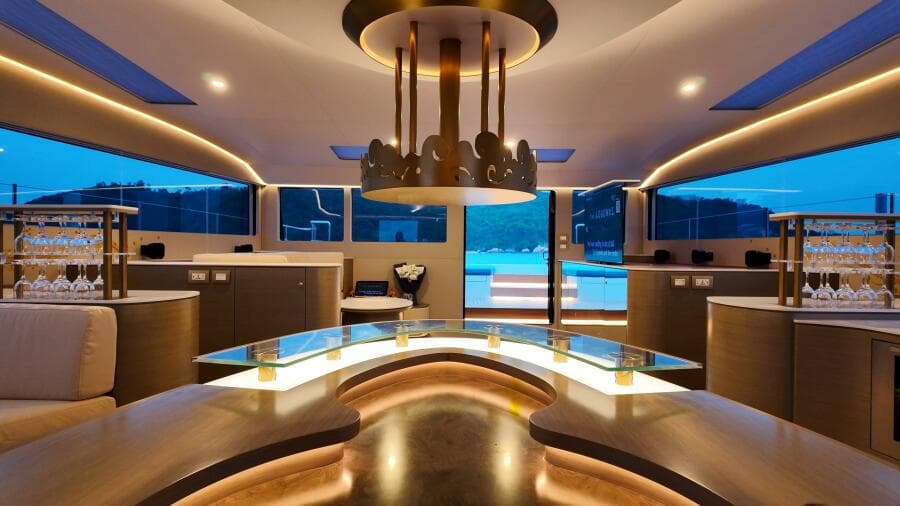

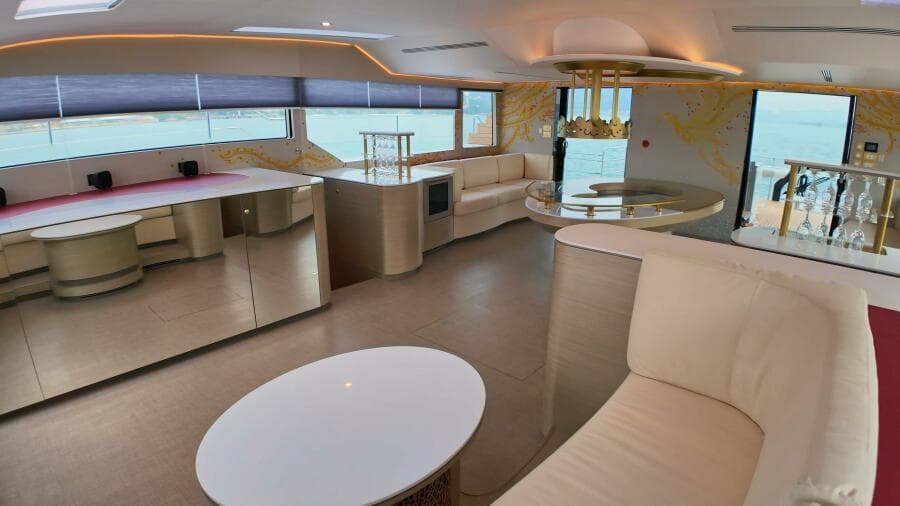

Saloon to Starboard
Electric sliding main saloon windowsL-shaped settee with bench seats, cushions
Dining table with fold out extensions on electric struts, lowers to become coffee table
Long overhead skylight
Corner settee and coffee table forward, adjacent to Nav Station
Under seating storage
Stairs to Starboard hull
Choice of headliners
Wood sole
Overheaddown lights
Recessed lighting at floor level 110/230V AC and USB Socket
Navigation Station Forward
Recaro helm seats at the nav station
Navigation and electronics panel
Clear carbon finish, customized layout
12V and USB sockets
110/230V AC Sockets

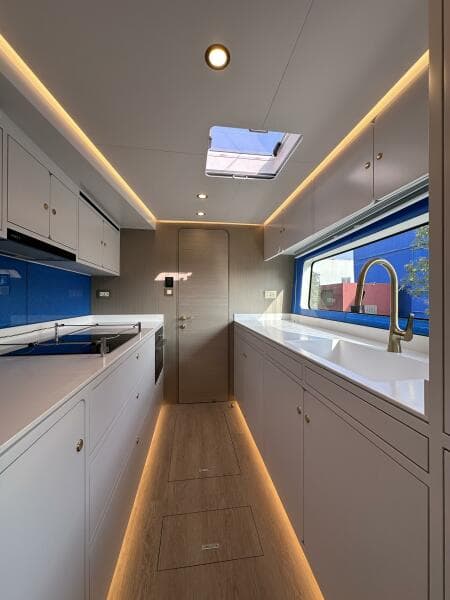

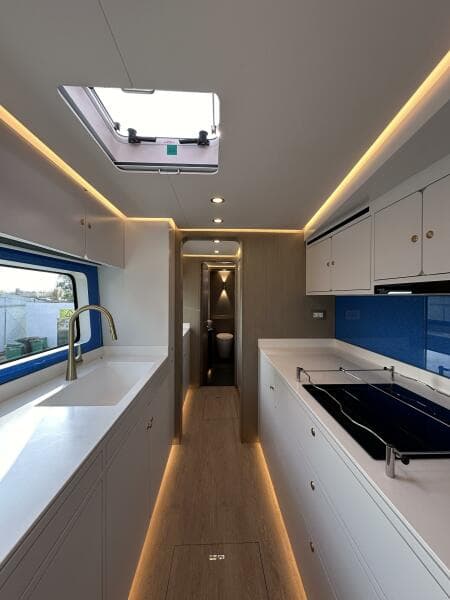

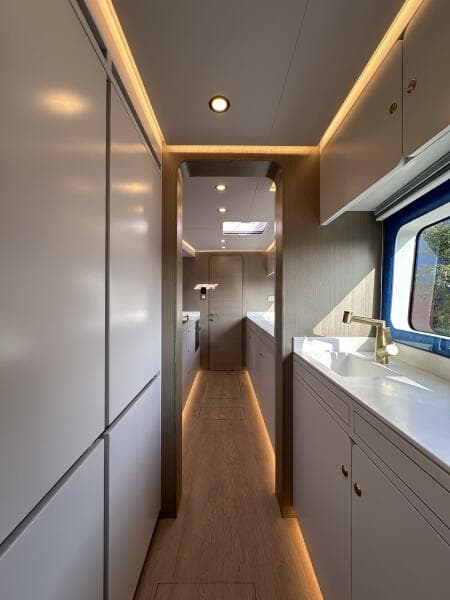

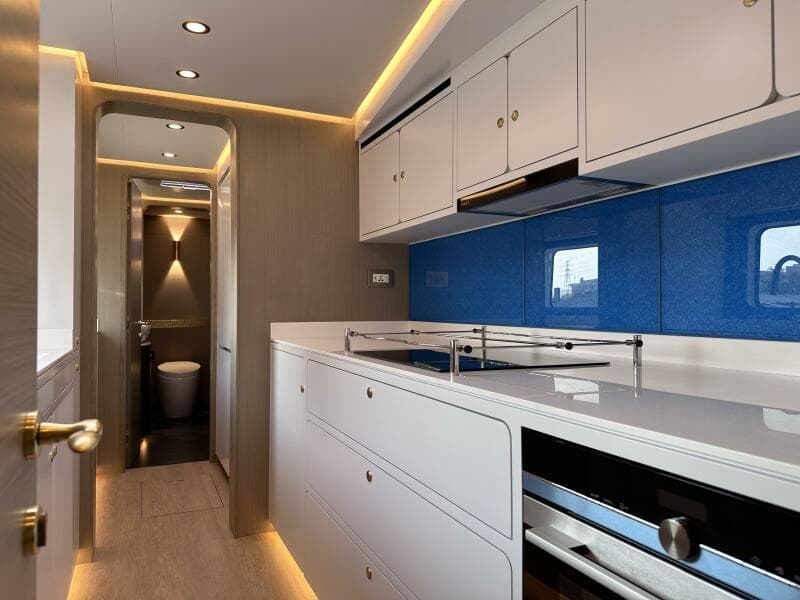

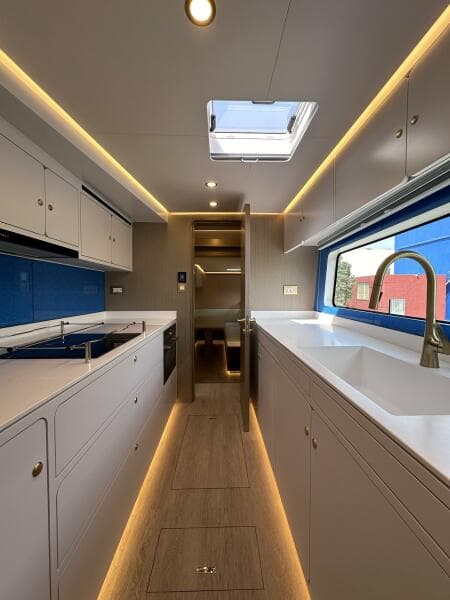

Port Side Galley and the "Island"
Electric sliding saloon windows with safety locks
Skylights extending the length of the saloon over the Island and Galley
Expansive custom Corian countertops
Twin stainless steel sinks
Mixer tap hot/cold
Stainless steel Isotherm 160L draw fridge
Stainless steel Isotherm 160L draw freezer
Electric oven and cooktop
Storage under bench tops, cupboards & draws
Recessed lighting at floor level around the IslandIn-built garbage bin

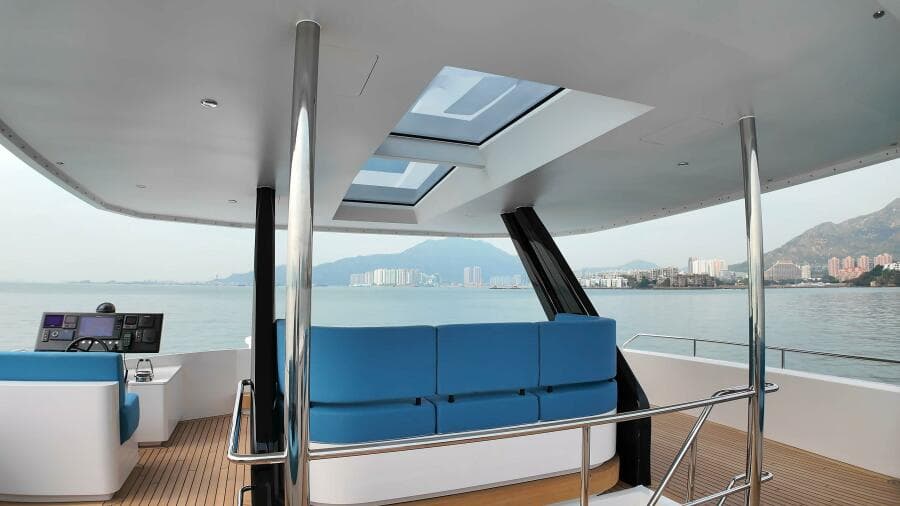

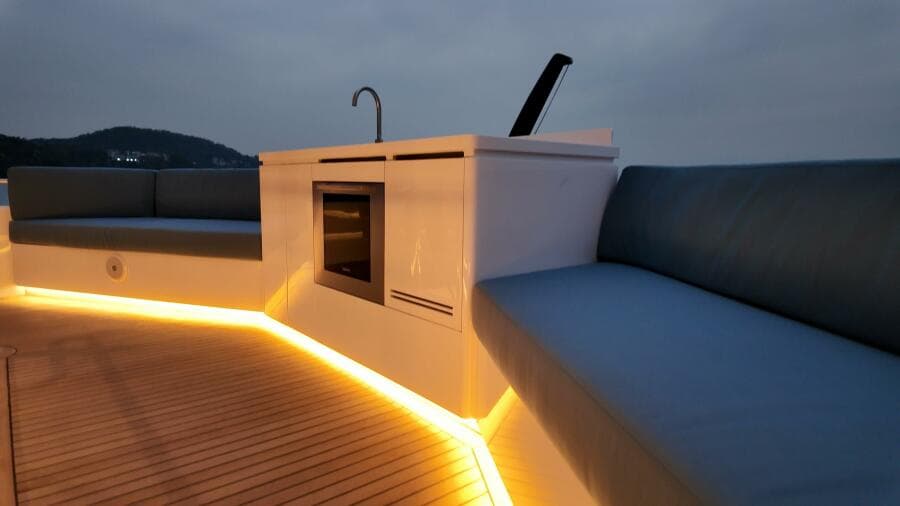

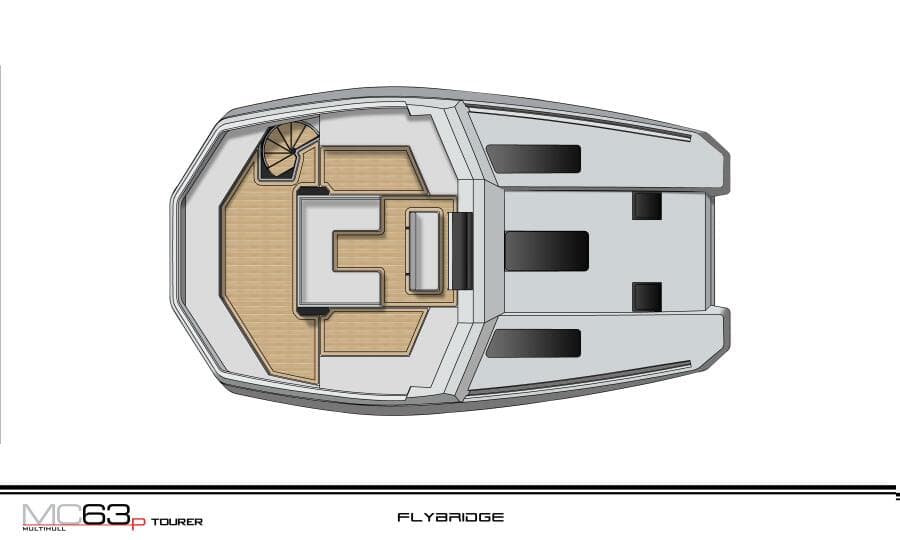

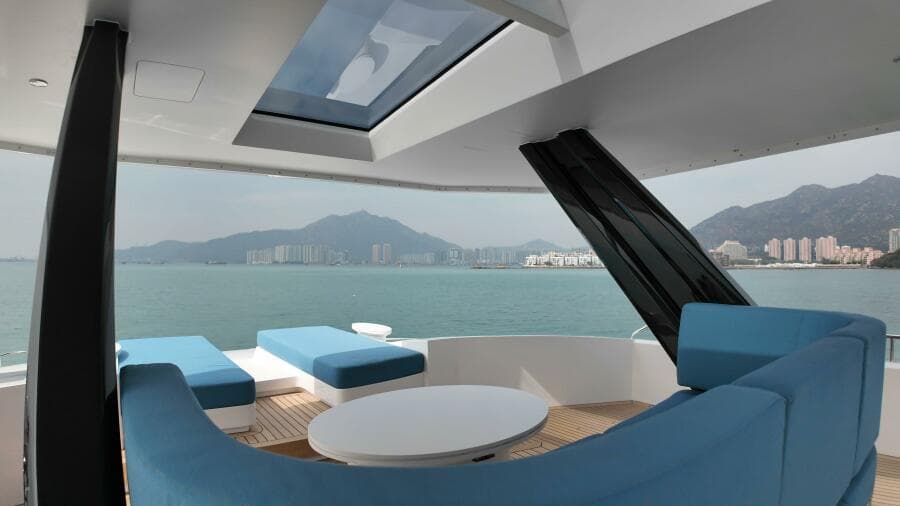

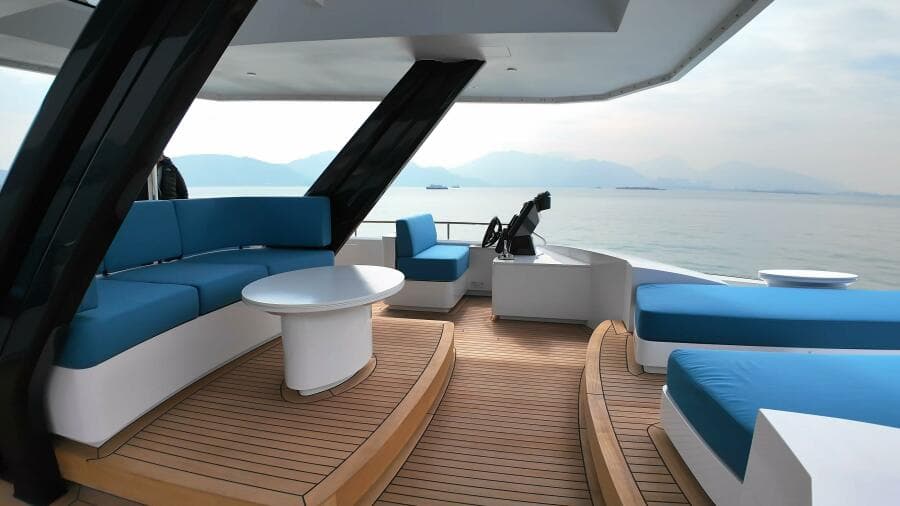

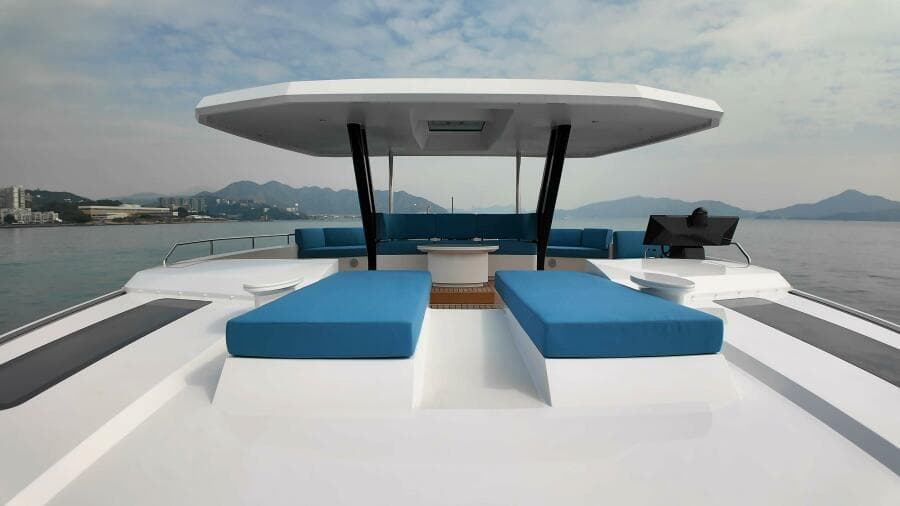

FLYBRIDGE

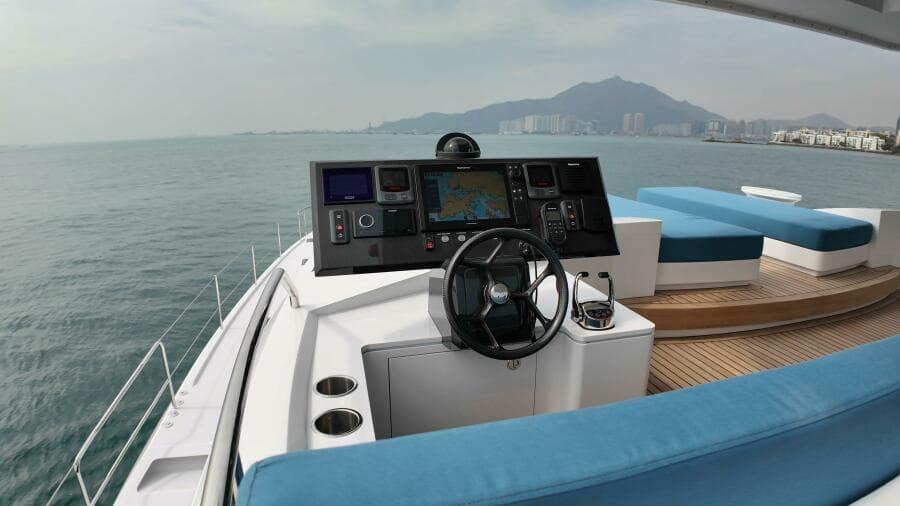

Enlarged flybridge, with offset spiral stairs to port, sunbeds and a central dining area with bench seat in front, Central helm station
Lounge area with wrap-around seating
Flybridge Sunbrella cushions
McConaghy carbon fiber steering wheel
Two (2) Seasmart folding footsteps to coachroof
Five (5) red courtesy lights
*Flybridge Layout Customizable

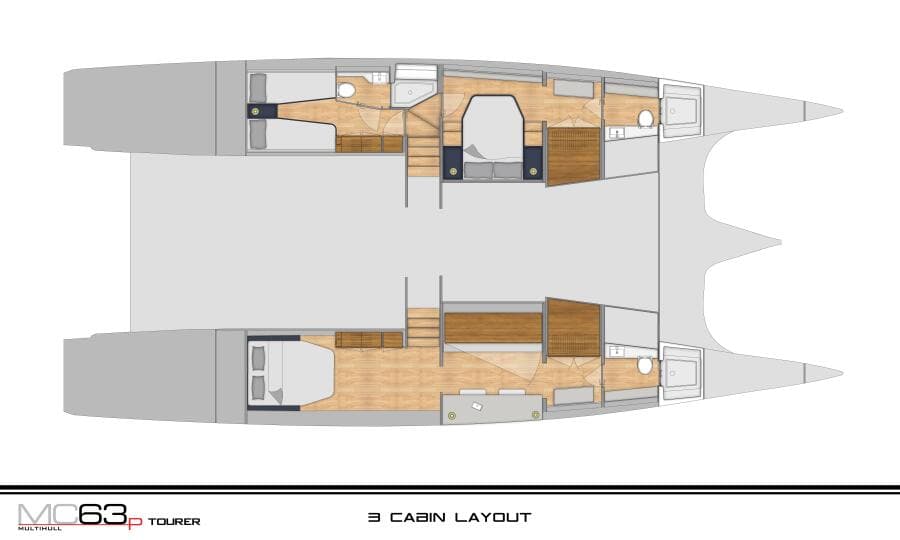

STARBOARD HULL - MASTER CABIN (3 CABIN LAYOUT)

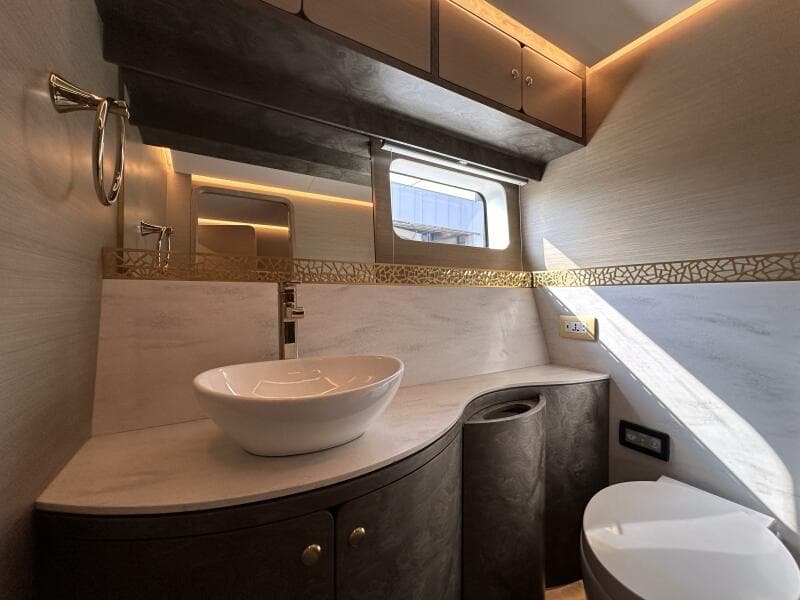

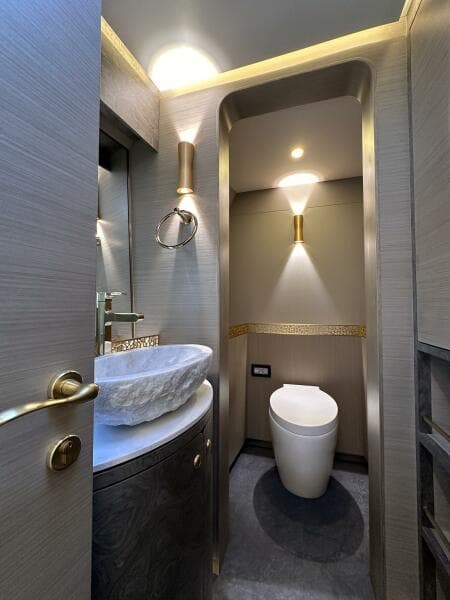

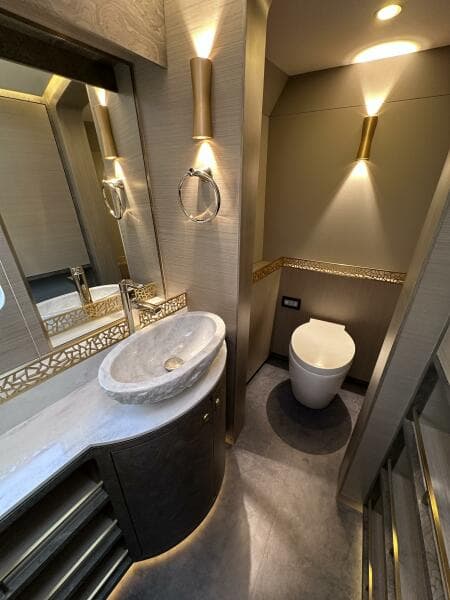

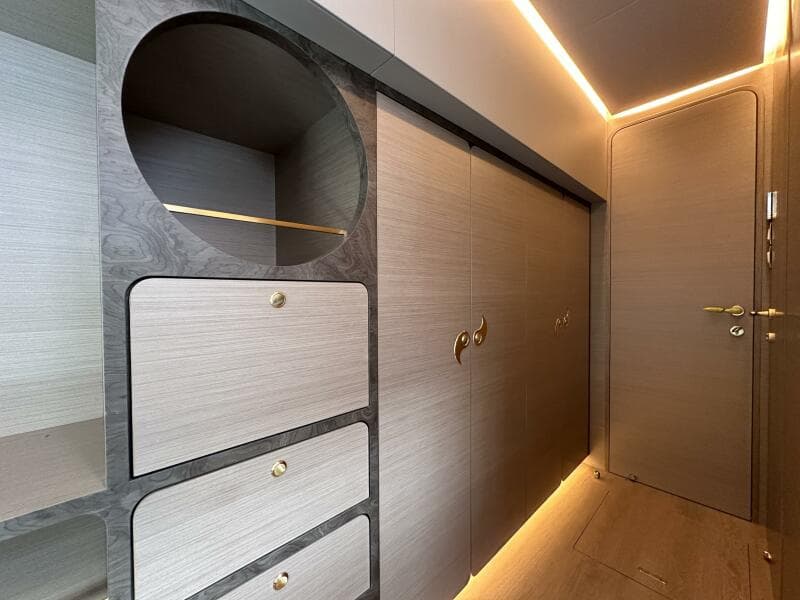

Forward Shower, Bathroom, Dressing Room

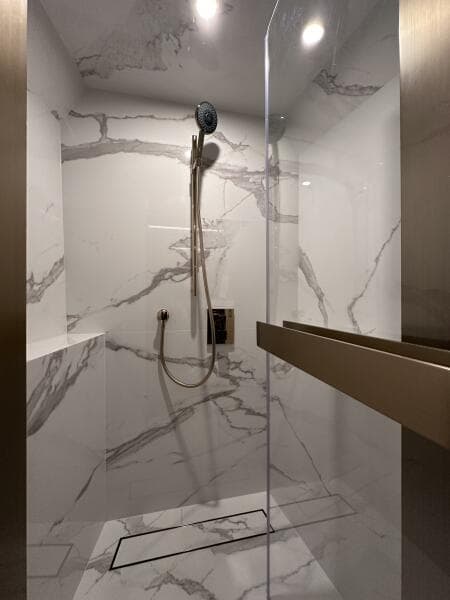

Quality shower fittings
Seaward-facing side windows

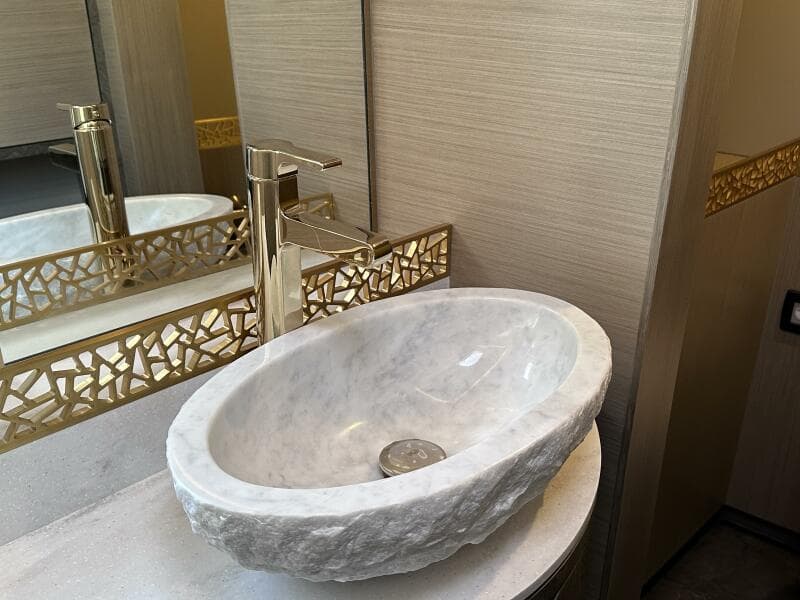

Vanity sink with cabinet
Mixer tap hot/cold
Full-length mirror
Electric toilet as standard
Hanging locker
Ventilation fan
Overhead downlights, recessed lighting at floor level
110/230V AC Socket

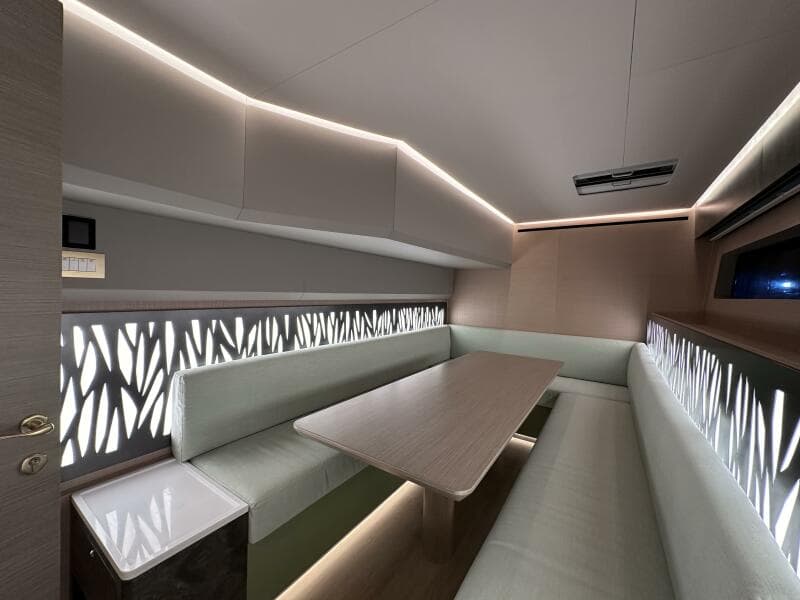

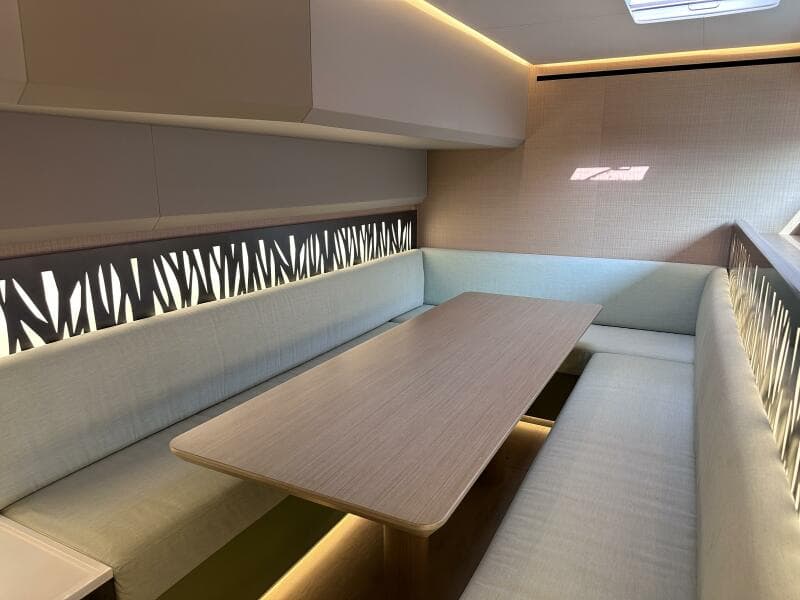

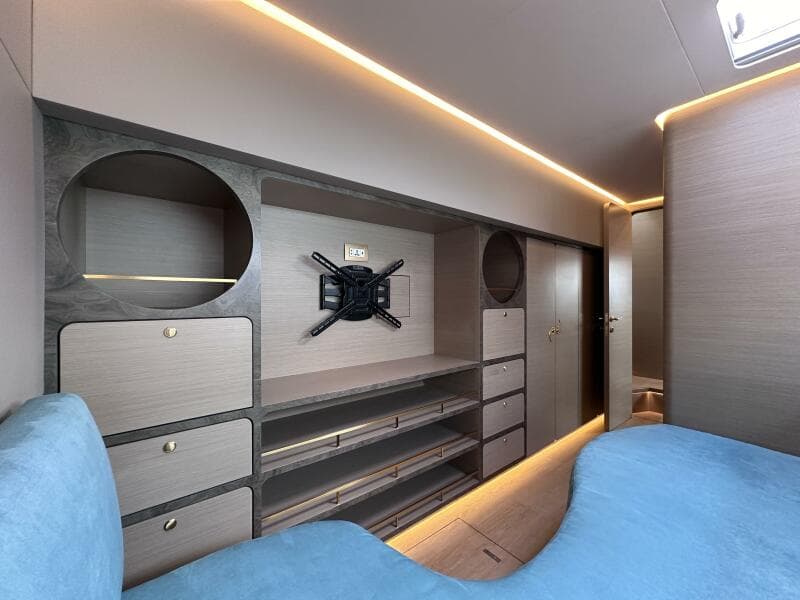

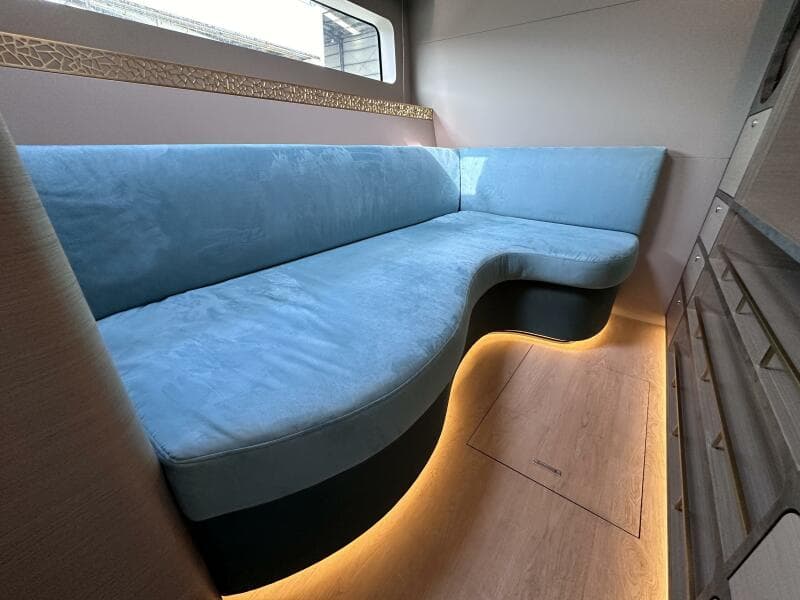

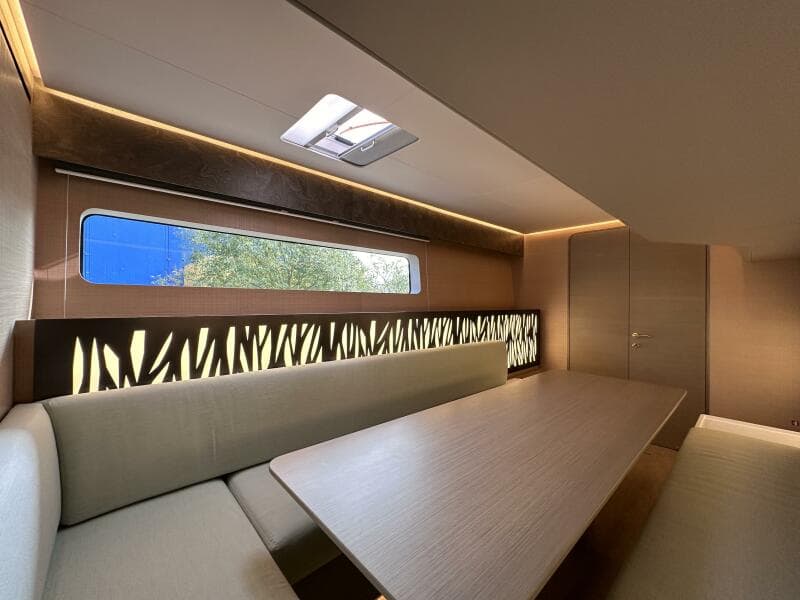

Mid Ship Lounge / Den
Sofa
Seaward facing side windows
Custom cabinetry with soft close drawers
Overhead downlights, recessed lighting at floor level
110/230 V Sockets and USB sockets
Large articulating TV Cabinet (TV not included) or bookshelf / storage

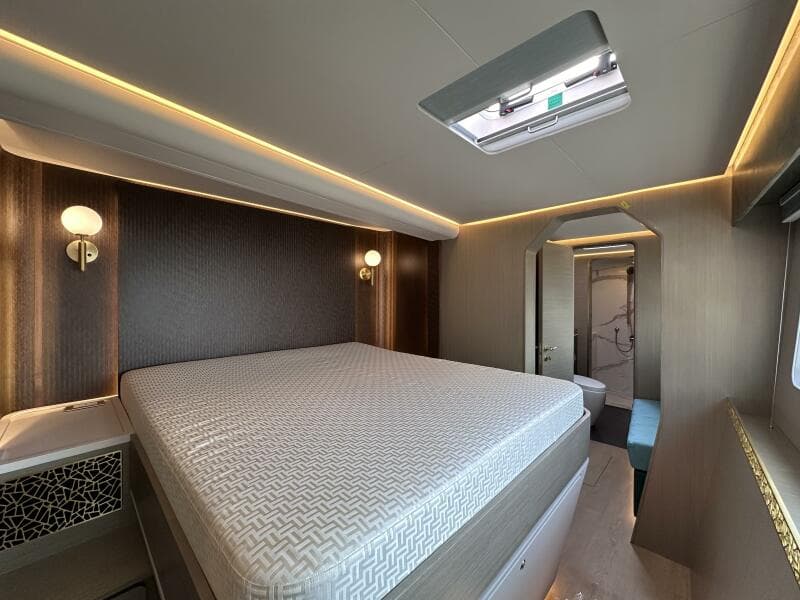

Aft Owner Cabin
Double Berth with storage underneath and overhead lockers
Seaward-facing side windows
Overhead hatch
Wood sole
Hull and Head liners
Overhead downlights, recessed lighting at floor level, bedside reading lights
110/230V AC Socket
PORT HULL - 2 GUEST CABINS

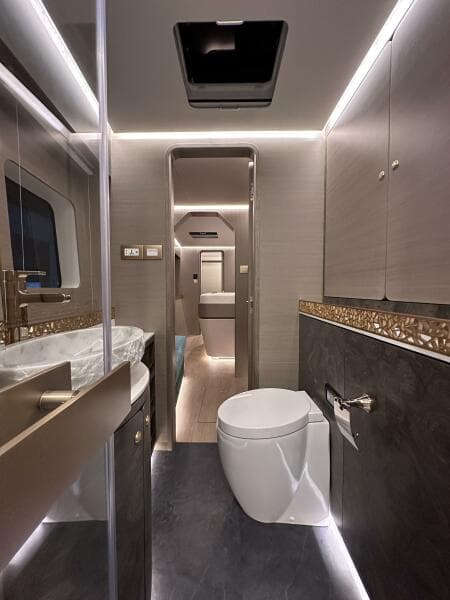

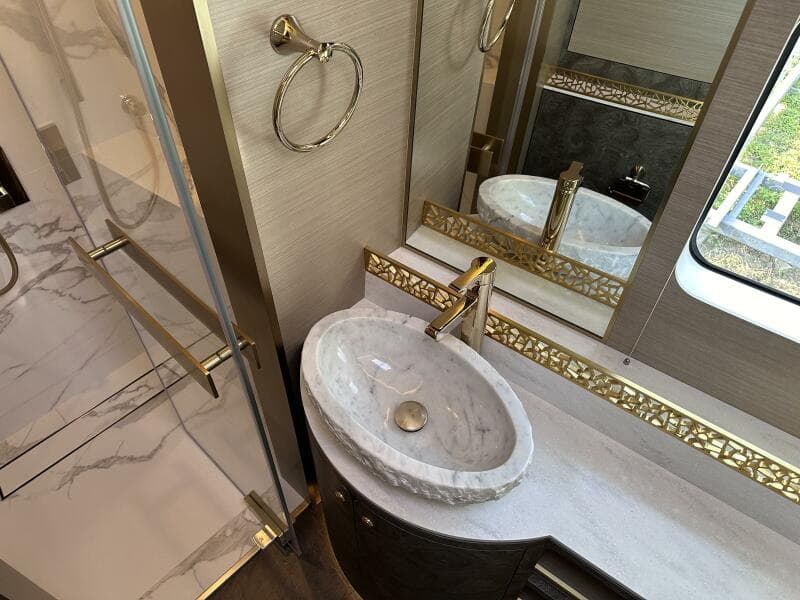

Forward Shower, Bathroom, Dressing Room
Large shower with quality fittings, corian sole and inboard hatch
Seaward facing side windows
Sink with cabinet and hot/cold mixer tap
Electric toilet
Hanging locker
Full length mirror
Bench seat
Ventilation fan
Overhead down lights, recessed lighting at floor level
110/230V AC and USB Socket
Midship Guest Cabin
Underdeck seaward facing double berth
Seaward-facing side windows
Ample storage under berth
Overhead hatch
Wood Sole
Hull and headliners
Overhead down lights, recessed lighting at floor level, bedside reading lights
110/230V AC Sockets and USB sockets
Aft Guest Cabin, Head and Shower
Twin single berths, with insert to convert to large double
Seaward-facing side windows
Ample storage underneath and lockers above berths
Overhead hatch
Wood sole
Hull and headliners
Large shower with quality fittings, Corian sole and overhead hatch
Sink with cabinet and hot/cold mixer tap
Electric toilet
Full-length mirror
Ventilation fan
Overhead downlights, recessed lighting at floor level, bedside reading lights
110/230V AC and USB Sockets

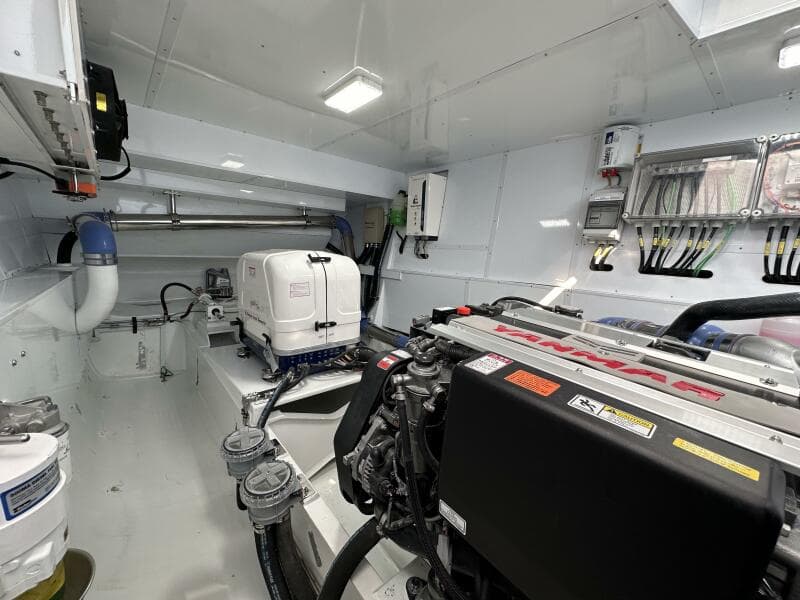

Systems and Machinery

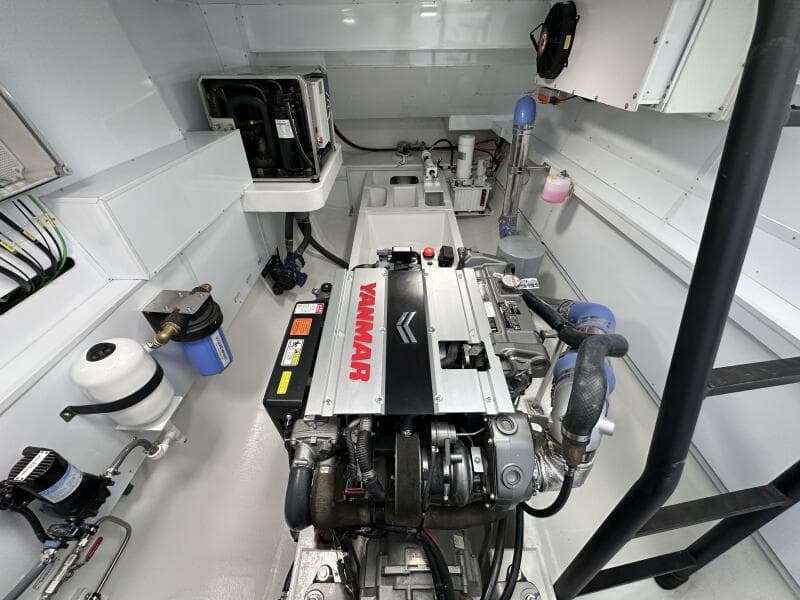

Engines and propellers 2 x 370hp Yanmar with shaft drives
Electronic throttle controls mounted in lower and upper helm stations
Insulation in Engine rooms
Freshwater engine cooling system
Engine instrument panel at helm position
Fuel tanks, total approx. 2 x 2000L
Racor500 fuel filters
Exhaust water locks
Two (2) Fuel Level Sensors
Two (2) Deck Fillers
Plumbing
Two (2)Rule automatic bilge pumps in each bilge compartment (2,000 GPM each
Hot & cold pressure water
Two (2) Isotherm water heaters – 40 Liter tanks slim
One (1) Gianneschi 50lpm/2,2-3.5bar Pressure pump
Black water tanks, total approx 160L
Fresh water tanks, approx 2 x 400L
Fresh Water Level Sensor
Holding tank sensor
Power Supply
One (1) Galvanic Isolator
Two (2) 110Amp 24V alternators
Six (6) MLI Ultra Lithium Ion 24/6000 Batteries
Two (2) Main Engine Start Batterie
Interior and Navigation Lighting and DC Power
CZone Digital Switching System including touch screen, iPad compatible, voltage, tank, bilge and fuse alarms, lighting (switches and dimmers), custom controls hydraulic transom (optional)
Interior downlights
Cockpit Lights on the Flybridge
Recessed lighting at floor level
One (1) Red/White nav stn light
One (1) all-round white nav light
One (1) stern light
One (1) port light
One (1) stbd light
One (1) Tank Sensor Monitor
Electrical AC
AC switch panel
Shore power / combination inverter
Entertainment
Fusion entertainment system - Four (4) speakers
Rudder and Steering
Twin rudders
Hydraulic Steering
Hatches
Lewmar flush deck hatches drained to the waterline
Anchor and Mooring
One (1) Lewmar V5 electric windlass
One (1) 50kg galvanized anchor, 100m chain
Six (6) x Nomen 300mm folding cleat
Lifting Platform
PLC controlled Hydraulic swim platform / tenderlift (width 4 meters) load capacity 1200kg, with remote control, Seasmart cleats, safety locks, and folding pad eyes (x4)
Miscellaneous Deck Hardware
McConaghy composite stanchions
Solid stainless steel bow rails
Two (2) deck water fillers
Two (2) deck fuel fillers
Two (2) deck waste pump-out
One (1) deck wash pump
Foredeck trampoline - black, grey or white
