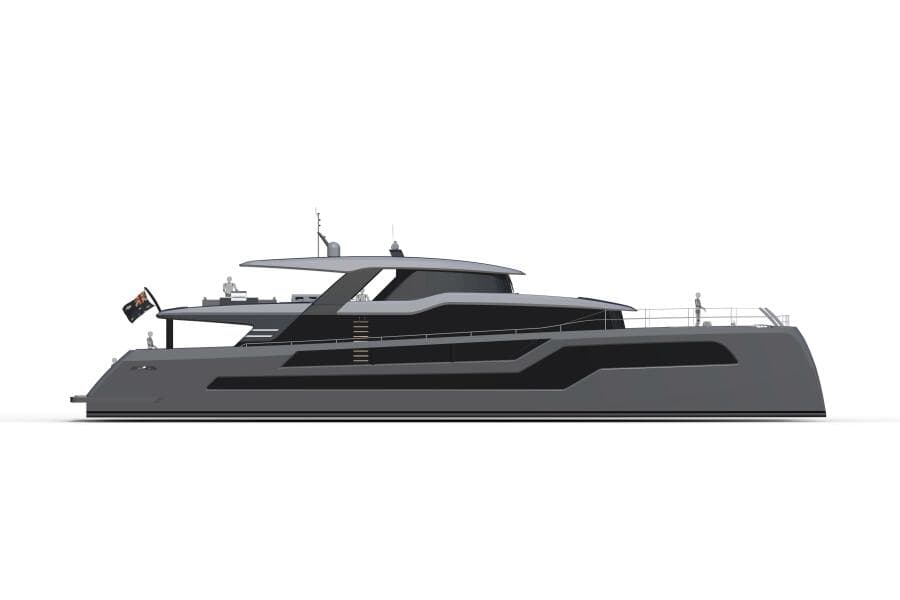

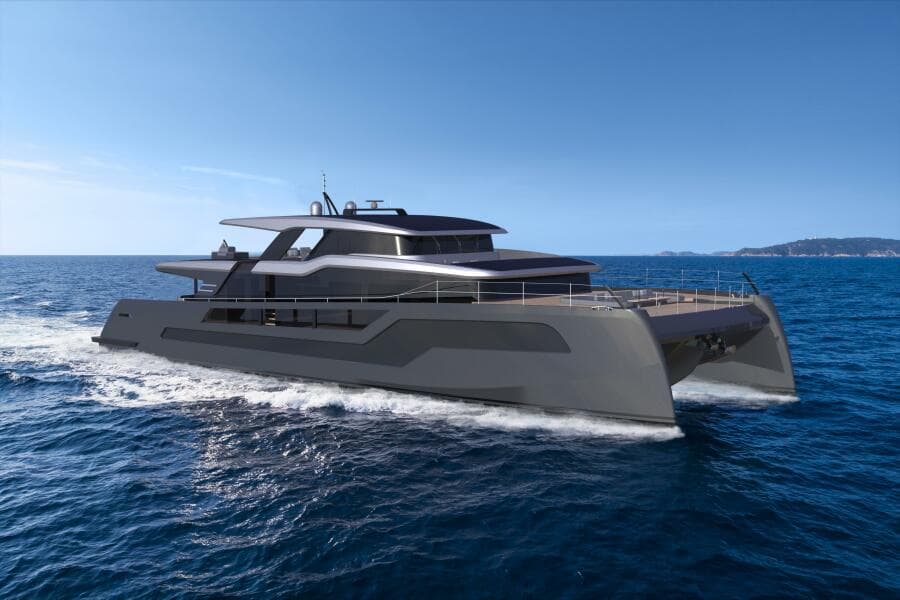

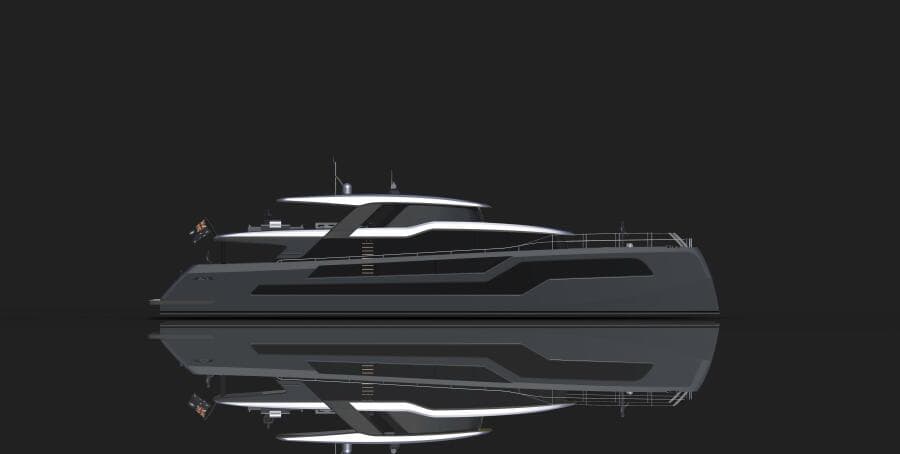

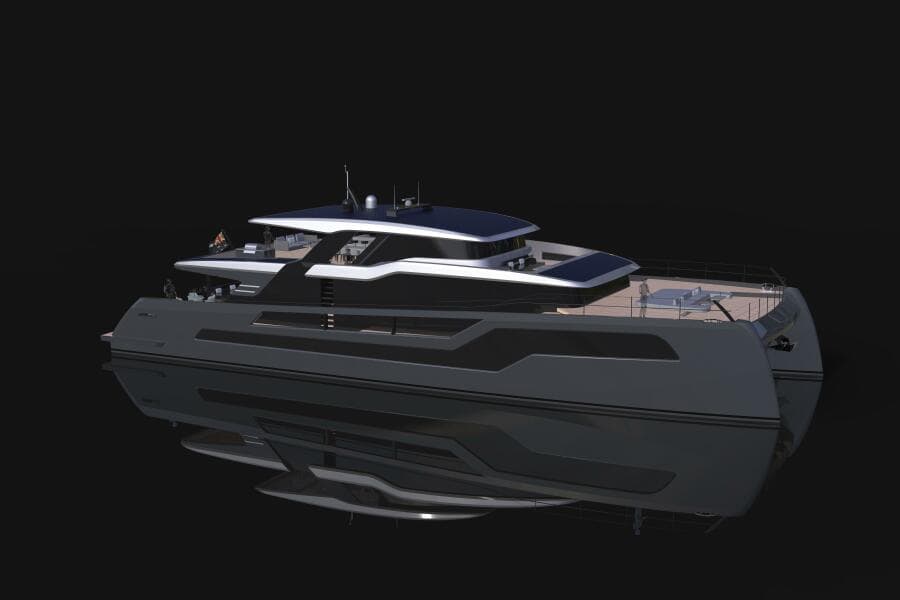

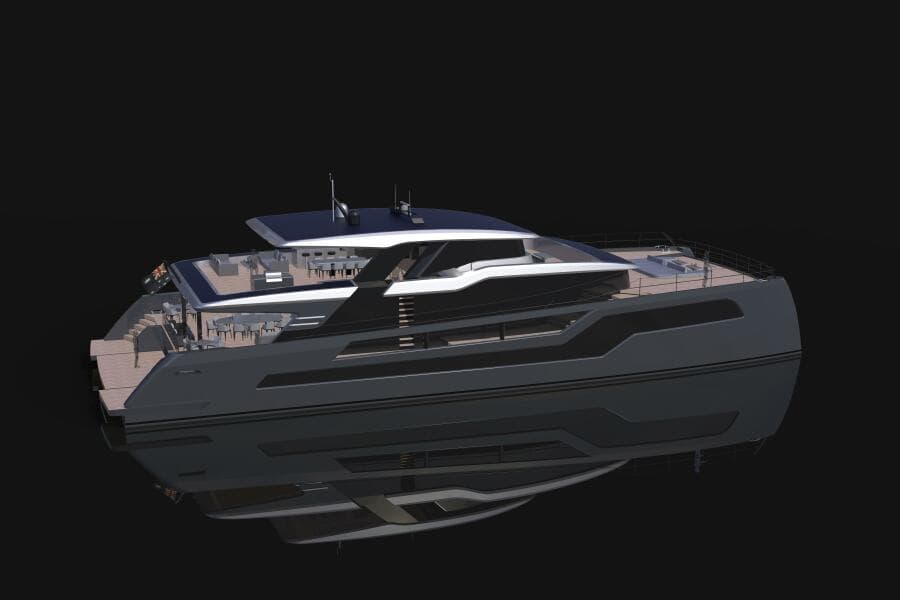

2027 McConaghy Boats MC115P Power Catamaran

LOA - 35.36m

Max Beam - 13.50m

Draft - approx1.30m

Standard Power - 4 x Volvo IPS1350 (total 4,000hp

Generator - 2 x Kohler - 24EKOZD 60hz

Fuel Tanks capacity - approx 40,000L

Fresh Water capacity - approx 2,400L

Black water capacity - approx 1,000L

Grey water capacity - approx 1,000L

Cruising speed - approx 17kts

Headroom saloon - 2.1m - 2.5m

Headroom hulls - 2.1m - 2.3m

Range:

At 10kts - approx 6,154nm

At 12kts - approx 4,248nm

At 20kts - approx 2,667nm

The hull, deck and superstructure will be of composite construction (Epoxy resin, E-glass with Carbon reinforcement and Gurit san foam corecell).The hull, deck and structure to be post-cured at high temperatures in a custom-built oven to elevate the TG of the resin.Both bottom shell and topside shell are framed by major transverse bulkheads, whilst the bottom shell is reinforced with a matrix of floors and longitudinal stringers, and the topsides shell by longitudinal stringers.

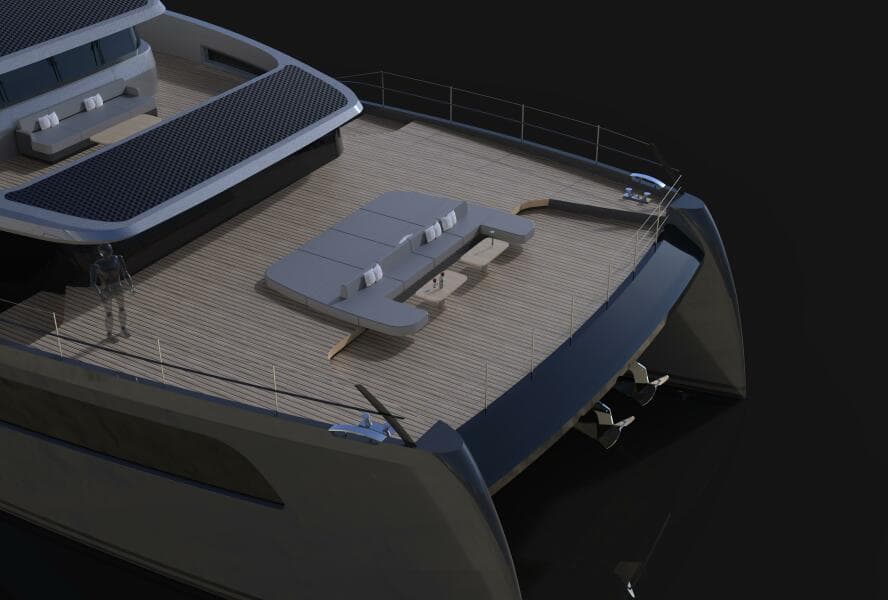

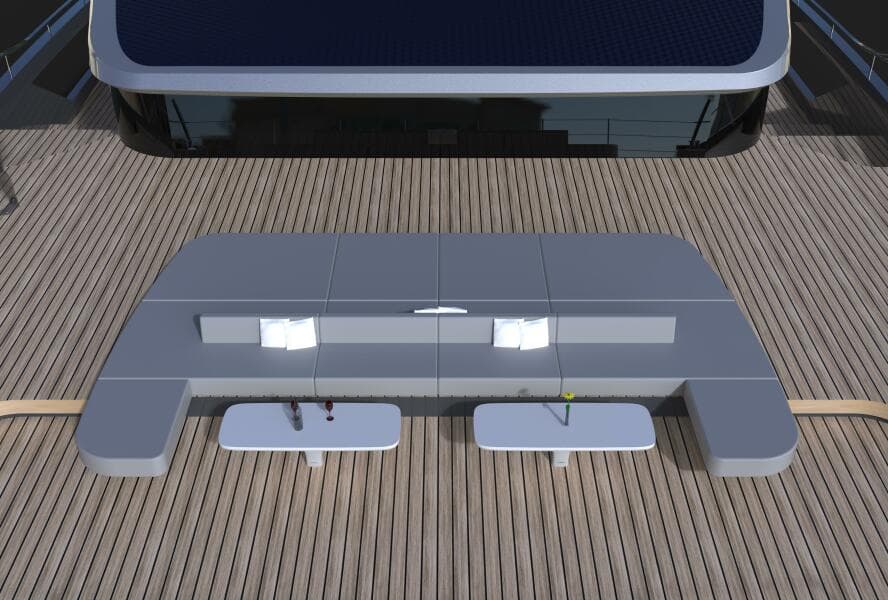

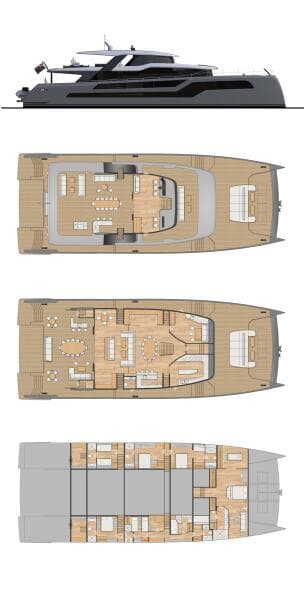

Foward Deck: Lower profile lounge/convertible to a sunbed, coffee table, and storage lockers

Saloon: Crew Mess in forward port; Galley in forward starboard; Dining table for 12, U-shape wet bar and storage lockers in mid; Lounge area in aft saloon

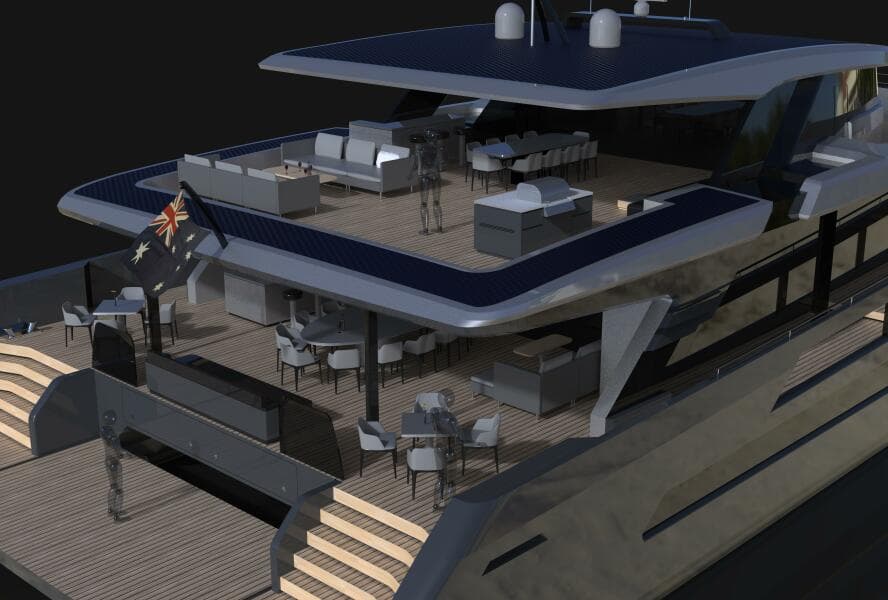

Aft Deck: L-Shape Lounge, Wet Bar with 3 bar stools, Dining table for 12

Helm station with carbon wheel, 5 helm chairs

Side opening doors port & starboard to Portuguese bridge

Stairs from side decks to flybridge

Wet bar with storage under

BBQ island with mixer tap and stainless steel sink at stab

Dining table for 12 people (loose furniture)

Three sofa lounges with coffee tables (loose furniture)

Master cabin forward, SPA cabin at port, lounge at stbd•Port Hull: 2 VIP guest cabin with double berth, 1 guest cabin with twin bunks & 1 workshop•Starboard Hull: 2 crew cabins , 1 captain cabin with twin bunks, 1 guest cabin & 1 workshop

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
