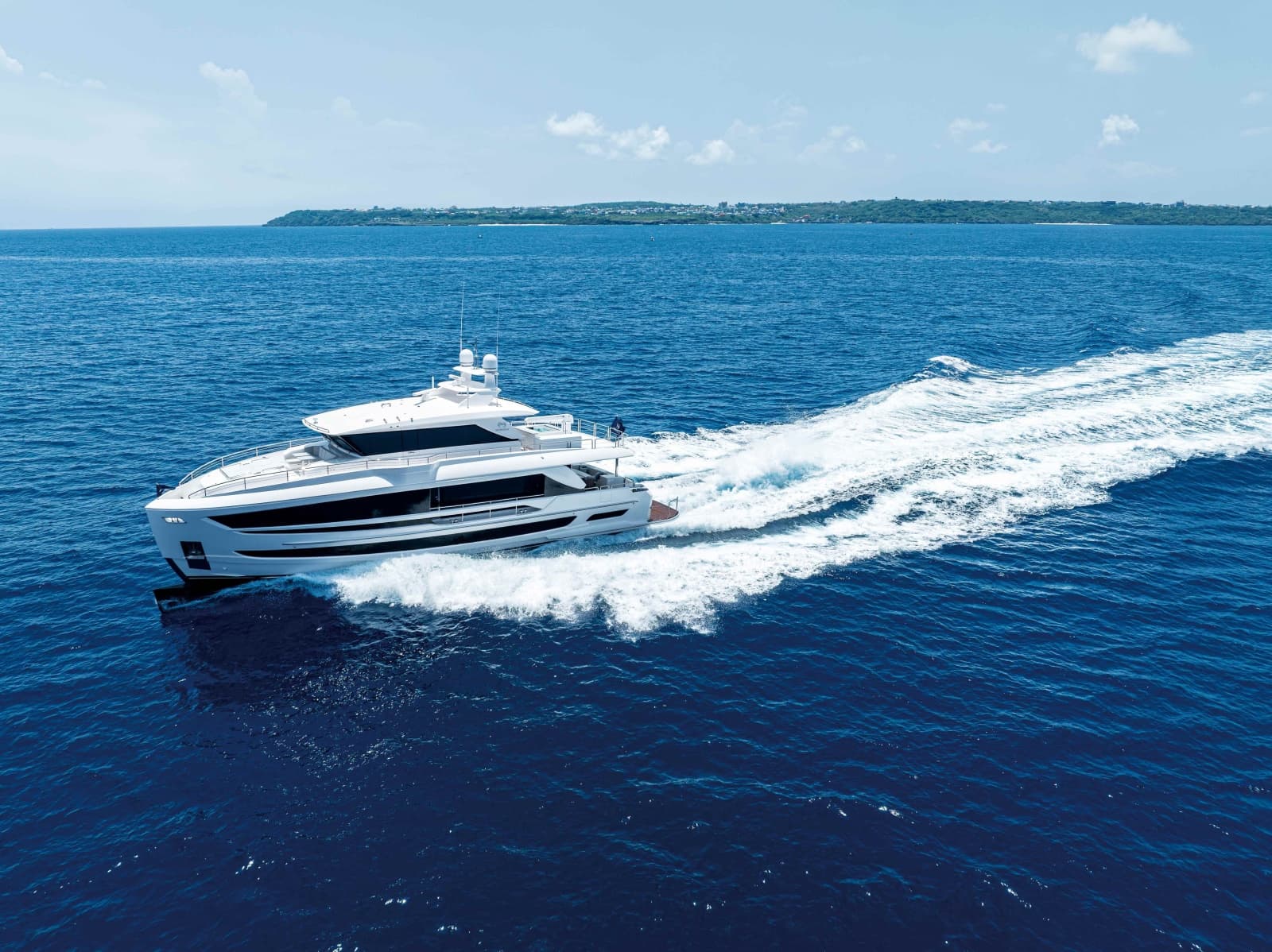

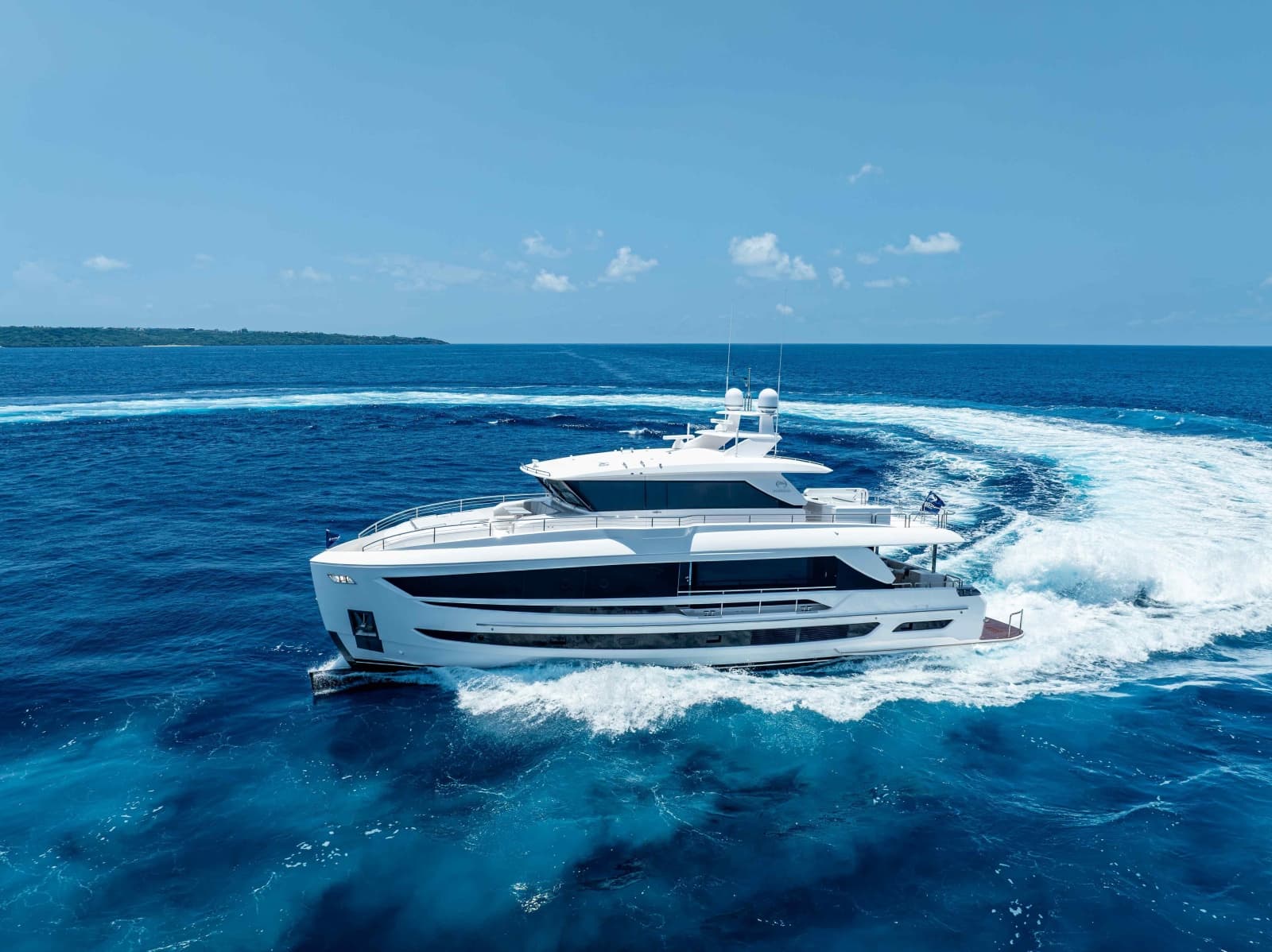

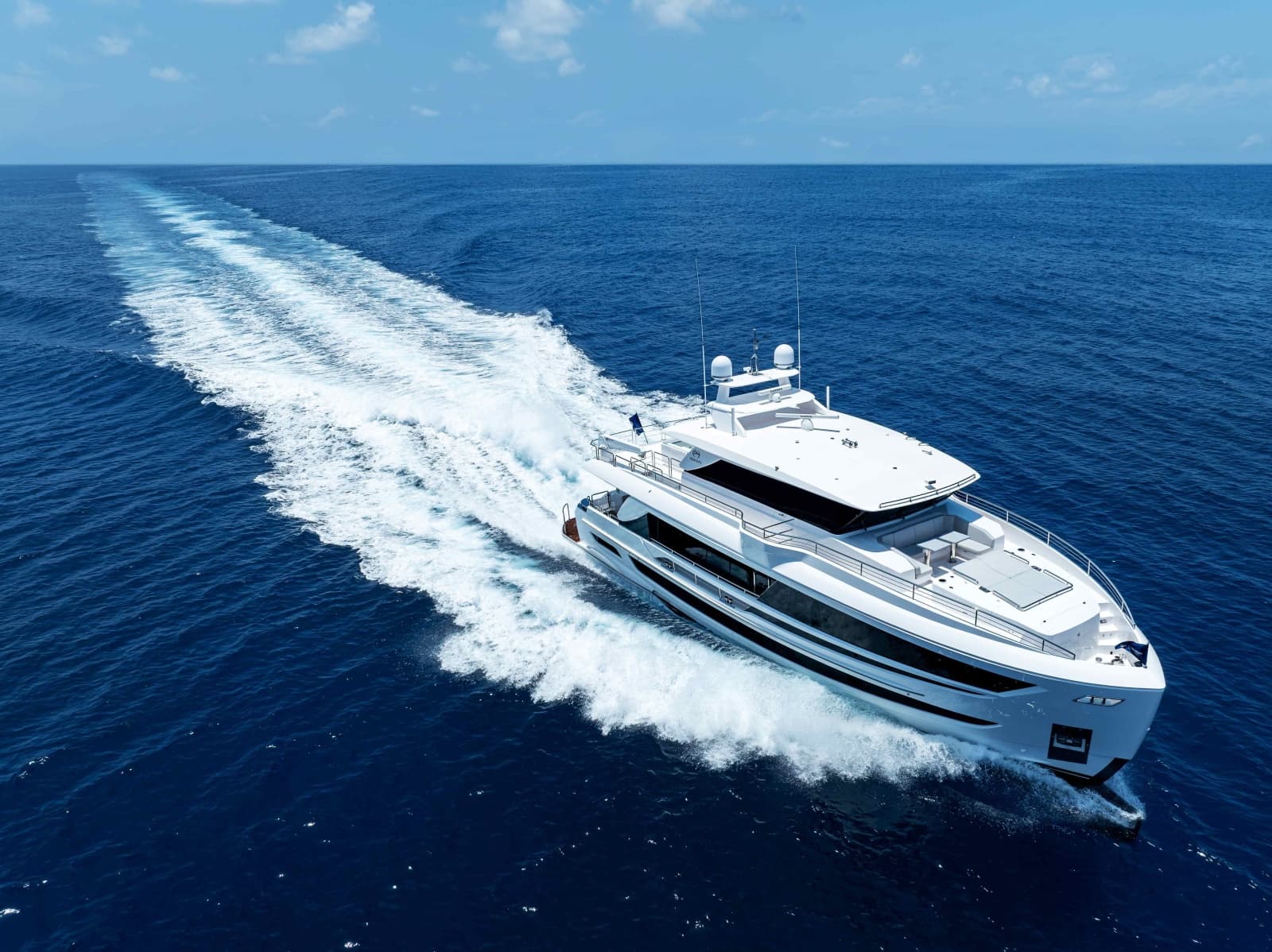

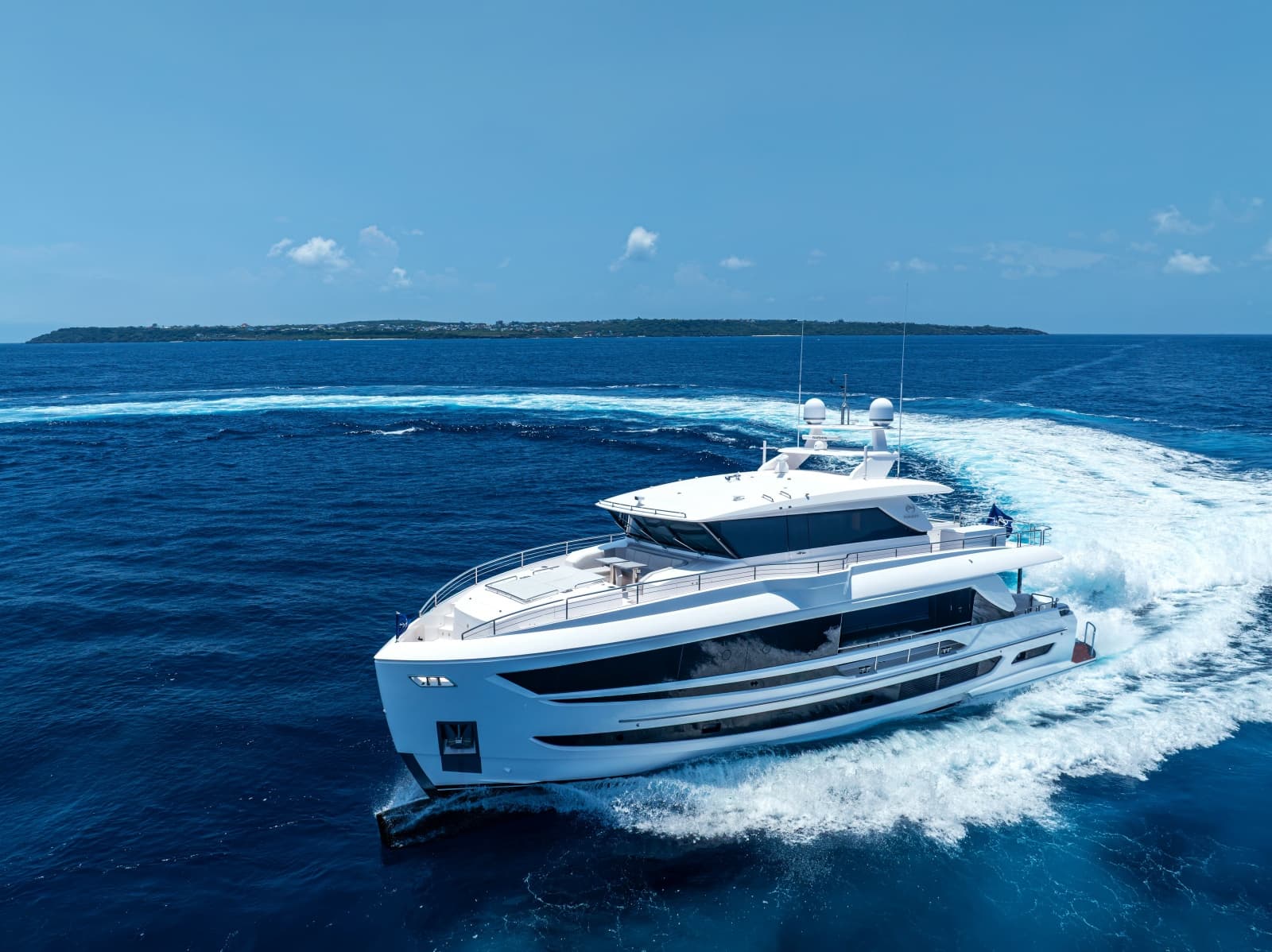

2027 Horizon FD80

White gelcoat finish

One-piece hull and superstructure utilizing

SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers

Hull, deck and superstructure built with licensed process SCRIMP™ for improved strength and less weight

Hybrid design hull bottom with sandwich construction and solid fiberglass

High-density foam cored hull sides, decks and superstructure

Stringers with high-density foam coring

Interior structural components all properly bonded to hull

Strong collision bulkhead for extra safety

International brand anti-fouling bottom paint with anti-osmosis treatment

PropSpeed/PropGold metal paint for underwater appendages

Tunnels for reduced draft

High-Performance Piercing Bow (HPPB) with S/S protection plates

Upper deck with bump-out design at PORT and STBD side

(2) 10-person life rafts

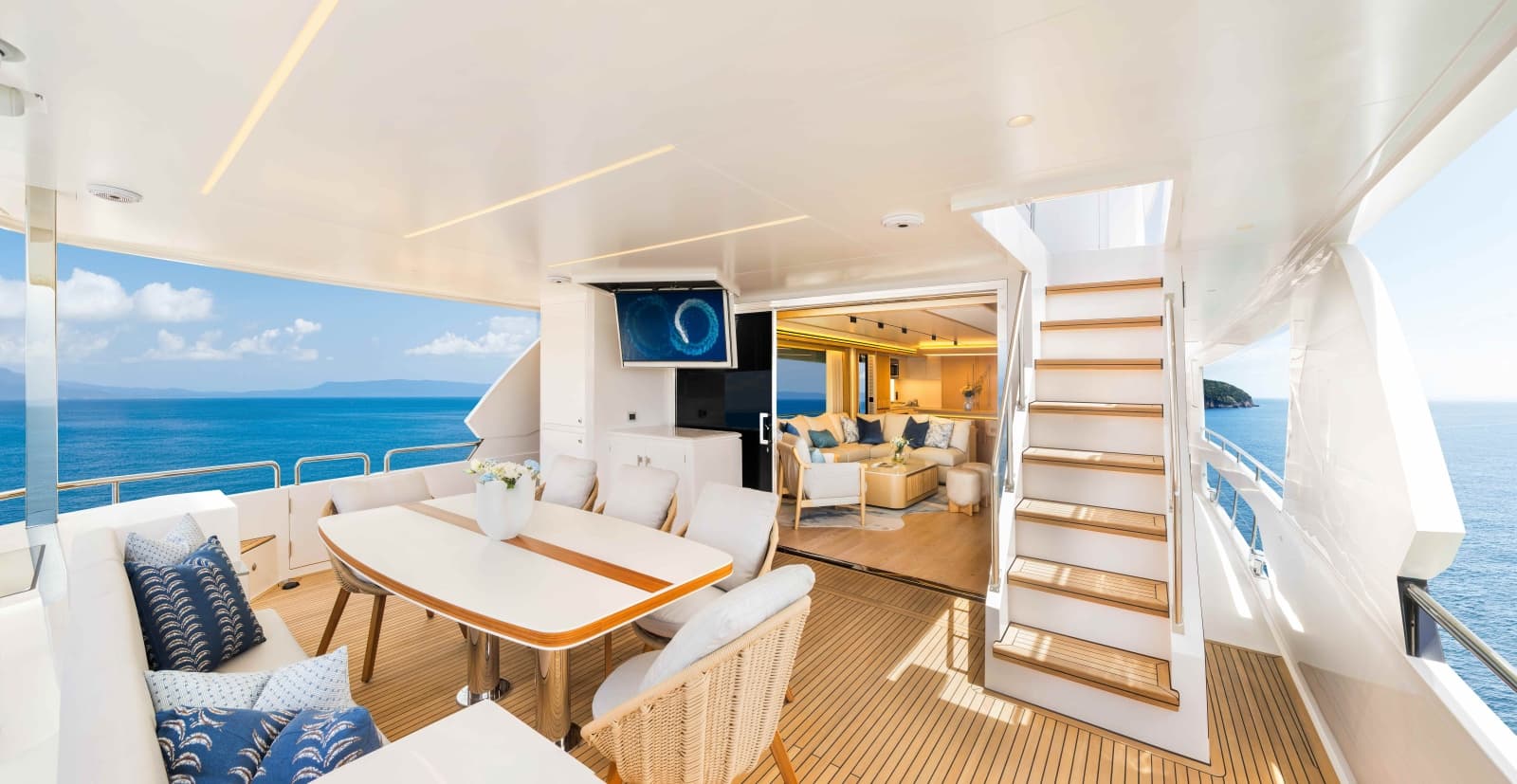

Teak aft deck

(2) ACCO 300ft high tensile 1/2” anchor chains (2) 90kg S/S anchors

(2) Maxwell VWC 3500 windlass

(3) Maxwell VC2500 electrical rope capstan on aft deck and bow deck

(2) Chain counters in pilothouse Freshwater & seawater anchor chain washdown system

Frameless windows, slightly tinted tempered laminated Low-E glass for windshield

Frameless windows, tinted tempered laminated glass for side windows

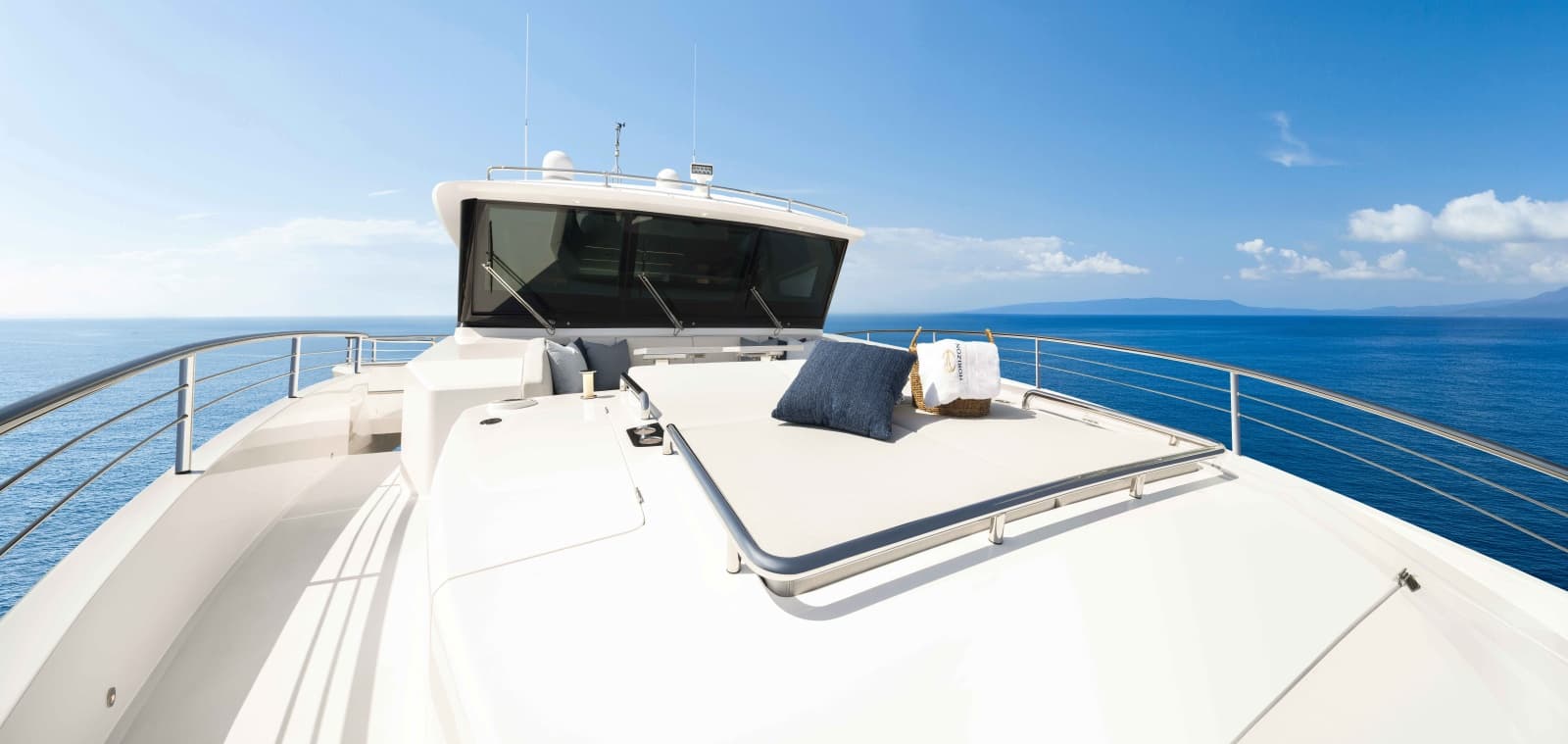

Foredeck accessed from STBD staircase/walk around on main deck

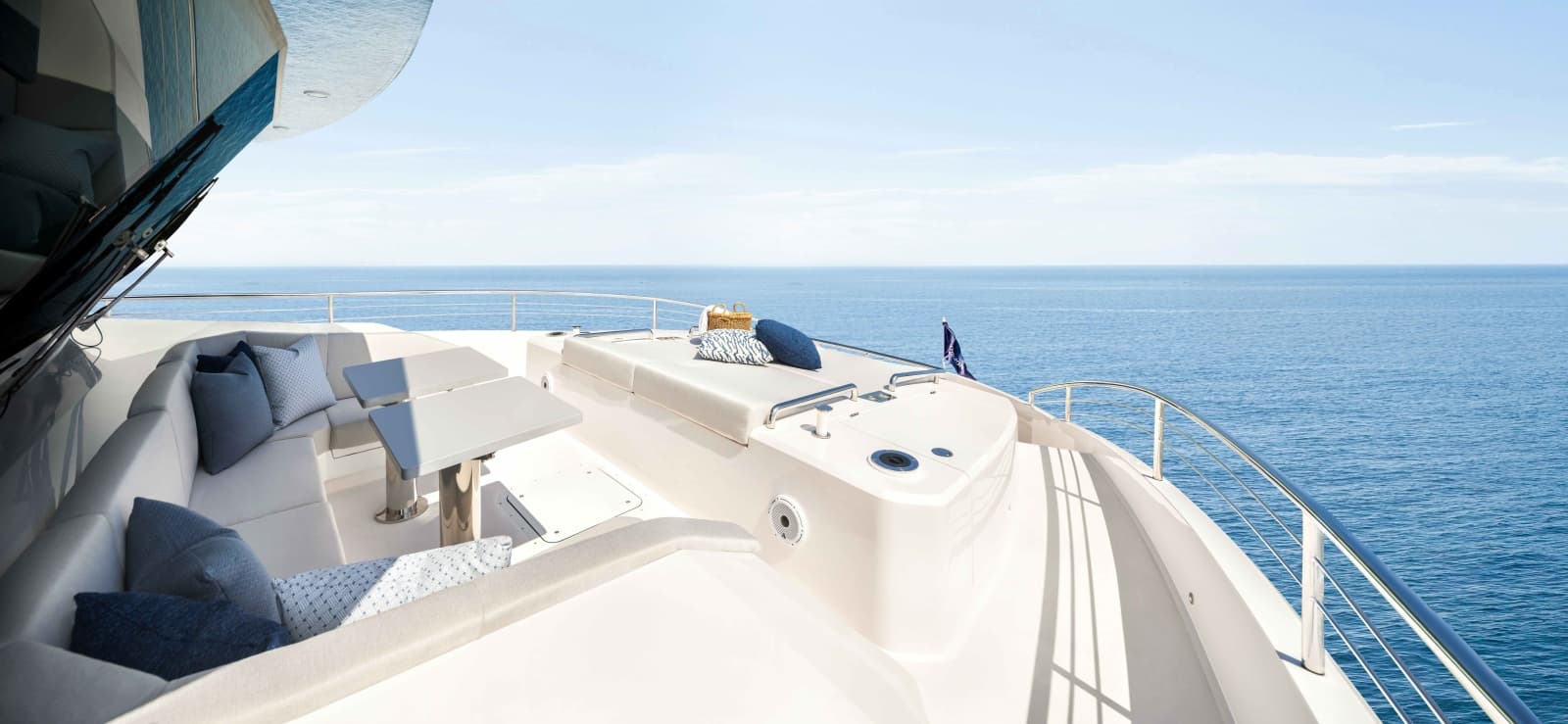

Foredeck built-in U-shaped seating w/ sliding tables

Foredeck sun pad w/ drink holders

Sunshades for bow seating, per layout

(2) Bulwark side doors close to aft deck for boarding

Wind/weather door on each side of the aft deck leading forward to the side decks

MarQuipt 7-step side boarding sea stairs

43” LED electrical flip-down TV

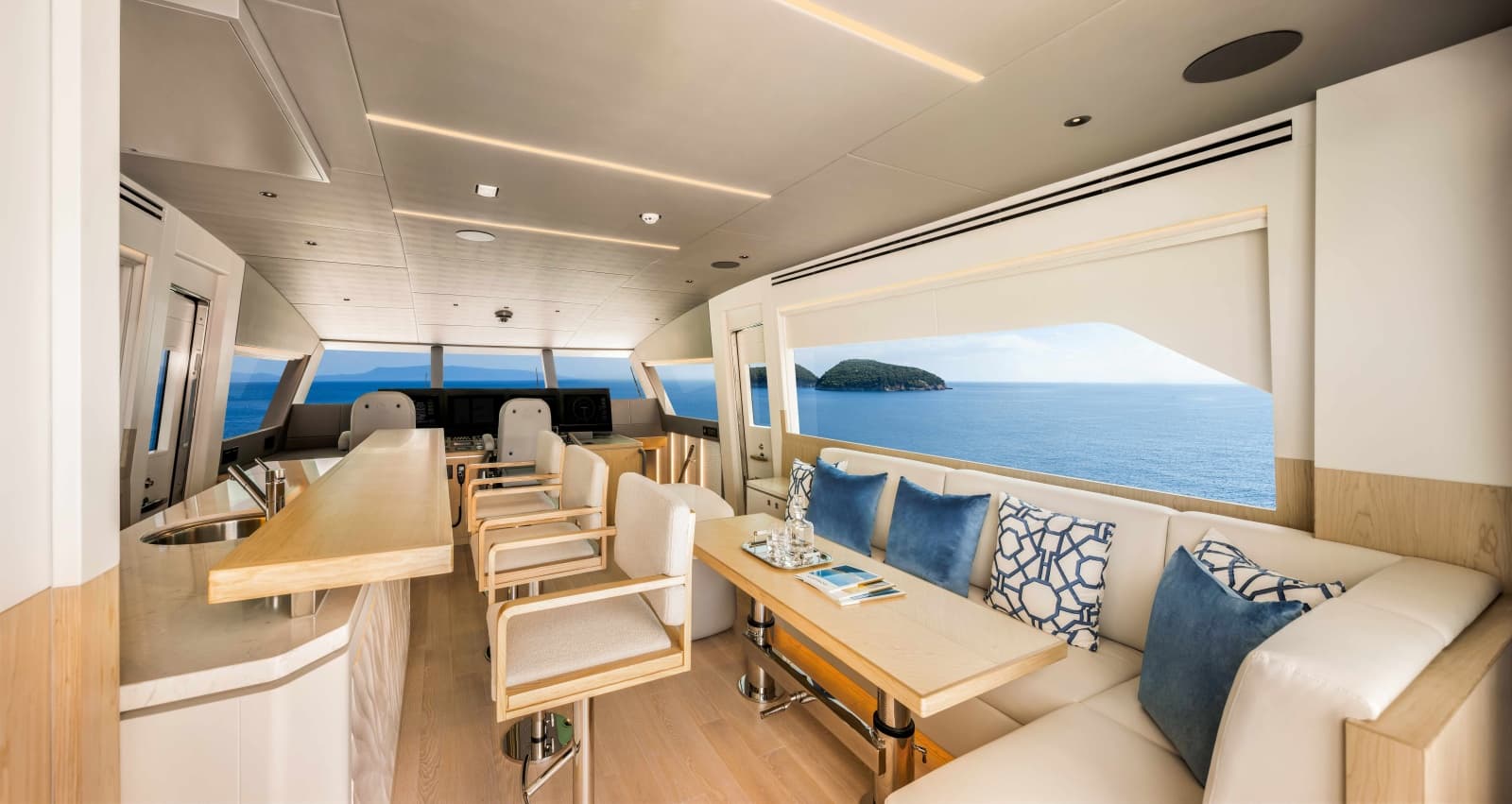

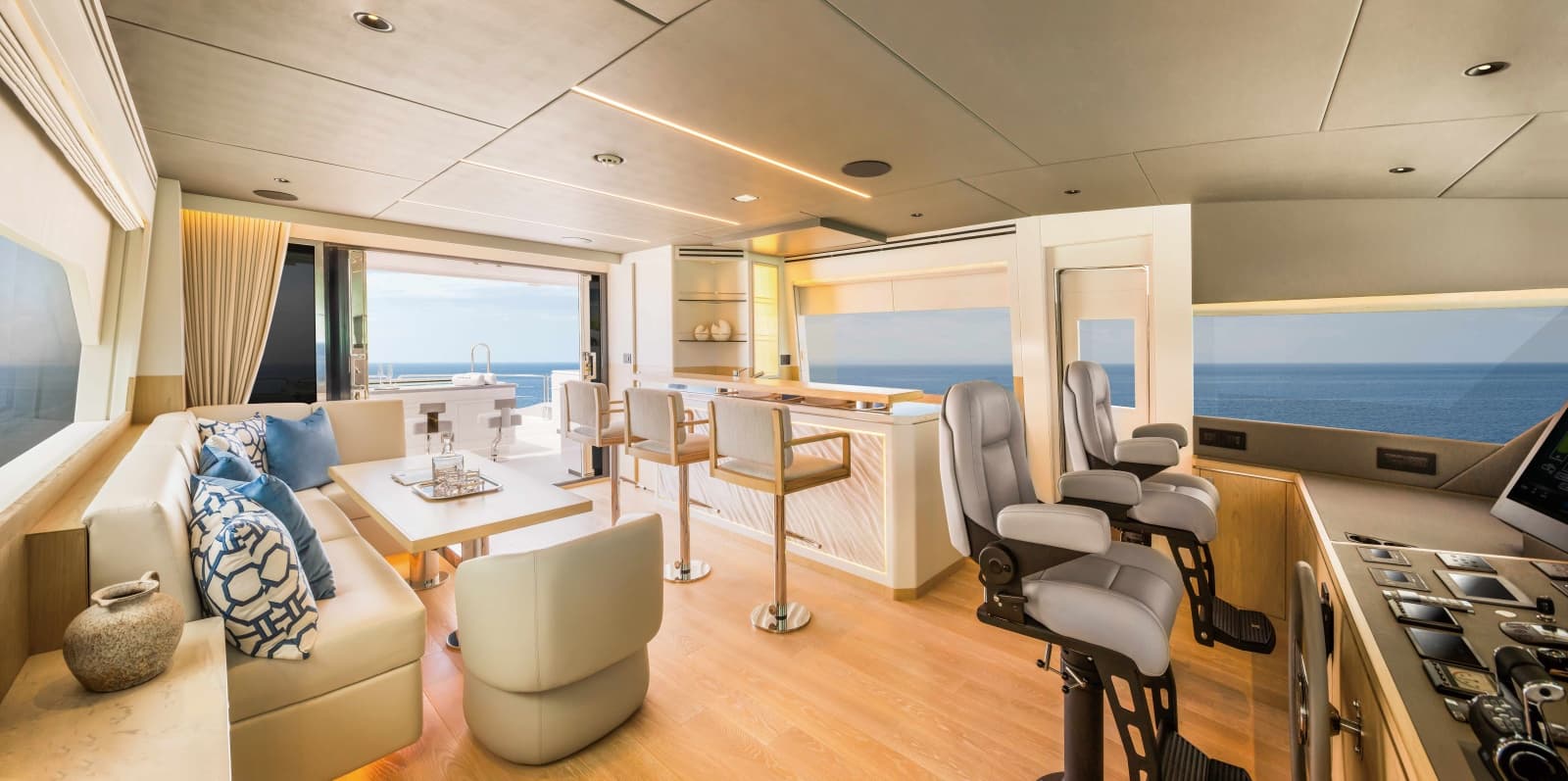

Enclosed Skylounge with dayhead, L-shaped settee, armchair, dayhead, and custom two-level bar  (incl. 4 stools, refrigerator, ice maker, sink, glass cabinet, 43” LED electrical flip-down TV

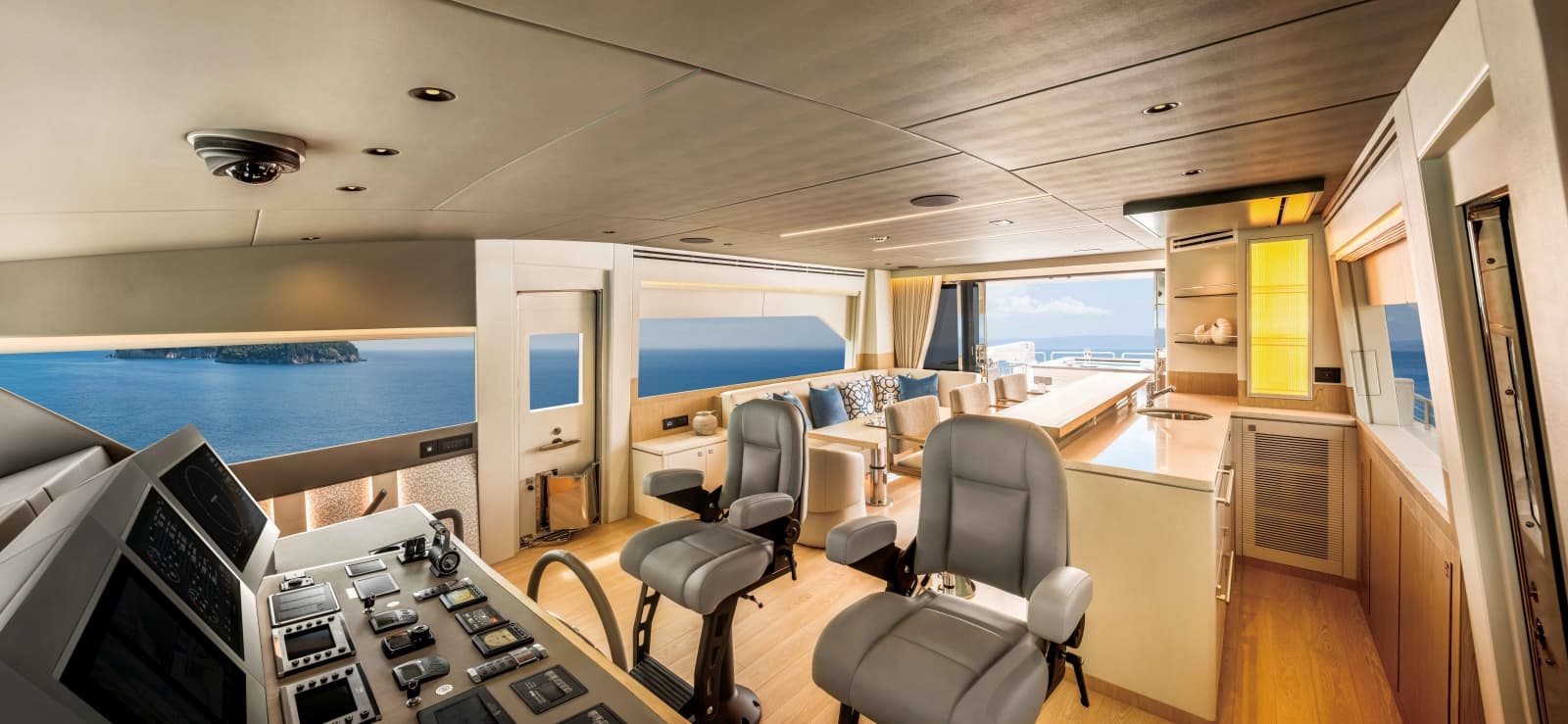

(2) manual helm chairs

Custom-designed helm with full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Riviera magnetic compass, surveillance camera system, bilge pump panel & navigational lights

Walk-around bridge design— PORT side bridge leads forward to bow deck

Non-skid boat deck

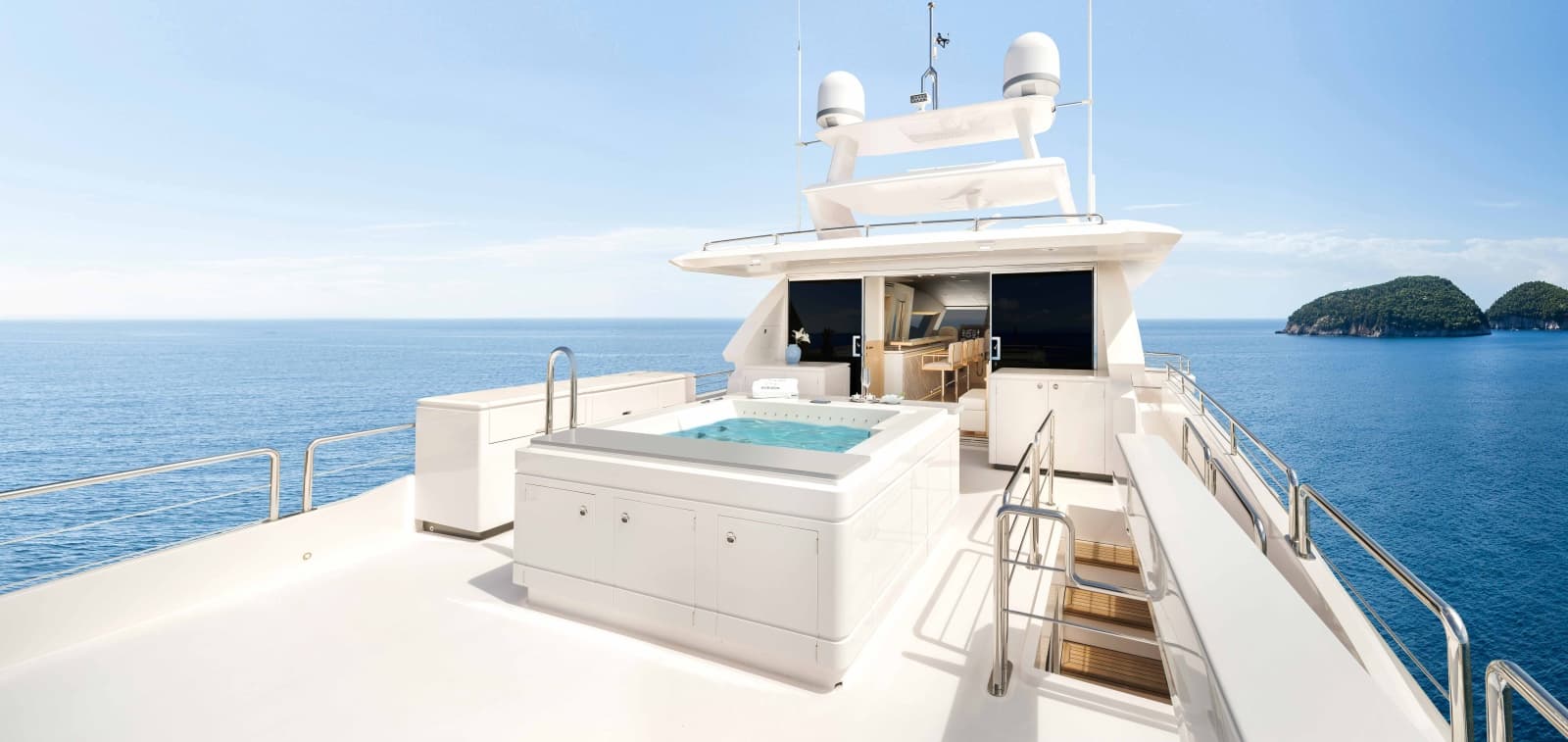

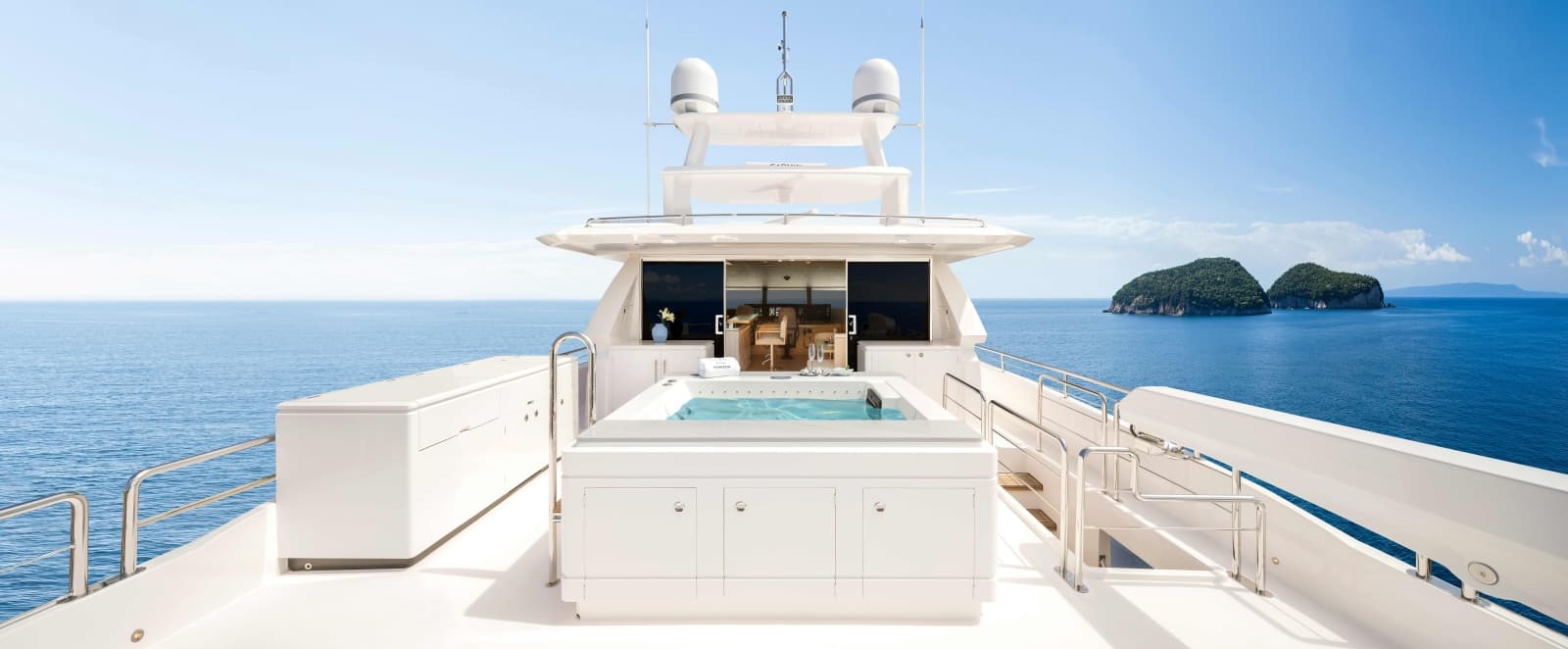

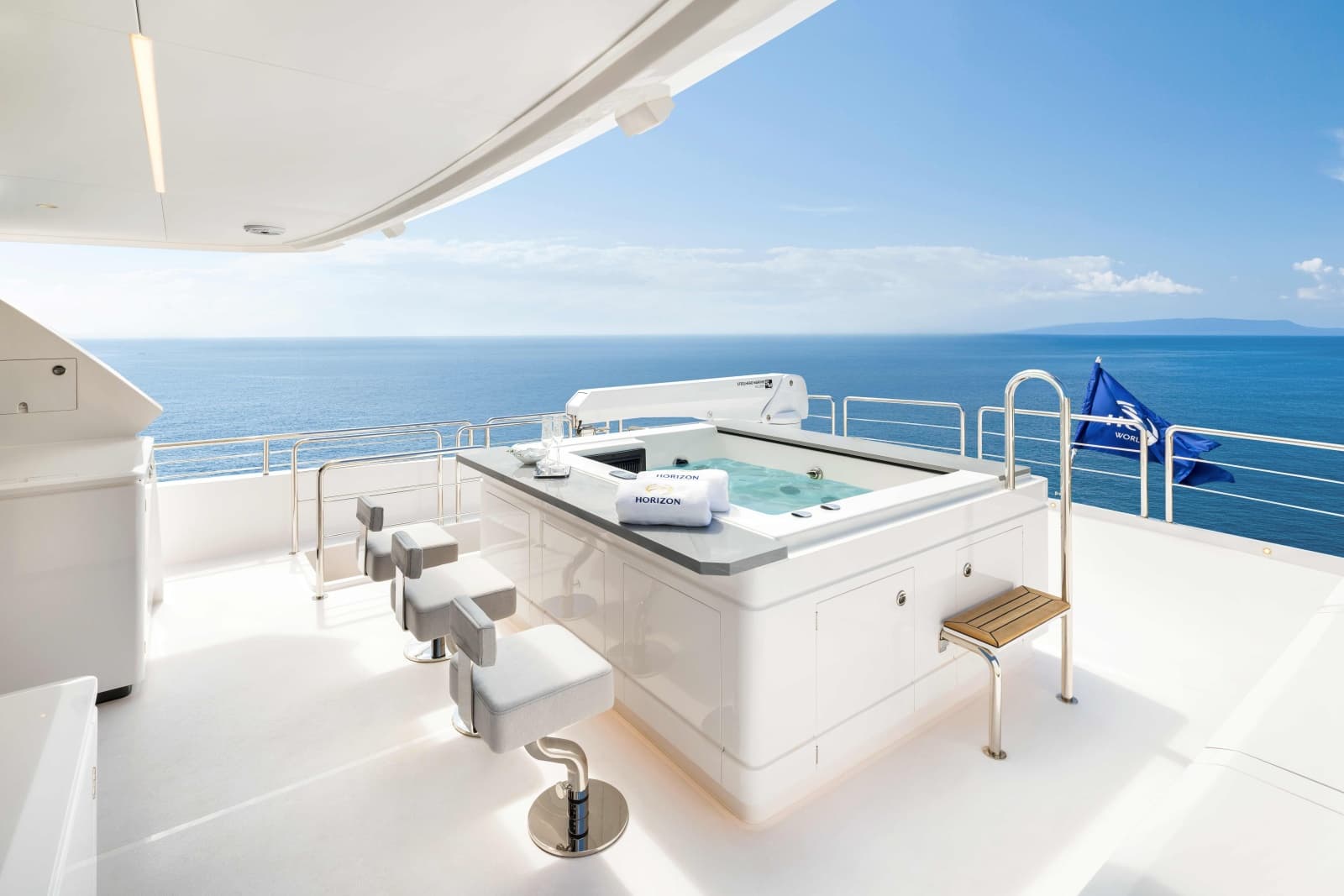

Hot tub w/ bar, 3 stools, and shower

Hydraulic Steelhead davit ES2500 (1130kg/2,500lbs)

Radar arch w/ antenna bracket

(1) hidden Propane 24" BBQ with manual Hi-Lo & hidden sink

Cabinets w/ refrigerator, ice maker, and storage

Sunshade for boat deck area, per layout

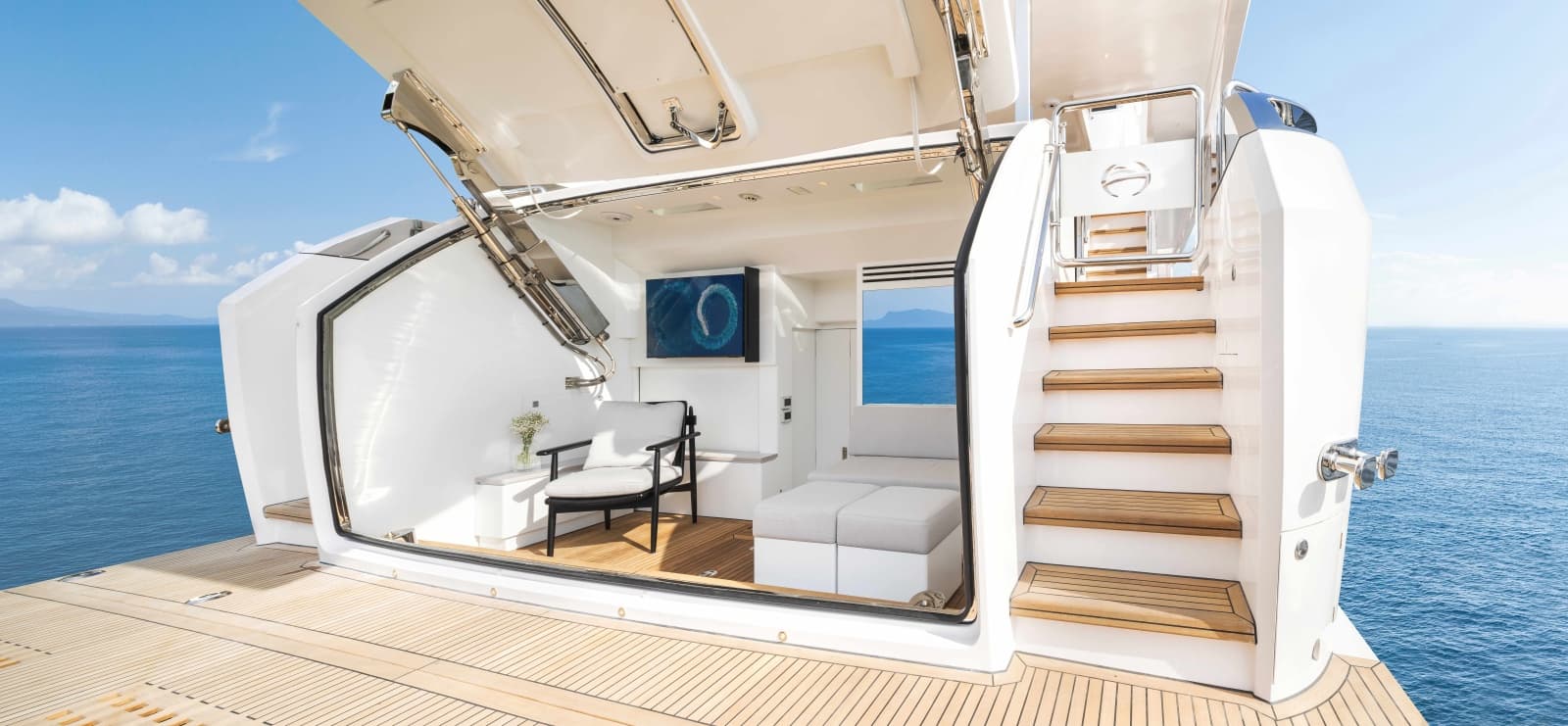

Teak beach club and swim platform; teak steps to boat deck and swim platform

Hydraulic door w/ pantograph door in the middle

Hydraulic Hi-Lo swim platform (1130kg/2,500lbs lifting capacity) with two removable corner rails

Sofa seating with ottomans and 43" LED TV

Twin MTU 10V2000 1,600hp

Side Power SPS93/VF1650 stabilizers

Side Power SH550 bow thruster and SH420 stern thruster

Zipwake interceptor system

Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder

Engine alarm system as per engine standard

High-performance S-class 5 blade propellers

Bronze struts w/ backing plates

Shaft and Rudder packing glands with Tides Marine dripless seals

Tethered remote handheld controller w/ plug on aft deck & pilot house

Hypro Marine power steering system

Underwater exhaust system for engines w/ bypass mufflers

Engine room with lightweight floor

Heavy-duty Insulated engine room door

S/S overhead grab rail on each side of engine

Anti-noise treatment to exhaust system

Delta-T engine room demisters

Air compressor

GFI protection for all AC outlets in exterior, heads, galley and engine room

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc.

LED lighting system throughout interior and exterior

(6) Underwater lights

(2) Onan Generators 29kW (60Hz) with sound shield

Pre-wired for wireless yacht controller

Maretron monitoring and control system

Glendinning shore power Cablemasters (x2) 100Amp with 75' power cable each

Shore power connection with (2) 100Amp boost polarization transformers, (2) galvanic isolators, (2) 100Amp shore power plugs and (2) 100Amp bow inlets.

(2) LED search lights

Pre-wired for LED boat name on stern, PORT, & STBD skylounge sides

Sonos stereo control by Control4 system

2,700 USG (10,220 ltrs) fuel tanks w/ sight & electrical gauges

(2) Racor 500 MA fuel filters, one on each generator

(2) Electric fuel transfer pumps

Fuel polishing system (210GPH)

1,500ltrs FRP water tank

(2) 20-gal water heaters

High-volume AC Freshwater pressure pump and backup DC pump

Spot Zero SeaXchange XTC II 1200 watermaker and Spot Zero ZTC II 2000 water purifier

Charcoal filters are plumbed into the freshwater line: shore water inlet and galley

Hot water circulation pump

Marine Air VARCX chilled water conditioning system

Tecma toilet system

100 gals holding tank & deck fitting for dockside pump-out

Sump pump system for grey water

Electric level indicators for holding tank

Headhunter sanitary treatment system (TW-HMX-301LP)

Electric Rule Bilge Pumps

High water level bilge alarm

Bilge exhaust ventilation fans

Fire-resistant treatment for pipe penetrations

Automatic fire damper system

(4) Portable fire extinguishers

Integrated fire alarm system in pilothouse, with CO and smoke detectors in each cabin

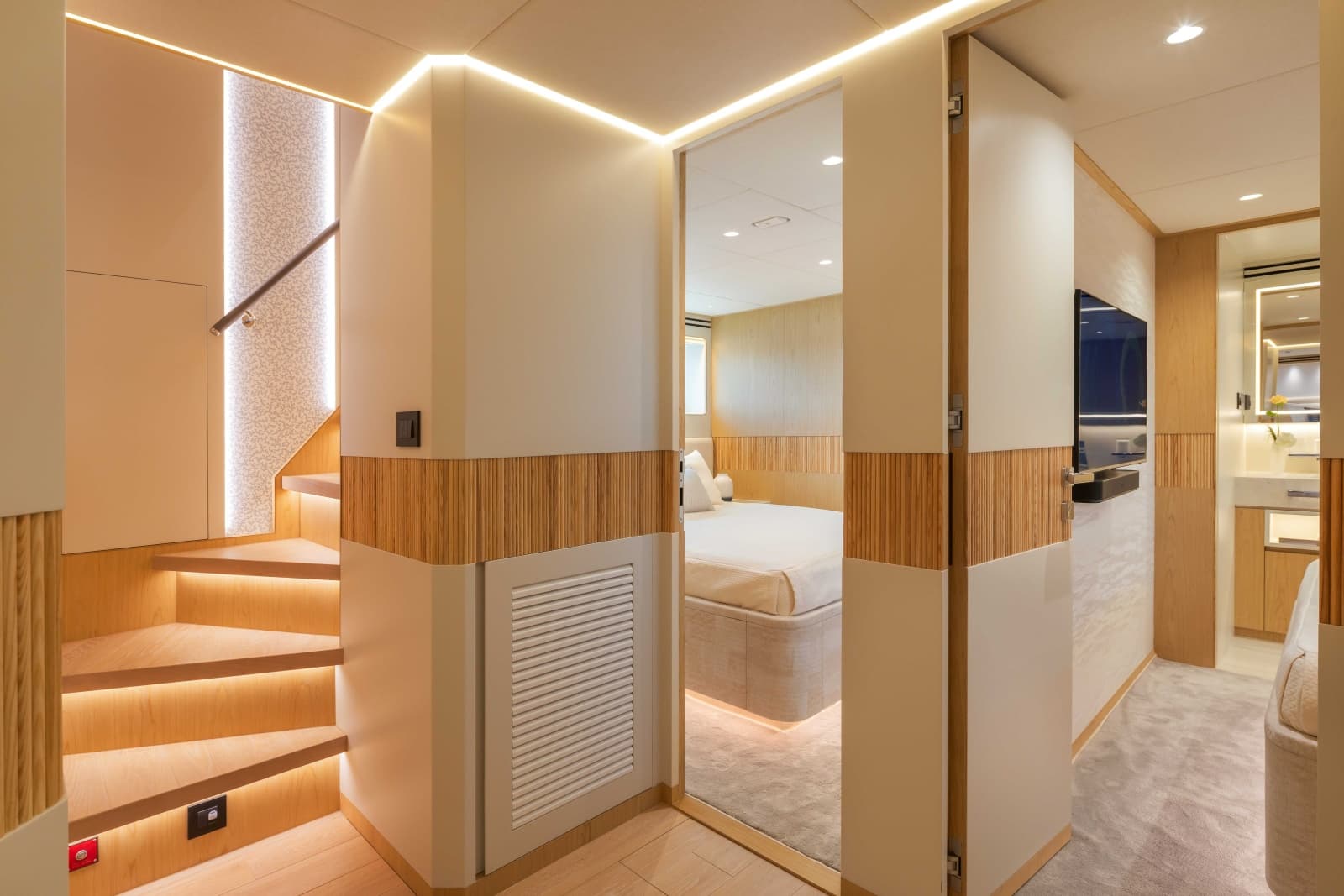

Guest accommodation includes:

On-deck master stateroom, forward VIP stateroom, STBD VIP stateroom &  PORT VIP stateroom, all ensuited

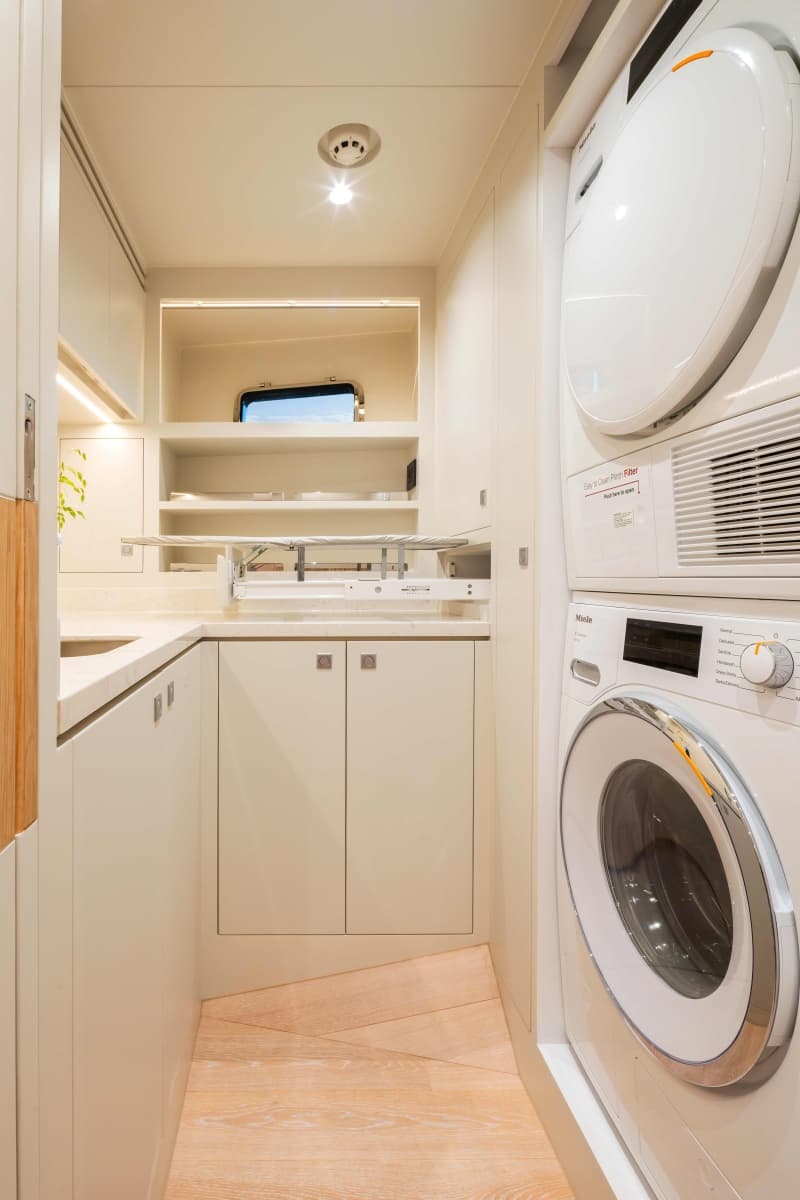

Laundry room w/ washer/dryer, storage, ironing board, and sink

Aft crew quarter w/ 2 crew cabins (one captain, one crew cabin, with one ensuite), access from STBD side Salon

Customized interior package for interior décor & lighting

Full set of Wedgwood (GIO) tableware for 10, incl. dish holder, pot/pan, dishes, plates, knives, forks, glasses… etc

Extra set of bed sheets for all guest cabins, including crews

3-panel manual sliding salon door

Dayhead

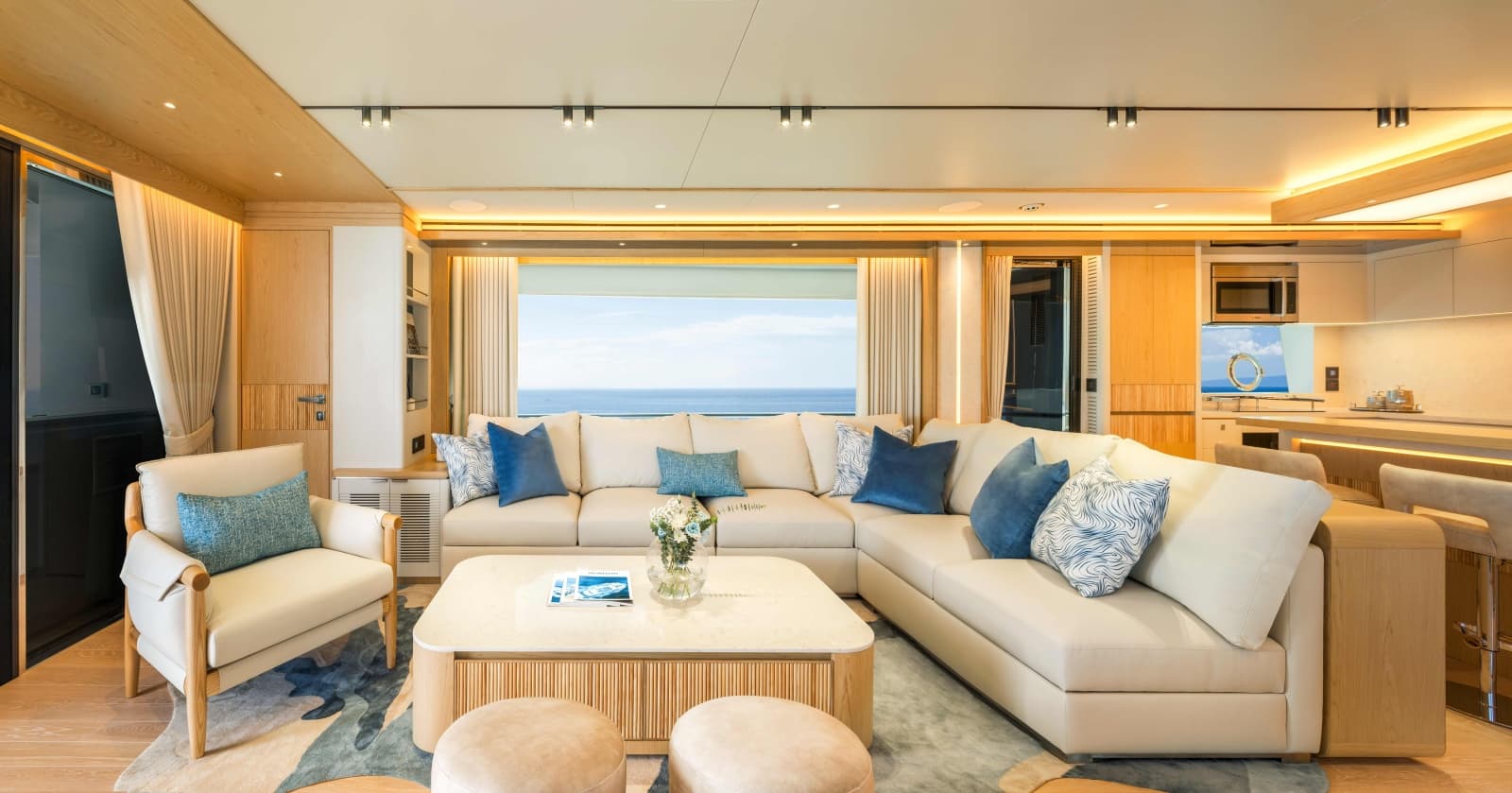

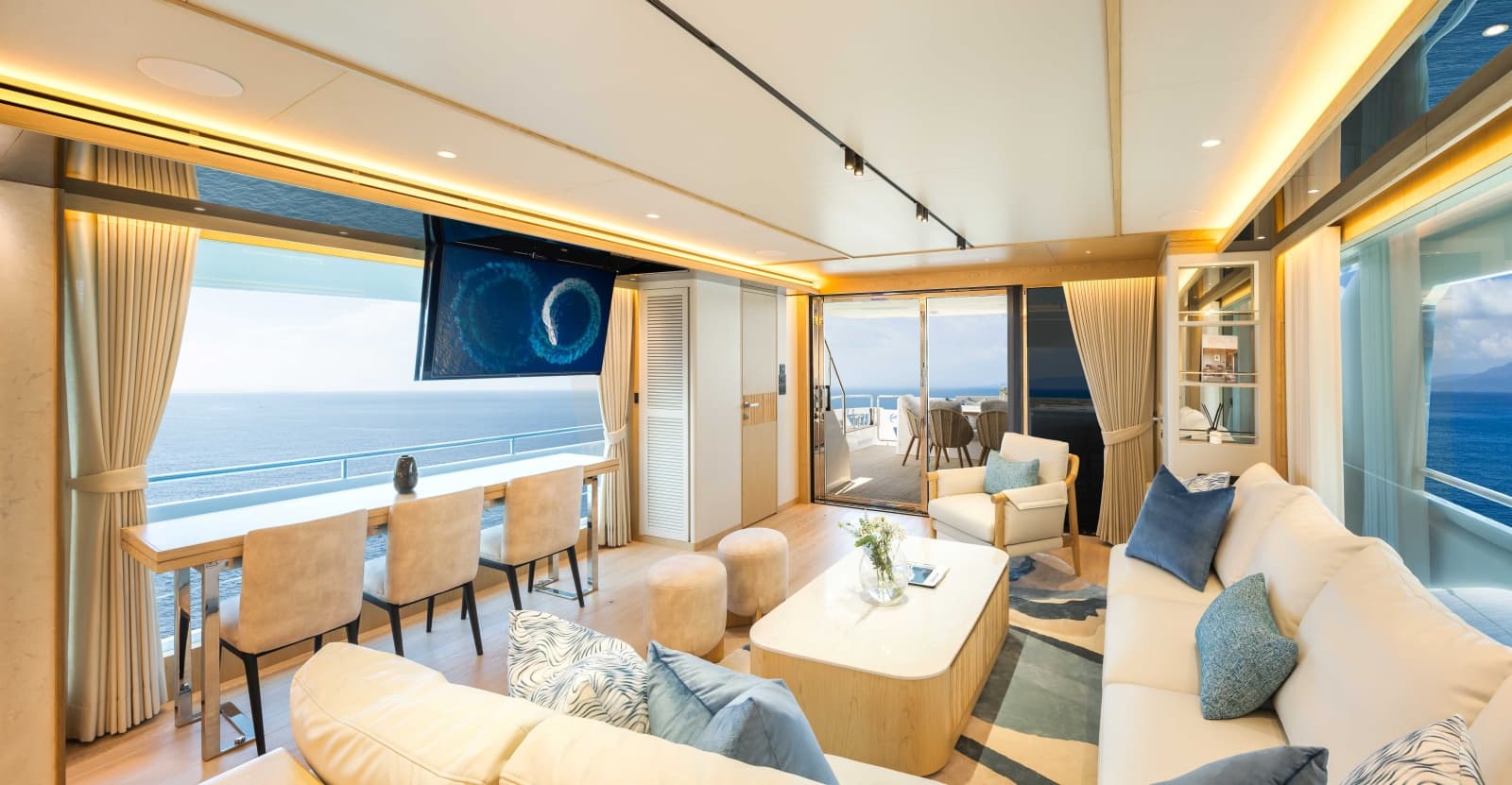

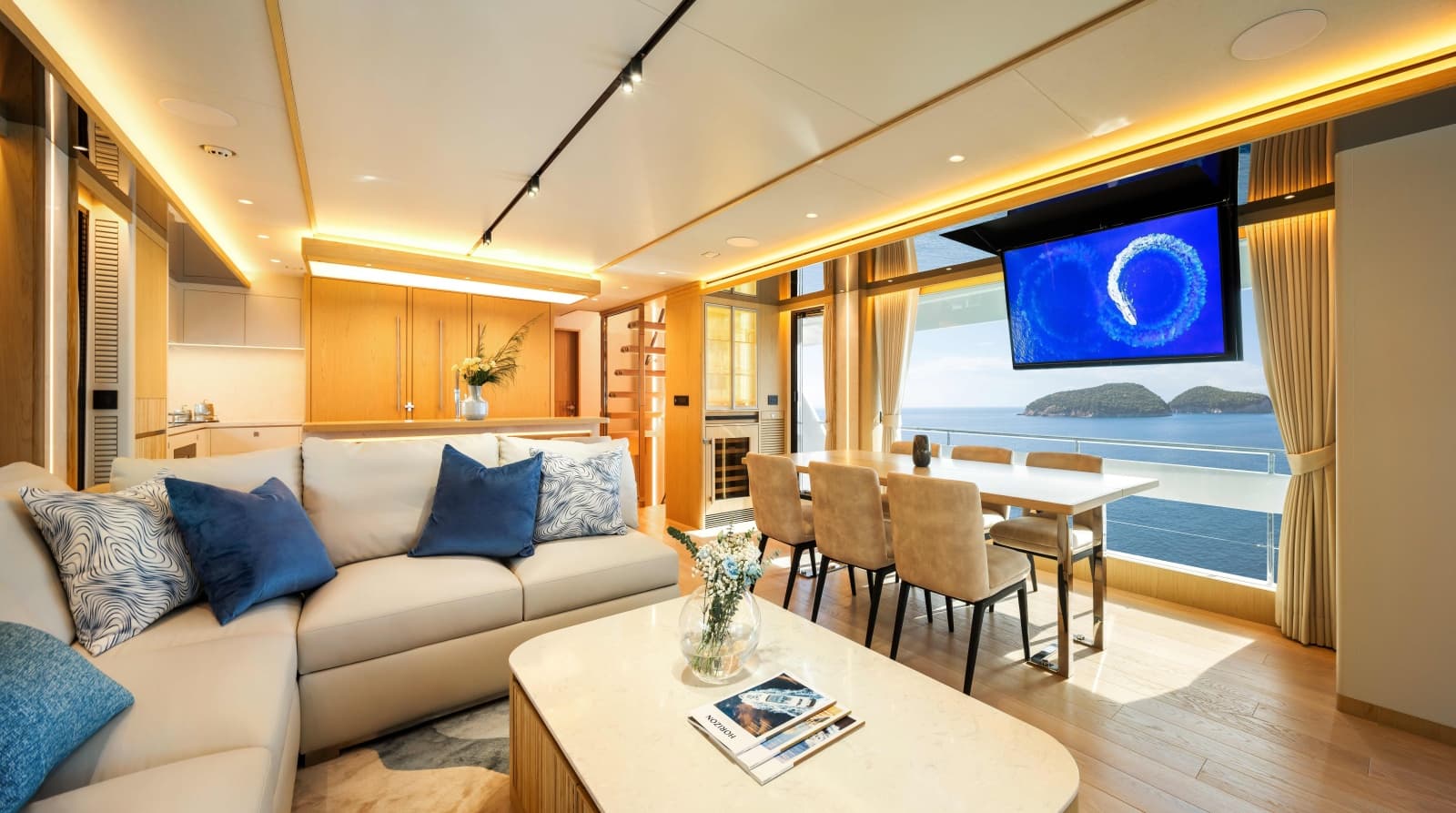

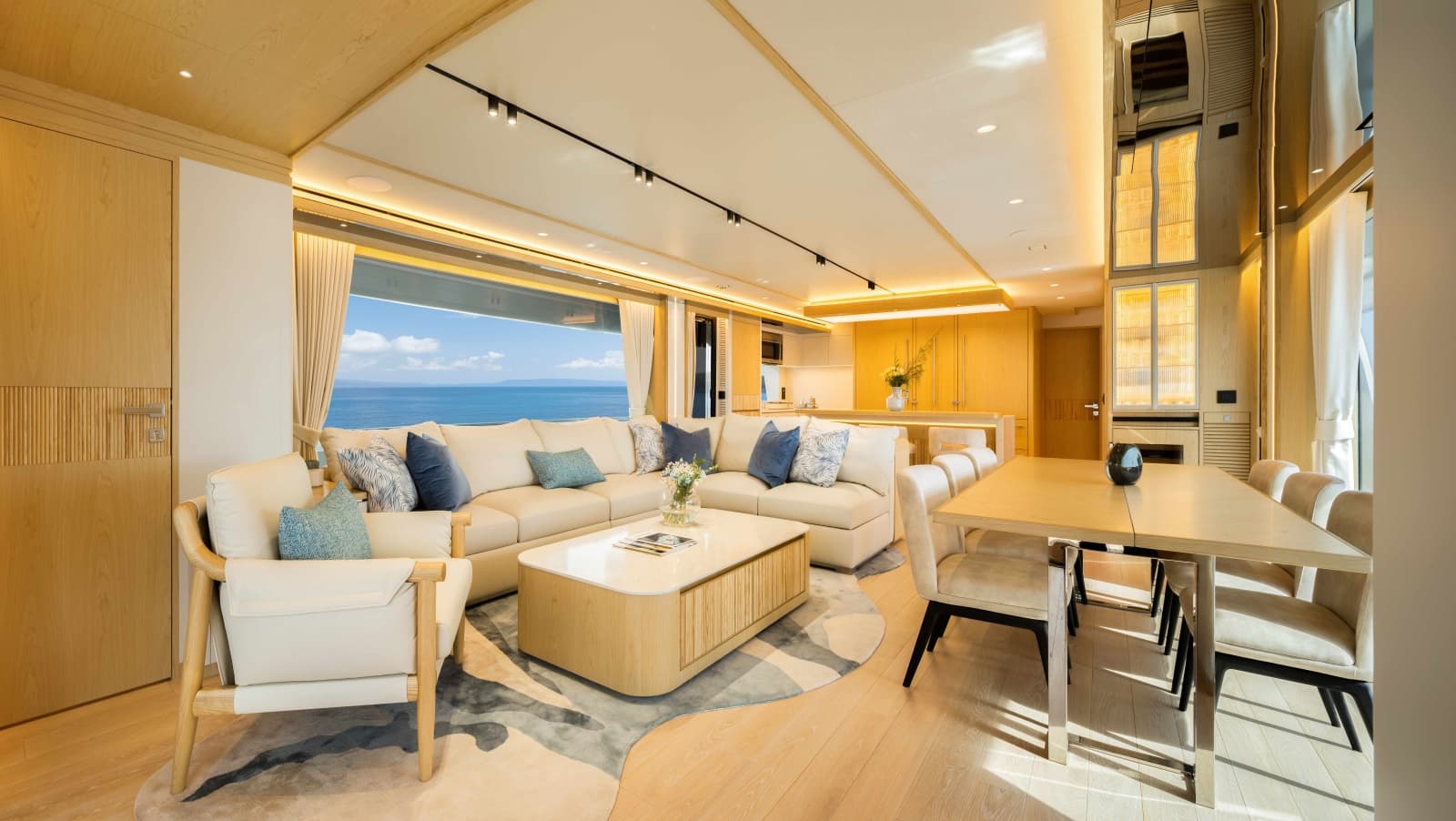

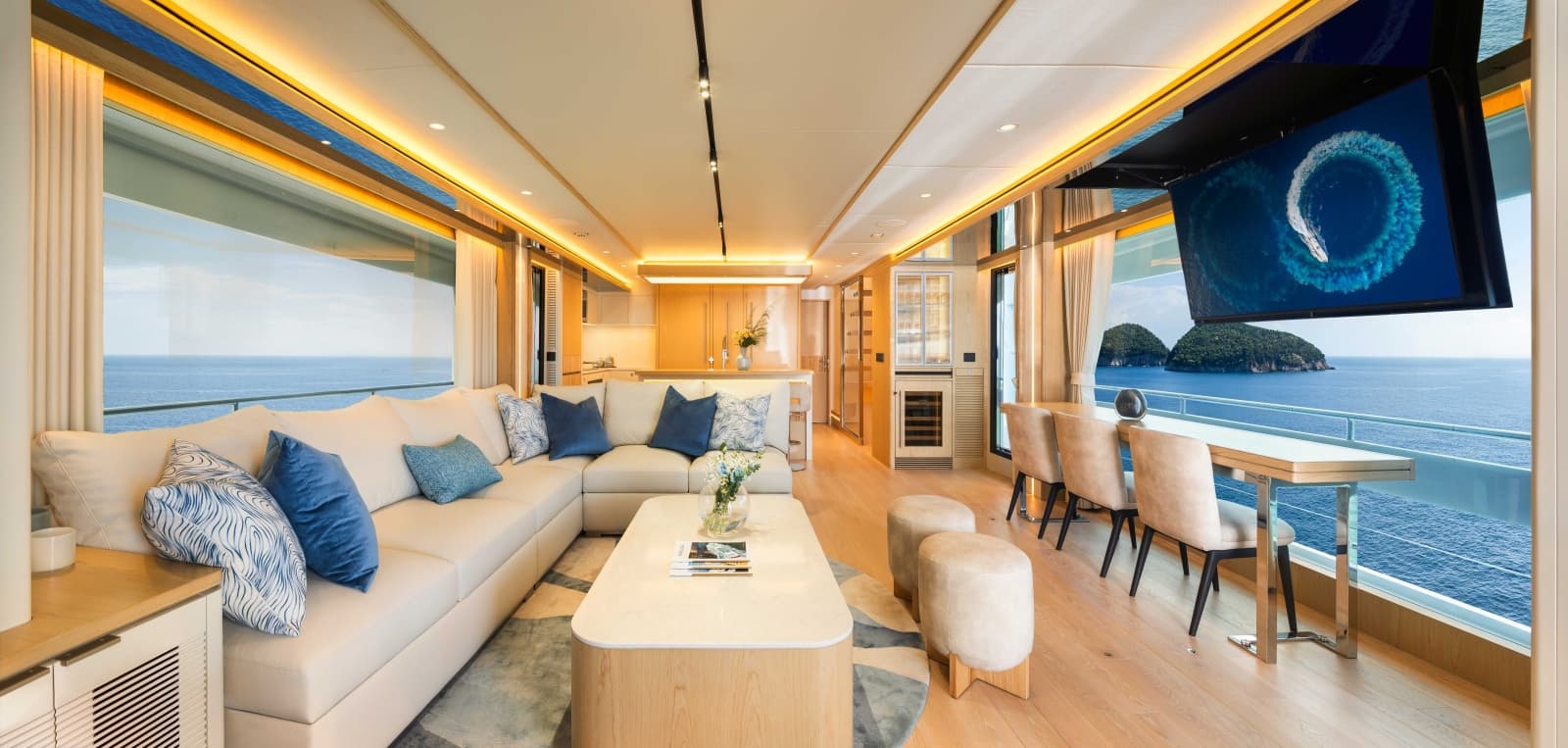

L-shaped sofa w/ table, armchair, two ottomans

Electric blinds

Custom area rug

PORT side buffet cabinet behind sofa

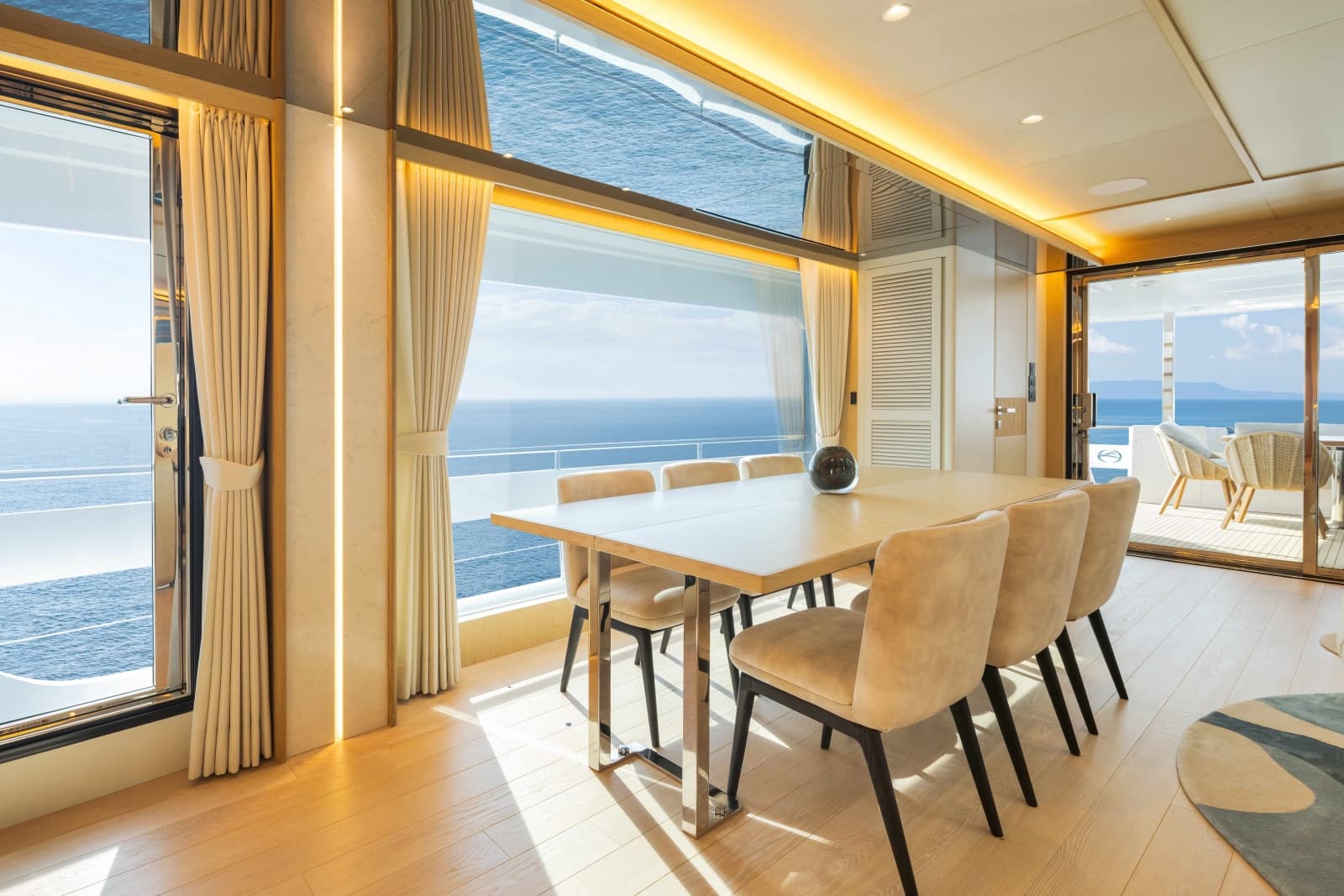

Convertible folding dining table & chairs, per layout

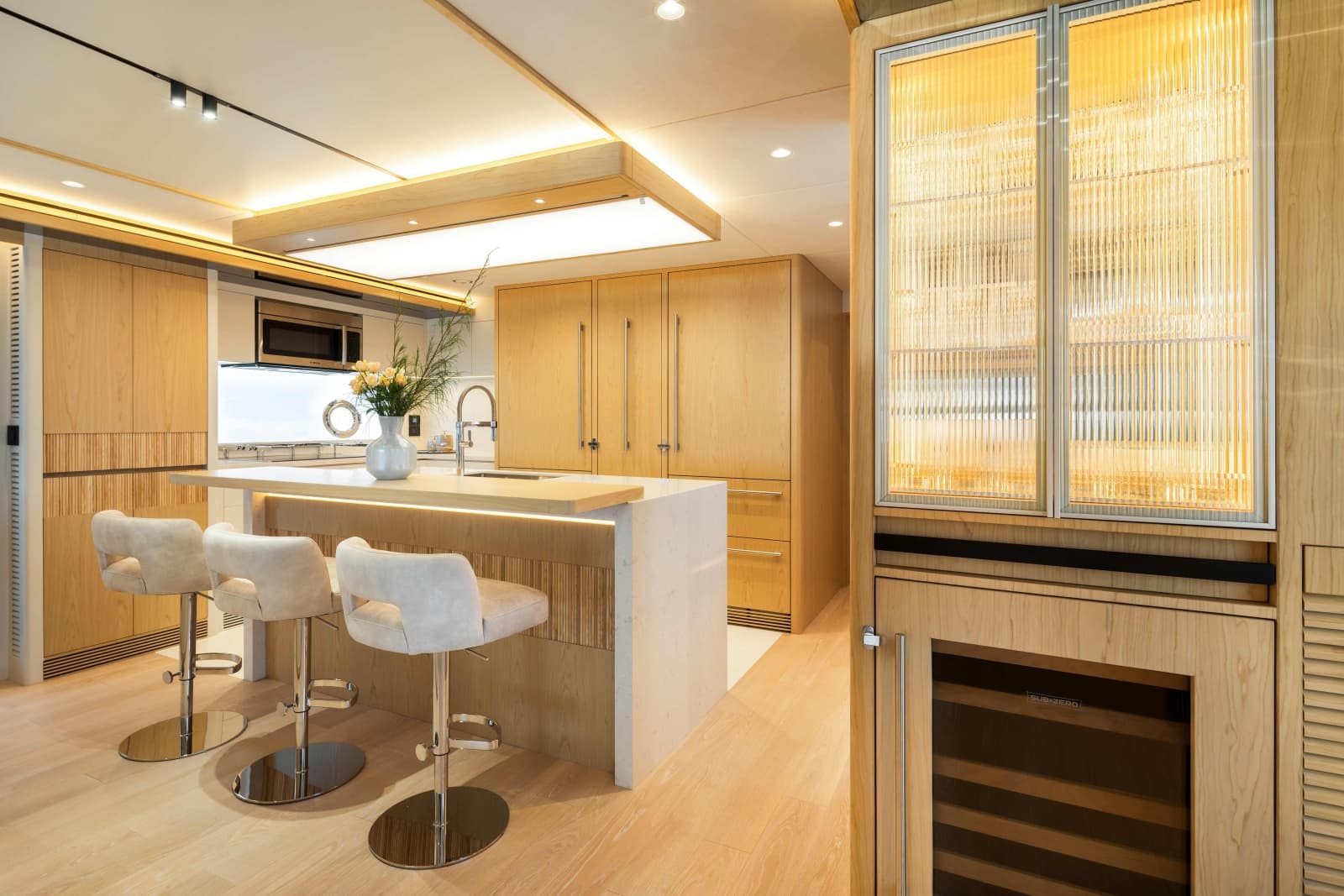

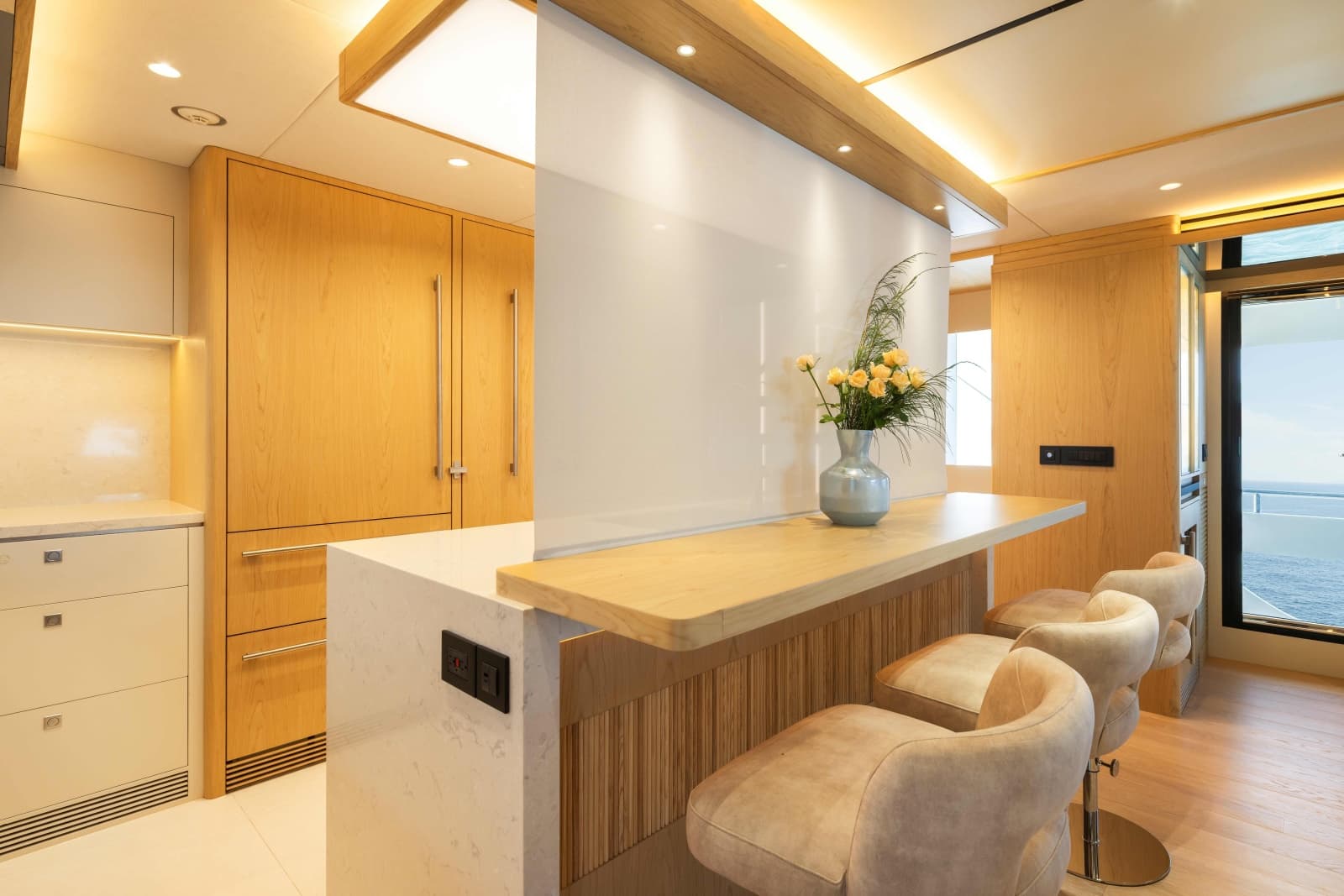

Breakfast bar design

55" LED fold down TV

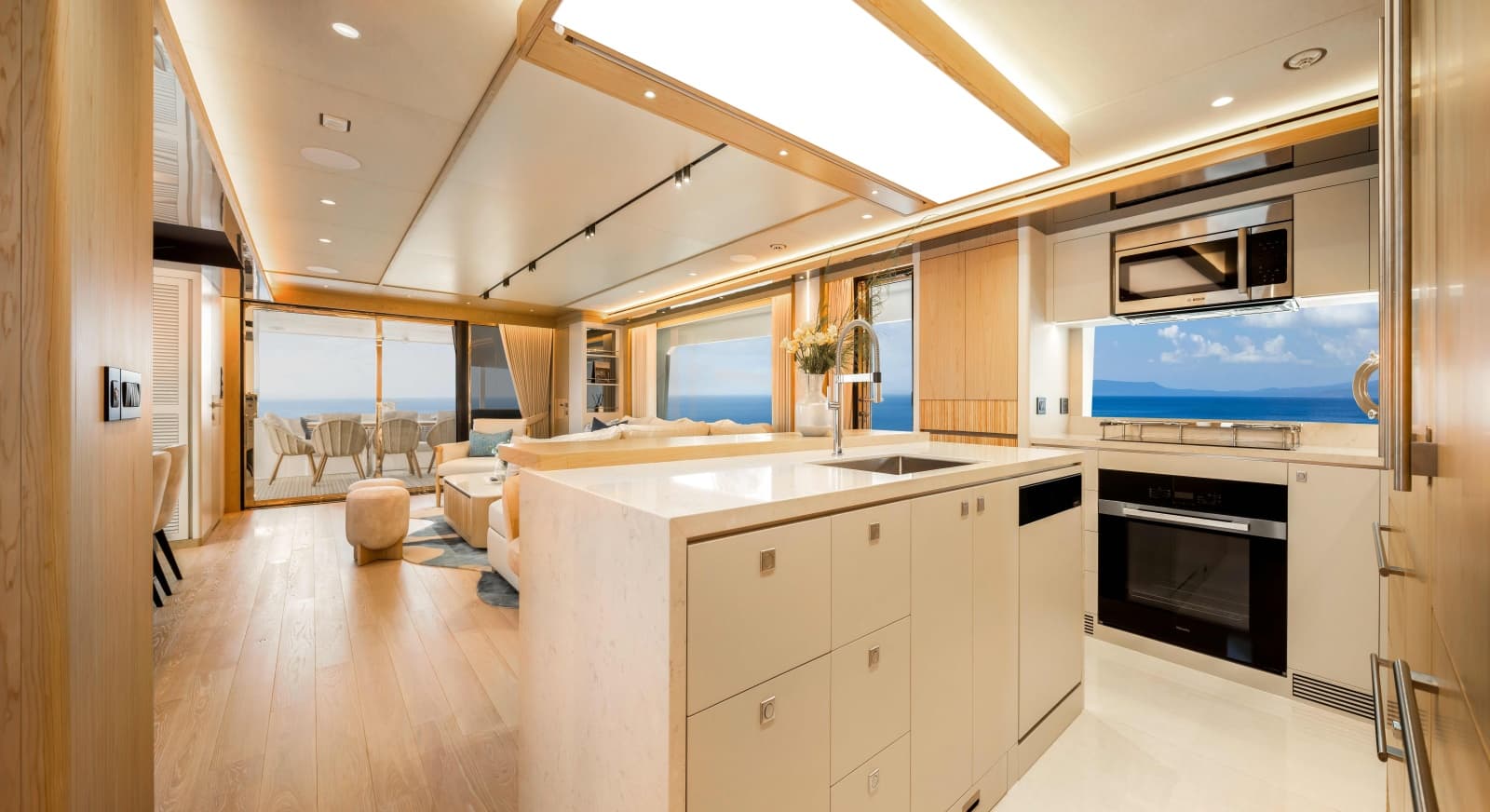

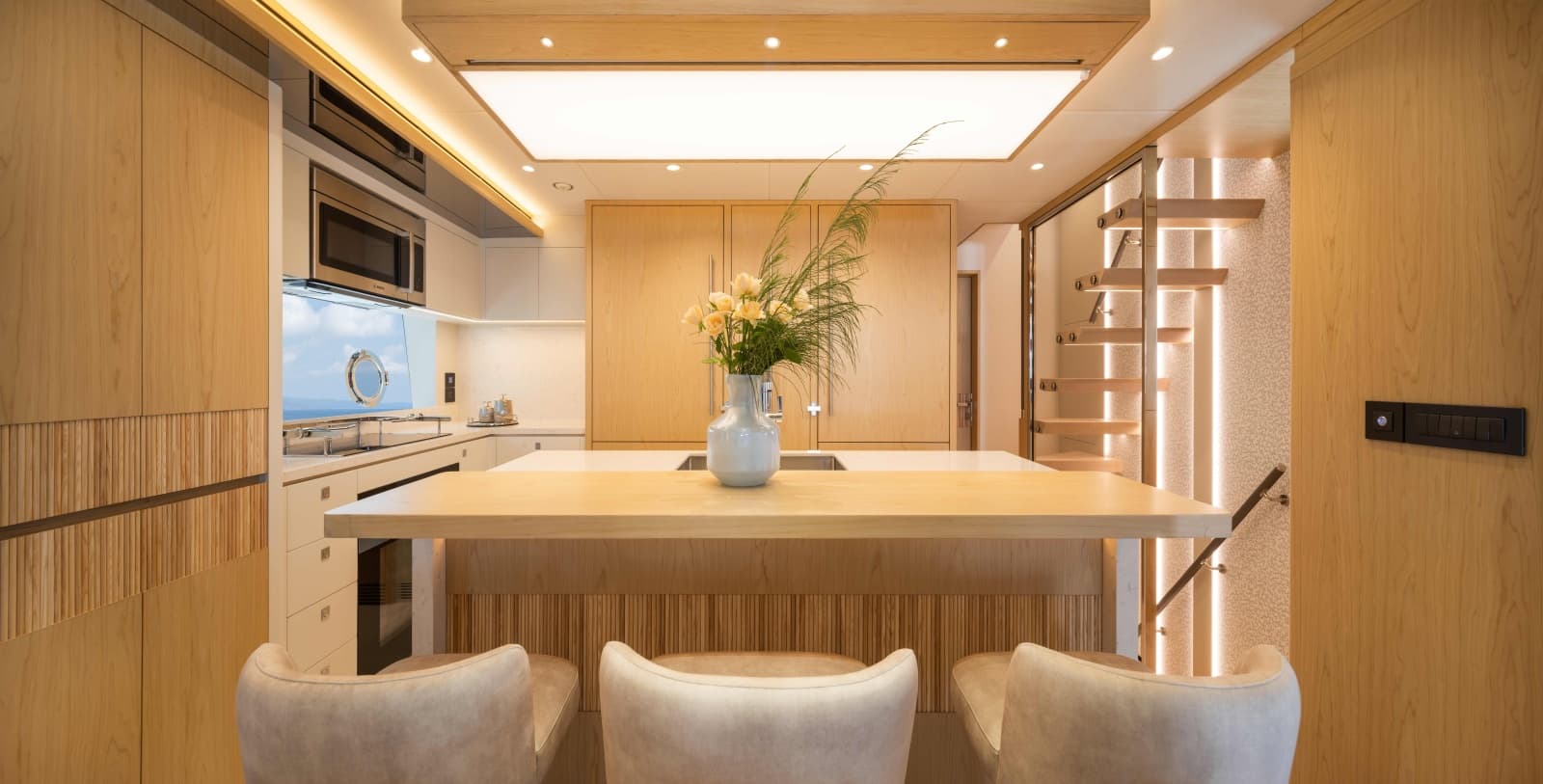

Enclosed galley design with Hi-Lo blind

Professional galley + extensive storage per layout

Full height Sub-Zero refrigerator + freezer

Miele cooktop, range hood, oven, microwave & dishwasher

Sub-Zero wine cooler

(1) opening porthole

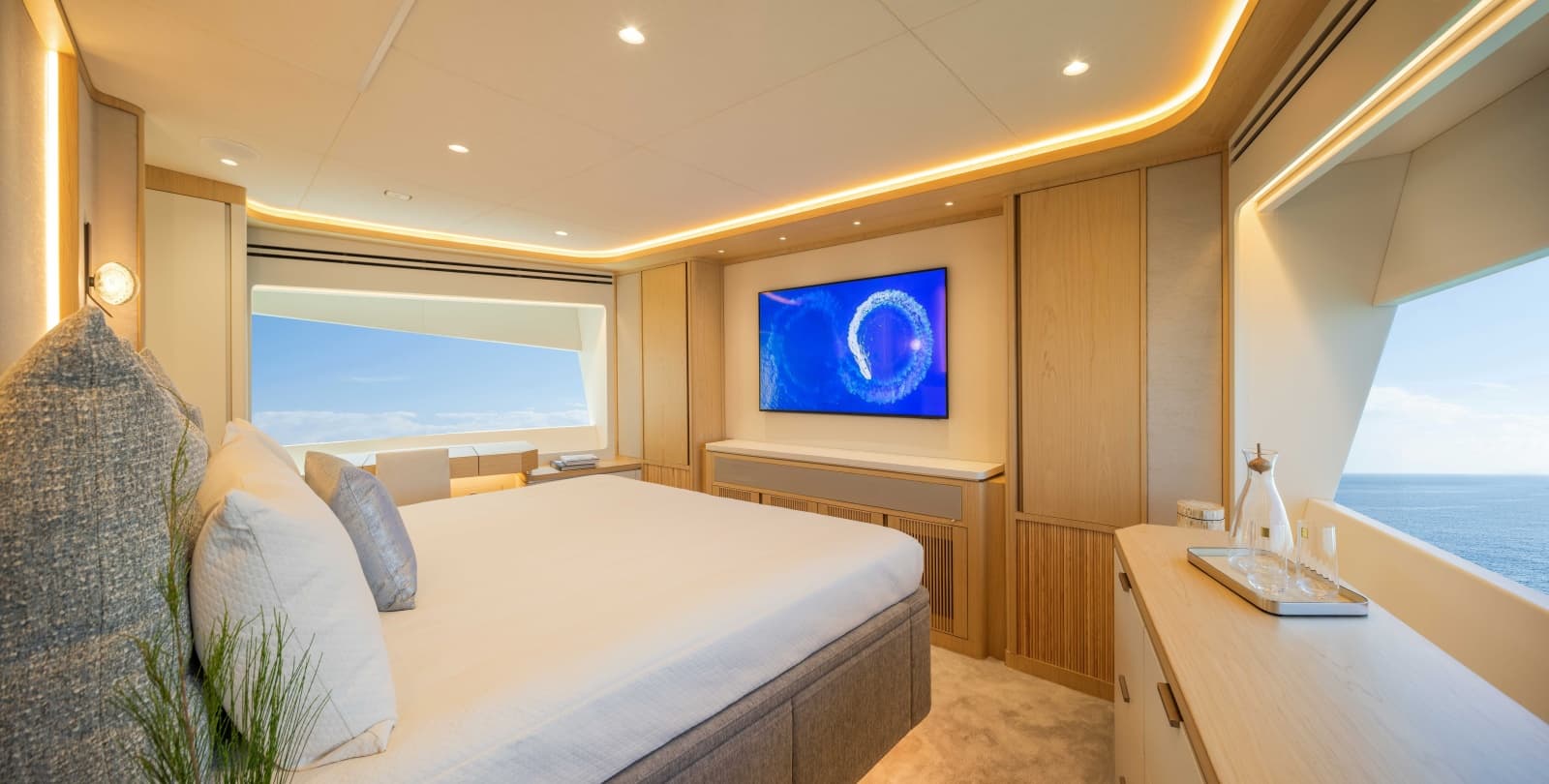

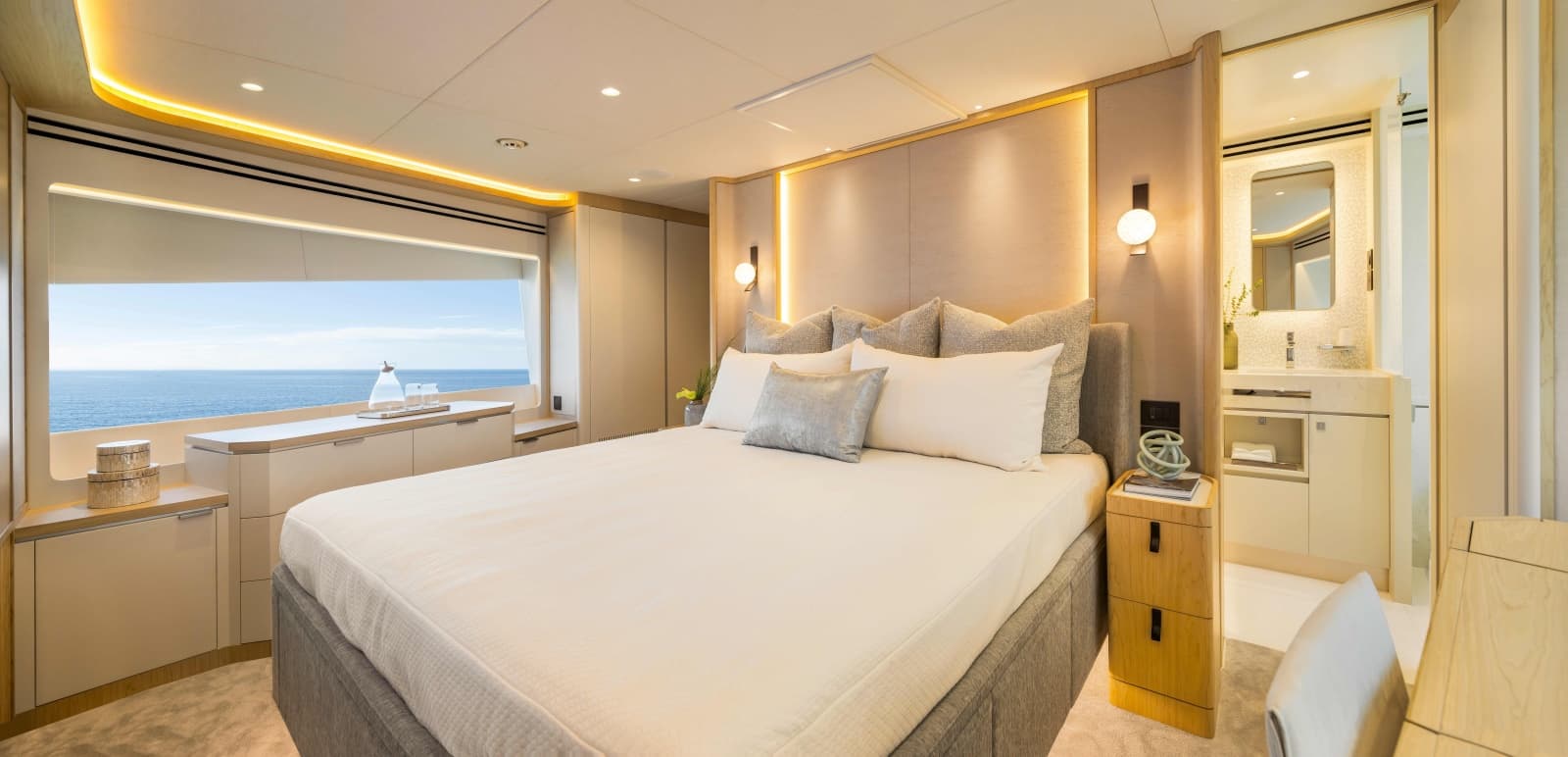

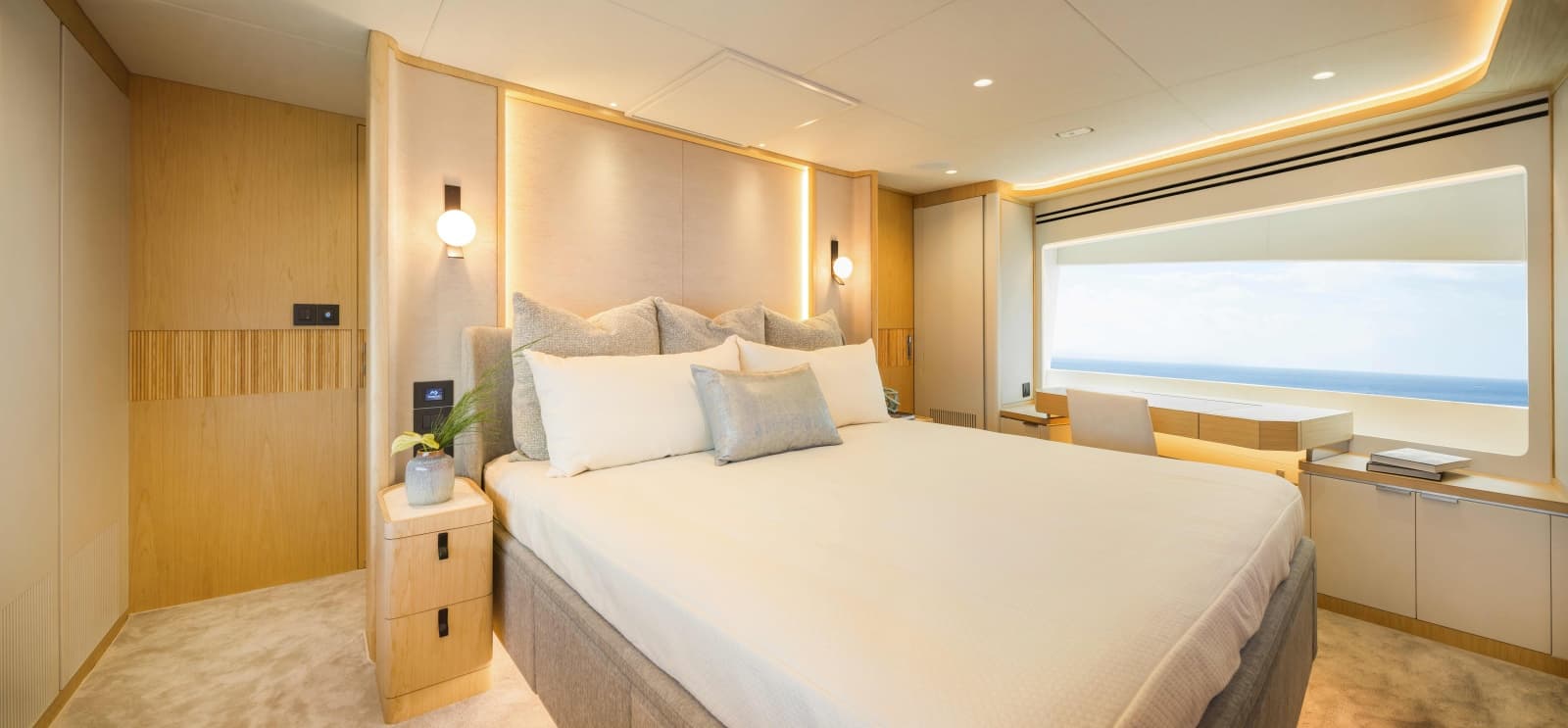

King bed w/ storage drawers under, nightstands, safe

STBD chest of drawers; vanity/desk at PORT; hanging lockers

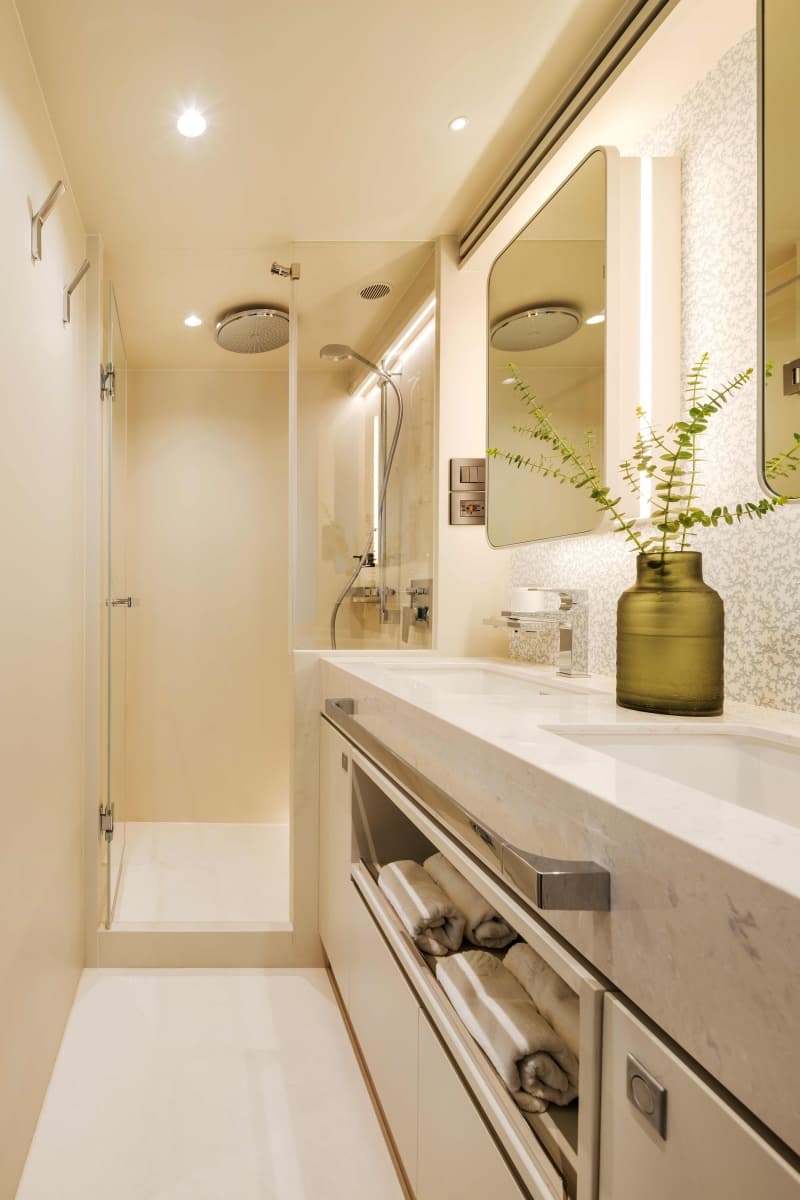

Ensuite head w/sink, rain shower & toilet

Electric shades

(1) Opening portholes in Master head

50" LED TV

Escape hatch in Master w/ ladder

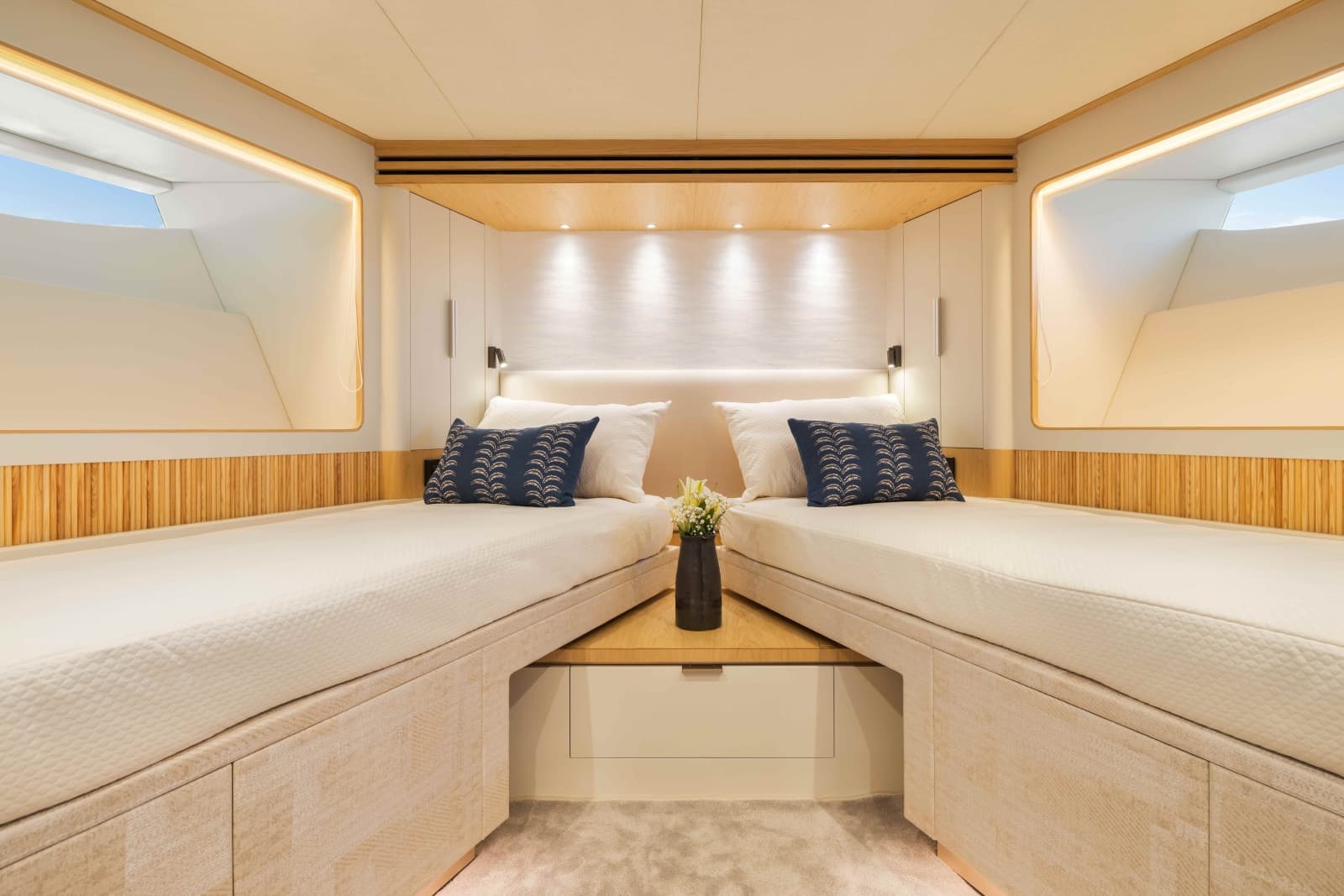

FWD VIP STATEROOM

(2) Twin beds (with sliding function), drawer under, hanging lockers, and storage

Ensuite head w/ sink, rain shower & toilet 32" LED TV

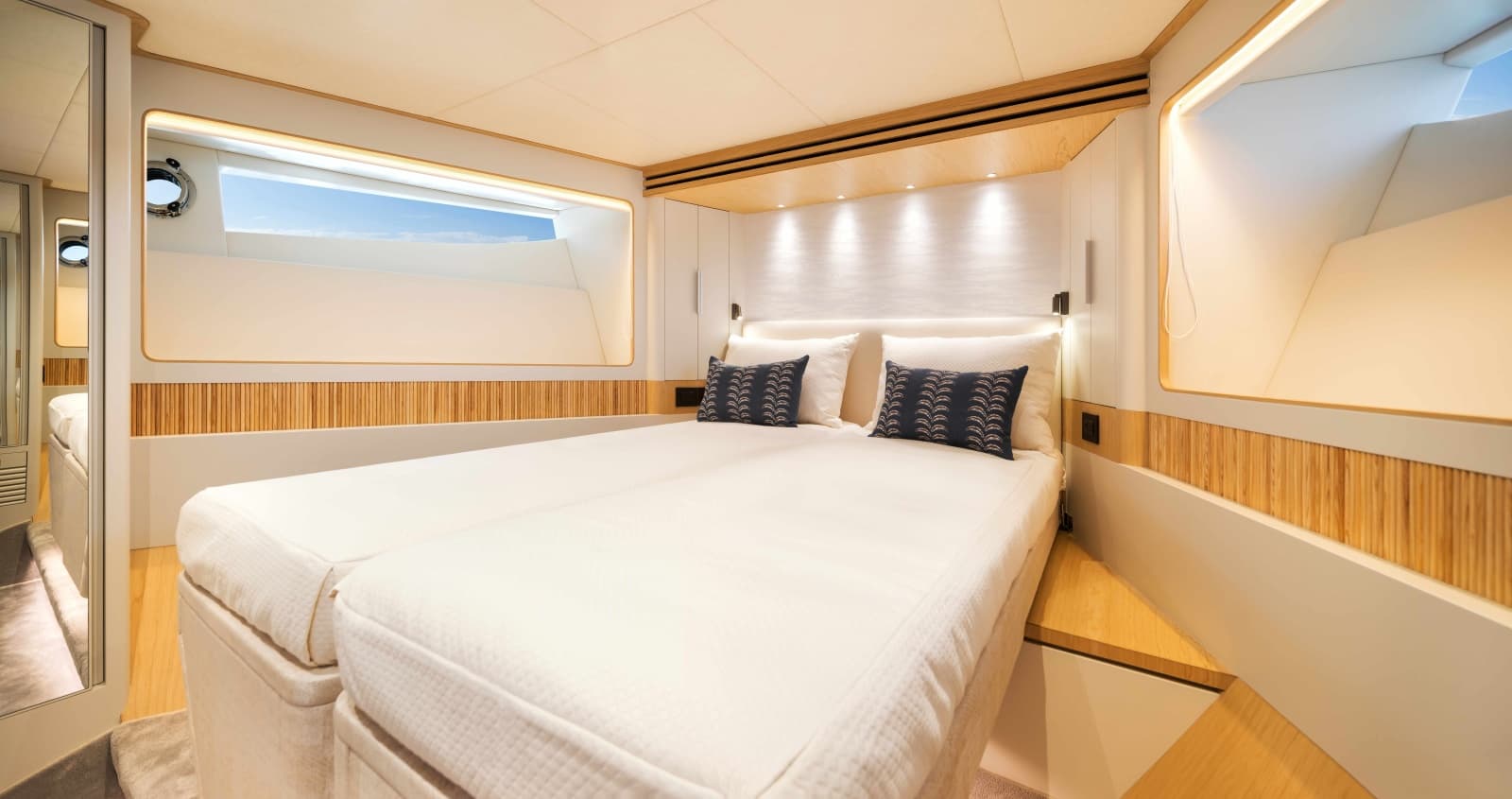

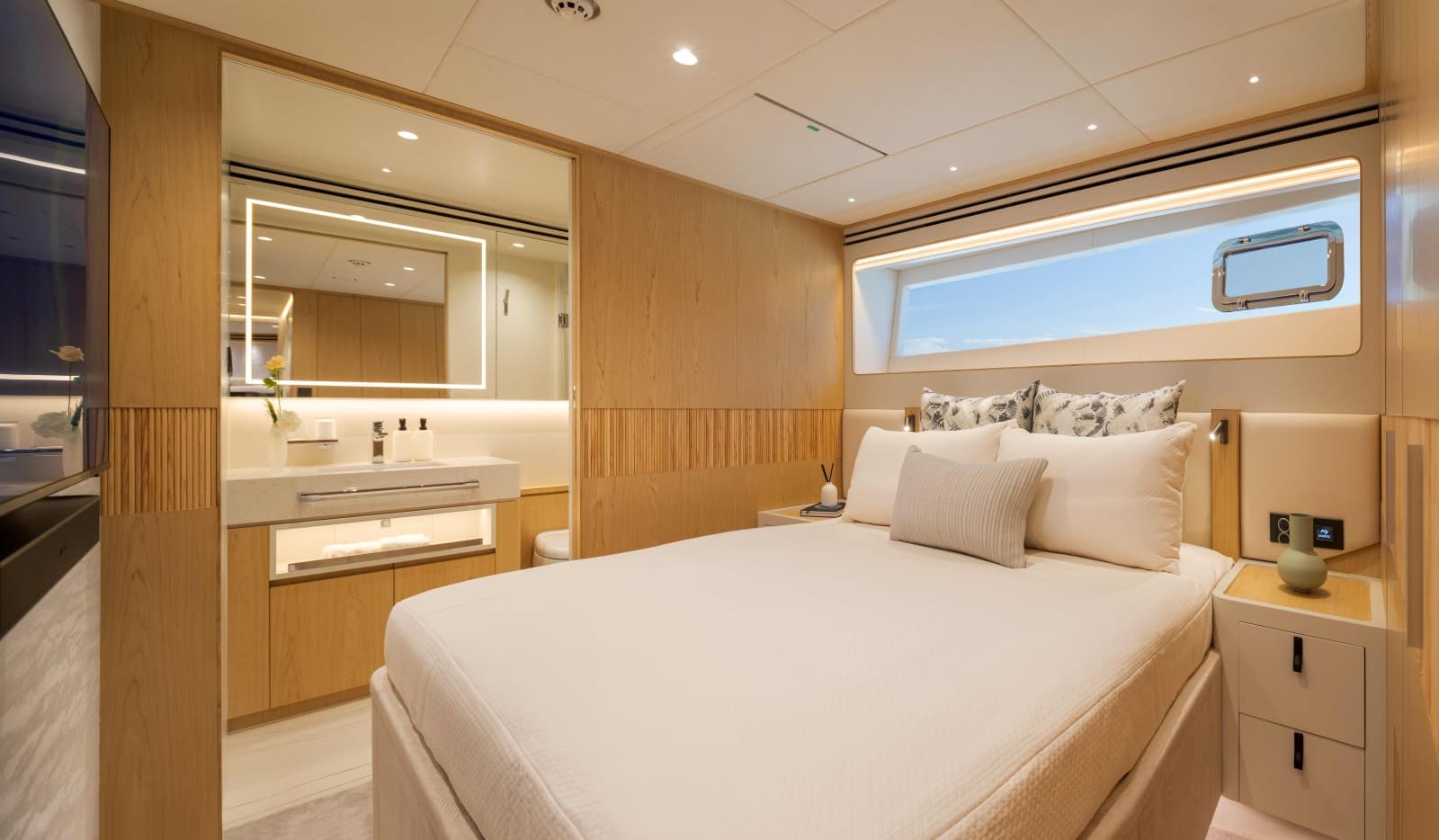

MIRROR VIP STATEROOMS

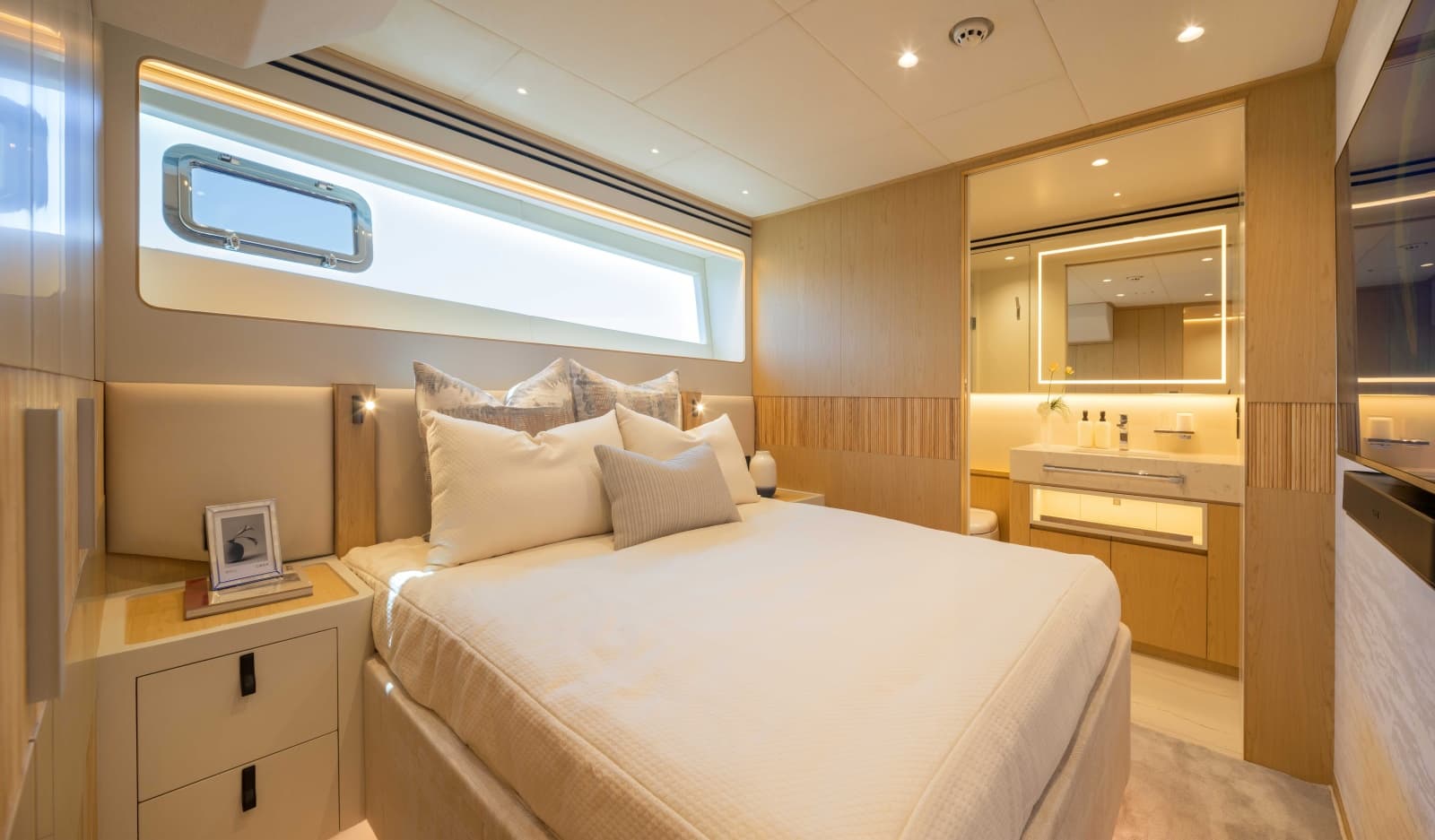

Queen bed w/ nightstands

Ensuite head w/ sink, rain shower & toilet 43" LED TV

Escape hatch up to salon with ladder from PORT VIP stateroom

PORT Captain Cabin with double bed, hanging locker, storage, and 43” LED TV

STBD crew cabin with bunk beds, hanging locker

Head w/ sink, shower & toilet

Crew area with burner, Miele washer/dryer, refrigerator/freezer, convection microwave, storage

Hi-Lo screen to enclose

ELECTRONICS

SAT TV antenna with a symmetric dummy dome & prewire for SAT phone

Reserve a cable conduit for Starlink system

4G/5G Cellular router system with WiFi on board

PILOTHOUSE NAVIGATION

Garmin navigational system incl.:

Garmin GPS w/ Satellite compass

(1) Garmin GMR™ 1236 xHD3 Open Array Radar

(1) Garmin Fantom 54 Solidstate Open Array Radar

(4) Garmin GPSMAP 9222 22" multifunction displays

MBB300C for inputting the Maretron info to GARMIN display

Garmin Autopilot system

Garmin Fishfinder/ Wind / Speed / Temp / Depth transducer

(2) Garmin VHF

Garmin AIS

Garmin Surround View Camera system
