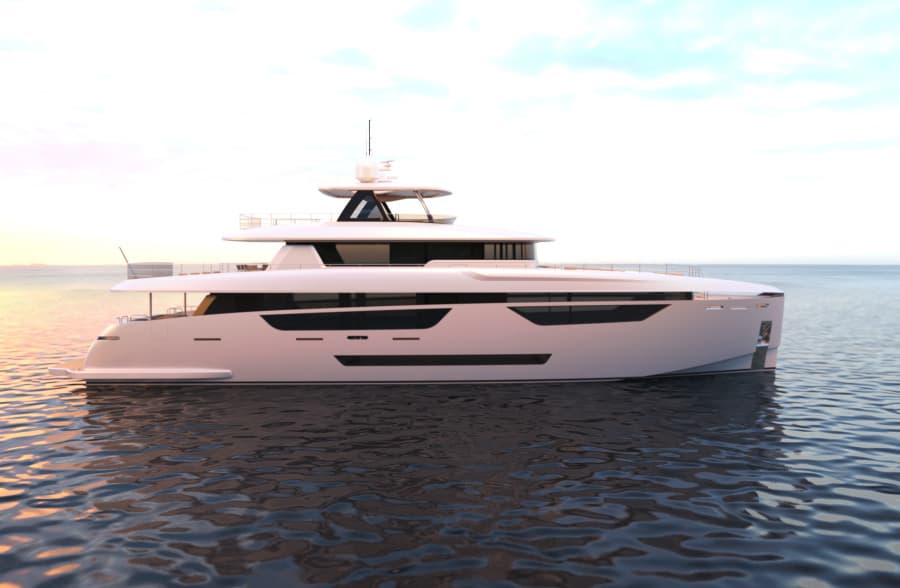

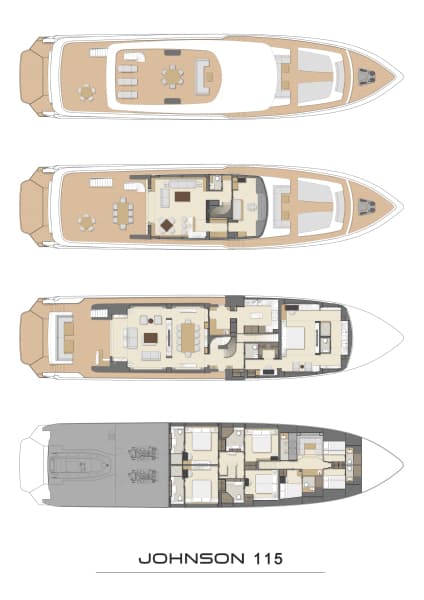

2026 Johnson SKYLOUNGE w/FB w/ON-DECK MASTER

1. MAIN DECK-TEAK 14MM

2. HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE)

3. STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN

4. VERTICAL ELECTRIC ANCHOR WINCHES x 2

MAXWELL VWC6000C/HYD:

VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS:

2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL

1 x BAND BRAKE

1 x CHAIN ROLLER STOPPER TENSIONER

1 x HAND HELD REMOTE CONTROL

5. AFT DECK MOORING CAPSTAN x 2 SETS

MAXWELL VC2200W/D:

VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS: 1 x FOOT SWITCH W/COVER

1 x 80 AMP BREAKER PANEL

1 x REVERSING SOLENOID PACKS, 24VDC

6. STAINLESS STEEL 250 LB ANCHOR x 2

7. HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2

LEFT: 300 FEET (5/8”)

RIGHT: 300 FEET (5/8”)

8. FRESH WATER ANCHOR CHAIN WASH DOWN

9. HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS

10. S/S FLAGPOLE ON BOW RAIL

11. BOW STORAGE LOCKER FOR FENDERS AND ANCHOR CHAINS

12. HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS

13. BLACK TEMPERED SAFETY GLASS

14. STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE

15. TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE

16. STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND PORT LIGHTS ON DECK HOUSE

17. BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM:

SSI 48300000 STOWAWAY SHOWER UNIT WHITE x 1

18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK

19. FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS

20. AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2

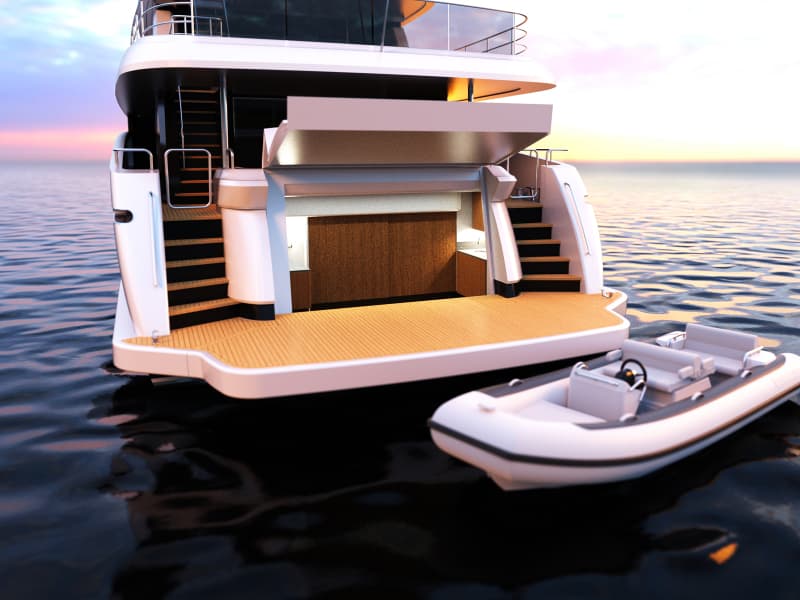

21. TENDER GARAGE

22. ANTI-FOULING BOTTOM PAINT:

SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE

SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE

23. SINGLE BOOT STRIPE COLOR: BLACK

24. S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RAILS

25. LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2

26. EXTERIOR STEP LIGHTS:

IMTRA KODIAK BLUE LED S/S 24V

27. RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES

28. SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT

29. ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER

30. FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK:

SCANDVIK 10187 S/S

31. AFT DECK REFRIGERATOR:

ISOTHERM CRUISE 90 FREEZER INOX 110V/60HZ

32. DECK WASHDOWN, SALT WATER:

FLOJET 4325-343L WATER PUMP 24V W/NOZZLE x 1

33. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS LIFTING CAPACITY

34. WATER FILL DECK FITTING x 2

35. DIESEL FILL DECK FITTING x 2

1.TEAK FLOOR

2.FRP RADAR ARCH AND MAST

3.AIR HORN:

BUELL S/S AIR HORN COMPRISING:

    1 X 5444-3 24V TANK MOUNTED COMPRESSOR

    1 X 1062 12” STROMBOS AIR HORN

    1 X 1063 15” STROMBOS AIR HORN

    1 X 1064 18” STROMBOS AIR HORN

4.INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED:

    AQUA-SIGNAL ONE SET (5)

    3532-003 #55 MASTHEAD LIGHT 24V

    3535-103 #55 STARBOARD LIGHT 24V

    3534-203 #55 PORT LIGHT 24V

    3533-703 #55 STERN LIGHT 24V

    3531-703 #55 ALL-AROUND LIGHT 24V

5.TEAK TREAD STAIRWAY FROM MIDSHIP BULKWALK TO PILOTHOUSE AND FORWARD WITH HAND RAILS AND LED STEP LIGHTS

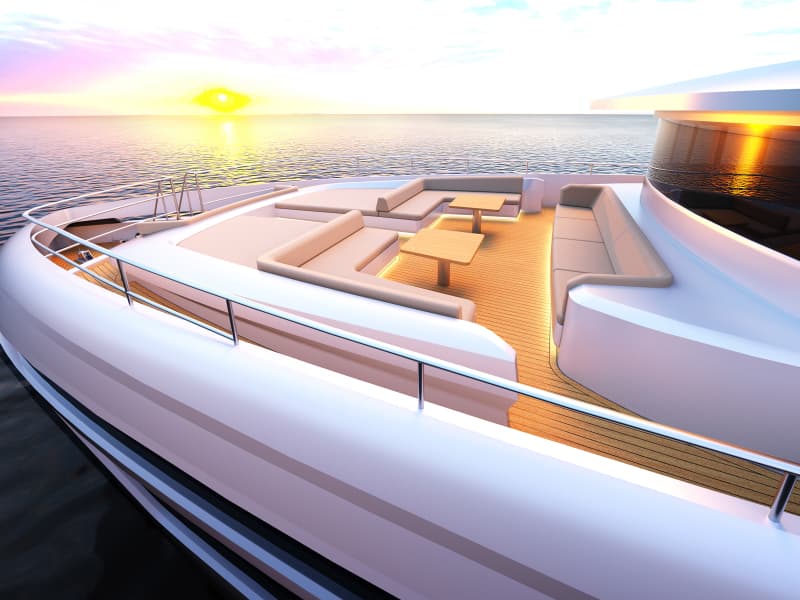

6.AT FORWARD OF THE PILOTHOUSE:

U-SHAPED SEATING WITH TEAK FOLDING TABLE

TWIN AFT FACING L-SHAPED SEATING

SUNPADS

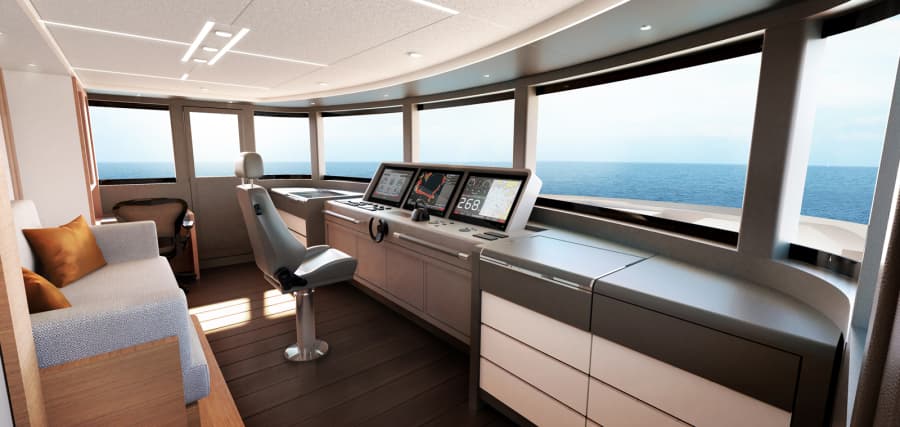

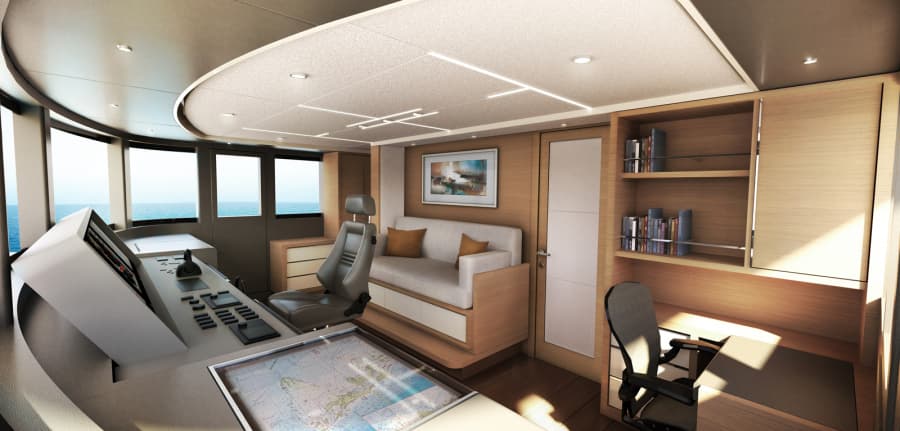

7.PILOT HOUSE:

HELM SEAT - BESENZONI P217 HELM SEAT x 1

SOFA SEATING AREA BEHIND HELM SEAT

WORK DESK/CHART TABLE AT STARBOARD SIDE

SEARCH LIGHT -ACR RCL-100 24V

 "AT REST" STABILIZER CONTROL AND MONITORING DISPLAY

BOW & STERN THRUSTER CONTROL PANEL

DANFORTH 5” MAGNETIC COMPASS

FUEL GAUGE HEADHUNTER TS-3000 SERIES

RUDDER INDICATOR

CCTV SYSTEM:

    FLIR DNR118 NETWORK VIDEO RECORDER LIR DNR118

    FLIR N338FH IP DOME CAMERA x 3 (2 ON AFT DECK, AND 1 ON FORE-DECK FACING WINCH)

    FLIR AX8 MARINE THERMAL MONITORING CAMERA x 2 FOR ENGINE ROOM

 GARMIN NAVIGATION SYSTEM:

I. HELM:

GPSMAP® 8624 FULLY-INTEGRATED MULTI-TOUCH MFD x 3

GRID™ - GARMIN REMOTE INPUT DEVICE x 1

GARMIN CARD READER x 1

VHF 200 MARINE RADIO x 2

AIS™ 600 CLASS B BLACK BOX TRANSCEIVER x 1

GMS 10 NETWORK PORT EXPANDER x 2

II. CREW’S MESS:

GPSMAP® 7608 FULLY-INTEGRATED MULTI-TOUCH MFD x 1

GHS 10™ 10 WIRED VHF HANDSET x 1

 III. AUTOPILOTING:

GHP REACTOR, HYDRAULIC W/SMARTPUMP COREPACK x 1

GRF 10 RUDDER FEEDBACK SENSOR x 1

 IV. MAST/HARDTOP/RADAR ARCH:

GMR™ 2526 X HD2 OPEN ARRAY RADAR AND PEDESTAL (25KW/6FT/96NM) x 1

GMR FANTOM™ 6 OPEN ARRAY RADAR AND PEDESTAL (40W/6FT/72 NM) x 1

GPS 19X NMEA 2000 x 2-GXM™ 52 SIRIUS XM® MARINE RECEIVER x 1

V.SOUNDER & TRANSDUCER:

GSD™ 25 PREMIUM SONAR MODULE x 1

AIRMAR 1KW B265LH BRONZE THRU-HULL TRANSDUCER x 1

GARMIN GT51M-THP –S/S THRU-HULL PAIR DOWNVU/SIDEVU x 1

AIRMAR DST800 SMART SENSOR DEPTH, SPEE, TEMP, NMEA 2000 x 1

 8. CARD ROOM:

CABINET/PANTRY AREA NEAR STAIRS

WETBAR

REFRIGERATOR: ISOTHERM CRUISE 130 ELEGANCE

ICEMAKER: ISOTHERM WHITE ICE MAKER

FAUCET: GROHE

SINK

4 X BAR STOOLS/HIGH CHAIRS

GRANITE TOP

CARD TABLE FOR 4

HEAD

 9.U-SHAPED SEATING WITH TEAK FOLDING TABLE AT AFT LOUNGE AREA

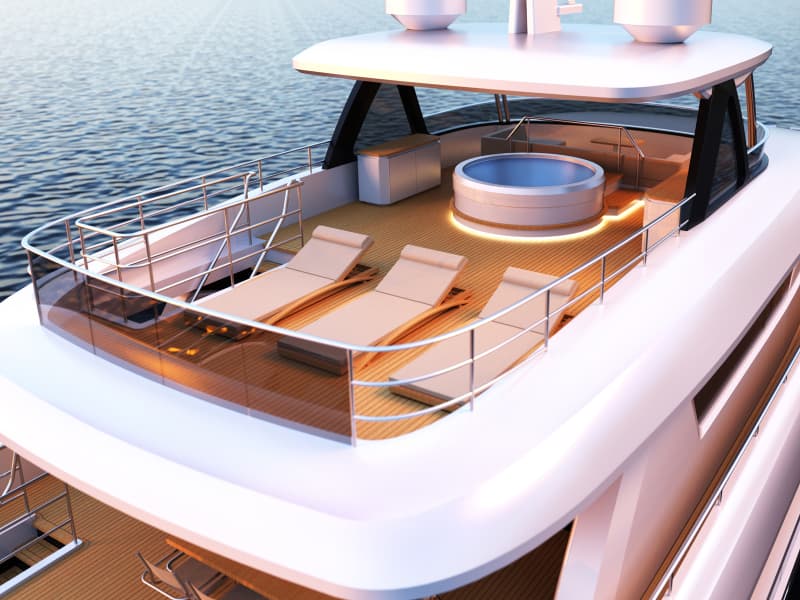

10.JACUZZI AT BRIDGE DECK AFT

11.S/S HATCH ON BRIDGE DECK STEP OPENING

12.LOW LEVEL COURTESY LED LIGHTS 24V

13.OVERHEAD LED LIGHTS

14.INTERLOCKING HEADLINER

1. ENGINE:

CAT C-32 ACERT 1925 HP X 2 GEARBOX

ZF2070A MARINE GEAR RATIO 2.467: 1 x 2

2. SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION

3. CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACK-UP SYSTEM:

FIXED STATIONS x 1 AT PILOTHOUSE; REMOTE CONTROL STATION x 1 IN THE AFT DECK PORT SIDE

4. ENGINE FUEL FILTERS: RACOR 75/1000MAX2 W/ALARM x 2

5. GENERATOR FUEL FILTERS: RACOR 75/500MAX2 W/ALARM x 2

6. S/S SHAFTS: AQUATECH 22 HIGH STRENGTH DIAMETER 4” x 2

7. HIGH PERFORMANCE 5–BLADE PROPELLERS: HUNG SHEN NIBRAL PROPS x 2

8. MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES

9. SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS:

TIDES MARINE RUDDER SEAL DIAMETER 3-1/2” & SHAFT SEAL DIAMETER 4”

10. HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES:

PSC-2252-21-2 DUAL STATION W/COOLING WATER FLOW DETECTOR

11. SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CON AND WATER MAKER

12. SEA COCKS ON ALL UNDERWATER FITTINGS

13. S/S EMERGENCY TILLER

14. S/S RUDDERS: DIAMETER 3-1/2”

15. HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM: EXALTO 24V X 4

16. BOW AND STERN THRUSTERS WITH CENTRAL HYDRAULIC SYSTEM

17. “AT REST” STABILIZER SYSTEM

18. STEERING WHEELS AT P/H & F/B: S/S 22” DIAMETER x 2

19. DEANGELO EXHAUST SYSTEM W/ BYPASS

1. WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDA-CORE DECK PLATES

2. PYROTEK NOICE CONTROL DESIGN SOUND INSULATED MATERIALS

3. WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR

4. FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE

5. E/R AC LED LIGHTS & DC LED DOME LIGHTS

6. ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR:

DELTA “T” BLOWERS WITH 600-P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN

500-219183-45/8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS

500-215363-30/8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS

7. AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN:

SEA-FIRE FM-200 24V

SEA-FIRE FIRE DETECTION & MONITORING SYSTEM THROUGHOUT THE BOAT

8. ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE

9. HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP:

HEADHUNTER XR-124 12-24VDC x 1

HEADHUNTER M5-230 MACH 5 230VAC x 2

10. CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM:

CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL AIR COMPRESSOR:

TWCX60 (60000 BTU) x 4 AIR HANDLER:

SALOON: 24000 BTU/HR x 1, 18000 BTU/HR x 1

GALLEY: 18000 BTU/HR x 1

KITCHEN: 24000 BTU/HR x 1

PILOTHOUSE: 18000 BTU/HR x 1

CARDROOM: 24000 BTU/HR x 1

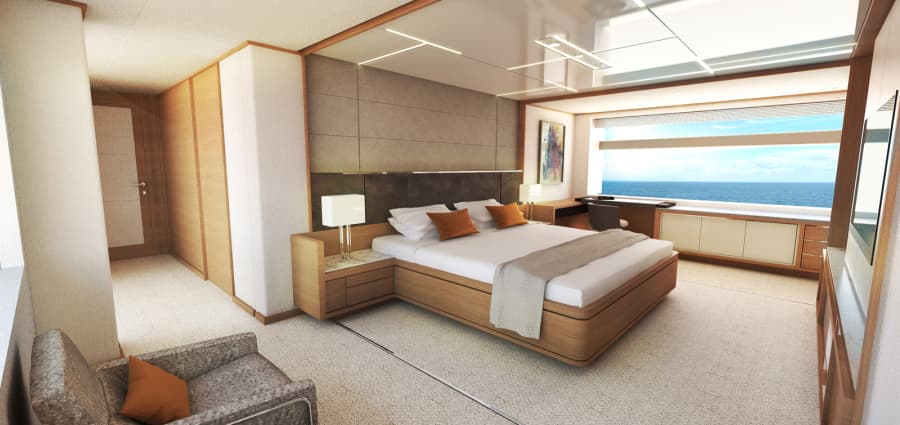

MASTER STATEROOM: 24000 BTU/HR x 1, 18000 BTU/HR x 1

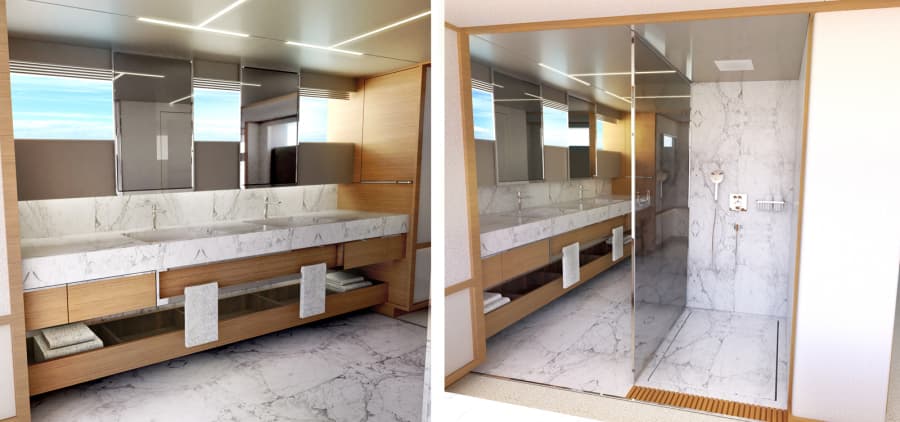

MASTER BATHROOM: 18000 BTU/HR x 1

PORT FWD GUEST CABIN/BATHROOM: 18000 BTU/HR x 1

PORT AFT GUEST CABIN/BATHROOM: 18000 /HR x 1

STBD FWD GUEST CABIN/BATHROOM: 18000 /HR x 1

STBD AFT GUEST CABIN/BATHROOM: 18000 /HR x 1

CAPTAIN CABIN: 9000 BTU/HR x 1

PORT CREW CABIN: 9000 BTU/HR x 1

STBD CREW CABIN: 9000 BTU/HR x 1

CREW MESS: 12000 BTU/HR x 1

11. FRP FUEL TANKS W/ HEADHUNTER FUEL GAUGE:

3960 GAL FUEL TANK x 1

12. OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES:

REVERSO OP-704 24V x 1

13. HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW

14. MANUAL BILGE PUMP:

HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1

15. FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER:

TUTHILL FR2410C 24V 1/4HP x 2

TUTHILL 901-1 x 2

16. S/S COVER OUTSIDE ENGINE EXHAUST

17. FRESH-WATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN ENGINE ROOM:

BASIN: LP-7000 x 1

TAP: SCANDVIK 10477 COMPACT MIXER WHITE x 1

SHOWER DRAIN: RULE 98 800GHP 24V x 1

18. WATER MAKER:

SEA RECOVERY 1400GPD(ONE) COMPLETE PREFILTER, OIL/WATER SEPARATOR, CARBON FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER

19. WORK BENCH OVER THE ENGINE X 2

1. OCTOPLEX DISTRIBUTED POWER CONTROL AND MONITORING SYSTEM OF ALL MAIN SHIP SYSTEM INCLUDING BUT NOT LIMITED TO, TANK LEVEL ALARMS AND MONITORING, PUMP CONTROL, BILGE STATUS AND ALL ELECTRICAL LOAD MANAGEMENT

2. 110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER

3. SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM:

GLENDINNING CABLE MASTER CM-8 100AMP 24V WITH 120’ CABLE x 2 SETS

GLENDINNING RADIO REMOTE CONTROL 04155 (2 TRANSMITTERS) x 1 SET

4. INVERTERS:

VICTRON QUATTRO 48/500/70-100/100

5. COLOR-CODED WIRING FOR EASY IDENTIFICATION

6. GENERATOR:

ONAN MARINE DIESEL GENERATORS 55 KW 3 PHASE,(60HZ); 110V/220V 60HZ x 2 INCLUDING

STANDARD EQUIPMENT(CONTROL PANEL): SOUND SHIELD, WET EXHAUST MUFFLER, GAS/WATER SEPARATOR

7. AUTOMATIC BATTERY CHARGER:

DOLPHIN 80 AMP 24V 115-230V 50/60HZ x 2 FOR SERVICE BATTERIES

PROTECH 12V 30AMP x 1 FOR GENERATOR BATTERIES

8. BATTERY SWITCH (VAPOR PROOF): BEP 701-MDO x 3

9. 225 AMP/HR GEL CELL SEALED BATTERIES FOR SERVICE/ENGINES/GENSETS:

SERVICE LIFELINE GPL-8DL 255AMP x 4

ENGINE LIFELINE GPL-8DL 255AMP x 4

GENSETS LIFELINE GPL-8DL 255AMP x 2

10. ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS

11. AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING ENGINE ROOM

12. GFI PROTECTION FOR AC REQUIRED OUTLETS: VIMAR 16511.16B 120V~60HZ

13. AUTOMATIC ISOLATION & BOOSTING TRANSFORMER: CHARLES 93-ISOBOST 100 AMP x 2

14. INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS, PILOTHOUSE, HAND RAILS, AND GALLEY

15. COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2” COPPER STRAP AND HULL ANODES

16. SHORE TELEPHONE INLET: HUBBELL PH6594TV x 1

1. FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR

2. WASTE TREATMENT SYSTEM IN E/R: HEADHUNTER TW-HMX-512 1200GPD

3. SUMP PUMPS FOR SHOWERS: RULE 12 24V/2000GPH x 3

4. BILGE PUMPS: RULE 16A 24V/3700GPH x 7

5. FLOAT SWITCH:

LOW-SUREBAIL 382251 x 6

HIGH-SUREBAIL 382251 x 9

6. MARINE GRADE LINES FOR FRESH WATER SYSTEM

7. WATER HEATERS W/HOT WATER CIRCULATING PUMP: WATER HEATER: TORRID MV40S 120V 1500W S/S 40 GALLONS x 2

HOT WATER CIRCULATING PUMP: GRUNDFOS UP10-16B5/ATLC 115V/60HZ x 1

8. 770 GAL S/S WATER TANKS W/ HEADHUNTER TS-3001B ELECTRIC WATER GAUGE

9. PRESSURE STORAGE TANKS:

HEADHUNTER AVF-4 4 GAL x 2

GROCO PST-1 1 GAL x 1

10. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS, IN BRONZE WITH BALL VALVES

11. HIGH WATER BILGE ALARM SYSTEM - 7 AREAS

12. DOCKSIDE FRESH WATER INLET: PAR JABSCO 44410-1001 x 1

13. COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION

14. BRONZE INTAKE VALVES (BALL). ALL THRU-HULL FITTINGS ARE BRONZE

15. 2HP AC FIRE PUMP WITH ON-DECK FIRE HOSE

16. BILGE EXHAUST VENTILATION: PAR 35740-0013 24V 3” FLANGE MOUNT BLOWER

1. HIGH QUALITY FABRIC SOFAS

2. INTERLOCKING VINYL CEILING PANELS THROUGHOUT

3. HIGH QUALITY DOOR LOCK SETS THROUGHOUT

4. LED LIGHTING SYSTEM THROUGHOUT:

CHROME TRIM & WHITE COLOR

5. ITALIAN SWITCH & OUTLETS THROUGHOUT:

VIMAR / CHROME TRIM

6. CHOICE OF FABRICS FOR BEDDING & CURTAINS

7. INDIRECT LED WARM WHITE LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES

8. INTERIOR STAIRWAYS WITH SAFETY LED LIGHT SYSTEM

9. CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT IN EACH CABIN

10. PYROTEK NOISE CONTROL DESIGN OF SOUND INSULATION IN WALLS BETWEEN CABINS

11. CENTRAL VACUUM SYSTEM W/ OUTLETS:

NUTONE 110V/60 HZ x 1

12. CHROME COLOR BATHROOM FIXTURE THROUGHOUT

13. FROSTED GLASS FOR SHOWER DOORS

14. SALOON:

HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 4

INTERLOCKING VINYL CEILING PANELS THROUGHOUT

S/S HIGH POLISH ELECTRICAL OPERATED DOOR

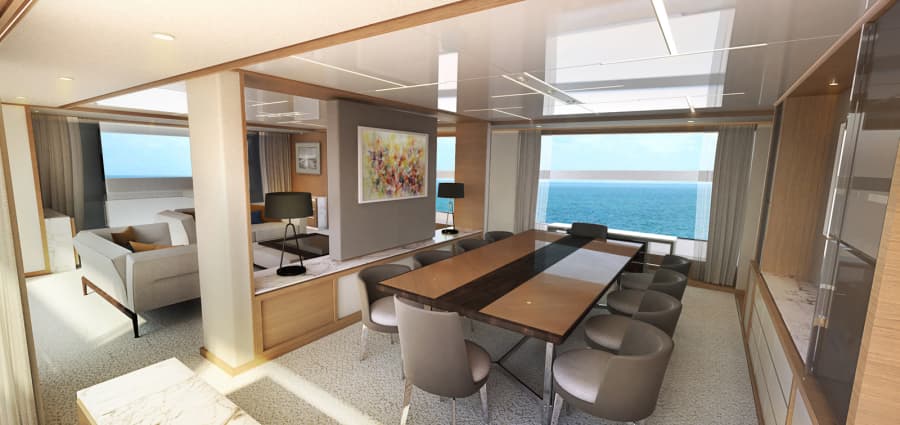

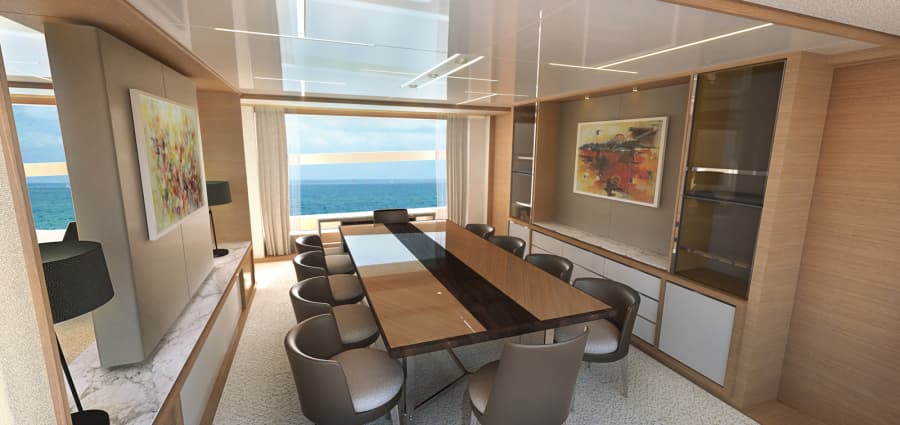

CUSTOM DESIGN DINING TABLE (FOR 8 PEOPLE)

CUSTOM DESIGN CEILING SOFFIT

CUSTOM DESIGN TV CABINET

NUVO WHOLE ZONE AUDIO SYSTEM

SHAPE LC-58U30 58” TV

PIONEER BLU-RAY DISC PLAYER

APPLE TV

15. MASTER CABIN:

INTERLOCKING VINYL CEILING PANELS

KING SIZE BED

CUSTOM DESIGN HEADBOARD

CUSTOM STORAGE CABINETS

POWER CURTAINS

VANITY LIGHT

CEDAR LINED WALKING CLOSET

READING LIGHTS:

SHAPE LC-50U30 50” TV

PIONEER BLU-RAY DISC PLAYER

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

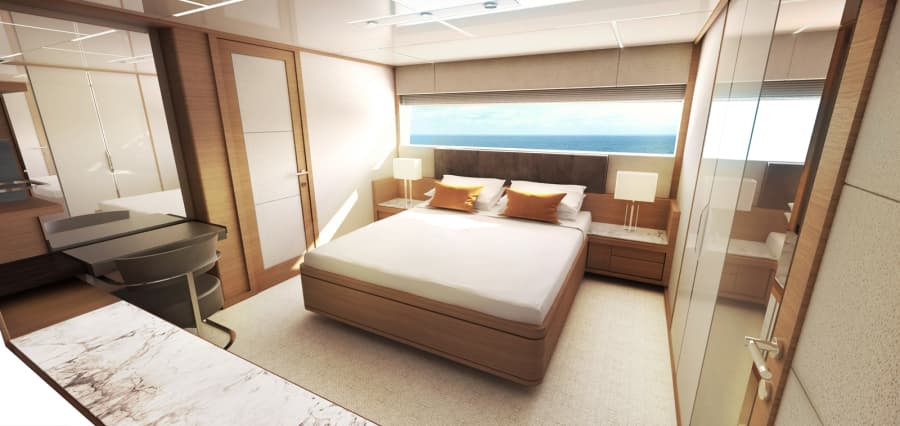

16. PORT FWD GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS

QUEEN SIZE BED

CUSTOM DESIGN HEADBOARD AND CEILING

CUSTOM STORAGE CABINETS

VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1

CEDAR LINED CLOSET

READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2

SHAPE LC-32LE275 32” TV

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

17. PORT AFT GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS

QUEEN SIZE BED

CUSTOM DESIGN HEADBOARD AND CEILING

CUSTOM STORAGE CABINETS

VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1

CEDAR LINED CLOSET

READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2

SHAPE LC-32LE275 32” TV

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

18. STBD FWD GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS

QUEEN SIZE BED

CUSTOM DESIGN HEADBOARD AND CEILING

CUSTOM STORAGE CABINETS

VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1

CEDAR LINED CLOSET

READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2

SHAPE LC-32LE275 32” TV

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

19. STBD AFT GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS

QUEEN SIZE BED

CUSTOM DESIGN HEADBOARD AND CEILING

CUSTOM STORAGE CABINETS

VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1

CEDAR LINED CLOSET

READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2

SHAPE LC-32LE275 32” TV

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

20. CAPTAIN’S CABIN:

TEAK & HOLLY FLOORS

HANGING LOCKER

DOUBLE BED

DESK & READING LIGHTS

SHAPE LC-32LE275 32” TV

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

21. STBD CREW & PORT CREW QUARTERS:

TWIN BEDS

READING LIGHTS

NUVO WHOLE ZONE AUDIO SYSTEM

22. CREW MESS AREA:

SOFA SEATING AREA

DINNING TABLE

SHAPE LC-32LE275 32” TV

NUVO WHOLE ZONE AUDIO SYSTEM

APPLE TV

GARMIN GPSMAP® 7608 FULLY-INTEGRATED MULTI-TOUCH MFD x 1

GHS 10™ 10 WIRED VHF HANDSET x 1

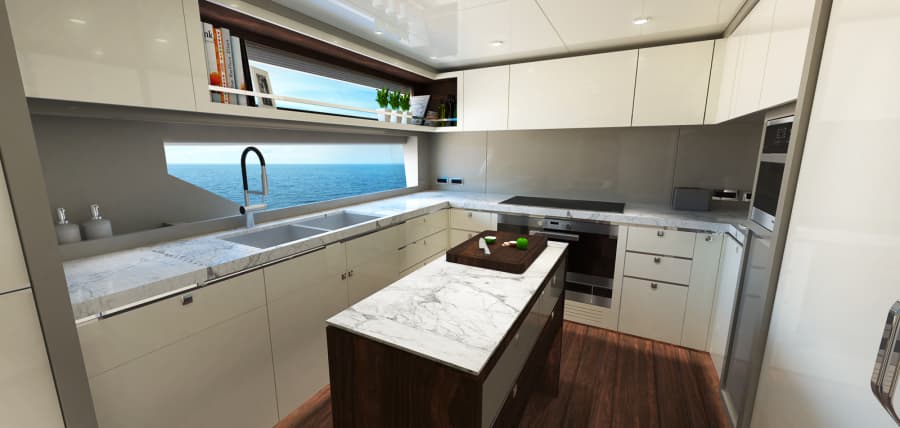

1. TRASH COMPACTOR:

BROAN # 15SSEXF S/S

2. STONE WORKTOPS

3. TWIN BOWL SINK WITH TAP

4. CABINETS AND TOP-BOX LOCKERS

5. COOKTOP:

MIELE LATEST MODEL

6. ICEMAKER:

MIELE LATEST MODEL

7. DOWNDRAFT VENTILATOR:

MIELE LATEST MODEL W/ LIGHT

8. DISHWASHER:

MIELE LATEST MODEL

9. OVEN:

MIELE BUILT IN LATEST MODEL

10. FULL HEIGHT REFRIGERATOR:

MIELE LATEST MODELS

11. FULL HEIGHT FREEZER:

MIELE LATEST MODELS

12. MICROWAVE:

MIELE LATEST MODEL

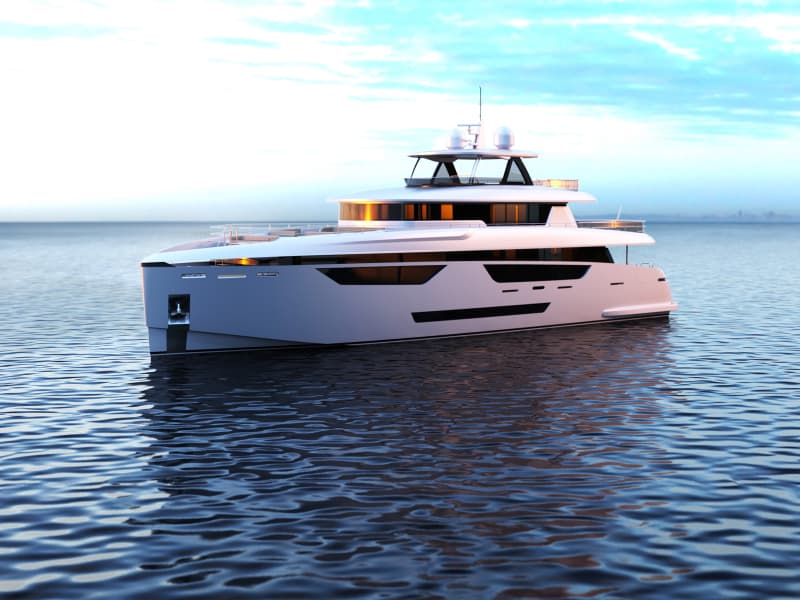

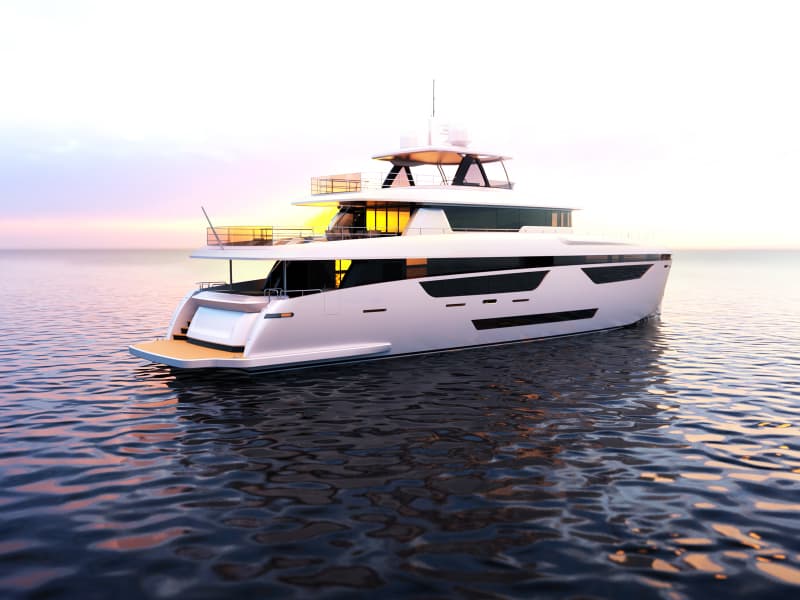

New construction, hull already in the mold. New direction for Johnson Yachts - large volume, wide beam, Tri-Deck with flybridge, transom garage with Beach Club once tender is launched. Interior design by DESIGN UNLIMITED, England.

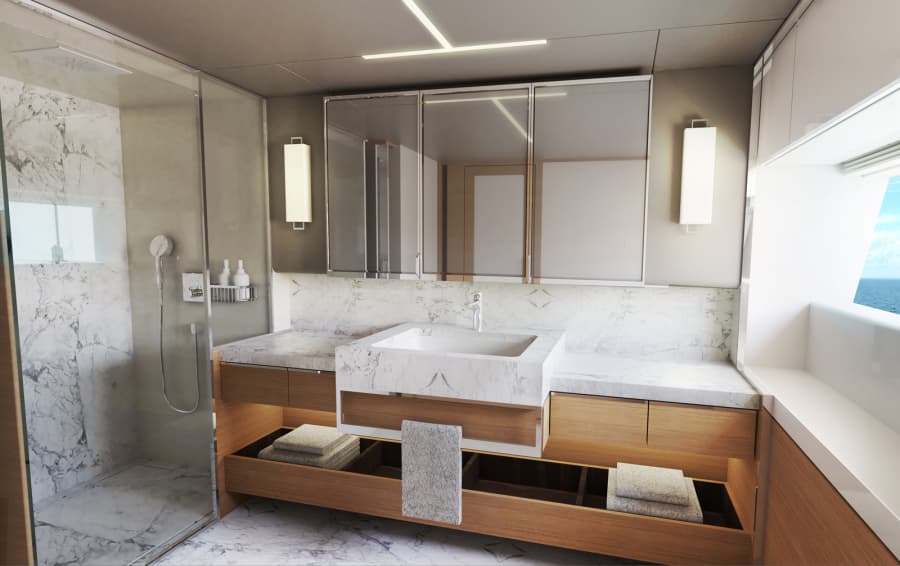

1. MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS

2. SEAMLESS POLYURETHANE FINISH IN ALL HEADS

3. NON-SLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING

4. HEADHUNTER VACUUM TOILET SYSTEM IN EACH HEAD

5. EXHAUST FANS IN EACH HEAD

6. MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD

7. SINKS WITH GROHE FAUCETS

Listing MLS by Yachtr.com
