2026 Johnson Flybridge w/Hydraulic Platform

1. DNV Type approved fiber/resin & sandwich core material applied

2. Isophthalic white gelcoat finish for hull above waterline, exterior decks and furniture

3. High-density foam cored hull bottom

4. High-density foam cored hull sides, decks and superstructure

5. Stringers with high density form coring

6. Interior structural components all properly bonded to hull.

7. Anti-fouling paint. Primer system.

8. Tunnels for reduced draft

1. 14 MM main deck teak floor

2. Stainless integral rollers & chain stopper for anchor chain

3. 300 feet galvanized chain (5/8")

4. Maxwell hydraulic windlass VWC4000BB/HYD

5. Stainless Steel 250 lb. anchor x 2

6. Heavy duty 316# S/S handrail & stanchions

7. Heavy duty 316# cleats and fairleads

8. Medium tinted safety glass

9. Stainless steel pneumatic saloon sliding door with button and safety sensor device

10. Stainless steel rubrail with rubber insert around hull & deck joint

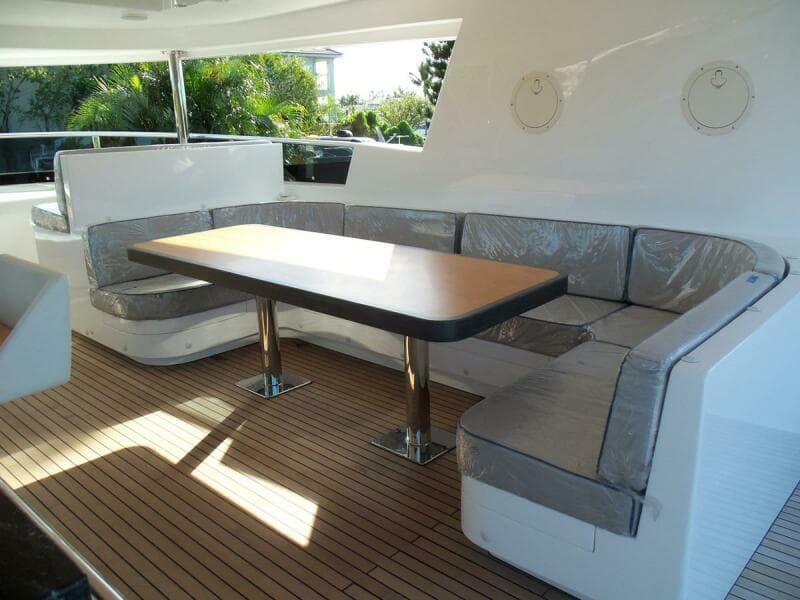

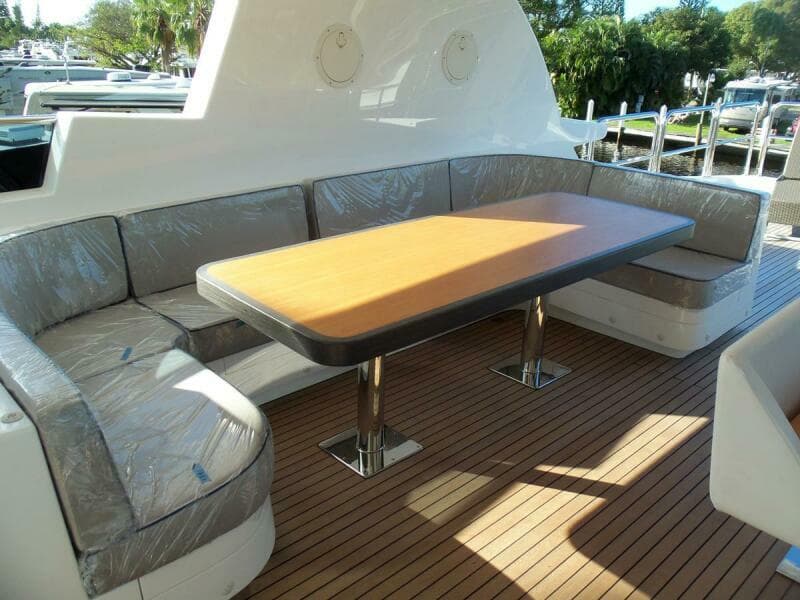

11. Aft deck seating built-in with cushions

12. Aft deck wooden table with protective cover

13. LED low level courtesy light son side deck

14. LED low level courtesy lights on aft deck

15. Stair to flybridge

16. Hot & cold transom shower

17. Stainless steel swimming ladder

18. Water fill deck fitting

19. Diesel fill deck fitting

20. Flojet 4325-3431 raw water deck wash down pump

21. LED floodlights for cockpit x 2

22. Stern capstan Maxwell VC2550 24V x 2

1. 5 blade bronze propellers x 2

2. Bronze p-brackets

3. Stainless steel Aquatech 22HS 4" diameter shafts

4. 3 1/2" Tides shaft and rudder seals

5. Boot top stripe size 3" color black, blue or red

6. Full cathodic bonding system to zinc anodes

7. Seawater strainers for engines, genset and air conditioning

8. Seacocks on all underwater fittings

9. Underwater exhaust with bypass

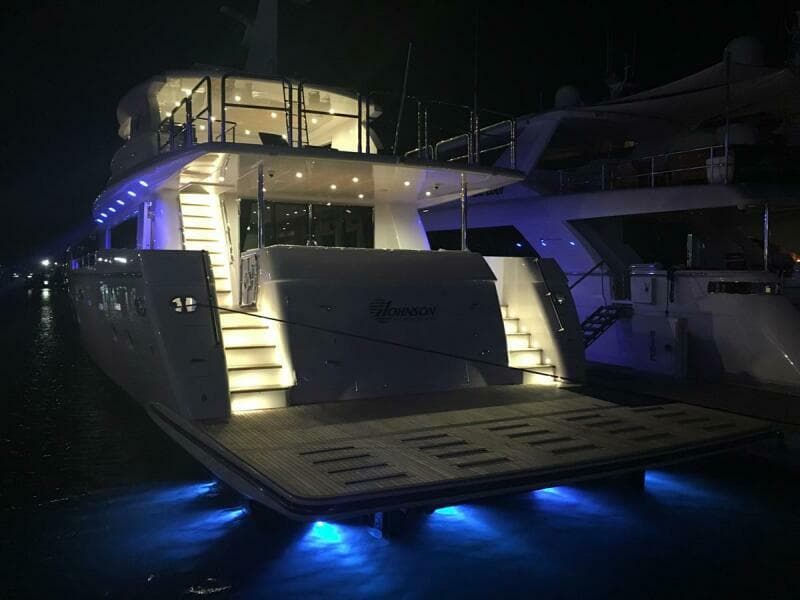

10. Aqualuma underwater night Sport series x 8

11. Aritex hydraulic swimming platform with lifting capacity of 2640 lb.

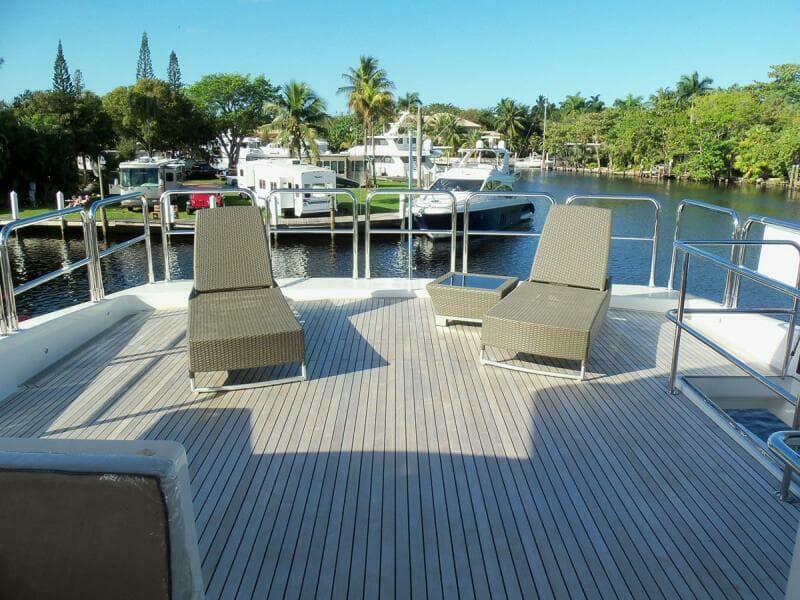

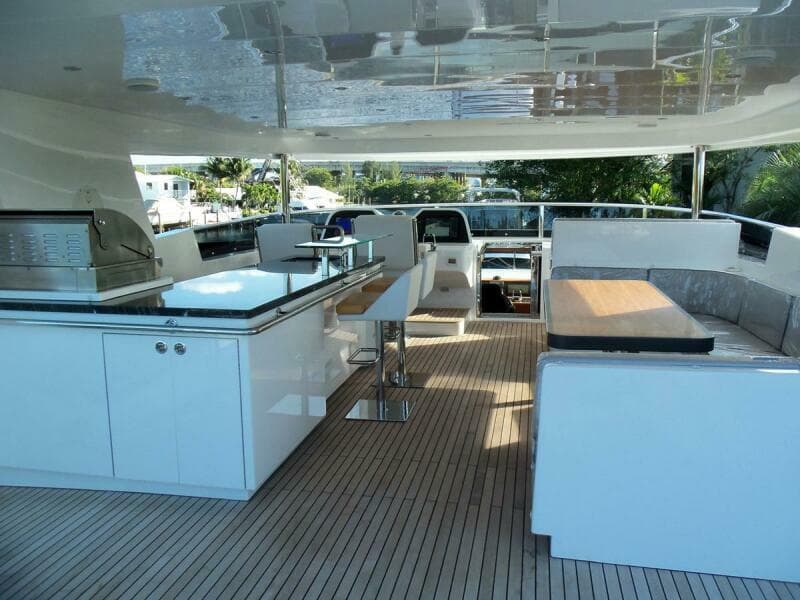

1. Teak flybridge deck on entire deck area

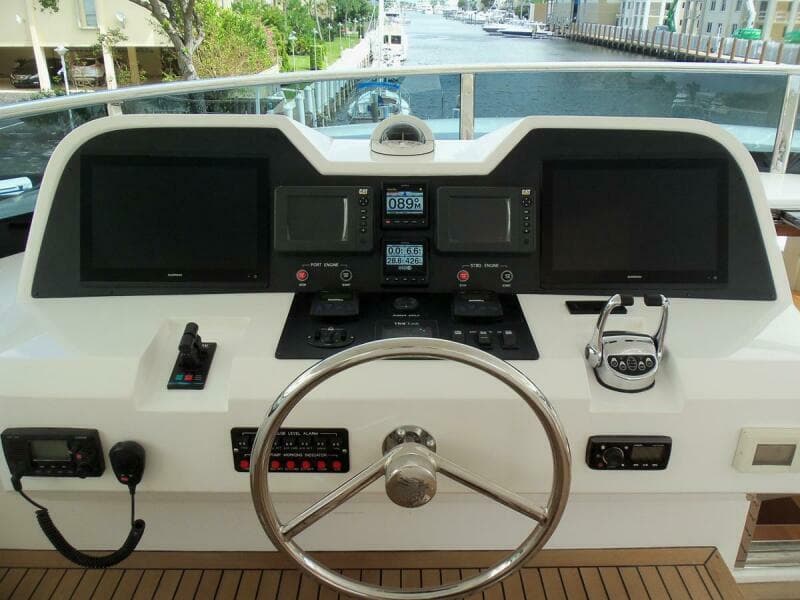

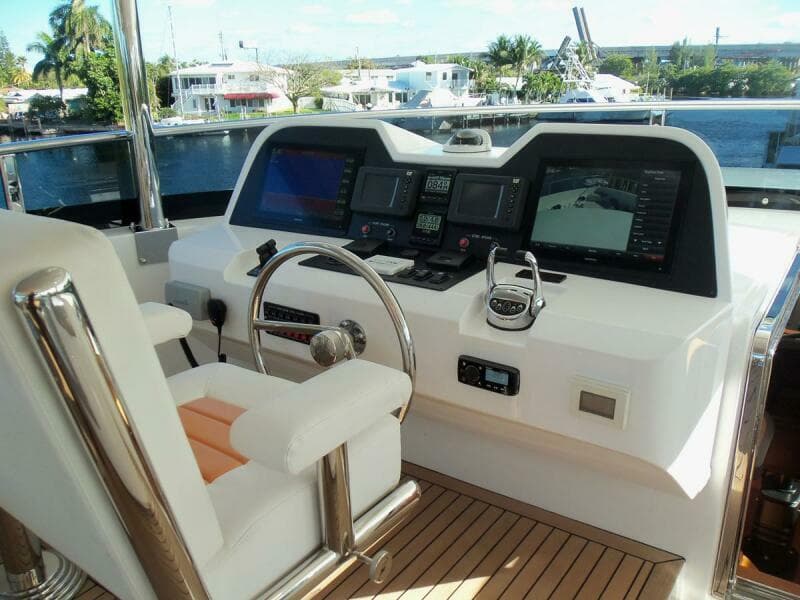

2. Instrument console

3. Built-in seating with cushions and height adjustable table

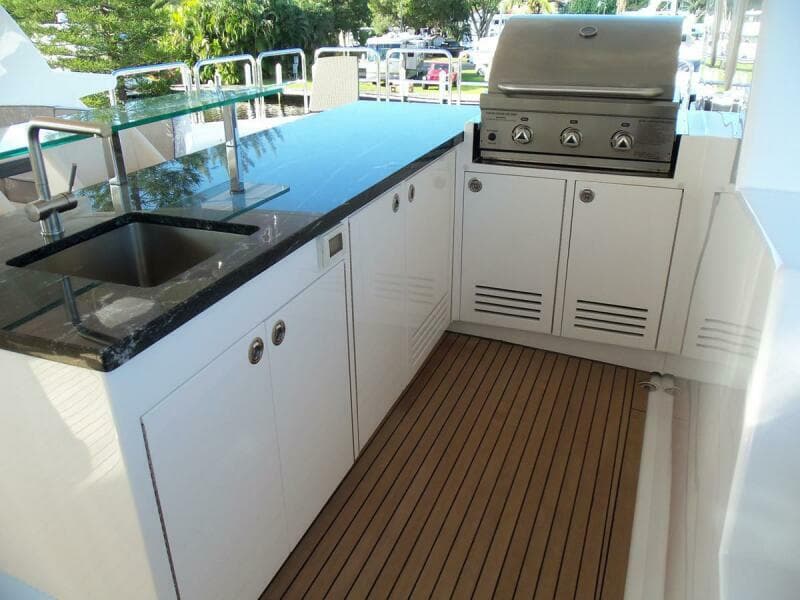

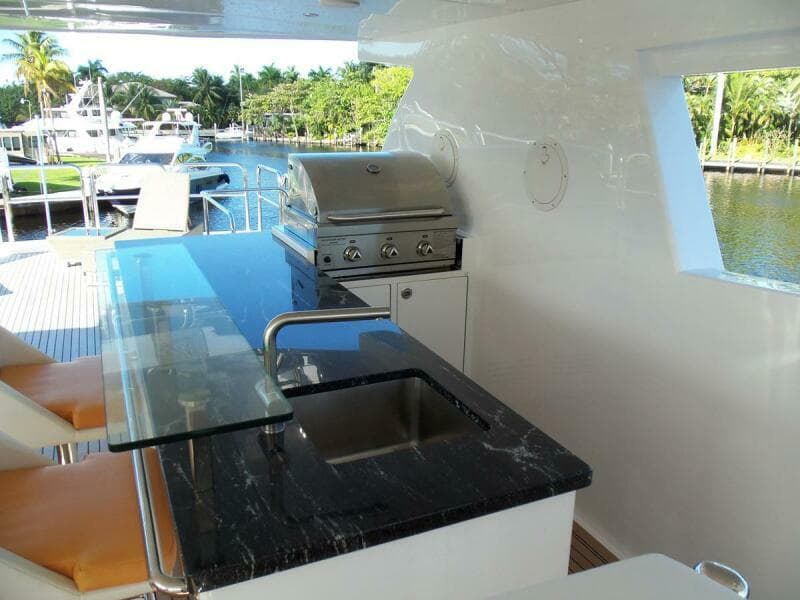

4. Custom walk behind wet bar

5. Isotherm Inox refrigerator

6. Isotherm 5W08A141LMN000ice maker

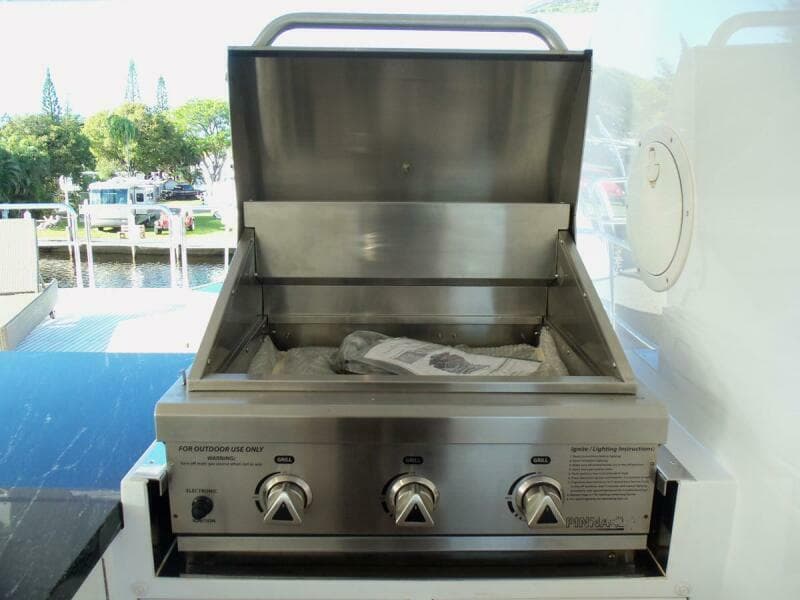

7. High quality Aritex stainless steel gas BBQ 30"

8. Rudder indicator

9. Magnetic compass

10. Stainless steel guard rails and grab rails

11. Low level courtesy LED lights 24v

12. PAR Jabsco search light

13. Buell airhorn

14. (2) Manual pilot chairs

15. Stainless steel steering wheel

16. CCTV system with 5 cameras (engine room, aft deck port & stbd/fwd deck)

17. Fuel gauge Headhunter TS-3000 series

18. One shipset LED navigation lights

19. Fusion stereo system

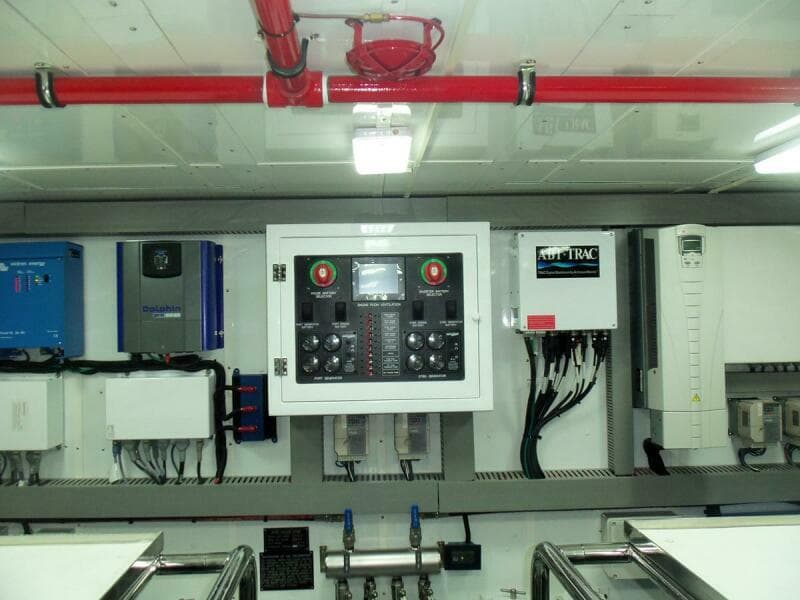

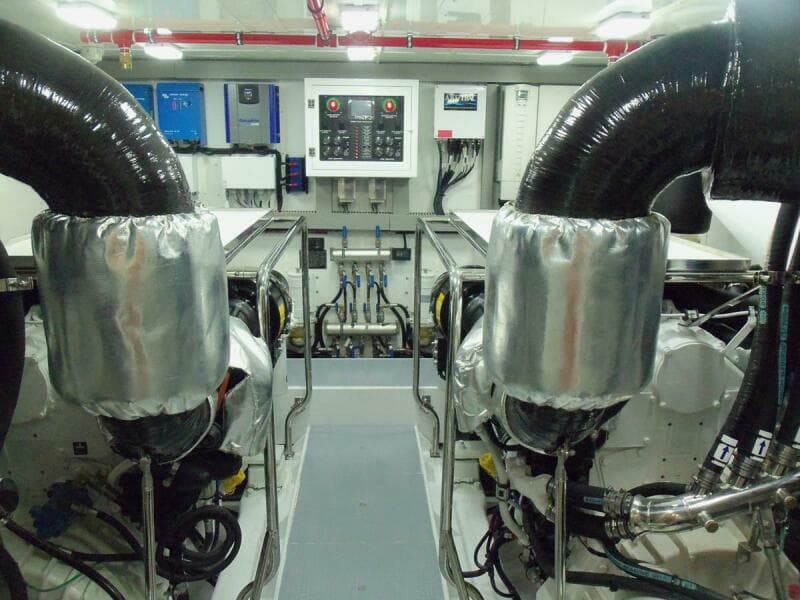

1. Engine room clean designed with lightweight honeycomb floor.

2. Sound proofing throughout engine room

3. Heavy duty insulated engine room door

4. Stainless steel grab rails on each side of engine

5. Engine room LED ceiling lights

6. Engine compartment ventilation blowers

7. Man Ship engine room demisters

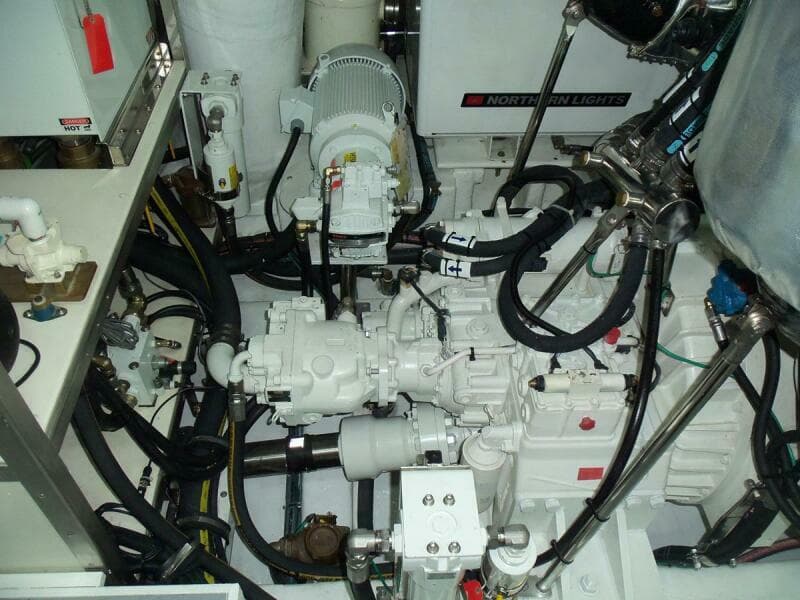

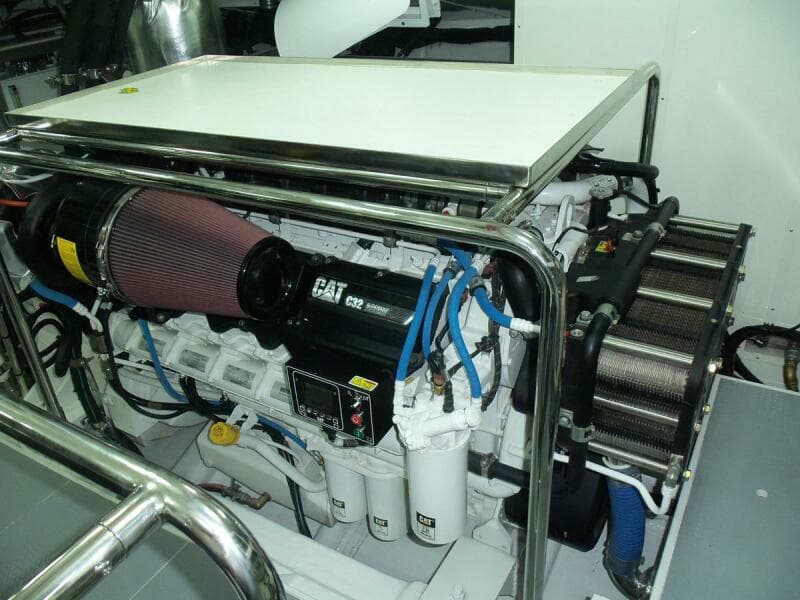

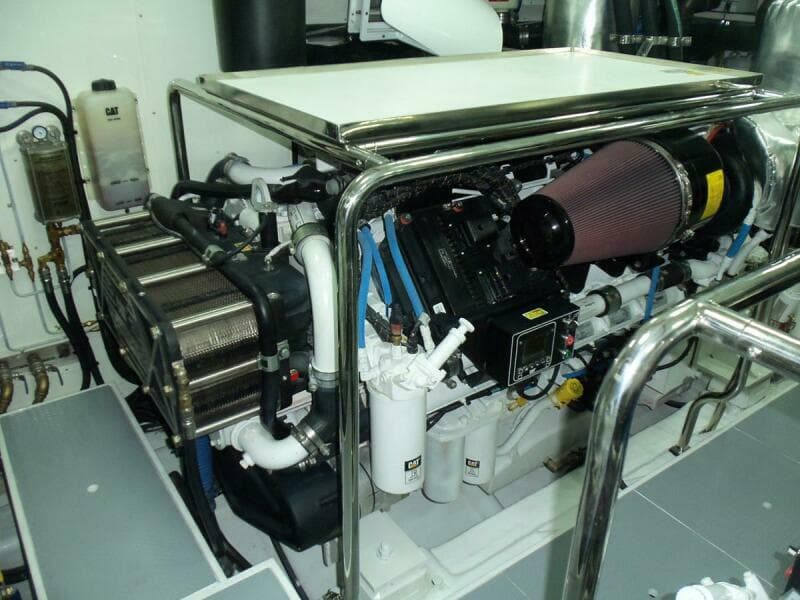

8. (2) CAT's C-32 ACERT 1925 HP engine

9. Hydraulic steering system

10. Engine load distributed through flexible mountings on stainless steel engine bed bonded to FRP hull girder

11. Engine alarm system

12. Air compressor

13. Trident hose or equivalent for engine exhaust

14. Hydraulic "AT REST" stabilizer system

15. Hydraulic bow and stern thrusters

1. 110V/220V AC electrical system

2. DC 12/24V system

3. Color-coded wiring for easy identification

4. Main electric panel includes AC & DC circuit breakers

5. AC 110V receptacles located sockets throughout the boat.

6. GFI protection for all AC outlets in exterior, heads, galley and engine room

7. Fiberglass water/exhaust separator for generators

8. Electrolysis bonding system

9. Cathodic protection with zinc anodes for shafts, struts, etc.

10. Indirect lighting under valance in saloon, staterooms and galley

11. Italian Vimar switches for lighting system

12. (2) 100 amp shore power connections with auto isolating & booster transformers.

AC/DC Main Power System

13. (2) Northern Lights generators 55kW (60Hz) with sound shield

14. Battery charger for 24v

15. Battery charger for 12v

16. Alternator split charging system

17. (4) 255 amp/hr AGM ship service batteries

18. (4) 255 amp/hr AGM engines start batteries

19. (2) 255 amp/hr AGM generator start batteries

20. All batteries enclosed with proper fixtures

21. (2) Shore power connections wired with 2 units of 100amp automatic isolating & booster transformers

22. (3) BEP battery select switches

23. Inverter - Victron energy 24/5000-120V

1. Garmin GPS

2. Garmin compression radar

3. (2) Garmin 17" multifunction displays

4. Garmin autopilot system

5. Garmin AIS

6. (2) Garmin VHF radios

7. Ritchie FD-500P 5" 24V compass

Fuel Oil System

1. Fuel tanks with sight and electric gauges and capacity as specified in Principal Dimension above

2. Dual Racor duel filter/water separator for each engine

3. Racor duel filter/water separator for generator

4. Oil changing pump for engine, generator and clutches

Fresh Water System

5. Stainless steel water tank with electric gauge and capacity as specified in Principal Dimension above

6. Headhunter March 5 M5-230 AC pump

7. GROCO-4000004-24V DC pump for back-up

8. Marine grade lines for fresh water system

9. (2) 40 gallon water heaters - Torrid MV 40

10. Hot water circulation pump

11. Dockside fresh water inlet

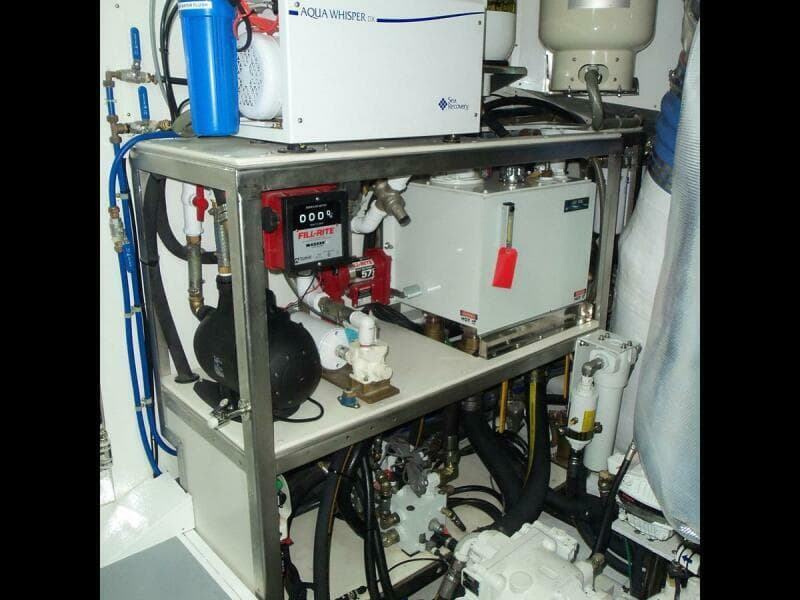

12. Watermaker 1400 GPD

Sanitary System

13. Holding tank with macerator pump

14. Holding tank level indicator

15. Y-valve for holding tank with deck fitting for dockside pump out

16. Sealand toilet system

17. (5) Sump pumps for shower water

Bilge Water System

18. (7) DC 24V Rule 3700 bilge pumps

19. PAR JABSCO 29270-0000 manual bilge pumps i engine room

20. (7) Highwater level bilge alarm system

21. Bilge exhaust ventilation fans

Air Conditioning System

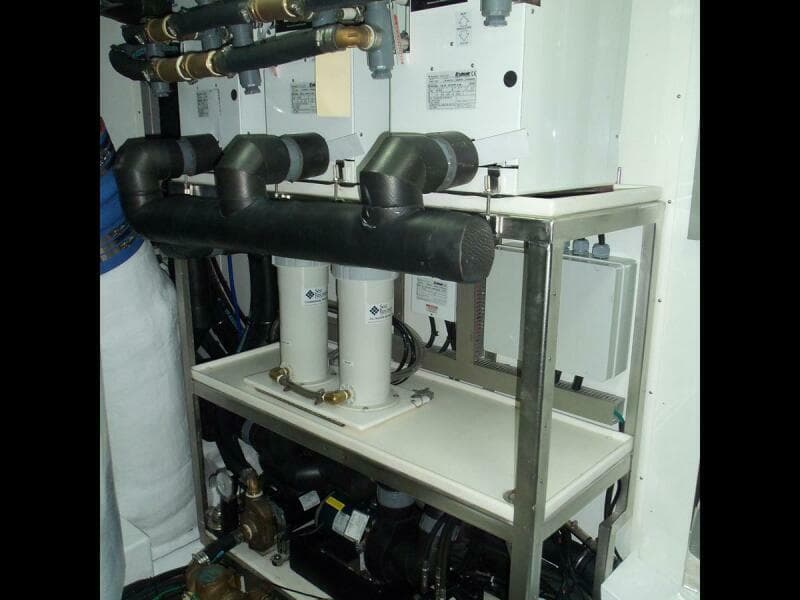

22. (3) Cruisair chilled water air conditioning system with 60,000 BTU compressor

23. Air handlers throughout

Fire Safety System

24. Insulating with fire protection material in engine room wall

25. Auto shutdown system

26. Automatic/manual Sea-Fire fire extinguisher system

27. Integrated fire alarm system in helm station with smoke detector in each cabin

Interior Decoration

1. Standard layouts: Master stateroom, VIP plus 2 guest cabins and 2 crew cabins

2. Standard collection of wood for interior

3. Standard collection of carpet except in wood floor areas

4. Standard collection of interlocking vinyl ceiling panels throughout

5. Choice of marble/granite/wood floors in galley from standard collection

6. Choice of granite/glass/quartz stone for galley countertop and backsplash from standard collection

7. Standard choice of fabrics for bedspreads, decorative pillows and sheet set (flat sheer, fitted sheet, pillow cases) one set per berth

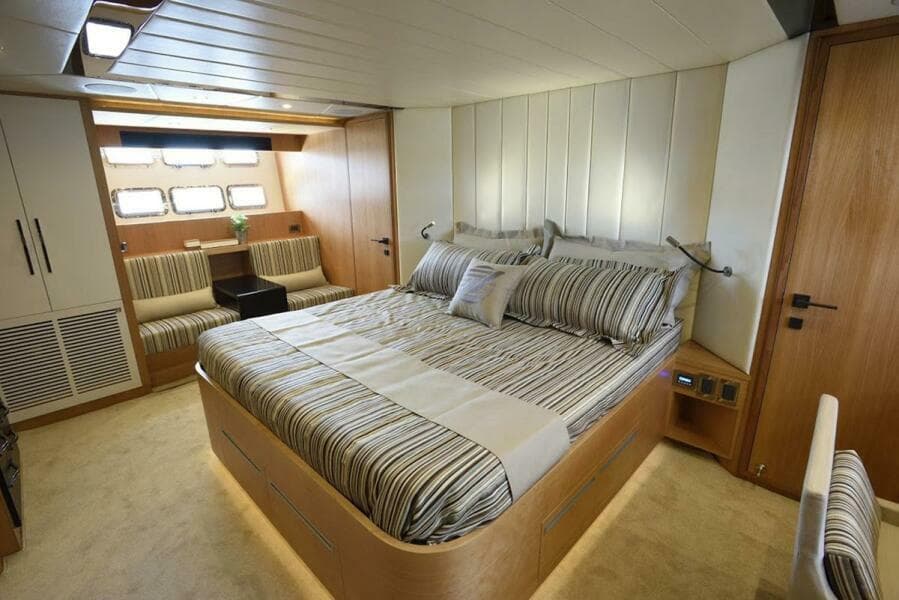

8. King size bed in master stateroom

9. Upholstered headboard for master stateroom, VIP stateroom and guest cabins

10. Wood or upholstered bed frames in all cabins

11. Hanging lockers in all staterooms

12. Quick KAI XP-LP 4W LED ceiling lightings

13. Indirect LED lighting system under bed and valances

14. 24V Reading lights in each cabin

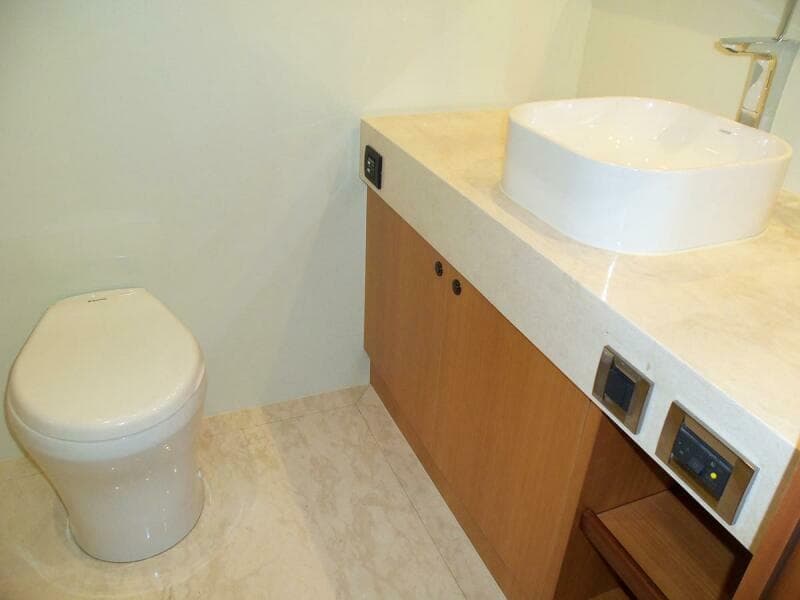

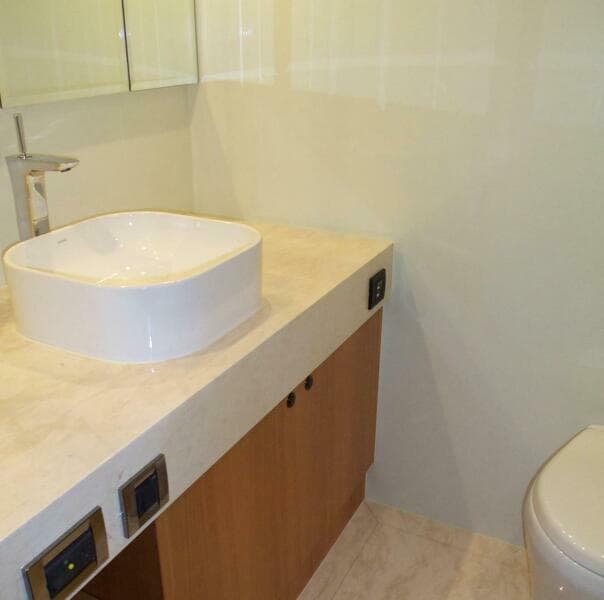

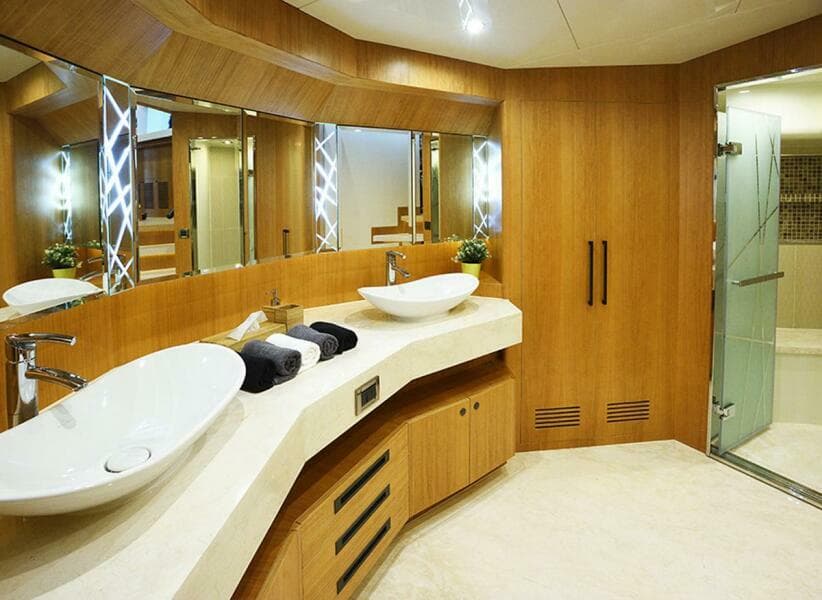

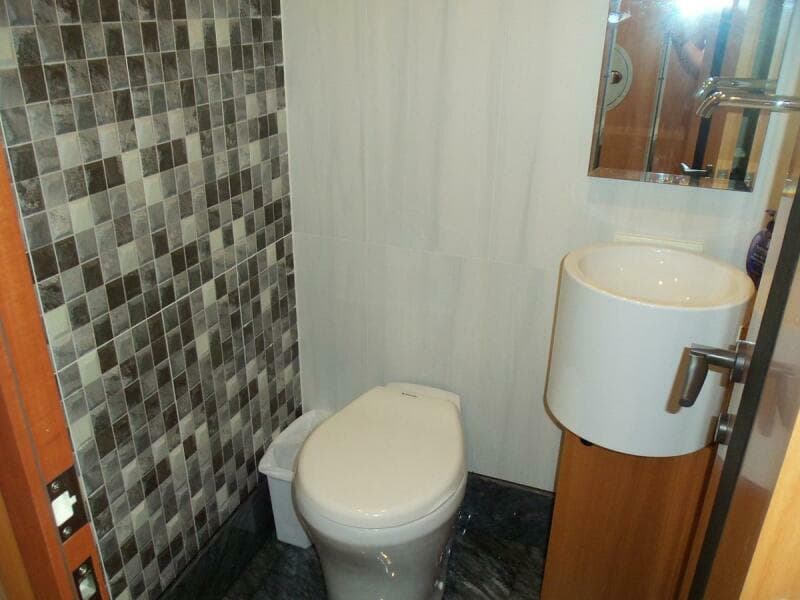

15. Choice of marble/granite/mosaic/glass/quartz stone for countertop and backsplash in all heads from shipyard collection

16. Choice of marble/granite/wood floor in all heads from shipyard collection

17. Glass/dishes/plate holders if sample provided

18. Grohe faucets, towel bars, towel rings cup/brush/soap holders, toilet roll holders all heads.

19. Toto or equivalent basins

20. Lacquer finish above basin countertop

21. Wood finish below basin countertop

22. Exhaust blower for each head

23. Standard choices of mosaic finish for all shower walls except for crew which is to be finished in lacquer

24. Mirror and mirror ceiling for all heads

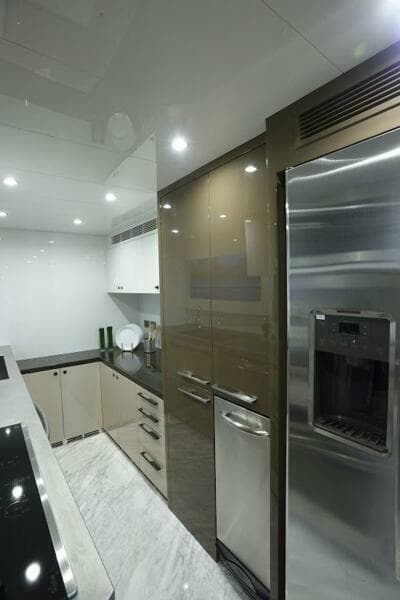

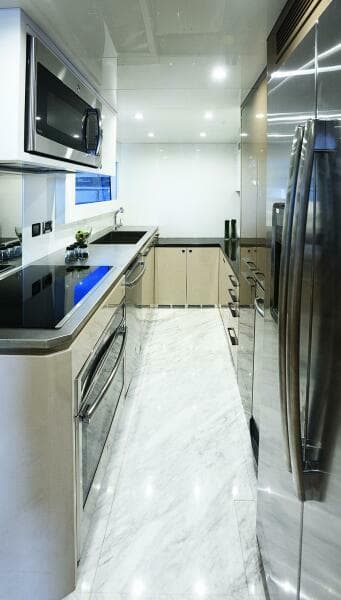

Appliances

25. GE latest model refrigerator

26. GE PDT720SSHSS dishwasher

27. GE PVM9179SFSSI microwave

28. GE PP9030SJSS cook top

29. Stainless steel sinks per layout

30. GE WCVH4800KWW washer

31. GE DCVH480EKWW dryer

32. GE PT7050SFSS oven

33. GE GCGI580RSS trash compactor

34. GE 7N35AA6AJOOOO wine cooler

35. Crew's galley: GE microwave, Isotherm refrigerator

Stereo System

36. TV antenna on top of radar arch

37. Wi-Fi booster system with wireless routers onboard

38. Flybridge- (1) Fusion marine stereo and (4) speakers

39. Saloon POP-UP VIZIO 50" LDC TV with Bose Lifestyle home entertainment system and separate Blu-ray disc player

40. Master Stateroom VIZION 43" LDC TV with Fusion marine stereo system

41. VIP stateroom VIZIO 32" LCD TV with Fusion marine stereo system

42. Guest stateroom VIZIO 28" LCD TV with Fusion marine system

43. Exterior connector for shore phone and cable TV

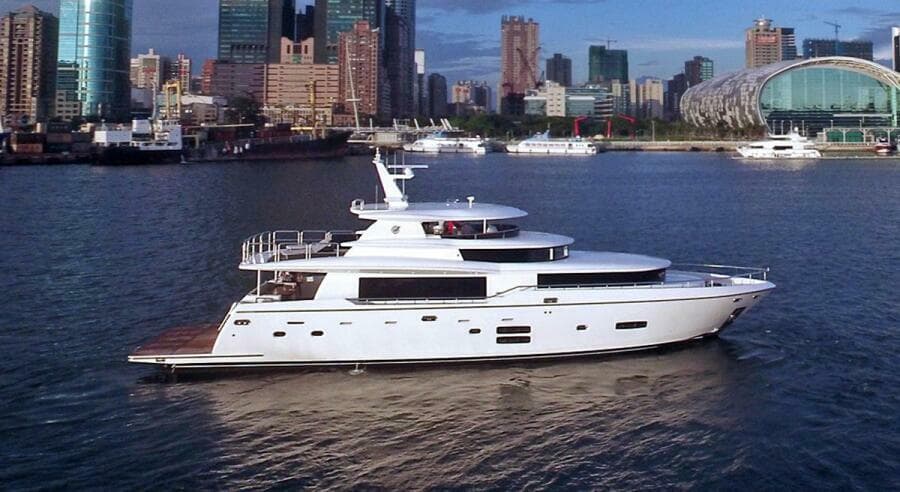

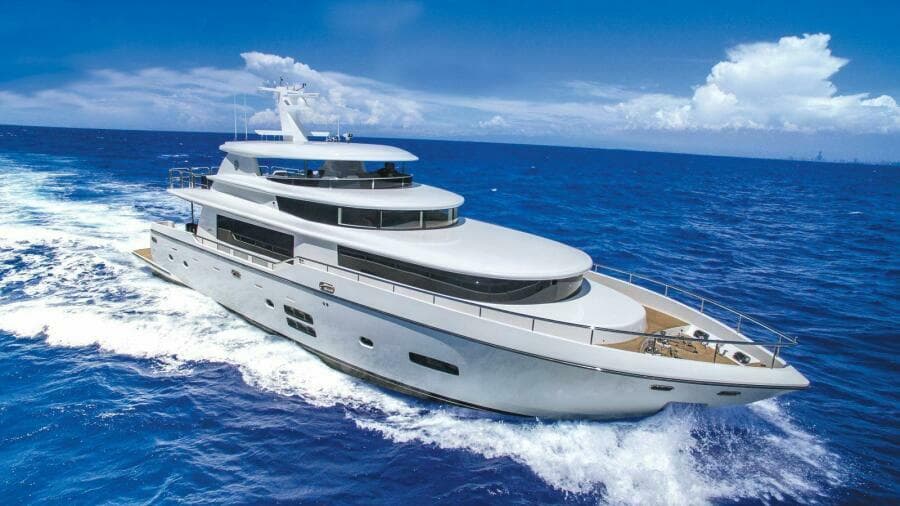

JOHNSON 93' OPEN FLYBRIDGE (New Construction)

Please note, this is a new construction project. The hull and deck are complete waiting for Buyer's choice of customization.  Completion time is approximately 14 months depending on other yard projects.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!

** OPTIONS UPON REQUEST **

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Price FOB Taiwan and includes U.S. Duty and Pre-Delivery Commissioning

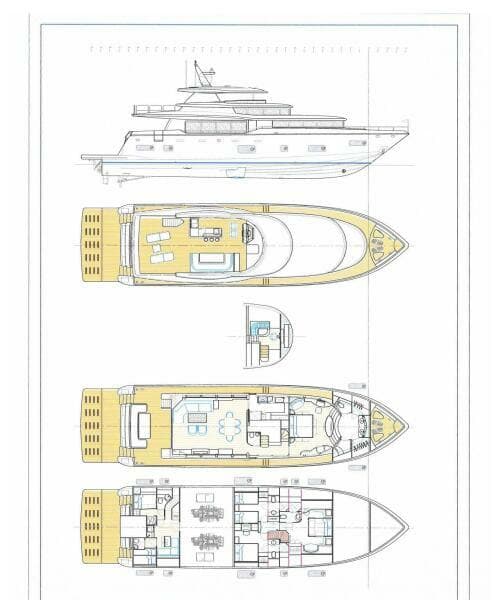

The layout drawing reflects the newly available large hull side windows with opening portholes.

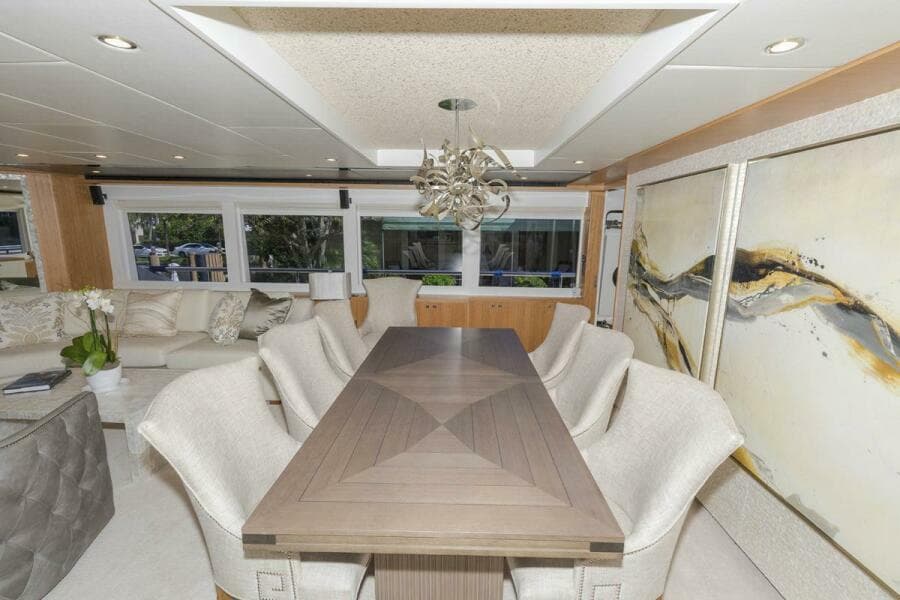

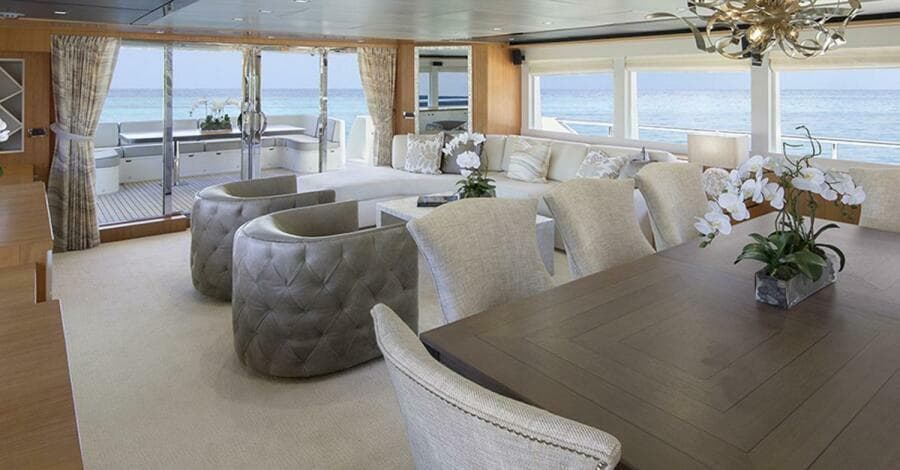

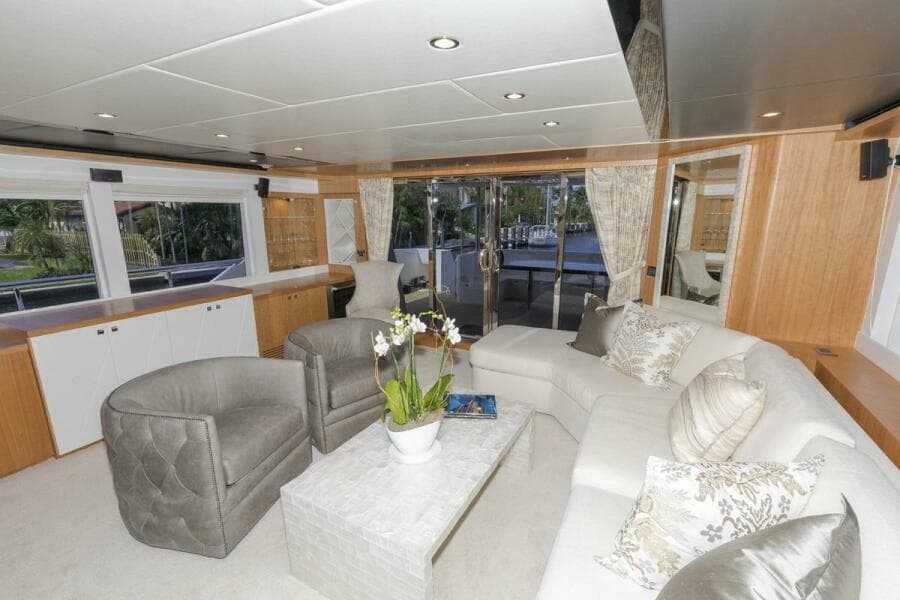

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.

The Skylounge model is available for an additional $150,000.

No US Tariff or Duty are included in the price. All Prices are FOB Taiwan.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Not included are pieces of free standing furniture and lamps, special designer-specified lighting, art work, cooking utensils, cutlery and flatware, soft goods and the design fees attendant to personalizing the owner's interior arrangement plan and design.

Performance statistics, weight, draft, freeboard and height are estimated only and are not warranted, and actual figures will vary depending on tolerances achieved during the vessel's construction process and the equipment, supplies and stores on board, as well as operational and sea conditions. Johnson Yachts reserves the right to substitute equipment and materials stated herein to others which it believes to be of equal or superior quality and to make such design and dimensional changes as it believes are necessary to improve the vessel's performance and function. Special treatment of interior fit-out and/or use of non-standard soft furnishings required by the purchaser may be subject to additional charges.
