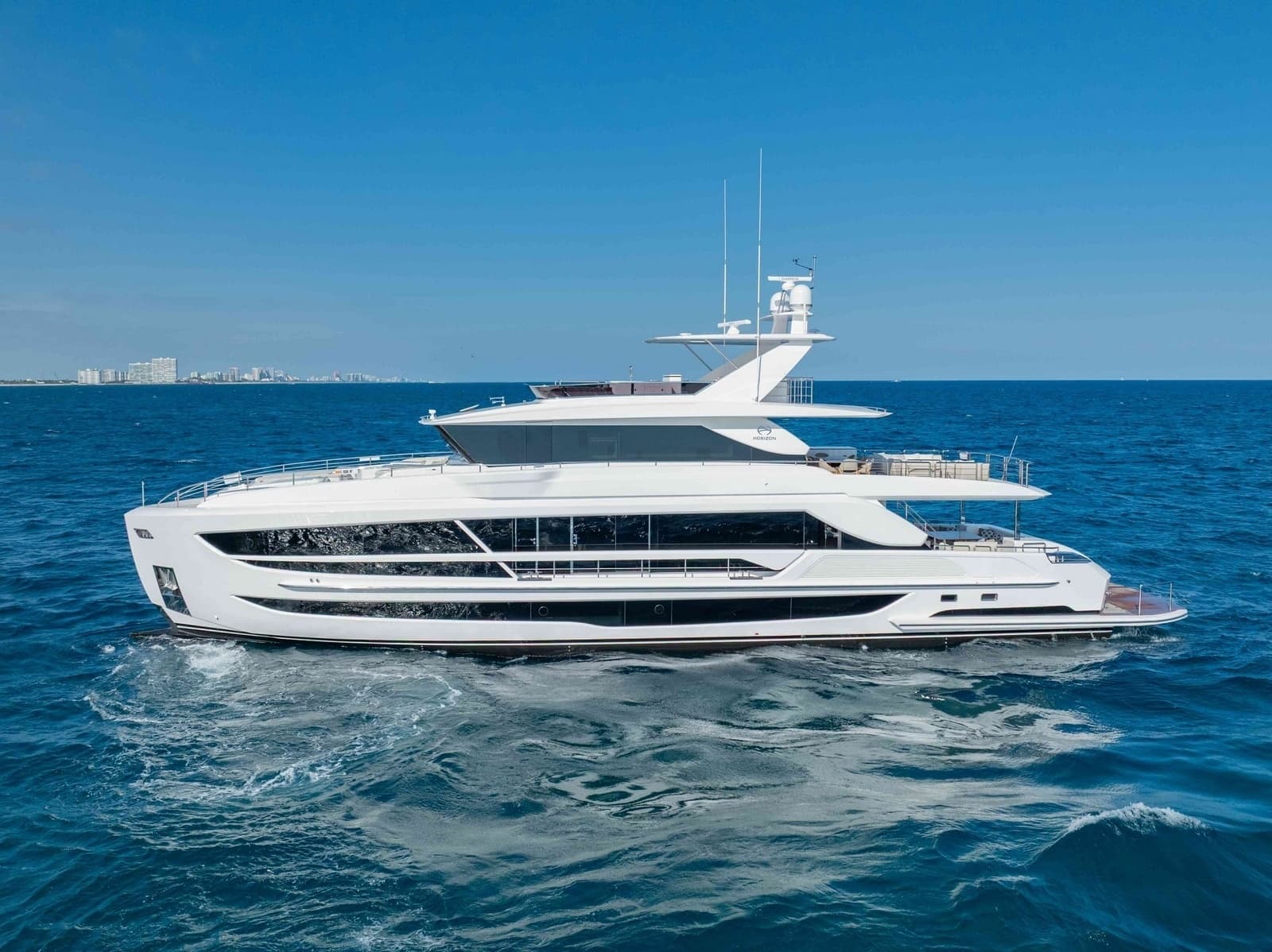

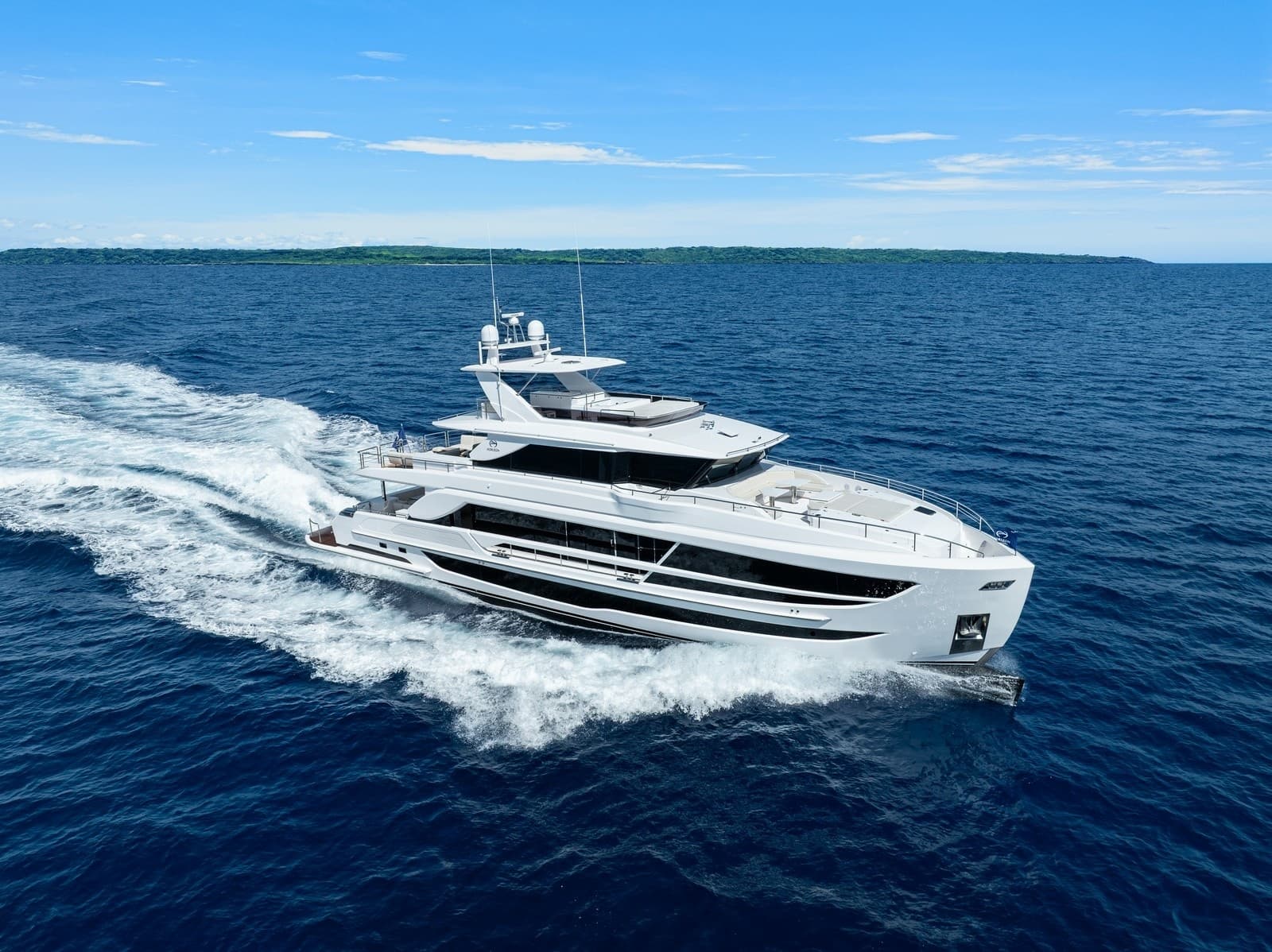

2026 Horizon FD100

• The LAST non-SCR Diesel Exhaust 100'+ Class Horizon Built
• 250 Original Hours on Caterpillar C-32 ACERT 1900hp

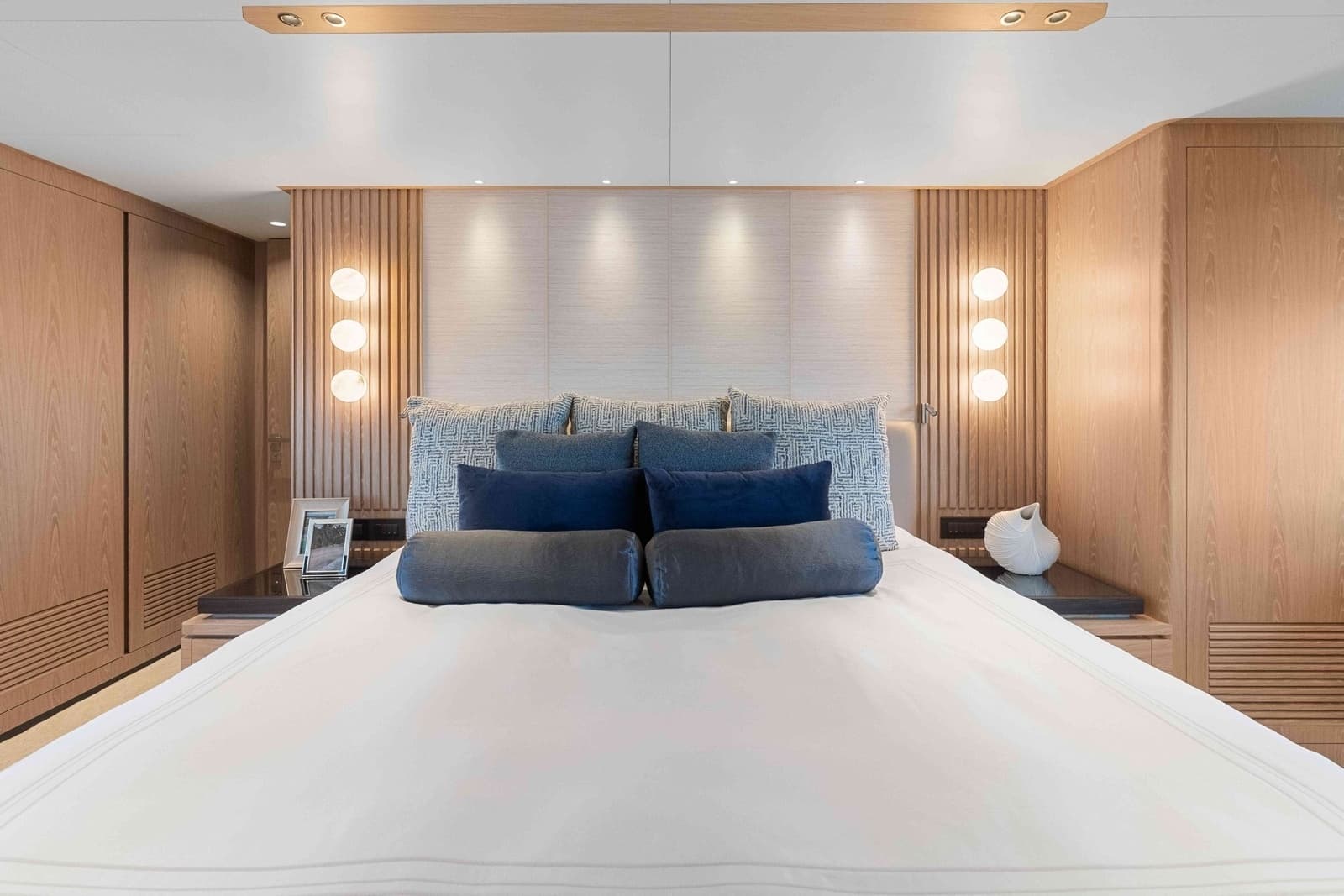

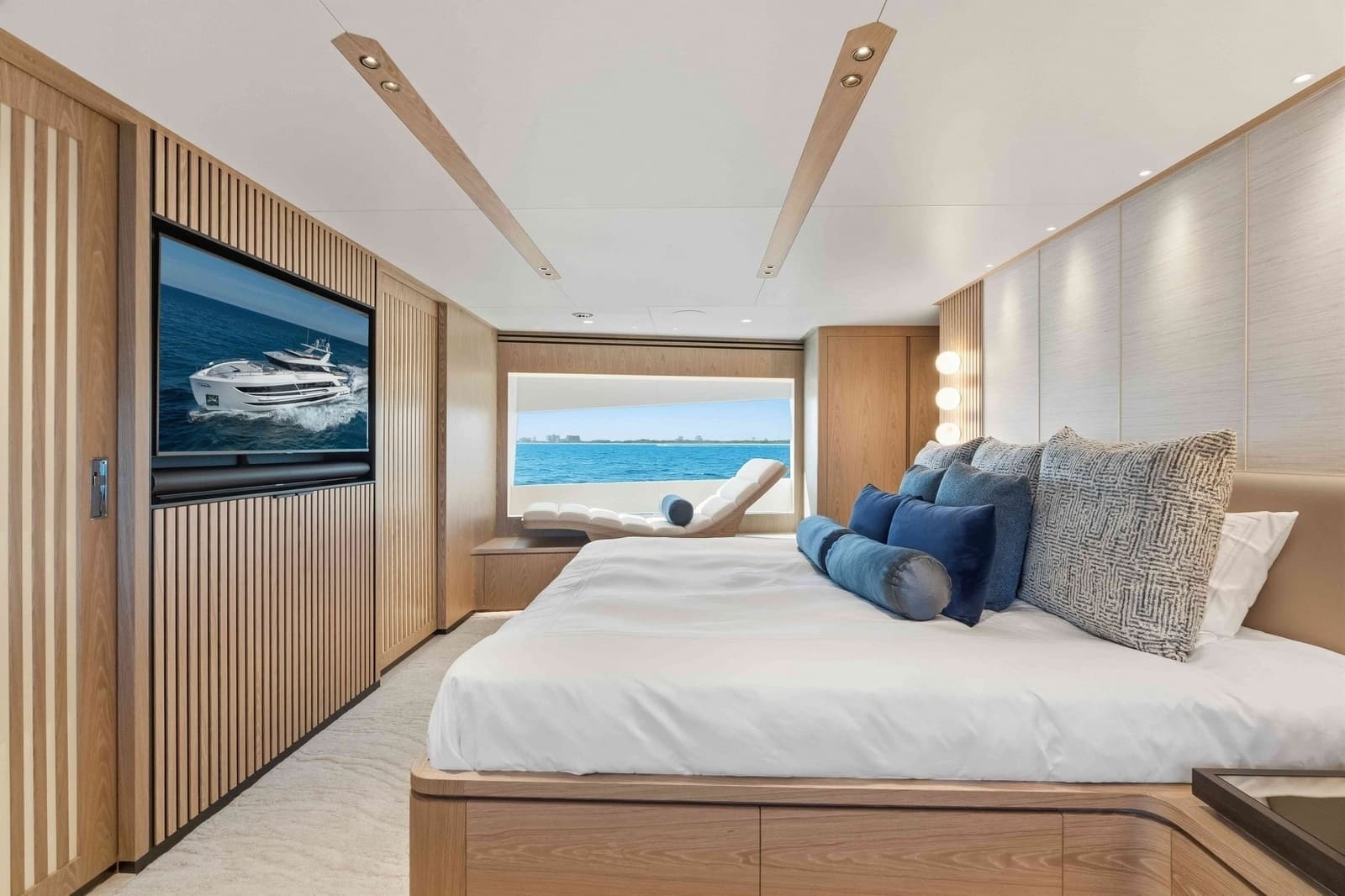

• 5 Stateroom Full Beam On-Deck Master w/ His and Hers Head

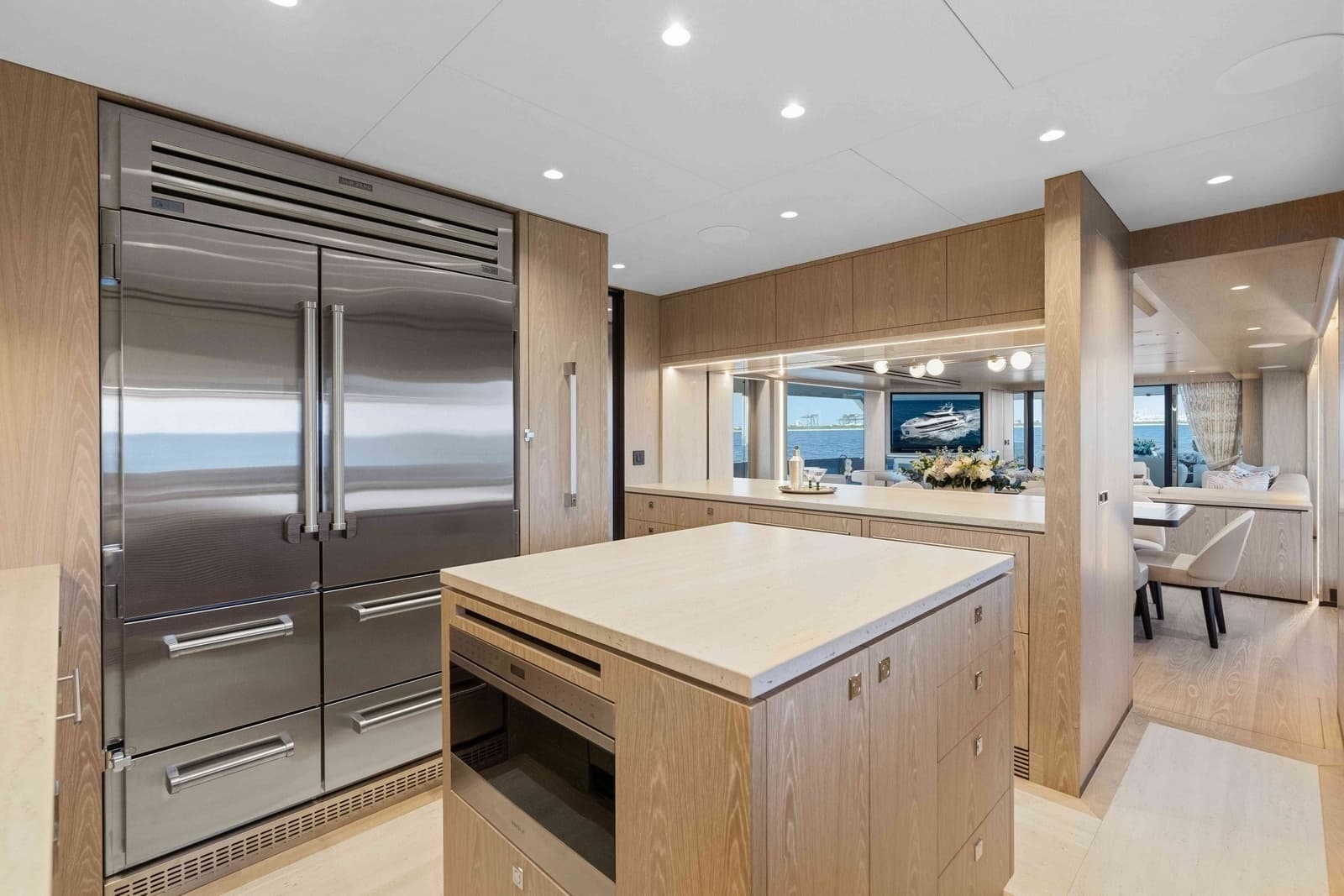

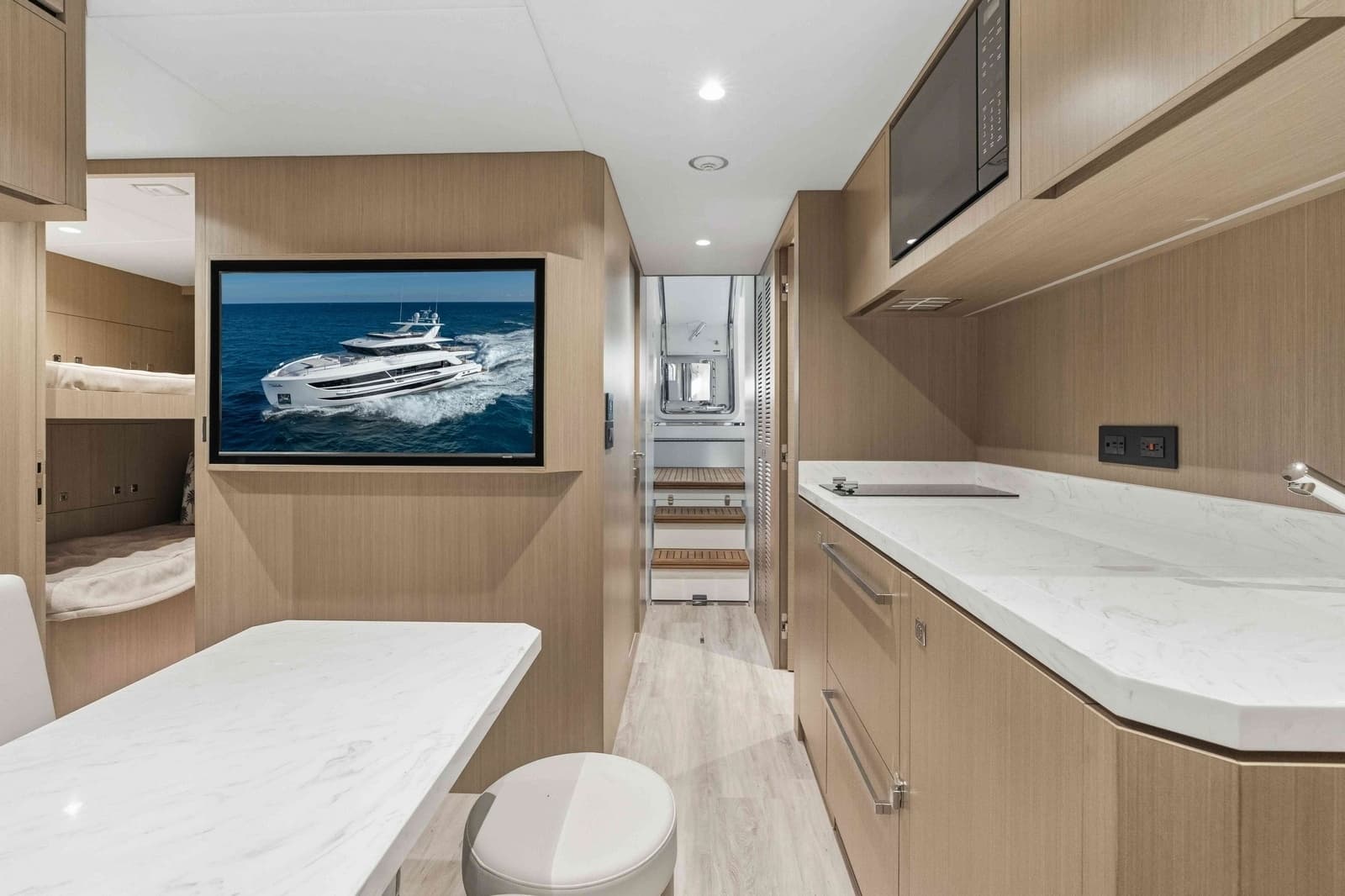

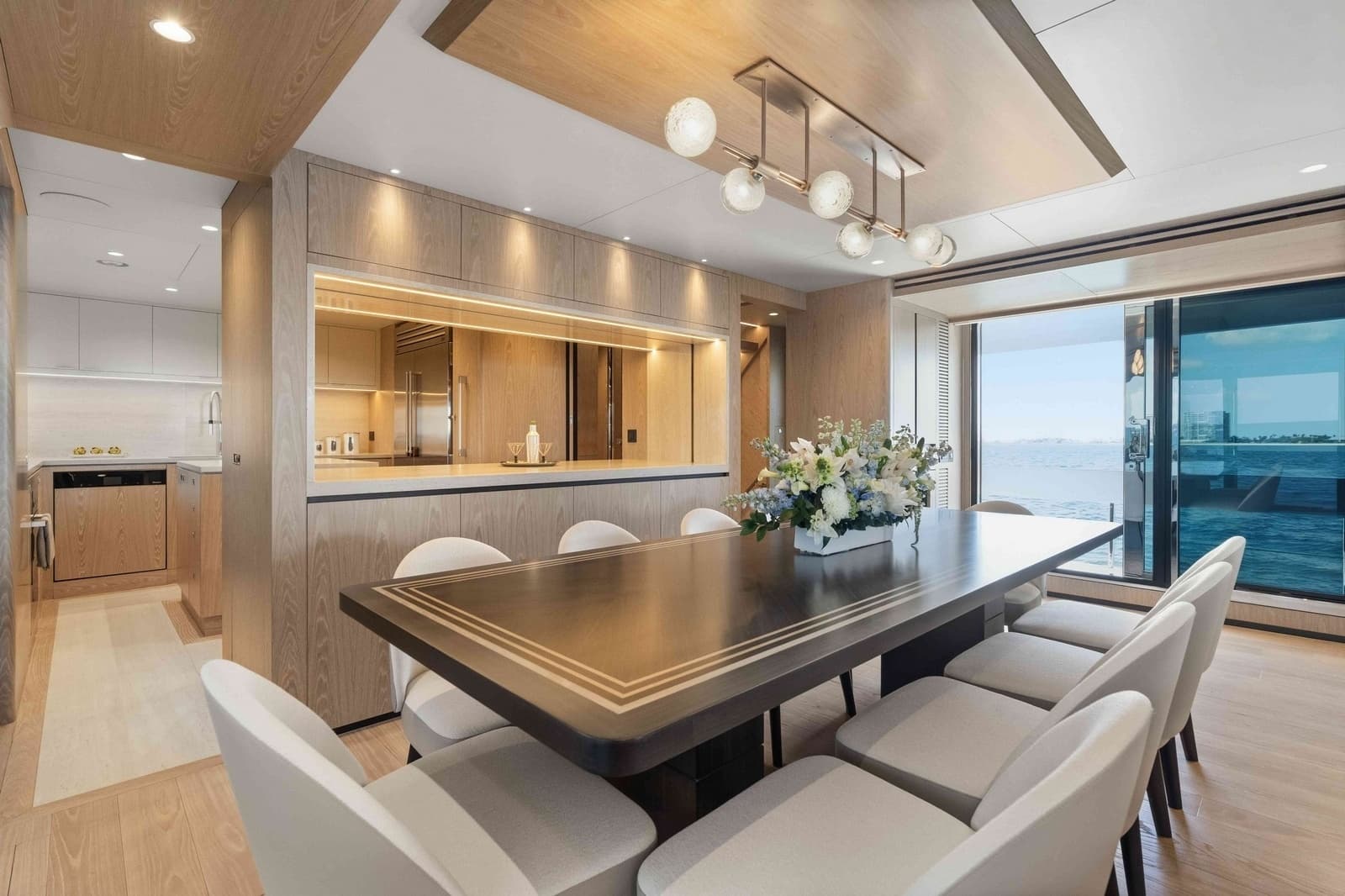

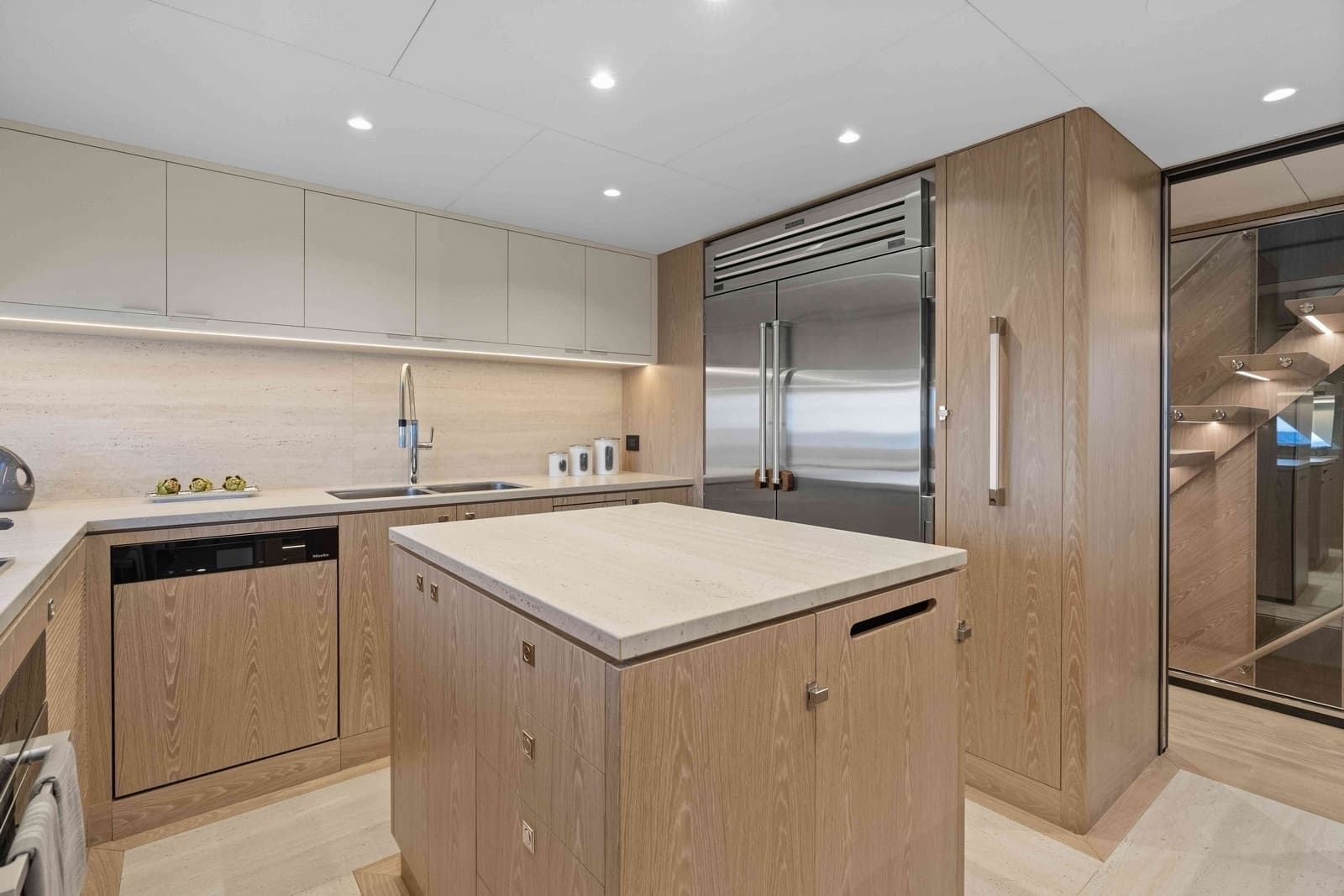

• Center Island in Galley
• Interior Skylounge Electric Divider for Pilothouse separation
• Dayhead in Skylounge

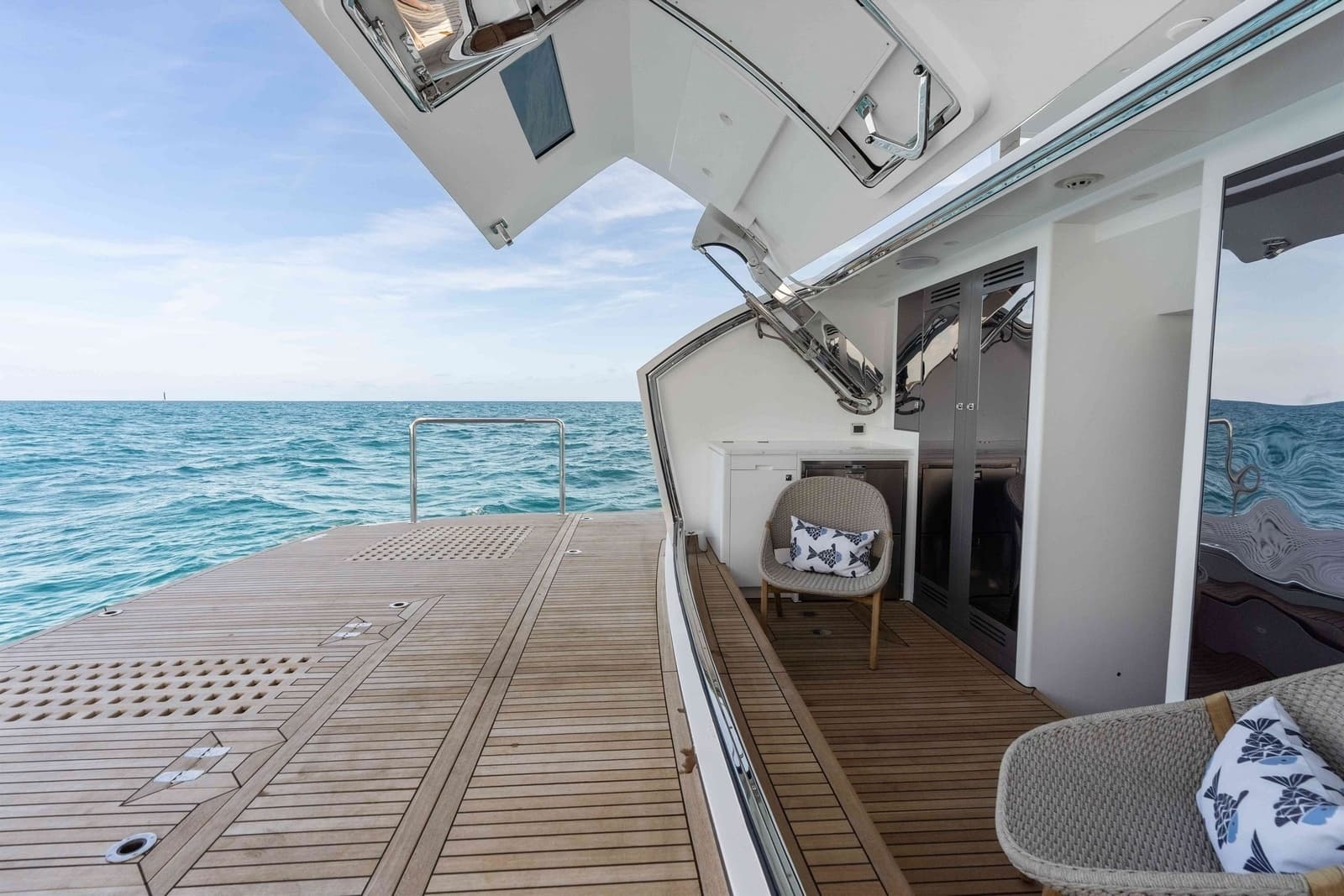

• Beach Club with full shower and Head can be used as a 3rd head for crew when Beach Club closed
• Under 2-year full factory warranty through Feb 26th, 2028
• Extended Width Skylounge with Extended Dinette Cover aft
• Transformer Platform
• Bow and Stern Thrusters
• Walker Bay 17' Center Console Tender

• ABS/DNV type-approved fiber/resin & sandwich core material applied
• White gelcoat finish for hull above water line, exterior decks, and furniture
• One-piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6D infusion, incl. longitudinal and transverse stingers
• Hull, deck, and superstructure are built with licensed process SCRIMPTM for improved strength and less weight
• Hybrid design hull bottom with sandwich construction and solid fiberglass
• High-density Divinycell or equivalent foam cored hull sides, decks, and superstructure
• Stringers with high-density foam coring
• Interior structural components are all properly bonded to the hull
• Strong collision bulkhead structure for extra safety
• International anti-fouling bottom paint with anti-osmosis treatment
• PropSpeed/PropGold metal paint for underwater appendages
• Tunnels for reduced draft
• High Performance Piercing Bow (HPPB) with S/S protection plates
• Upper deck with bump-out design at PORT and STBD side
• Asymmetrical skylounge design (STBD side wide body, incl. a non-skid ledge and grab rail above)

• Teak aft deck, teak boat deck, teak swim platform, and teak steps to boat deck, flybridge, and swim platform. Non-skid for the rest
• FRP cap rail
• Maxwell VWC3500 vertical hydraulic anchor winches (x2) w/ local foot switches and remote handheld controller
• 350ft high tensile 1/2” anchor chains (x2) w/ chain stopper and tensioner
• 110Kg S/S anchors (x2)
• S/S rollers (x2) and chain stopper
• Chain counter (x2, one per windlass) in Pilothouse
• Heavy-duty 316 S/S cleats and fairlead w/ rollers
• Aft deck corner hawsers (x2)
• Aft deck Maxwell VC2500 electrical rope capstan (x2)
• A Maxwell VC2500 electrical rope capstan on bow deck
• Bulwarks with flush-mounted courtesy lights
• Bulwark side doors (x2) at aft deck for boarding
• Freshwater/seawater anchor chain washdown system by manual operation
• 1-3/4” handrail with 1-1/2” S/S stanchions and steel cable around entire boat
• S/S flagpole at bow
• Standard lines and ProStock PF-7 fenders (x4) & PF36x48 (x1), incl. Horizon logo covers
• Portuguese bridge with sofa seats as per layout

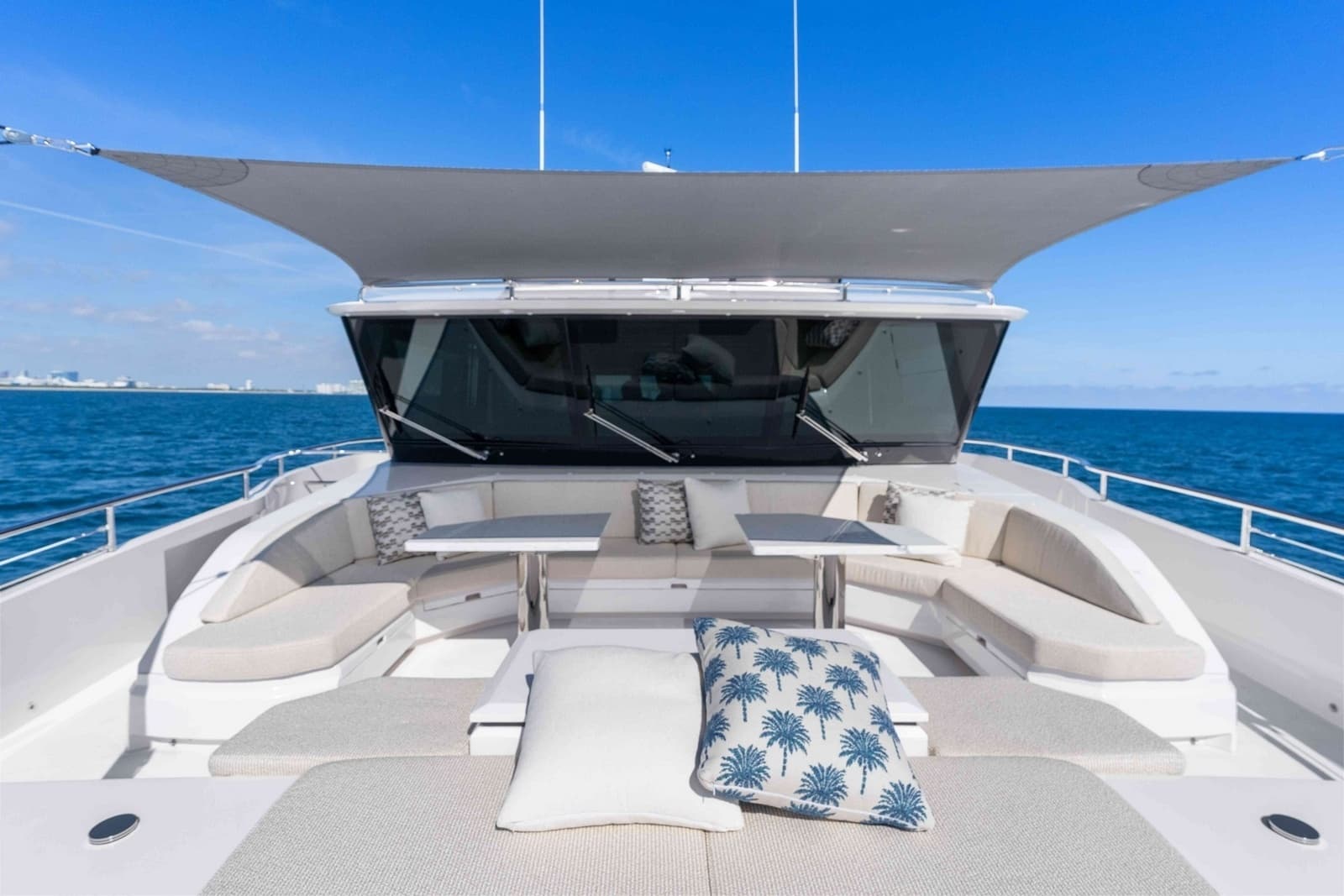

• Foredeck sunpad cushion with fold-up reclining backrests (x2), cup holders, and pop-up lights (x2)
• One hidden sink to the FWD PORT sidewalk
• A USB charger near one of the outlets on the bow deck
• Frameless windows, slightly tinted tempered laminated
• Low-E glass for the windshield
• Frameless windows, tinted tempered laminated glass for side windows
• Stairs from aft deck to swim platform with S/S gate doors and handrails
• Salon local-made S/S electric sliding entrance door with inflatable seal around the door frame
• Deckhouse sliding side doors with an inflatable seal around the door frame. (x2, one at each side)
• A wind door on each side of the aft deck to its side walkway

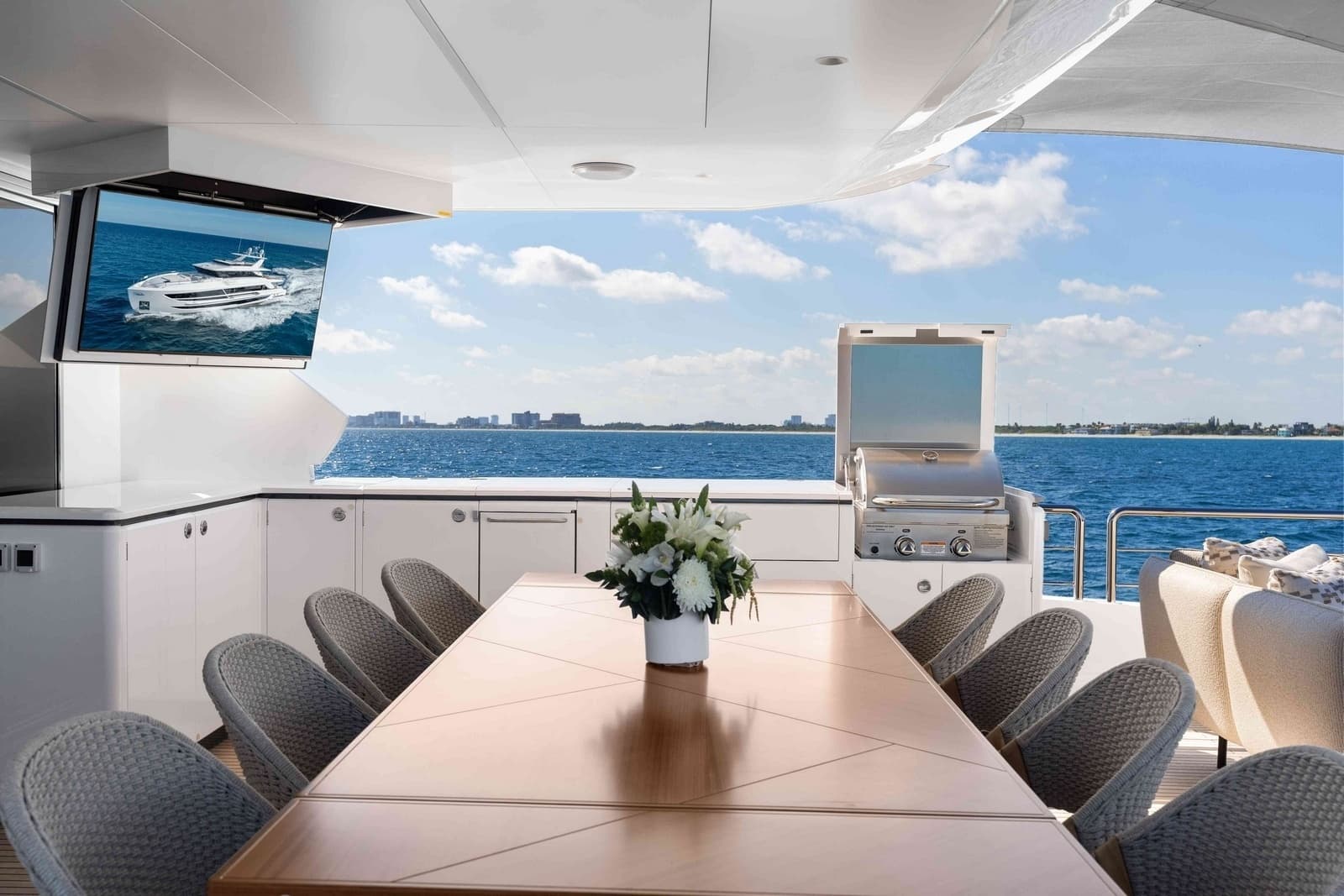

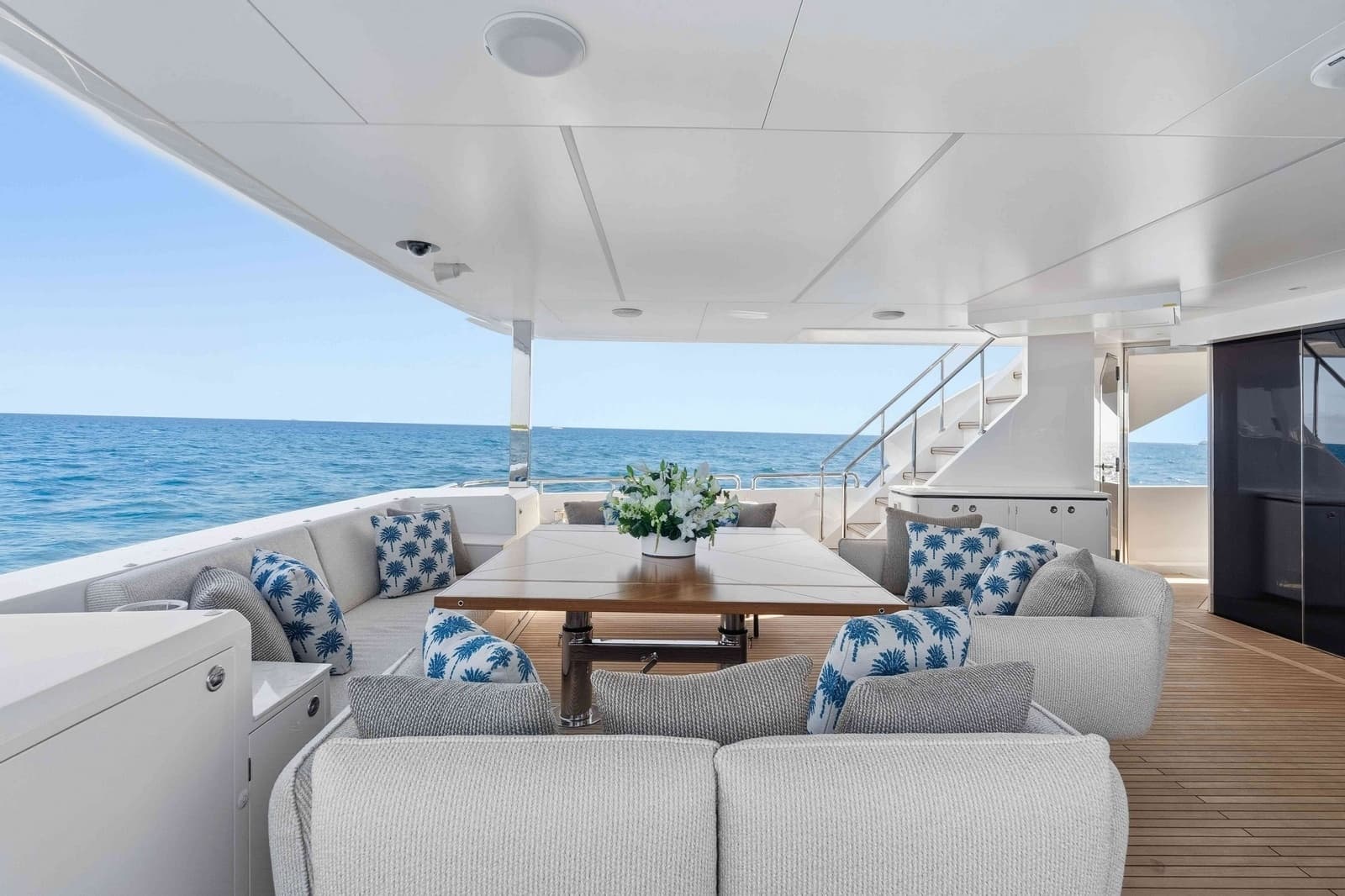

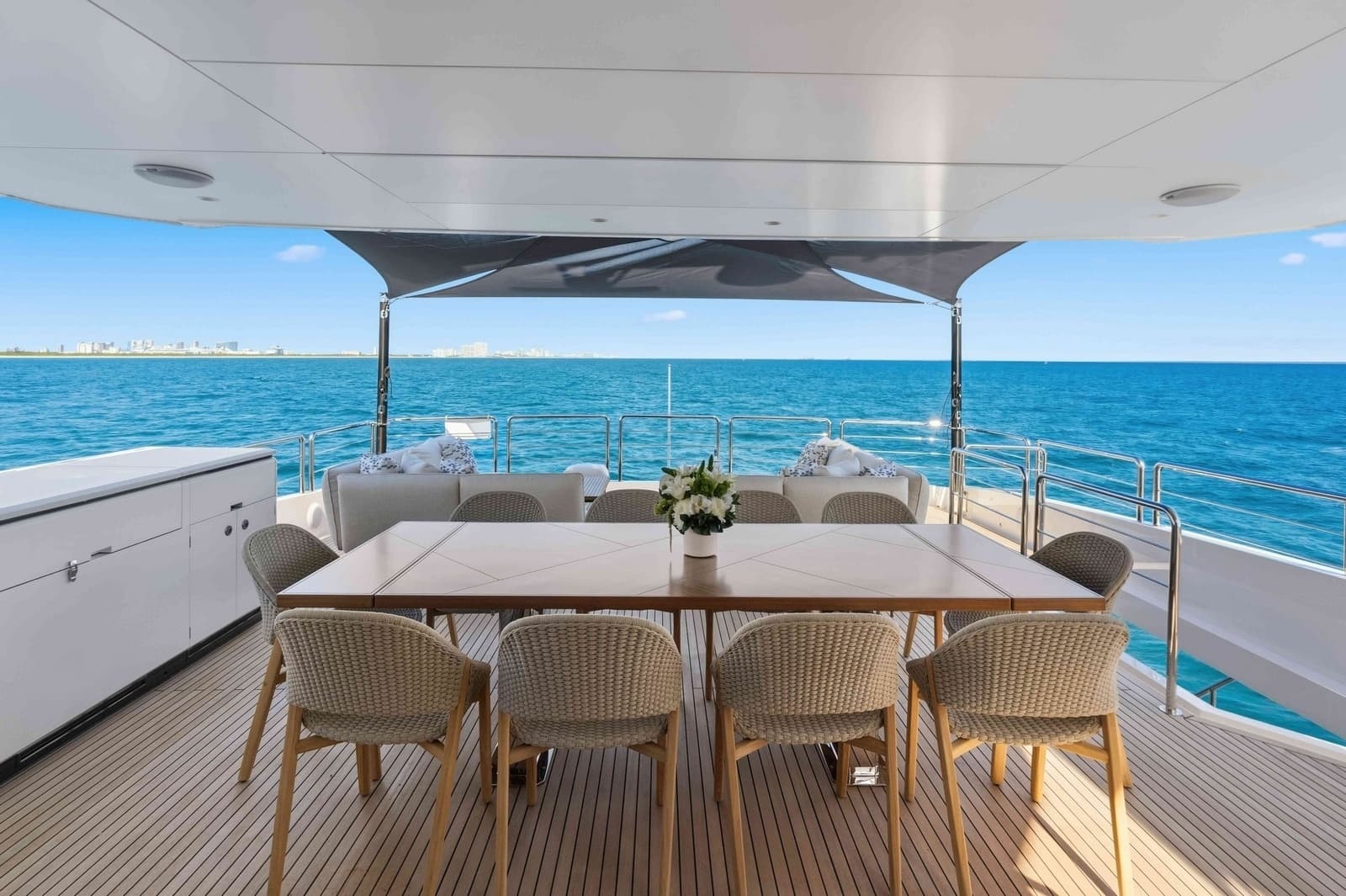

• Aft deck sliding/hi-lo foldable table as per design

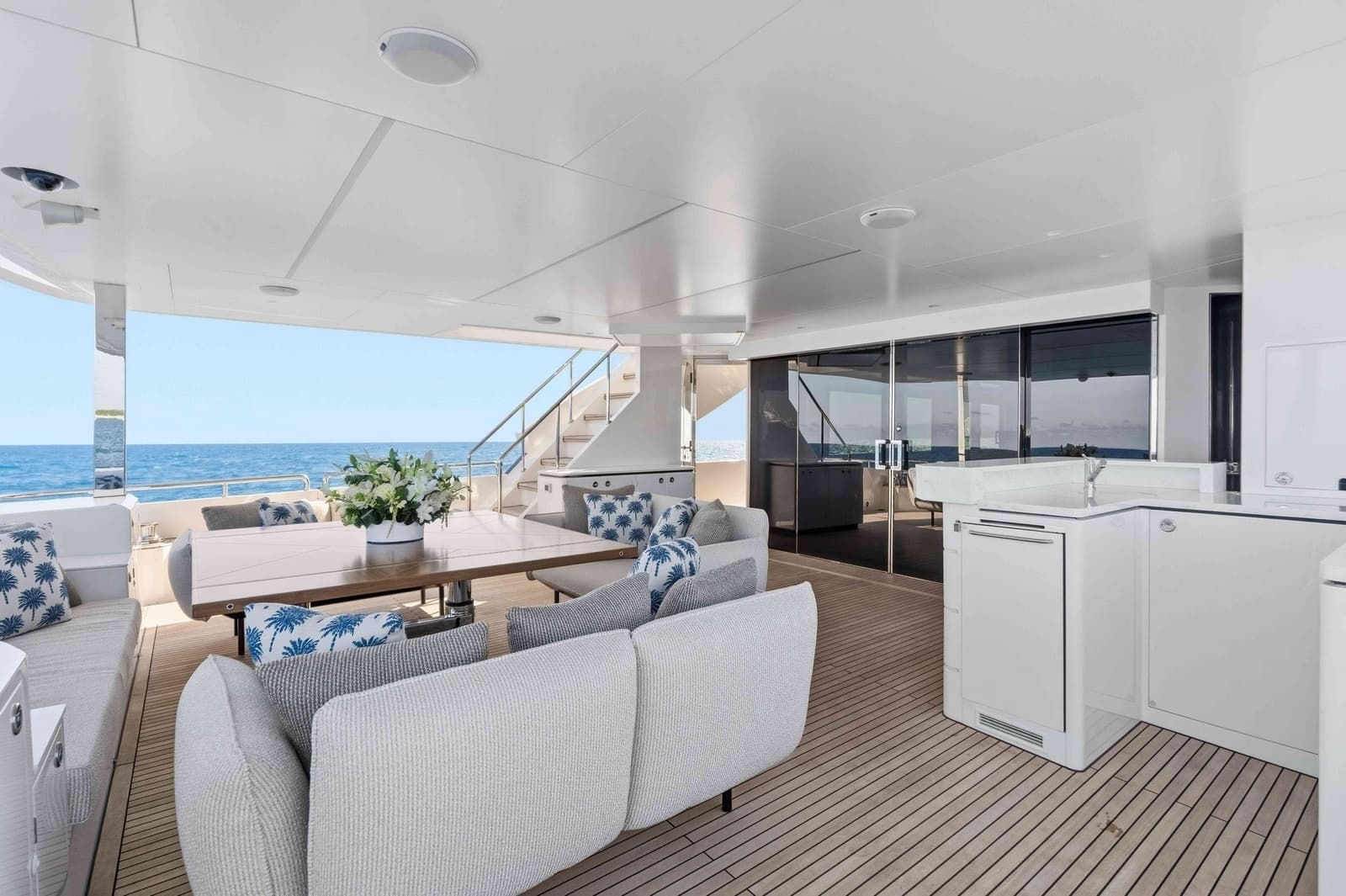

• Aft deck bar with a sink, a Vitrifrigo refrigerator/freezer (C115IXD4-F), and a Scotsman CU50 ice maker
• One integrated stair from the aft deck to the upper deck
• Hydraulic Hi-Lo swim platform with function as a tender lift; up to max 2500lbs
• Two pop-up cleats on the Hi/Lo swim platform
• Boat hooks (x2, ship loose)
• A FRP storage cabinet beside the PORT staircase of the aft deck
• MarQuipt 7-step aluminum side boarding sea stair (incl. FRP storage box)
• Incorporated a tailor-made Aritex transformer with 440lbs (200KG) capacity to use as a dive step with a wireless remote controller
• Removable rope rails with four poles at each corner of the transformer platform and two other rail sockets at the side of the fixed platform. (Total 6 sockets)
• Built-in shower with hot/cold water above swim platform
• A rain shower on the underside of the beach club door
• Sun awning to Foredeck and boat deck (total 2 sets)
• Rub rail around hull sides
• S/S portholes, plus one custom openable porthole in the galley
• Exterior LED step lights
• 2” Removable corner rails (x2) on swim platform (with extra 4 sockets on fixed platform)
• Prewire LED boat name on PORT, STBD, and stern (3 sets, max.8 letters/set)

• Hydraulic door with a pantograph door in the middle
• ELIO lounge chairs (x2) in the stern storage area as per layout

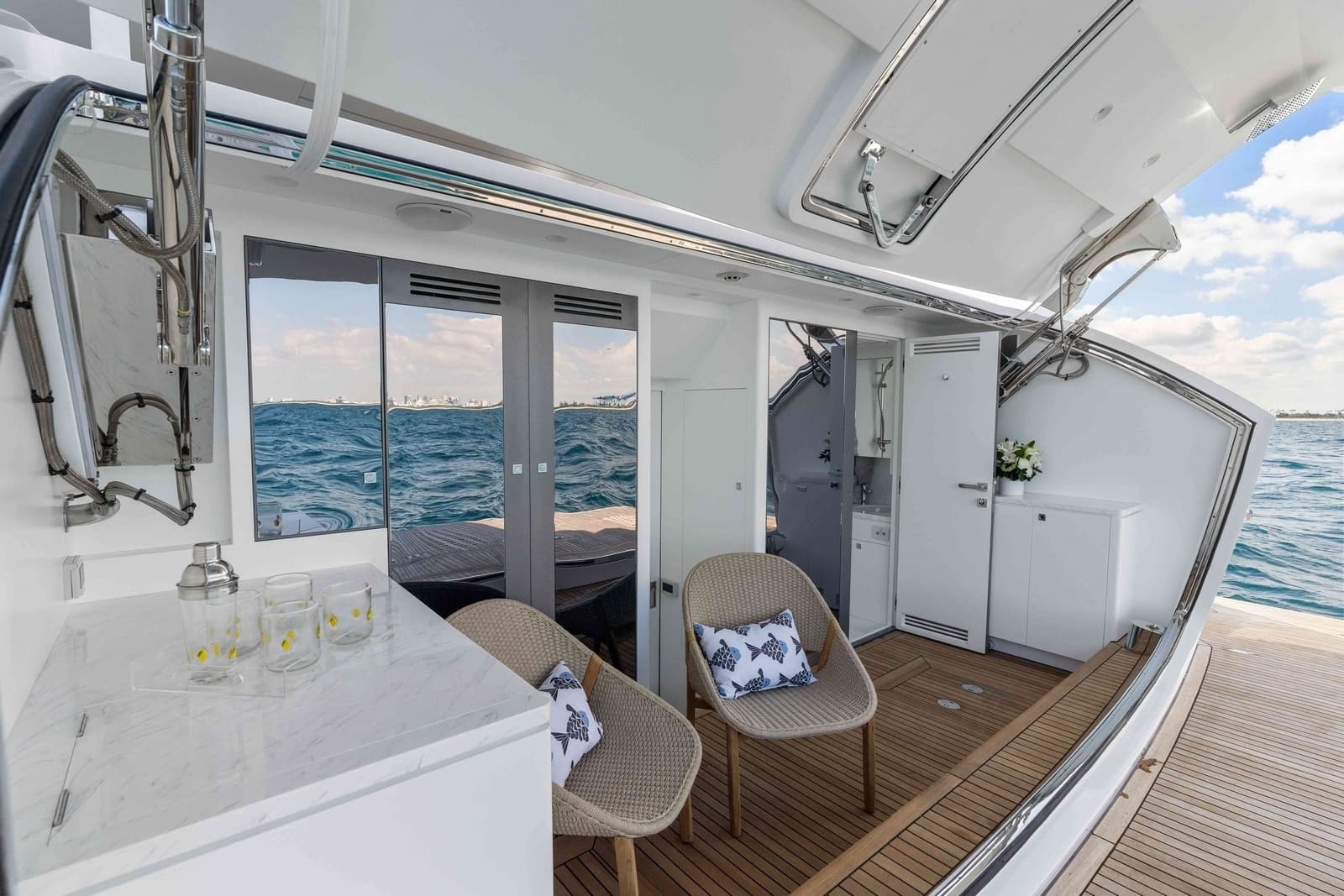

• A walk-up bar with a sink and a Vitrifrigo Drawer refrigerator/freezer with ice maker (DW180 IXD1-EFI-2) as per the layout
• A wet storage for water toys
• A wet head with sink and shower

• Teak floor w/ wet storage & wet head
• Hydraulic door with rain shower, underneath the door & a pantograph door in the middle
• Teak steps to the swim platform
• Hydraulic Hi-Lo swim platform (1,500lbs lifting capacity) w/ custom transformer (440lb lifting capacity)
• (2) Removable corner rails w/ extra sockets

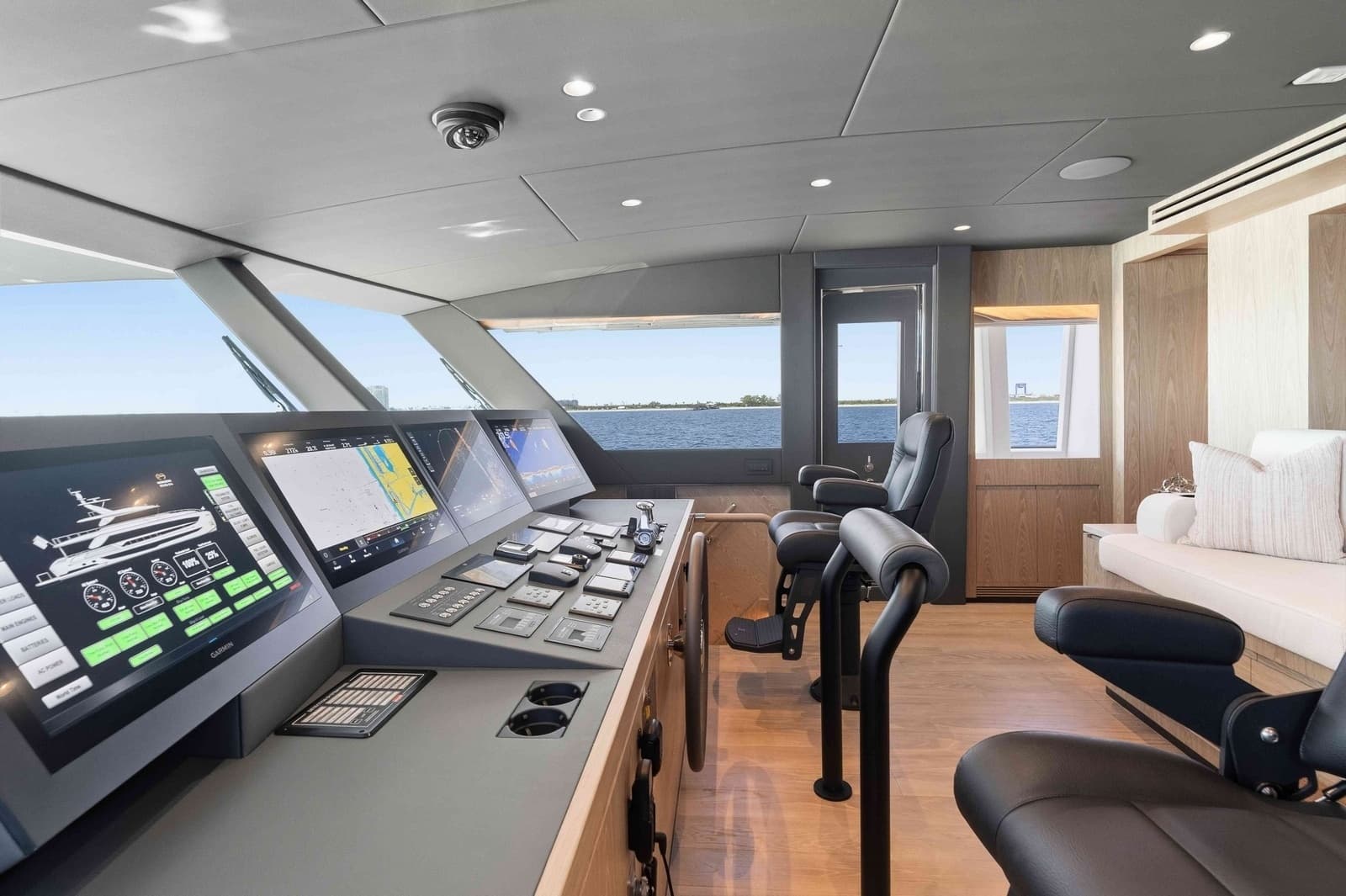

• Helm station with carbon fiber dashboard panel (as main station)
• Hi/Lo screen between pilothouse and skylounge
• MML Travertine Tile finishes the bar countertop and surrounding wall near the hi-lo screen on the skylounge side
• Air Conditioner
• L-shaped seats w/ table as per layout
• A wet bar incorporated with a Franke sink, two Sub-Zero refrigerator/freezer with ice maker
• (DEU2450CI), and two glass lockers at each end, S/S manual sliding door to boat deck with self-lock
• A day head in Skylounge
• Ship loose a retractable ladder (x1)

• Teak upper deck (incl. boat deck, excl. side walkway)

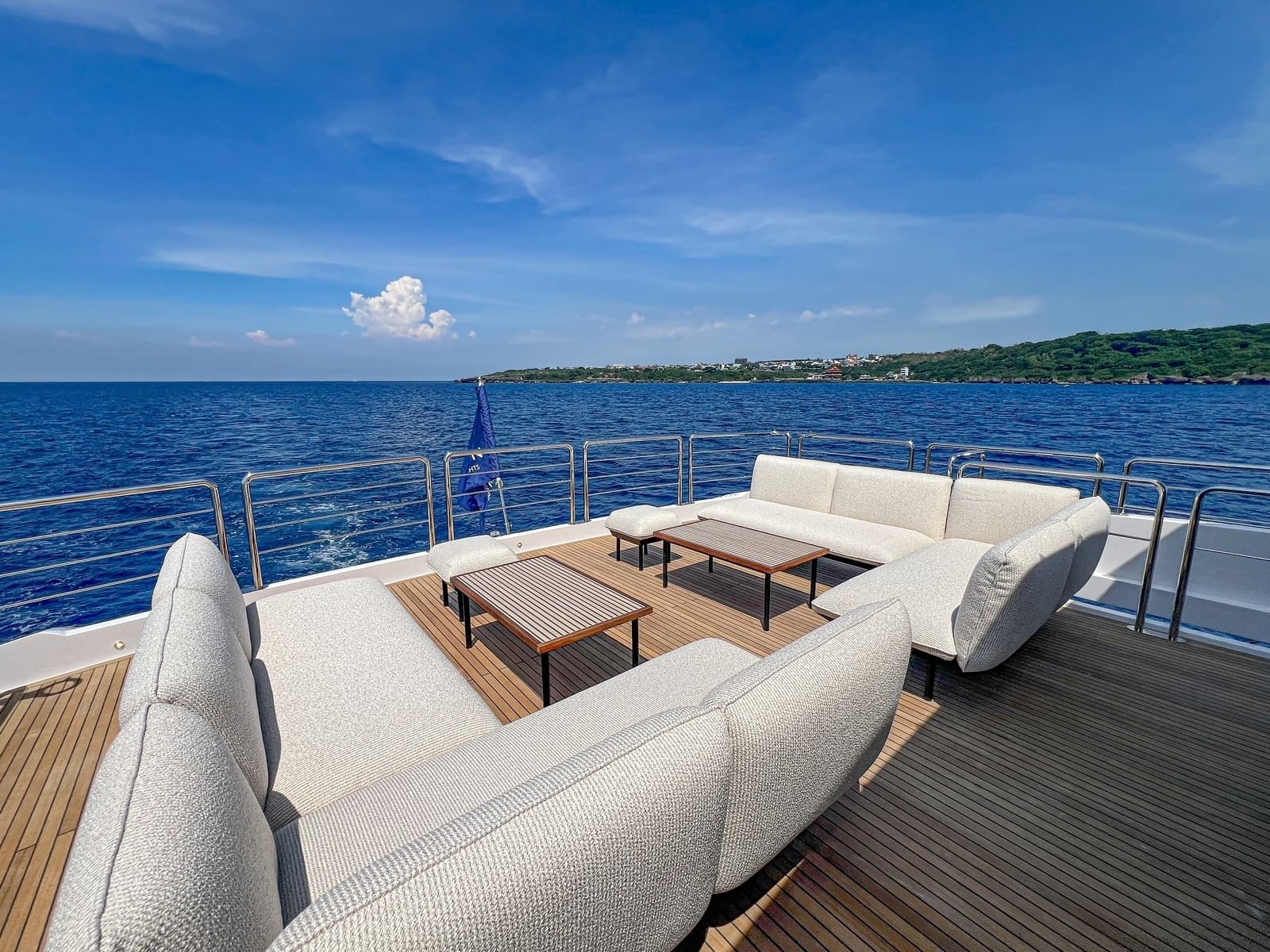

• Boat deck furnishing as per layout: Relaxed L-shape sofas (x2) with coffee tables (x2), ottoman (x2) and a dining table with leaves for 10 (incl. 10 chairs)
• Sarlas fabrics for exterior cushions and sunpad
• Stamoid covers ("Smart 1”, White color) for boat deck loose furniture, helm seats, aft deck seats, and foredeck sunpads and seats
• FRP countertop and bar front
• A wet bar with a sink, a Vitrifrigo refrigerator/freezer C85IXD4X-1 and a Scotsman CU50 ice maker
• One hidden Propane 24" BBQ w/ manual Hi-Lo
• Oversized drains w/ strainers on each corner of the boat deck/upper deck and internal overboard drains
• Tokai Sanshin LED searchlights (x2)
• Lumitec flooding lights (x4; 2 for mast and 2 for boat deck)
• Chrome-plated Buell air horns on top of the radar arch
• S/S flagpole at stern
• Pre-engineered for a future davit installation (w/ capacity for 2500lb) at STBD rear corner of boat deck
• LED warm white lights for the Horizon logo on PORT and STBD side
• A USB charger near the outlet on the stb side of the boat deck
• 10-person life raft with bracket (A pack, 2 units, to be installed in the USA)

• Non-skid flybridge deck on the entire deck area
• 55” Hi-Lo TV with cabinet

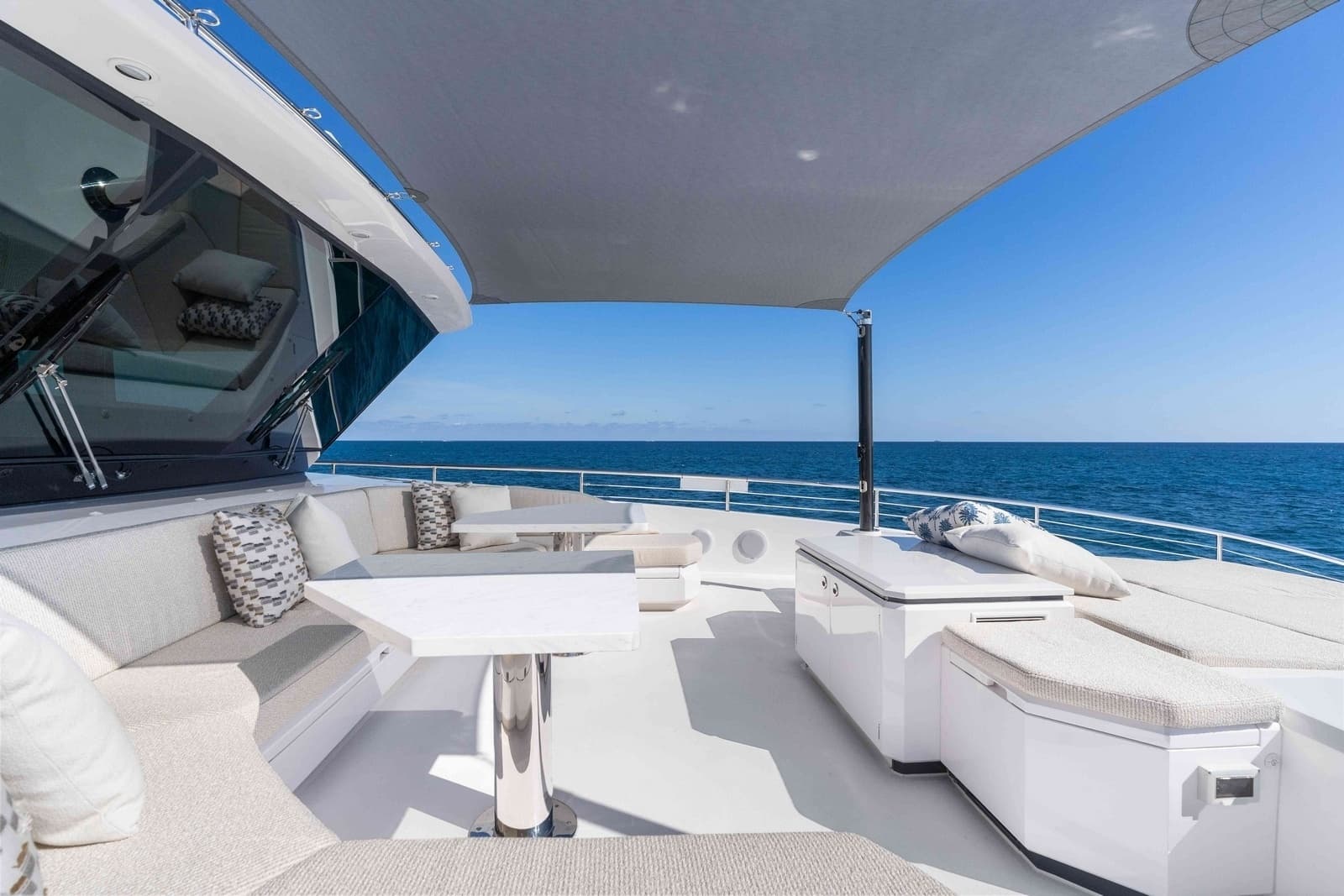

• Full-width sun pad at the forward tri-deck with fold-up backrests (x2) for two center sun pads

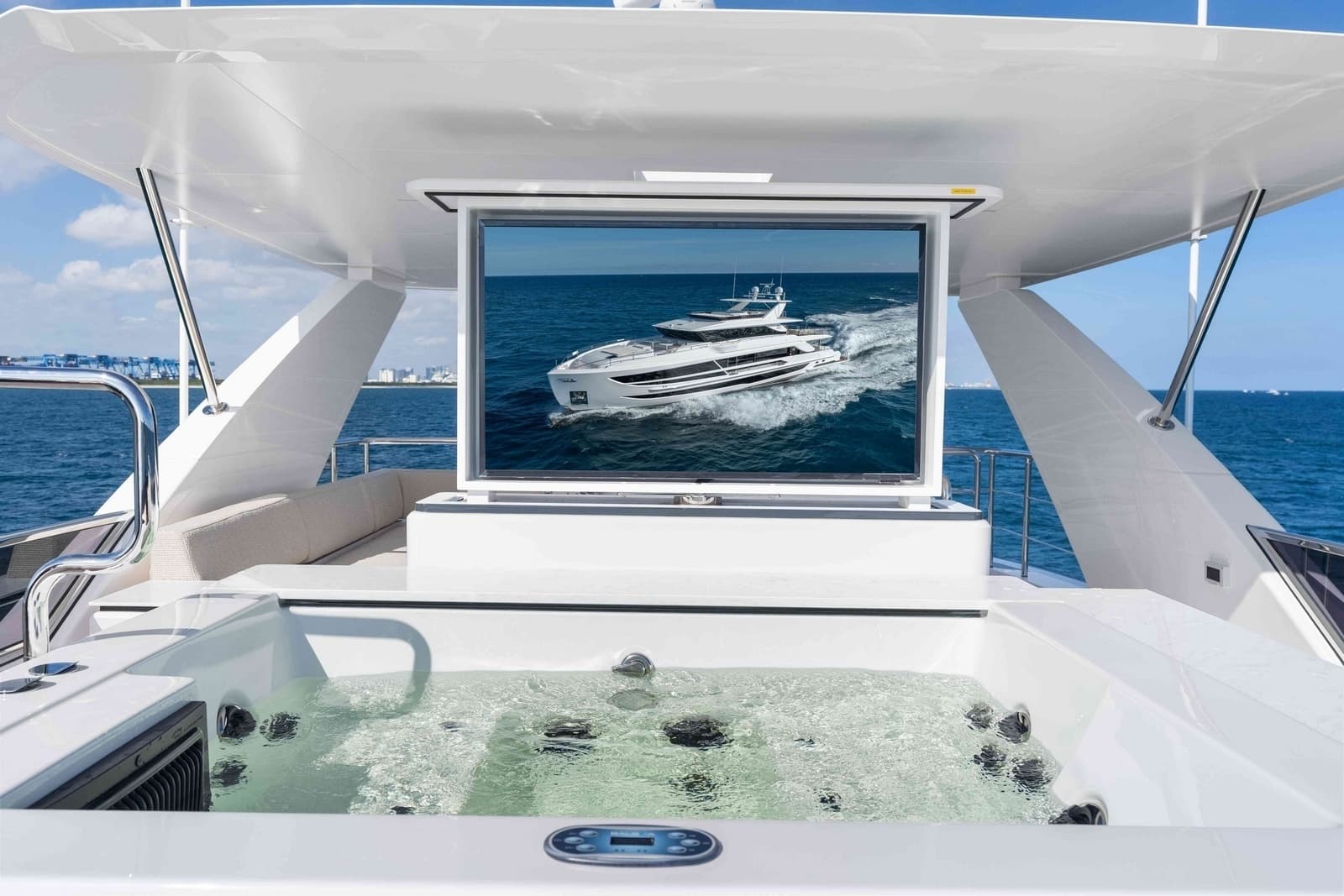

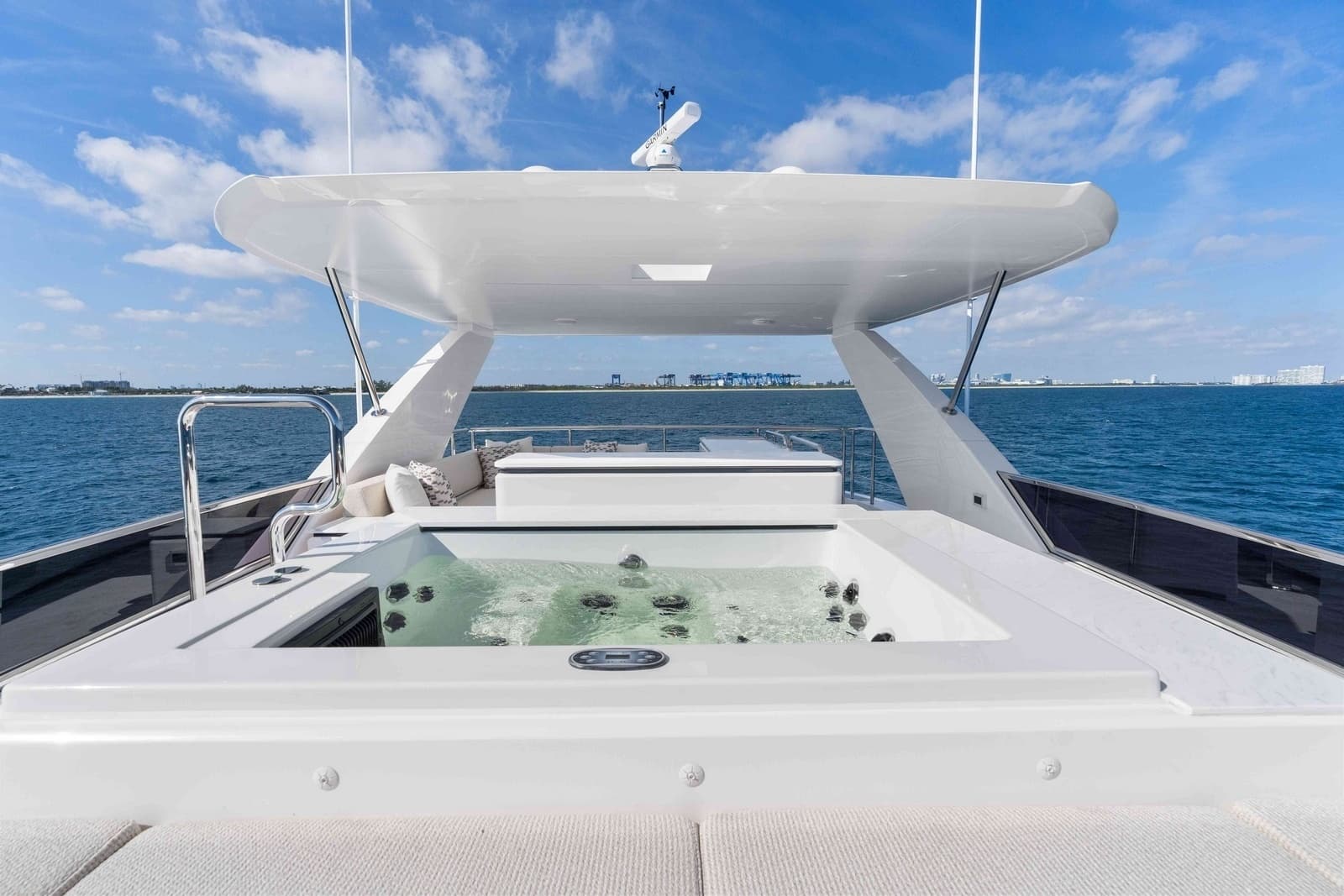

• A hot tub with a shower head and a large edge on one side. (detail design per layout)
• A dual USB charger near the outlet on the STBD side
• Radar arch with antenna bracket
• Windshield with S/S frame and S/S rails around aft deck
• One stair from the upper deck to the Tri-Deck
• FRP seat with table and FRP cabinet (with a sink, a Vitrifrigo refrigerator (C115IXD4-F), and a
• Vitrifrigo ice maker (IMHYDIXN1-X) as per layout
• Oversized drainage with strainers on each corner of flybridge deck and internal overboard drainage

• Stidd Slimline 500N-MX2 manual pilot chairs (x2)
• A leaning post with pre-engineering and reinforcement for 3rd pilot chair for future installation
• Integrated instrument panel on the helm station with leather counter
• Sofa seat w/ a table as per layout
• A hinged door to separate Skylounge and the pilothouse
• Heavy-duty Speich S/S wipers with wiper wash system
• Variable speed control on each windshield wiper
• Standard black mesh for the windshield
• Riviera ASTRA magnetic compass on the helm
• International LED navigation lights (incl. anchor, masthead, stern, PORT and STBD side lights, total 5 units)
• Prewire masthead light and stern light for tender towing used
• Full set of engine gauges at helm
• Electric fuel and water level gauges
• Monitoring system for equipment (bilge pumps, blowers, navigation lights)
• Surveillance camera system (two PTZ cameras; one at aft deck and one in the engine room)
• USB charger (x1)
• Chart storage

• Twin diesel engines with reduction gears
• Live SAE-C PTO on gearboxes for thrusters/windlass and stabilizer power
• SAE-A PTO on engines for hydraulic steering gear
• S/S shafts Aqualoy 22 HS
• High-performance S class VEEM Superyacht 6 blade propellers in NiBrAi
• Bronze struts with backing plates
• Shaft and rudder packing glands with Tides Marine dripless seals
• ZF Smart Command engine control with chrome control heads at the helm station
• Prewiring for the future wireless yacht controller
• ONE remote handheld control (with throttles, gears, and thrusters) with 4 plugs (plug locations: Tri-deck,
• Boat deck, Pilothouse, Aft deck)
• FRP foil balanced blade rudder with S/S rudder stock (x2)
• Seastar Optimus power steering system
• S/S emergency tiller in rudder cabin
• 24” S/S steering wheel
• Underwater exhaust system for engines with bypass mufflers
• Side-Power hydraulic stabilizer system SPS96B VF1950 (1.95 square meter) with “At Anchor” function
• Side-Power hydraulic bow thruster SH700 (700kg) and stern thruster SH550 (550kg)
• Ship loose an extra Side-Power DC cooling pump for backup
• Zipwake interceptor system

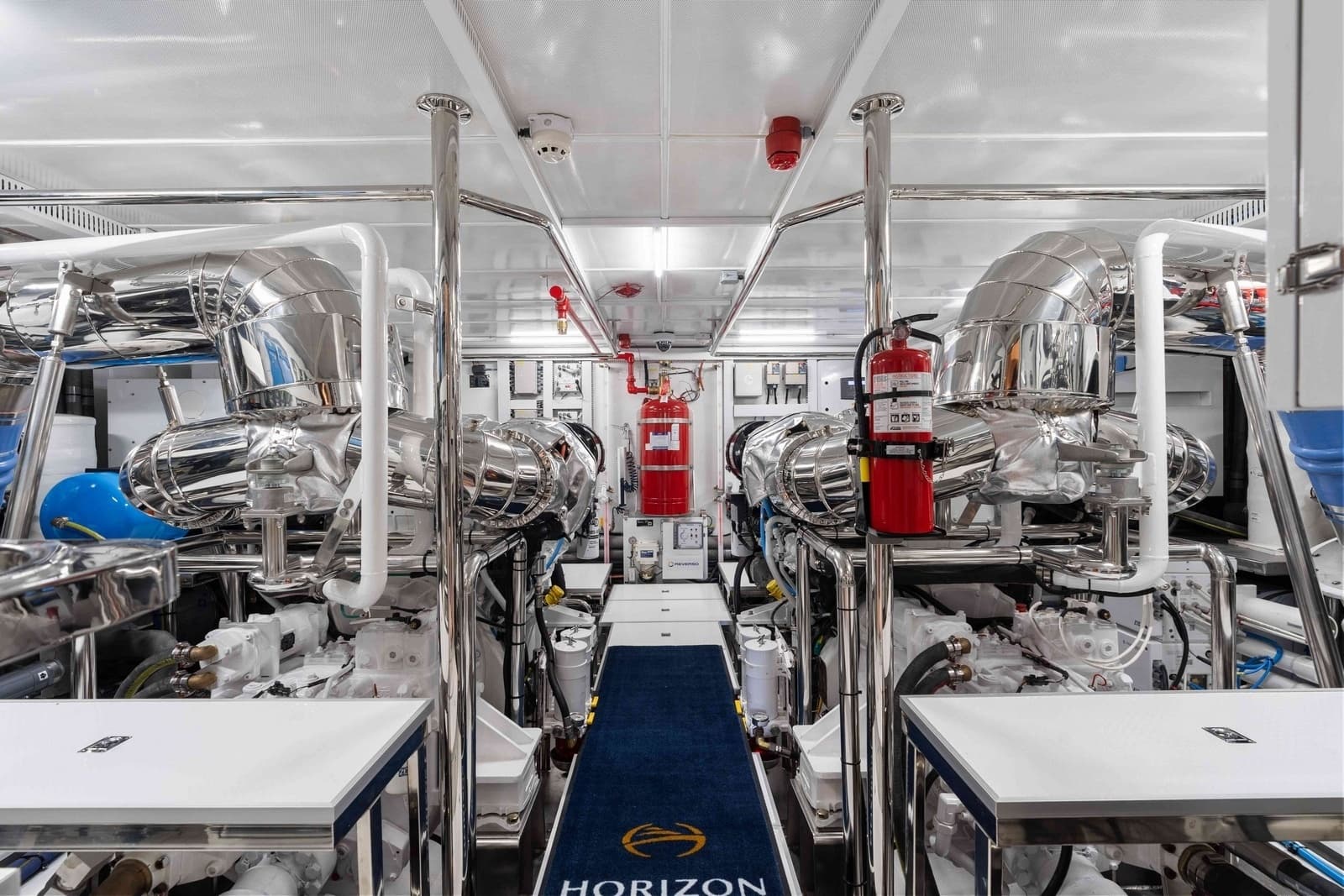

• The engine room offers a clean design with lightweight honeycomb floors
• Watertight bulkheads forward and aft
• Heavy-duty insulated engine room door
• S/S overhead grab rail on each side of engine
• Engine room LED ceiling lights
• Blue LED rope lights under engines
• Anti-noise treatment with sound and heat insulation material for the engine room
• Delta-T reversible AC intake blower(s) w/automatic speed control
• Delta-T engine room de-misters
• Engine load is distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
• Engine alarm system as per engine standard
• Air compressor
• 18K BTU Air handler, incl. controller
• Trident hose for engine exhaust
• Workbench with toolbox under
• ElectroSea marine growth strainer

GENERAL DESCRIPTION

• Color-coded wiring for easy identification
• AC and DC main electric panel with circuit breakers
• Sub-panel design with circuit breakers in each zone for electrical distribution
• Emergency power package and lighting system
• AC volt duplex receptacles located throughout, including engine room
• GFI protection for all AC outlets in exterior, heads, galley, and engine room
• Fiberglass water/exhaust separator for generator
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc
• Indirect lighting under the valance in the salon, staterooms, skylounge, and galley
• Dimmer system for LED ceiling lights on aft deck and skylounge or flybridge
• Dimmer system for LED ceiling lights in the salon, pilothouse, master and VIP staterooms
• Italian Vimar outlets & switches for the lighting system
• Motion detection light at the guest foyer close to the staircase
• Underwater lights (x8)
• Prewire for FLIR M364C night vision (no bracket)

AC/DC MAIN POWER SYSTEM

• AC electrical system: 240V/120V, Single-Phase 3-Wire, 60Hz 255 Ah 12V AGM start batteries (x4) for
• engines/generators with battery chargers (x2)
• 210 Ah AGM batteries (x8) for ship‘s DC 24V service power with combined inverter/chargers (x2)
• 210 Ah emergency batteries (x2) above main deck with a dedicated independent battery charger (x1)
• All batteries enclosed with proper fixtures; ignition-protected battery switch
• Octoplex multiplexing power distribution system
• Maretron monitoring and control system with a MBB300C for inputting the Maretron info to GARMIN display

SHORE POWER SYSTEM

• Glendinning shore power Cablemaster (x2)
• 100Amp with 75’ power cable each
• Shore power connection w/ 100Amp ISO boost polarization transformer and galvanic isolator (x2)
• Shore power 100Amp plug (x2) and 100Amp bow inlet (x2)

GENERAL DESCRIPTION

• Marine-grade pipes are applied throughout the boat
• Color-coded piping system for easy identification
• Engine room strainer plumbing with crossover line, freshwater flush, and an extra custom cap
• Pre-wire and pre-plumb for future diving compressor
• Reserve space with pre-wire for one unit of Electrosea CL-2000-X2.0 (Up to 75GPM) (no pre-plumbing)

FUEL OIL SYSTEM

• Fuel tanks with sight and electric gauges and capacity specified in Principal Dimension above ISO grade
• fuel hose through the entire system
• Dual Racor 75/1000 MA fuel filters/water separator, each engine
• Racor 500 MA fuel filters (x2, one on each generator)
• Oberdorfer electric fuel transfer pumps (x2)
• Oil change pump system for engines, gears, and generators
• Fuel polishing system (x1, 210GPH)

FRESHWATER SYSTEM

• FRP water tank with a capacity specified in the Principal Dimension above
• Freshwater hose bibbs on foredeck, aft deck, boat deck, and Tri-deck
• 30-gal water heaters (x2)
• High-volume Headhunter AC freshwater pressure pump and one DC pump for backup
• Spot Zero SeaXchange XTCII 1800 water maker & ZTC II 2000 water purifier
• Freshwater outlet and hose for filling engine and generator expansion tanks
• Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
• Hot water circulation pump
• AIR CONDITIONING SYSTEM
• Marine Air VFD chilled water air conditioning system
• Air handlers for the interior area
• A backup air conditioning seawater cooling pump
• Ship loose a backup air conditioning circulation pump
• Honeywell dehumidification system (Honeywell DR65A3000 x5 units, incl. T10 Pro smart thermostat control panel per unit.) No dehumidification system in Beach Club

SANITARY SYSTEM

• Headhunter toilet system for forward cabins and TECMA toilets for crews and stern storage head
• 200 gal holding tank with deck fitting for dockside pump out
• 100 gal sump tank with pump for each shower & washer drainage area
• Headhunter sanitary treatment system (TW-HMX 6001LP)
• Electric level indicators for holding tank and sump tank

BILGE WATER SYSTEM

• Electric Rule Bilge Pumps
• Manual bilge pump (x2) in engine room and forward staterooms
• High water level bilge alarm
• Bilge exhaust ventilation fans
• Deck wash-down pump with outlets at the chain lockers and transom

FIRE SAFETY SYSTEM

• Fire insulation in the engine room
• Fire-resistant treatment for pipe penetrations
• Fixed fire extinguisher FM200 for the engine room with remote pull station
• Automatic/manual shutdown system
• Automatic fire damper system
• Fire Pump (w/outlets & hydrants)
• Portable fire extinguishers (x5)
• Ship loose fire blankets (x3)
• Integrated fire alarm system in pilothouse, with CO and smoke detectors in galley and Engine Room

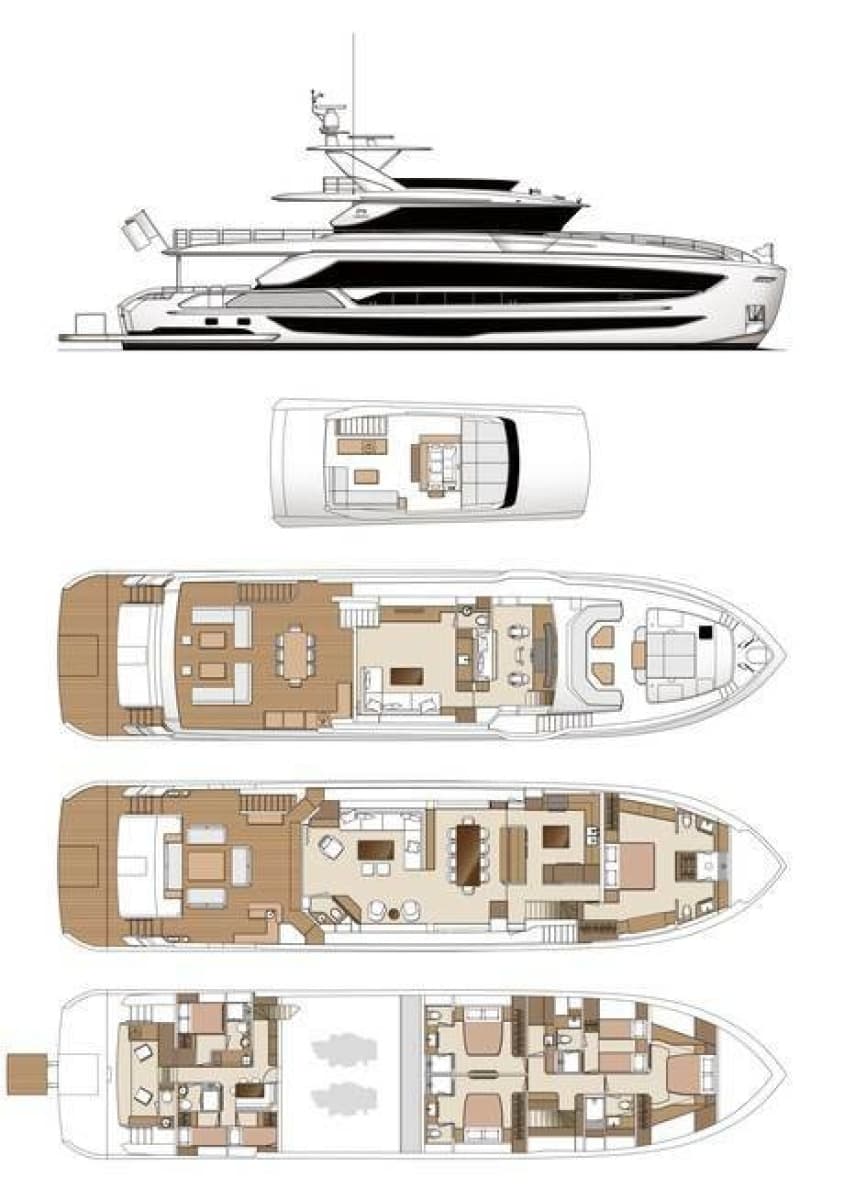

• 5 ensuite staterooms and 3 crew cabins (incl. 1 ensuite) as per layout
• A laundry room with a sink in the lower deck

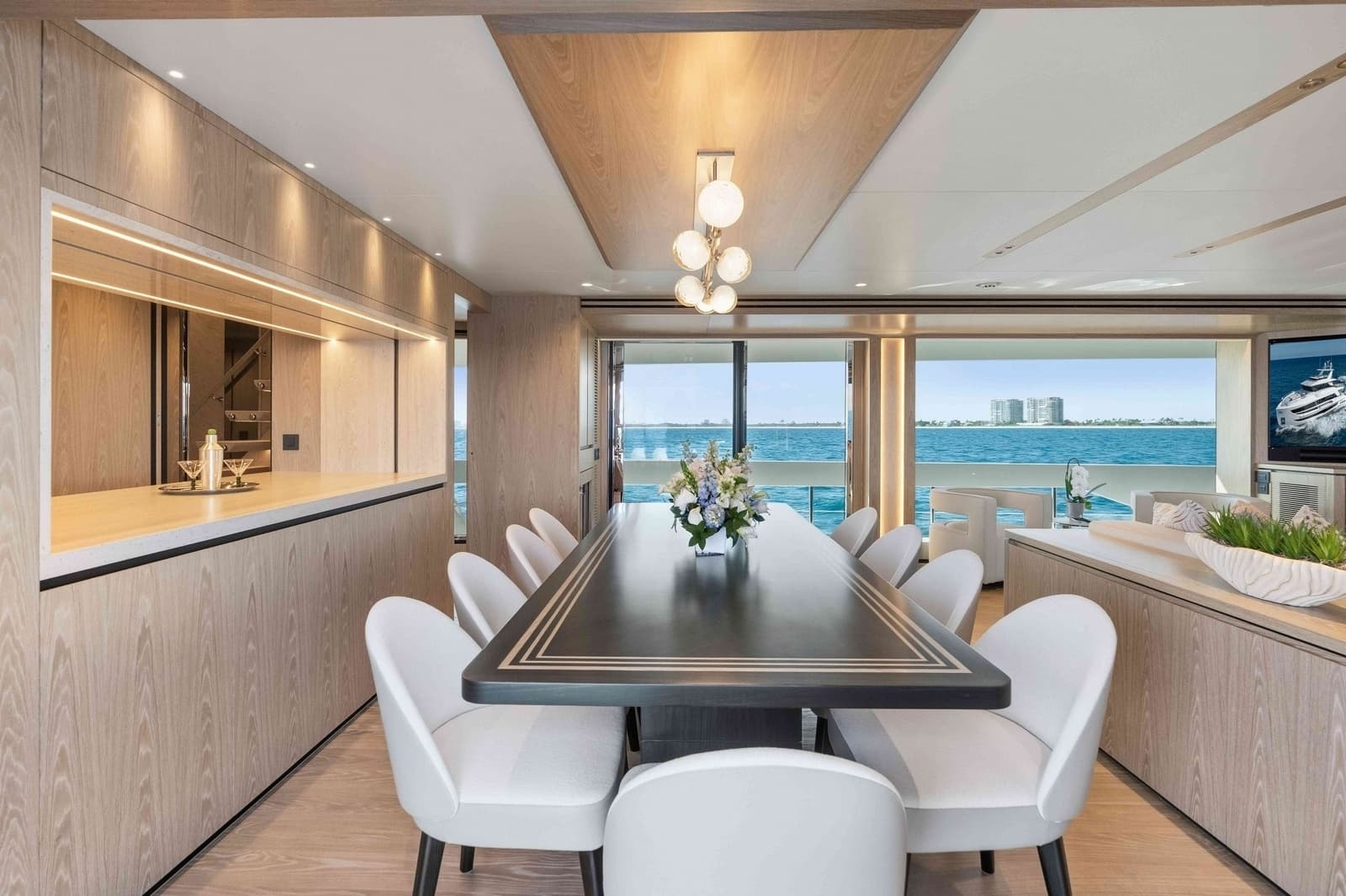

• Forward salon layout: salon with formal dining and dining chairs as layout
• Salon sofa/arm chairs/stools/coffee table/side table style and arrangement as per interior package
• Cadorin Rock oak floor for public area, Fabrica Brushstrokes-Glaze carpet for Master Stateroom floor and Fabrica Brushstroke-Gloss carpet for all guest staterooms floor, and SENSI ROMA-MML Travertine tile for galley floor and Angora Pearl for heads floor. (Details please refer to Interior spec)
• Custom rugs for Skylounge and Salon
• Angora Pearl countertop & backsplash for heads and SENSI ROMA-MML Travertine tile countertop & backsplash for galley, guest foyer, and laundry room. (Details please refer to Interior spec)
• Interior Main wood: Dyed oak (70% stain, 30% gloss); Partial walls & furniture: stained oak (70% stain, 30% gloss)

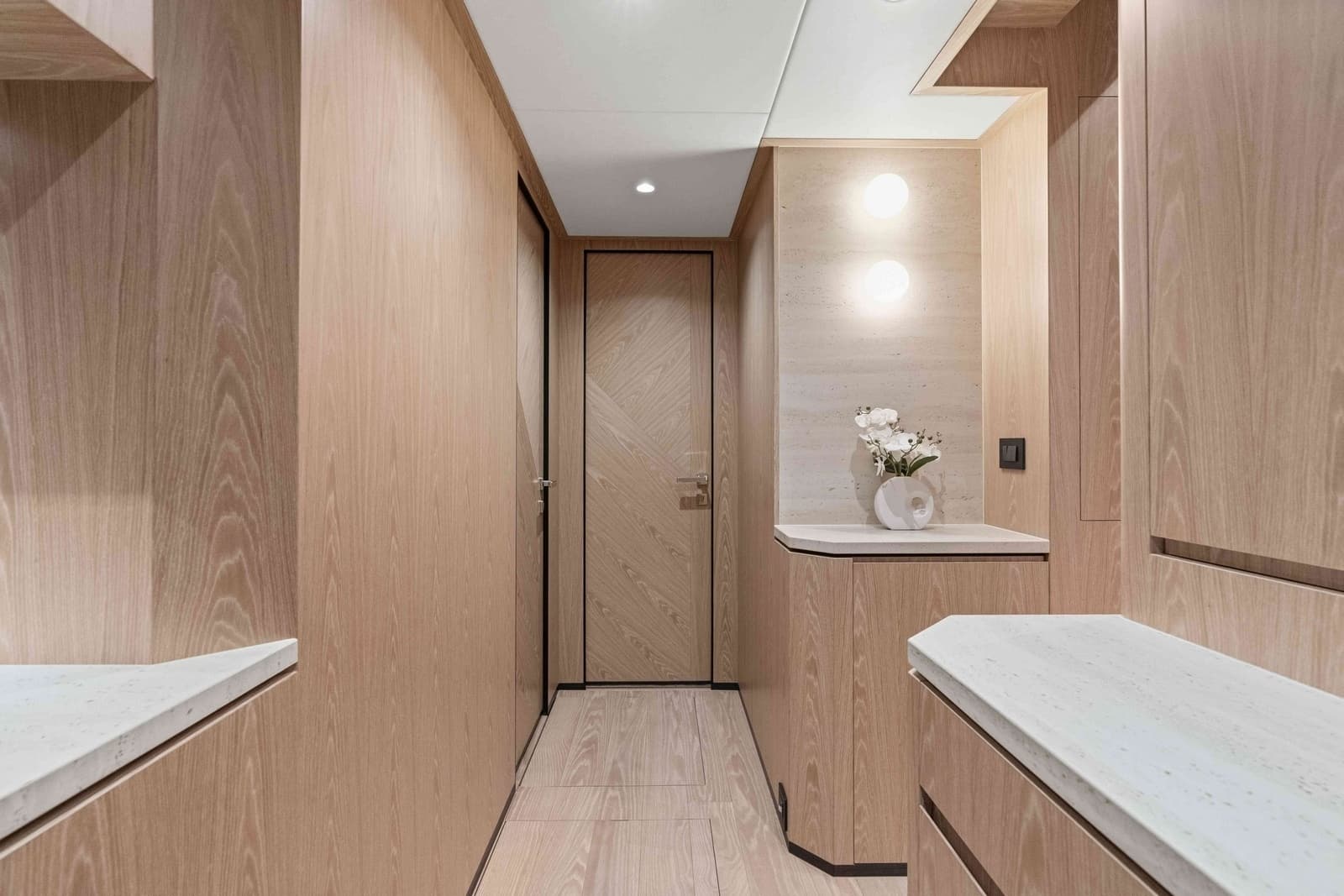

• A feature SENSI ROMA-MML Travertine tile wall in guest foyer

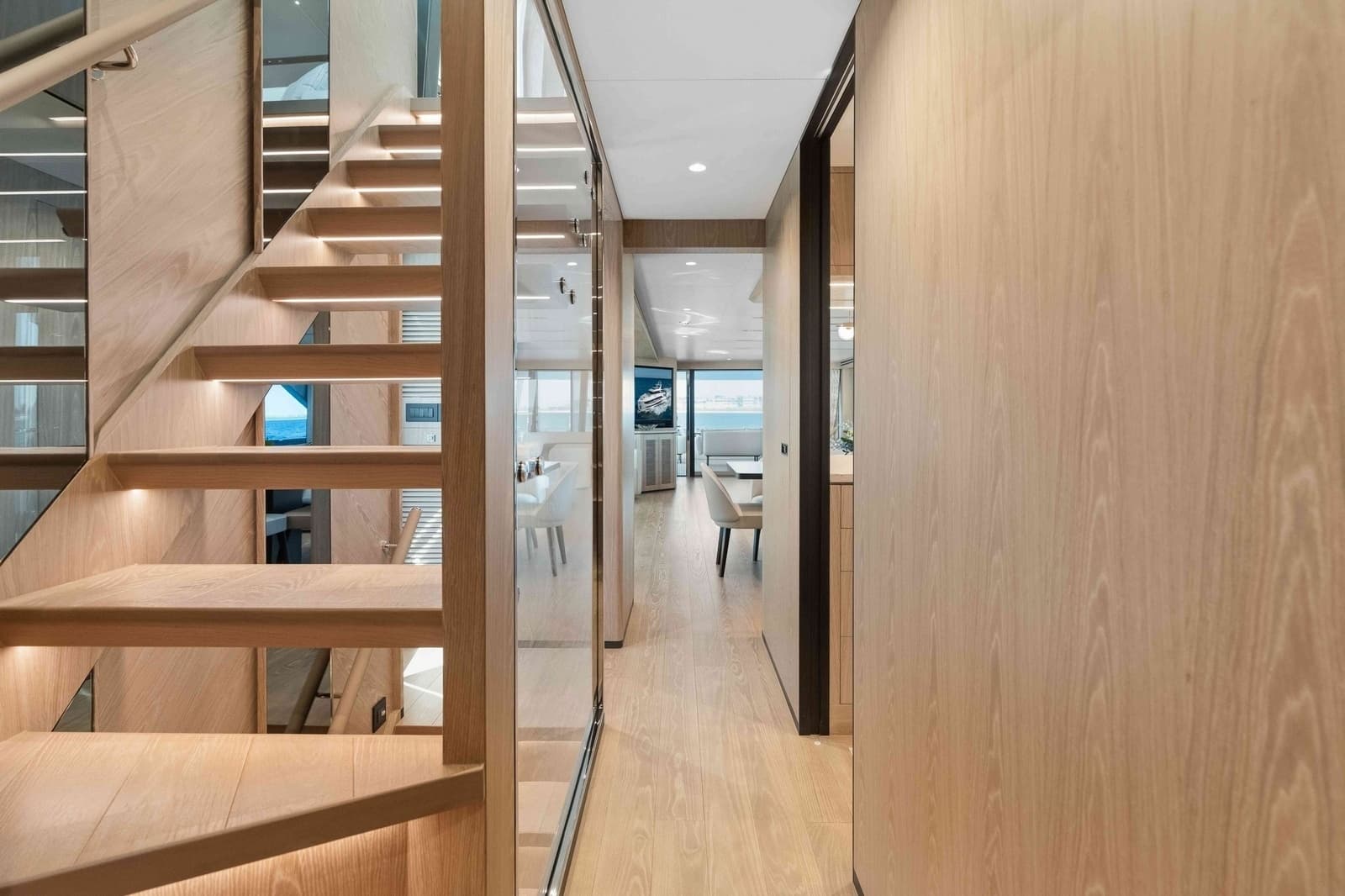

• Interior stairway from main deck to flybridge/ skylounge/pilothouse and forward staterooms
• High-quality Frascio entrance door handle with master key system (including 3 keys) and cabinet door handles per shipyard standard
• High-density hotel-grade pocket spring mattresses for the entire boat, except crew cabins and upper bunks
• Sarlas Belharra fabrics for manual Roman blind (one layer per each) with valance in Skylounge Coulisse
• Honeycomb light-filtering Shades Sheer for Salon windows

• 4-panel S/S electric sliding entrance door & manual sliding door to each side of the main salon

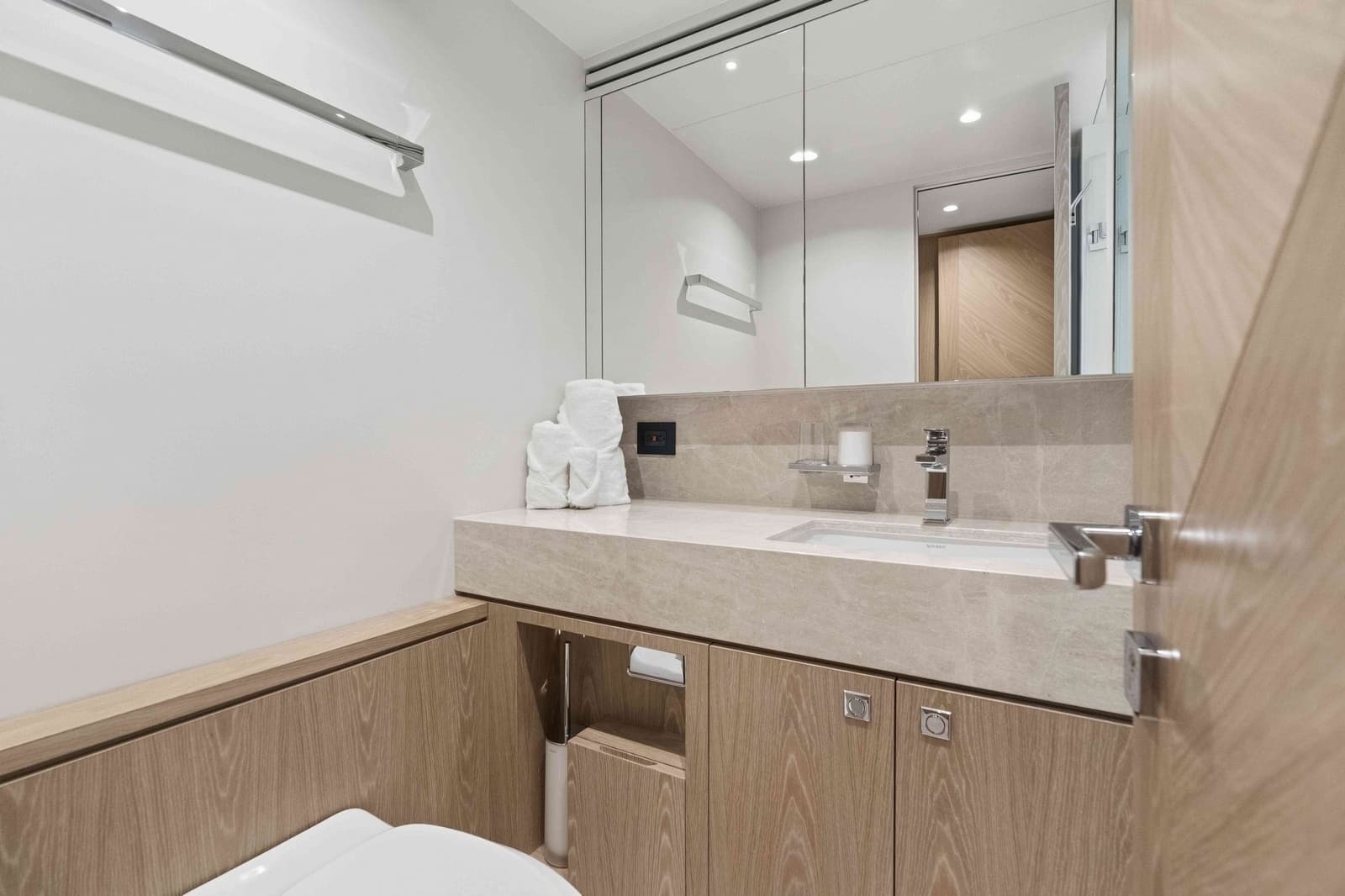

• Dayhead in main salon aft

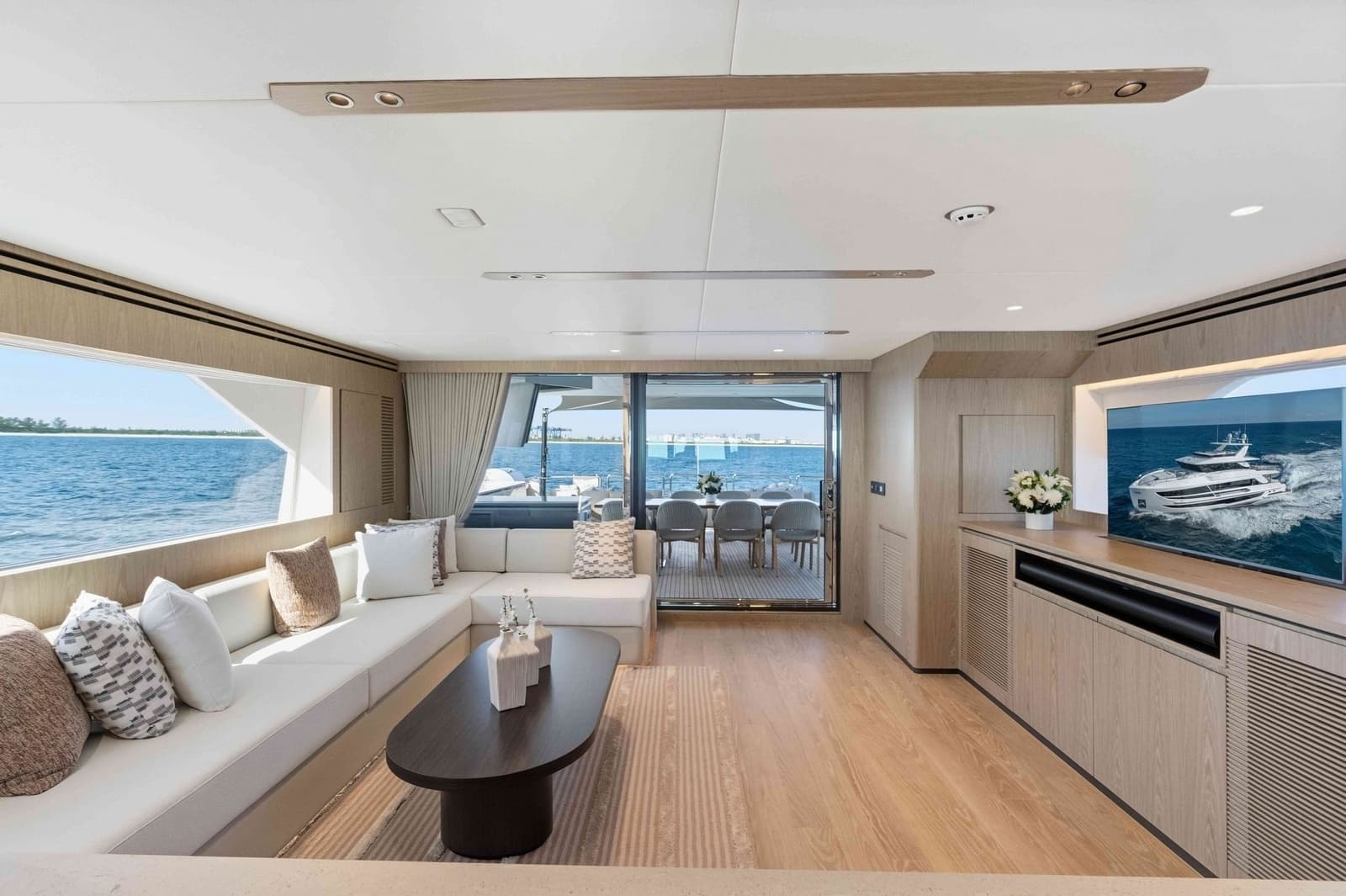

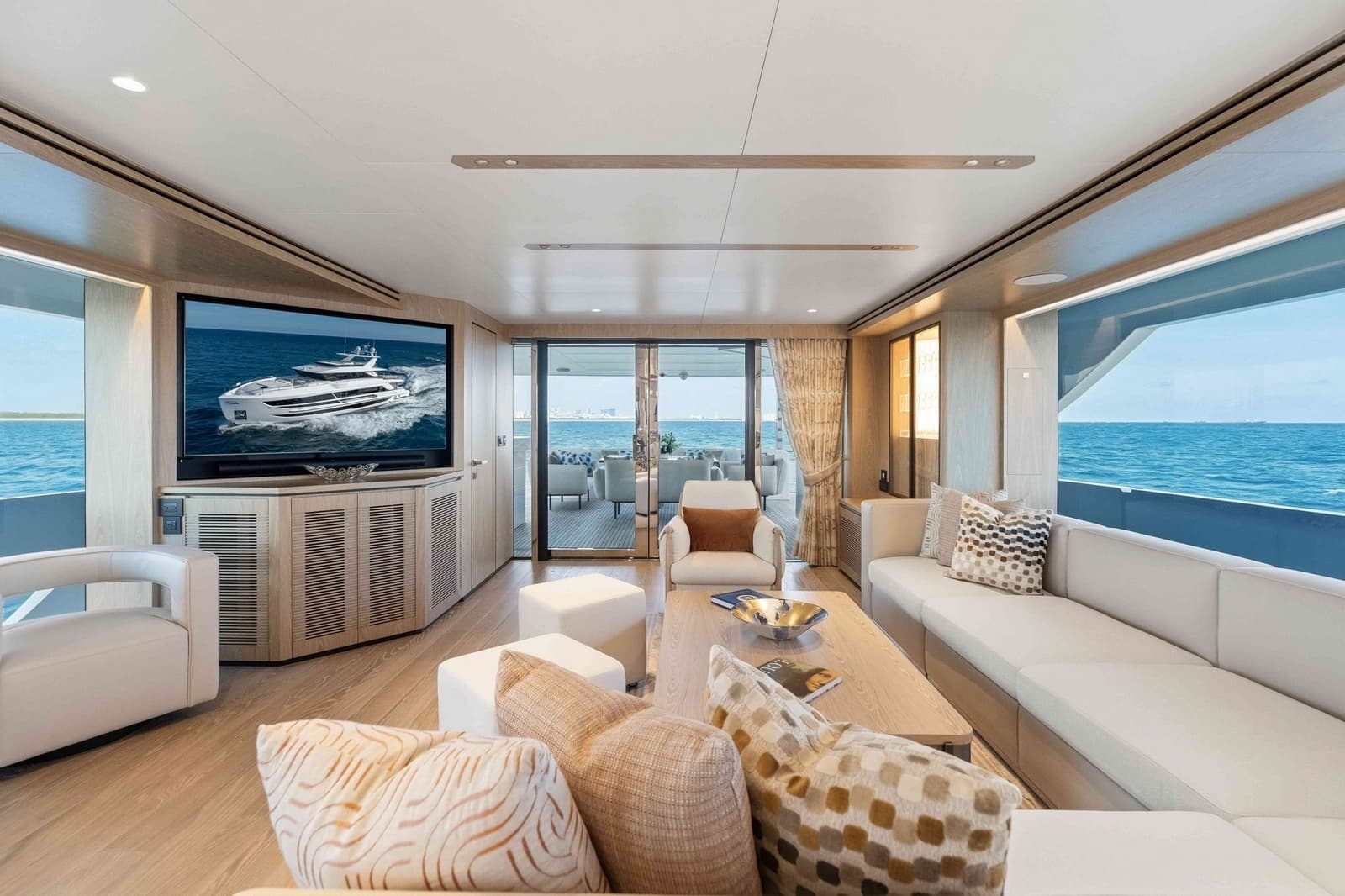

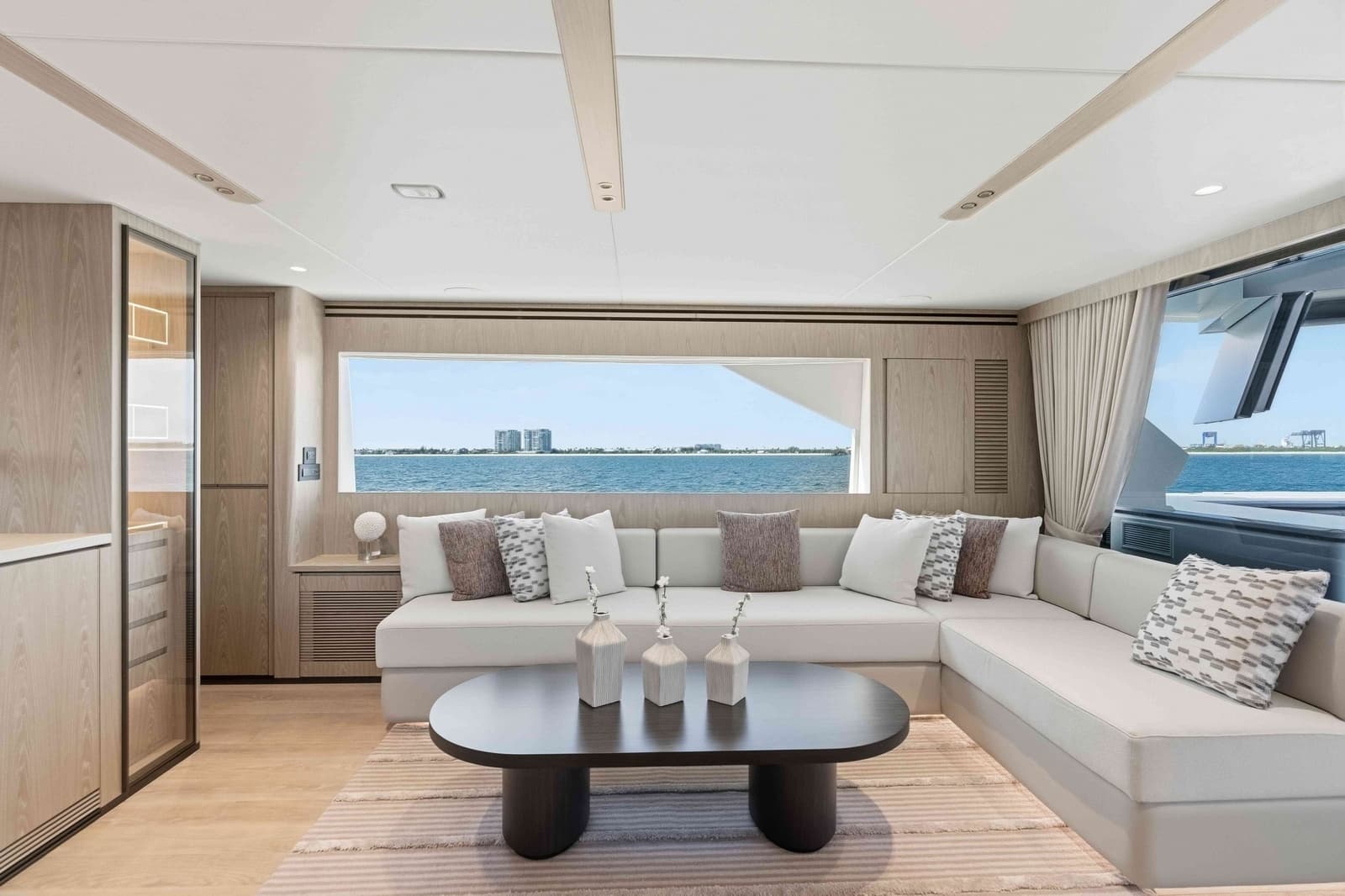

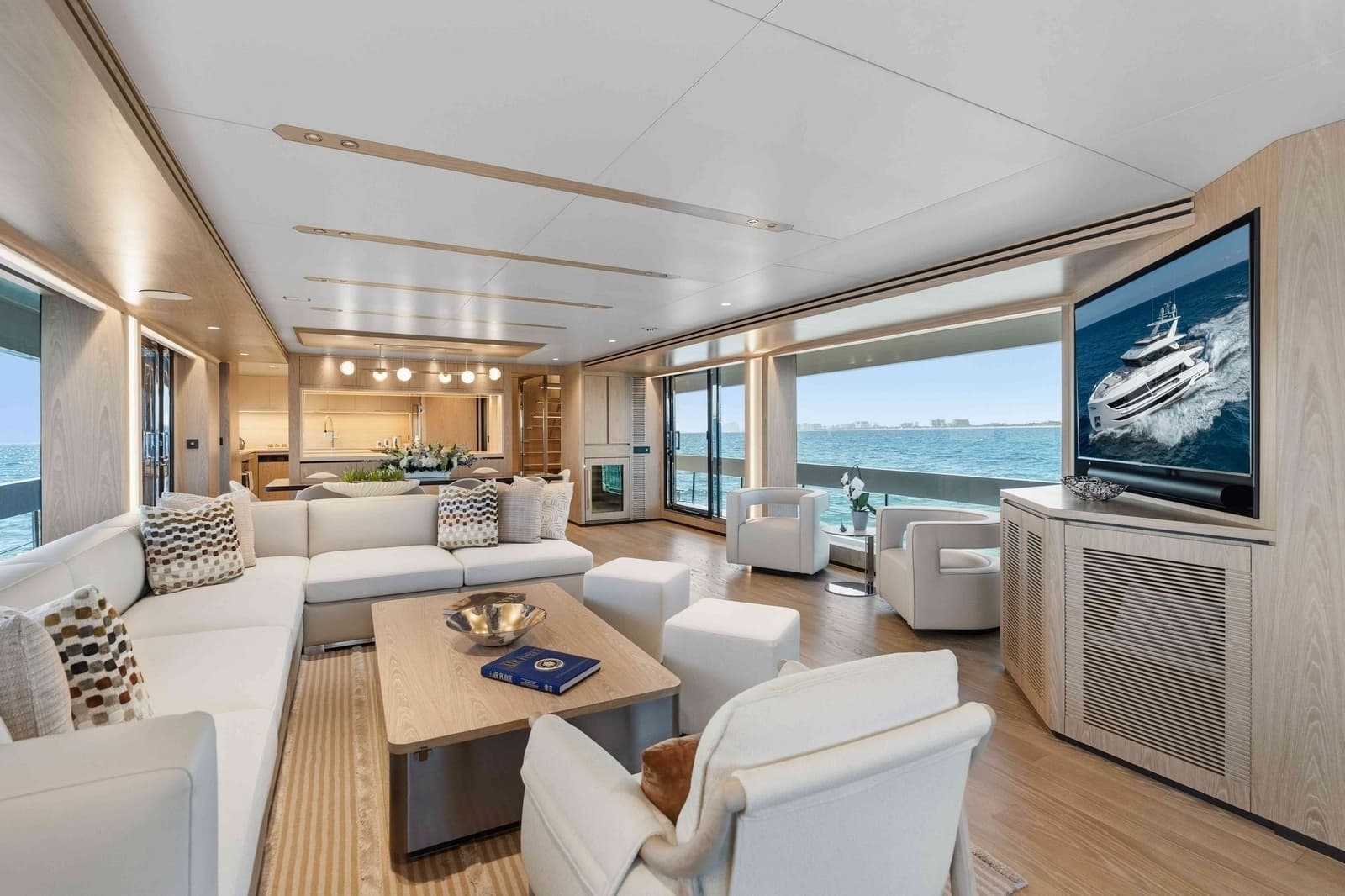

• L-shaped sofa w/table, armchair, and ottomans
• (2) Armchairs & side table to STBD
• Custom area rug

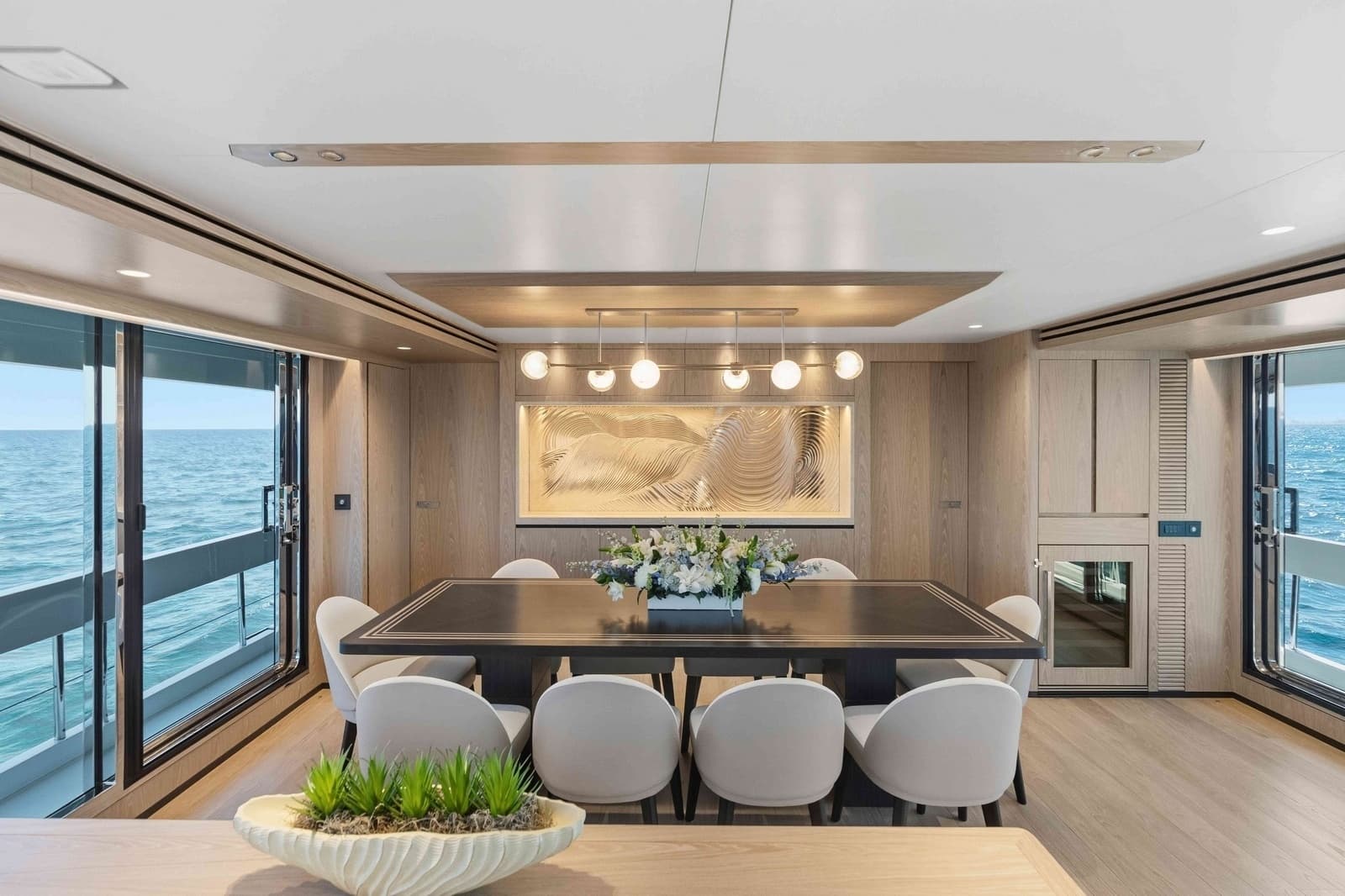

• Formal dining table & chairs for 10
• Free-standing custom storage cabinet
• Breakfast bar design
• Electric curtains
• 65" TV

• Enclosed galley w/ Hi-Lo screen & kitchen island
• Professional galley + extensive storage per layout
• Sub-Zero 48" refrigerator/freezer PRO4850 (x1), 24" drawer-type under-counter fridge ID 24-R (x1) and 24" drawer-type under-counter freezer ID-24F (x1)
• Miele 36” electric induction cooktop KM 7740FR (x1) with Monogram/G.E. exhaust blower ZV800SJSS (x1) above
• Miele dishwasher G7916Sci (x1)
• Miele 30” convection oven H2880BP (x1)
• Wolf 24” drawer microwave MD24TE/S (x1)
• Kitchen Aid trash compactor KTTS505EPA (x1)

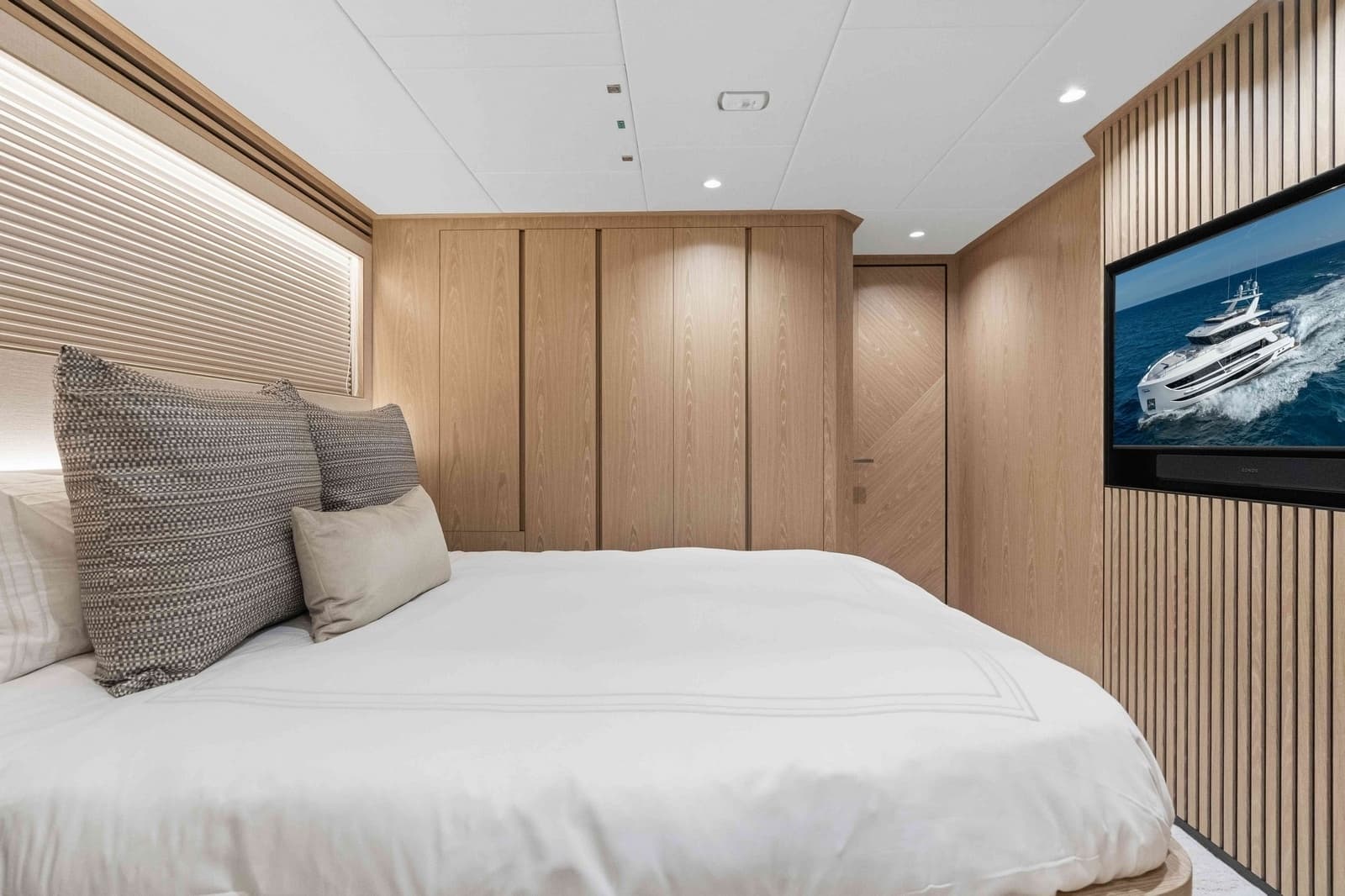

• King bed w/ storage drawers & nightstands, safe

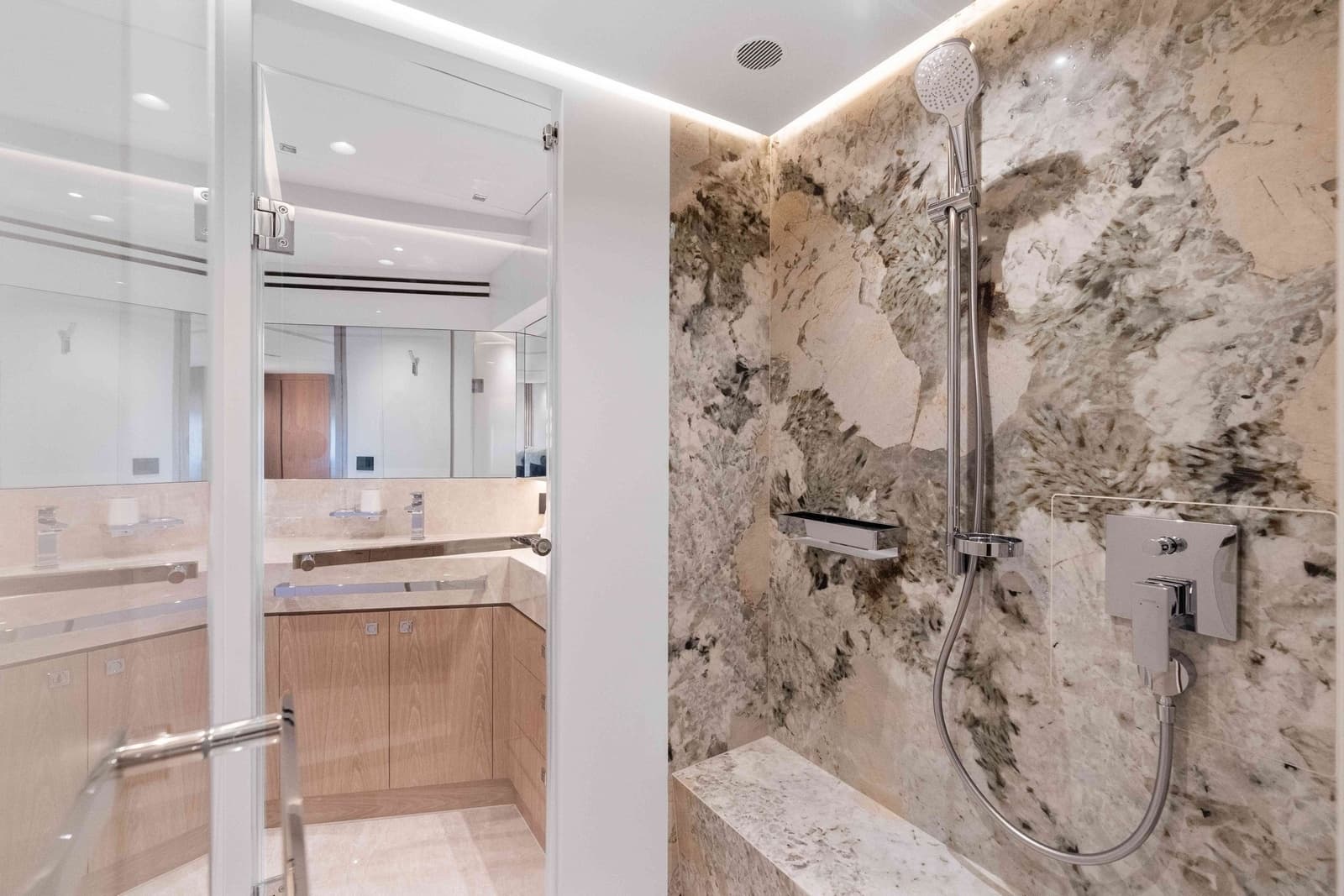

• His and Hers head w/sinks & rain shower
• Electric Roman Shades
• (2) Opening portholes to each side
• 50" TV
• Escape hatch in Master with ladder

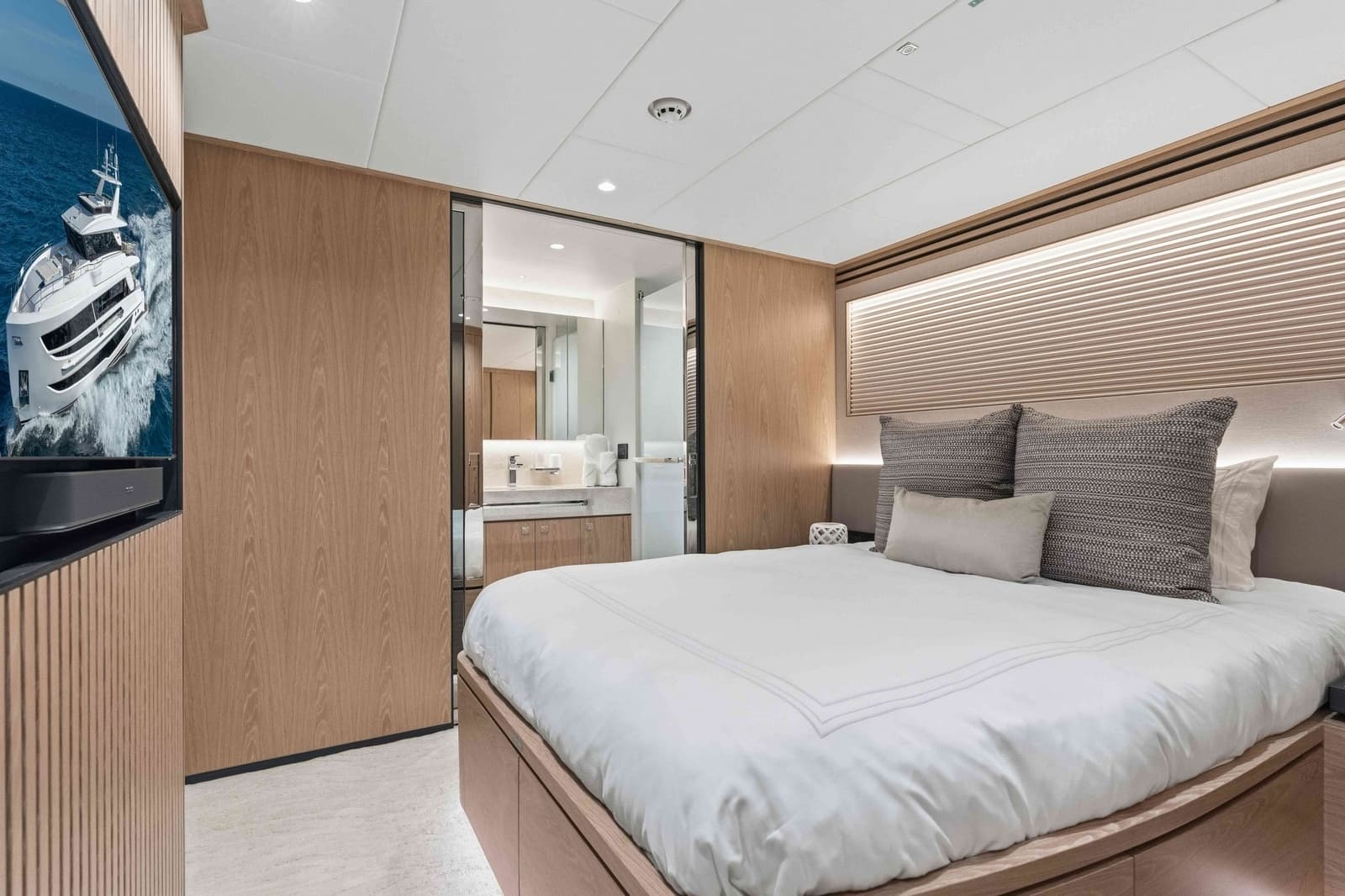

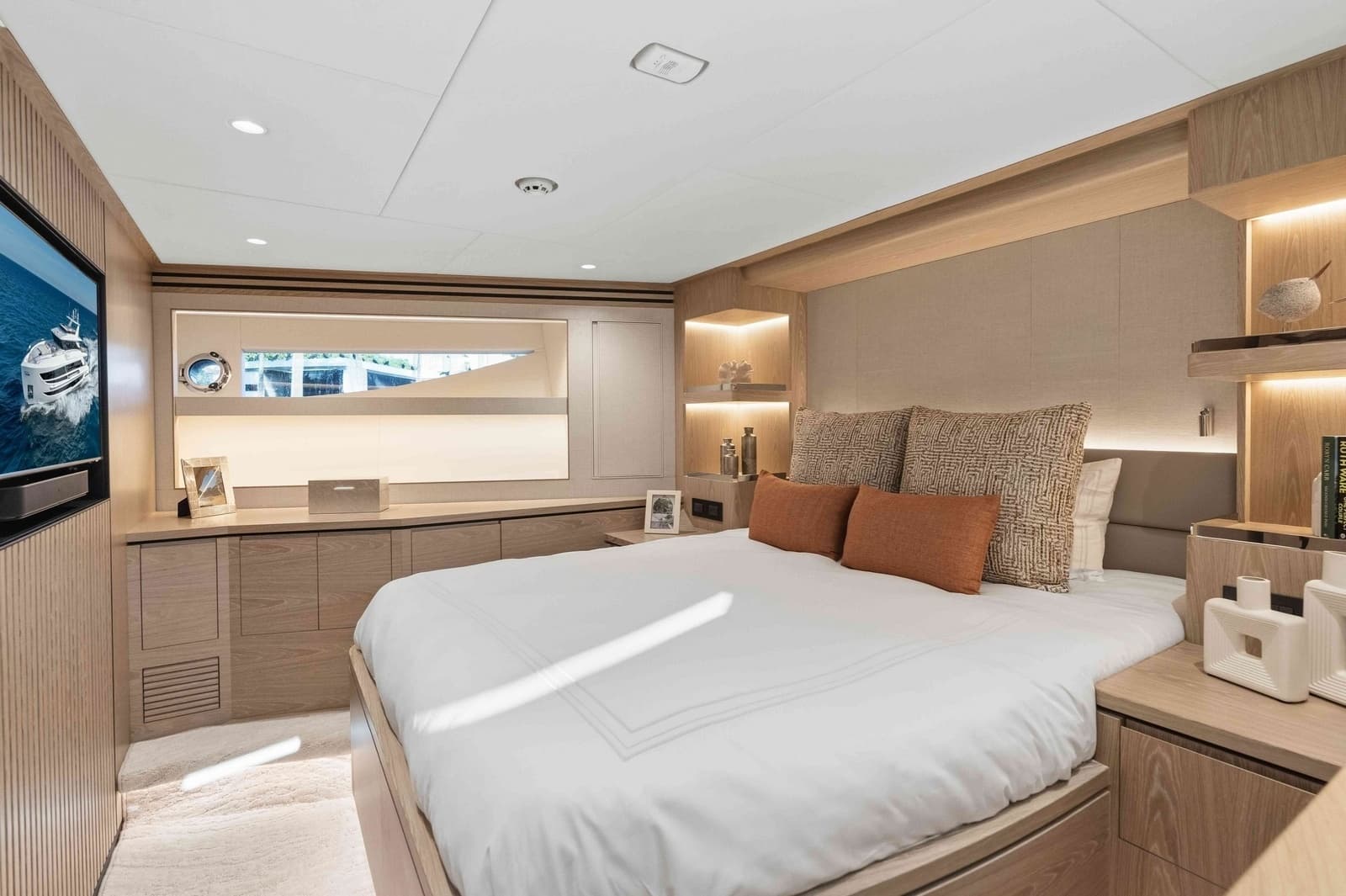

• Queen bed w/ nightstands & drawer storage Large hanging lockers STBD

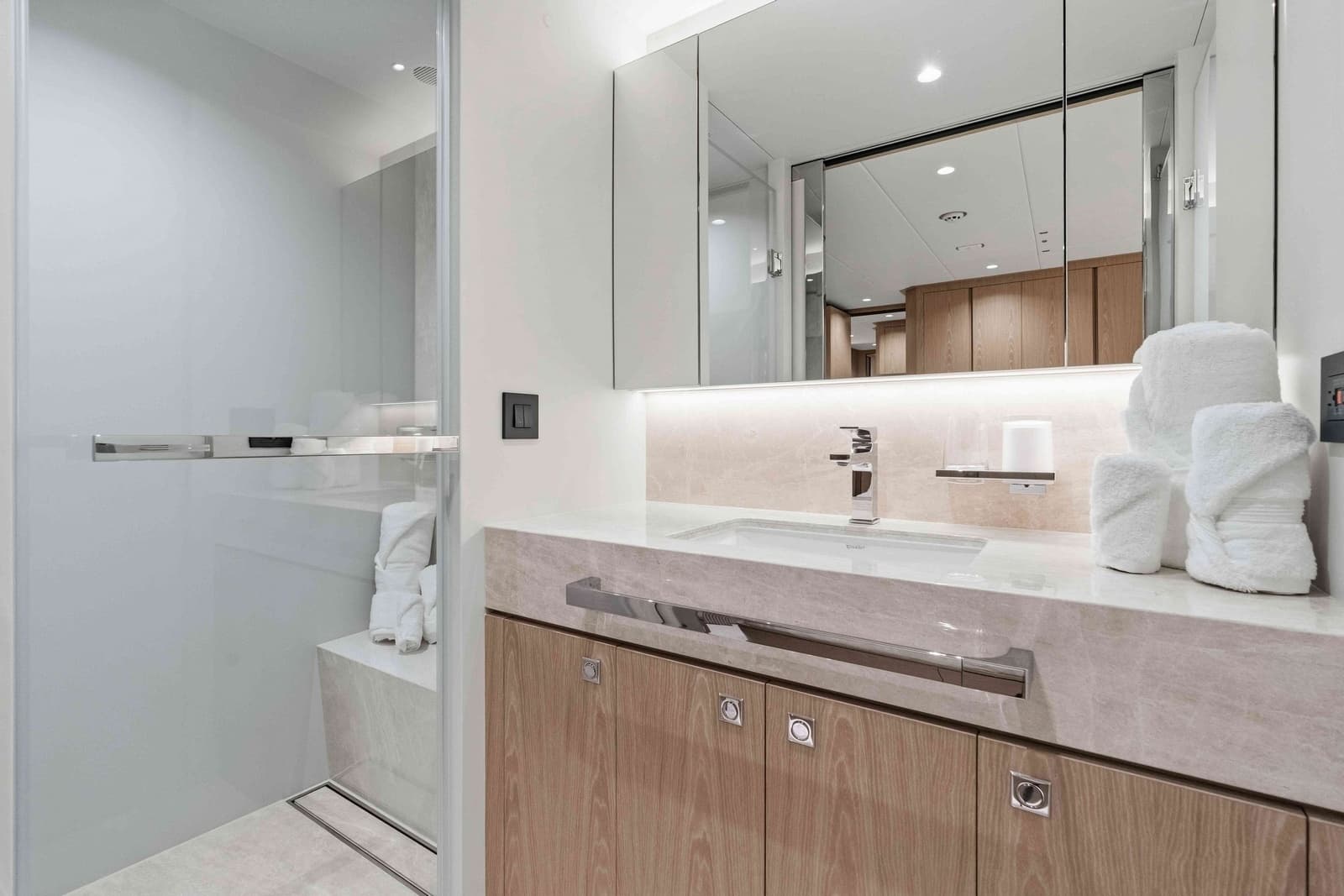

• Ensuite head w/ sink, shower & toilet
• 43" TV

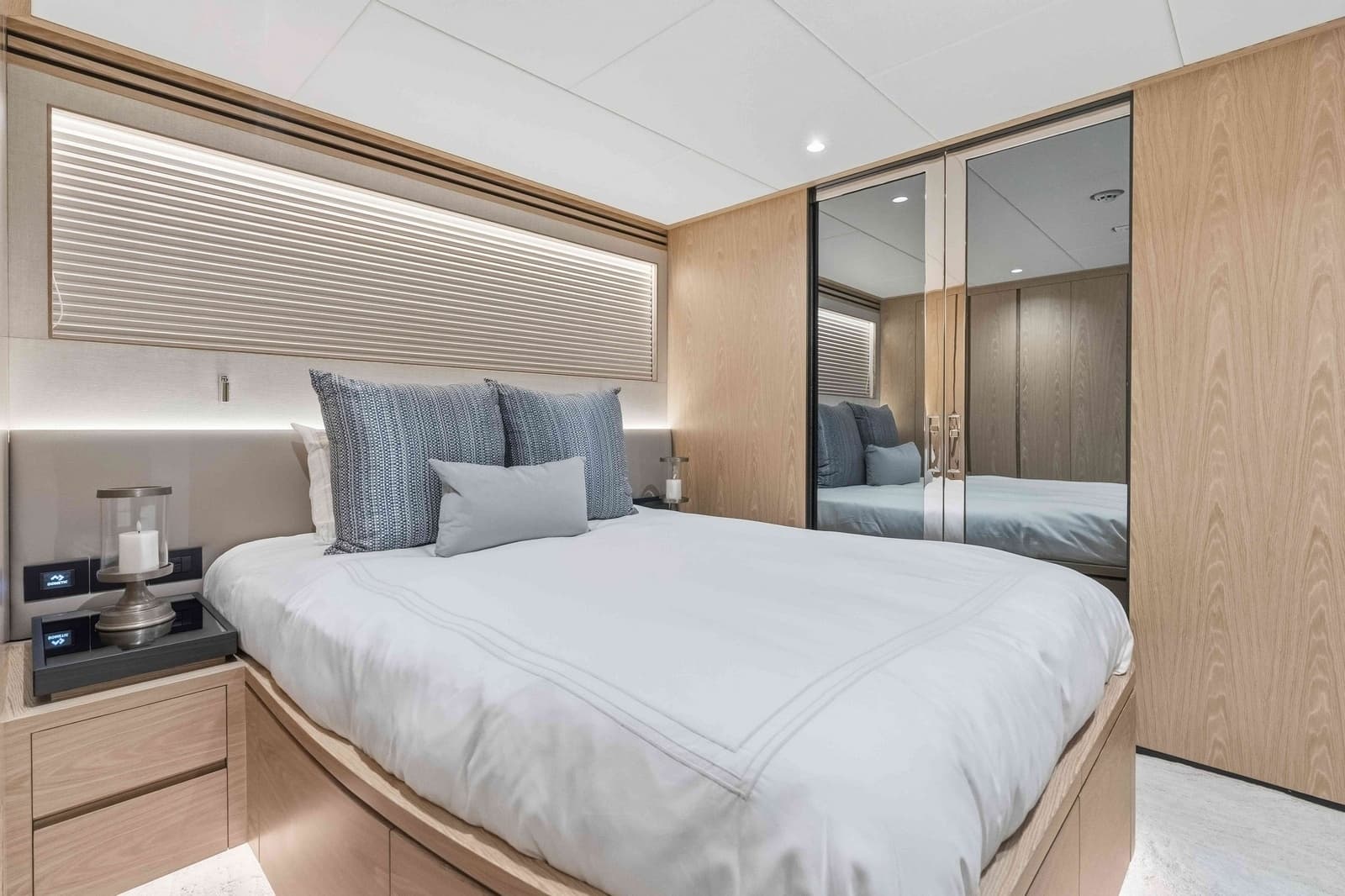

• Queen bed w/ nightstands
• Ensuite head w/ sink, shower & toilet
• 43" TV

• Queen bed w/ nightstands
• Ensuite head w/ sink, shower & toilet
• 43" TV
• Escape hatch up to salon with ladder

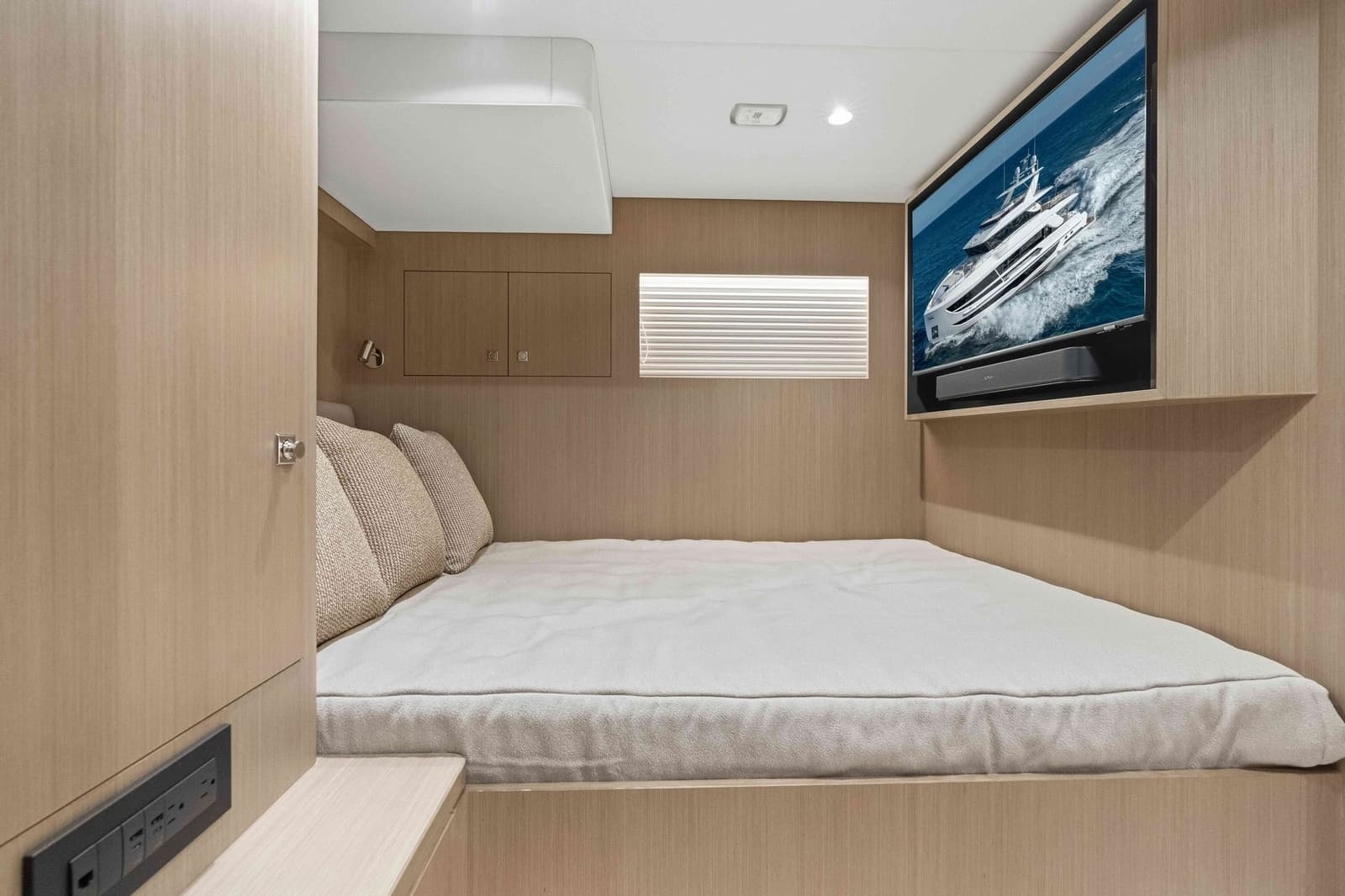

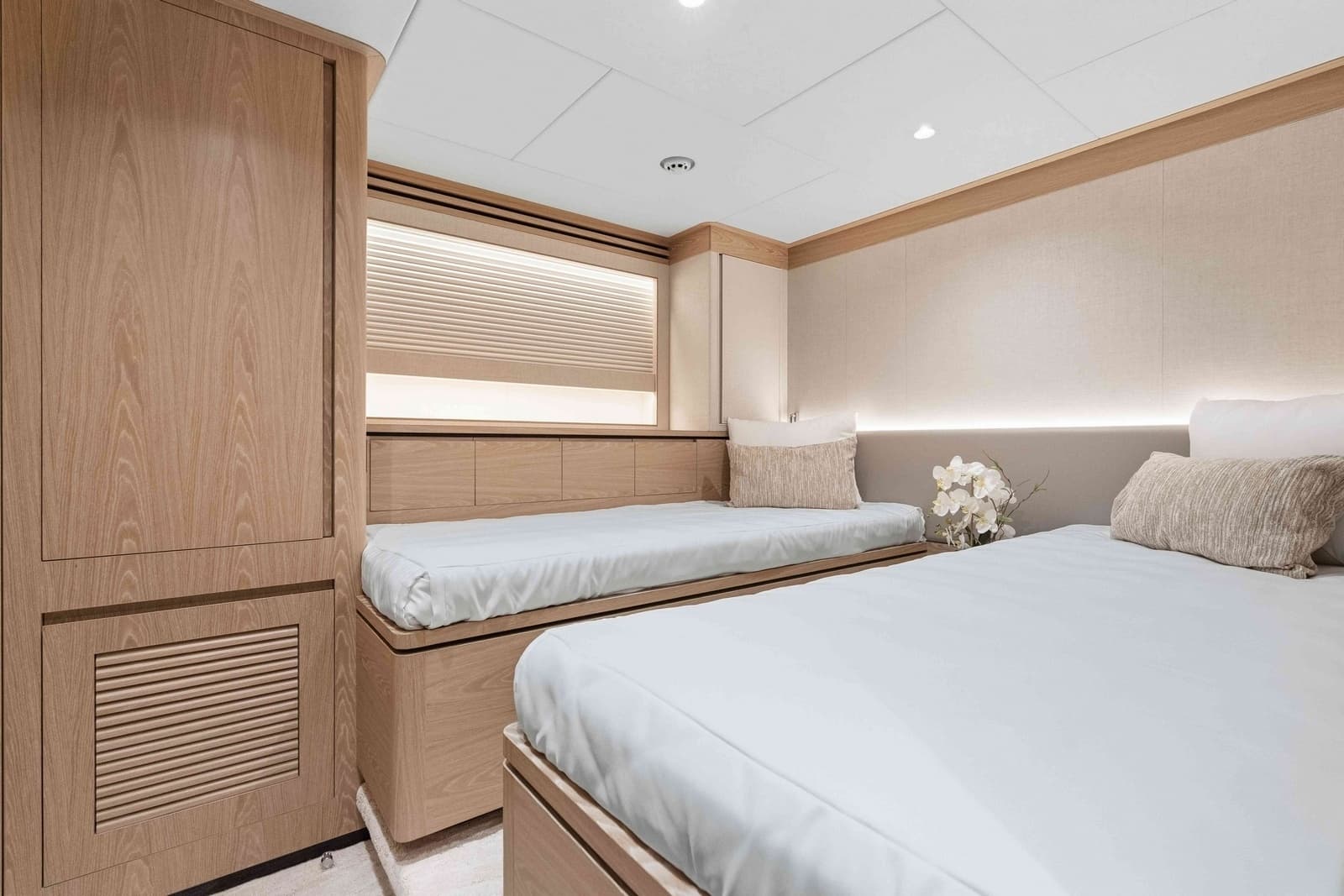

• (2) Twin bed (one sliding bed, one fixed)
• Ensuite head w/ sink, shower & toilet
• 32" TV

• PORT captain cabin w/ queen bed, ensuite
• (2) STBD Bunk crew room
• Shared head w/ sink, shower & toilet
• Crew mess with one Kenyon two-burner cooktop, one Gianneschi range hood, one Wolf convection microwave MC24, one sink, and one Perlick refrigerator/freezer drawers
• 43” TV

• SAT TV antenna with a symmetric dummy dome & prewire for SAT phone
• Starlink maritime flat high-performance
• Satellite internet kit
• 4G/5G Cellular router system with WiFi on board
• Exterior connector for shore phone and cable TV

• Garmin GPS with Satellite Compass
• Garmin GMR 1236 xHD3 (6-foot/12kW/96nm) radar plus GMR Fantom 54 (4-foot/50W/72nm) radar
• Garmin GPSMAP 9224 - 24" multifunction displays (x4)
• Garmin Fishfinder and transducer
• Garmin Autopilot system
• Garmin Wind/ Speed/ Temp transducers
• Garmin AIS
• Garmin VHF (x2) with built-in loudhailer
• Garmin GRID 20 remote input device
• Garmin Reactor AP Remote Control

Exclusions are to include, but are not limited to, the owner's personal belongings. A detailed list of exclusions is to be provided at the time of sale upon written request from the Buyer.

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
