2026 Hargrave E Series
“RESONANCE”
Description

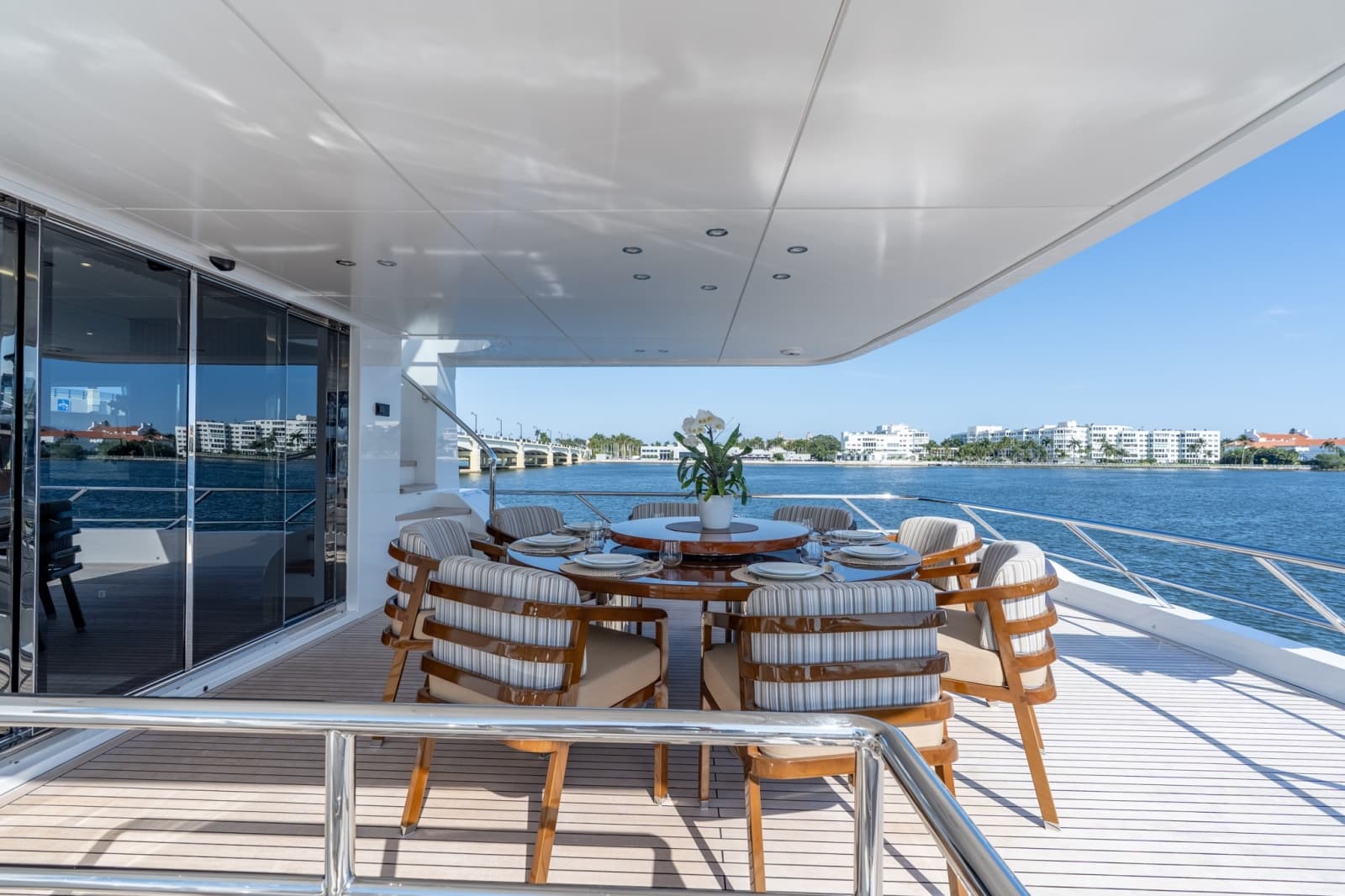

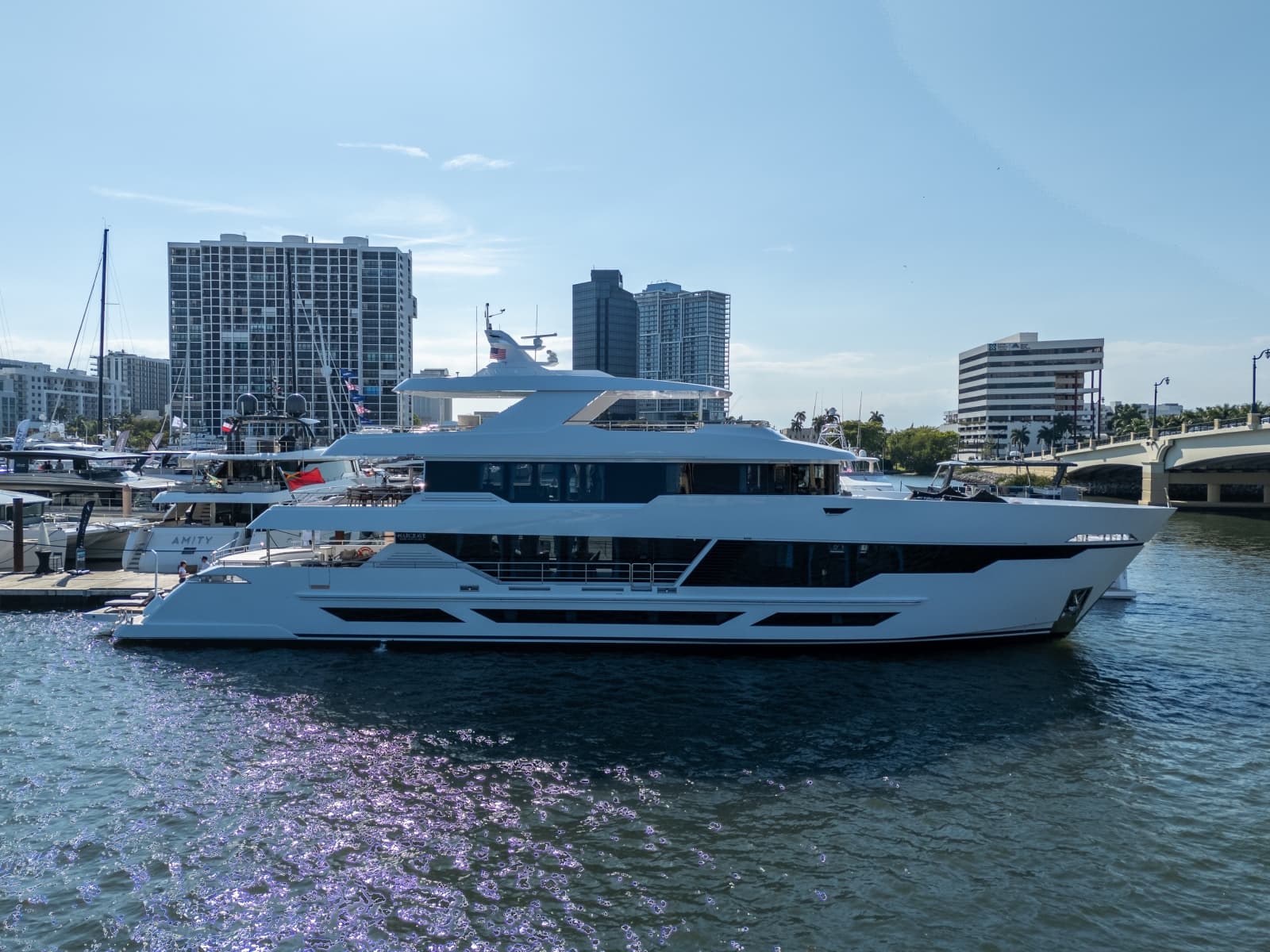

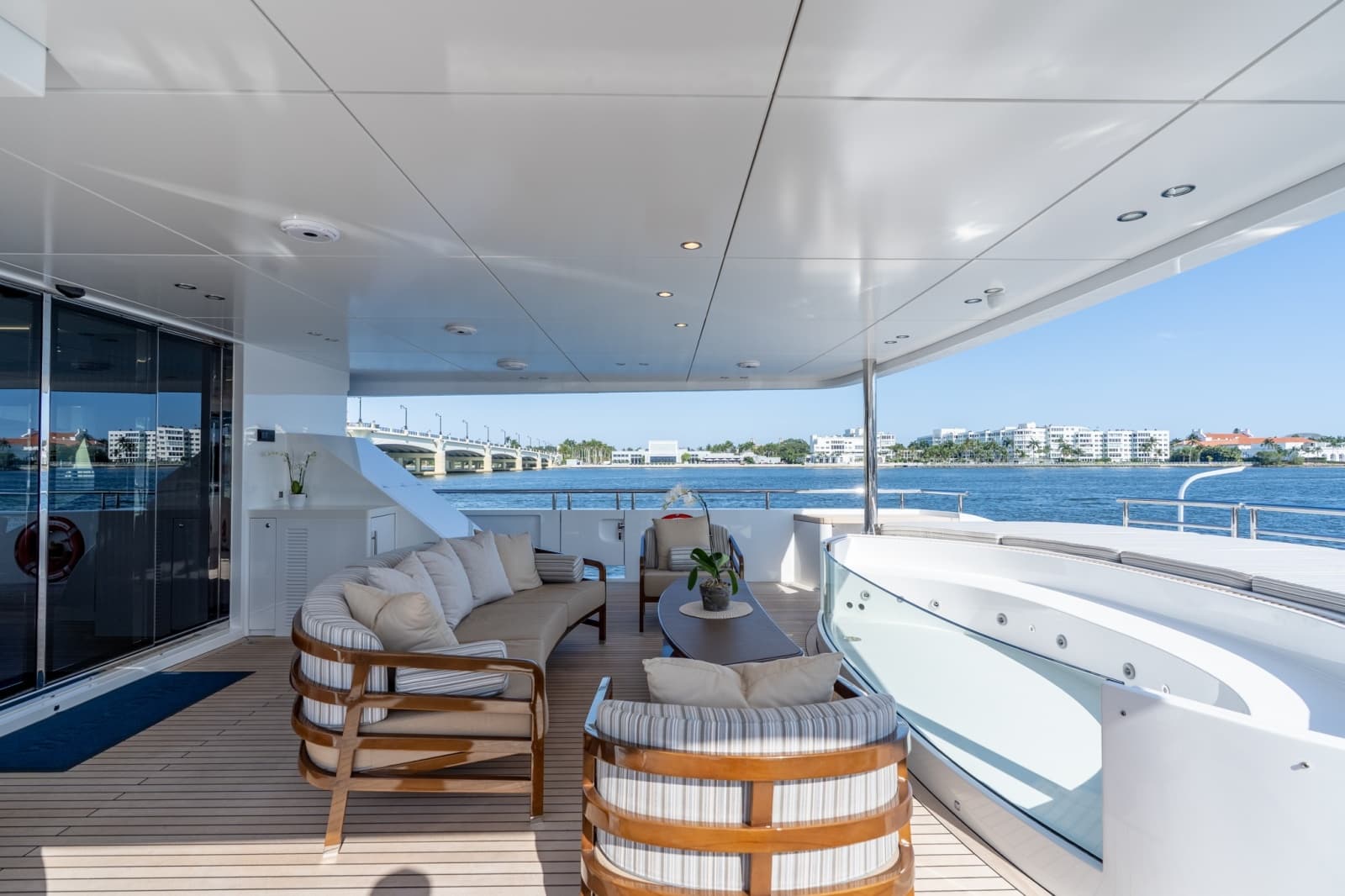

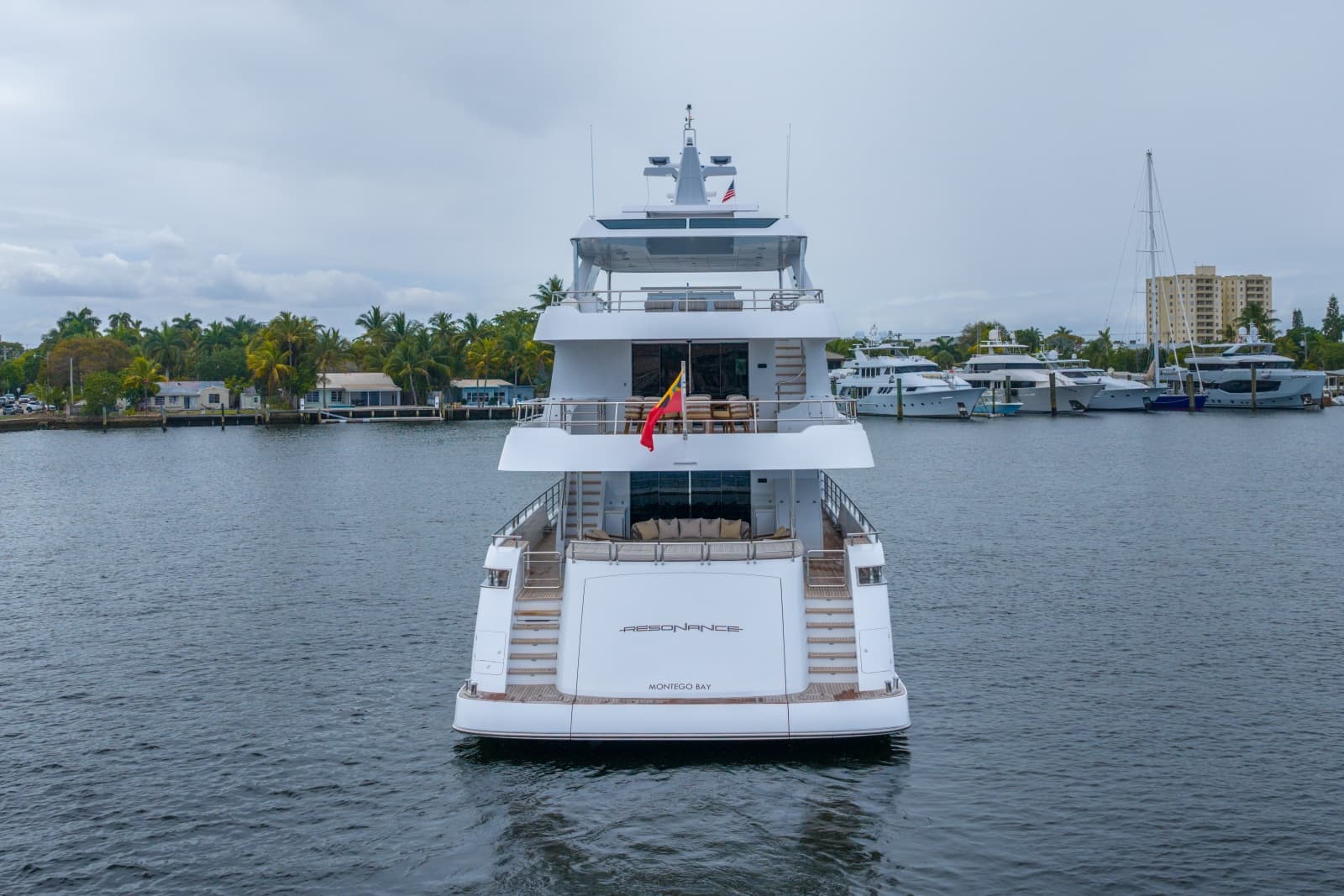

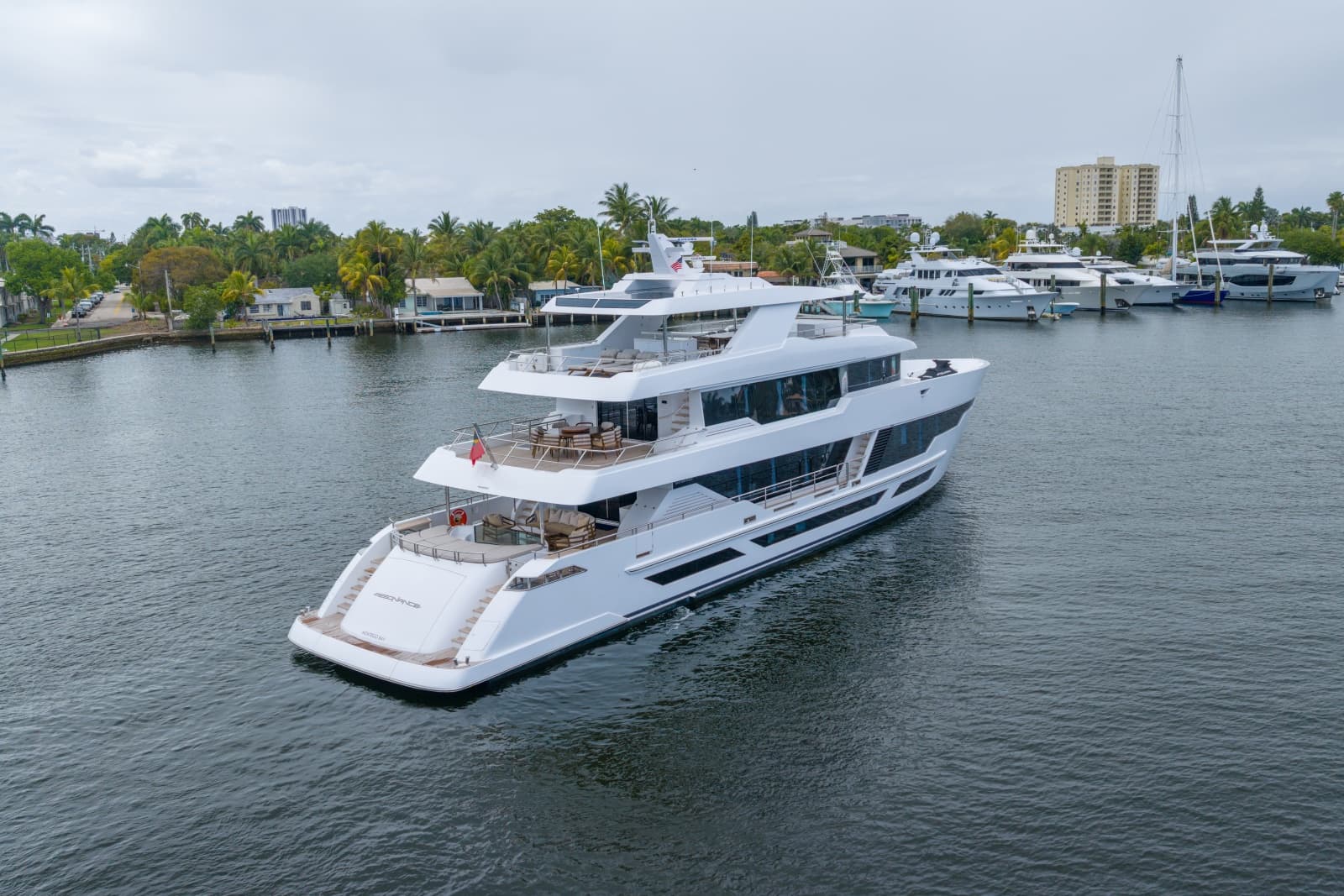

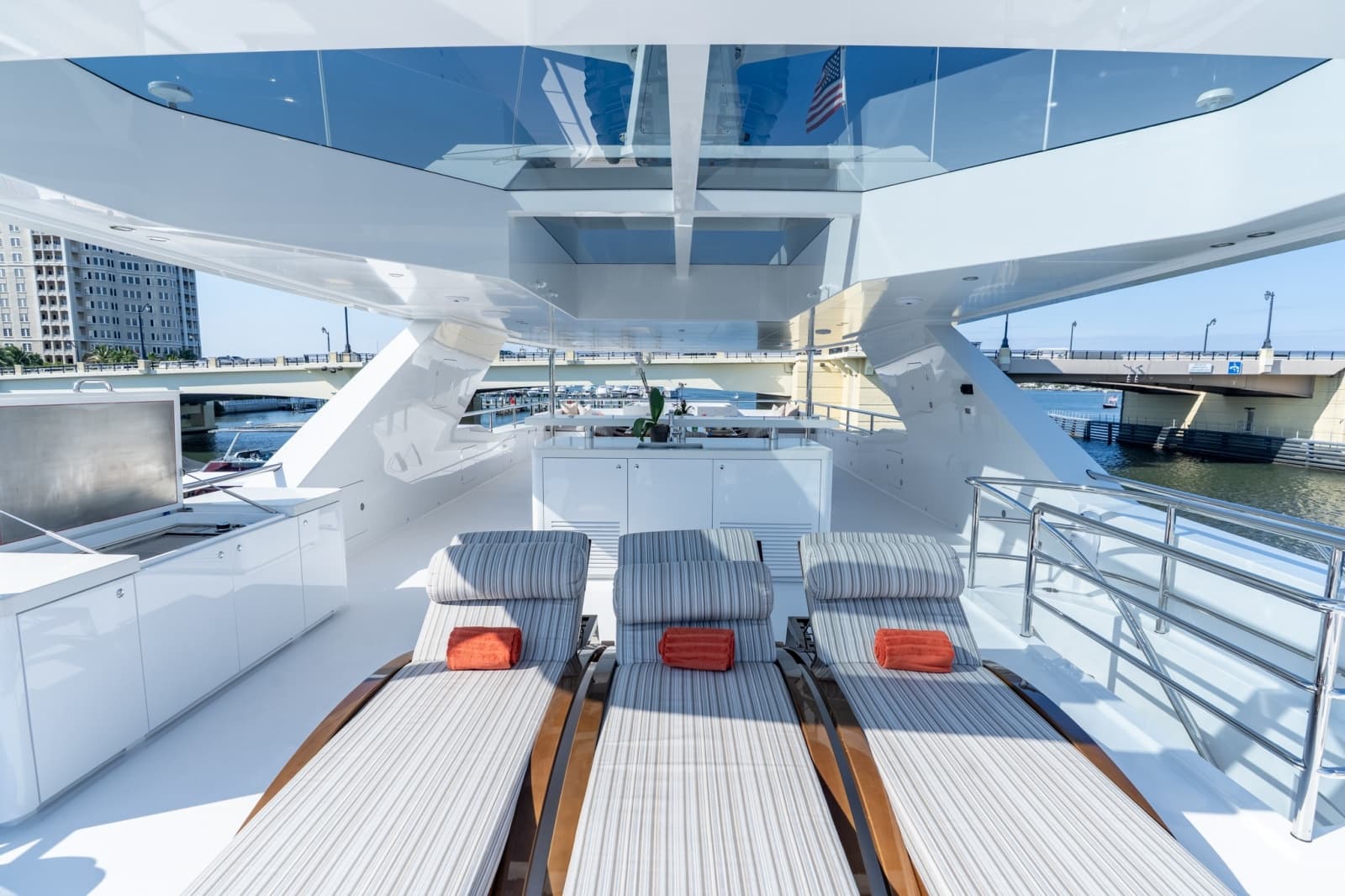

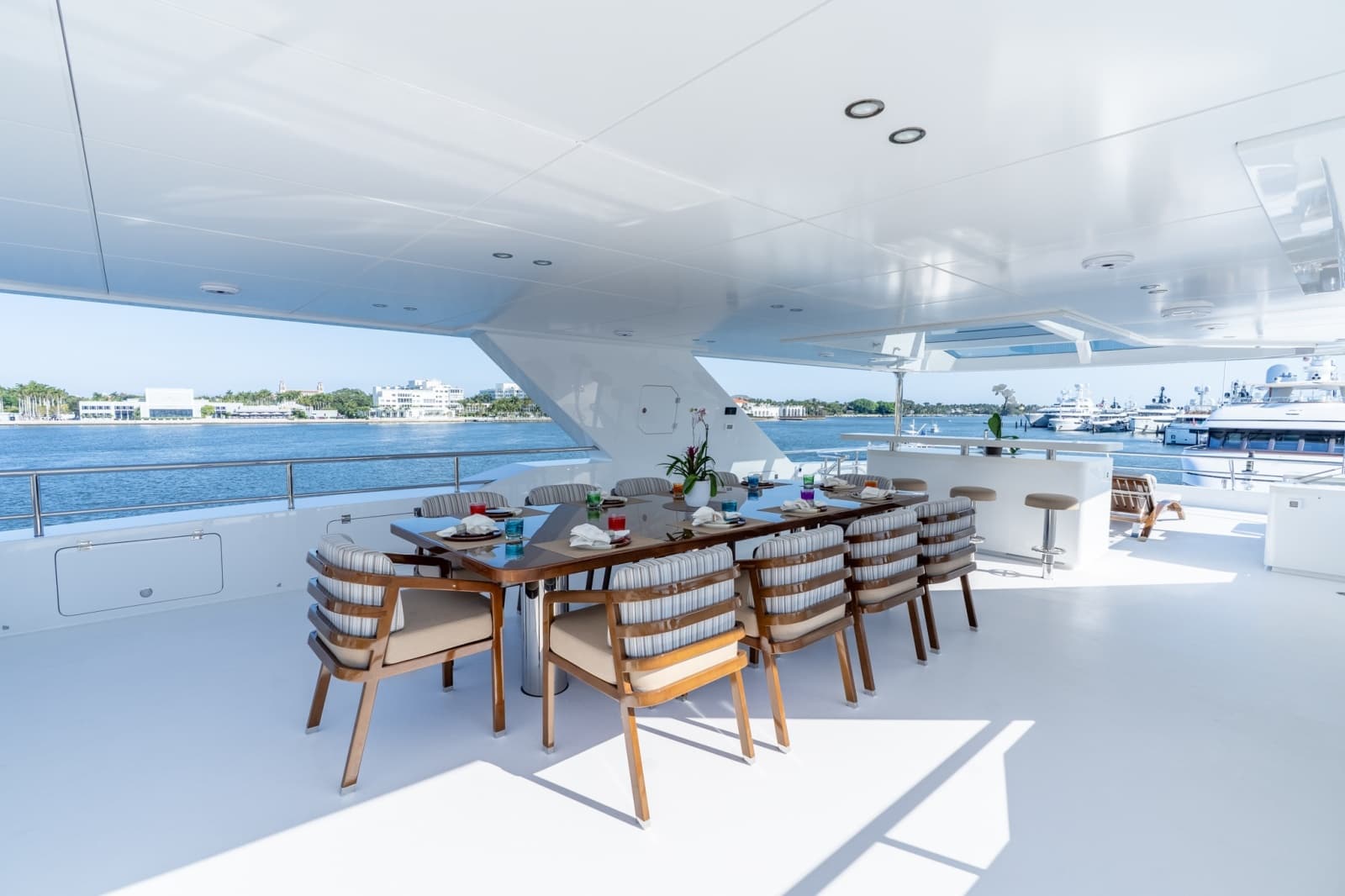

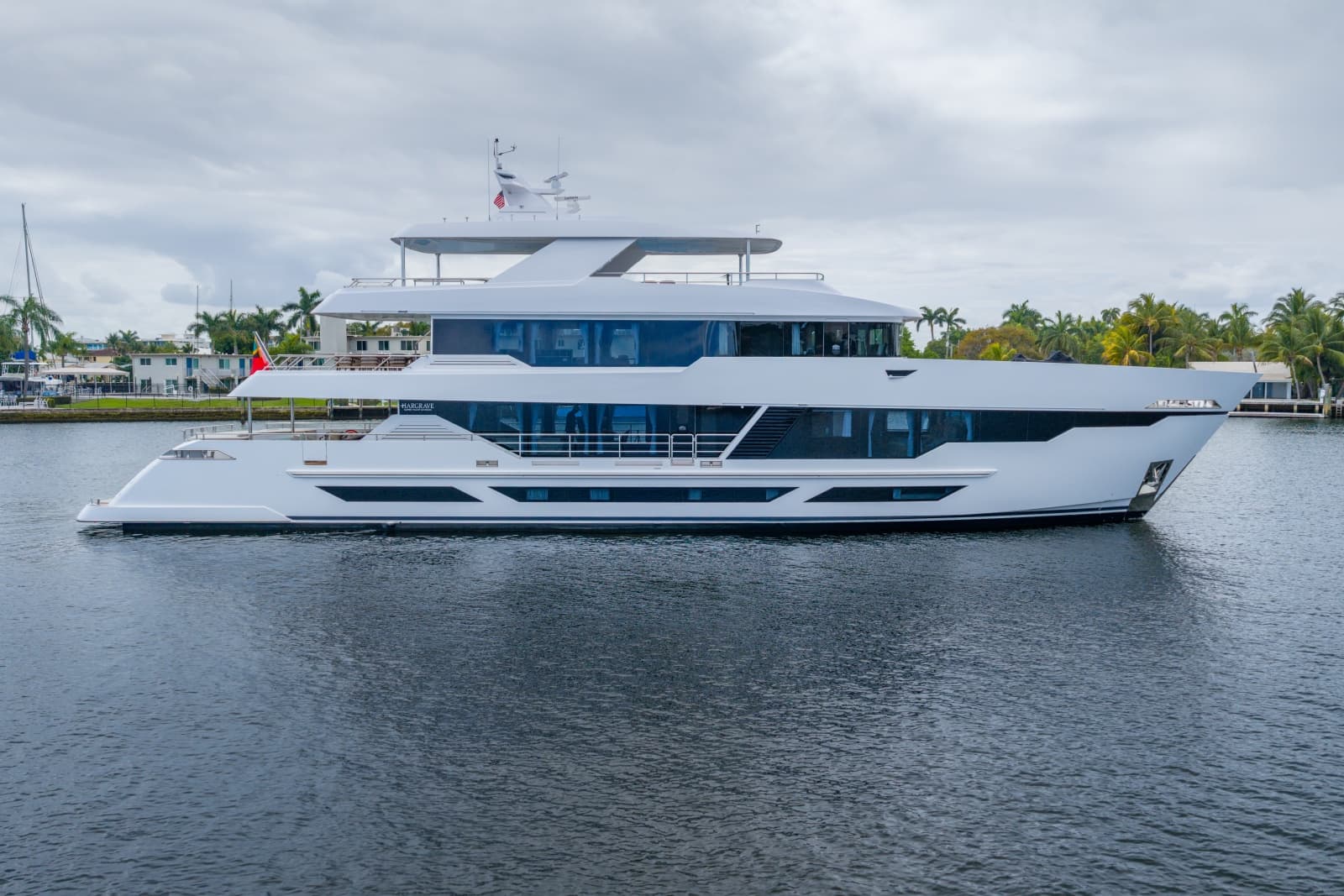

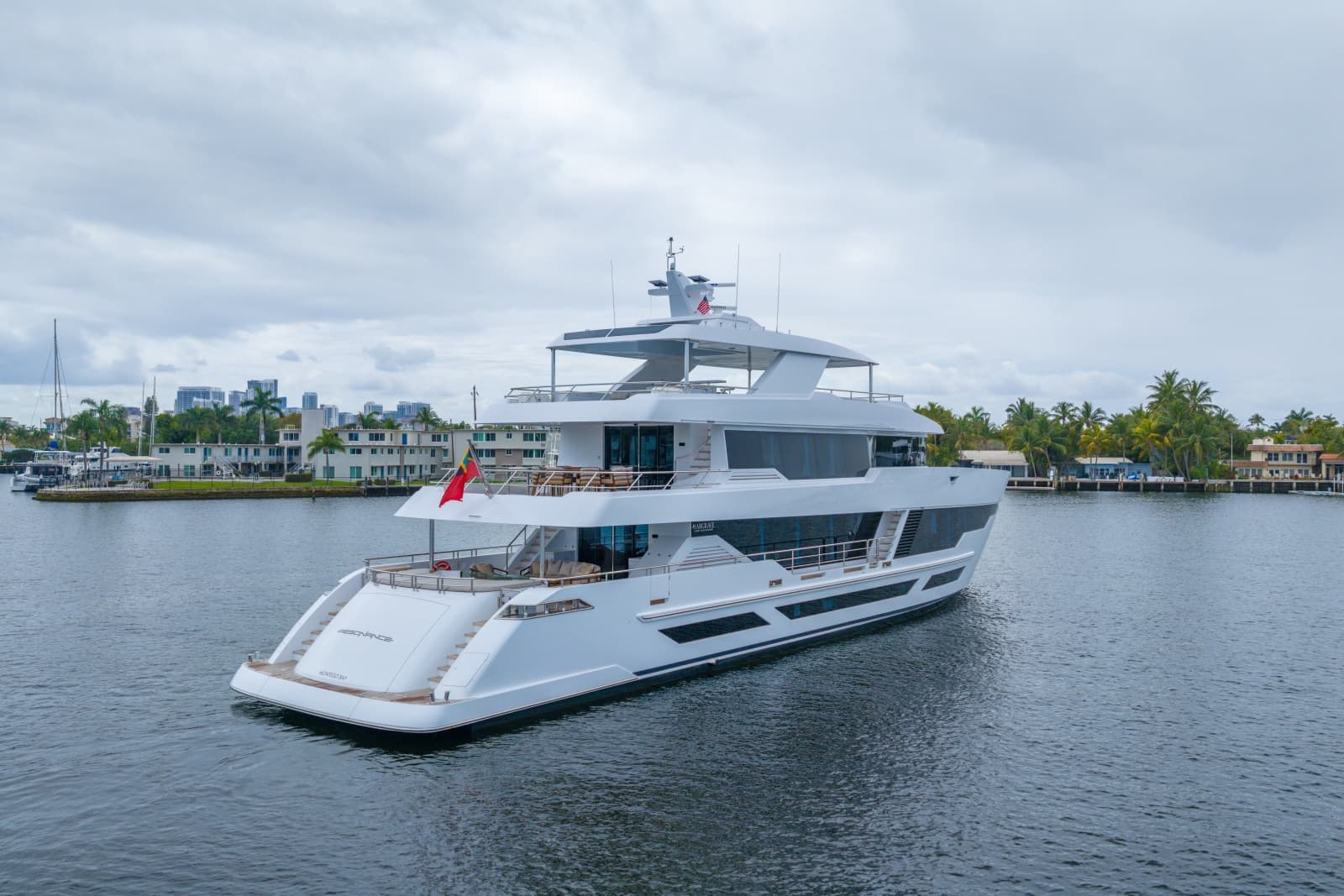

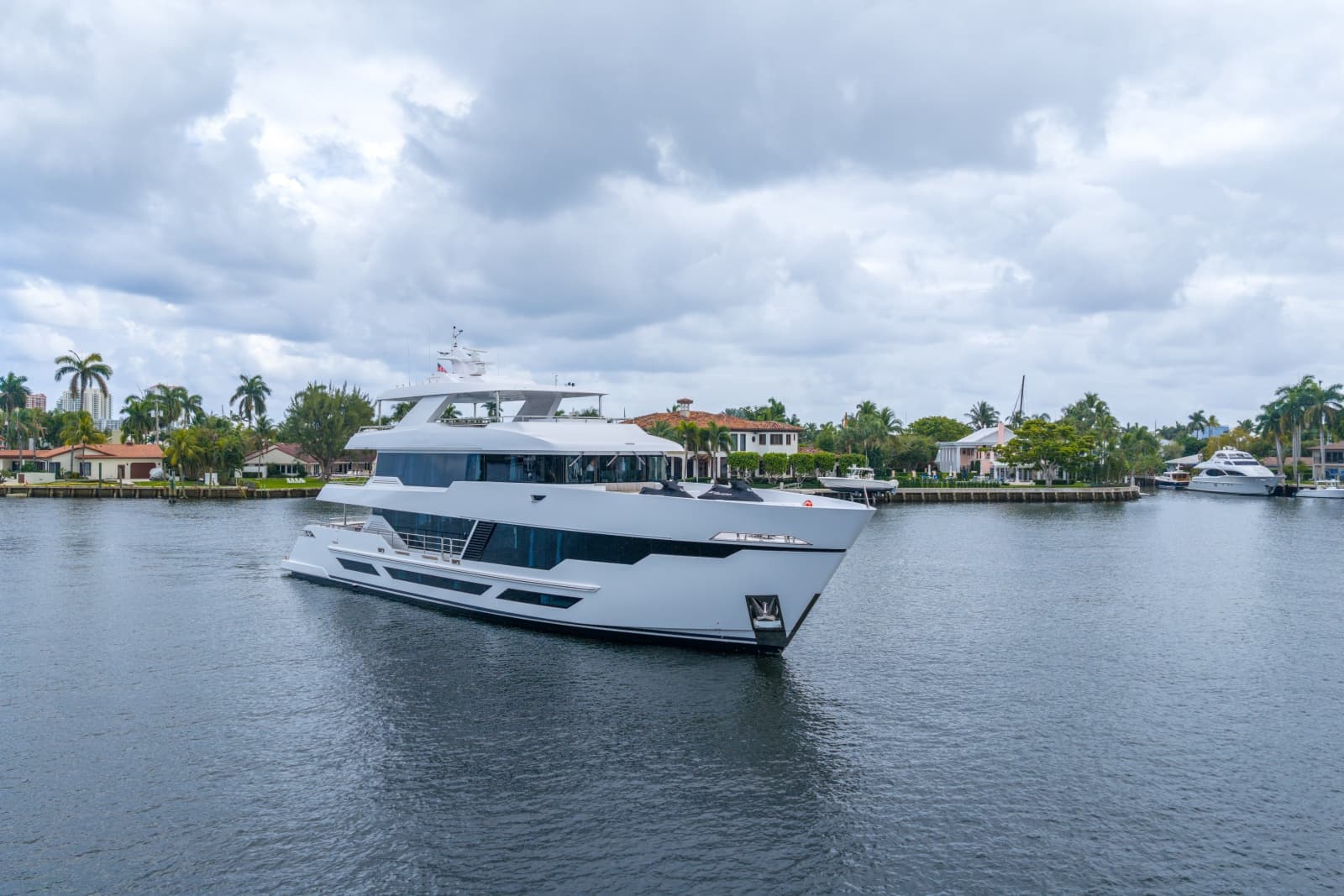

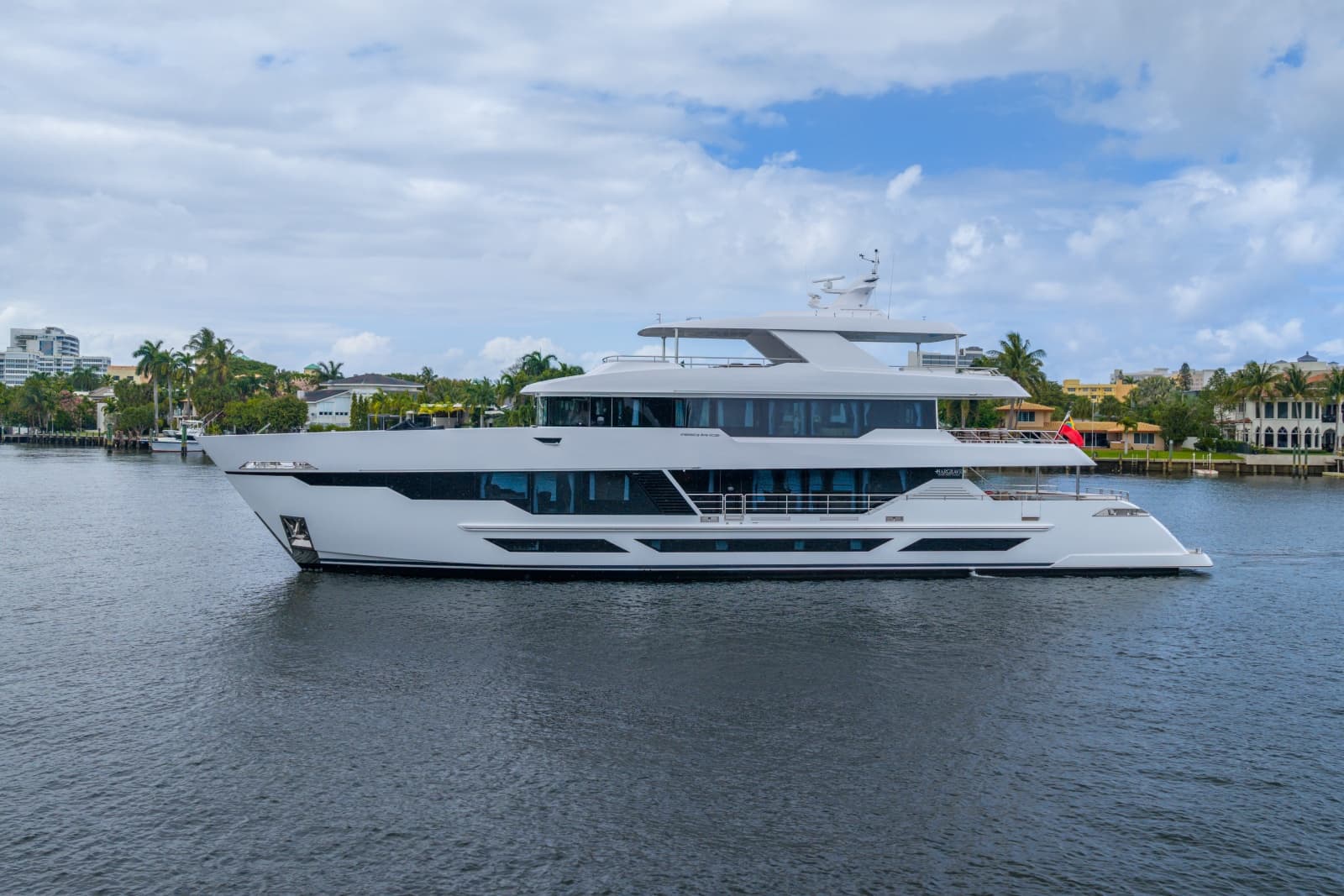

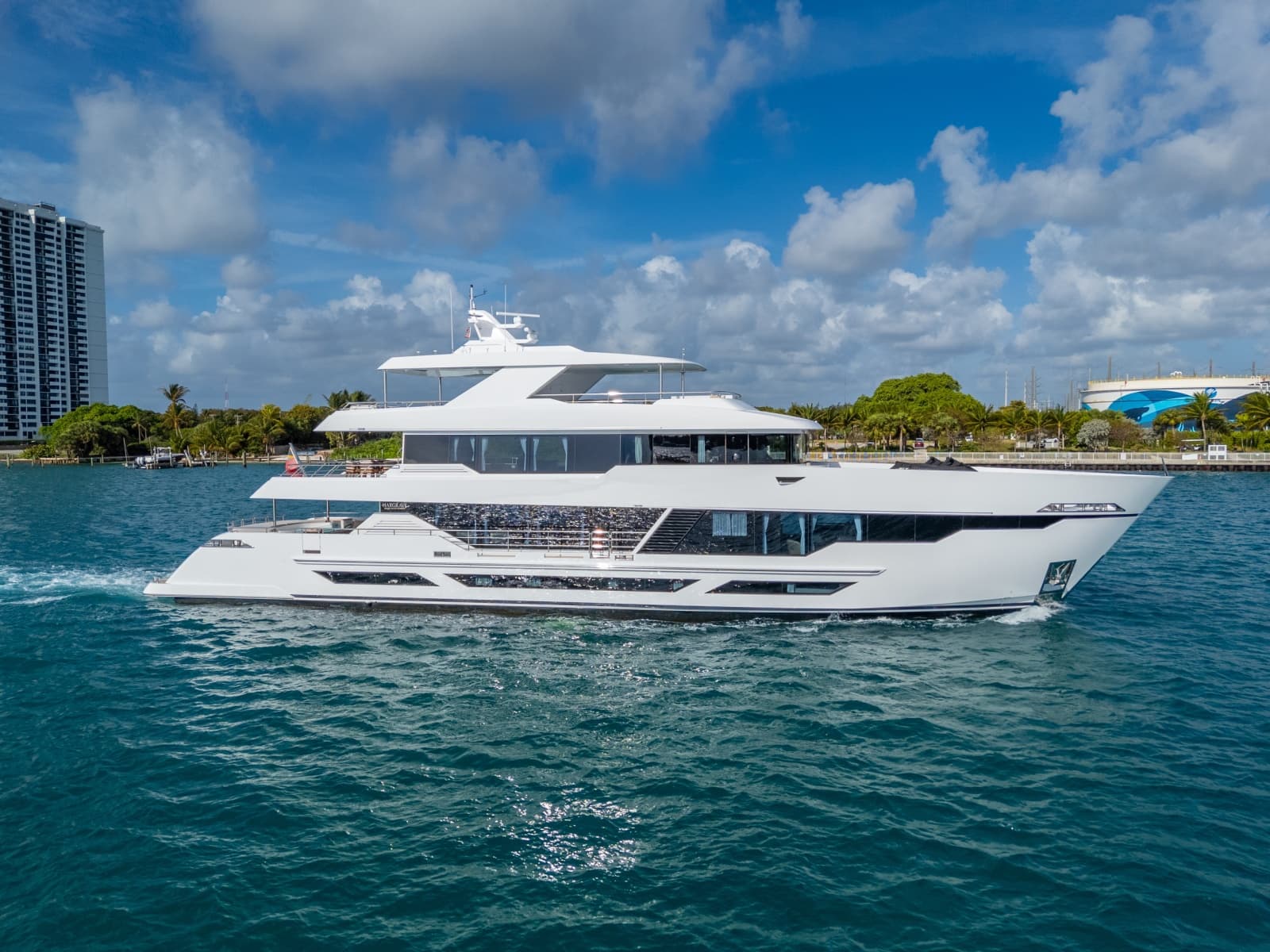

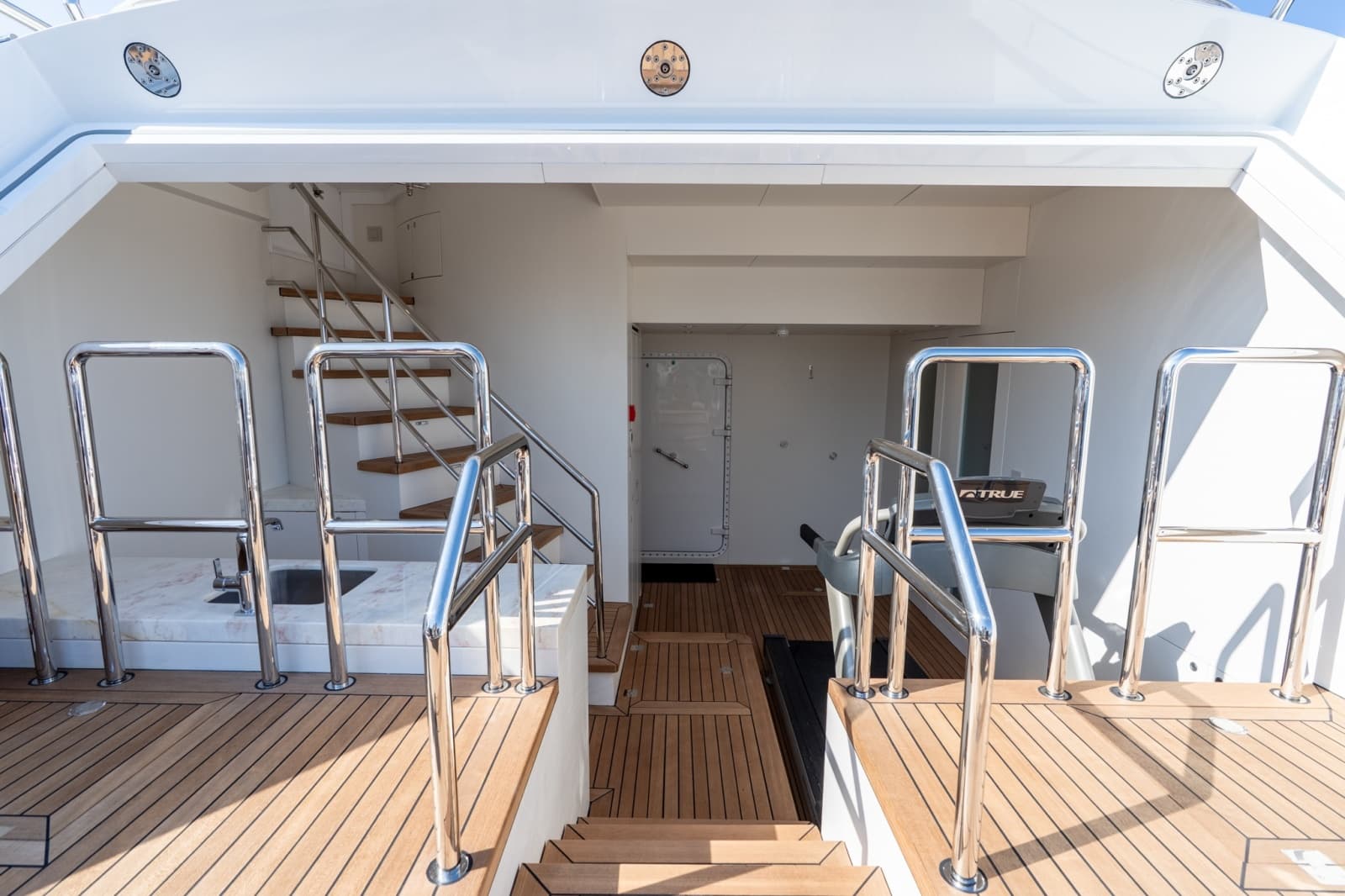

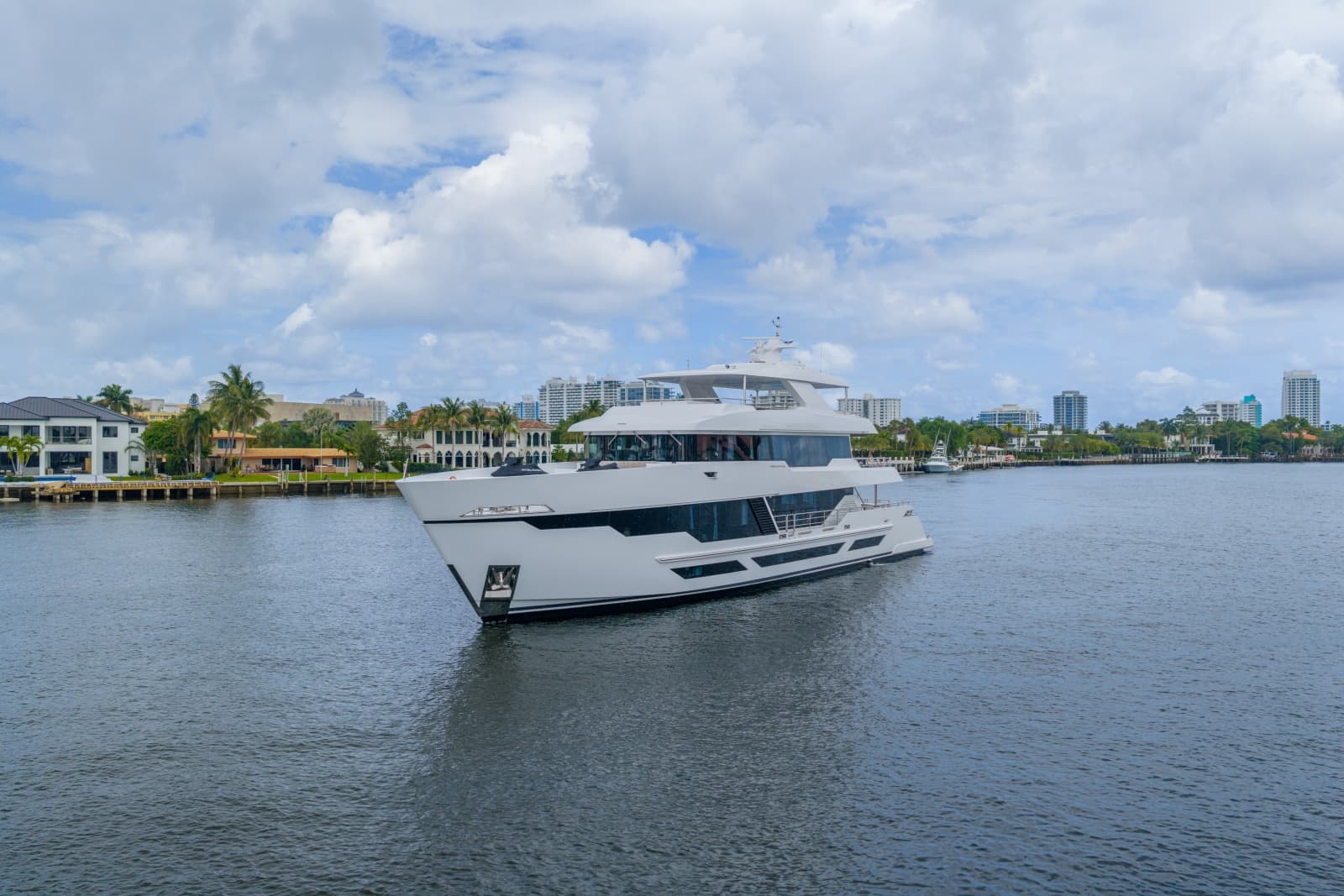

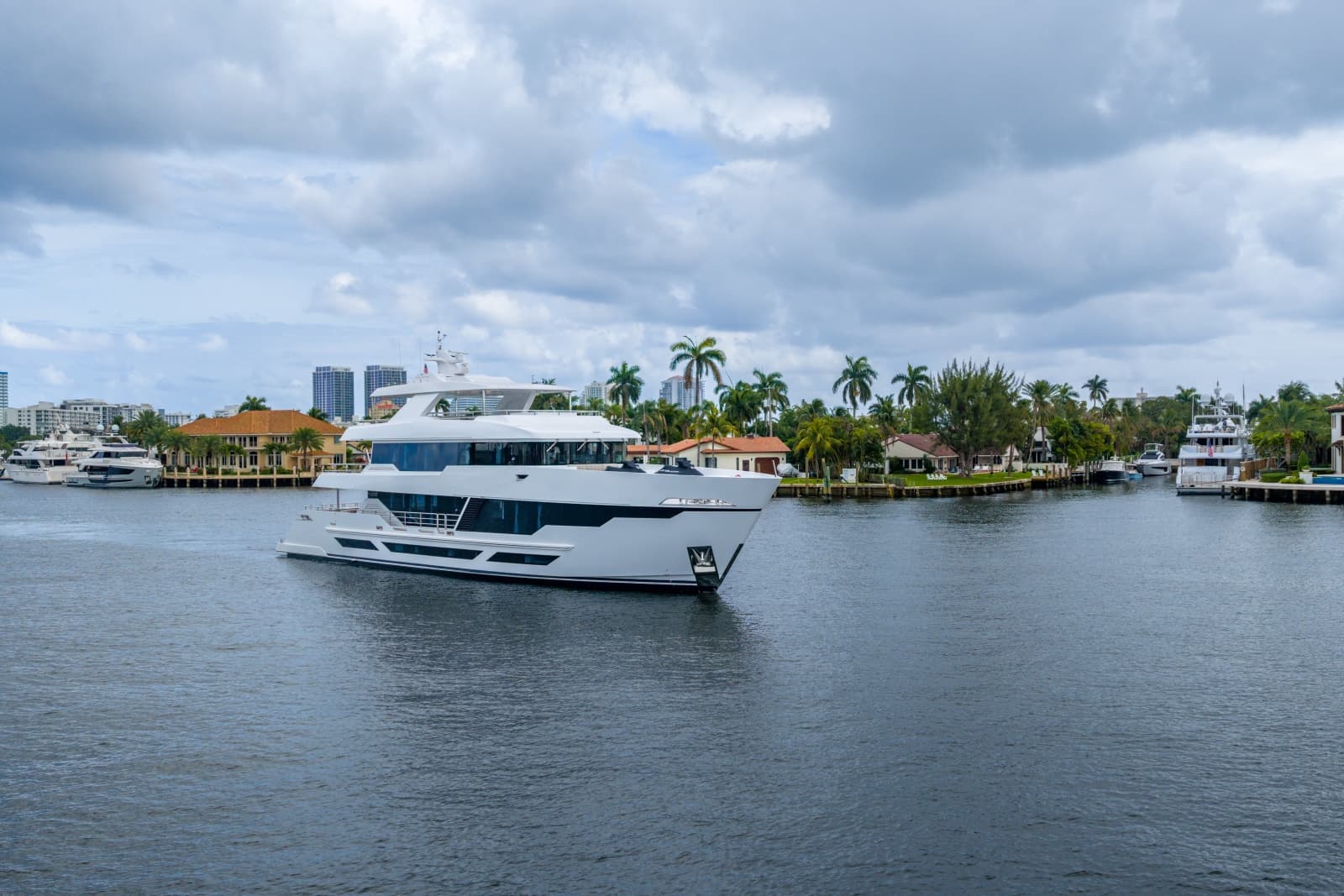

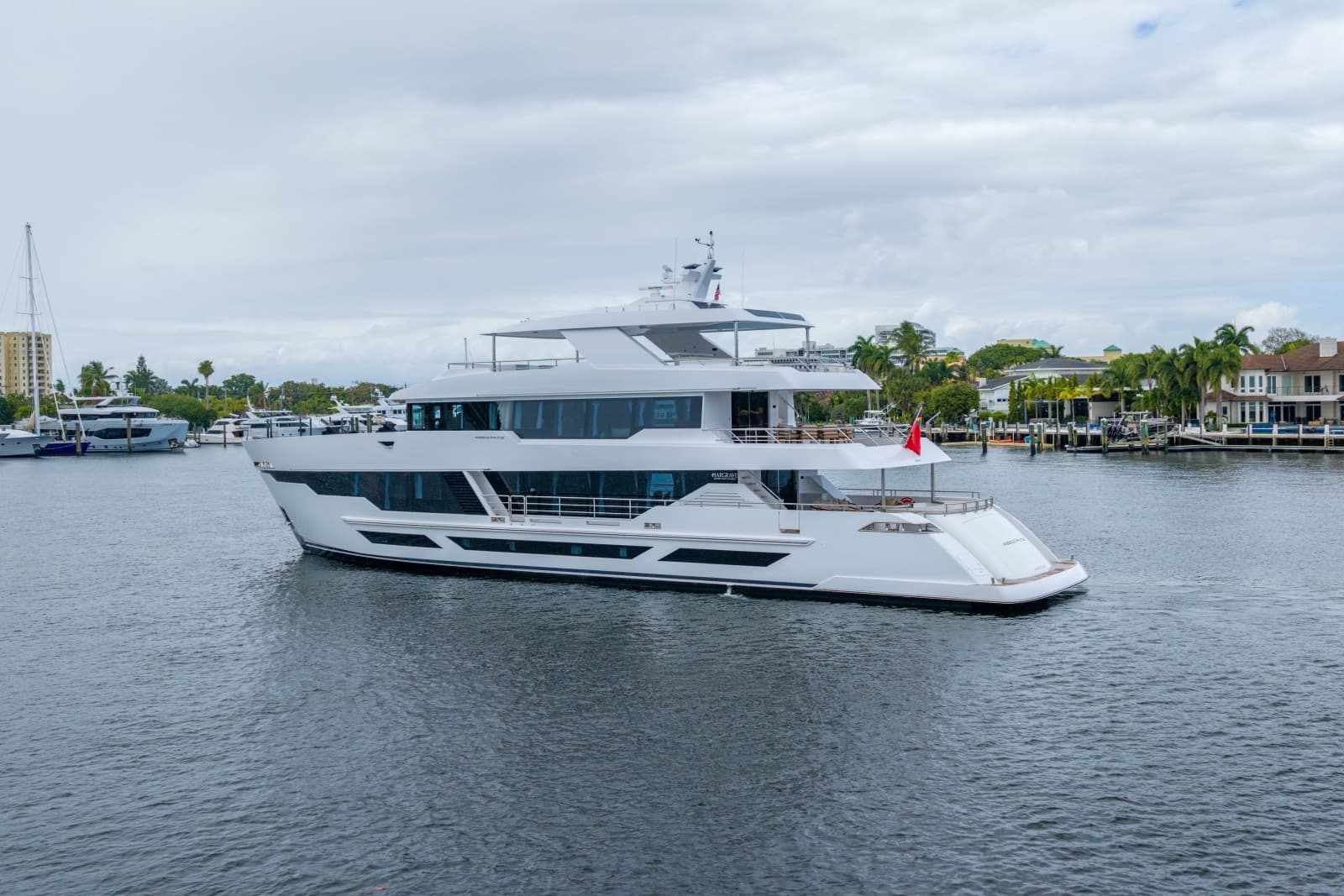

Built with Hargrave’s renowned attention to detail and craftsmanship, this tri-deck motor yacht delivers both striking presence and exceptional performance. Her contemporary exterior profile is complemented by expansive deck spaces, including a spacious sundeck ideal for entertaining, complete with lounge seating, bar, and optional Jacuzzi. The aft deck and beach club provide effortless access to the water, creating a resort-style experience for owners and guests alike.

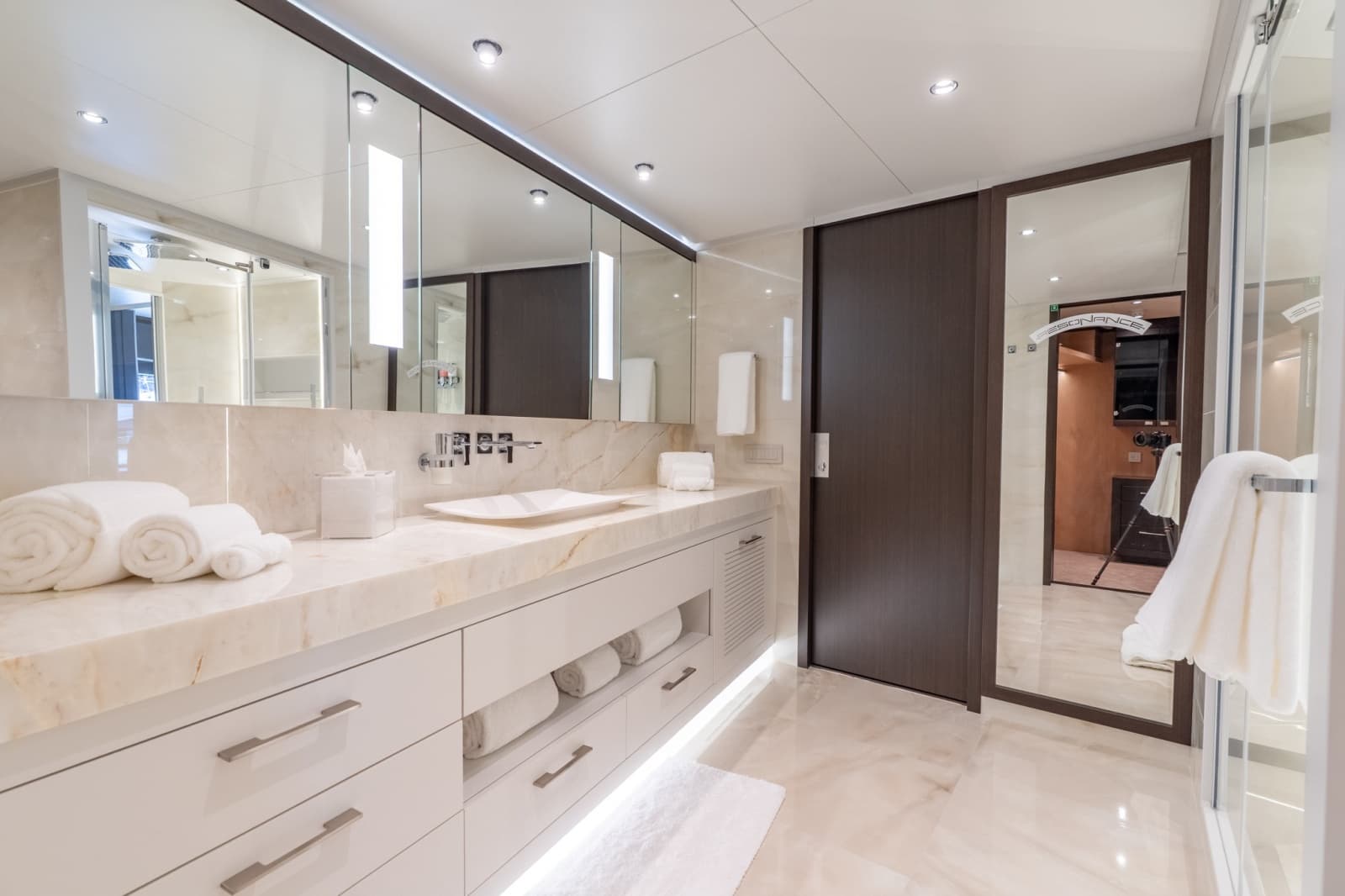

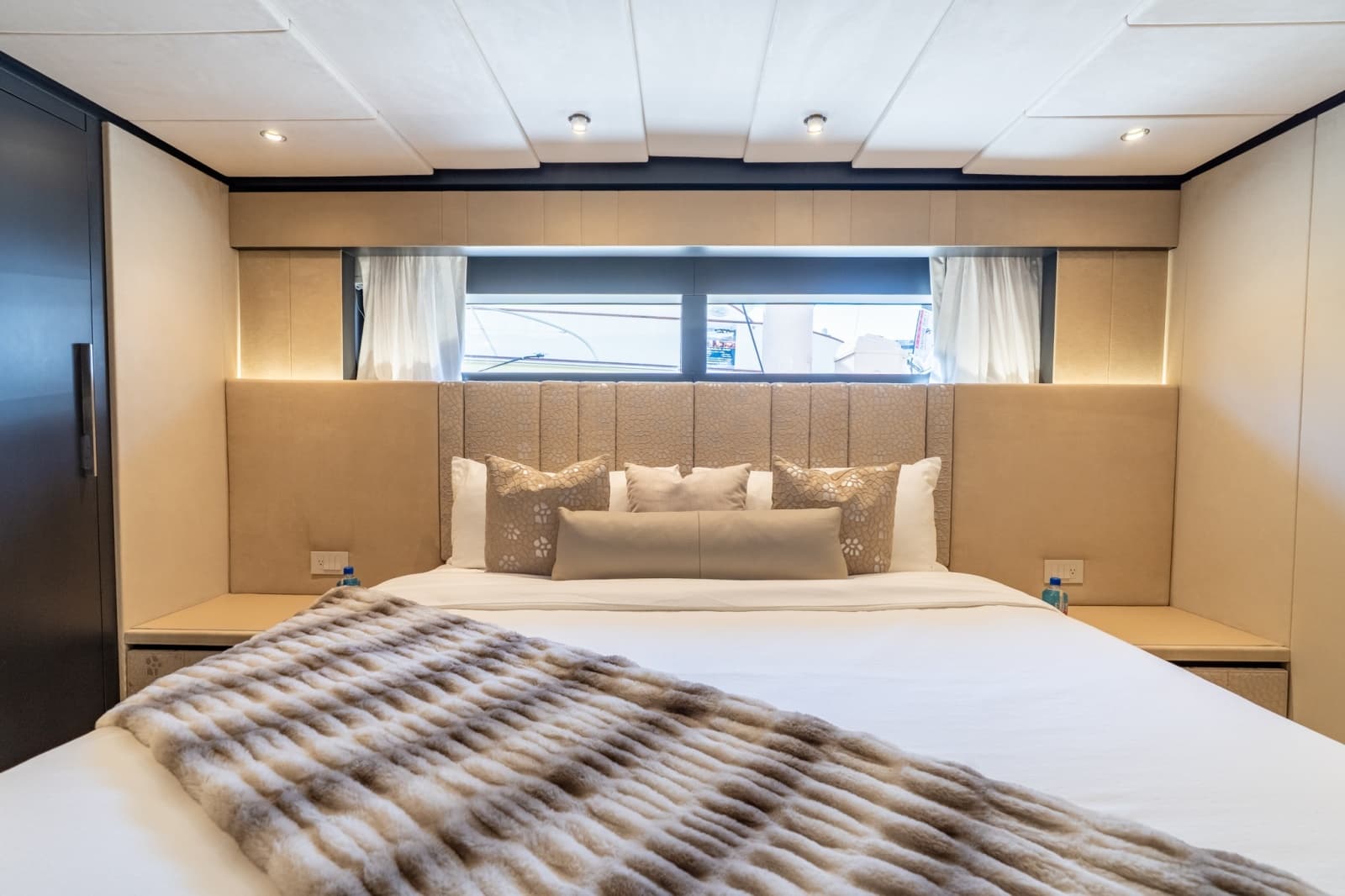

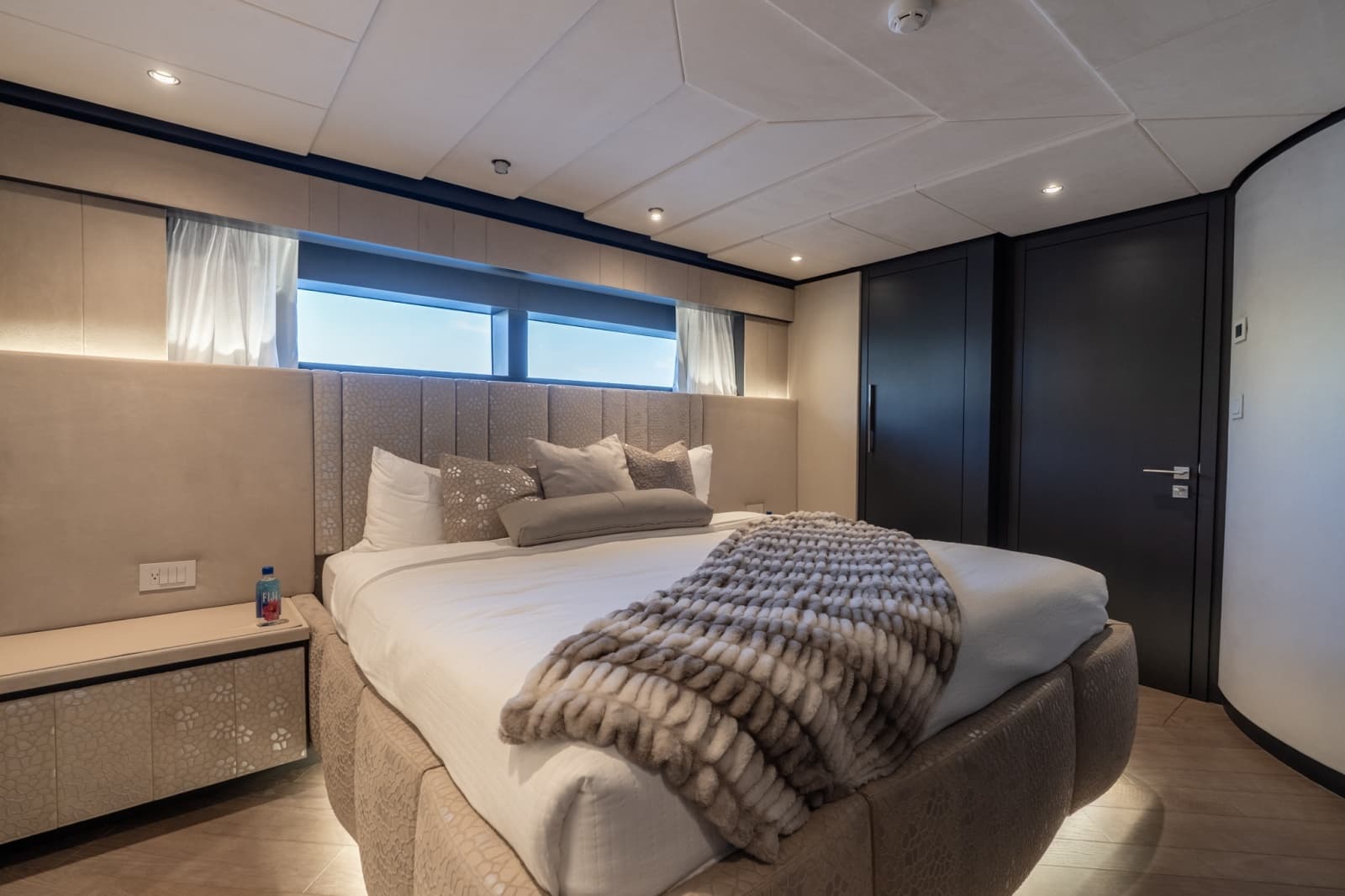

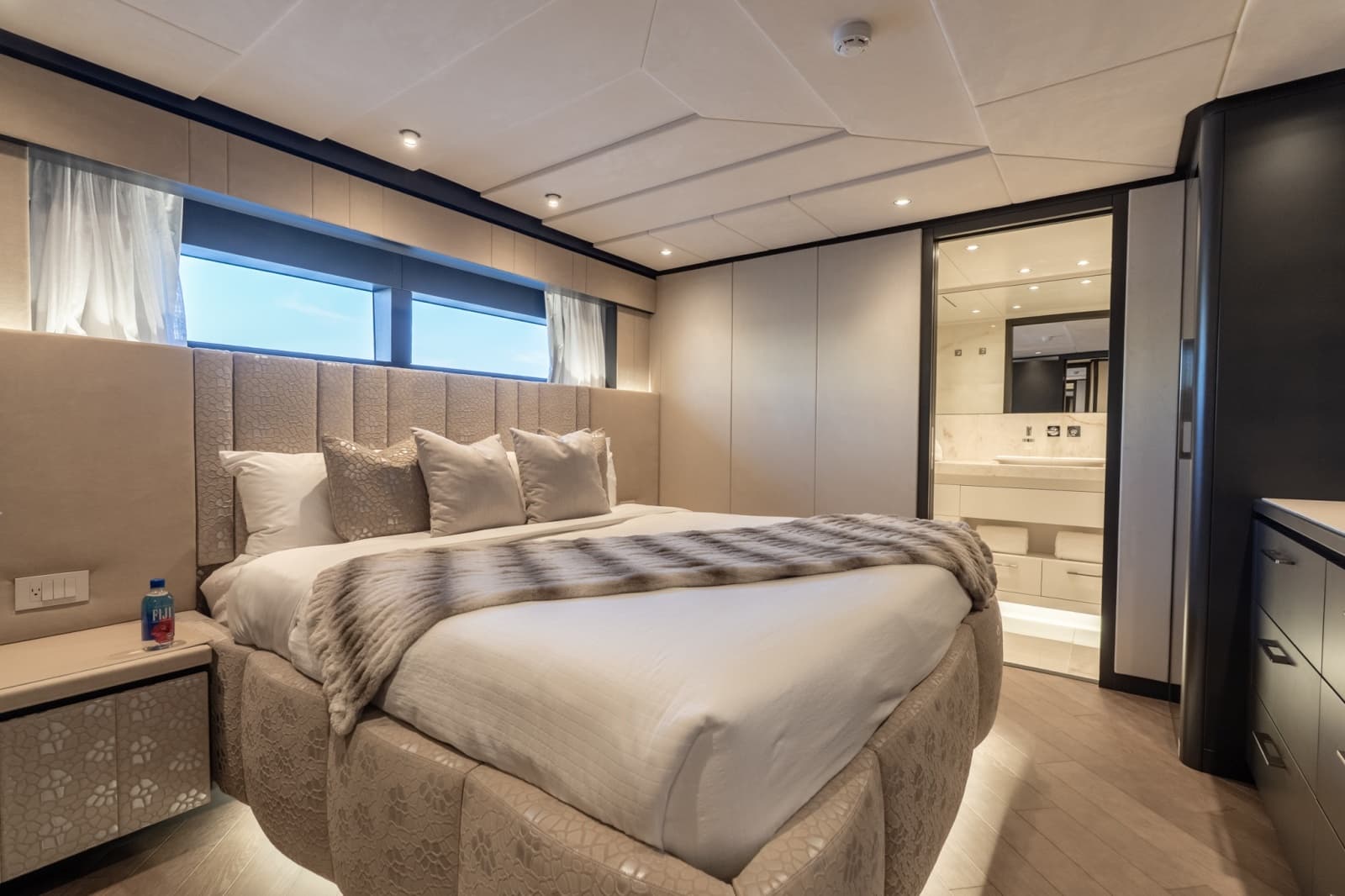

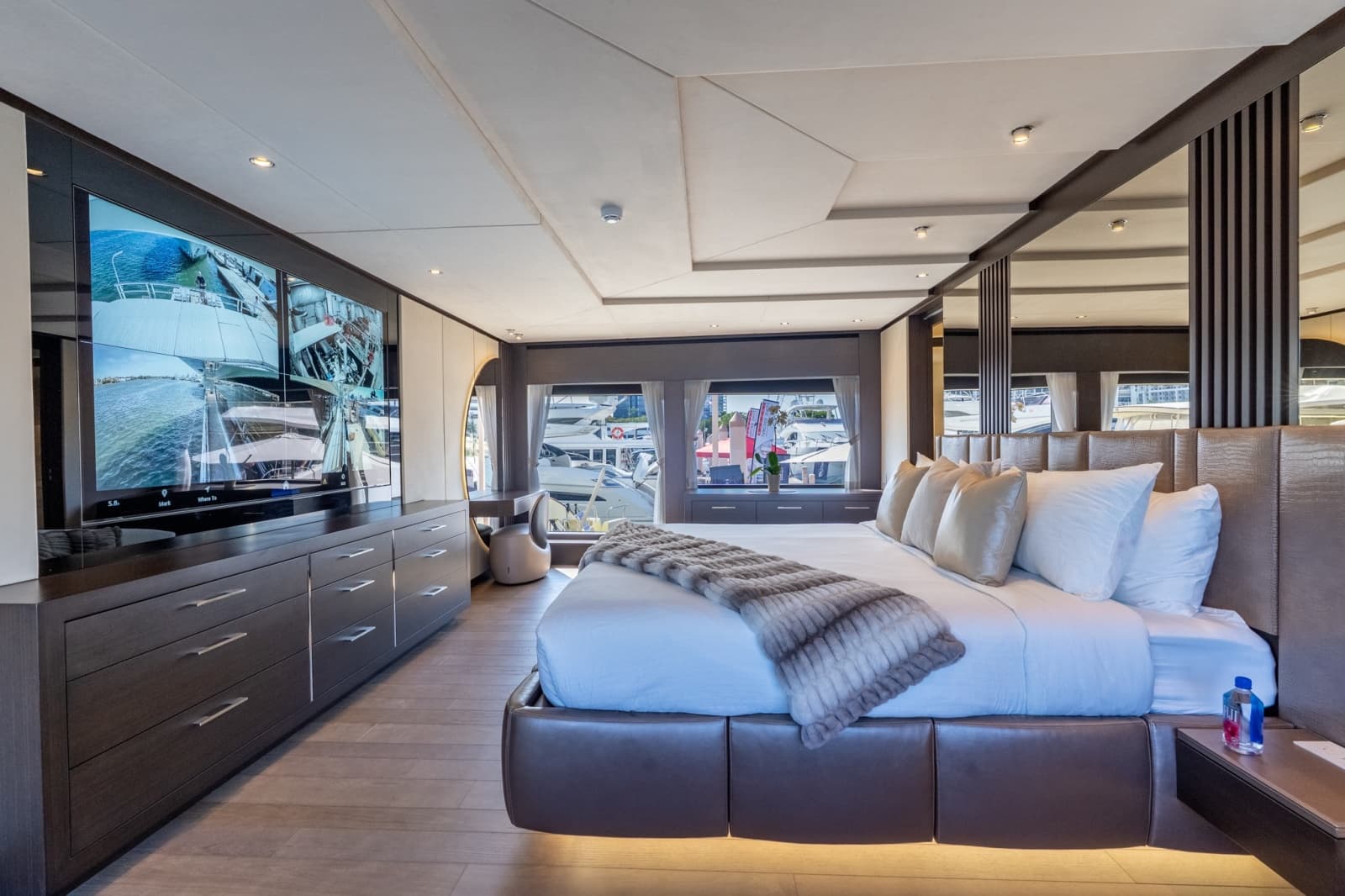

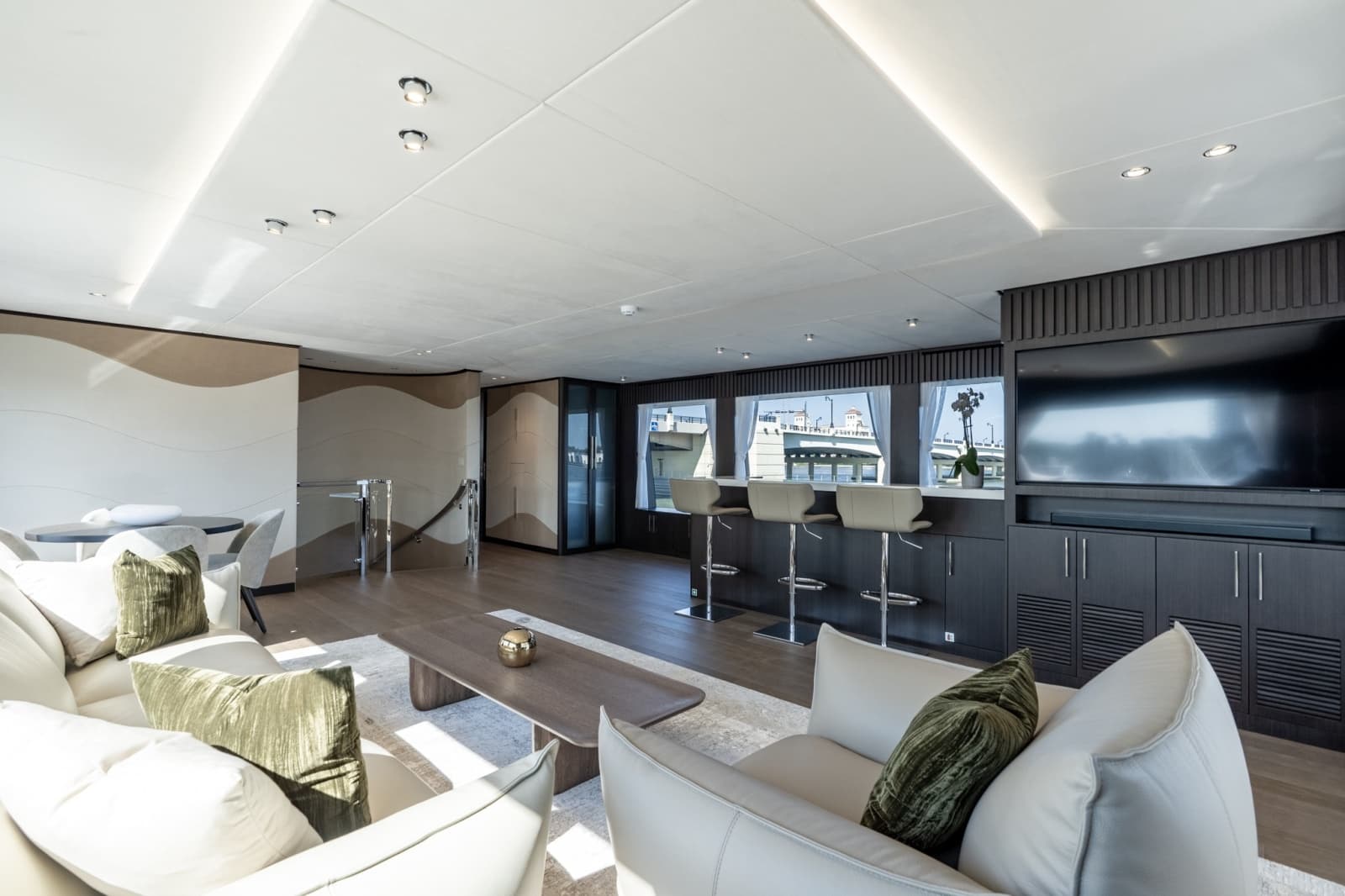

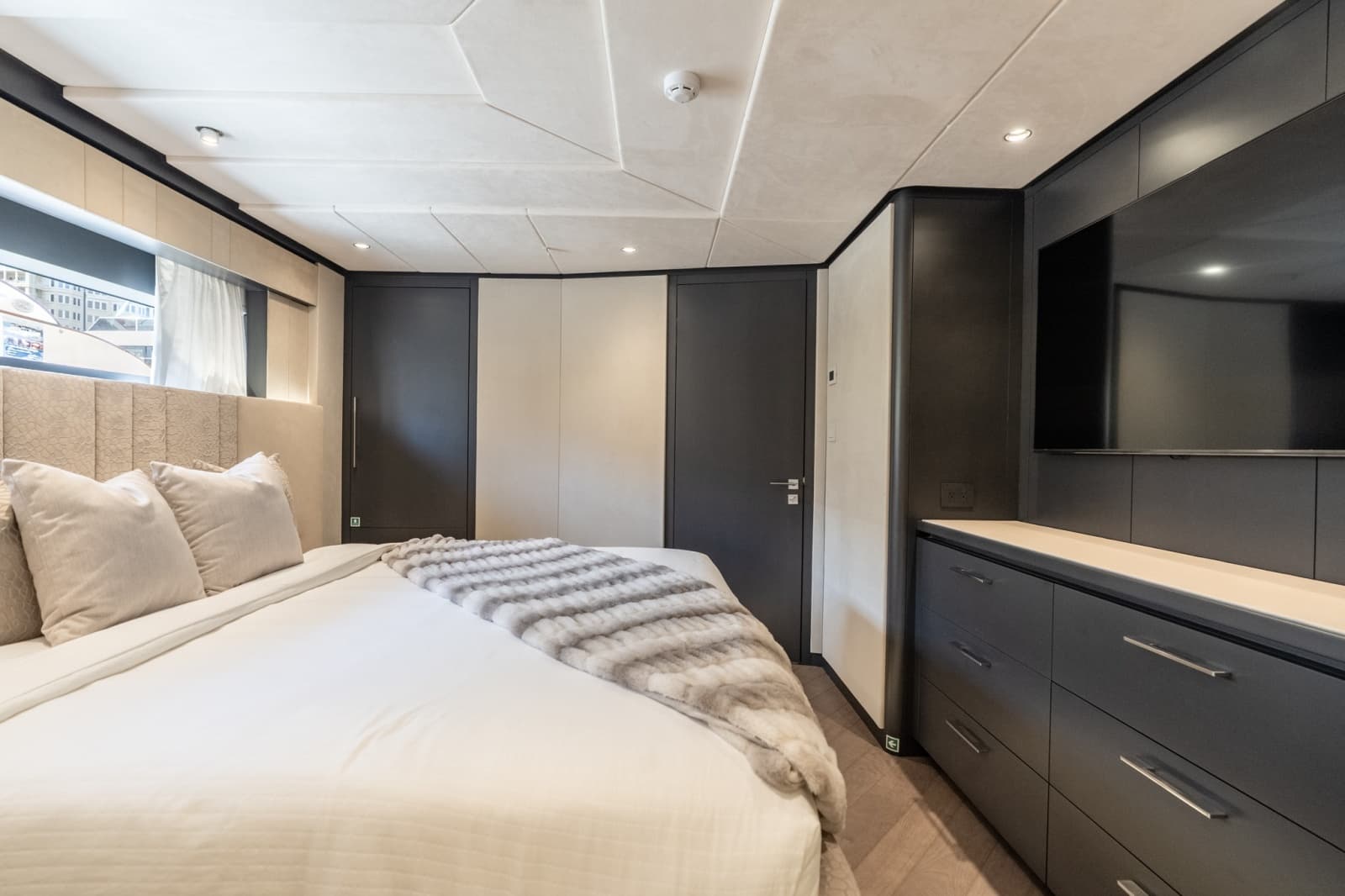

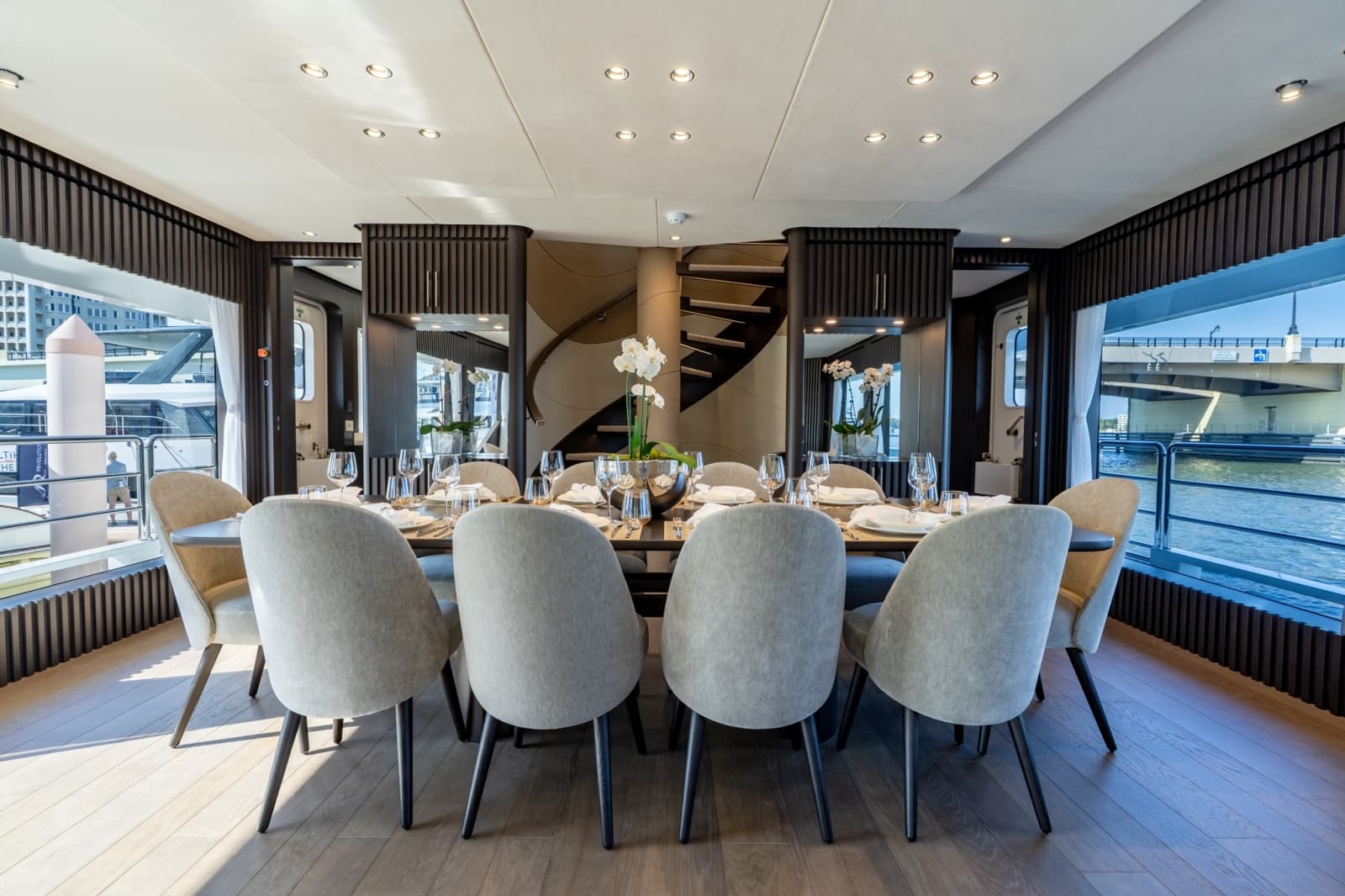

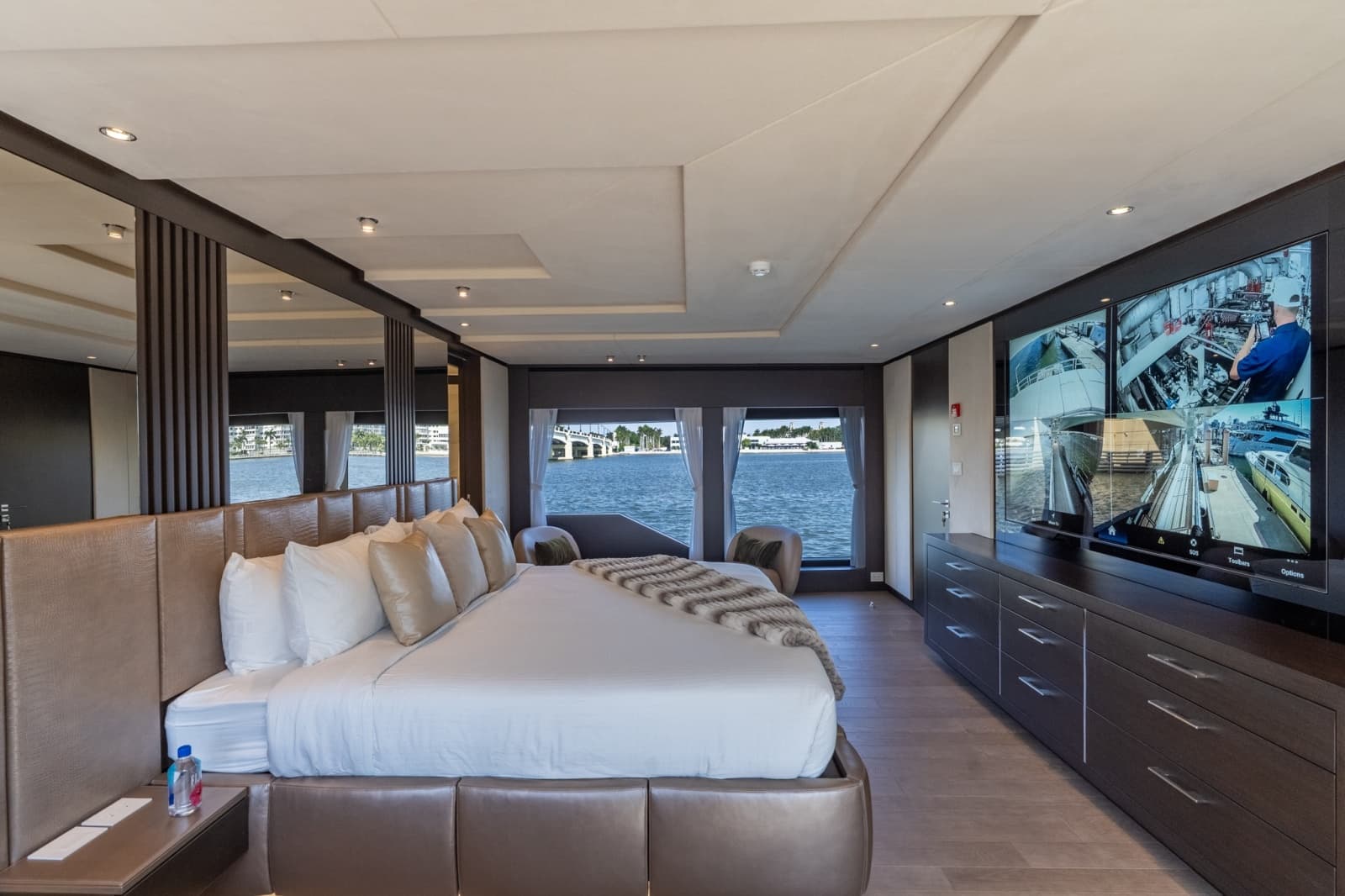

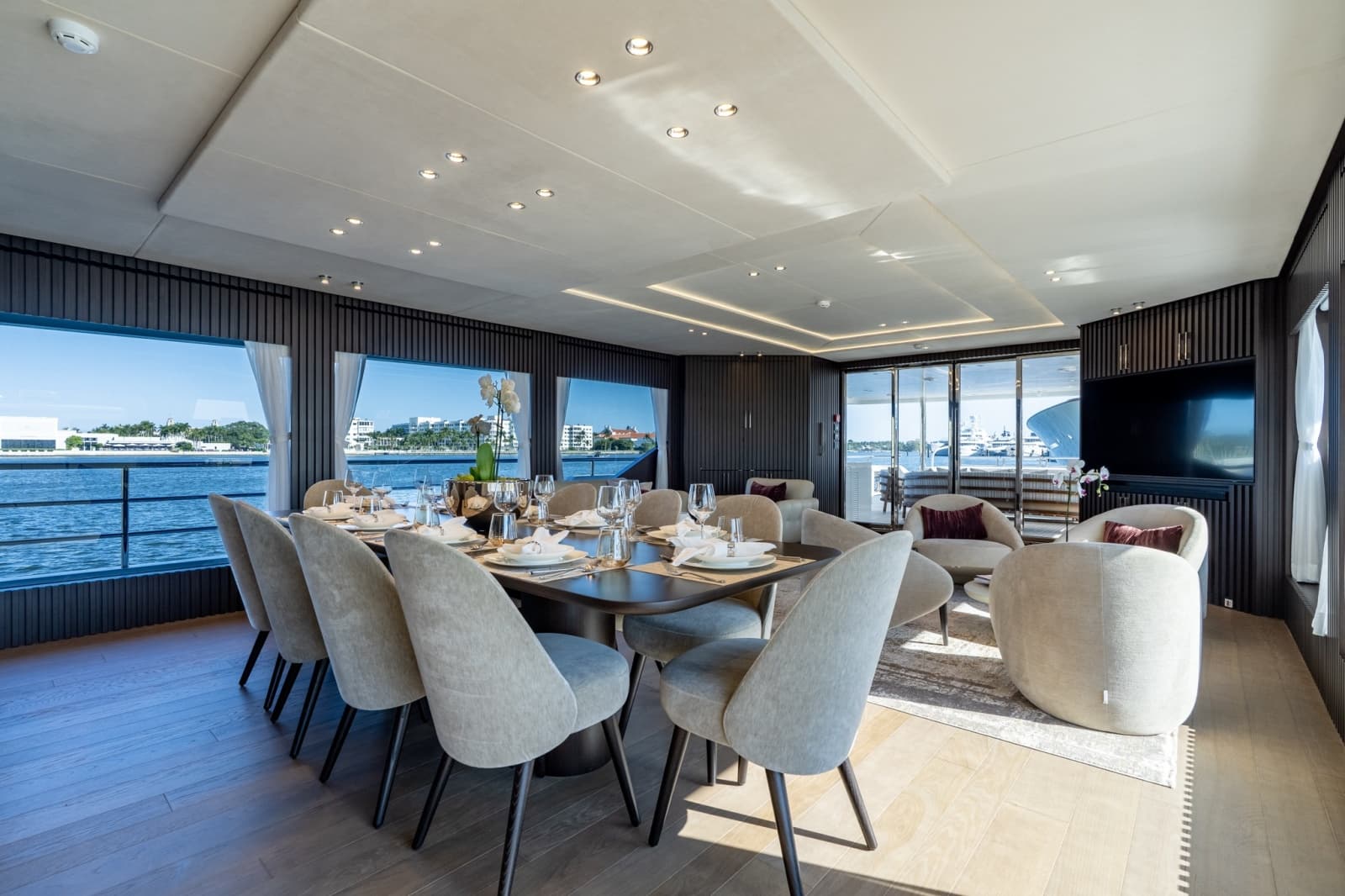

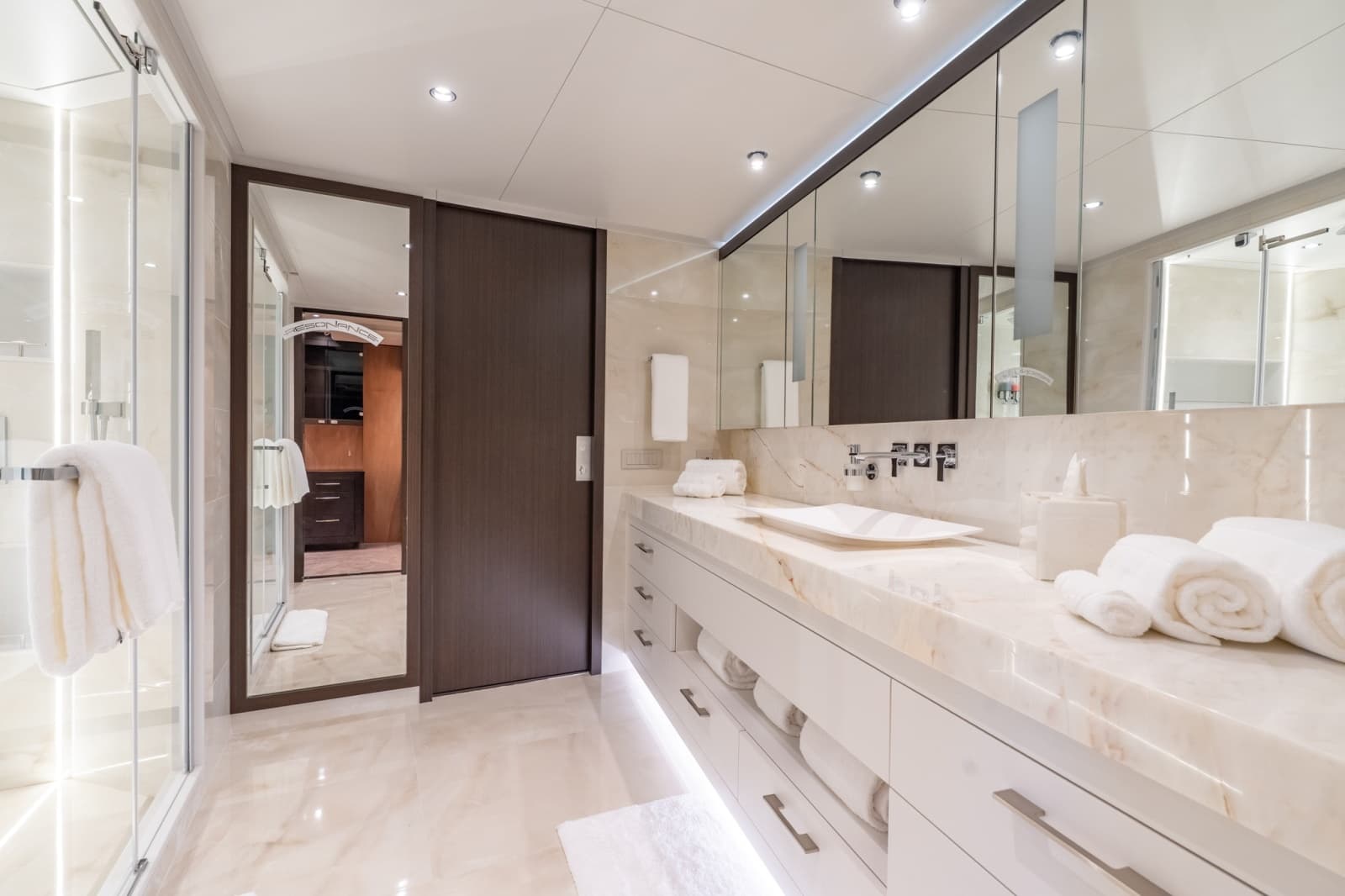

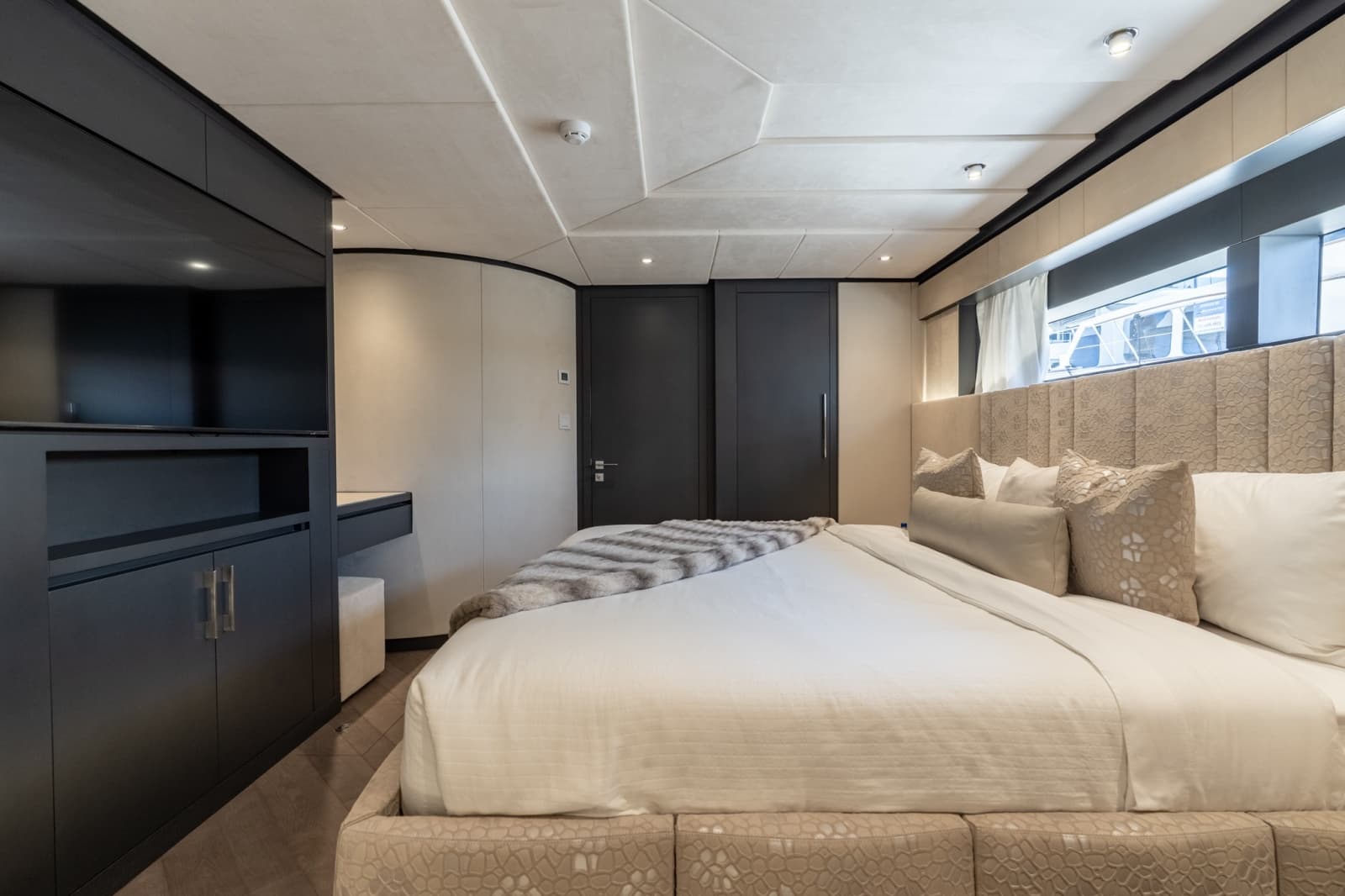

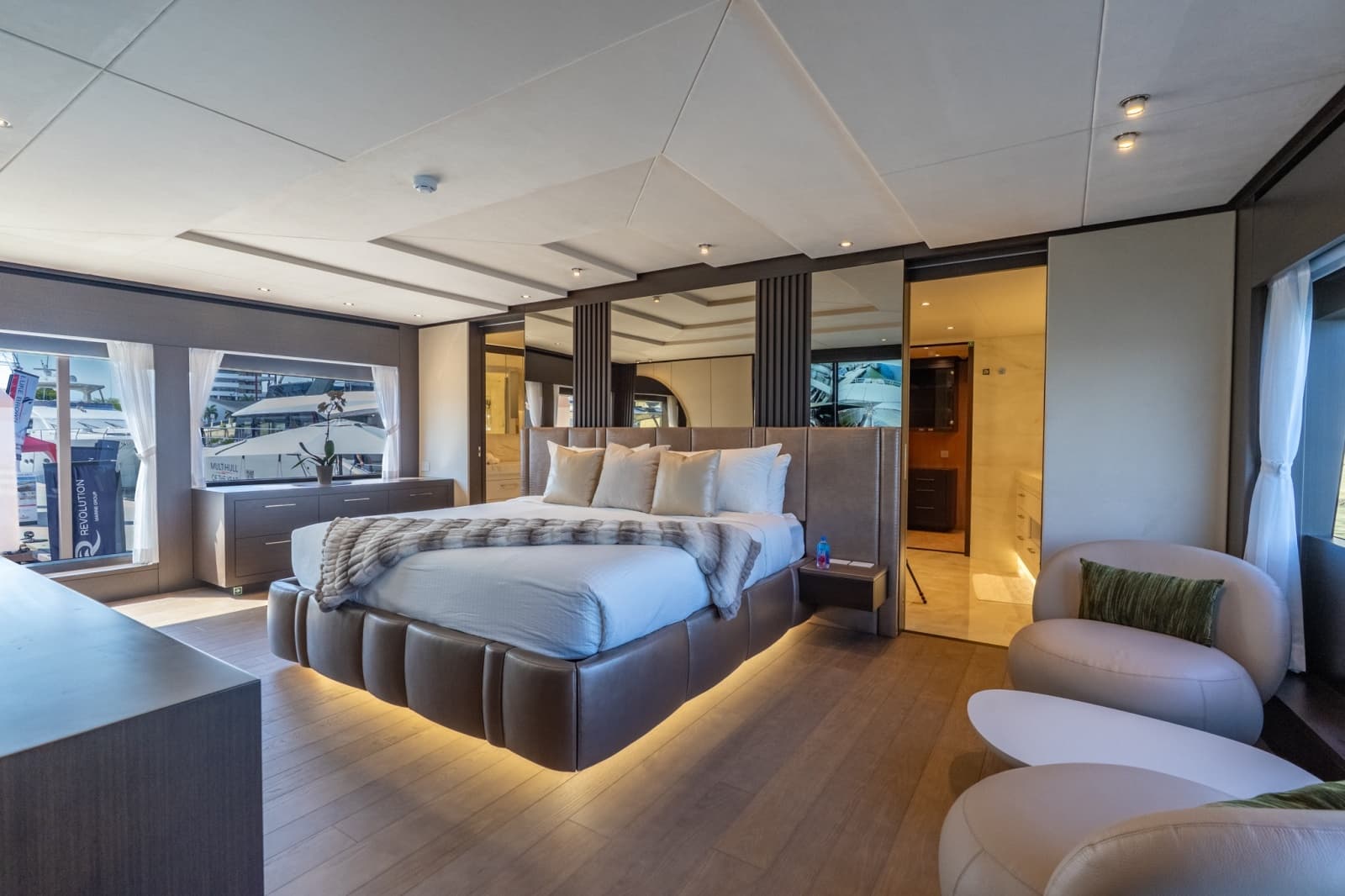

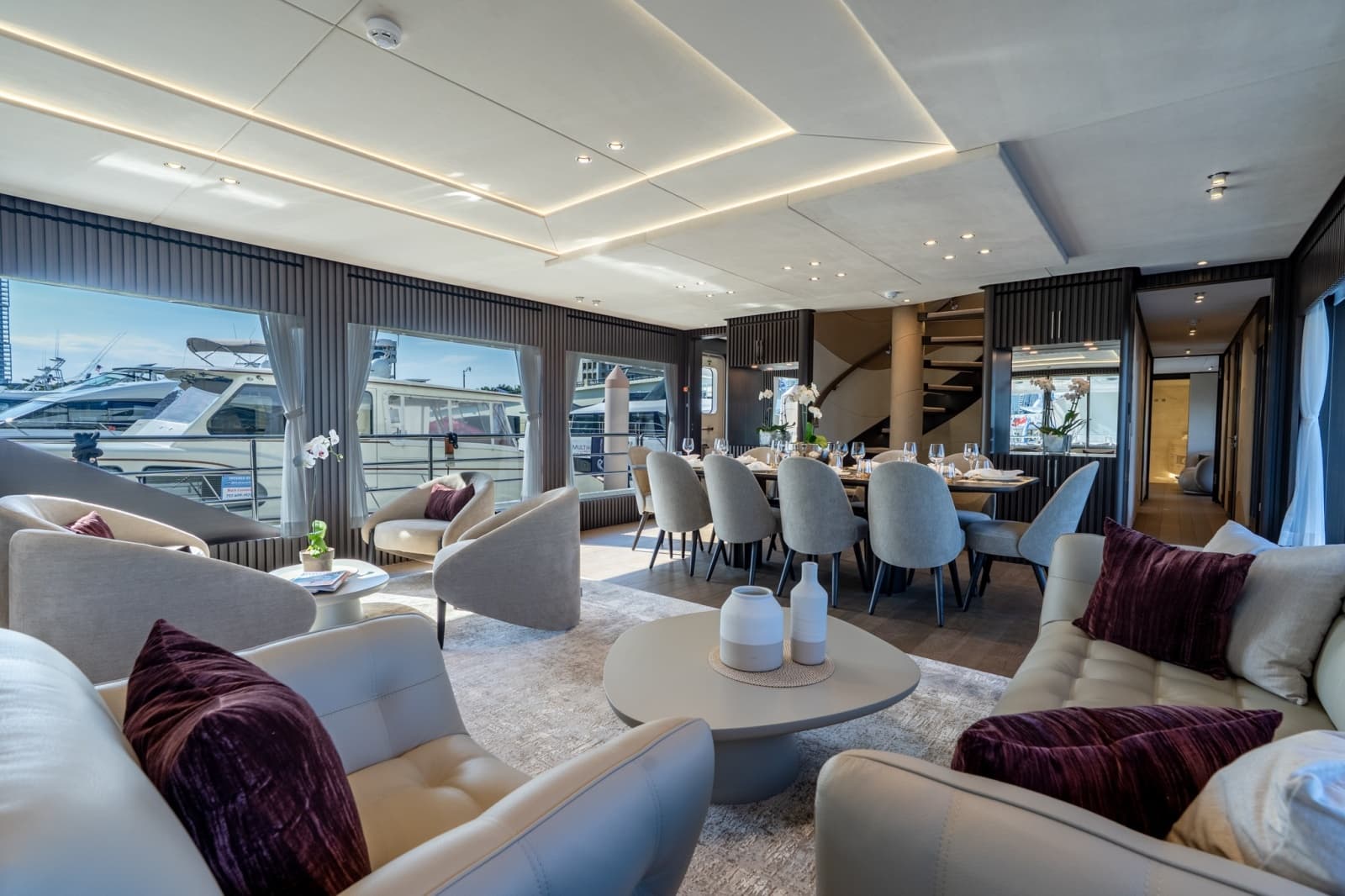

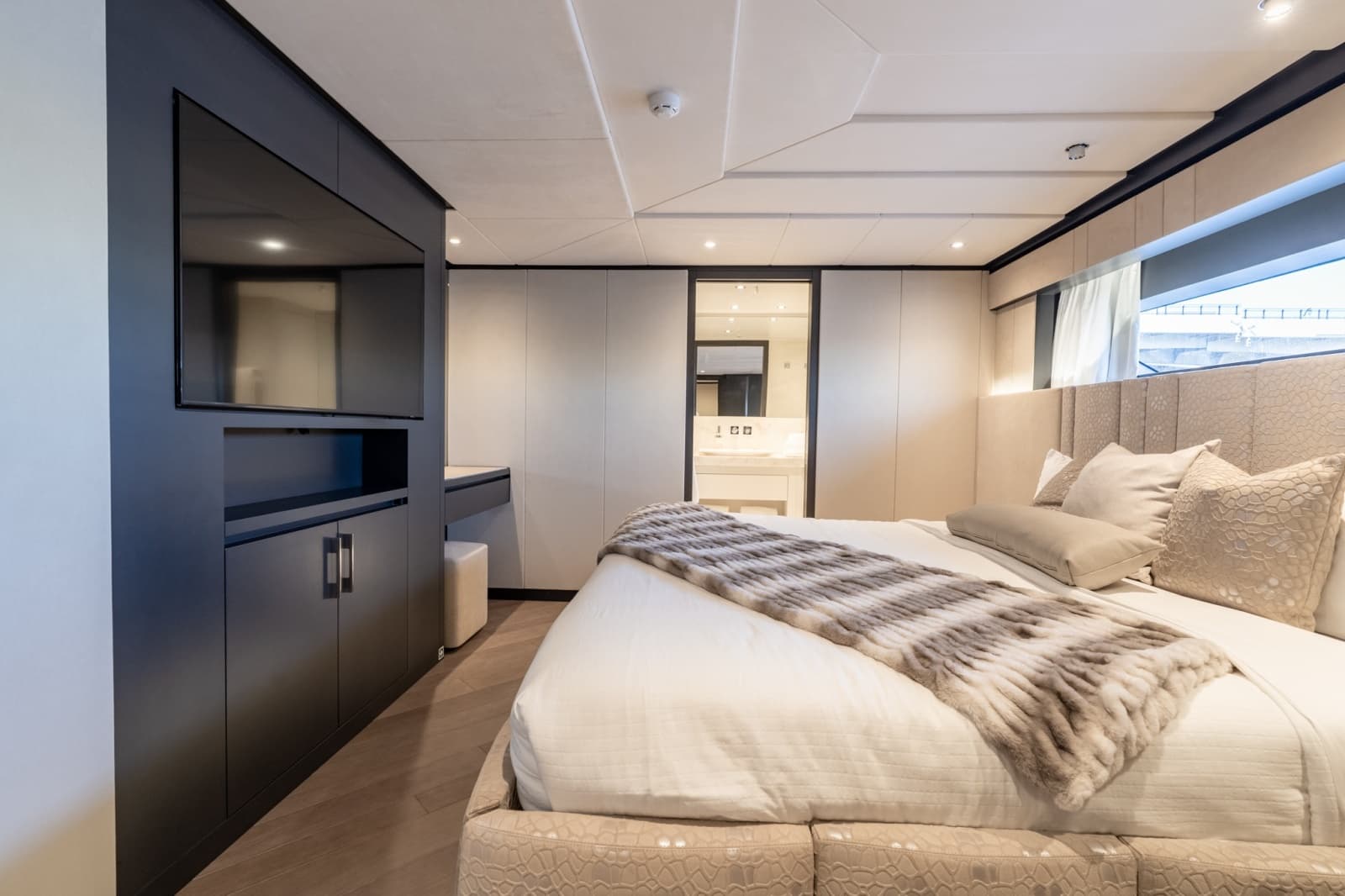

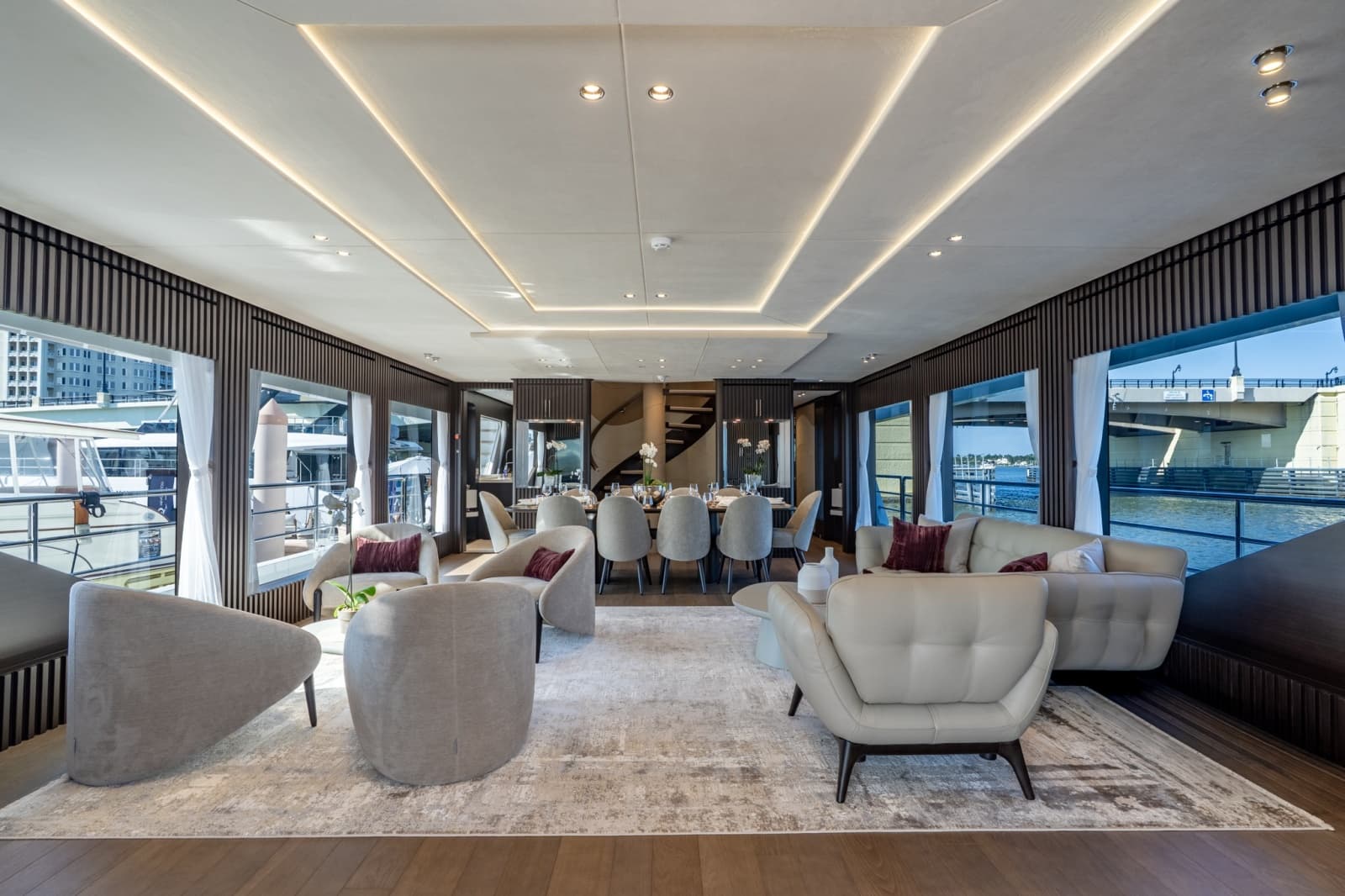

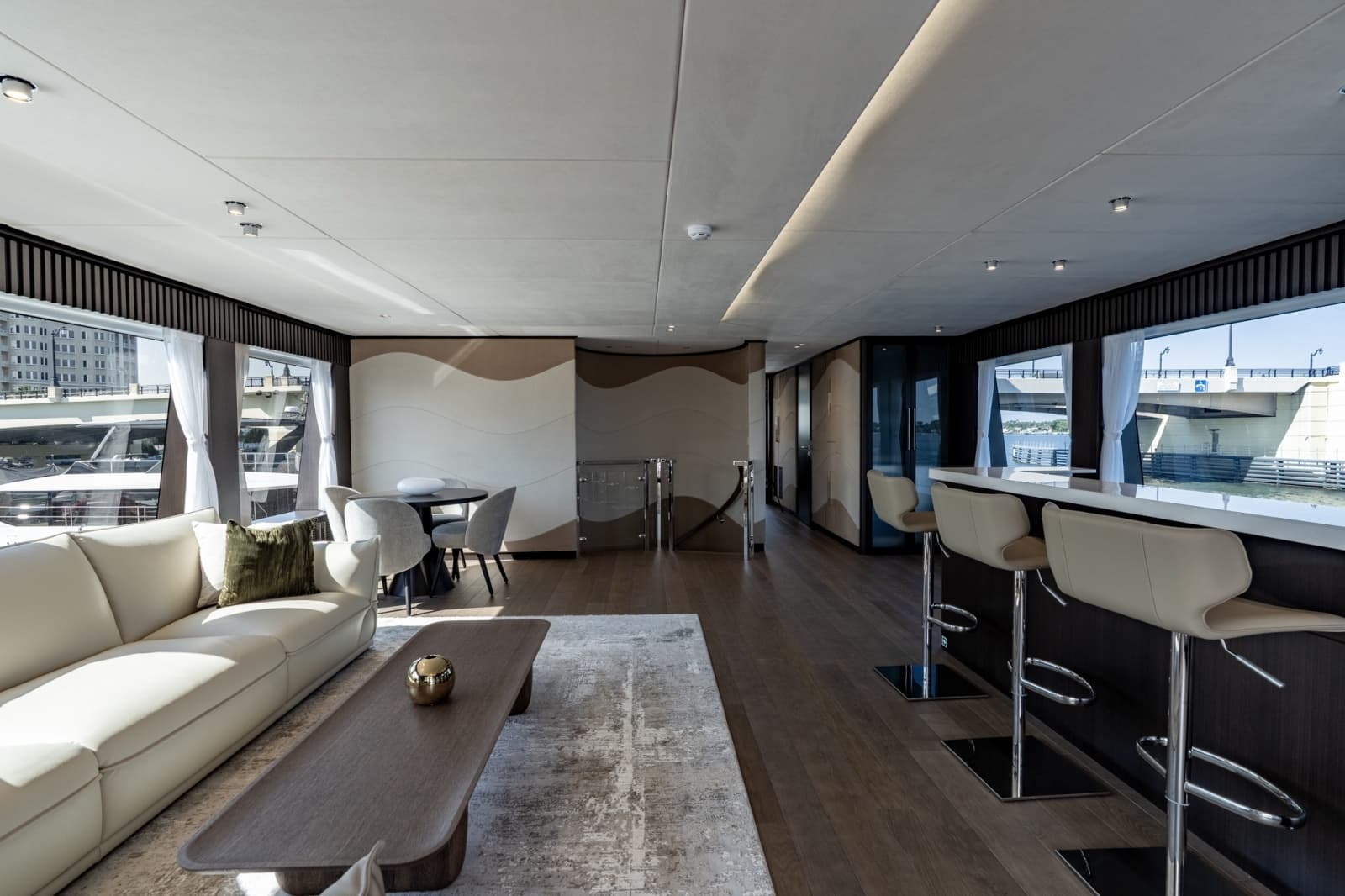

Inside, the yacht showcases a sophisticated, light-filled interior with custom finishes, panoramic windows, and an open-concept salon that flows seamlessly into a formal dining area. Accommodations are thoughtfully arranged for up to 10 guests in five luxurious staterooms, highlighted by a full-beam on-deck master suite featuring a private office, walk-in wardrobe, and spa-inspired en suite.
Powered by twin diesel engines, the 125' E Series offers impressive cruising efficiency, stability, and long-range capability. Advanced onboard systems and smart yacht technology enhance both comfort and ease of operation.
Designed for discerning owners seeking elegance, performance, and versatility, the 125' Hargrave E Series is a true statement of luxury yachting at its finest.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Miles Yacht Group. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Generators
Full Details
Main Characteristics
- Accommodations: 10 Guests + 7 Crew
- Classification: RINA Pleasure Yachts
- Unrestricted Navigation
- (ISPP) International Sewage Pollution Prevention
- Length Overall: 38.25 meters ‑ 125.5 ft
- Length: 33.26 meters ‑ 109 ft
- Beam Max: 7.80 meters ‑ 25.6 ft
- Depth: 3.45 meters ‑ 11.3 ft
- Displacement (Light Ship): 165 Tonnes
- Displacement (Fully loaded): 205 Tonnes
- Gross Tonnage: 342 GT
- Speed: 18 Knots
Propulsion
- Main Engines: 2 x CAT C32 1900HP @ 2300 Rpm
- Gearbox: Twin Disc MGX‑6598DC 3.03:1
- Engine Control: Glenndining (1 main + 2 remote stations)
- Generators: 2 x CAT C4.4: 75kw
- Shaft Propeller: CJR (UK) 4,5” MarineMet 25 Shaft / 5 Blades Class S Propellers
Electrical System
- Main Service: 115/208 VAC 3PH 60Hz
- Shore Power Converter: ASEA 75 kVA
- Service and Engine Start System: 24DC
- Service Batteries: 2200 Ah (2x 100 A Charger)
- Emergency Batteries: 880 Ah (1x 80 A Charger)
- Radio Batteries: 260 Ah (1x 30 A Charger)
- ME & Generator Batteries: (x2) 960 Ah (2x 40 A Charger)
- Fire Puımp Batteries: 880 Ah (1x 80 A Charger)
Tank Capacity
- Diesel Oil: 30.250 Lt / 8.000 Gallons
- Fresh Water: 4.540 Lt / 1.200 Gallons
- Black Water: 2.000 Lt / 500 Gallons
- Grey Water: 3.000 Lt / 800 Gallons
Hull
- Hull/Superstructure: Carbon Reinforced E-Glass - Epoxy Composite Sandwich
- Open Deck: Handlaid Burmese/Myanmar Teak or Non Skid Paint
- Paint System: Awlgrip
Master Equipment List
- Airhorn: Kahlenberg
- Anchor winch and Capstans: (x2 )Maxwell VWC6000 Hyd. Windlass, VC4000 Capstans
- Windscreen Wipers: (x4) Speich
- Alarm & Monitoring system: Wago
- Anchor and Chain: (x2) 200kg 316L S.S. Pool Anchor, (x2) 123m (400 ft) 14mm, Grade 3 Studlink Chain
- Batteries and chargers: Victron
- ER Ventilation: Delta T System
- Bow thruster: Naiad 67 hP Bow thruster
- Stabilizers: Naiad 525 At Rest Stabilizer with 22kW Power Pack
- Fuel Water filters: Separ
HVAC
- TECHNICOLD Chiller assembly (x3) 120,000 BTU
Steering System
- Wills Ridley Electro Hydraulic Steering
Insulation
- Unifrax B15 Engine room and B0 Galley insulation
- Rockwool Thermal cabin insulation
Pumps
- HeadHunter and FEIT
- Sewage treatment: Headhunter TW‑HMX‑6001LP
- Toilet system: Headhunter White Royal Flush Bravo

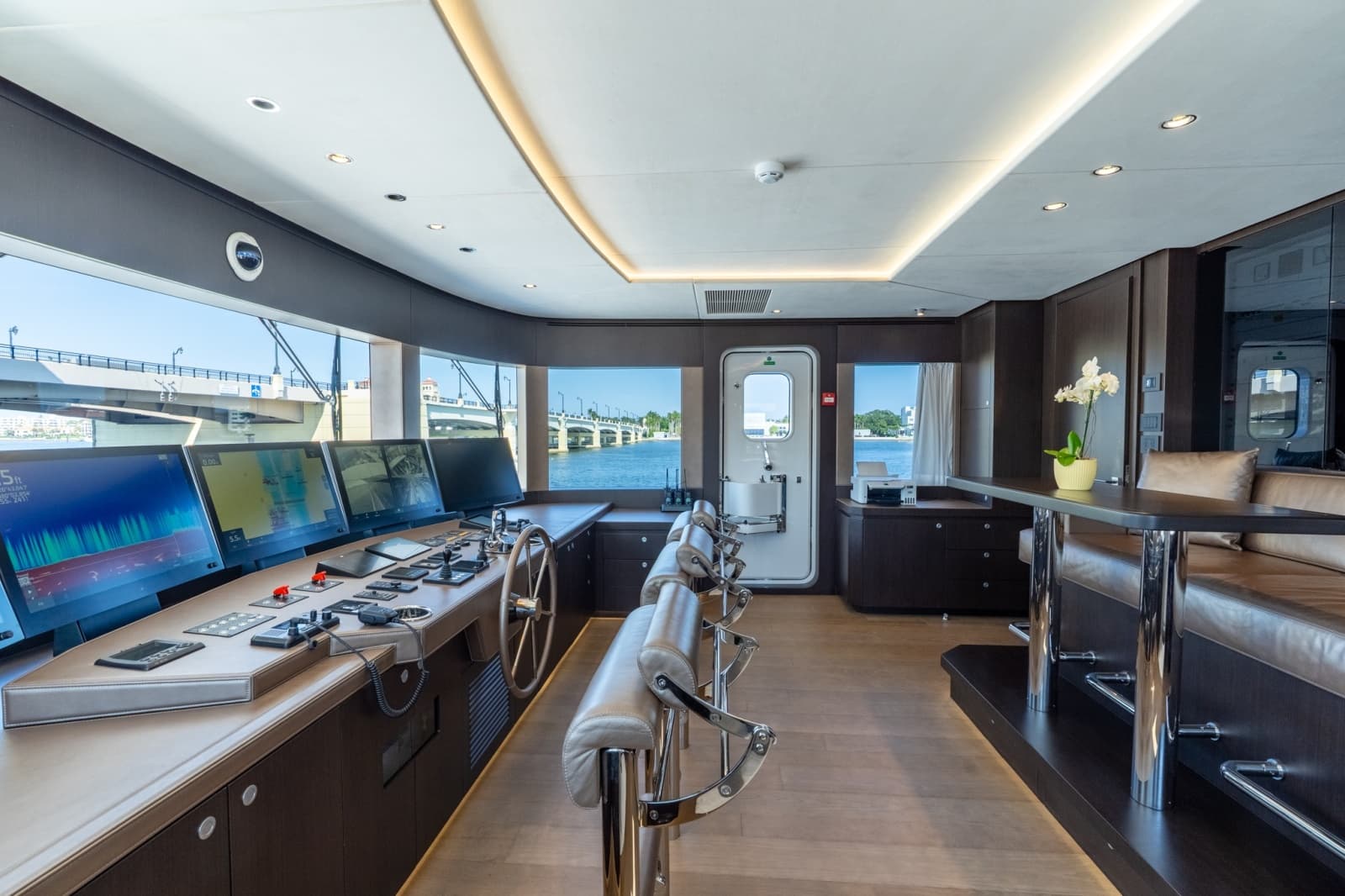

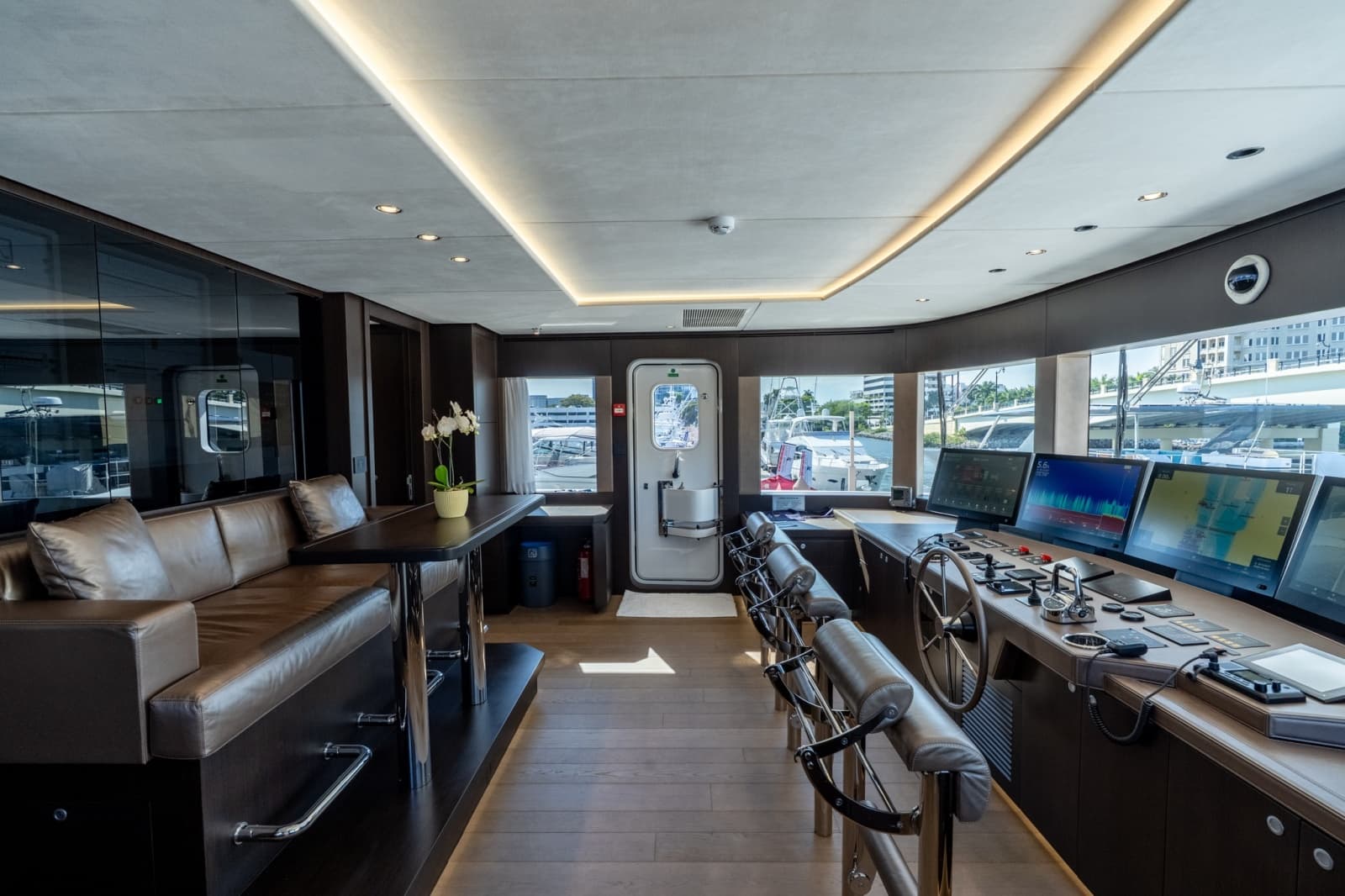

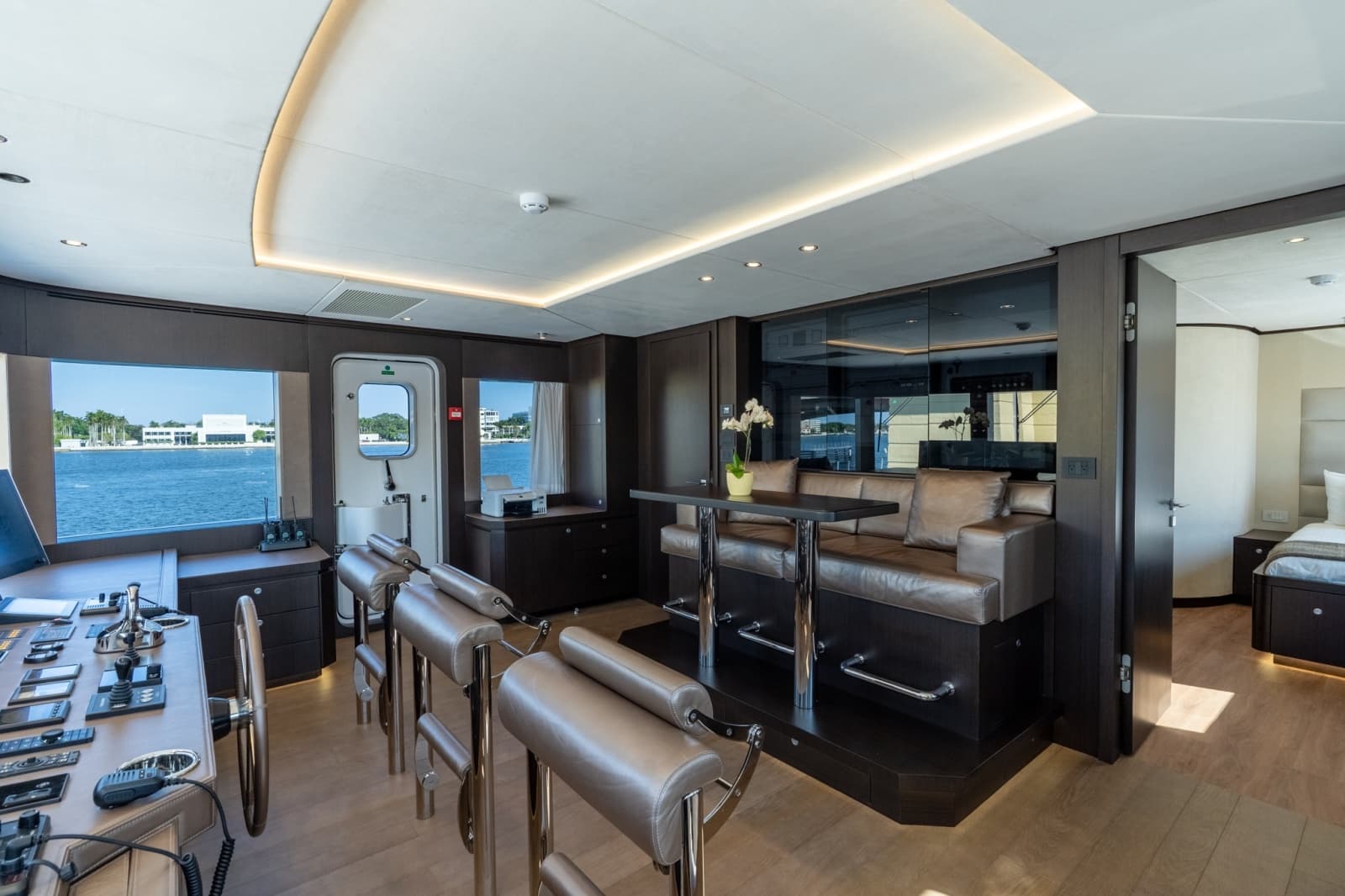

Navigation and Communication Equipment
- GARMIN & FURUNO
- (x5) Surveillance Cameras & FLIR N232 Thermal Camera
- (x5) 32” Pilot House Touchscreen
- (x2) Garmin 215 VHF Radio
- Garmin Fantom 54 Radar / Furuno 6” Radar
- Furuno NV700 Autopilot
- Furuno Navtex, AIS and NavNet
- (x2) Starlink Antenna
Deck Equipment
- Swim Ladder: 316L Stainless Steel
- Crane: SW 1000kg (2200lbs) Telescopic Hydraulic Deck Crane
- Pasarella: 17ft Hydraulic Gangway
- Handrails: 316L S.Steel
- Pantograph Doors: (x4) Pantograph Door
- Sliding Doors: Electric-operated main and upper saloon doors
- Watertight Doors and Deck Hatches: Watertight Deck Hatches and Engine Room
- WT Fire Doors
- Aft Beach Shell Door: Hydraulic Actuator Operated Carbon Reinforced Composite Watertight Door
Safety Equipment
- Life Rafts: Viking 2 x 12 Persons
- Fire Protection: Fireboy FM200 Engine Room Fixed Fire Extinguishing System
- Fire and General Alarm System: HAES Conventional Fire Detection System

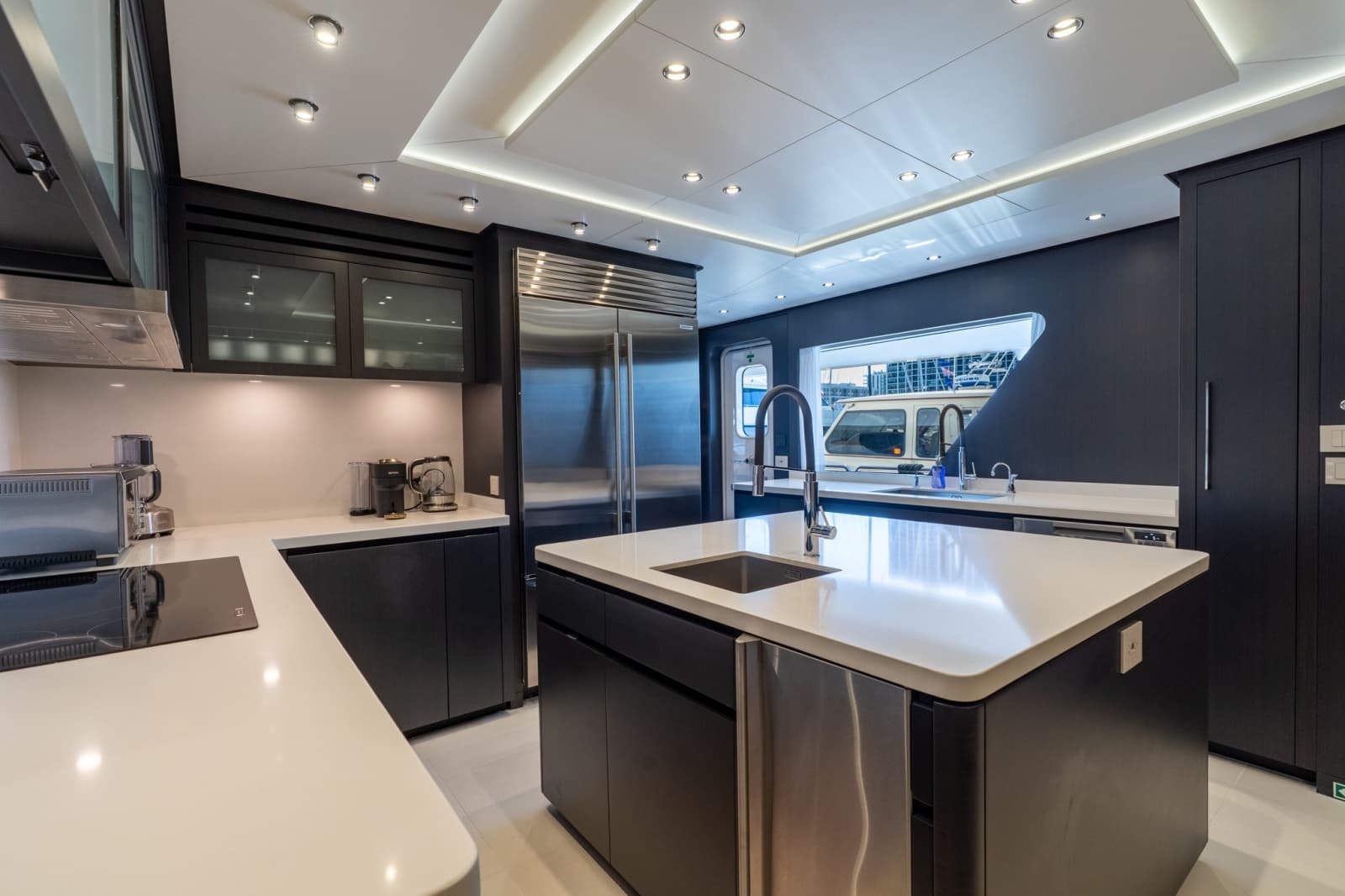

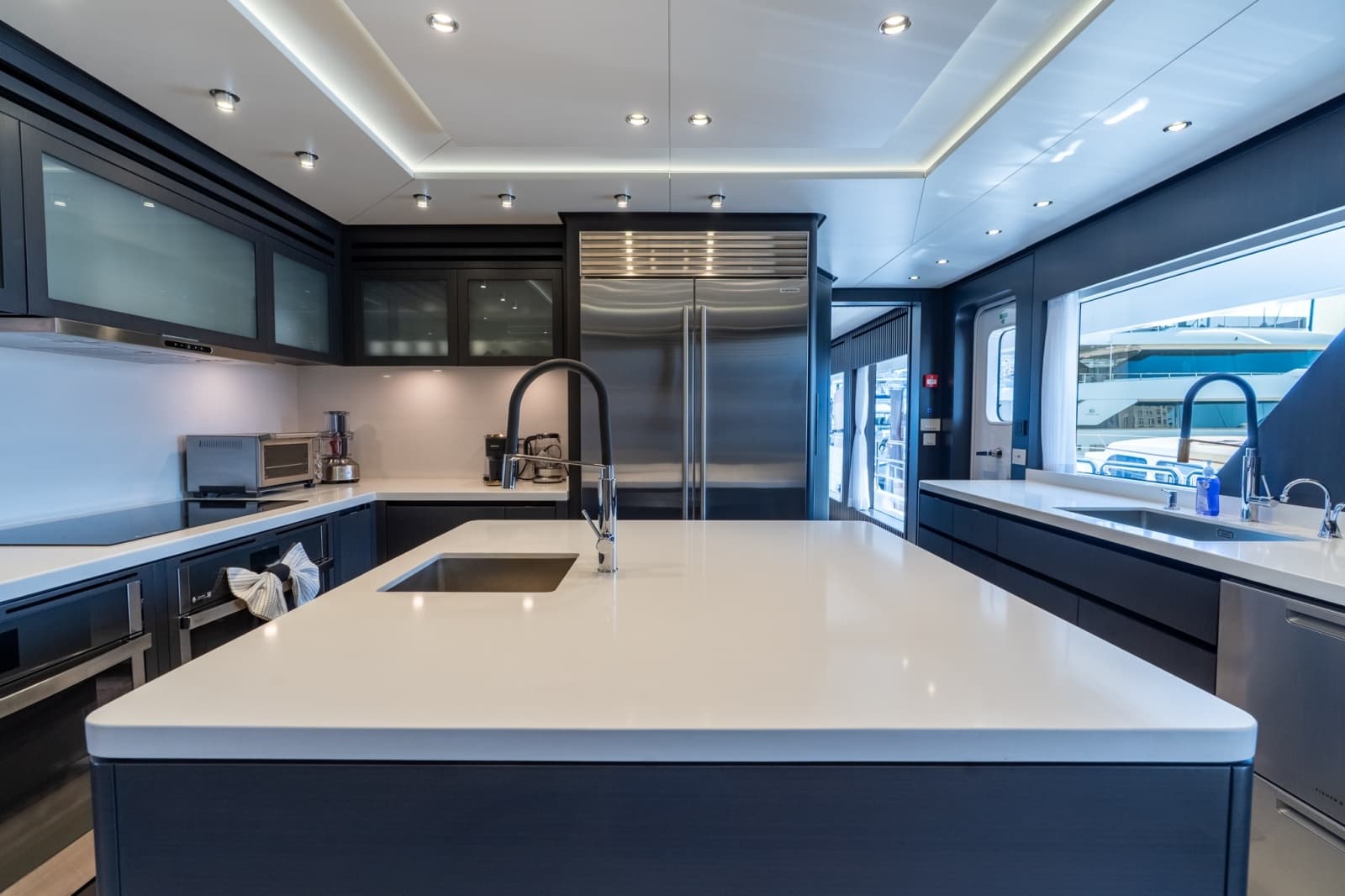

Appliances
- Cooktop: GE 36" Built-In Touch Control Induction Cooktop (Galley)
- Washer: (x2) GE 4.8 cu. ft. Capacity Smart Front Load ® (Washer Crew mess (1) / Guest Corridor (1))
- Dryer: (x3) GE 7.8 cu. ft. Capacity Smart Front Load Electric Dryer (Crew mess (2) / Guest Corridor (1))
- Refrigerator: Subzero 36" Classic French Door Refrigerator/Freezer (Galley), Subzero 42" Classic French Door Refrigerator/Freezer (Galley)
- Wine Cooler: (x3) Schmecke 12 Bottle Freestanding 2 Shelf Wine Cooler (MD Corridor (2) / UD Salon (1)), Zephr 24" French Door Dual Zone Wine Cooler (Sundeck). (x2) Zephr 15″ SingleZone Wine Cooler (MD Aft (1) / UD Salon (1))
- Microwave Oven: GE 2.1 Cu. Ft. Over‑the‑Range Sensor Microwave Oven (Galley)
- GE 0.7 Cu. Ft. Countertop Microwave Oven (Crewmess)
- Grill: Fire Magic Deluxe Gourmet Drop-In Grill (Sundeck)
- Dishwasher: Fisher & Paykel Series 7 Contemporary Tall Double (Galley)
- Garbage Disposal: (x2) GE 3/4 HP Continuous Feed Garbage Disposer (Galley)
- Range Hood: Broan® Elite EWT1 Series Chimney 36” Range Hood (Galley)
- Oven: (x2) GE 30"Smart Built‑In Convection Single Wall Oven (Galley)
- Ice Maker: (x4) Hoshizaki Top Hat Cuber Icemaker, Air‑cooled (MD Aft (1) / UD Salon (1) / Beachclub (1) / Sundeck (1))
Entertainment
Television:
- Samsung 32" Class QLED 4K Q60D (Captain Cabin)
- (x6) Samsung 55" Class QLED 4K Q60DUD (Salon(1) / Guest Cabins(4) / Crewmess(1))
- Samsung 65" Class QLED 4K Q60D (MD Salon)
- Samsung 85"Class Neo QLED 8K Smart TV (Master Cabin)
- (x9) Apple Tv 4K
- (x9) Xantech DL85K/CFL‑Proof Dinky Link IrReceiver
Sound System
- Audio/Video: Crestron Ready
- Bose Smart Soundbar 900 Dolby Atmos (MD Salon)
- Bose Smart Soundbar 700 Dolby Atmos (UD Salon)
- (x2) Bose Bass Module 500, Black 10’’, (MD Salon (1) / UD Salon (1))
- (x6) JL Audio M6‑770X‑C‑GWGW Speaker, (MD Aft (2) / UD Aft (1) / Sundeck (3))
- JL Audio M6‑650X‑C‑GWGW Speaker (Bowdeck)
- (x2) JL Audio M6‑10IB‑C‑GWGW‑4 Subwoofer, (MD Aft (1) / Sundeck (1))
- (x3) Fusion Apollo MS RA770 Marine Stereo, (MD Aft (1) / UD Aft (1) / Sundeck (1))
- Fusion Apollo SRX400Marine Stereo (Bowdeck)
- (x4) Fusion® ARX Wireless Remote, (MD Aft (1) / UD Aft (1) / Sundeck (1) / Bowdeck (1))
Internet System
- (x8) TP‑LINK AX1800 Ceiling Mount WiFi 6 Access Point
- (x2) TP‑LINK Omada Hardware Controller
- Peplink Cellular Antenna Mobility 40G 5G /LTE Ready
- Peplink Max BR2 Pro/Dual 2.5 GPS Wan Ports, X62 5G
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
