2025 Toy Marine 51
Description

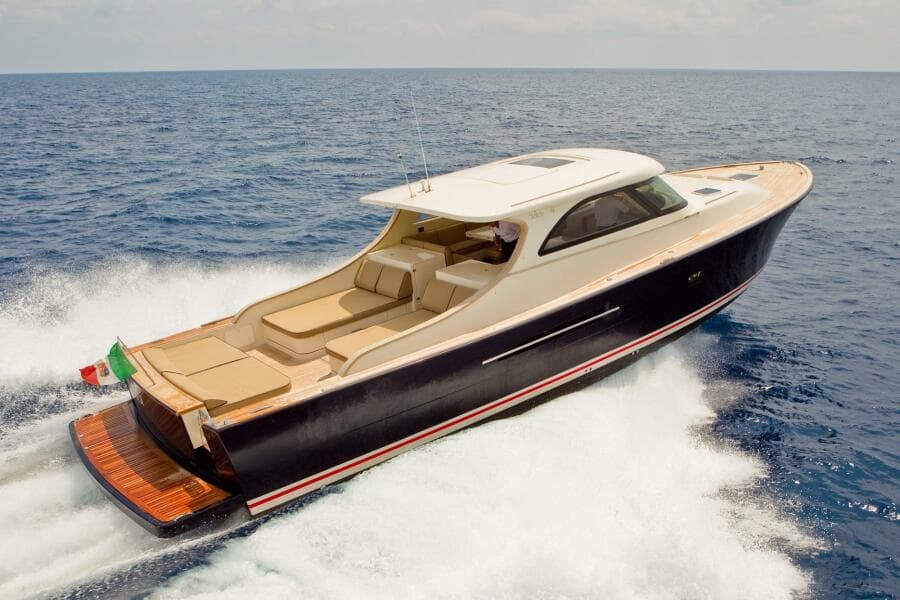

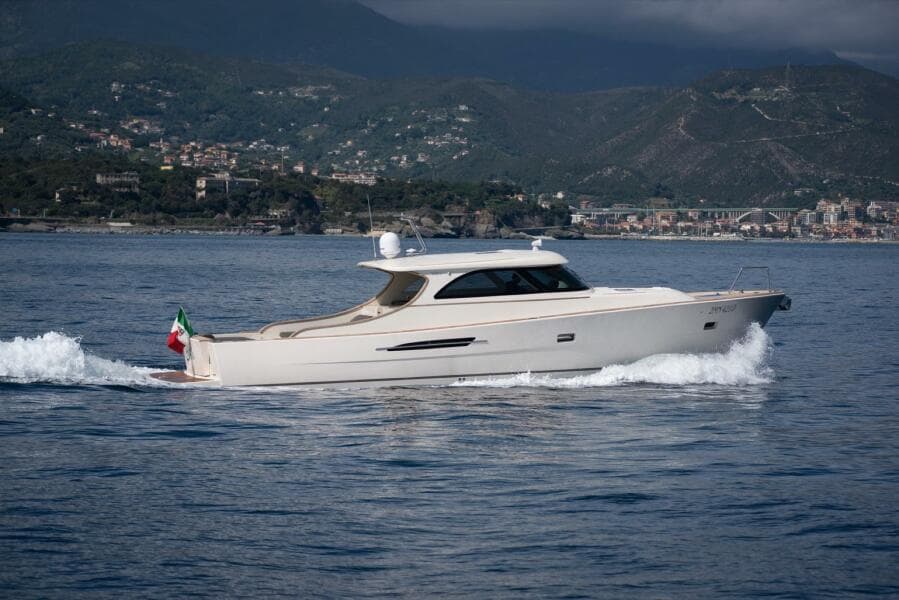

The Toy 51 is a medium-sized boat characterized by great habitability and at the same time extraordinary handling and ease of management. Cruise comfort is high thanks to the careful work that involved all the elements of the boat and to the complete set of equipment.

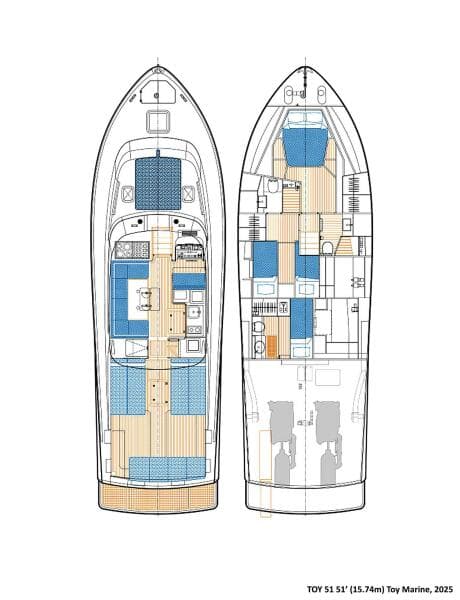

The Toy 51 is perfectly suited for daily use as well as for long holidays with family or friends. Below deck, in addition to two bedrooms and two bathrooms for the owner and guests, a real accommodation for the sailor has been created with its own bathroom and independent entrance from the cockpit.
This solution allows you to have a support person on board while ensuring privacy during cruises.
A layout version has also been studied which, in addition to the two cabins and two bathrooms for the owner and guests, and the crew’s quarters, has a kitchen below deck, separated from the sleeping area.
In this way, it is possible to have the large dinette completely dedicated to guests and to keep the service area separate from the other rooms.

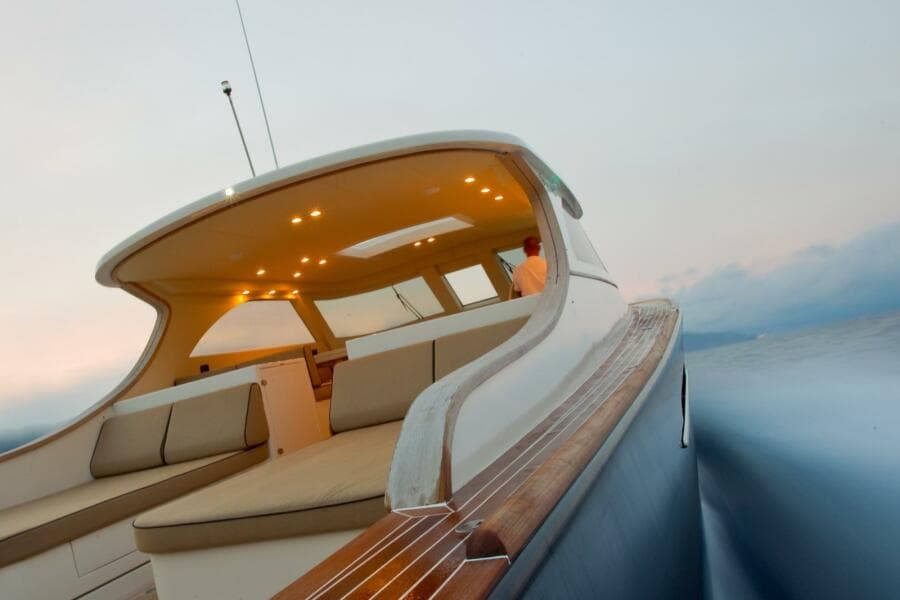

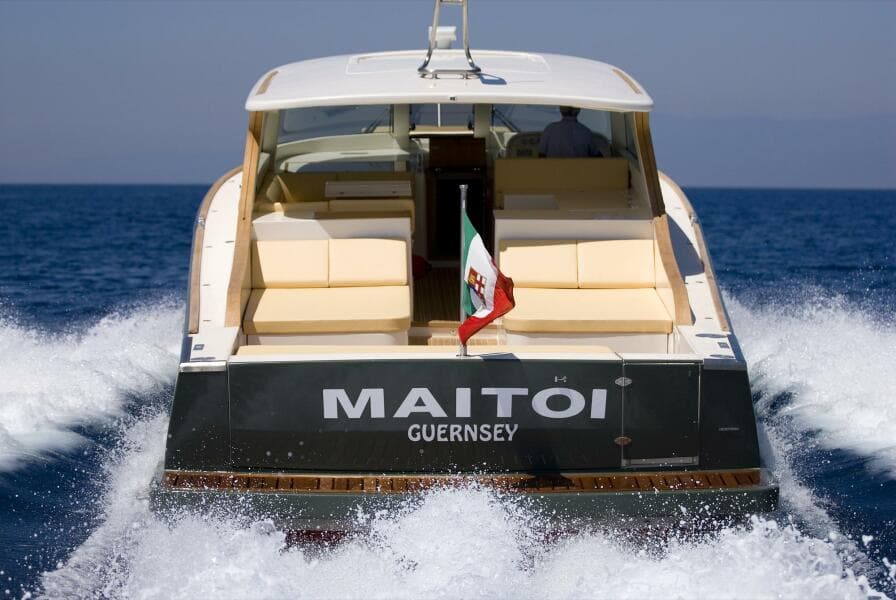

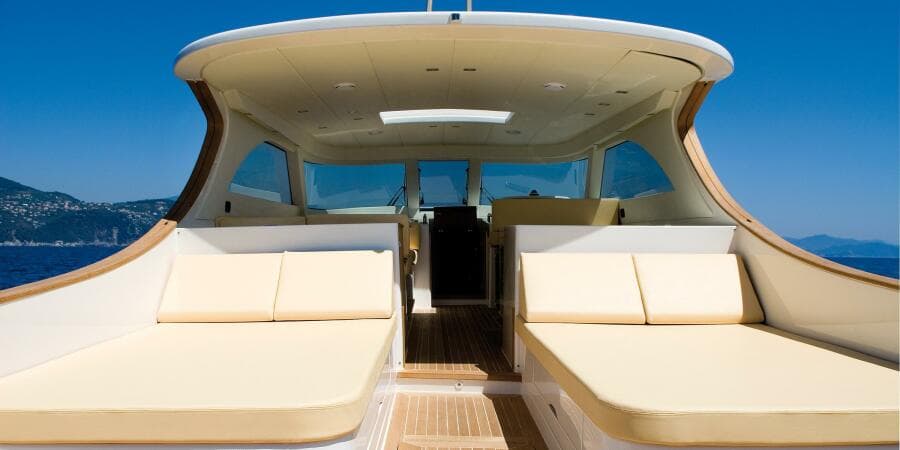

The exteriors of Toy 51 are designed for those who love to experience the sea outdoors. The large cockpit space can be set up with different combinations of sundecks and sofas. The boat can also be equipped with a comfortable garage for the tender, with access from the stern platform equipped with a comfortable tender lift.
Cruise comfort is high, thanks to the careful work that involved all the elements of the boat and the full range of equipment.
The Toy 51 is equipped with the Volvo IPS propulsion system which provides precise handling and optimized fuel consumption.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Weight & Measurements
Accommodation
Tankage
Engines
Full Details
MAIN CHARACTERISTICS
Hull length 15,01 mt. 49.3 ft
Length overall 15,74 mt. 51.6 ft
Length at waterline 13,64 mt. 44.7 ft
Beam 4,80 mt. 15.9 ft
Draft (max) 0,90 mt. 2.9 ft
Displacement (half load) 19 tons
Engines N. 2 Volvo D8 600Hp
Propulsion IPS 800
Fuel capacity 580 UK gallons (2200 Lt)
Water Capacity 130 UK gallons (500 Lt)
Cruising speed 26 knots
Top speed 33 knots
Design: Nauta Design
Certification CE – B offshore
HULL AND STRUCTURES
- Vessel built in accordance with CE certification, cat. B offshore
- Sandwich hull sides and single skin bottom
- Structural bulkheads in marine grade plywood
- Watertight bulkheads: bow - midship / engine room
- Hull colored gelcoat in accordance with client’s selection
- Hinged transom door
- GRP swimming platform with teak gratings

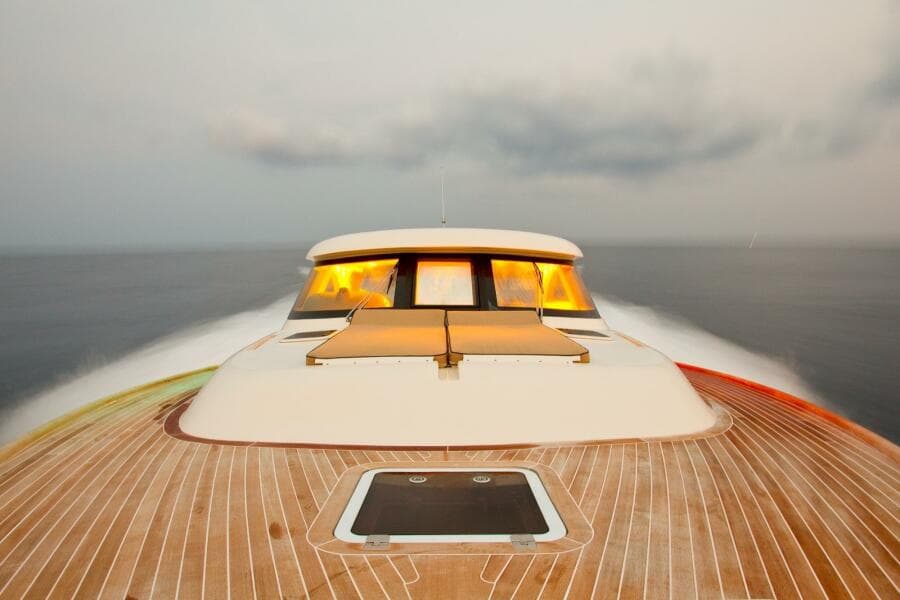

DECK
- Deck laminated in GRP sandwich with PVC core
- White gelcoat finish with sprayed non-skid
- Engine room accesses, N.1 systems locker hatch and anchor locker hatch
- Forepeak for anchor winch and chain
Teak
- Cockpit, helm station and dinette sole covered with 10 mm teak and solid side coamings
- Solid teak sheer line toe rail
Hatches, portlights and windows
- Low profile deck hatches
- Custom smoke grey safety glass windshield with PVB and UV treatment
- Windshield center section opening with upper hinges
- N.2 wipers with freshwater washer. Pump connected to boat freshwater tank
- Hatches handles and hinges in stainless steel
- Electrically sliding pilothouse roof hatch
- Portholes with safety stainless steel enclosures / darkeners
Deck accessories
- Flagpole
- Stern recessed telescopic hydraulic gangway
- Hidden deck shower with hot and cold fresh water
- Courtesy foot-lights
- Tender lift
- Inox Swimming ladder withdrawn in the aft platform
Mooring system
- N.1 2000 W anchor windlass with remote switches at helm and forepeak
- Stainless Steel Trefoil type anchor Kg 20
- Stainless Steel stem plate with mooring fairlead integrated
- Galvanized 10 mm steel chain, 60 m length with swivel
- N. 6 flush deck cleats, N.2 on the bow, N.2 midships, N.2 at stern
- N. 2 flush deck stainless steel cleat on the swimming platform form tender mooring
- N. 4 mooring fairleads: N. 2 on the bow, N. 2 at stern
- N. 10 Folding padeyes on the deck toward the CL. for fenders
DECK FURNITURE

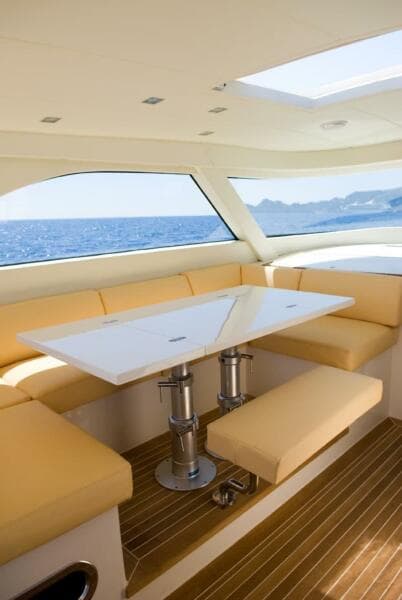

Dinette
- C shaped lounge with folding CL seat
- Teak covered hi-low table

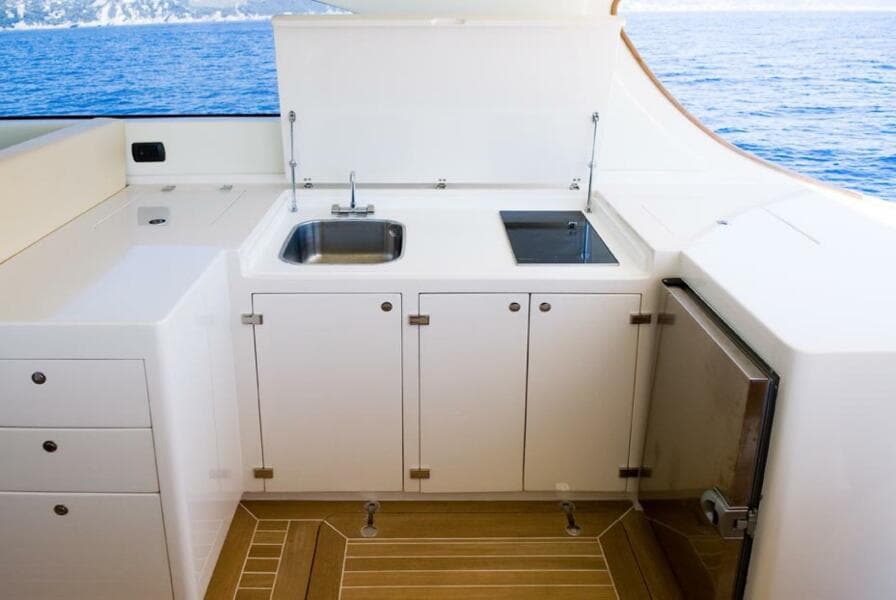

Galley
- Open galley on stbd side facing the dinette
- Induction cooktop with two burners
- Sink with hot-cold mixer faucet
- Refrigerator 110 l.
- Freezer sunk in countertop 50 l.

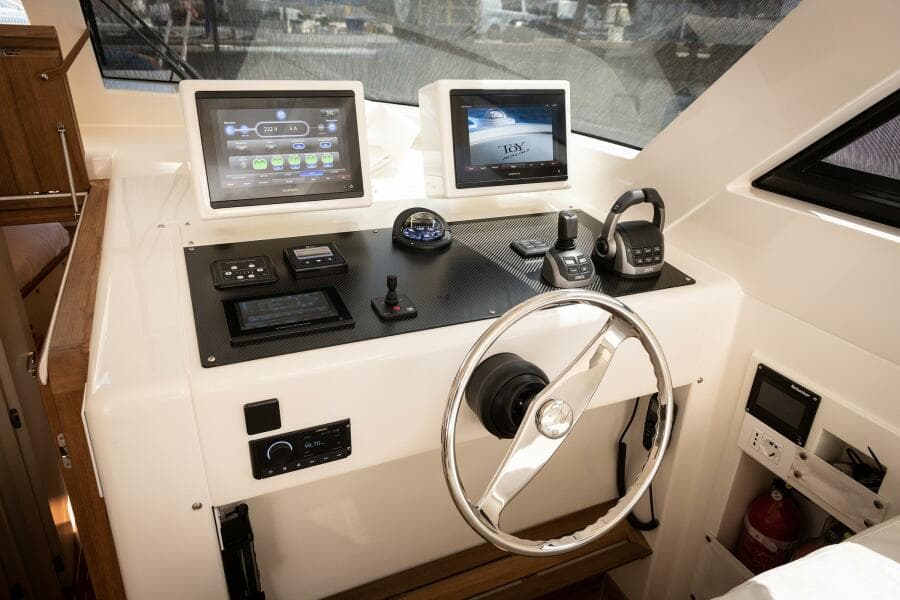

Steering station
- Double helm seat to the front of the galley
- Helm console with instruments and engine controls and various
- 3” Ritchie magnetic compass
- Ongaro Stainless steel steering wheel
- Hydraulic steering system
Upholstery and canvas
- Dinette cushion with Sunbrella washable external cover.
- External cushions with closed cell rubber foam and with Sunbrella washable external cover
INTERIOR FURNITURE
Interior material
- Furniture and bulkheads and hull linings off white lacquered with teak trims or teak/mahogany veneered, door frames bulkhead flush and teak doors
- Cabin sole made of marine grade plywood and finished with teak, oak or mahogany veneer
- Door handles, and interior fittings in polished stainless steel or satin finish
CABINS
Front cabin
- King size bed
- N. 2 hanging lockers with drawers
- Drawers and storage under berth
- 220V 60hz outlet
- N. 1 opening deck hatch
- N. 2 hull opening portlights
- N. 2 bookshelves at stbd and port side

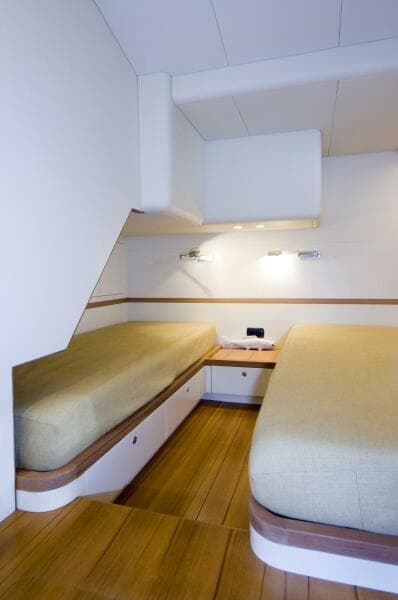

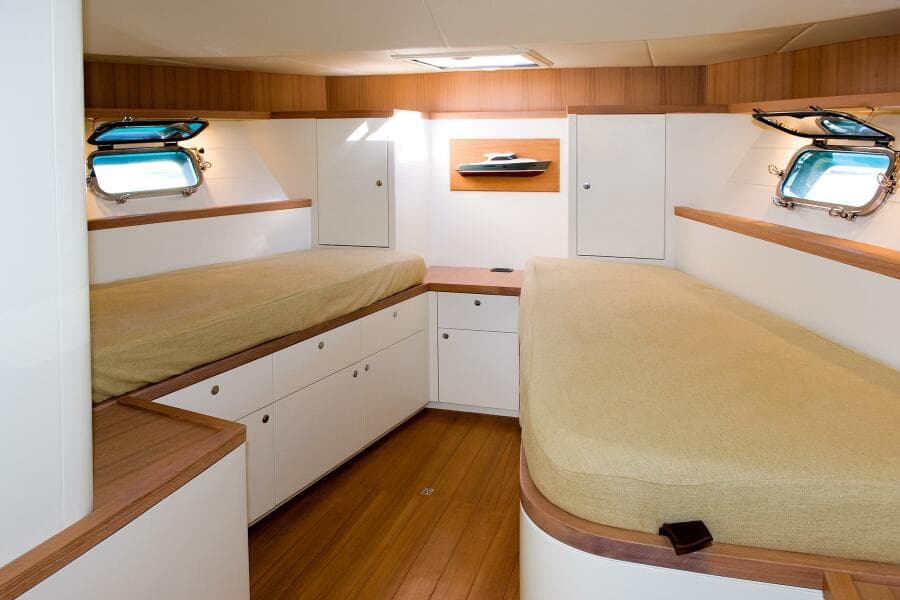

Guest cabin
- Twin beds
- N. 1 hanging locker with drawers
- Drawers and storage under berth
- 220V 60hz outlet
- N. 2 hull opening portlights

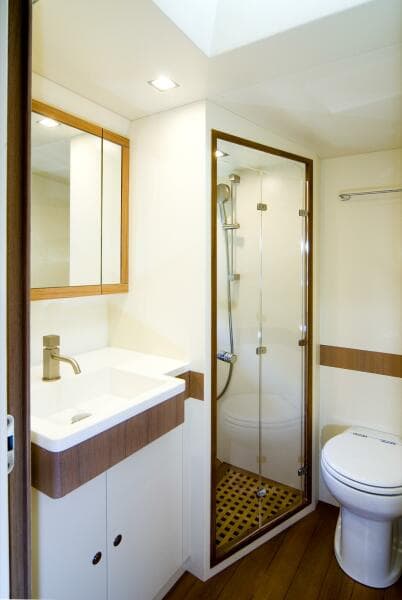

Heads
- Sink with storage below and vanity mirror
- Separate shower with teak gratin
- Hot-cold lever mixer faucet
- Electric toilet
- 220 V 60hz outlet
- Teak cabin sole
- Shower with mixer & support
- Complete set of bathroom accessories
- Opening deck hatch

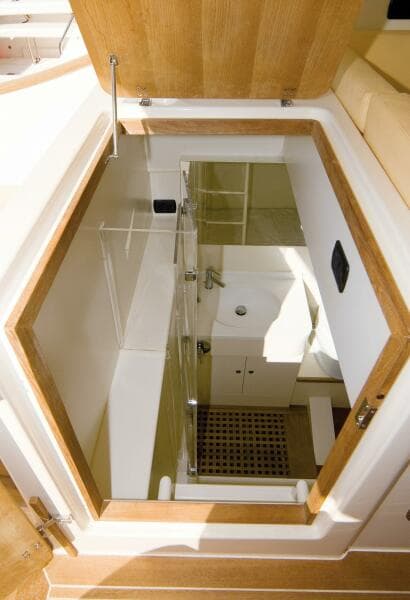

Crew cabin

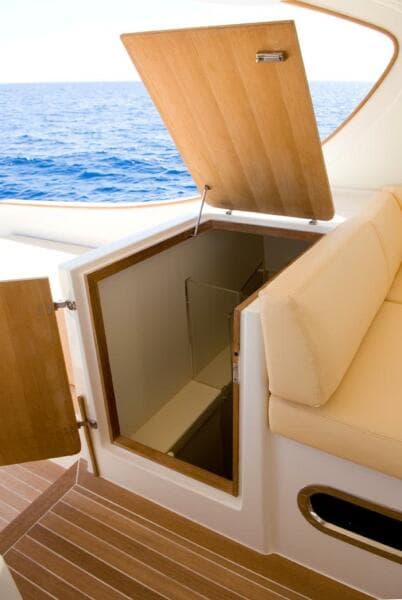

- Access hatch from port deck
- Single bed
- N. 1 hanging cocker
- Porthole
- Washbasin, WC and shower with grating
Upholstery
- Foam berth mattresses with lining
- Bedspread quilt and shams available in different colours
- Upholstered ceilings in sky leather
ENGINES
- Volvo D8; 600 hp.
- IPS 800
- Integrated Lowspeed
- Volvo Penta Interceptors system for stability control
Fuel system
- 50 mm Stainless steel fuel fills on deck with drain
- Structural GRP fuel tank of 2200 lt capacity, with stainless steel inspection and cleaning port including fills, supplying engines and generator
- Tank level gauge at steering station
- Racor filter for each engine
Cooling and exhaust system
- Engine cooling system with heat exchanger
- Bronze seacocks with valve
- Raw water strainers with removable stainless-steel filters
- Integrated exhaust
Ventilation and insulation
- Engines air intakes in hull top sides
- Engine compartments blowers
- Engine hatches and engine room acoustically insulated with fireproof and washable material
AUXILIARY EQUIPMENT
Fresh water system
- Stainless steel flush fill on deck
- N°2 structural VTR water tanks for a total of 500 ltrs with inspection ports
- Water level gauge at steering station
- Shore water supply connection with pressure regulator
- Fresh water pressure pump
- 220V AC, 50 lt stainless steel boiler
- Water distribution system for galley, head and cockpit shower
- Cockpit shower with hot and cold water
Salt water system
- Raw water pressure pump
- Manifold for distribution to WC, galley and anchor locker chain washer
Grey water system
- Grey water tank for head sink and shower including 24V drain pump
- Galley sink with overboard discharge
Black water system
- N. 3 electric toilets
- Black water polypropylene tank with electric sump pump and Y valve, 150 l.
- Alarm for full tank, valves manifold for dock / overboard discharge
Bilge system
- N. 3 24V DC automatic bilge pumps. One in aft peak, one mid ship / engine bay, one for cabin / forepeak
- Bilge pumps have automatic switch floats and manual override switches on helm console
- N.1 emergency hand bilge pump in cockpit with three-way valve to drain all bilges and overboard discharge with siphon and safety valve
ELECTRIC SYSTEM
220 V AC 60hz
- Watertight inlet for shore power 50 Amp.
- Power genset 9 KW 220V AC 60hz.
24 V DC
- Service batteries set 24V 640 Ah.
- Engines and genset start batteries set 24V 240 Ah.
Electrical panels
- Main distribution panel
- Fuse panel
- Batteries switch panel
- Cockpit control panel
Equipment
- N. 1 24V battery charter
- N. 2 24V 80A engine alternators
- 1 Inverter 2000 W
Lighting
- Watertight led spots in head, dinette and galley
- Led spots in accommodation
- Bed reading lights
- N. 4 watertight cockpit foot lights
Various
- Register approved navigation lights. Switches for navigation lights on helm console
- Earthing system
- Cathodic protection with sacrificial anodes
NAVIGATION INSTRUMENTS
- N. 1 VHF
- Hi Fi integrated system, 2 dinette speakers and 2 watertight speakers in cockpit
- GPS and Plotter including depth sounder and autopilot
VARIOUS
- Firefighting system in engine compartment with emergency control installed at
- steering station
Delivery and documents
- Sea trials
- System test
- CE / RINA certification (12 people)
- CE approved owner’s manual
