Description

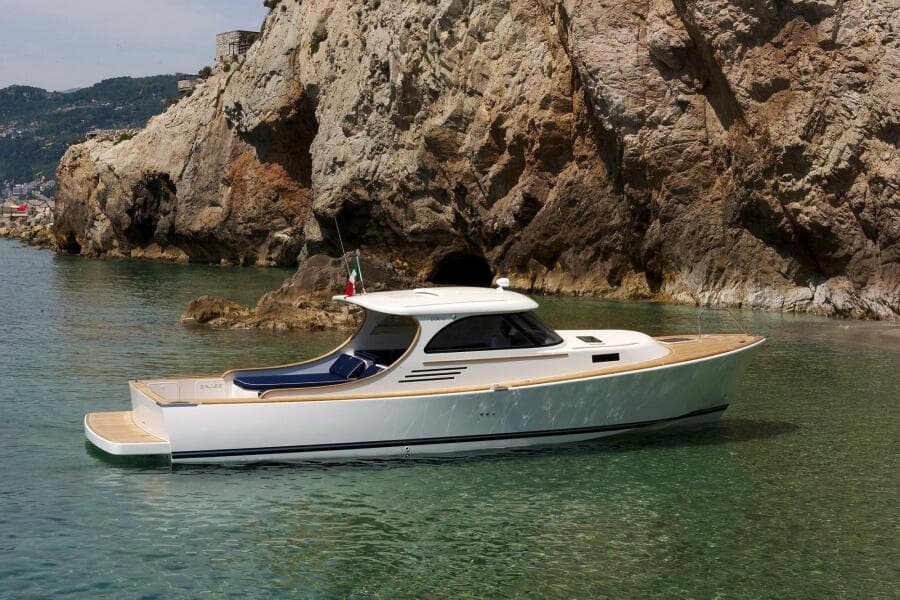

The Toy 36 stands out for its harmonic design with a classic setting, but is thought over in every curve to be in line with a refined and current aesthetic sensibility. The highest quality materials and components have been chosen to integrate into the overall design while leaving the owner the opportunity to customize technical choices and outfitting details.

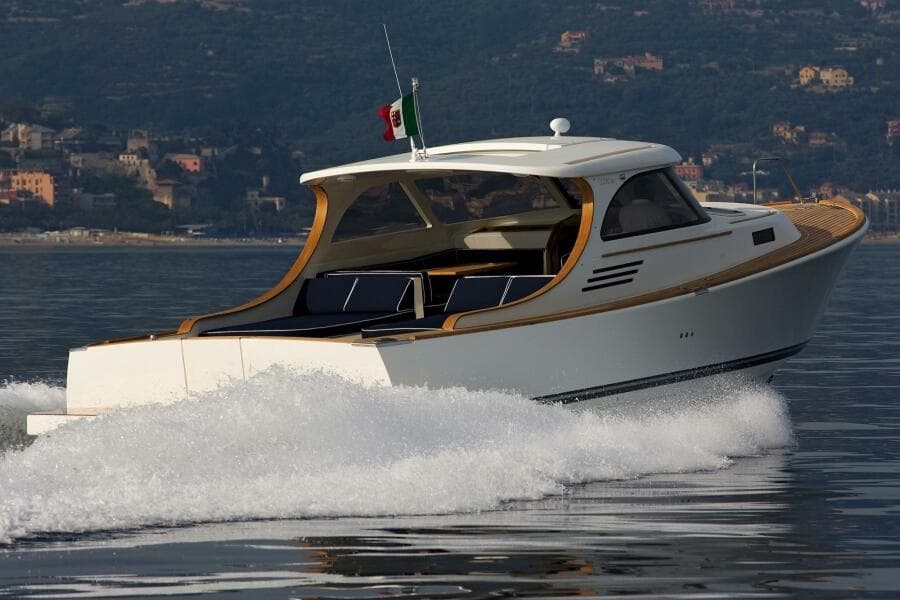

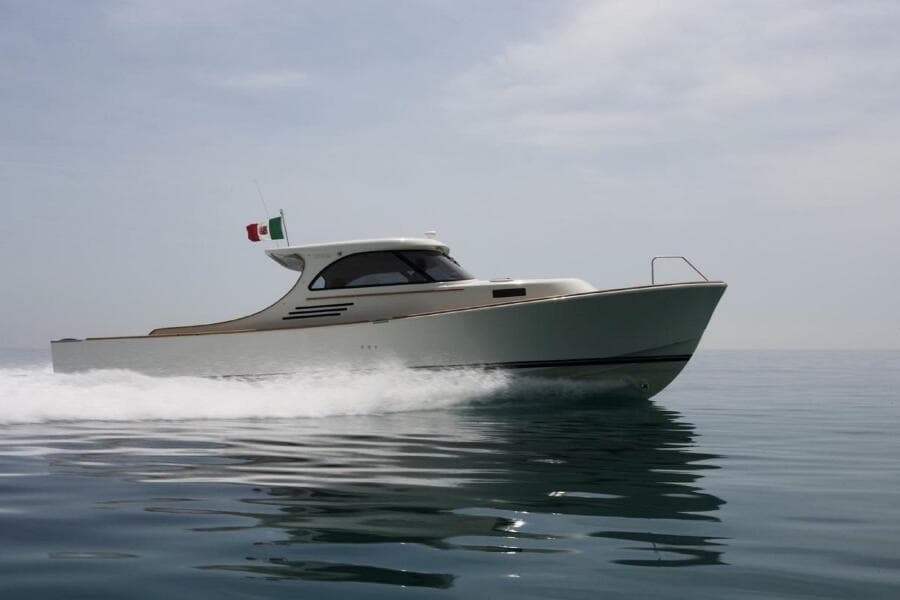

Safety and ease of use are the main qualities of the boat, while the deep V-shaped hull ensures course stability even in rough seas.

Propulsion takes place via traditional shaft lines and the motors, positioned under the sundeck, are easily accessible for any inspection and maintenance activity. The large cockpit, a natural continuation of the dinette and the low freeboard gives a pleasant feeling of space and contact with the sea.

The Toy 36 is the typical picnic boat, but it also allows cruises with family or friends.

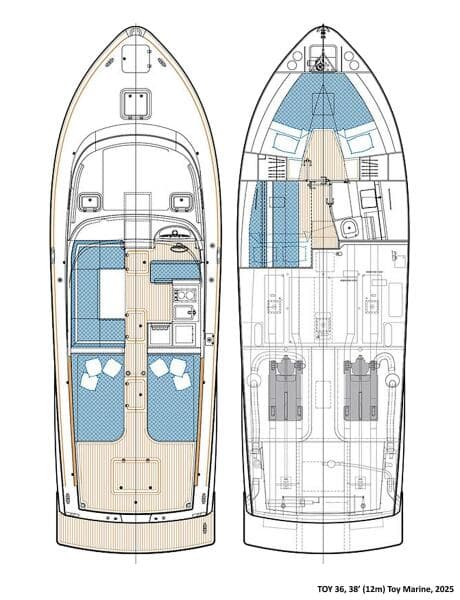

The layout of the boat has been designed for maximum comfort during navigation.

A large platform makes entry on board and access to the sea particularly convenient.

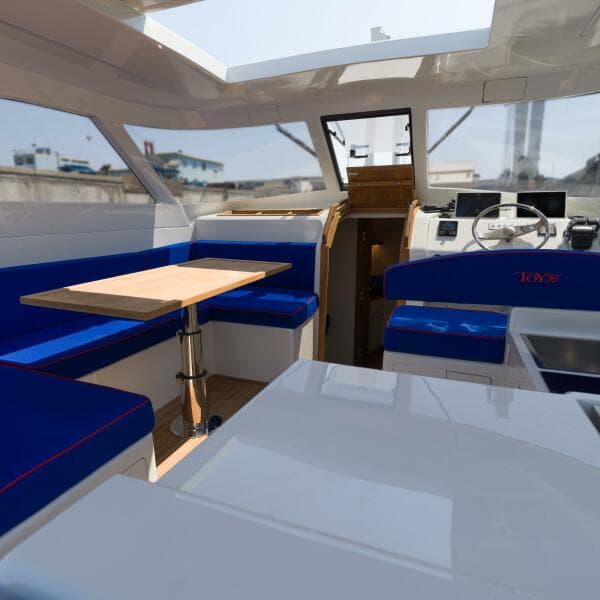

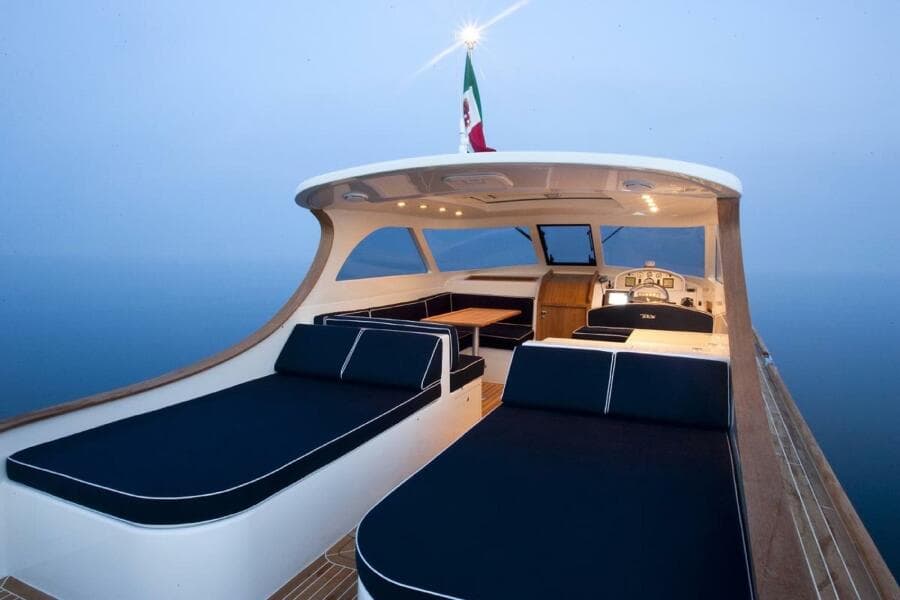

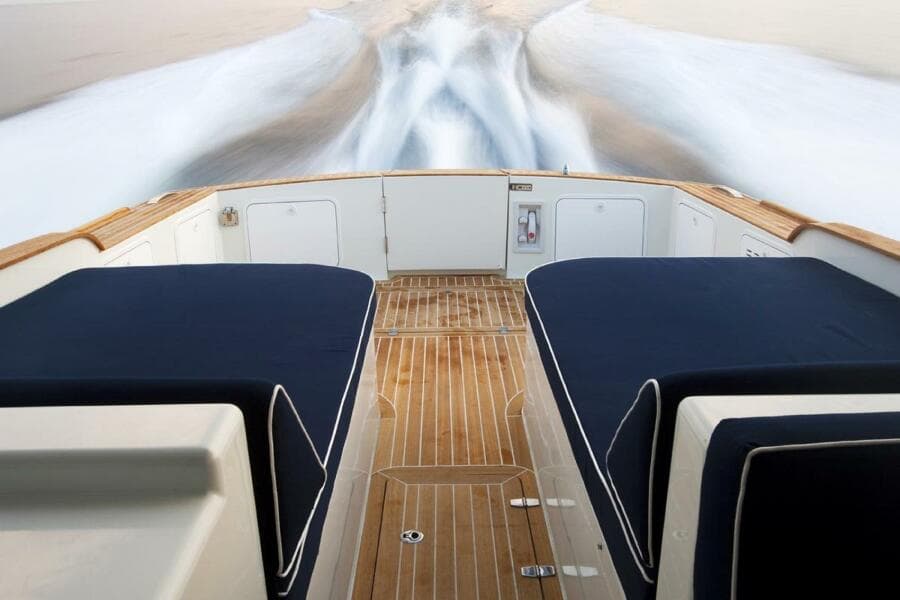

In the cockpit two large sun loungers are ideal for relaxing even while sailing, while the large dinette is protected by the deckhouse with an electrically opening roof.

The large cockpit is in fact the natural continuation of the dinette and together they compose a unique environment that allows to share pleasant moments on board.

The low freeboard gives a pleasant feeling of space and contact with the sea.

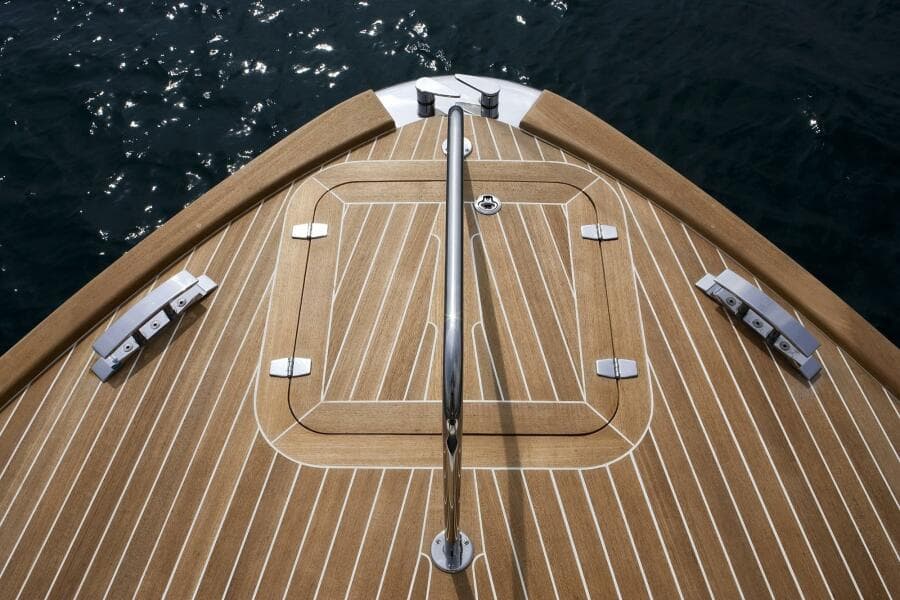

The bow area is equipped with a comfortable sunbathing area.

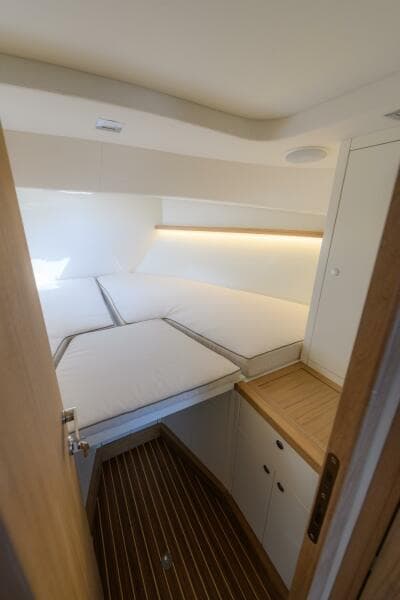

Below deck, an unpredicted height for a boat of eleven meters allows excellent habitability in all environments. The V-shaped bed in the owner’s cabin has been designed to best optimize space, while the comfortable sofa in the sitting area can be converted into a bed to accommodate guests.

Teak with light maple vanishing points creates a pleasant continuity between the interiors and exteriors.

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

The Toy 36 stands out for its harmonic design with a classic setting, but is thought over in every curve to be in line with a refined and current aesthetic sensibility.

Key Specifications

LOA38' 3"

Beam12' 6"

Draft Max2' 11"

LOD38' 3"

LWL32' 8"

TypePower

Hull MaterialFiberglass

FuelDiesel

Range300 nm

Weight & Measurements

Displacement8 lbs

Accommodation

Cabins1

Sleeps3

Heads1

Tankage

Fuel264 gal

Water35 gal

Engines

Yanmar 8LVInboard

MakeYanmar

Model8LV

TypeInboard

Fuel TypeDiesel

Power320 HP

Year2025

Drive TypeV

Yanmar 8LVInboard

MakeYanmar

Model8LV

TypeInboard

Fuel TypeDiesel

Power320 HP

Year2025

Drive TypeV

Full Details

MAIN CHARACTERISTICS

Hull length 11,00 mt. 36.0 ft

Length overall 11,65 mt. 38.2 ft

Length at waterline 9,96 mt. 32.7 ft

Beam 3,80 mt. 12.5 ft

Draft (max) 0,90 mt. 2.9 ft

Displacement (half load) 8 tons.

Engines N. 2 YANMAR 320 HP

Transmission N. 2 RR 2.08 LP; V-drive gearboxes

Propulsion shafting In line prop shaft with submerged propellers

Steering system Hydraulic system with blade rudders

Fuel capacity 242 UK gallons (1000 Lt)

Maximum Theoretical Cruising

Autonomy 3000 RPM – 28 Knots = 300 Nautical Miles

Water Capacity 132 UK gallons (500 Lt)

Cruising speed 26 knots

Top speed 30 knots

Design: Nauta Design

Certification CE – B off shore

HULL AND STRUCTURES

Vessel built in accordance with CE certification, cat. B offshore
Sandwich hullsides and singleskin bottom.
GRP swimming platform with teak gratings and folding swimming ladder
Hinged transom door.
Watertight bulkheads: bow - midship / engine room.
Hydraulic trim tabs
Antifouling bottom paint and red / white bootlines.
Cathodic protection with sacrificial anodes

DECK

Deck and superstructure with fly bridge laminated in GRP sandwich with PVCcore.
White gelcoat finish with sprayed non-skid.
N.2 cockpit sun beds on engine cockpit hatches and on foredeck.
N.2 engine room hatches.
N.1 systems locker hatch and anchor locker hatch.
N. 4 handrails, on roof top and bow deck
Stainless steel ladder to the fly bridge with steps made of teak wood.

Teak

Cockpit, helm station and dinette sole covered with 10 mm teak and solid sidecoamings.
Solid teak sheer line toe rail.

Hatches, portlights and windows

Low profile deck hatches.
Custom smoke grey plexi windshield.
Windshield center section opening with upper hinges.
N.2 wipers with freshwater washer. Pump connected to boat freshwater tank.
Hatches handles and hinges in stainless steel.

Deck accessories

Mooring and steaming light post.
Teak Flagpole.
Watertight inlet for shore power.
Hidden deck shower with hot and cold fresh water.
Courtesy foot-lights.
Inox Swimming ladder withdrawn in the aft platform

Mooring system

Anchor windlass 1000 W with remote switches at helm and forepeak, chain
diameter 8mm
Stainless Steel Trefoil type anchor Kg 10.
Stainless Steel stem plate with mooring fairlead integrated.
Galvanized 8 mm steel chain, 50 mt length with swivel.
N. 6 flush deck cleats, N. 2 on the bow, N 2 mid ships, N. 2 at stern.
N. 8 Pushlock along the toerail toward the CL. for fenders.

DECK FURNITURE

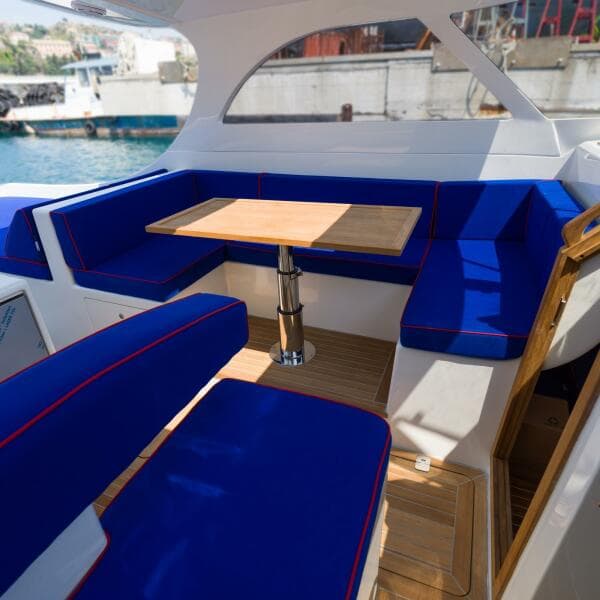

Dinette

C shaped lounge with folding CL seat.
Drawer below seats
Teak covered hi-low table.
Hatch with direct access to bilge area
Hatch with access to fuel tank inspection

Galley

Stainless steel sink with hot-cold mixer faucet.
Refrigerator 110 l.
Freezer sunk in countertop 50 l.
Electric cooktop with two burners.

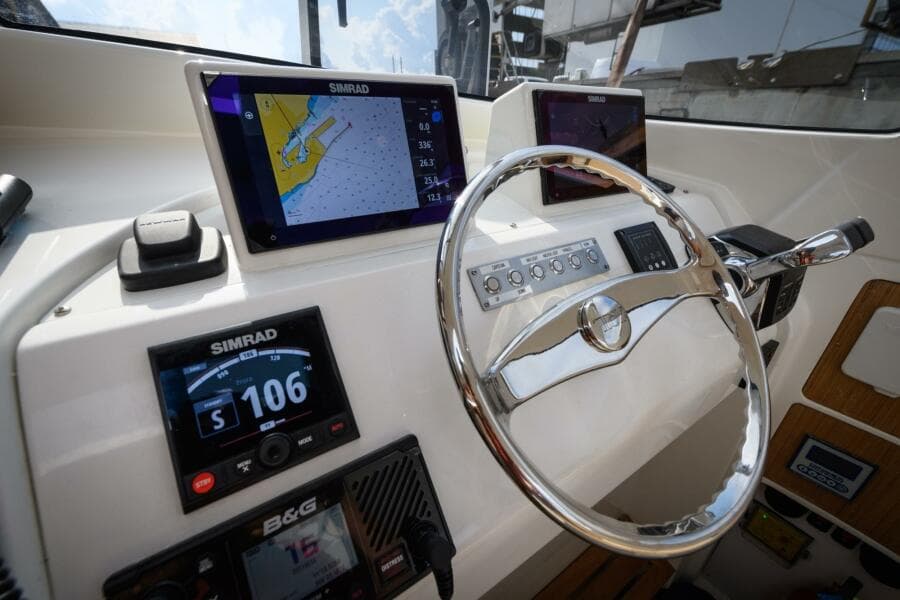

Steering station

Double helm seat to the front of the galley.
Helm console with instruments and engine controls and various, 1 Display 9”
3” magnetic compass.
Electronic engine controls.
Ongaro stainless steel steering wheel.
Hydraulic steering pump.

Upholstery and canvas

Dinette cushion with Sunbrella washable external cover.
External cushions with closed cell rubber foam and with Sunbrella washable external cover.

INTERIOR FURNITURE

Interior material

Furniture and bulkheads and hull linings off white lacquered with teak trims or
teak/mahogany veneered, door frames bulkhead flush and teak doors.
Cabin sole made of marine grade plywood and finished with teak, oak or
mahogany veneer.
Door handles, and interior fittings in polished stainless steel or satin finish.

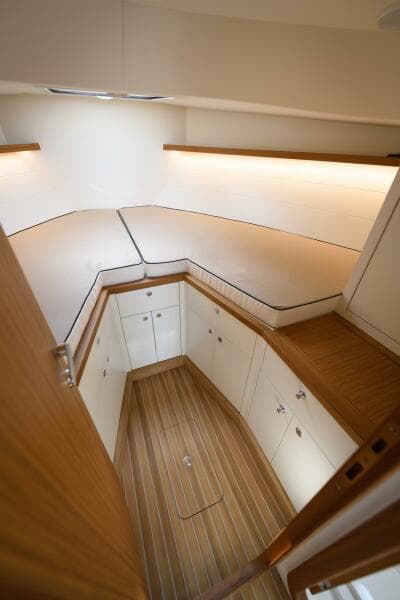

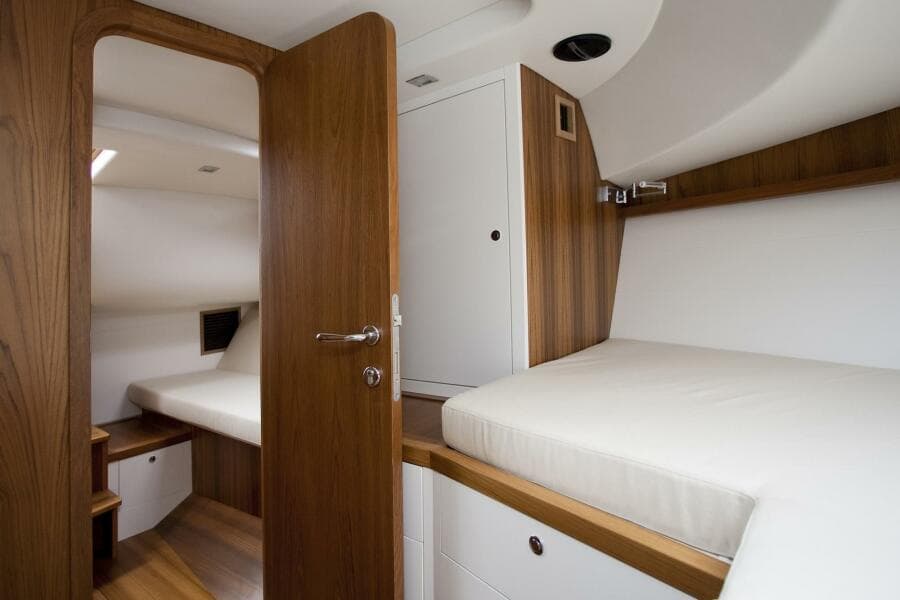

Cabins

Twin size bed with “V” layout.

- N. 2 hanging locker with drawers.
- Drawers and storage under berth.
- 220V 60hz outlet.
- N. 1 opening deck hatch.

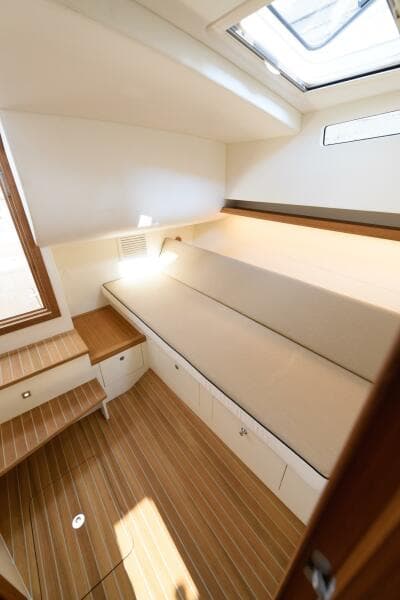

N. 1 sliding sofa / bed.

- Cabinets and bookshelf.
- Hatch and fixed porthole

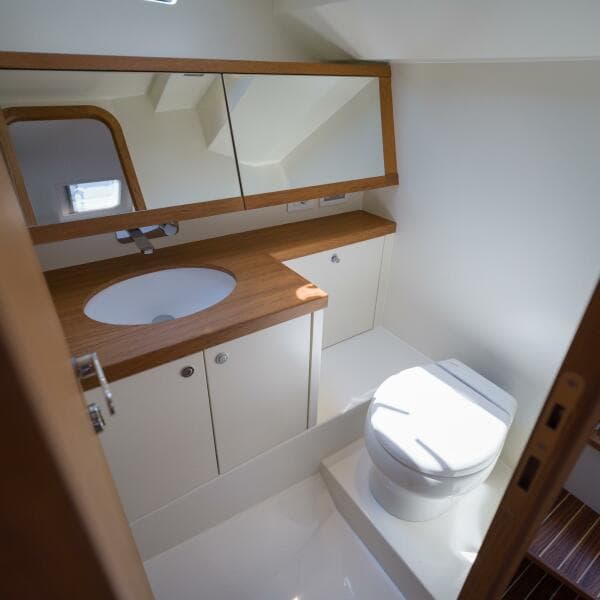

Heads

Sink with shower mixer & support. storage below and vanity mirror.
Shower with teak gratin.
Hot-cold lever mixer faucet.
Electric toilet.
220 V AC 60hz outlet.
Complete set of bathroom accessories.
Opening deck hatch.

Upholstery

Foam berth mattresses with lining.
Bedspreads and cushions made of “ecru” fabric.
Clear leather like vinyl ceilings.

ENGINES

2 engines YANMAR 370 hp. 8LV
RR 2.08 LP reverse gearboxes.
Stainless steel AISI 316 propeller shafts.
PSS shaft log seals and bronze stuffing boxes.
Bronze struts.
Four blades propellers.
Inox rudders blades 16/11V

Fuel system

50 mm Stainless steel fuel fills on deck with drain.
Structural GRP fuel tank of 242 UK gallons (1000 lt) capacity, with stainless steel
inspection and cleaning port including fills, supplying engines and generator.
Tank level gauge at steering station.
RiNa approved flexible fuel piping.
Racor filter for each engine.

Cooling and exhaust system

Engine cooling system with heat exchanger.
Bronze seacocks with valve.
Raw water strainers with removable stainless steel filters.
Wet engine exhaust system with submersed exits and by pass for low rpm at stern under swimming platform.
4” Engine Exhaust.

Ventilation and insulation

Engines air intakes from deck house sides grids.
Engine hatches and engine room acoustically insulated with fireproof and washable material.

AUXILIARY EQUIPMENT

Fresh water system

Stainless steel flush fill on deck.
N°2 structural GRP 132 UK gallons (250 lt.) each tanks with inspection ports.
Water level gauge at steering station.
Fresh water pressure pump.
220V AC 60hz, 25 lt boiler.
Water distribution system for galley, head and cockpit shower.
Cockpit shower with hot and cold water.

Salt water system

Raw water pressure pump.
Manifold for distribution to WC
Anchor locker chain washer.

Grey water system

Grey water tank for head sink and shower including 12V drain pump.
Galley sink with overboard discharge.

Black water system

N. 1 electric toilets.
Black water polypropylene tank with electric sump pump and Y valve.
Alarm for full tank, valves manifold for dock / overboard discharge.

Bilge system

N. 4 12V DC automatic bilge pumps. One in aft peak, one mid ship / engine bay, one for cabin / forepeak.
Emergency engine room suction system (LUPE)
Bilge pumps have automatic switch floats and manual override switches on helm console.
