2025 Archipelago A-80 Expedition
Fort Lauderdale, Florida, United States
$6,900,000USD
80'Length
2025Year
NewCondition
DieselFuel
PowerType
AluminumHull
Description

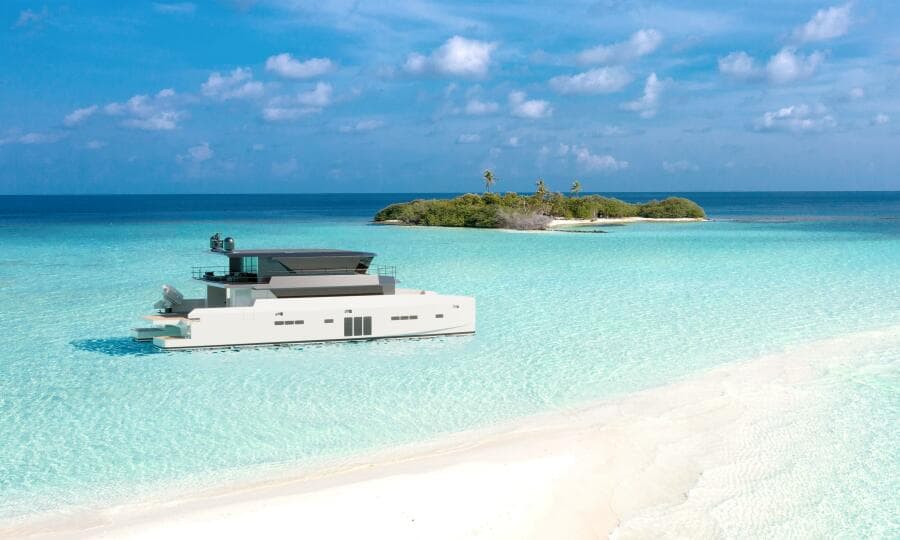

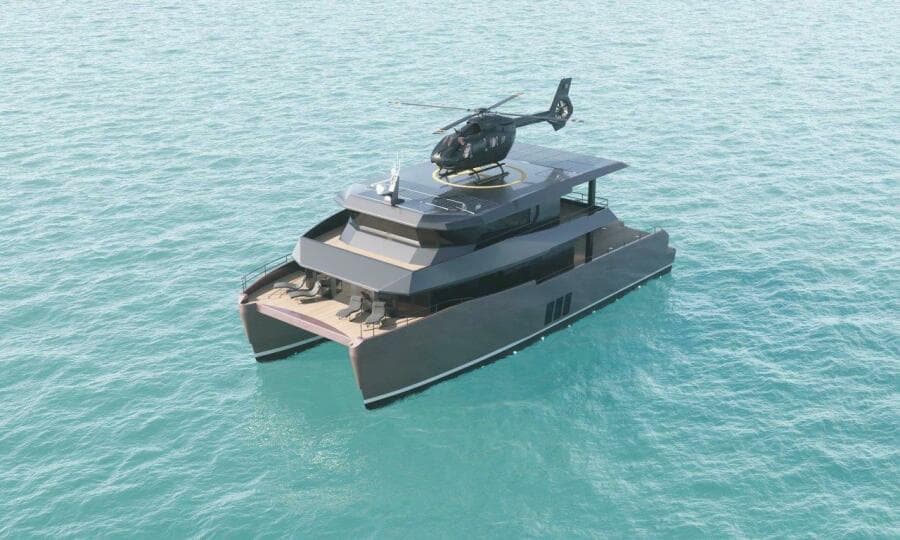

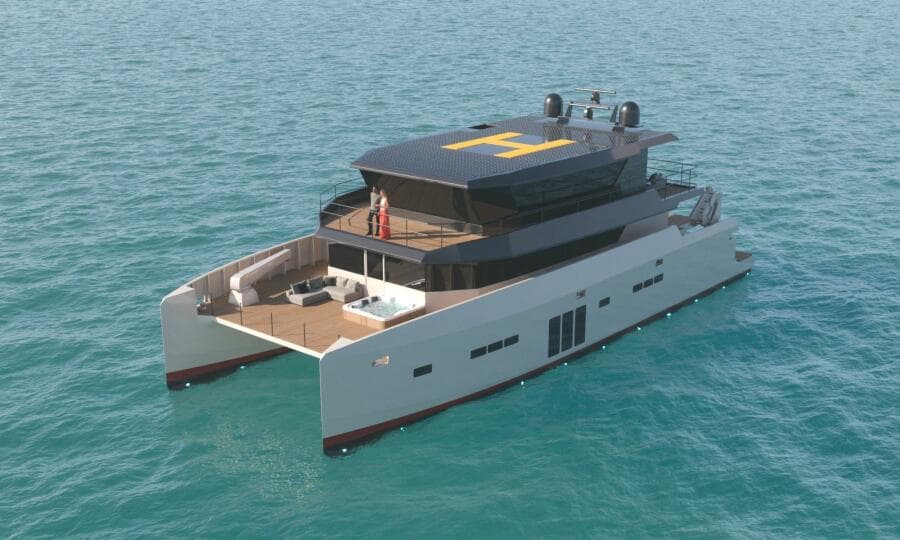

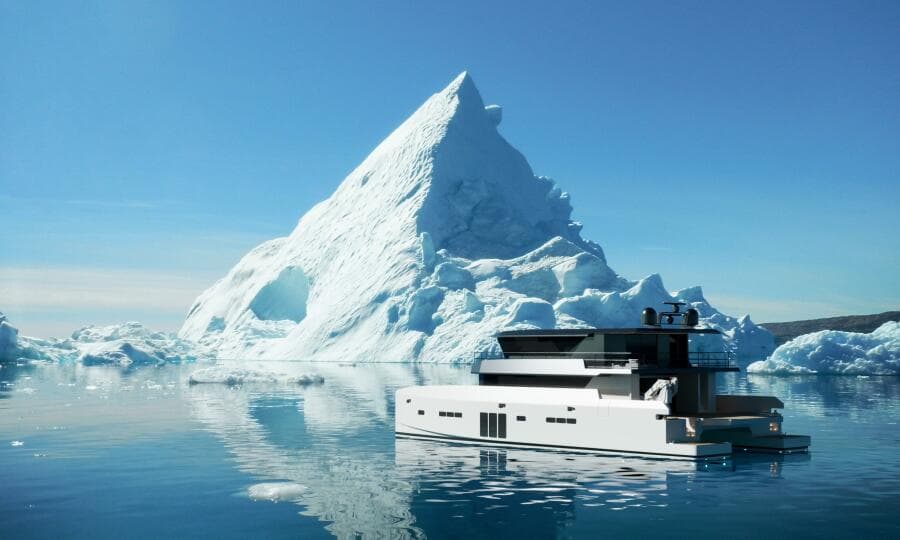

Currently under construction in Vietnam with an expected delivery of October 2025. The Archipelago A80 is designed for extended offshore exploration. Built to MCA class with 4 staterooms, 20,000l fuel, 5000nm mile range, 20kw solar, and 25kt top speed, the A80 is helicopter and sea plane capable. Super yacht quality, designed for remote areas the A80 is able to be customized to suit your needs.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Luke Brown Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
UNDER CONSTRUCTION
Key Specifications
LOA80'
Beam36'
Draft Max4' 2"
TypePower
Hull MaterialAluminum
FuelDiesel
Tankage
Fuel2642 gal
Water264 gal
Engines
MAN i-6-850Inboard
MakeMAN
Modeli-6-850
TypeInboard
Fuel TypeDiesel
Power850 HP
LocationPort
MAN i-6-850Inboard
MakeMAN
Modeli-6-850
TypeInboard
Fuel TypeDiesel
Power850 HP
LocationStarboard
Full Details
Standard Layouts
- Master Cabin + Four (4) VIP Guest cabins + Crew cabin
- Master Cabin + Three (3) VIP Guest cabins + Crew cabin + Captain's cabin
Main Machinery, Propulsion, and Maneuvering Equipment
PROPULSION:
- (2) MAN i6-850 main engines, 850 hp/ 625 kW each
- (2) Stainless steel propeller shafts with dripless shaft seals and spare seat
- (2) Bronze Veem fixed pitch 5-blade propellers with interceptor adjustment blades
- Set of propulsion, helm, and speed control panels with levers in upper wheelhouse
POWER SUPPLY SYSTEM:
- (1) Marine type generator set (19,0 KVA, 230 VAC @ 50 Hz, single phase
RENEWABLE ENERGY SOURCES:
- Set of Solar panels across the entire roof area, giving c.20kW installed power
RUDDERS AND STEERING SYSTEM:
- (2) Bronze rudders
- (2) Rudder stocks, stainless steel
- (2) Sets of self-aligning lower and top bearings
- (2) Emergency tillers
- Set of Electro-Hydraulic steering system
MANEUVERING EQUIPMENT:
- (2) Proportional Sleipner 48V DC bow thrusters
- (2) Proportional Sleipner 48V DC stern thrusters
- Dockmate system with Dynamic Positioning (DPS)
Deck Equipment
ANCHOR EQUIPMENT:
- (2) Quick windlass 3000w, 230 VAC
- (2) Galvanized anchor 75 kg VQR, plus 50m 14mm galvanized chain and 100m rode
- (1) Emergency anchor 34 kg + 20m chain
MOORING EQUIPMENT:
- (1) Mooring kit – 8 Fendertex inflatable fenders plus 4 mooring ropes
- (2) Lewmar electrical mooring capstans aft
- (1) Hinging swim ladder on the sugar scoops
Interior
INTERIOR DESIGN:
Personalized design including:
- (2) Days with dedicated Archipelago interior designer
- (1) Render of Salon
- (1) Reder of Owner’s Cabin
- (1) Render of Owner’s Head
FLOORING COVERING:
- Laid timber strip synthetic floor in salon and wheelhouse
- Decorative carpet in salon – design type TBA, removable
FURNISHINGS AND INTERIOR OUTFITTING:
Set of galley and household appliances as listed (Siemens or Bosch):
- (1) Refrigerator with freezer
- (1) Dishwasher
- (1) Electric oven
- (1) Washer/dryer
Exterior
EXTERNAL HULL FINISHING SYSTEM
DECK COVERINGS:
- All working decks finished with anti-skid painted surface
EXTERNAL DOORS:
- (1) Sliding door (manually operated) from cockpit to salon – stainless steel frames
- (2) Sliding door (manually operated) from wheelhouse to balcony
- Pantograph fore access door for access to foredeck from salon
WINDOWS:
- Set of fixed windows with tinted glass on main deck
- Set of fixed skylights in salon fore area
- Set of window wipers for wheelhouse with wash wipe system
Piping System
FUEL SYSTEM:
- Set of separated fuel oil tanks with (2) day tanks, and (4) bunkering tanks (20,000 l total capacity)
- (2) Racor Duplex fuel filters with drip tray and water sensors
- (2) Fuel polishing units (one per hull)
BILGE SYSTEM:
- (8) Electrical bilge pumps, with oil filter in engine room, in compliance with MGN280
FRESH WATER:
- (2) Fresh water tanks with electronic readout level indicators (volume 1000 l each)
- (2) Fresh water pressurizing pumps
- (2) Fresh water heaters (100 l capacity each)
- (1) Hand shower on deck
- (1) Blue Water water maker 280l/h – 220V DECK WASH SYSTEM:
- (1) Fresh water outlet on cockpit (female quick-coupling snap connector)
- (1) Fresh water outlet for washing the foredeck
- (1) Fresh water outlet on balcony
- (1) Fresh water outlet in both sugar scoops
- (1) Retractable 5m hose in both chain lockers for chain wash SANITARY DRAINS SYSTEM:
- (2) Black/ grey water tanks 500L with discharge systems
- (2) Electric sewage discharge pumps
- Set of 24V electric toilets in bathrooms with fresh water flush
HVAC System:
- Set of Termodinamica air conditioning system – capacity 250 000 BTU/h (new technology ultra-efficient – Energy Saving VFD controlled 230V AC)
Electrical Systems
AC DISTRIBUTION SYSTEM (110 or 230VAC, depending on configuration):
- Set of AC distribution system and wiring
- (1) Main switchboard AC 230V @ 50 Hz, 1 phase
- (1) Shore connection (32A, 230V @ 50 Hz, 1 phase)
- (1) Shore connection power cord 20m long
- (2) Victron Quattro 24V/5000W/120A combined inverter and battery charger
- Set of 230V @ 50 Hz sockets, with USB charging
DC DISTRIBUTION SYSTEM:
- (1) Main switchboard, 24 V DC
- Set of DC distribution system and wiring
- (1) DC-DC charger for 24V battery bank
- Set of Lithium battery banks (25.6V DC / 14,0 kWh)
- (2) Sets of starting batteries for gensets
- (2) Chargers for genset starting batteries (one per each engine room)
DIGITAL SWITCHING:
- Set of Automation system (digital switching) with following functions shall be installed:
- Lighting with dimming
- Navigation lights
- Control valves and pumps
- Tank level monitoring
Lighting System
- Set of deck lights
- Set of interior lighting with LED lamps
- Set of lights in engine rooms
- Set of spot lights on sugar scoop steps and side decks
- Set of spot lights on front terrace deck and cockpit ceiling
- Set of Smart system controlling lights (including dimers for ceiling lights

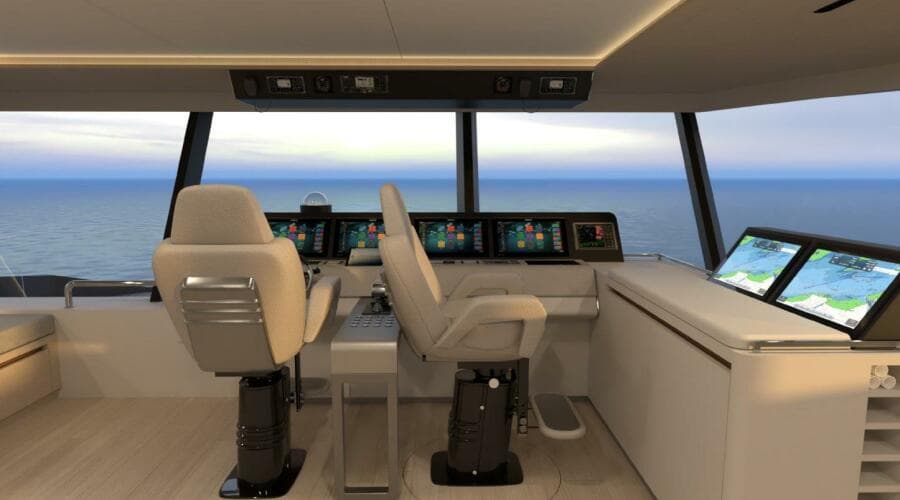

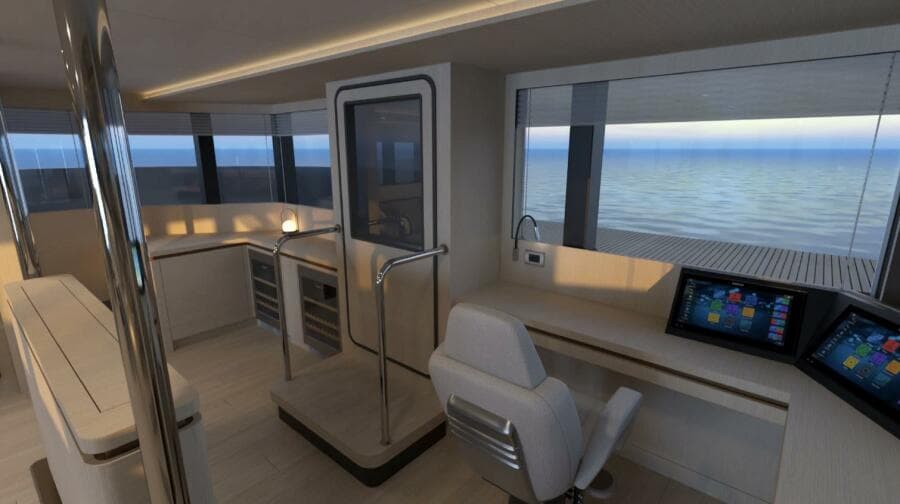

Navigation Equipment
- Set of Solas navigation lights with LED lamps, including NOC lights
- (1) Compass (135mm)
- (1) Chronometer
- (1) Barometer
RAYMARINE NAVIGATION PACKAGE:
- (3) Raymarine Axiom 16” Touch Multi-function display
- (1) Raymarine RD424HD 24” 4kW 608mm digital radome radar
- (1) Raymarine Evolution autopilot
- (1) Raymarine AIS700 – Automatic Identification System
- (1) Multisensor (depth, speed & temperature sensor)
- (1) Wind sensor
- (1) GPS
- (1) Raymarine Modular Dual-Station VHF radio system Ray90
- (1) Searchlight with control unit
- (1) Electric fog horn
- (1) Wireless autopilot controller
Further navigational equipment / manufacturers can be supplied as required
Audio/Video/IT Equipment and Services
TV’s:
- (1) Wide screen LED 55” TV with installation (salon)
- (1) Lifting system up/down (if possible depending on customer layout)
- Set of 40” LED TVs with installation (price per cabin)
AUDIO:
- Set of Sonos wireless speakers in all living spaces (excluding heads) and eternal for aft deck and balcony
IT:
- Set of wireless distribution throughout vessel, including 4G mobile antenna (SIM not included)
- (1) Starlink Marine antenna with installation (subscription not included)
Safety
ADOPTION TO SPECIFIC FLAG REQUIREMENTS:
- Compliance with MCA Small vessel Commercial Craft Code (MGN 280 (M))
FIXED FIRE EXTINGUISHING SYSTEM:
- Set of Stat-X automatic fire extinguishing system with helm controls
MISCELLANEOUS SAFETY EQUIPMENT:
- Set of complete rescue equipment with life-rafts for 16-people with Solas grab bag and Cat C first aid kit
- (1) EPIRB
