Description

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

Key Specifications

LOA91' 11"

Beam39' 5"

Draft Max5'

TypePower

Hull MaterialGRP

FuelDiesel

Cruise Speed12 Knots

Max Speed14 Knots

Weight & Measurements

Gross Tonnage243

Accommodation

Cabins4

Sleeps8

Tankage

Fuel5283 gal

Water761 gal

Holding5283 gal

Full Details

GENERAL DESCRIPTION

Builder Wider
Length (L.O.A.) 28,04 m (92’ 0”)
Length Moulded (Lh) 27,80 m (91’ 2”)
Waterline Length (LWL) 25,49 m (83’ 8”)
Beam Max (BOA) 11,98 m (39’ 4”)
Draft (at full load) 1,90 m (6’ 3”)
Gross Tonnage (GT) 243 GT
Displacement Full Load 159 ton (351,549 lb)
Building Material GRP
Exterior Designer Luca Dini Design & Architecture
Interior Designer Luca Dini Design & Architecture,
Wider Centro Stile
Naval Architect Wider Engineering & MDS
Engineering
Certification RINA Class
Location Fano, Italy

ACCOMMODATION

Cabins 4+2
Berths 8+4
Heads 4+2+1

PERFORMANCE

Engines 2x Danfoss e-Motor 500 kW
Gearbox 2x Twin Disk MGX-5136SC
Genset 2x FPT N67 570 EVO 357 kW
Battery Pack 30 x Wider LiFePO4 – Total NET
Capacity 360 kWh At Anchor 15 h
Maximum Speed (Trial Condition) 14 knots
Cruise Speed (Trial Condition) 12 knots – Range 1500 nm
Ecological Speed (Trial Condition) 8 knots – Range 3100 nm
Long Range Speed (Trial Condition) 6 knots – Range 4100 nm
Zero Emission Mode (Trial Condition) 6 knots – Range 24 nm

TANK CAPACITIES

Fuel Capacity 20,000 lt (5,283 US GLS)
Fresh Water 2,000 lt (528 US GLS)
Grey Water 2,000 lt (528 US GLS)
Black Water 1,000 lt (264 US GLS)

MAIN DECK

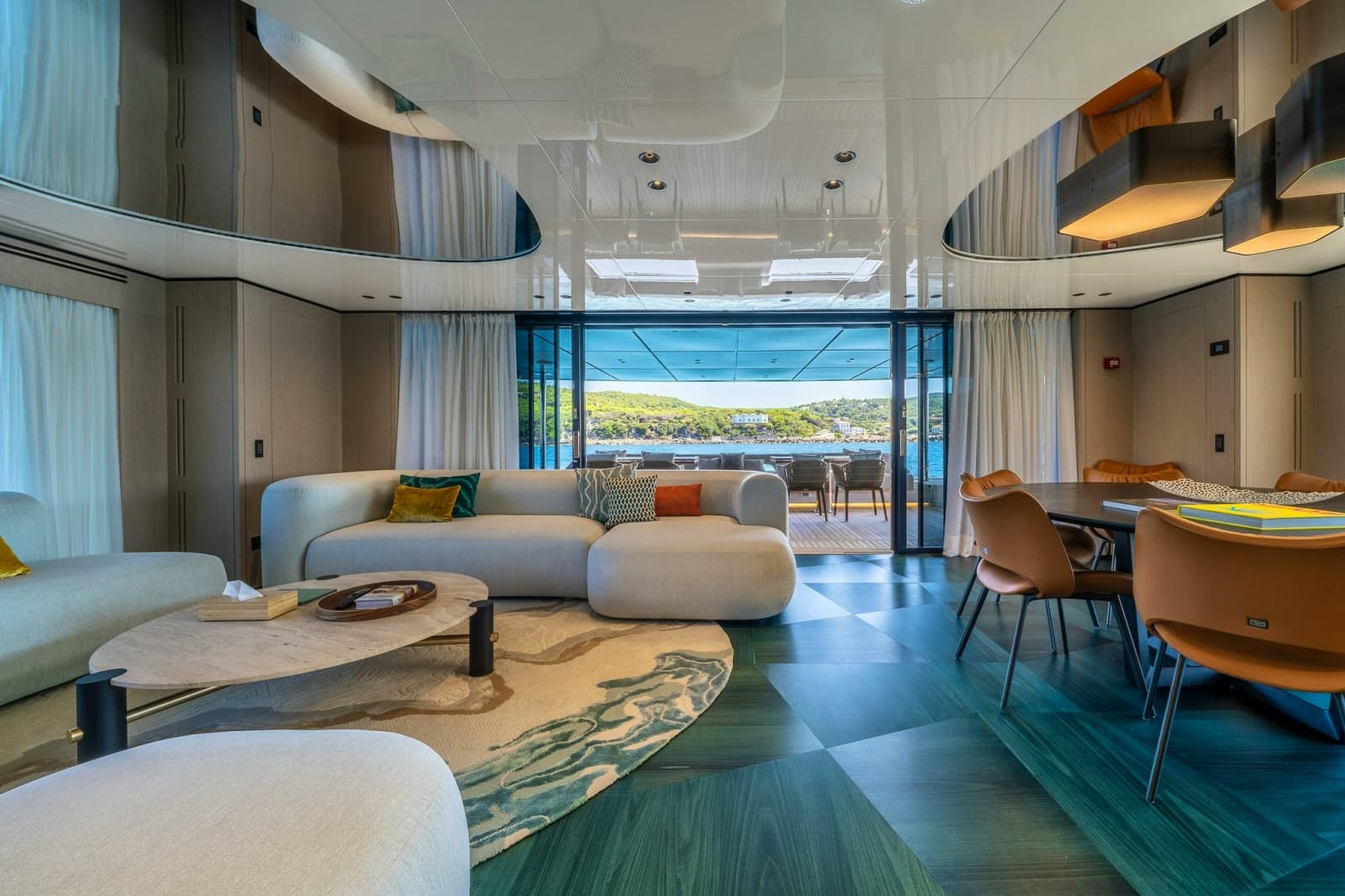

LOUNGE AREA
► Air conditioning
► Cabinet with wood doors and leather-topped shelves
► L-shaped fabric sofa (Wider Centro Stile custom design)
► Coffee table
► Manually-operated vertical pleated curtains for doors and
windows (fixed aft glass door and fixed side windows)
► 55” LED TV - freestanding
► LED ceiling spotlights 24 Vdc
► Lighting control point (3)
► Sockets (3)
► Fire sensor (1)
► Hi-Fi system
► Ceiling speakers (2)
► Subwoofer
► Music control console
► B&O Core Multiroom (share music in all the B&O Zone
through B&O App for smartphone or tablet)
► Wood flooring
► Wood teak ceiling

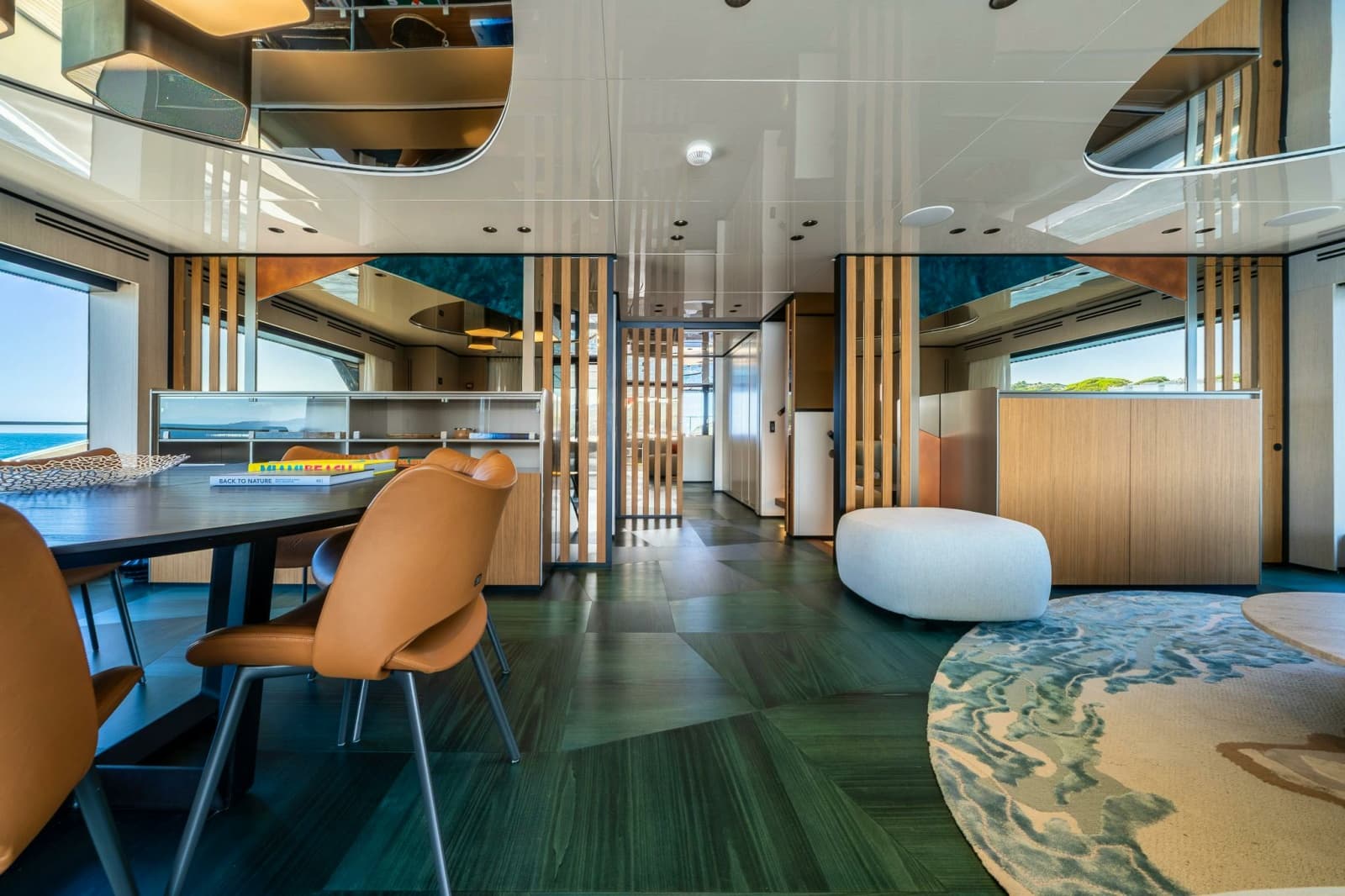

DINING AREA
► Cabinets (3) with wood doors and leather-topped shelves
► Air conditioning
► Tableware for 8 (serving dishes, porcelain panels, glassware,
stainless steel cutlery)
► Round dining table in wood with (8) chairs
► Manually-operated pleated curtains (fixed side windows)
► LED ceiling spotlights 24 Vdc
► Lighting control point (3)
► Sockets (3)
► Wood flooring
► Wood teak ceiling

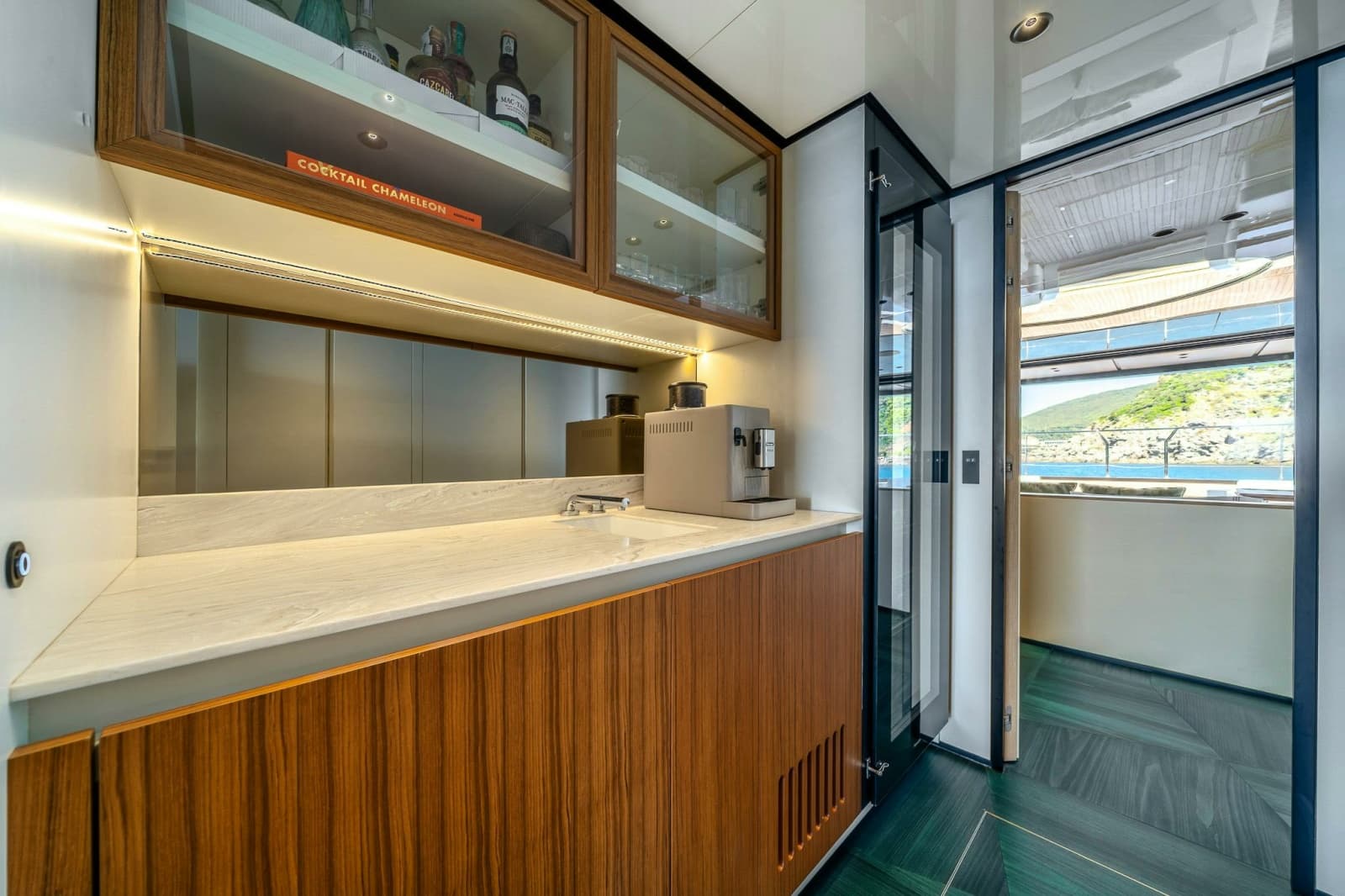

BAR / PANTRY
► Air conditioning
► Wine cooler
► Mini Fridge
► Ice Maker
► Cabinets with doors, shelves and drawers
► Corian® sink with hot/cold fresh water
► Wood flooring
► Corian® countertop
► LED ceiling spotlights 24 Vdc
► Undercabinet LED strip 24 Vdc
► Lighting control points
► Sockets
► Fire sensor
► Wood teak ceiling LAUNDRY AND CREW CORRIDOR
► Washing Machine Miele
► Dryer Miele
► Cabinet with door, shelve and drawer
► LED ceiling spotlights 24 Vdc
► Lighting control points
► Sockets
► Fire sensor
► Lacquered mat ceiling
► Exit door to side deck

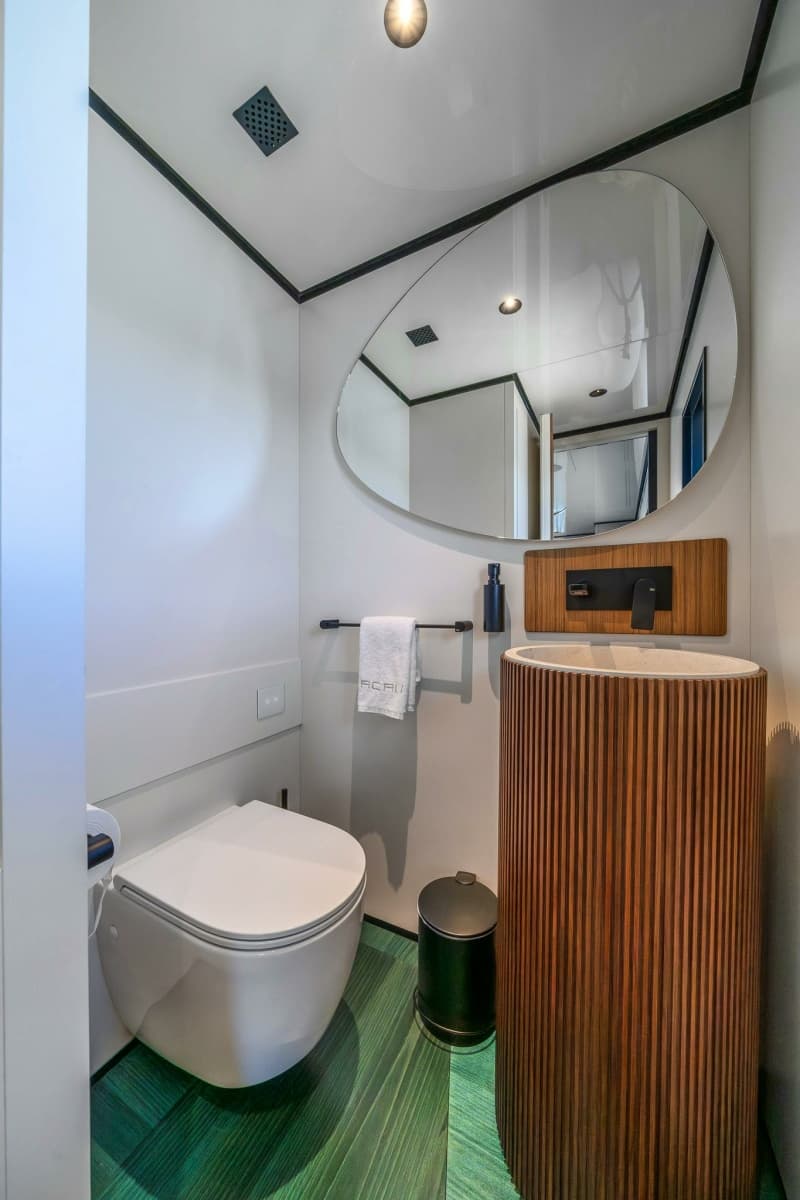

DAY TOILET
► Fixed glass window
► Bespoke free standing sink and tap
► Toilet control panel
► Wood flooring
► Mirror
► Manually-operated Venetian blinds
► Electric toilet 230 Vac
► Air extraction fan
► LED ceiling spotlights 24 Vdc
► Lighting control panels (1)
► Socket
► Soap holder
► Roll holder
► Toilet brush

MAIN DECK/EXT. AREAS

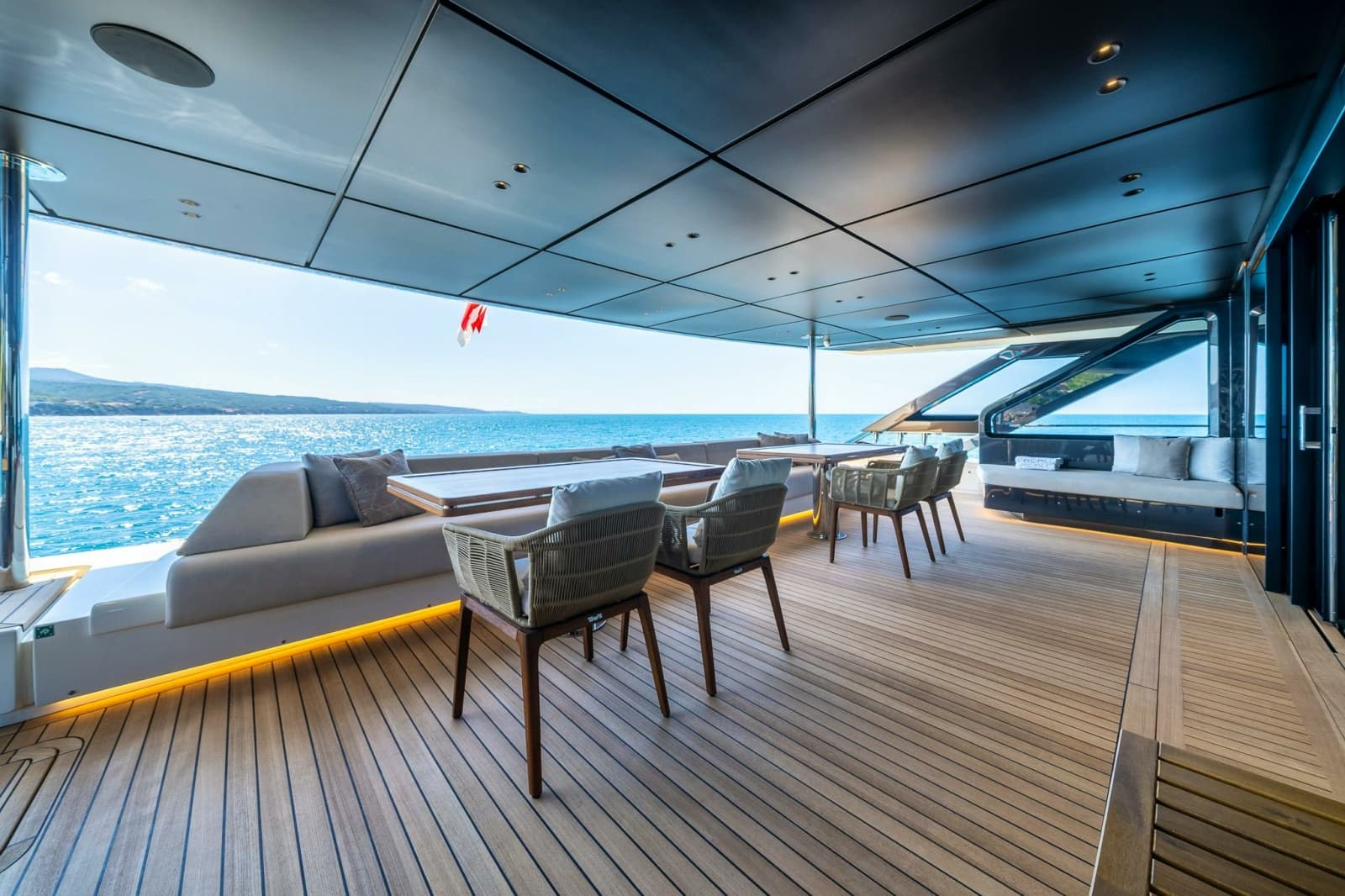

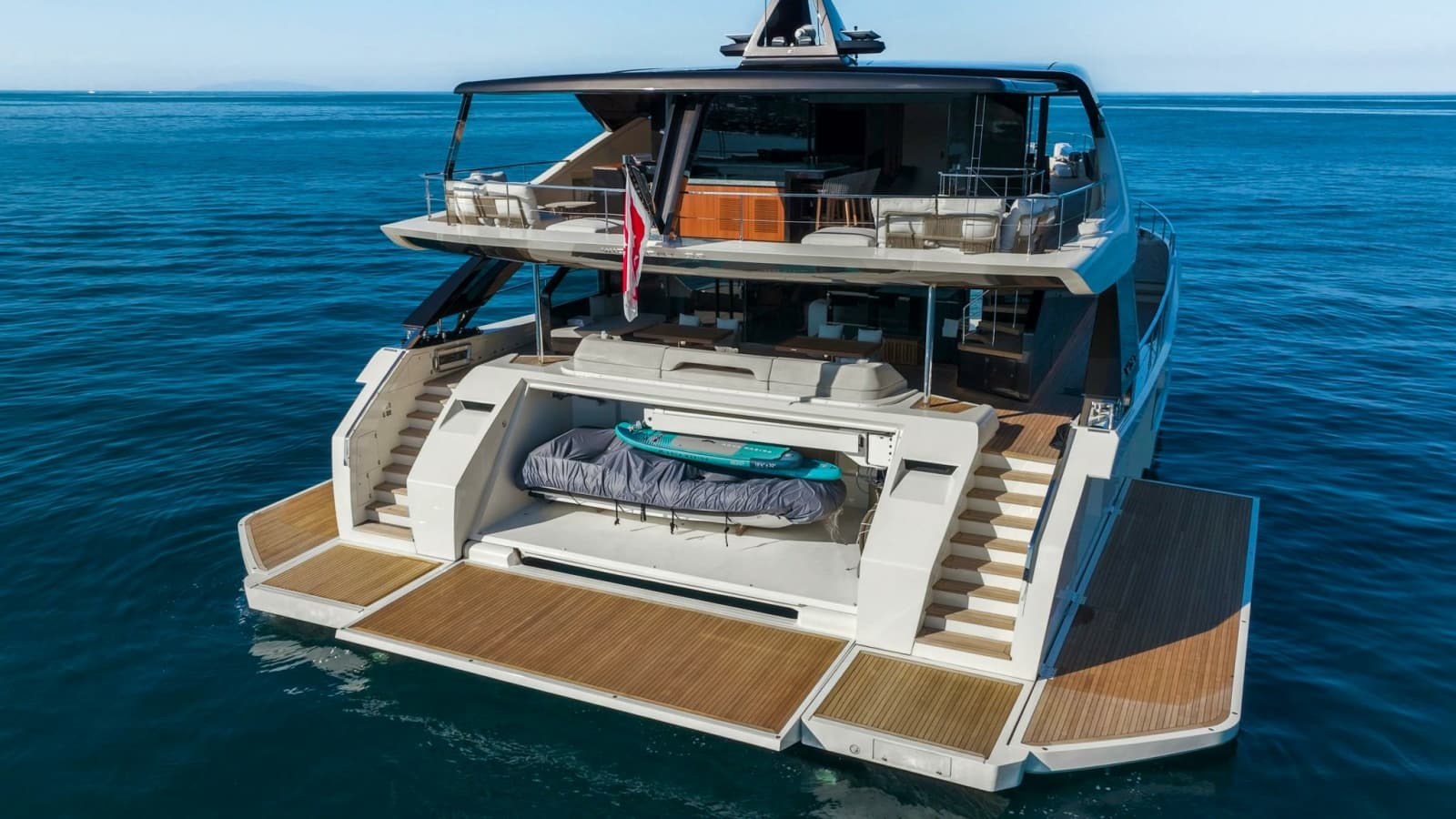

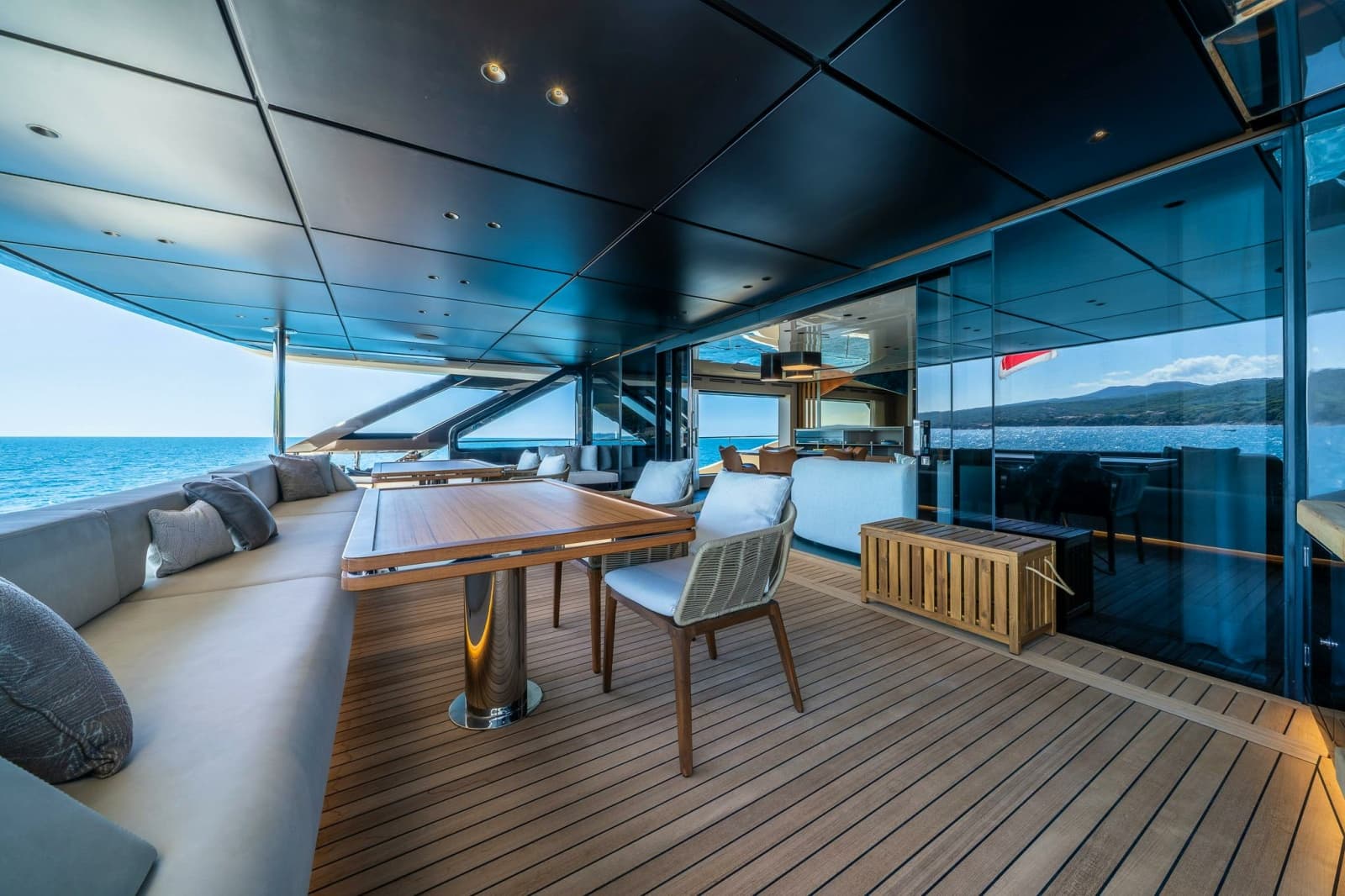

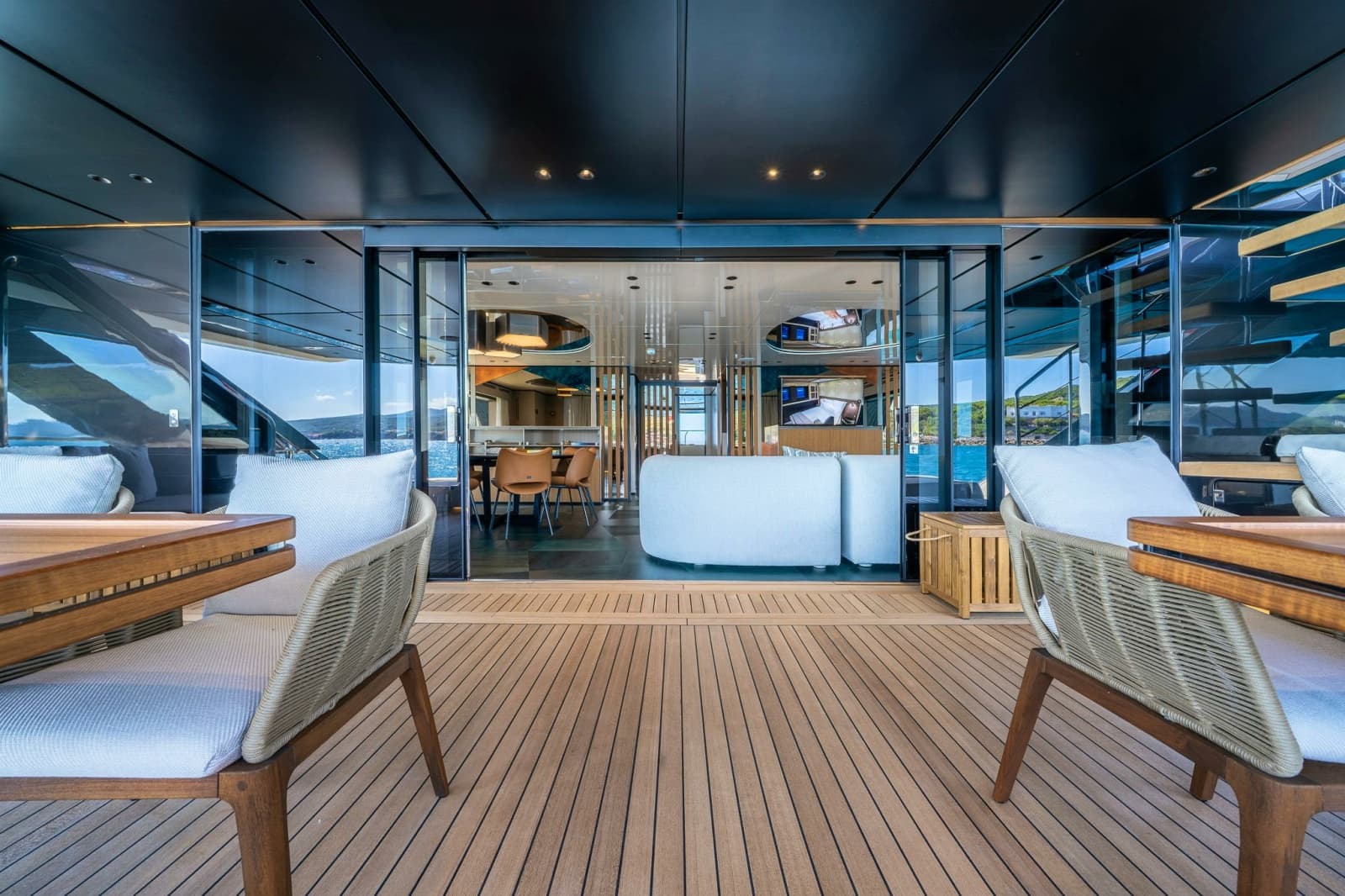

COCKPIT AND CORRIDORS

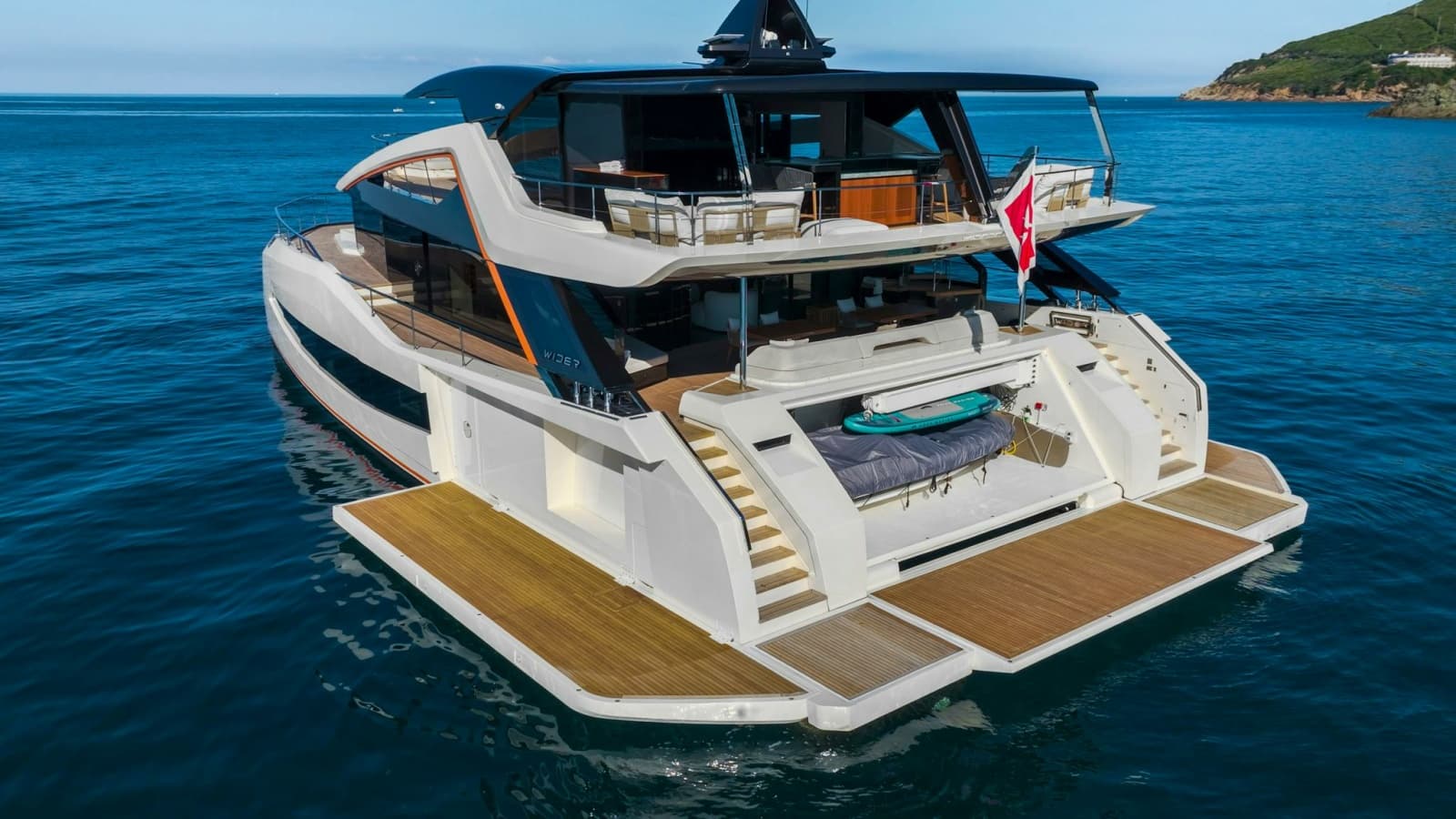

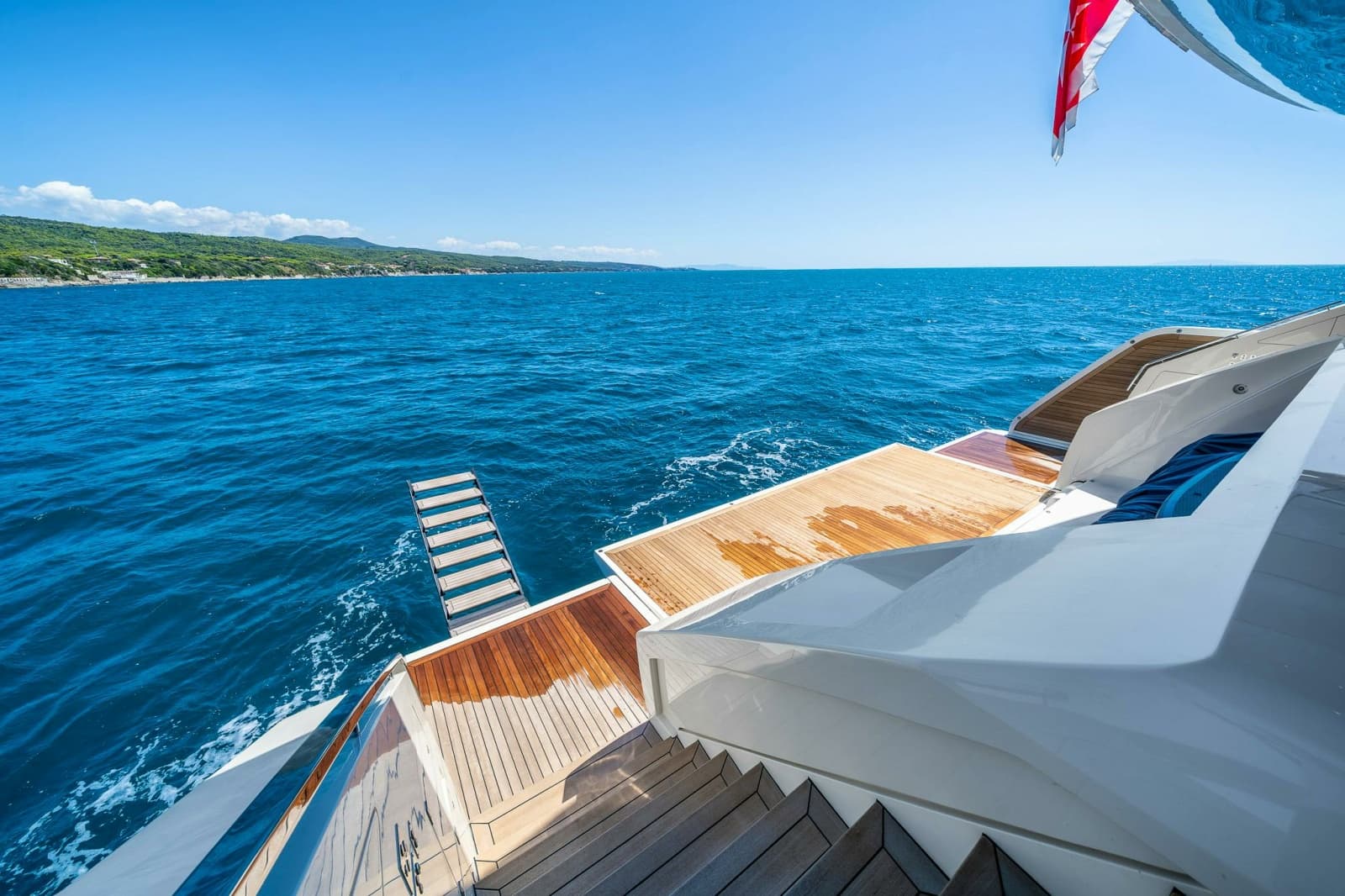

► Access to platforms (2) via aft teak wood staircase
► Stainless steel gates (2)
► Hand rails in stainless steel
► Main access to engine room (2) from deck hatch (internal
aluminium and teak staircase)
► Fixed GRP sofa with cushions and low tables (2) that convert
into a dining table
► Left side sofa with round smoking table (1)
► Access to flybridge (GRP, steel and teak staircase, stainless
steel handrails), starboard side
► LED ceiling spotlights 24 Vdc along side decks
► Low LED strip 24 Vdc along side decks
► LED ceiling spotlights 24 Vdc
► LED ceiling strip 24 Vdc
► Aft sofa LED strip 24 Vdc
► Platform access stairsteps LED strip 24 Vdc
► PVC textile coverings for GRP sofas
► Manually-operated aft glass sliding door with stainless steel
frame, for access to main deck saloon
► Lighting control panels (2)
► Hi-Fi system
► Ceiling waterproof speakers (2)
► B&O Core Multiroom (share music in all the B&O Zone
through B&O App for smartphone or tablet)

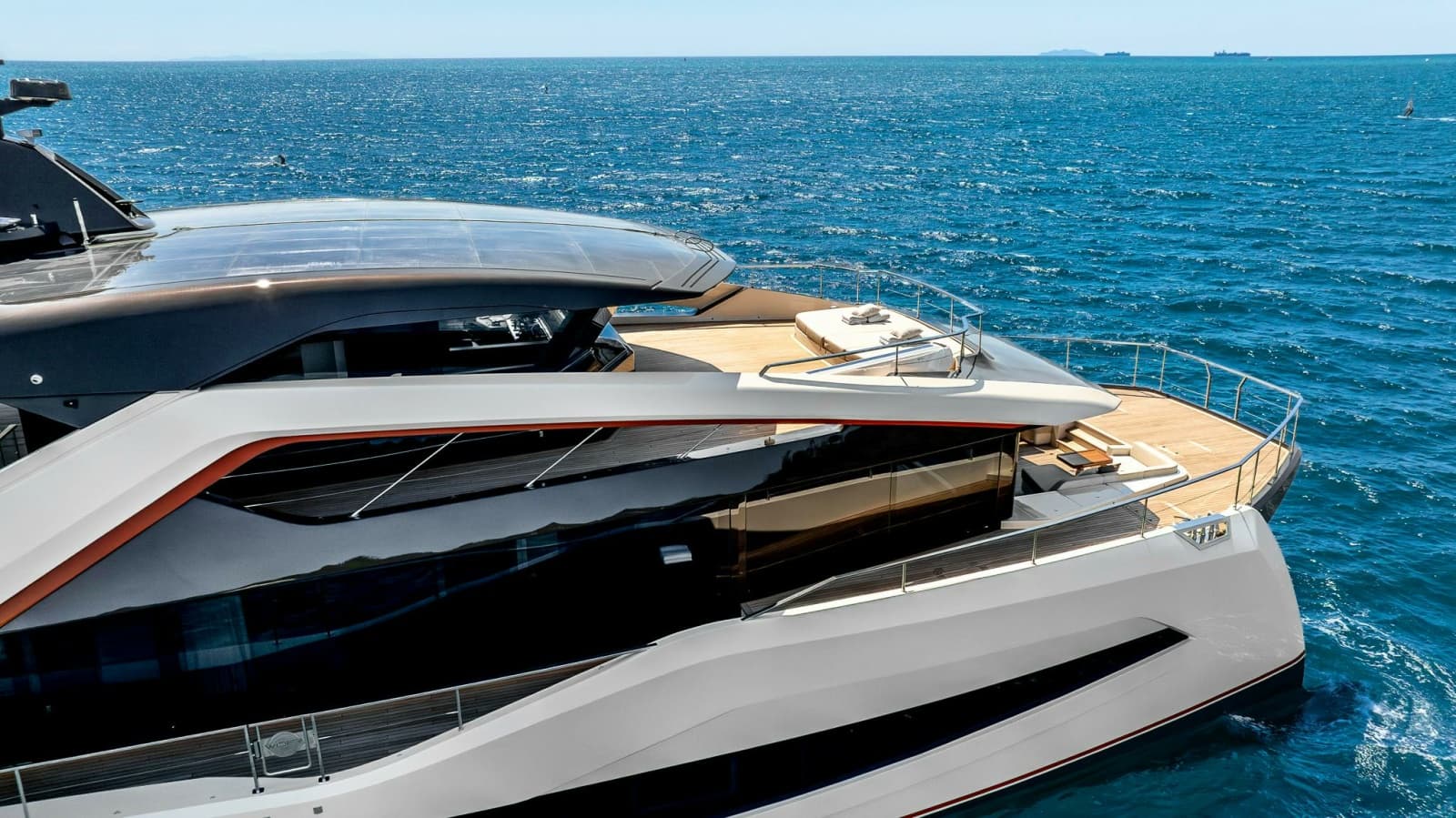

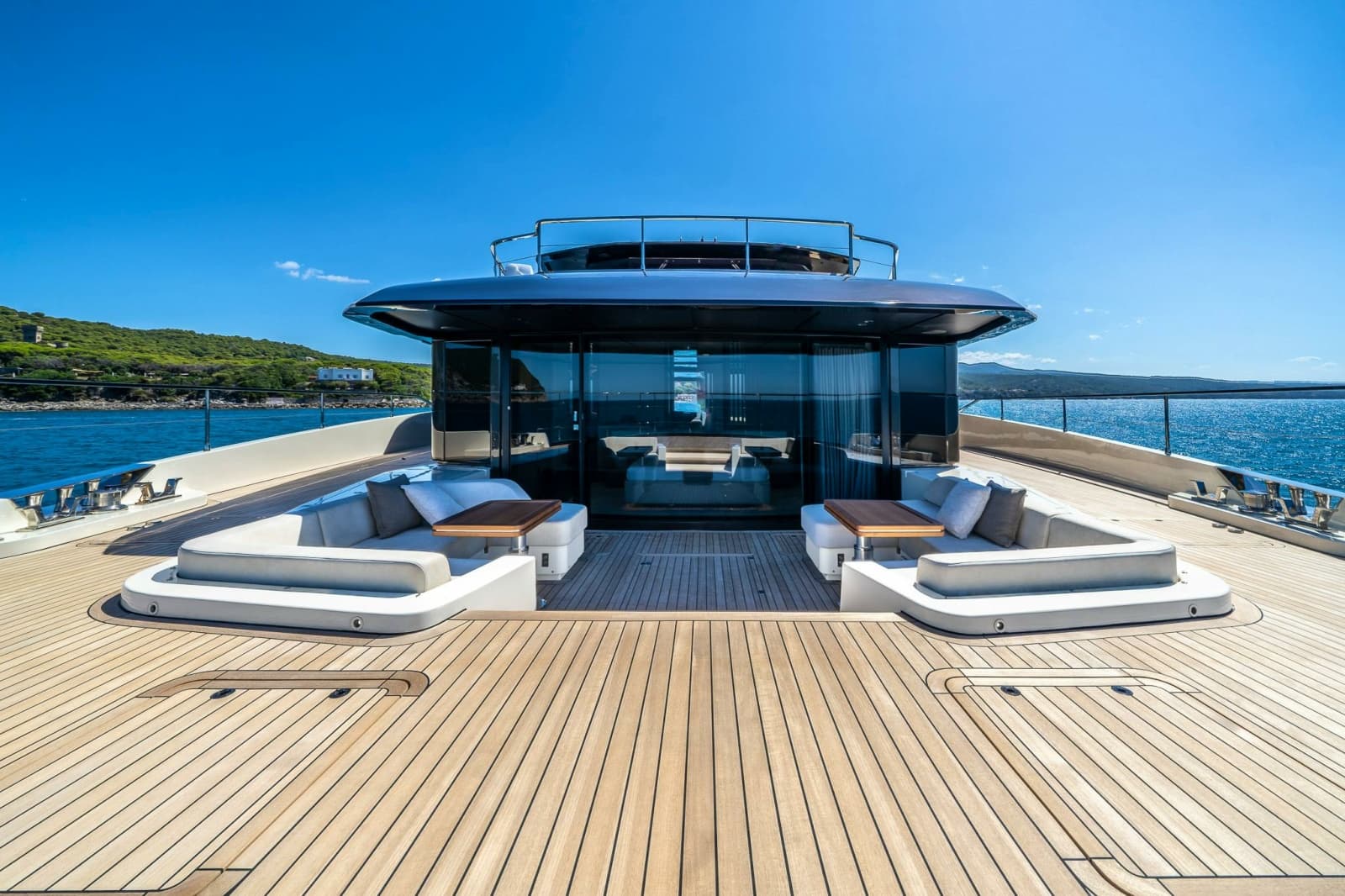

FORE EXTERNAL OWNER’S LOUNGE
► Dinette with opposite-facing sofas (2), low manuallyoperated
tables that convert into sunpads (2)
► Port and starboard side locker (2)
► ceiling waterproof speakers (2)
► LED ceiling spotlights 24 Vdc
► Sofa LED strip 24 Vdc
► Lighting control point (1)

UPPER DECK/EXT. AREAS

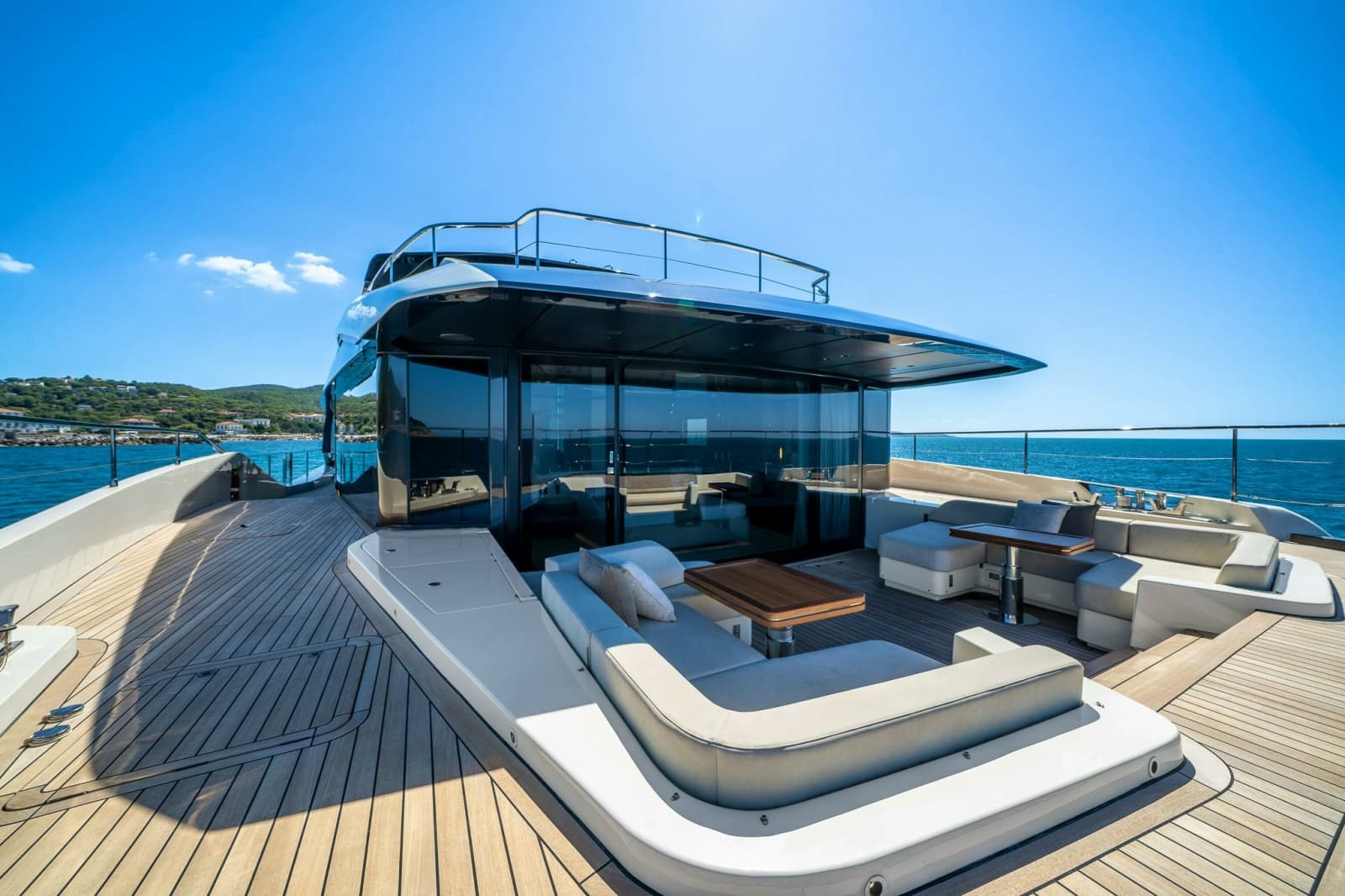

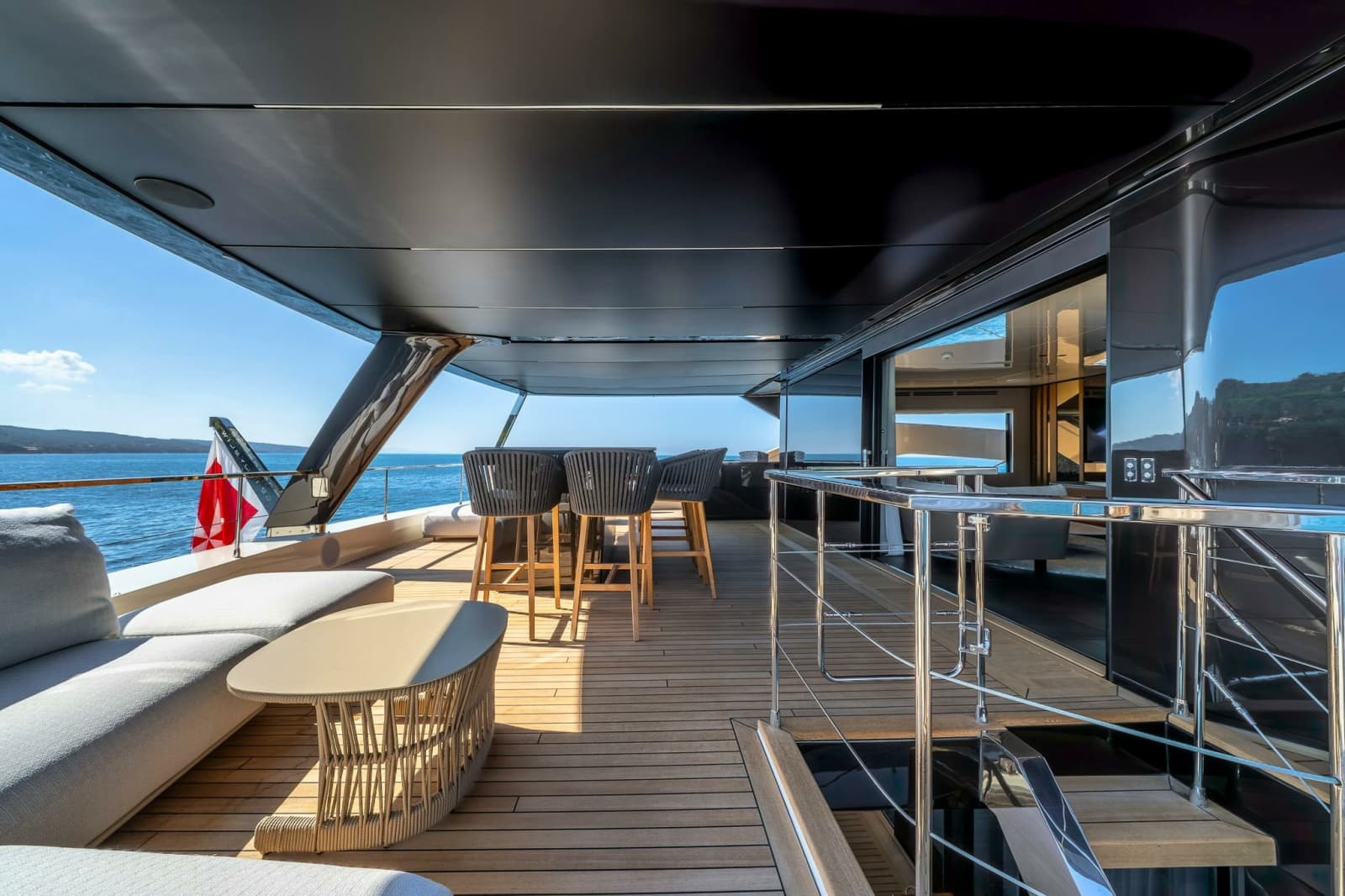

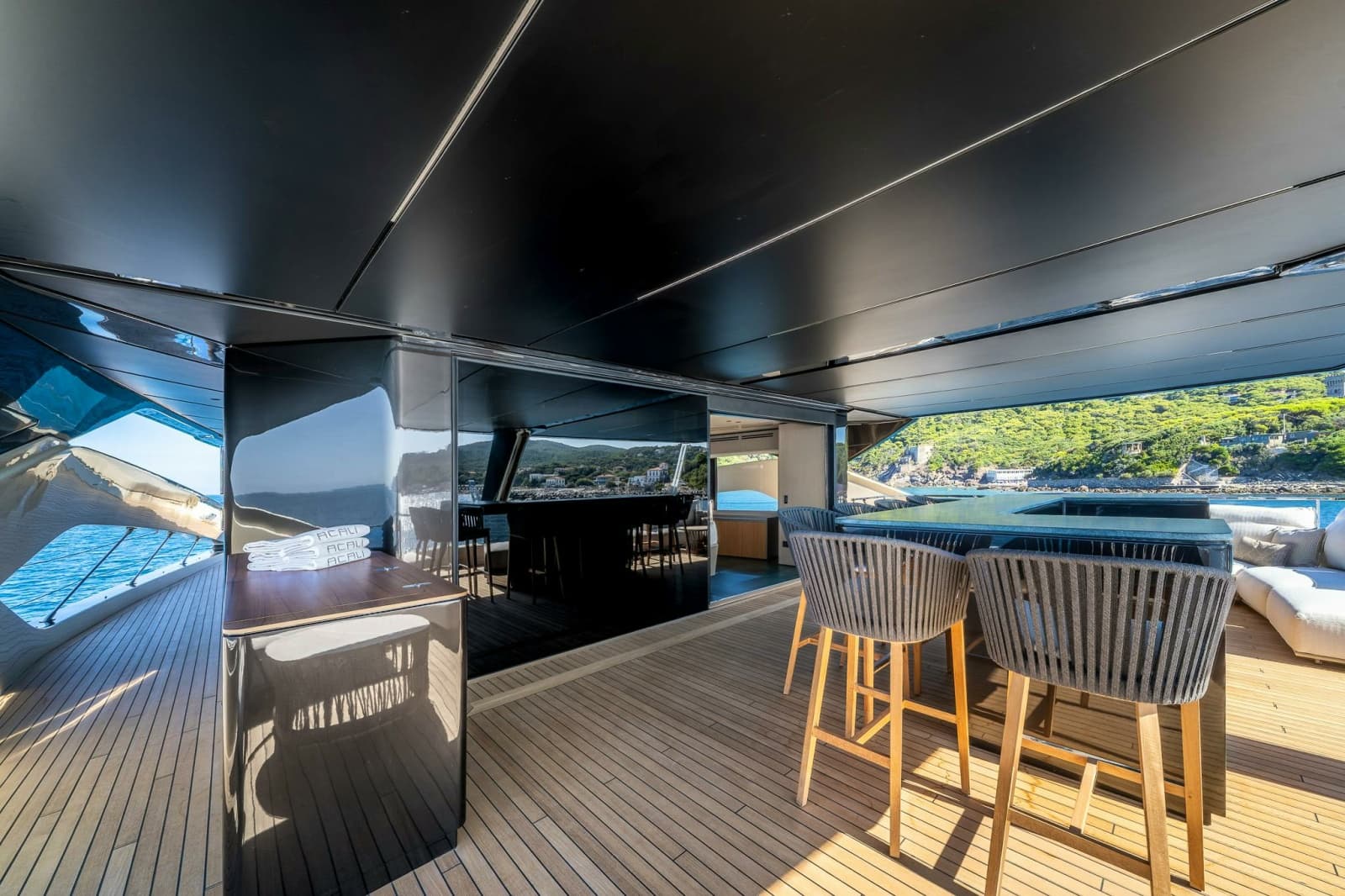

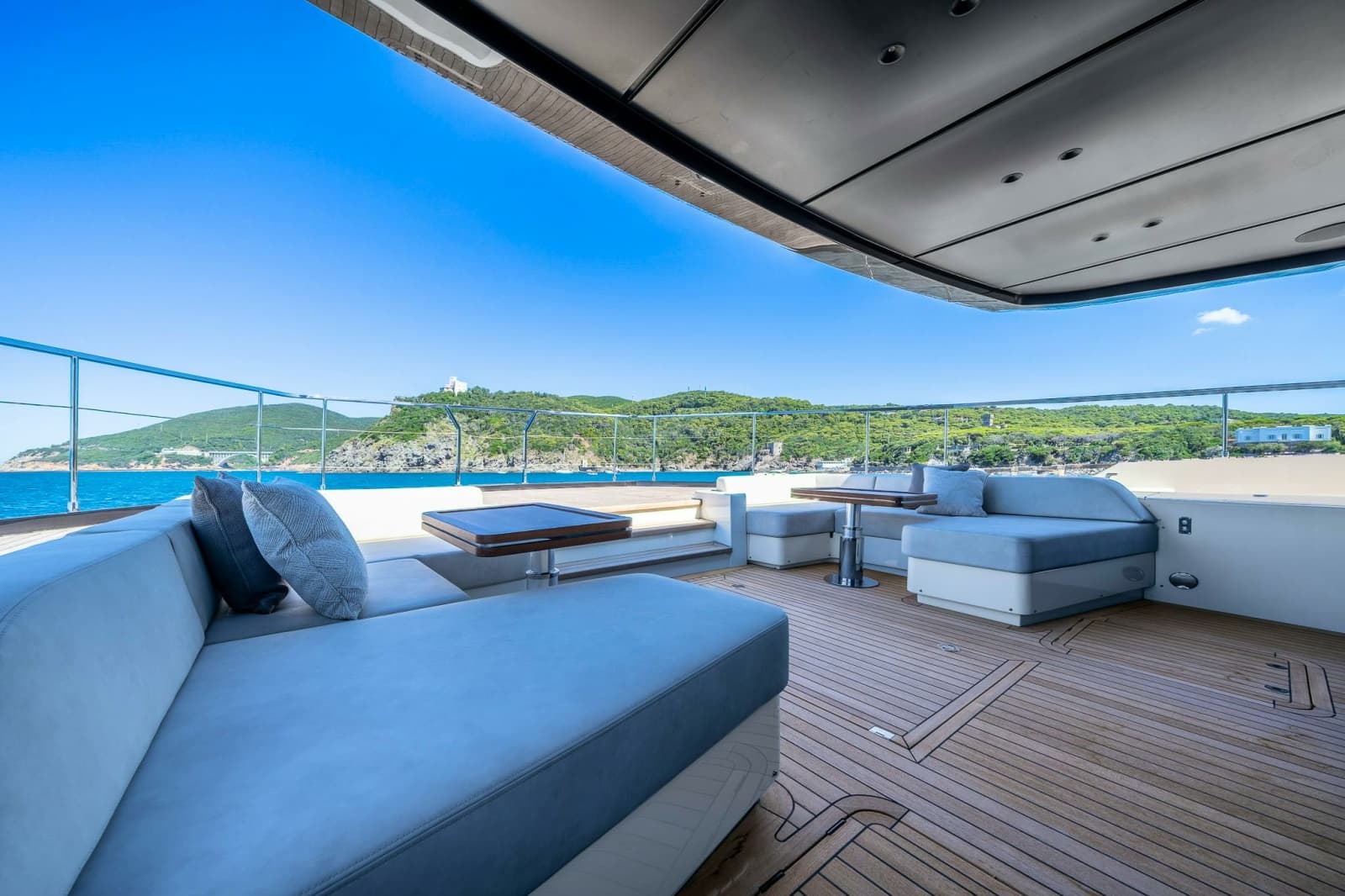

EXTERNAL LOUNGE
► Access to sky lounge and helm via manually-operated
double sliding glass door with stainless steel frame
► Free-standing L-shaped sofa (2)
► Coffee table (2), under roof

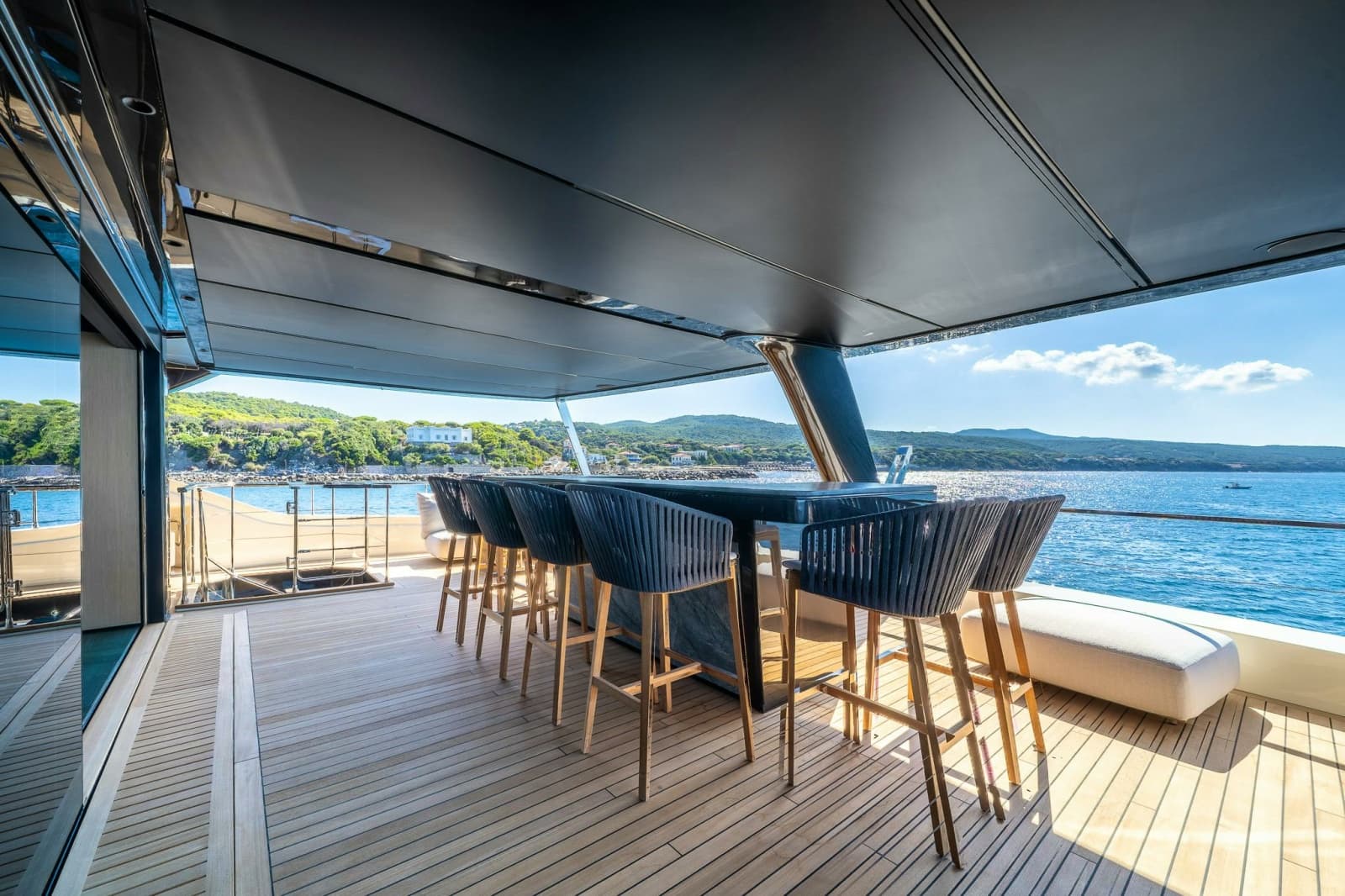

► Dining table in wood with Teppanyaki grill (1) and 10 chairs
► Sink, refrigerator and top in Corian® or equivalent material
► Forward sunpad with covers
► Forward dinette with GRP sofas upholstered with outdoor
fabric
► Forward table that converts into a manually-operated coffee
table covers
► Manually-operated aft subwoofer speakers
► Coated fibreglass support
► Hand rails in stainless steel
► LED ceiling spotlights 24 Vdc
► Low LED strip 24 Vdc along side decks
► Forward sofa LED strip 24 Vdc
► Stairsteps LED strip 24 Vdc
► Lighting control panels (2)
► Extendable structural sunshade 24 Vdc
► B&O Core Multiroom (share music in all the B&O Zone
through B&O App for smartphone or tablet)

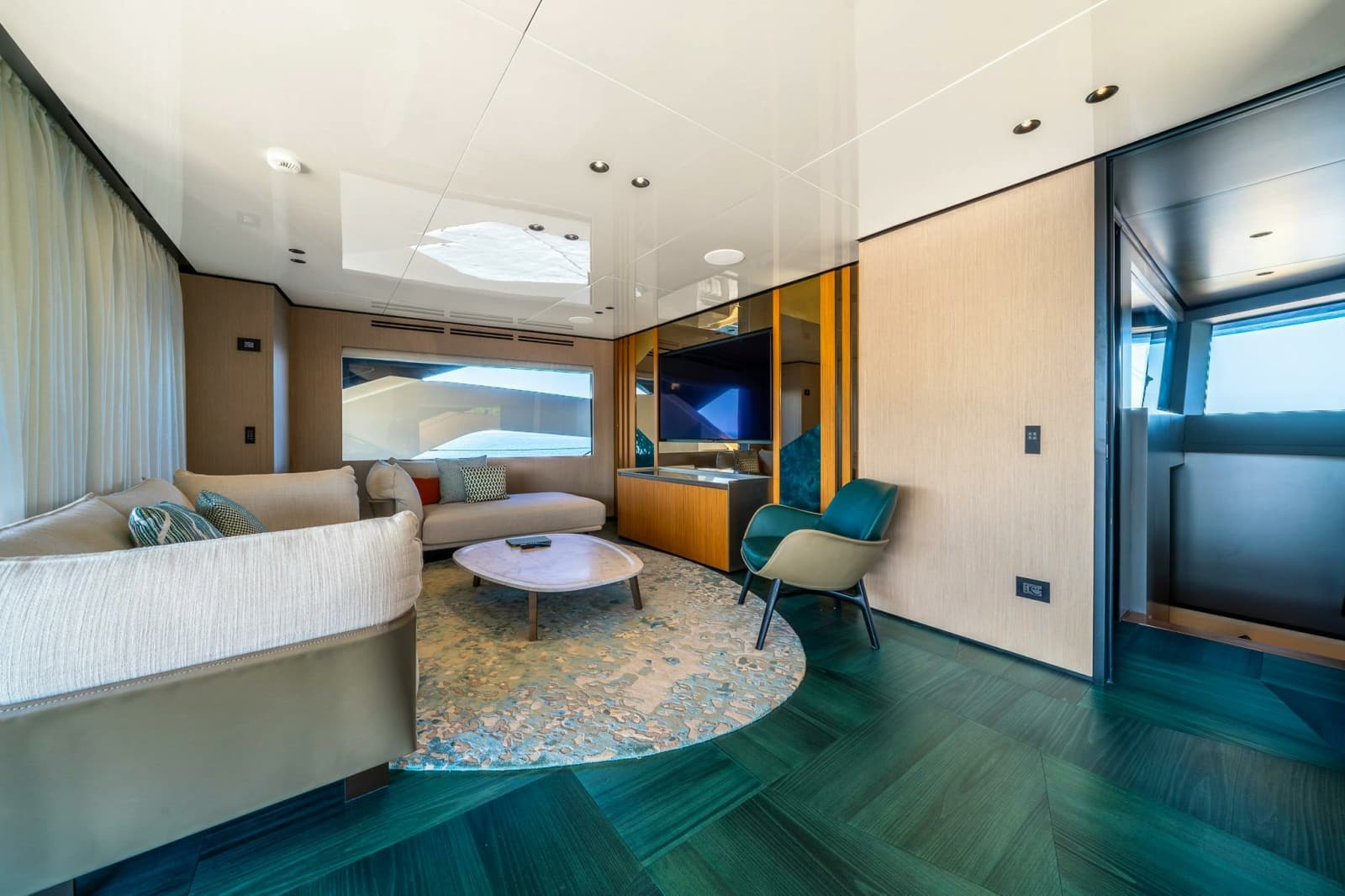

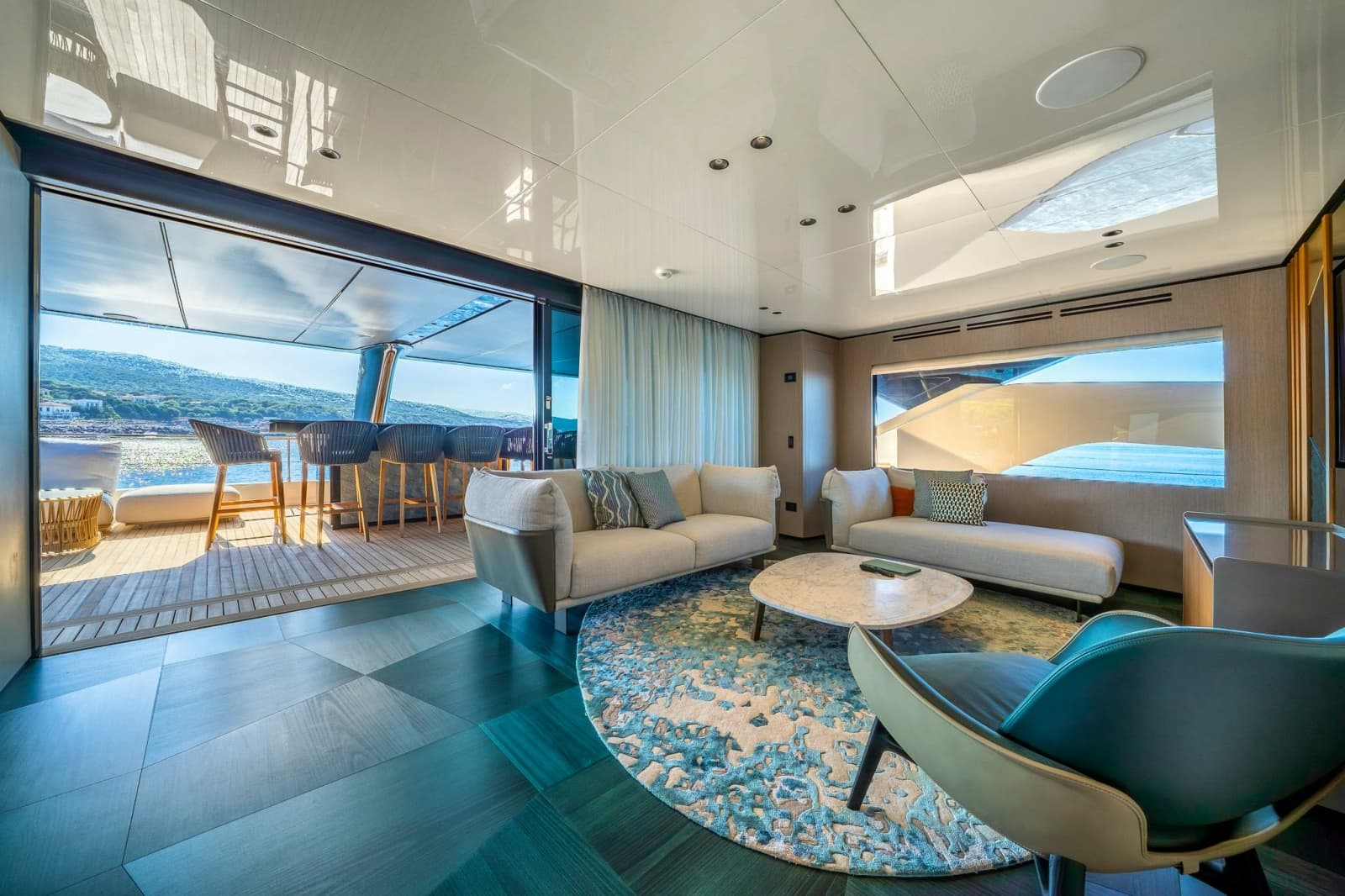

SKY LOUNGE
► Side door
► Air conditioning
► Hi-Fi system (shared amplifier)
► Wall-mounted 65” LED TV
► ceiling speakers (2)
► Subwoofer
► LED ceiling spotlights 24 Vdc ► Lighting control point (4)
► Sockets (3)
► Fire sensor (1)
► Free-standing sofas (2)
► Free-standing coffee table (2)
► Frontal low cabinet
► Free-standing armchair

UPPER DECK

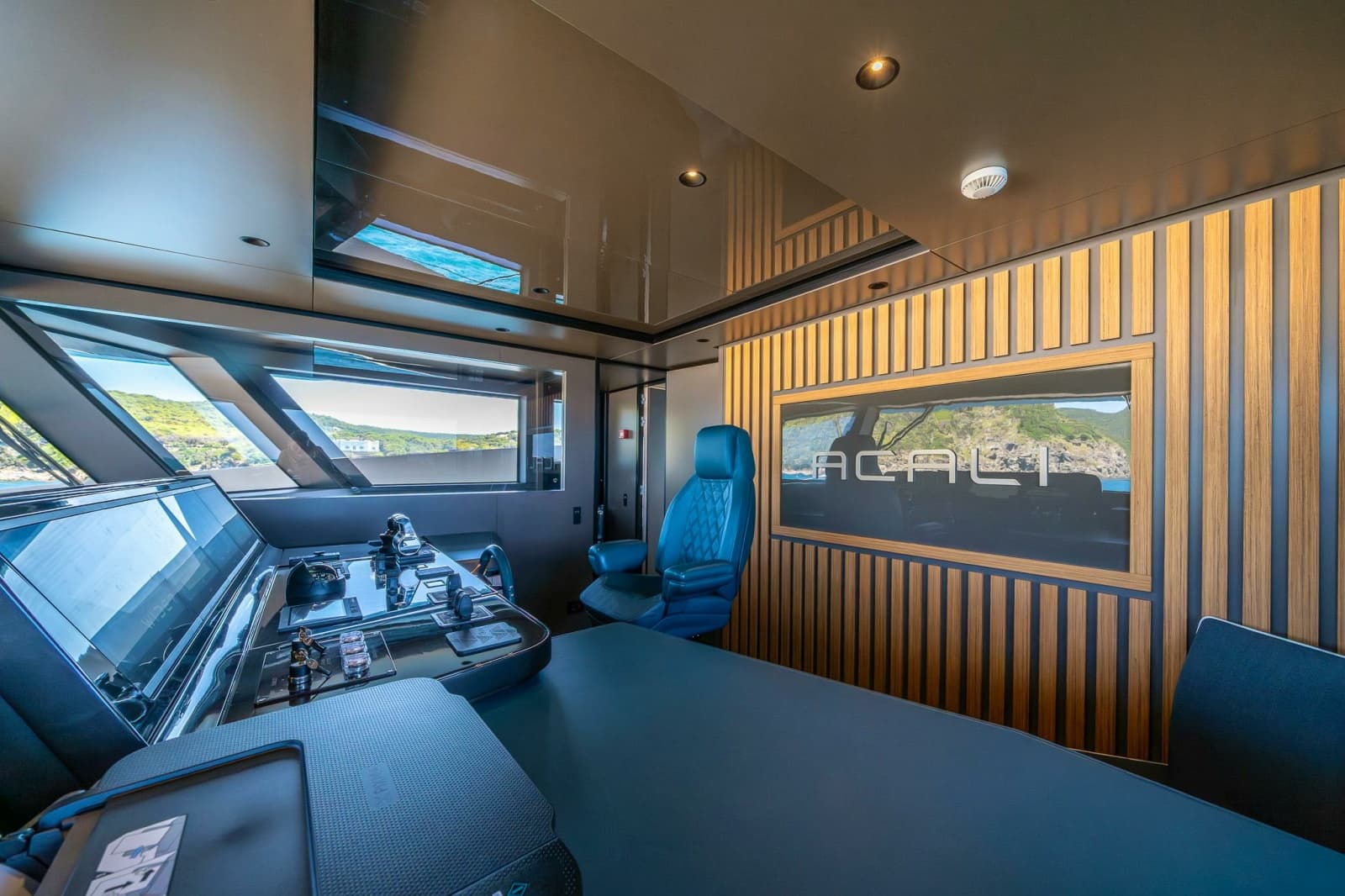

WHEELHOUSE
► Main deck access
► Air conditioning
► Magnetic compass
► 16” multifunction touch display (4) for navigation system
(radar, plotter, GPS, echo sounder, engine data)
► Fixed side window
► Watertight side door, starboard side
► Rudder angle indicator
► Electronic propulsion control lever
► Clock, barometer and thermos hygrometer
► Wood flooring
► Captain’s chair (stand-up)
► USB charging port (2)
► Windscreen wipers
► Storage compartment
► VHF, echo sounder, radar, GPS compass, automatic pilot,
wind sensor, AIS
► Cabinet with wood doors (3) and leather top
► Instrument panel in coated aluminium
► Window defogging system
► 24 Vdc and 230 Vdc electrical panel
► LED ceiling spotlights 24 Vdc
► LED ceiling spotlights 24 Vdc - Red
► Bridge console LED strip 24 Vdc
► Stairsteps LED strip 24 Vdc
► Lighting control panels (1)
► Sockets (2)
► Fire system control panel
► Fire sensor (1)
► 10 cameras, 2 in engine room and 8 for mooring and
navigation
► Weatherproof door
ROOFTOP
► Masthead
► Horn
► Electrically-operated forward searchlight 24 Vdc
► Fixed GRP hardtop
► Navigation lights (5)
► Radar
► Empty Radom (2)
► Wind sensor
► GPS
► Wi-Fi antenna
► 5G antenna
► Air termination tip
► Roof-integrated photovoltaic panels (10 kW)

LOWER DECK

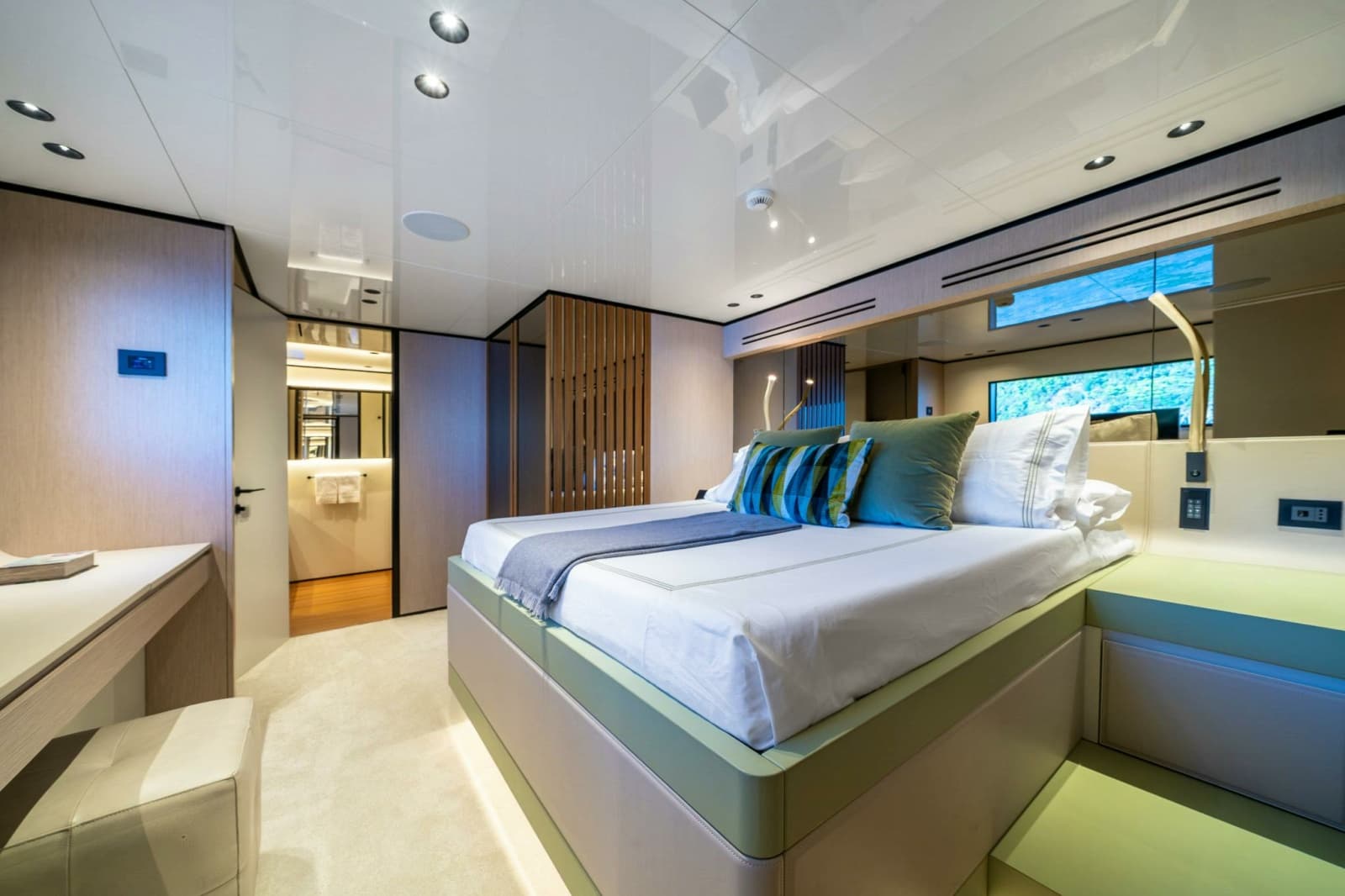

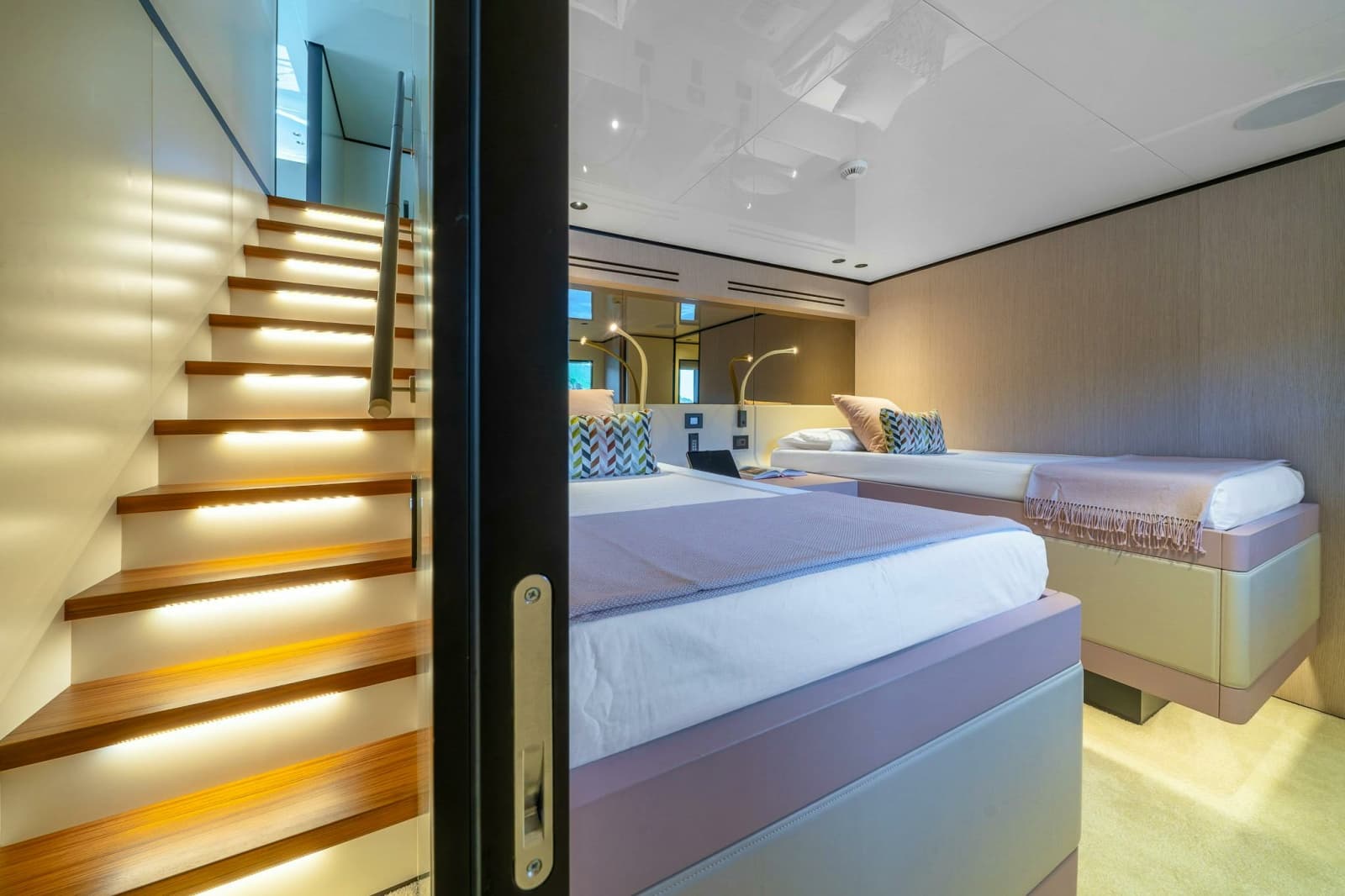

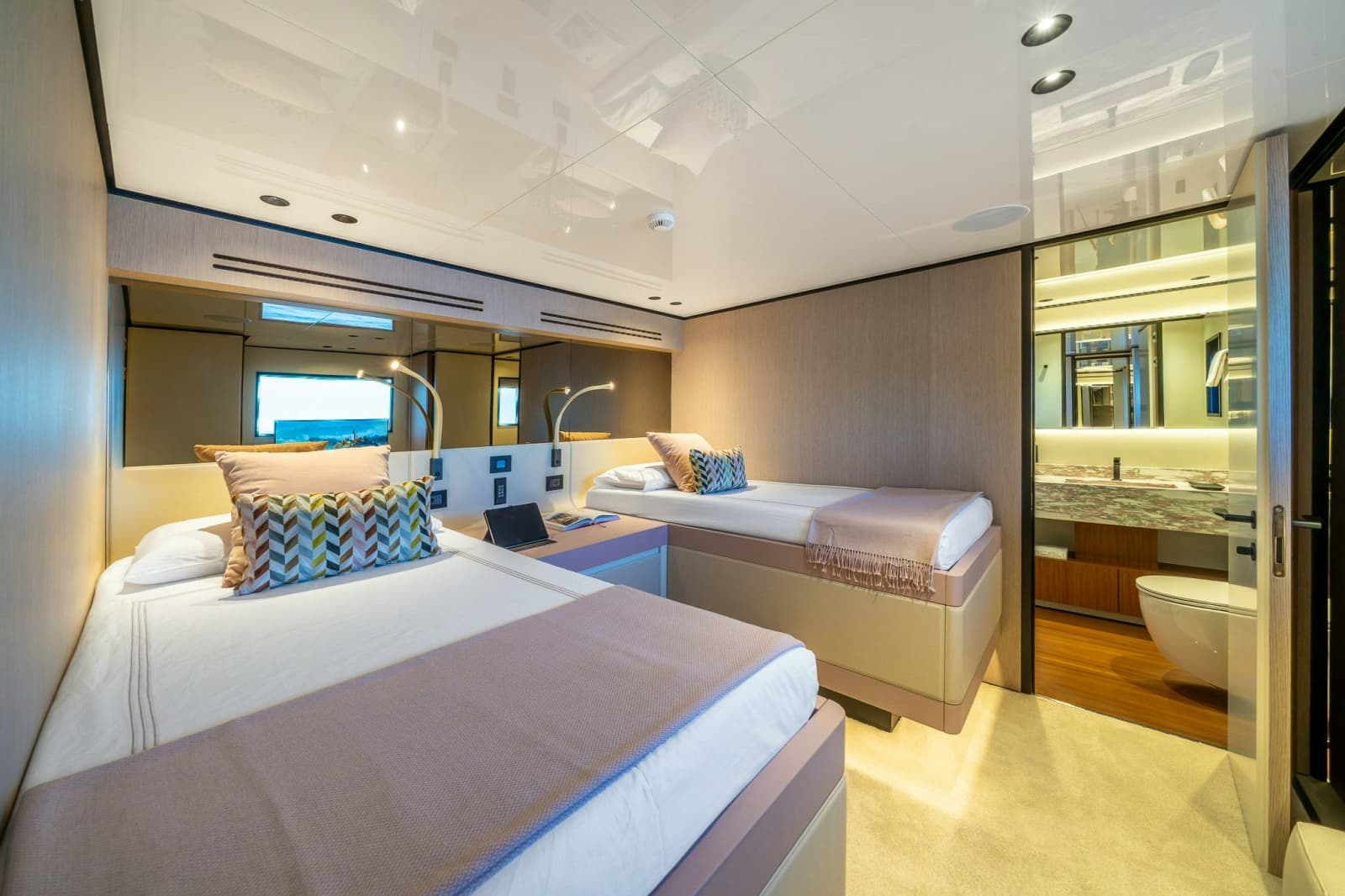

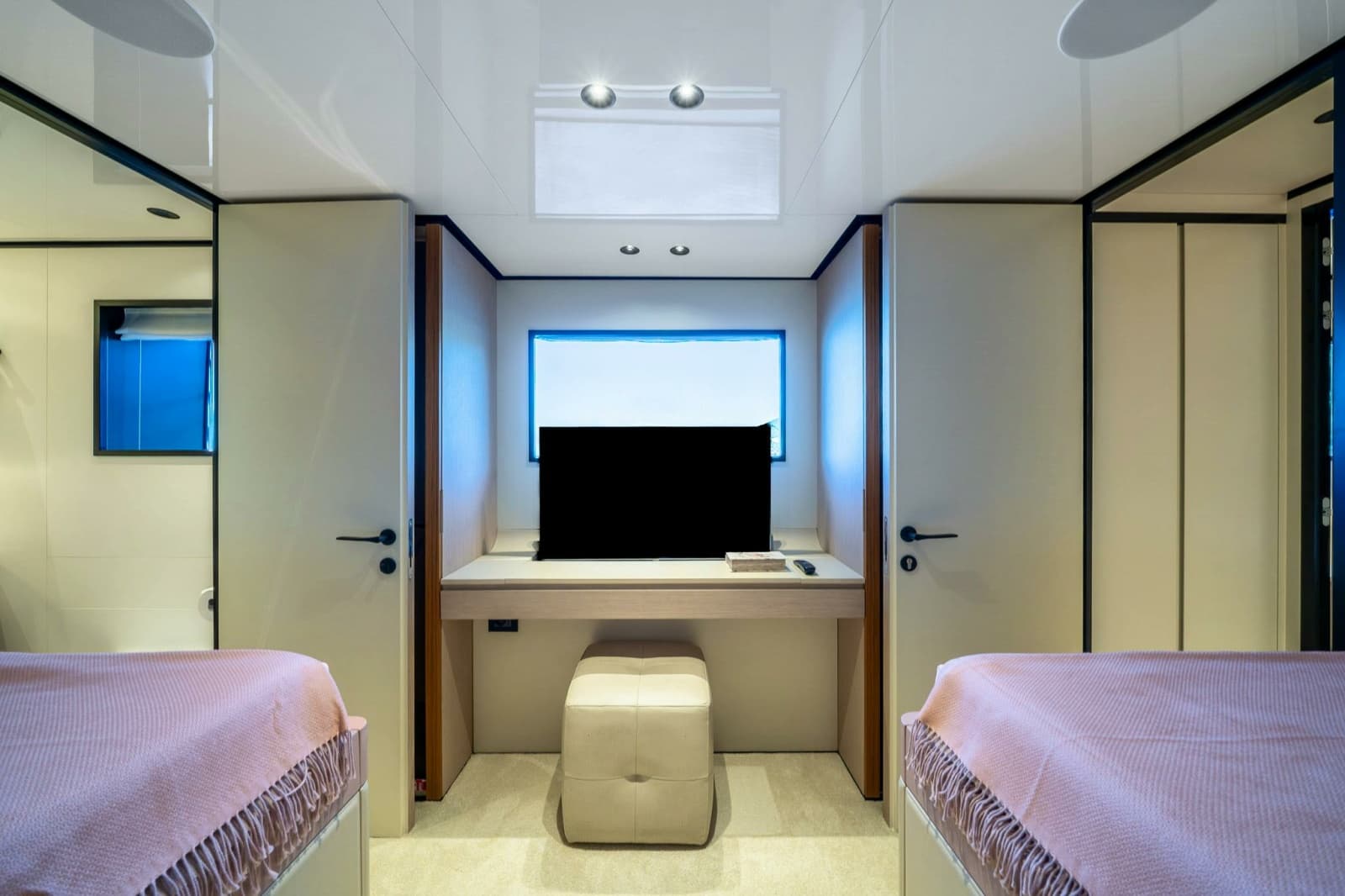

GUEST CABIN (1)
► Air conditioning
► Air handling unit
► Wood wardrobes (2) with hanging rod and shelves
► Bedside table with drawer
► Fixed window
► Single beds (2) (mattress, pillows, bed cover) with leather
bed frame
► LED ceiling spotlights 24 Vdc
► Bed frame LED strip 24 Vdc
► Reading lights (2)
► Wardrobe lights with microswitch (2)
► Motorised retractable 43” Smart TV
► Lighting control points (4)
► Roller blinds control points (1)
► Sockets (2)
► USB charging ports (2)
► Carpet flooring
► Pleated curtain
► Electric blackout roller blinds
► Padded leather headboard
► Cabinet/desk with armchair
► Fire sensor
► Teak wood ceiling
► B&O Core Multiroom (share music in all the B&O Zone through B&O App for smartphone or tablet) GUEST BATHROOM (1)
► Shower (glass door, Corian® tray)
► Hot/cold water mixer with handheld shower head
► Fixed glass window
► Wood flooring
► Built-in washbasin with Corian® top
► Double-door bathroom cabinet and shelf
► Mirror
► Manually-operated roller blinds
► LED ceiling spotlights 24 Vdc
► Lighting control points (1)
► Sockets (1)
► Toilet control panel
► Electric toilet
► Air extraction fan
► Roll holder
► Toilet brush

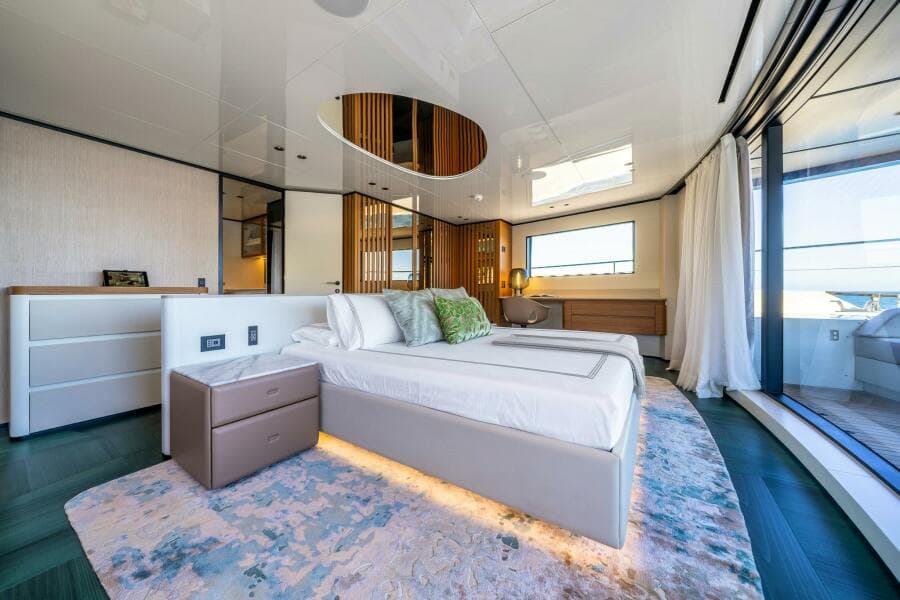

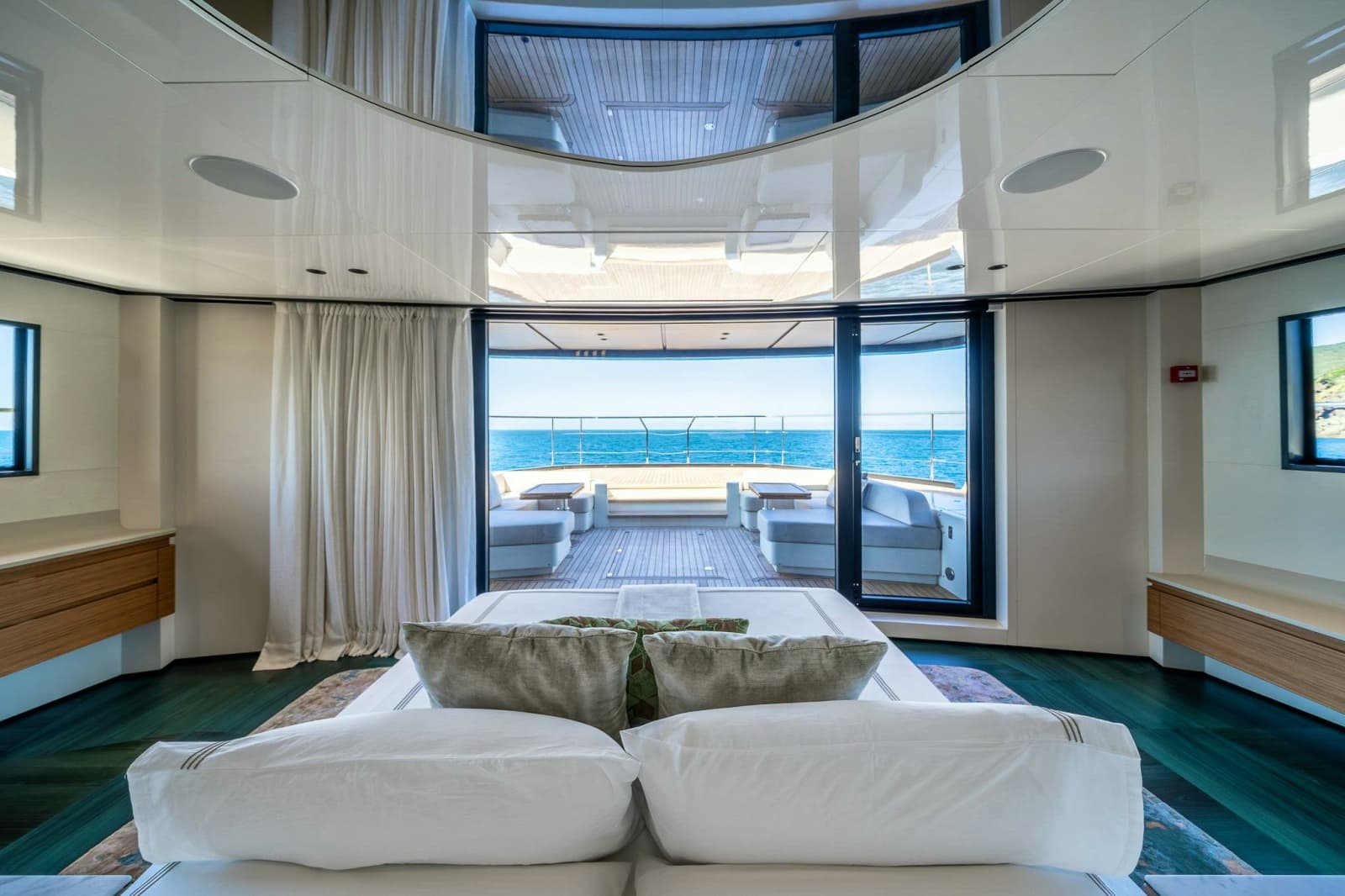

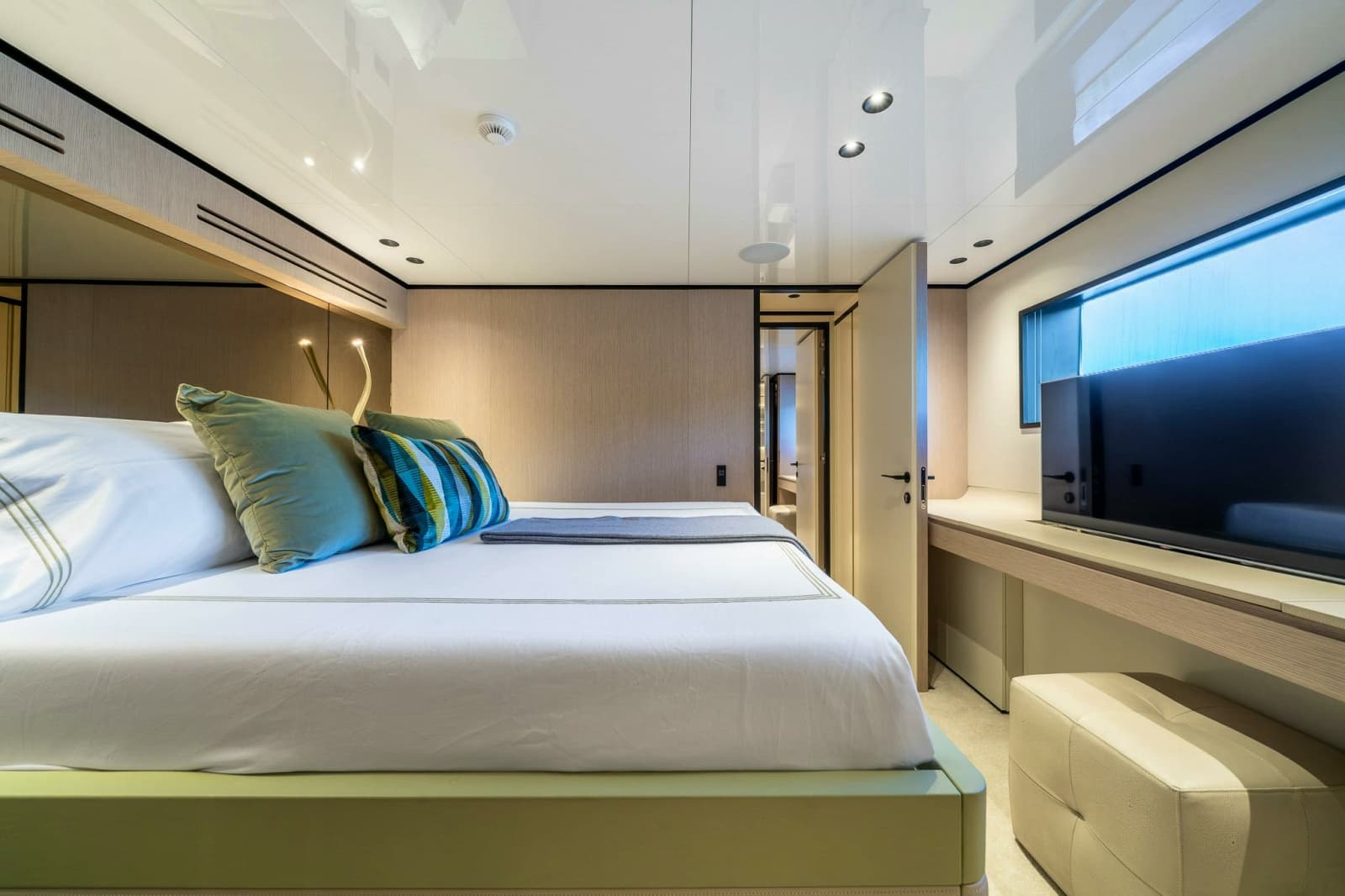

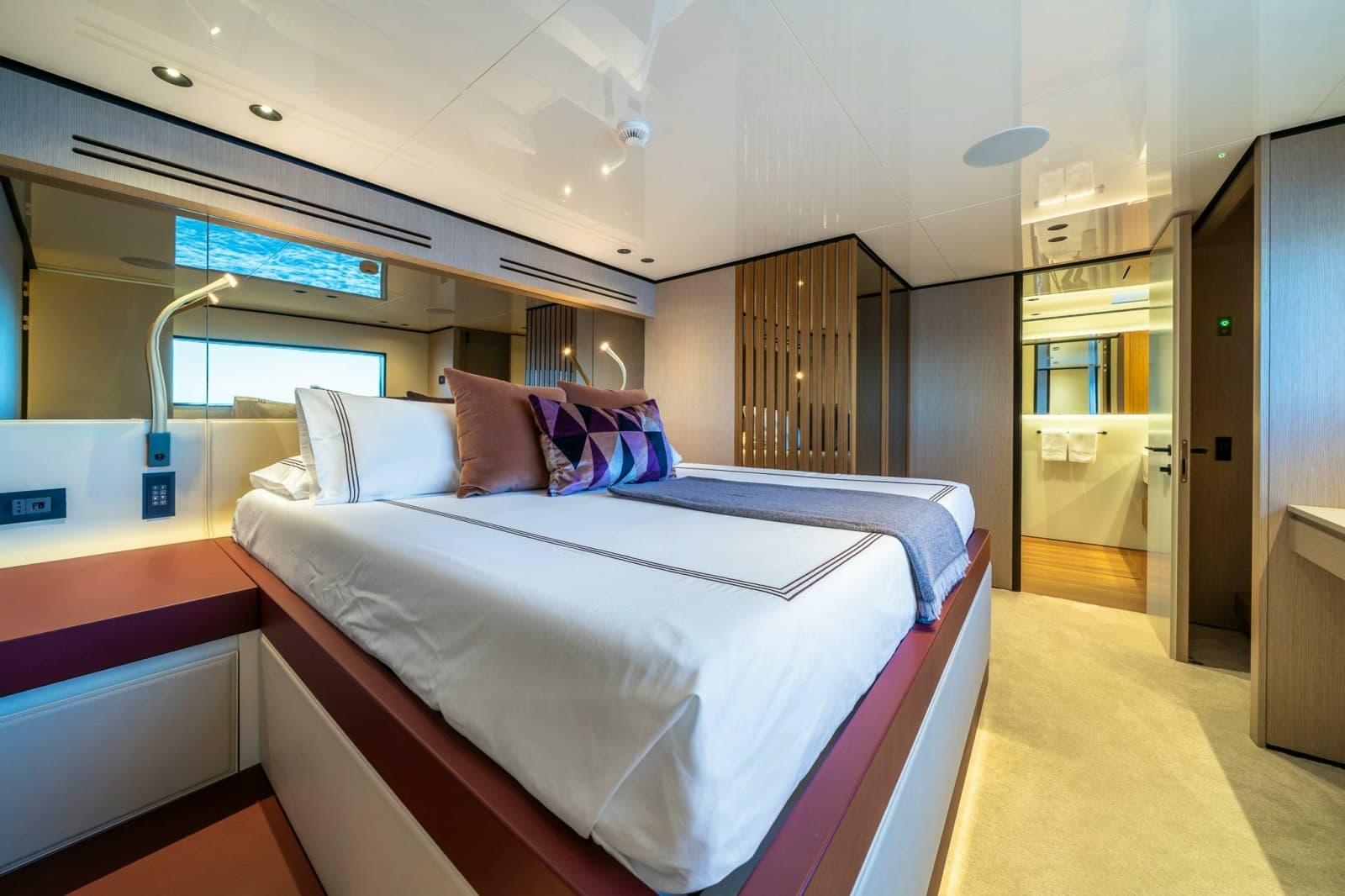

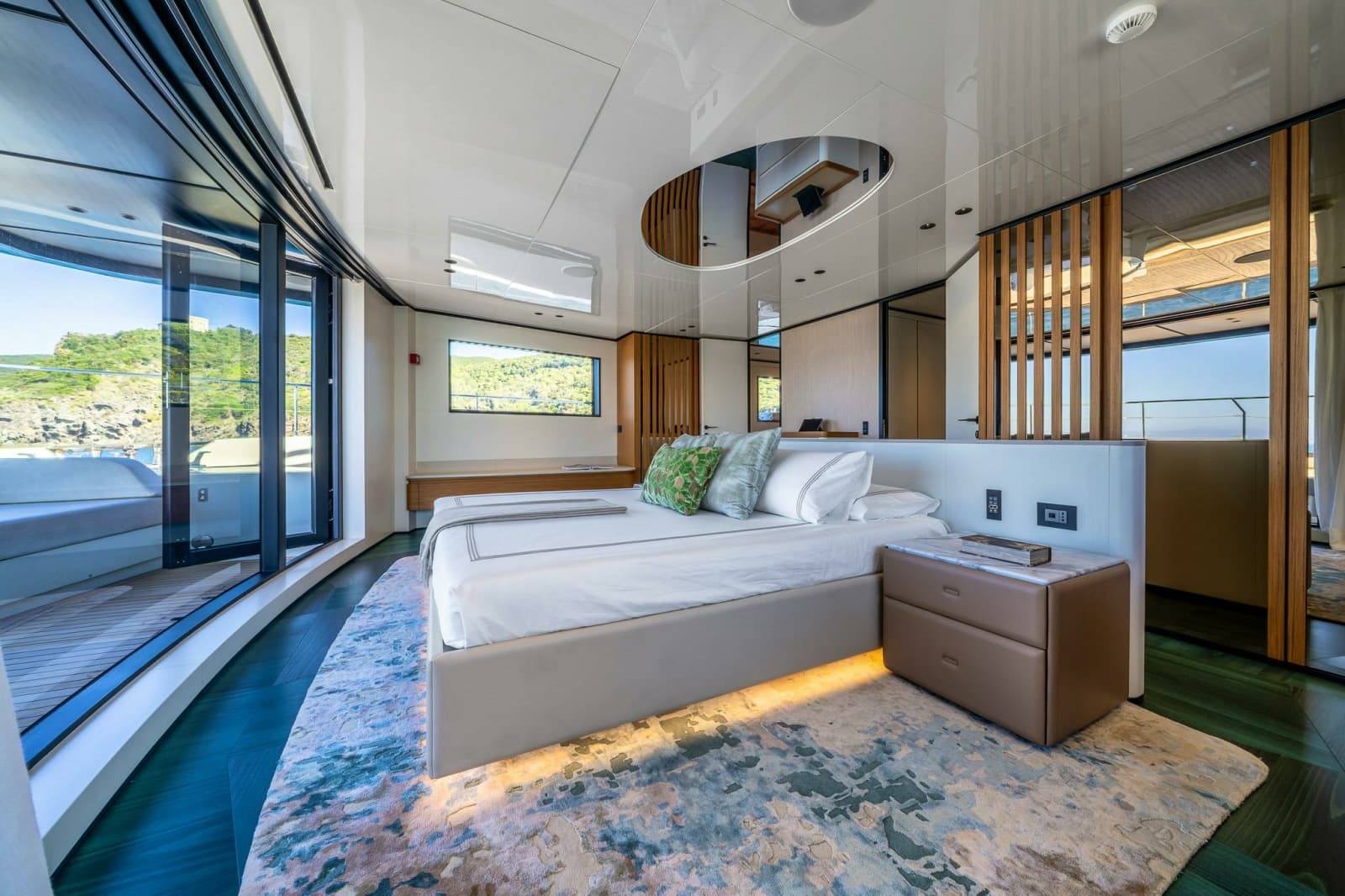

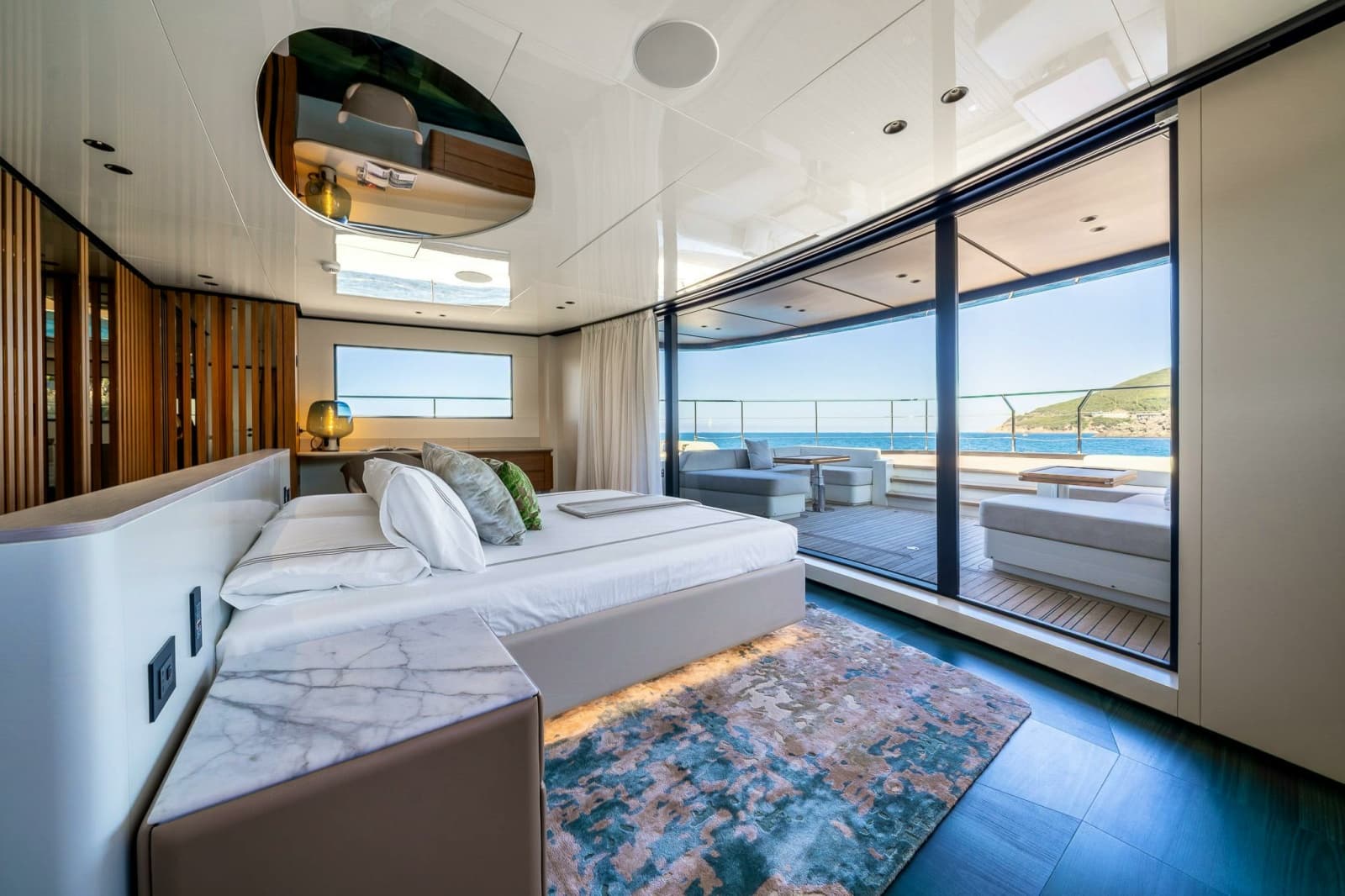

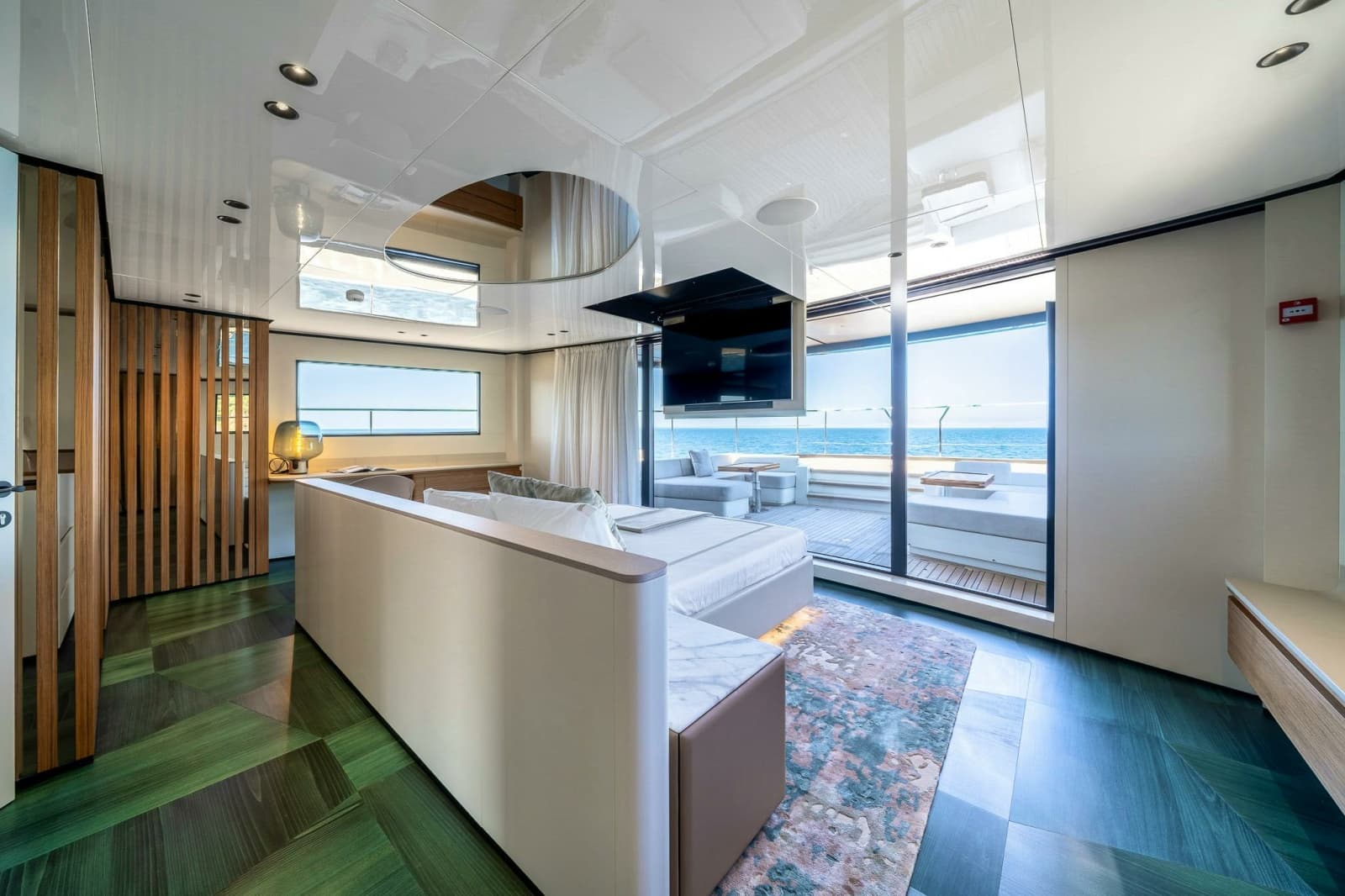

VIP CABINS (2)
► Air conditioning
► Air handling unit
► Wood wardrobe (1) with hanging rod and shelves
► Bedside table (2) with drawer
► Fixed window
► King bed (1) (mattress, pillows, bed cover)
► LED ceiling spotlights 24 Vdc
► Bed frame LED strip 24 Vdc
► Reading lights (2)
► Wardrobe lights with microswitch (2)
► Motorised retractable 43” Smart TV
► Lighting control points (4)
► Roller control points (2)
► Sockets (2)
► USB charging ports (2)
► Carpet flooring
► Pleated curtain
► Electric blackout roller blinds
► Padded leather headboard
► Cabinet/desk with armchair
► Watertight door for access to beach club balcony
► Fire sensor
► Teak wood ceiling
► B&O Core Multiroom (share music in all the B&O Zone
through B&O App for smartphone or tablet)

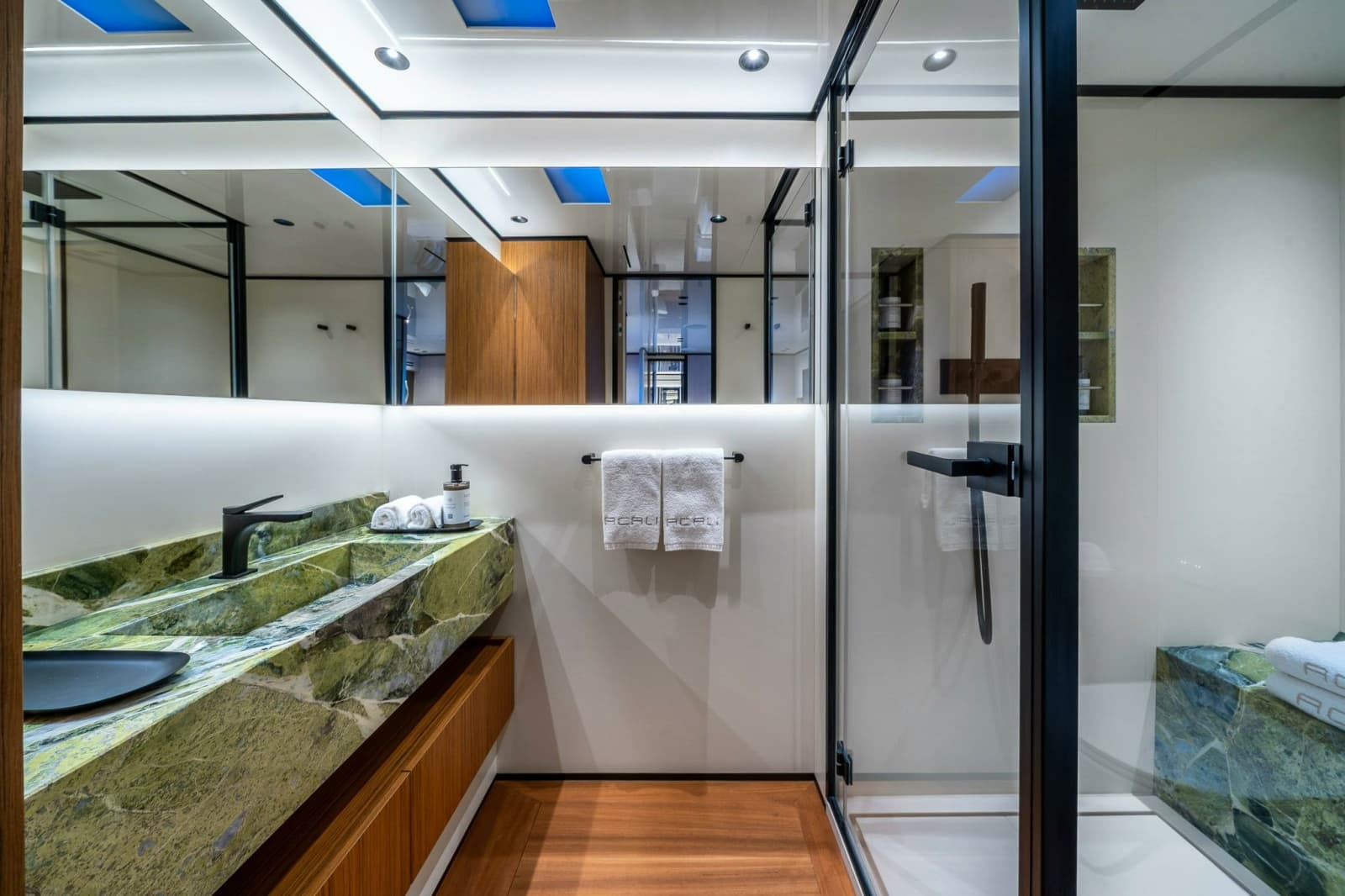

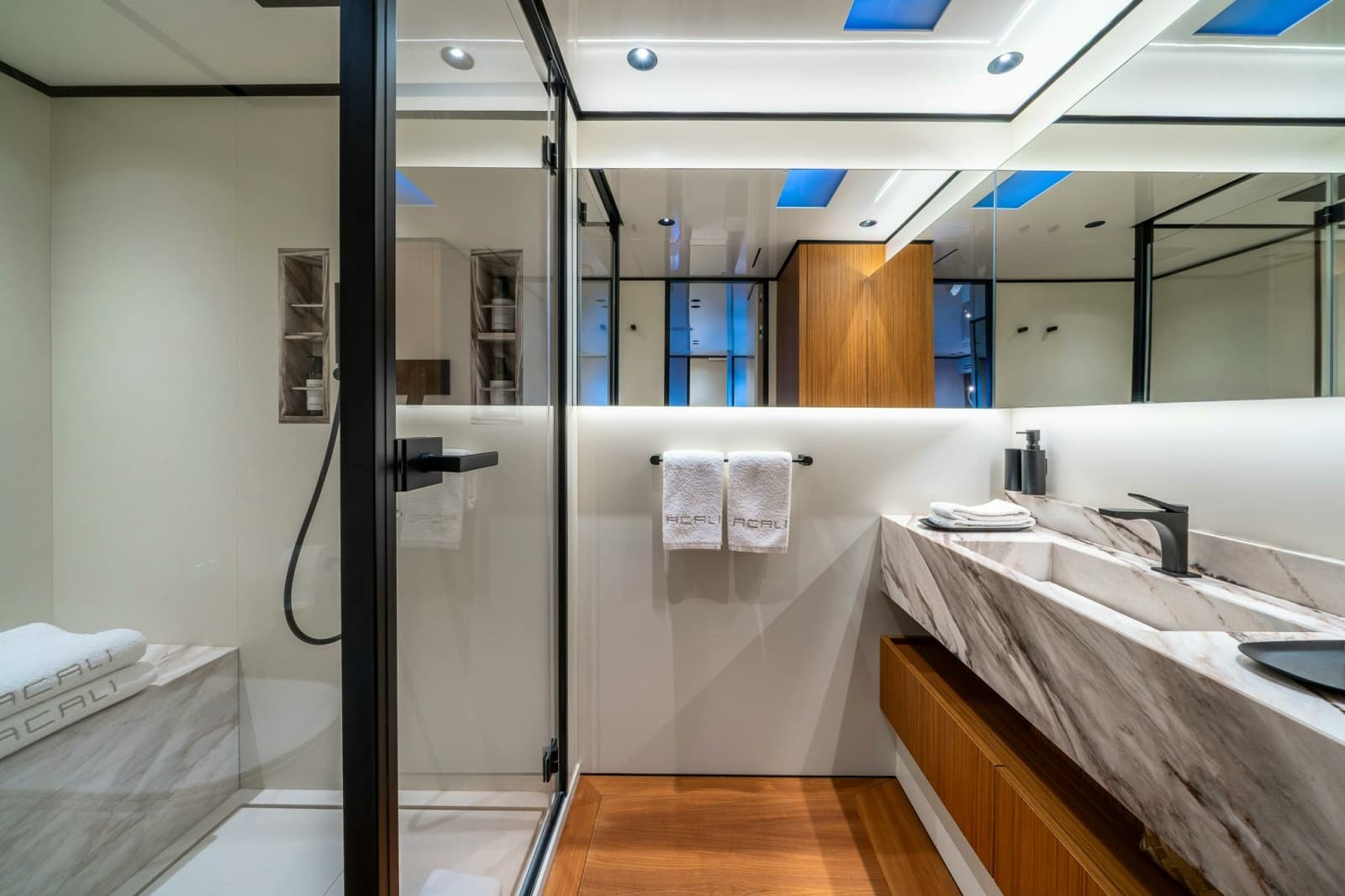

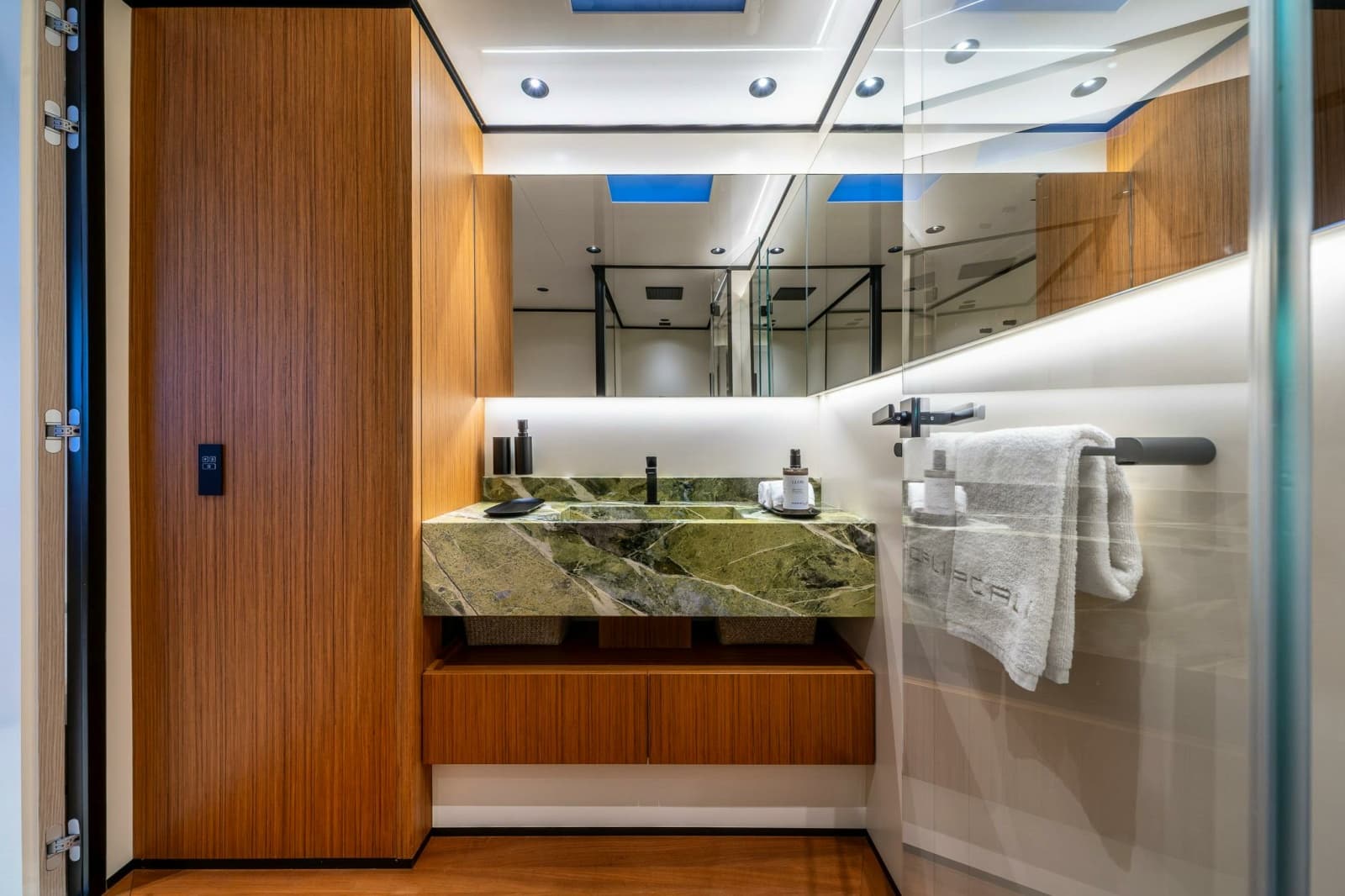

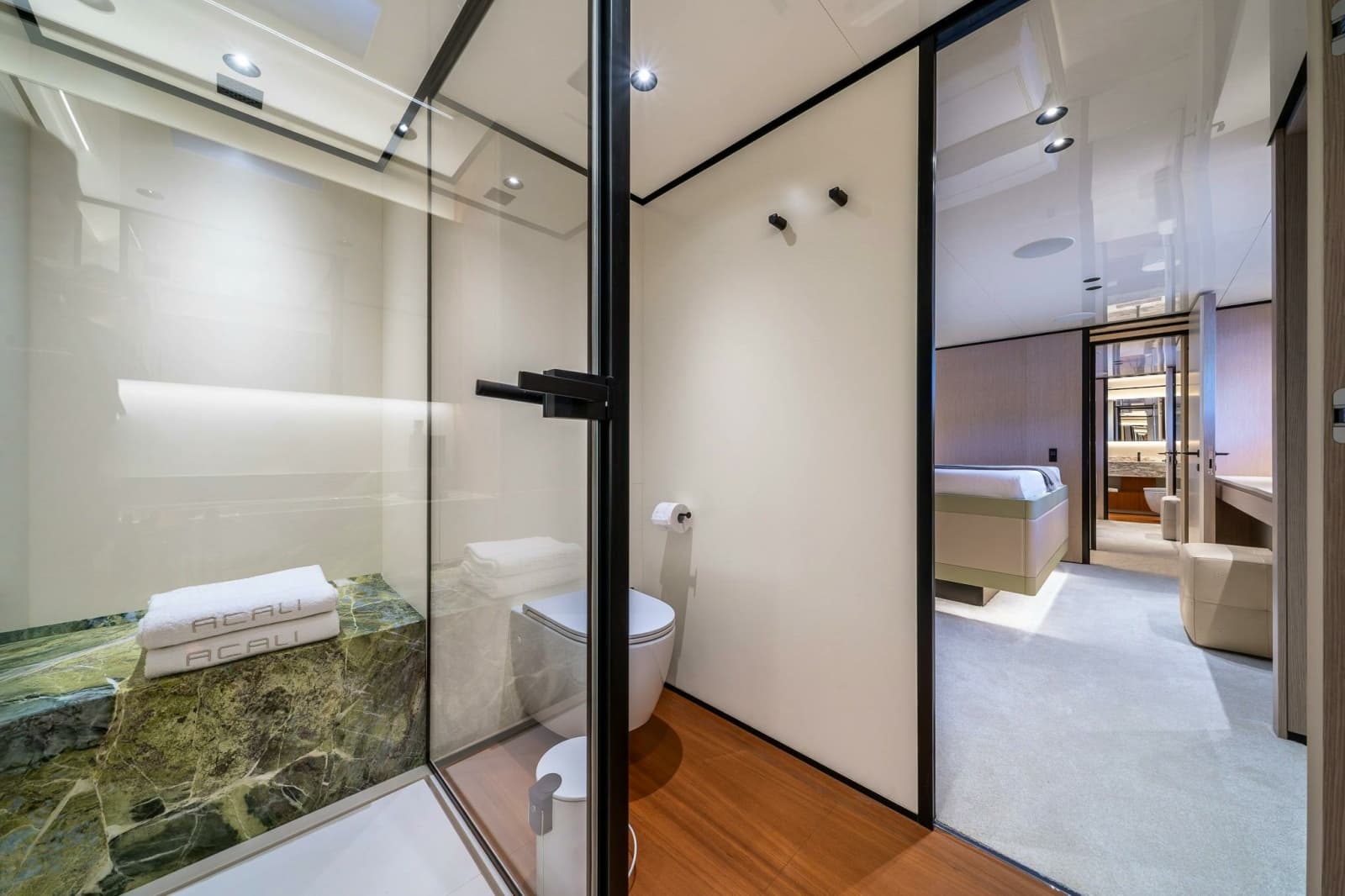

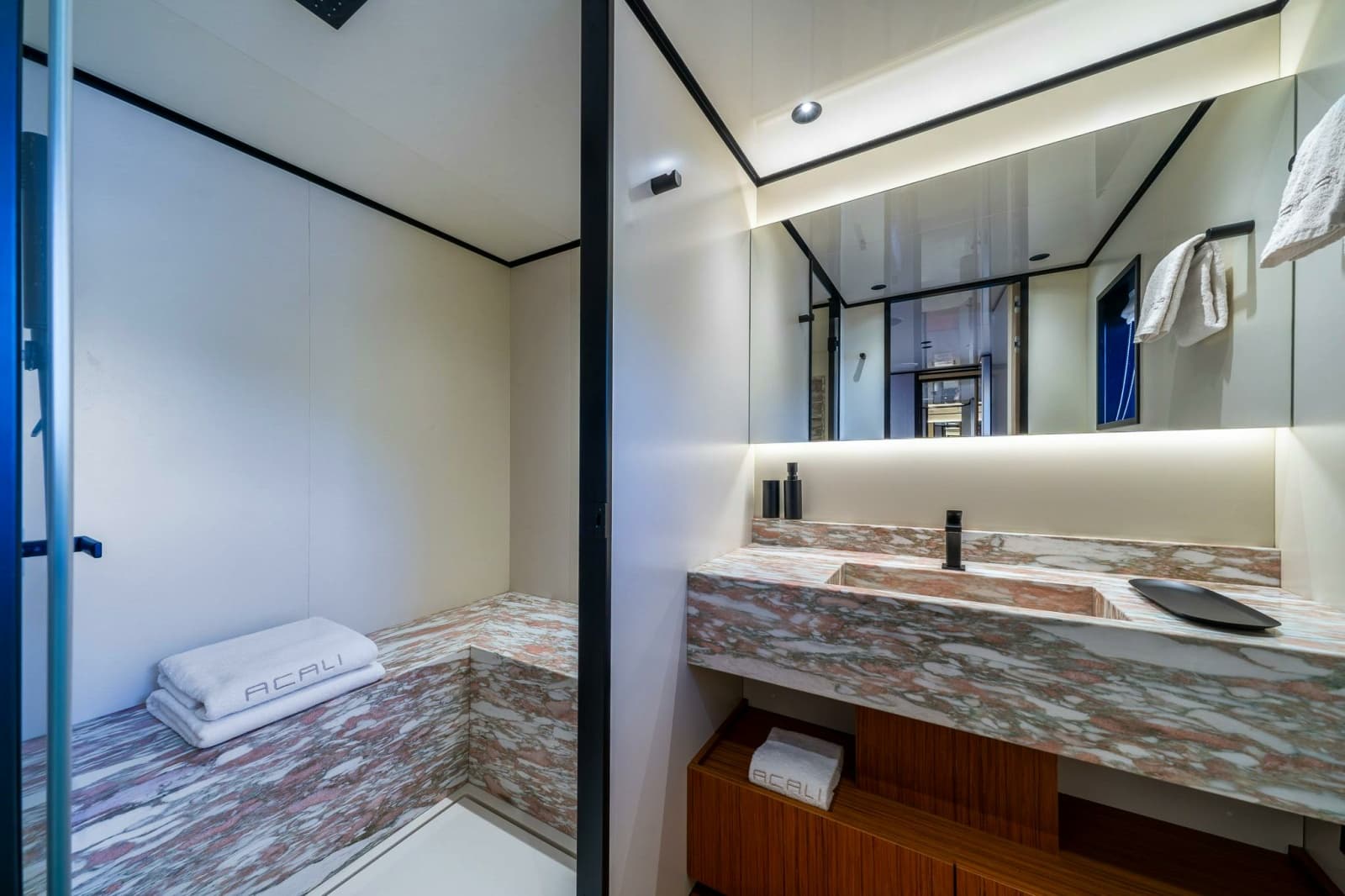

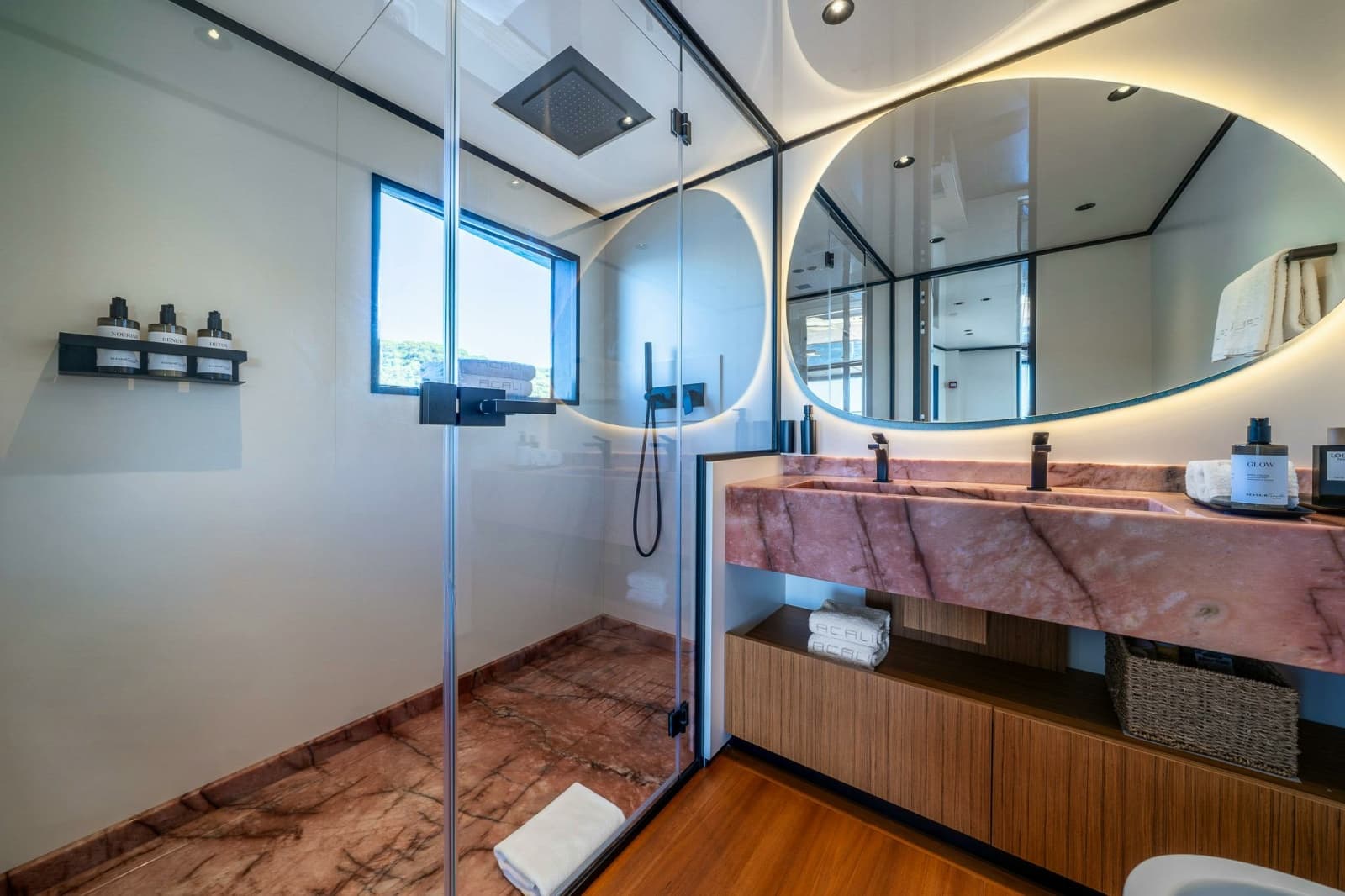

VIP CABIN BATHROOMS (2)
► Shower (glass door, Corian® tray)
► Wall-mounted shower head
► Hot/cold water mixer with handheld shower head
► Fixed glass window
► Wood flooring
► Built-in washbasin with Corian® top, with extra marble finish ► Double-door bathroom cabinet or shelf
► Mirror
► Manually-operated roller blinds
► LED ceiling spotlights 24 Vdc
► Lighting control points (1)
► Sockets (1)
► Toilet control panel
► Electric toilet
► Air extraction fan
► Roll holder
► Toilet brush
VIP AND GUEST CABIN CORRIDOR (2)
► LED ceiling spotlights 24 Vdc
► Stairsteps LED strip 24 Vdc
► Lighting control points (1)
► Sockets (1)
► Electrical panel - Guest and VIP (1)
► A/V rack

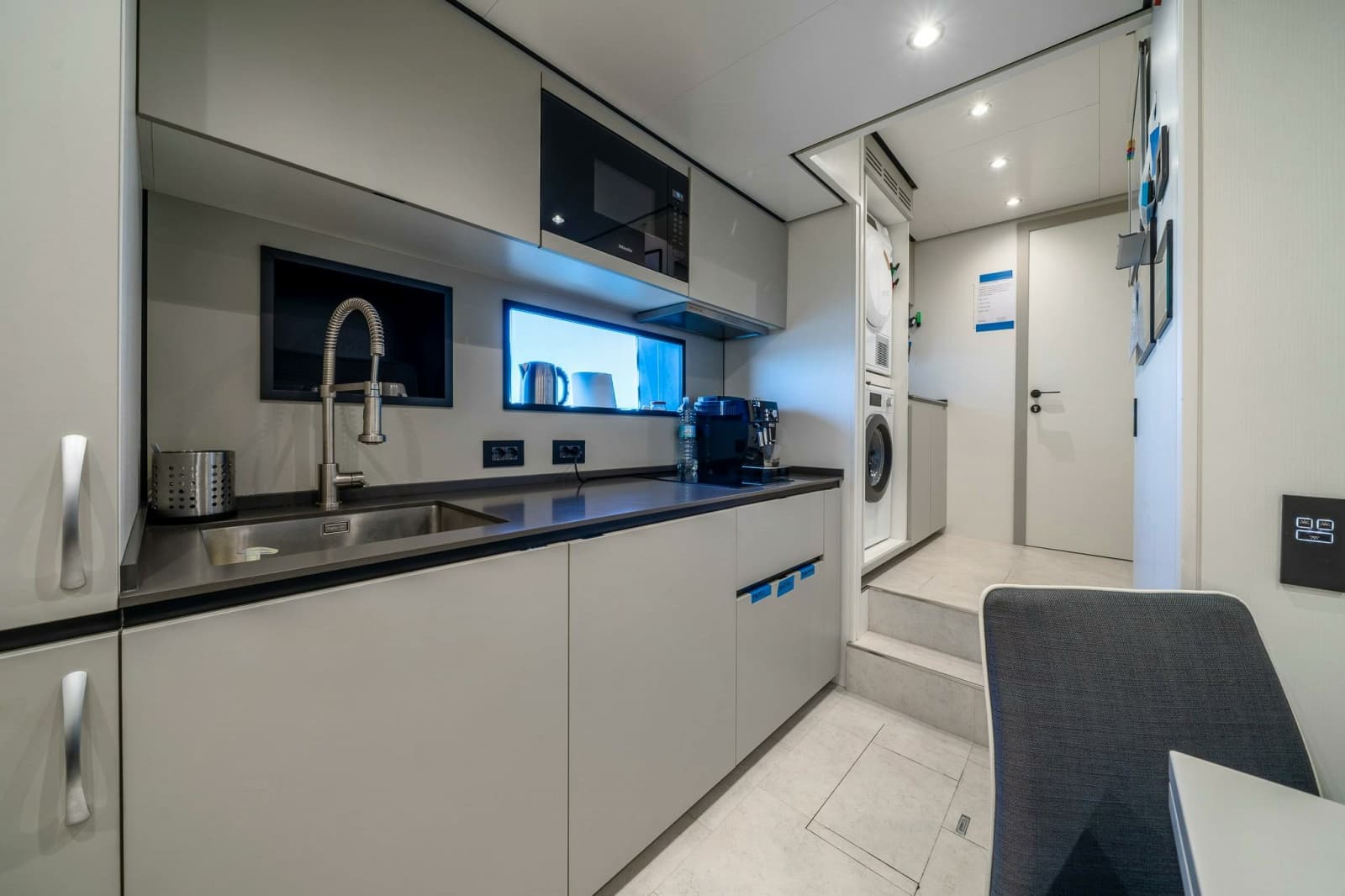

GALLEY AND CREW MESS
► Access to crew quarters from main deck via internal
staircase
► Walking storage area
► Air conditioning
► Air extraction fan
► Corian® sink
► Ceramic glass cooktop (2) burners
► Cabinets with Corian® top
► Wall cabinets with doors, bulwark side
► Miele Micro Wave
► Miele Freezer
► Miele Fridge
► Miele Undercounter fridge
► Miele Dish Washer
► Miele Oven (90 cm)
► Miele Induction Hob (6 zone)
► Miele Hood
► Vinyl flooring
► Bench for (4) people
► Lacquered table
► 32” TV
► Fixed glass window
► 15” automation display
► 7” multifunction touch display for navigation system
► Electrical control panel
► LED ceiling spotlights 24 Vdc
► Staircase courtesy spotlights
► Lighting control panels (2)
► Sockets (5)
► USB charging port (2)
► Fire sensor (2) CREW CABINS (2)
► Air conditioning
► Air handling unit
► Hatch access, stainless steel and teak staircase (starboard
side vessel)
► Wood wardrobe with door and shelves, desk and armchair
► Single bed (2)
► Fixed glass window
► LED ceiling spotlights 24 Vdc
► Reading lights (2)
► Lighting control point (2)
► Sockets (2)
► Laminate vertical walls
► Vinyl leather headboard
► Vinyl flooring
► 24” TV (Captain cabin)
CREW BATHROOMS (2)
► Air extraction fan
► Wood cabinet with doors and shelves
► Shower with plexiglass enclosure
► Stainless steel washbasin with Corian® top
► Toilet control panel
► Electric toilet
► LED ceiling spotlights 24 Vdc
► Lighting control point (1)
► Sockets (1)
► Mirror
► Laminate vertical walls
► Vinyl flooring
► Roll holder
► Toilet brush
► Waste bin
BEACH CLUB
► Teak-covered fixed side platforms (2)
► Electro-hydraulically operated teak-covered side balconies
► Water toy storage compartment (Seabob, foldable SUP or equivalent)

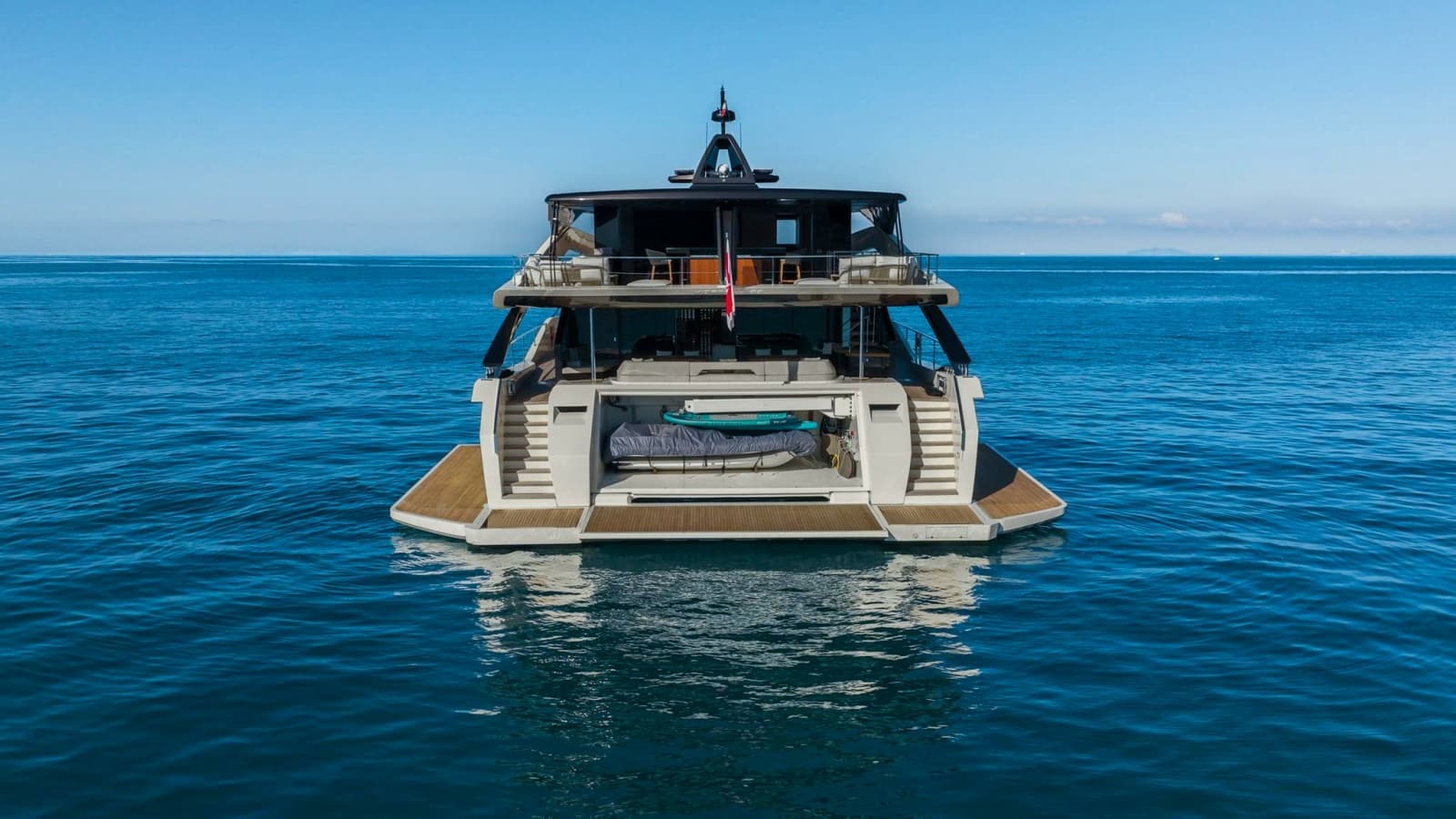

GARAGE
► Access via aft garage door and hatch under removable sofa
seat on main deck
► GRP flooring
► Electro-hydraulically operated garage door
► Tender and jet-ski hauling and launching system (Besenzoni G 406 - 1,300 kg capacity crane)
► Williams 505 tender
► LED lighting

EQUIPMENT

DECK EQUIPMENT
► Deck accessories in stainless steel
► Super Hawk 105 kg SHHP anchors (2) with 110 m long chains (2), 12 mm diameter
► Stainless steel cleat: at stern (4) and bow (4)
► Retractable cleat for tender & toys on stern platforms
► Docking lines - 80 m total
► Fender covers with Wider Yacht logo (12)
► Hot/cold fresh water shower at platform (2)
► Hot/cold fresh water shower at forward upper deck
► Fire and chain washdown hose (saltwater supply)
► Fenders: cylindrical (6), spherical (6)
► Roller fairleads: stern (2), bow (2)
► Retractable self-levelling stepped gangway/bathroom staircase in coated steel and eco-teak; electro-hydraulically operated, with remote controls (2) and manual stanchions
► Manual retractable emergency bathroom staircase
► Teak wood cockpit and side decks
► Galley access side pantograph door
► Access hatch to chain locker
► Access hatch to forward lockers (6)
► Windshield fabric covers
► Electrical engine room emergency shut-off (gen-set diesel shut-off, damper closure and ventilation shut-off)
► Engine room fire extinguishing activation controls
► Bridge-controlled electric aft and forward windlasses, 4000W, (4) at docking stations
► Electric anchor windlass, 4000W, (2) with proportional controls at bow and helm.
PROPULSION AND CONTROL
► 300 ekW gen-set (2)
► Propulsion engine max. 500 ekW (2)
► Battery bank, total capacity 435 kW/hour (Net Capacity 360 kW/h)
► Electric forward thruster (2), 300 kgf, with 22 kW electric motor
► Low-maintenance shaft through-hull with mechanical seal
► Electric steering
► Shaft drive transmission
► Engine double diesel filters (2)
► Gen-set start battery 160 Ah 12 Vdc (2)
► Gen-set start battery charger 25 A 12 Vdc
► Gen-set battery master switch (2)
► Propulsion electrical panel (2)
► Battery electrical panel (3)
► Dc/Dc converter batteries (3)

SYSTEMS

► Watermaker 170 L/h 400 Vac
► Activated carbon filter
► UV steriliser
► Fresh water autoclave unit
► Boiler 80 L (2)
► Electric hot-water recirculation pump
► Blackwater and greywater treatment system
► Electric dry bilge pump
► Automatic electric dry bilge pump (8)
► Automatic bilge pump start sensors (8)
► Bilge high-level alarm (8)
► Electric fire pump/chain washdown
► Fire extinguishers
► Engine room electric extractor fans (2)
► Engine room smoke control dampers (4)
► Engine room droplet separators (2)
► Engine and inverter cooling circuit complete with heat exchanger, electric pumps and sensors (2)
► Battery and Dc/Dc converter cooling circuit complete with heat exchanger, electric pumps and sensors
► ceiling LED lighting for engine room and mechanical room
► LED lighting under grating
► Manually-operated AEROSOL fire extinguishing system in engine room (2)
► Manually-operated AEROSOL fire extinguishing system in battery room
► Hydrocarbon detection system in battery room
► Electric blackwater pump
► Blackwater tank, 500 L (2)
► Blackwater tank level sensor (2)
► Electric greywater pump
► Greywater tank, 1000 L (2)
► Greywater tank level sensor (2)
► Fresh water tank, 1000 L (2)
► Fresh water tank level sensor (2)
► Diesel fuel structural tank, 4000 L (2)
► Diesel fuel structural tank level sensor (2)
► Diesel fuel day tank, 1000 L
► Diesel fuel day tank level sensor
► Diesel fuel filtering system
► Fuel system solenoid valve (10)
► Air conditioner (240,000 BTU)
► Air handling unit
► Air compressor 25 L
► Cable reel 20 m for hook-up to dock power supply
► Soundproof watertight forward bulkhead
► Rice grain aluminium flooring
► HOTEL electrical panel 400/230 Vac
► HOTEL electrical panel 24 Vdc

PROPULSION

► Electrical panel 700 V
► Service batteries 516 Ah 24 Vdc
► Service battery charger 100 A 24 Vdc
► Pressure and gravity fresh water inlet hatch
► Right and left side fuel inlet with fuel-lock system
► Silenced swim-up exhaust system
► Colour CCTV cameras (2) in engine room + bow (2) + starboard (1) + port (1) + stern (2)
► Engine room automation system display (2)
► Engine room and mechanical room fire sensors (8)
► Engine room light switches (2)
► Mechanical room light switches (4)
► Engine room Sockets (2)
► Mechanical room Sockets (2)
► Cathodic protection with anodes
► Lightning protection system with dedicated ground plate
► AC ground plate
► Negative ground plate
► Dock isolation transformer 240-480 Vac/400 Vac 3P+3P 55 kVA
► Hotel isolation transformer 400 Vac/400 Vac 3P/3P+N 40 kVA
► Dock plug 3P+G 63 A
► MPPT converter for rooftop photovoltaic panels (4)
► B&O core multiroom and app

SAFETY EQUIPMENT

► Life rafts (2) for 16 people (8+8) at aft upper deck compartments in the SVR area
► Lifebuoy with floating lifeline and midship light in specific open housing
► Life vests

Listing MLS by Yachtr.com
