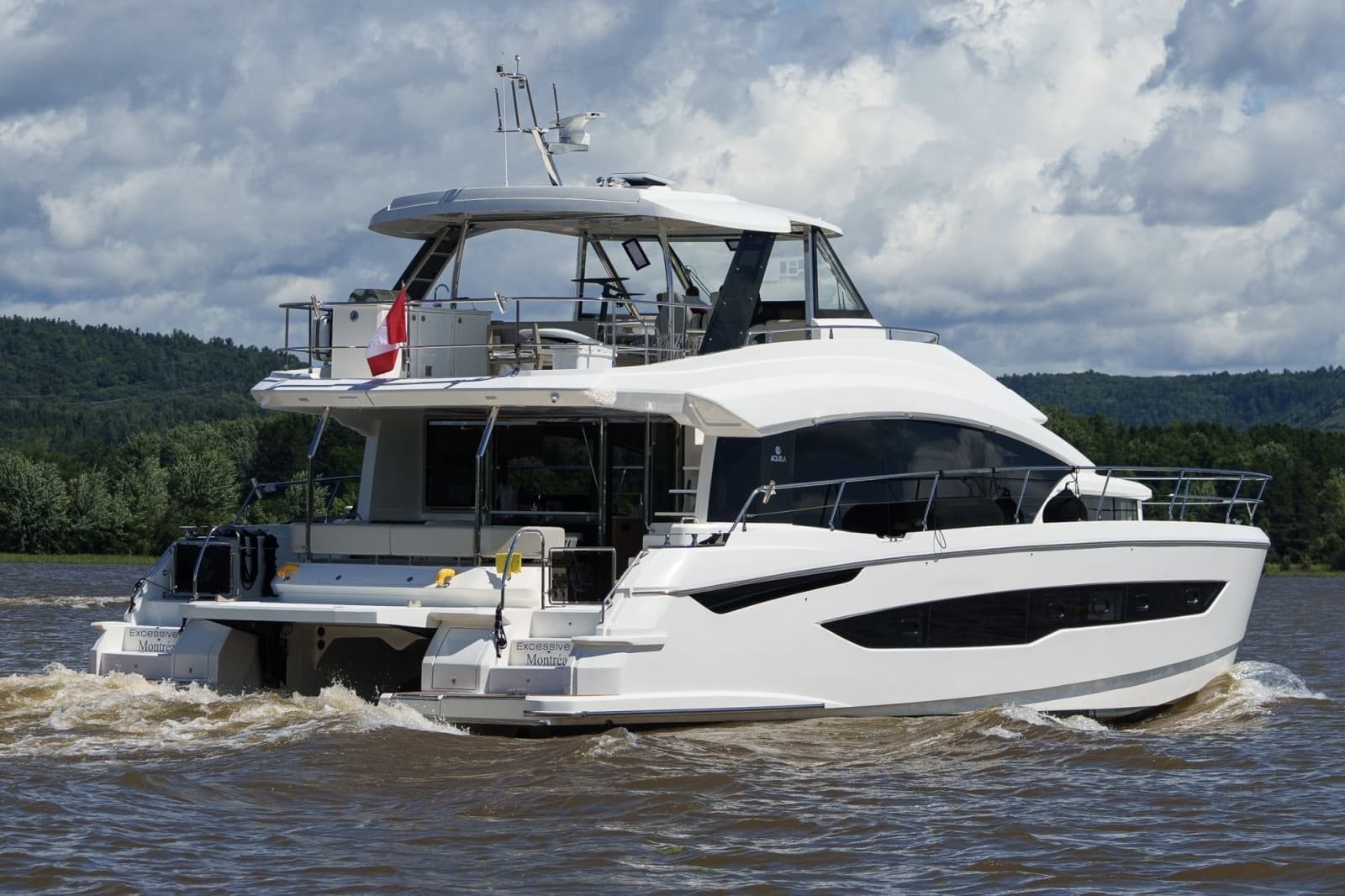

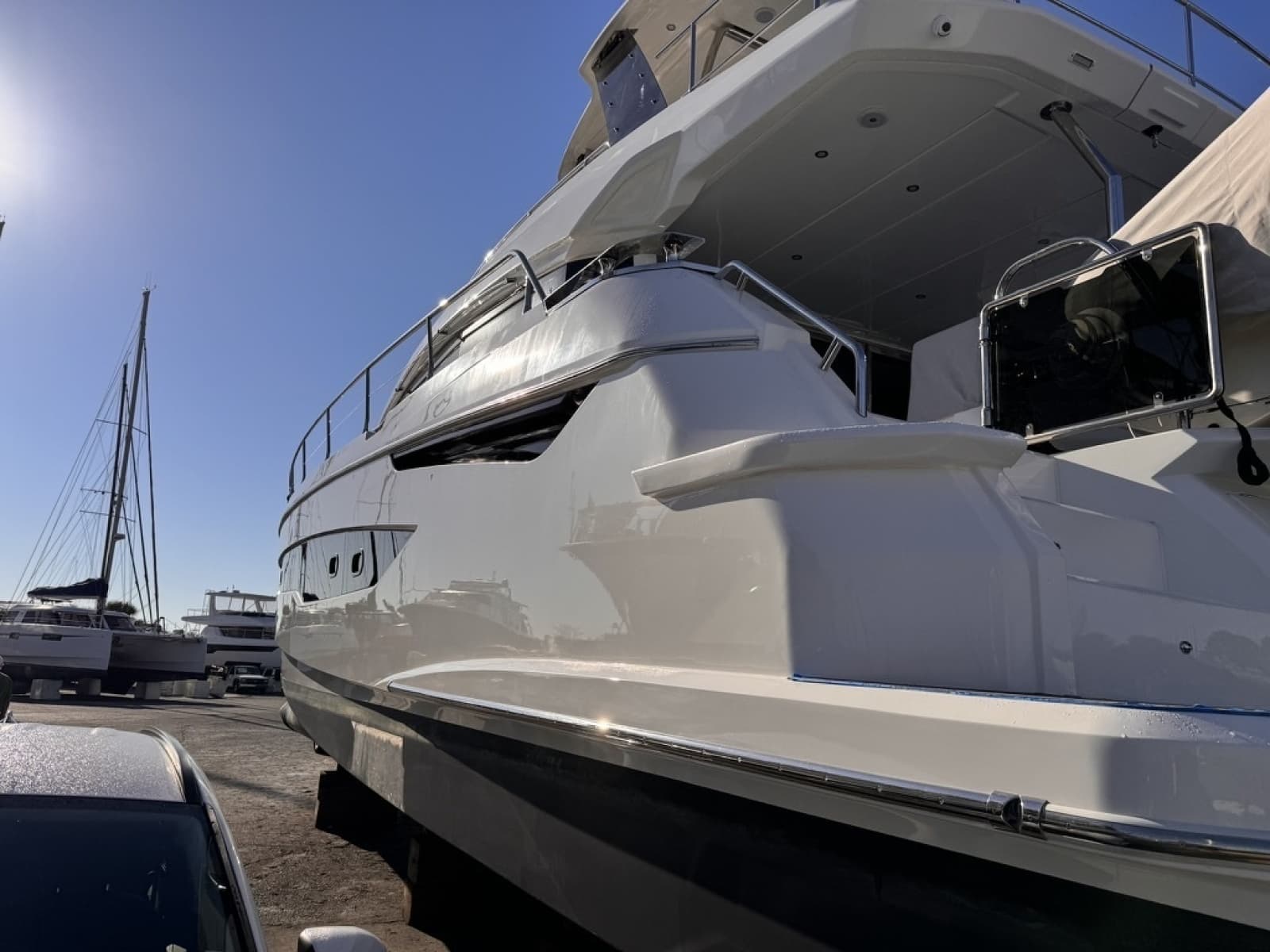

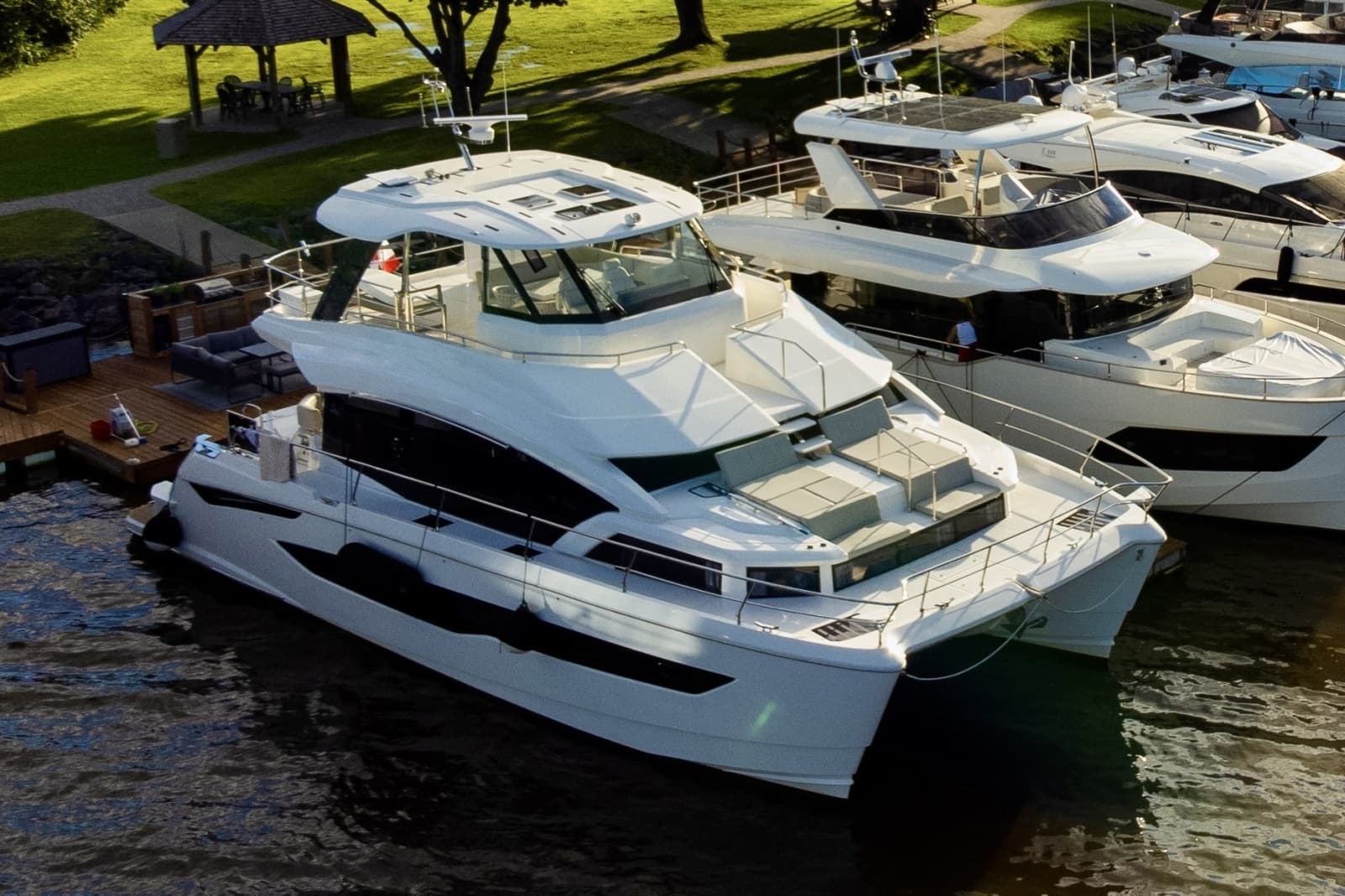

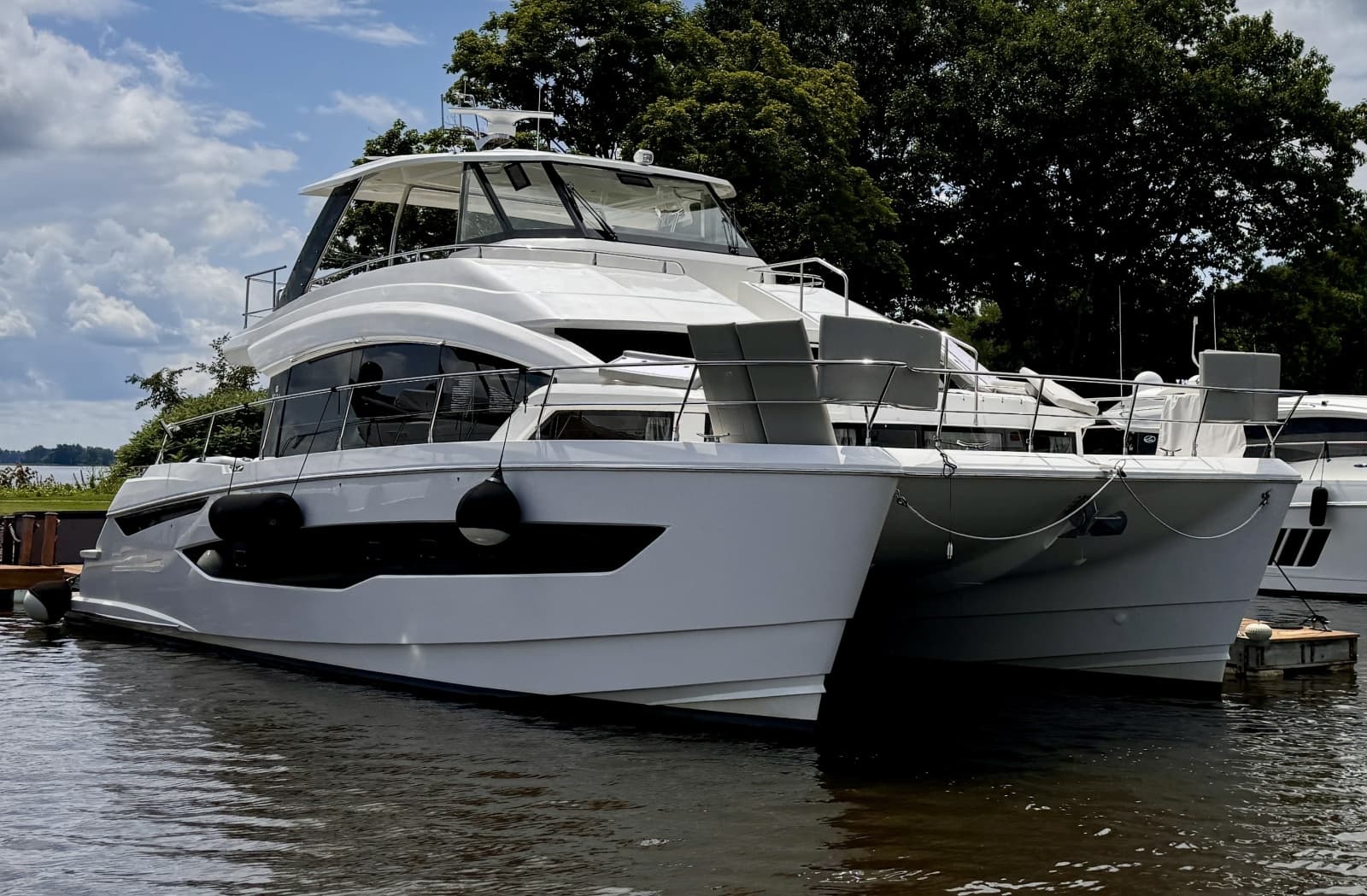

2024 Aquila 54 YACHT

Notes:

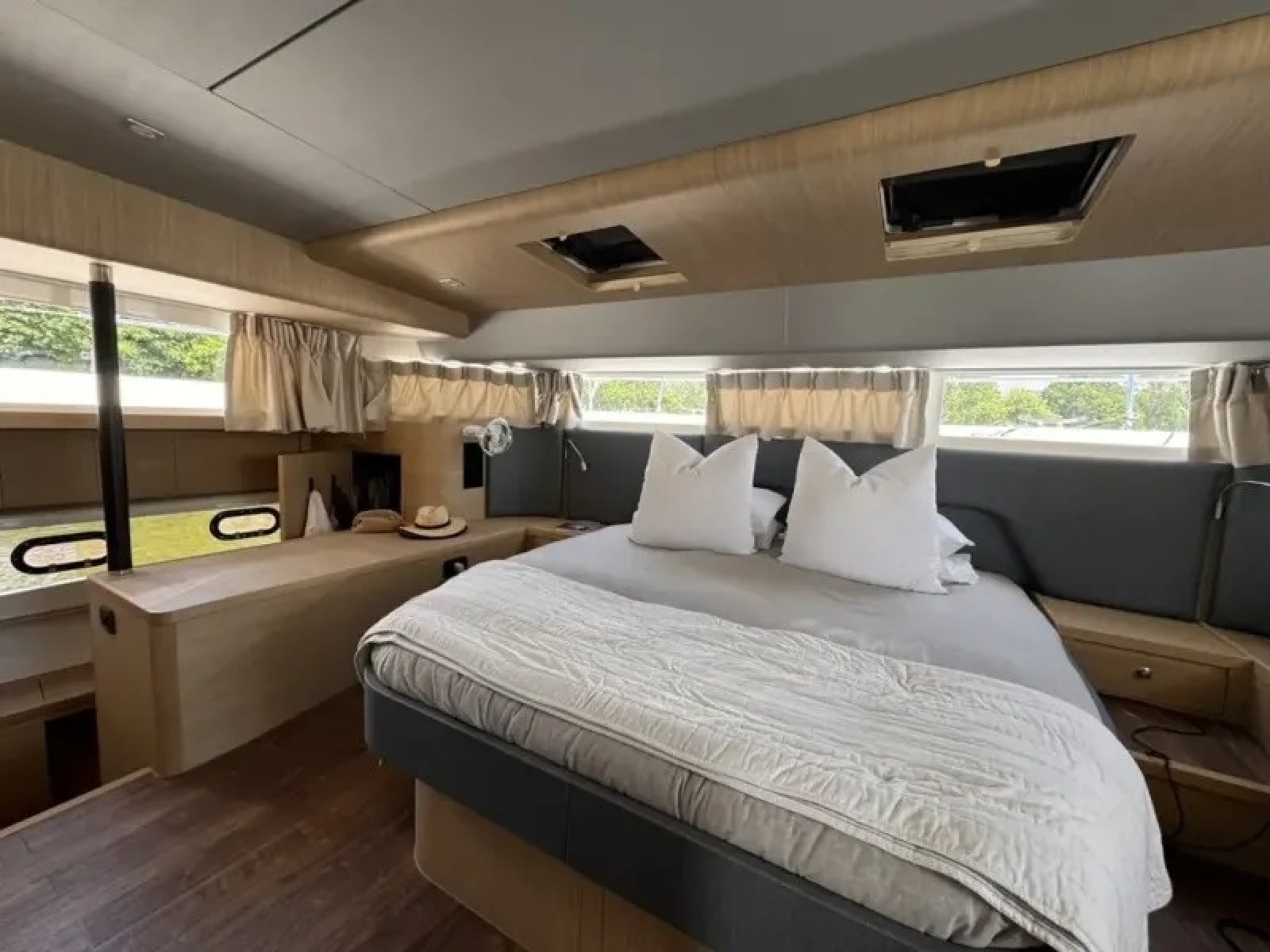

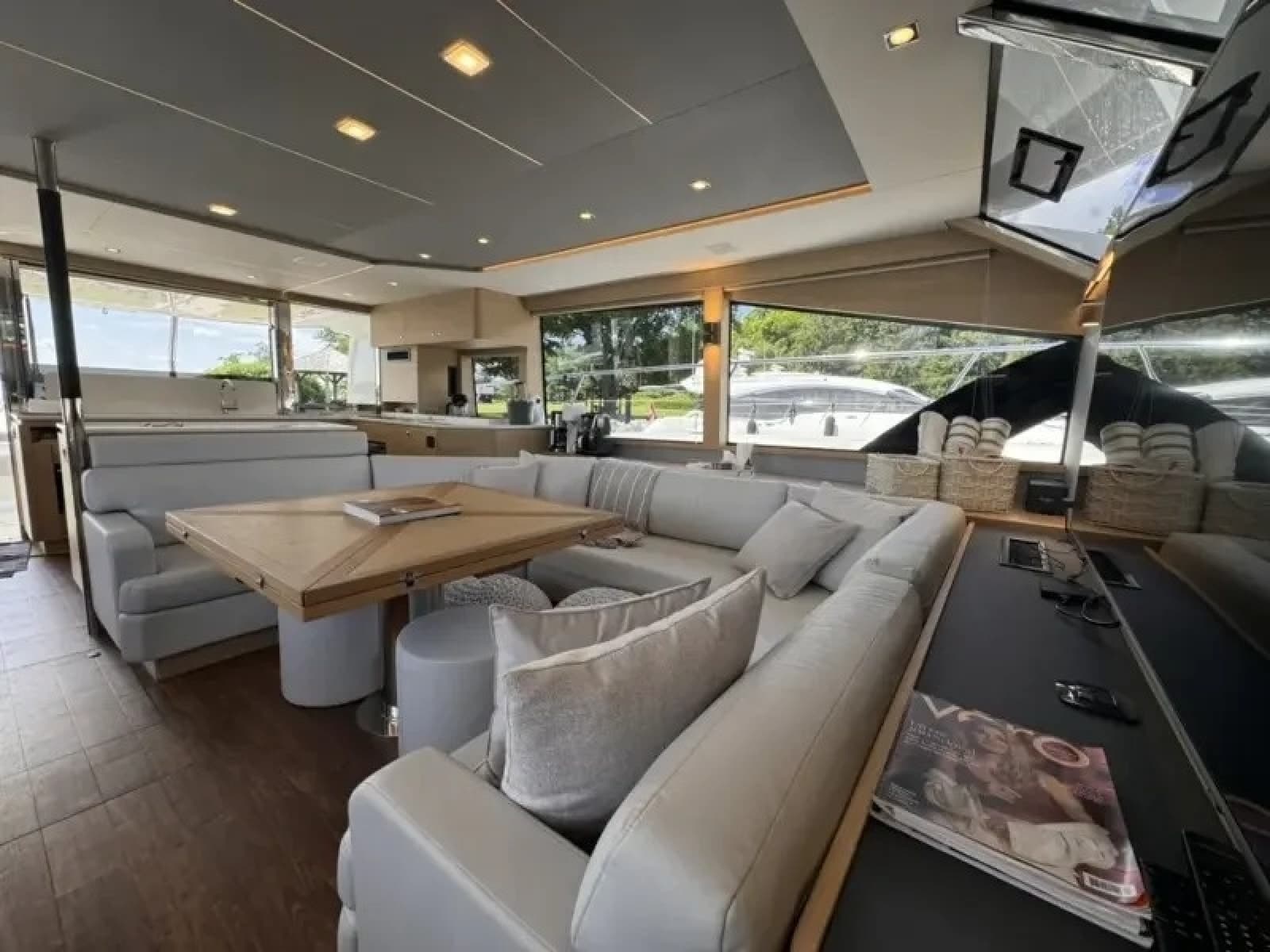

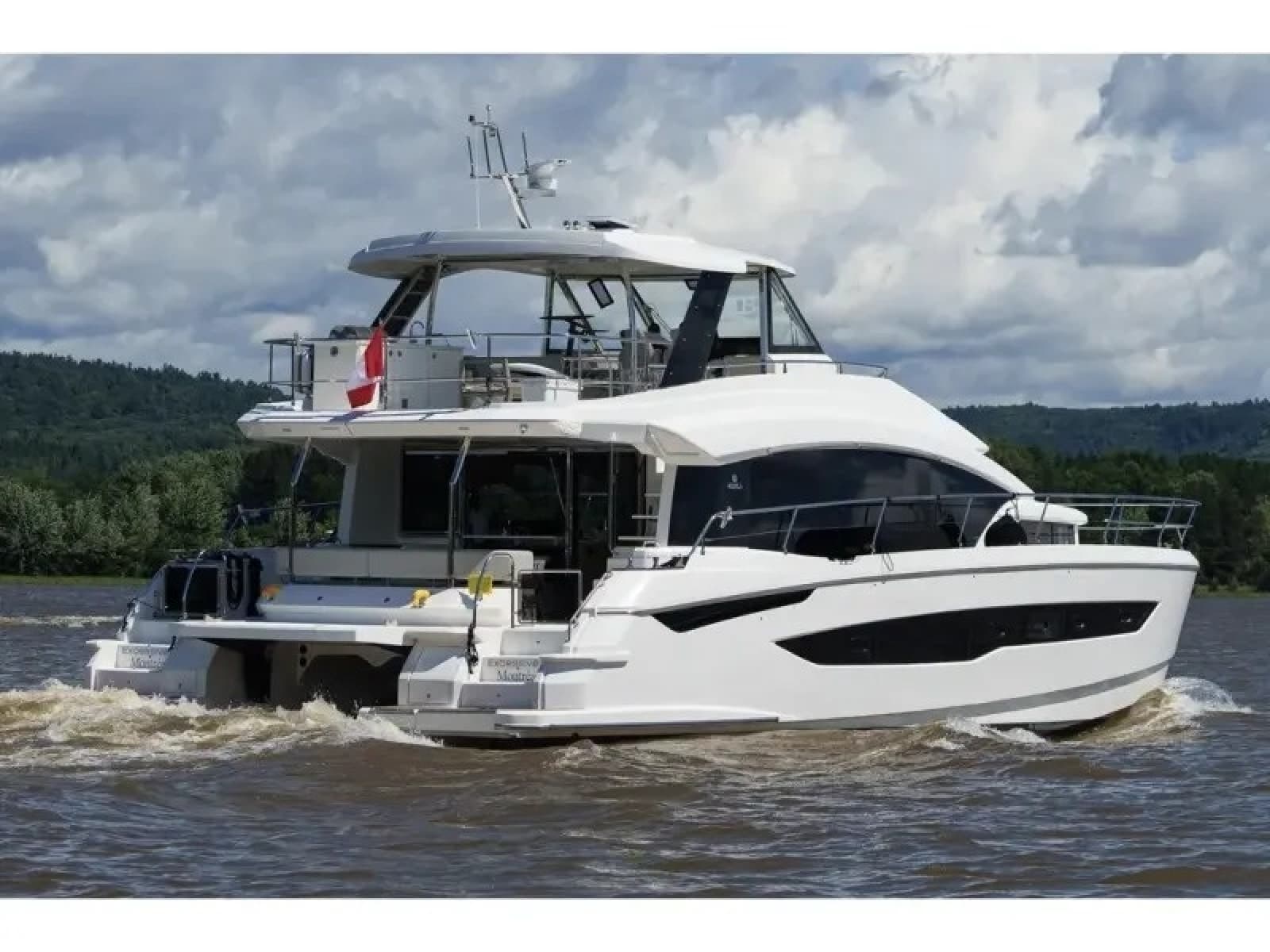

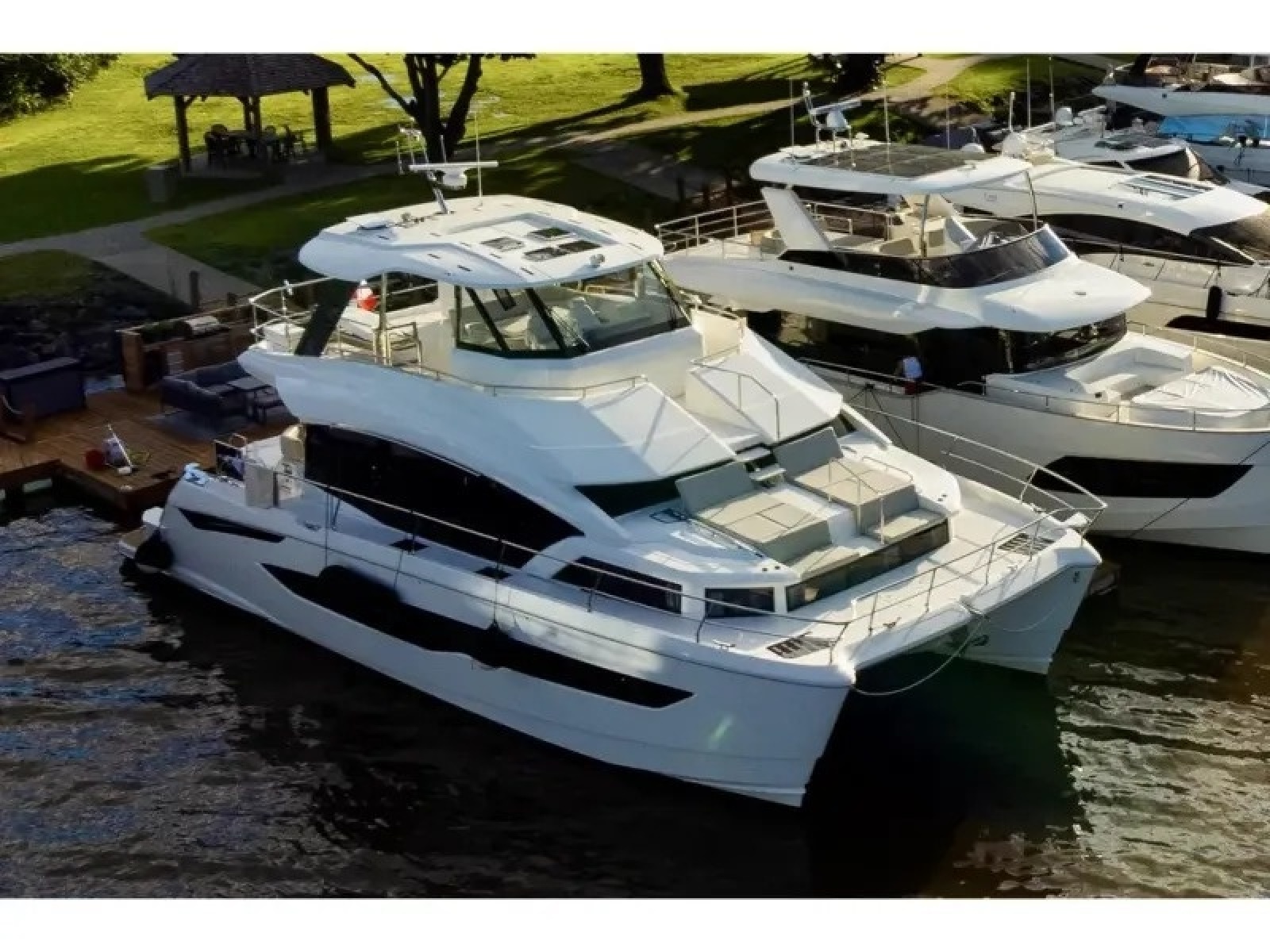

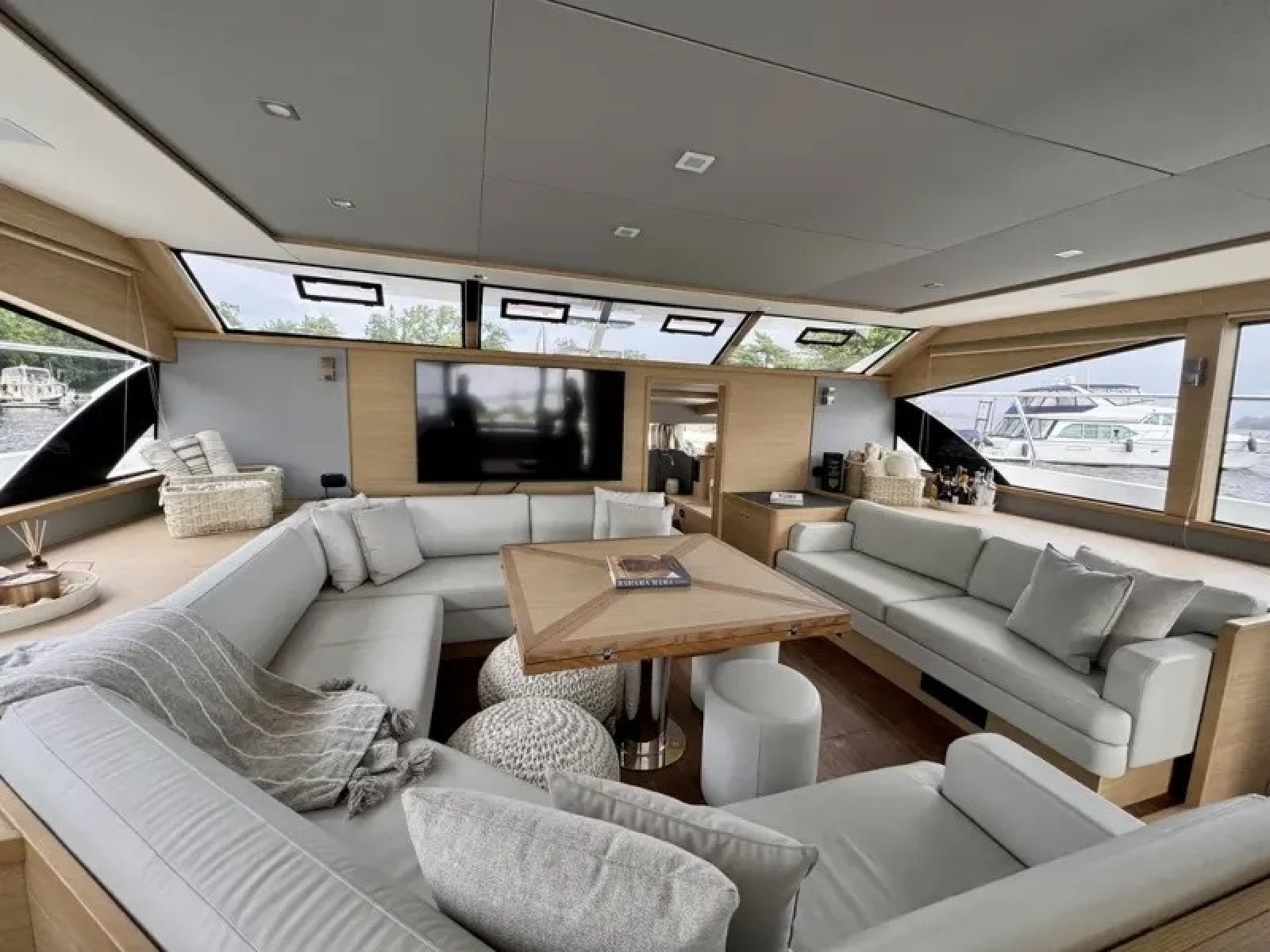

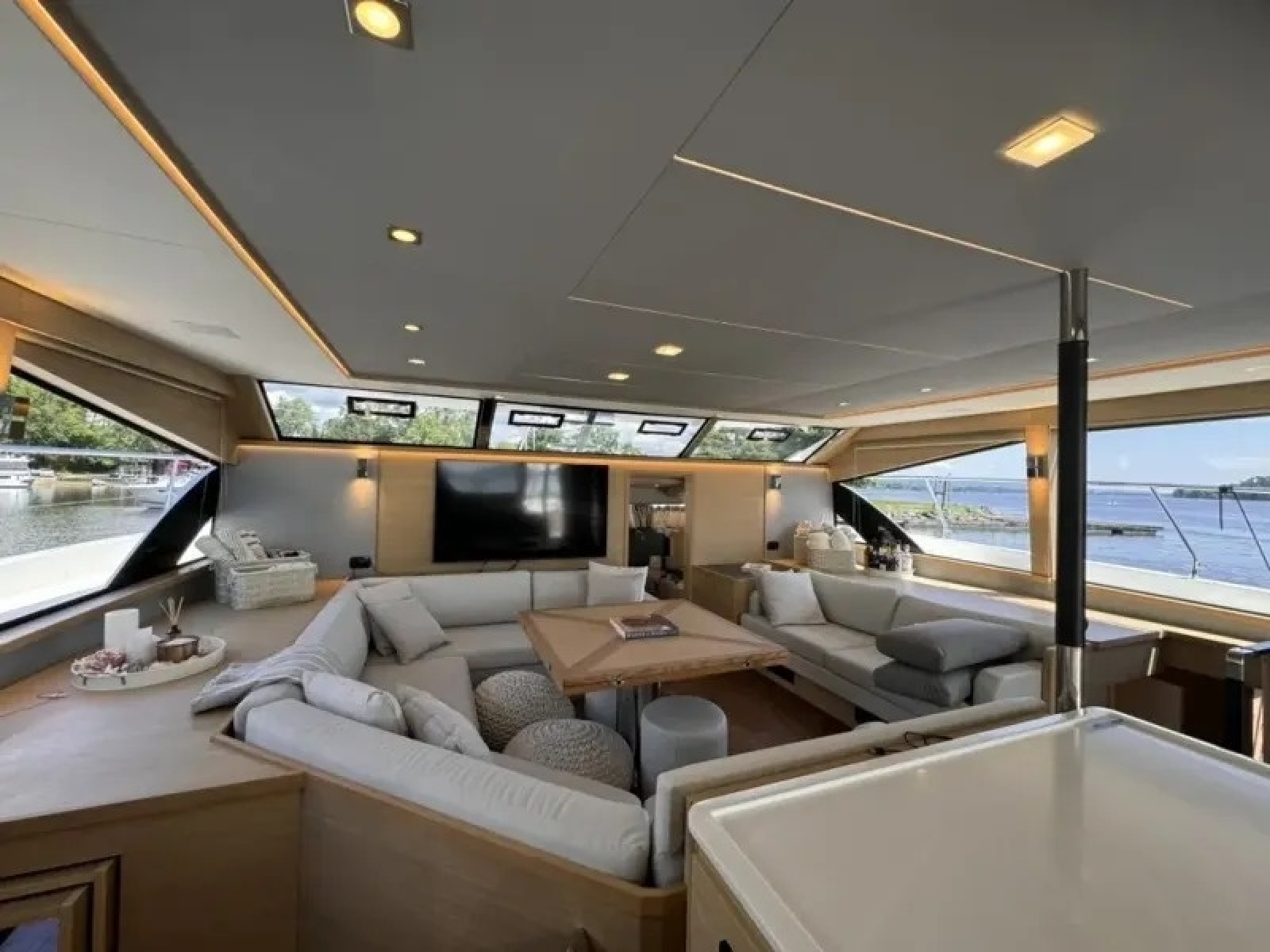

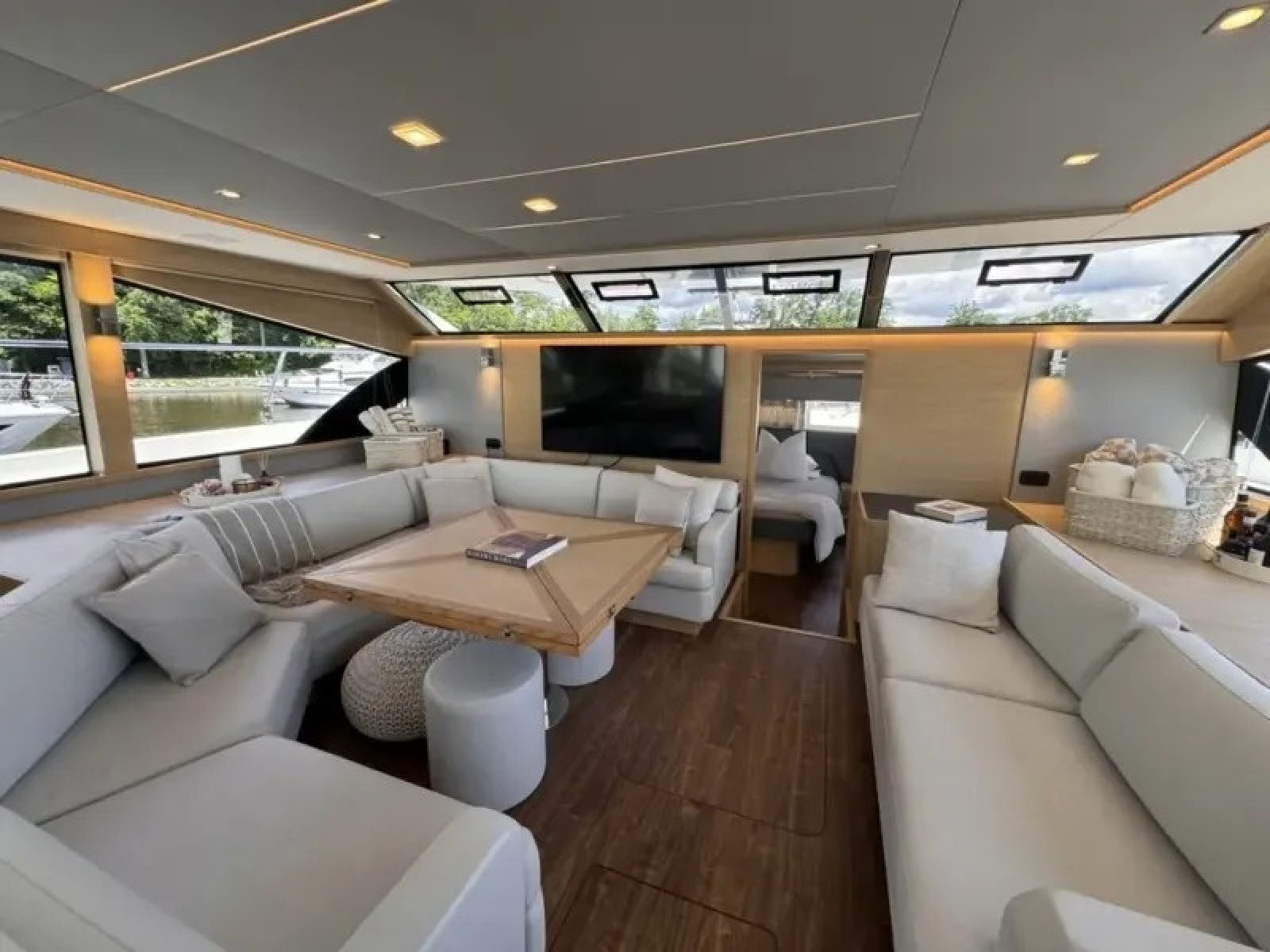

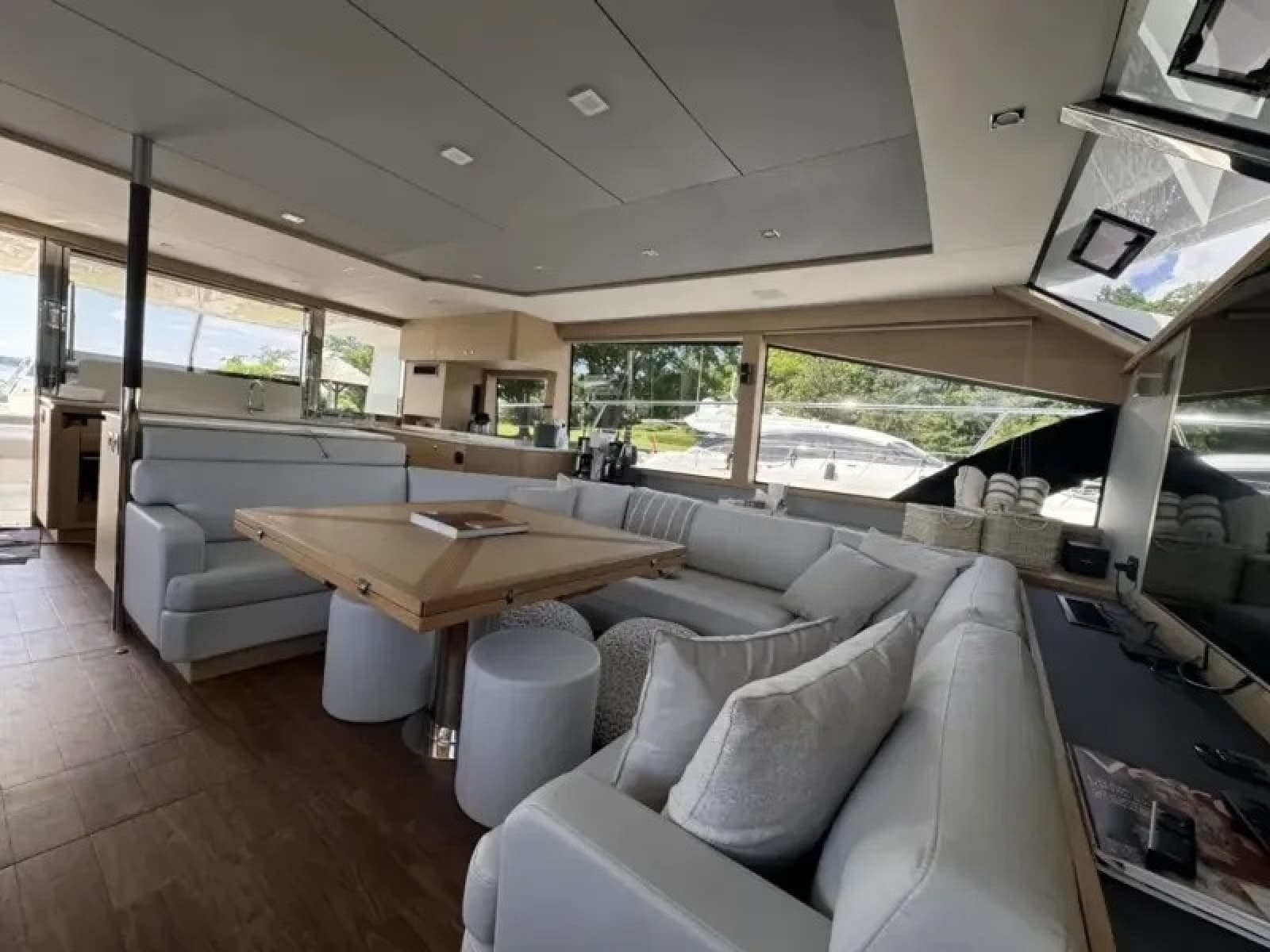

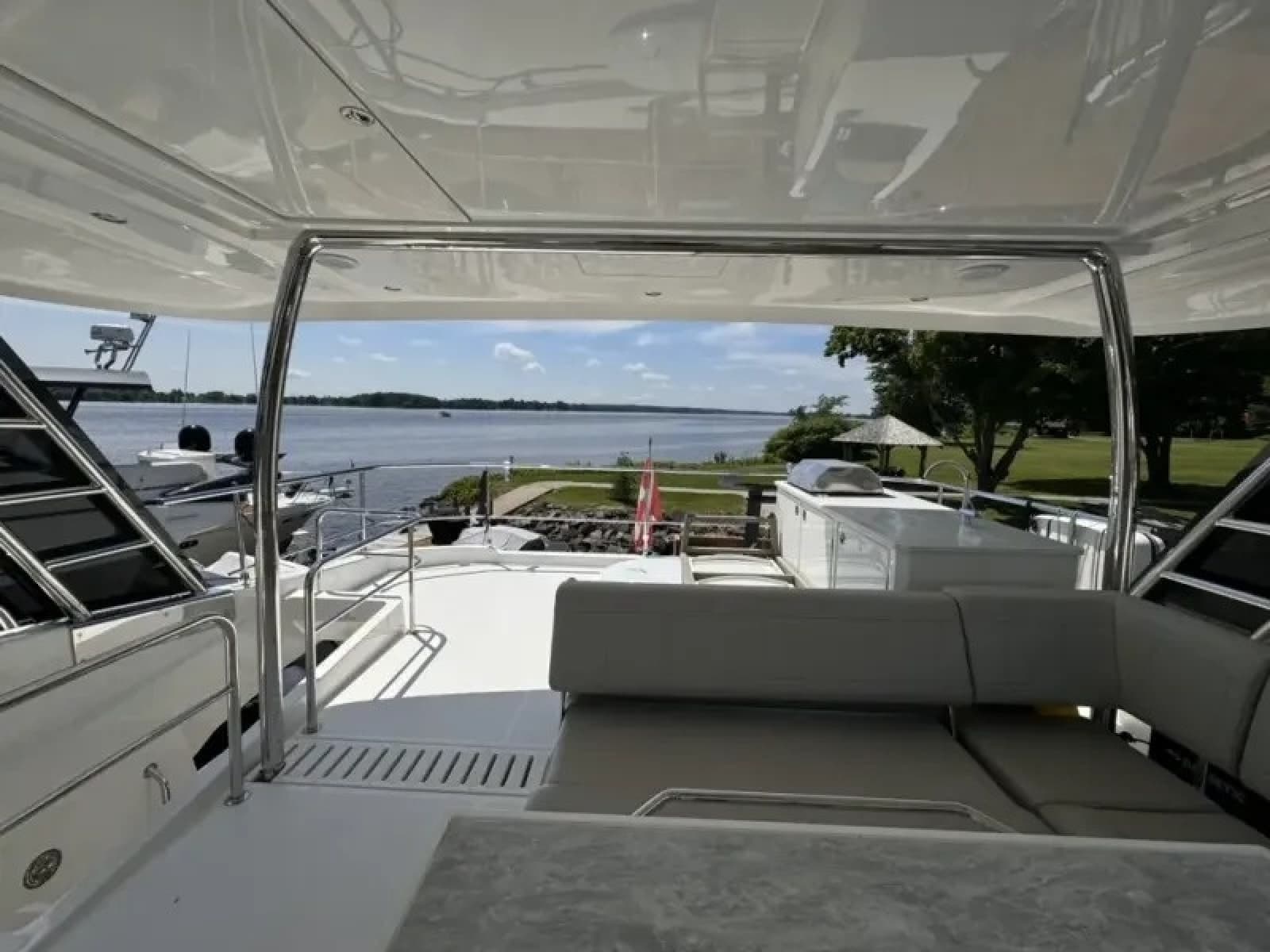

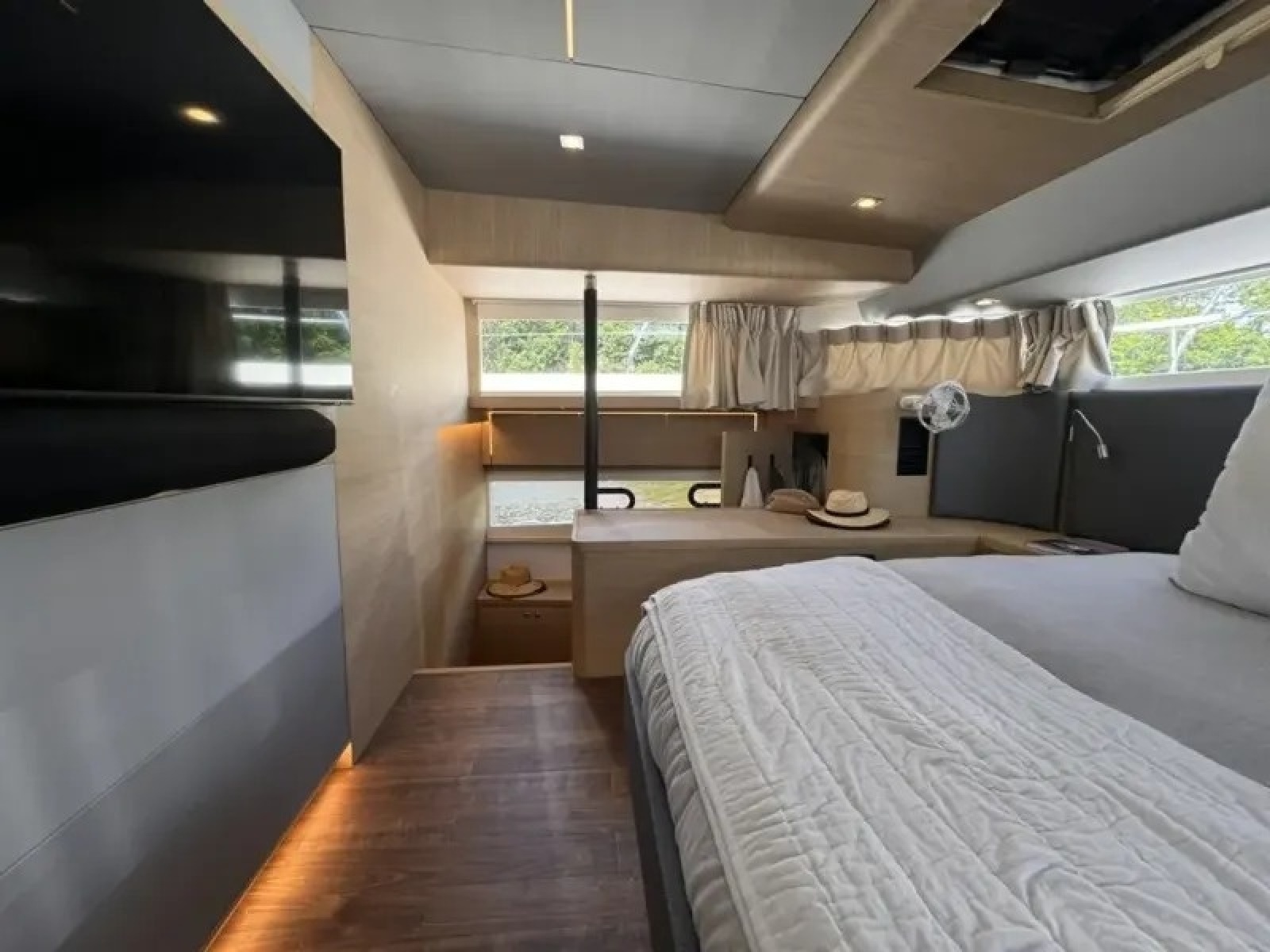

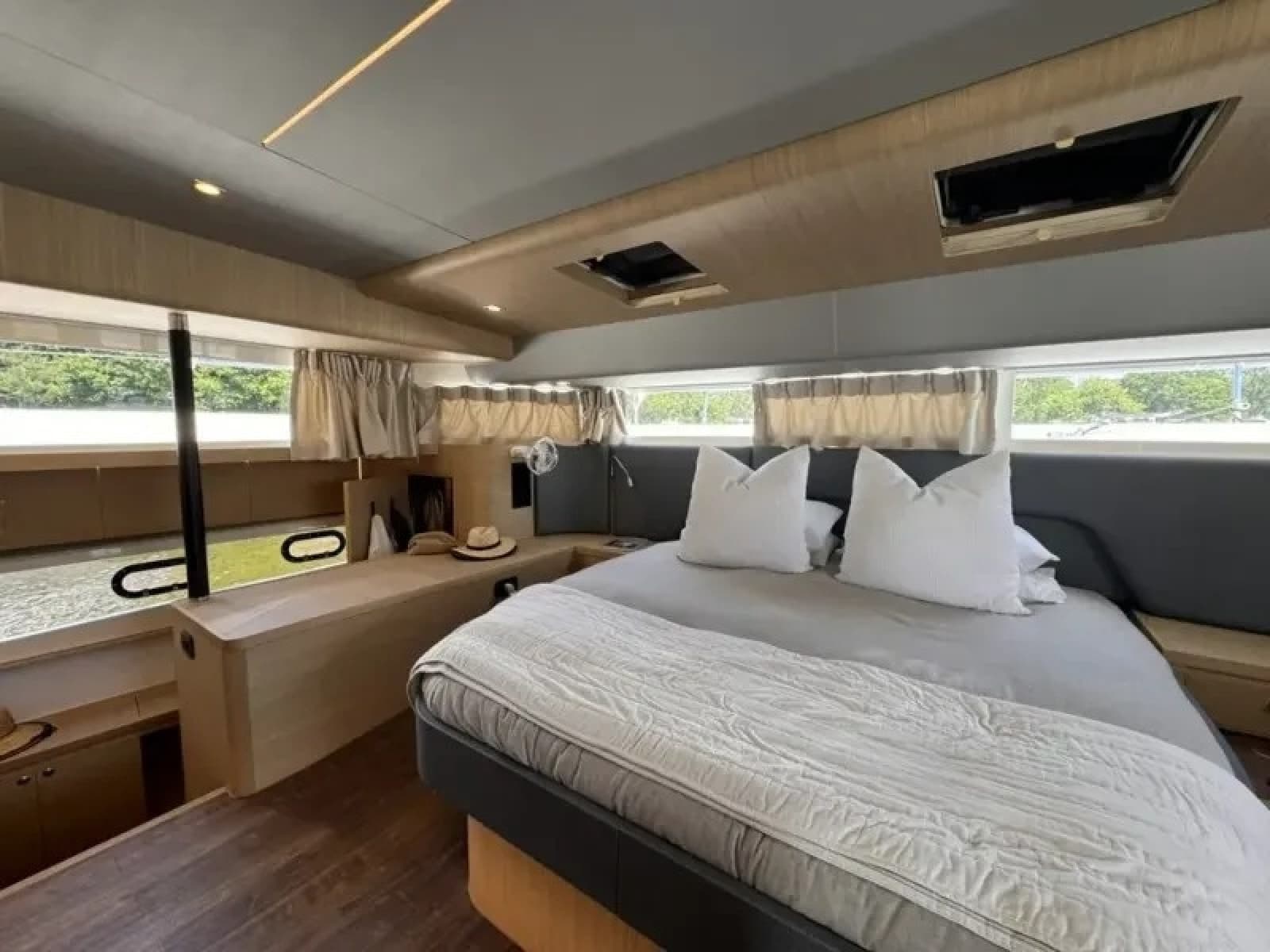

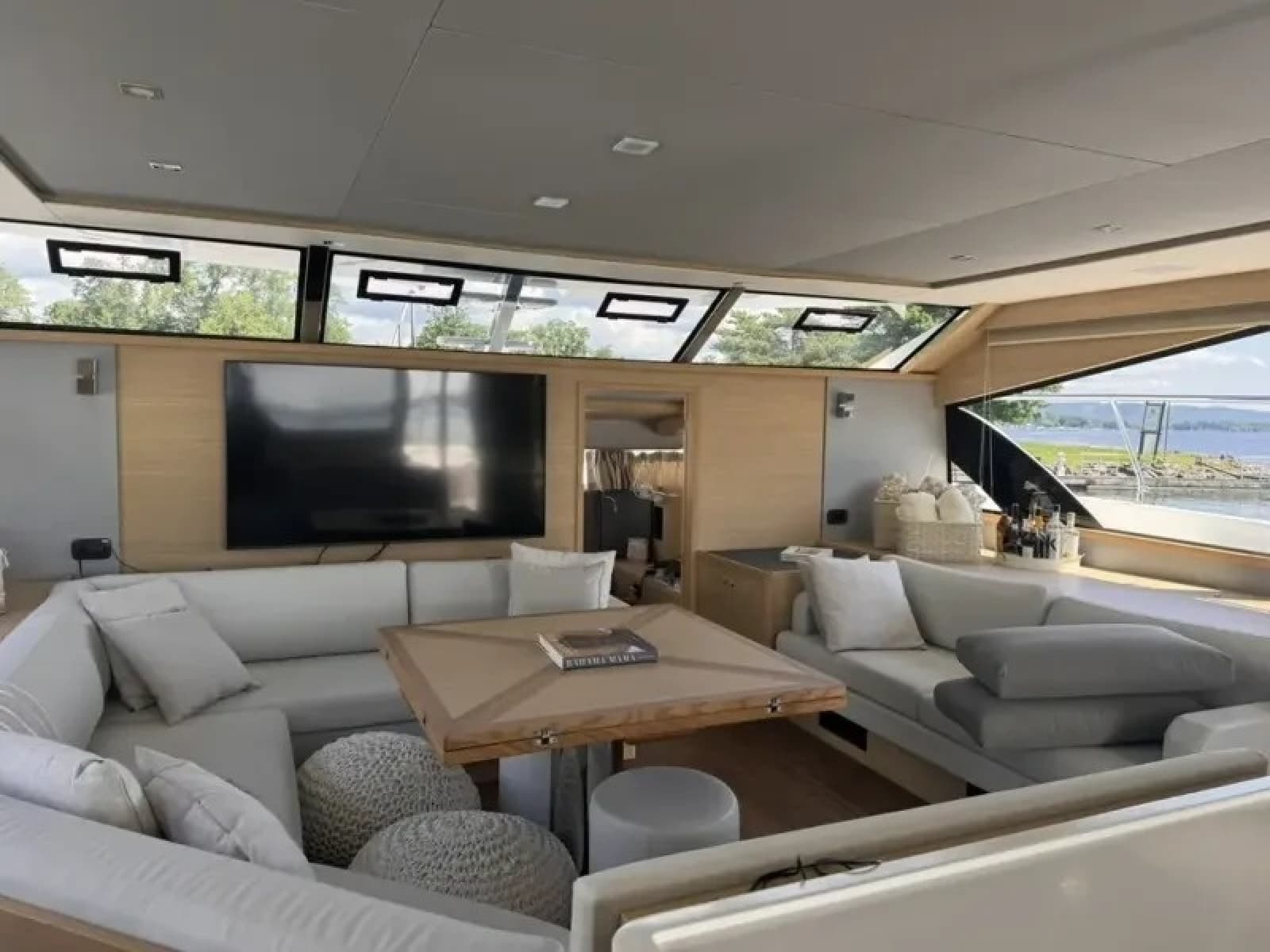

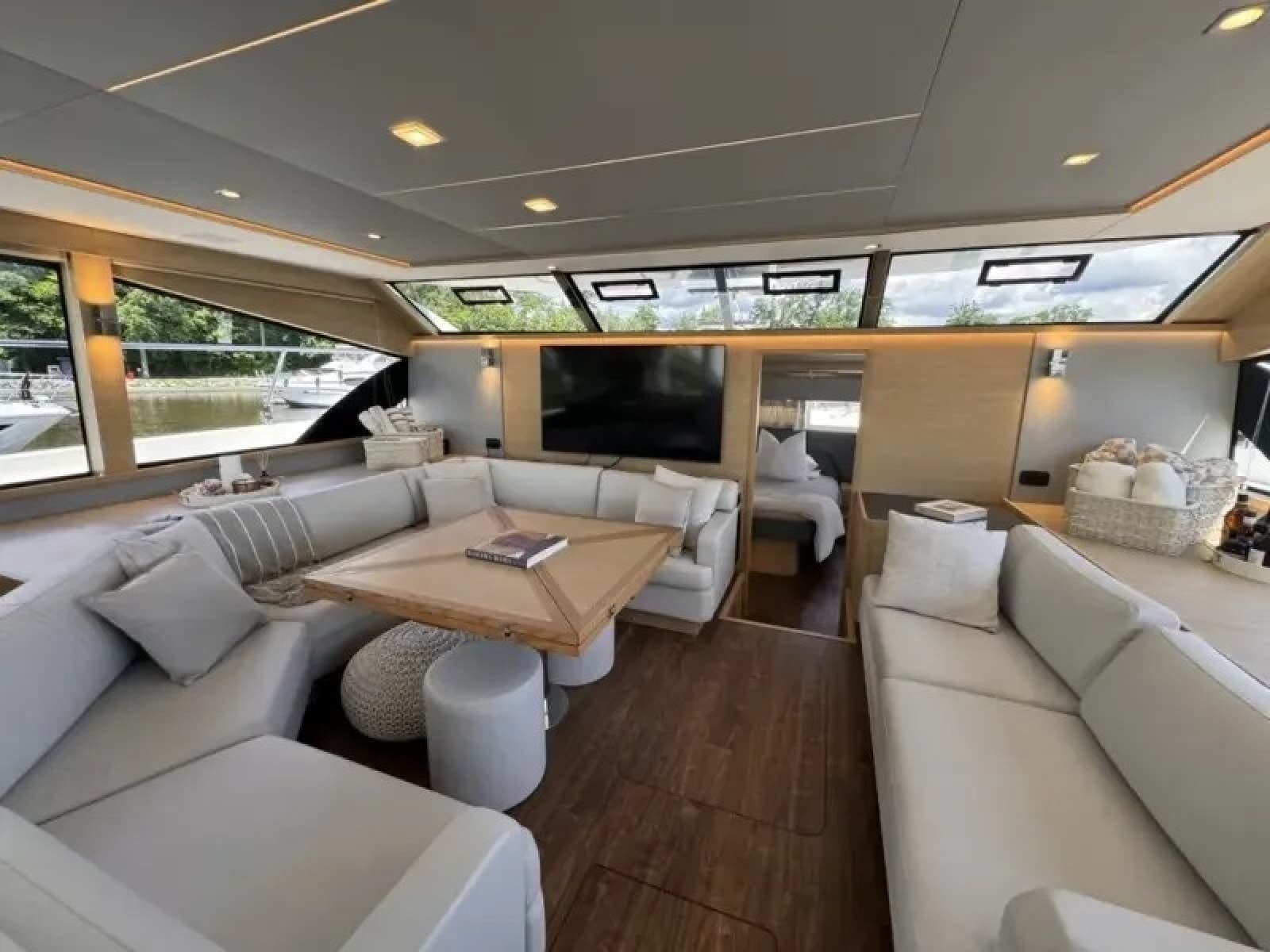

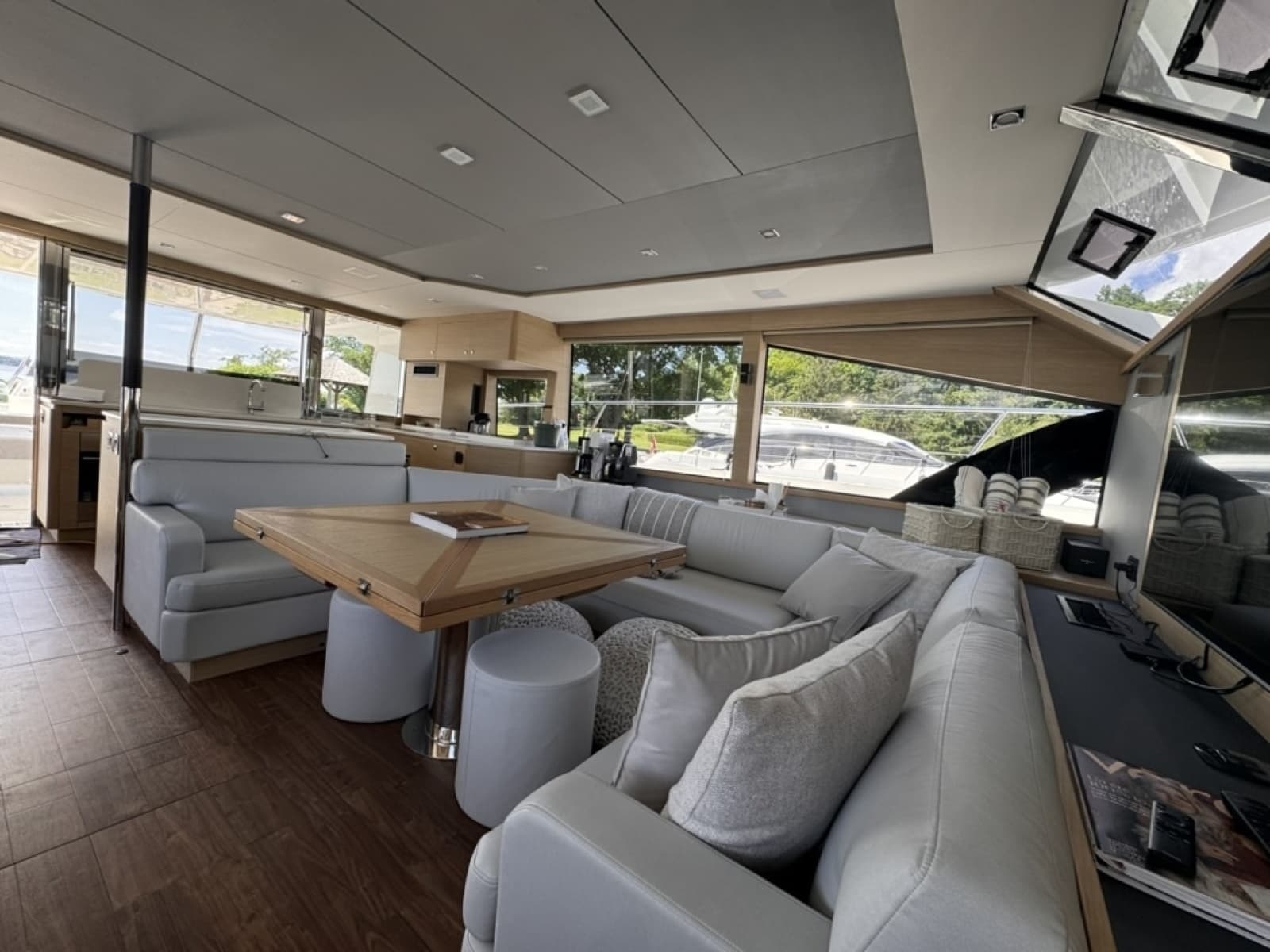

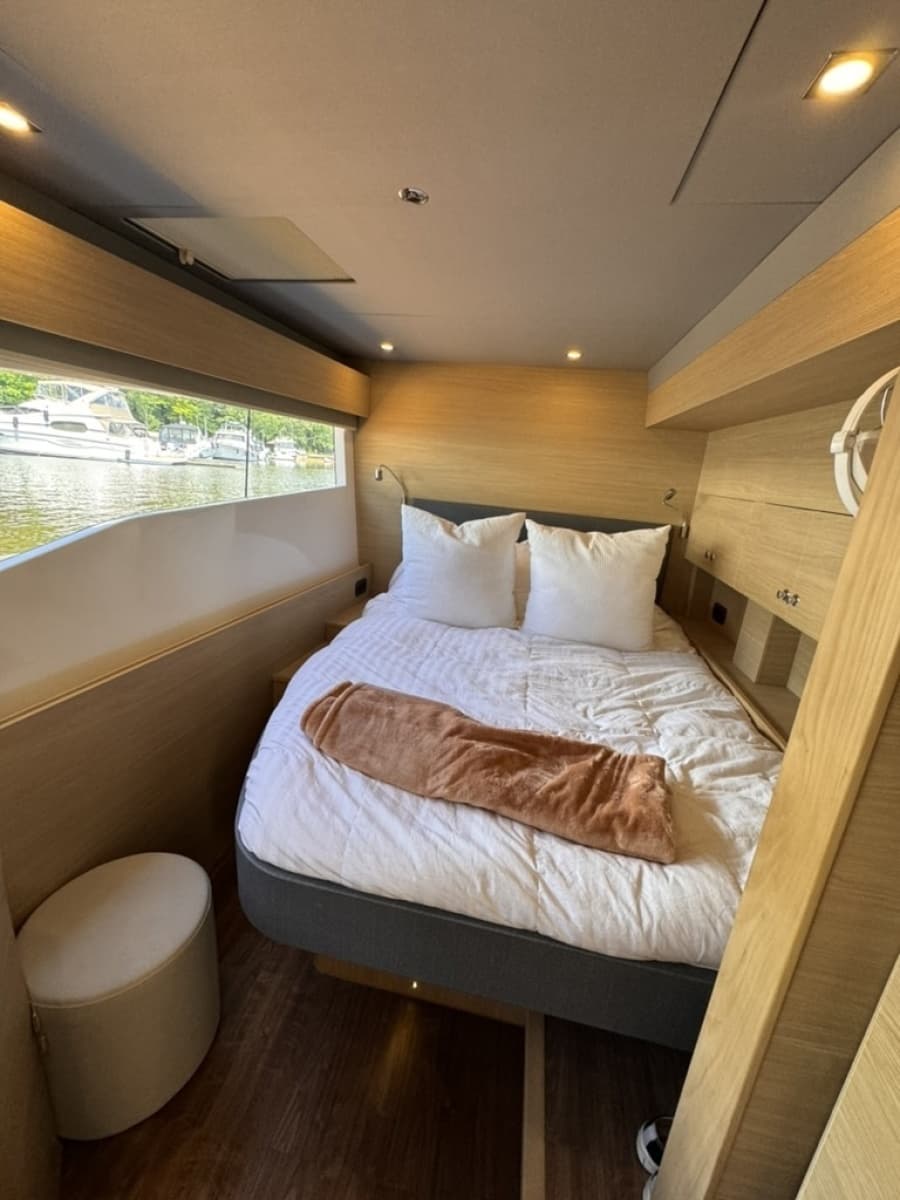

The Aquila 54 Yacht Power Catamaran represents the perfect balance between luxury, performance, and innovation. Designed with world-class craftsmanship, this yacht offers an unparalleled cruising experience with spacious interiors, exceptional stability, and remarkable fuel efficiency. The expansive salon and full-beam forward master cabin provide breathtaking panoramic views, while the versatile flybridge options—open or fully enclosed—ensure year-round comfort. Whether for long-range cruising or entertaining guests, the Aquila 54 is built to exceed expectations.

DIMENSIONS | WEIGHT

Length Overall: 54'2"

Beam: 25'2"

Max Draft: 4'6"

Weight : 52 367 Lbs

ENGINE

Twin x 480HP Volvo D6 Inboard engines

Reserve fuel tanks (2 x 360L / 92gal) with transfer pumps

Bow thrusters x 2 - port and stbd hull - 8.0HP - 6.0KW - thruster control at upper helm

CAPACITY

Cabins: Change from standard layout three cabin three head to four cabin four head with galley up - all other items per standard base boat

Sleeping Capacity: 6+

Maximum Passengers: 30

Water Capacity: 1000L / 238 Gl

Fuel Capacity: 2200L / 581 Gl

OPTIONS

Electrical BBQ on AFT deck flybridge wet bar (310 square inches of cooking area) with 65L stainless steel fridge.

Stainless steel ice maker at AFT deck wet bar installed next to 65L stainless fridge.

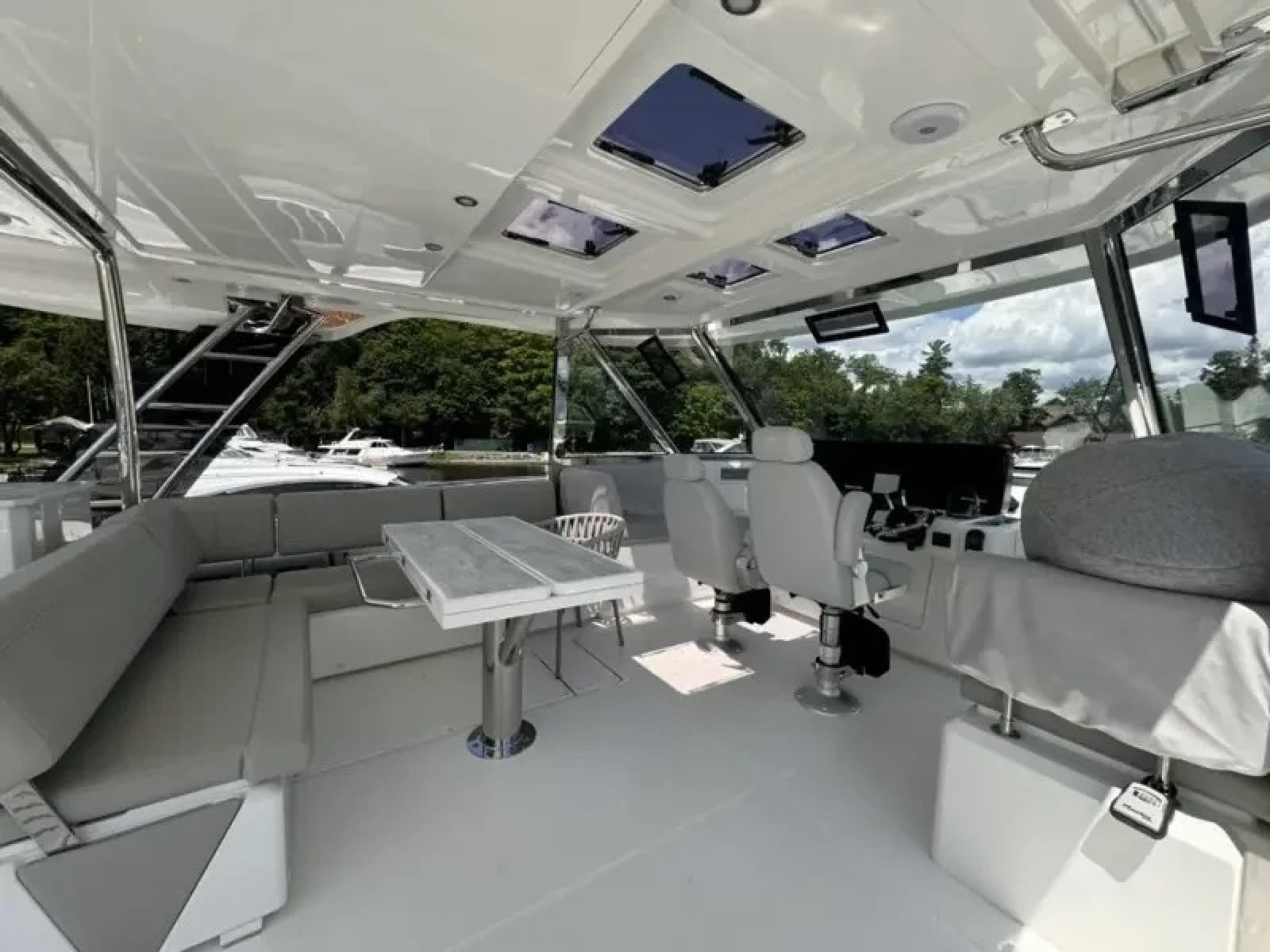

Flip down 32 inch TV flybridge (excludes TV).

Captain chairs x 2 in place of FRP molded bench seats.

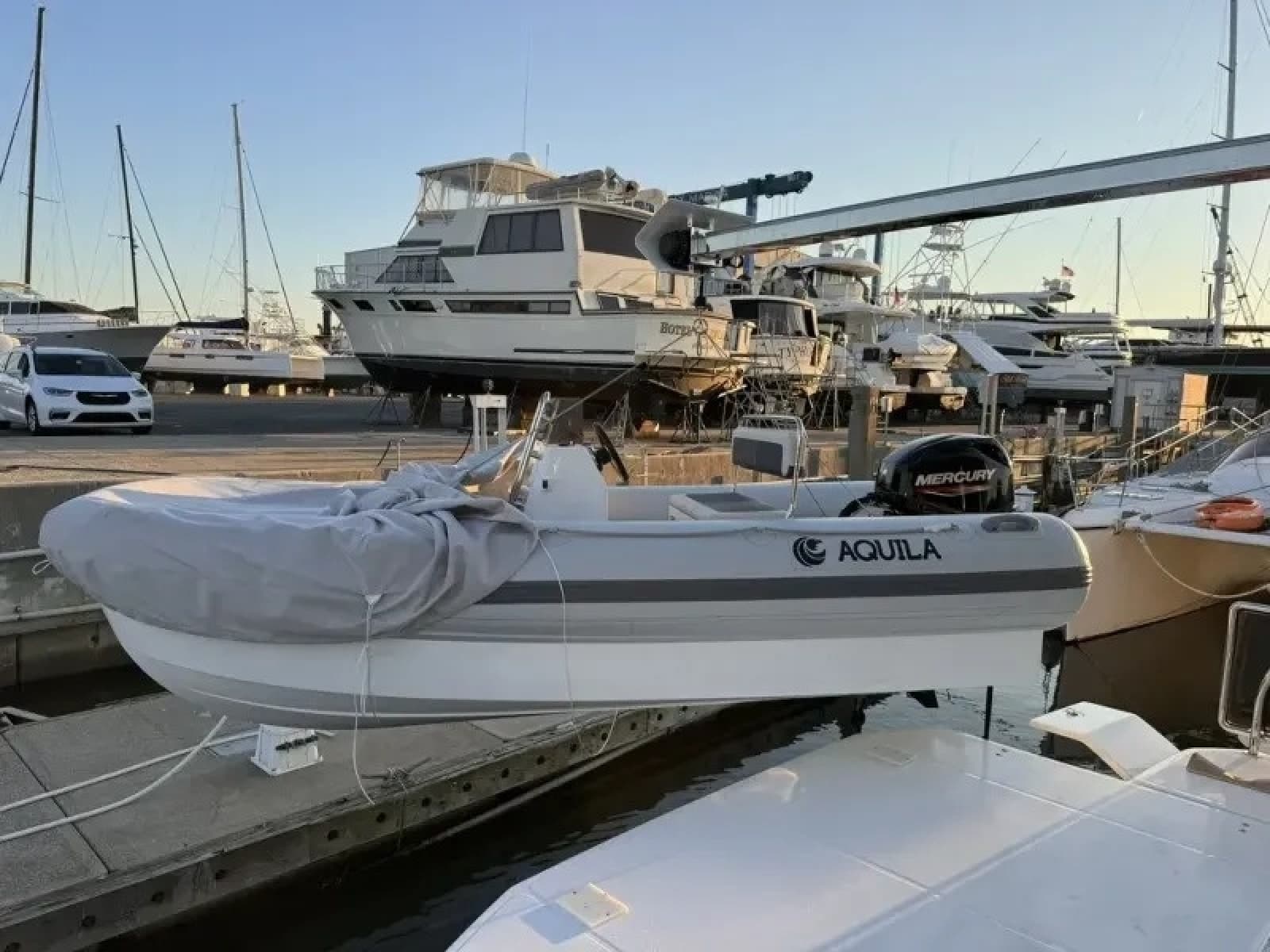

Aquila 14 cat rib sport console, electric start with 40HP Mercury outboard, lifting bridle and securing tackle, tow post.

Electrical dinghy crane lifting system with fixed AFT platform  for dinghy - maximum lifting capacity 1,000LBS/454kg.

Wireless remote for windlass

Additional house battery inverter/charger - mastervolt mass Combi Pro 24v/3500W-100.

Generator 21KW 60HZ dual voltage (120v and 240v) with sound enclosure, remote control and fuel transfer pump.

Solar panels - 2 x 100W.

Shore power cable master stowage system (two systems).

Water maker 189ltr/50gal per hour - SeaXchange XTCII1200 (220/240V).

Dockside water connection.

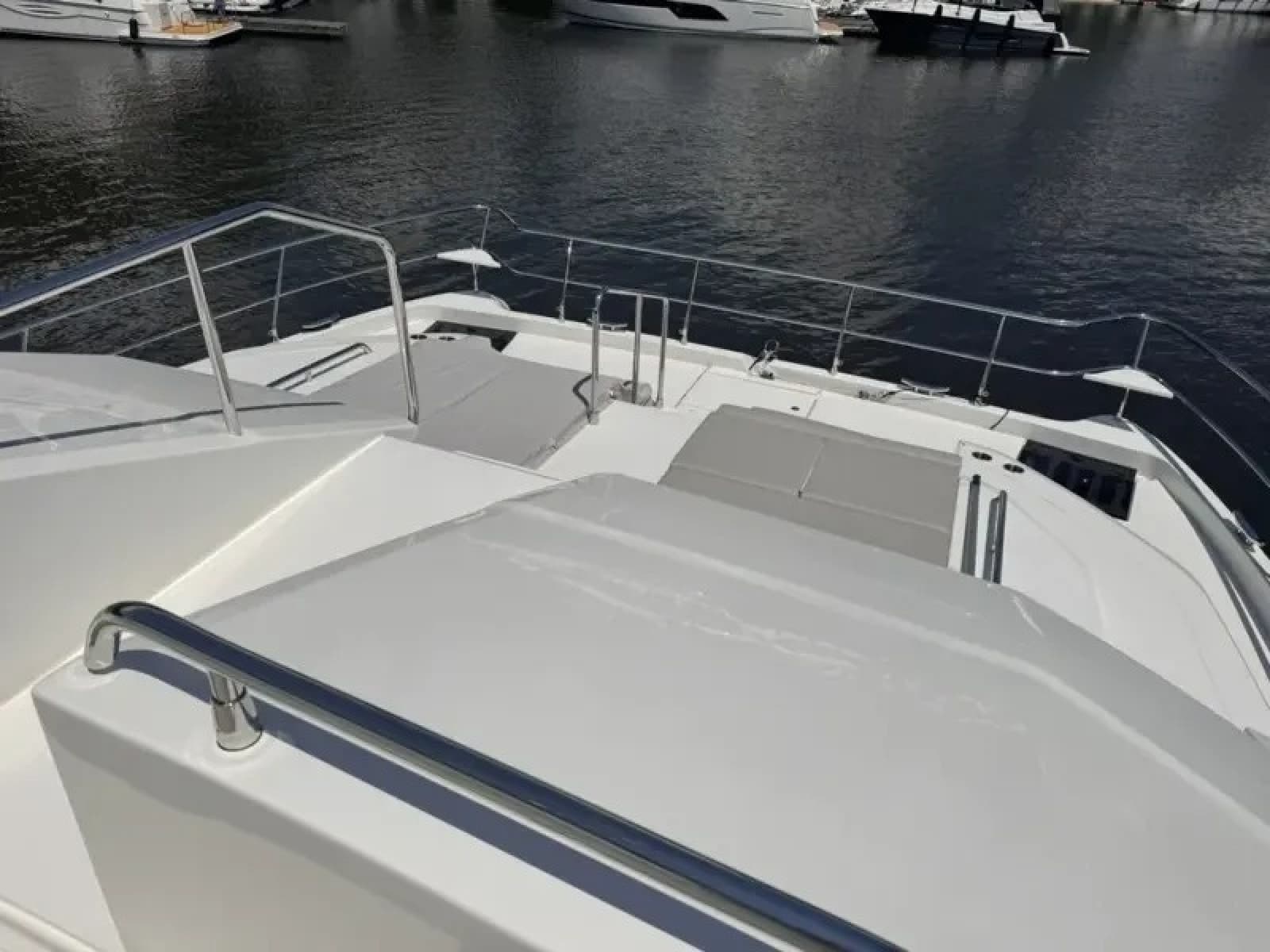

Sea water deck wash pump for bow area.

Fresh water deck wash pump for bow area.

Chilled water air conditioning - V77-77000 BTU chiller for four cabin, salon and flybridge (variable speed).

Fans in cabins - two fans in master bedroom and one fan in each guest cabin - four cabin version.

Curtain on salon entry door.

Washer/dryer single combo unit - ventless.

Prefitting for 4 TVs with support in cabins - five cab version (TV's not included, excludes prefitting in aft port cabin with bunks).

Standard system in salon + single all in one bluetooth soundbar in all cabins - four cabin version.

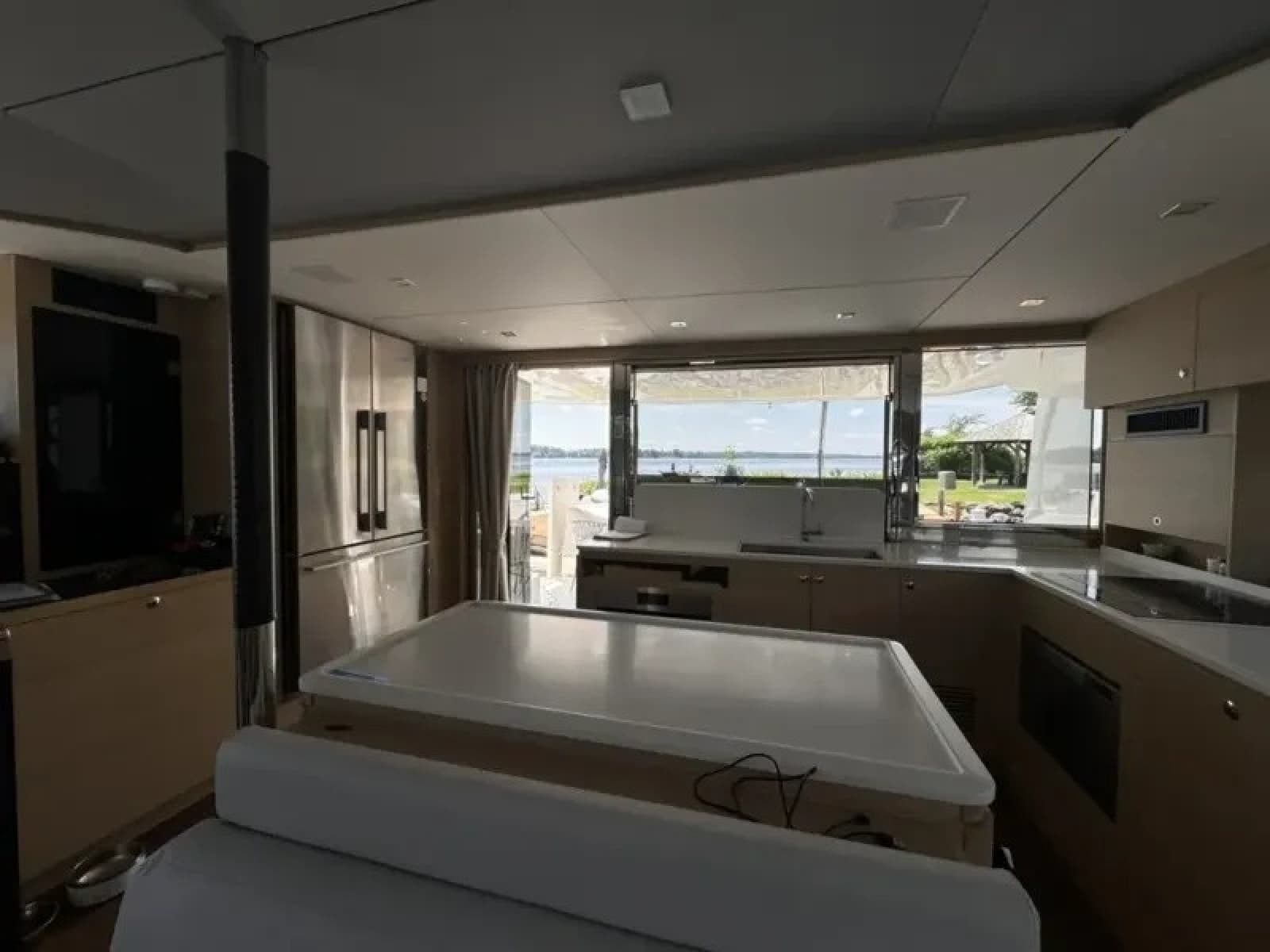

Dishwasher ( 120v, 60Hz) installed under main galley countertop (cannot be ordered with the convection oven).

Convection oven (120v, 60Hz) installed under main galley countertop in lieu of standard microwave (cannot be ordered with the dishwasher).

Electric wine cellar in salon/galley (23 bottles).

Offshore navigation package - includes all items as listed in the above Coastal Navigation Package plus a Raymarine radome Quantum 2 Q24D color scanner, Raymarine AIS700 system with antenna coupling, and a second Raymarine 16" Axiom2 Pro S chart plotter.

Raymarine AIS700 system with antenna coupling.

Additional Raymarine cam300 camera mounted to face AFT starboard into transom area.

Spot light with remote.

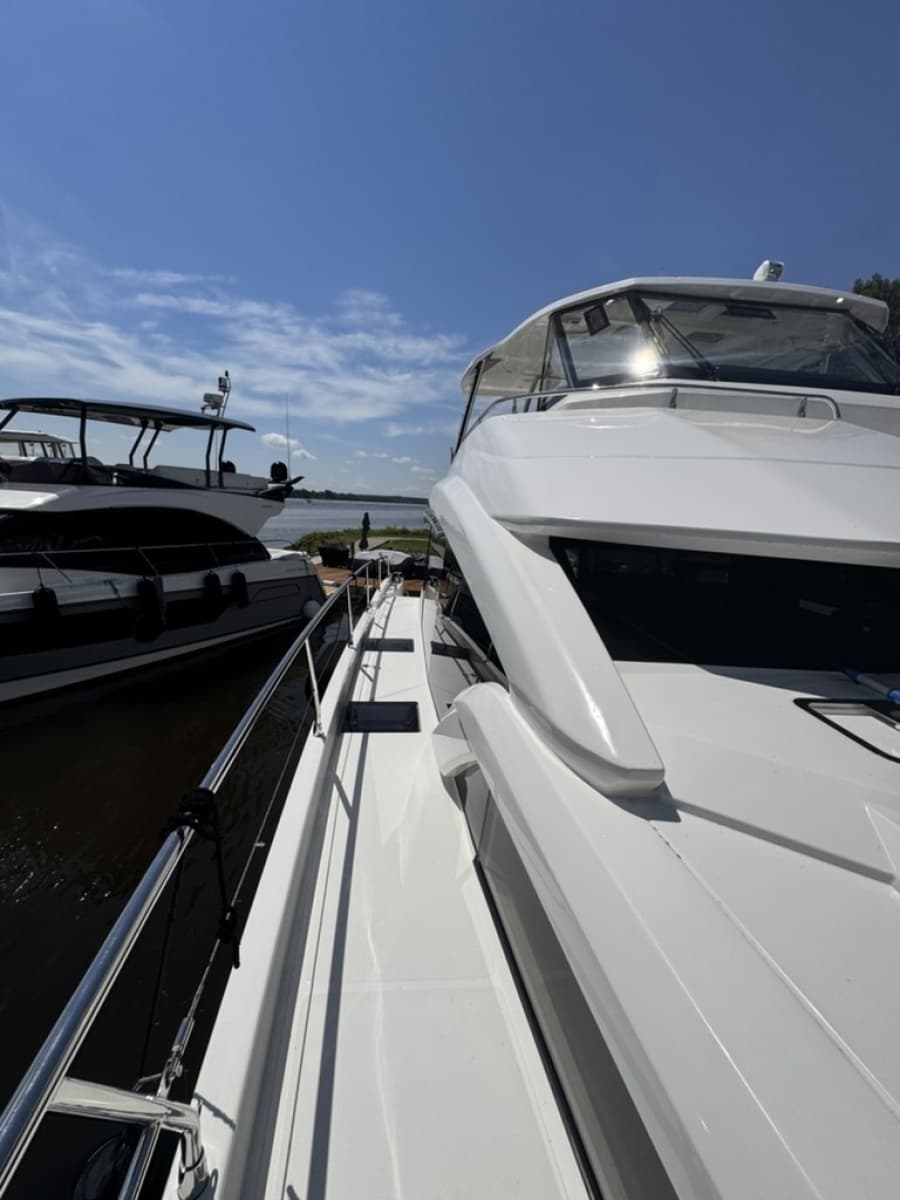

Blue led courtesy deck lighting package on portuguese flybridge walkway and main side deck walkways.

Underwater lighting- 4 x Explore E6 XFM colors DMX.

Ready to experience the Aquila 54? Contact Marine 360 today!
