Description

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

Key Specifications

LOA113' 6"

Beam25' 12"

Draft Max7'

Draft Min2' 5"

LWL104' 12"

TypePower

Hull MaterialSteel

FuelDiesel

Cruise Speed11.5 Knots

Max Speed14 Knots

Range3800 nm

Weight & Measurements

Gross Tonnage298

Displacement279 lbs

Accommodation

Cabins5

Sleeps12

Tankage

Fuel7945 gal

Water1770 gal

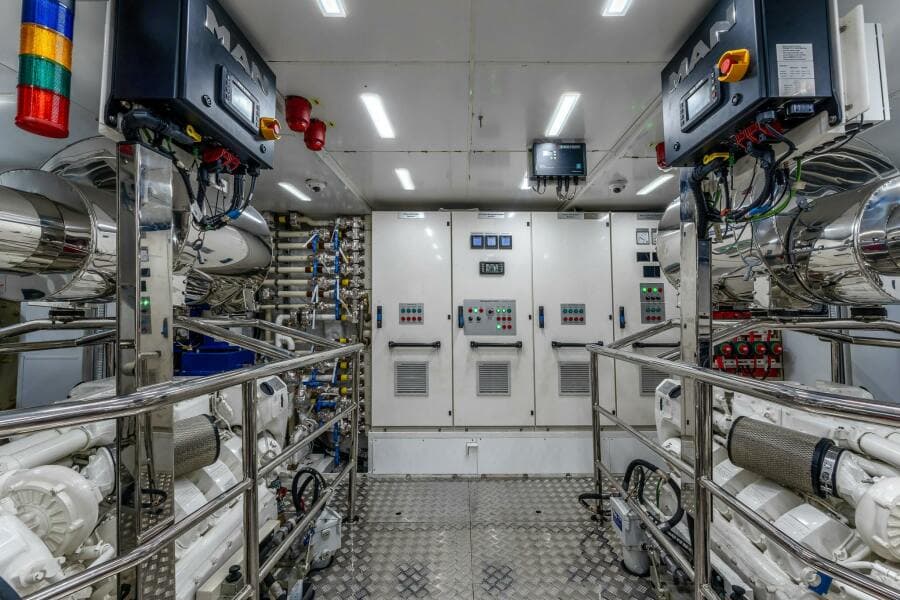

Engines

MAN D2868LE425

MakeMAN

ModelD2868LE425

Power800 HP

MAN D2868LE425

MakeMAN

ModelD2868LE425

Power800 HP

Full Details

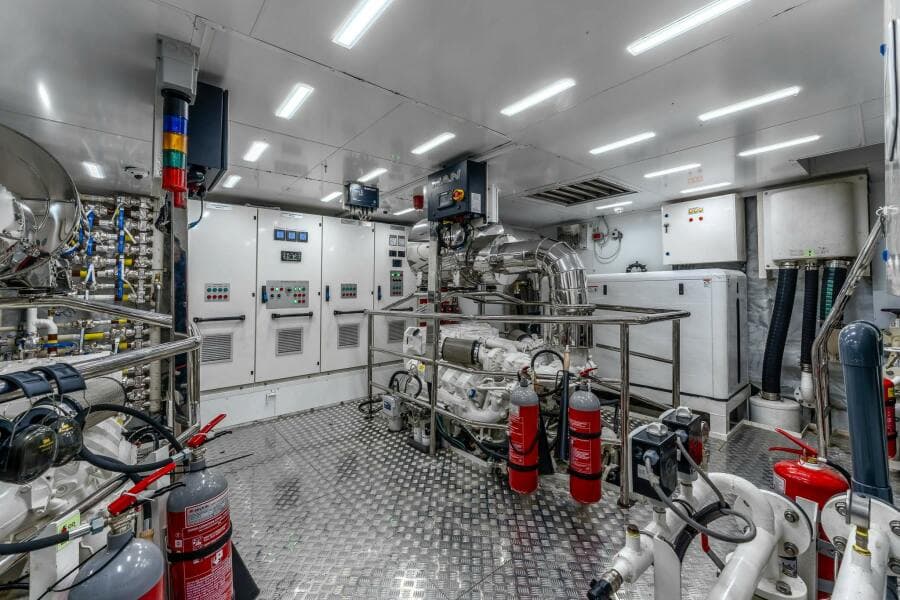

OTHER MACHINERY

Air draft (Height above DWL): 11.88 meters
Keel Type: Keel Plate and Skeg
Bilge Water Tank: 640 liters
Total Propulsion Power: 2 x 800 HP (2 x 588 bkW)
Drive Type: Propeller
Engine Control System: (electronic, remote): Aventics
PTO Pumps: LIVE
Water Makers: EVAC, 2 x H2012, 434 liters / Hrs
Engine Room Ventilation: GIANNESCHI
Fuel Filtration: ALFA LAVAL Fuel Sperator
Sewage Treatment System: Optional
Vacuum Pumps and Toilets: JETS
Fixed Bilgeand Diesel Driven Emg Fire /Bilge Pump: GIANNESCHI
Generator Exhaust Filters: CENTEK MARINE
Hot Water Boiler & Heaters: GIANNESCHI
Pumps: GIANNESCHI
Main Engine & Generators Duplex
Filters: RACOR
Air Horn: KAHLENBERG
Electrical Supplies: 230 / 400 V - 50 hz
Starter Batteries for Engines & Gensets: VICTRON
Service & Emergency Batteries: VICTRON
Service Generator: 2 x KOHLER 55KW
Shore Power Connection: GLENDENNING CABLEMASTER
Registered Type: Commercial Yacht / Private Yacht

ACCOMMODATION

Guest Berths: 12

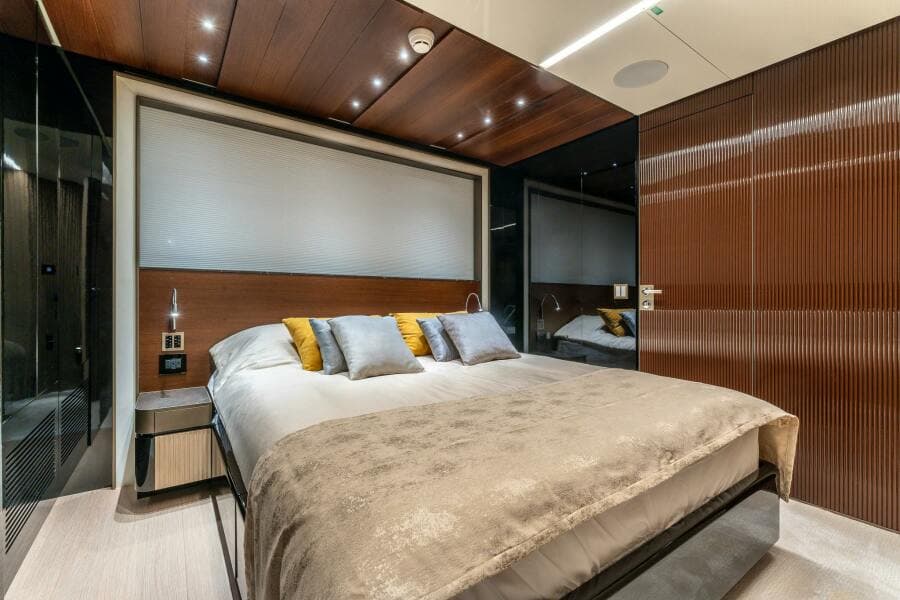

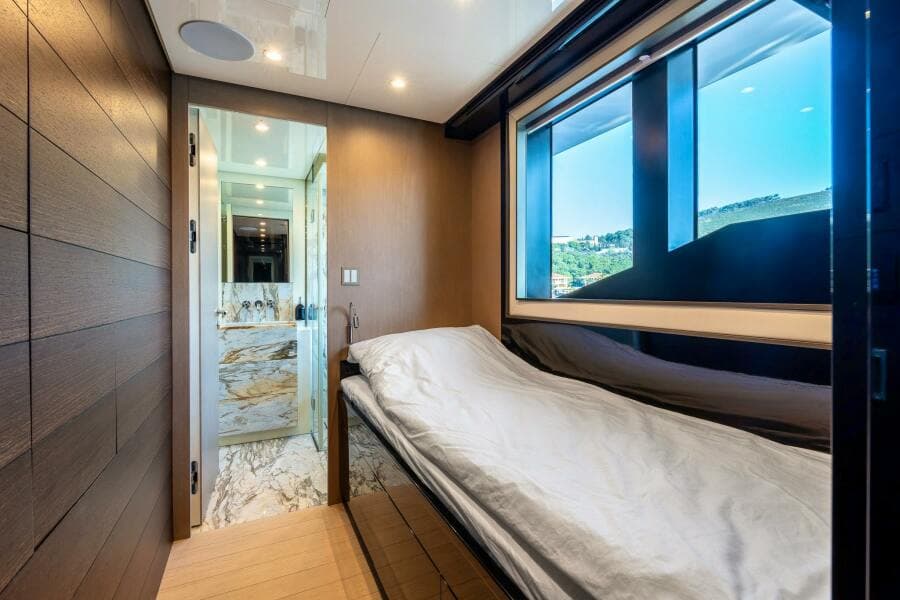

Guest Cabins: 1 Owners Suite (on Main Deck) + 4 cabins (On Lower Deck )

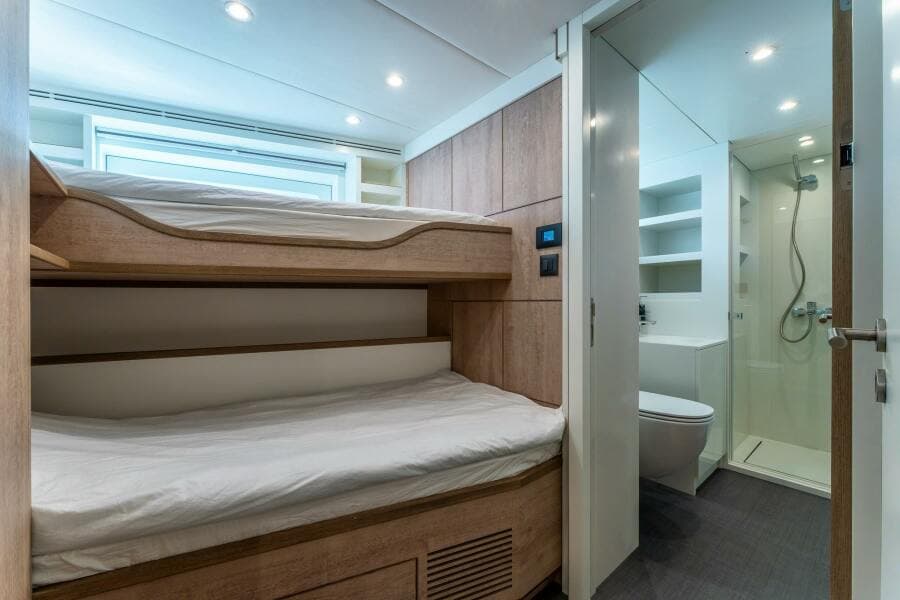

Number of Crew Cabins: 7 (6 on the Lower Deck, Captain Cabin on Wheelhouse Deck)
Total Crew Berths: 7
