Description

DH Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

Key Specifications

LOA125' 4"

Beam26' 9"

Draft Max7' 1"

Draft Min4' 6"

TypePower

Hull MaterialGRP

FuelDiesel

Cruise Speed13 Knots

Max Speed18.5 Knots

Range4200 nm

Weight & Measurements

Gross Tonnage314

Displacement230 lbs

Accommodation

Cabins5

Sleeps10

Tankage

Fuel10039 gal

Water1321 gal

Registration & Documentation

Registration Placenassau

Reg #9994060

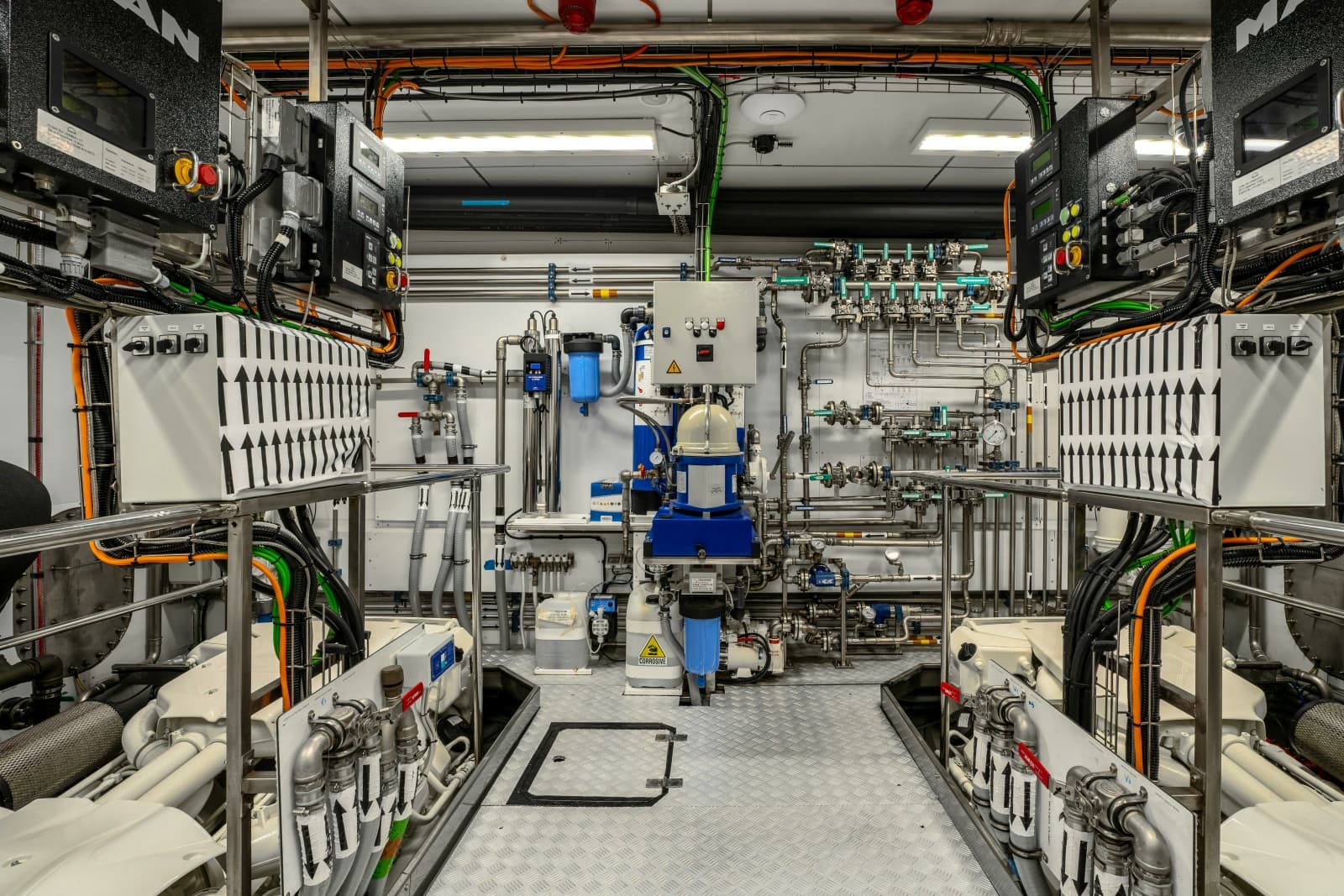

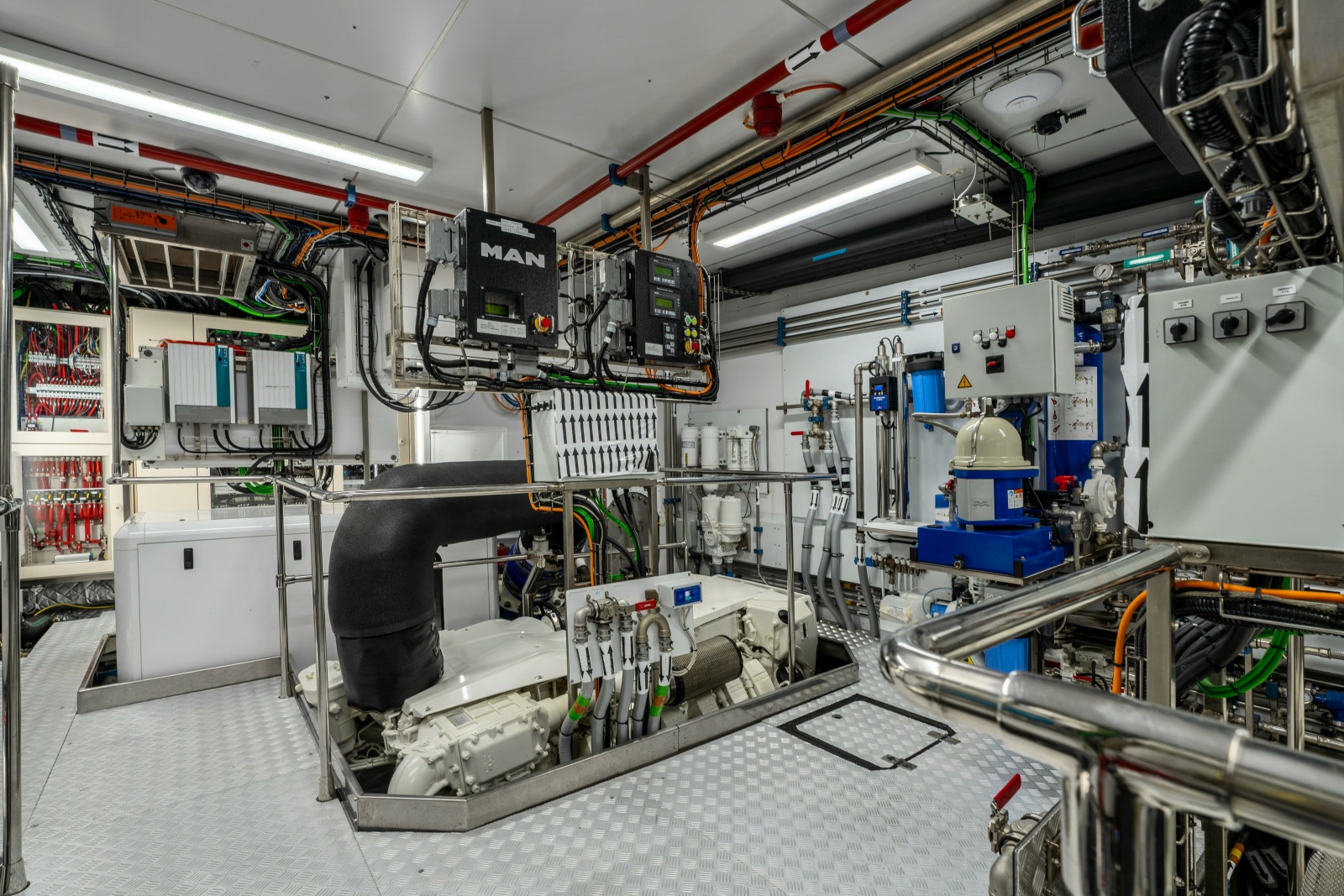

Engines

MAN V12

MakeMAN

ModelV12

Fuel TypeDiesel

Power1800 HP

Hours435

MAN V12

MakeMAN

ModelV12

Fuel TypeDiesel

Power1800 HP

Hours435

Kohler

MakeKohler

Power0 HP

Hours1,857

LocationPort

Kohler

MakeKohler

Power0 HP

Hours2,760

LocationStarboard

Full Details

ACCOMODATIONS

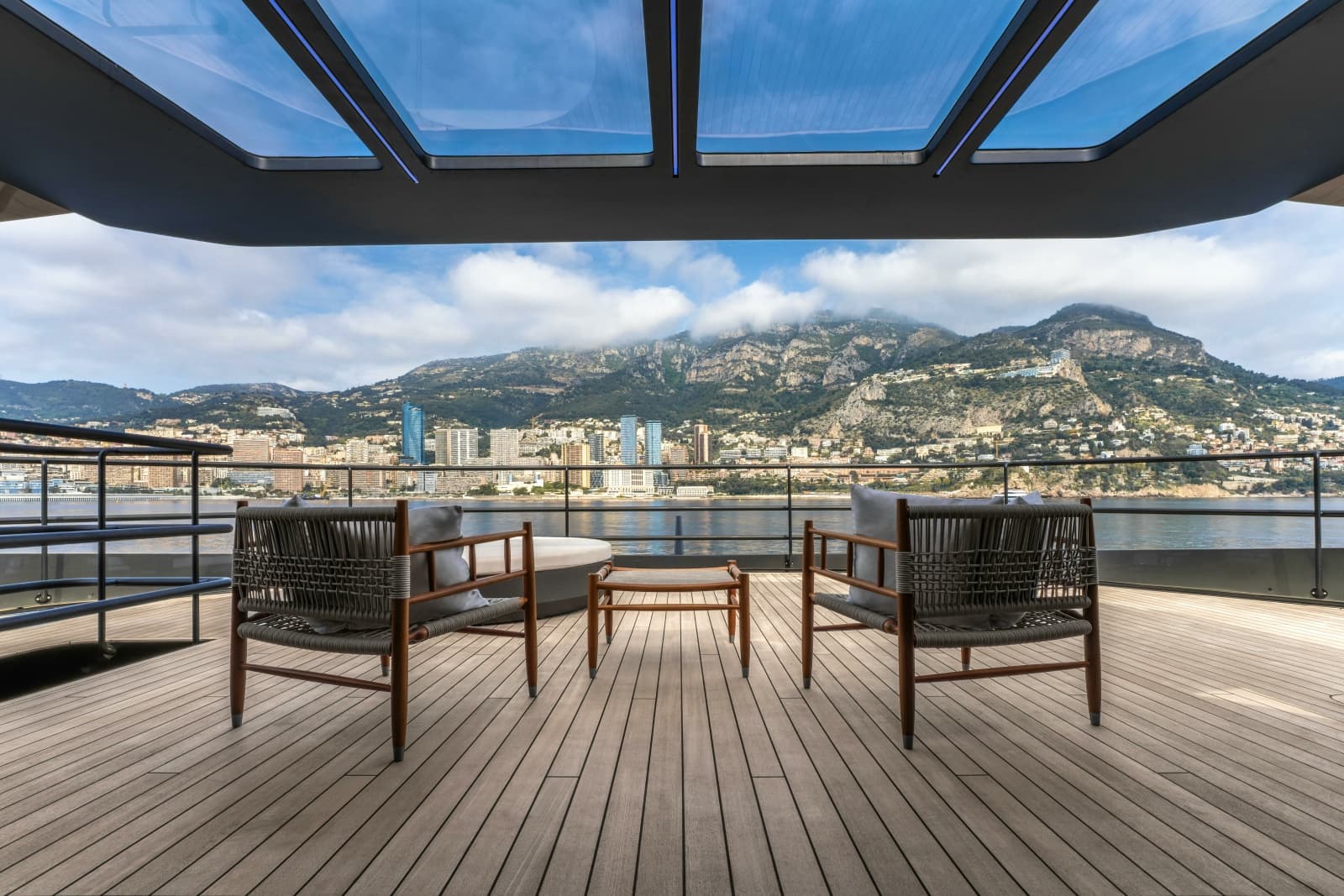

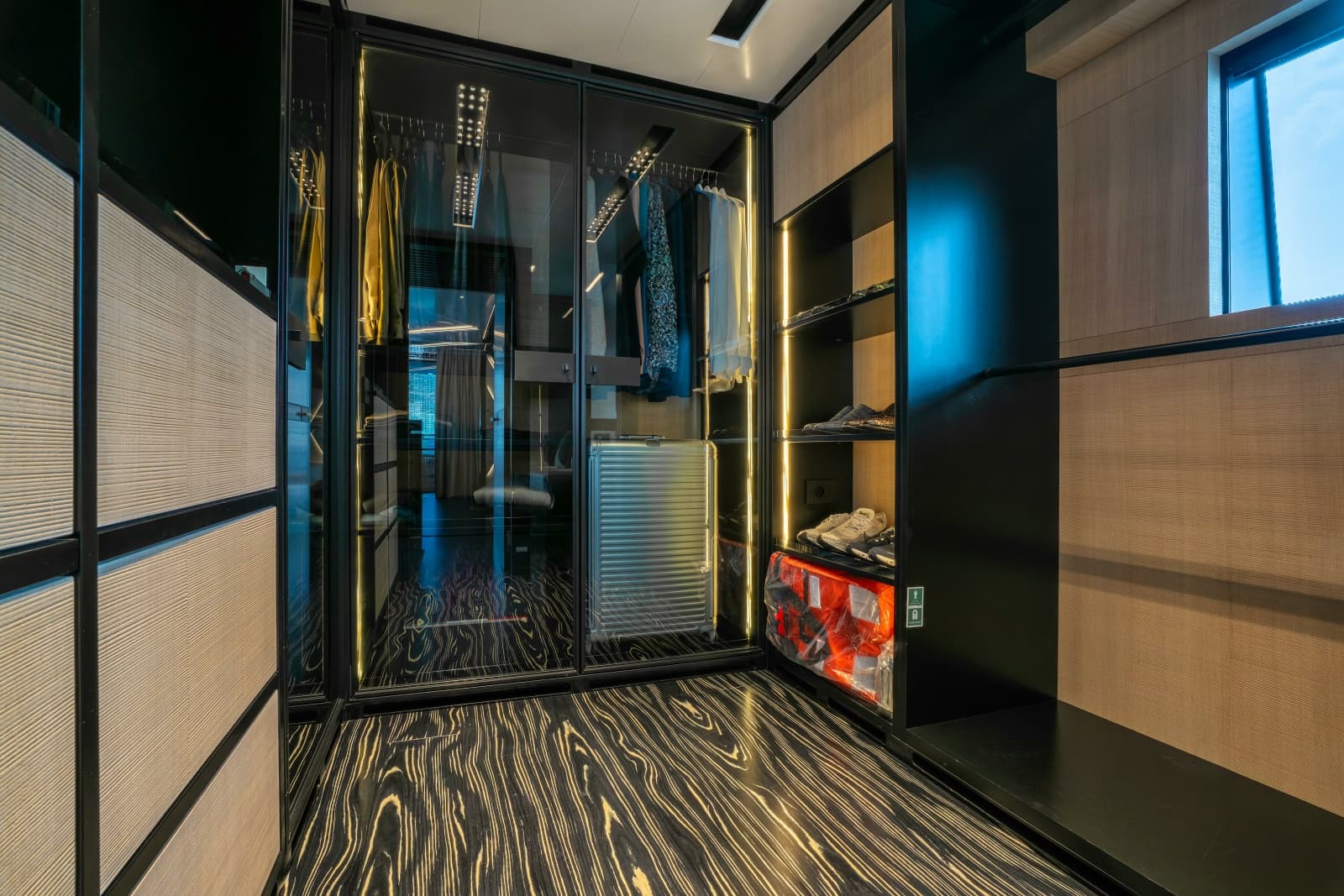

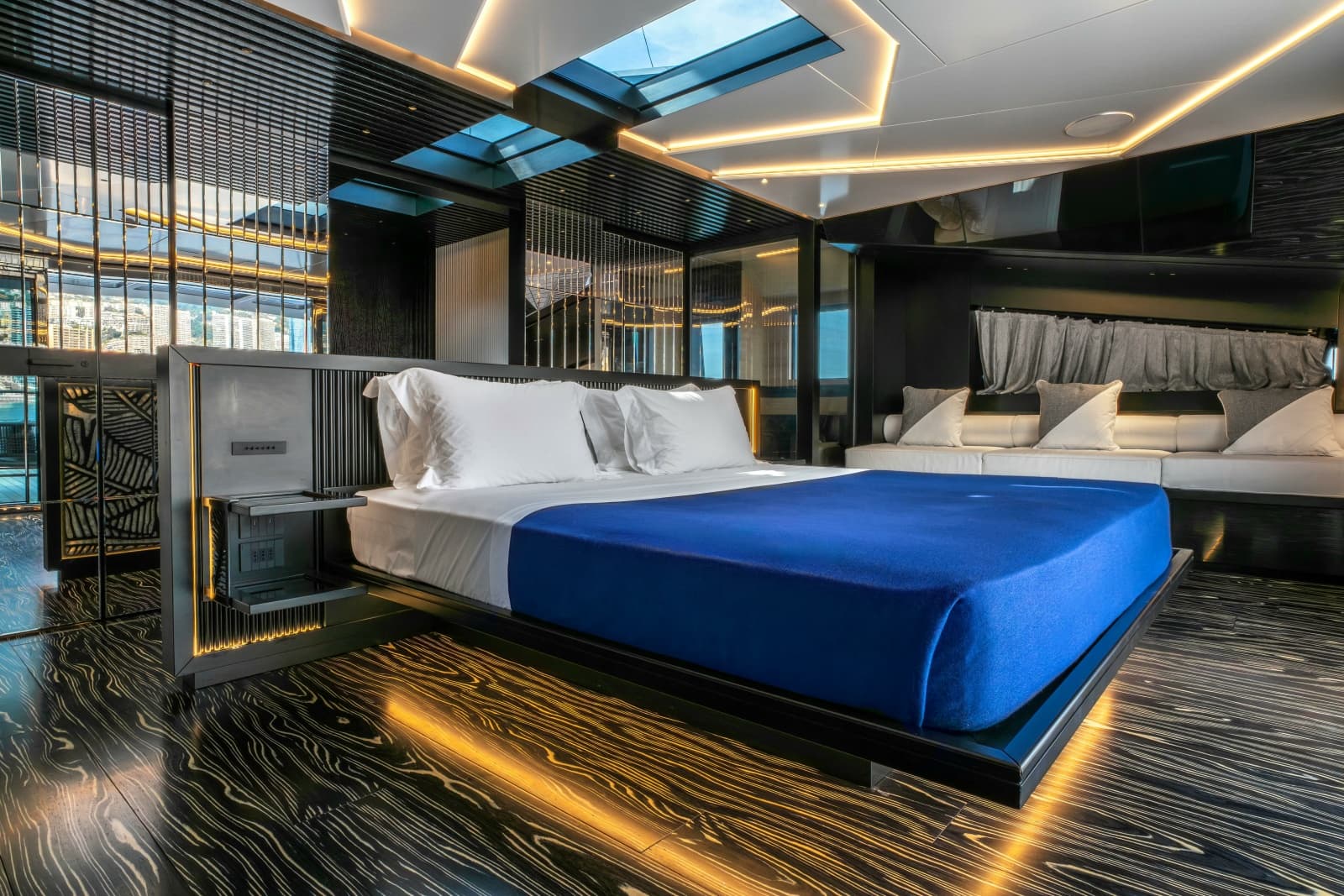

Owner's Stateroom on upper deck with private terrace , walk-in closet and ensure Bathroom

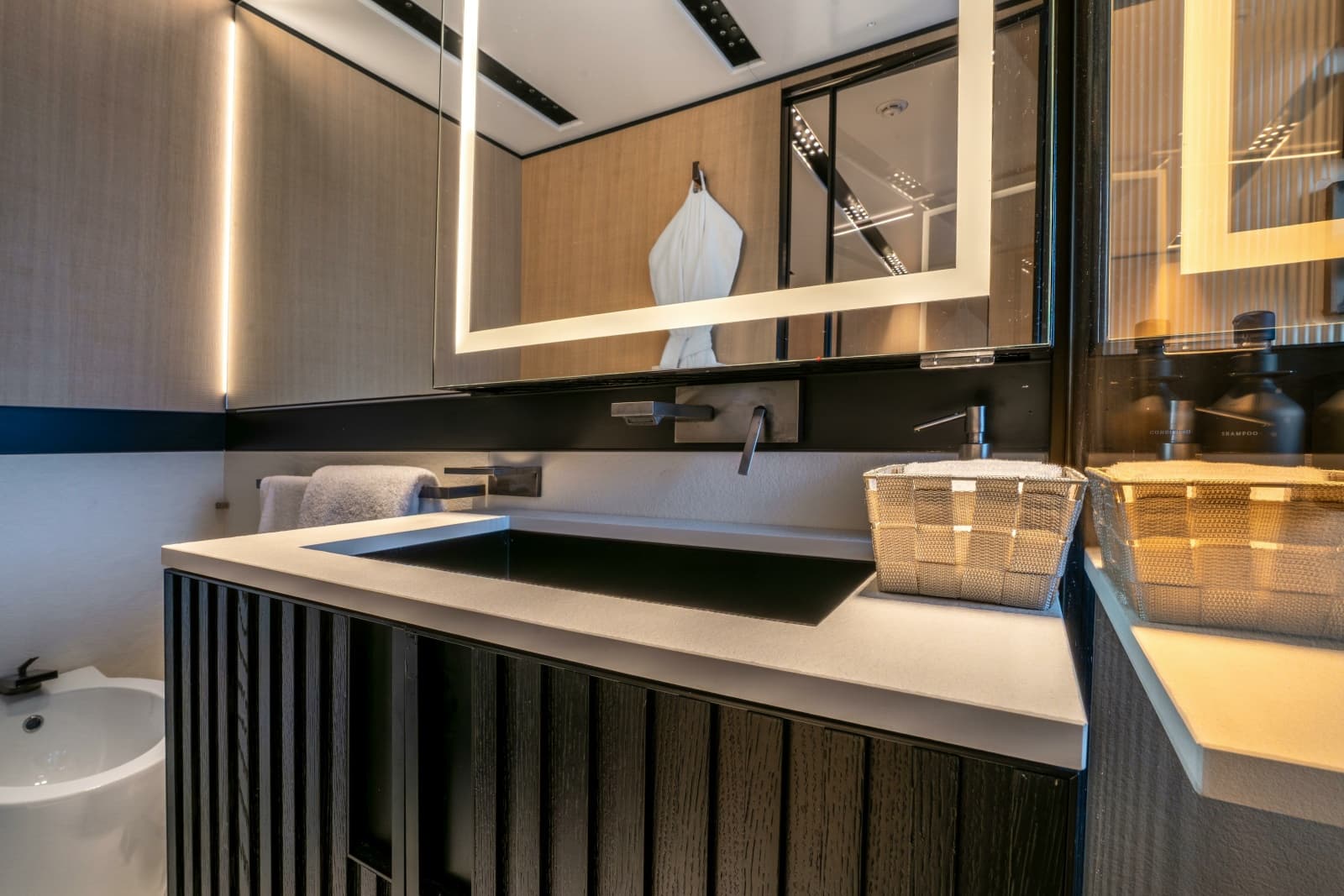

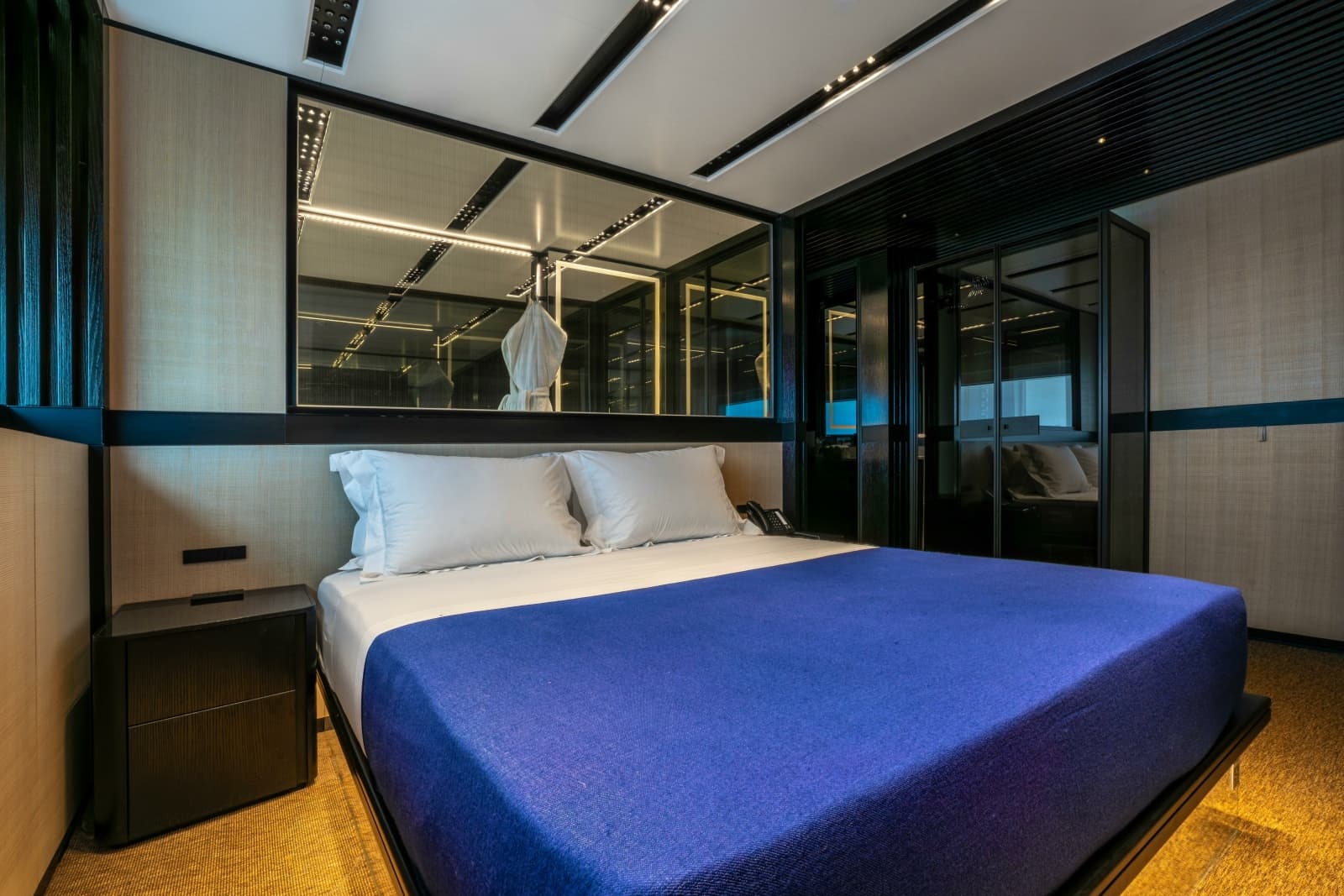

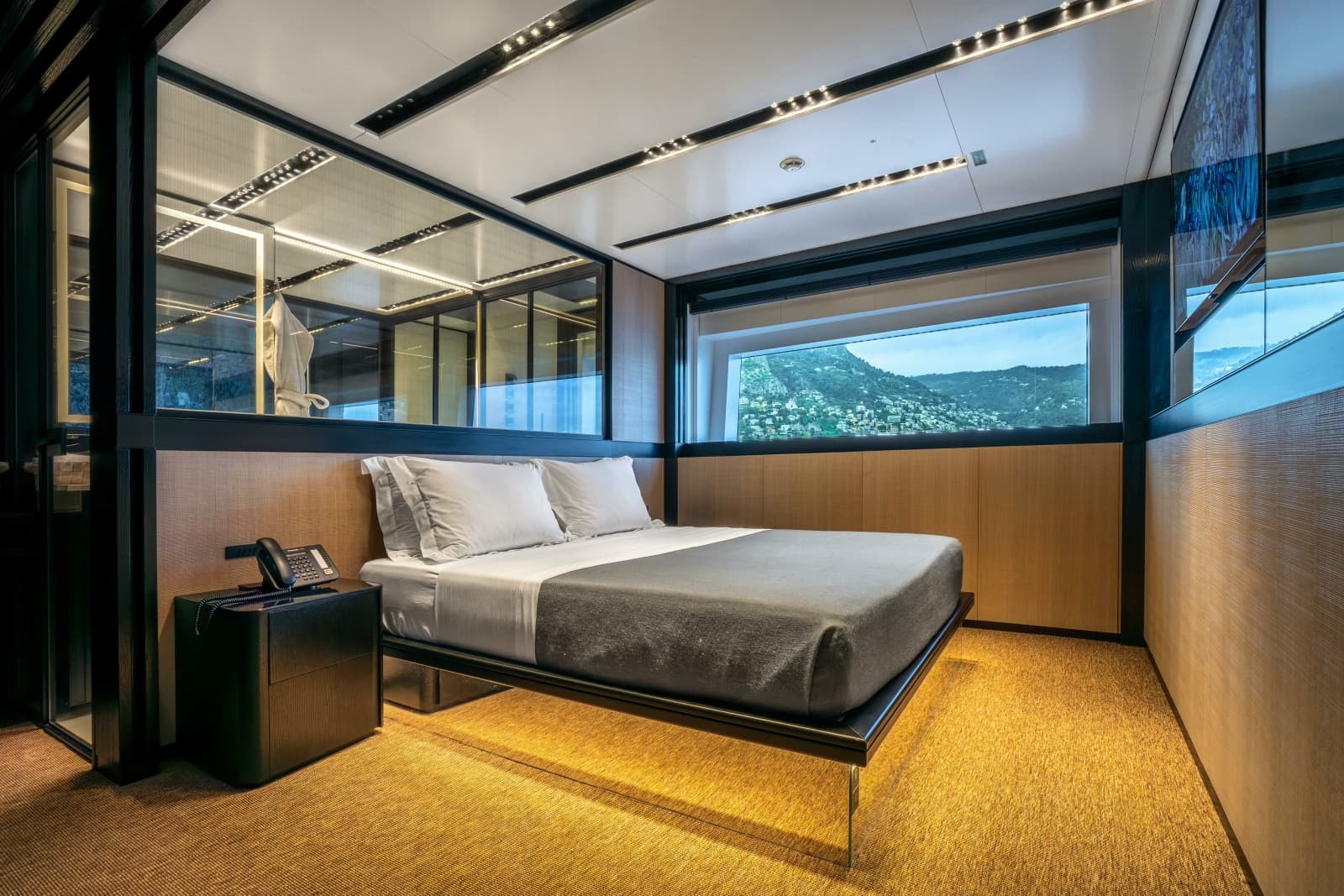

VIP staterooms on the lower deck with ensuite bathrooms
Double staterooms on the lower deck with ensuite bathrooms

ACCOMODATIONS

Owner's Stateroom on upper deck with private terrace , walk-in closet and ensure Bathroom
VIP staterooms on the lower deck with ensuite bathrooms
Double staterooms on the lower deck with ensuite bathrooms

ACCOMODATIONS

Owner's Stateroom on upper deck with private terrace , walk-in closet and ensure Bathroom
VIP staterooms on the lower deck with ensuite bathrooms
Double staterooms on the lower deck with ensuite bathrooms

DECK MACHINERY & EQUIPMENT

(2) Posidonia SHHP PTW + 219 kg anchors
(1) 100 m, (1) 120 m anchor chains
(2) Italwinch 5.5 kW anchor windlass system
(2) Opacmare Load 1,200 kg
(2) Italwinch 4 kW fore, (2) Italwinch 4 kW aft mooring capstans
Dupont Marine paint exterior
(2) Hydraulic door with 400vac unit

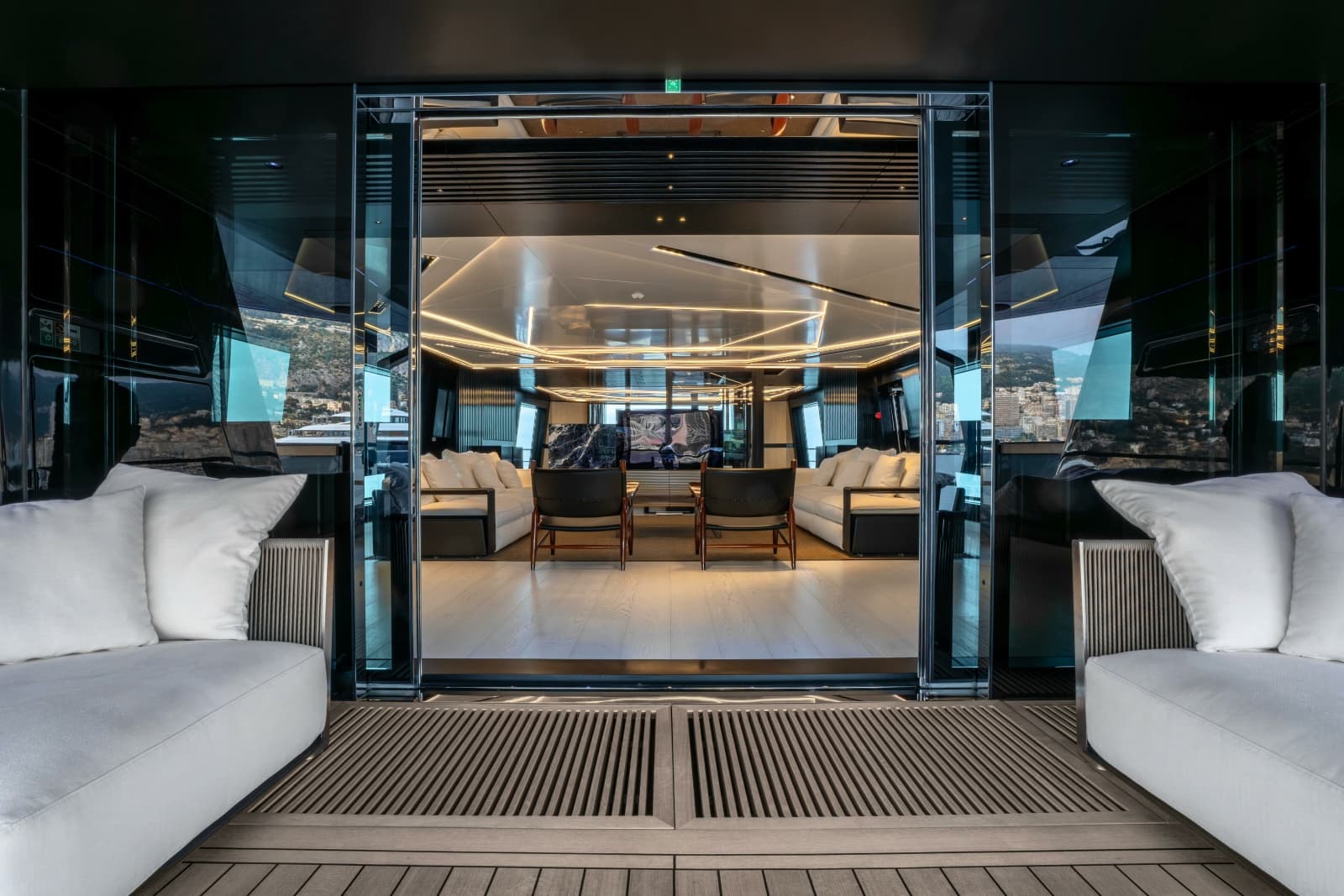

(2) Opacmare sliding doors on main deck
(1) Opacmare sliding door on upper deck to access master

DECK MACHINERY & EQUIPMENT

(2) Posidonia SHHP PTW + 219 kg anchors
(1) 100 m, (1) 120 m anchor chains
(2) Italwinch 5.5 kW anchor windlass system
(2) Opacmare Load 1,200 kg
(2) Italwinch 4 kW fore, (2) Italwinch 4 kW aft mooring capstans
Dupont Marine paint exterior
(2) Hydraulic door with 400vac unit
(2) Opacmare sliding doors on main deck
(1) Opacmare sliding door on upper deck to access master

DECK MACHINERY & EQUIPMENT

(2) Posidonia SHHP PTW + 219 kg anchors
(1) 100 m, (1) 120 m anchor chains
(2) Italwinch 5.5 kW anchor windlass system
(2) Opacmare Load 1,200 kg
(2) Italwinch 4 kW fore, (2) Italwinch 4 kW aft mooring capstans
Dupont Marine paint exterior
(2) Hydraulic door with 400vac unit
(2) Opacmare sliding doors on main deck
(1) Opacmare sliding door on upper deck to access master

COMMUNICATION EQUIPMENT

Intellian T80W LNB Worldwide SAT TV
Intellian V80gG control unit VSAT
Furuno Felcom18 with printer and alarm/distress unites life Inmarsat-C
Furuno LH-5000 intercom
(2) Furuno FM8900 VHF
Radar X-Band radar transponders
GMDSS with LRIT and Inmarsat-C

COMMUNICATION EQUIPMENT

Intellian T80W LNB Worldwide SAT TV
Intellian V80gG control unit VSAT
Furuno Felcom18 with printer and alarm/distress unites life Inmarsat-C
Furuno LH-5000 intercom
(2) Furuno FM8900 VHF
Radar X-Band radar transponders
GMDSS with LRIT and Inmarsat-C

COMMUNICATION EQUIPMENT

Intellian T80W LNB Worldwide SAT TV
Intellian V80gG control unit VSAT
Furuno Felcom18 with printer and alarm/distress unites life Inmarsat-C
Furuno LH-5000 intercom
(2) Furuno FM8900 VHF
Radar X-Band radar transponders
GMDSS with LRIT and Inmarsat-C

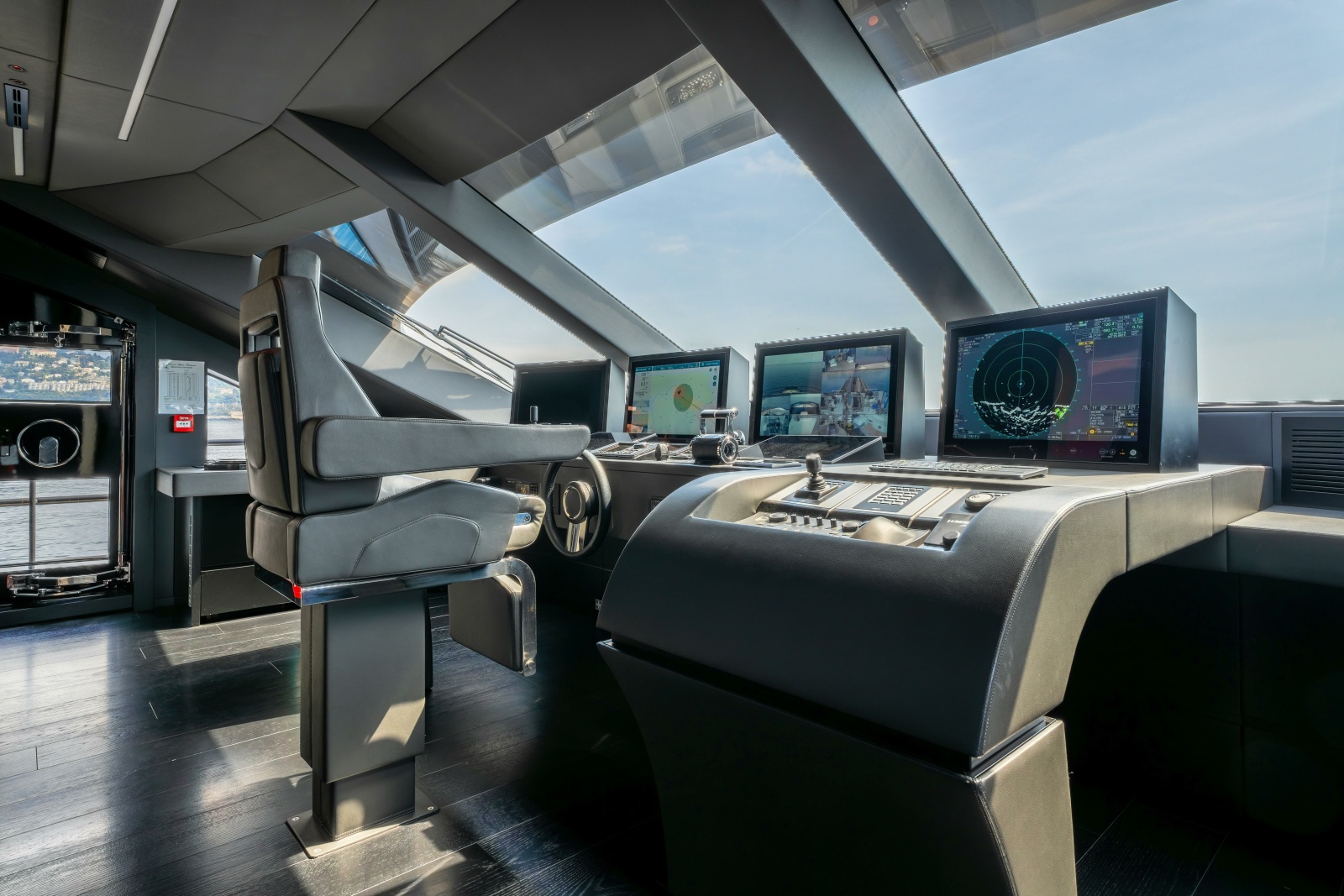

NAVIGATION EQUIPMENT

Furuno X-Band radar (25 kW - 96 nm - arpa 100)
Furuno Hatteland 24" full HD touch display radar
Furuno Chartplotter
Sonar: DFF1 600 w Megawide electronic chart
Fuselli Fassio calibrated compass with spare compass
Simrad AP80 Auto pilot
Furuno FE800/Less MB echo sounder
Furuno GP170 GPS
Furuno FA170/GPA017S AIS
(1) Searchlight installed on mast
(1) Portable daylight signaling light
Bridge Navigation Watch Alarm: BR-500 control unit
Airmar WX220 weather station

NAVIGATION EQUIPMENT

Furuno X-Band radar (25 kW - 96 nm - arpa 100)
Furuno Hatteland 24" full HD touch display radar
Furuno Chartplotter
Sonar: DFF1 600 w Megawide electronic chart
Fuselli Fassio calibrated compass with spare compass
Simrad AP80 Auto pilot
Furuno FE800/Less MB echo sounder
Furuno GP170 GPS
Furuno FA170/GPA017S AIS
(1) Searchlight installed on mast
(1) Portable daylight signaling light
Bridge Navigation Watch Alarm: BR-500 control unit
Airmar WX220 weather station

NAVIGATION EQUIPMENT

Furuno X-Band radar (25 kW - 96 nm - arpa 100)
Furuno Hatteland 24" full HD touch display radar
Furuno Chartplotter
Sonar: DFF1 600 w Megawide electronic chart
Fuselli Fassio calibrated compass with spare compass
Simrad AP80 Auto pilot
Furuno FE800/Less MB echo sounder
Furuno GP170 GPS
Furuno FA170/GPA017S AIS
(1) Searchlight installed on mast
(1) Portable daylight signaling light
Bridge Navigation Watch Alarm: BR-500 control unit
Airmar WX220 weather station

ELETTRICAL EQUIPMENT

Electrical : 88 kW transformer + 400v 3 - phase 50 Hz main
Shore Power: (1) 125A, 400V AC 3-phases
Batteries: (2) Service battery banks (800Ah C20 + 800Ah C20), (1) Emergency battery bank (800Ah C20), (1) Radio battery bank (200Ah C20)

Battery Chargers: (2) Chargers dedicated to service batteries, (1) Charger dedicated to emergency batteries, (1) Charger dedicated to main engine batteries, (1) Charger dedicated to genset batteries

ELETTRICAL EQUIPMENT

Electrical : 88 kW transformer + 400v 3 - phase 50 Hz main
Shore Power: (1) 125A, 400V AC 3-phases
Batteries: (2) Service battery banks (800Ah C20 + 800Ah C20), (1) Emergency battery bank (800Ah C20), (1) Radio battery bank (200Ah C20)

Battery Chargers: (2) Chargers dedicated to service batteries, (1) Charger dedicated to emergency batteries, (1) Charger dedicated to main engine batteries, (1) Charger dedicated to genset batteries

ELETTRICAL EQUIPMENT

Electrical : 88 kW transformer + 400v 3 - phase 50 Hz main
Shore Power: (1) 125A, 400V AC 3-phases
Batteries: (2) Service battery banks (800Ah C20 + 800Ah C20), (1) Emergency battery bank (800Ah C20), (1) Radio battery bank (200Ah C20)

Battery Chargers: (2) Chargers dedicated to service batteries, (1) Charger dedicated to emergency batteries, (1) Charger dedicated to main engine batteries, (1) Charger dedicated to genset batteries

ENTERTAINMENT EQUIPMENT

70" B&O TV in main salon
55" LG TV + B&O sound in master
48" LG TV + B&O sound in VIP staterooms
48" LG TV + B&O sound in guest staterooms
42" LG TV + B&O sound in beach bar

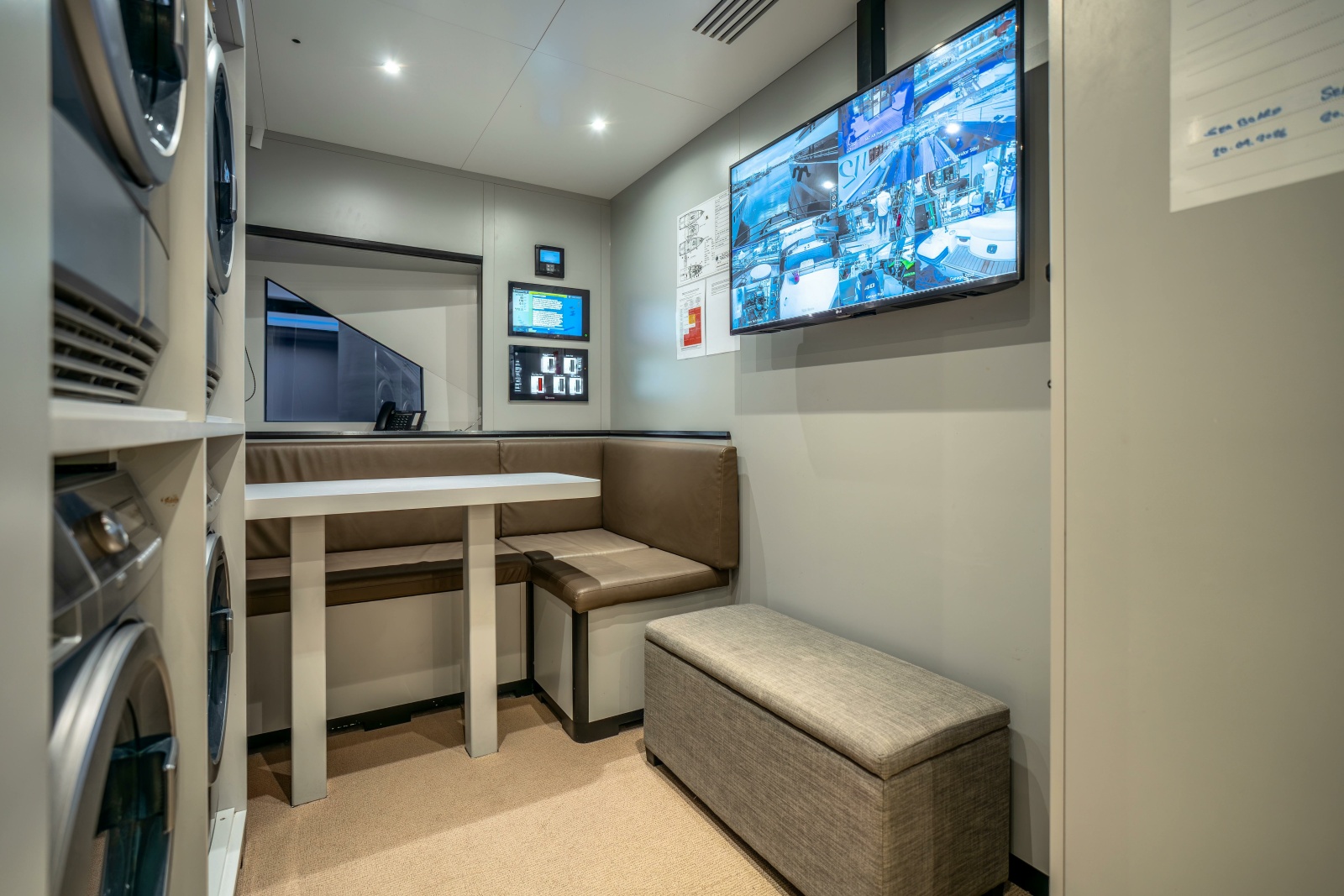

48" LG TV in crew mess
Owner's and guest areas have app for Android and Apple home automation to control lights and curtains

ENTERTAINMENT EQUIPMENT

70" B&O TV in main salon
55" LG TV + B&O sound in master
48" LG TV + B&O sound in VIP staterooms
48" LG TV + B&O sound in guest staterooms
42" LG TV + B&O sound in beach bar
48" LG TV in crew mess
Owner's and guest areas have app for Android and Apple home automation to control lights and curtains

ENTERTAINMENT EQUIPMENT

70" B&O TV in main salon
55" LG TV + B&O sound in master
48" LG TV + B&O sound in VIP staterooms
48" LG TV + B&O sound in guest staterooms
42" LG TV + B&O sound in beach bar
48" LG TV in crew mess
Owner's and guest areas have app for Android and Apple home automation to control lights and curtains

SAFETY & FIREFIGHTING EQUIPMENT

Fire-fighting systems according to flag authority
Seawater fire-fighting system with fire house for engine room
Vapor detection system for garages
Smoke and fire detection throughout
Furuno watch alarm system with flash beacon and motion sensor with (3) remote controls in crew cabins
(2) 10-Pax life rafts with survival kit
Solas approved lifejackets
(1) Life ring with automatic light/smoke device
(2) Life rings
(2) Life rings with buoyant line
Provided parachute flares and smoke signals
(1) lc-305 alarm unit
(1) lc-306 distress unit
(1) Pp-520 printer

SAFETY & FIREFIGHTING EQUIPMENT

Fire-fighting systems according to flag authority
Seawater fire-fighting system with fire house for engine room
Vapor detection system for garages
Smoke and fire detection throughout
Furuno watch alarm system with flash beacon and motion sensor with (3) remote controls in crew cabins
(2) 10-Pax life rafts with survival kit
Solas approved lifejackets
(1) Life ring with automatic light/smoke device
(2) Life rings
(2) Life rings with buoyant line
Provided parachute flares and smoke signals
(1) lc-305 alarm unit
(1) lc-306 distress unit
(1) Pp-520 printer

SAFETY & FIREFIGHTING EQUIPMENT

Fire-fighting systems according to flag authority
Seawater fire-fighting system with fire house for engine room
Vapor detection system for garages
Smoke and fire detection throughout
Furuno watch alarm system with flash beacon and motion sensor with (3) remote controls in crew cabins
(2) 10-Pax life rafts with survival kit
Solas approved lifejackets
(1) Life ring with automatic light/smoke device
(2) Life rings
(2) Life rings with buoyant line
Provided parachute flares and smoke signals
(1) lc-305 alarm unit
(1) lc-306 distress unit
(1) Pp-520 printer

SECURITY EQUIPMENT

(1) HD digital hybrid video recorder
(6) PTZ technical areas cameras
(1) PTZ mast cameras
(1) 24" full HD touch display Hatteland
(1) Remote control in crew mess and captain's cabin on Furuno 16" disp

SECURITY EQUIPMENT

(1) HD digital hybrid video recorder
(6) PTZ technical areas cameras
(1) PTZ mast cameras
(1) 24" full HD touch display Hatteland
(1) Remote control in crew mess and captain's cabin on Furuno 16" disp

SECURITY EQUIPMENT

(1) HD digital hybrid video recorder
(6) PTZ technical areas cameras
(1) PTZ mast cameras
(1) 24" full HD touch display Hatteland
(1) Remote control in crew mess and captain's cabin on Furuno 16" disp

CCTV

(1) PTZ camera on mast
(6) PTZ cameras for external areas (1 on main deck fore area, 2 on main deck side passageways, 2 on main deck aft area, 1 on upper deck aft area
(6) PTZ cameras for technical areas (2 on engine room, 1 on technical room, 2 on garages, 1 in stern technical area

CCTV

(1) PTZ camera on mast
(6) PTZ cameras for external areas (1 on main deck fore area, 2 on main deck side passageways, 2 on main deck aft area, 1 on upper deck aft area
(6) PTZ cameras for technical areas (2 on engine room, 1 on technical room, 2 on garages, 1 in stern technical area

CCTV

(1) PTZ camera on mast
(6) PTZ cameras for external areas (1 on main deck fore area, 2 on main deck side passageways, 2 on main deck aft area, 1 on upper deck aft area
(6) PTZ cameras for technical areas (2 on engine room, 1 on technical room, 2 on garages, 1 in stern technical area

MOTION SENSORS

BR-560 motion detector

MOTION SENSORS

BR-560 motion detector

MOTION SENSORS

BR-560 motion detector

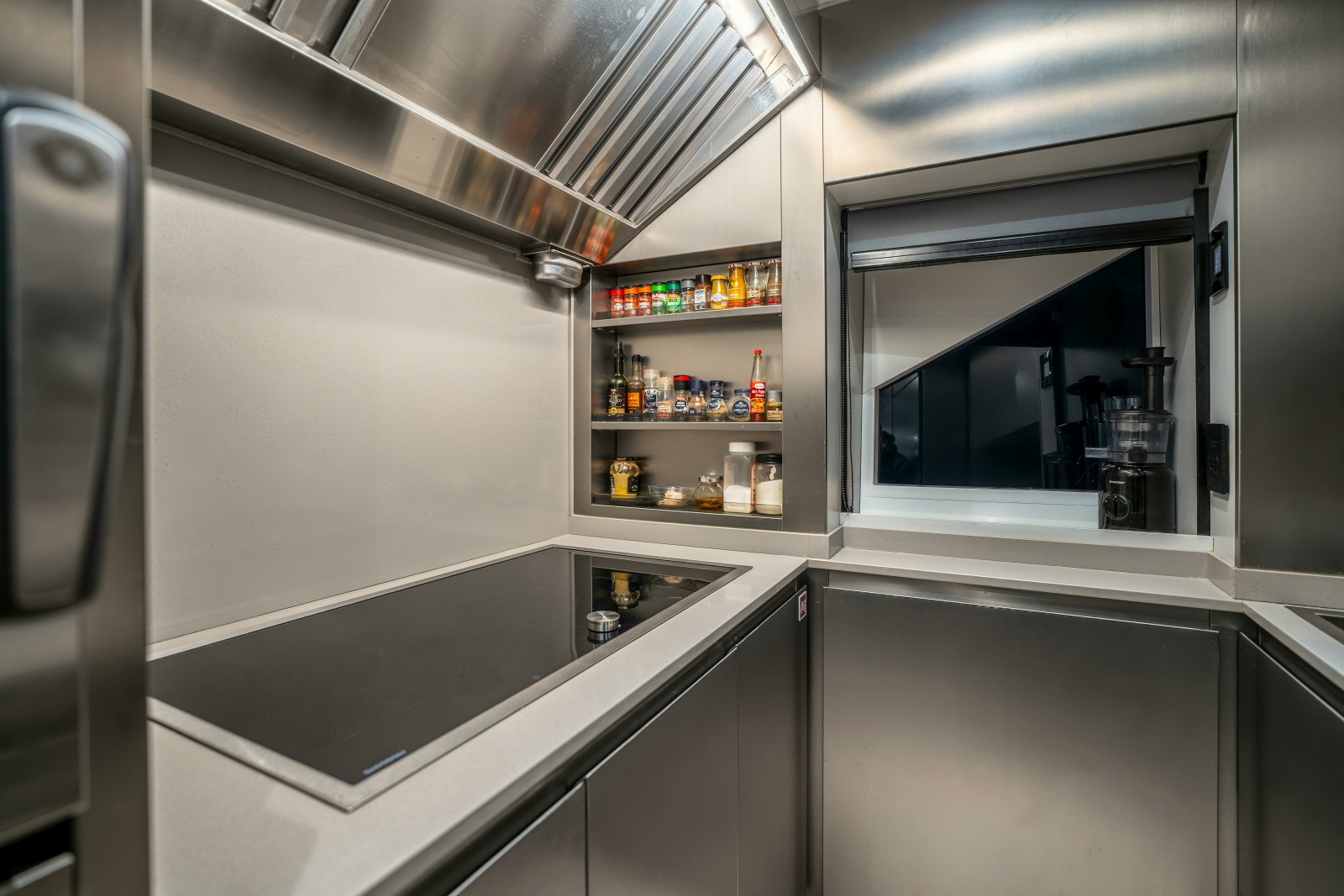

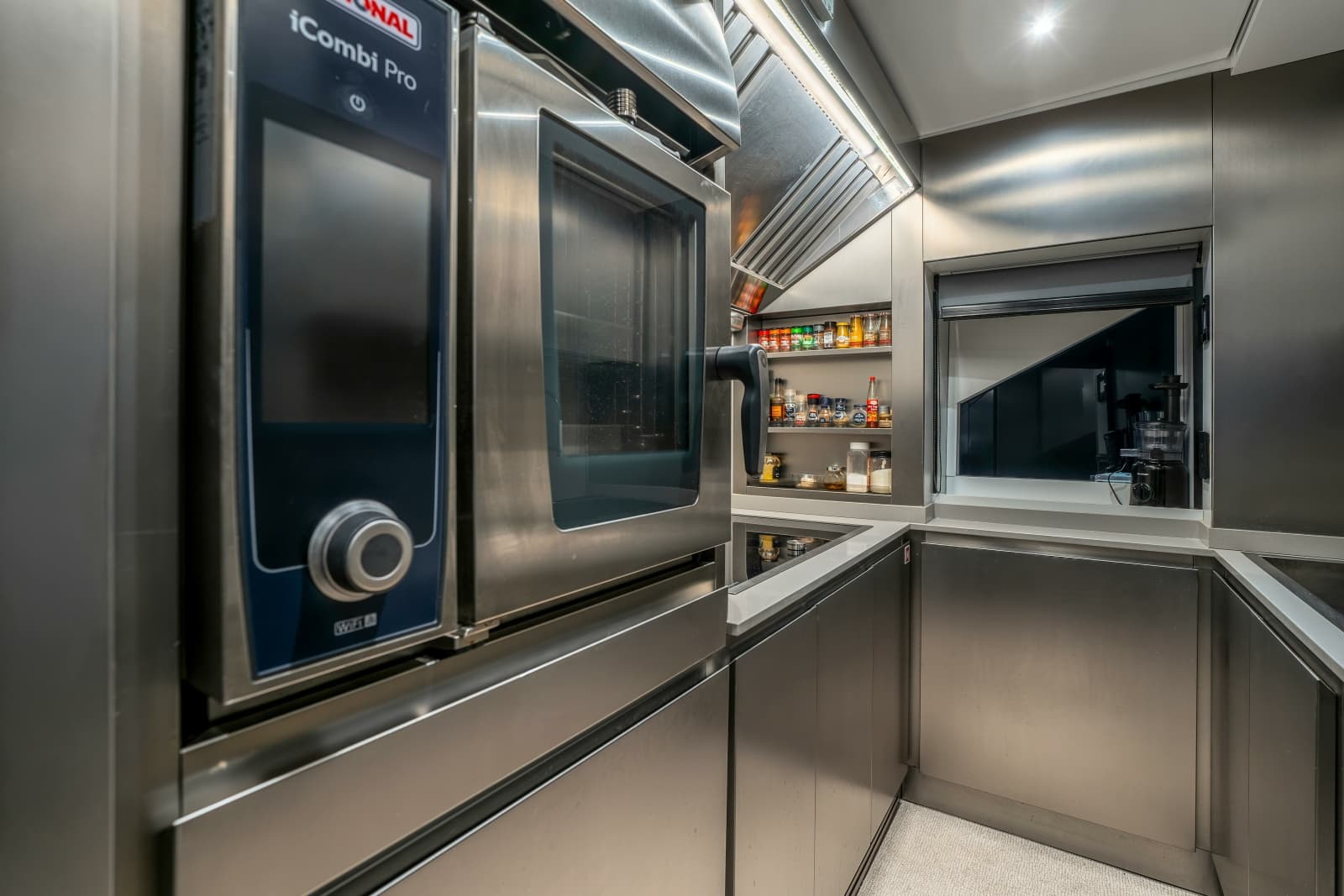

MAIN GALLEY EQUIPMENT

(1) Gaggeneau induction cooking top
(1) Zanussi hood
(1) AEG full height refrigerator
(1) Full height freezer
(1) Rational self cooking center XS6 2/3 oven
(1) Gaggeneau dishwasher
(1) Insinkerator Evolution 100 garbage macerator
(1) Gaggeneau microwave oven

MAIN GALLEY EQUIPMENT

(1) Gaggeneau induction cooking top
(1) Zanussi hood
(1) AEG full height refrigerator
(1) Full height freezer
(1) Rational self cooking center XS6 2/3 oven
(1) Gaggeneau dishwasher
(1) Insinkerator Evolution 100 garbage macerator
(1) Gaggeneau microwave oven

MAIN GALLEY EQUIPMENT

(1) Gaggeneau induction cooking top
(1) Zanussi hood
(1) AEG full height refrigerator
(1) Full height freezer
(1) Rational self cooking center XS6 2/3 oven
(1) Gaggeneau dishwasher
(1) Insinkerator Evolution 100 garbage macerator
(1) Gaggeneau microwave oven

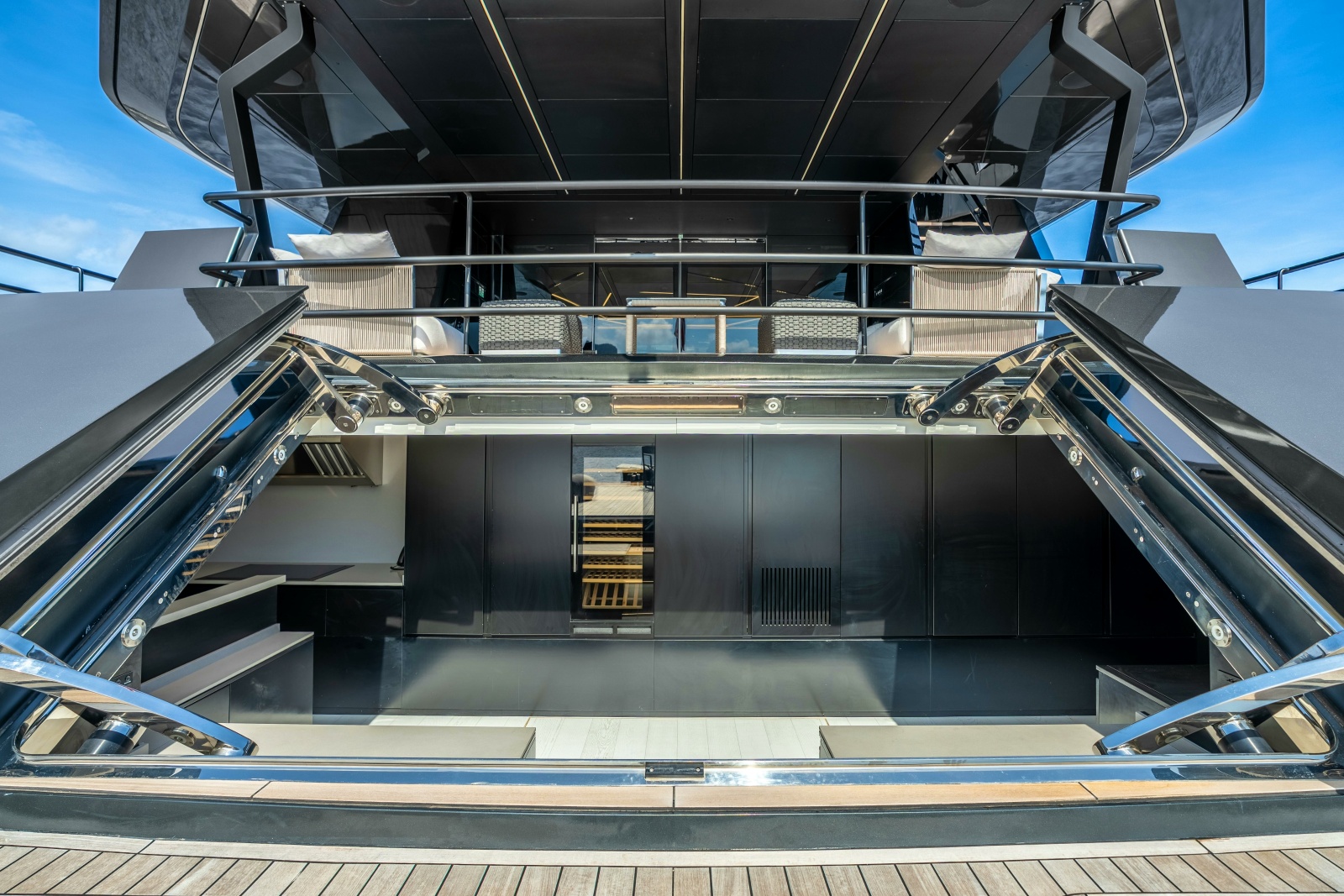

BEACH BAR EQUIPMENT

(1) Dunavox wine cellar
(1) AEG refrigerator
(1) AEG freezer
(1) Hoshizaki icemaker
(1) Insinkerator Evolution garbage macerator
(1) Gaggeneau induction cooktop
(1) Zanussi hood
(1) Gaggeneau oven

BEACH BAR EQUIPMENT

(1) Dunavox wine cellar
(1) AEG refrigerator
(1) AEG freezer
(1) Hoshizaki icemaker
(1) Insinkerator Evolution garbage macerator
(1) Gaggeneau induction cooktop
(1) Zanussi hood
(1) Gaggeneau oven

BEACH BAR EQUIPMENT

(1) Dunavox wine cellar
(1) AEG refrigerator
(1) AEG freezer
(1) Hoshizaki icemaker
(1) Insinkerator Evolution garbage macerator
(1) Gaggeneau induction cooktop
(1) Zanussi hood
(1) Gaggeneau oven

AUXILIARY MACHINERY

Steering & Trim Tabs: Twin disk, MY 4000 / 4 -24
Bow Thruster: Sidepower
Stern Thruster: Sidepower
Stabilizers: Zero speed CMC Marine LR290
Underwater Lights: (18) Lumishore TIX803 EOS
Fuel Filters: (4) Racor, 1 for each consumer (engines and gensets)
Fuel Oil Separator: (1) Alfalaval MIB 303 - 760 liters/hour capacity
Air ConditiOning: (2) Condria 180,000 BTU with AHU units

AUXILIARY MACHINERY

Steering & Trim Tabs: Twin disk, MY 4000 / 4 -24
Bow Thruster: Sidepower
Stern Thruster: Sidepower
Stabilizers: Zero speed CMC Marine LR290
Underwater Lights: (18) Lumishore TIX803 EOS
Fuel Filters: (4) Racor, 1 for each consumer (engines and gensets)
Fuel Oil Separator: (1) Alfalaval MIB 303 - 760 liters/hour capacity
Air ConditiOning: (2) Condria 180,000 BTU with AHU units

AUXILIARY MACHINERY

Steering & Trim Tabs: Twin disk, MY 4000 / 4 -24
Bow Thruster: Sidepower
Stern Thruster: Sidepower
Stabilizers: Zero speed CMC Marine LR290
Underwater Lights: (18) Lumishore TIX803 EOS
Fuel Filters: (4) Racor, 1 for each consumer (engines and gensets)
Fuel Oil Separator: (1) Alfalaval MIB 303 - 760 liters/hour capacity
Air ConditiOning: (2) Condria 180,000 BTU with AHU units

OTHER EQUIPMENT

(1) SubZero refrigerator/freezer/icemaker in master
(1) Vitrifrigo frigobar in guest lobby
(1) Refrigerator in lower deck

OTHER EQUIPMENT

(1) SubZero refrigerator/freezer/icemaker in master
(1) Vitrifrigo frigobar in guest lobby
(1) Refrigerator in lower deck

OTHER EQUIPMENT

(1) SubZero refrigerator/freezer/icemaker in master
(1) Vitrifrigo frigobar in guest lobby
(1) Refrigerator in lower deck

CREW MESS

(1) Full height refrigerator
(1) Full height freezer
(1) 90 cm induction cooking top
(1) Garbage macerator
(1) Hood
(2) Zanussi washing machines
(2) Zanussi dryers

CREW MESS

(1) Full height refrigerator
(1) Full height freezer
(1) 90 cm induction cooking top
(1) Garbage macerator
(1) Hood

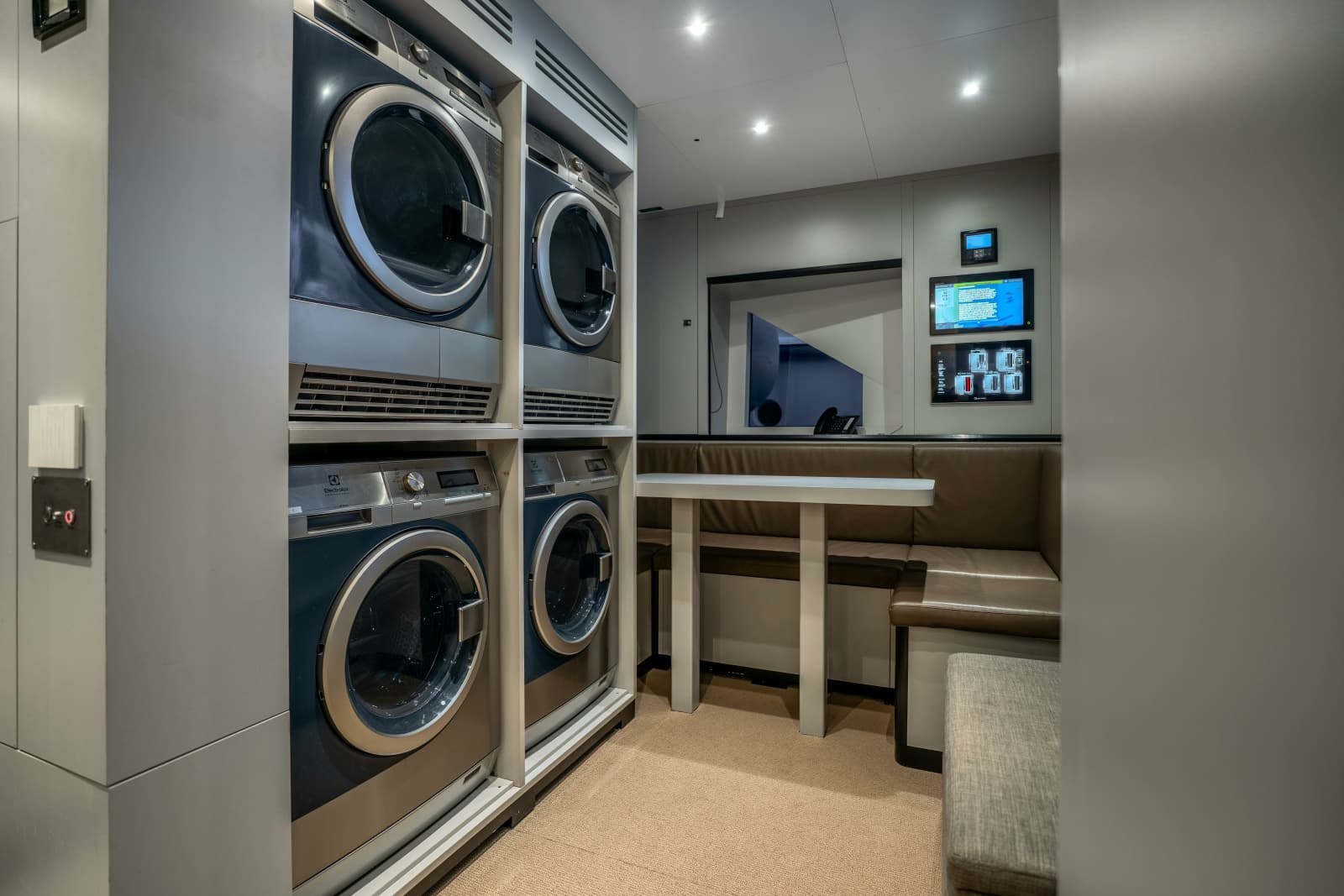

(2) Zanussi washing machines
(2) Zanussi dryers

CREW MESS

(1) Full height refrigerator
(1) Full height freezer
(1) 90 cm induction cooking top
(1) Garbage macerator
(1) Hood
(2) Zanussi washing machines
(2) Zanussi dryers

CREW

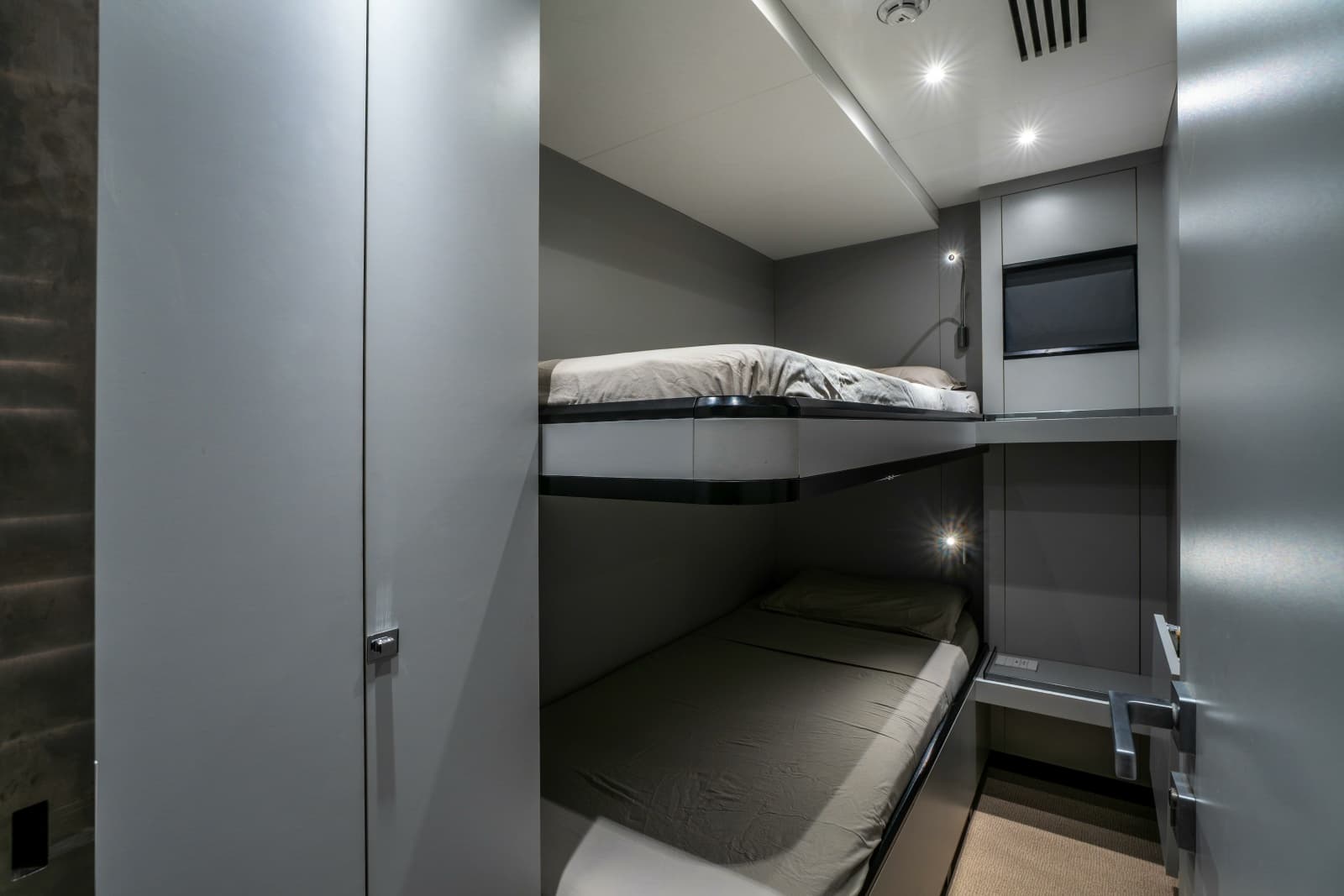

(3) Twin crew cabins (with Pullman)
(1) Captain's cabin (with double bed)

CREW

(3) Twin crew cabins (with Pullman)
(1) Captain's cabin (with double bed)

CREW

(3) Twin crew cabins (with Pullman)
(1) Captain's cabin (with double bed)

MACHINERY

Main Engines: (2) MAN V12 1,800 hp Diesel flanged with ZF 3050 A - 519hrs as of January 10th, 2024 Gear Boxes: (2) ZF 3050 A Generators: (2) Kohler 55 kW (1,431hrs as of January 10th) + 70 kW (1,857hrs as of January 10th), 50 Hz @ 1,500 RPM
