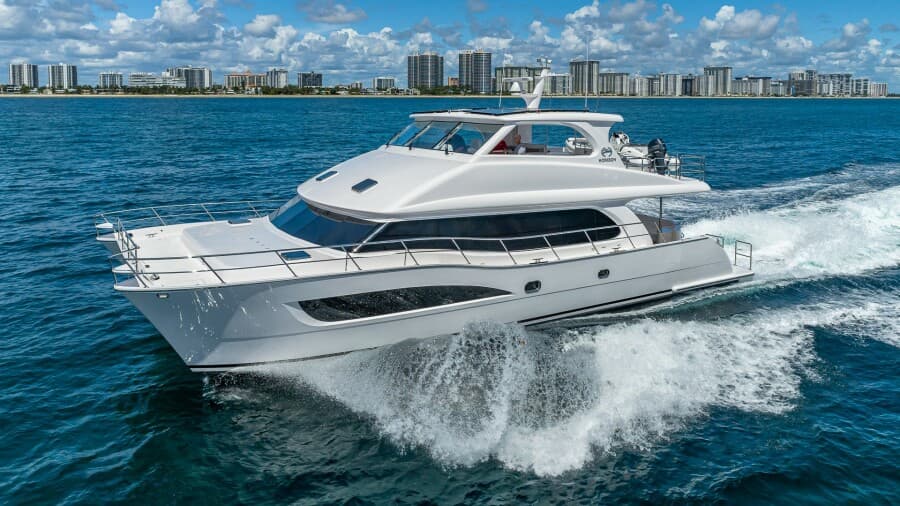

2023 Horizon PC60

A. Hull and Main Structure

1. ABS/DNV type approved fiber/resin & sandwich core material applied.

2. White gelcoat finish for hull above water line, exterior decks and furniture.

3. One piece hull SCRIMPTM cored lamination w/ deep skeg and longitudinal girders.

4. Hull, deck & superstructure are built with licensed process SCRIMPTM for improved strength and less weight.

5. Fiberglass solid hull bottom and high density foam cored construction topsides in accommodation area.

6. High density foam cored construction bottom and topsides in engine room area only.

7. High-density Divinycell or equivalent foam cored hull sides, decks and superstructure.

8. Stringers with high density foam coring.

9. Interior structural components all properly bonded to hull.

10. Strong collision bulkhead structure for extra safety.

11. International® anti-fouling bottom paint, w/ anti-osmosis treatment.

12. PropSpeed/PropGold metal paint for underwater appendages

13. Tunnels for reduced draft.

B. Exterior Deck and Equipment

1. Gunwale with external rub rail.

2. Fiberglass cap rail.

3. Mooring cleats with hawse pipes in gunwale.

4. Locker for 24V anchor windlass with foot switches.

5. Anchor control at flybridge.

6. Roller and S/S chain stopper for anchor.

7. Heavy-duty S/S handrail. Top rail 1-1/2", stanchions 1-1/4" and mid rail 1".

8. Teak pulpit seats at bow.

9. Deck hatch for access to 63kg S/S anchor with Ultra flip swivel, 200 ft of high tensile 3/8” chain plus 100ft mooring rope.

10. Fresh water at chain locker.

11. Opening oval portlights (x6 for open salon layout, and x4 for on deck master layout).

12. Hull side frameless and flush mounted seam windows tinted and tempered glass for master & VIP cabin.

13. Deck hatches (x2) with blinds & screens.

14. Stainless steel framed salon door with 7 feet opening.

15. Port and starboard sides boarding door.

16. Non-skid deck.

17. Self draining aft deck.

18. FRP curved seat with cushions.

19. Hi-gloss finished fixed height Teak cockpit table.

20. Large curved steps (x2) down to large dive/swim platform.

21. Manual swim ladder (x2).

22. Cockpit lockers for storage.

23. Cockpit LED down lights.

24. Courtesy lights.

25. Hot and cold fresh water shower (x2) recessed into aft coaming.

26. Fresh water deck wash tap and dock inlet at portside.

27. Canvas covers for helm console, Stidd helm chair, FRP lounge seating & table, aft cockpit seating and cockpit table.

28. Comfortable curved stairway with plasdeck treads up to flybridge from aft deck.

29. Recessed fuel and water inlets.

30. Install fuel gauges with fuel sensor at fill on P&S side deck.

31. Swim platform with S/S rails TWO on each hull.

32. Dimmer switch for aft. deck ceiling lighting.

33. Dimmer switch for three light above aft. deck table.

34. Pre-wire for stern LED nameplate.

35. Locks on 3x storage lockers on aft. deck.

36. *FRP aft deck bar with Corian top, basin, fridge, icemaker and overhead locker.

37. Install OS Burnewinn fishing rod holders 5 on stern.

38. New inner liner for storage space in fwd. deck.

39. Add one S/S handrail on stbd. of aft. deck, besides aft. bar.

40. Upgrade to PC65 FB deck assembly with three ceiling lighting in the extra length area.

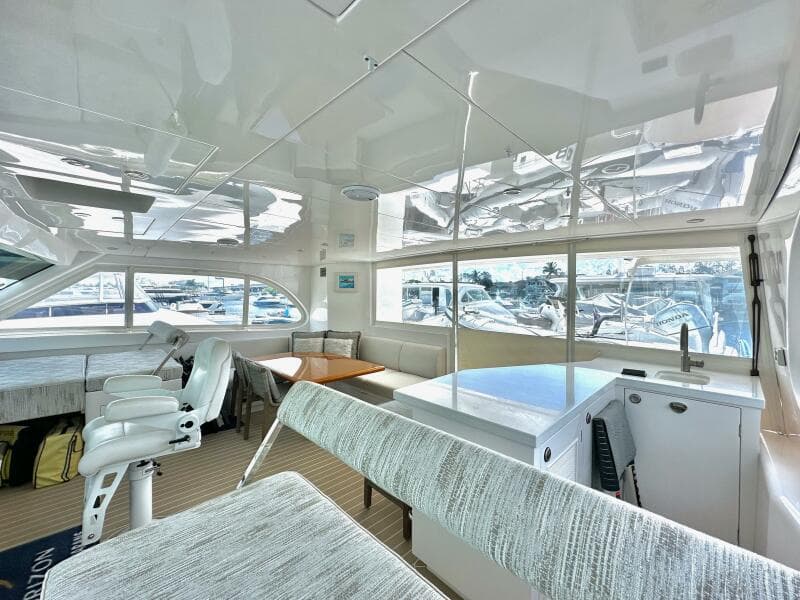

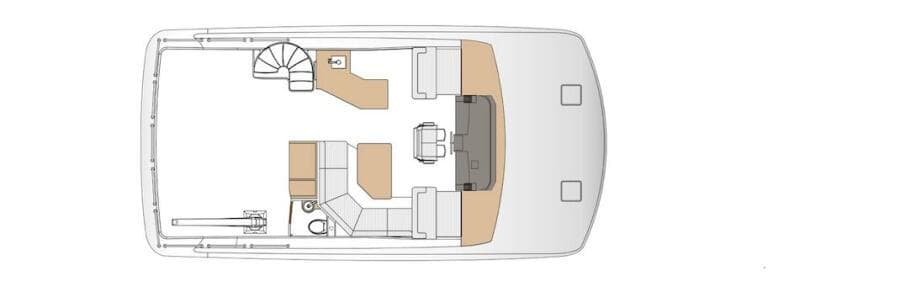

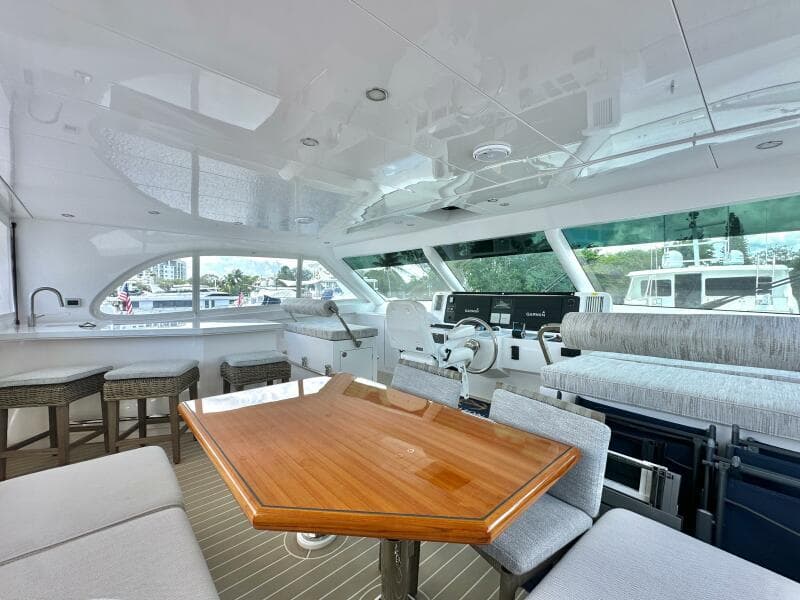

C. Flybridge and Boat Deck

1. Non-skid flybridge cambered deck with ample drainage.

2. Navigation LED lights.

3. Ample locker space for storage.

4. Wet bar with sink, hot and cold water, fridge.

5. Indirect lighting under bar counter.

6. Luxurious lounge seating with one step higher.

7. Satin finished teak hi/lo and sliding table.

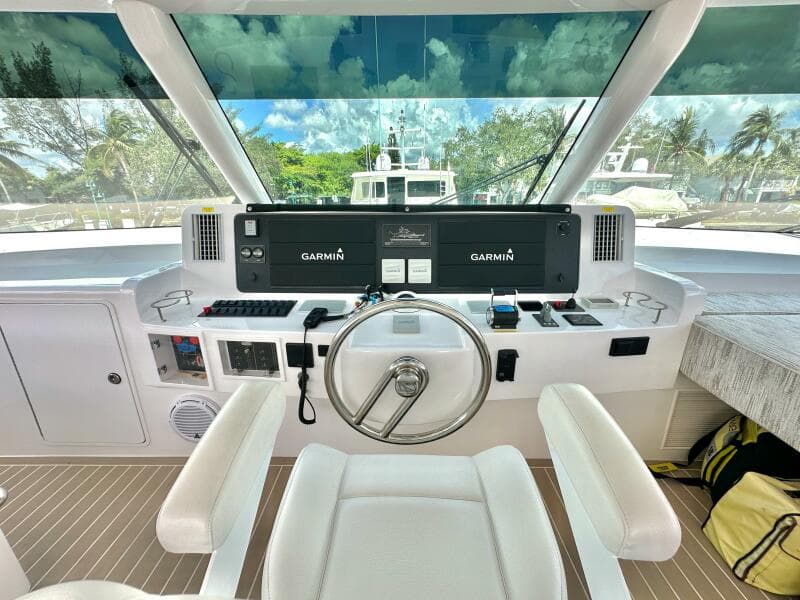

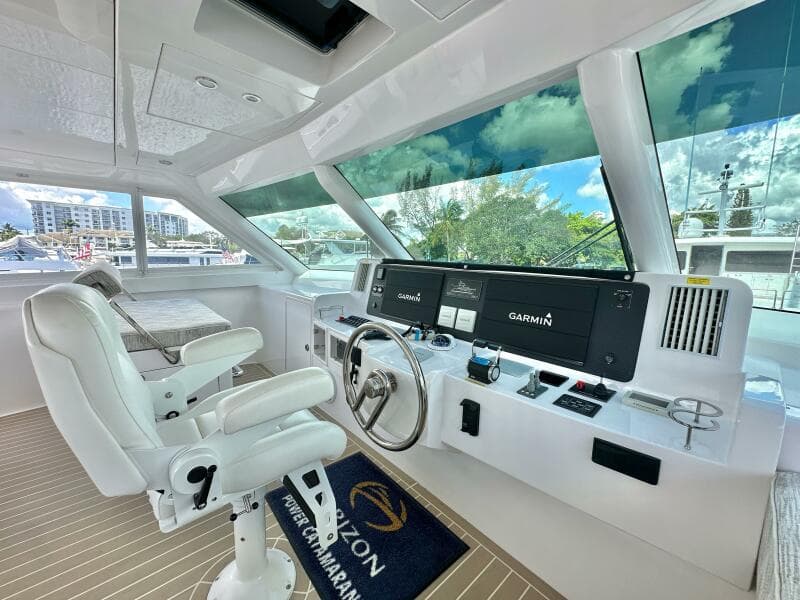

8. Helm station with S/S wheel.

9. STIDD pilot chair (x1).

10. Instrument console with engine controls, chart plotters instrument monitors and panels, fuel tank monitoring system.

11. Remote controls for spot (search) light and ship’s horn.

12. Bilge pump monitors and controls.

13. Compass with 4 1/2” size.

14. Comfortable stairs for access to aft deck with stainless handrails.

15. Hard top ceiling lights.

16. Hardtop reinforced for Nav. gear to be mounted on top.

17. Steelhead E1100 hydraulic crane for tender on flybridge.

18. S/S flag pole on stern.

19. Double bench seat on port side.

20. Double bench seat on STBD with slide out panel and cushion for daybed.

21. One flood light on the radar arch.

22. Dimmer switch for F/B ceiling lighting

23. Air conditioning on flybridge (2 outlets)

24. One S/S hatch on hardtop (without screen), above console.

25. GE Deep Freezer

26. One outlet near davit and cut FRP for single spigot flush mount washdown box in the stbd. for davit.

27. F/B bar upgrade from FRP to Corian top.

28. Add BLUESEA dual USB charger at P&S of console.

E. Engine Propulsion & Steering System

1. MAN i6 800 HP engines.

2. Dual Racor filters in each engine room.

3. S/S shafts AQUAMET HS 22# or equivalent.

4. High performance 5 blade Veem propellers .

5. Bronze P bracket.

6. Shaft and rudder packing glands with maintenance free Tides seals.

7. Stainless rudder with zinc plates.

8. Side Power bow thruster SE250 15hp

9. Side Power stern thruster SE210 (13.15HP) with tunnel.

10. Hypro Electronic Command Steering System.

11. Underwater exhaust system with bypass and mufflers.

12. Install fuel pump operation switch with solenoid valve in engine.

13. Manual adjustable trimtab at stern.

F. Engine Room and Equipment

1. Sound and heat insulated compartments.

2. Ventilation system with moisture eliminators.

3. 21.5kW (60Hz) Onan generator*1 with sound shield and air water separator.

4. Engine access through deck hatches in cockpit floor.

5. DC Lights.

6. Automatic fire extinguisher outlets.

7. High water bilge pumps with alarms.

8. Oil change pump system for engines gears, and generators.

9. Fresh Water Flush for Air conditioning raw water system.

G. Electrical System

1. 110V or 220V electrical supply from generator/shore power.

2. One Glendinning shore power cable master 50Amp w/75’ power cable andone 50Amp shore power connection w/plug at stern portside.

3. Upgrade shore power breaker*2 to ABB (DDA203 A S-63 + S203-C50) in lieu of std. Legrand.

4. Automatic transform switch for AC power supply.

5. Color-coded wiring for easy identification.

6. Premium DC distribution board with switches, voltmeter and amp meter.

7. Remote panel for generator.

8. 6x 200AH Victron LiPo4 batteries for house bank service. W/ Victron Quattro Inverter system

9. Premium AC panel with switches 110/220VAC, 50A dock inlet

10. Navigation light selection panel

11. Fresh, black water & diesel tank gauges.

12. Four 210Ah AGM start batteries for engines/generator.

14. Vimar switches for lighting switches and receptacles.

15. Outlets in salon, bar, galley, cabins, flybridge, aft deck, and engine room.

16. AC and DC distribution panels.

17. Smoke detector in each zone.

18. Shipyard provides conduits at appointed 14 areas for install other AV system in USA. Navigation & Instrumentation

19. Garmin GPS.

20. Garmin 48” 48mile open array radar system.

21. Garmin 8622 22" (x3) multifunction displays.

22. Garmin Autopilot System.

23. Garmin Wind/Speed/Temp/Depth transducers.

24. Garmin VHF at flybridge (with built-in loudhailer) and interior navigation station.

25. Garmin AIS.

26. Garmin transducer with sonar module.

27. Connect MAN engines data to Garmin display with ONE extra NBE100 net work bus extenders.

H. Mechanical System

1. Headhunter fresh water Royal Flush Bravo marine toilets in Master head, and Espresso toilets for the VIP and Guest head with back-up fresh water pump.

2. Washer and separate dryer including laundry cabinets and iron board.

3. 70 Gallon holding tanks (x2), Y valve for overboard discharge or dock side pump out.

4. 250 Gallon water tank.

5. Water and fuel tank integral to hull.

6. Color coded piping for easy identification.

7. Two-level water bilge alarm.

8. Electric 24V bilge pumps.

9. Marine grade lines for fresh water system.

10. 30 Gallon hot water heater to engine.

11. Fuel transfer pumps.

12. High volume AC fresh water pump.

13. Hot water circulation pump.

14. New plastic sea cocks system, except engines. Change to two Sealand discharge pump in lieu of std. RULE

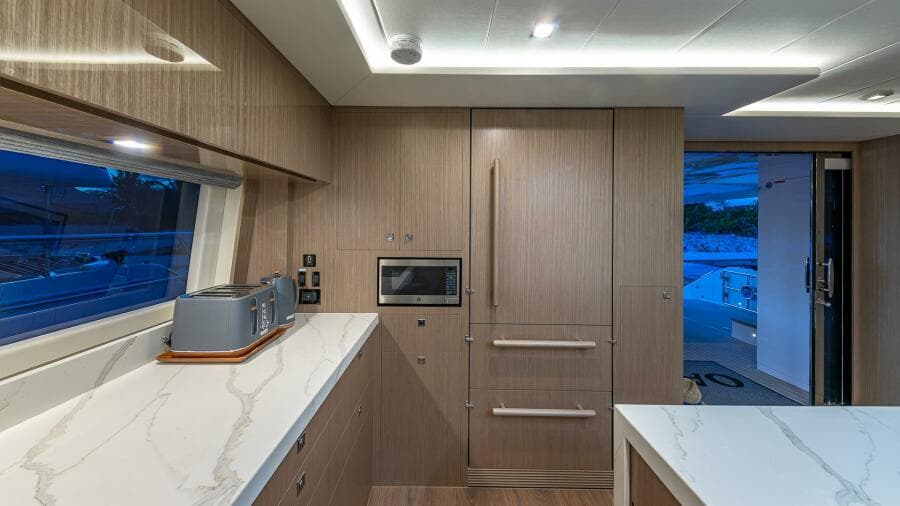

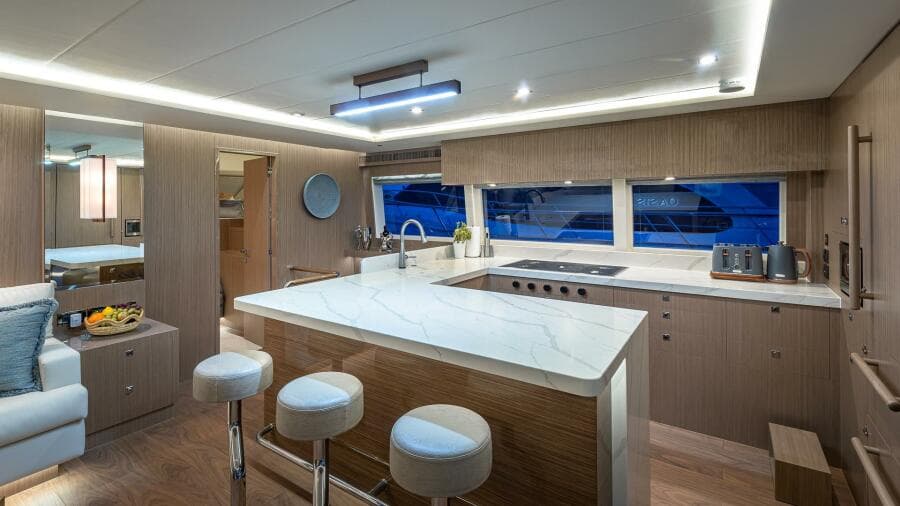

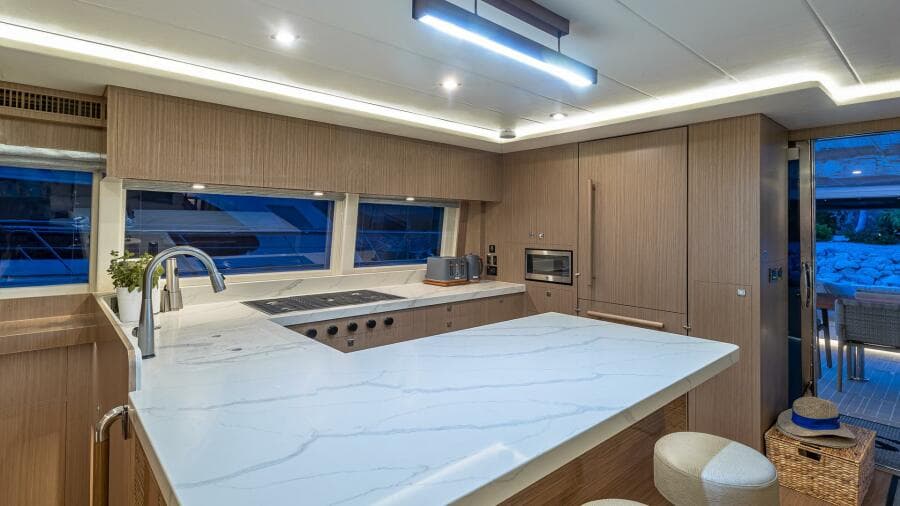

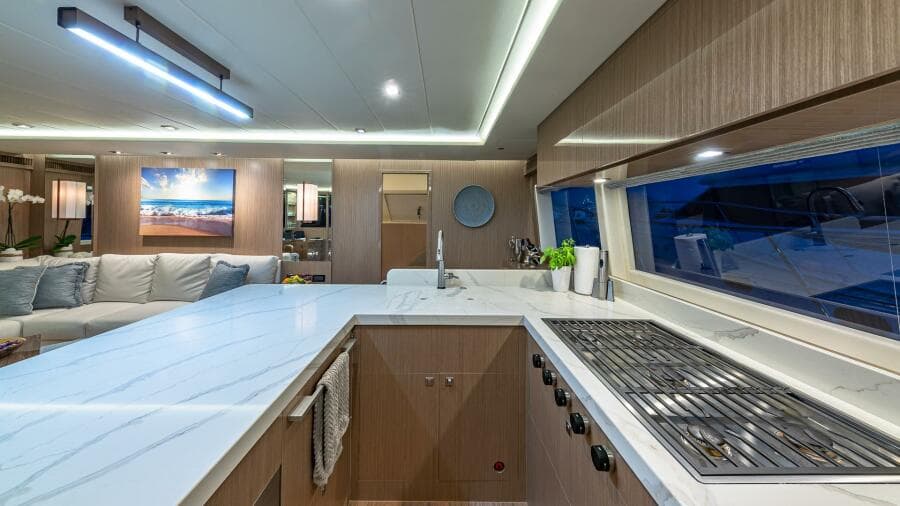

Galley

1. Corian counter tops and back splashes.

2. Miele KM6365 Flush cooktop

3. Zephyr Twister Extractor over cooktop.

4. Miele (KFNF9855IDE) 30” panel ready fridge.

5. Fisher &Paykel panel ready dishwasher.

6. Cutlery & crockery drawers.

7. Pot and pan drawer & spice cupboard.

8. Additional storage drawers and cupboards.

9 . Single Large sink with * Insinkerator PRO750 Disposal w/ air switch.

10. Under counter trash drawer.

11. SUMMIT wine cooler.

12. Bar stools with S/S post (x3) in galley. Office/Navigation Area (port of salon)

13. Storage cabinets and drawers.

Stereo System

1. Flybridge FUSION Apollo Marine stereo with Fusion amp, JL 7” speakers*4 and one 10” subwoofer*1.

2. Salon 55" TV with Sonos Soundbar and Apple TV.

3. JL 10” subwoofer*1, FUSION AMP*1 and Apollo Marine stereo with two 7” JL speakers on aft. deck and two 7” JL speakers on bow.

4. Master cabin 32" TV. FUSION Apollo Marine stereo (x1) and Fusion speakers (MS-CL602) (x2).

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
