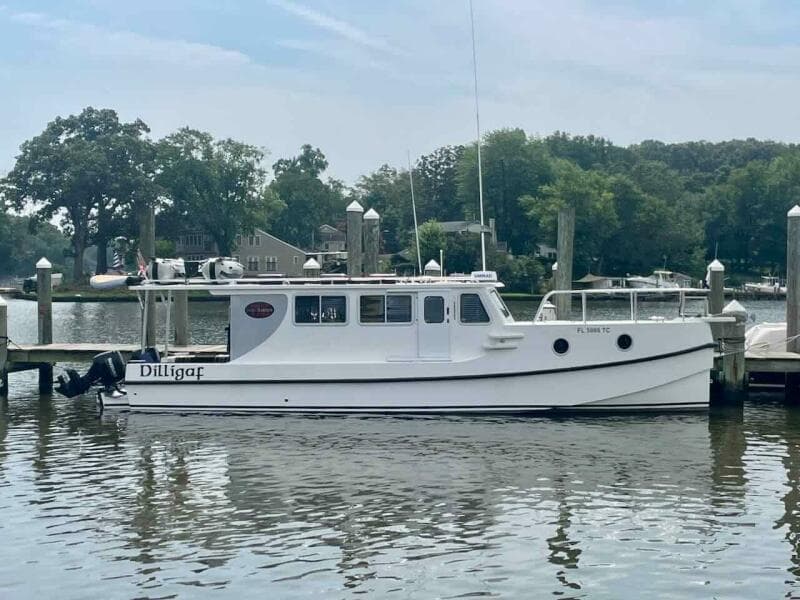

2021 Great Harbour TT35

Virtual Tour: www.bit.ly/TT35VIRTUAL

Video Tour: www.bit.ly/TT35VIDEO

Slideshow: www.bit.ly/TT35SLIDE

Manufacturer’s Tour: www.bit.ly/TT35MFGTOUR

Drone Video: www.bit.ly/TT35DRONE

Great Lakes Boating Review: www.bit.ly/TT35GLBR

Cruising Odyssey Review: www.bit.ly/TT35COR

Boating Magazine Review: www.bit.ly/TT35BMR

Passagemaker Review: www.bit.ly/TT35PMR

The TT35 design has evolved over time. Being one of the more recent builds, Dilligaf benefits from these design improvements including:

Closed Transom. Earlier models had a fold down transom that required he cockpit to have an uncomfortable slope to the floor in order to make a transition to the water level, as well as standing water at the back of the cockpit that rises further in reverse.

Central Air Conditioning. Earlier models featured a cabin top air conditioner that did not adequately cool the forward cabin.

Traditional Dinette - Convertible Berth: Earlier models featured a port side door which did not allow room for a convertible dinette found in the later models. It was determined functionality of the convertible dinette far outweighed the port door, since the starboard door provides adequate access to the foredeck.

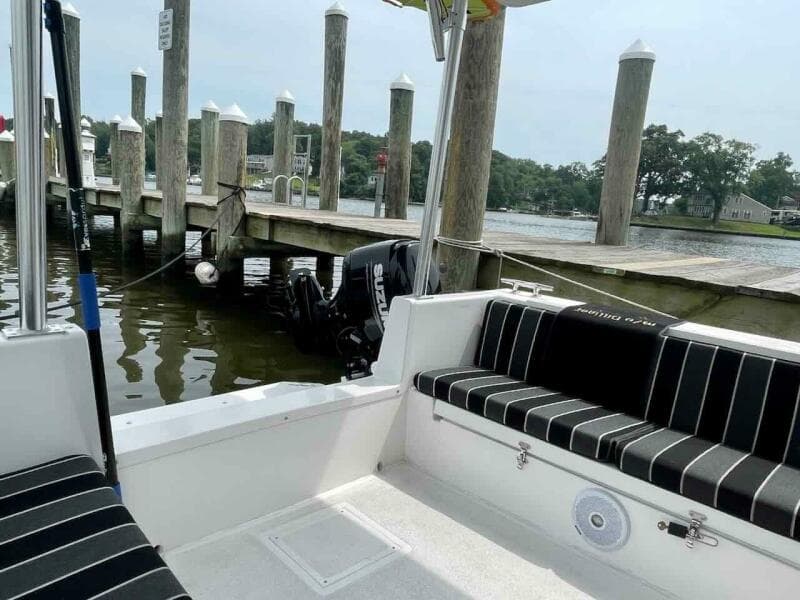

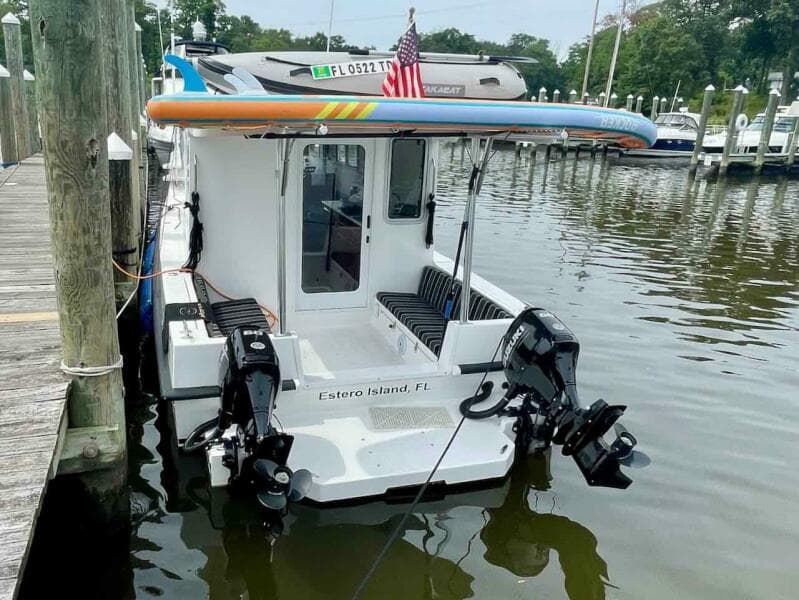

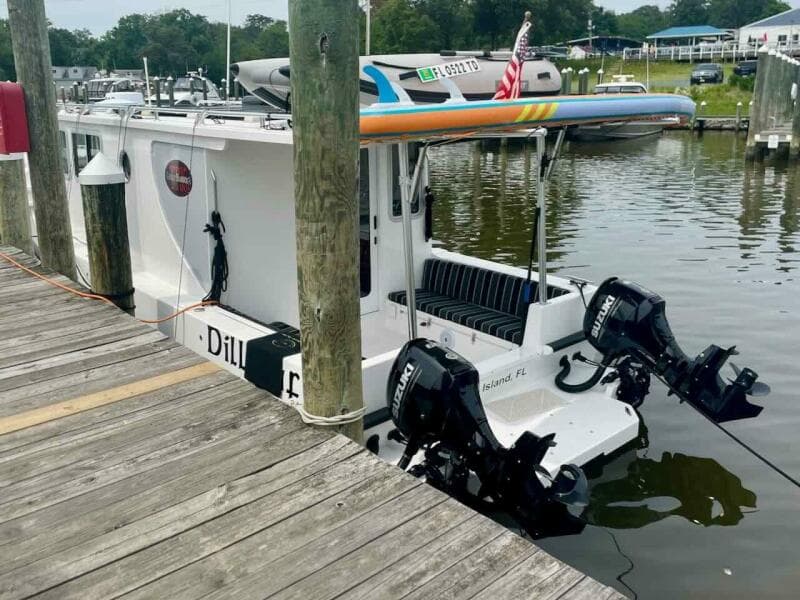

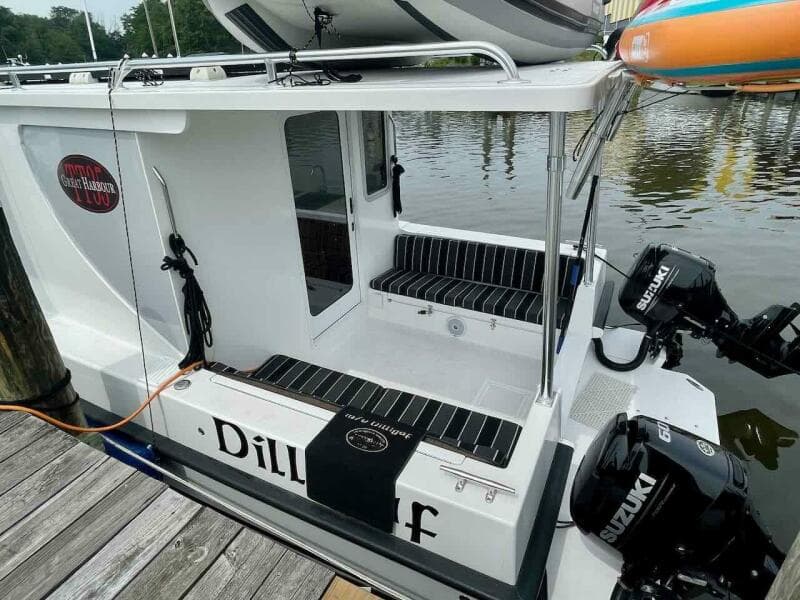

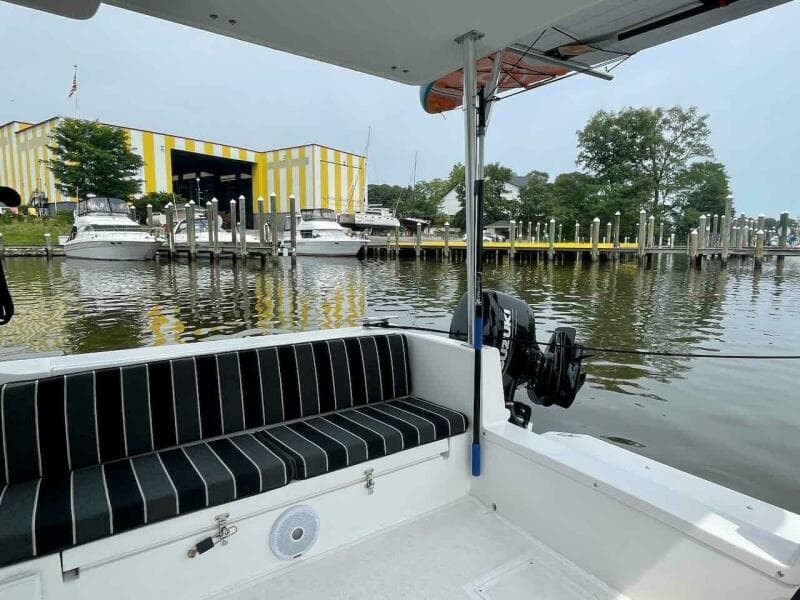

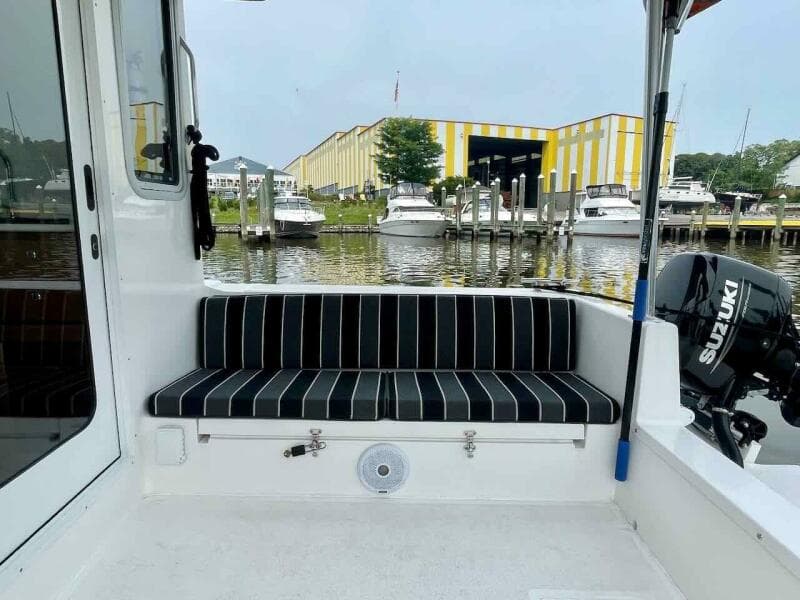

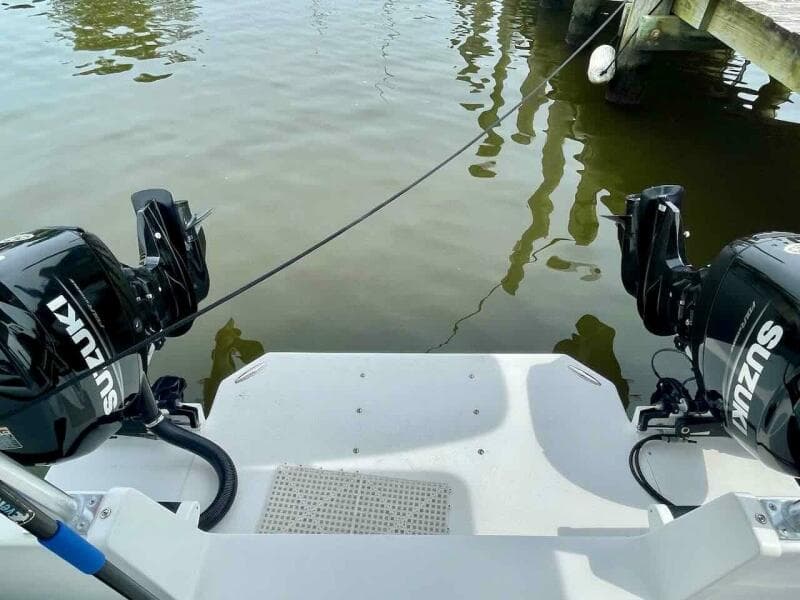

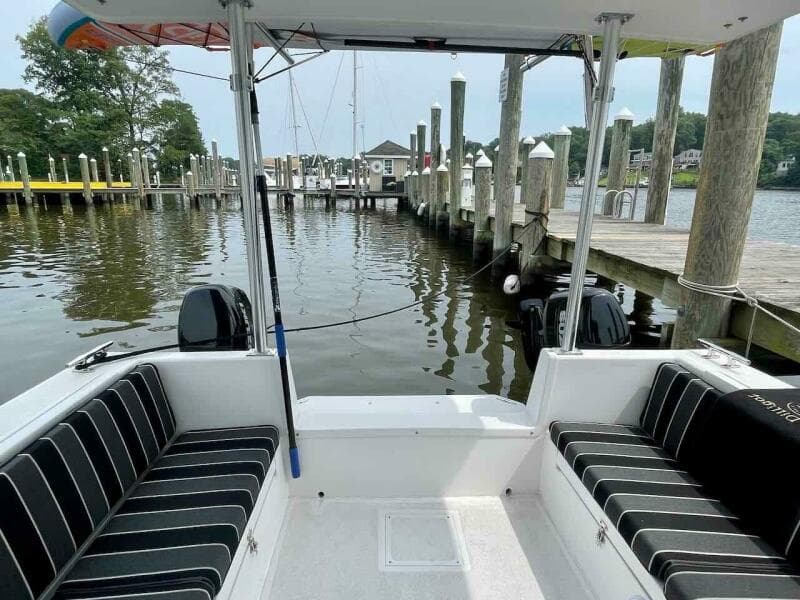

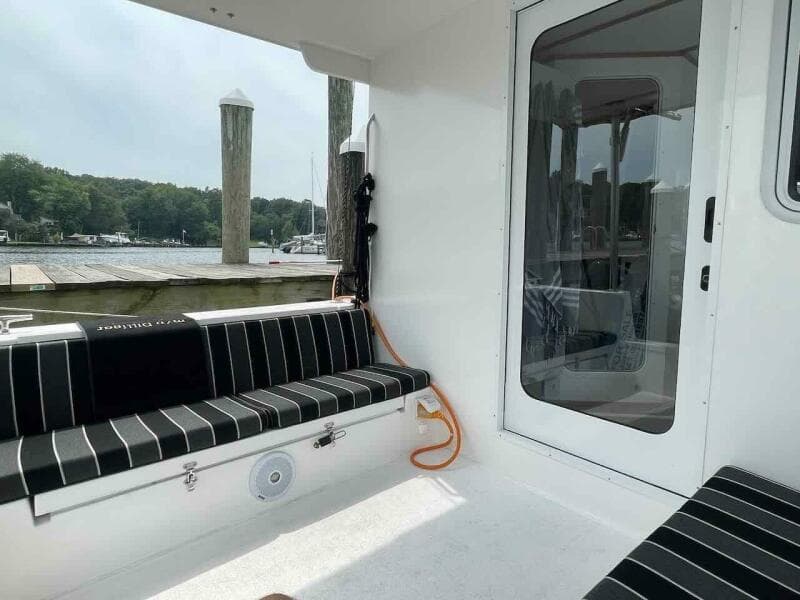

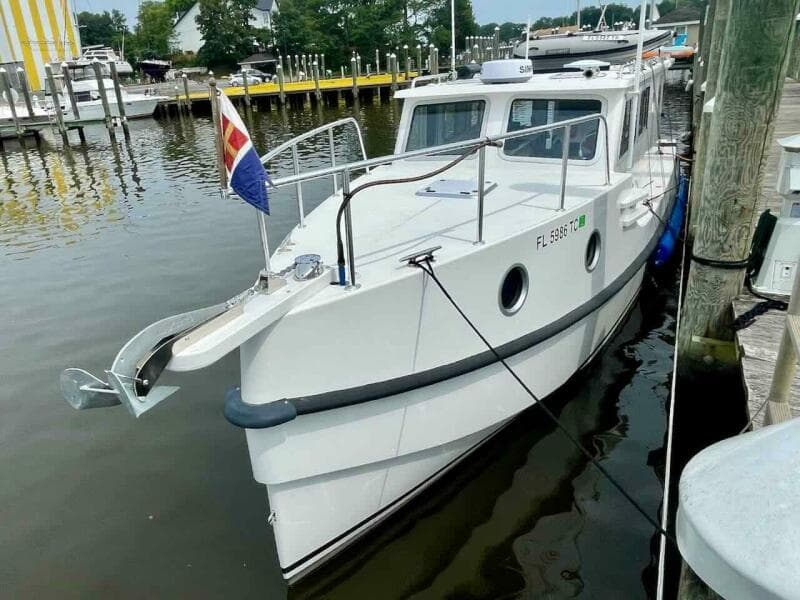

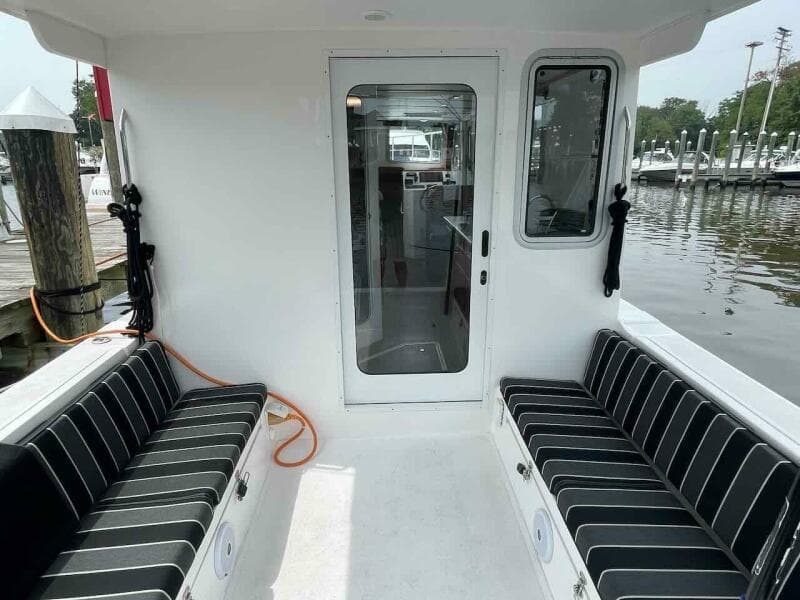

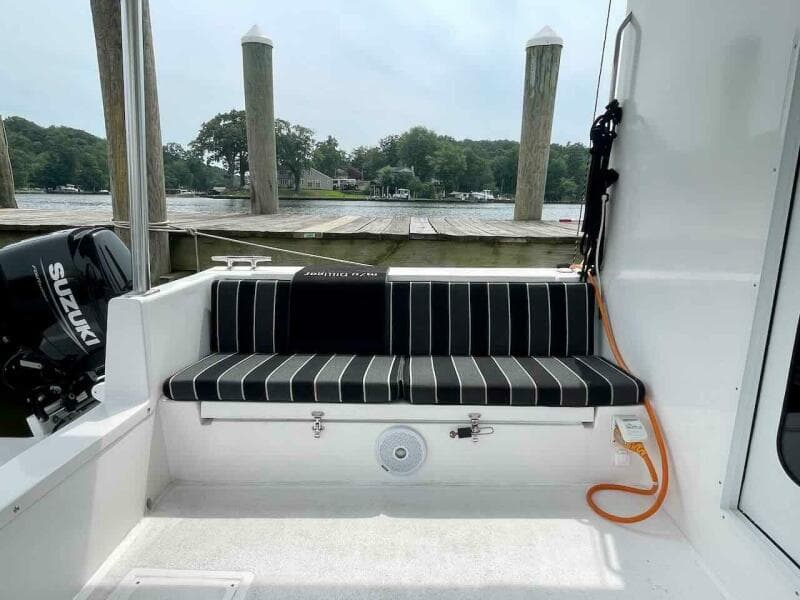

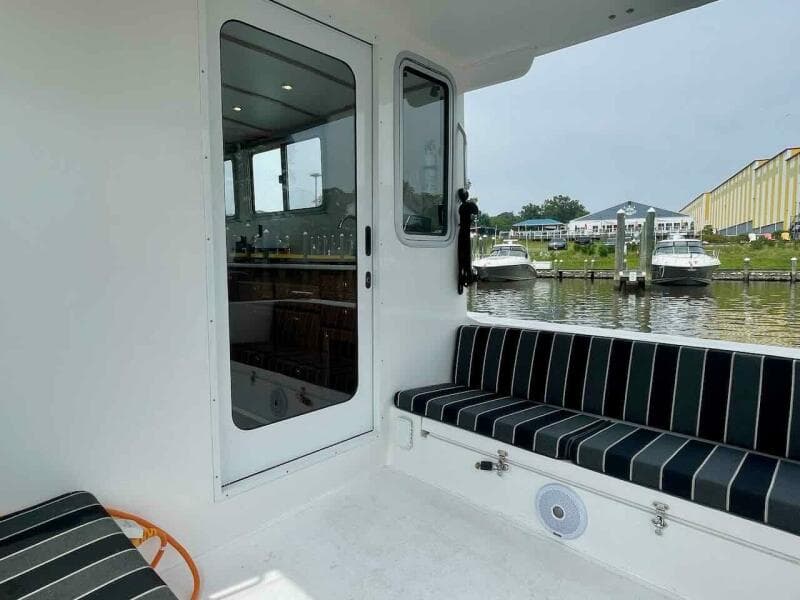

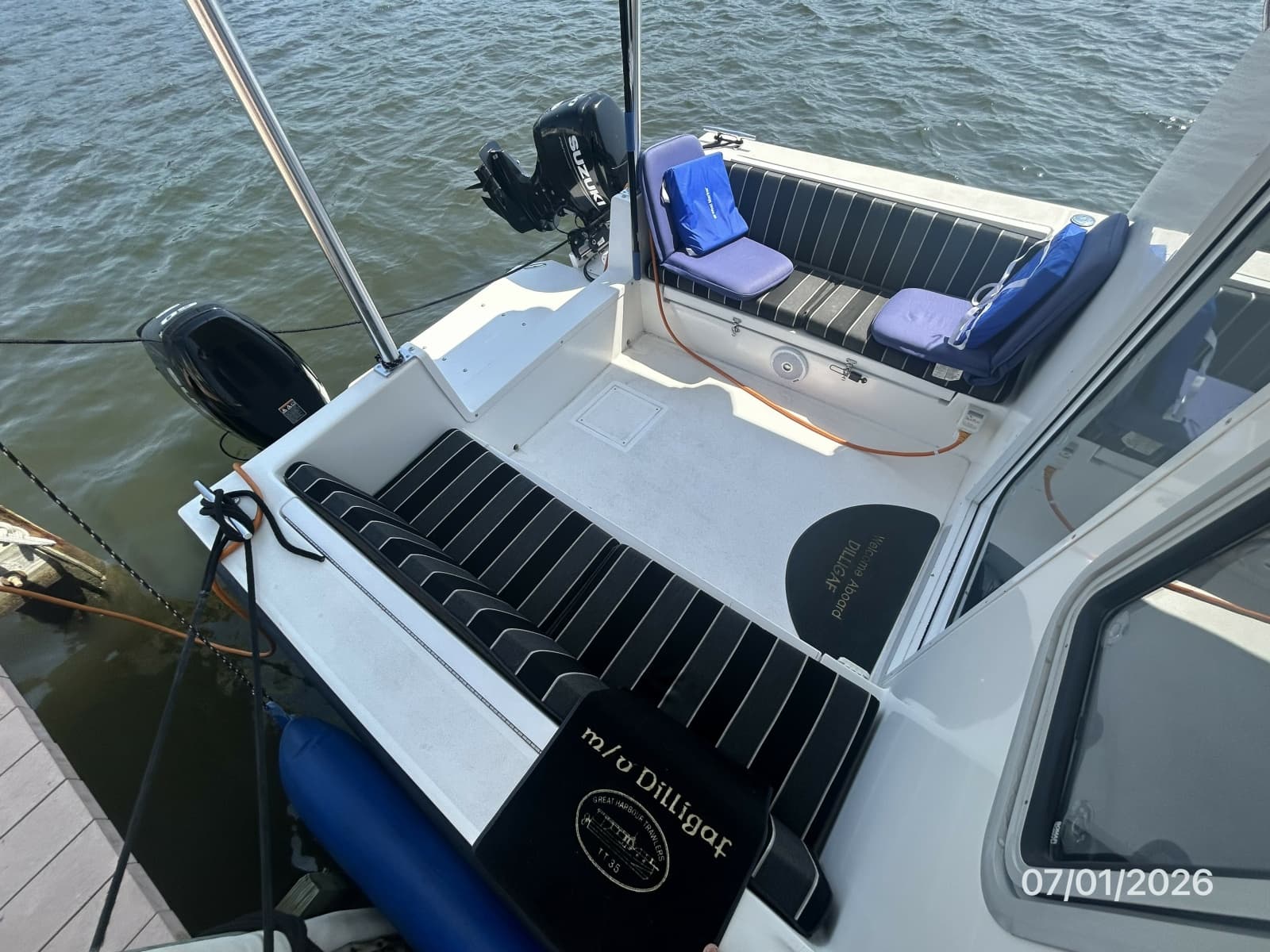

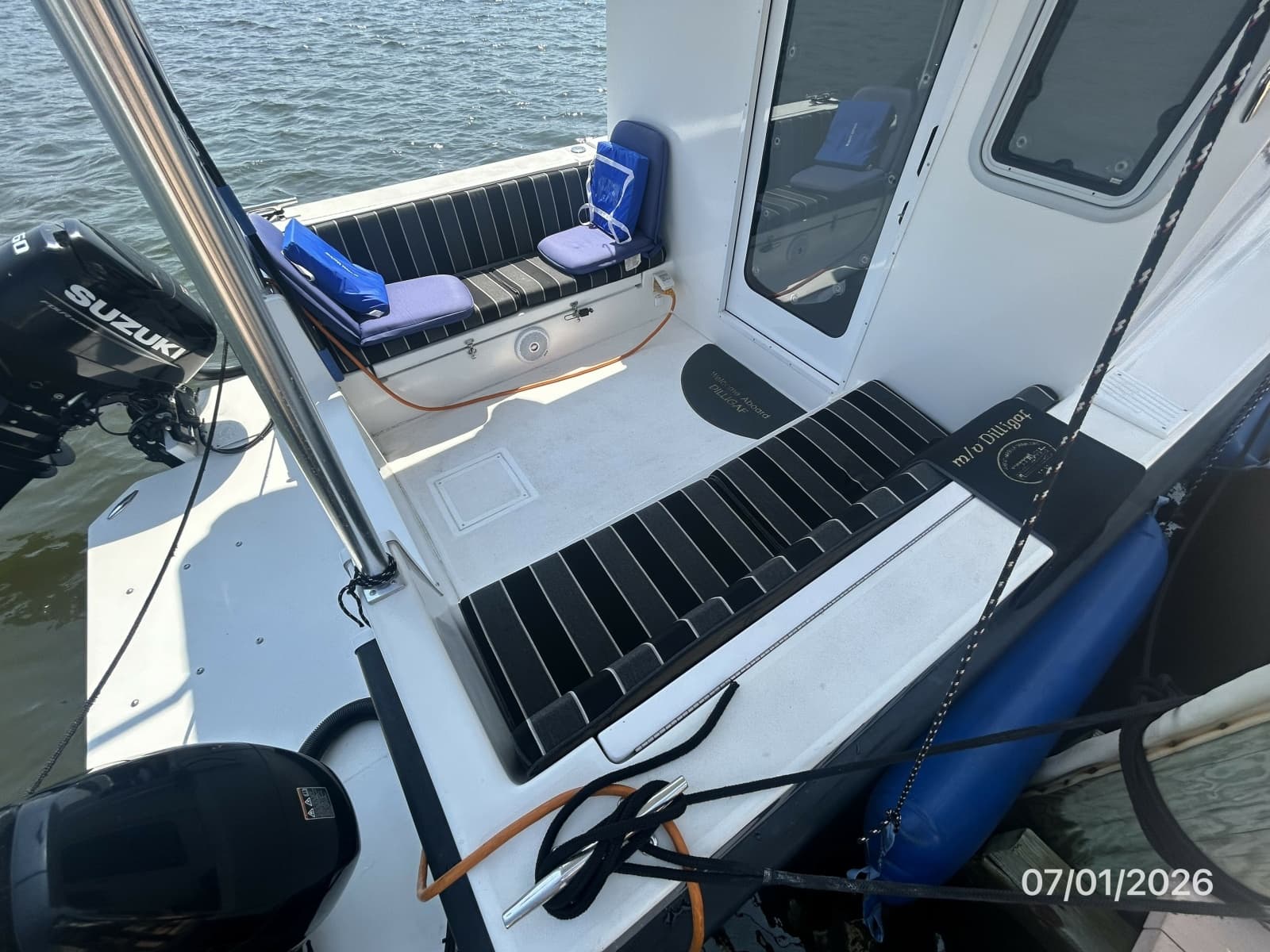

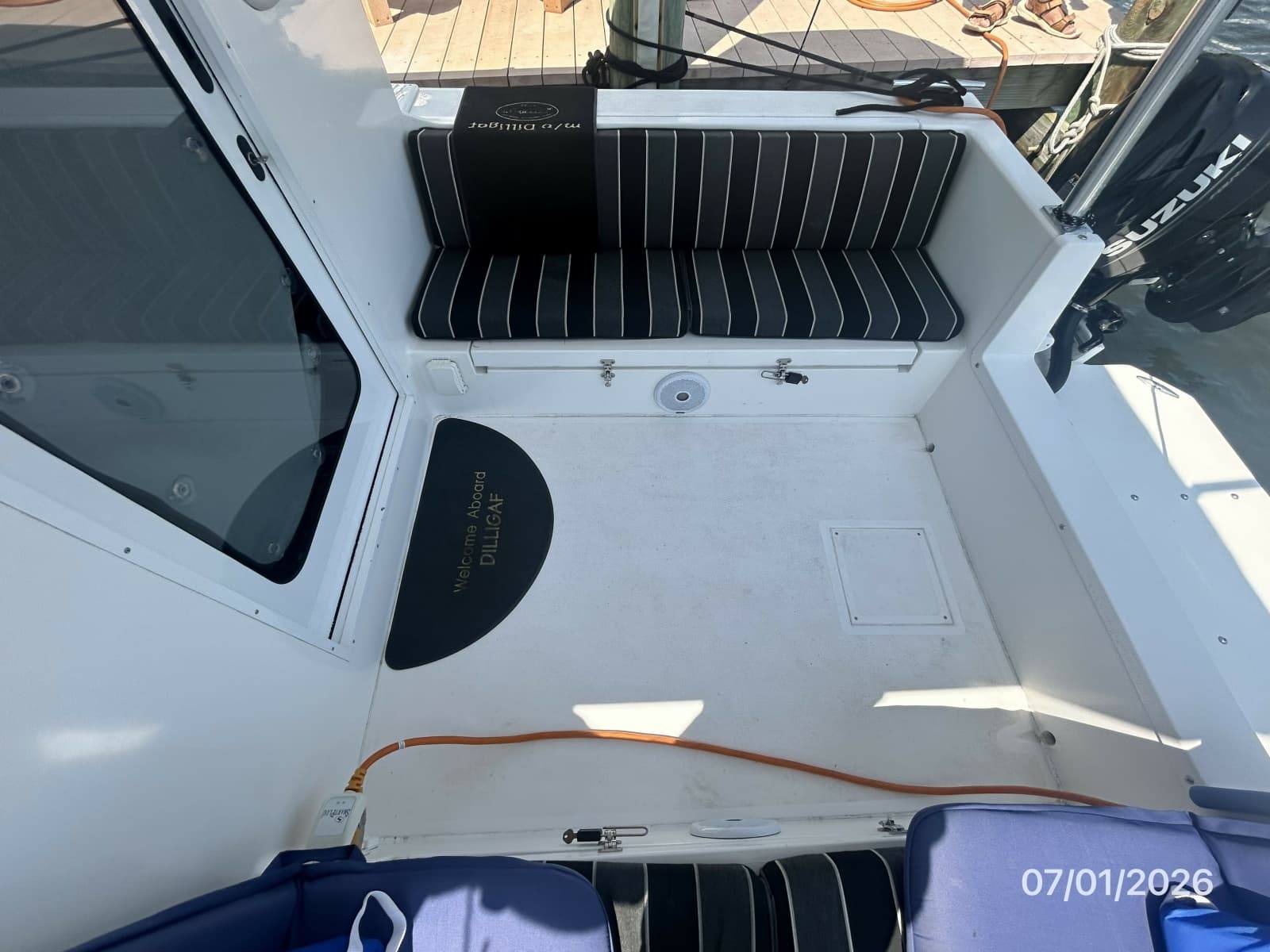

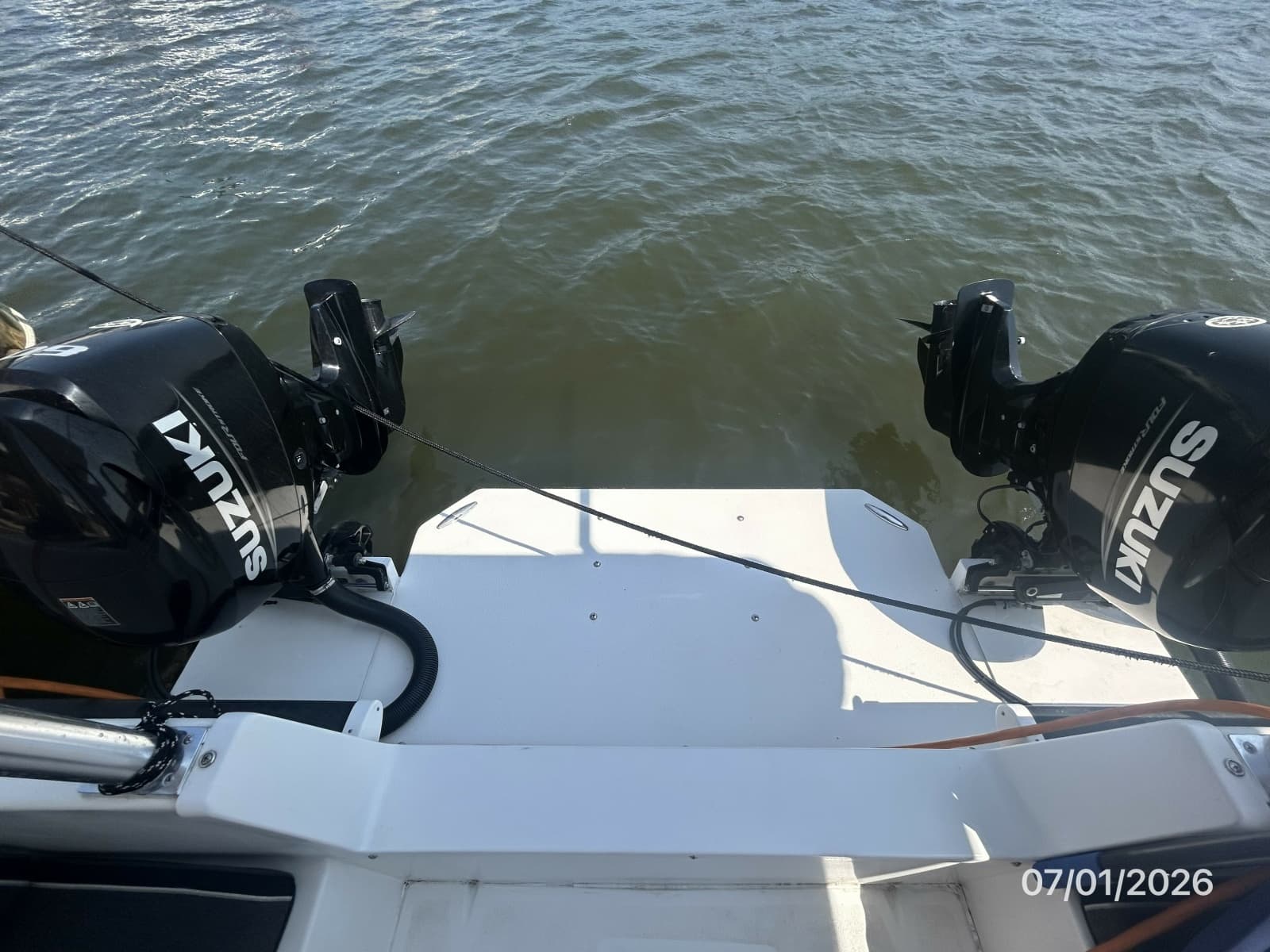

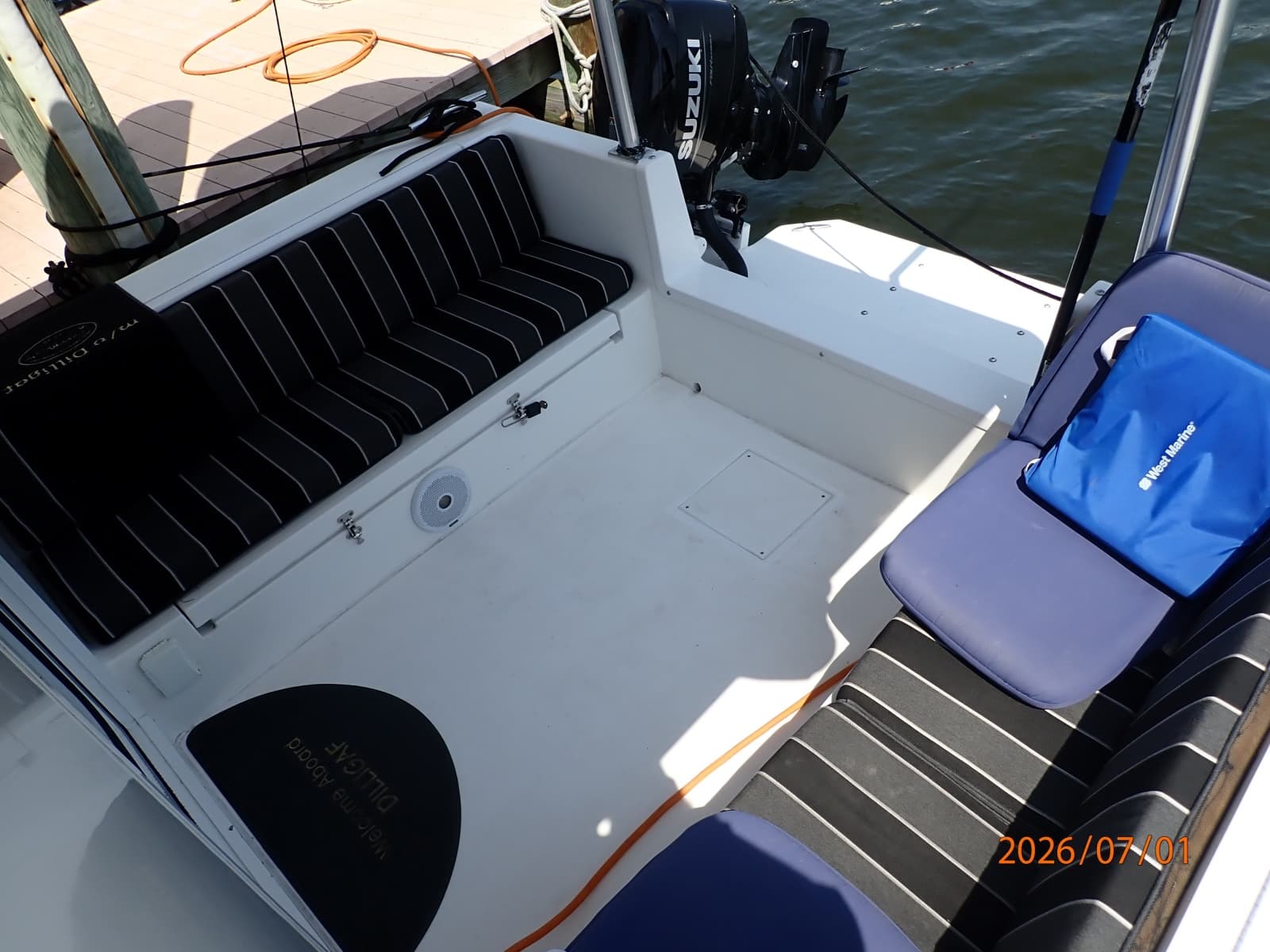

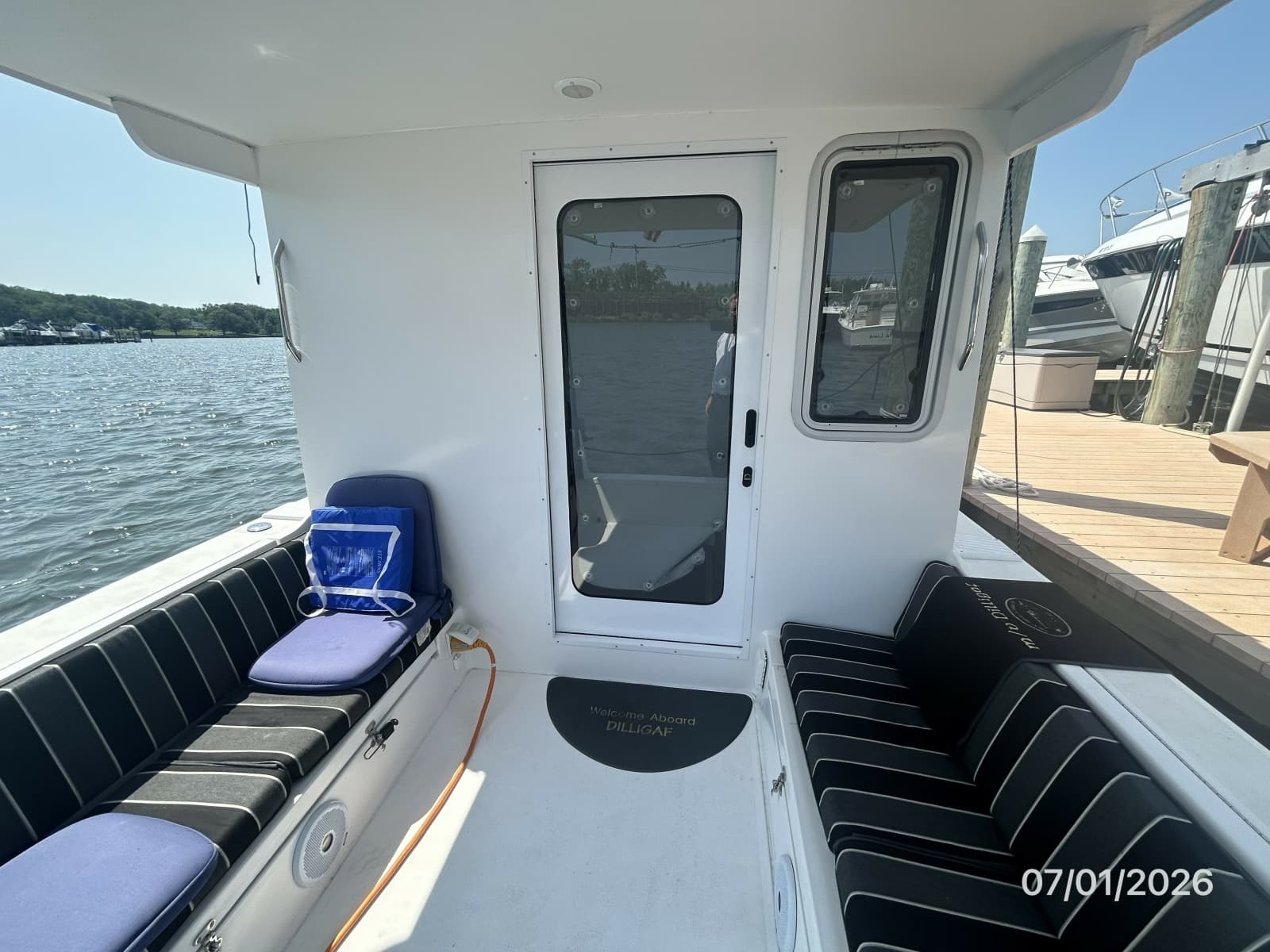

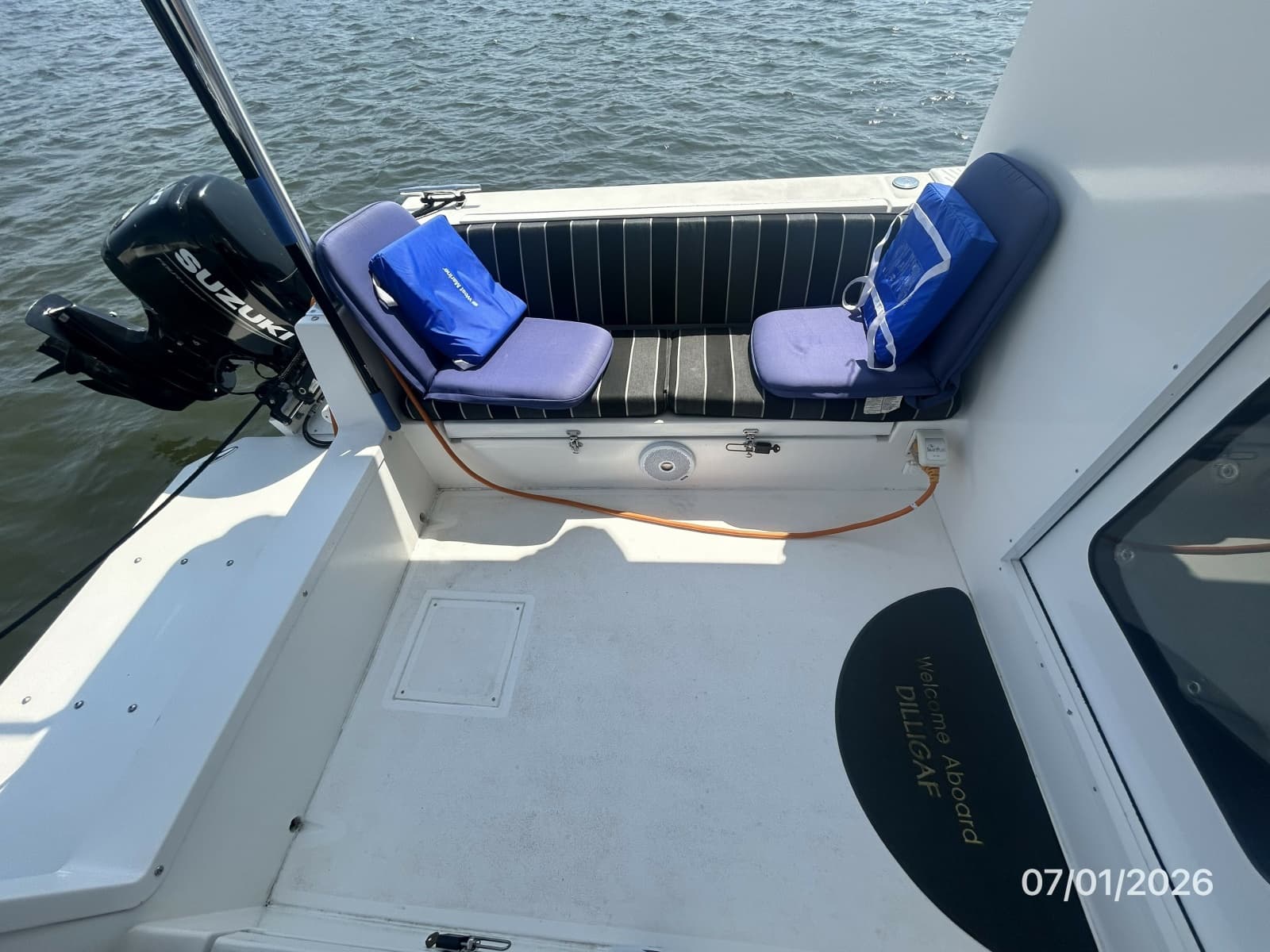

Entering the cockpit there is plenty of room for six people to relax on the two port and starboard seats. The swim platform is accessed from the cut-away transom, with twin outboard engines mounted on the port and starboard sides. At the forward bulkhead a sliding door offers access to the deck house along with an opening window to the galley. Two large lockers under the seats provide ample deck gear storage. The cockpit is protected from the sun and rain by an extension of the deck house hard top.

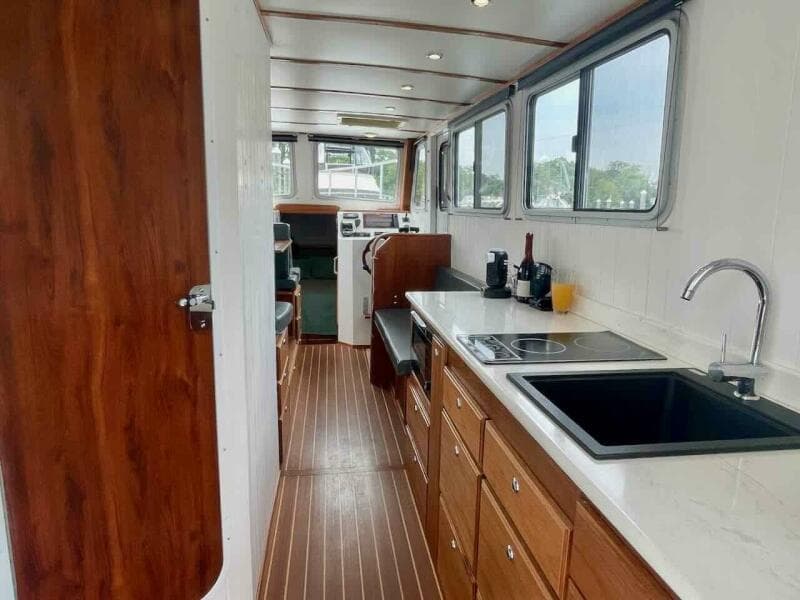

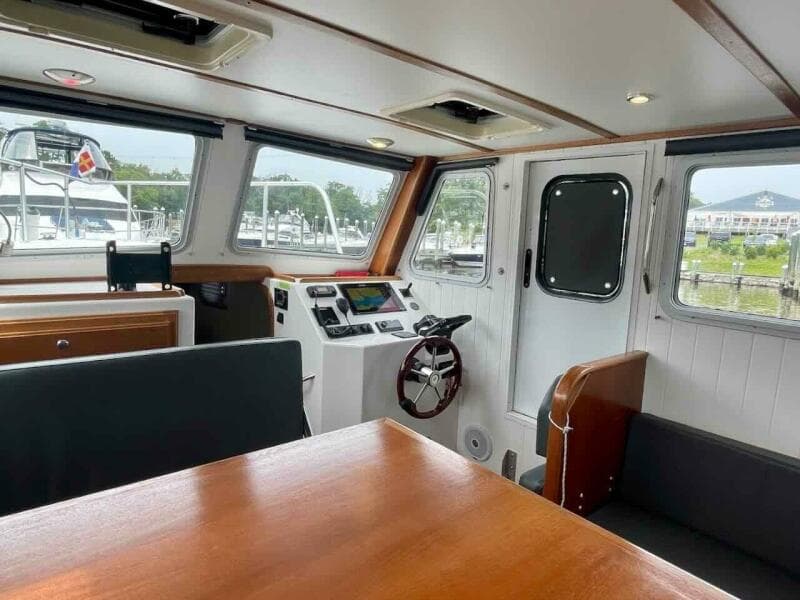

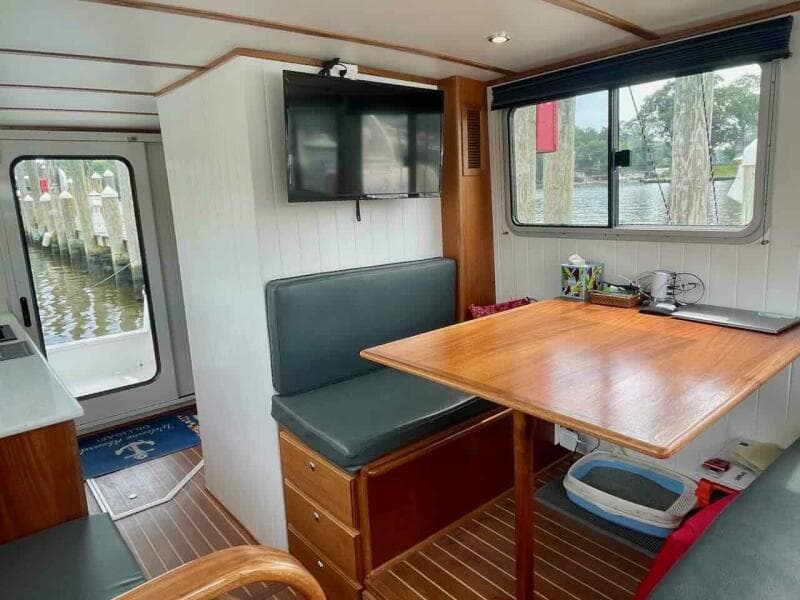

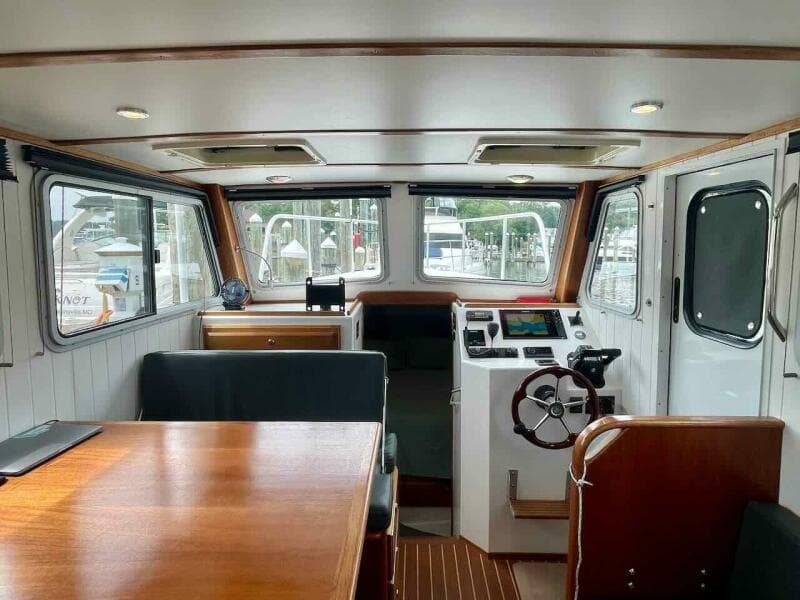

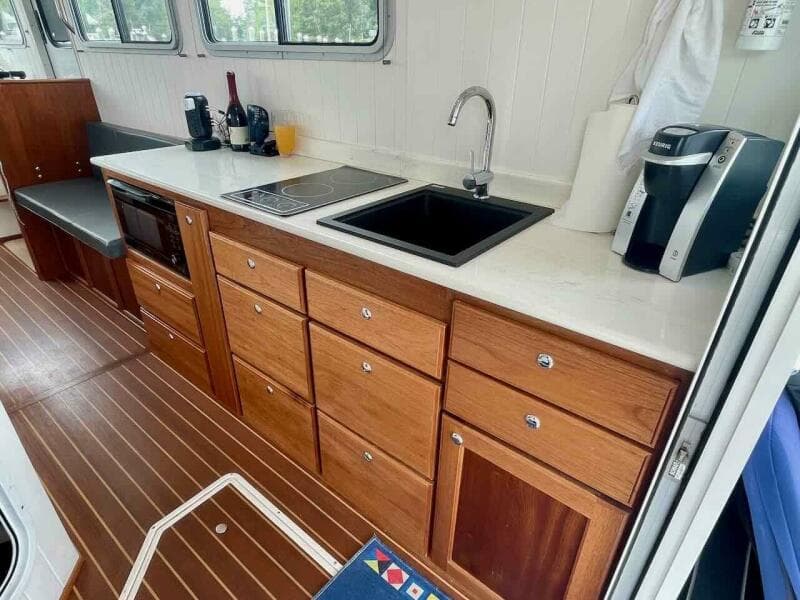

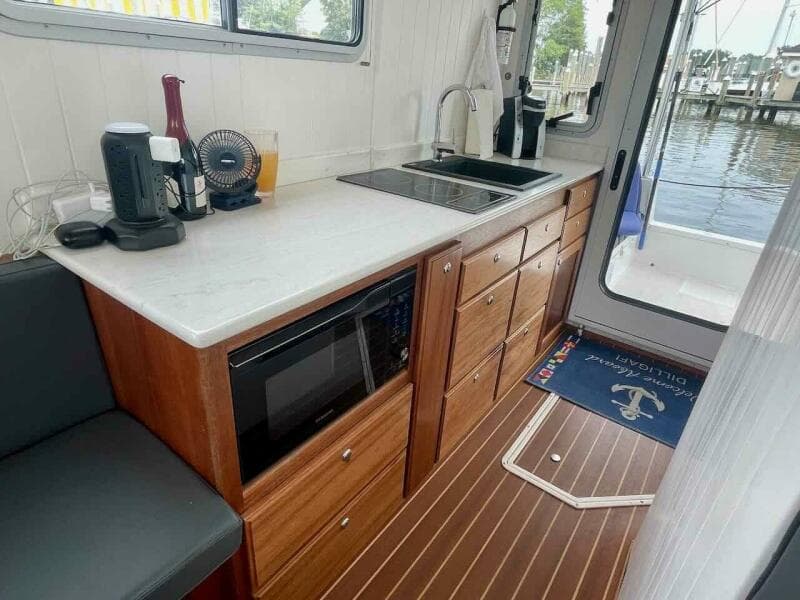

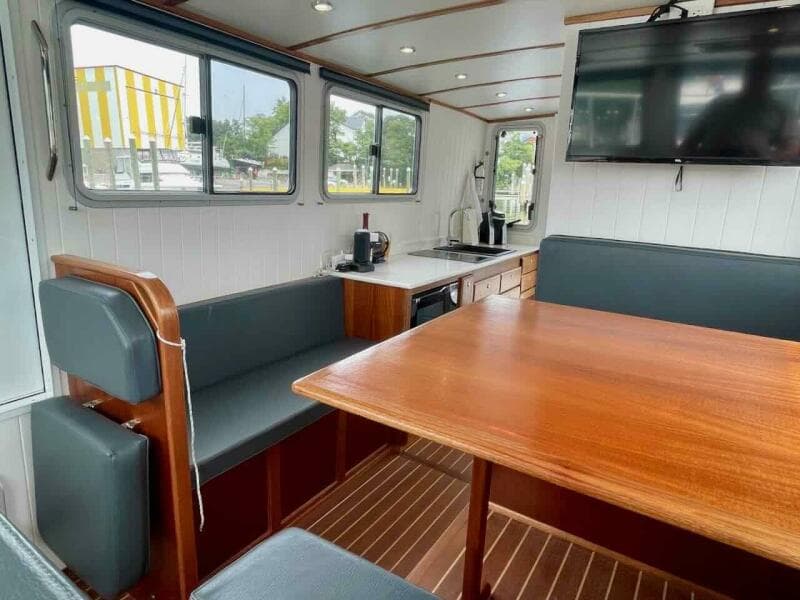

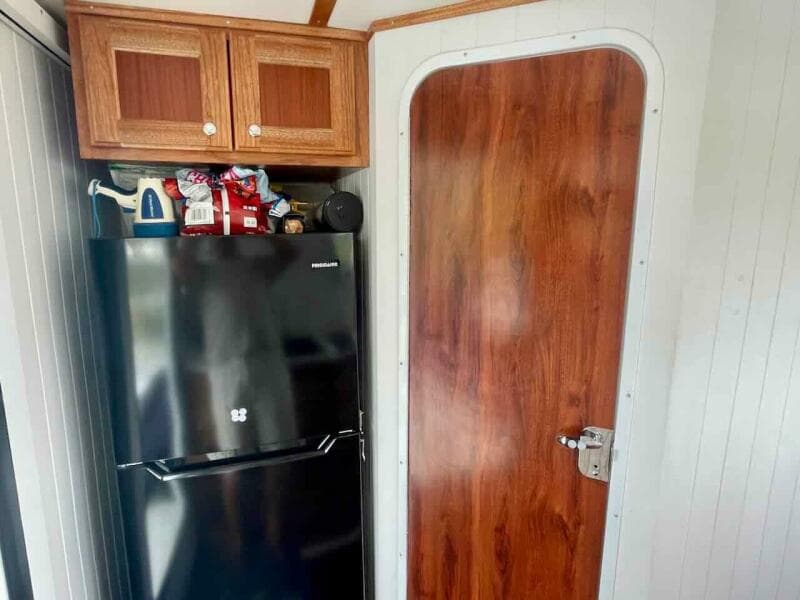

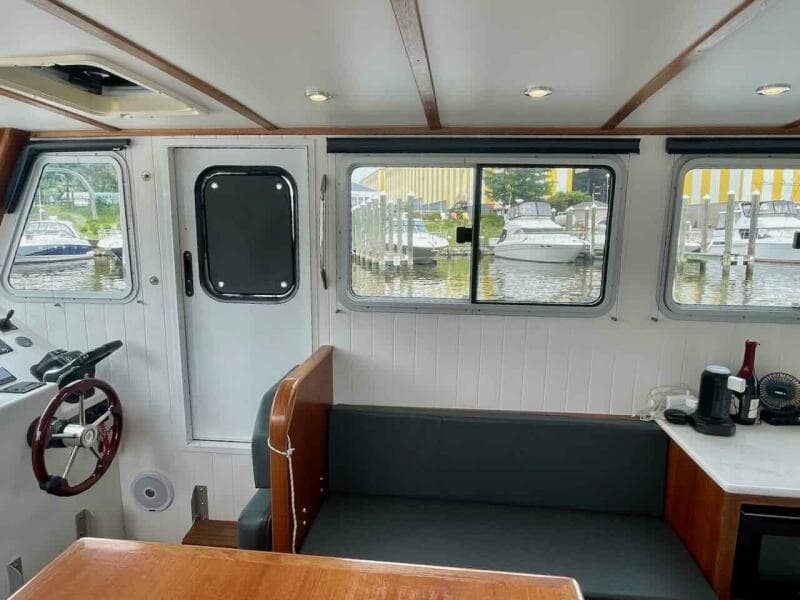

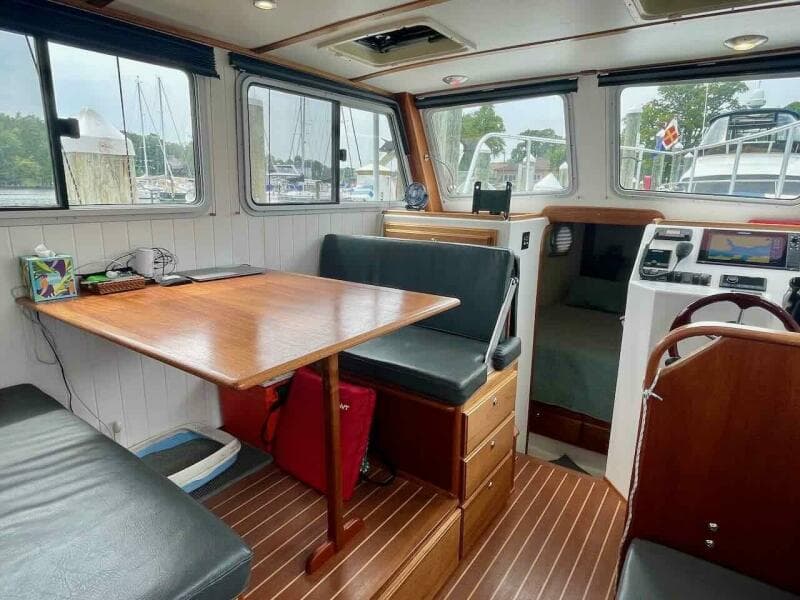

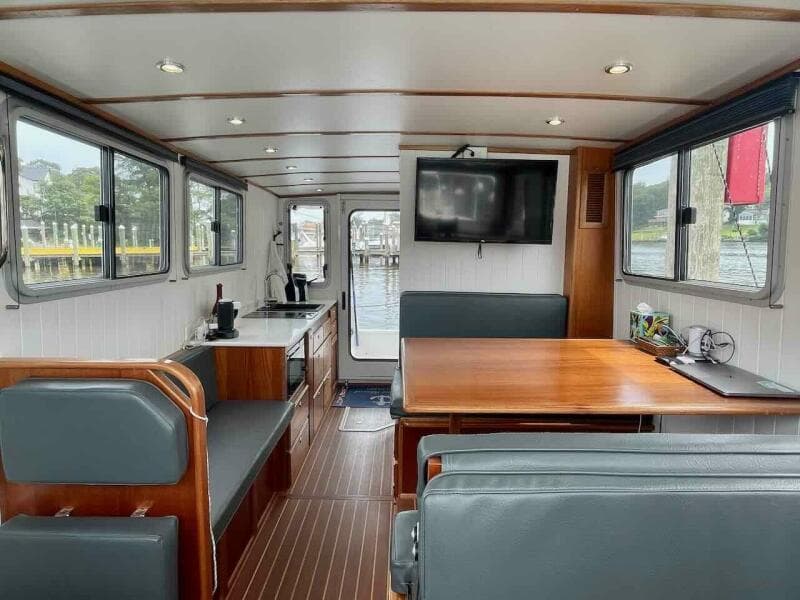

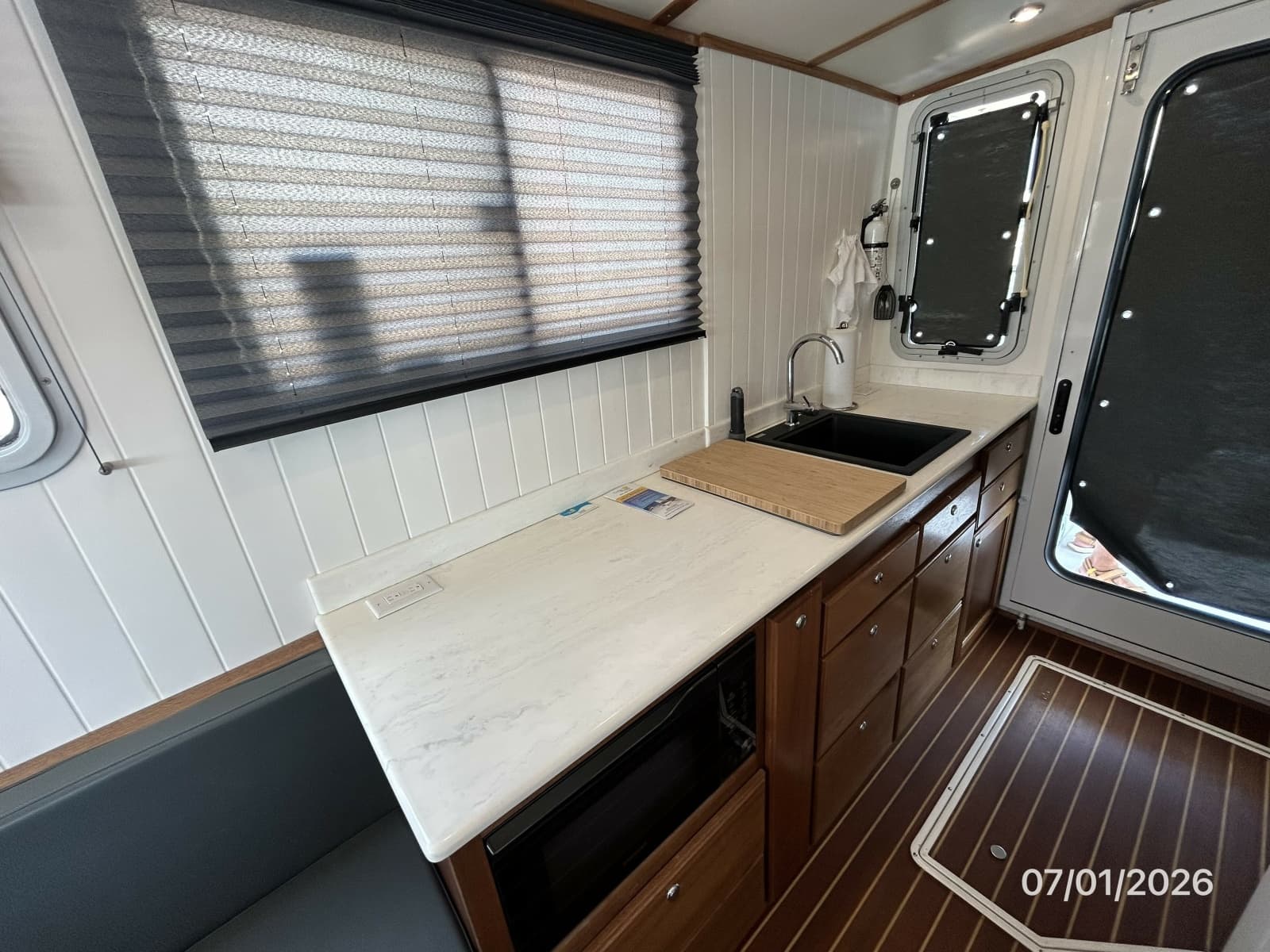

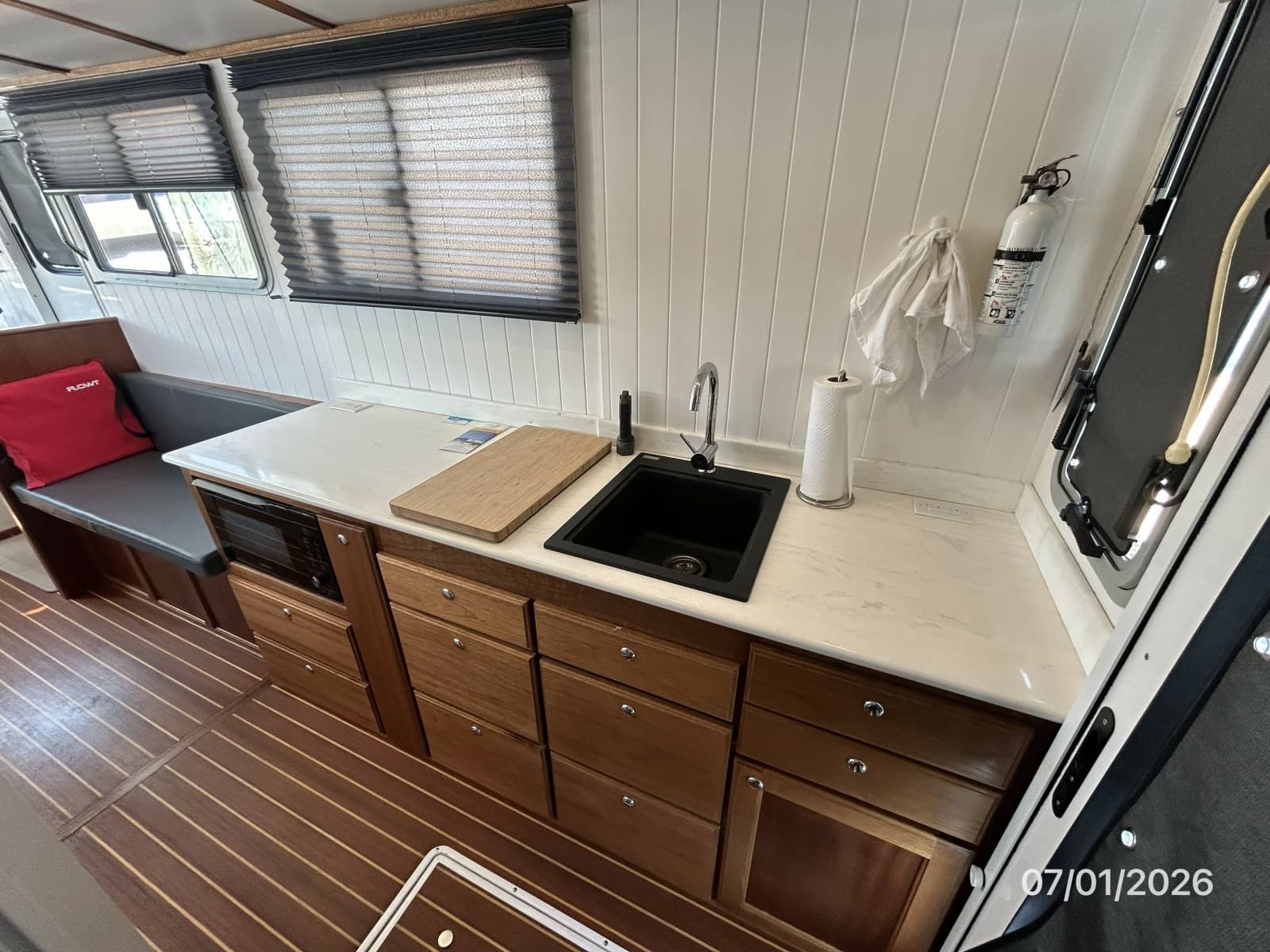

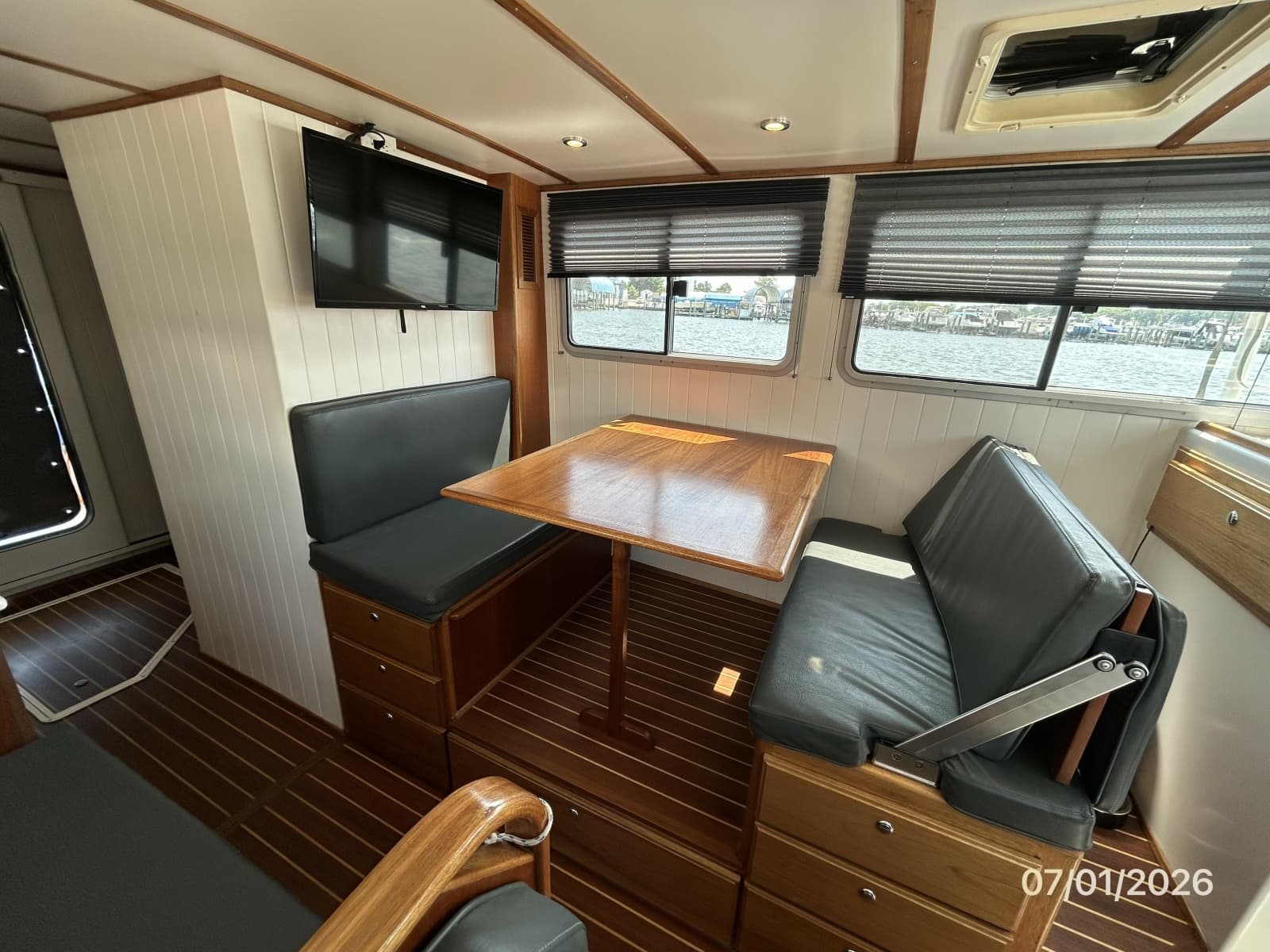

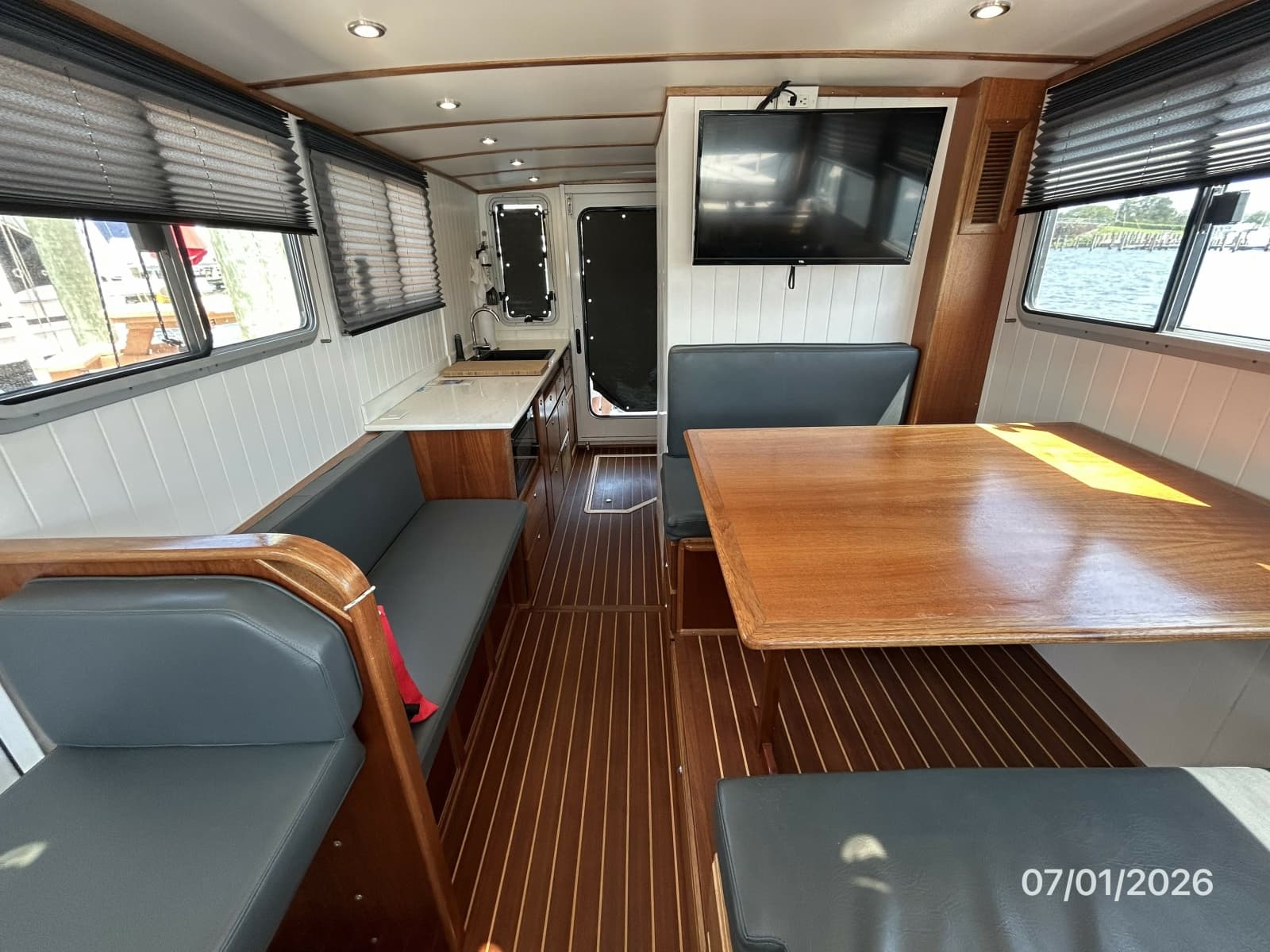

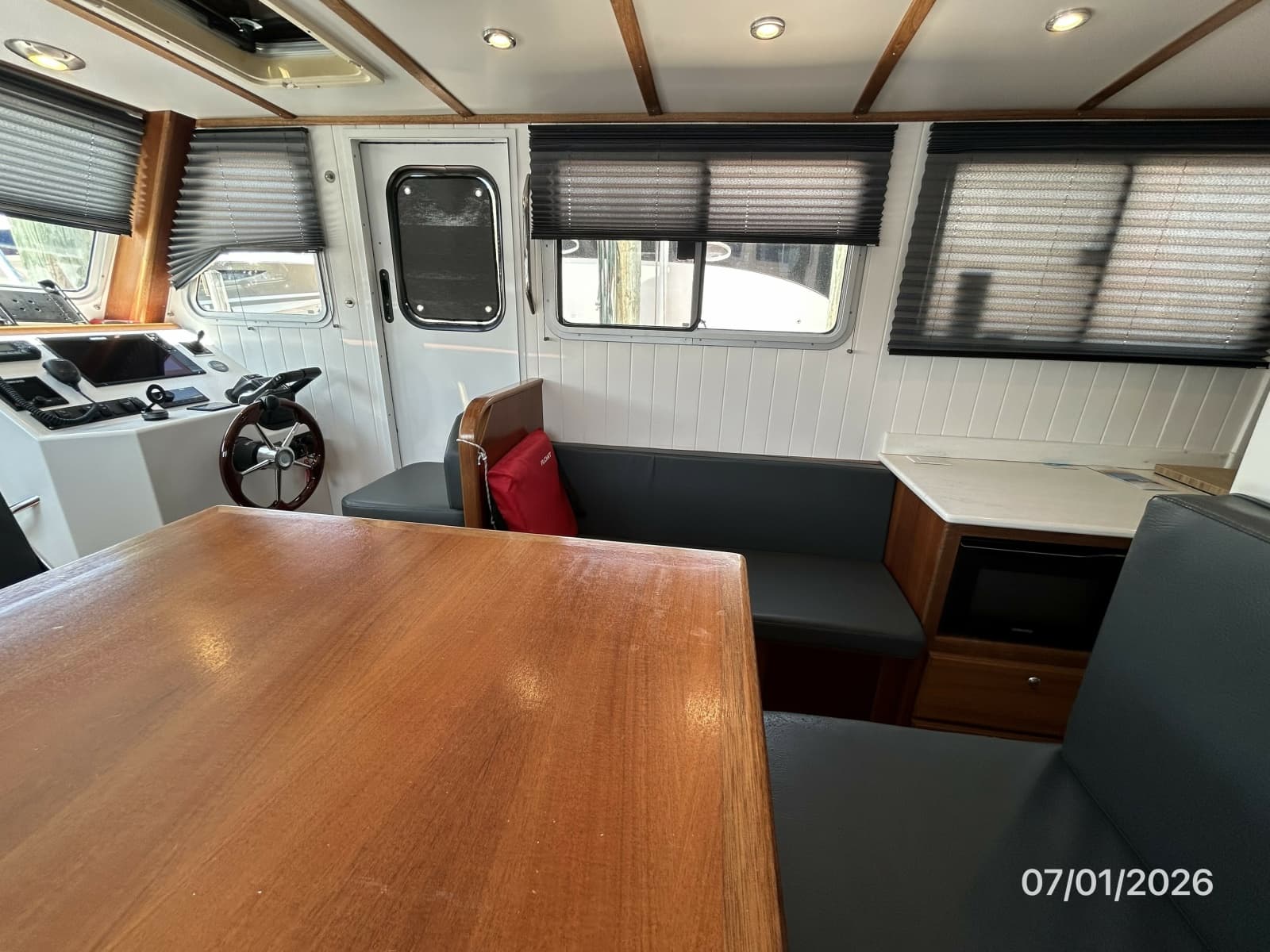

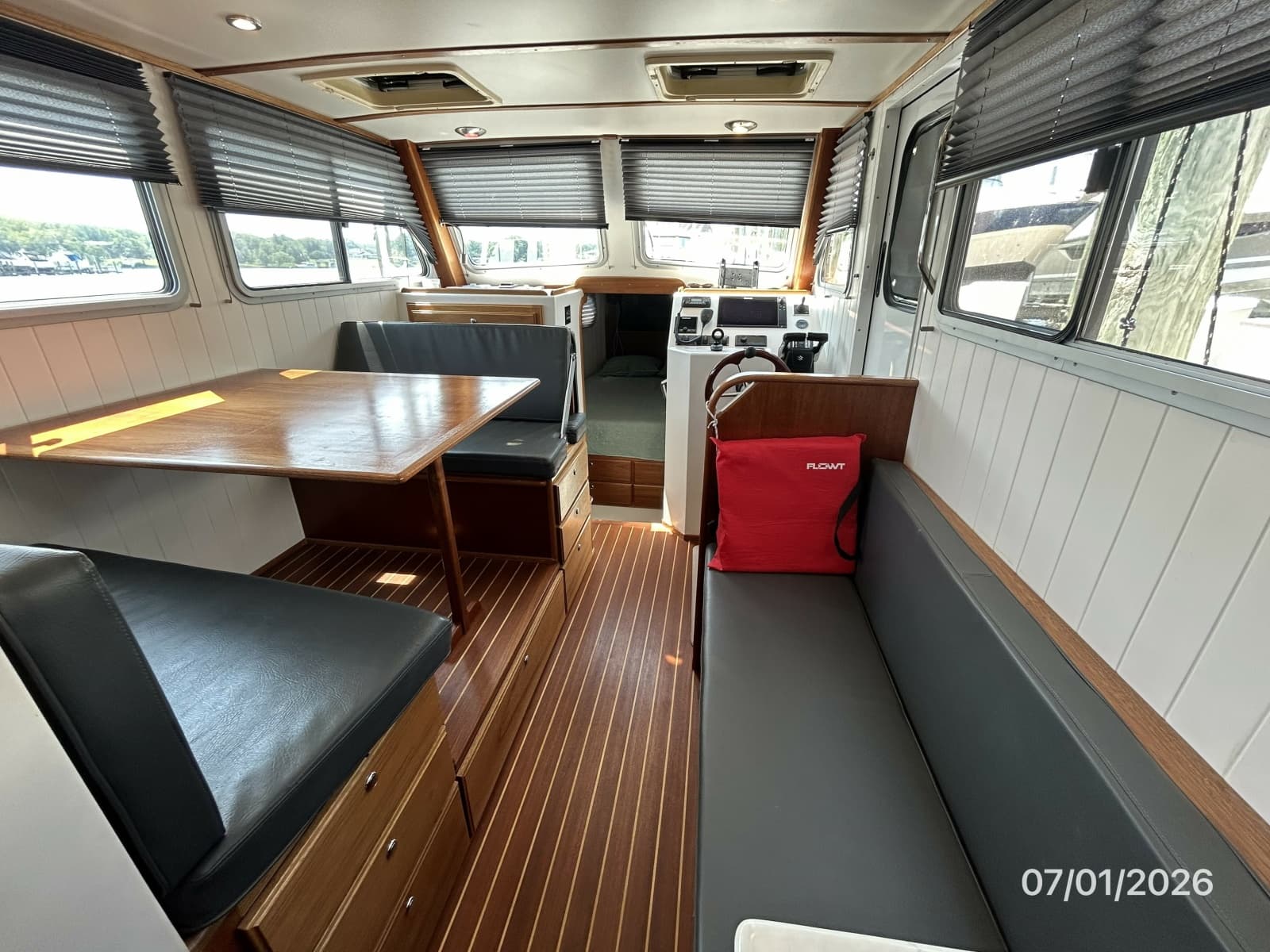

Entering the Deck House from the cockpit the galley is found to starboard, with a full-size refrigerator/freezer to port next to the door to the head. The galley includes a quartz countertop, sink, induction cooktop and microwave/convection oven. Under the counter there are drawers and lockers, along with a slide out spice rack and trash bin.  Opposite the galley, the head includes a sink, electric marine toilet, and separate shower stall. Moving forward the salon features a dinette on the port side with a seating area opposite, followed by the helm forward.  The dinette can seat four people and converts to a double berth.  The back of the forward dinette seat can reverse to provide forward facing seating opposite the helm while underway. A flat screen TV is mounted on the aft bulkhead along with the AC vent.

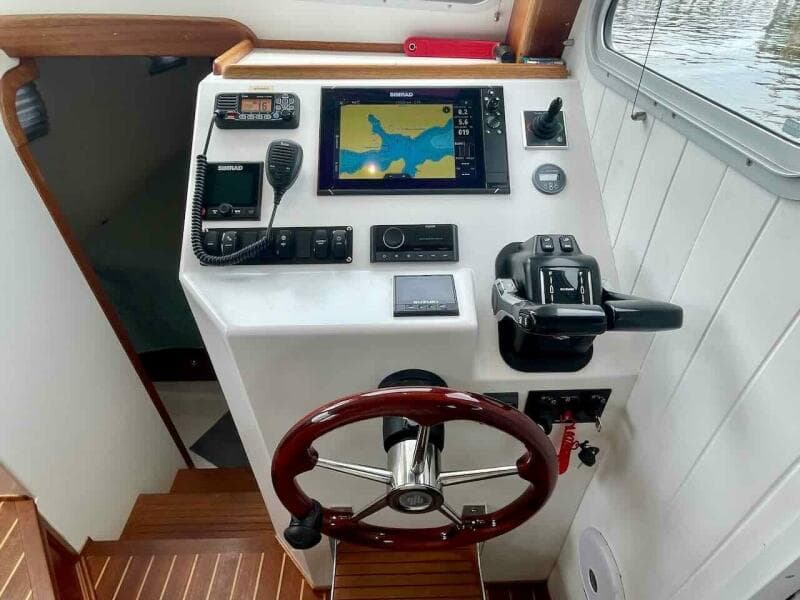

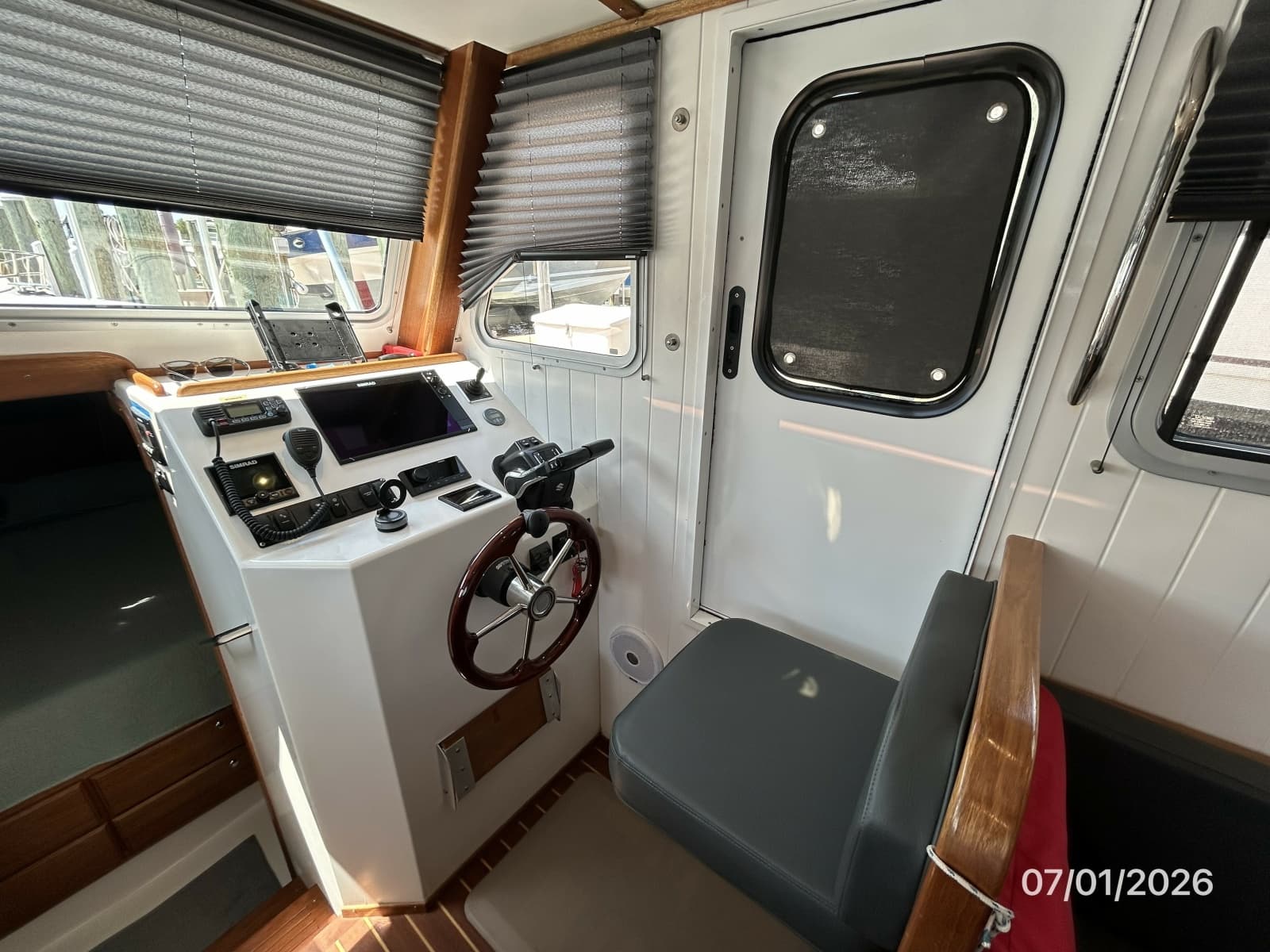

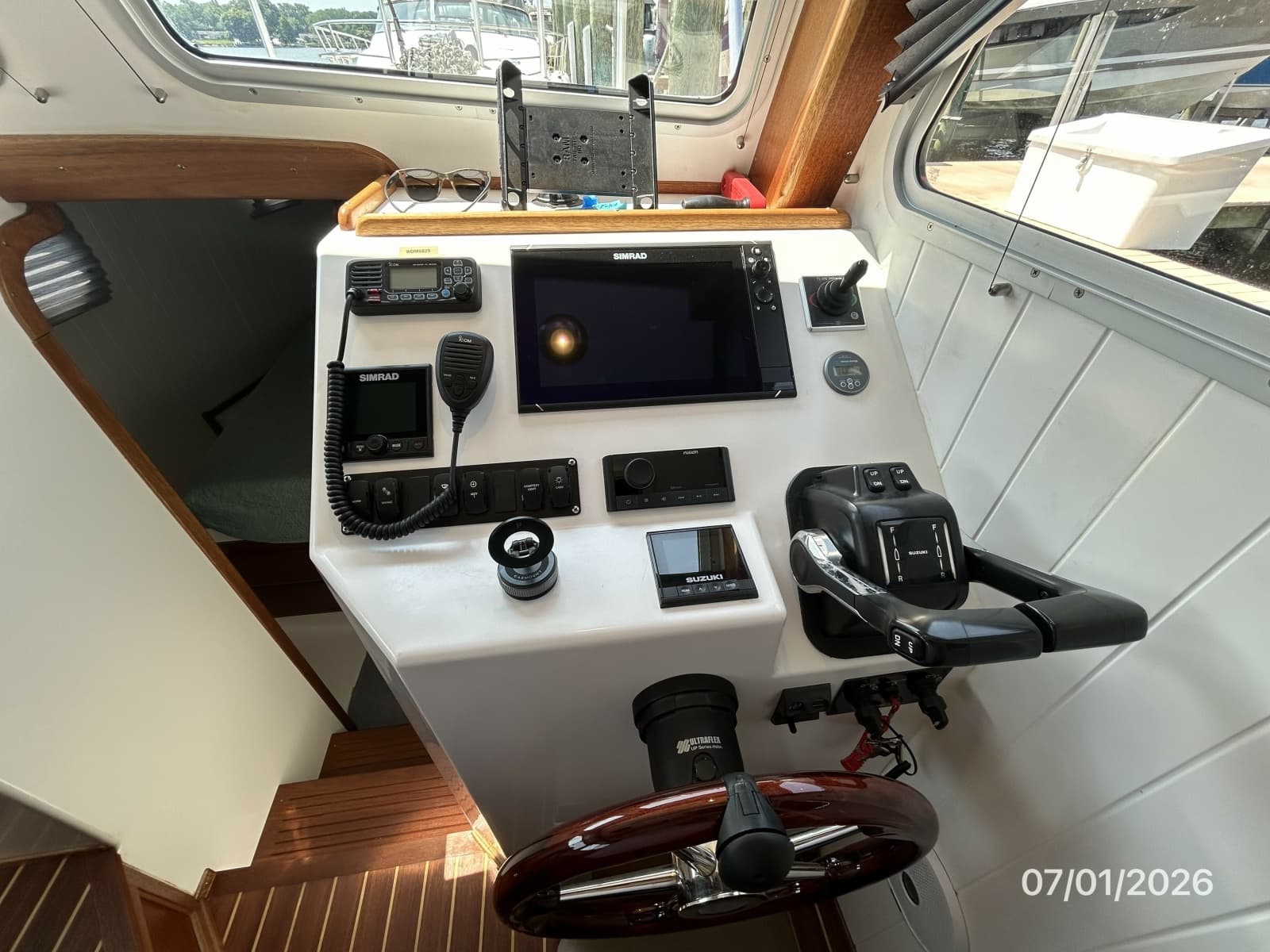

The helm is forward on the starboard side and features the boat’s operational controls, a sliding door for quick access to the foredeck and a fold down chair and footrest.

A teak and holly sole and wainscot paneling are found throughout the deckhouse, along with overhead LED lighting, 120 vac outlets, and windows providing 360 degree visibility.

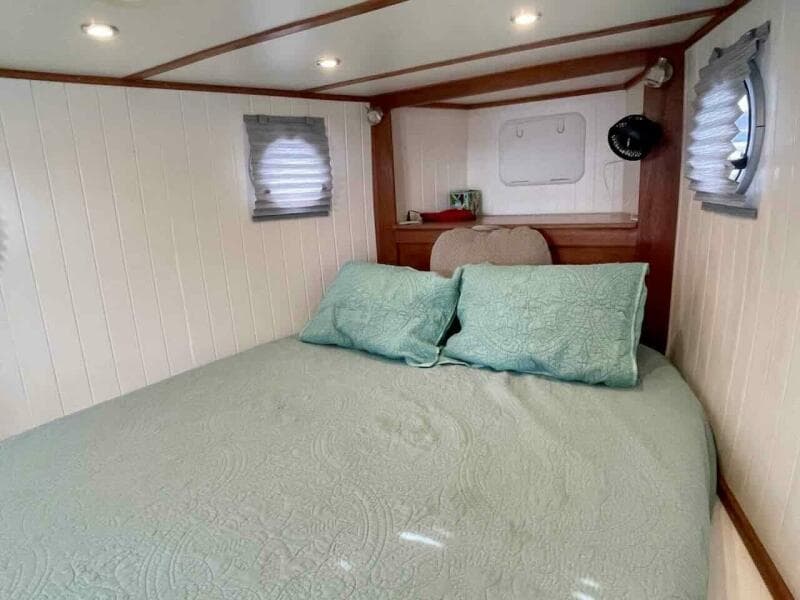

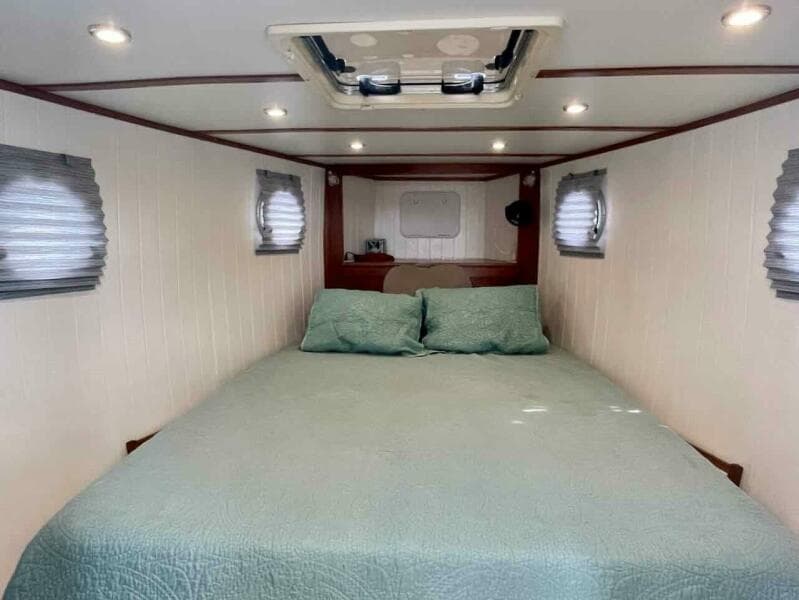

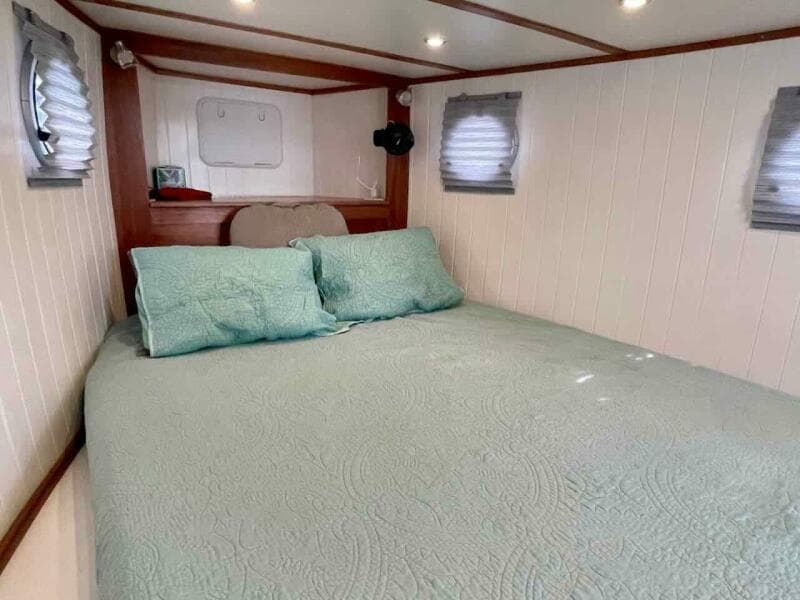

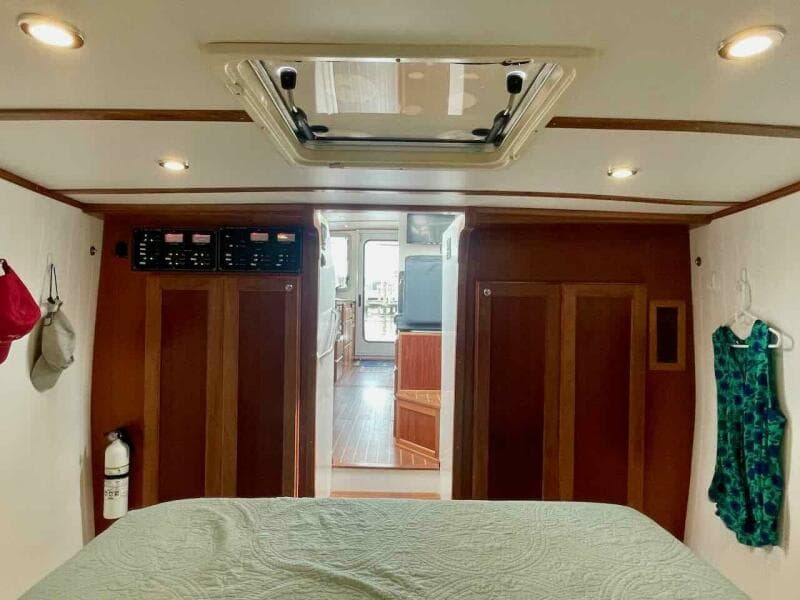

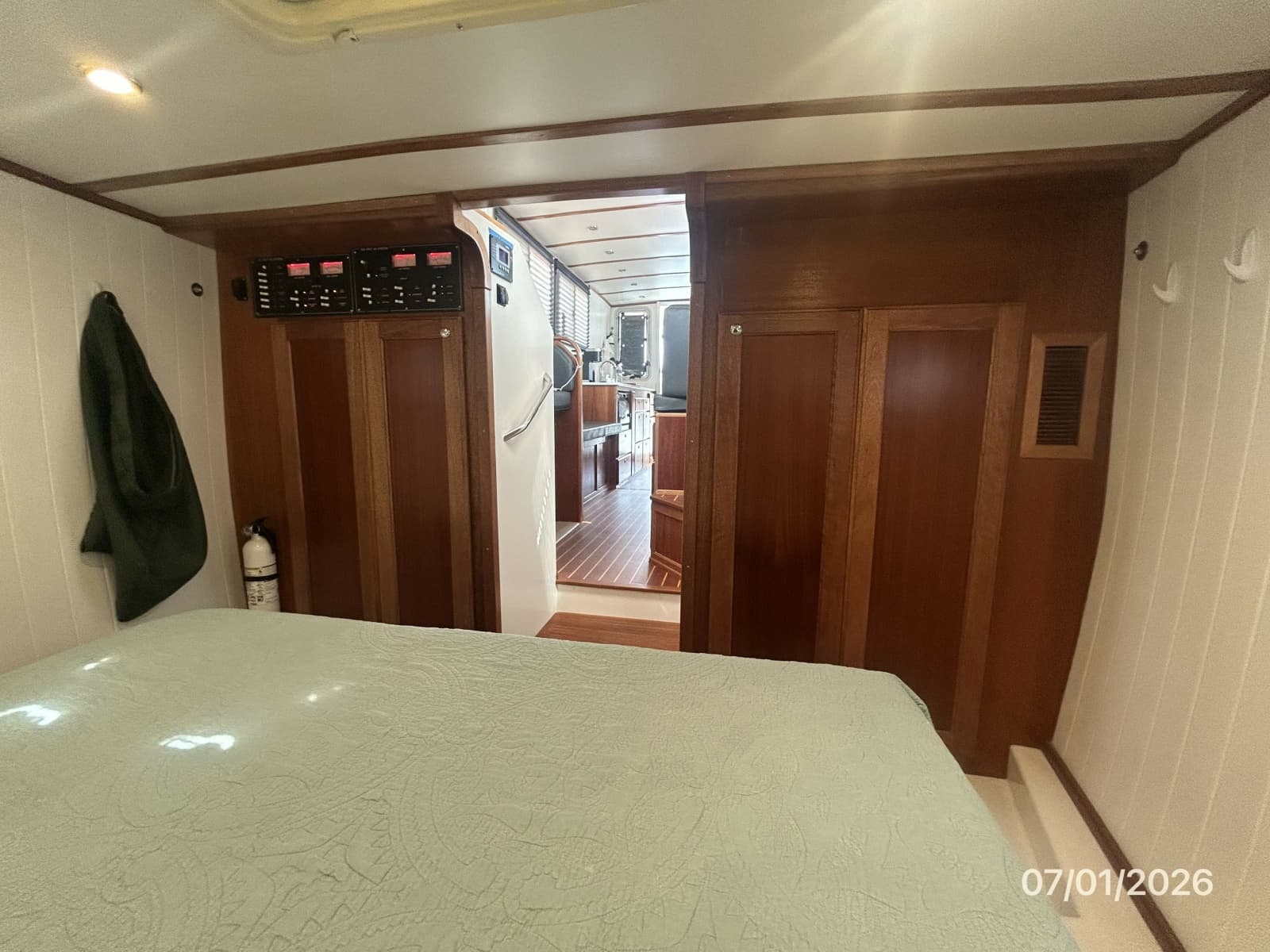

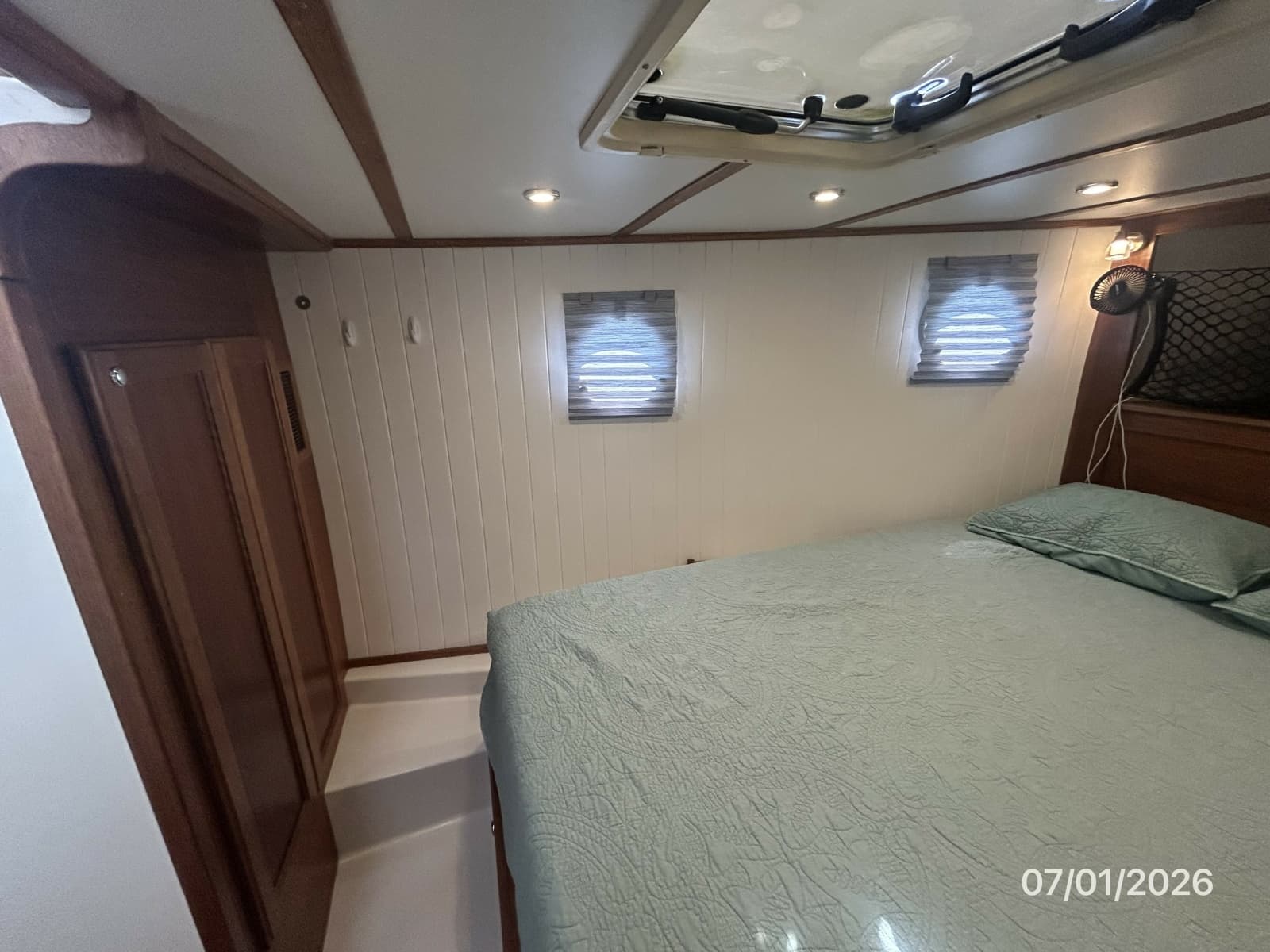

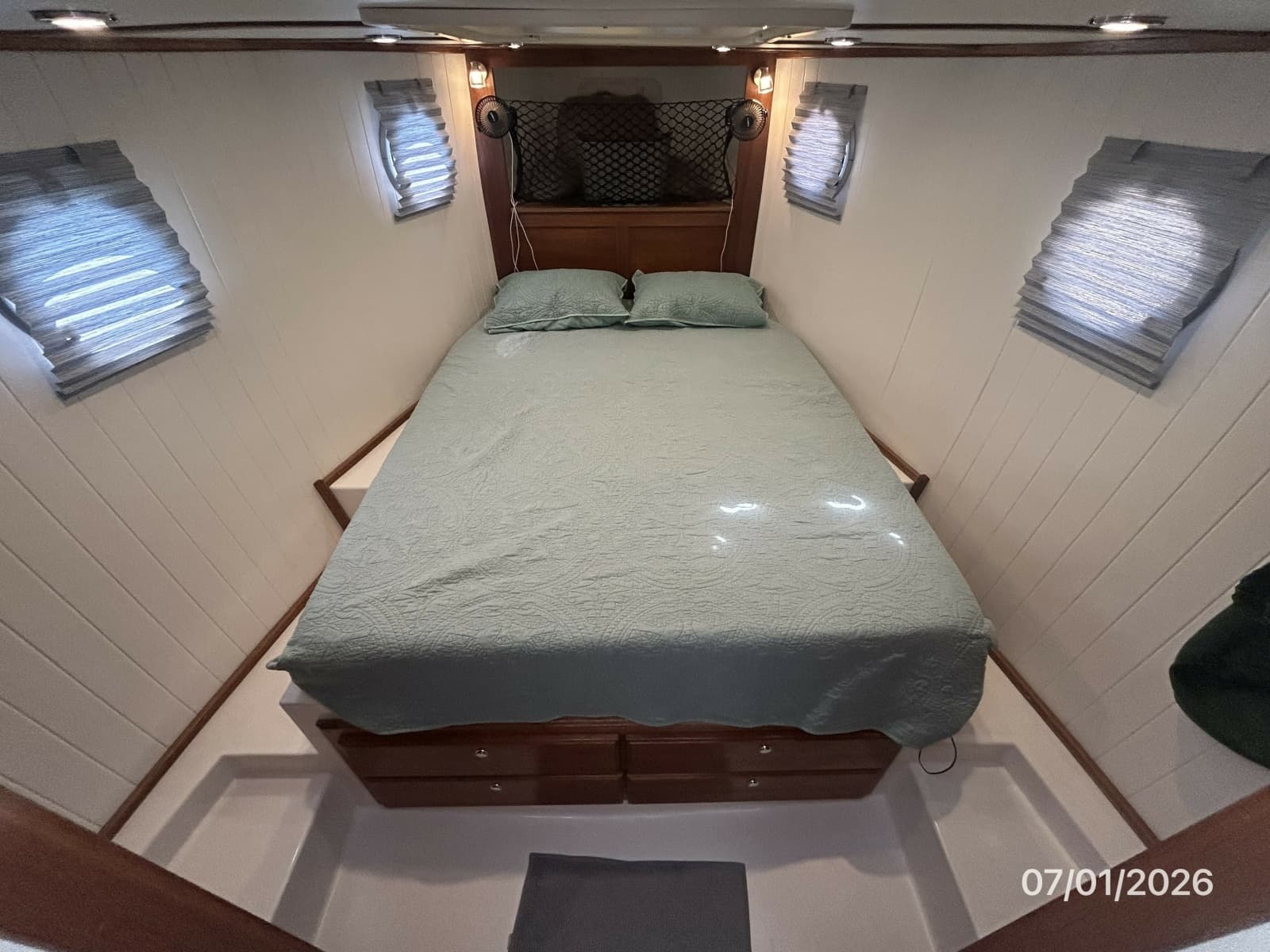

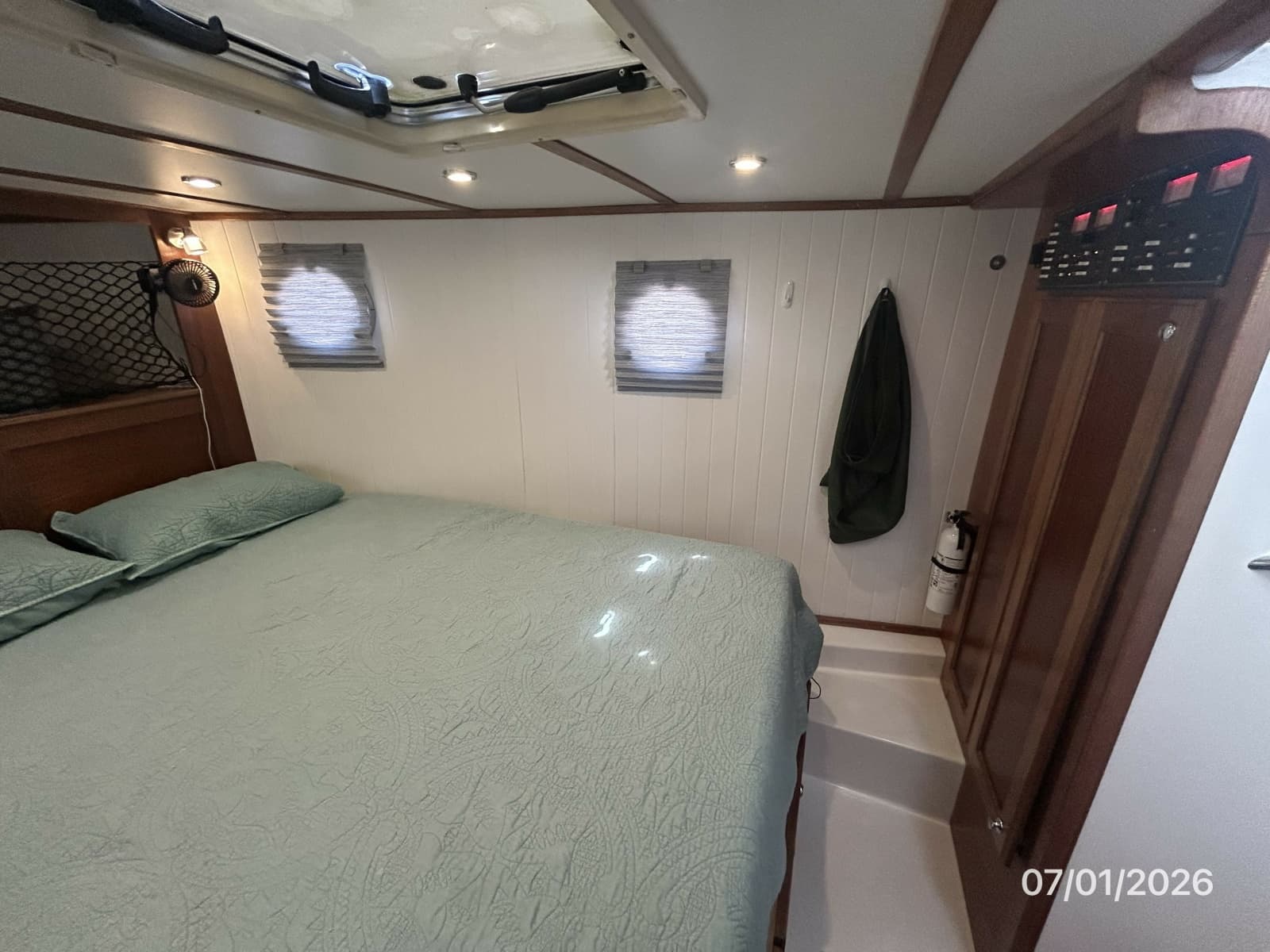

The forward cabin features a centerline, full queen berth, with drawers and lockers underneath, plus double hanging lockers along the aft bulkhead. Ventilation and light is provided by four opening port holes, an overhead hatch, AC vent and LED lights and lamps. Additional storage is provided by a large shelf and locker at the forward bulkhead along with anchor locker access.

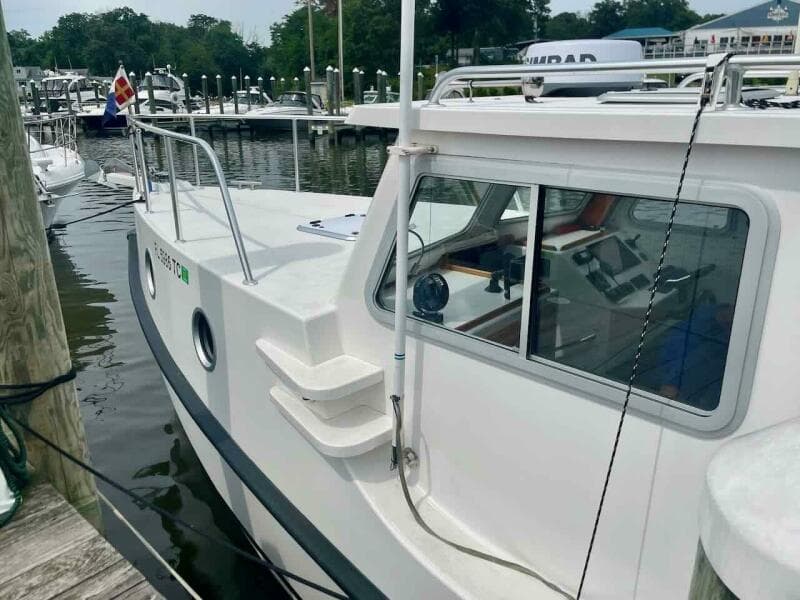

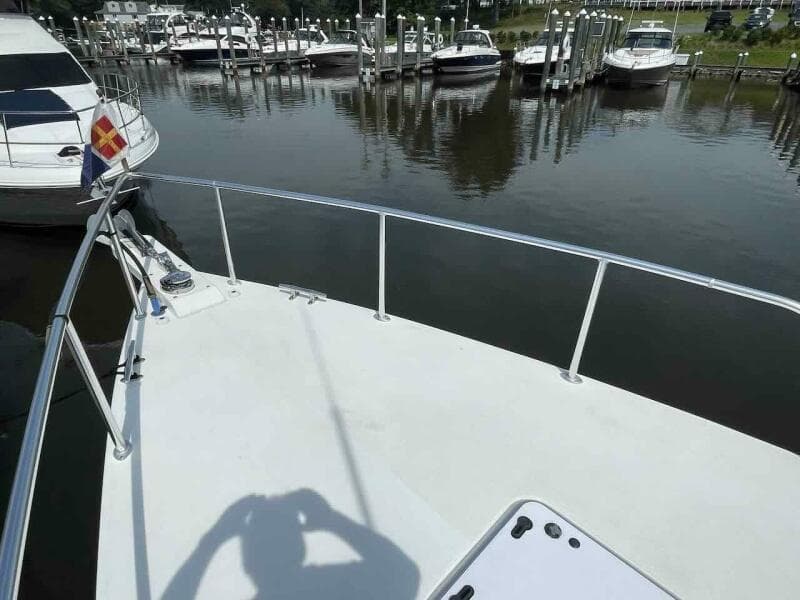

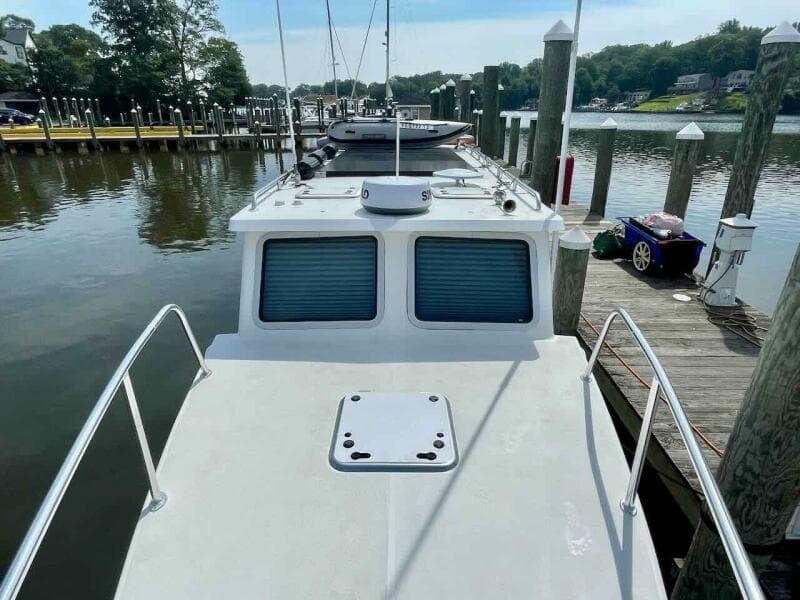

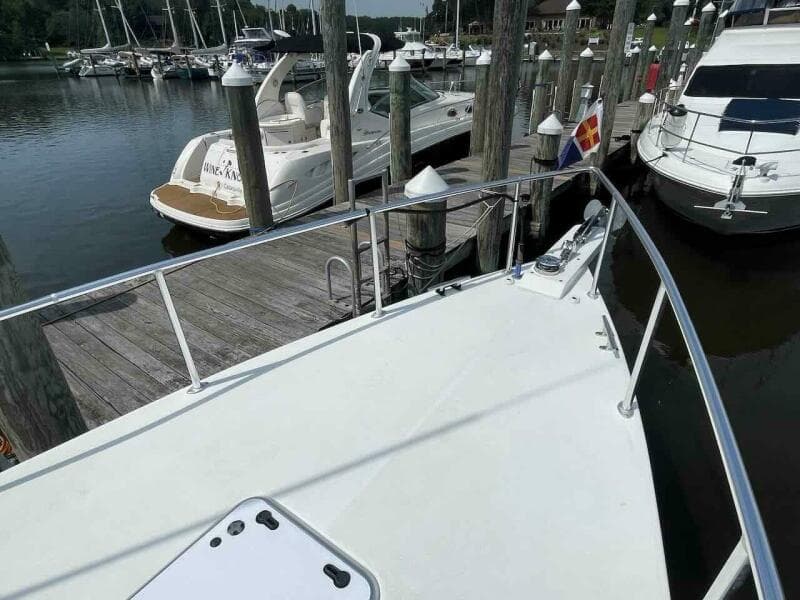

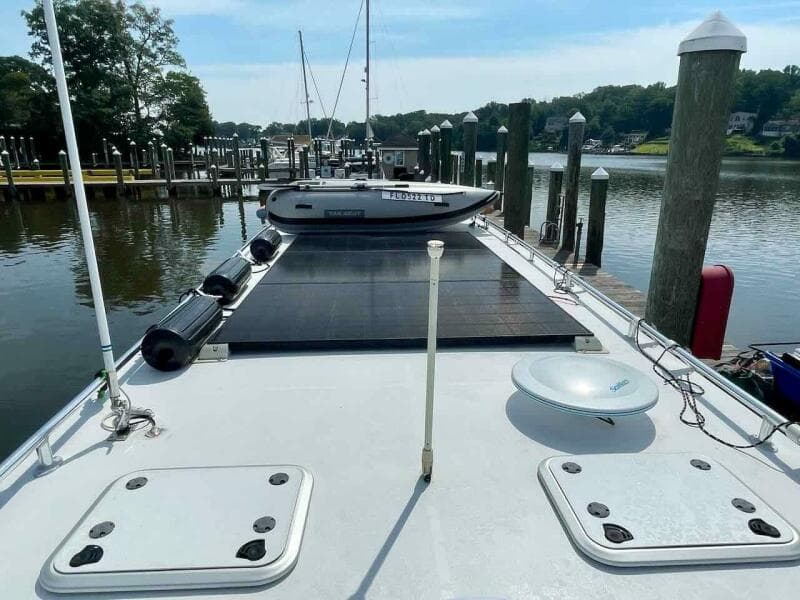

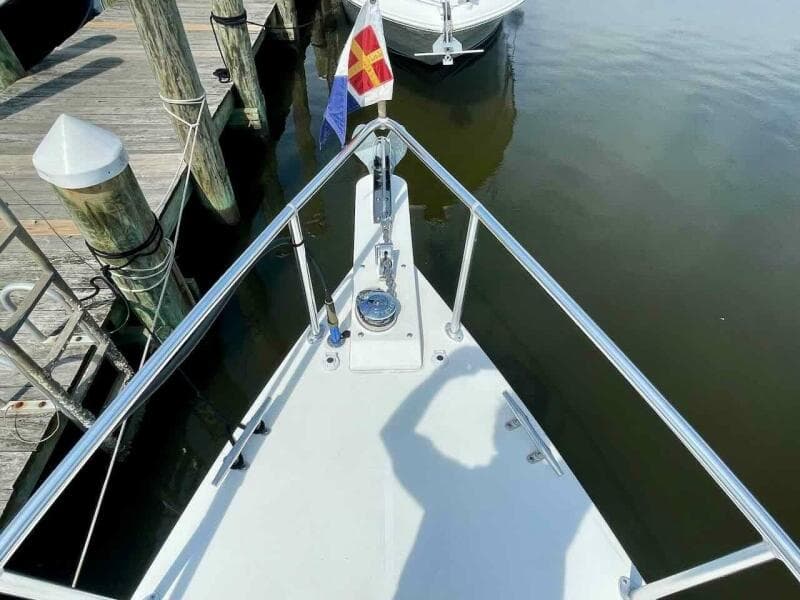

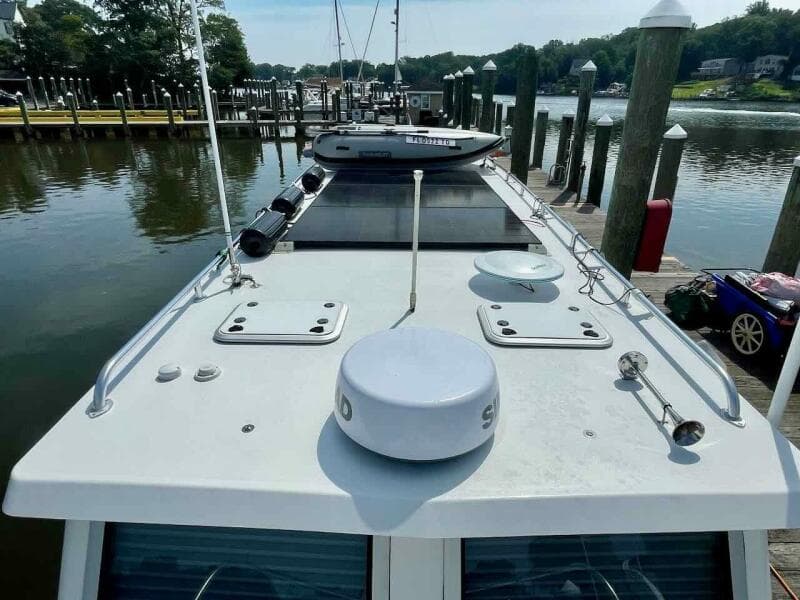

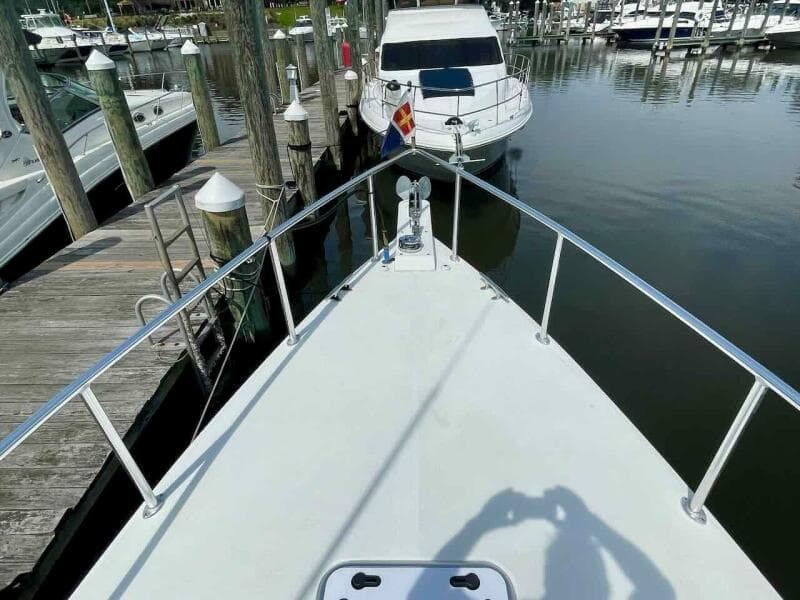

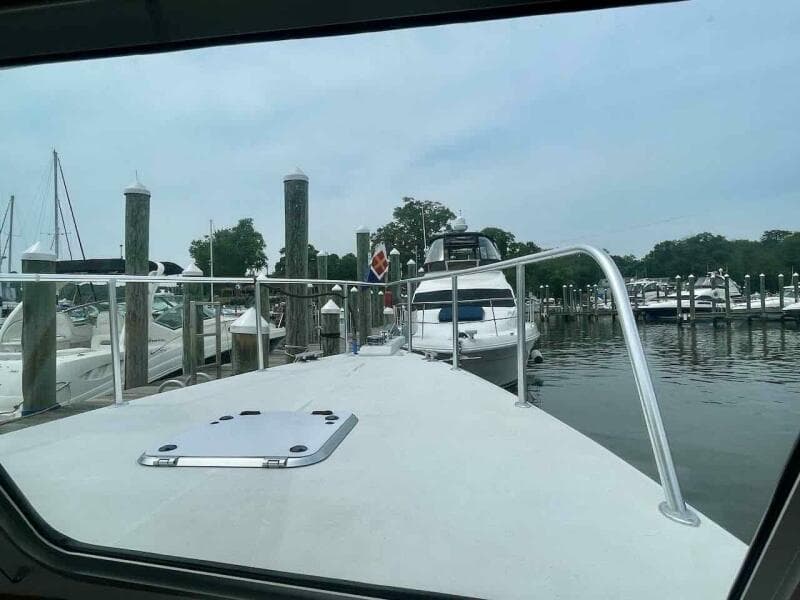

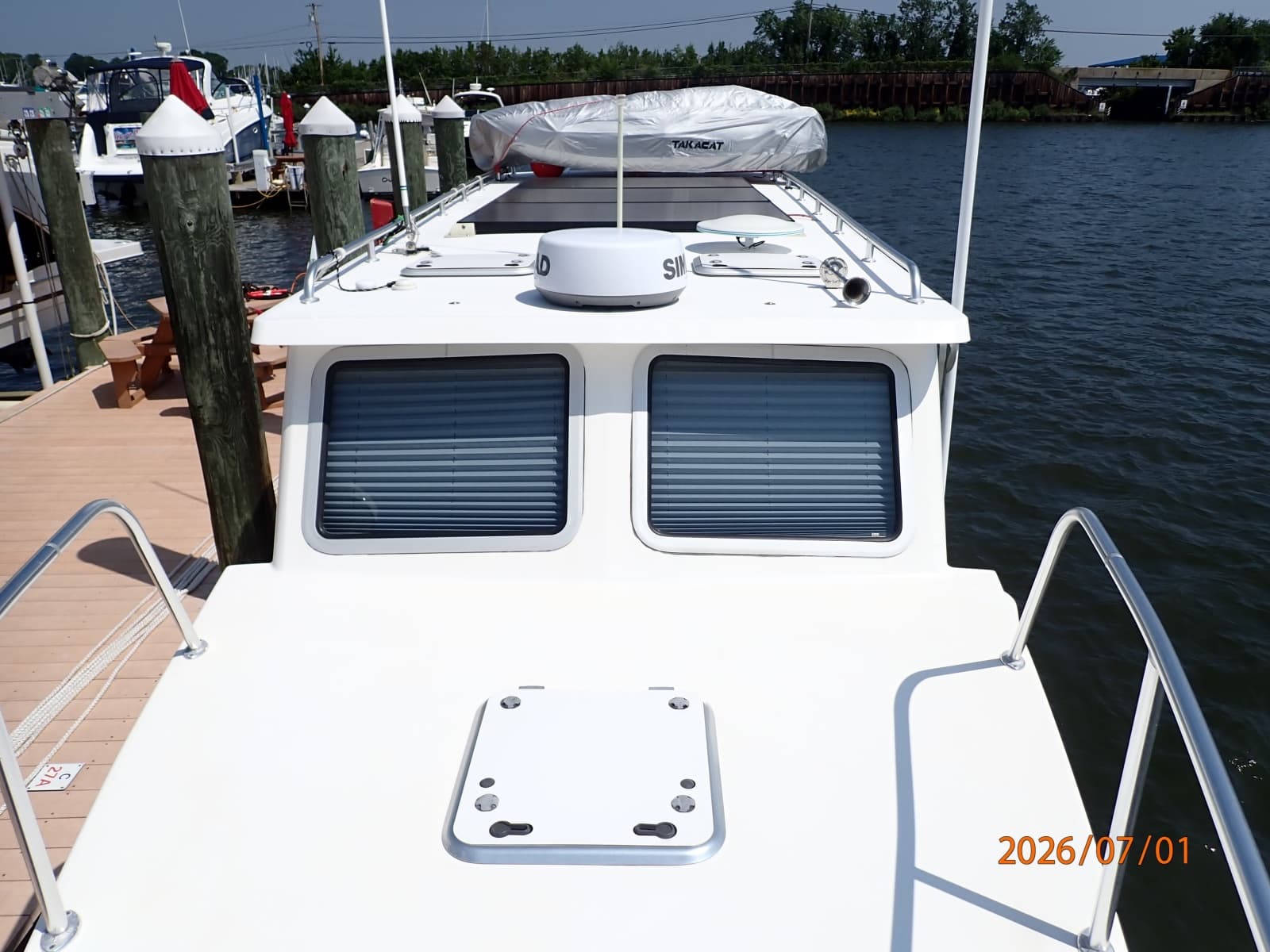

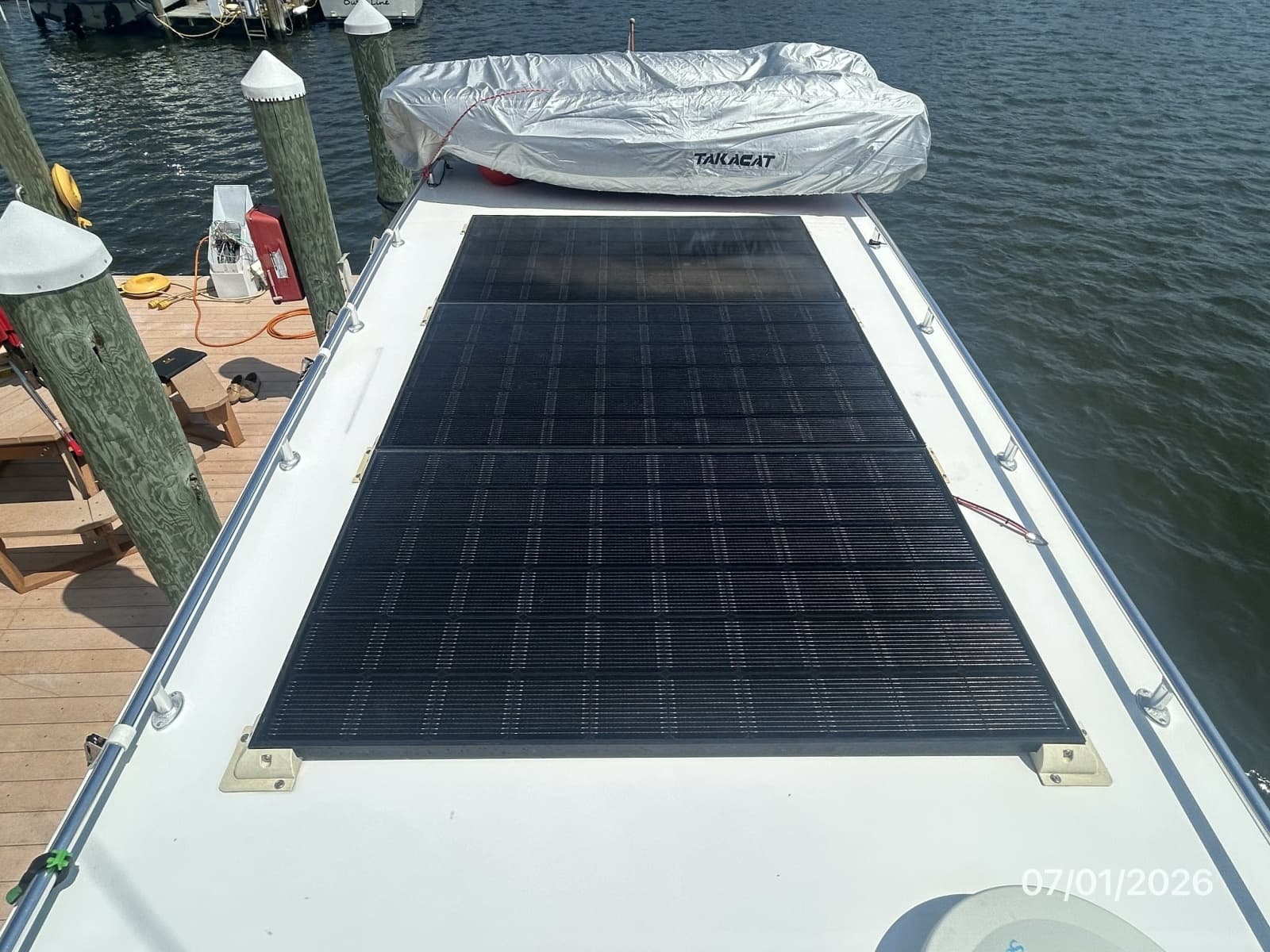

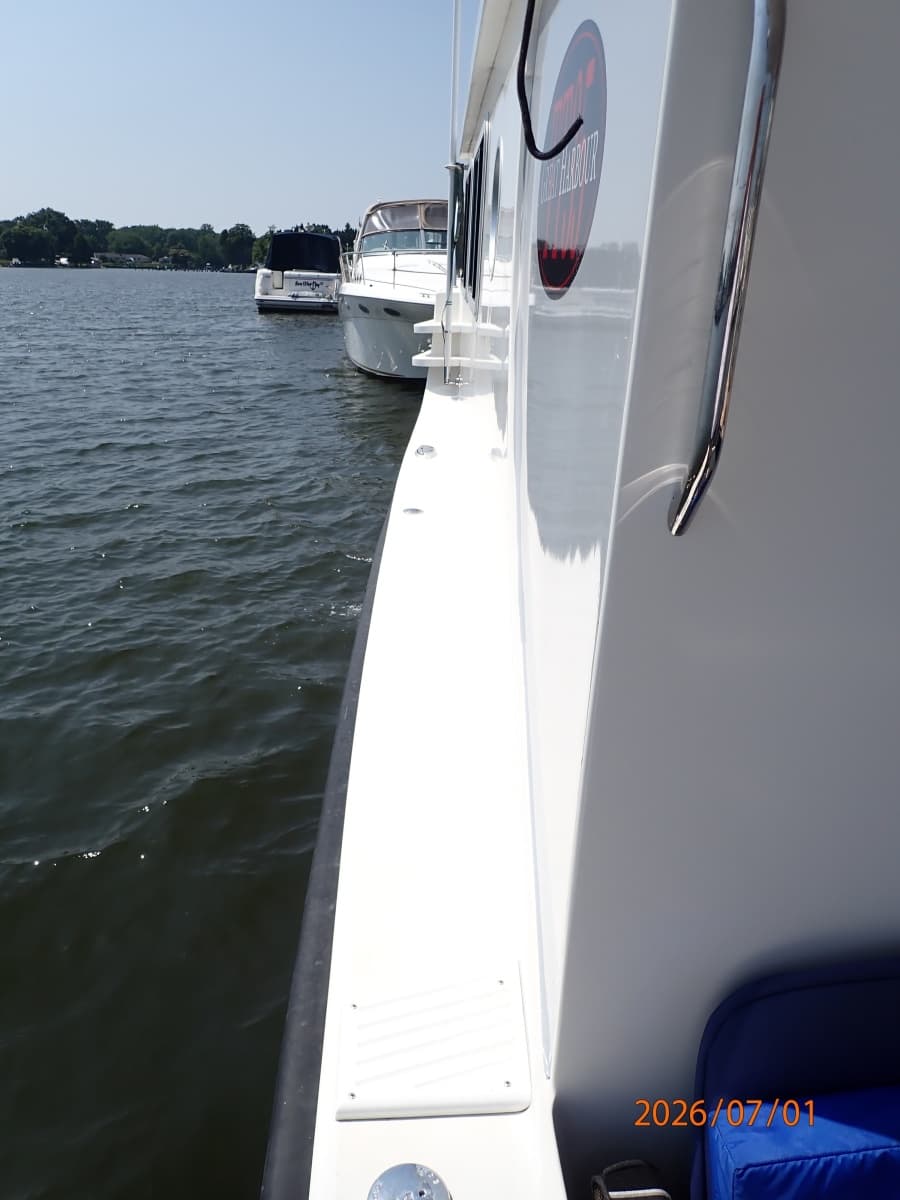

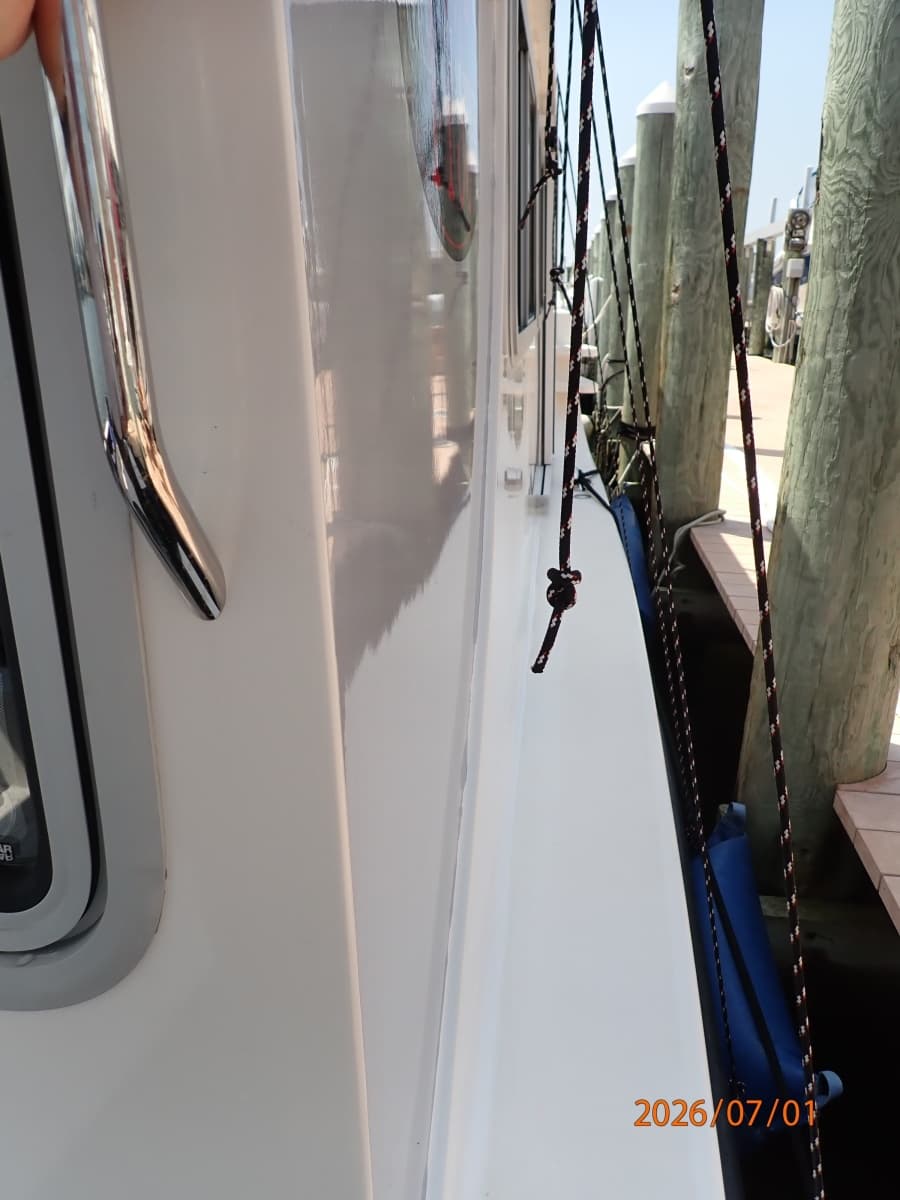

Surrounded by a sturdy aluminum rail, the foredeck is accessed along the port and starboard sides and by a sliding door at the helm.  The deck features a bow mounted, roller furling anchor with electric windless and deck washdown. The cabin top houses the ships antennas, navigation lights, solar panels and tender.

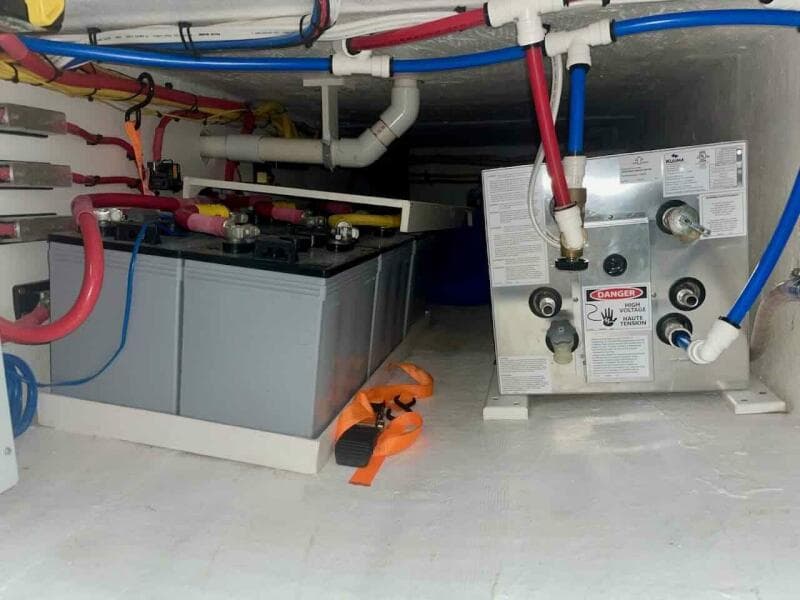

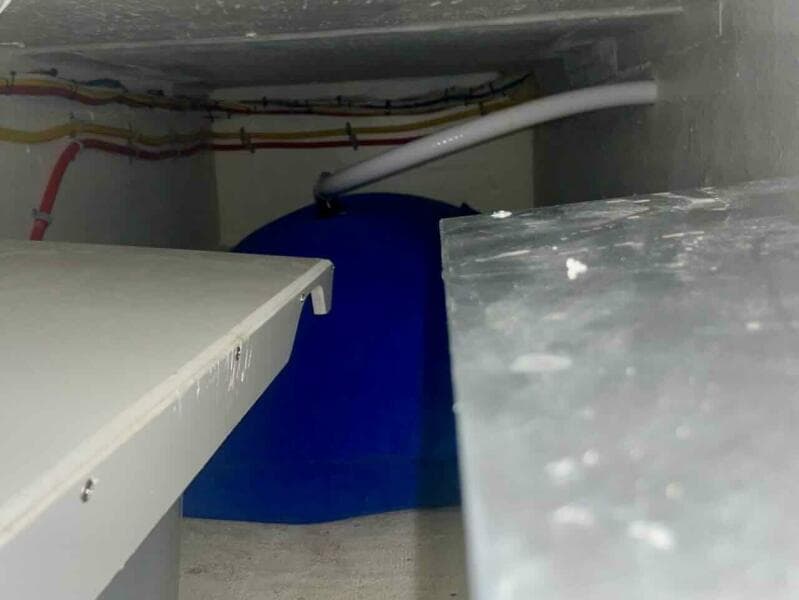

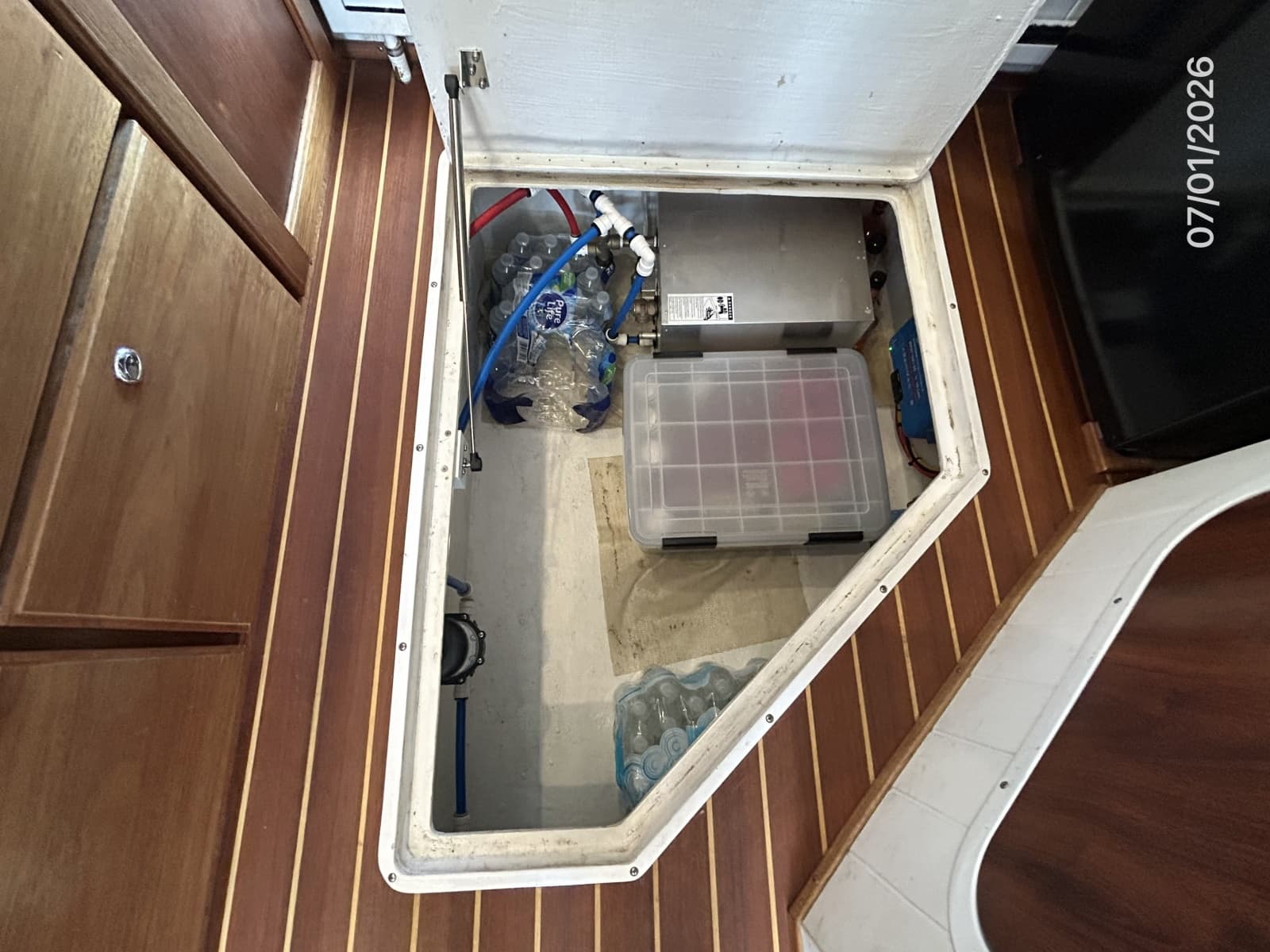

Located along the centerline of the boat and accessed from a hatch in the gally deck, the large utility locker houses the boats electrical and water systems.

- Full length hardtop overhead

- 2 Bench seats with cushions; port and starboard sides

- 2 large lockers underneath bench seats

- Walkthrough transom to swim platform

- 2 Stereo Speakers

- LED light, overhead mounted

- 30 amp shore power plug

- 2 Scuppers

- Sliding door to galley

- Opening window to galley

- 2 Hand holds, forward bulkhead port and starboard

- Headroom 83 inches

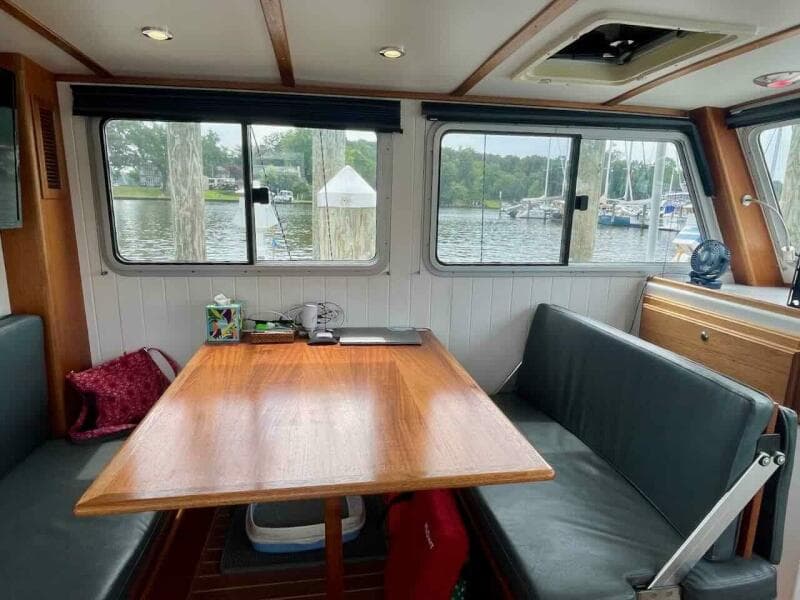

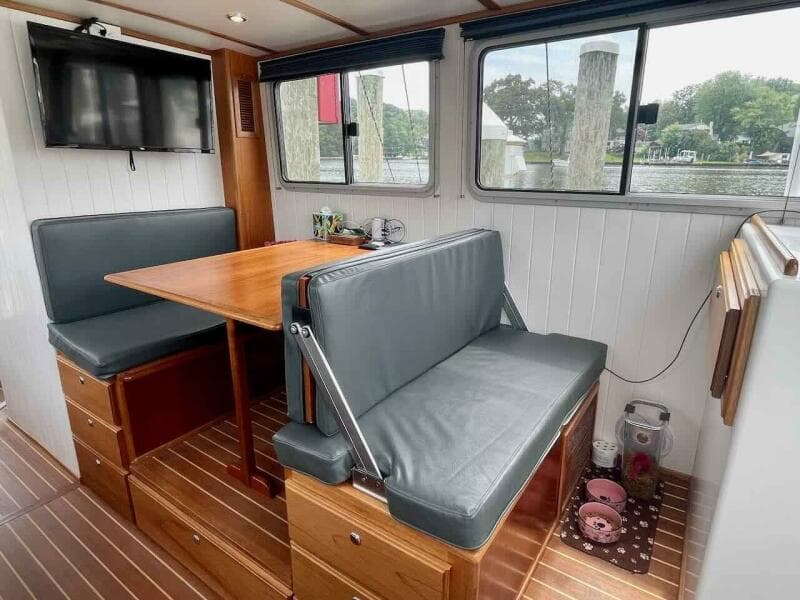

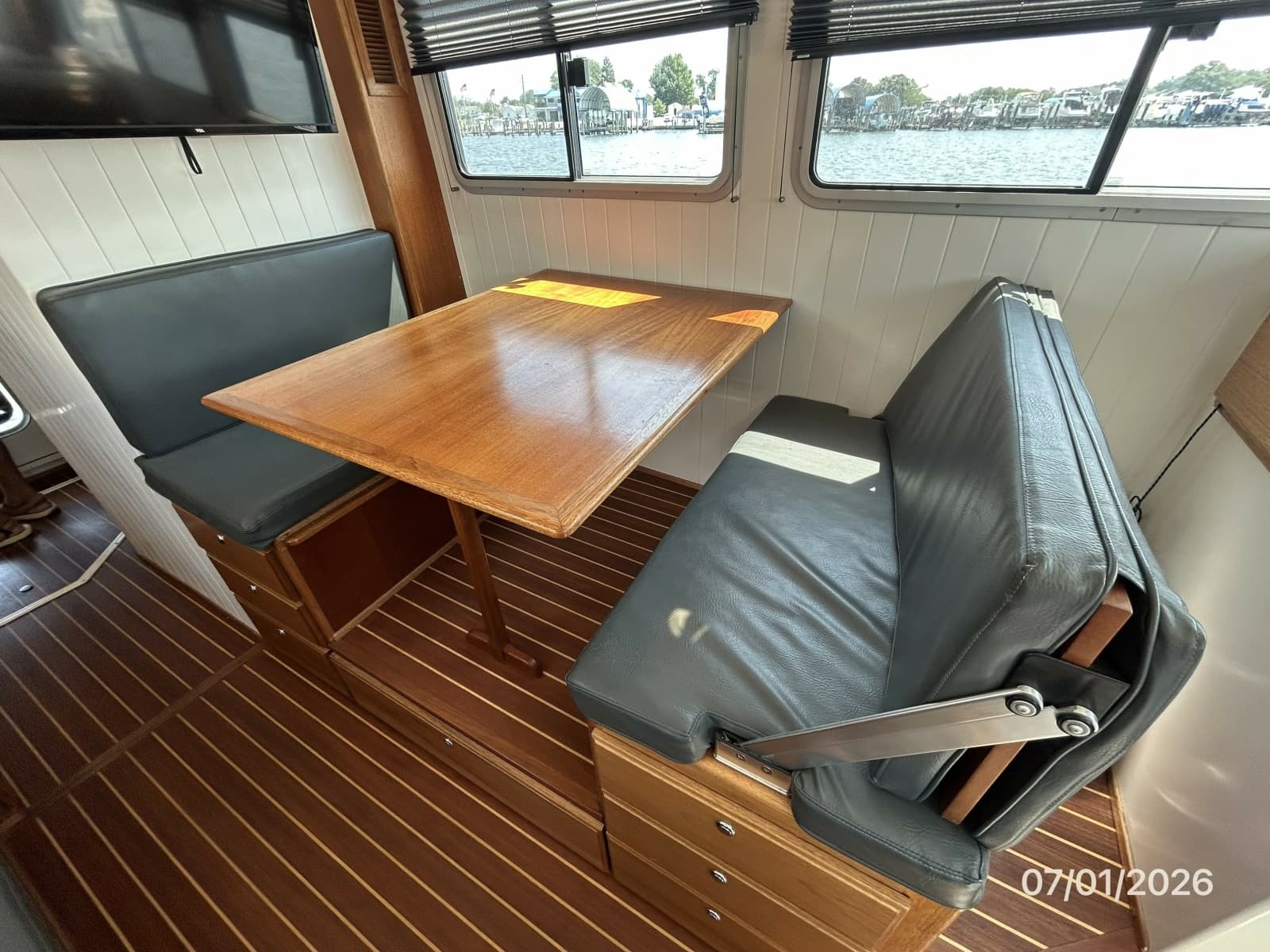

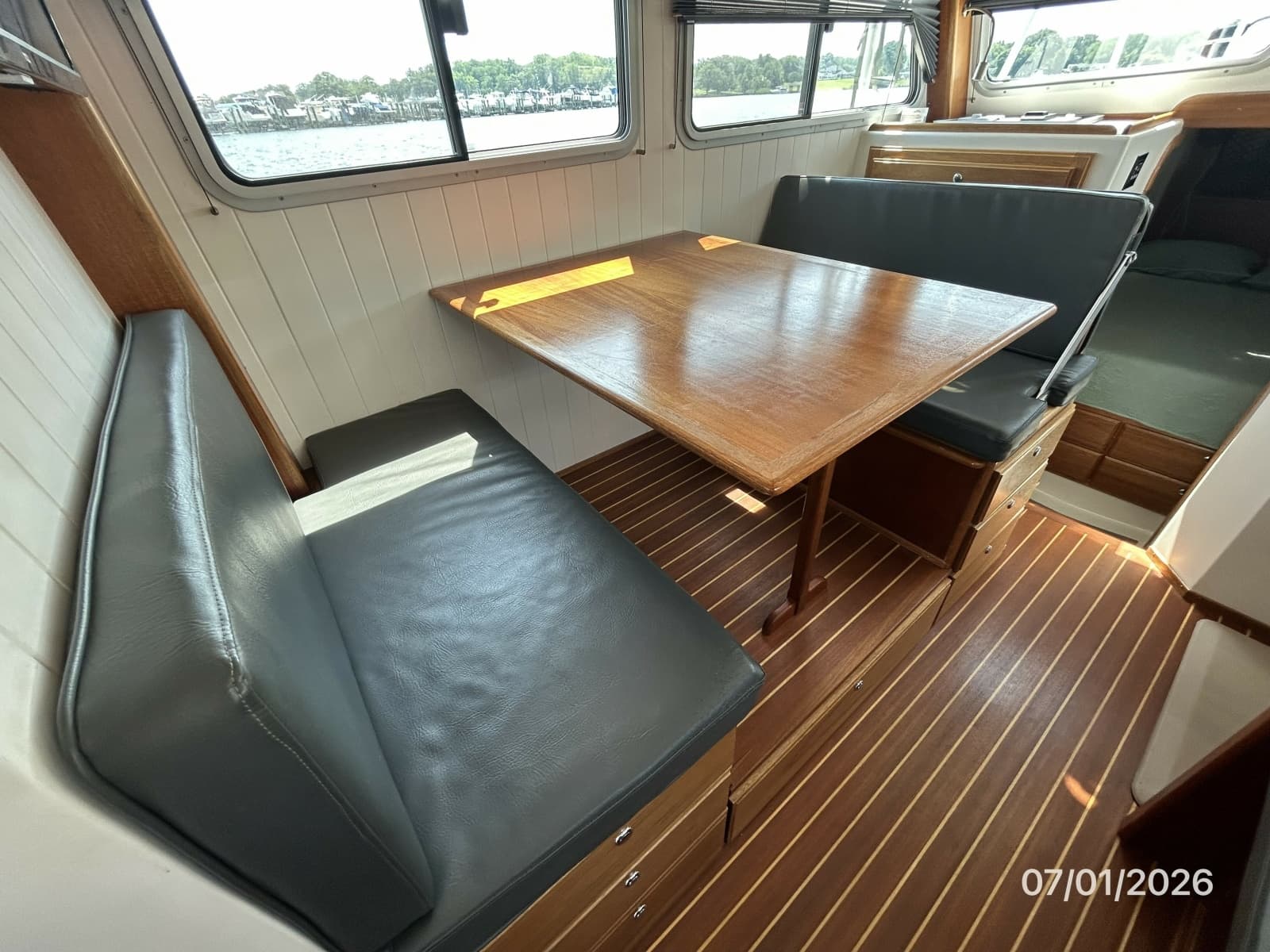

- Dinette

  * Forward seat with reversable back; converts to forward facing seat

  * Aft seat

  * Teak table

  * Storage lockers and drawers

  * Converts to double berth; 41x77 inches

  * 120 vac outlet

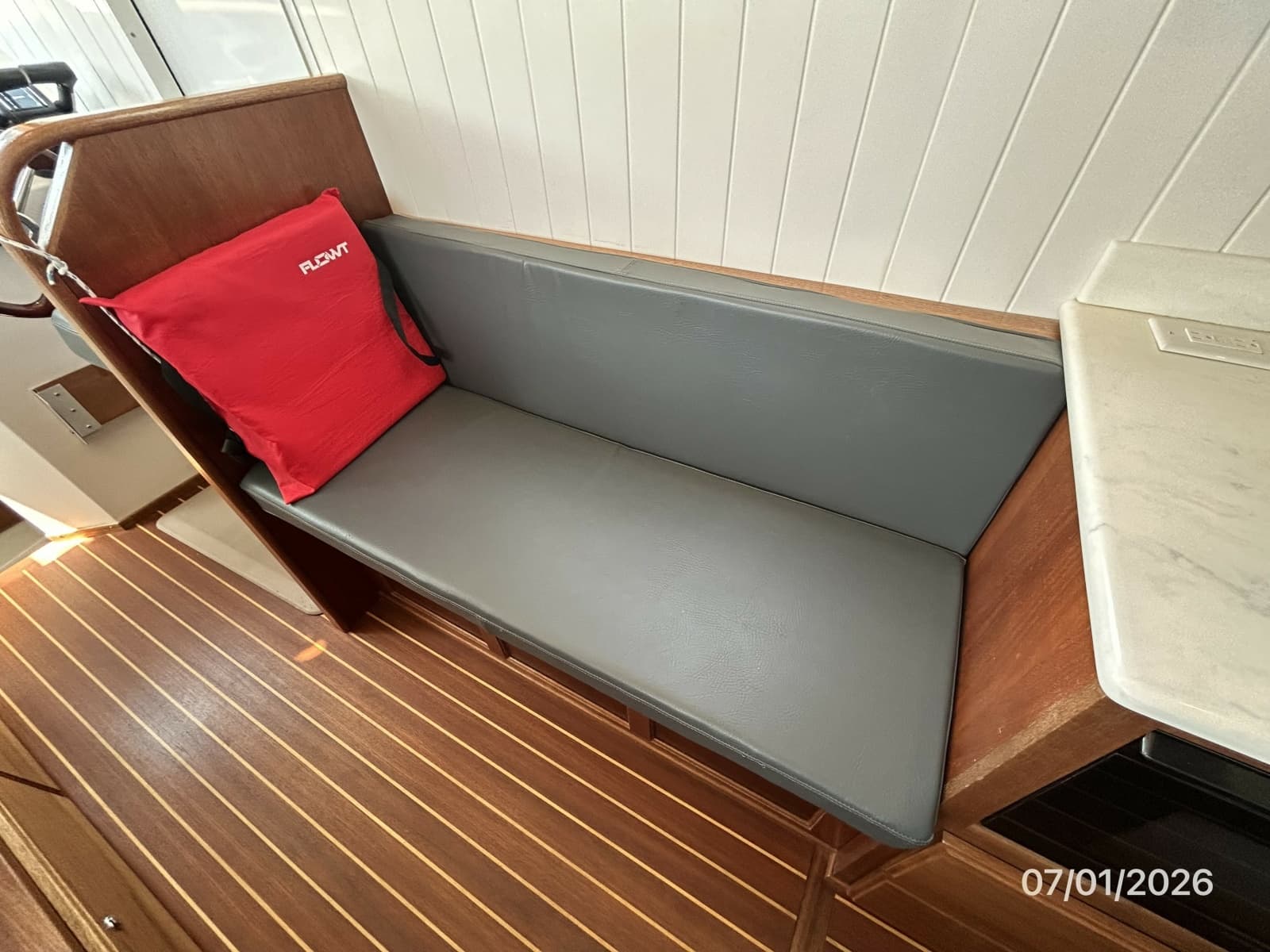

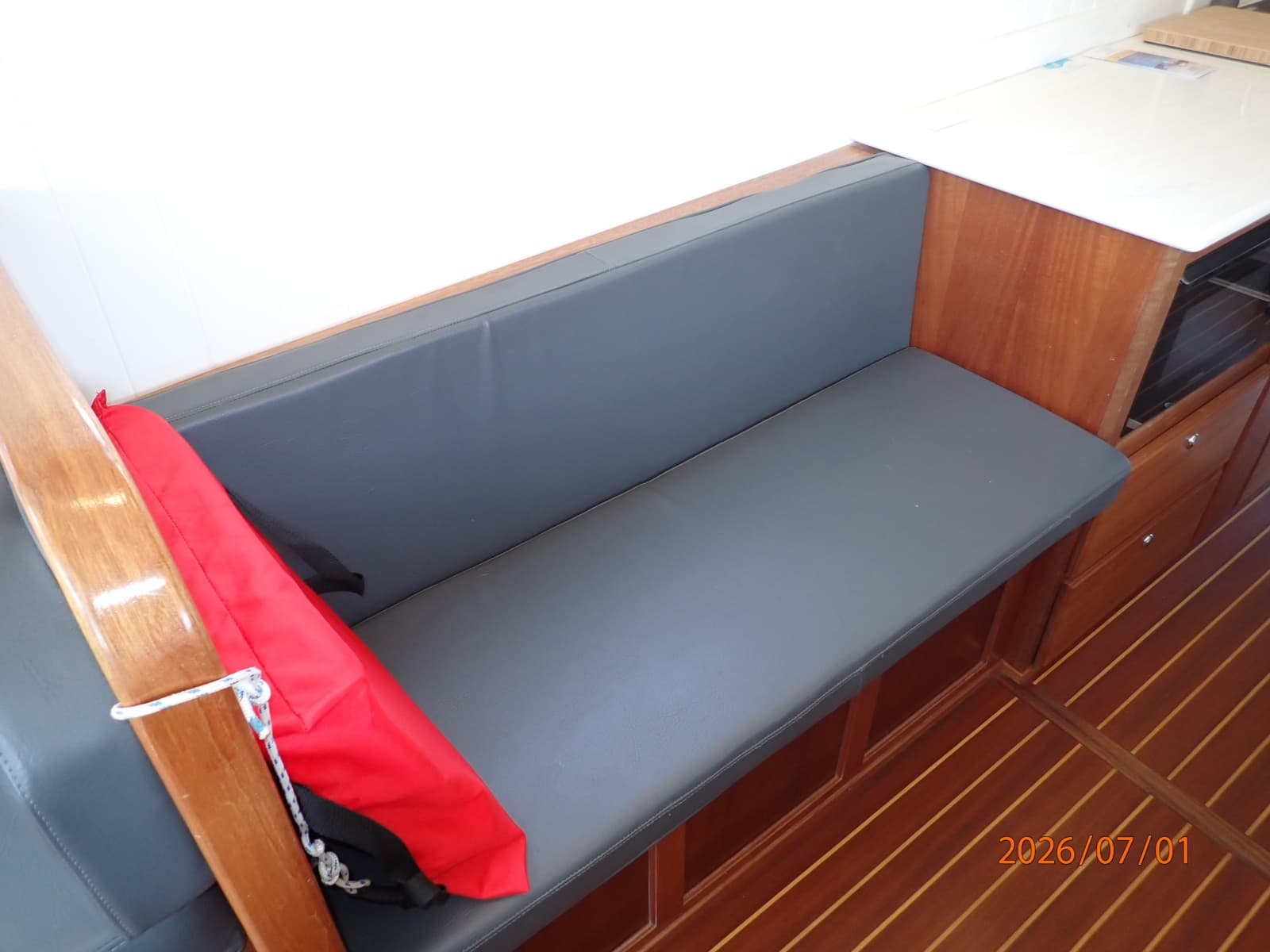

- Seat; port side opposite dinette; w/storage underneath

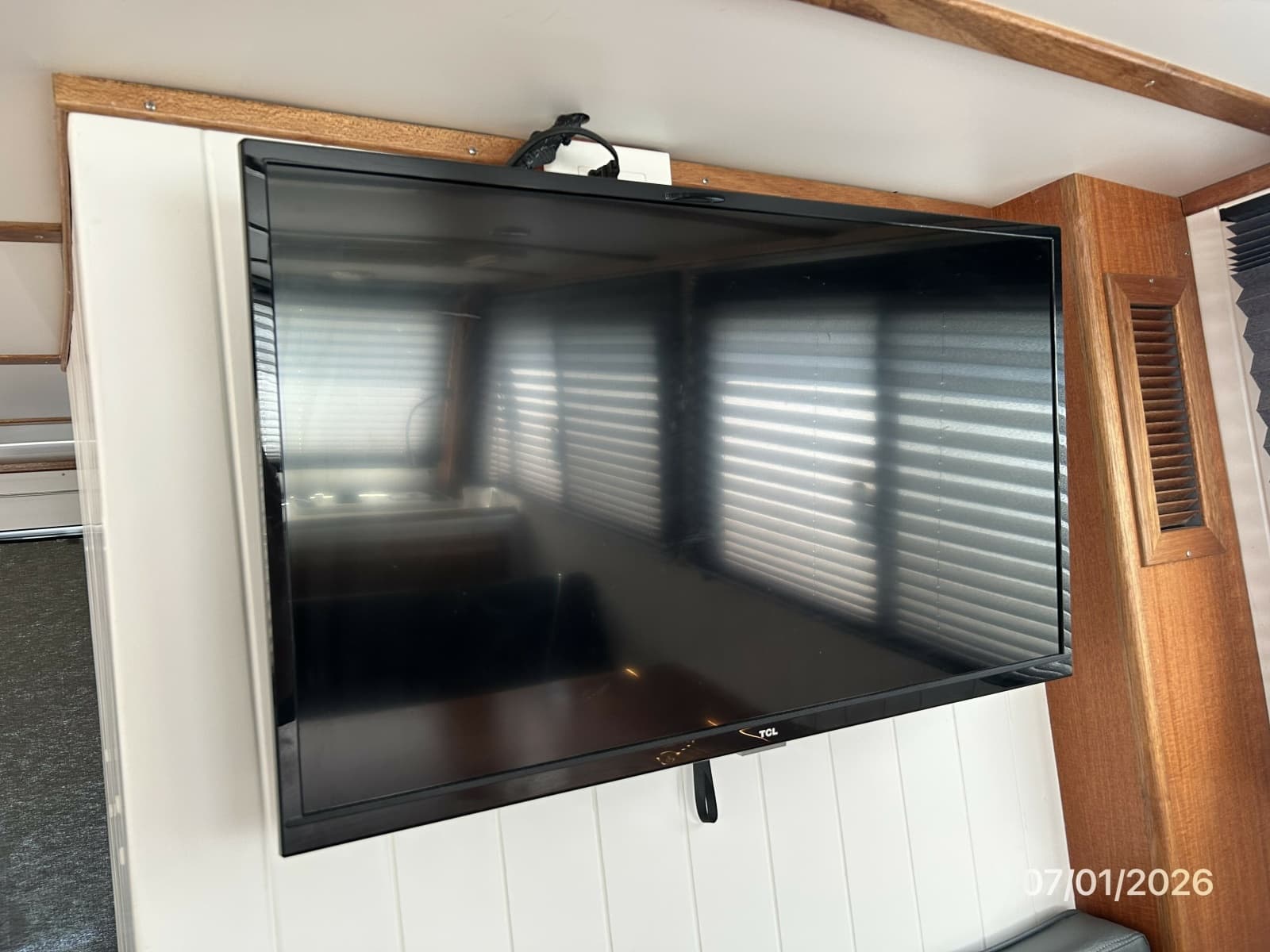

- TLC 33 inch flatscreen TV; model 32S334

- 6 Overhead led lights

- Countertop w/chart lamp

- AC register

- 2 Opening overhead hatches; w/shades and screens

- 3 Opening windows; w/shades and screens

- 3 Fixed windows; w/shades

- 1 Sliding door; w/fixed window and shade

- Folding step; next to helm

- Companionway to forward cabin

- Teak & Holly sole

- Quartz countertop

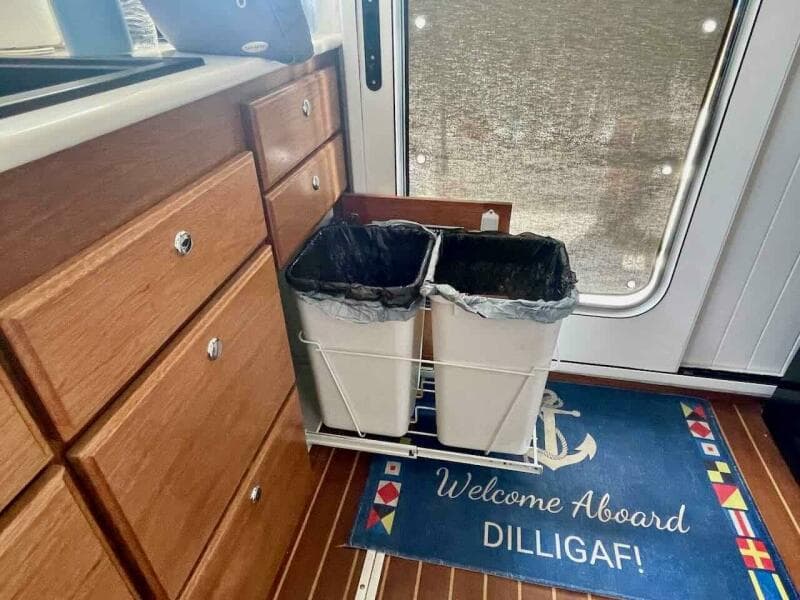

- Slide out trash bin

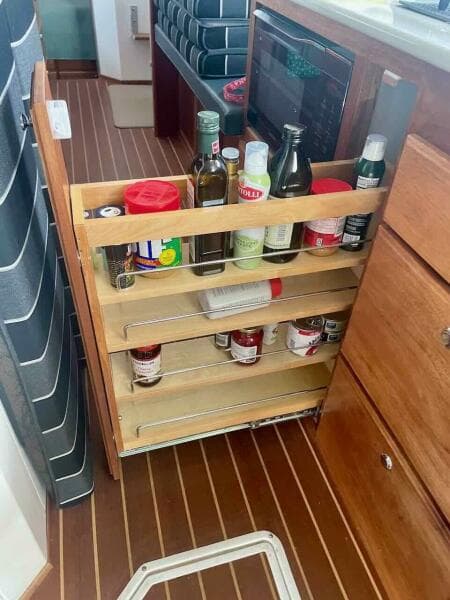

- Slide out spice rack

- 9 Drawers

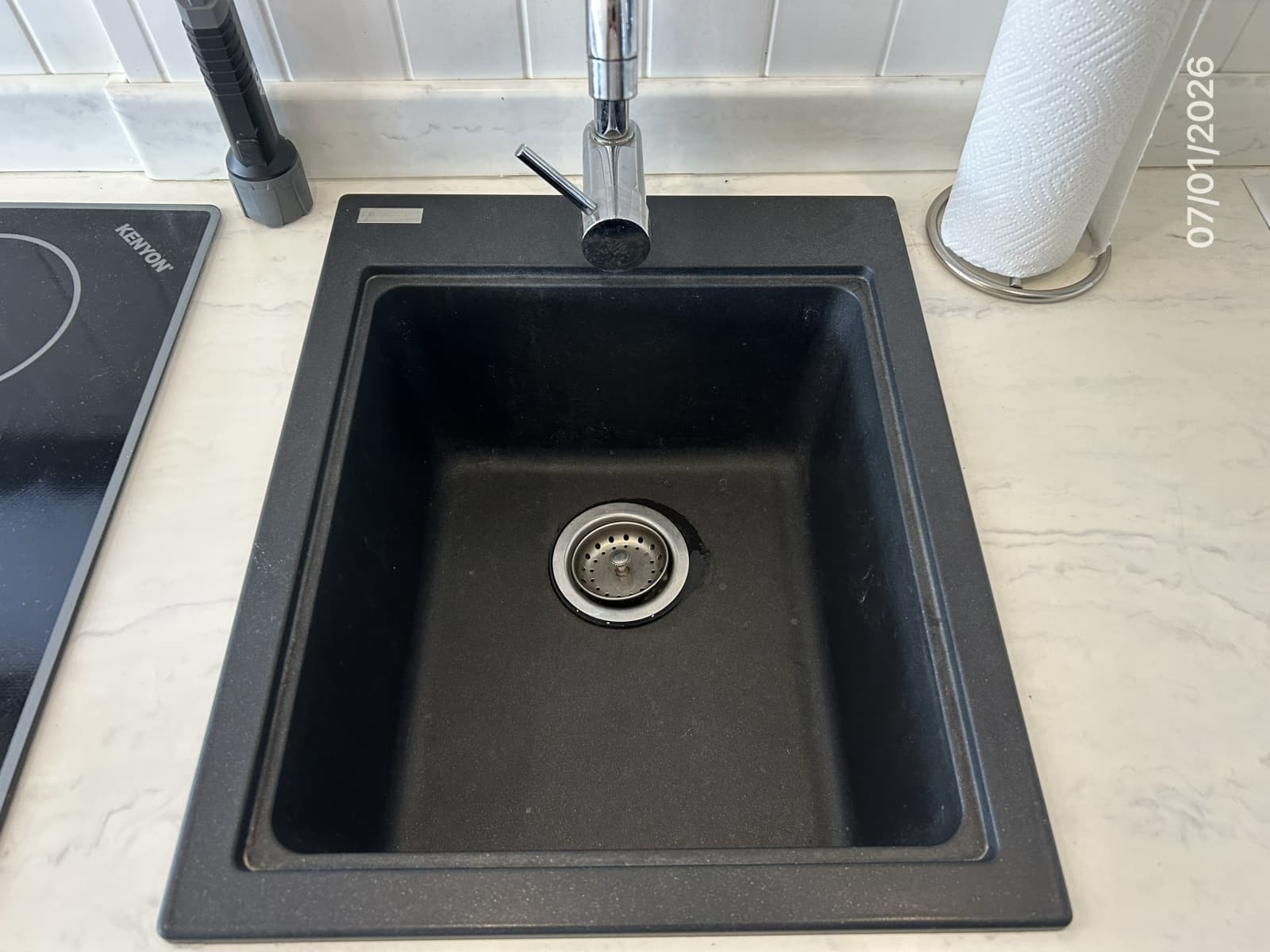

- Sink w/hot and cold running water

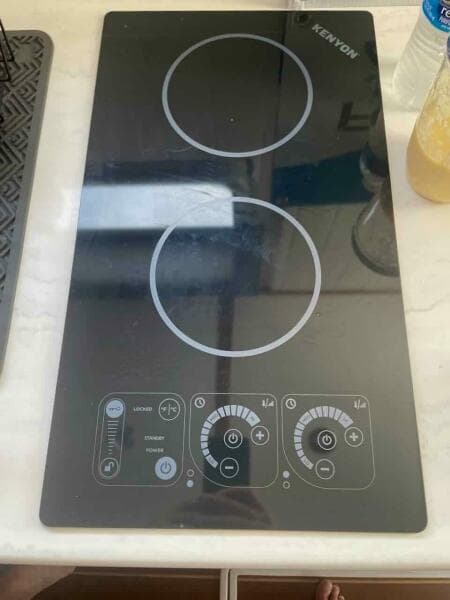

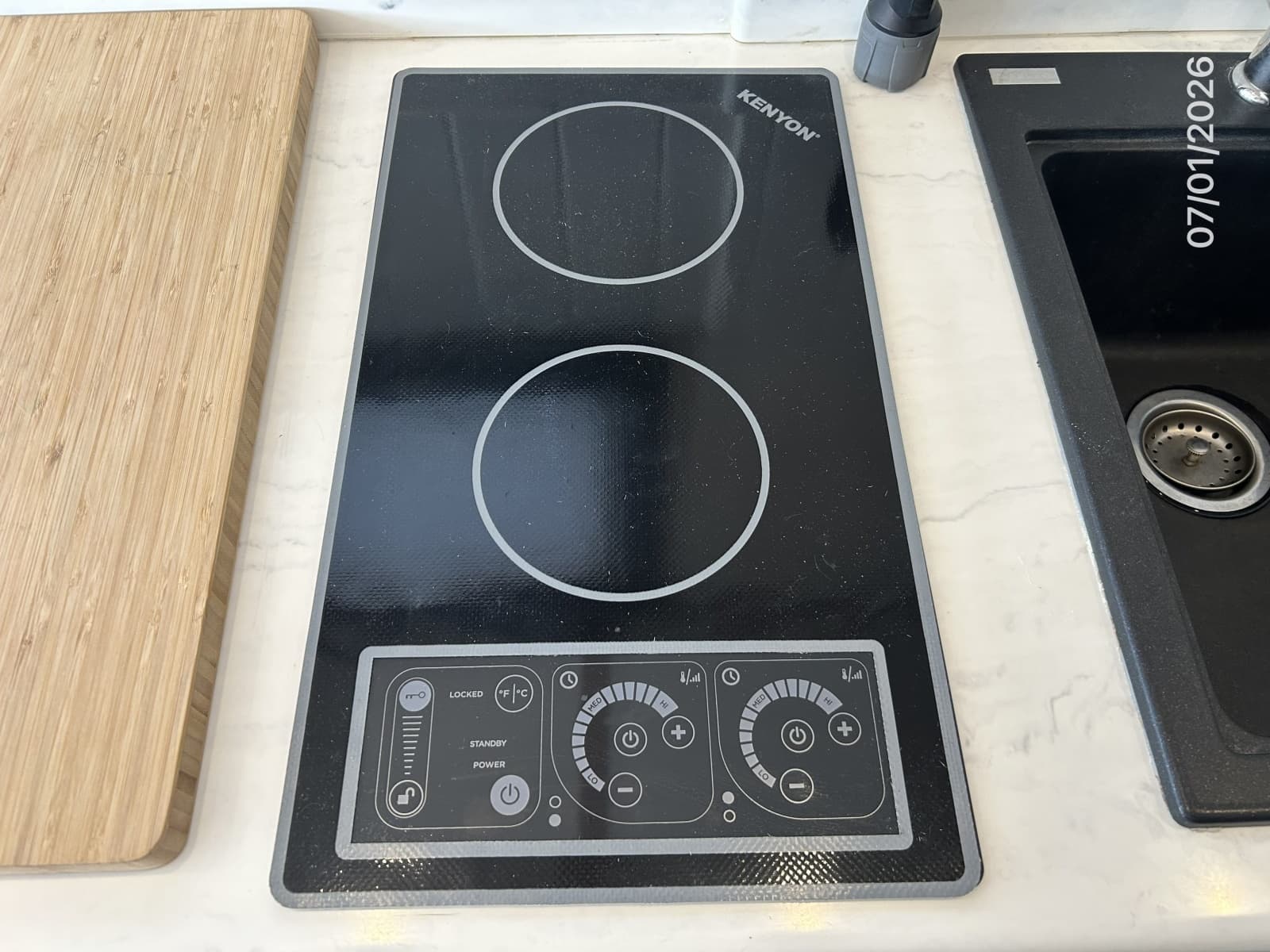

- Kenyon induction cooktop; 2 burner

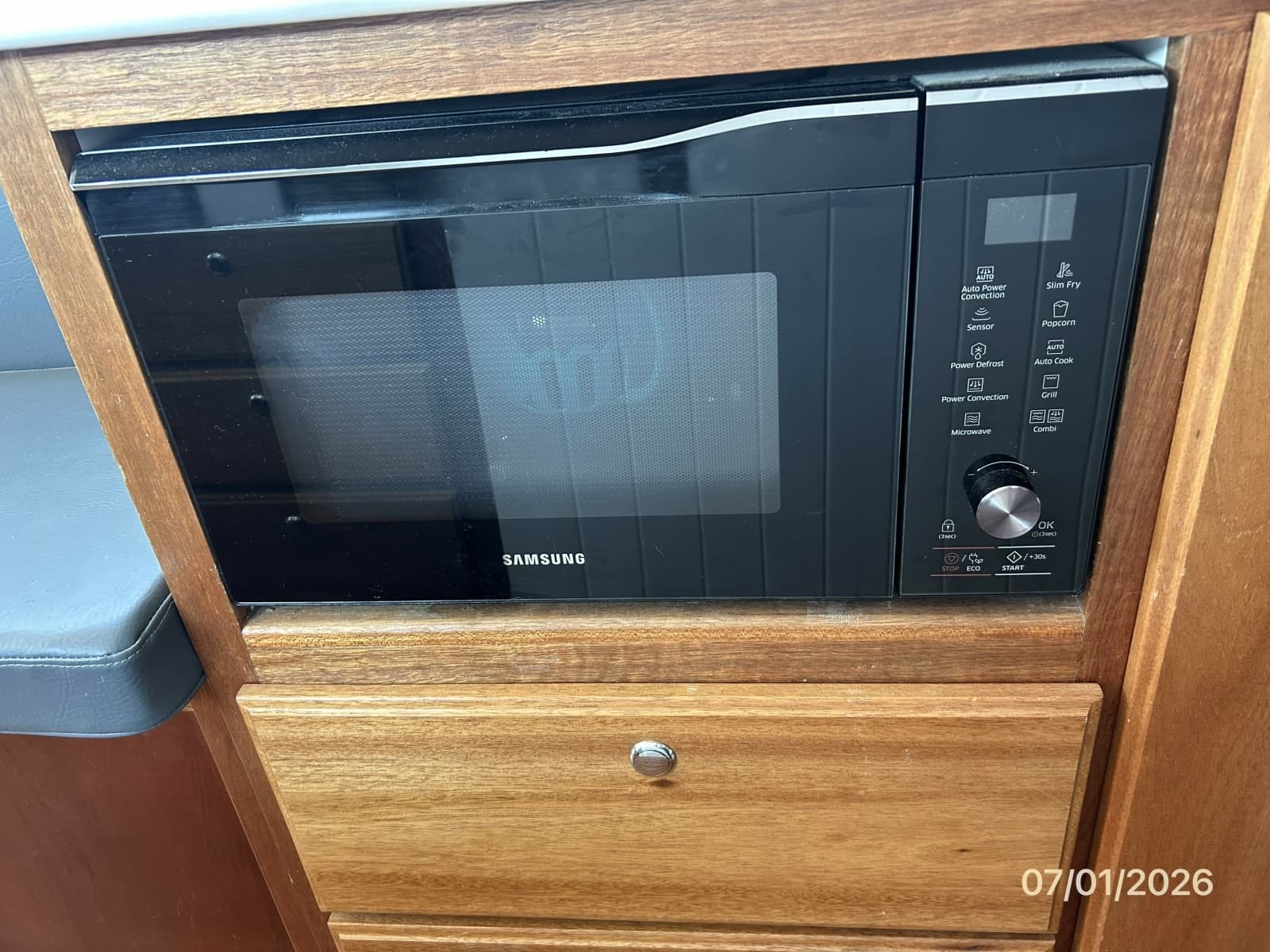

- Samsung Microwave/convection oven

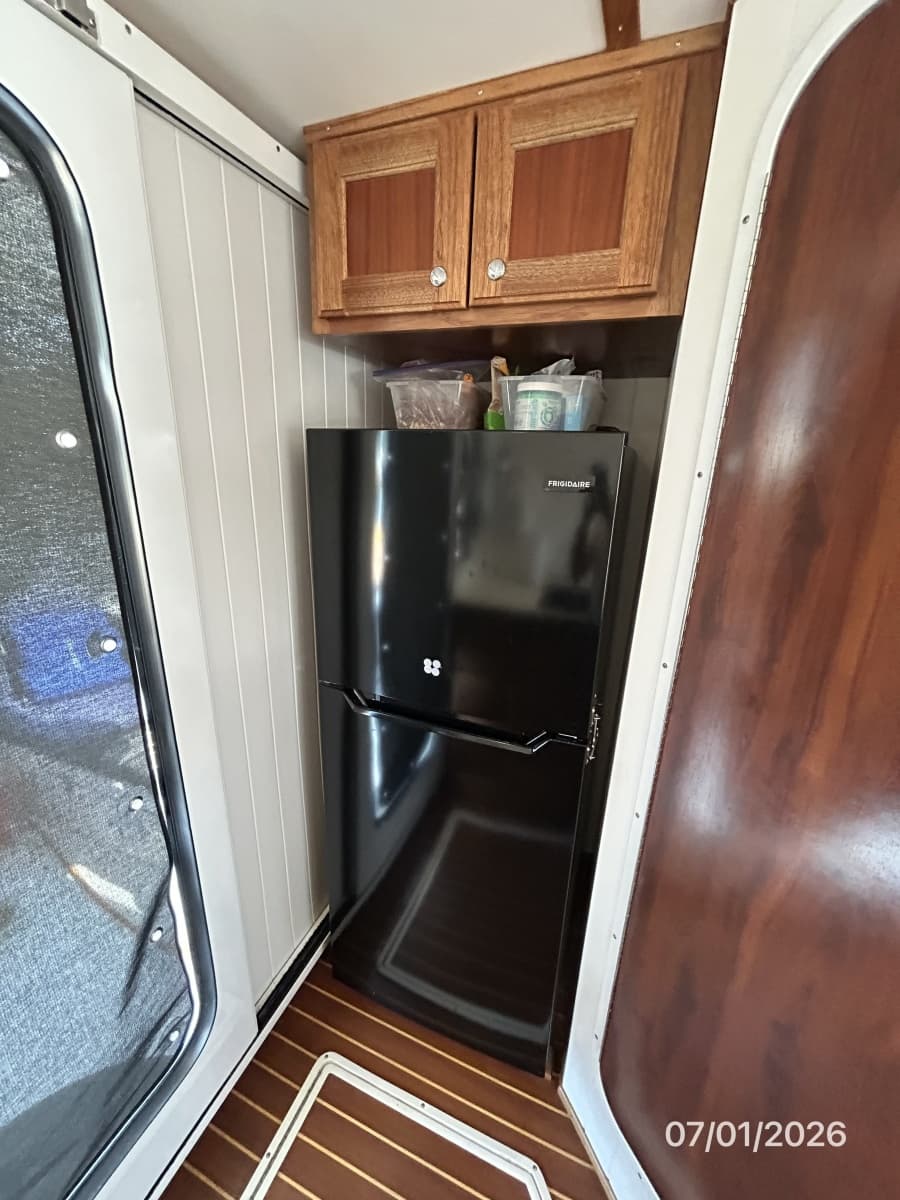

- Frigidaire refrigerator/freezer; apartment size; 10.1 cu.ft.; model FFET1022UP

- Top mounted locker above refrigerator/freezer

- 2 120 vdc receptacles

- 2 Opening windows; w/shades and screens

- 3 Overhead led lights

- Teak & Holly sole

- Fire extinguisher

- Headroom 79 inches

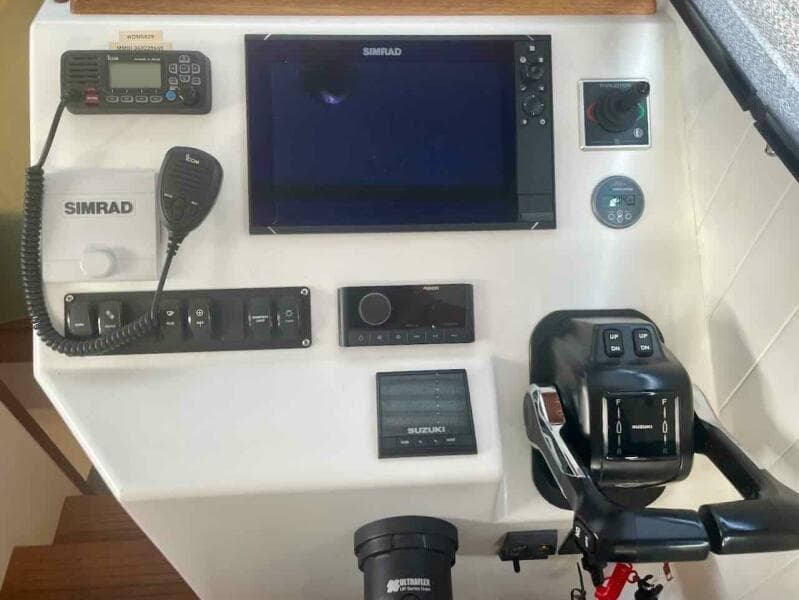

- Ultraflex UP series helm with wood and stainless steel wheel

- Engine throttle and pitch controls

- Engine start/stop panel

- Simrad Chartplotter/Radar display/control panel

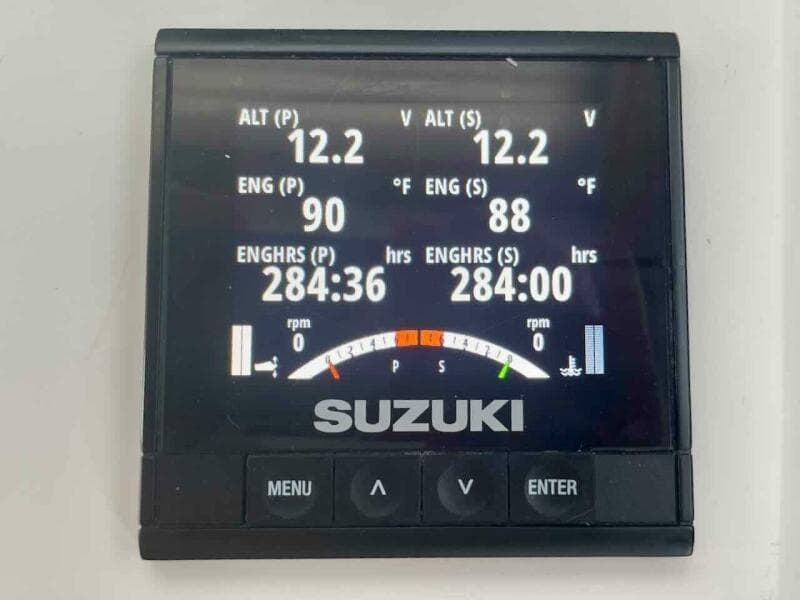

- Suzuki engine multi-function display

- Simrad auto-pilot control panel

- Bow thruster controls panel

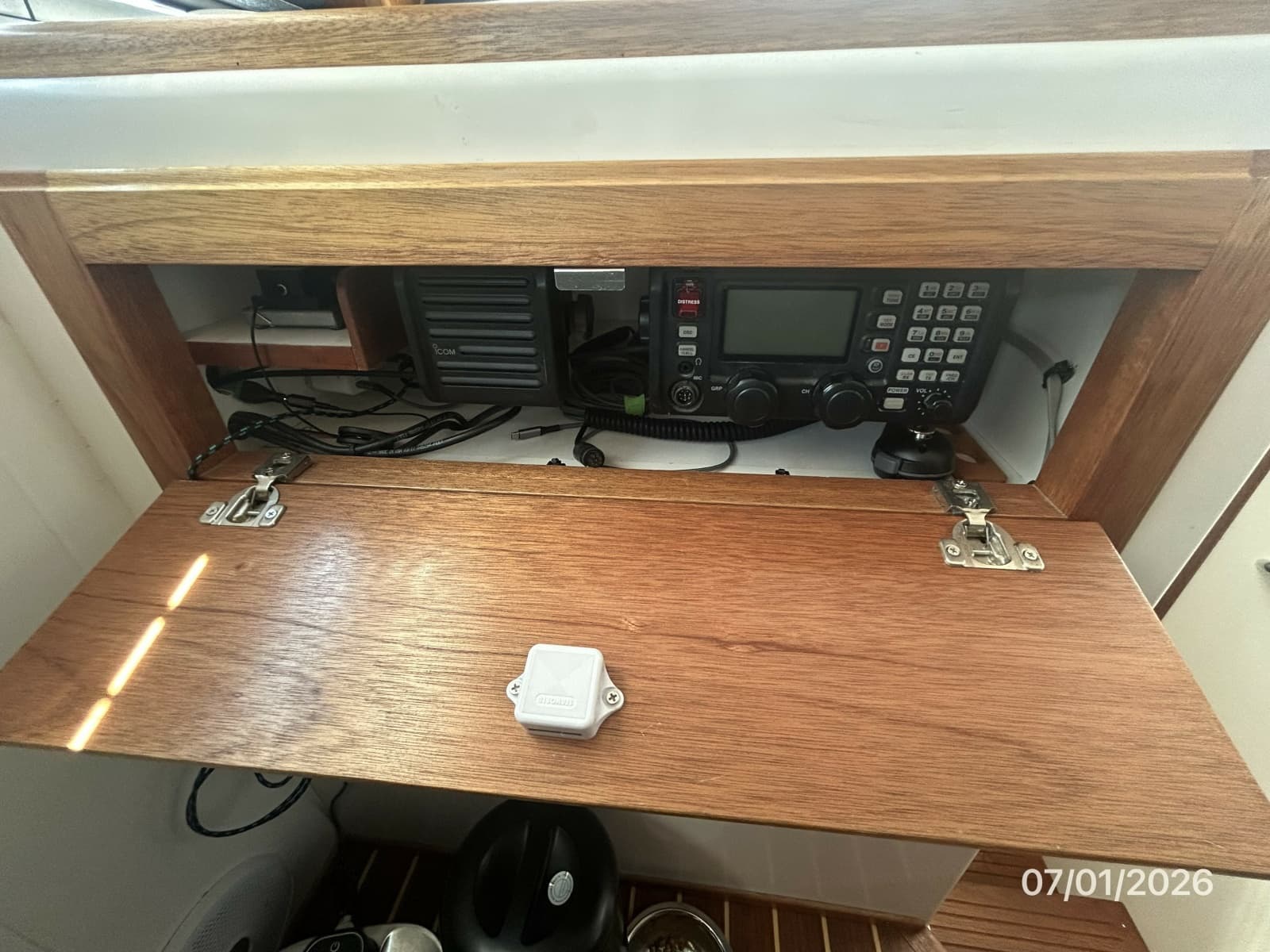

- iCom VHF marine radio; model IC-M330

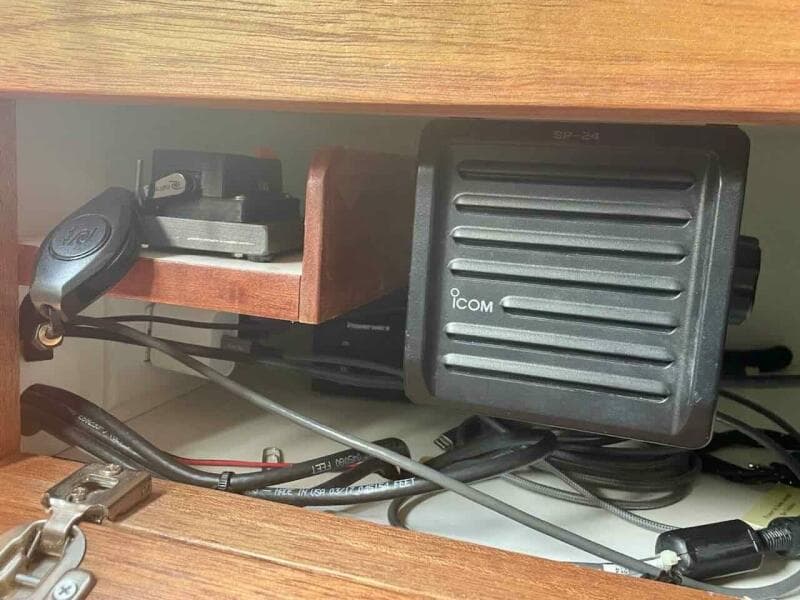

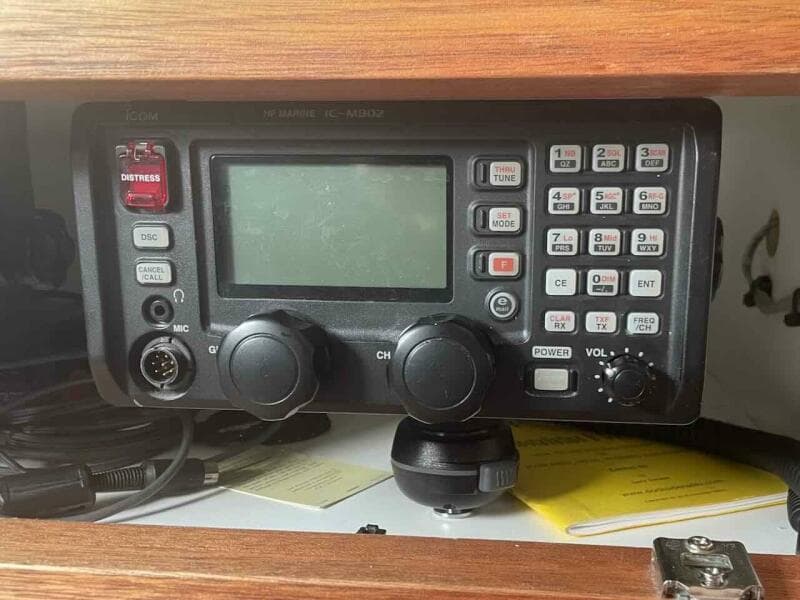

- iCom HF marine single side band radio; model IC-M802

- Fusion stereo radio control panel; Bluetooth and Sirius Radio capable

- Victron Energy battery monitor; model BMV 702

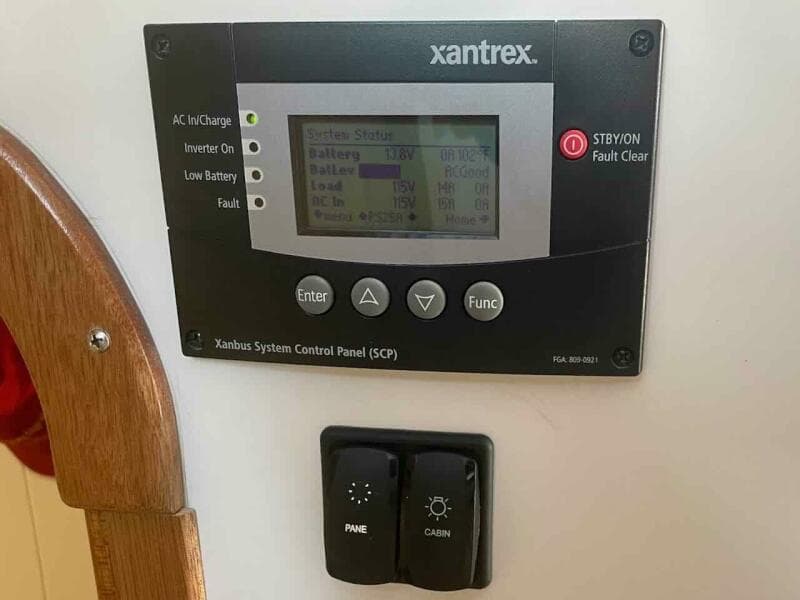

- Xantrex Xanbus system (SCP), battery charger/inverter control panel

- Maxwell anchor windless controls

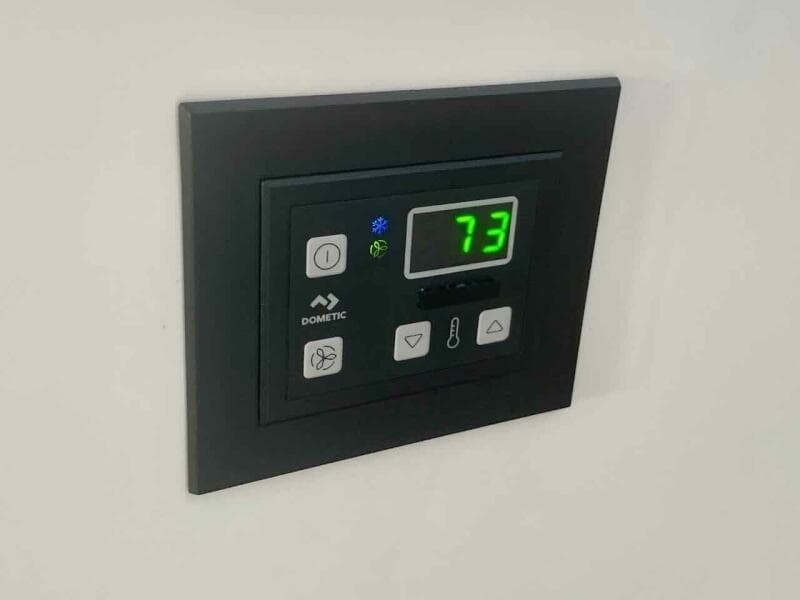

- Dometic air conditioning control panel

- 2 Fusion stereo speakers

- Fold down captain’s seat

- Fold down footrest

- Bench seat (reversable back, shared with dinette)

- Headroom 77 inches

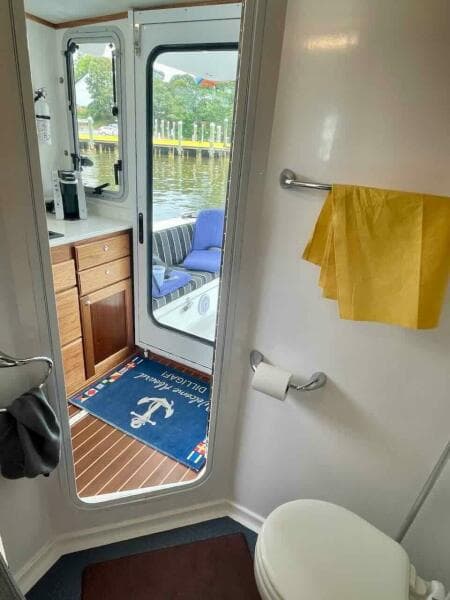

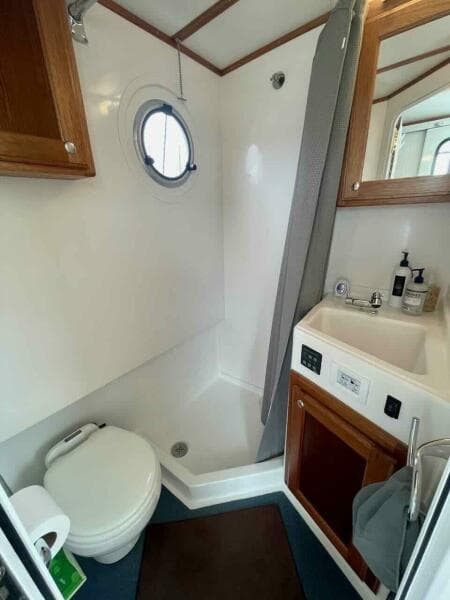

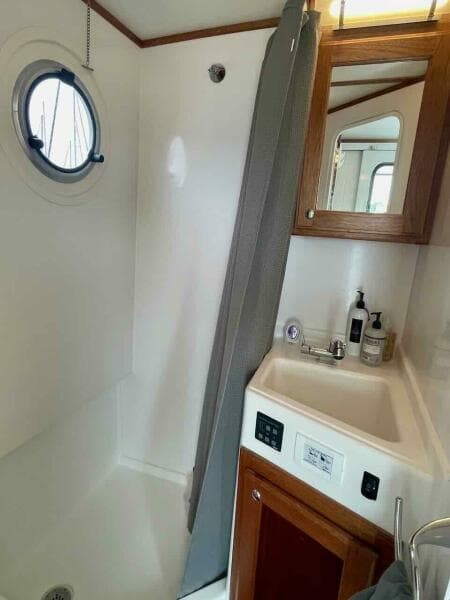

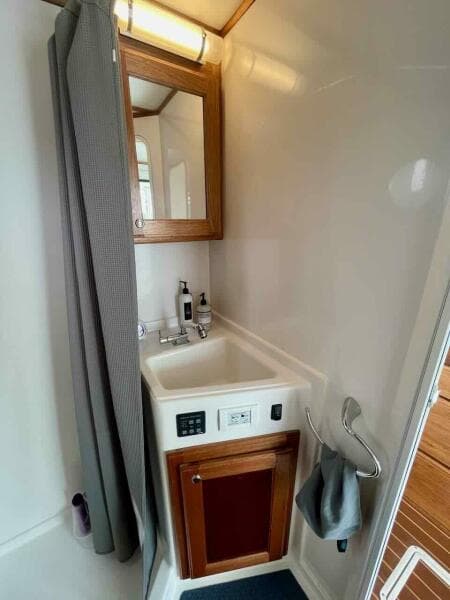

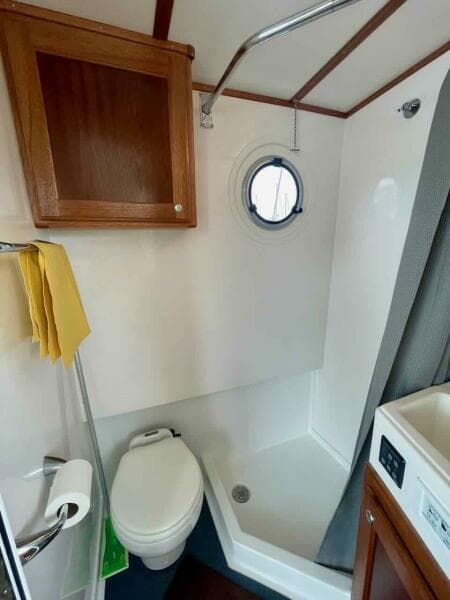

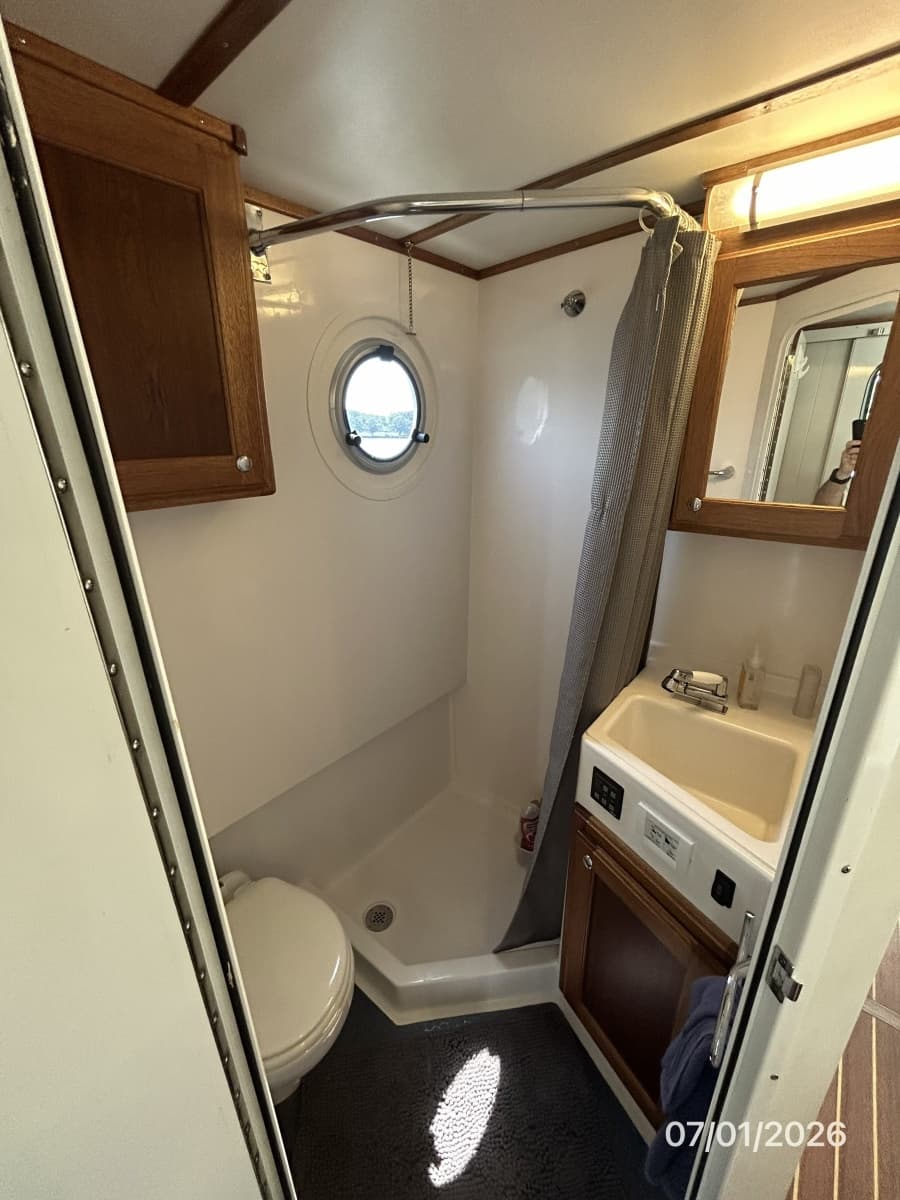

 - Sink with hot and cold running water

 - Over sink medicine cabinet w/mirrored door and light above

- Under sink locker

- Shower stall w/curtain

- Shower wand with hot & cold pressurized water and bracket; doubles as sink spigot

- Raritan Marine Elegance electric marine head

- Head flush controls

- Waste control panel/tank monitor

- Locker; top mounted above head

- Bath towel rack

- Hand towel ring

- Toilet paper holder

- 120 vdc outlet

- Light switch

- Opening port hole

- Non-skid flooring

- Headroom 78 inches

- Queen centerline berth; 80x60 inches

- 4 Drawers and storage locker, under v-berth

- Shelf with locker underneath; forward of berth

- 2 Hanging lockers; port & starboard, aft bulkhead side

- Opening overhead hatch; w/shades and screens

- 4 Opening ports; w/shades and screens

- 6 Overhead LED lights

- 2 Reading lamps

- AC Register

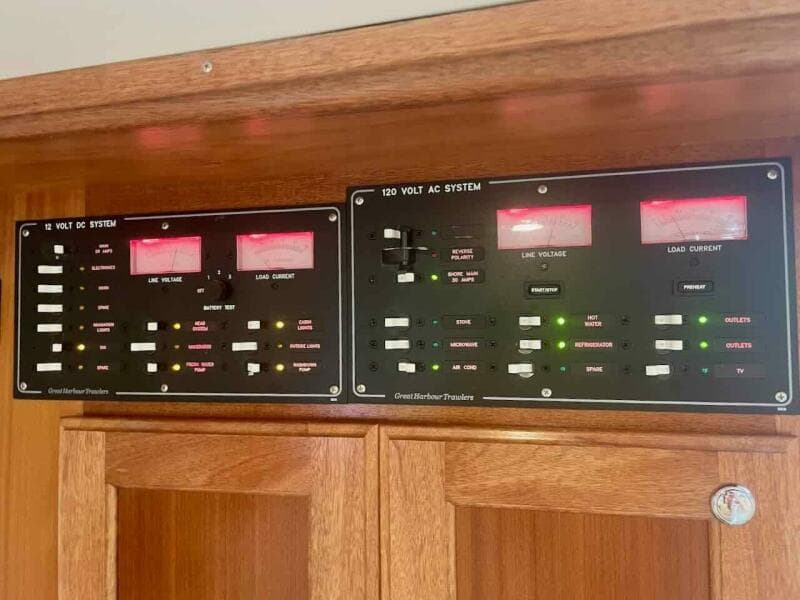

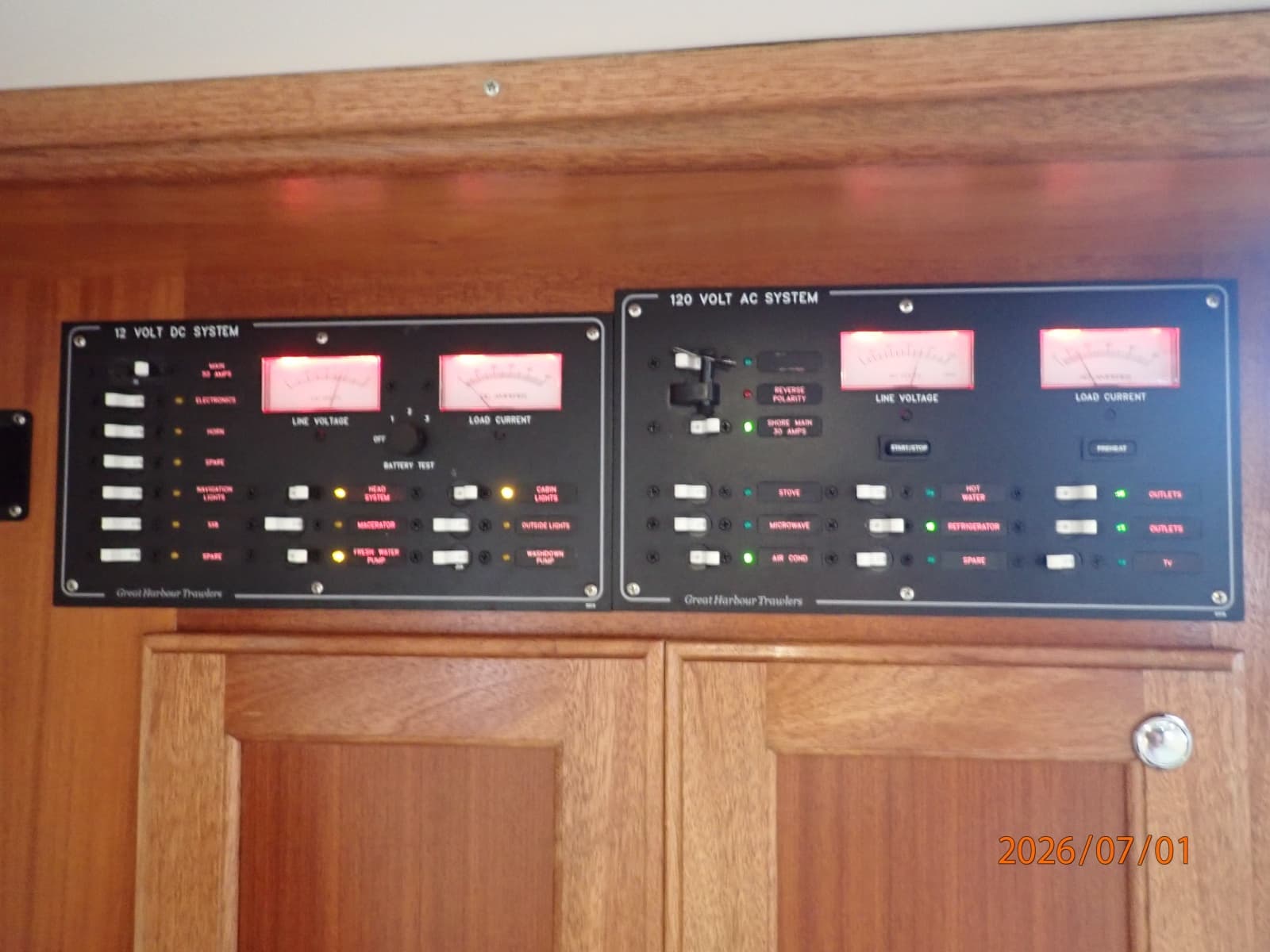

- 12 vdc distribution panel

- 120 vac distribution panel

- Maxwell windless breaker

- 3 120 vdc outlets

- Fire extinguisher

- Anchor locker access panel

- Headroom 72 inches

- 12 vdc house system with distribution panel

- 120 vdc house system with distribution panel

- Honda EU3200i generator; 3.2 KW; portable

- 120 vdc receptacles throughout

- LED lighting throughout

- Running/navigation lights

- 6 Batteries; 6 vdc; 190 Ah; (3 parallel 12 vdc banks; 570 Ah total)

- Blue Sea Systems breaker panel

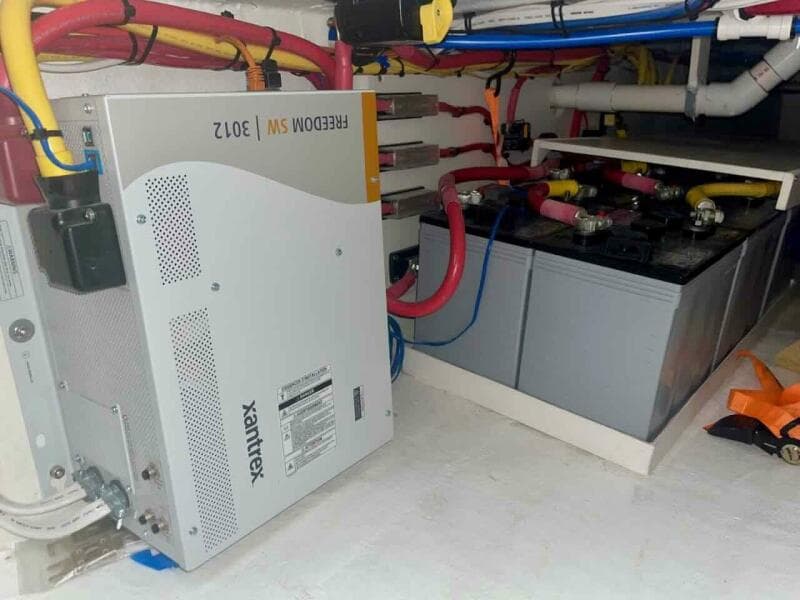

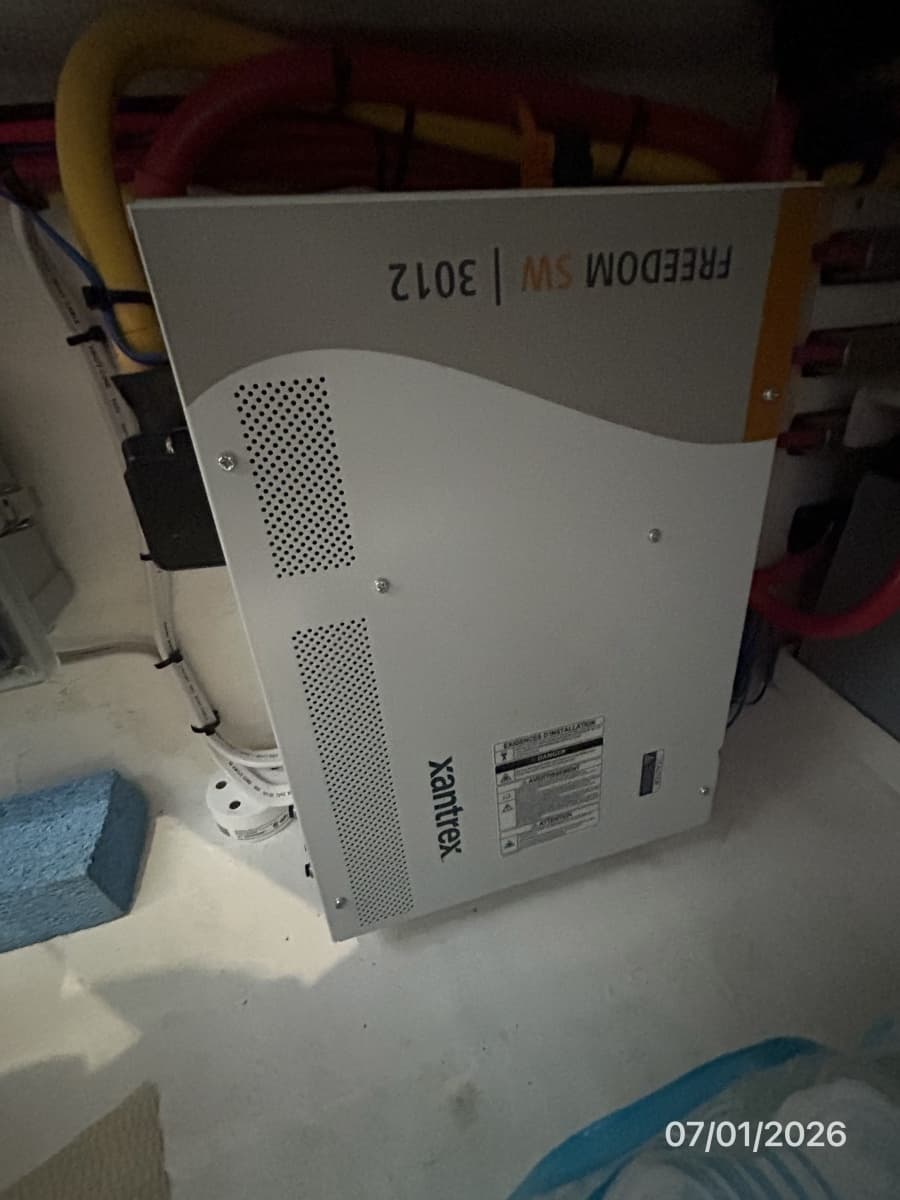

- Xantrex Fredom SW battery charger/inverter; model 3012

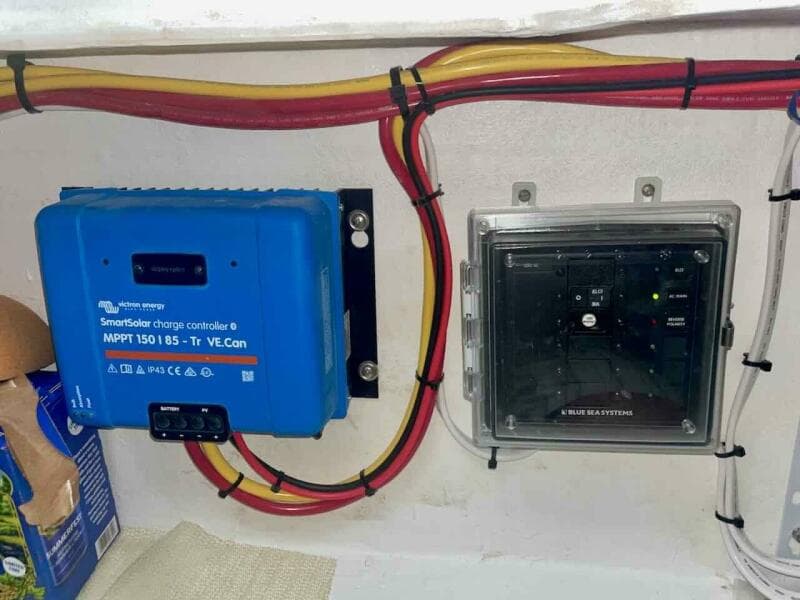

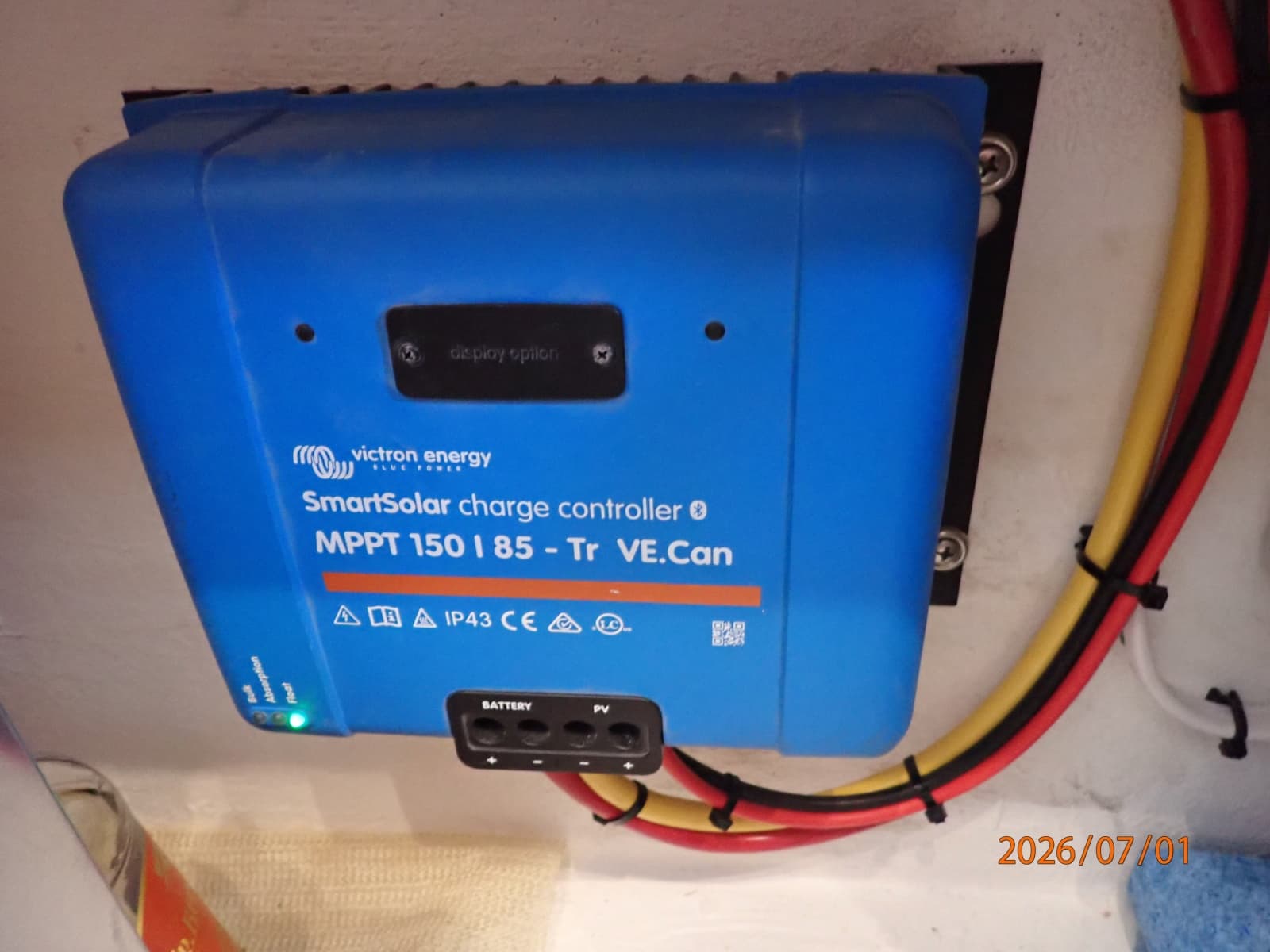

- Vitron Energy, SmartSolar charge controller; model MPPT 150 | 80 – TR

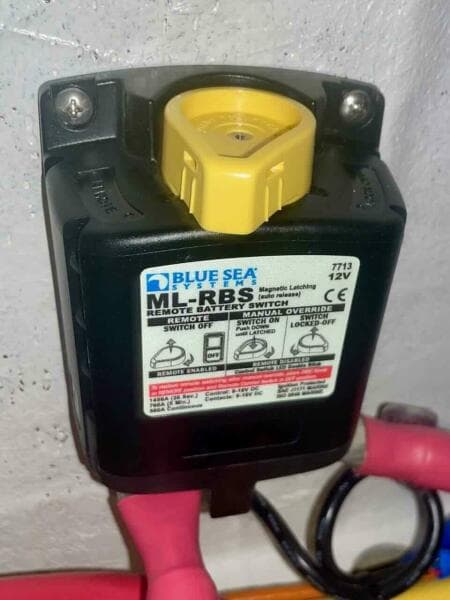

- Blue Sea Systems remote battery switch; model ML-RBS

- 3 Solar Panels; 300 watts each, 900 total

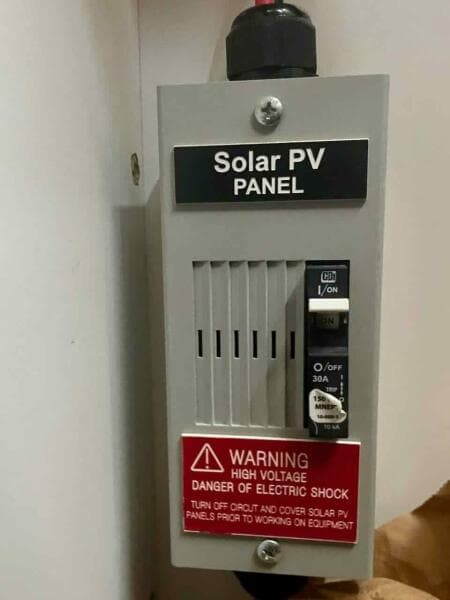

- Solar PV breaker box

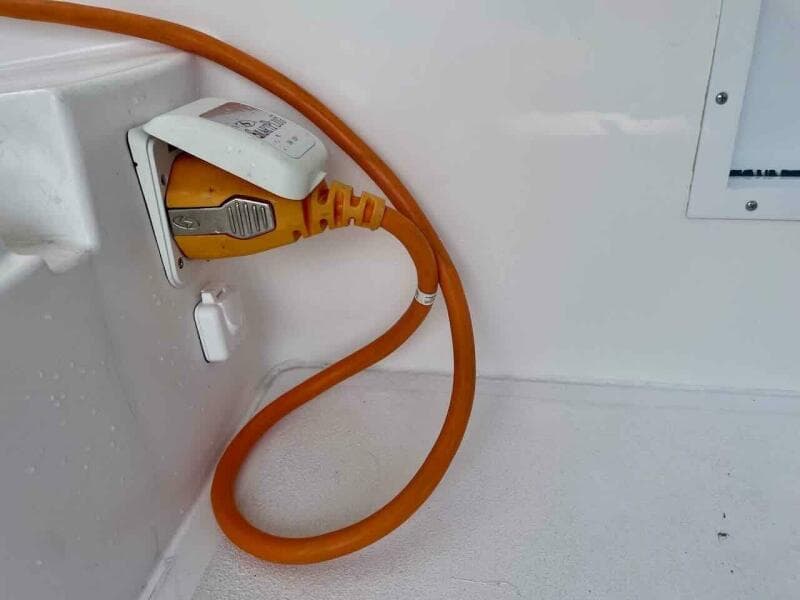

- Shore power receptacle; SmartPlug; 30 amp

- Shore power line; SmartPlug, 30 amp

- TV coaxial cable receptacle

- Windless circuit breaker

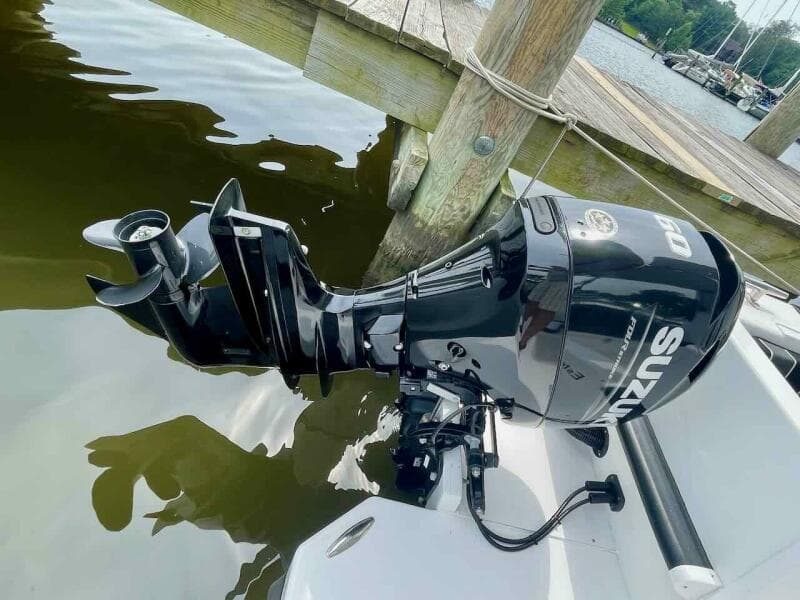

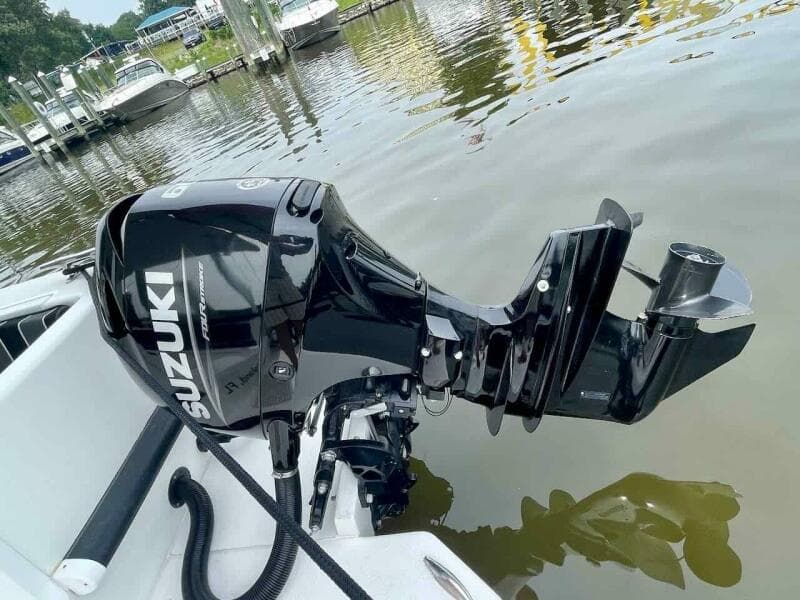

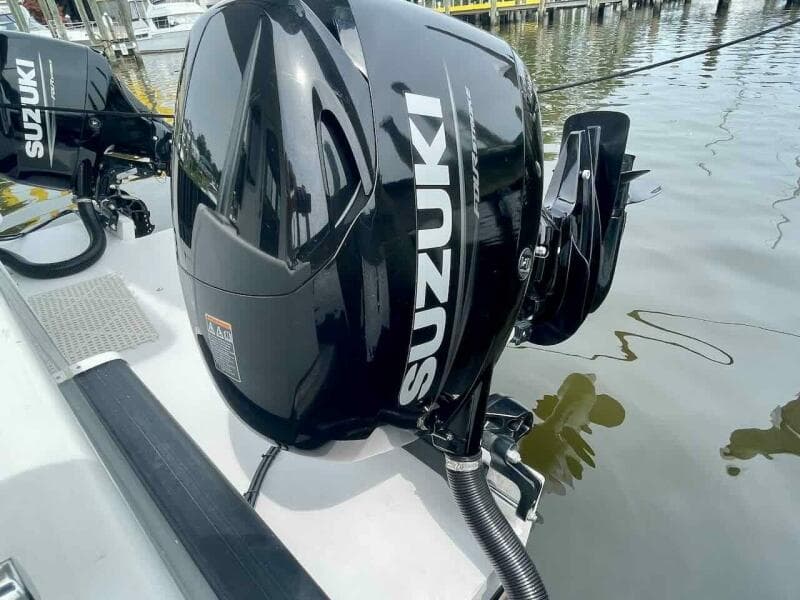

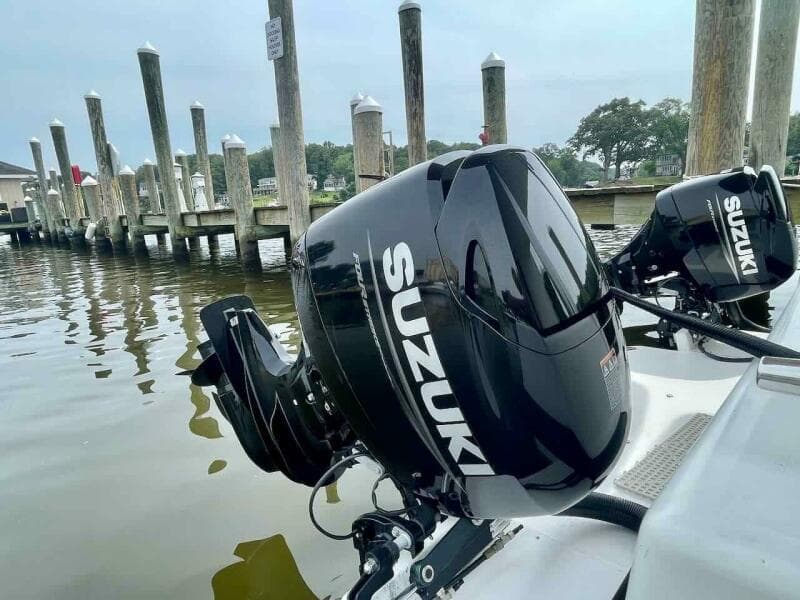

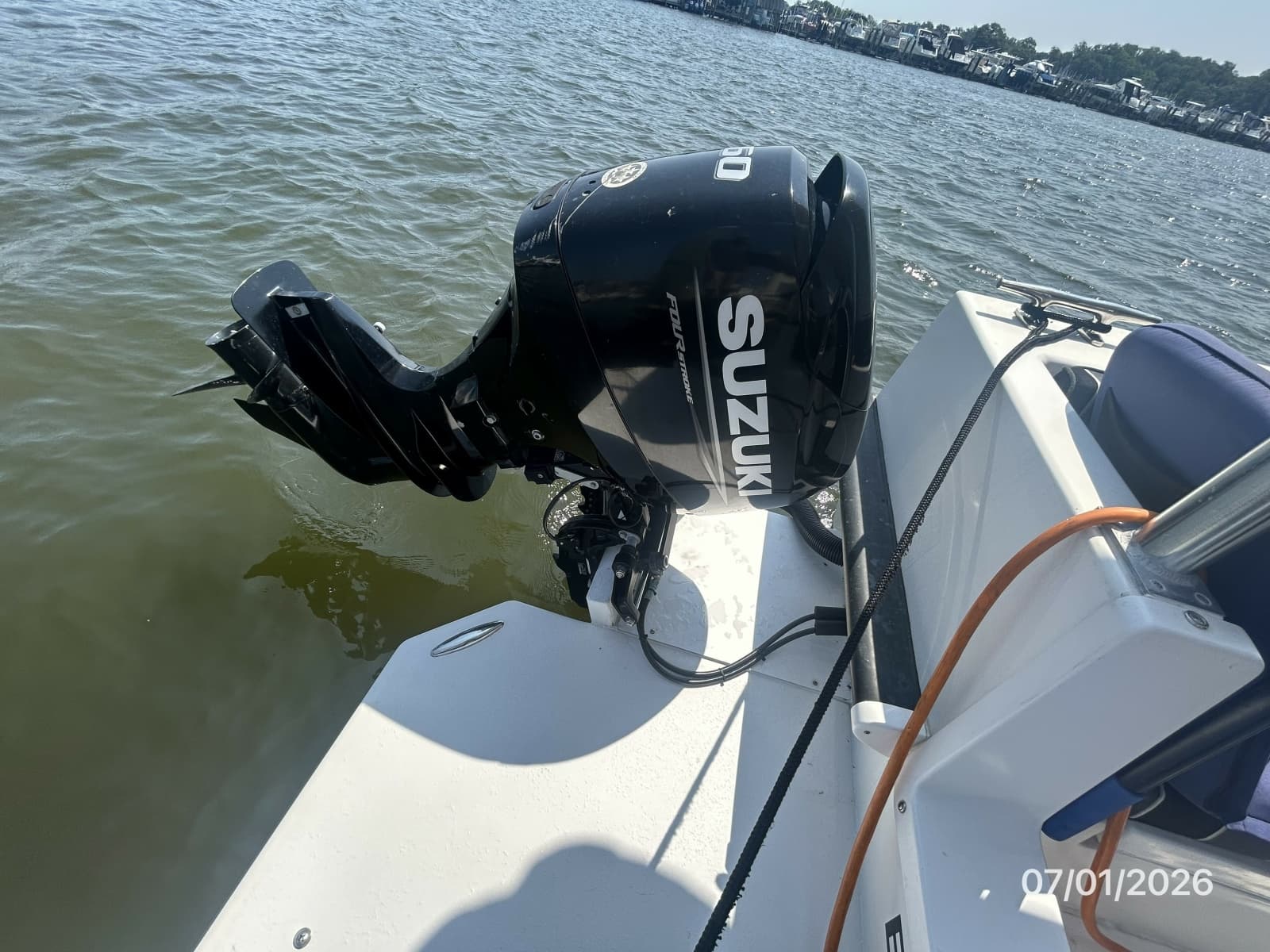

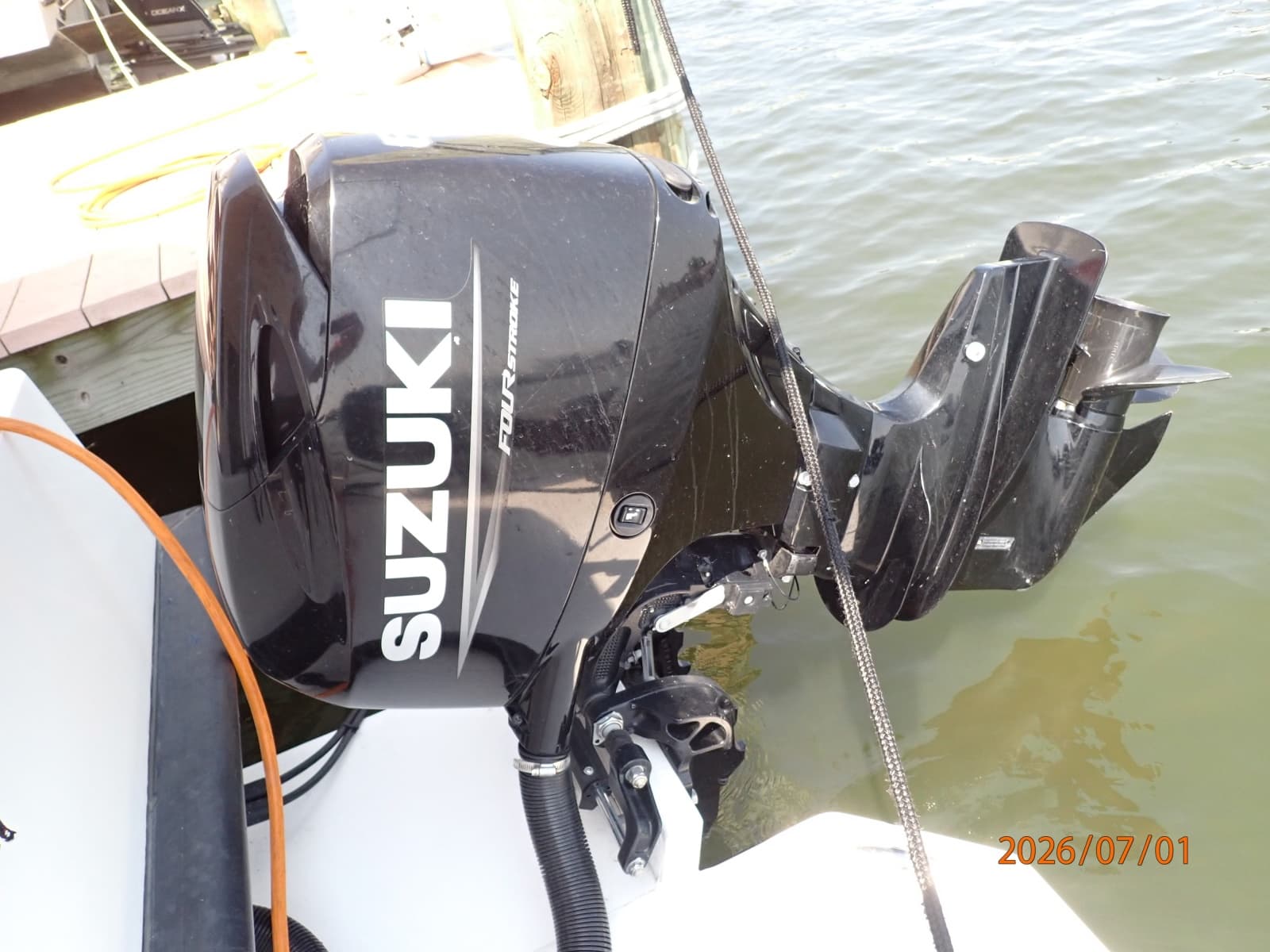

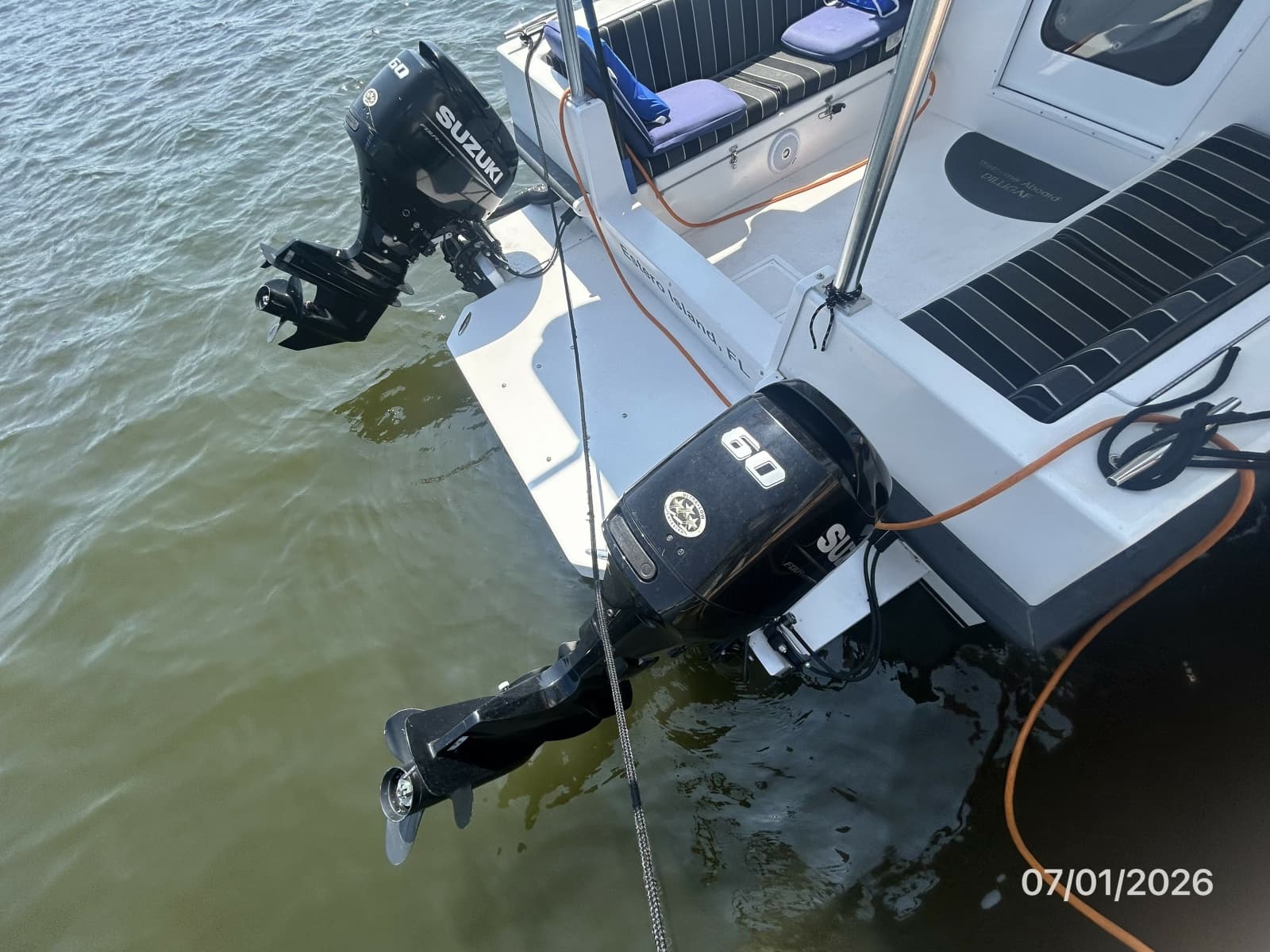

- 2 Suzuki outboard engines; model DF60AV

  * 60 hp

  * 284.36 hours, port

  * 284.00 hours, starboard

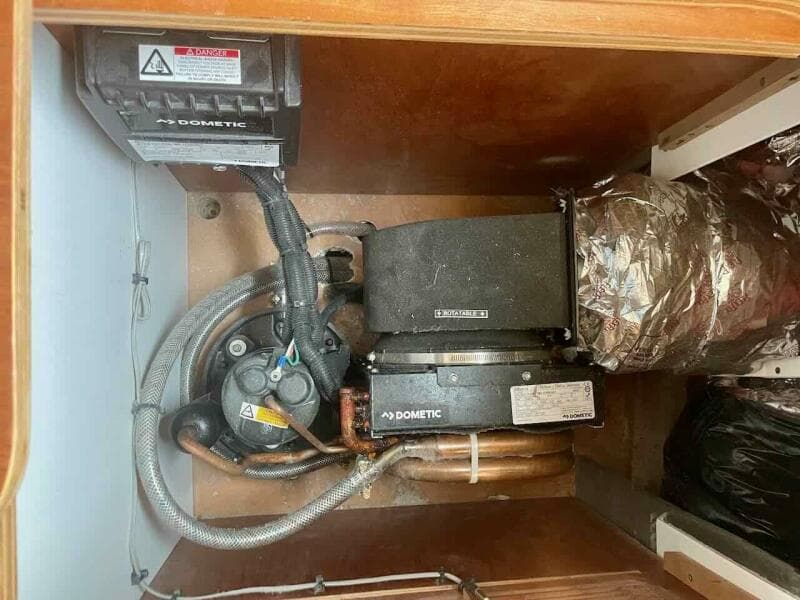

- Dometic reverse cycle air-conditioning system; 16,000 btu; model DTG16-410A

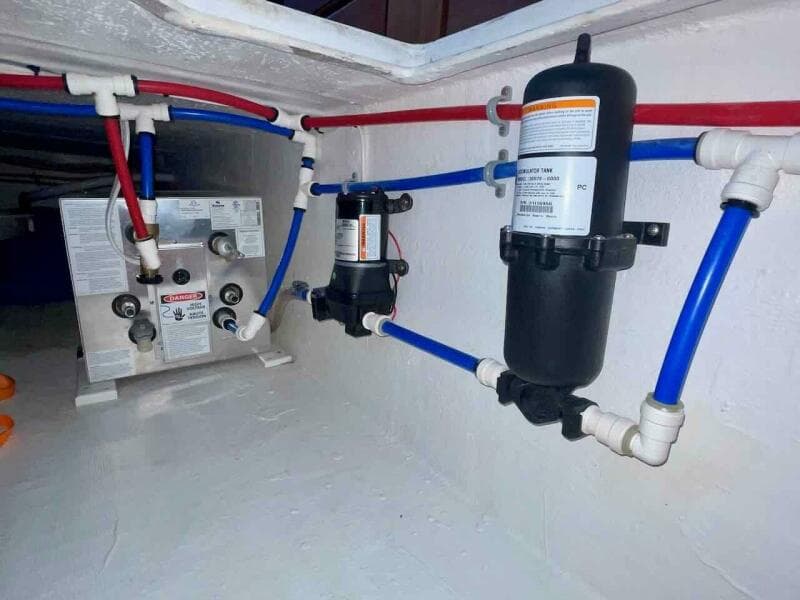

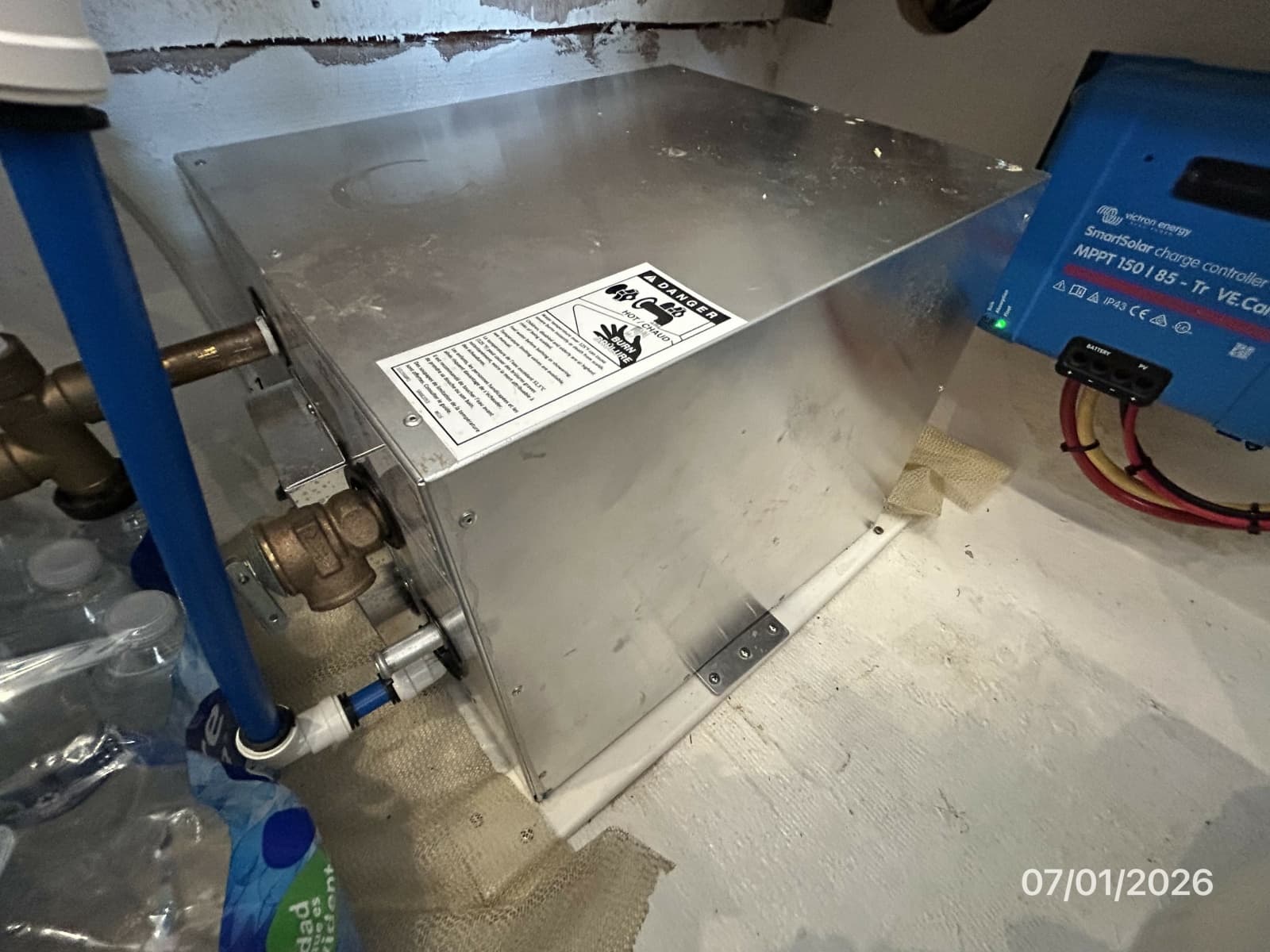

- Kuuma hot water heater; 6 gal; model KWHTR6A120HSF15A150

- Frigidaire refrigerator/freezer; apartment size 10.1 cu.ft.; model FFET1022UP

- Venus waste water tank system; model WWS4212B

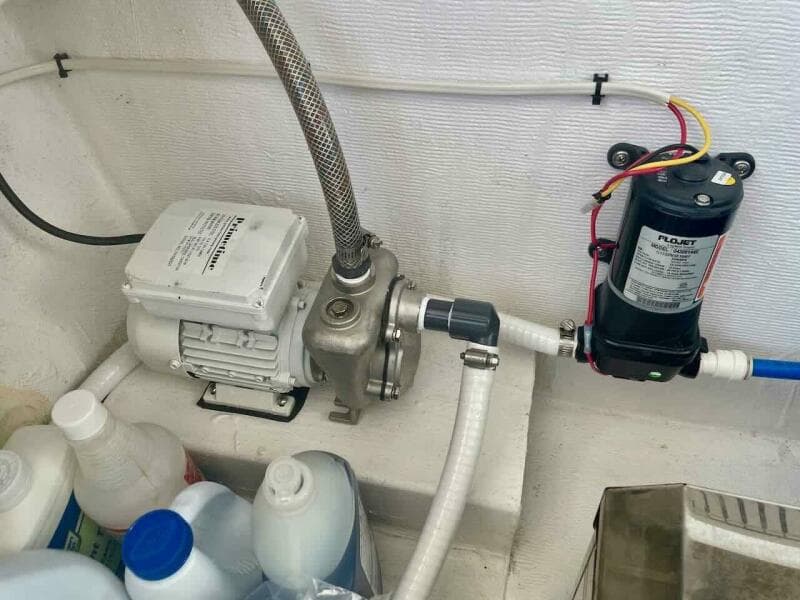

- FloJet house water pump; 3.5 gpm

- Jabsoco house water accumulator tank; 1 ltr; model 30573

- Flojet washdown pump; 3.5 gpm; model 04305144E

- Primetime AC water pump; model PT-115VT-60-W

- 2 Suzuki fuel filter/water separators; P/N 99105-20006

- Big Dog Marine fuel tank vapor filter; P/N 999CC65X1

- 4 Deck Cleats: 2 bow, 2 stern, fixed

- 4 Deck Cleats; 2 mid-ships, 2 swim platform, fold down

- Max Set 10 plow anchor

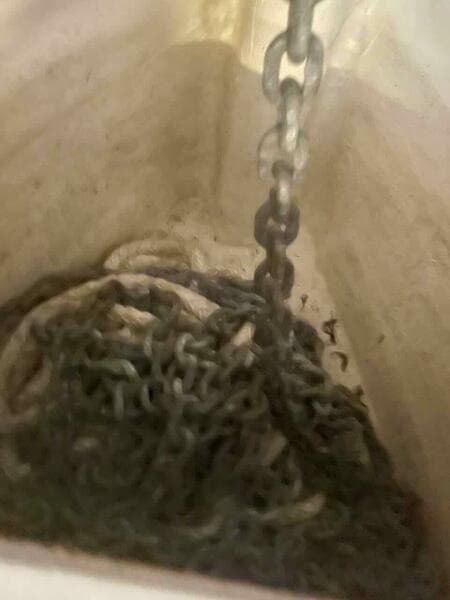

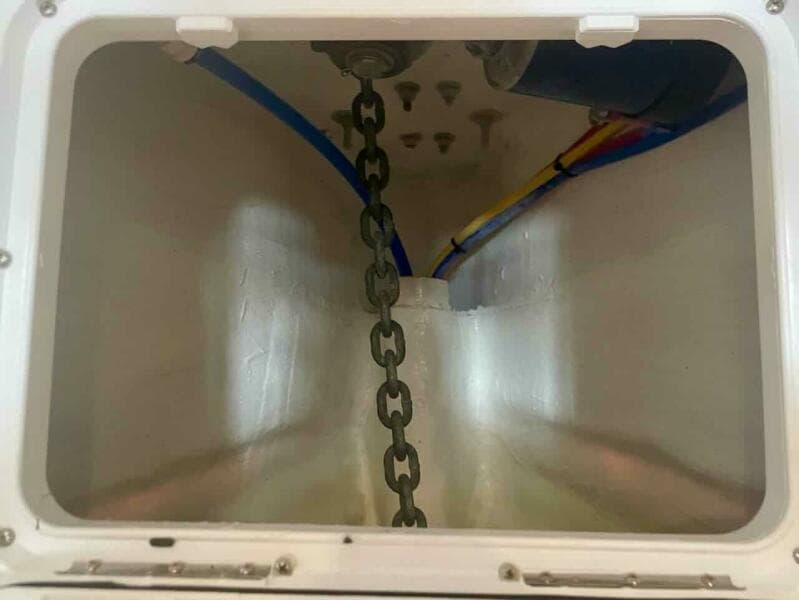

- Chain locker; forward cabin access

- Maxwell electric windlass

- Wash down spigot, bow

- Swim platform

- SeaDog horn, cabin top mounted

- Simrad radar transceiver, cabin top mounted

- 2 Radio antennas (VHF & SSB)

- Simrad GPS antenna, cabin top mounted

- Sirius XM Galaxy antenna, cabin top mounted

- SeaWatch TV antenna, cabin top mounted

- Running lights

- Aluminum bow rail

- Aluminum hand holds; cabin top port and starboard

- 3 Aluminum hand holds; cockpit and starboard door

- Holding tank pump out, port side mid ship

- Water fill, starboard side mid ship

- Fuel fill, port side aft

- Tender cradle; cabin top

- Board rack; cabin top

- Dock Lines

- Fenders

- Wash down gear

- 4 Near Shore PFDs

- Kiddie emergency signal kit (gun w/flairs, 5 hand held flairs, 1 hand held smoke signal)

- Kiddie marine chemical fire extinguisher; type 1-A:10B:C

- Kiddie marine chemical fire extinguisher; type B:C Size 1

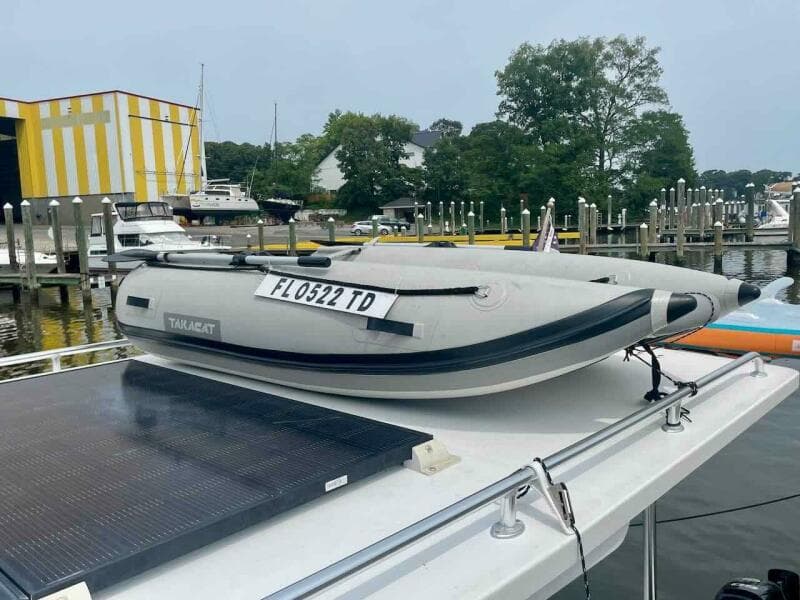

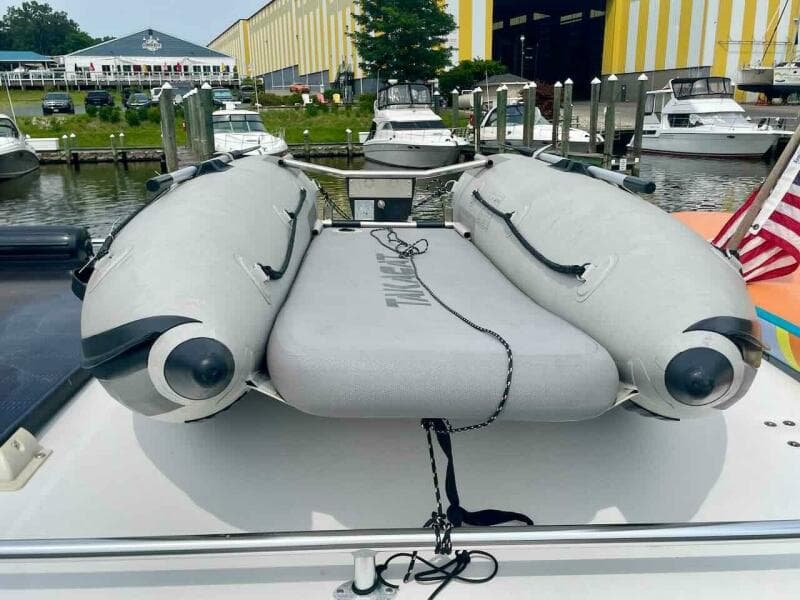

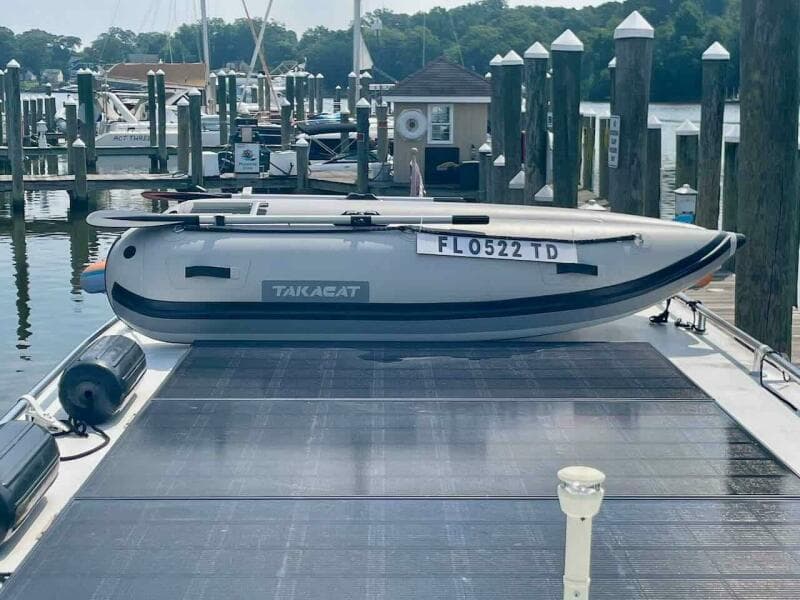

- 2025 Takacat; T300LX; 9' 10"

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
