2020 Hargrave C92

ALL TRADES WELCOME | FULLY SERVICED | BRING ALL OFFERS

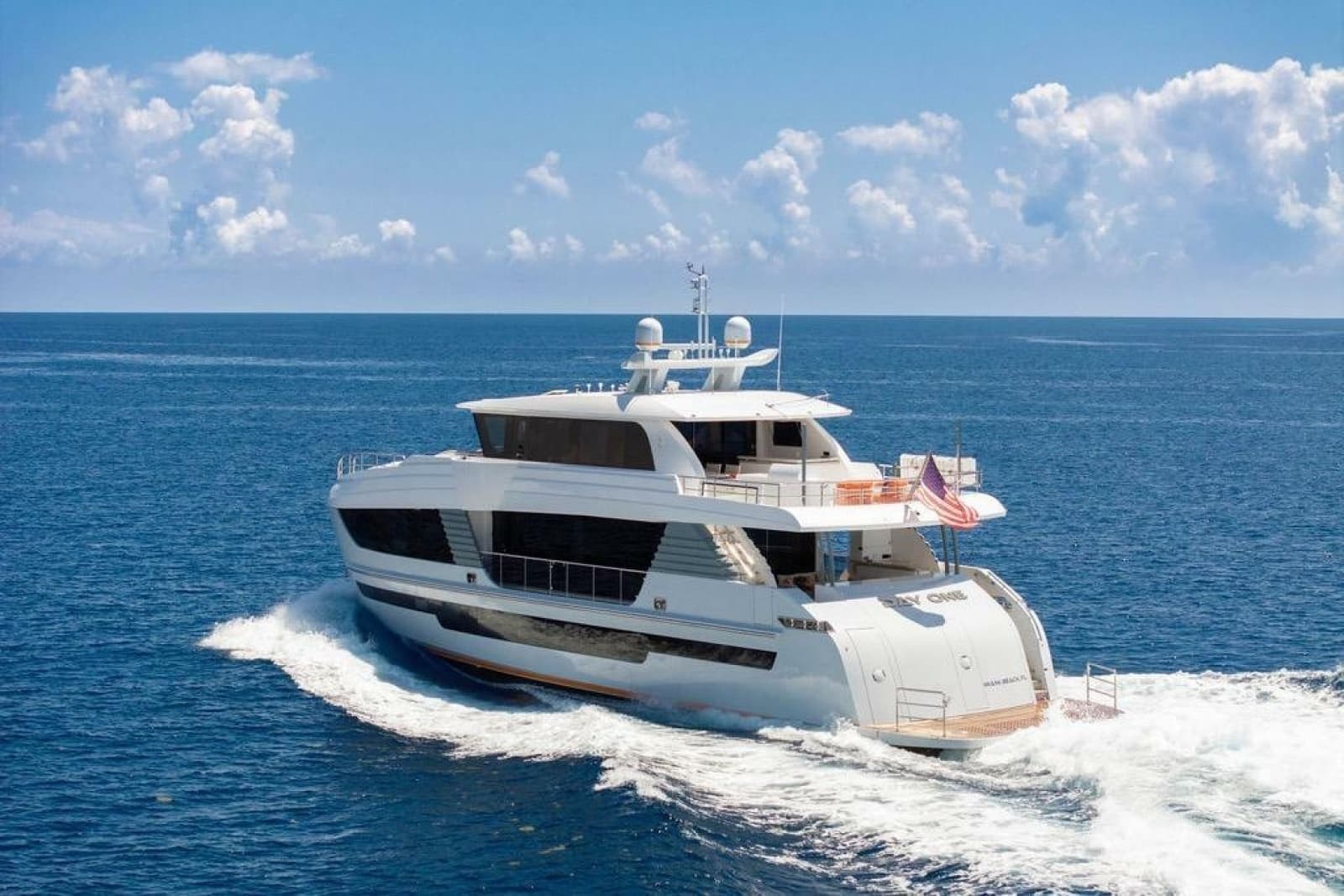

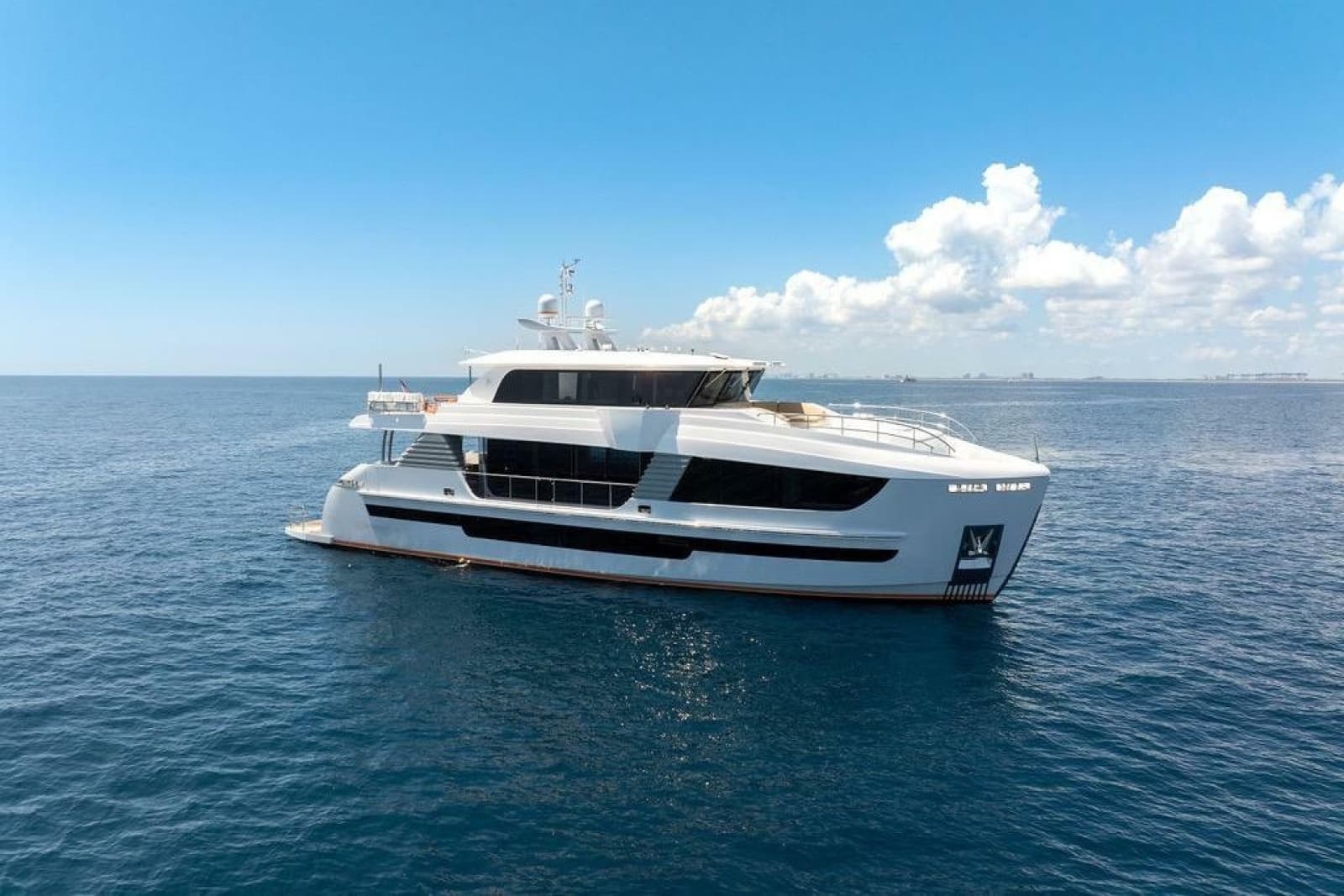

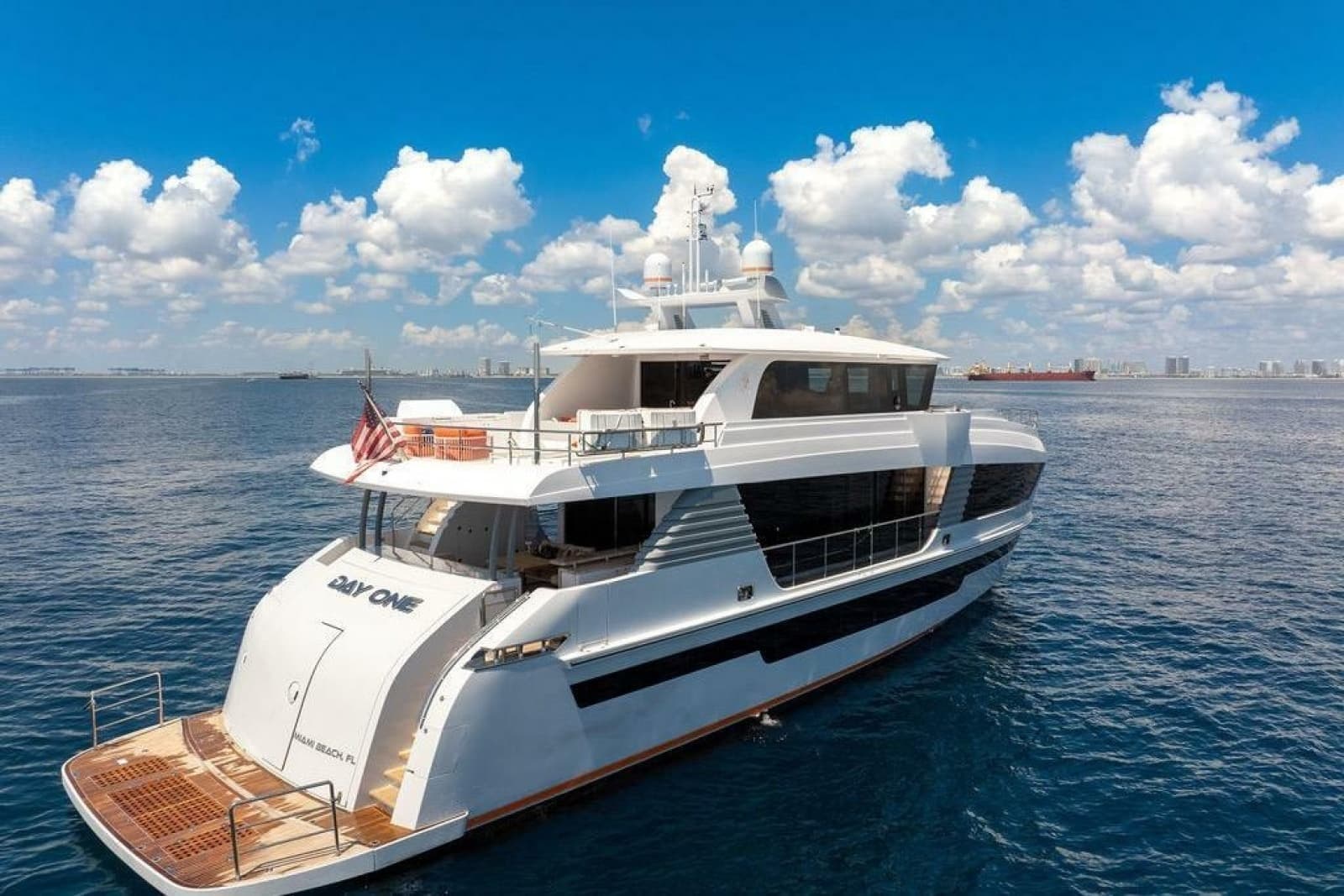

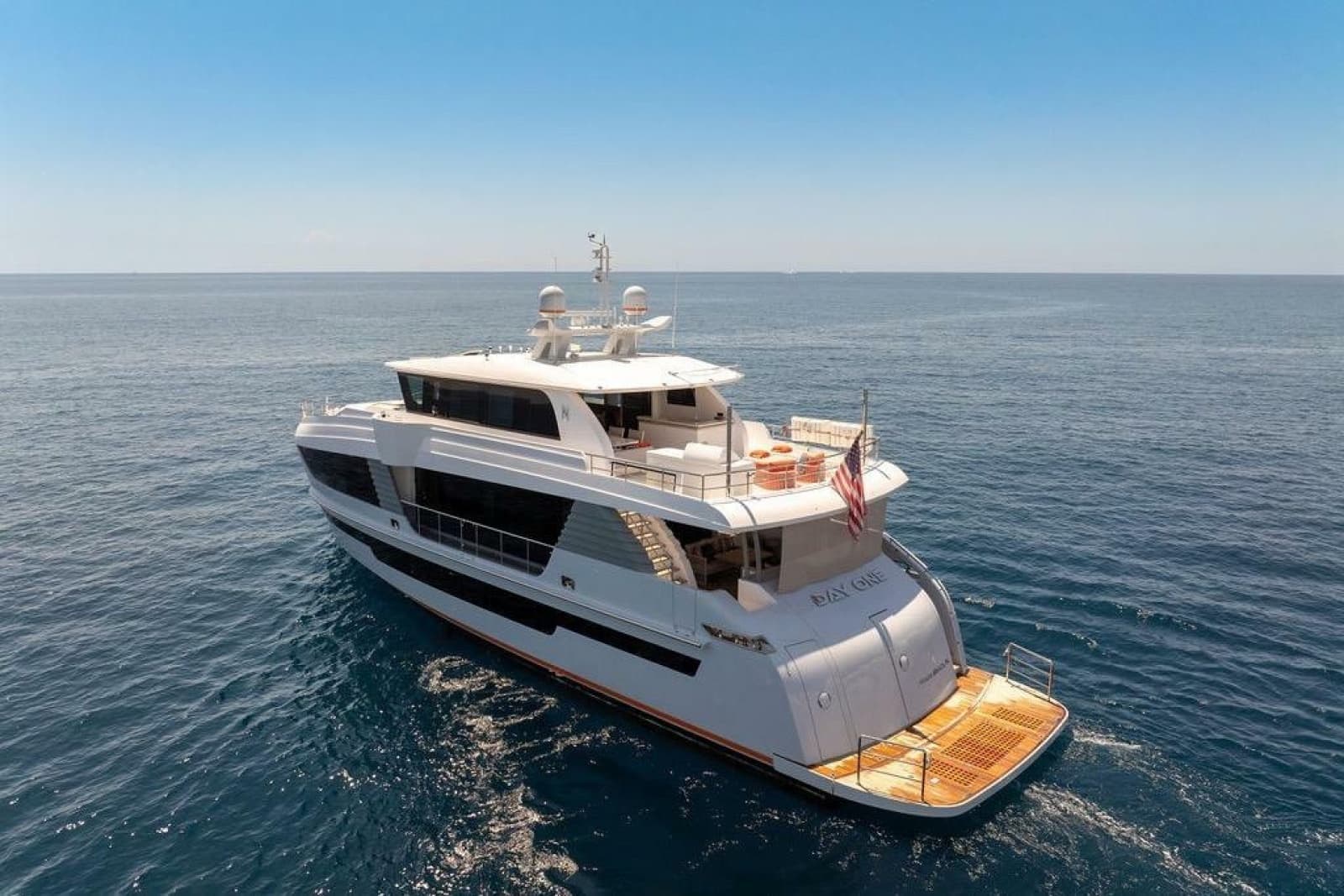

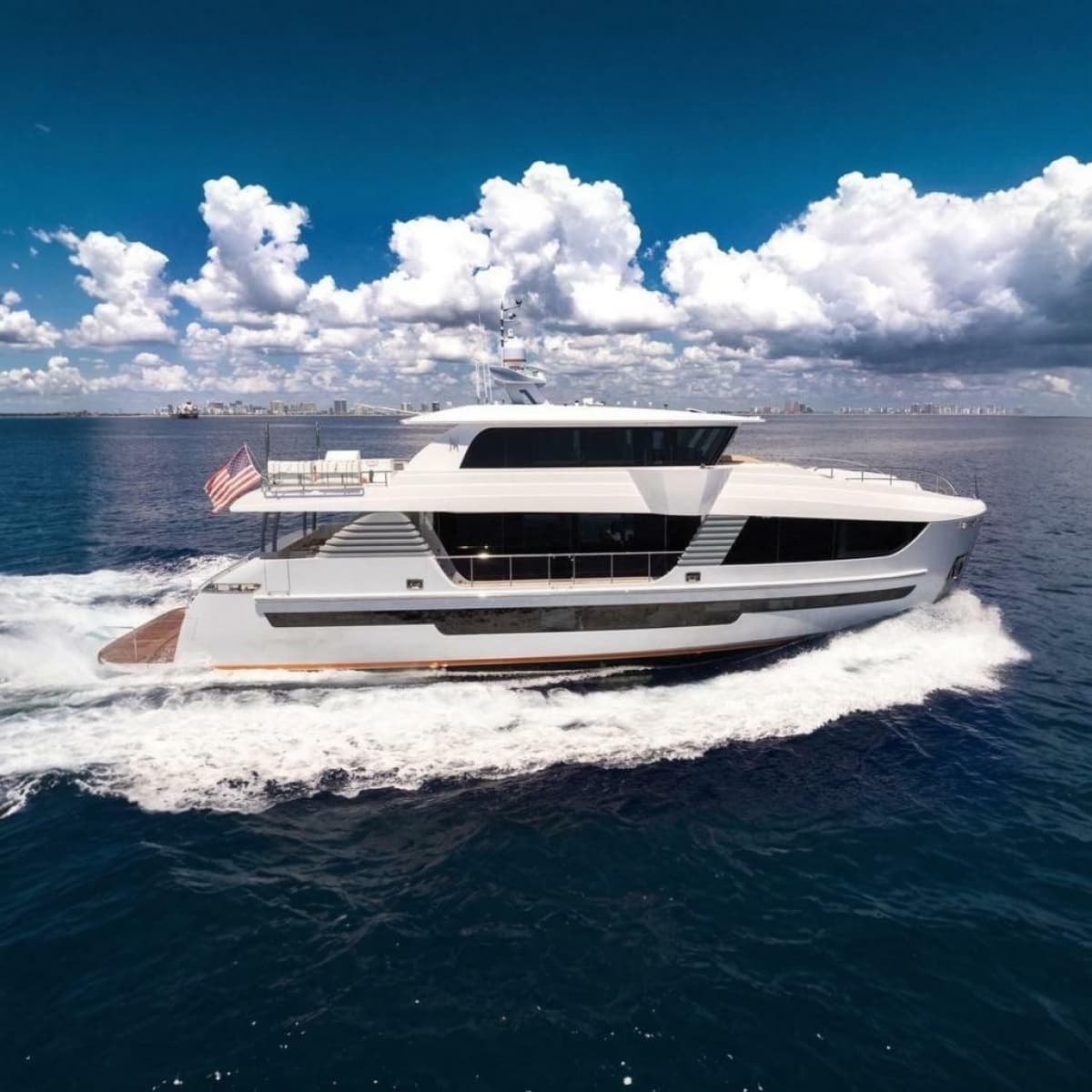

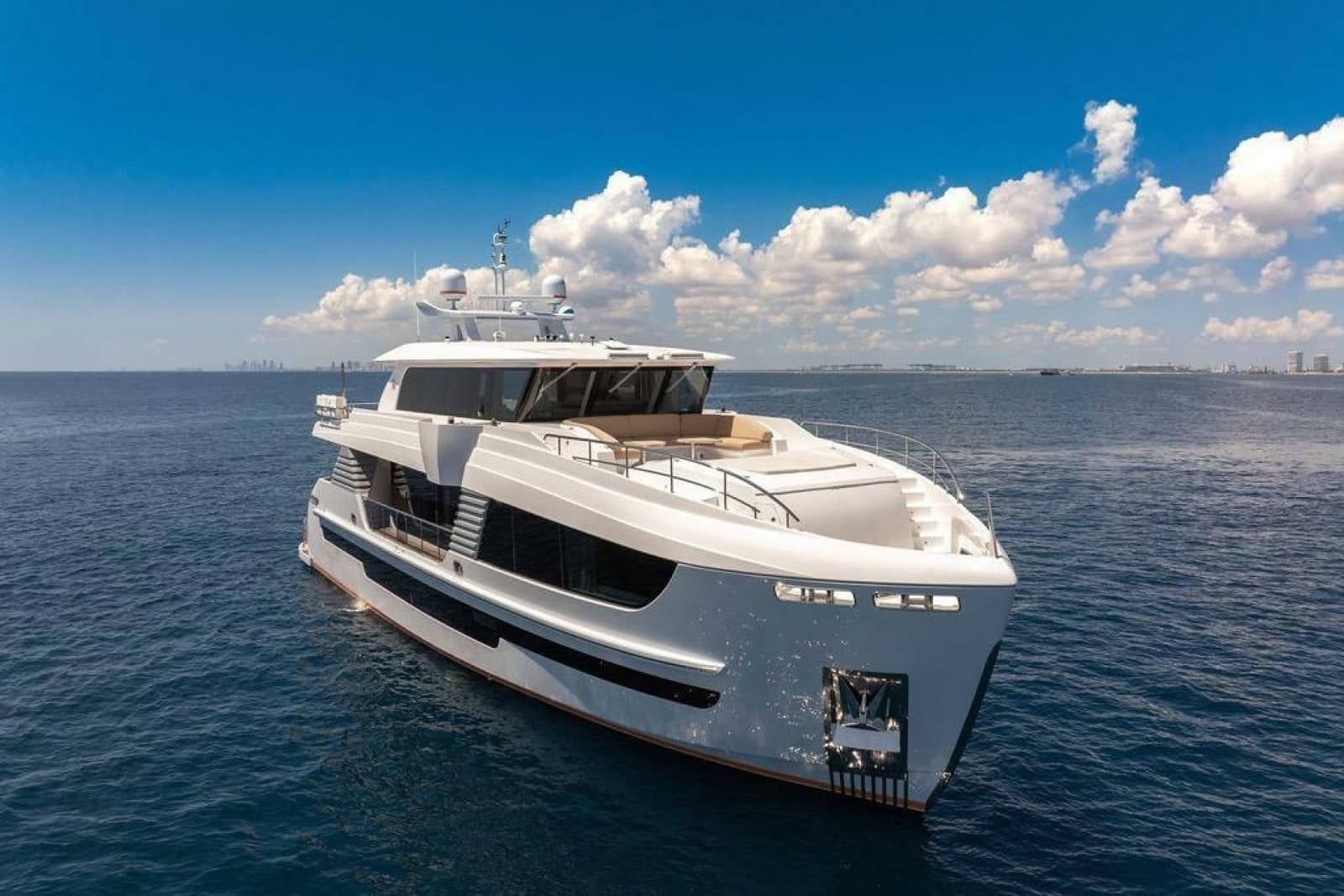

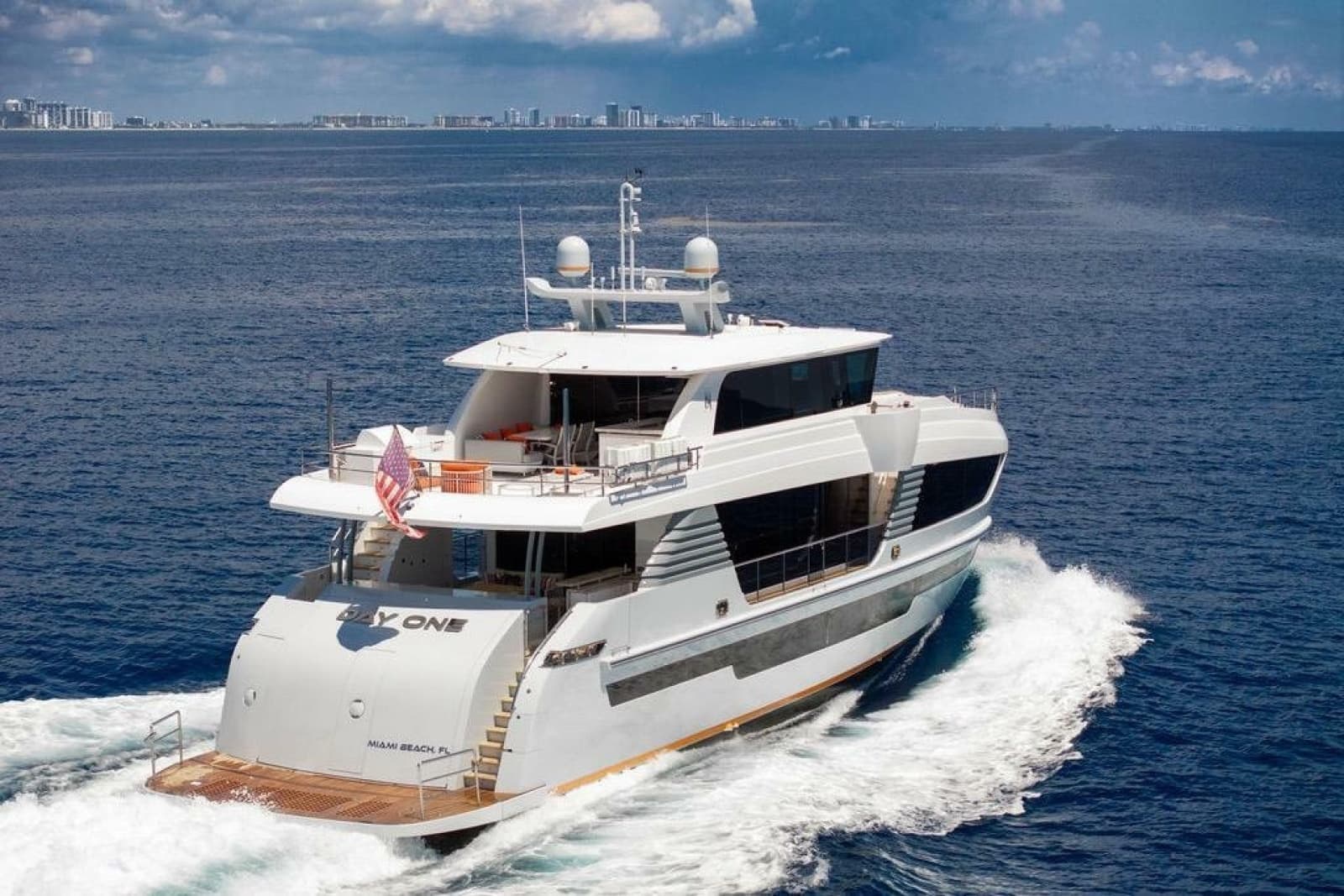

Bold, modern, and exceptionally well-maintained, the 2020 92’ Hargrave C92 Day One presents a standout opportunity in today’s market. Built in 2020 and kept in excellent condition, she is equally suited for private ownership or high-end charter use throughout the Bahamas, Caribbean, or beyond. Her versatile layout and strong feature set make her one of the more compelling offerings in her class.

Outdoor spaces are thoughtfully designed for both relaxation and entertaining. The foredeck offers a private lounge with shaded seating, while the upper deck features a seamless indoor-outdoor dining experience with alfresco seating, bar, and open-air gathering areas. The yacht’s beach club further enhances the onboard lifestyle, complete with lounge seating, bar, and a hydraulic swim platform for easy access to the water.

Inside, Day One showcases a clean, contemporary interior with modern finishes and abundant natural light. The on-deck, full-beam master stateroom provides a spacious and comfortable owner’s retreat with his-and-hers en-suite. Additional accommodations include well-appointed guest staterooms, while the skylounge and extended pilothouse offer added flexibility with a secondary lounge, day head, and dedicated workspace—ideal for extended cruising.

Key Features:

• Twin MTU 10V2000M96 1600 hp engines
• 4 Stateroom layout
• On-deck full-beam Master Stateroom
• Enclosed Sky Lounge
• Beach Club Package
• NAIAD zero speed stabilizer
• NAIAD hydraulic bow and stern thrusters

Recent Upgrades & Services 2026:

• Full MTU Major Services
• New Batteries (17)
• Full Generator(s) Services

Vessel Walkthrough:

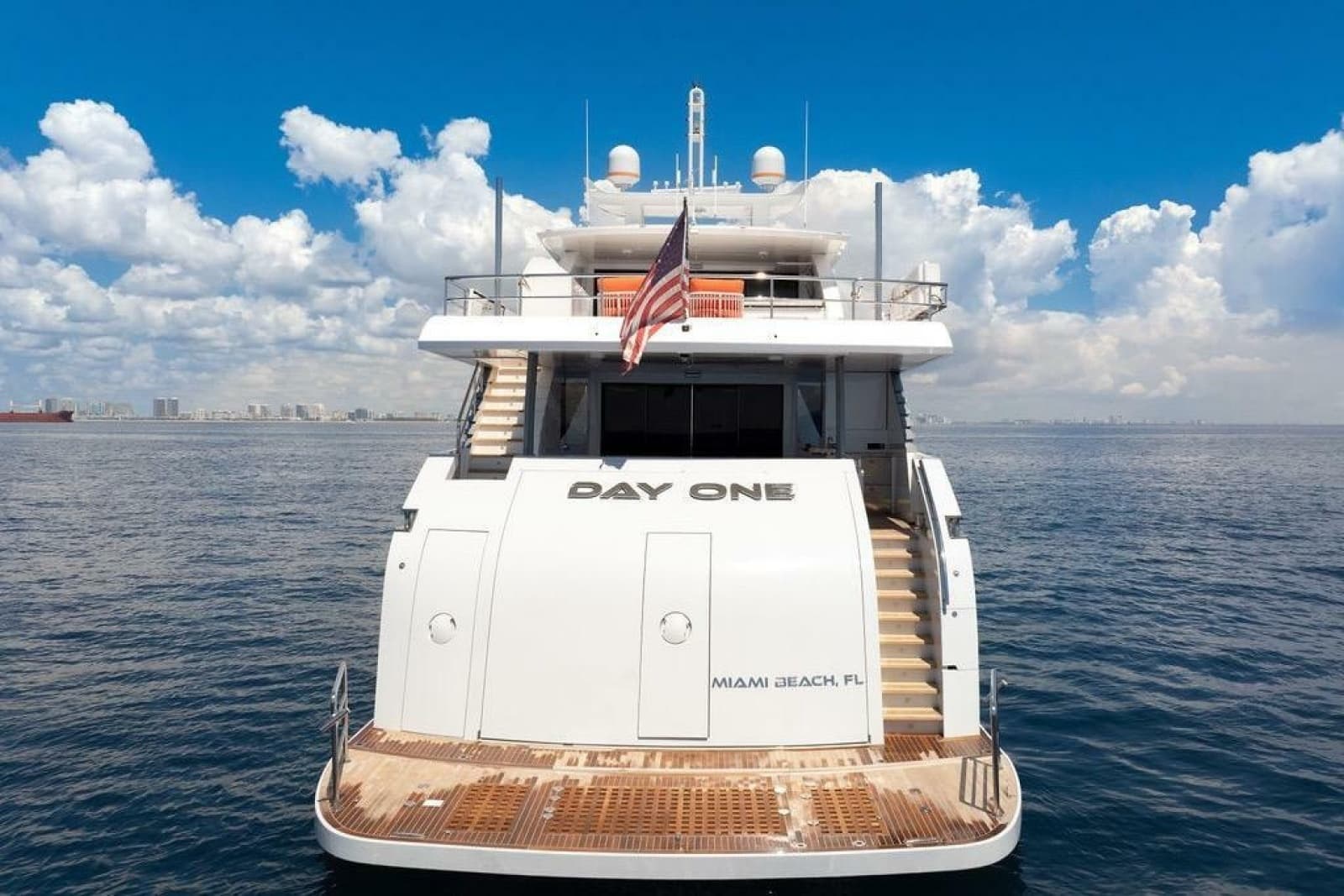

As you board the yacht from the aft, you'll land on the spacious swim platform. This area has dual purposes; it’s perfect for launching water toys and accessing the water, and it also serves as an initial boarding step.

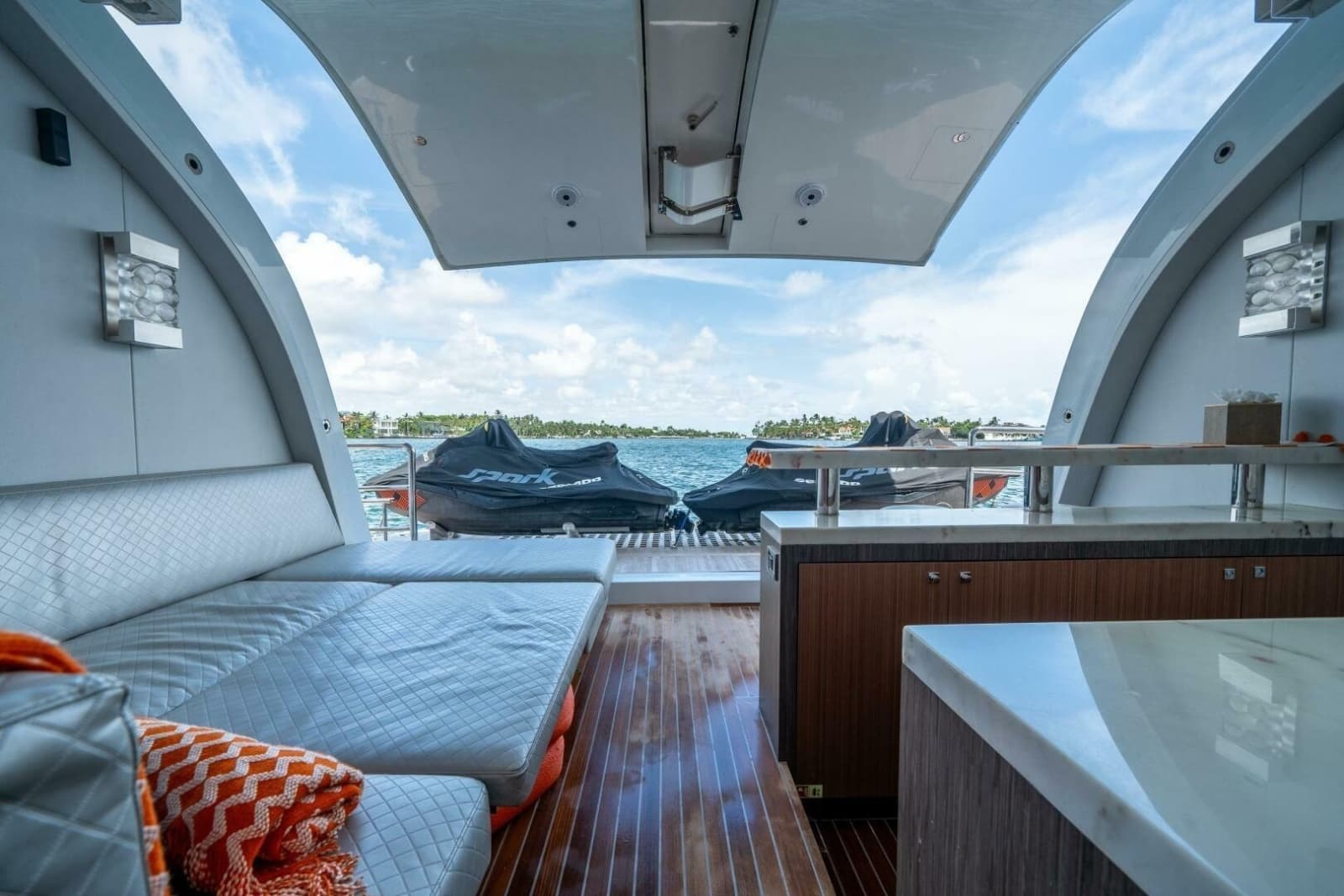

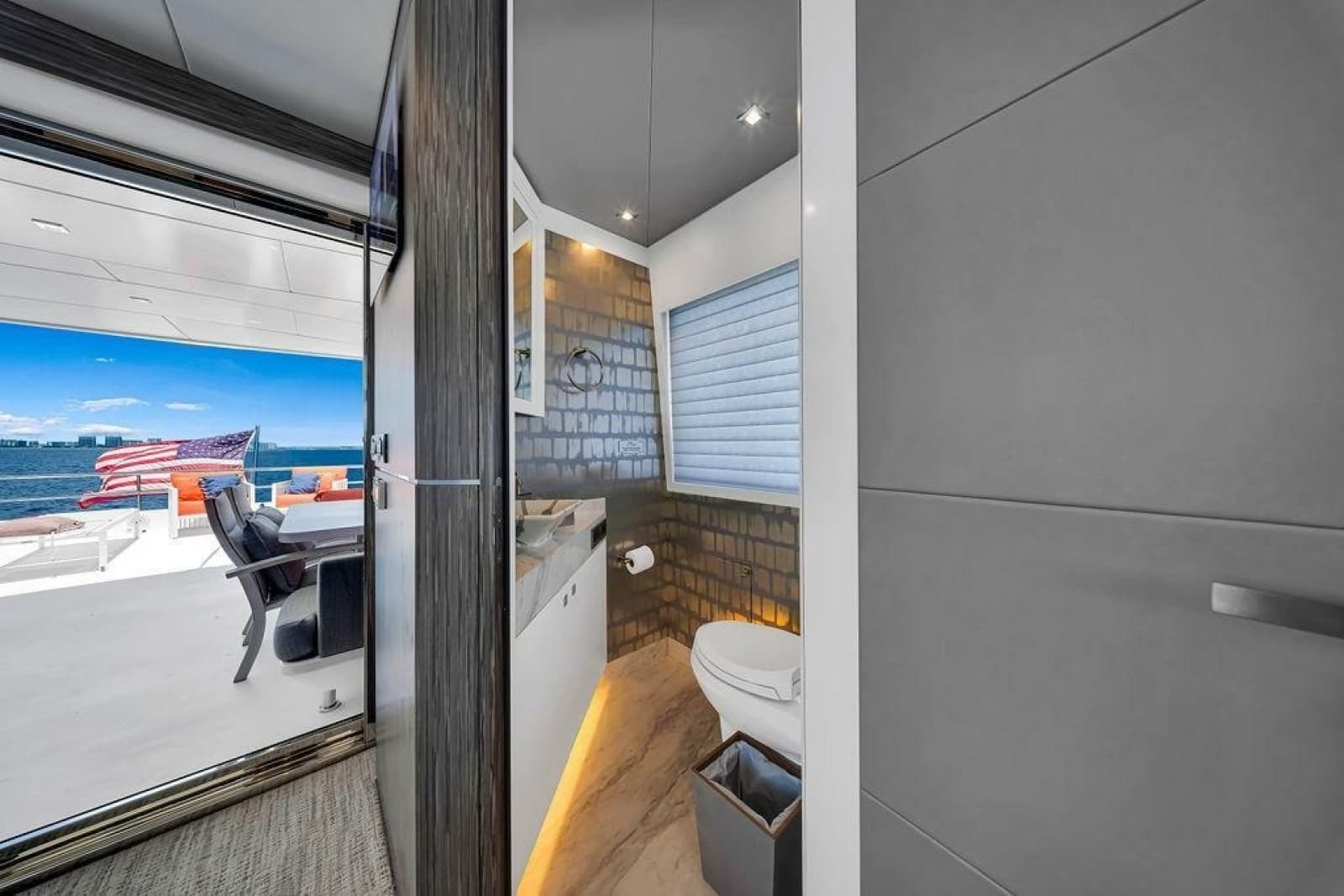

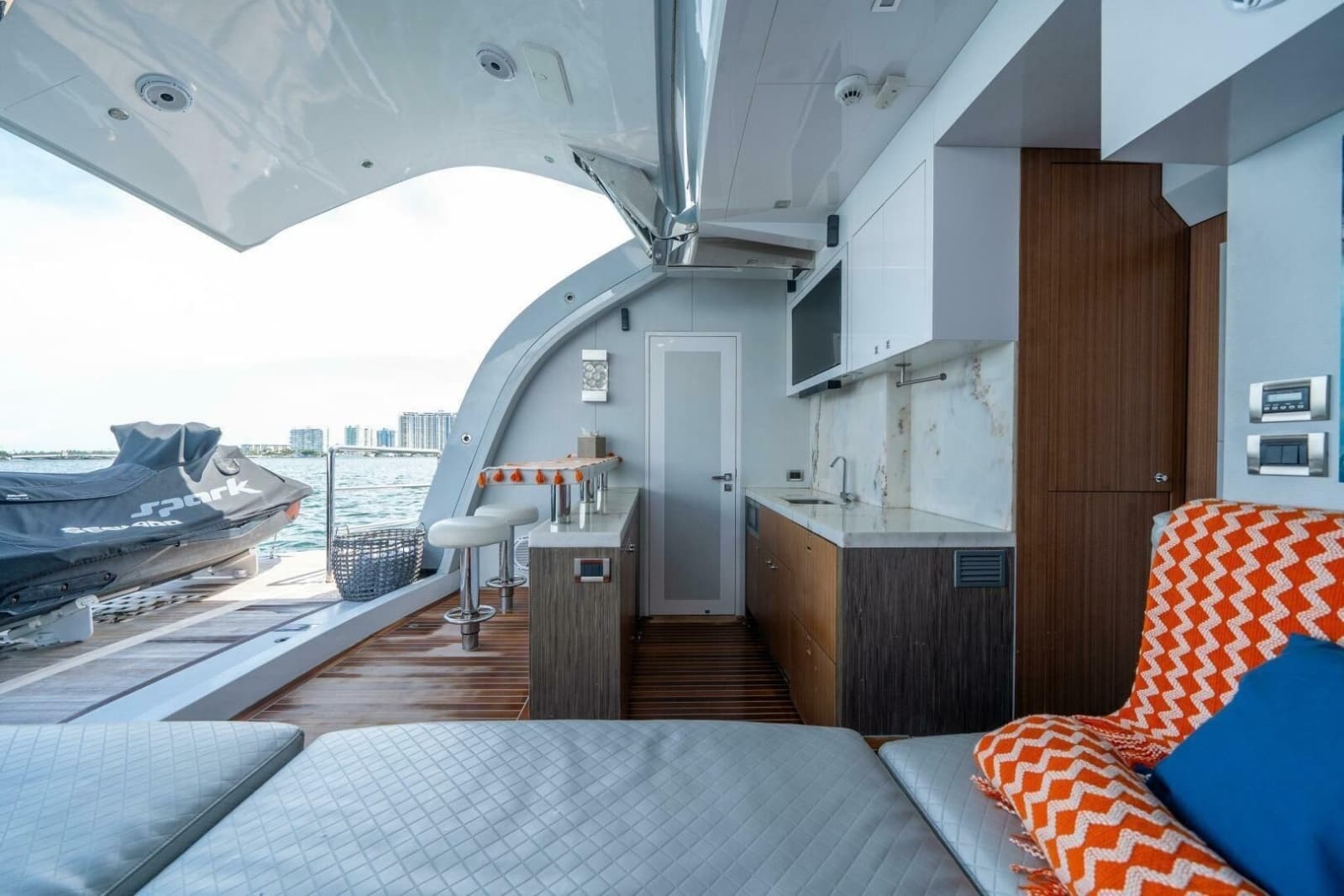

The large beach club features a half bath on the port side, a fully equipped stand-up bar with stools, and a u-shaped lounge on the starboard side. The beach club can be directly accessed from and become part of the crew area. This area also serves as a crew lounge at night and the settee converts to an additional berth. There is an access door plus the entire stern aft panel can be lifted into the air or there is an access door mounted in the center of the panel. The swim platform is hydraulic and can be lowered into the water.

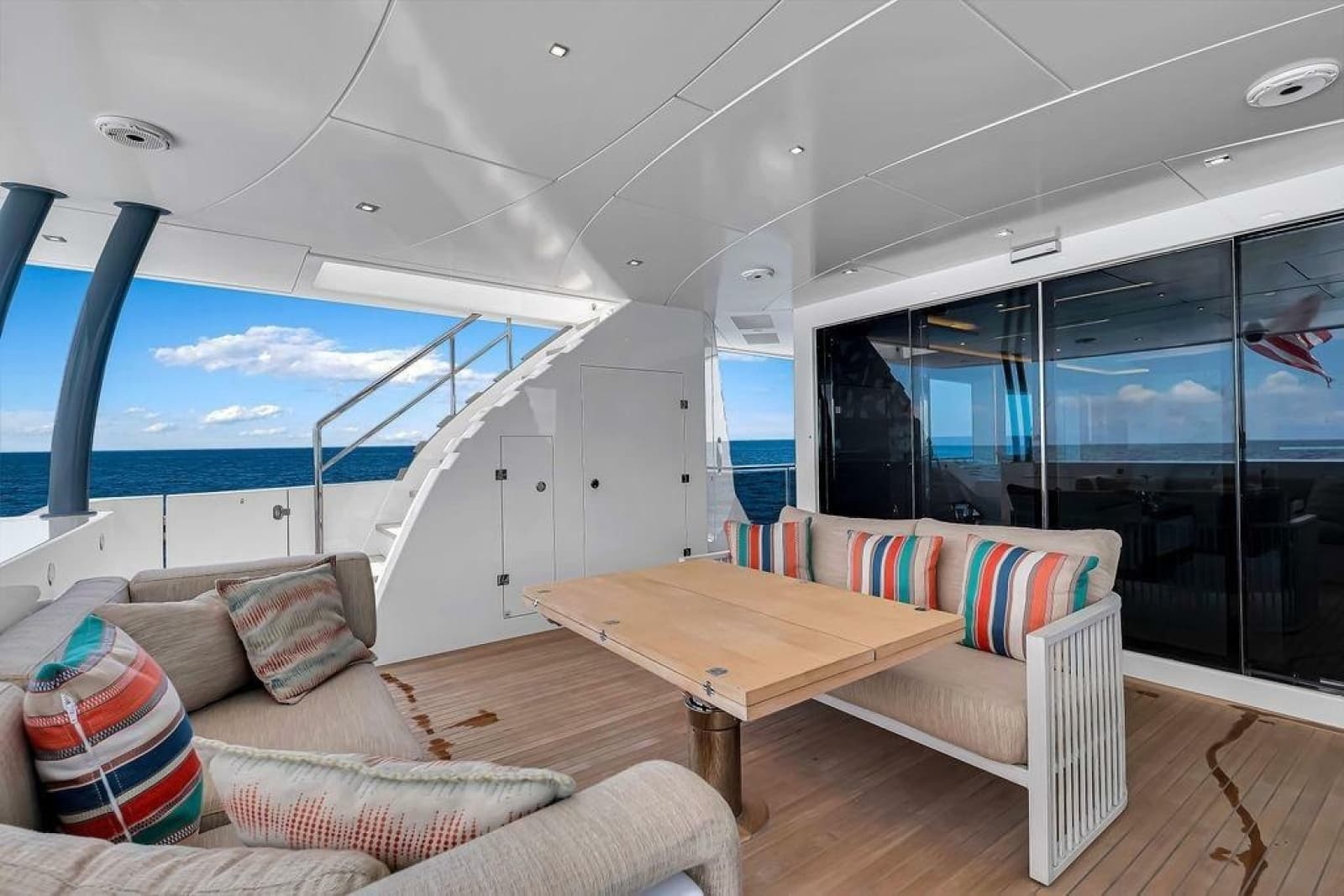

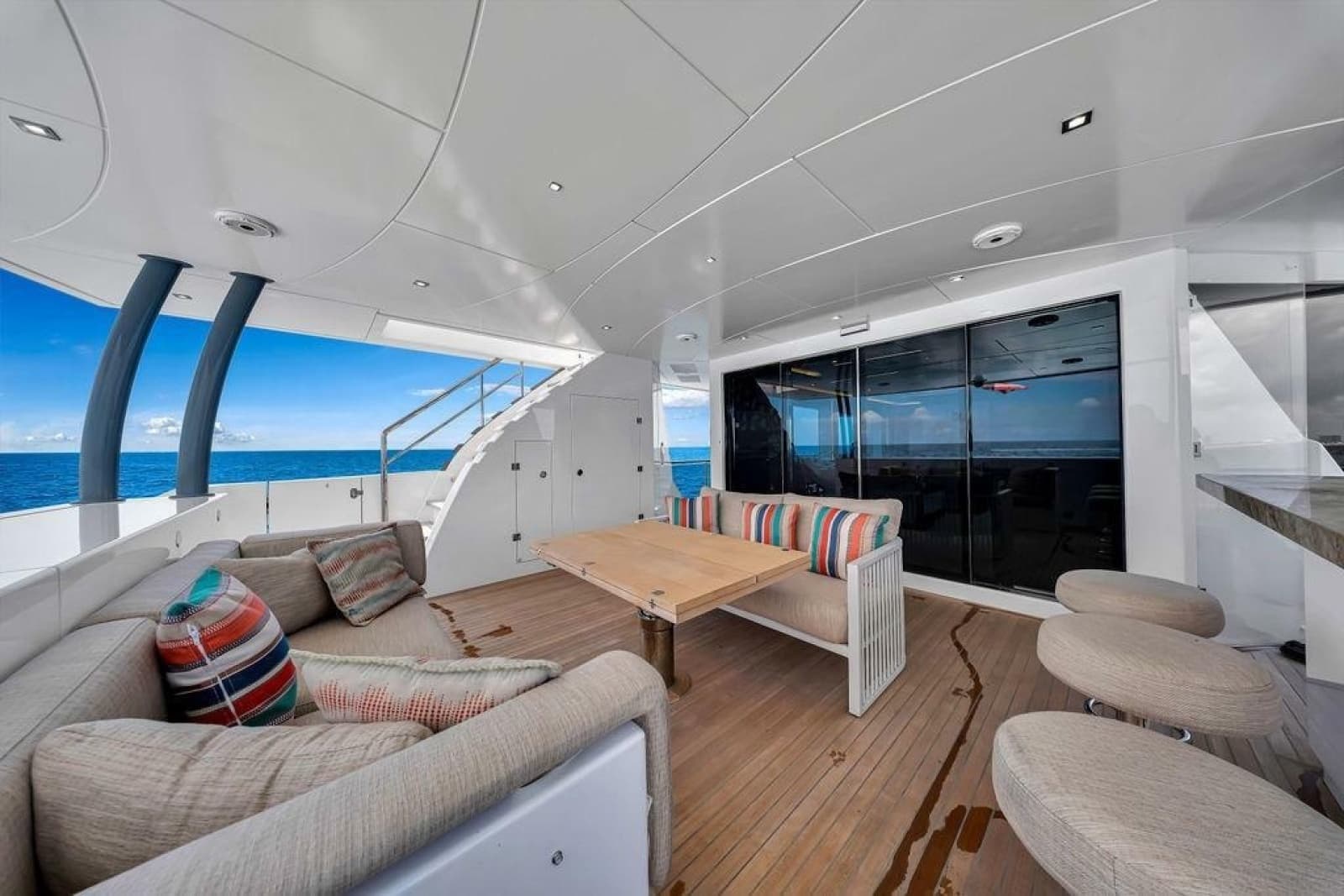

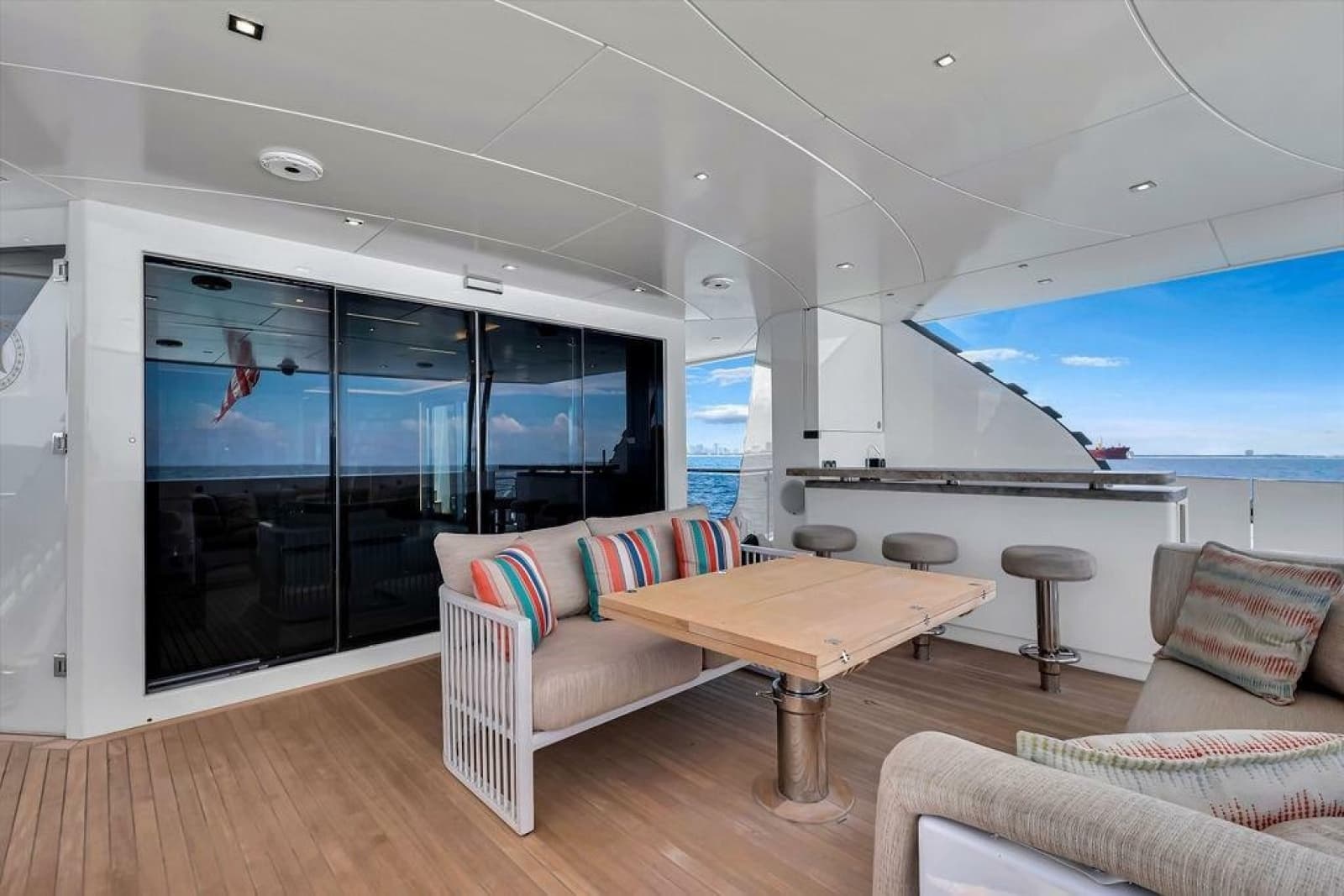

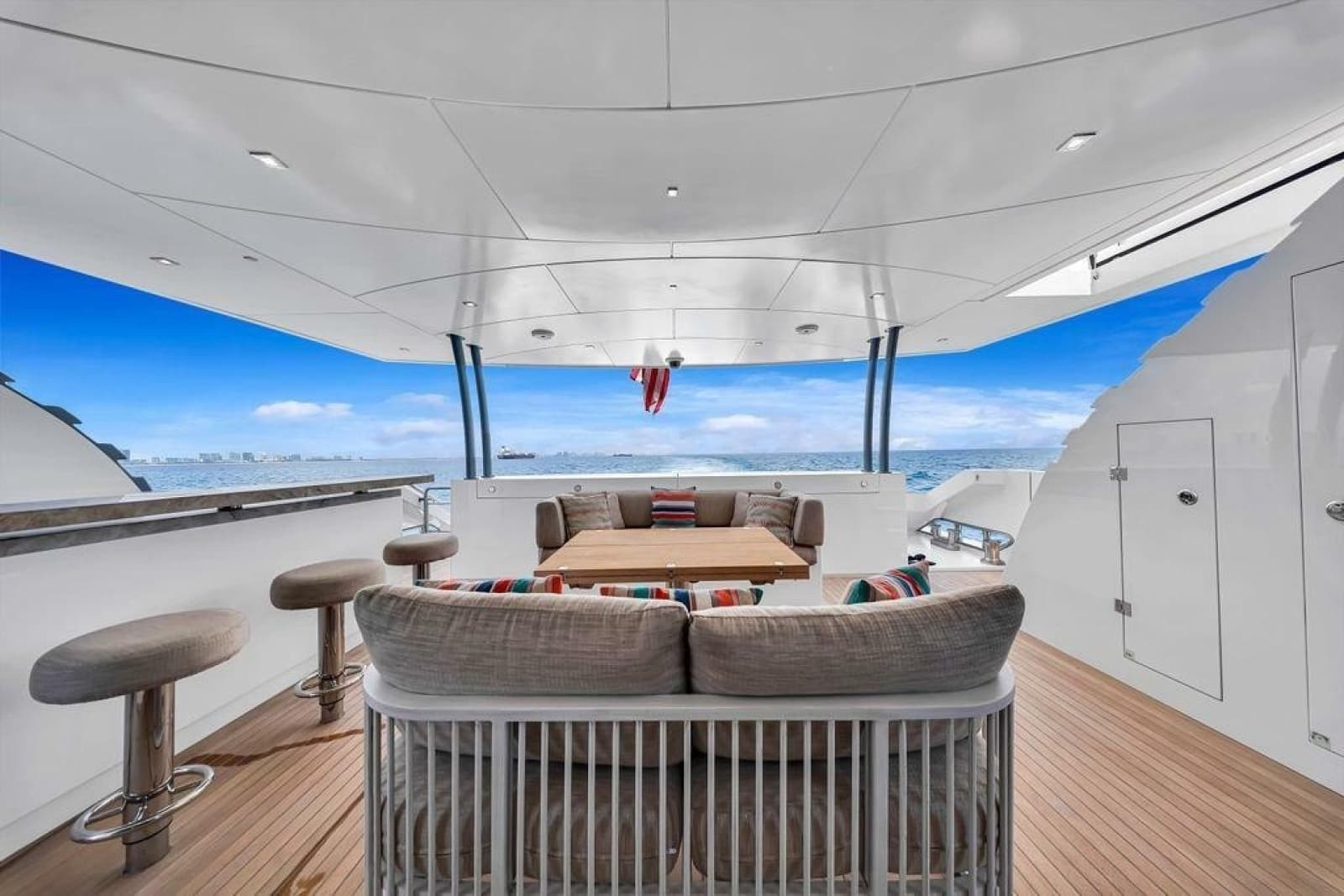

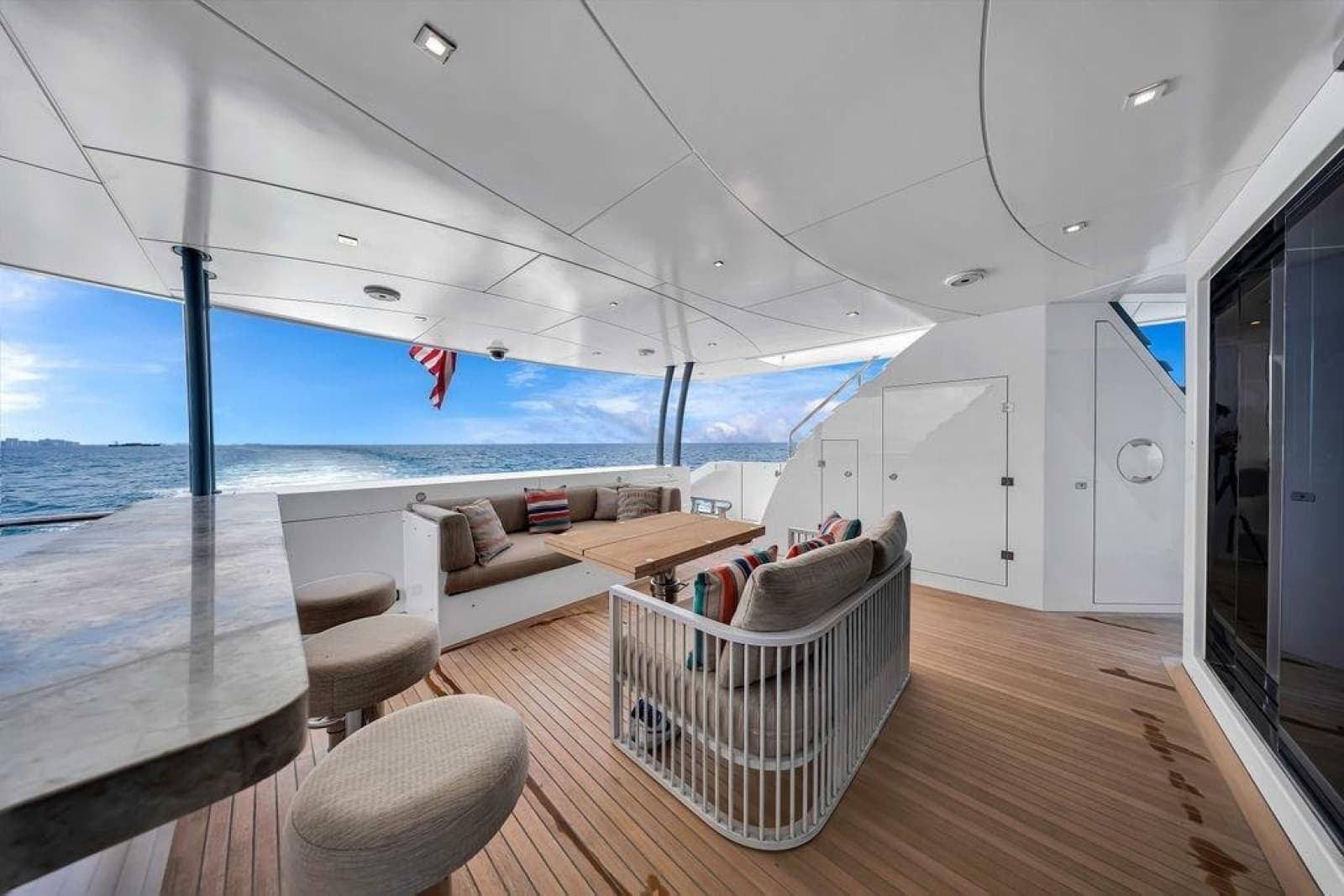

From the swim platform, ascend a few steps to the aft deck. This outdoor area is ideal for lounging and dining. Featuring a large dining table surrounded by plush seating, it provides the perfect setting for al fresco meals and socializing while remaining sheltered from the elements by the overhead deck.

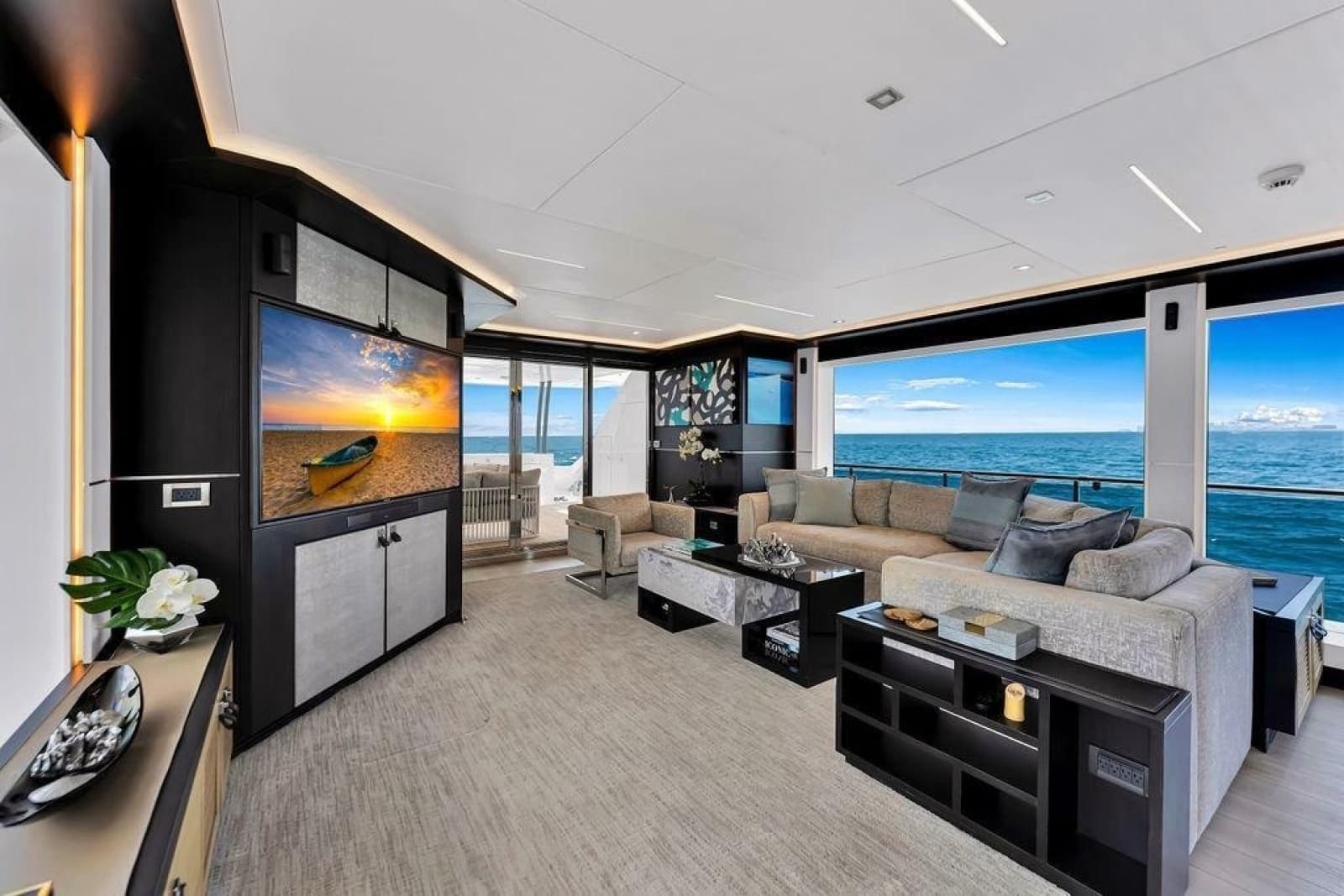

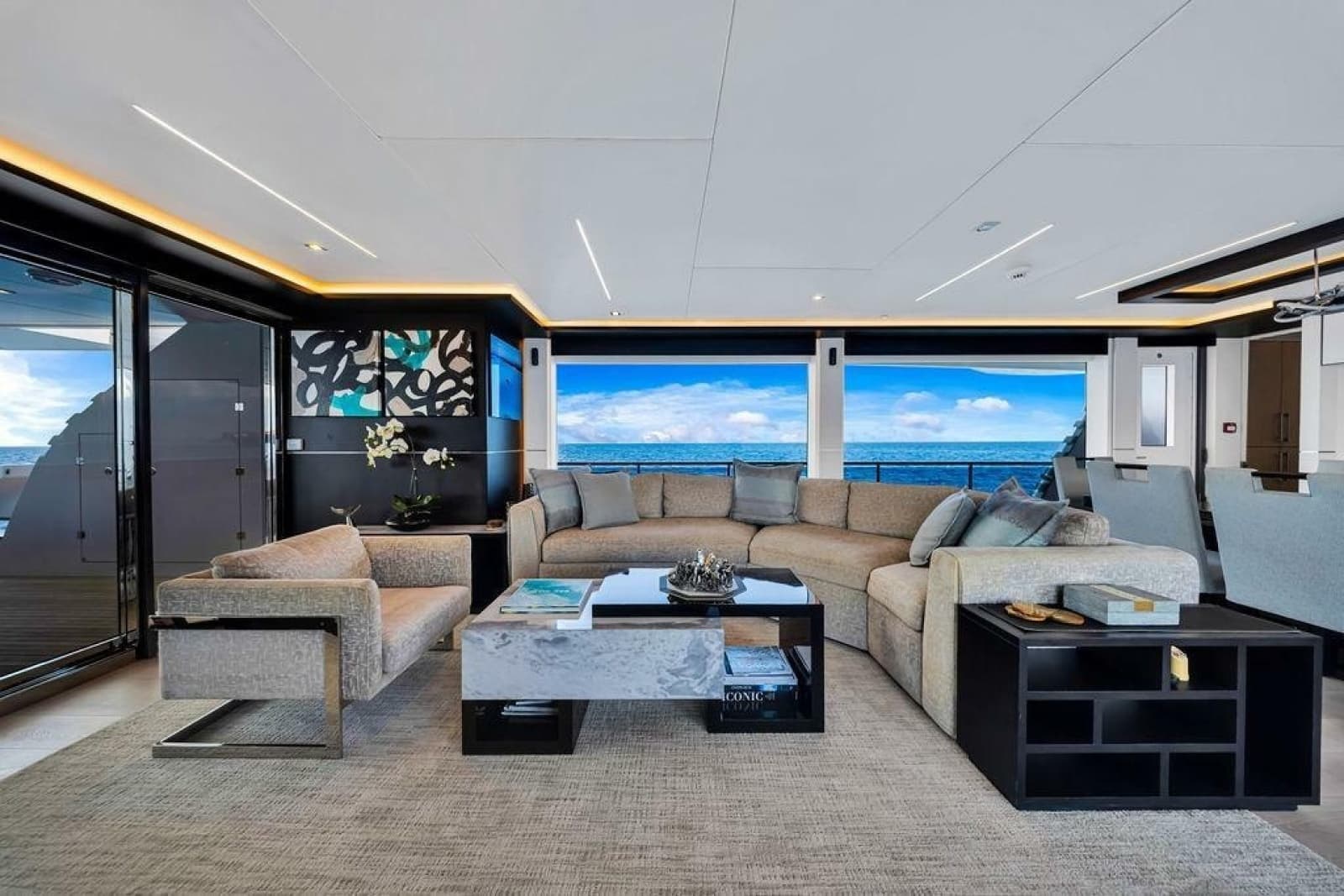

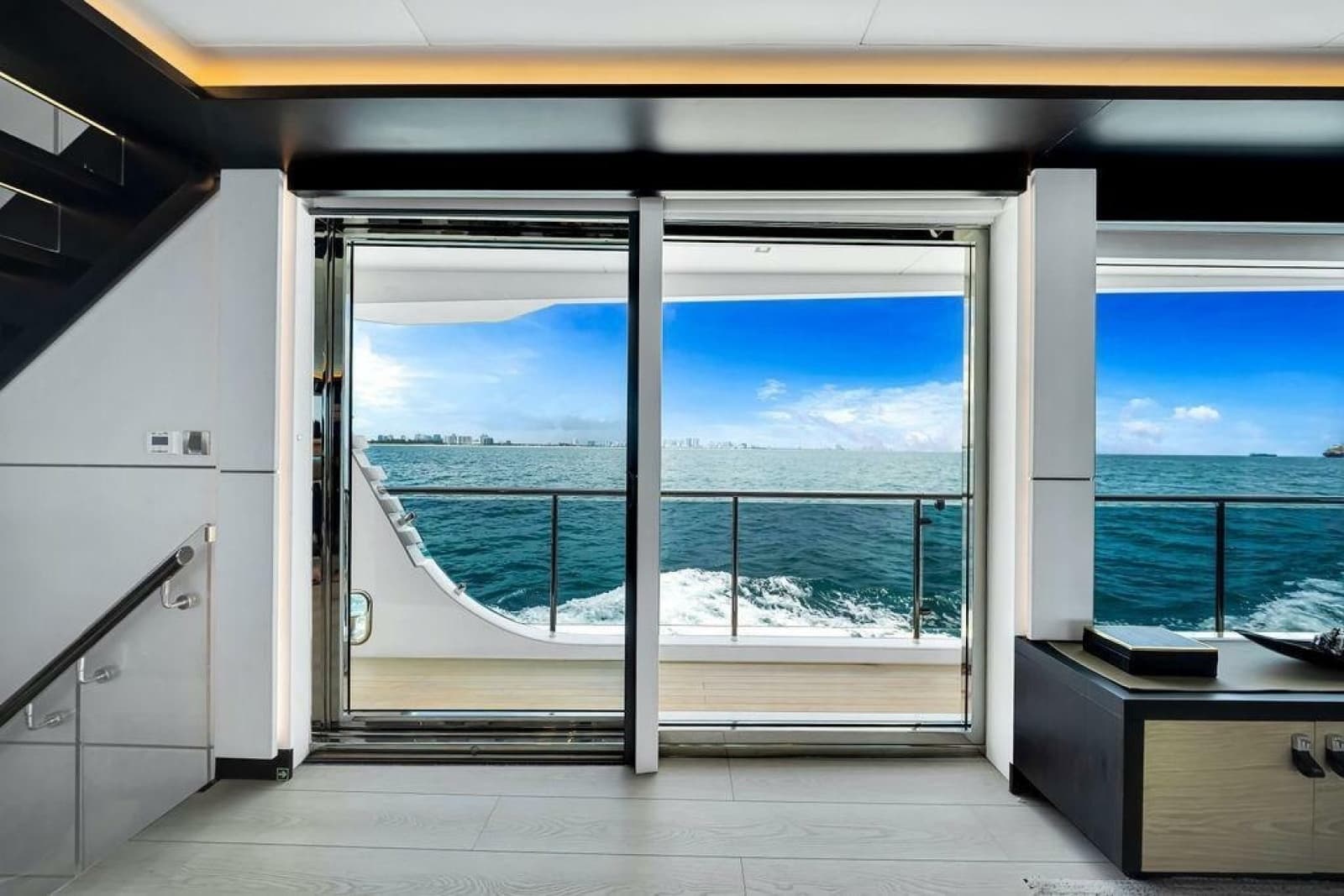

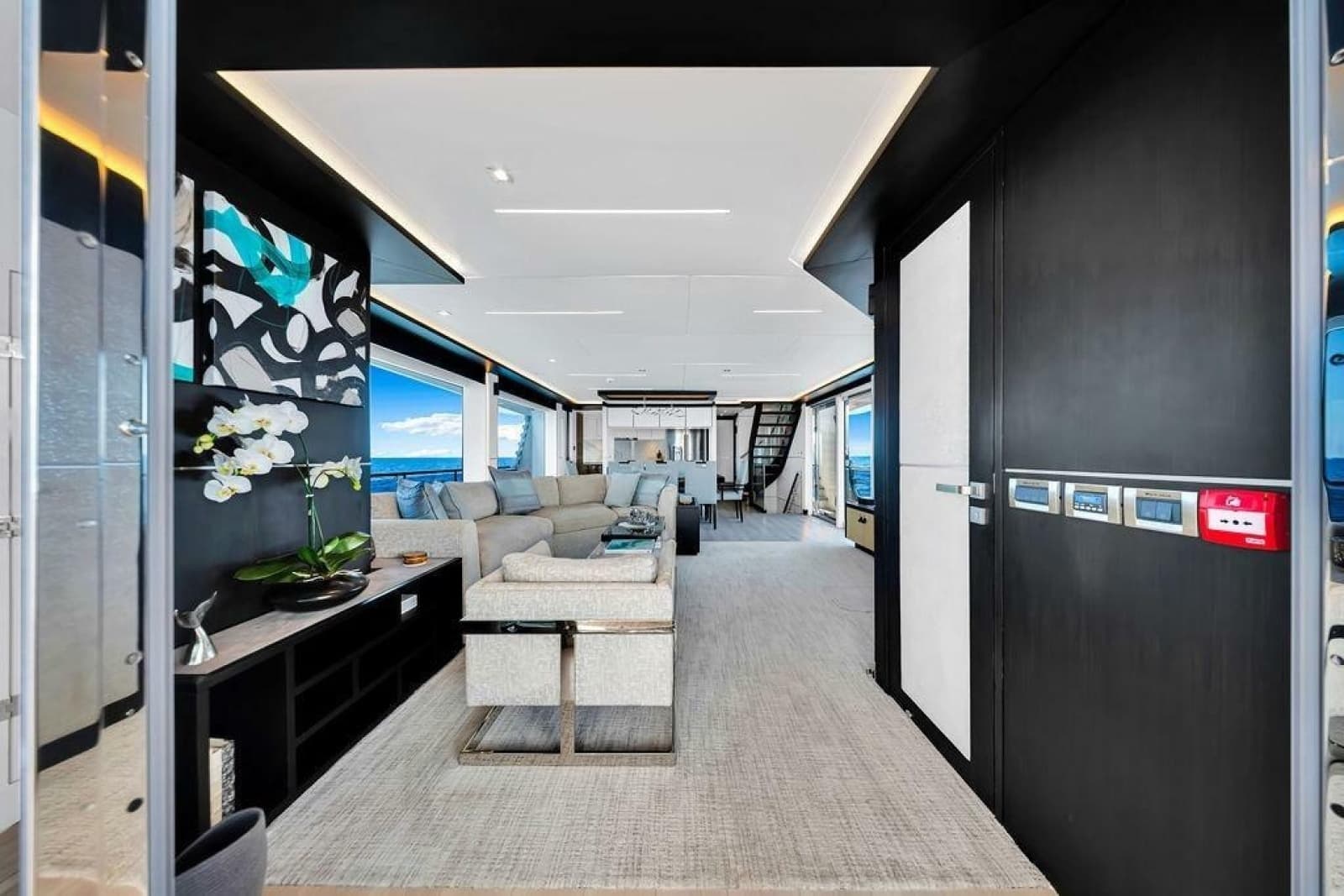

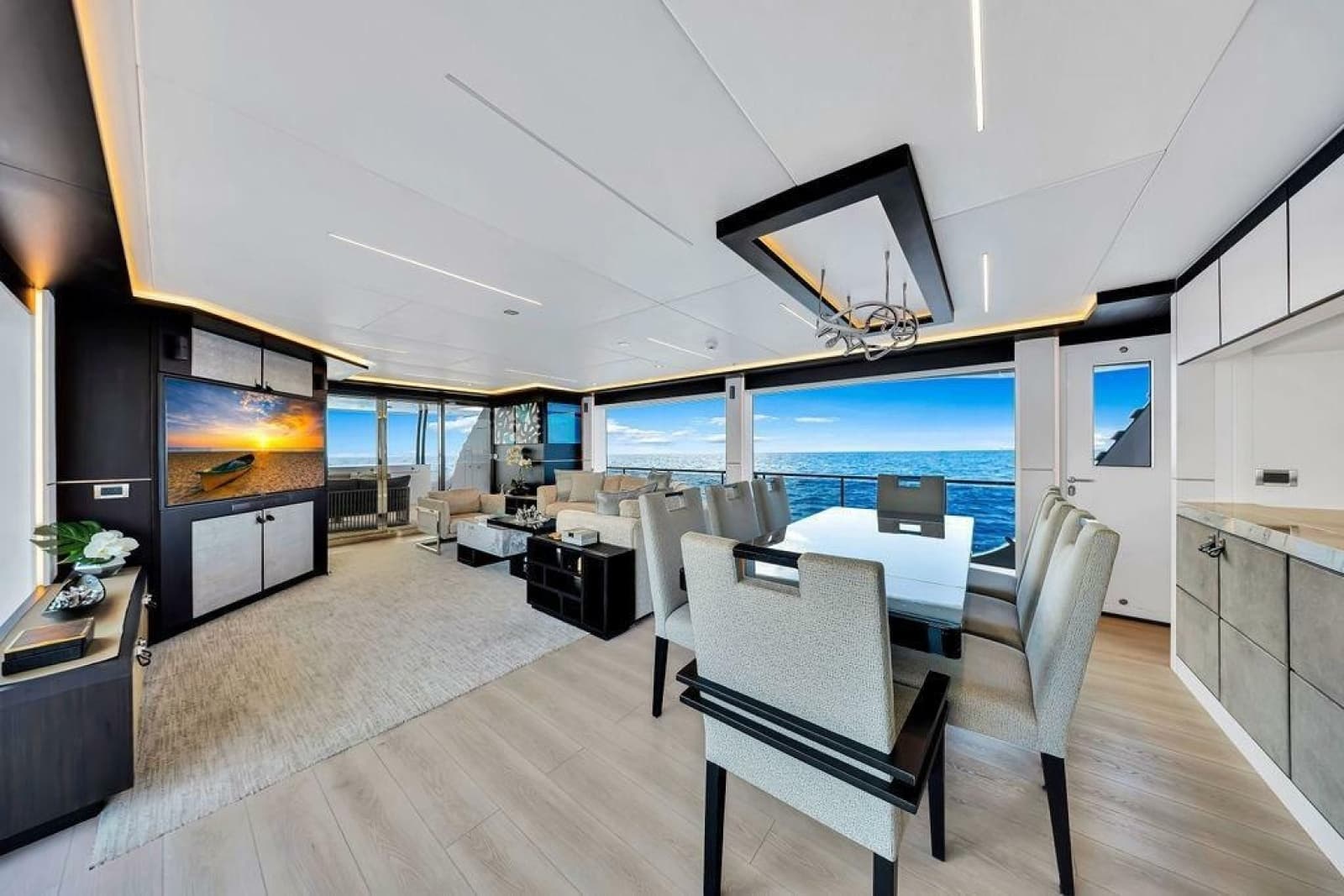

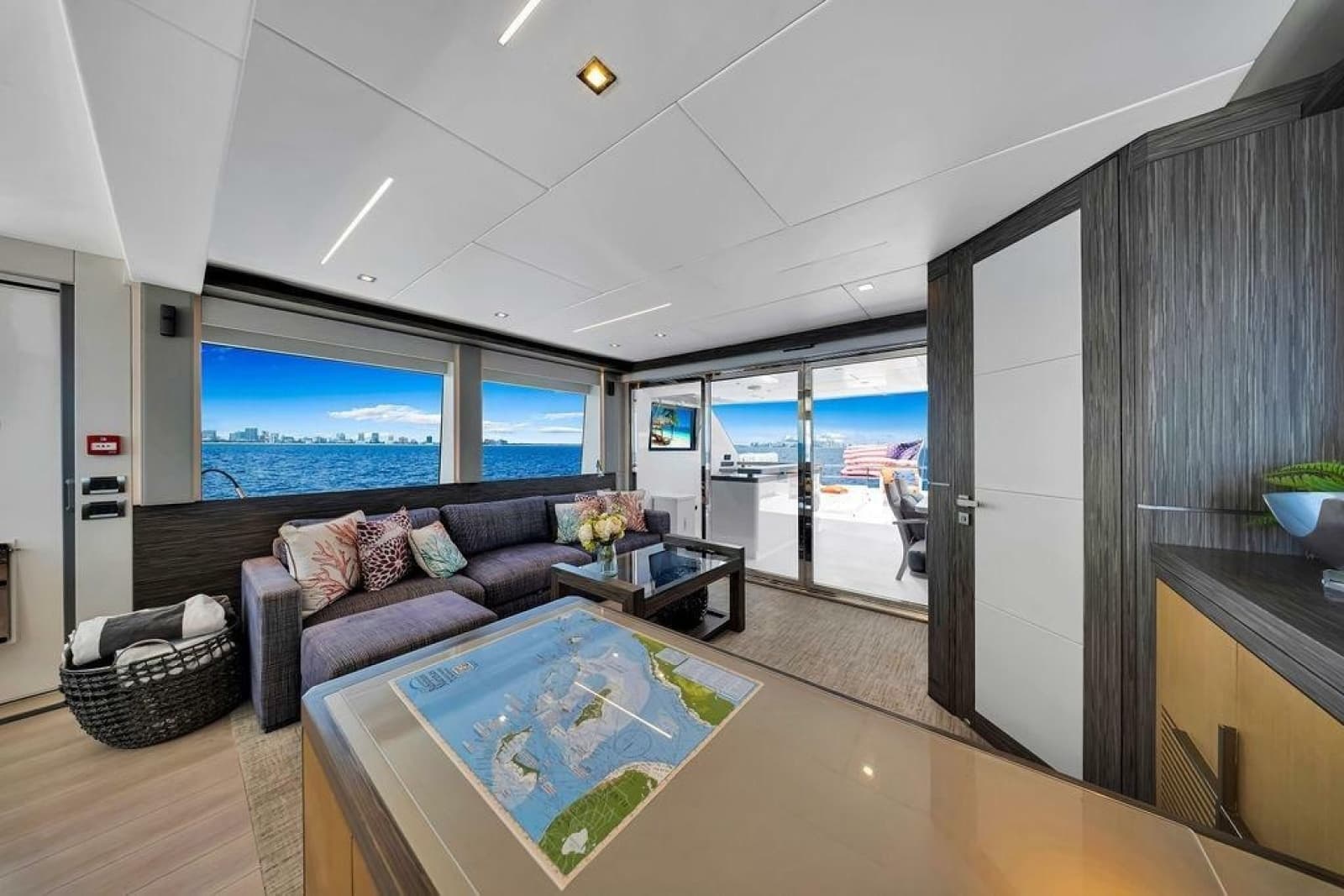

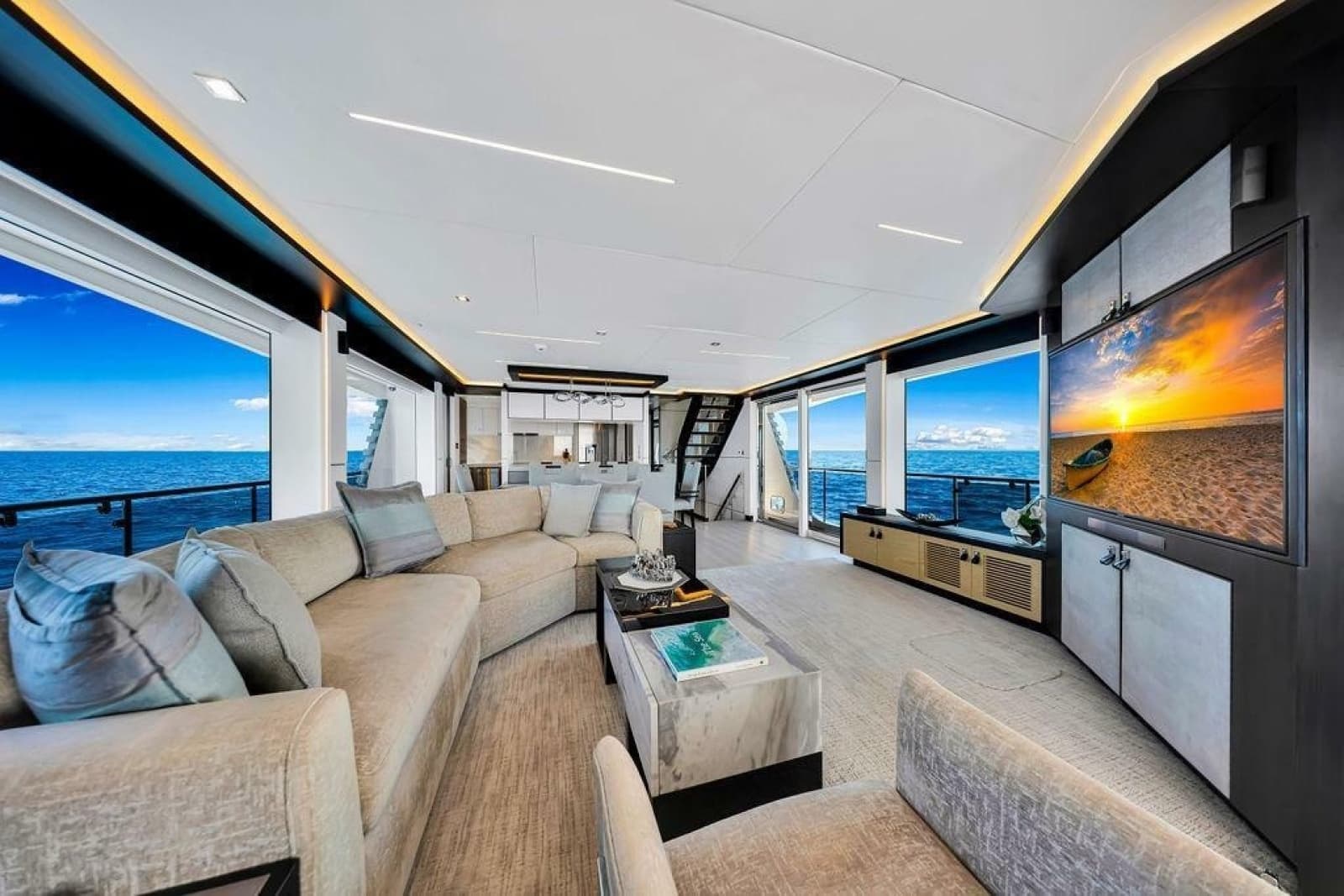

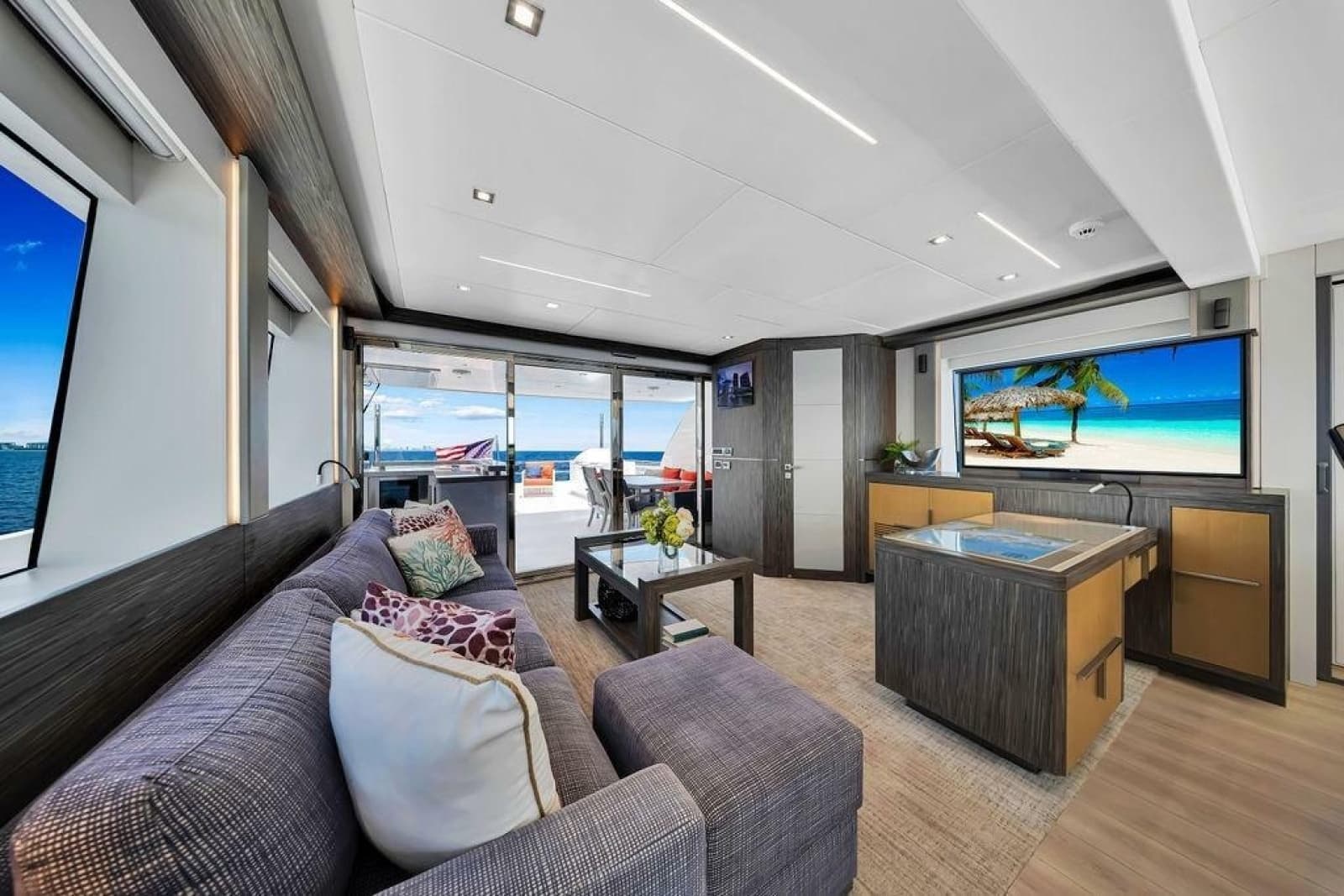

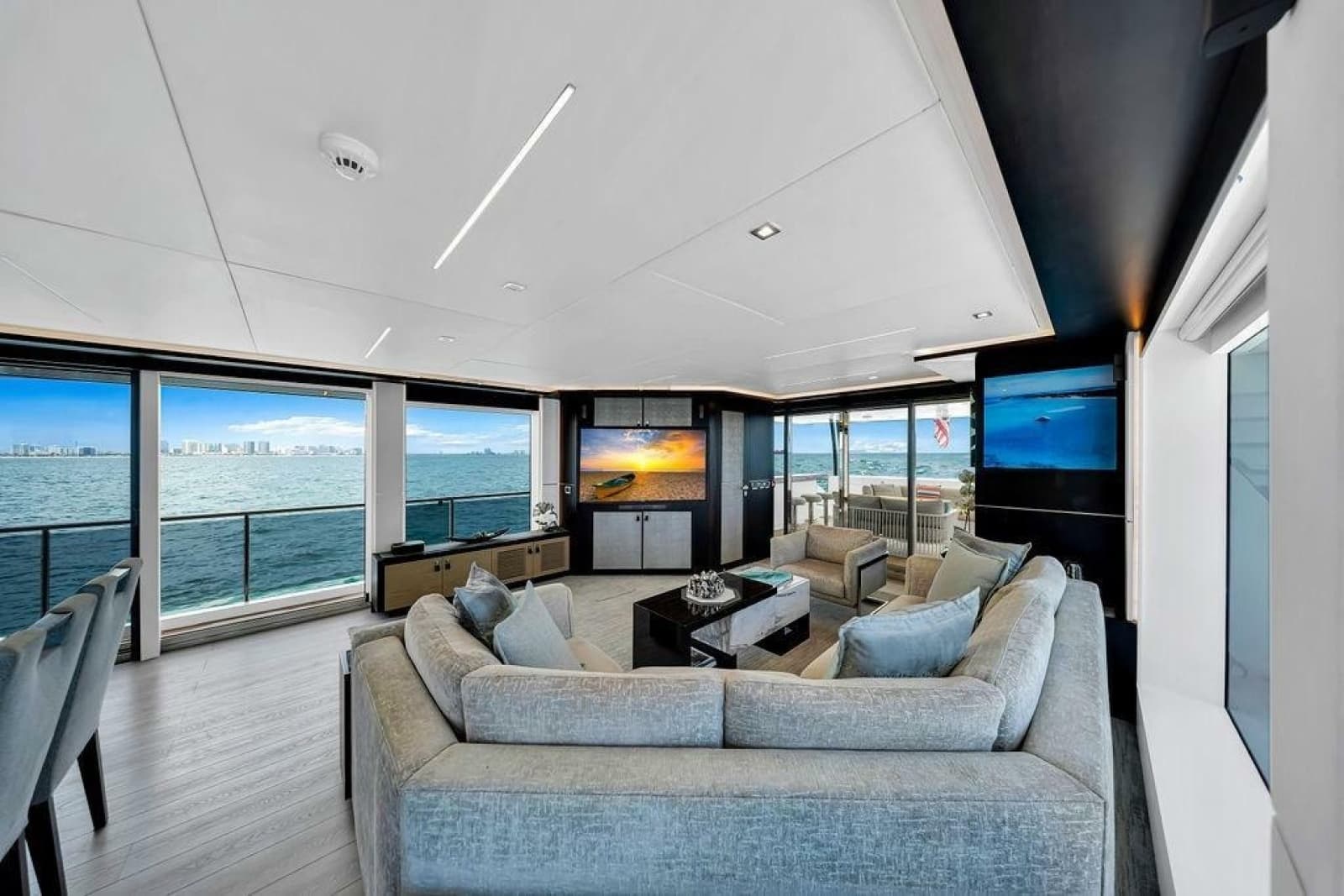

Step through the large sliding glass doors into the salon. Here, you're greeted by a beautifully designed, open-plan living space adorned with elegant furniture, rich woodwork, and expansive windows that flood the area with natural light. Plush sofas and loungers invite relaxation, complemented by a state-of-the-art entertainment system including a large flat-screen TV and premium sound system.

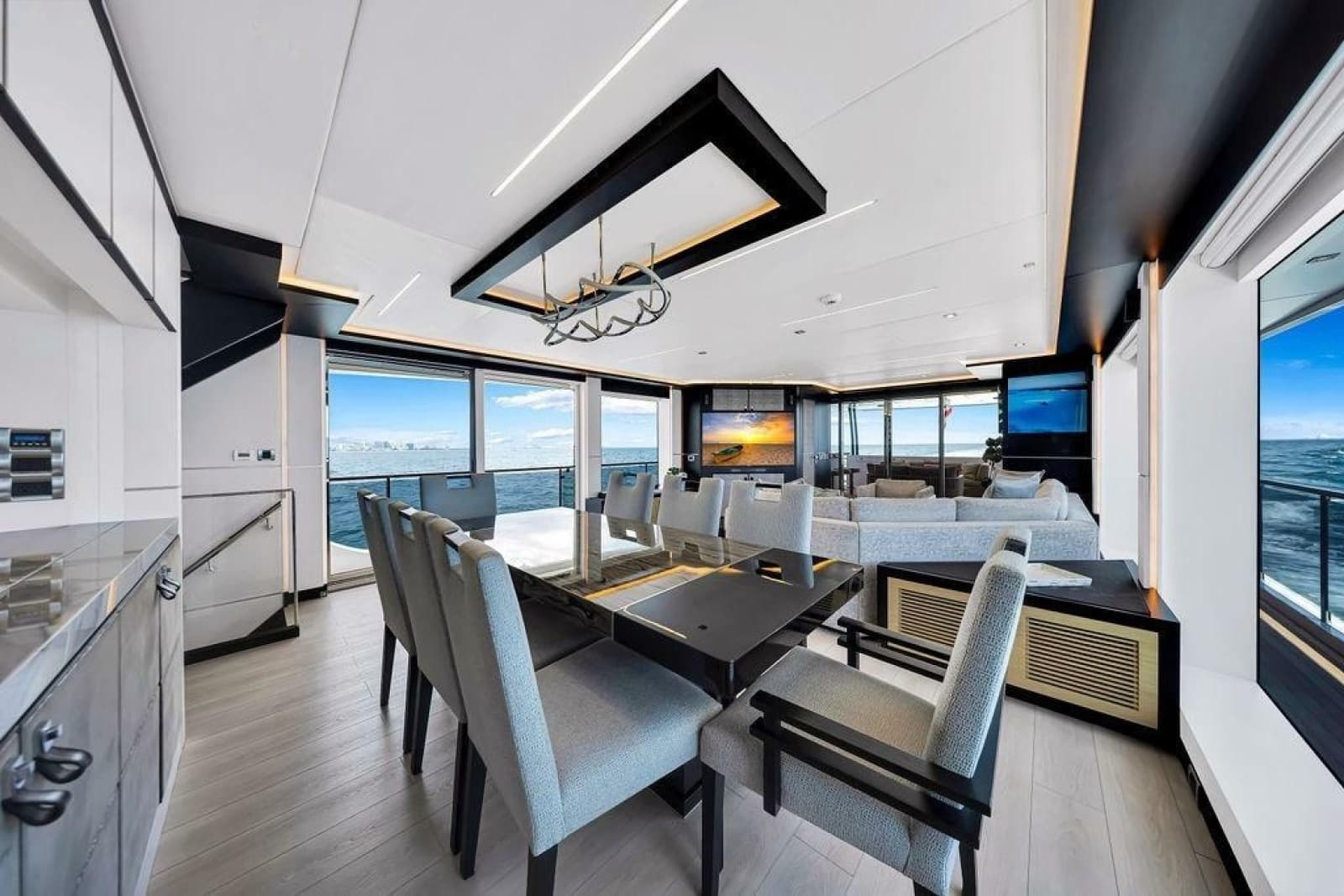

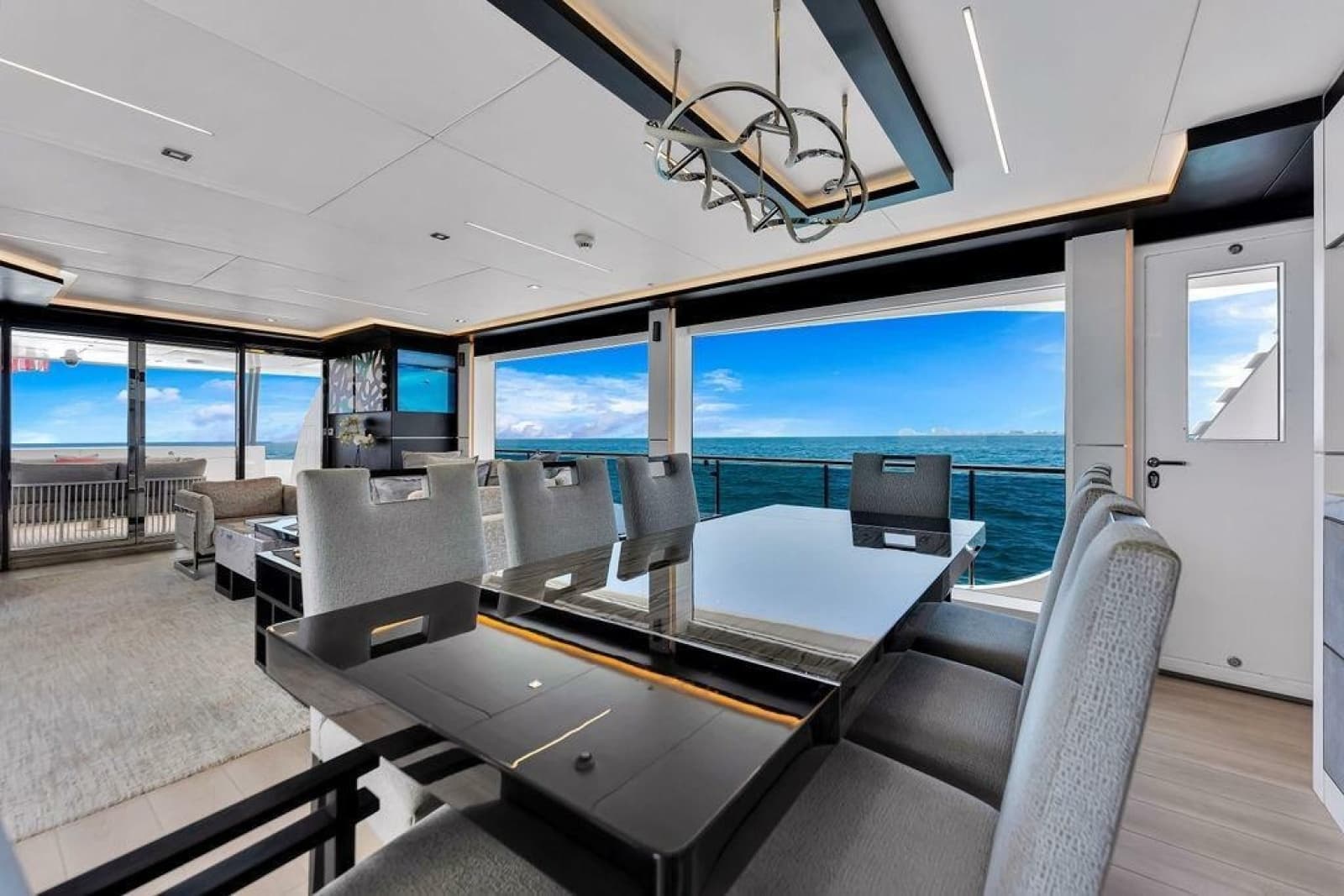

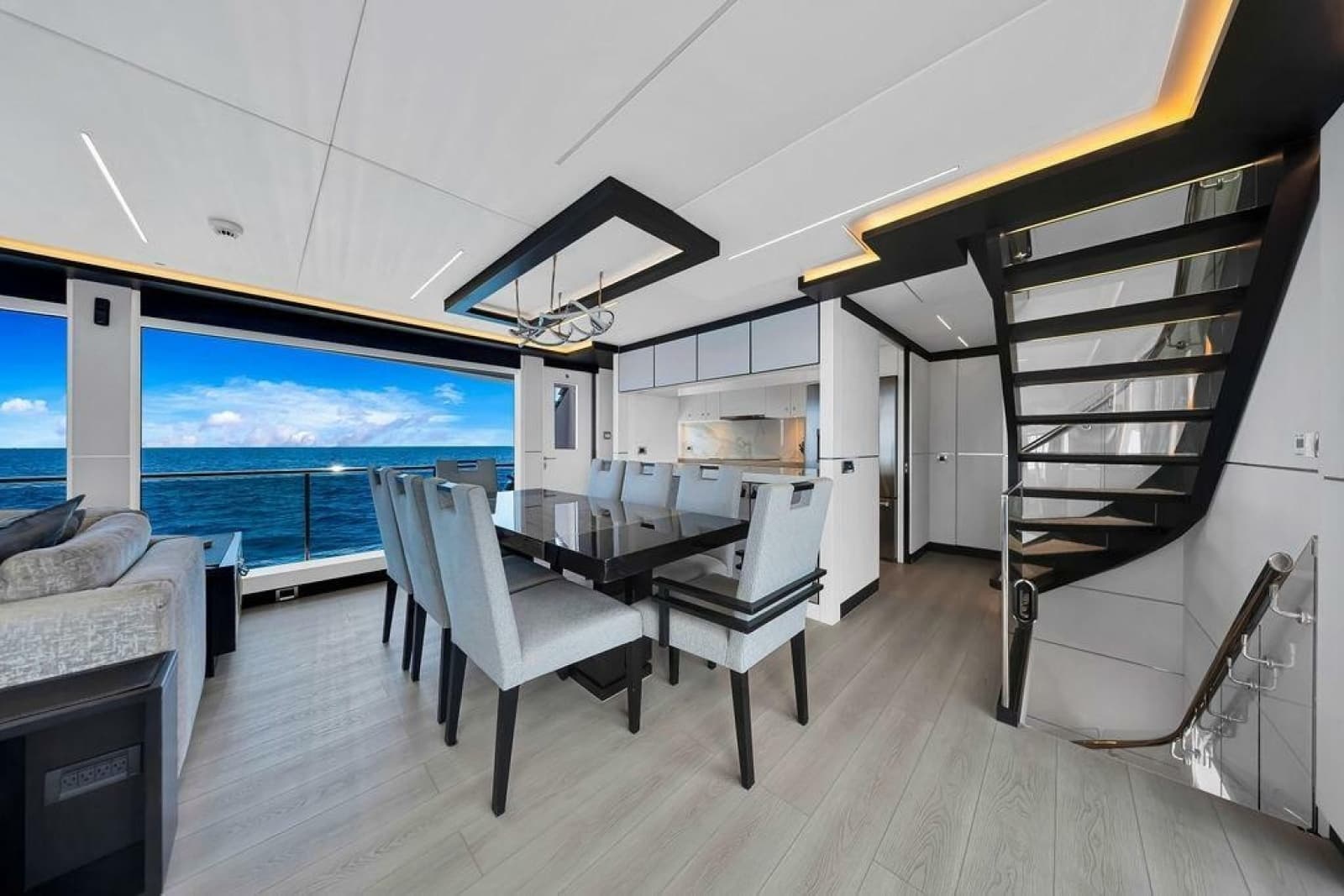

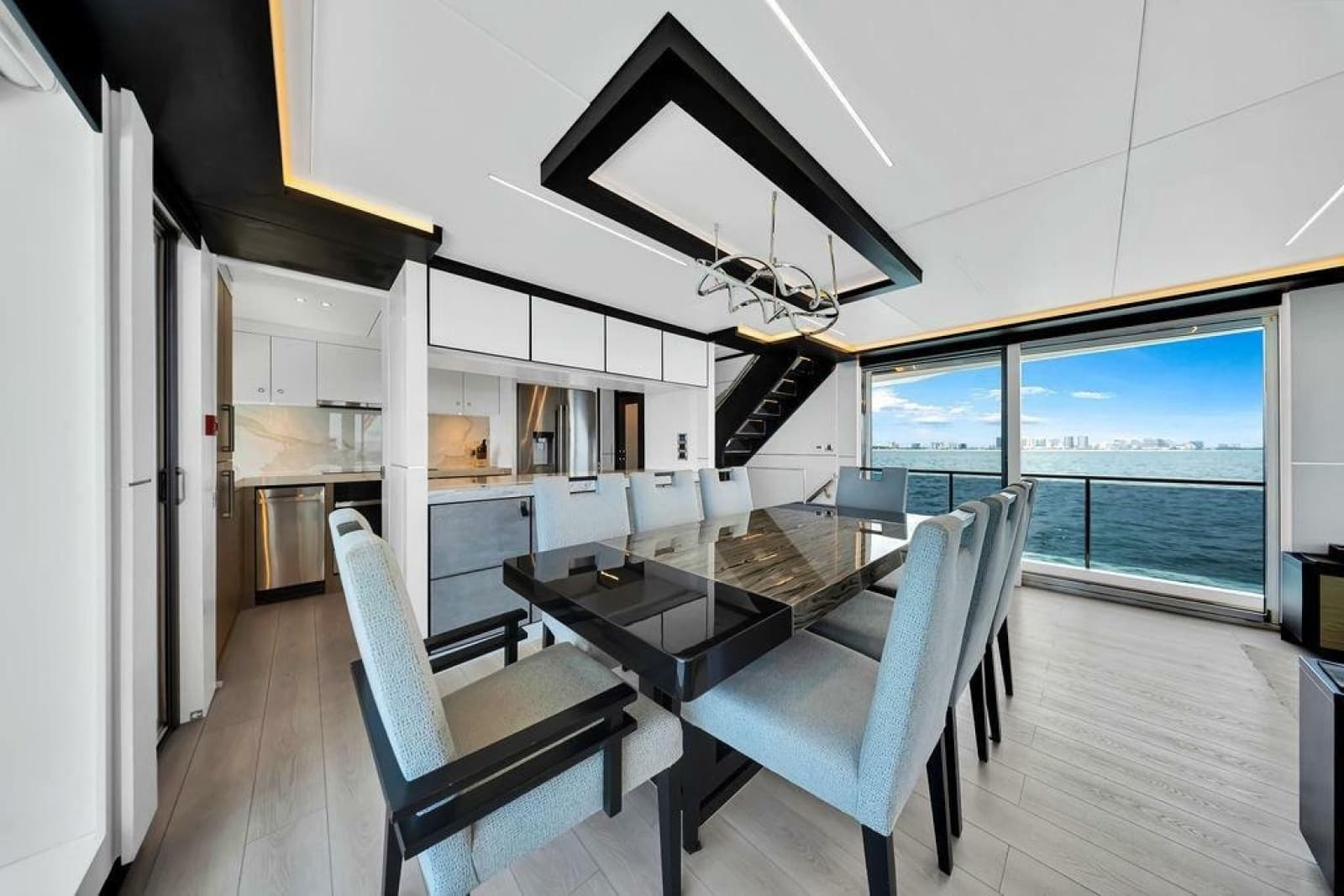

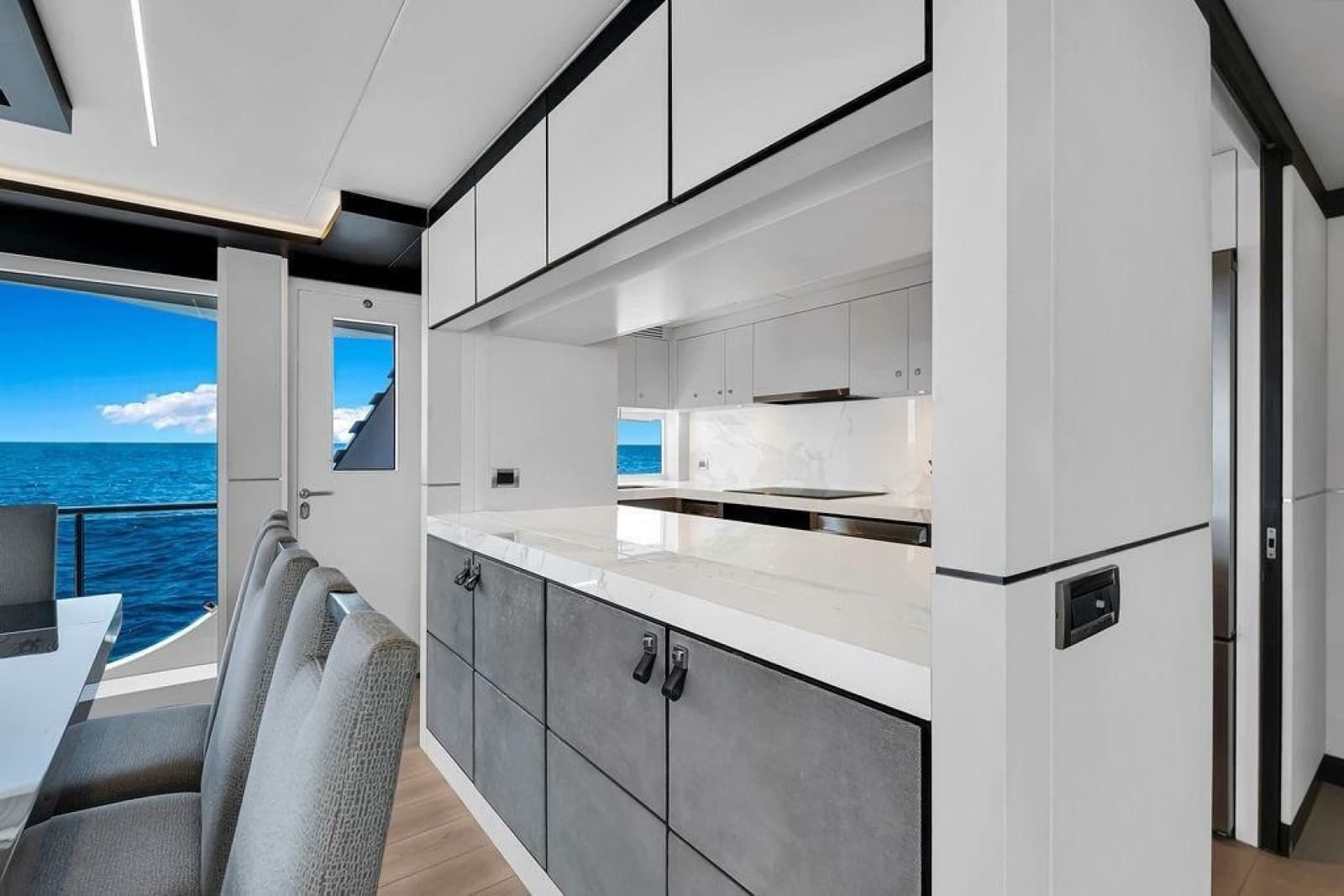

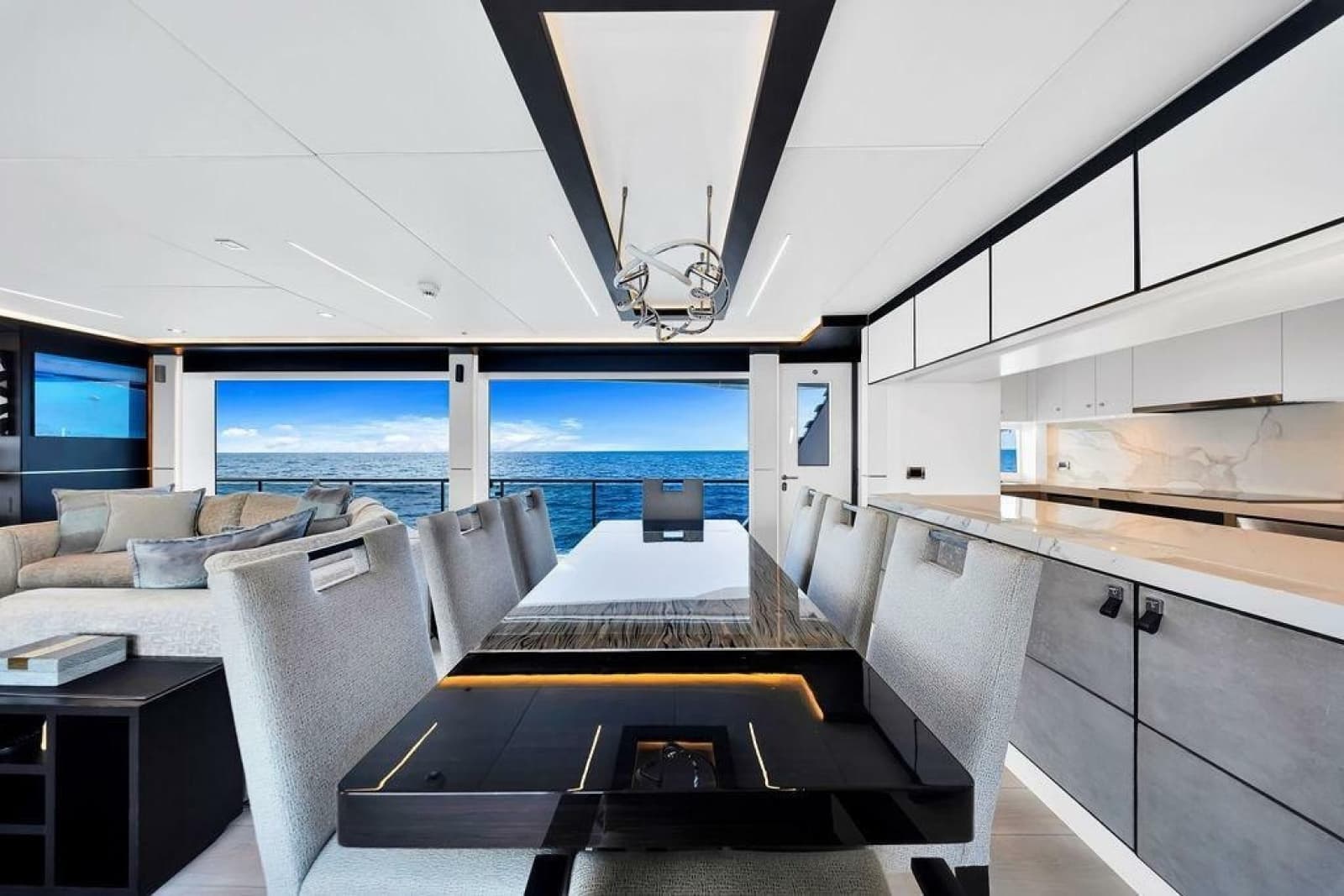

A few steps forward from the salon, the dining area seamlessly integrates into the space. Featuring a stylish dining table capable of seating 6 to 8 guests, this area is perfect for enjoying formal dinners.

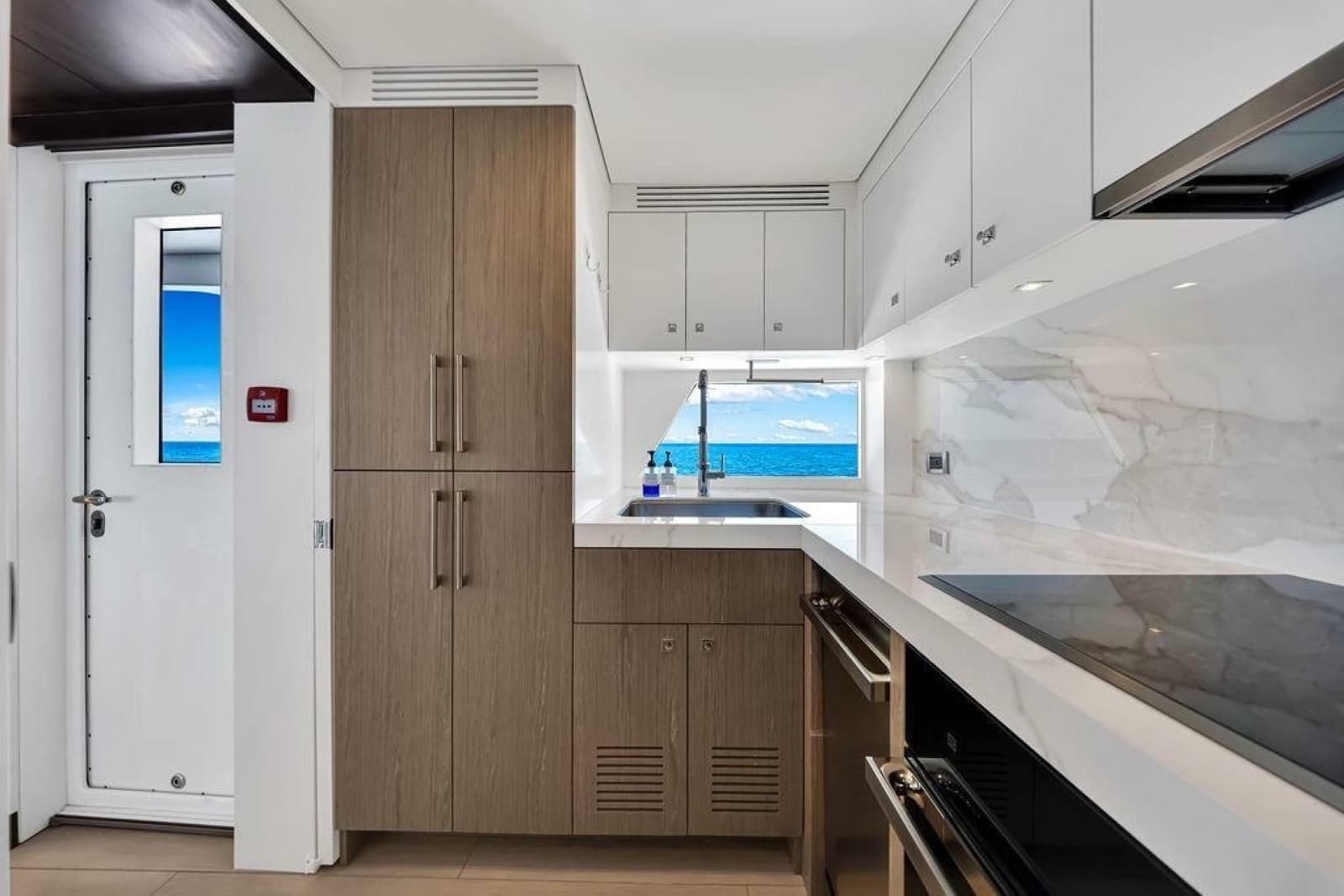

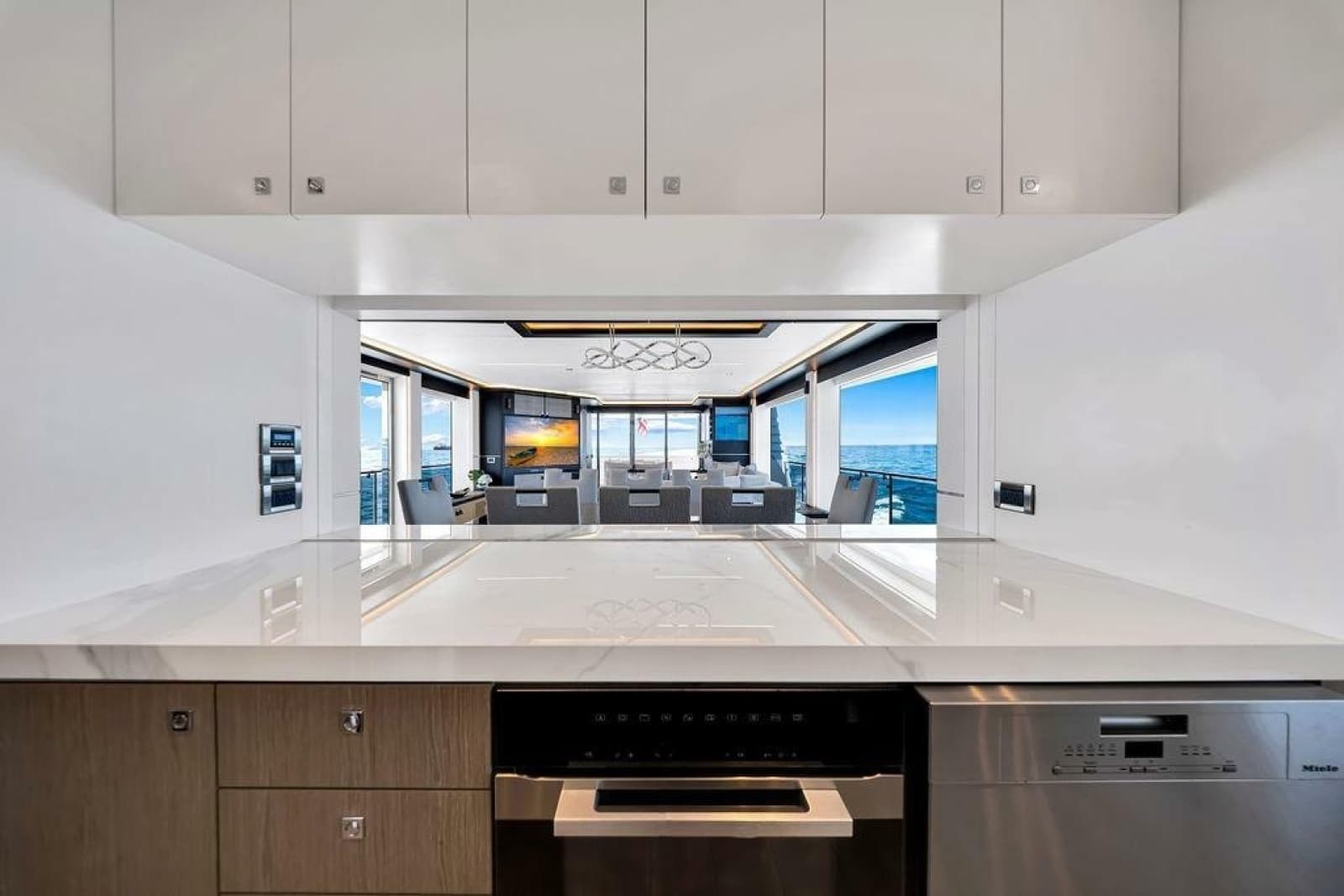

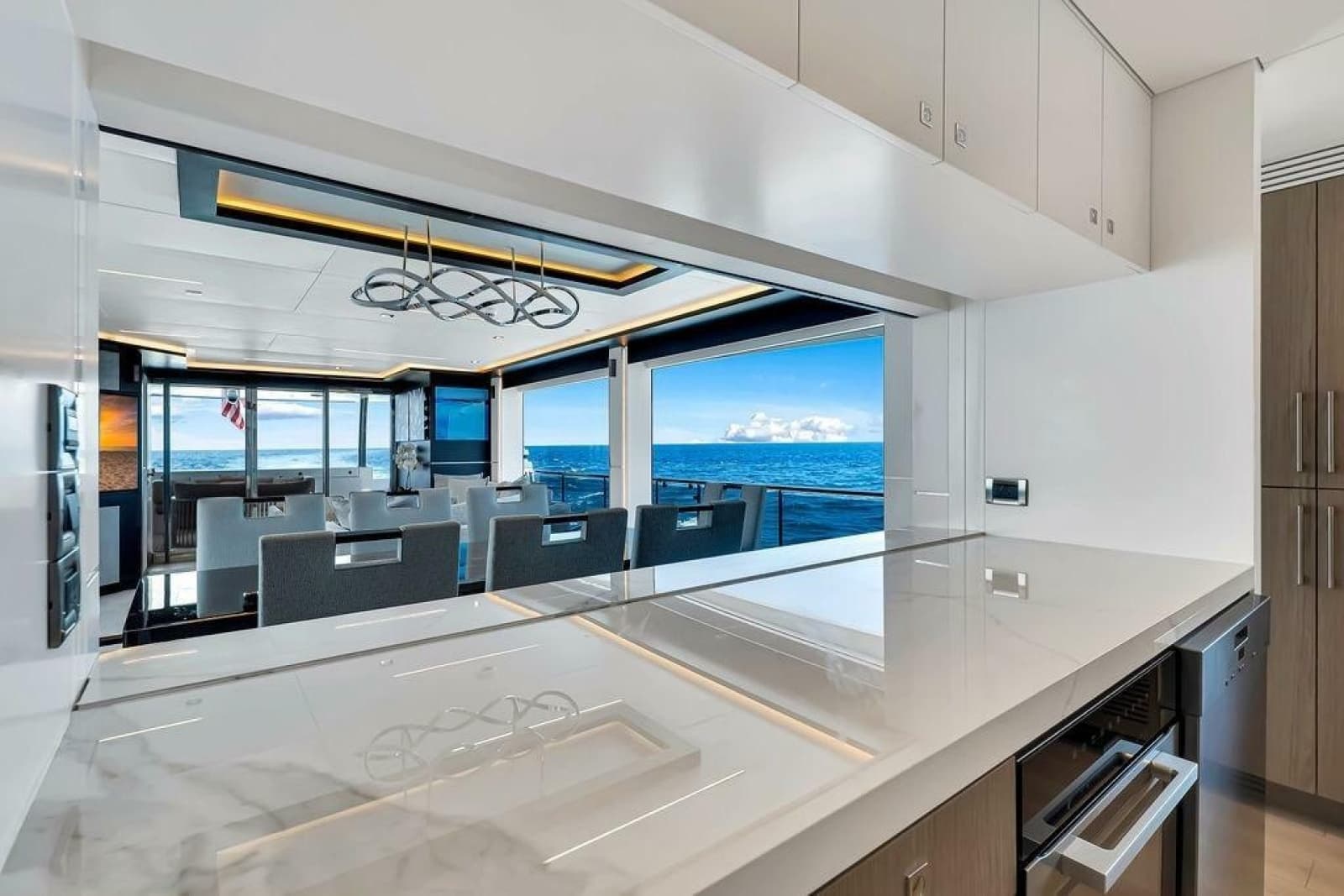

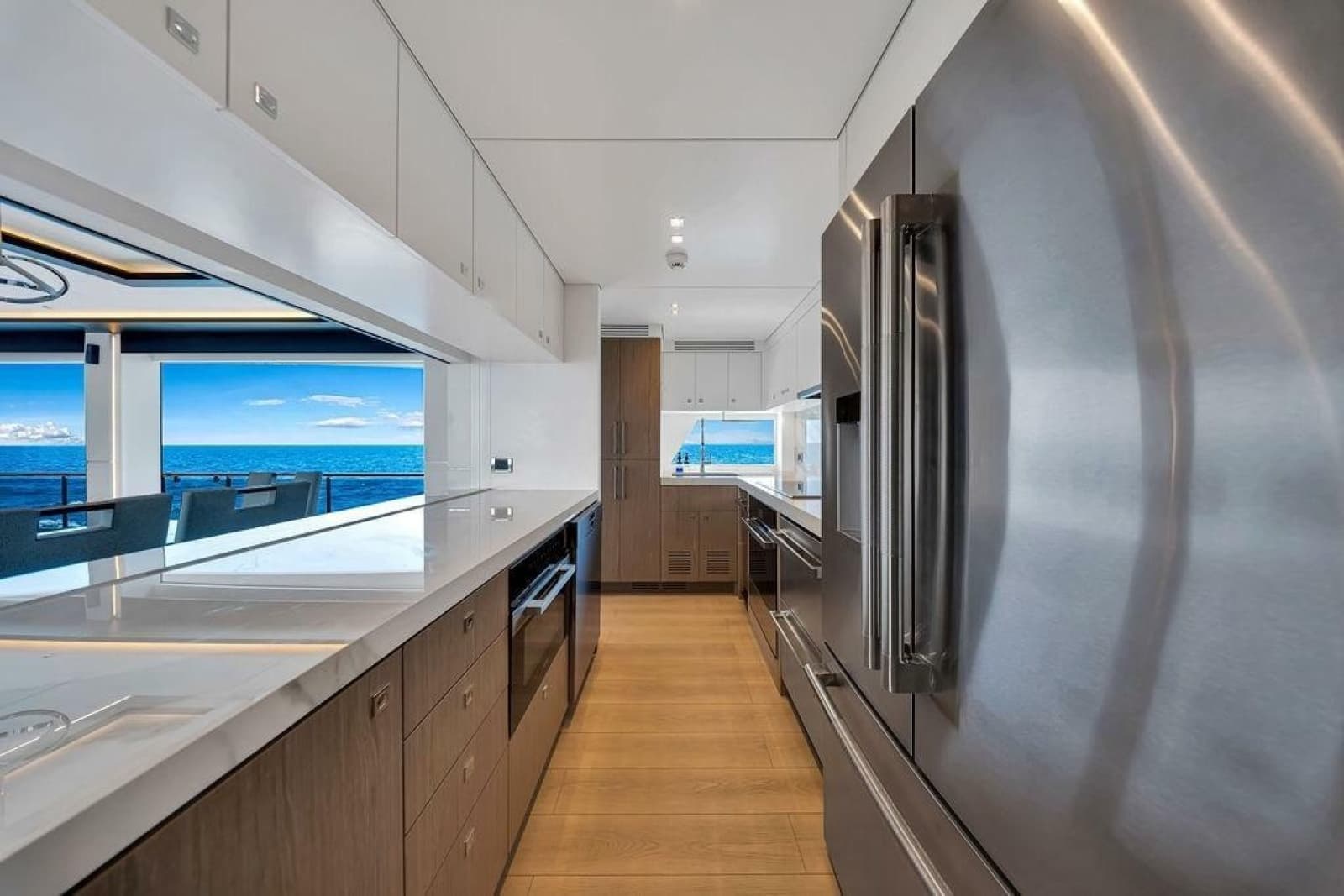

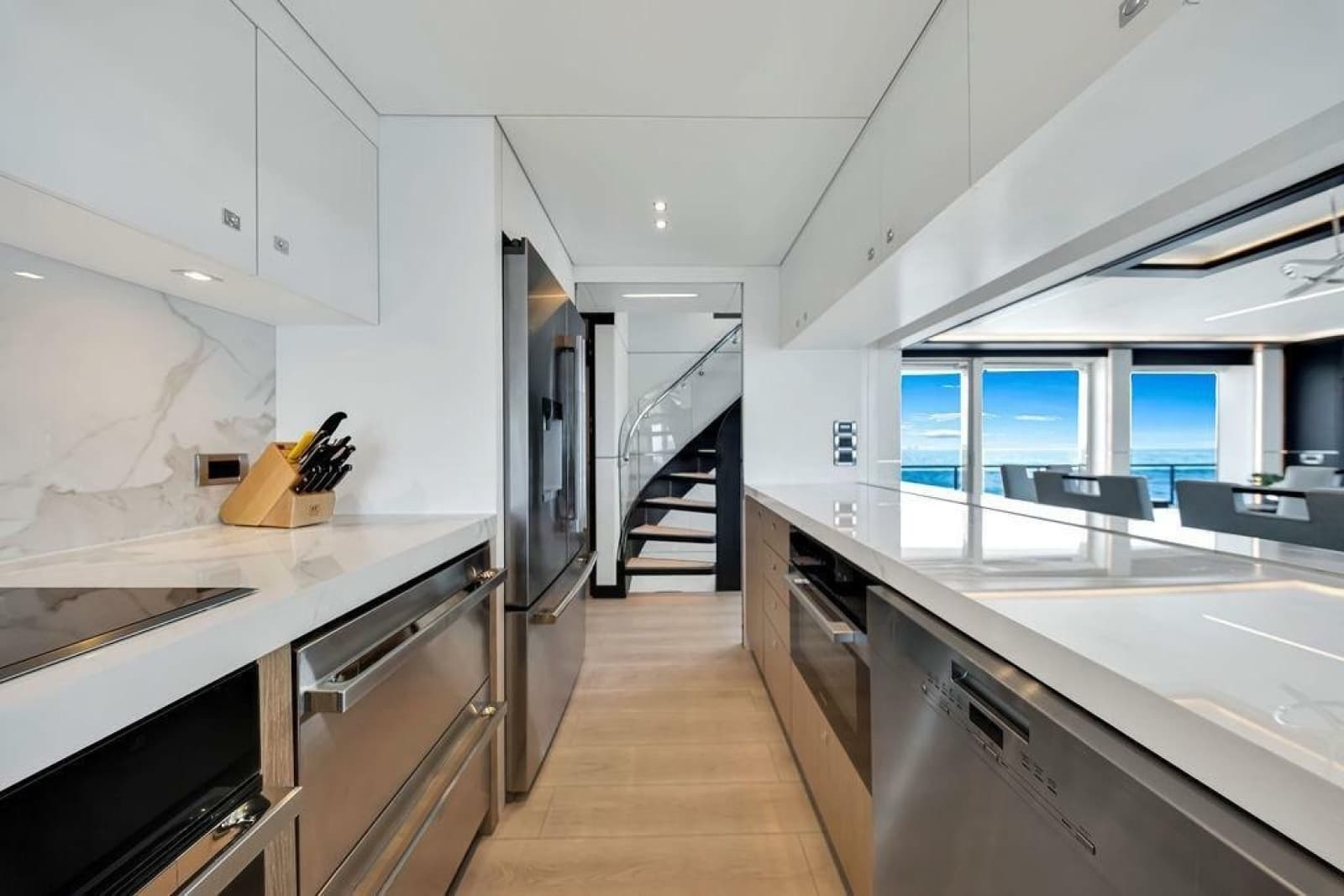

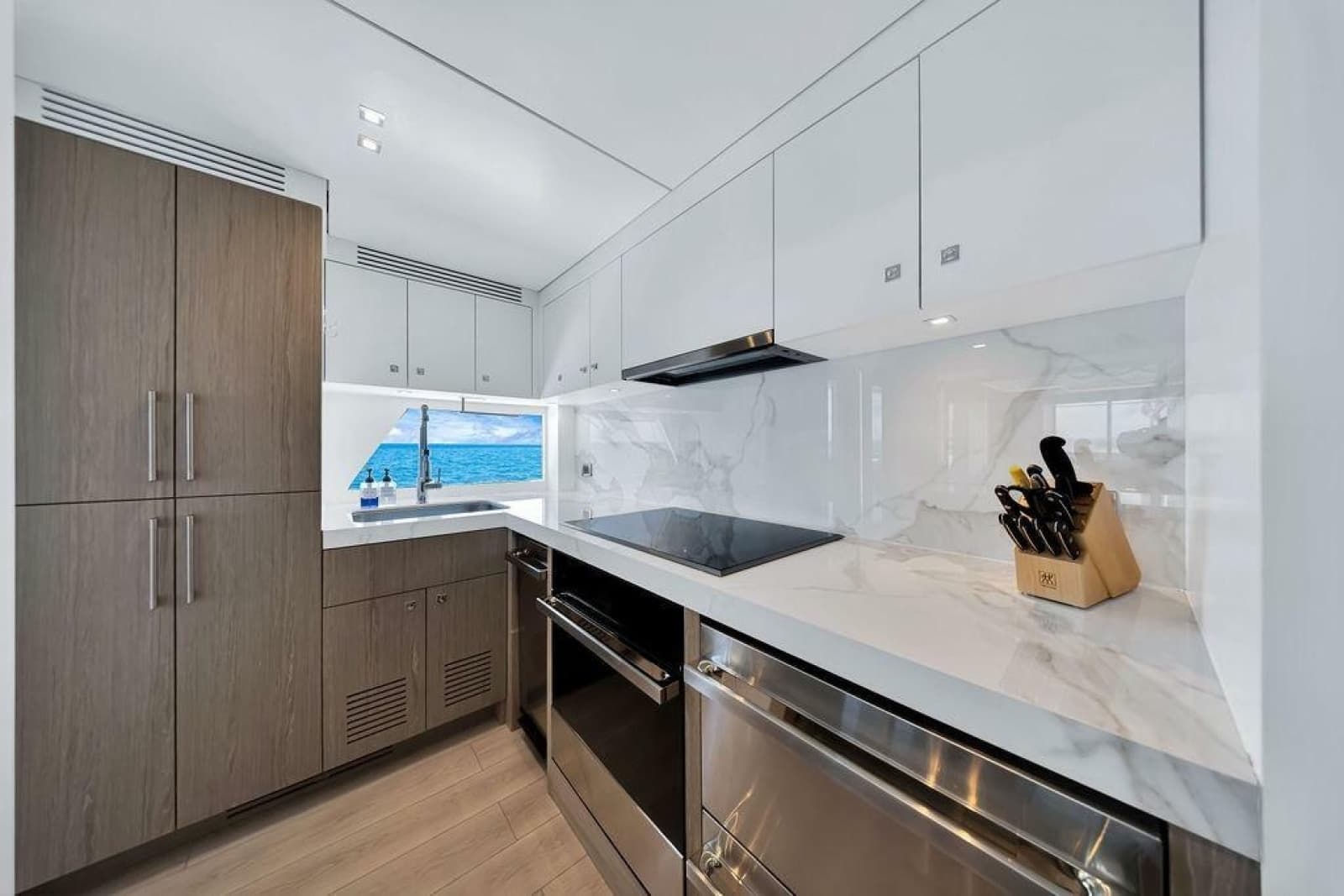

The galley is designed so it can either open to the salon for casual entertaining or closed for more formal service. There is a large double door refrigerator as well as extra refrigeration drawers, a full pantry, and dishwasher. (Note - an additional full freezer is located on the bridge deck.)

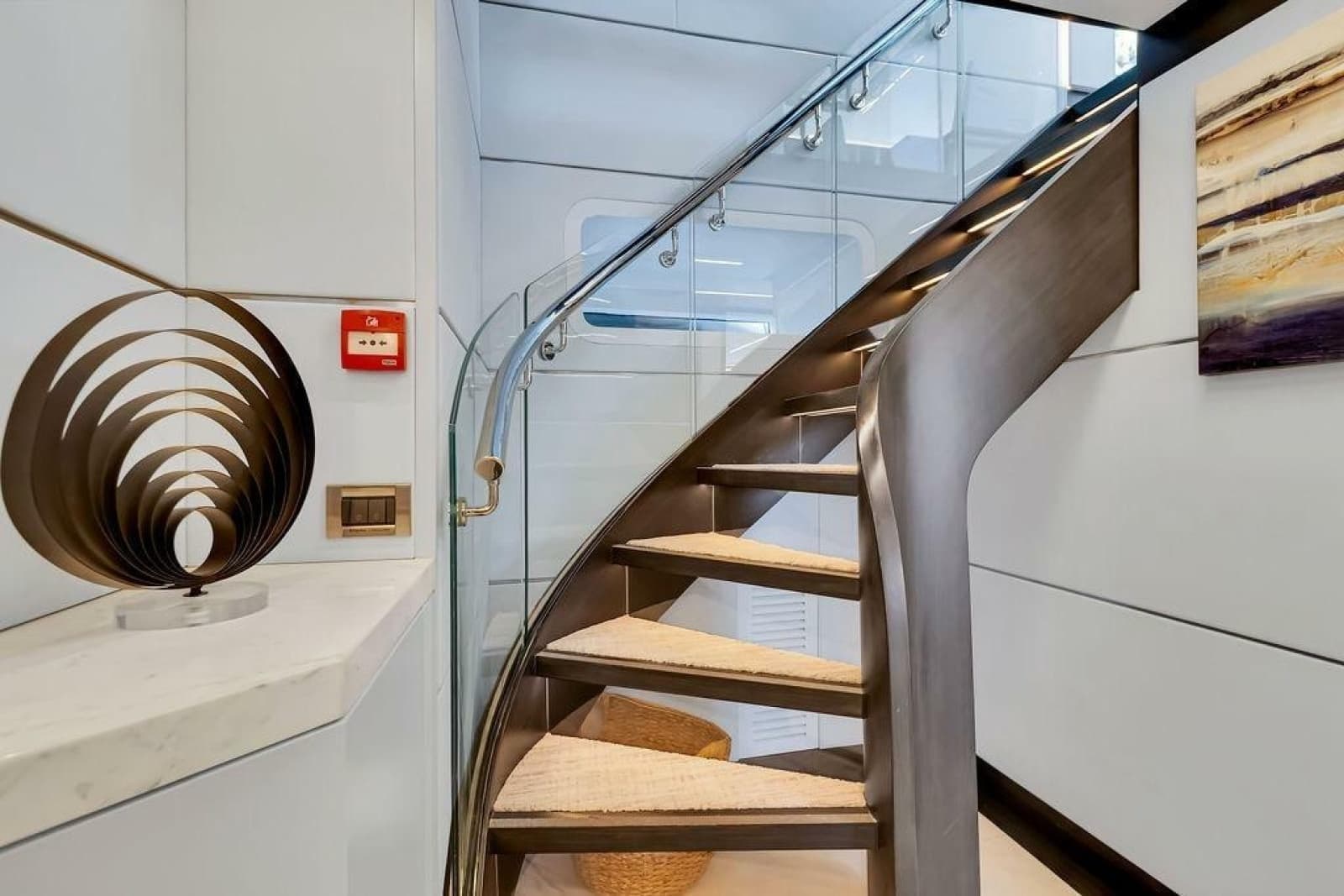

You can access the upper bridge deck three ways – immediately upon boarding the aft deck there is a staircase on the port side leading up. When you are walking forward on the side decks there are staircases, port and starboard leading up. Finally, there is a set of interior stairs leading to the sky lounge on the starboard side in the galley.

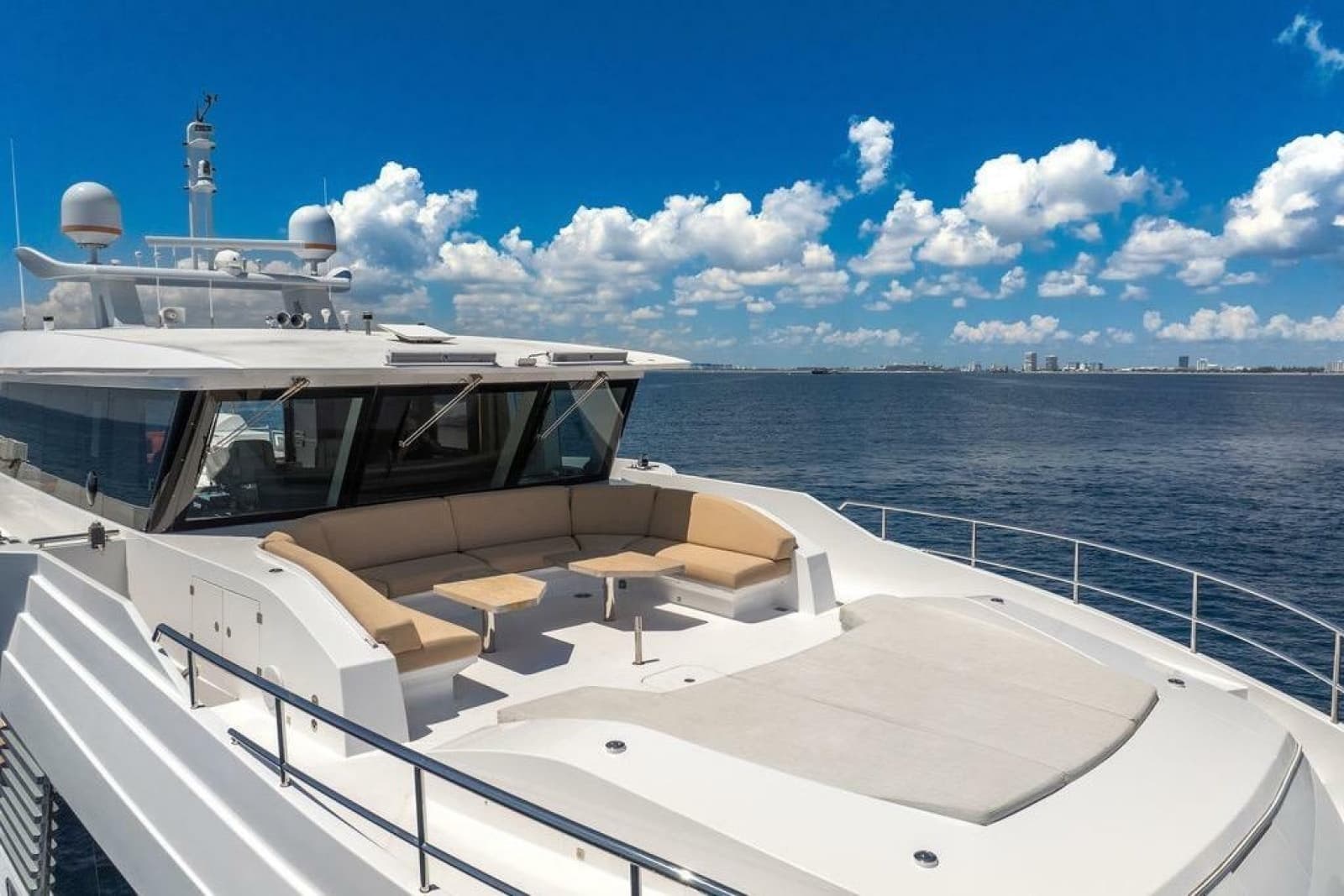

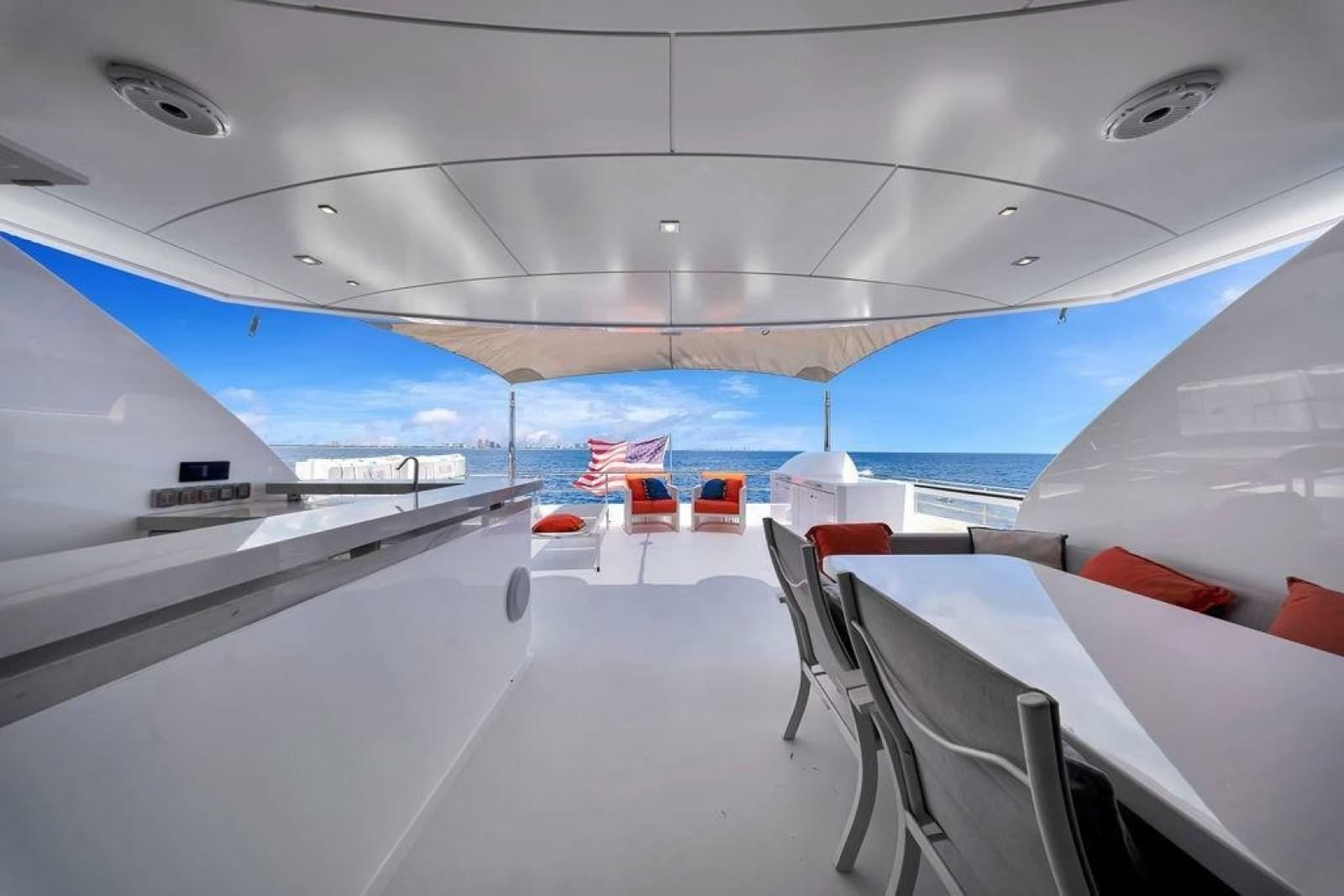

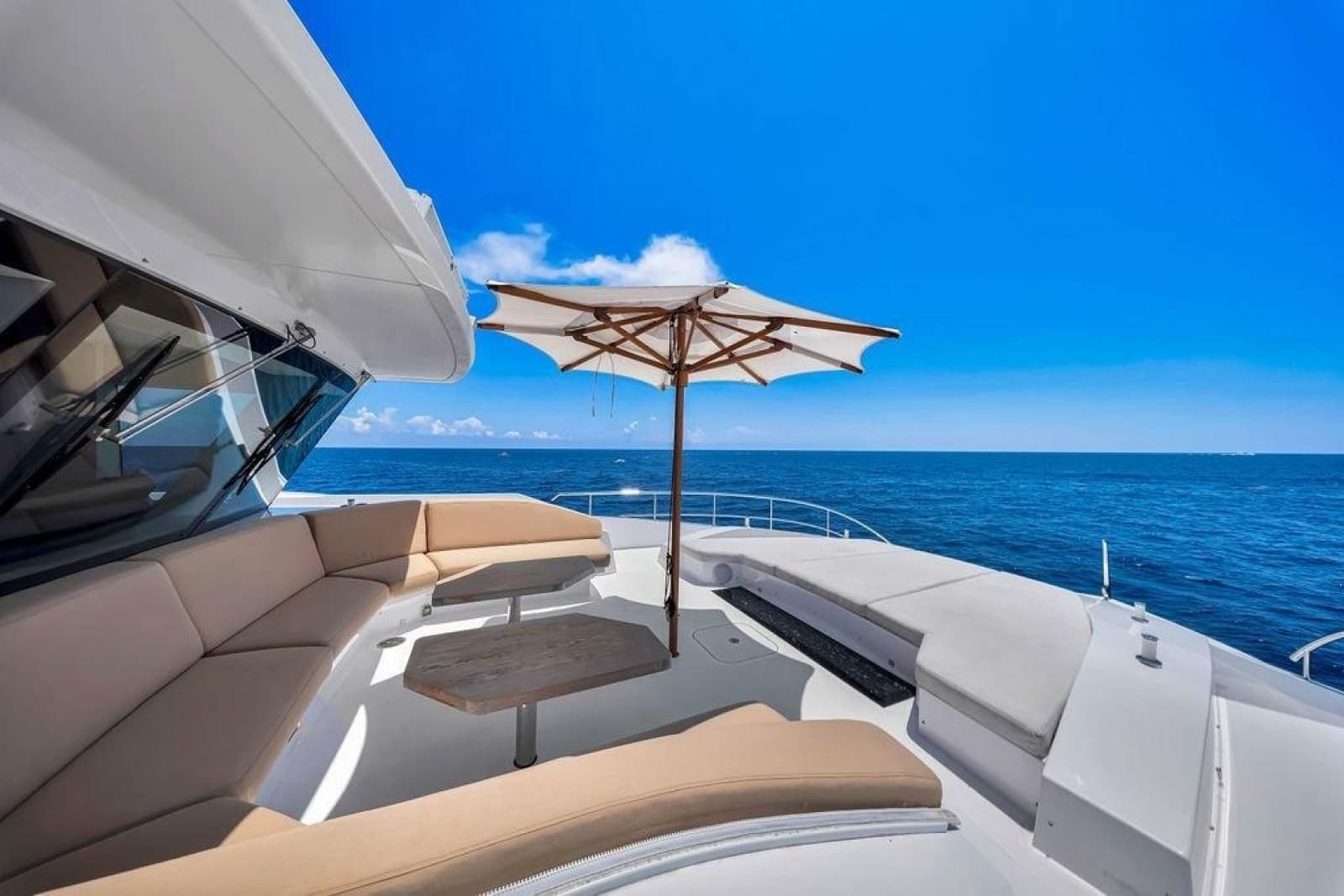

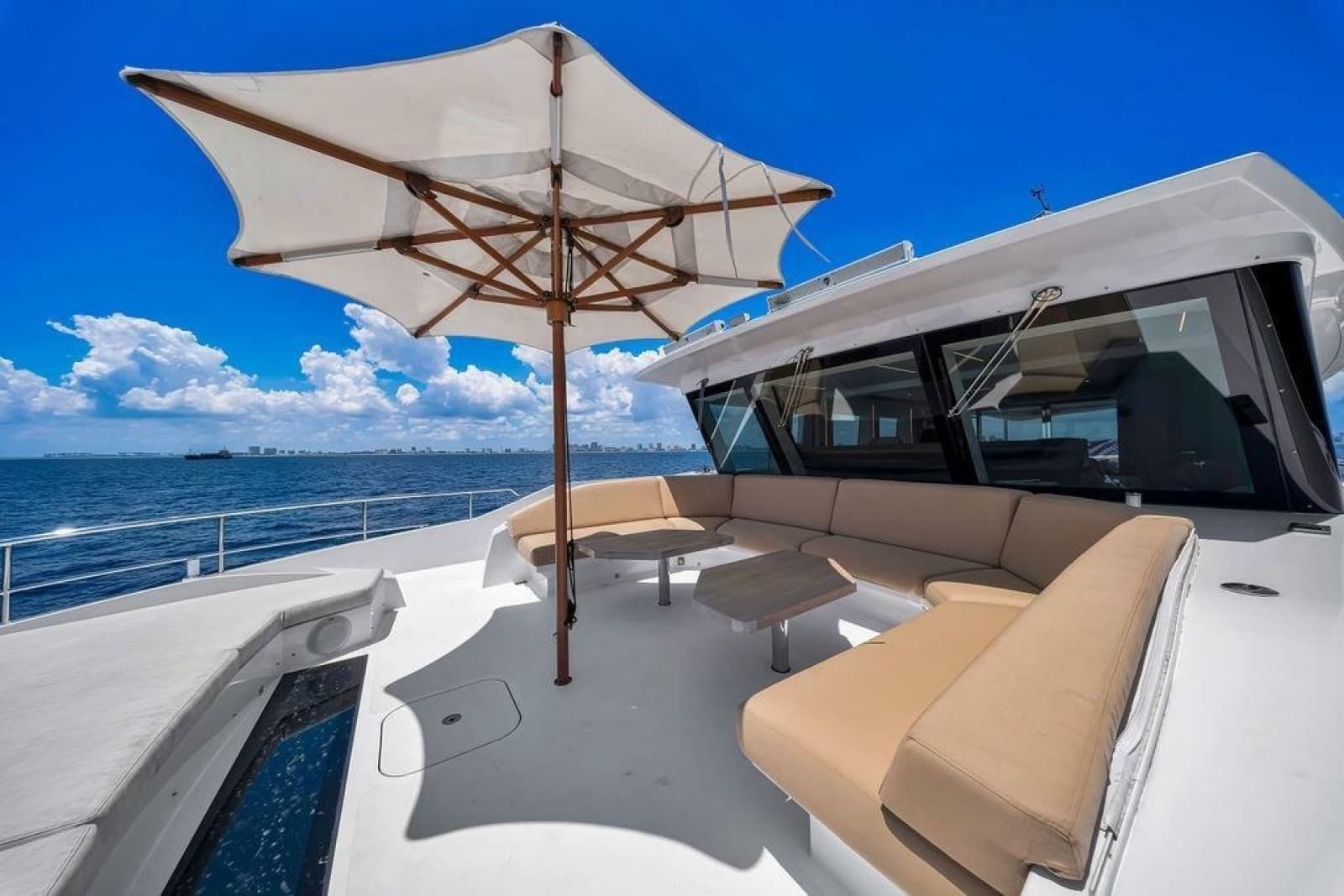

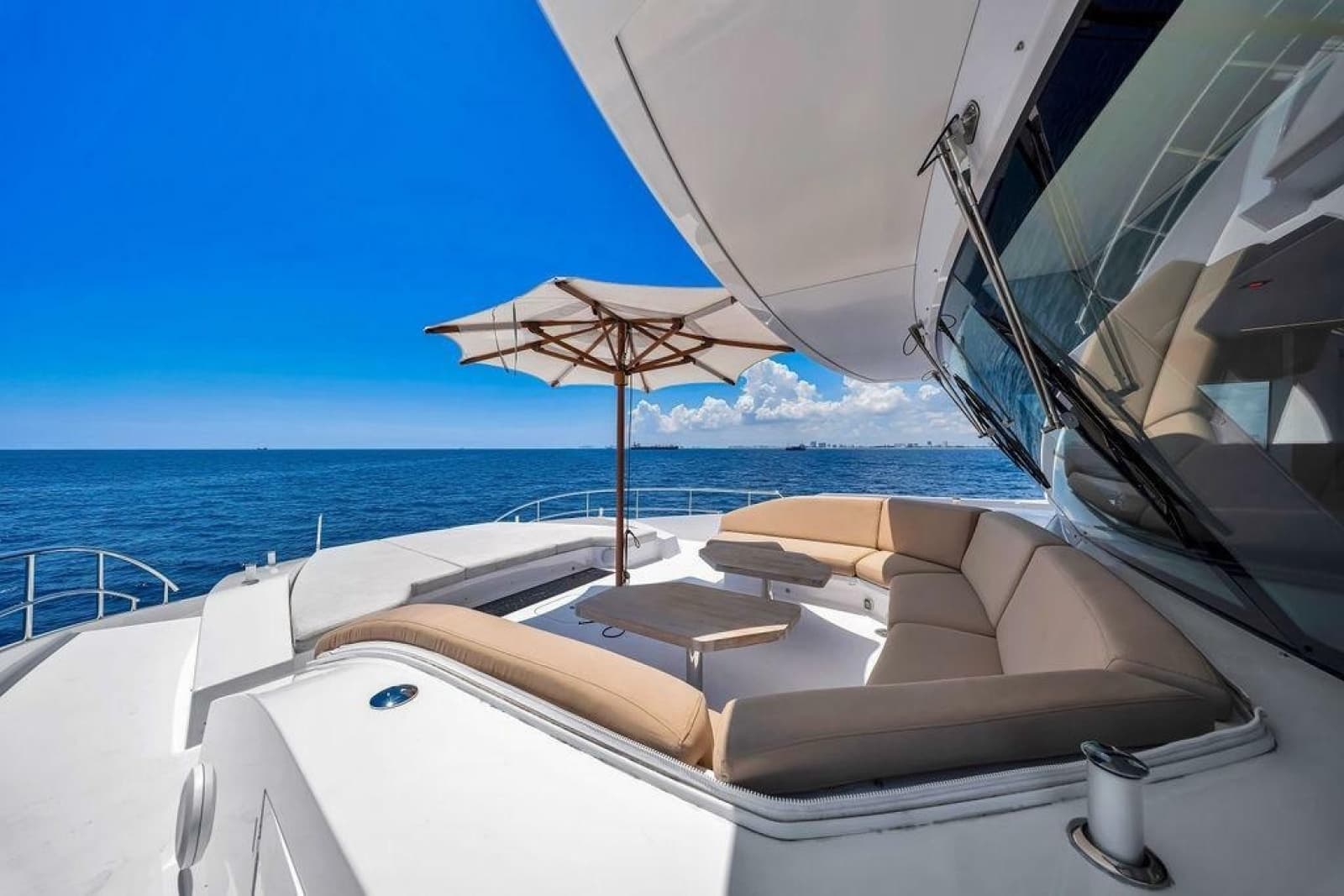

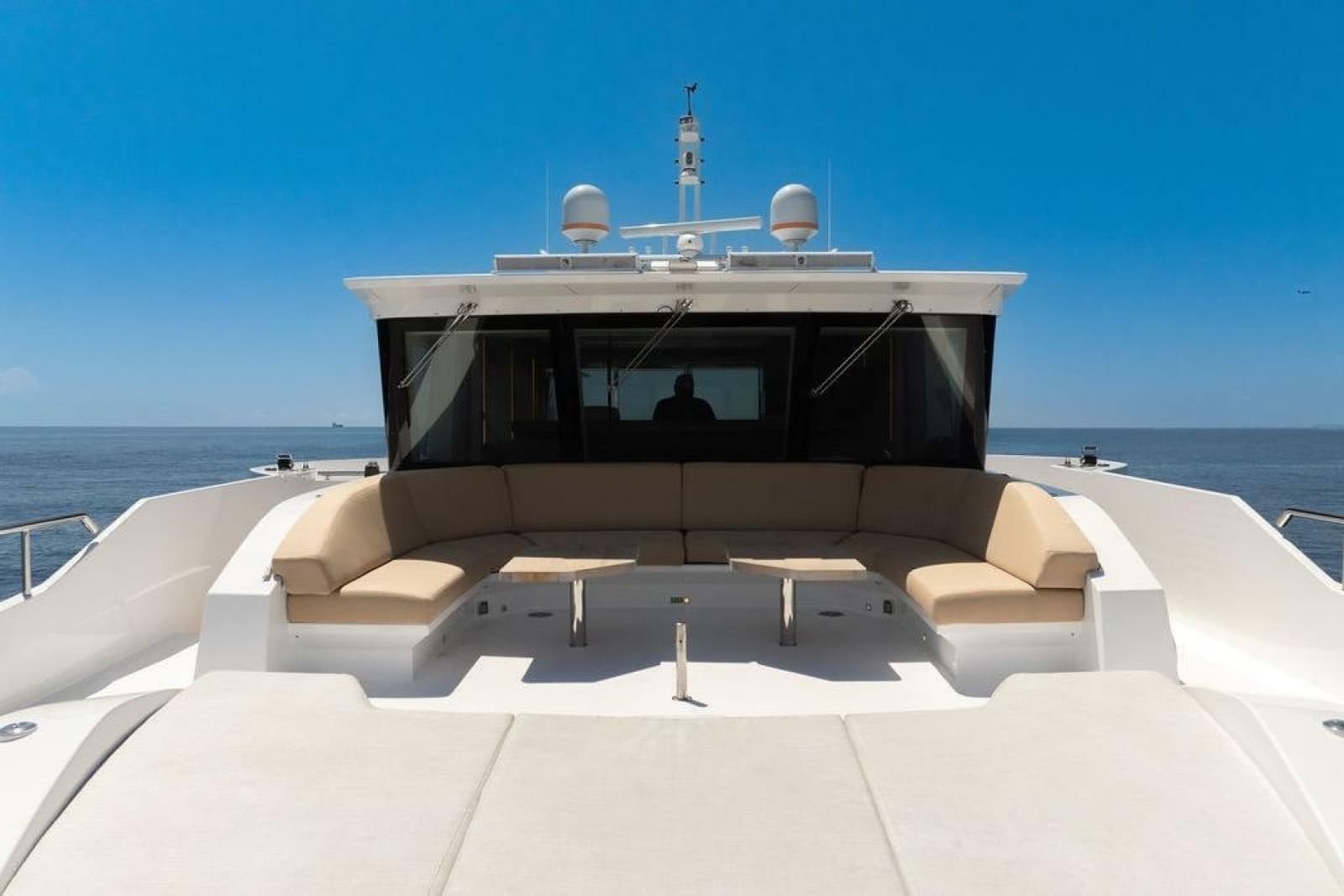

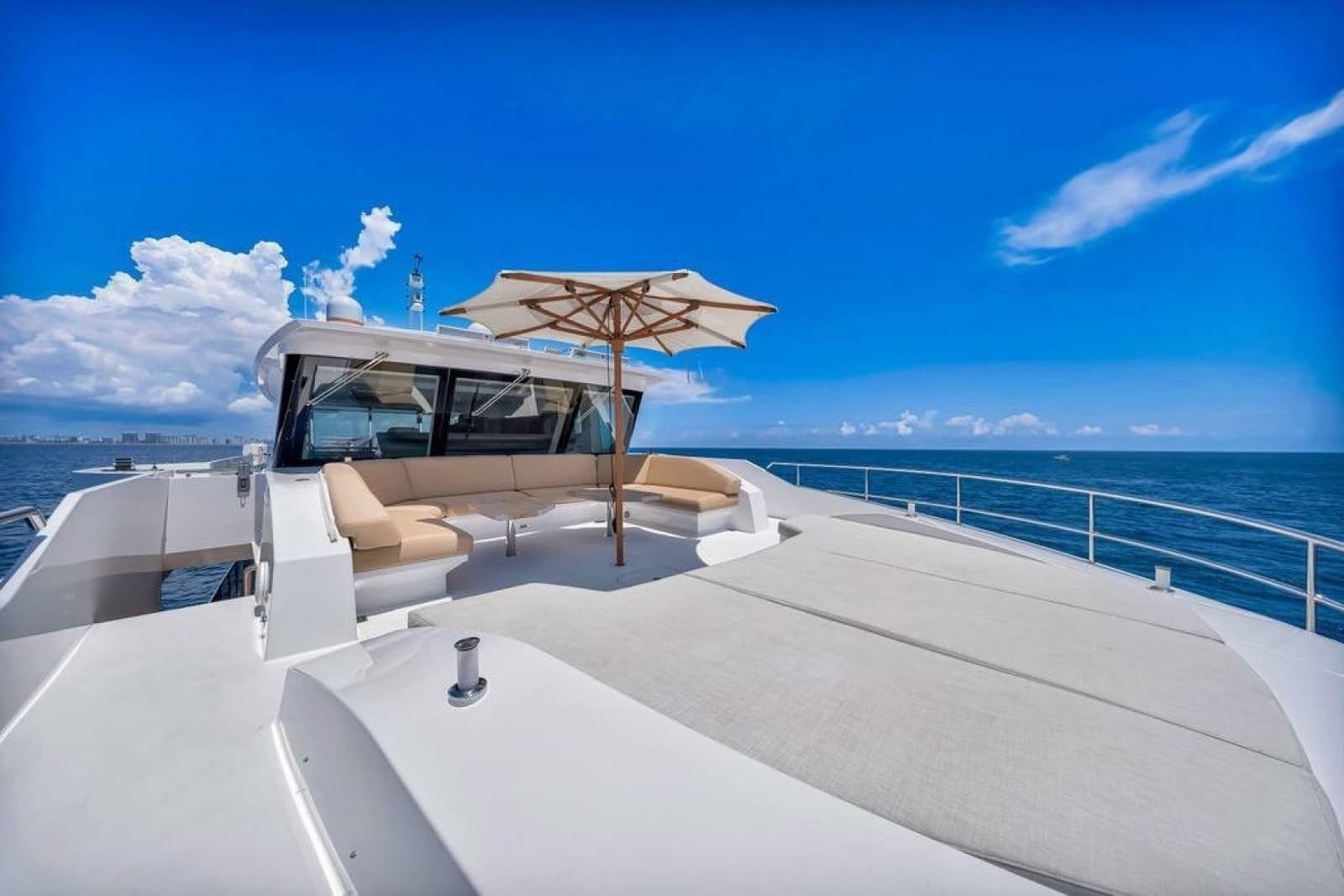

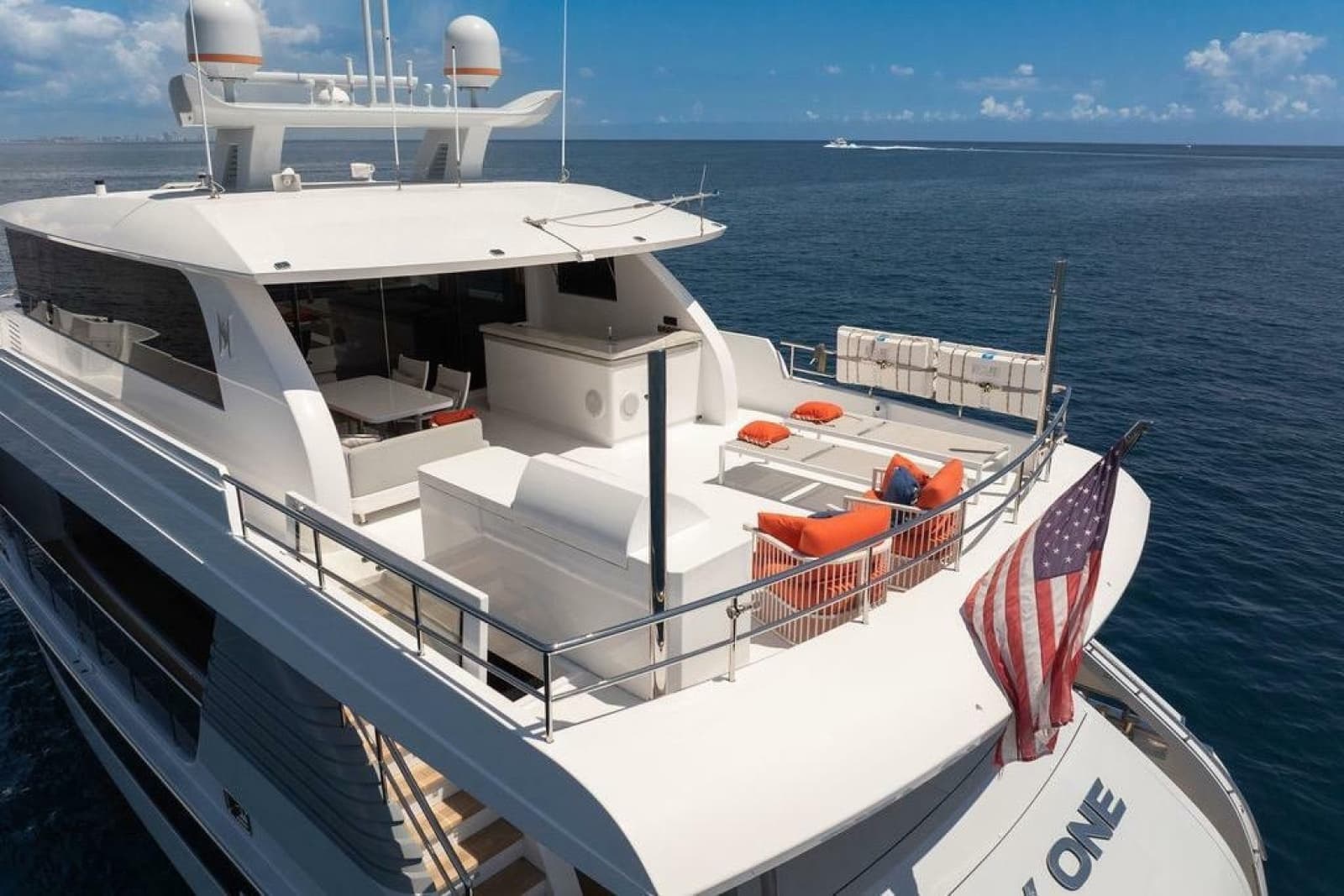

There is a large U-shaped lounge outdoor seating area forward of the helm station with cocktail tables as well as a comfortable sun pad area. There is a second outdoor seating area aft of the pilothouse as well as a standup bar with stools that includes a sink, wine cooler, ice maker, and storage. Additionally, Day One includes a full grill and refrigeration on the upper aft deck on the port side.

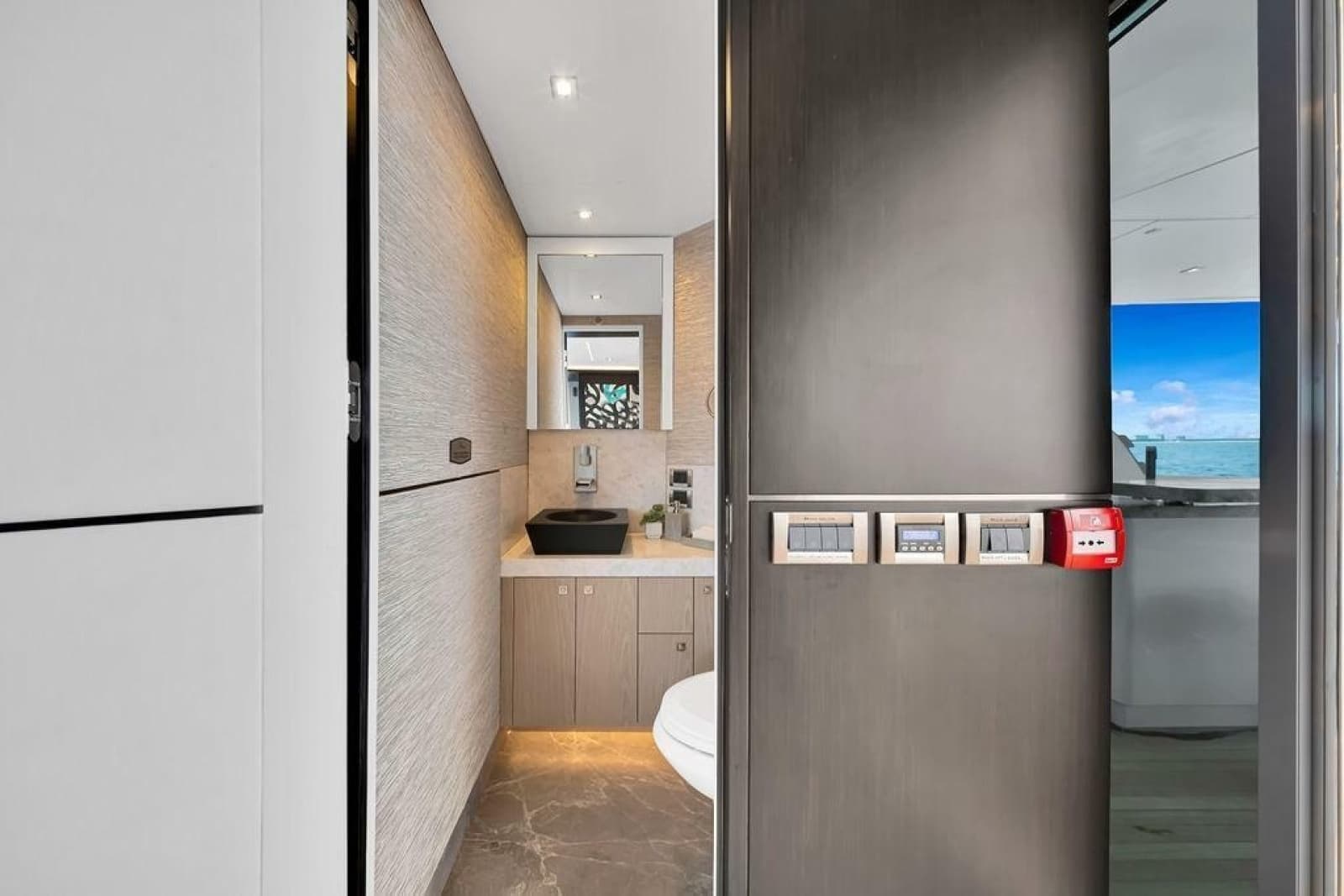

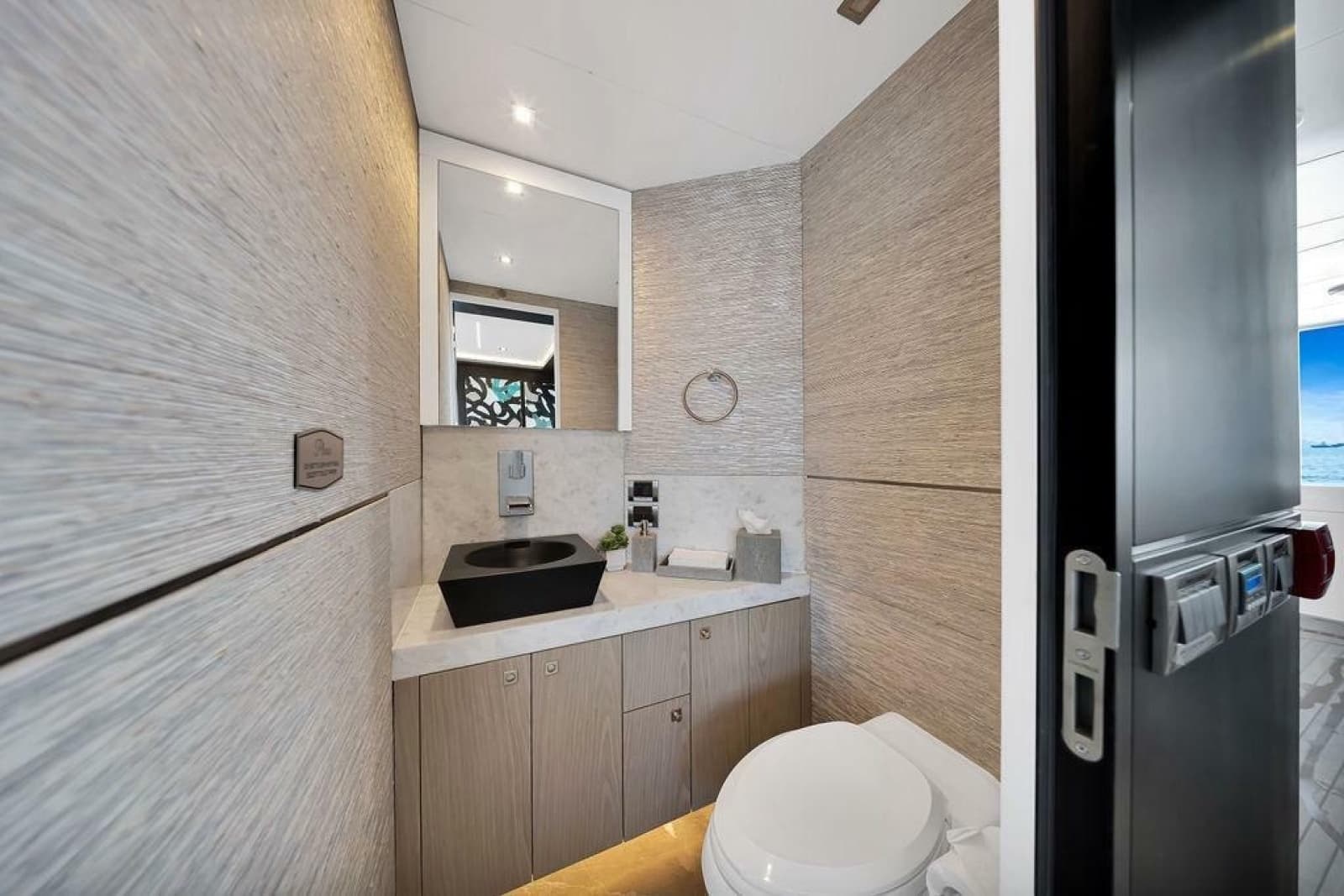

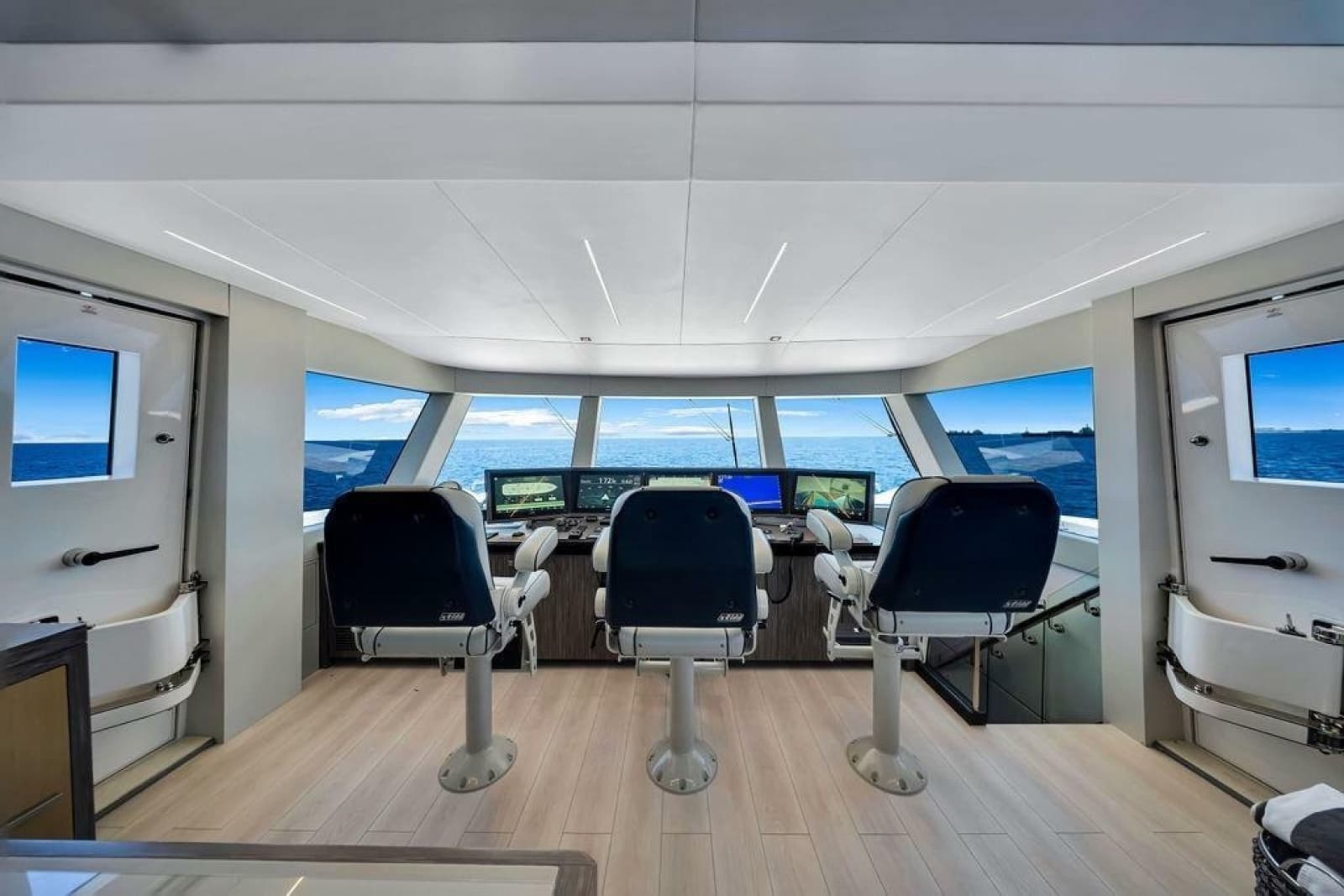

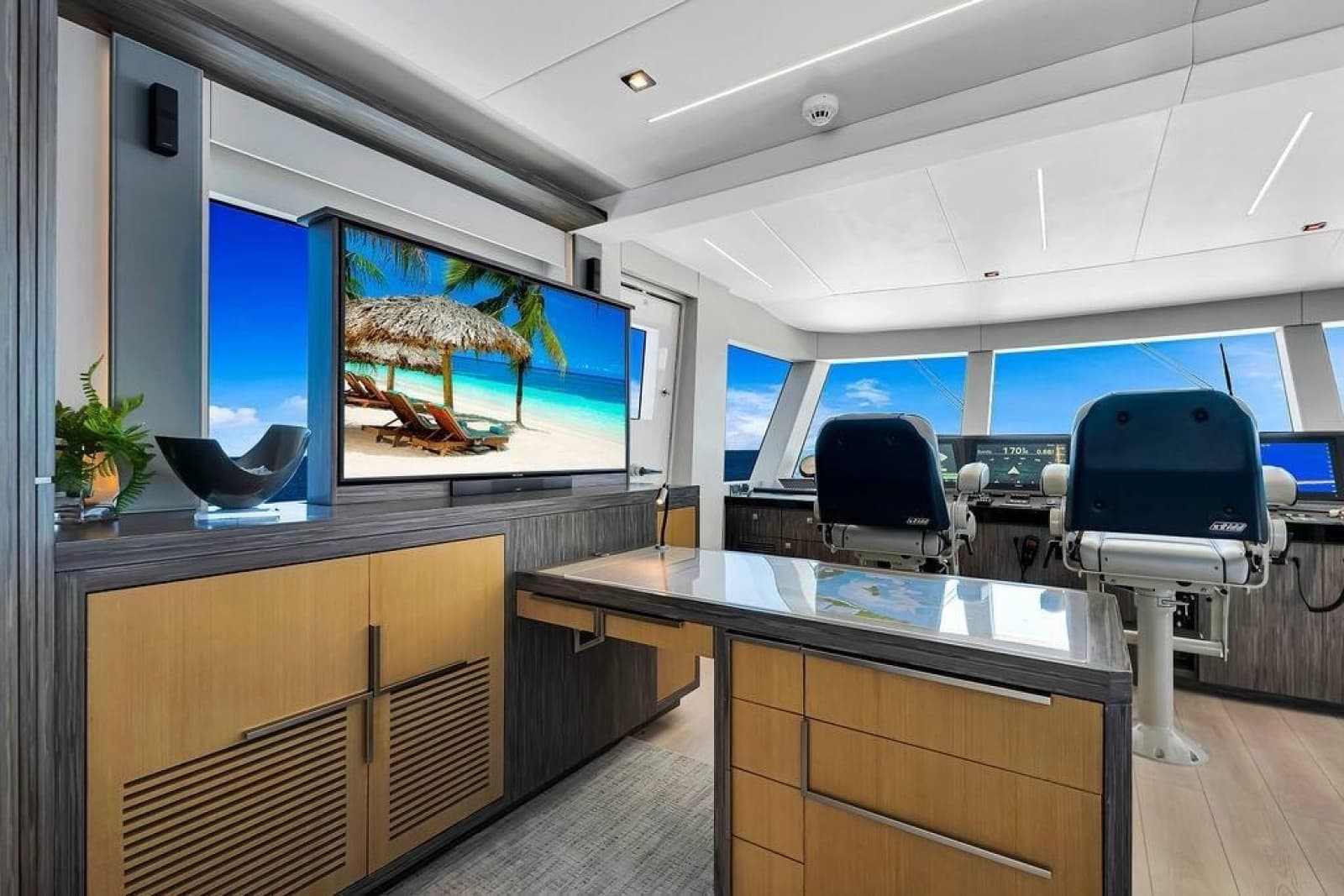

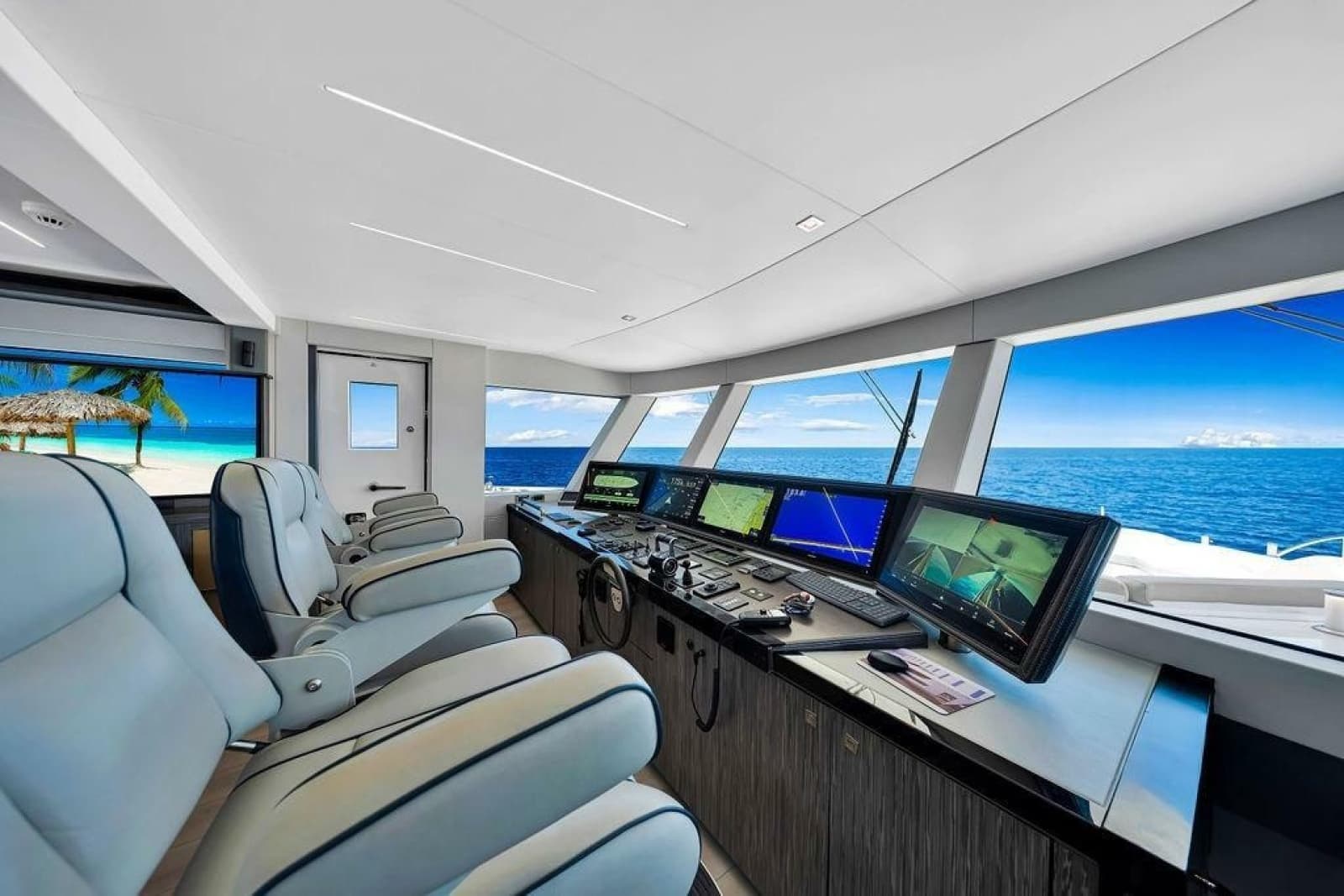

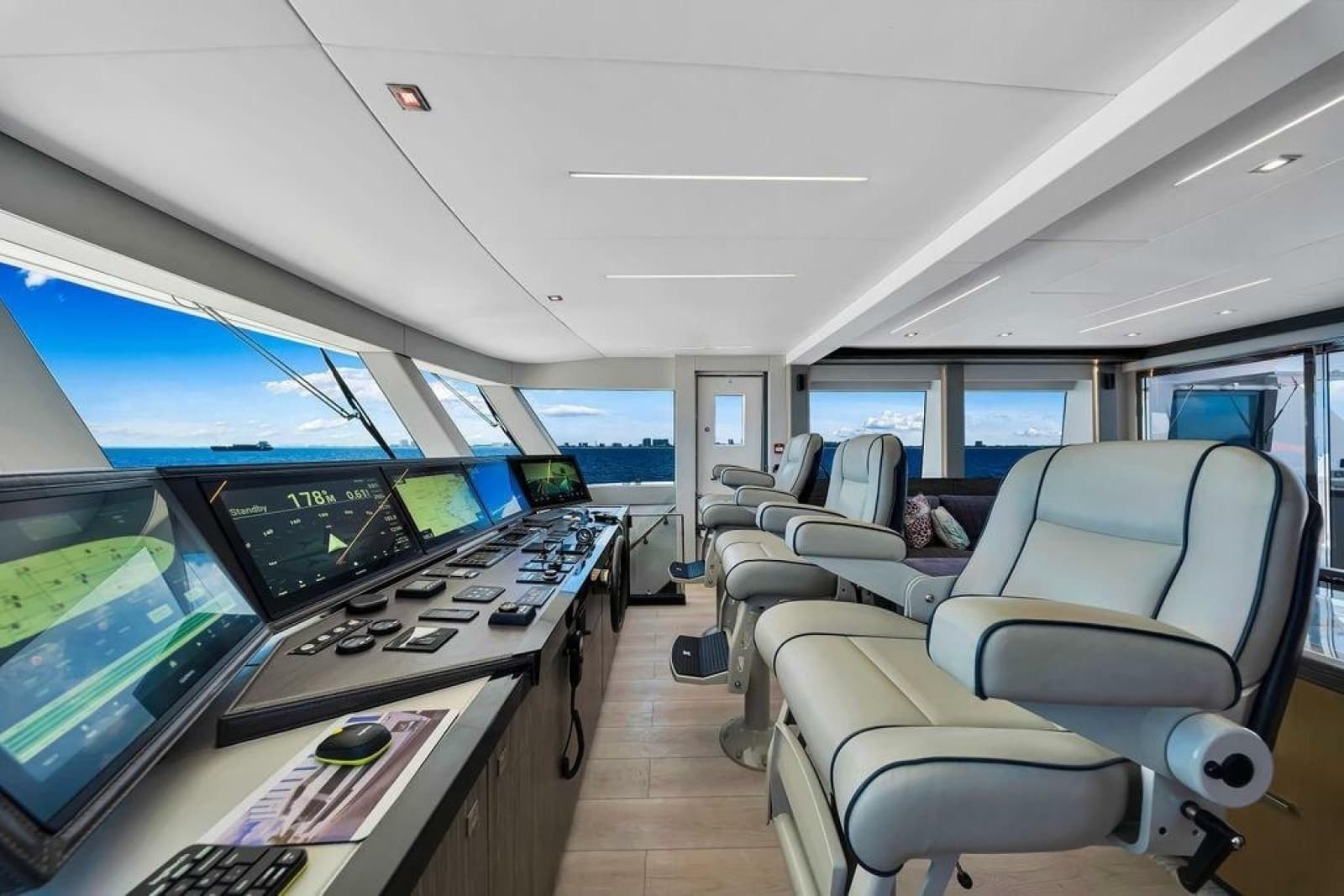

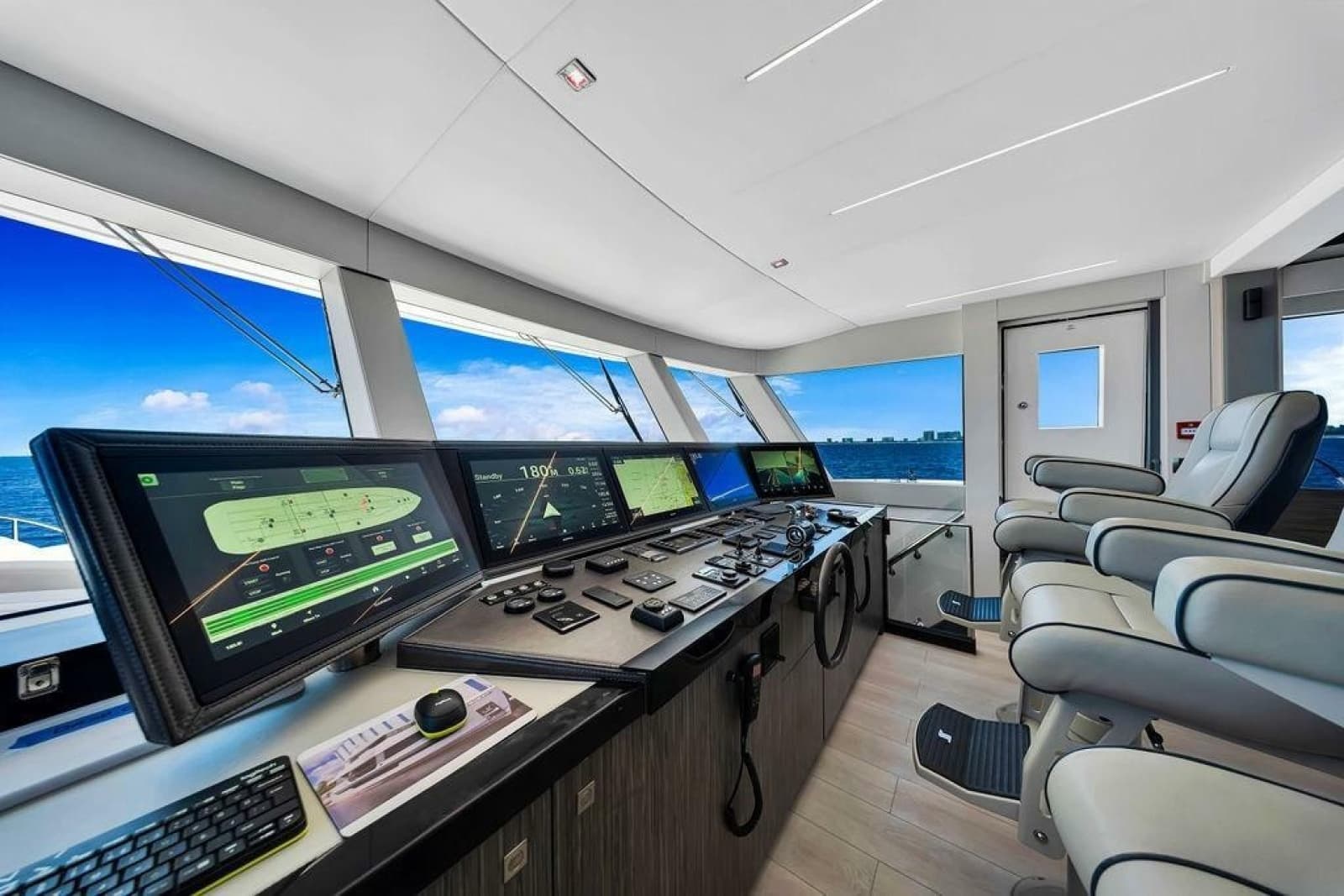

The Pilothouse includes a private head on the port side, a high-low retractable high-def television, and a large sofa lounge on the starboard side. A custom owner's desk is forward on the port side, and forward of that is the helm station which is well laid out and includes three Stidd helm chairs. Complete details on electronics and audio-visual equipment are shown below in this listing.

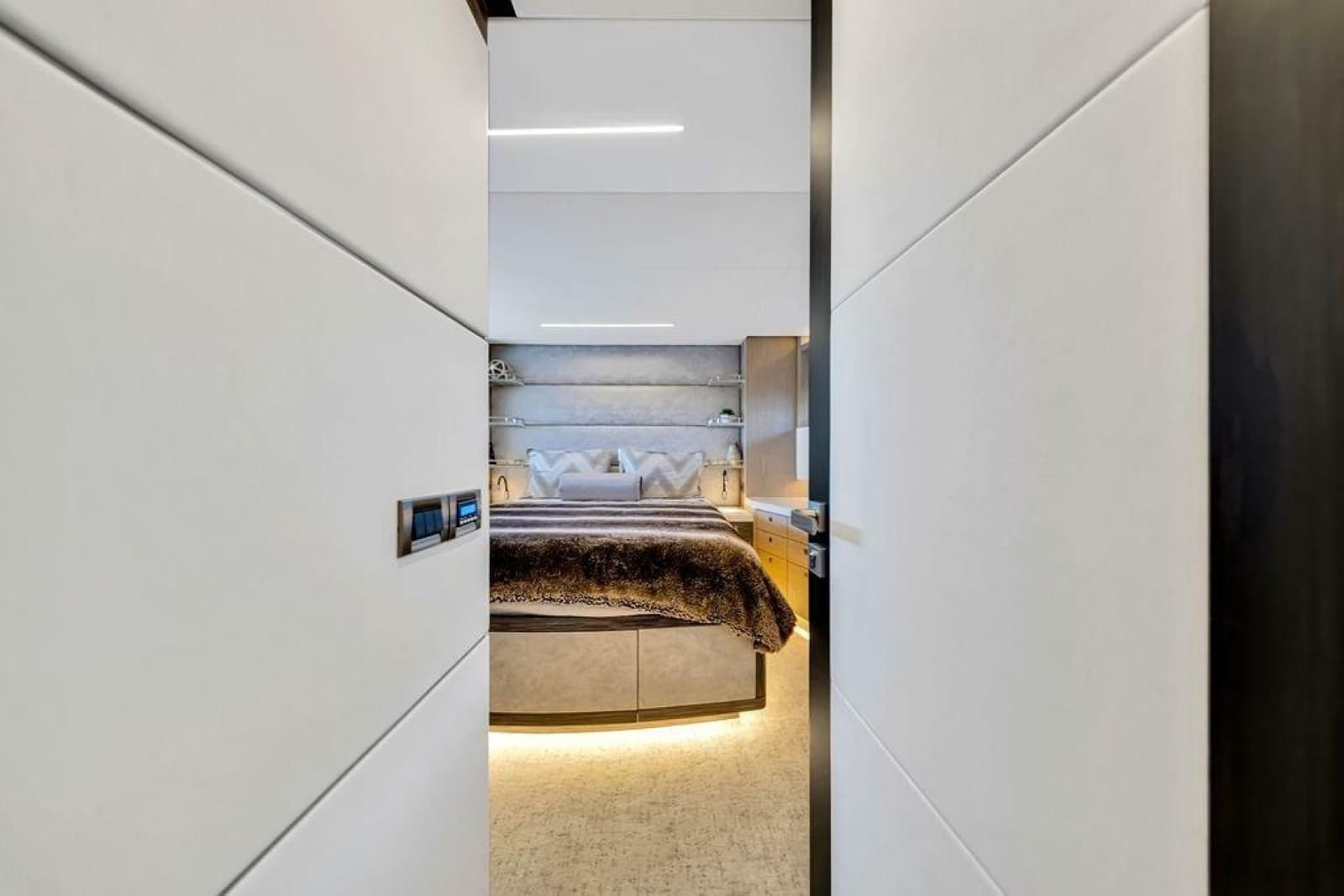

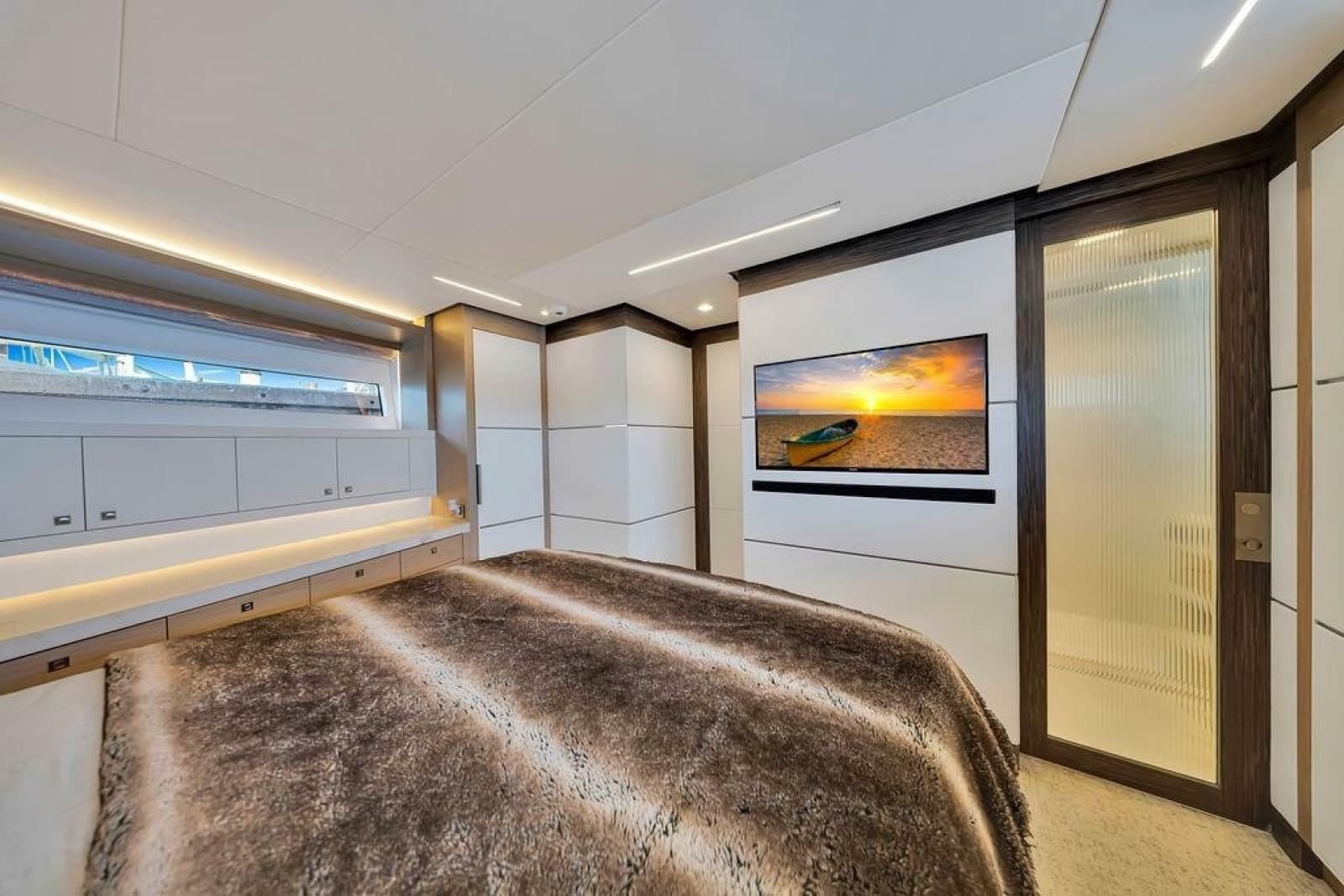

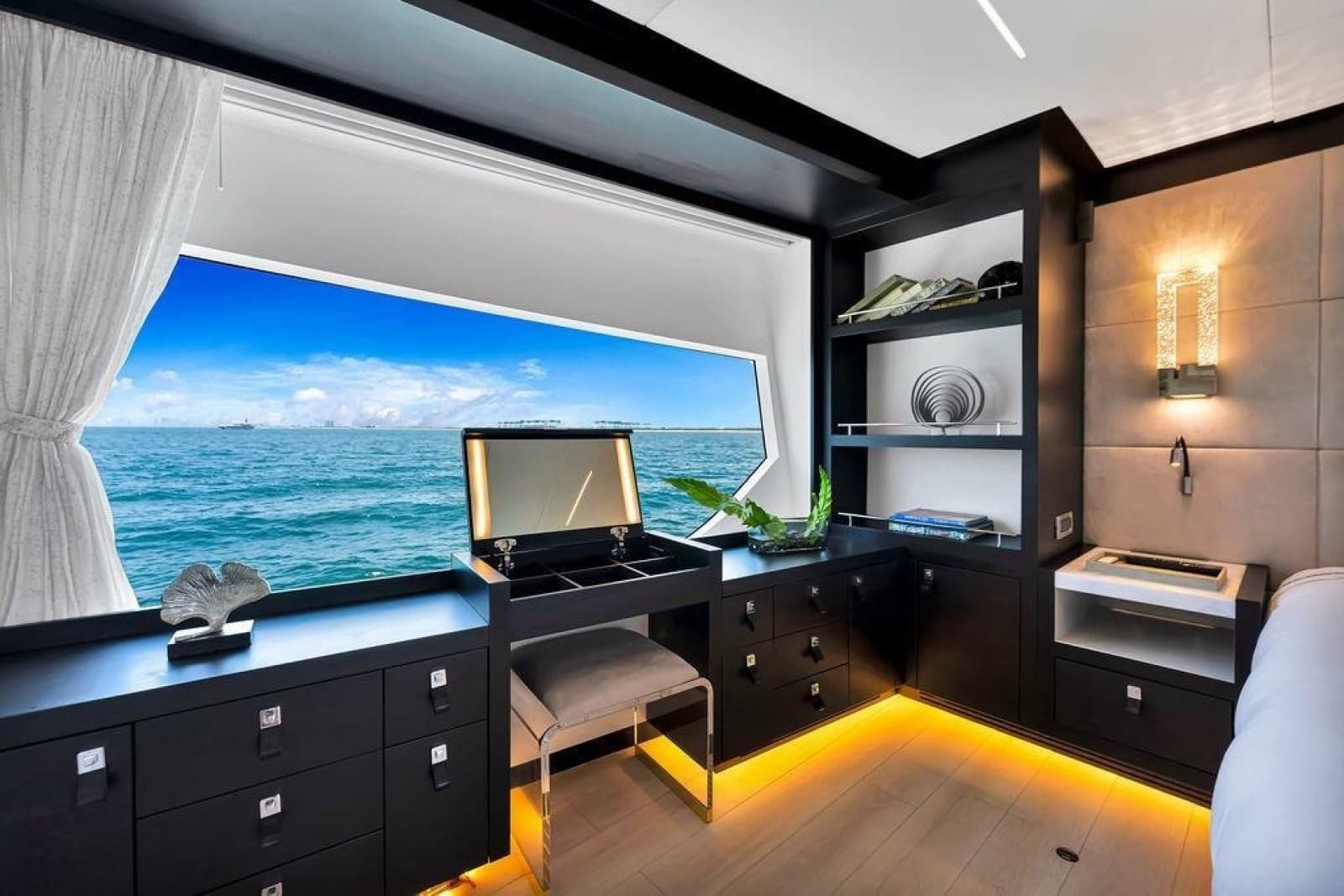

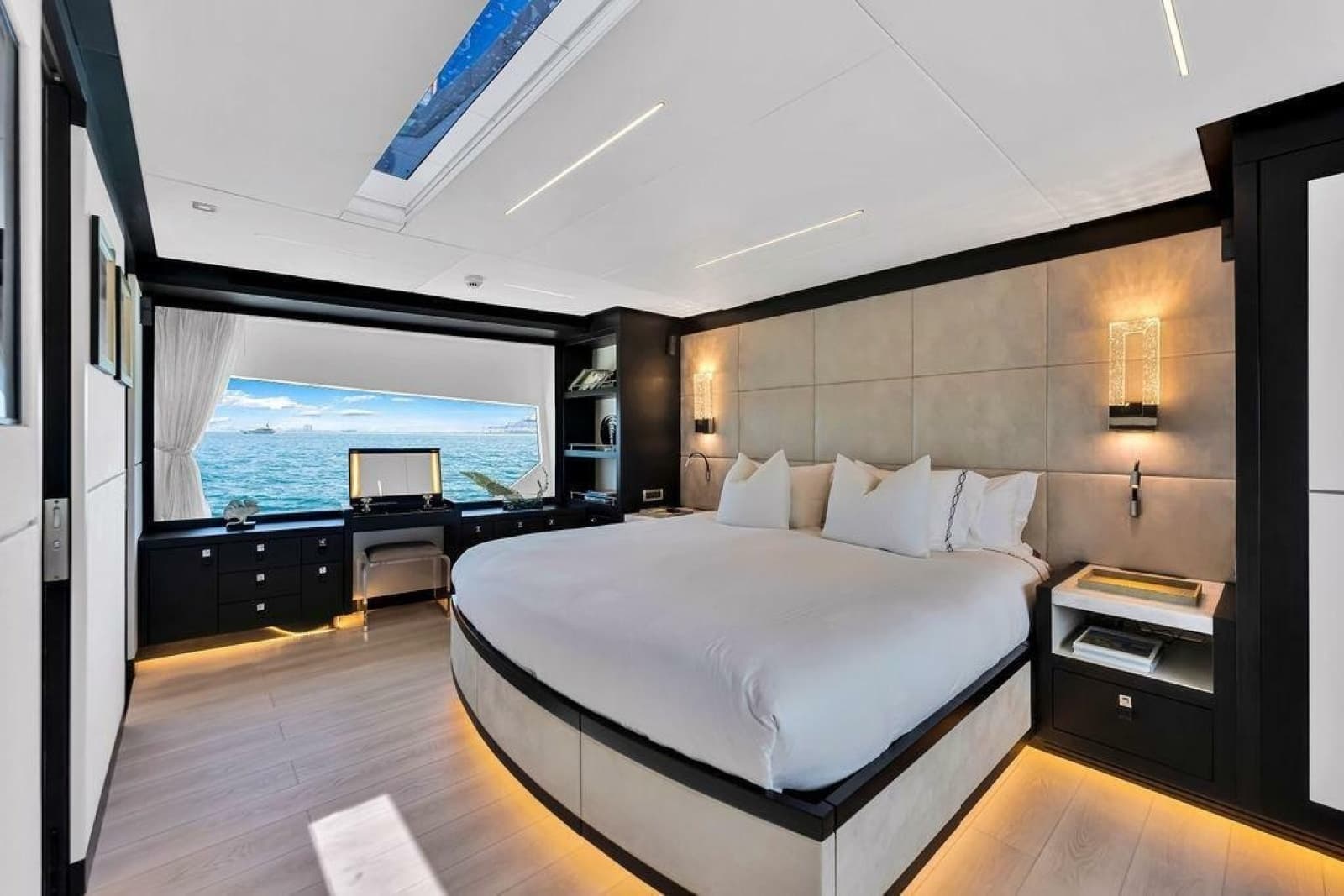

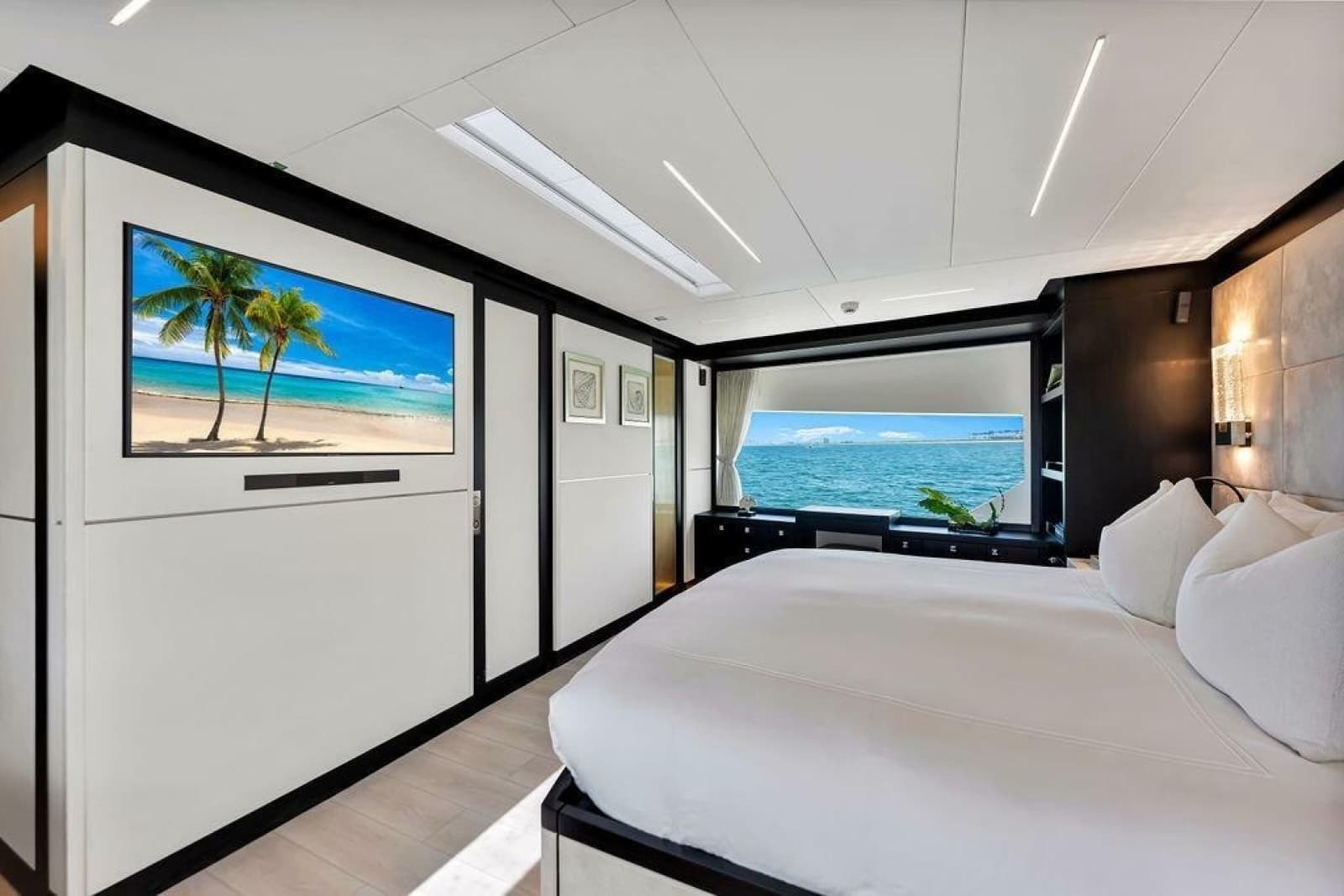

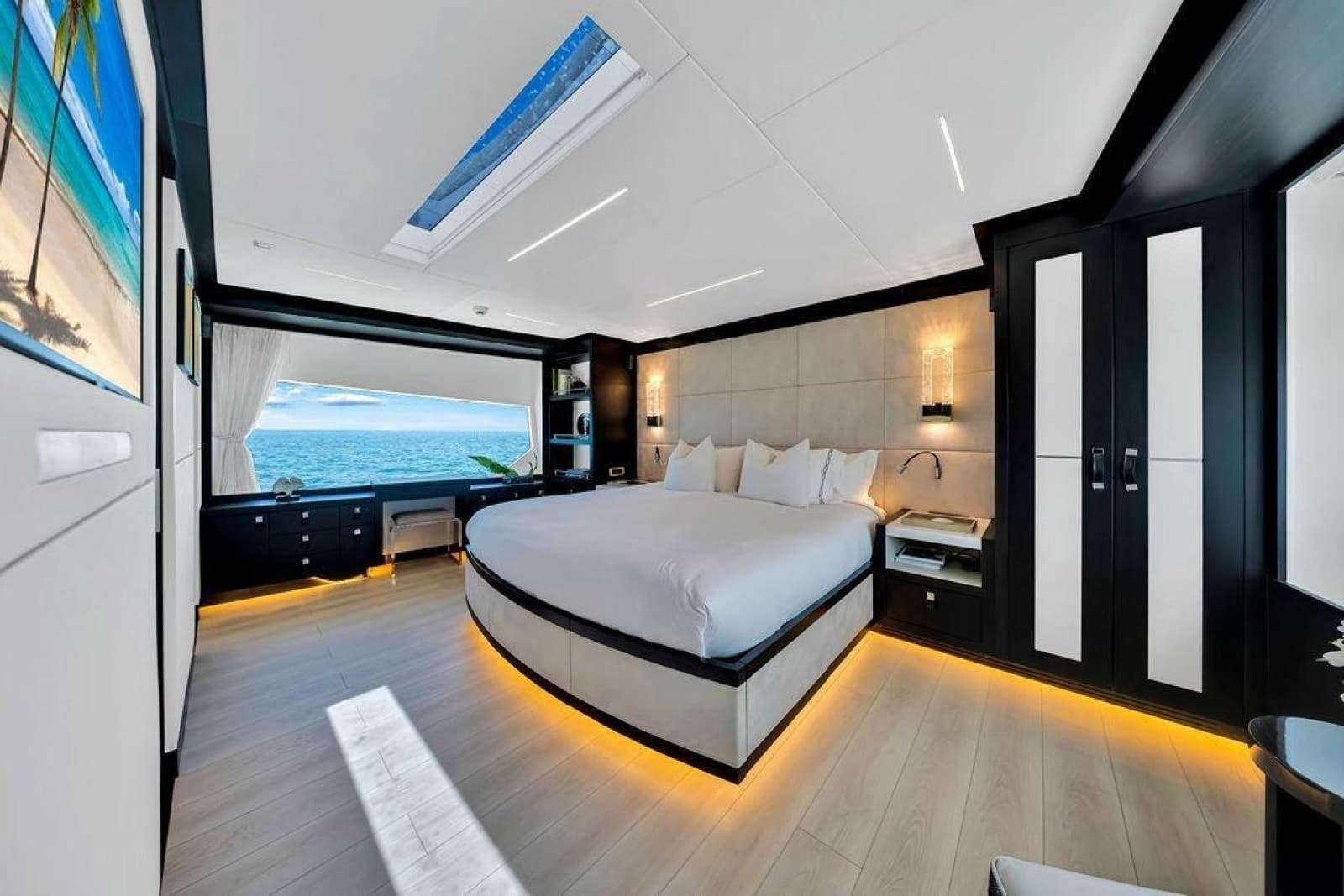

Descend to the main deck, where you'll find the on-deck full-beam master stateroom. This haven of comfort features a king-sized bed, a spacious walk-in closet, and a private seating area. The en-suite bathroom is opulent, with double vanities, a large shower, and premium fixtures. The retractable power shade system can only be seen to be believed as it is a first class piece of artwork in and of itself. The system provides total darkness for a restful sleep and when open, gorgeous views through huge port and starboard windows.

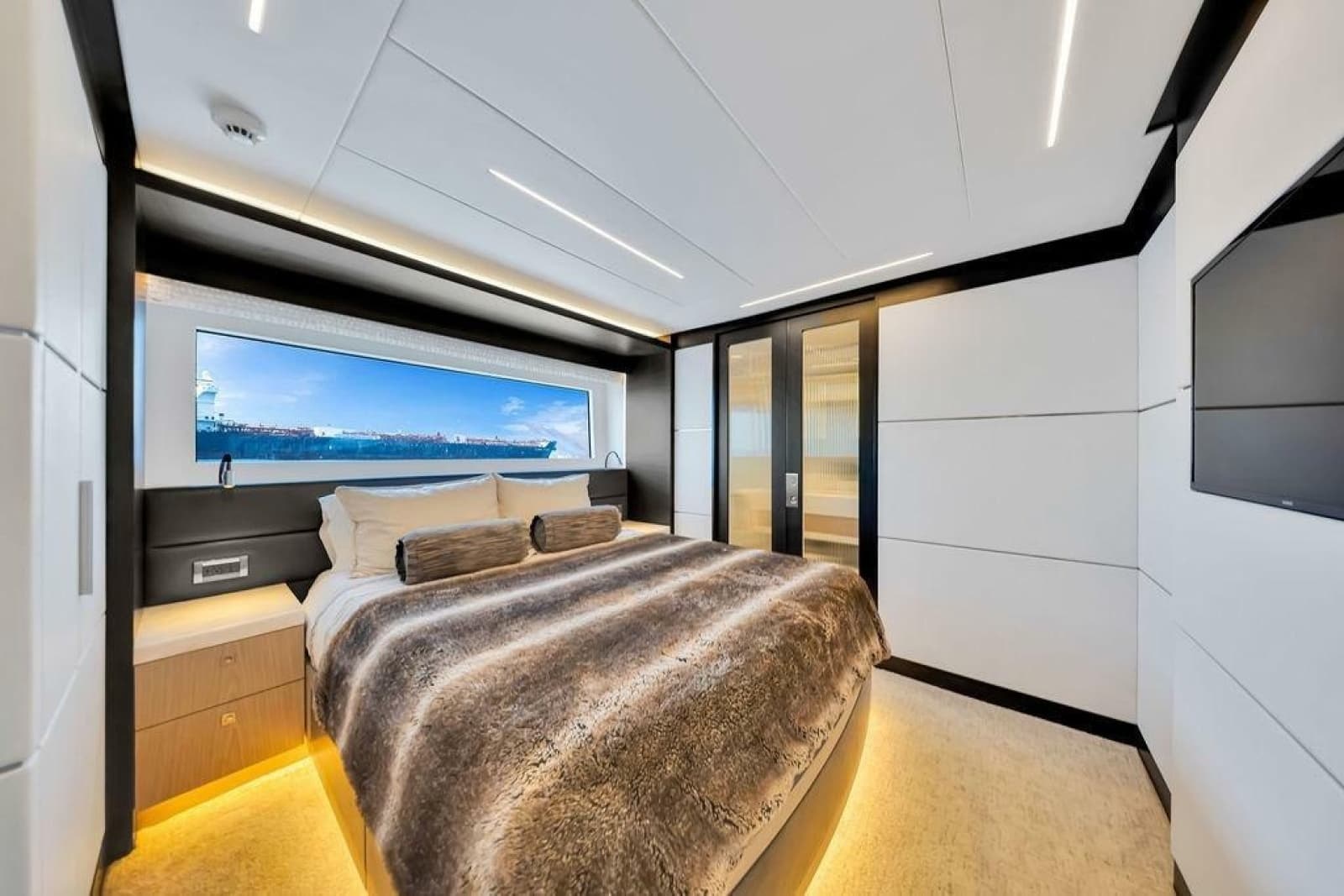

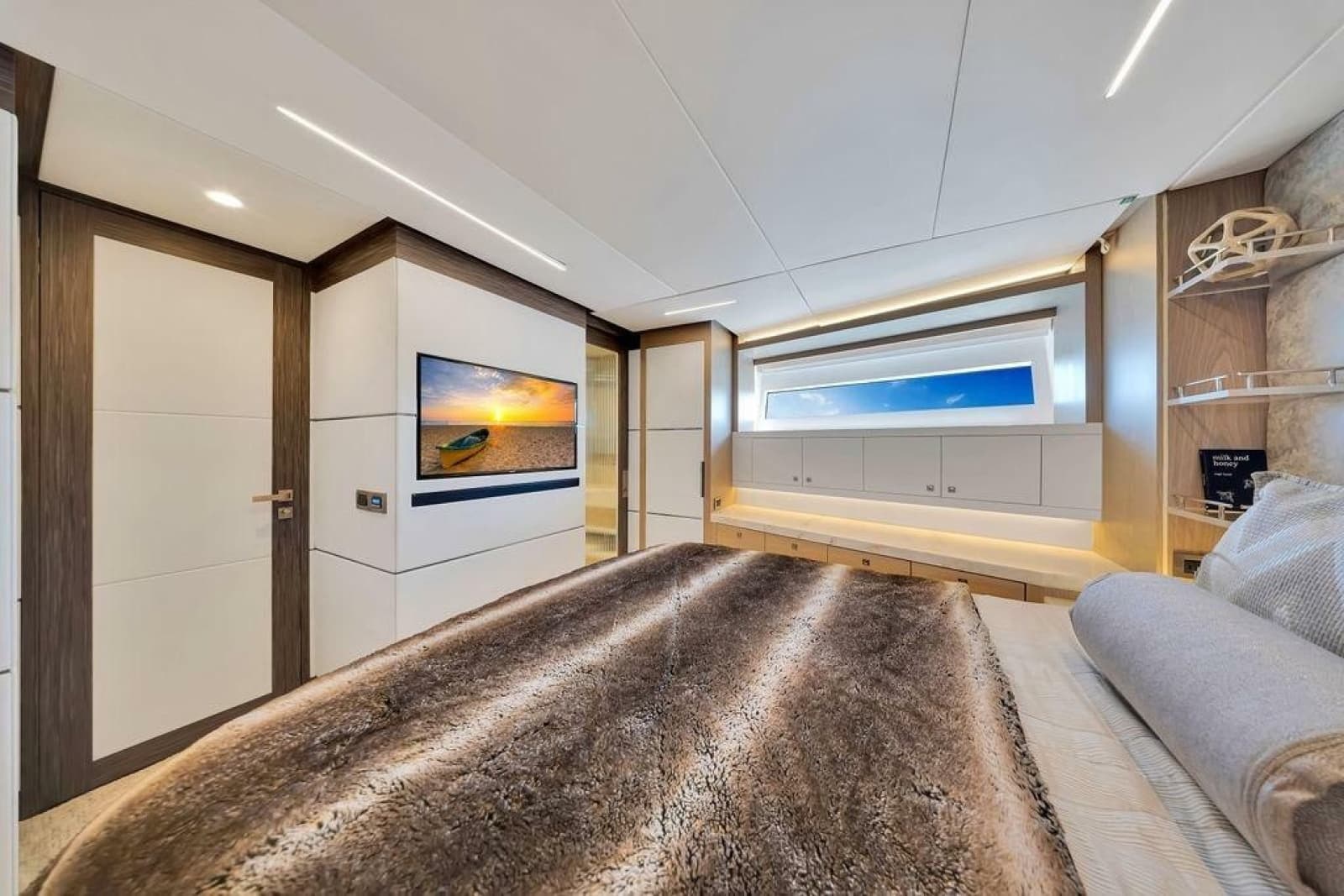

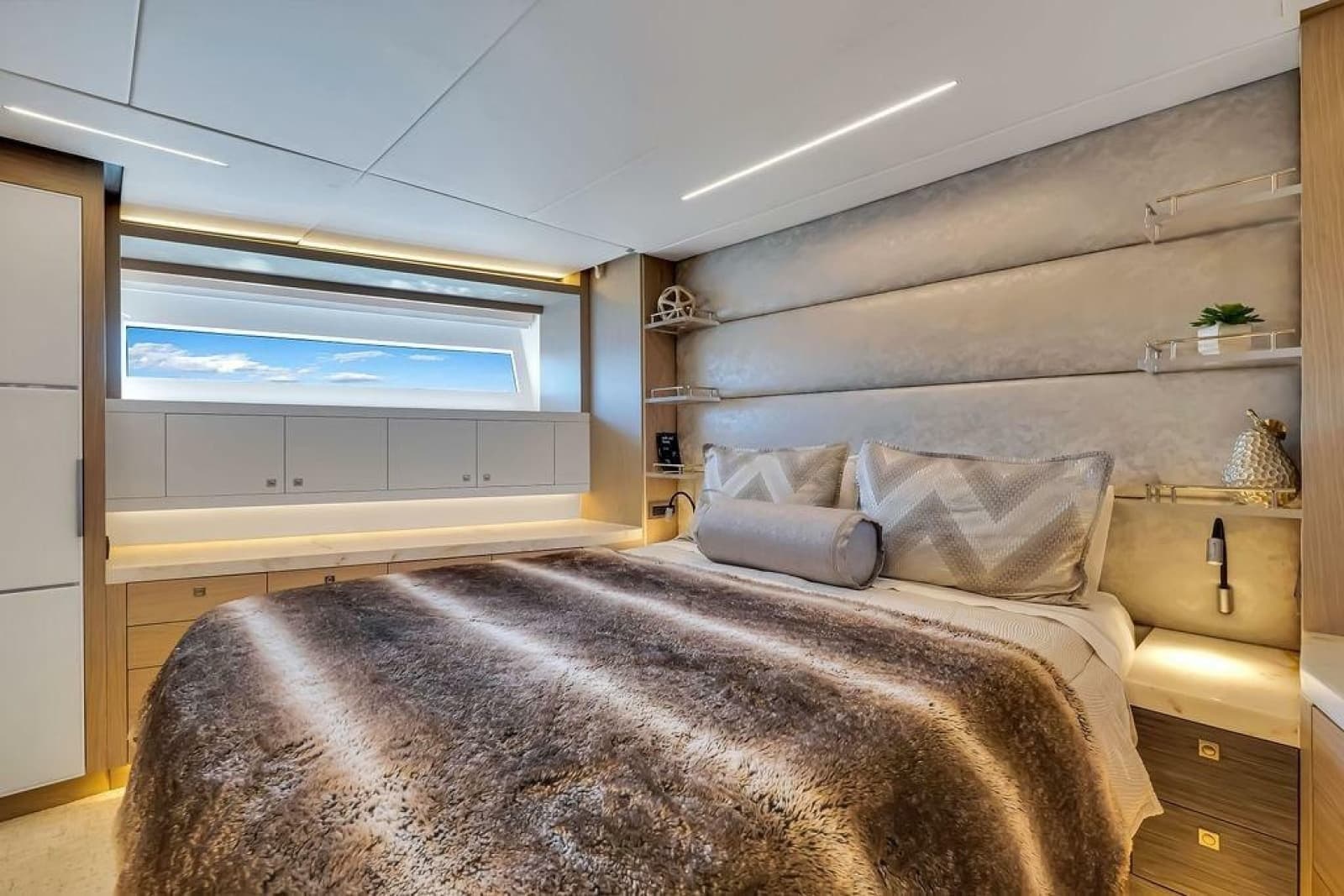

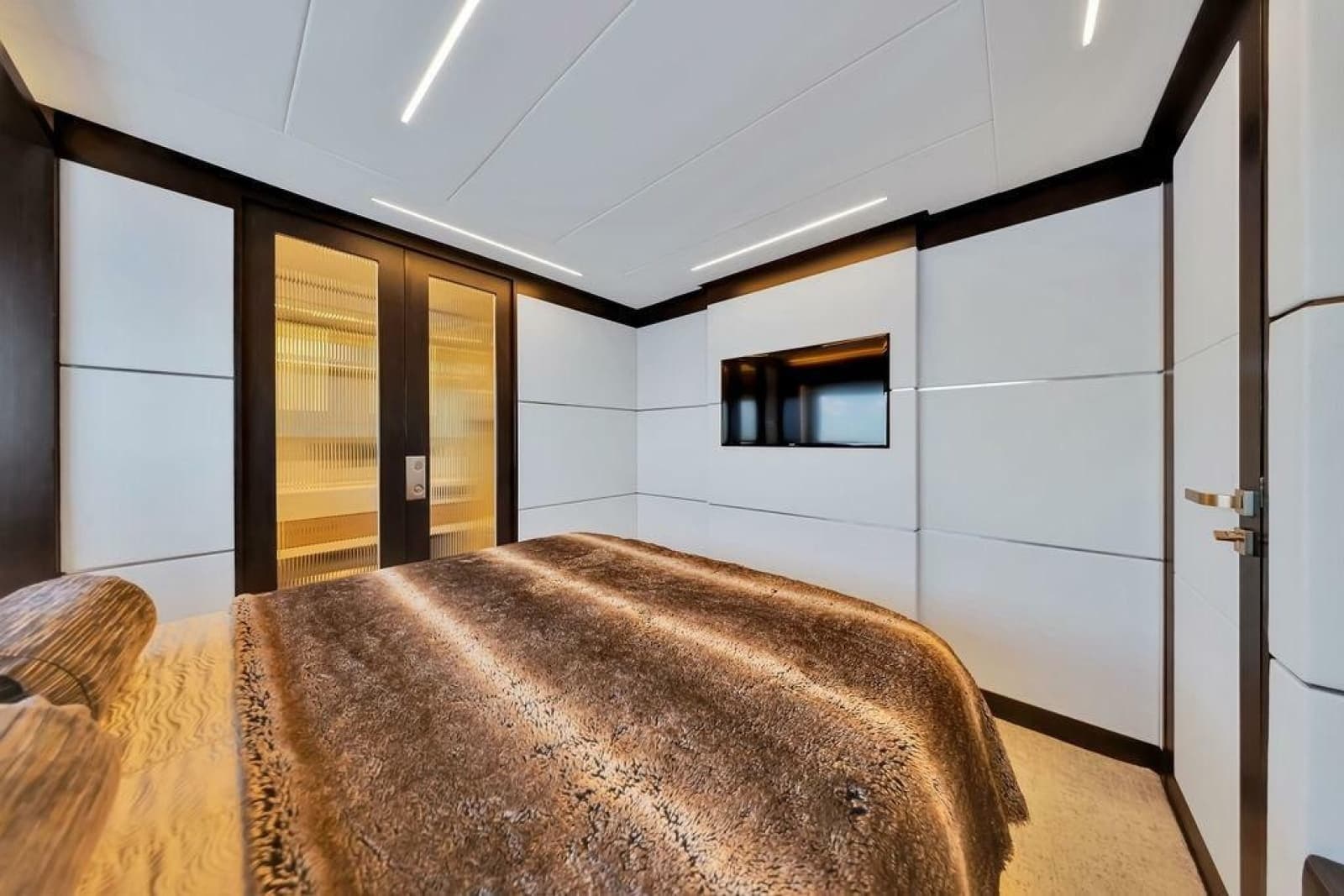

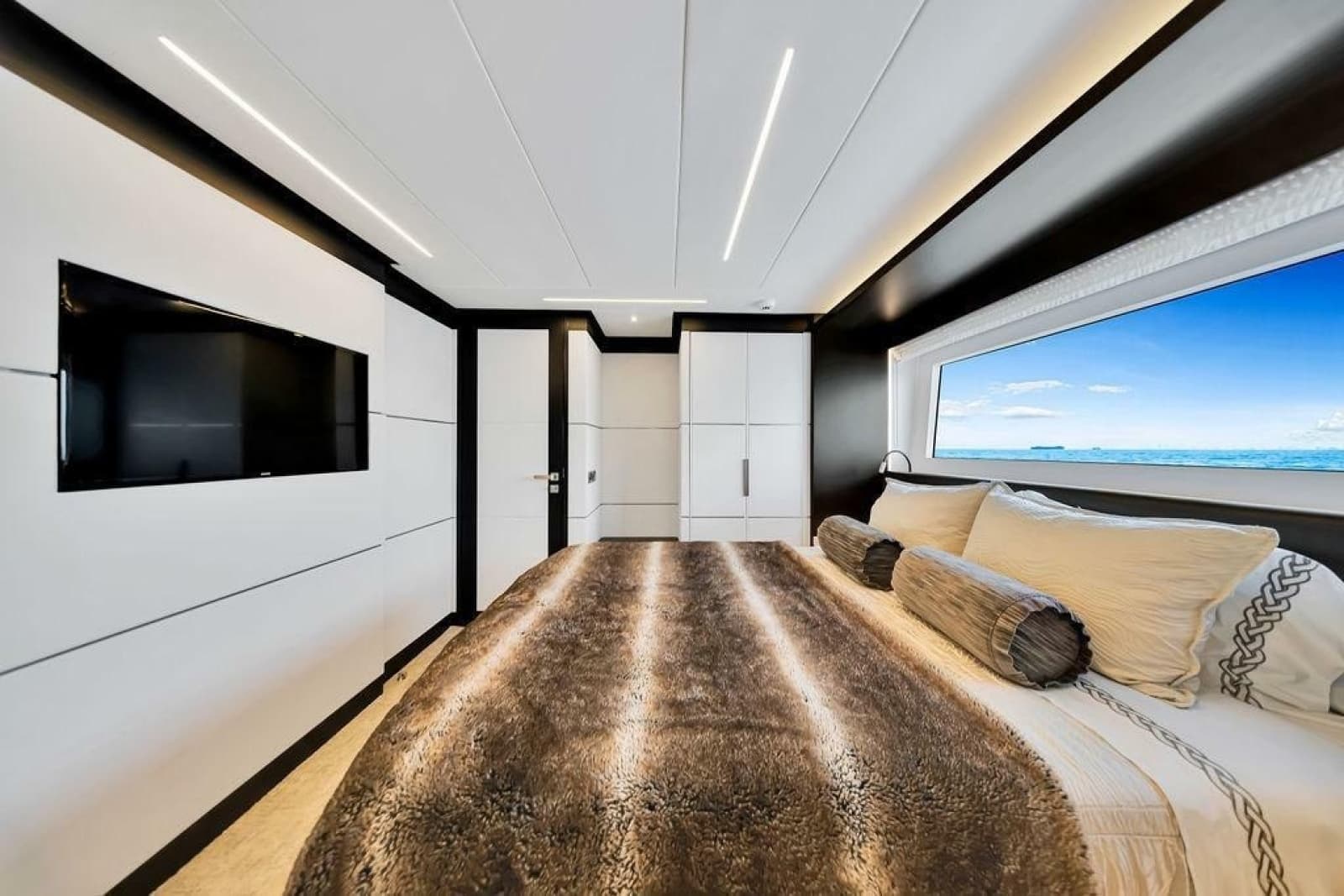

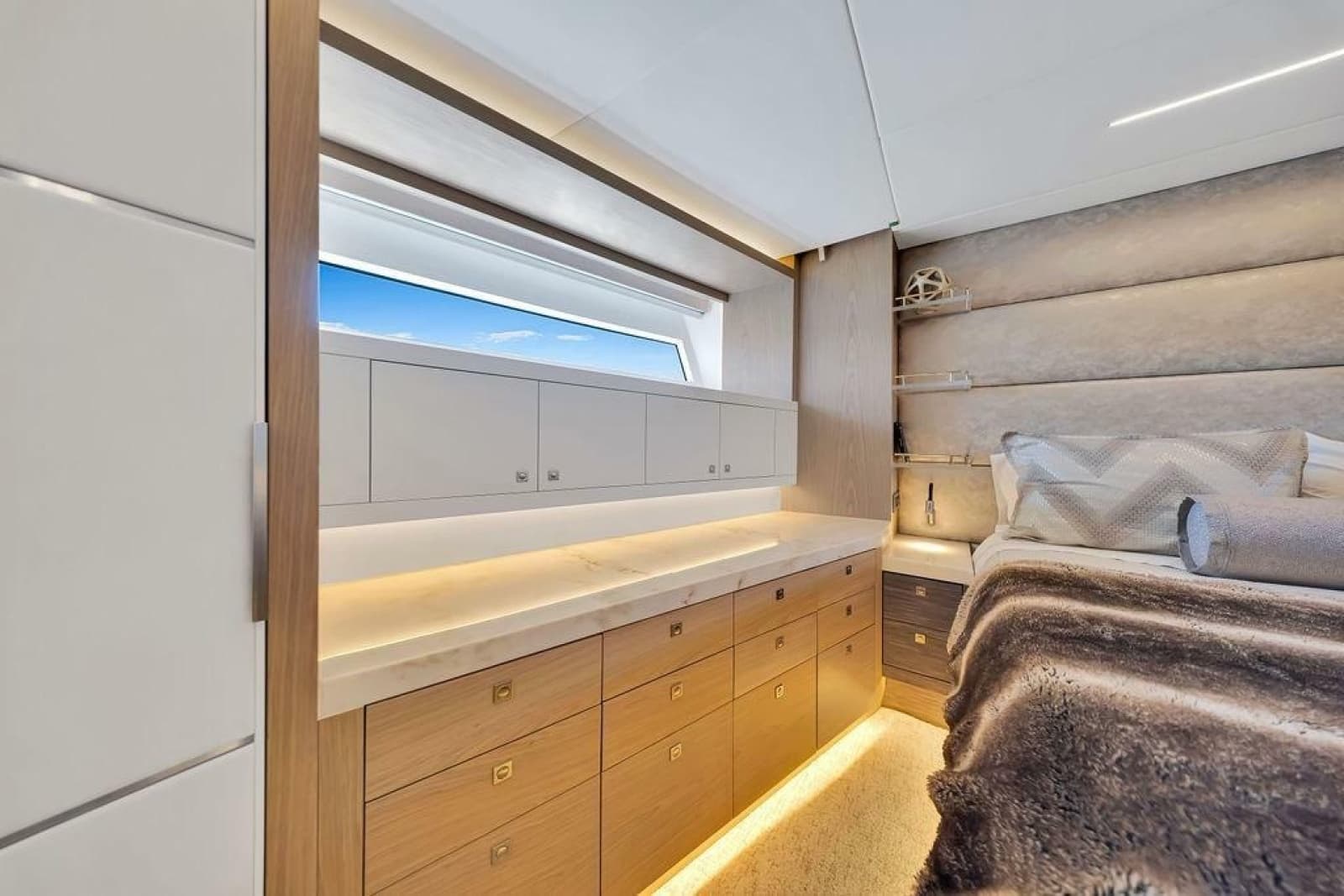

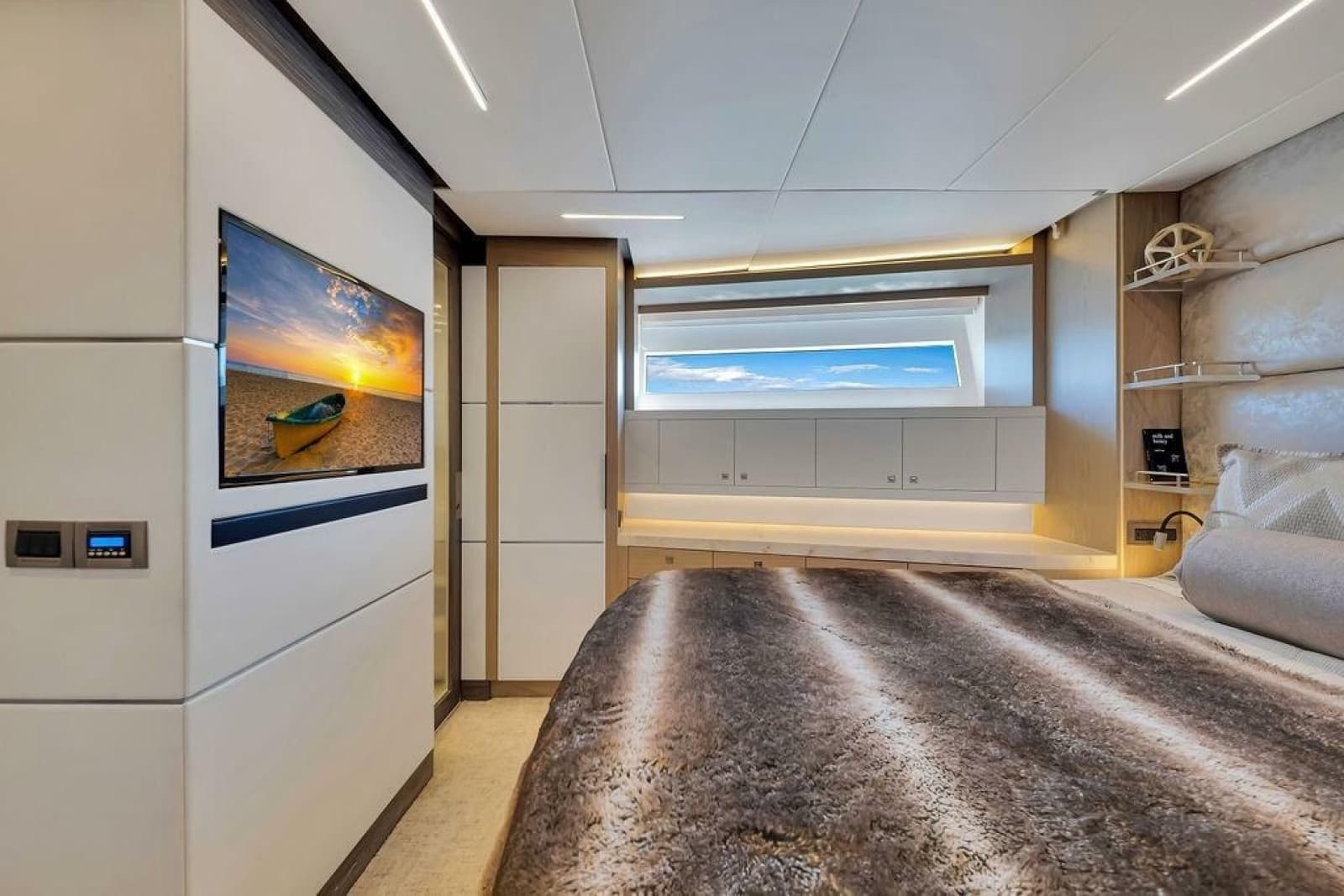

The lower deck hosts two VIP staterooms. Each room offers a queen-sized bed, tastefully designed interiors, and en-suite bathrooms. These staterooms ensure that guests experience the same level of comfort and luxury as the owner.

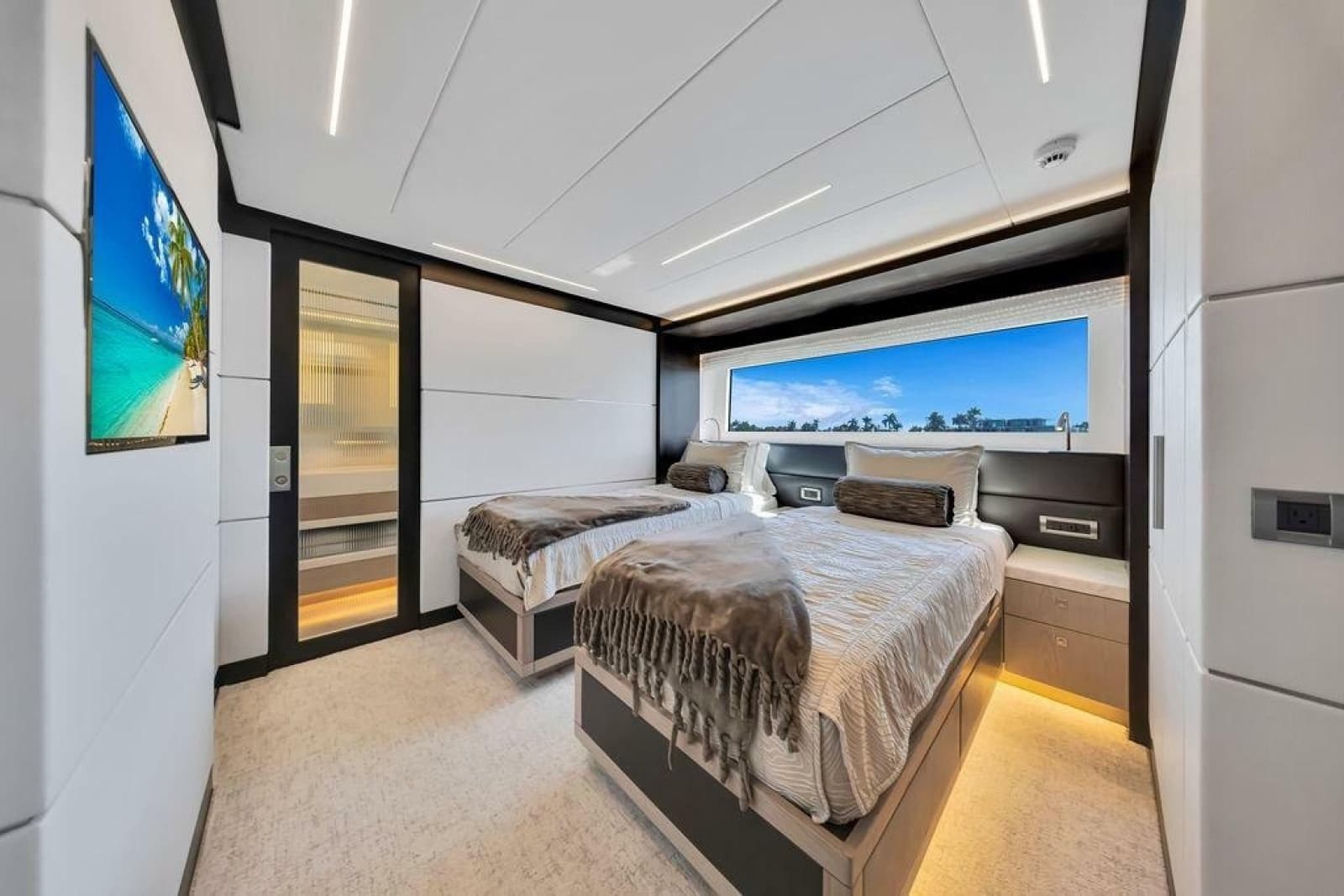

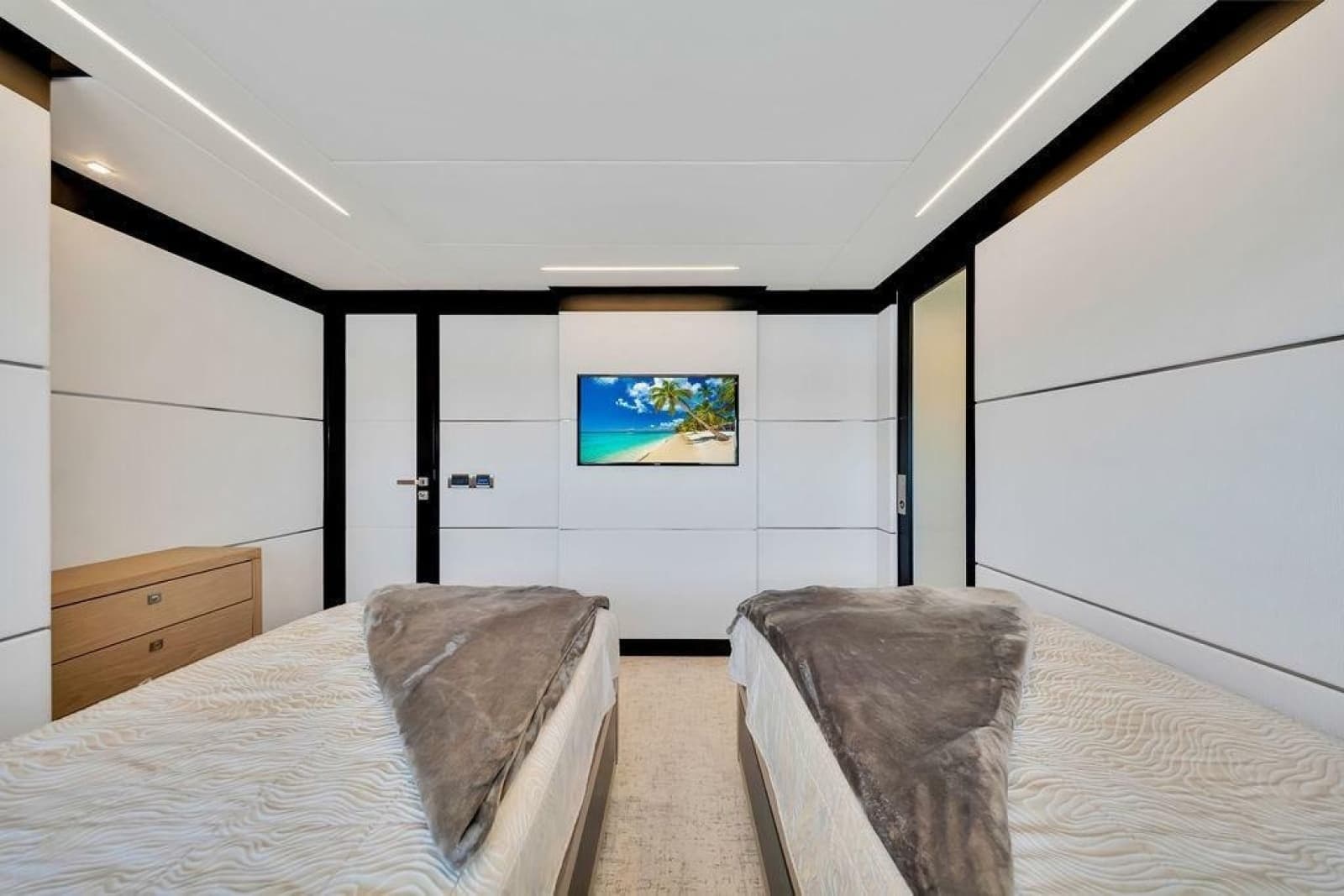

Additionally, the lower deck includes another very large guest twin-stateroom with en-suite head and shower. Finally, a unique feature to Day One’s lower deck layout is the inclusion of a full gym workout room and large walk-in pantry with storage and washer/dryer setup.

Accessed either through the external aft deck door or the beach club, the crew quarters consist of two separate (one full, one twin bunk) dedicated sleeping spaces, a totally separate head and shower, a communal mess area, and a small galley. The layout ensures that crew members have their own private space while remaining close enough to attend to all guest and yacht needs efficiently.

The engine room houses Twin MTU 10V2000M96 1600 hp engines. Equipped with advanced engineering systems, the engine room ensures that the yacht delivers both performance and reliability. This area also contains various technical systems essential for the yacht's operation, including generators, watermakers, and air conditioning units.

Whether it's lounging on the aft deck, dining in the salon, sunbathing on the flybridge, or retiring to the master suite, the C92 offers the ultimate blend of luxury, comfort, and an unforgettable experience on the water.

Vessel Overview:

Exterior Deck and Equipment:

• Teak aft deck, teak swim platform, and teak steps to swim platform and steps to the upper deck and side walkway Non-skid for the rest
• FRP cap rail

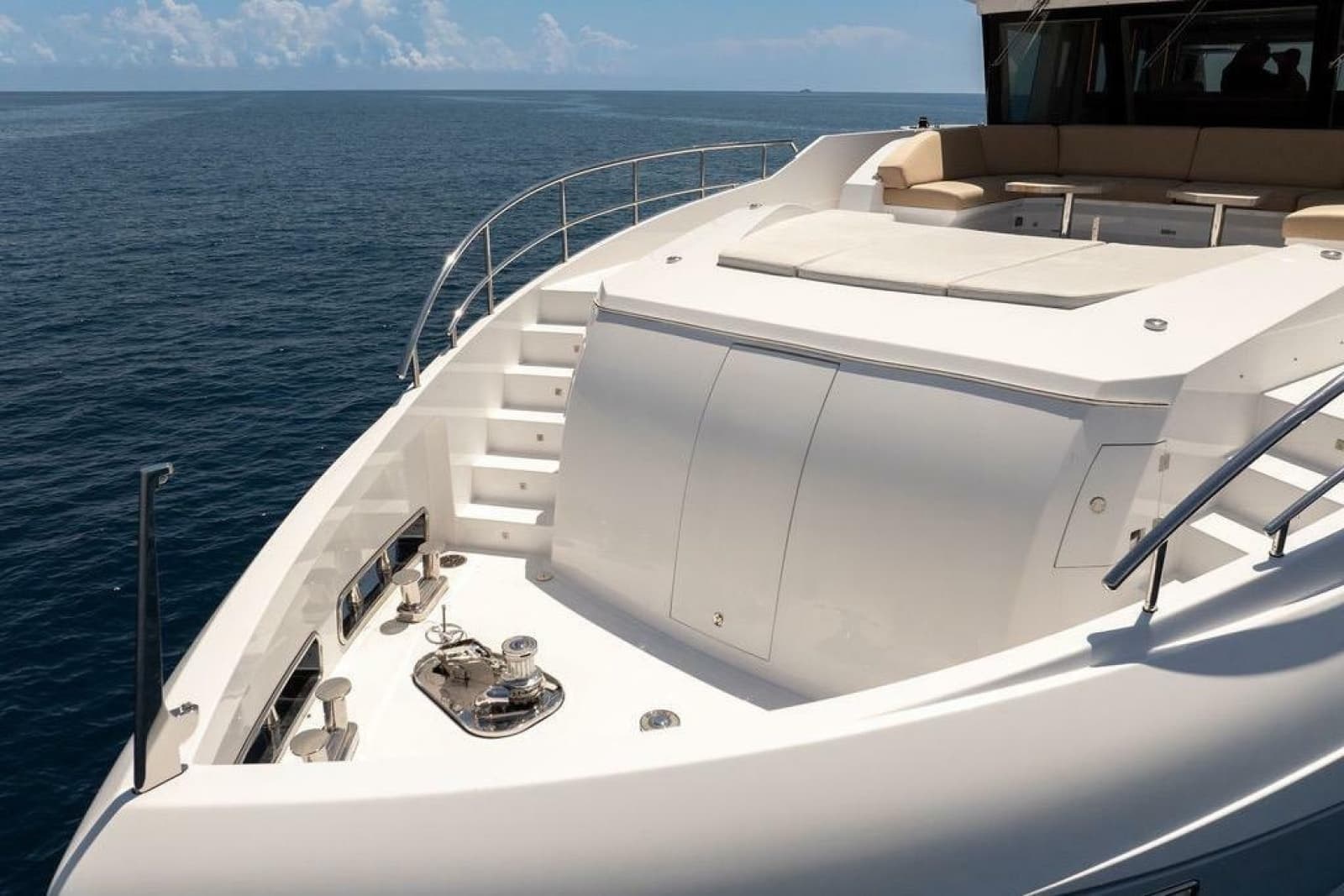

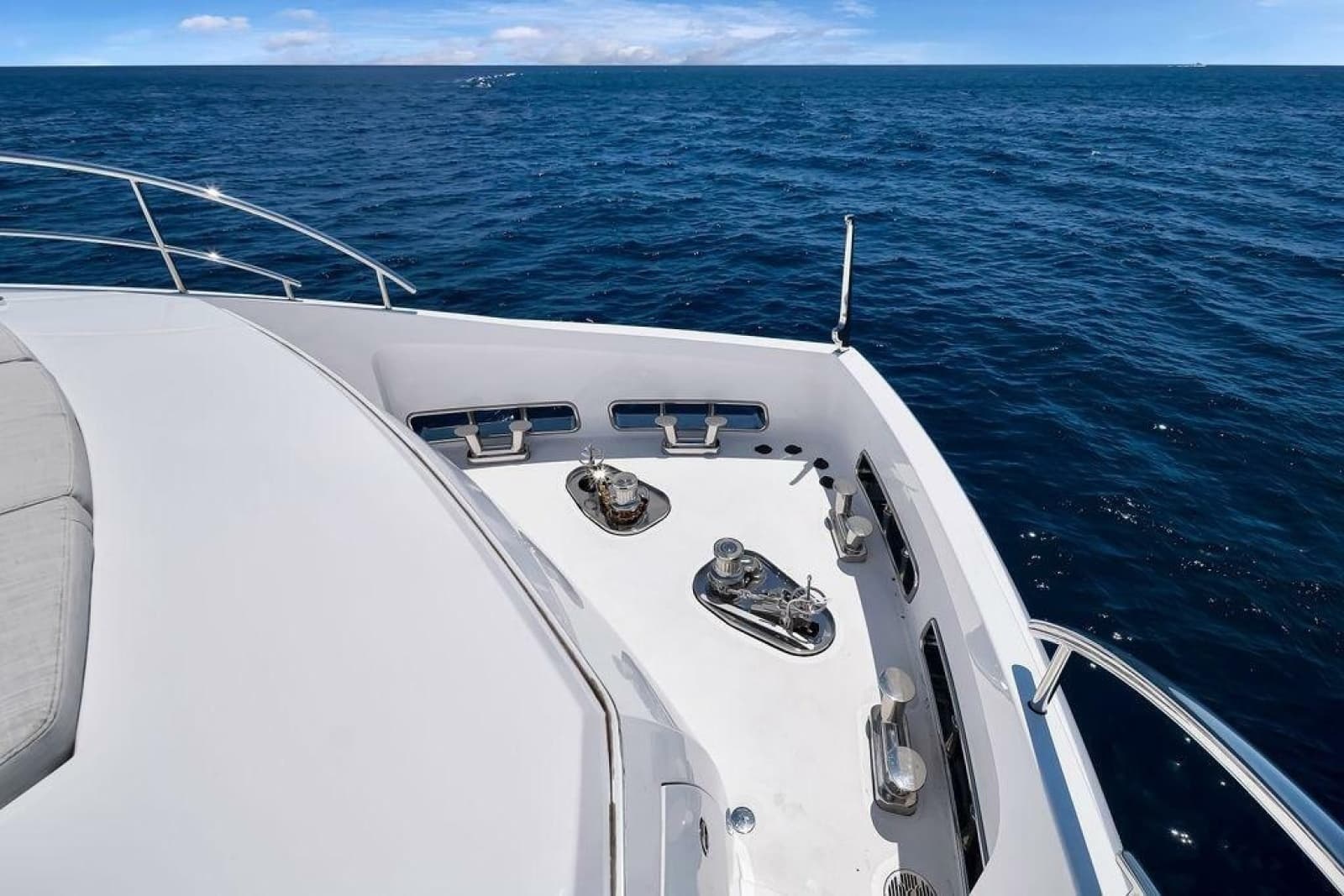

• Maxwell VWC3500 vertical hydraulic anchor winch (x2) w/local foot switches and remote and chain counter
• 285 ft High tensile ½’ anchor chain (x2)
• 100Kg Stainless Steel anchor (x2)
• Stainless Steel rollers and chain stopper
• Heavy duty 316 Stainless Steel Cleats and fairlead w/rollers
• Aft deck corner hawser (x2) towing 12000lbs
• Bulwarks w/flush mounted courtesy lights
• Bulwark side doors (x4) at aft deck for boarding and midship
• Freshwater/seawater anchor chain wash down the system by manual operation
• 2" Handrail with 1-1/2” Stainless Steel stanchions and steel cable around the entire boat
• Stainless Steel/ flag pole at the bow
• Standard docking lines
• Portuguese bridge with sofa seats and lounge tables as per layout

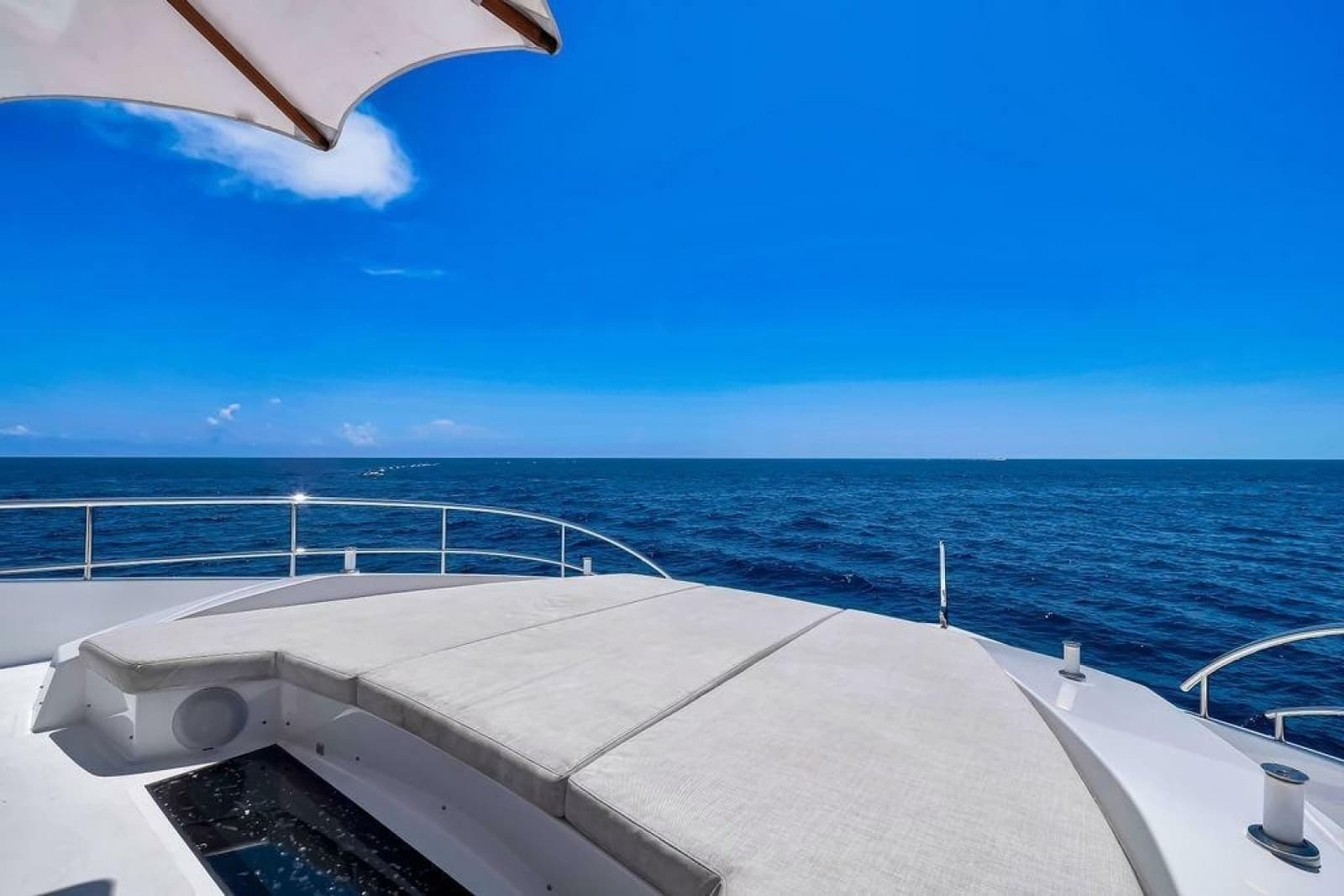

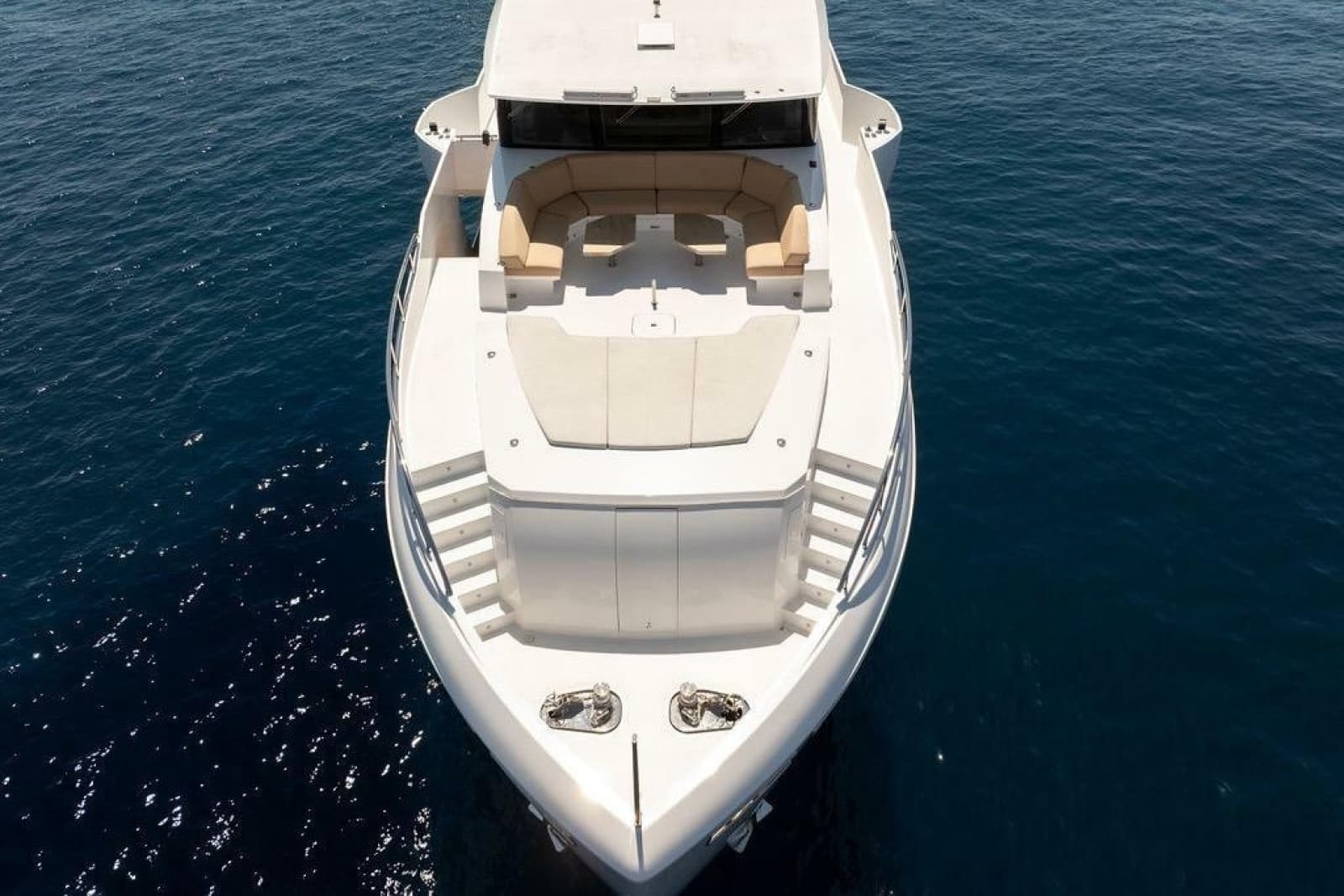

• Foredeck sunbathing cushion w/drink holders
• Frameless windows, clear tempered laminated Low-E glass for windshield
• Frameless windows, tined tempered laminated glass for side windows
• Stairs from the aft deck to swim platform with Stainless Steel gate doors and handrails
• Stainless Steel Sliding saloon entrance door, self-locking auto door sky lounge and aft deck with a kick button
• Deckhouse side entrance door (x2) one sliding door on the starboard side and one hinged door from the galley on the port side walkway
• Aft dining table

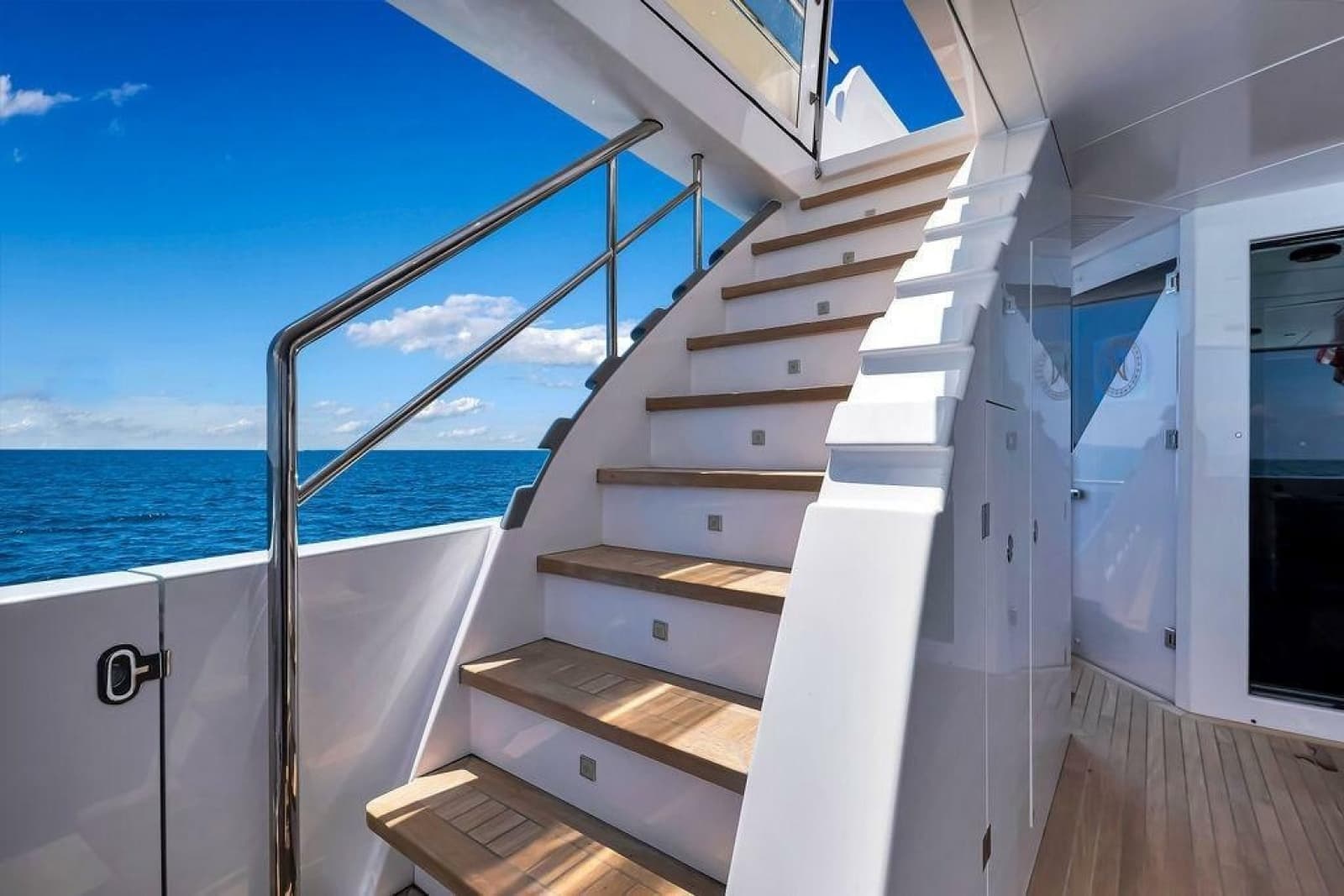

• Integrated stairs from the aft deck to the upper deck (one for port side)
• Hydraulic Hi/Lo swim platform with function as tender lift up to max 2000 lbs removable chalks for swim platform tender
• Two pop-up cleats on hi/lo swim platform.
• Boathook
• Built-in shower with hot/cold water above the swim platform.
• One extractable swim ladder
• Rub rail around hull sides
• Portholes are all glass
• Exterior LED step lights
• Removable corner rails on the swim platform

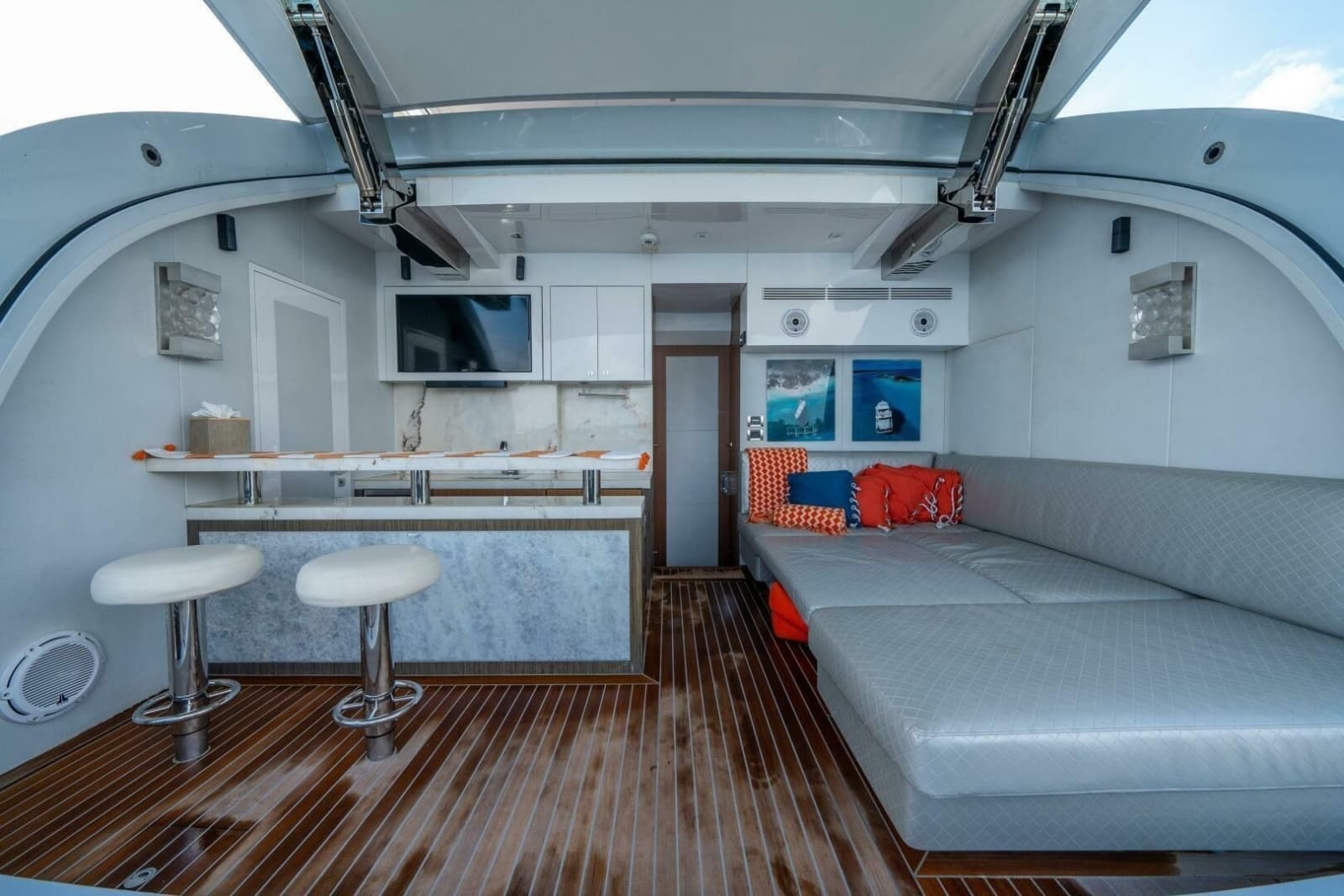

 Beach Club:

• Hydraulic door with pantograph door in the middle
• Sofa seat w/table as per layout
• Bar with Stainless Steel bar stools, sink, Isotherm 2 drawer refrigerator and cooktop

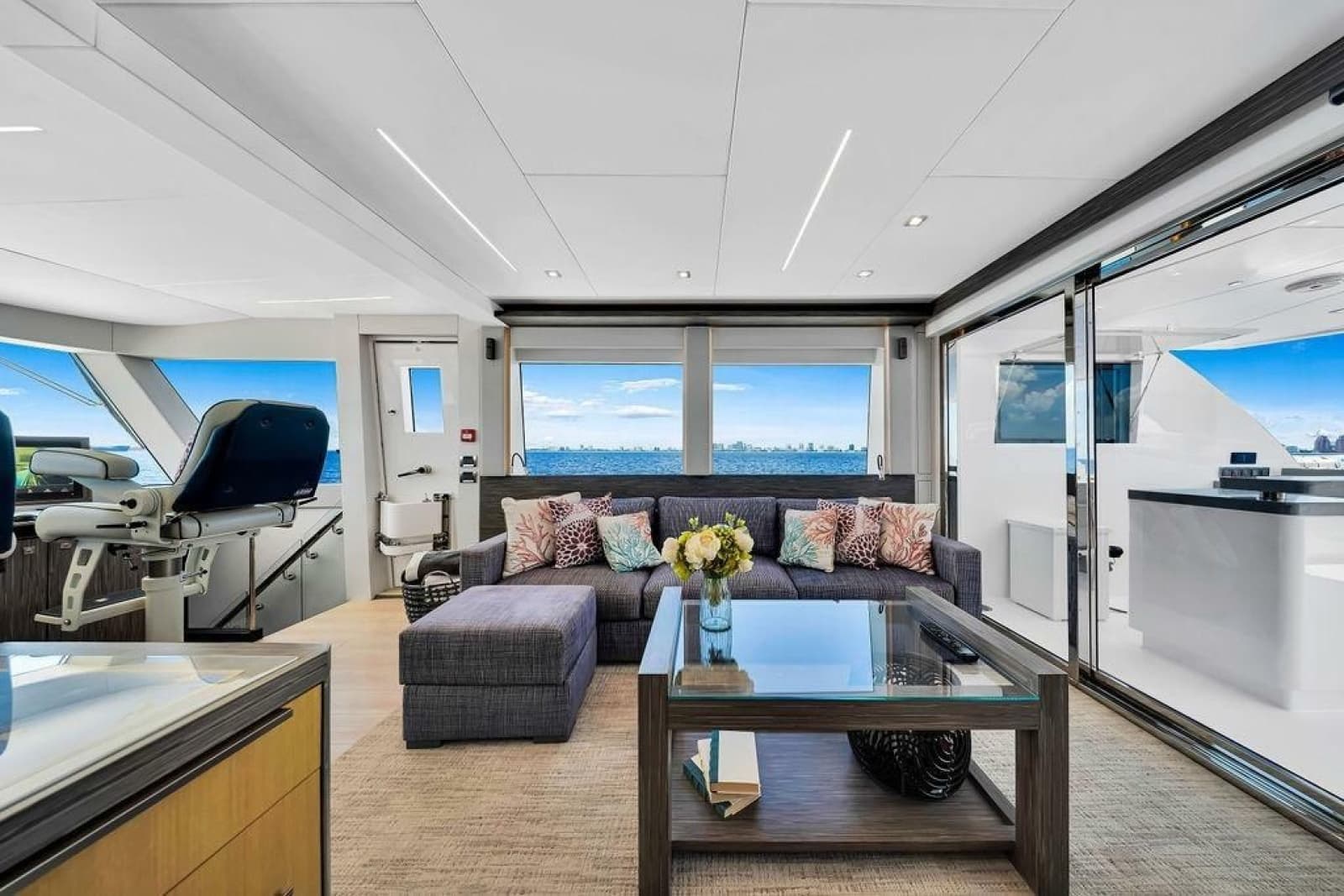

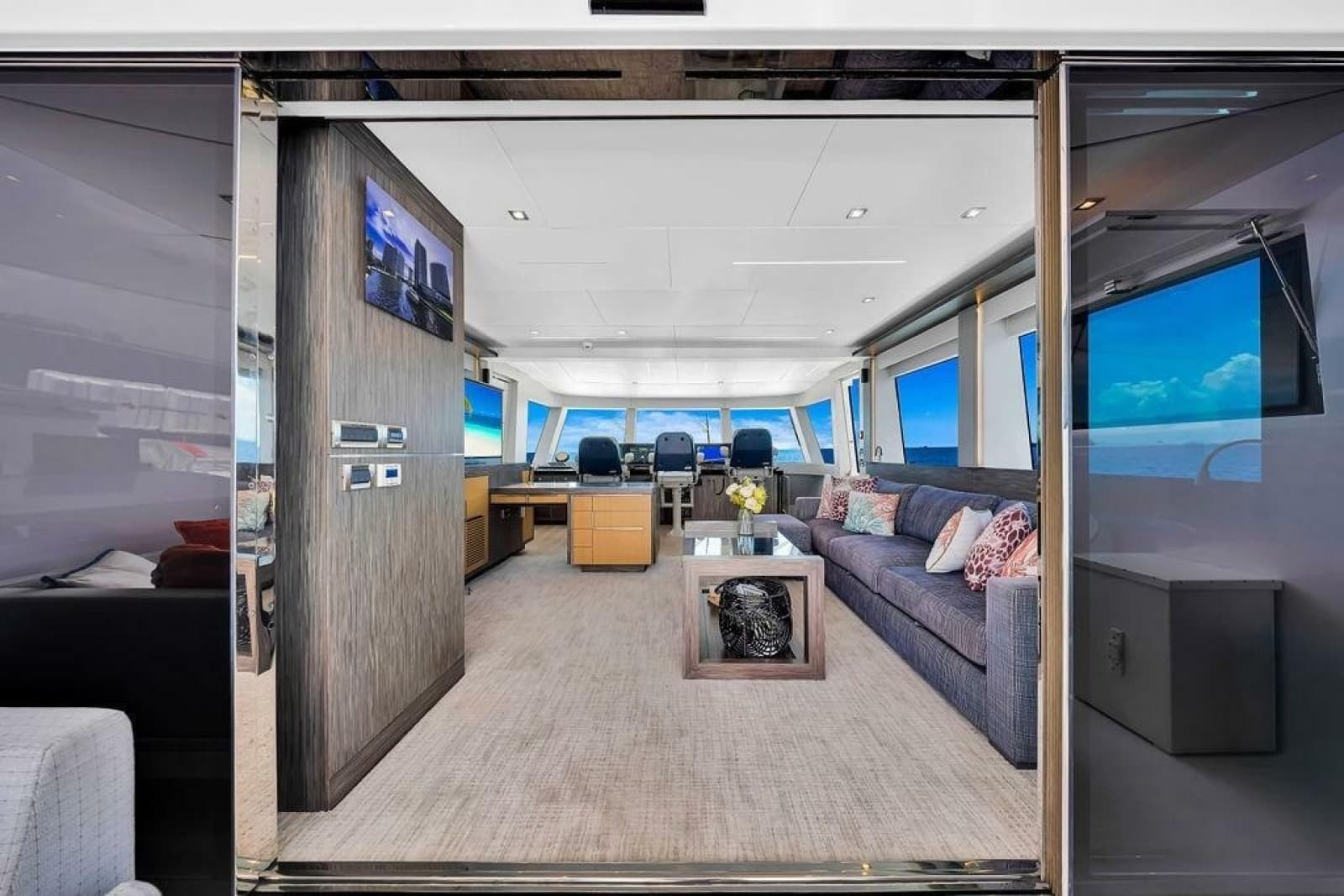

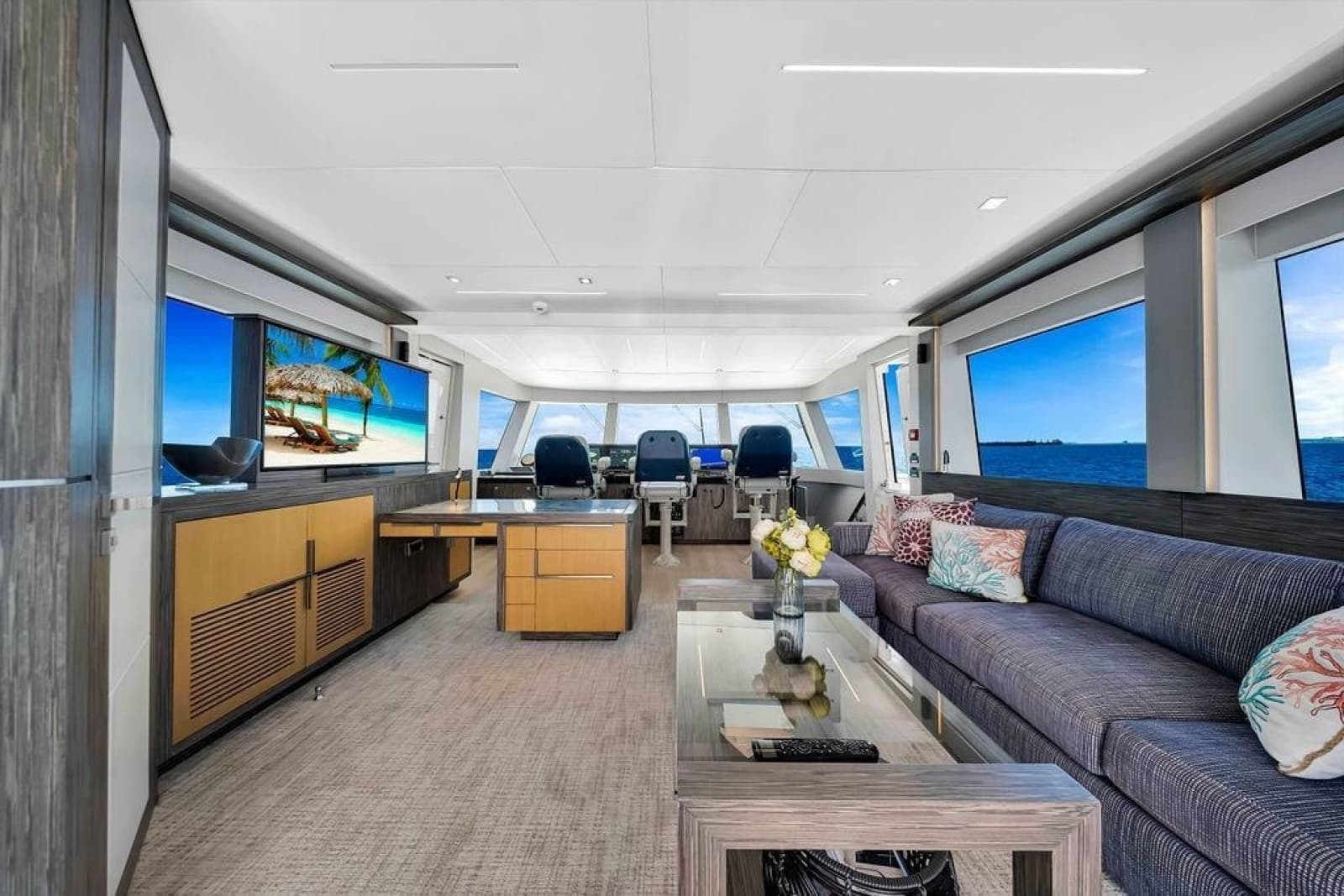

Skylounge and Boat Deck Skylounge:

• Helm station (as the main station)
• Choice of marble/Corian/Teak for countertop
• L-shaped seats w/table as per layout

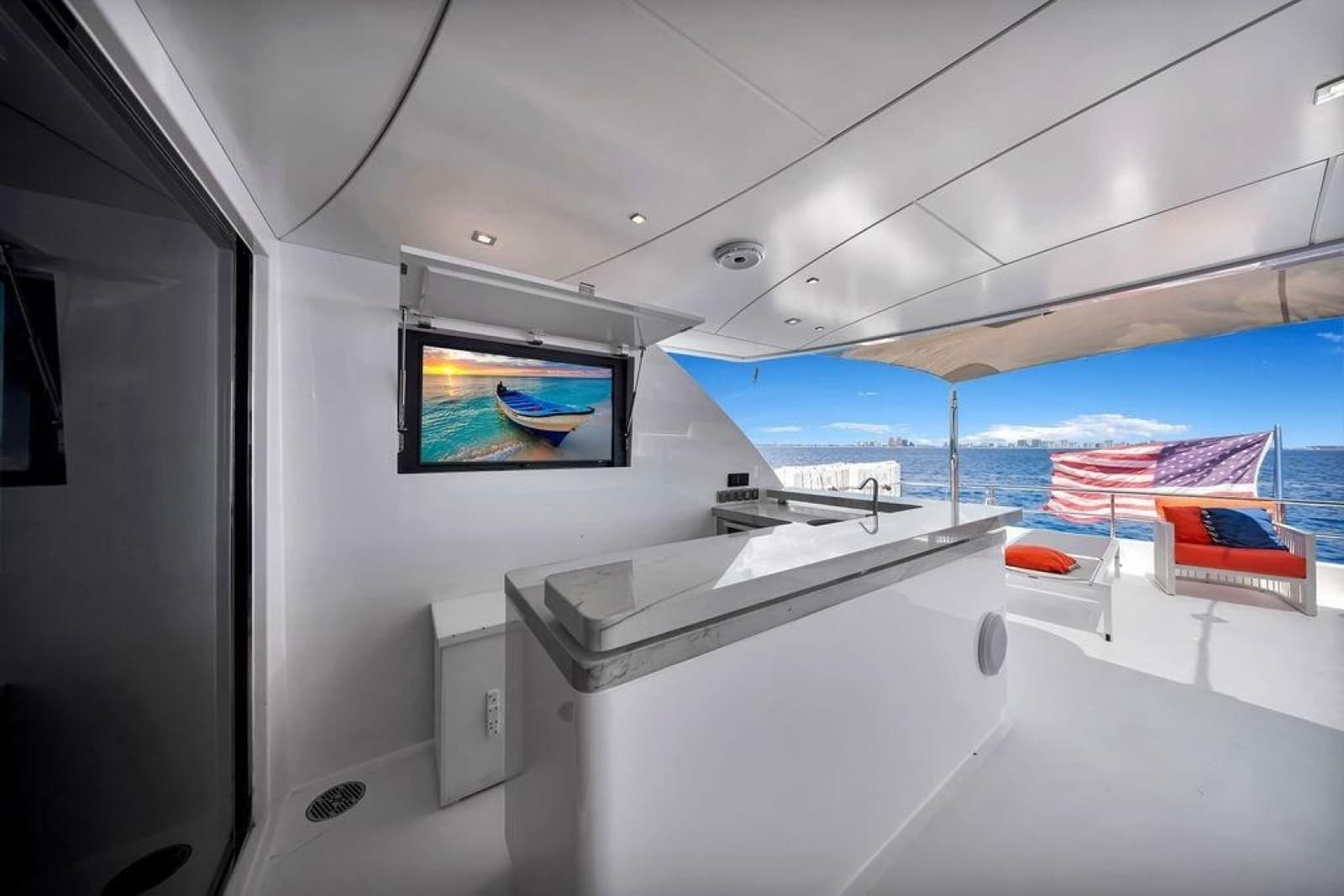

• Custom two-level bar, sink, refrigerator, and wine cooler
• Sliding door to the boat deck with self-lock.
• Hatch (x1) on hardtop with a (ship loose) retractable ladder
• Sun awning aft of sky lounge with Stainless Steel supports
• Fwd umbrella

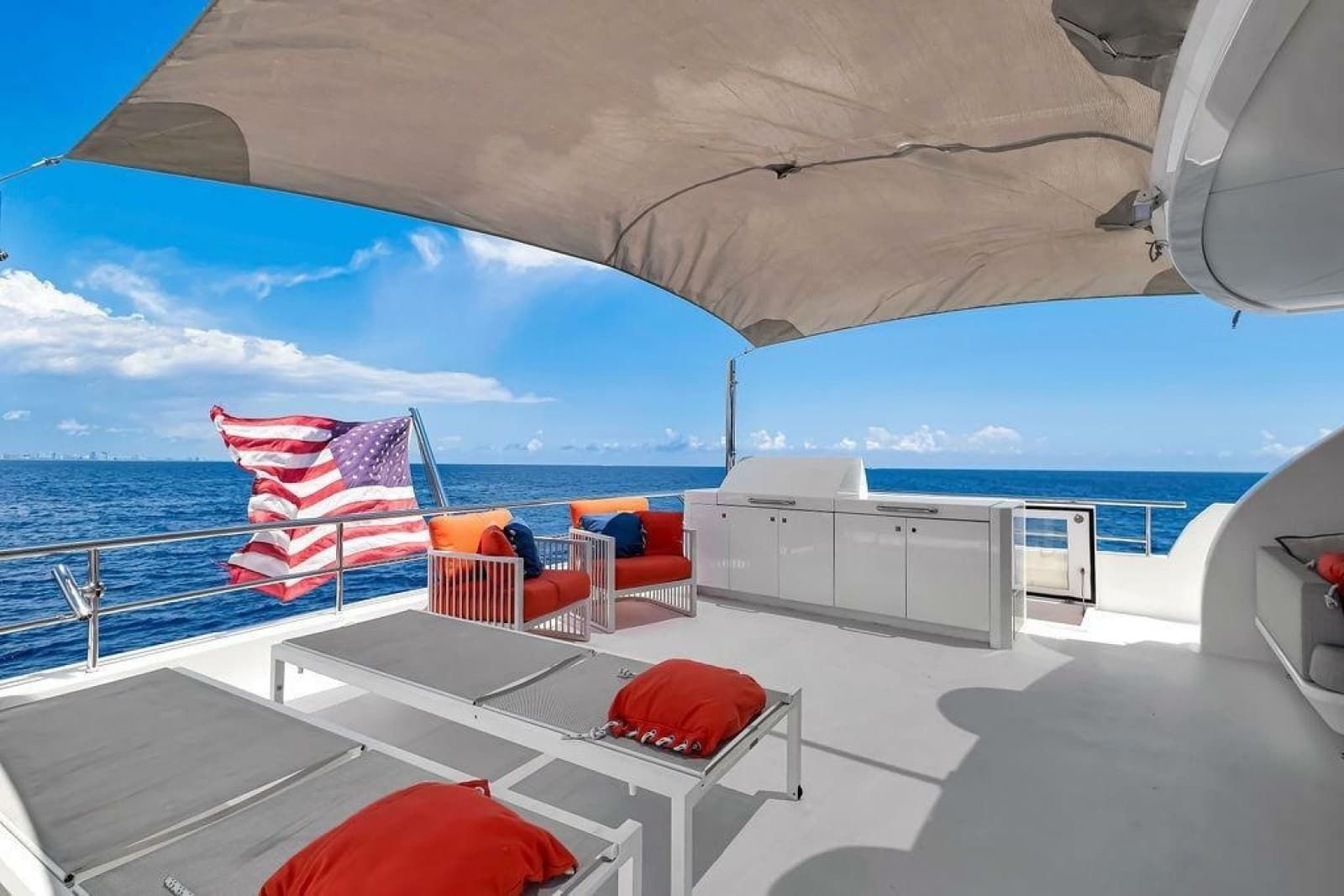

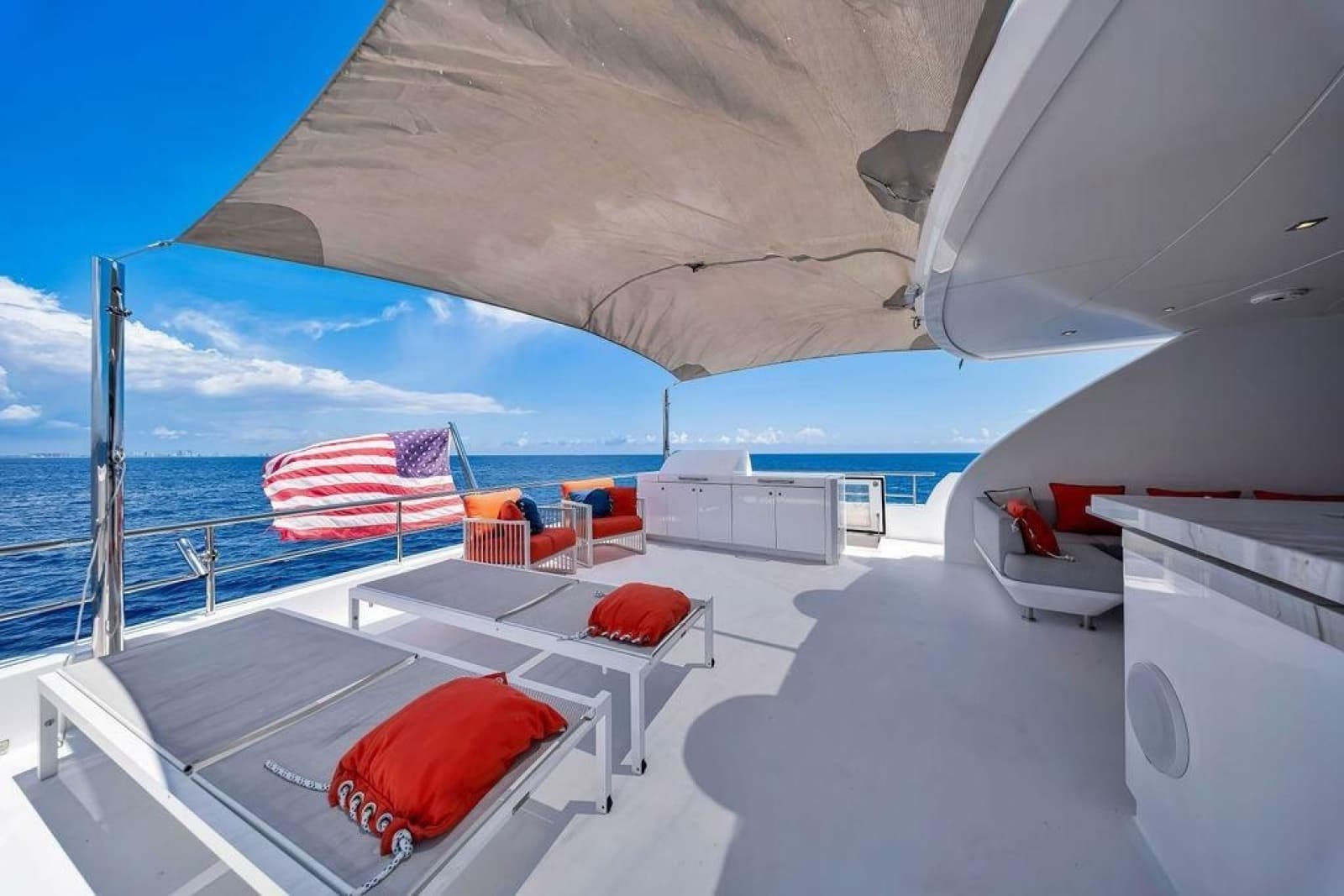

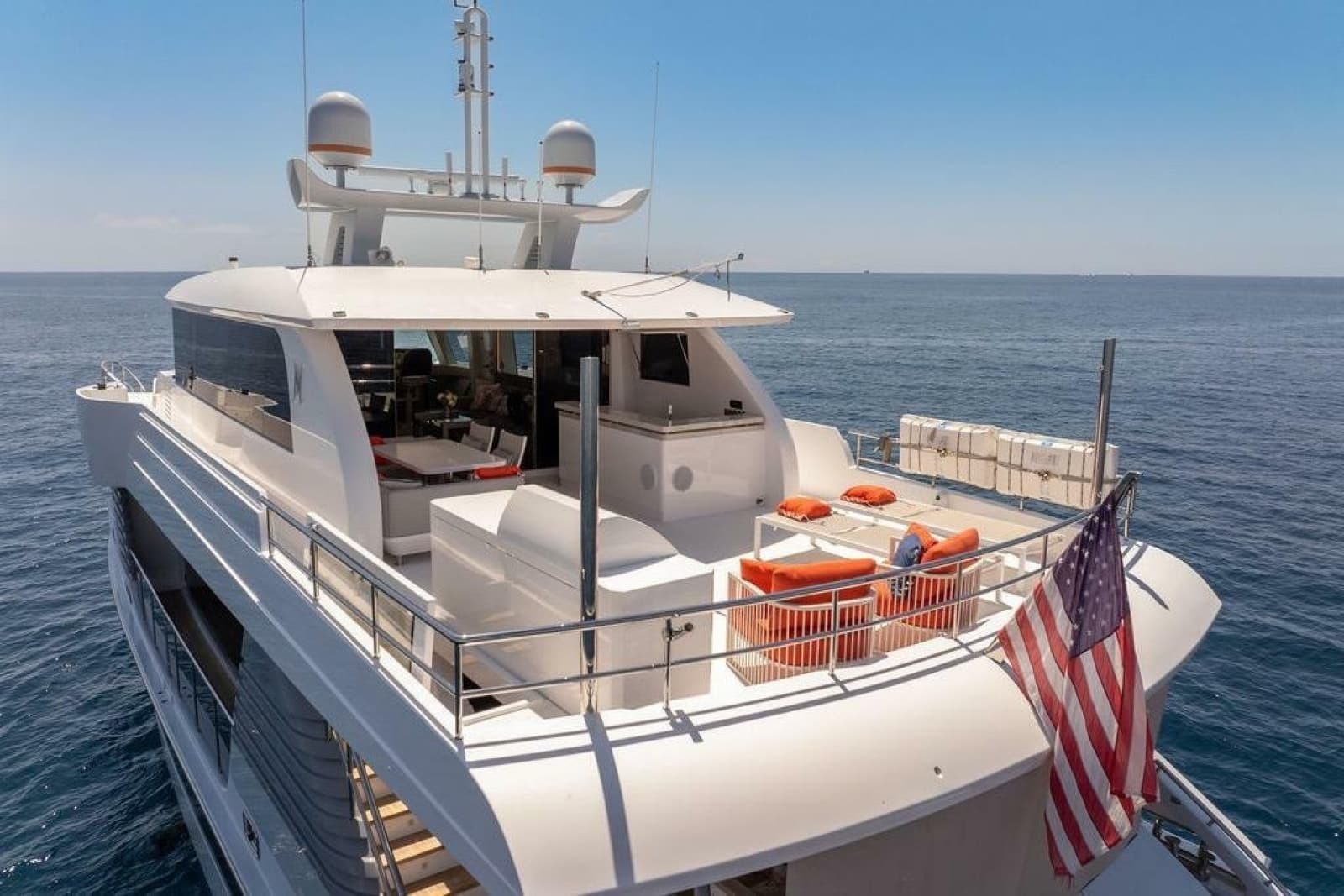

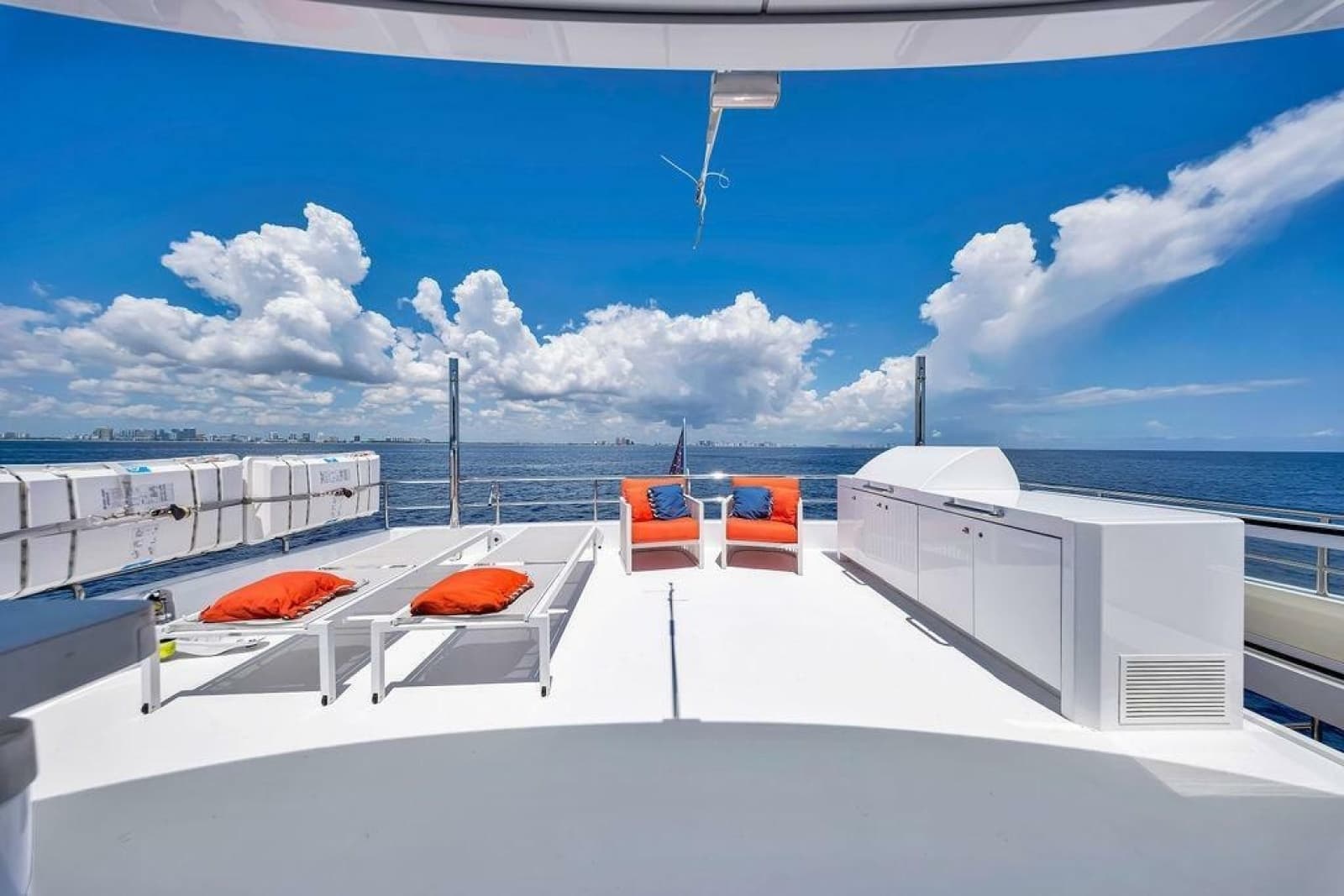

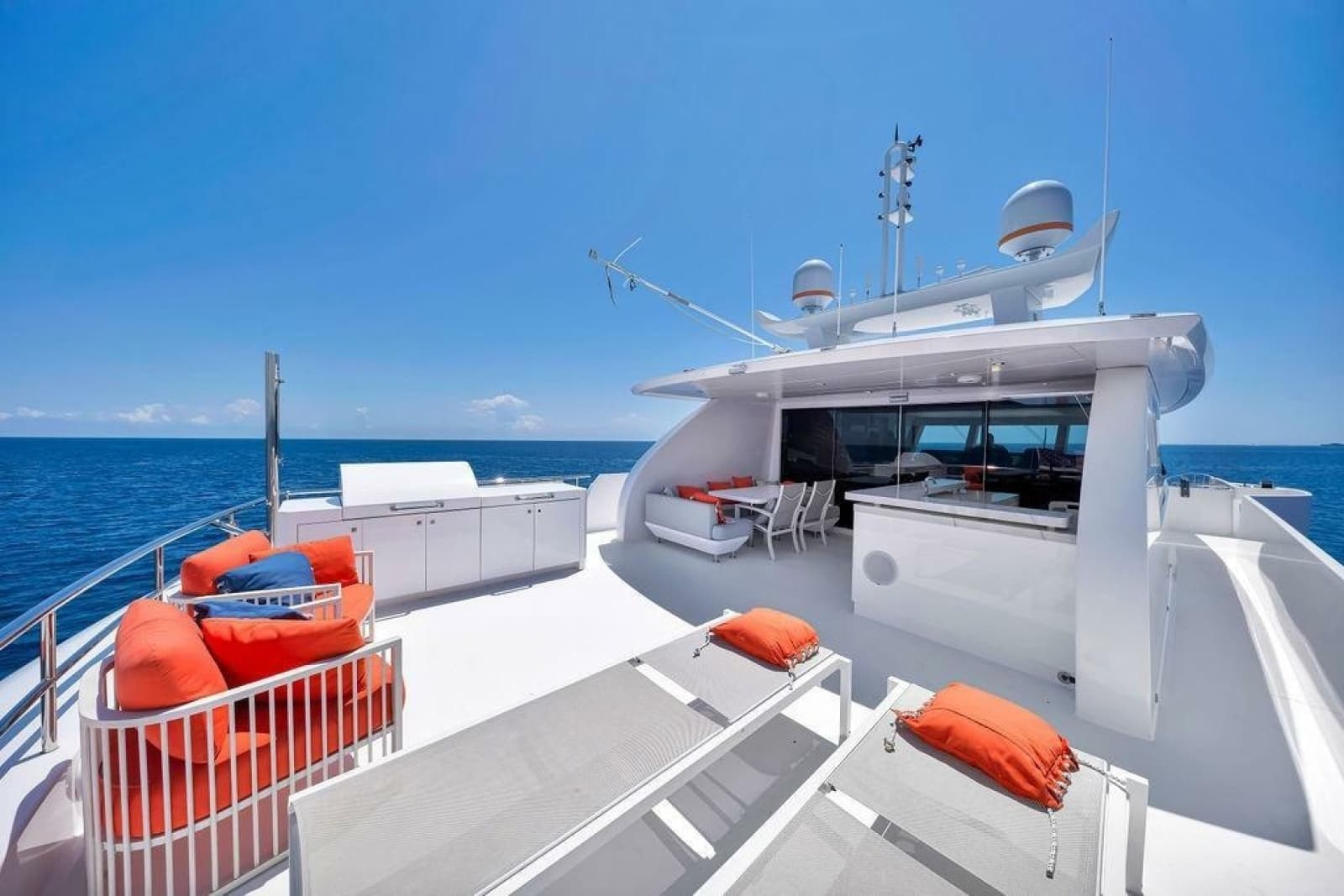

Boat Deck/Upper Deck:

• Non-skid upper deck
• Boat deck furnishings
• Sunbrella fabrics for exterior cushions
• Sunbrella canvas covers for the upper deck furniture, aft deck seat, windshield, sun pad, and foredeck cushion, and seat
• Countertop per designer
• Integral Stainless Steel handrails around exterior FRP cabinet

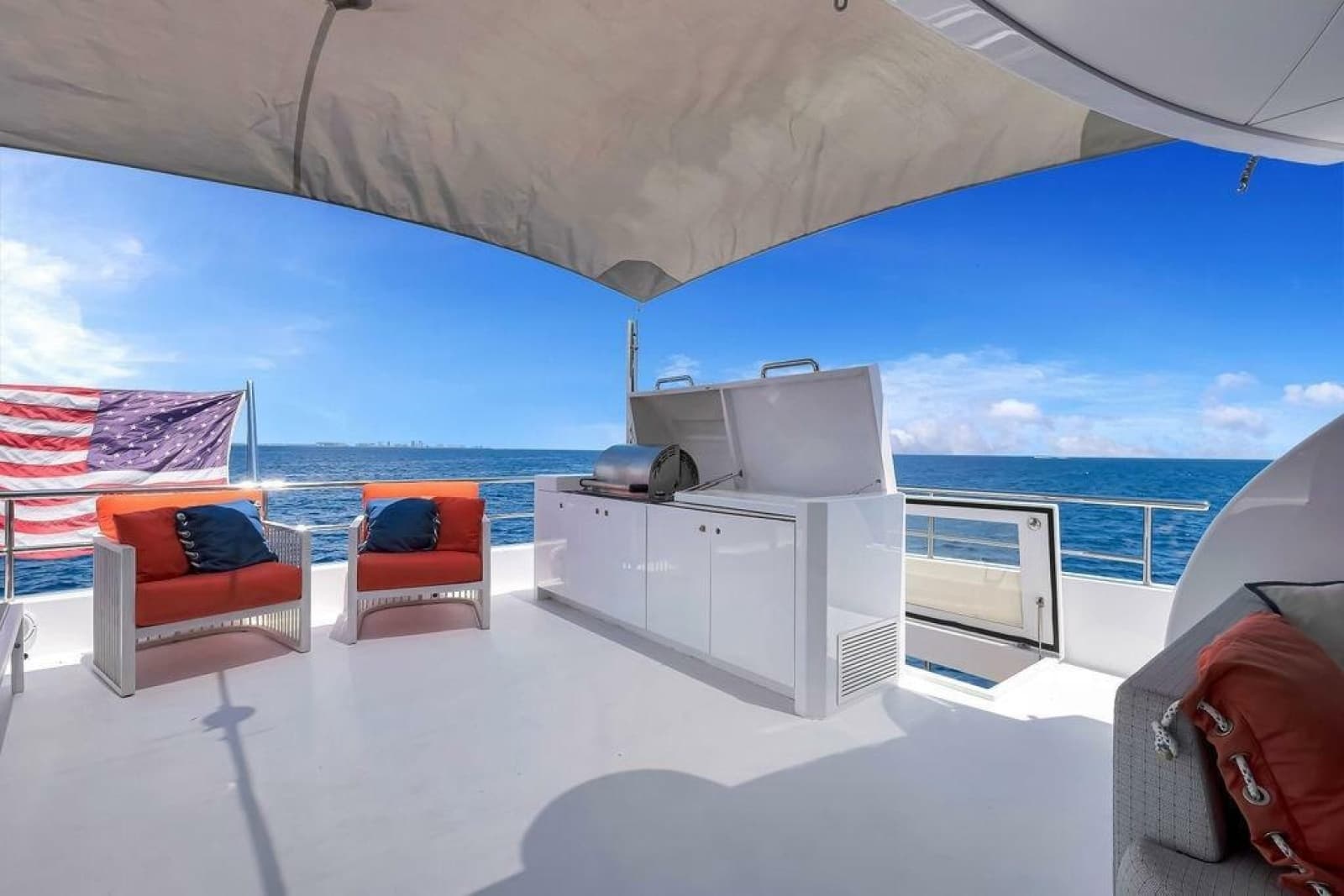

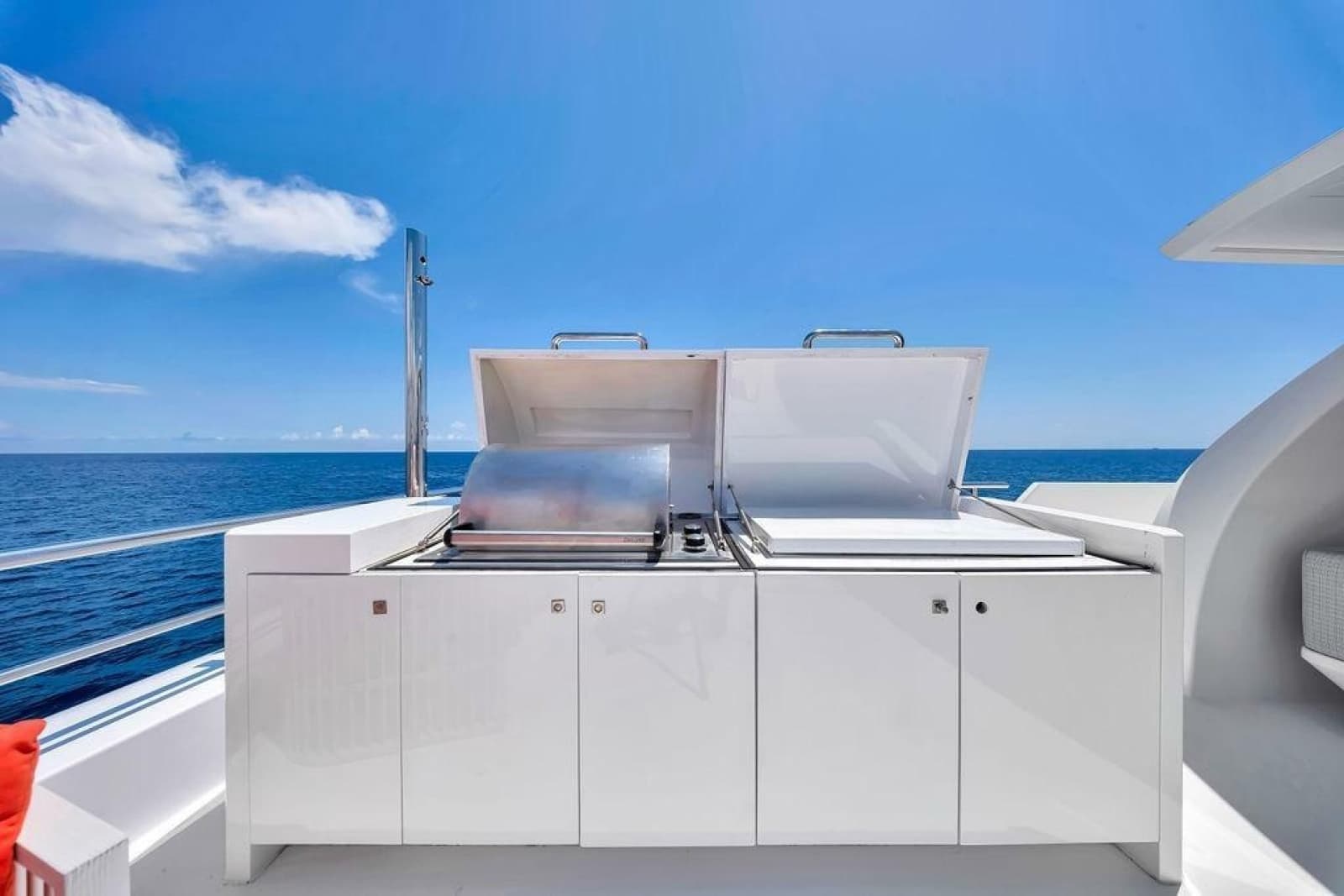

• One 30” fire magic barbecue in custom cabinet per layout no flip cover
• Oversize drains with strainers on each corner of the upper deck and internal overboard drains

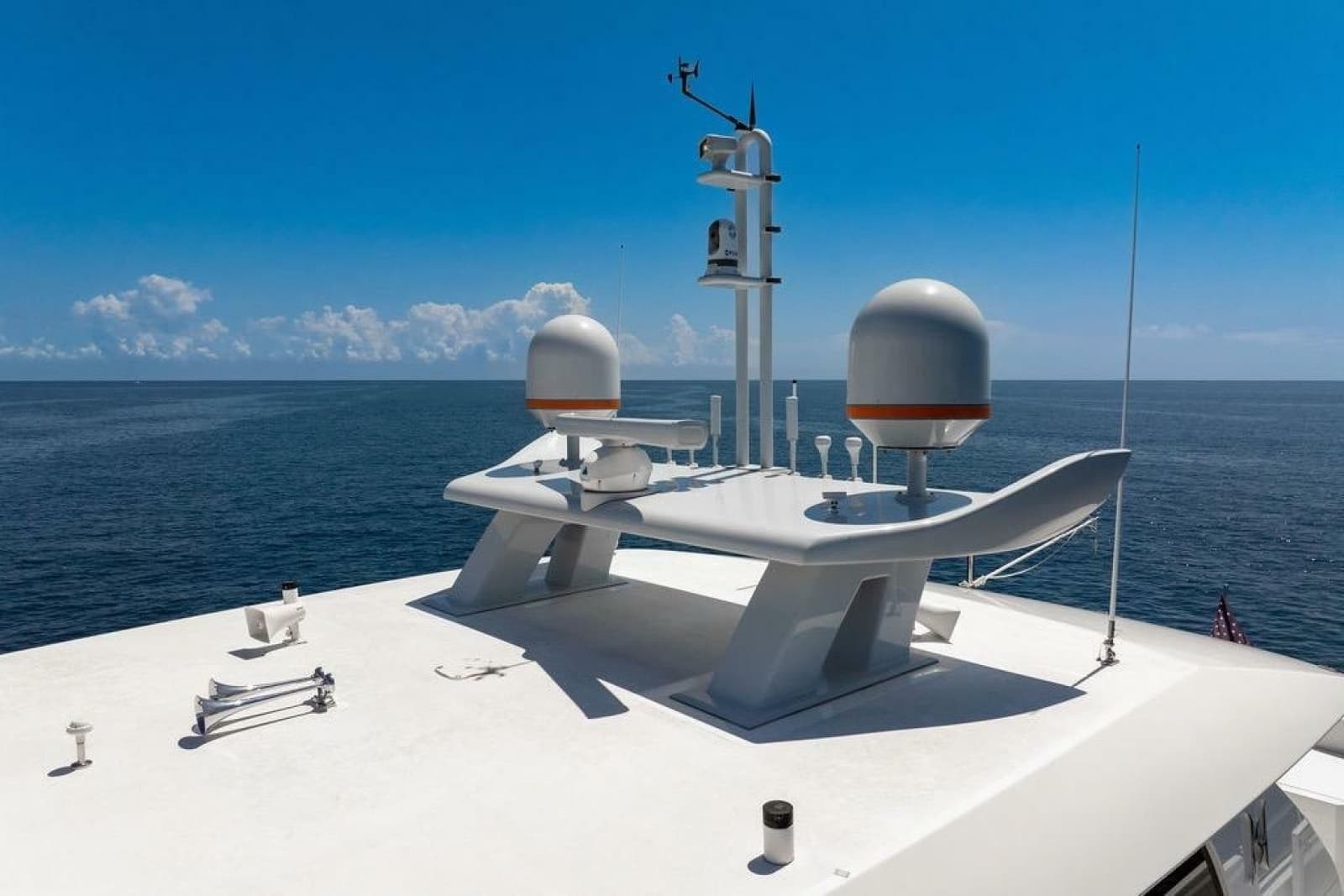

• Radar arch w/antenna brackets
• Kallenberg air horns on top of the radar arch
• Stainless Steel flag pole at stern

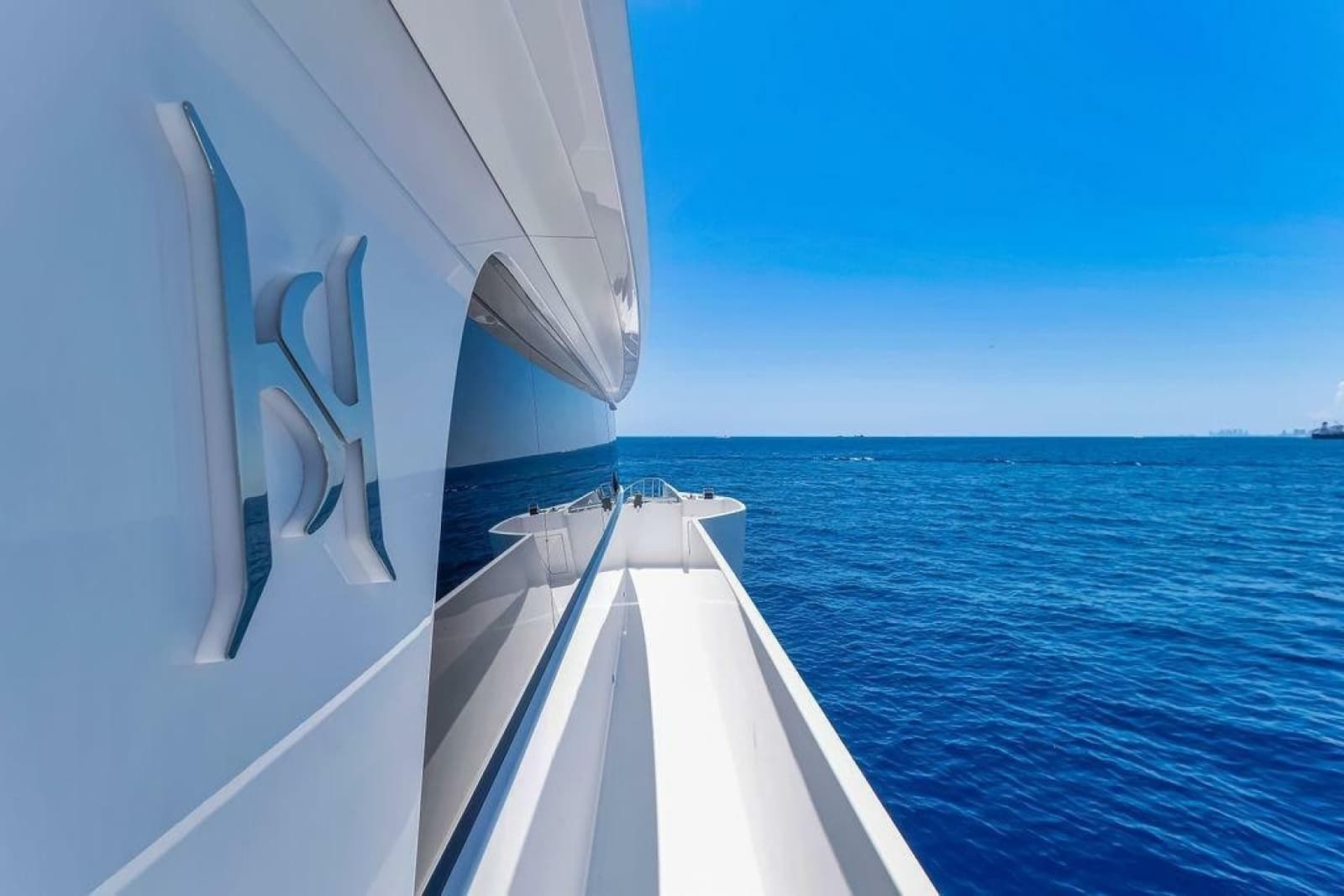

• LED blue lights for H logo on port & starboard side

 Pilothouse and Instrument:

• Stidd pilot chair (x3, manual)
• Integrated instrument panel on helm station, standard choices of wood and leather
• Heavy-duty Speich Stainless Steel wipers w/wiper wash system
• Variable speed control on each windshield wiper
• Danforth or equivalent magnetic compass at helm
• International LED navigation lights
• Full set of engine gauges at helm
• Electric fuel and water level gauges
• Monitoring system for importation equipment (bilge pumps, blowers, navigation lights)
• Surveillance camera system (PTZ cameras at aft deck and engine room)
• DC12V Receptacle
• Chart storage if space allowed

 Engine Propulsion and Steering System:

• Twin MTU 10V2000M96 engines (gauges manual in e/r and chrome mounts for cameras)
• Stainless Steel shafts Aqualoy 22 HS or equivalent
• High performance S class 5 blade propellers in NiAlBr
• Main and intermediate bronze struts with backing plates
• Shaft and rudder packing glands with Tides Marine dripless seals or equivalent
• MTU engine controls at helm station
• One remote handheld control plug-in type
• Jastrom power steering system
• Stainless Steel rudder w/zinc plates
• Stainless Steel emergency steering wheel in rudder cabin
• Custom steering wheel at helm station
• Underwater exhaust system for engines w/bypass mufflers
• NAIAD zero speed stabilizer
• NAIAD hydraulic bow (45HP) and stern thrusters (65HP)
• Humphries Interceptor trim system.
• Anti-noise treatment to the exhaust system
• Air handler in E/R

 Engine room and Equipment:

• Engine room clean designed with powder-coated decks
• Heavy-duty insulated engine room door
• Stainless Steel overhead grab rail on each side of the engine
• Engine room LED ceiling lights
• Engine compartment ventilation blowers
• Delta T engine room de-misters
• Engine load distributed through flexible mountings on Stainless Steel engine bed bonded to FRP hull girder
• Engine alarm system as per engine standard

 Electrical Systems:

General Description:

• Color-coded wiring for easy identification
• Main electric panel includes AC & DC circuit breakers
• 24 volt DC monitoring and main circuit breaker panel
• Subpanel design in each zone for electrical distribution
• Emergency power package & lighting system
• AC volt receptacles located throughout including the engine room
• GFI protection for all AC outlets in exterior, heads, galley, and engine room
• Fiberglass water/exhaust separator for generator
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc
• Indirect lighting under valance in salon, staterooms, sky lounge, and galley
• Dimmer system for LED-ceiling lights in the aft deck and sky lounge
• Dimmer system for LED ceiling lights in the salon, master, and VIP staterooms
• Italian Vimar switches for the lighting system
• Underwater lights (x 8)
• Stern docking lights and flood light boat deck

AC/DC Main Power System:

• Northern Lights generators (x2) 38 kW (60Hz) with sound shields
• 255 Ah AGM start batteries (x4) for engines/generators with battery chargers (x2)
• 210 Ah AGM batteries (x8) for ship’s DC 24v service power with combined inverter-chargers (x2)
• 210 Ah Emergency batteries (x2) above main deck w/independent battery charger (x1)
• All batteries enclosed with proper fixtures
• Vapor proof battery switch
• Power distribution system

Shore Power System:

• 4x Glendinning 100 Amp shore power Cablemasters each w/125’ power cable (2 Forward 2 aft)
• Shore power connection w/100 Amp ISO boost transformers which will be wired as a polarization transformer

Navigation System:

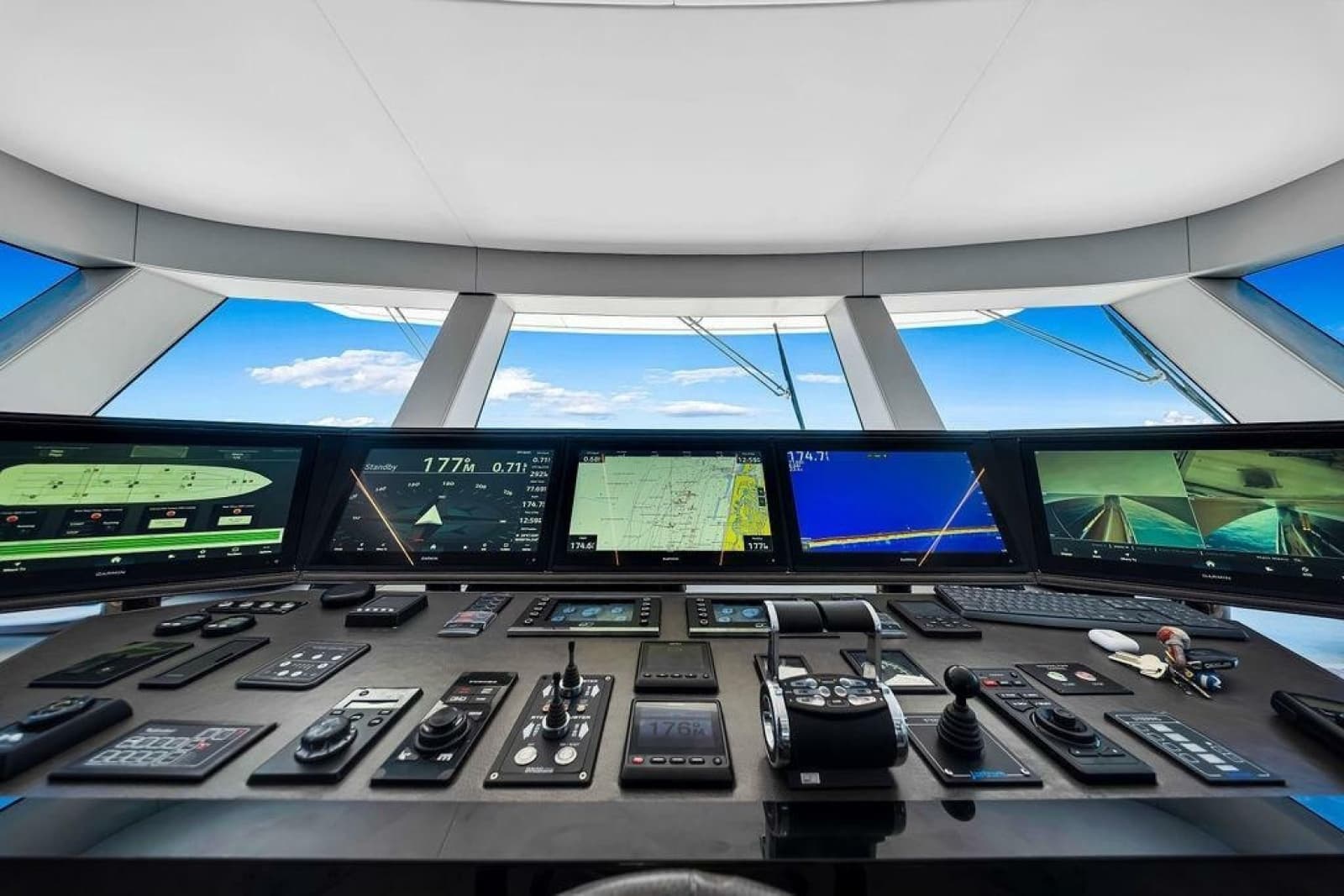

• Custom designed 5 screen display
• Garmin GPS
• Furuno 72” 12kW 72nm open array radar system
• Garmin 24” (x 5 units) multifunction displays screens
• Garmin fish finder and chirp transducer
• Garmin Autopilot system
• Garmin wind/speed/depth/temp transducers
• Garmin VHF (2)
• Garmin AIS
• (4) 22" Garmin 8622 mfd screens plus 5th screen ship service unit
• Pepwave 5-G wifi
• EPIRB (2)
• F.L.I.R.
• (2) 12 Man lift rafts

Mechanical Systems:

Fuel Oil System:

• Fuel tanks w/ sight & electric gauges and capacity specified in Principal Dimension above
• Dual Racor 75/1000 MA fuel filters/water separator, each engine
• Electric fuel transfer pumps (x2)
• Racor 500 MA fuel filters (x2) one on each generator
• Reverso oil change pump system for engines, gears, and generators
• Reverso FPS210 fuel polishing system (x1)

Fresh Water System:

• FRP water tank with a capacity specified in Principle Dimension above
• Watermaker 2,000 GPD by Dometic
• High volume Headhunter AC freshwater pressure pump 2 and one DC pump for back up
• Freshwater hose for filling engine and generator expansion tank
• PVC piping for fresh water system
• 40 Gallon water heaters (x2)
• Hot water circulation pump (x2)

Sanitary System:

• Headhunter toilet system
• 600 gallon holding tank w/macerator pump and 500 gallon per day Headhunter waste treatment system
• Y-Valve for holding tank with deck fitting for dockside pump-out
• 500 Gallon sump tank
• Sump pumps system for grey water tank
• Electric level indicators for 600 holding tank

Bilge Water System:

• Electric Rule bilge pump (x5)
• 110 Volt bilge pumps (x2) crew area, 2 in the engine room and 1 in the forward VIP
• High water level bilge alarm
• All bilges dry and Awlgrip painted

Air Conditioning System:

• Cruise Air chilled water air conditioning system and makeup air for lower deck
• Air handlers throughout the boat

Fire Safety System:

• Fire insulation in the engine room
• Fire resistant treatment for pipe penetrations
• Fixed fire extinguisher by NOVEC for engine room with remote control
• Auto shutdown system
• Automatic fire damper system
• Portable fire extinguishers (x8) in recessed lockers
• Integrated fire alarm system in the sky lounge with heat or smoke detector in each cabin

Appliances:

• Undercounter ice maker, refrigerator per layout
• Wine cooler per layout
• Stainless Steel Sink per layout
• Garbage disposal
• Refrigerator (x2)
• Induction cooktop with exhaust blower above
• Dishwasher
• Microwave and oven or one microwave-oven
• Trash compactor

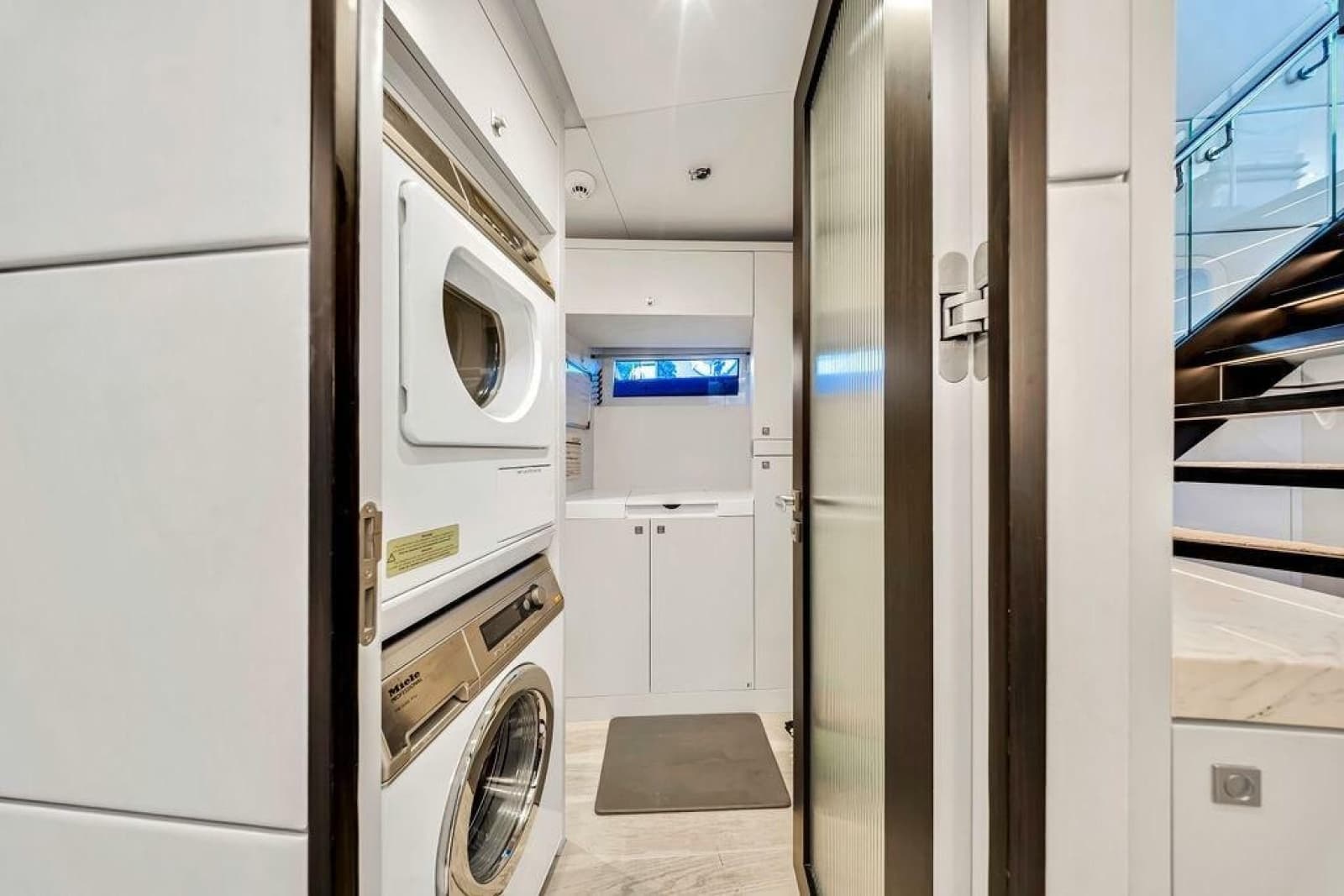

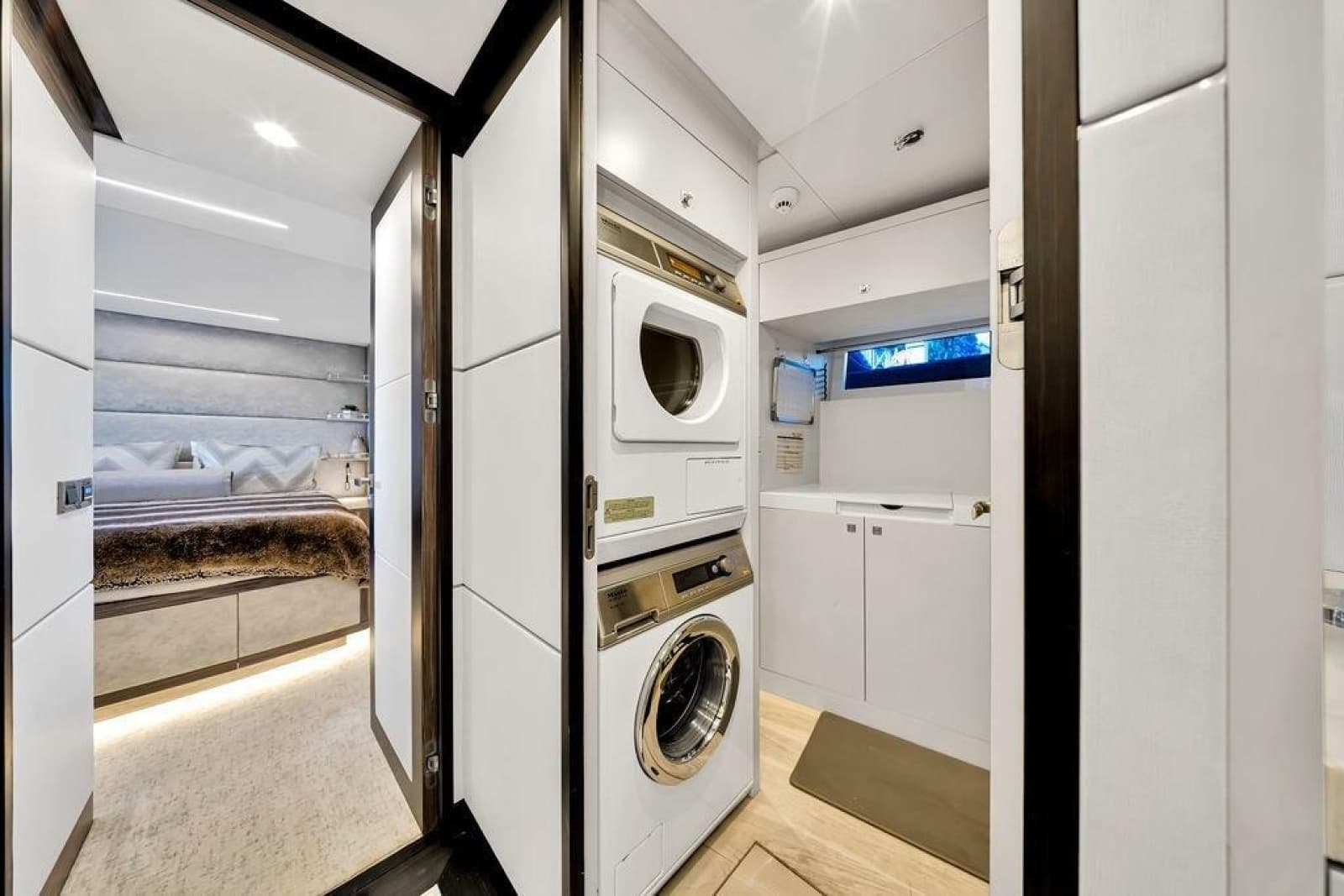

• Stacked washer/dryer (x2)
• All appliance to be Meili
• Television Package and Stereo System

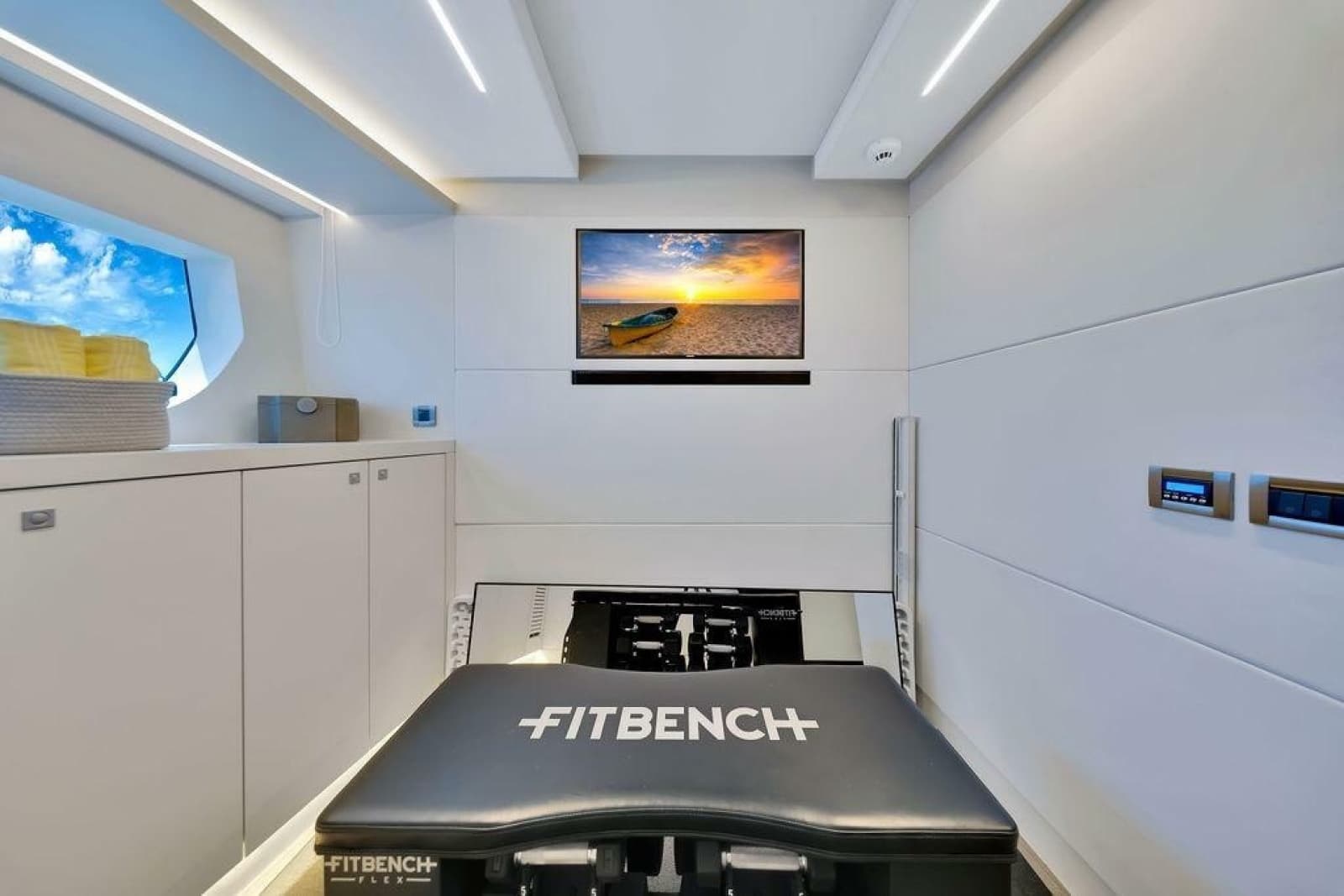

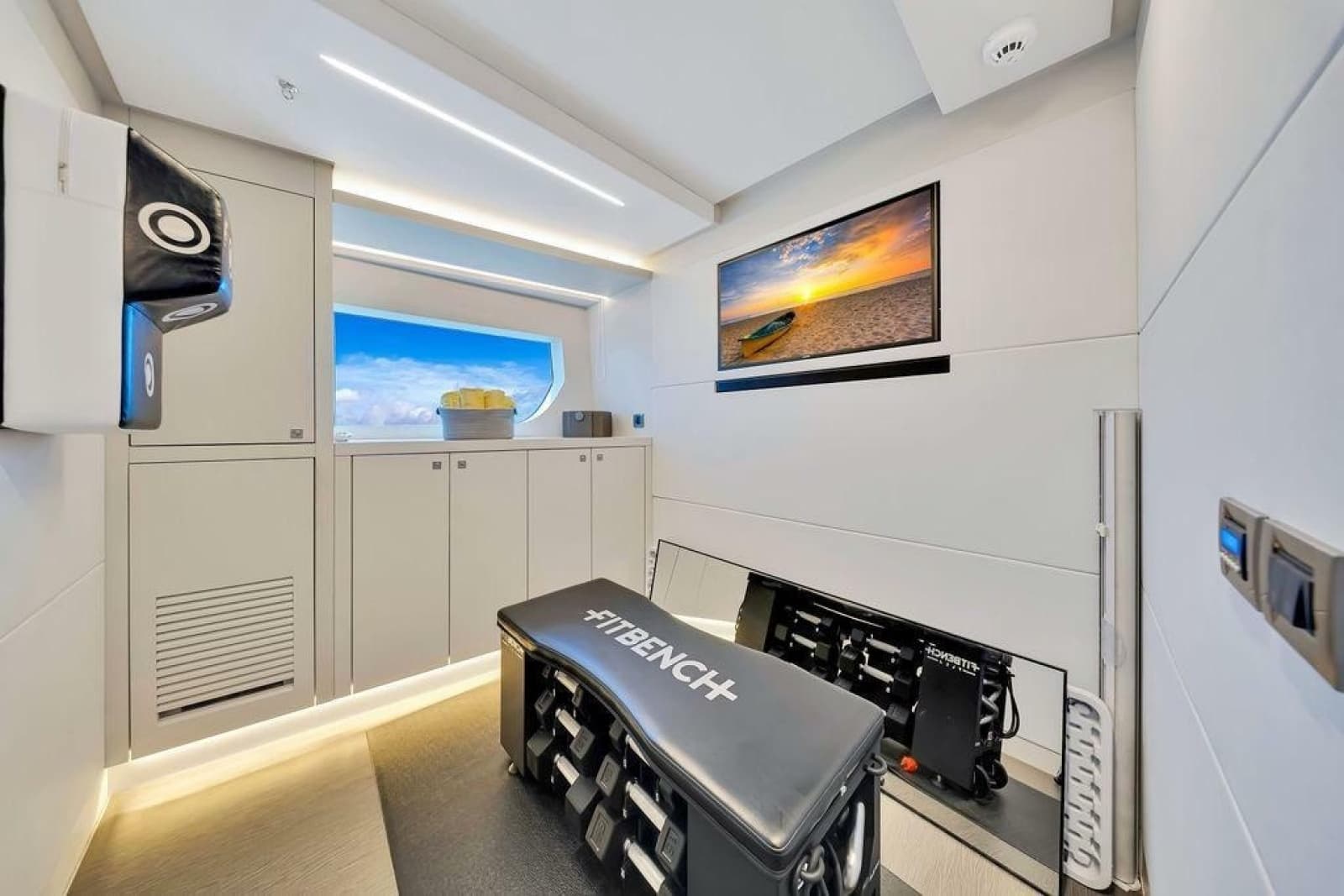

• TV screens located in master suite, three guest suites, exercise room, crew cabins, beach club, aft deck, galley, and sky lounge.
• TV antenna on top of the radar arch and dummy doom
• WiFi booster system with wireless routers onboard
• Skylounge 55” LED TV with Fusion Marine Stereo (x1) and speakers (x2)
• Upper deck Fusion Marine Stereo Amplifier and speakers (x2) from sky lounge Fusion Stereo

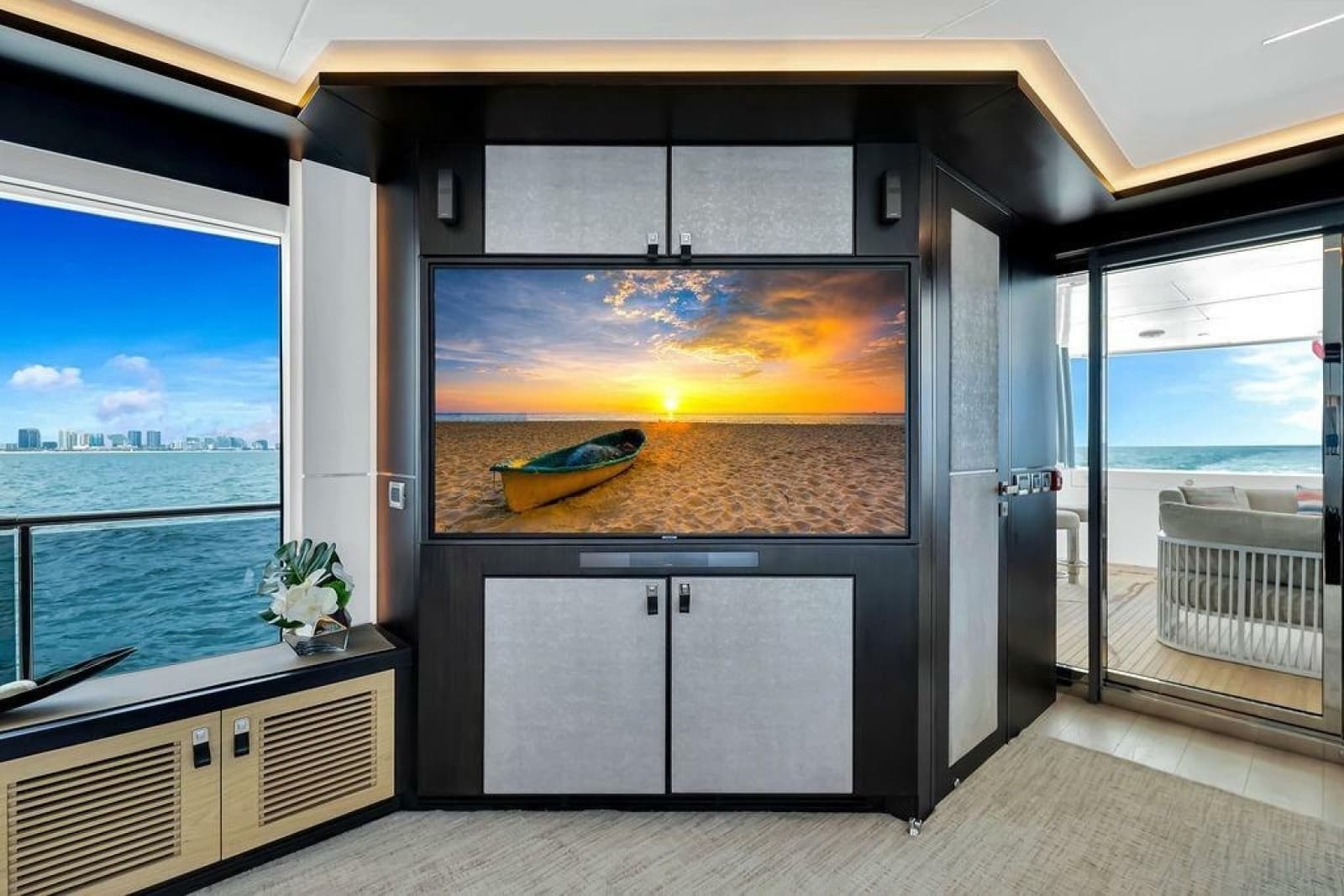

• Salon 55” LED TV with Bose lifestyle home entertainment system and separate Blu-Ray disc player and Apple TV
• Aft deck Fusion Marine Stereo (x1) and speakers (x2)
• Master stateroom 50” LED TV with Bose lifestyle home entertainment system and separate Blu-Ray disc player and Apple TV
• VIP stateroom 40” LED TV with Fusion Marine Stereo (x1) and SM speakers (x2)
• Guest stateroom 32” LED TV with Fusion Marine System (x1) and SM speakers (x2)
• Crew mess 32” LED TV with Fusion Marine Stereo (x1) and SM speakers (x2)
• Wireless intercom system
• Exterior connector for shore power and cable TV
• Aft deck TV 50"

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by YACHTS360. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

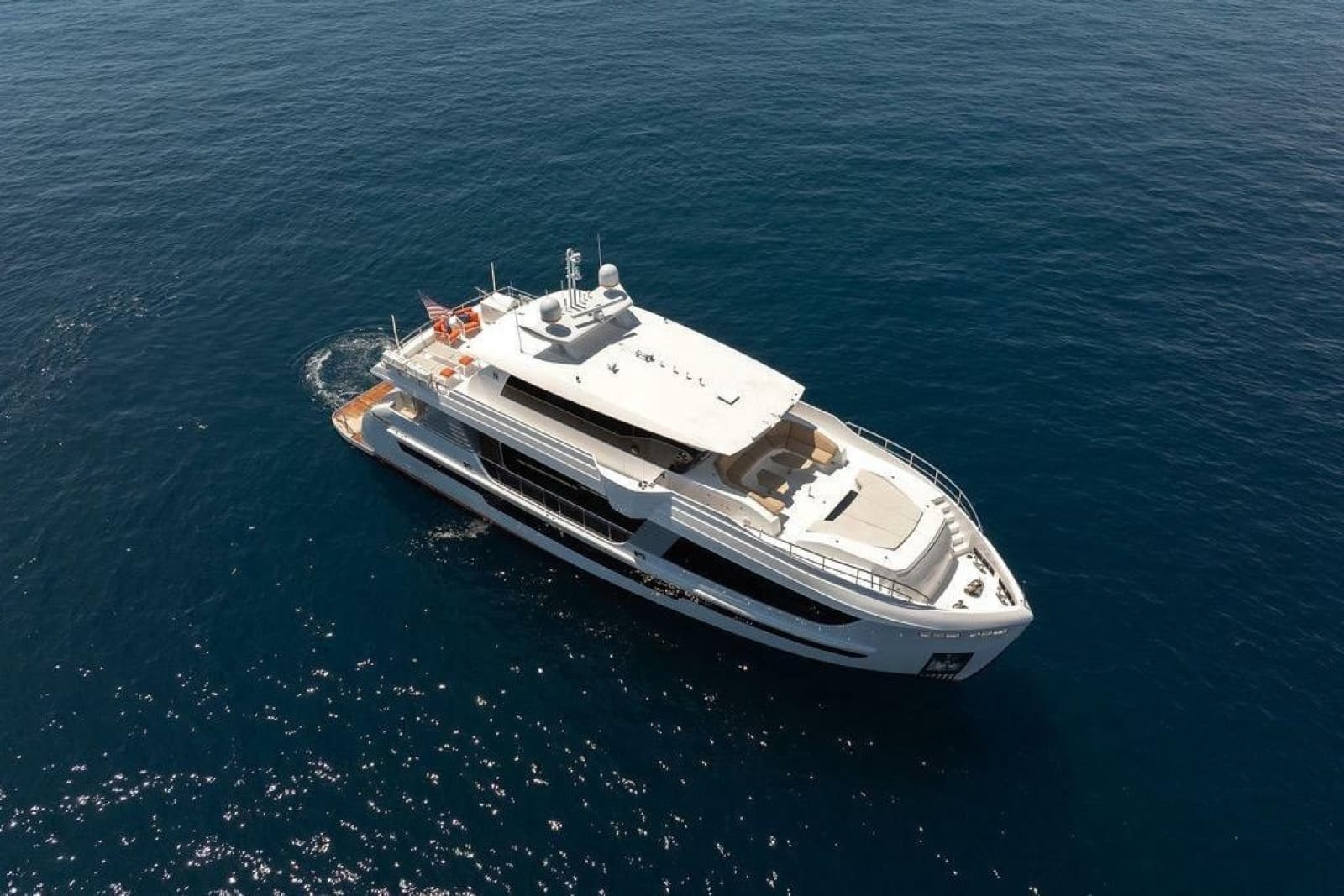

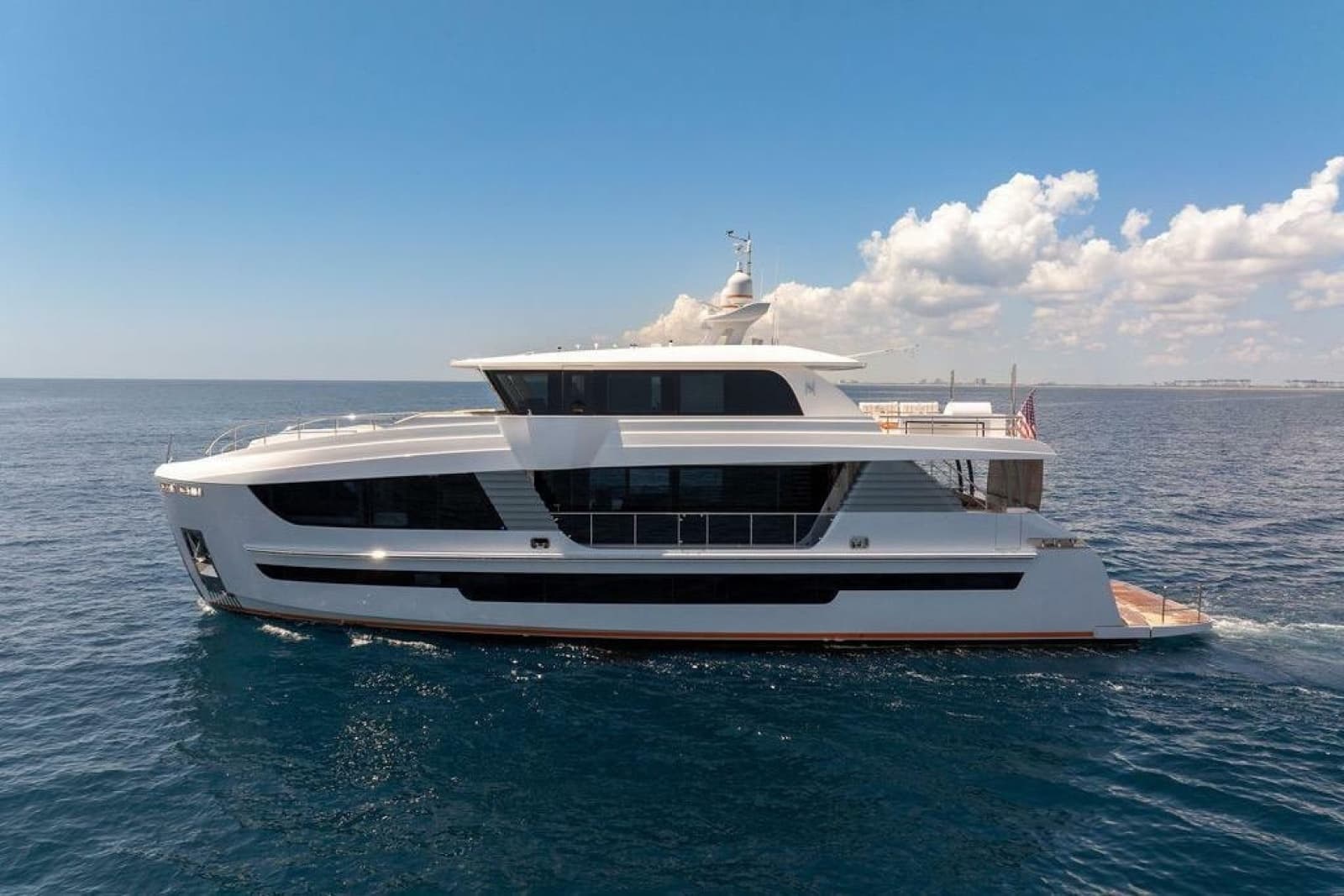

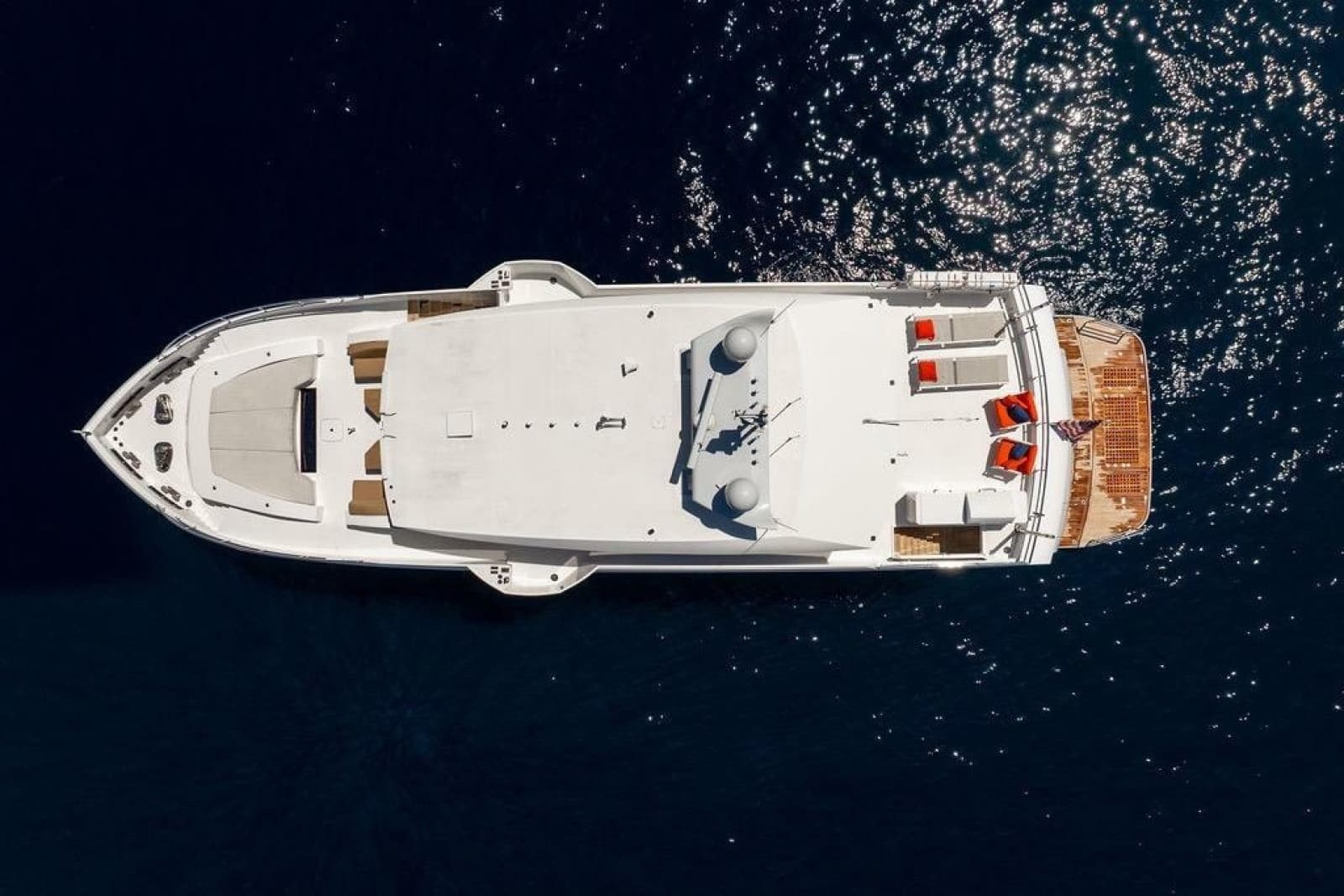

ALL TRADES WELCOME | FULLY SERVICED | BRING ALL OFFERS Bold, modern, and exceptionally well-maintained, the 2020 92’ Hargrave C92 Day One presents a standout opportunity in today’s market.
