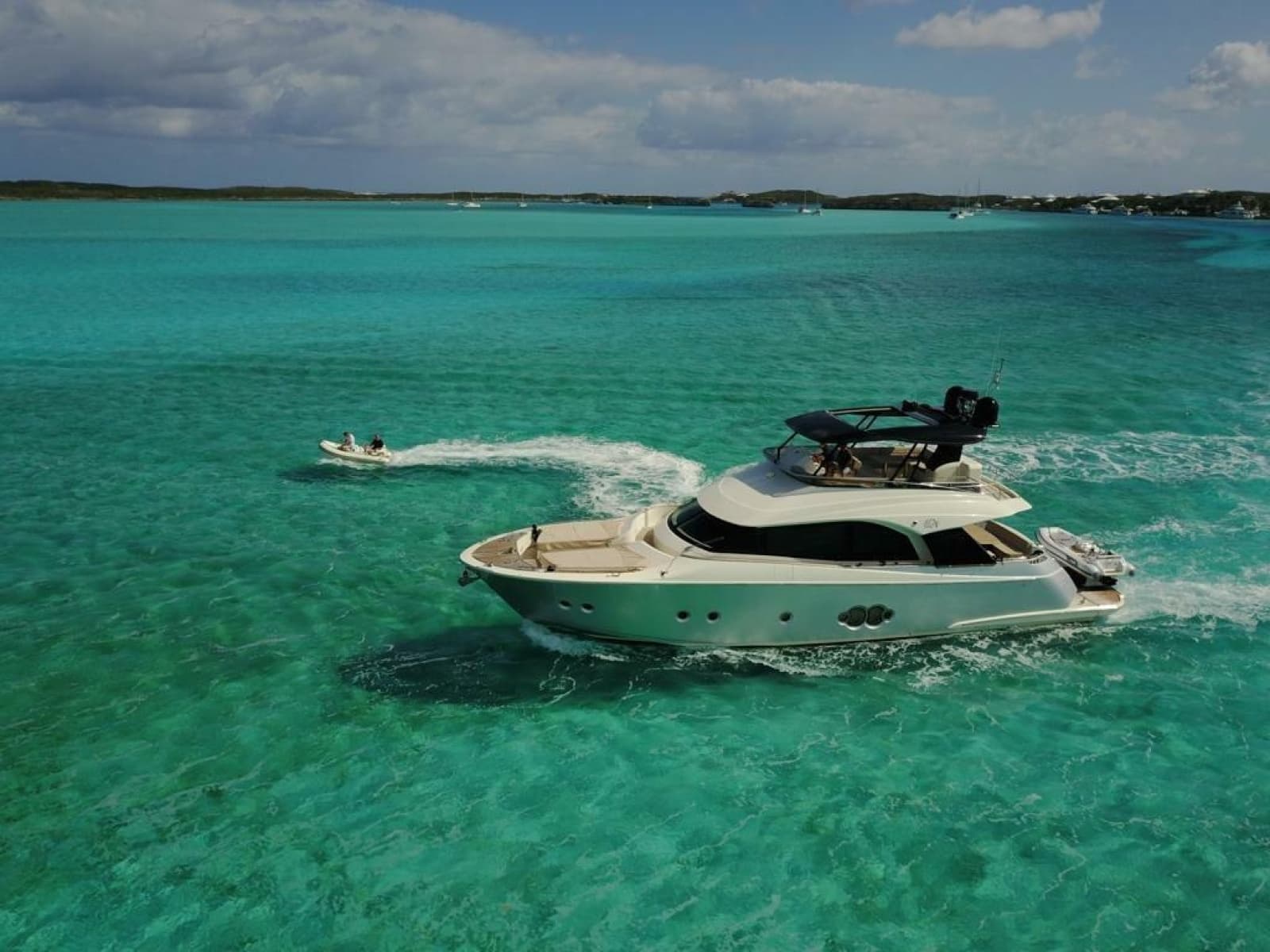

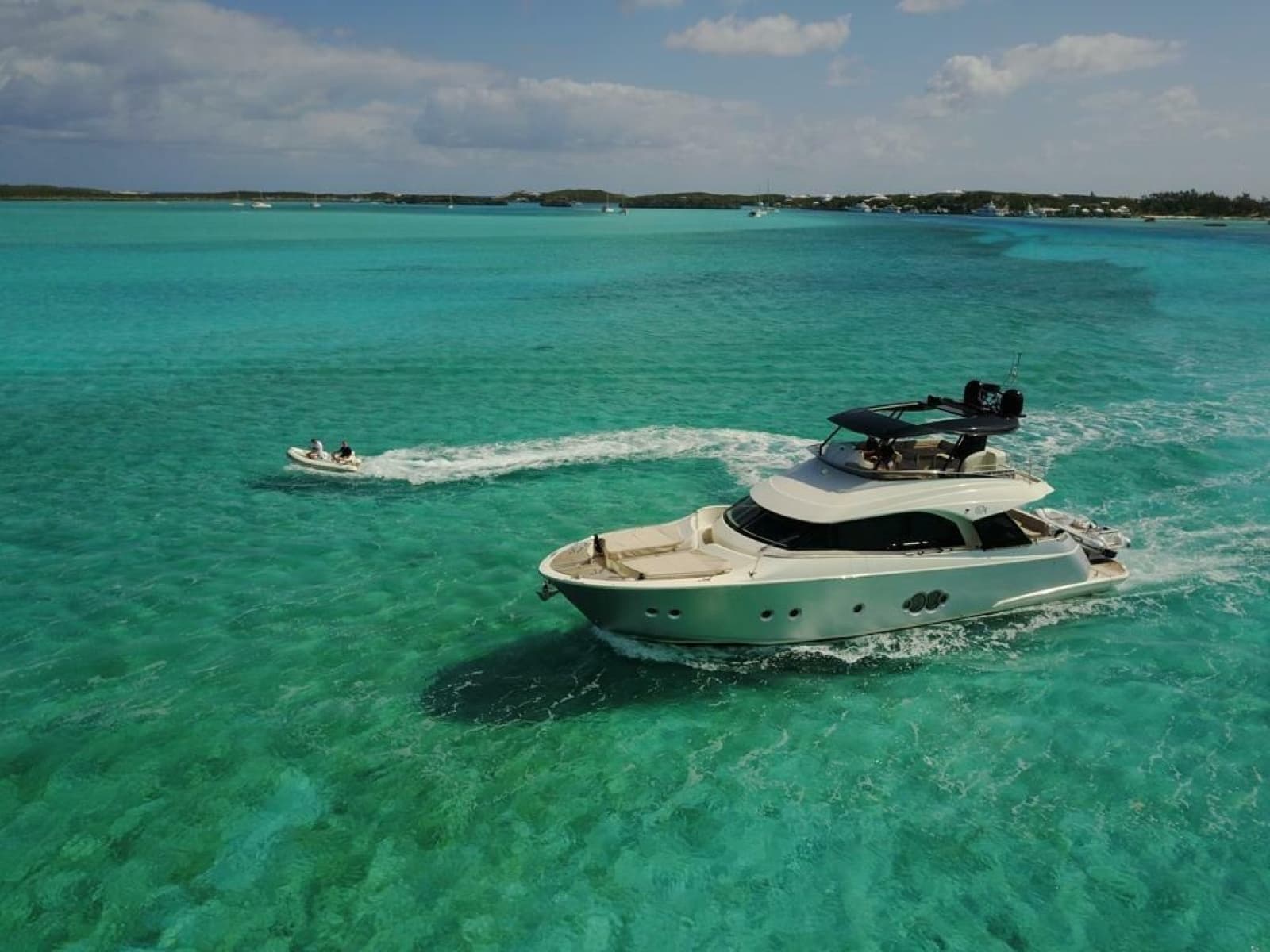

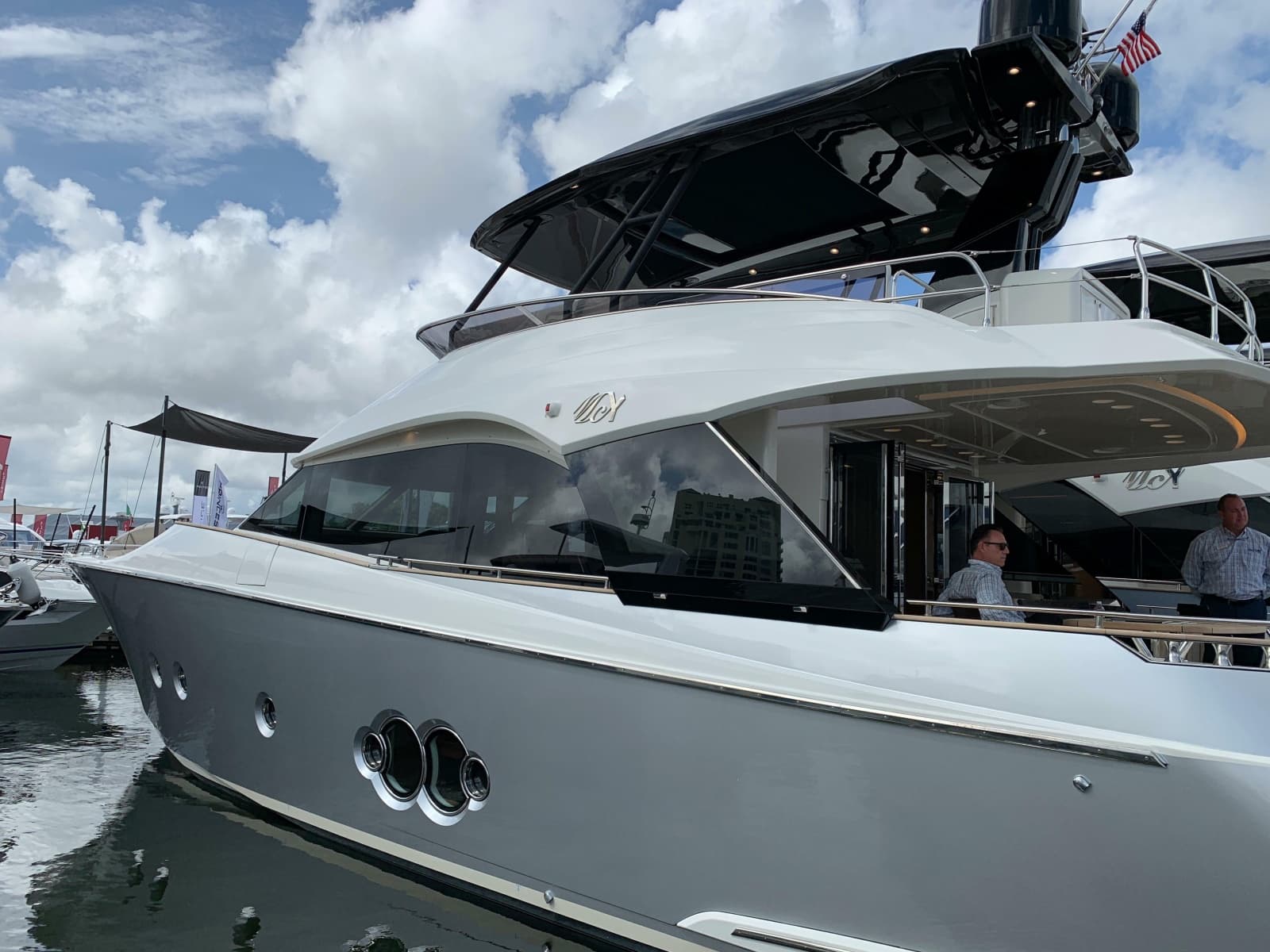

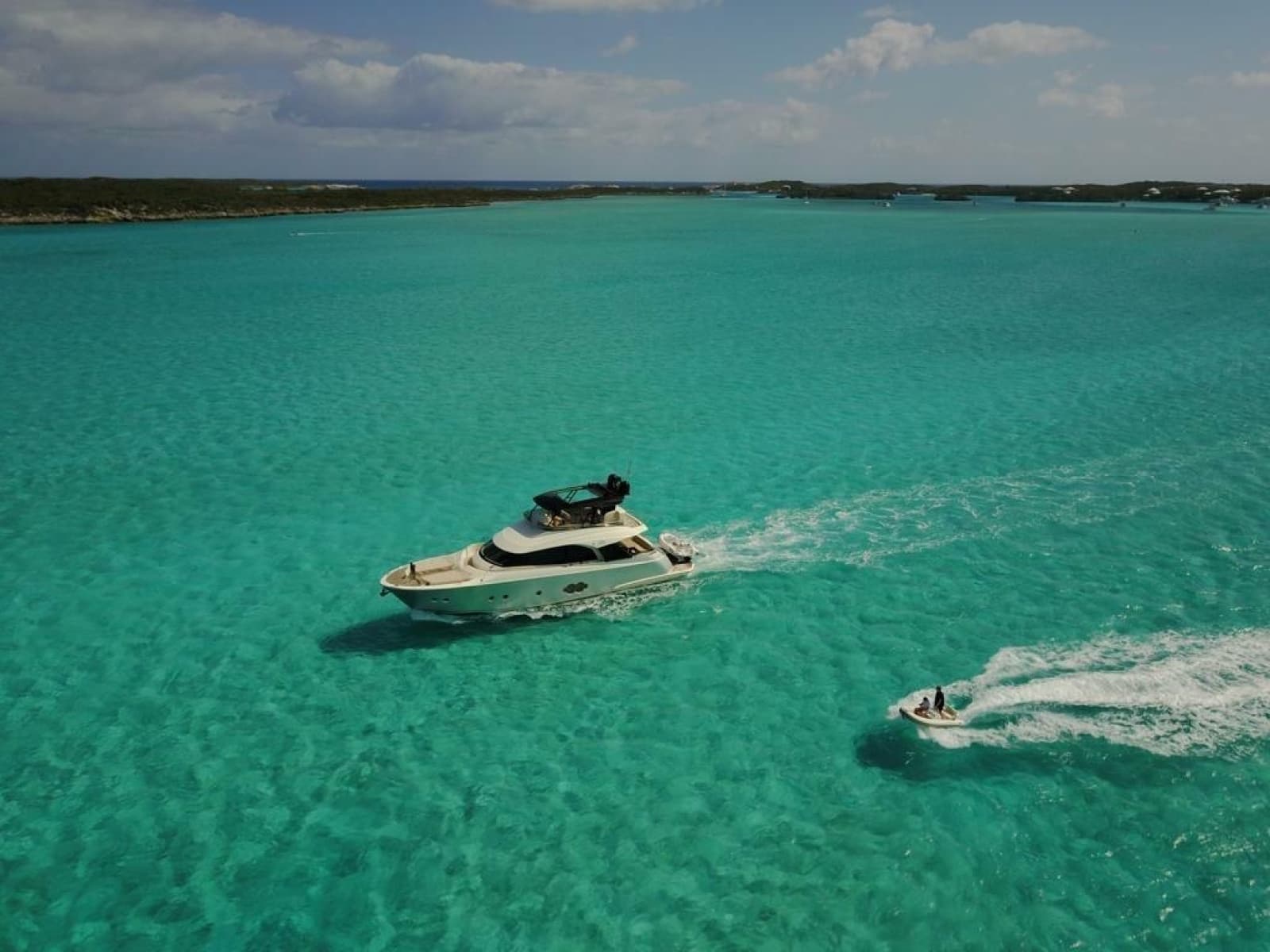

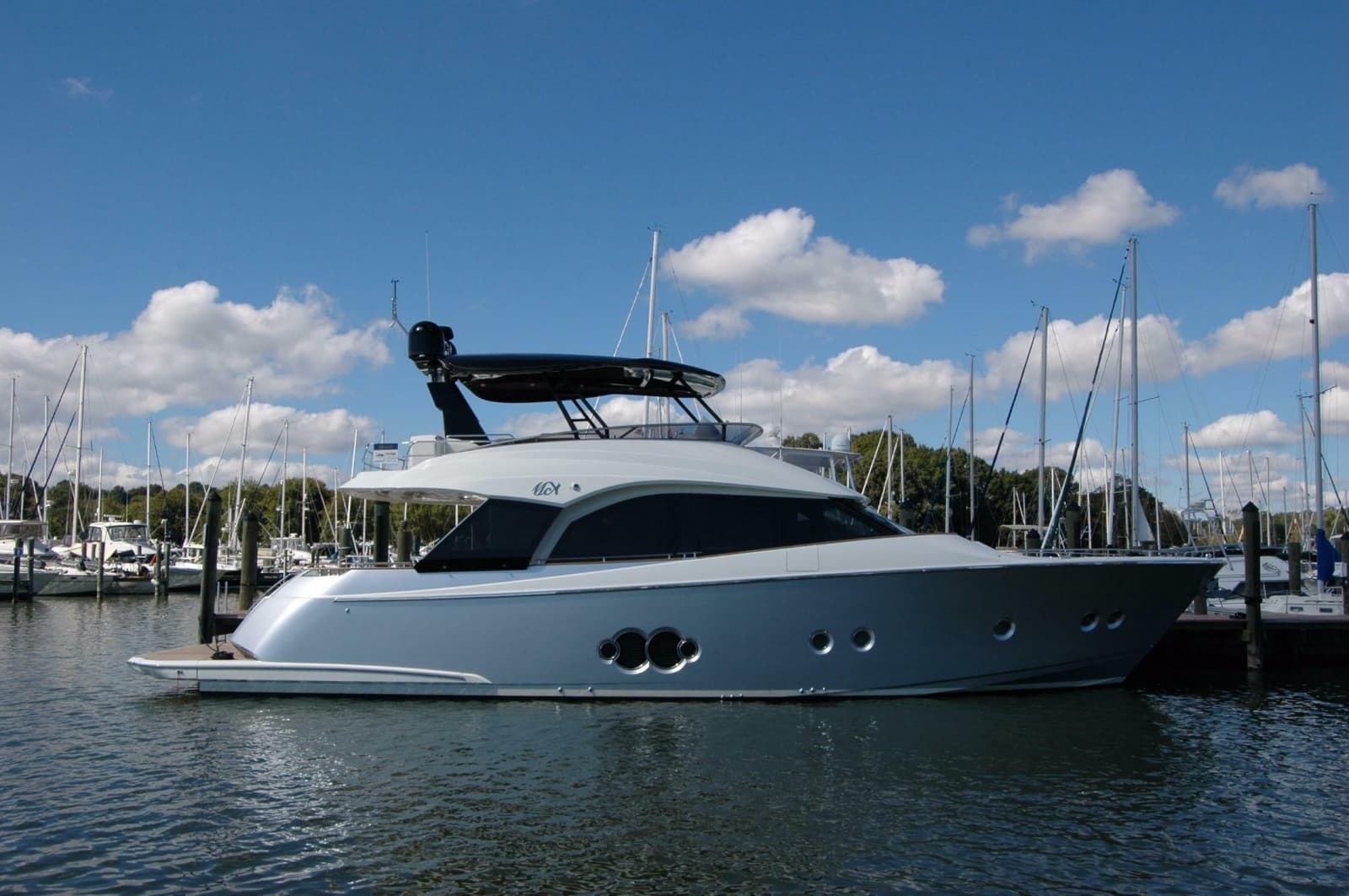

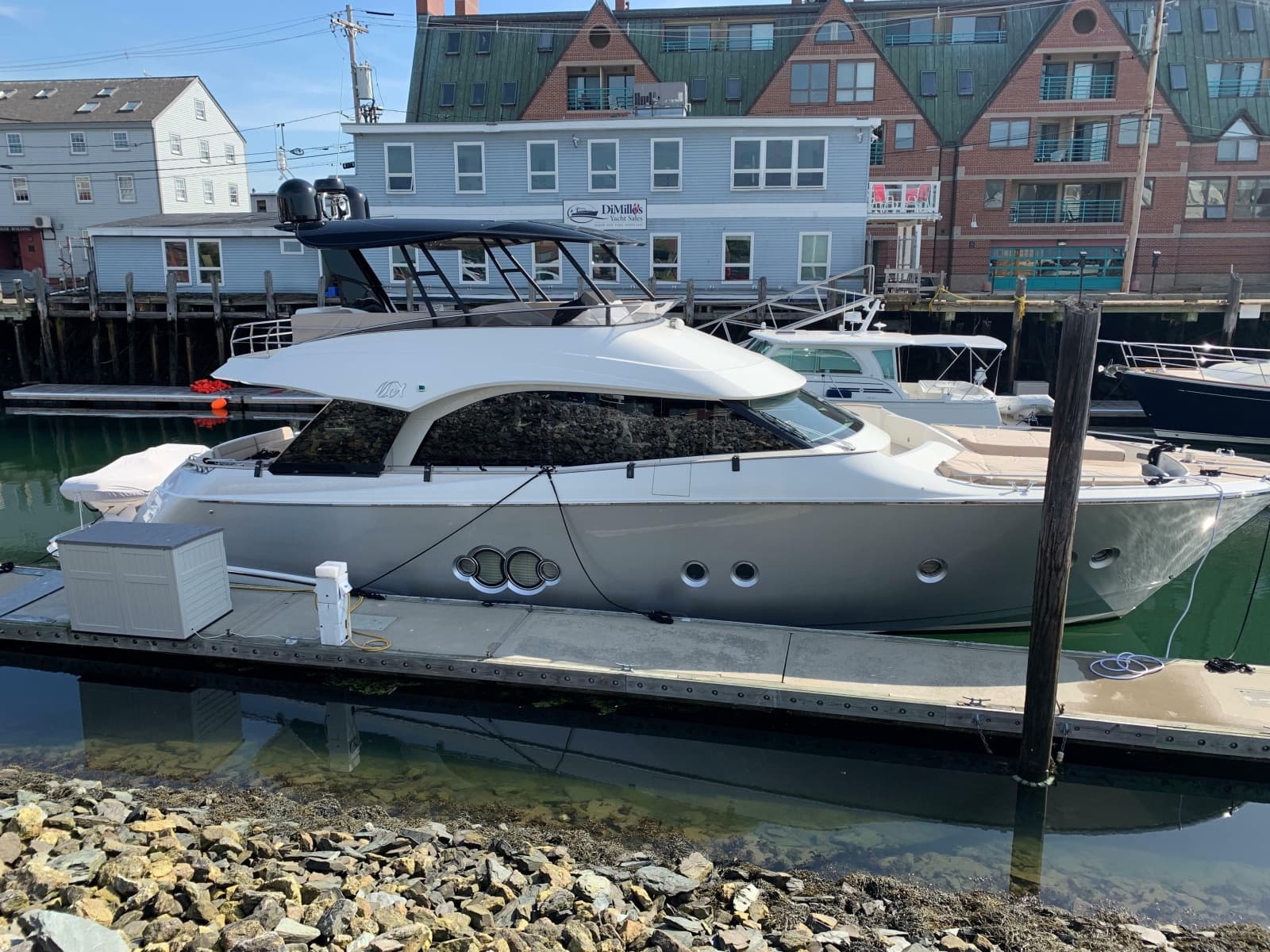

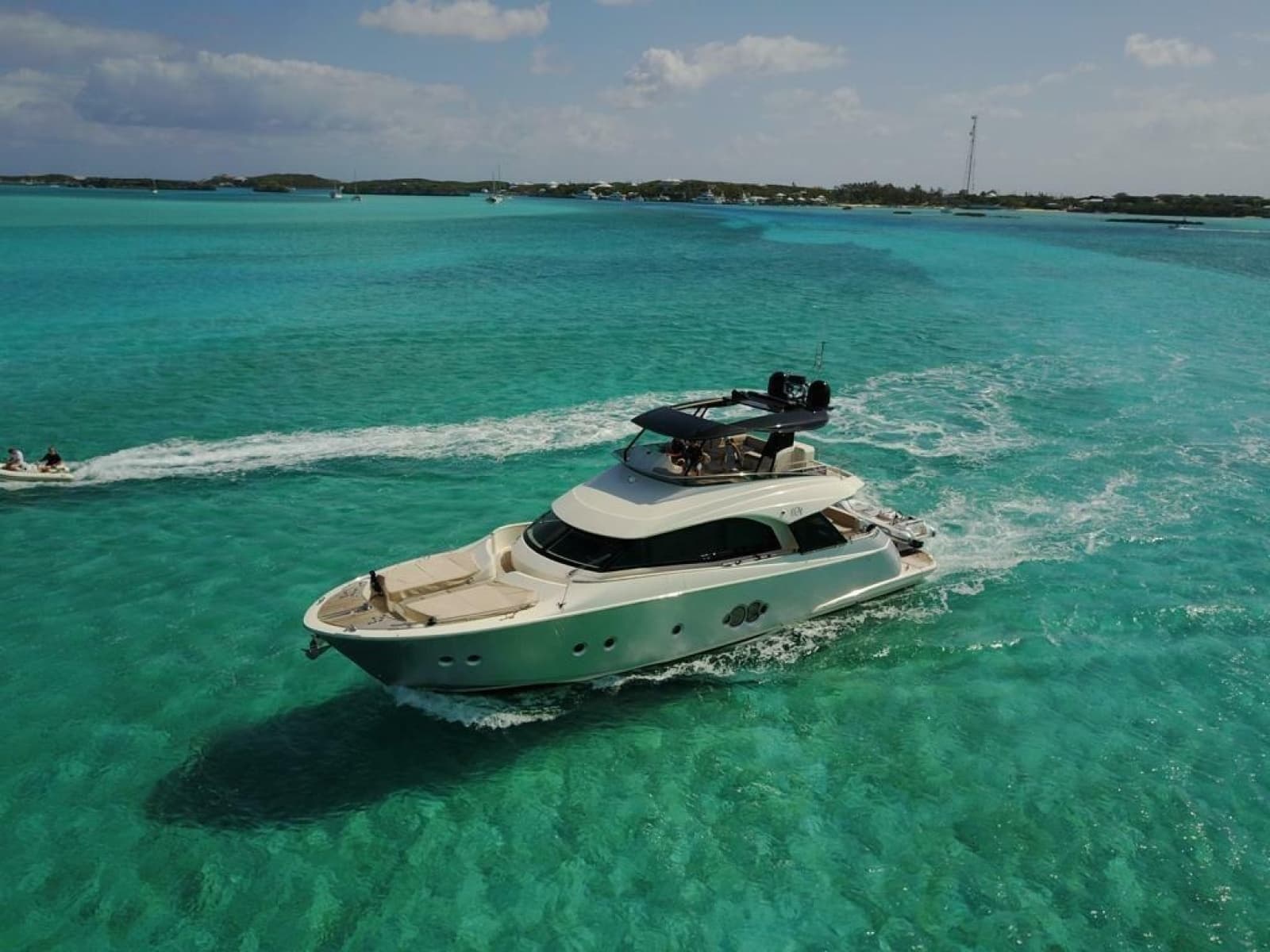

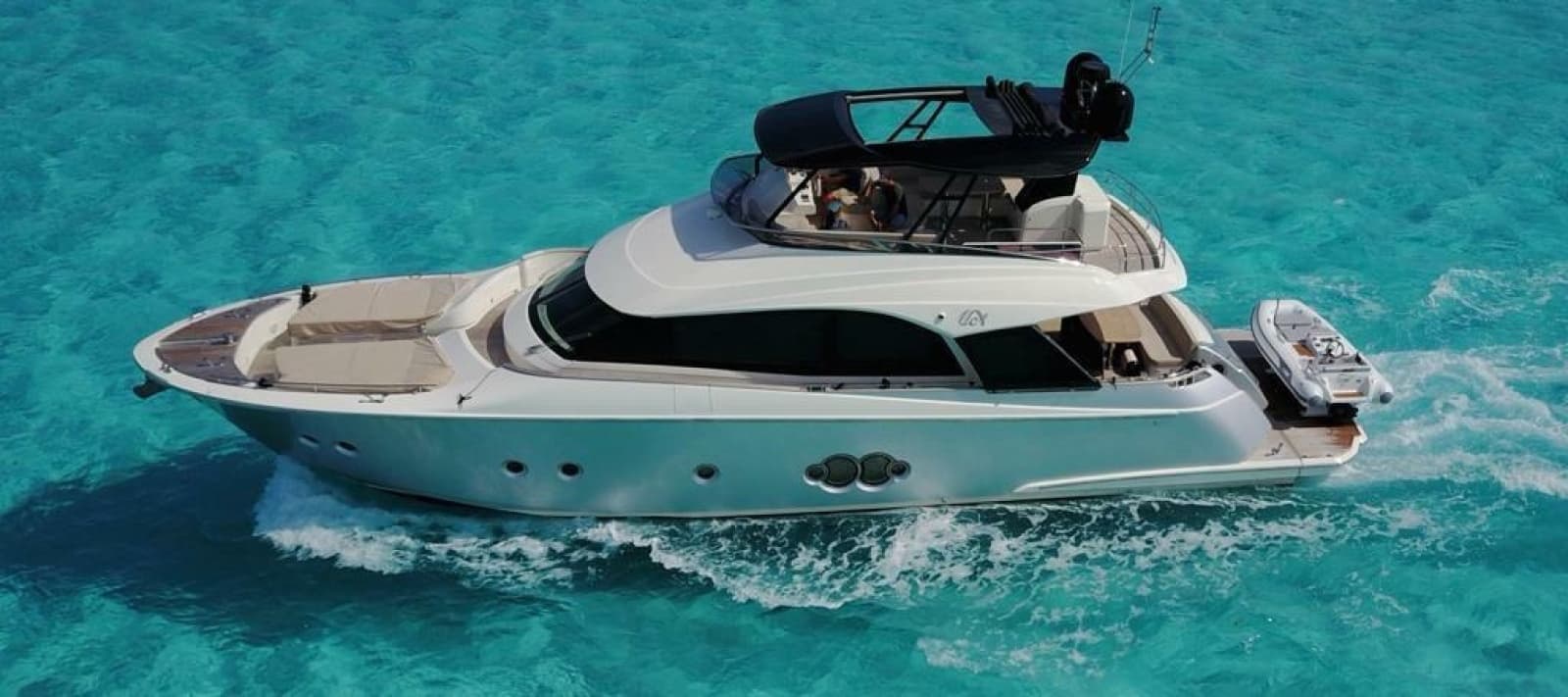

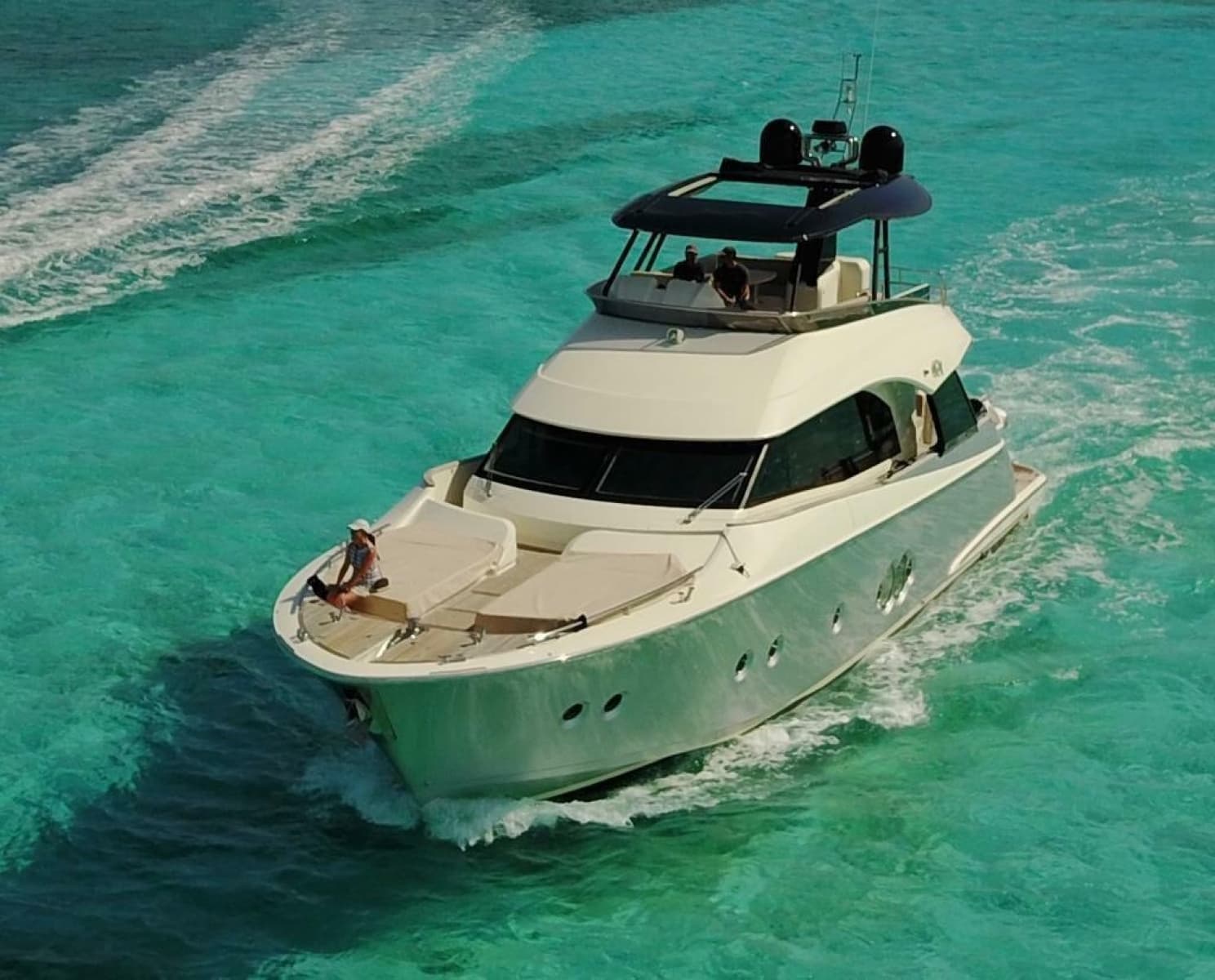

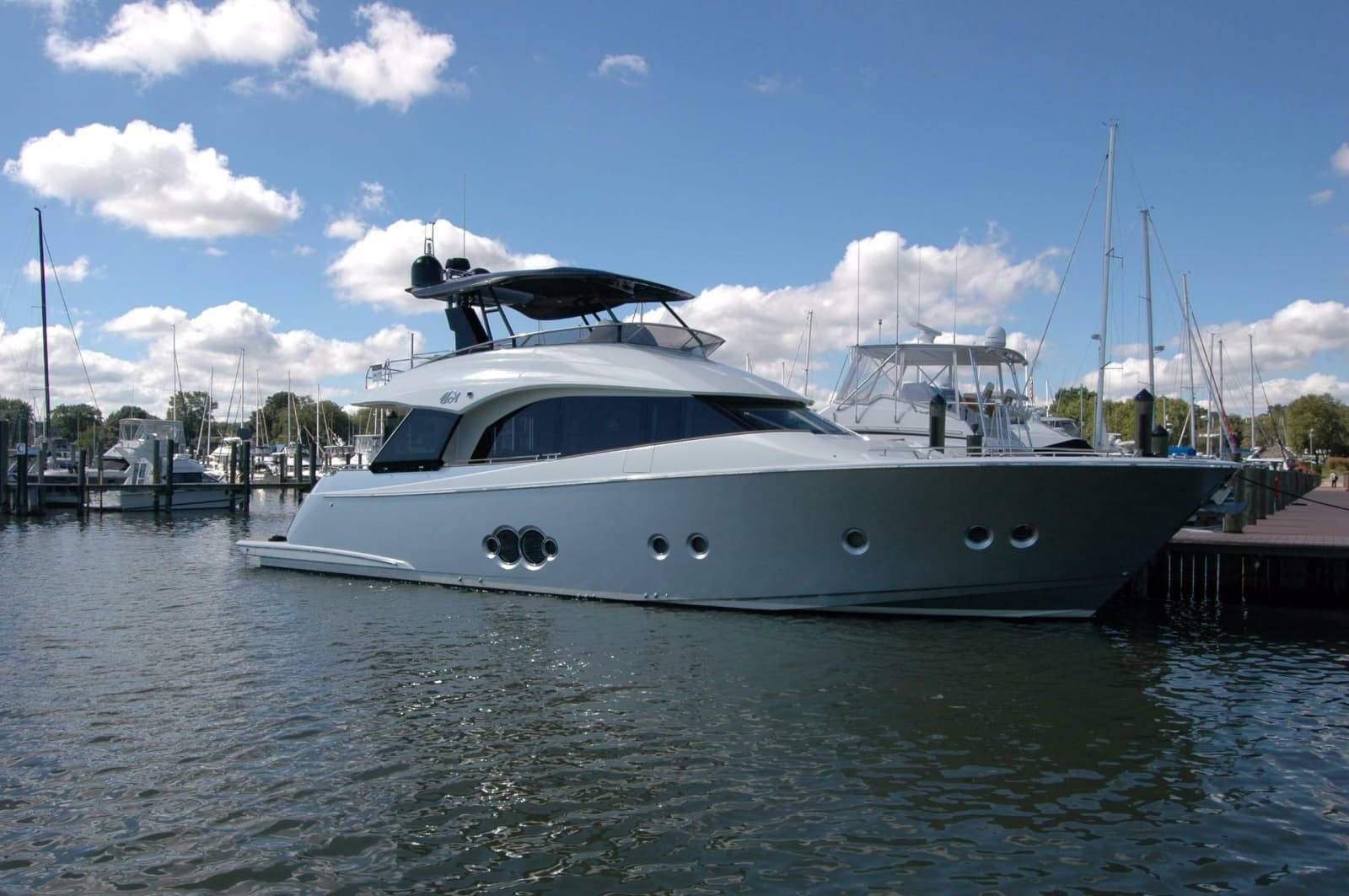

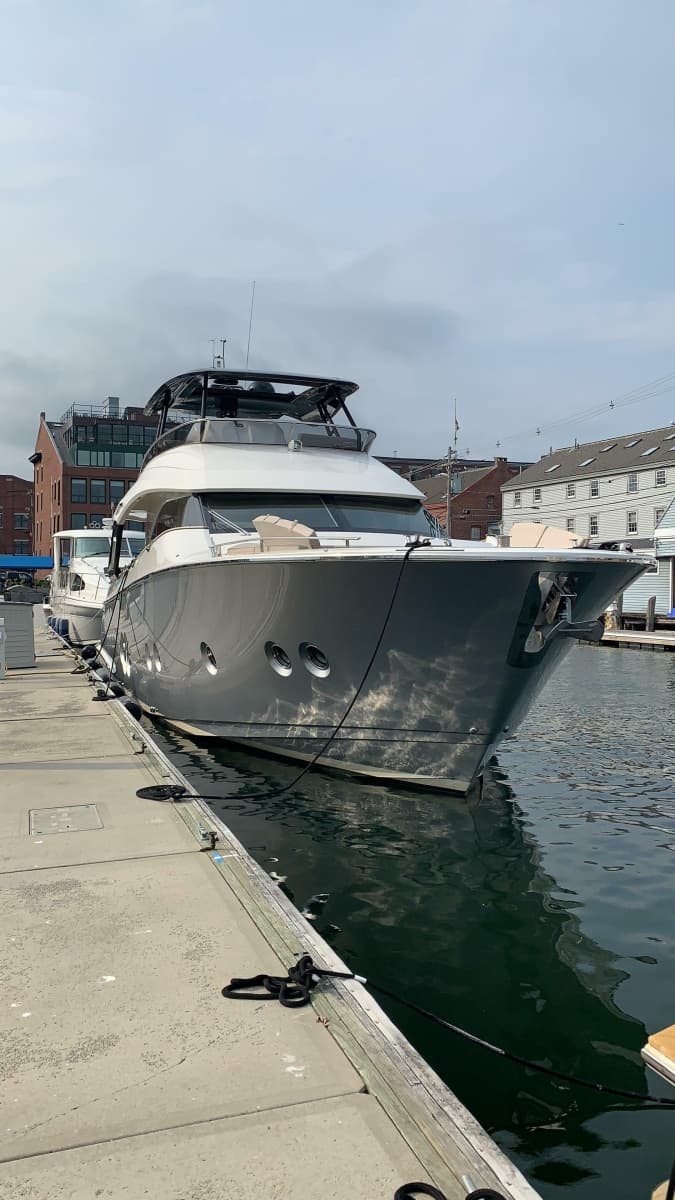

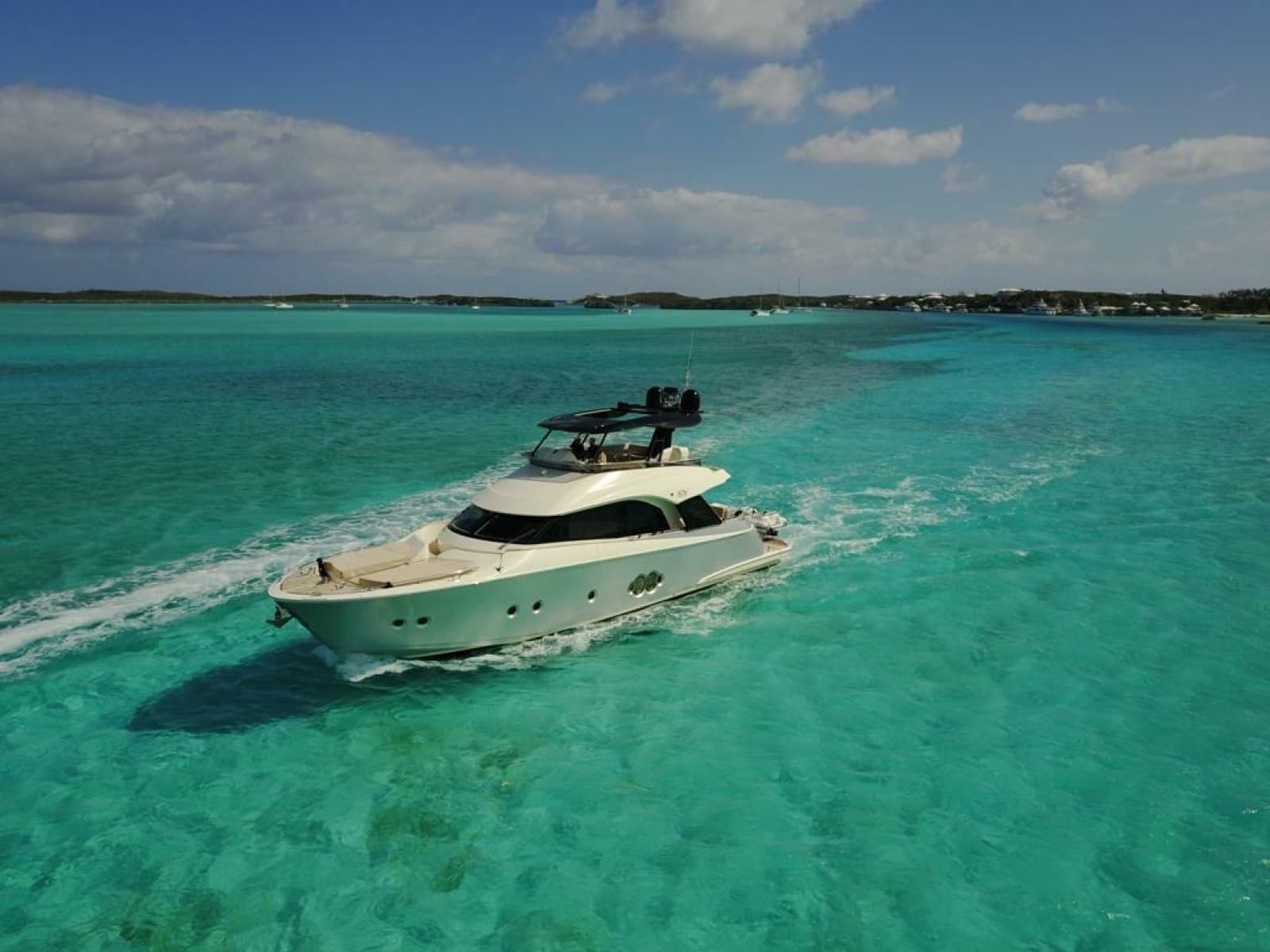

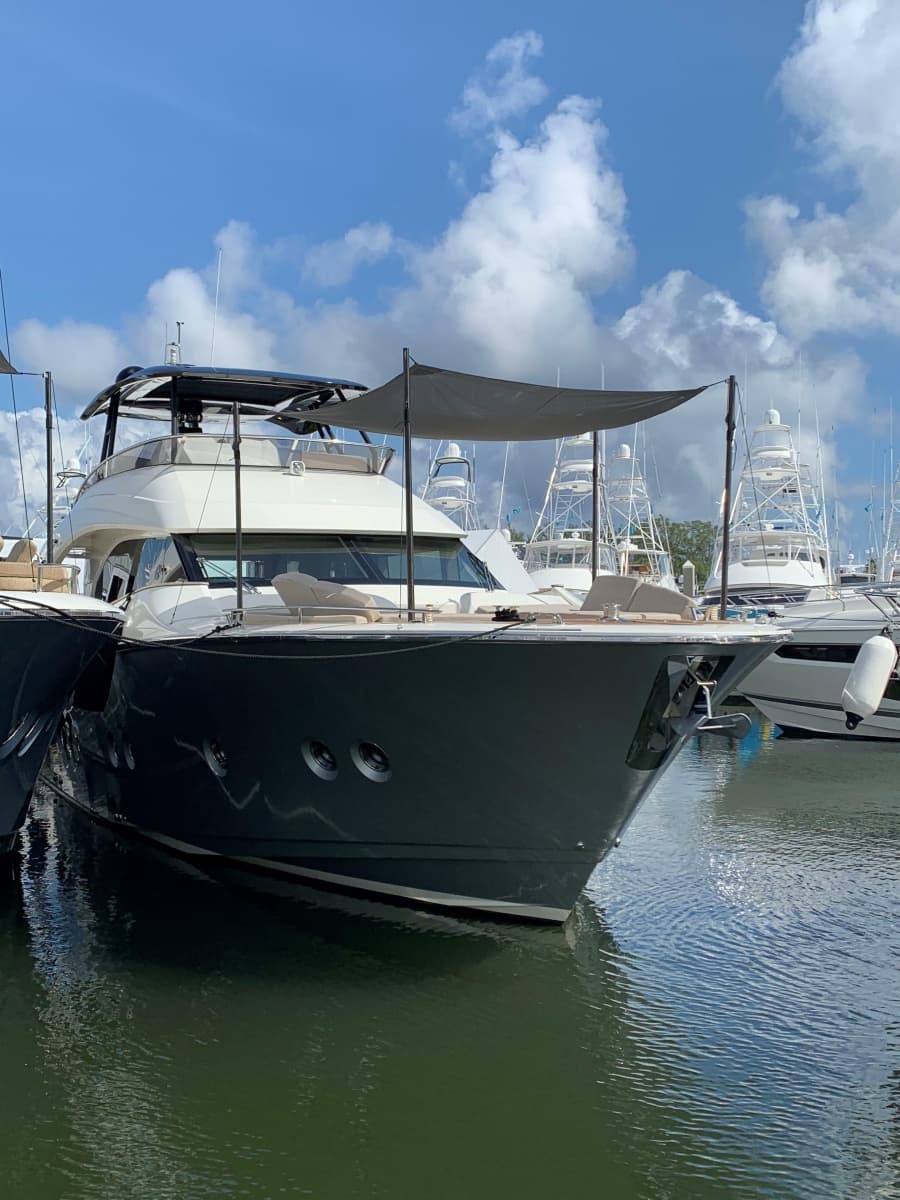

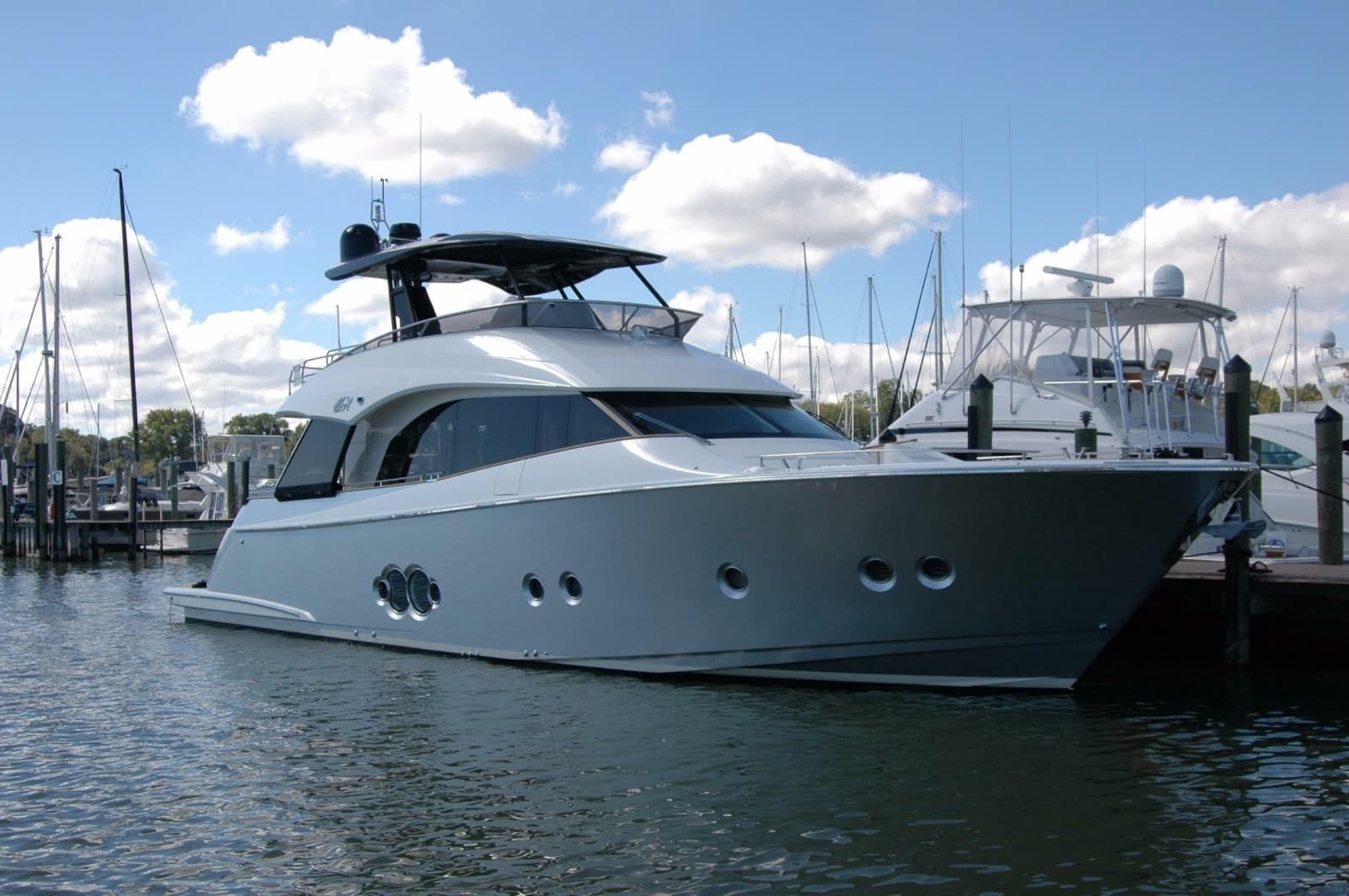

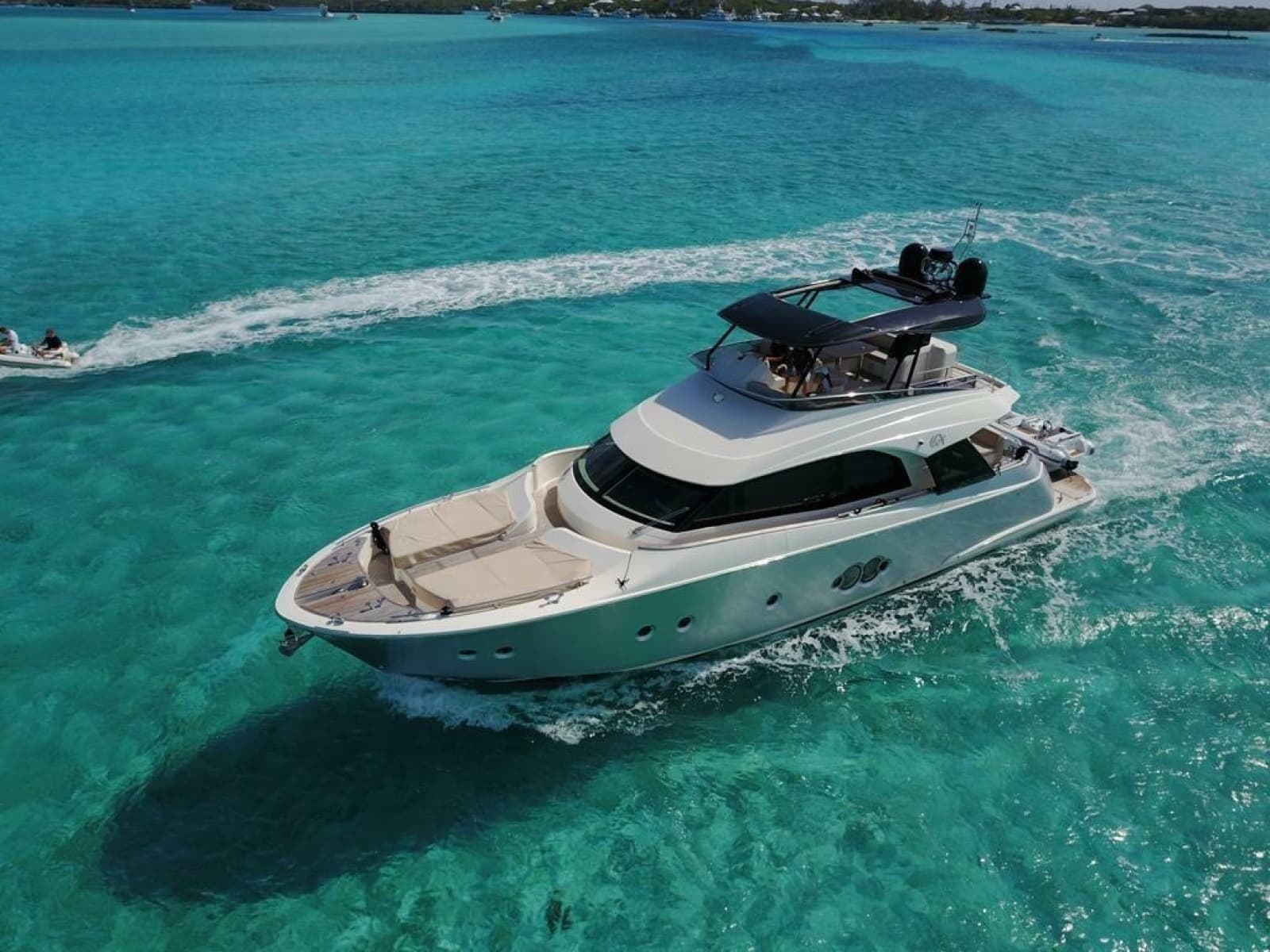

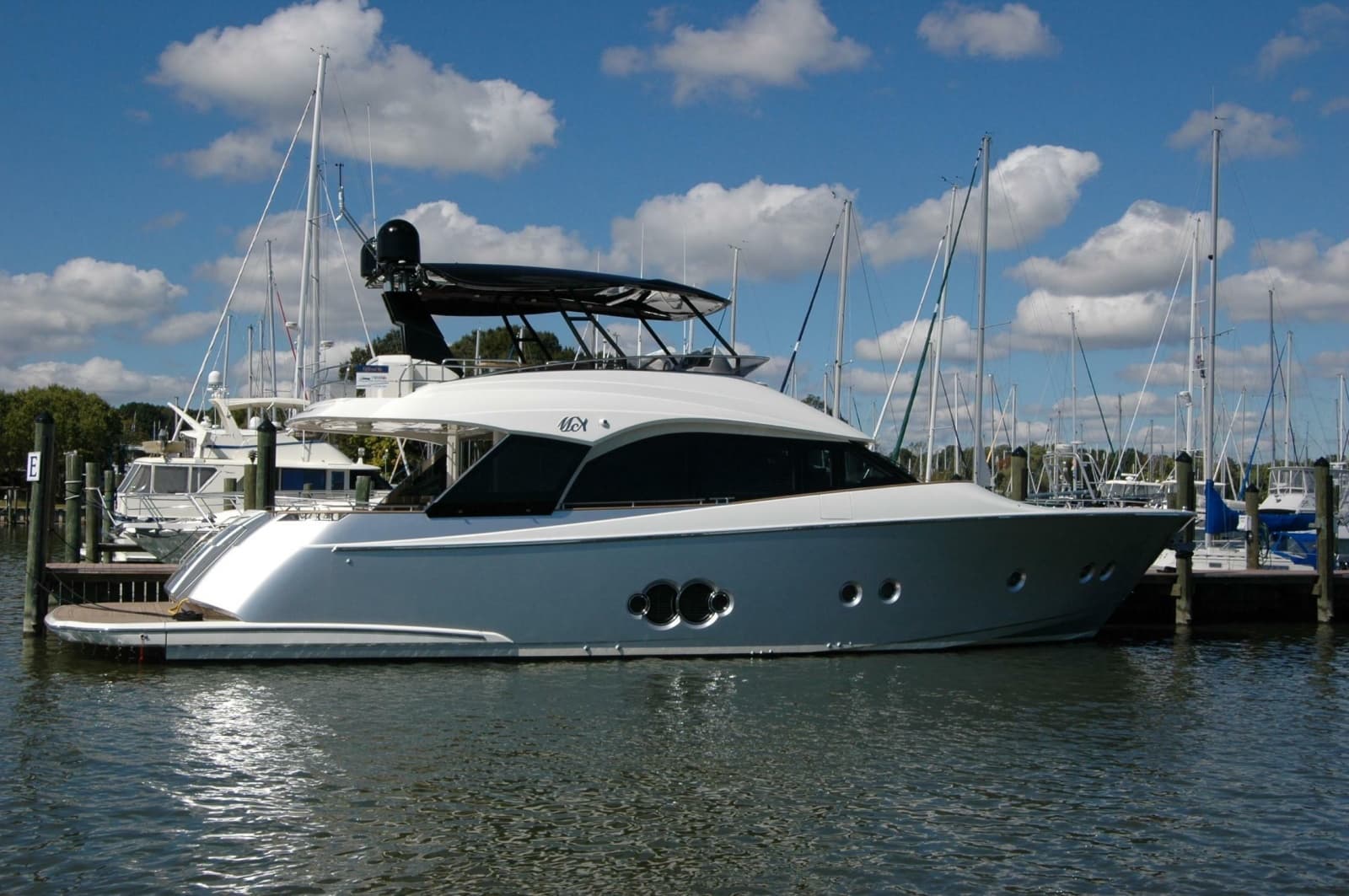

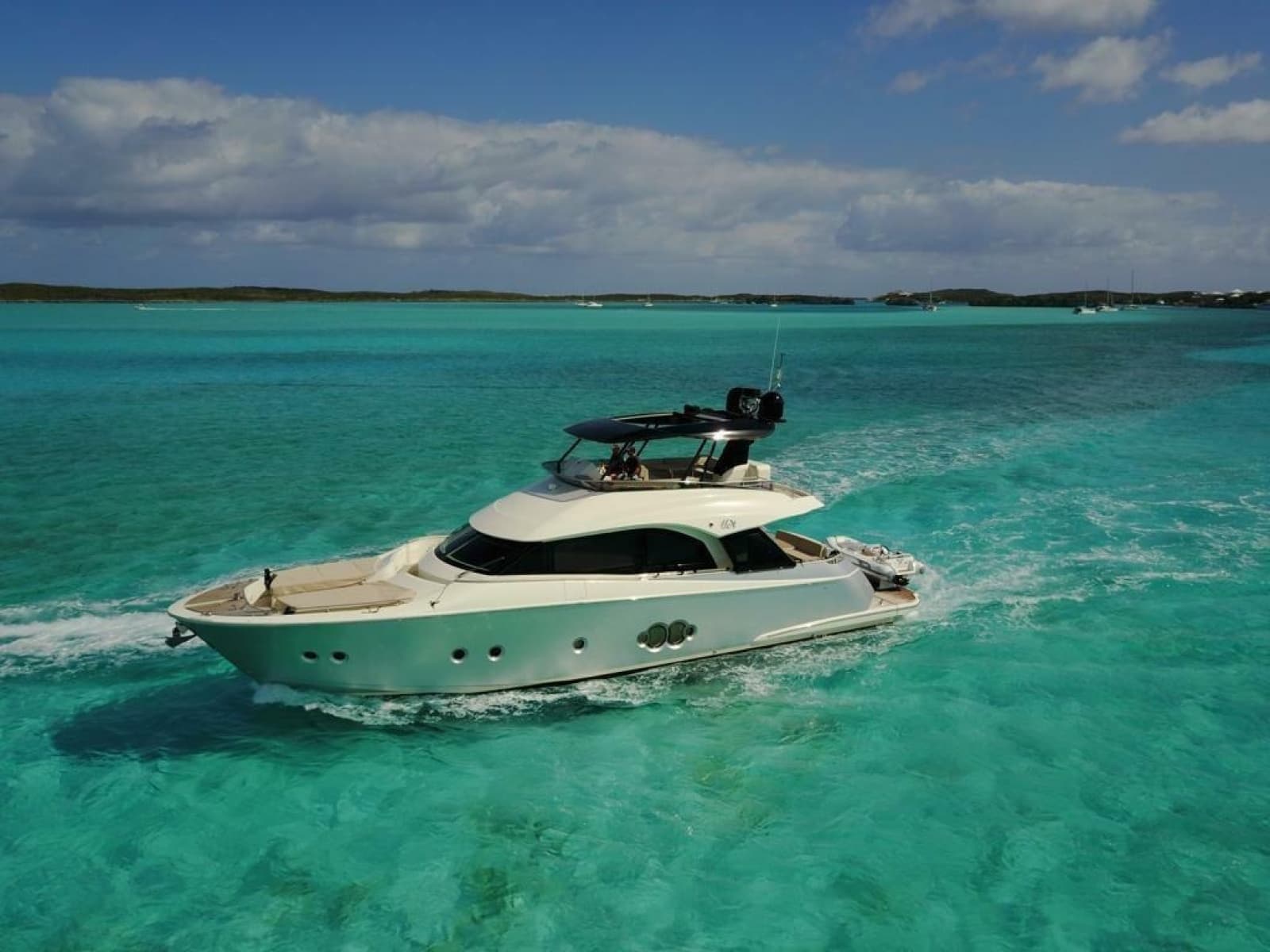

2018 Monte Carlo Yachts MCY 65

Hull Design and Characteristics

• MCY 65 has a planing hull, with a 15° deadrise angle along the entire bottom, deep “V” bow, with 6 iso-parametric spray rails.
• Hull, deck and superstructure are made in sandwich lamination using only vinylester resin in the external skin to prevent osmosis phenomena and DCPD resin.
• A bow crash box to improve the resistance to waves and impacts is provided. Furthermore, in that same area, the hull is reinforced by using kevlar lamination.
• Structural bulkheads are in sandwich.
• The other internal partition walls are built using LARICROSS composite
• The structural project of the hull is according to CE-Design Category A

Power and Drive Systems

• Engines                                   (2) MAN V8 1200, 8 cylinders, 90° V design
• Gearbox                                 ZF 510 - 1 A
• Direct mount marine transmission
• Shafts                                     Aquamet 22, diam. 80 mm
• Propellers                               NiBrAl alloy, four blades, 880 mm diameter
• Rudders and Steering SystemSteel, 0.25 sqm surface
• Power assisted steering system
• Dual Station Bow Thruster     24V 10kW (210kgf)

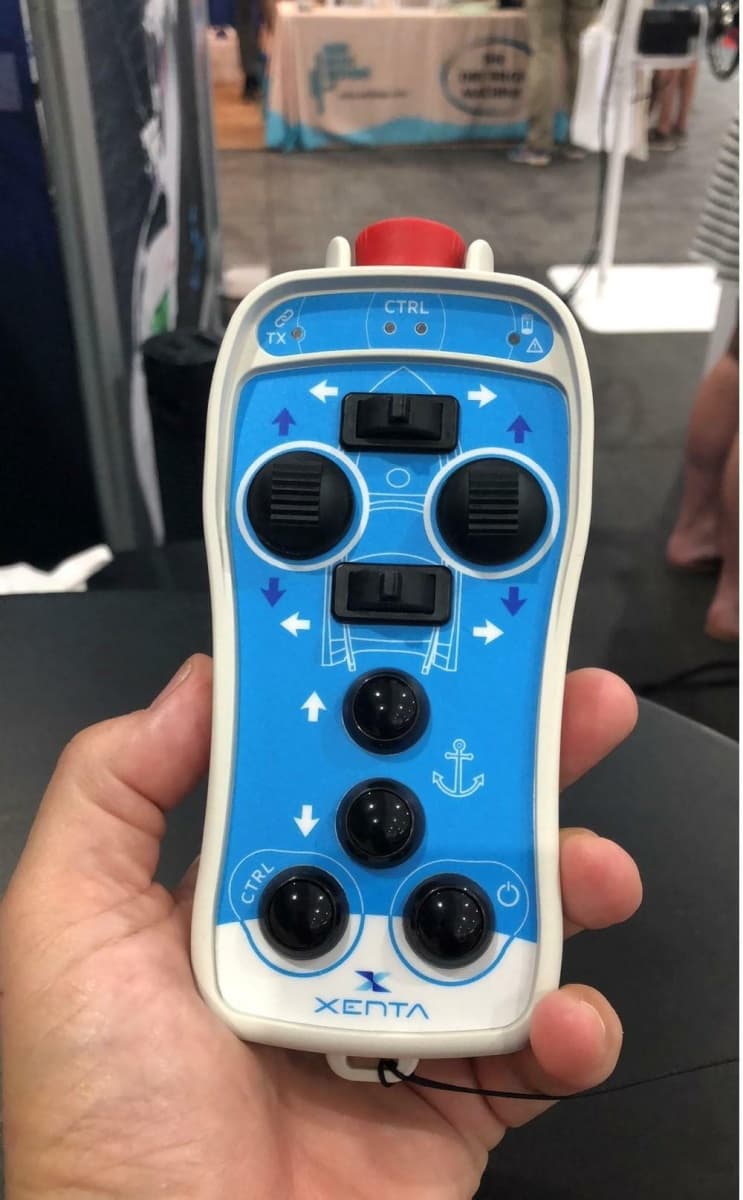

• Manoeuvring system option: Manoeuvring joysticks (main helm and flybridge) for easy control at docking, with electronic control of bow thruster and engines
• Trim Tabs:                                      Hydraulic Trim Tabs System (Note: Trim Tabs function, the display is inoperable)

Mooring

• 40 kg anchor with 70 m chain
• Reversible electric anchor winch, with foredeck, main helm and flybridge controls (controls on floor for up/down/captain operation)
• Stem head roller with automatic anchor launch and retrieve
• Bow stainless steel protection
• Stainless steel bow fairleads with stainless steel protection
• Stainless steel bow, stern and 6 spring cleats ( and additional 2 as option)
• Option: twin stern mooring electric winches
• Stern stainless steel fairleads with rollers

External Layout and Equipment

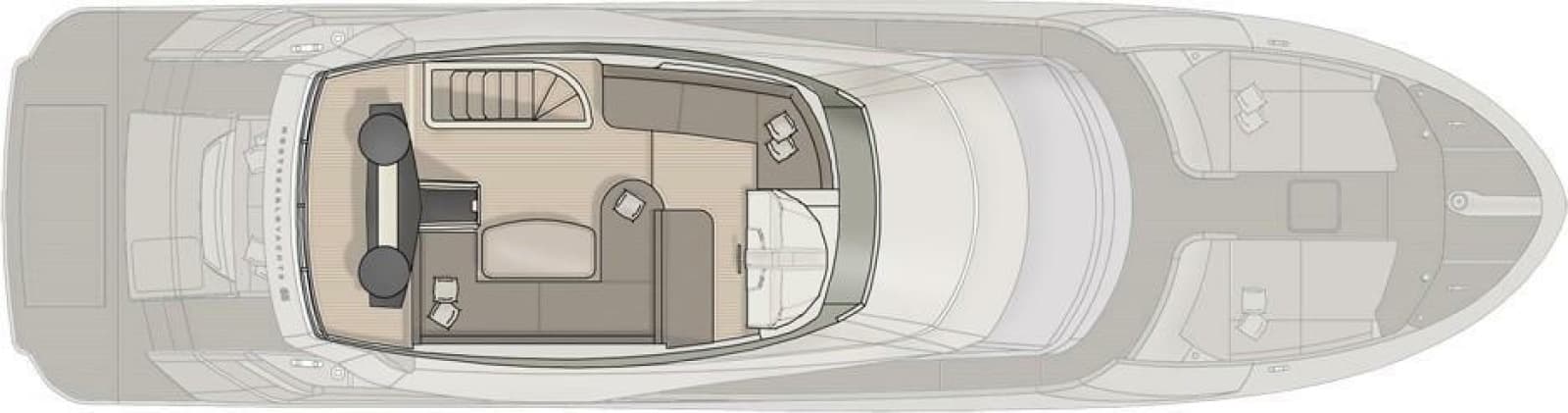

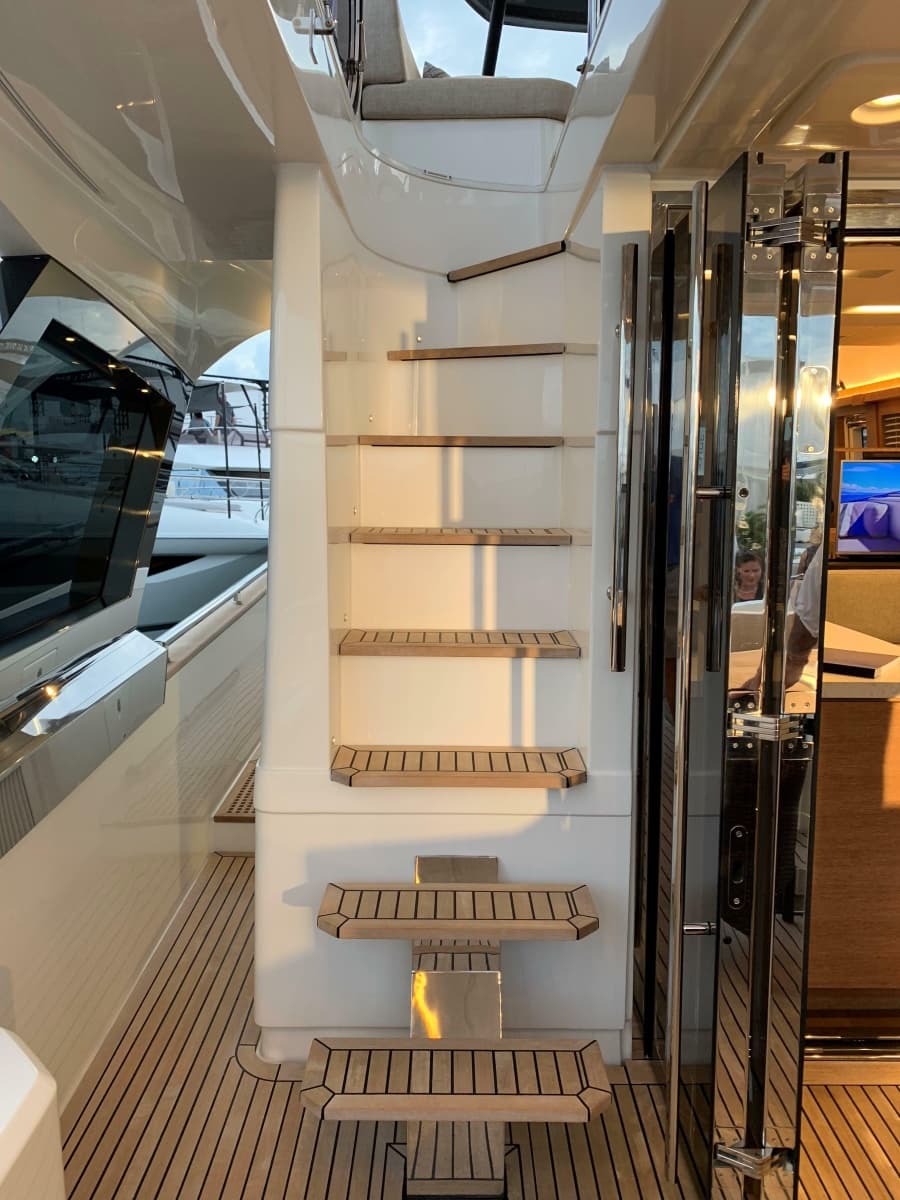

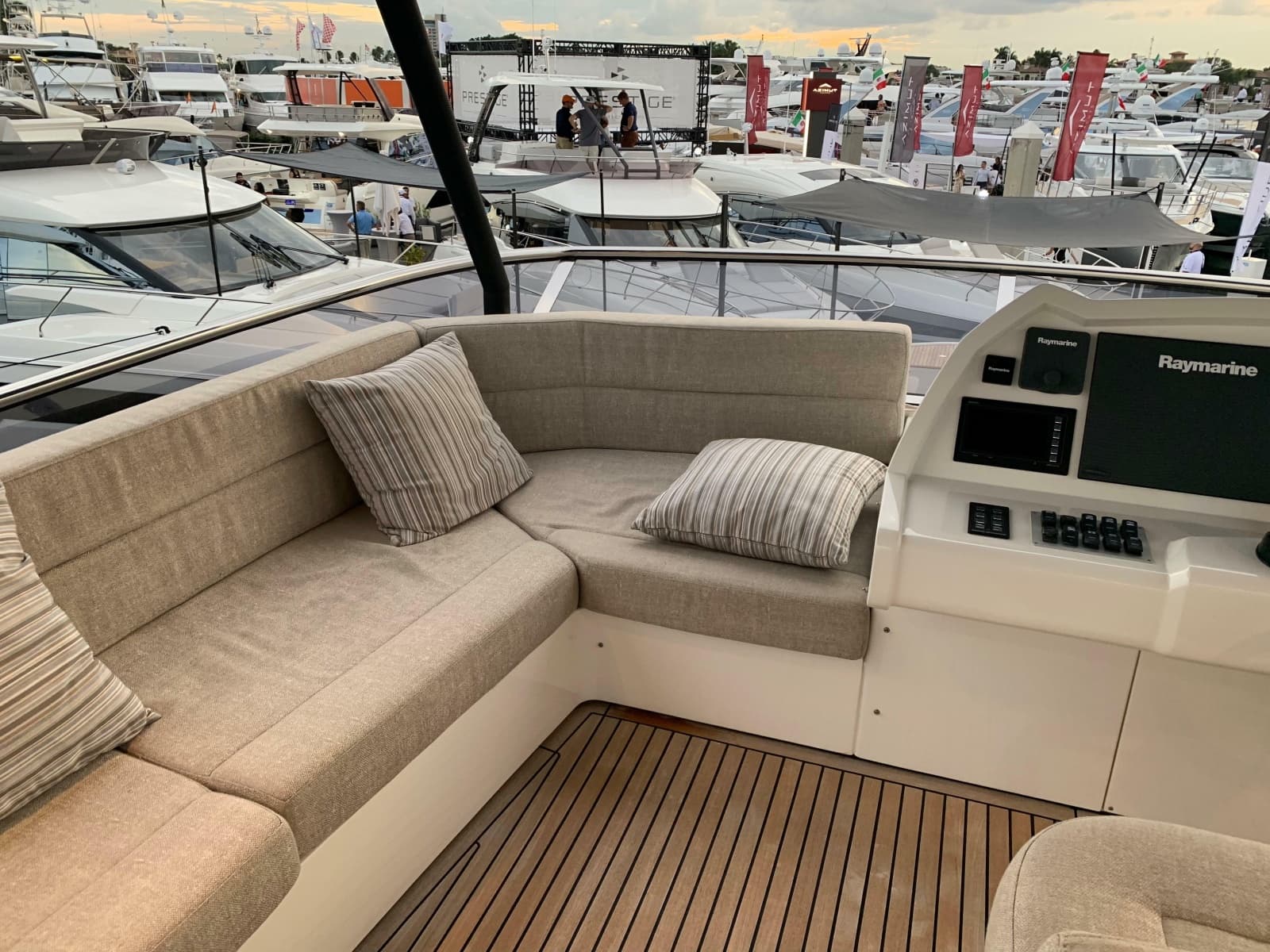

• FlybridgeExternal staircase with teak steps
• Option: teak floor
• Lights and perimeter courtesy lights
• Plexiglass and aluminium access hatch to flybridge
• Plexiglass and stainless steel windscreen
• Stainless steel protection pulpit and handrails
• Fiberglass radar mast, black painted, with aluminium wings supporting:navigation lights,
• radar and GPS antennas equipment,
• TV antenna,
• horn
• lighting protection
• flybridge lights

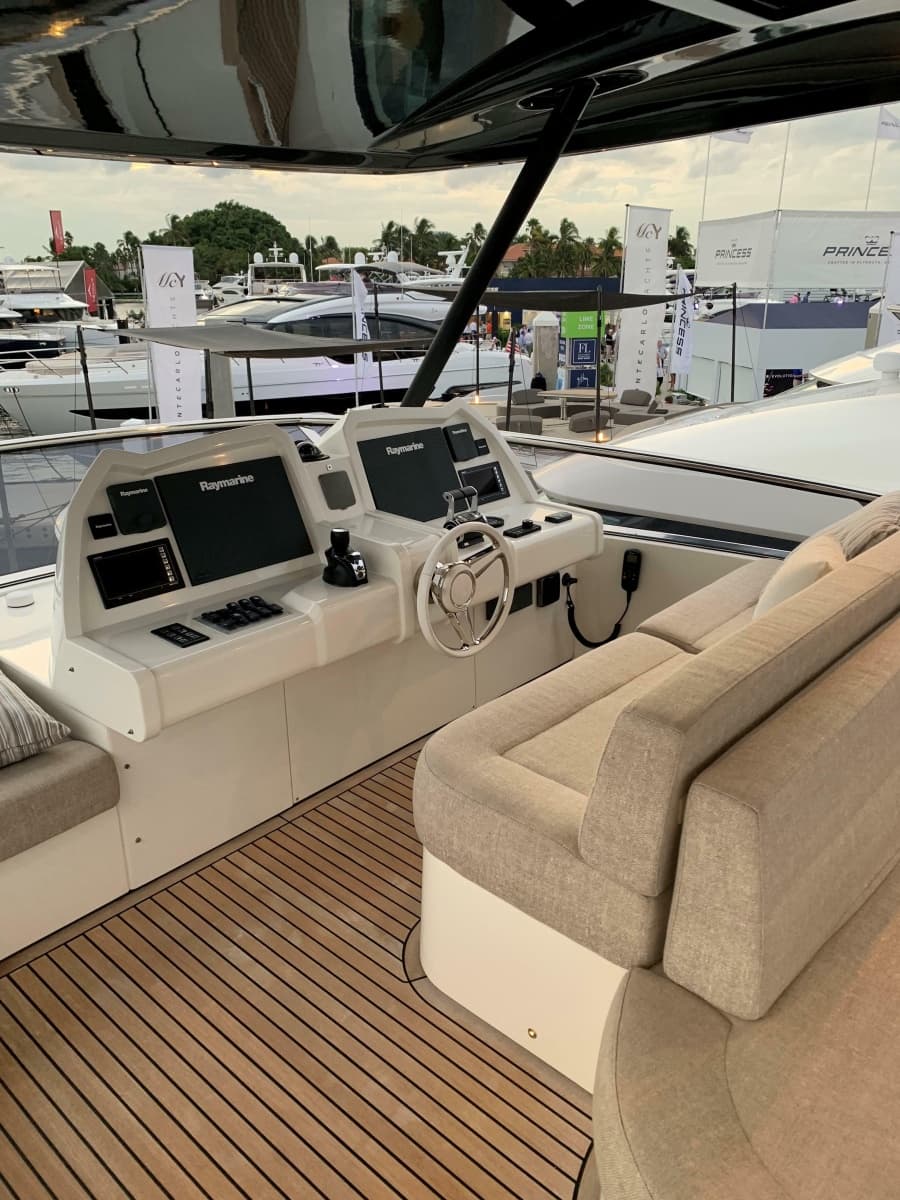

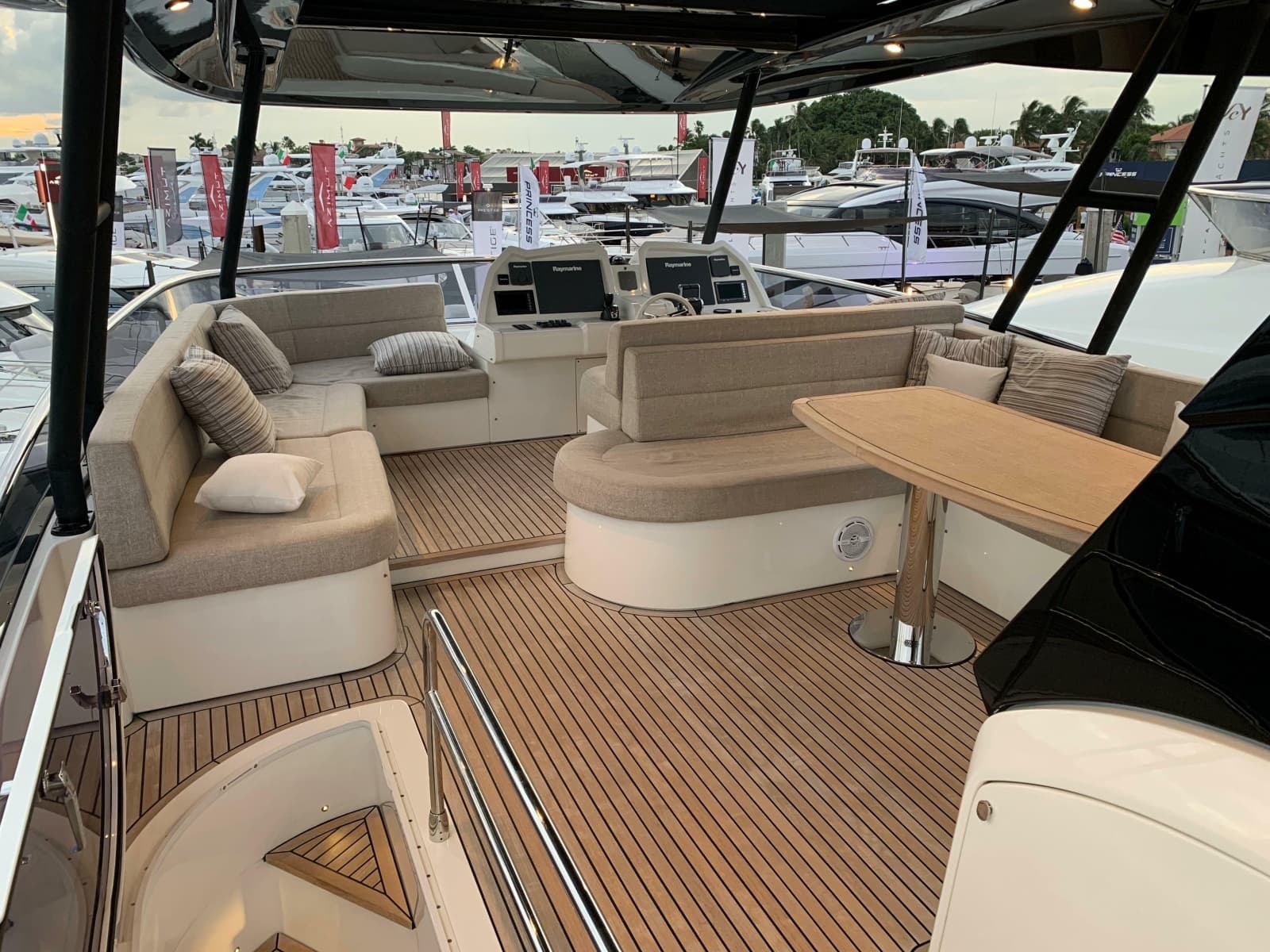

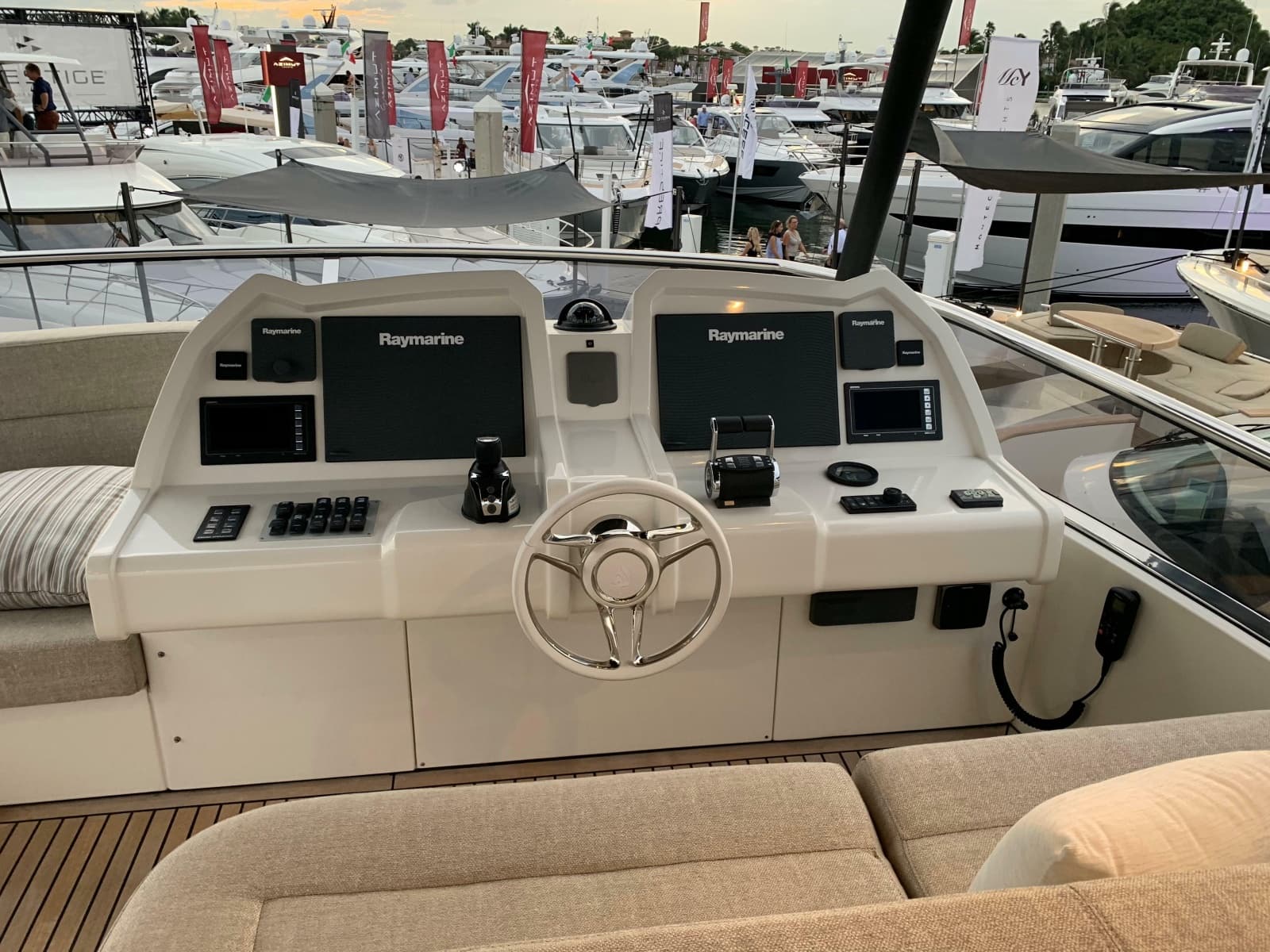

• Pilot console with navigation and engine control screens, including instrumentation as per section 9, plus:steering wheel
• main engines and reversing gear levers
• key switches for port and starboard engines
• rudder angle indicator
• horn, windscreen wipers, rudder pump, anchor winch and chain counter, search light
• panel with warning and alarms for monitoring system
• Helm Seat with storage

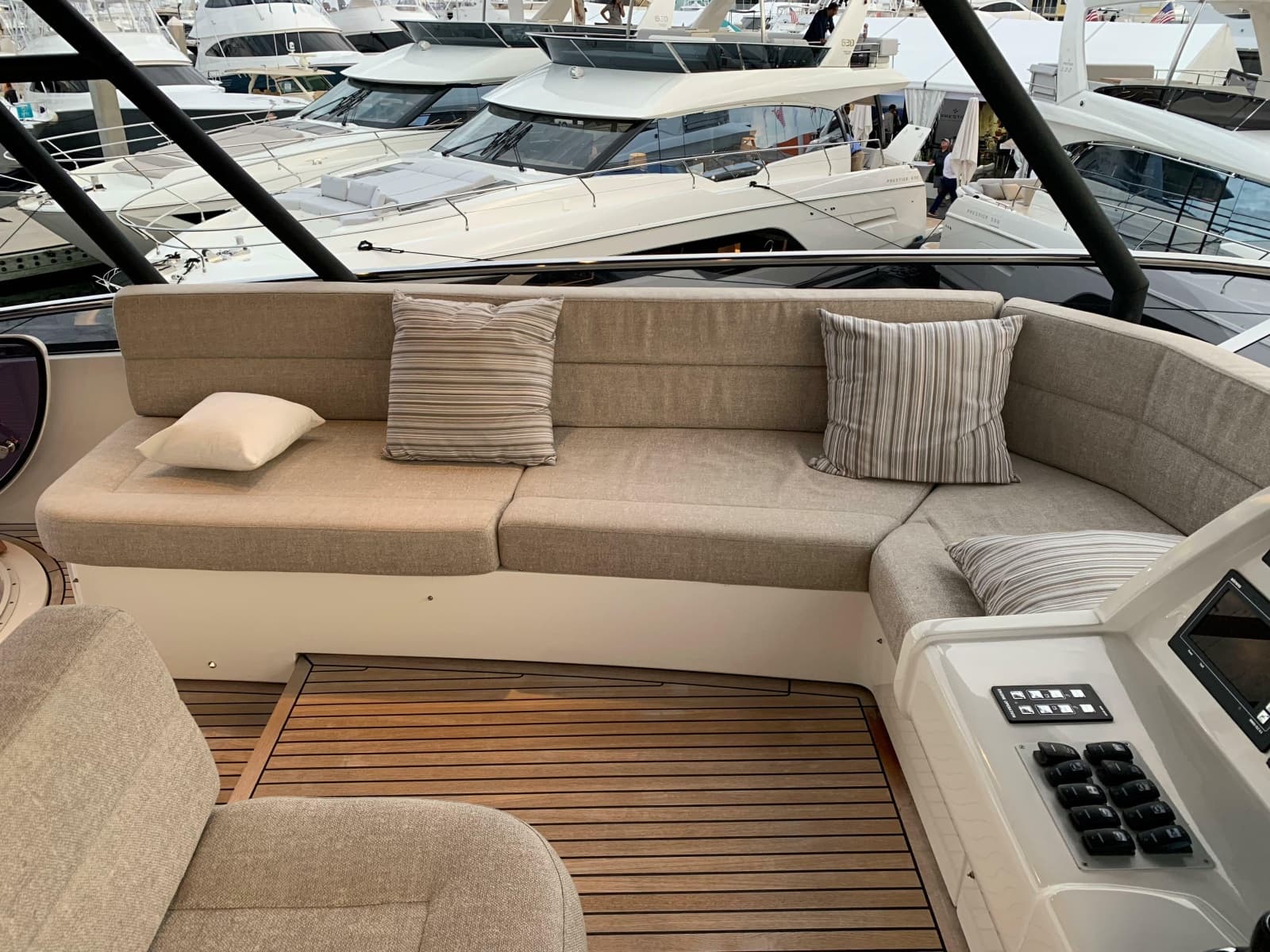

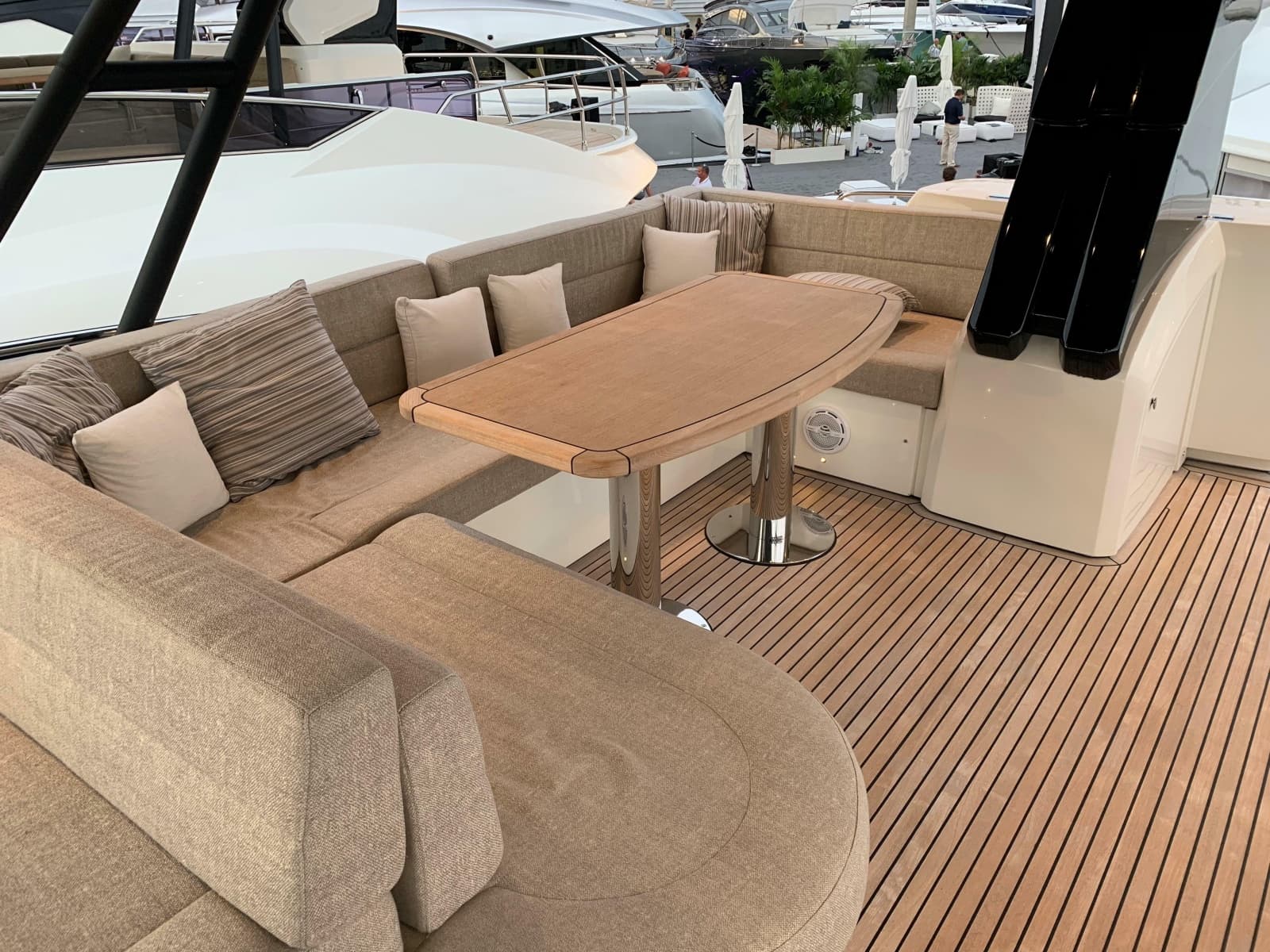

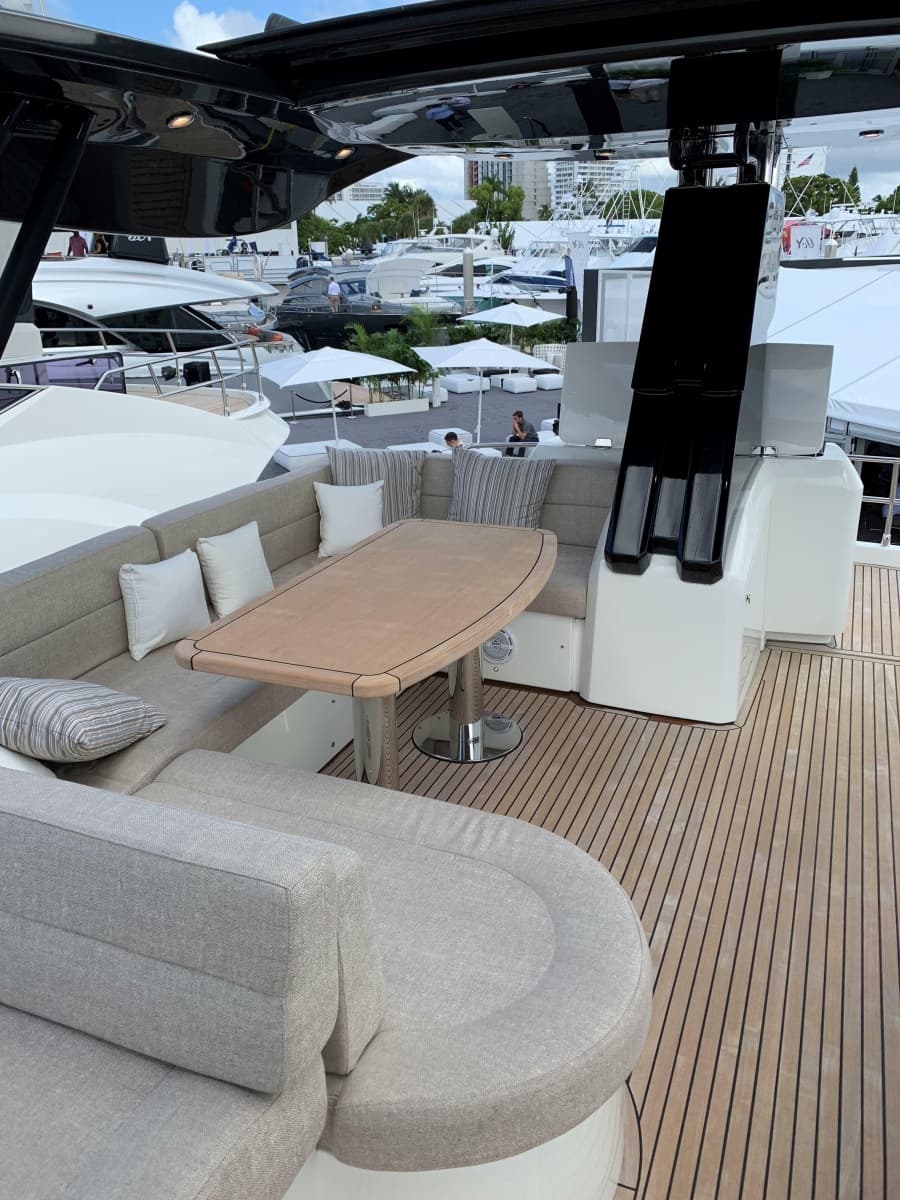

• C-shape sofa with cushions, decorative cushions and large capacity storages
• “L” sofa on port side, with cushions
• Teak table for 6 people with 2 stainless steel legs.
• Sunbathing aft platform

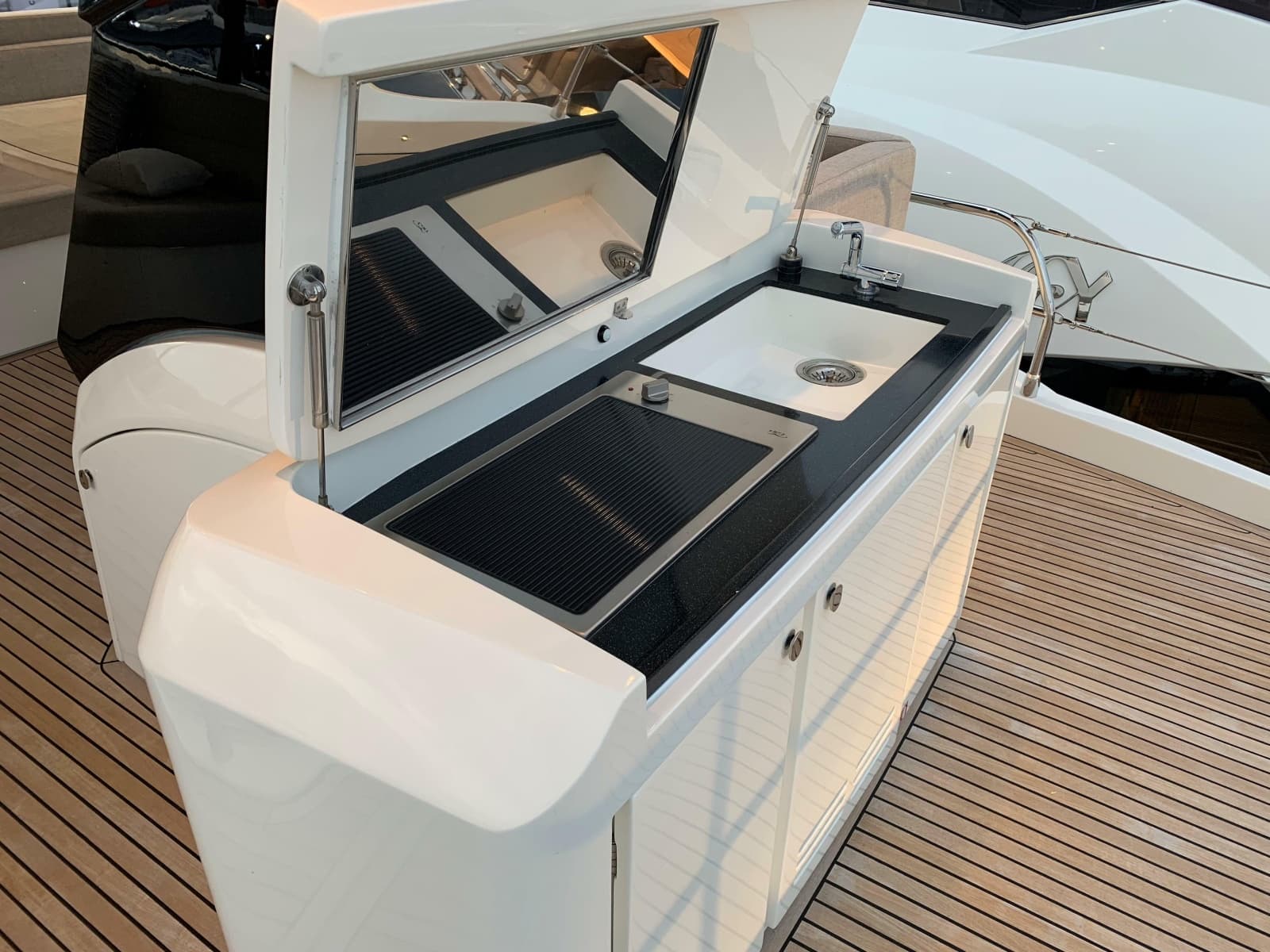

• Galley with sink, hot and cold water supply, fridge, ice maker and storages
• Barbecue grill (option)

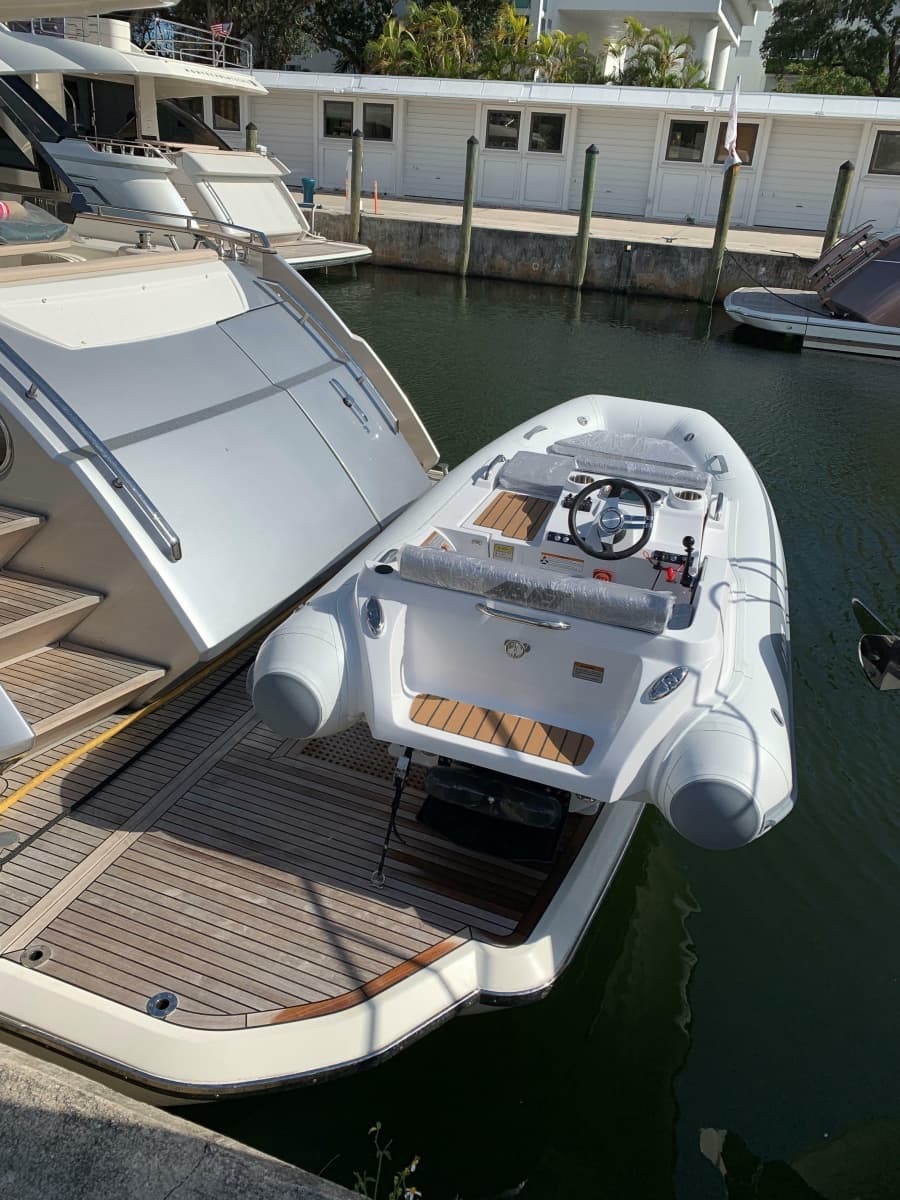

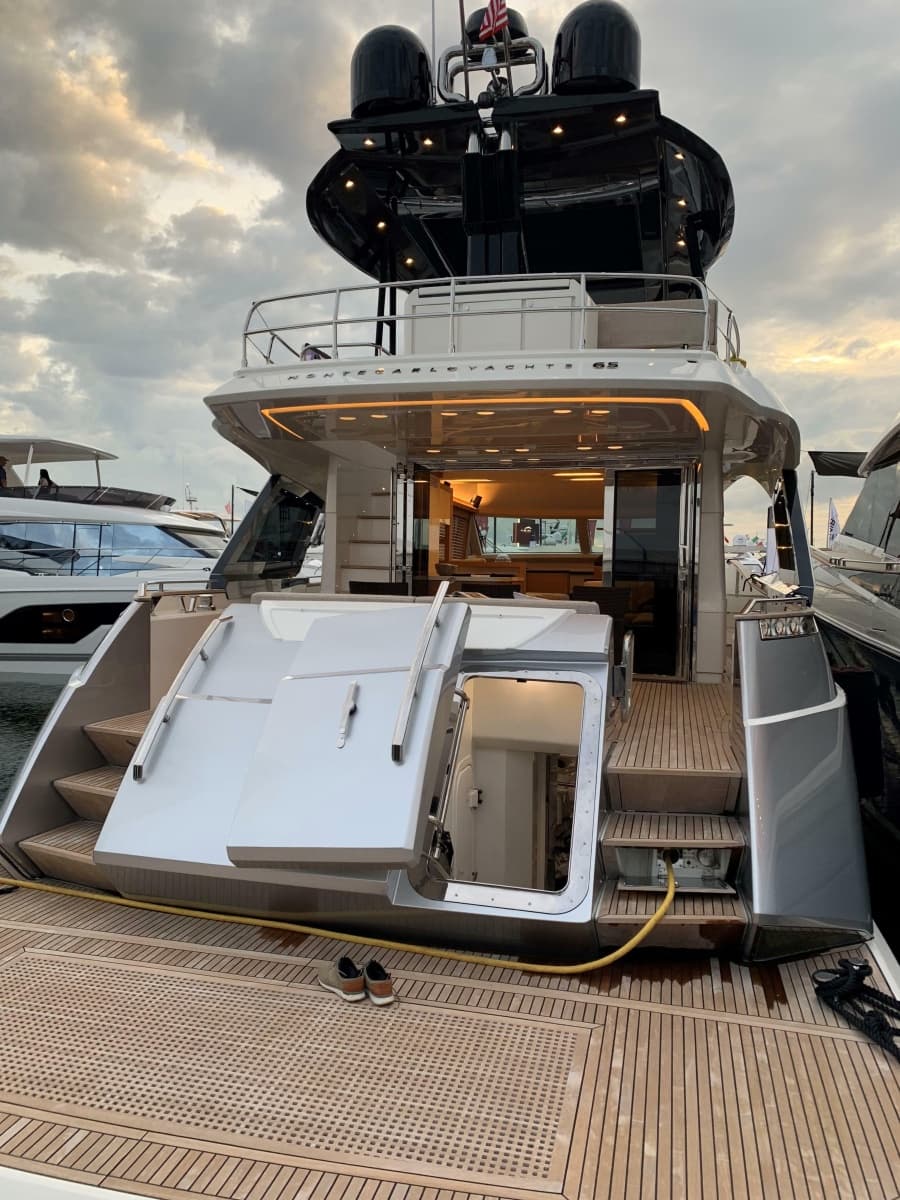

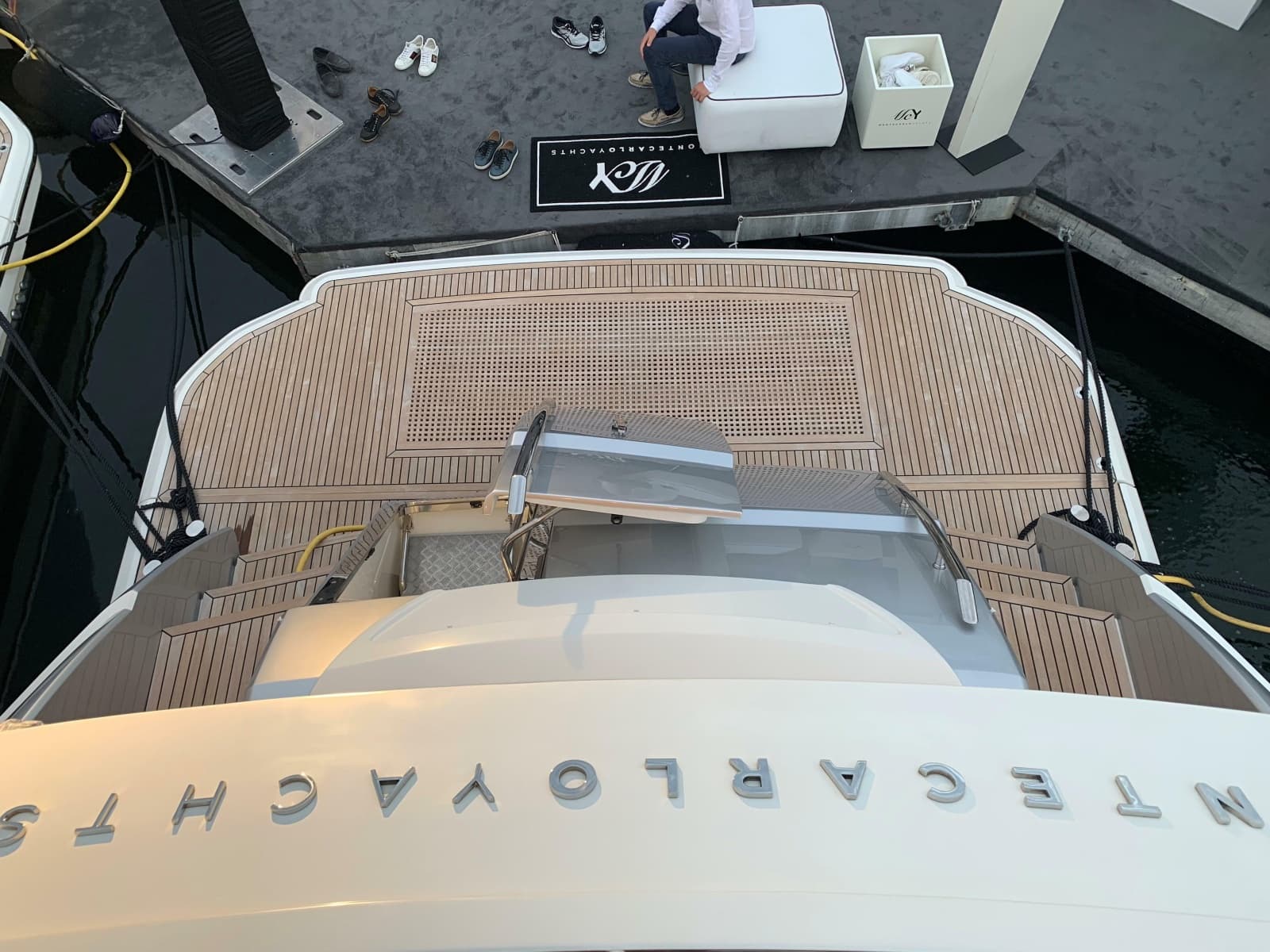

• SternBathing platform with:hydraulic up/down lifting system – 600 kg max loading capacity
• platform size suitable for a 3.25 m tender length
• platform teak floor and teak grating
• stainless steel fender bar with rubber insert reinforcement
• Foldable bathing ladder
• Water proof access hatch to engine room, and crew cabin
• Stern stairs to aft cockpit, with stainless steel handrails and hatches for shore power connection and stern platform shower (cold and hot supply)
• Option: electro-hydraulic concealed stainless steel gangway, with teak grating, automatic stanchions.

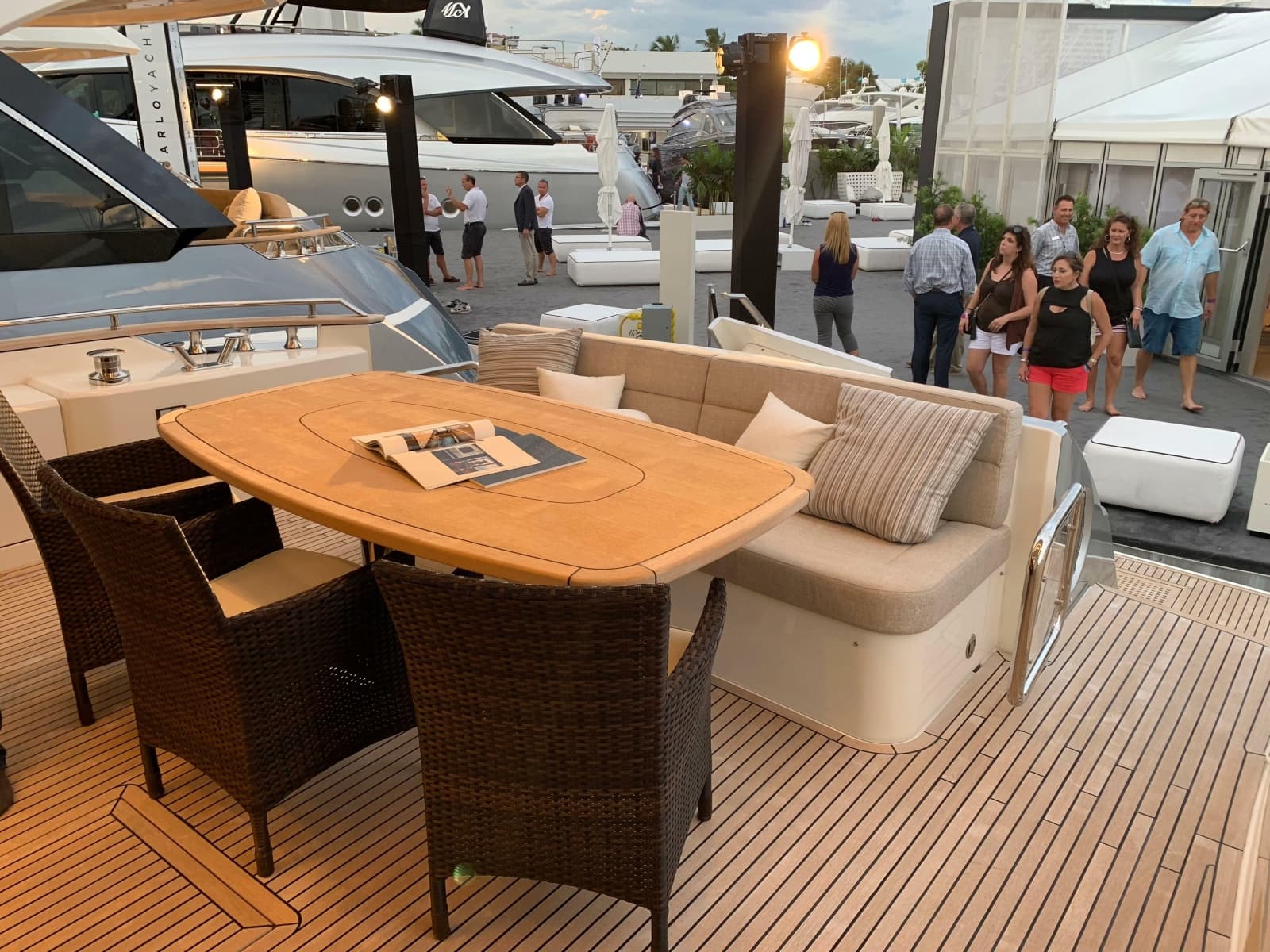

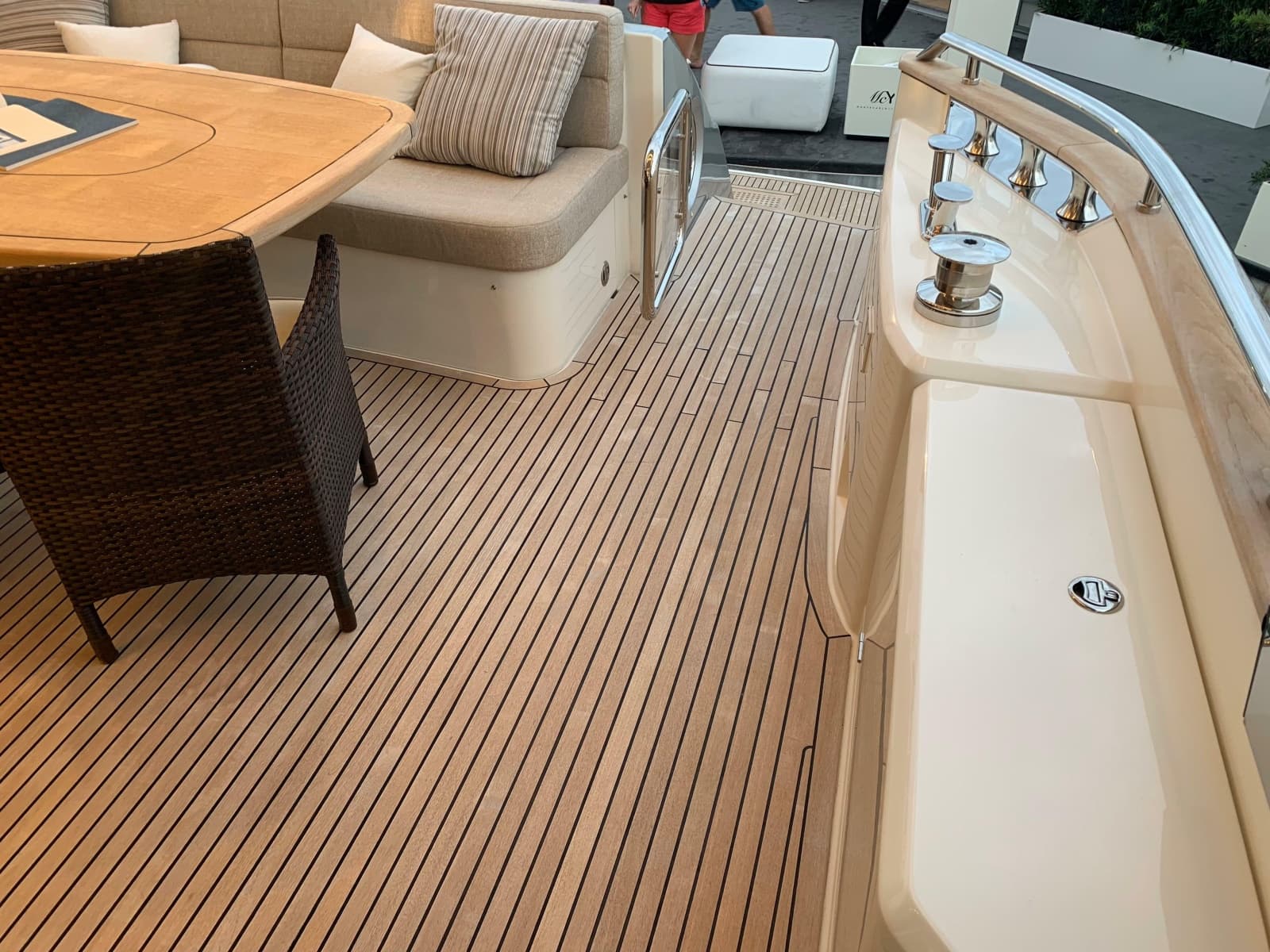

• Aft CockpitOption: teak handrails on bulwark with stainless steel handrails
• Teak floor with perimeter courtesy lights
• Stainless steel and tempered glass fashion plates for lateral protection of the cockpit, with courtesy lights
• Salon door in stainless steel and tempered glass
• Stainless steel and plexiglass gates to stern staircases
• Stern sofa with cushions and storage

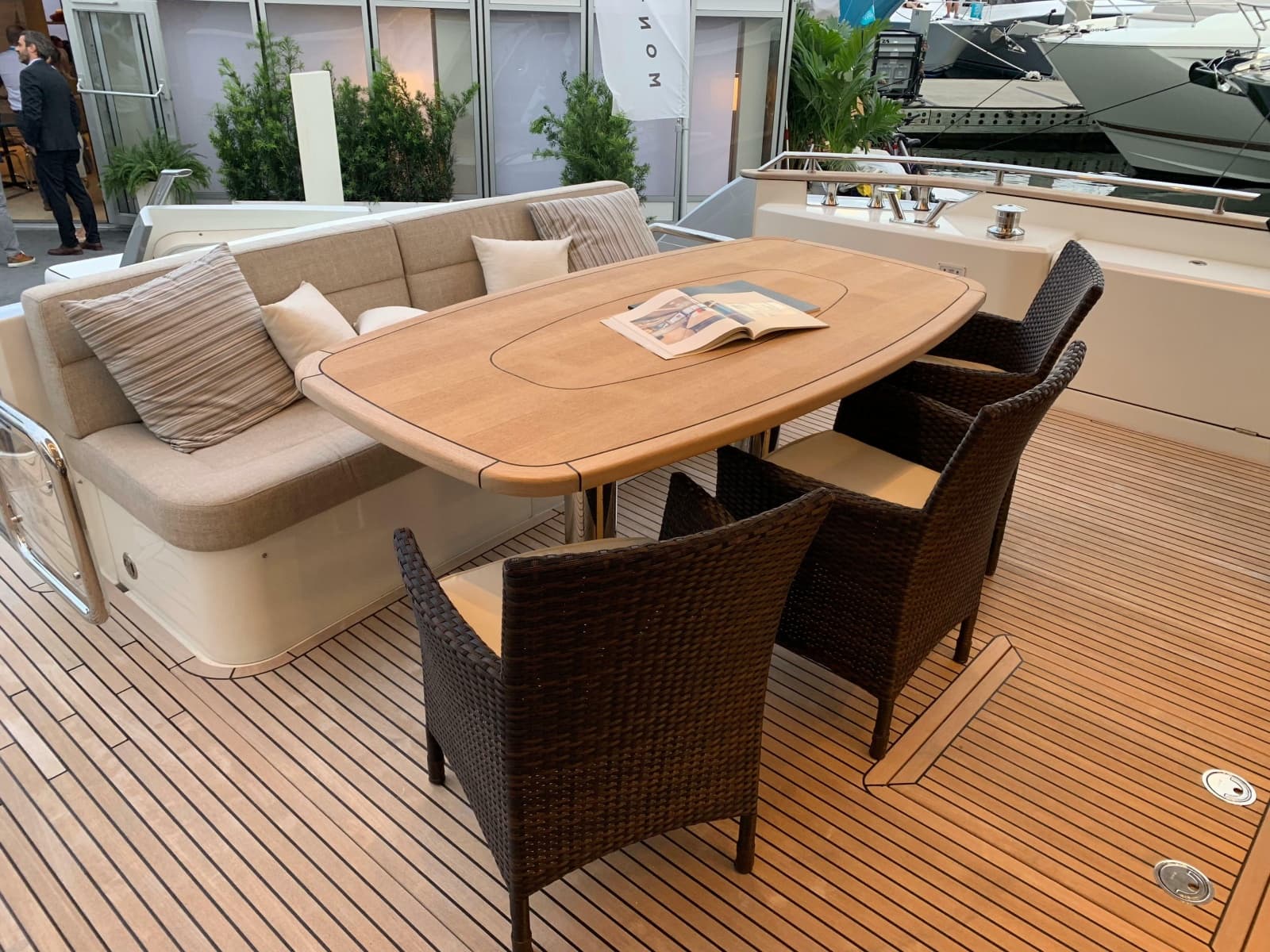

• Teak table for 8 people with two stainless steel legs
• LED power and courtesy lights on ceiling
• Flush deck hatch for engine room

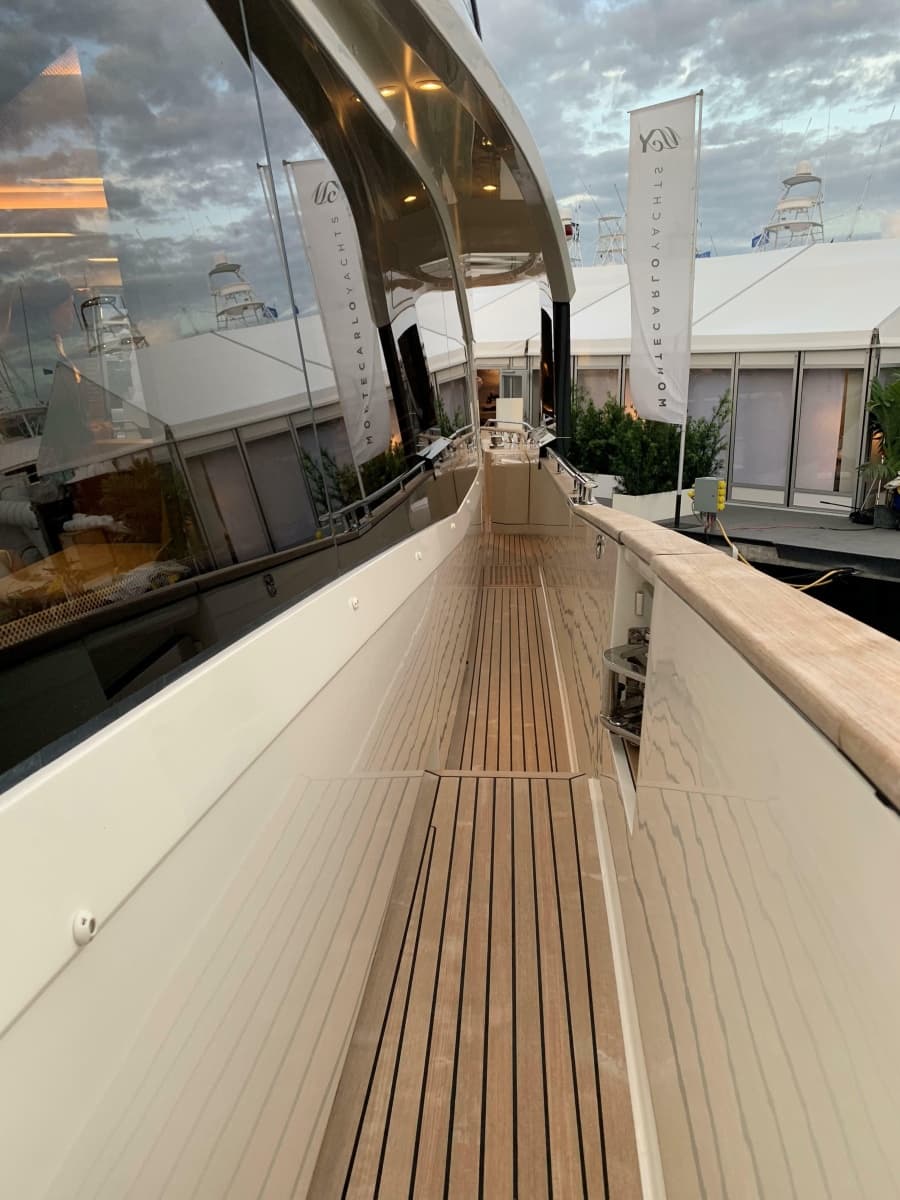

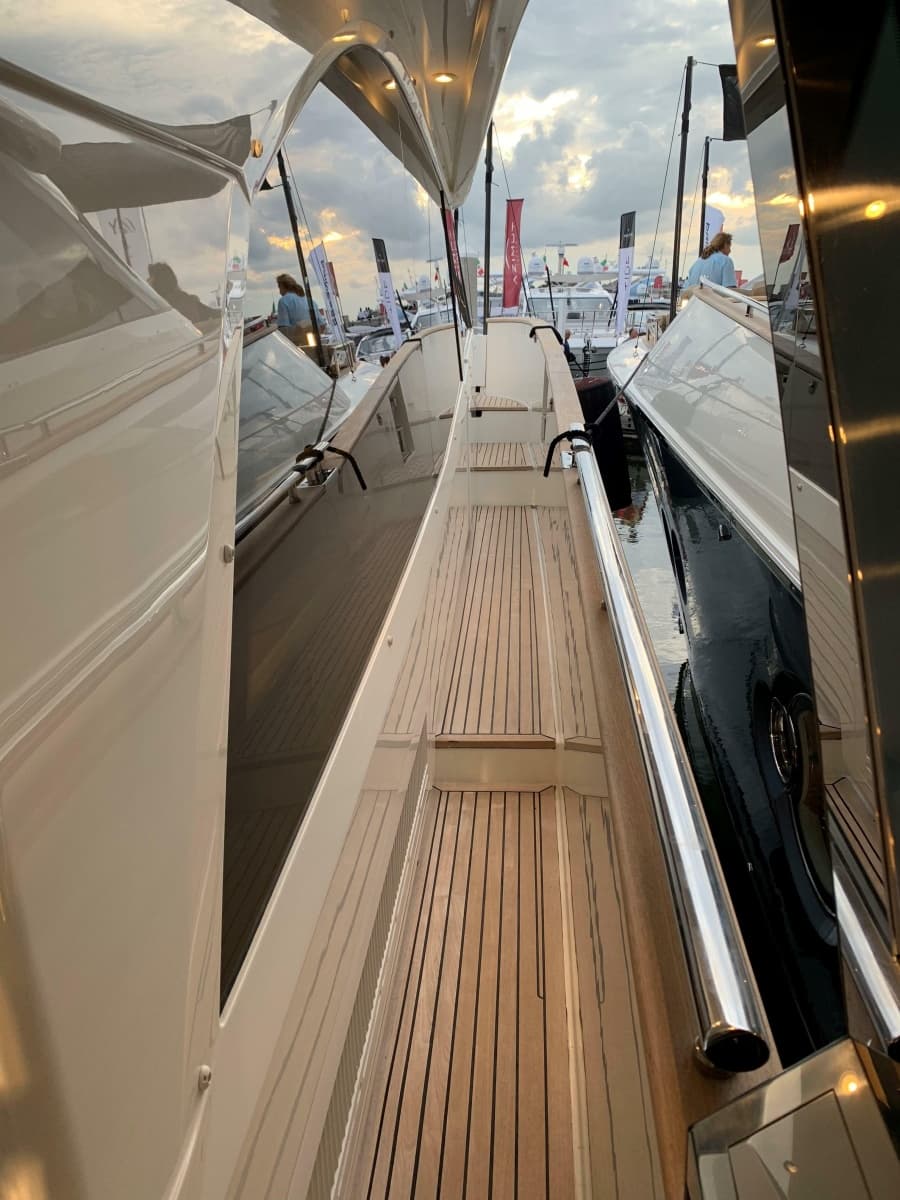

• SidewaysOption: teak floor with perimeter courtesy lights
• Storages covered with teak door and step, containing fresh water intake (on port side) and black and grey waste discharges (on starboard side)
• Option: teak handrails on bulwark with stainless steel handrails
• Stainless steel fender rubber with rubber insert reinforcement
• LED power lights on ceilings
• Tempered high thickness glass windows glued to the superstructure
• Window on starboard side (manual)

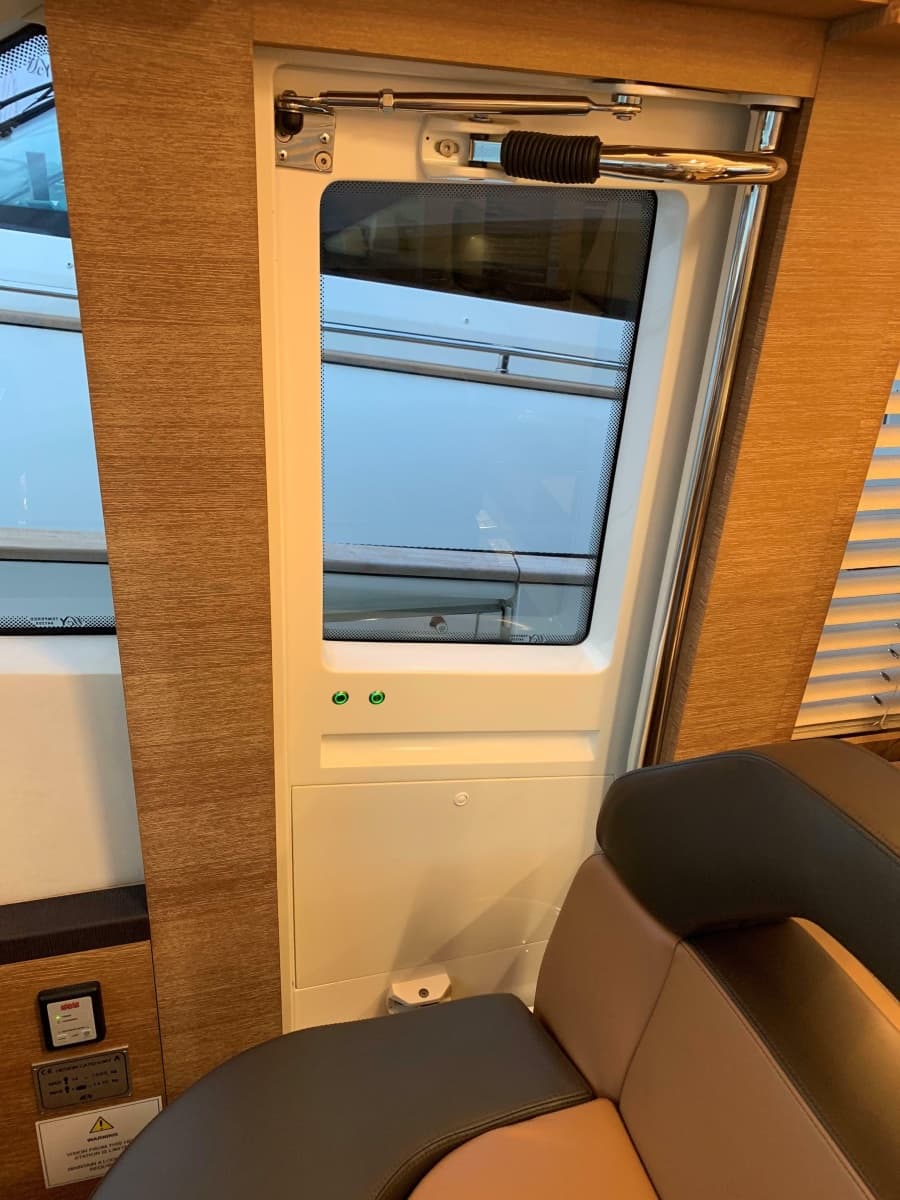

• Option: semi-automatic electric watertight door from saloon to starboard sideway, in lieu of manual window

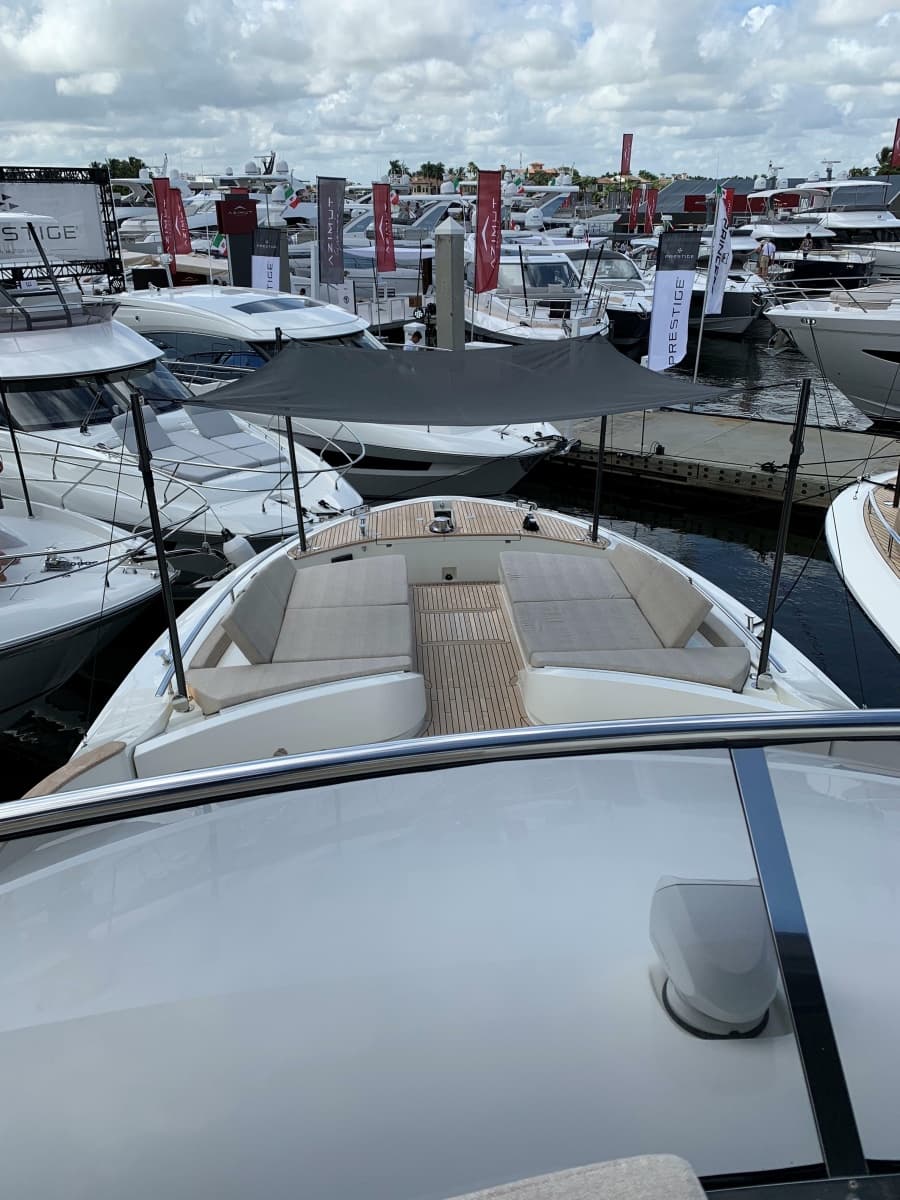

• Bow cockpitChain locker in the anchor winch area, with:two storages and handrails to fix fenders
• chain guiding support
• cold and hot water shower

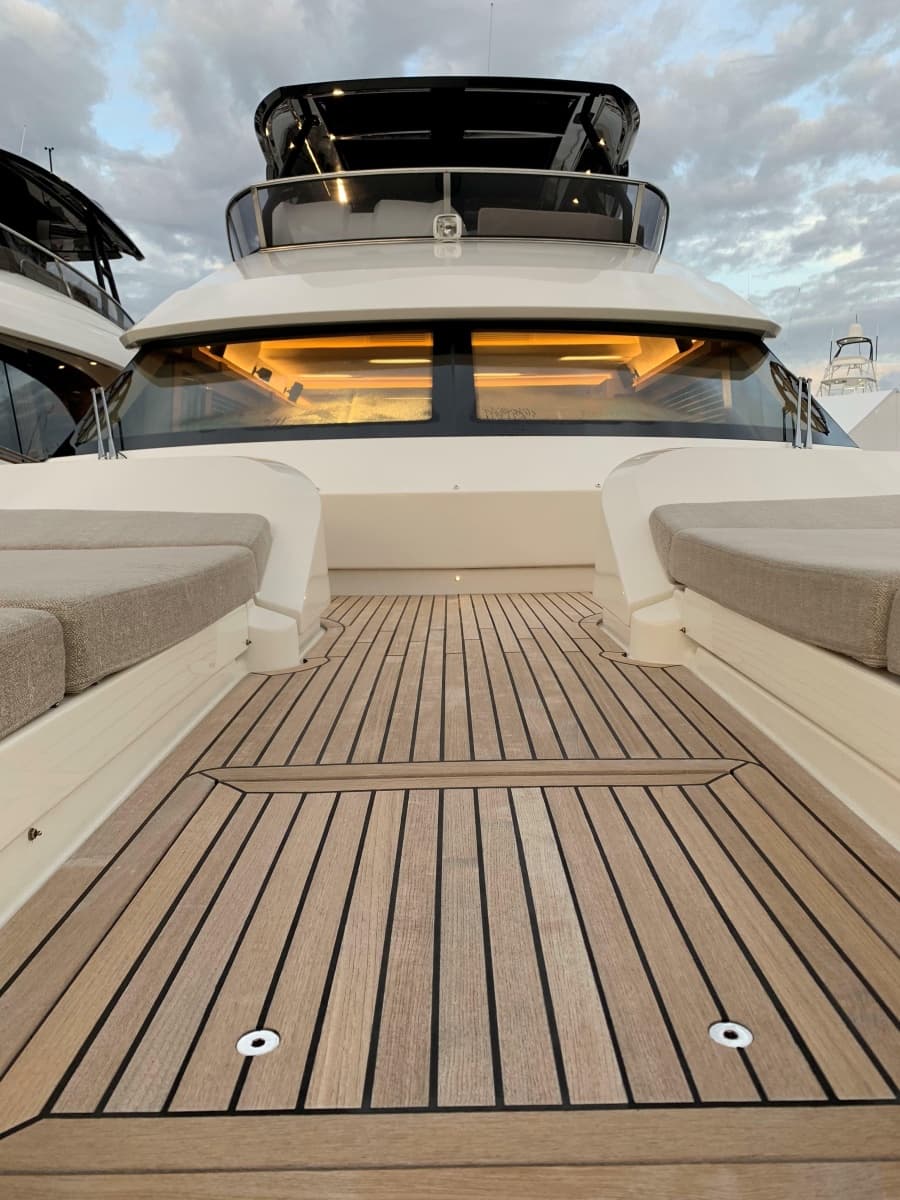

• Teak floor with perimeter courtesy lights
• Flush deck hatch for VIP cabin emergency exit

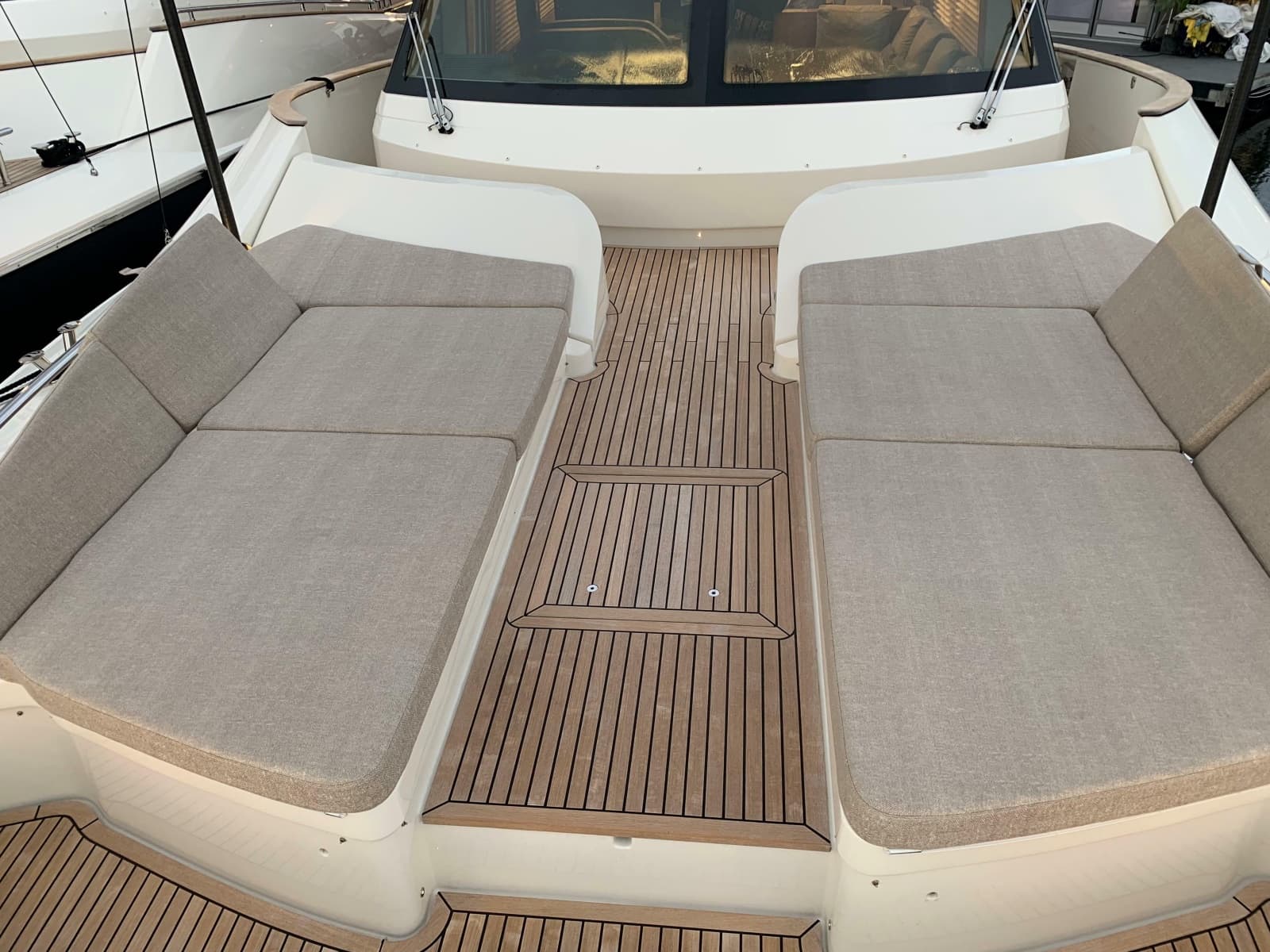

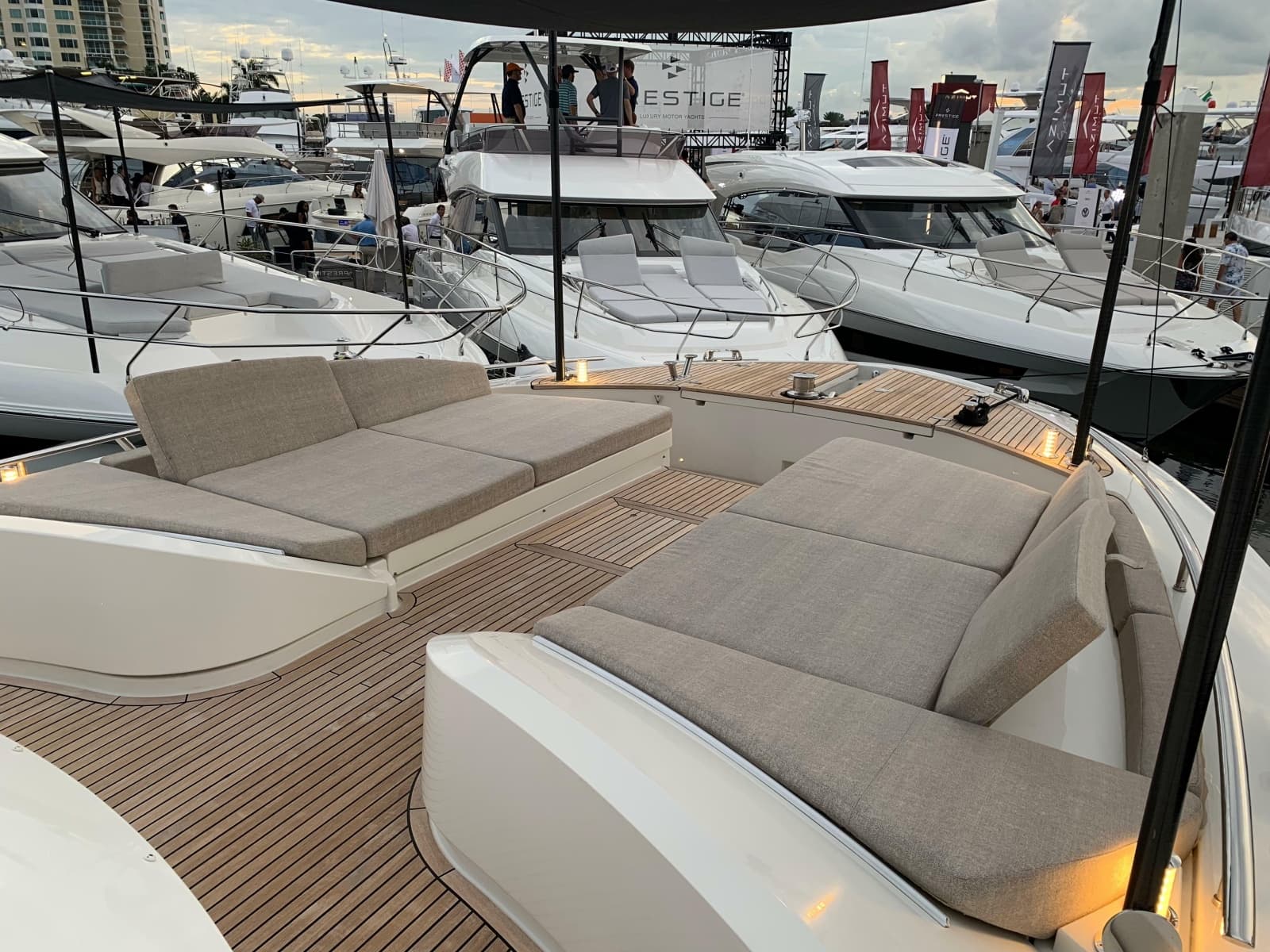

• Sofas with cushions and storages
• Complete Portuguese bridge with storages
• Stainless steel handrails
• Option: teak handrails on bulwark along the Portuguese bridge
• Forward windscreen in sandwich tempered glass
• 2 electric windscreen wipers for forward windscreen

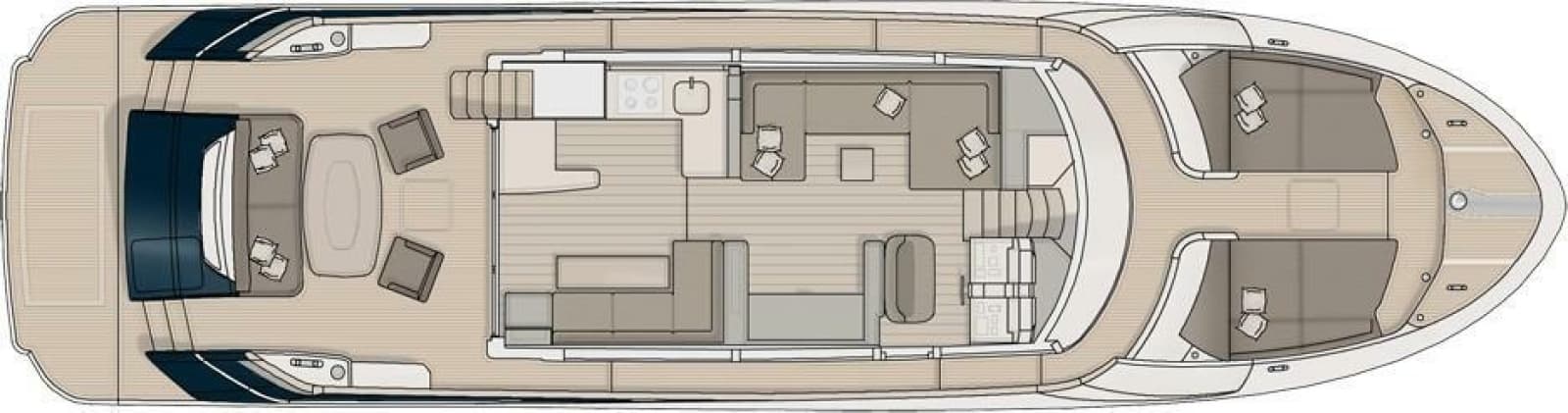

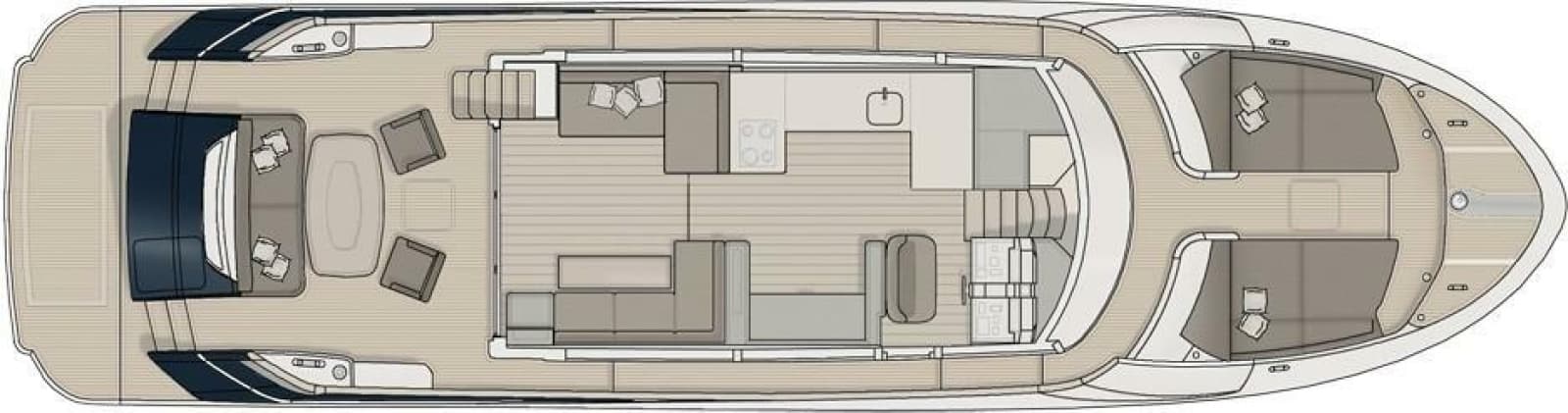

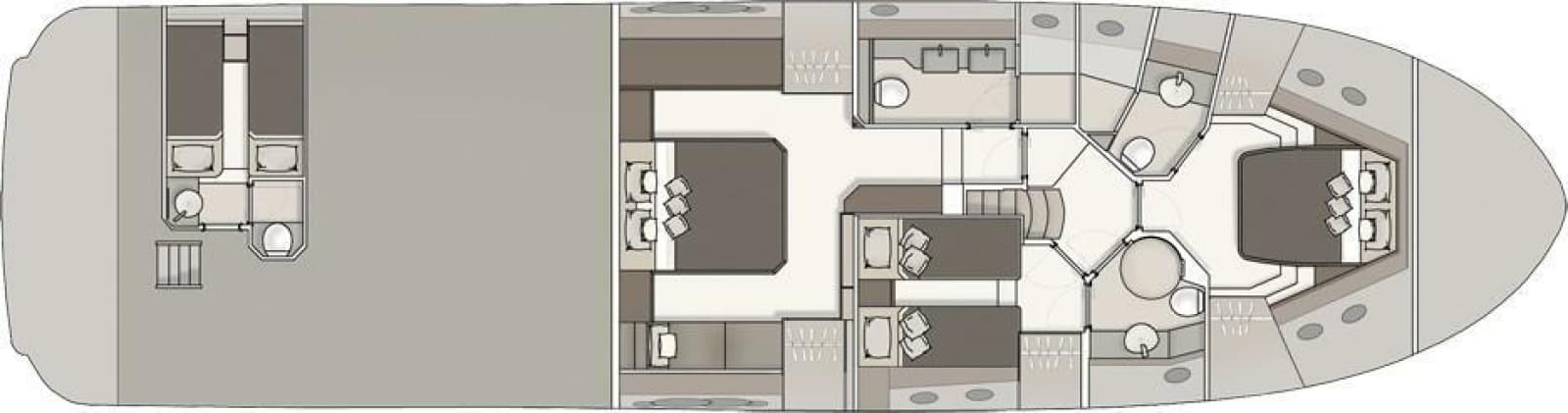

Internal Layout and Equipment

1. Internal Layout and Equipment

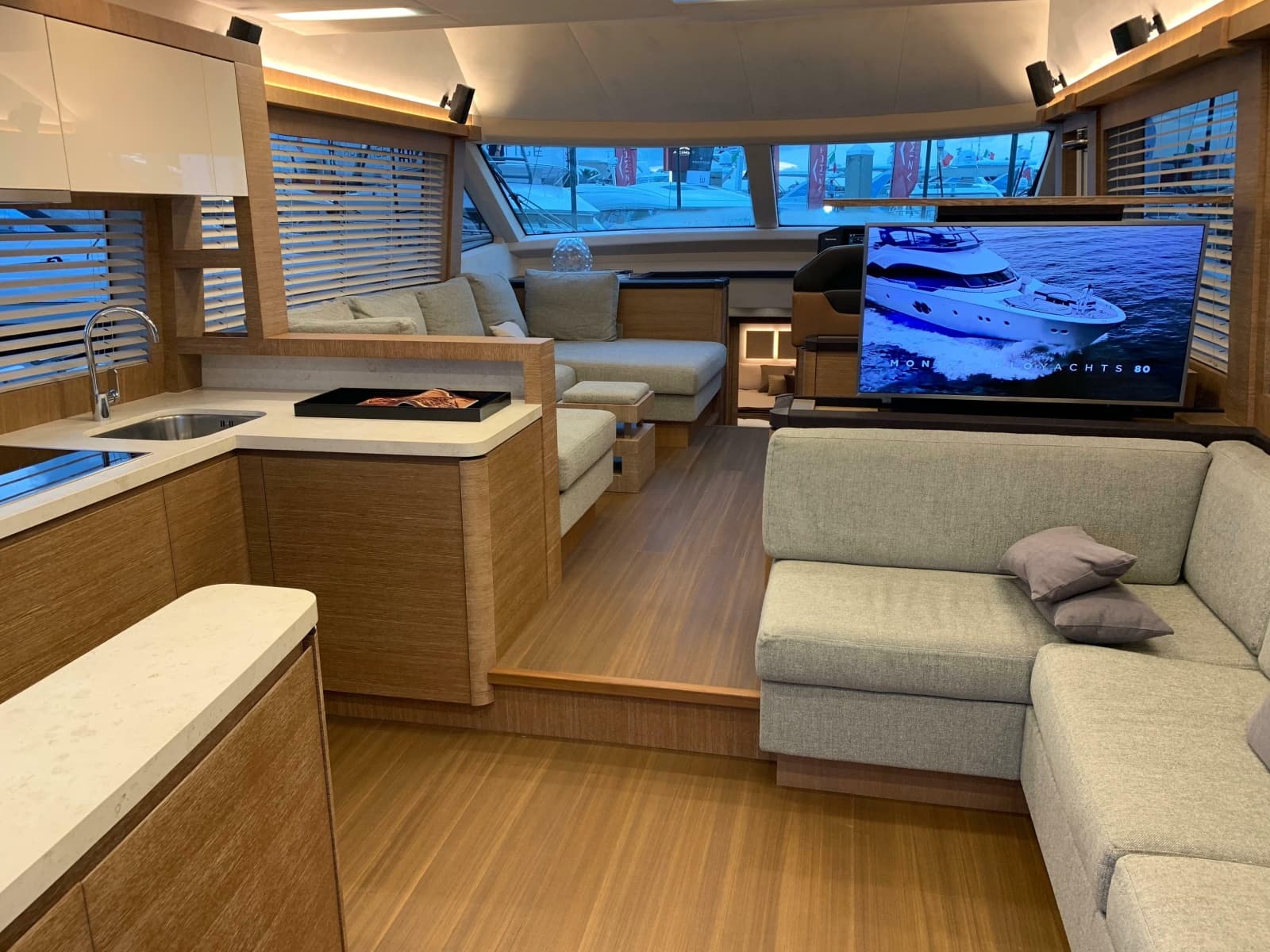

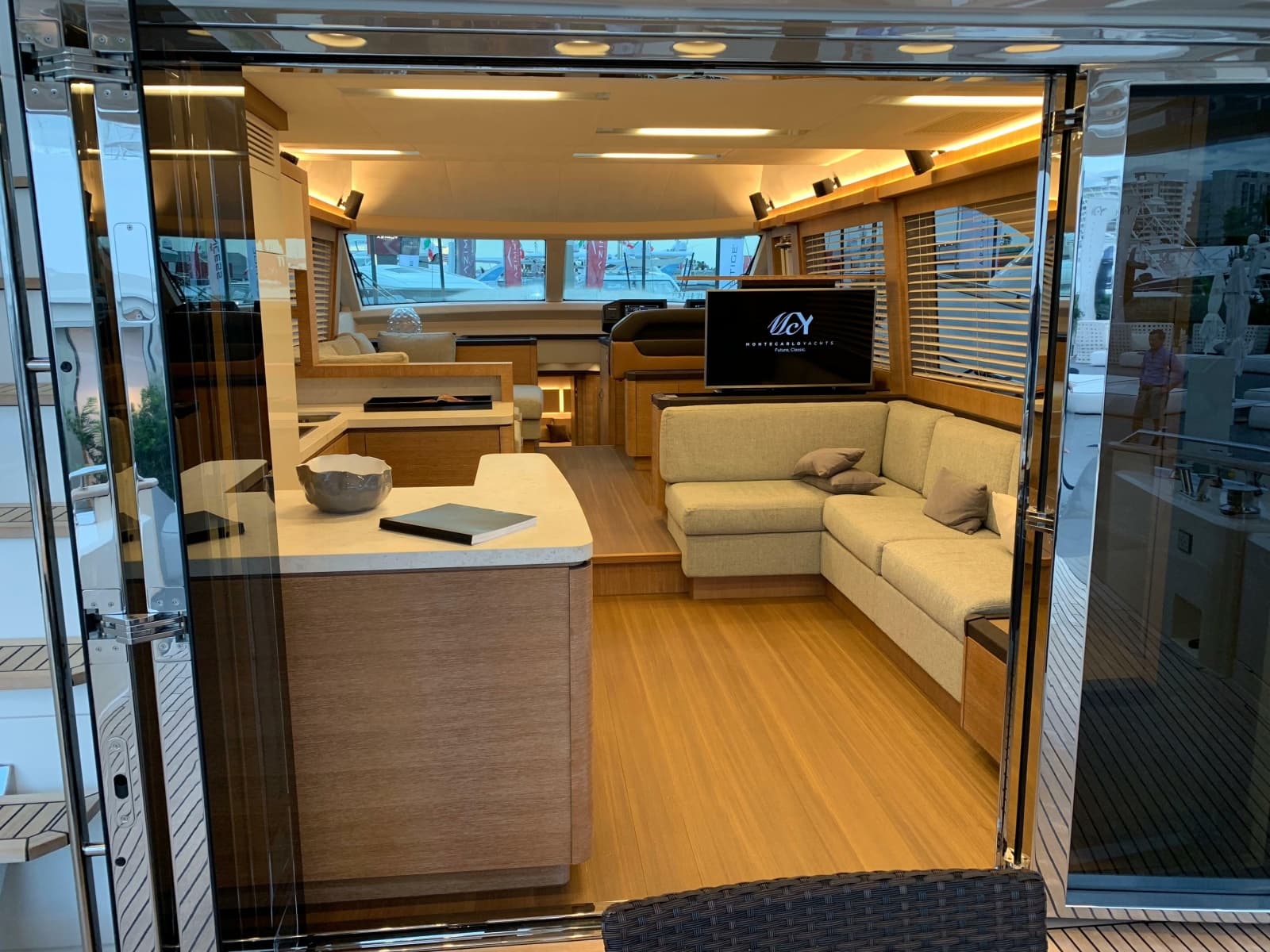

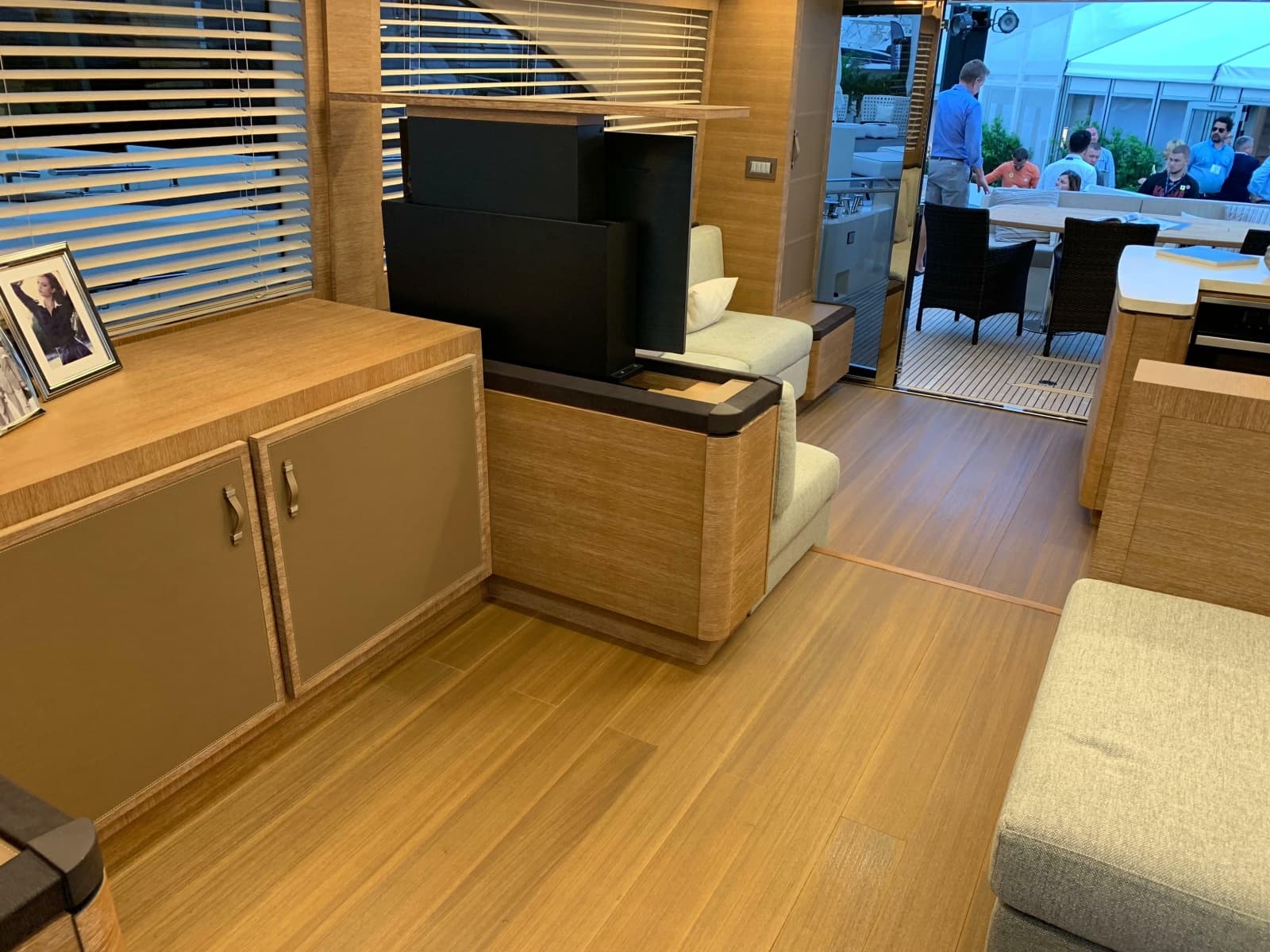

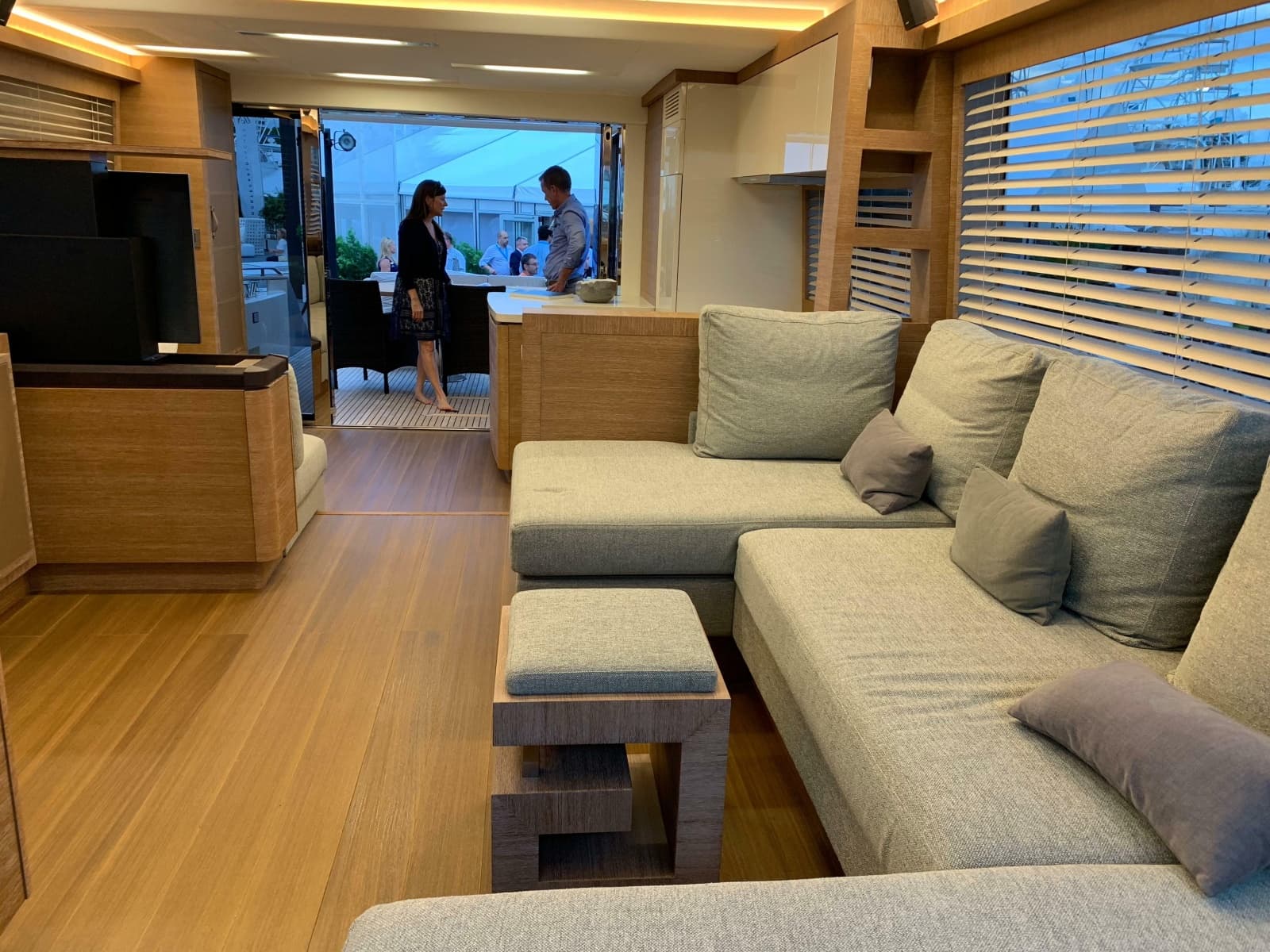

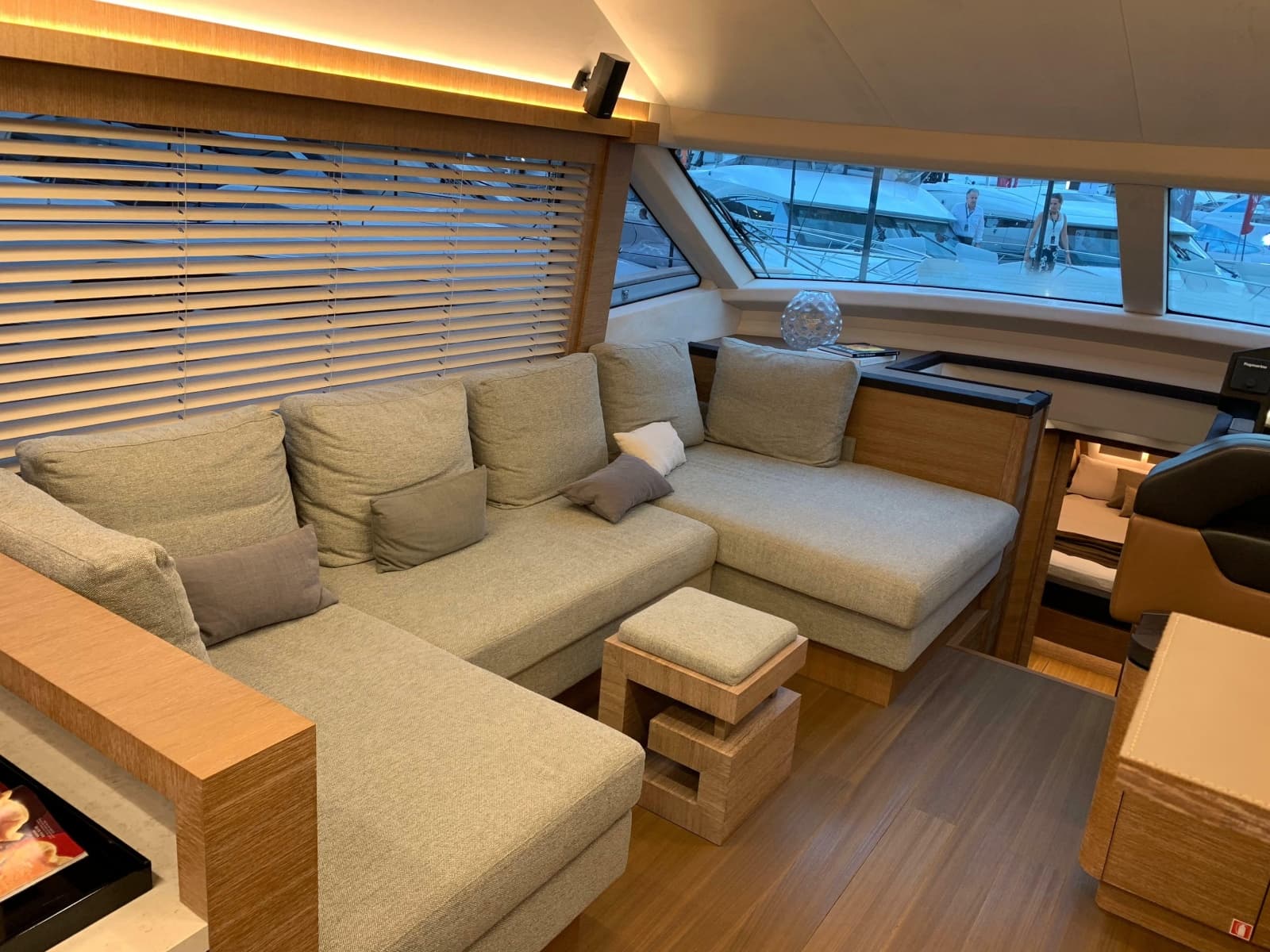

• Main deck – saloonCabinet with drawers on starboard side on starboard side.
• Electric panels along stairs to lower deck
• Dishware and cutlery storage

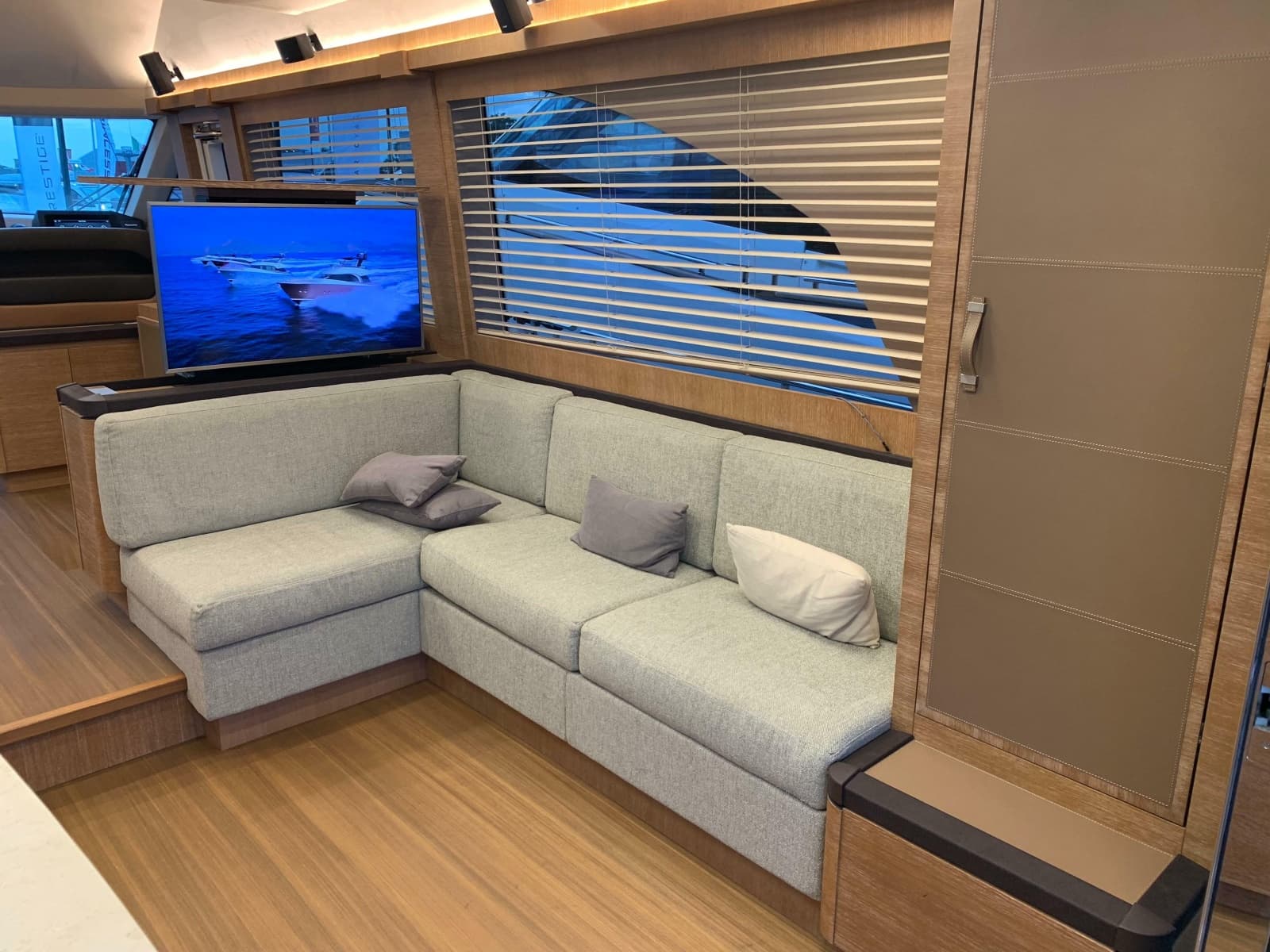

• Sofa on port side with sofa table
• Sofa on starboard side with foldable dining table
• Option: TV with up/down rotating lifting mechanism for a 40" LED full HD TV
• Direct LED lights on ceilings, indirect lights on ceiling
• Venetians blinds on port and starboard sides
• Electrical panel on starboard side

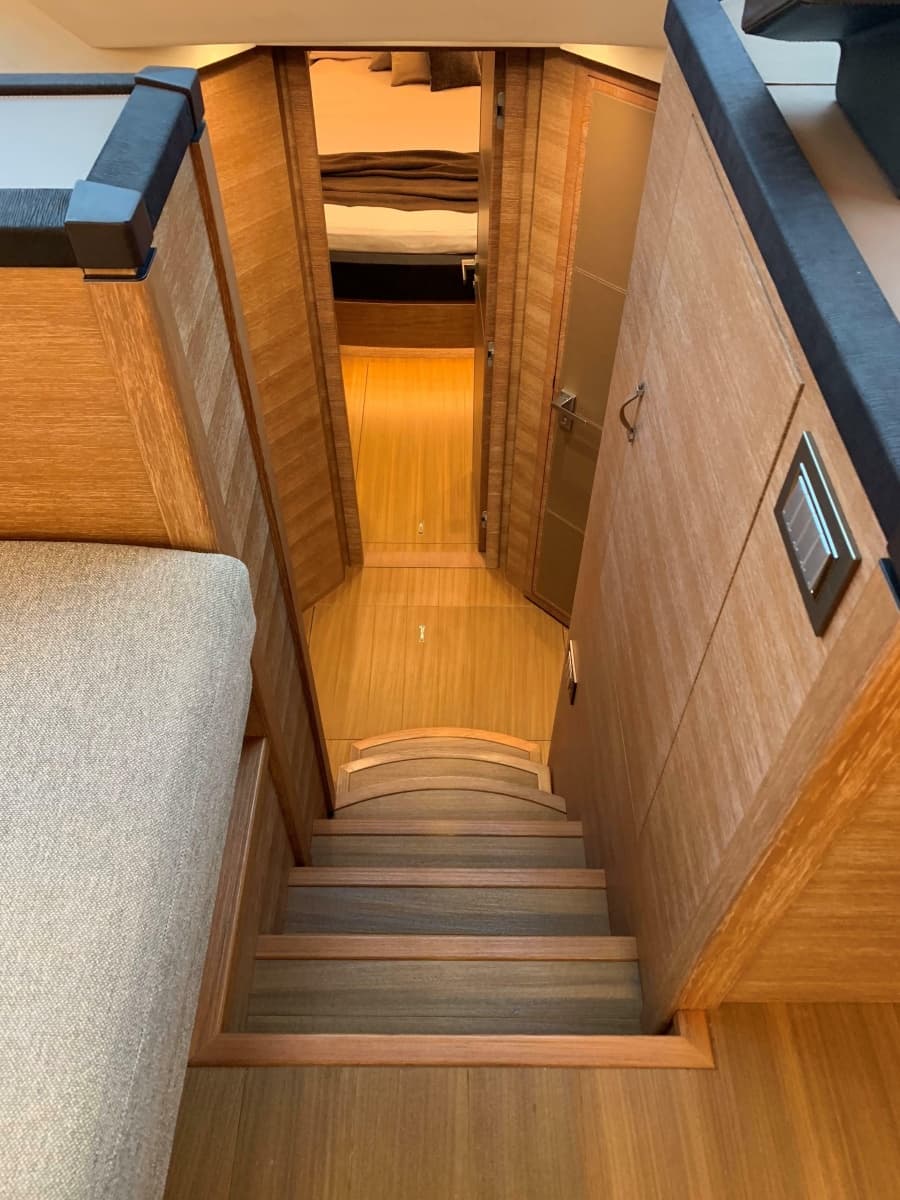

• Stairs to lower deck
• Galley on portside
• Electric venetian blinds (option)

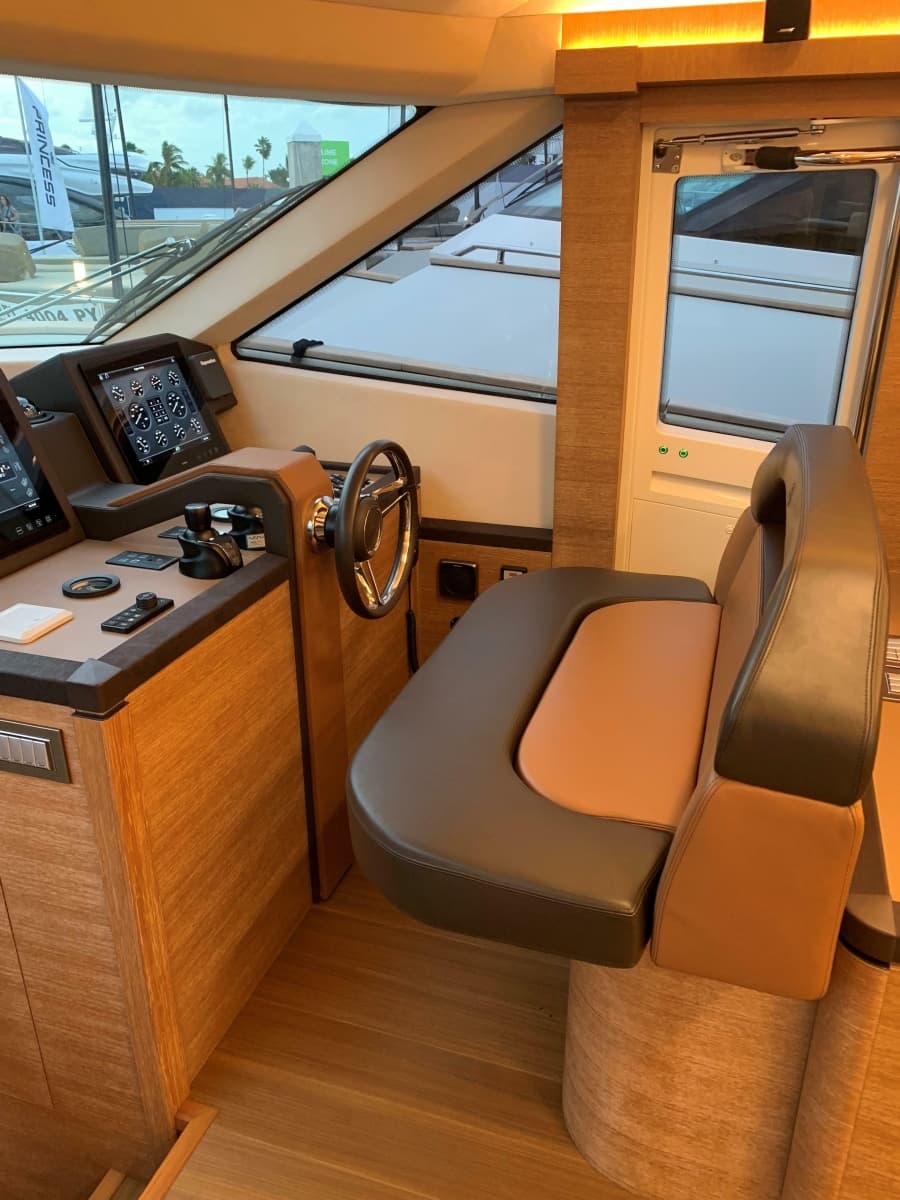

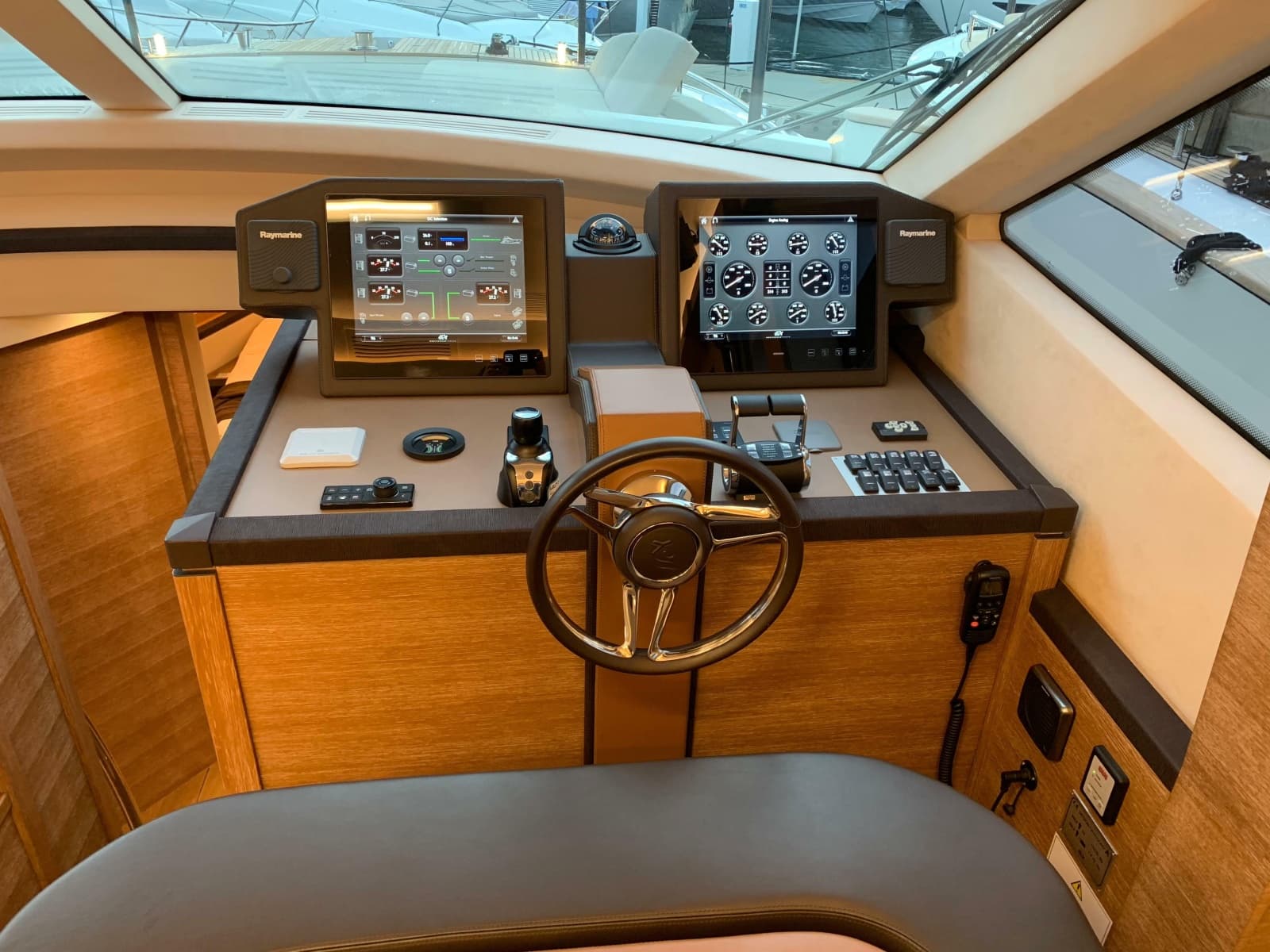

• WheelhouseInstruments console
• Option: semi-automatic electric watertight door to access sideways
• Helm seats (for 2)
• Direct LED lights on ceilings (day and night navigation lights)
• Pilot station includes, further to the instrumentation as per paragraph.9:
• Steering wheel in leather
• Main engines and reversing gear levers
• key switches for port and starboard engines
• Rudder angle indicator
• Horn, windscreen wipers, rudder pump, anchor winch and chain counter, search light, fire extinguisher controls

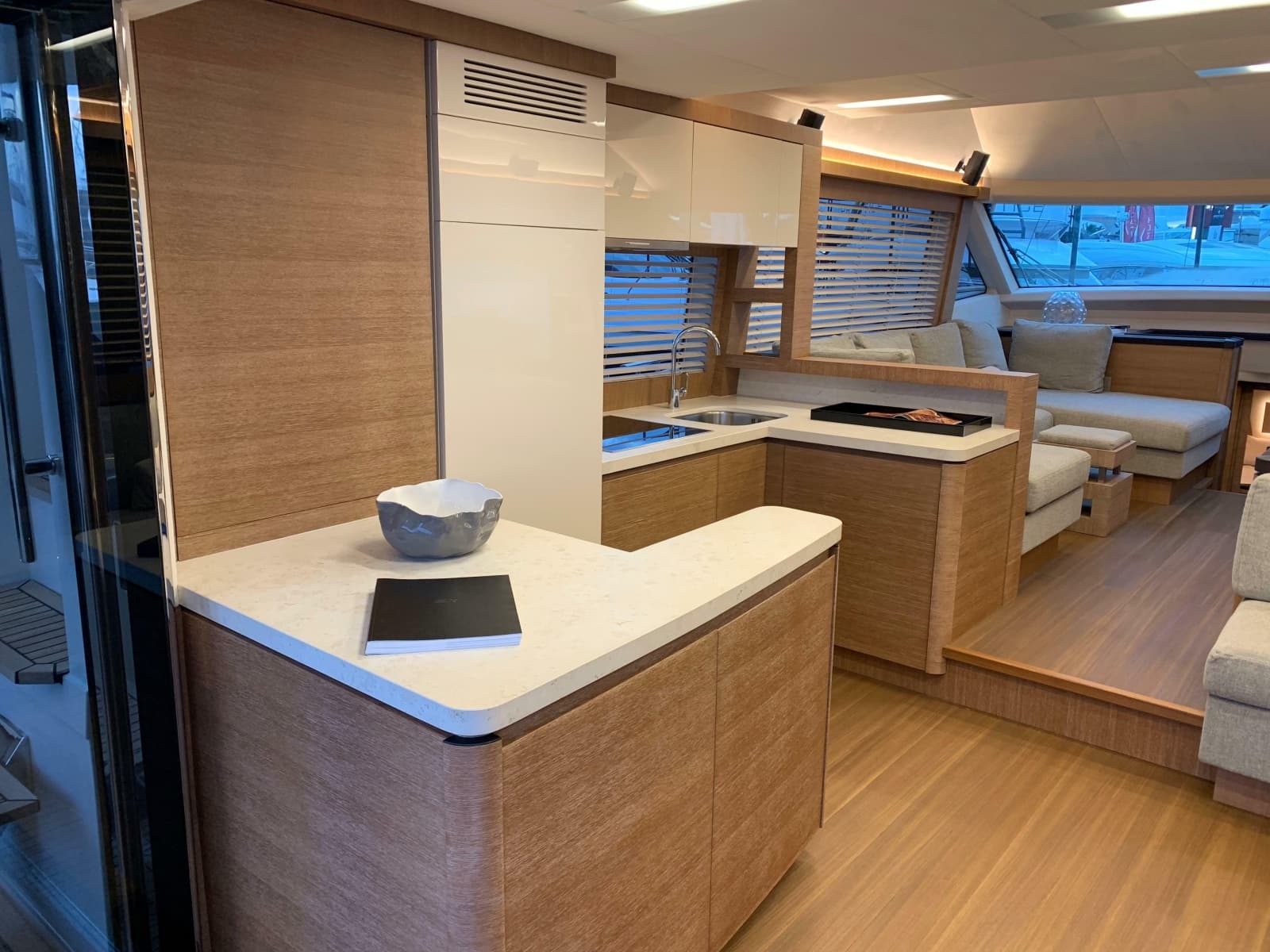

• Galley Working top with cooking top and stainless steel sinkStorage under cooking top and sink
• Storage shelves
• Direct LED lights on ceilings
• Equipment of galley includes:four induction hobs
• extractor
• combined oven
• fridge + freezer 190 liters total capacity
• option: dishwasher
• hanging furniture and cabinets
• option: front opening freezer + 260 liters fridge
• Crew CabinTwo beds with mattresses, bedspreads and pillows
• Wardrobe
• Direct LED lights on ceilings
• Opening porthole with mosquito net
• Storage underneath the bed
• Weather tight door to engine room
• Sink
• Mirror
• Cabinet
• Crew BathroomTecma WC
• Direct LED spotlights on ceiling
• Shower

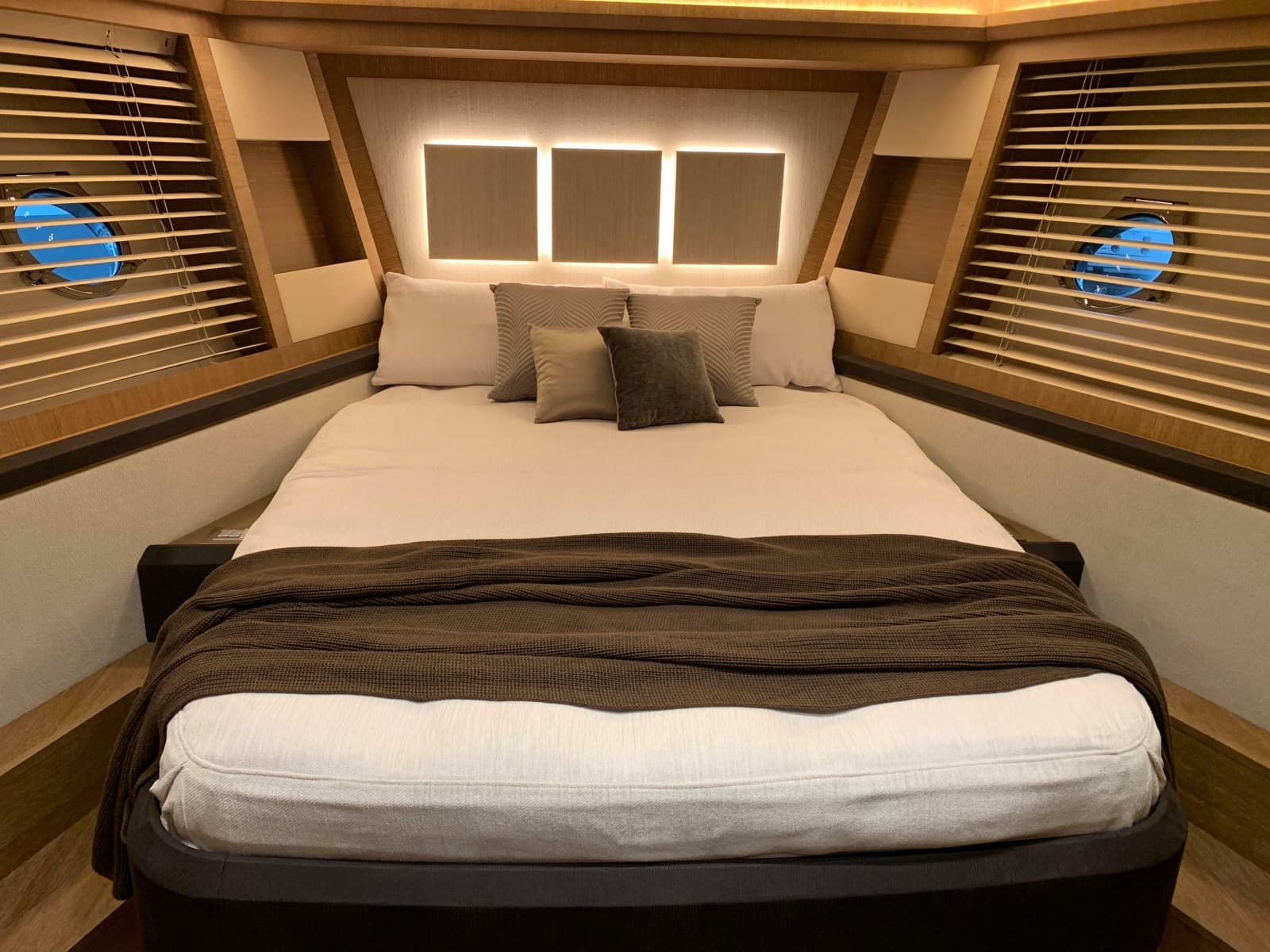

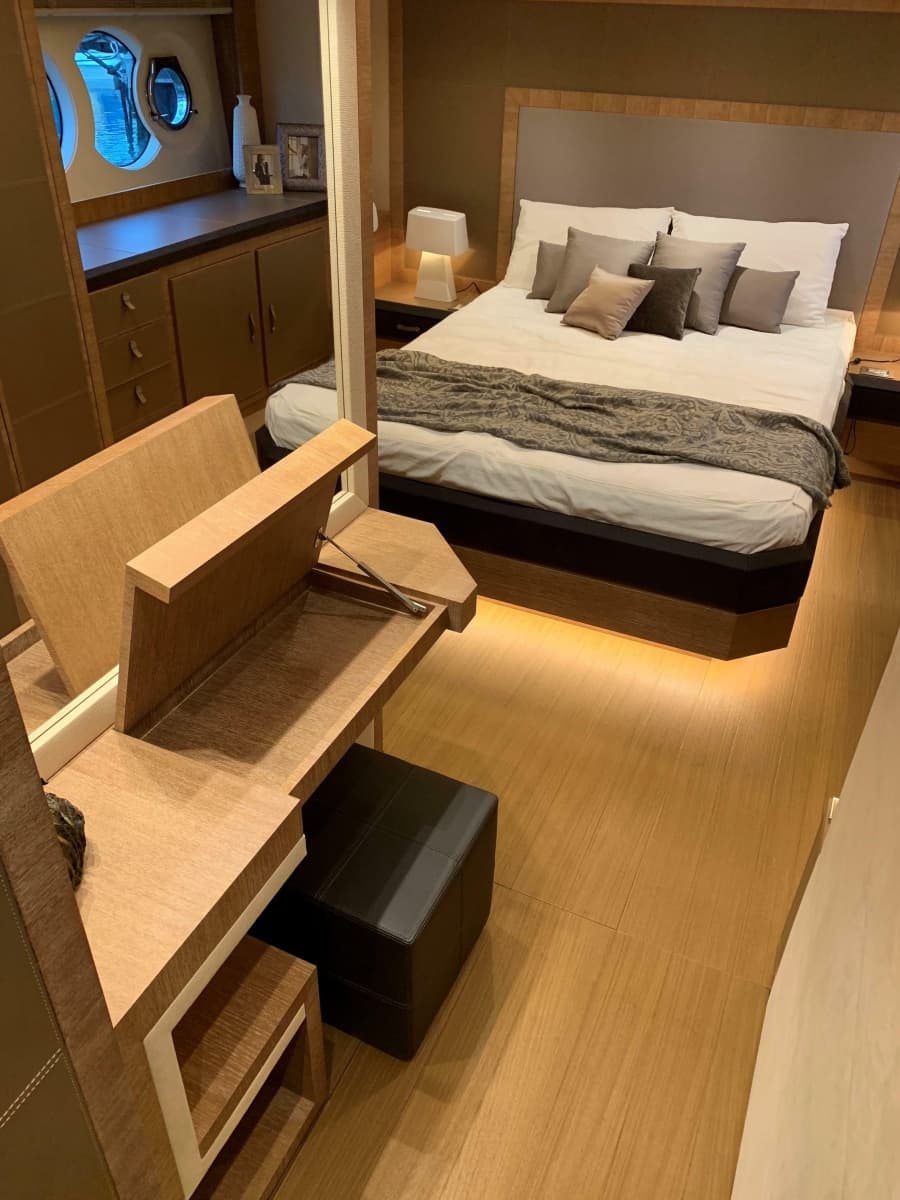

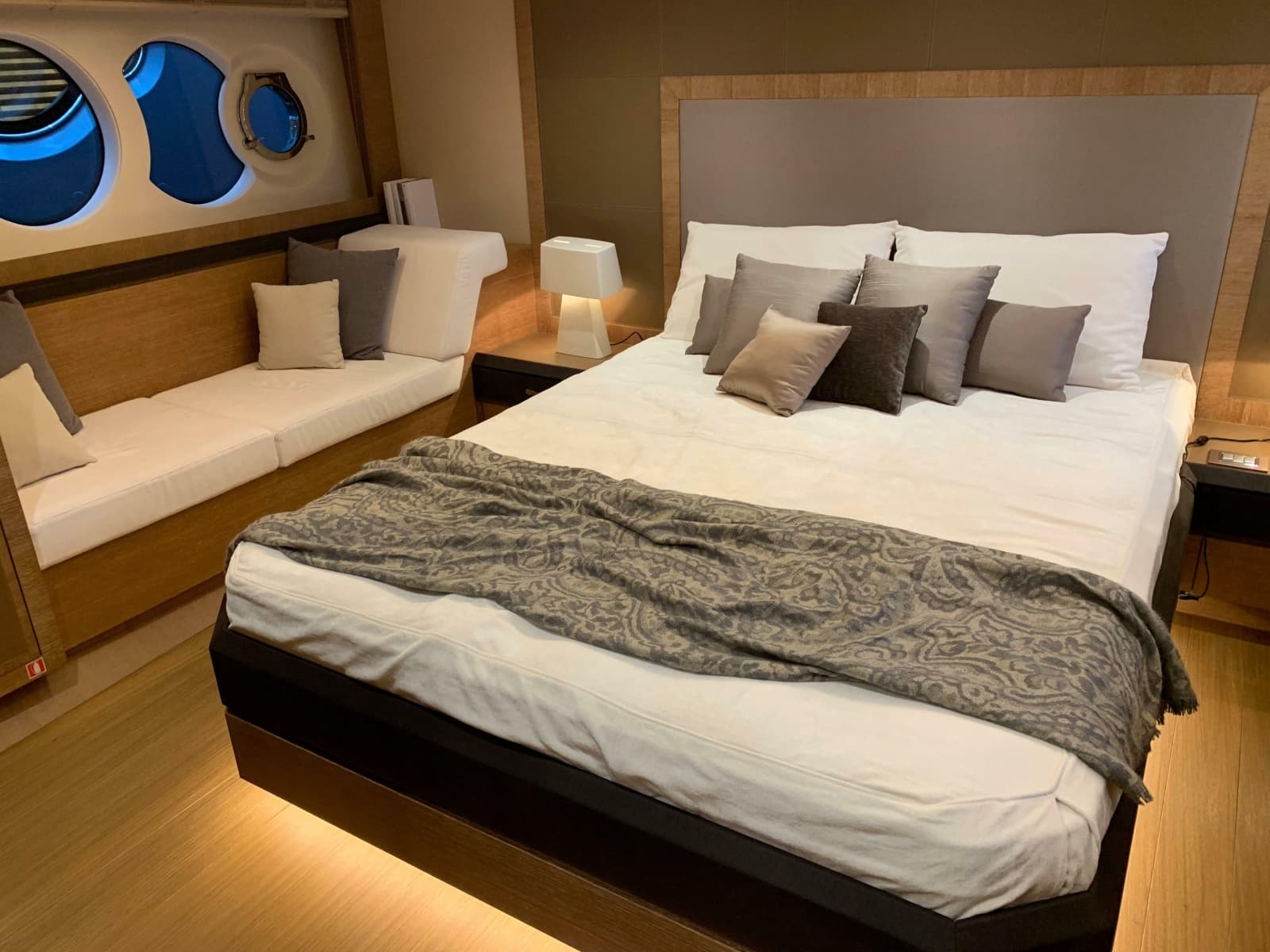

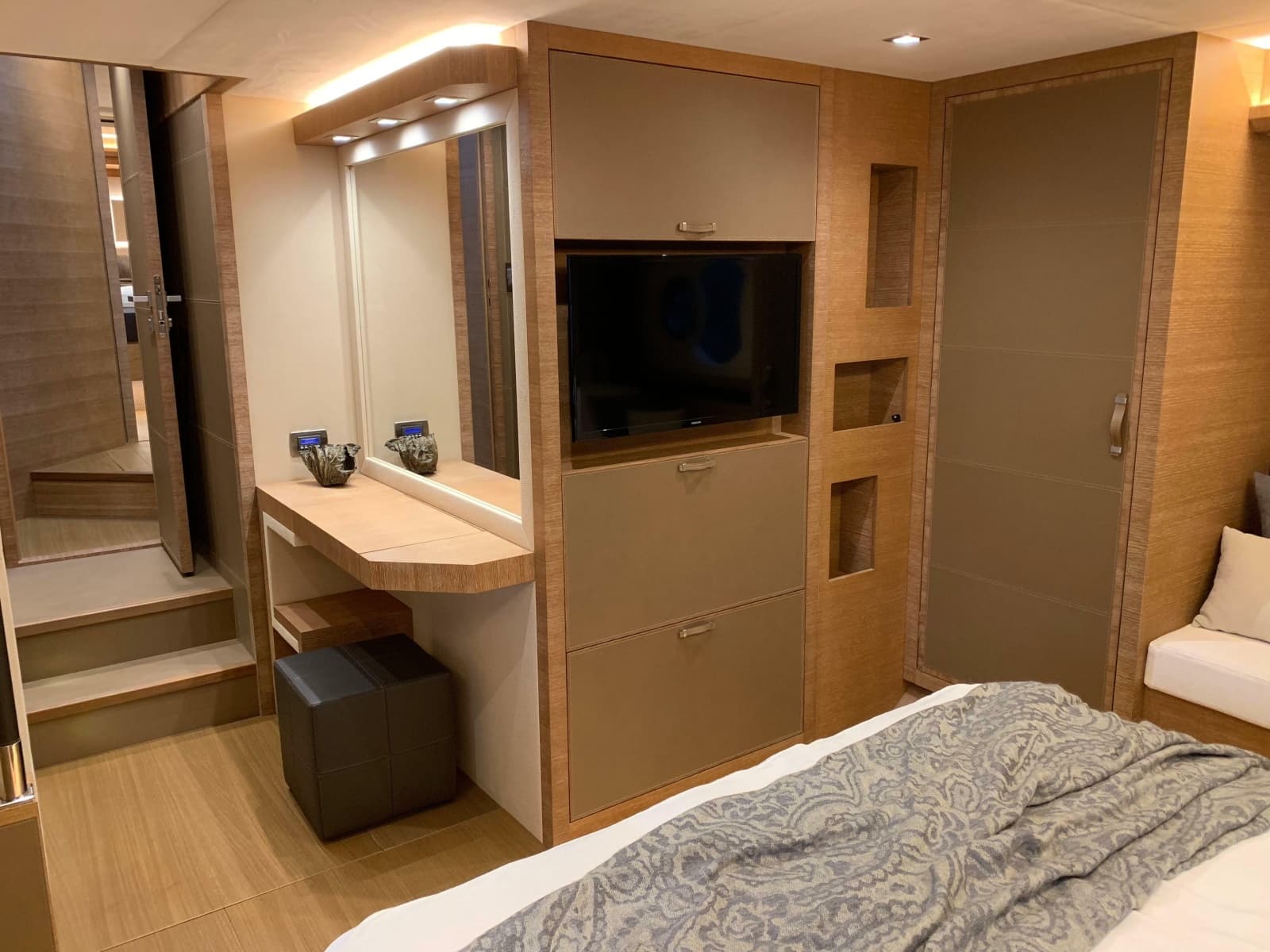

• Master Cabin King size bed with mattress, bedspread and pillows
• Two nightstands
• Power LED indirect light and LED spotlights
• MCY design large windows with opening portholes and mosquito nets
• Chaise longue with cushions
• Venetians blinds on port and starboard sides
• 2 wardrobes with hanging bars
• Large storage and drawers on portside
• Vanity table with pouf- Carpet
• En-suite bathroomTecma WC
• Option: Tecma bidet

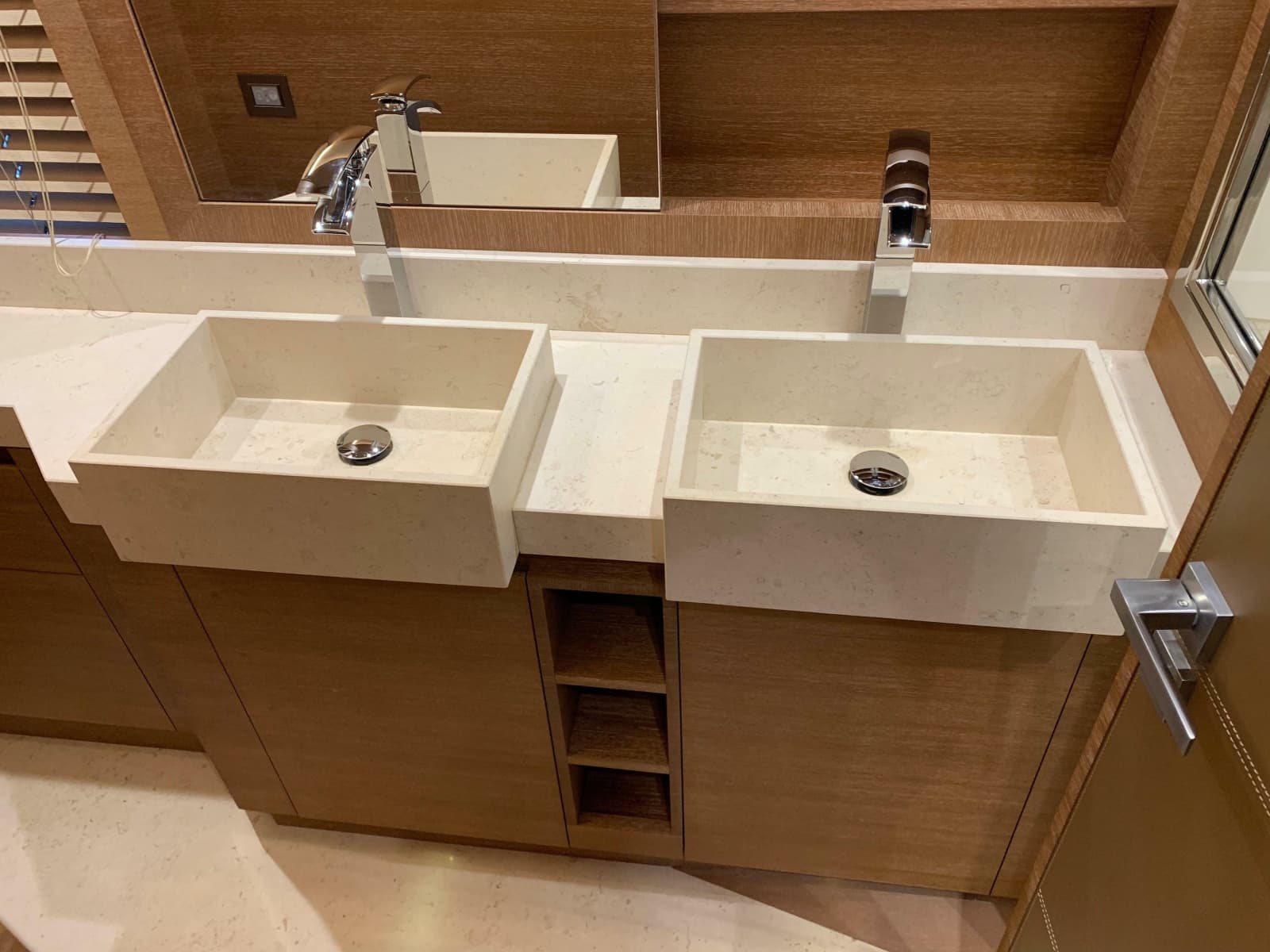

• Marble with two large size basins and floor
• Venetian blinds
• Mirror and cabinet
• Power LED indirect light and LED spotlights

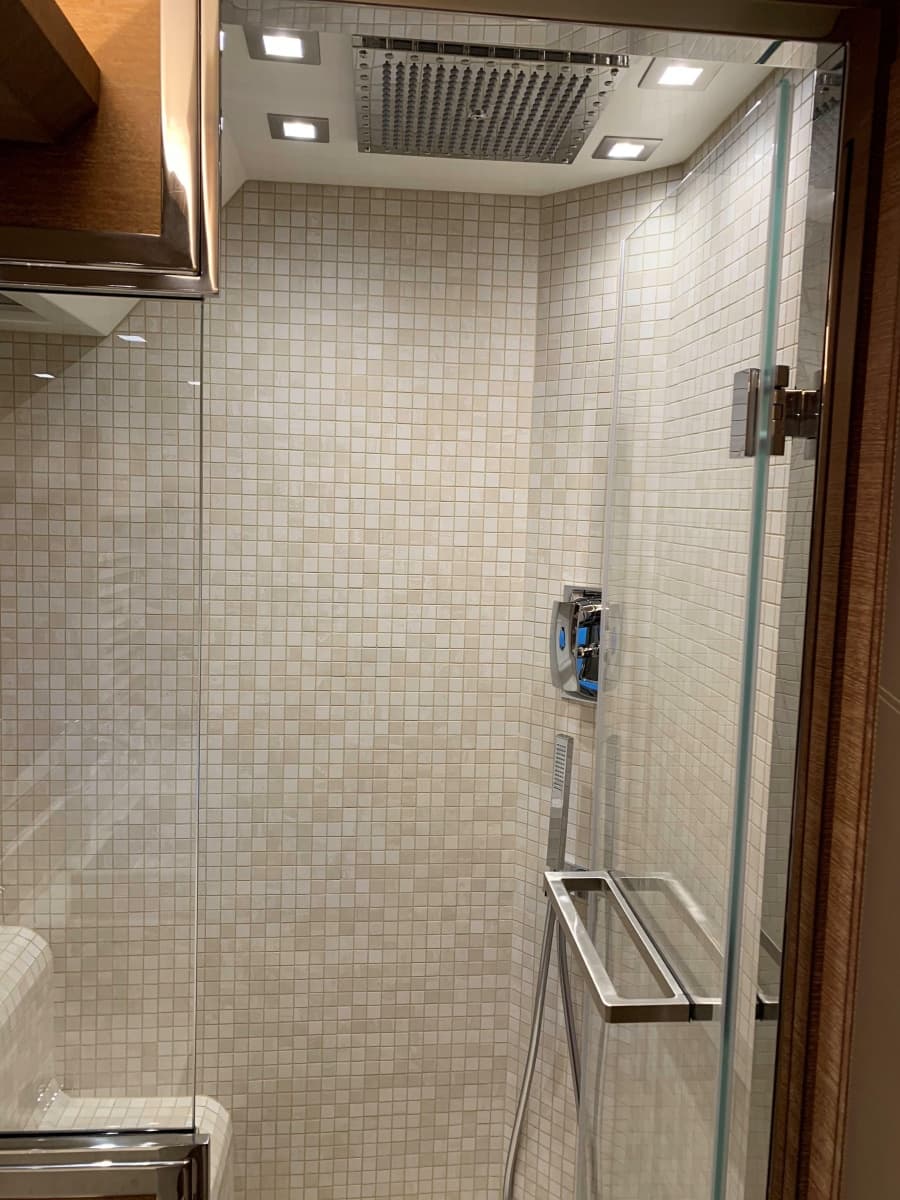

• Separate shower room with:
• Mosaic tiles
• Shower column with central rain shower on the ceiling
• LED lights on ceiling and in the shower
• Extractor

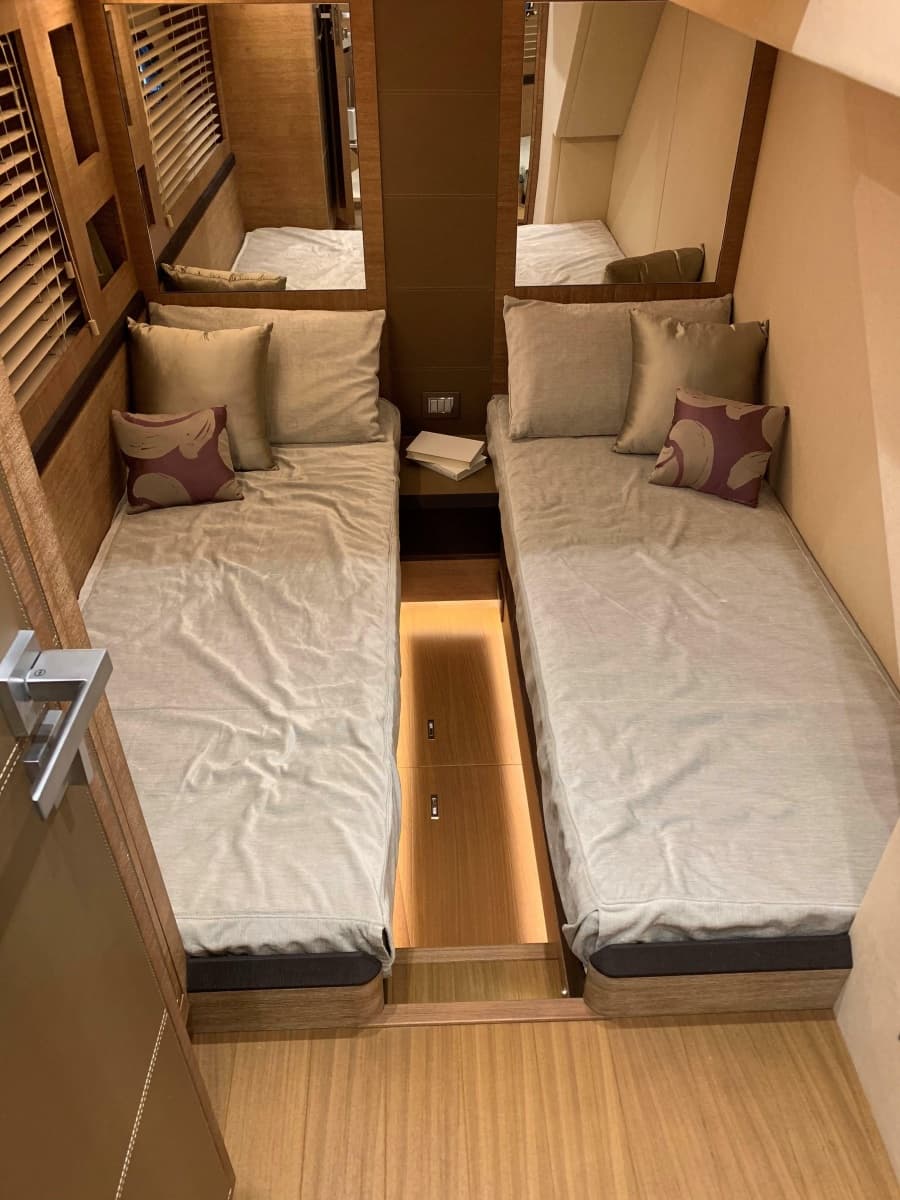

• Guest Cabin Twin beds with mattress, bedspreads, pillows and storage underneath
• One nightstand
• Two opening portholes with mosquito nets
• Power LED indirect light and LED spotlights
• Wardrobe with hanging bar, mirror and light
• Venetian blinds
• Carpet

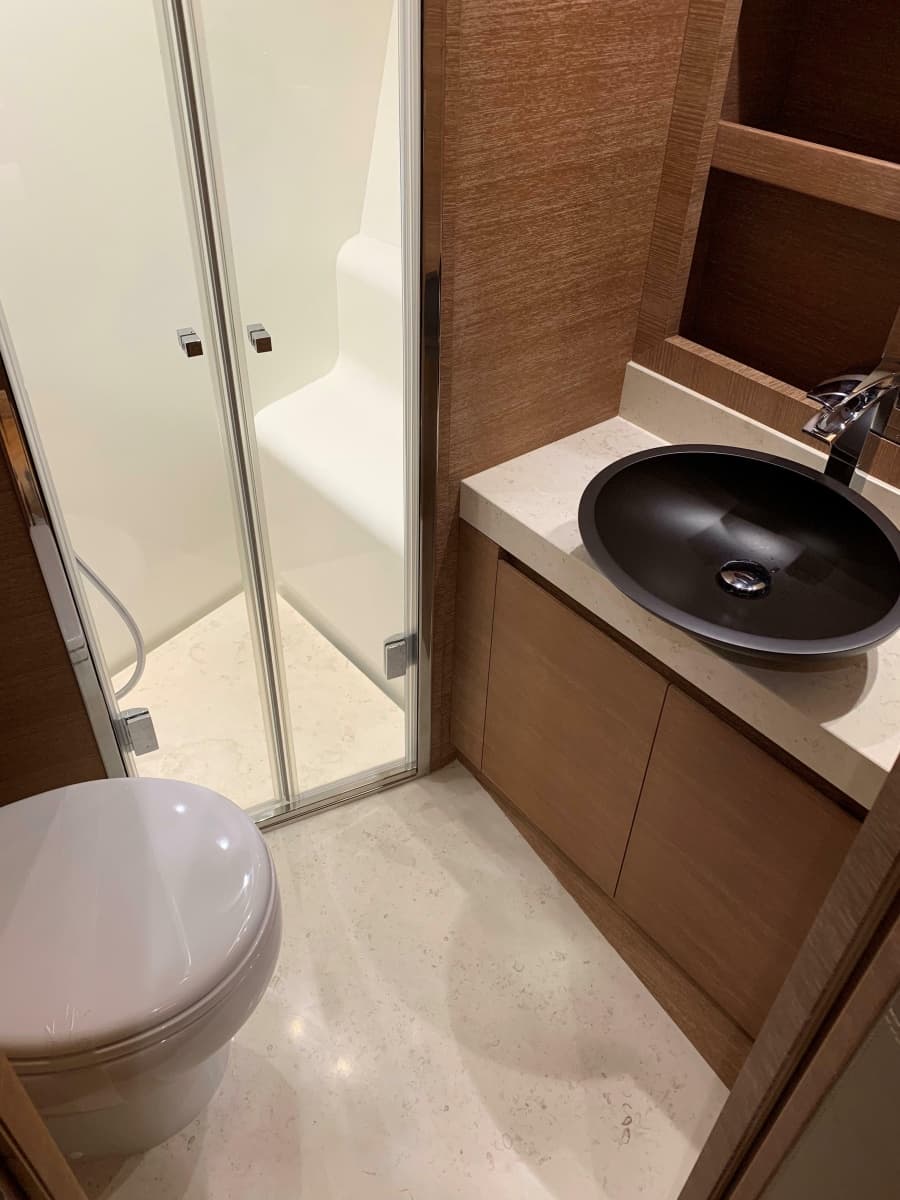

• Guest BathroomThe guest head can be used as a day toilet with direct access also from the lower deck corridor
• Tecma WC
• Sink
• Mirror
• Cabinet under the sink and behind
• Shower with circular box
• Opening porthole with mosquito net
• LED spotlights on ceiling and in the shower

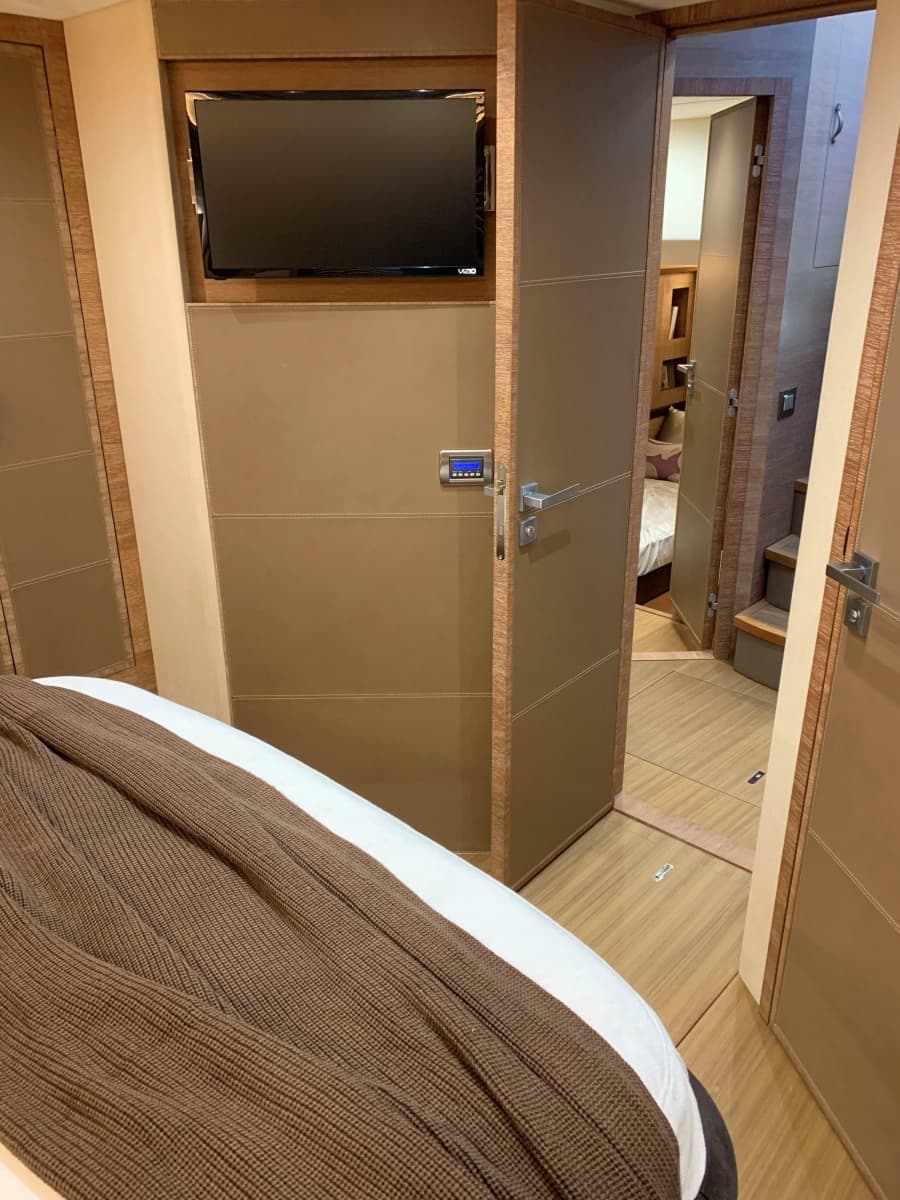

• VIP CabinDouble bed with mattress, bedspread, pillows and storage underneath
• Two nightstands
• Wall reading lamps in leather
• Power LED indirect light and LED spotlights
• Four opening portholes with mosquito nets
• Wardrobes with hanging bar and light
• Emergency hatch on ceiling, with mosquito net
• Venetian blinds
• Carpet
• VIP BathroomTecma WC
• Sink
• Mirror
• Cabinet above and under the sink
• Shower with glass and steel door
• Shower column with central rain shower
• Opening porthole with mosquito net
• LED spotlights on ceiling and in the shower
• Power LED indirect light

Electrical Systems

• General characteristics. The whole system has been carried out according to:1) Directive 94/25/CE, amended by 2003/44/CE
• 2) EN ISO 10133:2000 “Small craft – Electrical systems – Extra-low-voltage D.C. Installations”
• 3) EN ISO 13297:2000 “Small craft – Electrical systems – Alternating current Installation”
• 4) EN ISO 10134:2003 “Small craft – Electrical devices – Lightning protection systems”
• 5) EN ISO 16147:2002 “Small craft – Inboard diesel engines – Engine-mounted fuel and electrical components”
• Voltage system as follows:24V DC with grounded negative for:Bilge systems
• Steering systems
• Internal / External lights
• Engine room lights
• Navigation lights
• Electronic monitoring system
• Navigation systems
• Emergency systems
• Thrusters & Winches
• Engine room ventilation
• Other small utilities
• 230/110V AC, single phase, 60Hz for:Air conditioning systems (option)
• Galley appliances
• Battery chargers
• Electrical outlets
• Entertainment systems
• Other small utilities
• Electrical panelsMain electrical control panels are installed in the:engine room
• wheelhouse
• Secondary electrical panels are installed in all the areas of the yacht
• Wiring / ConduitsElectrical wiring is housed in metal or self- extinguishing closed PVC conduits.
• Electrical wiring is developed with no flammable materials and with proper cross section related to the use.
• Ground EquipmentGround system for all the water intakes, the aluminium structure, steel components, etc…
• Ground system for all the 230/110V AC equipment
• Lightning protection
• The ground system is connected to:Stern and under hull zincs
• Porous copper plates under the hull
• 230/110V AC Power sourcesShore Power
• Two 230V AC, 50A shore inlets placed on stairs hatch – with Glendenning master cable systems (option)
• AC power source run to the main electrical panel in the engine room.
• Power sources are protected by magneto/thermal breakers and isolation transformers
• Each shore power line has a multi-meter, to control all the electrical parameters (Volt, Amp, Watt, frequency)
• GeneratorOne 23 kW Kohler generator, 230/110V AC, 60Hz, 12V DC starter, with sound shield          box and electronic control panel located in the engine room.
• AC power source run to the main electrical panel in the engine room
• Power sources are protected by magneto/thermal switches
• Generator has a multi-meter that control all the electrical parameters (Volt, Amp, Watt, frequency)
• 230/110V AC distribution
• Each appliance is protected by magneto/thermal breakers
• 24V DC Power sources
• BatteriesGroup of 24V AGM Mastervolt batteries for services
• Group of 24V AGM Mastervolt batteries for engines
• Group of 24V AGM Mastervolt batteries for anchor winch and bow thruster
• 12V AGM Mastervolt battery for generator
• Group of 24V AGM Mastervolt batteries for stern thruster (option)
• All batteries new 2022
• Battery chargers24V 100Amp Mastervolt battery charger for services / engine batteries
• 24V 30Amp Mastervolt battery charger for anchor winch and bow thruster batteries
• 12V 25Amp Mastervolt battery charger for generator
• 24V 30Amp Mastervolt battery charger for stern thruster (option)

• Alternators24V 120Amp alternator connected to service battery.
• 24V 120Amp alternator connected to anchor winch and bow thruster battery
• 2 x 24V 120Amp alternators connected to engine battery

Generator alternator connected to the generator battery

Lighting System

• Engine RoomSpotlights 24V DC are installed to the ceiling of the engine room.
• Engine room lights are connected to service batteries
• Master, VIP and Guests Cabin Power LED spotlights and strip power LED in the ceiling
• Courtesy strip LED around the bed an under the furniture
• Lights control close to the entrance door and near the bed
• Saloon and Galley Power LED spotlights in the ceiling
• Blue power LED spotlights in the dashboard ceiling (night navigation lights)
• Lights control close to the entrance door and near the stairs
• Crew Power LED spotlights and strip power LED in the ceiling
• Courtesy LED under the bed
• Lights control close to the entrance door
• BathroomsPower LED spotlights and strip power LED in the ceiling
• Courtesy LED
• Lights and shower ventilation control close to the entrance door
• ExteriorsPower LED spotlights and strip power led in the aft cockpit ceiling and in the side deck ceiling
• Courtesy LED spotlights around the floor of the external deck and the floor of the fly bridge           -
• Courtesy Power LED spotlights on the upper side of the fashion plates
• Power LED spotlights in the radar mast wings
• Lights control close to the entrance door and in the monitoring system

Electronics

• Dashboard & Navigation Instruments HullN°1 Raymarine DT800 Depth / Temperature transducer
• Wheelhouse2 Raymarine Axiom touch screen displays
• 2x Raymarine ST70 displays
• 1x Raymarine GPM 400 G Series processor
• 1x Raymarine G Series keyboard
• Raymarine RAY 240E DSC VHF
• Flaps indicators
• Option: manoeuvring joystick
• Magnetic compass
• Flybridge2x MAN CLC 6.5” displays for engines monitoring (including voltmeter, engine oil temperature, water temperature, engine revs, gearbox oil temperature, etc)
• 2 Raymarine Axiom Displays
• 1x Raymarine ST70 display
• 1x Raymarine G Series compact keyboard
• Raymarine RAY 240E VHF repeater
• Flaps indicator
• Option: manoeuvring joystick
• Magnetic compass
• Radar Mast1x Raymarine PB200 weather station / GPS antenna
• 1x Raymarine radar antenna radome 4 KW digital
• Monitoring System Salon Dashboard On Raymarine Axiom Screens
• External and engine room temperature indicators
• Alarms and manual controls for bilge system
• Fresh, Grey and Black water level indicators and alarms with discharge control systems
• Fuel level indicators and alarms with engines consumption indication, water in Racor filters indicator (option), fuel valve ON/OFF indicator
• Service battery indicators (Volt, Amp IN/OUT, Charge level)
• Engine battery switch control and voltage indicator
• Bow thruster and anchor winch battery switch control and voltage indicator
• Stern thruster battery switch control and voltage indicator (option)
• Generator battery switch control, voltage indicator, Start/Stop control, fuel valve ON/OFF indicator, water in Racor filter indicator (option)
• Engine room ventilation alarms and control
• 230V AC Source selection page with Volt, Amp, Watt, frequency, phase indicators
• 230V AC main breaker status indicators
• 230V AC overload and load shedding system
• Navigation lights status (ON/OFF) and alarms indicators
• Owner’s manual pages viewer
• Fly dashboard acoustic alarm activation
• Fly dashboard optical alarm activation
• Fly dashboard indicators
• Acoustic remote alarm
• Optical remote alarm
• Emergency operation panel (included into 24V saloon panel)
• Bilge pump alarm indicator and manual switch
• VHF power supply selection

Entertainment Systems

• SalonOption: 40" Edge LED full HD TV with up/down lift
• Option: Home Theatre Bose Lifestyle V-Class
• Option: DVD player

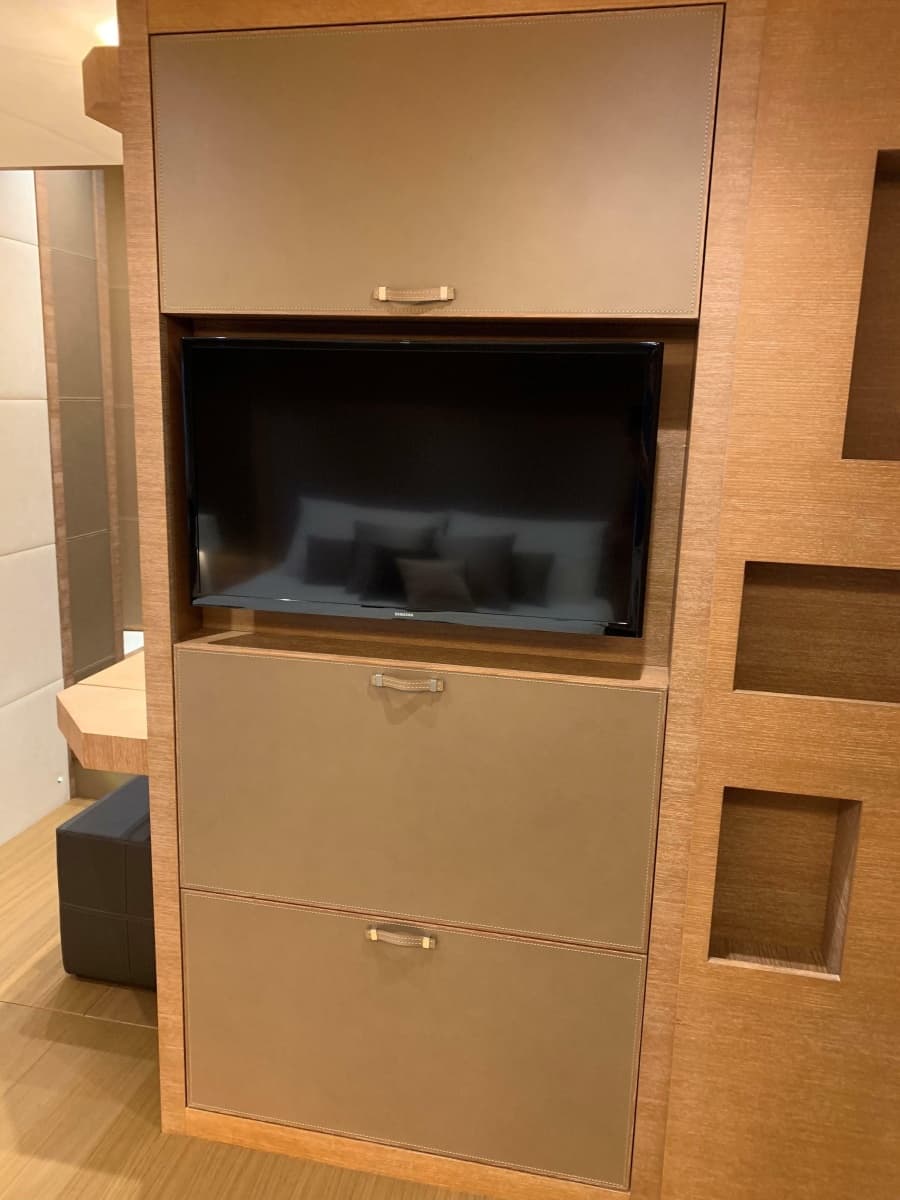

• Owner Cabin                    Option: 32" Edge LED full HD TV
• Option: Home Theatre Bose Lifestyle V-Class
• Option: DVD player
• VIP Cabin  Option: 26" Edge LED full HD TV
• Option: DVD player
• Guest Cabin                      Option: 20" Edge LED full HD TV
• Option: DVD player
• Aft Cockpit
• Two Bose External Loudspeakers (with remote control)
• Bow Sun pad Area New JL Audio control head with 4 new speakers
• Flybridge    New JL Audio control head with 5.1 speakers

Fuel System

• 2x stainless steel tanks, for a total capacity of 925 US gals (3.500 l).
• Each tank is provided with stainless steel breather pipe and electric sensor for level monitoring.
• Fuel tank levels are visible on the electronic monitoring system LCD screens at the wheelhouse dashboard operating with a safety magnetic system.
• Fuel filling operation is carried out through inlets placed on each deck side.

Black and Grey Water System

• 1x grey water tank with 80 US gals (300 l) capacity.
• 1x black water tank with 66 US gals (250 l) capacity.
• Grey and black water tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard.
• Tank's emptying has automatic or manual outboard through 2 dedicated electric pumps.

Bilge System

• Centralized system with suction in each compartment connected to the main collector positioned in the engine room
• 24 V DC electric pump with controller in main helm on the electronic monitoring system
• Emergency manual pump in the engine room.
• 24V automatic bilge pumps.
• High capacity emergency bilge pump in engine room through engine sea intakes and water pump.
• Bilge level alarm.

Fresh Water System

• Fresh water system is fed by tanks in the midship bilge (capacity 200 US gals - 750 l) or by the shore connection on stern.
• Water tank levels are visible on the electronic monitoring system LCD screens at the wheelhouse dashboard.
• 2x 16 US gals (60 l) water heaters

Sea Water System

• 4x main brass sea water intakes with valves and filters: 2 for the engines, 1 for the generator and 1 for general utility.
• Chain washing with sea water supplied by an electric pump positioned under the floor of VIP cabin

Venting and Extraction System

• Interiors ventilation
• Centralized system for toilet air extractors
• Galley extractor
• Engine Room ventilation
• Engine room ventilation system:2x electrical ventilators 24V DC
• 2x electrical extractor 24V DC
• Engine room ventilation system control is connected to the engine keys and to the electronic monitoring system.
• Cruisair air conditioning system with reverse cycle (cool and heat) (option)

Insulation

• Hull and deck sandwich lamination together with absorbent, sound-proofing and heat insulation materials guarantee high level of noise reduction and thermal insulation.
• Interiors ceilings and floorings are soft mounted through vibration absorbers materials and system in order to maximize vibrations and noise reduction.
• Complete noise and thermal insulation of engine room through insulation materials, covered with aluminium sandwich finishing walls.

Additional Equipment

• Docklines
• 6 fenders
• Dishware, glassware and cutlery for 6 people
• Towel sets for bathrooms, with MCY logo
• Owner’s manual (with electronic copy available through the electronic monitoring system)

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
