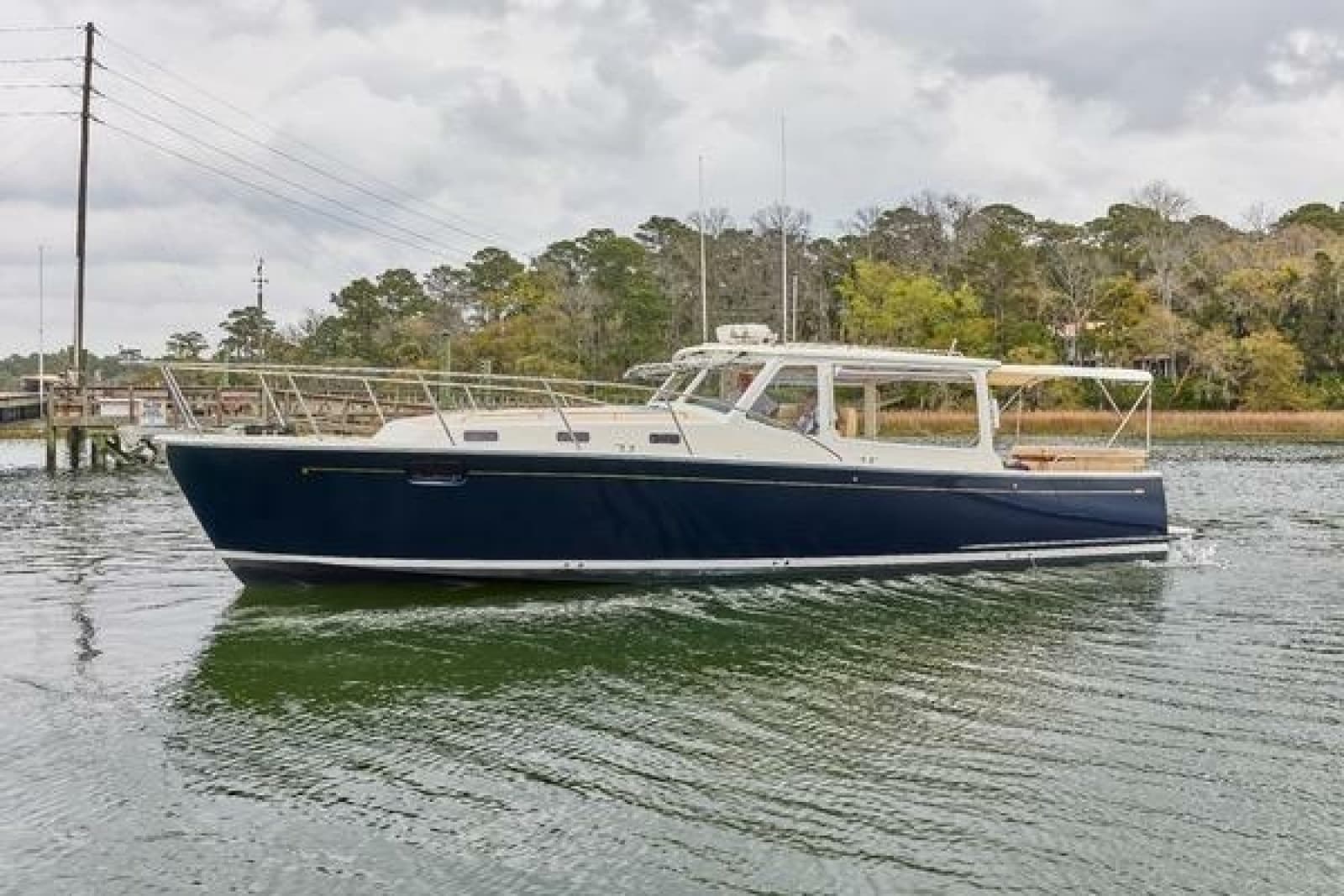

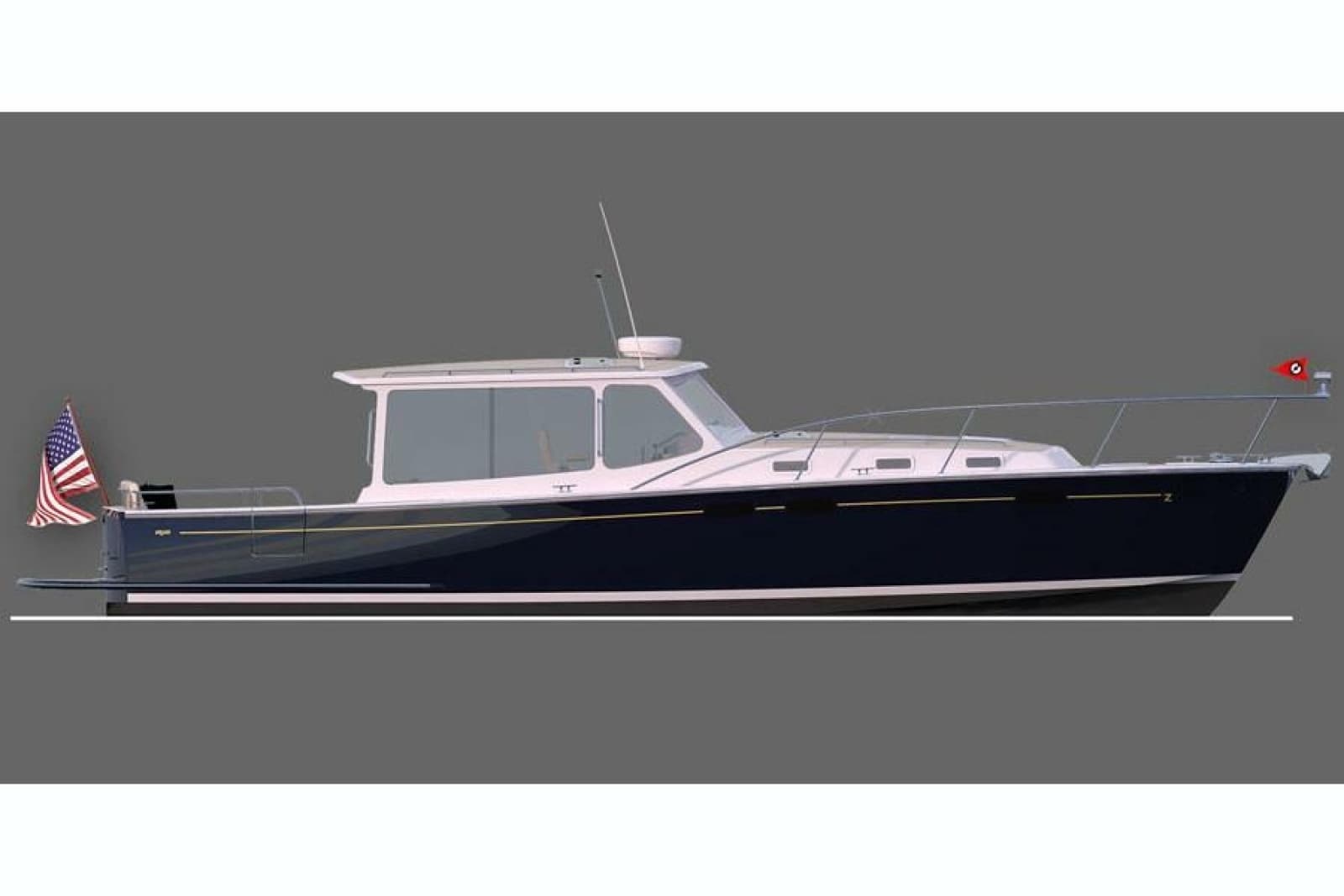

2018 MJM 40z

Main Cabin Specifications:

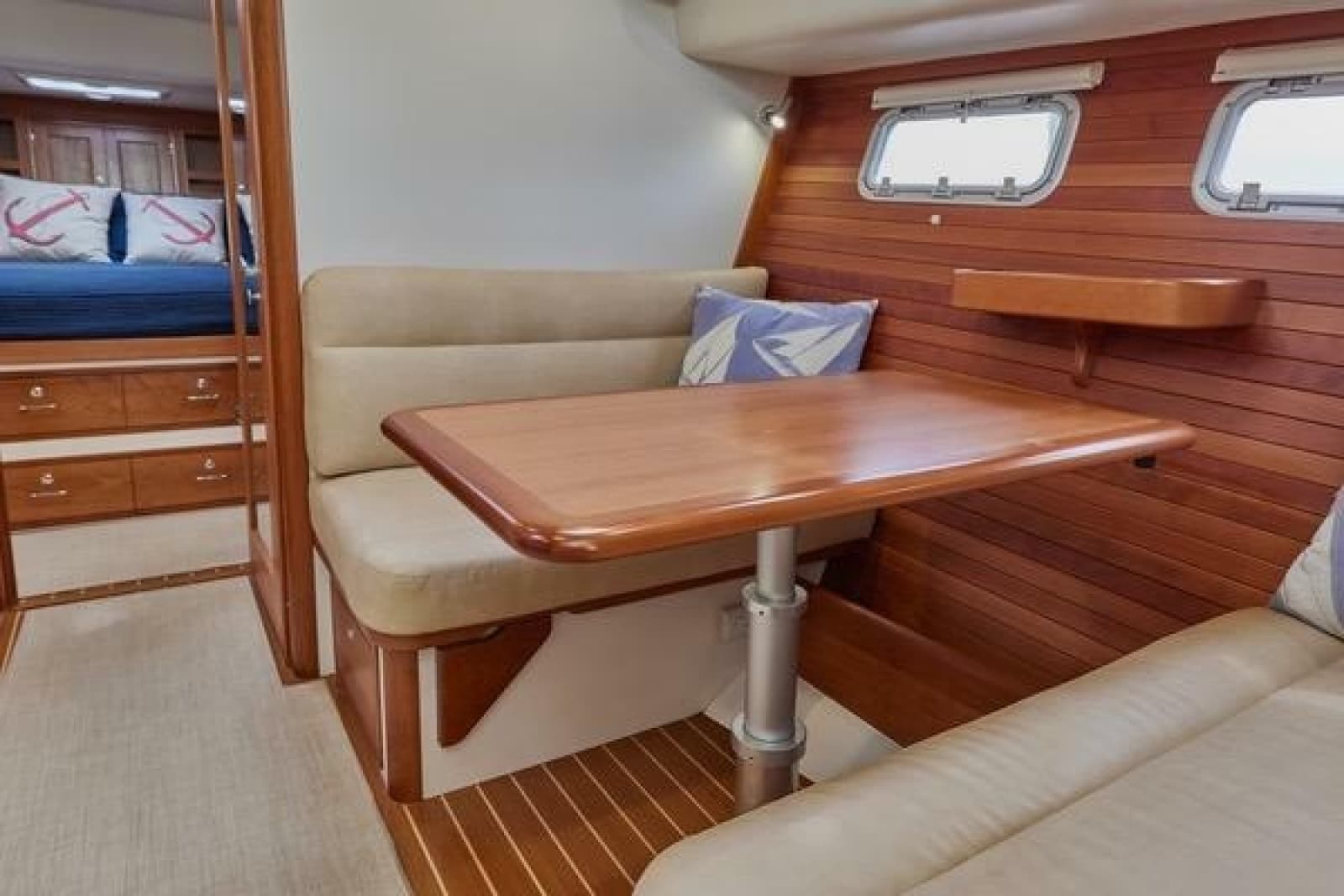

• Spacious dinette table lowers with electronic control to form 40-44” wide, 78” long berth.
• Heavy opaque “Pullman” curtain anchors to ceiling to form private double cabin with vertical zipper entry.
• Double berth filler mattress insert is stored in vinyl bag.
• Large fixed hull ports (2), skylight hatches (2) and cabin portlights (2) maximize ventilation, space and light.
• The companionway is designed for safety to function like a normal stairway with stainless grab rails and only 2 steps w/shoe locker & tool storage under.
• Headroom of 6’4” on centerline.

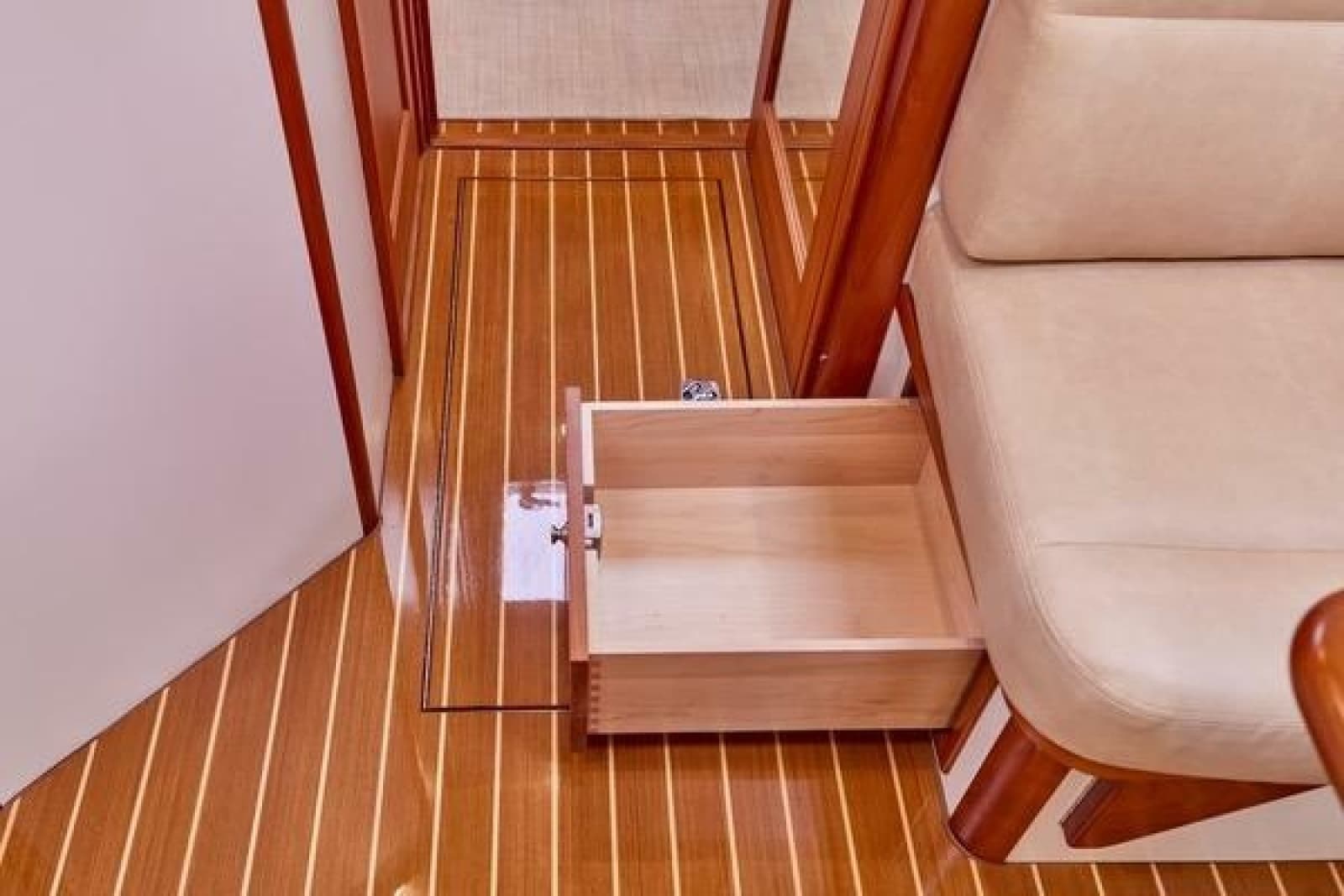

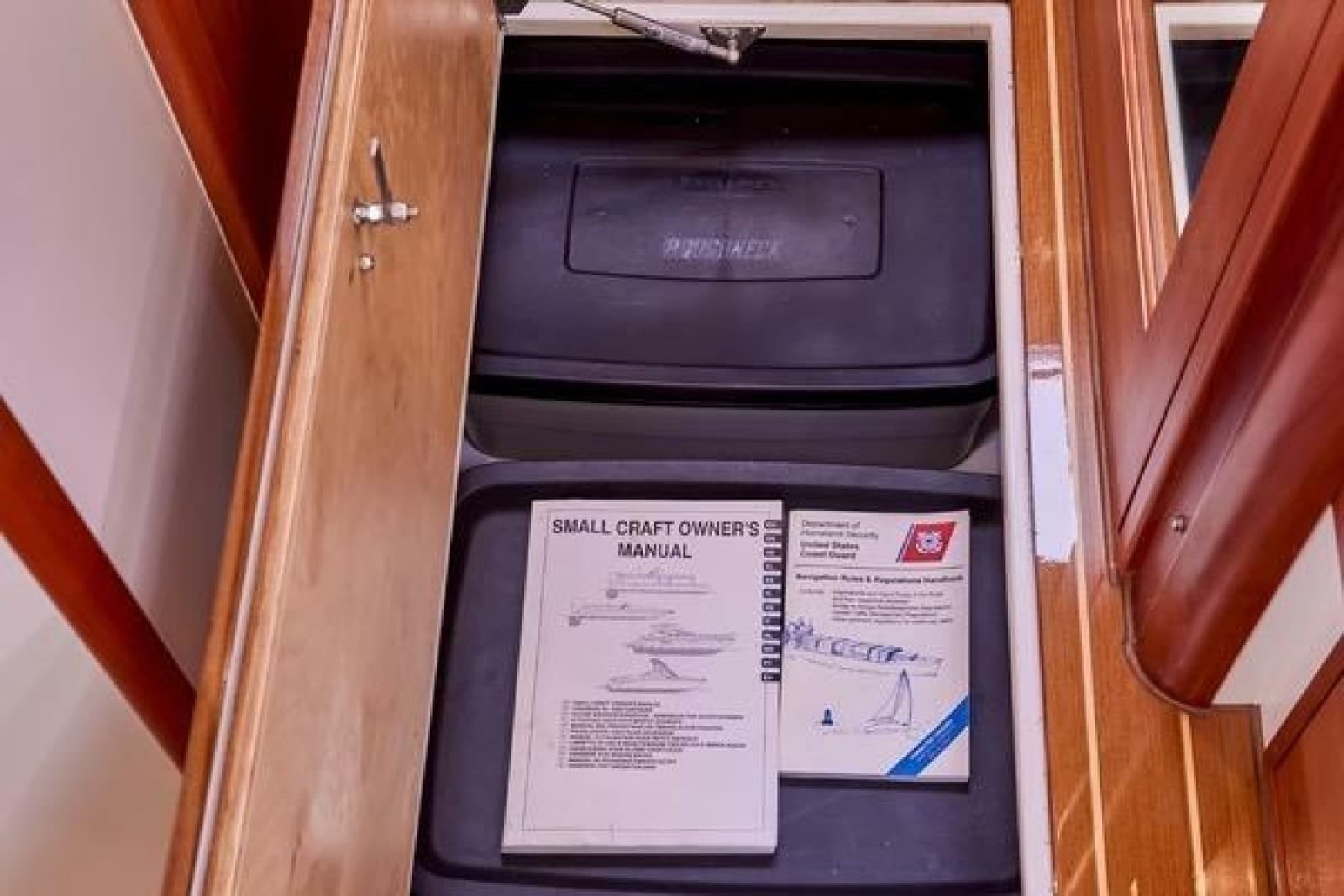

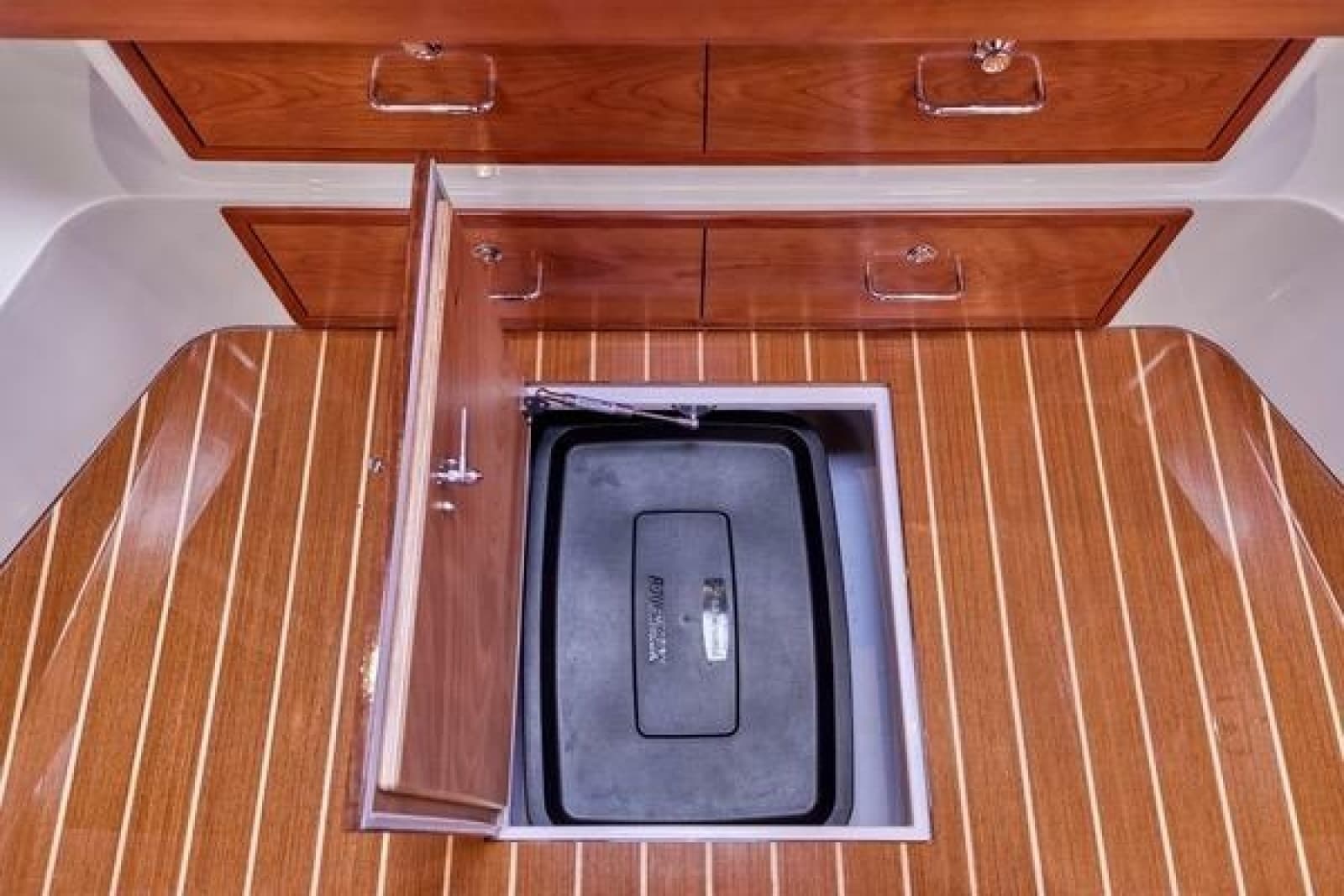

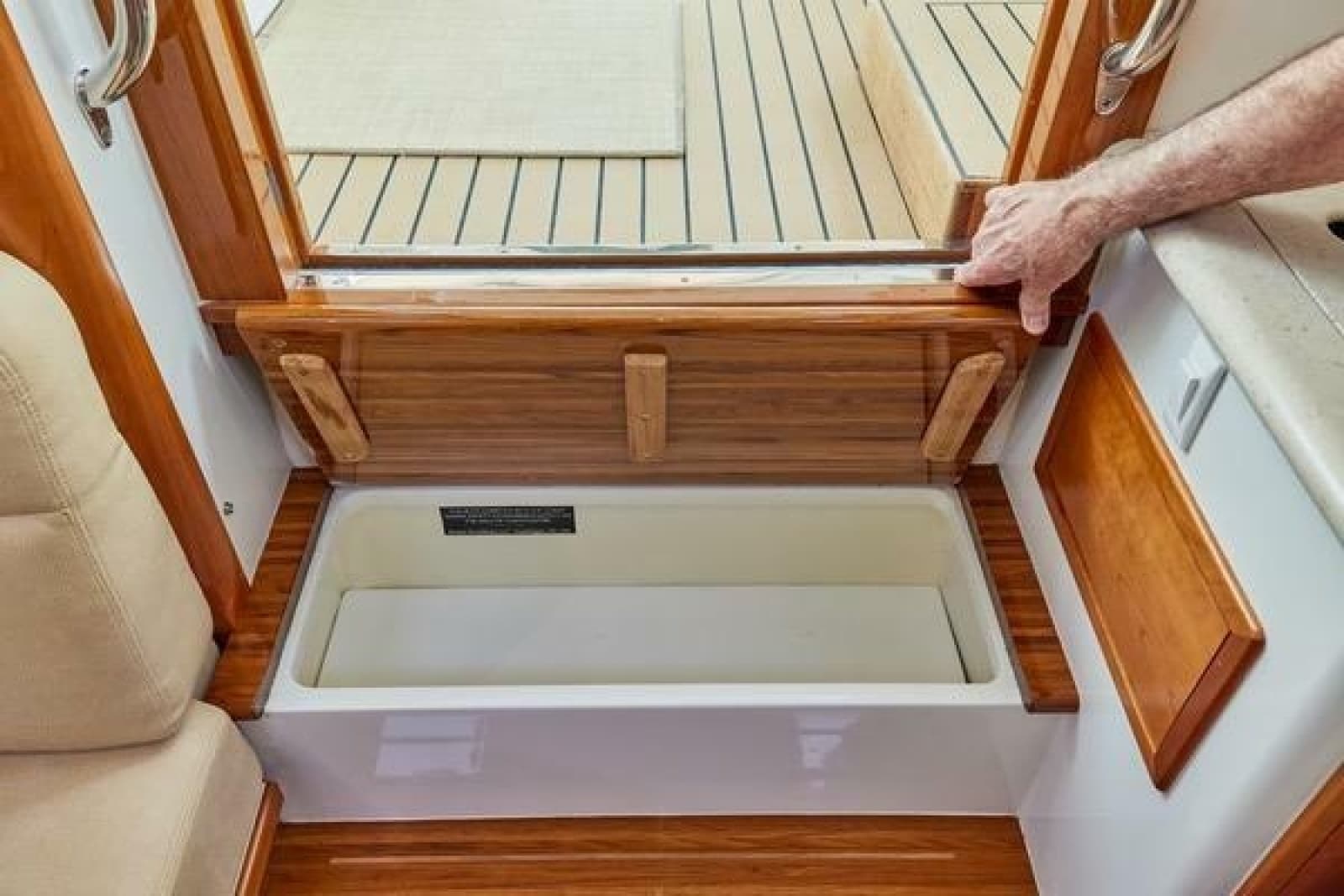

• High-gloss finished teak & holly cabin sole with storage compartment for large plastic bins.
• Egg Shell White Nevamar HPL paneling with American Cherry trim with foam backed vinyl headliner & satin-varnished cherry hull battens.
• Access door to dual entry head with integral shower.

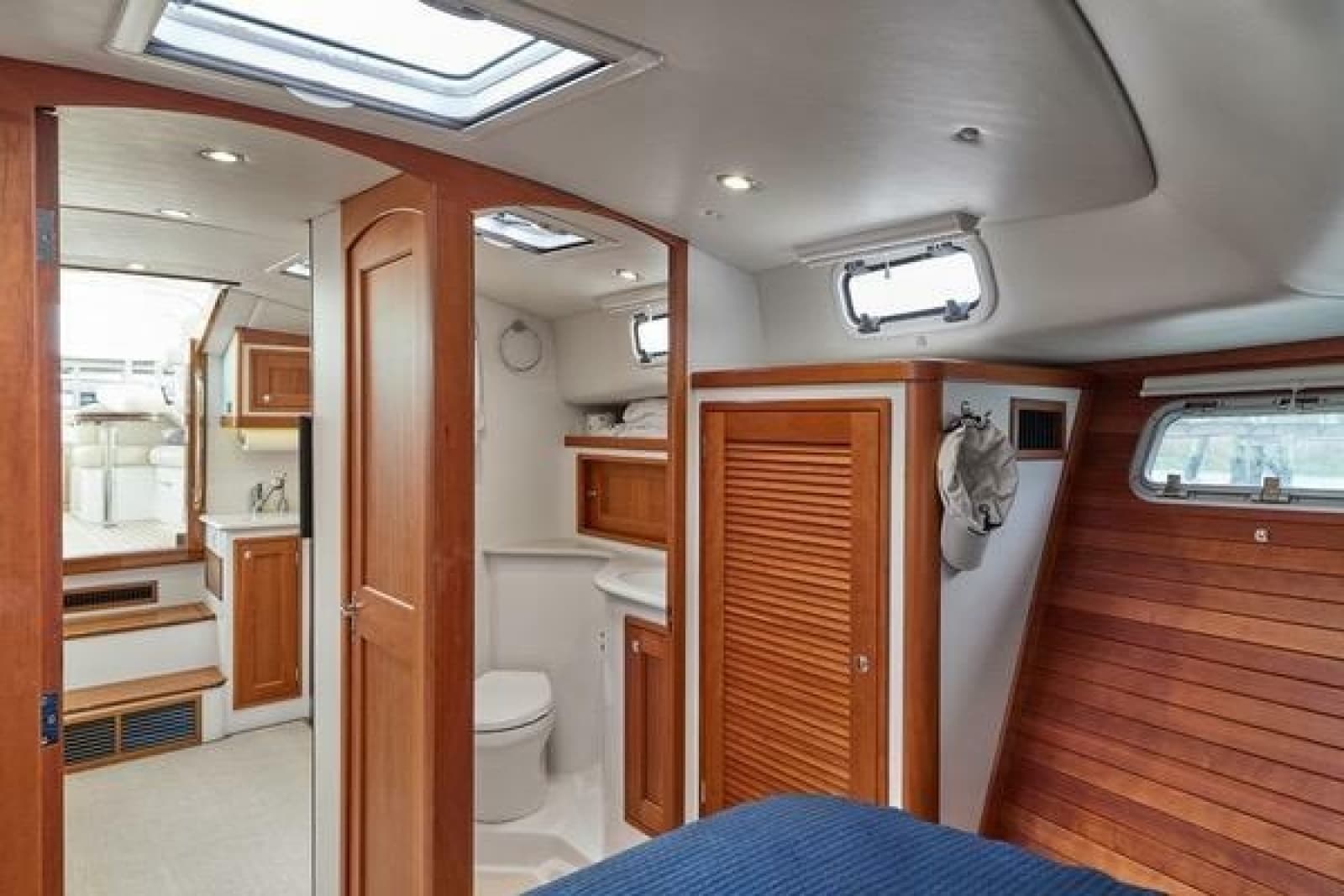

Forward Cabin Specifications:

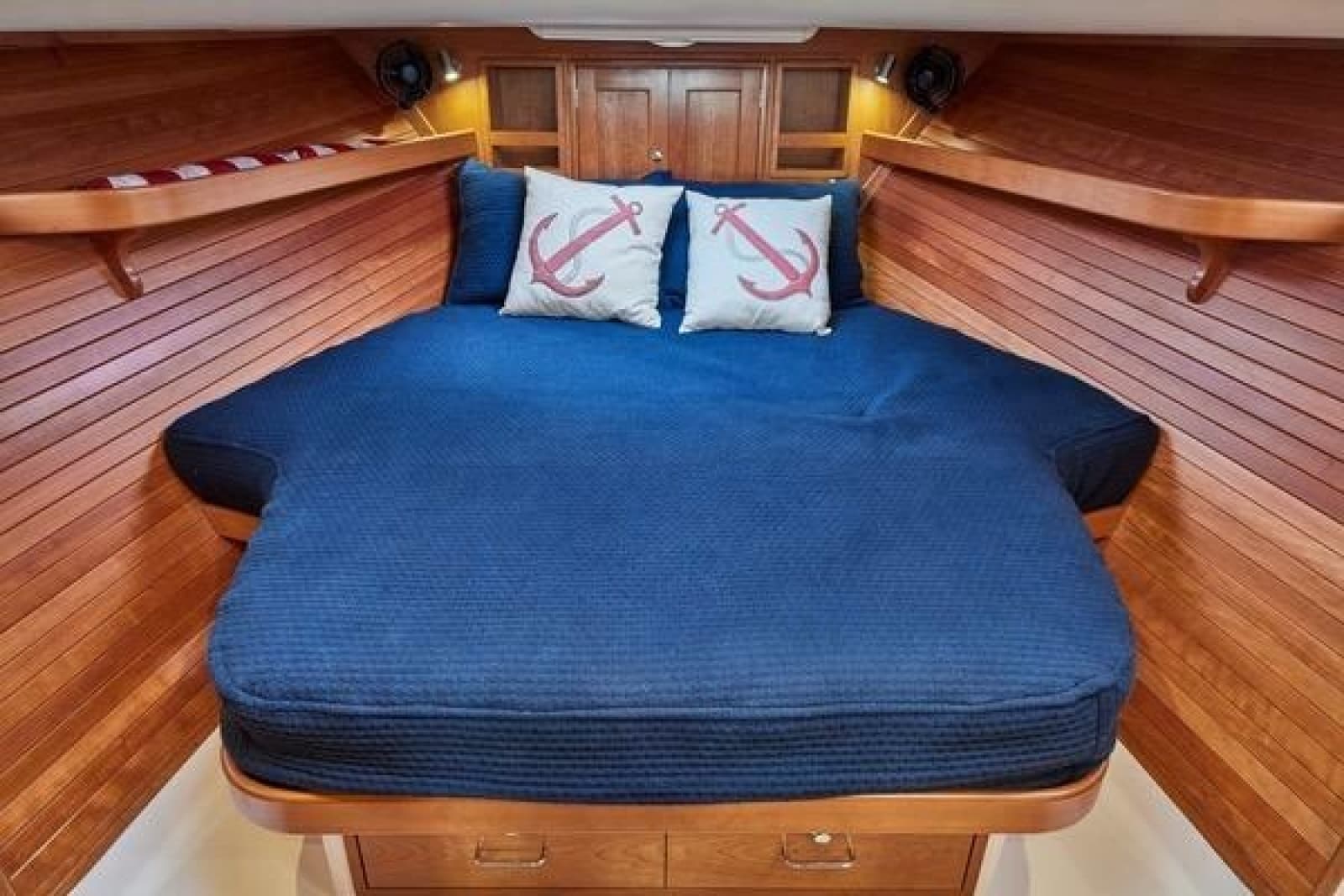

• Fixed 78”x 60” island berth with memory foam mattress covered in durable, water resistant quilted Ultra-Leather.
• Storage drawers (4) and below-berth storage bin.
• Storage shelves over berth (P&S) also serve as handholds when rising from berth.
• Framed forward bulkhead with recessed bookcases (2) and double access doors to large forepeak anchor locker.
• Combination bureau/entertainment center with drawer & shoe locker, Corian counter and upper storageshelf
• Hanging locker to port with storage shelf over.
• Private access to head and ensuite shower.
• Stainless double-hooks (3) for clothing
• Dressing mirror on forward face of entry door.
• Custom nesting slot for stateroom entry door

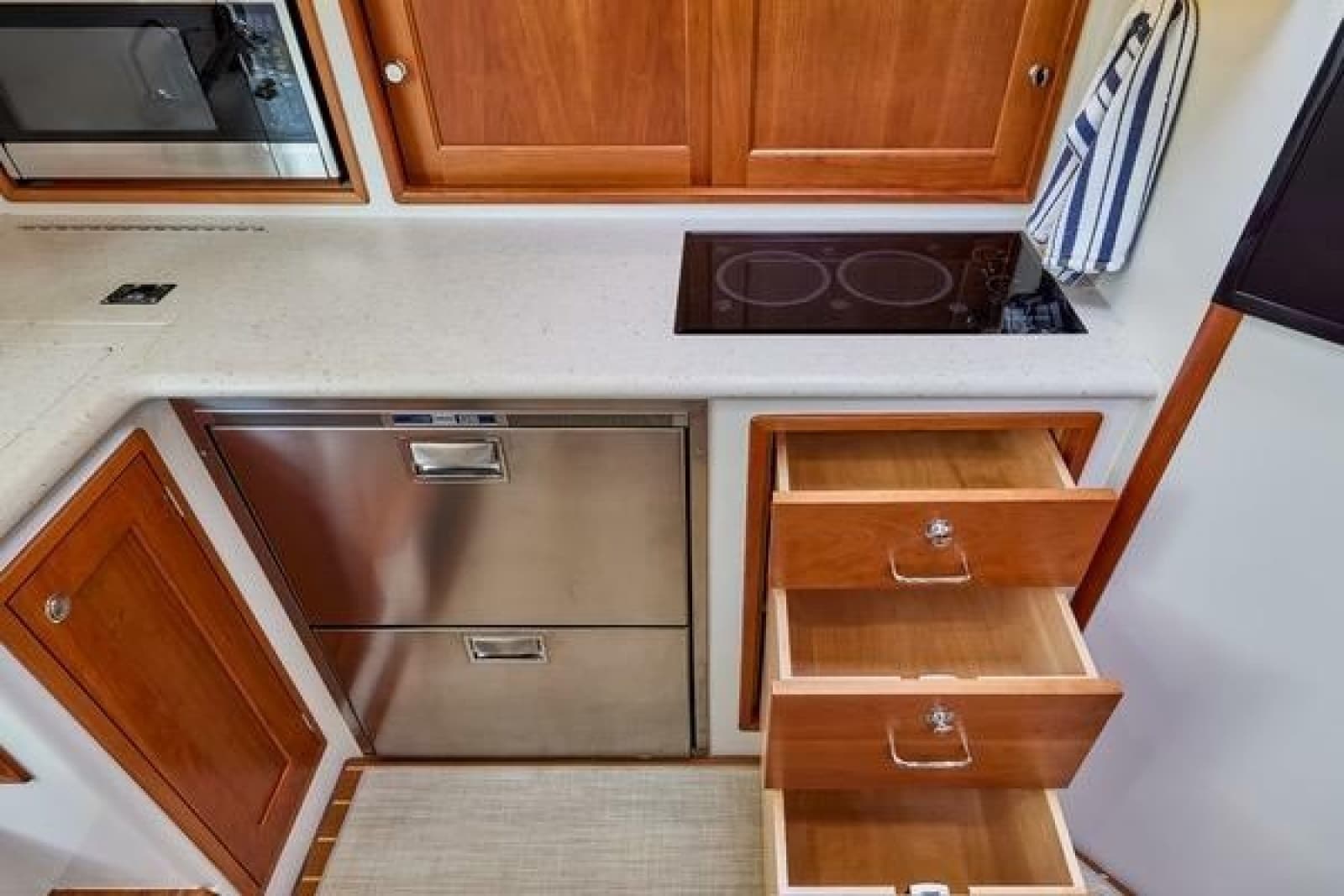

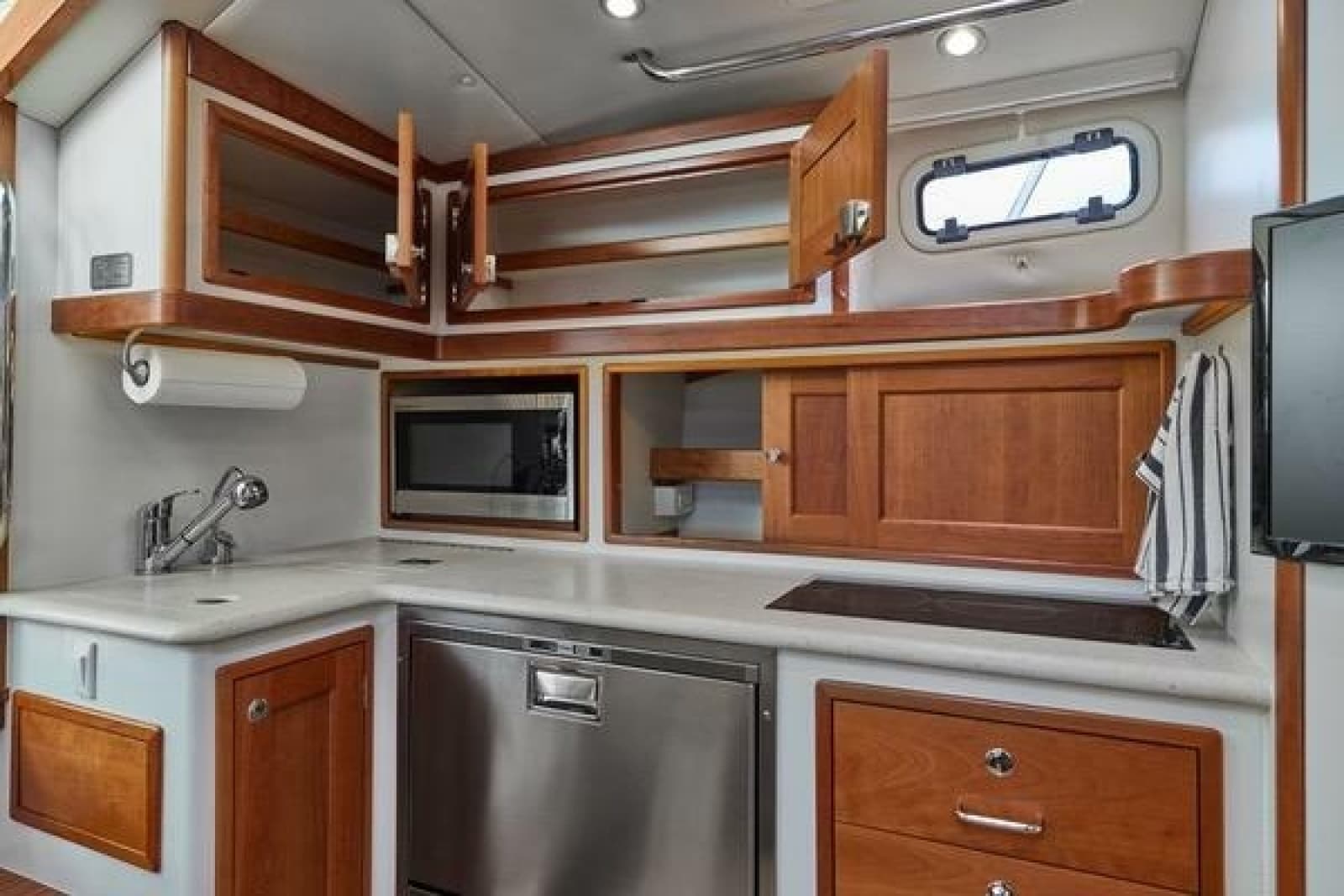

Galley Specifications:

• Corian counter-top with framed, paneled cherry cabinetry with push-button locks & drawer handles and upper storage cabinets with offset inner shelf.
• Recessed polished SS sink with removable bamboo cutting board cover and Scandvik pullout faucet.
• Flatware & utensil drawers (3).

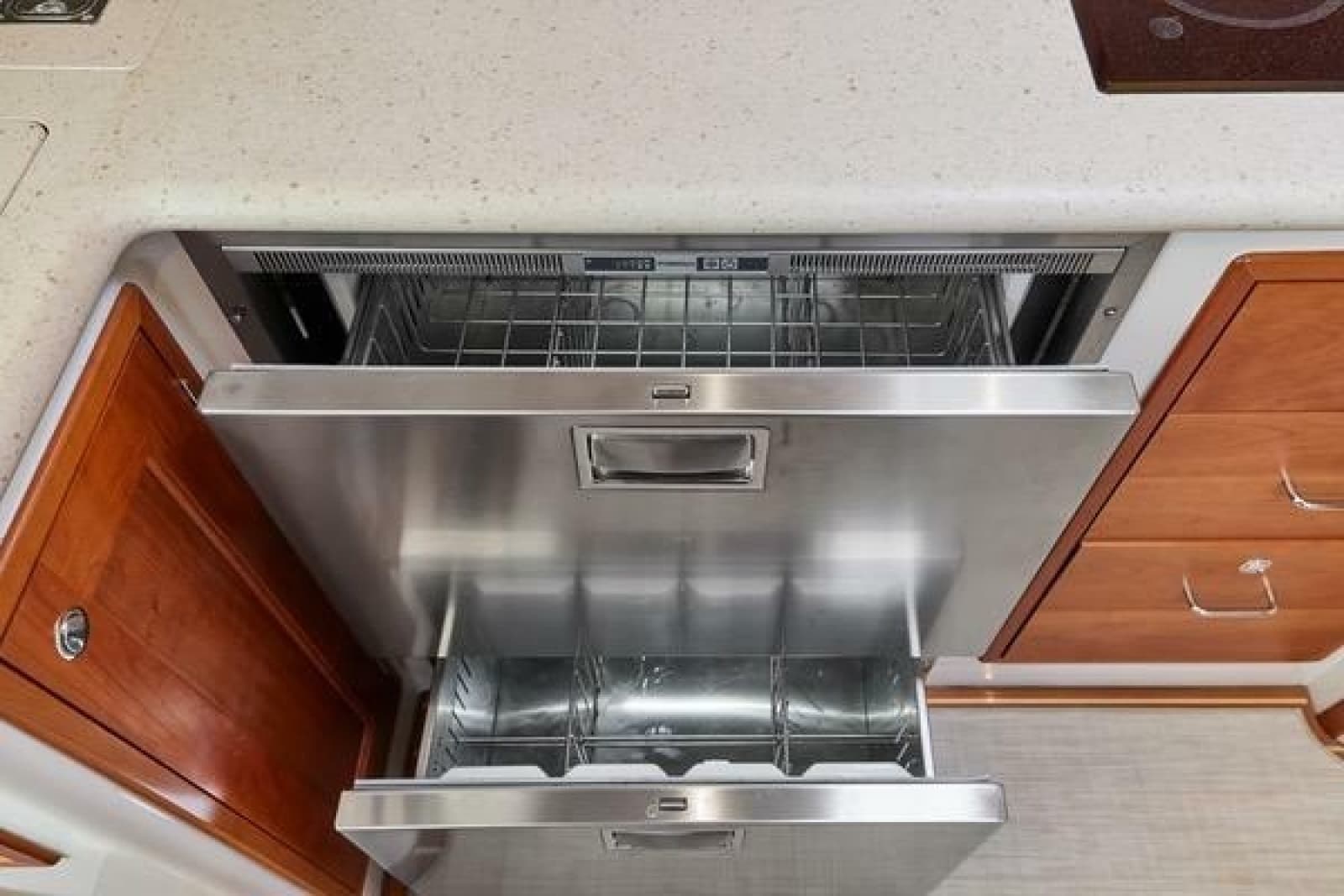

• Stainless 5.5 cu. ft. 2-drawer refrigerator.
• Indel B153 Freezer compartment w/2 ice trays
• Dry goods cabinet with soft close sliding doors and intermediate shelf w/LED trim lighting.
• Storage locker for pots/pans and cleaning supplies.
• Flip lid access panel to large Rubbermaid trash bin.
• Overhead safety handrail/towel drying bar.
• Ceramic 2-burner induction cooktop
• Sharp 1.1 cu.ft. Microwave Oven
• Double stainless hooks for hot pads and dishtowels.
• Extended shelf with grab-rail fiddle above galley suitable for chart storage, cutting boards, etc.

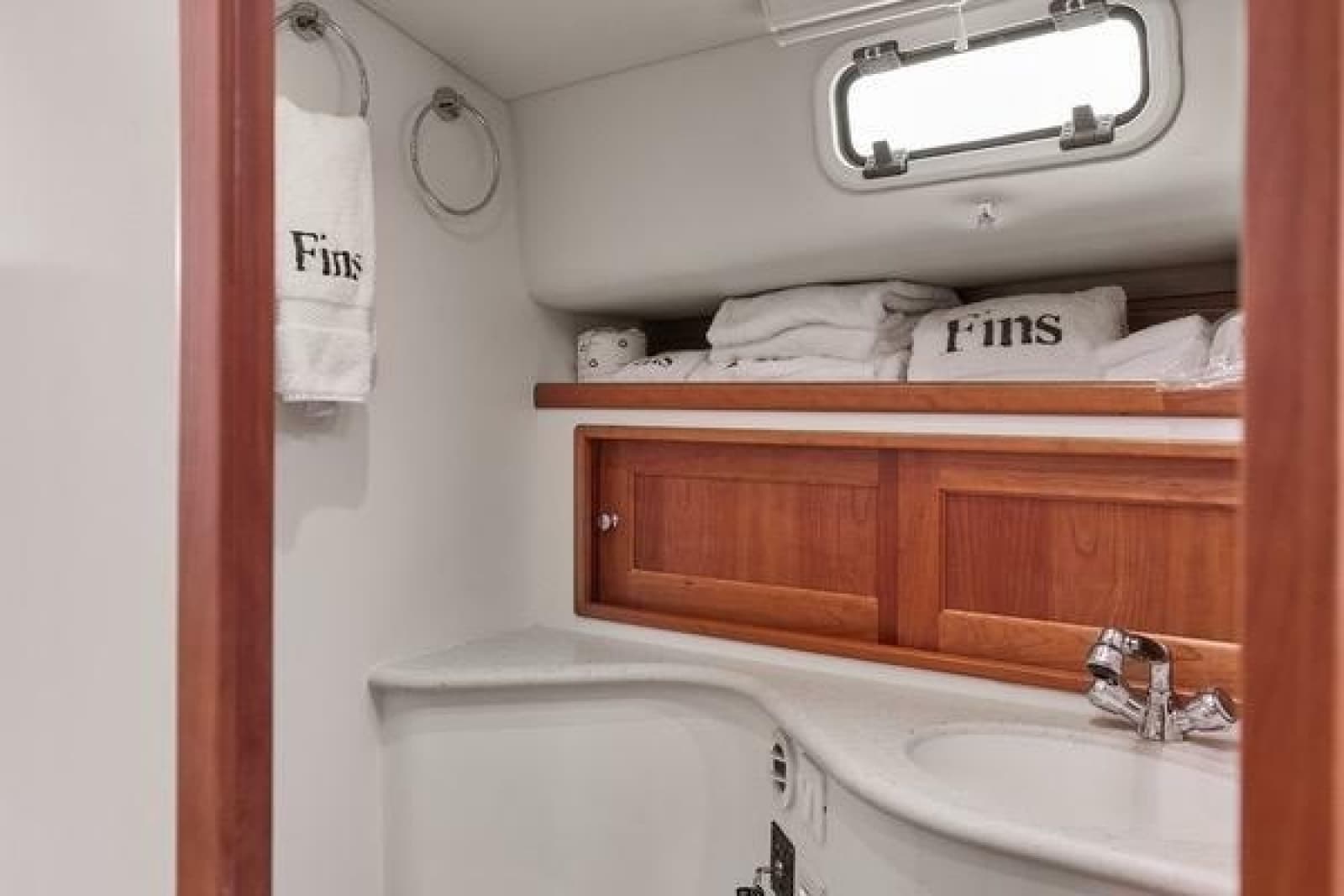

Head Specifications:

• The portside combination head/shower is accessible from either forward or main cabin.
• Corian counter with white Corian oval sink having mixer valve spigot and pullout flexible hose with soft-spray to use as second shower.

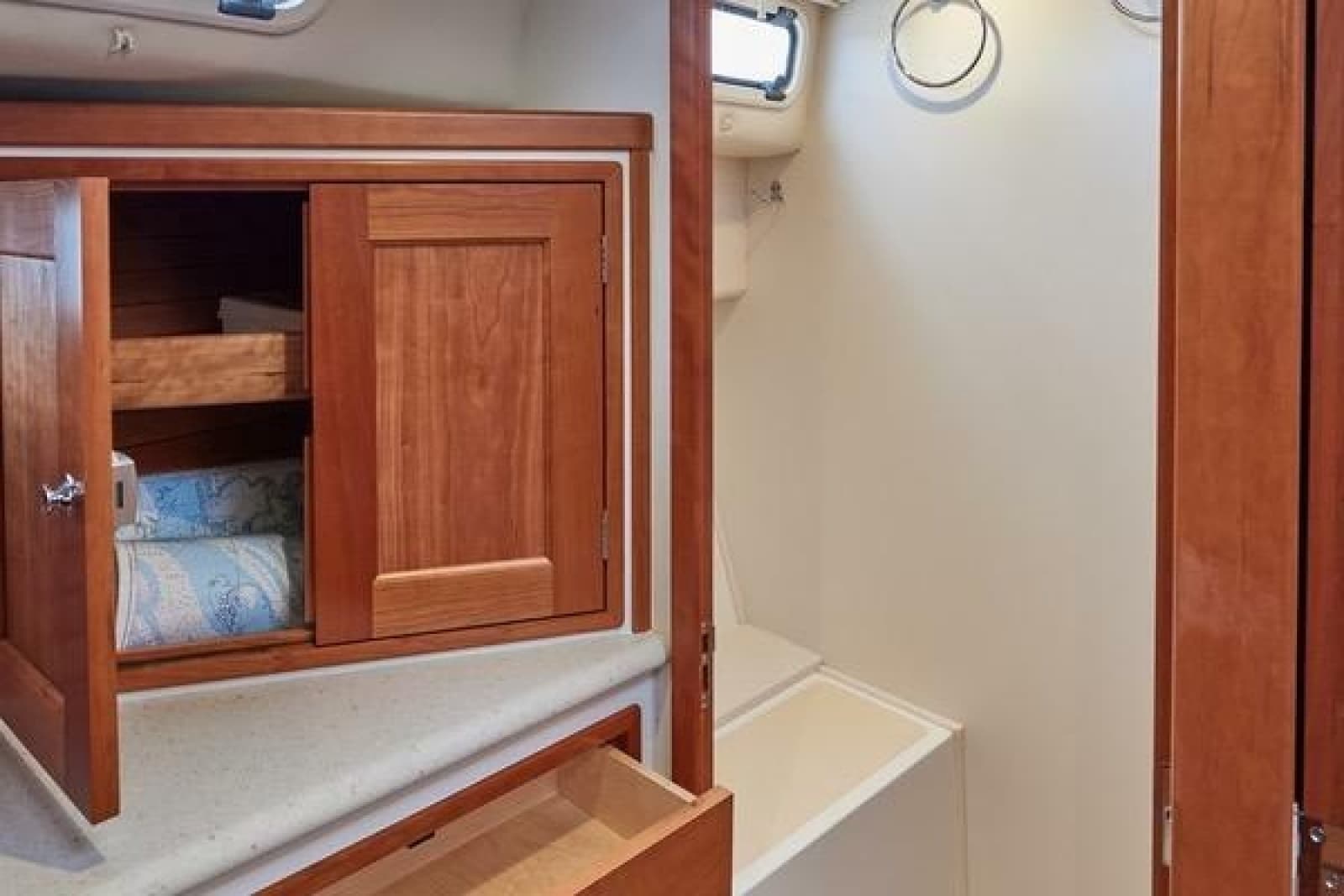

• Paneled cherry storage locker outboard with sliding doors and towel storage shelf above.
• Full-length mirrors inside door.
• Locker under sink w/stainless TP holder
• Towel rings and hooks.
• Vent hatch and portlight.
• Floor drain to gray water overboard system

Ensuite Shower Specifications:

• Shower access to starboard from forward cabin with seat as well as towel & toiletry storage bin outboard.
• Wall mounted Scandvik shower hose w/turnoff.
• Shaving mirror.
• Towel rings and swimsuit & foul weather gear hooks.
• Opening vent hatch & portlight w/screens & shades
• Floor drain to gray water overboard system.

Hull Specifications:

• Modified deep-V, offshore hull with sharp entry, 3.5:1 Length to Beam Ratio, dual lifting strakes, chine flats and 19-degree transom deadrise.
• ISO (CE Mark) Certified Category A Ocean
• Hull and cove stripe in Awlcraft 2000 Majestic Blue w/3 coats of clear to facilitate abrasion repair.
• “Quiet Chine” to dampen wave slap.
• Strong & light epoxy wet prepreg composite with Eglass and 1” CoreCell closed- cell core
• Solid keel, stem, and transom corners backed by a structural grid using unidirectional E-glass/epoxy GRP
• Reinforcing of thru-hull and hardware attachments areas with solid glass or Penske-Board.

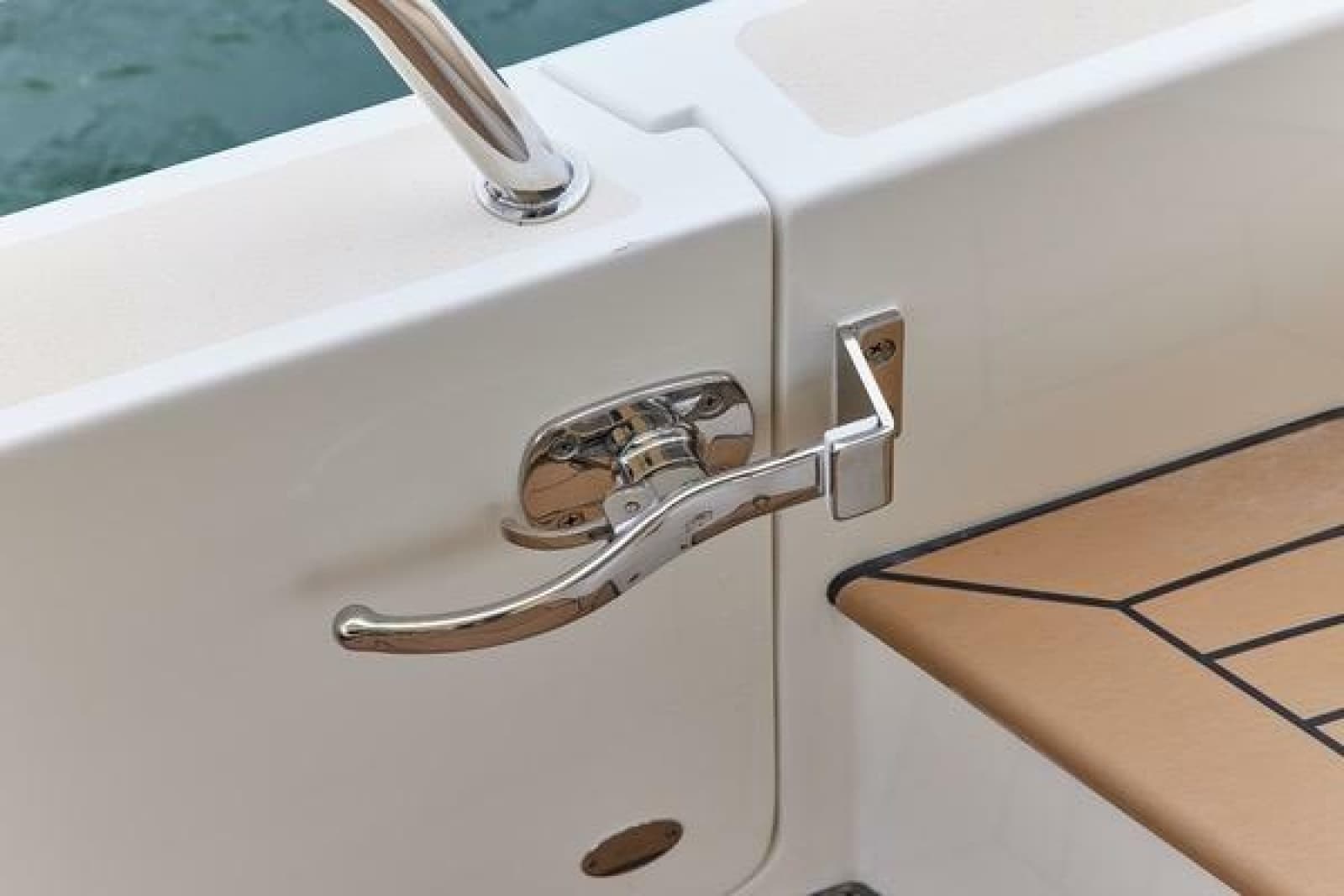

• Side entry doors onto cockpit sole (2)
• Transom door to swim platform.
• Bilges painted with smooth, gloss-white finish.
• PVC guardrail and SS quarter-guard rub strips.
• Hull ports (4) in forward cabin and main saloon

Deck Specifications:

• High-tech composite under vacuum using oven post-cured epoxy impregnated, stitched biaxial E-glass with a 1” Alcan Airex C70 closed-cell PVC foam.
• Insignia white gelcoat deck w/sand- textured non-skid
• Molded swim platform with recessed dinghy cleats.
• Custom Armstrong SS retractable swim ladder
• Backing plates for cleats and stanchions of epoxy G-10 pressure-laminated composite.
• Hull and deck fused as monocoque structure with methacrylate adhesive with shear strength of 3,000 lbs. per square inch w/mechanical fasteners on 8-10” centers.
• 316L SS handrails (17) on pilothouse corner posts, hardtop, cabin top, under hardtop, aft seat backs, galley overhead, on console and companionway entrance.
• 29” cockpit guardrail and 24” bow rail of 1.25” 316L stainless with spotlight and teak burgee staff for 16” hoist.
• Flag with teak staff and retainer pin.

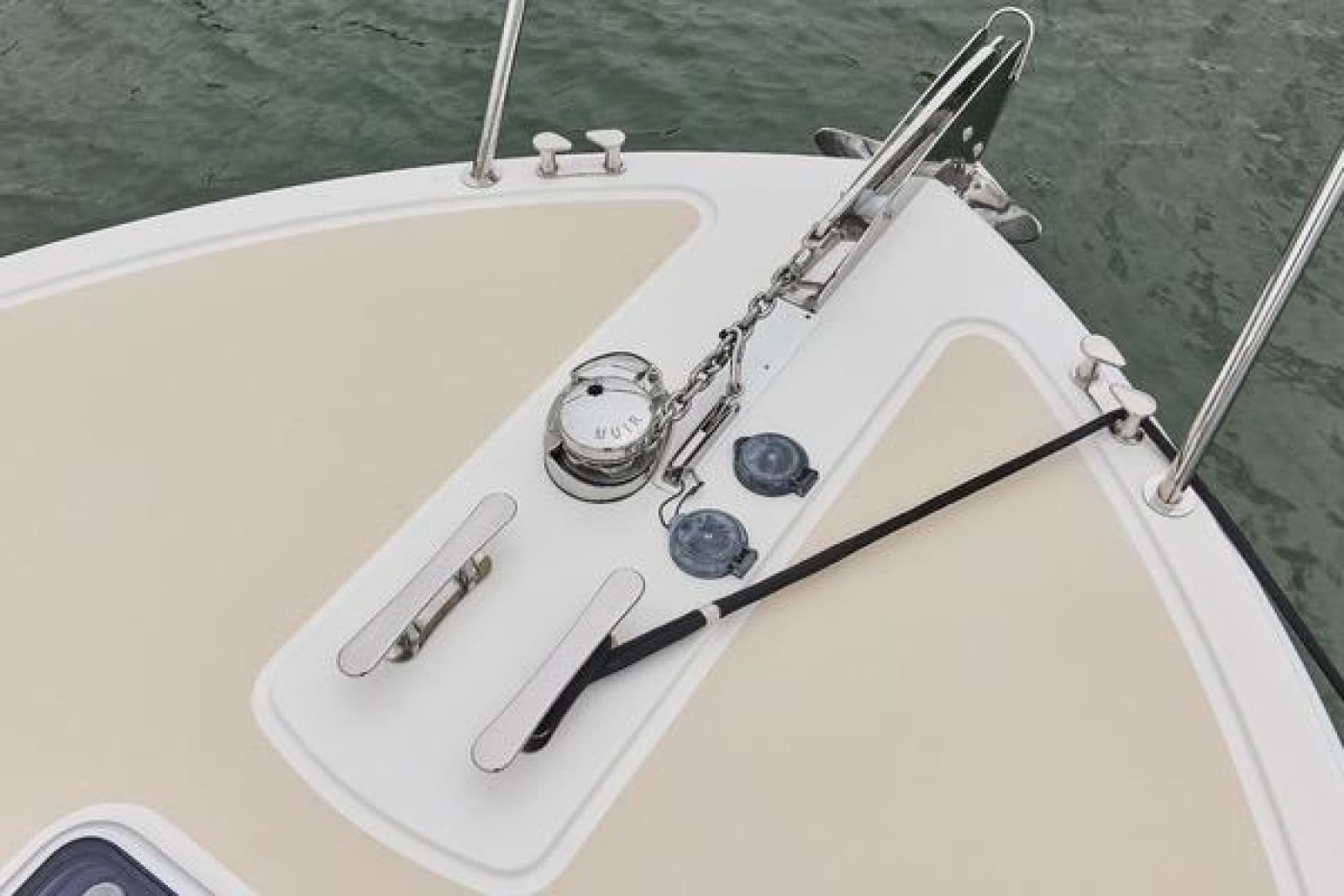

• Muir anchor windlass with deck and cockpit controls
• Auto-launching polished stainless Lewmar claw anchor w/250’ of rode and 25’ of stainless chain.
• Fresh water anchor and rode washer control at helm.
• Polished stainless steel stem guard
• Molded Downeast Style windshield frame & hardtop

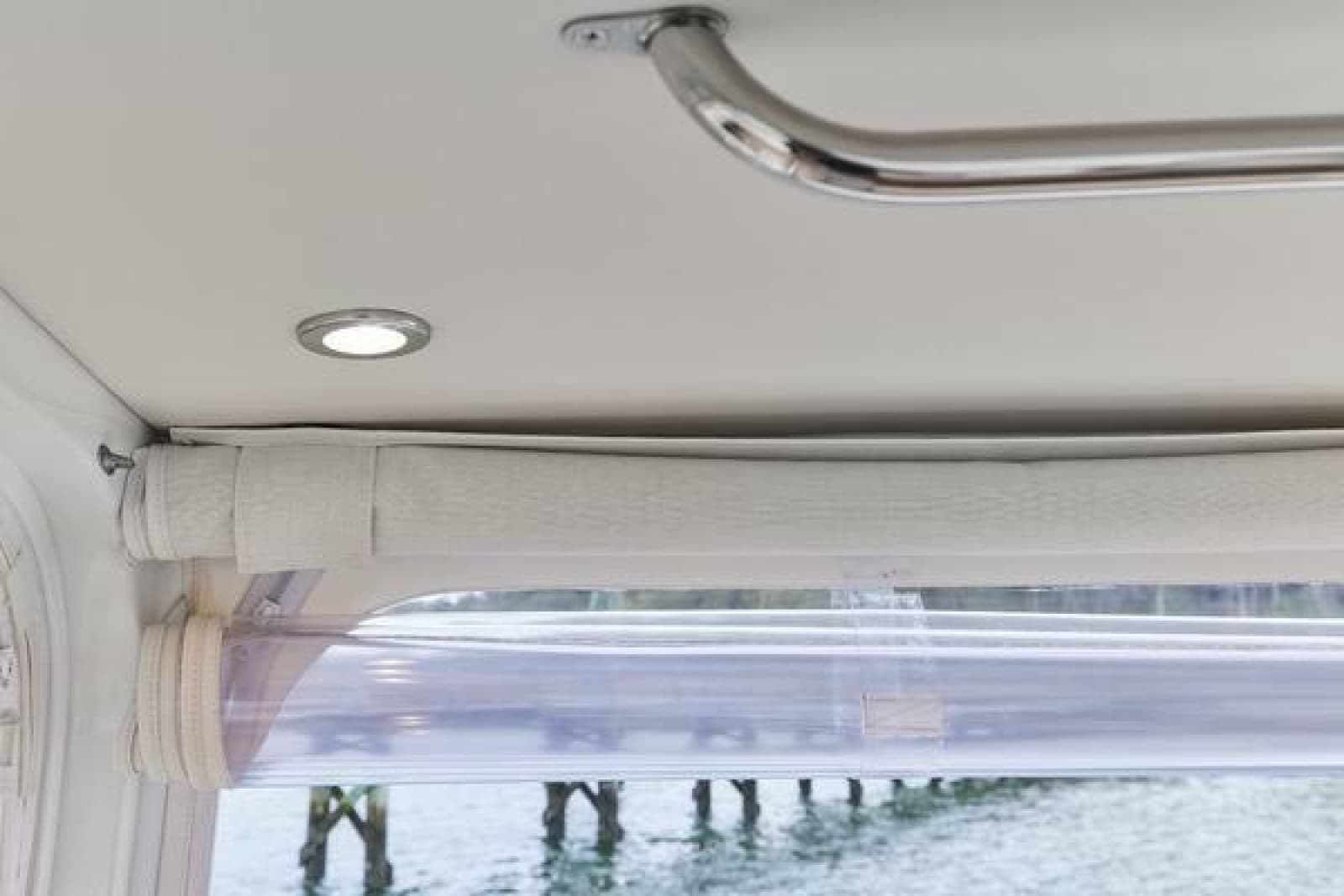

• Pilothouse enclosed on sides by roll-up-in-place, Strataglas curtains.
• Roll-up entry curtain w/combo window/screen
• Deck drains divert dirt/soot/dew/rain into gray water system and out transom...not onto topsides.
• Custom SS multi-directional bow chocks (2).
• Systems room access hatches
• (3) with scuppers, overboard drains, gaskets and lockdowns. Main hatch has electric operated lift and Armstrong access ladder.
• Clear Awlcraft finished teak storage drawers w/locks

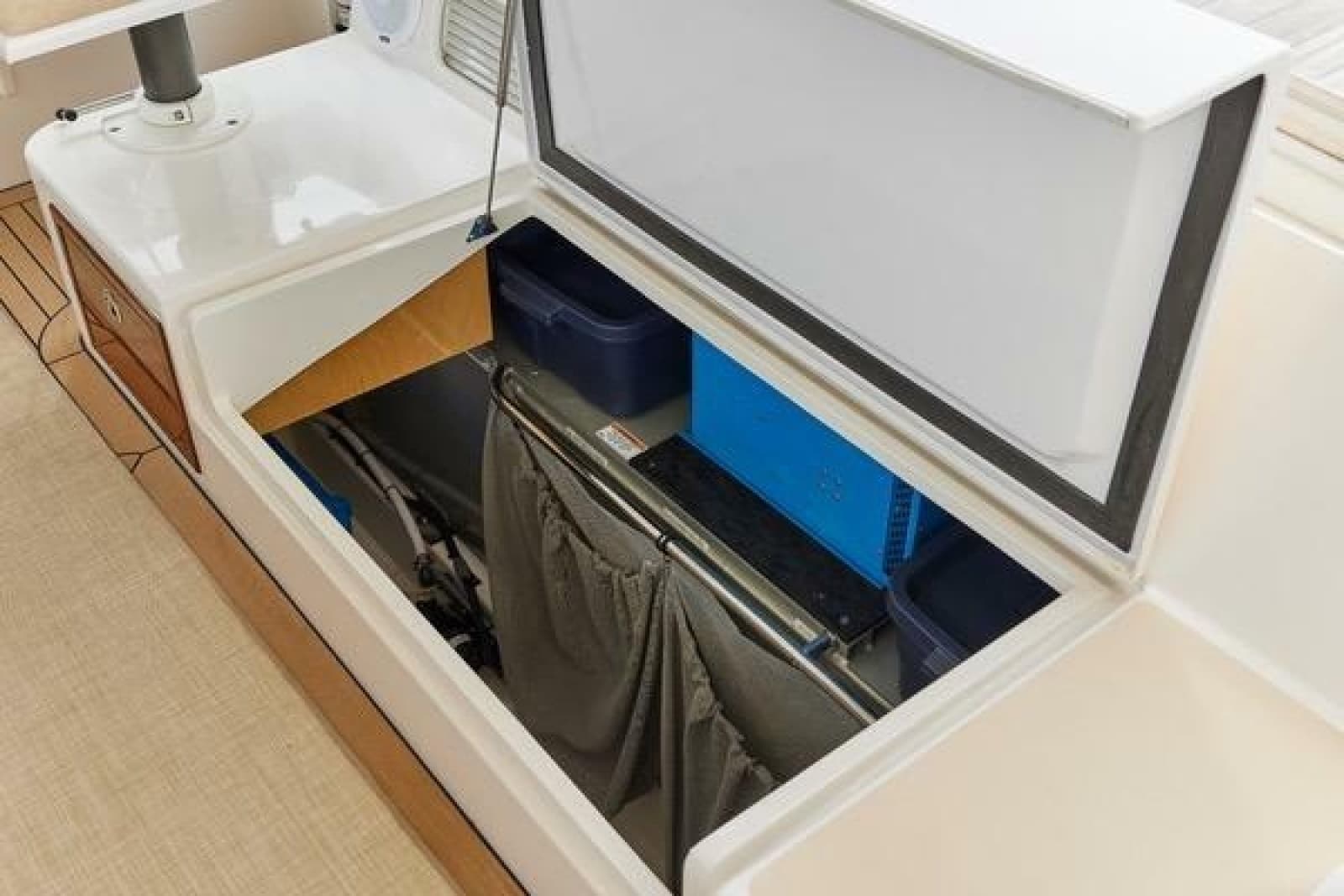

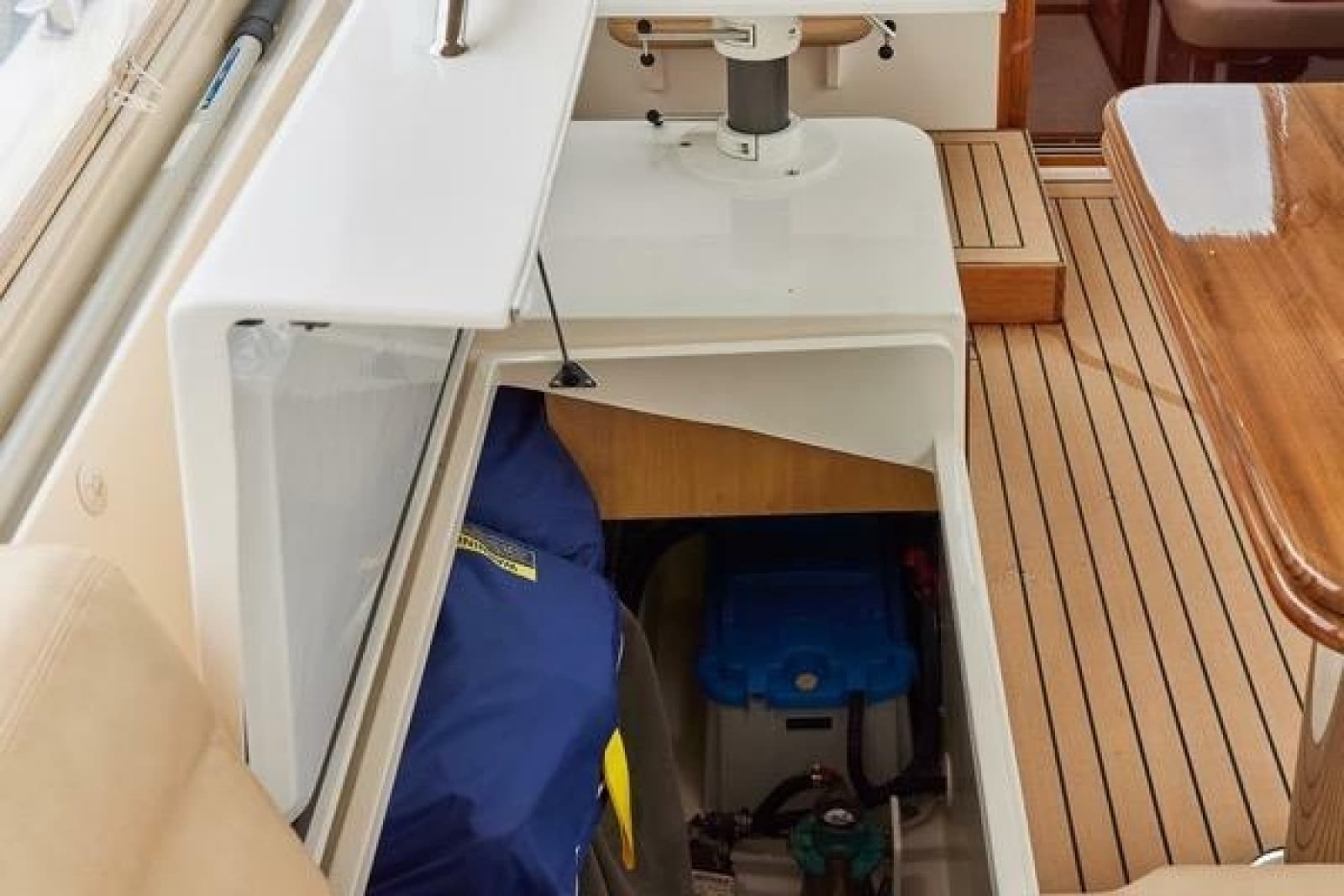

• Large pilothouse settee lockers P&S w/piston- activated lockable lids, vinyl flooring and mesh organizer bags for cords, hoses, mountain bikes, hard luggage, dinghy & golf clubs.

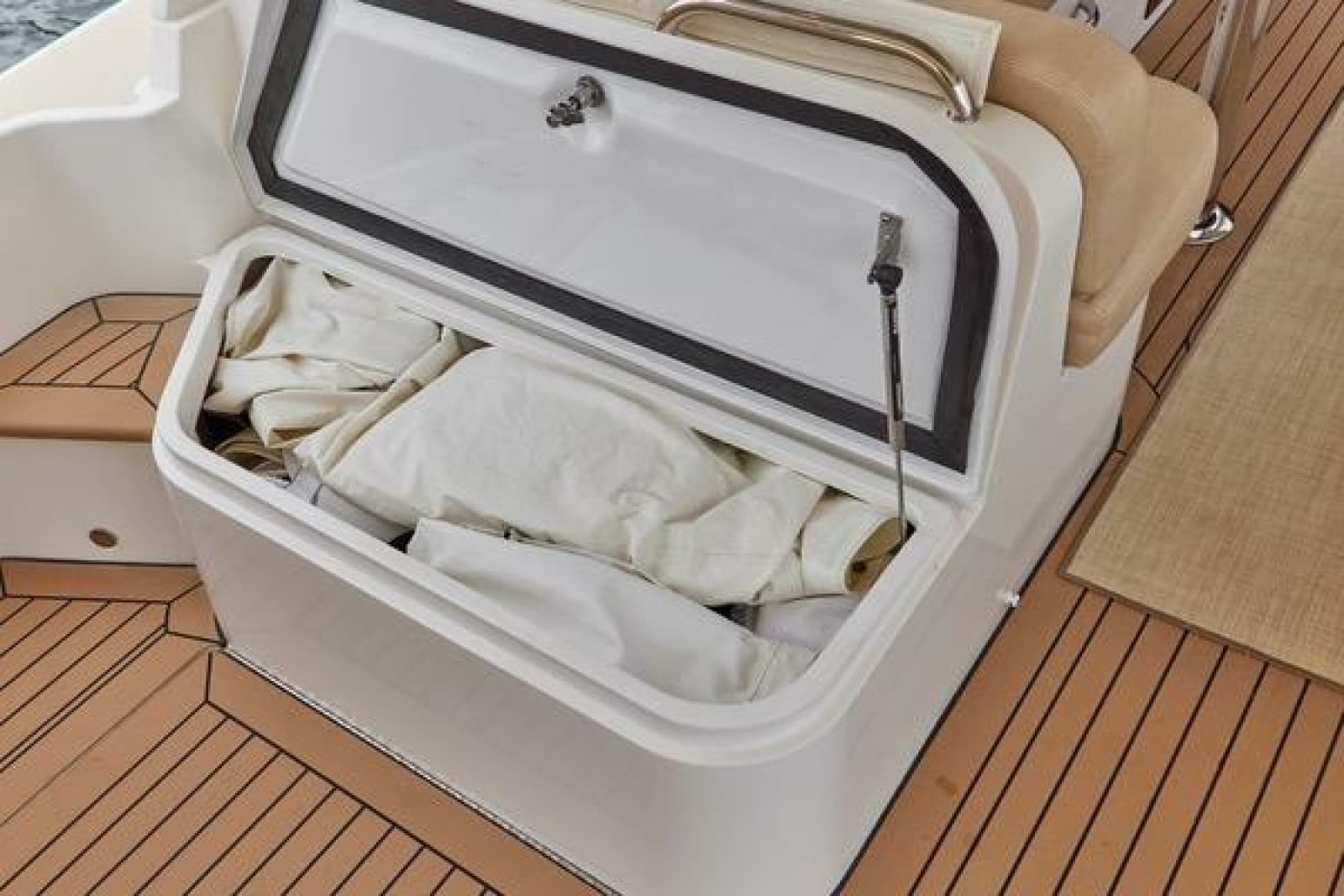

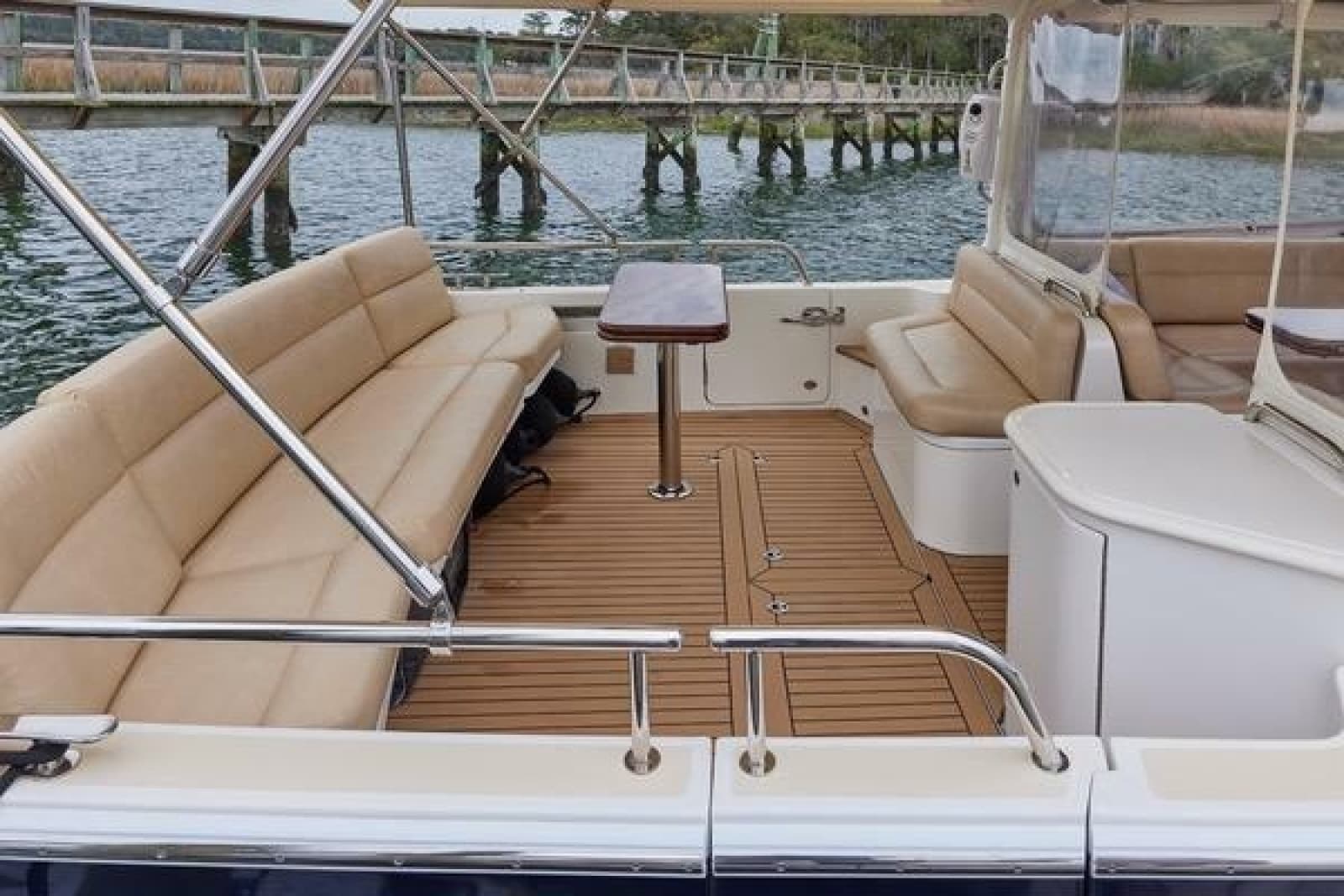

• Cockpit seat lockers (P&S) for docklines, fenders & cleaning supplies with UltraLeather cushions.
• Dual position 36x16 single- leaf gloss-varnished teak table opens to 32”wide for cockpit & pilothouse.
• Pilothouse settees w/UltraLeather covered memory-foam bottom cushions...convert to 6.5-foot berths.

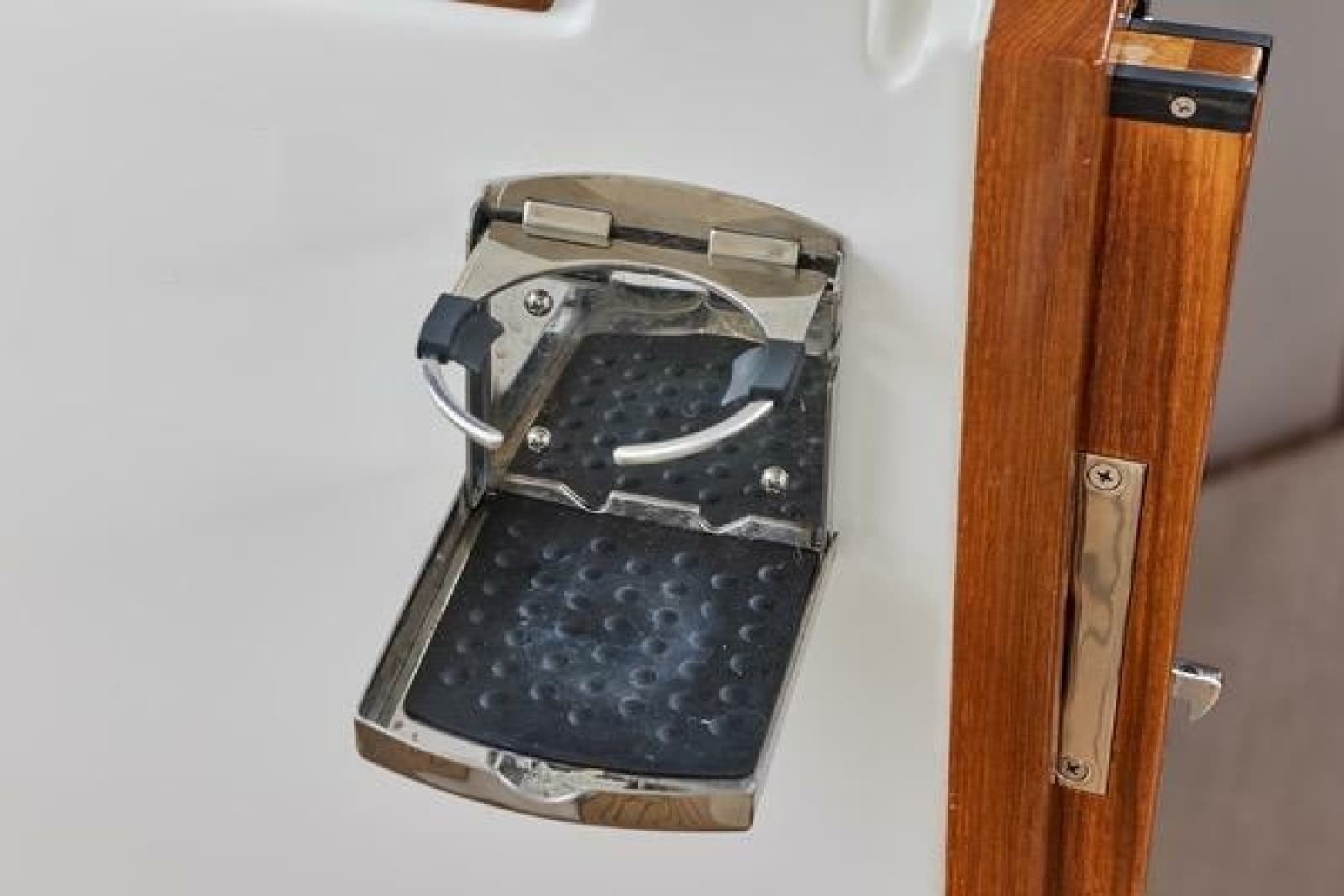

• Drink holders (6) at piloting seats and transom seat
• 8 Lewmar overhead hatches in forward cabin (2), head, shower, main saloon (2) and over piloting chairs (2)...all with Ocean Air dual action shade-screens.
• 6 opening portlights in forward cabin, head, shower, galley and saloon.
• Ocean Air combination screen/shades on hatches and pull shades on portlights.
• Gloss-varnished, lockable (from inside & out) sliding teak companionway door with 4-section hinged cover with chartbook retainer fiddle.
• Movable SS Cockpit Chair (1) with UltraLeather bolstered cushions at side of transom seat.

Propulsion Specifications:

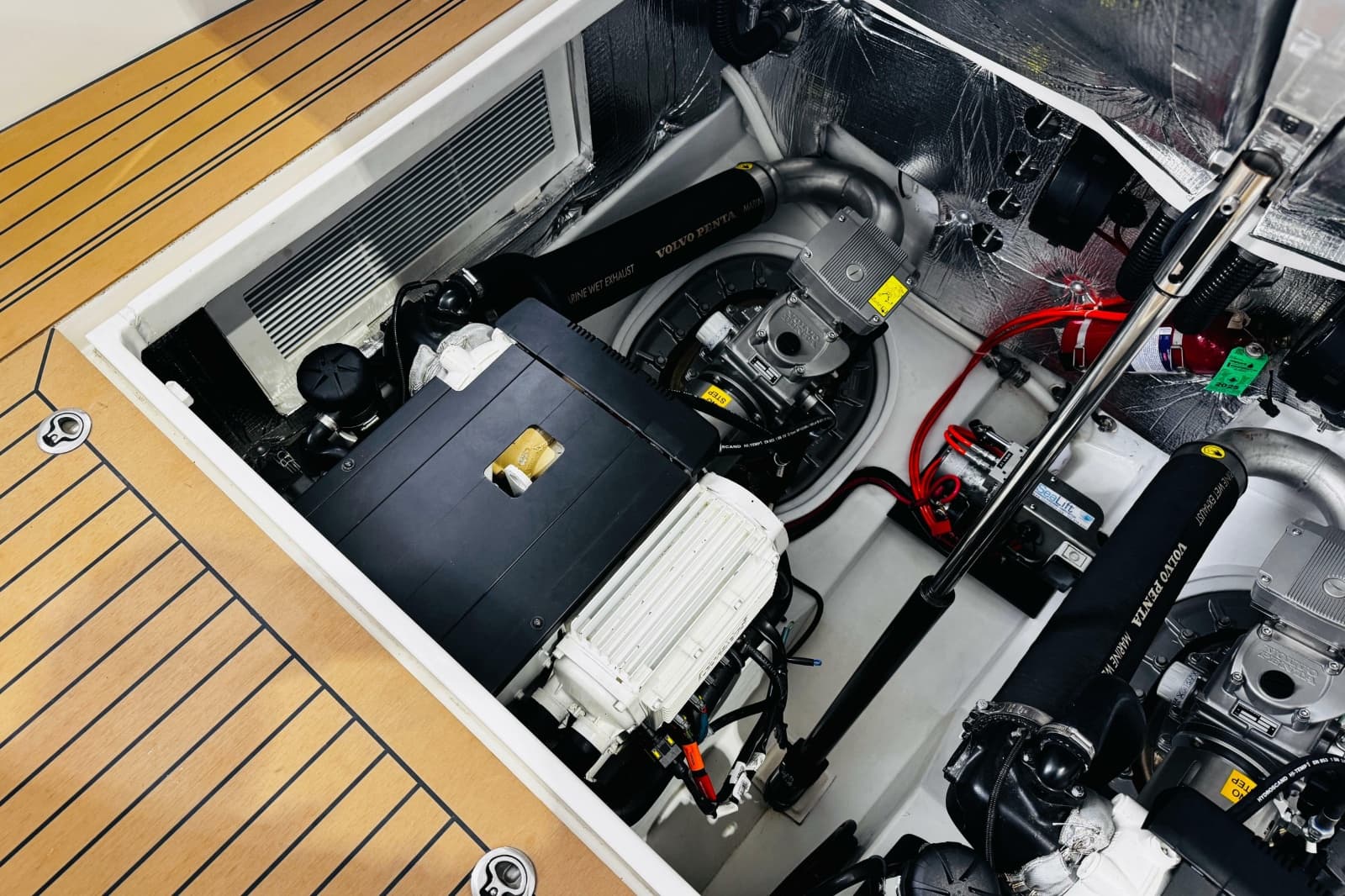

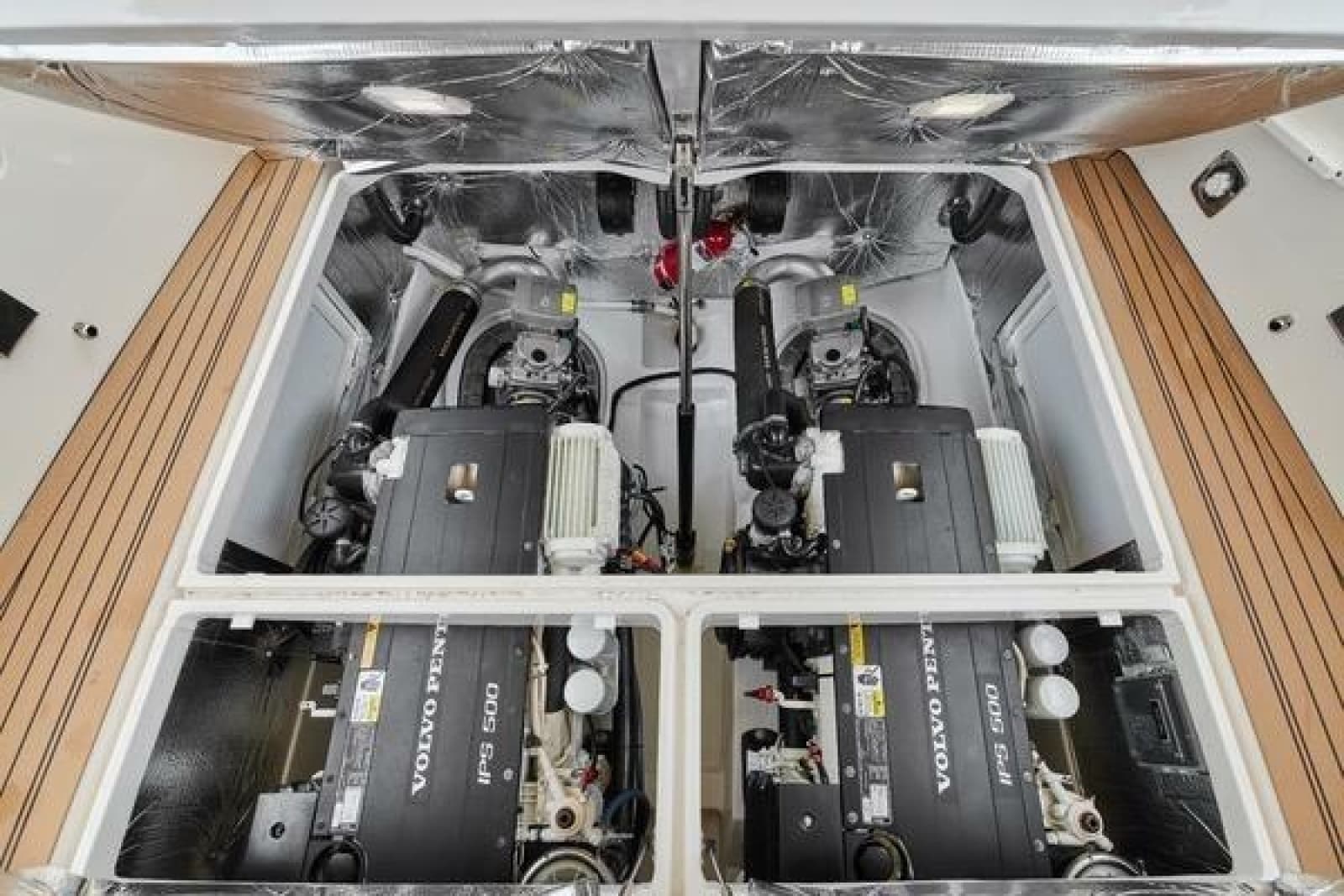

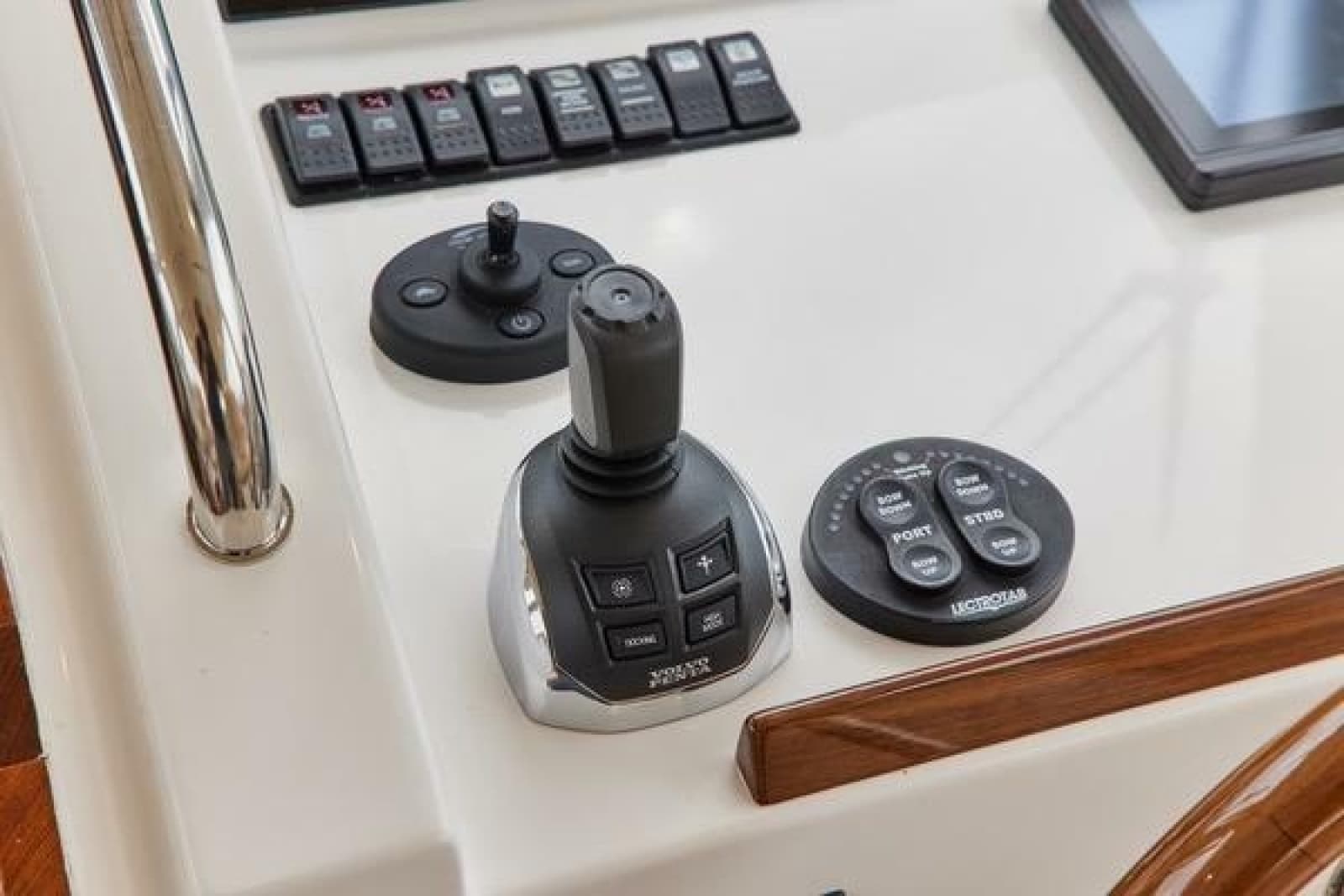

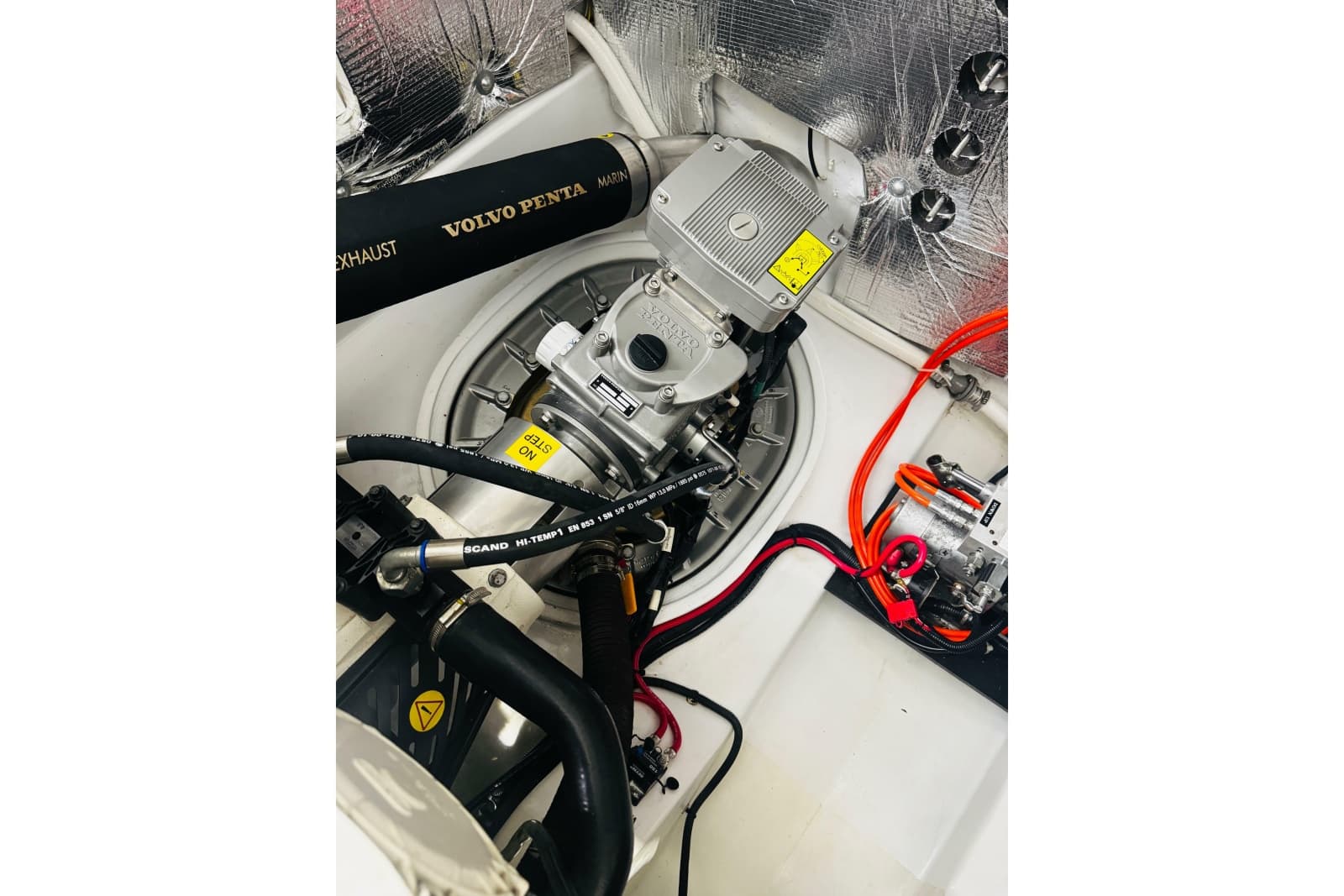

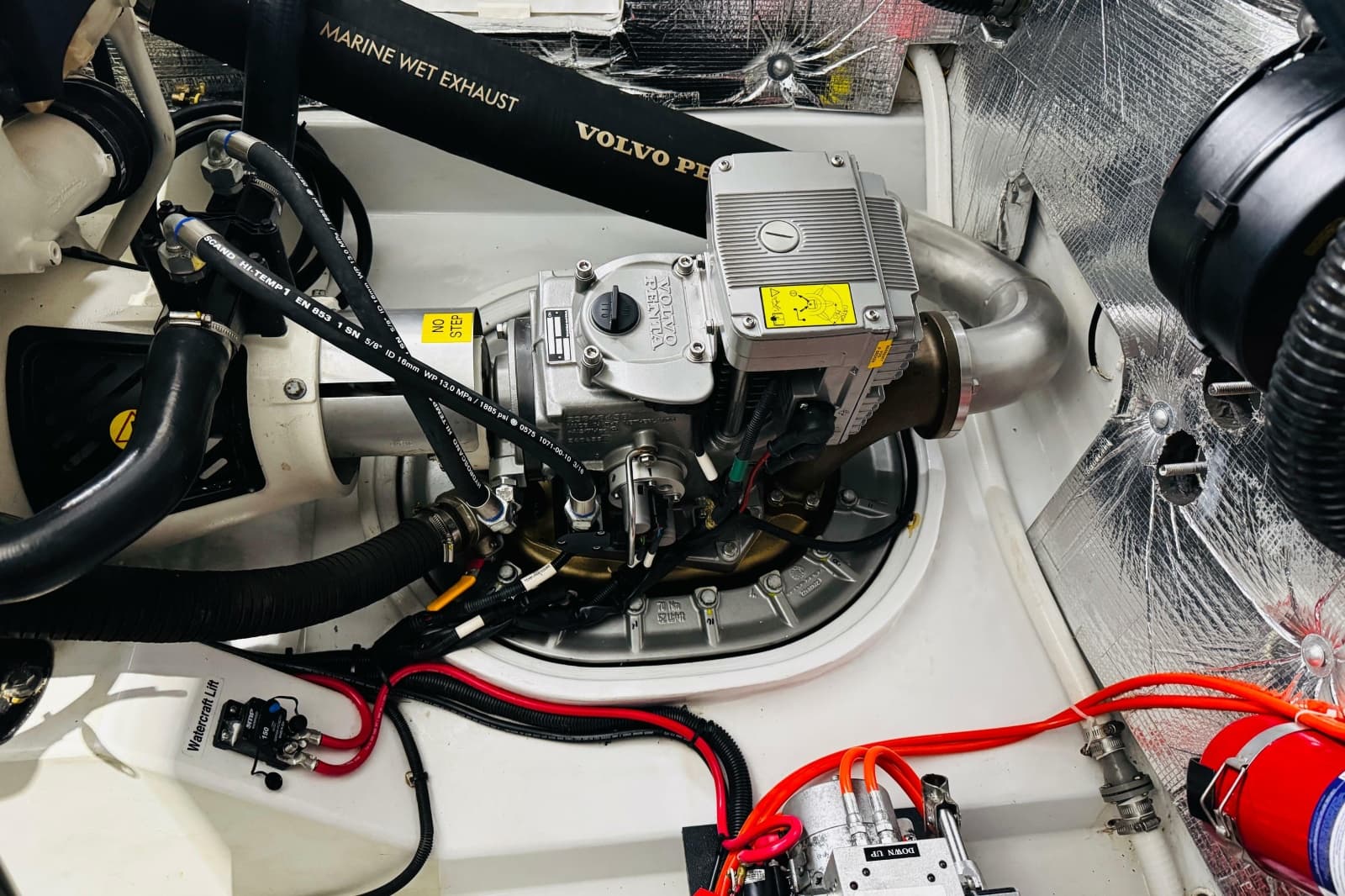

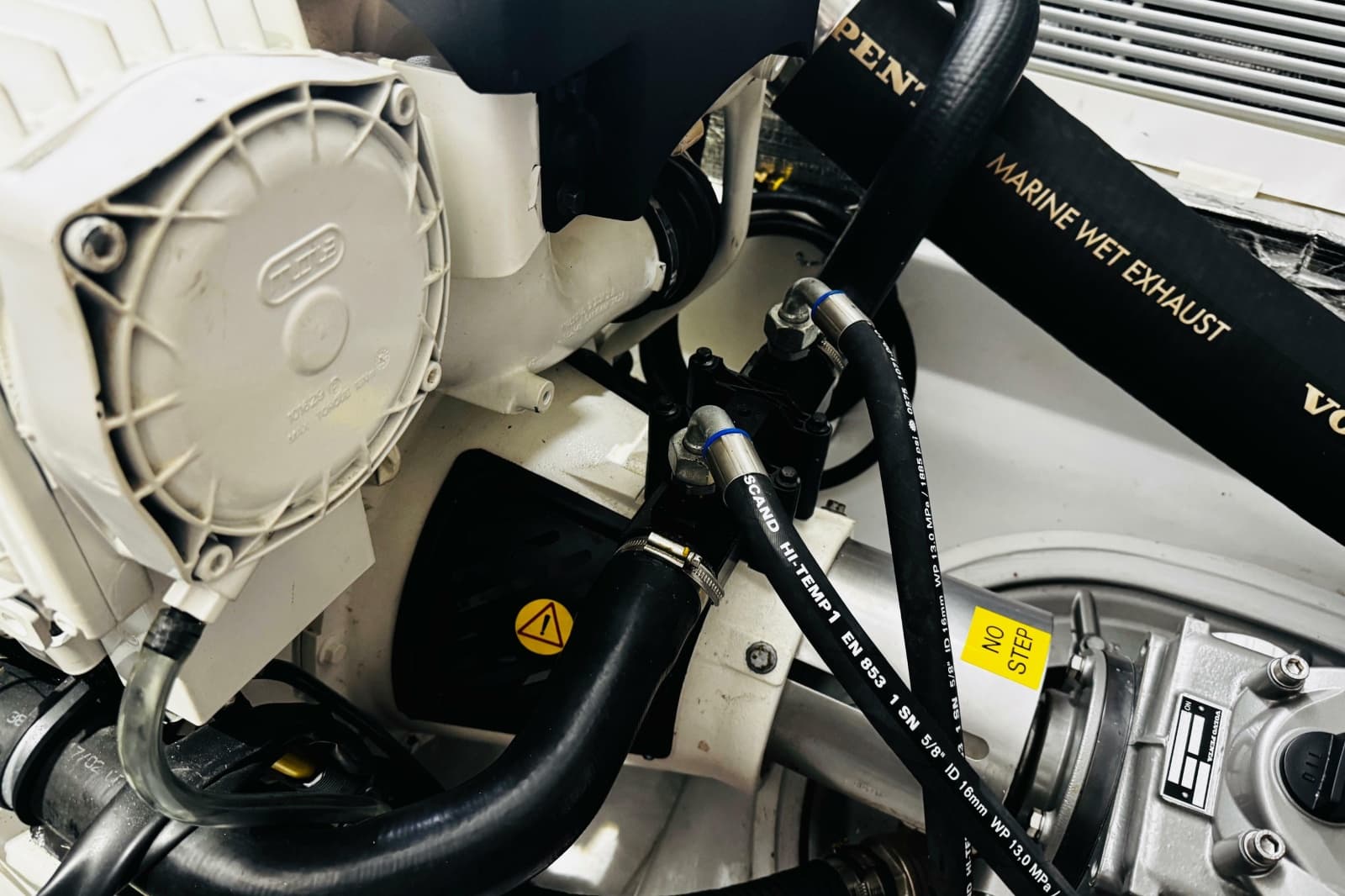

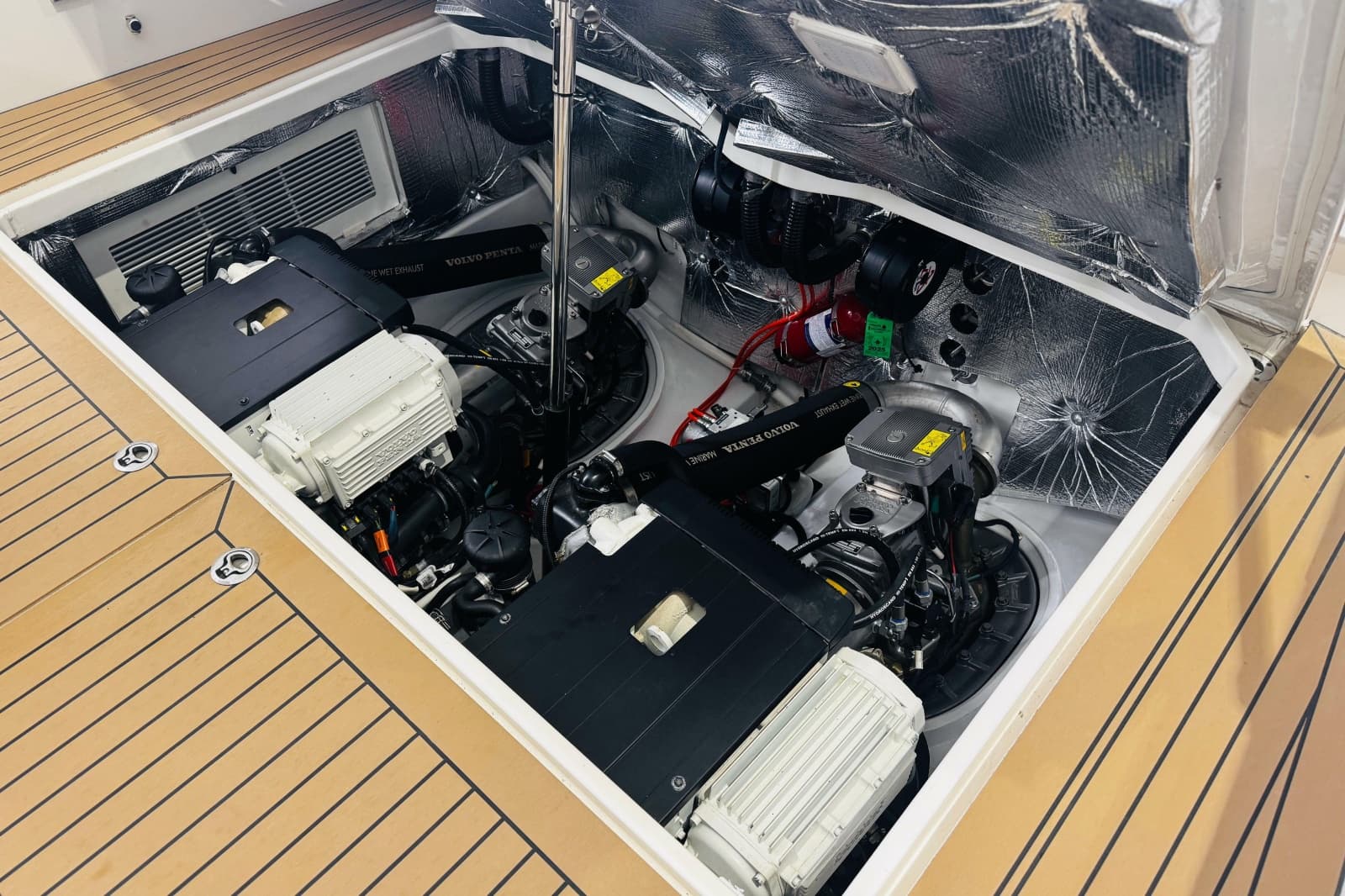

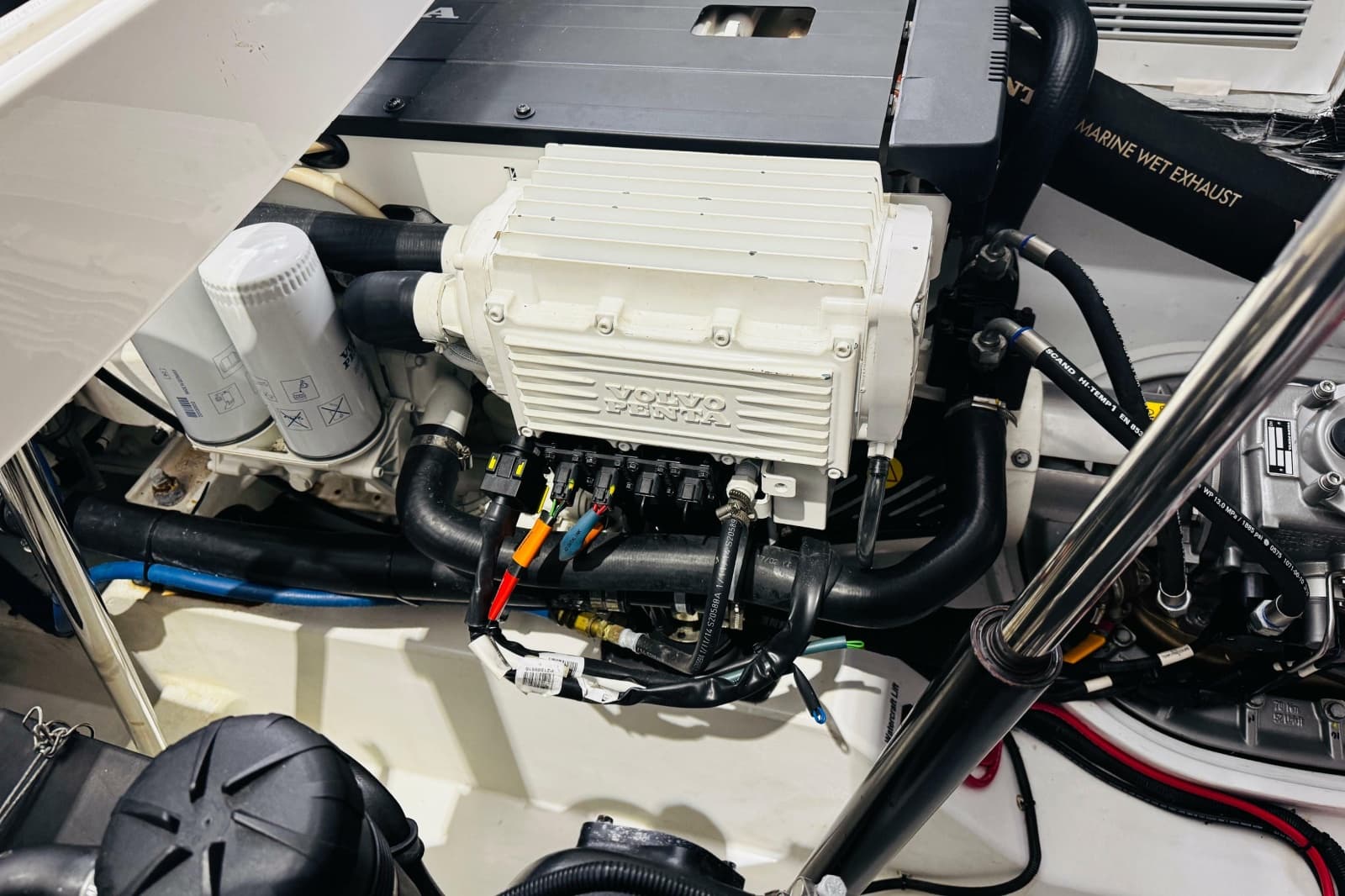

• Twin Volvo-Penta D6 IPS 500 joystick docking system with DPS Station Keeping (450hrs)
• Volvo-Penta Line Cutters between Duo Props
• Lectrotab Electric Trim Tabs
• Engine spares kit and service manuals
• UL approved fuel shutoff and fuel/air separators.
• Racor fuel/water separators with spare cartridges
• Two 175 gallon, aluminum fuel tanks with fuel level sensors and interconnect line with shut-off valves.
• Parker Class 1 steel-braid- reinforced, fuel hoses.
• SS engine air intakes (4)
• Dedicated sump below engine and transmission.

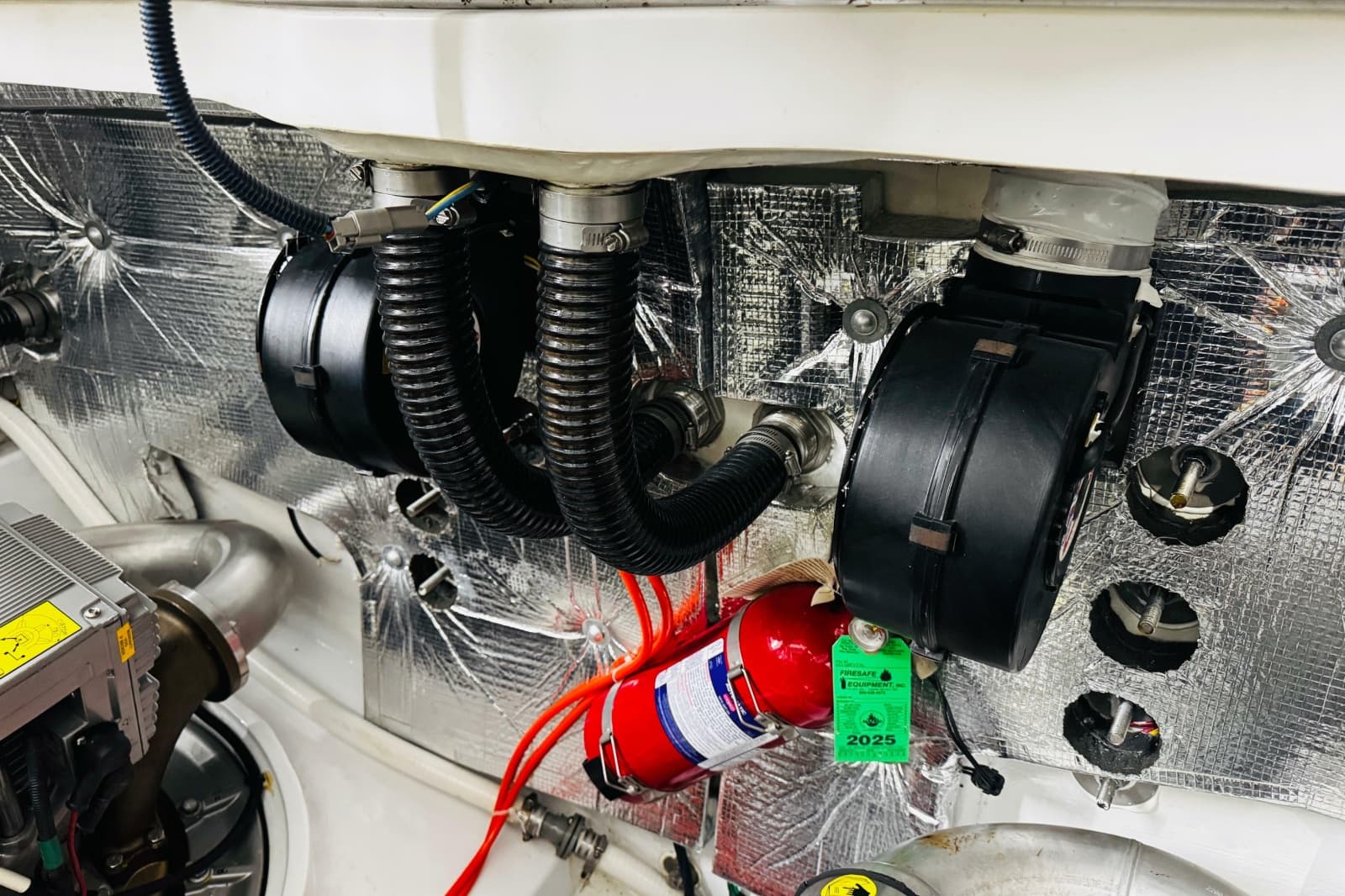

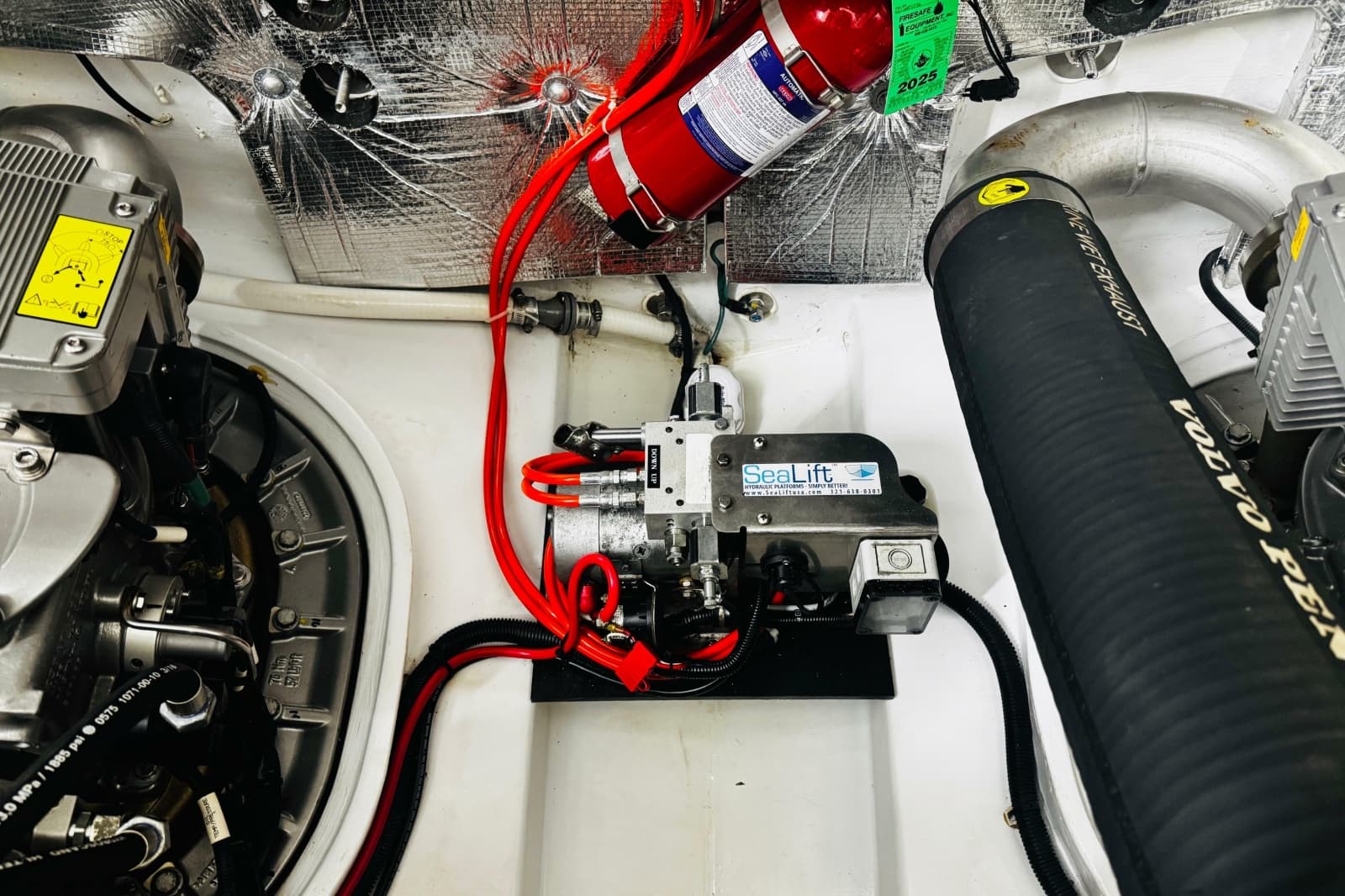

• Seafire automatic fire suppressant system
• Custom Soundown insulated engine room.

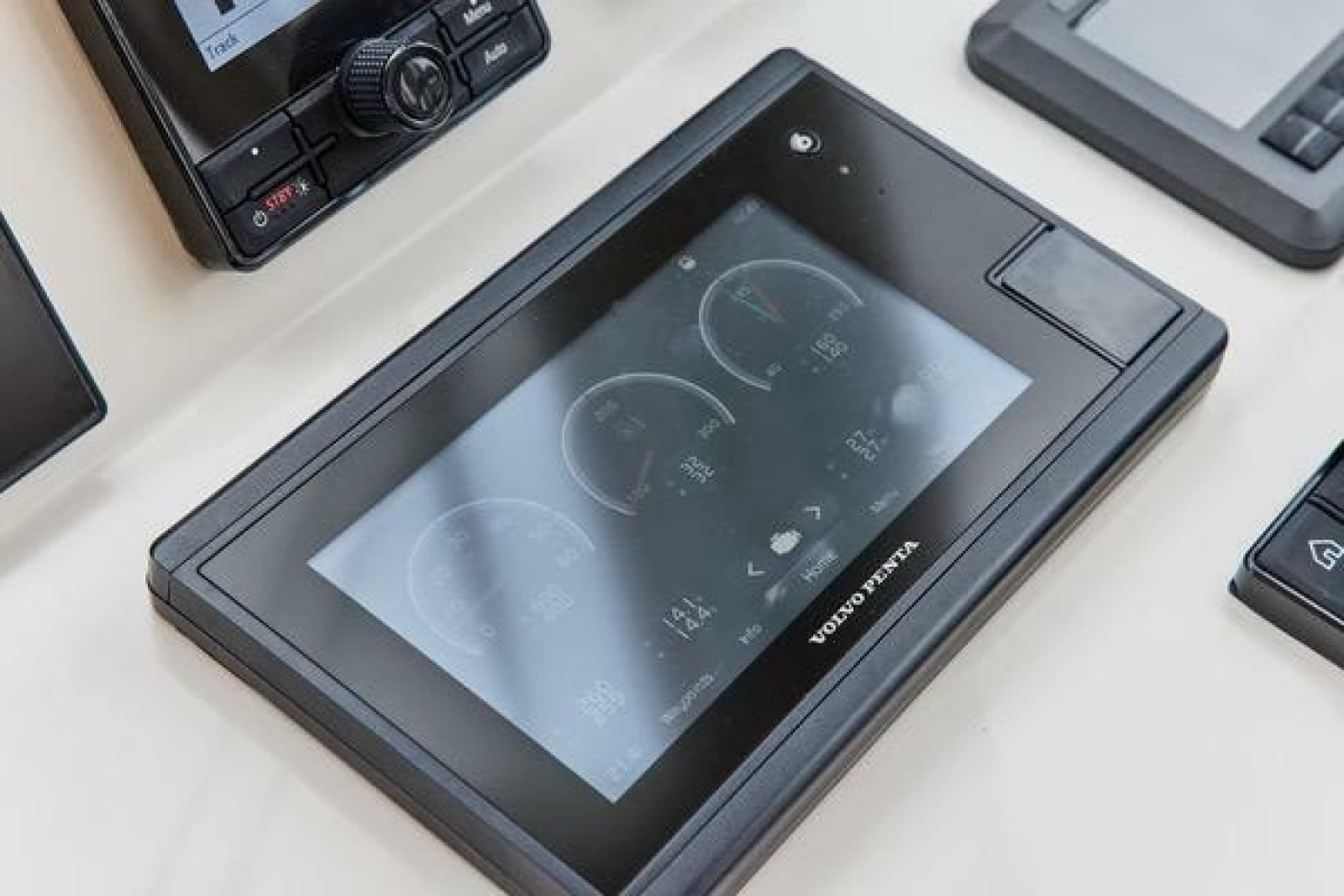

• Data display allows precise fueling

Electrical Specifications:

• Custom backlit electrical panel with 23-12v DC breakers and 12-110V AC breakers, stainless breaker guards and digital DC and AC monitors
• 110V AC system w/Victron Energy Shorepower system w/ 2-50' 30-Amp Hubbell cords
• Stainless GFCI duplex outlets (6)
• Volvo-Penta standard 125 amp alternators
• Blue Seas automatic charging relays
• Northern Lights 6KW 1800 rpm 3 cylinder generator (555hrs)
• Galvanic isolator
• LED cabin-reading lights (4) Overhead in galley (3) head (2) shower (2) saloon
• (5) forepeak (3) and pilothouse (6). Galley, dinette, forepeak and pilothouse w/dimmers
• Courtesy lights (3) in cockpit and head.
• Engine compartment lights.
• 700-amp hour absorbed glass-mat battery capacity with 2- Group 8D 245 AH house and 2-Group 31 105 AH engine batteries
• LED navigation and anchoring lights.
• Bonded electrical system and underwater fittings
• Serviceable wiring, bundled & numbered with Deutsch O- ring waterproof connectors.
• Dirt Devil central vacuum system

Plumbing Specifications:

• Pressure hot/cold water with Johnson Aqua Jet Duo variable-speed water pressure pump
• 13-gallon stainless steel hot water heater.
• 100-gallon polyethylene freshwater tank
• Dock water inlet w/check- valve and PSI regulator.
• General Ecology Seagull IV purification system
• Scandvik hot/cold shower on swim platform
• High-pressure fresh water washdown in port cockpit locker w/50’ hose & nozzle.
• Jabsco Rule 1100 automatic bilge pumps (3)
• Vacuflush head system with 32 gallon holding tank w/ pump out and macerator discharge.
• Back-up Bosworth manual bilge pump.
• Centralized gray water discharge system
• Gray water sump w/inspection port for shower, head, icebox and AC condensate.
• Marelon non-corrosive thru- hulls/seacocks with strainers and double-clamped hose.

Piloting, Navigation, and Entertainment

Piloting and Navigation Specifications:

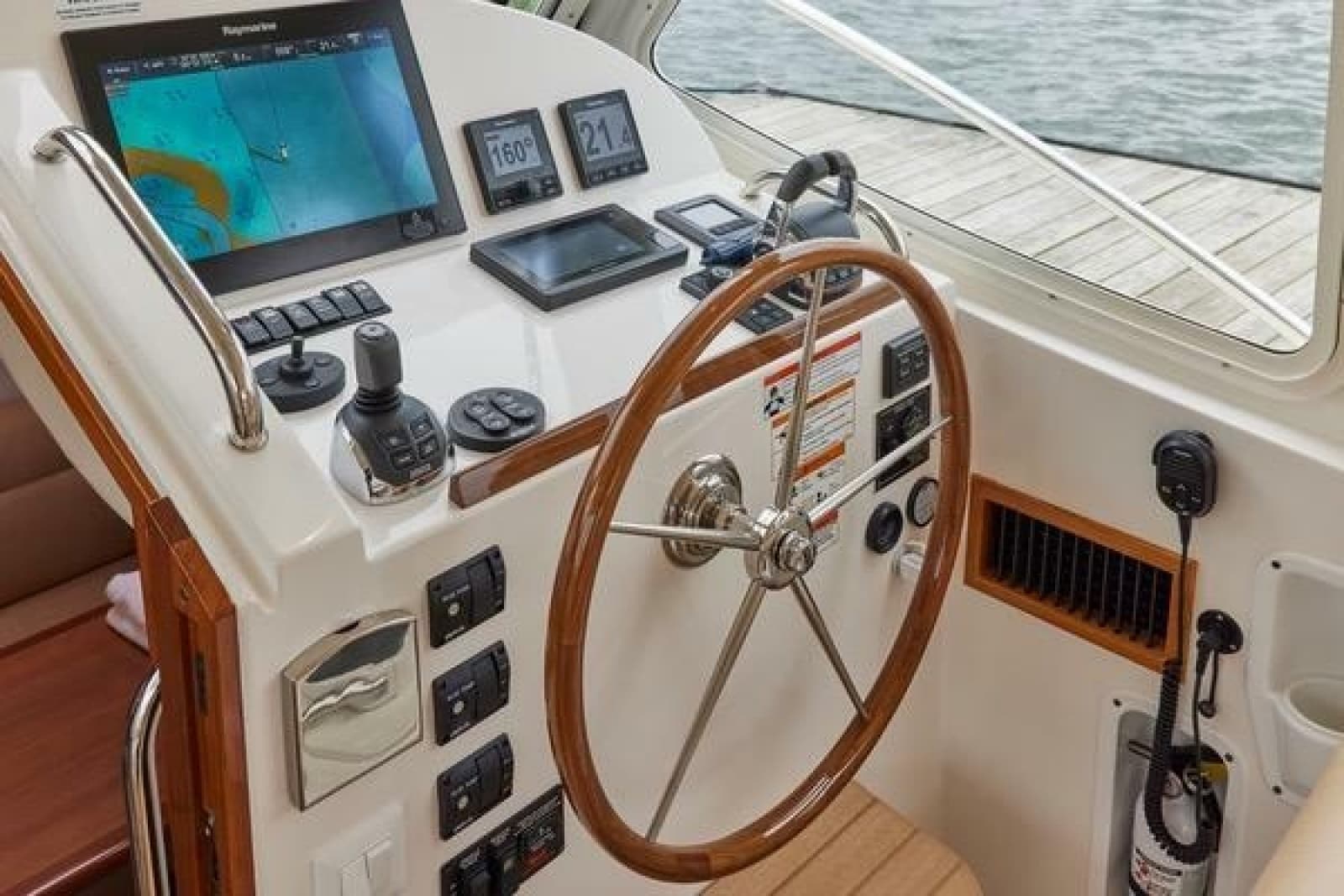

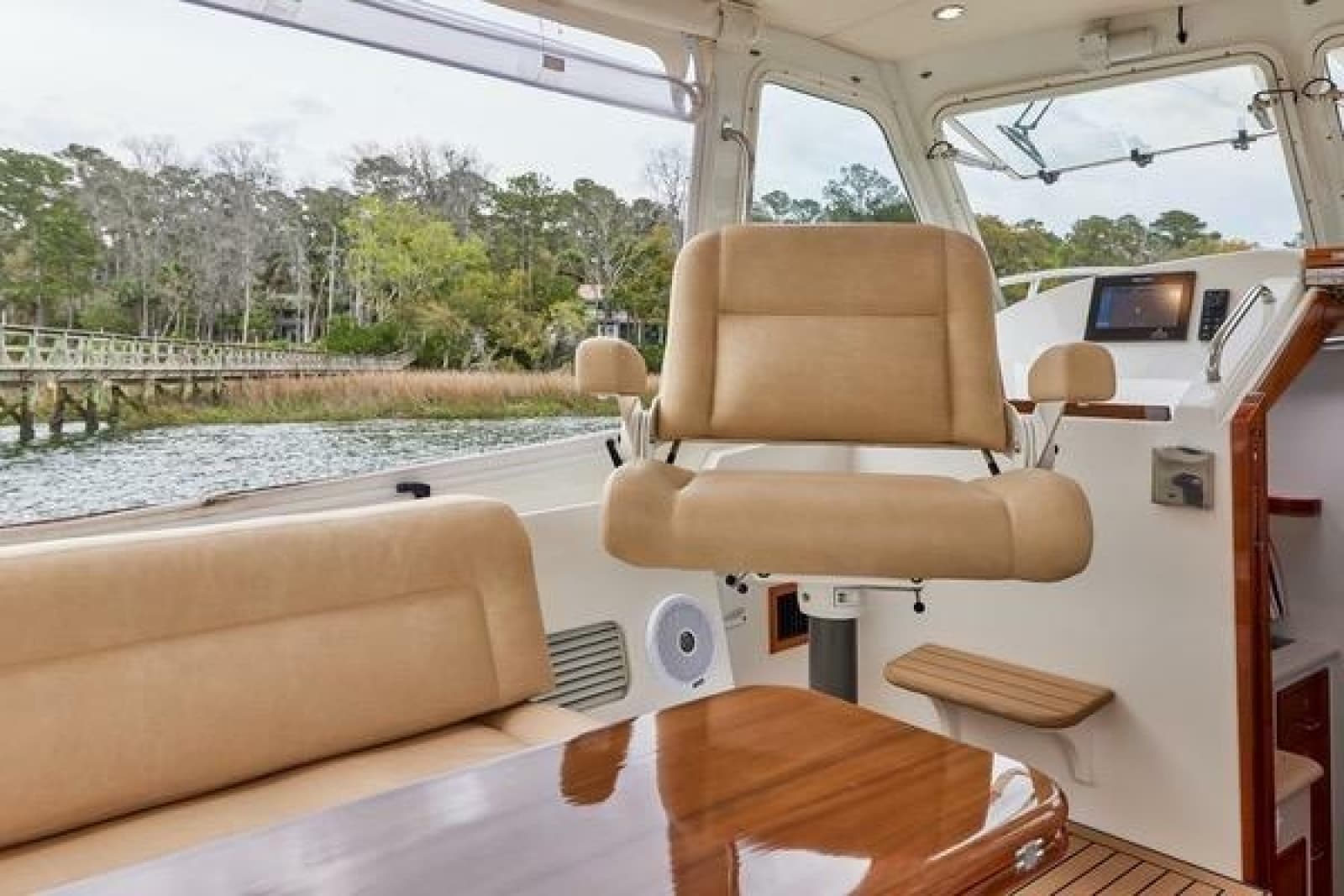

• Matched Stidd 500 30” wide Admiral low-back, recliner piloting chairs in UltraLeather which lower and swivel to create social seating for 8 persons.
• 24” Edson destroyer wheel with varnished teak trim
• Fully-opening windshields (3) for air flow in warm climates and better visibility in fog or at night. Electric push- button option installed.
• Windshield wipers & washers
• 320,000 CD LED bowrail mounted spotlight.
• Bi-level piloting console (P&S) with gray anti-glare
• Kahlenberg duel air horn w/auto fog/anchor signal
• Ritchie SS-2000 4.5 Supersport compass.

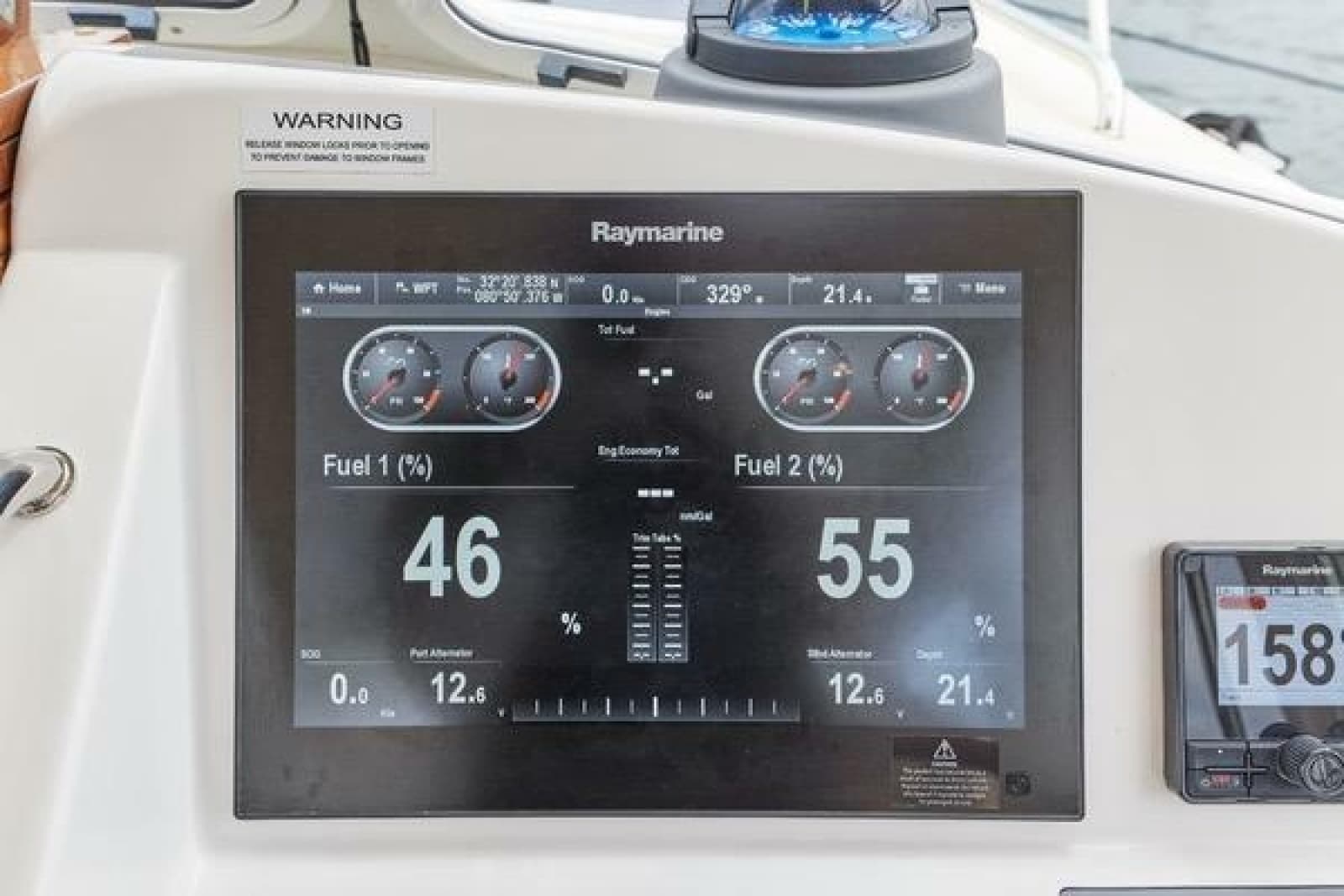

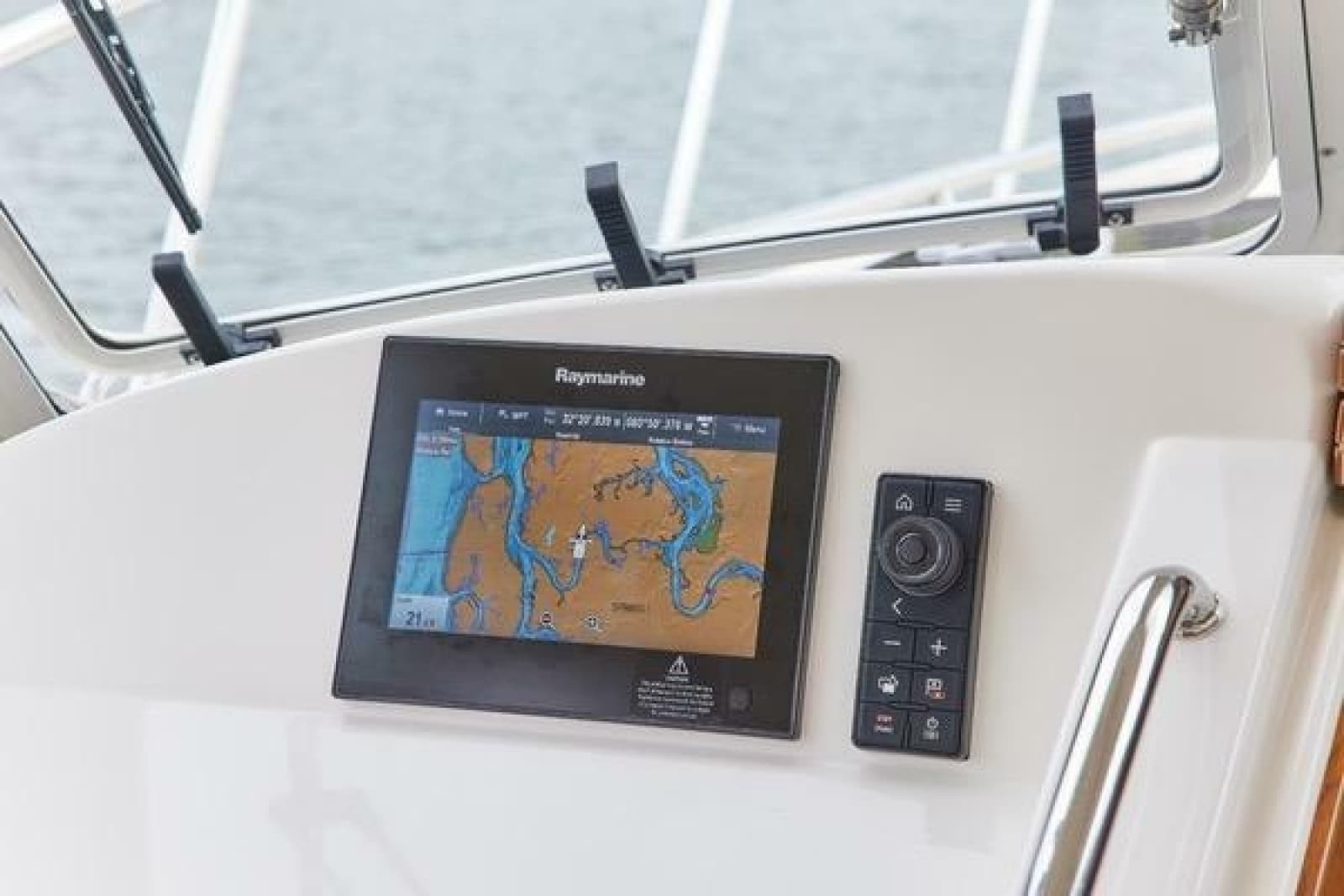

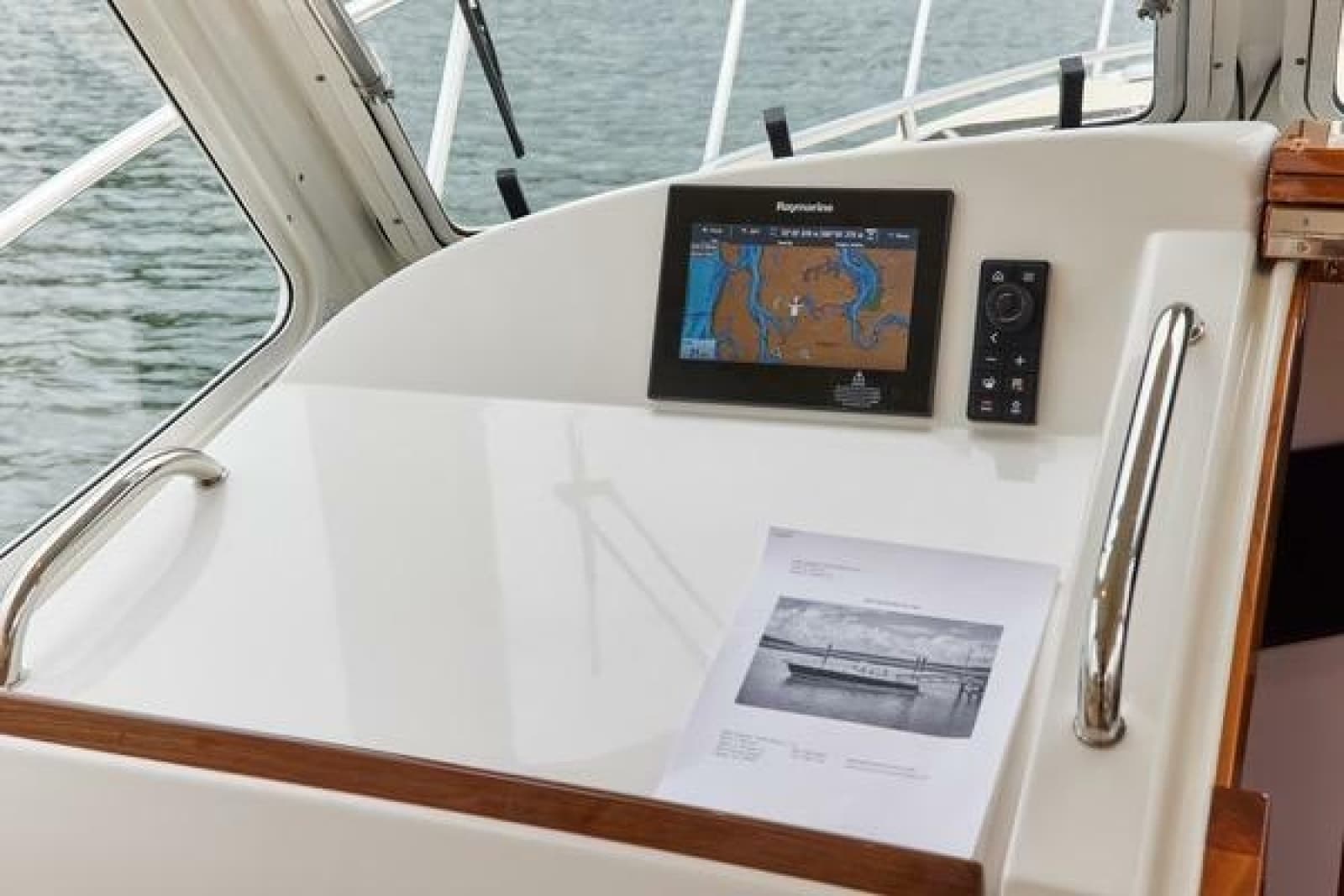

• Raymarine Axiom Pro S 16 Hybrid Touch MFD with Wi- Fi for iPad control STARBOARD and PORT positions
• Raymarine Axiom Pro S 12 Hybrid Touch MFD - PORT

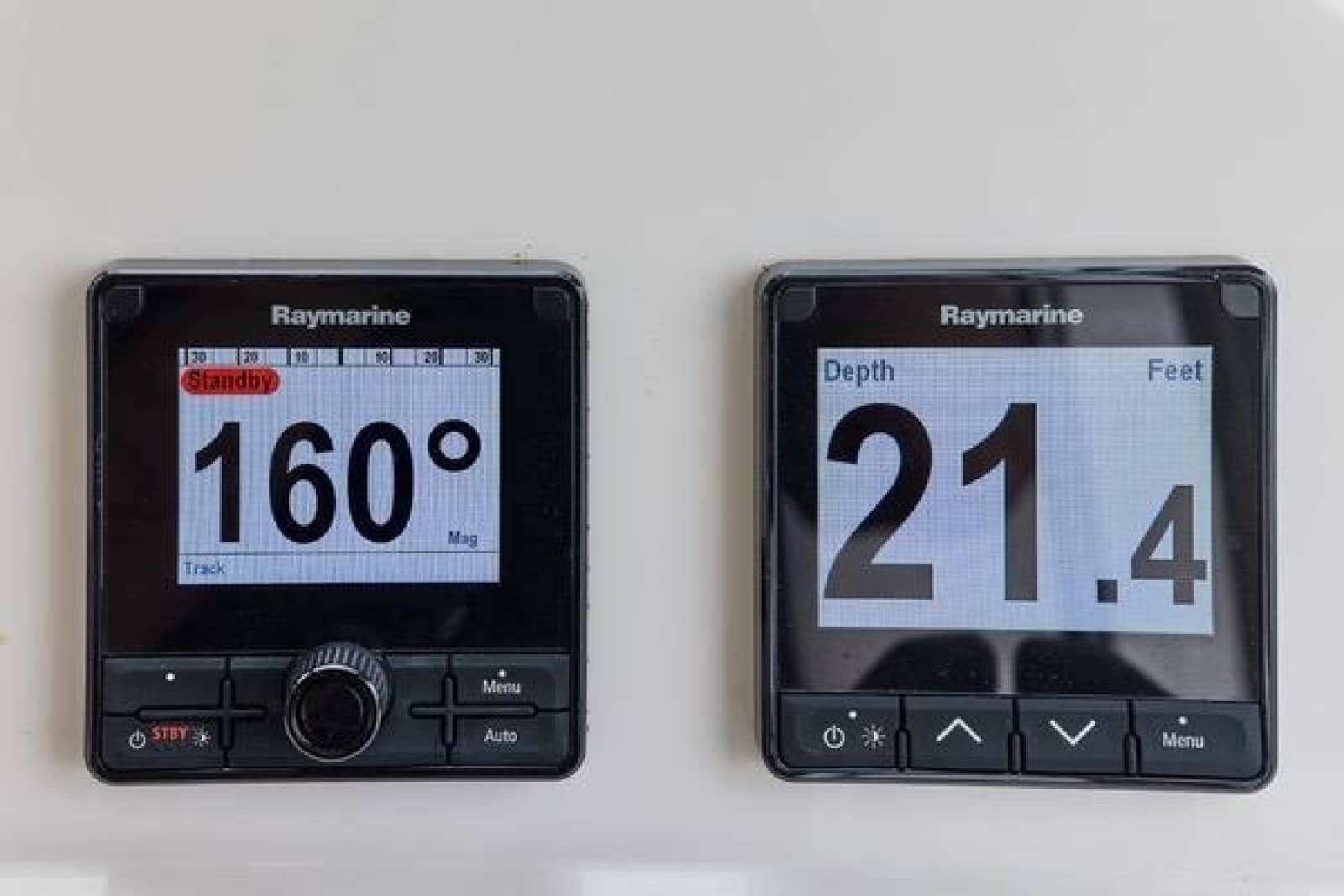

• Raymarine i70s Display for large depth readout.
• Raymarine Auto-Pilot
• Raymarine 4KW HD Color Radar w/dome

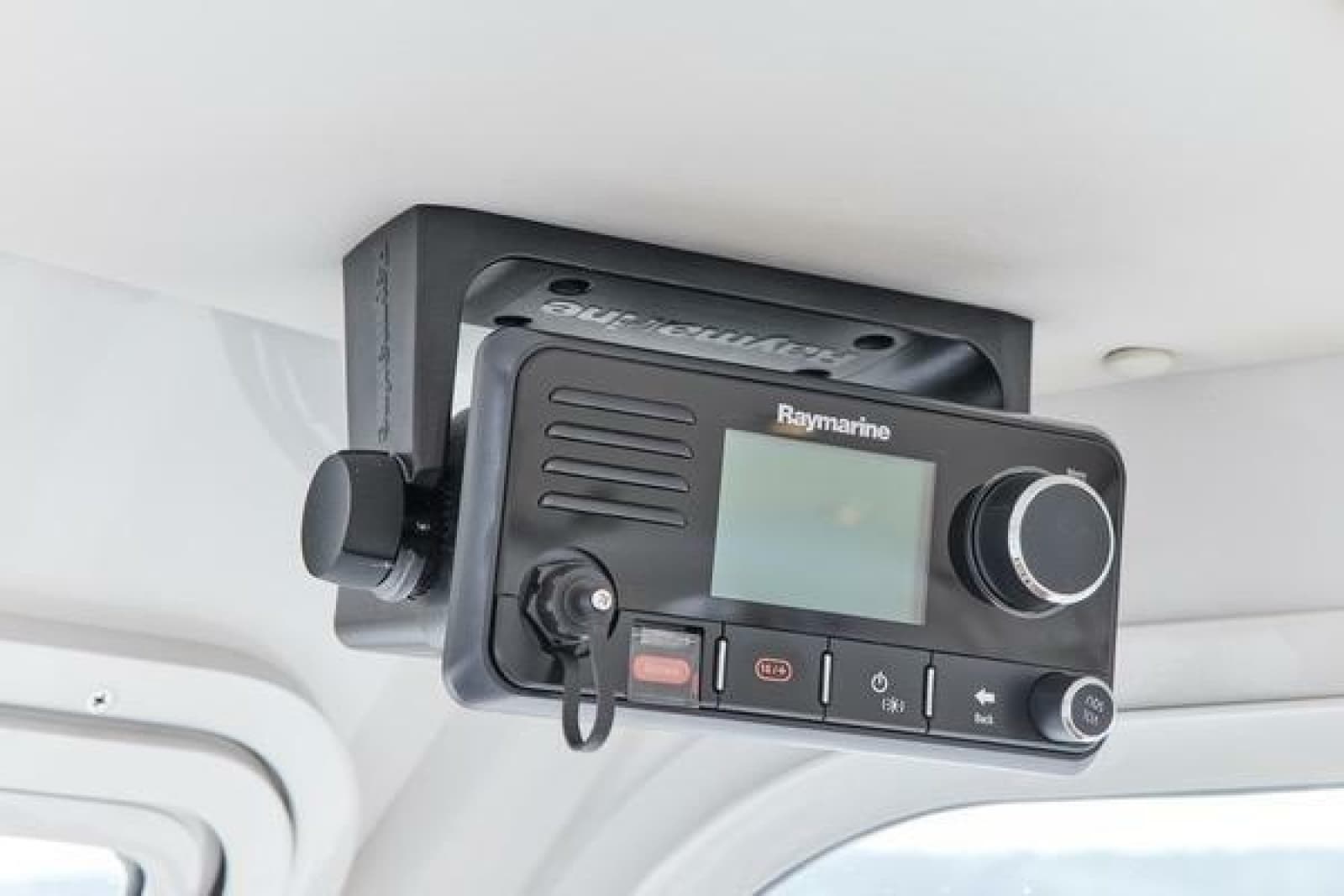

• Raymarine Ray 63 VHF on overhead w/ remote control with microphone
• Raymarine AIS 650 tracking system.

Entertainment Specifications:

• Fusion MS-AV755 stereo w/ AM-FM-CD-DVD-Bluetooth- USB-AUX2-iPod/iPhone- MTP-ARC-Pandora Sirius XM w/5 channel 1600 watt amplifier; 6-7” speakers; 2-3” speakers, 6” subwoofer in saloon and 350W amplifier.

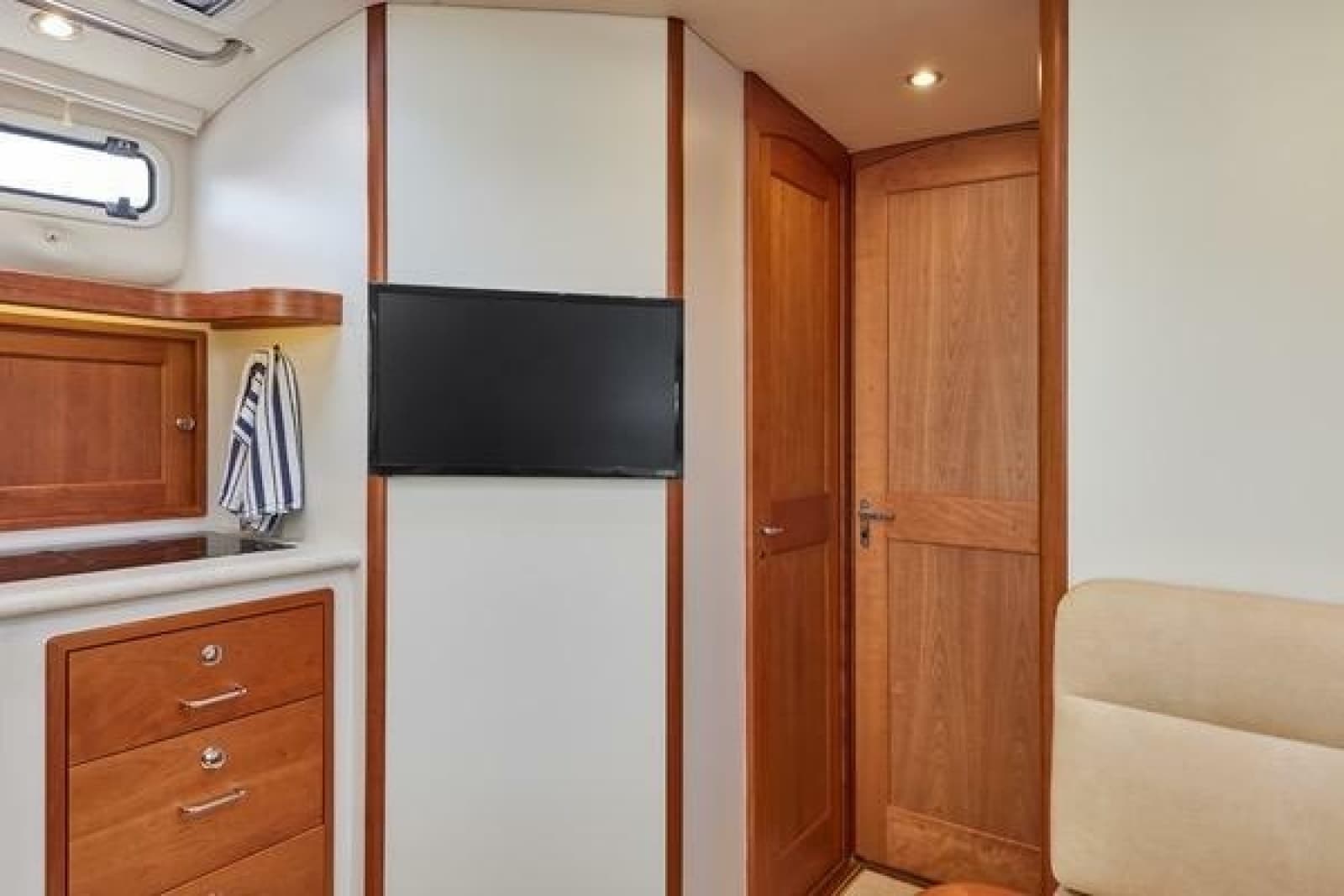

• 24 inch HDTV, amplifier and external speaker in saloon.

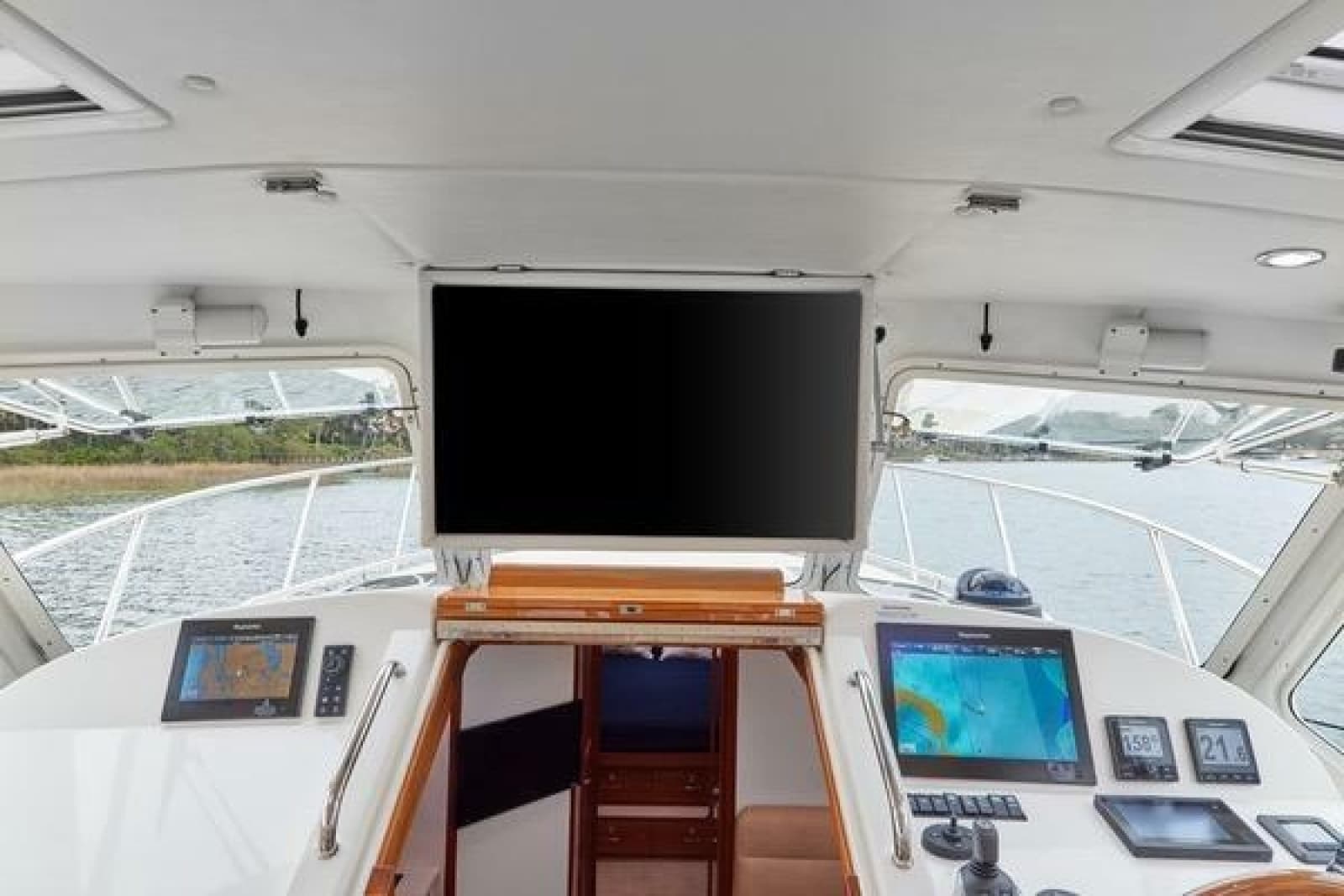

• 32 inch drop-down smart HDTV with wi-fi streaming, Fusion A/V connection in Pilothouse.

Factory Installed Options

Factory Installed Options and Upgrades:

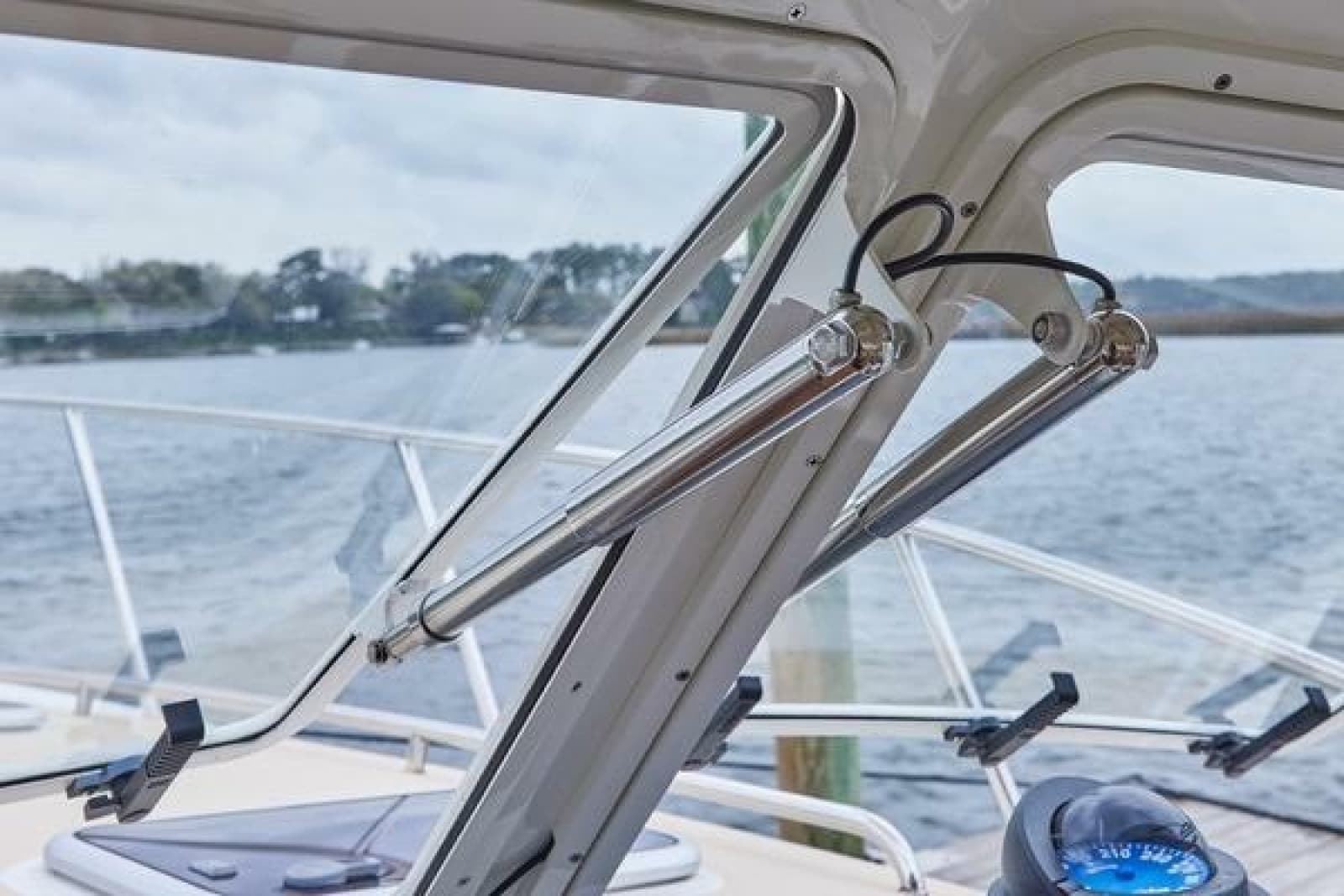

• Power opening front windshields
• Roll up Sunbrella Privacy Curtains over large openings in sides plus six others fore and aft.
• Esthec Composite Decking in Pilothouse, cockpit.
• Aft cockpit Bimini top with boot.

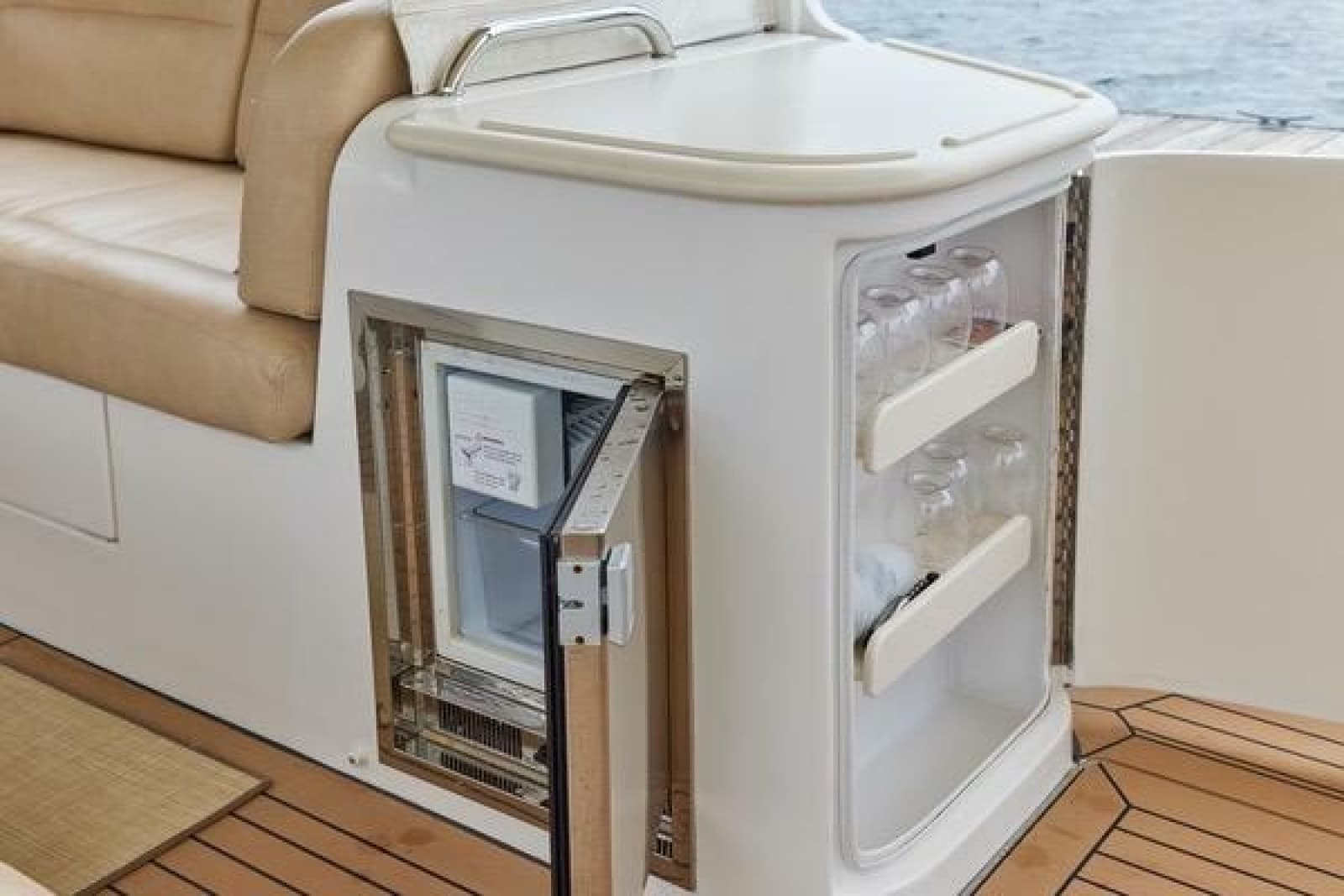

• Aft cockpit serving bar with Vitrifrigo IMXT Ice Maker and wine tumbler storage.

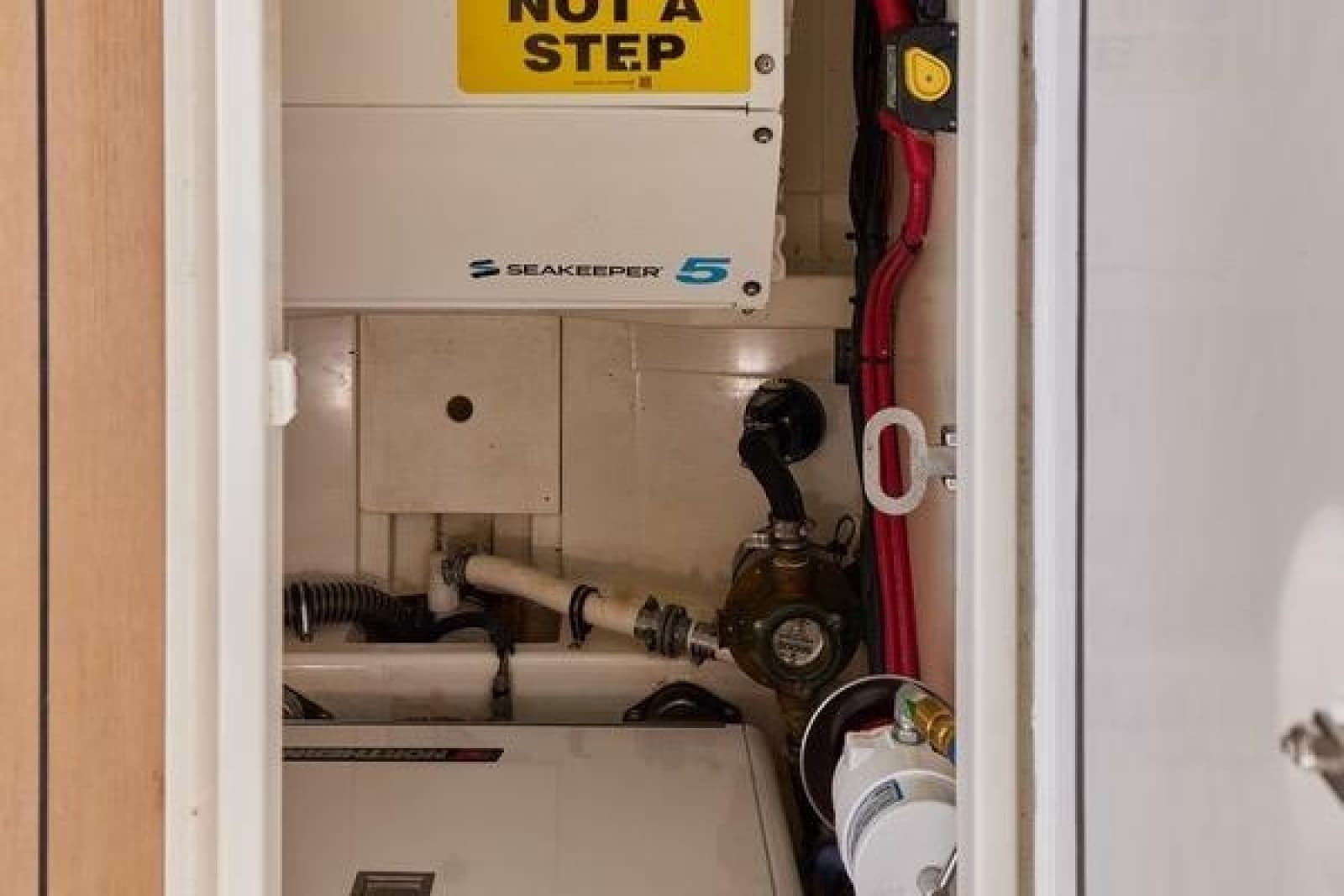

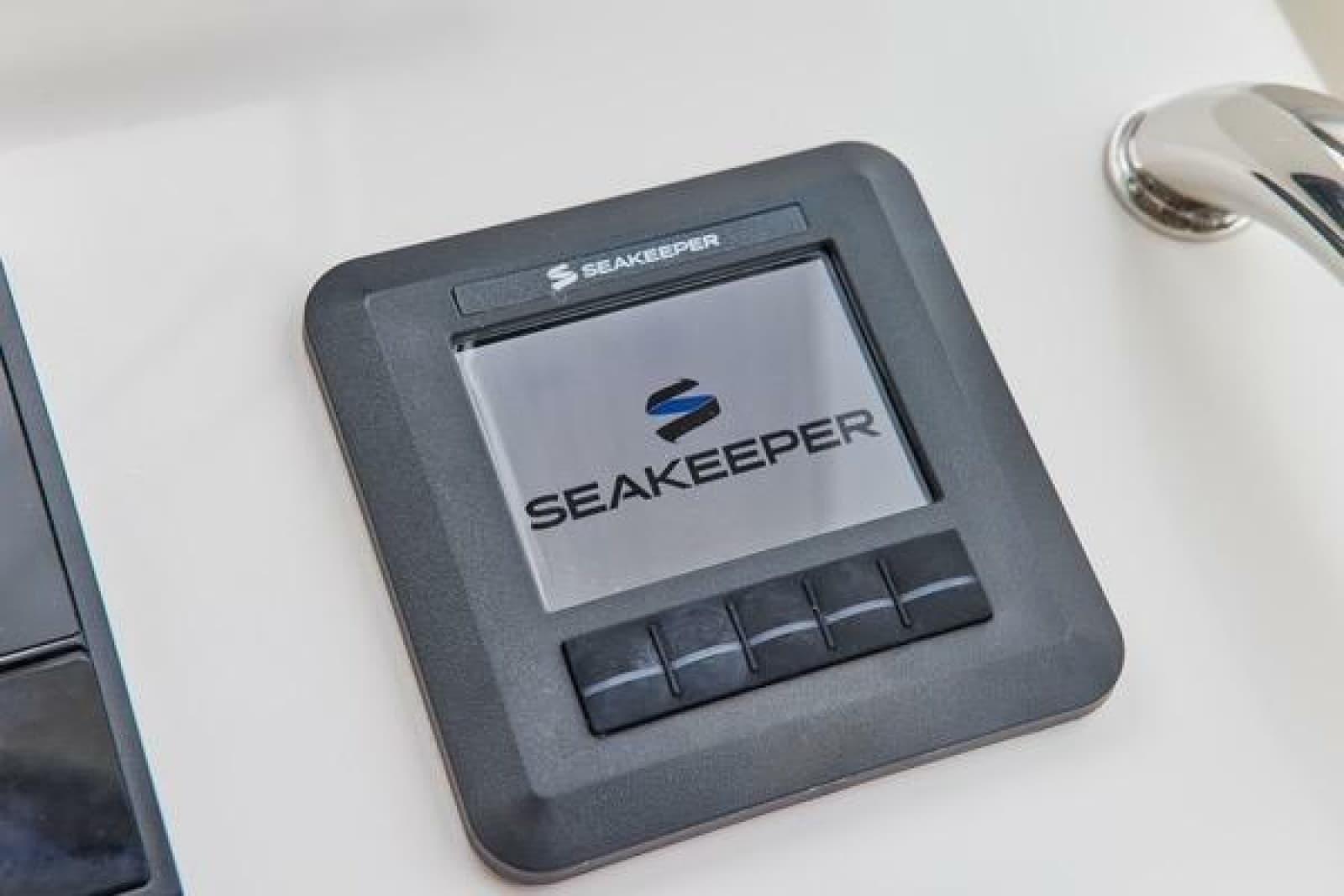

• NG 8000 Seakeeper Gyrostabilizer
• Northern Lights 6KW 1800 rpm 3 cylinder generator (555hrs)
• 32,000 BTU Marine Air Conditioner System
• 24 Inch LED TV, amplifier and external speaker in saloon
• 32 inch Drop Down Smart HDTV with wi-fi streaming, Fusion A/V connection in pilothouse
• Air-Conditioning "Soft Start" Kit - Reduces start up amperage draw and lowers noise at start up
• Freedom Lift
• Ice-Maker

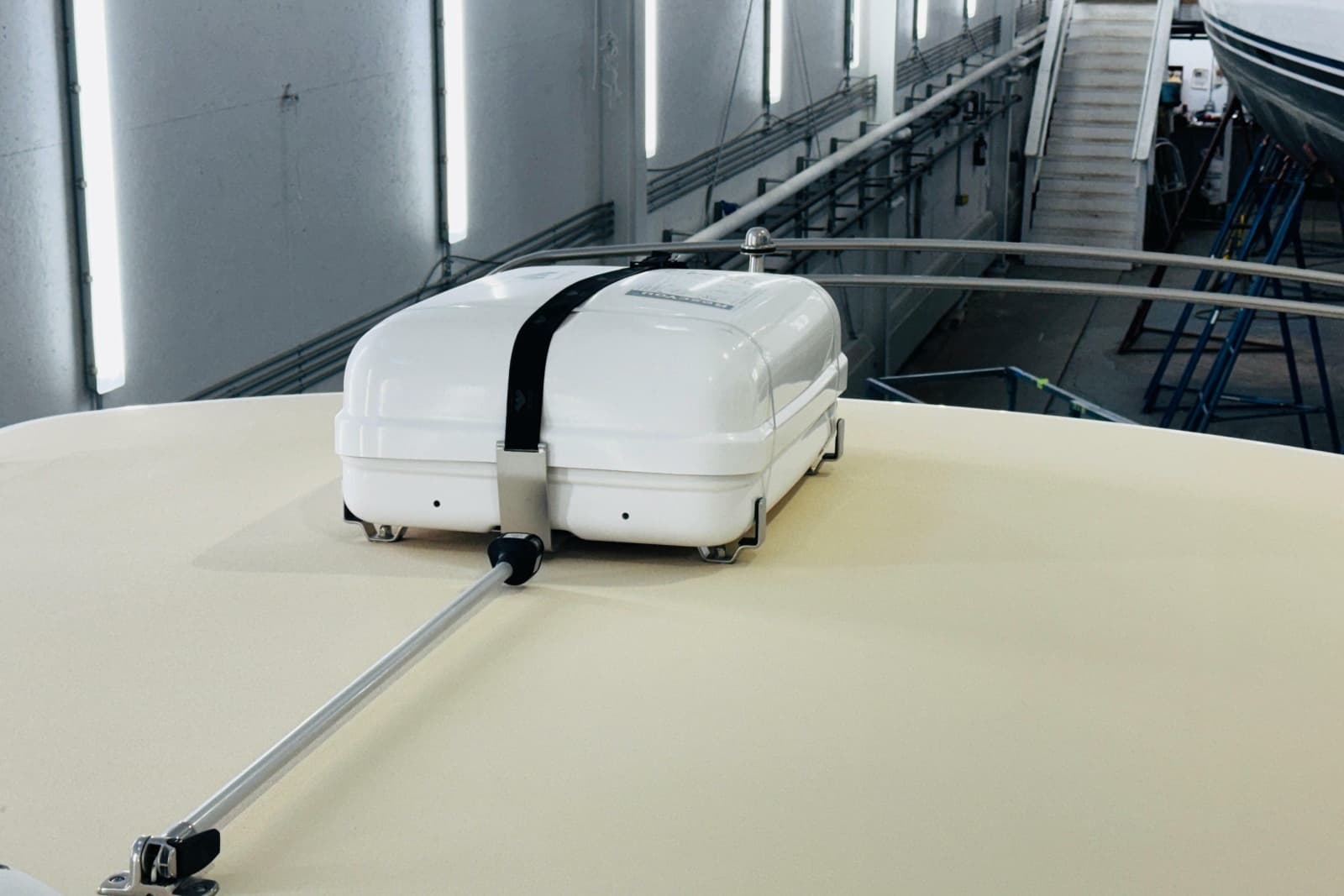

• Life Raft

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
