2018 Legacy 36

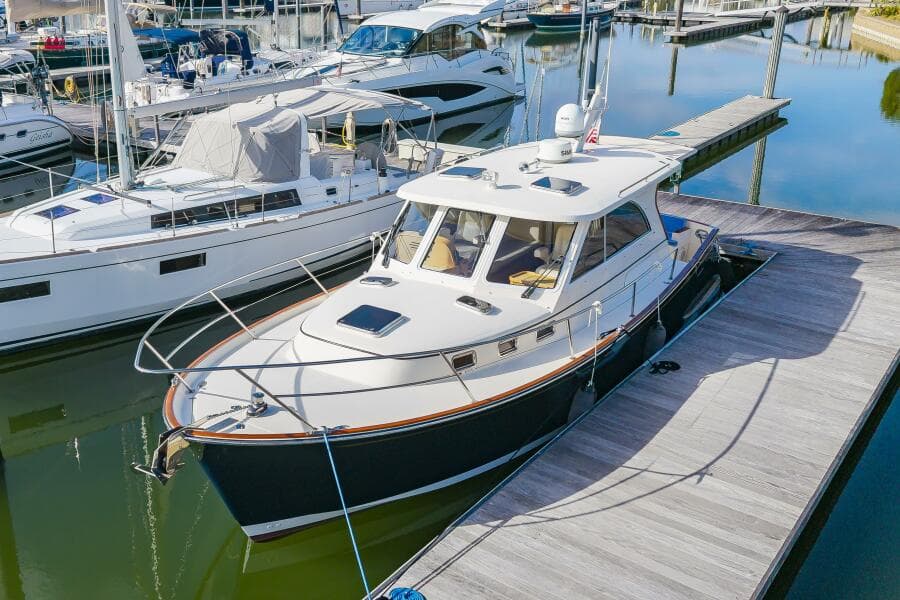

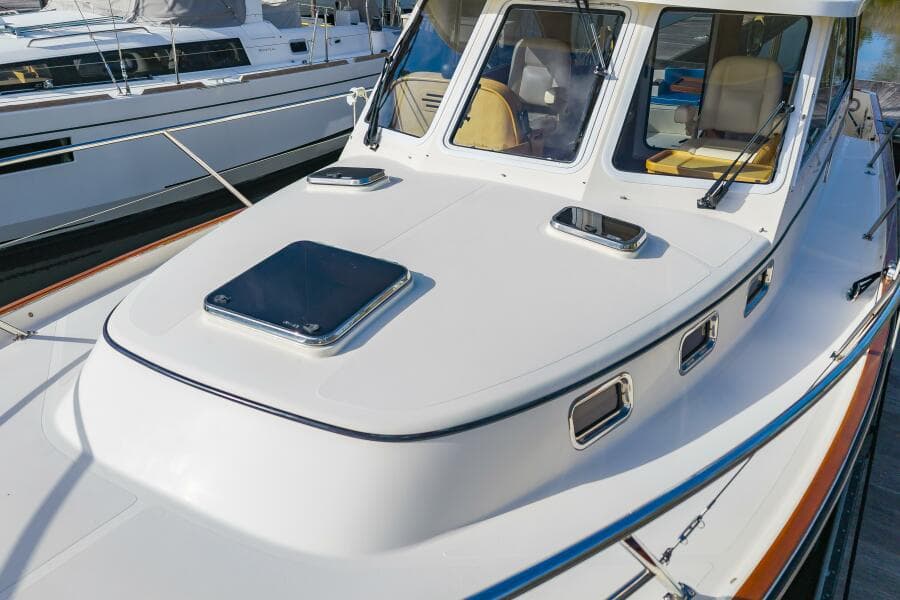

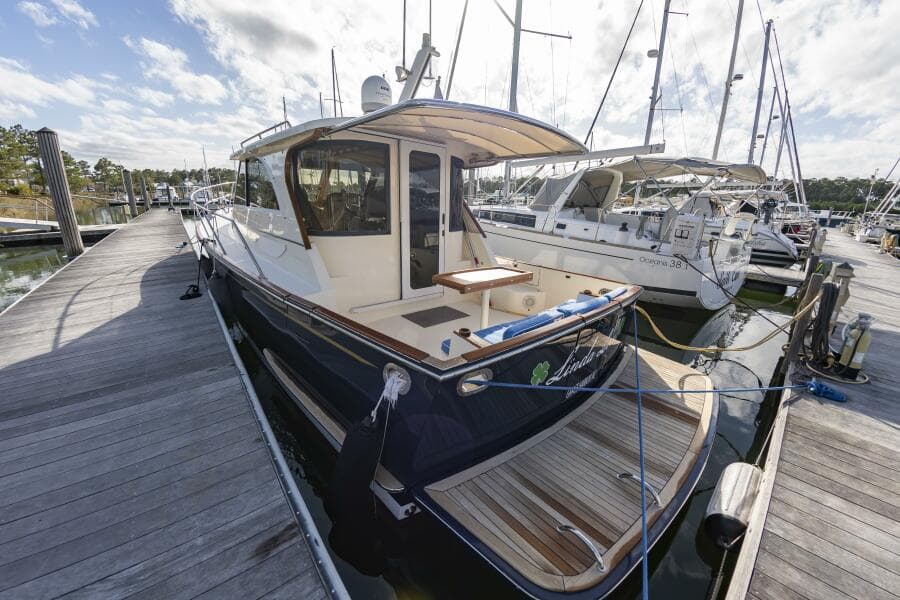

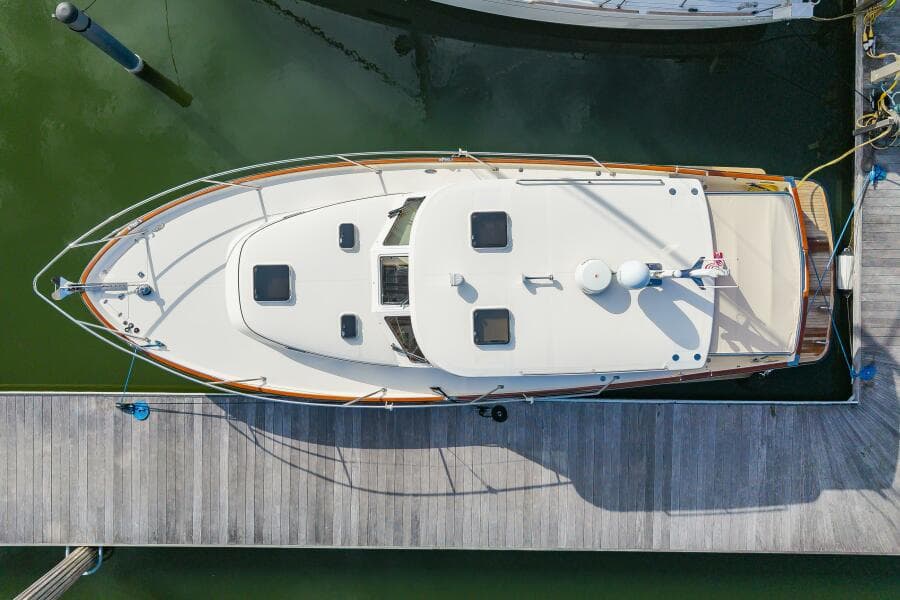

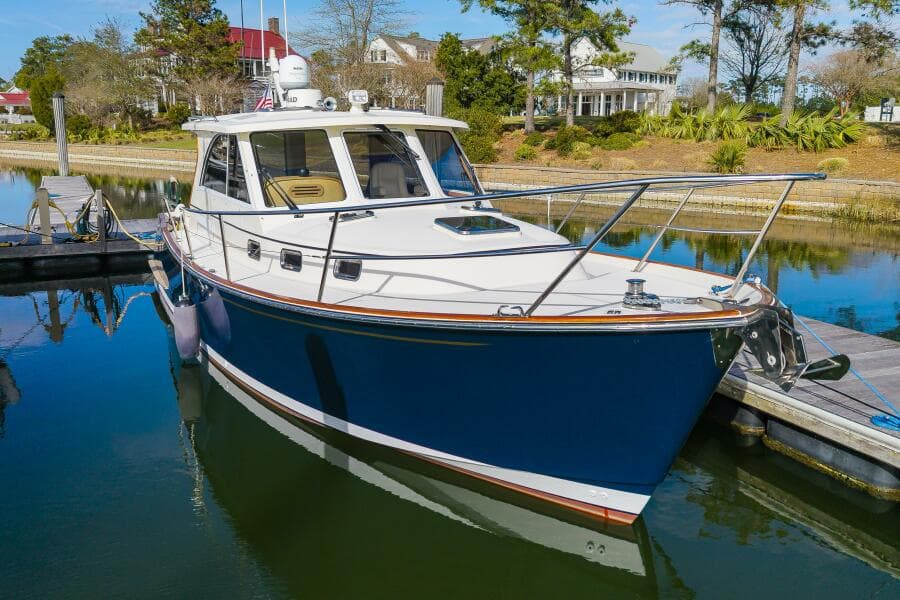

Under way or at the dock, the experienced yachtsman will appreciate the attention given to deck details that enhance safety and comfort. The aft self bailing cockpit is a large oasis of relaxation, providing an aft settee for sun worship, as well as two additional seats adjacent to the entrance to the helmdeck salon. Tall bulwarks, a hefty 1 ¼” bow rail, plenty of handholds and molded non-skid all offer security when heading to the foredeck. Her sidedecks are wide for easy and safe passage. Also note the large array of ventilation, two stainless steel opening hatches on the helm deck, three additional stainless steel deck hatches to the cabin as well as six stainless steel opening portlights. The deck hardware is all of the highest quality with particular attention given to the custom 316 stainless steel fabrications and appointments. The deck is thoughtfully trimmed with epoxy coated Sapelle, a beautiful African hardwood, all expertly finished with high gloss two part urethane for an easy to maintain yacht finish. The deck shares the same high tech, vacuum infused lamination as the hull, and includes windows in the coring layout with aluminum backing plates at all high load hardware installations. The result is a strong and light weight deck structure with easily serviceable hardware installations.

Blue NPG-lsothalic gel coat

Modified Epoxy vinylester back-up resin

Modified Epoxy vinylester infused hull with PVC foam core sandwich with •

uni-directional e-glass reinforcementsCustom optional hull colors available

Modified Epoxy vinylester infused stringer system

Two part urethane waterline stripe

Full keel/skeg protects the prop and rudder

White NPG-lsothalic gel coat

Modified Epoxy vinylester resin infused sandwich structure

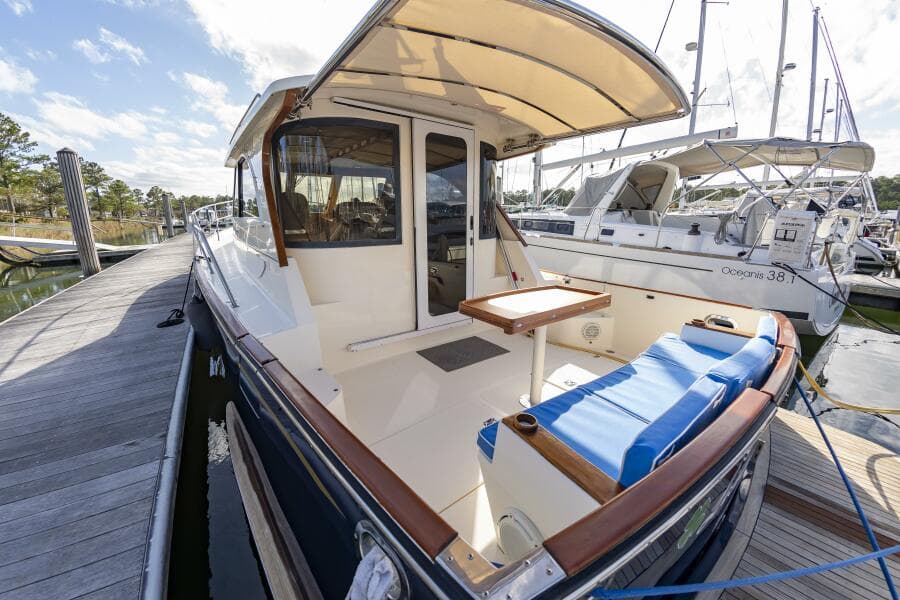

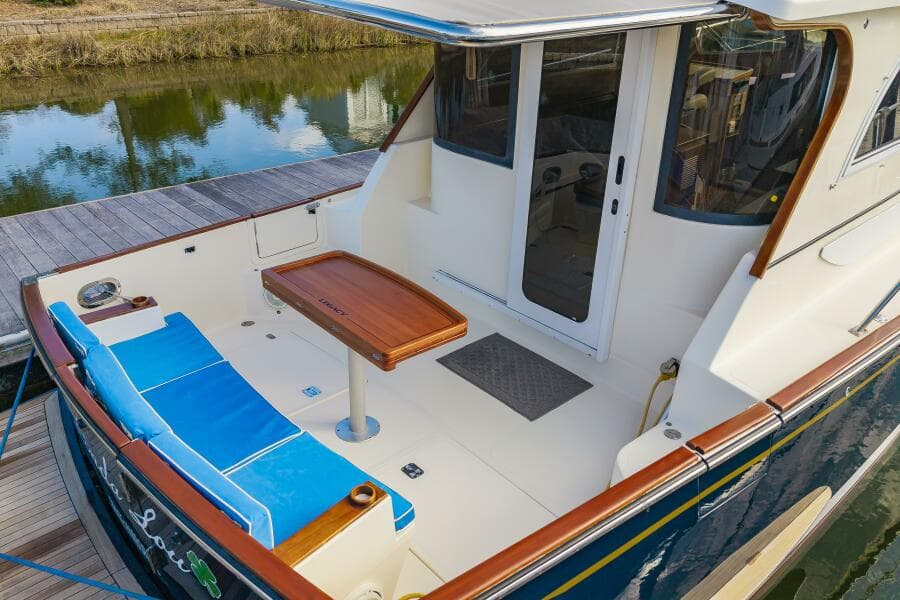

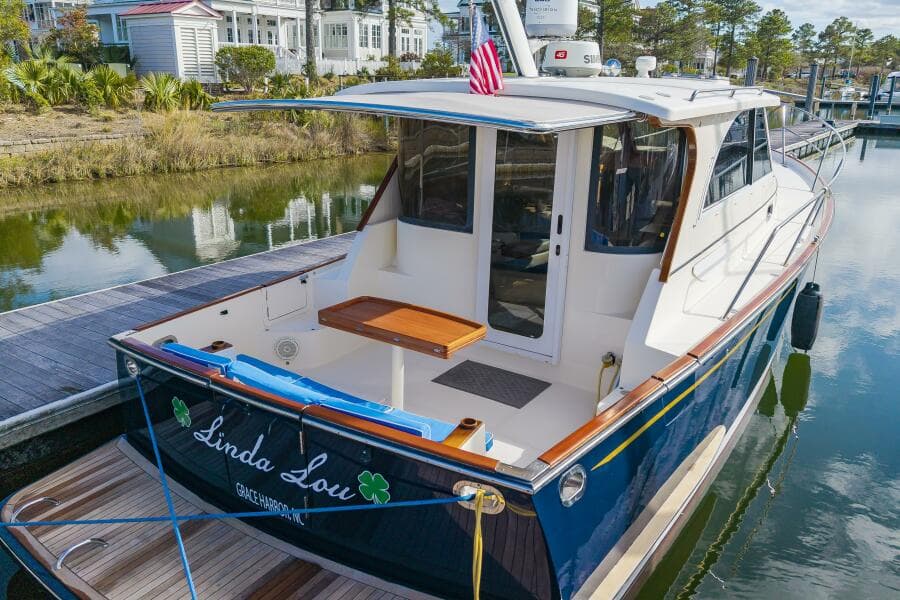

Self-draining cockpit with lazerette storage

Port and starboard molded steps leading to the side and fore decks

Port and starboard hinged boarding doors in hull for convenient side

access

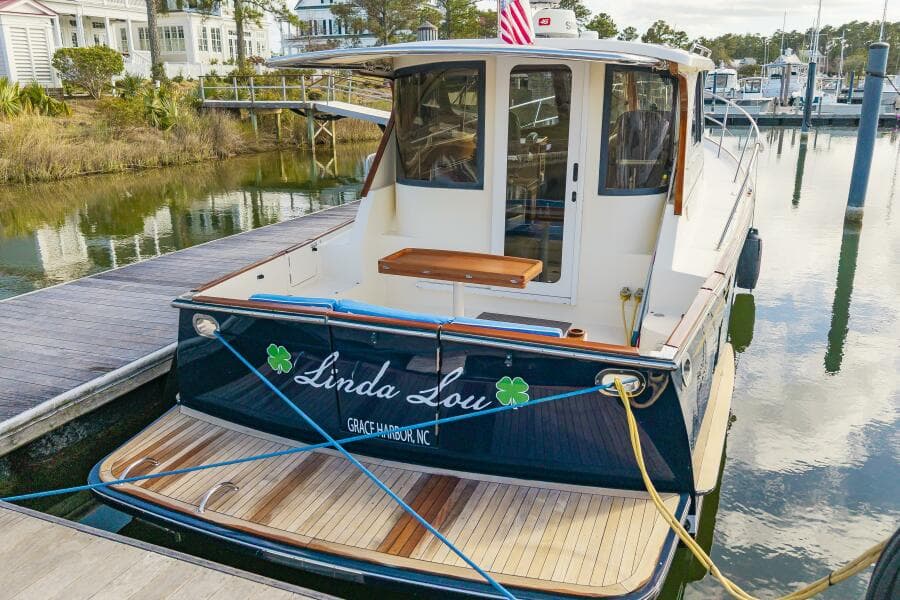

Transom door access to swim platform

Custom highly polished type 316SS bow breast plate

316 Stainless steel chocks at bow and mid ship

Large type 316 stainless steel mooring cleats at bow, mid ship and stern

(6) Stainless steel opening port lights with insect screens

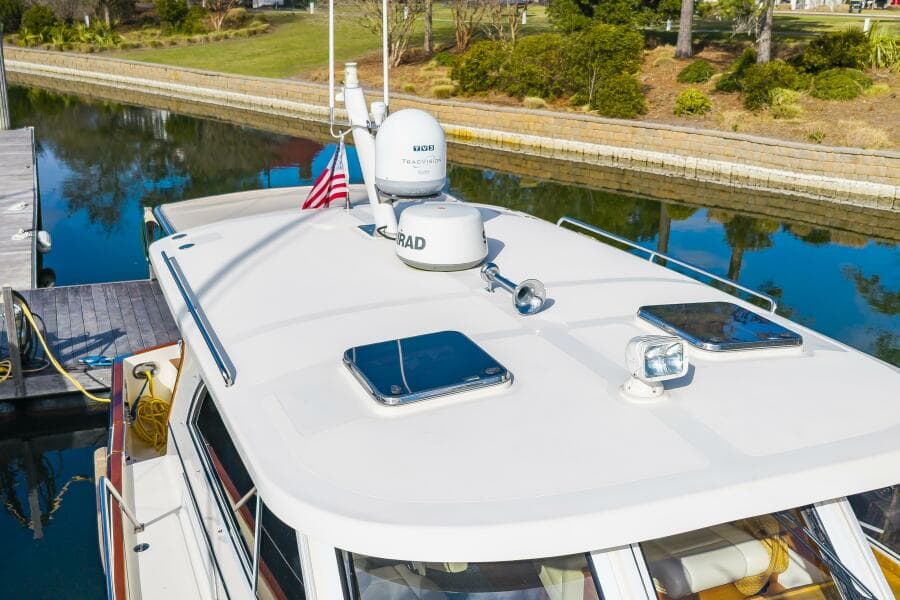

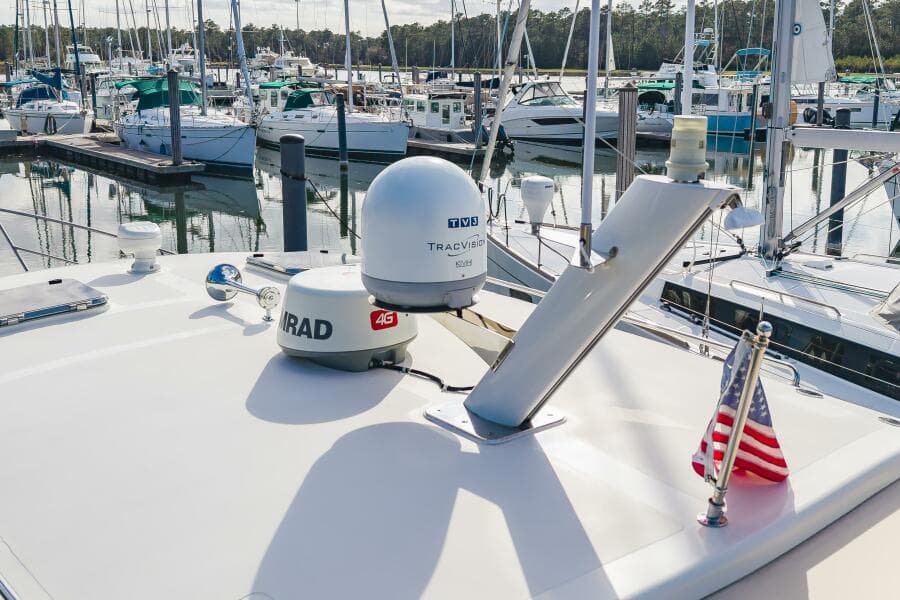

Navigation lights mounted in custom light standards on helm deck roof

top

Custom type 316 stainless steel mooring line hawse pipes at transom

and hull side

Epoxy sealed with gloss two part urethane varnished exterior Sapelle

trim and cap rails

Type 316 stainless steel handrails on hardtop port and starboard

Compressed air horn on hard top

Swim platform with stainless steel undermount swim ladder

Molded cockpit seating with storage, fore and aft facing with Sunbrella

cushions

Diamond pattern molded in non slip deck surfaces

Custom type 316 stainless steel perimeter/bow rail

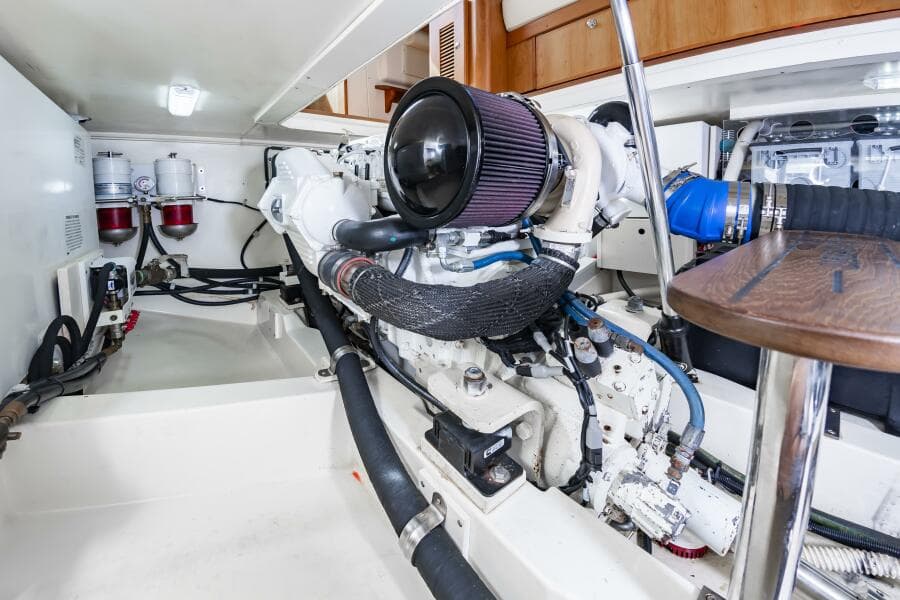

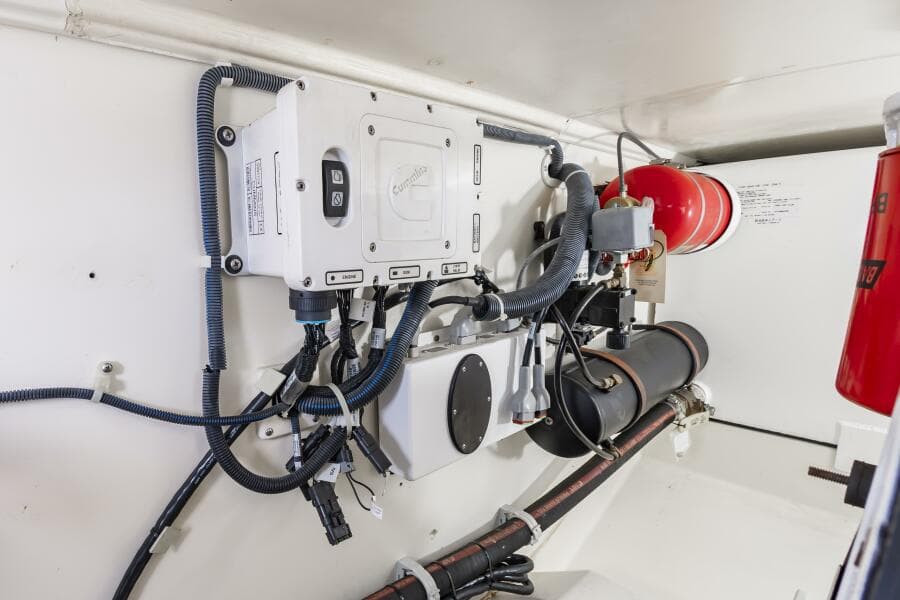

Cummins QSB 6.7 480 electronic diesel engine with ZF marine gear

Cummins Smartcraft display at helm

Binnacle mount , electronic single lever engine control

300 US Gallon fuel capacity in (2) aluminum fuel tanks with individual

fills and valved gravity cross over

Racor fuel filter/water separator

8" underwater exhaust and silencer with dry by pass to transom exhaust

tip

2" Aqua met double tapered prop shaft4-Blade, 5 axis CNC precision machined NiBrAI propeller

PYI dripless shaft seal

Bow thruster with joy stick control

Marelon sea valves on all underwater thru-hulls

Automatic fire extinquisher system with manual back-up

(1) Super 8D AGM engine start battery with emergency parallel to house

batteries

Seastar tilt helm hydraulic steering with teak rimmed Stazo wheel

Heavy duty Exalto wiper system with freshwater wash

Electronically actuated trim tabs with helm indicator and control

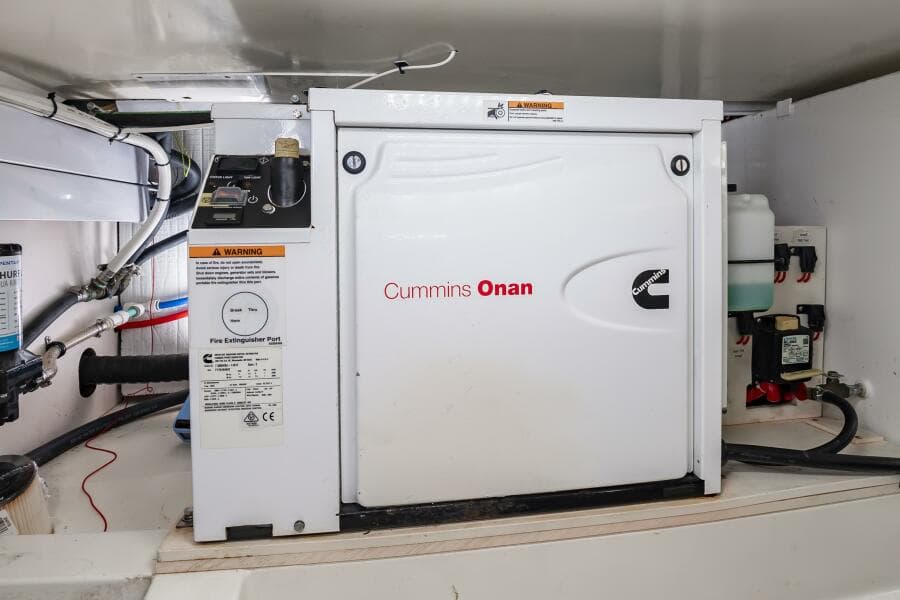

Cummins 7.0 KW Generator (380 hours)

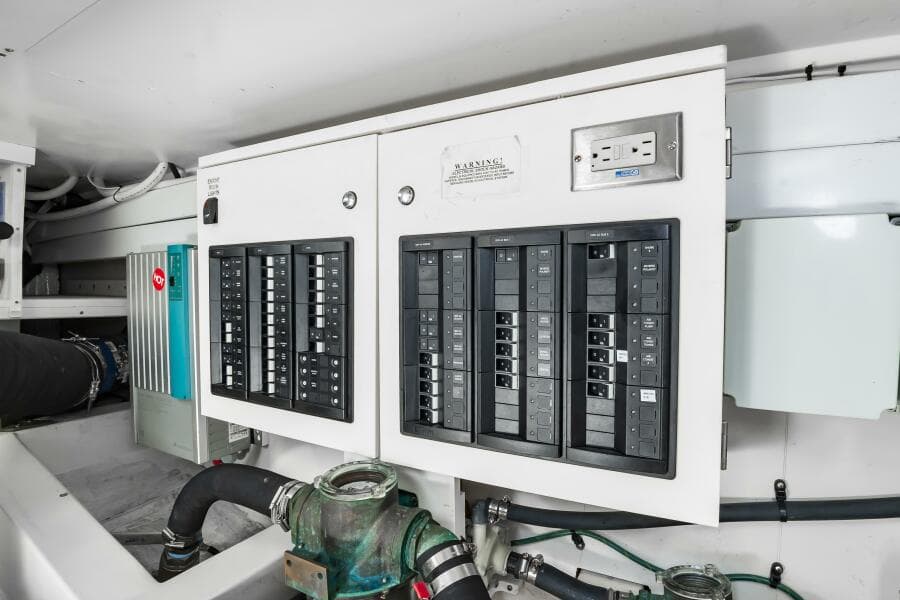

AC and DC control panels with overcurrent protection and polarity

indicator

Remote panel includes display for tanks, AC and DC volts and amps

DC circuit control panel at helm

Remote battery switches conveniently located at helm

Emergency parallel cross over remote battery switch

(2) 30 Amp VAC shorepower inlets with 50 foot cord sets

AC shore power system with GFI protected convenience outlets

throughout

Galvanic isolator

Combi inverter/battery charger

(2) 8D AGM house batteries

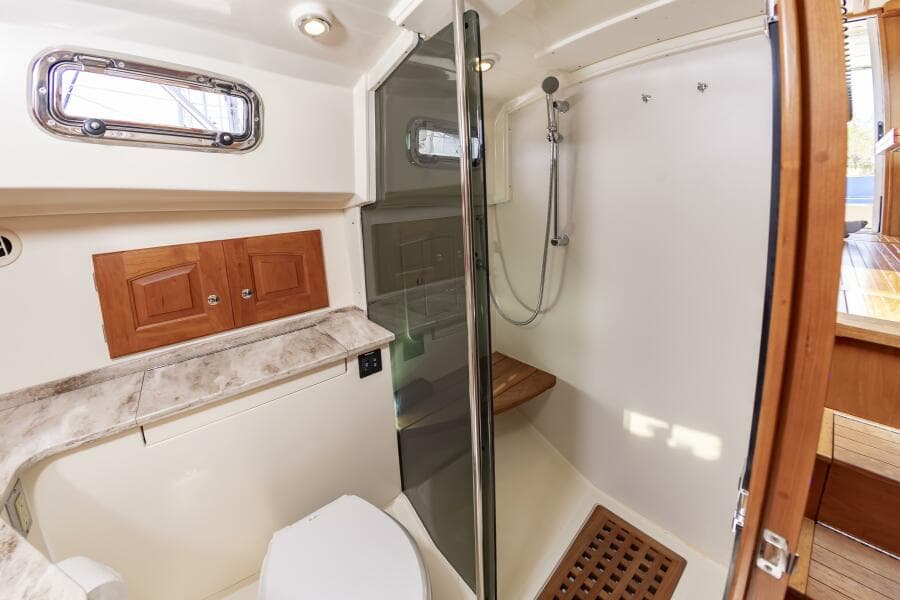

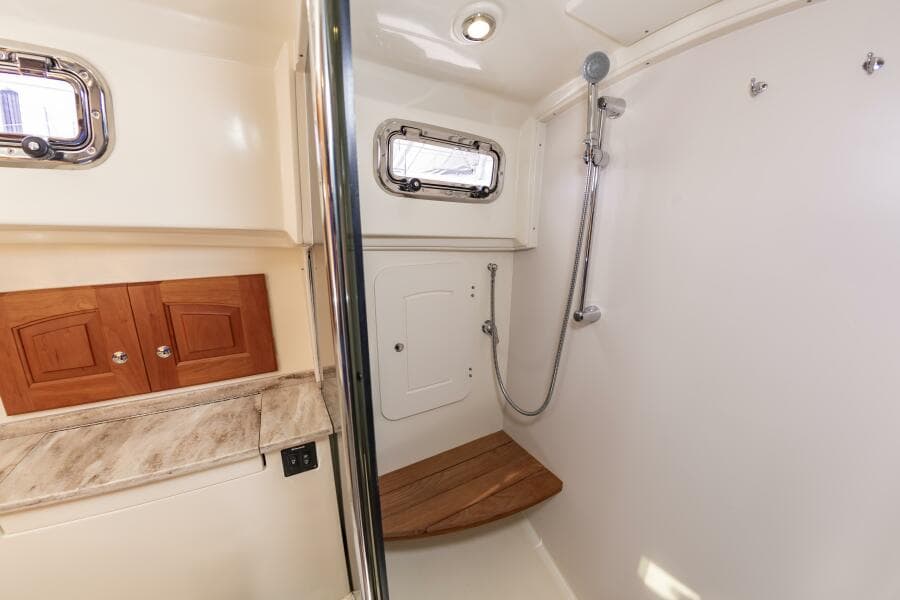

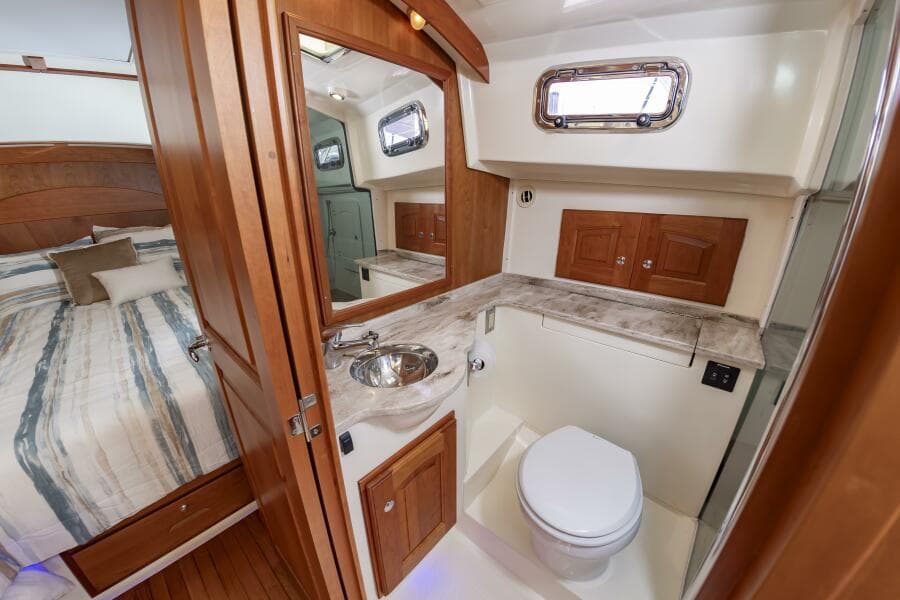

Head with separate shower stall

Seat in shower stall with storage outboard

Built in vanity with sink and storge

Stainless steel overhead hatch

Stainless Steel opening ports (2) with insect screens

Cherry framed mirror with vanity lighting

Solid surface countertopsSingle lever head faucet

Shower drain to sump pump

Freshwater flush electric MSD with holding tank

Waste tank level indicator

Macerator pump for holding tank discharge as permitted

Holding tank pump out deck fitting

Overhead and courtesy floor lighting

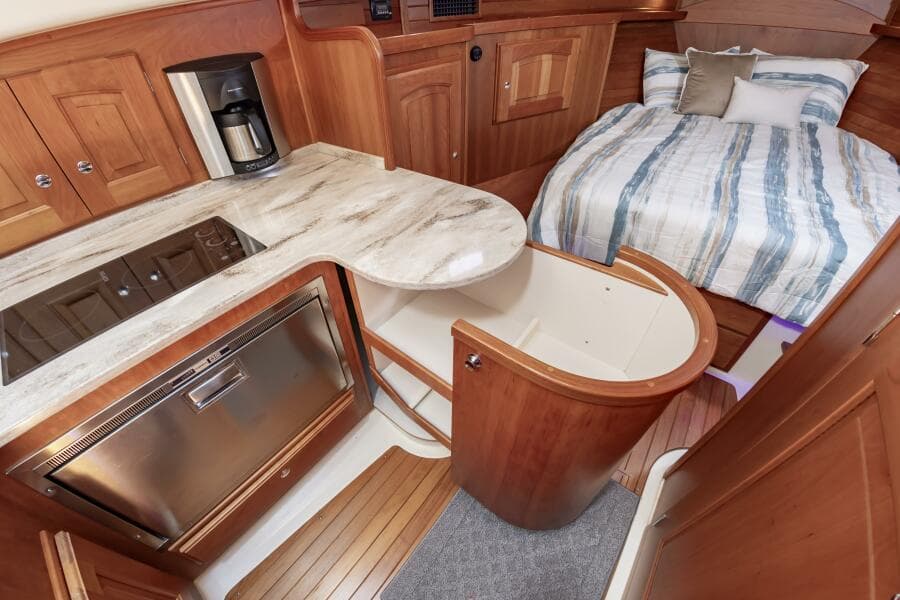

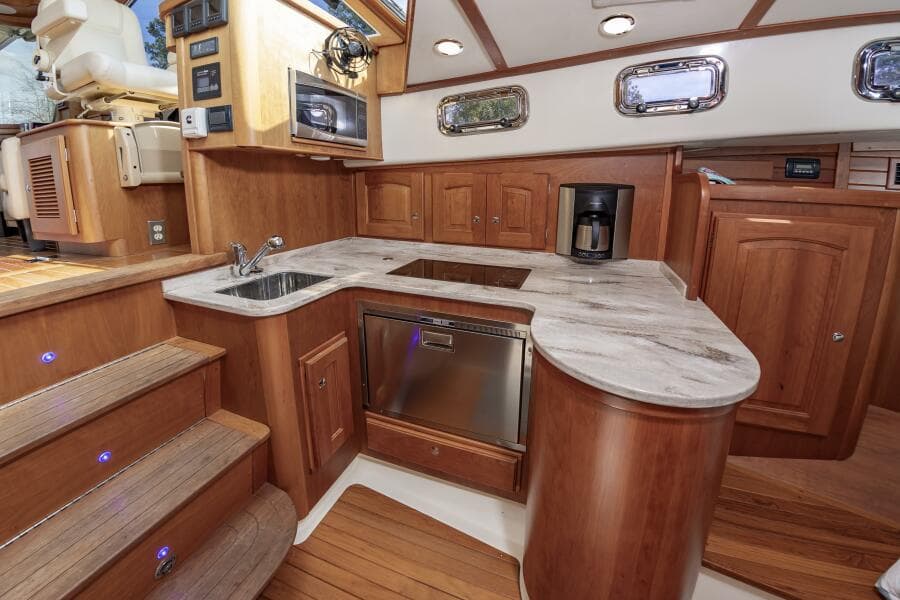

Electric two burner cooktop

Stainless steel drawer style AC/DC refrigerator

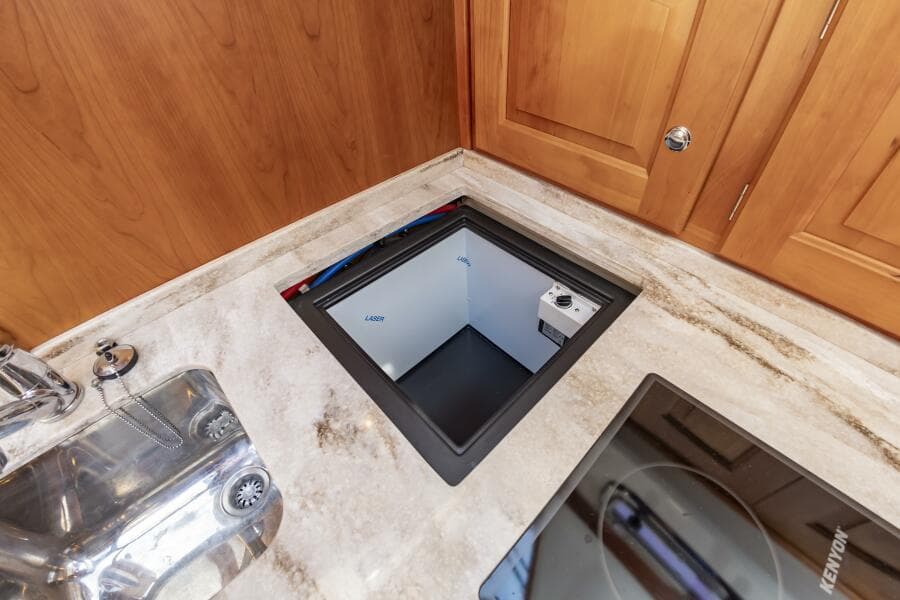

Top load AC/DC freezer in galley down layout, drawer style in galley up

layout

11 Gallon water heater with engine heat exchangerSolid surface countertops

Built -in micro wave oven

Large stainless steel galley sink with single lever faucet

Large galley cabinets

Hot and cold pressurized water system

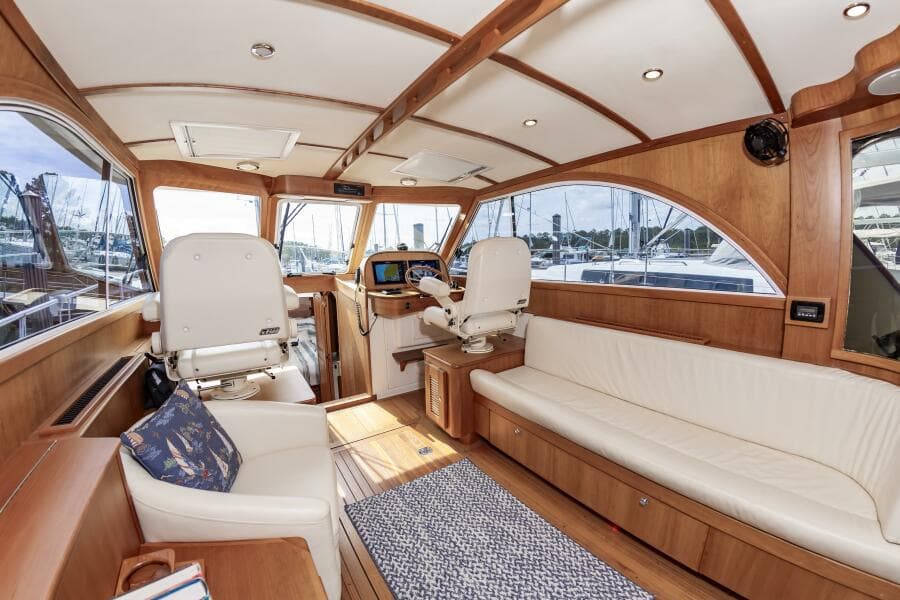

Powder coated anodized aluminum windows with opening windows

port, starboard and centerline

(2) Stainless Steel overhead ventilation hatches

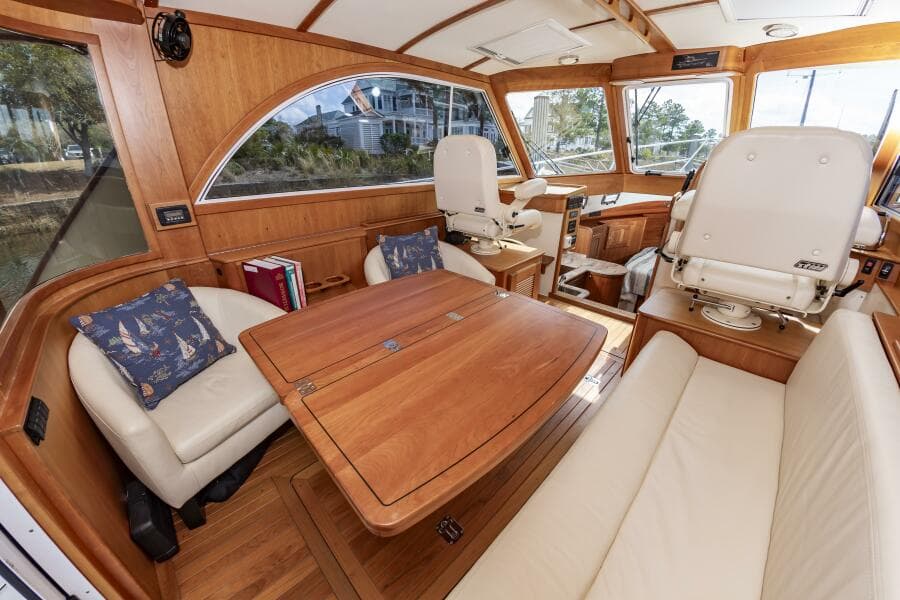

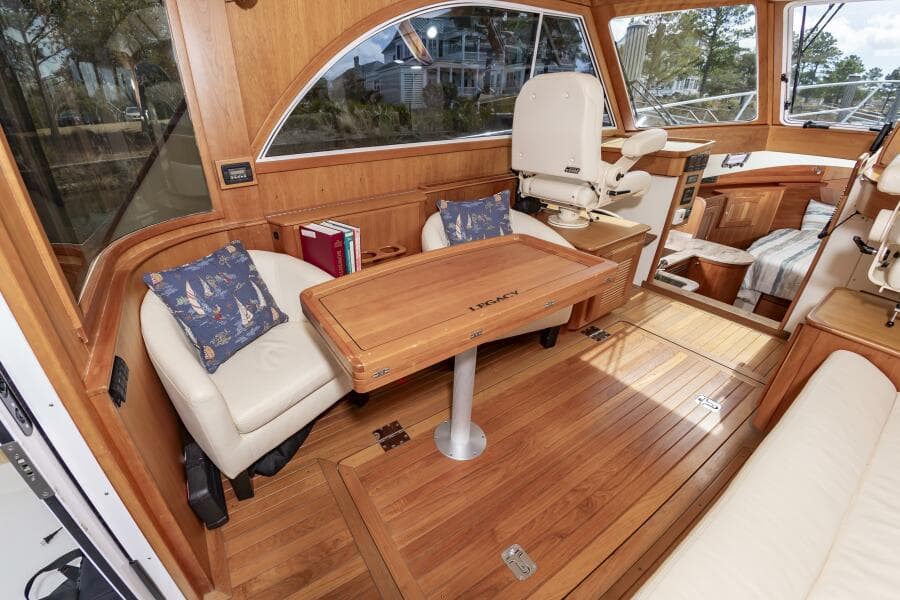

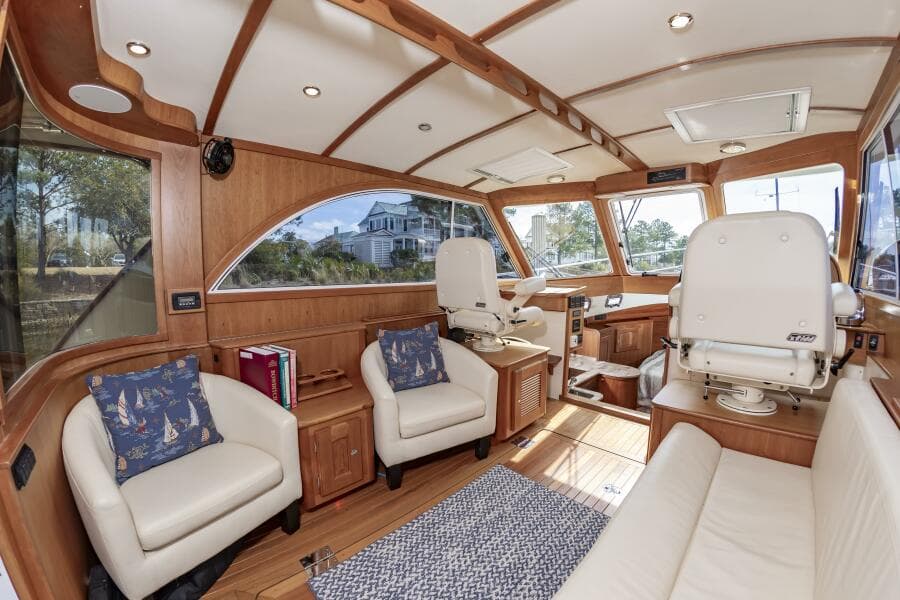

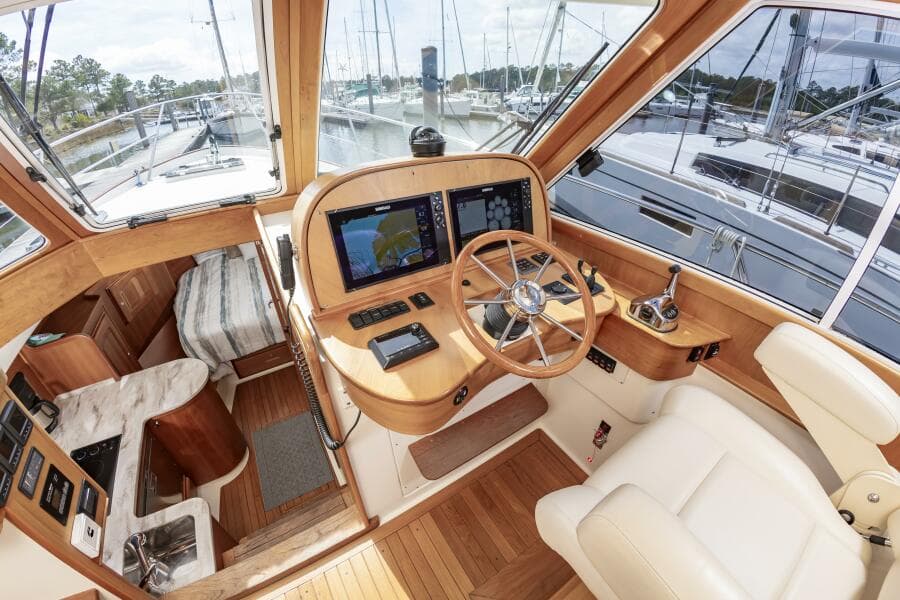

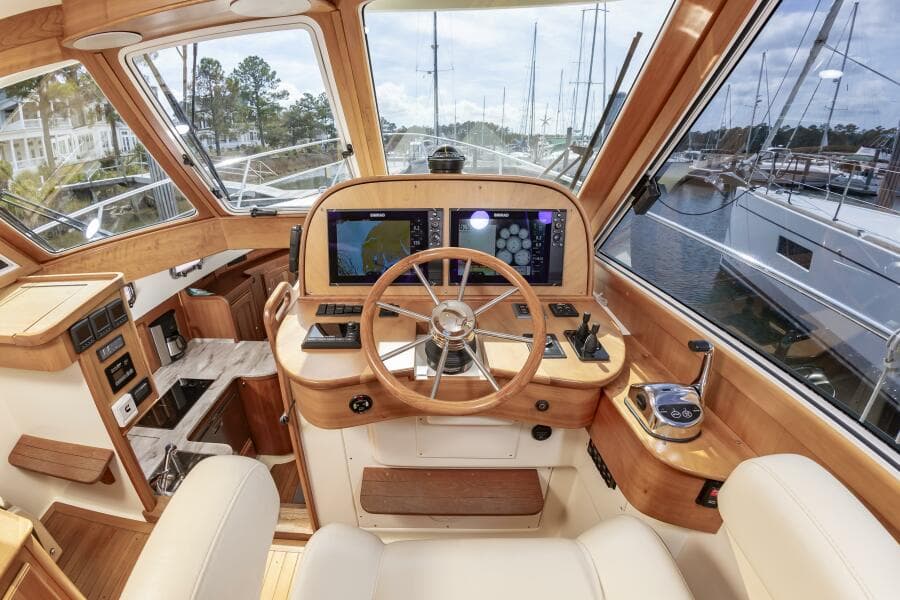

Varnished Sapelle helm deck sole

Drop leaf table on pedestal

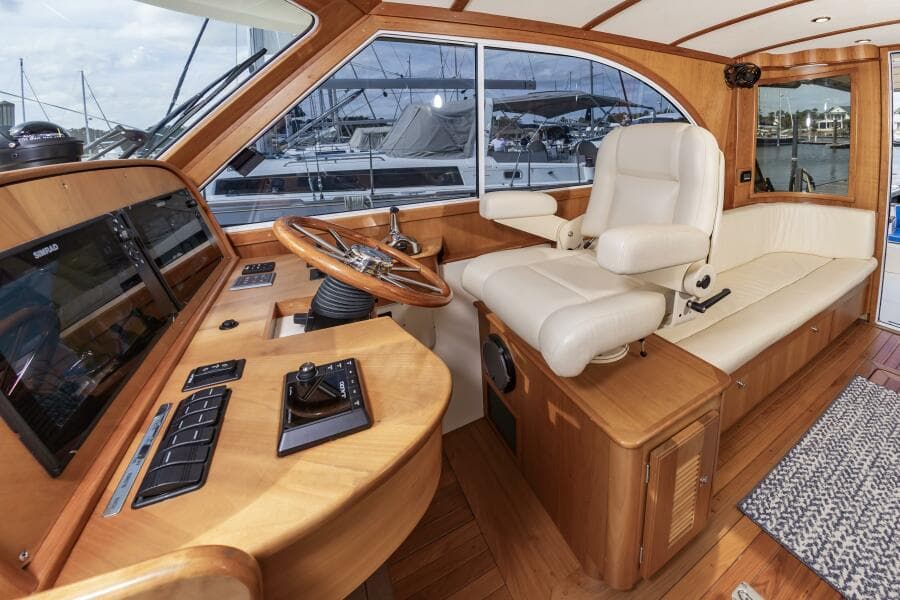

Binnacle compass with back lighting

Stainless Steel Stazo wheel with wood rim

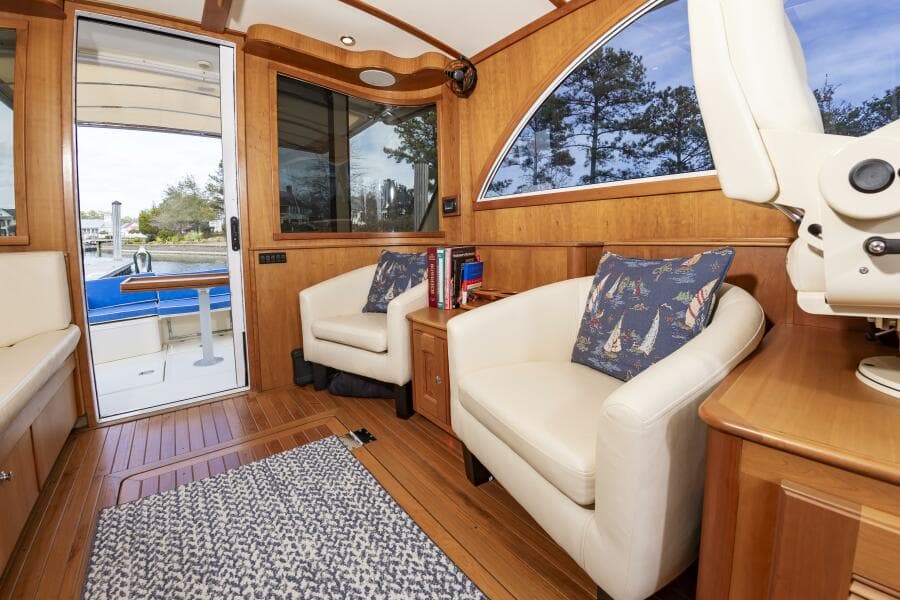

Curved acrylic hard aft enclosure with framed sliding door

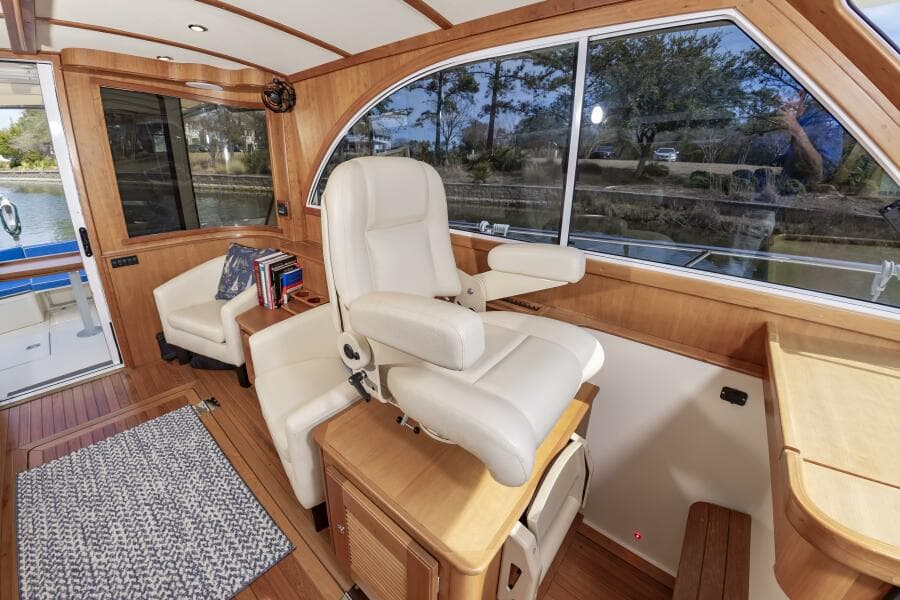

Helm and Nav pedestal swivel and sliding captain chairs

Settees convert to additional sleeping berths

Helm deck elegantly trimmed and finished with satin varnished cherry

Chart table to port with convenient chart book storage

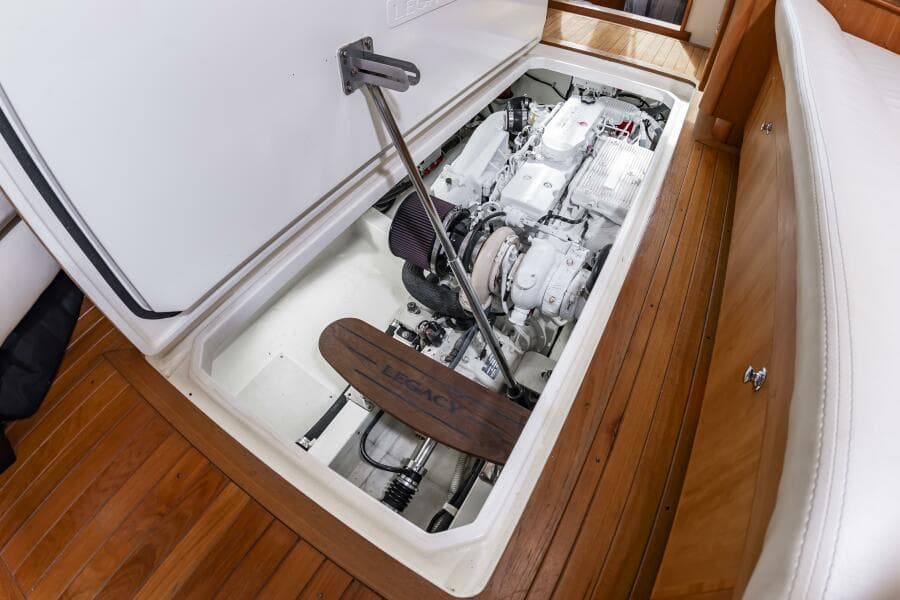

Engine hatch with electric lift

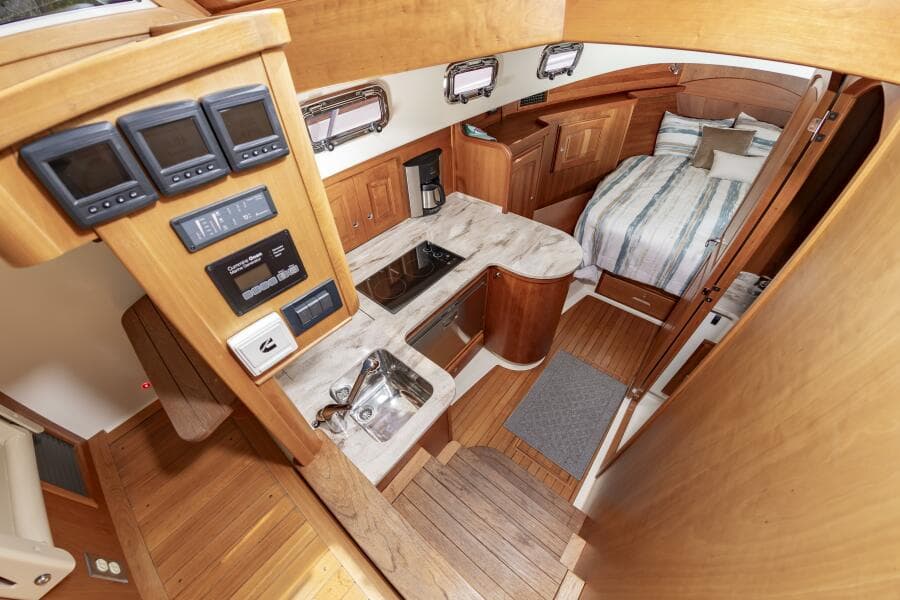

Galley up or down layouts available

Storage beneath settees including large table storage drawer

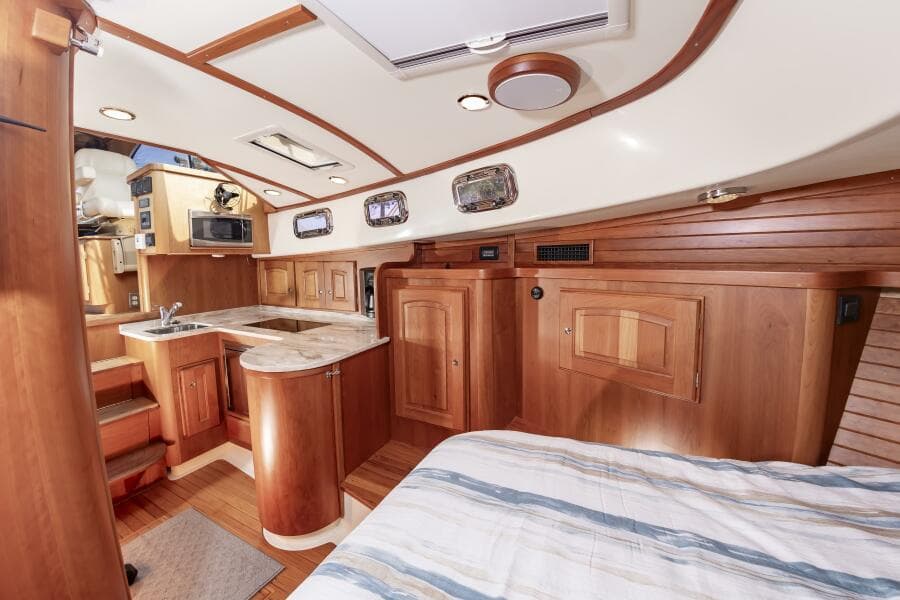

Satin varnished cherry interior

Stainless steel ventilation hatches in each cabin

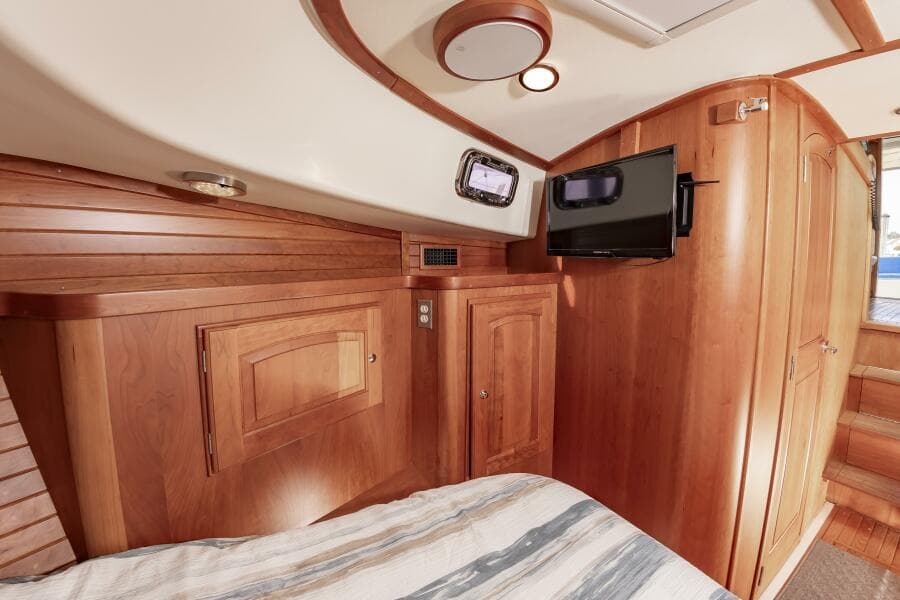

Enclosed or open master stateroom

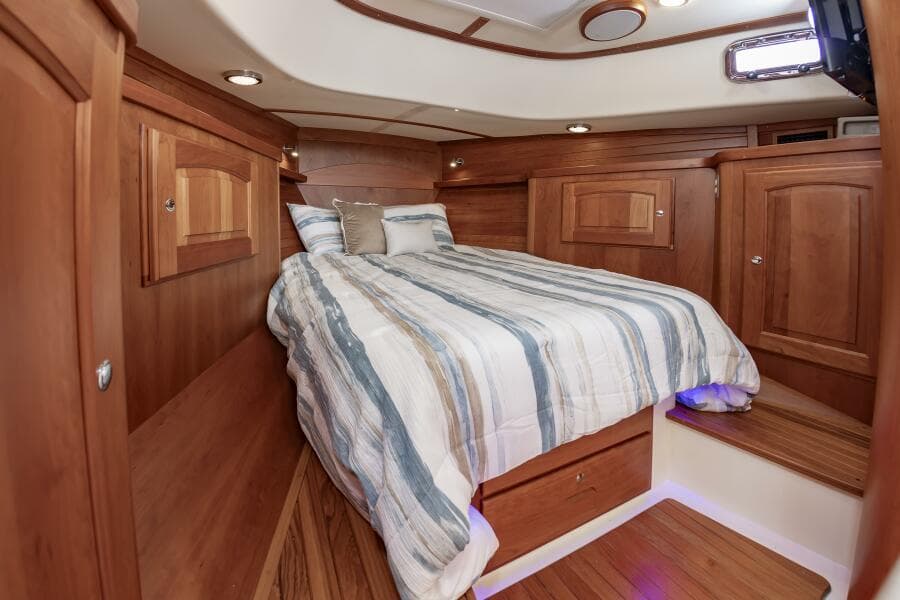

Island double berth with dovetailed drawers and storage below

Hanging lockers to port and starboard

Shelved lockers port and starboard

Tongue and groove cherry hull sides

Multiple interior arrangement plans; Galley down or galley up with

additional interior settee that converts to a double berth

Open air skylight above galleyLED overhead and reading lights

LED floor courtesy lighting

AM/FM digital media ready stereo with interior and helm deck speakers

Solid Sepelle varnished cabin sole

Solid cherry locker faces and door frames

Elegant, laminated curved cherry trims on lockers and island berth

surround

Solid stock, cherry raised panel cabinet doors

Solid stock , cherry raised panel passage doors

RPM

1800 9.5 knots 7.7 gal/hour 79

 2000 11 knots 7 gal/hour 82

 2400 14.8 knots 13.5 gal/hour 84

 3000 22.4 knots 22.8 gal/hour 91

 WOT 26 knots 27.6 gal/hour 92

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
