2017 Overmarine Mangusta 165 E
“BLACK LEGEND”
Golfe Juan, France
$23,422,300USD
163'Length
2017Year
UsedCondition
DieselFuel
PowerType
GRPHull
Description
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
-
Key Specifications
LOA163' 8"
Beam30' 2"
Draft Max6' 2"
Draft Min1' 4"
TypePower
Hull MaterialGRP
FuelDiesel
Cruise Speed25 Knots
Max Speed35 Knots
Range800 nm
Weight & Measurements
Gross Tonnage485
Displacement300 lbs
Accommodation
Cabins4
Sleeps10
Tankage
Fuel10567 gal
Water1057 gal
Registration & Documentation
Registration PlaceViareggio
Reg #9830551
Engines
MTU 16V 2000 M94
MakeMTU
Model16V 2000 M94
Power2600 HP
Hours1,447
LocationPort
MTU 16V 2000 M94
MakeMTU
Model16V 2000 M94
Power2600 HP
Hours1,454
LocationStarboard
MTU 16V 2000 M94
MakeMTU
Model16V 2000 M94
Power2600 HP
Hours1,420
LocationMiddle
MTU 16V 2000 M94
MakeMTU
Model16V 2000 M94
Power2600 HP
Hours1,420
LocationMiddle
Full Details
Overview
LOA: 49.90m (163′ 8″)
Beam: 9.20m (30′ 2″)
Draft: 1.90m (6′ 2″)
Builder: Overmarine (Mangusta)
Year: 2017 (2022)
Model: Mangusta 165 E
Builder: Overmarine
Engines: 4 x MTU 2600 HP
Speed: 25/35 knots (approx)
Range: 800nm
Accommodation: 10 guests in 4 cabins (+ cinema room)
Crew: 9
Draft: 1.90m (6′ 2″)
Gross Tonnage: 485
Tax Status: VAT Paid
Construction: GRP
Beam: 9.20m (30′ 2″)
Draft: 1.90m (6′ 2″)
Builder: Overmarine (Mangusta)
Year: 2017 (2022)
Model: Mangusta 165 E
Builder: Overmarine
Engines: 4 x MTU 2600 HP
Speed: 25/35 knots (approx)
Range: 800nm
Accommodation: 10 guests in 4 cabins (+ cinema room)
Crew: 9
Draft: 1.90m (6′ 2″)
Gross Tonnage: 485
Tax Status: VAT Paid
Construction: GRP
Key Features
• The most iconic Mangusta 165E ever built
• Pristine condition and very high spec
• Under original private ownership with EU VAT Paid
• Equipped with the latest MTU engines, still under warranty
• ABS 5-year special survey completed in 2022
• Full-beam amidships owner’s suite with private study and dressing
• The largest aft deck found on any 50-meter yacht

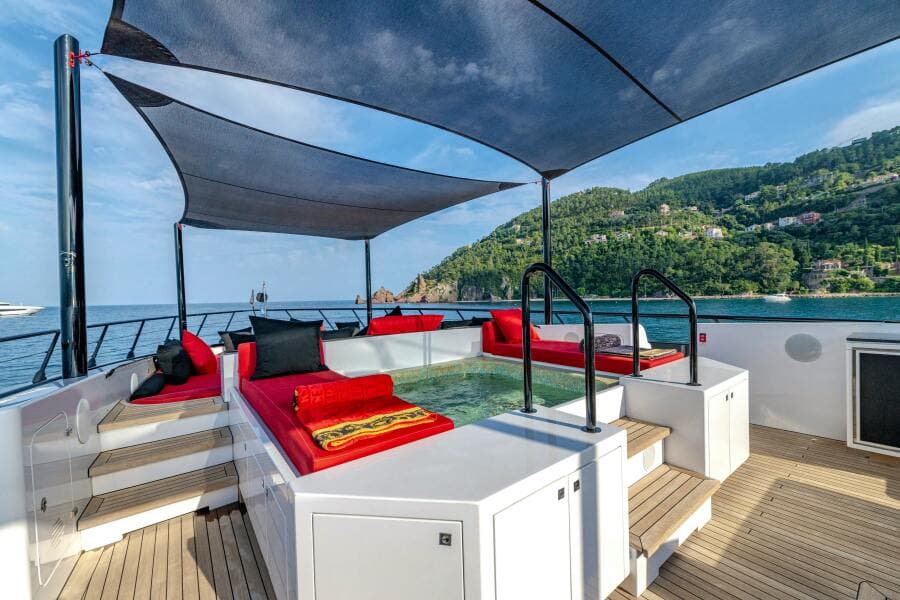

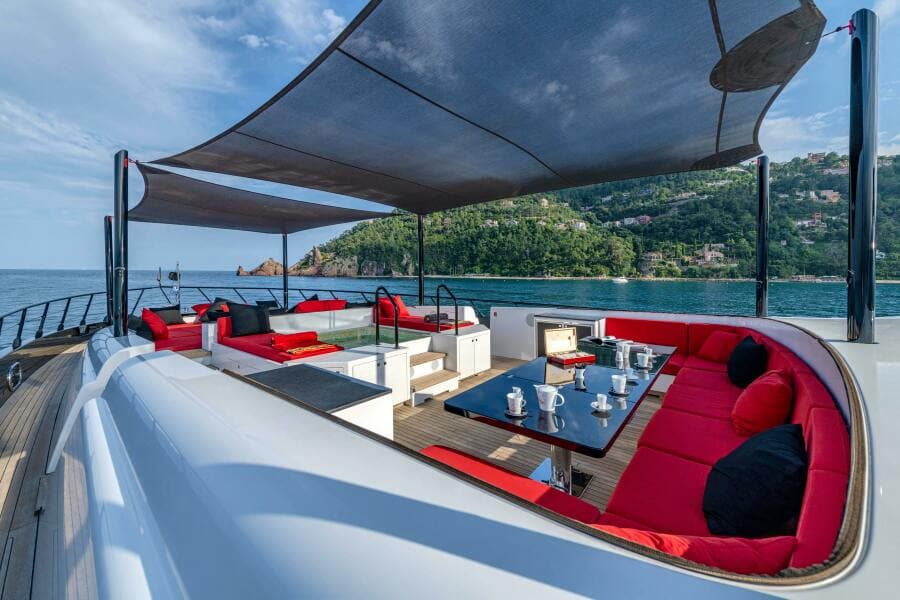

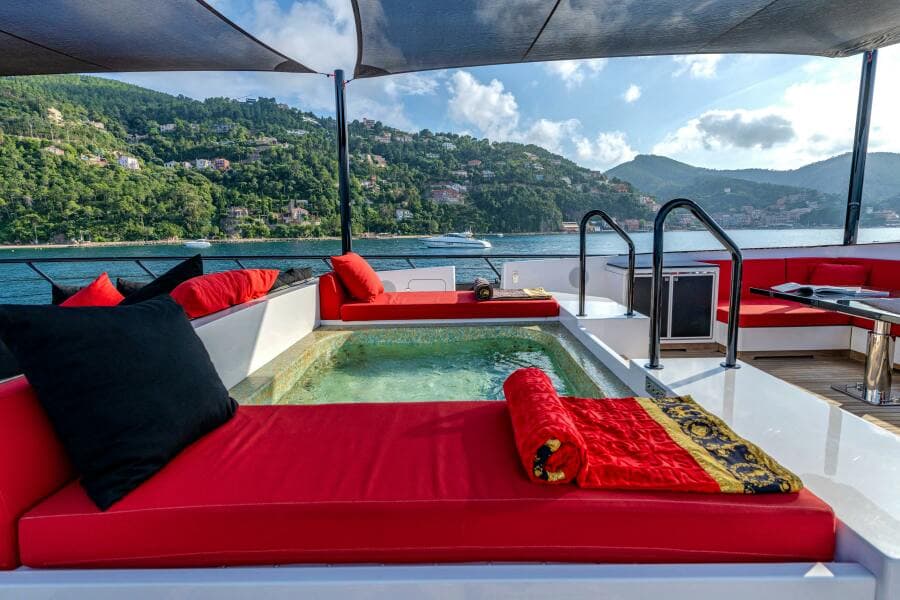

• Spacious exterior decks with jacuzzi, bar, seating and DJ booth
• Zero speed and underway gyro stabilizers
• Pristine condition and very high spec
• Under original private ownership with EU VAT Paid
• Equipped with the latest MTU engines, still under warranty
• ABS 5-year special survey completed in 2022
• Full-beam amidships owner’s suite with private study and dressing
• The largest aft deck found on any 50-meter yacht
• Spacious exterior decks with jacuzzi, bar, seating and DJ booth
• Zero speed and underway gyro stabilizers
Description

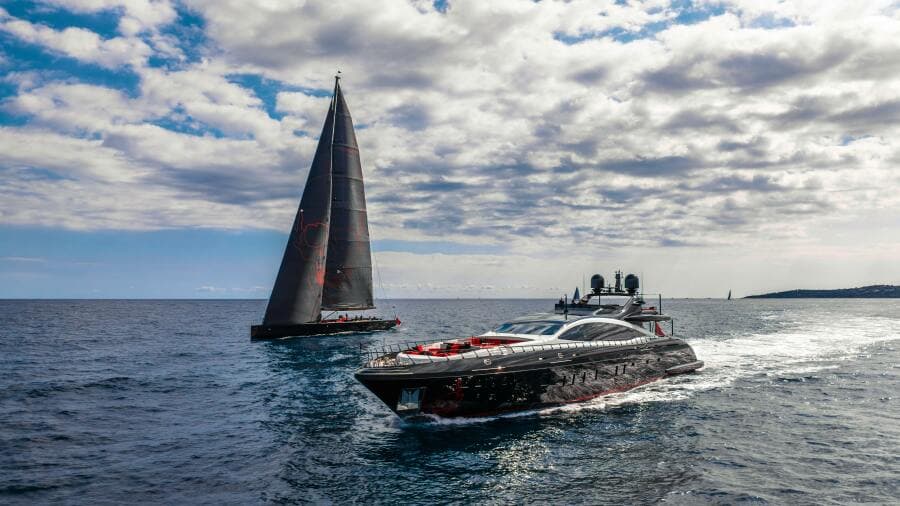

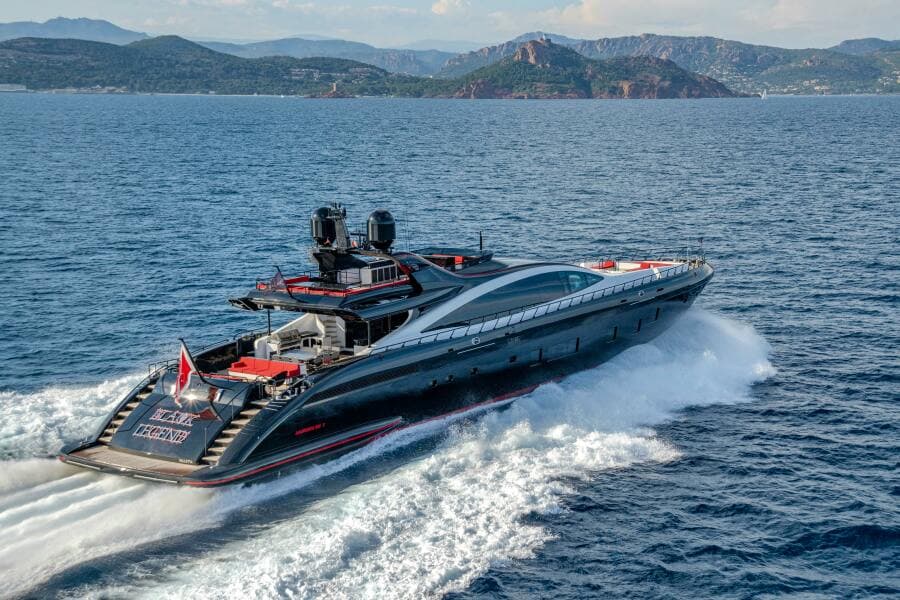

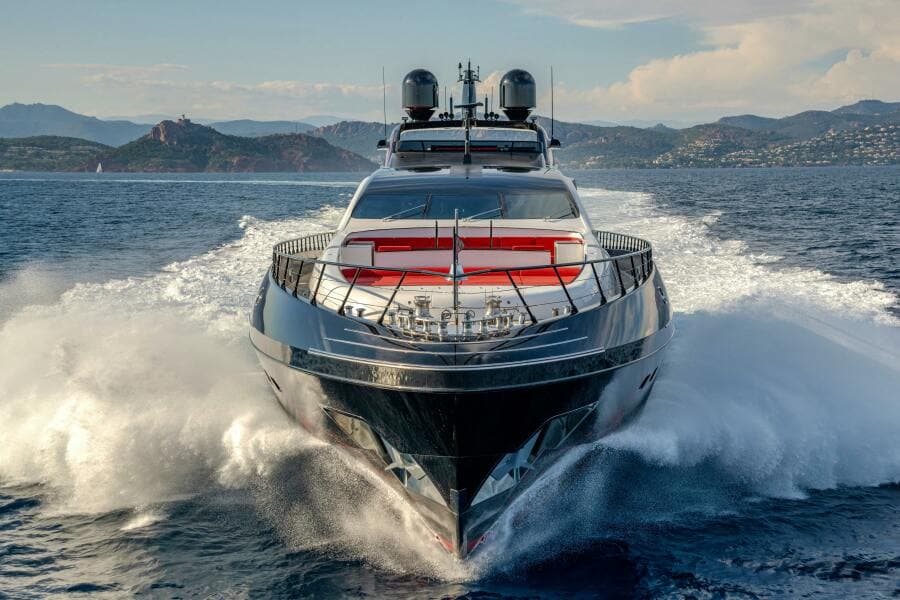

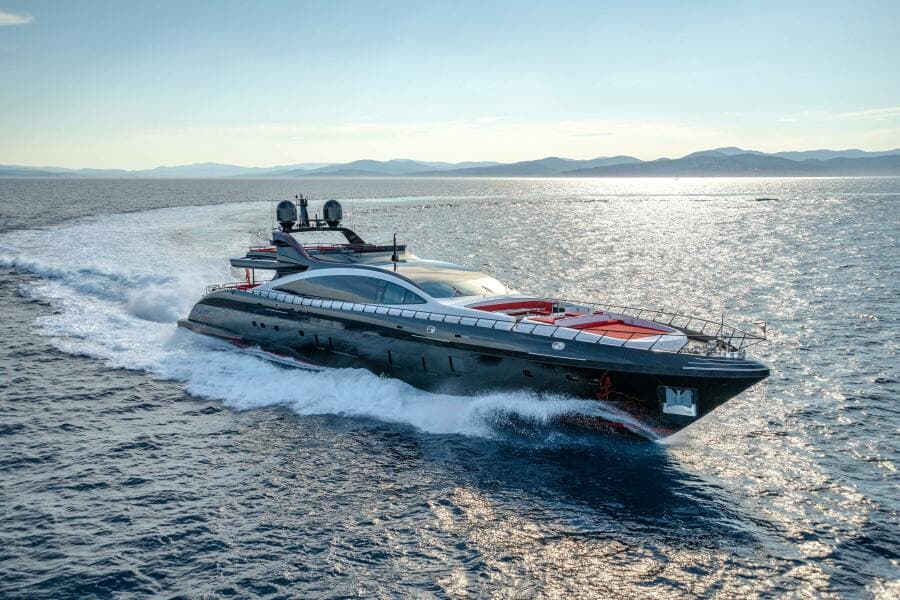

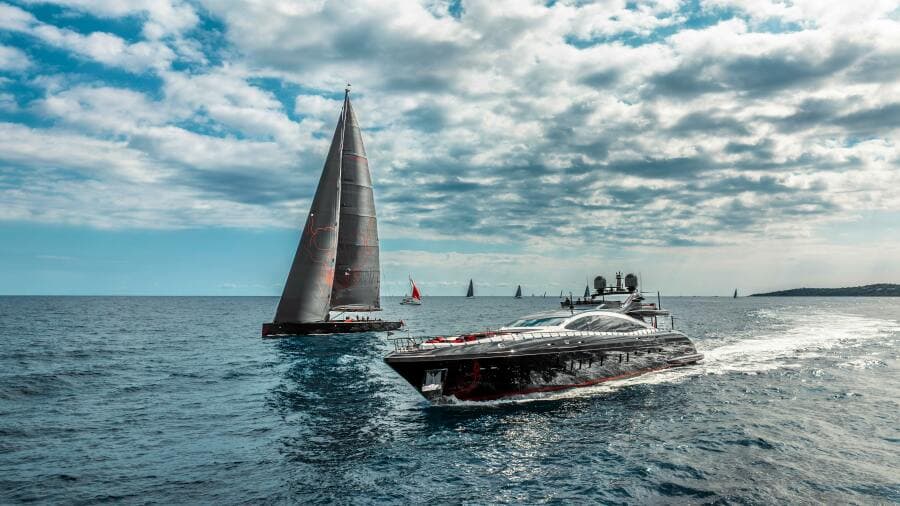

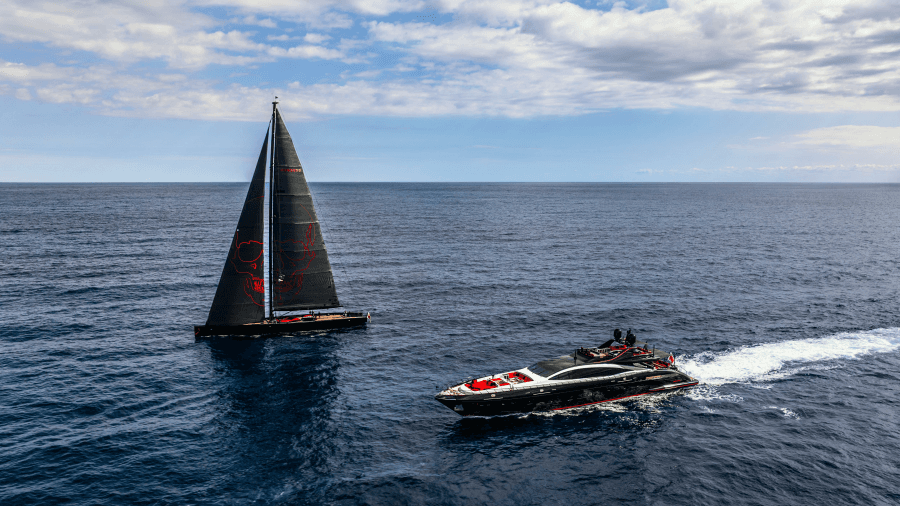

The 50-metre Black Legend is an immaculately presented, fast and sporty Mangusta 165E, and the penultimate hull delivered in the series. Maintained in pristine condition by one private owner, equipped with the latest MTU engines for optimum efficiency, and boasting a blistering top speed of 35 knots, Black Legend is one of the most iconic Mangusta yachts ever built by Overmarine.
The semi-custom open yacht was built for a highly experienced owner with performance, comfort and style in mind. Conceived with the support of a strong project management team, this truly unique superyacht is optimised at every turn to enhance the guest experience. She was awarded ‘Power Yacht over 40m’ at the International Yacht & Aviation Awards.
Her meticulously designed Asian-inspired interior enjoys a modern achromatic colour palette, enhanced by exclusive fabrics. The spacious main deck salon leads directly to the largest aft deck found on any 50-metre yacht, with a bar, barbecue, al fresco dining area and comfortable sofas to accommodate large groups of friends and family.

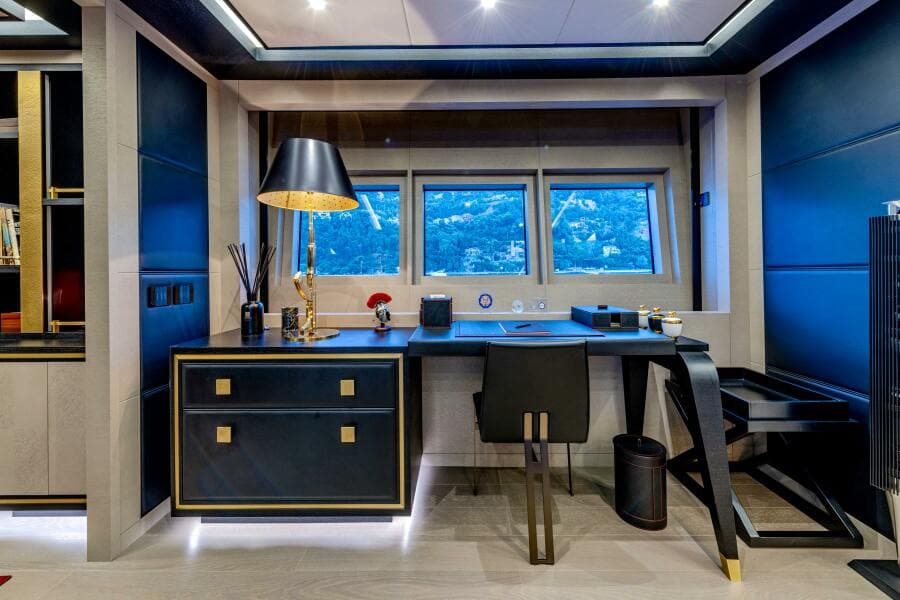

On the lower deck, a full-beam master suite with a private office and dressing room is complemented by a gym, cinema, and three further guest cabins, including a VIP. The cinema room can be converted to sleep a further two guests if required, bringing the total guest accommodations up to 10.

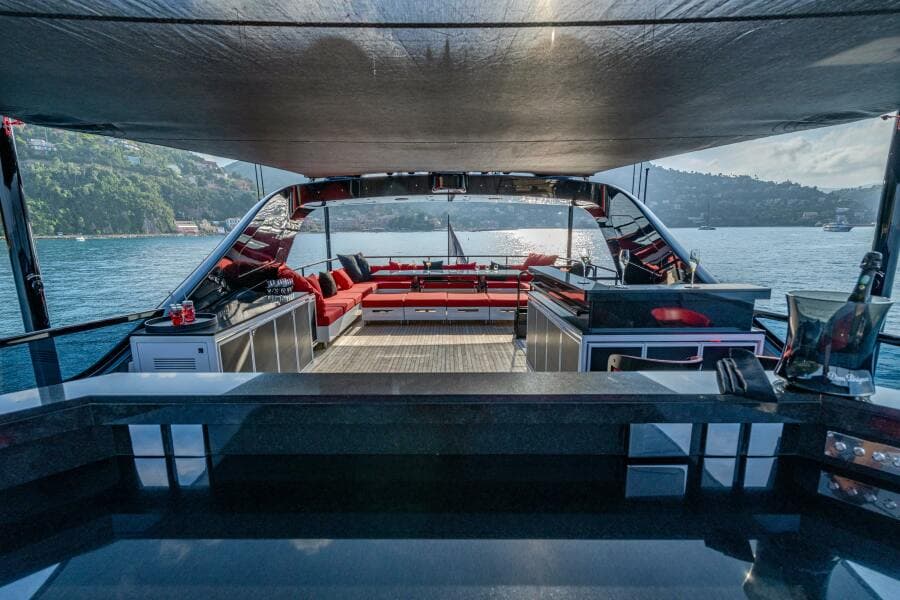

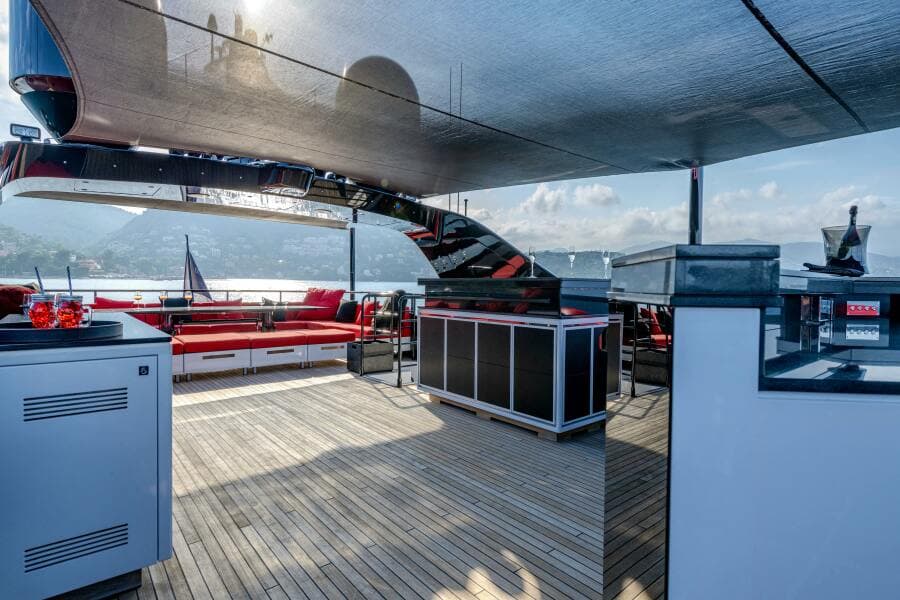

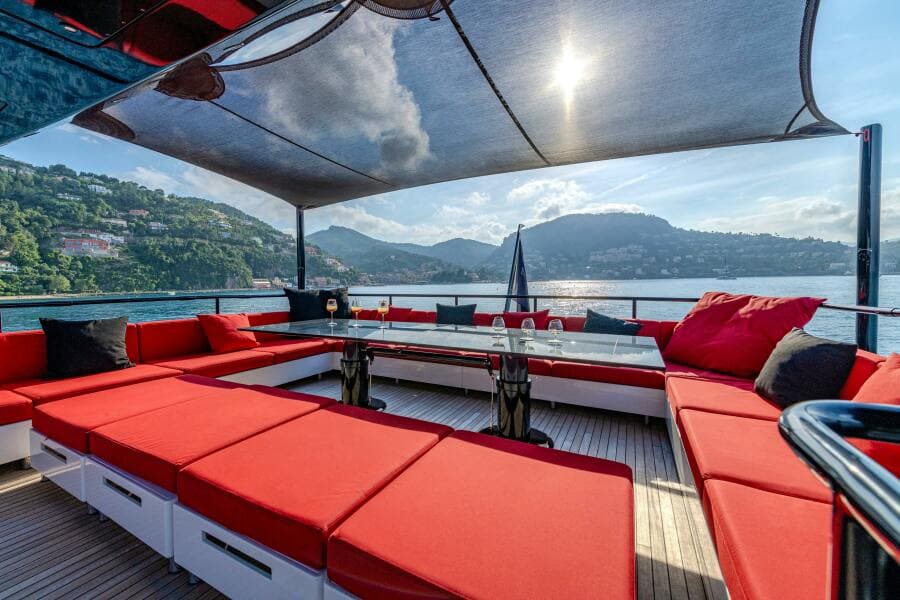

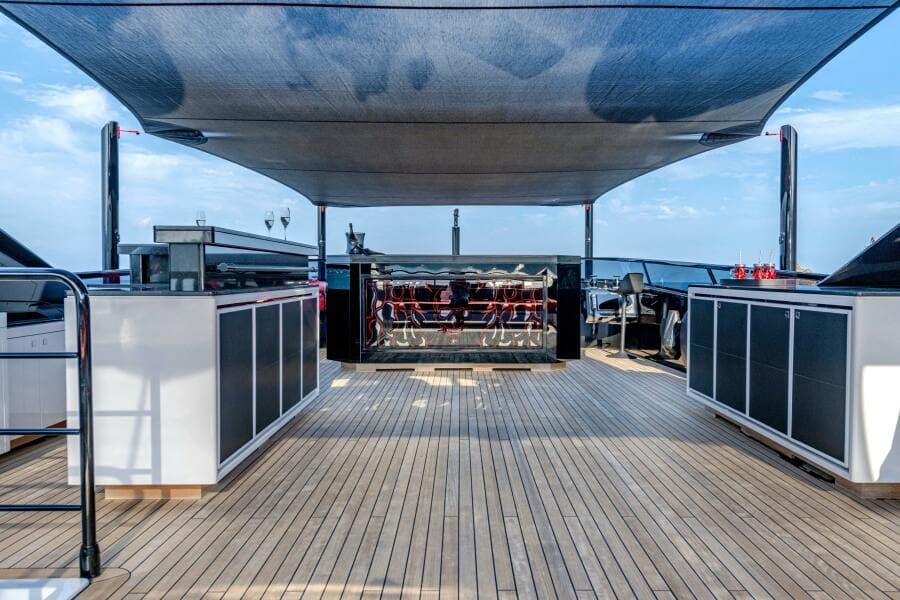

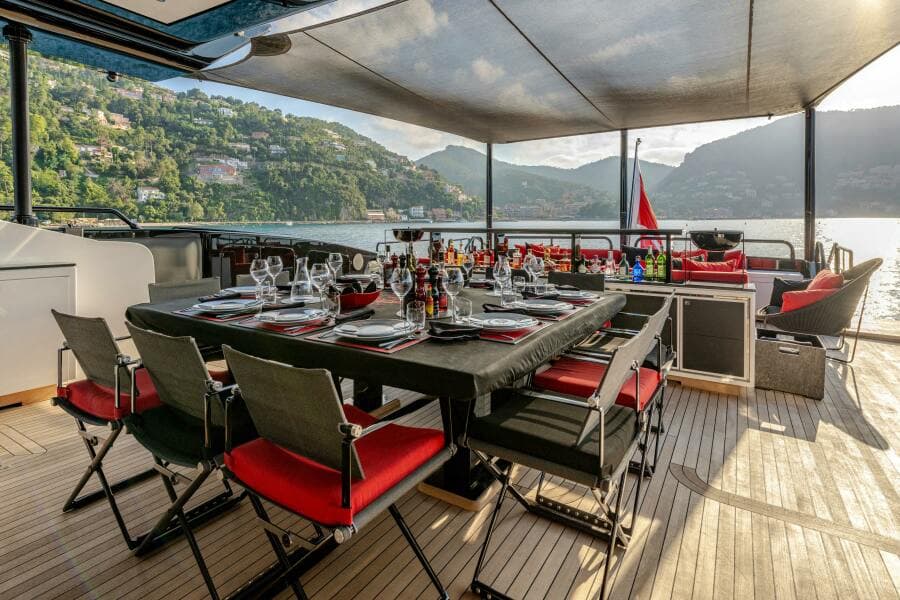

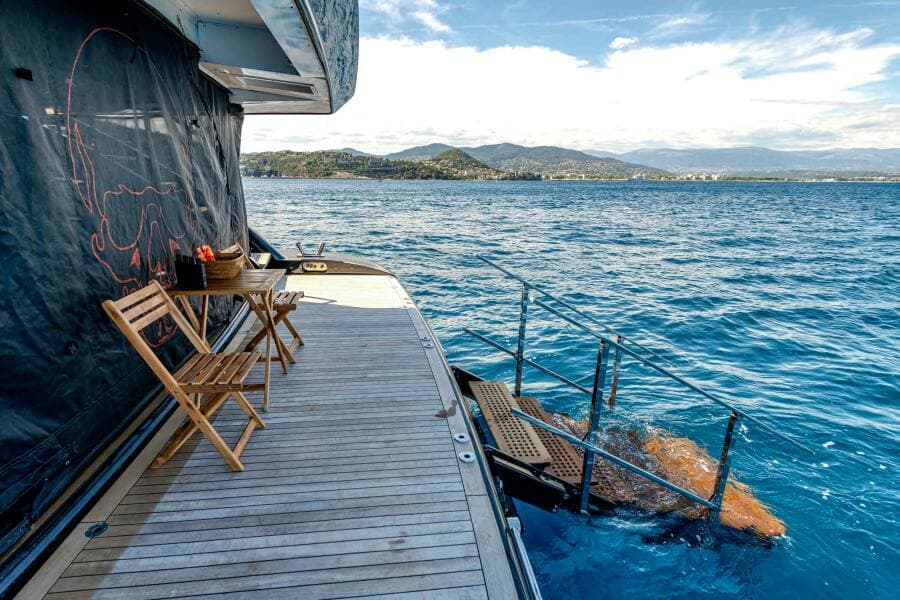

Key highlights of the sprawling exterior deck spaces include an incredible foredeck area with a Jacuzzi, forward view seating and sunbeds with awnings. The sundeck is an ideal entertainment space, with sunpads, a cocktail bar and a DJ booth. On the lower deck, the beach club and stern platform provide waterside relaxation, while explorers and thrill seekers will appreciate the garage setup for watersports, chase boats and tenders.
Black Legend has always been meticulously maintained and completed her ABS 5-year special survey in 2022. She’s also equipped with both zero speed and underway stabilisers for the smoothest and most comfortable of guest experiences. The yacht is offered with an MTU warranty extension.
The semi-custom open yacht was built for a highly experienced owner with performance, comfort and style in mind. Conceived with the support of a strong project management team, this truly unique superyacht is optimised at every turn to enhance the guest experience. She was awarded ‘Power Yacht over 40m’ at the International Yacht & Aviation Awards.
Her meticulously designed Asian-inspired interior enjoys a modern achromatic colour palette, enhanced by exclusive fabrics. The spacious main deck salon leads directly to the largest aft deck found on any 50-metre yacht, with a bar, barbecue, al fresco dining area and comfortable sofas to accommodate large groups of friends and family.
On the lower deck, a full-beam master suite with a private office and dressing room is complemented by a gym, cinema, and three further guest cabins, including a VIP. The cinema room can be converted to sleep a further two guests if required, bringing the total guest accommodations up to 10.
Key highlights of the sprawling exterior deck spaces include an incredible foredeck area with a Jacuzzi, forward view seating and sunbeds with awnings. The sundeck is an ideal entertainment space, with sunpads, a cocktail bar and a DJ booth. On the lower deck, the beach club and stern platform provide waterside relaxation, while explorers and thrill seekers will appreciate the garage setup for watersports, chase boats and tenders.
Black Legend has always been meticulously maintained and completed her ABS 5-year special survey in 2022. She’s also equipped with both zero speed and underway stabilisers for the smoothest and most comfortable of guest experiences. The yacht is offered with an MTU warranty extension.
Main Characteristics
Built by: Overmarine (Mangusta)
Year: 2017
Length: 49.90m (163′ 8″)
Beam: 9.20m (30′ 2″)
Draft: 1.90m (6′ 2″)
Classification: ABS, A1, AMS, MCA LY3
MCA: Yes
Flag: Malta
Hull colour: Black
Gross tonnage: 485 t
Displacement: 300 t
Designer: Stefano Righini Design
Naval Architect: Overmarine
Interior Designer: Overmarine
Year: 2017
Length: 49.90m (163′ 8″)
Beam: 9.20m (30′ 2″)
Draft: 1.90m (6′ 2″)
Classification: ABS, A1, AMS, MCA LY3
MCA: Yes
Flag: Malta
Hull colour: Black
Gross tonnage: 485 t
Displacement: 300 t
Designer: Stefano Righini Design
Naval Architect: Overmarine
Interior Designer: Overmarine
Capacities
Cruising Speed: 25 knots (approx)
Top Speed: 35 knots (approx)
Range: 800nm at cruising speed
Fuel capacity: 40,000 Litres (10,567 US Gallons)
Water capacity: 4,000 Litres (1,057 US Gallons)
Black water capacity: 5,400 Litres (1,427 US Gallons)
Top Speed: 35 knots (approx)
Range: 800nm at cruising speed
Fuel capacity: 40,000 Litres (10,567 US Gallons)
Water capacity: 4,000 Litres (1,057 US Gallons)
Black water capacity: 5,400 Litres (1,427 US Gallons)
Fuel consumption
560 L/hour at 17knts
1220 L/hour at 25knts
1688L/hour at 30 knots
1220 L/hour at 25knts
1688L/hour at 30 knots

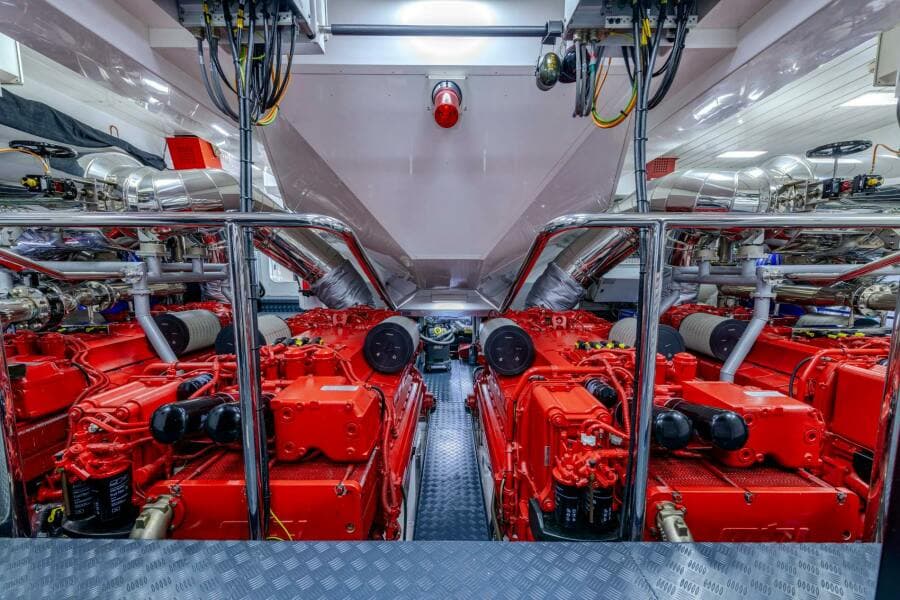

Machinery
Engines: 4 x MTU 2600 HP
Engine model: MTU 16V 2000 M94
Engine hours: Port: 1447hrs
Starboard: 1454hrs
Central Port Engine: 1420 hrs
Central Starboard Engine: 1420 hrs
Propulsion: Water Jets
Gearboxes: ZF model 5050
Steering: 2 x Waterjets Kamewa (RRAB) model 71-4 and 2 x 71-B4 (Booster)
Emergency Waterjets steering through a RRAB/Kamewa back-up panel
in Wheelhouse and ER.
Stabilizers: 4 x Seakeeper 30HD
Air Conditioning: Frigit Chiller C-18 - 2x18kW – 241,160 BTU
Bow Thruster: Mod. 24” TRAC 90kW 400V/3ph/50Hz
Water pressure system: 2 x Electrical pumps Gianneschi P&B / Jet 622 400V/3ph/50Hz
Water maker: 2x Idromar / MC 5S, 230 lt/h reverse osmosis
Sand Filters: Idromar
Boilers: 6 x 120Lt
UV Filters: Idromar
Water Softener: Idromar
Mesh Filter: Idromar
Silver Ion Dosing Station: Idromar
Active Carbon Filters : Idromar
Sewage Treatmant plant: Selmar 12000 plus
Trim Tabs: 8 x Humphree Interceptor
Engine model: MTU 16V 2000 M94
Engine hours: Port: 1447hrs
Starboard: 1454hrs
Central Port Engine: 1420 hrs
Central Starboard Engine: 1420 hrs
Propulsion: Water Jets
Gearboxes: ZF model 5050
Steering: 2 x Waterjets Kamewa (RRAB) model 71-4 and 2 x 71-B4 (Booster)
Emergency Waterjets steering through a RRAB/Kamewa back-up panel
in Wheelhouse and ER.
Stabilizers: 4 x Seakeeper 30HD
Air Conditioning: Frigit Chiller C-18 - 2x18kW – 241,160 BTU
Bow Thruster: Mod. 24” TRAC 90kW 400V/3ph/50Hz
Water pressure system: 2 x Electrical pumps Gianneschi P&B / Jet 622 400V/3ph/50Hz
Water maker: 2x Idromar / MC 5S, 230 lt/h reverse osmosis
Sand Filters: Idromar
Boilers: 6 x 120Lt
UV Filters: Idromar
Water Softener: Idromar
Mesh Filter: Idromar
Silver Ion Dosing Station: Idromar
Active Carbon Filters : Idromar
Sewage Treatmant plant: Selmar 12000 plus
Trim Tabs: 8 x Humphree Interceptor
Electrical
Generators: 2 x KHOLER model 100 EFOZDJ 99 kW, 400 VAC, 50 Hz, three-phase.
Starboard Generator: 6883 hrs
Port Generator: 6394 hrs
400 V, 50 Hz, 3 x phases for power consumers (TN-Net)
230 V, 50 Hz, 1 x phase for small equipment and lighting (TN-Net)
24 V DC for monitoring, external communication, different nautical and other consumers
Shore power: Shore power 400 VAC 3-phase 50 Hz, insulator transformer primary 3- phase, secondary 3 phase with neutral grounded at one point, 80kVA
Shore Power Cable: 25 metre 250 Amp. 400 V
Services pack batteries: One bank of approximately 630Ah as auxiliary power supply and for emergency lighting
Main emergency batteries: One bank of approximately 420Ah with battery charger.
Secondary emergency batteries: One bank of 60Ah with battery charger.
Starboard Generator: 6883 hrs
Port Generator: 6394 hrs
400 V, 50 Hz, 3 x phases for power consumers (TN-Net)
230 V, 50 Hz, 1 x phase for small equipment and lighting (TN-Net)
24 V DC for monitoring, external communication, different nautical and other consumers
Shore power: Shore power 400 VAC 3-phase 50 Hz, insulator transformer primary 3- phase, secondary 3 phase with neutral grounded at one point, 80kVA
Shore Power Cable: 25 metre 250 Amp. 400 V
Services pack batteries: One bank of approximately 630Ah as auxiliary power supply and for emergency lighting
Main emergency batteries: One bank of approximately 420Ah with battery charger.
Secondary emergency batteries: One bank of 60Ah with battery charger.
Accommodations

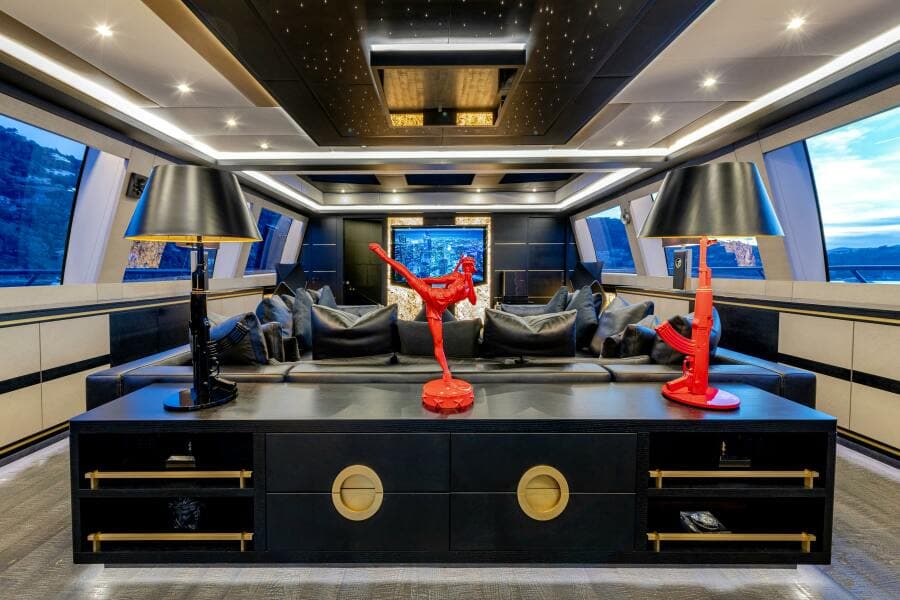

Main deck salon
Owner cabin
VIP Cabin
2 x Double guest cabins
Gym
Cinema Room

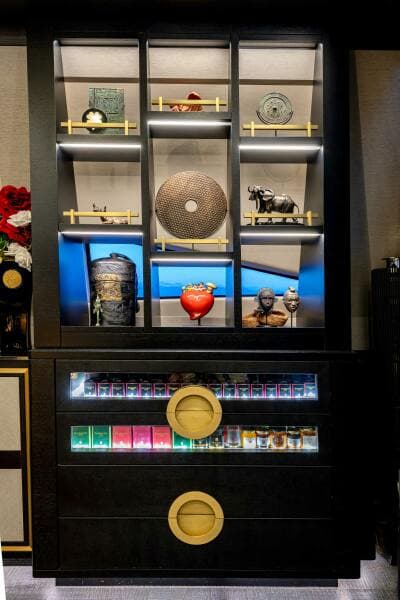

- Glass showcase
- Wine cooler with bronze handle
- Bronze handle/finishing on all storage furniture
- Backlit panel with Slate Lite Elios gold
- Black leather Minotti texture
- Marble black granite
- Relax Sofa Area with Minotti Leather Black and Tavolino Versace
- Fully equipped bar
- Day head
- Versace guardian table & chairs
- Celling composed with leather studio art pearl ora, white leather, black leather, fibreoptic light and indirect lighting

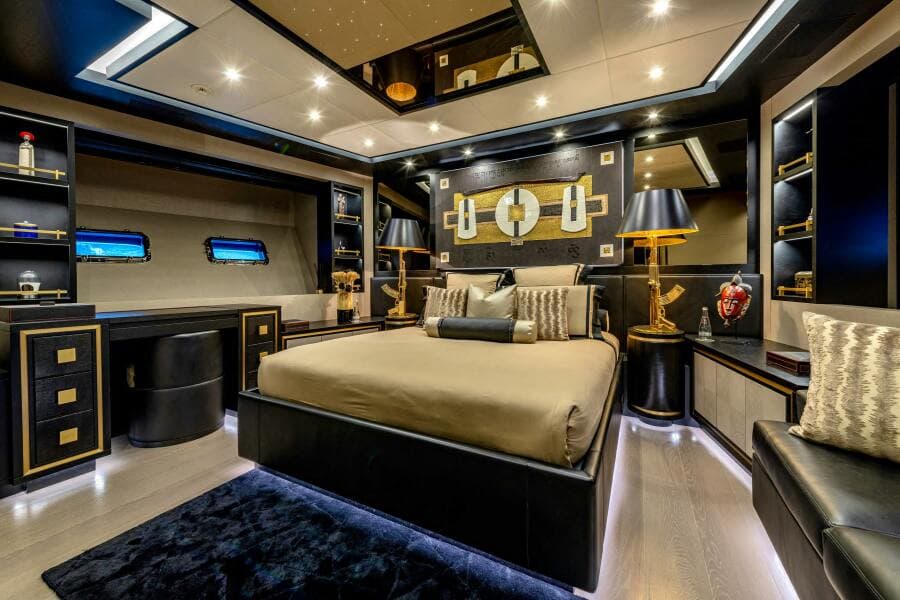

Owner cabin

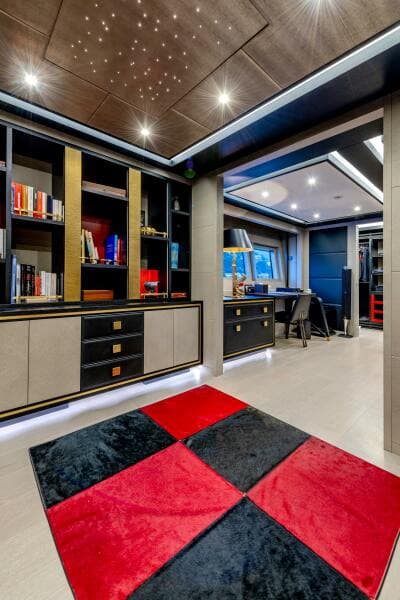

- Entrance with a library and storage area
- Full beam suite with bedroom

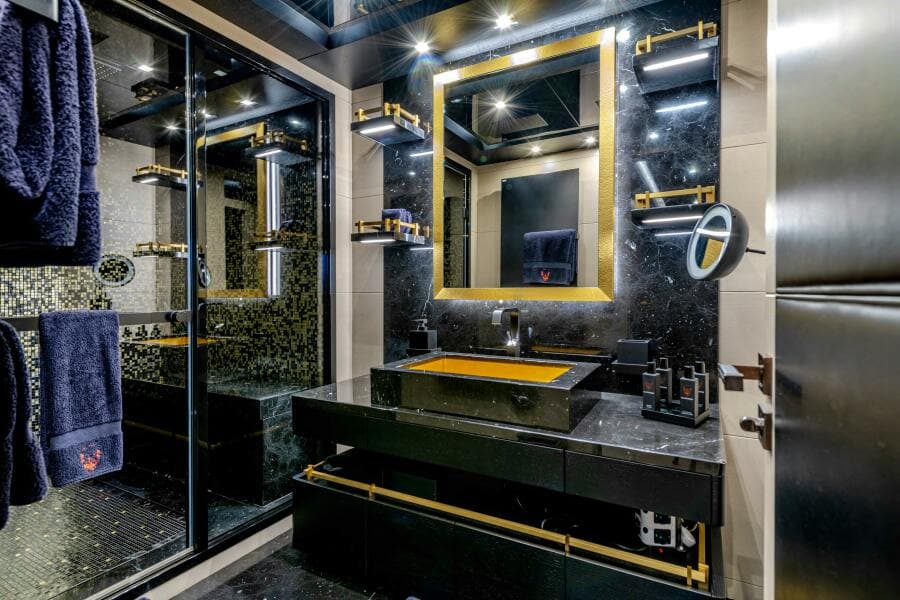

- En-suite bathroom with hammam shower

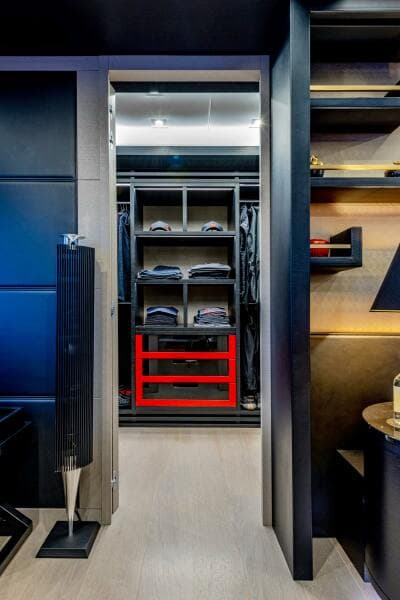

- Full size owner dressing
- Marble Marquina
VIP Cabin
- Full beam cabin located forward

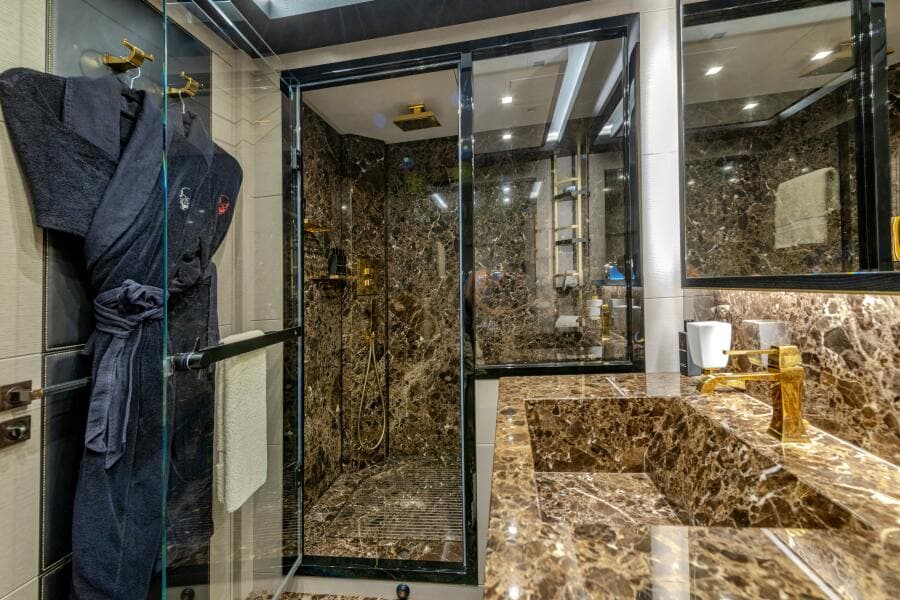

- En-suite bathroom
- Private dressing
- Marble Portoro
2 x Double guest cabins
- Cabins located portside and starboard
- En-suite bathrooms
- Private dressing on portside cabin
- Marble Portoro
Gym

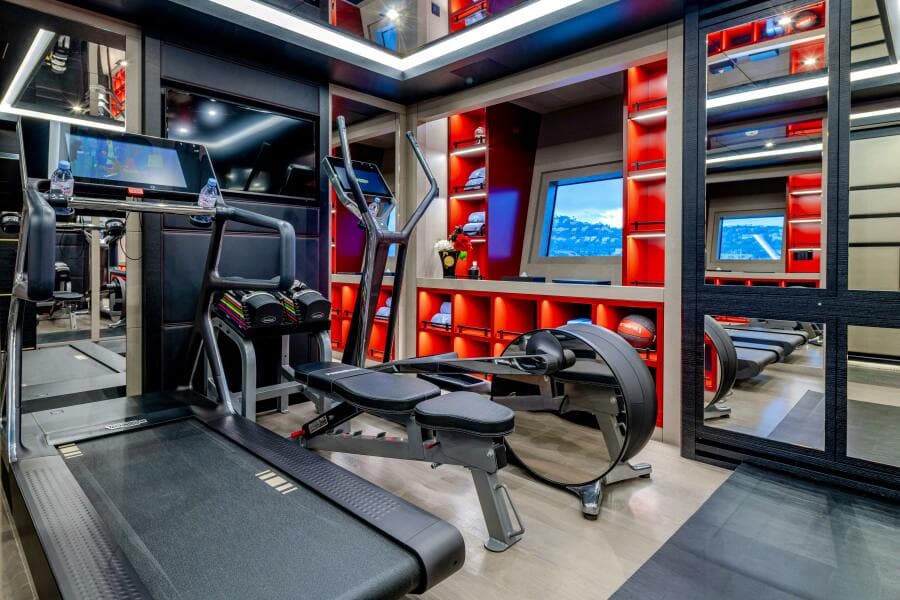

- Fully equipped gym by Technogym (treadmill and elliptical bike).

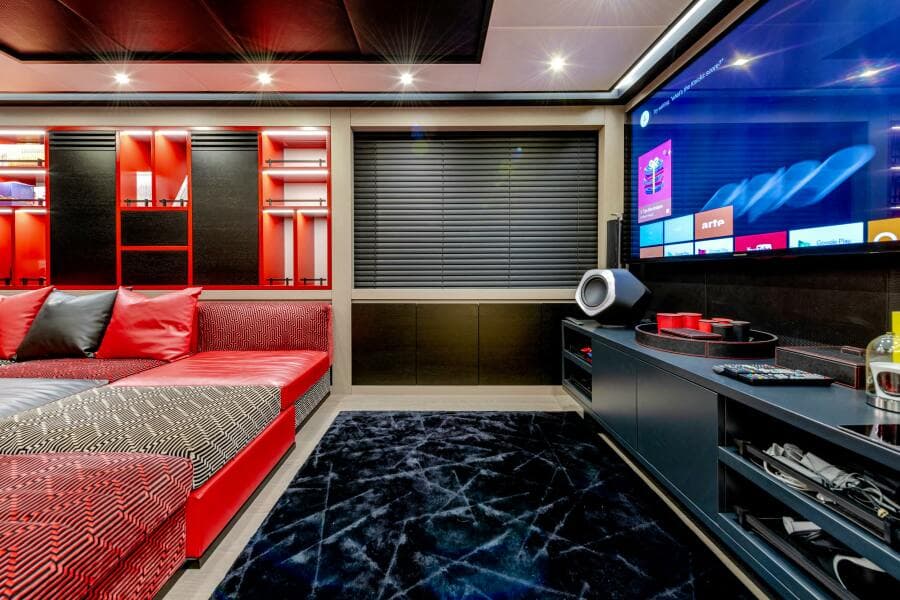

Cinema Room
- Cinema room with dedicated entertainment system. Can be converted into two beds.
Galley & Laundry

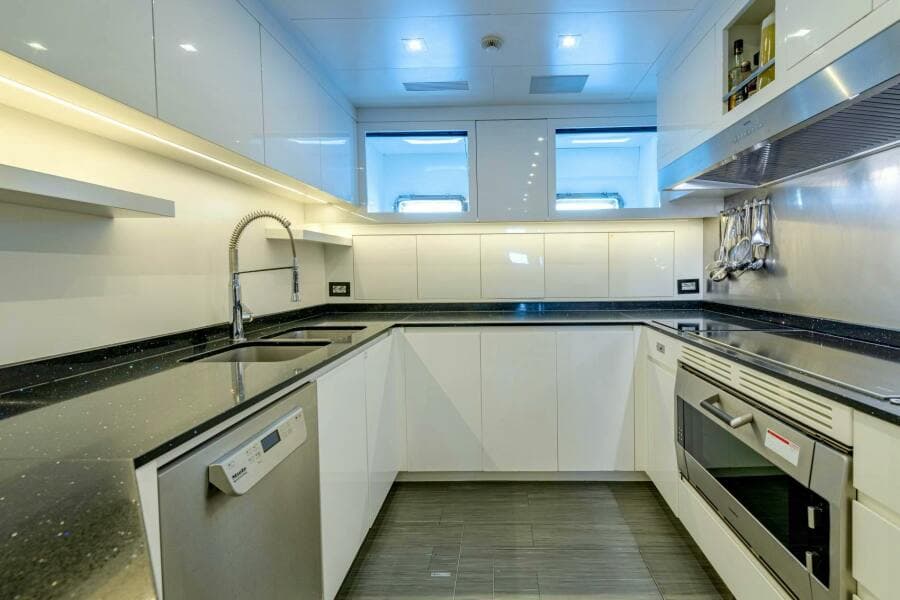

Galley
1 x Miele Induction Hob full surface
1 x Miele Induction Hob
1 x Gaggeneau oven
1 x Microwave Gaggeneau
8 x Custom fridges (with either positive cold or negative cold)
2 x Freeze in bilge
1 x Miele Dishwasher
Laundry
2 x Washing machine Miele Pro
2 x Dryer machine Miele Pro
1 x Miele Induction Hob full surface
1 x Miele Induction Hob
1 x Gaggeneau oven
1 x Microwave Gaggeneau
8 x Custom fridges (with either positive cold or negative cold)
2 x Freeze in bilge
1 x Miele Dishwasher
Laundry
2 x Washing machine Miele Pro
2 x Dryer machine Miele Pro
Communication Equipment
Pepwave 5G Router
Pre-installation for Starlink
VSAT V100 GX
TV Satellite
Peplink for WIFI distribution
VHF-D FM-472
Pre-installation for Starlink
VSAT V100 GX
TV Satellite
Peplink for WIFI distribution
VHF-D FM-472
Navigation Equipment

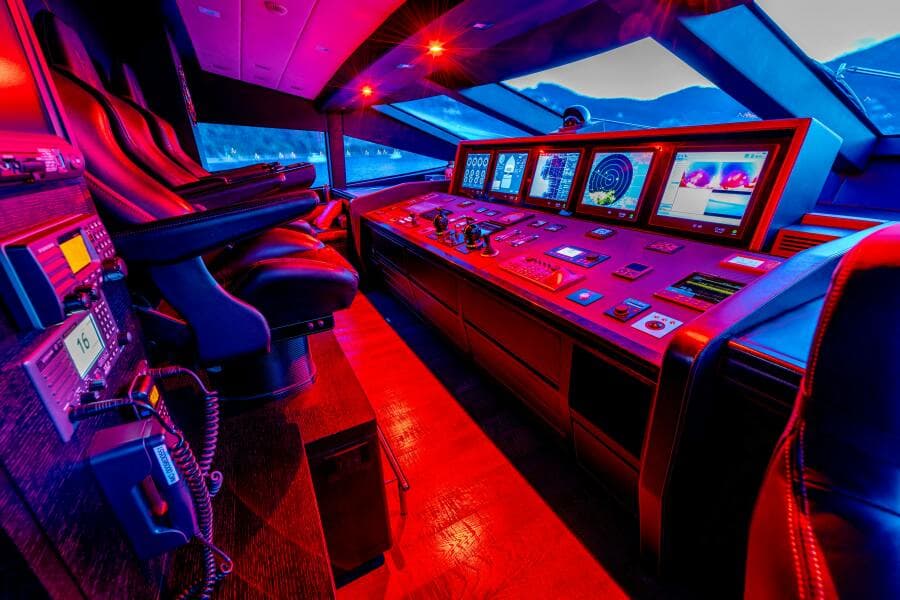

Wheelhouse
Displays: 5 x Hatteland 19” HD 19T21MMD
Plotter: Transas Navisailor 4000 Conning Display
AIS: Transas AIS Interface Level 3
Computer: PC Wallmount WMT 300 PC Box
GPS: Furuno GPS DGPS GP 1700 IMO approved + Furuno GPS GP-33
Gyro Compass: Simrad GC80 + Simrad AR80 analogue repeater
Compass: Cassens & Plath BETA 5
Radar: Furuno FAR 211
Depth Sounder: Furuno IMO Echo Sounder FE800
Speed log: Furuno Doopler DS80
Wind log: Airmar Weather WX150 NMEA 0183/2000
Multifunction Displays: 2 x Furuno FI-70
Autopilot: Sperry Navipilot 4000 C-PLATH
Helm: C-Plath
AIS: Furuno Ais Transponder FA 150 CLASS A
BNWAS: Furuno BNWAS
VHF: FM 8900S GMDSS Class A + VHF Furuno FM 4721 DSC Class D
NAVTEX: Furuno NAVTEX NX700
INMARSAT: 2 x Furuno INMARSAT STD C/LRIT – IMO FELCOM18 INMARSAT-C + Furuno INMARSAT SSAS system MINI-C FUR.FELCOM-19 SSAS
SSB: 1x SSB Cables predisposition
Intercom: Phonotec CIS 3100
Infrared Camera: M-Series Flir M-625XP
Flybridge Wing Stations
2 x Furuno FI-70 Multifunction Displays
2 x VHF Repeater RB8900
Displays: 5 x Hatteland 19” HD 19T21MMD
Plotter: Transas Navisailor 4000 Conning Display
AIS: Transas AIS Interface Level 3
Computer: PC Wallmount WMT 300 PC Box
GPS: Furuno GPS DGPS GP 1700 IMO approved + Furuno GPS GP-33
Gyro Compass: Simrad GC80 + Simrad AR80 analogue repeater
Compass: Cassens & Plath BETA 5
Radar: Furuno FAR 211
Depth Sounder: Furuno IMO Echo Sounder FE800
Speed log: Furuno Doopler DS80
Wind log: Airmar Weather WX150 NMEA 0183/2000
Multifunction Displays: 2 x Furuno FI-70
Autopilot: Sperry Navipilot 4000 C-PLATH
Helm: C-Plath
AIS: Furuno Ais Transponder FA 150 CLASS A
BNWAS: Furuno BNWAS
VHF: FM 8900S GMDSS Class A + VHF Furuno FM 4721 DSC Class D
NAVTEX: Furuno NAVTEX NX700
INMARSAT: 2 x Furuno INMARSAT STD C/LRIT – IMO FELCOM18 INMARSAT-C + Furuno INMARSAT SSAS system MINI-C FUR.FELCOM-19 SSAS
SSB: 1x SSB Cables predisposition
Intercom: Phonotec CIS 3100
Infrared Camera: M-Series Flir M-625XP
Flybridge Wing Stations
2 x Furuno FI-70 Multifunction Displays
2 x VHF Repeater RB8900
Deck Equipment
Bollards / cleats (680mm W x 310mm H)
4 x Bollards on foredeck
2 x Bollards on the aft deck
2 x Mooring line stowage winches on forepeak
2 x Mooring line stowage winches on aft deck
6m Telescopic gangway
Bathing ladder
Aft Deck
Sun Deck
Fore Deck
4 x Bollards on foredeck
2 x Bollards on the aft deck
2 x Mooring line stowage winches on forepeak
2 x Mooring line stowage winches on aft deck
6m Telescopic gangway
Bathing ladder
Aft Deck
- Black tanzania granite dining table with 8 x Dedon Seax chair
- Aft lounge with 2 x Paola Lenti armchairs, 2 x large sofas, 2 x Paola Lenti cocktail tables
- Bar with black tanzania granite countertop and white lacquered wood
- Custom furniture with BBQ Napoleon bypro 825, sink, fridge, ice maker
- Full lighting system on celling
- Multiplex awning
Sun Deck
- Very large sunbed area
- Fully equipped bar with black granite countertop
- Custom DJ booth
- Sofa with forward view
- Multiplex awning
Fore Deck
- Large U shape sofa with 2 x cocktail tables with black granite counter-top
- Large sunbed area
- Mosaic jacuzzi
- 2 x Custom storage furniture with icemaker and fridge
- Multiplex awning
Safety & Security Equipment
All safety, bilge, and fire-fighting equipment according to class and flag
Pump Gianneschi P&B / ACB 531 A – 400V - 4 Kw
Bilge Oily Water Separator DVZ
Bilge Oily Water Tank with capacity according to “Tank capacities”
Emergency Pump (Diesel) outside engine room
2 x Bilge/fire pumps, which are also used as fire pumps, are installed in the engine room
Portable extinguishers are installed in all areas of the vessel according to the ABS/CISR regulations
Pump Gianneschi P&B / ACB 531 A – 400V - 4 Kw
Bilge Oily Water Separator DVZ
Bilge Oily Water Tank with capacity according to “Tank capacities”
Emergency Pump (Diesel) outside engine room
2 x Bilge/fire pumps, which are also used as fire pumps, are installed in the engine room
Portable extinguishers are installed in all areas of the vessel according to the ABS/CISR regulations
Entertainment Equipment
Main Deck Salon
Aft Deck
Foredeck
Garage
Flybridge
Owner’s Cabin
Owner’s Ensuite
Port Guest Cabin
Port Guest Ensuite
Gym
Starboard Guest Cabin
Starboard Guest Ensuite
Cinema Room
VIP Cabin
VIP Ensuite
Crew Mess
Laundry
Galley
Captain’s Cabin
Crew Cabins
ECR
- TV 85” Bang & Olufsen Beovision Avant
- AVR Denon X4200
- 1 x Beolab 19 Speaker
- 2 x Beolab 90 Speakers
- 2 x Beolab 18 Speakers
- DVD OPPO BDP 1050 EU
- Sealux HD / 3D A/V Client Spec
- Apple Ipad Mini 4 64GB
- Apple TV
- Satellite Decoder HUMX TN7000HF
Aft Deck
- 4 x Sonance VT 6.5” Waterproof loudspeakers
- 4 x Sonance XTR 6.5” Waterproof loudspeakers
- Sonance Sonamp SDP8-130 Amplifier
- Sealux HD Audio Client Spec
- Apple Ipad Mini 4 64GB
Foredeck
- 8 x Sonance XTR 6.5” Waterproof loudspeakers
- Sonance Sonamp DSP8-130 Amplifier
- Sealux HD Audio Client Spec
- Apple Airport Express
- Apple Ipad Mini 4 64GB
Garage
- 2 x Sonance Mariner W82 Speakers
- Sonance Sonamp DSP2-150 Amplifier
- Volume control plate
Flybridge
- 4 x Sonance VT 6.5” Waterproof loudspeakers
- 4 x Sonance XTR 6.5” Waterproof loudspeakers
- Sonance Sonamp DSP8-130 Amplifier
- Sealux HF Audio Client Spec
- Apple Ipad Mini 4 64GB
- Pioneer XDJ-RX
- Pioneer RMX500
- Pioneer HDJ-2000-K
- 2 x Pioneer RM-07
Owner’s Cabin
- TV 75” Bang & Olufsen Beovision Avant
- 1 x Beolab 19 Speaker
- 4 x Beolab 18 Speakers
- DVD Oppo BDP 105D EU
- Sealux HD / 3D Client Spec
- Apple Ipad Mini 4 64GB
- Apple TV
- Satellite Decoder HUMX TN7000 HD
- AVR Denon X4200
Owner’s Ensuite
- 2 x Sonance VP66
- Volume Control Plate
Port Guest Cabin
- TV 40” Samsung L Due 60 JU6410
- AVR Denon X2200
- 2 x Sonance VP 66 Speakers
- Sonance Subwoofer VP12SUB NC
- DVD Samsung BluRay BDH8900
- Sealux HD / 3D AV Client Spec
- Apple Ipad Mini 4 64GB
- Satellite Decoder HUMX TN7000 HD
Port Guest Ensuite
- 2 x Sonance VP66 Speakers
- Volume Control Plate
Gym
- TV Samsung L Due 40 JU6410
- AVR Denon X2200
- 2 x Sonance VP 66 Speakers
- Sonance Subwoofer VP12SUB NC
- DVD Samsung Bluray BD-H 8900
- Sealux HD / 3D A/V Client Spec
- Apple Ipad Mini 4 64GB
- Satellite Decoder HUMX TN7000 HD
- Apple TV
Starboard Guest Cabin
- TV 40” Samsung L Due 40 JU6410
- AVR Denon X2200
- 2 x Sonance VP66 Speakers
- Sonance Subwoofer VP12SUB NC
- DVD Samsung Bluray BD-H 8900
- Sealux HD / 3D A/V Client Spec
- Apple Ipad Mini 4 64GB
- Satellite Decoder HUMX TN7000 HD
Starboard Guest Ensuite
- 2 x Sonance VP66
- Volume Control Plate
Cinema Room
- TV 75” Bang & Olufsen Beovision Avant
- AVR Denon X4200
- 1 x Beolab 19 Speaker
- 4 x Beolab 18 Speakers
- DVD OPPO BDP 1050 EU
- Sealux HD / 3D A/V Client
- Apple Ipad Mini 4 64GB
- Apple TV
- Satellite Decoder HUMX TN700 HF
- Sony Playstation 4
- WII U Gaming Console
VIP Cabin
- TV 55” Bang & Olufsen Beovision Avant
- AVR Denon X4200
- 1 x Beolab 19 Speaker
- 2 x Beolab 18 Speakers
- DVD Samsung Bluray BD-H8900
- Sealux HD / 3D A/V Client Spec
- Apple Ipad Mini 4 64GB
- Satellite decoder HUMX TN7000 HD
VIP Ensuite
- 2 x Sonance VP66 Speakers
- Volume Control Plate

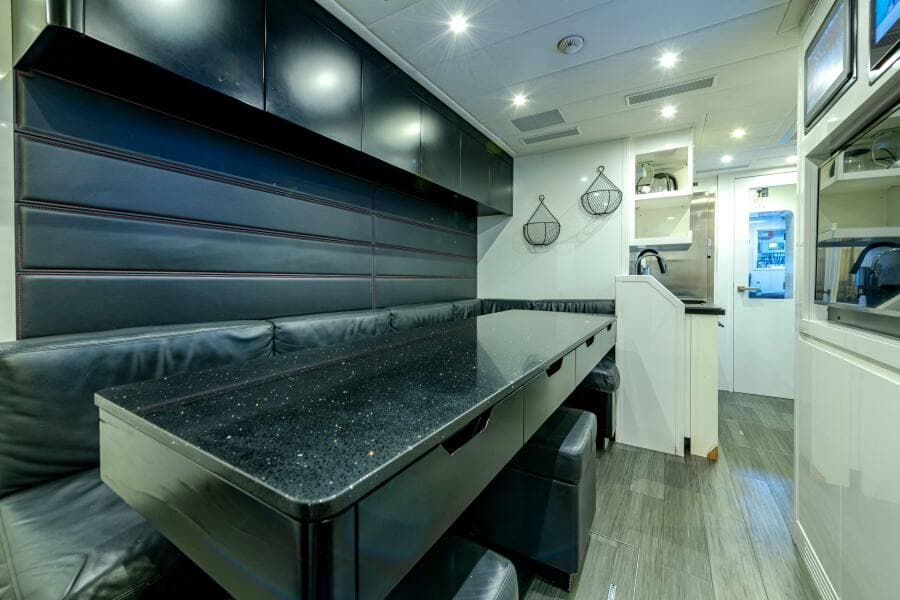

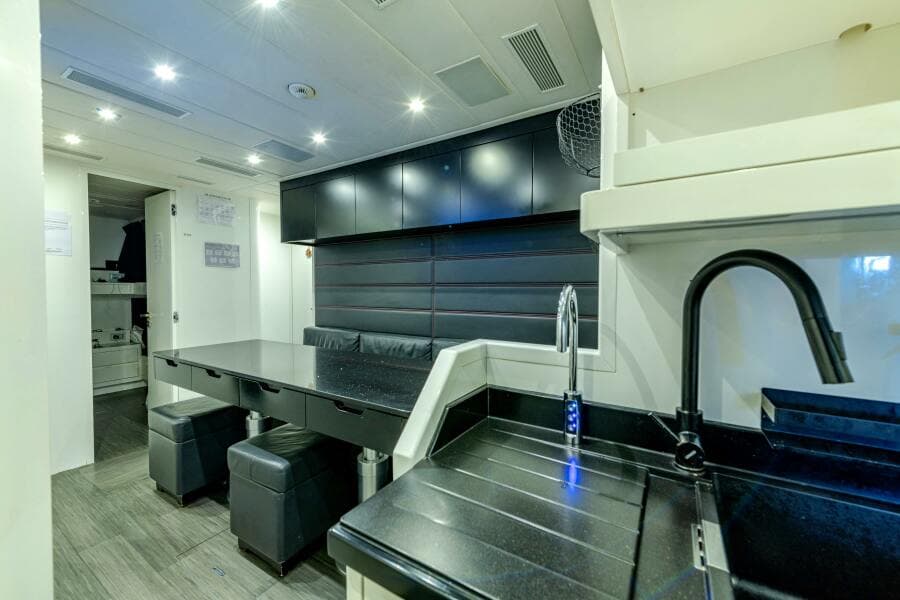

Crew Mess
- TV 40” Samsung L Due 40 JU6410
- 2 x Sonance VP66 Speakers
- AVR Denon X3200
- Sealux HD / 3D A/V Client spec
- Apple Ipad mini 4 64GB
- Satellite decoder HUMX TN7000 HD
Hatteland HD 19T21MMD 19” CCTV monitor - Furuno FI-70 Multifunction display
- 9001-Indoor unit
- Furuno BNWAS BR540
- Furuno remote handset HS4721
Laundry
- Pioneer DEH4800FD
- 2 x Sonance VP66 Speakers
Galley
- Pioneer DEH 4800FD
- 2 x Sonance VP66 Speakers
Captain’s Cabin
- TV LED Samsung 32”
- 2 x Sonance VP66 Speakers
- AVR Denon X2200
- Sealux HD / 3D A/V Client Spec
- Apple Ipad Mini 4 64GB
- Satellite decoder HUMX TN7000HD
- Furuno BNWAS BR540
- Furuno FI70 Multifunction display
Crew Cabins
- 2 x TV LED Samsung 22 H5500
- 2 x Bluetooth headsets
- Sealux HD / 3D A/V Client spec
- Apple Ipad Mini 4 64GB
- Satellite decoder HUMX TN7000 HD
ECR
- Pioneer DEH 4800FD
- 2 x Sonance XTR 6.5” Waterproof speakers
- 9003 Substation Headset
Tender & Toys
Milpro Commando Tender
Seadoo RXPX 300
2x Seabob F5S Carbon
Seadoo RXPX 300
2x Seabob F5S Carbon
Refit History
All machinery serviced annually according to best practices
MTU engines still under warranty
2017
2018
2019
2020
2021
2022
2023
2024
MTU engines still under warranty
2017
- MTU Engine Interface Module changed for port engine
- Generators standard annual service
2018
- MTU standard annual service
- Generators standard annual service
- Seakeeper starboard centre ECU replacement
2019
- MTU 500hrs service
- MTU replacement of alternator seals and bearings
- KaMeWa standard annual service
- Generators standard annual service
2020
- MTU port engine centre, modification of the condensation air manifold
- MTU port and starboard engine centre, turbocharger casing
- MTU 1000hrs service
- ZF. A1 service
- SELLMAR reconditioning of the 3 pumps, replacement of UV lamps and ballast
- KaMeWa standard annual service. Oil analysis, alignment check, ultrasonic examination
- Humphree cleaning of the blades and replacement of the through-hull fittings with engine rings
- Generators 6000hrs service
- Seakeepers annual service + bushing + accumulator / hydraulic circuit flushing
2021
- MTU standard annual service
- SELLMAR removal of the probe plate, workshop service. Creation of a new gasket. Replacement of probes. Disassembly/reassembly of the seawater pump. Disassembly/reassembly of the discharge pump
- KaMeWa standard annual service
- Humphree cleaning of the blades and replacement of the motor bushings
- Idromar replacement of UV lamps, replacement of level probes, replacement of seal kits for all pumps. Water quality test
- Idromar test of RAS membranes. Removal of high-pressure pump for servicing. Replacement of quartz and UV lamp, cleaning of sand filter, replacement of low-pressure gauge
- Generators turbo refurbishment, cylinder compression test, endoscopy
- ZF. 5-year inspection
2022
- 5-year special survey
- MTU QL1
- KaMeWa 5-year service, PTO pump service on the external MP, replacement of fly screen.
- Removal of directional KaMeWa’s
- Humphree cleaning of the blades and replacement of the motor bushings. Blade removal and workshop inspection
- Idromar microbiological water analysis, removal of membranes, testing, replacement of membrane caps, replacement of low-pressure pump, removal of high-pressure pump and electric motor for reconditioning, oil change for high-pressure pump, replacement of high-pressure hoses.
- Generators replacement of exhaust elbows, replacement of injection pump, change of EDM pump seal
- Seakeepers annual service, bushing, accumulators / hydraulic circuit flushing, glycol
- Draining, seal replacement on the internal gyro cylinder port centre.
- All anodes replaced
2023
- MTU standard annual service
- SELLMAR general inspection, replacement of level probes, replacement of the charcoal filter, replacement of U.V. lamps, cleaning
- KaMeWa service, oil analysis, alignment check. Removal of boosters, replacement of all hydraulic hoses
- Humphree cleaning of the blades and replacement of the motor bushings
- Idromar removal of high-pressure and low-pressure pumps for reconditioning (new low- pressure pump), replacement of quartz and UV lamp, replacement of pressure gauge
- Generators replacement of injection rail port/starboard - replacement of EDM pumps, replacement of generator bearings. Removal of the temperature exchanger. Removal of the air exchanger. Removal of the fuel exchanger. Removal of the transmission oil exchanger. Removal of the Expansion Tanks. Cleaning (acid / degreaser / pressure wash). Replacement of seals. Pressure / vacuum tests.
- Seakeeper service at 1000 hours for all. Port centre replacement of glycol pump No. 2.
- Overhaul of the EDM pump
- ZF service A and endoscopic analysis.
2024
- MTU standard annual service
- SELLMAR replacement of the charcoal filter, installation of new suction pipes
- KaMeWa standard service, oil analysis, replacement of KaMeWa wing station levers
- Humphree cleaning of the blades and replacement of the motor bushings
- Idromar winterizing, replacement of filter head, replacement of sand filters. Membrane testing
- Generators standard annual service
Exclusions
Works of art and personal owner's items are not included in the sale.
Listing MLS by Yachtr.com
Listing Owner
NameTom Dunigan
TitlePresident
Emailtom@dmgboat.com
Phone586-204-7723
Cell248-505-3959
Address31300 N River Rd
Address Line 2Suite 3
CityHarrison Township
ProvinceMI
CountryUSA
Postal Code48045
Get in Touch
Interested in This Boat?
Send us a message and our team will get back to you promptly
