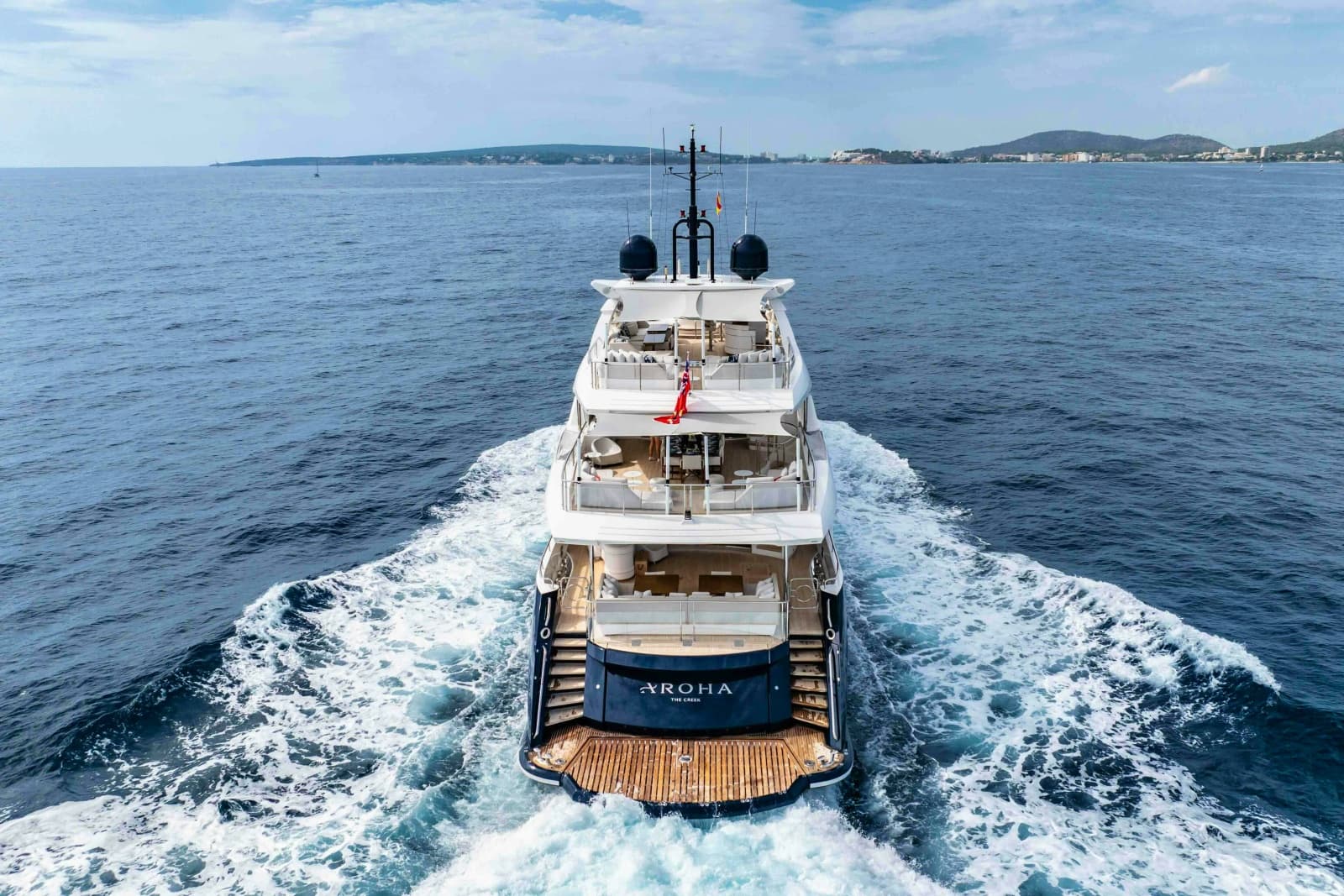

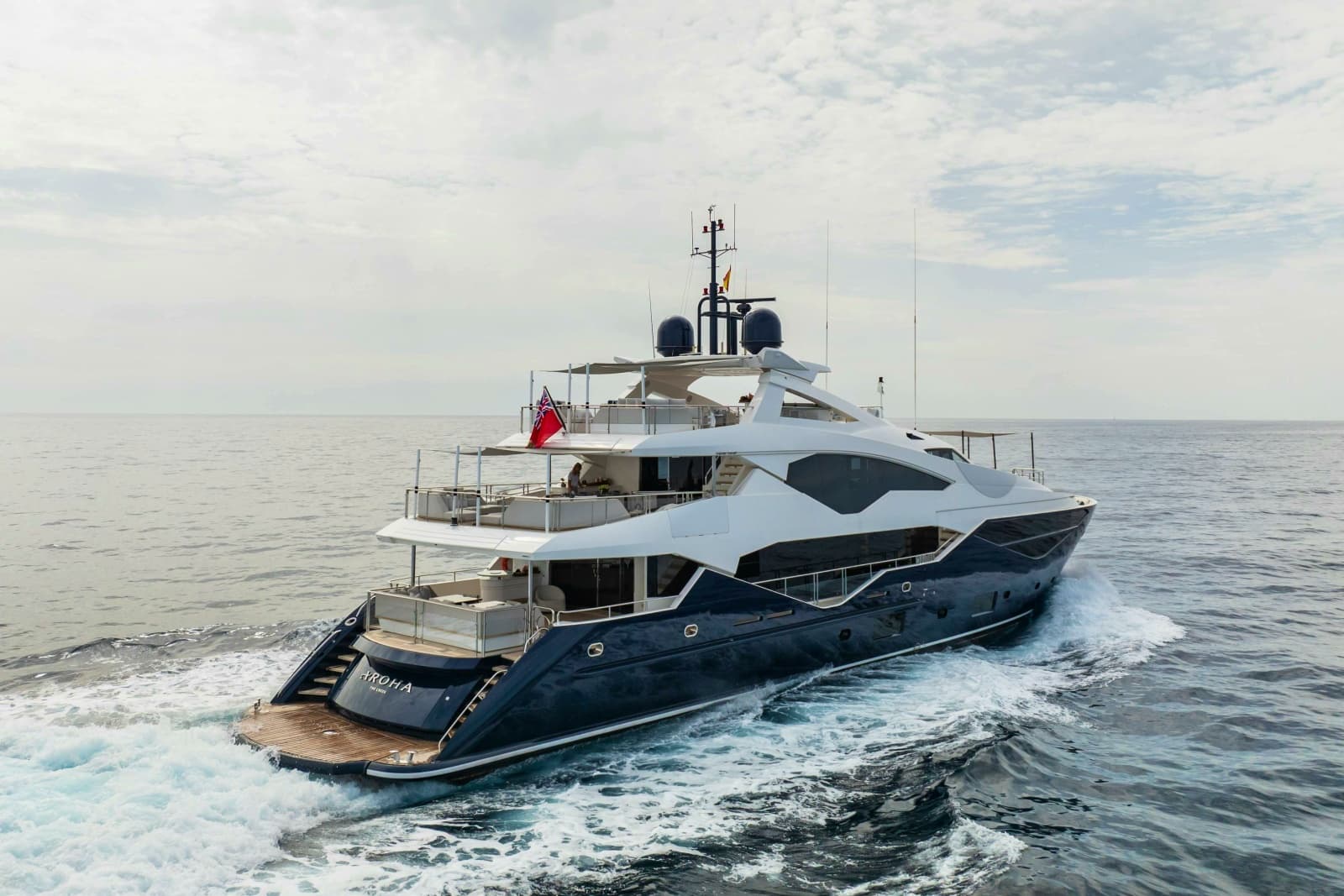

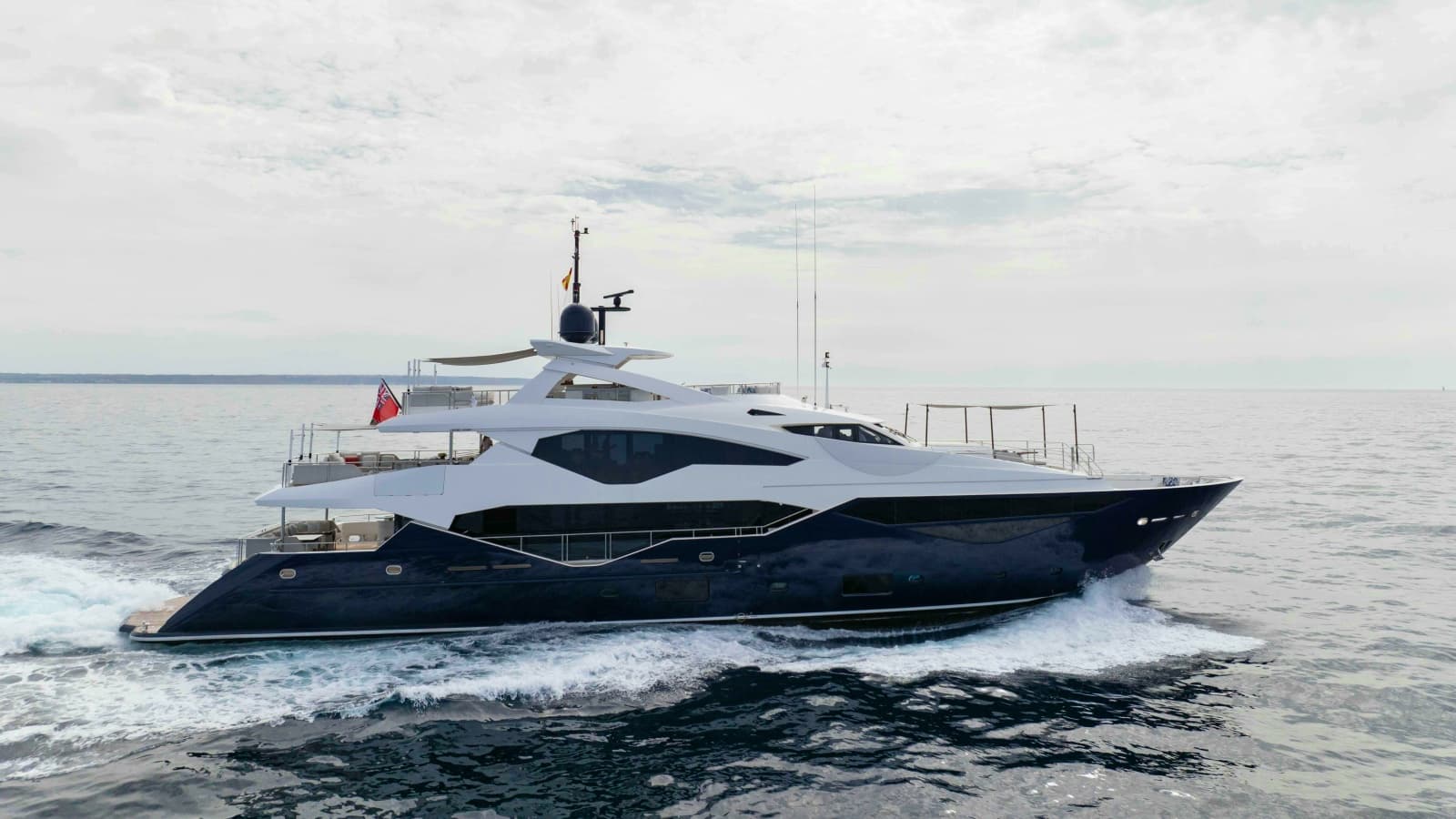

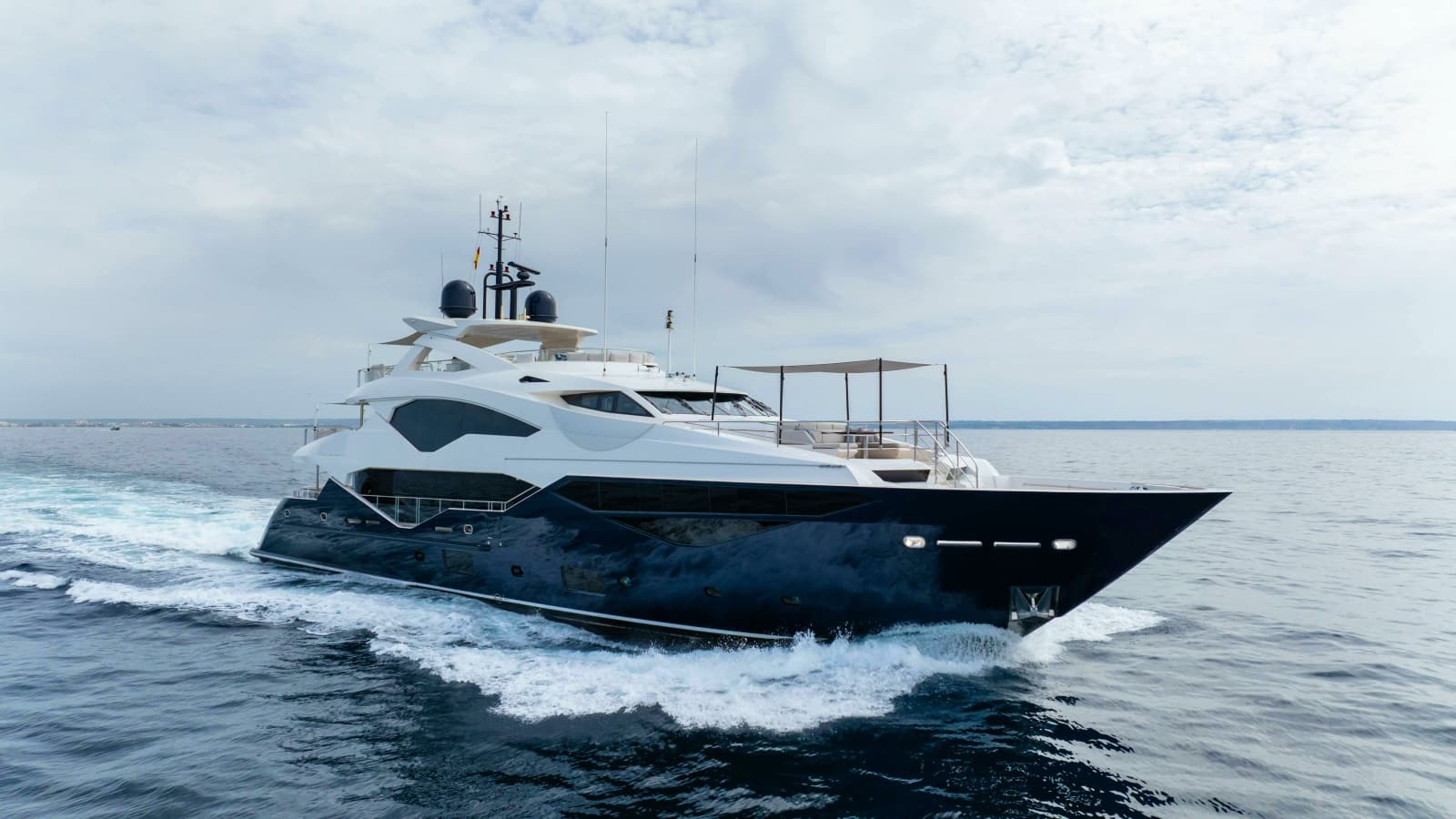

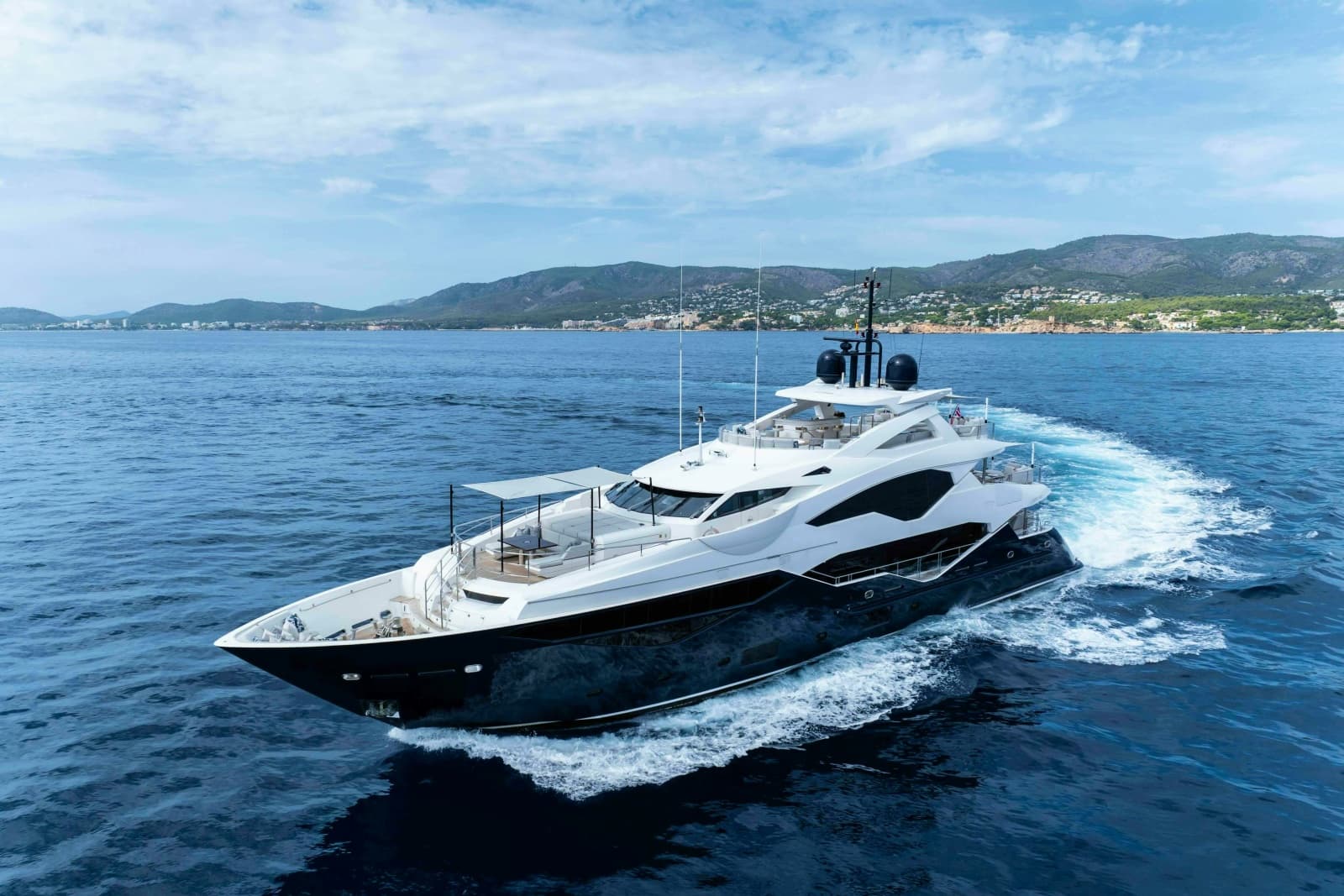

2016 Sunseeker Sunseeker 131 Yacht

LOA: 131’5” (40.05m)

Beam: 26’7” (8.09m)

Draft: 8’10” (2.7m)

Year: 2016

Builder: Sunseeker

Model: 131 / 60416131

Crew: 8 in 5 Cabins

Guests: 12 in 5 Cabins

Classification: RINA, LY3 Commercial (Run Privately)

Flag: Cayman Islands

Location: Palma de Mallorca - Spain

Hull Material: GRP

Hull Designer: Sunseeker

Tonnage: 342 GT

Range at Cruising: 1,500nm

Max Speed: 23 knots

Price: EUR 11,995,000

EU VAT Paid: No

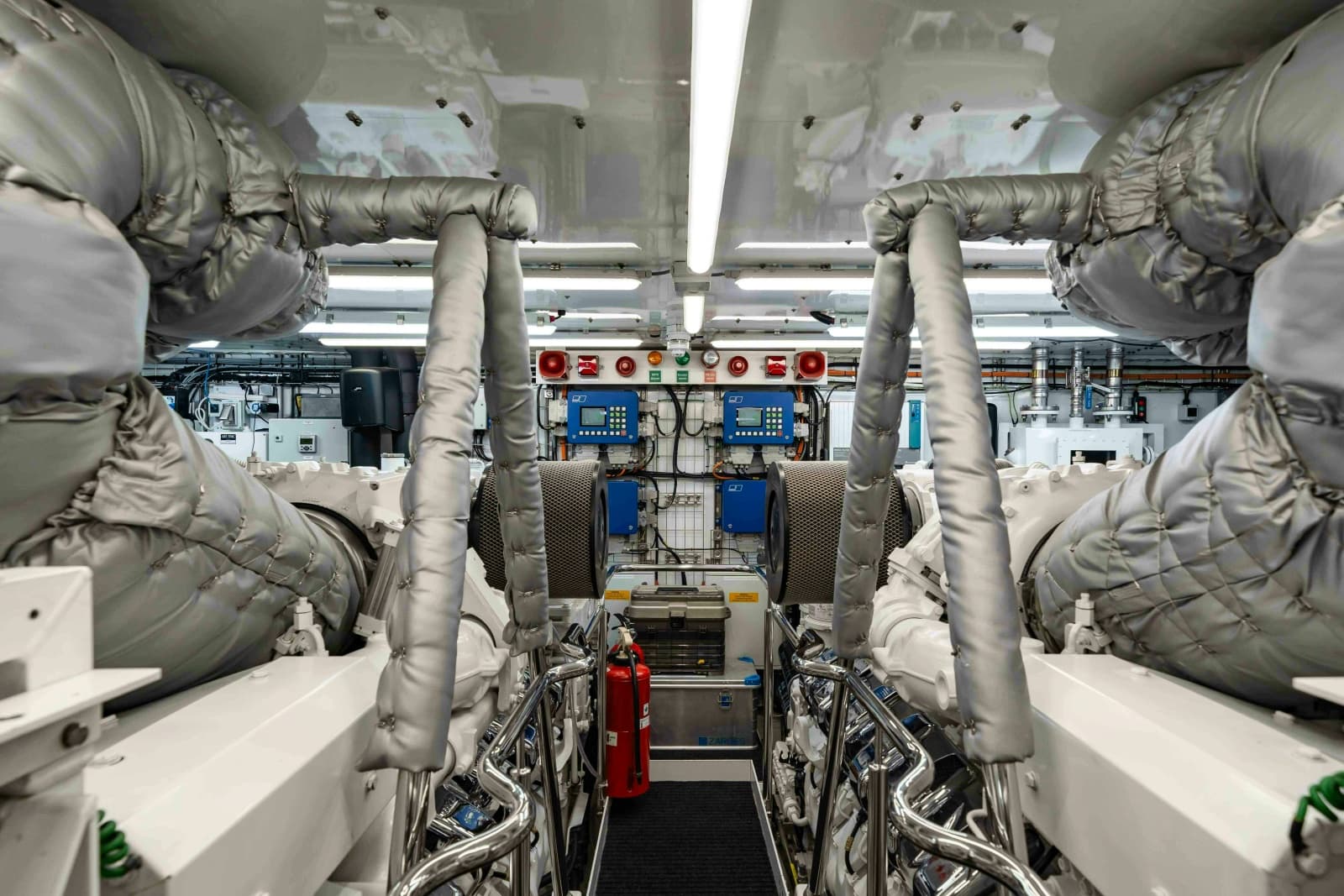

Engines: 2 x MTU 12V 4000 M93 3,140hp

Port engine hours: 4328 hours

Starboard engine hours:  4327 hours

Gearbox: ZF - ZF7600A, Gear ratio: 3.286:1

Propellors: 2 x Rolla 5 blades NiBrA

Steering: Wills Ridley with dual pumps 220V three phase and 24V DC

Stabilisers: Stabilizers: ABT-TRAC 440 digital fin stabilization system at Rest Stabilisation

Bow thruster: Hydraulic bow thruster system 100HP ABT TRAC 20

Stern thruster: Hydraulic stern thruster system 65HP ABT TRAC 16

Total Fuel Capacity: 28,600 Ltr – 7,555 USG

Lube Oil: 287 Ltr – 76 USG

Waste Oil: 287 Ltr – 76 USG

Water Capacity: 5,200 Ltr – 1,375 USG

Grey Water: 1,340 Ltr – 330 USG

Black Water: 1,340 Ltr – 330 USG

Generators: Generators: 2 x Kohler 80kw 400/230V 3 Phase 50Hz - 80EFOZDJ

Port generator hours: 9950 hours

Starboard generator hours: 10018 hours

(Both Generators were top end rebuilt at 8050 hours before the start of summer season 2024)

Shore Power: Shore power: 2 x 125A plugged flexible 20M cable

Shore power converter: Atlas 90 kVA-SPA-II Series 50Hz

Batteries: 24v Service Batteries

Emergency and Radio Batteries: 24v

Fuel Filters: Racor Dual Cross over setup

Fuel Oil Seperators: Alfa Laval MMIB 303

Bilge Pump: Gianeschi 3phase Main

Fire Pump: Gianeschi 3phase Main

Aux Fire/Bilge: Gianeschi – Diesel Pump

Boilers: a pair of Quick Boilers with 3 x 2kw heating elements

Sewage Treatment: Hamman Super Mini

Toilet System: Techma

Airconditioning system: Full Dometic Chilled Loop water system (Sunseeker optional Tropical upgrade)

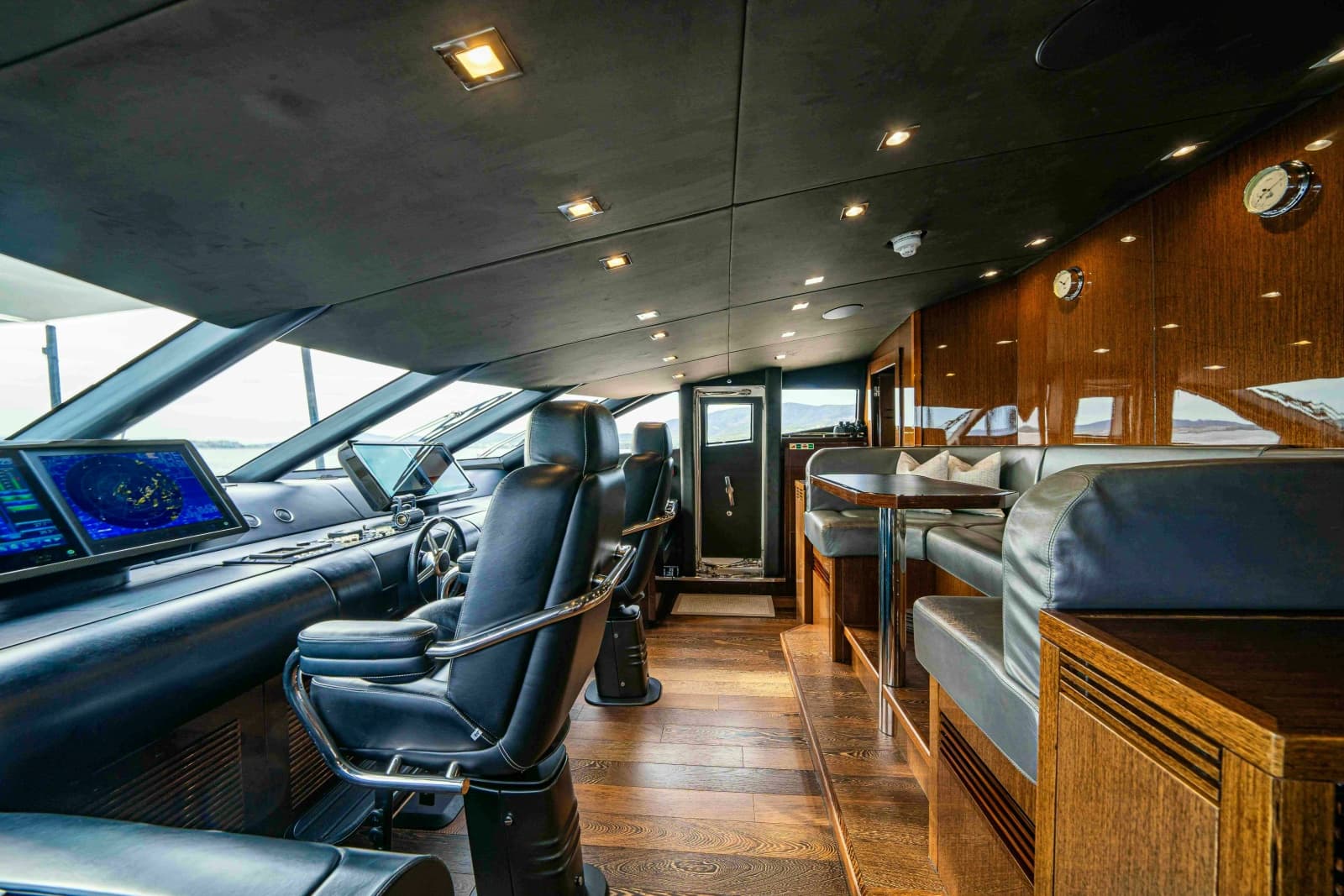

Radar: Furuno FAR1518-BB X-Band 9GHz 12Kw

Electronic chart system: Transas Navi-Sailor 4000 ECDIS & Time Zero Professional

Magnetic compass: Ritchie compass Helmsman HF-743

Gyro compass: Hemisphere GNSS V103

Auto pilot: Simrad AP70

Log: Sperry Naviknot 350E

Echosounder: Furuno FE800 Echo Sounder 200KHz with 200B-8B Transducer

GPS: Furuno GP170 GPS Navigator with GPS antenna

Display: 4 x Hatteland Series X 19" Maritime

AIS: Furuno FA170 Class A AIS Transponder with GPS and VHF antenna

Bridge navigational watch alarm: Furuno BR510

Rudder angle indicator: Simrad RF45X

SAT C: Sailor with 6066 Terminal & Printer

VHF system: Sailor 6222 Class A DSC

Handheld Portable VHFs. 2 x Icom GM1600E GMDSS VHF

MF Radio: Sailor 6301 MF/HF 150W Radio Telephone

Navtex Receiver: Furuno NX700B

Satcom system: Sailor 9110 VSAT 103cm

Satellite TV: Intellian replaced in 2022

Terrestrial communications: Pepwave 5G Max BR1 & Starlink Data system

Wi-Fi router: Ubquity Dream Machine Pro with remote management, including switching gear and AP’s throughout the vessel

Anchors: 1 x Pool style Manson Kedge 210Kg Stainless and 1 x Admiralty galvanized bow anchors

Anchor chains: Upgraded anchor chain to 2 x 165-meter 19mm Galvanised Chains

Windlasses: 2 x Hydraulic Vertical Lewmar

Capstans: 2 x Hydraulic Lewmar

Passerelle: Electro-hydraulic Besenzoni 150 Kg

Swim platform: Electro-hydraulic Phoenix Marine

Garage door: Electro-hydraulic on Phoenix System

Spotlight: ACR UP102

Awnings and Deck Covers:

Complete Set of deck covers

2 x Electric retractable awnings, bridge deck aft and sundeck

Removable awning on main deck, bridge deck aft and forward, sundeck

Jacuzzi pool with water feature and bubble system

Complete gym set up with treadmill, rowing machine, free weights and Boxing Bag

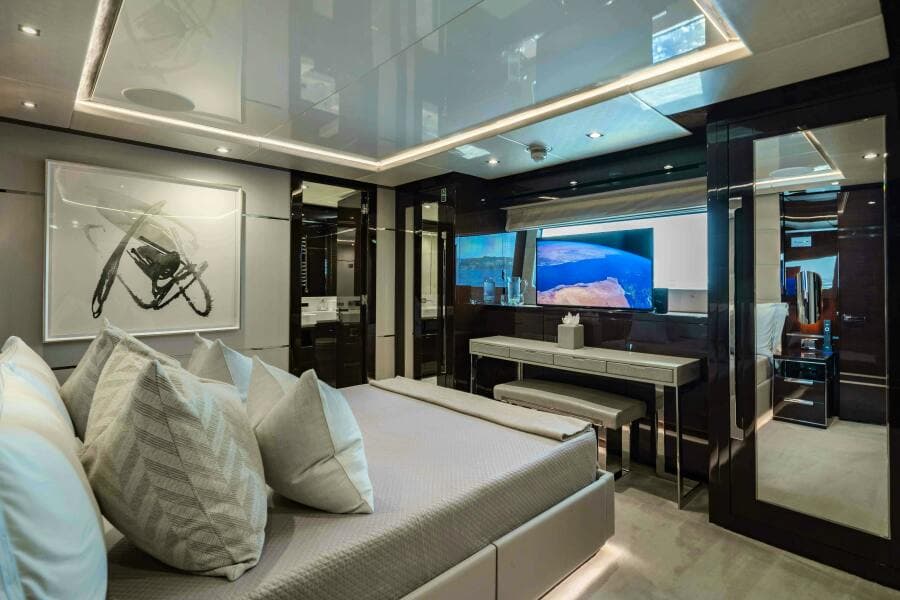

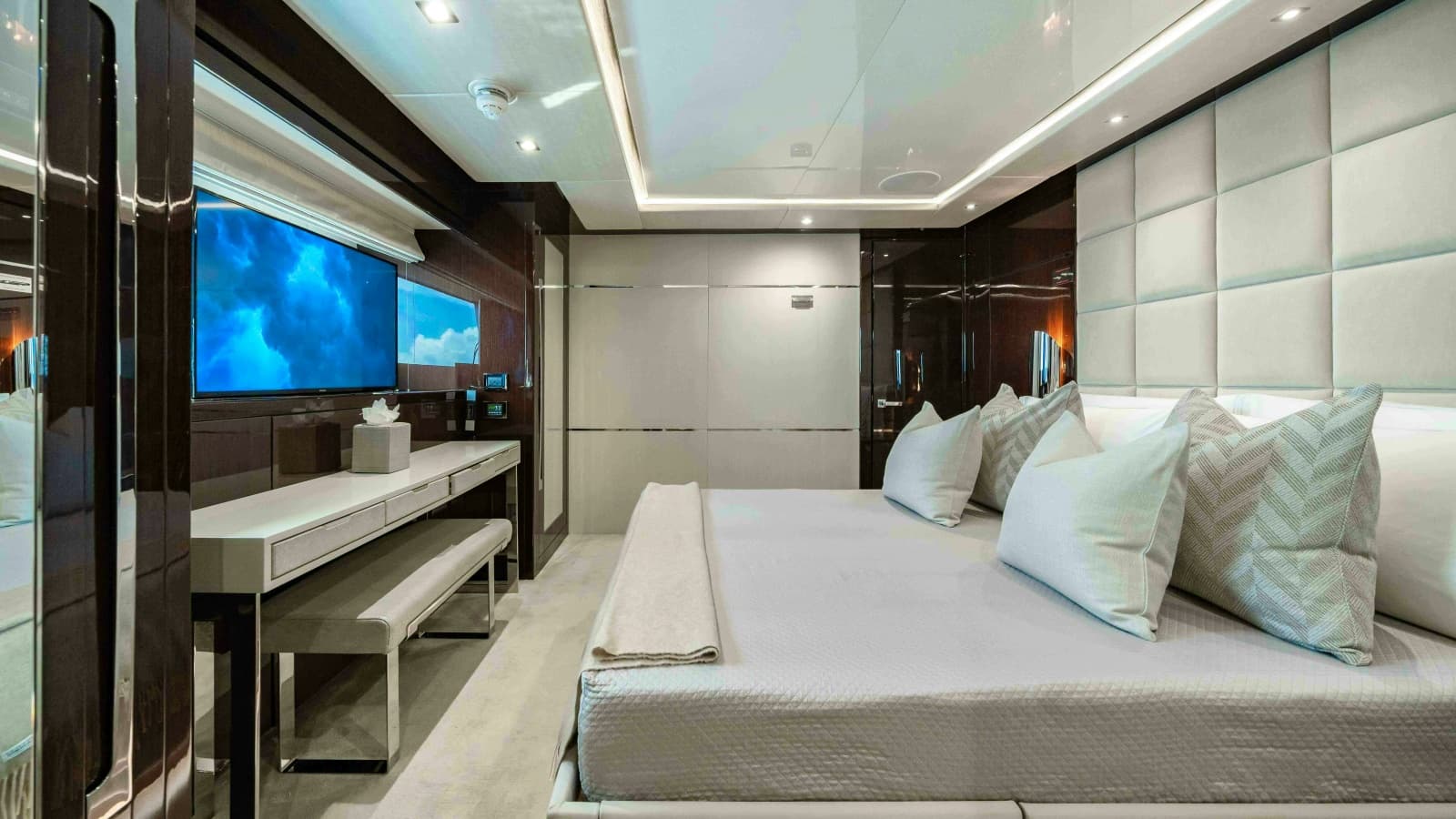

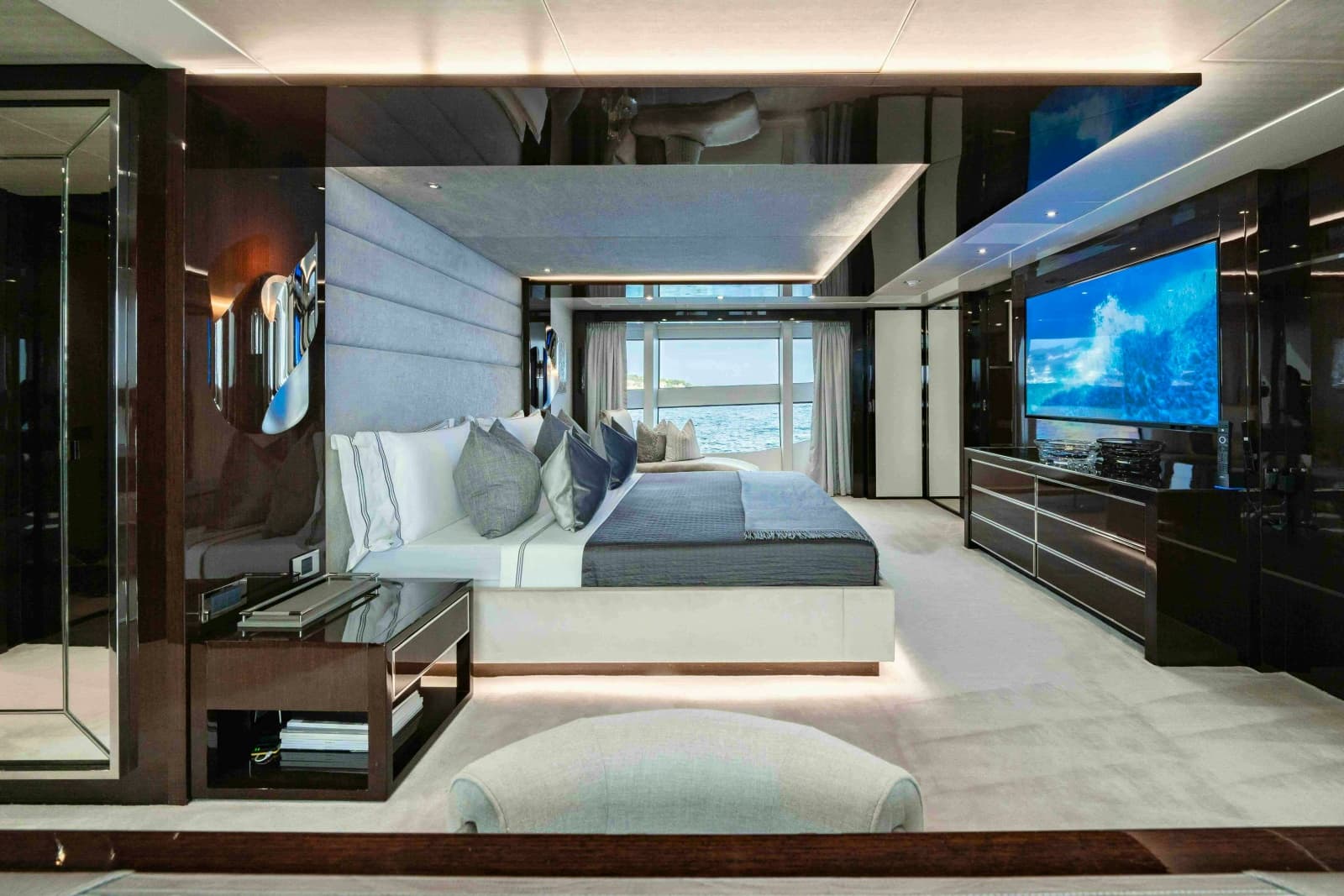

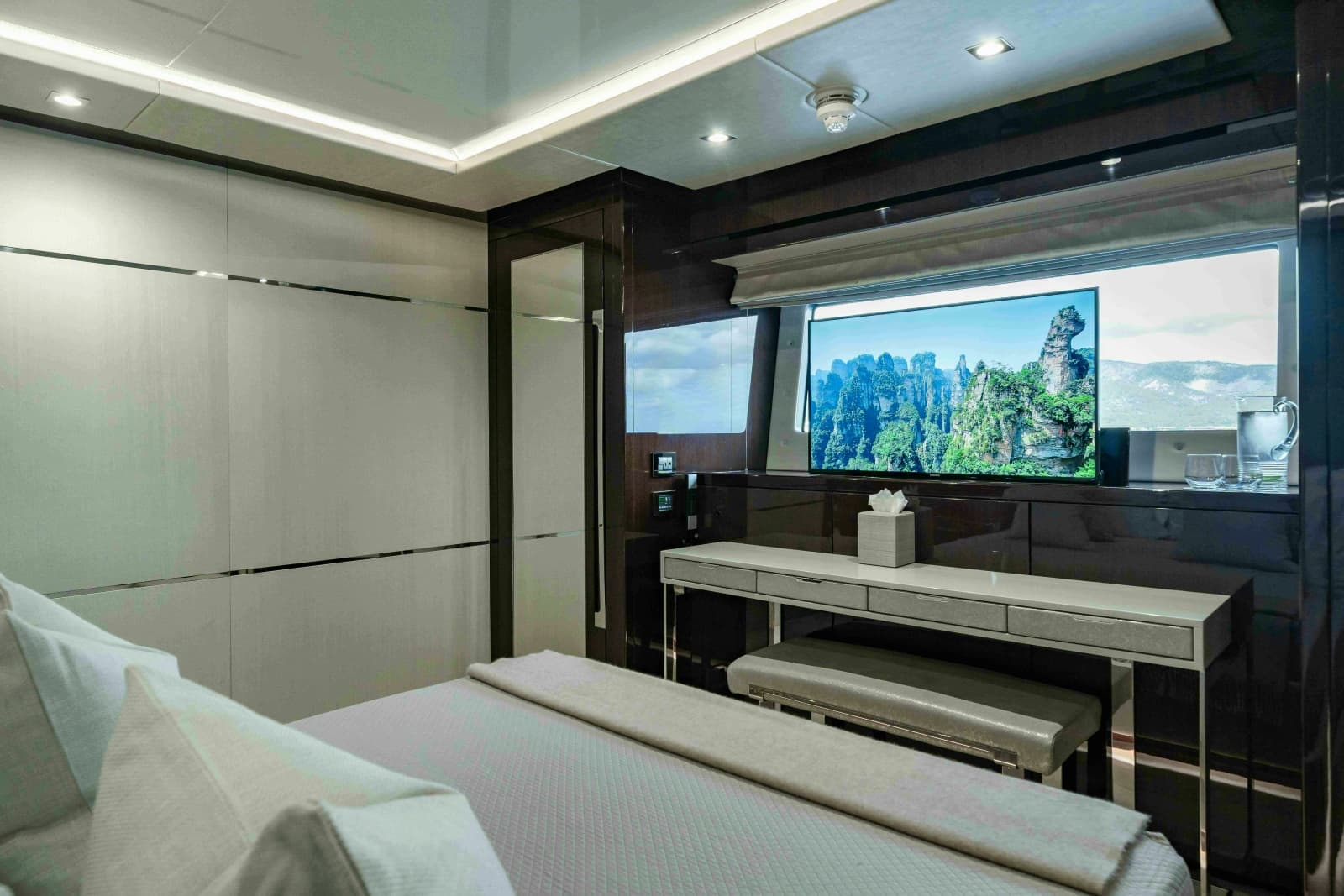

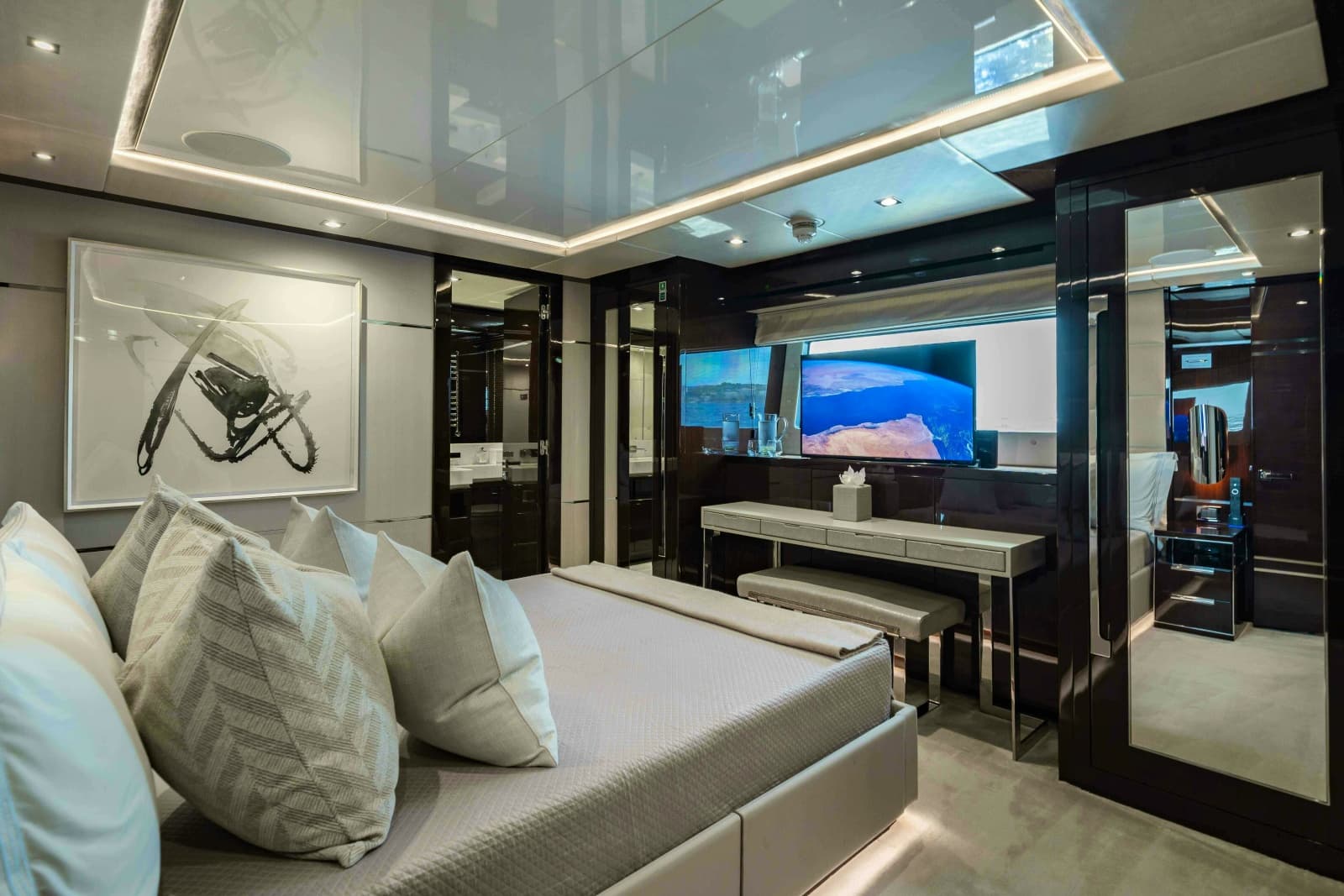

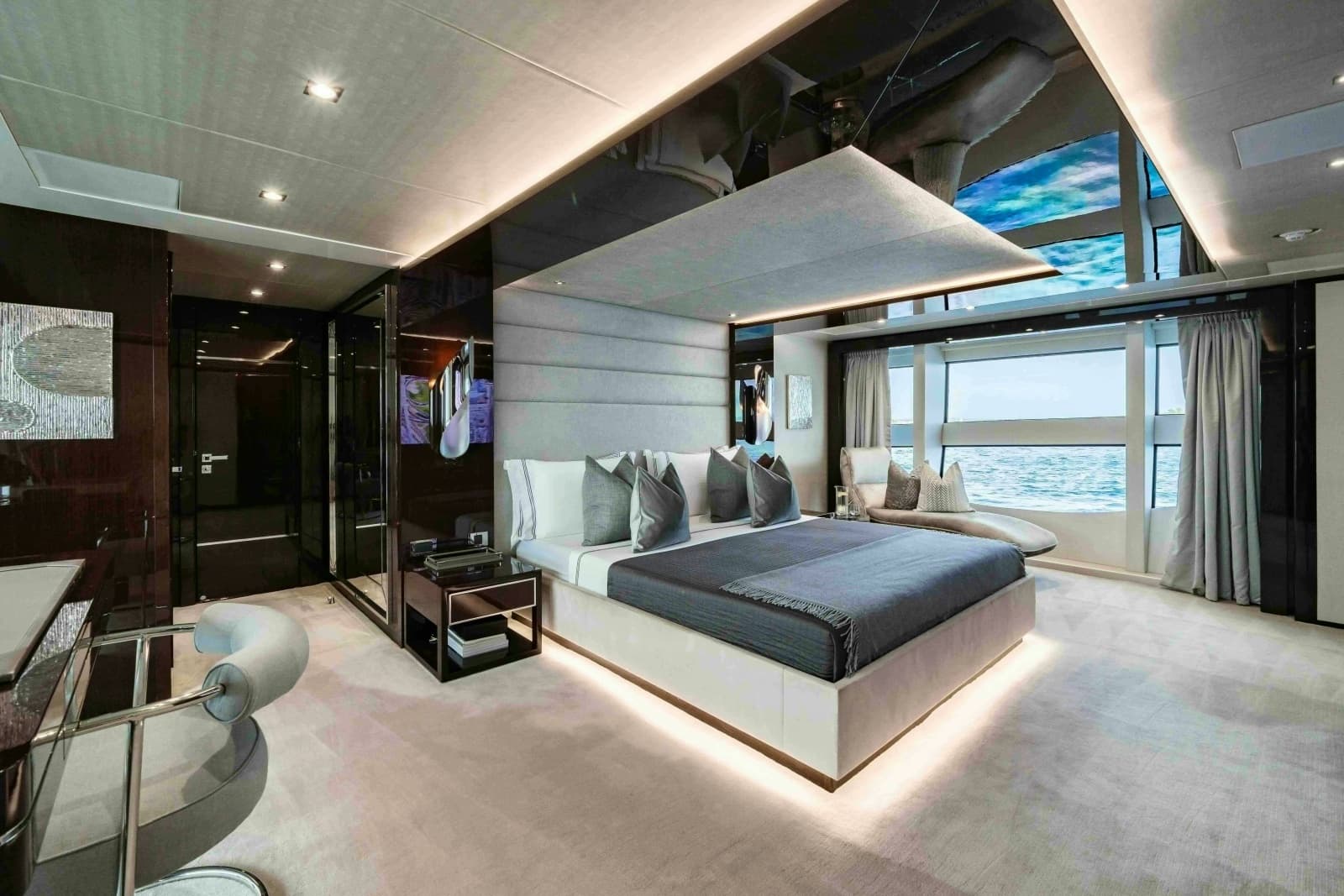

Each Cabin has Samsung TV complete with entertainment system, Airplay, Apple TV and SAT TV. High powered speakers and universal remote

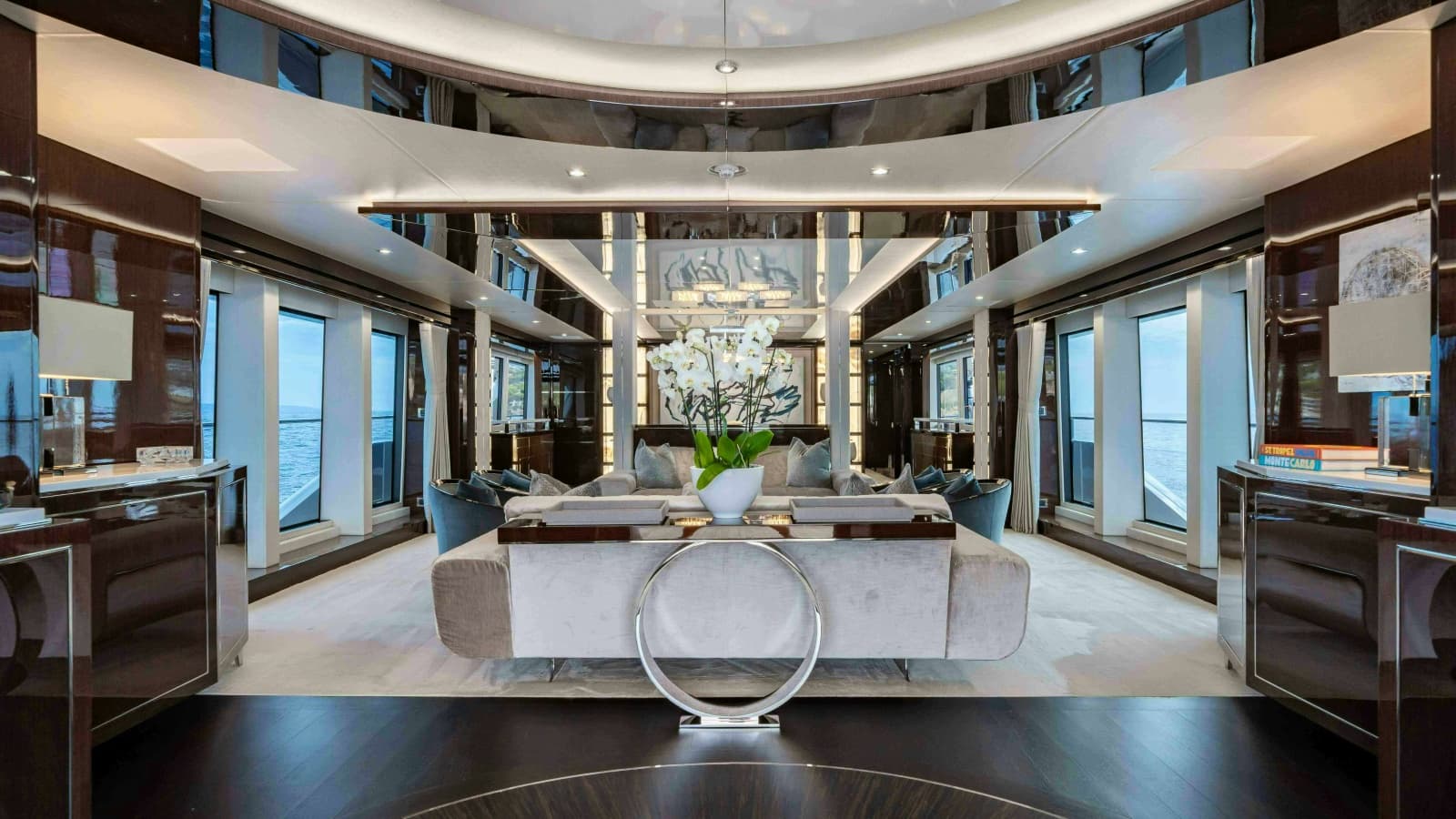

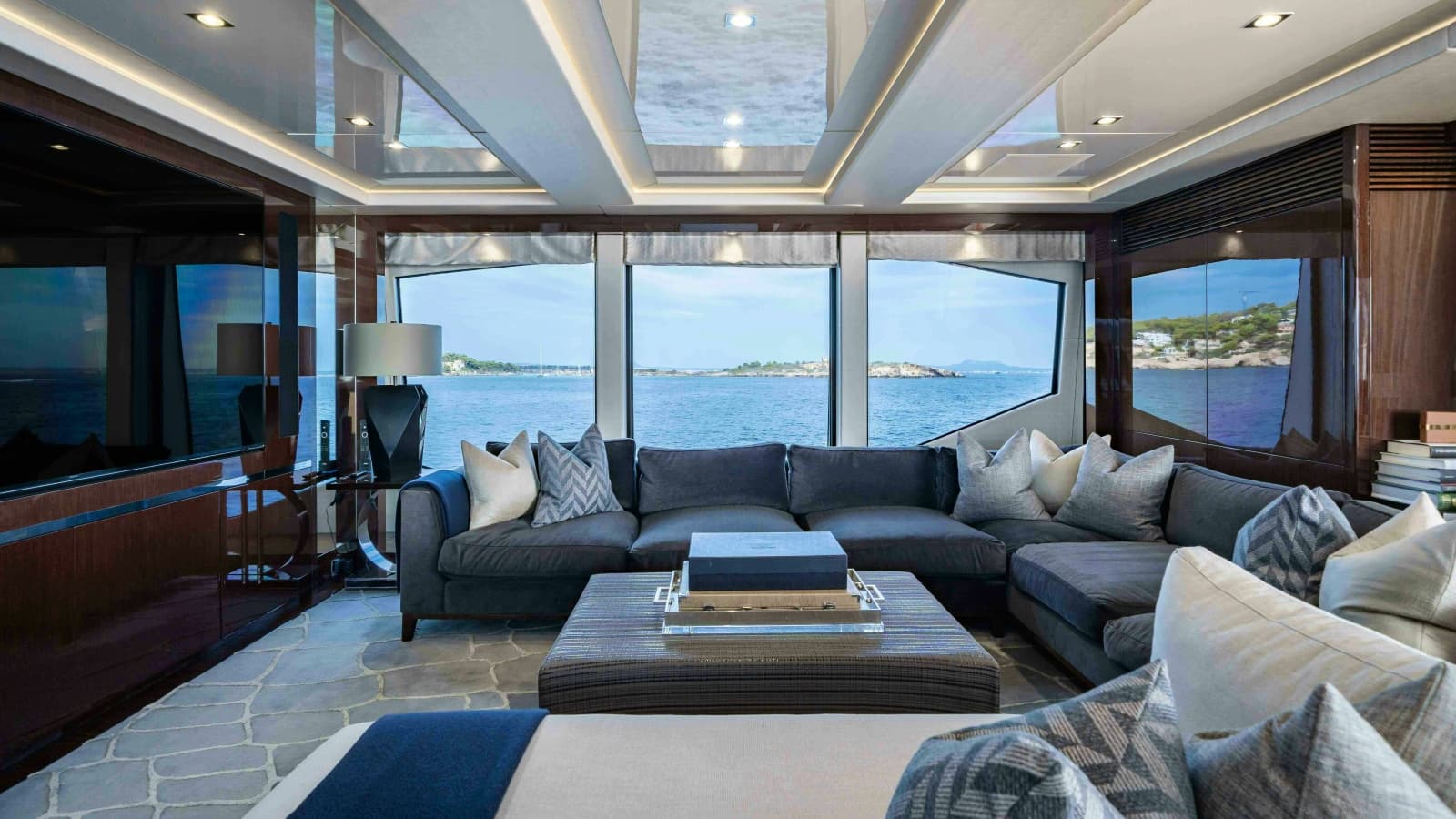

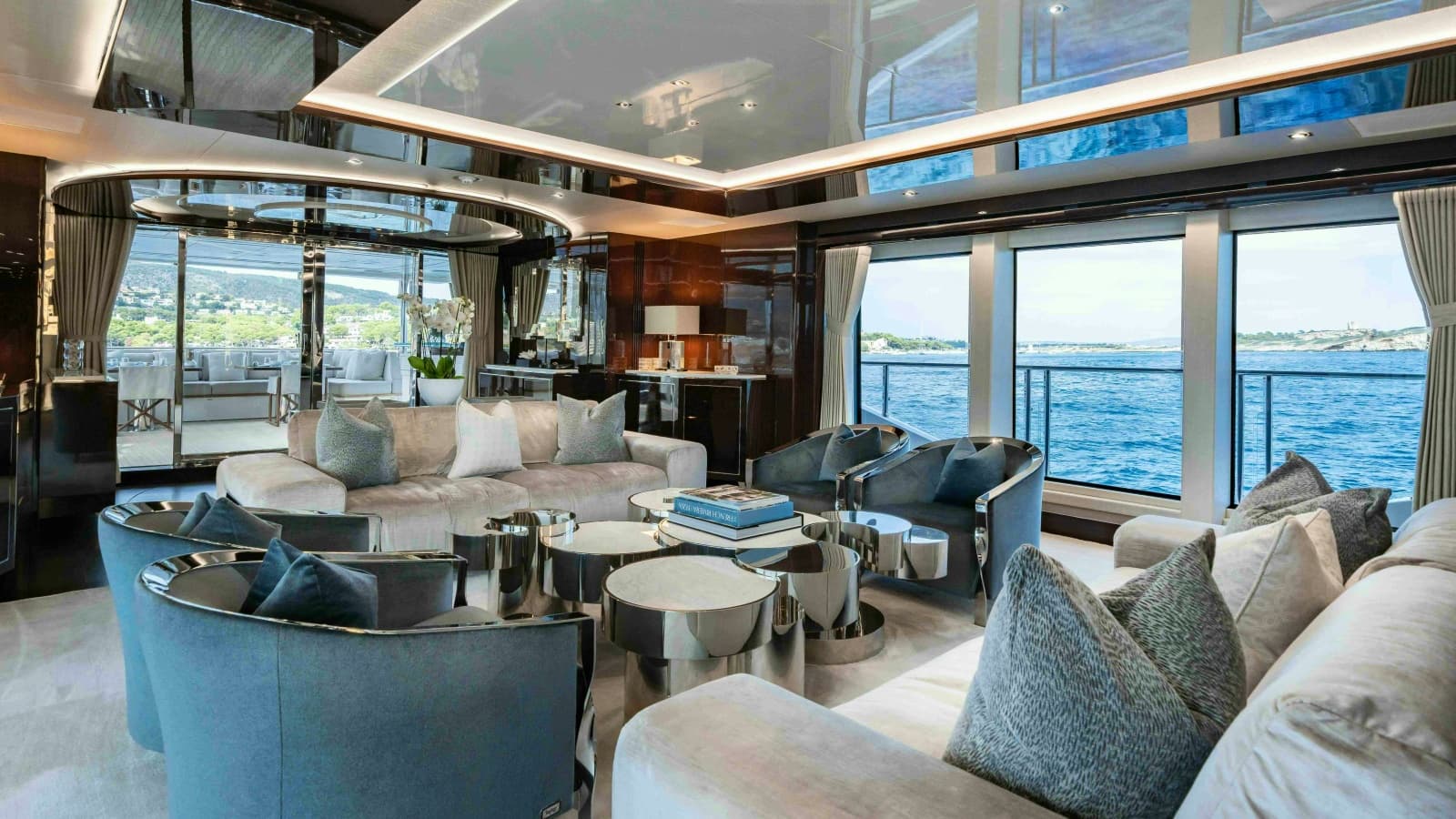

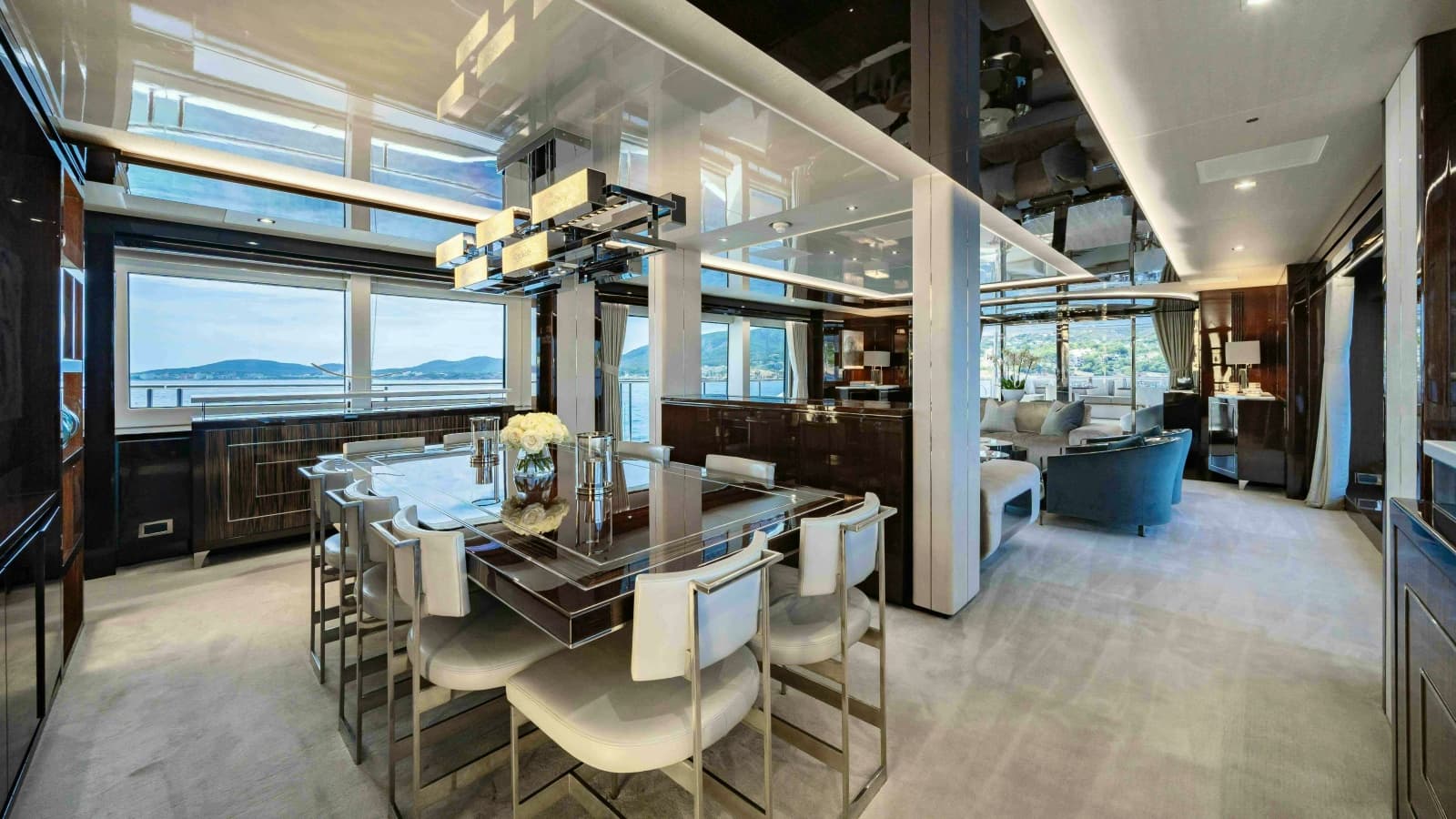

Upper Saloon: 85” Samsung TV connected to the onboard entertainment system

Lower Saloon: 60” retractable TV connected to the onboard entertainment system

Aft Deck: Antiglare external TV

Full Sonos sound system on the external with 4 zones all linked to the onboard entertainment system complete with airplay.

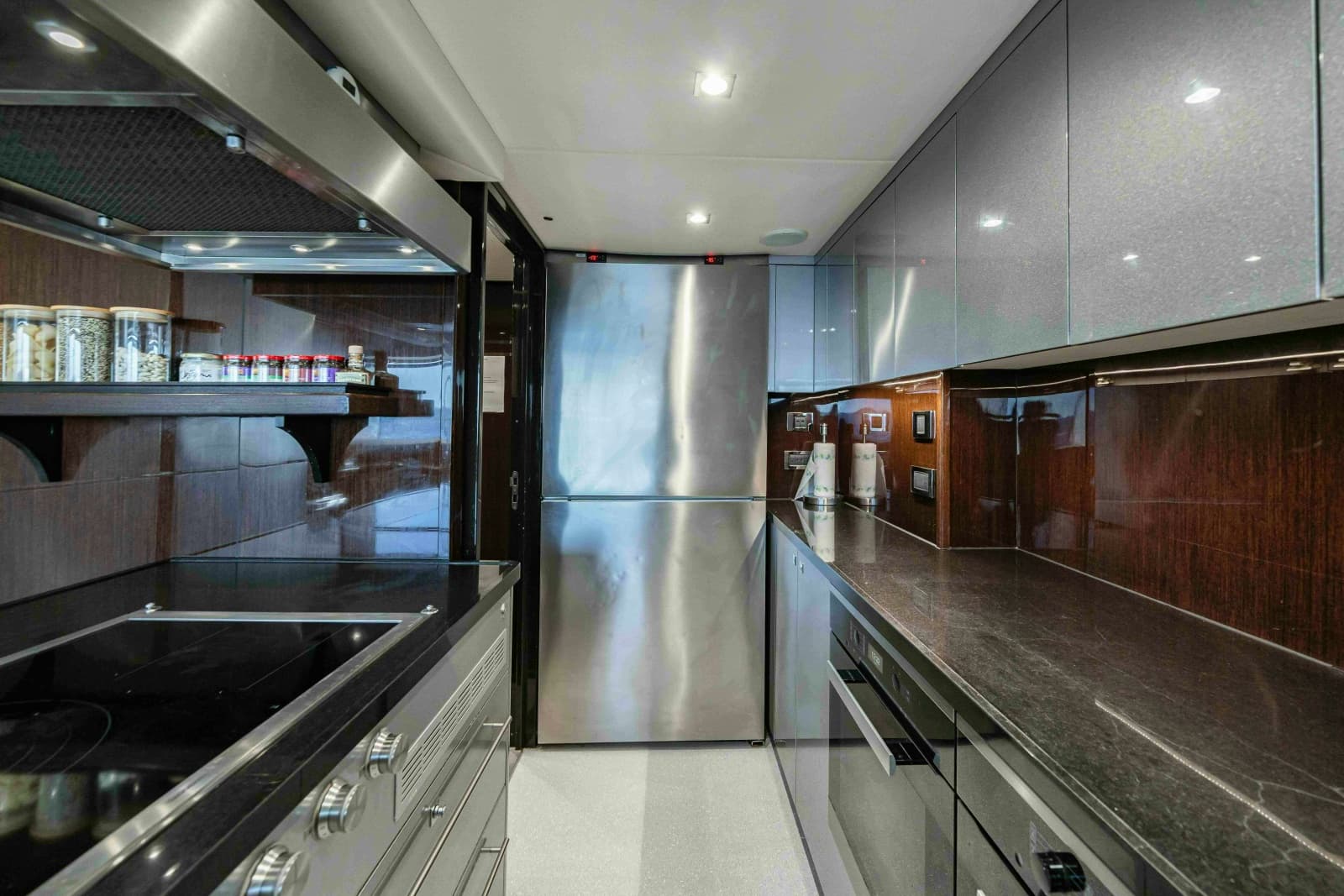

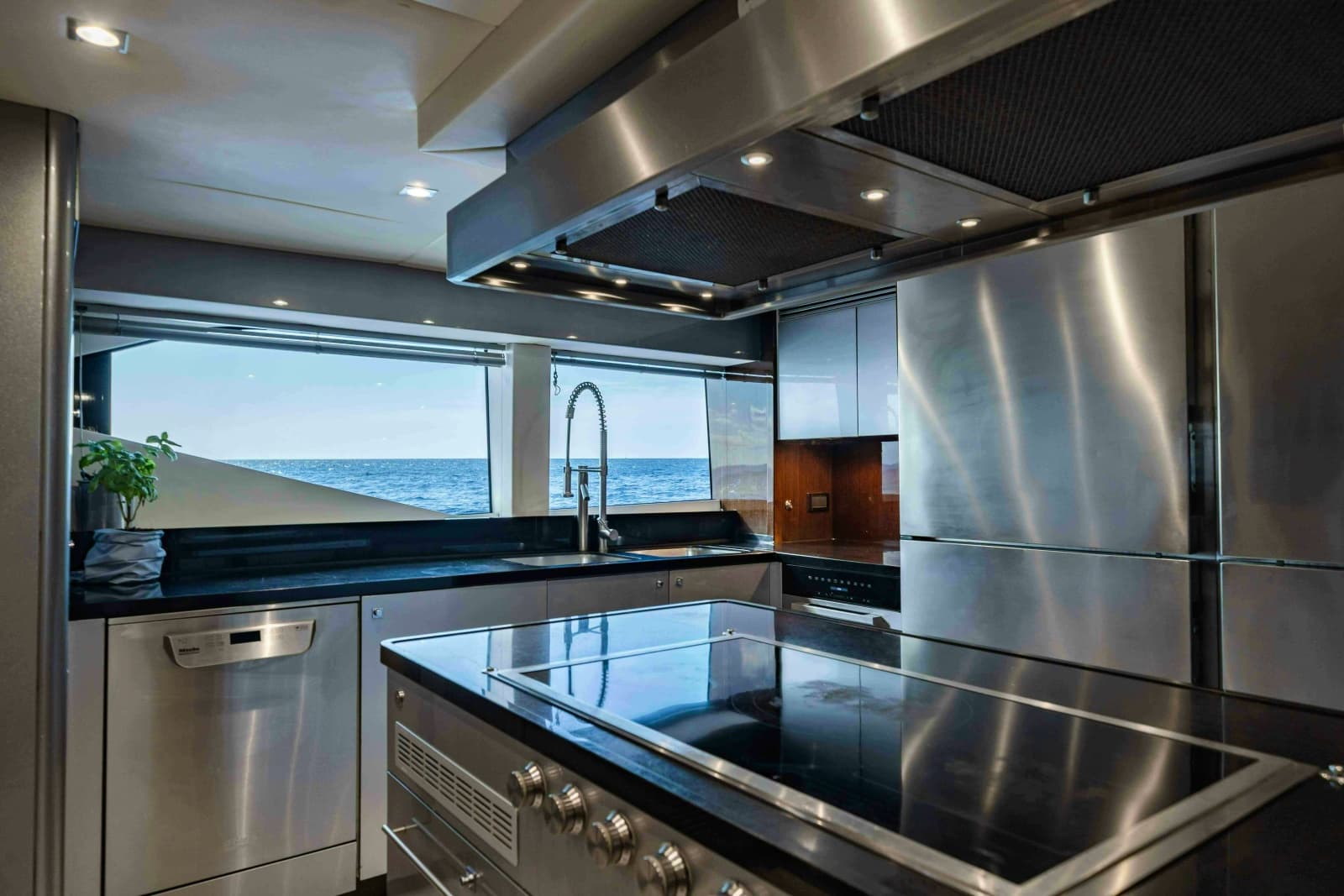

Galley

Miele Ovens: 2 independent ovens

Miele Combi/Microwave oven

Gaggenau 5-point induction Cook top

Sous vide

Kenwood appliances

Deep Fryer

BBQ – Hibachi portable

Miele Dishwasher Professional Line

Dumb waiter connecting to upper stew pantry

Fridges: 4 Fridges, operating on independent compressors sea water cooled

Freezers: 2 Freezers, operating on independent compressors sea water cooled

Laundry

Miele Washing Machine: 2 Professional Series

Miele Dryer: 2 Professional Series

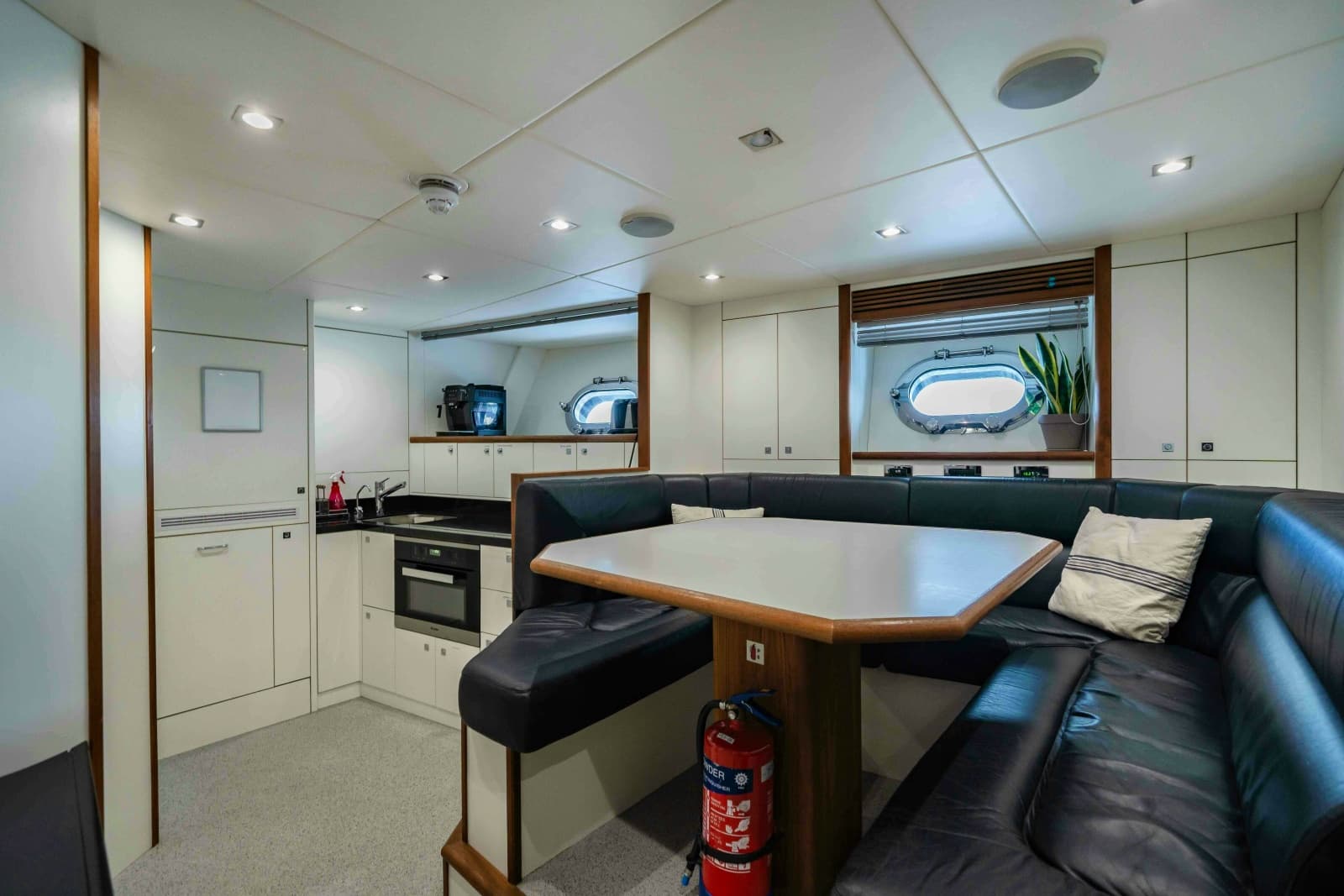

Crew Mess

Miele Microwave

Miele fridge

Miele dishwasher

Lower Stew Pantry

Miele wine fridge

Ice Machine

Upper stew Pantry

Miele dishwasher

Miele full size fridge

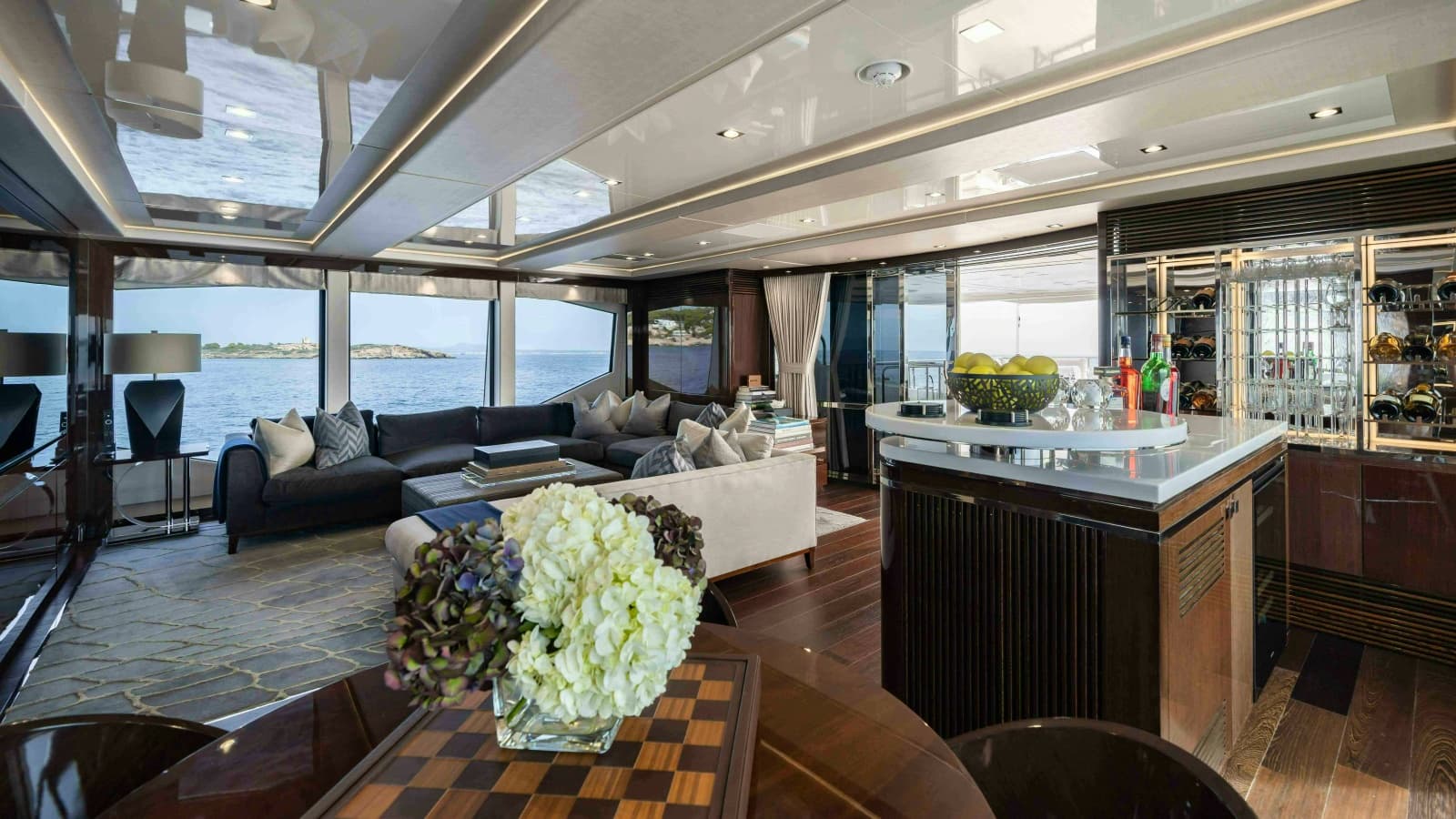

Upper Saloon Bar

Miele wine fridge

Ice Machine

Main Deck Bar

Ice machine

Dometic fridge

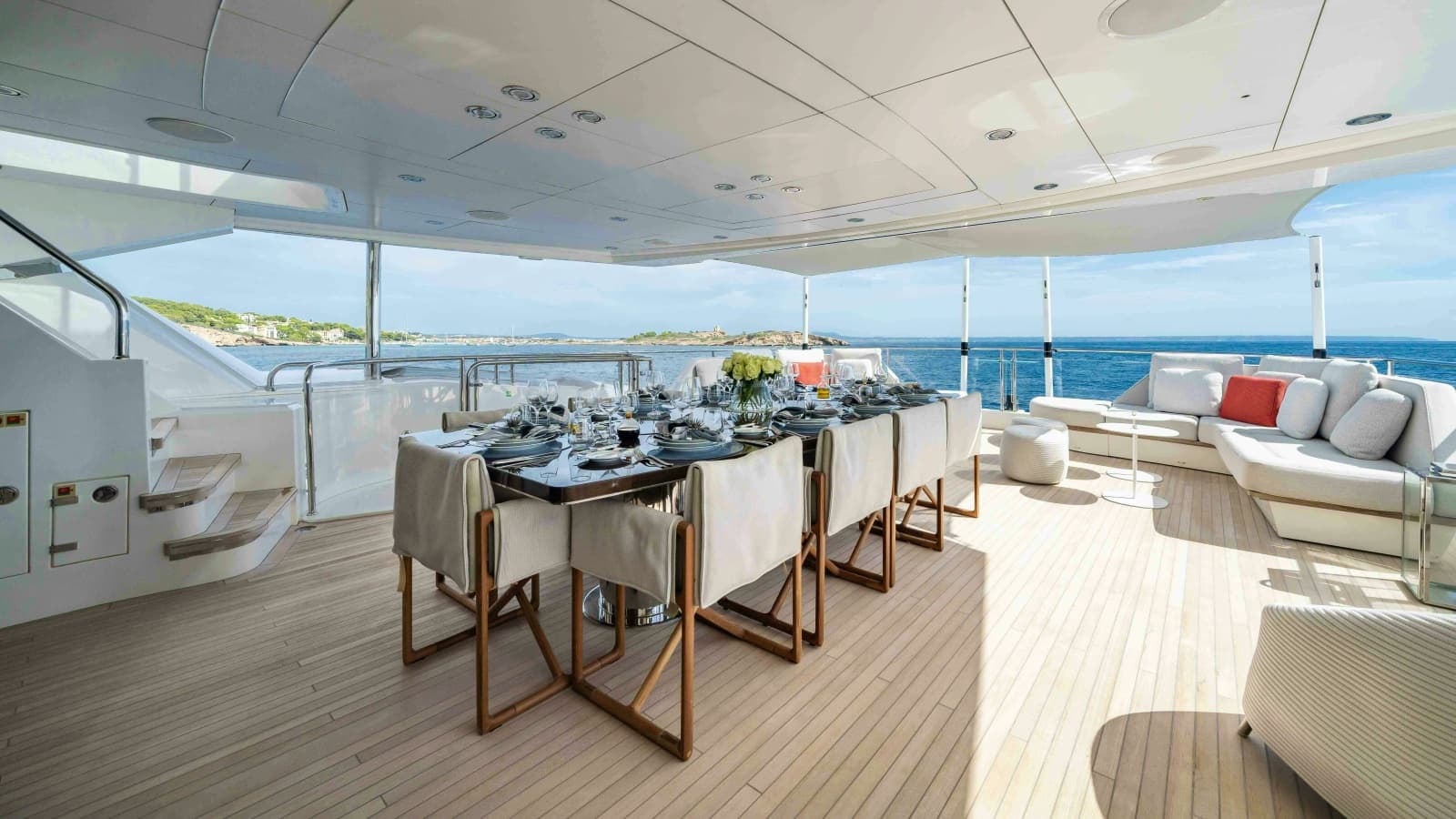

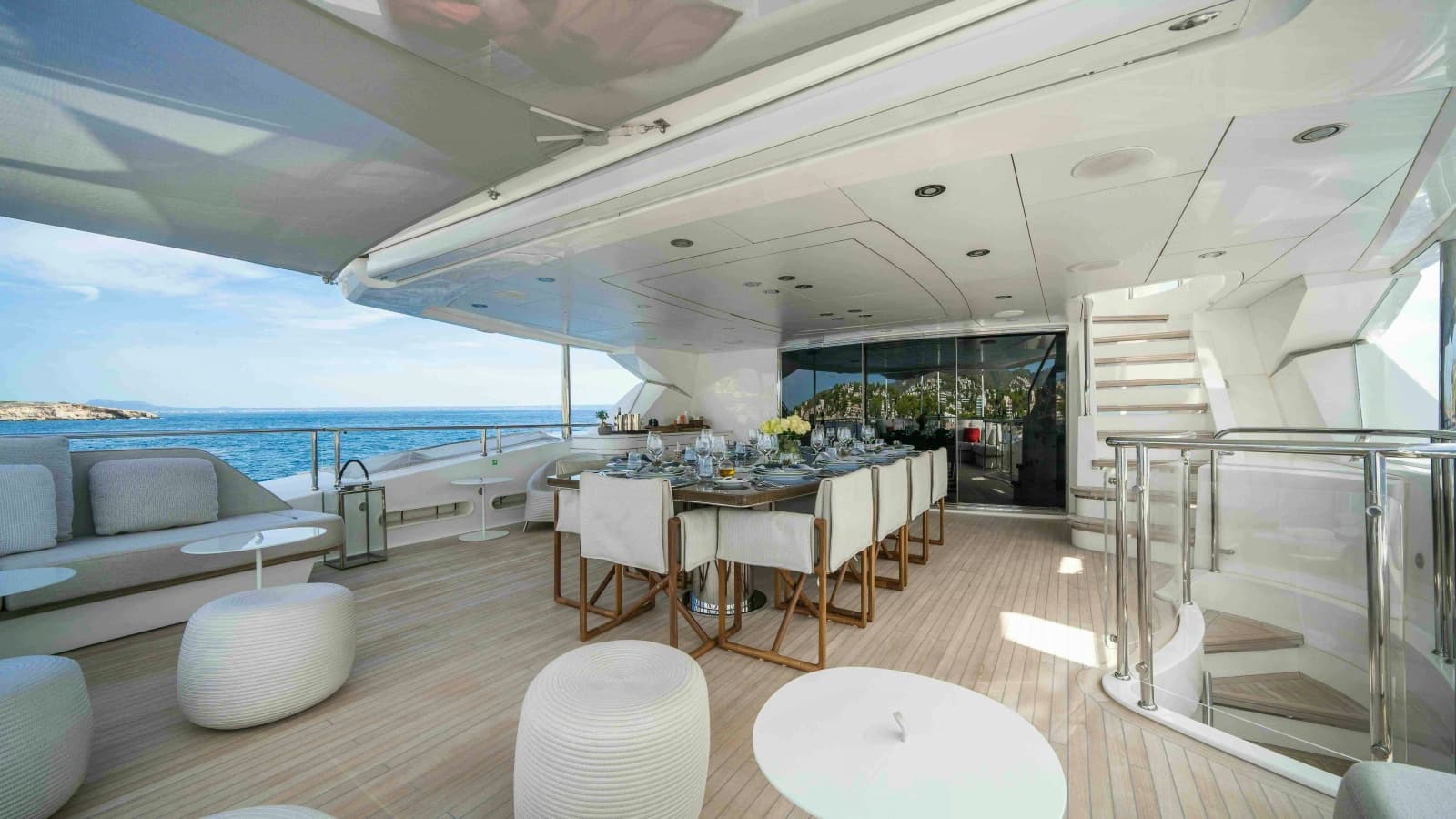

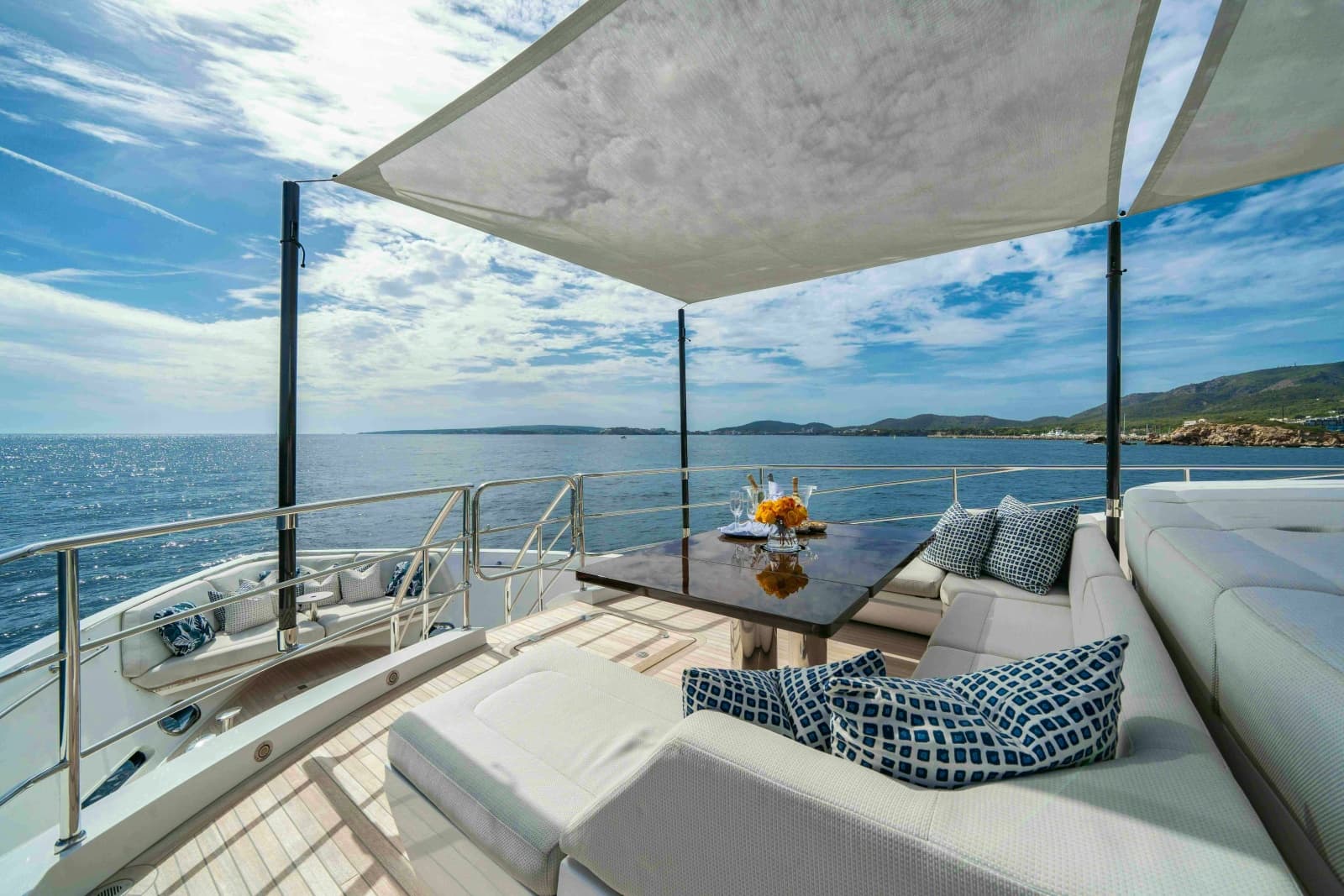

Bridge Deck Dining

Dometic fridge

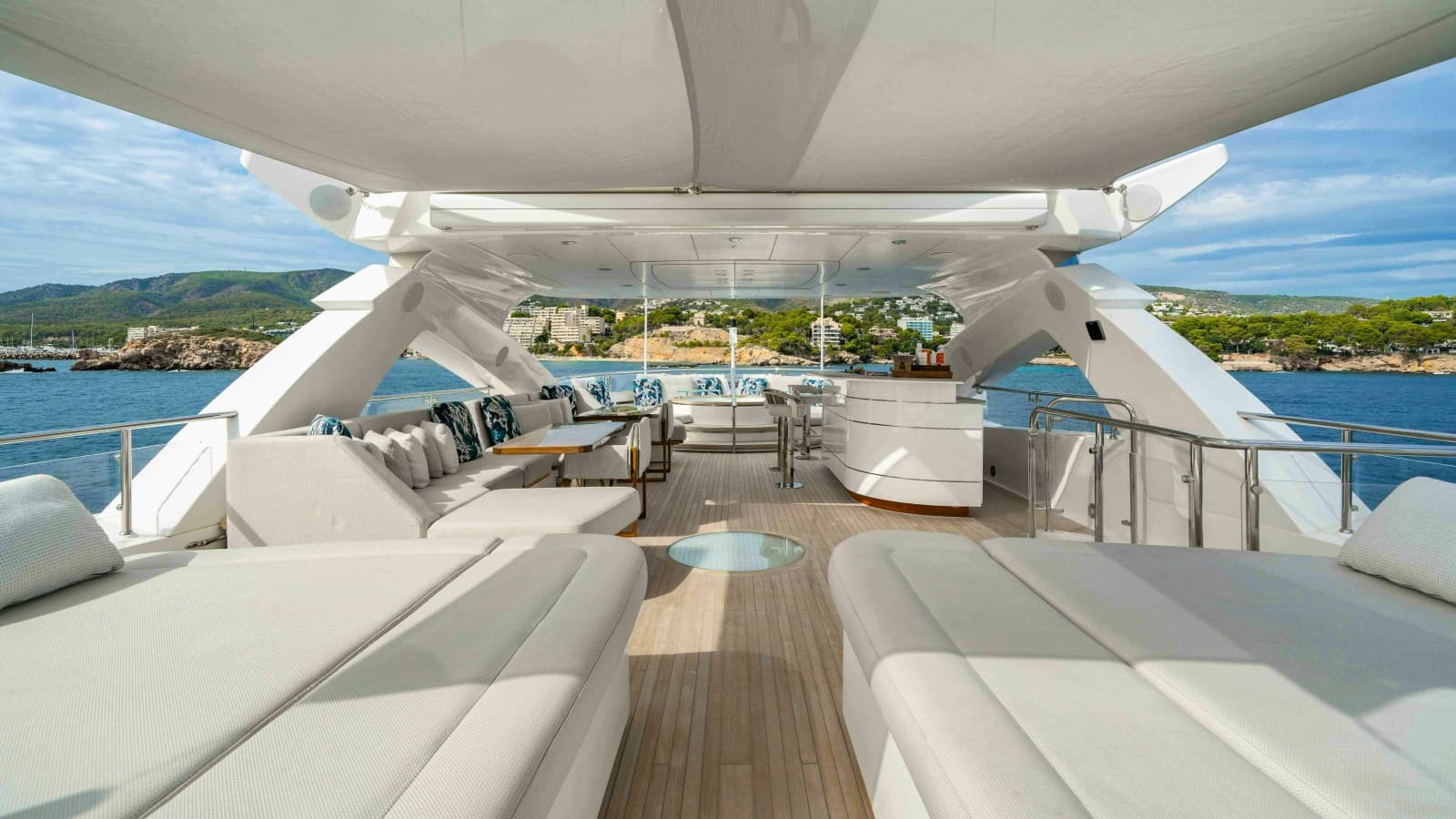

Sky Deck

Drinks Fridge 2 drawer

Dometic Fridge

Ice Machine

All housed in the new bar installed in 2022

Safety

Life Rafts: 4 x Zodiac 10 pax life rafts, in survey and inspection date

Life Rings: 4 total, 2 x Smoke and light and 2 x lifeline

EPIRB: ARC Global Fix

SART: McMurdo

Medical Kits: MSOS Near Costal with O2 Kit

Smoke Hoods, Life Jackets, Immersion suits: all in date and Qty according to Class

Security

CCTV 5 total, Aft camera is linked to external monitoring

Tijssen Monitors in Bridge, ER, Crew Mess, and PMS with remote alarming system via SMS

Fire Fighting

All RINA & MCA Compliant portable and fixed firefighting systems for vessel of size and class

Alarms

Tijesson Ship monitoring system, with touch screen capable of remote and local start stop of equipment

Fire Bouy Xintex monitoring system throughout

FM200 Fixed ER suppression system

FM200 Fixed suppression system for Laundry and PMS

Intruder detection system

Bilge/Fire Pumps

3 phase Gianeschi Bilge and Fire Pumps located in the engine room

Diesel crash pump located in the Pump room

Tenders

Williams 535 Jet RIB

Water Sports

Yamaha Jetskis VXHO series new in 2020 with 50 hours on each

Kayaks inflatable x 4

Inflatable Jetski dock

Inflatable Pool

2020:

• Underwent full 5-year RINA survey
• Transom re painting, shaft removal, inspection and re-installation, rudders removed and re-installed after testing bearings and running gear, new lip seals fitted
• New fixed installation of aft deck furniture and tables
• New jet skis

2021/2022:

• RINA intermediate Survey
• Full installation of Ubquity networking gear AV/IT, including re-cabling, switches, camera and access points.
• Installed new generator coil in the starboard generator, major generator services to both units.

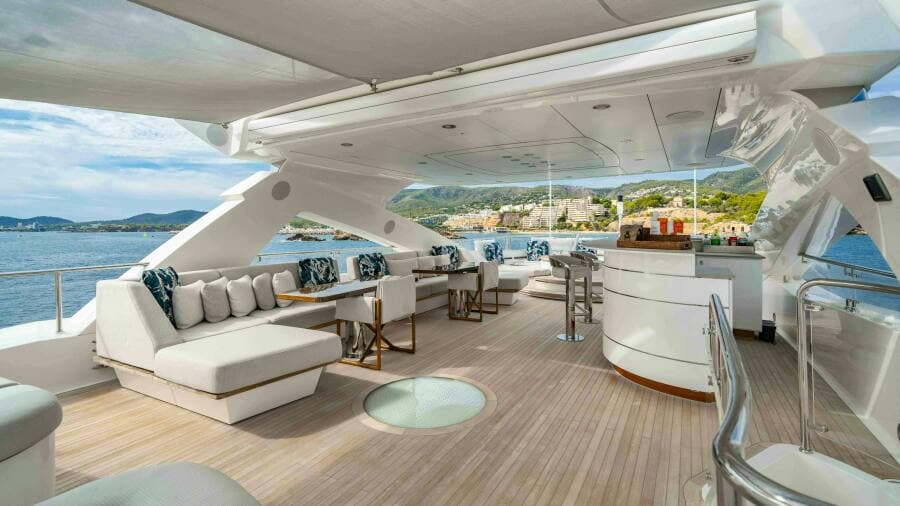

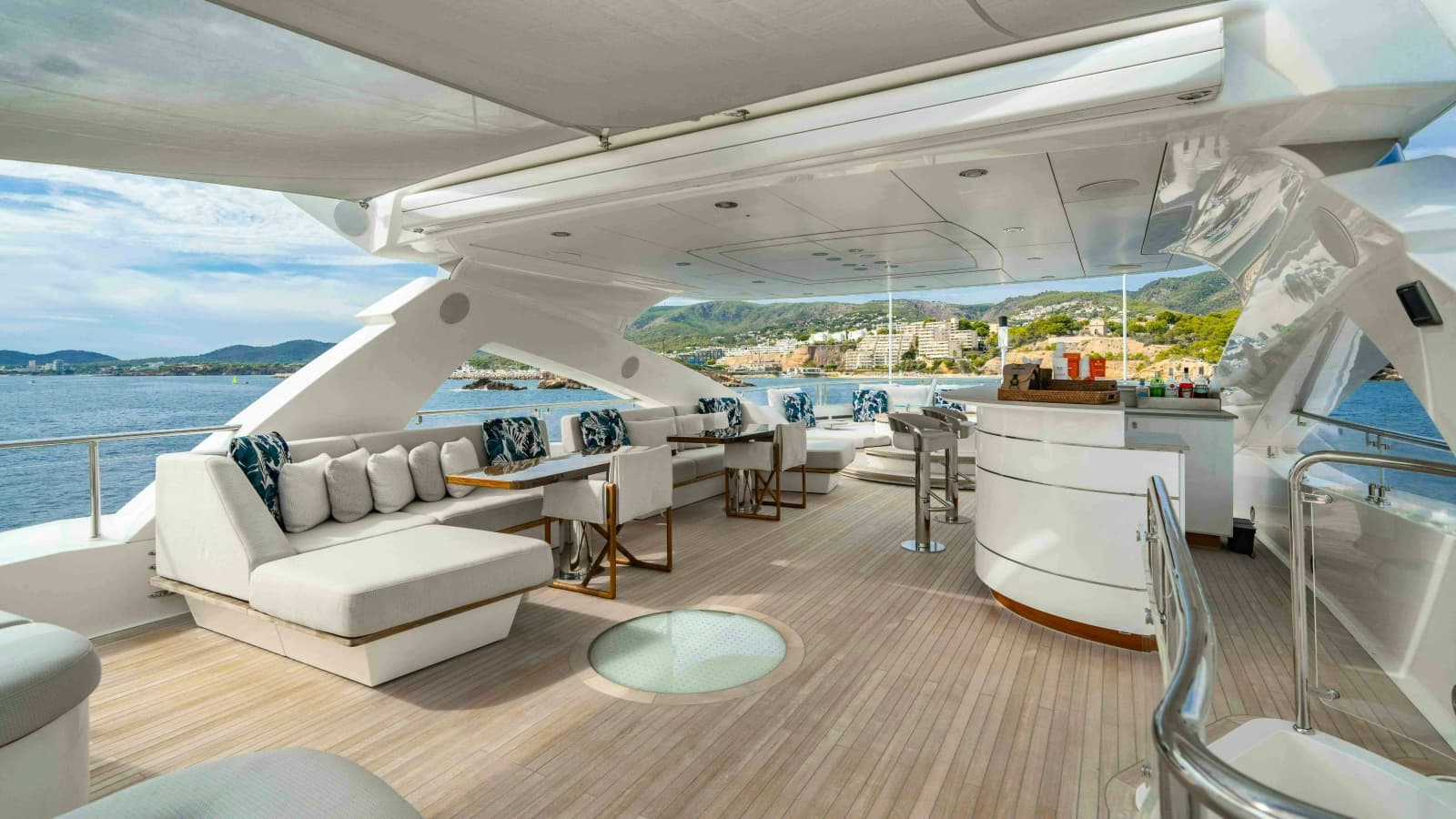

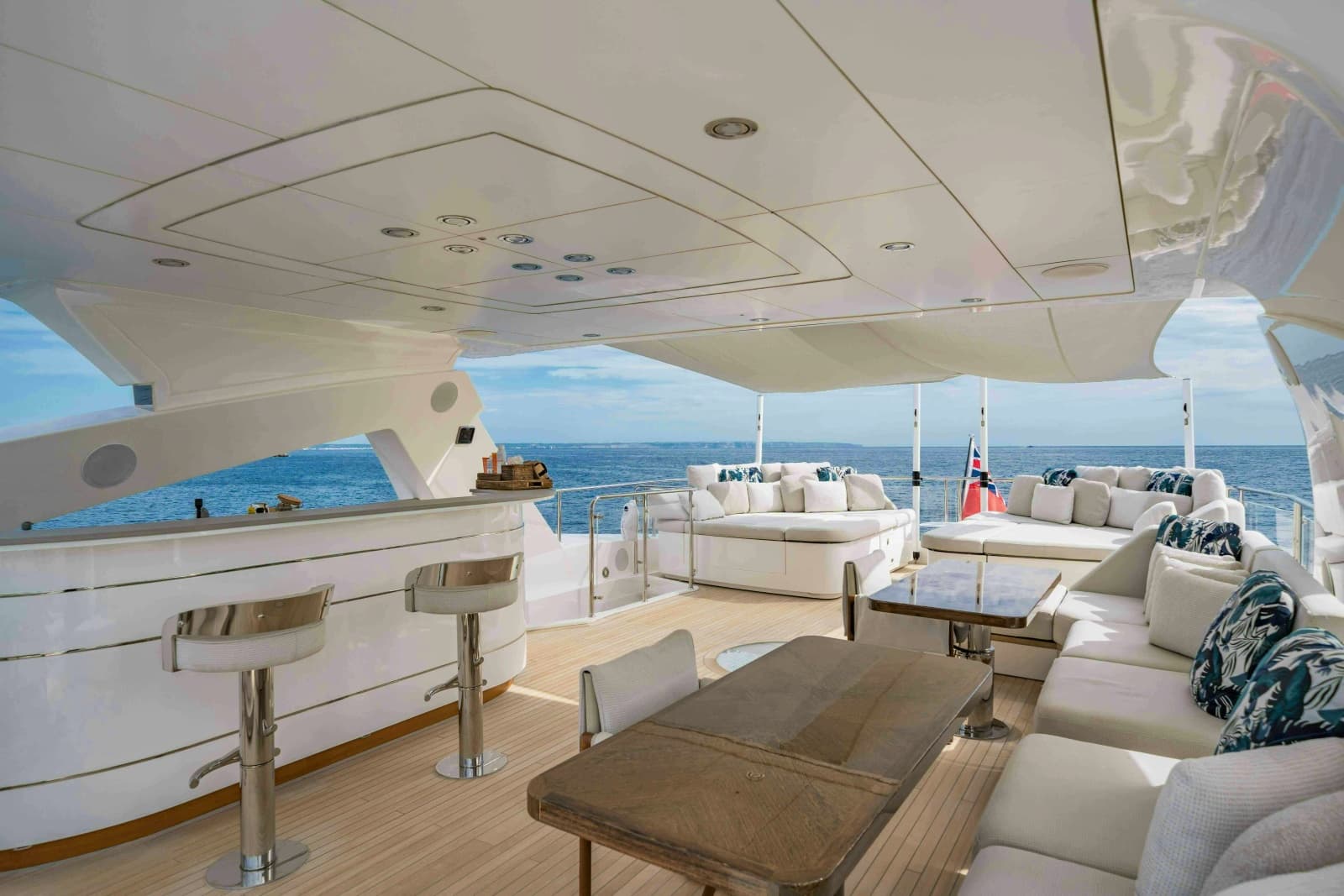

• Constructed and installed a new bar, bar stools and seating on the sundeck
• Completely re-upholstered all exterior squabs and new deck cushions
• Full top end service of the stabilisers, new bearings and bushings installed

2022/2023

• RINA Intermediate Survey
• Removed, services and replaced and necessary, all through valves, main engine exhaust valves and generator valves.
• Installed new fire insulation to the main engine exhausts.
• Installation of new TV control system throughout the yacht, upgraded the exterior entertainment system and airplay capability

2023/2024

• RINA Survey and renewal of class certificates
• Full revision of the swim platform, completely removed, tested and re installed.
• New teak installed on the swim platform
• Complete 10,000 hour rebuild both generators, including the generator top, heads, gaskets, injectors water pumps etc.
• Generator PTO’s full service and installation of new bearings

Aroha was purchased by the current owner in 2020, since we have owned the yacht each year in the winter months, we have invested a large amount of work and funds into maintenance to better the yacht from when it was purchased. We have made significant upgrades to the exterior cushions, deck upholstery and layout, including new furniture, bar and seating arrangements. All new linen and soft furnishing have been fitted throughout the yacht.

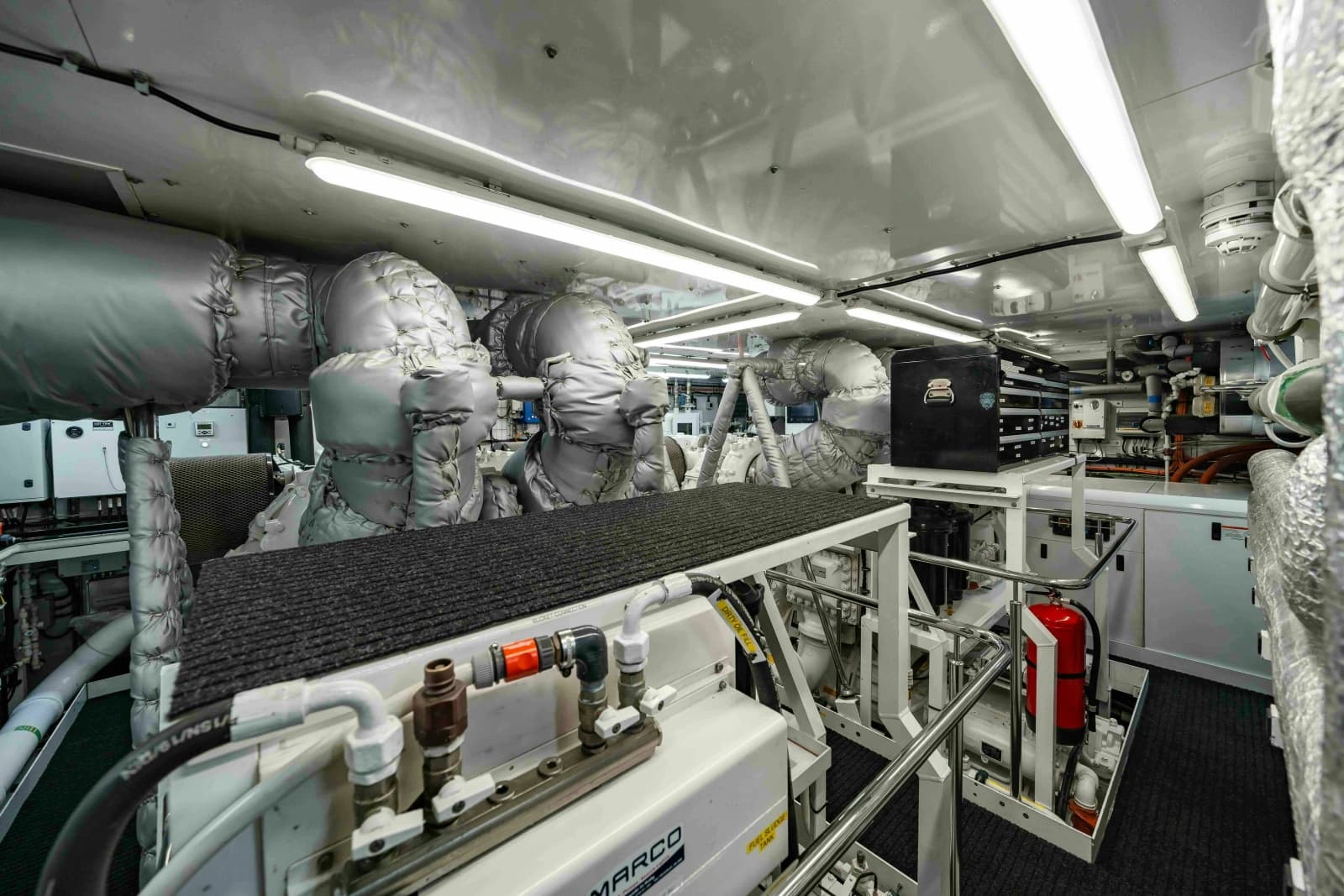

Mechanically we have overhauled the generators, completing the 10,000 hour service on these during the winter of 2023/2024. Overhauled the stabilisers, removed all the main valves and exhausts, spray rings etc. We have completed the book services to the MTU main engines. The hydraulic system has been overhauled and PTO’s and clutched have been serviced, and/or replaced where necessary.

Regarding class surveys and maintenance, we have maintained the vessel to commercial class standards in accordance with RINA survey requirements. I have downgraded the statutory “Certificates of Compliance” to be “Statements of Compliance” meaning if a potential owner were to convert the yacht back to full commercial code, it would be a paper formality to complete this task as all maintenance is compliant with the current code.
