2016 Marlow EXPLORER 88E



MAIN CHARACTERISTICS



Name

VIRGINIA SEA

Type

Motor Yacht Semi-Displacement

Builder

Marlow

Year

2016

Refit Year

2024

Hull No

CN-XXE88101G516

Yacht Model

Explorer 88 E

LOA (M/FT)

28.2

M

91’

11”

Length COR

27.74

M

91’

00”

Beam Overall (M/FT)

6.55

M

21’

 6”

Draft (Full Load) (M/FT)

1.63

M

5’

 4”

Gross Tonnage

126

Displacement (Half Loaded)

162 lbs

Hull Material

Fiberglass / GRP

Hull Configuration

Fiberglass / GRP

Superstructure

Fiberglass

Decks

Teak

Flag

Jamaica

Naval Architect

Marlow Yachts

Exterior Designer

Marlow Yachts

Interior Designer

Marlow Yachts

Main Engines

2X Caterpillar C32A 1900Hp

Speeds

27(kn) Max



23(kn) Cruising



10(kn) Economical

Range

1500 nm @ 10 kn

Guest Accommodation

10 / 4

Crew Accommodation

3 crew berths



COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE



¨      New Garmin electronics

¨      New engines exhaust

¨      Full beam master s/r and 3 Guest cabins plus crew for 3/4

¨      Enclosed head on aft deck

¨      Bow and Stern thruster



CLASSIFICATION



Flag

Jamaica

Port of Registry

St. Ann’s Bay

Classification

Member of IACS / Non - IACS

US Tax Status

Duty Paid

MMSI Number

399242000

Official Registration

JMP22001



ACCOMMODATIONS



OVERWIEW

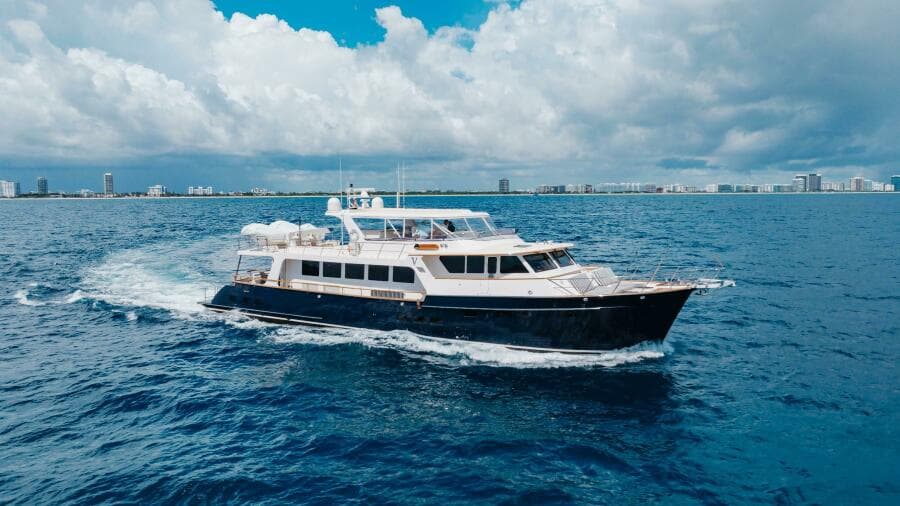

Delivered in 2016, VIRGINIA SEA is a stylish yet comfortable 91’ (28m) Marlow that combines sophisticated design, exceptional performance, and seaworthiness, making her perfect for long-range cruising and exploration.

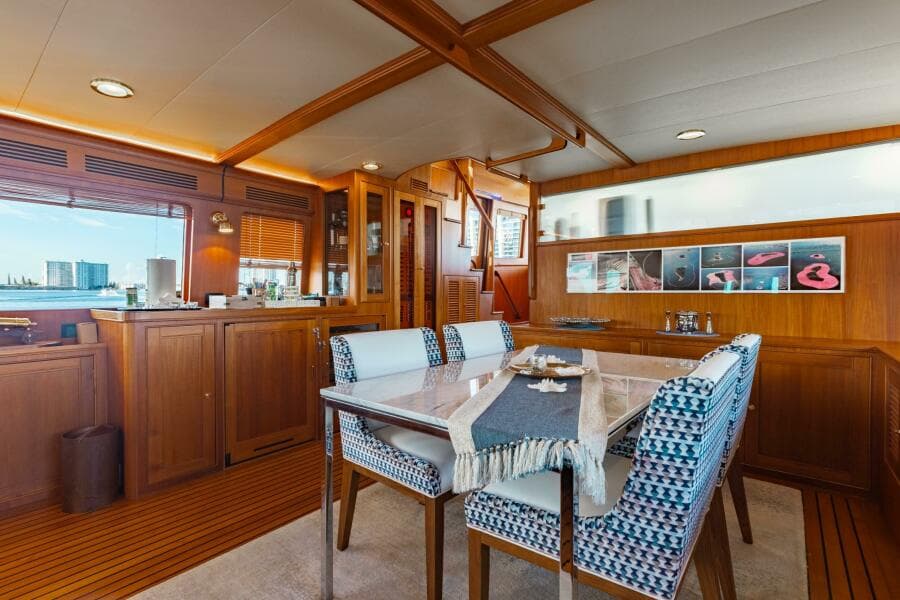

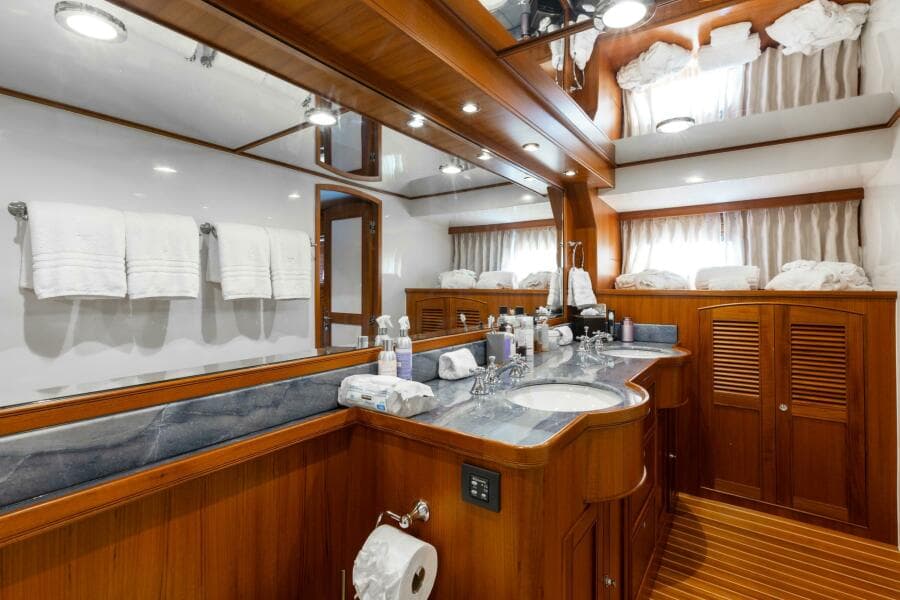

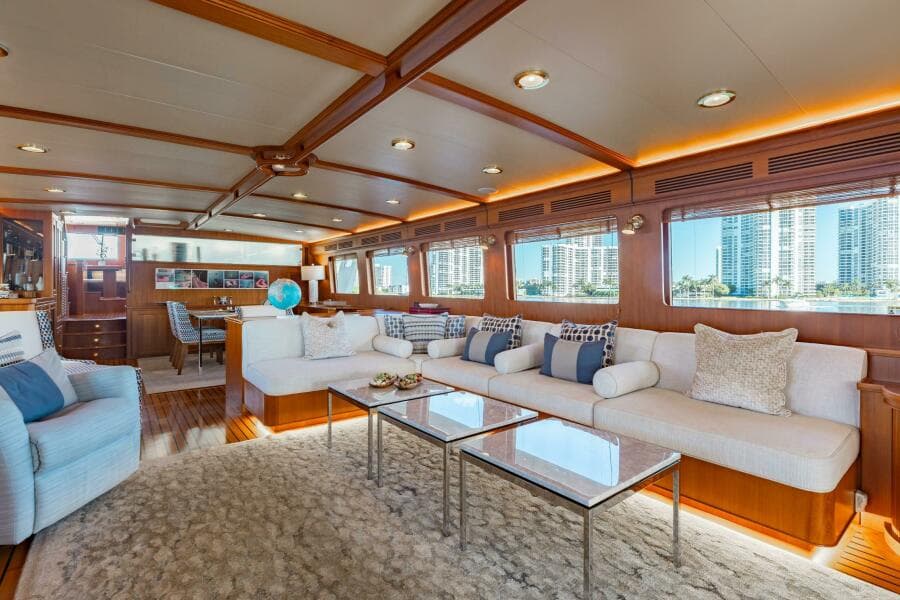

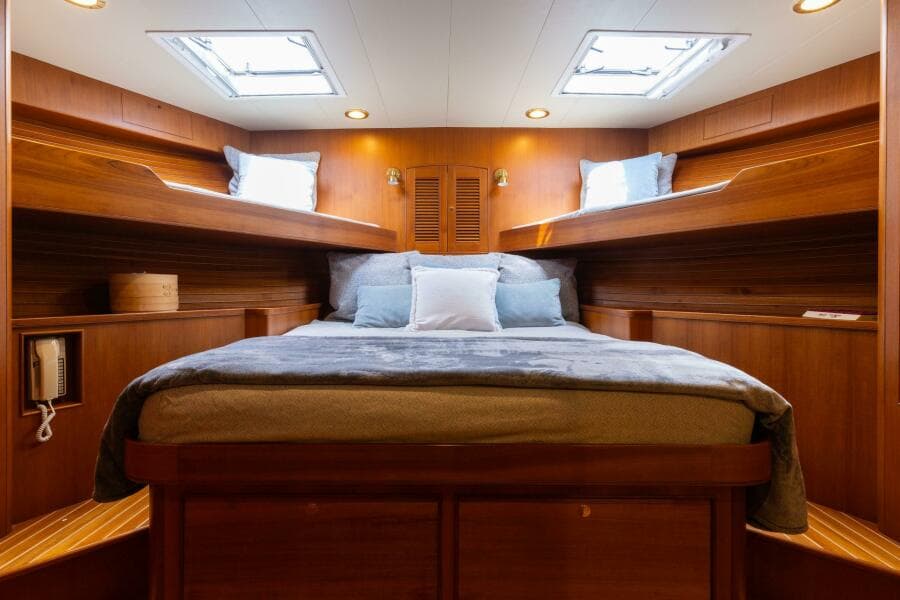

This head-turning yacht accommodates up to 10 guests in 4 spacious ensuite state rooms including a full-beam master stateroom, as well as a separate crew cabin that sleeps up to 4. The master stateroom features a king-size bed, a VIP suite features a king bed and 2 twin bunks, and the remaining guests are accommodated in 2 twin staterooms. All of the staterooms, along with the rest of yacht, are outfitted with designer fabrics, exquisite teak, and ebony satin finish woodwork.

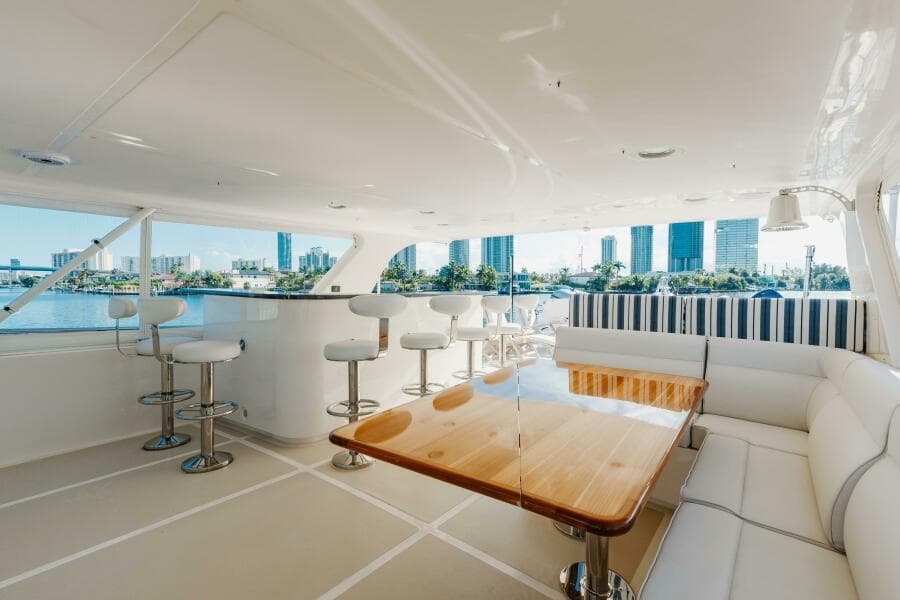

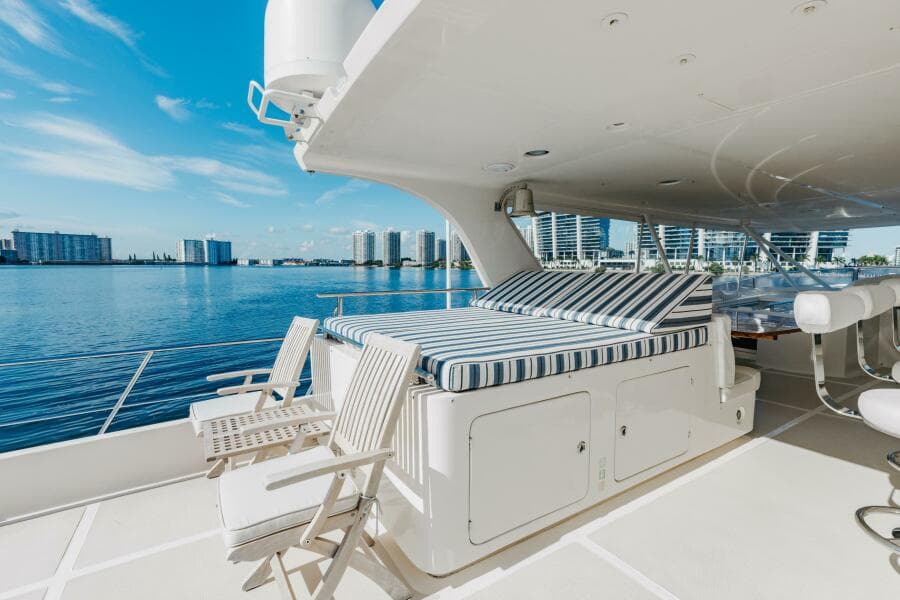

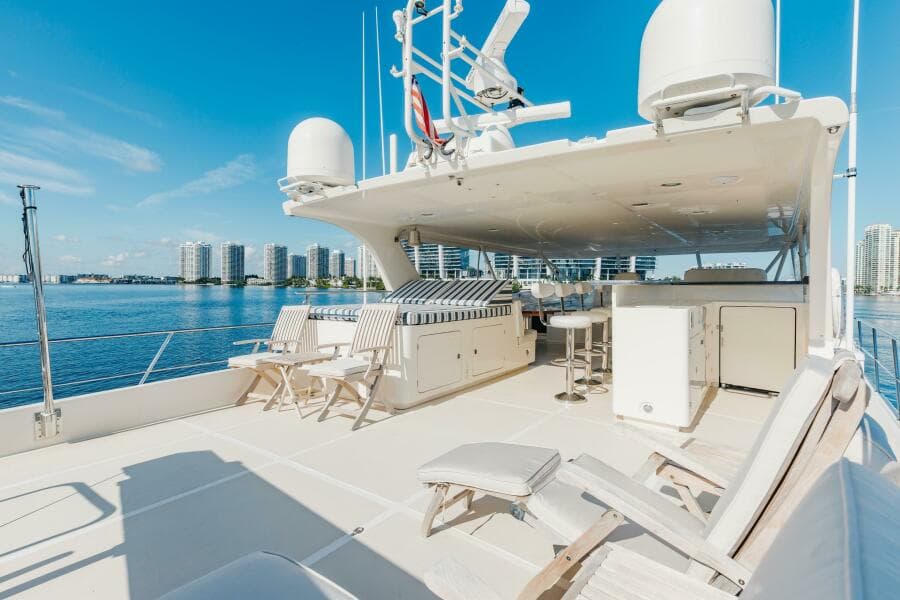

Her expansive flybridge is perfect entertaining, and she is in turnkey condition. Powerful twin Caterpillar diesel engines with 1,900hp each give VIRGINIA SEA a remarkable max speed of 29 knots and cruising speed of 23 knots. She is equipped with Yacht Controller, making docking a breeze, and she has been meticulously maintained.

ACCOMMODATIONS

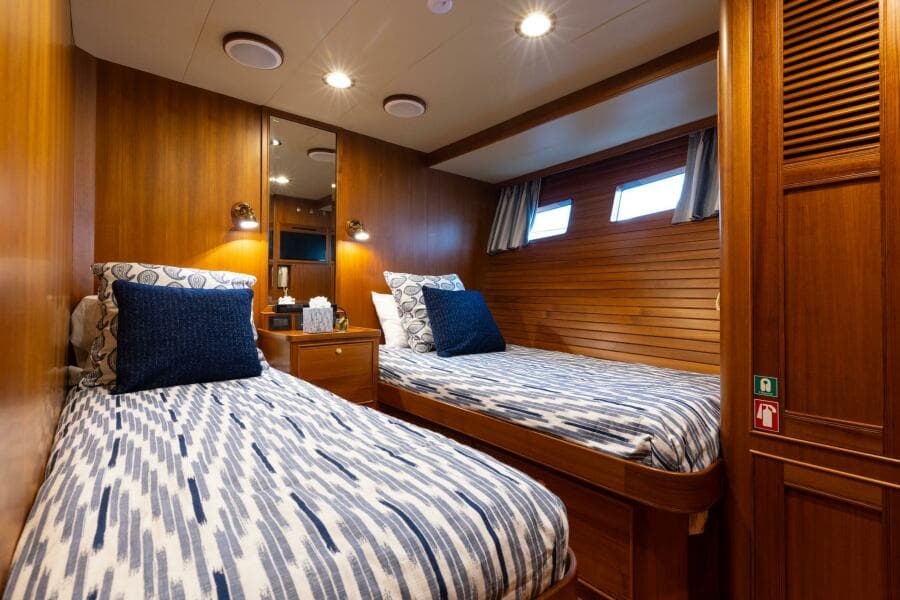

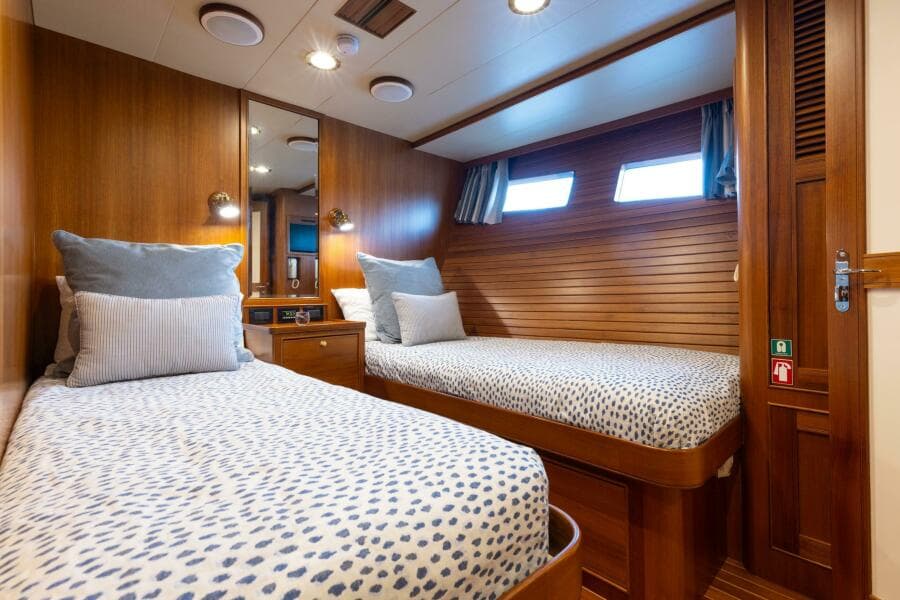

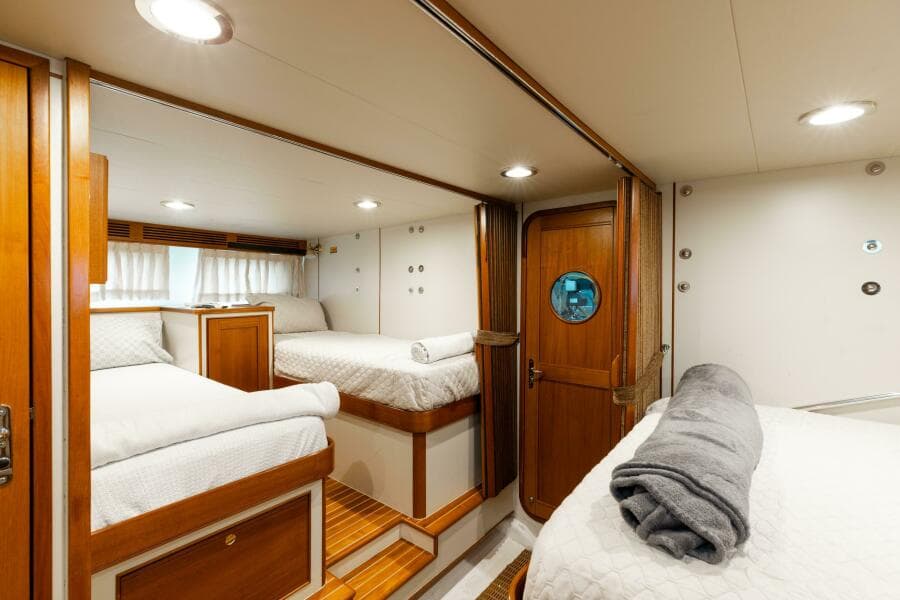

VIRGINIA SEA’s interior configuration has been designed to comfortably accommodate up to 10 guests overnight in 4 cabins, comprising a master suite, 1 VIP stateroom, 2 twin cabins and 2 pullman beds. She is also capable of carrying up to 4 crew onboard to ensure a relaxed luxury yacht experience.





CONSTRUCTION



Hull Material

Fiberglass / GRP

Superstructure Material

Fiberglass / GRP

Decks Material

Teak

Paint

Blue

Motor Hull Type

Semi-Displacement (SD)

Motor Hull Sub Type

Explorer / Expedition (EX)

Number of Decks

3



CAPACITIES



Gross Tonnage

126

Net Tonnage

37

Displacement Tons

81





Fuel Capacity

17,034

Litres

4,000

Gallons

Fresh Water Capacity

2,271

Litres

600

Gallons

Water Makers



Litres

1500

Gallons/day

Grey Water



Litres

200

Gallons

Black Water



Litres

200

Gallons





Speed

Consumption p/h

Range

RPM

Maximum

27





2200

Cruising

23





2000

Economical

10



1500

1000

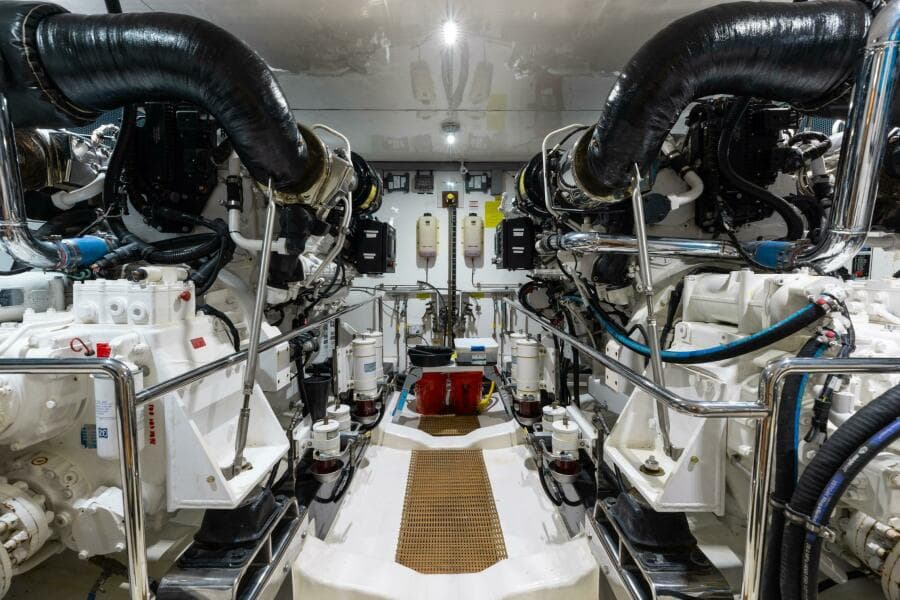

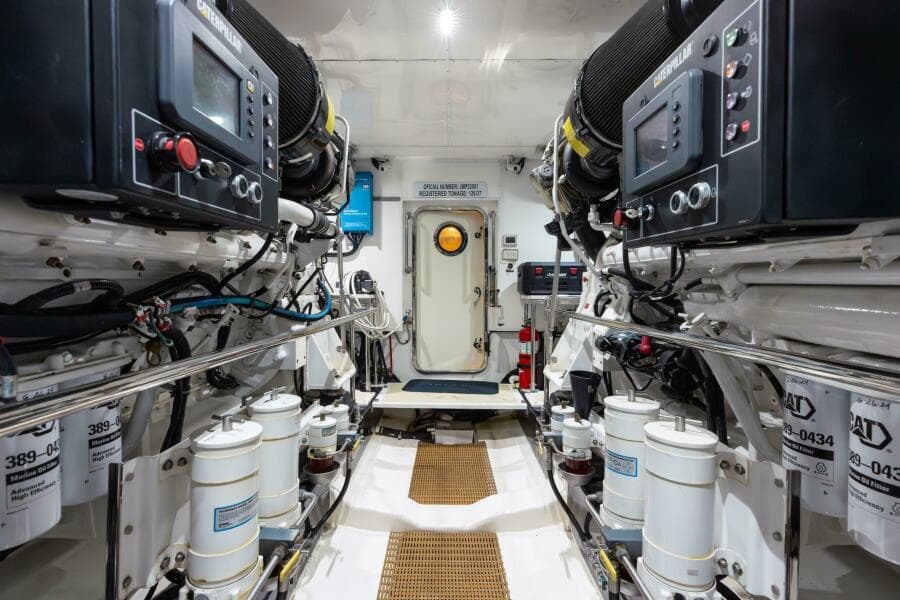

MAIN MACHINERY



Main Engines

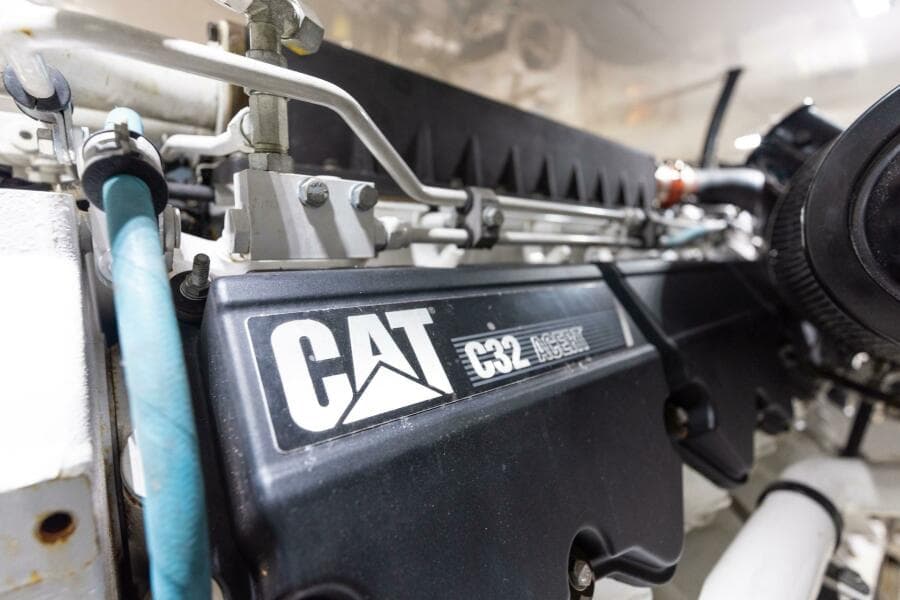

2X Caterpillar C32A 1900Hp

Engine Hours

Port          3400 hrs - (November 2025)



Starboard 3400 hrs

Propulsion Type

Inboard straight shaft

Engine Controls

RZF3000 Eletronic

Engines Exhaust System

Metcalf Marine Stainless Steel wet – New 2024

Gear Boxes

ZF3050A 2.5 20:1

Shafting

Evolution Oil Bath Shaft Systems 3.5 inches 8Q22

Propellers

HVNQ Shen 5 Blade Nibral 43” X 44”

Engine Ventilation

Yes





GENERATORS & ELECTRICITY

Output/Electricity

120/240 VAC Single phase 60H2

Generators

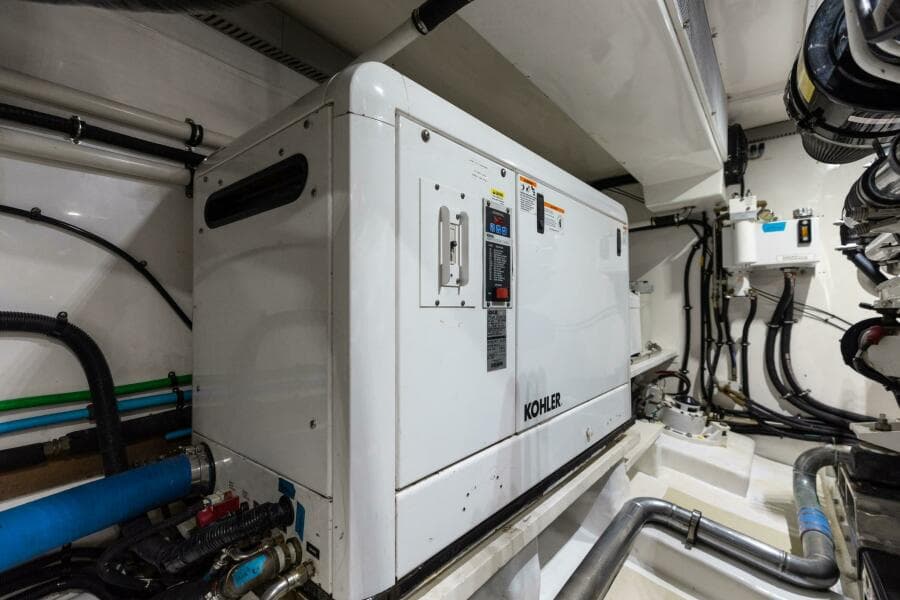

2 X 32 kW Kohler generators - Model 32E0ZD

Generator Hours

Port           5000 hrs – (November 2025)



Starboard 5000 hrs

Generator Exhaust System

Centex water lift separator

Shore Power

2X Bow-100amp cords / 2X Stern-100amp cords

Shore Power Converter

(4) ASEA Model AC-12 converters

Shore Power Transformer

Charles ISO Boost 100A – not in use

Batteries

2 sets service AGM 220AH – Main 2 sets AGM 220AH 24 VDC

Stern thrusters 2 sets AGM @165 AH @24DC

Battery Chargers

1 set AGM 165 AH @24 VDC – numerous battery charges

Inverters 12, 24DC

Generator Start

Battery

UPS (uninterruptible power supplies)

Yes - multiple throughout



AUXILIARY MACHINERY



Steering System

Hydraulic

Steering Gear

tba

Emergency Steering

tba

Bow Thruster

Vetus 12” DC

Stern Thruster

Vetus Model 28548D-EC17 12” DC

Stabilizers

NAIAD Model 302 w/ 9 ft fins

Under Water Lights

4 Ocean LED

Helm/Wing Station Controls

3 stations plus yacht controller





Fuel & Oil System



Fuel Filters

Dual Racor 1000 fuel filters to engines – 2 sets Racor 500 fuel filters to generator

Bunkering Station

Pt side w/ 2 fuel shutoff valves

Lubrication Oil Pump

GROCO V-lube 24 DC w/ manifold – forward - reverse







 Fresh Water System

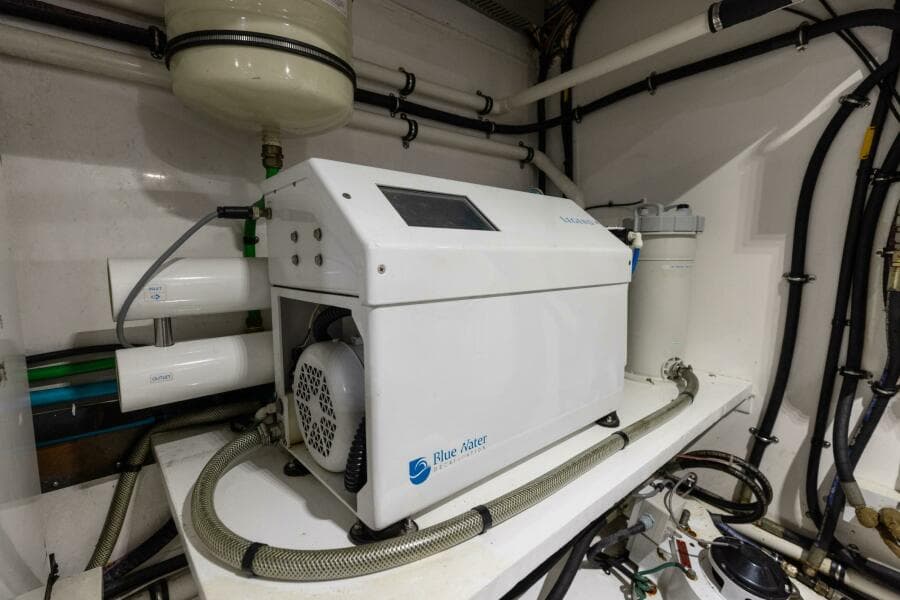

Fresh Water Makers

Blue water legend 1500 gal/day

Fresh Water Treatment

Yes

Fresh Water Pressure

Headhunter Mach 5 115 VAC Pump and (2) JABSCO 82600 DC pumps

Hot Water Boilers

3

Sea Water Pumps

1





Black & Grey Water System

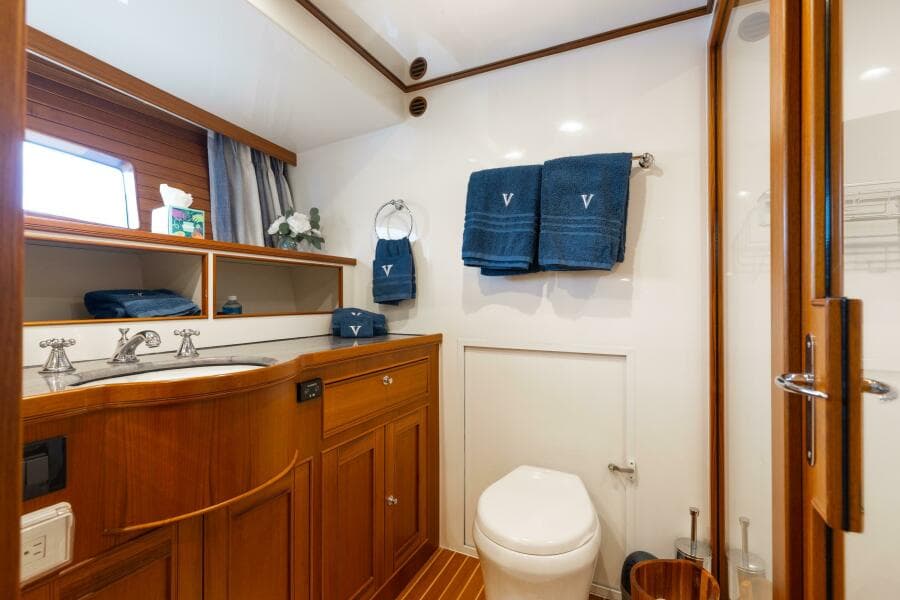

WC's (toilets/bidets)

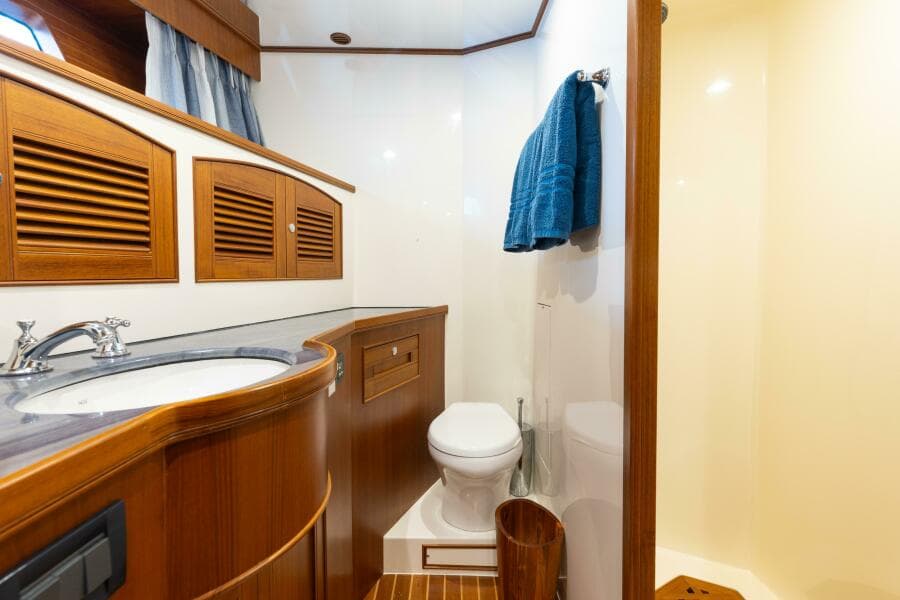

6 Sealand vacu flush 24 DC

Black & Grey Water Pumps

2 Sealand vacu flush pumps – deck discharge fitting





AC & VENTILATION SYSTEM



Air Conditioning

Domestic air conditioning chilled water system with: 3X 144,000 BTU A/C units w/ reserve cycle

Air Compressor

Yes

Air Handling Units

12

A/C Pumps

Yes

Engine Room Ventilation

Yes

Galley Ventilation & Extraction

Yes





HYDRAULIC SYSTEM



Hydraulic Power Packs

Yes





ANTIFOULING SYSTEM



Type

Yes



NAVIGATION & COMMUNICATION SYSTEMS



NAVIGATION SYSTEMS

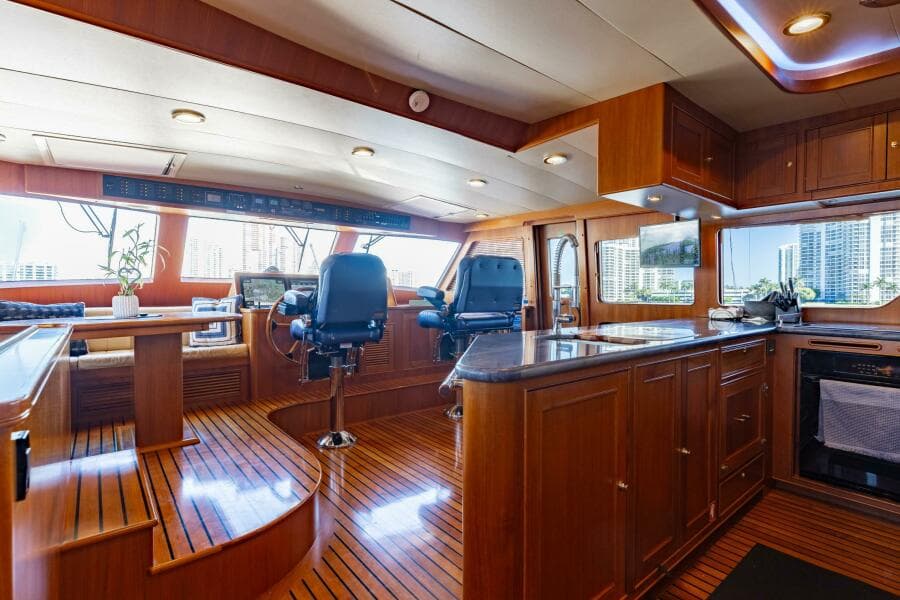

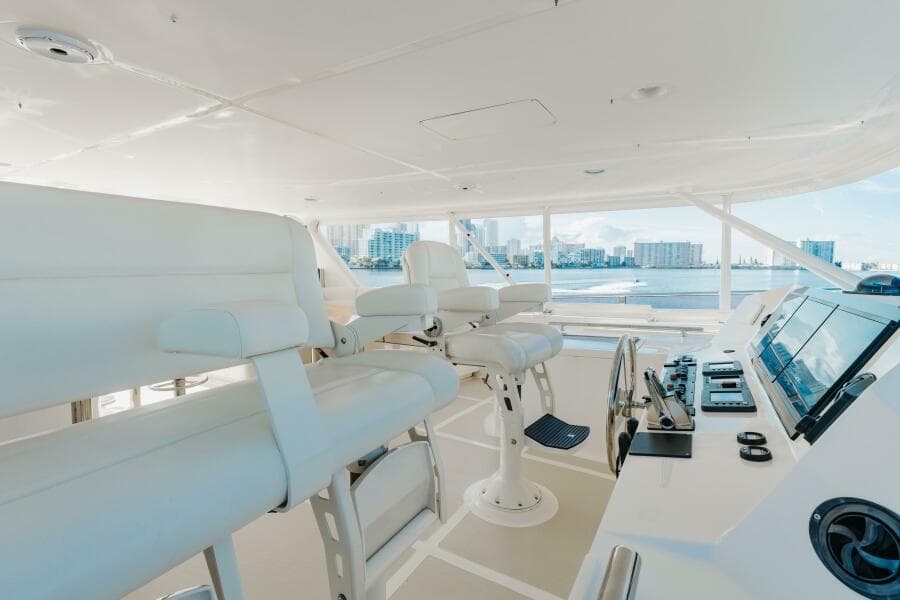

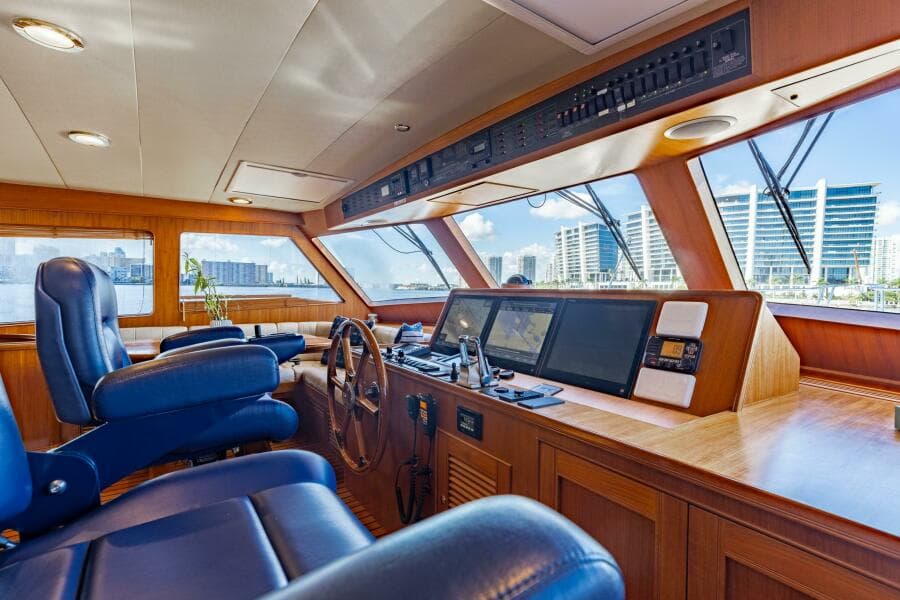

Navigation Bridge

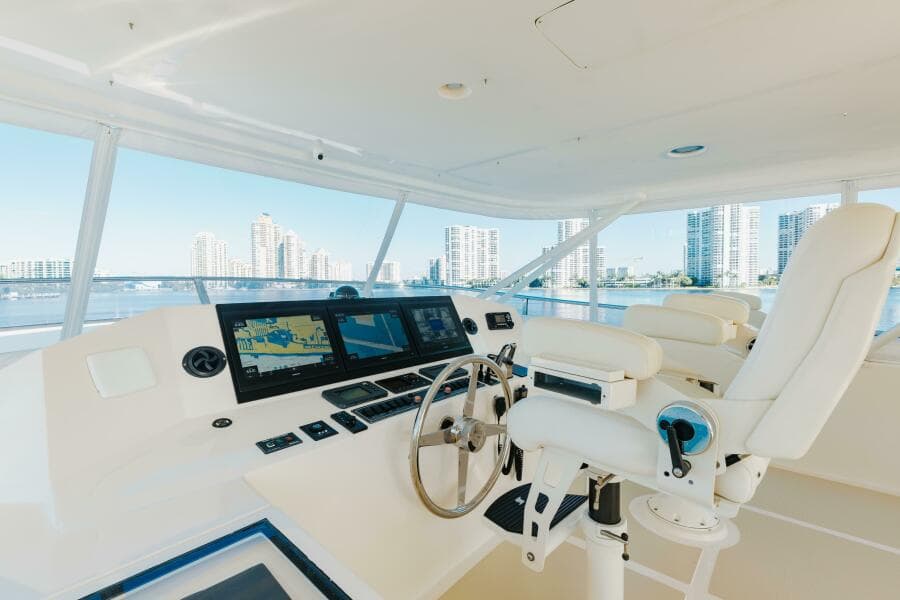

Lower station and flybridge station

Monitors

Lower helm Furuno 15” – 3 monitors

X-Band Radar

Garmin 1224 HD2 12 kw radar

S-Band Radar

Garmin 424 HD2 4 kw radar

Multifunctional Workstation

Yes

Chart Plotter

Garmin Bbox 8700 GPS map (4)

UPS

Yes

Magnetic Compass

Yes

Gyrocompass

Yes

Auto Pilot

SIMRAD AP70 Autopilot System MK2

Rudder Angle Indicator System

SIMRAD

Depth Sounder

Garmin

Video Sounder

Garmin GSD 25

GPS

o  3X Furuno Touch Screen Monitors – lower helm

o  Furuno Remote Display

o  SIMRAD AP70 Pack Autopilot System

AIS

Garmin Black Box AIS Transponder

Horn

Dual Trumpet

Search Lights

ACR

Bridge Navigation Watch Alarm

Garmin

Ships Computer

o  SIMRAD AP70 Pack Autopilot System

o  Cisco Wireless Access Point

o  Gost GSM/CDM WIFI High-Speed Data





COMMUNICATION SYSTEMS

SAT com

Starlink w/ wireless router

VHF Radiotelephones

ICOM

Portable VHF

ICOM



DECK MACHINERY & EQUIPMENT



Anchors

(2) Mason tri foil polishers anchor 3 Pt - Stbd

Anchor Chains

1 Fortress Fx 125 Aluminium anchor

Anchor Windlass System

Lewmar V8 – 30407 24 VDC chain gypsies

w/ clutch brake vertica capstans

Ground Tackle

(2) 300 ½ Link galvanized chain ea

Davits

Aritek R1000 Boom Crane w/ extendable arm – 1000 kg capacity

Sea-stair

Marquipt



SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT



Security System / Cameras

o  Raymarine Day/Night Marine Camera

o  2X Gost VF Vari-focal Ball Camera

Ship’s Safe

Yes

Fixed Firefighting System

2X Fireboy engine room auto supression

Smoke Detection

Yes

Fire Alarm

Yes

Alarms

Yes

Life Rafts

(2) Viking 8UKL – 8 pp Rafts w/ hydrostatic release

Lifejackets

Yes

Life Rings

Yes

EPIRB

ACR

Flares and Signals

Yes

Medical Equipment

Yes





ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS



Video Equipment / TV’s

o  1X 22” Samsung flat screen (main deck)

o  1X 42” Samsung flat screen (master)

o  1X Sony Blu-ray DVD player (master)

o  1X 26” Samsung flat screen (VIP)

o  2X 22” LED flat screen



GALLEY & LauNDRY EQUIPMENT

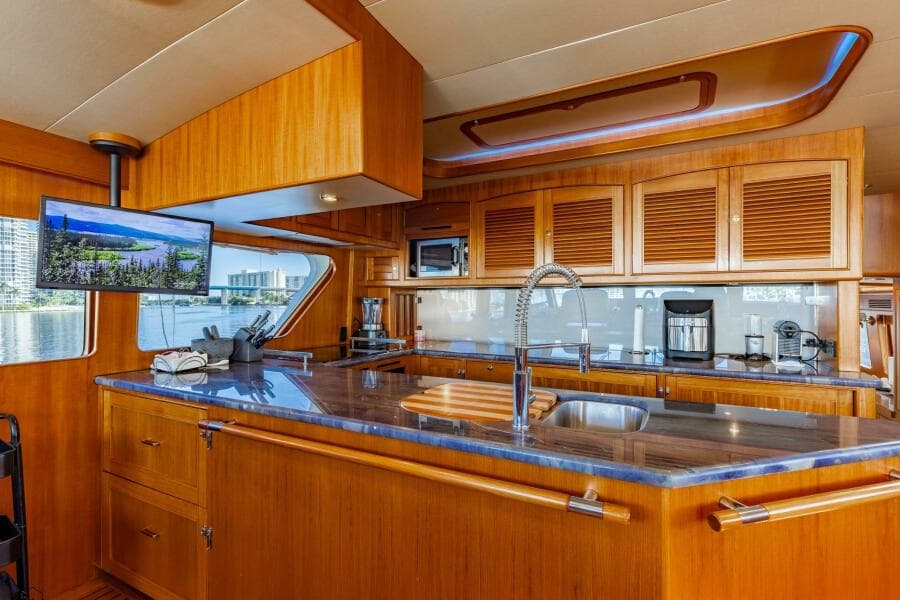

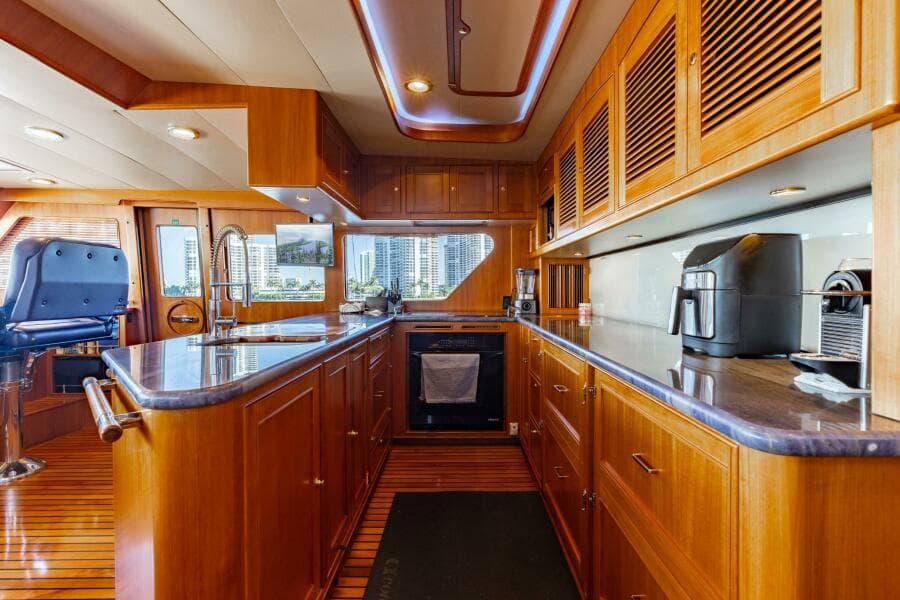

MAIN GALLEY EQUIPMENT

Cooking Equipment

o  1X Dacor range

o  1X Dacor oven

o  1X Sharp microwave oven





Refrigeration/Freezer

o  3X SubZero drawer freezers with custom teak faces

o  3X SubZero drawer refrigerators with custom teak faces

o  1X Icemaker





Dishwasher

o  Fischer & Paykel dishwasher drawer with custom teak

o  Insinkerator

Additional Galley Equipment / Salon

o  1X Subzero refrigerator with ice maker

o  1X Subzero wine cooler





CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

Microwave

Yes

Refrigeration/Freezer

1X Uline with ice maker





Wine Storage

1X Subzero wine cooler

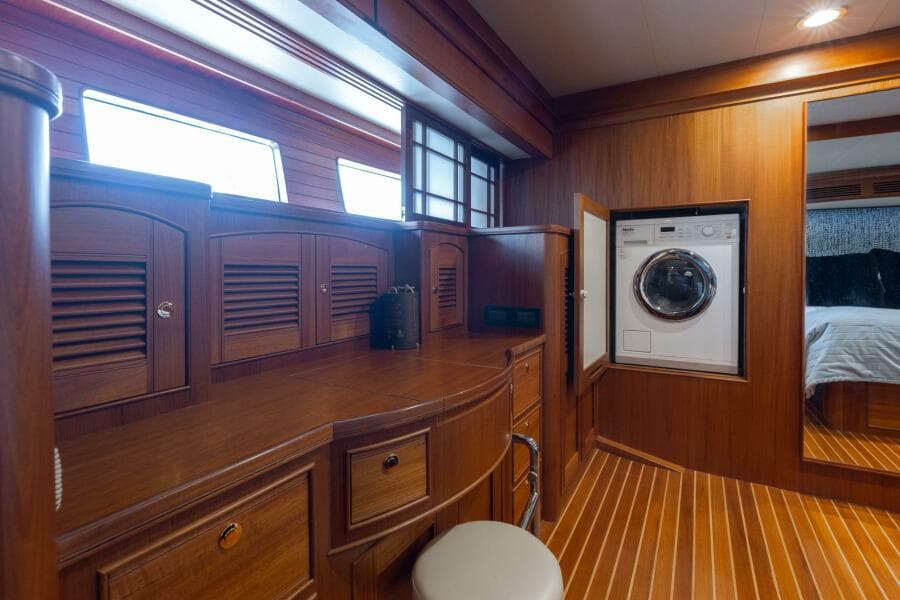

Main Laundry Equipment

o  1X Whirpool washer/dryer set (fwd guest area)

o  1X Miele washer/dryer set (Master)

o  1X Splendide washer/dryer set (crew)





Other

Central Vacuum system



OTHER EQUIPMENT



·        Removable sun awning foredeck + FB Aft Deck

·        ¾ enclosure isinglass w/ open bridge





TENDERS & TOYS

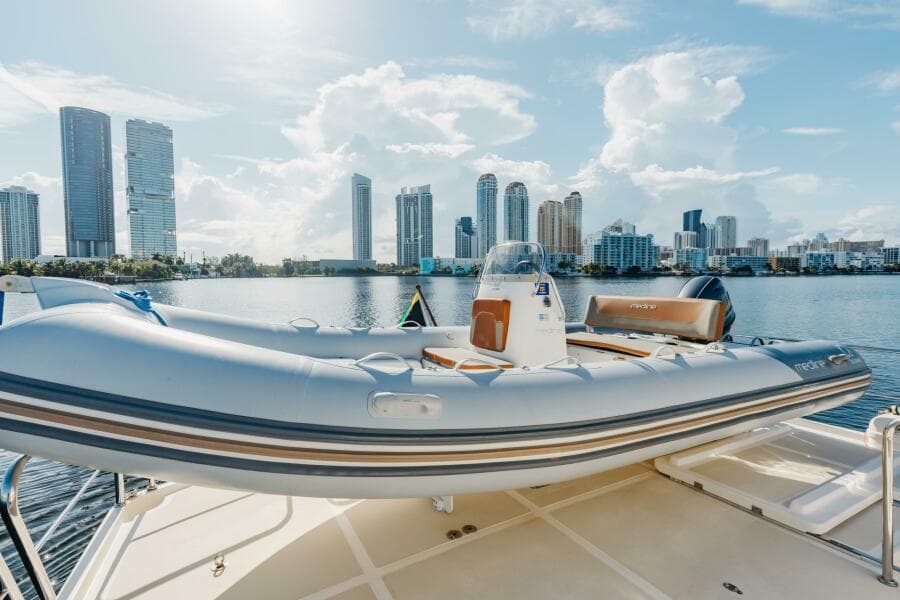

Tenders

16’ Z-marine



CAPITAL IMPROVEMENTS



2024

Exterior

New engine Exhaust by Metcalf



3000 hr engine service – new aftercoolers



New Garmin electronics



Starlink sat service



Haul out and bottom service



Service fire system

Interior

Updated interior furnishings





Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Fraser Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

“The need for speed is quite impressive on a vessel this size. Cruise easily in the low 20’s and see upper 20’s flat out. Over 1500 miles range at 10kts. Spacious and comfortable, VS II is updated and in turnkey condition.”
