Description

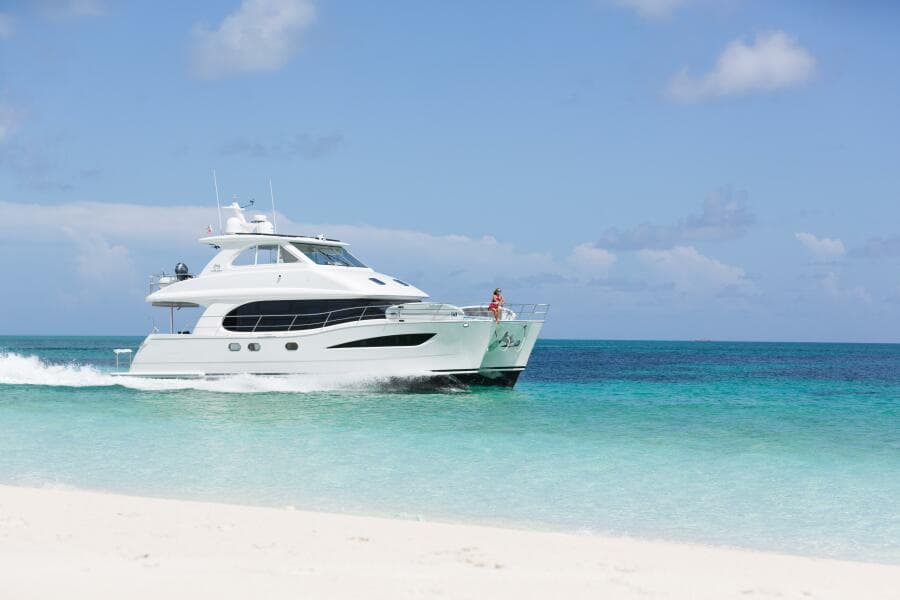

This 2016 PC52 is equipped with twin CUMMINS QSB6.7 550HP engines that cruises at 18 knots and tops out at 22. With 950 gallons aboard your slow cruise speed of 9-10 knots will allow you to have a range of nearly 1,000 NM. Pairing this long distance capability with a shallow 4'6 draft, she is the ideal blue water cruiser with comfort, luxury, and performance. The vessel has a three cabin, two heads layout that gives the master/owner's stateroom the entire starboard side of the vessel w/ en-suite head and walk in shower. The port side is shared by the VIP and twin cabins that have a Jack and Jill style head and shower. With the cabins below, the salon and galley share the entire main deck of the boat, allowing for a very open and homestyle feeling. Vessel in immaculate condition with all past service records and invoices shareable.

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by The Powercat Company. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

PC52

Key Specifications

LOA51' 6"

Beam22'

Draft Max4' 3"

Draft Min4'

LWL48'

Bridge Clearance18' 6"

TypePower

Hull MaterialComposite

FuelDiesel

Cruise Speed18 Knots

Max Speed22 Knots

Range950 nm

Weight & Measurements

Displacement73,400 lbs

Accommodation

Cabins3

Sleeps6

Heads2

Tankage

Fuel950 gal

Water270 gal

Registration & Documentation

Registration PlaceHelena, MT

Reg #PCC51510L516

Engines

Cummins QSB 6.7Electric

MakeCummins

ModelQSB 6.7

TypeElectric

Fuel TypeDiesel

Power550 HP

Year2016

Hours760

LocationPort

Drive TypeV

Cummins QSB 6.7Inboard

MakeCummins

ModelQSB 6.7

TypeInboard

Fuel TypeDiesel

Power550 HP

Year2016

Hours760

LocationStarboard

Drive TypeV

Generators

Cummins Onan

MakeCummins Onan

Power17.5 KW

Hours450

Full Details

Specifications and Upgrades

A. HULL AND MAIN STRUCTURE

White gelcoat finish for hull above waterline, exterior deck, furniture, and superstructure
One-piece hull lamination and longitudinal girders
Hull built with licensed SCRIMP™ process for improved strength and reduced weight
High-density foam-cored construction bottom and topsides
Solid fiberglass laminate stem and keel
Main engine girders with high-density foam coring
Deck and superstructure foam-cored reinforcement for rigidity
International anti-fouling bottom paint with anti-osmosis treatment

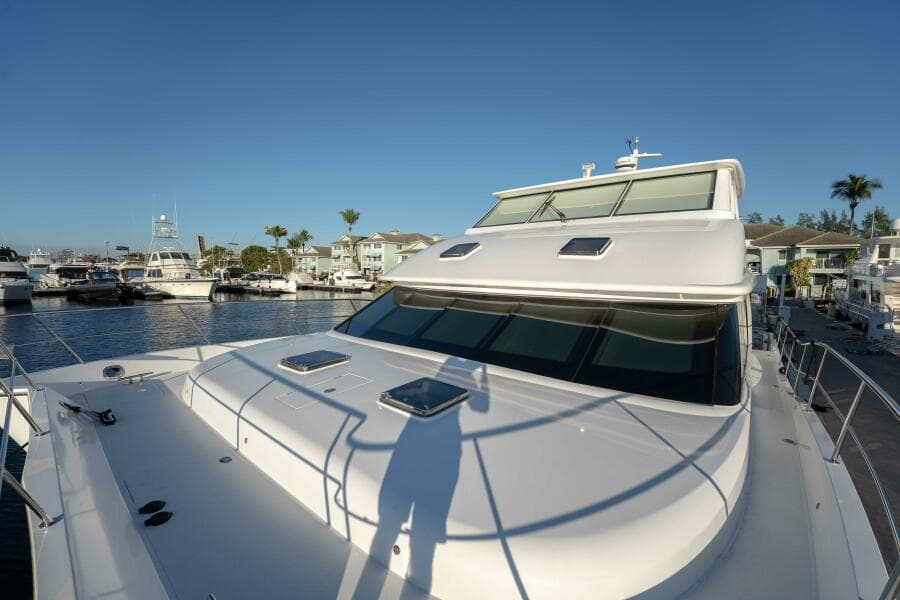

B. EXTERIOR DECK AND EQUIPMENT

Non-skid main deck w/ teak aft deck and stairs
Fiberglass cap rail
Stainless steel rub rail around hull-deck joint
Heavy-duty stainless steel #316 1-1/4” handrails with 1” stanchions
Ten mooring cleats on deck
Flag staff on back of flybridge
Fuel and water inlets
Locker for 24V anchor windlass
50 kg Delta anchor
150 ft high-tensile 3/8” chain and 150 ft warp
Aluminum sliding salon door
Two bow storage lockers with access through flush FRP deck hatches
Two deck hatches with blinds and screens
Engine access through manual deck hatches in cockpit floor with manual struts
Two large hull-side frameless windows
Six oval port holes

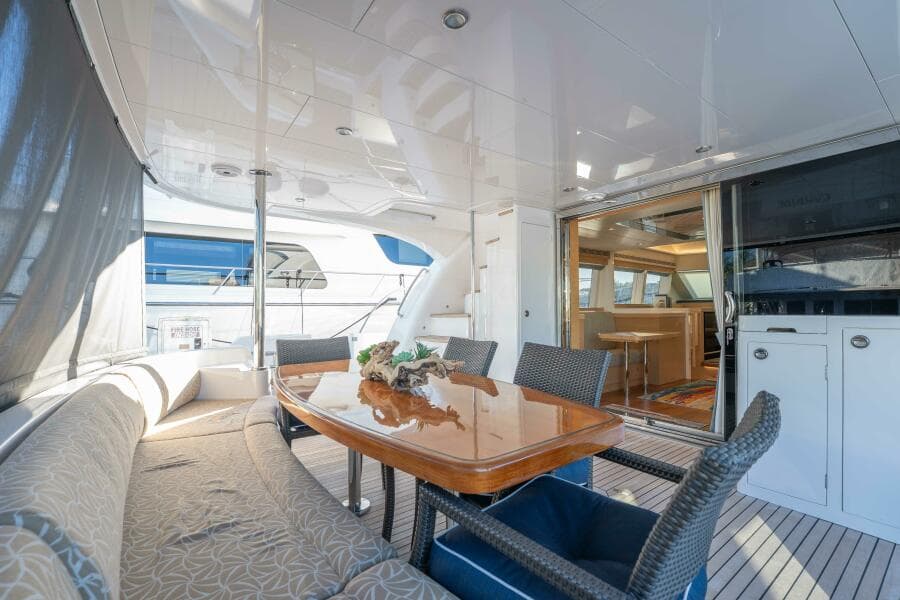

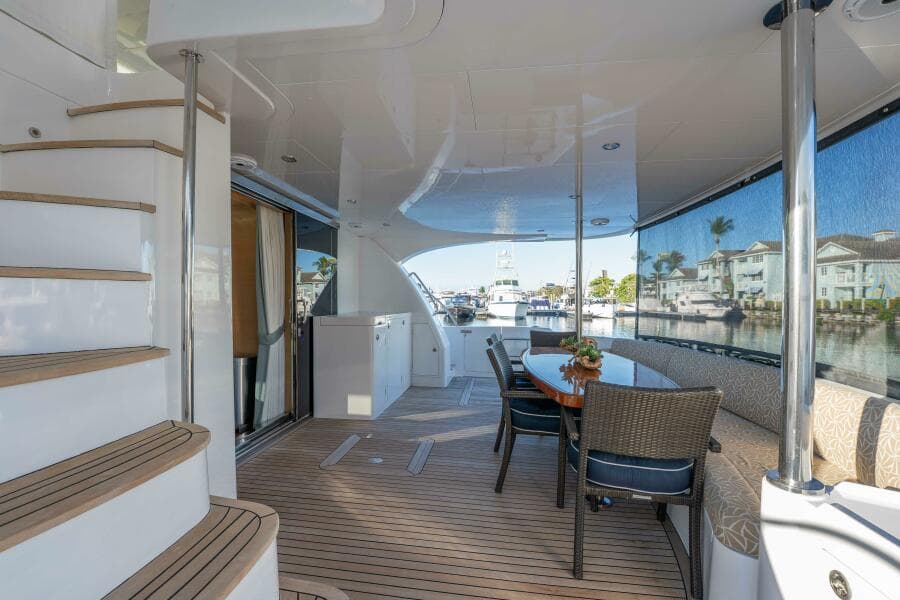

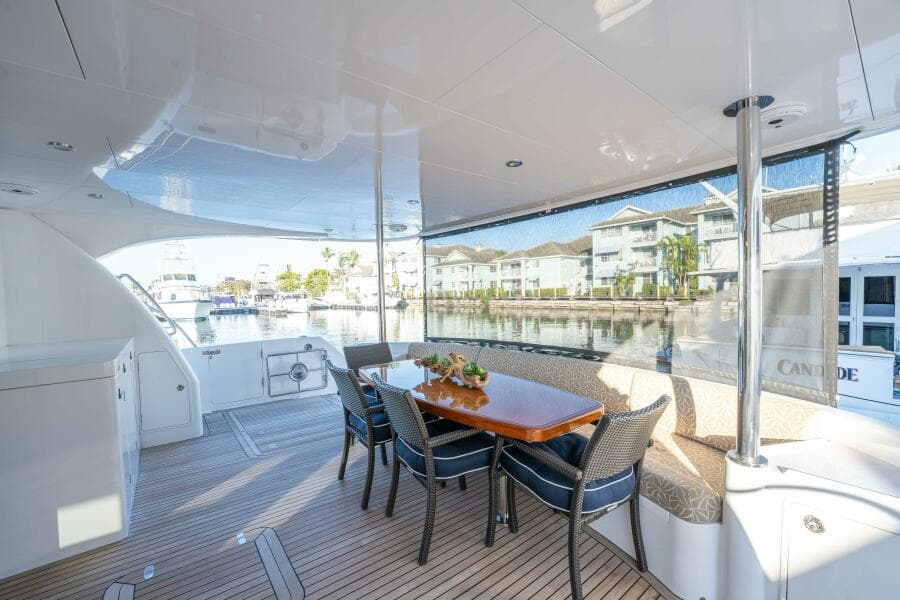

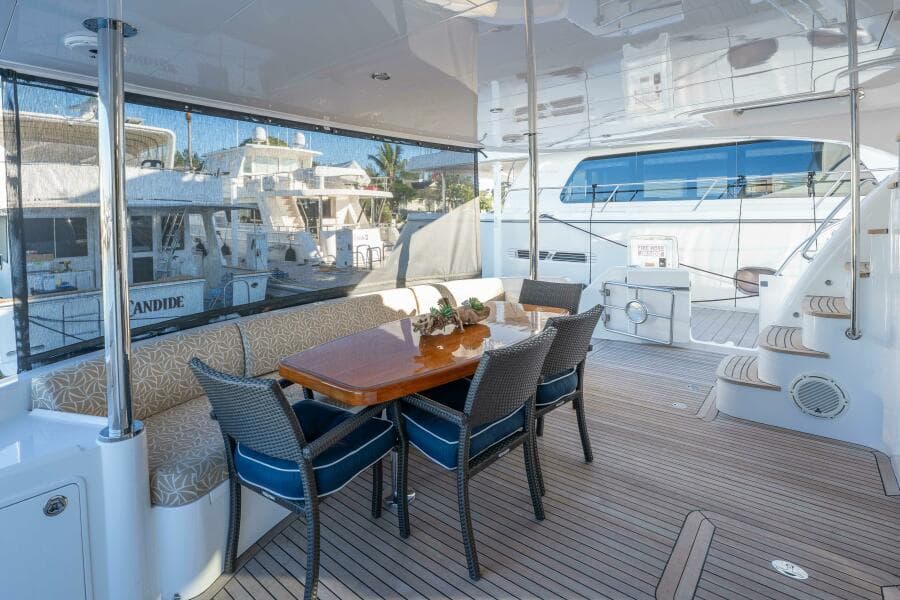

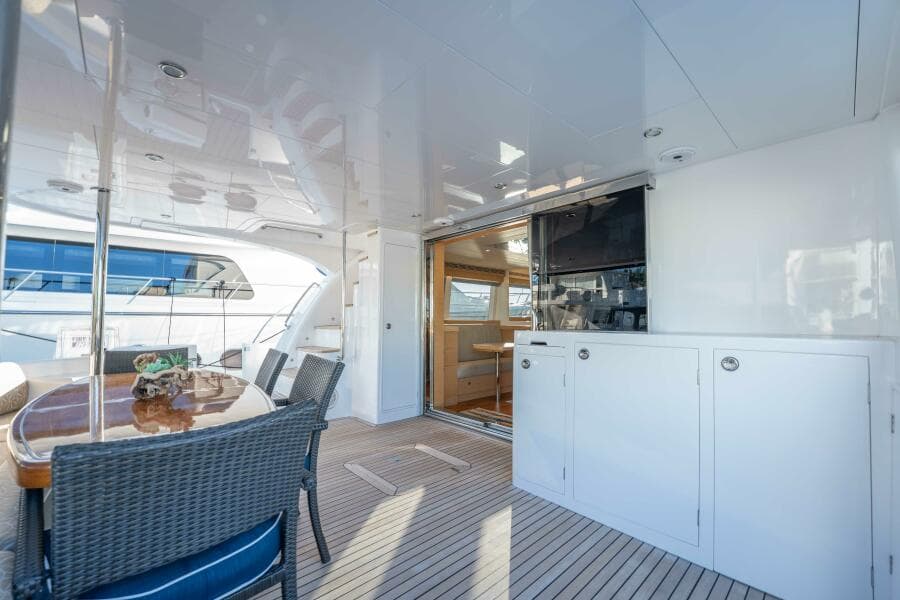

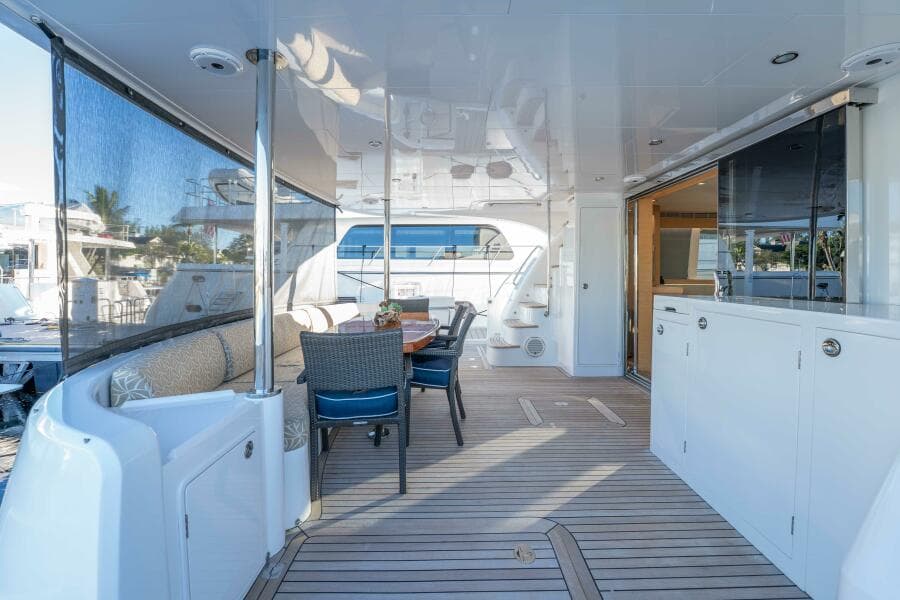

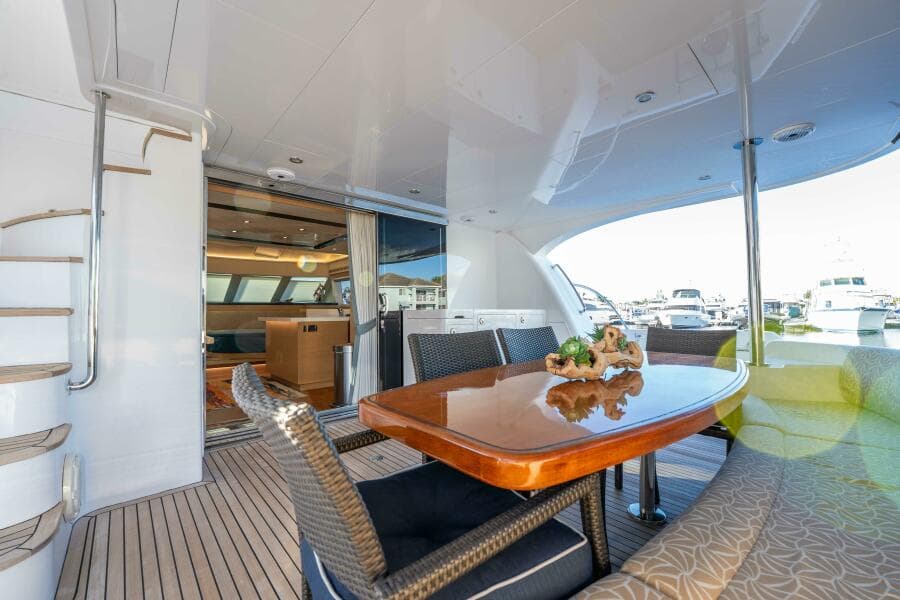

FRP curved seat with cushions on aft deck

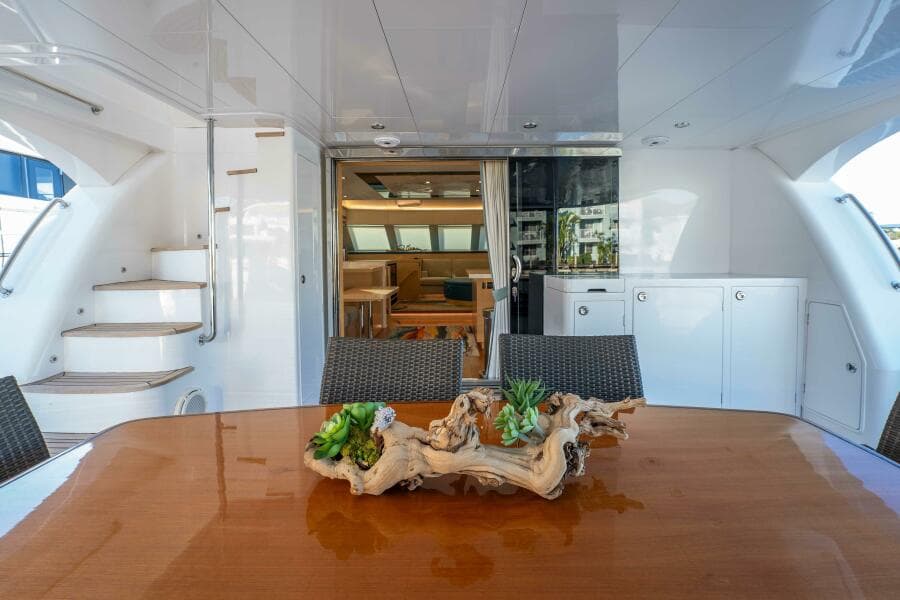

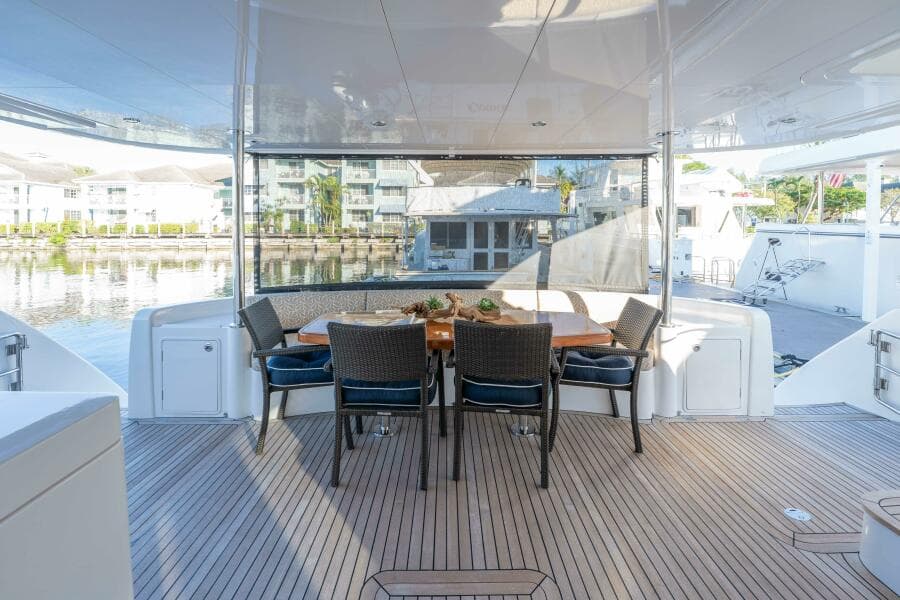

Teak cockpit table
Comfortable stairs from aft deck to flybridge
Two steps down to dive/swim platform
Cockpit lockers for storage
Built-in shower with hot and cold water
Swim ladder on starboard side
LED courtesy lights
LED bulwark with flush-mounted deck lights
LED ceiling lights
LED white lights with 24VDC transformer on Horizon logo (port & starboard)
Wiring for boat name on transom
AQUA SIGNAL navigation lights
Cockpit down lights

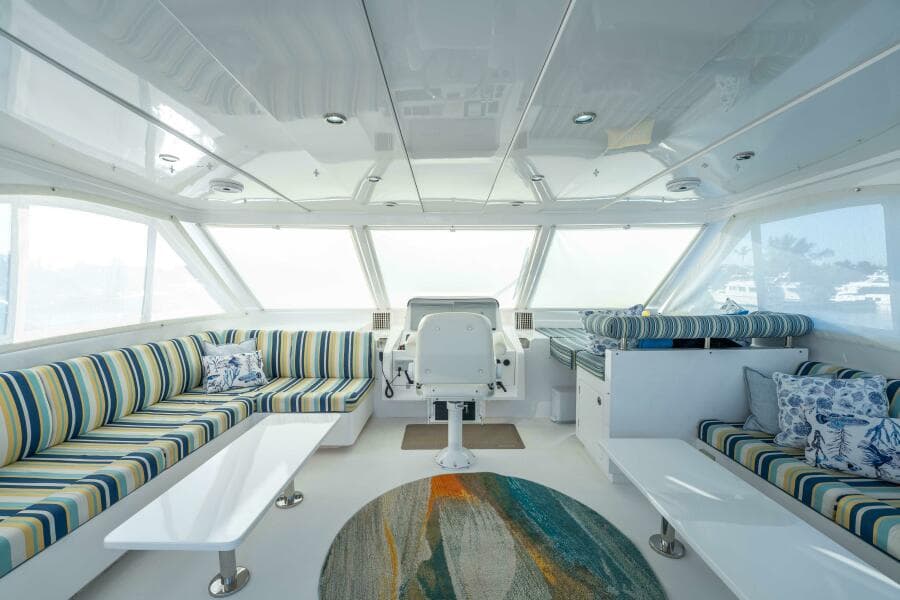

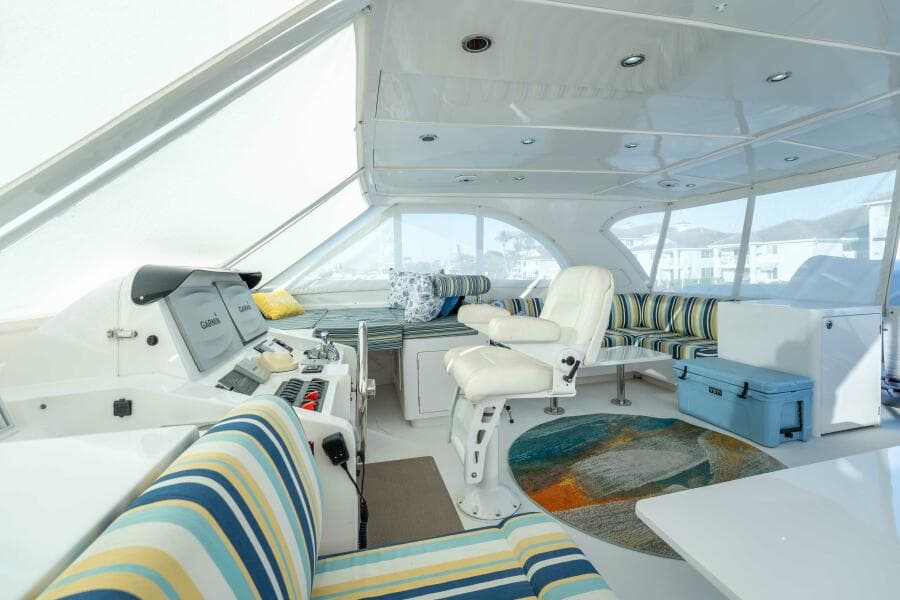

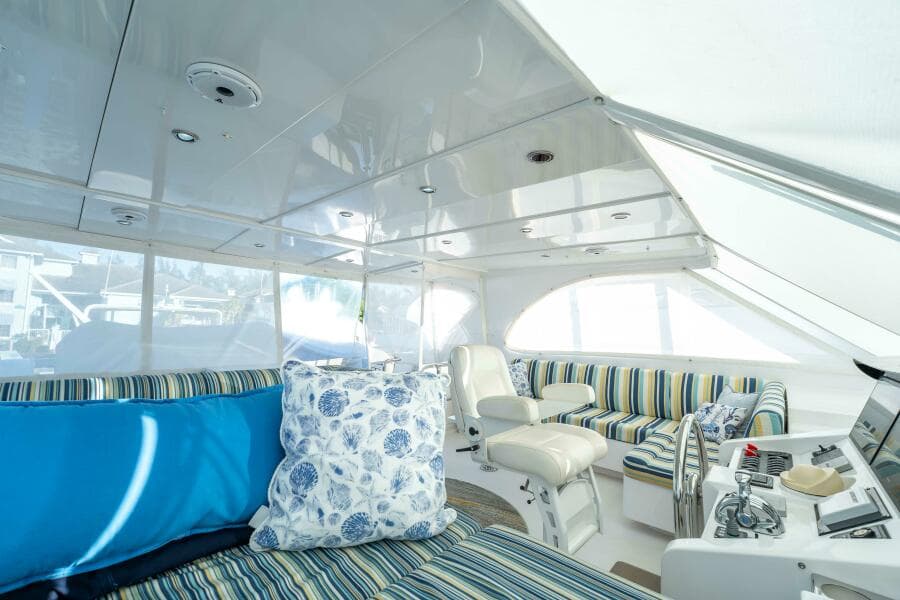

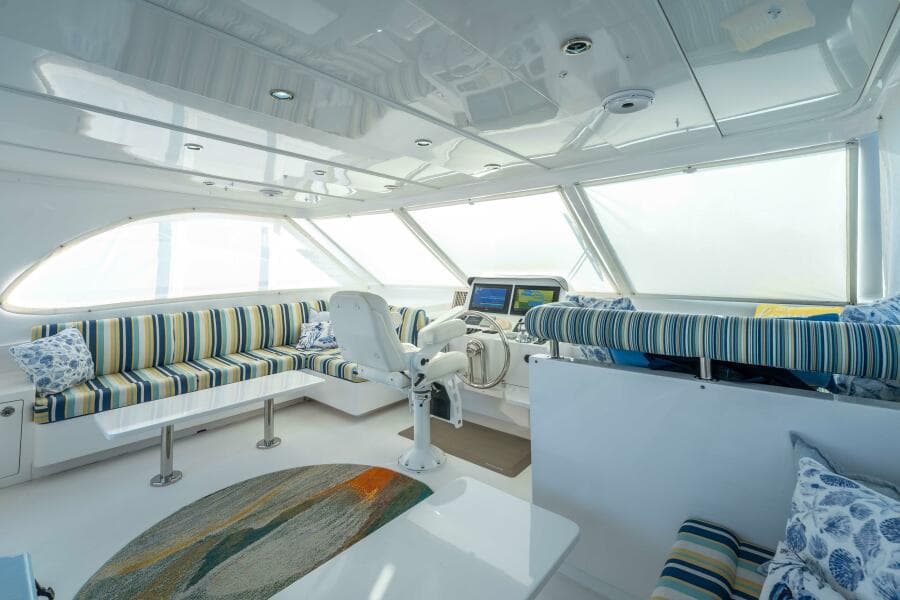

C. FLYBRIDGE

Non-skid cambered flybridge deck with ample drainage

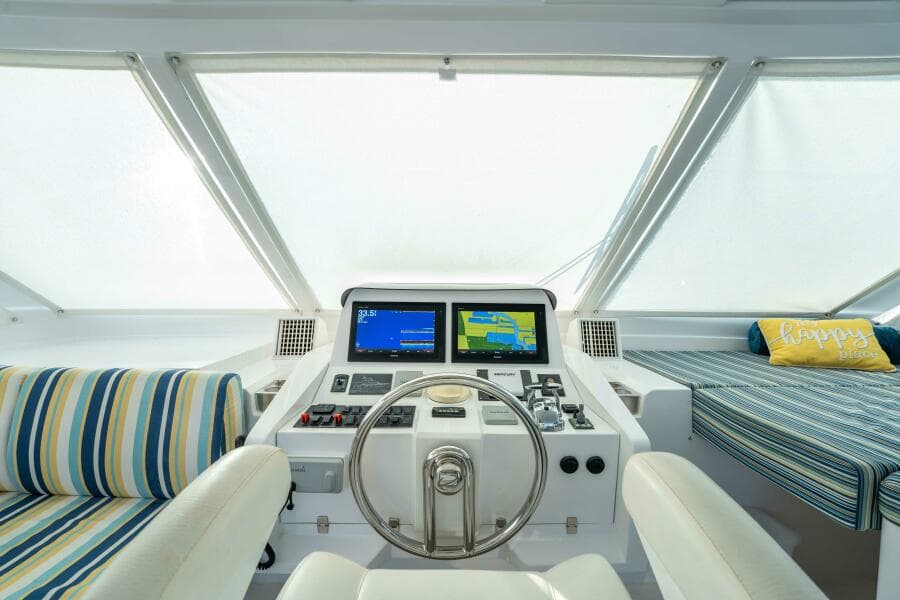

Helm station with stainless steel wheel and instrument console
Single white helm seat
FRP arch and FRP hardtop
DC refrigerator
FRP table with seating
Sun pad / bench seat starboard side of helm console with cushions
Ample locker storage
FRP non-skid floor
Air conditioning with outlets from helm console (port & starboard)

D. PILOTHOUSE AND INSTRUMENTATION

Controls for ship’s horn at flybridge helm
Bilge pump monitor and control at flybridge helm
Ritchie 4-1/2” compass at flybridge helm
Tank monitoring system (fuel, fresh water, black water)

F. ELECTRICAL SYSTEM

Color-coded wiring for easy identification
Premium DC distribution board with switches, voltmeter, and ammeter
Outlets in salon, bar, galley, cabins, flybridge, aft deck, and engine room
Vimar switches for lights and electrical outlets
AC/DC Main Power System
AC power supply from generator and shore power
Selector switch for AC power supply
Remote generator control panel
Four AGM batteries for engine and generator starting
Two AGM batteries for ship’s service power
BEP battery switch
One battery charger for all batteries
One inverter – 3.0 kW
Premium AC panel with switches
One 50-amp shore power connector

G. MECHANICAL SYSTEM

Fuel and Lube Oil System
Racor fuel filters for engines
One oil change pump for engines and generator
Fresh Water System
270-gallon water tank integral to hull
Color-coded piping for easy identification
Marine-grade water lines
One 17-gallon water heater (110V or 220V)
High-volume 24V fresh water pump with accumulator tank
Fresh water washdown for anchor
Fresh water washdown on aft deck
Sanitary System
Two (2) 30-gallon holding tanks integral to hull
Electric fresh water flush toilets with pumps, Y-valve for automatic discharge, and dockside pump-out (2)
Bilge Water System
Four electric 24V bilge pumps
High-level bilge water alarm
Fire Safety System
One Seafire automatic/manual fire extinguisher in engine room
Air Conditioning System
Marine Air central air conditioning for each cabin and salon

H. INTERIOR DESIGN AND EQUIPMENT

Interior Finish
Laminate carpeted flooring (option: wood)
Tempered safety glass windows
Soft furnishings including Roman blinds and accent wood

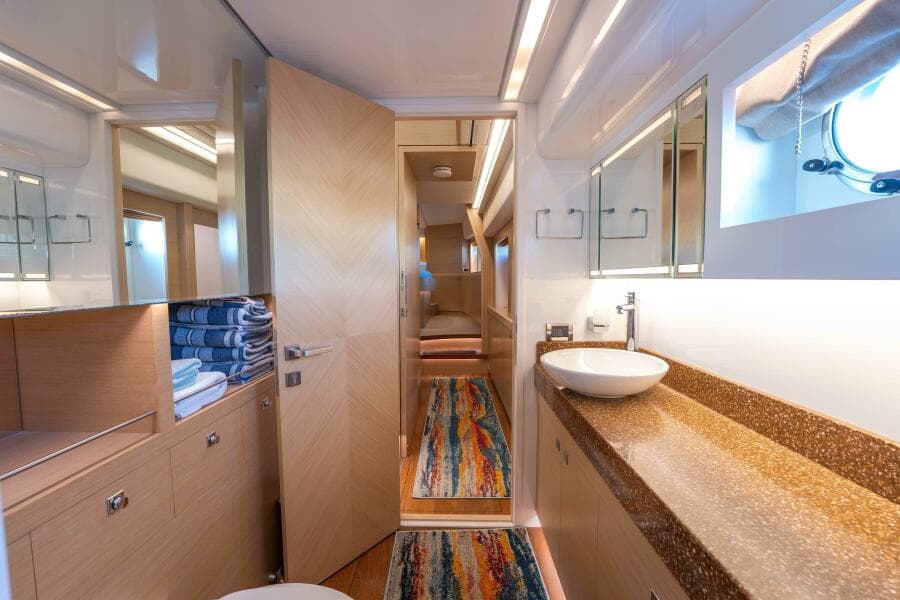

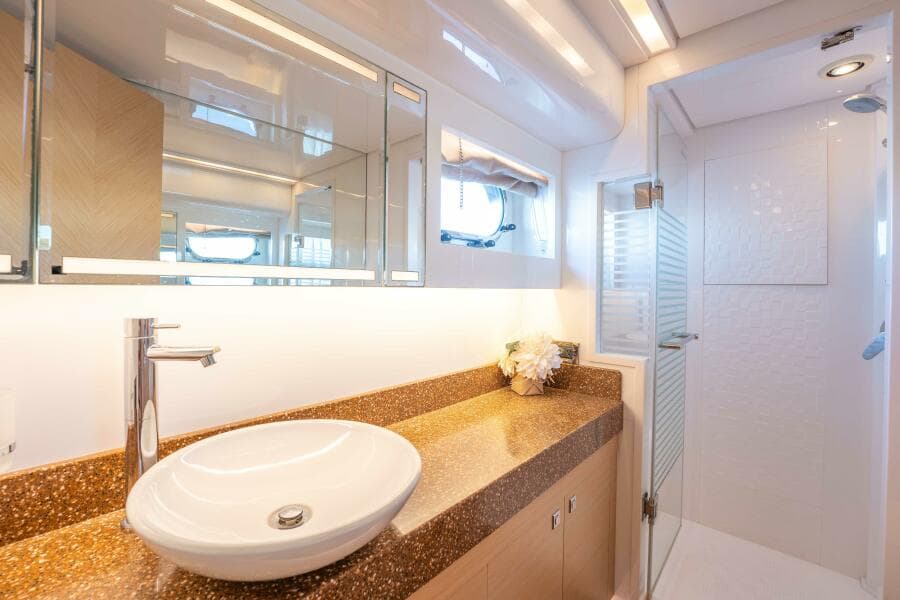

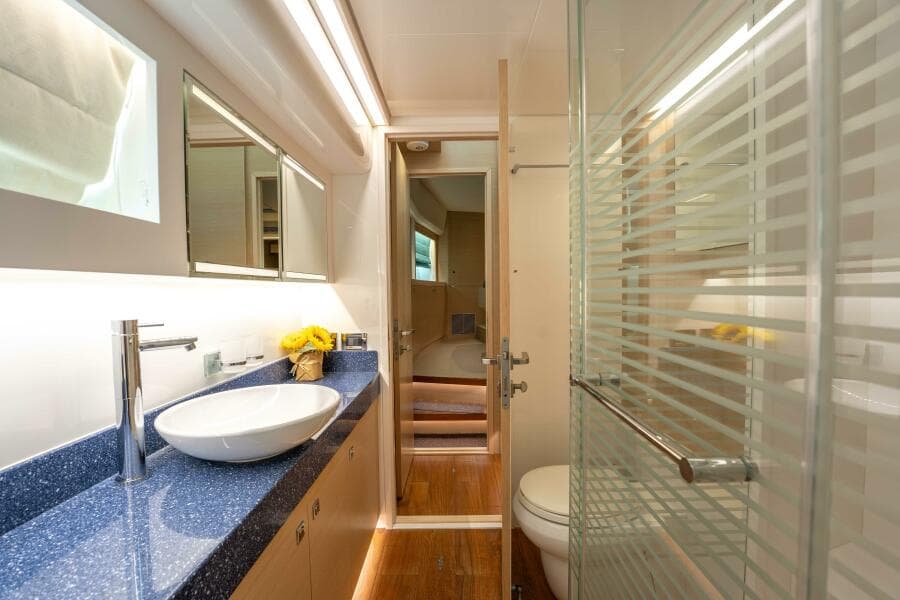

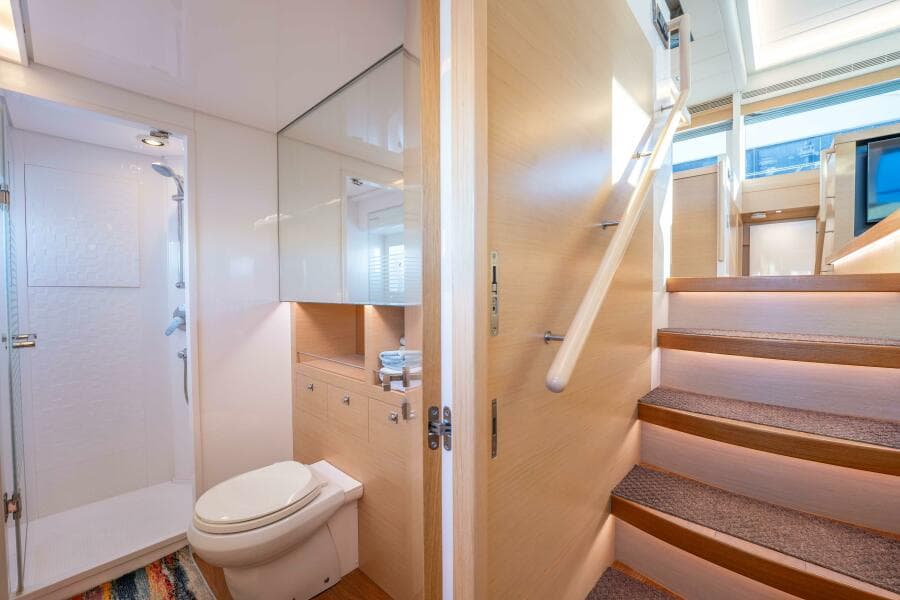

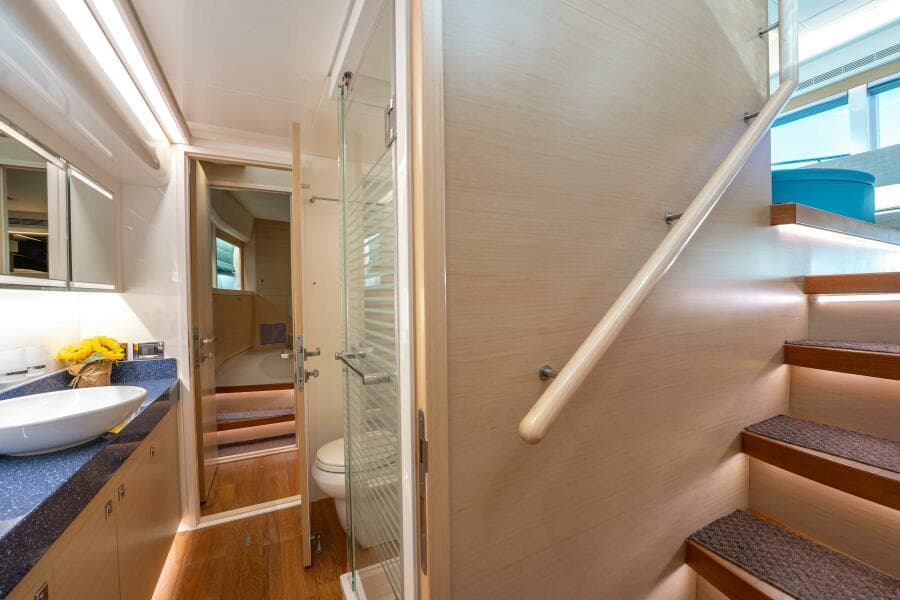

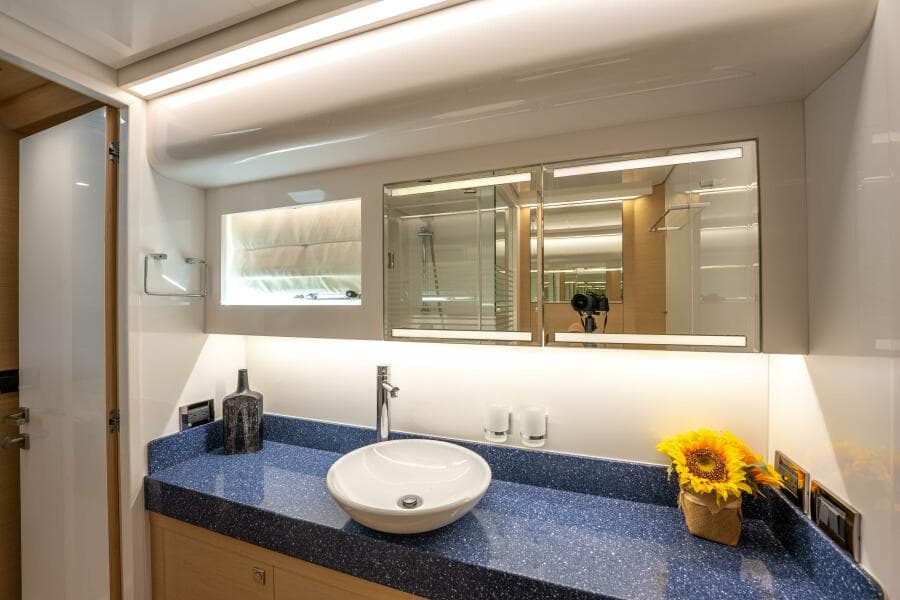

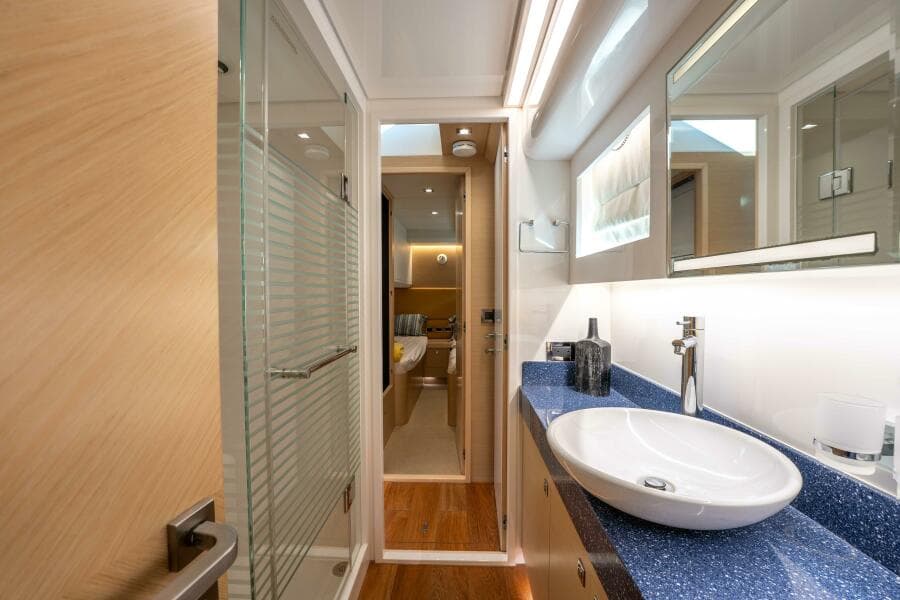

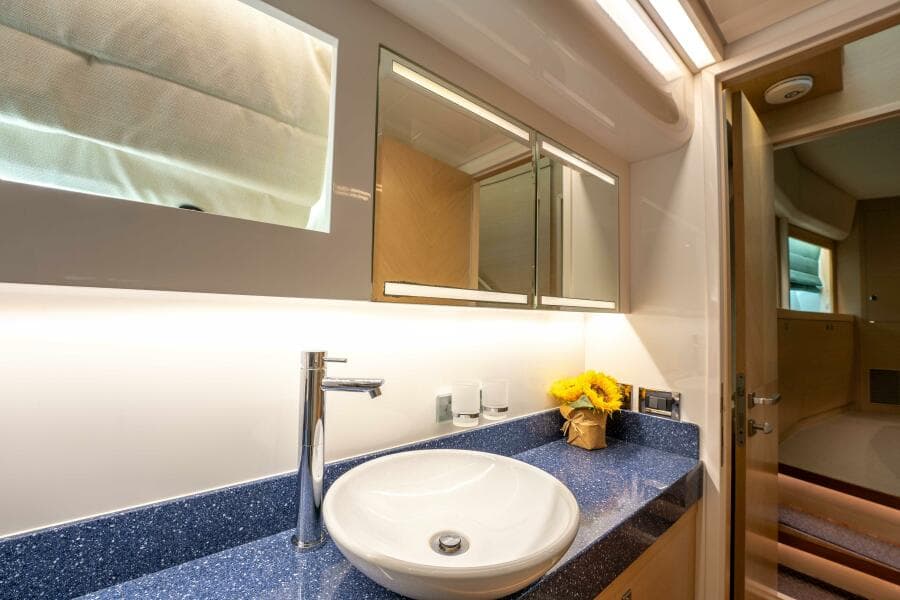

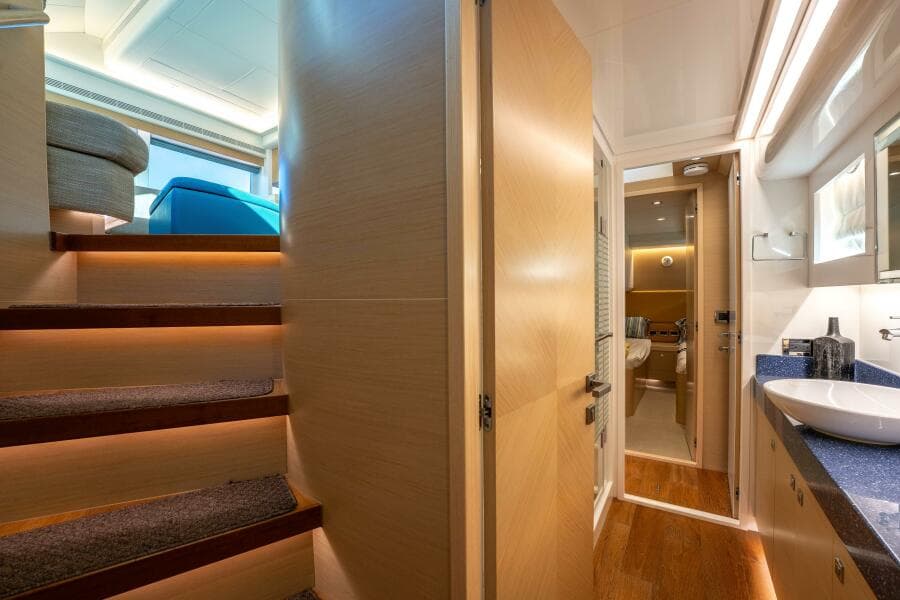

Heads and Showers – General:
Wood floors
Corian countertops
Fabric blinds over large windows
Portlights for ventilation
Basin, cabinets, and mirrors
Walk-in separate shower
Linen cupboard inboard of master shower
Separate toilet
Overhead lighting
Extractor fan

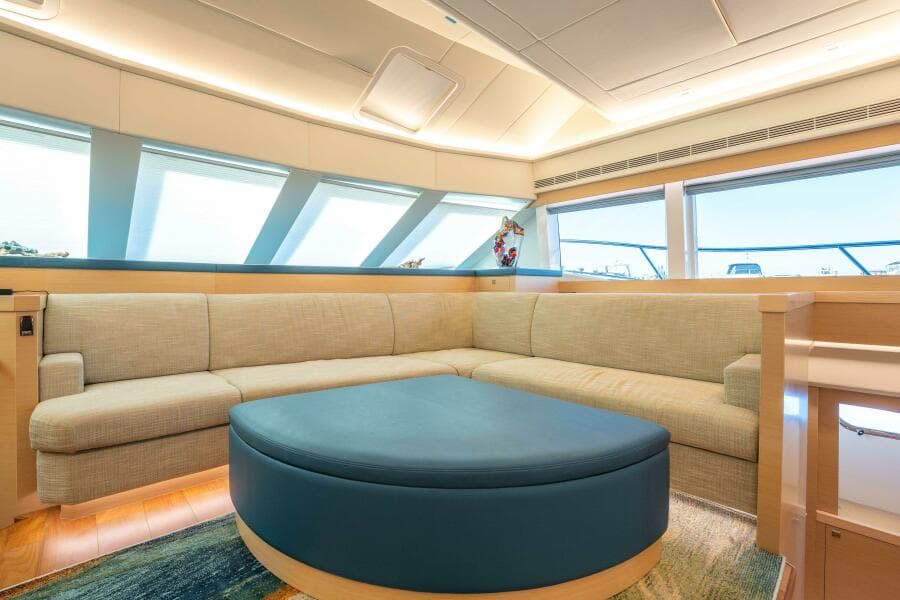

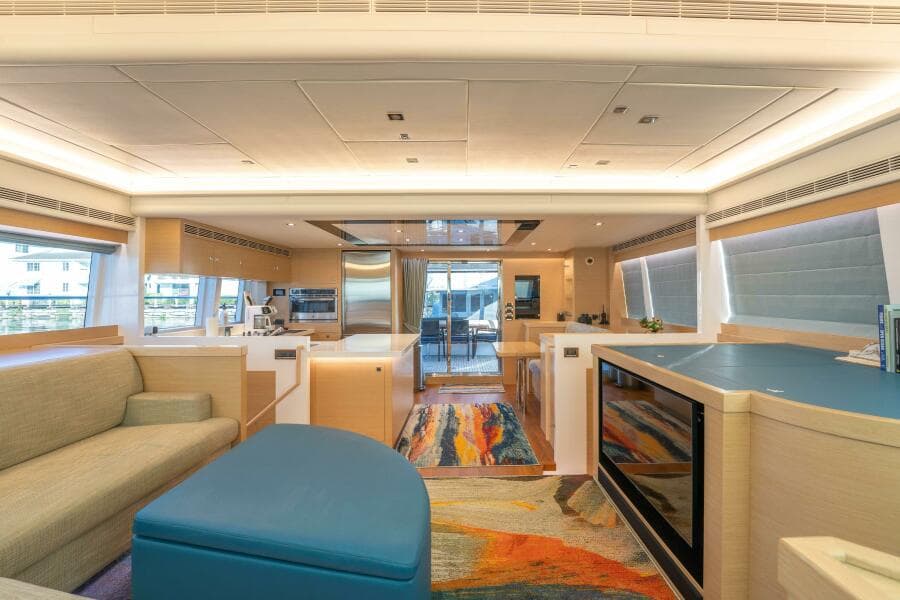

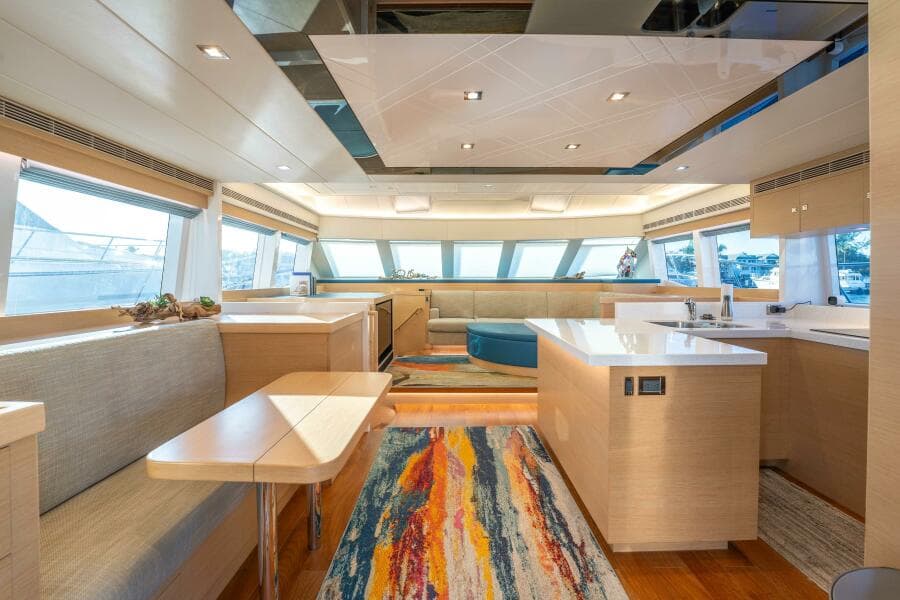

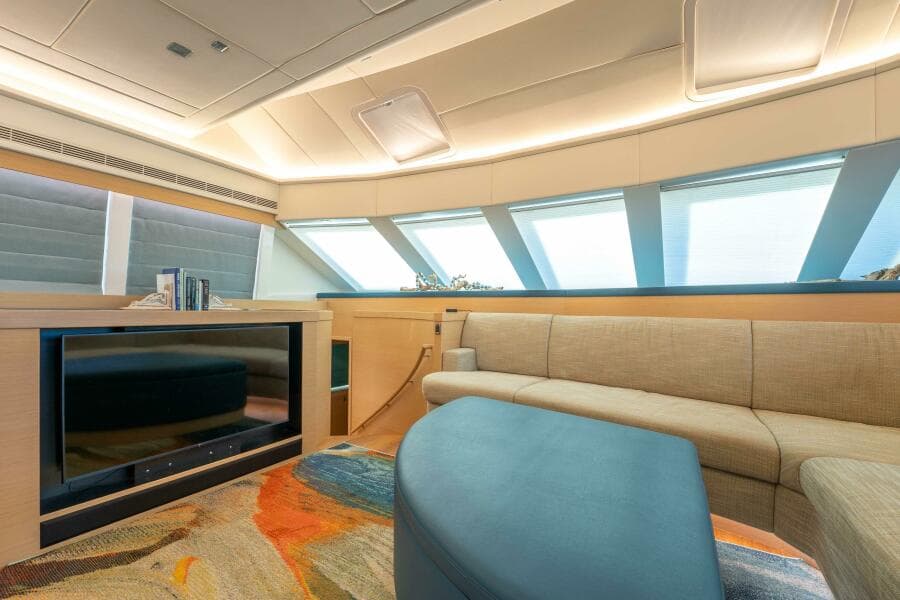

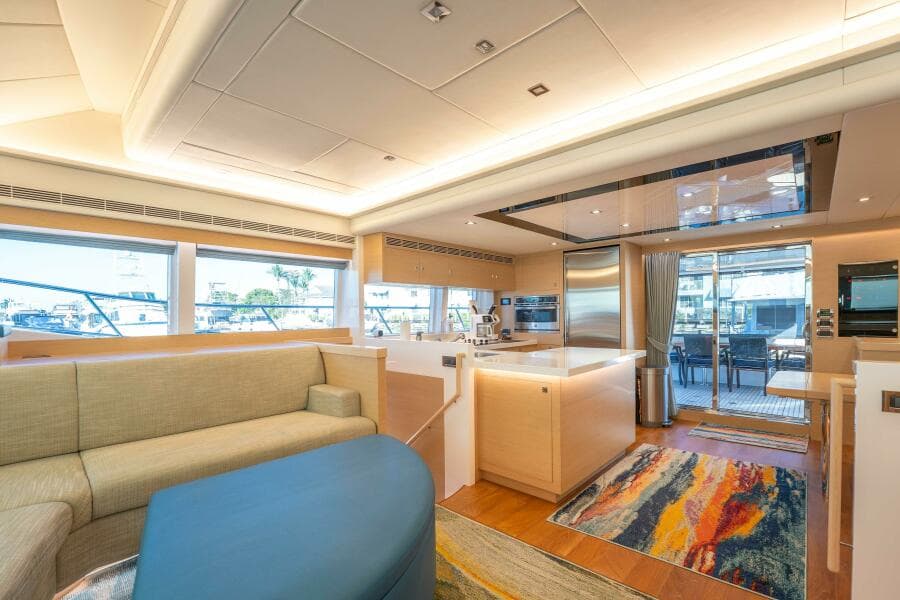

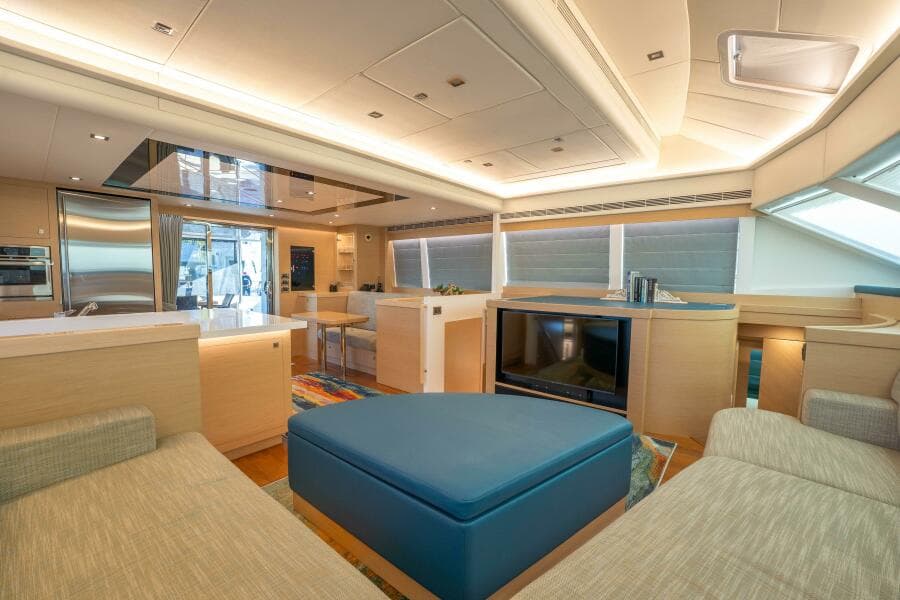

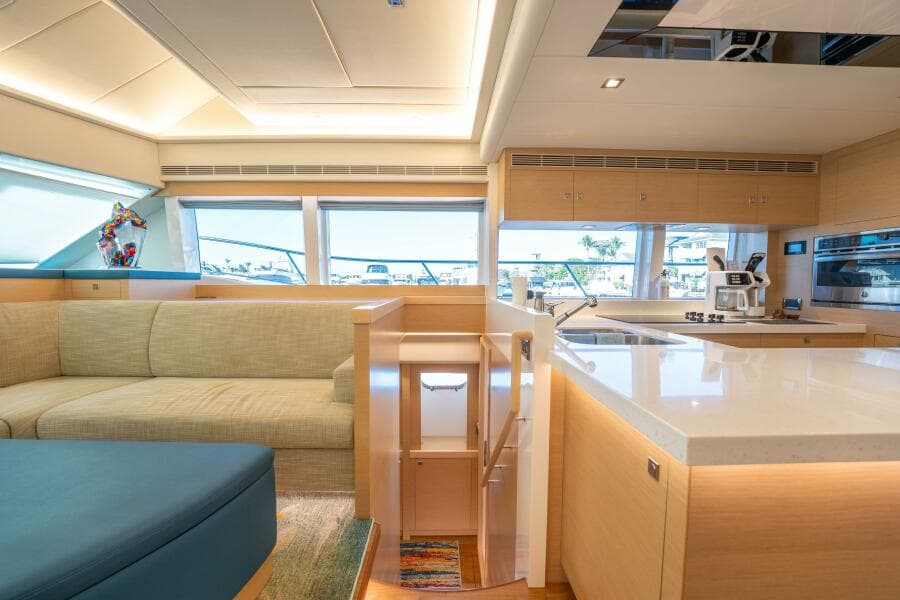

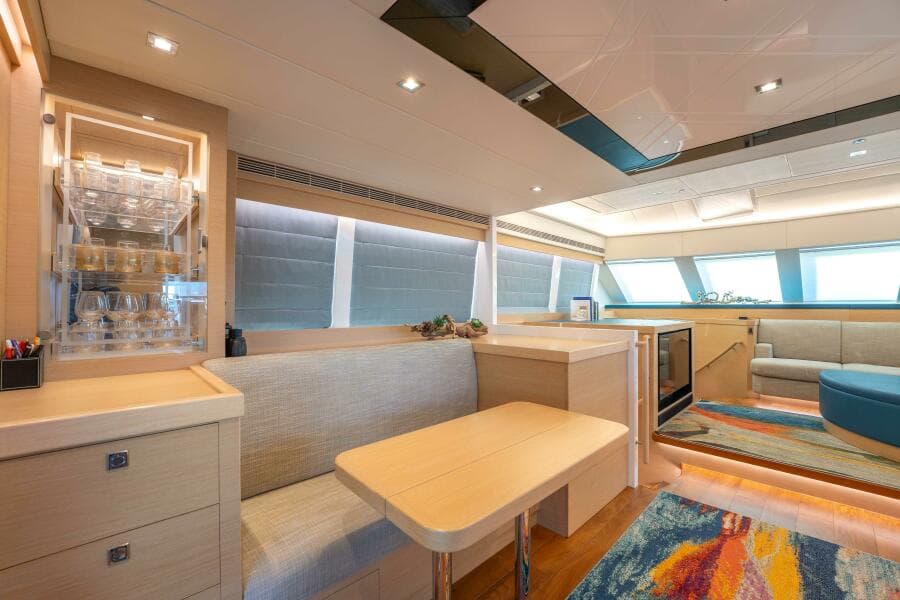

Salon
Fabric-covered salon seating
Wood coffee table
Cabinet for drinking cups
Space for optional TV

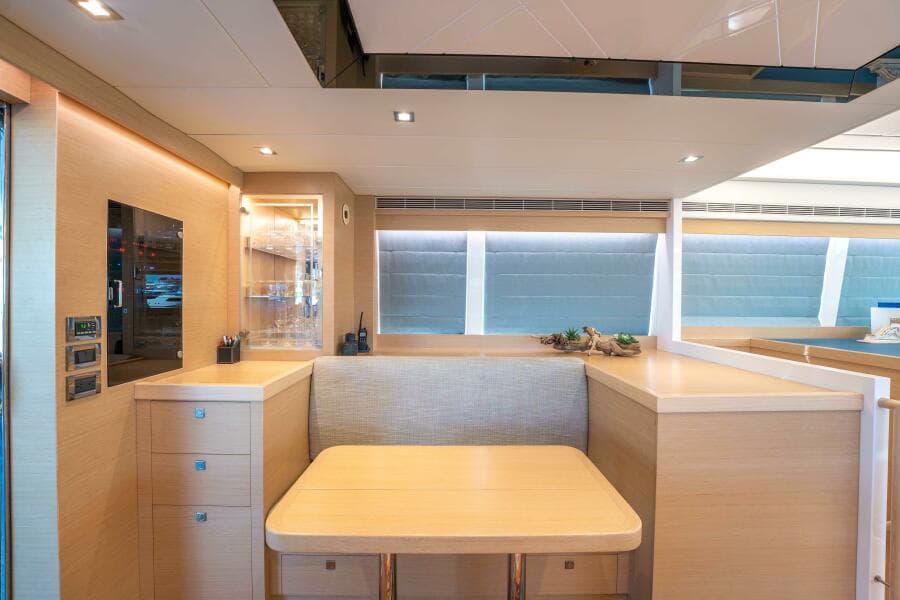

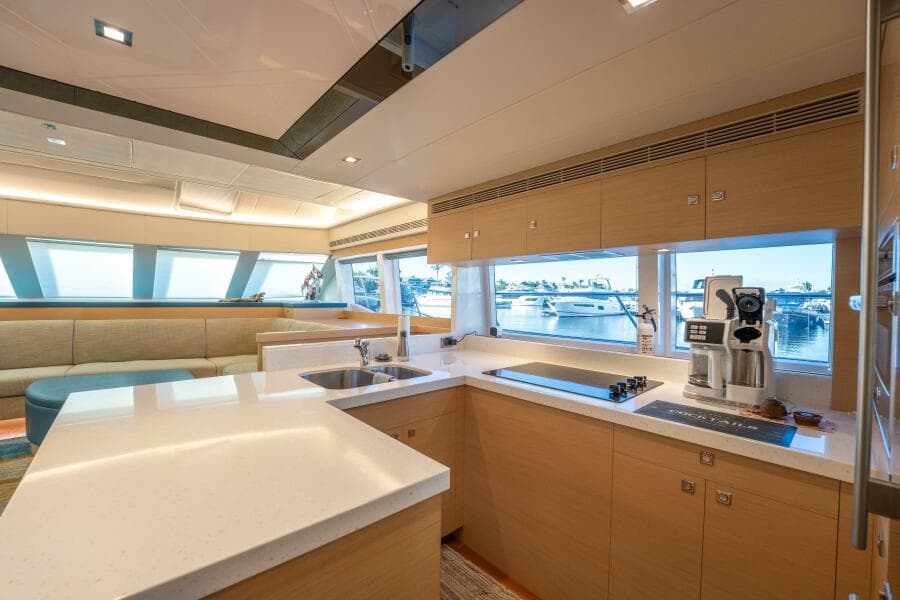

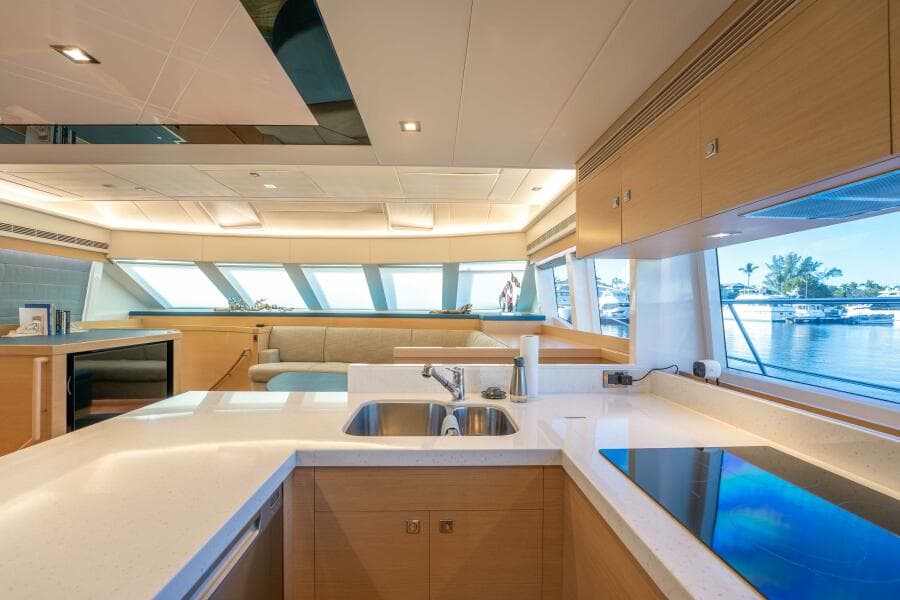

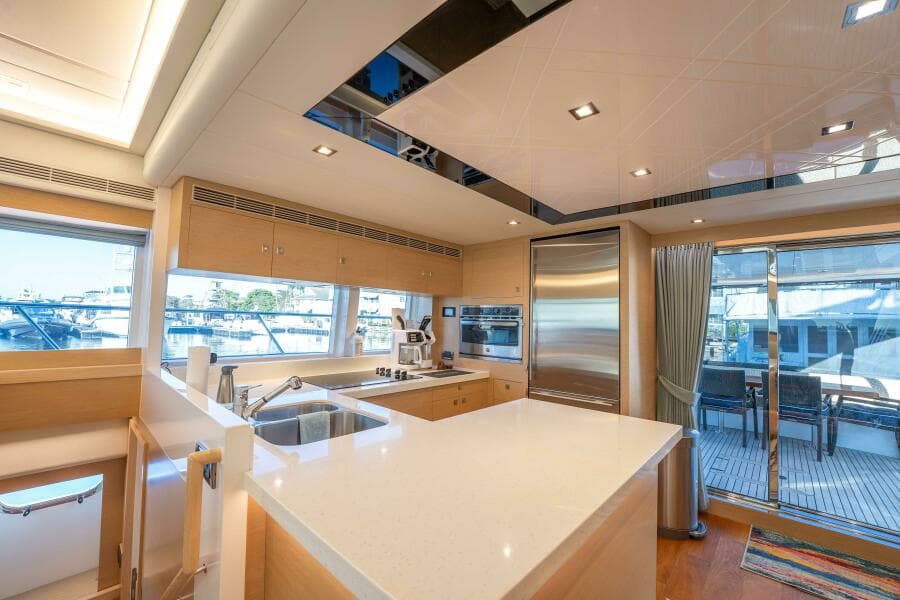

Galley / Dinette
Wood floors
Corian countertops
Double sinks with tap
Custom accent wood carpentry
Custom wooden carpentry for galley cupboards and counters
Cutlery and crockery drawers
Pots, pans, and spice drawers
Additional storage drawers and cupboards
Under-counter trash drawer
VIP Stateroom
Queen bed, semi walk-around
Closets
Custom wood accent carpentry
Carpeted floor
Deck hatch with screen and opening
Fabric blinds over large windows
Soft furnishings
Nightstands with light switches and outlets

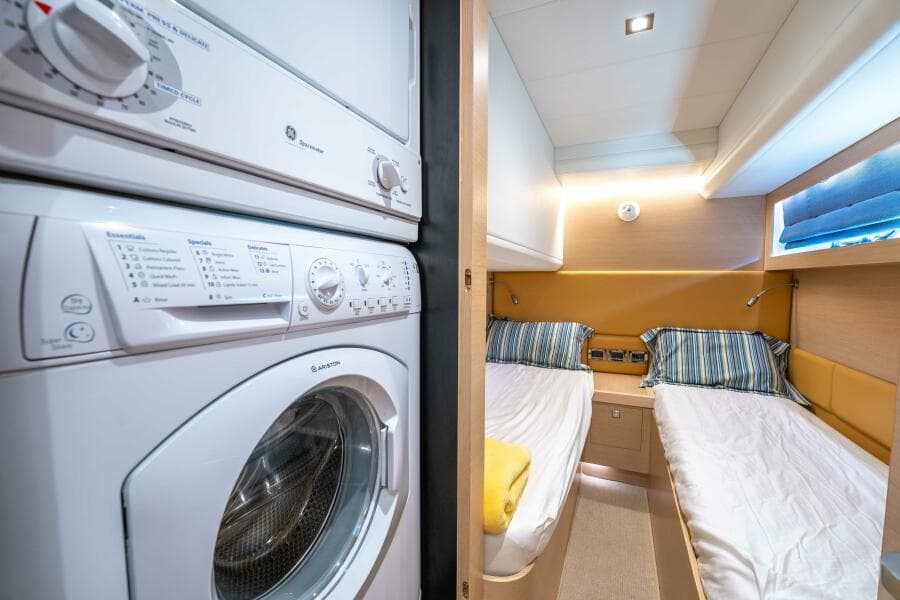

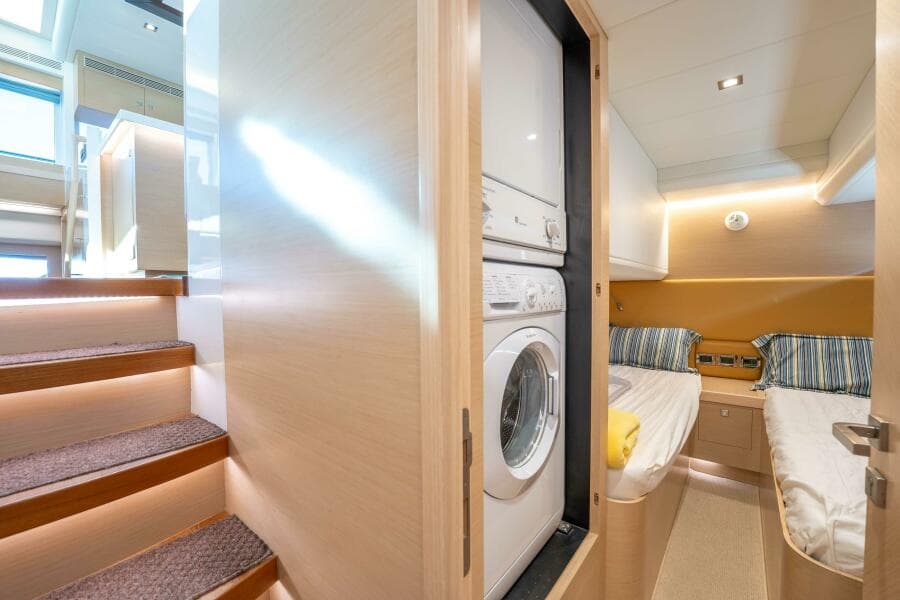

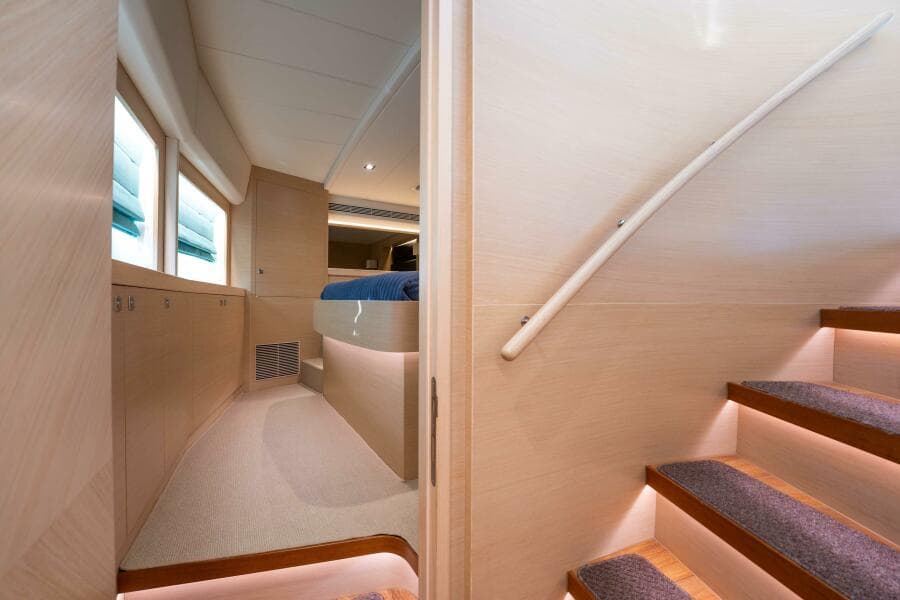

Port Aft Guest Stateroom
Custom wood accent carpentry
Carpeted floor
Opening portlights in hull side
Soft furnishings
Storage beneath beds
Cabin lights
Shared bathroom with VIP cabin

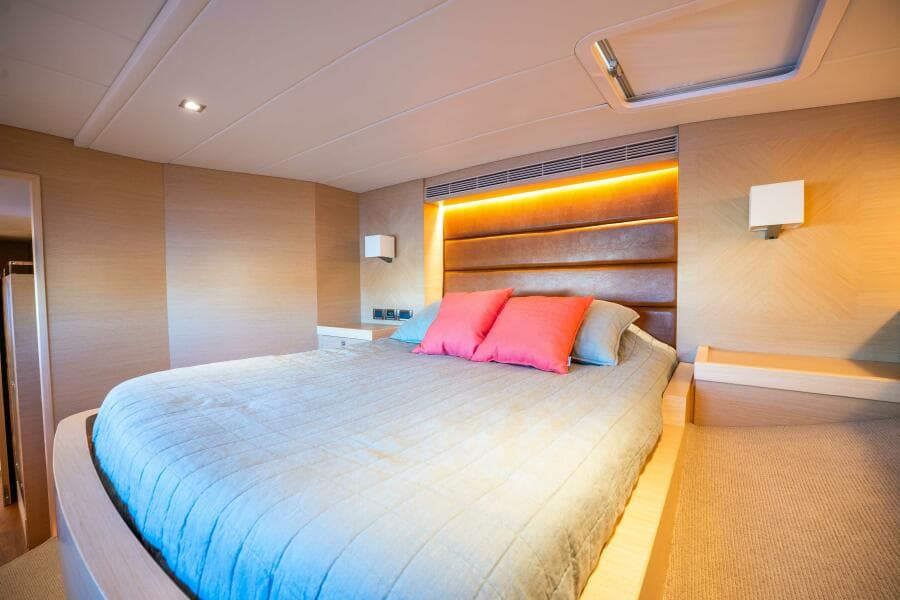

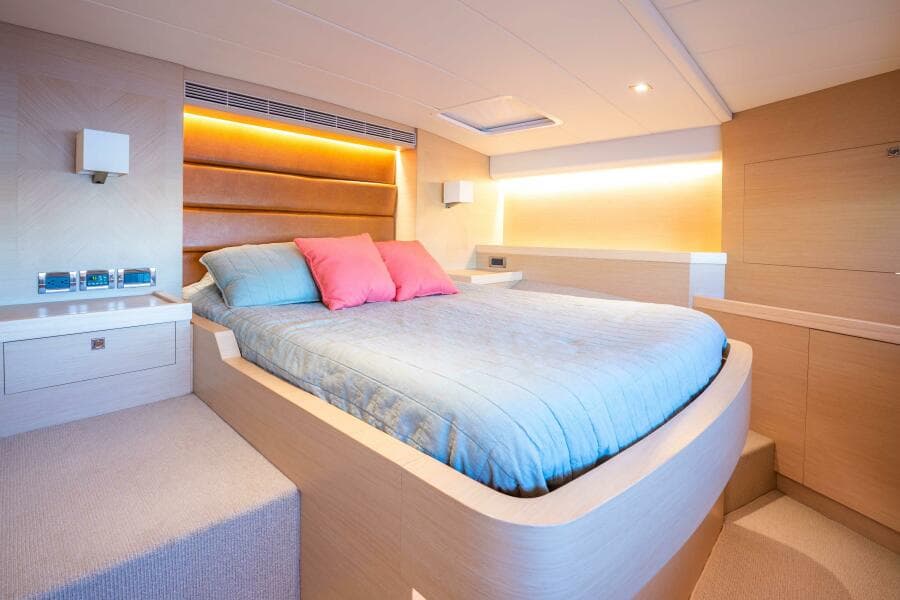

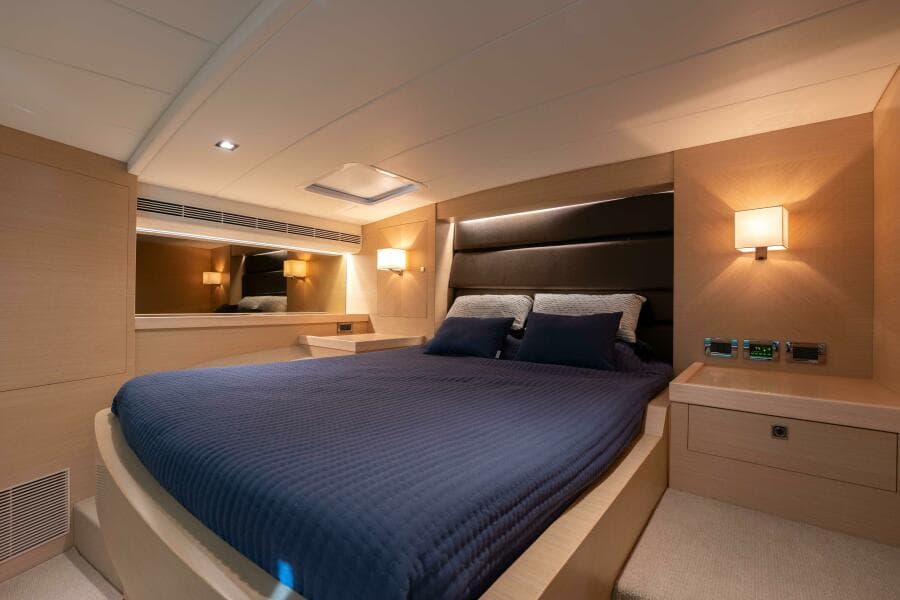

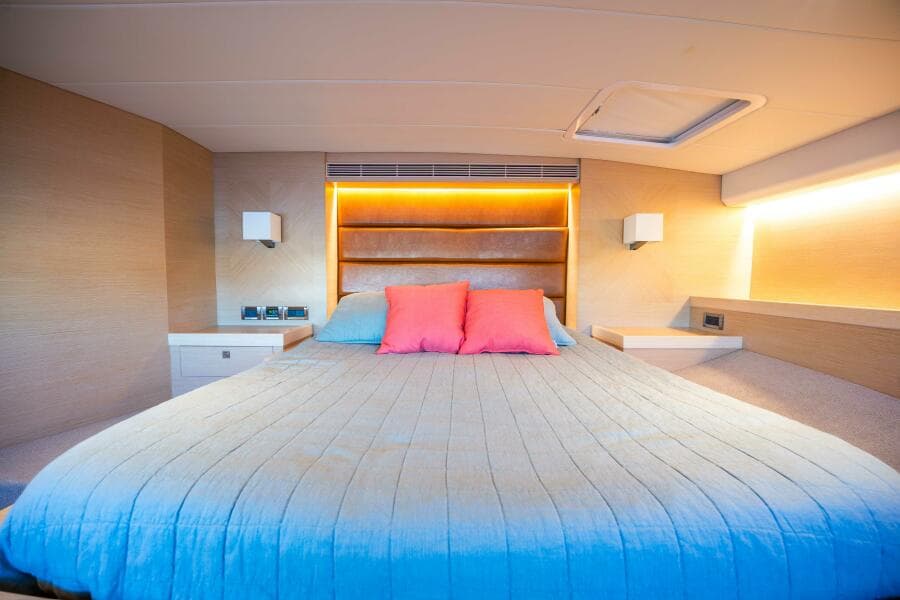

Master Stateroom
Custom accent carpentry
Carpeted floor
Deck hatch with screen and opening
Fabric blinds over large windows
Queen bed, semi walk-around
Large full-height closets
Closets for linens, towels, and clothes
Cabin lights
Nightstands with light switches and outlets
Lights
Headliner with recessed downlights

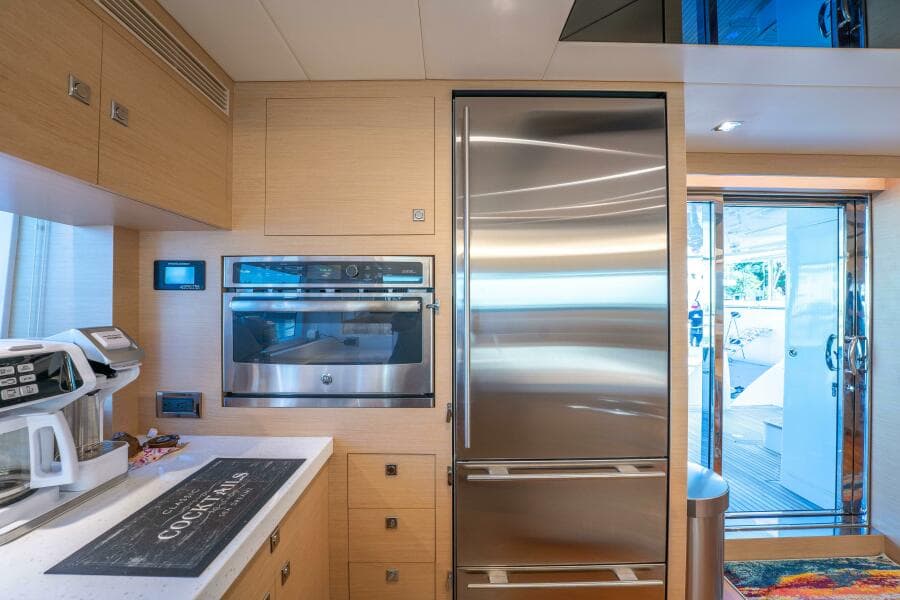

Galley Appliances
GE 4-burner electric cooktop
Extractor over cooktop
GE microwave / convection oven
GE full-height refrigerator with freezer

I. NAVIGATION & INSTRUMENTATION

Garmin 7215 – 15” touchscreen chart plotter with GPS antenna
Garmin autopilot
Garmin 24-mile radar
Depth transducer
VHF radio on flybridge

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
