2016 Aquila 48
“Arcadia”
Description

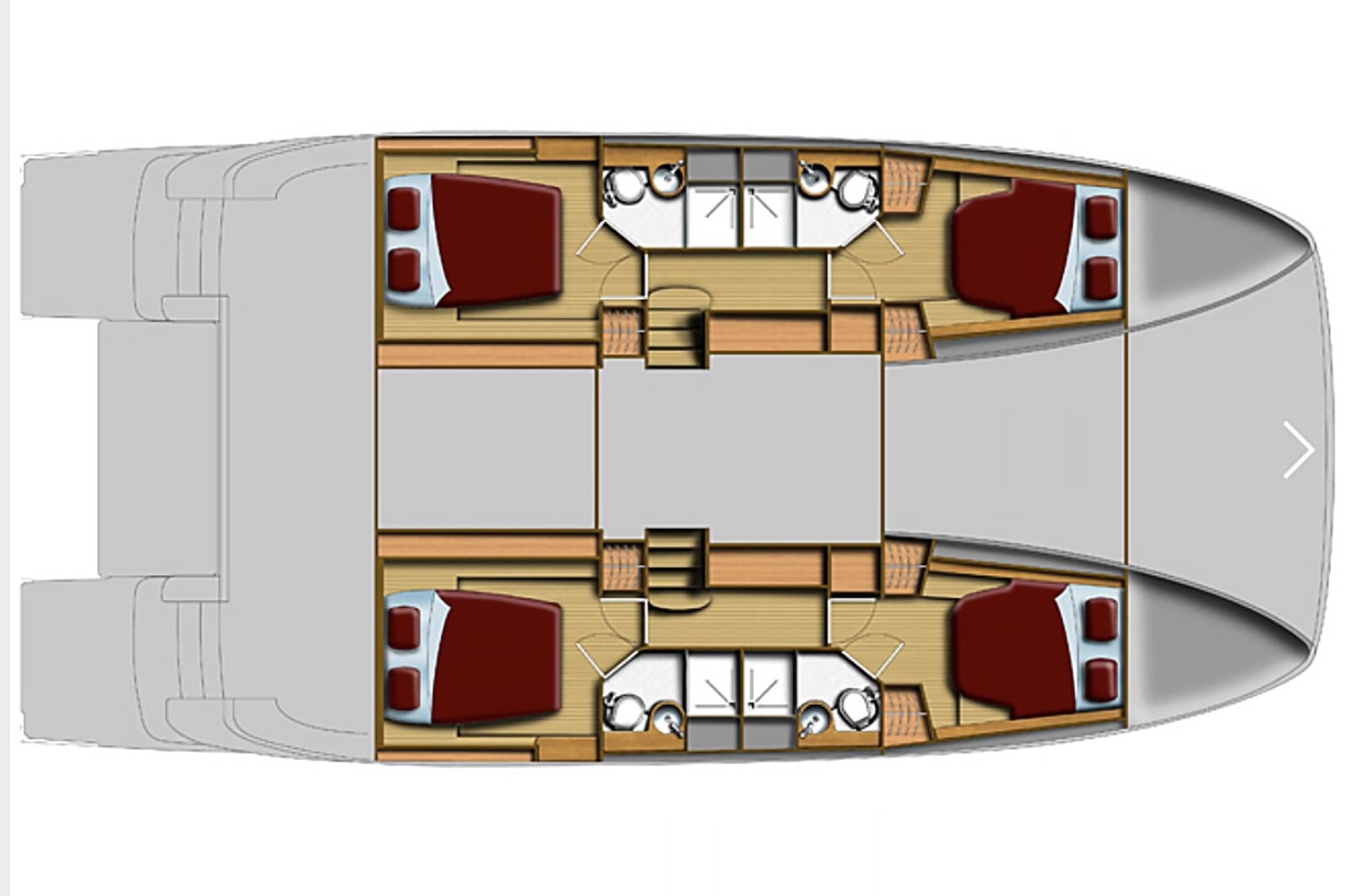

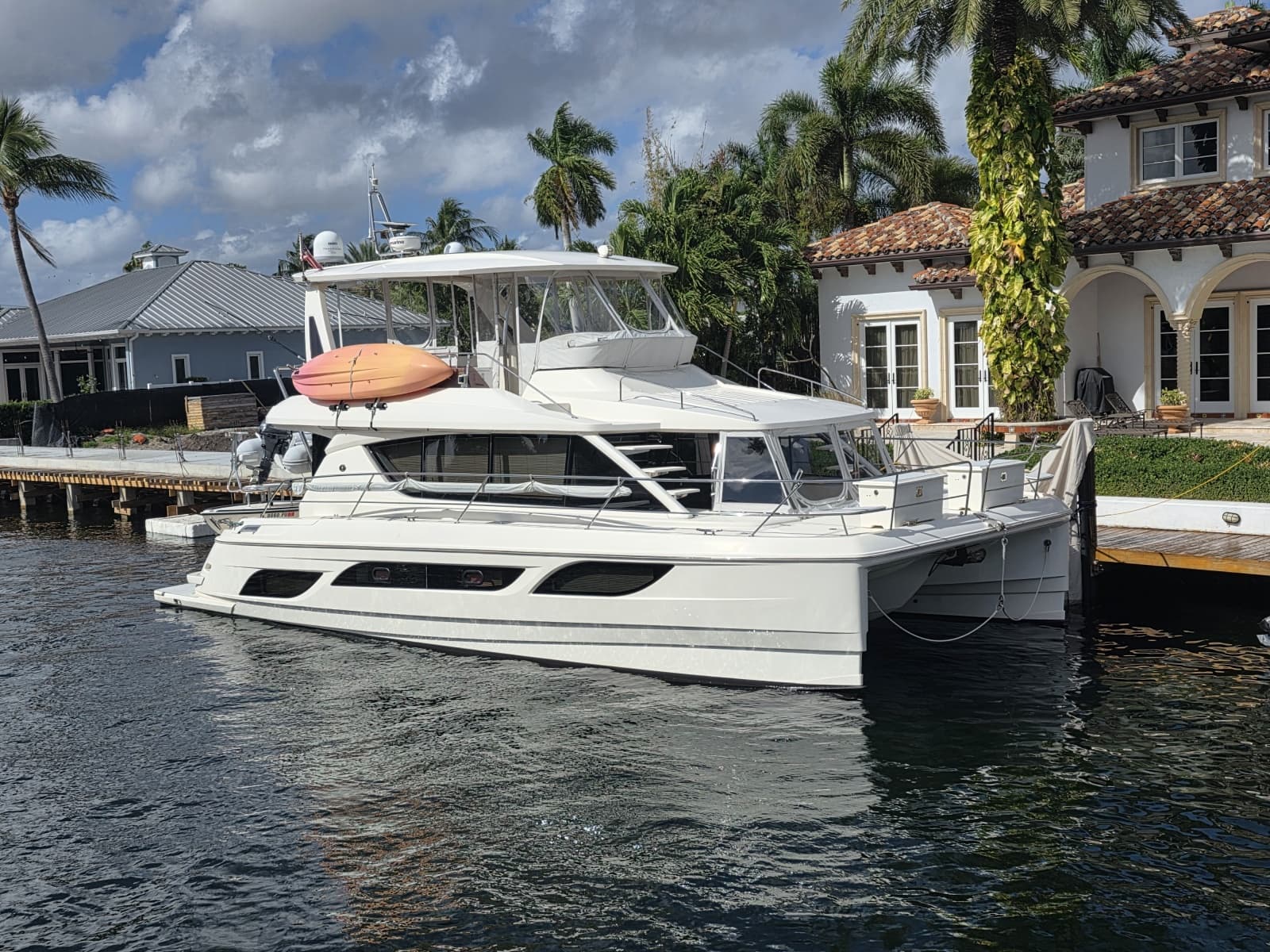

"Arcadia" is a 48' four cabin/four head Aquila power catamaran that was specially ordered and custom modified at the factory by the manufacturer as per the requirements of the original purchaser. She was modified to carry a Hell's Bay Boatworks, 17.8 professional flats skiff or any other similar skiff with similar specifications across her stern.

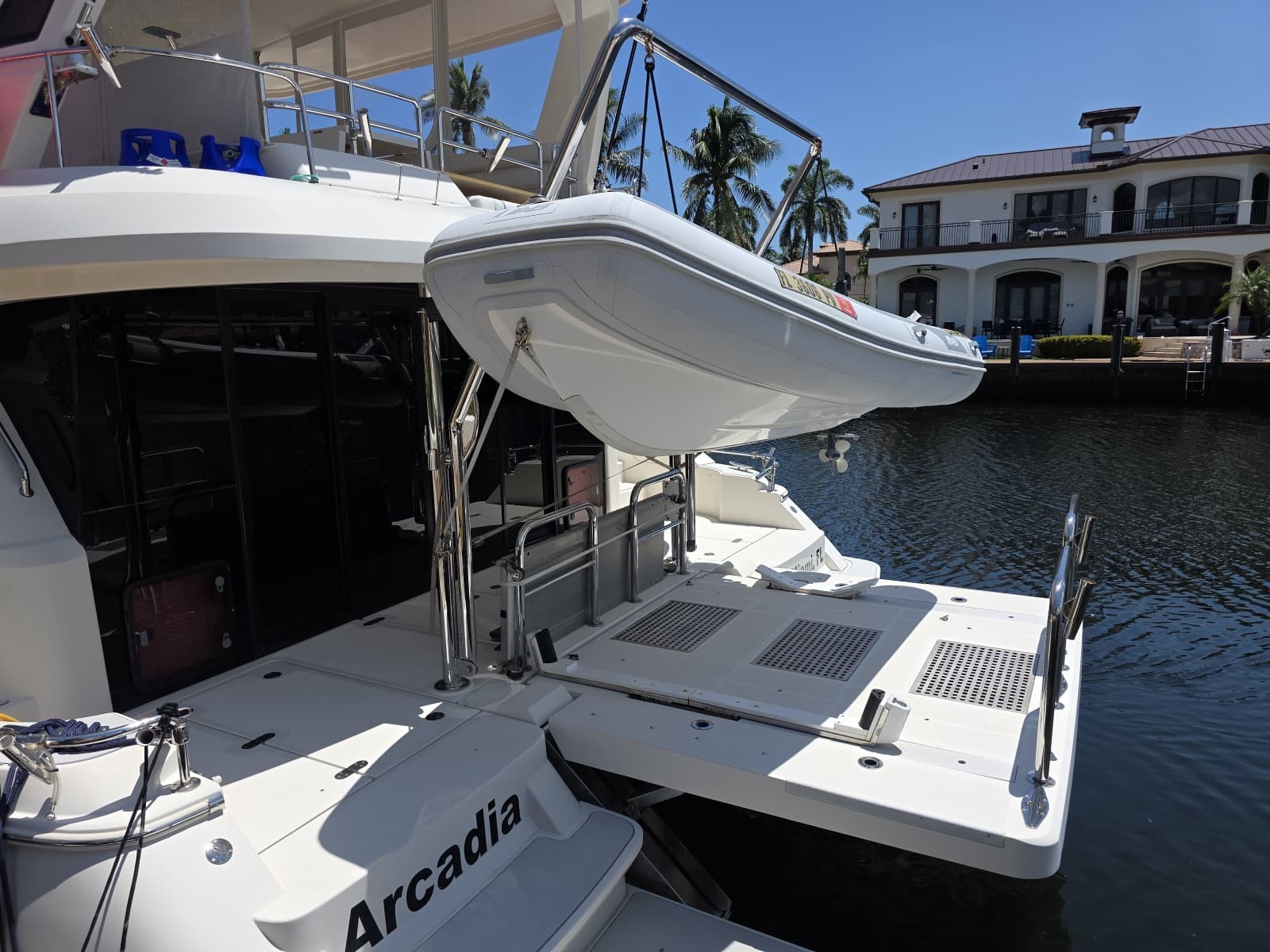

In addition to a skiff she carries a 13' AB hard bottom inflatable tender on a davit suspended above. She is not your stock version of the Aquila 48' four cabin. This vessel was custom modified at the factory by extending the hulls astern for more floatation and lift to support the extra weight of a skiff and the tender. The hydraulics and the swim platform were custom engineered and modified by enlarging the lift platform deck and fabricating special mounts for the hydraulics that allow clearance while deploying and retrieving the skiff. Custom rolling and removable support chocks were fabricated and installed in the platform deck for the skiff. The support chocks can be easily removed and stowed and then replaced with custom teak panels that cover the rails of the support hardware. This in combination with three 12" Accon pop up cleats along the aft edge of the platform deck make a clean unobstructed deck surface that functions as an enlarged swim platform when a skiff is not onboard.
The vessel comes with numerous upgrades and an extensive inventory of spares for the main engines, generator, electrical components, lighting, pumps for various systems onboard and others.
"Arcadia" is the perfect charter vessel or large family cruiser for that Island hopping. This vessel is essentially turnkey and ready to cruise as is.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by United Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Accommodation
Tankage
Registration & Documentation
Engines
Full Details
Mechanical

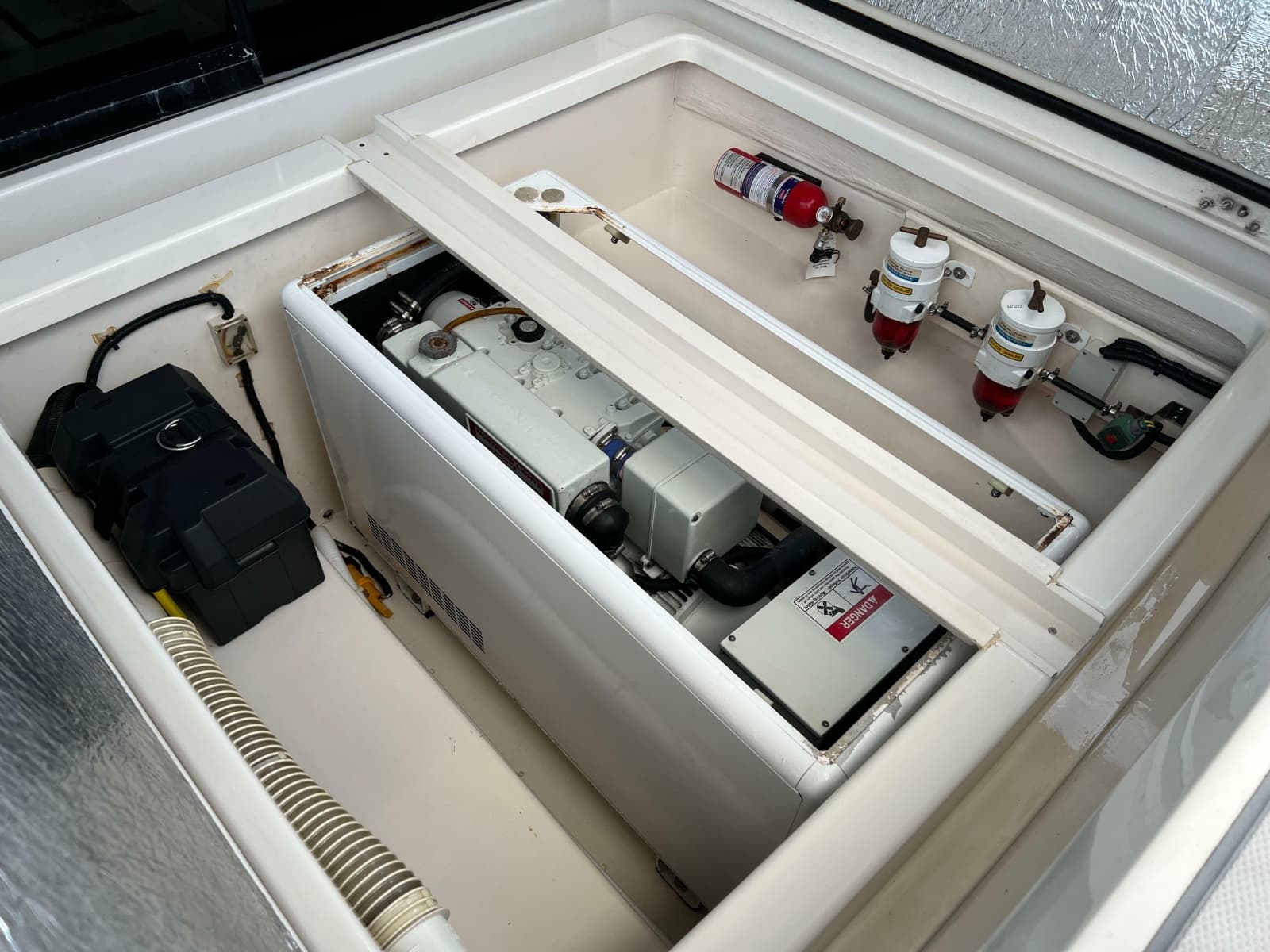

- Northern lights 16 KW dual voltage, (110/220V) generator
- Includes sound enclosure, remote control and dedicated 105-gallon diesel tank
- with transfer pump. 2,844 hrs. as of 06/08/26.

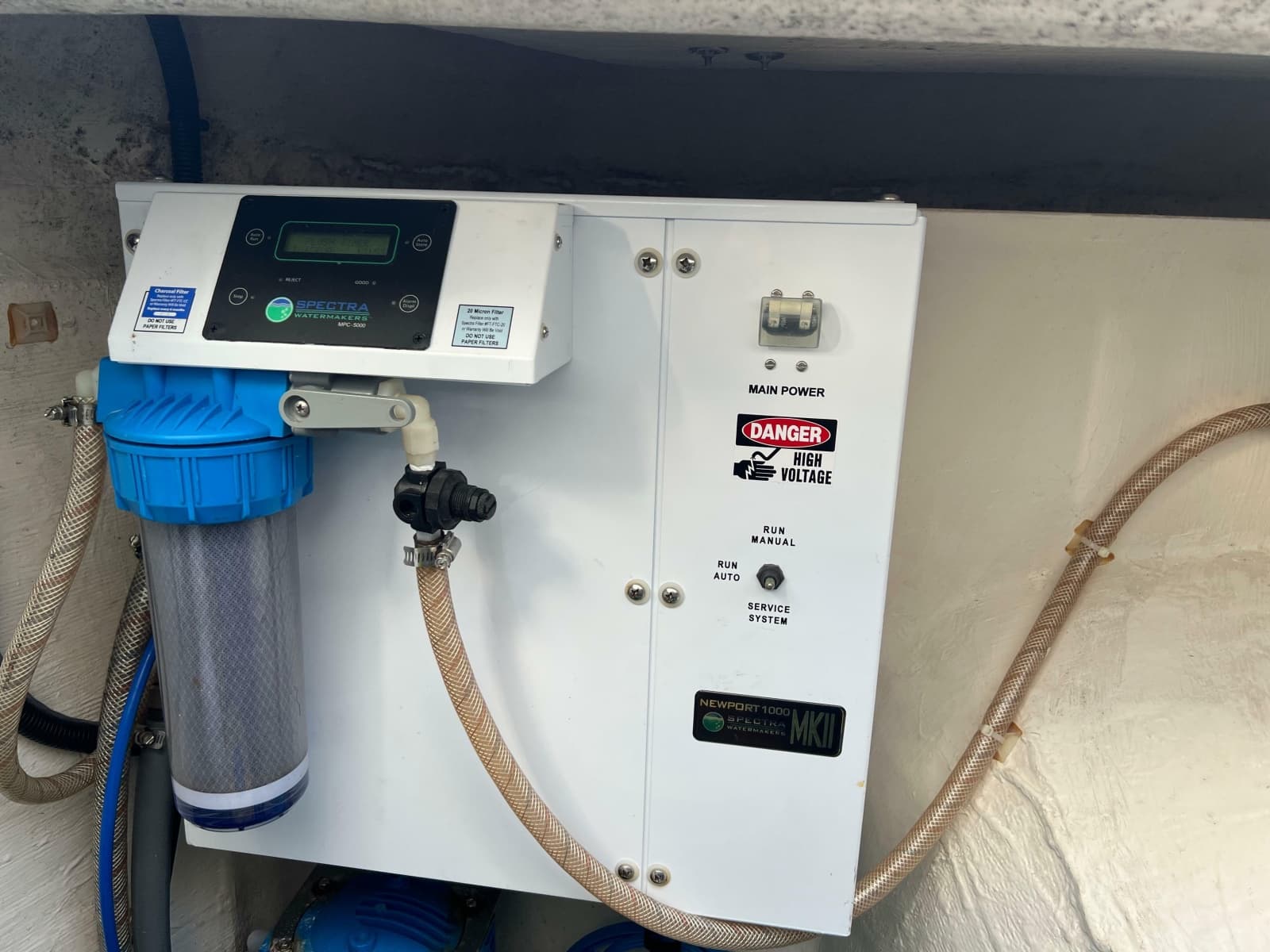

- Spectra Water makers MPC5000 w/ auto flush and 3 Membrane

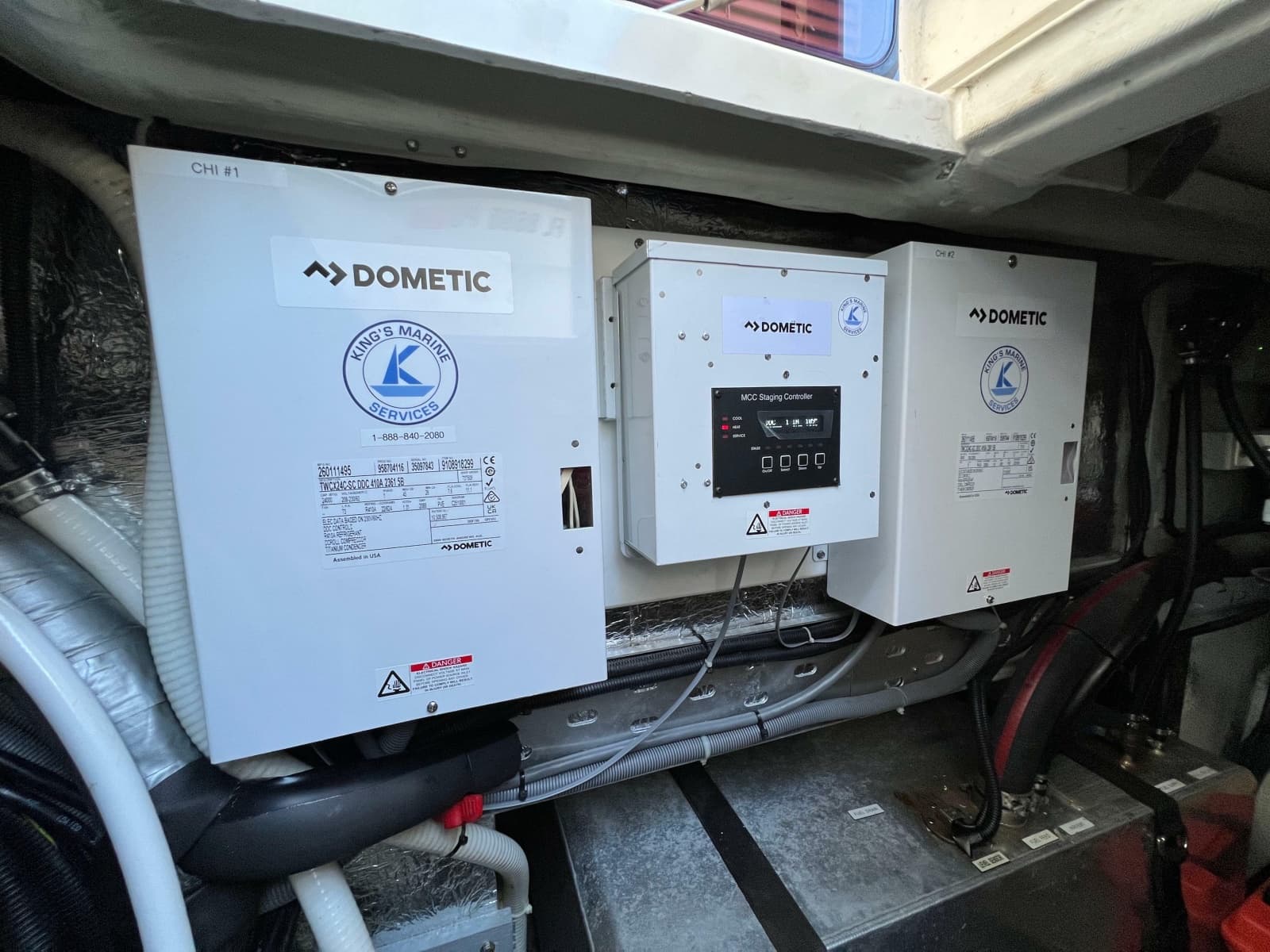

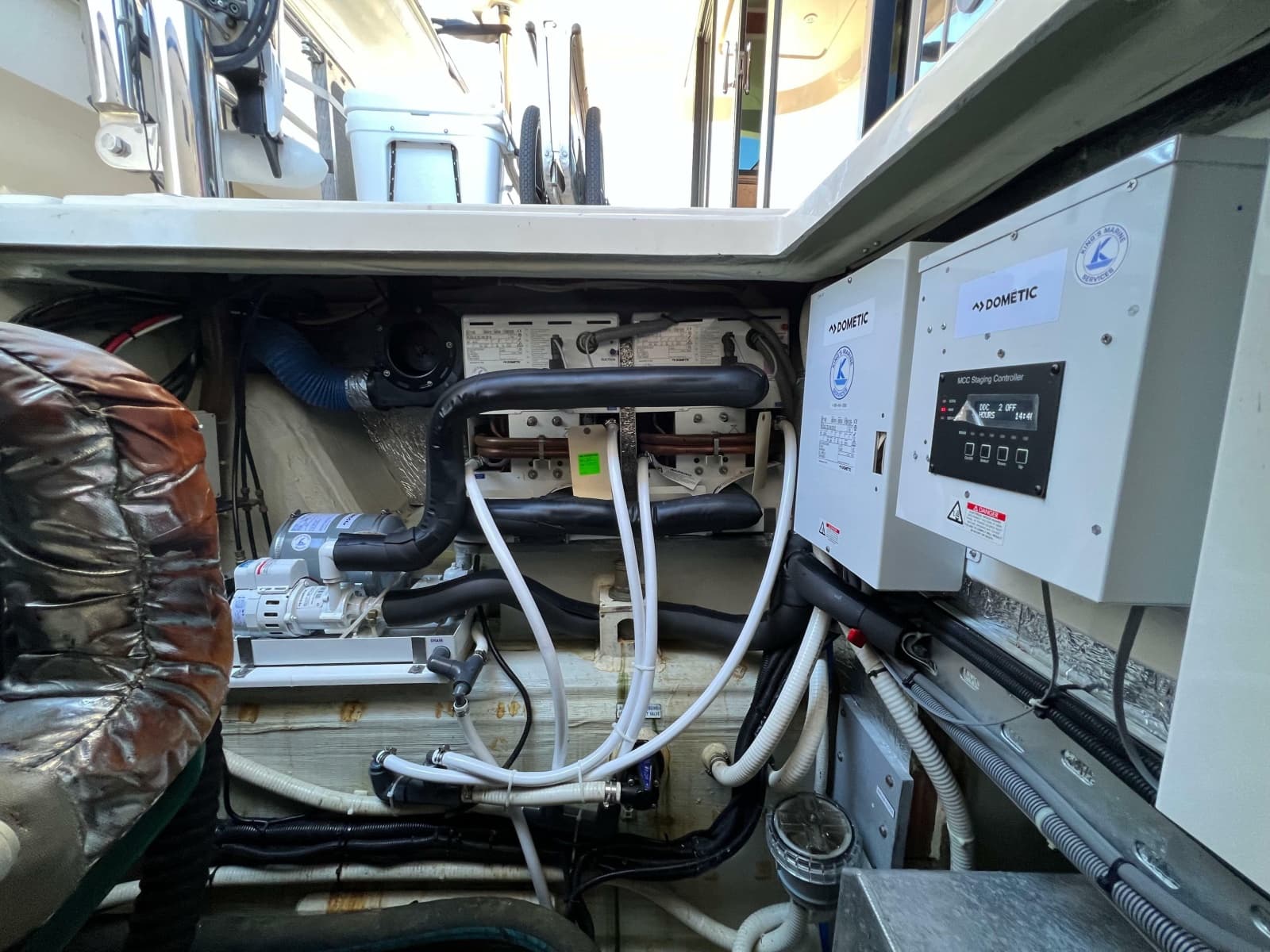

- Reverse cycle chilled water air conditioning Dometic, TWCX24C-SC DDC
- 410A 2361 5B, chillers. (24000 BTU ea.) New AC system (installed, January 2024).
- 2 x 55W solar panels on hard top.
- Victron Energy 12/110 volt, 3000 VA inverter/charger.

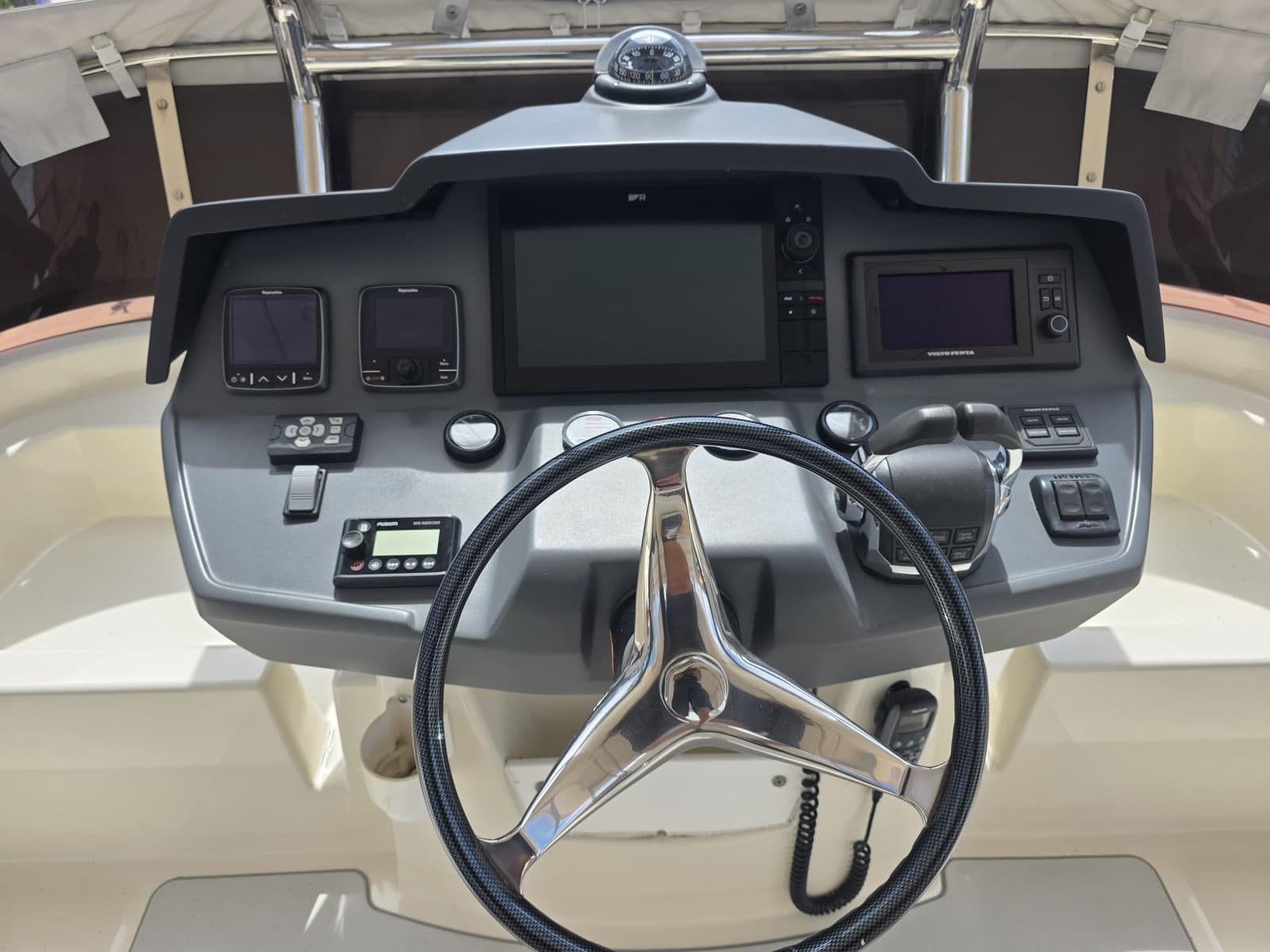

Electronics & Helm
- Raymarine, Cam100 Video Camera mounted on Aft of flybridge for docking.
- Raymarine, AIS 650 system with antenna coupling.

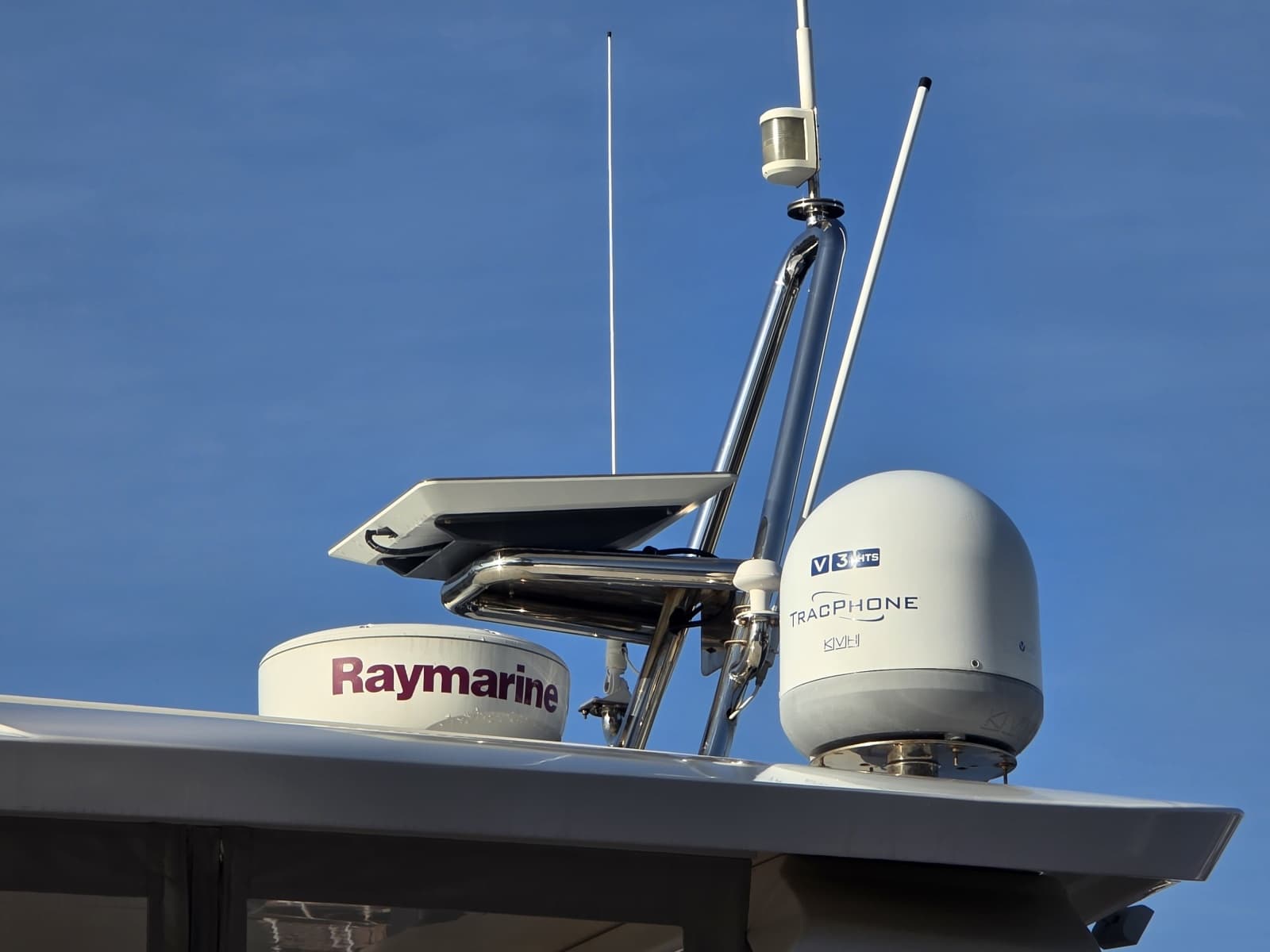

- Raymarine, Radome RD418HD color radar scanner 4KW, 24 inches.
- Raymarine, autopilot with P70 rotary display (hydraulic).
- Raymarine, I70 multifunction display (speed, depth etc).
- Raymarine, AXIOM Pro RVM, 12inch GPS Chartplotter. New and installed in January 2025. (Includes Navionics cartography).

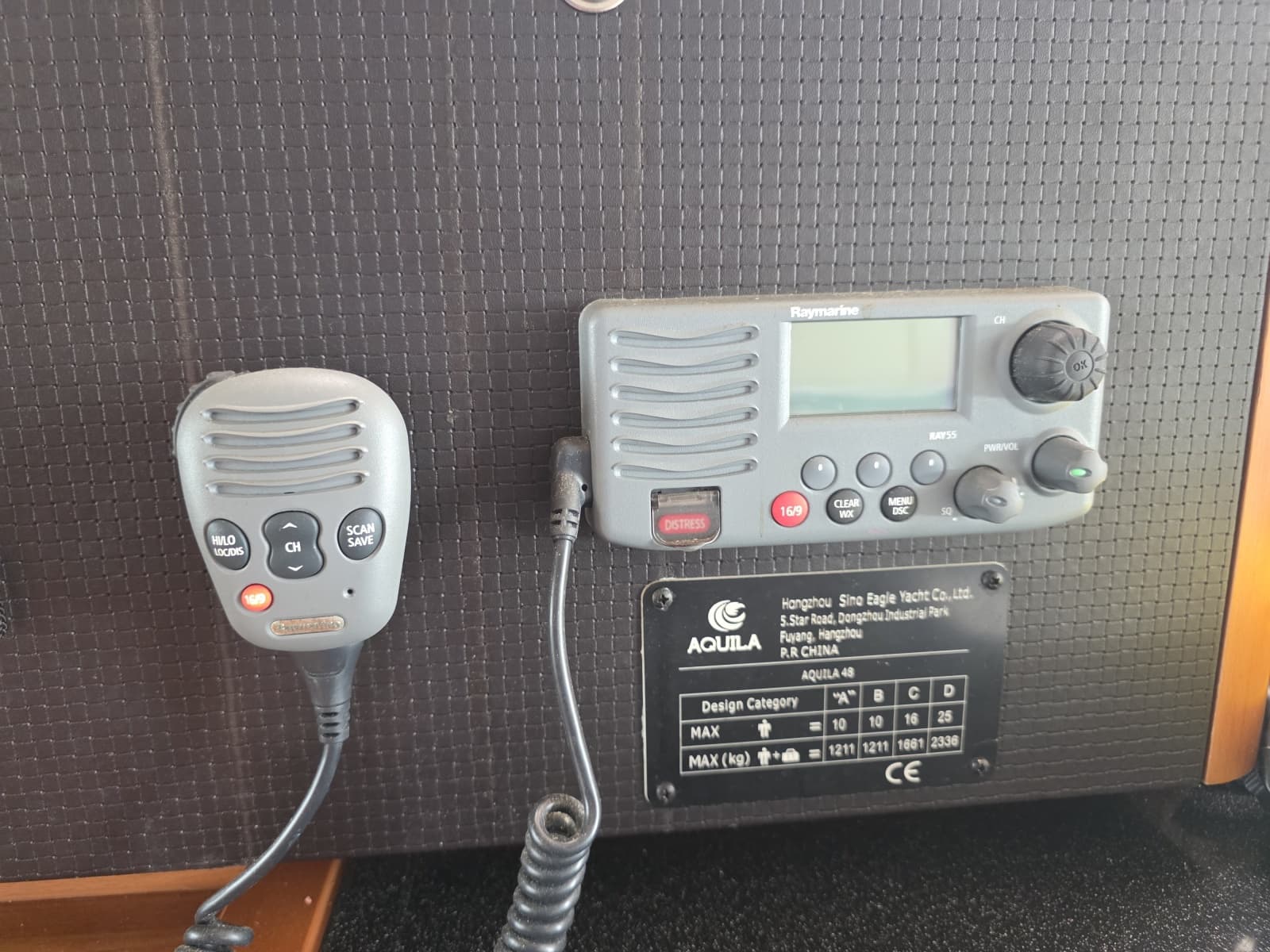

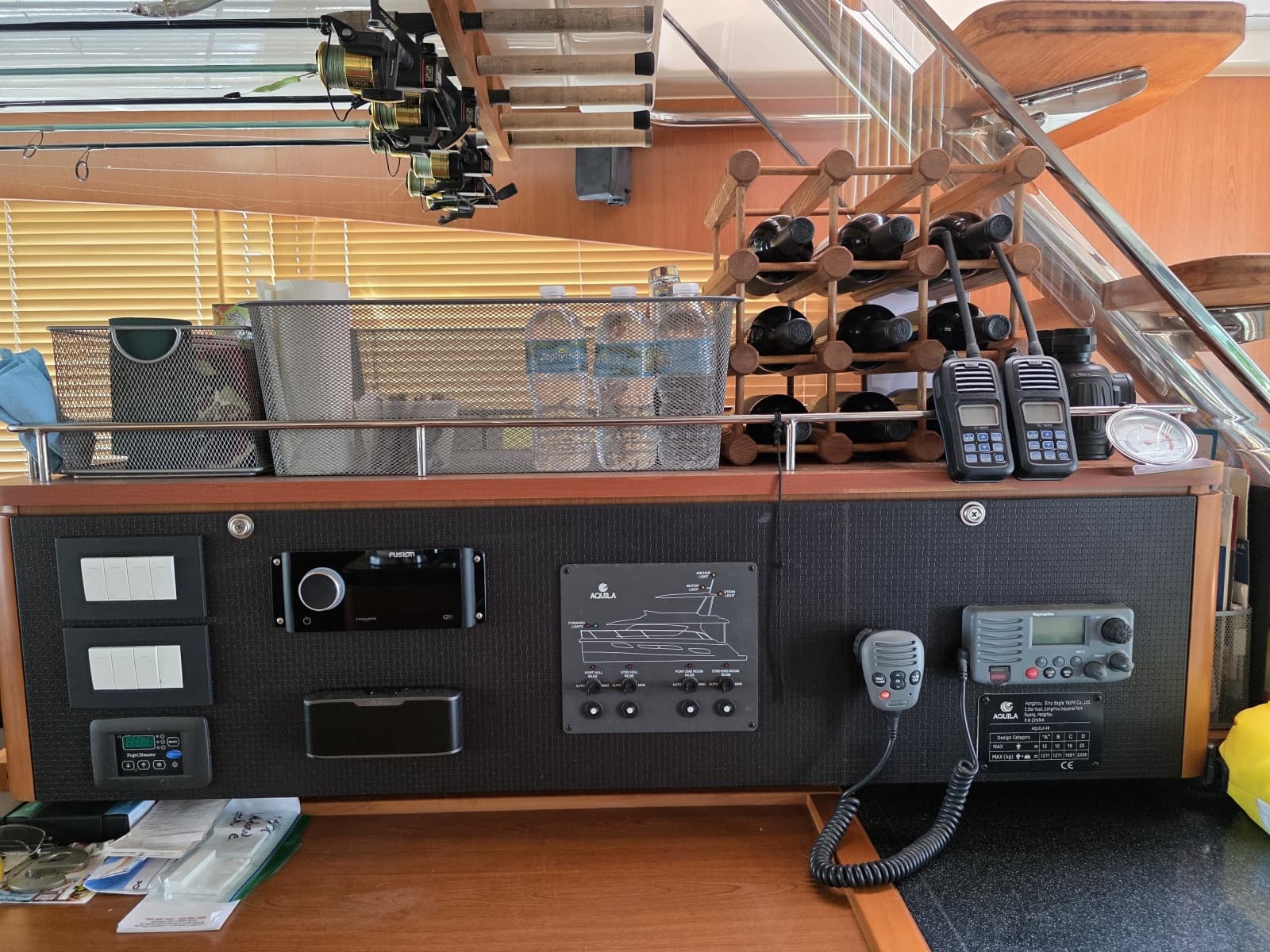

- Raymarine, 55US VHF with Raymicrophone remote station for flybridge and antenna.
- Raymarine, CP300 dual frequency sonar module installed.
- Raymarine, B260 high performance, dual frequency 50/200 Khz bronze thru hull transducer.
- XM weather radio receiver and antenna.
- Ten Lumitec SeaBlaze X2 RGBW full spectrum LED underwater lights. 6000 lumens each. New lights installed in August 2023.
- New upgraded, Heavy duty wiring harness for underwater lights with custom fabricated fuse block and control box including heavy duty solenoids for power distribution.
- Original KVH VSAT and Sat TV antennas upgraded to Starlink Maritime flat panel system for TV,
- Streaming movies, wifi internet and wifi calling. Installed through KVH in February 2024.

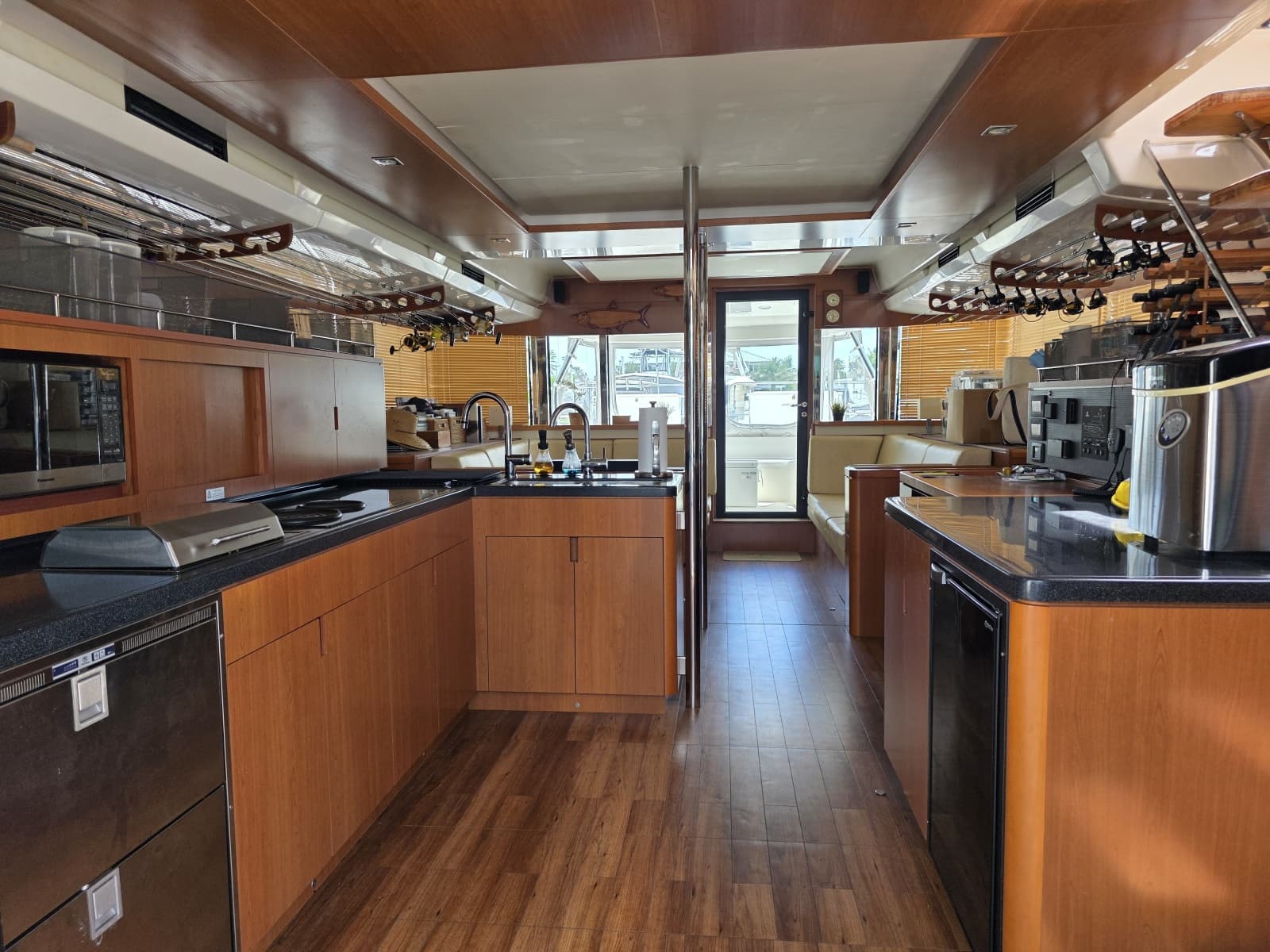

Galley

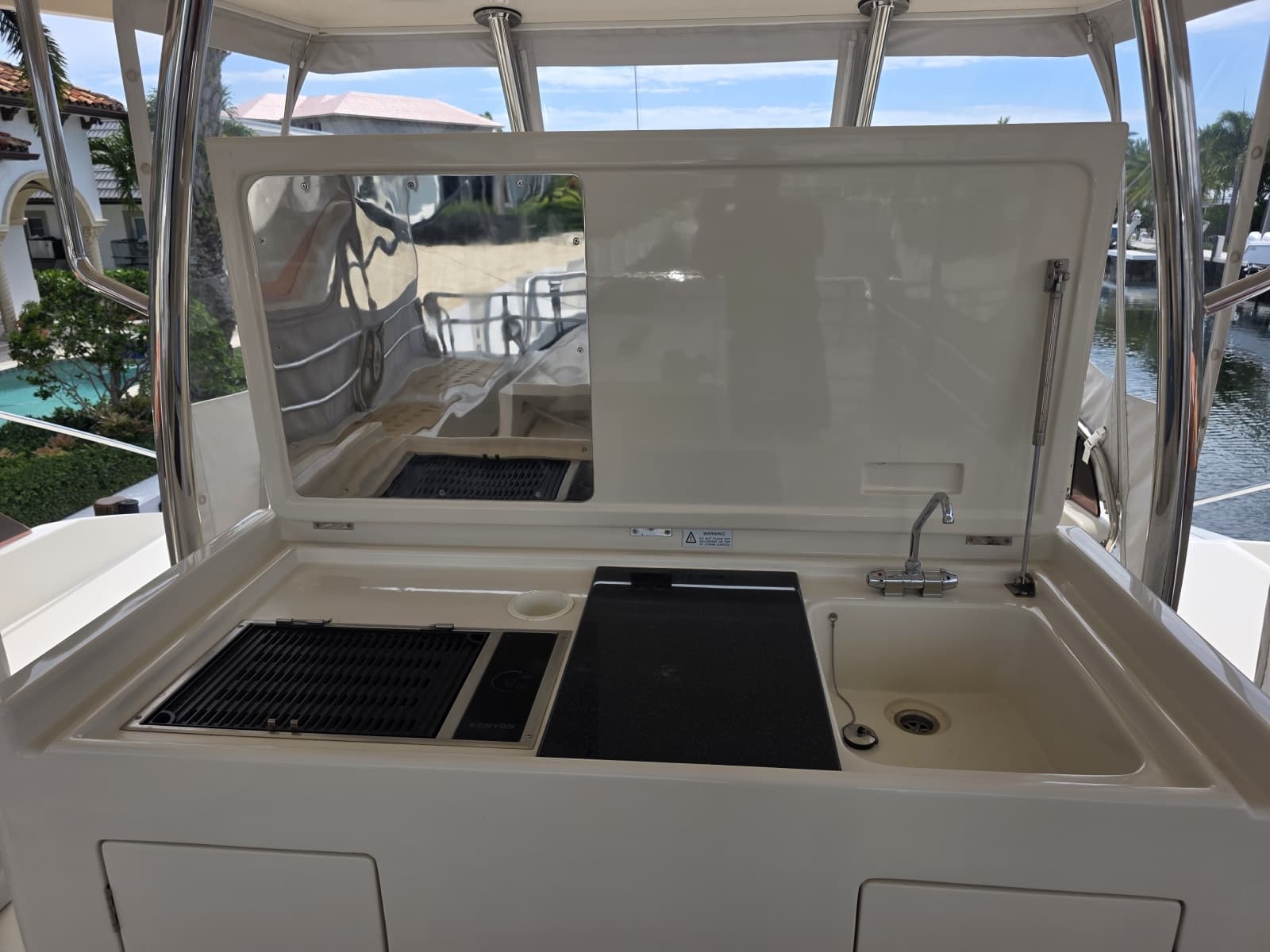

- Kenyon electric barbecue with SS cover and SS reflector on flybridge with optional fiberglass lid for food prep area.
- Kenyon electric grill/griddle with SS cover in galley.

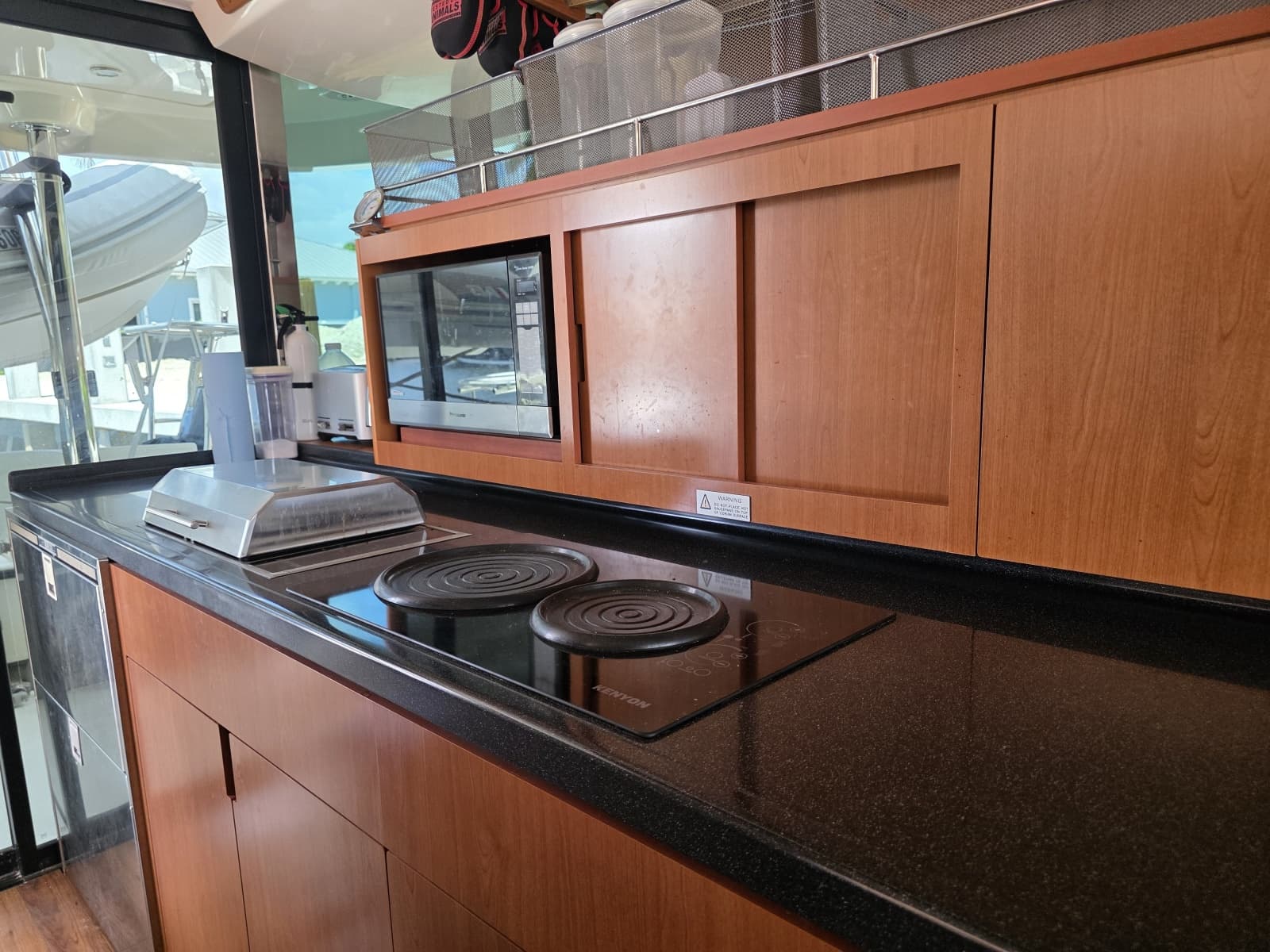

- 2 burner induction electric cooktop (220 Volt) in galley.

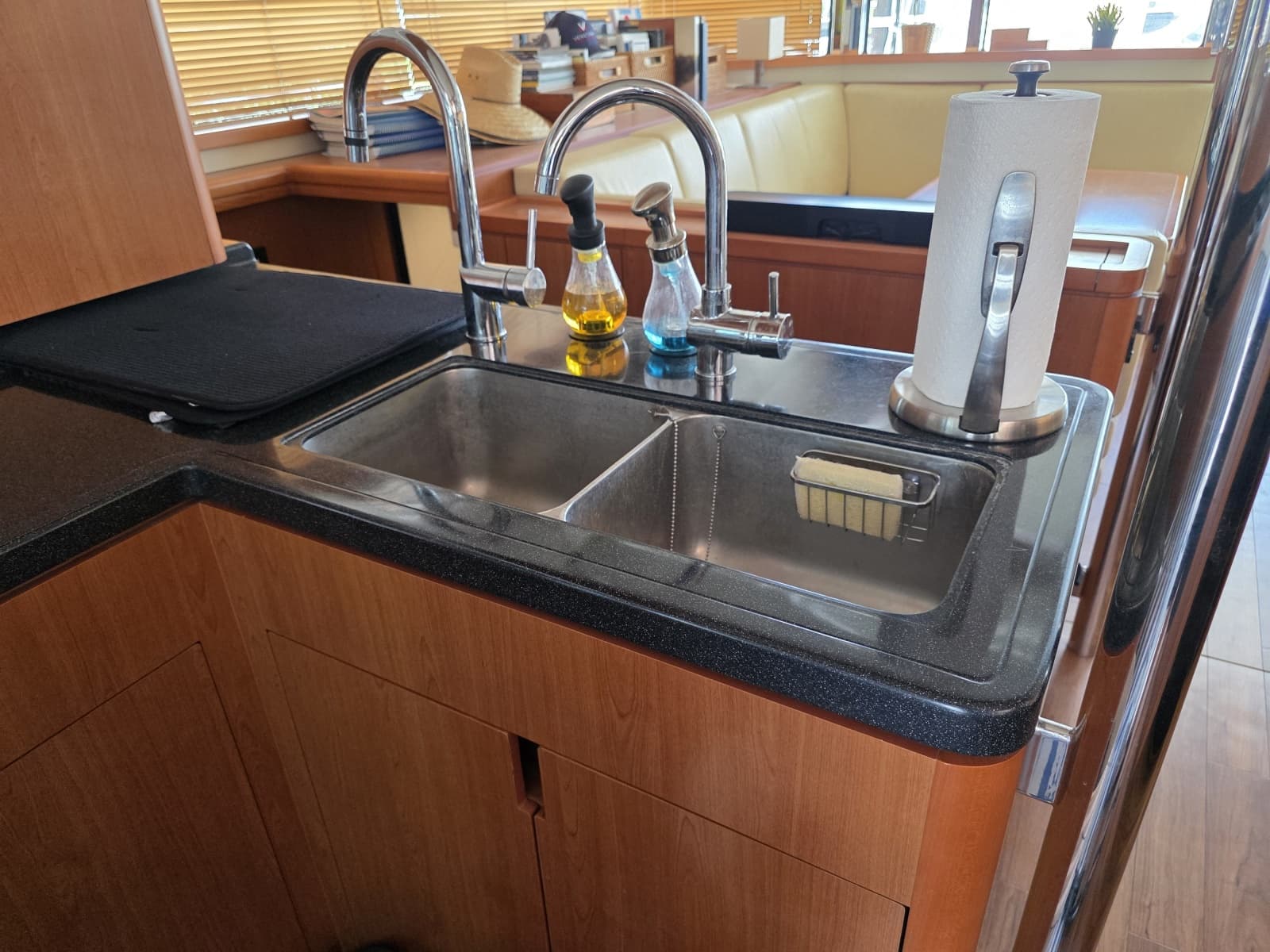

- Double deep basin sinks with double goose neck faucets
- Optional additional fridge in galley. 3 Total refrigeration in galley, one fridge on starboard side and one over under refrigerator and freezer on port side.
- Dometic counter top ice maker for 33lbs of ice per 24 hr period.
Engine & Mechanical

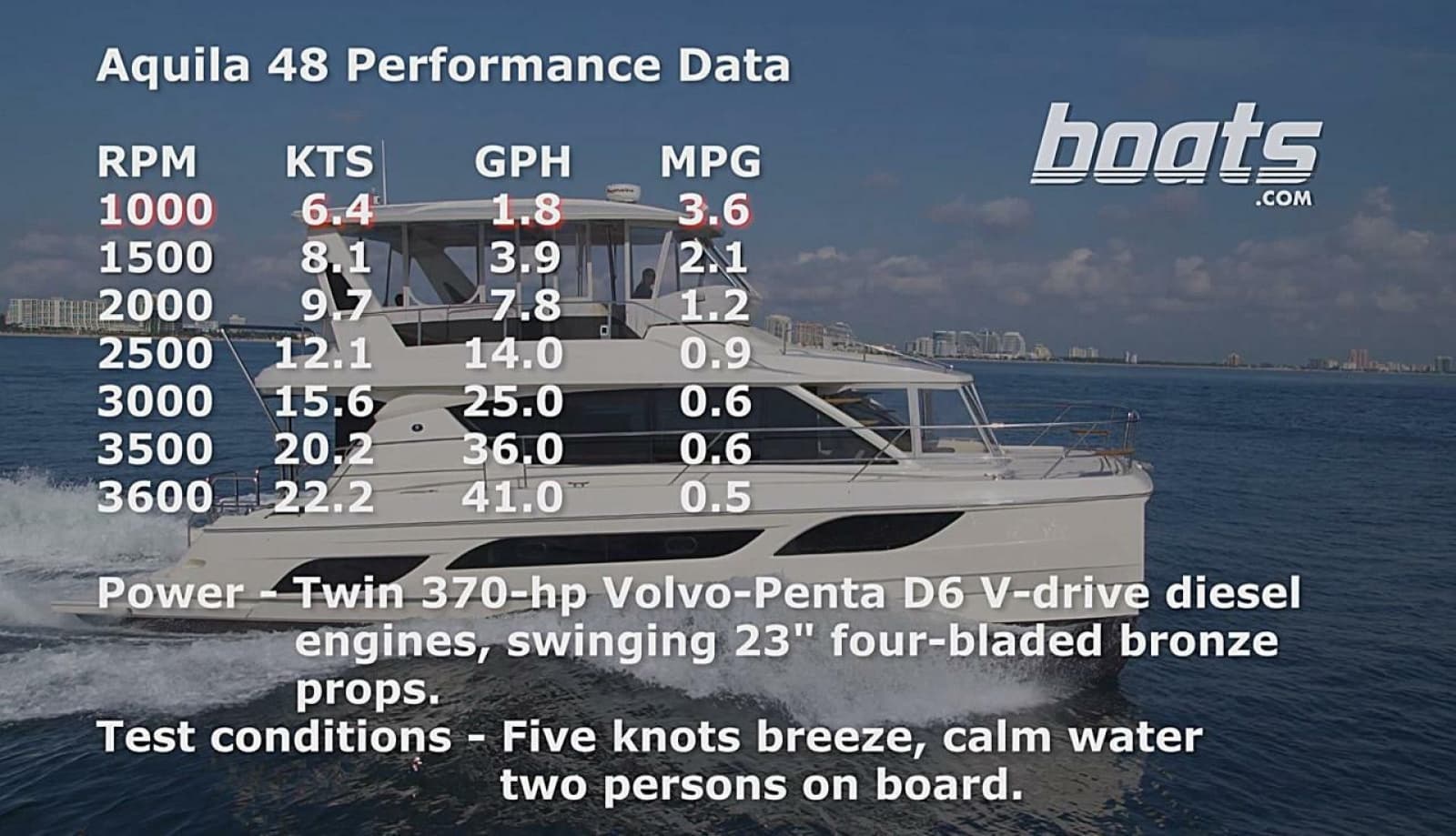

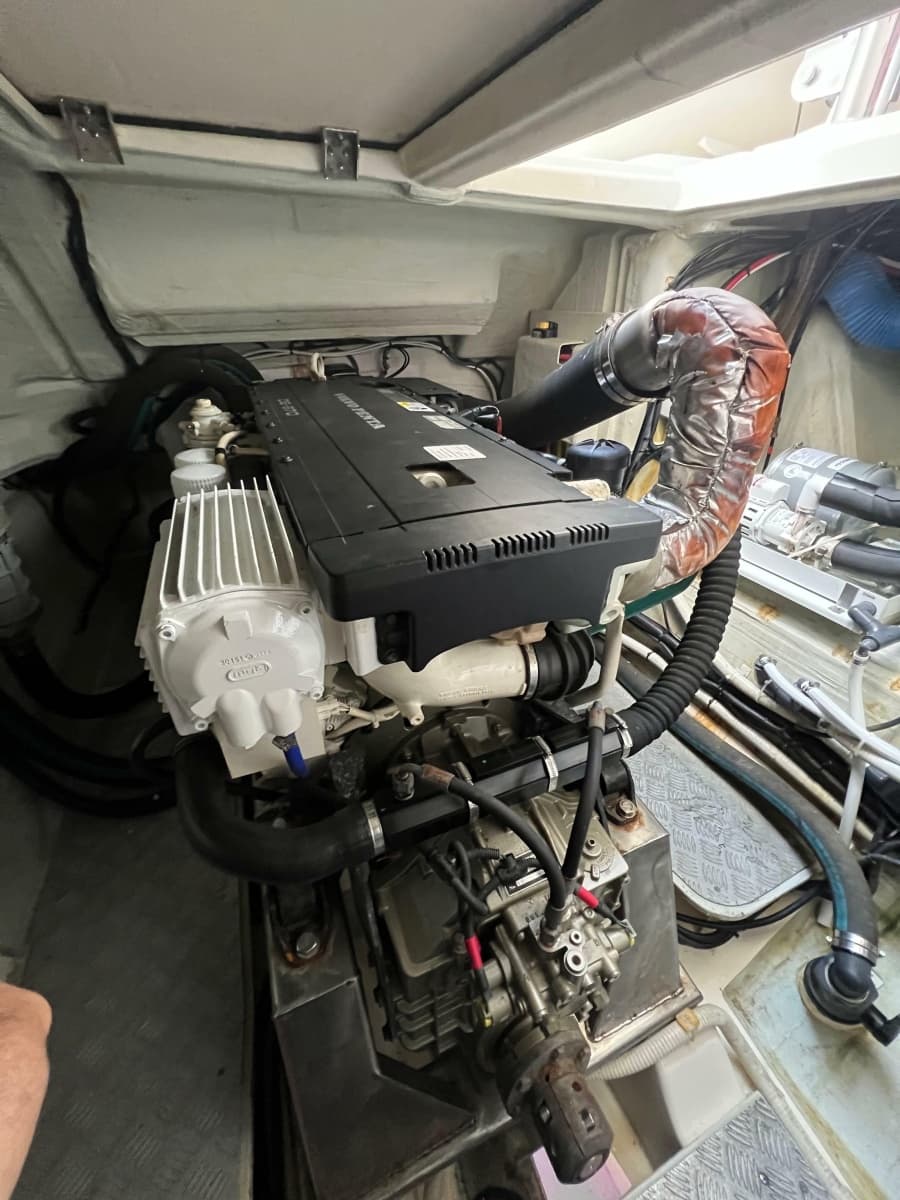

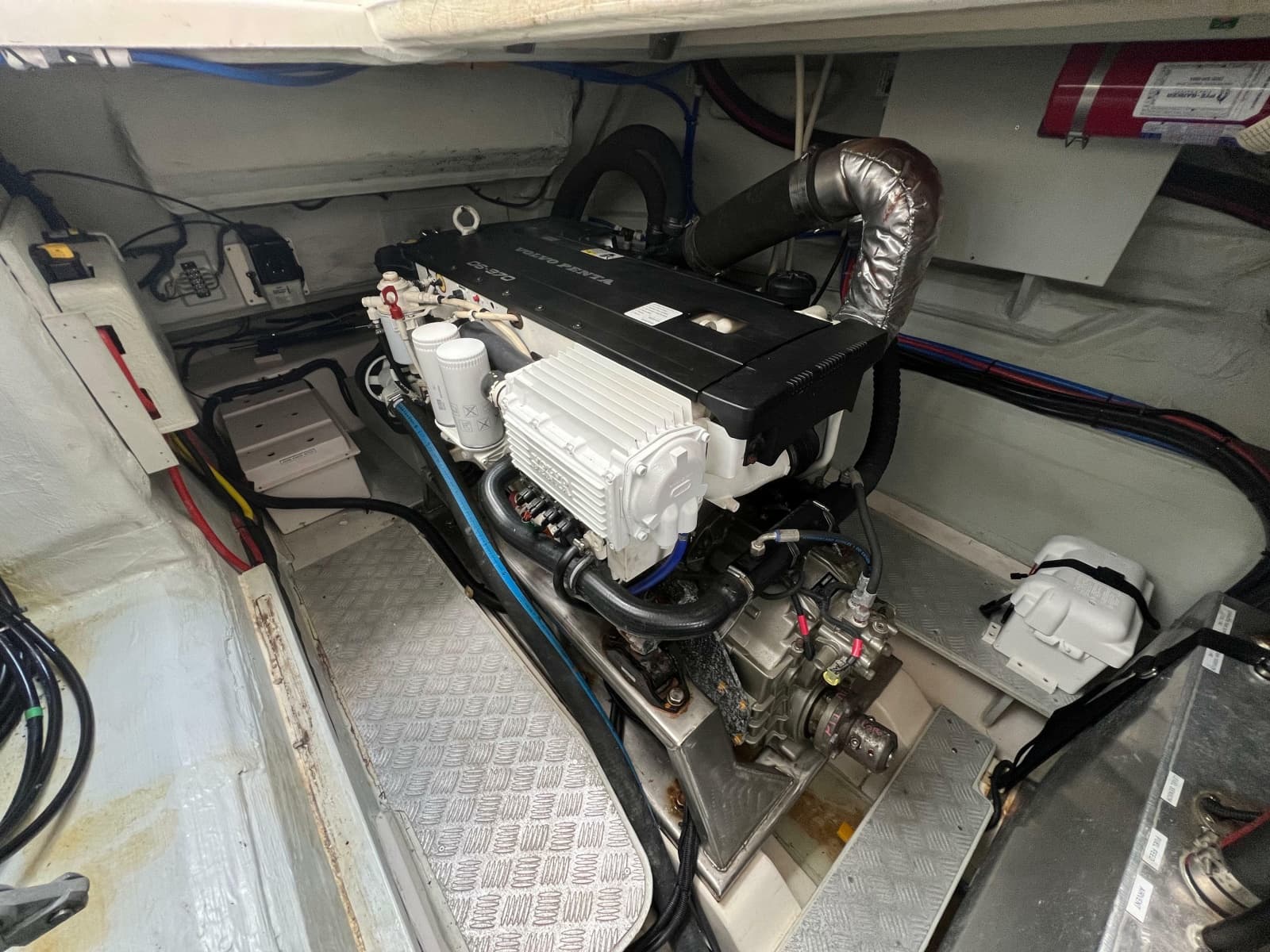

- 330 HP engines upgraded to 2 x 370 HP, turbo charged, Volvo D6 engines. Approximately 2,017 hrs on each as of 06/08/26.
- Engine manifolds upgraded from 4" to 7"
- Spare props with storage brackets x 2, located in the port side engine room.
- Rope cutters x 2, upgraded to Spurs line cutters.
- Cutlass bearings x 2 upgraded to Johnson Duramax water lubricated rubber bearings.
- Shaft seals upgraded to x 2 Tides Marine drip free shaft seals.
- Cranking batteries for main engines and generator replaced, March 2022.
- All 5, 12 volt, Mastervolt, AGM, 270 AH, house batteries replaced, January 2025.
Tender/Toys

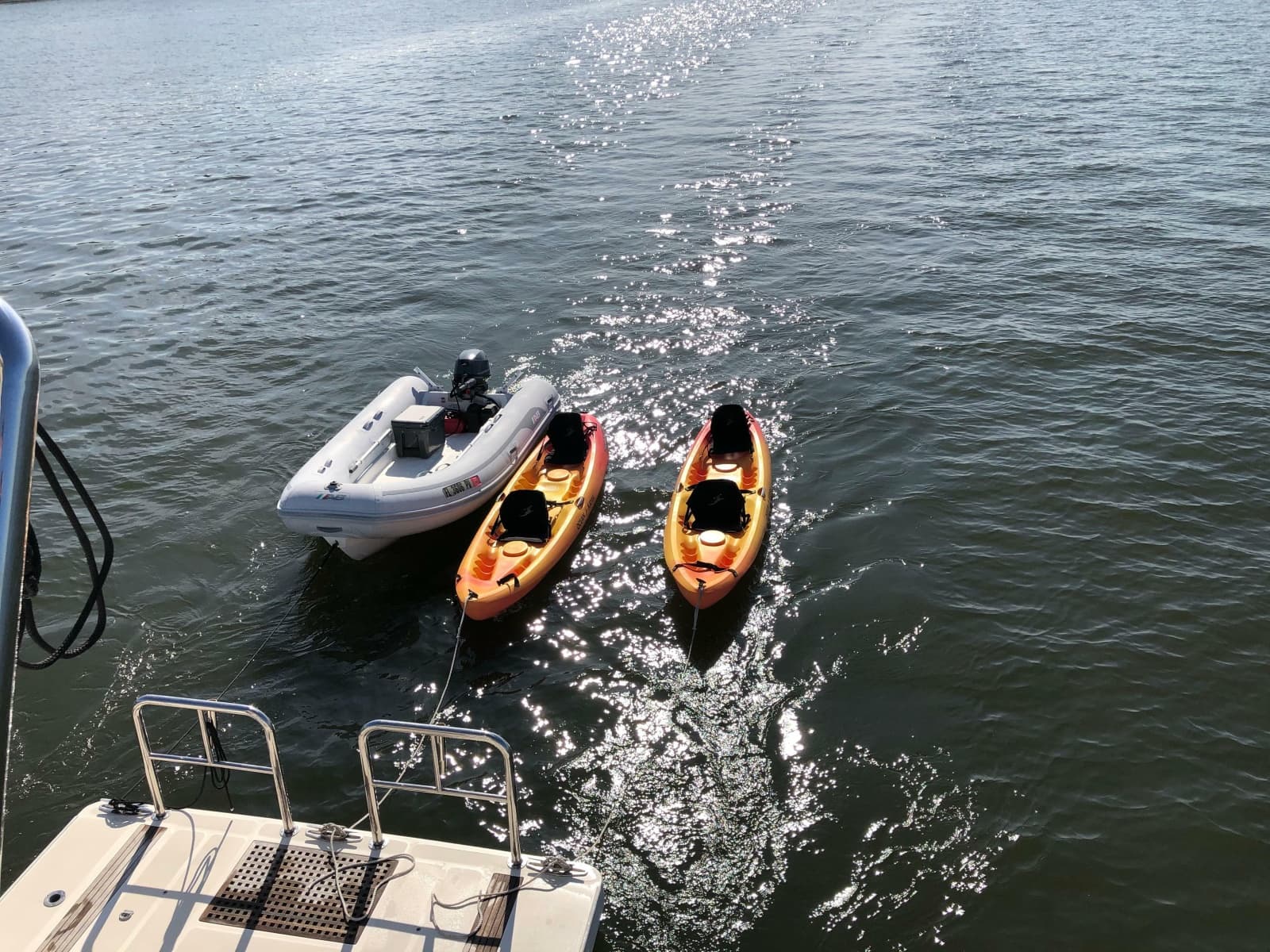

- 2015 AB Rib w/ 2017 Yamaha 25hp
- Kayaks (2) with stowage holders
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
