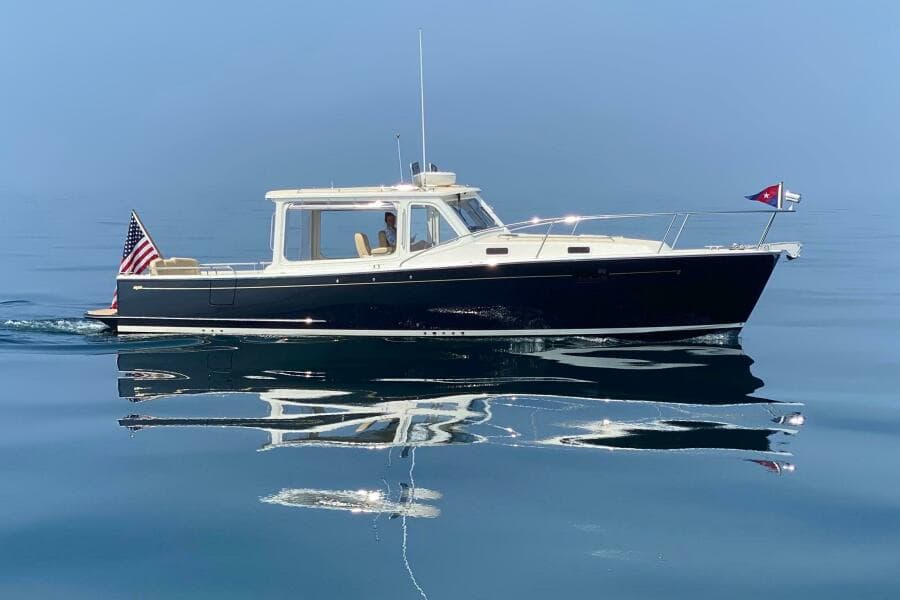

2015 MJM 36Z

Vessel Walk-Through

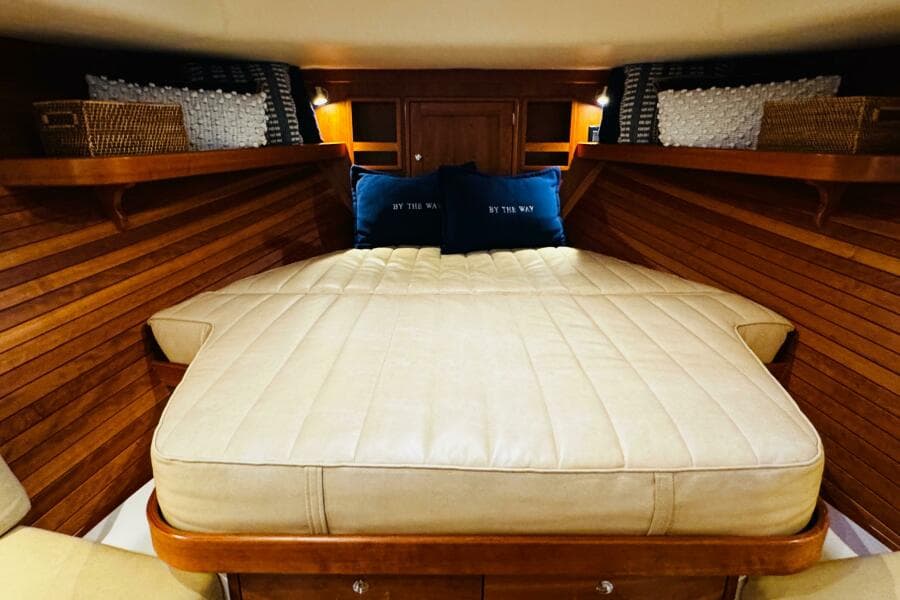

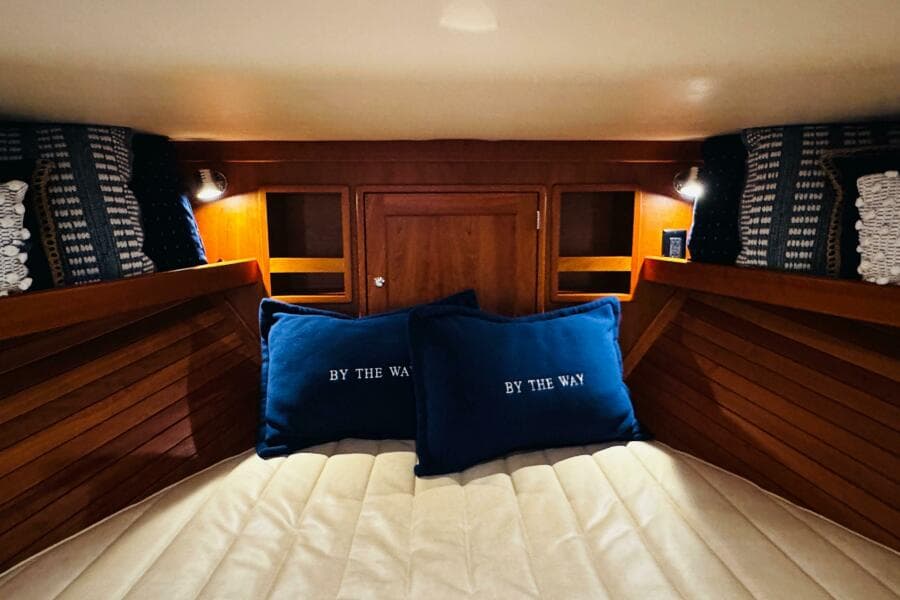

In addition to all of the standard features such as the side boarding doors, joy stick control , low maintenance no wood exterior, that make the 36z a joy to own and operate; By The Way has the preferred island queen layout with a stall shower in the enclosed head. vs the standard V-berth layout and ensuite shower.

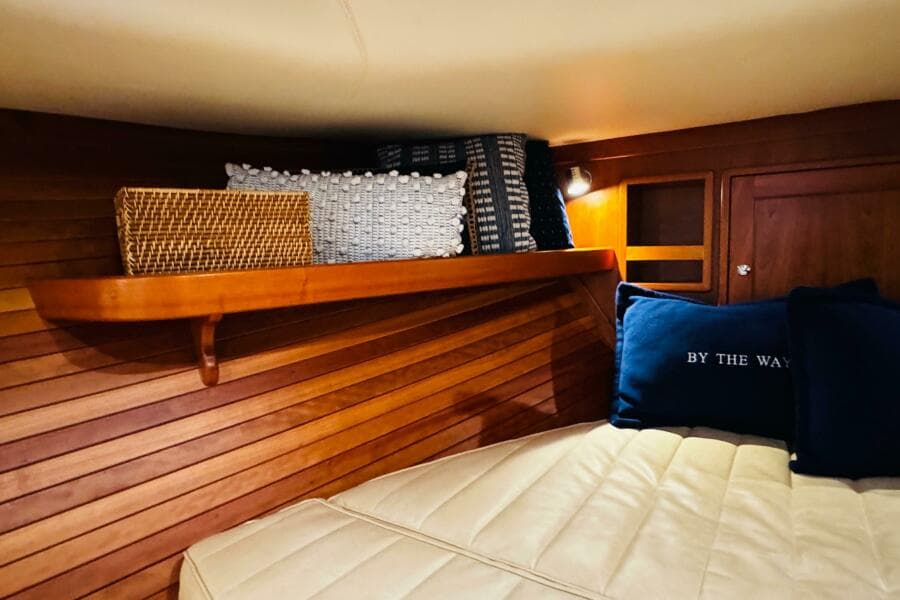

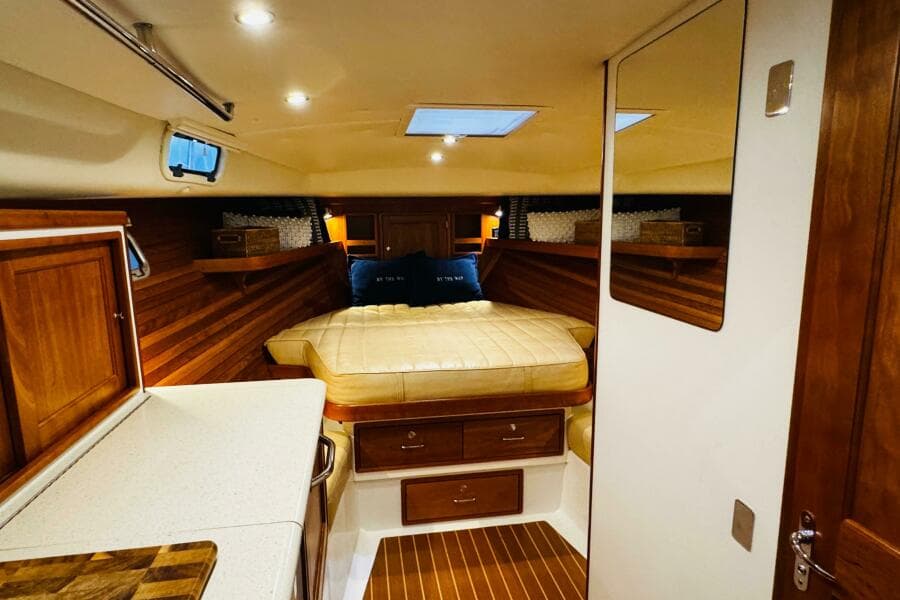

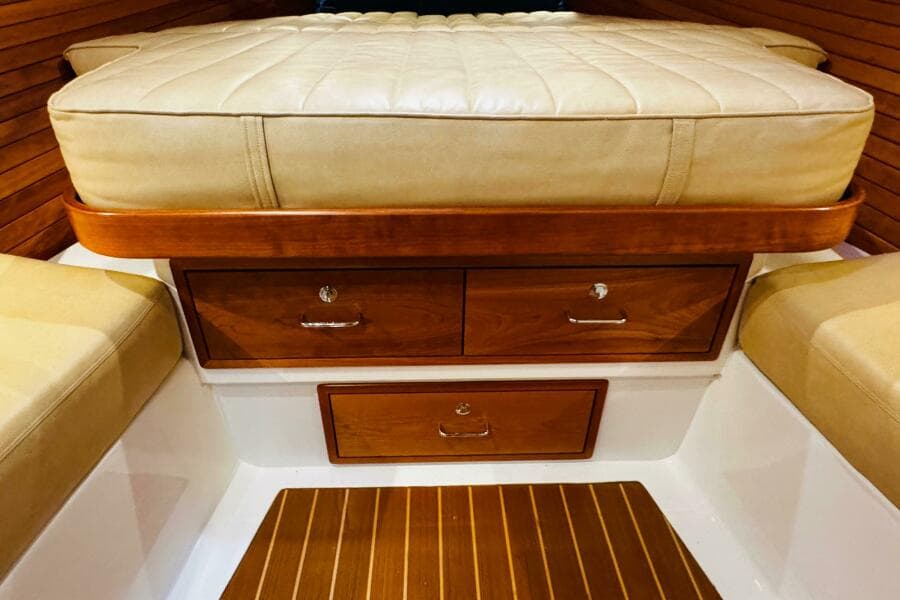

Naturally bright and airy with (4) opening ports in the house, (2) hull ports, and a large hatch (all with screens) there is equally abundant 12 volt lighting for evenings. Varnished Cherry wood work and a varnished teak and holly sole. Equipped with a 16,000 BTU reverse cycle (heats & cools) air conditioning equipment with remote air handlers in the wheelhouse, the 36z can be kept comfortable in a wide range of climates. A vast space of top access or bin type storage in the forward section below the berth and in cargo drawers aft as well as on shelves with fiddles above the berth.

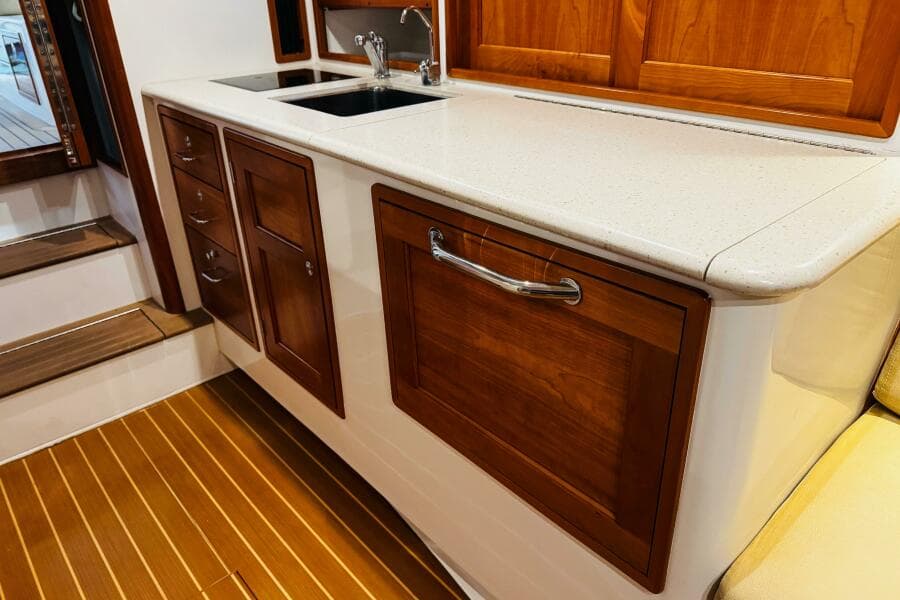

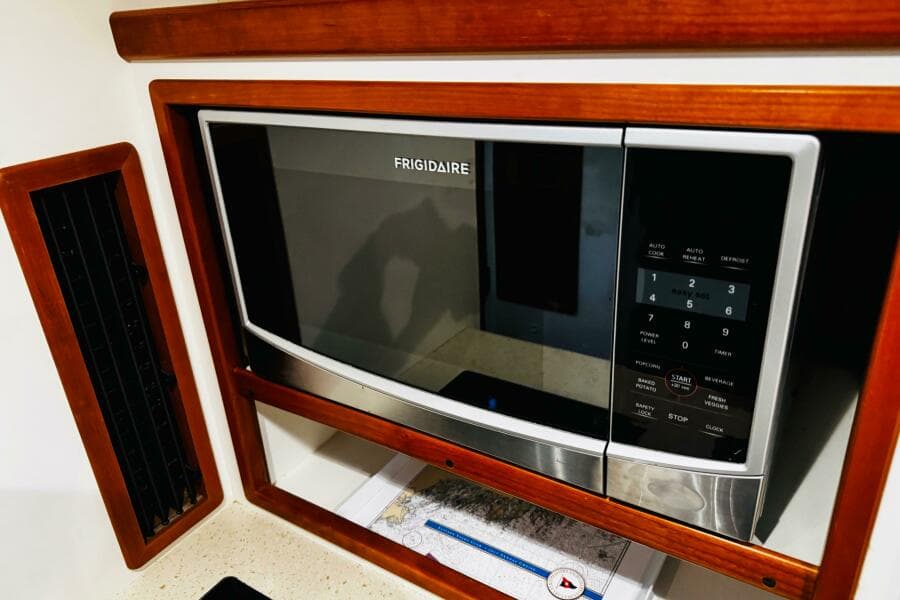

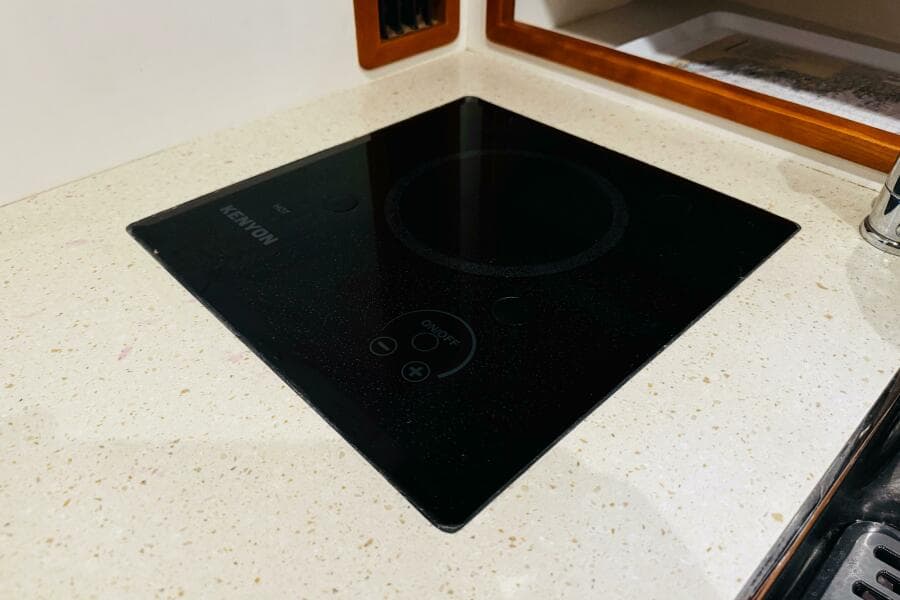

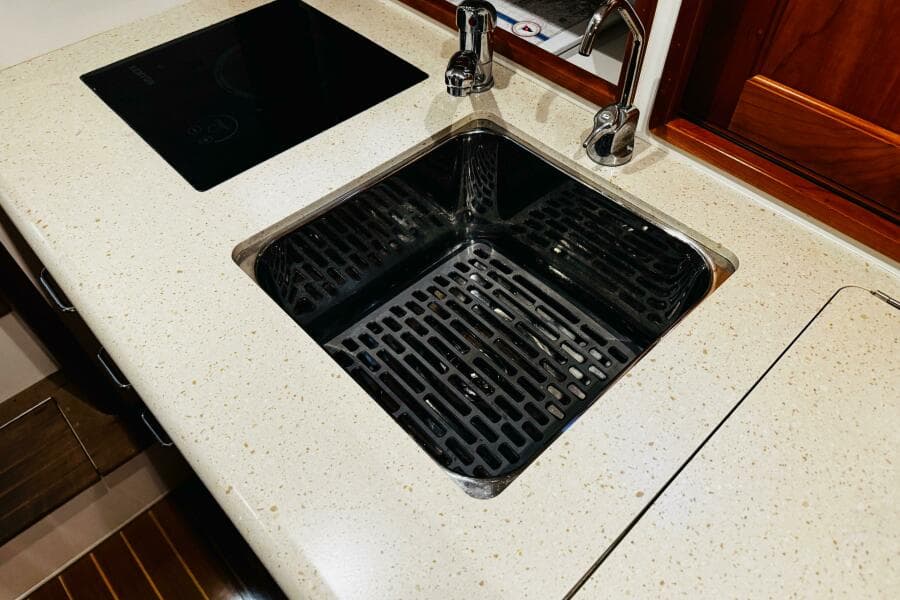

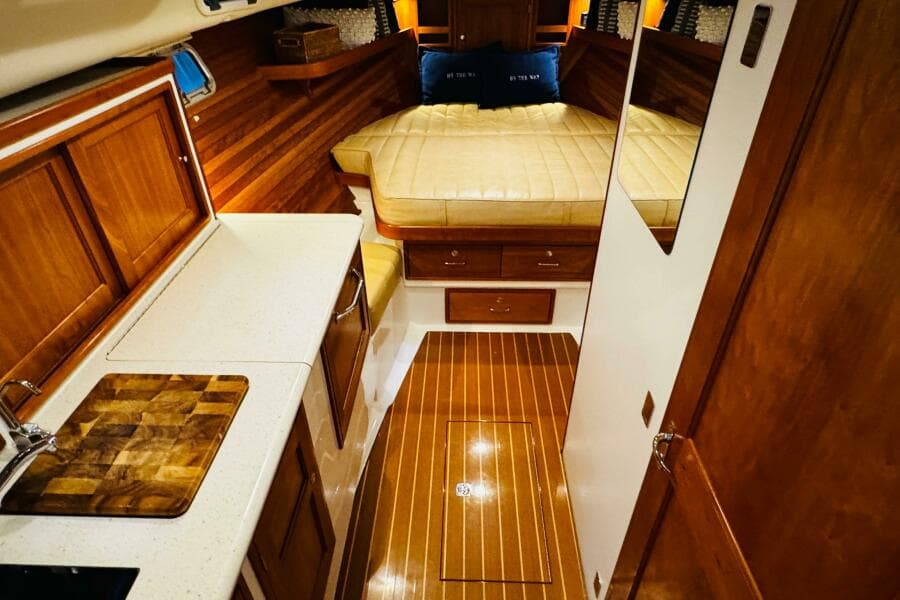

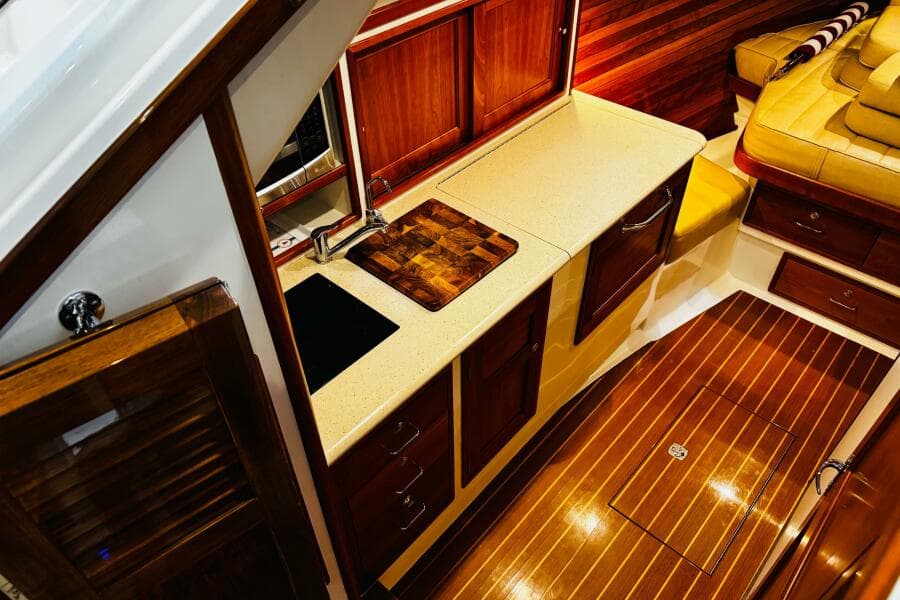

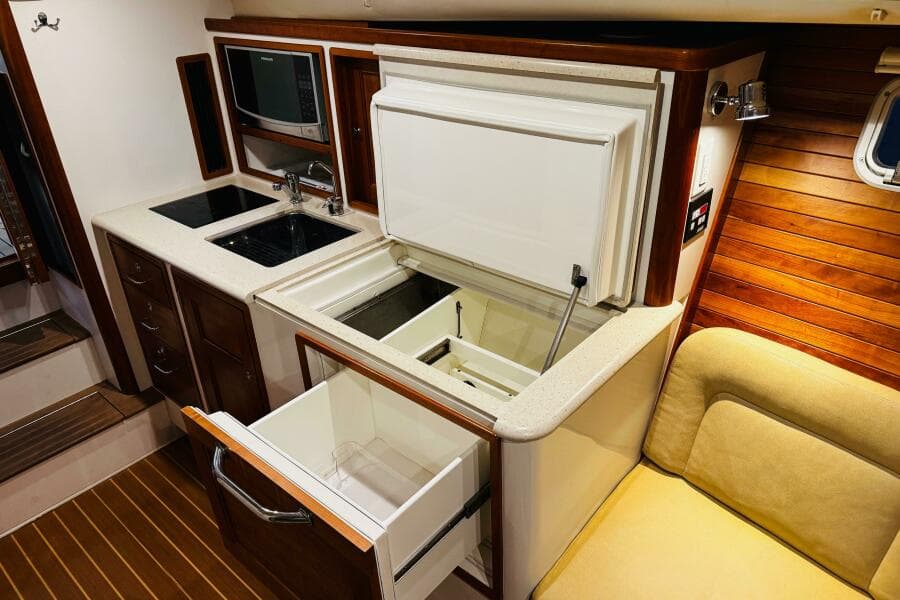

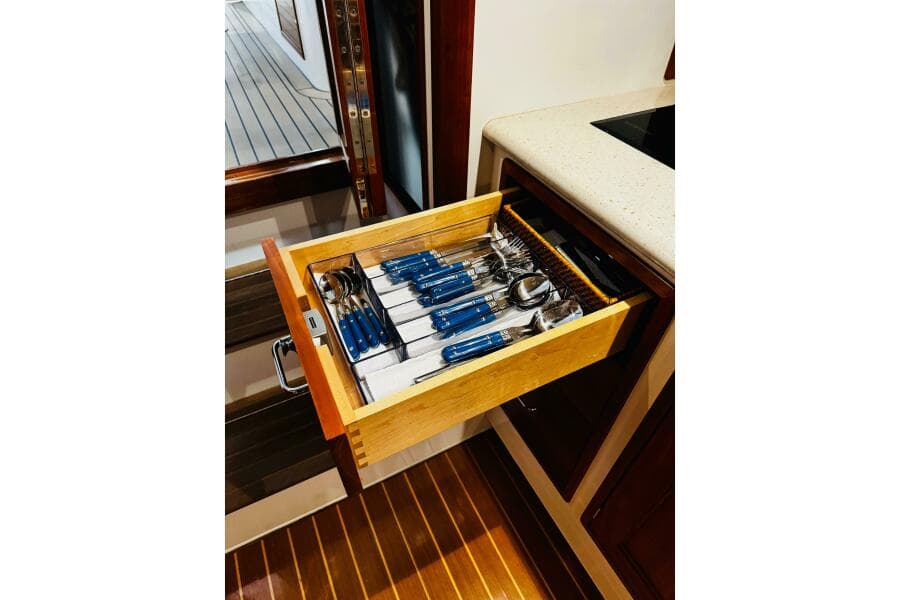

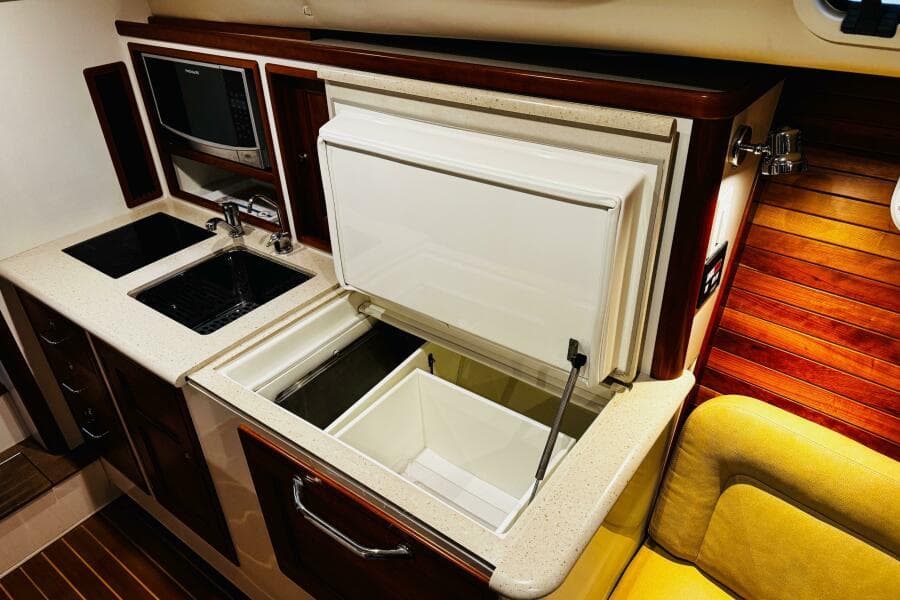

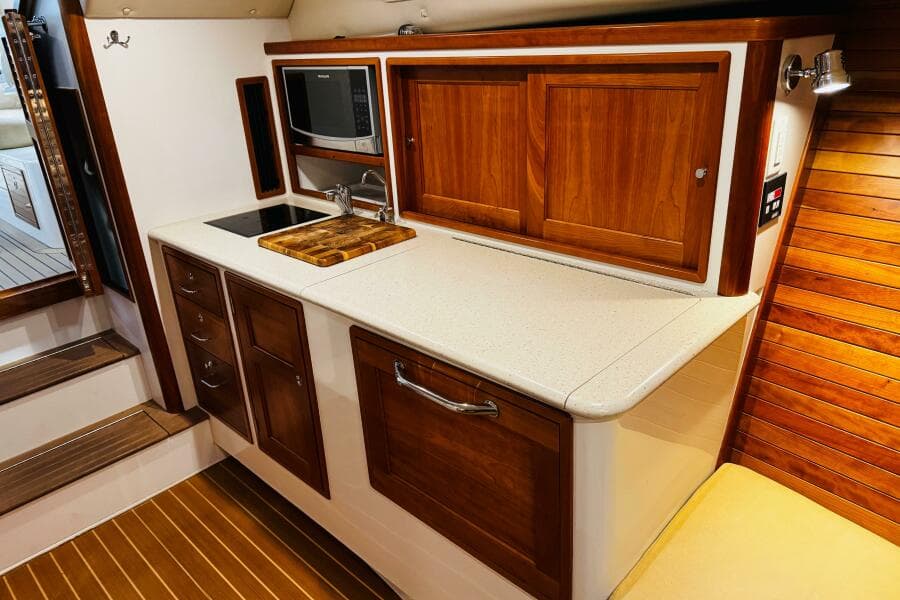

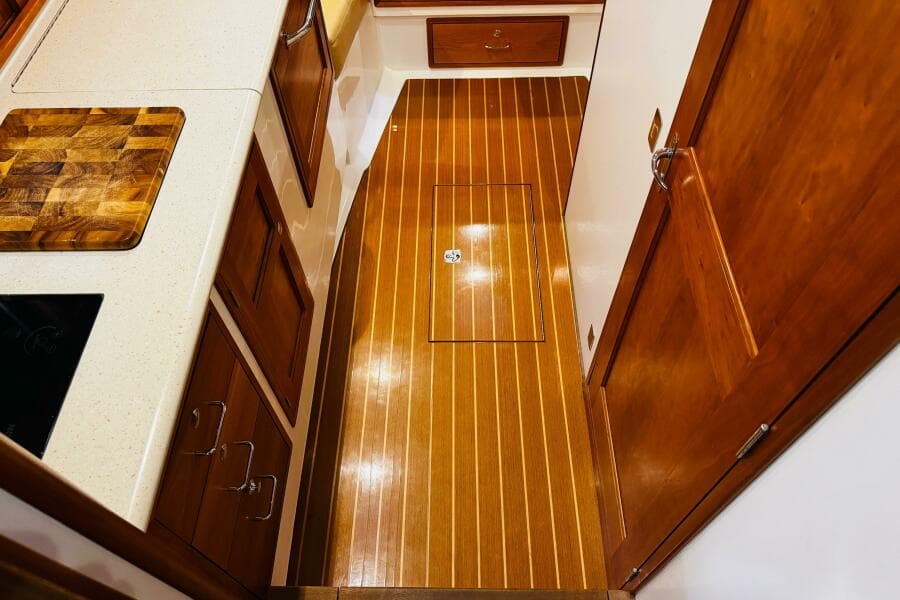

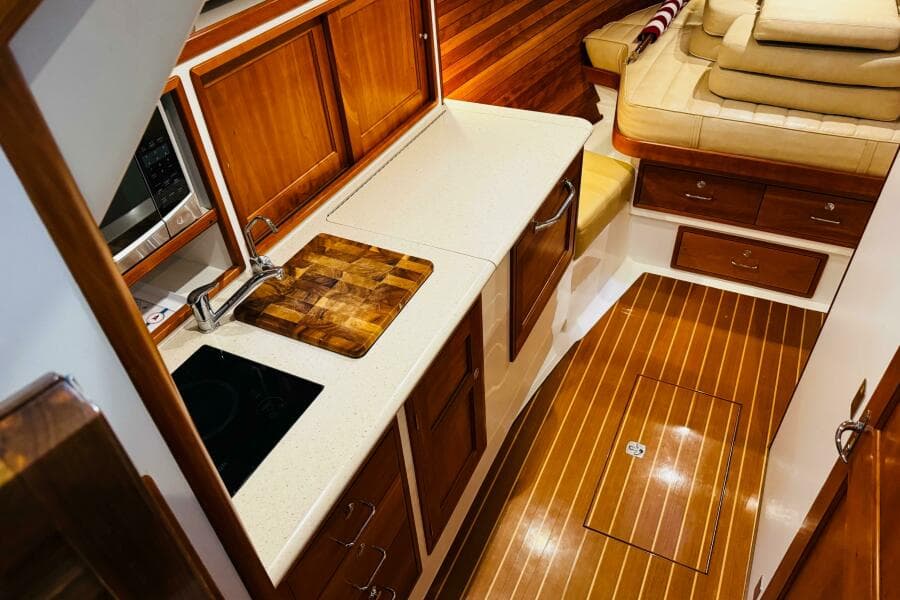

Aft and to port is the galley with Corian counter tops, top load refrigeration box with 12 Volt DC Seafrost system, Princess single burner ceramic cooktop that may be run through the inverter and microwave oven along with storage in 3 drawers and a number of lockers including a hanging locker just aft of the galley.

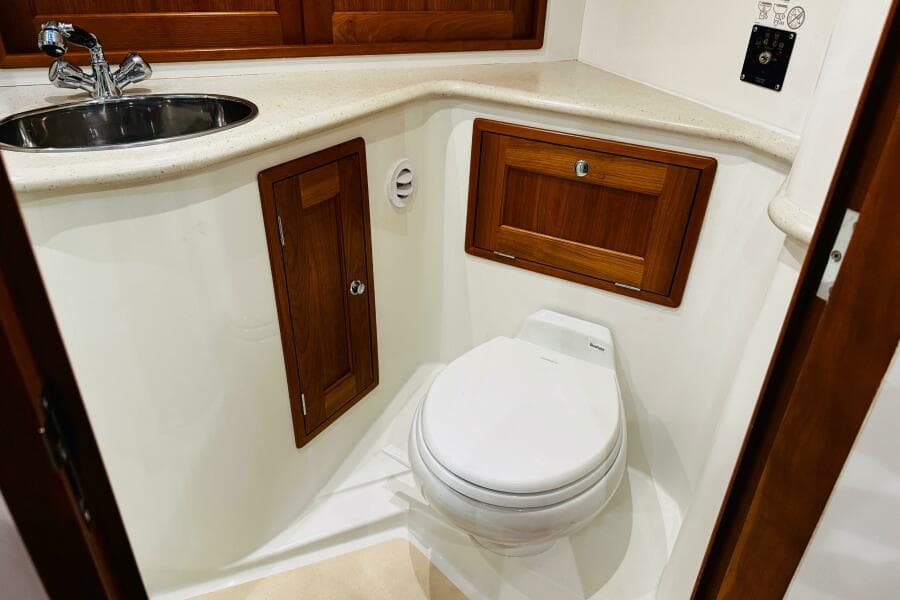

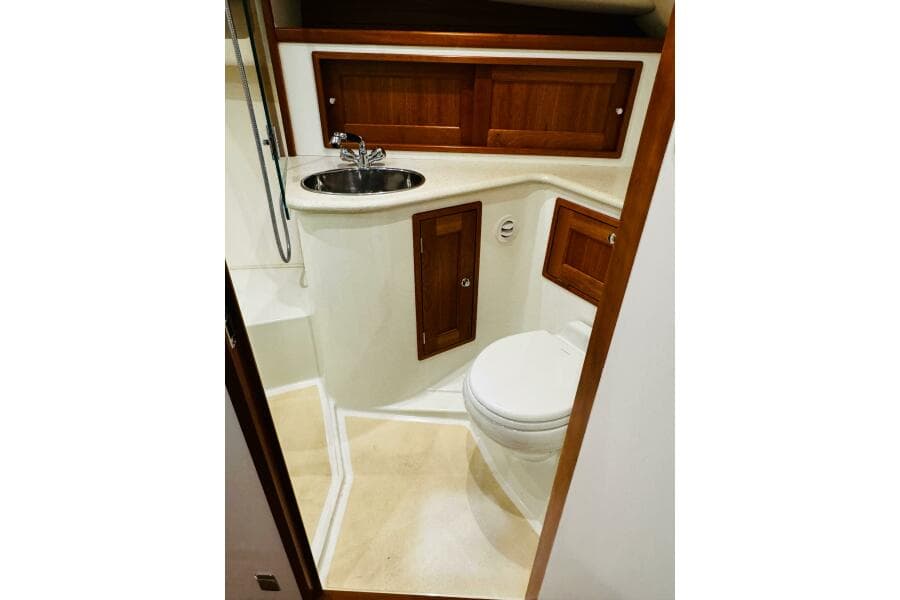

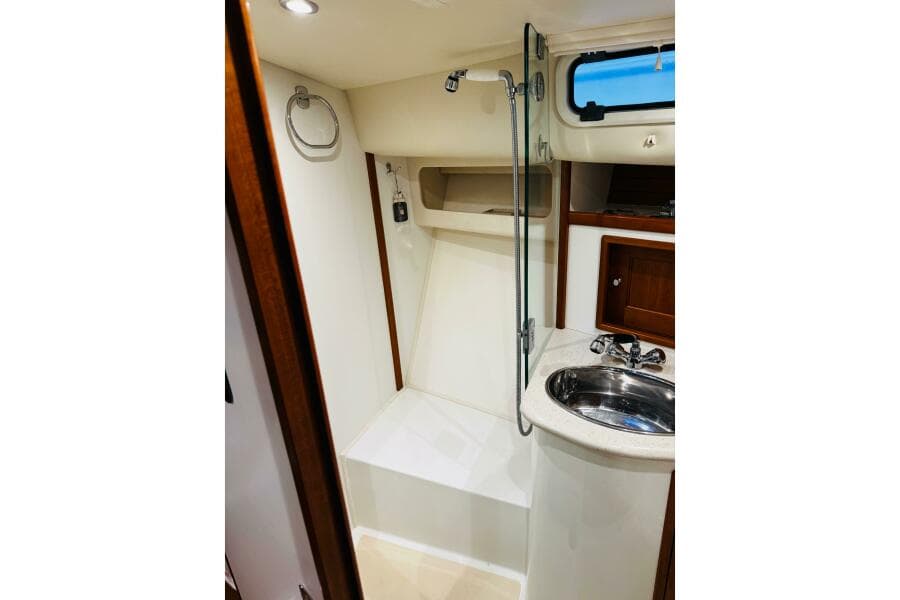

The enclosed head is to starboard with Sealand Vacuflush plumbed to the holding tank, Corain vanity with stainless sink, hot & cold pressure water, and separate stall shower compartment with seat, draining to a separate sump.

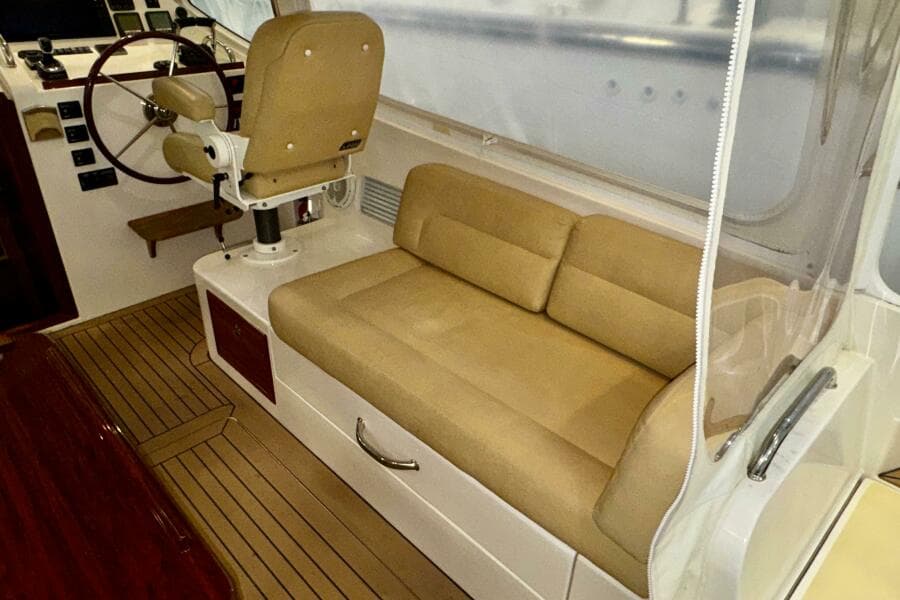

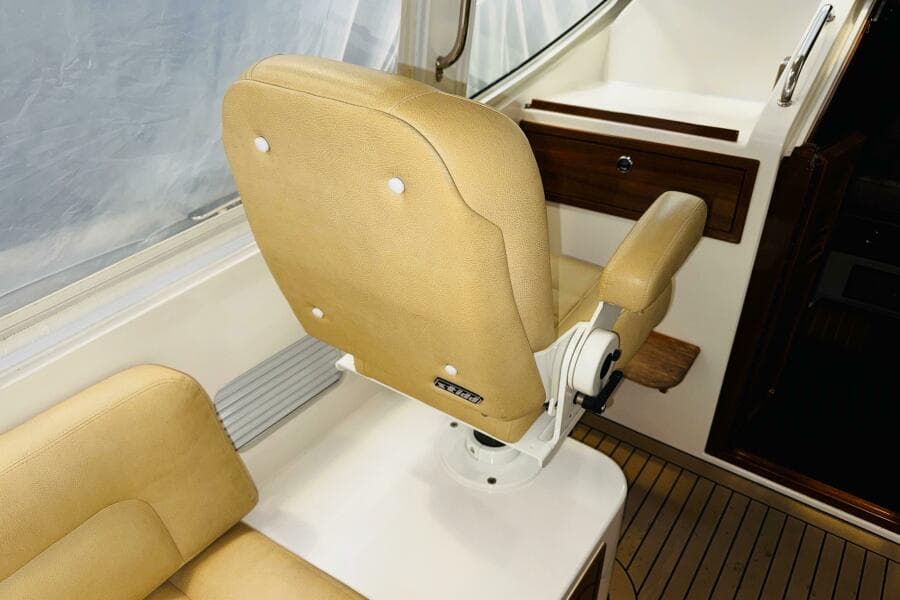

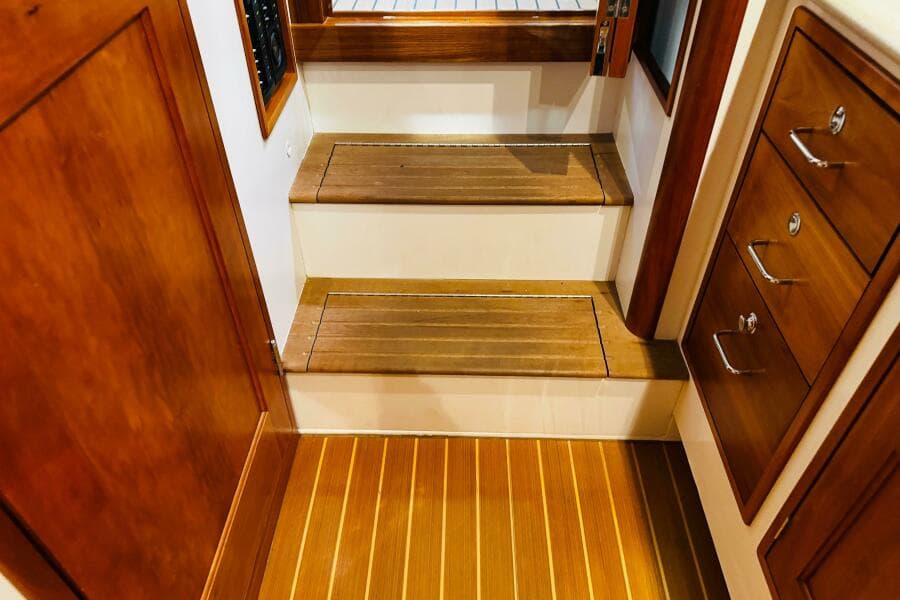

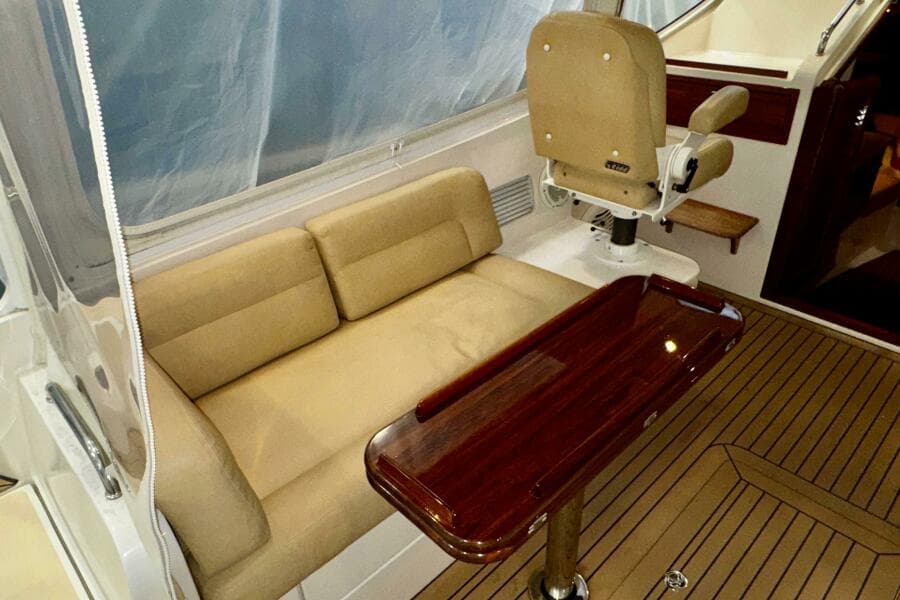

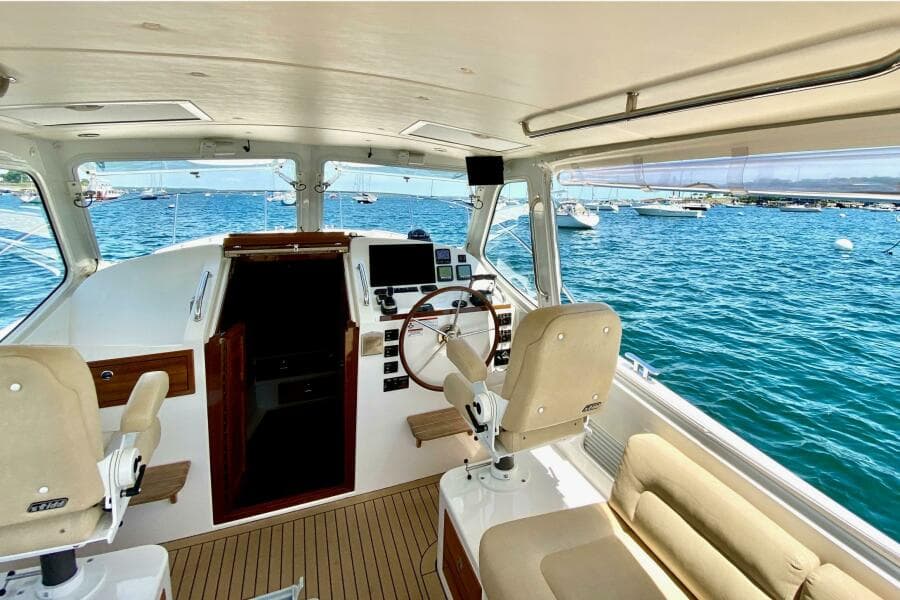

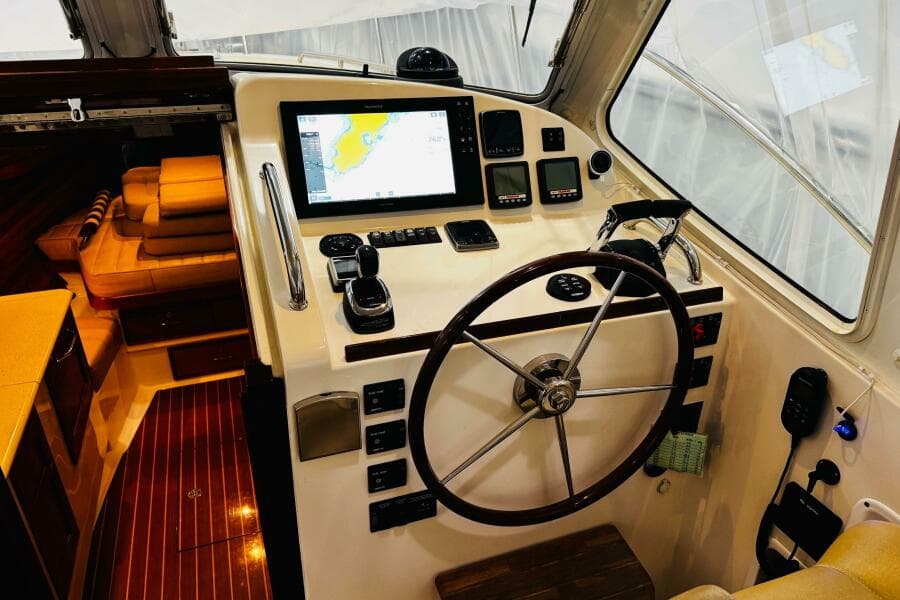

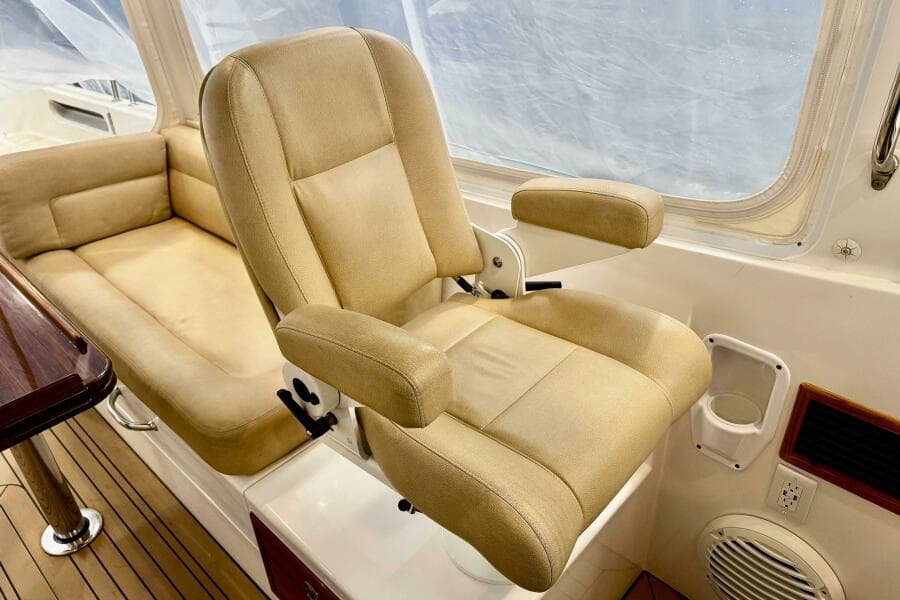

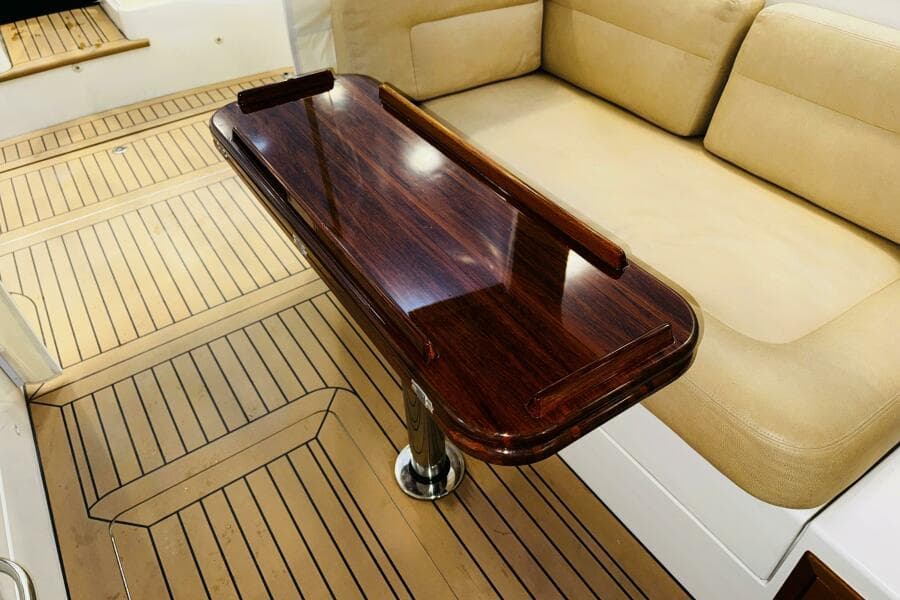

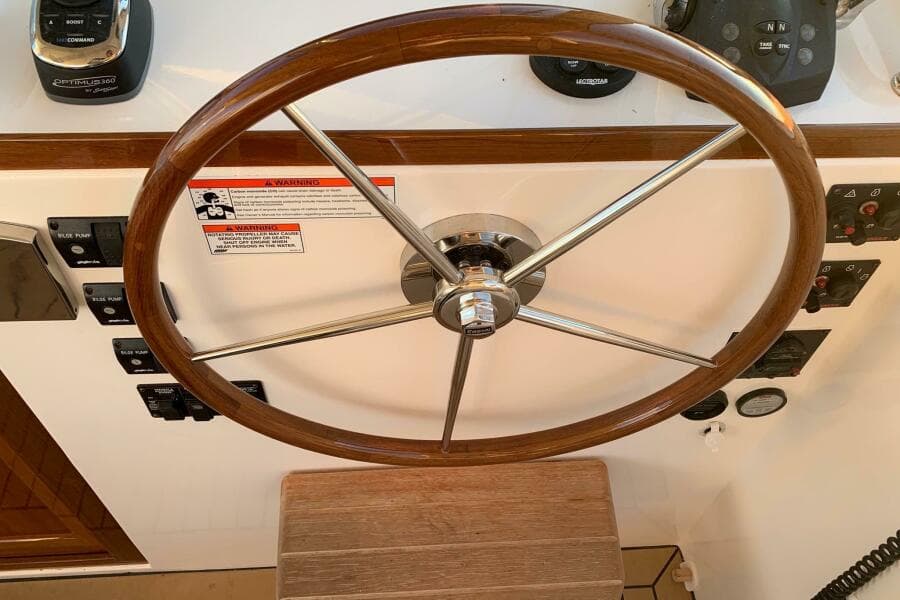

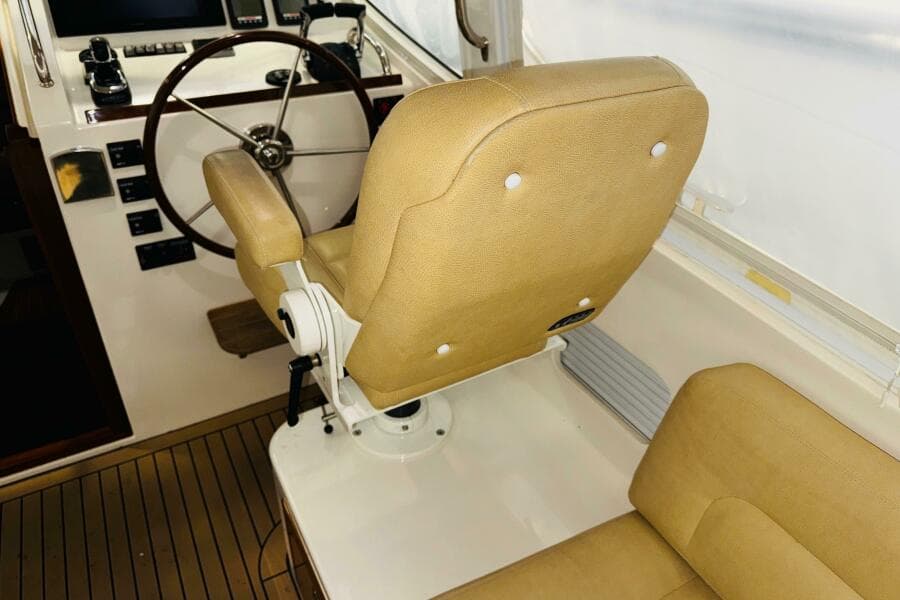

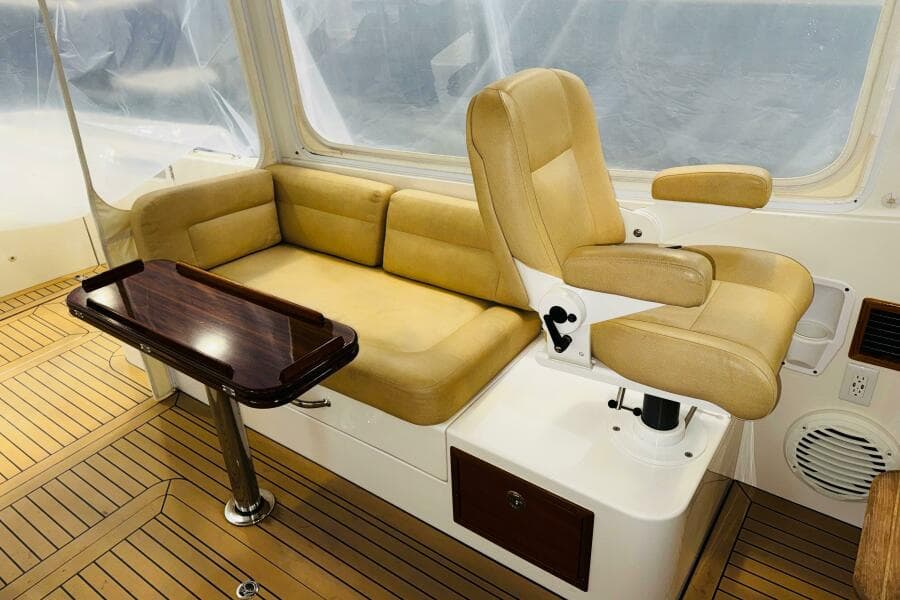

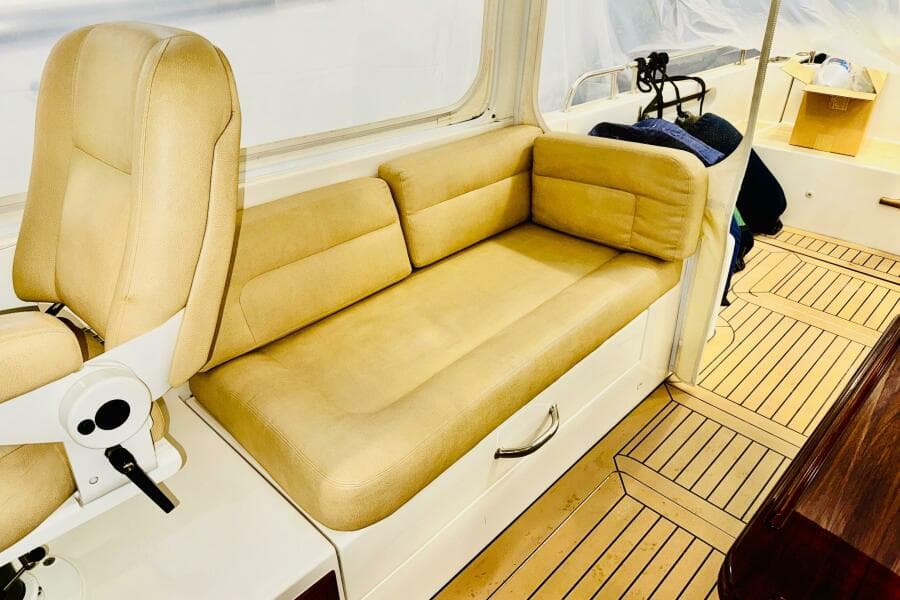

Up two steps (storage under) to the helm deck with helm station to starboard with all vessel navionics and controls and companion seat to port, both are Stidd 500N low back Admiral reclining seats with cargo drawers under. Aft of these are 6' settees Port & Starobard with what can only be described as voluminous storage space below, either locker is capable of holding bikes or golf clubs. The settees extend under the Stidd seats so with the Stidd seats elevated and cushions put down the settees make very comfortable berths. Dining is from a varnished teak pedestal table that will easily handle 4-6 for a luncheon. Additional storage is found below the hatch on centerline which also accesses auxiliary equipment. The wheelhouse is fitted with two overhead hatches with blinds and screens and the side and rear curtains are a breeze to roll up.

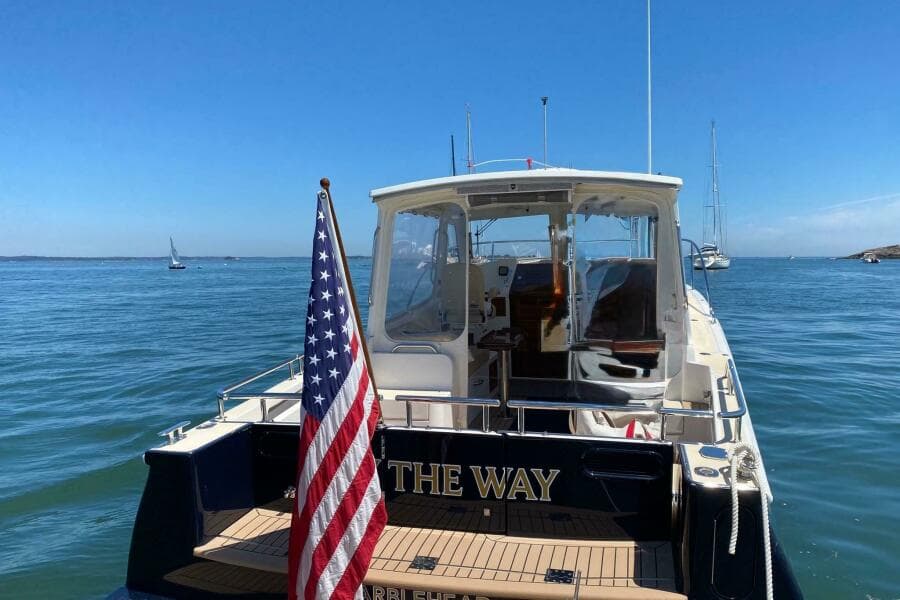

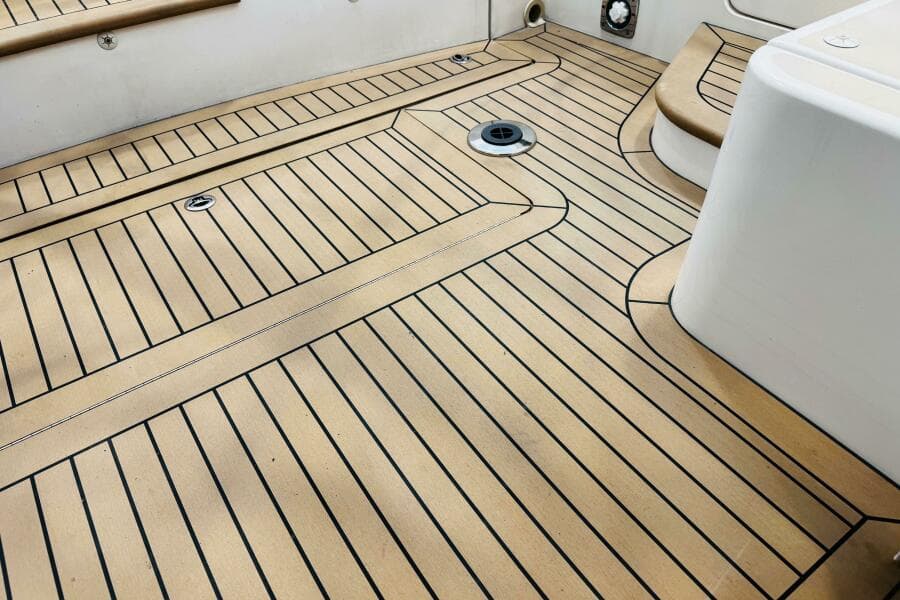

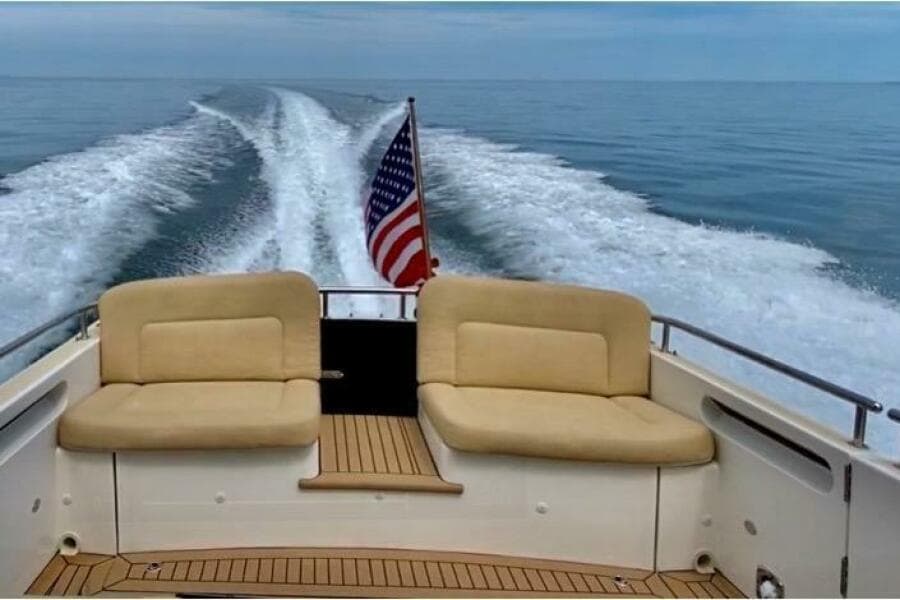

The wheelhouse flows, without interruption to the cockpit on a level deck with its two aft facing seats forward and the full width transom seat aft there is space for 8-10 owners and guests! There are side doors that make it so convenient to board just aft of the aft facing seats.

The engine compartment is directly below and its hatch is on a hydraulic lift. Access to the transom is through a centerline passage in the transom seat, the cushions for which are easily removed.

A step to the side decks is thoughtfully moulded in at the forward end of the cockpit and grab rails are located where one automatically reaches for them to make transiting fore and aft comfortable.

Recent Upgrades

• (2) New Yanmar ZT-370 drives - Installed June 2025 with a 2 year warranty

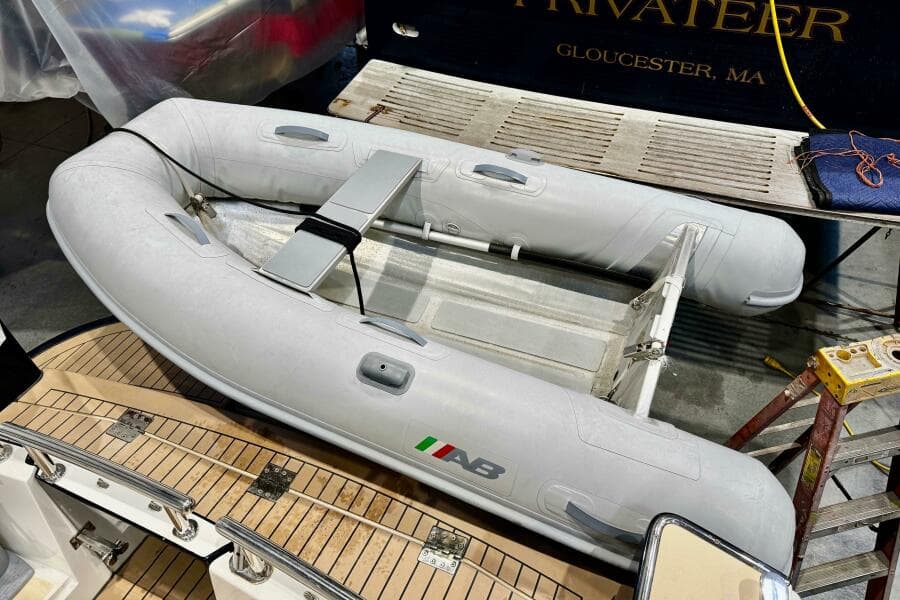

• Dinghy - AB Lammina 8' UL
• Outboard - Torqeedo Outboard with spare battery
• Davit - Hurley H2O Davit System
• New Pilothouse Enclosure
• New Starlink - High-Speed Internet
• New Siren Marine remote monitoring system
• New Solar Panel with Victron Smart Solar MPPT 7 Controller
• Fusion 700i Stereo with Rockford Amp & Subwoofer

Navigation Equipment

• Raymarine Axium XL touch screen color radar/plotter display (16" MFD)

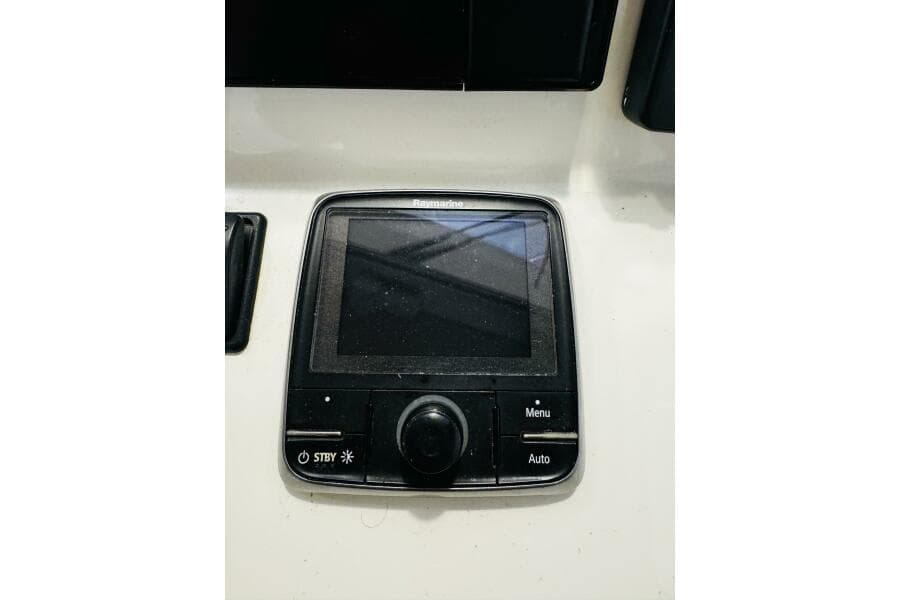

• Raymarine Smart Pilot Autopilot with ST70 control head
• Raymarine i70R multifunction display

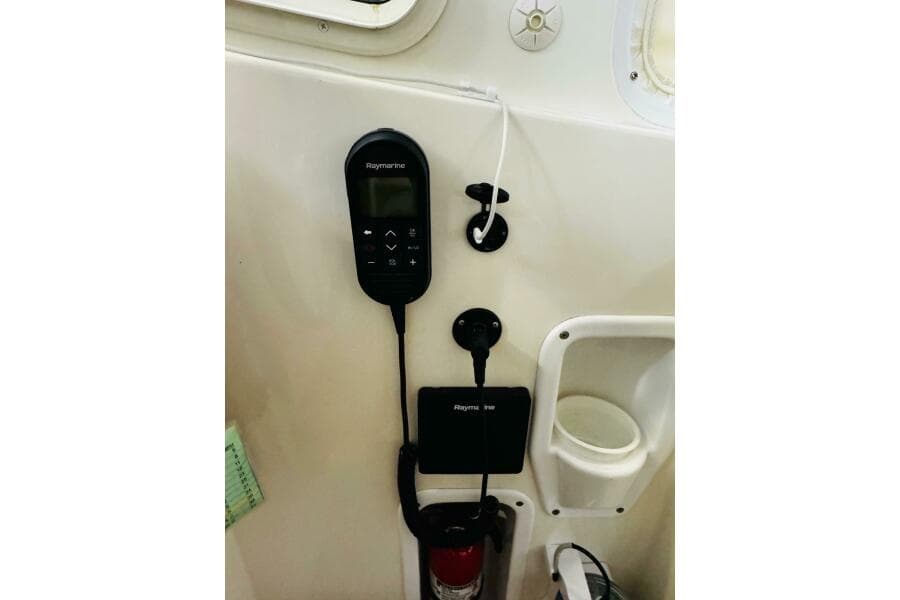

• Raymarine Ray 90 VHF radio with AIS 700
• Raymarine 24" 4 kw radome
• Independent tablet navigation set-up ay helm (iPad)
• Sirius Satellite Weather

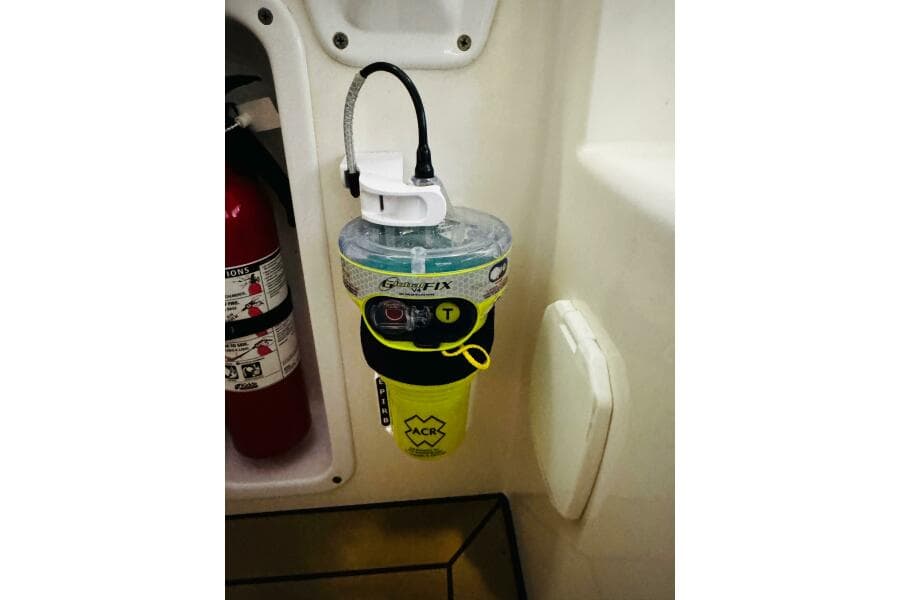

• ACR GlobalFix V4 EPIRB
• Jabsco 400,000 CP bow mounted search light with remote control at helm
• Ritchie 4.5" magnetic compass
• Horn
• (2) electric windshield wipers with wash down
• Lenco trim tabs
• Remote windlass controls
• Electrically opening windshields

Electrical & Mechanical Systems

Electrical:

Wired for 12V DC and 110V AC service. A Victron 3000W inverter handles lighter loads when off the dock while a Northern Lights 6kWh generator handles heavier loads.

12 Volt DC:

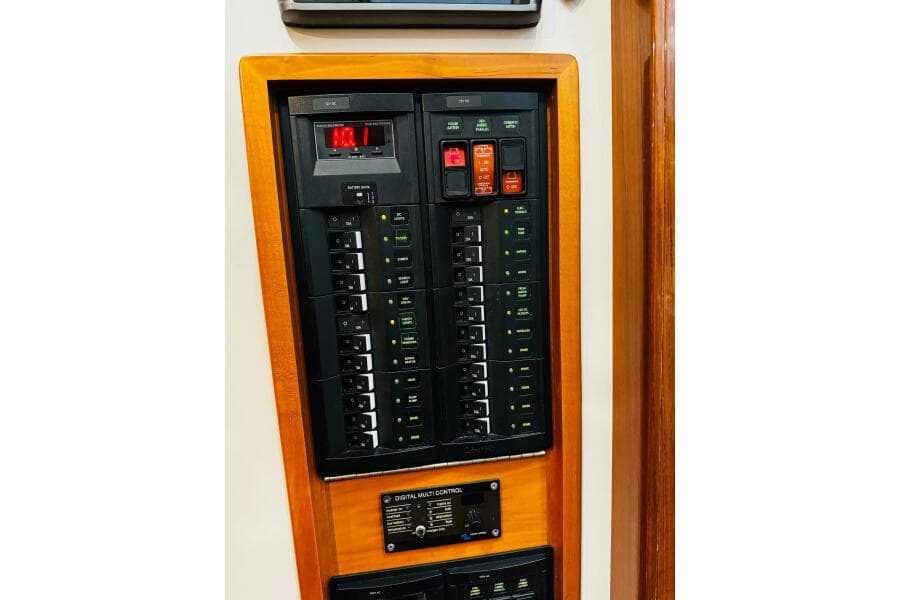

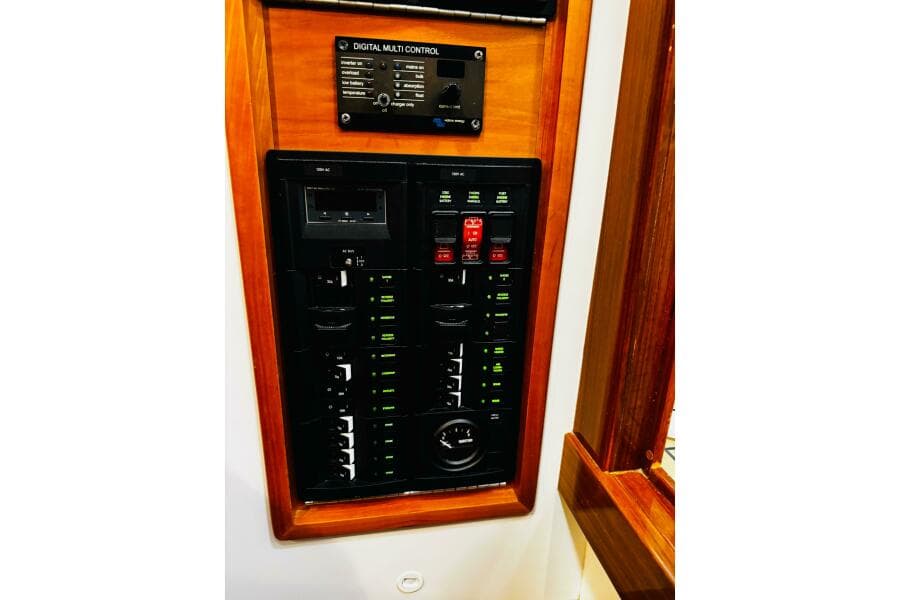

• Custom distribution panel with breakers
• Digital amp and volt meters
• 150 amp alternator
• (2) 4D AGM house batteries
• (2) Group 27 AGM engine start batteries
• Group 25 AGM engine start battery

110 Volt AC:

• Custom distribution panel with breakers
• (2) 30 amp shore power inlets at transom
• (2) 50' 30 amp shore power cords
• Digital amp & volt meters

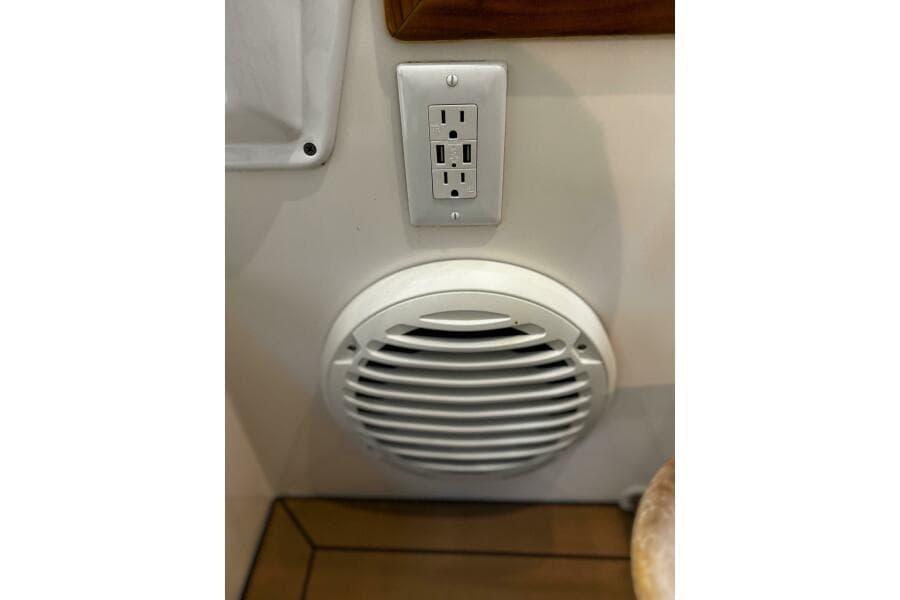

• (6) 110 volt outlets
• Victron 3000W inverter/100A battery charger
• New Isotherm 10 gallon water heater (also engine supplied)

Mechanical:

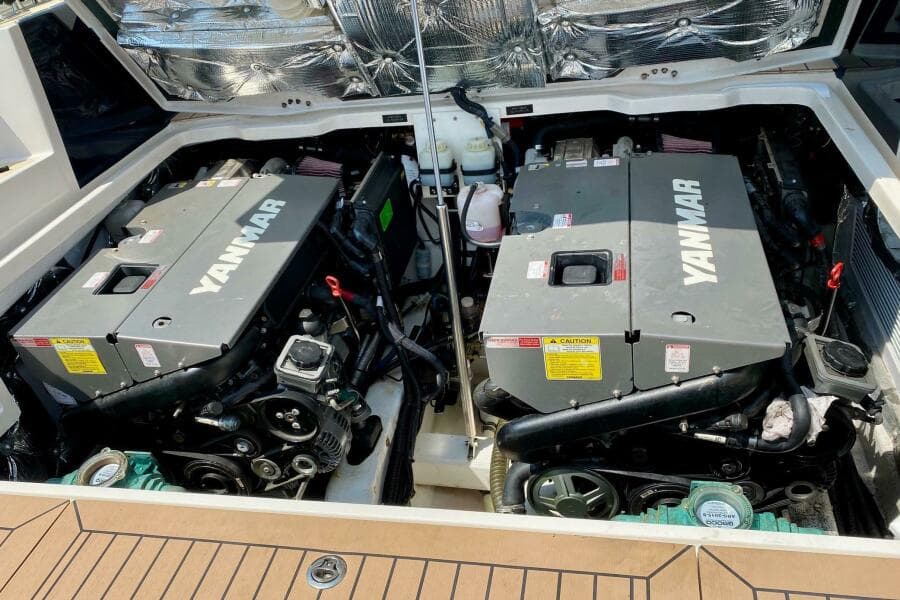

Twin 260 hp Yanmar diesels (preferred engine option) with 950 hours, turning dual counter rotating propellers through Yanmar ZT-370 stern drives (New drives June 2025 with 2yr Yanmar Warranty), Cruise speeds at approximately 27 knots at 80% engine load and 33 knots at wide open throttle.

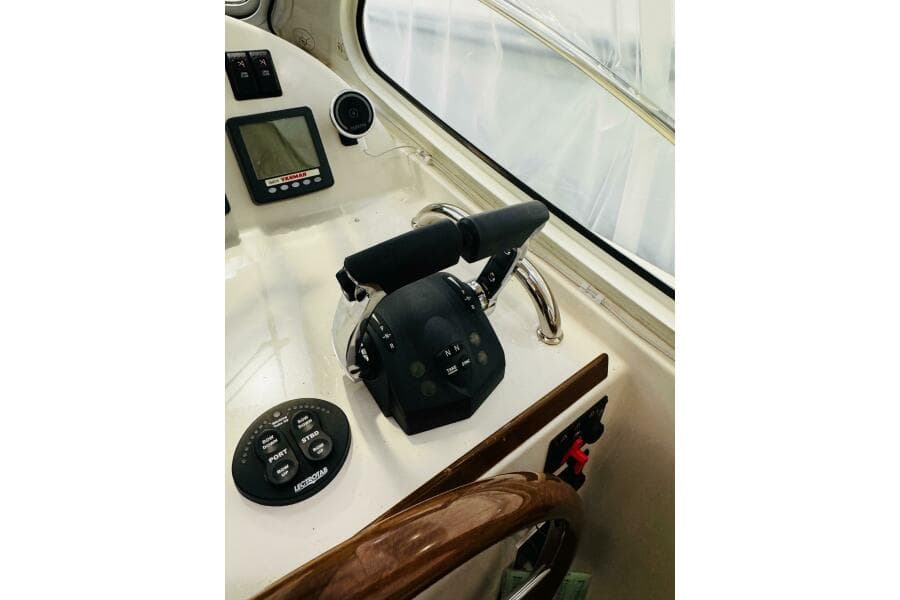

• Yanmar electronic engine controls
• Yanmar joystick control for docking

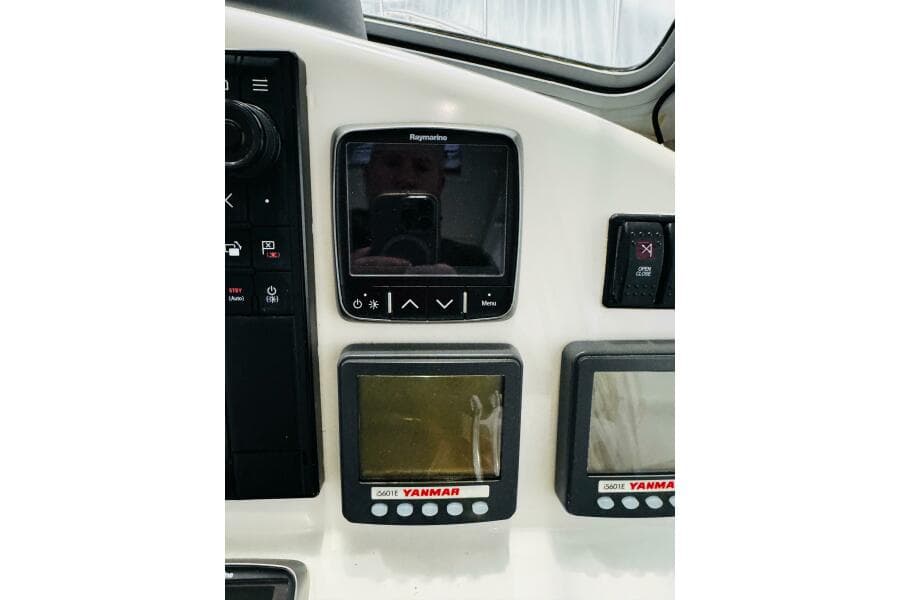

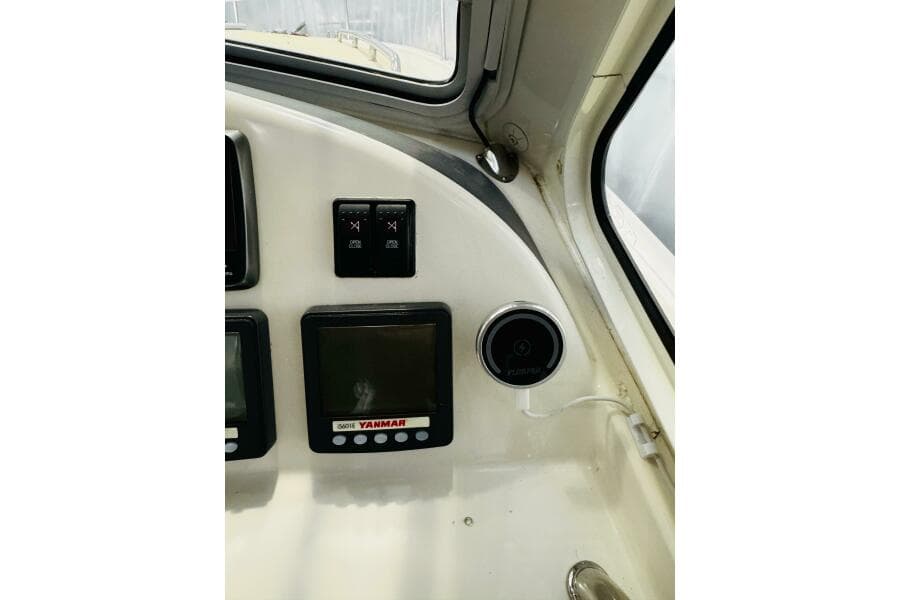

• (2) Yanmar i560 digital engine displays
• Yanmar dynamaic positioning/station keeping
• Racor fuel filters
• Seafire automatic fire suppression for engine compartment
• Marine Air 16,000 BTU reverse cycle air conditioner for interior with remote air handlers on the helm deck

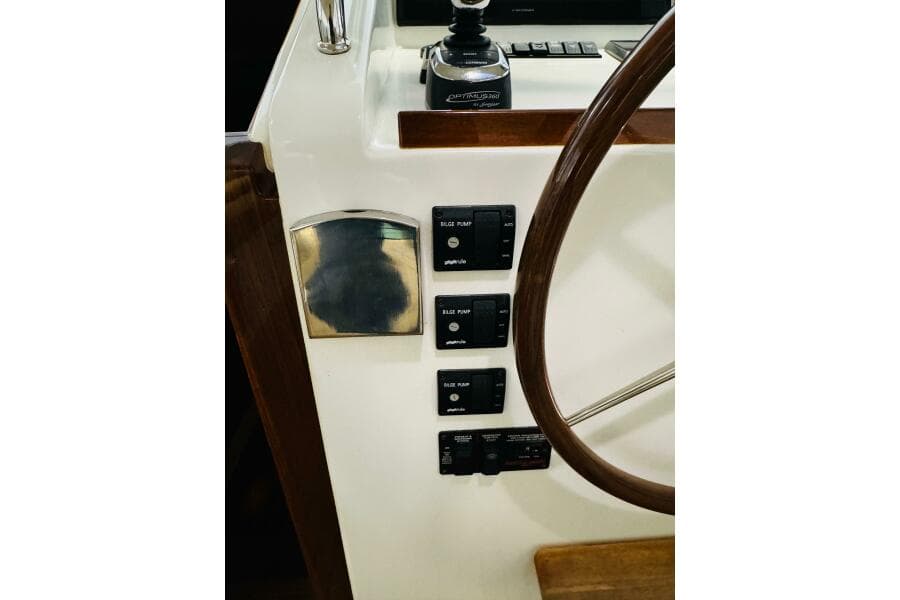

• (2) Rule 1100 electric bilge pumps
• High capacity manual bilge pump
• Tankwatch system on holding tank
• Macerator pump

Construction, Hull & Deck

• Muir low profile electric anchor windlass with controls at hem and bow
• Lewmar polished stainless steel anchor with 250' of chain & rode
• High pressure anchor wash down operable from helm
• Stainless bow, grab rails and other deck hardware
• Fiberglass swim platform
• Hot & Cold transom shower
• Centerline walk thru transom to swim platform from cockpit/swimplatform
• Side boarding doors P&S
• Varnished teak staff and stainless steel burgee staff
• Air compressor with both high volume low pressure and low volume high pressure setting for inflating dinghies, inflatable stand up paddle boards etc.
• Wichard flush mount D rings on house top for securing sea kayaks or paddle boards
• Fold down step on windshield mullion for ease of access to house top

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
