2014 MJM 40z

Steering SystemJoystick Control

Additional Information

Main Cabin Specifications:

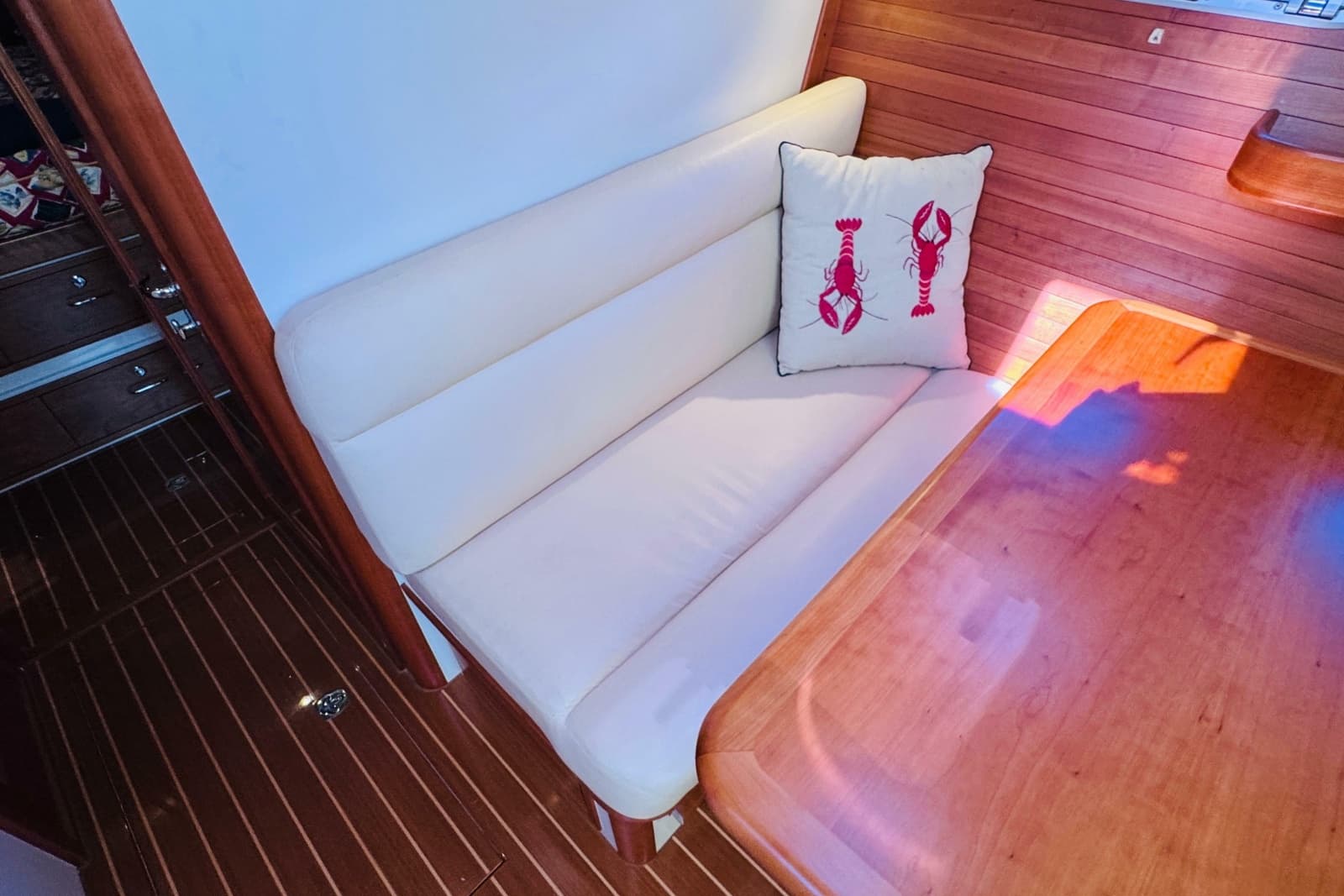

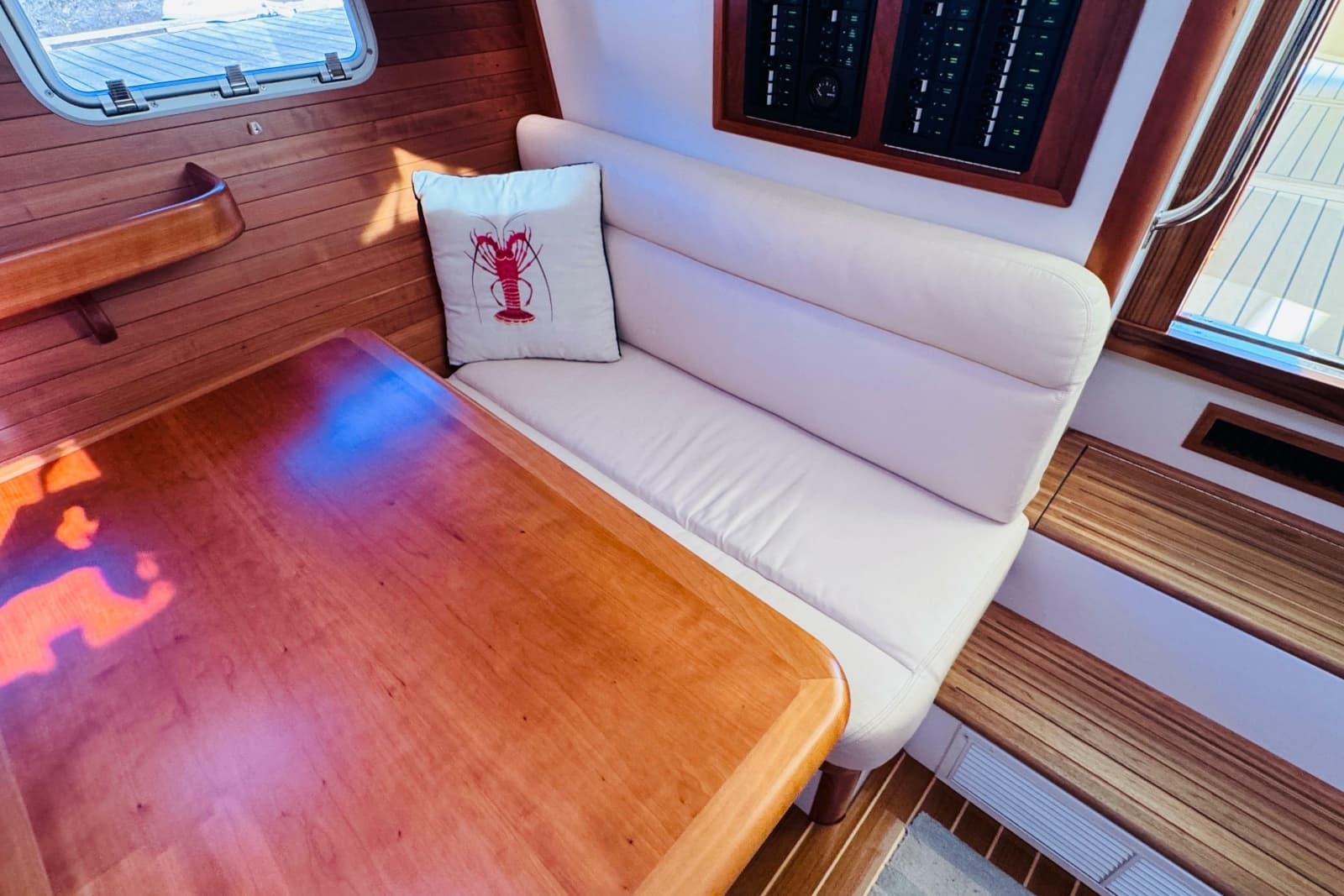

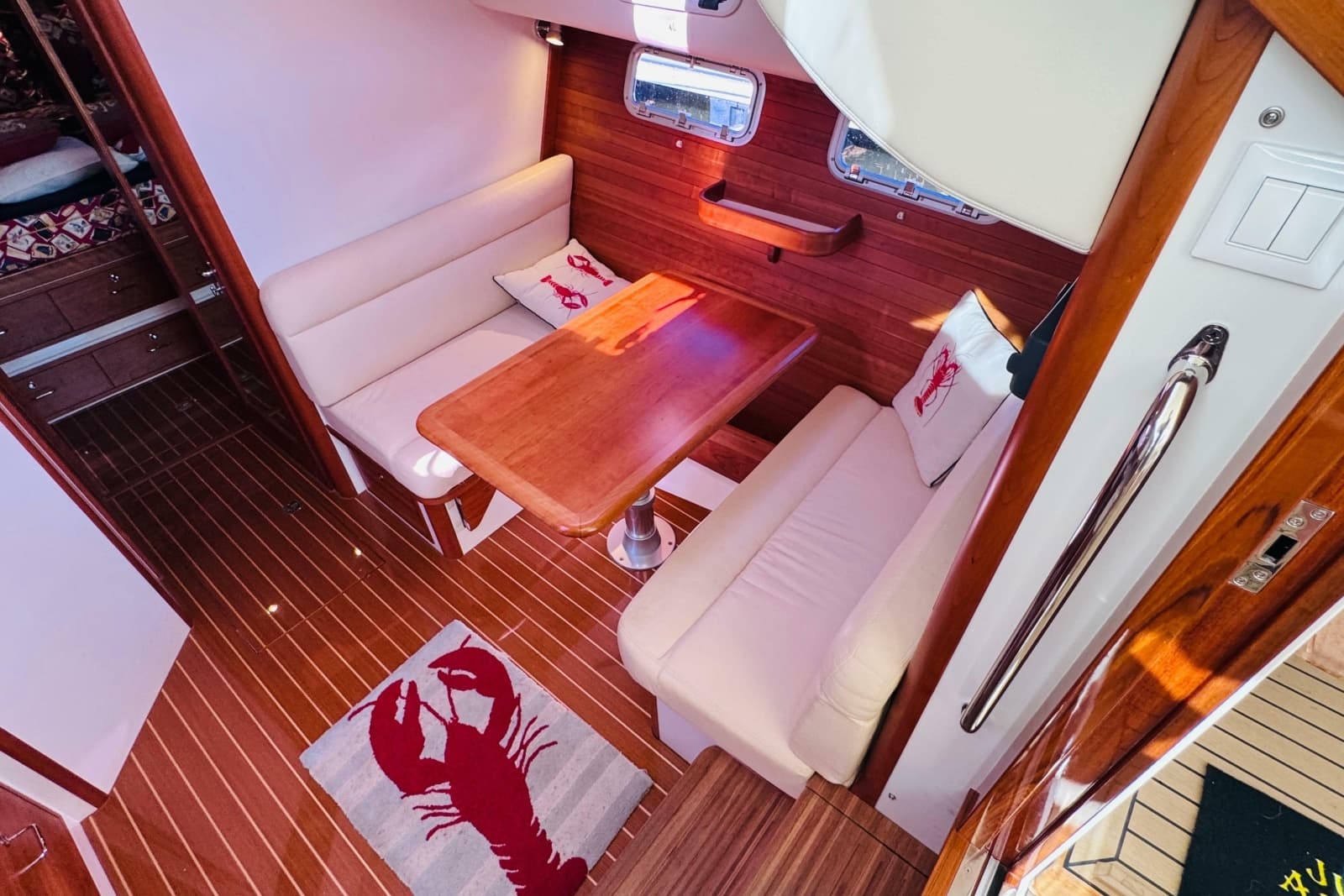

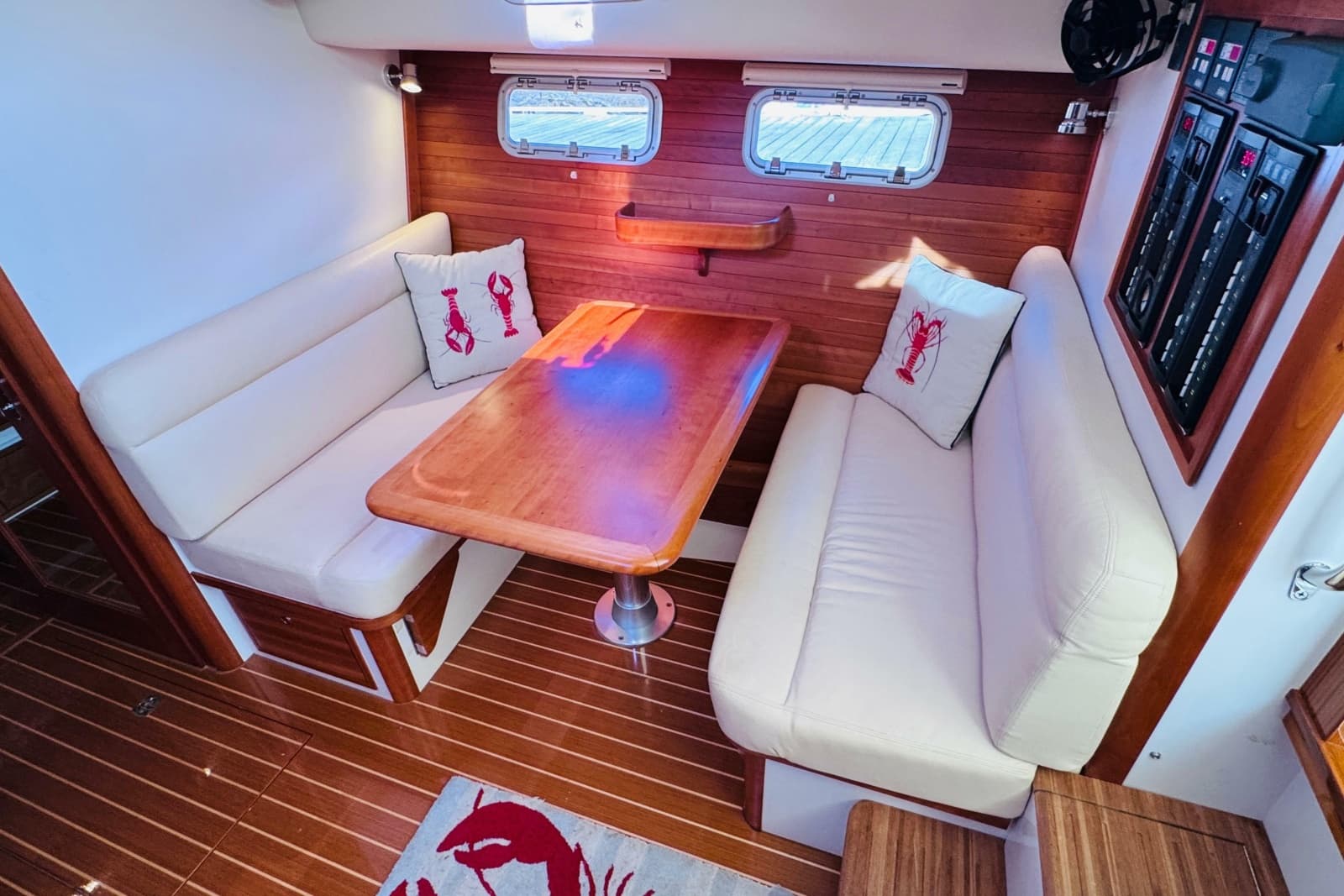

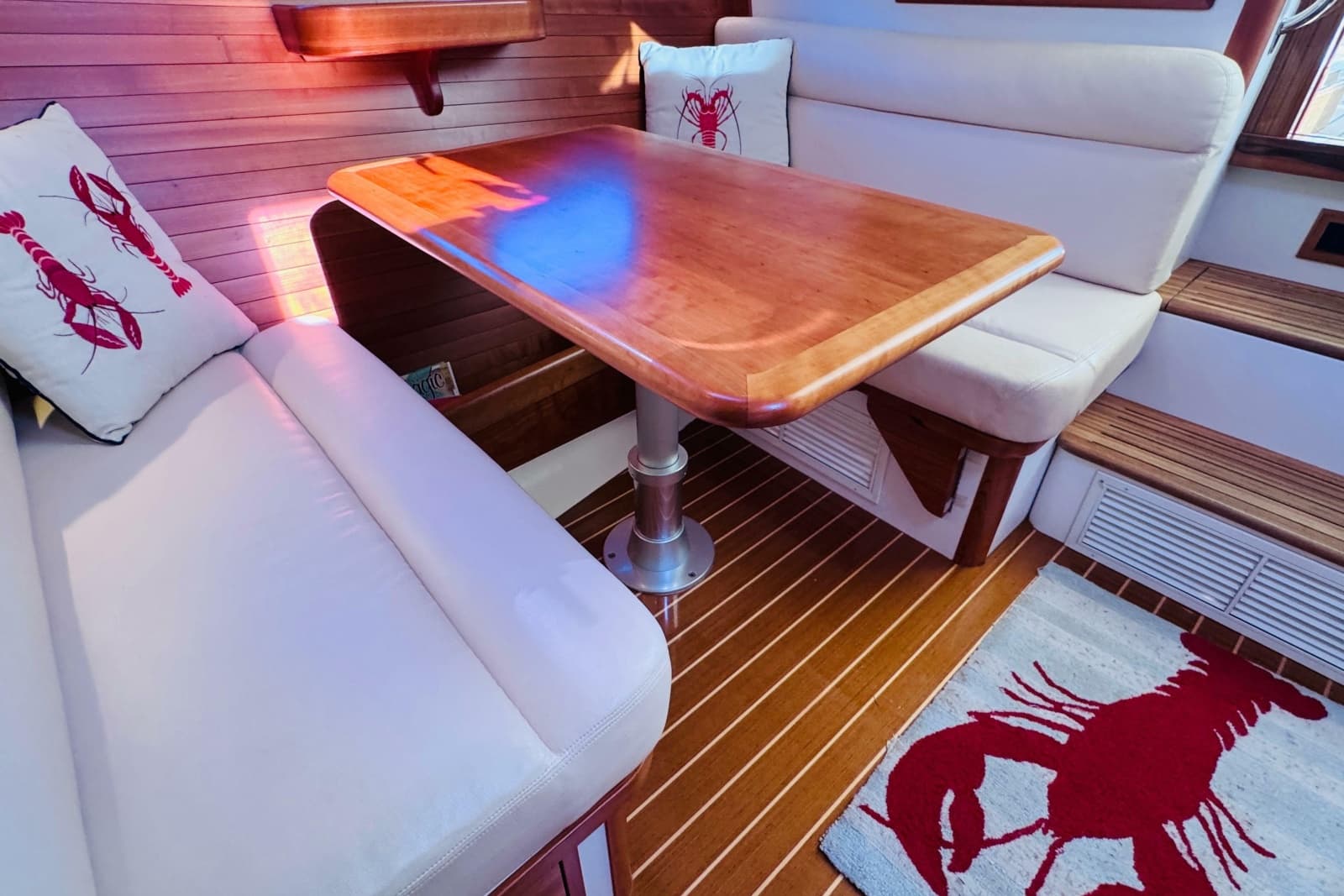

• Spacious dinette table lowers with electronic control to form 40-44” wide, 78” long berth.
• Heavy opaque “Pullman” curtain anchors to ceiling to form private double cabin with vertical zipper entry.
• Double berth filler mattress insert is stored in vinyl bag.
• Large fixed hull ports (2), skylight hatches (2) and cabin portlights (2) maximize ventilation, space and light.

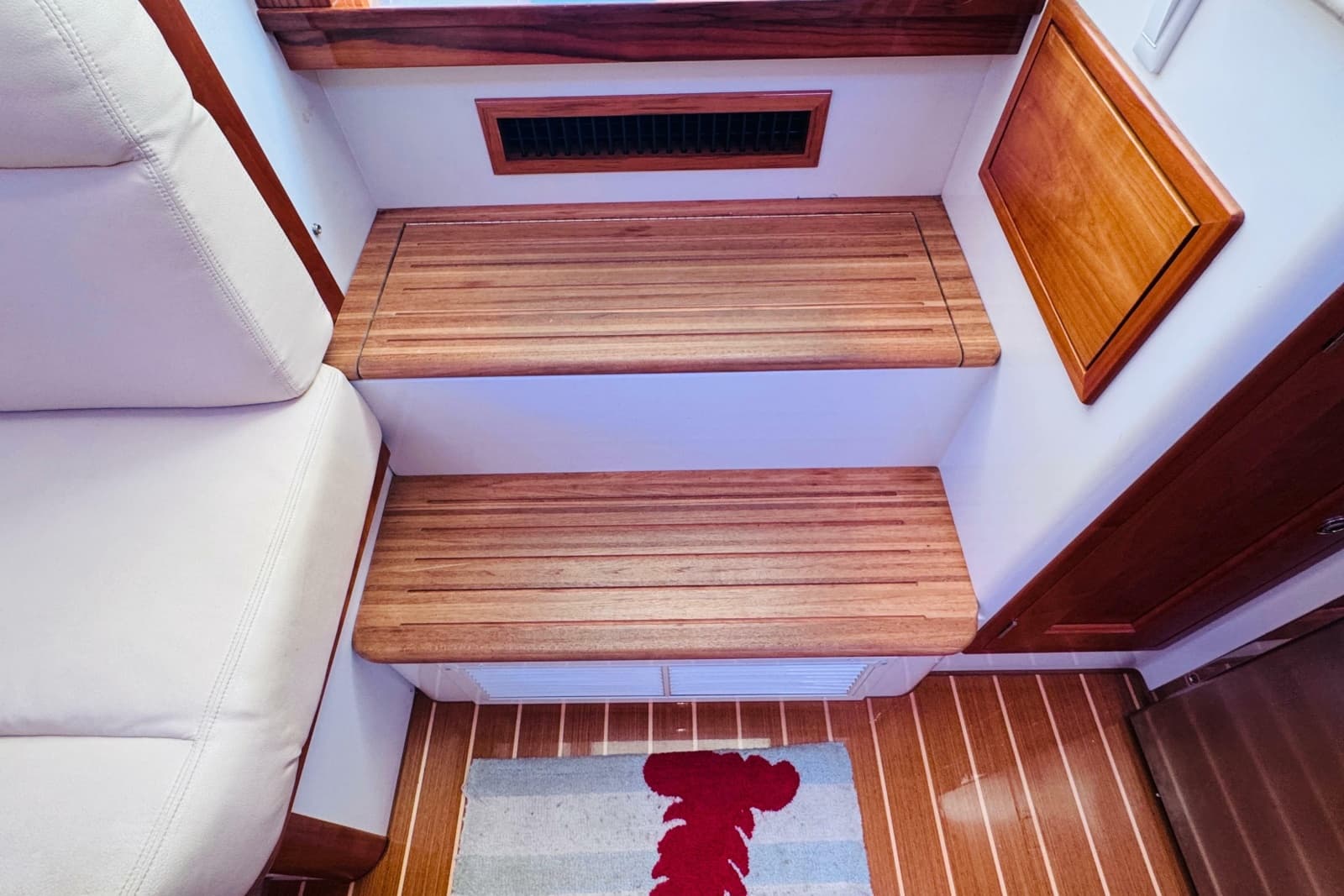

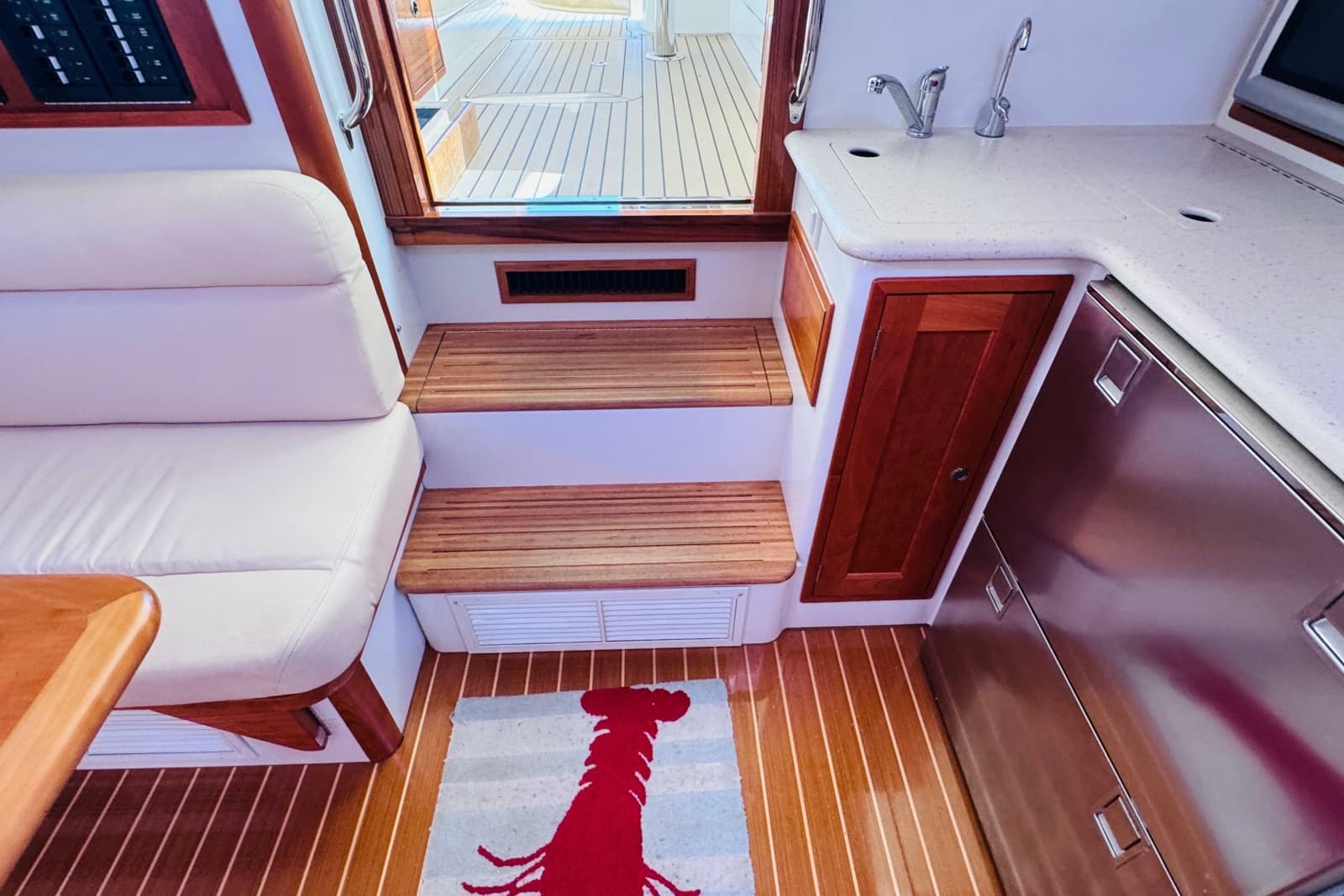

• The companionway is designed for safety to function like a normal stairway with stainless grab rails and only 2 steps w/shoe locker & tool storage under.
• Headroom of 6’4” on centerline.

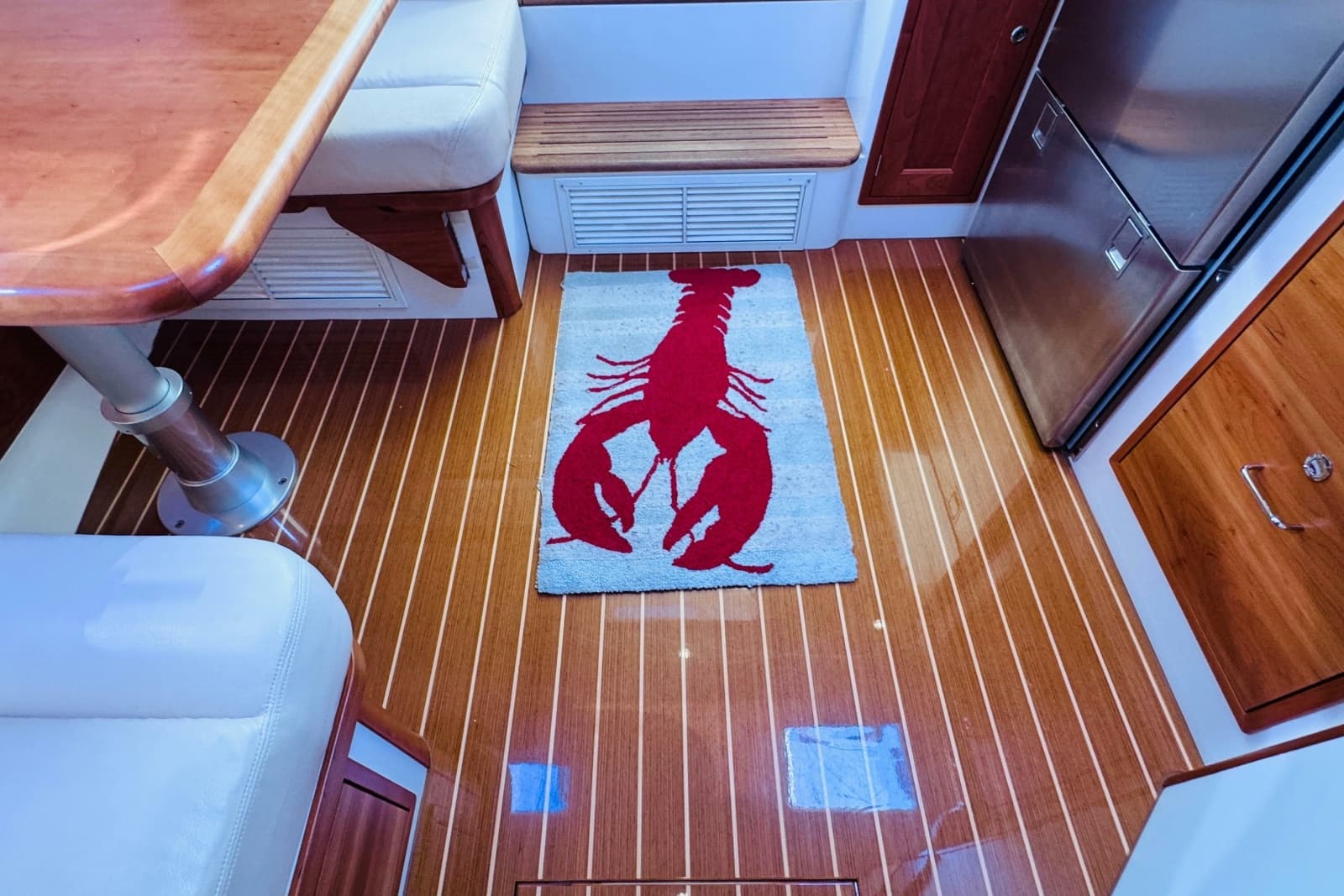

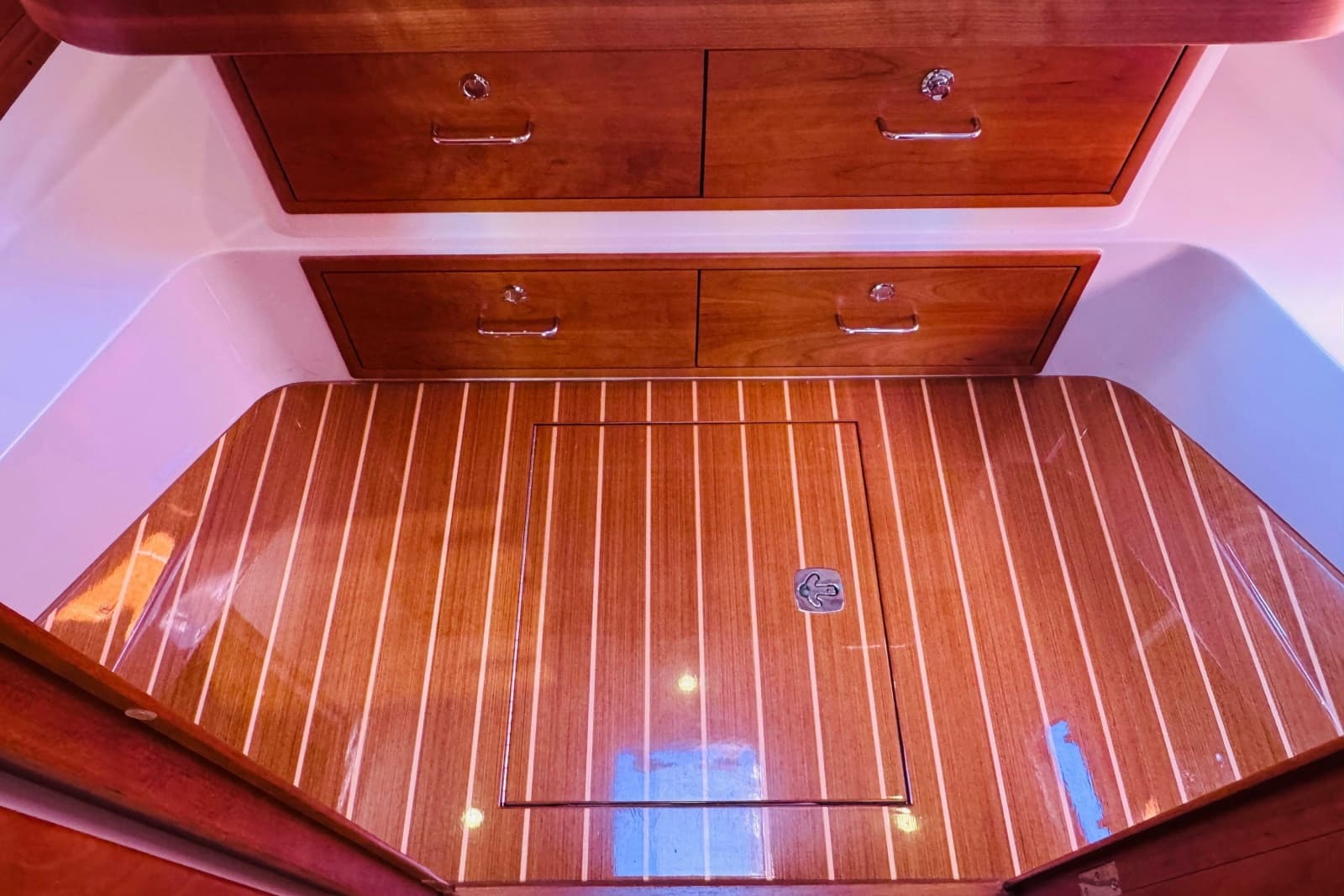

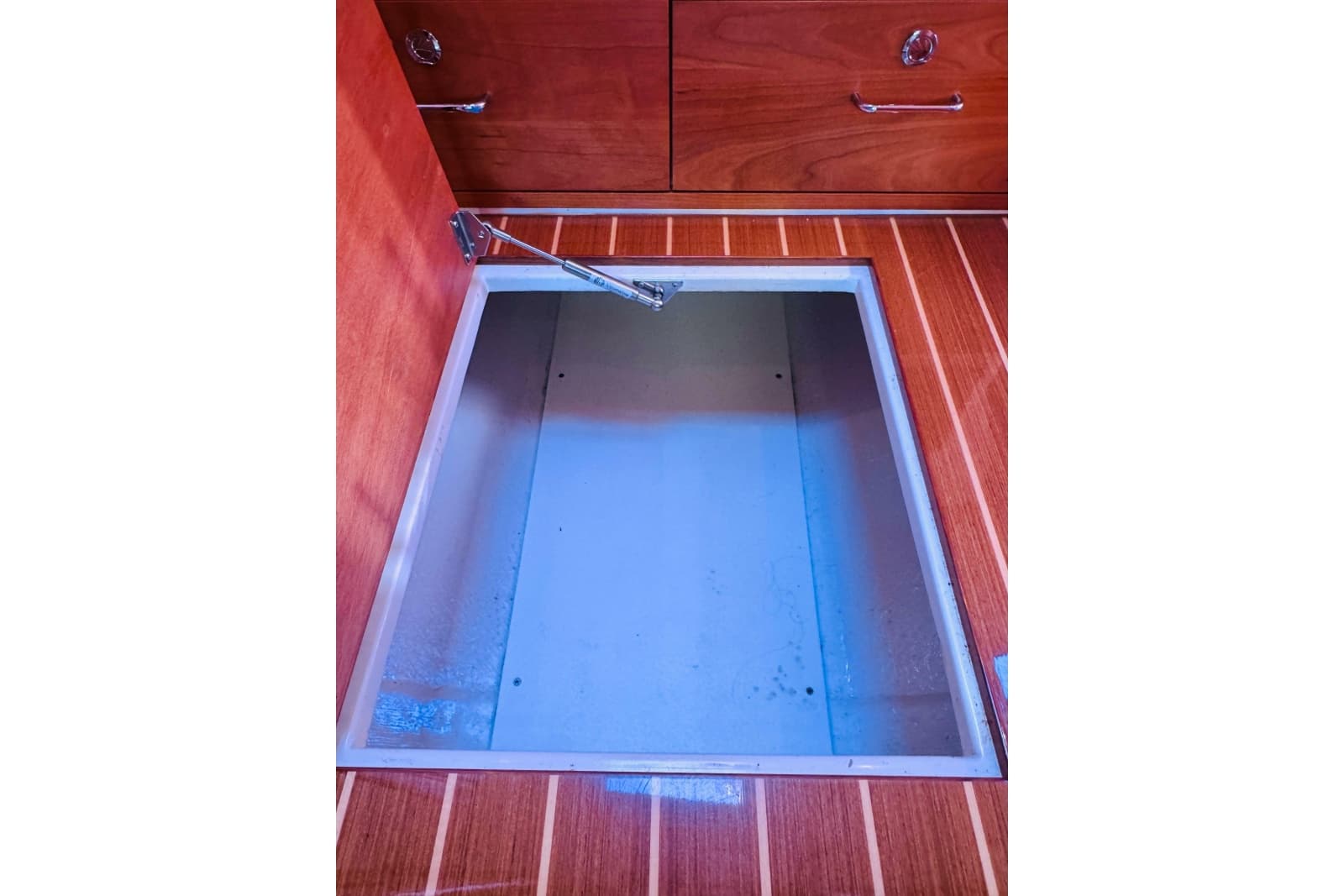

• High-gloss finished teak & holly cabin sole with storage compartment for large plastic bins.
• Egg Shell White Nevamar HPL paneling with American Cherry trim with foam backed vinyl headliner & satin-varnished cherry hull battens.
• Access door to dual entry head with integral shower.

Forward Cabin Specifications:

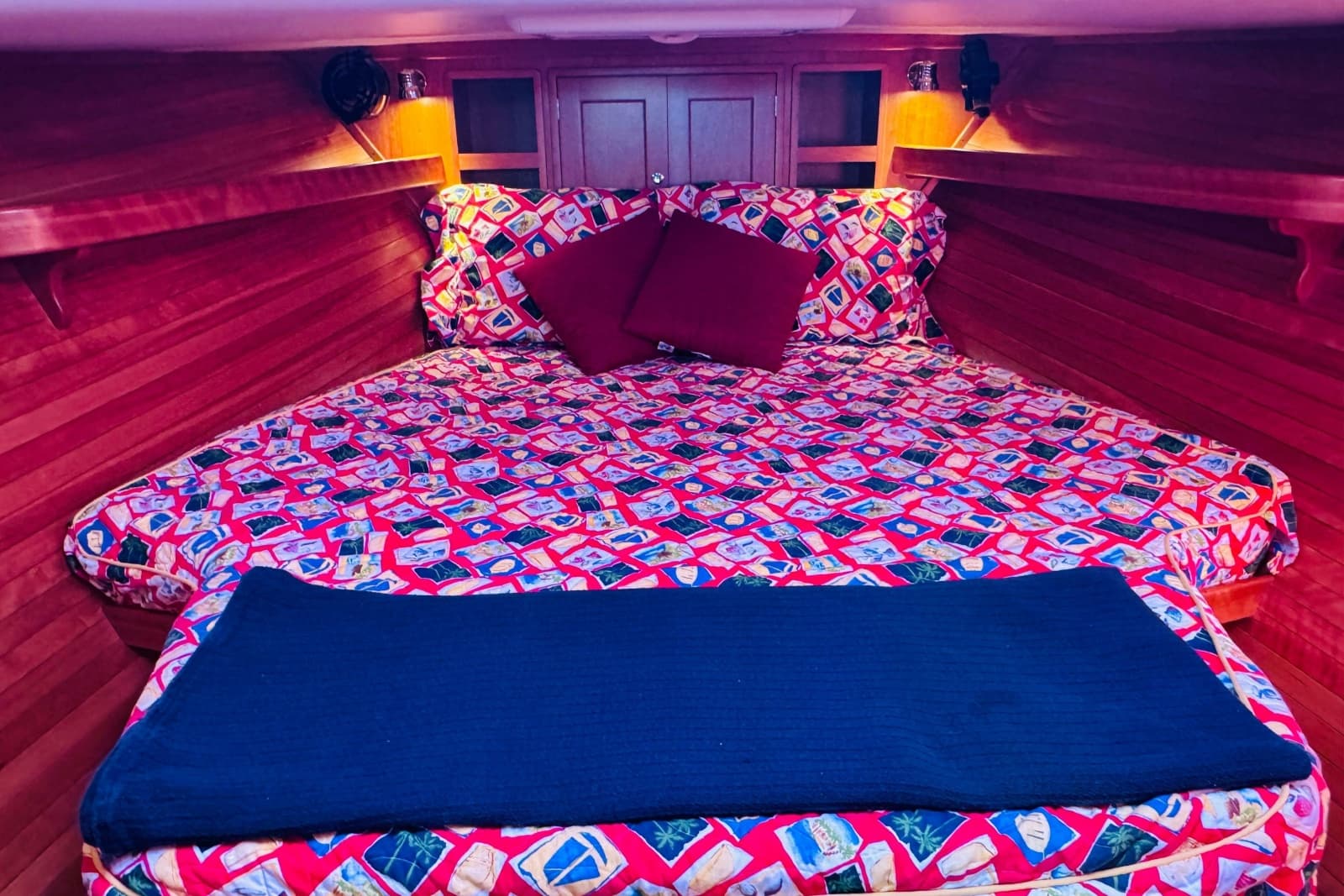

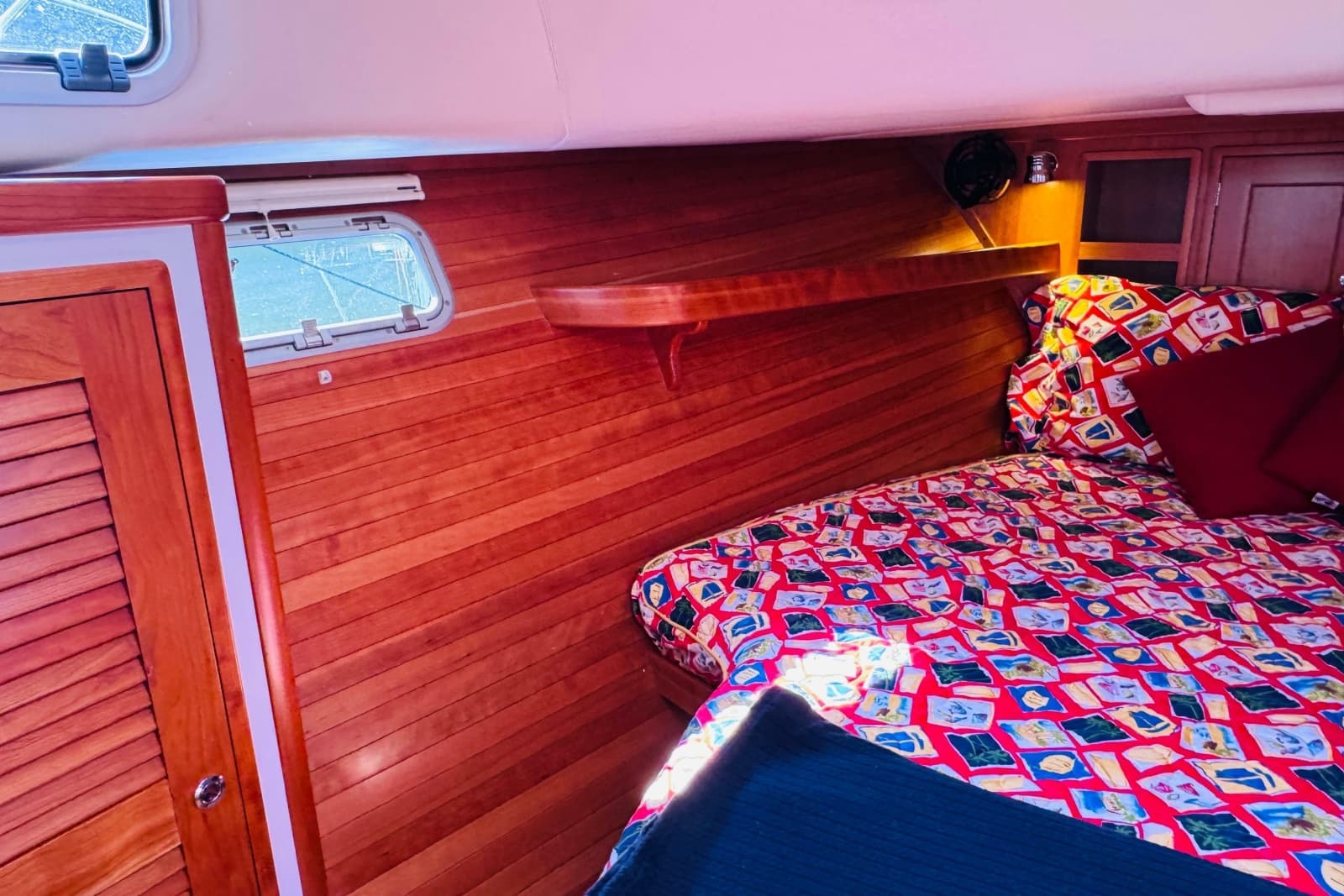

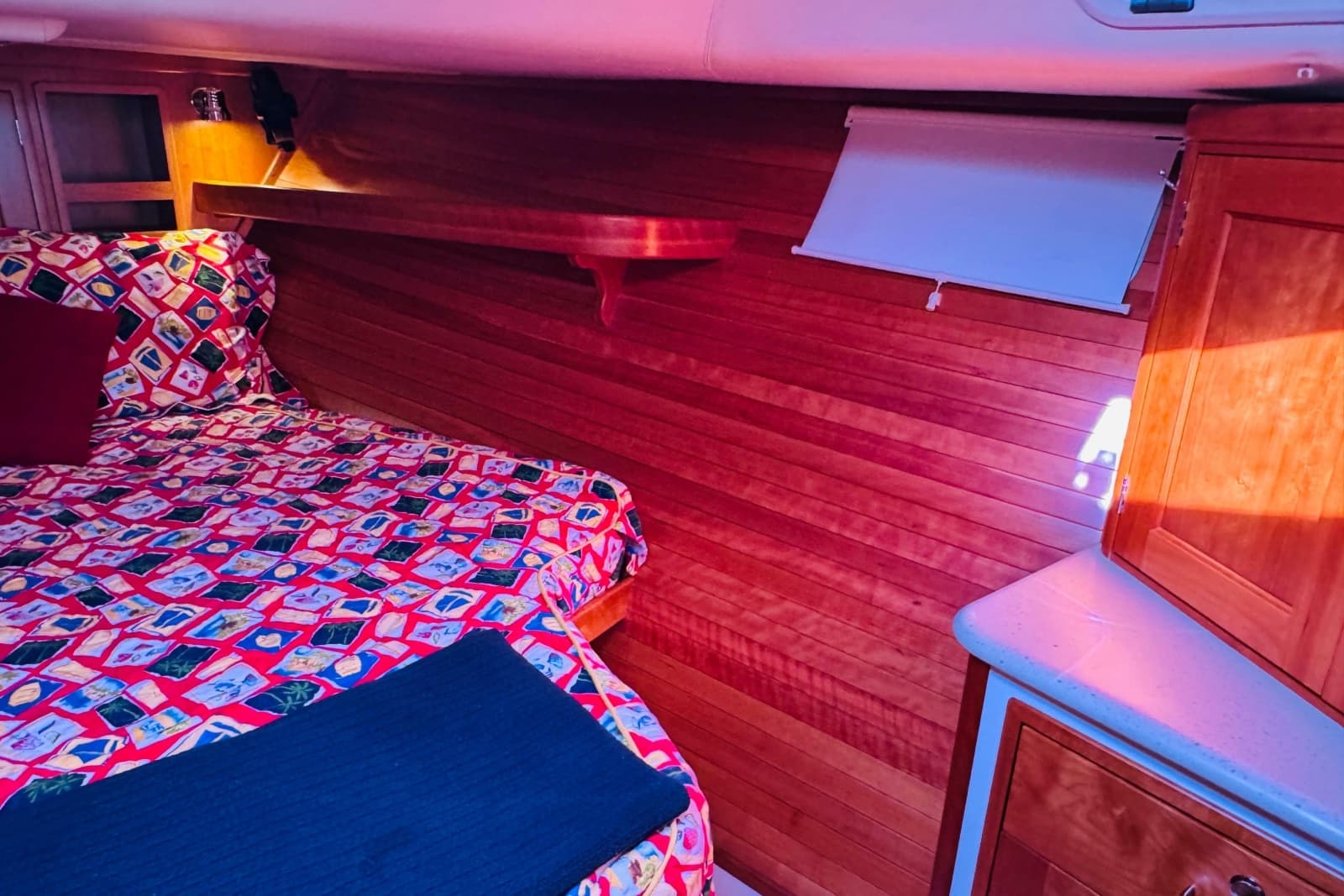

• Fixed 78”x 60” island berth with memory foam mattress covered in durable, water resistant material.
• Storage drawers (4) and below-berth storage bin.
• Storage shelves over berth (P&S) also serve as handholds when rising from berth.
• Framed forward bulkhead with recessed bookcases (2) and double access doors to large forepeak anchor locker.

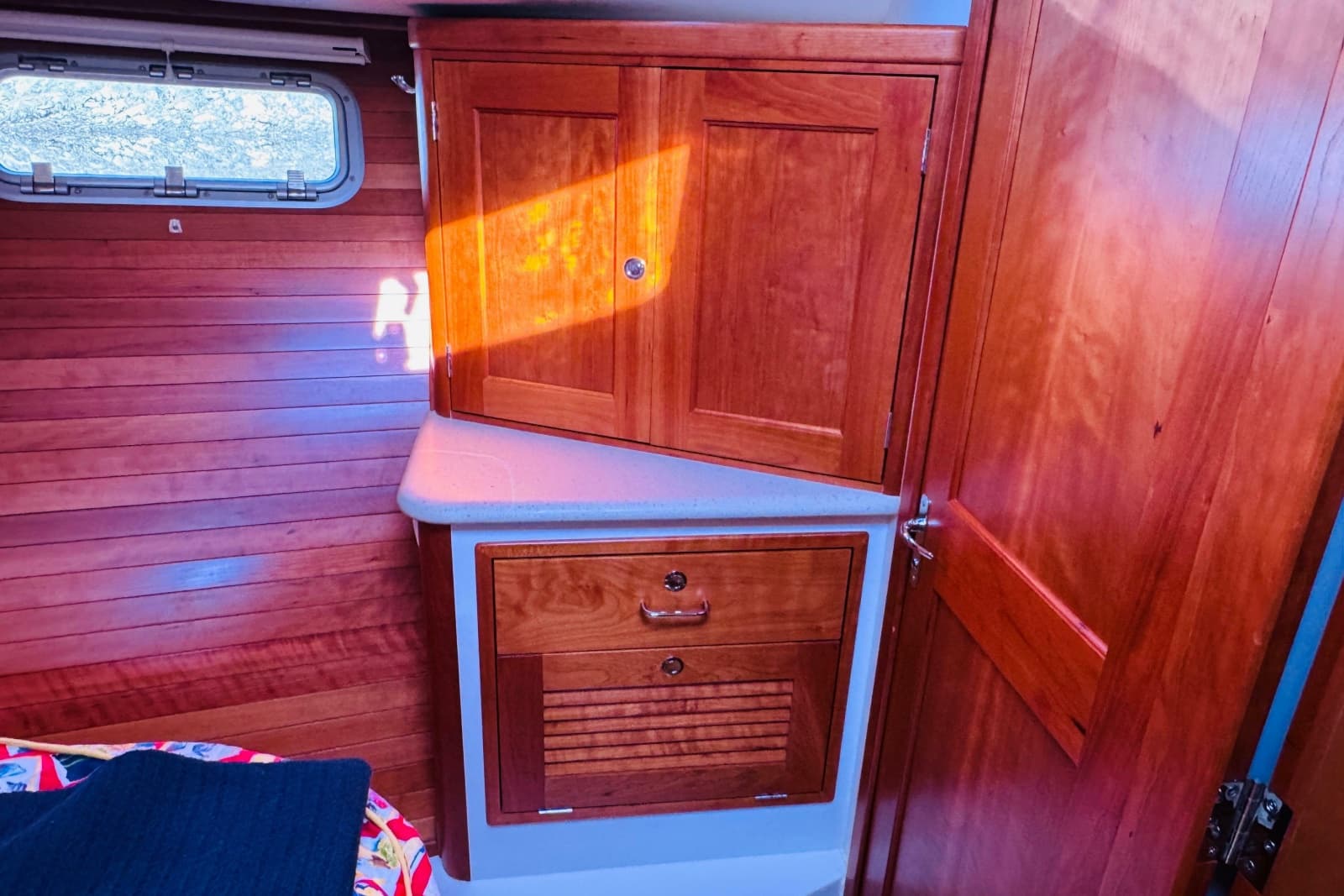

• Combination bureau/entertainment center with drawer & shoe locker, Corian counter and upper storageshelf
• Hanging locker to port with storage shelf over.
• Private access to head and ensuite shower.
• Stainless double-hooks (3) for clothing
• Dressing mirror on forward face of entry door.
• Custom nesting slot for stateroom entry door

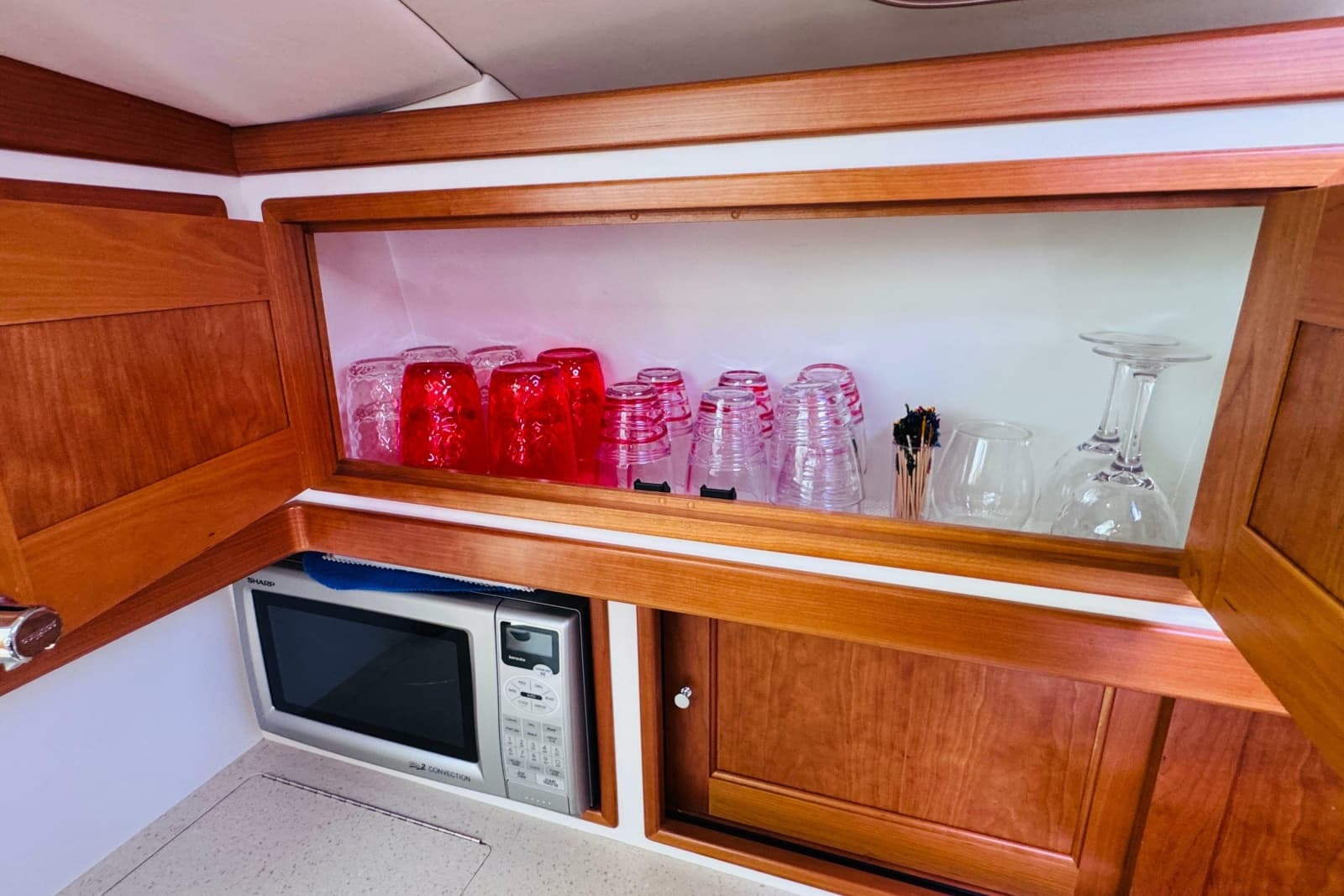

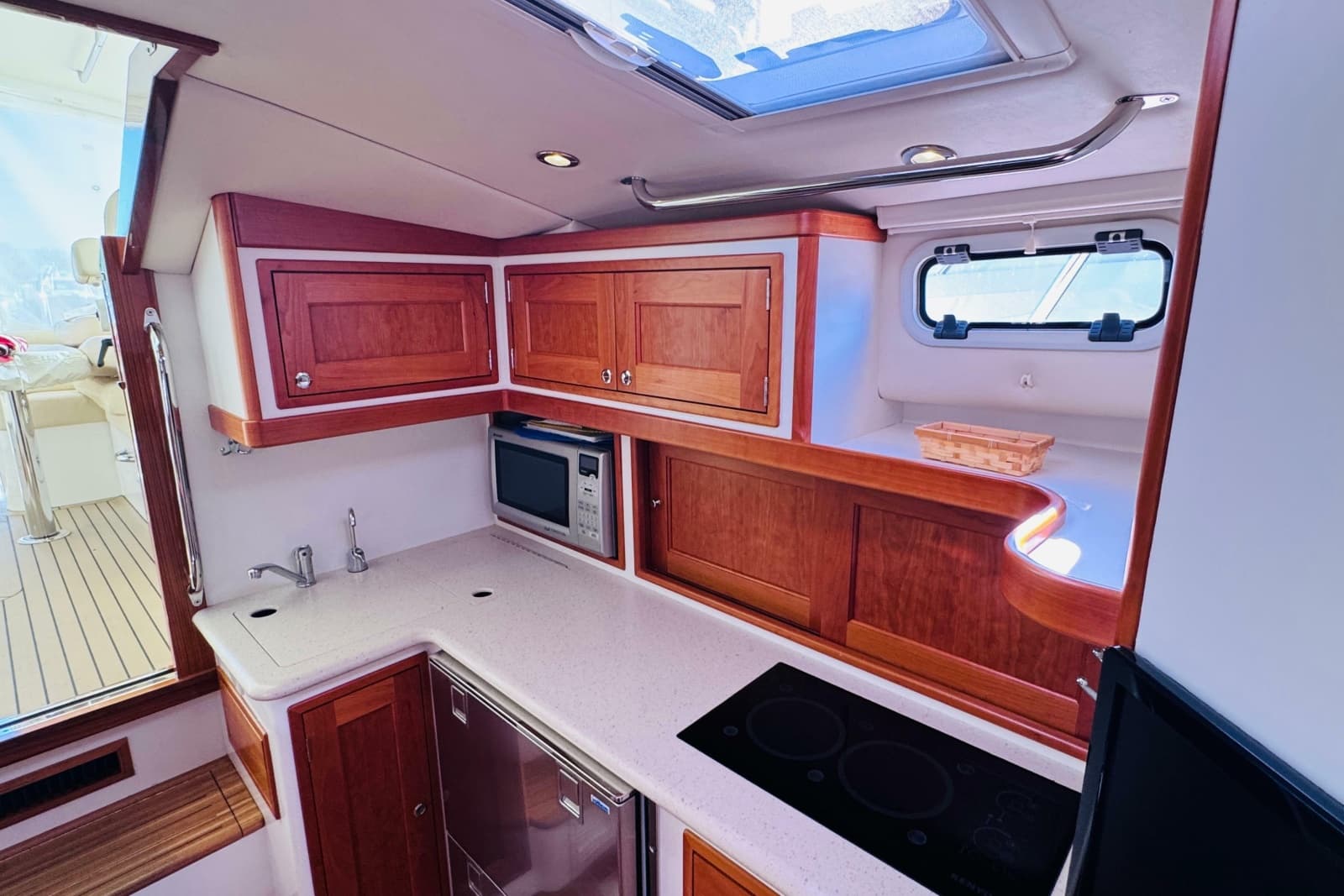

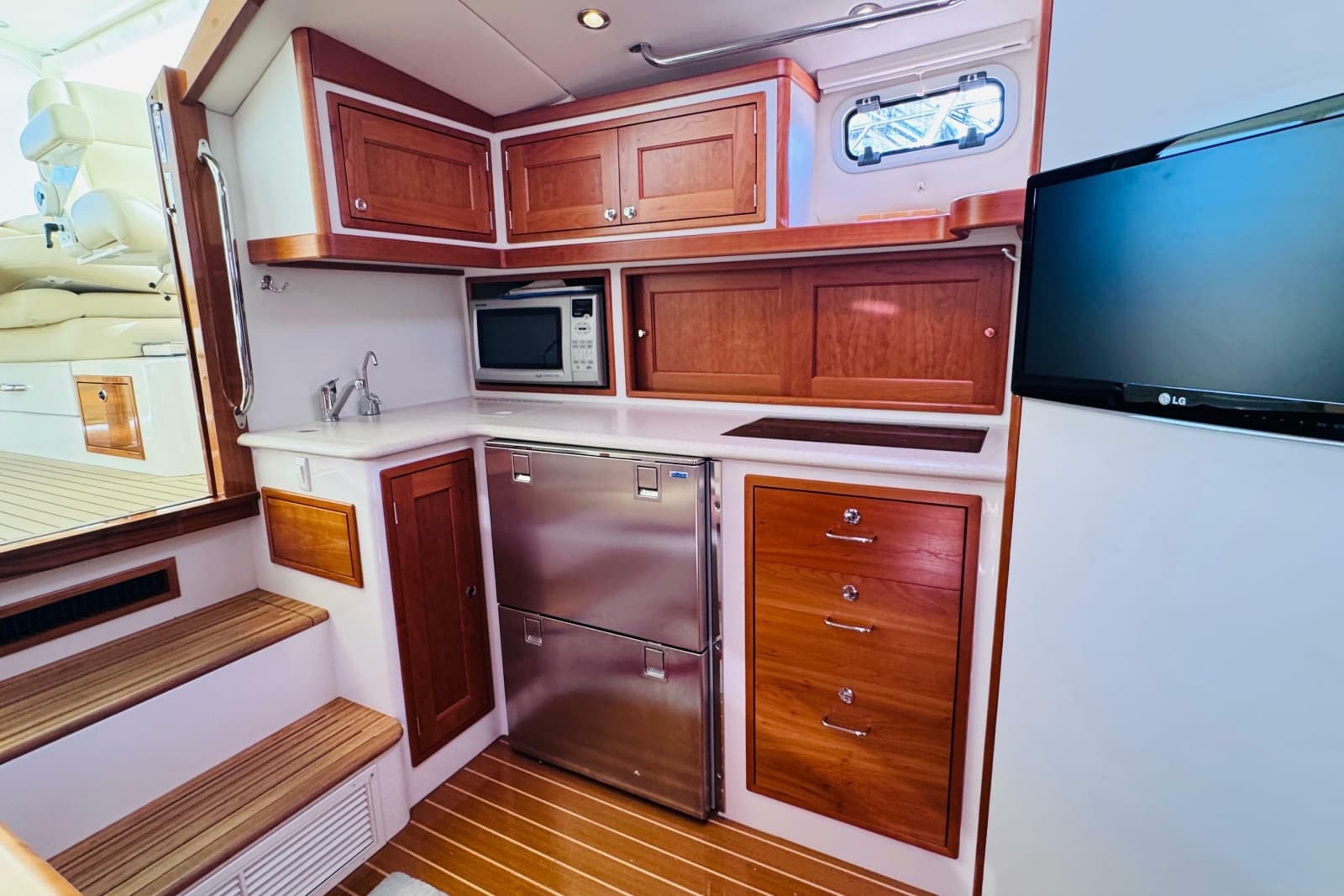

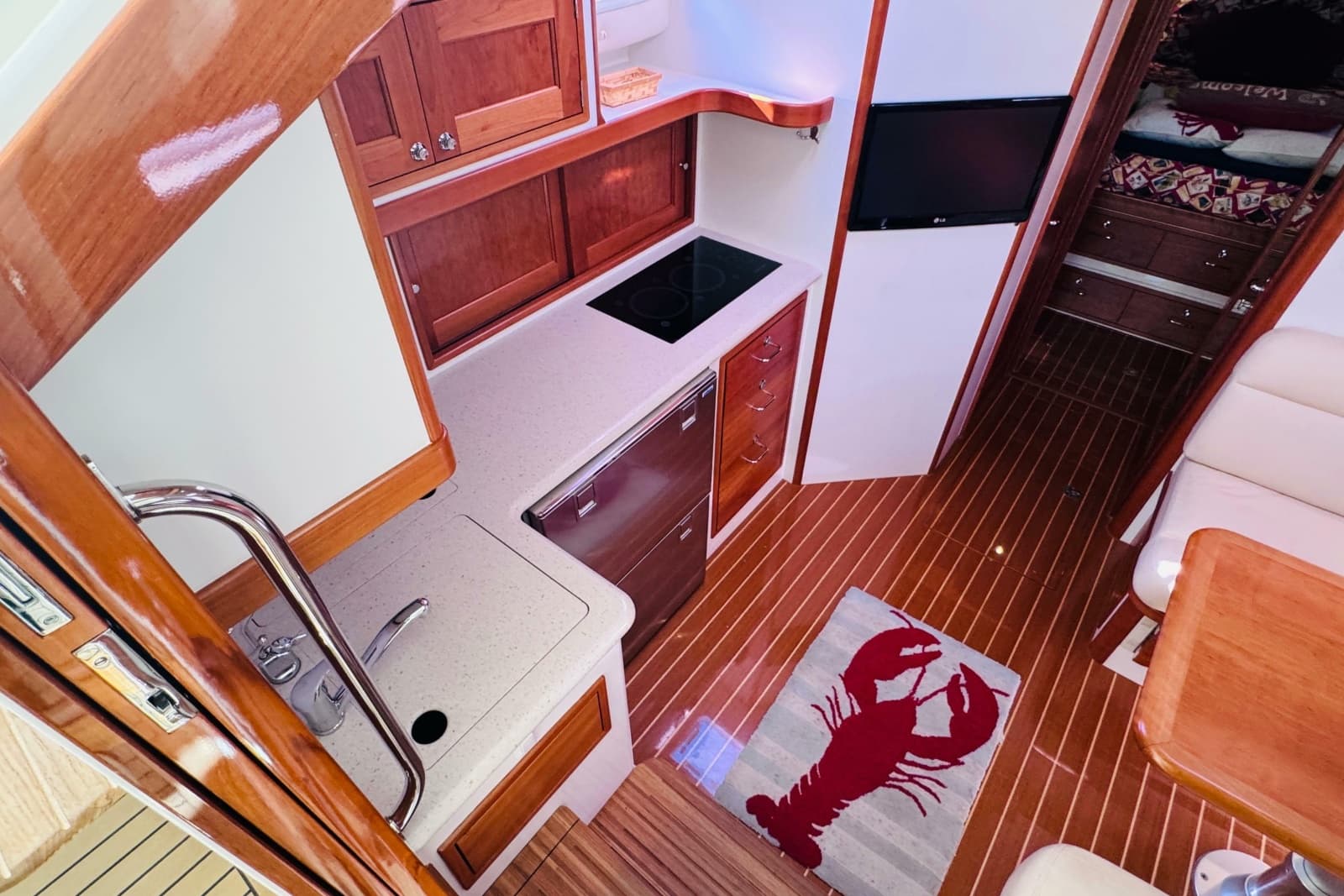

Galley Specifications:

• Corian counter-top with framed, paneled cherry cabinetry with push-button locks & drawer handles and upper storage cabinets with offset inner shelf.

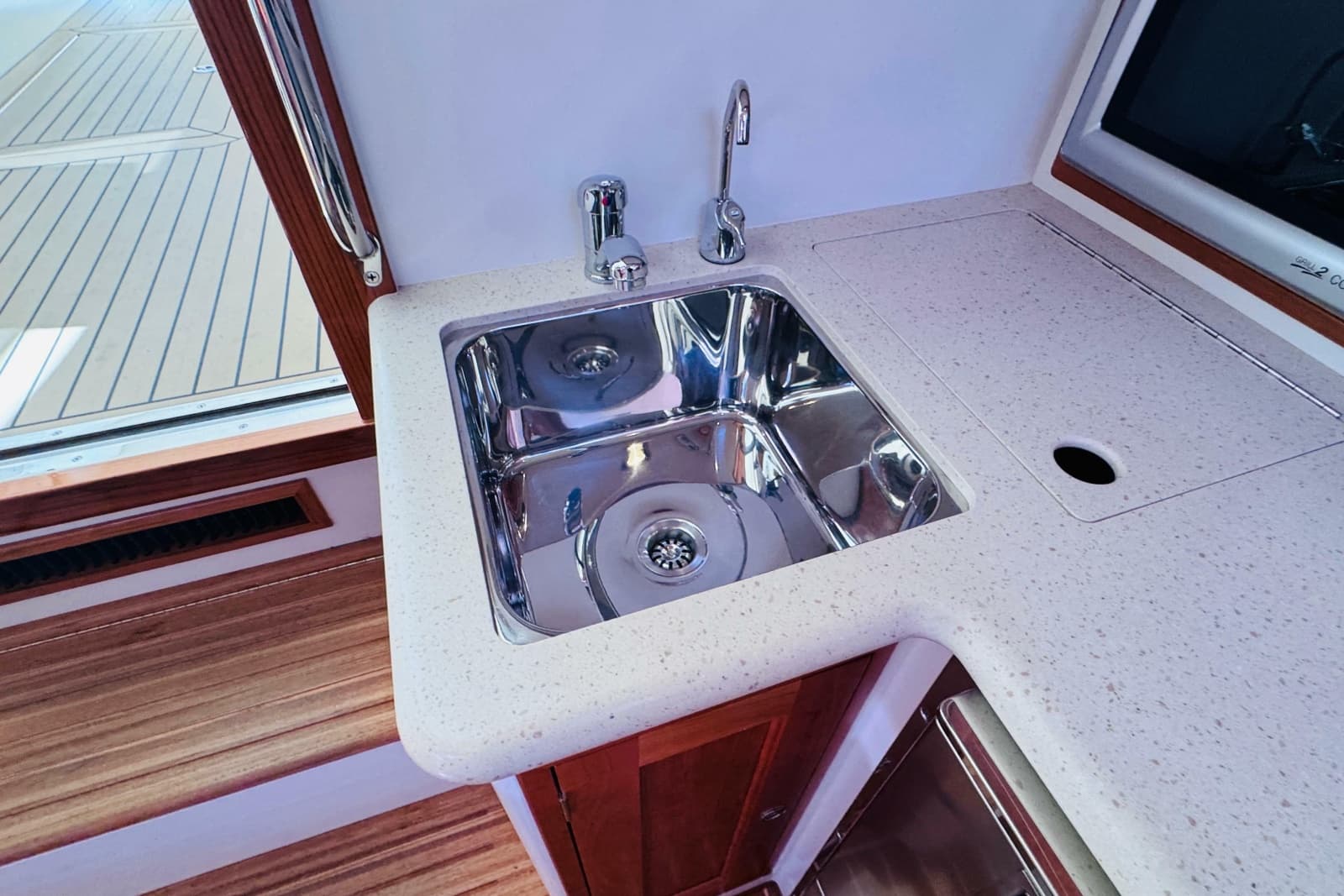

• Recessed polished SS sink with removable bamboo cutting board cover and Scandvik pullout faucet.
• Flatware & utensil drawers (3).
• Stainless steel 2-drawer refrigerator.
• Freezer compartment
• Dry goods cabinet with soft close sliding doors and intermediate shelf w/LED trim lighting.
• Storage locker for pots/pans and cleaning supplies.

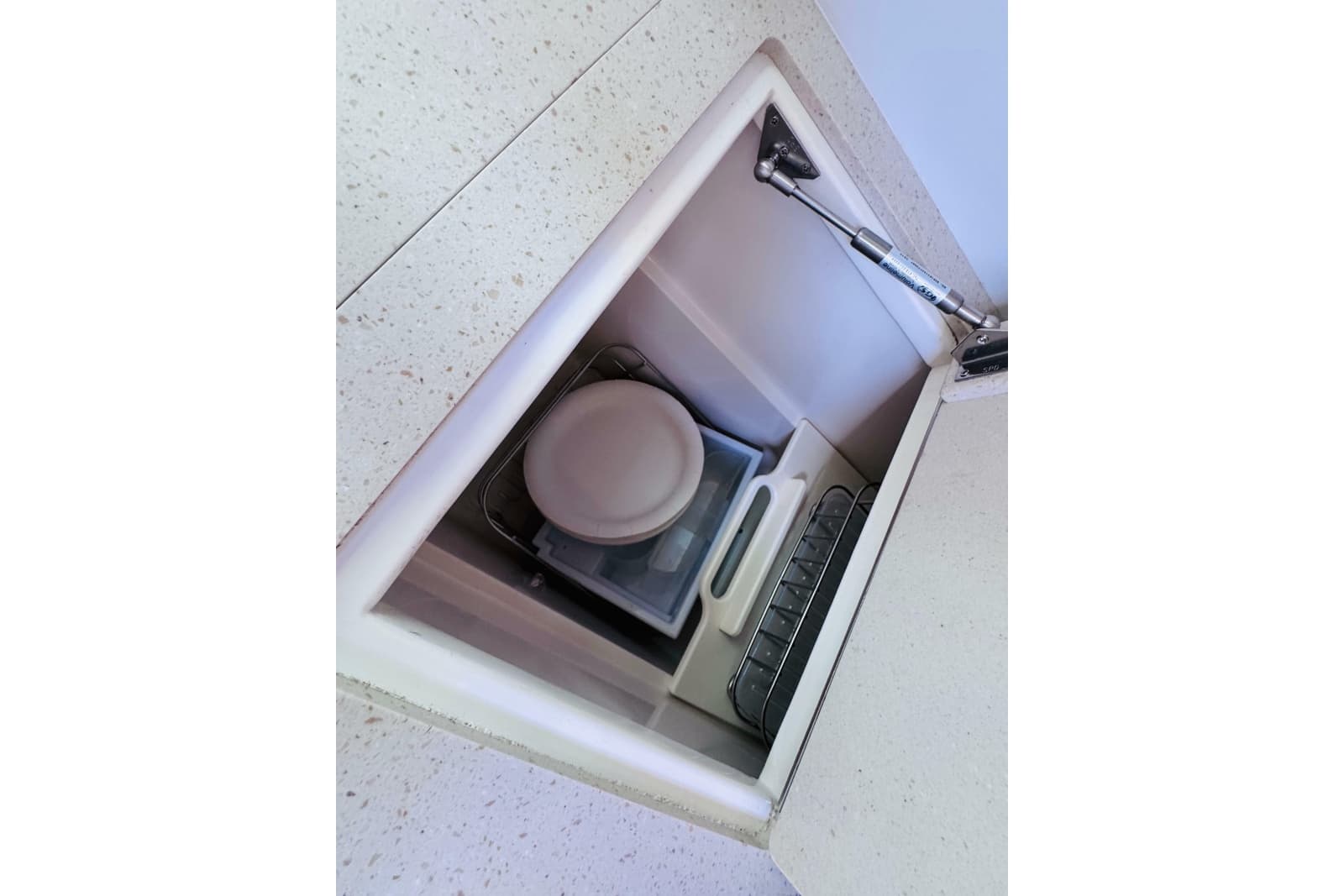

• Flip lid access panel to large Rubbermaid trash bin.
• Overhead safety handrail/towel drying bar.

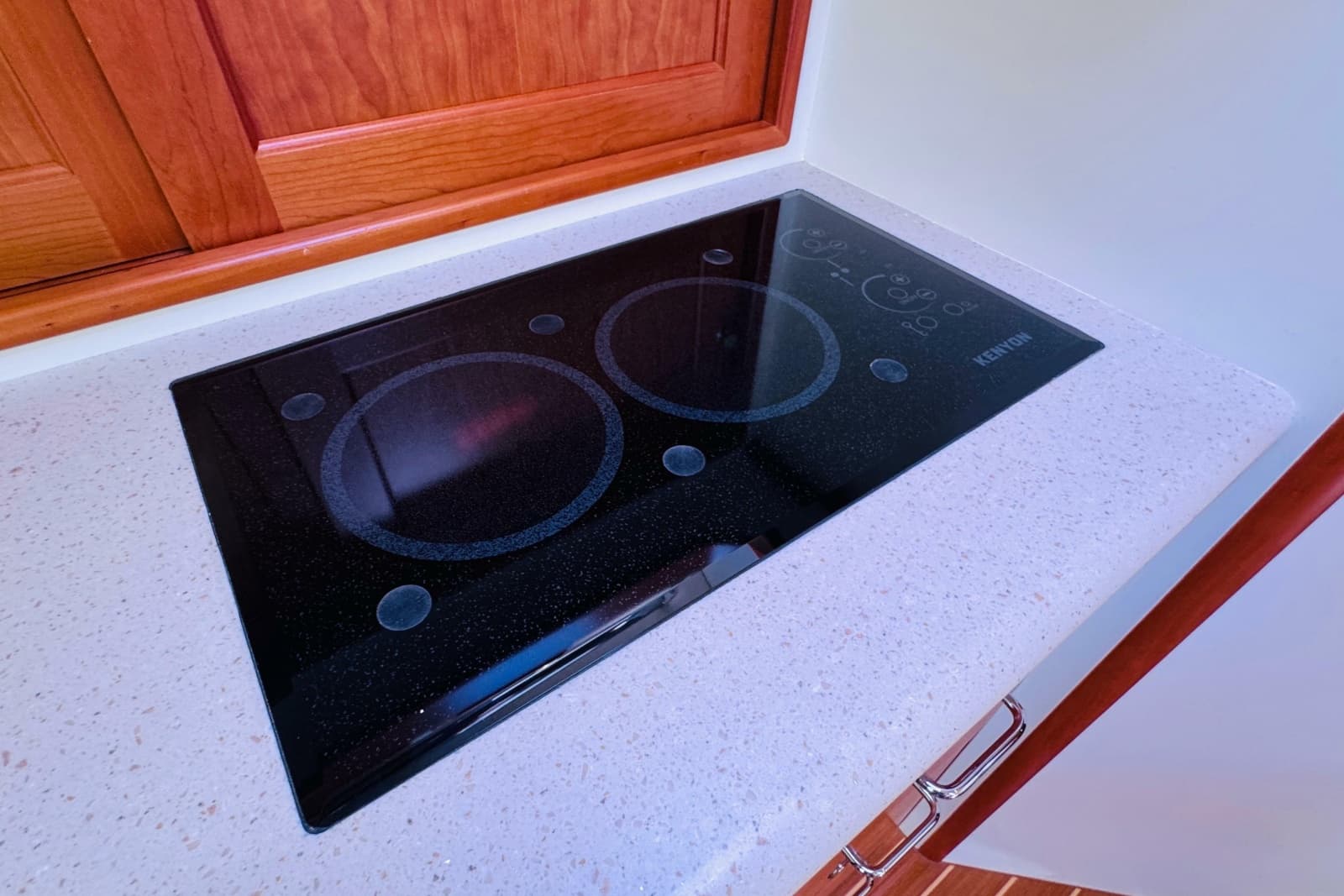

• Ceramic 2-burner induction cooktop
• Sharp microwave oven
• Extended shelf with grab-rail fiddle above galley suitable for chart storage, cutting boards, etc.

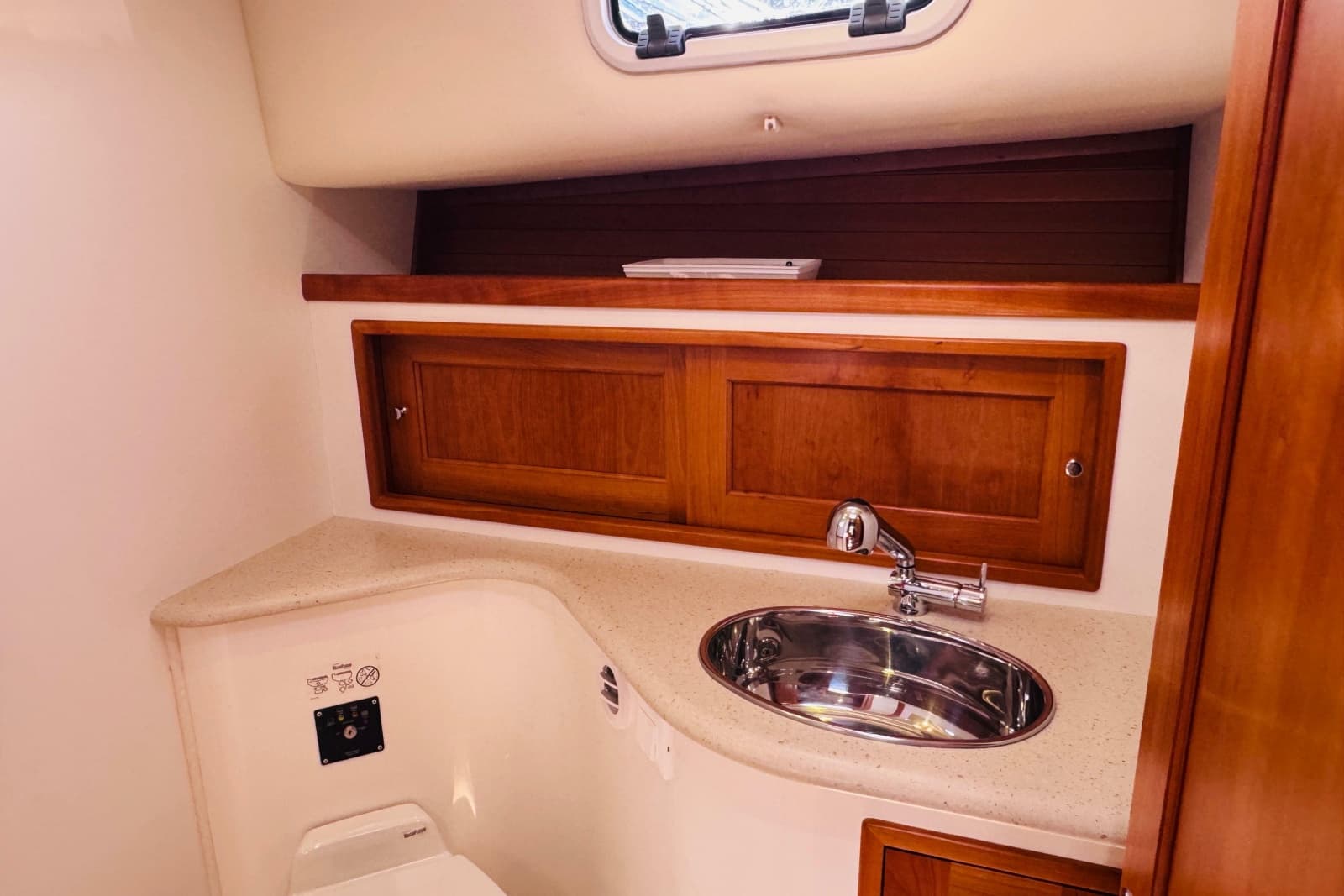

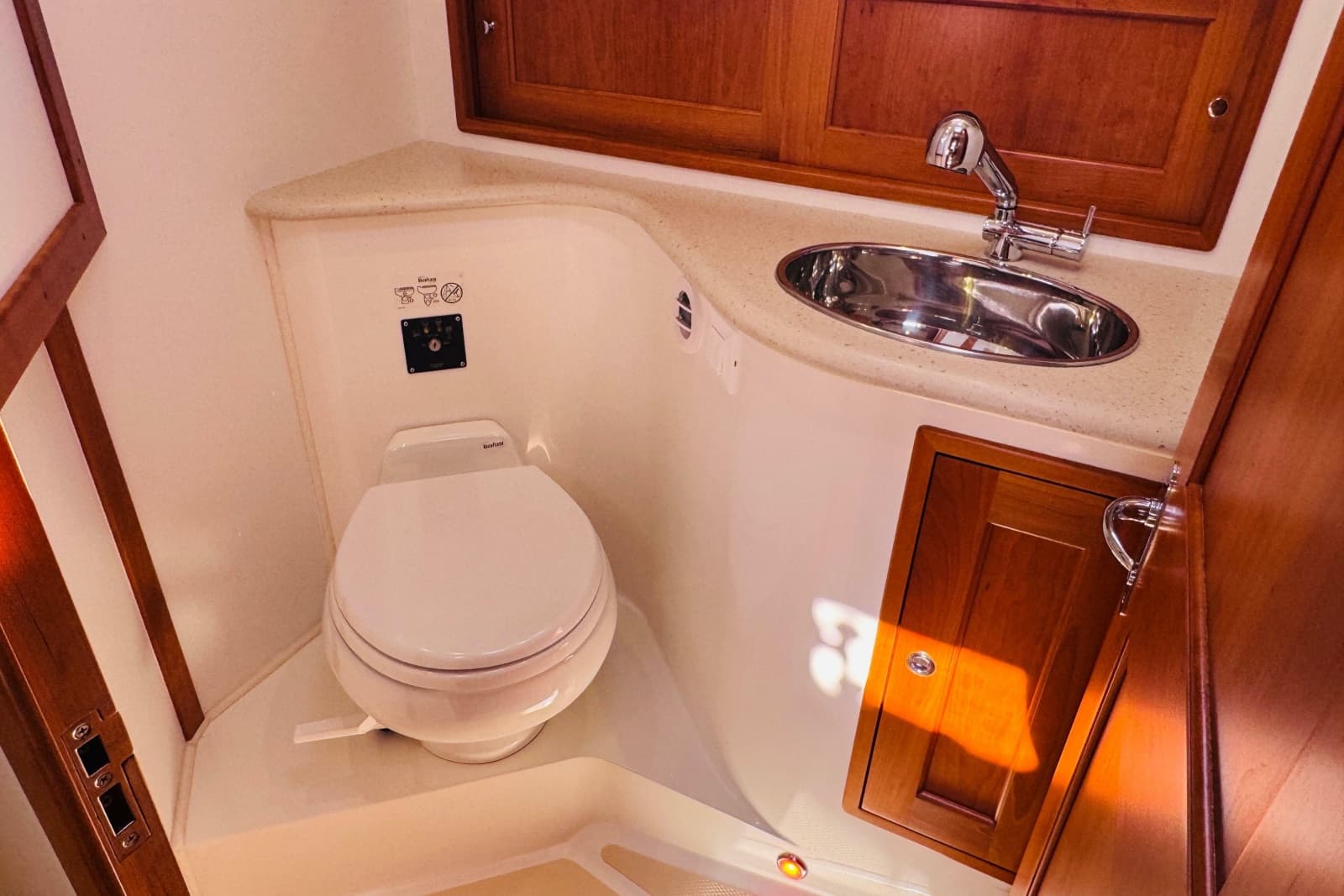

Head Specifications:

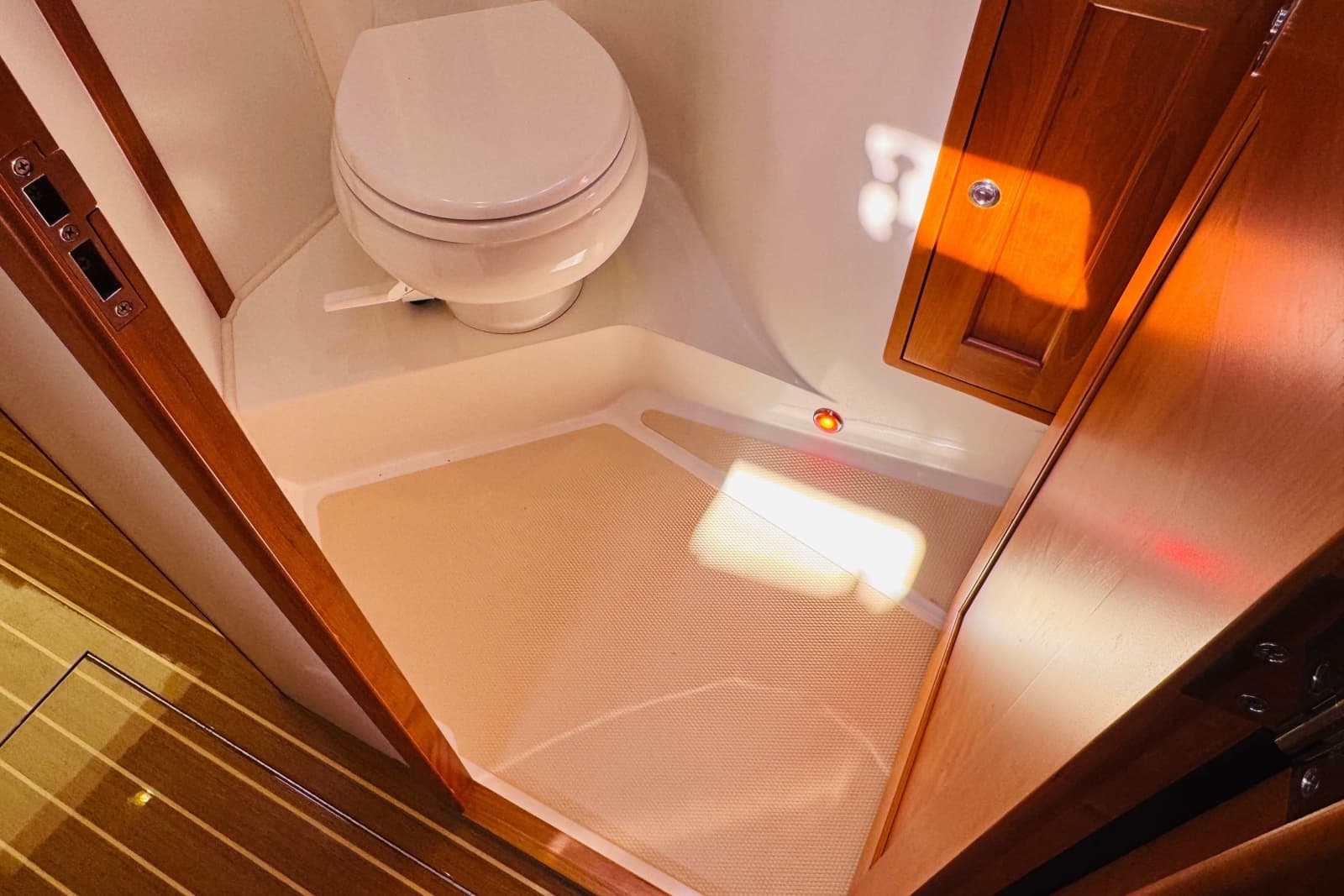

• The portside combination head/shower is accessible from either forward or main cabin.
• Corian counter with white Corian oval sink having mixer valve spigot and pullout flexible hose with soft-spray to use as second shower.
• Paneled cherry storage locker outboard with sliding doors and towel storage shelf above.
• Full-length mirrors inside door.
• Locker under sink w/stainless TP holder
• Towel rings and hooks.
• Vent hatch and portlight.
• Floor drain to gray water overboard system

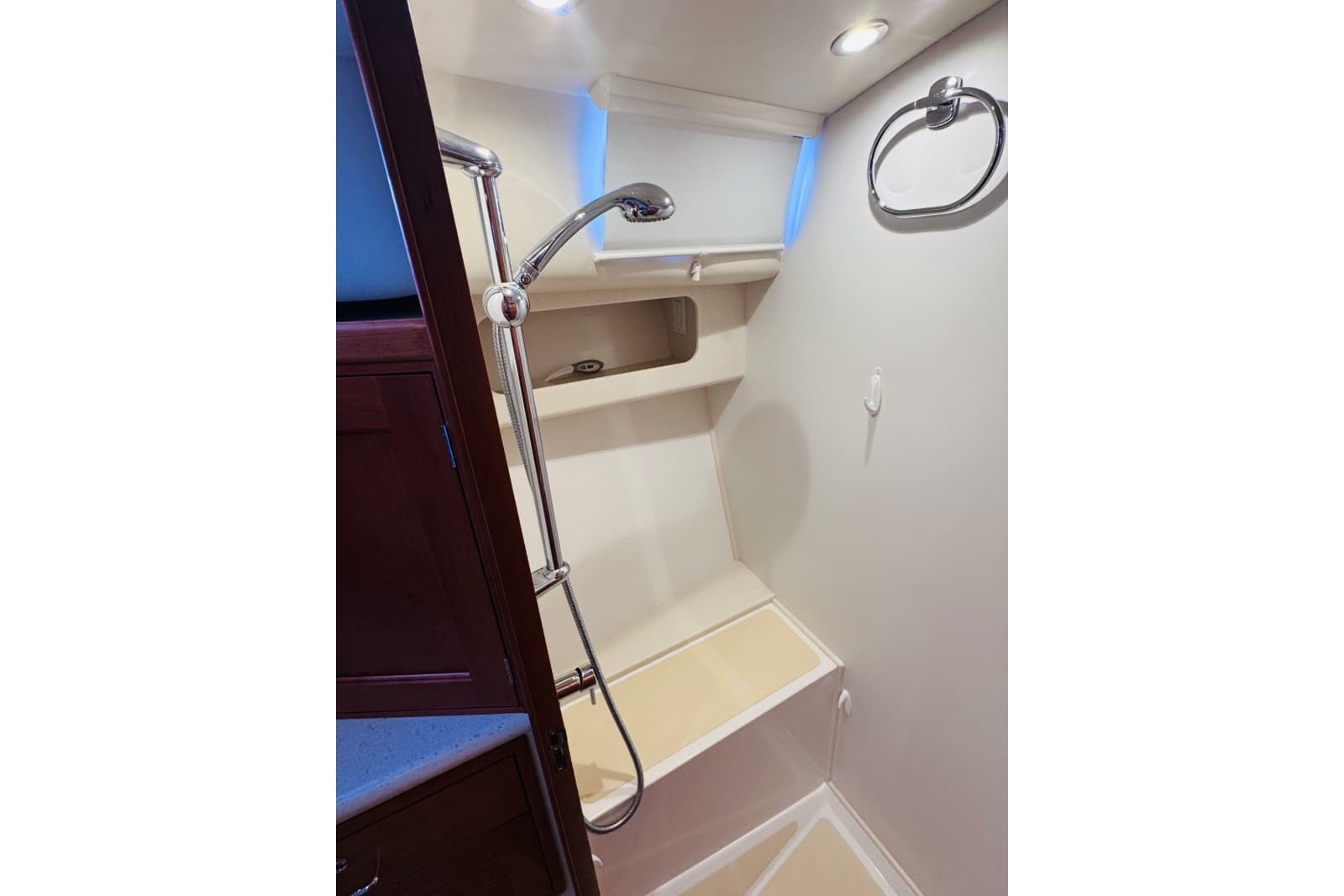

Ensuite Shower Specifications:

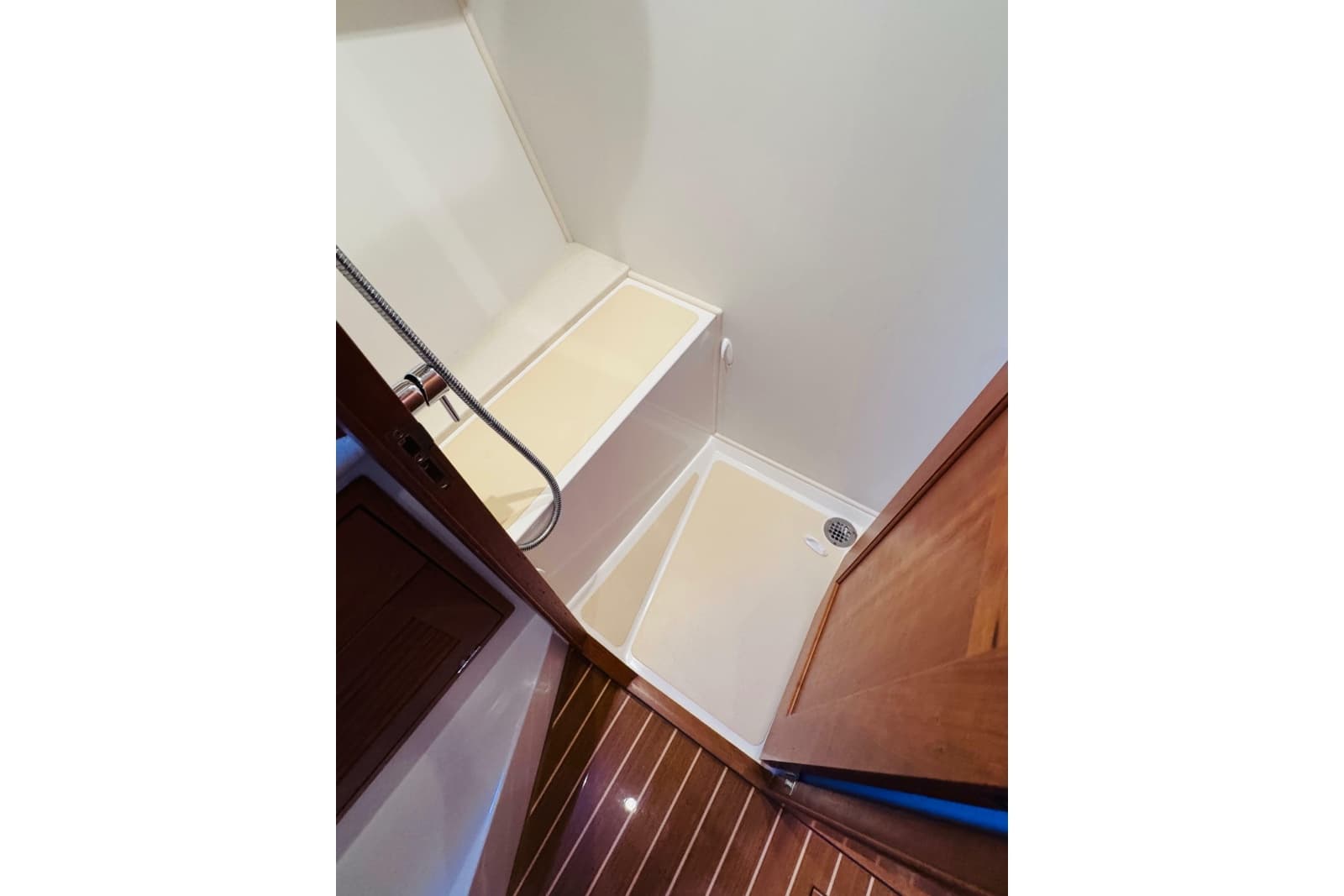

• Shower access to starboard from forward cabin with seat as well as towel & toiletry storage bin outboard.
• Wall mounted Scandvik shower hose w/turnoff.
• Shaving mirror.
• Towel rings and swimsuit & foul weather gear hooks.
• Opening vent hatch & portlight w/screens & shades
• Floor drain to gray water overboard system.

Hull Specifications:

• Modified deep-V, offshore hull with sharp entry, 3.5:1 Length to Beam Ratio, dual lifting strakes, chine flats and 19-degree transom deadrise.
• ISO (CE Mark) Certified Category A Ocean
• Hull and cove stripe in Awlcraft 2000 Majestic Blue w/3 coats of clear to facilitate abrasion repair.
• “Quiet Chine” to dampen wave slap.
• Strong & light epoxy wet prepreg composite with Eglass and 1” CoreCell closed- cell core
• Solid keel, stem, and transom corners backed by a structural grid using unidirectional E-glass/epoxy GRP
• Reinforcing of thru-hull and hardware attachments areas with solid glass or Penske-Board.
• Side entry doors onto cockpit sole (2)

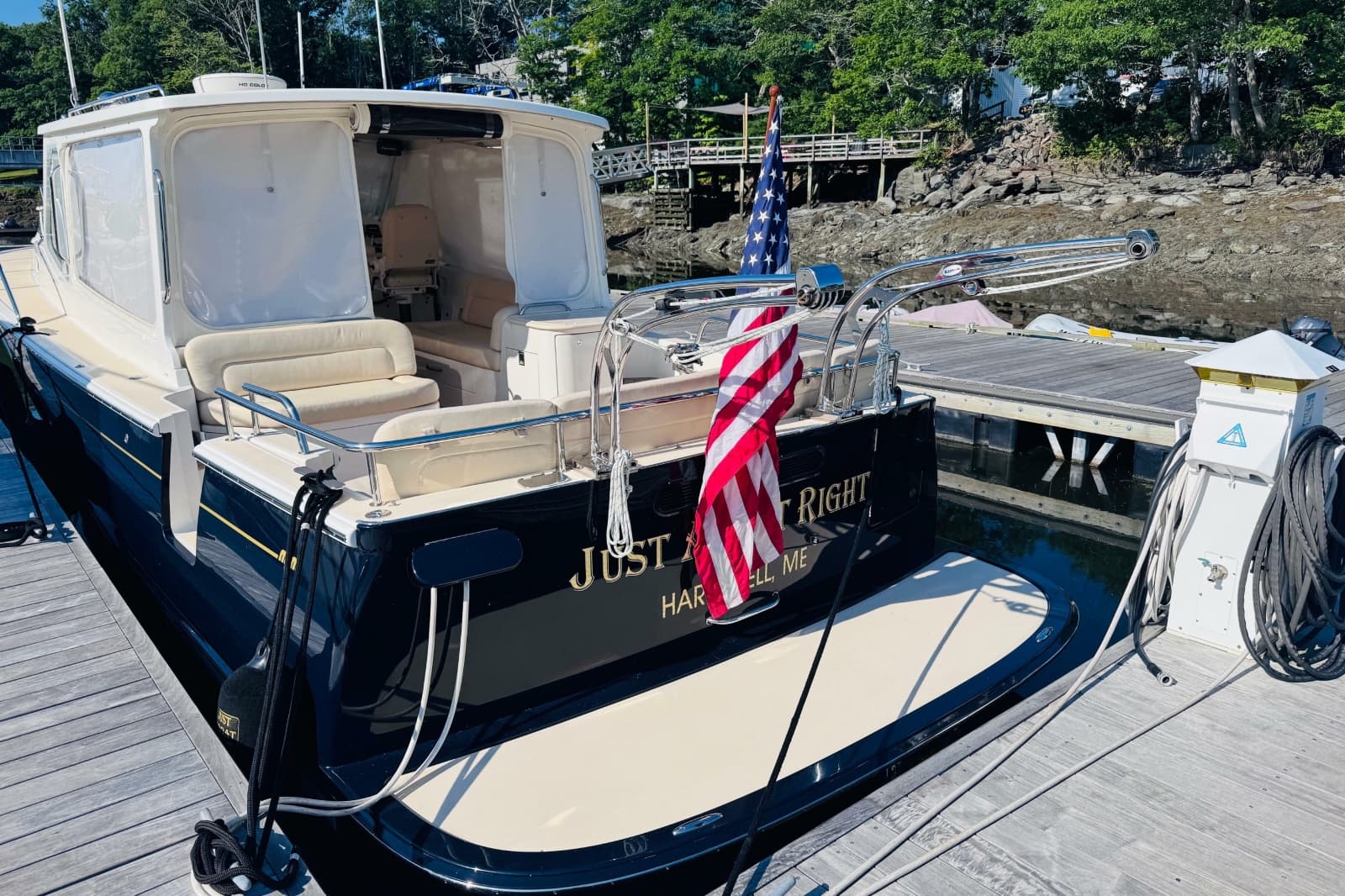

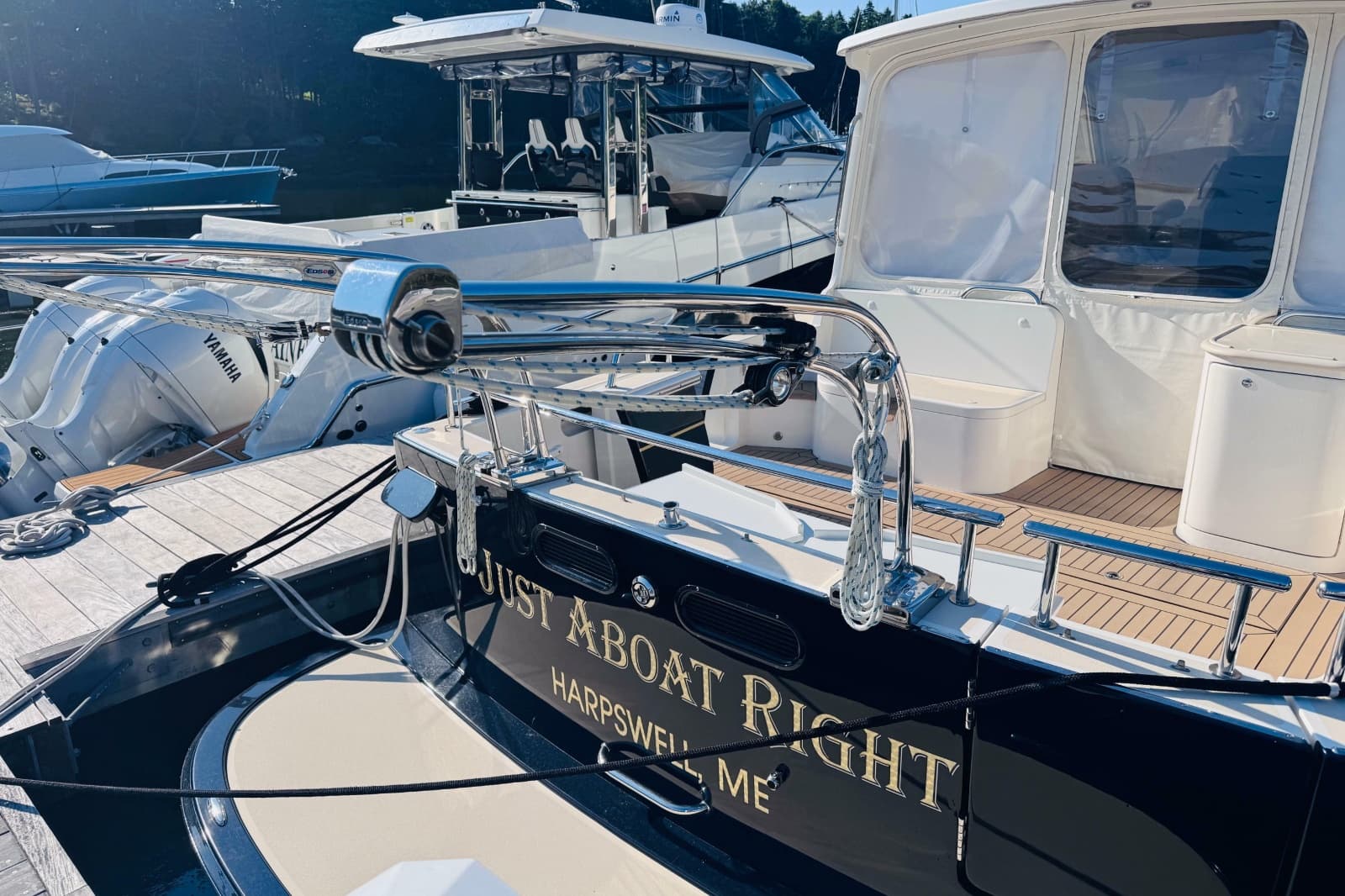

• Transom door to swim platform.
• Bilges painted with smooth, gloss-white finish.
• PVC guardrail and SS quarter-guard rub strips.
• Hull ports (4) in forward cabin and main saloon

Deck Specifications:

• High-tech composite under vacuum using oven post-cured epoxy impregnated, stitched biaxial E-glass with a 1” Alcan Airex C70 closed-cell PVC foam.
• Insignia white gelcoat deck w/sand- textured non-skid
• Molded swim platform with recessed dinghy cleats.
• Custom Armstrong SS retractable swim ladder
• Backing plates for cleats and stanchions of epoxy G-10 pressure-laminated composite.
• Hull and deck fused as monocoque structure with methacrylate adhesive with shear strength of 3,000 lbs. per square inch w/mechanical fasteners on 8-10” centers.
• 316L SS handrails (17) on pilothouse corner posts, hardtop, cabin top, under hardtop, aft seat backs, galley overhead, on console and companionway entrance.
• 29” cockpit guardrail and 24” bow rail of 1.25” 316L stainless with spotlight and teak burgee staff for 16” hoist.
• Flag with teak staff and retainer pin.
• Anchor windlass with deck and cockpit controls

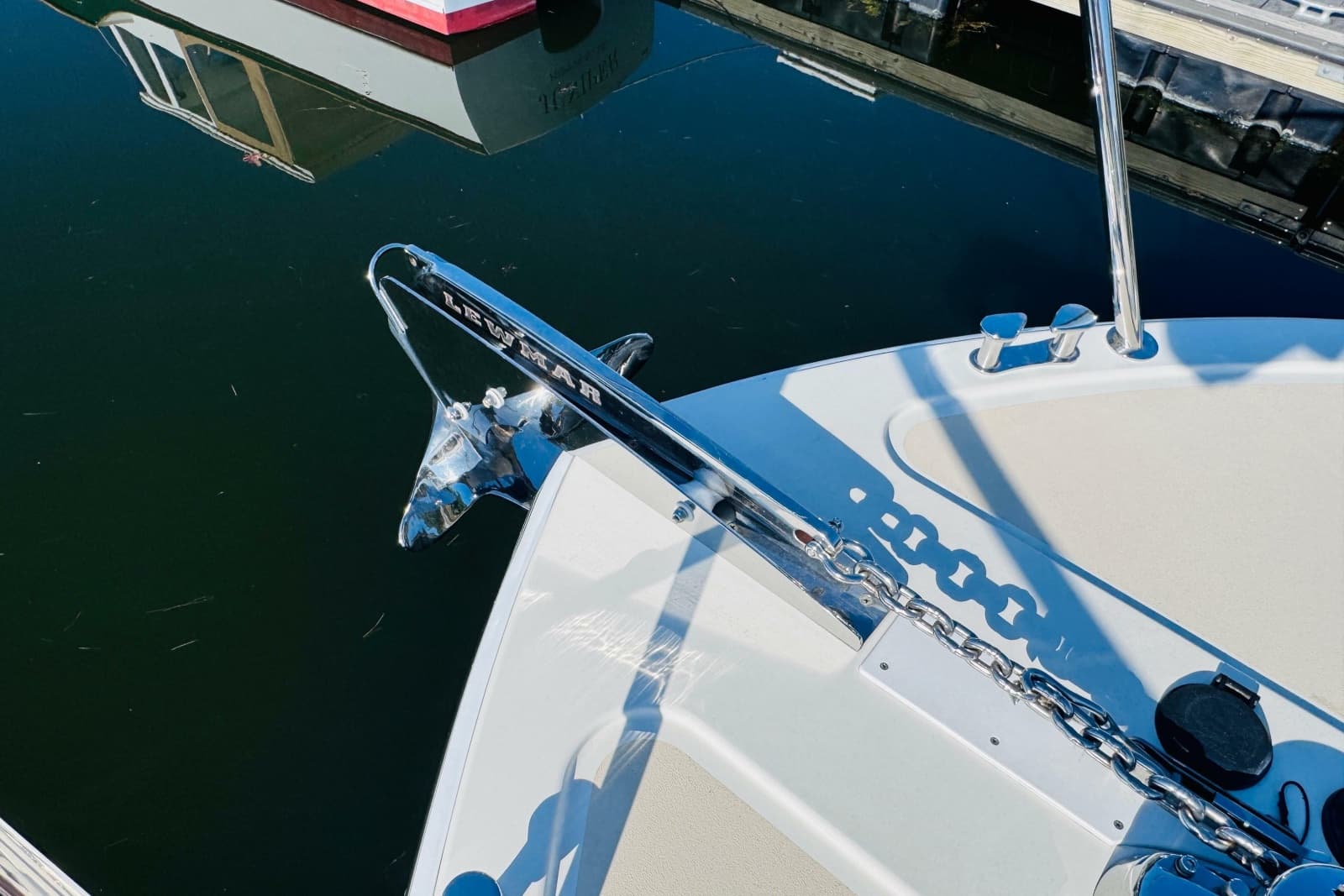

• Auto-launching polished stainless Lewmar claw anchor w/250’ of rode and 25’ of stainless chain.
• Fresh water anchor and rode washer control at helm.
• Polished stainless steel stem guard

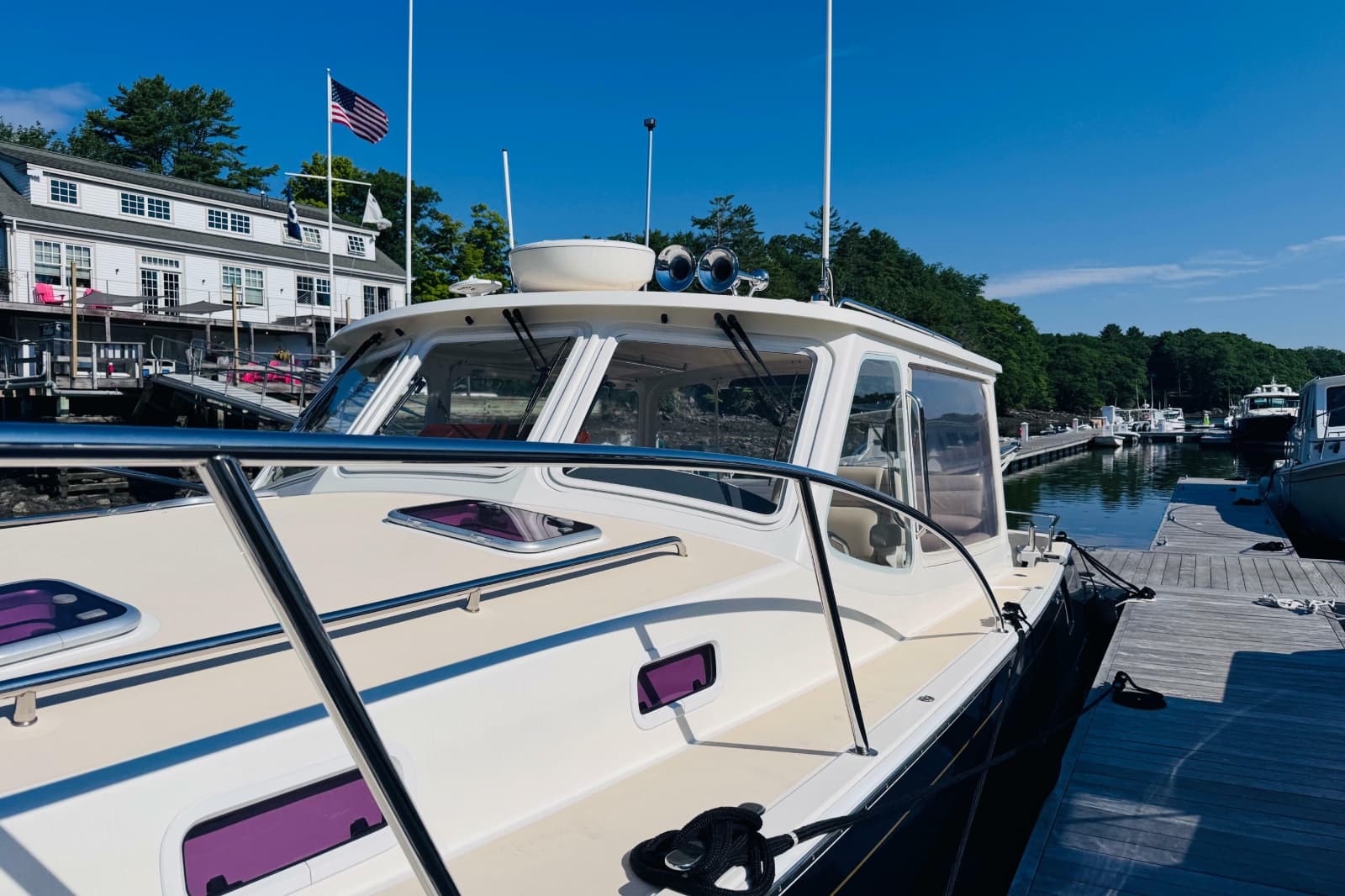

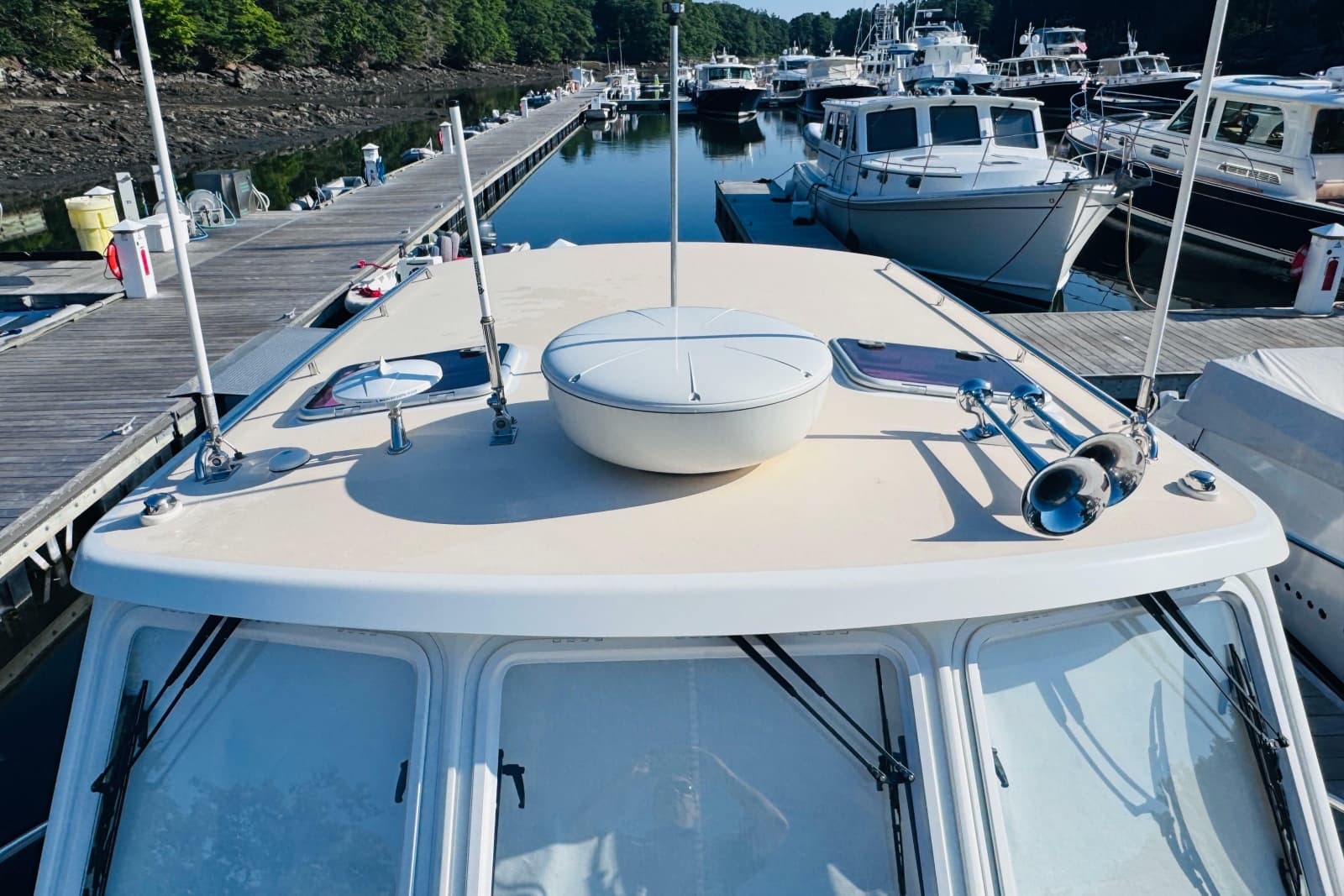

• Molded Downeast Style windshield frame & hardtop
• Pilothouse enclosed on sides by roll-up-in-place, Strataglas curtains.
• Roll-up entry curtain w/combo window/screen
• Deck drains divert dirt/soot/dew/rain into gray water system and out transom...not onto topsides.
• Custom SS multi-directional bow chocks (2).

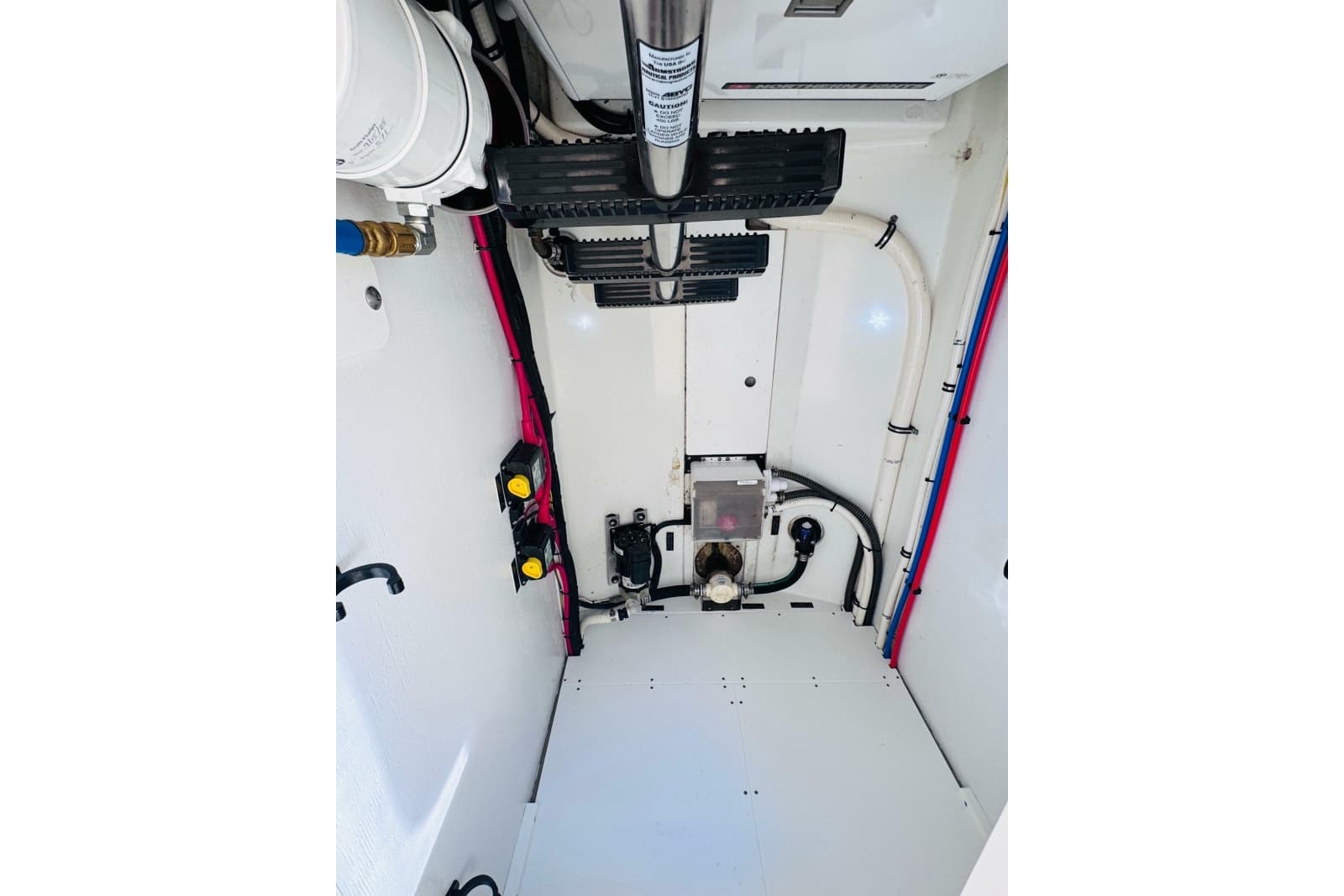

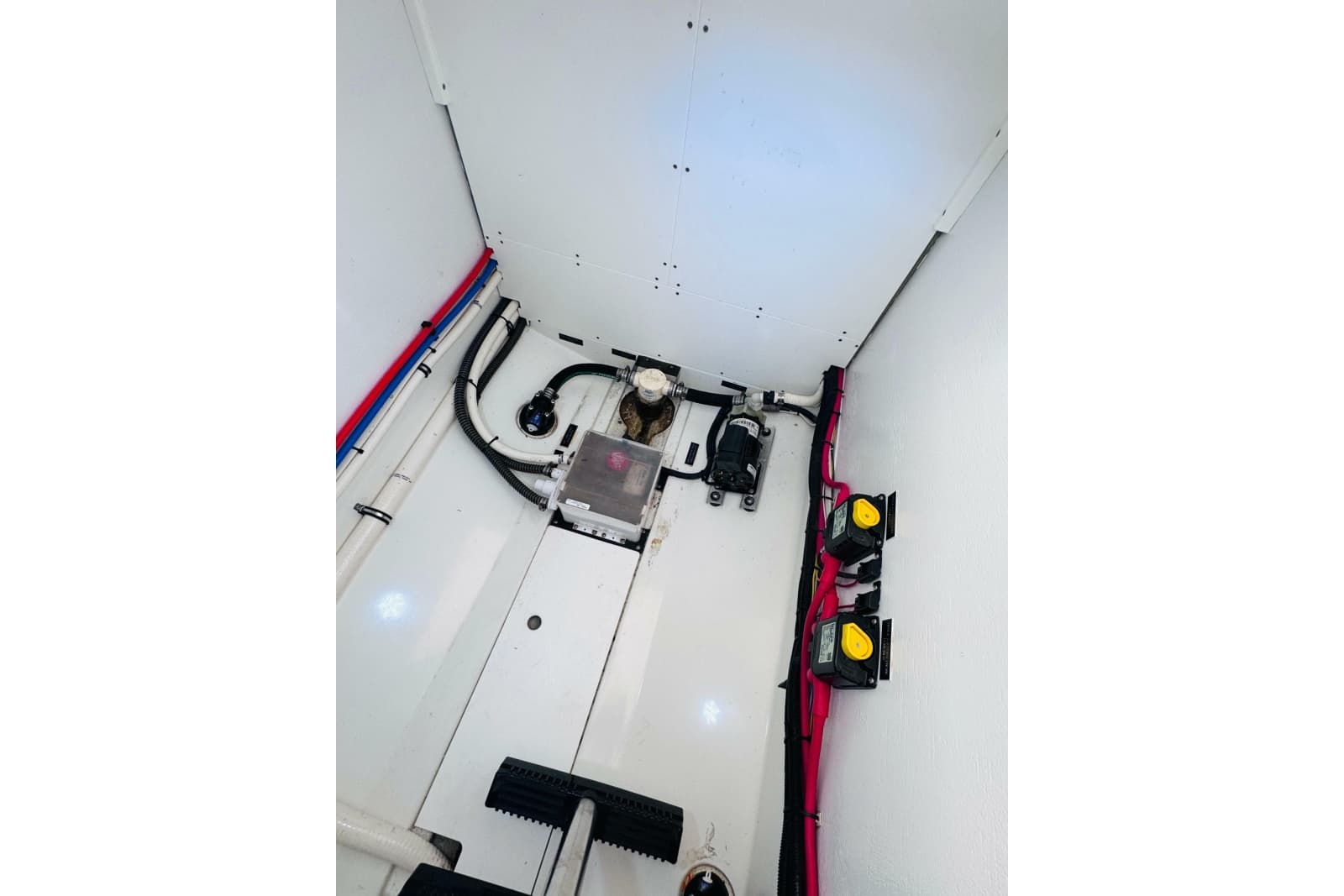

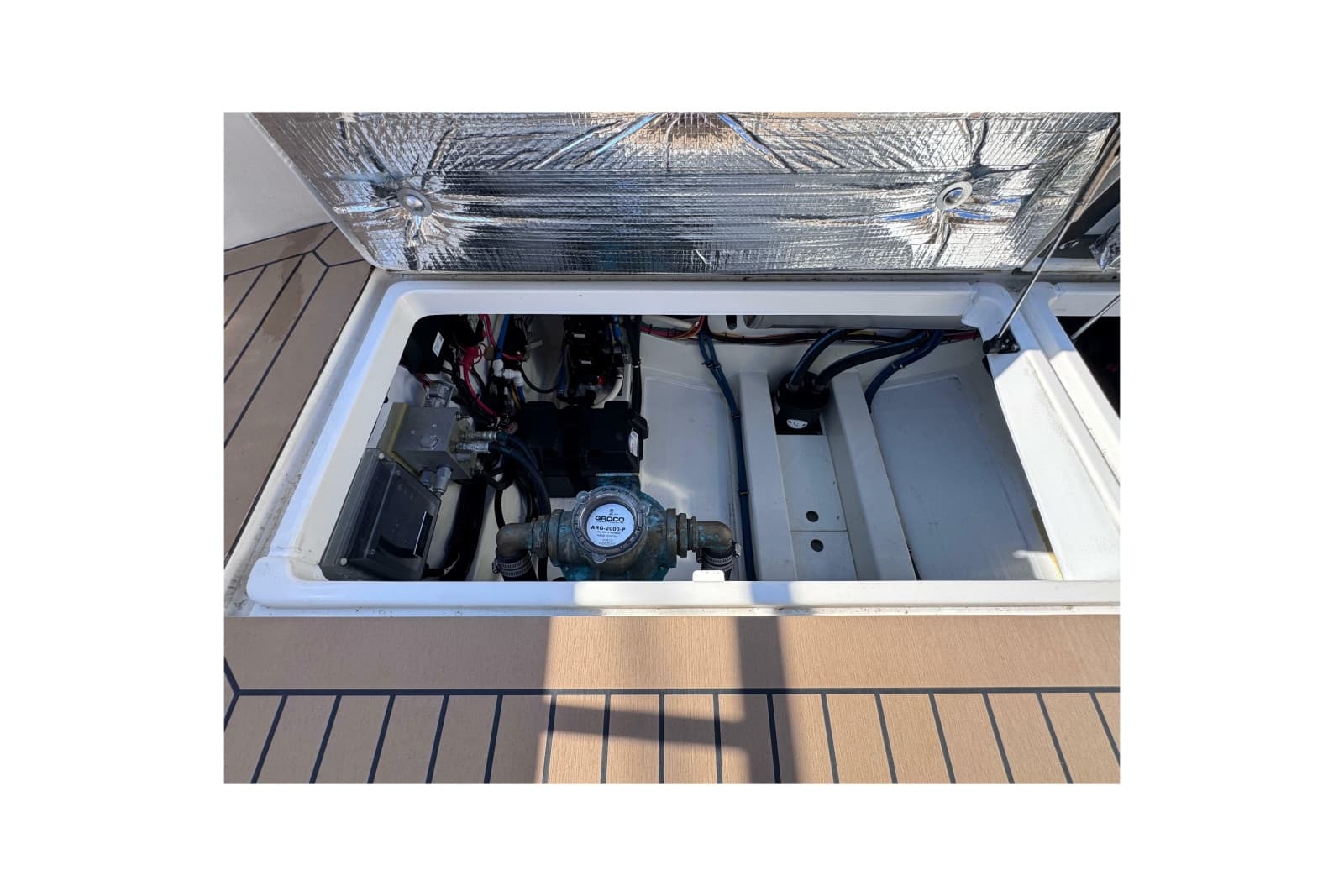

• Systems room access hatches
• (3) with scuppers, overboard drains, gaskets and lockdowns. Main hatch has electric operated lift and Armstrong access ladder.
• Clear Awlcraft finished teak storage drawers w/locks

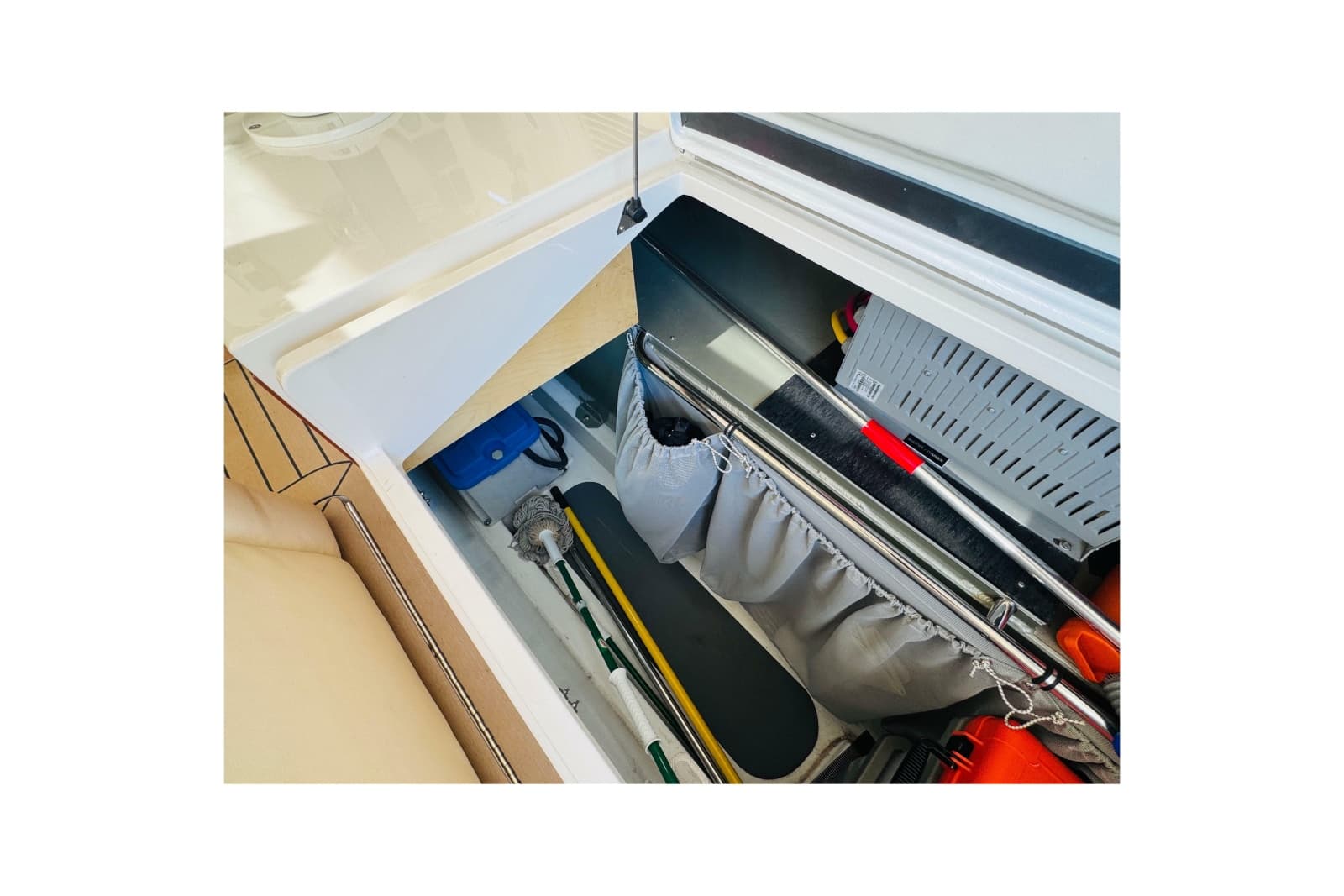

• Large pilothouse settee lockers P&S w/piston- activated lockable lids, vinyl flooring and mesh organizer bags for cords, hoses, mountain bikes, hard luggage, dinghy & golf clubs.
• Cockpit seat lockers (P&S) for docklines, fenders & cleaning supplies with UltraLeather cushions.

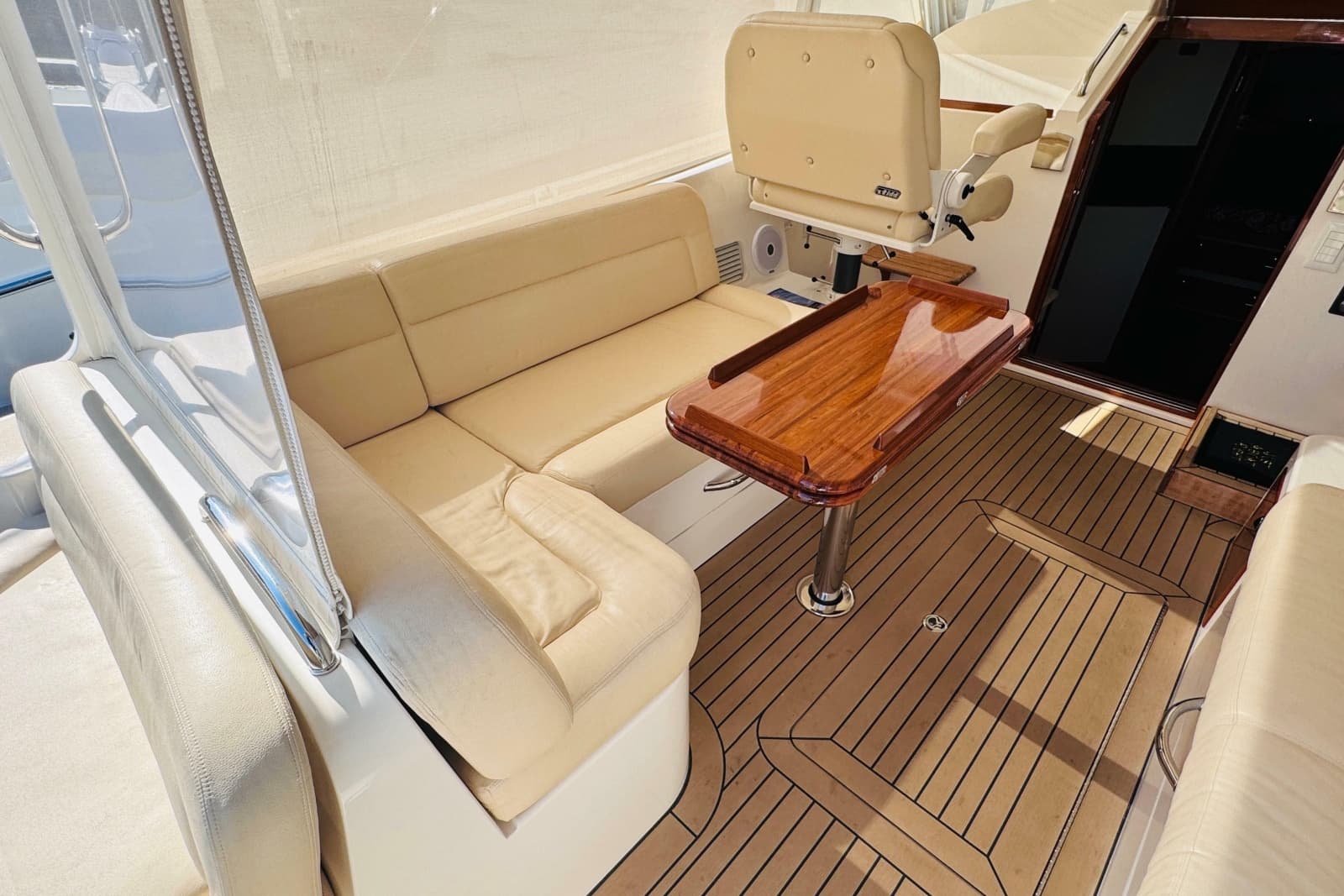

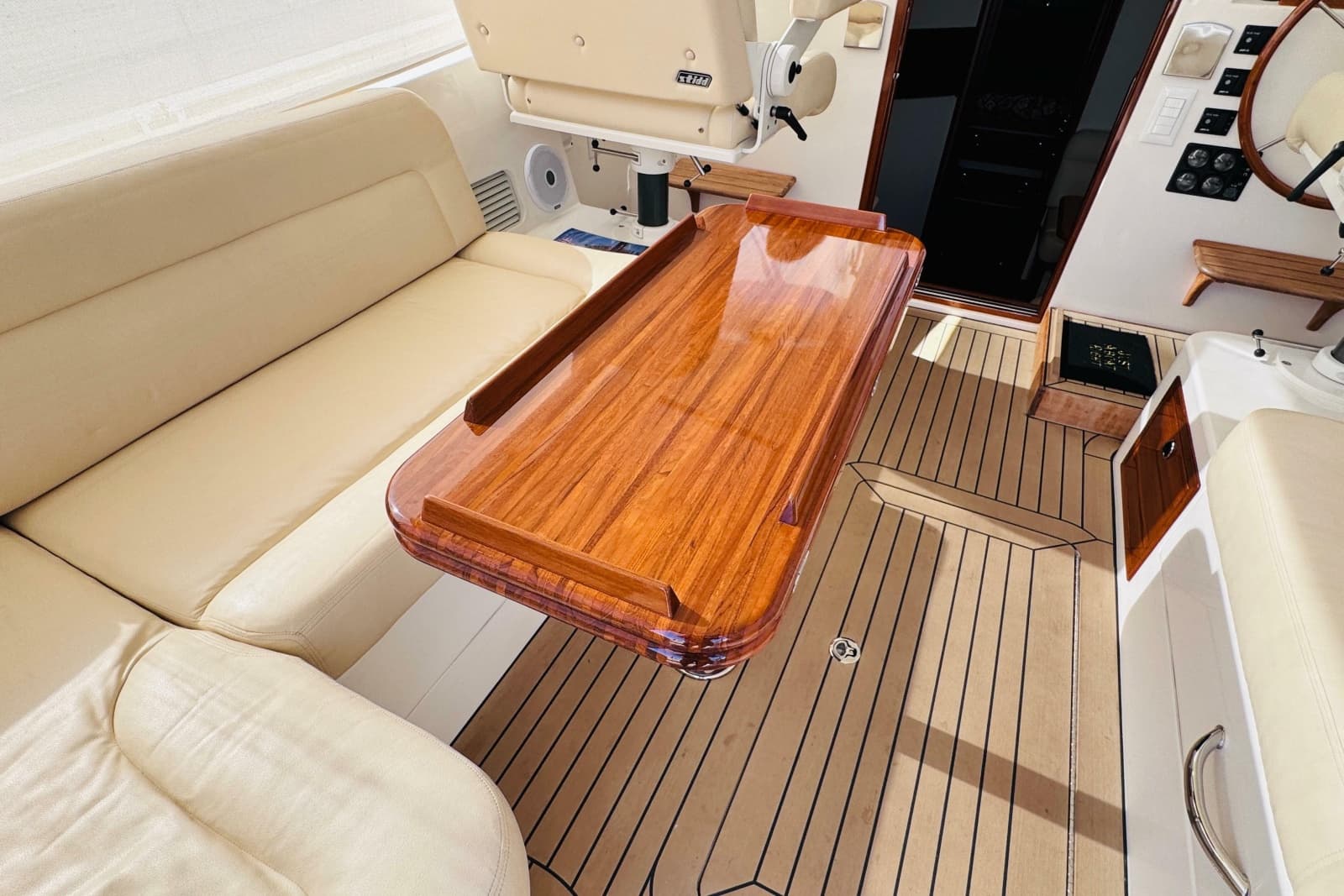

• Dual position 36x16 single- leaf gloss-varnished teak table opens to 32”wide for cockpit & pilothouse.

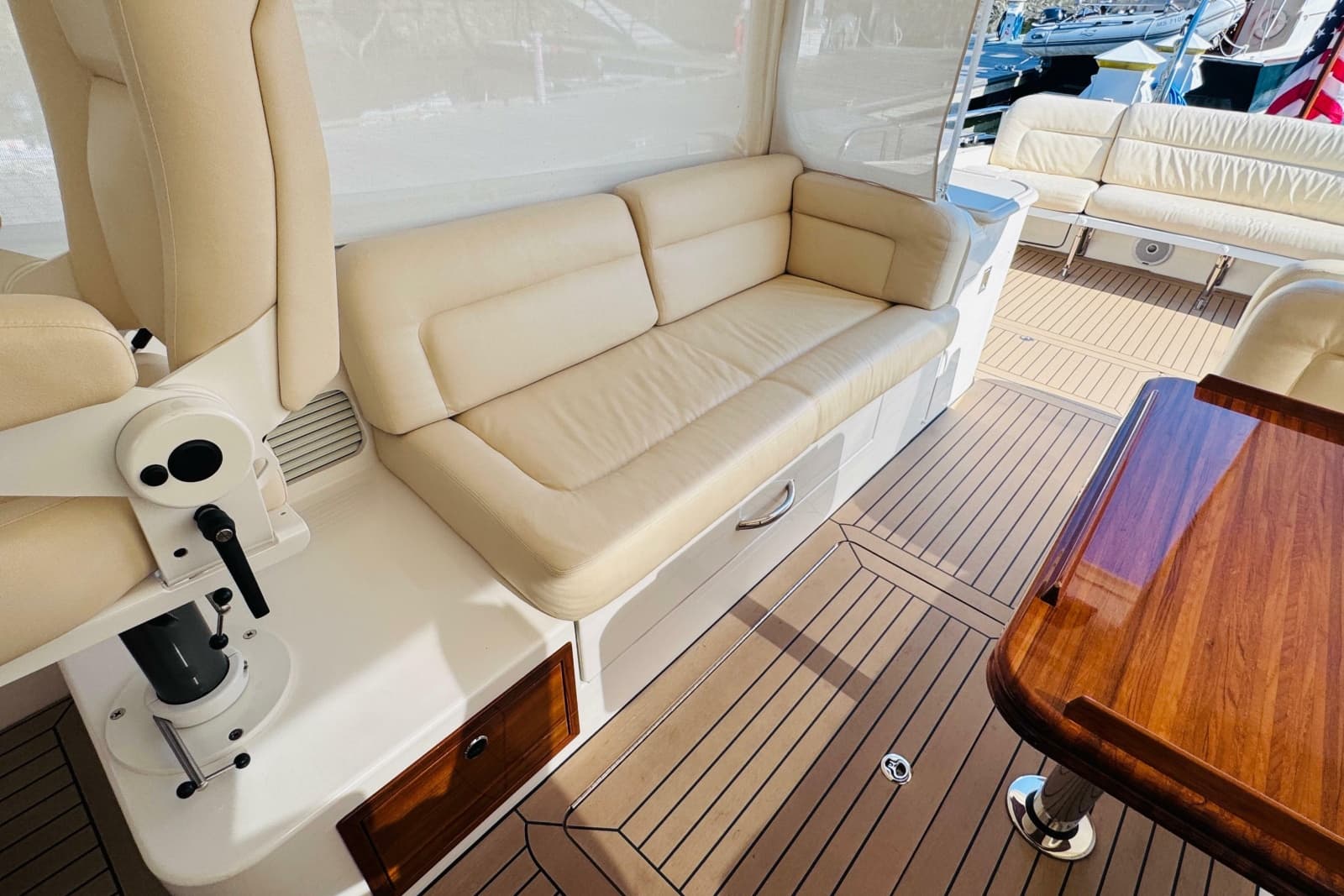

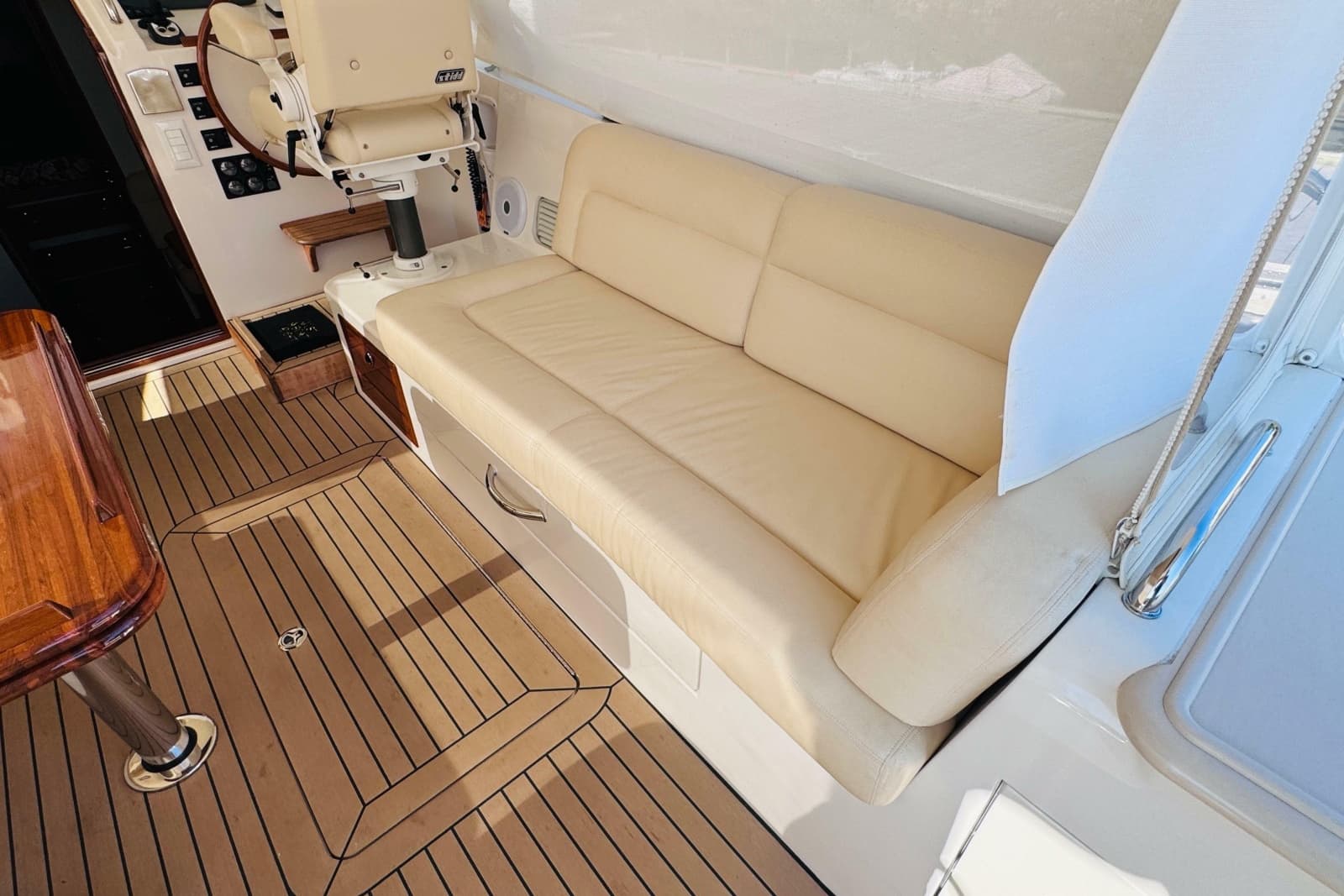

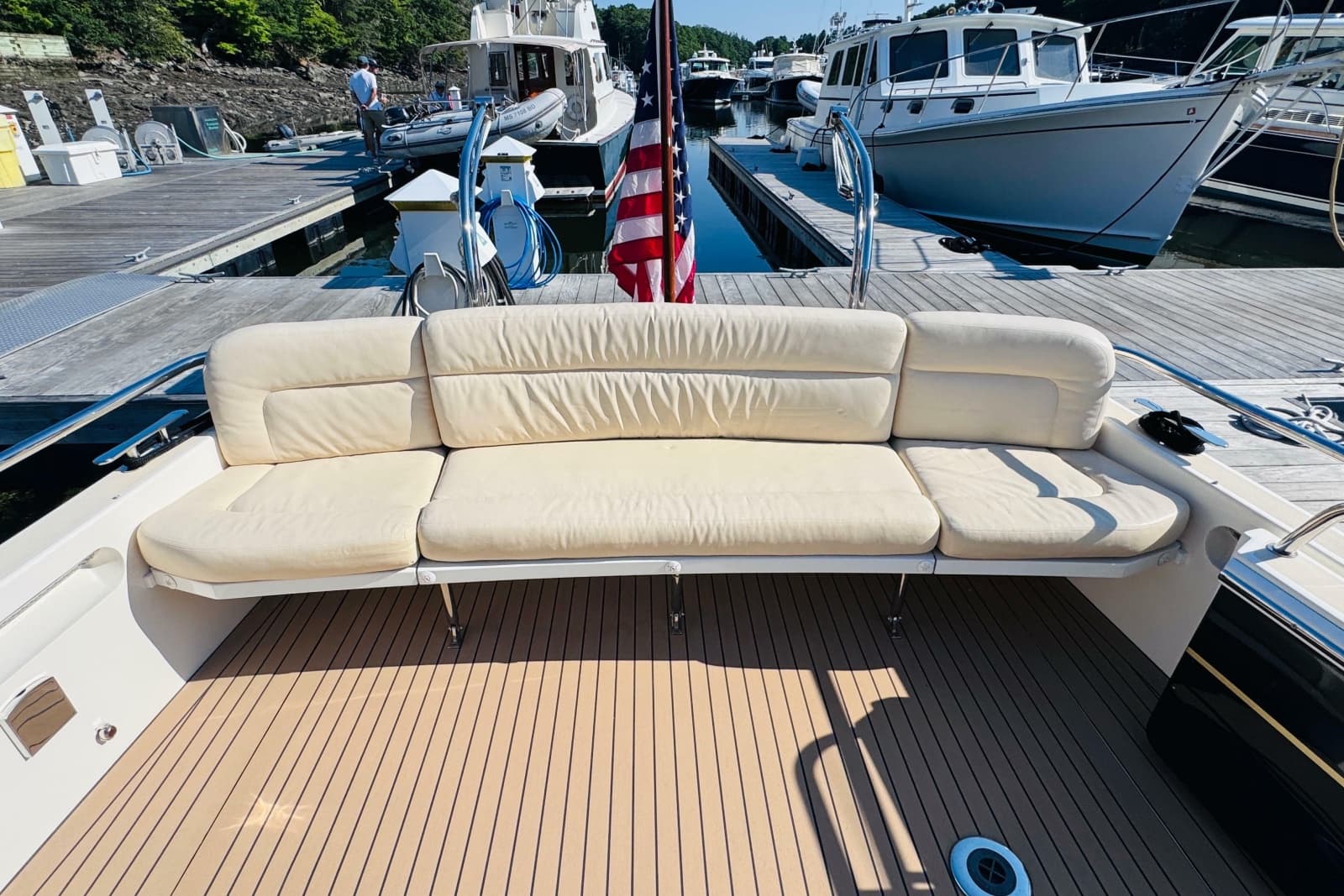

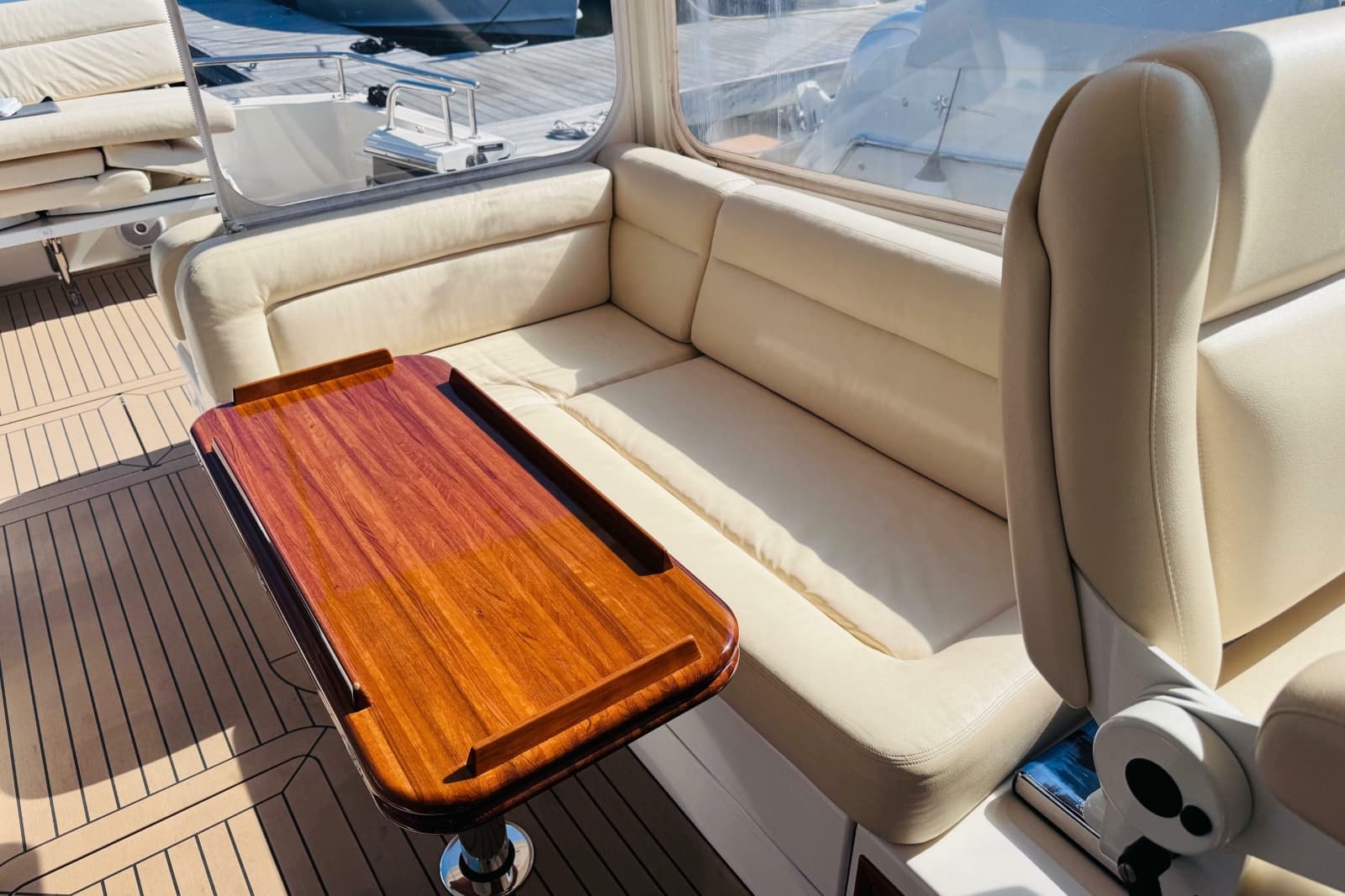

• Pilothouse settees w/UltraLeather covered memory-foam bottom cushions...convert to 6.5-foot berths.
• Drink holders (6) at piloting seats and transom seat
• 8 Lewmar overhead hatches in forward cabin (2), head, shower, main saloon (2) and over piloting chairs (2)...all with Ocean Air dual action shade-screens.
• 6 opening portlights in forward cabin, head, shower, galley and saloon.
• Ocean Air combination screen/shades on hatches and pull shades on portlights.
• Gloss-varnished, lockable (from inside & out) sliding teak companionway door with 4-section hinged cover with chartbook retainer fiddle.

Propulsion Specifications:

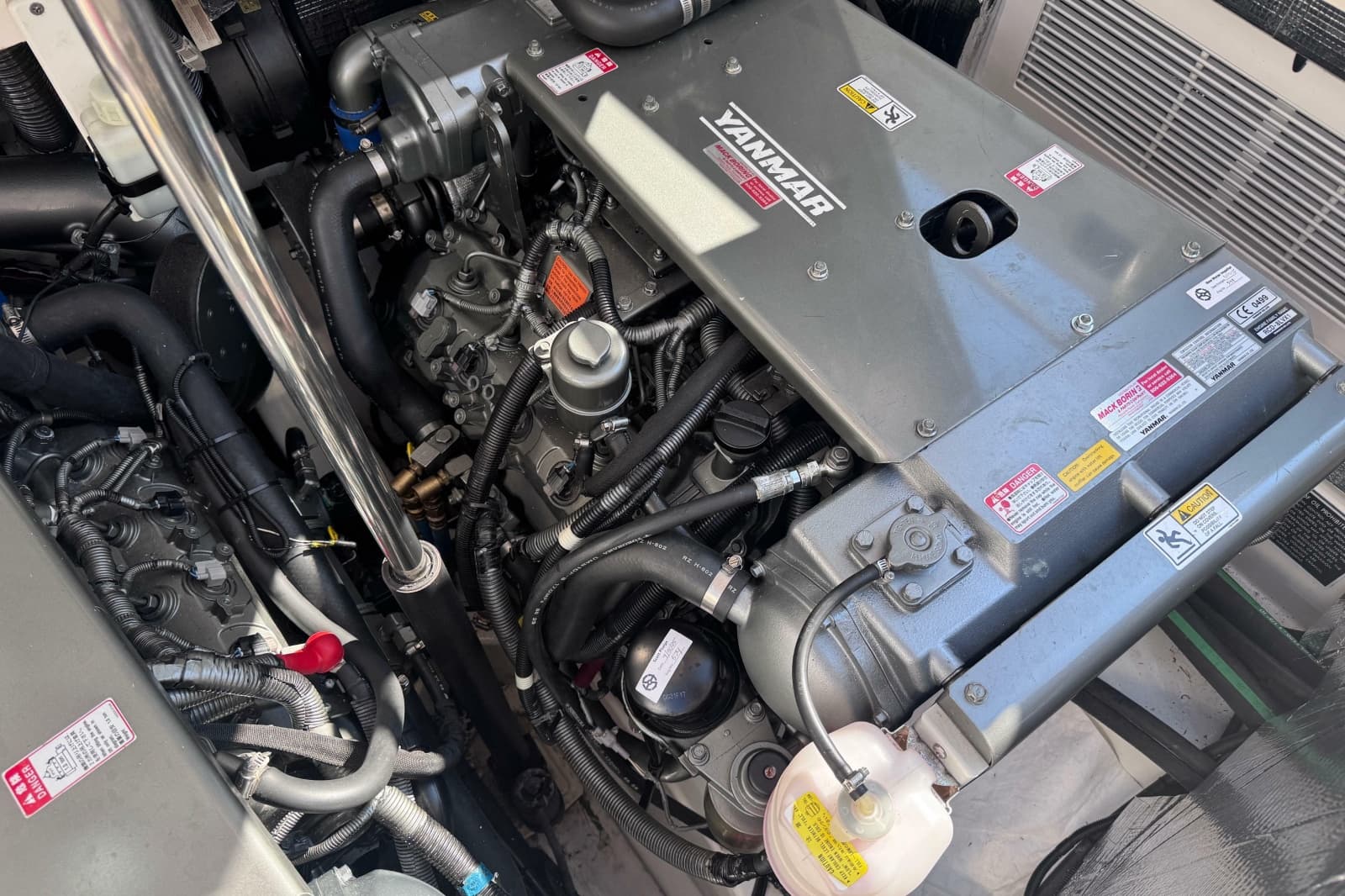

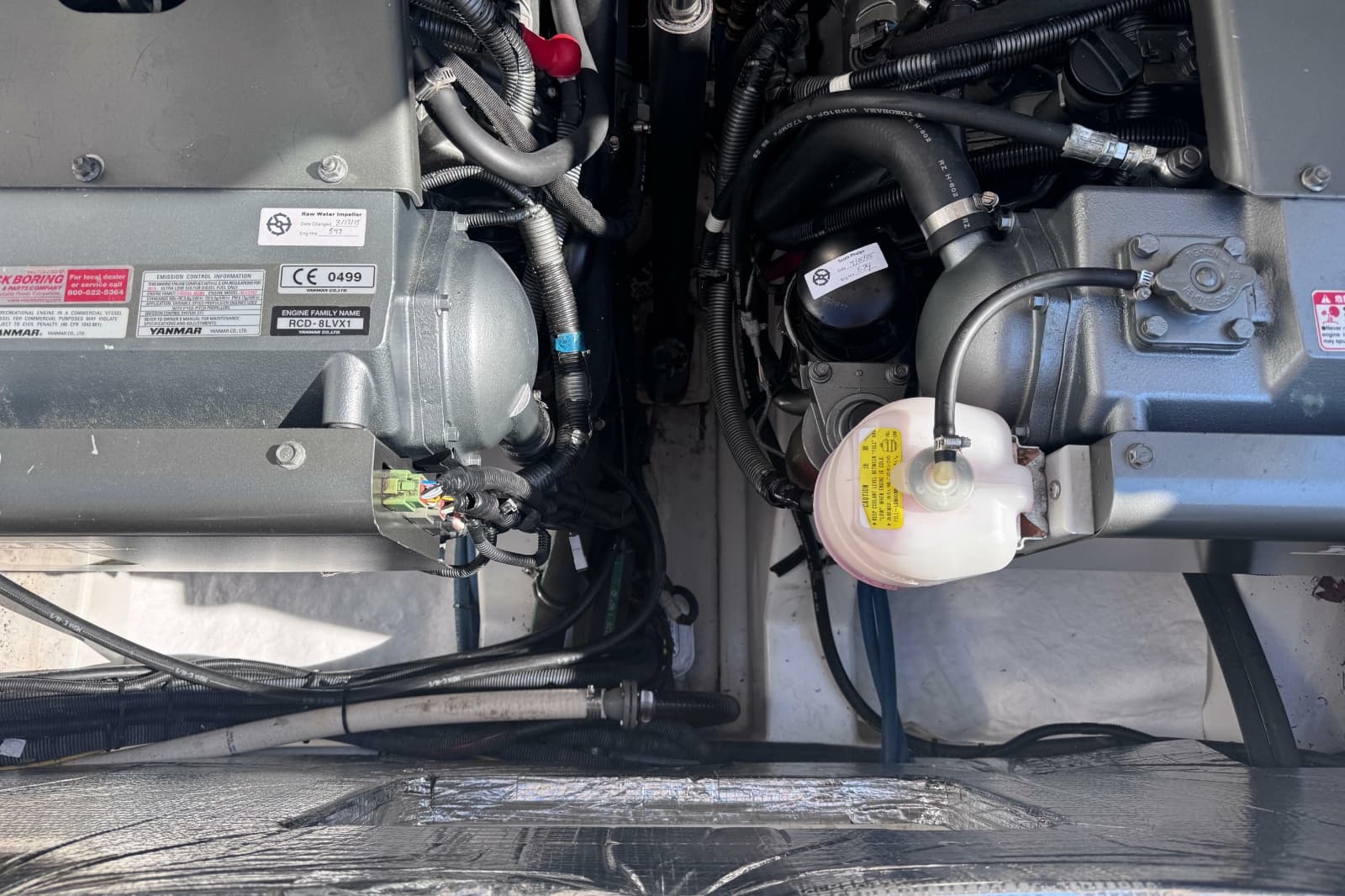

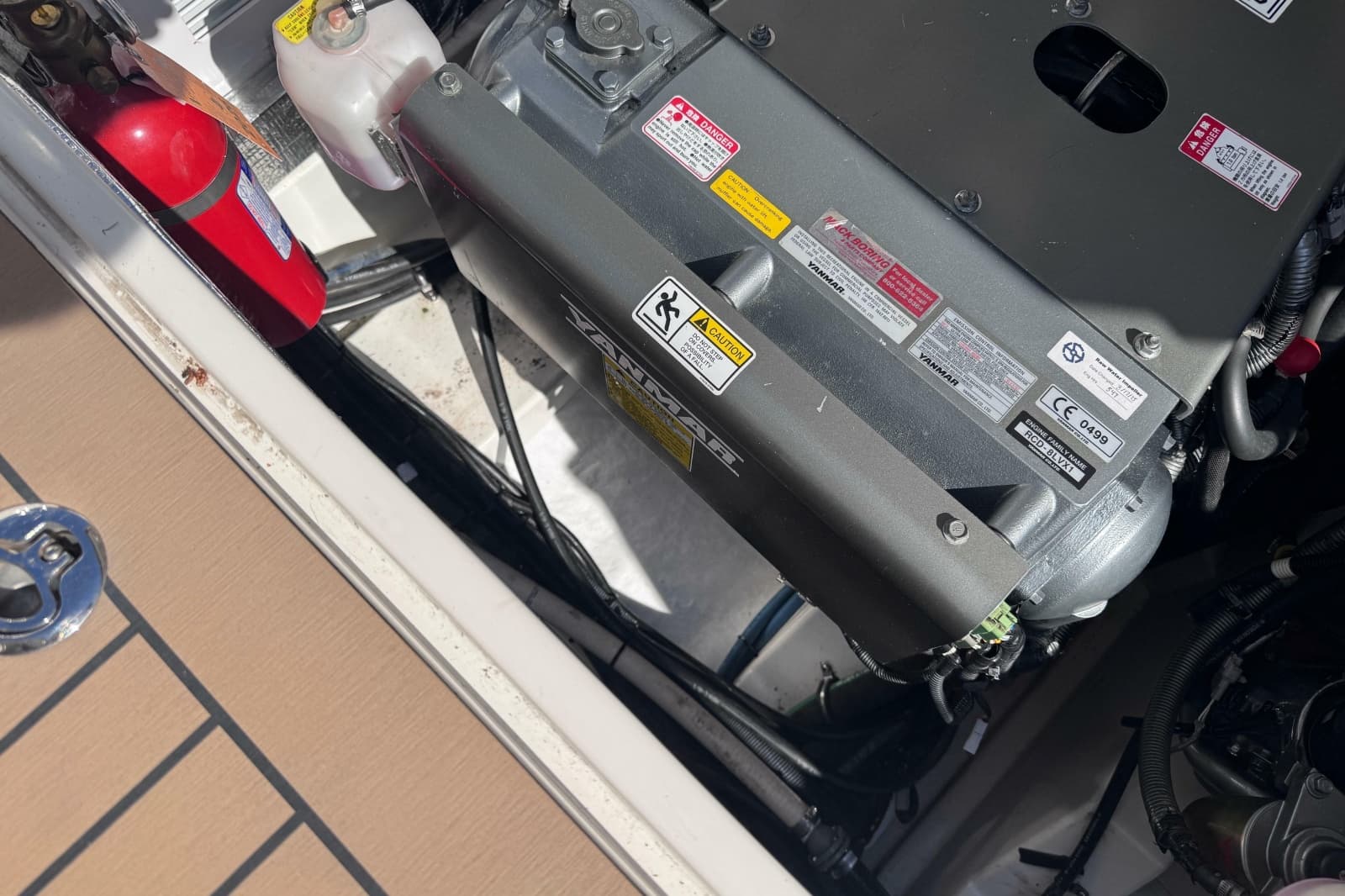

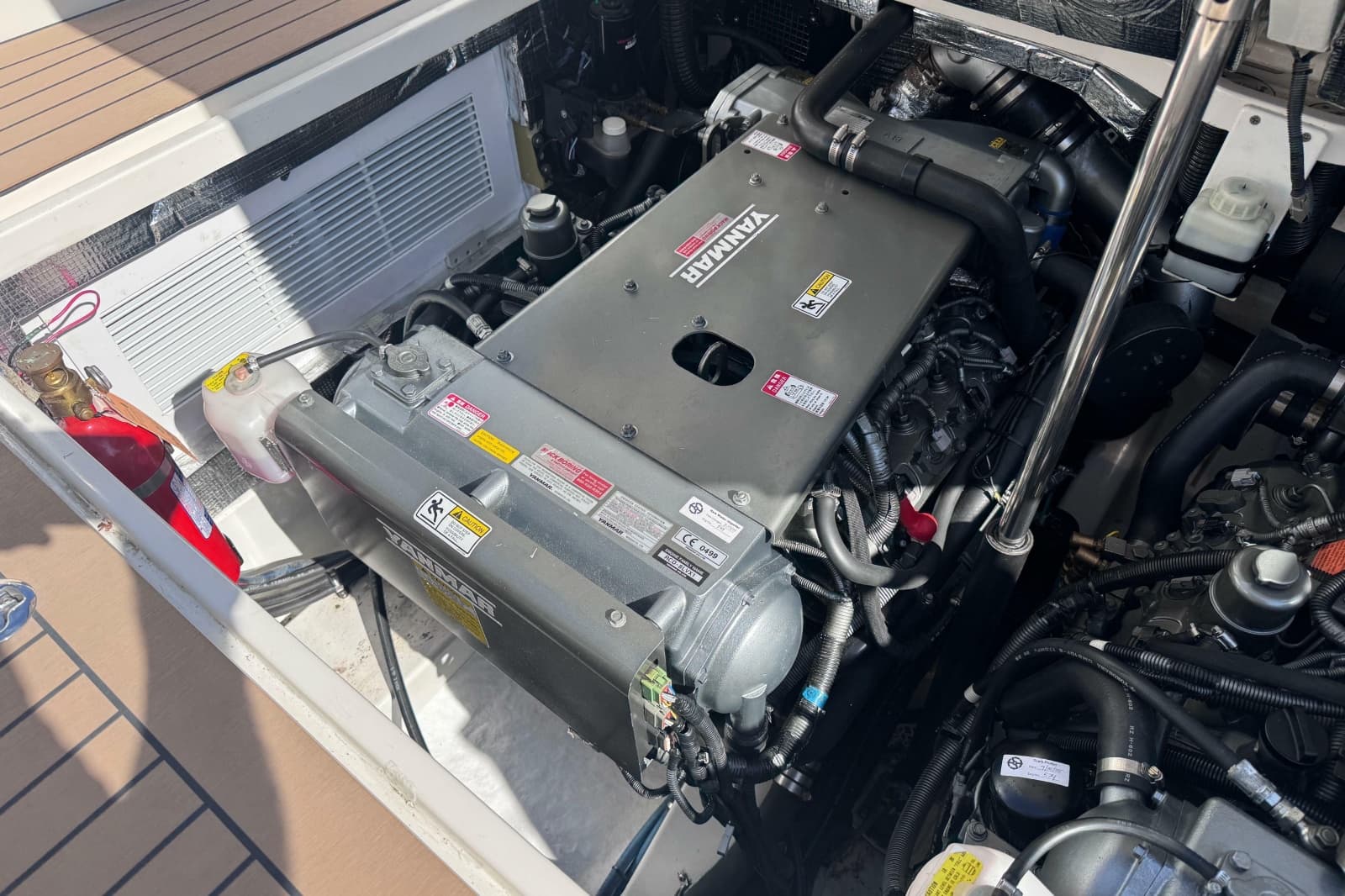

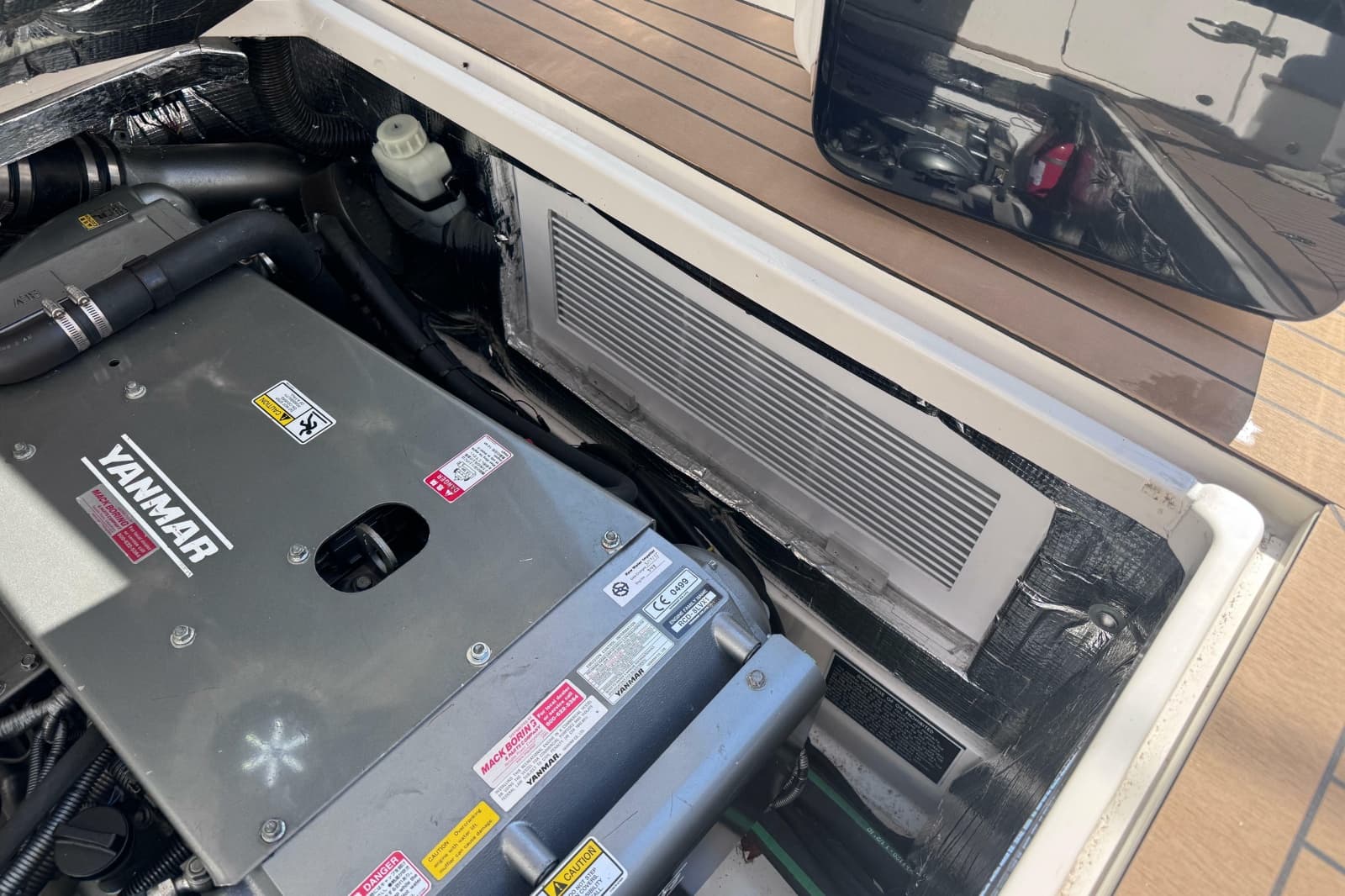

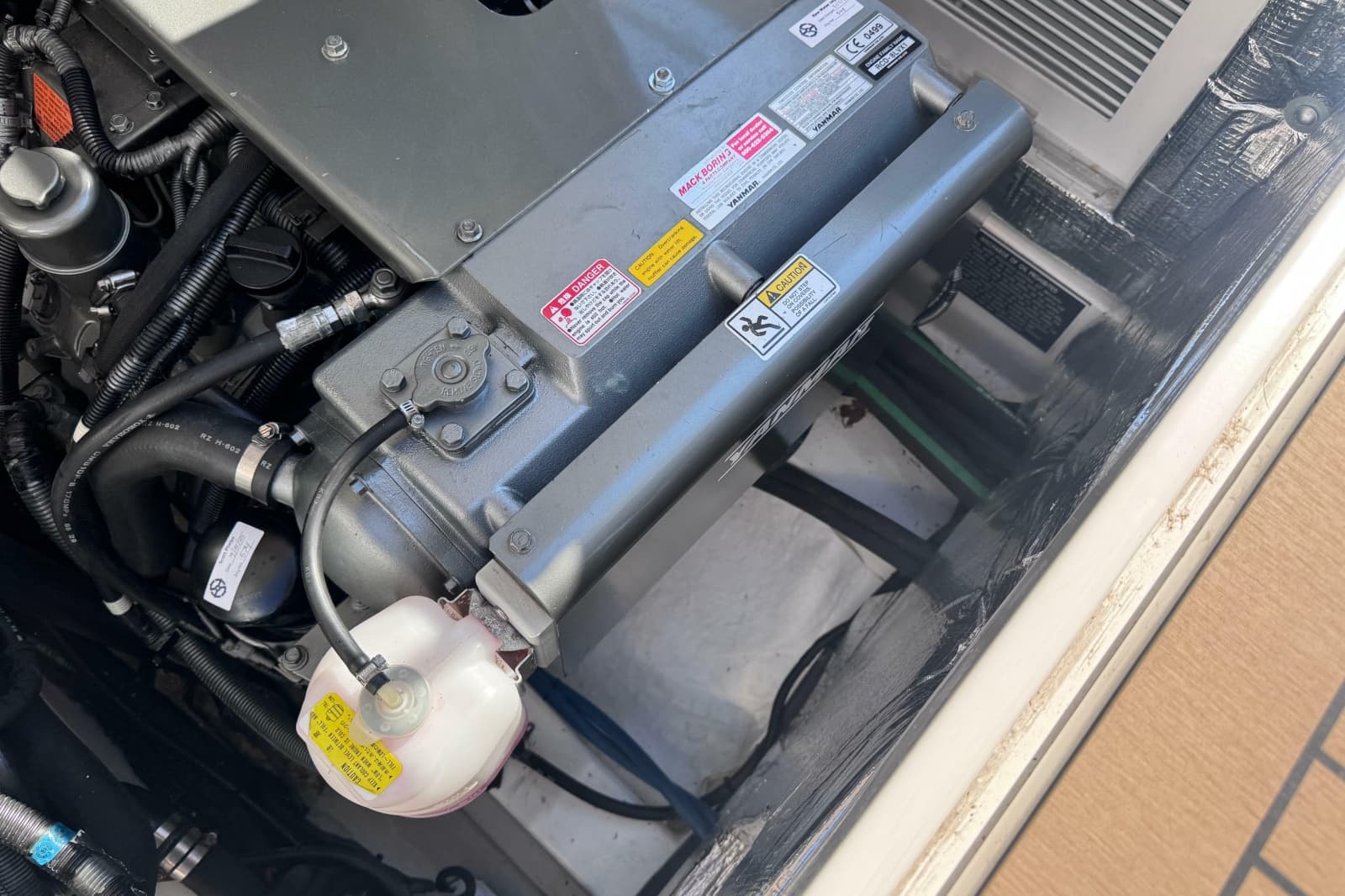

• Twin Yanmar 8LV's with joystick docking system and Station Keeping (565hrs)
• Electric Trim Tabs
• Engine spares kit and service manuals
• UL approved fuel shutoff and fuel/air separators.
• Racor fuel/water separators with spare cartridges
• Two 175 gallon, aluminum fuel tanks with fuel level sensors and interconnect line with shut-off valves.
• Parker Class 1 steel-braid- reinforced, fuel hoses.
• SS engine air intakes (4)
• Dedicated sump below engine and transmission.
• Seafire automatic fire suppressant system
• Soundown insulated engine room.
• Data display allows precise fueling

Electrical Specifications:

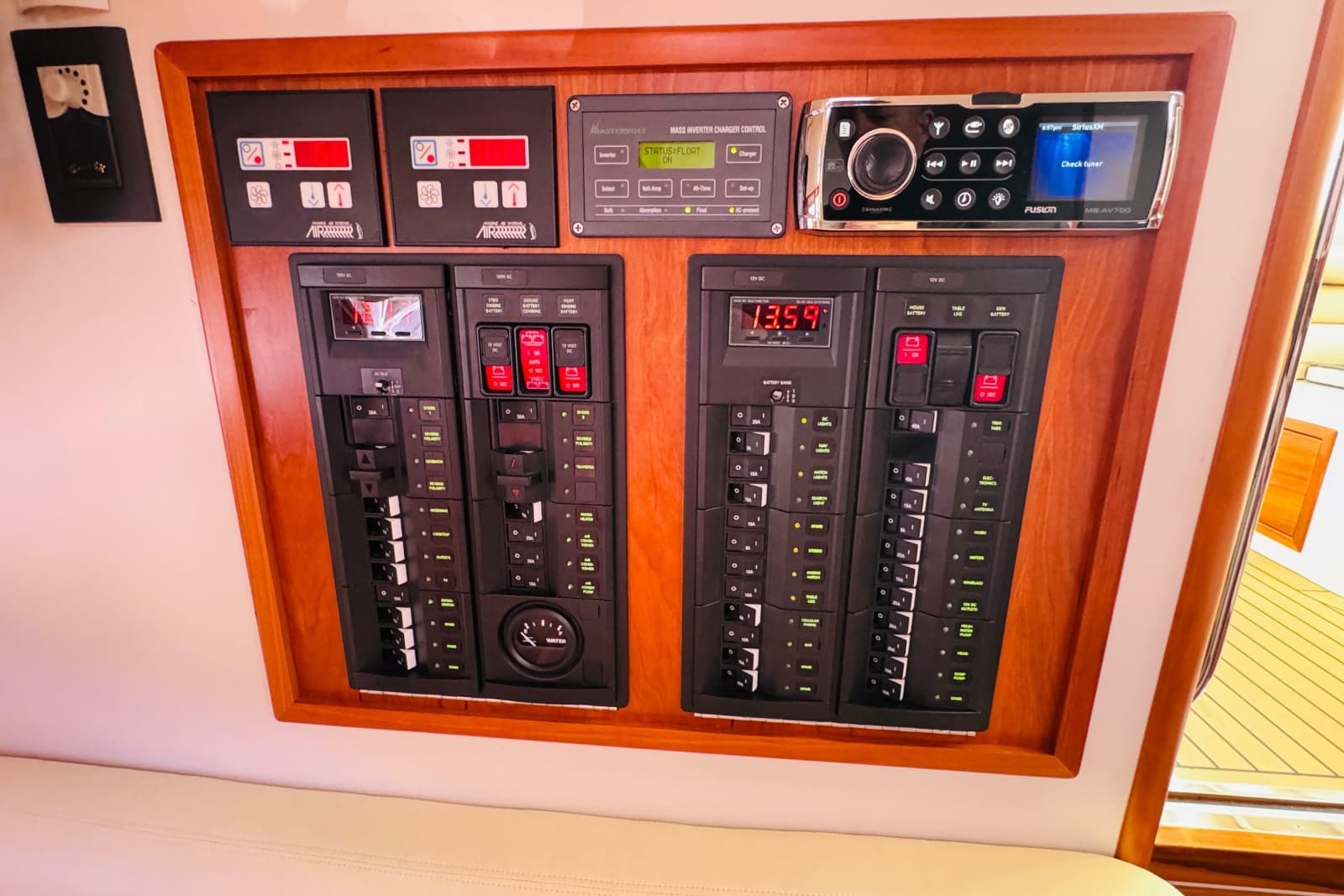

• Custom backlit electrical panel with 23-12v DC breakers and 12-110V AC breakers, stainless breaker guards and digital DC and AC monitors
• 110V AC system w/Victron Energy Shorepower system w/ 2-50' 30-Amp Hubbell cords
• Stainless GFCI duplex outlets (6)
• (2) Alternators
• Blue Seas automatic charging relays

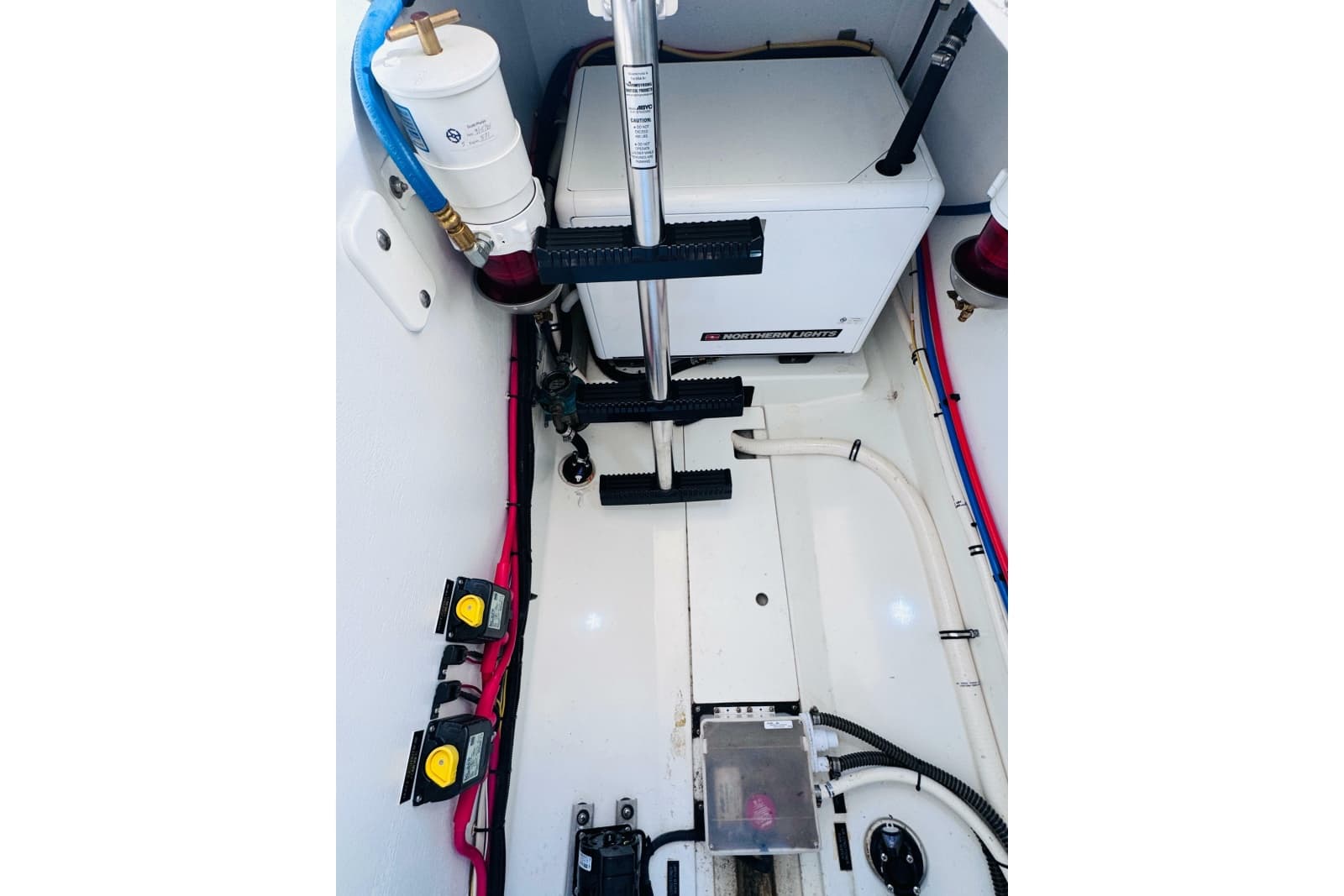

• Northern Lights 6KW 1800 rpm 3 cylinder generator (51hrs)
• Galvanic isolator
• LED cabin-reading lights (4) Overhead in galley (3) head (2) shower (2) saloon
• (5) forepeak (3) and pilothouse (6). Galley, dinette, forepeak and pilothouse w/dimmers
• Courtesy lights (3) in cockpit and head.
• Engine compartment lights.
• 700-amp hour absorbed glass-mat battery capacity with 2- Group 8D 245 AH house and 2-Group 31 105 AH engine batteries
• Navigation and anchoring lights.
• Bonded electrical system and underwater fittings
• Serviceable wiring, bundled & numbered with Deutsch O- ring waterproof connectors.

Plumbing Specifications:

• Pressure hot/cold water with Johnson Aqua Jet Duo variable-speed water pressure pump
• 13-gallon stainless steel hot water heater.
• 100-gallon polyethylene freshwater tank
• Dock water inlet w/check- valve and PSI regulator.
• General Ecology Seagull IV purification system
• Scandvik hot/cold shower on swim platform
• High-pressure fresh water washdown in port cockpit locker w/50’ hose & nozzle.
• Jabsco Rule 1100 automatic bilge pumps (3)
• Vacuflush head system with 32 gallon holding tank w/ pump out and macerator discharge.
• Back-up Bosworth manual bilge pump.
• Centralized gray water discharge system
• Gray water sump w/inspection port for shower, head, icebox and AC condensate.
• Marelon non-corrosive thru- hulls/seacocks with strainers and double-clamped hose.

Piloting, Navigation, and Entertainment

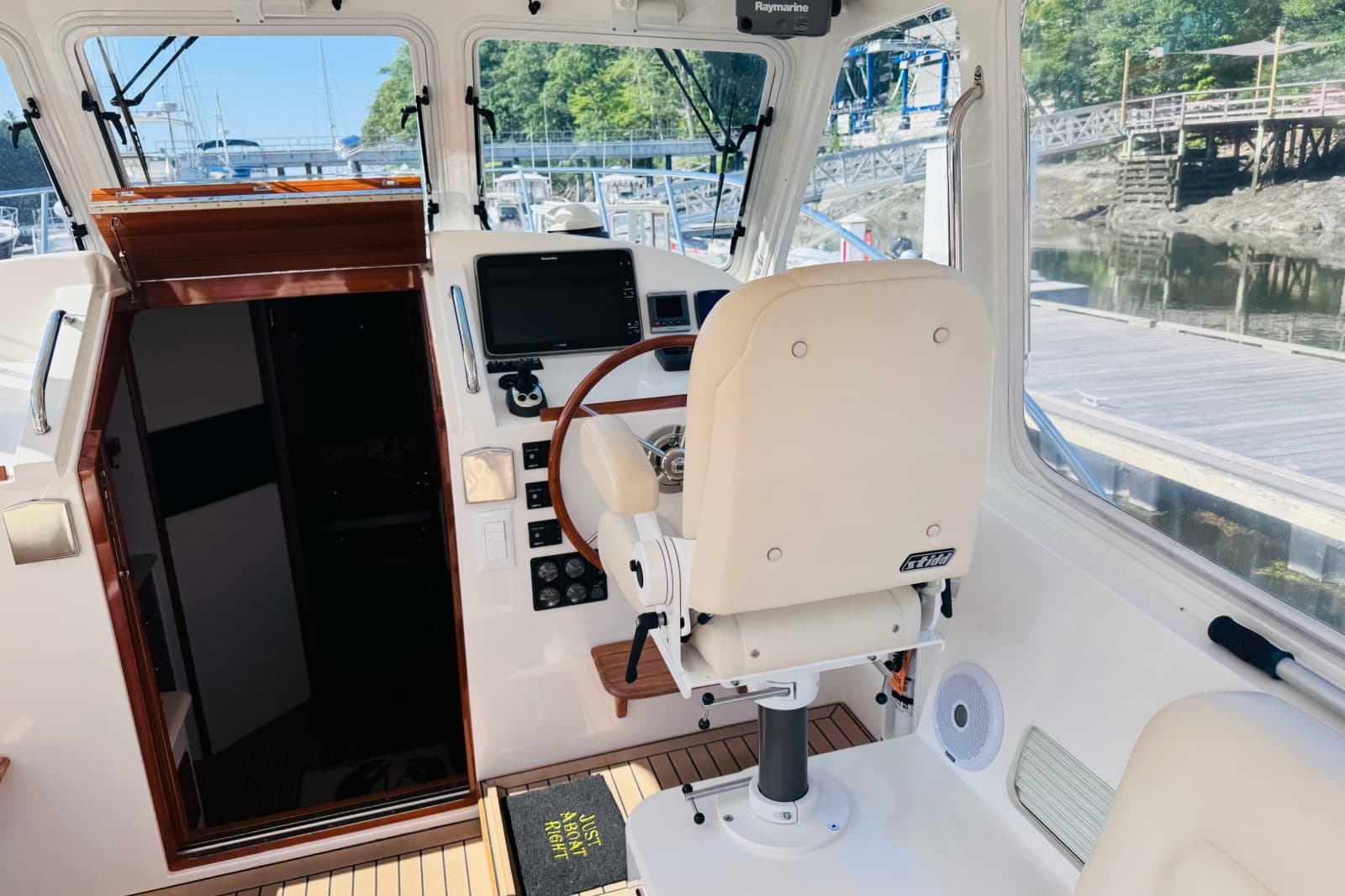

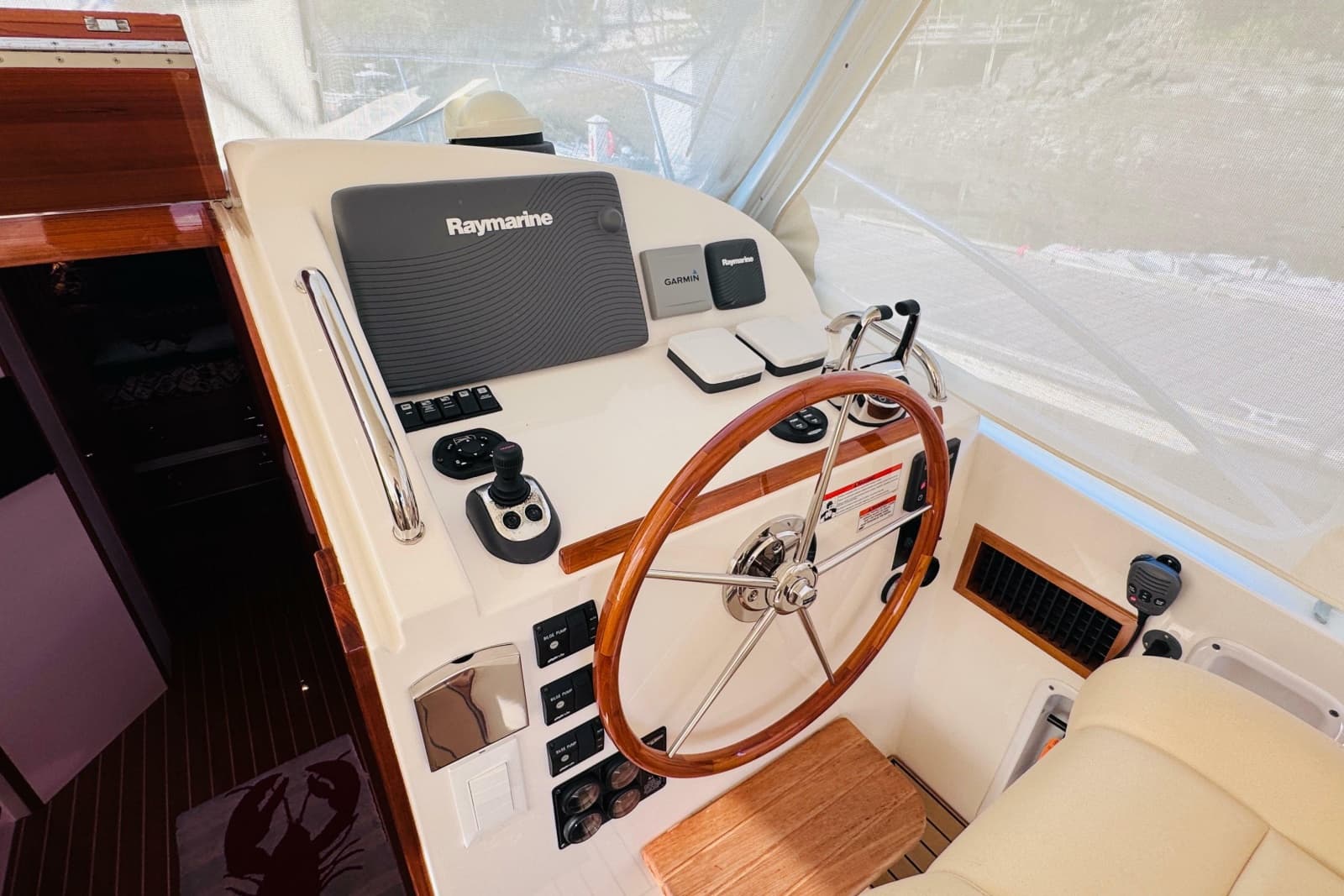

Piloting and Navigation Specifications:

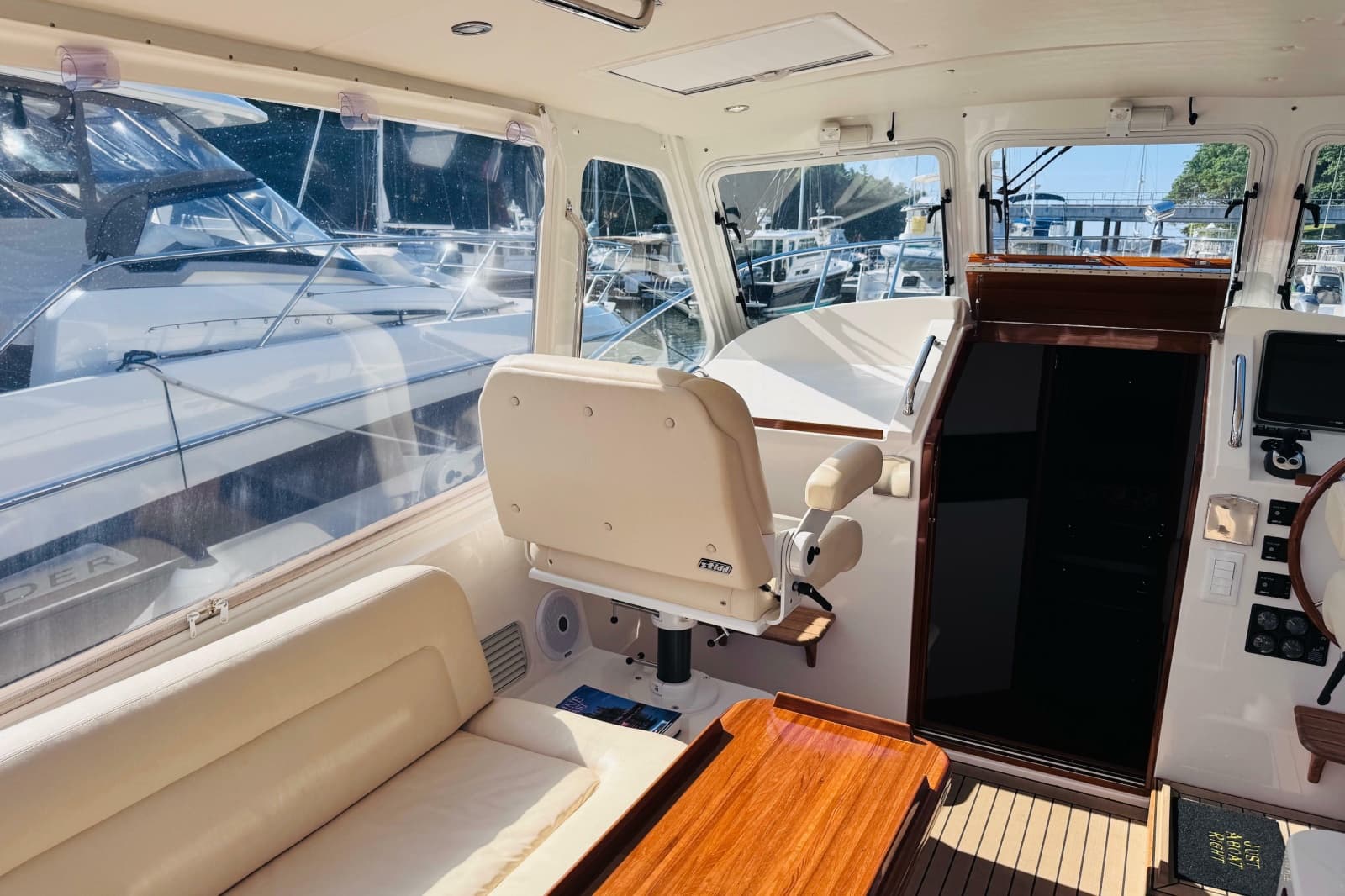

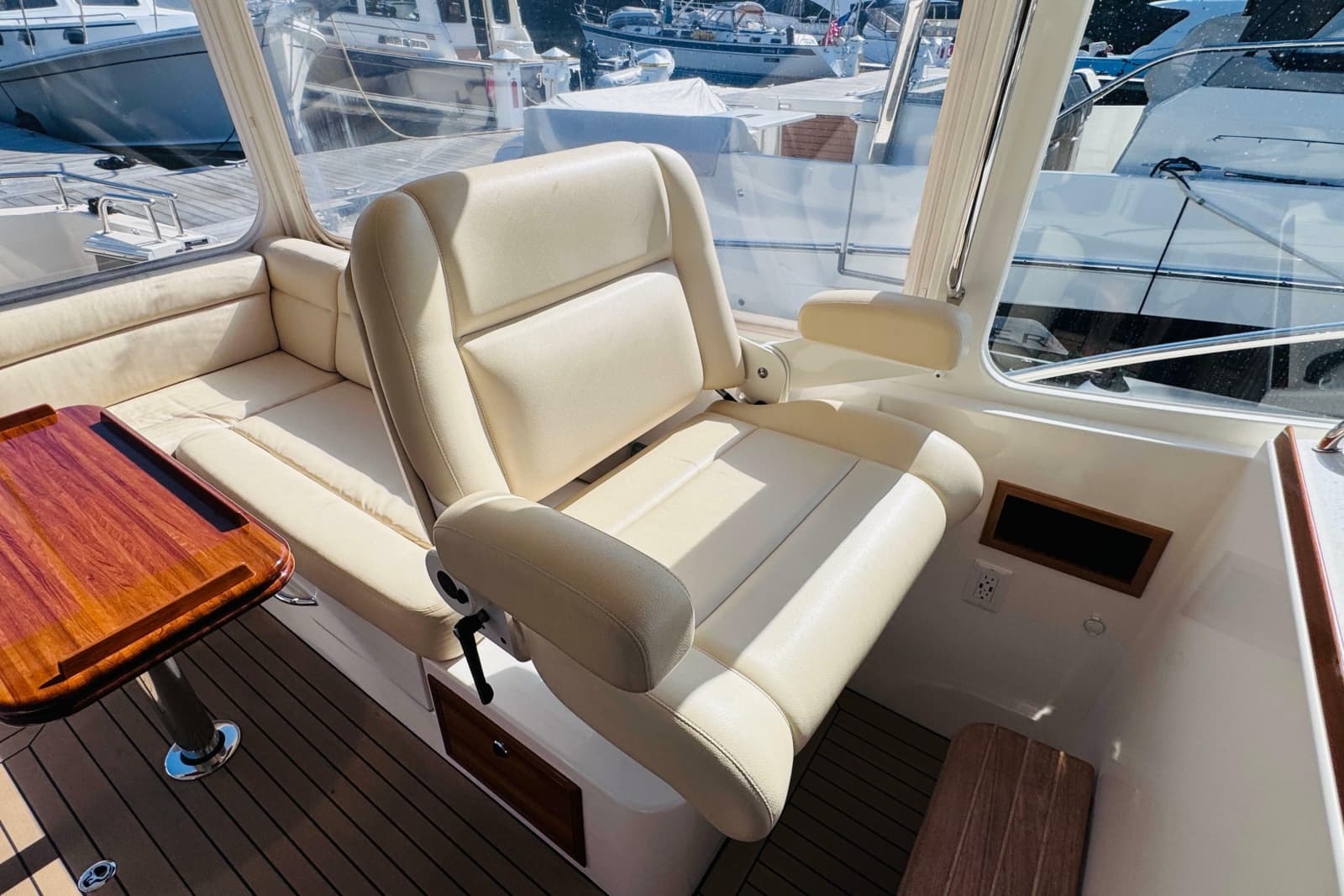

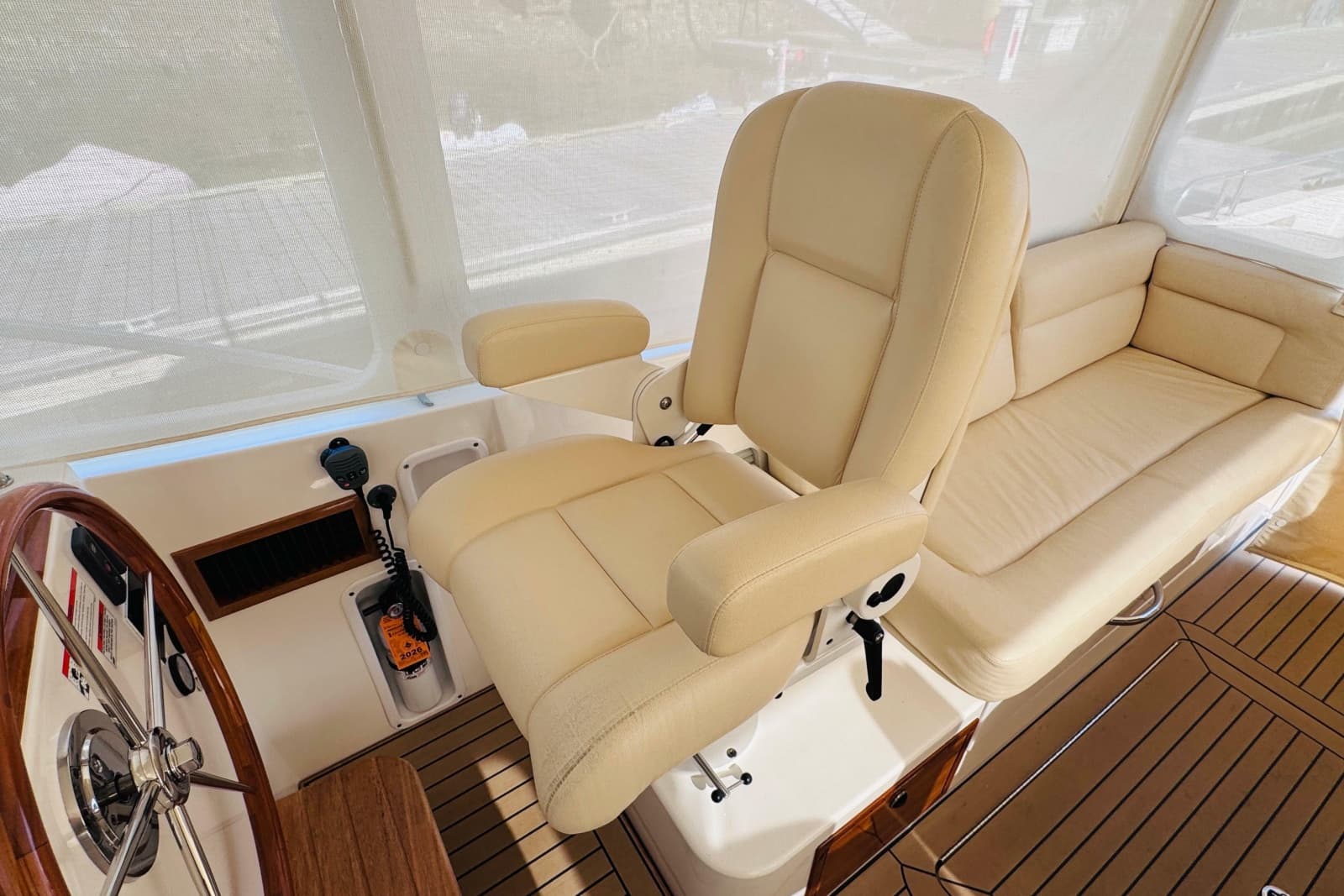

• Stidd recliner piloting chairs in UltraLeather which lower and swivel to create social seating for 8 persons.

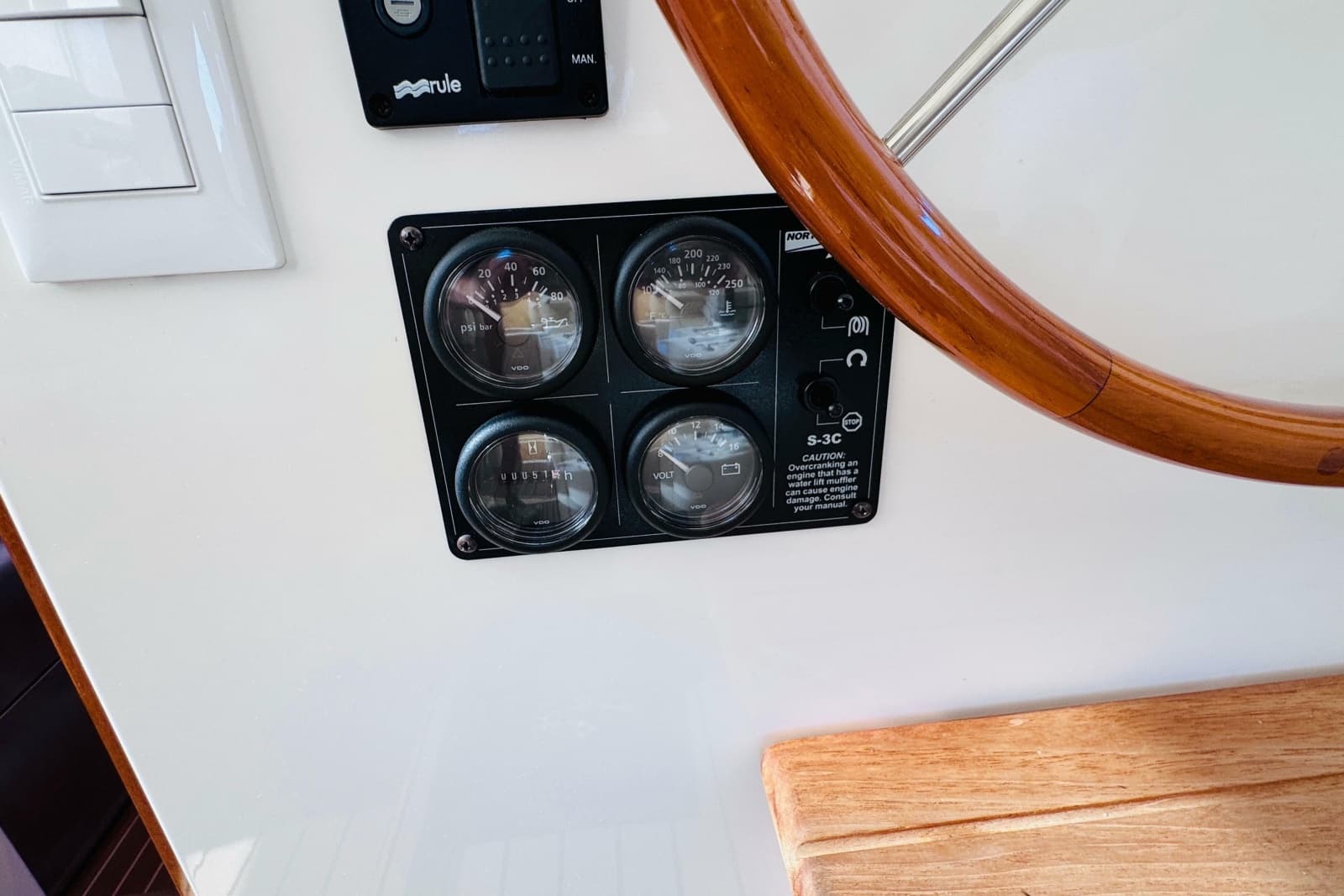

• 24” Edson destroyer wheel with varnished teak trim
• Fully-opening windshields (3) for air flow in warm climates and better visibility in fog or at night. Electric push- button option installed.
• Windshield wipers & washers
• Jabsco 320,000 bowrail mounted spotlight.
• Bi-level piloting console (P&S)

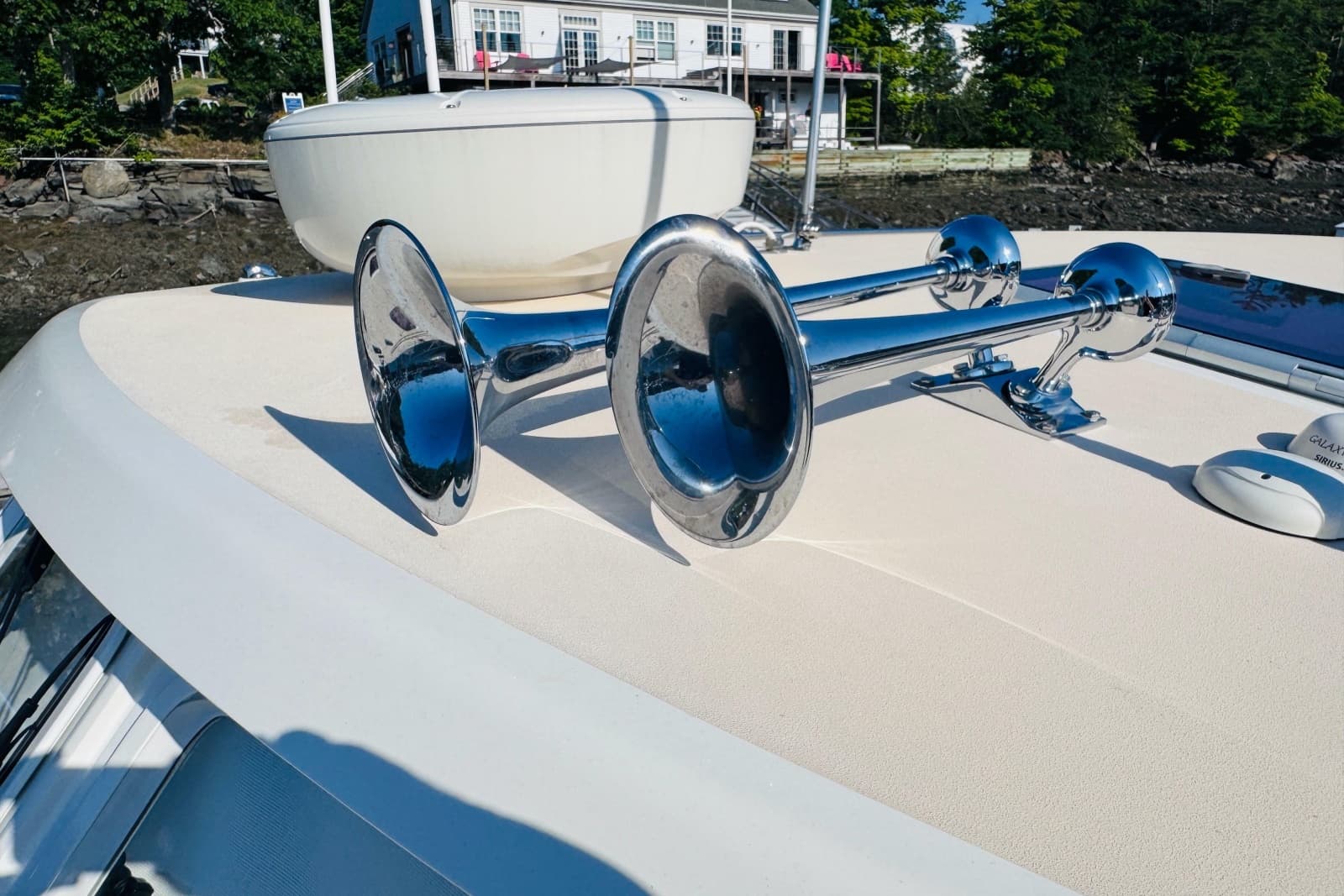

• Kahlenberg duel air horn w/auto fog/anchor signal
• Ritchie SS-2000 4.5 Supersport compass.

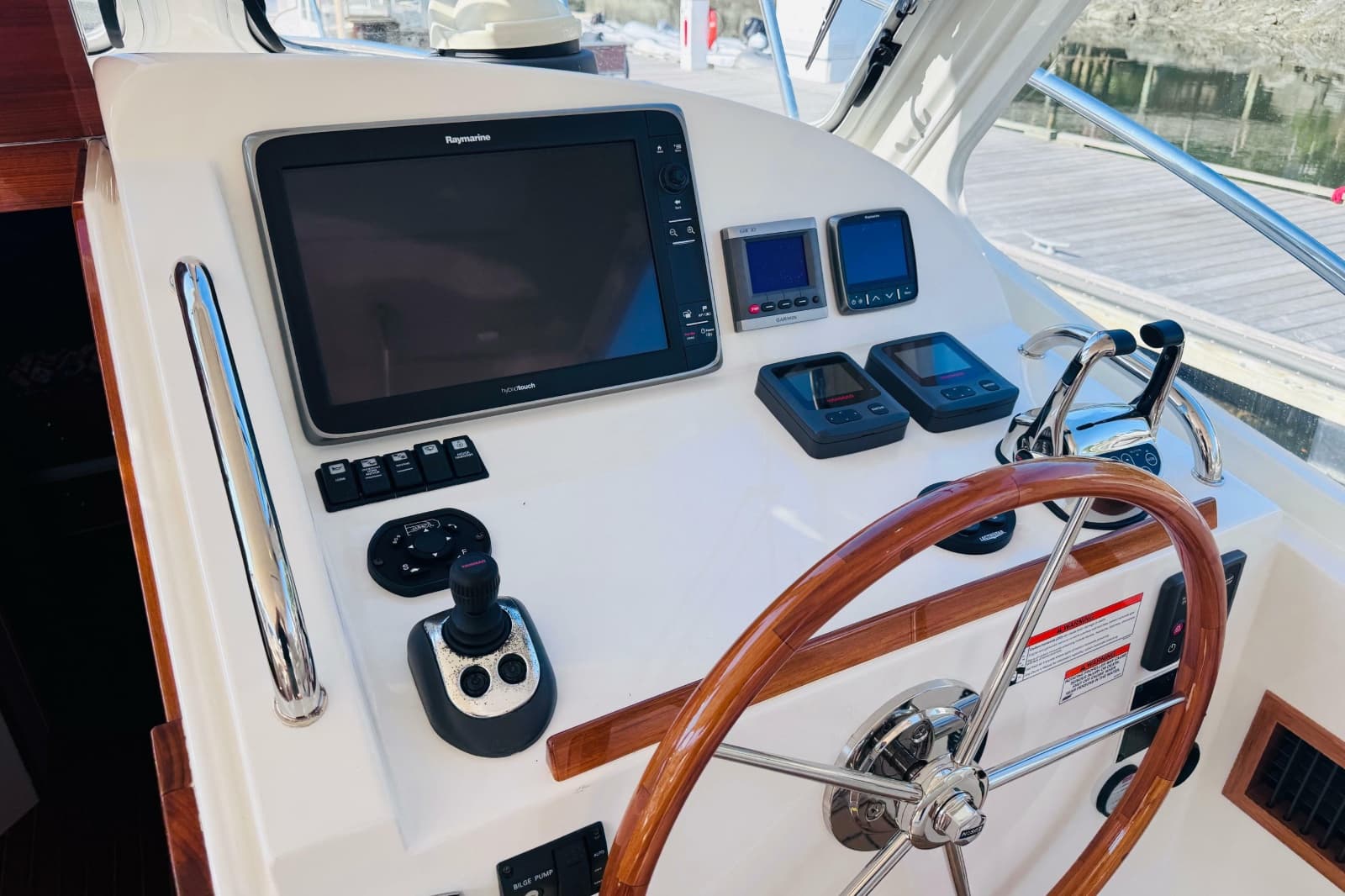

• Raymarine Axiom Pro S 16 Hybrid Touch MFD

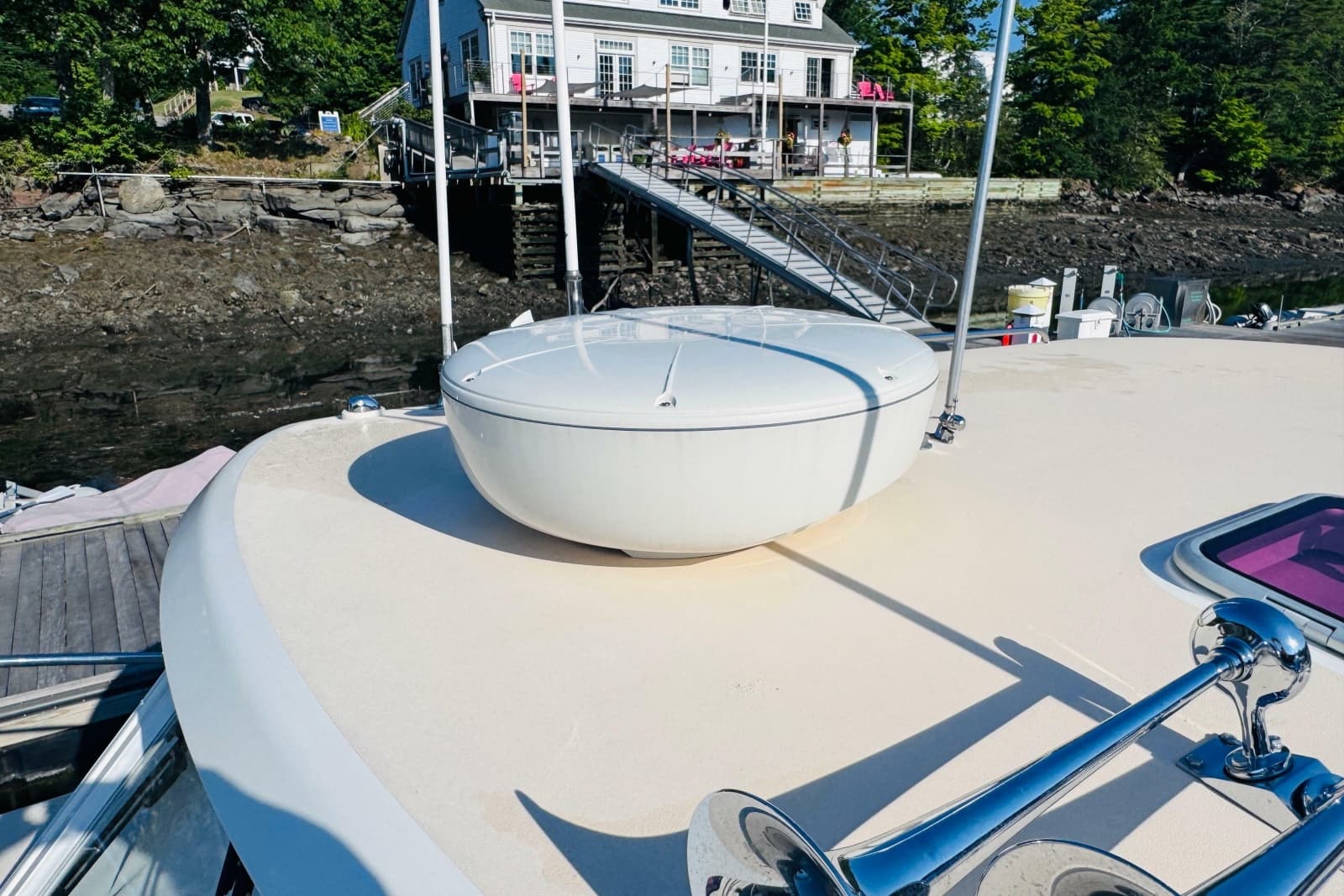

• Raymarine 4KW HD Color Radar w/dome
• Raymarine i70s Display for large depth readout.
• Raymarine Ray 63 VHF on overhead w/ remote control with microphone
• Garmin GHC 10 Auto-pilot

Entertainment Specifications:

• Fusion MS-AV700 stereo w/ AM-FM-CD-DVD-Bluetooth- USB-AUX2-iPod/iPhone

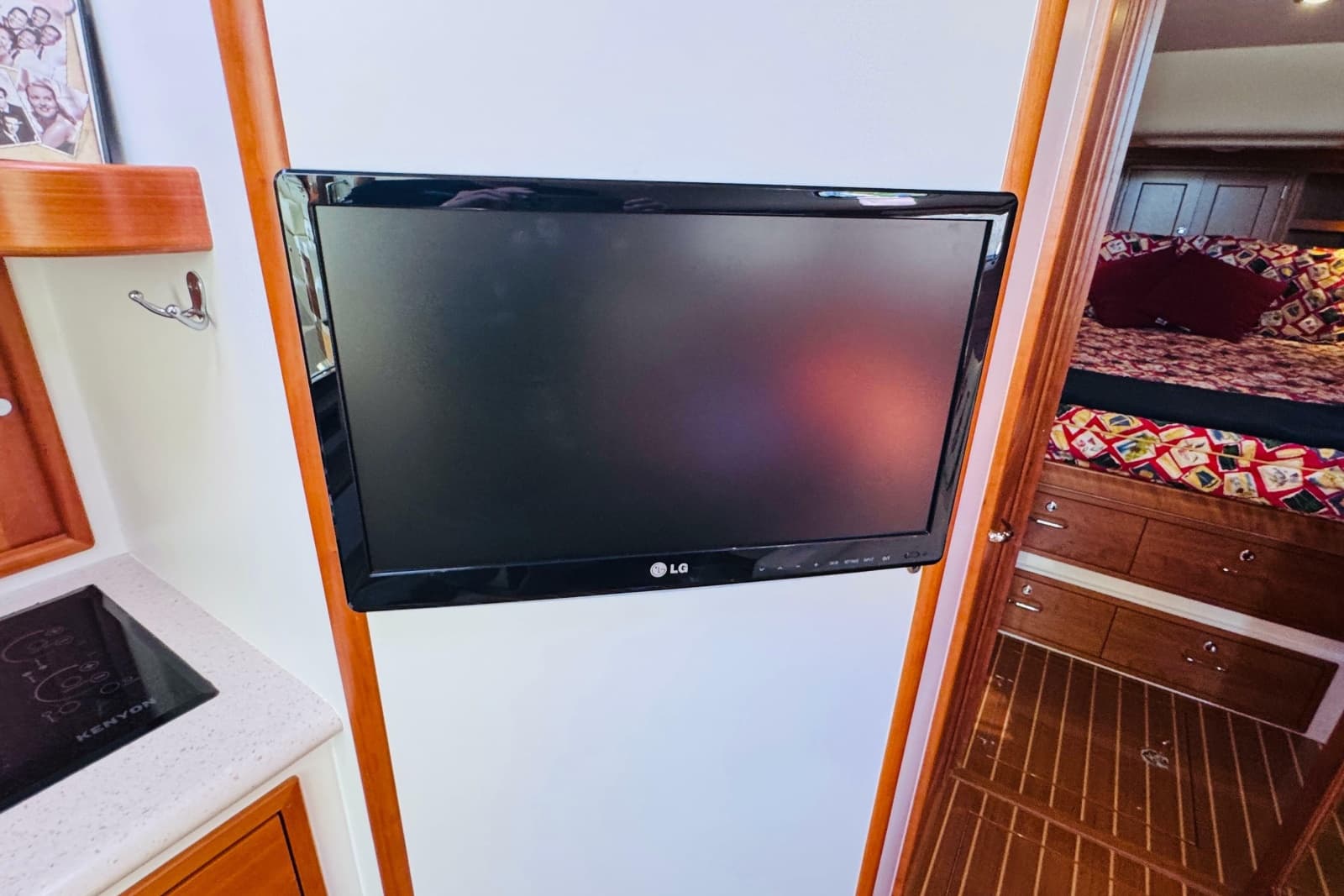

• 24 inch HDTV, amplifier and external speaker in saloon.

Factory Installed Options

Factory Installed Options and Upgrades:

• Roll up Sunbrella Privacy Curtains over large openings in sides plus six others fore and aft.

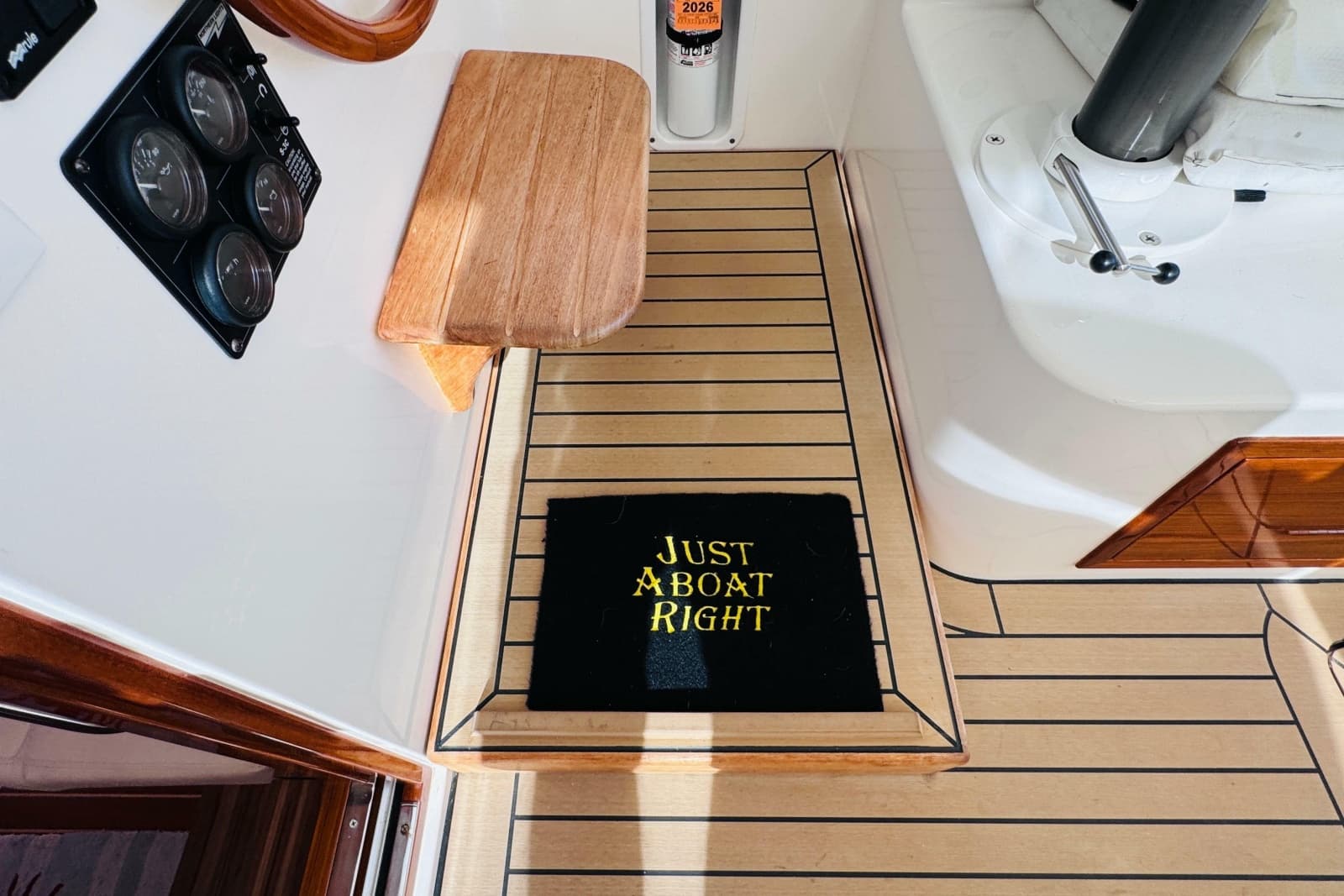

• Esthec Composite Decking in Pilothouse, cockpit.

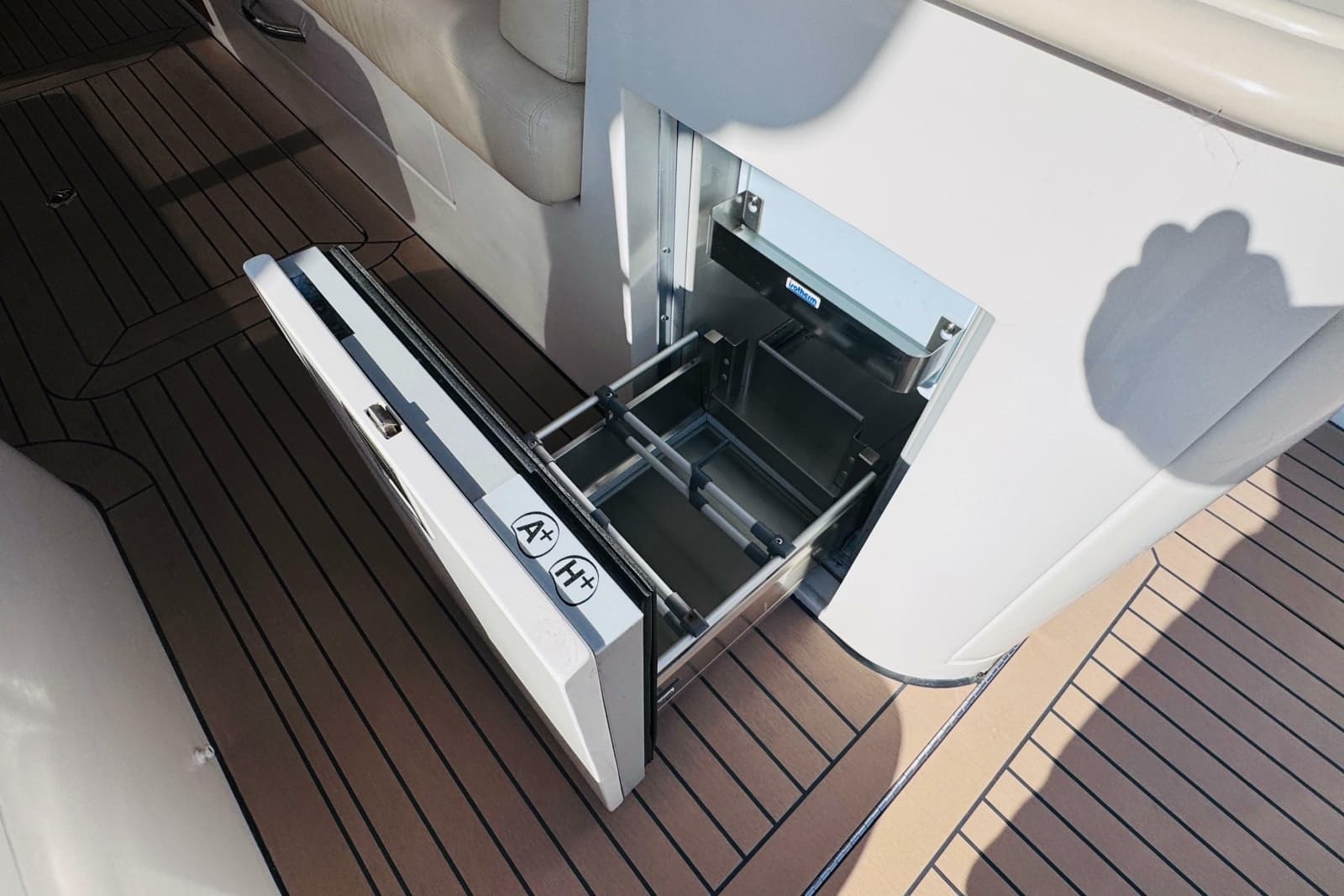

• Aft cockpit serving bar with Vitrifrigo beverage fridge and wine tumbler storage.
• Northern Lights 6KW 1800 rpm 3 cylinder generator (51hrs)
• 32,000 BTU Marine Air Conditioner System
• 24 Inch LED TV, amplifier and external speaker in saloon
