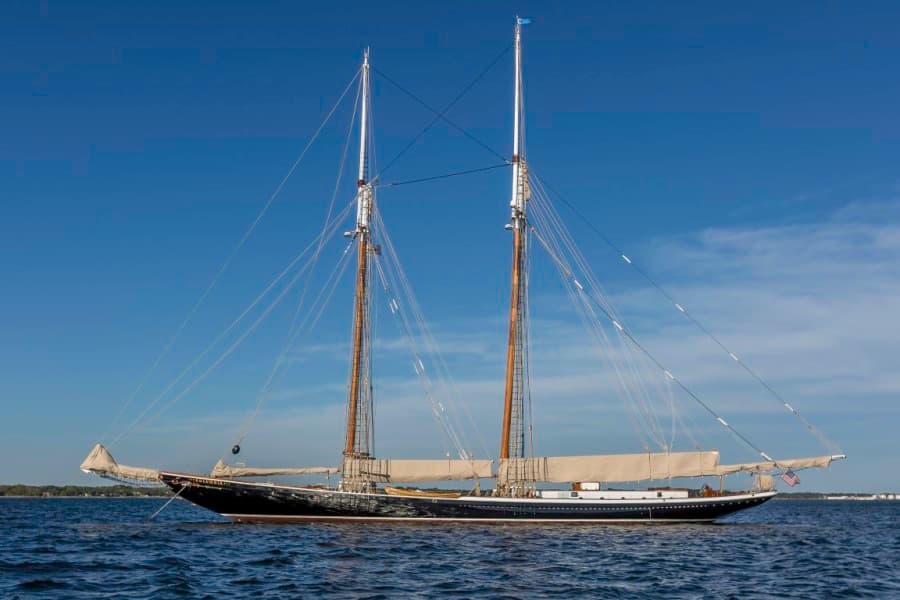

2014 Custom Sailing Schooner

MAIN CHARACTERISTICS

Name COLUMBIA

Type Racing / Fishing Schooner / Sailing Yacht

Builder Eastern Shipbuilding Group

Year 2014

LOA 141’2” 43.02m

LWL 110’0” 33.53m

Beam (Molded) 25’6” 7.77m

Hull Depth Amidships (Molded) 15’9” 4.80m

Hull Material Steel

Decks Teak wood with Holly strips

Flag United States

Classification Lloyds Registry- 100A1, SSC Yacht, Mono, G6

Design/Engineering John W. Gilbert & Associates

Main Engine One Caterpillar C-18, 587 HP

Max Speed – Under Sail Up to 17 knots

Max Speed – Under Power 13 knots

Cruising Speed – Under Power 10 knots

Range - Under Power/Sail 4000 nm

Ballast (fixed) Lead - 47 tons

Displacement 260 LT

Gross Tonnage 143 Tons

Guest Accommodations Sleeps 12 in 4 staterooms, each with ensuite facilities

Crew Accommodation Sleeps up to 15 crew, including Captain’s Cabin/Day Cabin

DIMENSIONS

Hull Length 141’2” 43.02m

Bowsprit 17’8” 5.38m

Length on Deck 132’4” 40.34m

Registered Length 115’4” 35.16m

Length at Waterline 110’0” 33.53m

Registered Beam (Molded) 25’6” 7.77m

Hull Depth Admidships (Molded) 15’9” 4.80m

Registered Waterline (DWL) 14’4” 4.37m

Eye Level (Above DWL) 10’5” 3.17m

Frame Spacing   19” 482.6mm

CONSTRUCTION GUIDANCE

The vessel’s hull, superstructure and underwater gear are designed and constructed in accordance with the Lloyds Registry Rules for Building and Classing Steel Vessels.

VESSEL OVERVIEW AND HISTORY

The original COLUMBIA was a 141’ classic Gloucester Fishing Schooner built at the historic A.D. Story shipyard of Essex, Massachusetts and launched April 17, 1923. Essex was the center for American Fishing Schooner construction. Designed by the innovative William Starling Burgess, the COLUMBIA was bred for speed. In the fall of 1923, the COLUMBIA challenged the BLUENOSE, Canada’s legendary schooner, in the International Fishermen’s Cup Races in Halifax, The BLUENOSE was skippered by Captain Angus Walters and the COLUMBIA was commanded by Captain Ben Pine. Nearly winning the title, the COLUMBIA was narrowly defeated by the BLUENOOSE and was one of the few American schooners to provide a challenge to BLUENOSE.

Tragedy struck the promising young COLUMBIA on August 24, 1927 near Sable Island, the notorious “Graveyard of the Atlantic”, where the COLUMBIA was lost with all hands in a gale.

Decades later, the owner of Eastern Shipbuilding Group, Inc., in Panama City, Florida, discovered the original lines plan of the COLUMBIA in the Essex Shipbuilding Museum in Massachusetts. He took the opportunity to fulfill a lifelong dream of bringing a significant piece of maritime history back to life. Drawn by her proud history and her beauty, the owner began the journey of bringing the COLUMBIA back to life, and returning her to the glory she deserves.

Working with John W. Gilbert and Associates of Boston, Massachusetts, the design was re-engineered with a steel hull instead of wood. An engine room and staterooms were added to the design. Covey Island Boatworks of Lunenburg, Nova Scotia, built the rigging and spars. Blocks were fabricated by A. Dauphinee & Sons and all the sails were constructed by Michelle Stevens Sailloft, LTD, both from the Second Peninsula, Lunenberg, Nova Scotia. Teak decking was completed by Teakdecking Systems of Florida.

In early 2006 the owner researched the original COLUMBIA’s history and made the commitment. He and his management staff, employees and subcontractors brought to life the design, engineering, purchased the materials and constructed the exact replica of the COLUMBIA (ESG Hull 981).

The hull lines were redrawn from a copy of the original hand drawn lines plan using AutoCAD computer software by John W. Gilbert & Associates. The hull plate, its formed shapes and structure, were electronically lofted, nested and numerically cut (NC) using ShipConstructor computer software at Eastern’s Allanton Engineering and Steel Processing Facility.

The vessel’s services, steering and propulsion systems were designed and installed for maximum efficiency when under sail or diesel power. There is a transverse bow thruster for ease of docking and undocking. The twin electrical power generation plants, switchgear and wiring were designed and installed meeting current marine regulatory requirements. Also installed are modern interior and exterior lighting, underwater lighting system, air-conditioning and heating and machinery space electric ventilation with plenty of thermal and acoustic insulation.

The onboard electronics, communication and navigational equipment with two 36 nautical mile radars, wind sensor, navigational LED lighting, electronic charting, electronic compass and autopilot for open water high performance efficiency. The entertainment systems are interfaced with Starklink.

Using today’s technology coupled with proven early 1900’s craftsmanship, Eastern’s Team of shipbuilders, sub-contractors and vendors collectively constructed and completed sailing trials of this new, modern, historic schooner on September 18, 2014 from Eastern’s Nelson Street Facility in Panama City, Florida.

Eastern’s COLUMBIA is truly a robust steel hull replica derived from the historic Gloucester Fishing Schooner, meeting today’s USA regulatory requirements, utilizing today’s technology, machinery, materials, electronics and safety equipment. It was designed with modern crew amenities and comfort in mind. It is a vessel designed with onboard features like no other for a worldwide port-to-port sailing adventure.

HULL CHARACTERISTICS

Displacement 260 LT

Deadweight Tonnage 32.5 LT

(ITC) Gross Tonnage 143 Tons

Net Tonnage 43 Tons

Vessel Speed Under Sail Up to 17 knots

Under Power 13 knots (max)

Under Power Cruising Speed 10 knots

Under Power/Sail Range 4,000 nm

Main Deck Plate 1/4”

Side Shell Plate 5/16”

Bottom Plate 5/16”

Watertight Bulkheads 1/4”

Hull Non-Watertight Bulkheads 1/4”

Bulkwark Plate 1/4”

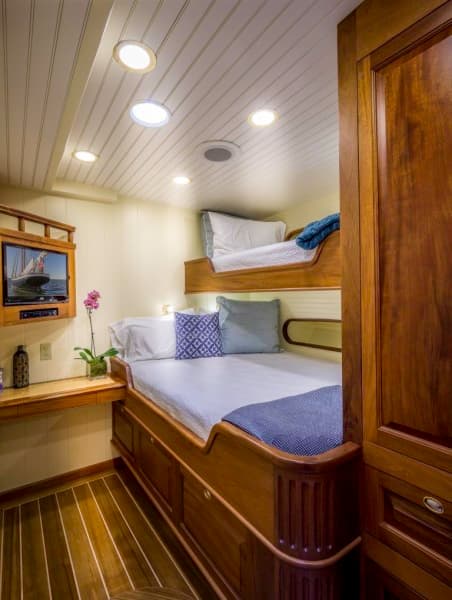

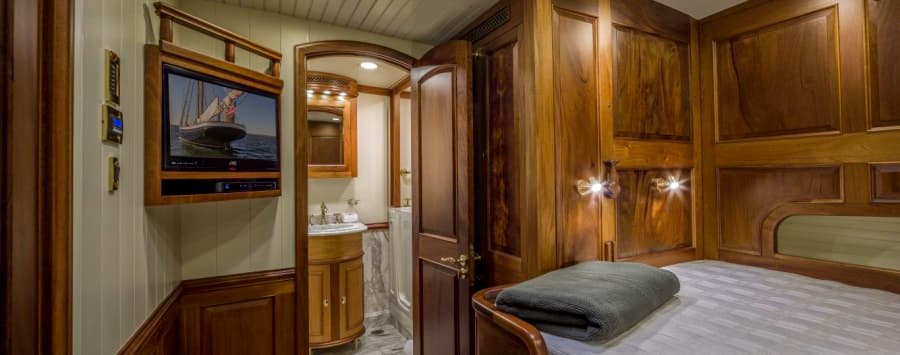

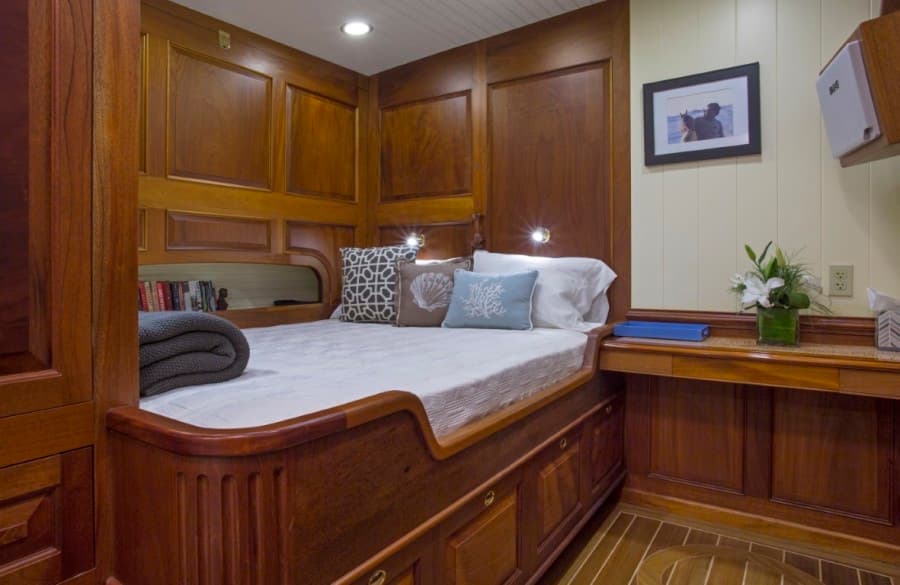

ACCOMMODATION DETAILS

Interior by Eastern Shipbuilding Group Interior Mahogany custom cabinetry – wood hand crafted, bunks, lockers, desks, leather settee and tables

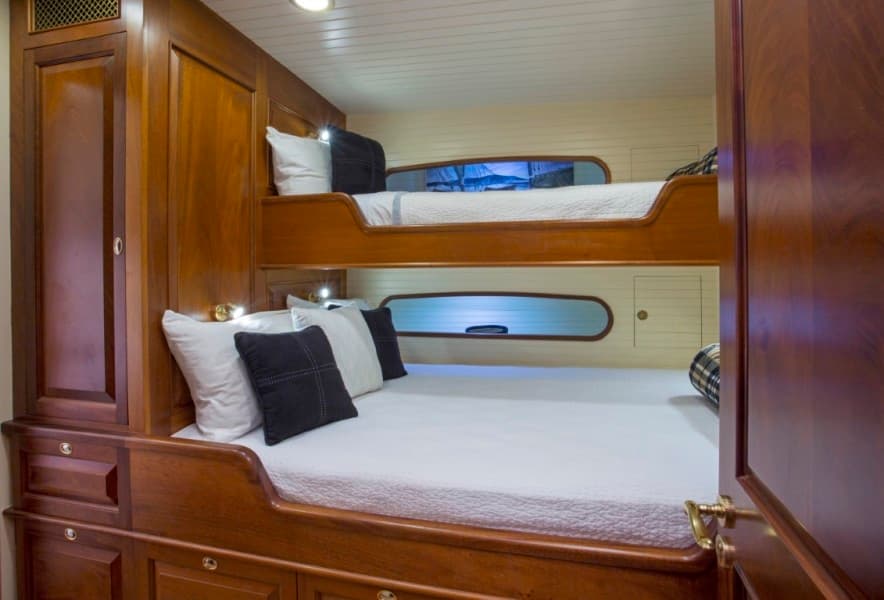

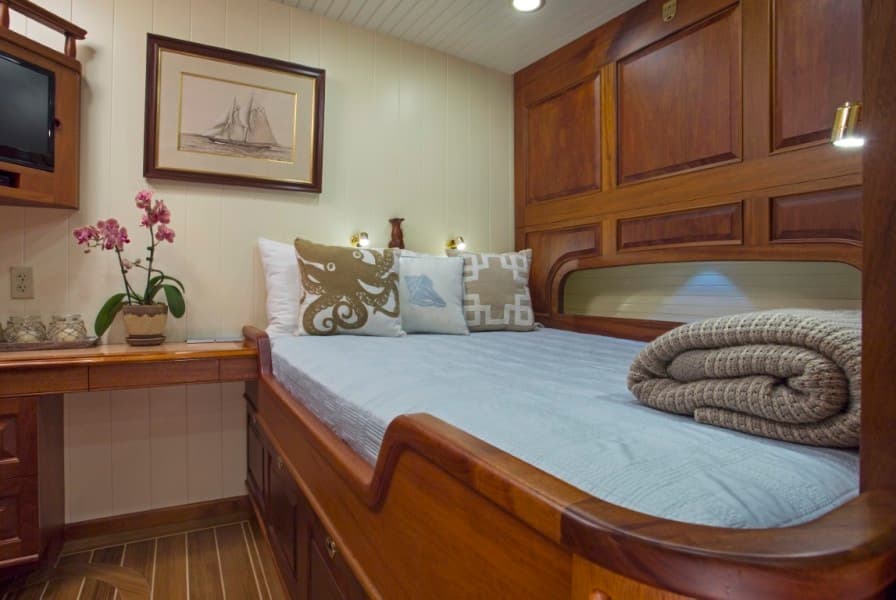

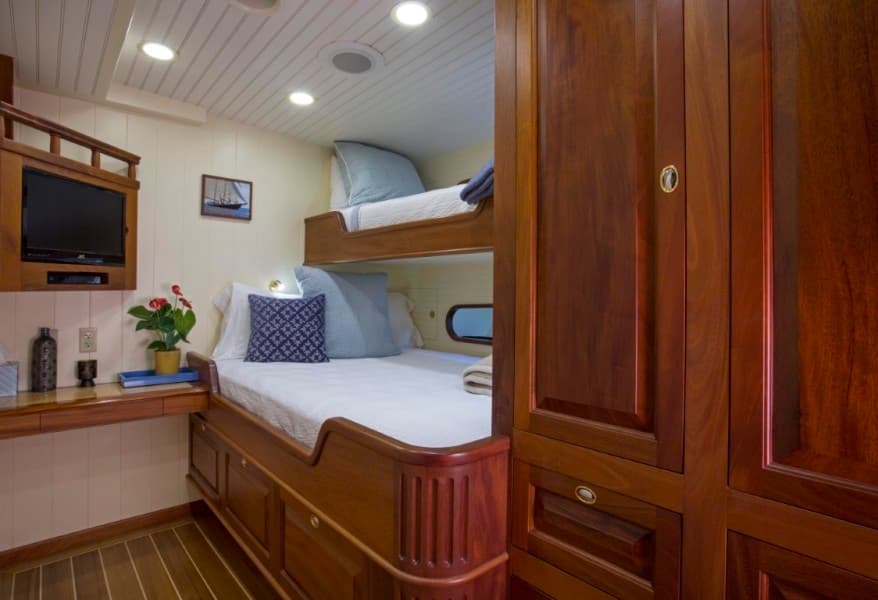

(4) Guest Cabins Sleeps 12 with ensuite facilities

(7) Full Heads

(1) Captain’s Cabin Sleeps 2 with ensuite facilities

(1) Crew Cabin – Forward (12) single berths, (1) head and shower

TANK CAPACITIES @100%

Total Fuel Oil in (4) tanks 6,262 US Gallons / 23,704 liters

Fixed Ballast Lead (47 Tons)

Potable Water 2,050 US Gallons / 7,760 liters

Gray Water #1 150 US Gallons / 567 liters

Gray Water #2 200 US Gallons / 757 liters

Black Water #1 150 US Gallons / 567 liters

Black Water #2 100 US Gallons / 378 liters

Fish Holds (2) @ 225 ft3 (insulated)

Main Deck Area 1,700 ft2

Deck House Top Area 540 ft2

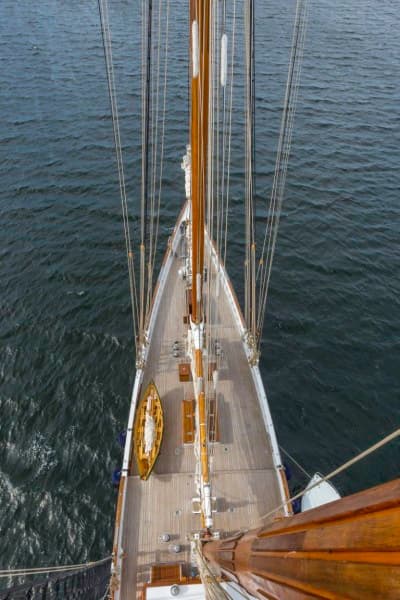

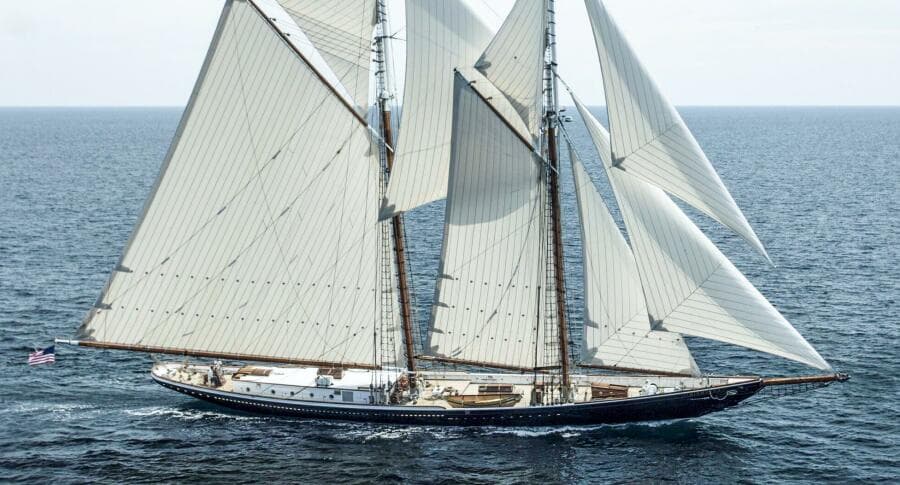

MAST, SAIL & RIGGING DETAILS

Main Mast (1) 19” x 124’10” Covey Island Boatworks, Douglas Fir Laminated Lower.

Sitka Spruce Laminated Top Mast

Foremast (1) 19” x 115’7” Covey Island Boatworks, Douglas Fir Laminated Lower.

Sitka Spruce Laminated Top Mast

Sails Michelle Stevens Sailloft LTD. Oceanus SAIL Cloth

Total Sail Area 10,220 ft2

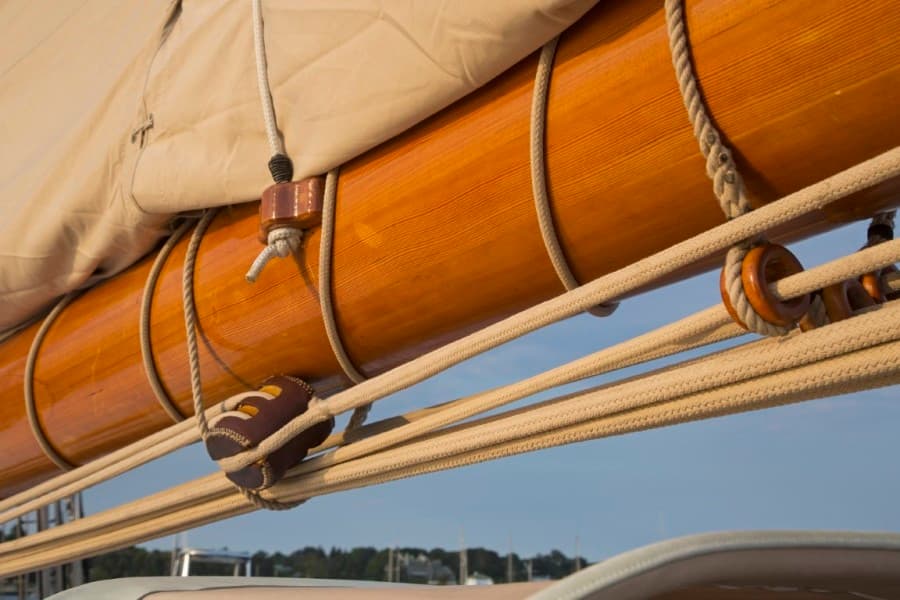

Spars Covey Island Boatworks, Sitka Spruce Laminated

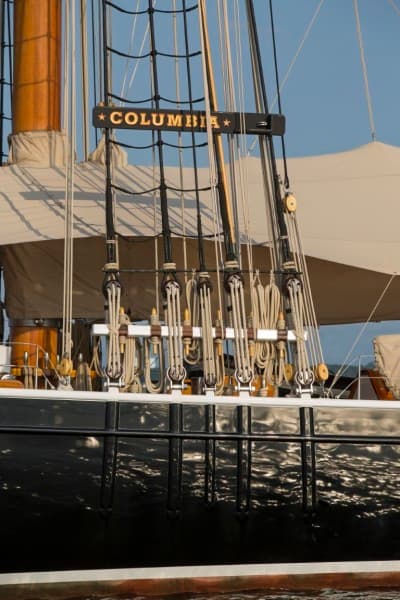

Standard Rigging Covey Island Boatworks, Traditional Gaff-Rigging 6x19 and 6x36

Parceled and served, Lignum Vitea Deadeyes

Running Rigging Covey Island Boatworks, Traditional New England Ropes

Vintage “Sta-Set” Double Braided Lines

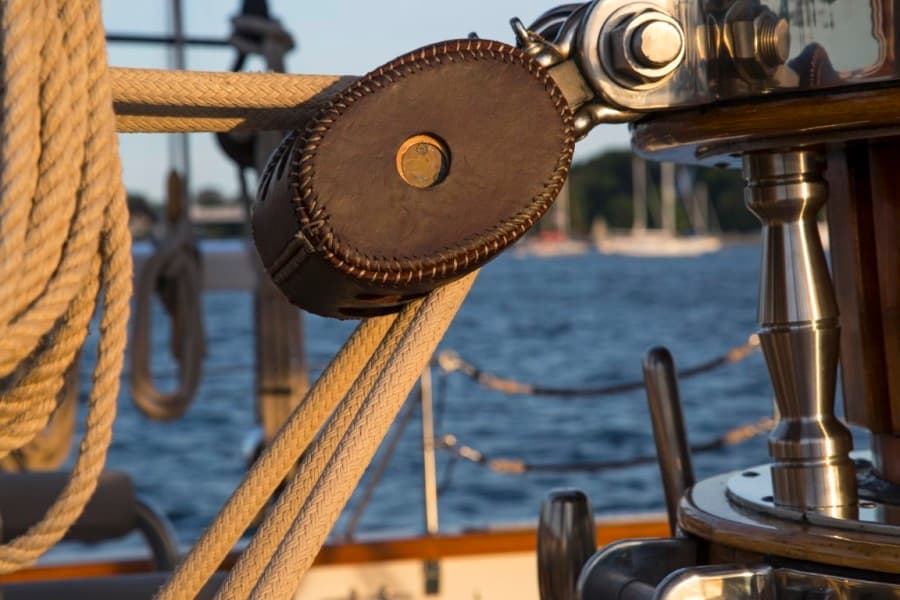

Blocks Covey Island Boatworks, A. Dauphinee & Sons

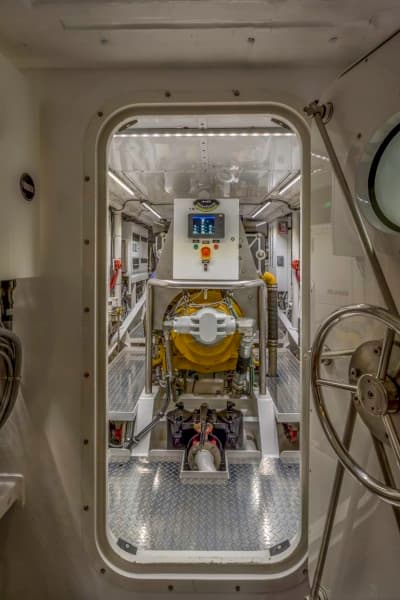

MACHINERY SYSTEM DETAILS

Diesel Propulsion (1) Caterpillar C-18, 587 HP @ 1800 RPM

Engine Hours: Main Engine Hours: 7,552 (01/19/2026)

Propulsion System (1) Hundested CPG32 CP, 3.07:1 Reduction

Tail Shaft (1) Hundested CP 120mm Tail Shaft

Propeller (1) Hundested CP (4) Blade Full Feathering Propeller

1200mm Dia. Material Ni-Al-Bz

Tail Shaft Bearings Cutlass Strut & Stern Tube Bearings

Tail Shaft Gland (1) Simplan Dripless Seal

Bow Tunnel Thruster (1) Key Power KP-16, 70 HP @1500 RPM Electro-Hydraulic

PTO Drive off the Main Engine

Main Rudder (1) Eastern Shipbuilding Group, Foil Type

Rudder Bearings Thordon SXL Bearings

Steering System (1) Pine Hill Equipment Electro-Hydraulic Steering System w/2x 10 HP HPU’s

Steering Rams (2) Pine Hill Equipment Hydraulic Cylinders

Steering Control (1) Electro/Hydraulic w/Manual Backup

Propulsion Control (1) Hundested Electronic

Bow Thruster Control (1) Key Power Electronic

Generator Engines (2) TAW Power Systems – John Deere, 65 kW, 200 AMP @ 1800 RPM Gensets

Generator Hours: Starboard Hours: 15,395 | Port Hours: 15,514 (01/19/2026)

Generator Rating (2) Kohler 65 kW each Continuous Rating 230 VAC, 3 Phase, 60 Hz @ 1800 RPM Marine Generators

Electrical Installation Eastern Shipbuilding Group, 230/120V AC and 24/12V DC

Main Switchboard (1) TAW Power Systems – Parallel Operation Switchboard, 230V AC,

65 kW 60 Hz, 3 Phase

Distribution Panels Ward Electronic – 208/120V AC 60 Hz, 3 Phase Primary Distribution Panels

Engine Cooling Heat Exchanged, Raw-water Cooled

Fire Pump (2) MP Pump, Inc. 5 HP #36085

Fish Hold Refrigeration (2) Eskimo Ice Makers E1510d-230-WP

Freshwater Makers (2) Cathelco Seafresh H208 Water Makers, 37 USG/per hour, w/RMF-2 Re-mineralizers

Freshwater Pump (2) Mach 5, #3380SWTH

Hot Water Heaters (10) On-demand Electric Hot Water Heaters Hubbell, MTX018-3R

Bilge Pumps (1) MP Pump, Inc. 5 HP #36085

Transfer Fuel Pump (1) Oberdorfer 1.5 HP T12CT

Fuel Filter Separators (3) Racor Duplex Filter – Diesel Engines

Fueling Stations (1) Vessel Fueling Station

Sewage Treatment (1) Dometic Sanitation 42 Gallon MSD Unit

Sewage Pump (1) Dometic Sanitation 24V

Toilets (7) Dometic Sanitation – Touchpad Control

Supply Ventilation (1) Delta T-fan

Exhaust Ventilation (1) Delta T-fan

HVAC and Duct Work (1) LeBlanc & Associates, Cruisair 20T Unit

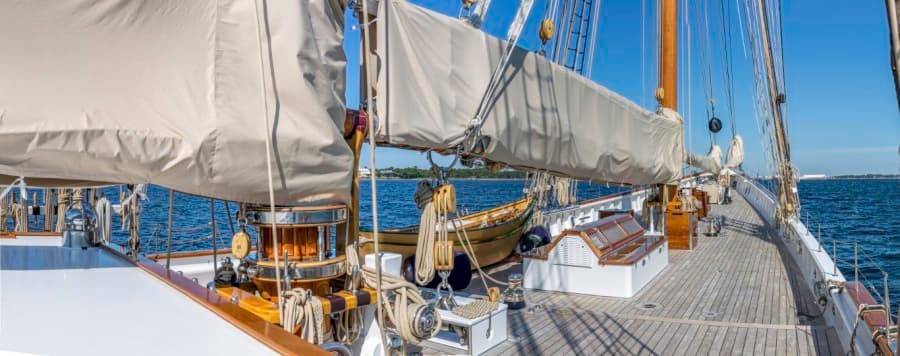

DECK EQUIPMENT DETAILS

Bow Capstan and Anchor Winch (1) Electro/Hydraulic – Ridderinkhof #R-AMW-H 20.5

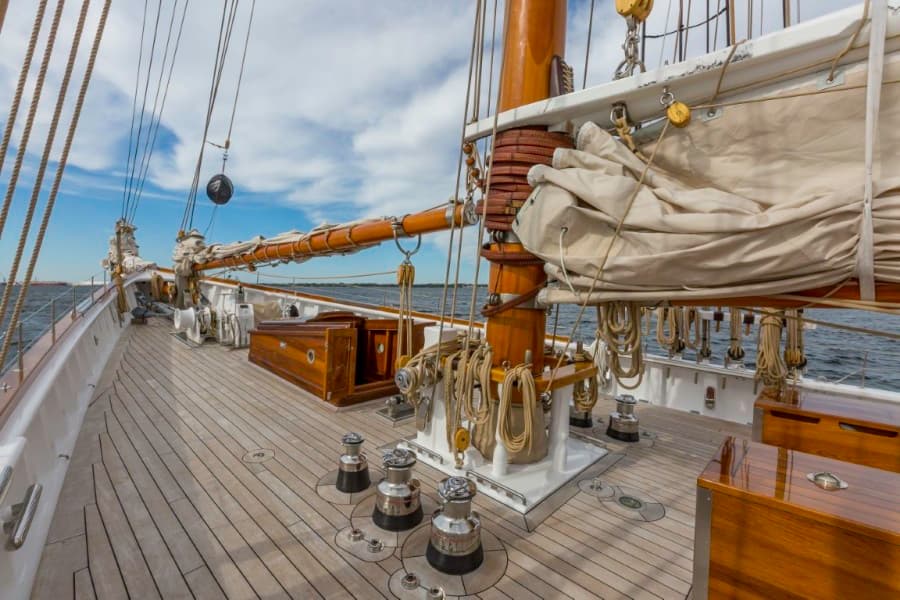

Sail Winches (10) Hydraulic (4 Fwd, 4 Mid-ship, 2 Aft) Harken #74

Sail Winch (1) Hydraulic (Mid-ship) Harken #68

Sail Winch (1) Hydraulic (Aft) Harken #980

Sail Winches (8) Manual – Harken

Manholes Pacific Coast Marine

Watertight Doors Pacific Coast Marine

Port lights Pacific Coast Marine

Deck Hatches Pacific Coast Marine

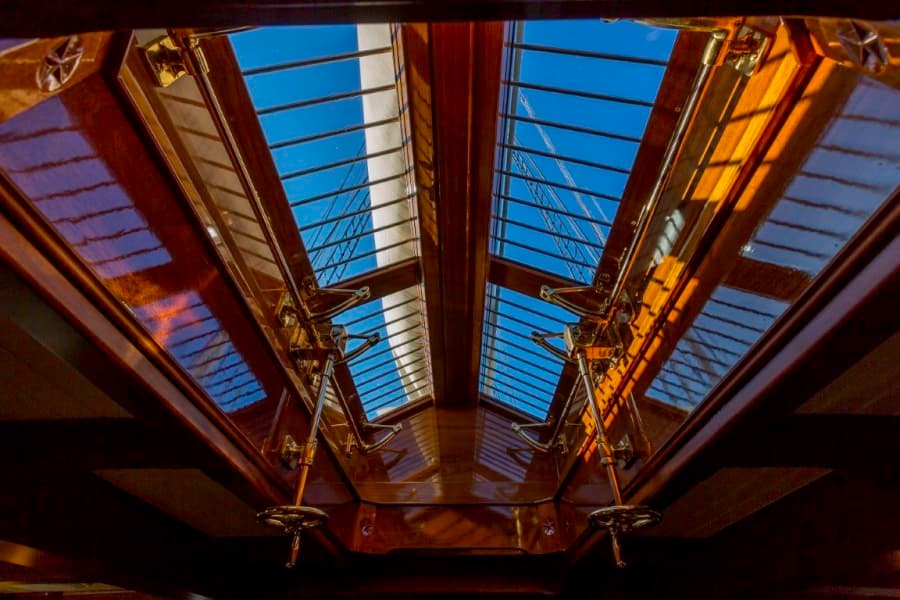

Deck Prisms Marine Skylights

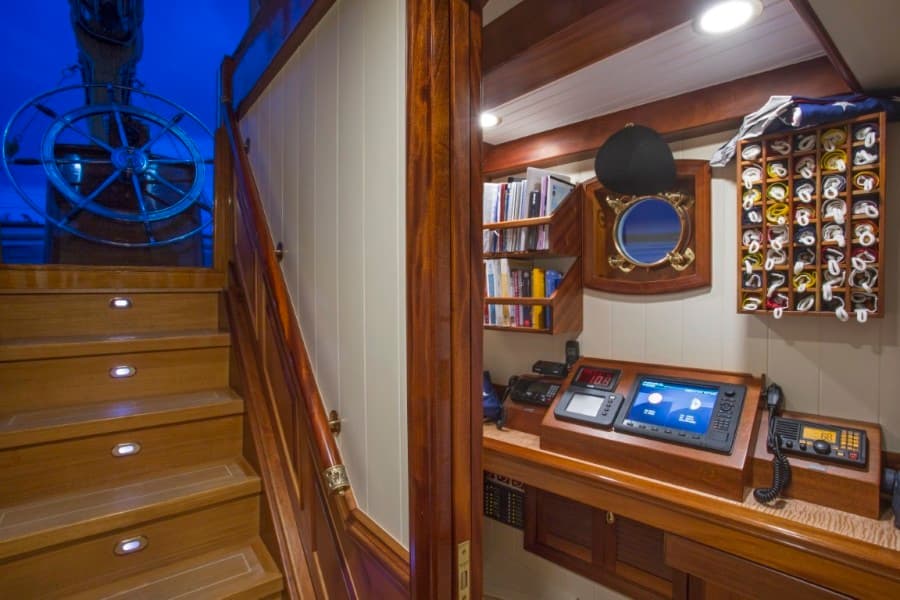

NAVIGATION AND COMMUNICATION DETAILS

Radar #1 B&G Broadband 36 nm, 4G Radar, 24” Radome

Radar #2 B&G Broadband 36 nm, 4G Radar, 24” Radome

AIS System Simrad NAIS-400, Class-B AIS w/GPS Antenna

Chart Plotter (4) B&G ZEUS 12” Color Displays w/Sail Software

GPS (3) B&G ZG50 GPS

Navigation Displays (3) B&G 20/20HV Displays

Graphical Function Displays B&G Hercules Base Back-GFD H3000/CPU HTDRA

Echo Sounder Simrad GFD H3000 Interface, Flanged Transducer

Speed Log Simrad, GFD H3000 Interface, Flanged Speed Sensor

Speed Display B&G H3000 AWA 360 Display w/SimNet Interface

Autopilot Simrad AP20, WR20 Remote Commander w/SimNet Wireless Interface

GPS Compass Simrad HS70 w/SimNet Wireless Interface

Course Computer Simrad AC12, w/SimNet Wireless Interface

Rudder Feedback Simrad RF300

Wind Sensor B&G Vertical Masthead Pack-1050mm

VHF Radios (2) ICOM Radio/Hailer, 25W 12VDC w/NEWMAR Hailer and Deck Horn

VHF Handheld (2) ICOM IC-M604A

Weather Station (1) Simrad Weather Module

Security Camera System (2) Orlaco Compact Color HR Cameras with LED Lights

Underwater Lighting Lumishore Color Change Lighting

Navigation Lights COLREGS/USCG approved LOPO 3nm LED

Ship’s Bell One

Ship’s Clock One

Ship’s Barometer One

Ship’s Whistle (1) Federal Single #41X 24VDC

LIFESAVING EQUIPMENT

EPIRB (1) A5 406 Mhz Unit

SART (2) S4 9GHz X-Band Search and Rescue Transponders

Life Rafts (4) USCG approved 15-man throw-overboard inflatable rafts

Life Jackets (30) USCG approved adult life jackets

Ring Buoys (2) 30” Ring Buoys w/lights and lines

Fire Stations (2) Main Deck

First Aid Kit One

Flares (10) Rocket Parachute Flares

ALARMS & FIREFIGHITNG DETAILS

Engine Alarm System Local Monitoring, by Caterpilar & TAW Power Systems

Fire & Smoke Detection (1) USCG approved, smoke and heat detection

General Alarm System (1) w/two Contact Makers

Fire Extinguishers (2) Co2 – Machinery Space; (4) Dry-Chemical – Accommodation Space

Fire Axe One

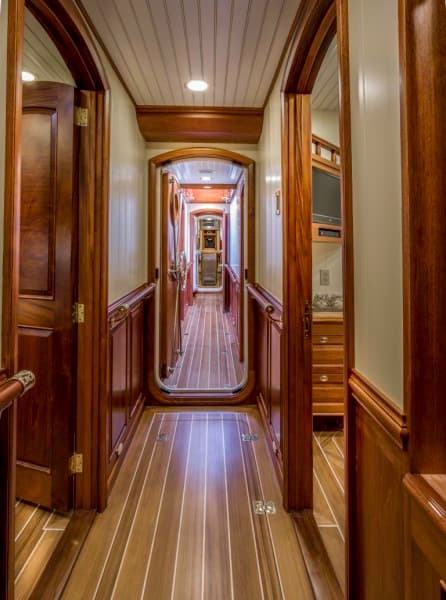

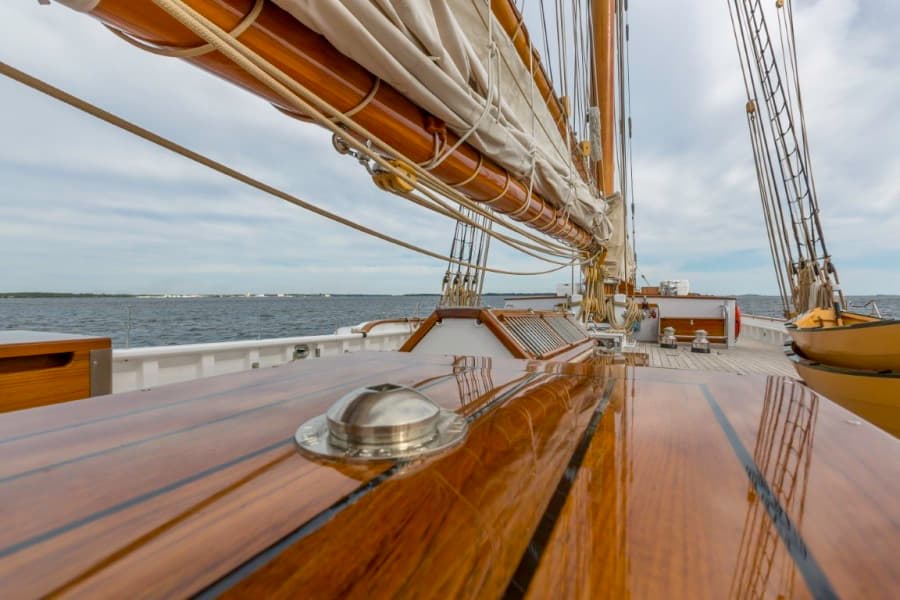

DECK & ACCOMODATIONS DETAILS

Joiner Fabrication Eastern Shipbuilding Group

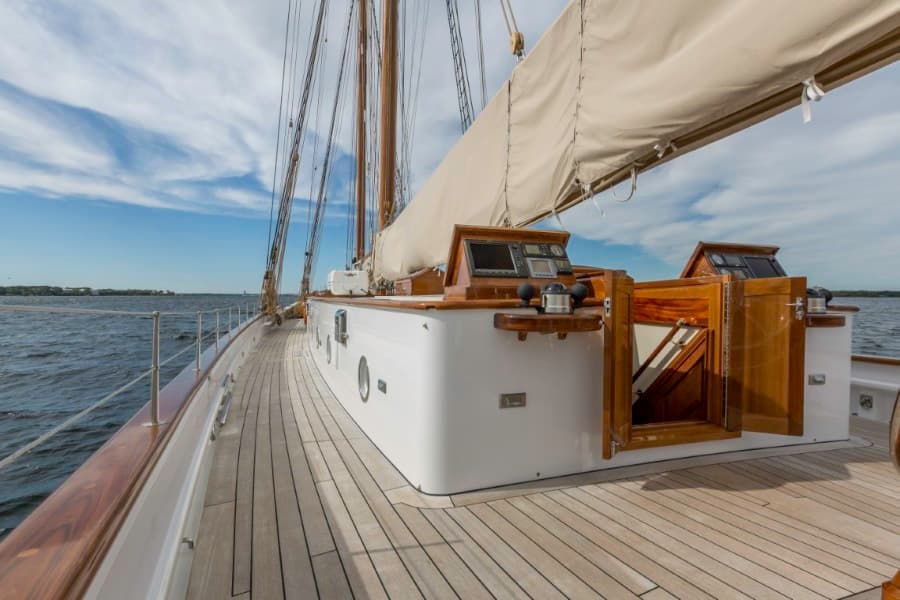

Exterior Deck Covering Teak Deck Systems – Teak wood w/Holly strips

Interior Deck Covering Teak Deck Systems – Teak wood w/Holly strips

Overhead Sheathing Traditional V-Bead Wood – painted

Bulkhead Sheathing Traditional V-Bead Wood – painted

Furnishings Mahogany custom cabinetry – wood hand crafted, bunks, lockers, desks, leather settee and tables

Thermal Insulation 4” Rock Wool

Noise & Sound Insulation Soundown, Barrier acoustic insulation

Exhaust Insulation 2” Rock Wool Insulated Blankets

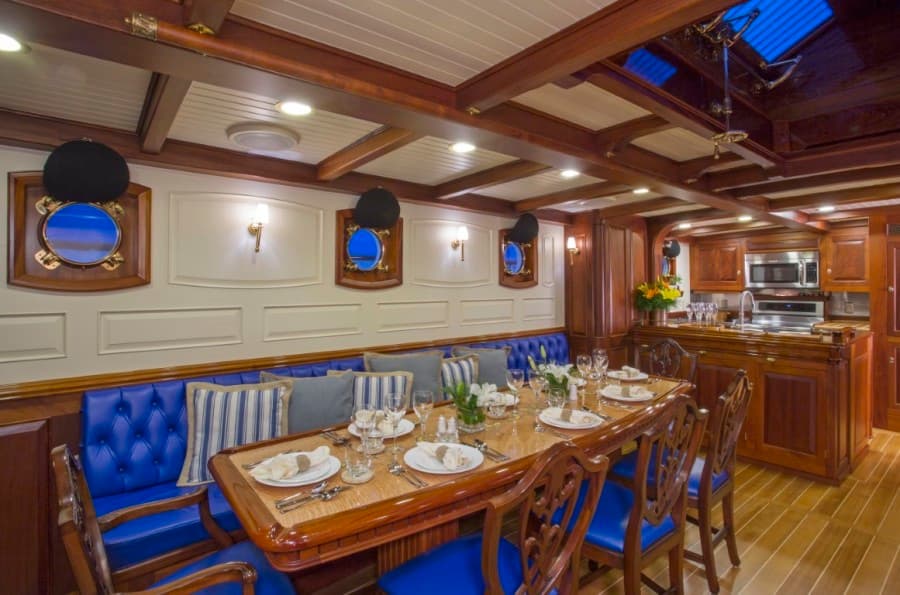

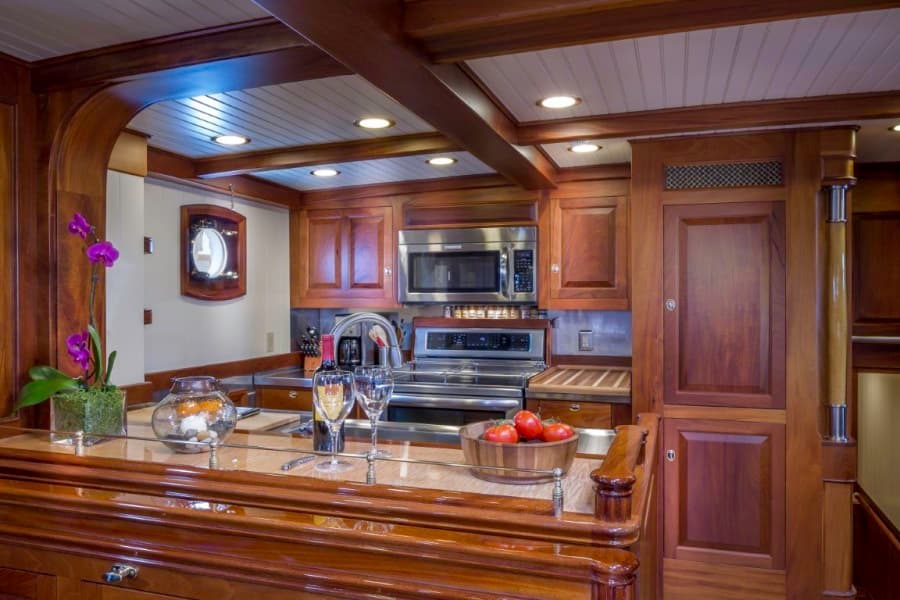

GALLEY / LAUNDRY EQUIPMENT

Refrigerator KitchenAid 28 ft3 – Stainless Steel #KSC24C8EYP02

Freezer Cospolich Refrigerator Co. – Built-in unit

Microwave Oven Range Hood, KitchenAid #W10249655A

Ice Maker KitchenAid, #KUIC15PLXS3

Trash Compactor Electrolux, #E15TC75HPS

Dishwasher KitchenAid #KUDE70FXSS5

Washer/Dryer (2) LG 24” All-in-one, Combo units, #Wm3455HS

Galley/Mess Countertops Stainless Steel

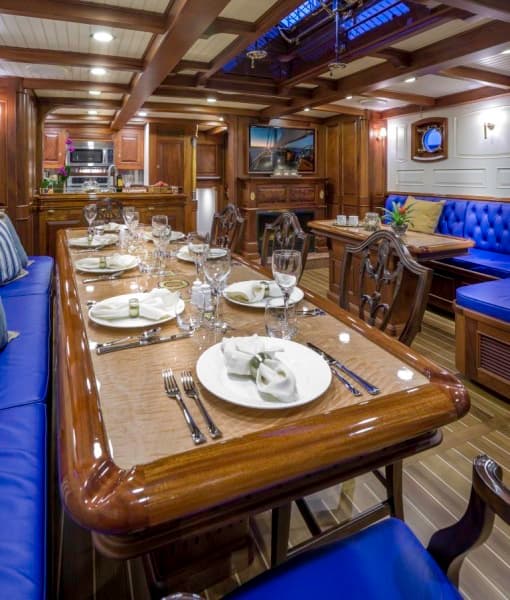

Mess Area Tabletop Tiger Maple & Mahogany Wood

Galley Sink Single, Stainless Steel

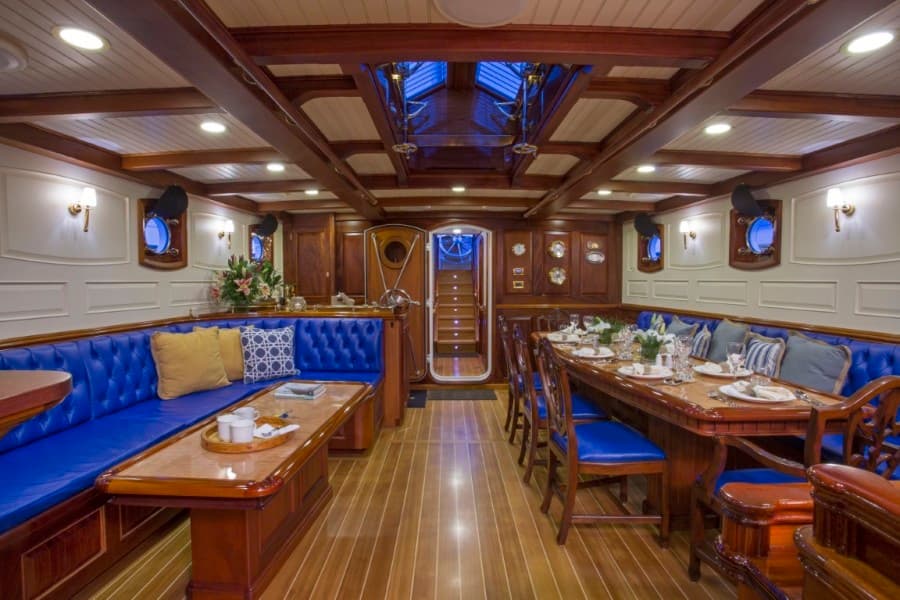

Main Salon Tabletop Tiger Maple & Mahogany Wood – retractable

Wet Bar Tiger Maple & Mahogany Wood w/sink

(1) Maxx Ice Refrigerator #MCR3U

(1) Maxx Ice Icemaker #MIM5C-0

(1) Maxx Ice 28-Bottle Wine Cooler #MCWC28-0

Main Salon Fireplace (1) Electric Dimplex #DWF36PG

ELECTRONICS / COMMUNICATIONS / AUDIO-VISUAL

VSAT KVH V3 w/M5 Dome, Mini-VSAT Phone/HDTV/Internet System

Marine TV Antenna Shakespeare SeaWatch Marine Antenna, 14” Diameter

Main Salon Television (1) Samsung 46” Smart HD TV

Television/DVD Players (6) RCA 22” HDTV/DVD Combo-units

Radio/CD System Crestron/Boston Acoustic & JBL

PAINT SYSTEM

All Plate & Shapes Wheelabrated with Carboline 8703, Pre-construction Primer

Exterior Coating below WL ALEXSEAL – Primer 161

ALEXSEAL – Fairing Compound 202

ALEXSEAL – Super Build 302

ALEXSEAL – Finish 442

Exterior Coating above WL ALEXSEAL – Primer 161

ALEXSEAL – Fairing Compound 202

ALEXSEAL – Super Build 302

ALEXSEAL – Finish 442

Potable Water Tank Coating International Paint – Interline 925

Void Tank Coating International Paint – Intershield 300V

Interior Superstructure International Paint – Intershield 300V

International Paint – Interthane 990

Machinery & Storage Spaces International Paint – Intershield 300V

Fuel, Lube Oil & Dirty Oil

Tank Coating - none

CATHODIC PROTECTION

Impressed Current System Cathelco (ICCP) Miniteck System

DISCLAIMER

All speeds, measurements, capacities, consumptions, etc. may be approximate or estimated. Specifications provided for information only. Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers. Lessee assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to lease. Subject to prior lease with option to purchase and inventory change or withdrawal from market without notice.
