2013 Westport Westport 164

• Hull 11 of only 14 Westport 50-meter built.Only two owners since new.

• Meticulously maintained by her owners.

• Helicopter capable.

• High quality American manufacturing and product support.

• 6 stateroom layout including upper deck master stateroom.

• Garage for tender or storage plus tender/toy storage on bow and sun deck.

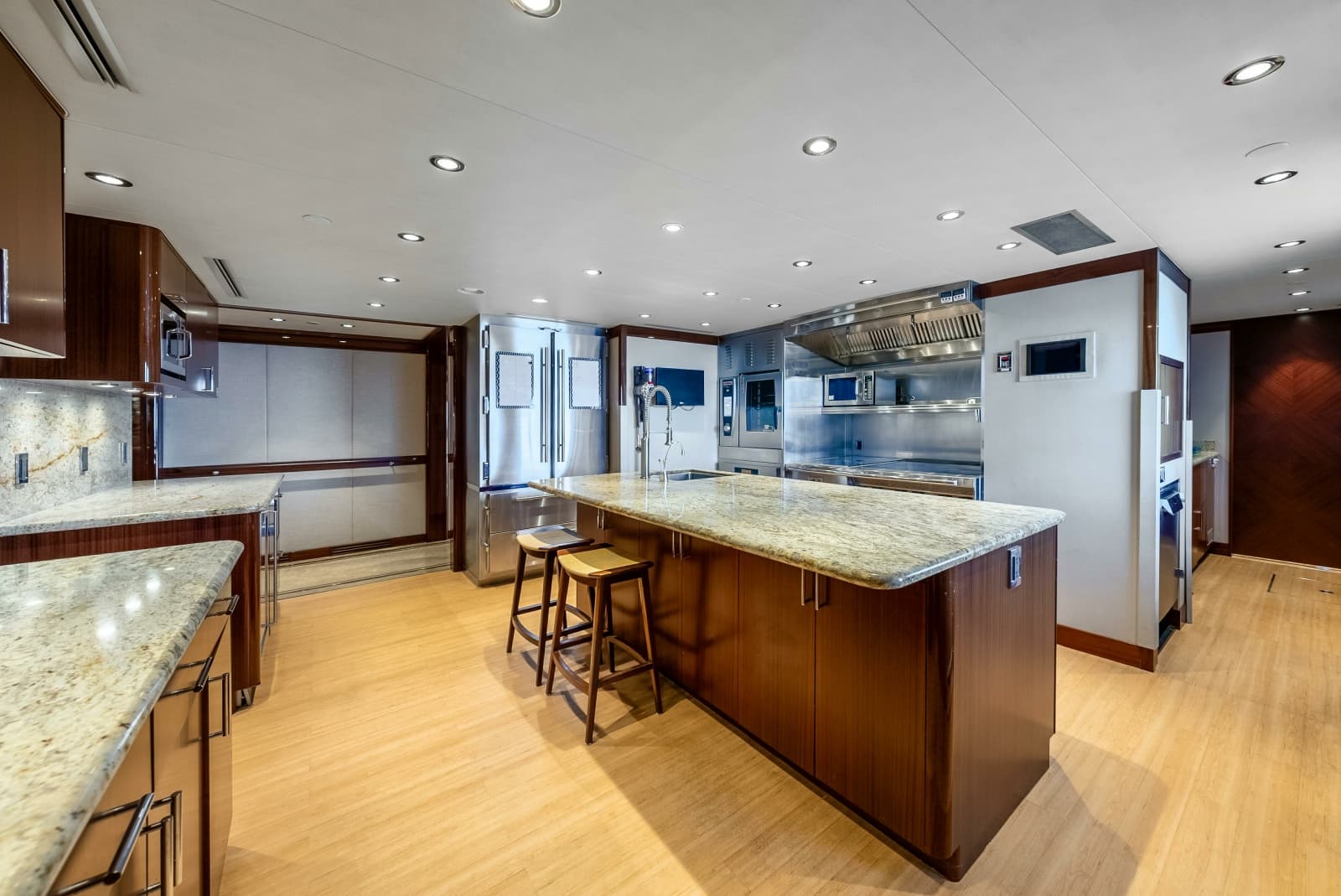

• Beautiful open galley arrangement with excellent storage.

• Massive crew accommodations.

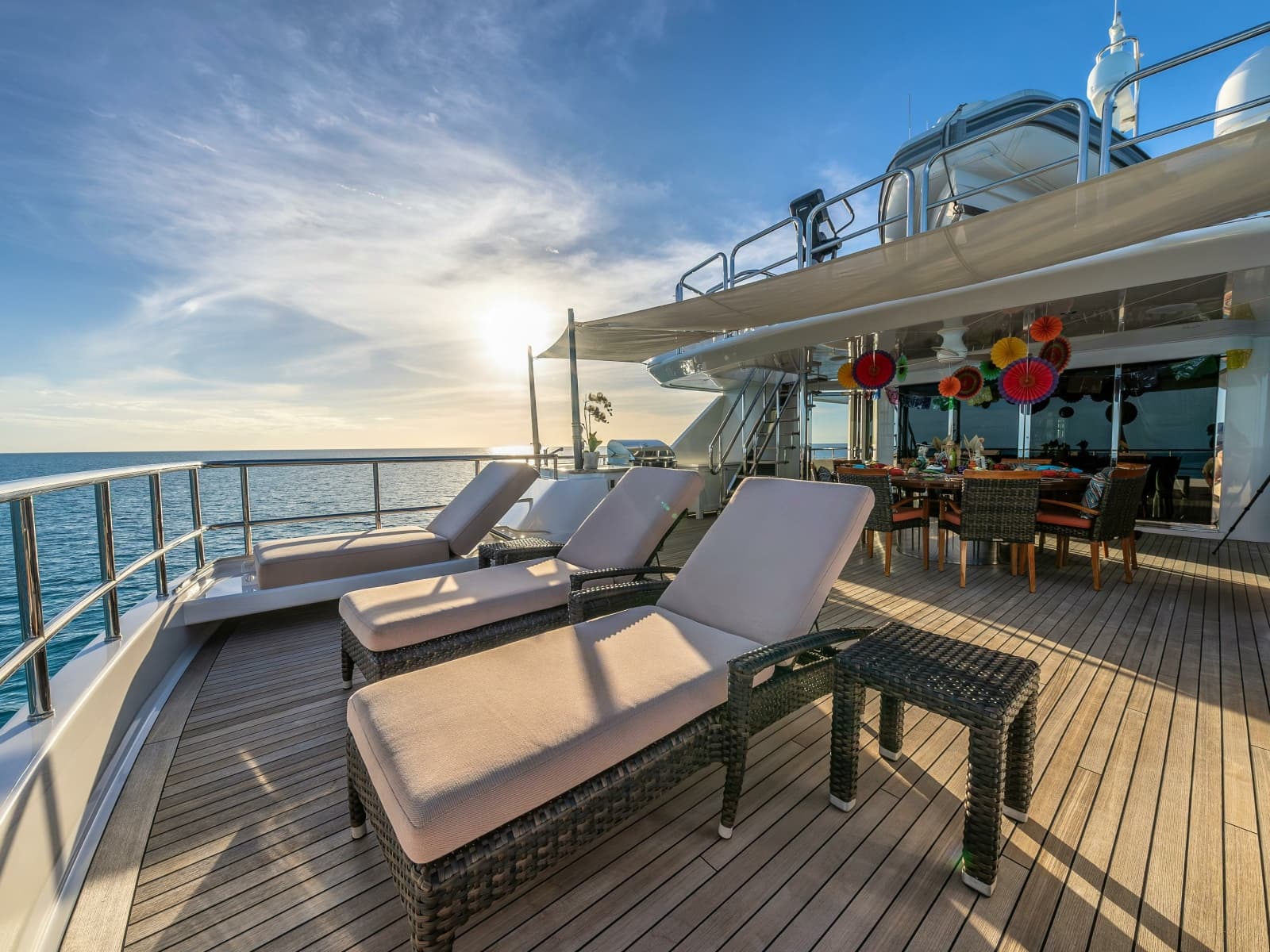

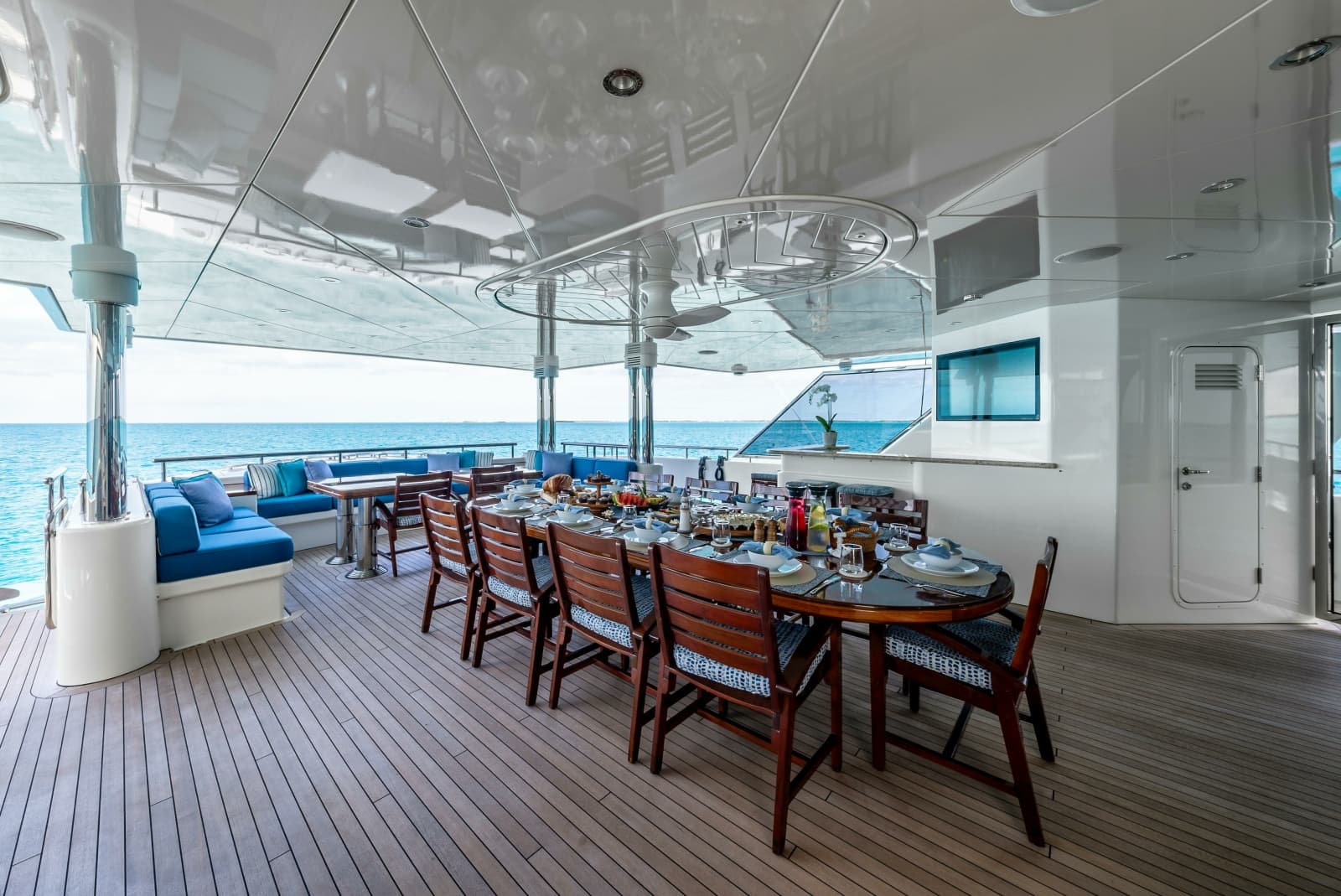

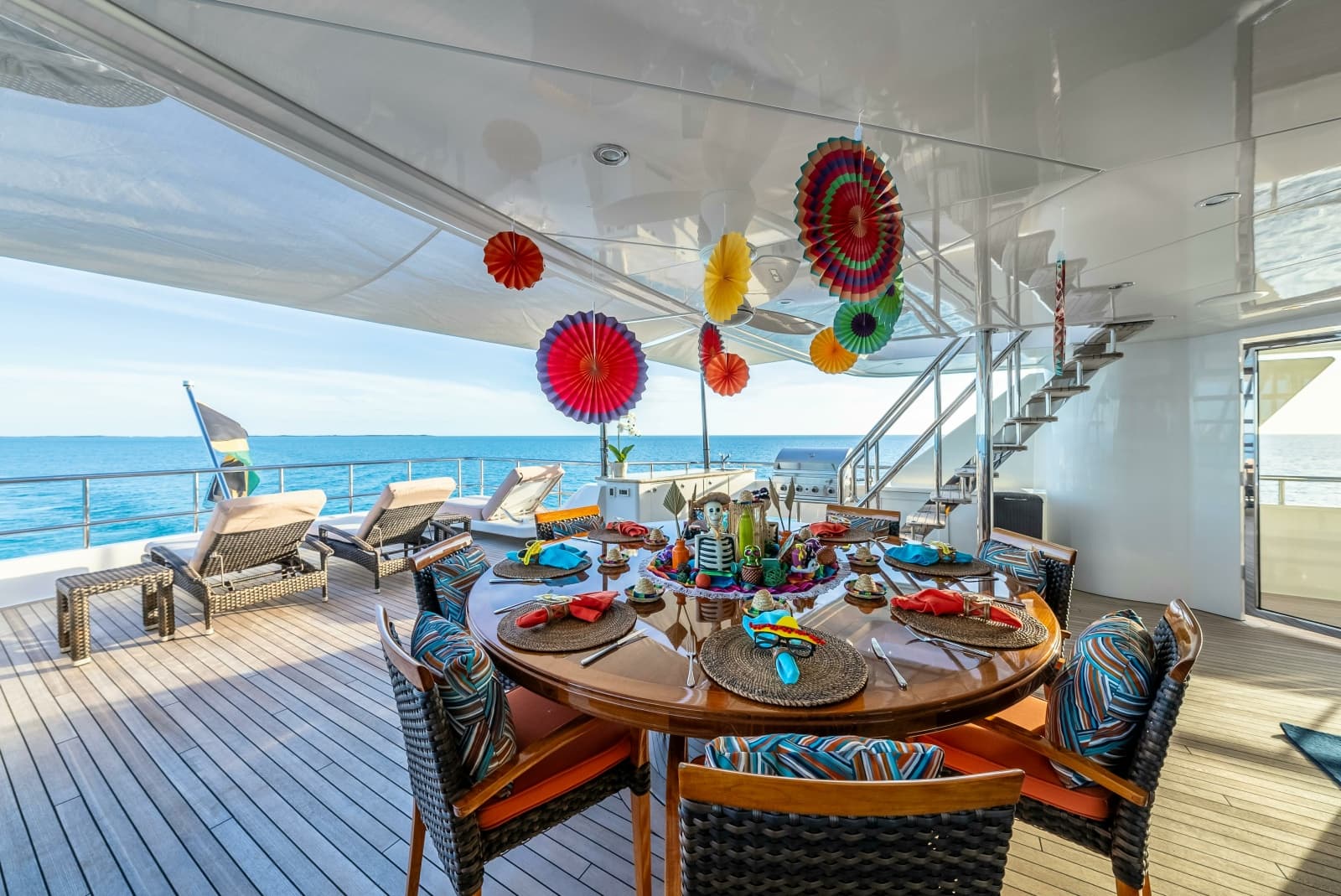

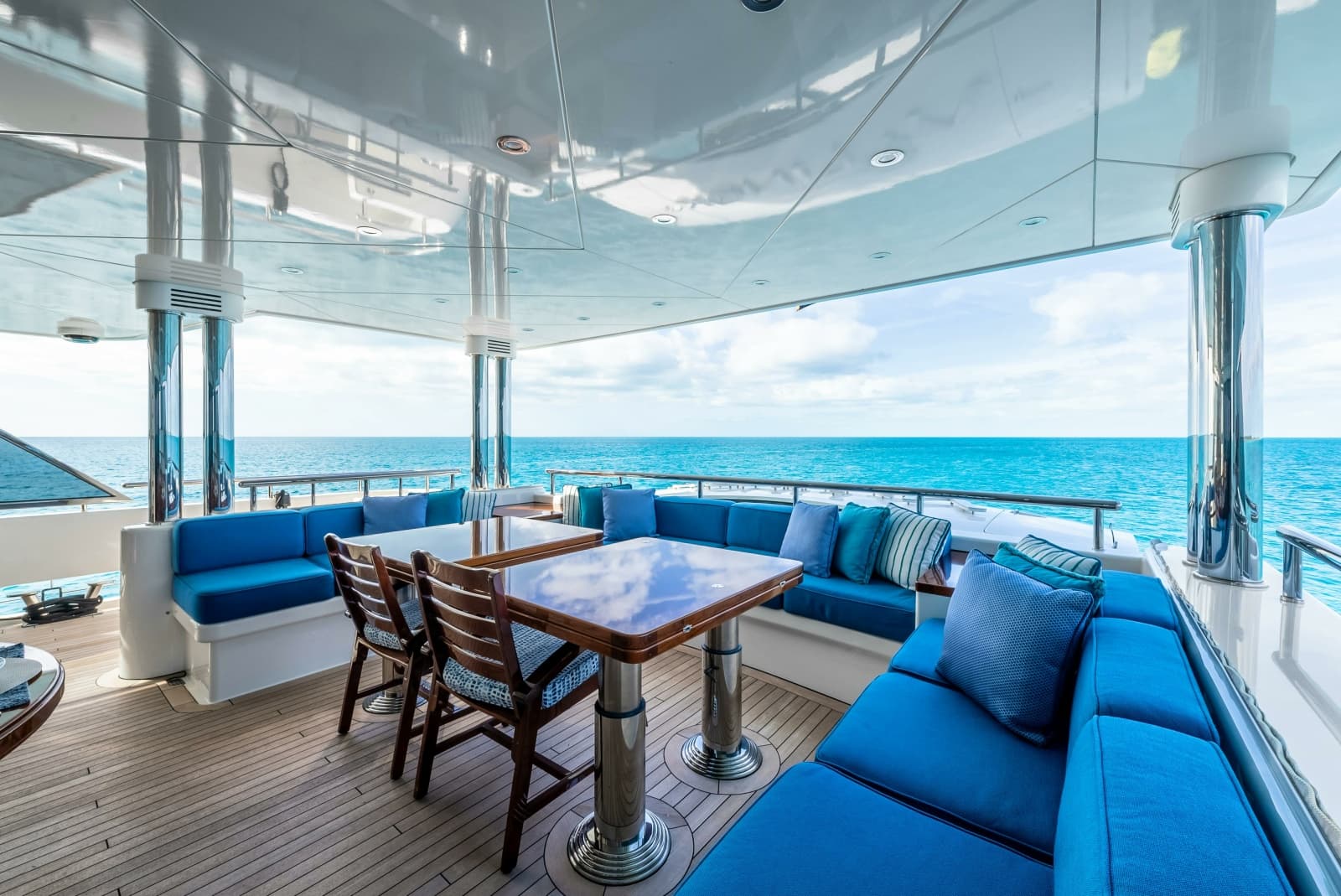

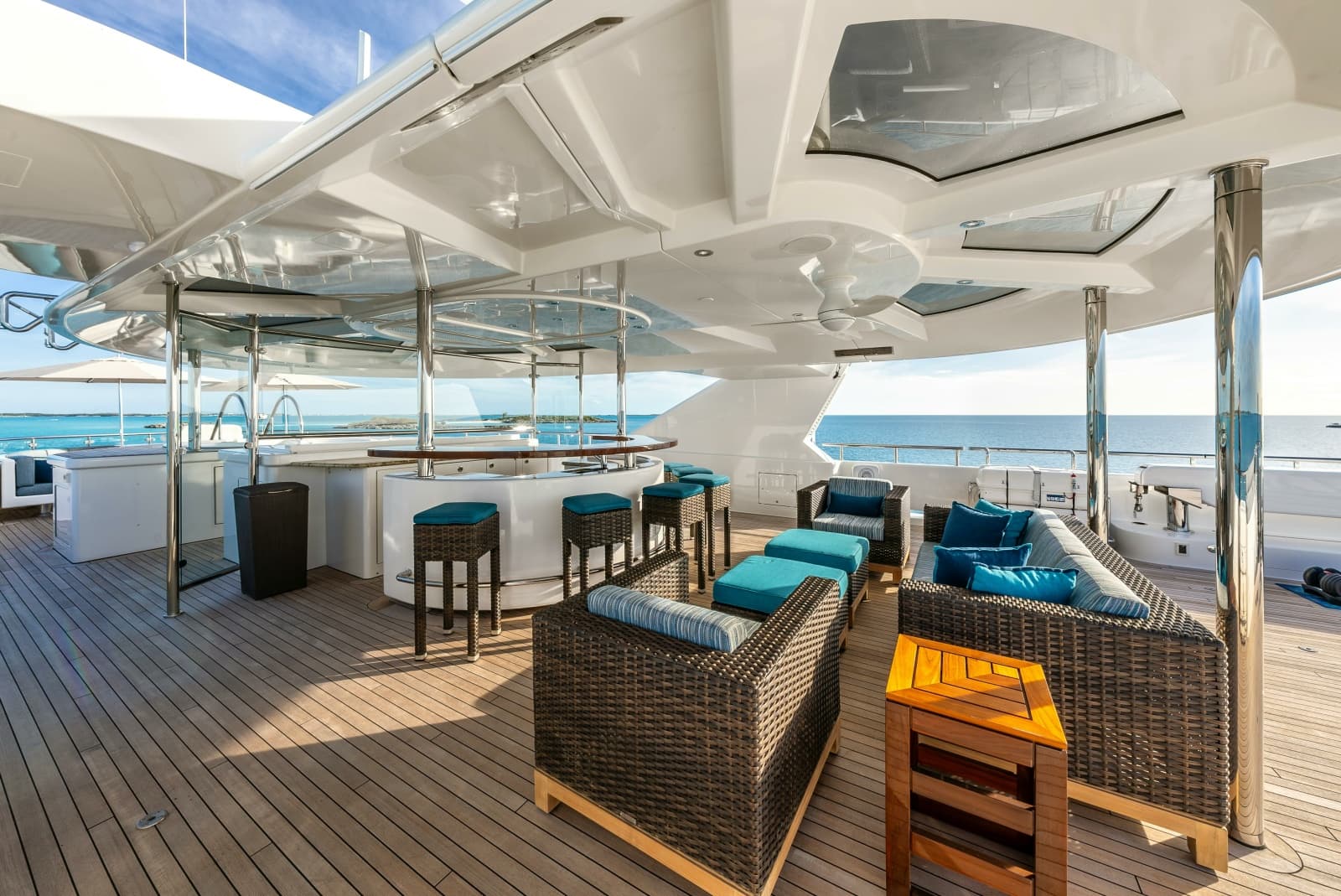

• Large aft deck and sun deck guest areas plus bonus terraces on bow and bridge side deck.

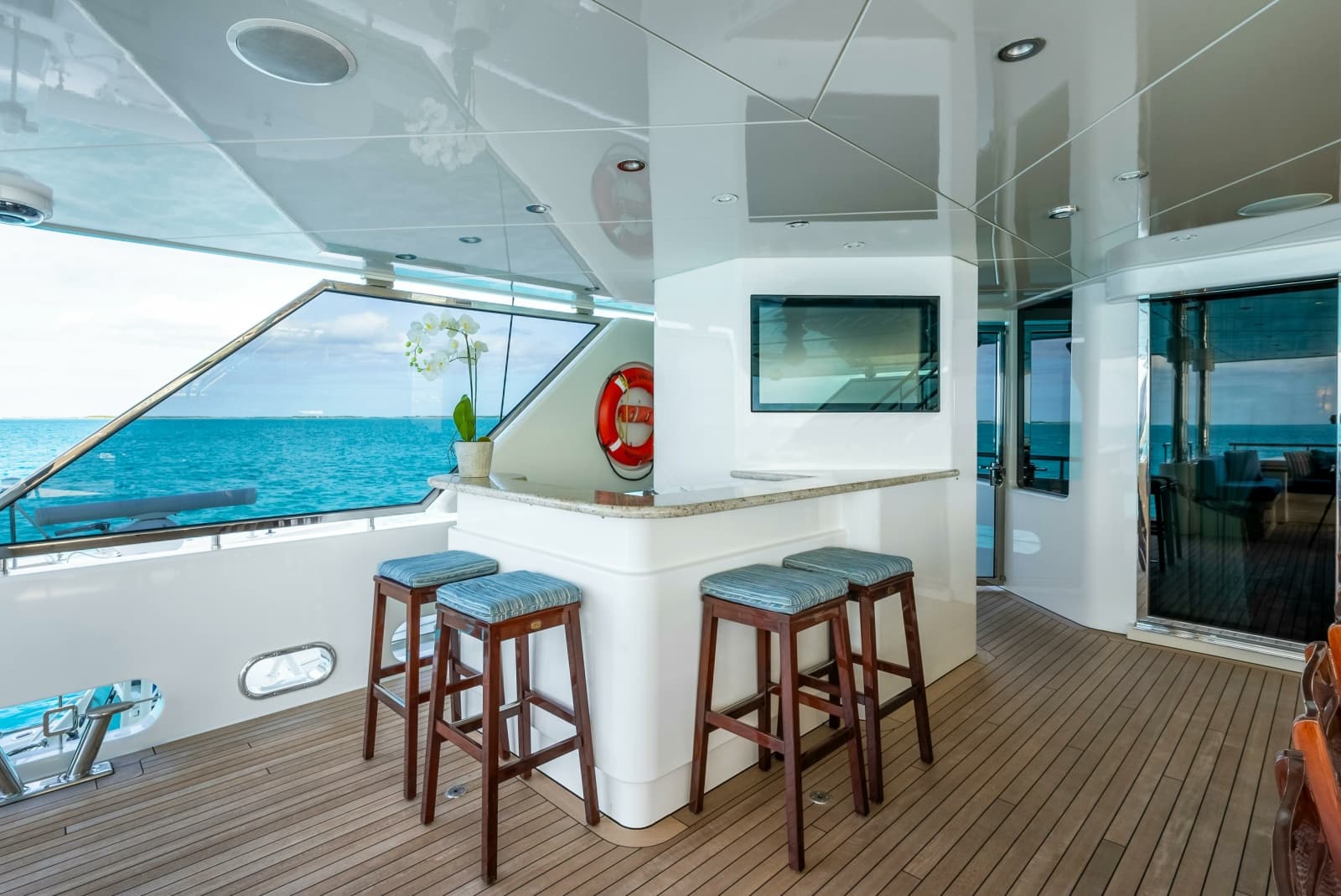

• Custom bridge aft deck layout with BBQ and service areas.

• 10 year ABS special survey completed October 2022.

• 19.5 knot cruise speed

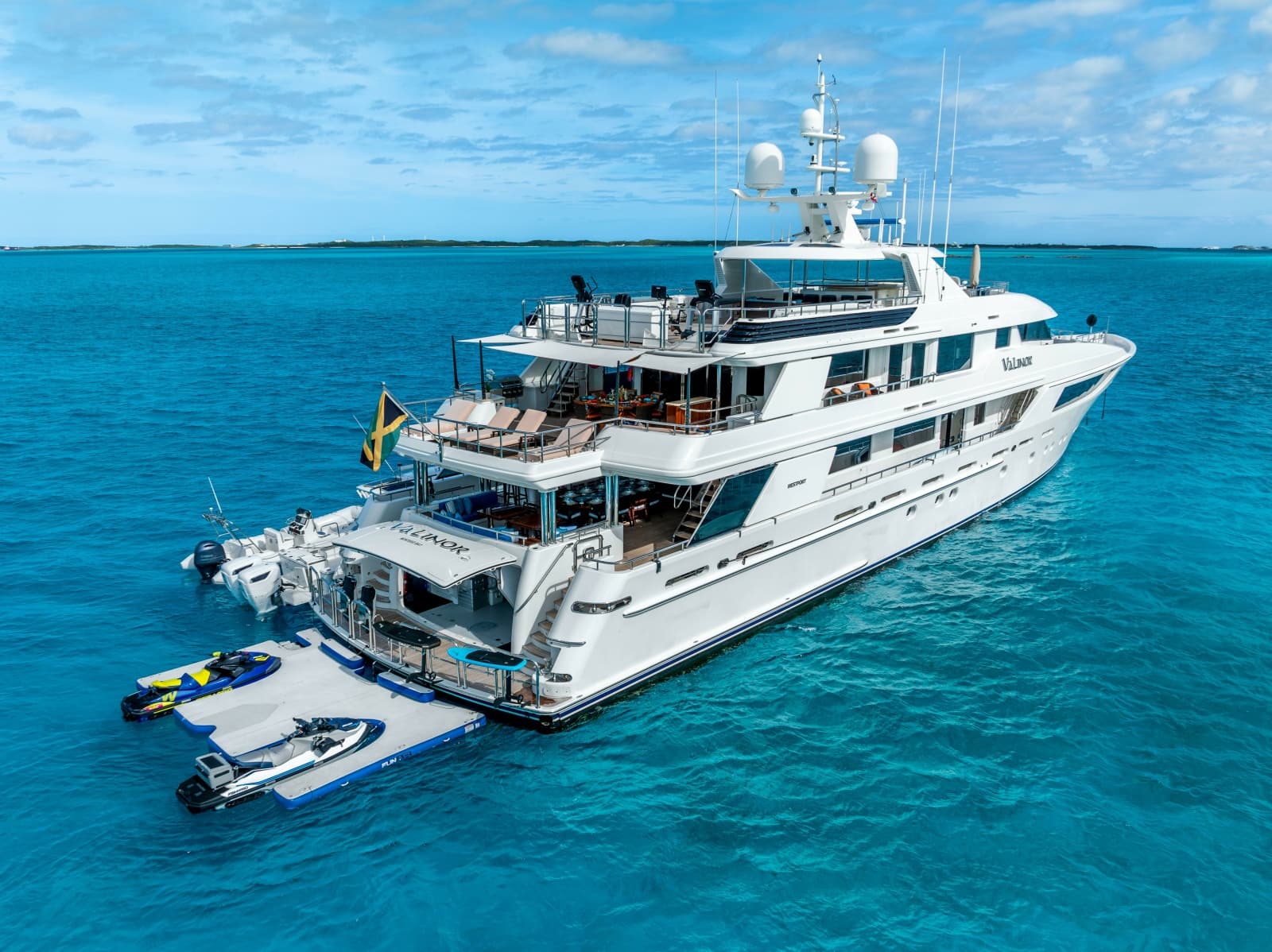

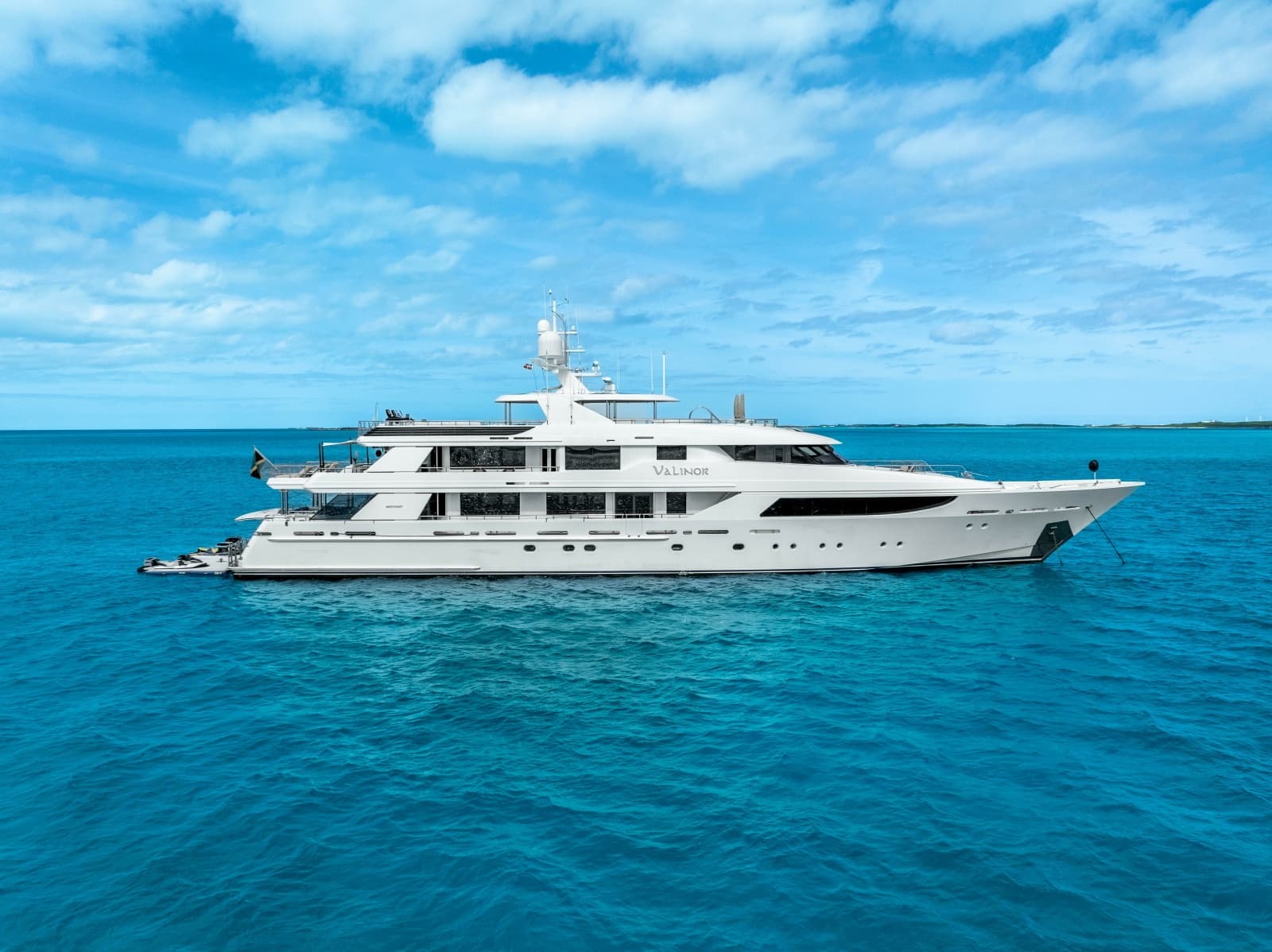

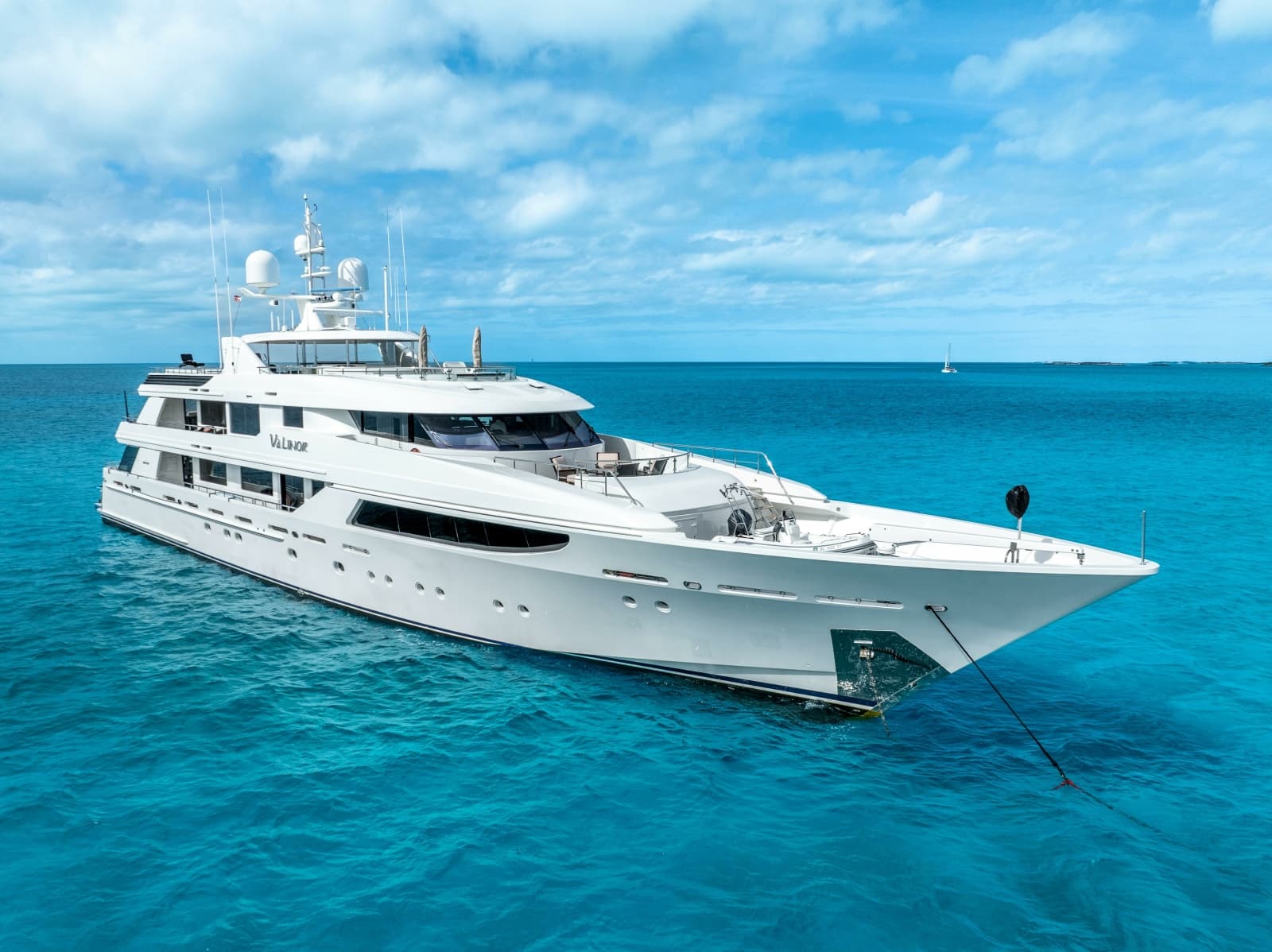

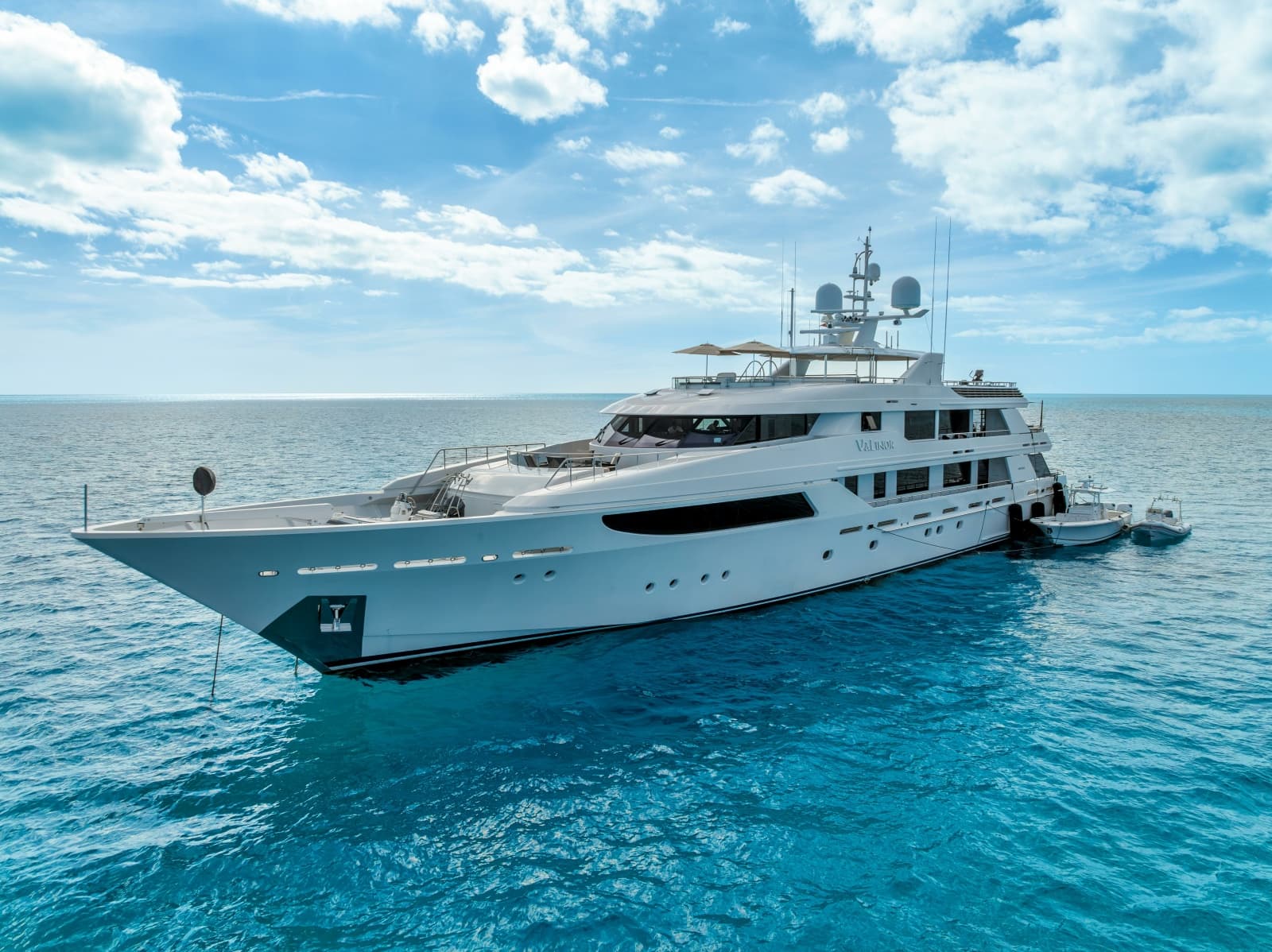

Launched in 2013, the 50m (164’) VALINOR is the ideal choice for an owner with an appetite for adventure. Built on Westport’s proven hull design, VALINOR has been fitted from stem to stern to enable extended cruising throughout the world’s most remote locations, including her most recent exploration of the South Pacific.

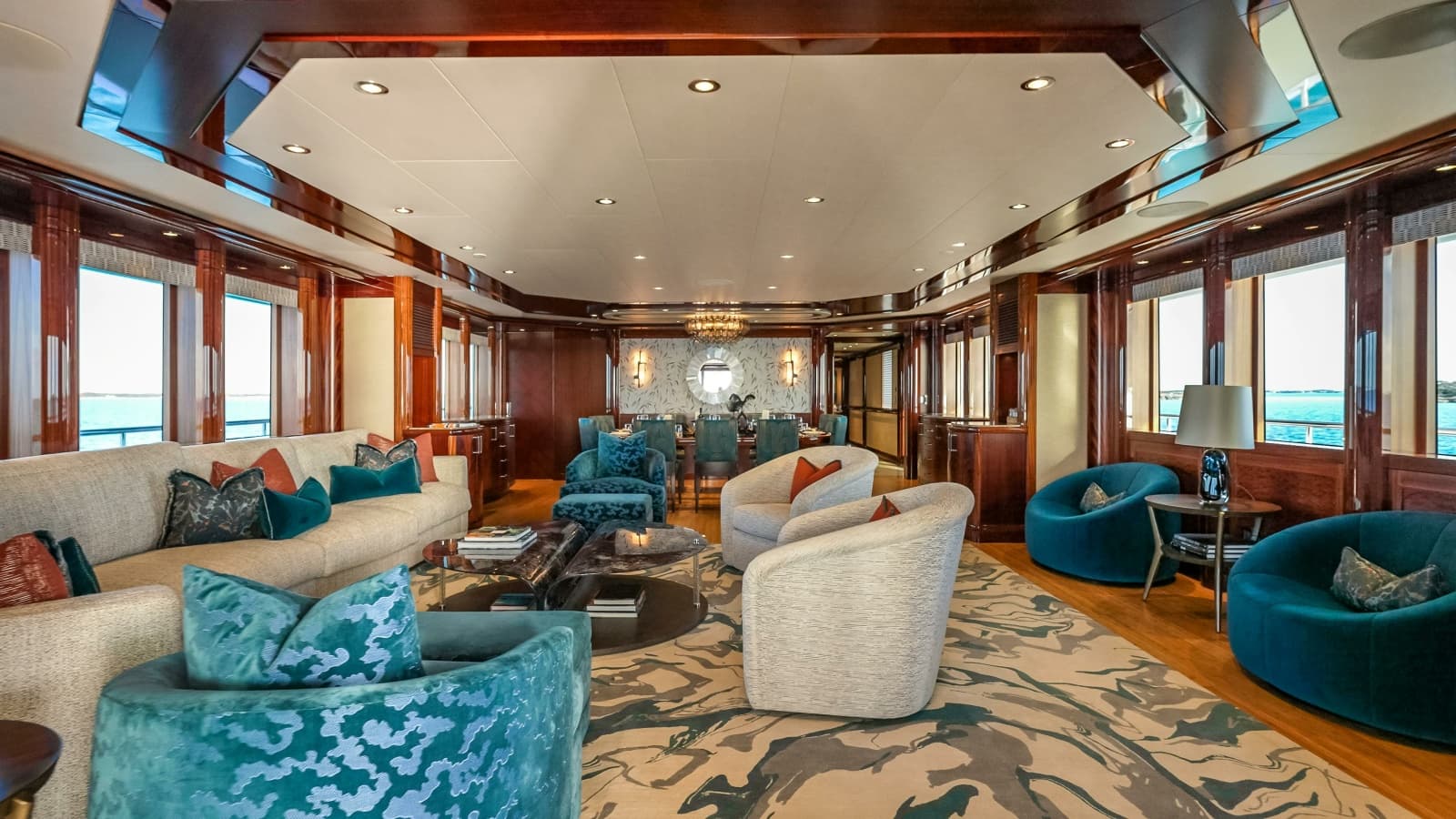

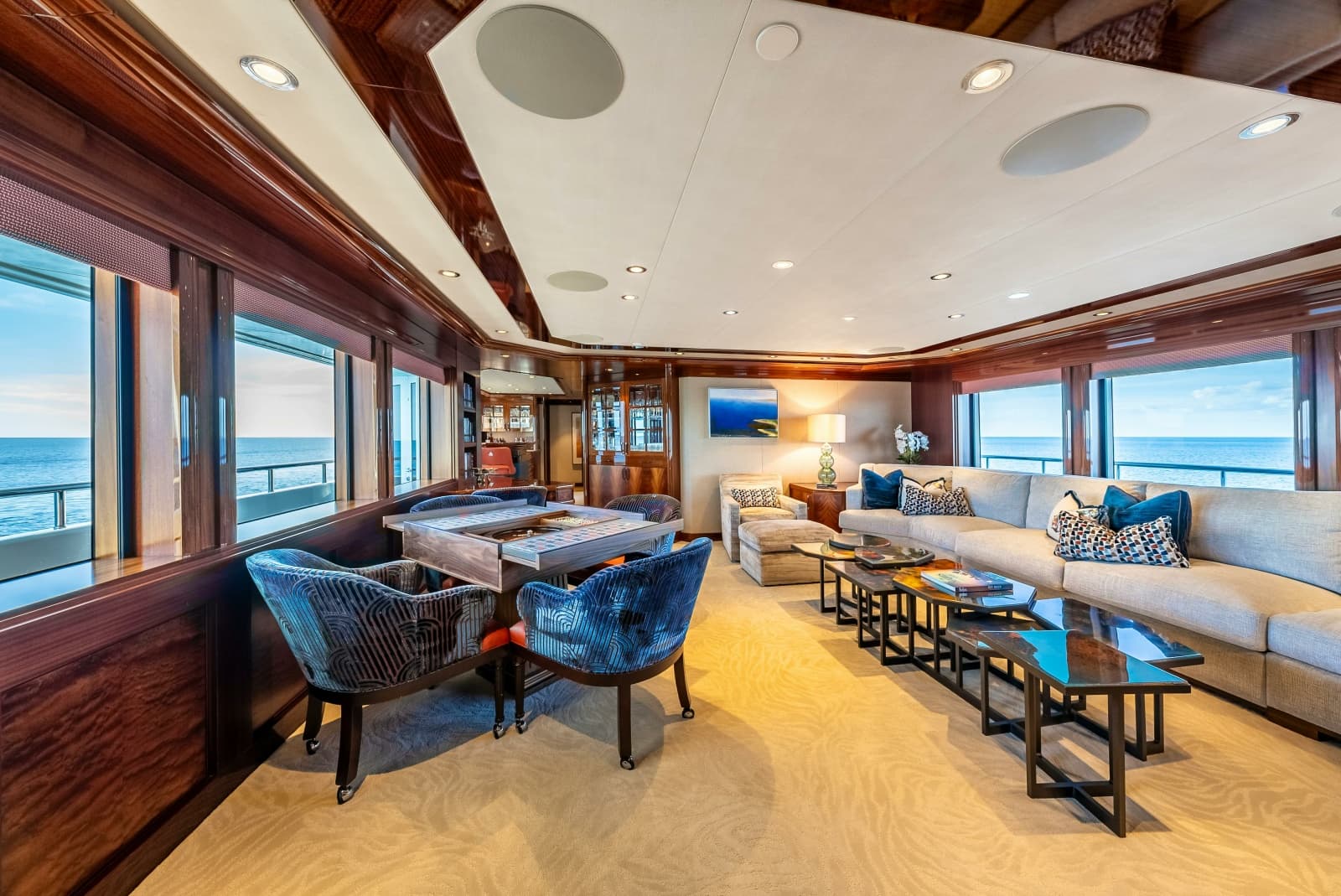

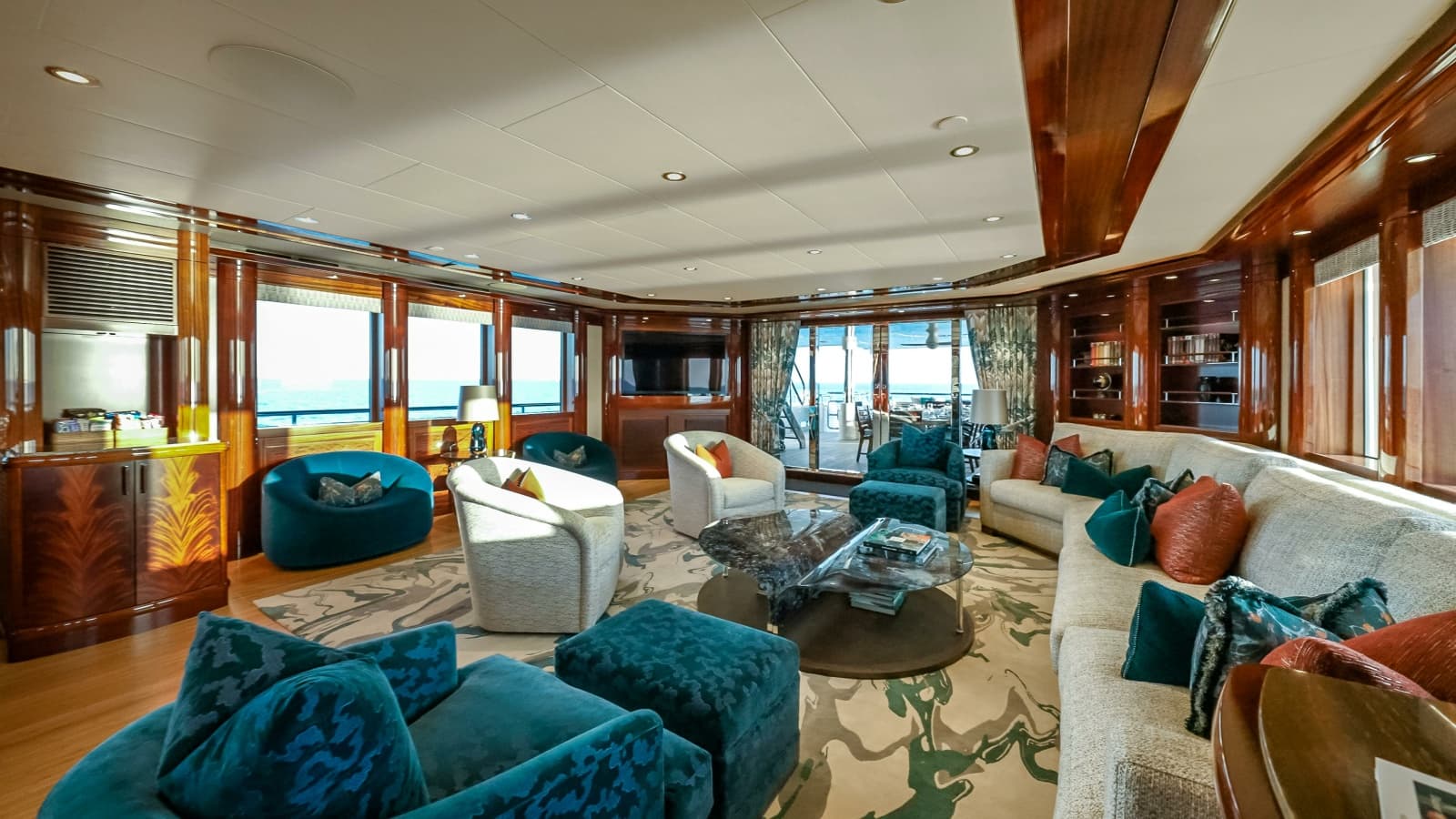

Her interior is a warm mix of contemporary and traditional, and her outdoor decks are perfectly suited either for casual lounging or alfresco dining. Able to accommodate up to 15 guests, VALINOR has a unique layout including an impressive six cabins with an on-deck VIP and master stateroom on the upper bridge deck. Accommodations include a large master stateroom on the bridge deck with private balcony and amazing views, a beautiful VIP with a large marble-clad ensuite bathroom, forward on the main deck, plus two king-sized staterooms and two twin staterooms (with Pullman berths) on the lower deck. Guests can relax and enjoy their time onboard in the care of VALINOR’s experienced crew of up to 12.

With an amazing collection of interior volume, massive deck space, 6 staterooms, a tender garage, touch and go helicopter capability, and the ability to cruise at or near 20 knots, the Westport 50 meter offers a unique combination of features, speed, and quality that is hard to match.

TYPE Twin-Screw Diesel, Semi Displacement

FLAG Jamaica

DIMENSIONS Length O.A. 50m (164 ft)

Beam 9.5m (31 ft)

Draft (full load) 2.45m (8 ft)

TONNAGE GT 492

DISPLACEMENT (light ship) 281.63

YEAR BUILT 2013, Refit: (small interior refit in 2022)

BUILDER Westport Shipyard, USA

NAVAL ARCHITECT William Garden

EXTERIOR DESIGNER Donald Starkey

INTERIOR DESIGNER Donald Starkey

CONSTRUCTION GRP composite hull and superstructure, last painted (At Build)

CLASSIFICATION ABS 100 ✠A1 Commercial Yachting Service + AMS LY2, MCA compliant

Accommodation for up to 15 guests in 6 staterooms: 1 Master on the Bridge Deck, 1 VIP on the Main Deck, 2 Doubles and 2 Twins (plus 3 Pullman berths) on the Lower Deck. Additional accommodations for up to 12 crew in 6 cabins: 5 double cabins forward/below and 1 captain’s cabin on the Main Deck.

BRIDGE DECK – OWNERS

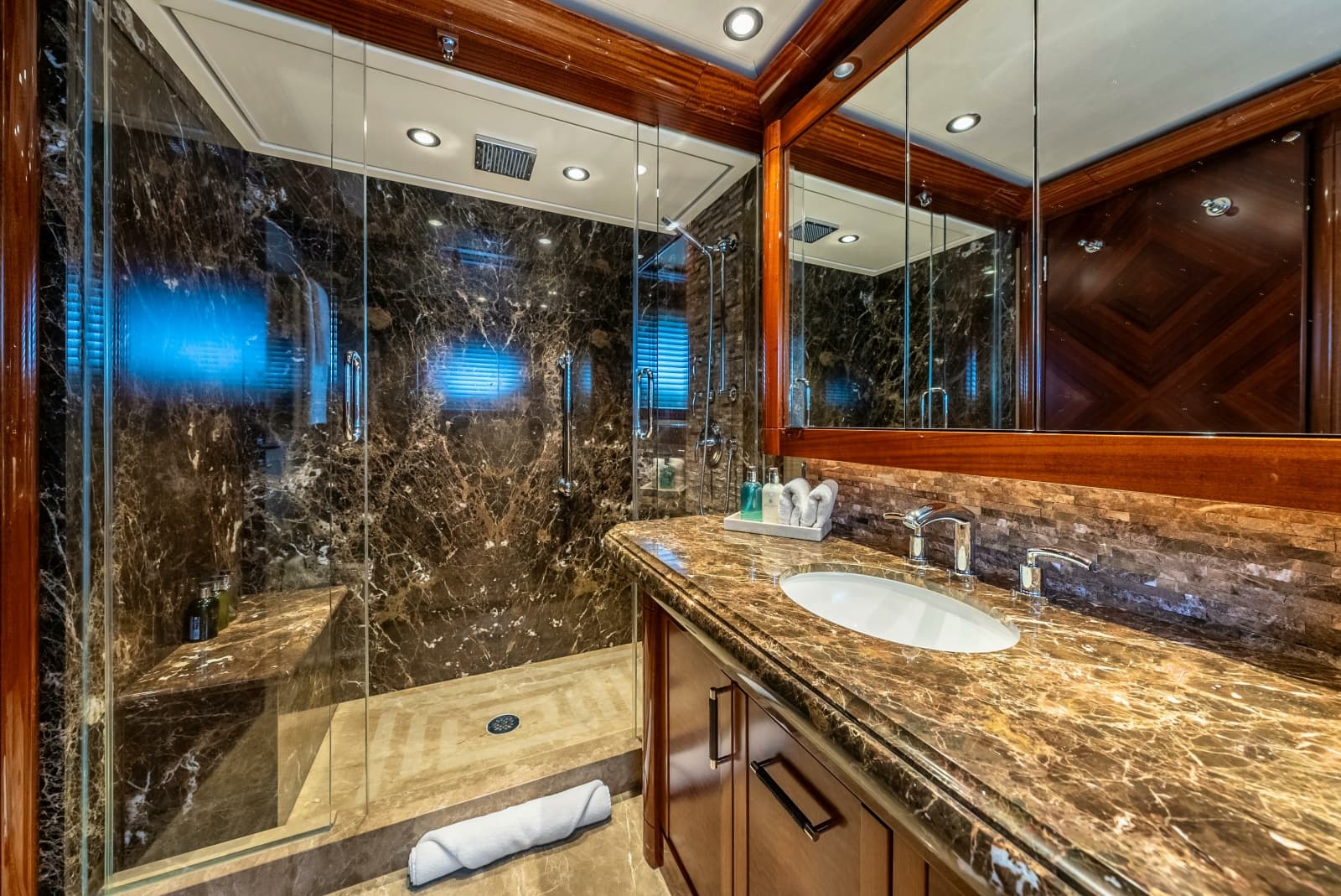

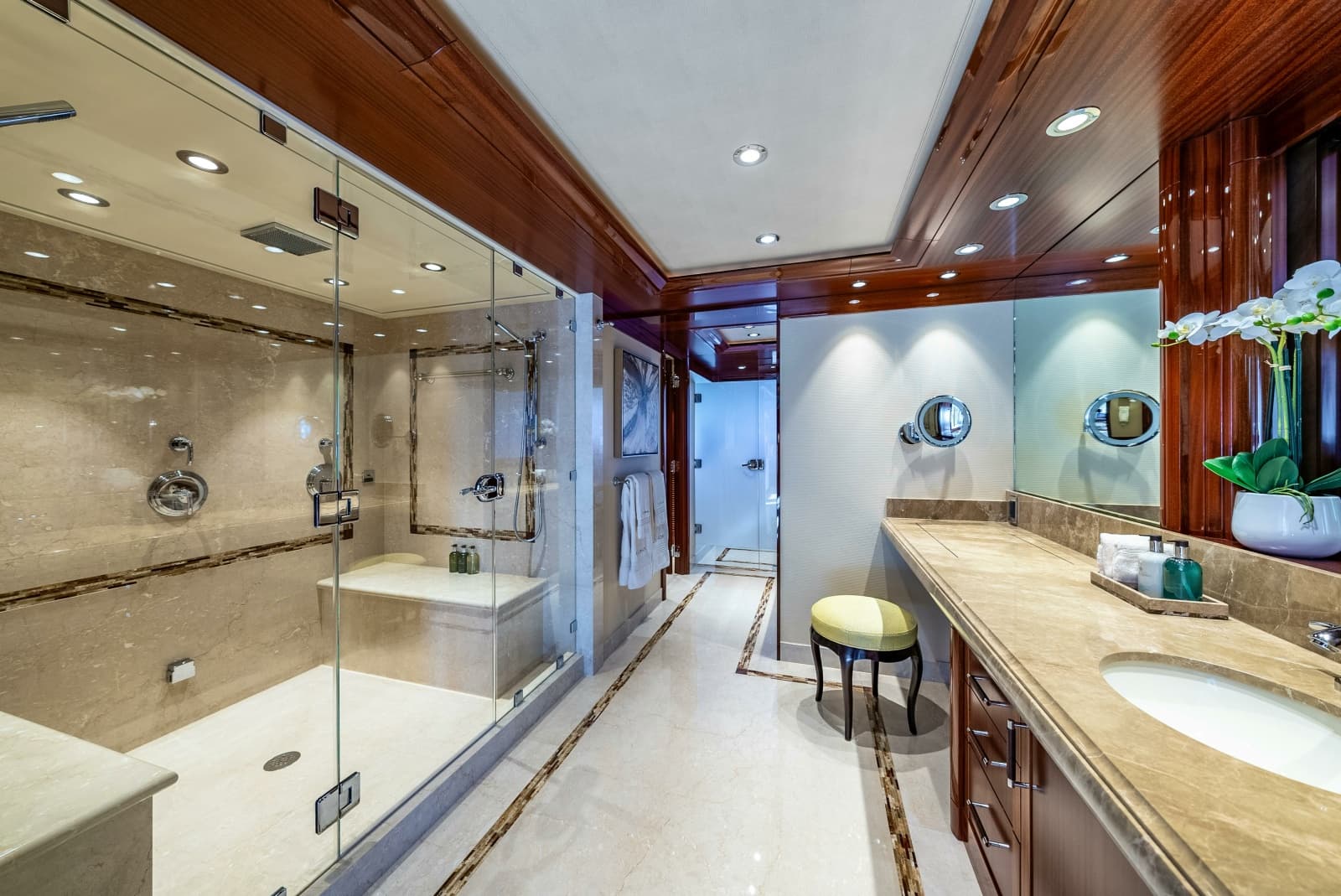

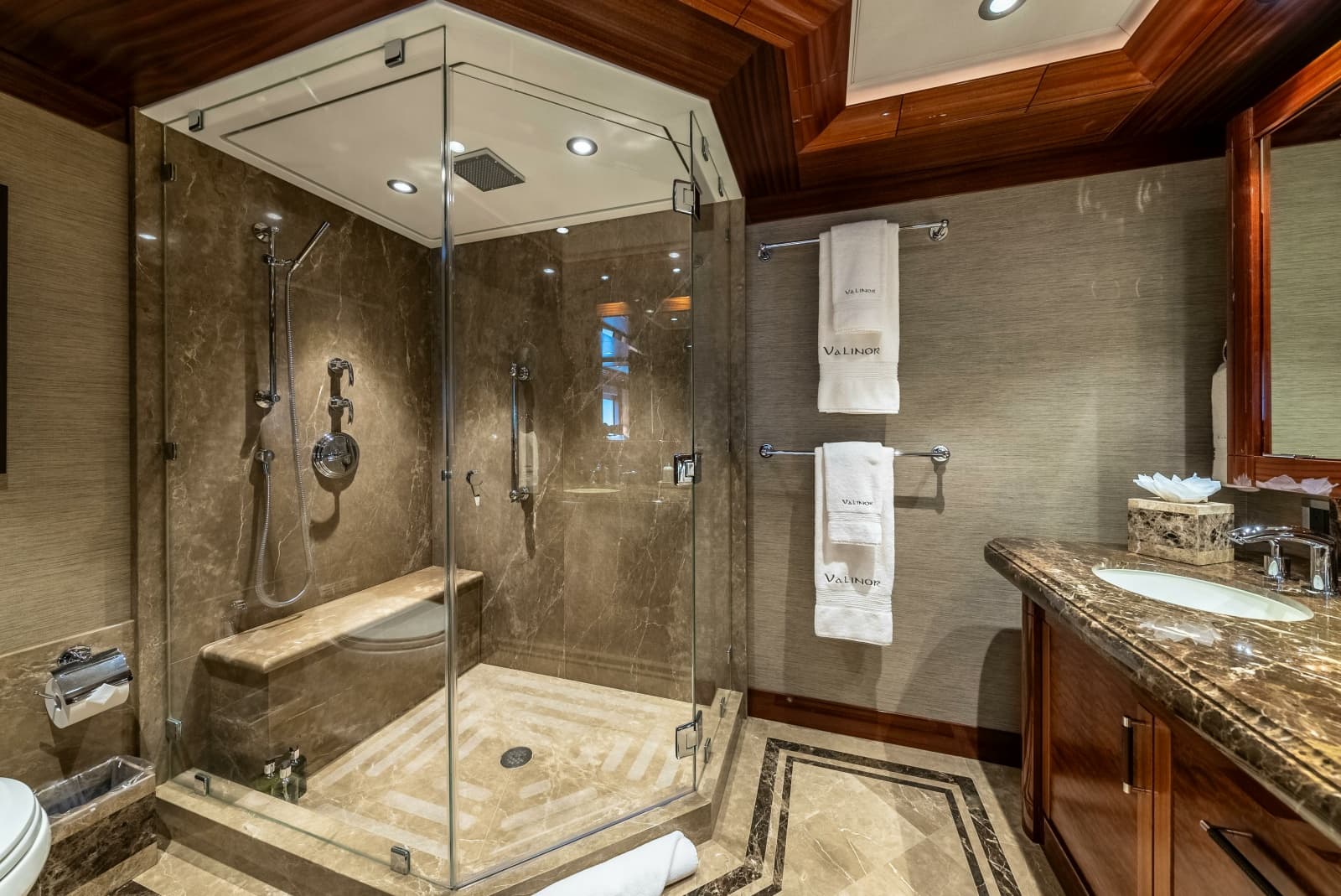

Master stateroom and en-suite, with steam shower, a private exterior deck, and extended master head and closet space used from relocation of captain’s cabin.

GUEST STATEROOMS

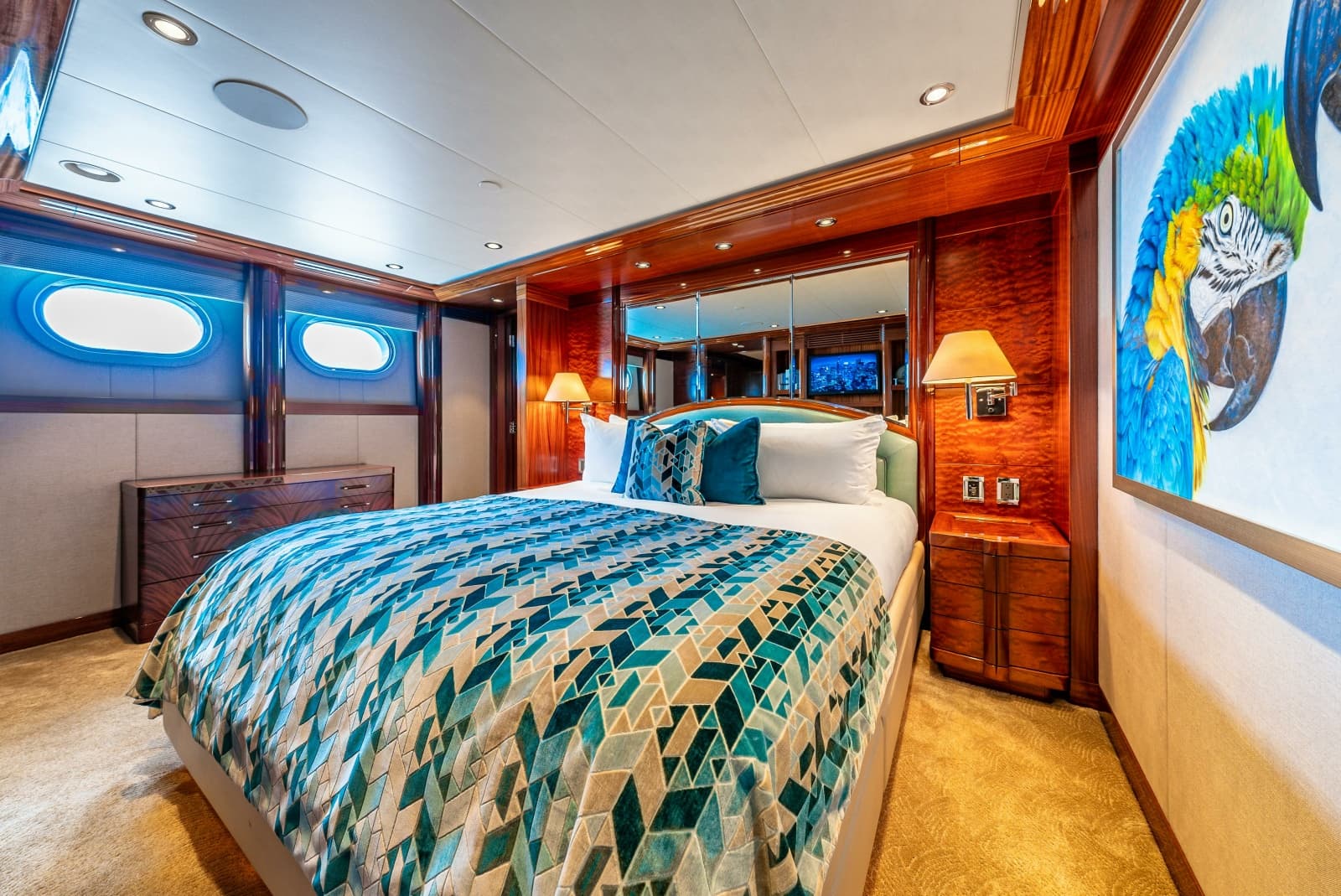

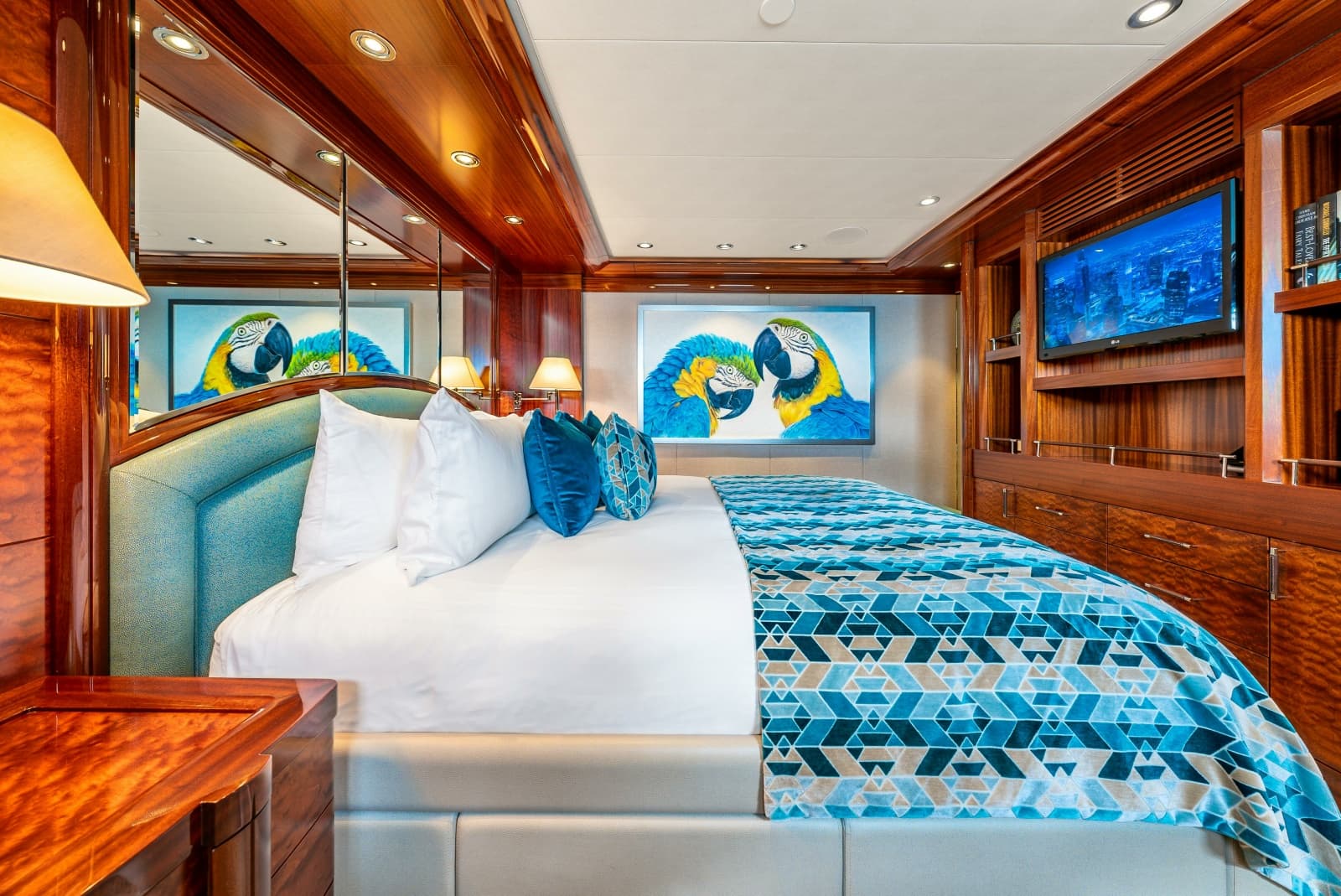

1 x On-deck Guest stateroom with King-size bed and en-suite bathroom;

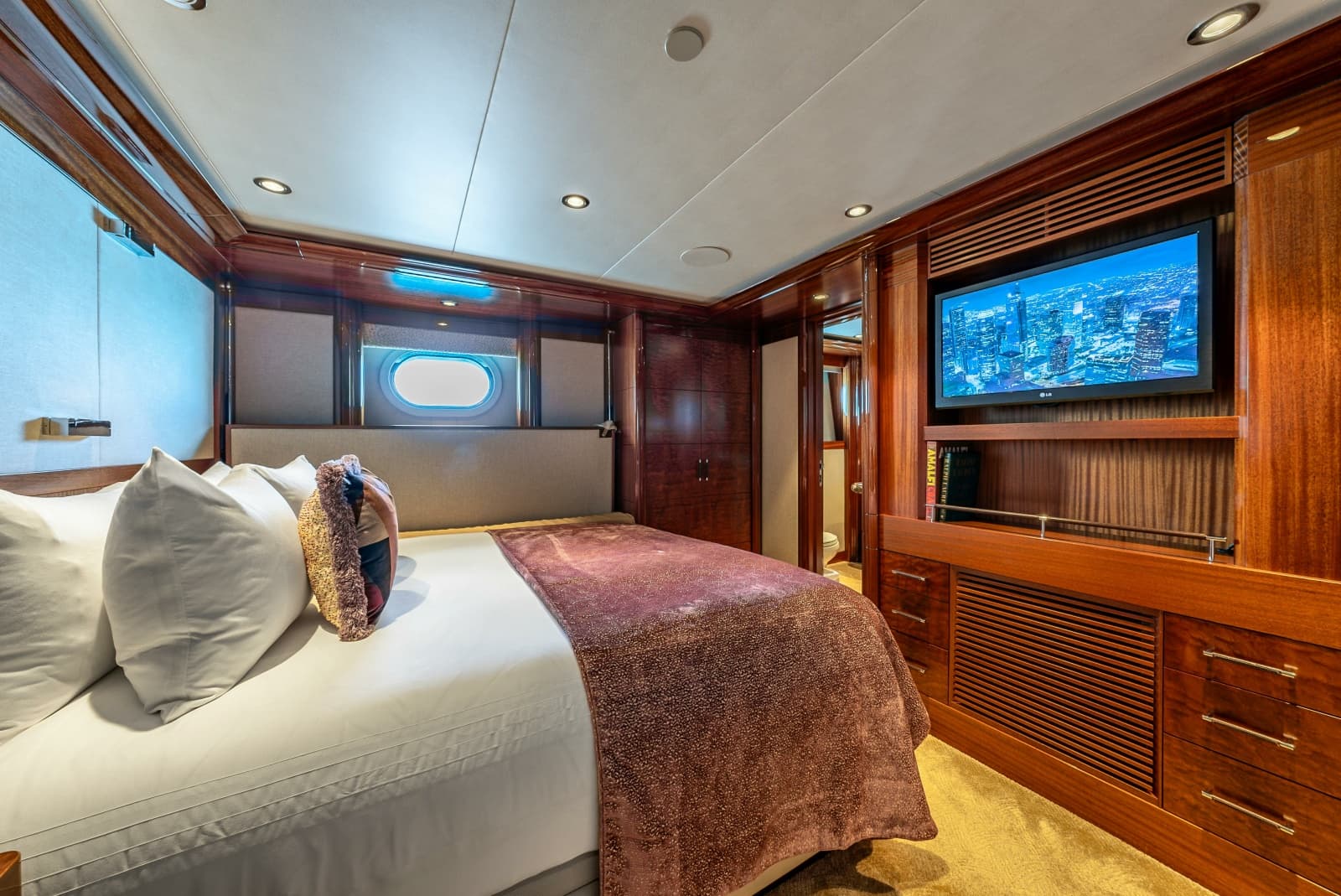

2 x Double staterooms with King-size bed and en-suite bathroom (Stbd & Port Aft)

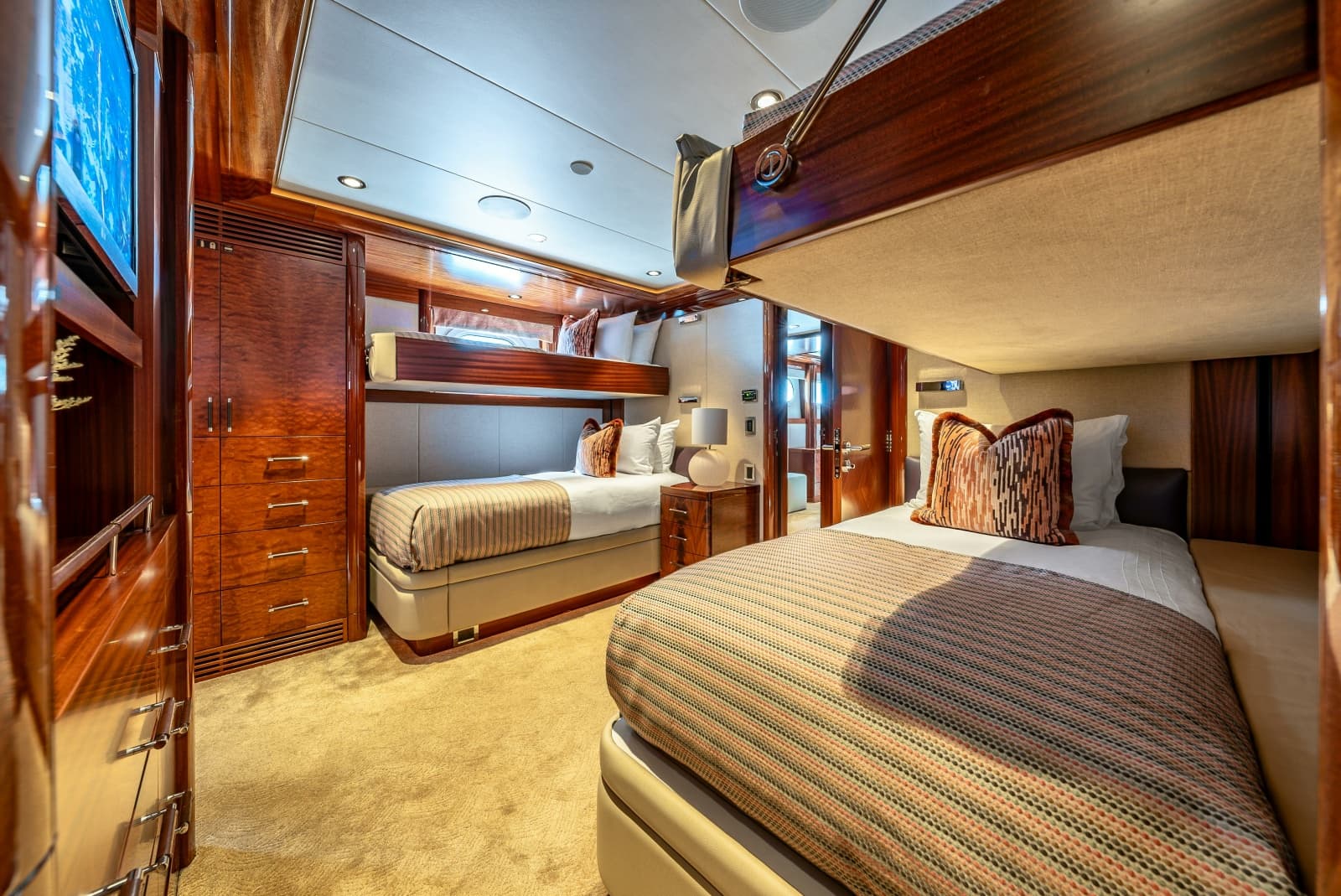

1 x Twin berth stateroom + Pullman and en-suite (Port Forward); can covert to Queen

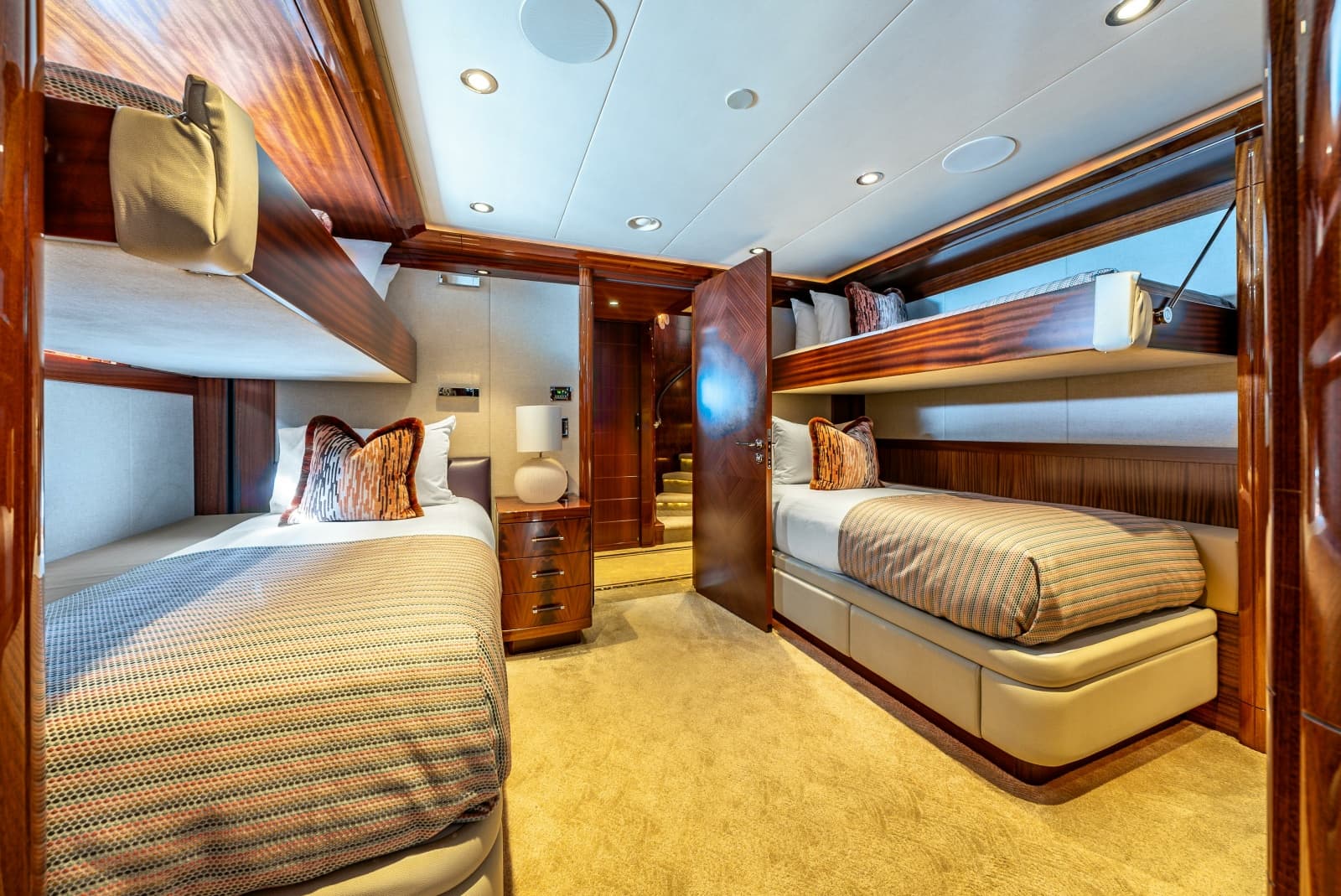

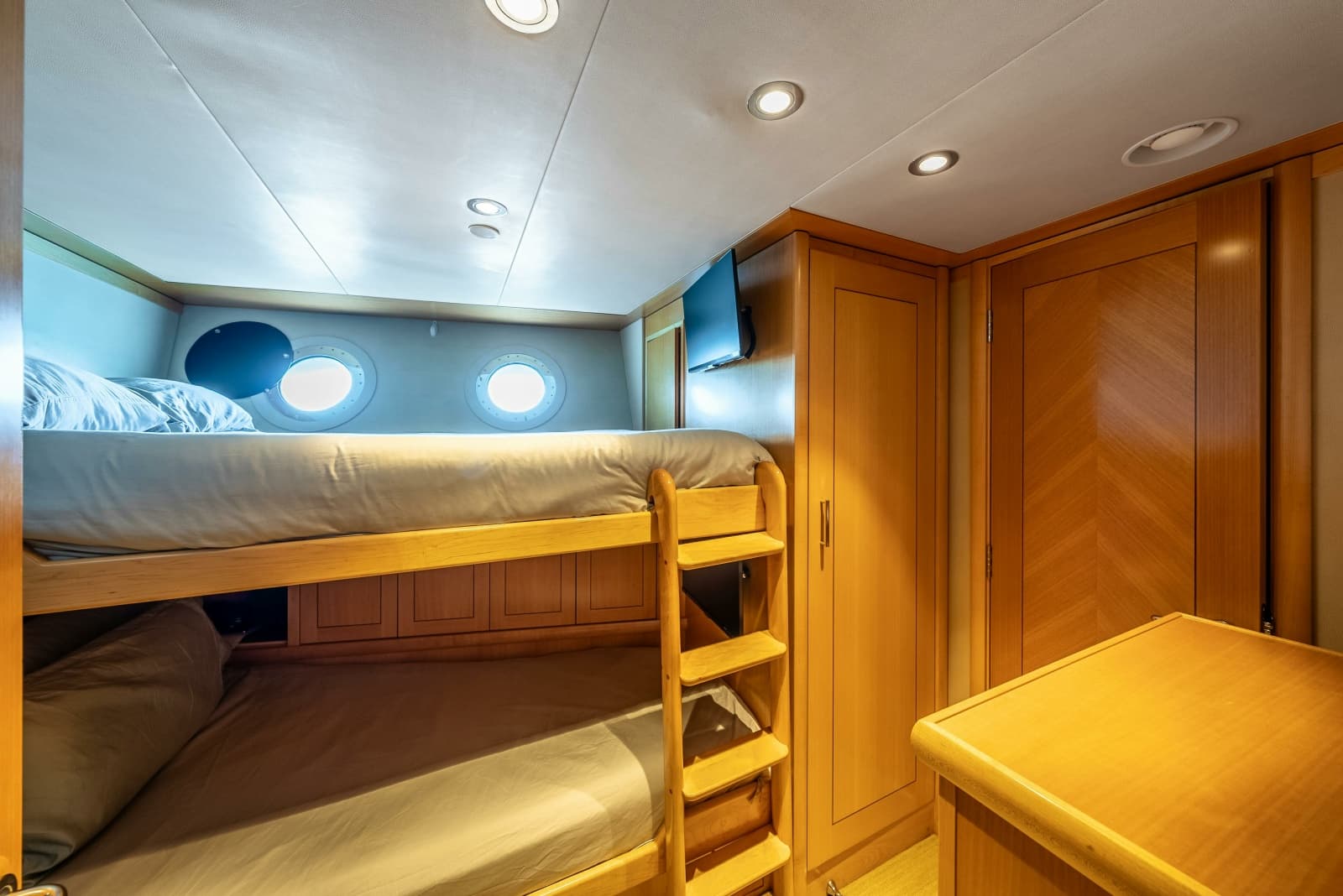

1 x Twin stateroom + 2 x Pullman berths and en-suite (Stbd Forward)

CREW

Captain’s cabin on main deck (double) with en-suite

5 x Twin crew cabins with en-suite.

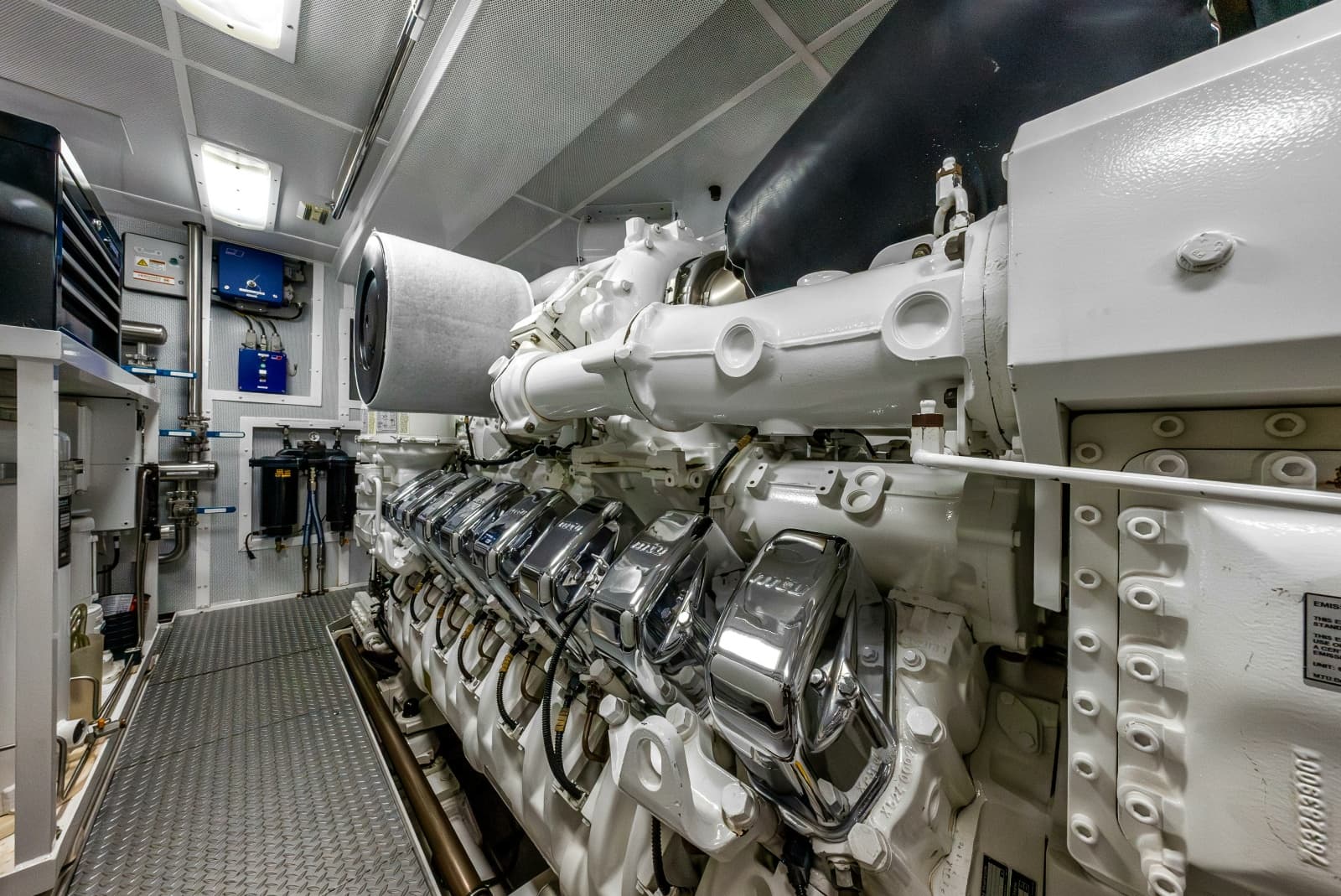

MAIN ENGINES 2 x MTU 16V 4000 M90, 3650hp 2,720 kW

ENGINE HOURS (March 2026)

Port: 7,633 hours

Stbd: 7,653 hours

GEAR BOXES Z/F 7550A 2.964 reduction gear

SHAFTS & PROPELLERS 5.5 inches Wartsila WFS1R-P (PSE) Type Seal

SPEEDS

Maximum speed 21 knots

Cruising speed 19-20 knots

Economical speed 10 knots

FUEL CONSUMPTIONS (detailed info available on request)

**RANGE 3000 nm at 10 knots (Includes 15.8 Lp/h for generator)

GENERATORS

2 x Northern Lights M1066T-99KW with PTO’s powering central hydraulic system.

1 x Northern Lights Auxiliary Generator - 65KW

GENERATOR HOURS (March 2026)

Port: 11,345 hours*

Stbd: 18,991 hours*

Mid: 7,399 hours*

* All three generators had in-frame rebuilds completed in 2021. Full rebuild as per the manufacturer’s specification.

ELECTRICITY 120-208V/3 phase/60Hz

SHORE POWER - Magnus SP200 150kVA Shore Power Convertor

Power output: 150kVA / 150kW. 100 Amp, 3 wire with ground, 3 phase.

BATTERIES & UPS’s:

• Radio battery bank
• Emergency battery bank
• House battery bank
• Phone system UPS
• VSat UPS & AV UPS (UPS upgraded in 2022)

FUEL 68137 liters (18800 US Gallons)

WATER 8,459 liters (2,235 US Gallons)

WATERMAKERS 3 x 13,626 liters/day (3,600 US Gallons/day)

LUBE OIL 870.55 liters (230 US Gallons)

DIRTY LUBE OIL 870.55 liters (230 US Gallons)

GREY WATER Three Sumps for transfer to black water tank or directly overboard via Y-valve

BLACK WATER 6,358.80 liters (1,680 US Gallons)

STEERING SYSTEM Jastram S2-33-2-35 Powered from Stbd M/E PTO. Back-up power from central hydraulic system. (Total overhaul 2022)

RUDDER ANGLE INDICATOR Pilothouse and wing stations.

BOW THRUSTER Marine Arcturus 24” Hydraulic, (Central Hydraulic system) 85hp

STABILIZERS Naiad Dynamics US, Inc. Model 621. 4 Fin system with ‘At anchor’ Stabilization. M/E PTO or central hydraulic system 85hp for power.

FUEL FILTERS 1 x Facet 900444-FG-220

FUEL SEPARATOR 2 x Alfa Laval MIB 303S-13

OIL/WATER SEPARATOR 1 x Bilgemon 488

FIRE/BILGE PUMP 2 x MP Pumps, Model No. 25934

BOILERS 3 x A.O Smith DEN 80110 80 Gallon. New heating elements & Anades - New heating elements & Anodes

WATERMAKERS 2 x FCI watermaker Atlas Plus 2800 GPD

SEWAGE TREATMENT Headhunter TW-HMX-512, 1200 GPD

WC's Headhunter royal flush system

AIR CONDITIONING Dometic- Cruise air, 3 chiller arrangement, Model No. ST5540 (001) SEH, 540,000 BTU.

VENTILATION

2 x Fresh air make up running through conditioners

Galley extraction

Engine room intake & extraction Delta-T

FIRE FIGHTING

Fixed

6 x Hydrant with Fire Hose and nozzle,

Engine room - Kidde Fire Systems FM200 system FM200 96Kg tank.

Generators have self suppression systems and alarms x3

Main switchboard Fixed Fire Boy 2kg CO2

Interior freshwater sprinkler system

Galley - Fixed ANSULITE R-102, 7-liter system (Foam)

Mobile

2 x Fireman’s outfits and SCBA

26 x Dry Powder Portable Extinguishers

10 x CO2 Portable extinguishers

2 x Foam Portable extinguishers

2 x Lithium Safe Extinguishers

LIFE-SAVING

49 x Lifejackets Pneumatic SOLAS A

12 x Child Lifejackets

4 x 12-man life rafts with SOLAS A-pack

27 Immersion suits

2 x EPIRB

3 x SART (1 x SART, 2 x AIS SART)

Flares

Smokehoods in every cabin, bridge, engine room and equipment room

Rescue Boat (None, 14ft tender used as rescue boat)

Medlink Medaire First Aid Equipment (Category A)

ALARMS Heat and smoke detector (FO flame detectors in engine room) with automatic general alarm throughout the vessel

SECURITY

9 x Digital IP CCTV cameras (Axis Cameras and Axis Camera Station)

2 x FLIR Infrared and thermal imaging camera (FWD and AFT)

Full vessel security system

VIC (Vessel Information Center) Alarm touch panel

SATCOM Furuno Felcom 18 Inmarsat Sat C with SSAS

2 x Iridium satellite telephones

2 x VSat based VOIP telephone lines

CELLULAR SYSTEM Onebox K4 5G for internet data installed (June 2022)

VHF RADIOTELEPHONES 2 x Furuno 25W FM8500 DSC VHF, 1 x Furuno MF/HF

MAGNETIC COMPASS Richie Globe Master 600, Halcyon Fluxgate interface with B&G

GYRO COMPASS Simrad GC80

AUTOMATIC PILOT Simrad AP70

LOG Furuno DS80 Doppler Speed Log

ECHO SOUNDER Furuno FCV1200 Black Box Sounder

RADAR Furuno 2127 (X and S Band) - New magnetron 2023

CHART PLOTTER TimeZero, Transas Navi-Sailor 4000 ECS. TZ CPU upgraded to Transas CPU

DISPLAYS x5 24" Hatteland screens

GPS 2 x Furuno GP150

NAVTEX Furuno NX-700B with NX5 Active Antenna Coupler

WIND INSTRUMENTS B&G Hydra 2000

METERELOGICAL INSTRUMENTS B&G Hydra 2000 magnetic compass

ANCHOR WINDLASS 2 x Maxwell Model No. VWC 11000 (Total rebuild October 2022)

AFT WARPING CAPSTANS 2 x Maxwell dual rotation Model No. VC8000 (Total rebuild October 2022)

GROUND TACKLE 2 x 5 shackle (150m) 5/8 inch, 2 x Stainless steel custom

BOAT CRANE & DAVITS 2 x Nautical Structures Marine Euro 1750LBS, 1 x 3800LBS, 1 x 5000LBS beam crane (All three overhauled in September 2022)

PASSERELLE Nautical Structures Model No.15716

1x SIDE BOARDING LADDER Nautical structures Carbon wave rider

SEARCHLIGHT 2 x Carlisle & Finch Company Model No. 2PS115

VSAT SEATEL/ VIASAT Dome not connected

HD SAT TV SEATEL dome

STARLINK Installed in March 2023

2x Marine antenna’s

iPad controlled Crestron system with KALEIDESCAPE Movie & Music

Apple TV throughout all guest areas

Wireless music connectivity throughout vessel

INTERNET Full Wifi throughout vessel, server distributed on 4 networks fully controlled by K4 Onebox system.

Sources:

• V-Sat
• Starlink
• 5G Data
• Marina Wifi

COMPUTERS

1 x Microsoft server

5 x Think Pad laptop computers

2 x Dell desktop computers

PHOTOCOPIER/PRINTER

2 x HP Envy Photo (July 2021)

1 x Brother MFC - J824DW network printer

MAIN GALLEY

1 x Electrolux 267080 Oven Combi Steamer

1 x Miele oven H4682 B

1 x Miele rapid wash dishwasher PG8056 (New October 2019)

1 x Electrolux rapid wash dishwasher WT30H208DU

1 x Wells Bloomfield Char- broiler 5H-B406-208

1 x Brass Smith heat lamp

Walk-in fridge/freezer room – American panel

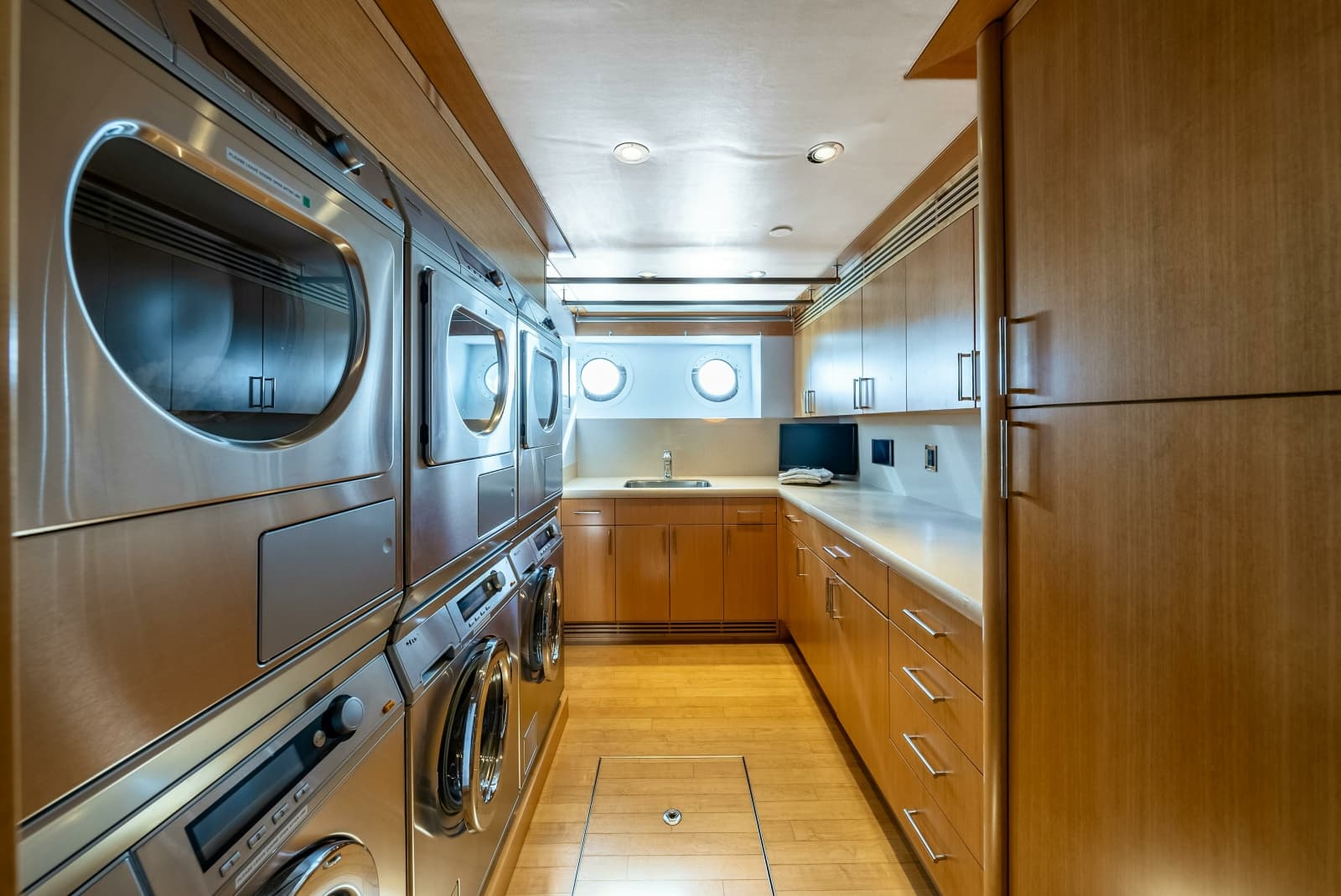

LAUNDRY

3 x Miele washers PW6068 PLUS LP USA – New Sept 2018

3 x Miele dryers DT 7138 PLUS USA – New Sept 2018

1 x LauraStar steam iron

MAIN DECK PANTRY

1 x Panasonic microwave Model NE-1064F

1 x Fisher & Pykel twin drawer dishwasher Model DD24DCX6

BRIDGE DECK PANTRY

1 x Instahot boiling water dispenser SST-FLTR

1 x Haier microwave Model SST-FLTR

1 x Instahot boiling water dispenser SST-FLTR

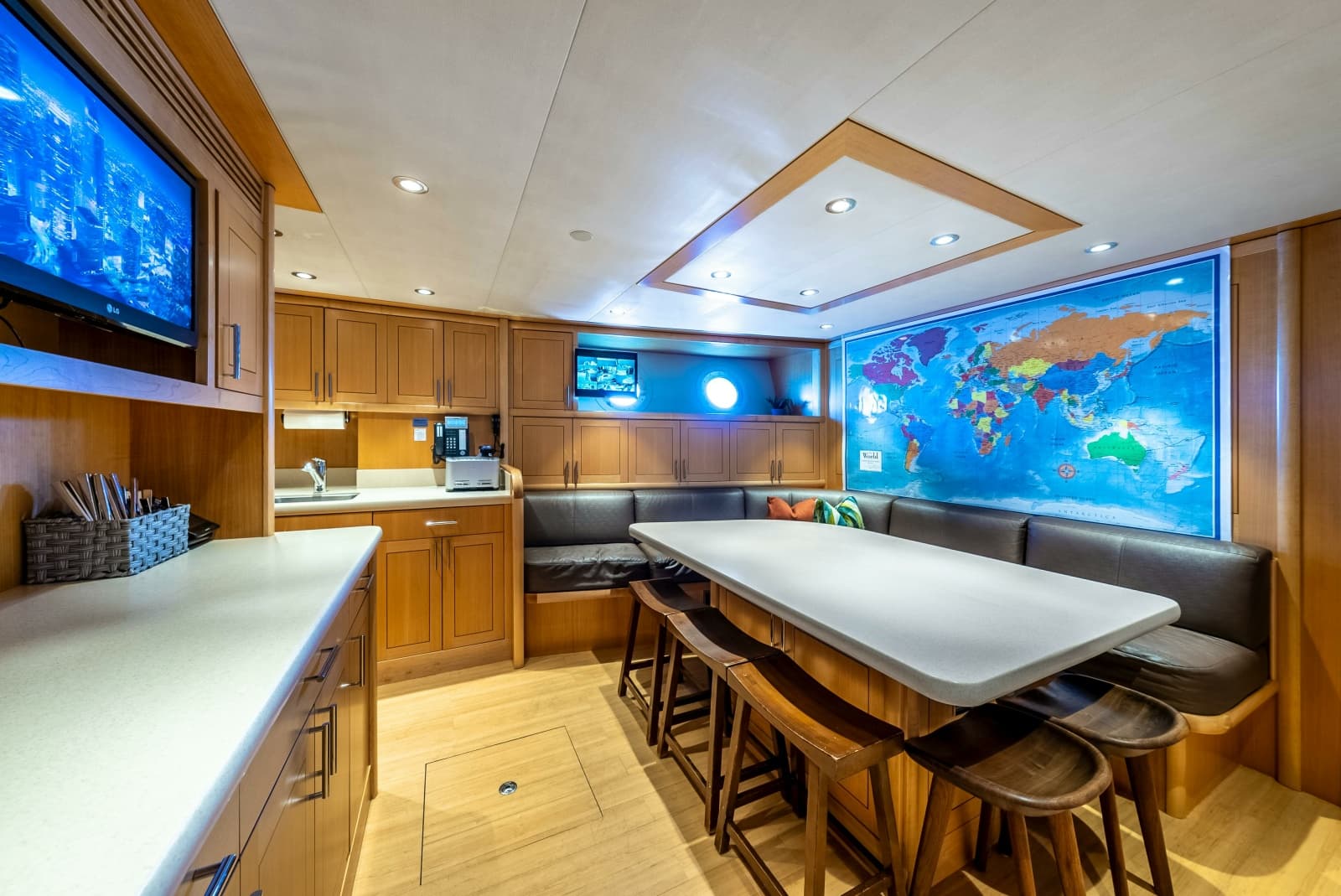

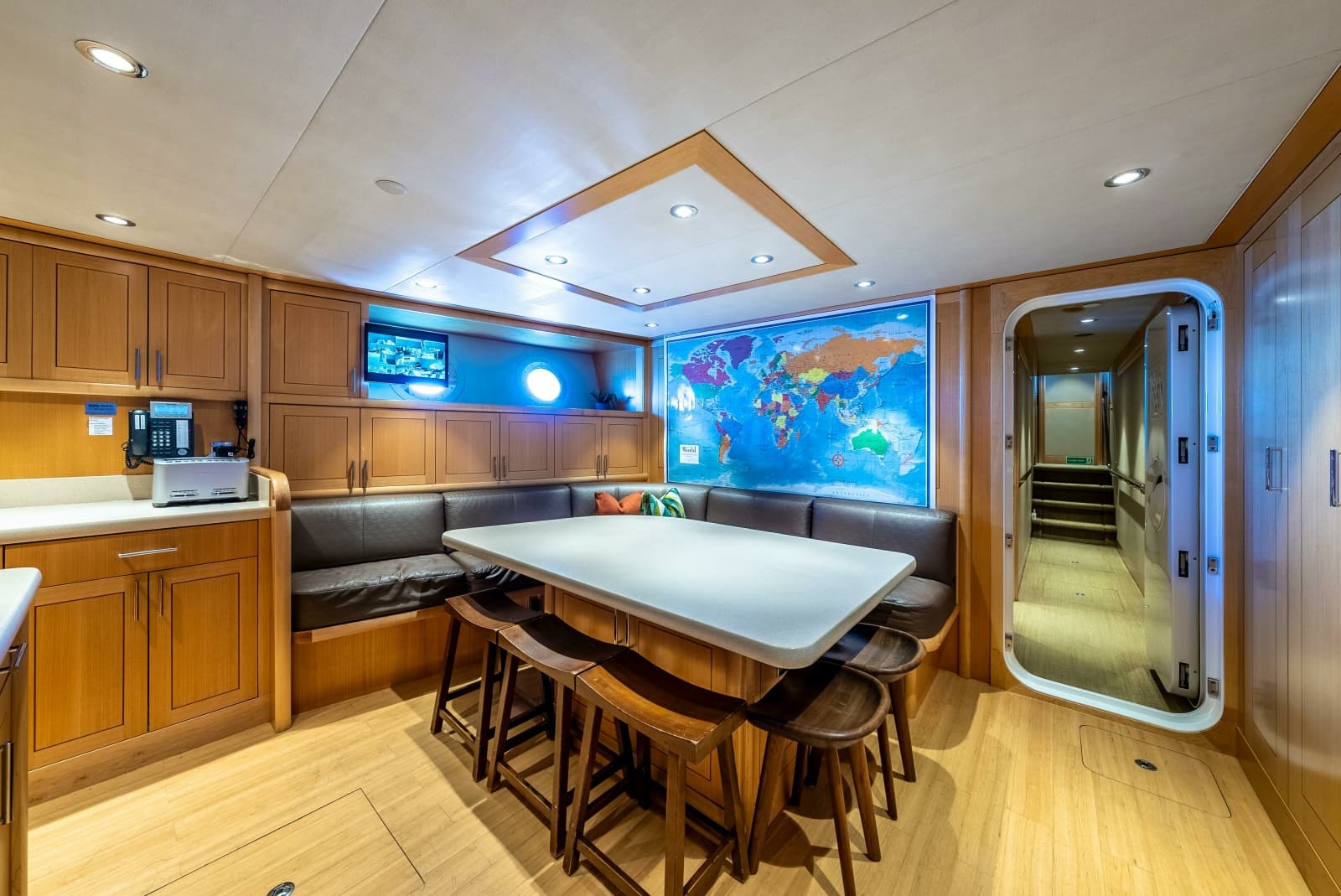

CREW MESS

1 x Sharp microwave Model R1214.

1 x Miele G6745 Dishwasher

1 x Instahot boiling water dispenser SST-FLTR

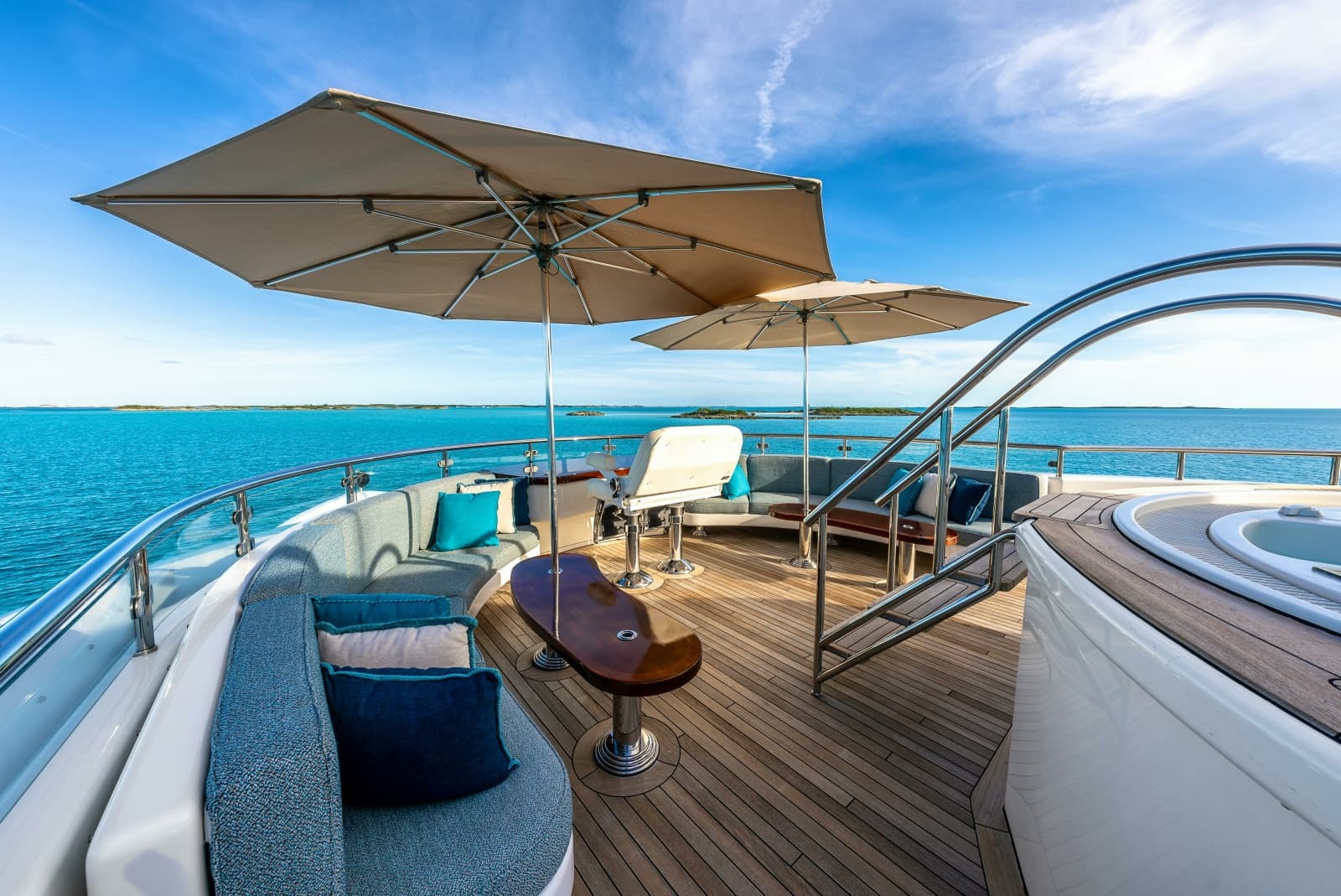

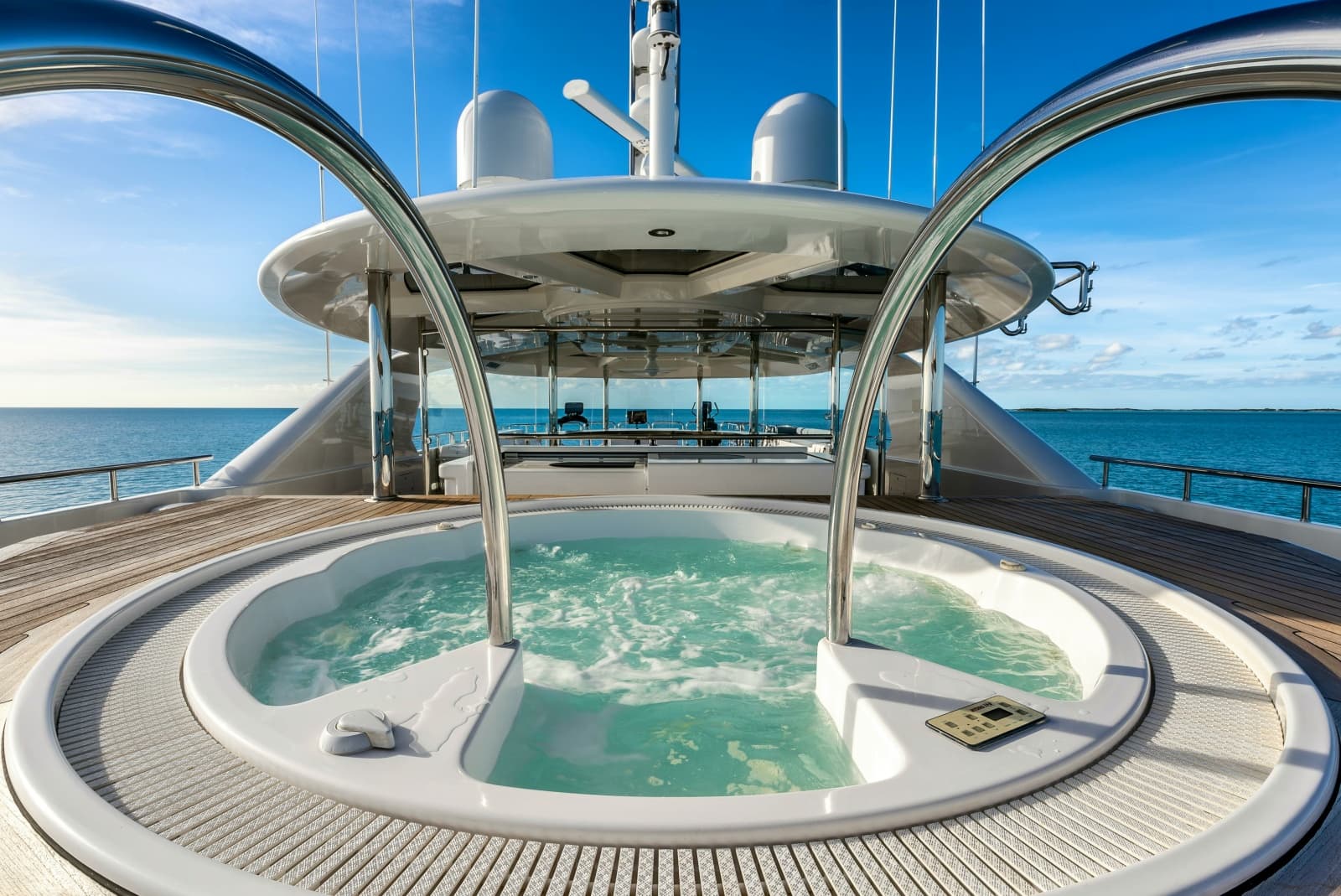

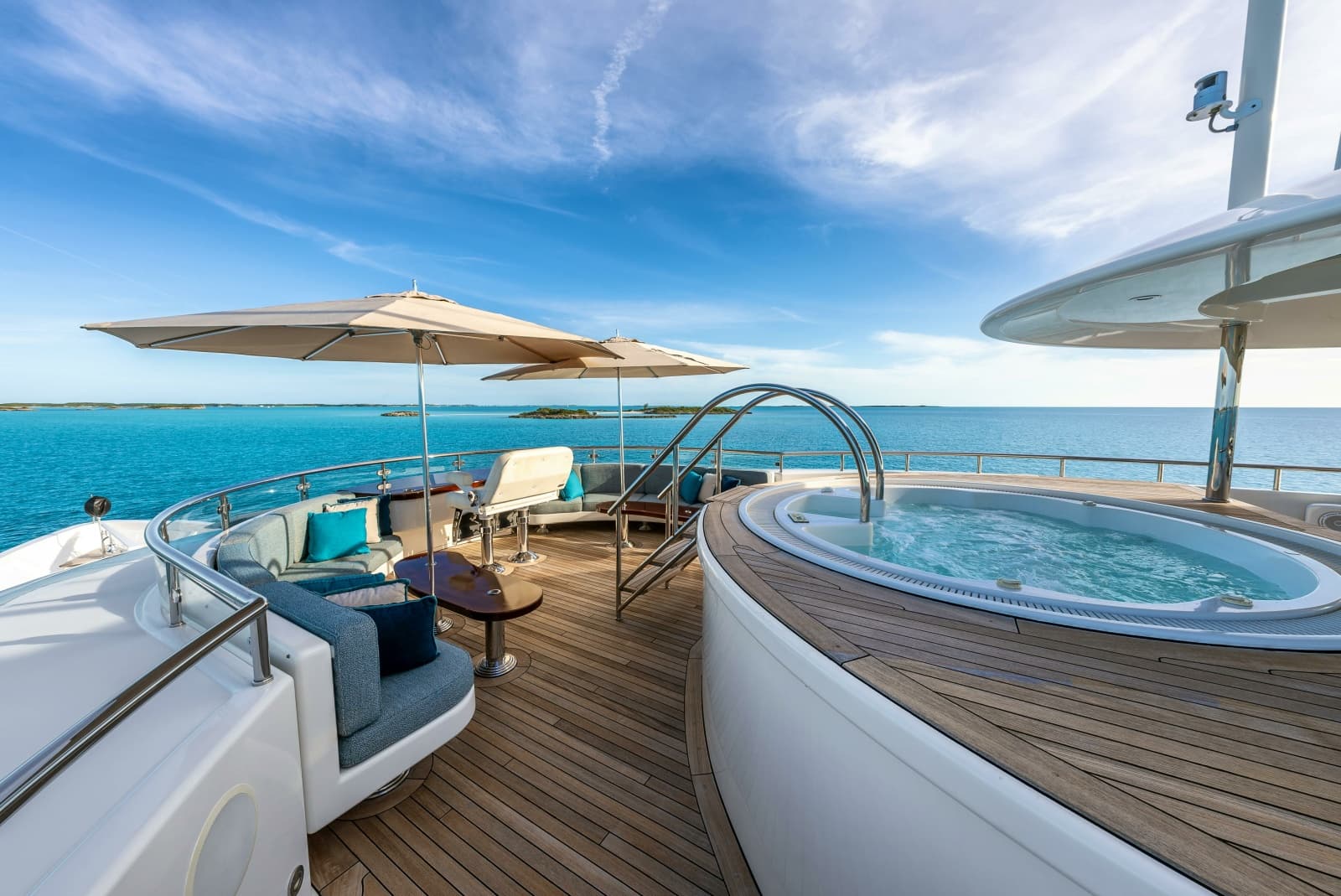

JACUZZI DIP POOL Located on the sun deck, 2 x 25kW Instahot in-line heaters

4 x Ship’s safes on board

1 x BBQ Located on bridge deck

TENDER

19ft AB RIB 200HP / 14ft AB RIB 70 HP

WATERSPORTS EQUIPMENT

2 x 2021 Seadoo Wakepro and Fishpro

2 x Seabob F-5's

2 x LIFT E Foils

2 x Paddle boards

2 x Hobie Mirage Eclipse pedal boards

1 x Platforms for tenders and jetskis

2 x Wake boards

2 x Kayaks

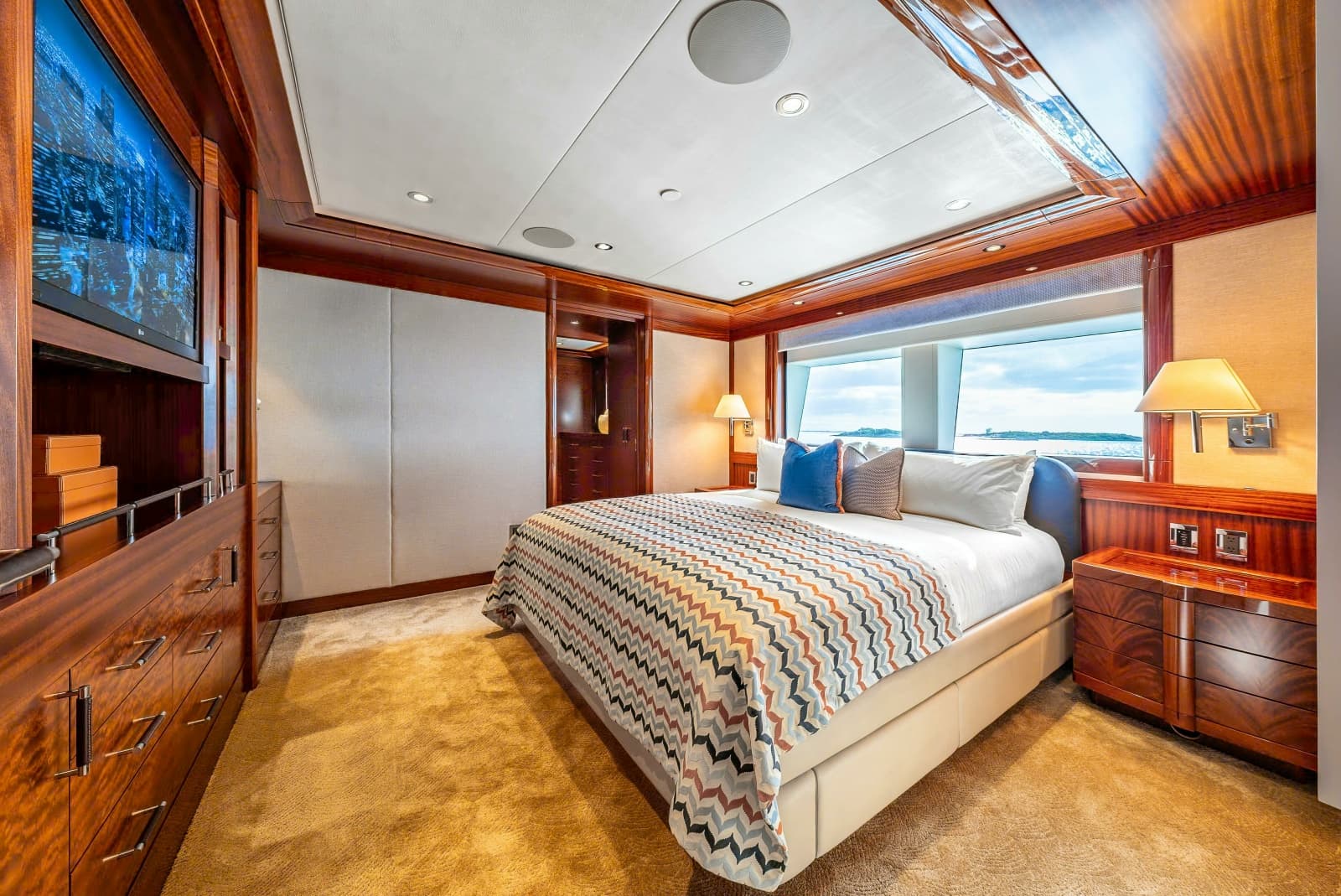

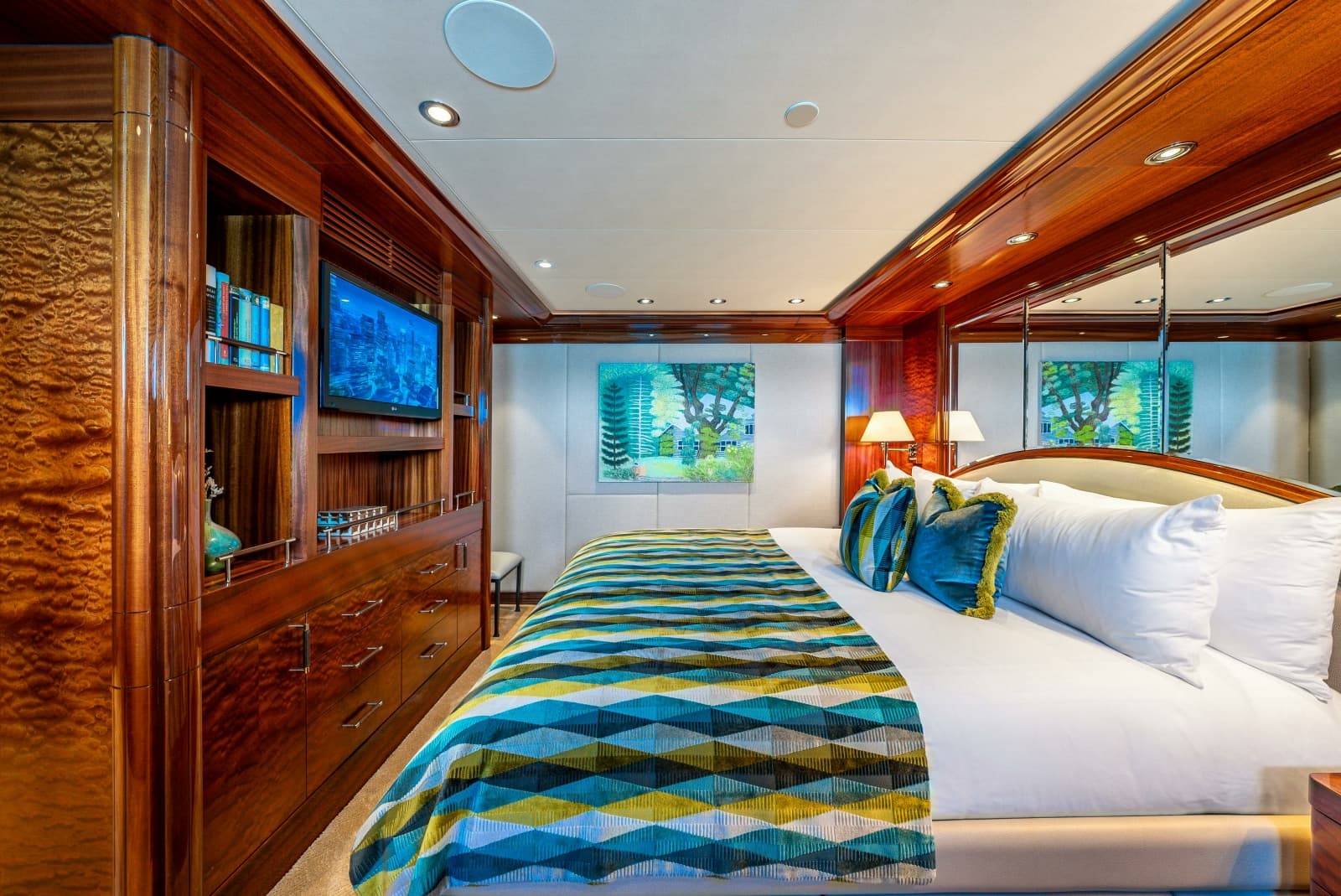

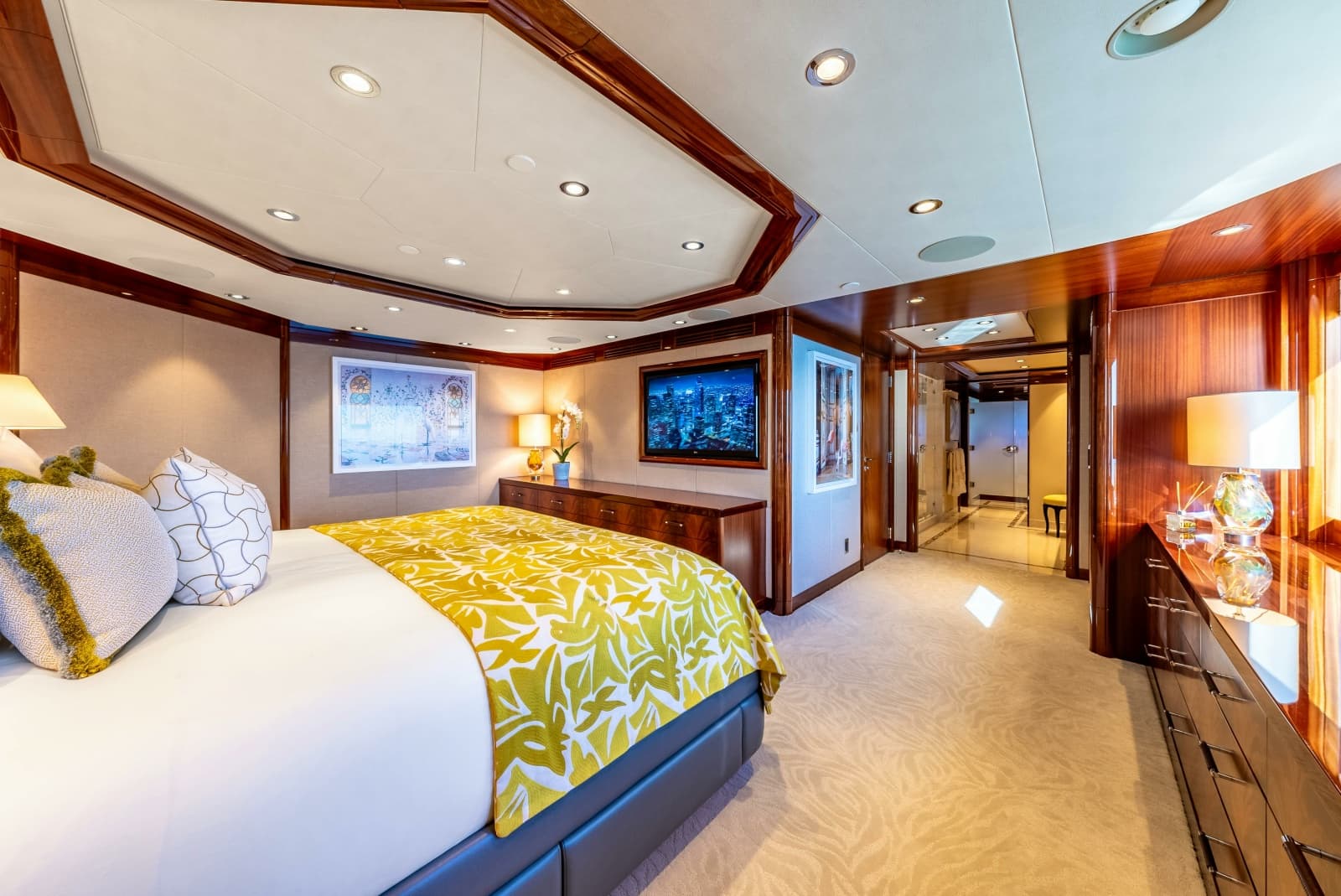

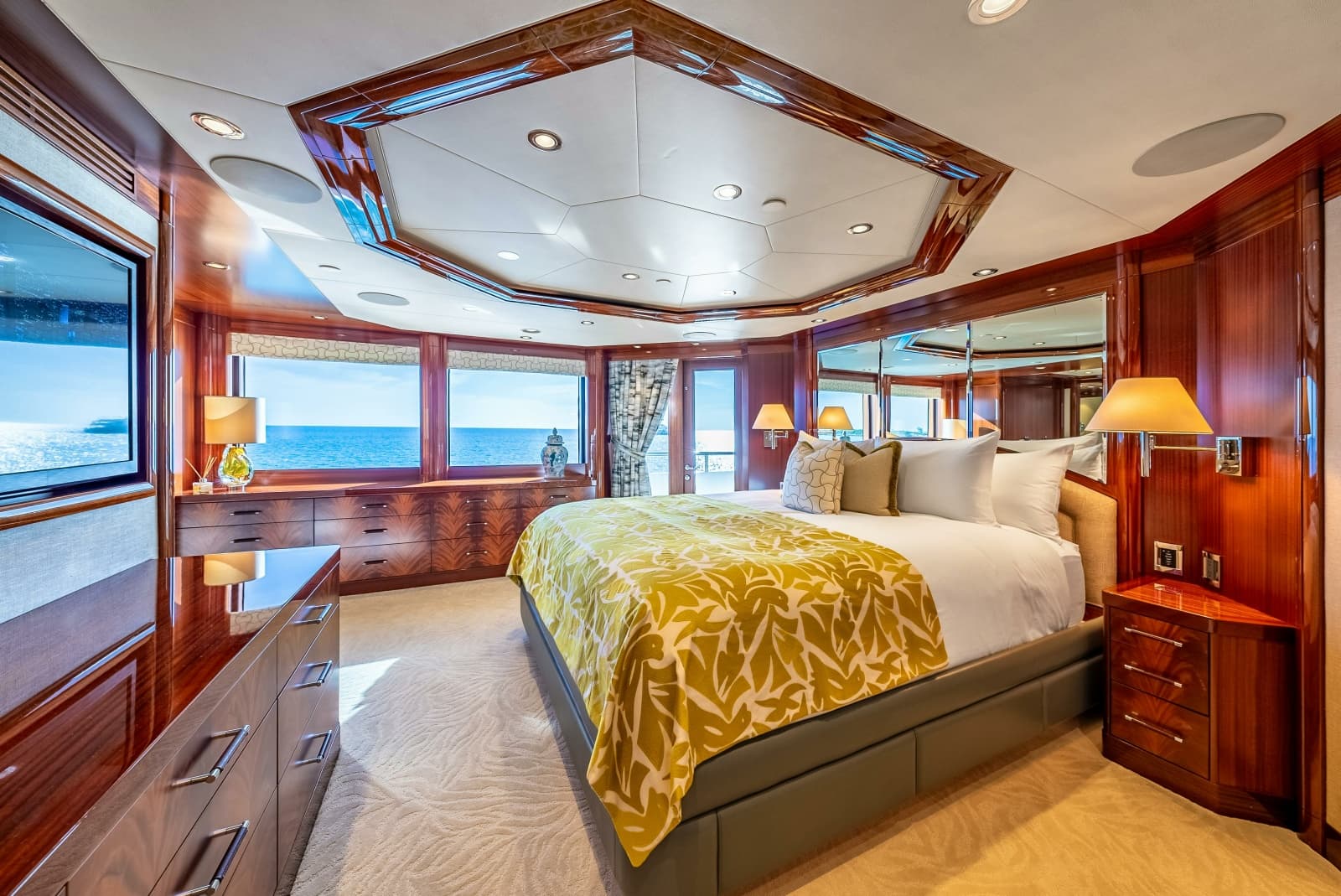

The bridge deck master stateroom features His and Hers baths and access to a semi-private terrace to starboard, steam shower and walk-in closet.With a private terrace and elevated position, this amazing stateroom offers privacy and visibility that is difficult to match on a 50-meter yacht.

Twelve crew are accommodated in five spacious en-suite cabins on the lower deck. The captain's cabin is finished to guest standards and situated forward on the port side of the main deck.

Owner will supply an Exclusions List upon receipt of written offer.

Name reserved.

34’ Regulator towed tender
