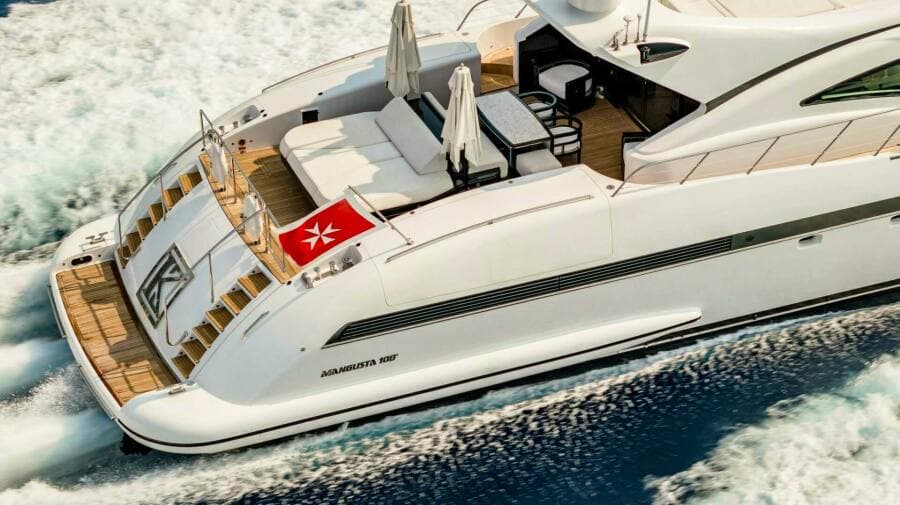

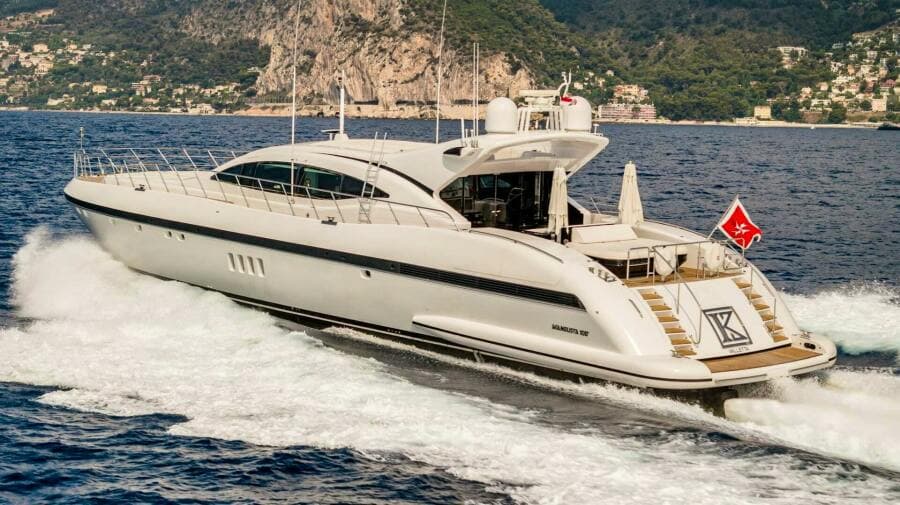

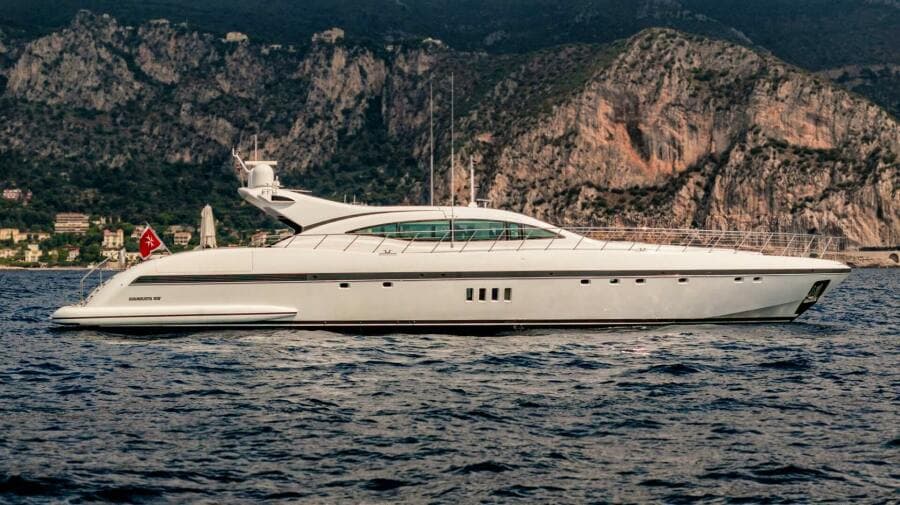

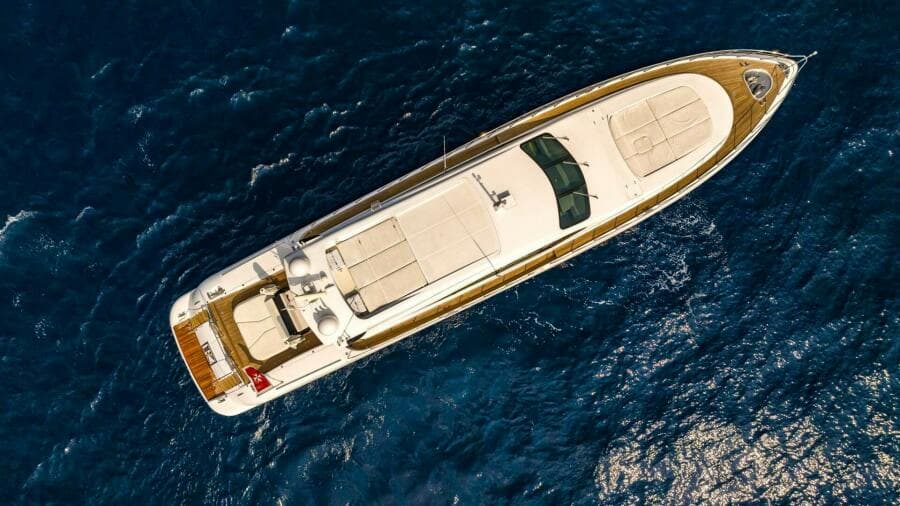

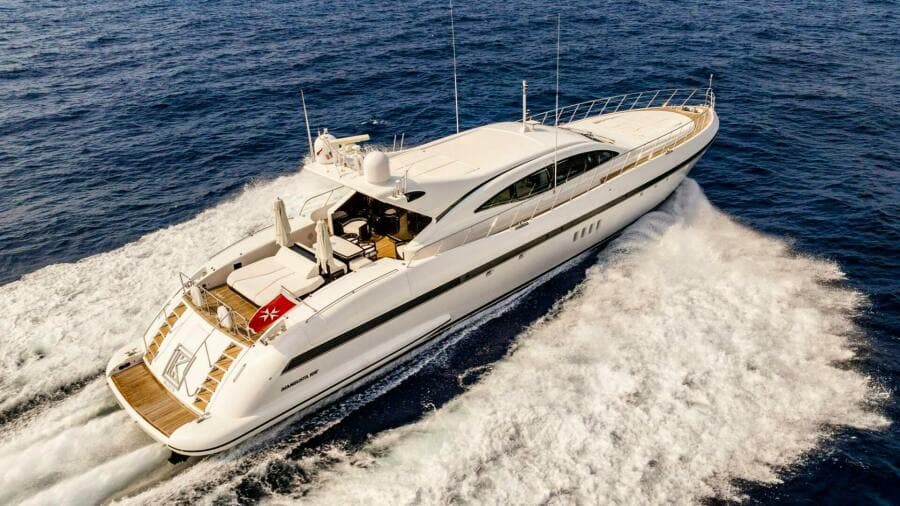

2013 Overmarine Mangusta 108

Builder: Overmarine Mangusta

Model: 108

Year Built: 2013

Refit: 2022

LOA: 109' 11" (33.48m)

Beam: 23' 4" (7.10m)

Max Draft: 4' 6" (1.35m)

Exterior Designer: Stefano Righini

Interior Designer: Sturge Toth

Guests: 6 in 3 cabins

Crew: 5 in 3 cabins

Classification: Bureau Veritas

VAT: Paid

Flag: Malta

Cruise Speed: 24 Kts

Cruise Speed Range: 420nm

Max Speed: 30 Kts

Displacement: 106 tons

Gross Tonnage: 184

Water Capacity: 2,000 liters

Fuel Capacity: 14,000 liters

Grey / Black Tank Capacity: 300 liters

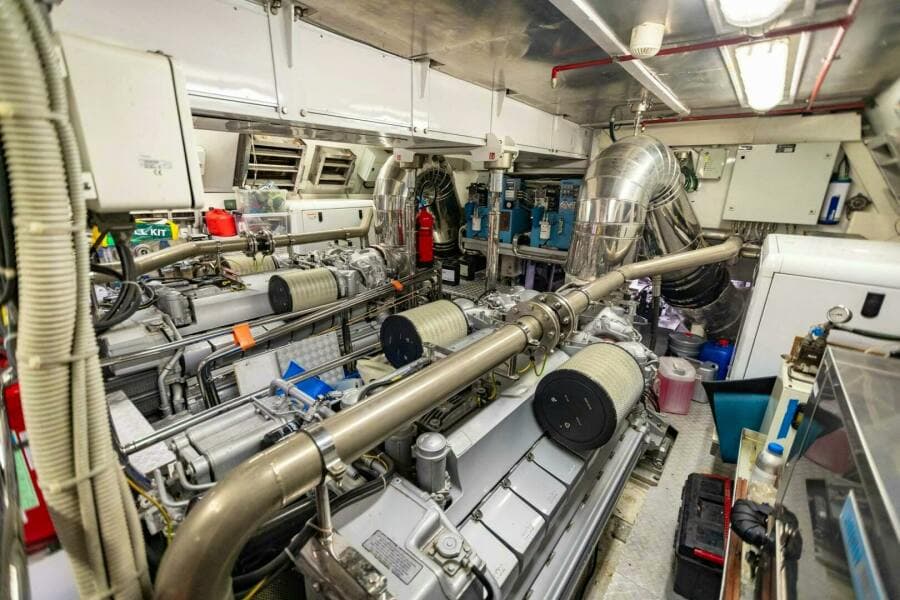

Engines: 2

Manufacturer: MTU

Model: 16V 2000 M94 2600HP

Fuel Type: Diesel

Port Hours: 1620

Starboard Hours: 1619

Generators: 2 x Kohler 33EFOZD 33 kW

Port Hours: 4087

Starboard Hours: 4112

Stabilizers: 2 x Gyro Zero Speed Stabilisers (ITEM Mare)

Gearbox: 2 x ZF type BW (4600)

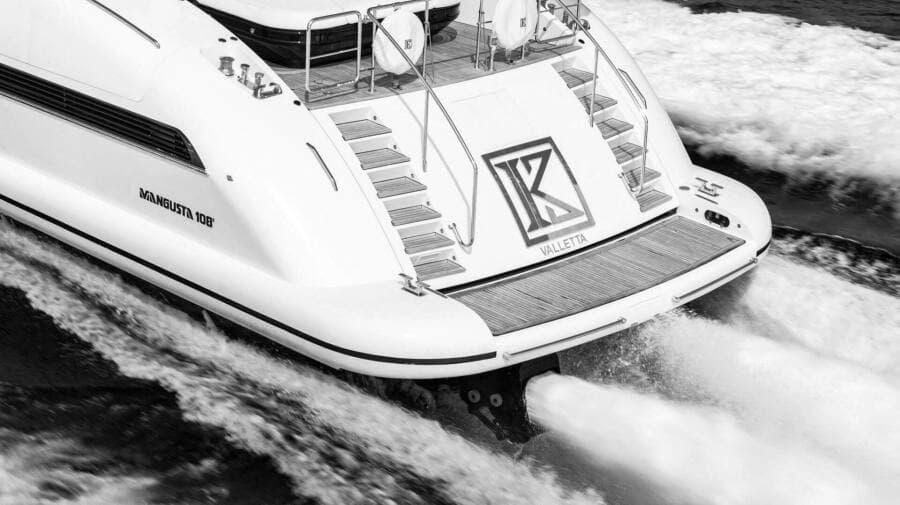

Steering / propulsion: Steering KaMeWa Water Jets

Water makers: Idromar with UV sterilizer MC5S 240 l/hr

Fuel Cleaning System: 100 litres (26 US gallons)

Angle Indicators: Rolls Royce System Analog and Digital

Bow Thruster: BCS Hydraulic 47kW/63HP

Fuel Filters: Separ SWK 2000/40/UMS

Fuel Oil Separators: MTU KFWA3

Bilge Pump: Gianneschi ACM 401 BT 15kW 400V

Fire Pump: Gianneschi ACM 401 BT 2.2kW 24V-DC

Sewage Treatment: Hamann Super Mini

WC's: TECMA Vacuum system (total x 7)

Ventilation: 6x 380V axial flow fan/blowers

Voltage 24 V

Shore power: 380 V

Crew quarters are aft, accessed from the main salon, with guests forward.

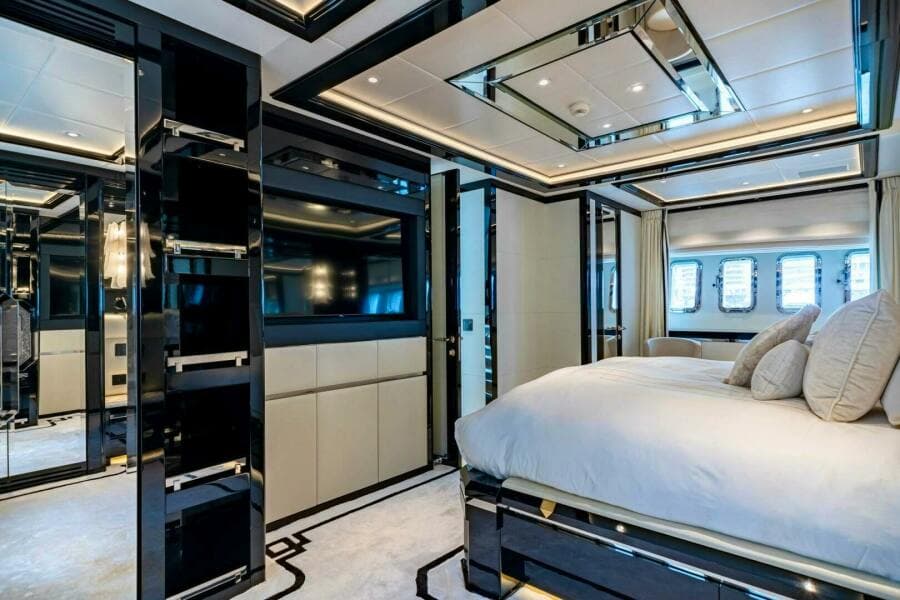

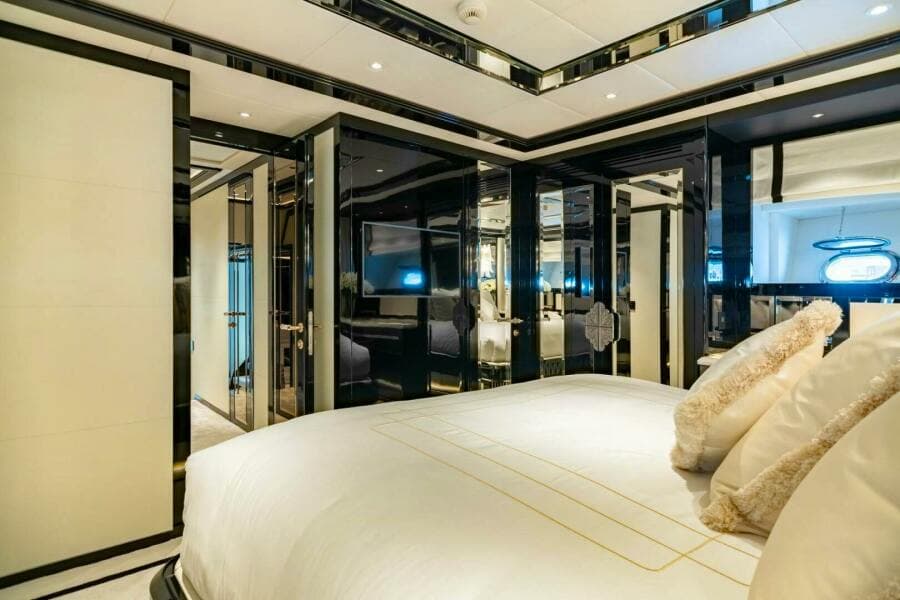

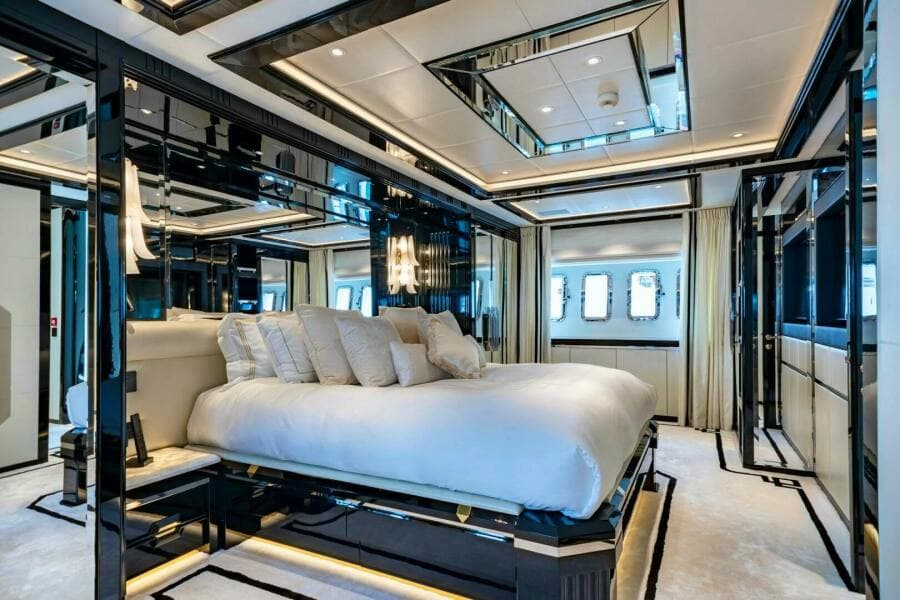

Master Stateroom

King Size double Bed.

Wardrobes

Bathroom – Shower / Sauna.

VIP Stateroom

Queen Size double Bed

Wardrobe

Sofa

Bathroom - Shower

Guest Stateroom 1

Twin Beds

Wardrobe

Bathroom - Shower

Crew Cabin 1

Captain and First Mate Cabin.

2 beds

Bathroom with shower and basin

Crew Cabin 2

Interior Crew and Chef Cabin.

2 beds

Bathroom with shower and basin.

Crew Cabin 3

Cabin/Storage area.

1 bed

1 x Oven – Miele

1 x Microwave – Miele

1 x Cooking Hob – Miele

1 x Extractor Fan – Miele

1 x Dishwasher – Miele

2 x Fridge/Freezer – Frigit in galley

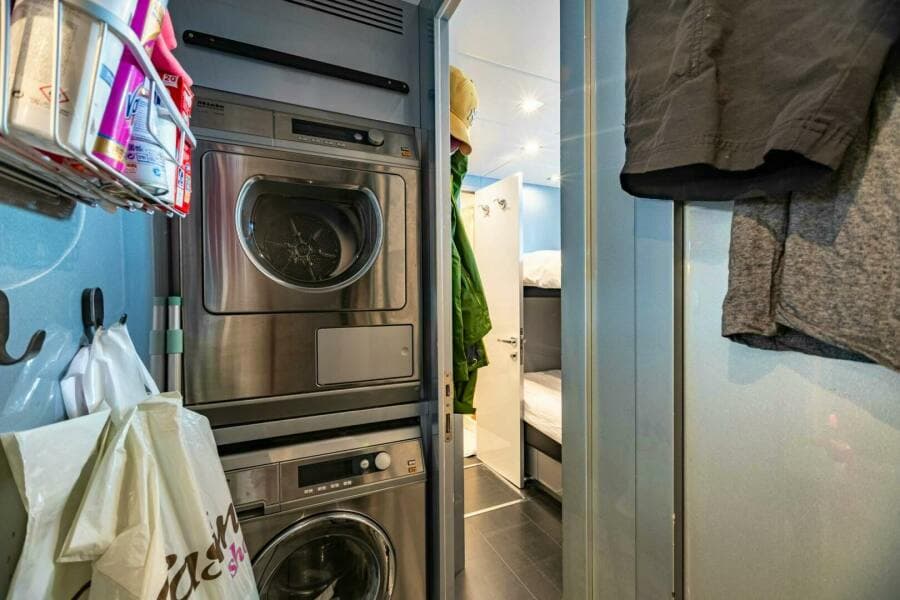

1 x Washing Machine – Miele

1 x Ice Maker

1 x Tumble Dryer – Miele

1 x Freezer Forward Bilge

1 x VHF DSC (crew area) - Simrad RS82

1 x Transceiver - Simrad RS80

1 x Speaker - Simrad LS80

1 x Intercom Phontech - Jotron CIS3100

1 x Radiotelephone simplex GMDSS - DSC- Class A - Sailor VHF – 6222

1 x Satellite antenna Tracvision in dome M9 - KVH KTV-M9

1 x Dome M9 – KVH

1 x Thermocamera + Joystick control unit - FLIR - M324L

2 x NSO Processor box with card reader and charts Navionics Silver + chart Navionics Platinum plus 33+P – Simrad

1 x Keyboard Control Unit - Simrad OP40

1 x Radar Scanner 6Kw , 4” ft - Simrad TX06-1

3 x Multifunction Graphic Display - Simrad IS20

2 x Hull Trasducer 50/200, 600W - Simrad B744V

1 x Broad band sounder Interface - Simrad BSM-

1 x Antenna GPS, 5HZ - Simrad GS15

1 x Wind Display - Simrad IS20

1 x Wind Sensor - Simrad IS20

1 x GPS Gyro Compass - Simrad HS70

1 x Gyrocompass repeater - Simrad HR80

1 x Autopilot - Simrad AP50

1 x Kamewa Interface - Simrad AD50

1 x Remote Control - Simrad QS50

2 x Monitor 15” – Boening

1 x Monitor 19” - Boening

1 x AIS Automatic Identification System - Class B - Simrad AI50

1 x Navtex - Furuno NX700B

2 x Lofrans Anchor Windlass 3kW 400V

Capstans – 2 x Lofrans 400V

Anchors – 2x 145KG each

Anchor Chains – 2x 14mm 125m each

Bensenzoni gangway with teak grating and hand rails

Swim platform – Swim ladder in teak and stainless steel

2 x Besenzoni cranes for jet skis and tender

PVC covers

Control levers to open CO2 system on deck

CO2 fixed station in engine room

2 x 8 pers ARIMAR Life rafts

Smoke sensors in all interior areas

Central fire alarm panel with heat sensors in galley and engine room

Security system with cameras in engine room and deck

Alarm panel on bridge

20 x life jackets

Fire extinguishers throughout

1 x Castoldi diesel Jet Tender 15’’ / 4,45m 110 CV

2 x Yamaha Wave runner 1300 / 163 hp
