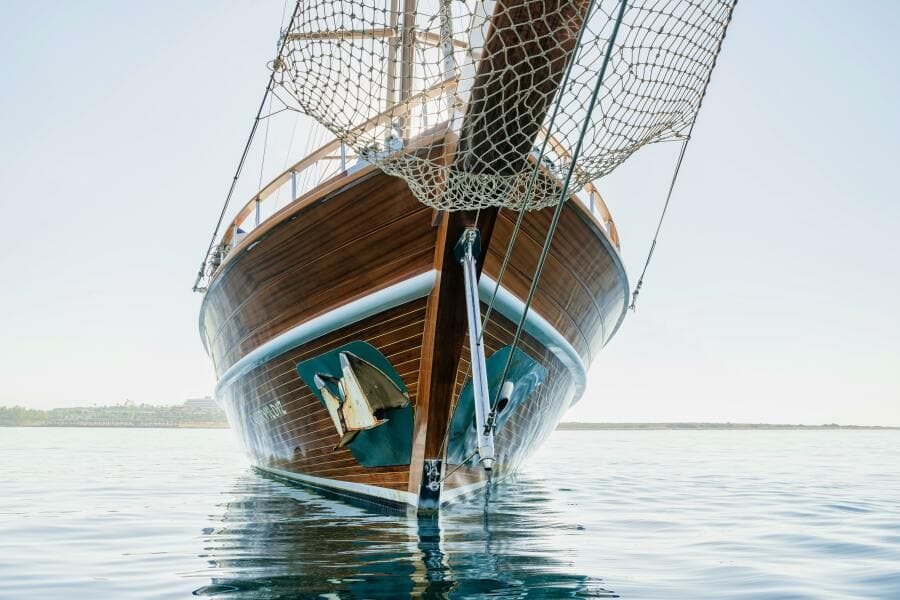

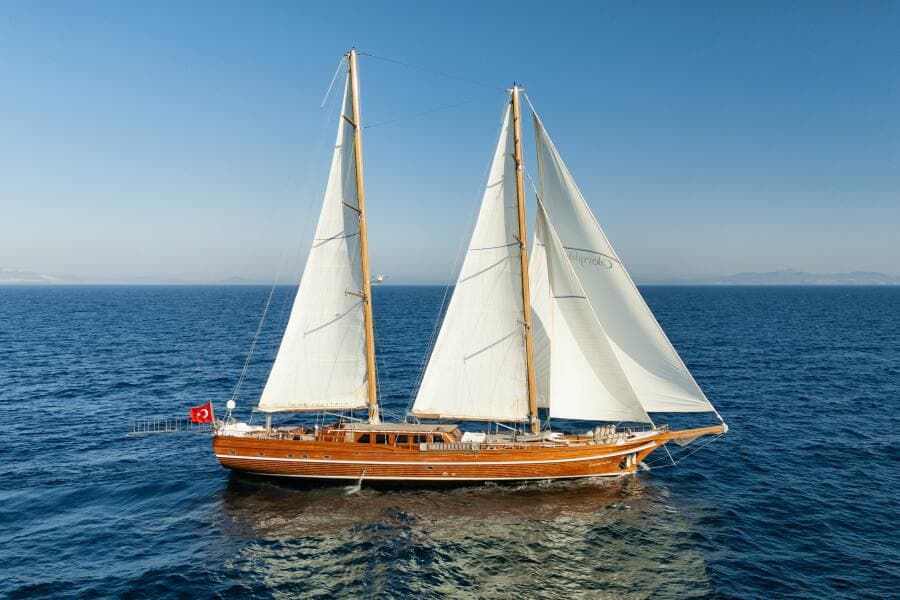

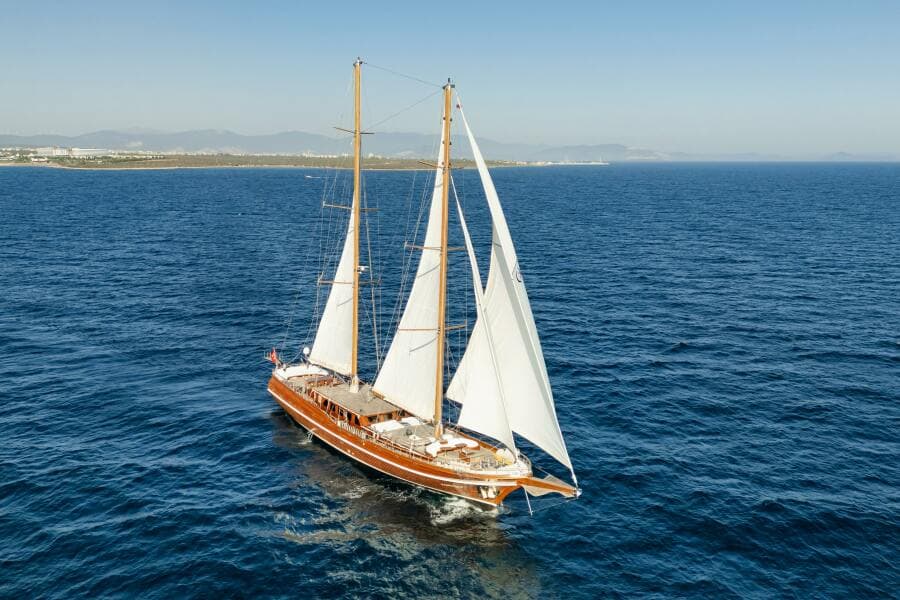

2013 East Yachting Custom

GENERAL
Built by                   East Shipyard-Bodrum
Year                         2013
Length                    41.00 mt (incl. bow sprit)
Beam                       8.90 mt
Draft                        3.98 mt
Classification           BV Hull Mach, Charter Yacht, W, Unrestricted Navigation
Flag                         Turkey
GRT                         228
Displacement         250.000 kg
Designer                 Akivades Design&Consultancy
Naval Architect       Akivades Design&Consultancy
Interior Designer    East Shipyard

► Wood
► Laminated mahogany 9 ply,
► Keel, frames and stringers laminated mahogany,
► Screws, nails and bolts silicone bronze,
► Staples, composite,
► Epoxy: International Epiglass
► Paint: topsides are fully Epifanes varnish, underwater International antifouling system

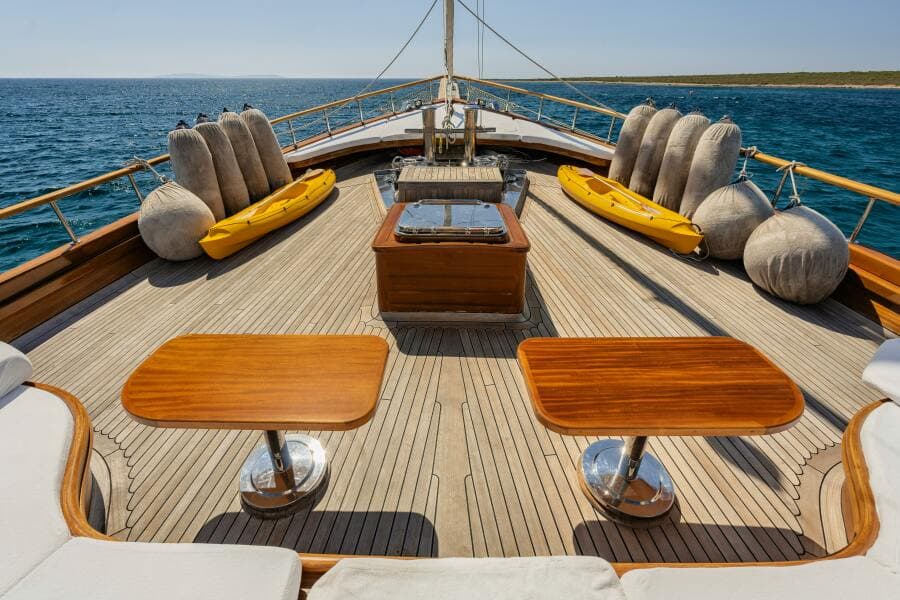

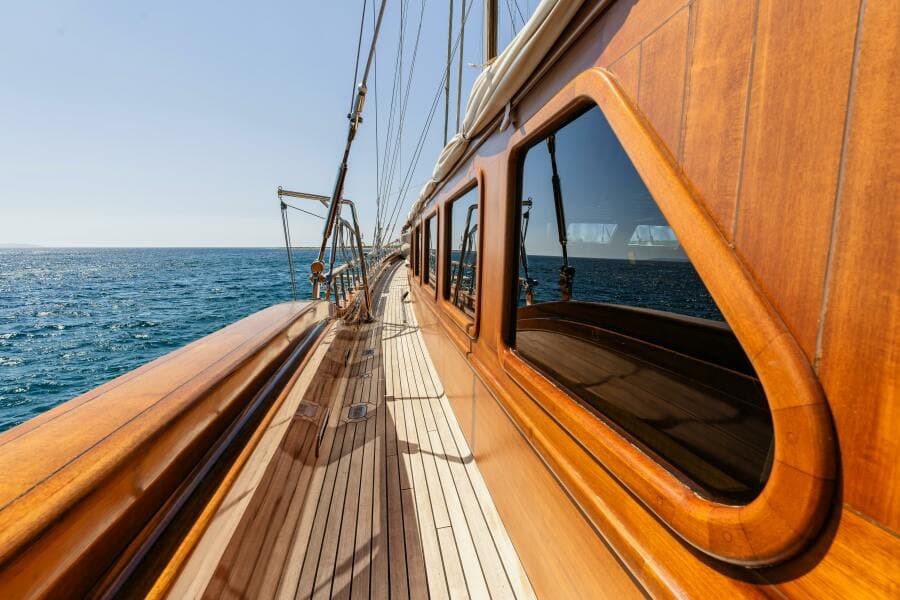

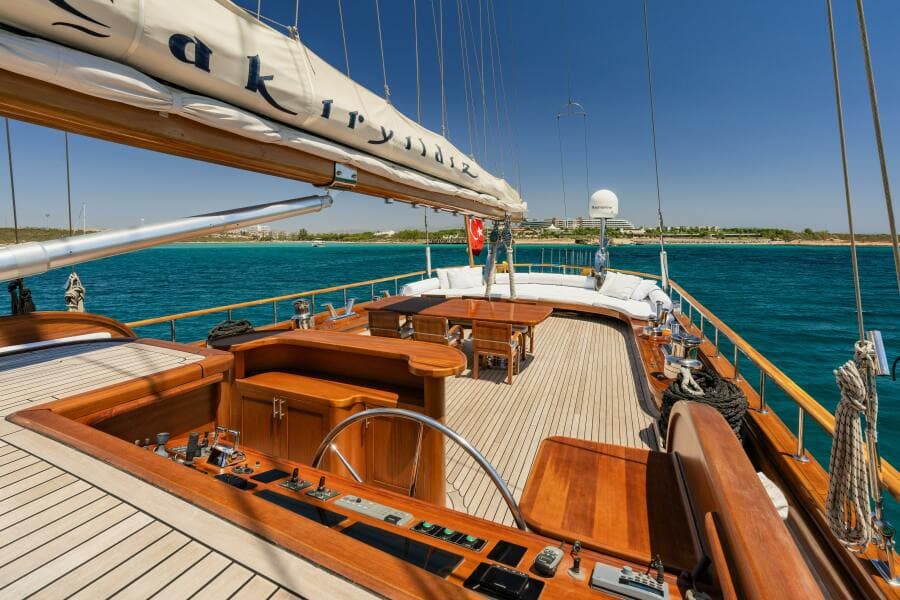

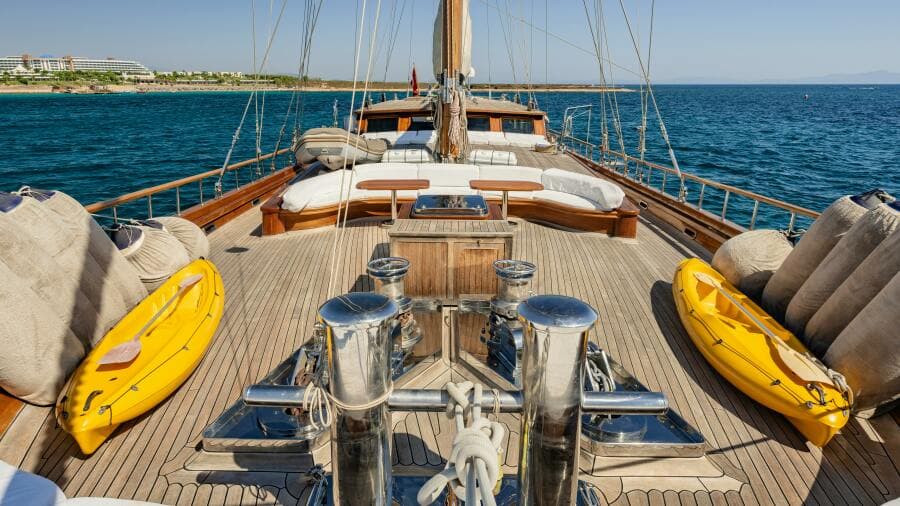

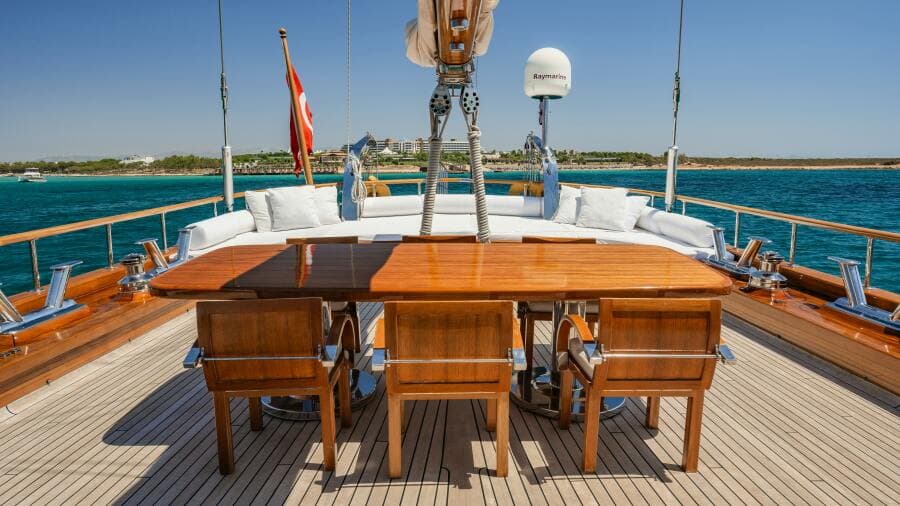

► Decking: 8 ply with insulation plus 15 mm Burma teak

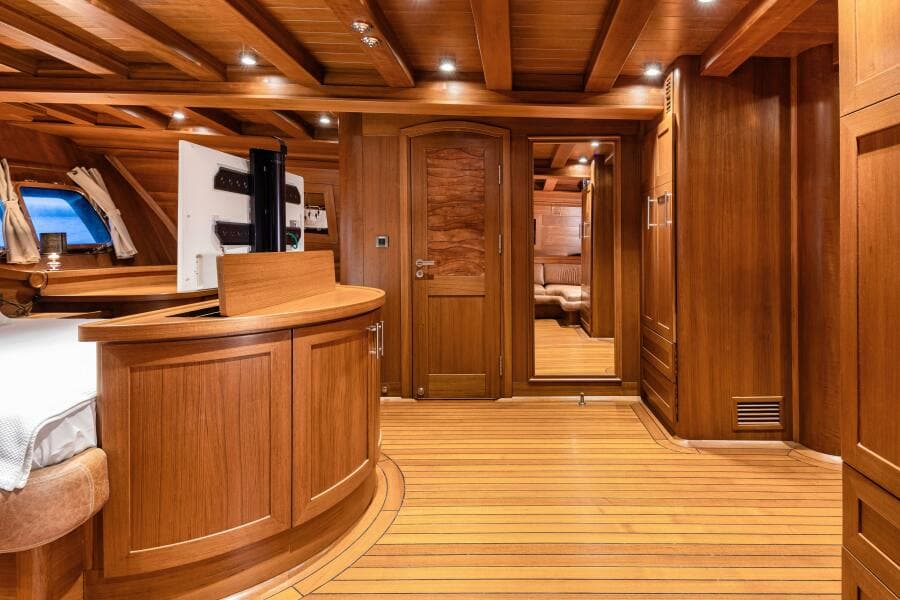

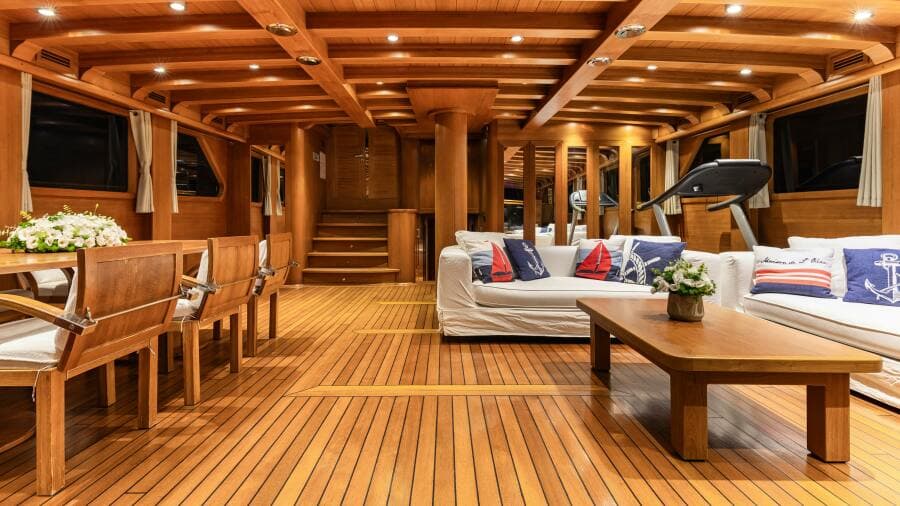

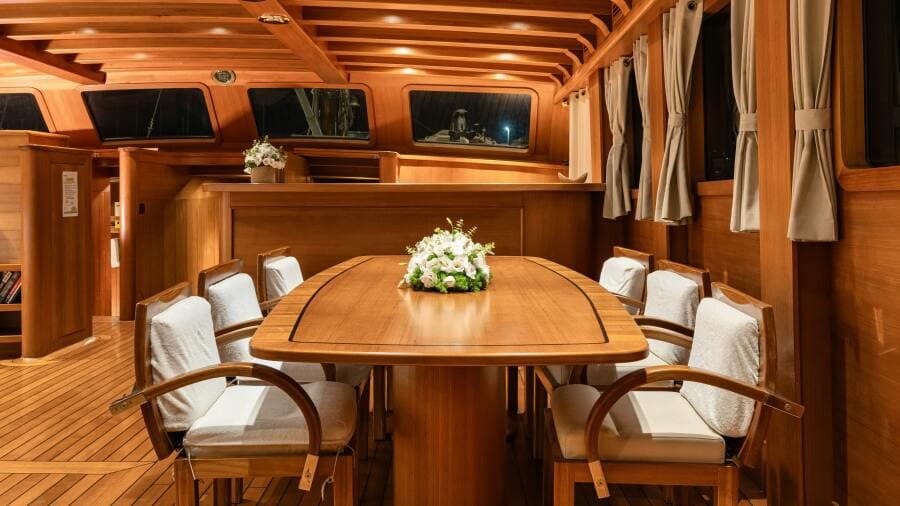

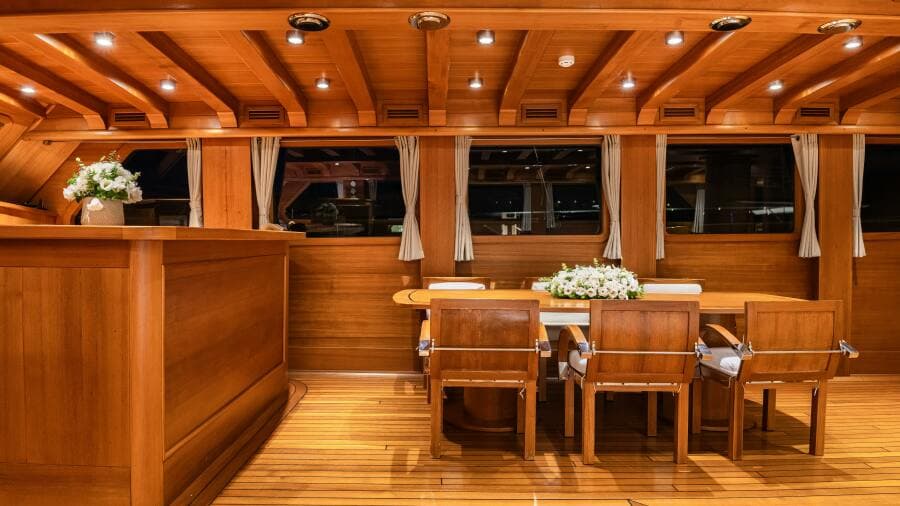

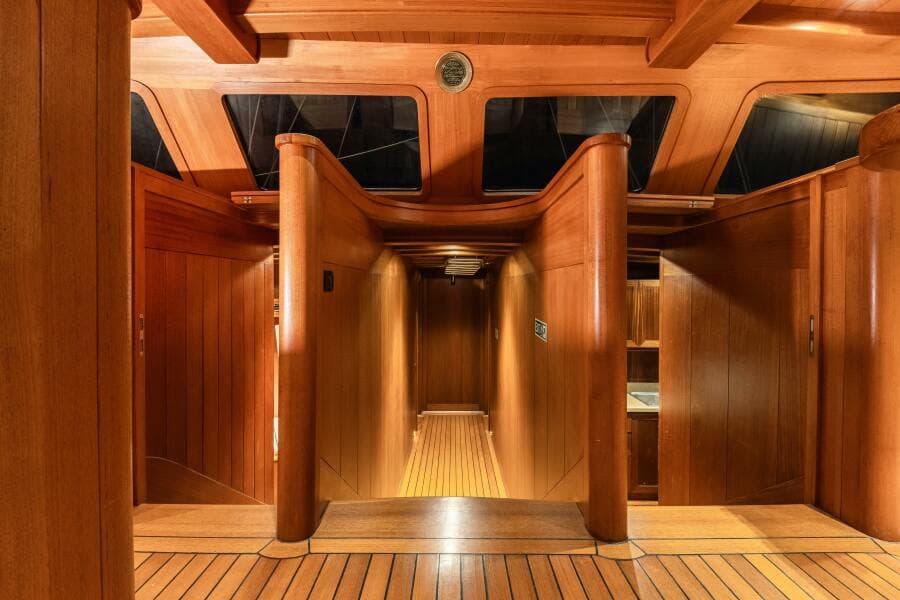

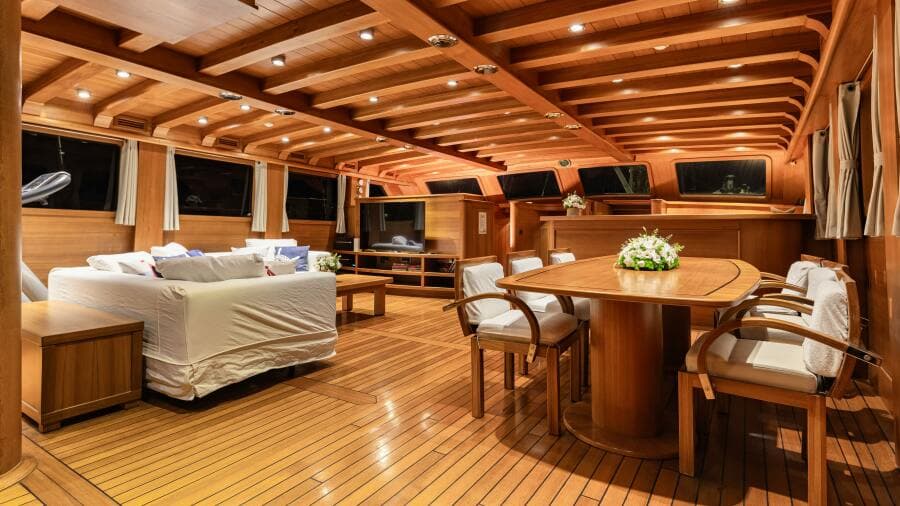

► Interior: fully Burma teak
► Custom made stainless steel portholes, hatches and watertight doors

Speed                            14.5 kn
Fuel capacity                  9,500 lt
Water capacity                5,500 lt
Black water capacity       6,360 lt
Grey water capacity included in black water

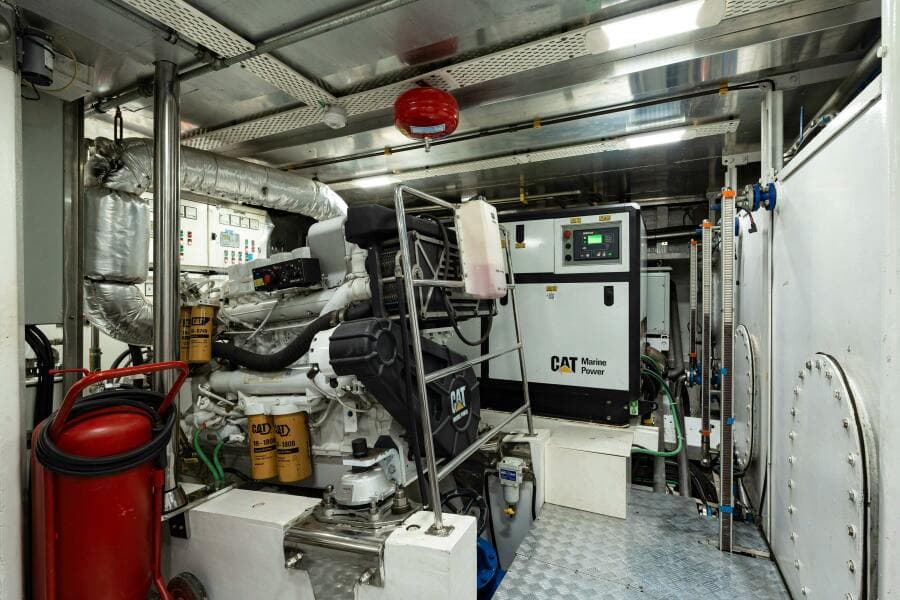

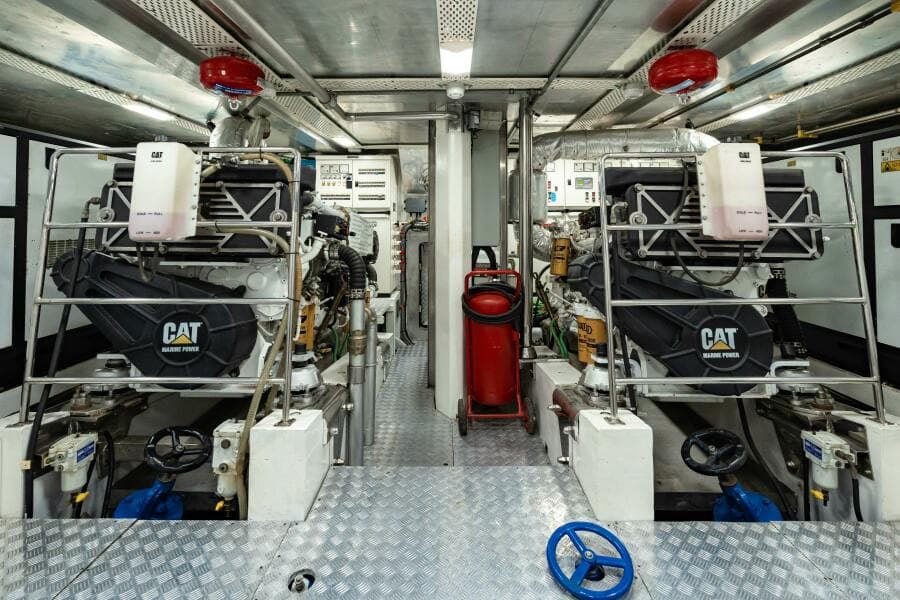

Engines                       2x CATERPILLAR
Engine model             2x CAT C18 ACERT, 600 HP, 1800 rpm, B Rating
Engine hours              2000 hrs
Fuel                            Diesel
Propulsion Conventional type (with g/b, shaft, a bracket and fixed pitch props)

Gearboxes                  2x ZF W650, Ratio 3,605:1, with live PTO
Steering Hydromarine Steering Gear
Stabilizers                    N/A

Generators                   2x CAT 4.4 DITA 69 kWe 50 Hz plus CAT 4.4. DINA 38 kWe 50 Hz
Generator hours          8000 hours on 69kW

► 380 VAC main switchboard and 24 VDC&230 VAC main switchboard has been located in Engine room
► 20 pcs independent switchboard panels,
► All generators could be running in parallel conditions, both automatically or manually
► Inverter: 2x Victron Energy Multiplus 5000 W
► Battery Chargers: Victron Energy Skylla and Orion models,
► Batteries: Victron Energy 12x 2 V-1500 A Gel type batteries,

    AGM type batteries for starting and emergency, Shore power Batteries
► Victron Energy 12x 2 V-1500 A Gel type batteries, AGM type batteries for starting and emergency

► Marincold Air Handling Unit : MC320 H/C – 320.000 BTU
► Marincold Fancoils for each cabin and compartment

Bow Thruster Wesmar hydraulic fixed pitch propeller
Stern Thruster               N/A
Water makers                2x SELMAR PACIFIC 280 CS, 600 lt/hrs
Propellers                      2x Fixed Pitch Al Cu3 Bronze propeller
Shafts                            2x stainless Steel Shafts Rudder angle indicators Hydromarine Rudder Angle İndicator
Fuel filters                      2x Separ SWK-2000/5
Fuel Filter for each main engine
Fuel oil separator          N/A
Oil/water separator       N/A
Fire bilge pump             2 pcs G&R ACM 501 BT (15 cbm/hr cap) bilge&fire pump 1 pc G&R Diesel Driven
Emergency fire pump
Boilers                            2x 100 lt G&R Boilers (with independent circulation pump)
Sewage treatment         2x HAMANN Super Mini Plus
Waste water treatment unit

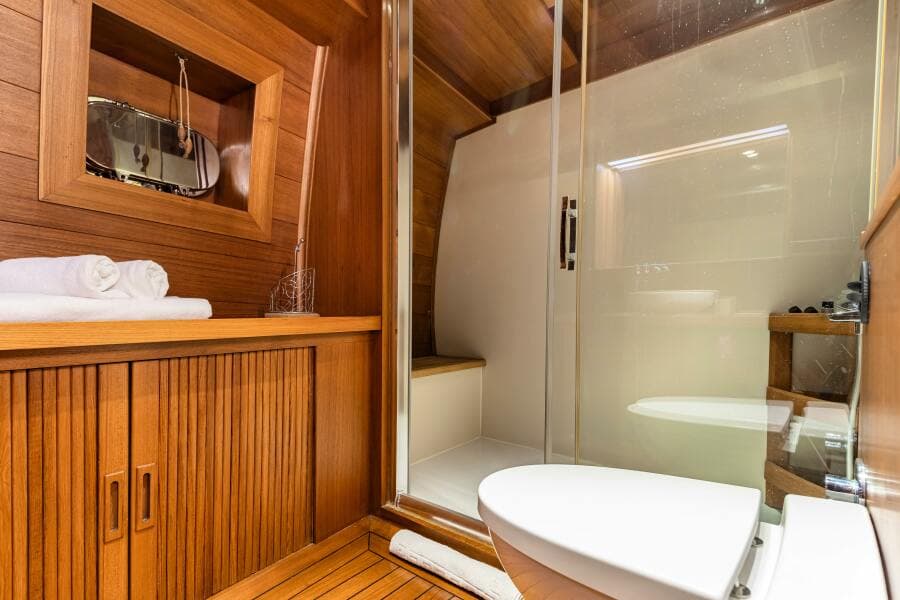

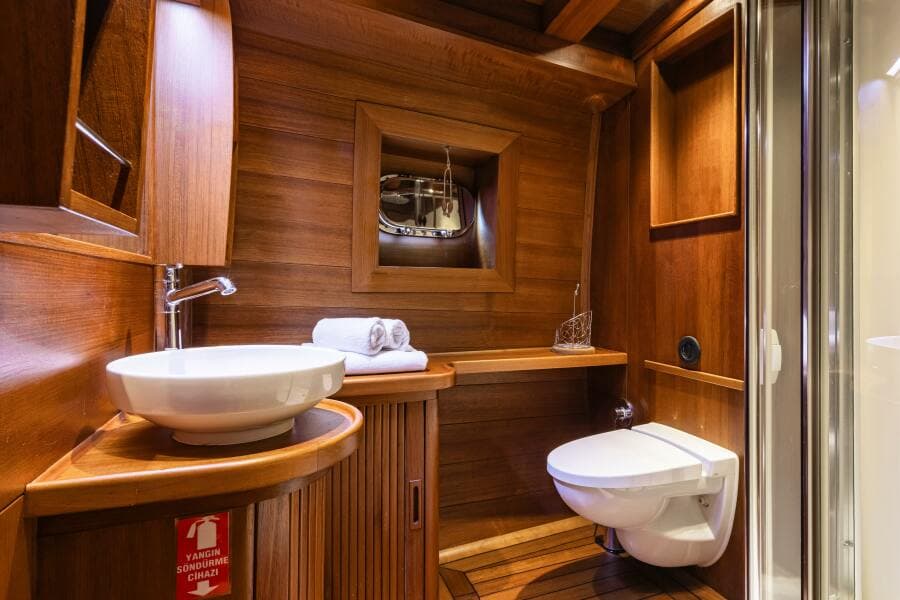

WC’s EVAC Vacuum System, 24 VDC and 230 VAC usable Fresh Air
Make up unit Marincold Fresh Air Make Up Unit:  MCF/A 480 – 48.000 BTU

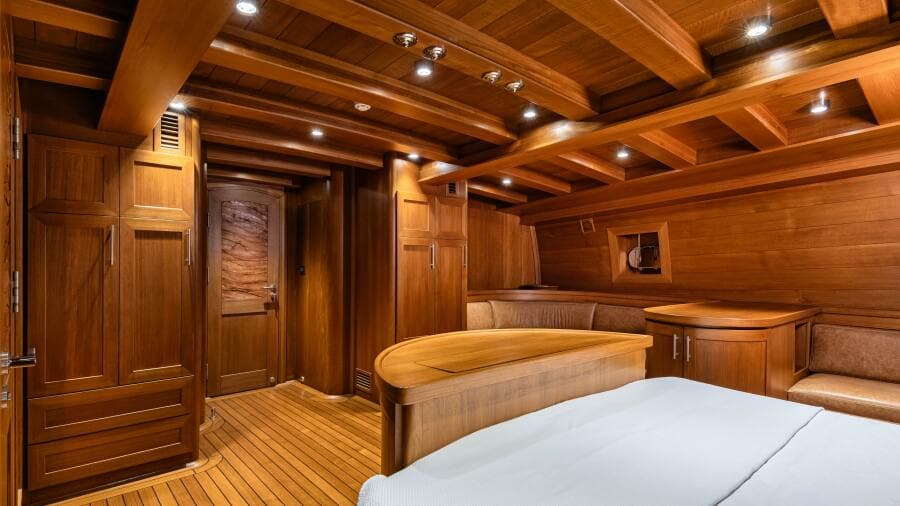

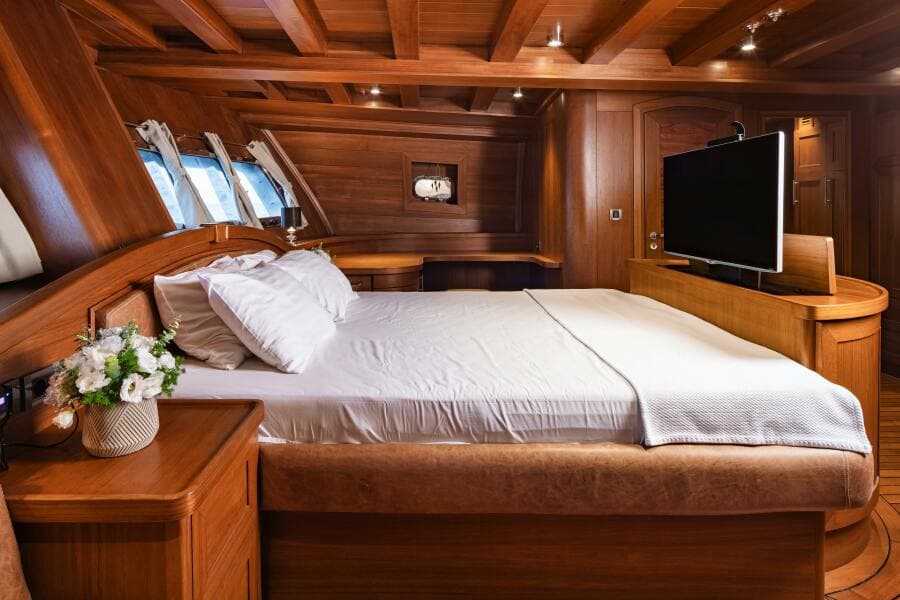

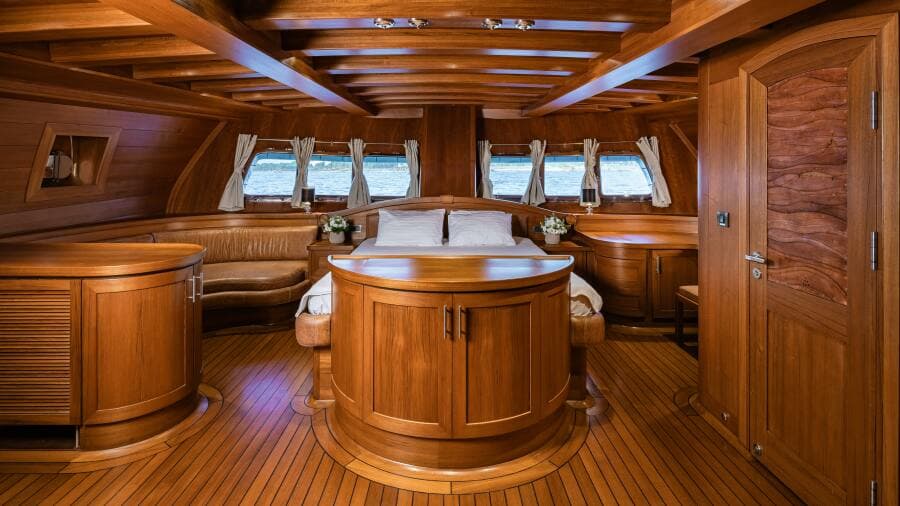

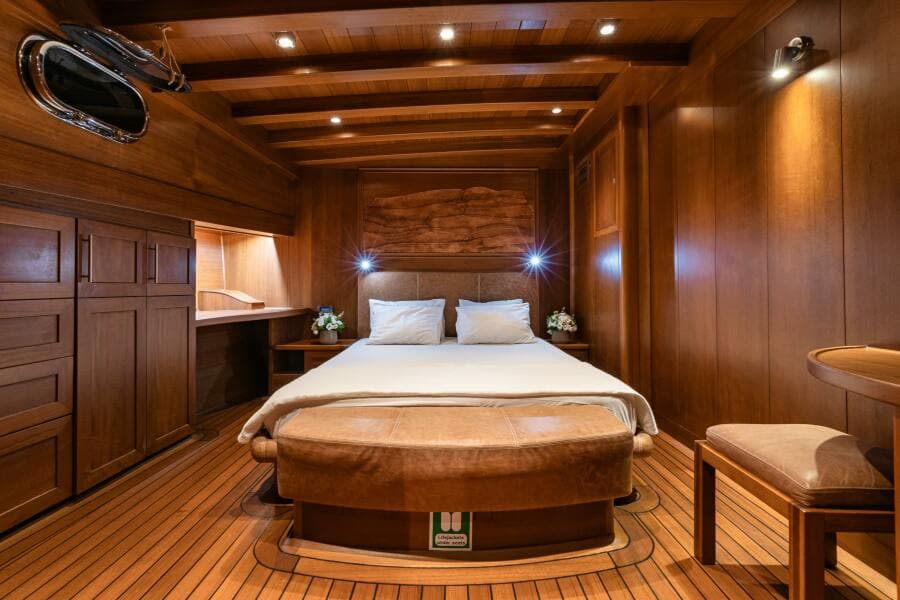

OWNER Master Cabin located aft side of yacht

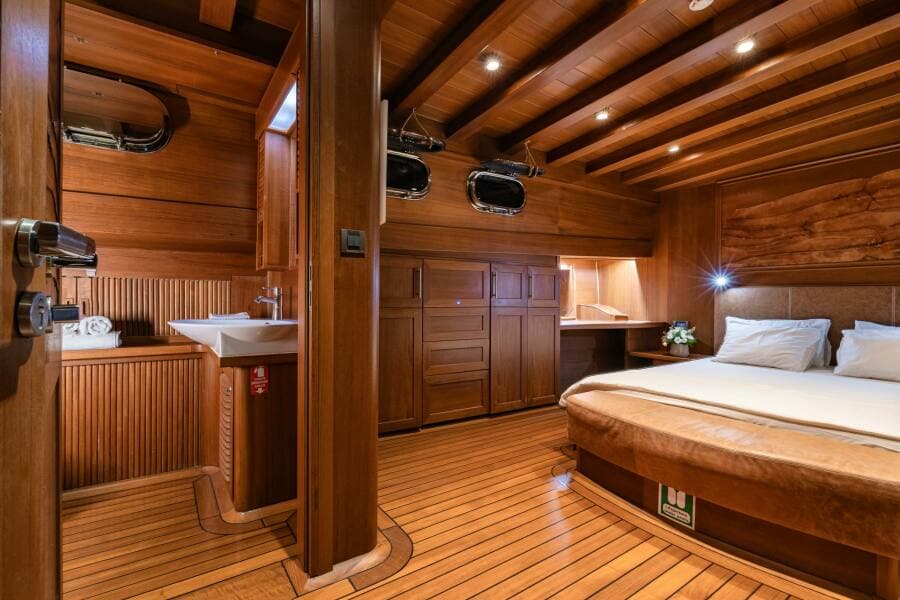

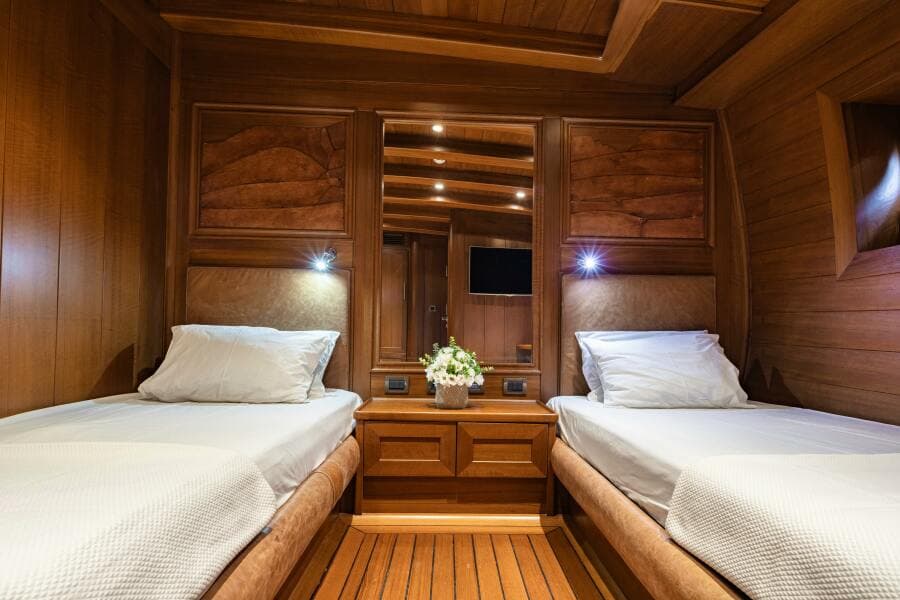

GUESTS 4x Guest cabin
STAFF Hostes cabin

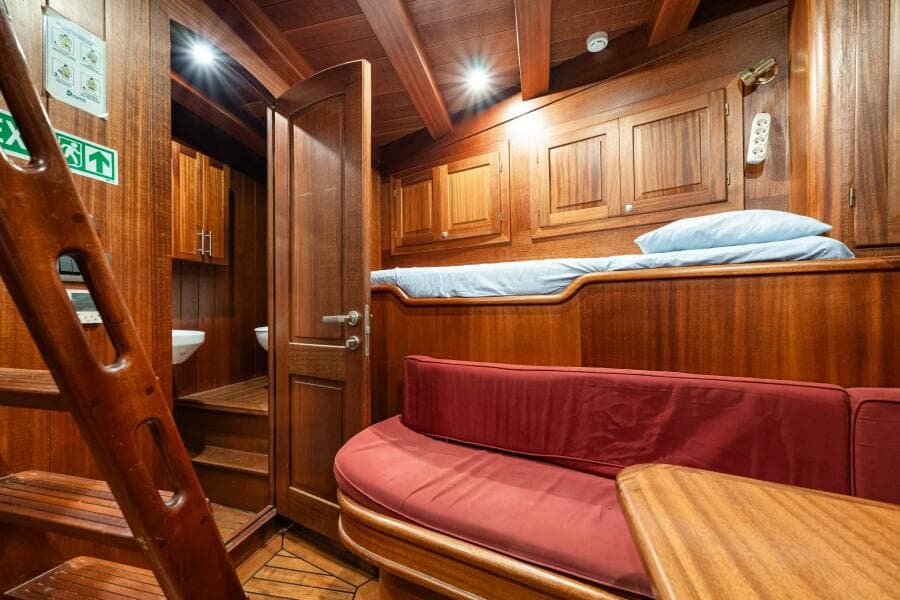

CREW Captain Cabin and crew cabins
(fore side)

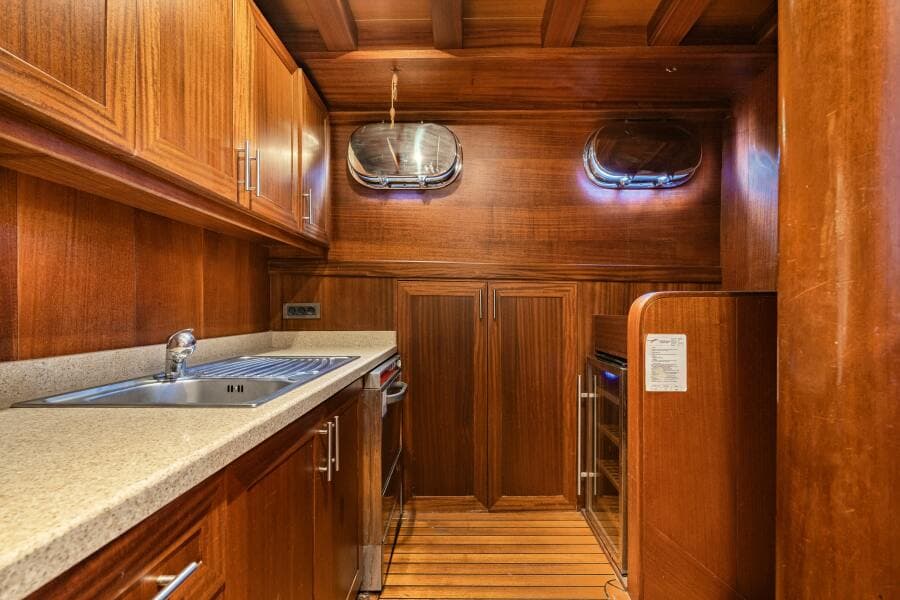

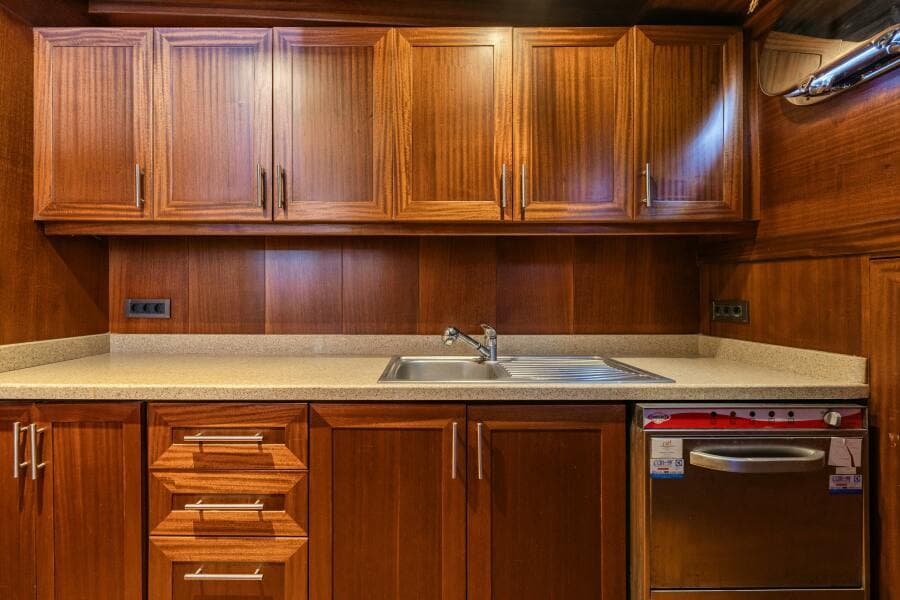

► Electric powered cooking plate with 5 sections,
► Franke owen
► 2 pcs Siemens Refrigerator
► 2 pcs Deepfreeze
► 1 pc washşng machine,
► 1 pc drying machine

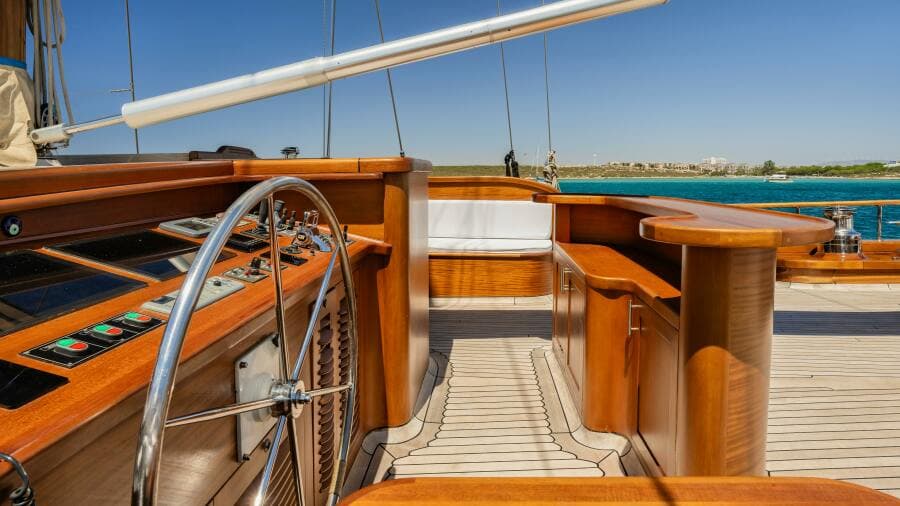

Steering System Hydromarine Hydraulic System

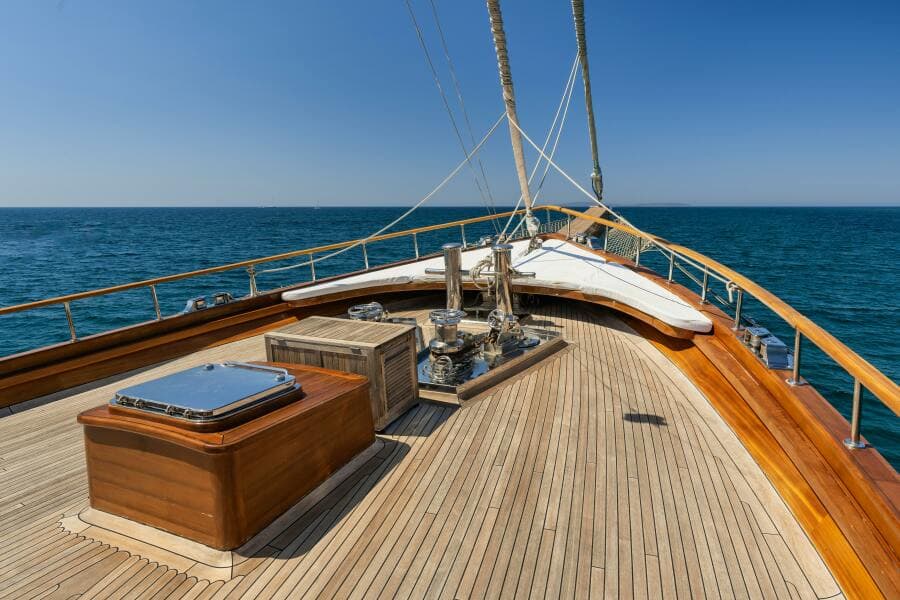

Windlass 2x Hydromarine Hydraulic Windlass
Anchors 2x 230kg HHP Stockless Anchors
Chains 19mm Galvanized Chain, 275mt

COMMUNICATIONS EQUIPMENT
► Raymarine VHF & UHF

NAVIGATION EQUIPMENT
► 2x Raymarine Radar,
► Raymarine Autopilot,
► Raymarine Chart Plotter,
► Raymarine Echosunder & Sppedlog

ENTERTAINMENT EQUIPMENT
► Satellite TV in each cabin and saloon
► Home cinema in saloon and master cabin
► Sonos central music system available in every cabins and
areas

TENDERS

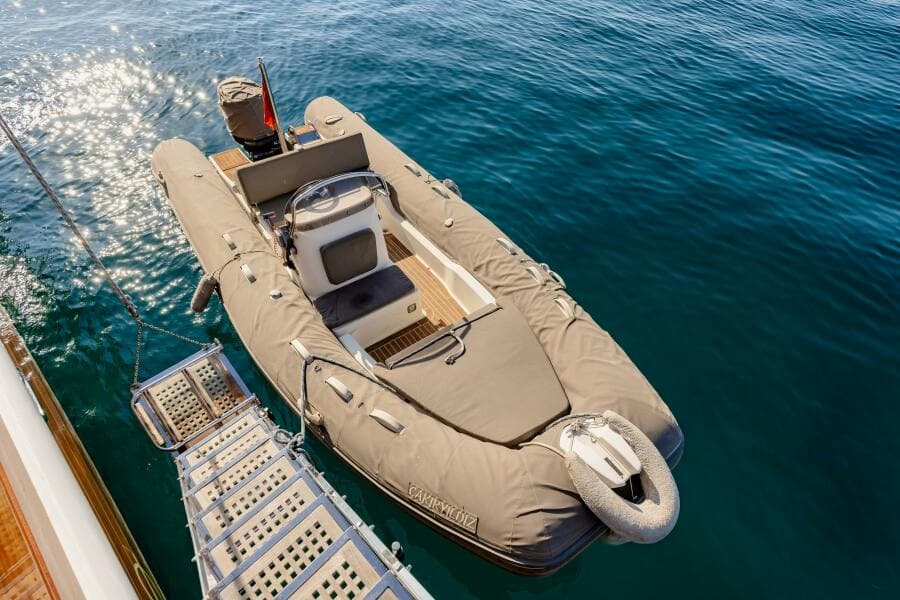

► Zodiac Medline 5,40 mt with 100 HP Yamaha outboard
► Zodiac Cadet 3,10 mt with 20 HP Yamaha Outboard

► Banana (3 person)
► 2 sets water ski set for adults
► 1 set water ski set for children
► Kneeboard
► wakeboard
► 2x Ringo
► 2x kano

► 2x Liferaft (12 person/each)
► 12x Lifejacket
► 5x Lifejacket (for children)
► 6x Lifebuoy
► Line Throwing Set
► 12x parachute Signal Rockets
► 2x Handheld Radiotelephone Apparatus
► Fixed CO2 system with Engine Room (acc to BV Rules)
► Fire dedection System for each compartment
► 14x Powder Extinguisher ( 6 kg)
► 10x Powder Extinguisher (2 kg)
► Quick Closing Valve System (for fuel tanks)
► Fire Station
► Quick Clos Dampers for Engine Room fans
► Fire Hoses and Nozzles for each fire hydrant

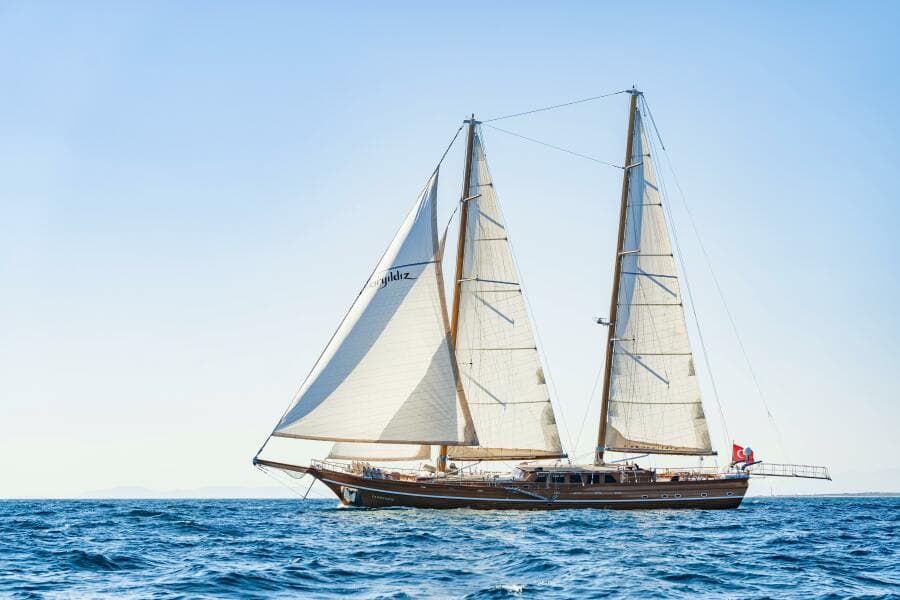

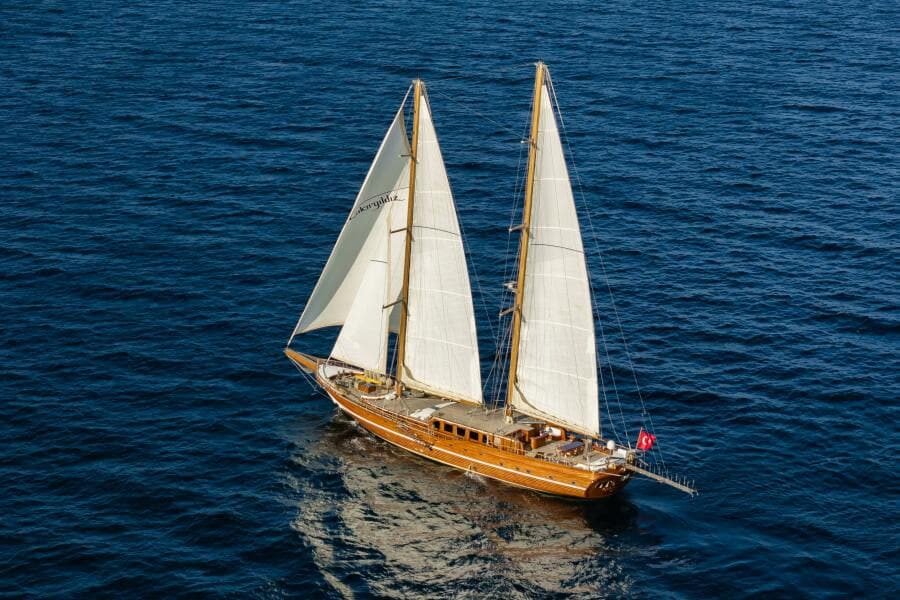

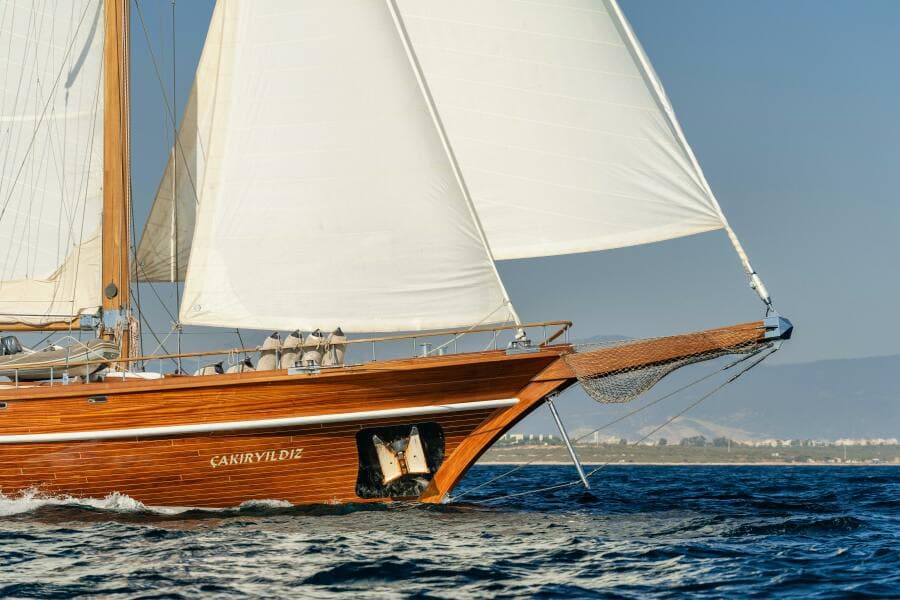

Main Sail          227 m2
Mizzen Sail       193 m2
Spinnaker Sail     95 m2
Genova Sail       233 m2
► Laminated wooden masts
► Sail winches: 10 pcs Andersen stainless steel hydraulic winches on deck
► Furlings, boom vangs and backstays:  Bamar
► Deck blocks and sailing equipments:  Antal
► Custom made stainless steel liftings and accessories

A complete list of exclusions is available upon request.
