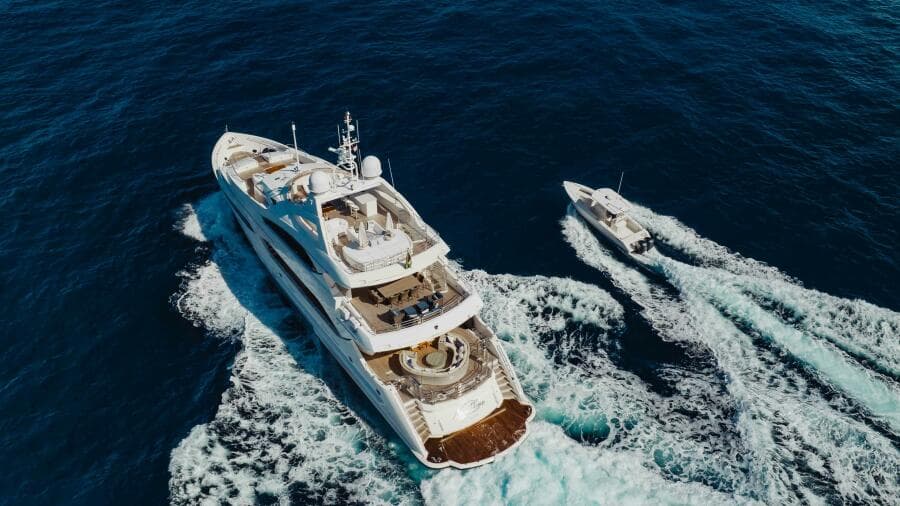

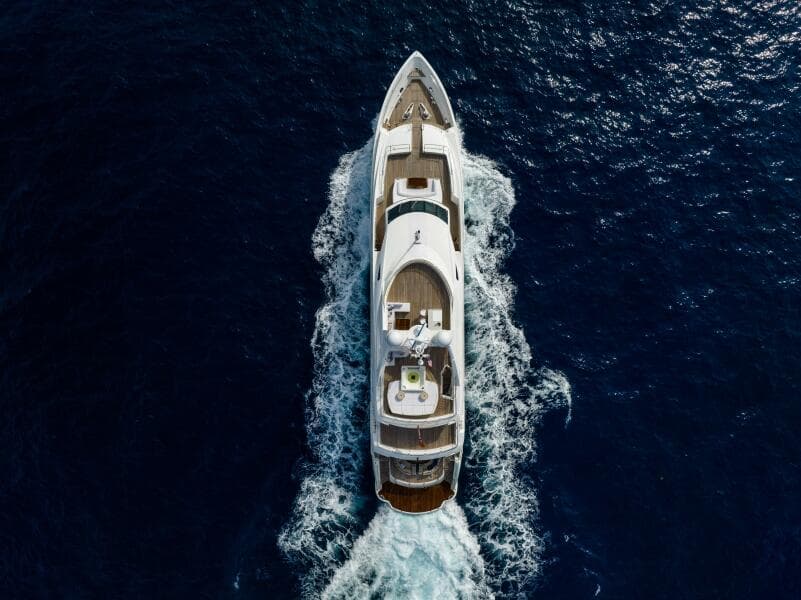

2010 Sunseeker 40m

1.     CONSTRUCTION

Fiberglass hull and superstructure with teak decks

2.     DIMENSIONS

                2.1 General

     Length Overall (L.O.A.):                          131.29 feet                (40.02 meters)

     Length at Waterline (L.W.L.):                  101.08 feet                 (30.81 meters)

     Beam (molded):                                         26.57 feet               ( 8.10 meters)

     Draft (loaded):                                            8.92 feet               ( 2.72 meters)

     Tonnage:                                                  338 gross

     Displacement:                                          286,000 lbs.

2.2 Capacities

     Fuel Capacity:                                         8,430 US Gallons        (31,910 liters)

     Water Capacity:                                      1,307 US Gallons        ( 4,950 liters)

     Lube Oil:                                                      77 US Gallons        (    291 liters)

Waste Oil:                                                    77 US Gallons       (    291 liters)

2.3                                          Speed             Consumption per hour                       RPM

Cruising:                           12.0 knots        100 US Gallons /hr                          1,400

3.     MACHINERY

3.1 Main Engines

Engine Type:

•   (2) MTU 12V 4000 M93 diesels @ 3,140 Hp each

Drive:

•   Direct drive

Propellers:

•   5-blade, Nibral, with stainless steel shafts

Transmission:

•   ZF 2650 A

Ratio:

•   3.286:1 A

3.2 Generators & Electricity

Output:

•   70 kW/ 230/400V / 1,500 RPM @ 50 Hz

Generators:

•   (2) Kohler 70EFOZD generators @ 1,500 rpm

Shore Power:

•   (2) 480V three phase 100 amp

•   Atlas shorepower SPA II, SPA 90F

Batteries:

•   (8) 12V, centerline forward engine room

•   (6) 12V 8D, below port lazarette sole

•   (6) 12V, bridge foredeck lockers

•   40 AMP mastervolt - 24V charger

•   80 AMP mastervolt - 24V charger

•   (2) 22.5 AMP Newmar in doghouse – 24V charger

Inverter/Filter:

•   Visicomm Sinewave harmonic filter

3.3 Air Conditioning

Type:

•   MarinAir tempered water system with (4) chillers

Output:

•   480,000 BTU’s

3.4 Other Machinery

Watermakers:

•   (2) 1400 GPD reported, HRO, Seafari

Hot water heater:

•   (2) electric calorifier’s with (3) elements each

Trim Tabs:

•   Stainless steel double ram 39” X 31”

Stabilizers:

•   ABT Trac model #400, hydraulic, at anchor with 28 Square ft Fins and underway

Bow Thruster:

•   (2) ABT Trac hydraulic 5-blade propellers in 20” Tube

Stern Thruster

•   (2) ABT Trac Hydraulic 5-blade propellers in 16” Tube

Steering System:

•   (2) Hydrive station hydraulic + emergency station

Fuel Separator & Filtration:

•   (2) Separ bowls in-line with bowl on engines

4.     COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

SATcom:

•   KVH V7 Mini V-SAT Broadband

Telephone System:

•   KVH

VHF:

•   Furuno

•   SIMRAD HS 100

•   SIMRAD HS 100 in crew mess & emergency steering station

Cellular Phone System:

•   Panasonic Hybrid system

Sat Terminal:

•   Sailor Inmarsat-C Terminal

4.2 Navigation Systems

Radar:

•   (2) Furuno 96 Mile (X & S band)

Magnetic Compass:

•   4” Ritchie

Auto Pilot:

•   Simrad AP50

Depth Sounder:

•   Furuno FI50

GPS:

•   Furuno GP-150 & GP-39

AIS:

•   Furuno FA-150

Ships Computer:

•   (2) Vasari and Nav computer with Nobeltec

Laser Plotter:

•   Navnet and Time Zero

Wind/Speed Log:

•   In GPS and Chart plottters & Sperry display

Navtex:

•   Furuno NX-700

Sonar:

•   Furuno FE 700 drop down

4.3 Entertainment System:

a.     Video Equipment

                TV’s:

•   Samsung TV, Apple TV in salon

•       Samsung TV, Apple TV, Bose DVD in master stateroom, Roku

•       Sony TV’s on powered lifts, Apple TV with Bose DVD in aft staterooms, Roku

•       Sony TV’s, Apple TV with Bose DVD’s in forward staterooms, Roku

•       Samsung TV with Alpine DVD player in crew mess, Roku

•       Samsung TV on powered lift, Apple TV, Bose DVD in sky lounge, Roku

b.  Audio Equipment

                Stereo’s:

•   Alpine AM/FM/DVD players in crew mess, galley & pilot house

•       Marantz AV receiver in salon

•       Bose AV receivers in lower guest staterooms and Samsung sound bar in master stateroom

•       RJI remotes & Ipad controllers

5.     GALLEY & LAUNDRY EQUIPMENT

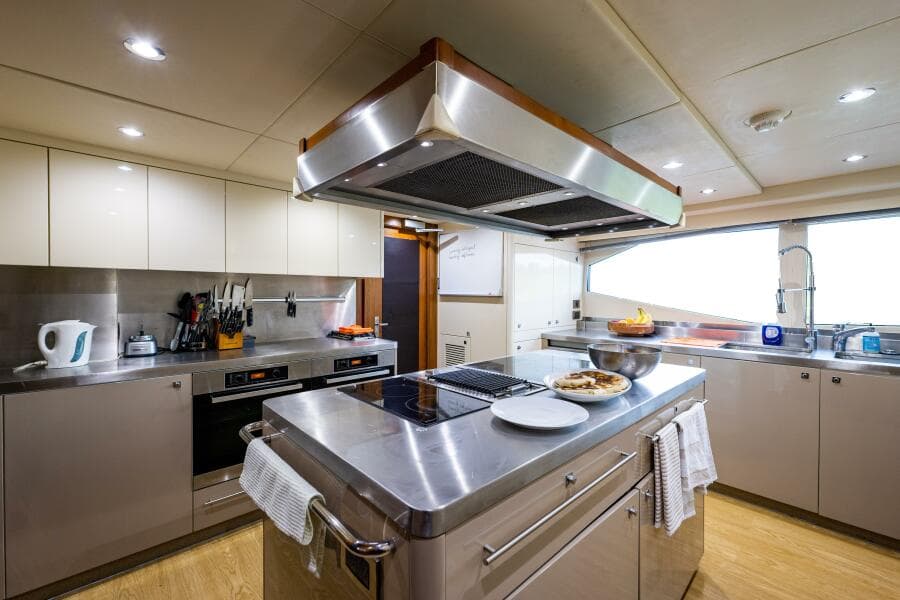

5.1 Main Galley Equipment

Cooking Equipment:

•   (2) convection Miele ovens

•    Six burner Hafele, single burner grille; new stove top June 2024

•    (1) Microwave oven – Miele

•    Miele vent hood with lights

Refrigeration/Freezer:

•   (3) Sub-Zero with drawers

•   (1) Sub-Zero with drawers

Dishwasher:

•   (1) Miele

5.2 Crew Galley/Mess Equipment

Cooking Equipment:

•   (1) microwave oven – Miele

Refrigeration/Freezer:

•   (1) Miele refrigerator

•   (1) Sanden freezer in garage

Other:

•   (1) Miele dishwasher (crew mess)

5.3 Additional Galley Equipment

Cooking Equipment:

•   Two burner electric Kenyon BBQ (sundeck)

Refrigeration/Freezer:

•   (1) Sub-Zero wine chiller (service pantry)

•    (1) Summit refrigerator (skylounge bar)

•    (1) Miele refrigerator (skylounge pantry)

•    (1) Raritan ice maker (galley service pantry)

•    (1) Summit ice maker (skylounge bar)

Other:

•   Dumbwaiter to sundeck

5.4 Laundry Equipment

     Main Laundry Equipment

•   (2) Samsung 2-piece washer and dryer (port lazarette)

6.  TENDERS & TOYS

Tenders:

•   19’ Aquascan tender

Dive Gear:

•   Kahlenberg – service air compressor

•    Bauer Junior II – dive air compressor

Other:

•   (2) Jet ski’s

•   (2) Sublue underwater scooters

•   (2) Wakeboards

•    Water ski’s

•   Snorkeling gear and diving equipment

•   Big Bubba 4 person towable tube

•   Fishing gear: 4 rods, 2 casting, 2 trolling, lures

7.  DECK EQUIPMENT

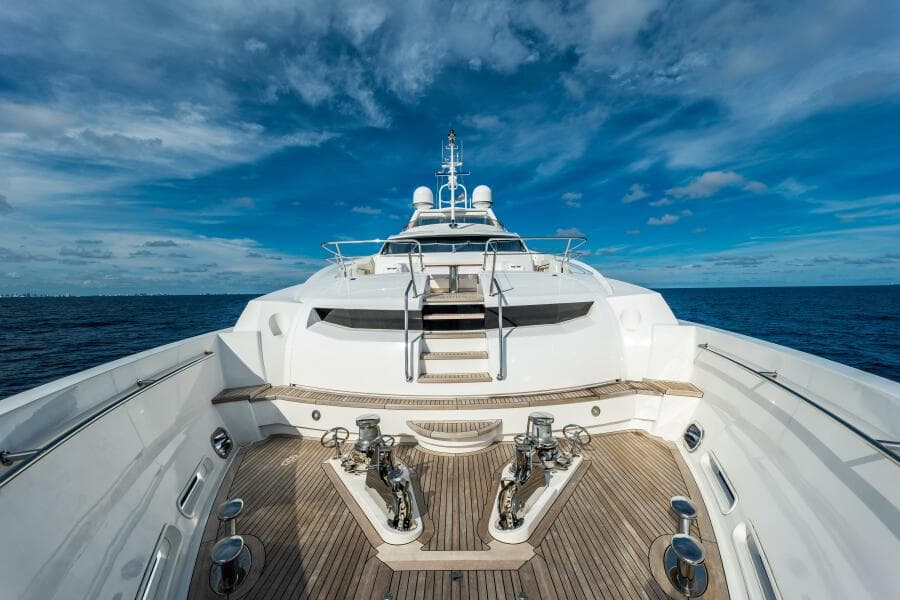

Anchor Windlass System:

•   (2) Muir VRC 8000 vertical, electrical

Anchors:

•   (2) 463 lbs. stainless steel Manson

Anchor Chain:

•   451’ of 0.05’ chain

Boat Crane and Davits:

•   Atlas 2000 Manual Operation davit– foredeck

•   Hydraulic winch in garage & electric overhead winch – dinghy davit

Passerelle:

•   Besenzoni, hydraulic

Swimming Platform:

•   Powered swim platform

8.  SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment

Cameras:

•   (4) Cameras and FLIR Thermal Camera

8.2 Fire Fighting Equipment

Fire Control System:

•   Seafire FM200 clean agent and Deluge system in engine room

•   400 Vac pump on manifold, Hatz diesel crash pump

•   400 volt pump in engine room with manifold, remote pickups

•   Manual release - starboard main deck fire locker, crew area

•   Shut-Downs: Vent fans, vent flaps, main engines, each generator

Fire Extinguishers:

•   (11) 2.5lb, (8) 10lb dry powder, (2) 5lb, (5)10lb CO2

Alarms:

•   Remote indicator: At lower helm, alarm system throughout vessel

8.3 Safety Equipment

Life Rafts:

•   (4) 10-person Sea Air

Life Rings:

•   (4) with floating throwing lines – (2) with strobes

EPIRBS:

•   ACR battery

SART:

2024:

·        New Rolla propellers

·        Shafts inspected

·        New cutlass bearings

·        New shaft seals

·        New rudder post bearings

·        Hull and superstructure polished and ceramic polymer applied

·        Complete bottom coat

·        All running gear treated with prop speed

·        New AC raw water intake system

·        New raw water intake system for watermakers

·        All new AC titanium chillers

·        All hydraulic PTO's rebuilt

·        Hydraulic stern thruster motor rebuild

·        MTU engines are fully serviced (annual)

·        Generators serviced (annual)

·        Swim Platform hydraulic locking actuators rebuilt

·        Garage door hydraulic locking pin seals replaced

·        Garage door, swim platform, balcony hydraulic motors replaced

·        RINA annual inspection completed

·        2024 Flow Marine titanium 40-ton chiller plant

2025:

·        Main engines master service @ 3,400 hours

·        New Rhodium AMCS system (state-of-the-art upgrade)

·        New Deif PMS power management system

·        New Kohler Generator Decision Makers

·        Generators top-end rebuild & full service

·        Central hydraulics rebuilt, flushed, new filter system

·        Swim platform, garage door & balcony hydraulics overhauled

·        Freshwater maker fully serviced

·        New toolbox with complete tool set

·        Two full sets of generator service spares

·        Aquascan tender with Suzuki outboard serviced

·        Flag & Class annual surveys completed

- Exclusions include all of Owner's personal effects, art work, china, crystal, silver-
