2010 Icon
“LOON”
Description

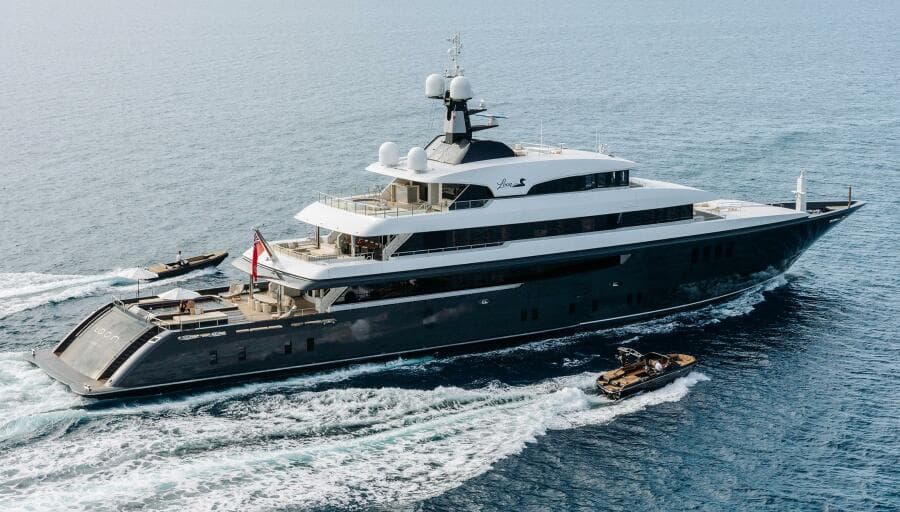

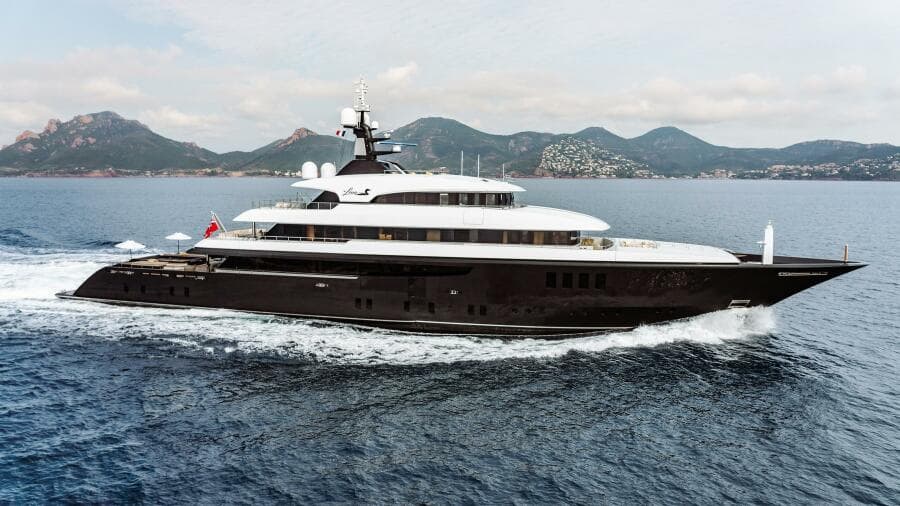

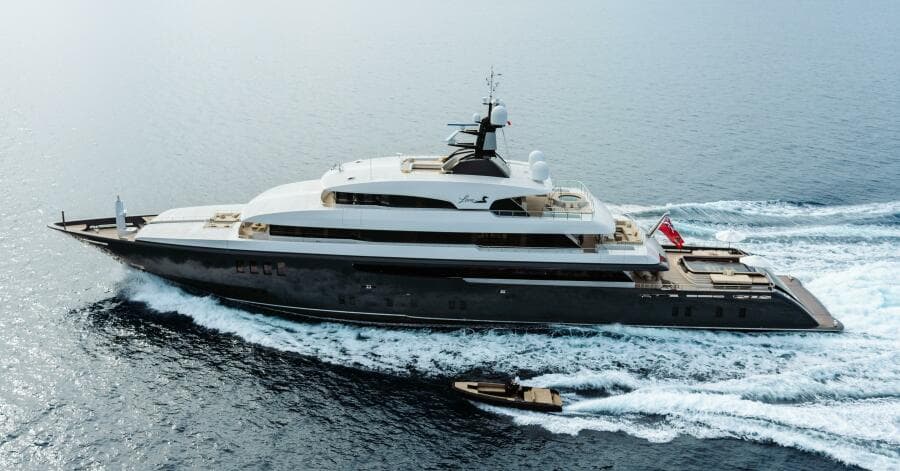

LOON is a 221’ Icon Motoryacht with 6 decks and 7 staterooms and is considered the most famous and marketed charter yacht in the world.
Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a minimalistic and refined elegance. The subtle colors and elegant furnishings create a serene atmosphere for relaxed ocean living. While Redman Whiteley Dixon Design (Exterior Designer) perfected a true design masterpiece with incredible exterior comfort.

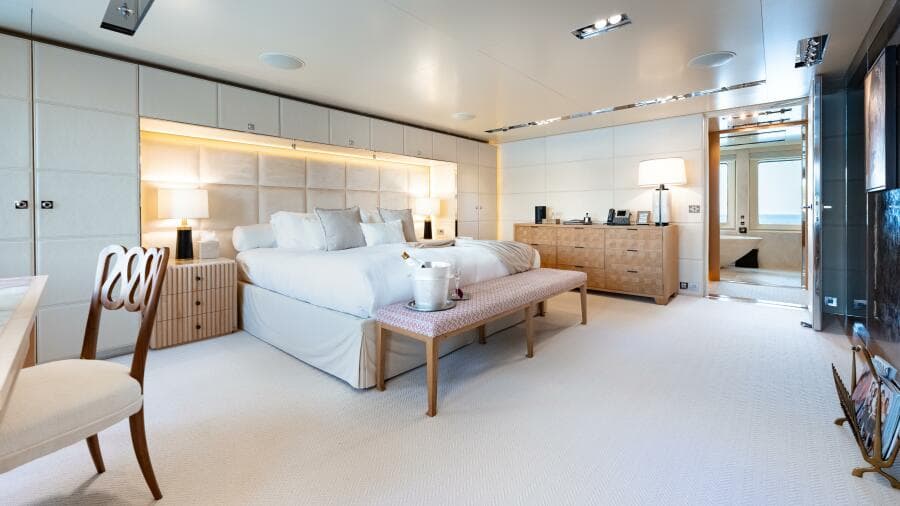

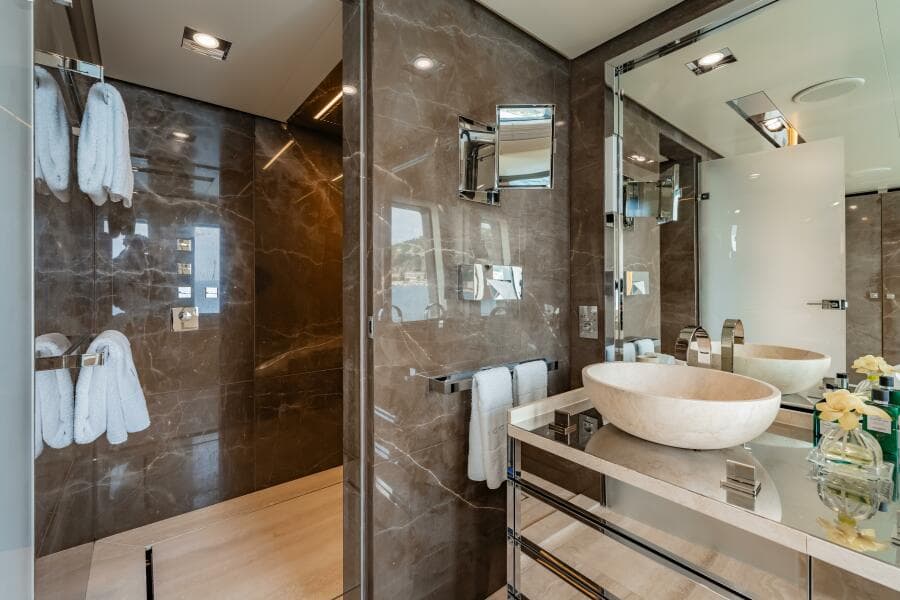

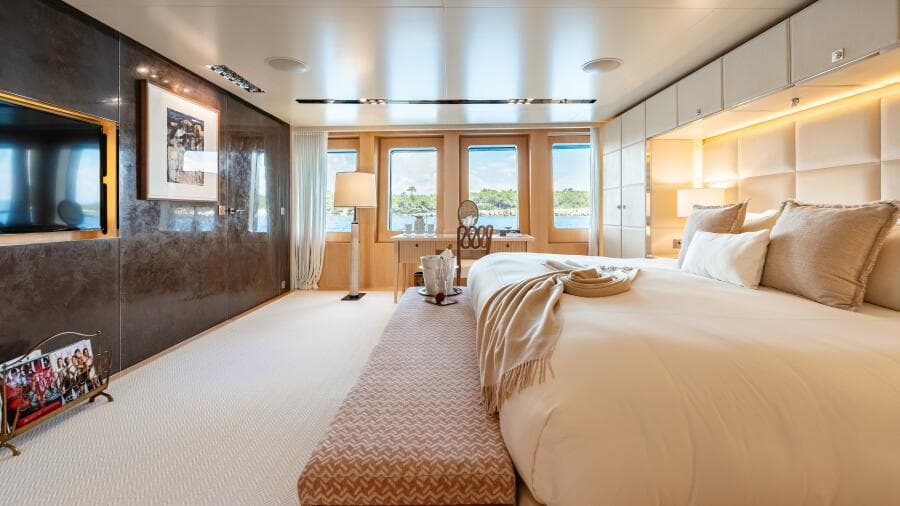

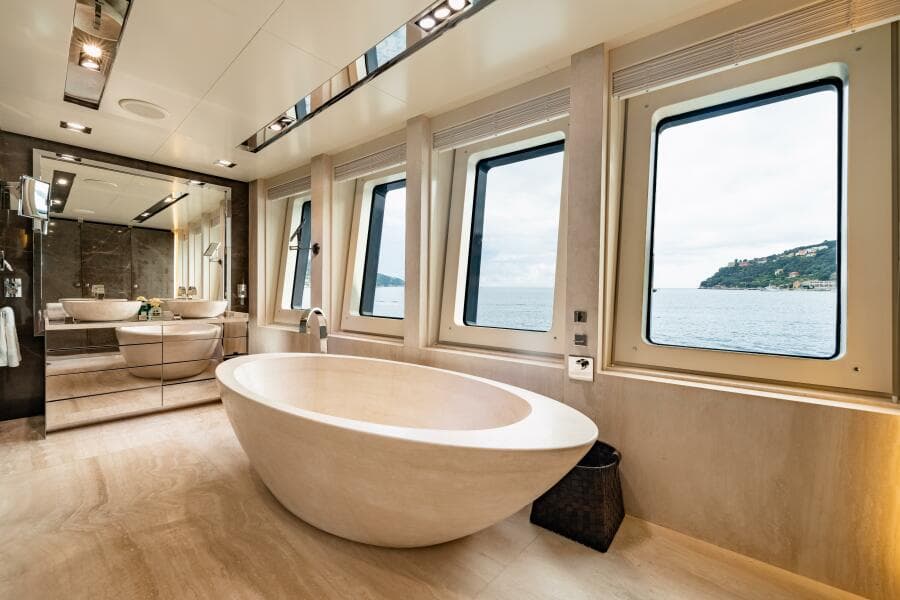

A few outstanding features are her main deck master with a private staircase up to her 180-degree view private lounge and/or office with a private exterior sunning area (this lounge and/or office could one day be easily transformed into a separate VIP stateroom similar to her sistership allowing for an 8-stateroom configuration).
In 2014 the Icon factory extended her hull by 16.40’ (5m) allowing for the largest beach club ever seen on a vessel of this size; one of the coolest features only found on Icons is the private hallway between the beach club and the lower guest accommodations. In addition, this extension made for an aft deck playground including a 24.60’ x 11.48’ (7.5m x 3.5m) saltwater or freshwater pool surrounded by sunbeds. There is also an additional exterior sofa and dining area forward of the pool.

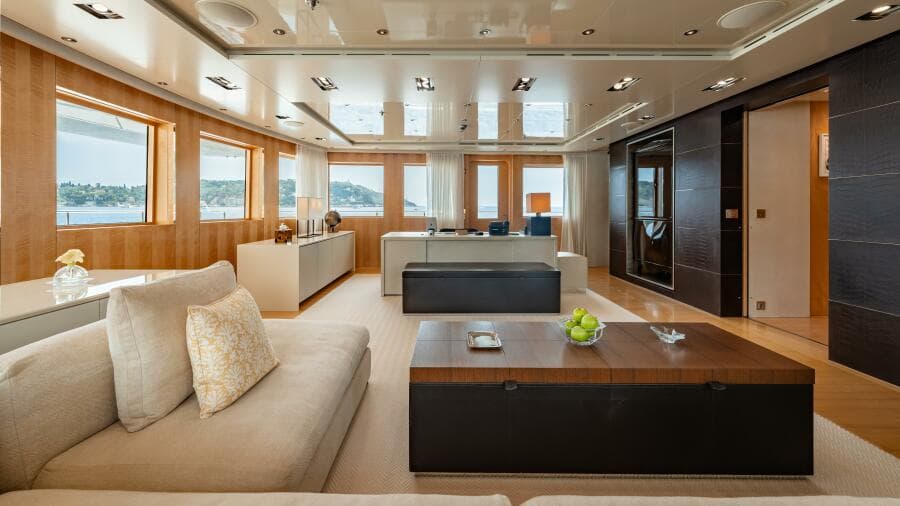

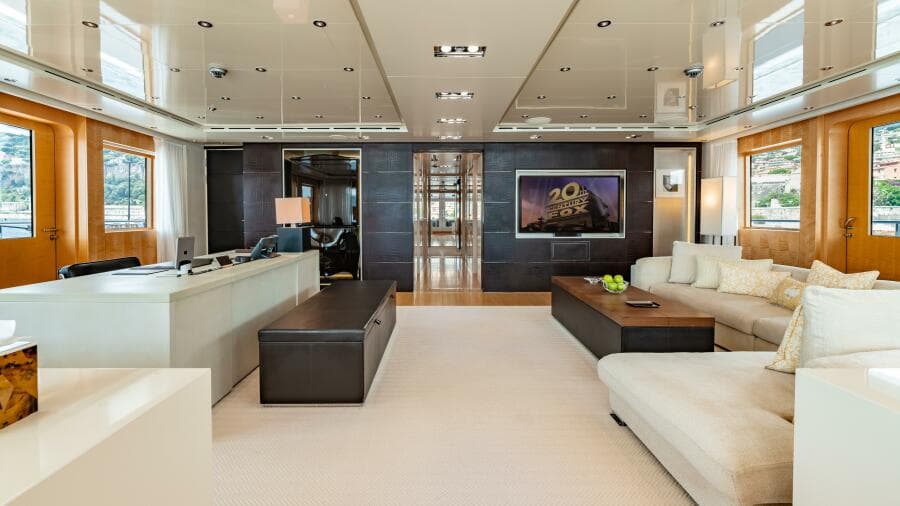

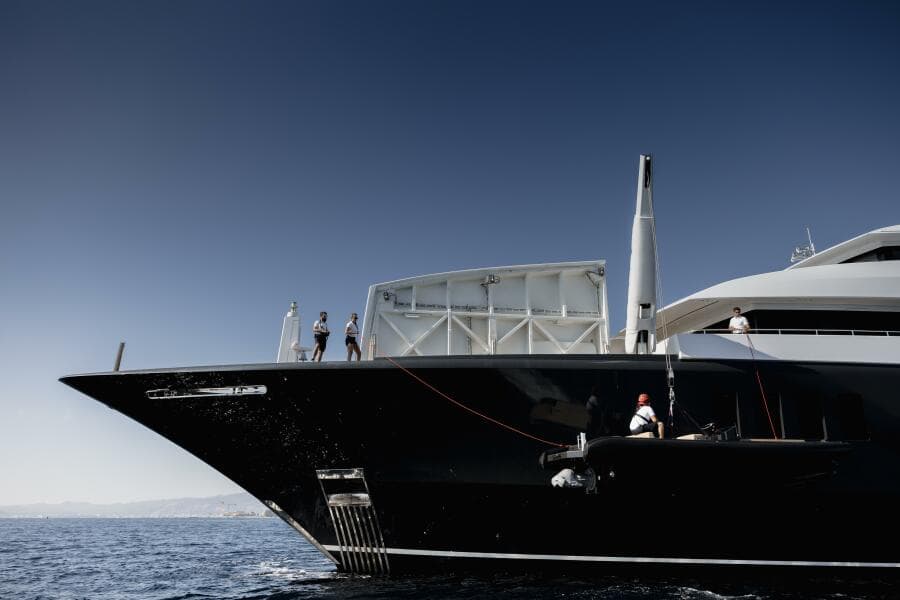

Forward of the Owner’s lounge and/or office is a large tender garage, which is one of the largest garages on similar size vessels! LOON’s garage fits 3 tenders, 3 jet skis and several toys. The garage’s location and size were incredibly thought out because it keeps the tenders off the decks, keeps them weather-protected, and allows for the massive beach club where a tender garage is usually located; this also allows for easier toy removal while stern in, and allows for guests’ immediate access to the water without waiting for the typical aft garage set up.

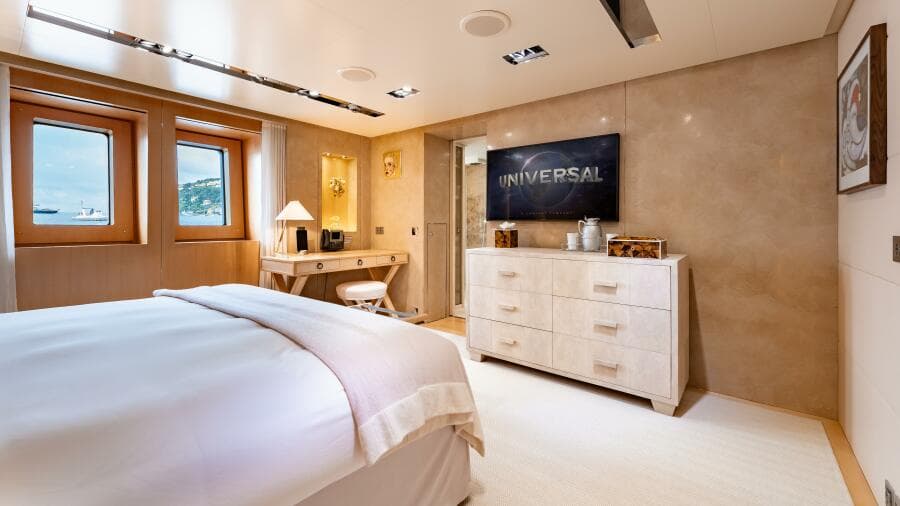

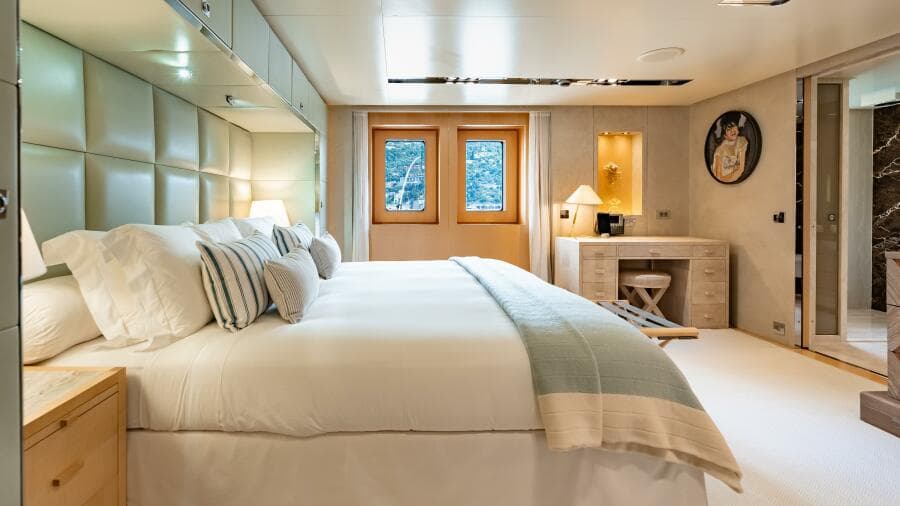

LOON’s spacious interior can accommodate up to 13 guests in 7 staterooms. The Owner’s master stateroom spans over two decks. There are 2 additional guest staterooms on the skylounge deck which is forward of the skylounge. On the starboard side there is a spacious VIP guest stateroom with a queen-size bed, and forward to the port is a smaller stateroom with a single berth, perfect for a child or nanny. There are 4 comparable sized staterooms on the lower deck, all with queen berths, 2 of these berths can easily convert to singles.
LOON was built for long-range cruising and boasts a range of 6,000 nautical miles at 12.5 knots. She is equipped with zero speed stabilization both at anchor and underway to ensure a comfortable voyage in all weather conditions.
Hull Material: Steel
Bulb: Steel
Superstructure Material: Aluminum
Deck Material: Teak, Grey Caulking
Paint: Awlcraft
Hull Configuration: Full Displacement Oceangoing Motoryacht
Number of Decks: (6) Decks
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Merle Wood & Associates. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Highlights
- LOON 221’ is considered the most famous and marketed charter yacht in the world
- Over USD 13 million in gross charter revenue within 18 months (Including USD 3.8 million remaining on the 2024 books)
- The Owner’s master stateroom spans over two decks with a private 180° viewing lounge and/or office
- The indoor forward garage keeps the tenders off the decks and weather-protected

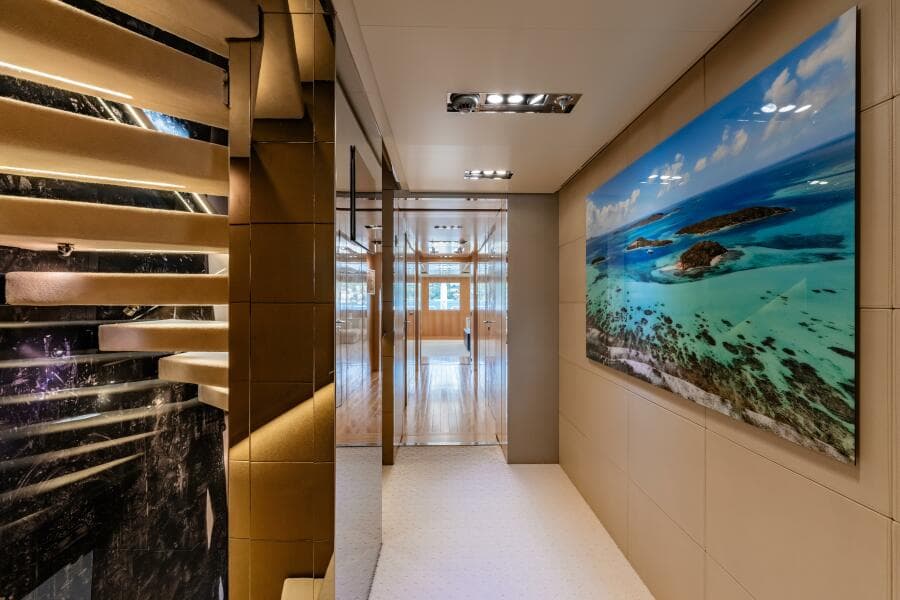

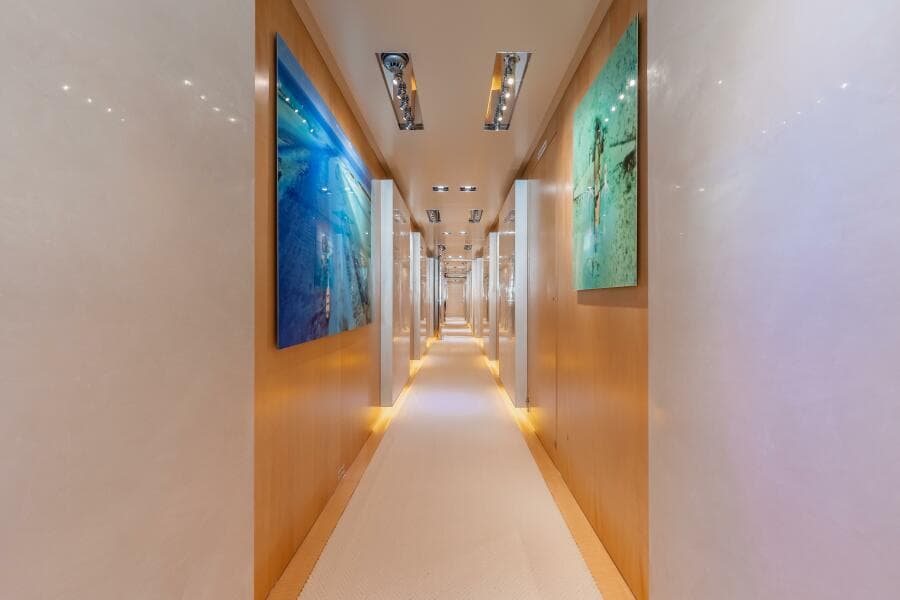

- One of the coolest features only found on Icons is the private hallway between the beach club and the lower guest accommodations
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Generators
Full Details
DIMENSIONS
General
- Length Overall (L.O.A.): 221.46 feet (67.50 meters)
- Length at Waterline (L.W.L.): 168.64 feet (51.40 meters)
- Beam (molded): 37.40 feet (11.40 meters)
- Draft (loaded): 12.47 feet ( 3.80 meters)
- Tonnage: 1,295 gross
Capacities
- Fuel Capacity: 52,185 US Gallons (197,543 liters)
- Water Capacity: 7,661 US Gallons (29,000 liters)
- Watermakers: 9,510 US Gallons (36,000 liters)
- Lube Oil: 818 US Gallons (3,100 liters)
- Waste Oil: 1,347 US Gallons (5,100 liters)
Decibel Noise Readings

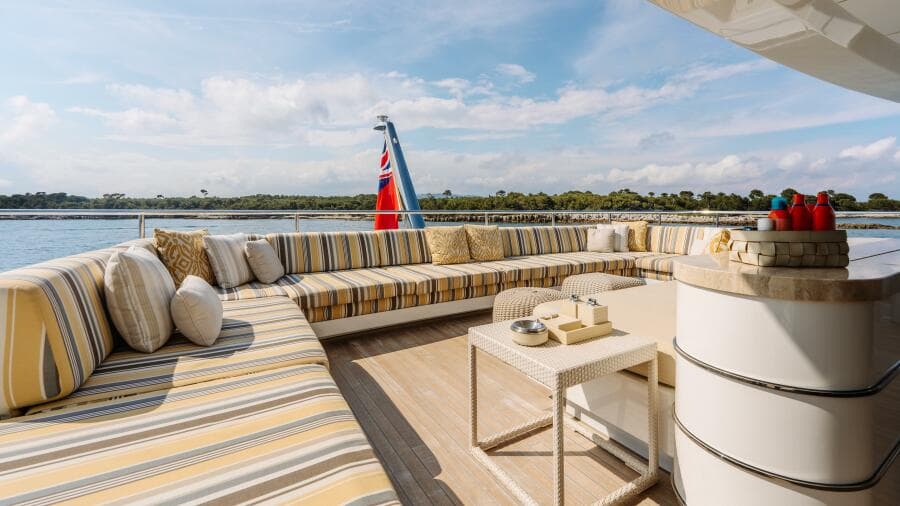

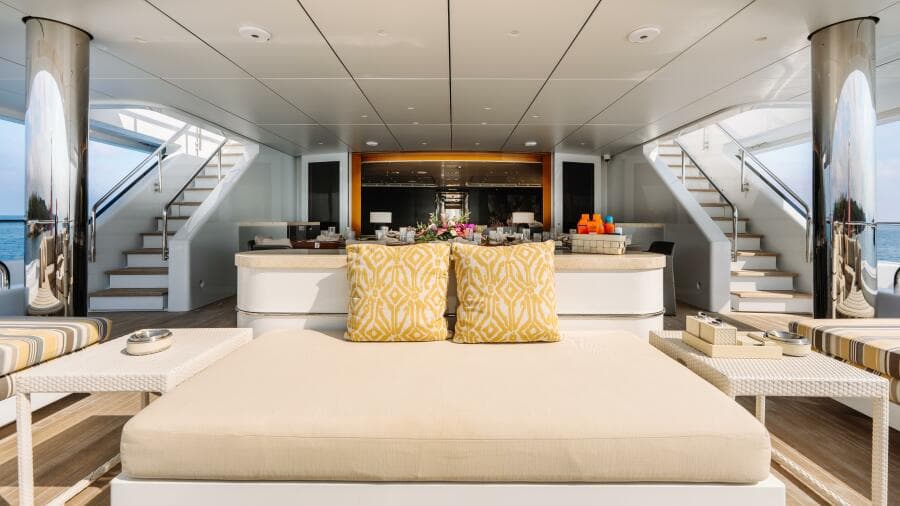

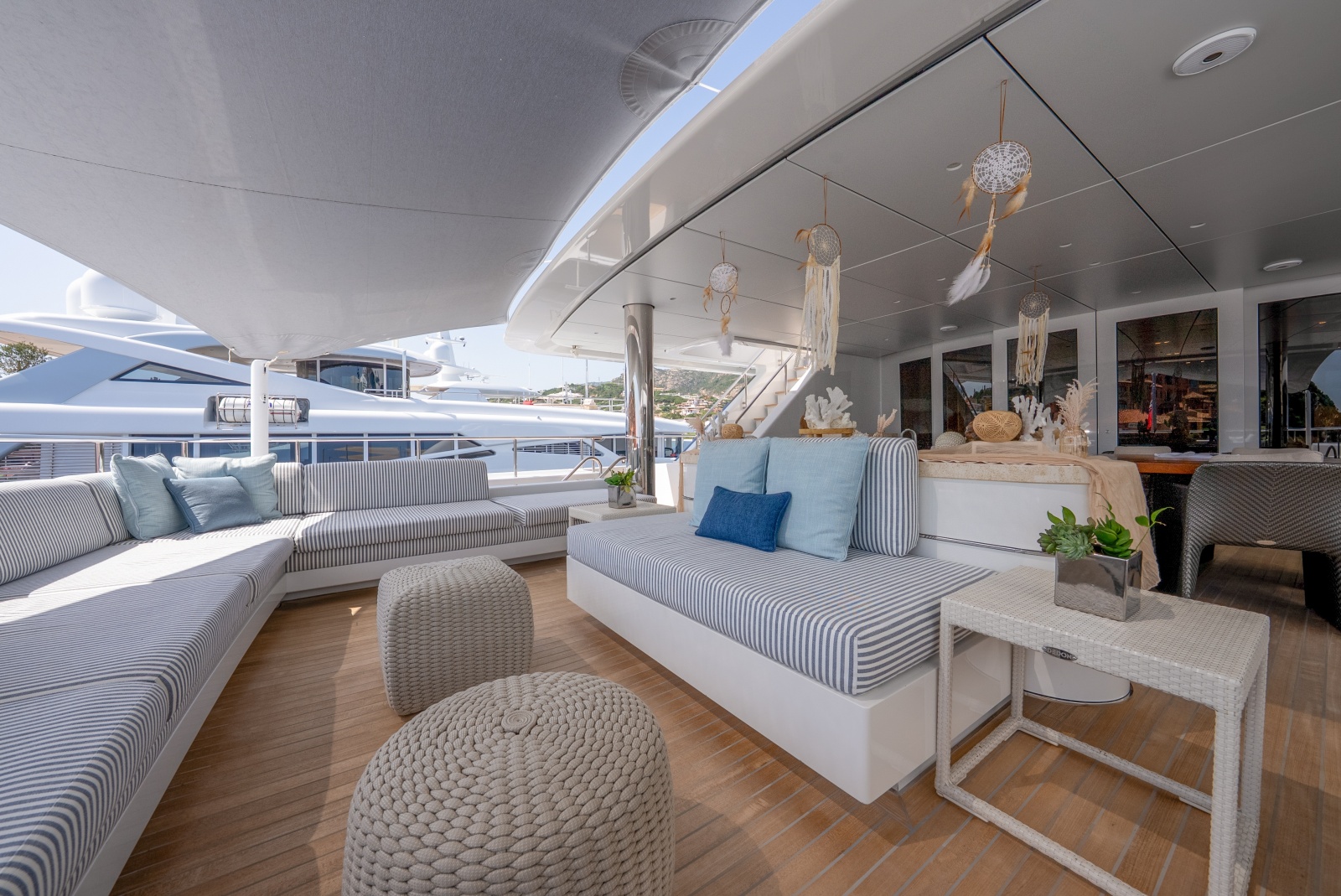

- Skylounge Deck Aft Lounge: Cruise Speed dB(a): 42 / Anchor dB(a): 40
- Skylounge Deck Forward: Cruise Speed dB(a): 42 / Anchor dB(a): 40

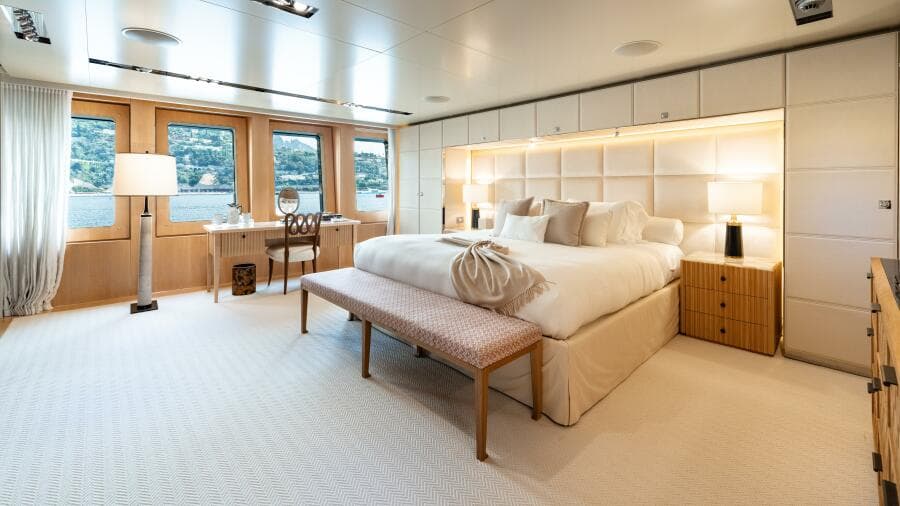

- Master Cabin: Cruise Speed dB(a): 41 / Anchor dB(a): 41
- Master Bath: Cruise Speed dB(a): 42 / Anchor dB(a): 42

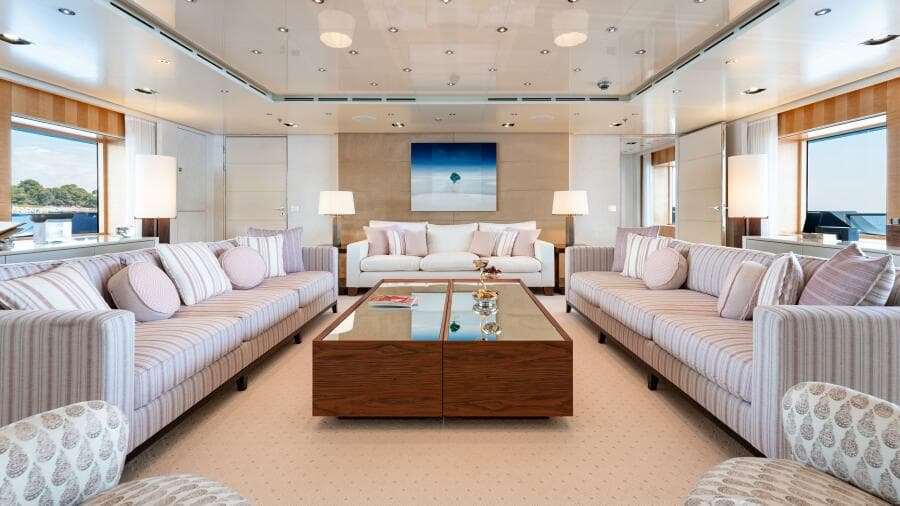

- Main Saloon Forward: Cruise Speed dB(a): 47 / Anchor dB(a): 43
- Main Saloon Aft: Cruise Speed dB(a): 53 / Anchor dB(a): 46
Sea Trial Fuel Burn (Per Engine)
Engine RPM 1,250
- SOG: 12 (knots)
- Fuel Consumption: 98 L/p/h
- Fuel Consumption: 26 G/p/h
Engine RPM 1,450
- SOG: 13 (knots)
- Fuel Consumption: 140 L/p/h
- Fuel Consumption: 37 G/p/h
Engine RPM 1,650
- SOG: 14.3 (knots)
- Fuel Consumption: 247 L/p/h
- Fuel Consumption: 65 G/p/h
Engine RPM 1,850
- SOG: 15.9 (knots)
- Fuel Consumption: 390 L/p/h
- Fuel Consumption: 103 G/p/h
Engine RPM 2,000 MAX
- SOG: 16.9 (knots)
- Fuel Consumption: 465 L/p/h
- Fuel Consumption: 123 G/p/h
MACHINERY
Main Engines
- Engine Type: (2) MTU 12V-4000-M71 @ 2,480 Hp each
- Engine Hours:
- Stbd.: 19,978 as of September 23,2025
- Port: 19,256 as of September 23,2025
- Gearboxes for Main Engines: ZF model 7561 (reduction 4.9:1)
- Drive: (2) Wartsilan Propellers – 5 Blades
- Fuel Type: Diesel
- Batteries: (2) 24V main engine start batteries
Generators
Starboard Generator Type:
- (1) 269 kW Scania generator new in 2014
Starboard Generator Hours:
- Starboard: Rebuilt in July 2024
- 5,034 hours since major overhaul
- TOTAL Hrs.: 31,792 as of September 23,2025
Port Generator Type:
- (1) 269 kW Scania generator new in 2014
Port Generator Hours:
- Port: Rebuilt in June 25, 2025
- 1,282 hours since major overhaul
- TOTAL Hrs.: 31,392 as of September 23,2025
Middle Generator Type:
- (1) 217 kW Scania generator. New in 2014
Middle Generator Hours:
- Rebuilt in July 2024
- 2,166hours since major overhaul
- TOTAL Hrs.: 25,834 as of September 23,2025
Emergency Generator:
- (1) Sisu Diesel model 49.492.CTAG-4V
- Fly bridge / Port side
Catalytic SOOT Filters DPF:
- All 3 main generators have HUG’s (low to zero emissions) for clean above-water exhaust at waterline
Generator Start:
- (3) Batteries 24V 200AH for main generators
Electricity
Output: Main power supply 230/400 volt, 50Hz, 3- phase for wire system with grounded neutral
Shore Power: (2) New150Kva Magnus SP300 shore power converters, capable of receiving and processing inputs ranging from 330-520 VAC and 40-70Hz and outputting 50Hz, 400V, 220 AMPs (New, September 2025)
Batteries: 24-volt emergency batteries
Battery Chargers: Mastervolt Mass 24/50
Inverter: Mastervolt Mass 24/2500
Air Conditioning
Type: Heinen & Hopman air conditioning system
Air Compressor: (2) Kaeser Airtower 6
Other Machinery
Watermaker: Hydro Electrique Marine Duplex H40/4200
- 750 liters (198 US Gallons) per hour
- 18,000 liters (4,755 US Gallons) per day
Trim Tabs/Stabilizers: (2) Quantum zero speed stabilizers - Model QC 1800 gyro controlled non-retractable two-fin stabilizer system, designed for peak performance at 15 knots while underway and optimum roll damping while at anchor
Bow Thruster: Veth tunnel thruster VT-240
Steering System: Van Der Velden Marine Systems (hydraulic)
Steering Gear:
- Rubber design oil bath shafts
- Wartsila/Lips 5-blade fixed pitch nibral bronze propellers
Emergency Steering: Van Der Velden Marine Systems
Fuel Separator & Filtration: Alfa Laval PU 150 / Alfa Laval
Fuel Transfer Pump: Alfa Laval ACP 32
Fuel Filling Pump: Azcue CA50/2A
Sewage System: Biological sewage treatment unit HMSA MS-II
Fresh Water System: (2) HEM Hydro Electric Marine H40 series RO water makers (20,000 liters per day)
Fresh Water Treatment:
- (2) HEM reverse osmosis freshwater system / each with water softener
- (2) HEM UV water sterilization system / HEM charcoal filtration system and silver ION
Bilge Water Filtration: Facet bilge water filtration system
Air Compressor: Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)
COMMUNICATION SYSTEMS
Wi-Fi: STARLink
INMARSAT-C:
- (1) Furuno Inmarsat CTT 3606E GMDSS system
- (1) Inmarsat Fleet 500 with internet and emergency worldwide communication
SSAS: (1) TT-3000E
Telecom: 2N VoiceBlue Max
VHF: (1) Sailor 6222 VHF/DSC radio
Potable VHF: (3) Jotron handheld VHF radios
Satellite Phone: (1) Iridium
Intercom: Phontech CIS
Telephone System: Cisco CME
Radar Transporters: (2) Jotron Tron SART20
SSB: (2) Sailor SSB radio TT3042C
ECDIS: Full ECDIS Transas 4000 paperless bridge
Radiotelephones: (20) Icom IC-F2000S UHF radio
Portable GMDSS VHF: (1) Sailor 6110 Gmdss system
GMDSS Battery Plant: (2) 12V PowerSafe monoblocs
Guest Phones: (15) Cisco IP Phone 7945
Internal Ship Communications: Cisco CME, 20 X Icom IC-F2000S UHF radio
IP Phones: Cisco IP phones in every room
Portable Phones: (1) Wireless Cisco portable phone
GSM Phones: (4) Cellular GSM/data phones
Note: Each cabin has a wired & wireless LAN connection
NAVIGATION SYSTEMS

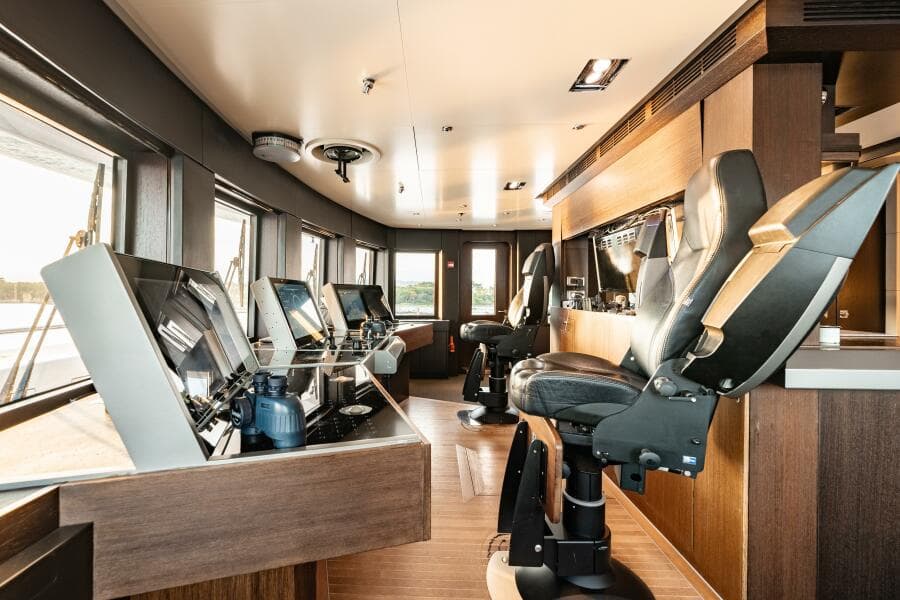

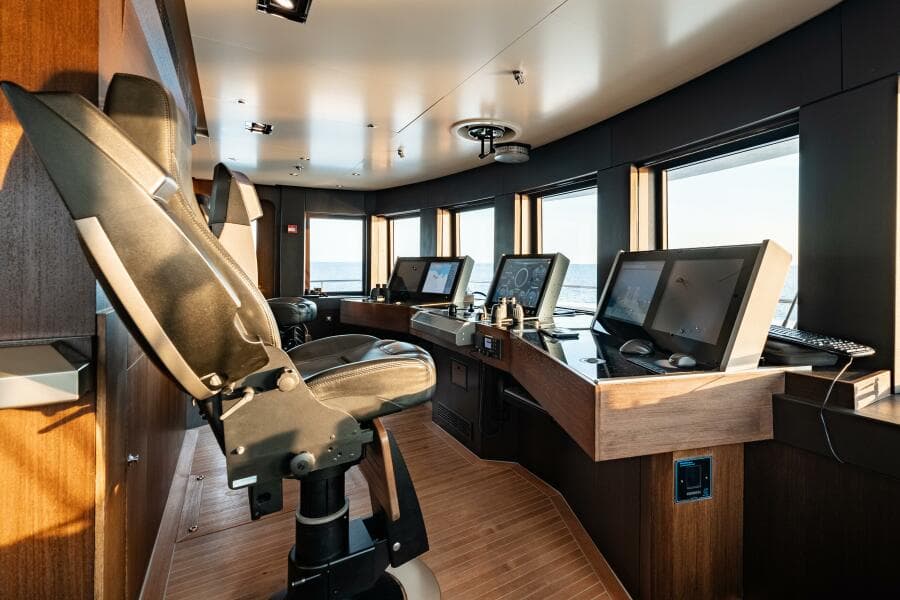

Navigation Bridge:
- Full ECDIS
- Transas 4000 paperless bridge
Monitors: (5) Hatteland – New 2023
X-Band Radar: (1) Furuno X-band radar FAR-2117BB
S-Band Radar: (1) Furuno S-band radar FAR-21375BB
Multifunctional Workstation: Radio Zeeland
Laser Plotter:
- (1) Transas Laser Plotter
- Also runs with a MaxSea Unit
UPS: APC Smart 3,000
Magnetic Compass: (1) Cassens & Plath 33001
Gyrocompass: (1) Raytheon standard gyrocompass STD22 - (ETO office)
Auto Pilot: (1) Raytheon 102-886
Speed Log: (1) Furuno Wind/Speed Log DS80
Depth Sounder: (1) Furuno Depth Sounder Fe700 with second backup unit
GPS:
- (1) Furuno GPS GP-170
- (1) Furuno GPS GP-150-DUAL
AIS: (1) Furuno AIS FA 150
Navtex: (1) Furuno NX 700 Navtex
Wind: Vaisala Weather Transmitter WXT520
Horn: (5) Tone Air Horns (Manual and auto functions)
Search Lights: Sanshin PP208
BNWAS: Watchkeeper
ENTERTAINMENT SYSTEMS
TV Equipment
APPLE TV in all guests' areas

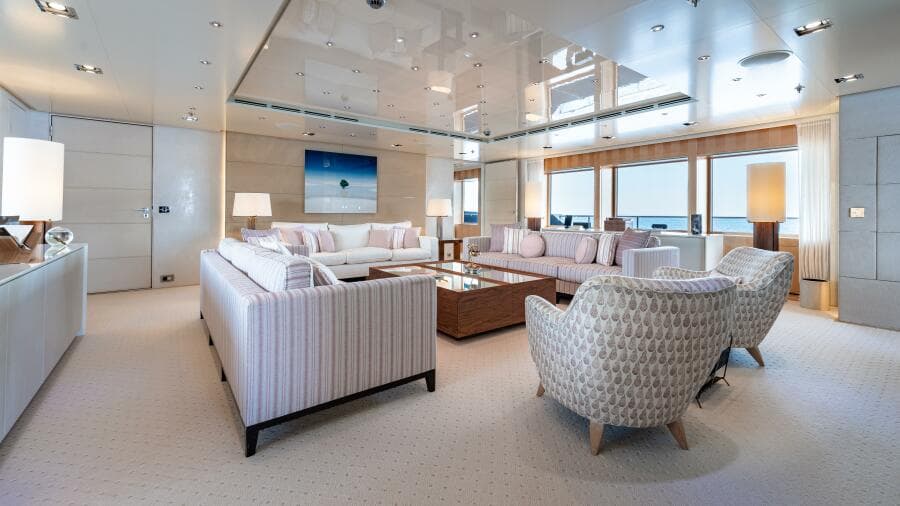

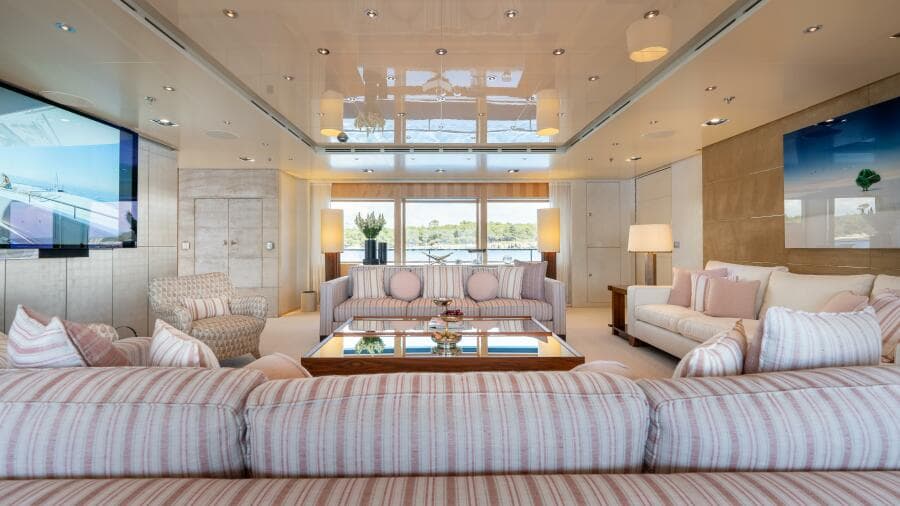

Main Salon:
- Bang & Olufsen BeoVision Avant
- (1) 85" 4K Ultra HD LED TV with surround sound
Skylounge Deck: (1) 80" Samsung 8K QLED TV with surround sound – New 2023
Master Stateroom:
- (1) 49" Samsung LCD TV with surround sound
- IPOD docking station which can be used for personal iPods

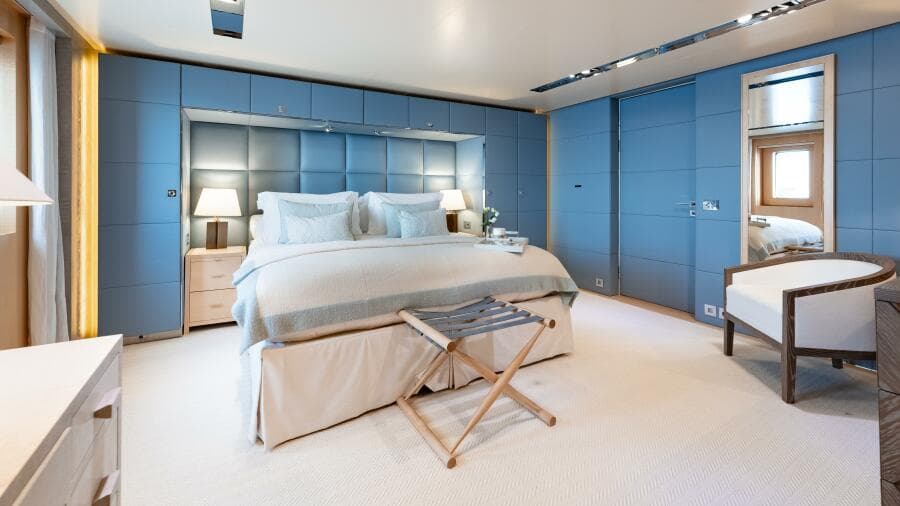

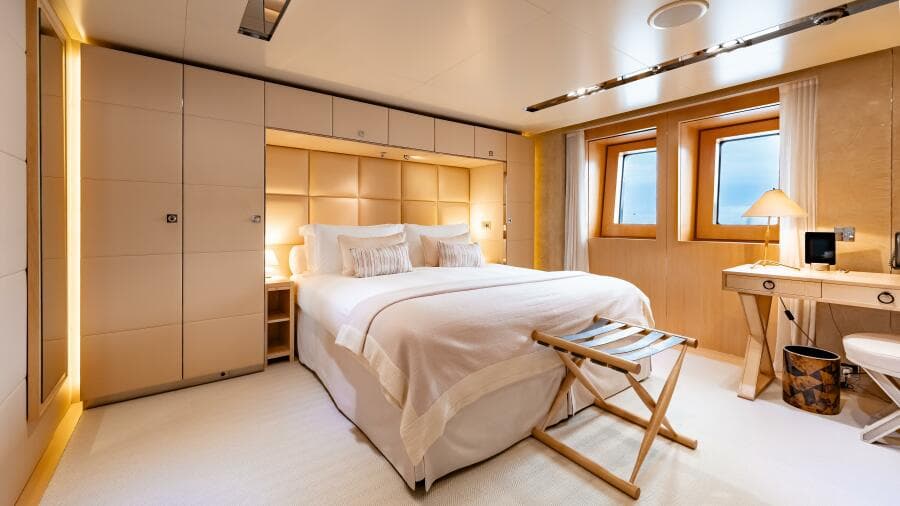

Guest Staterooms:
- (4) 48" LED Samsung Frame TVs - Lower deck
- (2) 43" LED Samsung TVs – Skylounge deck
- IPOD docking station in each guestroom which can be used for personal iPods
Beach Club: (1) 43" Samsung LCD TV on a TV lift
Gym: (1) 32" Samsung LCD TV
Crew Mess: (2) 43" Samsung LCD TVs linked to satellite and entertainment systems and surround systems
Other Equipment
PS4 and PS5 gaming console
The guest staterooms and saloons are equipped with automatic lights, curtains with 100% light shut, and air conditioning controls
Wi-Fi coverage throughout the vessel
Audio Equipment
Stereo’s: Sonos throughout the yacht allowing guests to stream or airplay from their phone
GALLEY & LAUNDRY EQUIPMENT

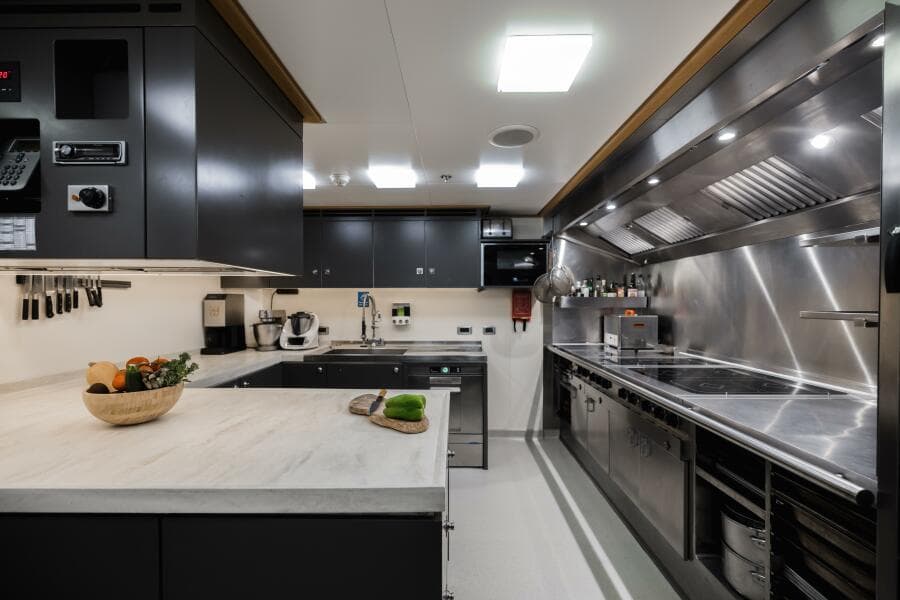

Main Galley Equipment
Cooking Equipment: Professional MKN cooking equipment, fully integrated in seamless stainless steel work surface
Refrigeration/Freezer:
- (1) Walk-in fridge 6m2
- (2) Walk-in freezers 6m2 (can be raised to fridge temperature)
Dishwasher: Hobart industrial dishwasher
Dumbwaiter: (2) Dumb waiters by Holland Marine which together serve all decks. Innovative lift cage with two compartments, one standard for trays and a large lower compartment for trolleys
Crew Galley/Mess Equipment
Cooking Equipment:
- (2) Ovens
- (1) Microwave
- (1) Hot Oven
Refrigeration/Freezer: Frigoboat
Dishwasher: Hobart industrial dishwasher
Other: Panasonic professional combi microwave
Additional Galley Equipment
Cooking Equipment:Weber BBQ
Buffet cabinets with refrigerator, ice maker, and plate warmer
Refrigeration/Freezer: 60L Fridge Frigonautica
Other:
- (1) Fridge wine storage
- (1) Storage room
Pantries
Skylounge Deck:
- Nespresso coffee machine
- Quooker instant boiling water tap
- Mixer tap
- Inskinkerator
- Stainless steel sink

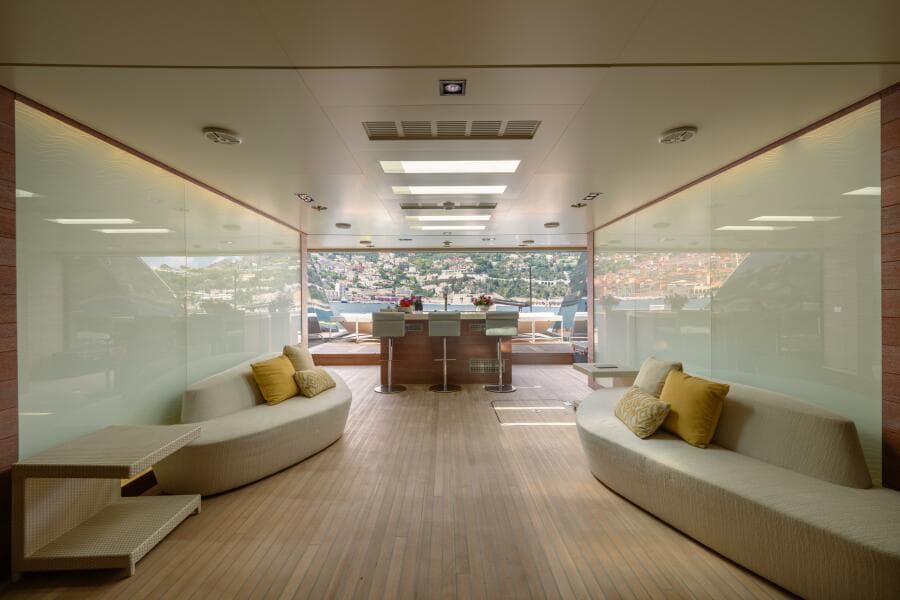

Beach Club:
- 60L drinks fridge
- Foster Ice maker
- Bar
- Marble sink
Bridge Deck:
- Nespresso coffee machine
- Quooker instant boiling water tap
- Mixer tap
- Inskinkerator
- Stainless steel sink
- 60L Drink fridge
Main Deck:
- Foster Icemaker
- Santos citrus juicer
- Panasonic professional combi microwave
- 4 Zone hob
- 60L Drink fridge
- Griddle
- Pasta Cooker
- Deep fryer
- Static oven
- Combination steam oven
- Salamander grill
- (1) Walk-in garbage fridge 6m2
- Custom stainless steel exhaust hood with 3 variable frequency intakes and 1 extraction fan to ensure slight under pressure over cooking range to minimize smells and cold air extraction
Laundry Equipment
Miele Professional
- (4) PW6065 washing machines
- (4) PT7136 dryers
- (1) PW6133 washing machine
- (1) PT7331 dryer
- (1) HM 16-80D rotary ironer
TENDERS & TOYS
Tenders:
- (1) 23.62’ (7.20m) 2022 Super Air Nautique Ski Boat
- (1) 24.61’ (7.50m) 2022 X-Craft Beachlander
- (1) 11.81’ (3.60m) Narwhal unsinkable rescue boat – New engine and tubes 2024
Jet Skis:
- (2) 2023 SeaDoo Sparks
- Yamaha Superjet standup jet ski
Toys:
- (2) Seabob F5S
- (2) Lift efoil
- (1) 13.12’ (4m) new custom FunAir inflatable waterslide - 2024
- (1) 40’ (12.19m) new custom FunAir inflatable beach club - 2024
- (2) Inflatable paddleboards
- (2) Wakeboards
- (1) Foil board
- (2) Wake surf boards
- (2) Water skis
- (1) Mono ski
- (2) Inflatable donuts
- (4) Inflatable sun loungers
- (1) Beach setup including marquee, chairs, tables and Weber BBQs Sets of PFDs, helmets, gloves, snorkels and fins
- Diving Compressor: Mariner 200 EPR diving/firefighting air compressor rated at 330bar (200bar for diving and 300bar for firefighting)
DECK EQUIPMENT
Anchor Windlass System: (2) Ten horn Winches model EACV 28U3
Aft Warping Capstans: (3) Polished Stainless steel Maxwell 8000
Anchors: (2) POOL fully balanced high holding power
Anchor Chain: 190 meters x 28mm of anchor chain for each anchor
Boat Crane and Davits:
- (2) Cramm lifting cranes
- (1) rated at 4 ton lifting Capacity for the 23.62’ (7.2m) Super Air Nautique – Stbd.
- (1) rated at 4 ton lifting capacity for the 24.60’ (7.5m) X-Craft Beachlander, rescue boat and 3 jet skis
Passerelle: (1) Aft Cramm passerelle with 90 degrees or possible rotation, plus up and down feature
Stern Boarding Gangway: Cramm Hydromar hydraulic

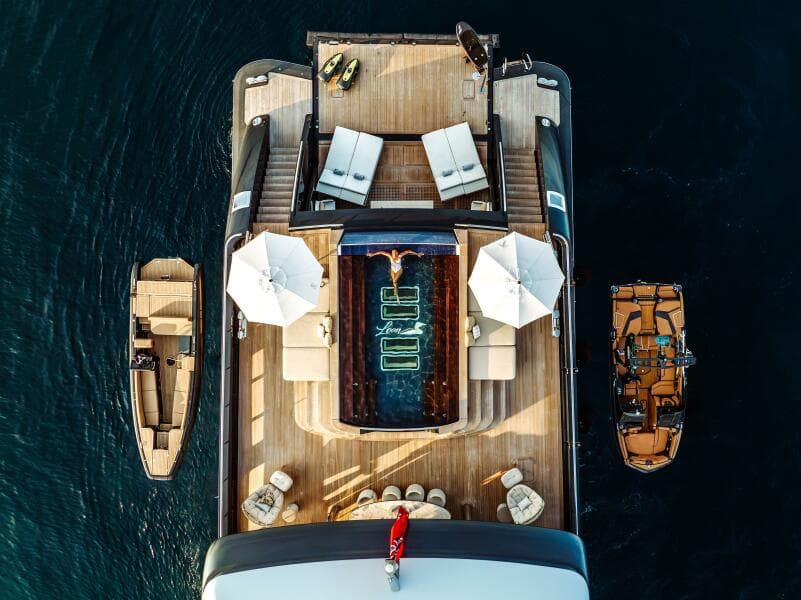

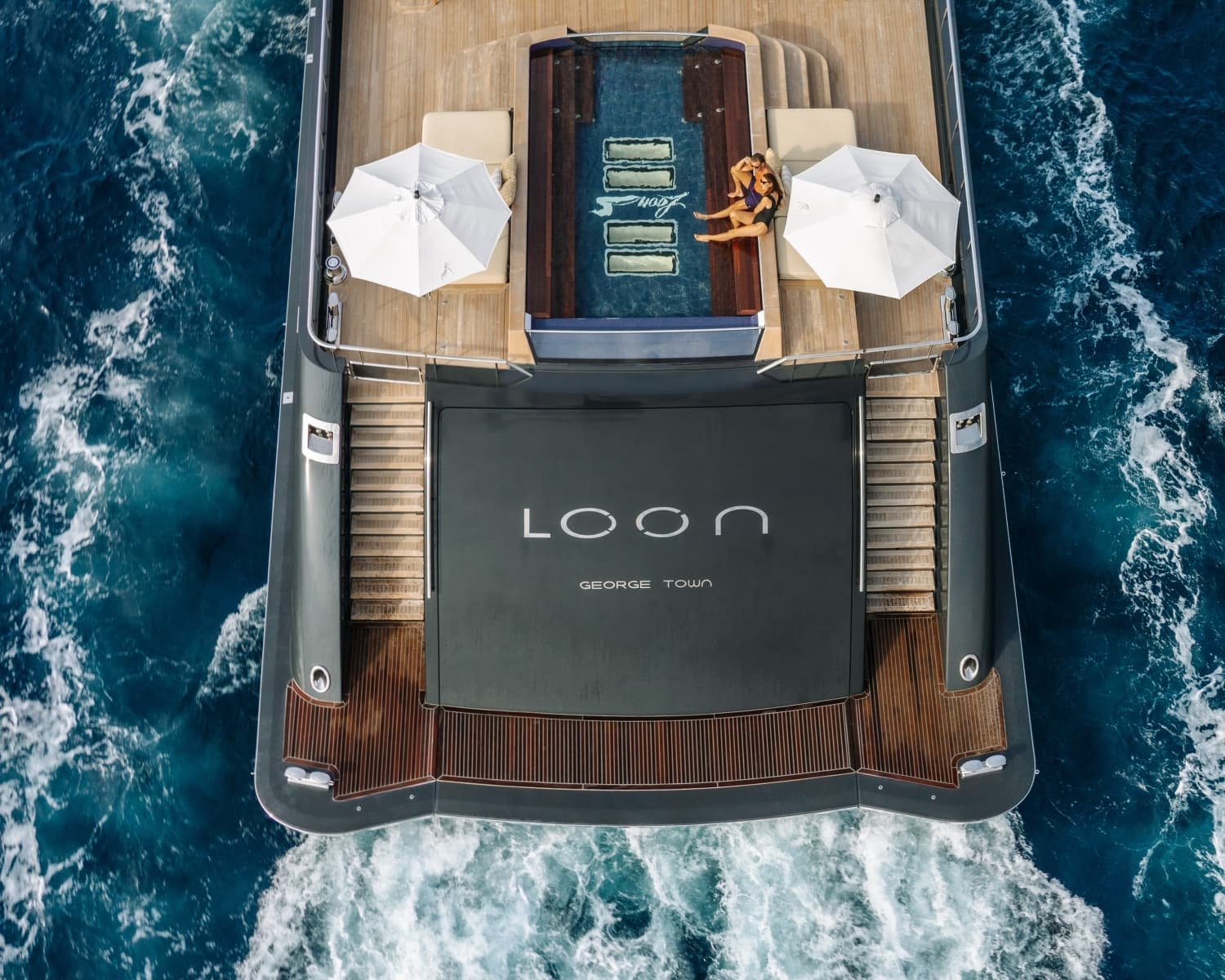

Swimming Platform: Fold down transom
Swimming Ladder: Stainless with teak steps
OTHER EQUIPMENT

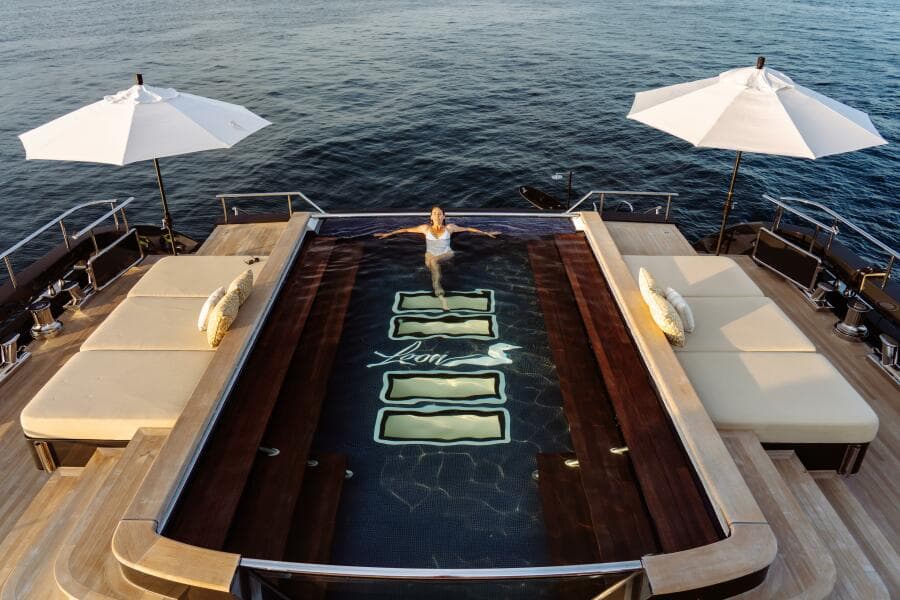

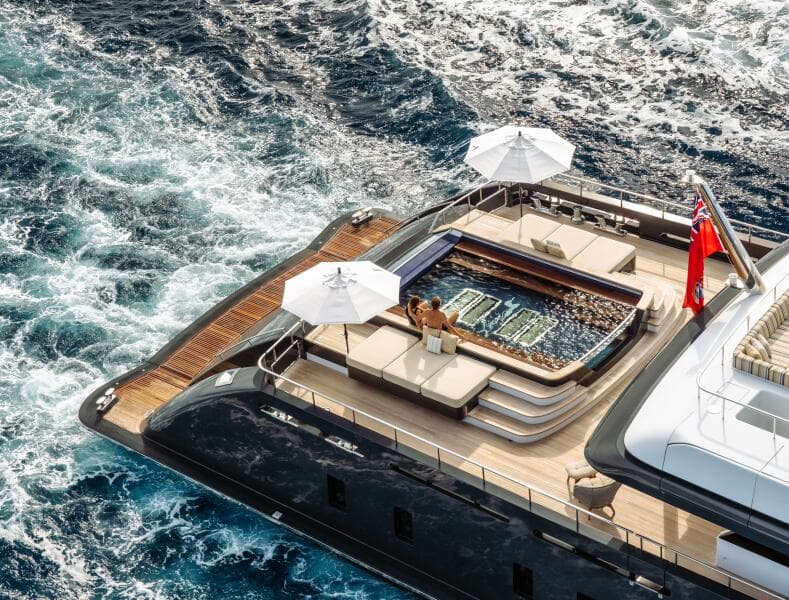

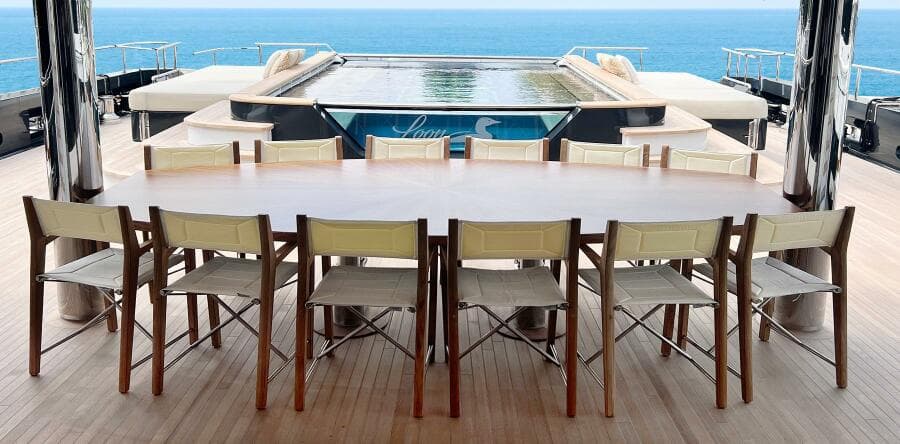

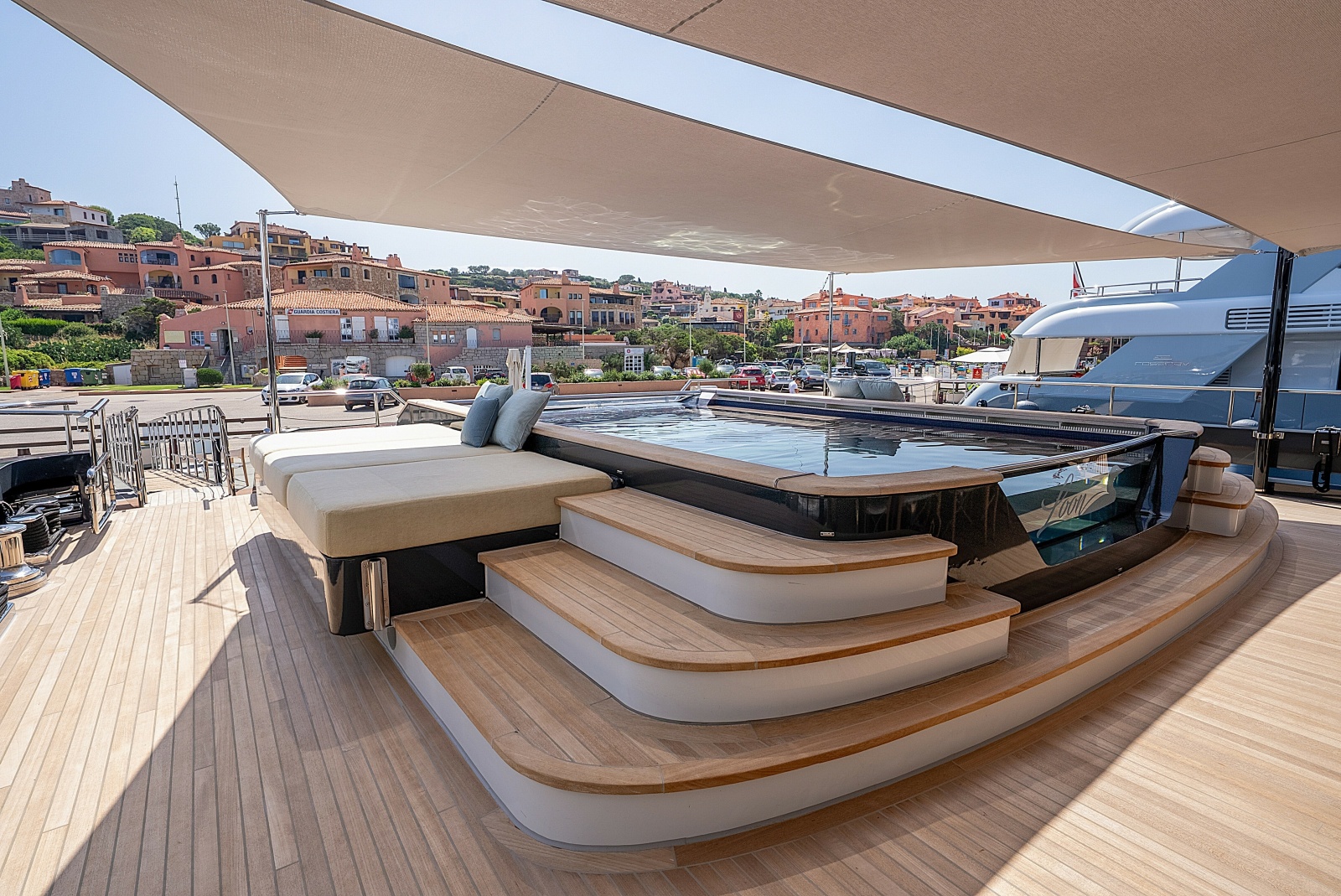

Pool: Filtered salt water + fresh washer

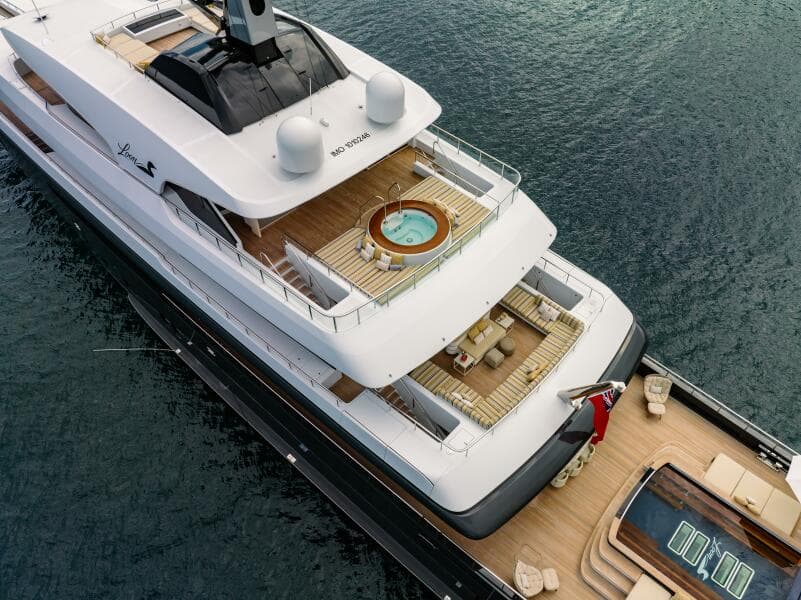

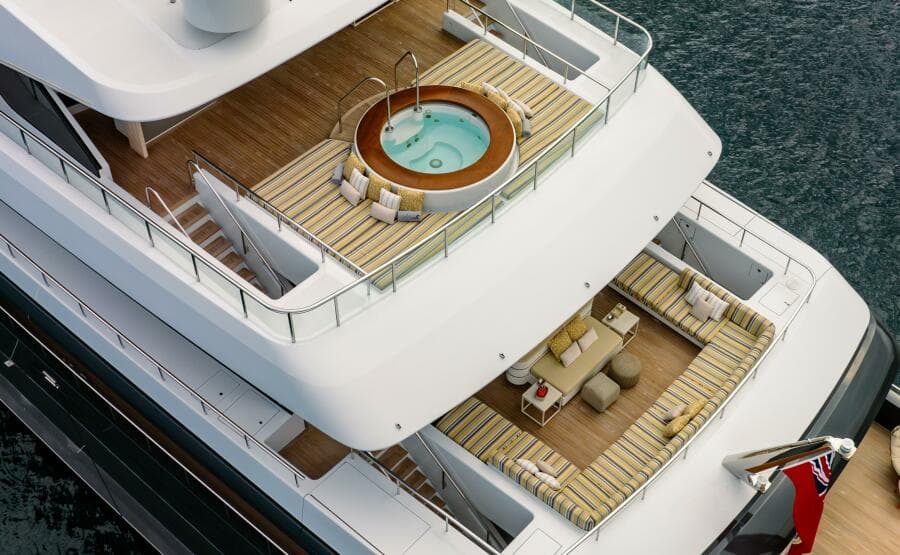

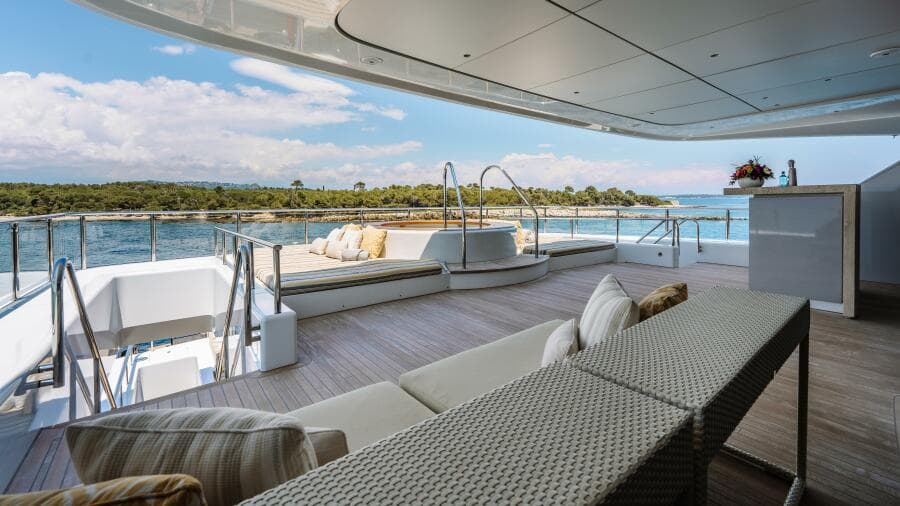

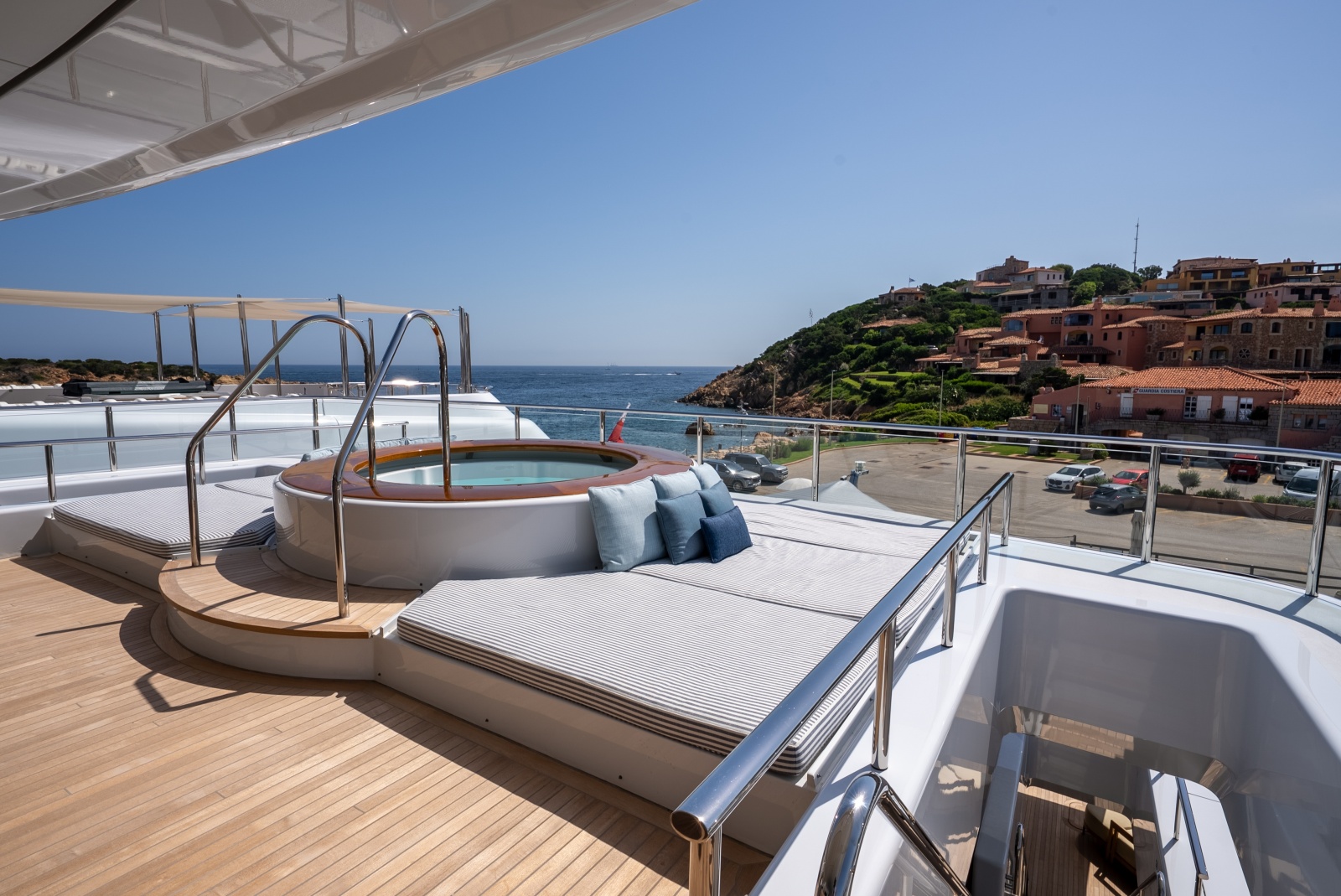

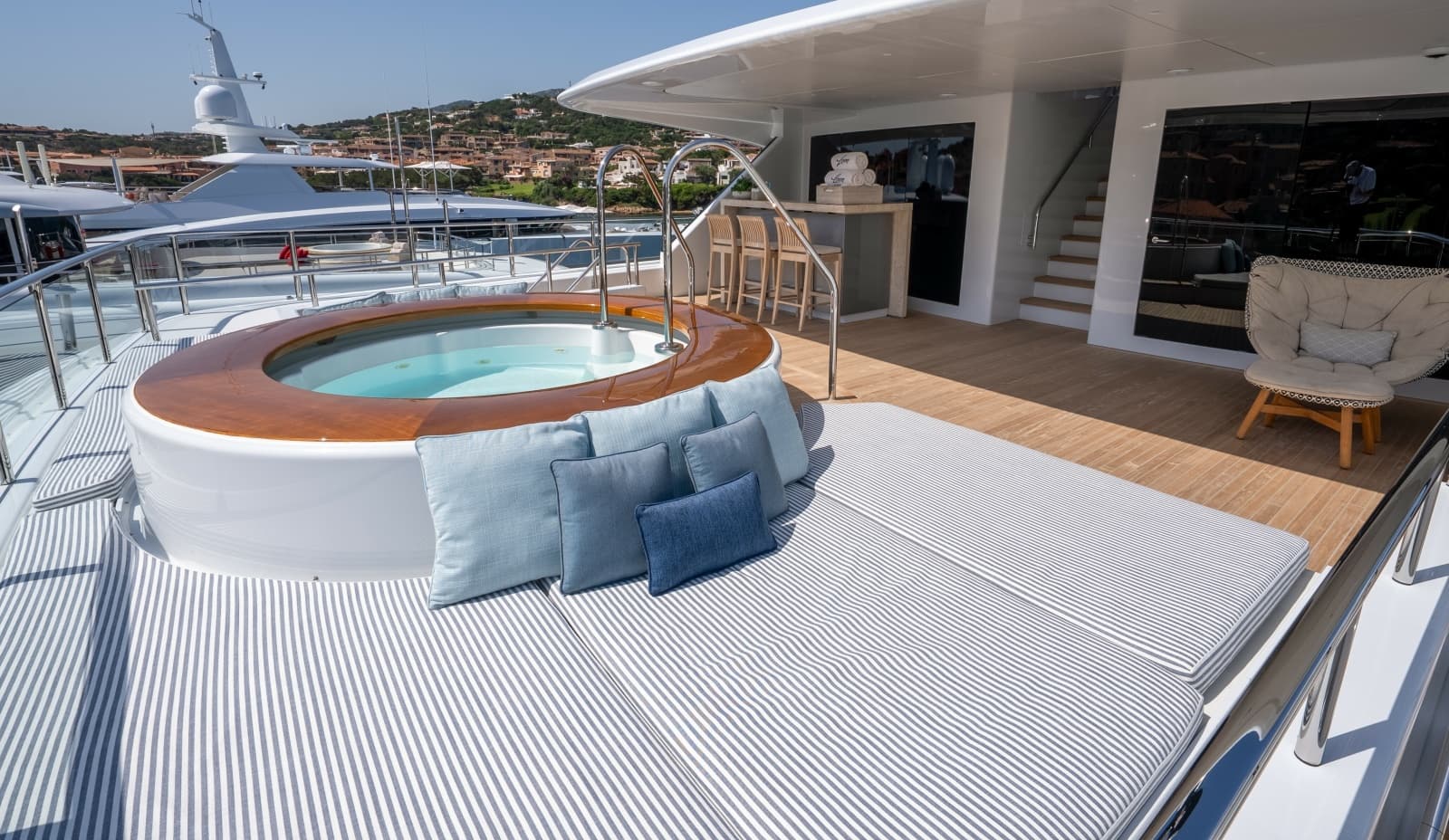

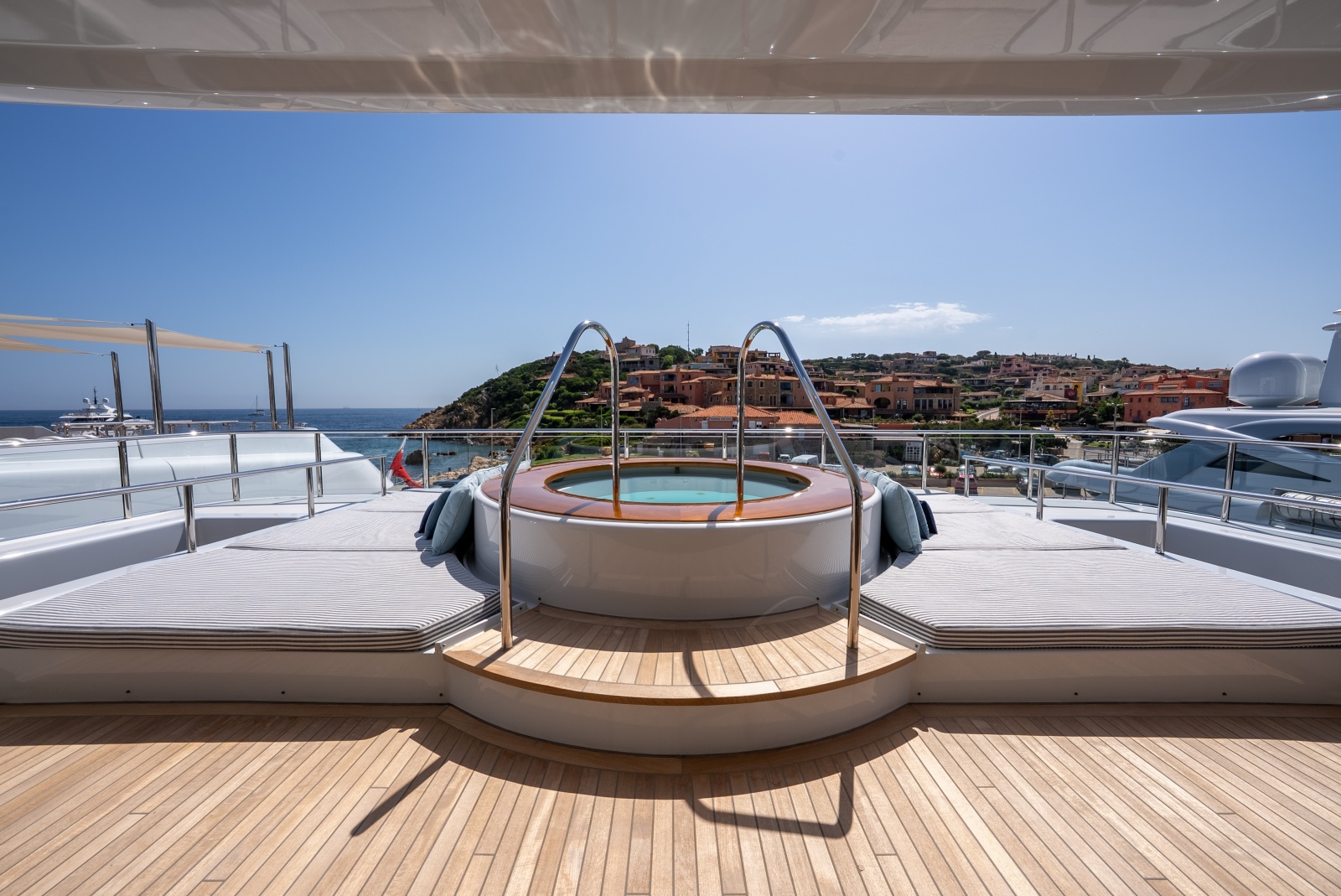

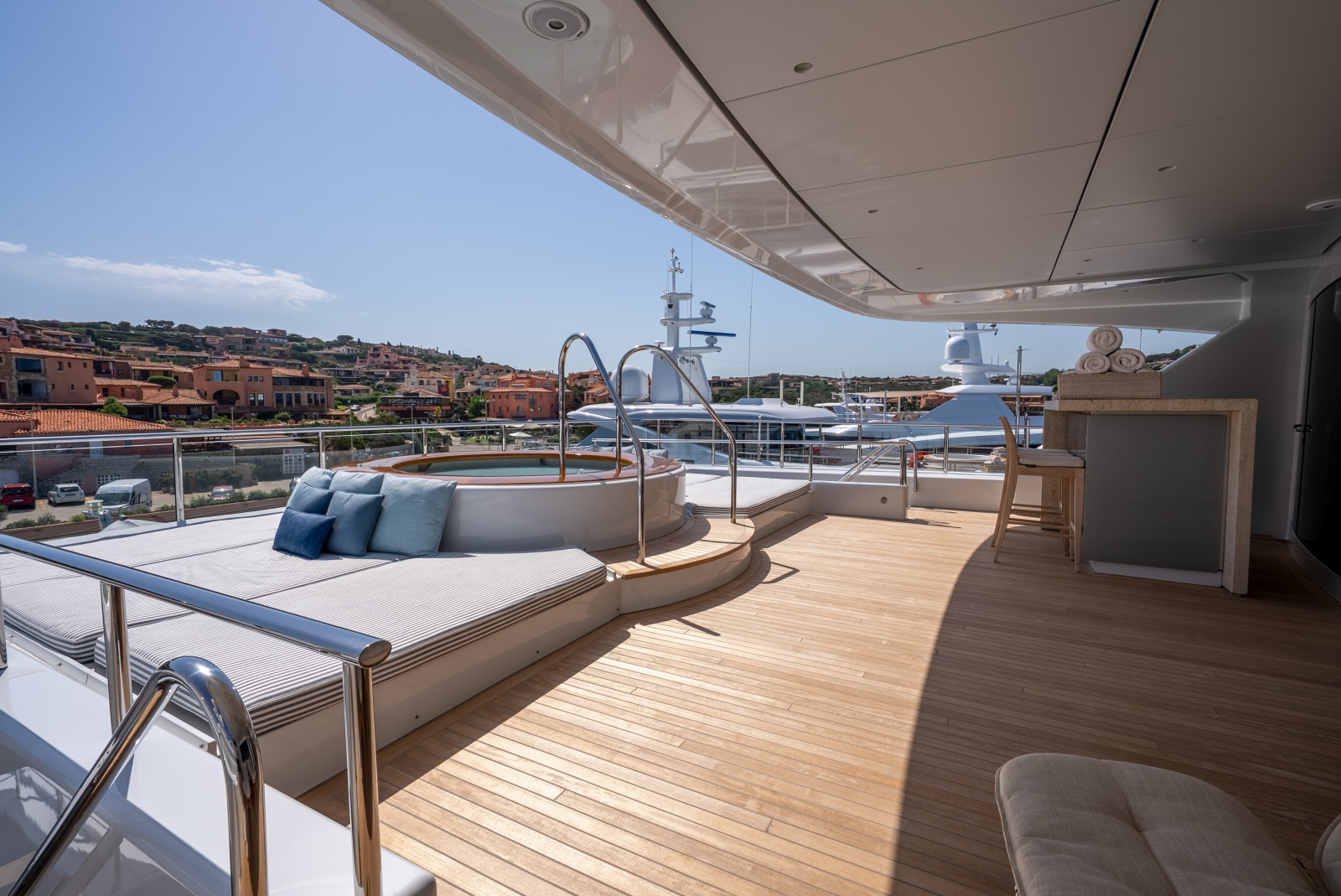

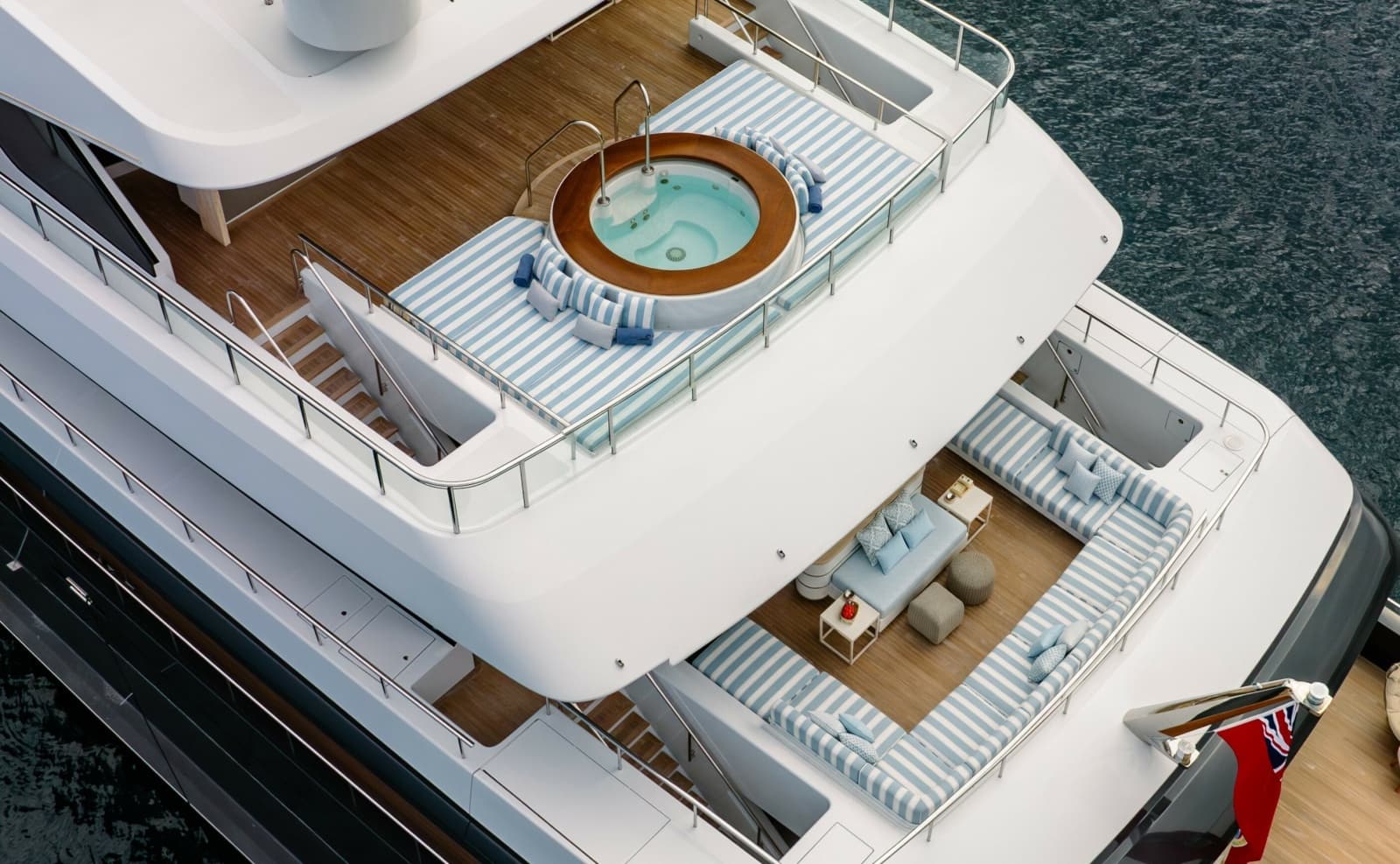

Spa Tub: Hoesch Alabama whirlpool on bridge aft deck

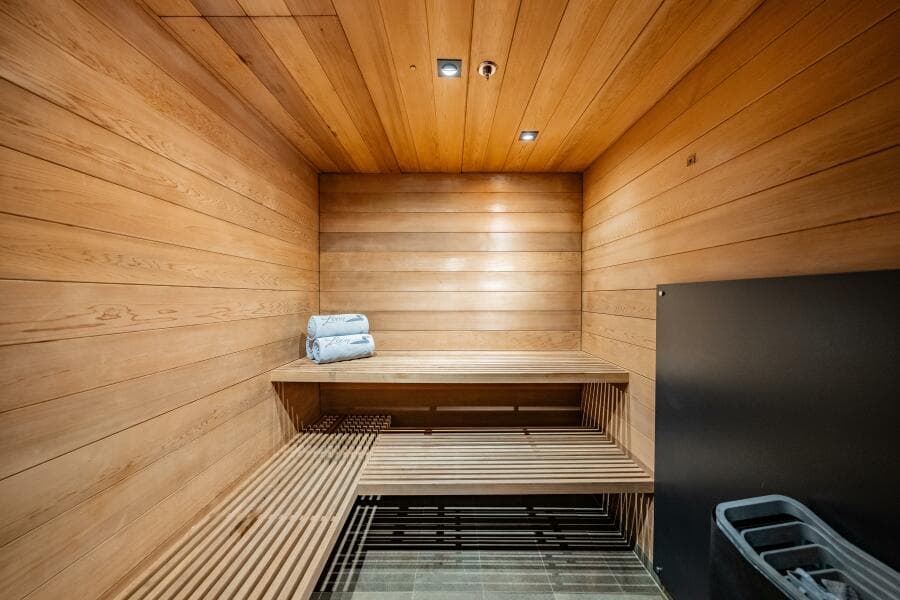

Sauna: (1) Sauna
Massage Room: (1) Massage room

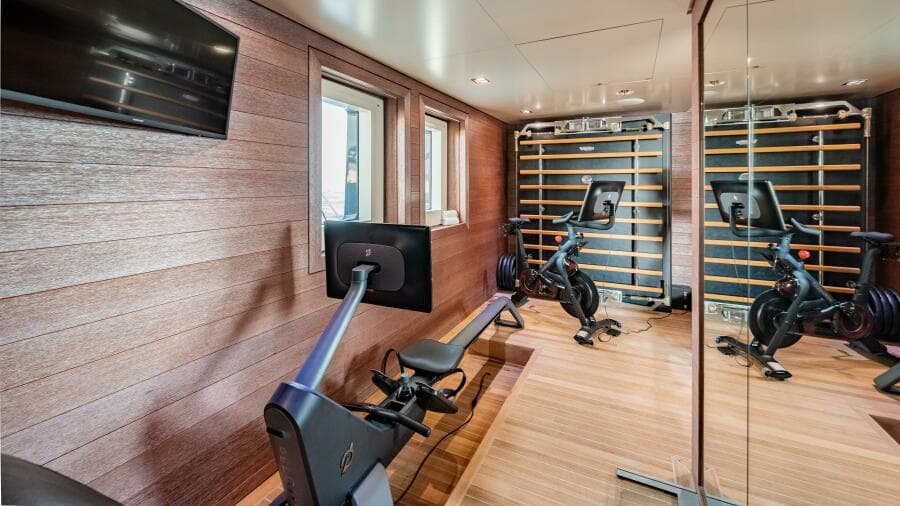

Gym Equipment:
- (1) Technogym Kinesis Personal Multi-Functional Gym - Peloton Equipment
- (1) Technogym Unica Compact Multi Gym

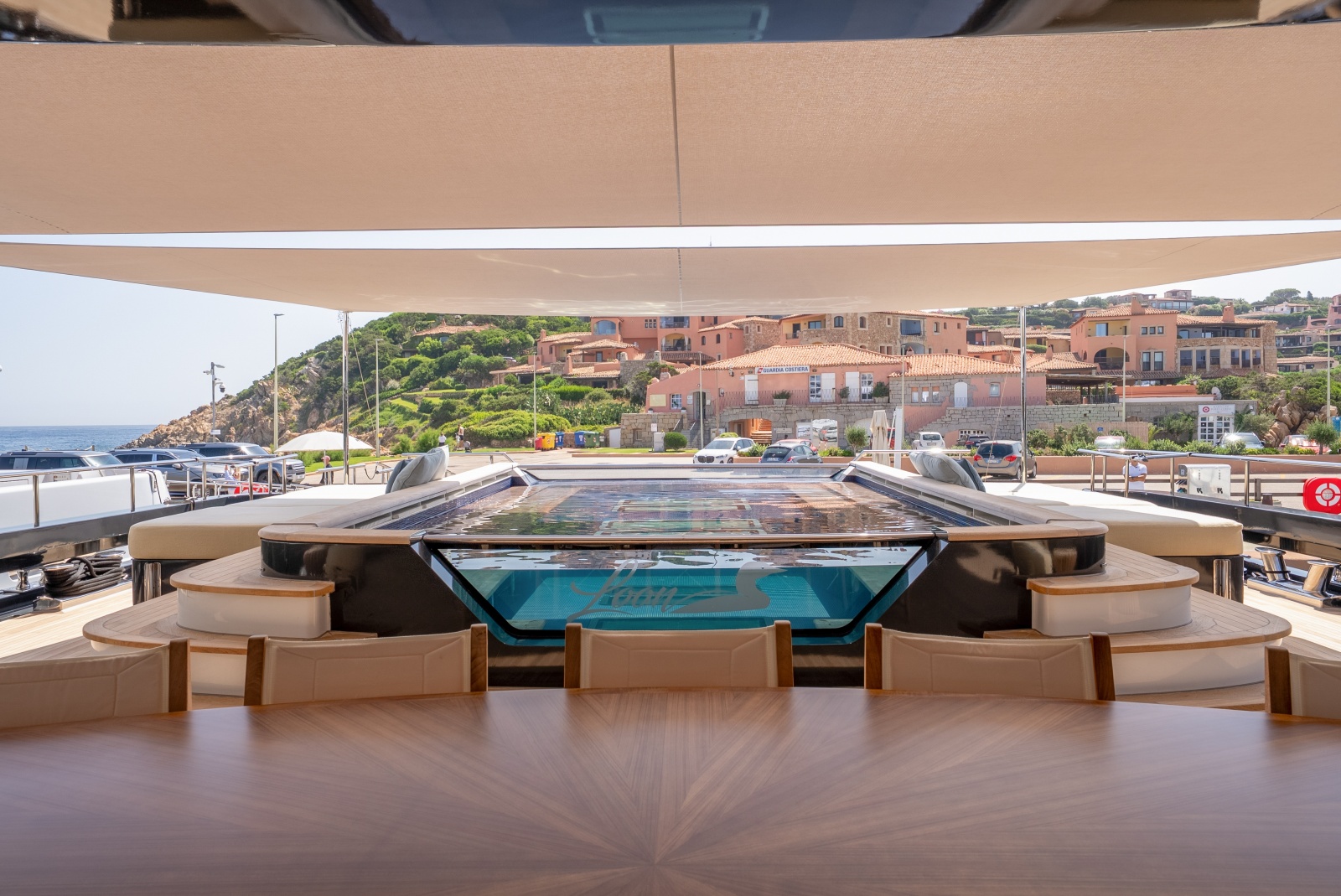

Sun Awnings: (1) Skylounge deck aft
SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT
Security Equipment
Security System: AXIS
CCTV System: (19) CCTV cameras with motion sensors
Monitors
- (1) Surface
- (2) Ipads
- (3) Hattelands
Fire Fighting Equipment
Fire Control System: Hi-Fog firefighting system throughout boat and a co2 system in galley duct
Fire Extinguishers: (52) Portable extinguishers
Fire Hoses: (22) Fire hydrants/hoses
Fire Alarms: Tyco Minerva T2000
Gas Detection: (2) Monicon S-500
Smoke Detention: (150) Tyco smoke and heat detectors
Alarms: E2S System Horns
Safety Equipment
Life Rafts:
- (4) 25-person
- (1) 8-person
Lifejackets: (37)
Life Rings: (8)
Line Thrower: (2) Pains Wessex 250
MOB Boat: Narwhal SV420
Breathing Apparatus:
- (4) BA
- (8) Bottles
Immersion suits: (37)
EPIRBS: (2) Jotron 40S
SART: (2) Jotron SART-20
Flares: (12) Parachutes
Medical Equipment: MSOS class B
ACCOMMODATIONS
General
- Accommodation for up to 13 guests including an Owner's two-level master stateroom, three double staterooms, two twin staterooms that can be converted to doubles and an additional single cabin
Owner

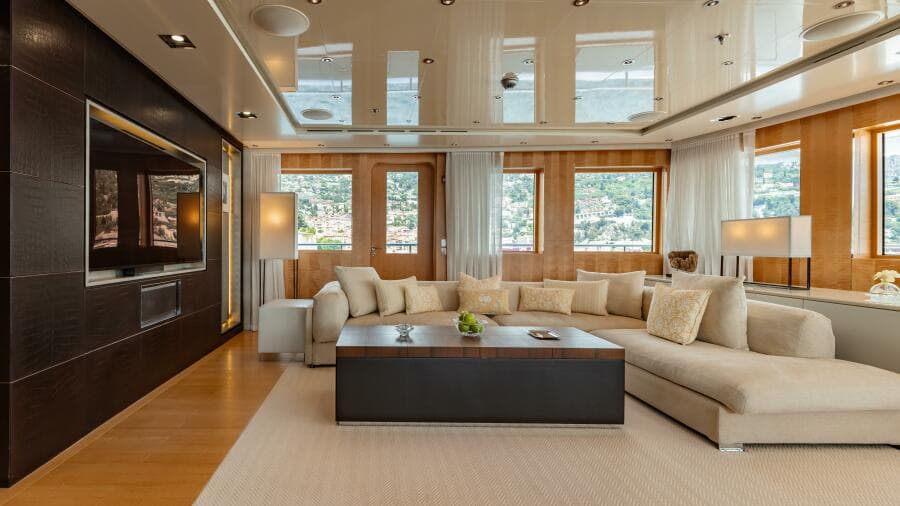

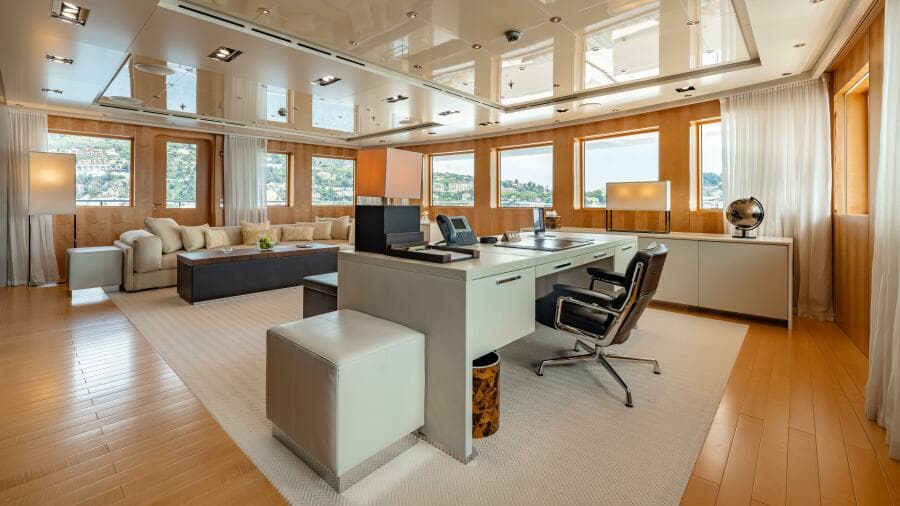

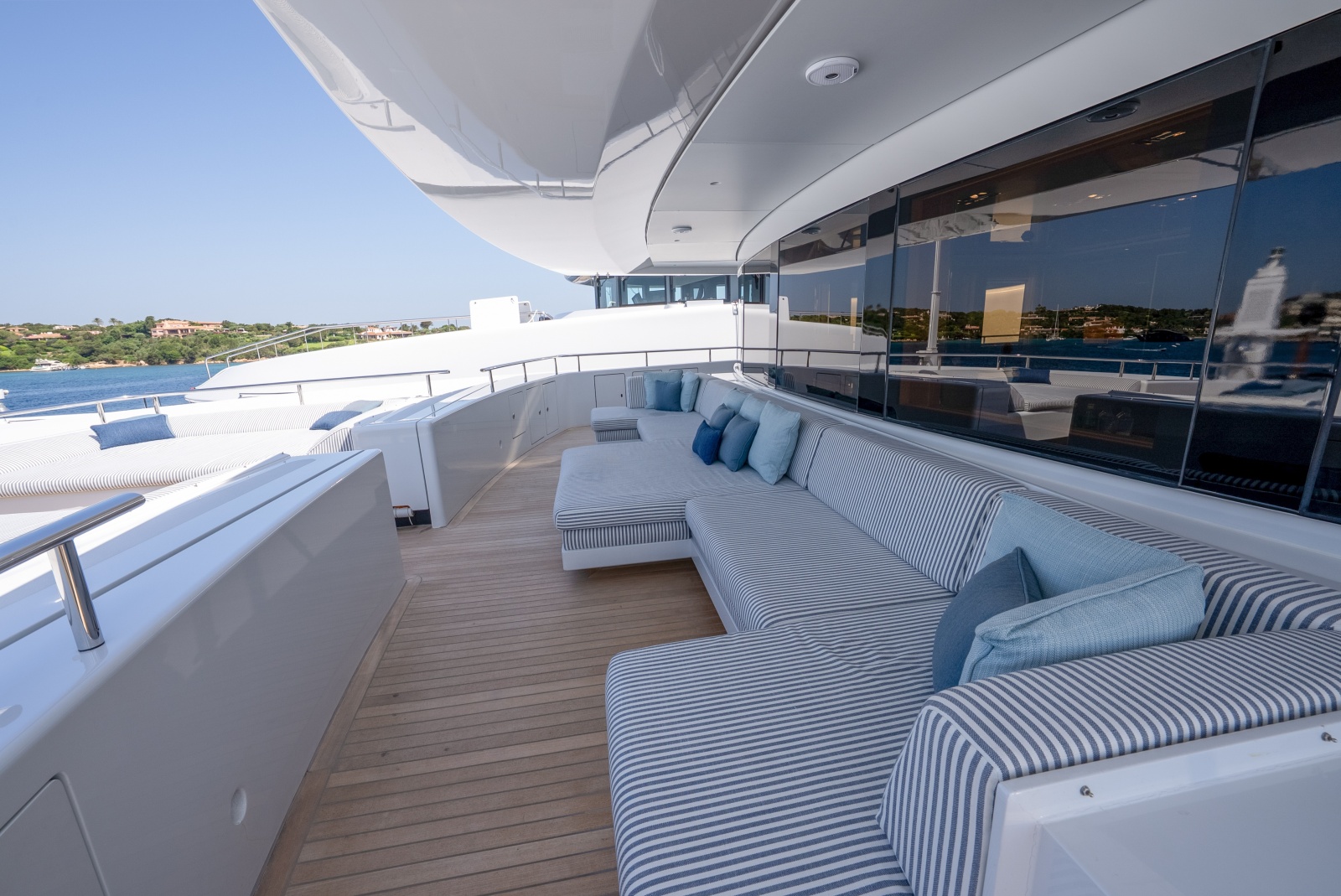

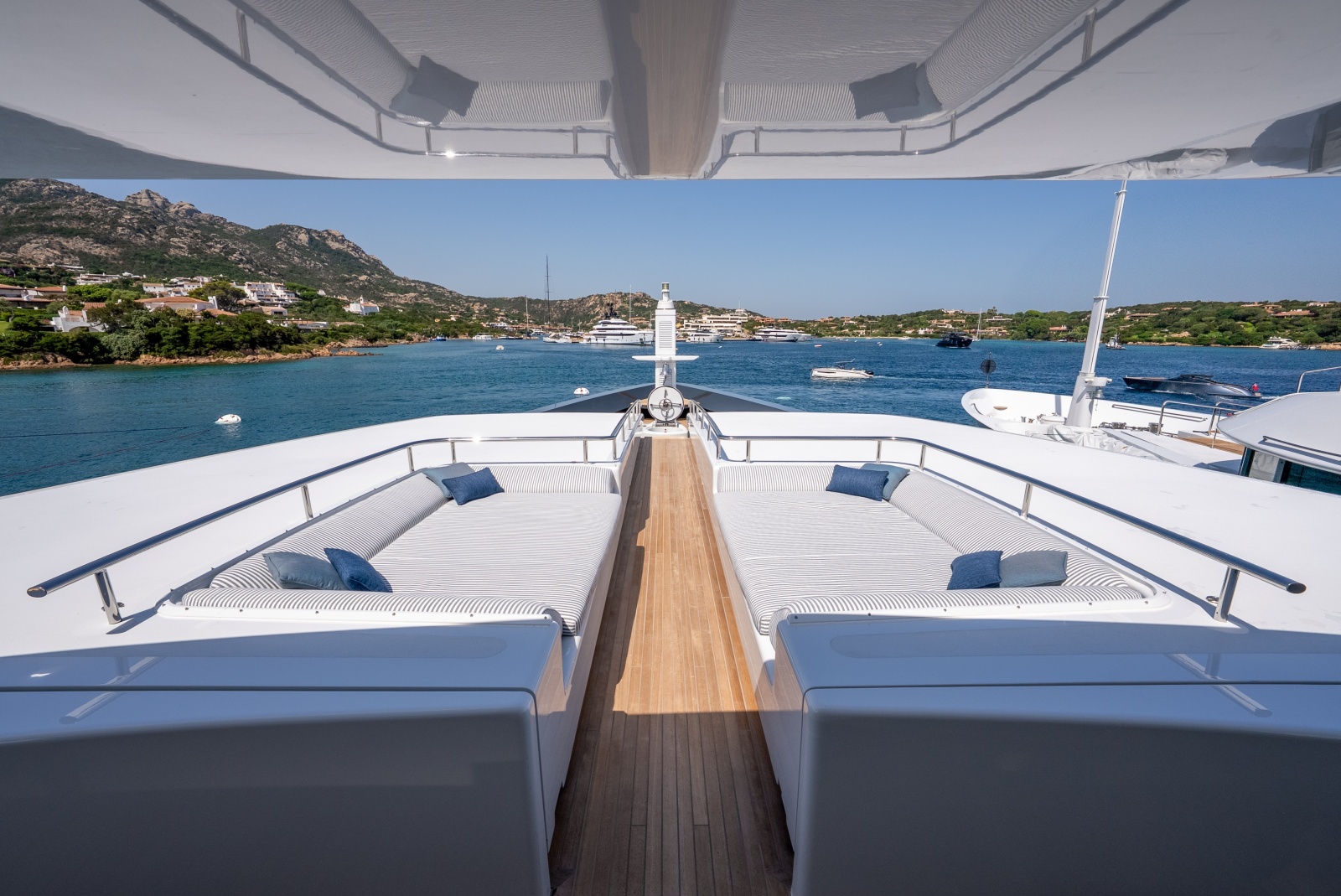

- The Owner’s two-level master stateroom includes a master suite and office on the main deck, and lounge area on the skylounge deck
Guests

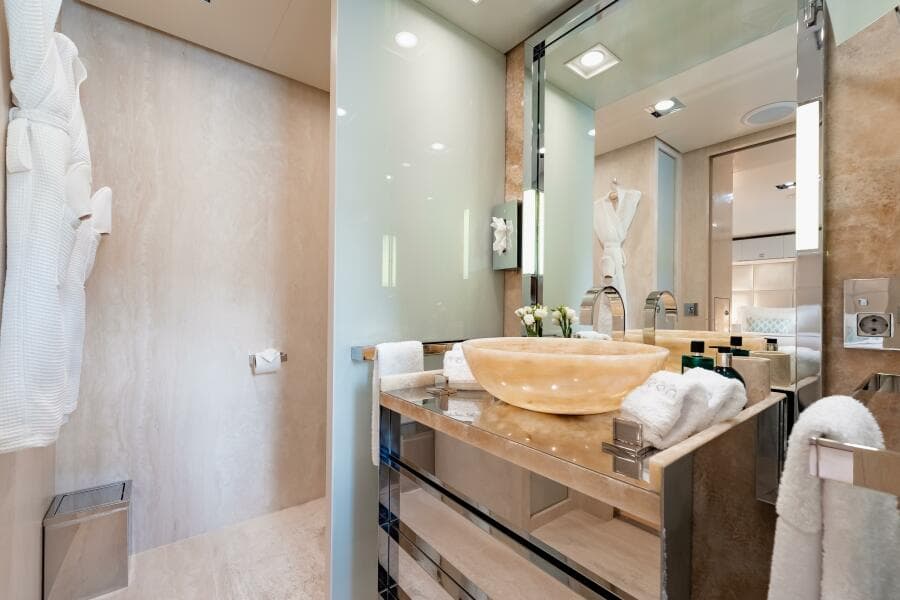

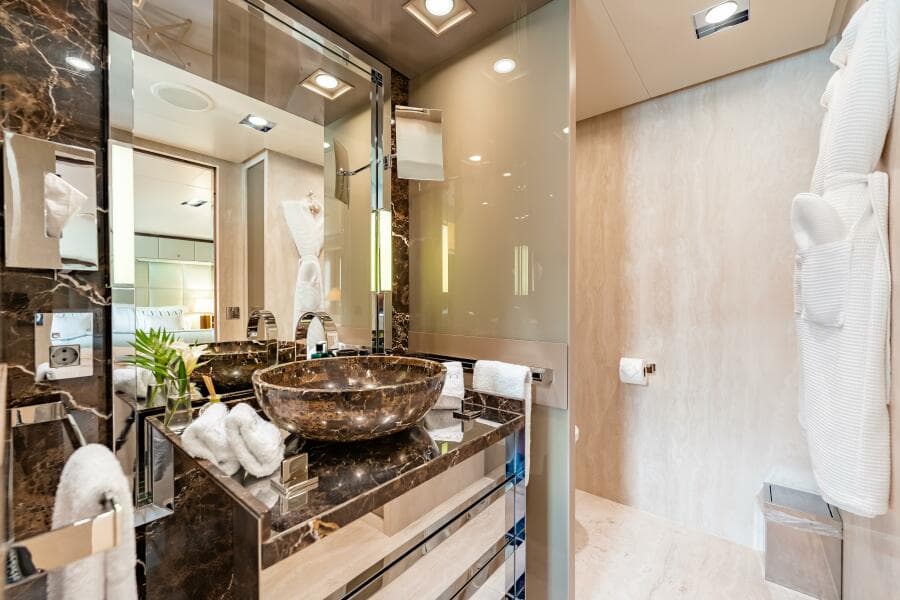

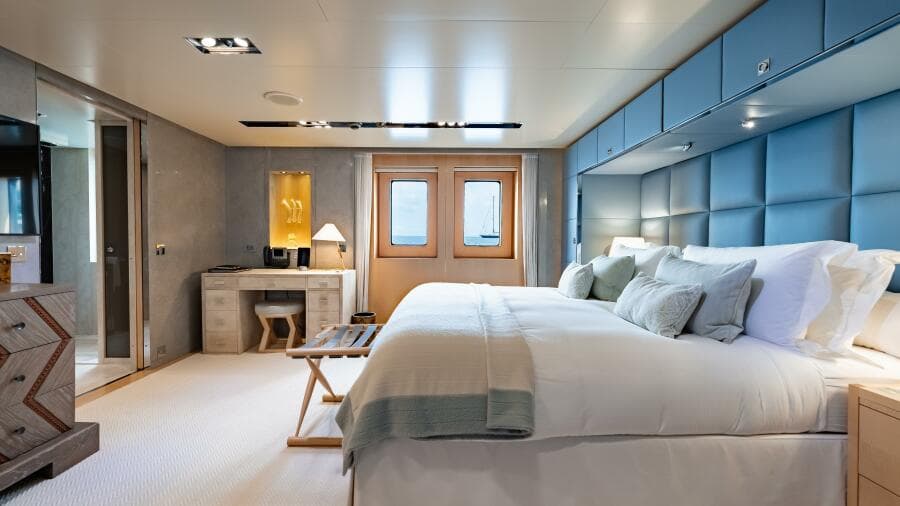

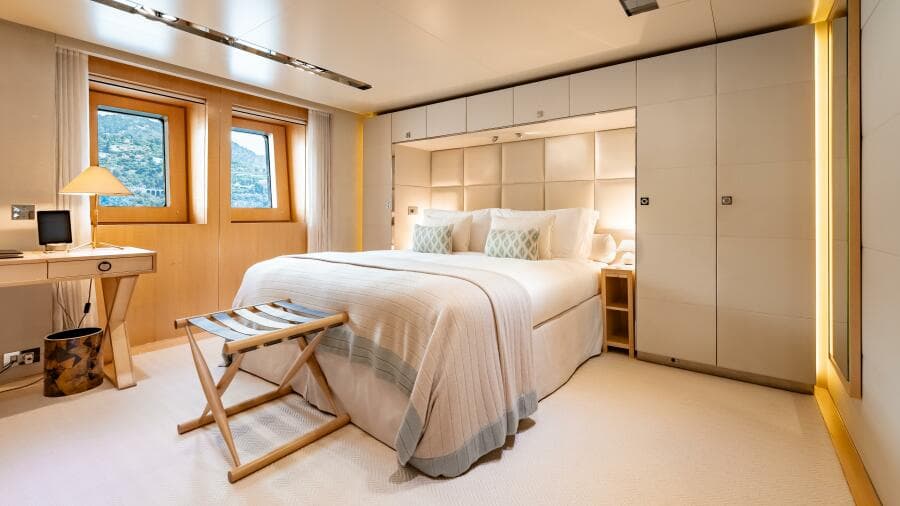

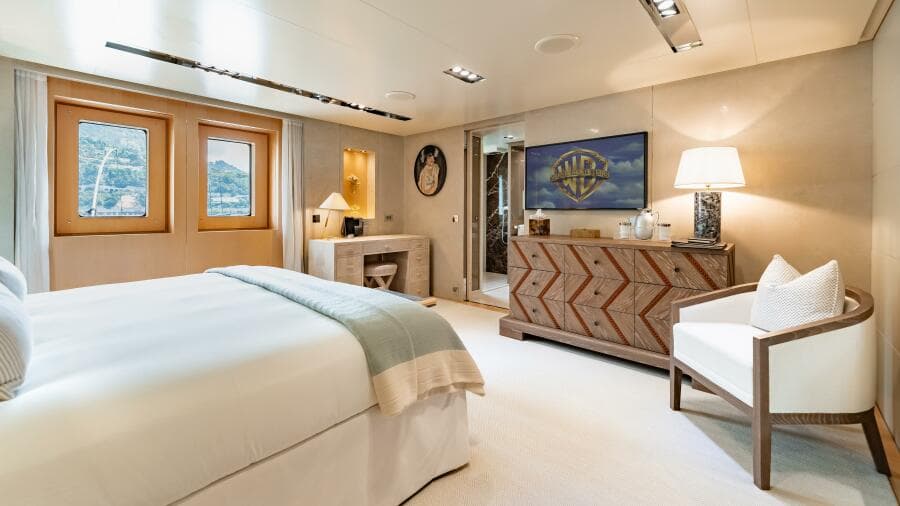

- Lower Deck: Four queen staterooms, including two that convert from queens to singles

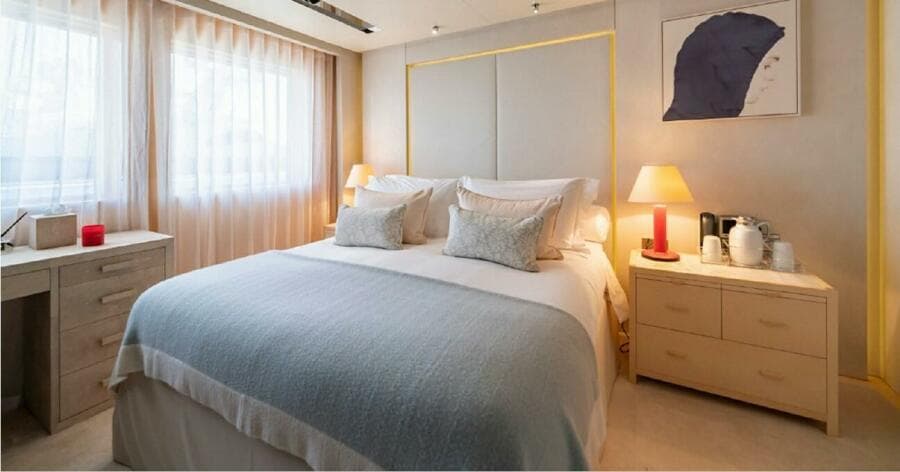

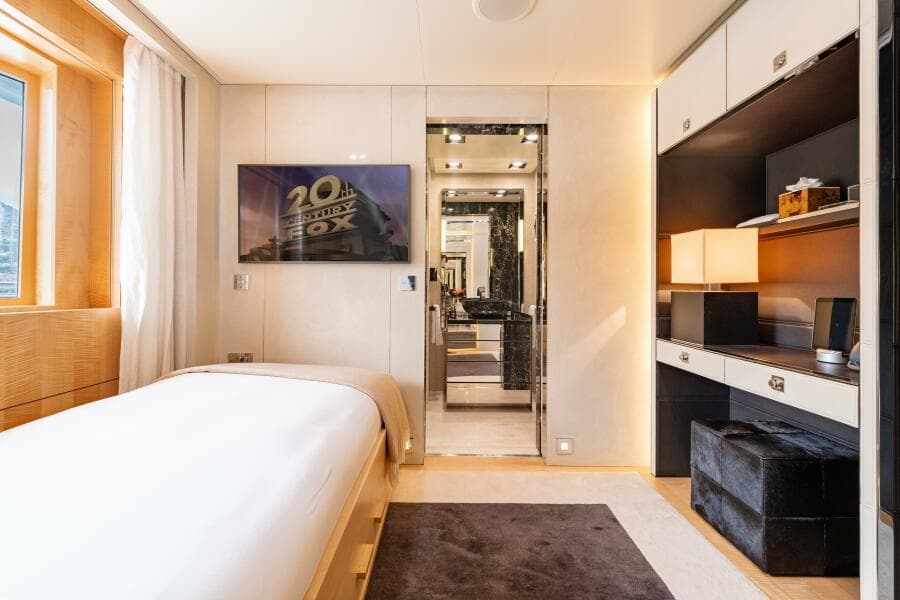

- Skylounge Deck: One double VIP stateroom and one single berth cabin
Crew
- Bridge Deck: Captain and Chief Officers Cabin.
- Lower Deck: A chief engineer's cabin, 6 shared cabins for crew with direct access to the guest accommodations’ corridor for service.
- Tank Deck: Crew mess room and relaxation area and 2 additional crew cabins.
COMMENTS
Exclusion:
- 48’ Anvera Chase Boat - Towable Tender. Name: “WILD THING”
- “LOON” name reserved for Seller
- All LOON monogrammed items on board
UPGRADES
2025
April 2025: 15-year survey completed at Rybovich in West Palm Beach, FL at a total cost of $3,300,000. See most of the items below:
- 15 Year Lloyds Class survey
- Bottom painted with Prop Speed
- Side boarding ladder overhauled
- Tender crane and Solace crane serviced
- Thru-Hull valves serviced or replaced
- Stabilizers 8000 hour service
- All LSA serviced
- All onboard tenders serviced
- Windlasses overhauled and chain dropped and calibrated
- Capstans overhauled
- Hydraulic sensors serviced
- Main Engines 10,000 hour service including heat exchangers and cooler
- ZF gearboxes serviced
- Shafts inspected and serviced
- Shaft seals replaced
- Generators serviced
- Main and emergency switchboard serviced and cleaned
- Frequency drives serviced
- Hull thickness/measurement inspection
- Bow thruster serviced (Rebuilt in 2022)
- Galley and laundry extraction ducting cleaned and serviced
- All Fan coils serviced or replaced
- Central cooling pumps serviced or overhauled
- Rvb Rails have been repainted with new non-skid
- Exterior windows recaulked
- Main Deck has new black wrap
September 2025: in Vilanova, Spain
• 2 New 150Kva Magnus SP300 shore power converters
• All turbos serviced
• HUG units replaced
• High Fog 5-year service done
• Accommodation duct cleaning done
• Dishwasher replaced
• Ovens, range and deep fryer serviced
• Grinding/sanding/painting of the tender garage completed
• All exterior white paint polished with YSR multi-step polishing system
• Deck lockers emptied and painted
• Carpet cleaned throughout
• Mattress cleaned
• Marble polished
• Interior lockers emptied and cleaned for inventory
2023 and 2024
- Complete bridge refit in 2023 which included completely rebuilding the console and
- navigation desk
- 5 New Hatteland displays
- Conversion of main deck pool to fresh water with a drop tank and water heater
- New pool deck cushions 2024
- Hull wrapped in 2023
- All 3 generators were rebuilt in 2024
Listing MLS by Yachtr.com
Listing Owner
Interested in This Boat?
Send us a message and our team will get back to you promptly
