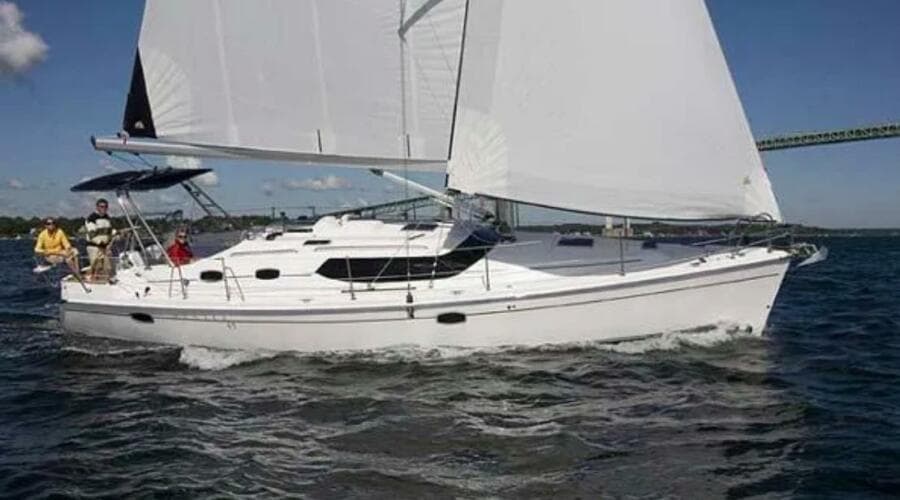

2009 Hunter 45 Deck Salon

Sail Area

I : 47.83 ft

J : 14.58 ft

P : 46.50 ft

E : 20.75 ft

Working Sail Area : 962.00 sq ft

Dimensions

LOA: 45 ft

LWL: 39 ft 7 in

Beam: 14 ft 6 in

Max Bridge Clearance:60 ft 7 in

Draft: 5 ft

Ballast: 7,389 lb

Displacement: 22,936 lb

Manufacturer Provided Description

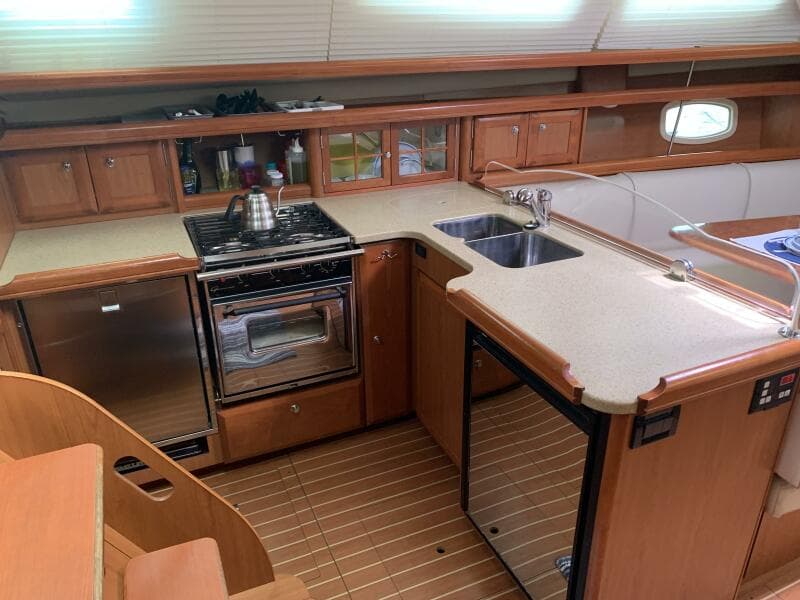

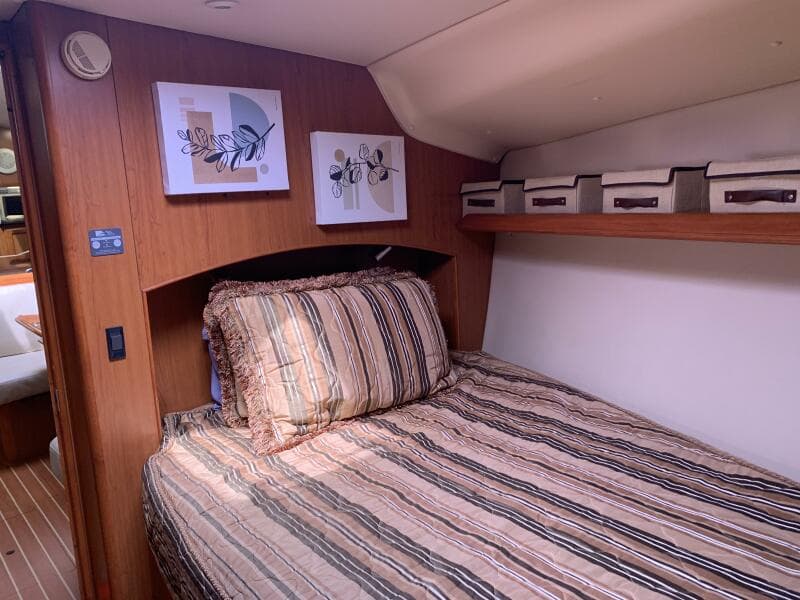

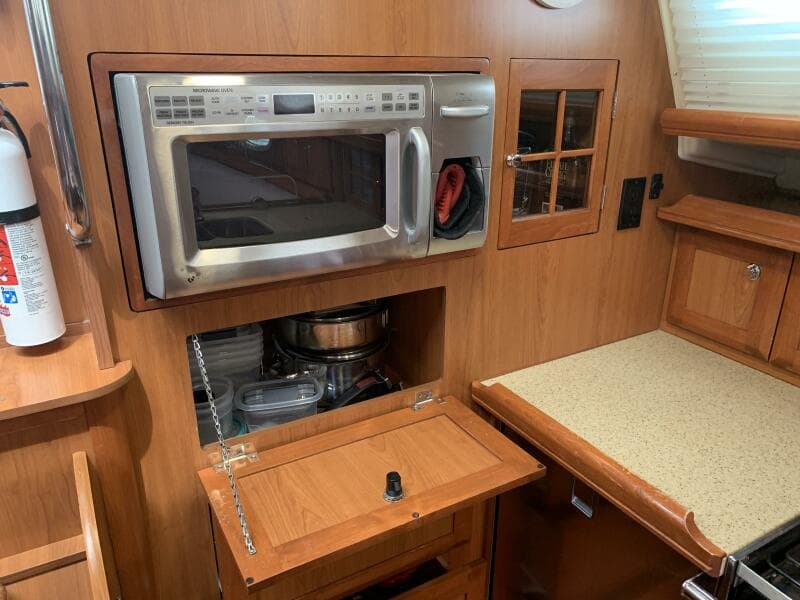

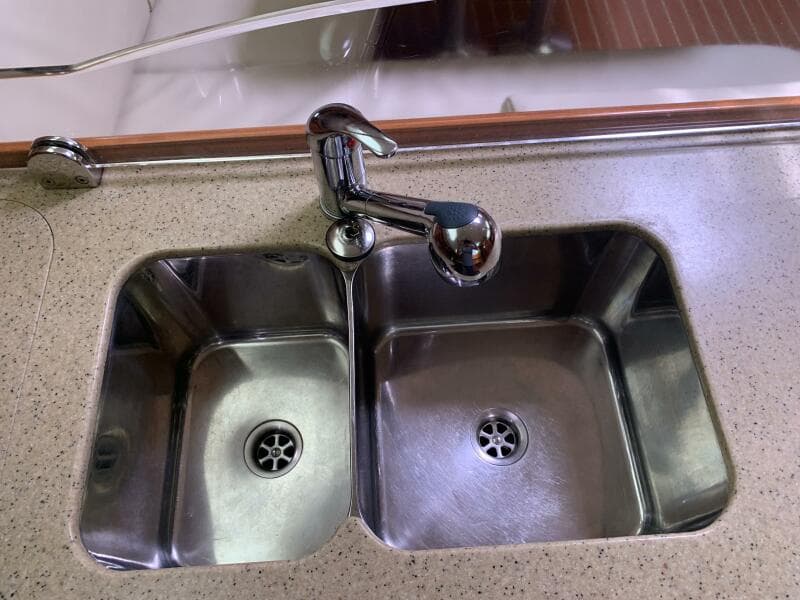

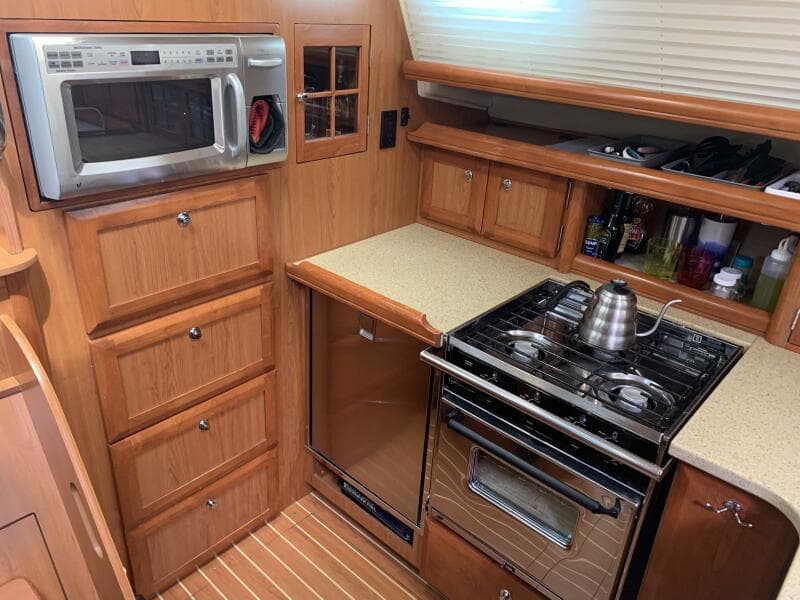

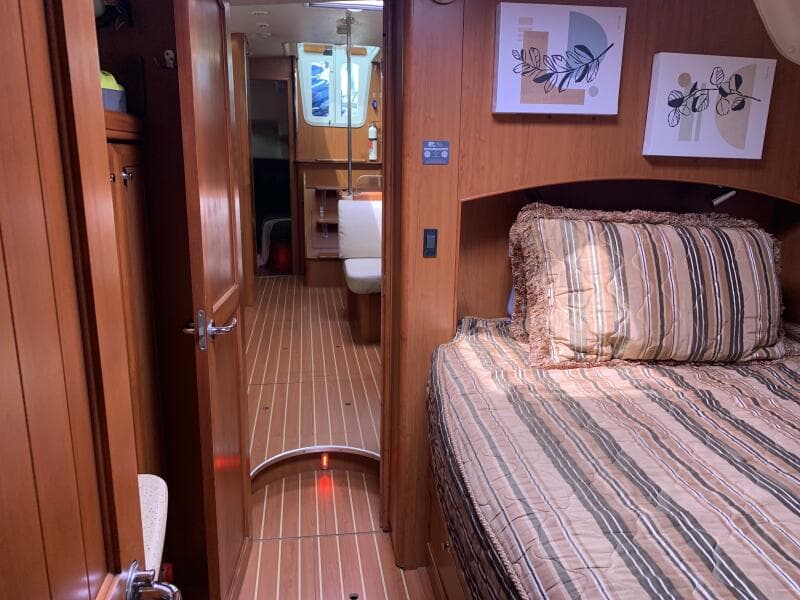

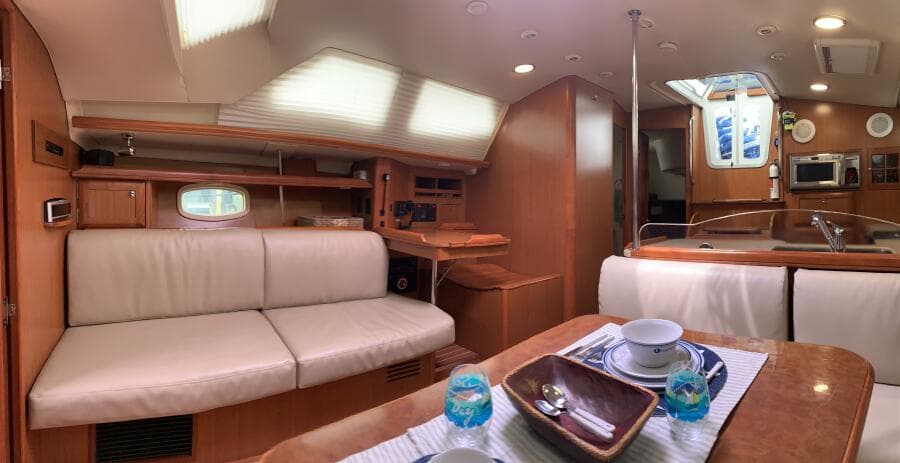

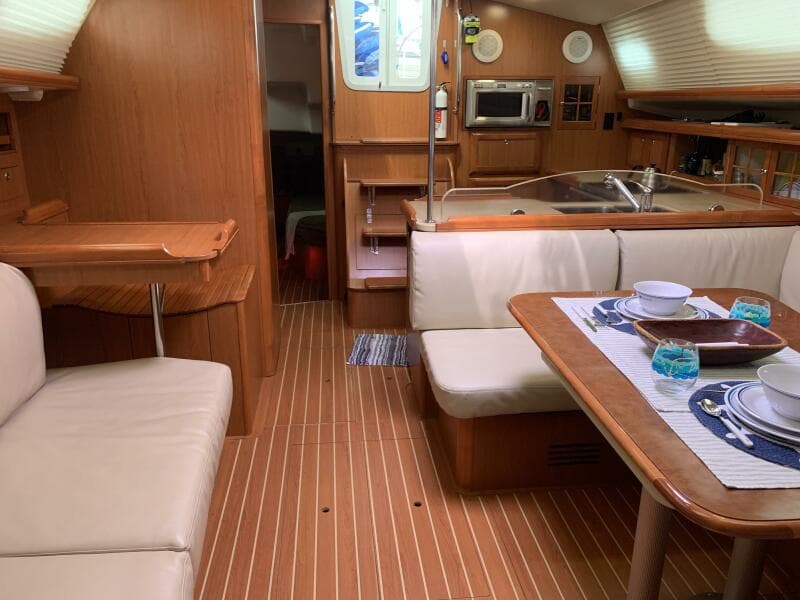

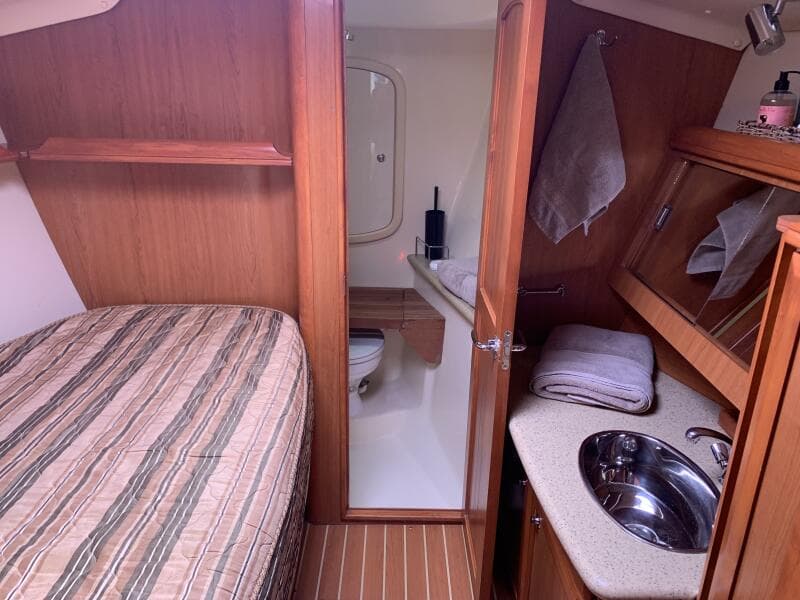

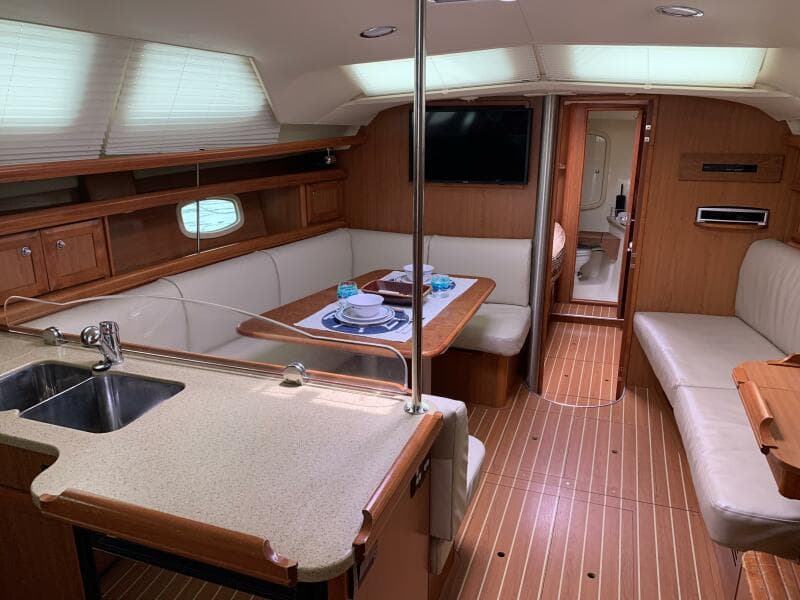

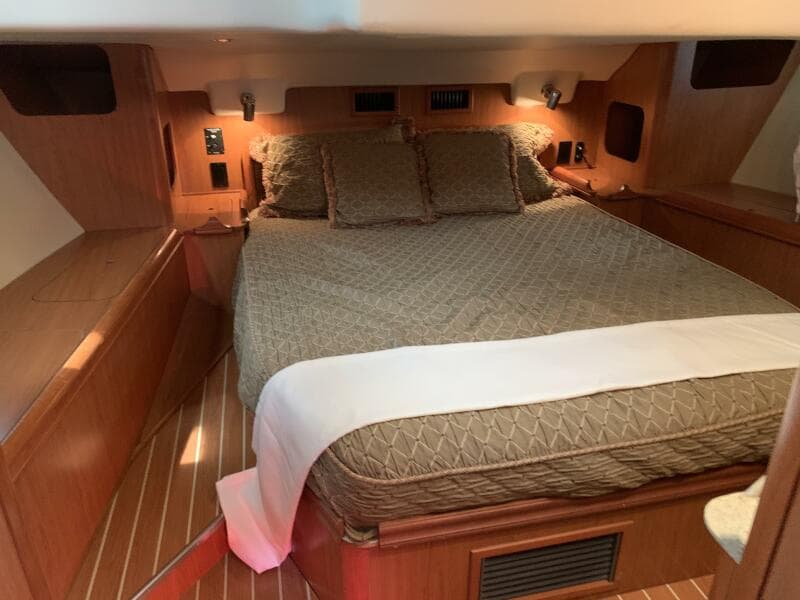

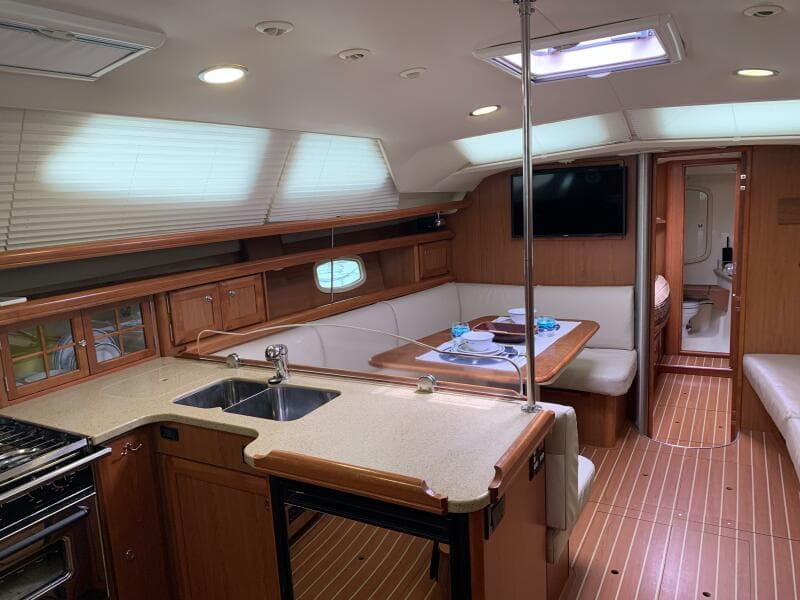

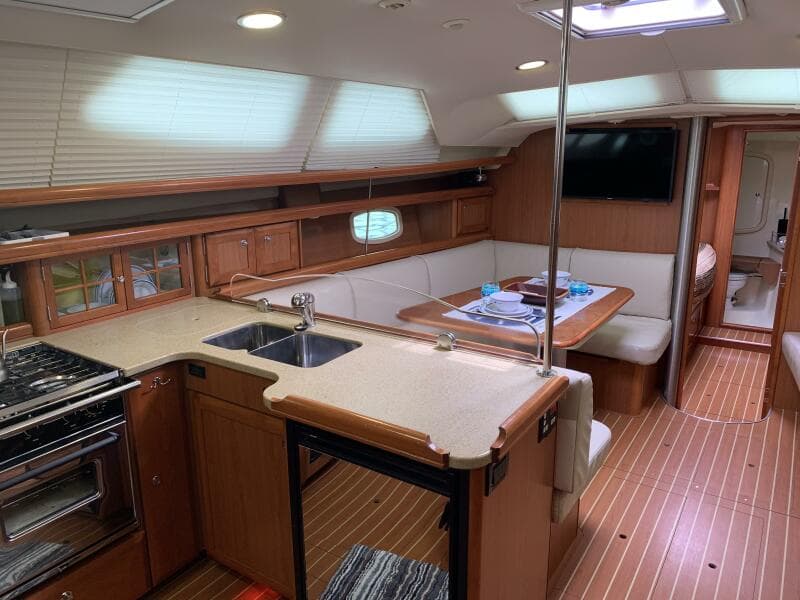

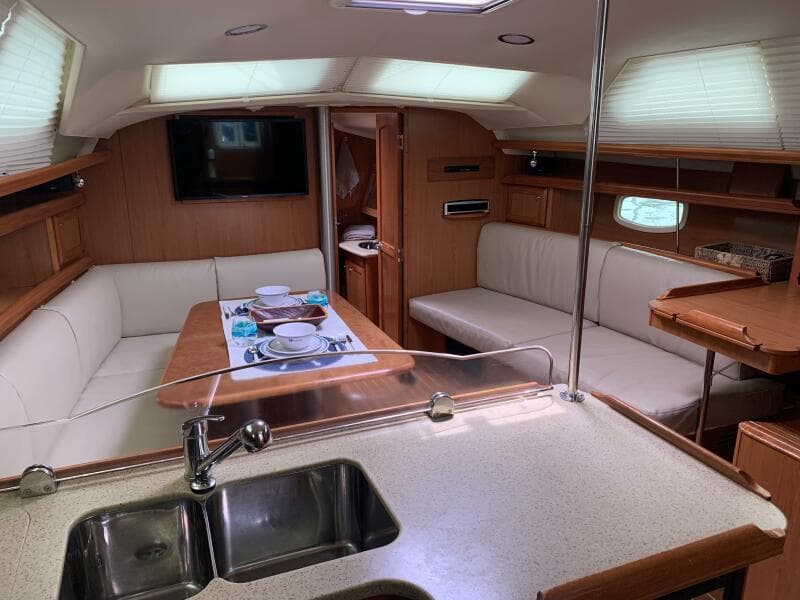

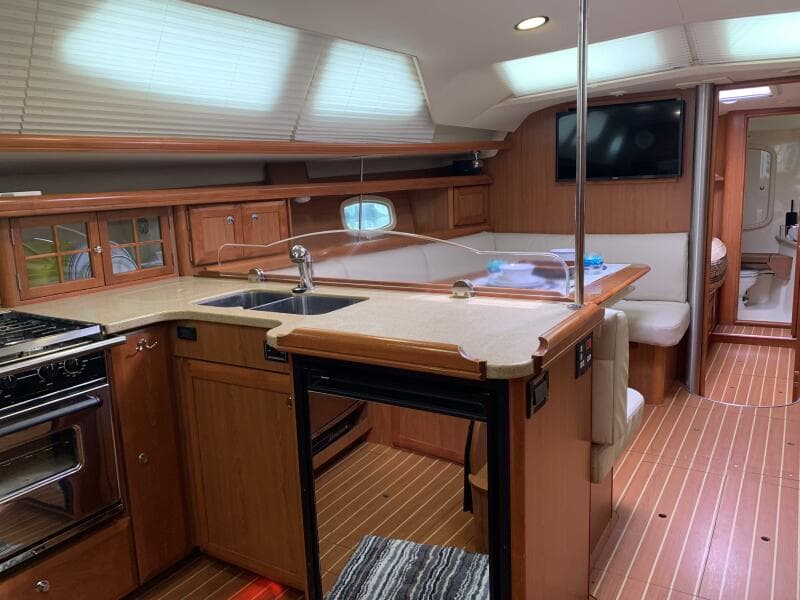

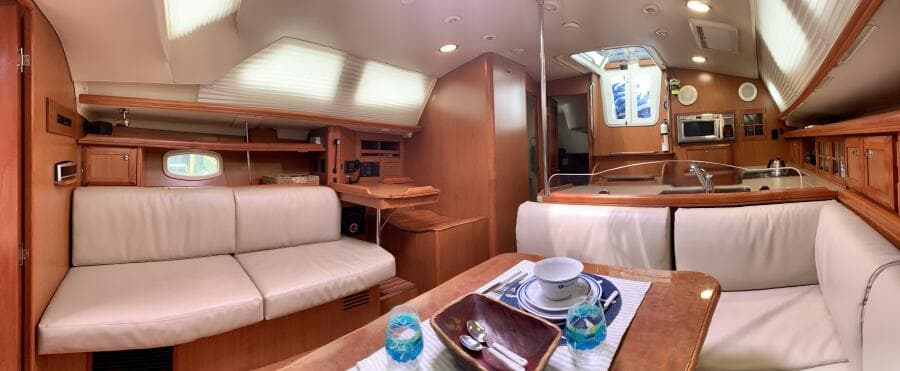

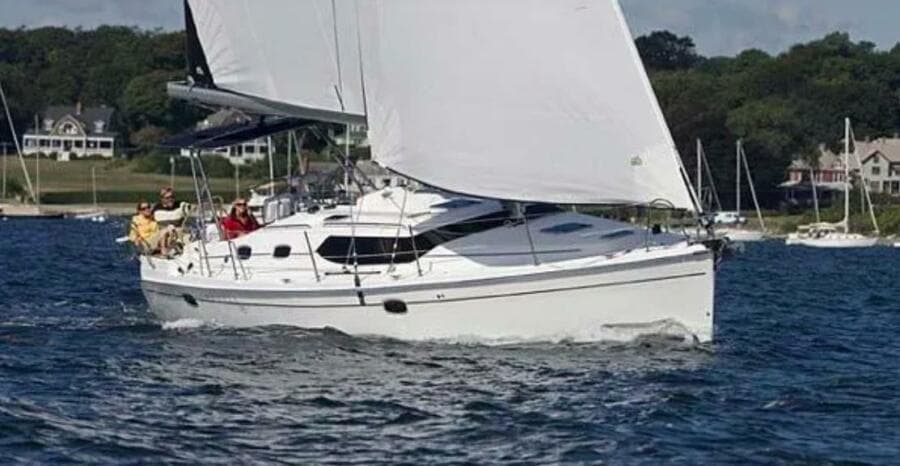

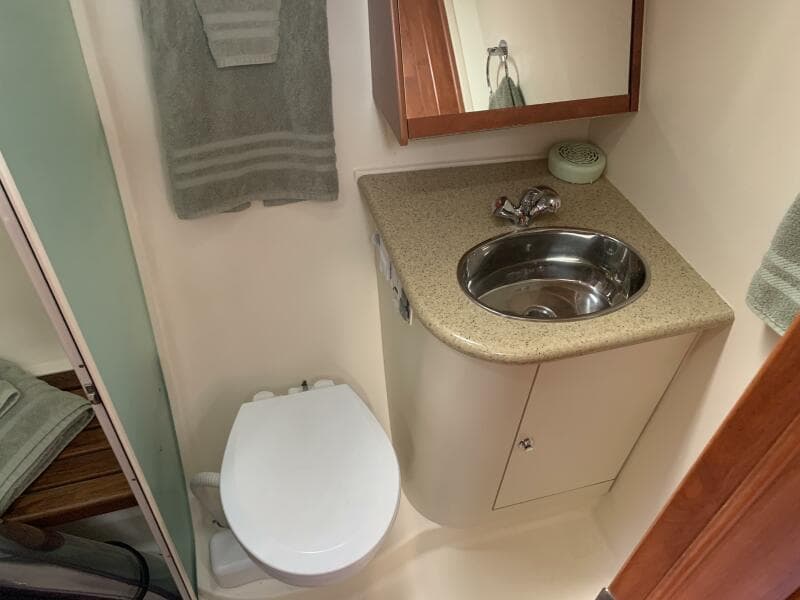

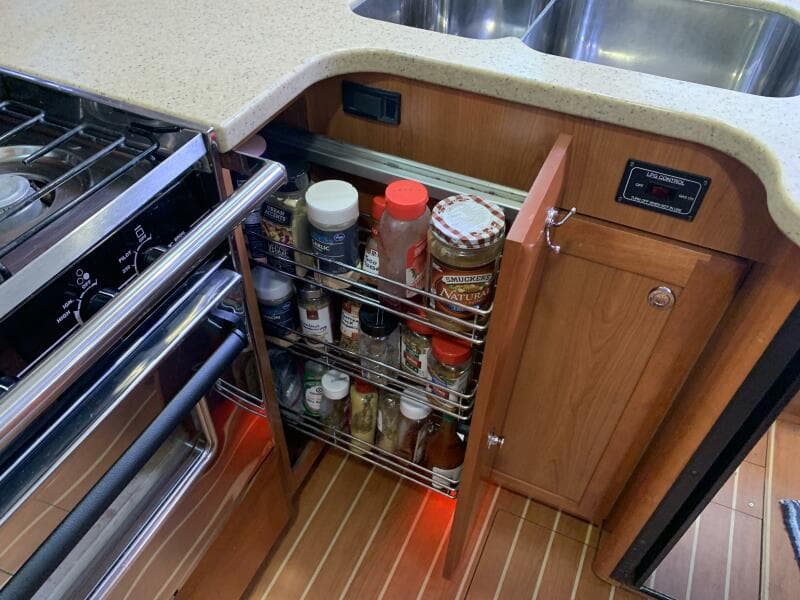

The Hunter 45 has redefined the DS concept with a bright and open salon. Oversized deck ports draw in huge volumes of natural light to complement the rich woodwork and airy plan, and the wraparound windshield dominates the sleek and imposing exterior profile. The Glenn Henderson-designed hull is solidly constructed and shaped for lively performance and a smooth ride, even in rough sea conditions. On deck, dual helm stations deliver the ultimate in comfort, control and visibility for the captain. Hunter's stainless steel Traveler Arch, B & R rig and a unique double ended mainsheet system provide the crew with effortless sail handling. The large galley will enable you to create memorable meals from provisions held in the huge storage areas. An expanded aft stateroom features a queen size berth, large hanging locker, fresh air ports, storage galore and private access to the aft head. Forward, your guests will enjoy the Pullman style cabin with a side mounted double berth and storage for two. The open vanity is separated from the private head and shower located in the forepeak.

Engine and Mechanical

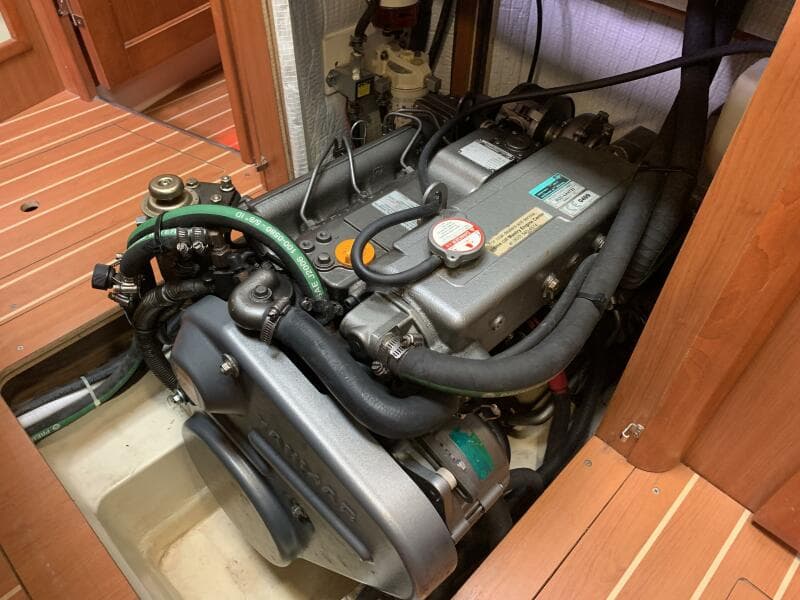

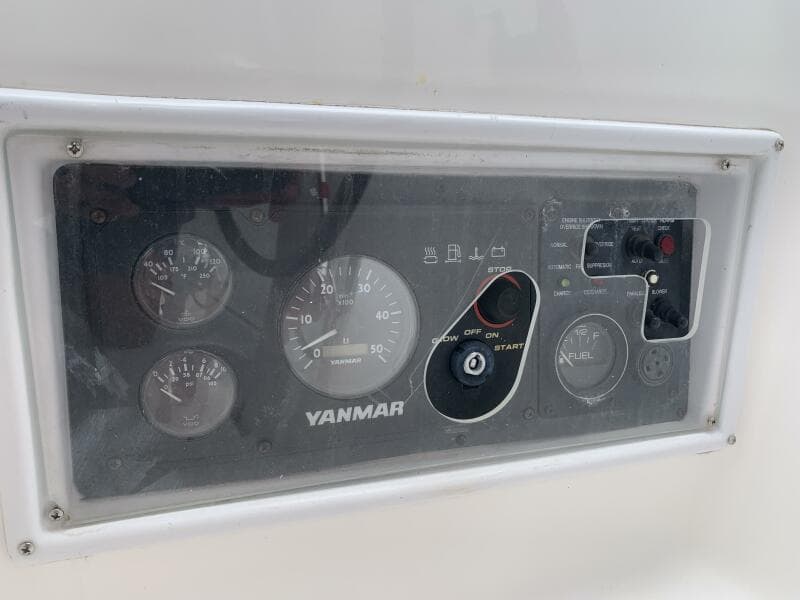

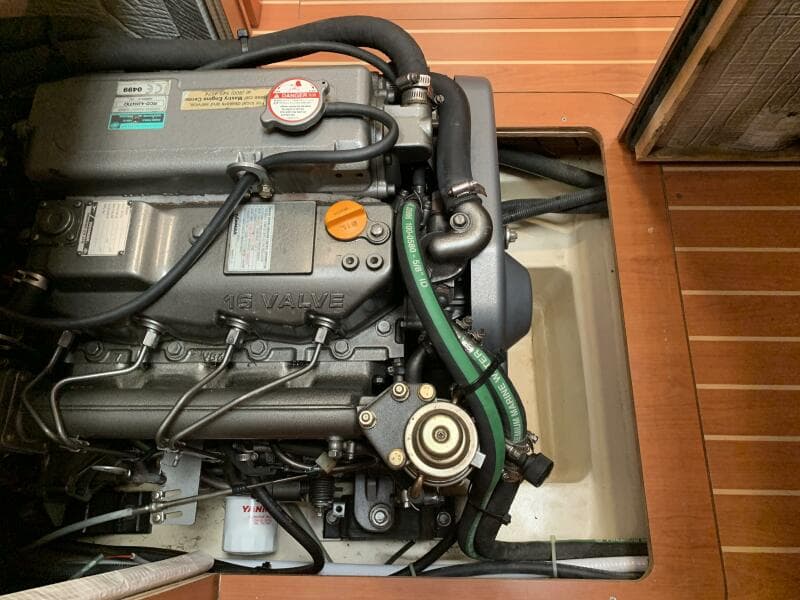

Engine: Yanmar, Turbo model 4JH4-TE, 75hp 1732 hours

Three blade propeller, 18/15 pitch bronze (2019)

X-Change-R oil change system (2019)

80 amp alternator on engine (2021)

Engine spares: alternator, starter, belts, hoses, and filters

(2) Racor type 80 fuel filters for engine and generator

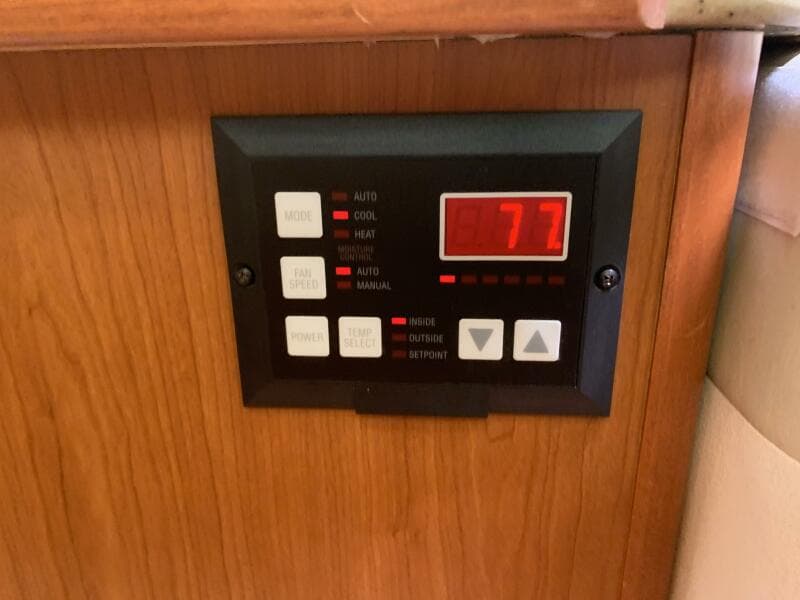

Reverse Cycle AC/Heat (2 Zones)

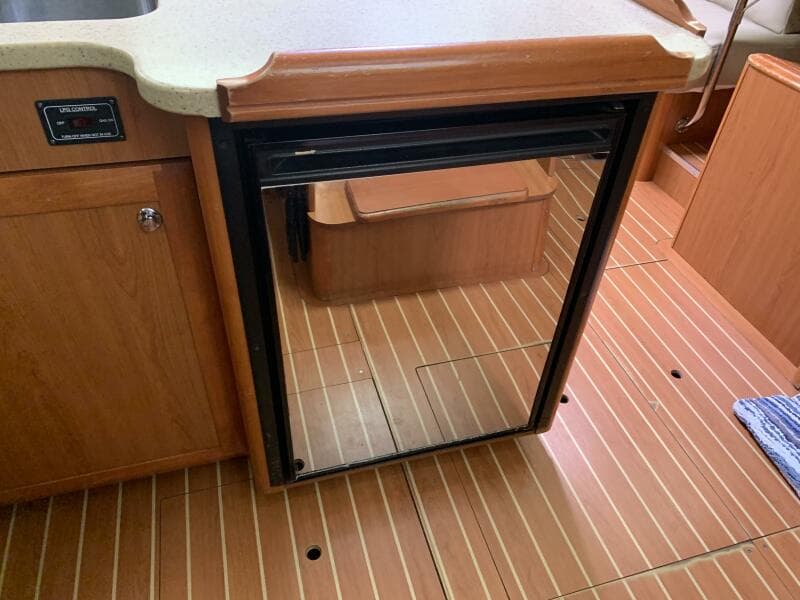

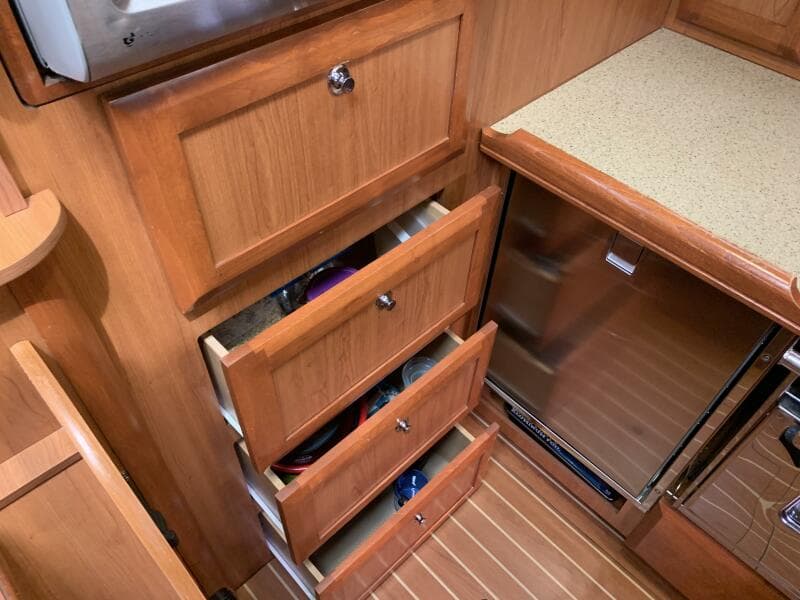

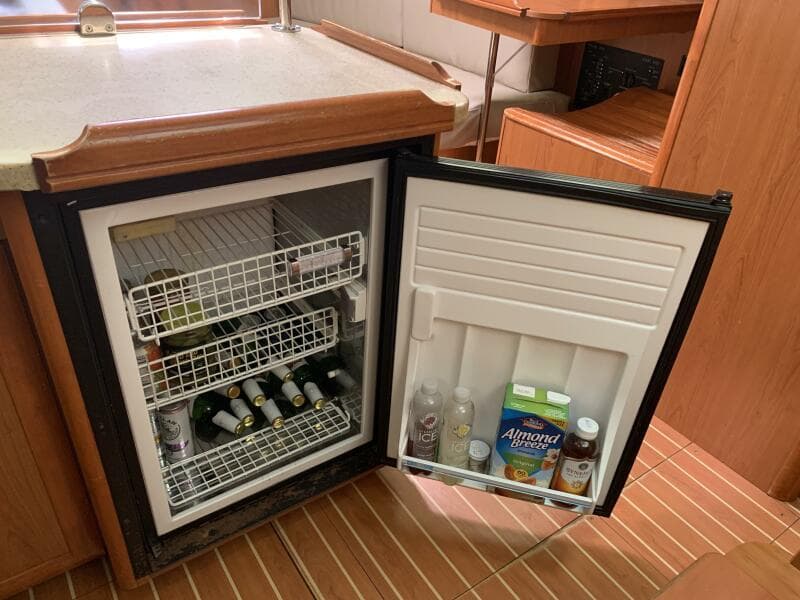

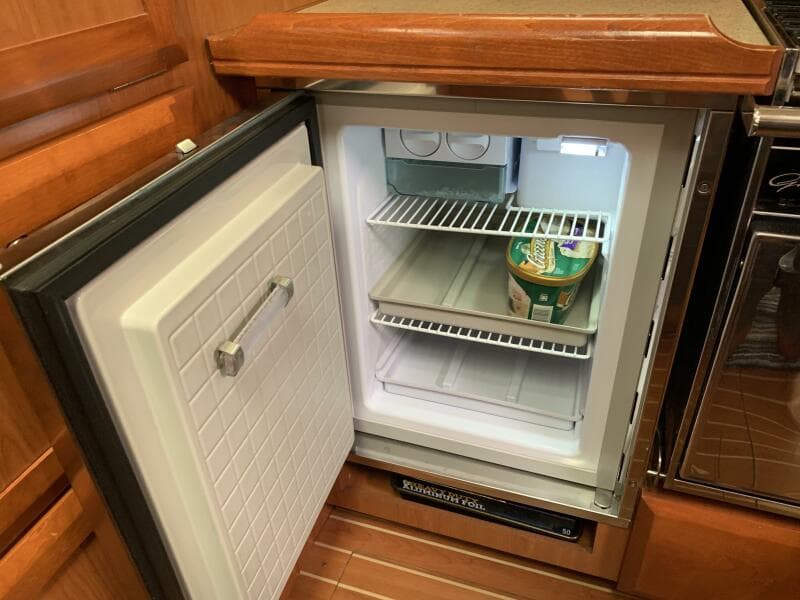

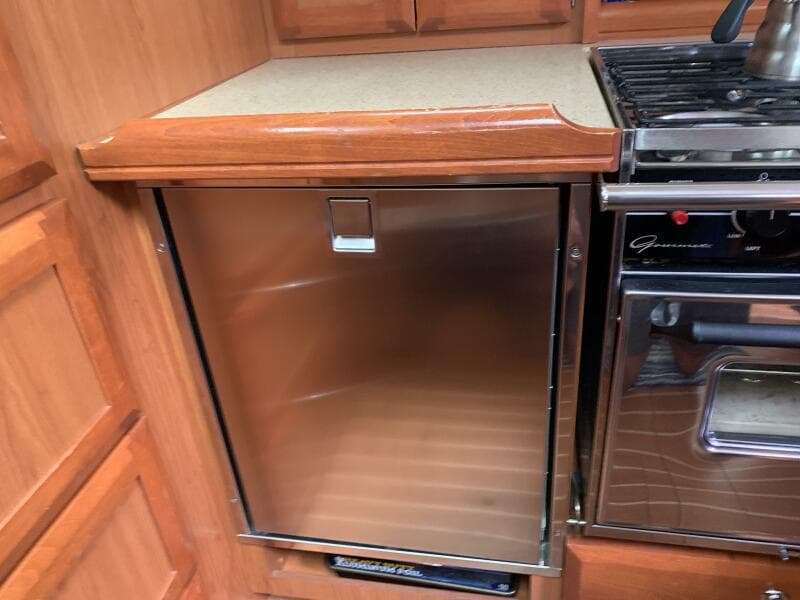

Separate Full Freezer and Fridge (Isotherm Freezer CR63F)

Watermaker: Seafari Mini 170 12 GPH 110VAC with fresh water flush option

Bow thruster: Side Power model (8.4hp) SE100

New macerator pump 2020

New AC pump 2020

New fresh water pump 2020

Tankage

Fuel:  74 gal

Fresh Water: 140 gal

Holding: 50 gal

Water Heater: 11 gal

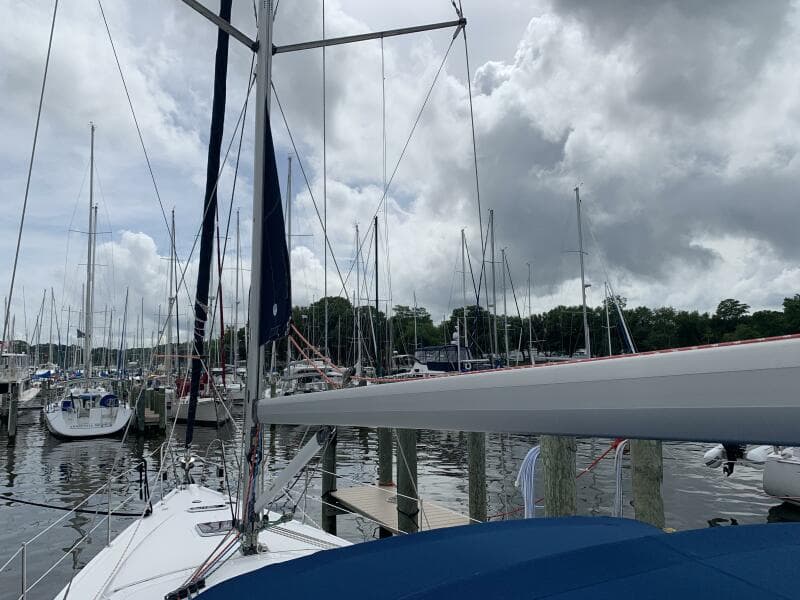

Sails and Rigging

NEW STANDING RIGGING JUNE 2025

Winch: reefing and out haul Lewmar #40, 2-speed, self-tailing, upgraded to electric

Boom vang

Reefing system, dual single line led aft

Inboard jib tracks with adjustable cars

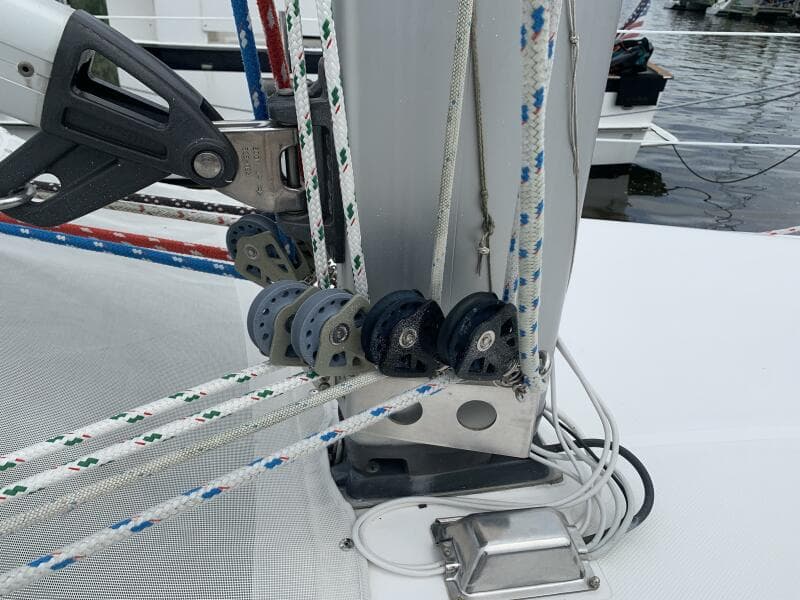

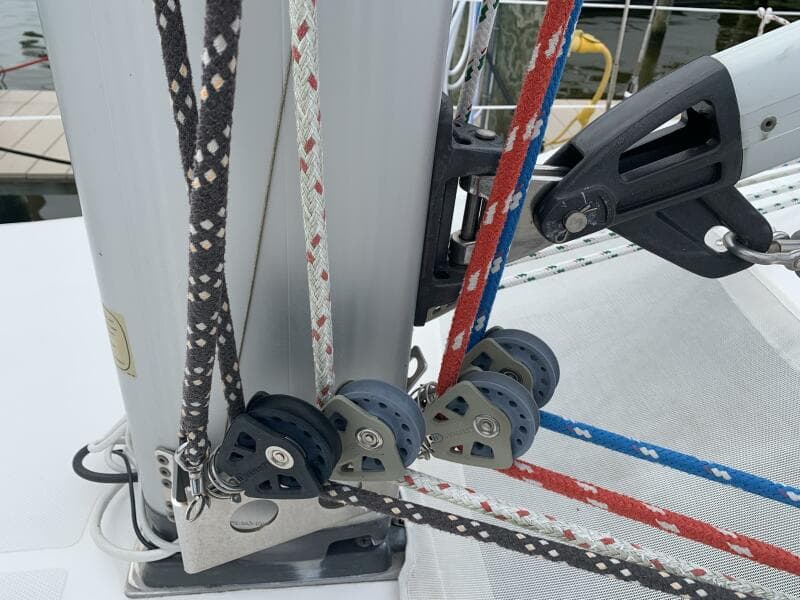

Internal halyards led to cockpit

Jib furling system, 110% jib with acrylic sun cover serviced (2018)

In-Mast furling system with vertical battens serviced (2018). The furling system was tensioned in 2020, the mail sail was replaced in December 2020 with a new North mainsail.

Main sheet purchase system, double-ended

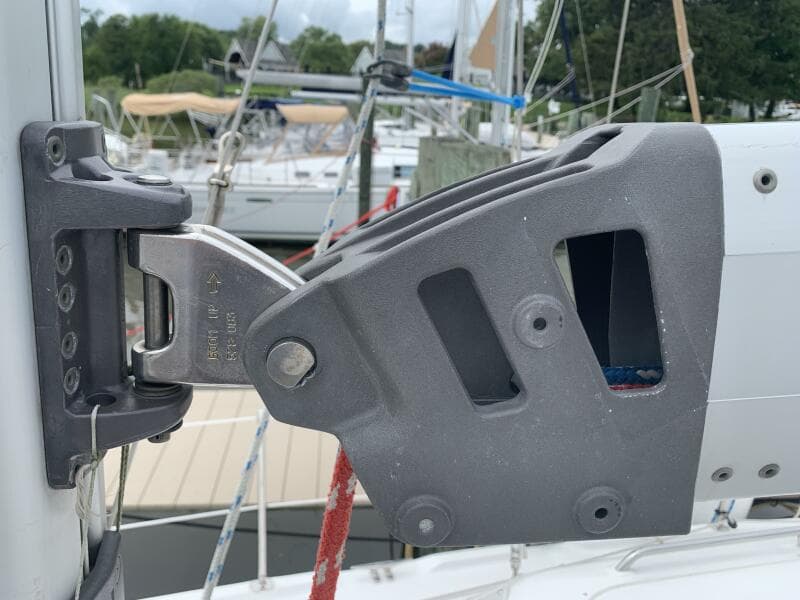

Mast, Selden, B&R with fractional sailplan

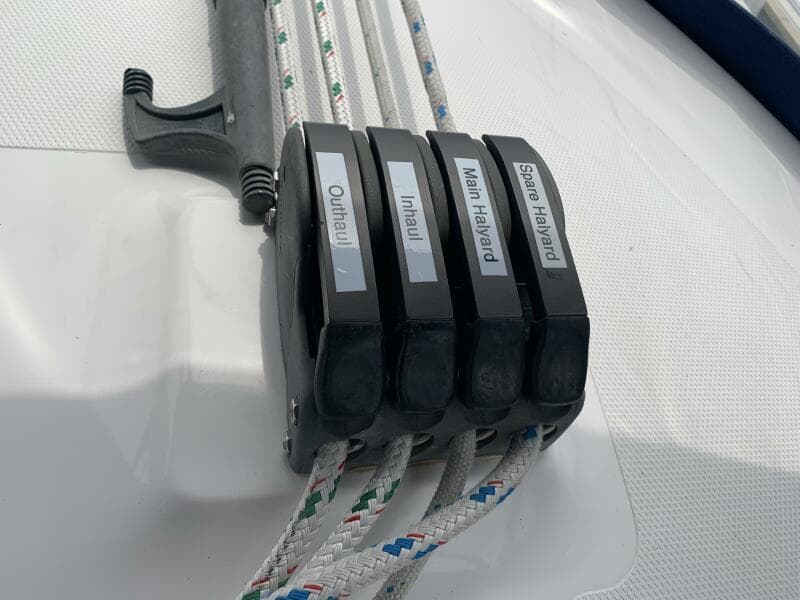

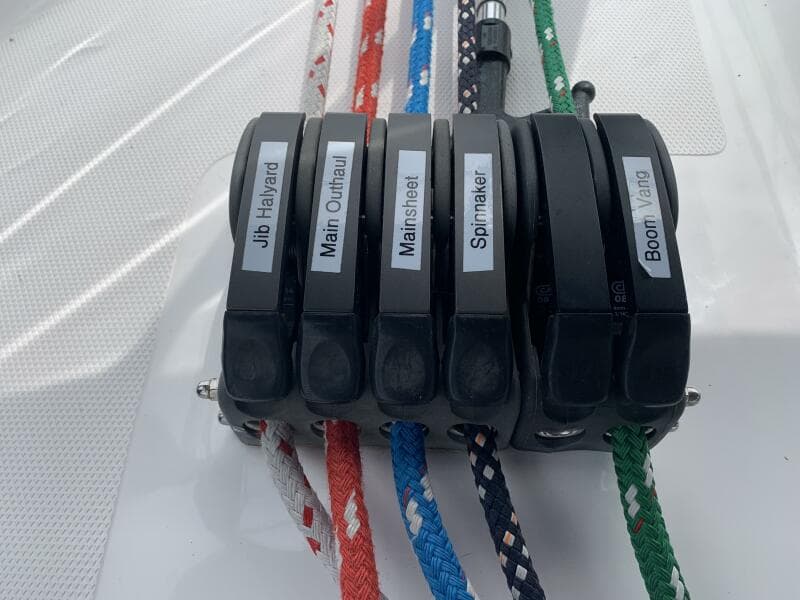

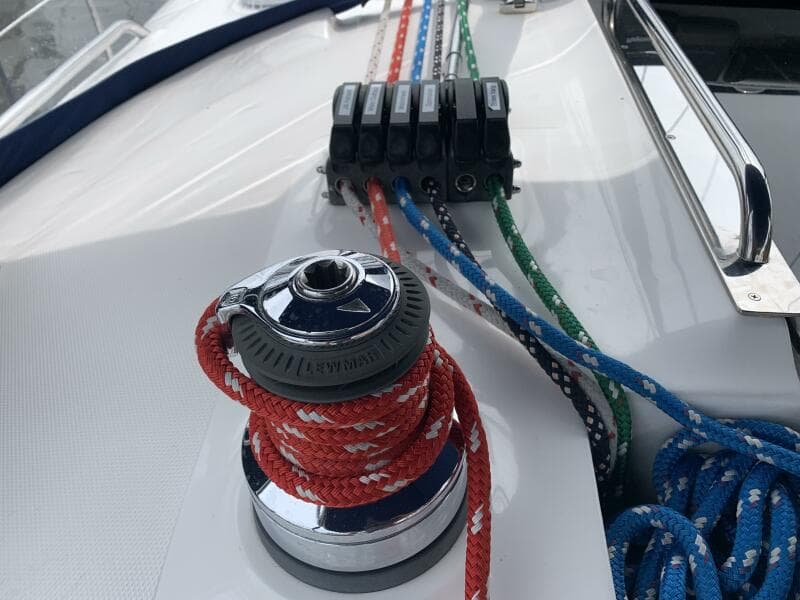

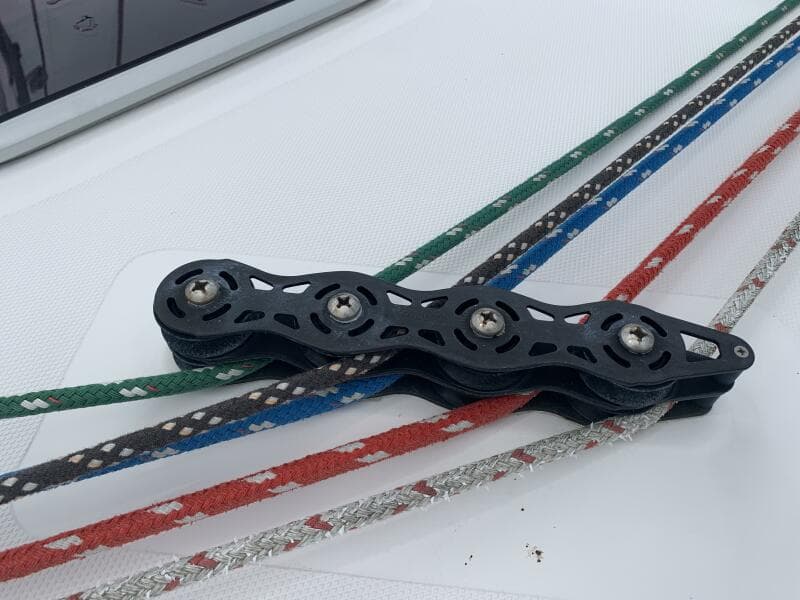

Rigging line stoppers and organizers, 2 sets

Traveler, arch mounted for main sheet

Winch handles (2)

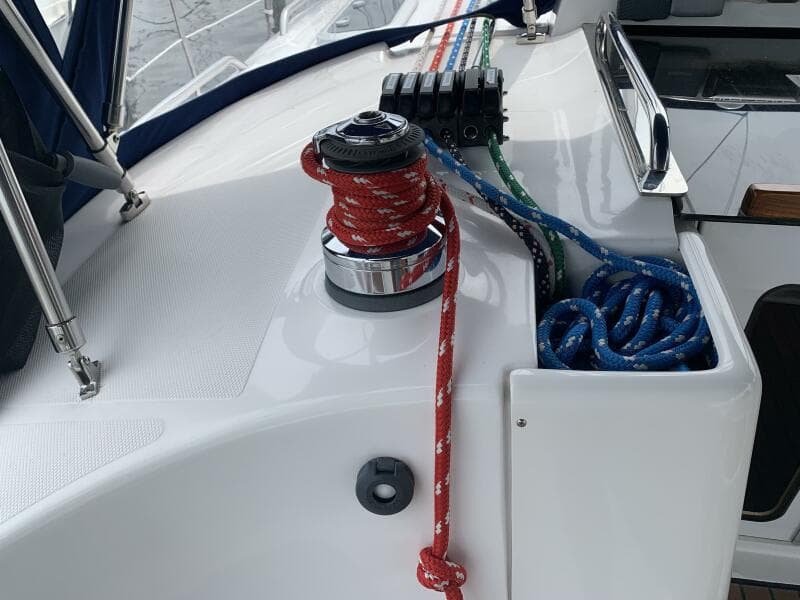

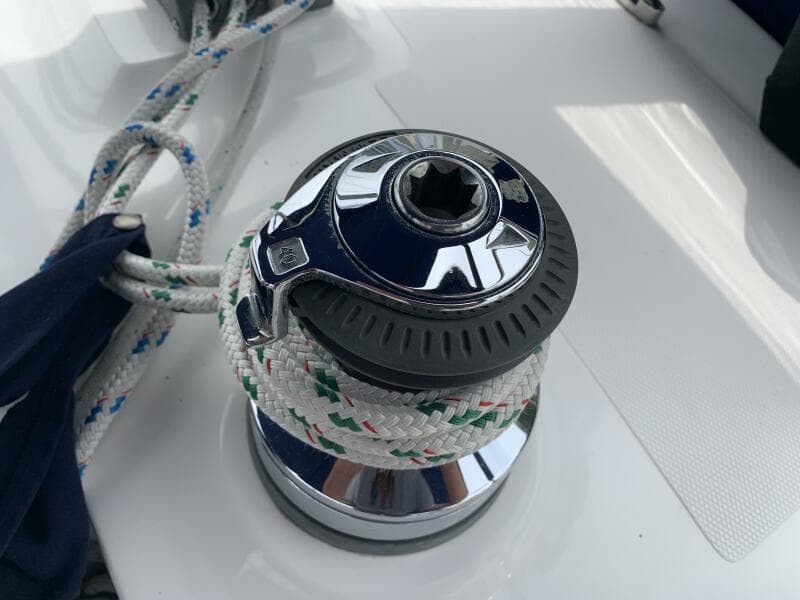

Winches (2) rigging, 2-speed self tailing #40 Lewmar electric winches

Winches (2) jib at helm, 2-speed, self tailing Lewmar #48

Windex wind indicator

Running rigging except halyards replaced (2016)

Dolye spinnaker with sock, spinnaker halyard and sheet (2018)

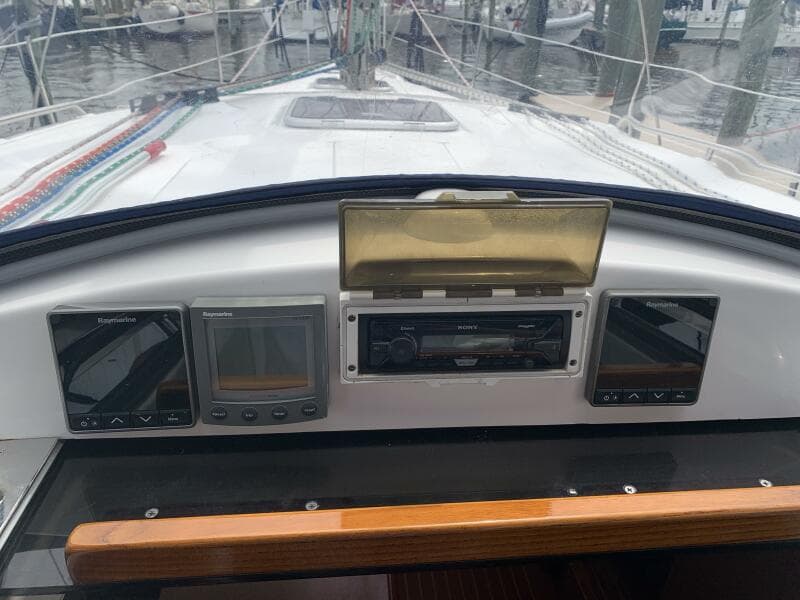

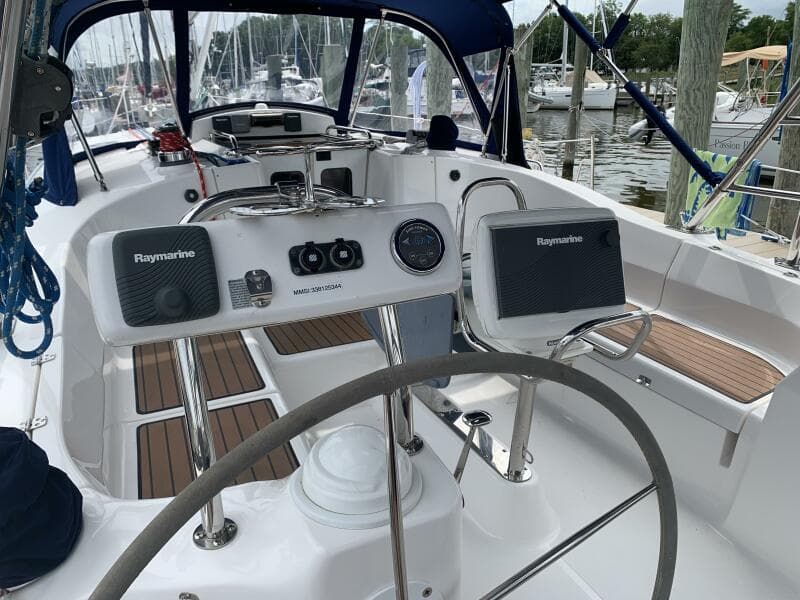

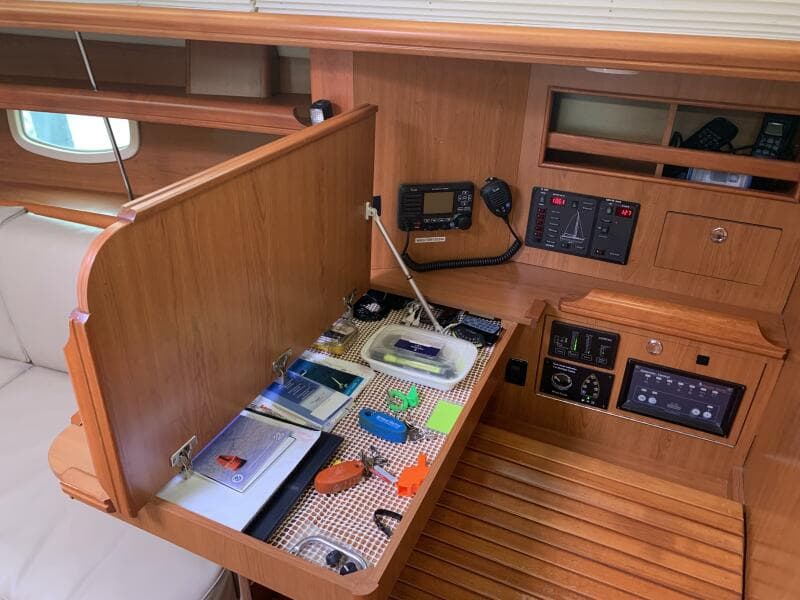

Electronics and Navigation

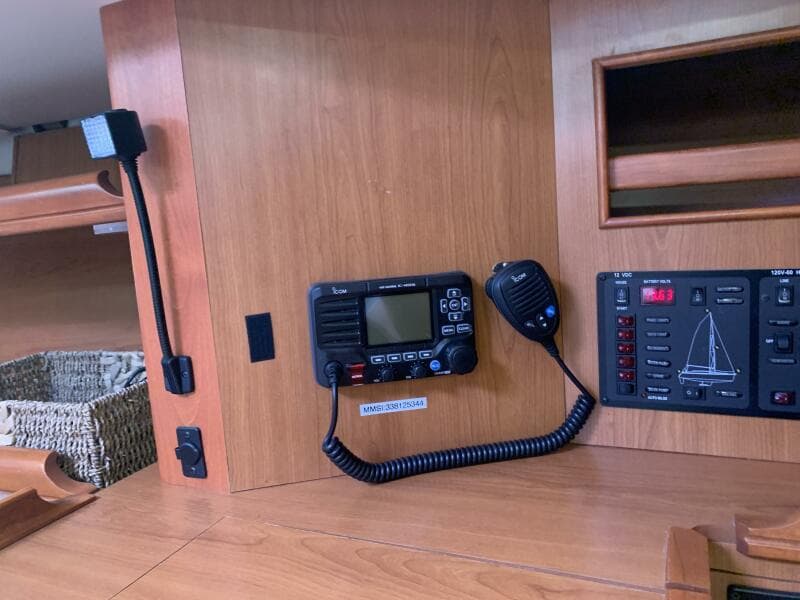

VHF Marine Transciever: IC-M504A

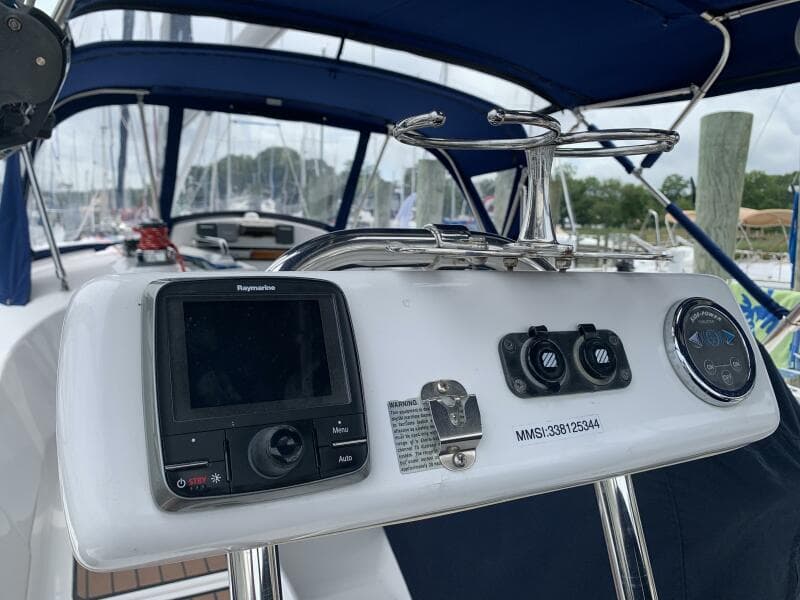

Raymarine Evolution autopilot

Raymarine AIS 650 Class B Transceiver (2015)

Raymarine DSM 30 HD Digital Sounder Module

Raymarine Radar Quantum model E702210 Radome Antenna (2018)

Raymarine SeaTalk HS Network Switch

Raymarine SR150 Sirius Weather System (2019)

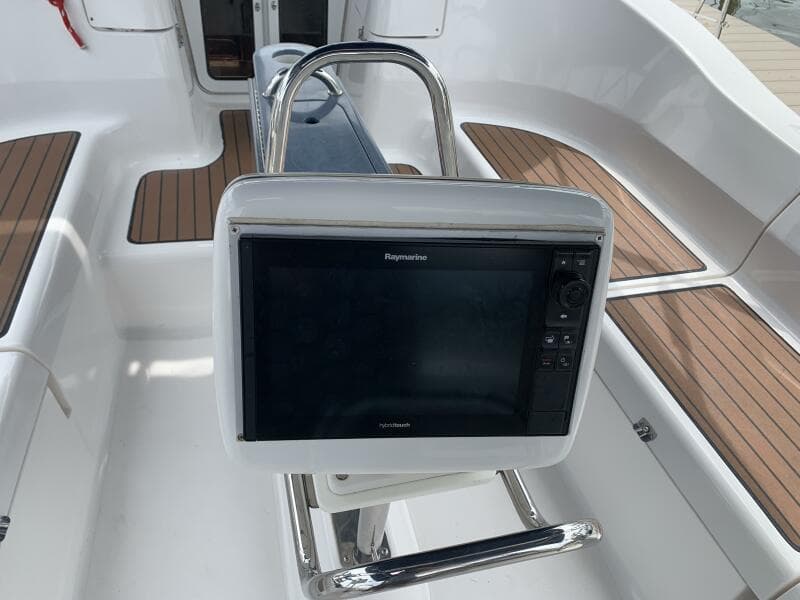

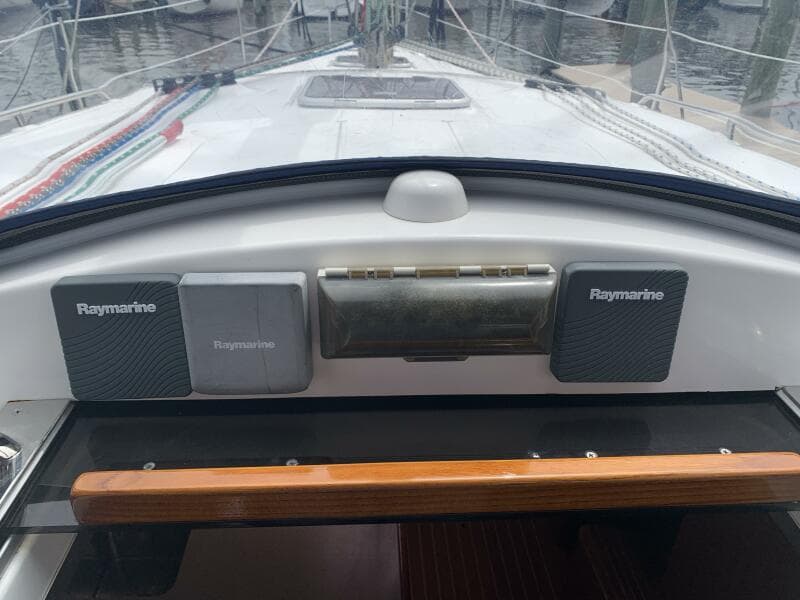

Raymarine ES127 12”Color Touch Screen MFD (2018)

(2) Raymarine I70 multifunction display with AIS (2018)

Raymarine ITC-5 Transducer converter model E70010 (2018)

Sirius XM Satellite radio and antenna (Radio new in 2020)

Raymarine model E70284) Sonar (2018)

Speed/Depth Sensor: Raymarine model 20-399-01 (2018)

Depth Transducer: Airmar - Model 30-386-02

Remote mic at helm: Command MICII HM-162B/SW

Compasses: Danforth Global Balance - Card System Compass, Model C401DWB

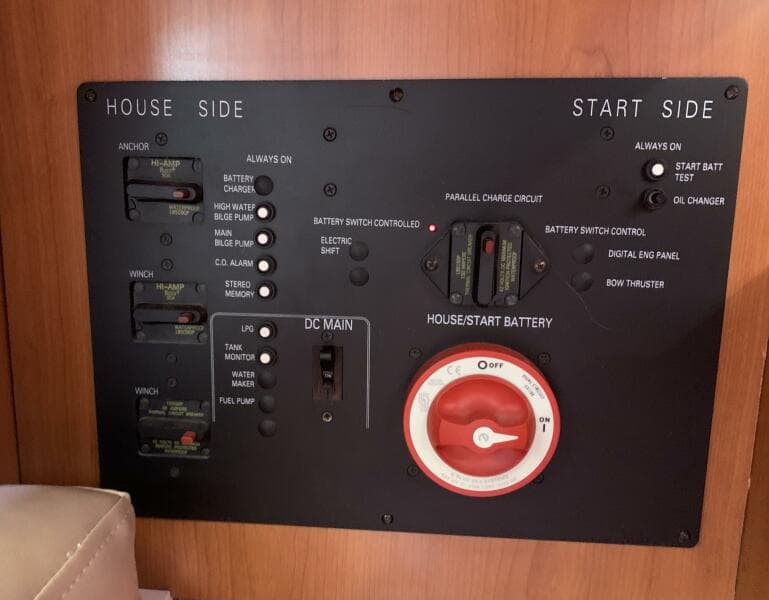

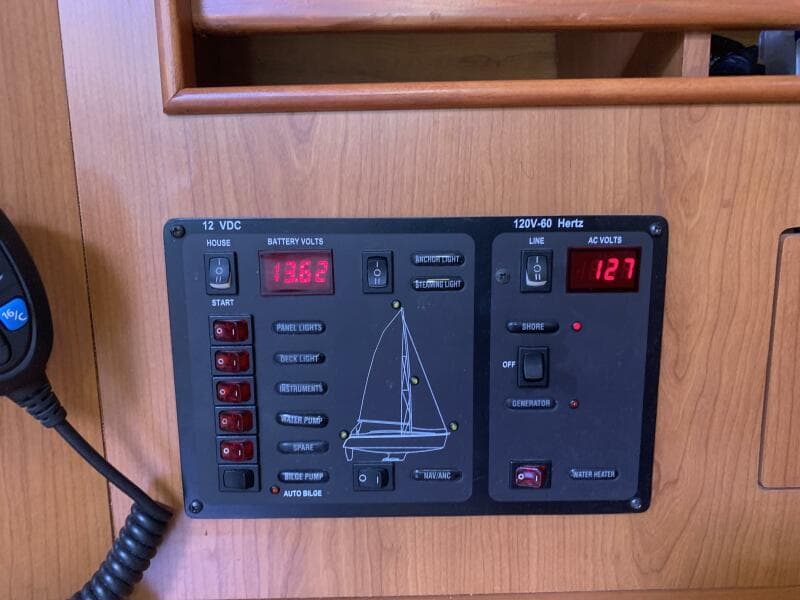

Electrical

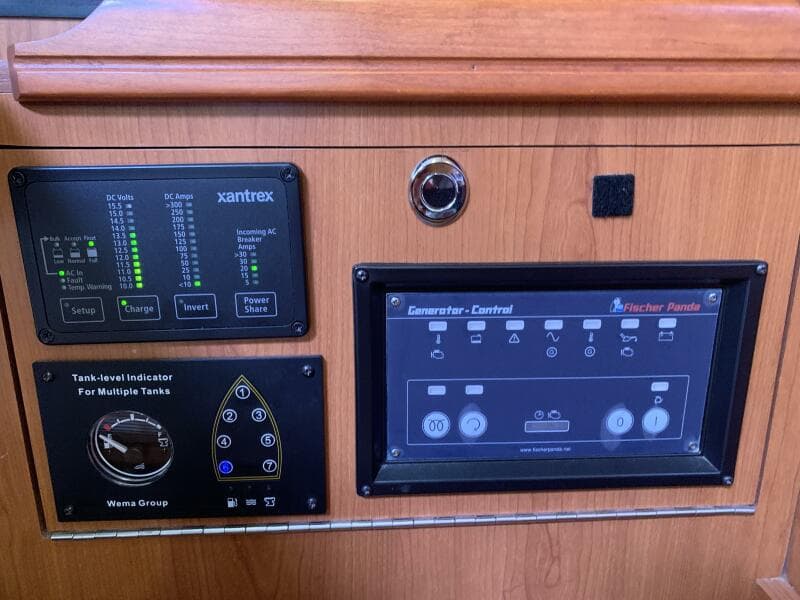

Generator: Fischer Panda, Model PMS 6000 ND With new digital panel (2020) 359 Hours

Inverter/Charger: Xantrex Freedom – new 2020

Generator kit: Generator spare parts

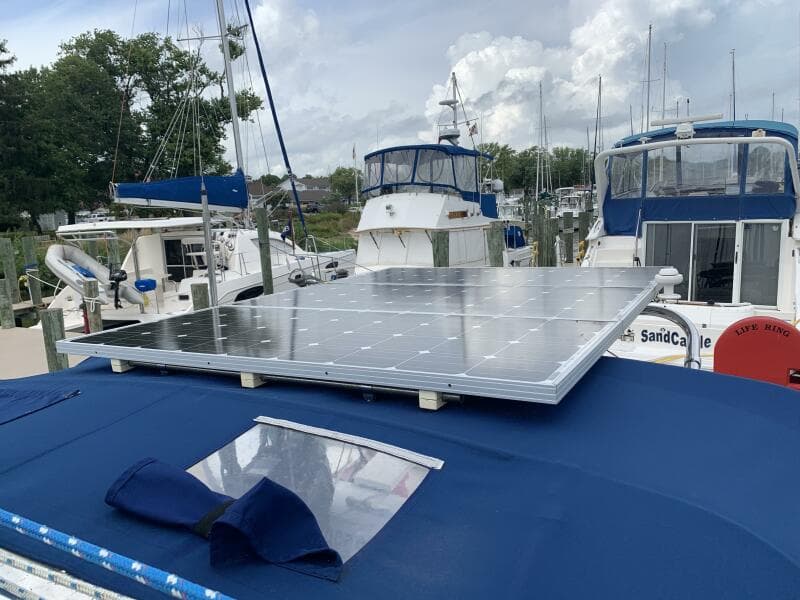

(3) Grape Solar 180 watt panels with Grape Solar 40 amp PWM charge controller. 540 amps total solar power

(3 ) 4D Lifeline AGM batteries (2018) 603 total amp hrs.

Group 24 AGM start battery for engine (2021)

Cable TV inlet

(2) 30amp 120v shore power inlets

(2) Charles Marine isolation transformers Model ISO-G2

(2) 30amp 50' shore power cords

Assorted pigtails and adapters 50amp-30amp,30amp-(2) 30 amp splitter

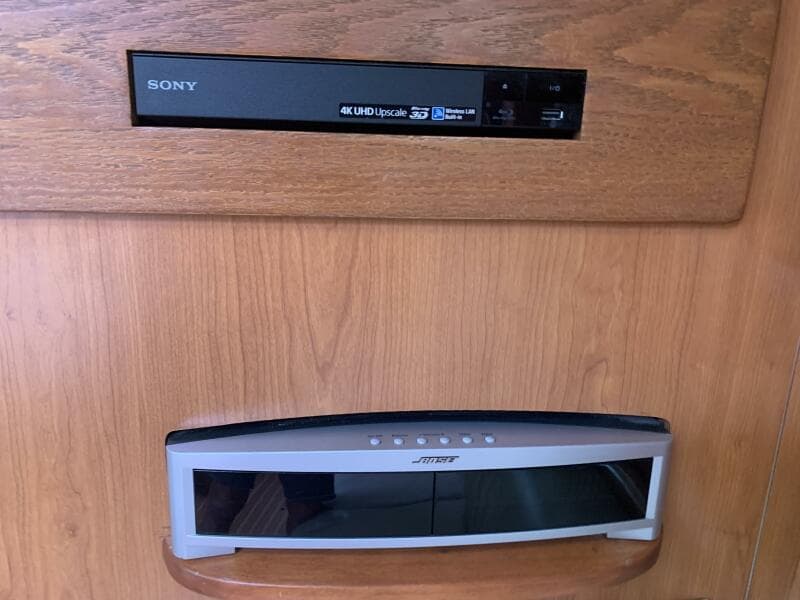

A separate small inverter dedicated to the TV/Stereo

New TV Antenna w/ Booster (2020)

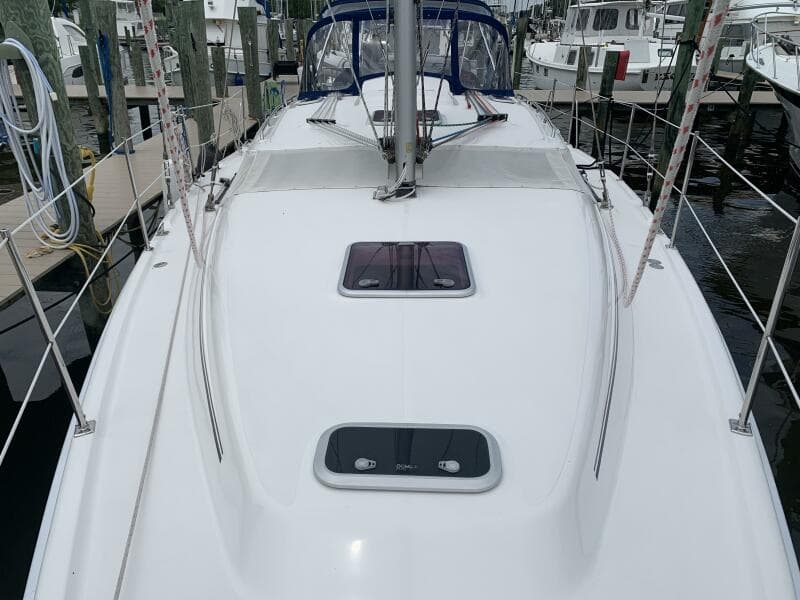

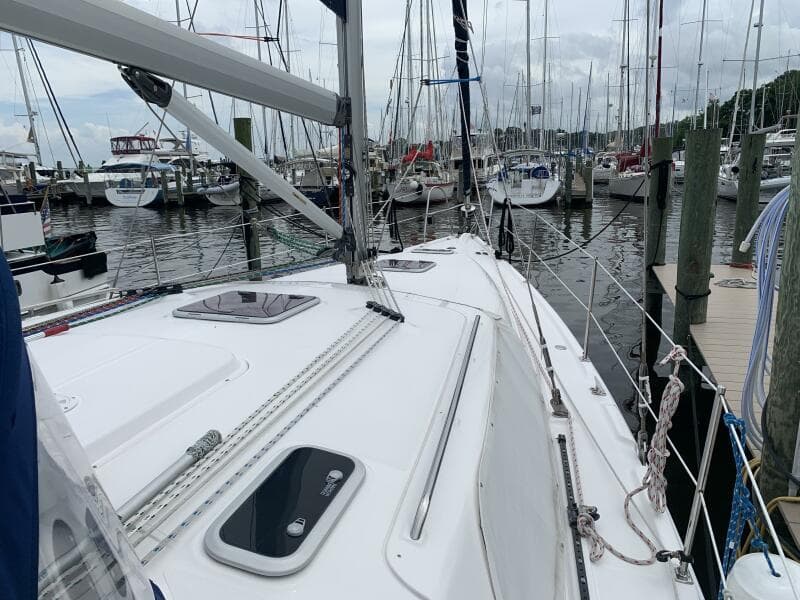

Hull and Deck

Wide open deck with a sexy no nonsense appeal. Good seating in cockpit and for lounging on the deck or stern.

Easily boarded via the stern swim platform

Haul out for bottom paint and speed prop (2020), Inspection and touchup 2021

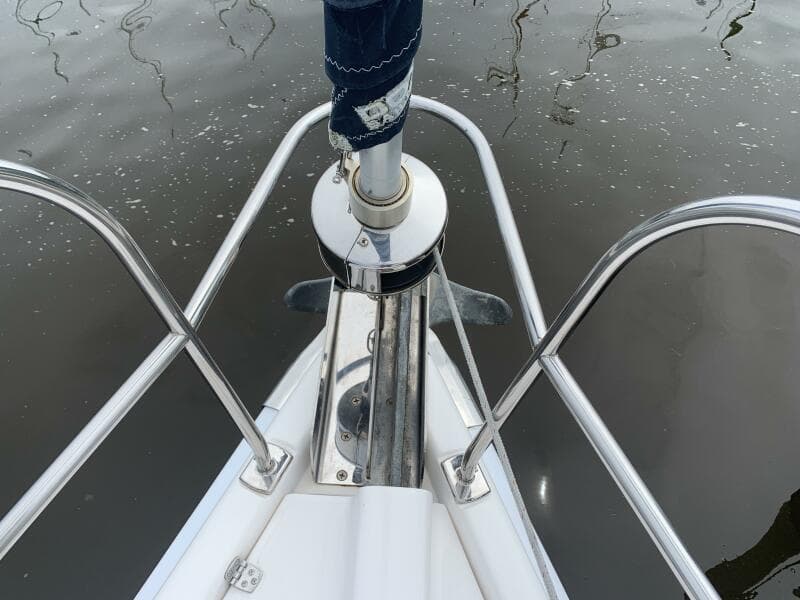

Anchor roller, double offset

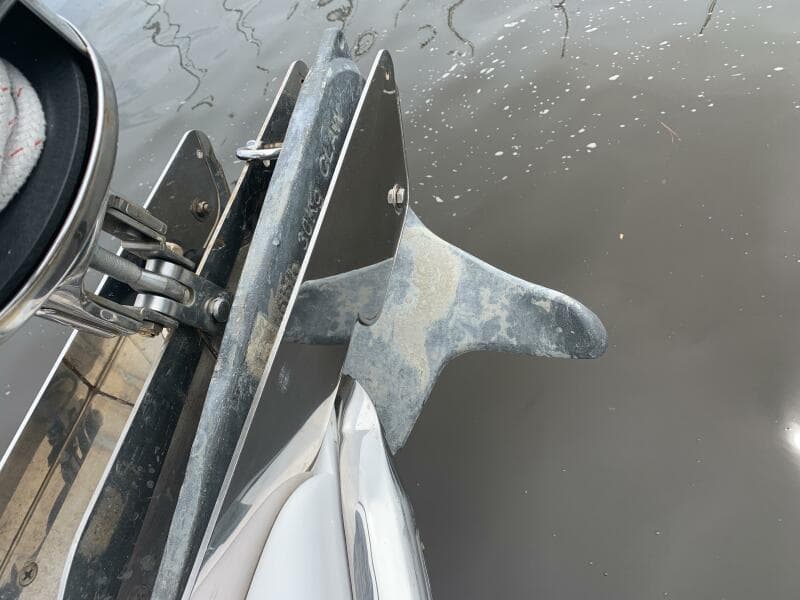

Bruce 66 pound anchor with 120 “ 5/16 chain and 140” 5/8 rope rode

Delta type 55# anchor with 30' chain and 150' rope rode

Danforth type 18# anchor with 15”chain and 50” rope rode

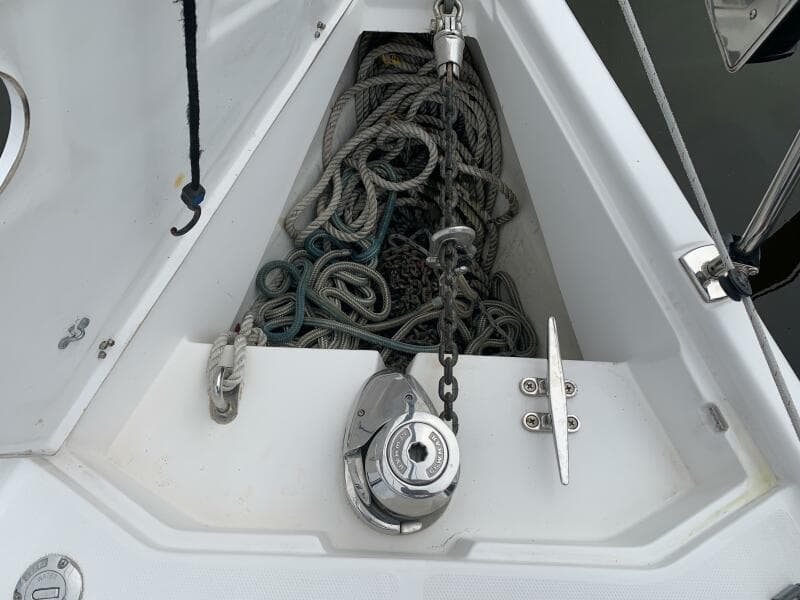

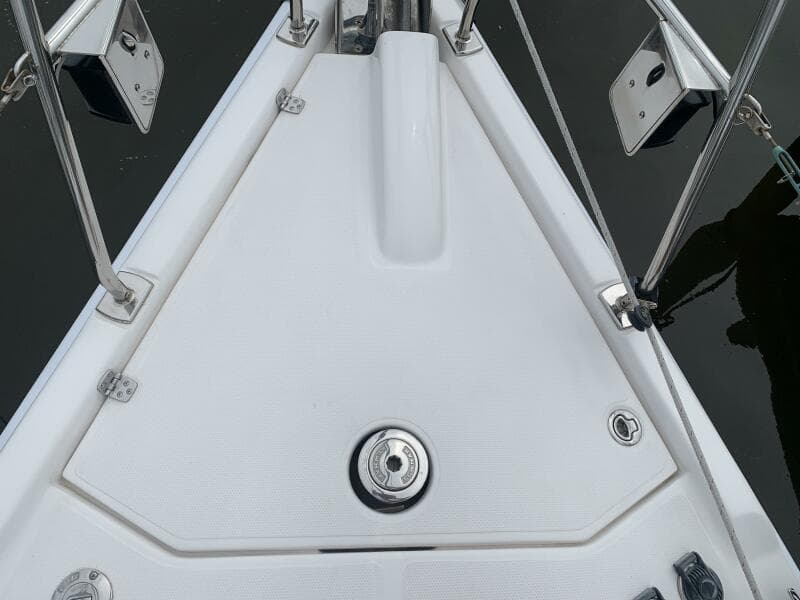

Anchor well with space for rode and chain

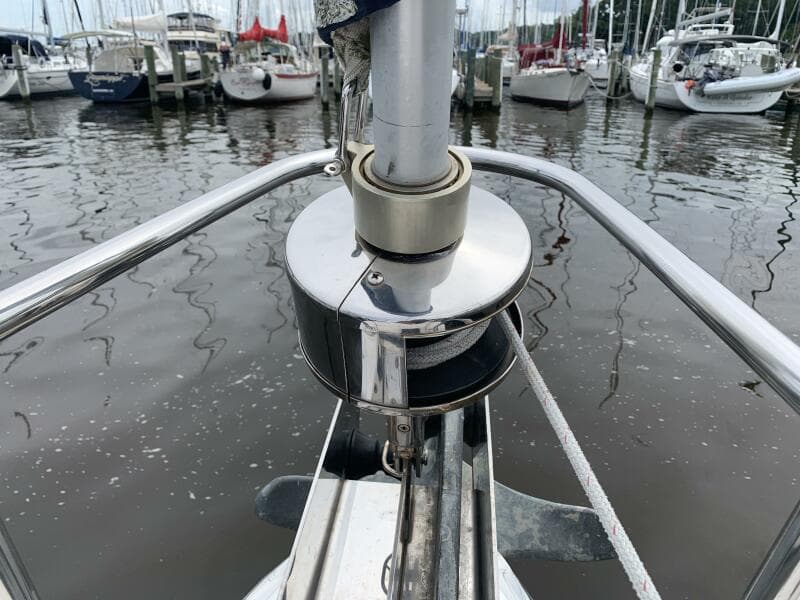

Anchor windlass: Lewmar RKI-50-FOC25

Bow pulpit, stainless steel

Deck, handrails, stainless steel

Lifelines, Double with 3 gates and stainless steel stanchions

Fresh water hook-up, dockside

(5) Hatches

HKT Kevlar hull reinforcement

Hull, FRP/balsa sandwich above waterline, solid FRP bottom

Hull, structural grid reinforcement

Keel, shoal

Maxguard gelcoats for UV protection

Mooring cleats, (8) stainless steel

Nonskid deck

(2)Ports,fixed

(8) Ports openings

Rub rail, full wrap with stainless steel insert

Rudder, balanced spade with stainless steel shaft

Through bolted hull to deck jointDavit: purchased from Hunter, custom base plates

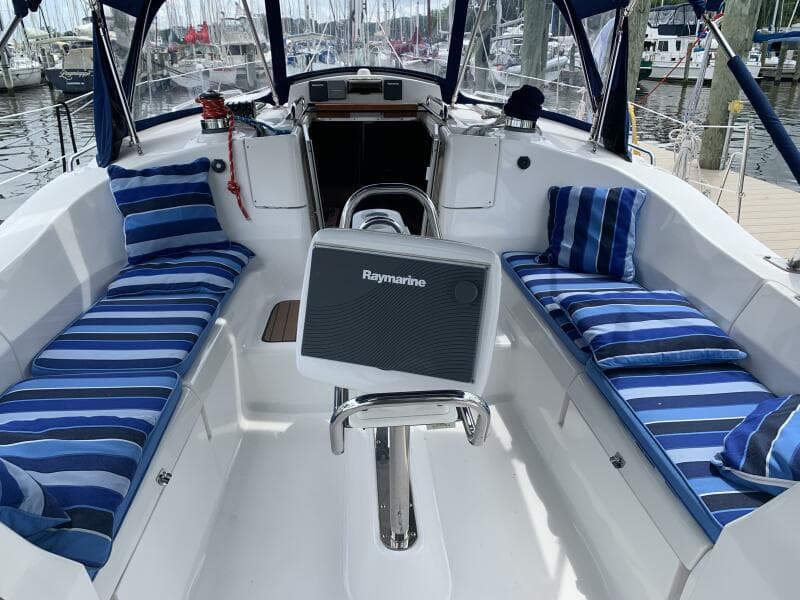

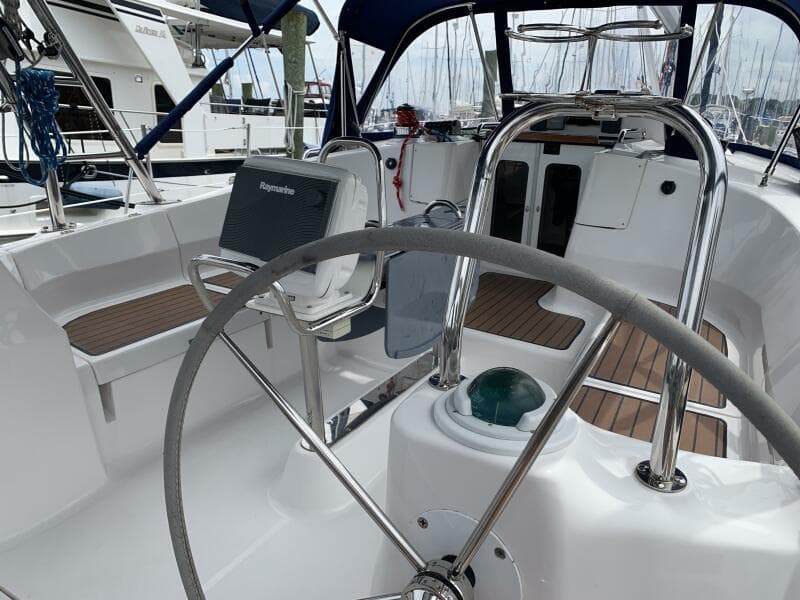

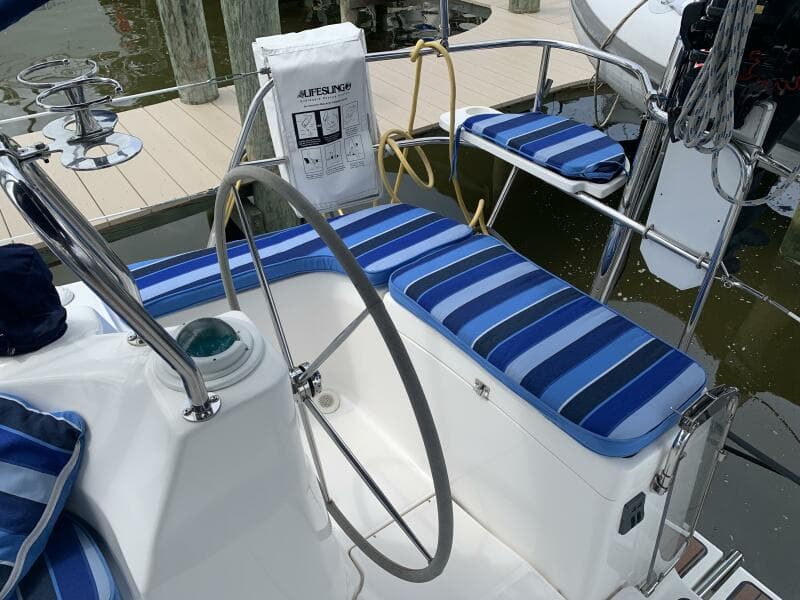

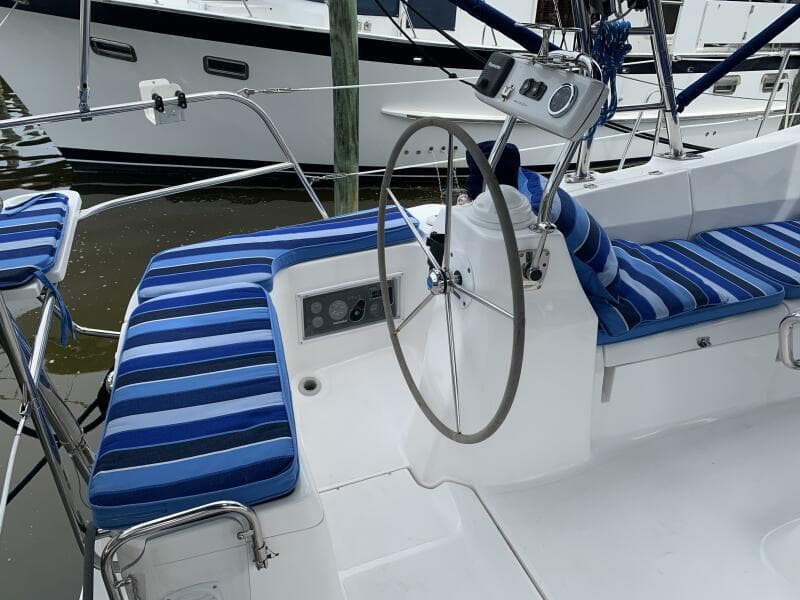

Cockpit

Bimini: Additional SS tubing for frame, custom canvas over companionway

Full size dodger Strataglass full enclosure with side curtains (2018)

Custom covers: Winch covers, dual helm covers, cockpit table cover, sliding top over companionway as well as the instruments mounted in the sea hood.

Swim platform with stainless steel telescoping ladder

Cockpit traveler arch, stainless steel with mainsheet traveler

Cockpit / transom shower with hot and cold fresh water

Custom Sunbrella cockpit cushions (2018)

Safety Equipment

Global fix IPRO 406 Mhz EPIRB with GPS)

(3) Carbon monoxide and (3) smoke detectors

Emergency tiller

(3) Fire extinguishers

Fire extinguishing system, automatic hypalon engine room

GFI receptacles

Hand-held flares

Primary bilge pump 1500 gph (2020) (A spare 1500gph pump on board)

High bilge water alarm and secondary bilge pump 4000 gph

Manual bilge pump

Life jackets (6)

NMMA Certification on all systems

Horseshoe and Life Sling systems

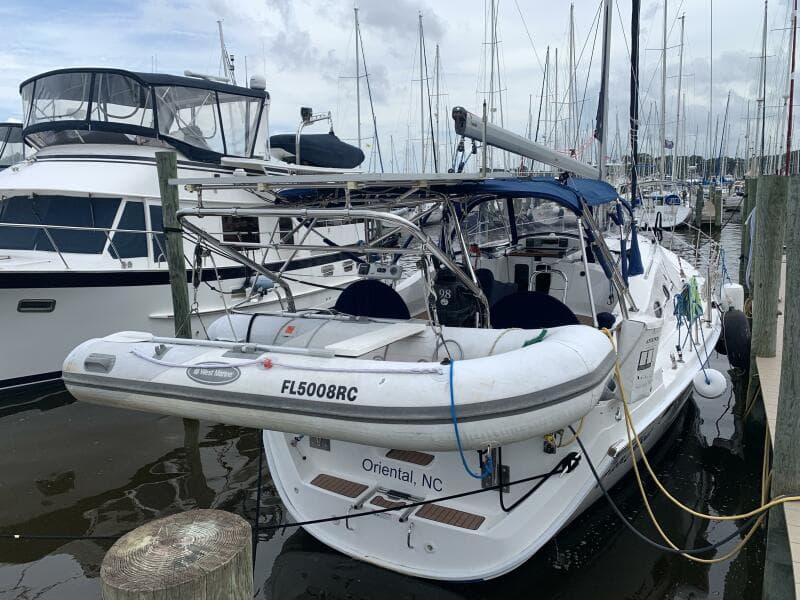

Tender

Dinghy: Westmarine RIB 10”3” inflatable(2016)

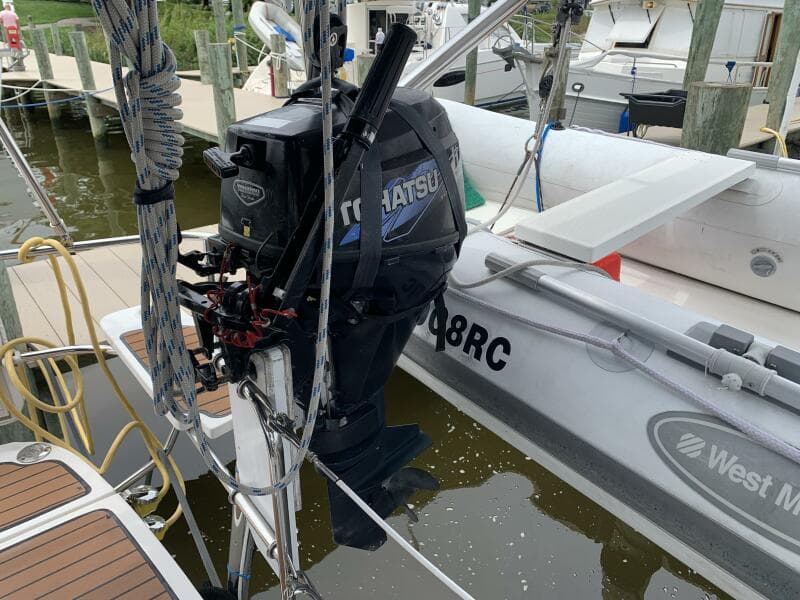

Dinghy motor: Tohatsu - 9.8 HP

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Integrity Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

OWNERS PLANS HAVE CHANGED. FLOTE ABOUT AWAITS NEW OWNERS. FULLY EQUIPPED AND READY TO CRUISE! NEW STANDING RIGGING JUNE 2025.
