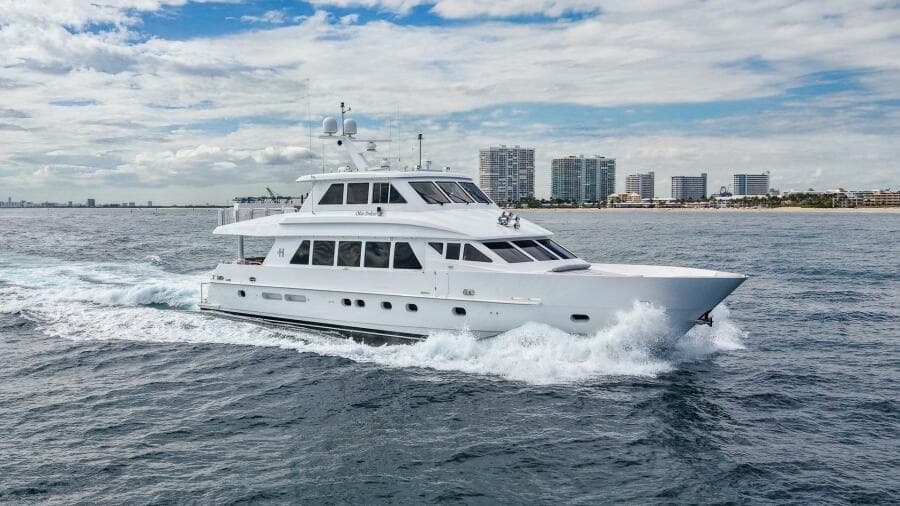

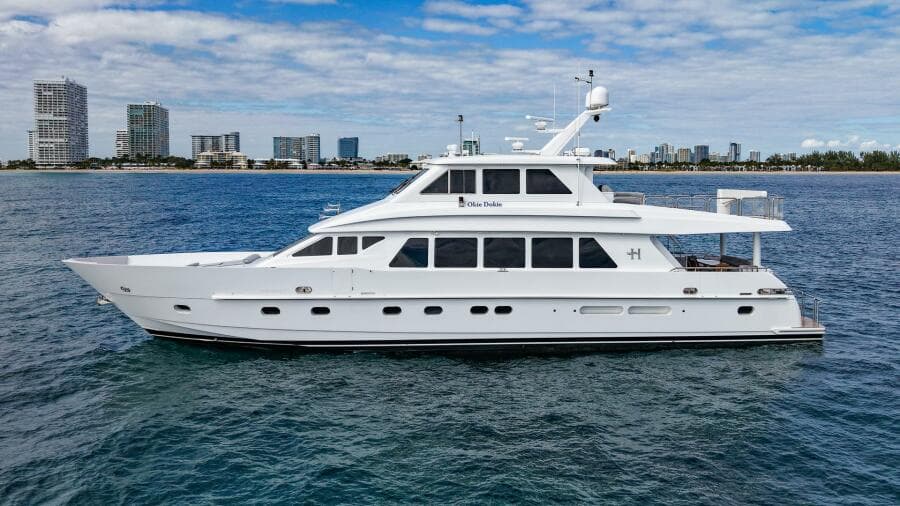

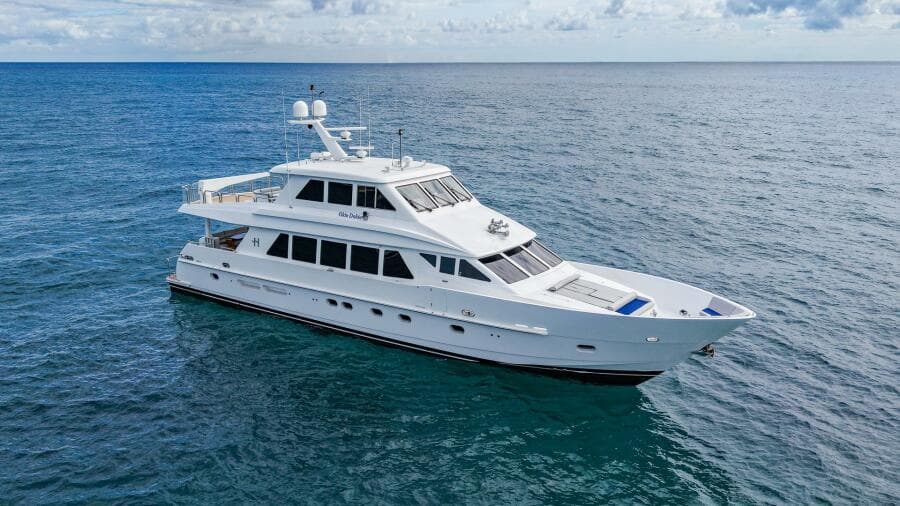

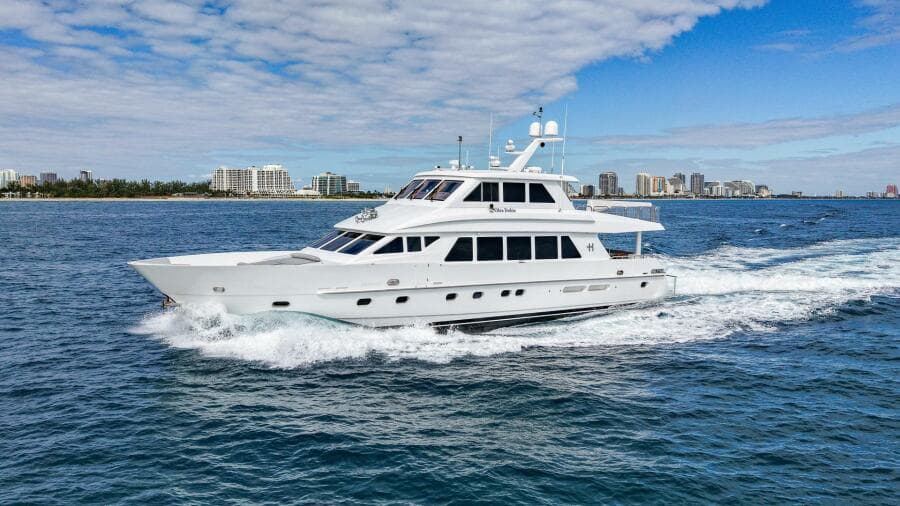

2009 Hargrave

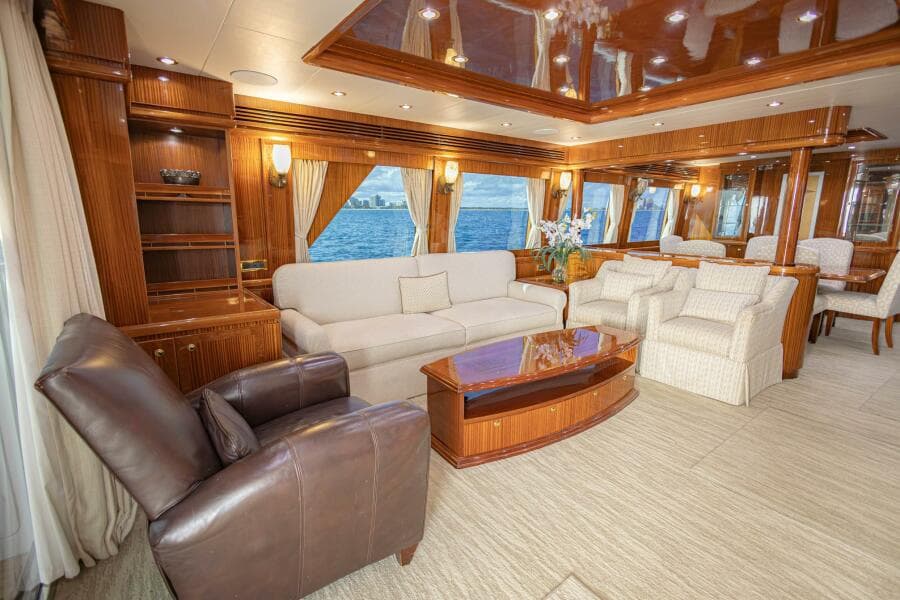

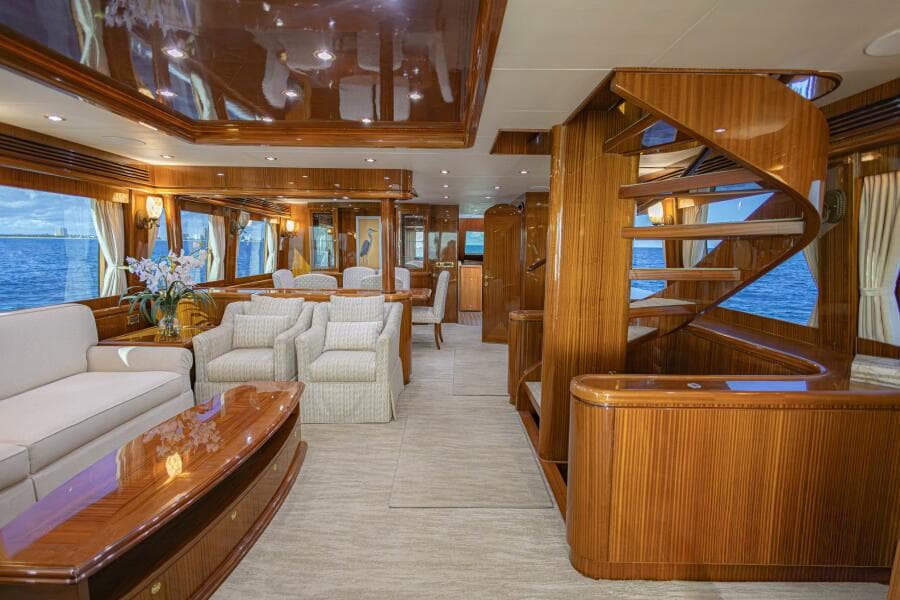

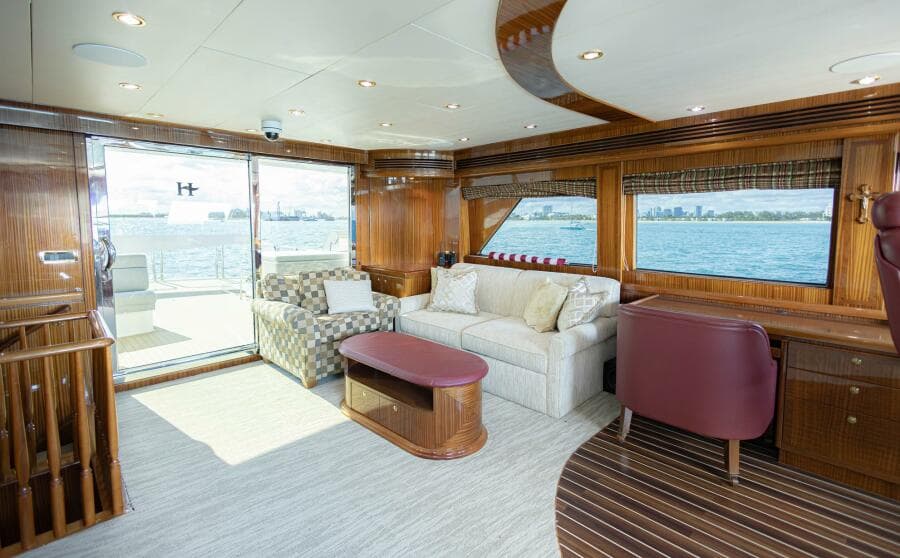

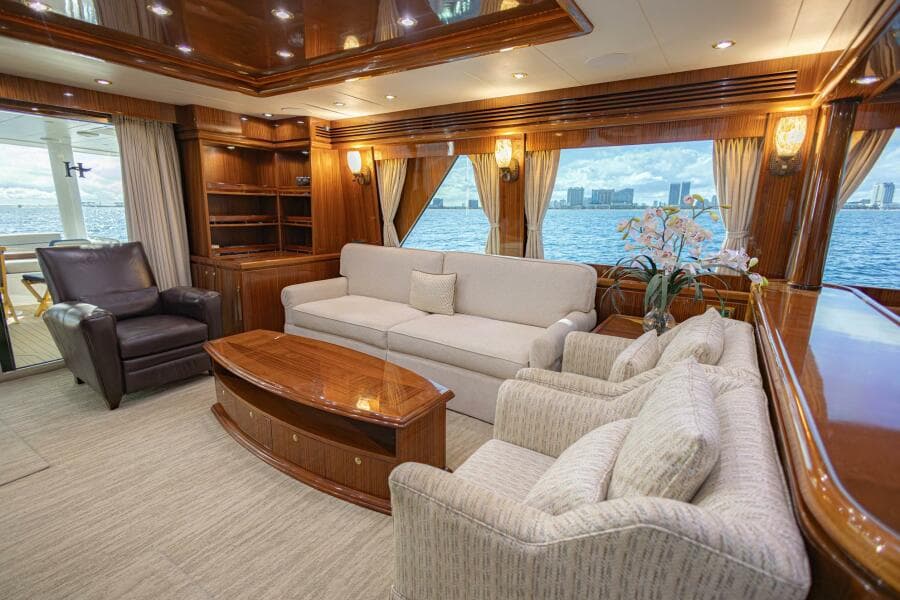

The interior of Okie Dokie, which was designed by Yacht Interiors by Shelley, has a relaxed main salon with Gloss Sapeli Cabinets and cornice board.

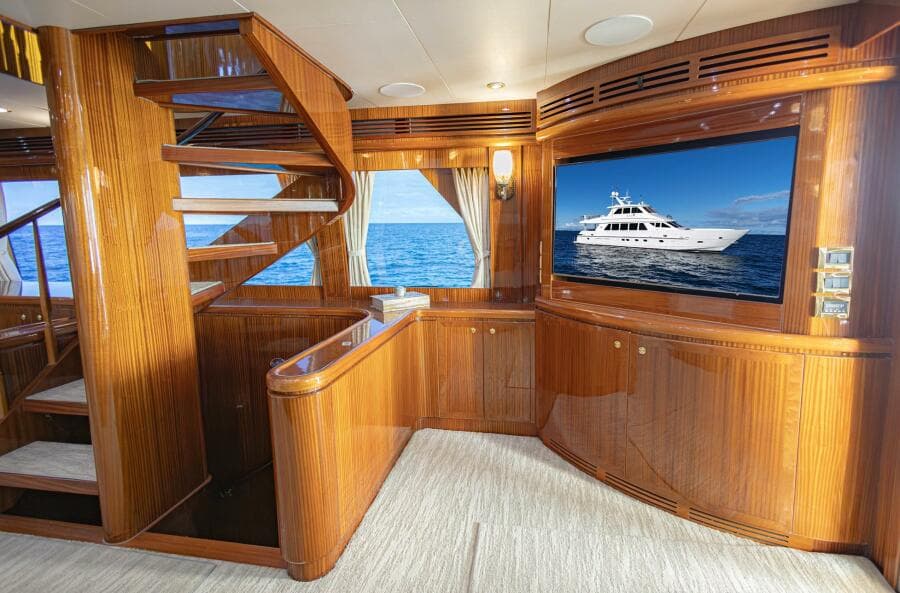

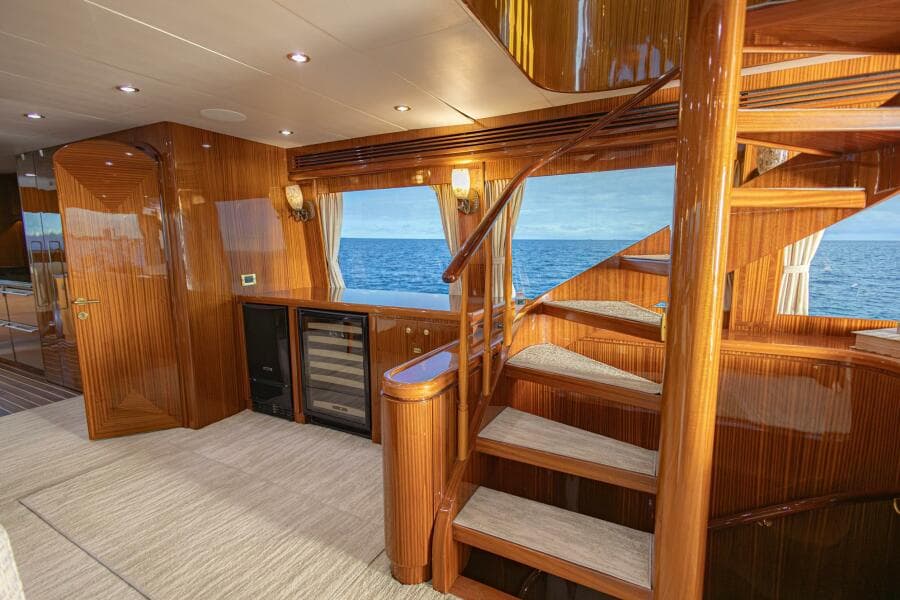

Entering from the aft deck through an air assisted automatic clear glass door, you will first notice how it exudes comfort with the use of soft fabrics and inviting colors. To port, there are bookselves and comfortable seating area. Amidships, staircase leads to a private owner's suite, and forward engine room door for easy access is rough seas. There is also a staircase leading upward to the Sky Lounge. Beside the staircase on the main deck, there is a wine storage cabinet and icemaker.

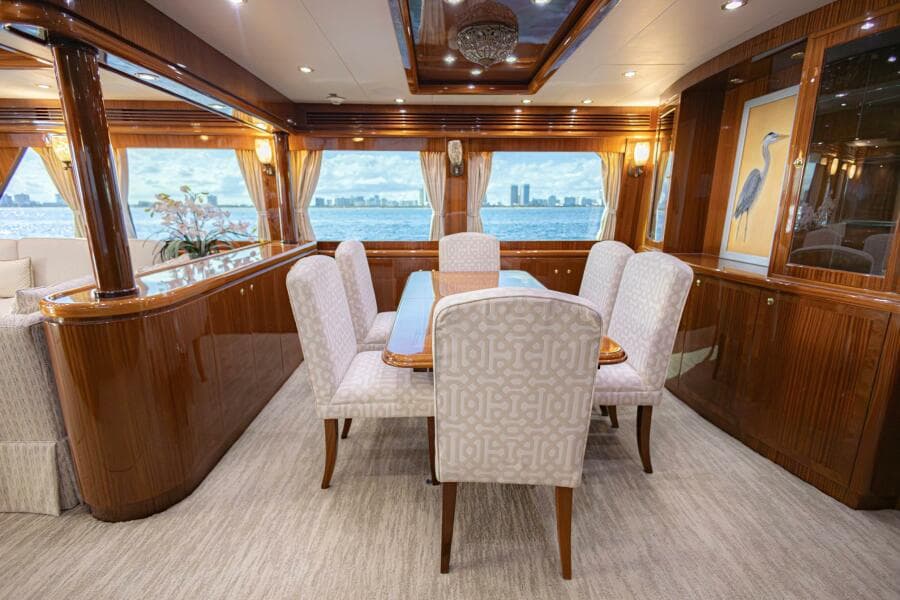

DINING:

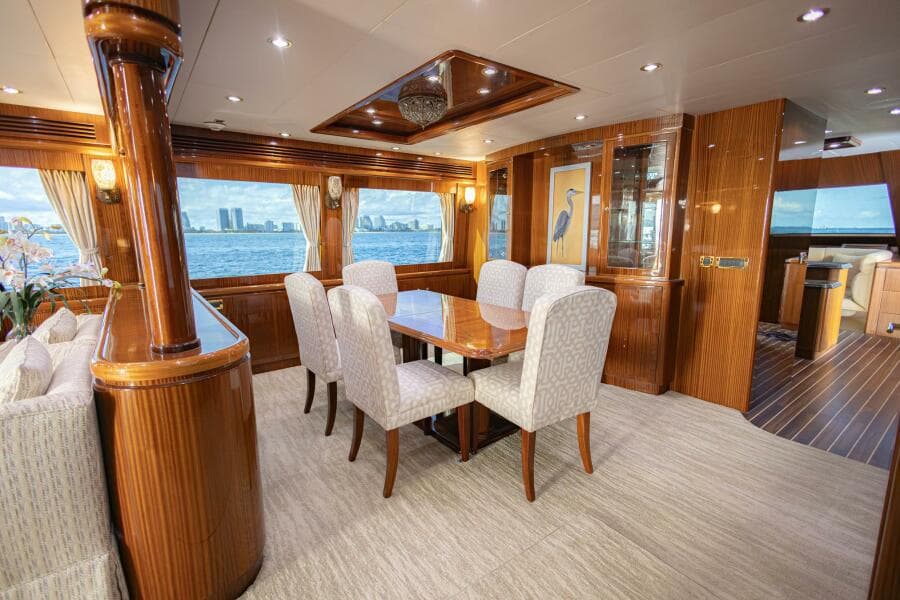

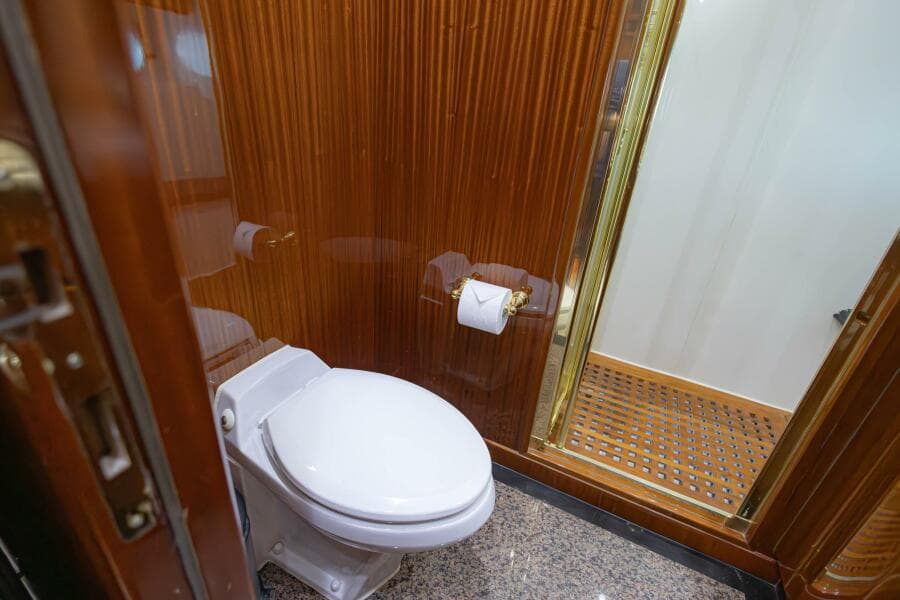

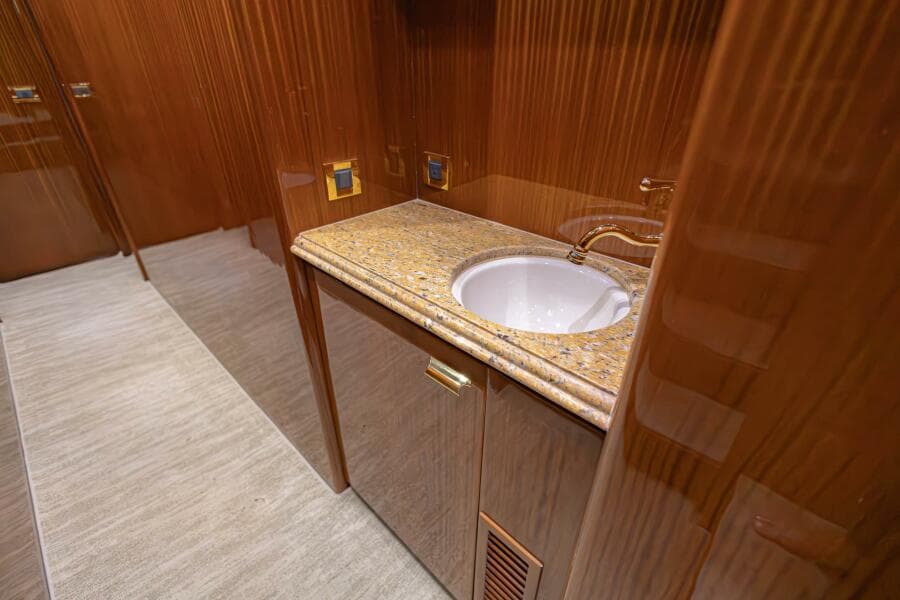

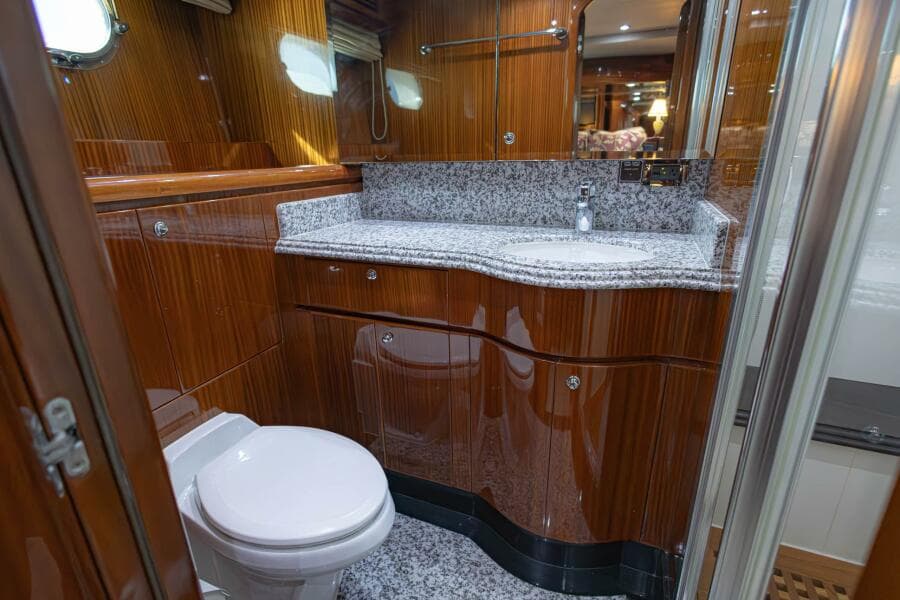

Forward of the salon is the formal dining area for eight guests, a console with Green Butterfly granite counter top and China cabinets on either side. The custom Dining table is Gloss Sapeli and Gloss Maitore. The main day head is conveniently located forward of the salon and aft of the galley. It has beautiful Gris Pearl granite slab accented with Black Absolute granite and Gris Pearl borders.

GALLEY:

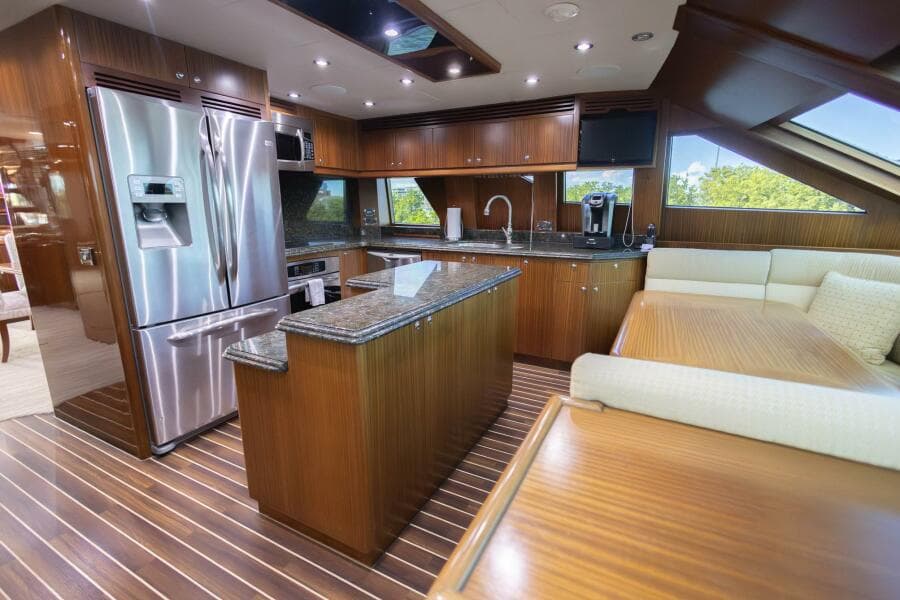

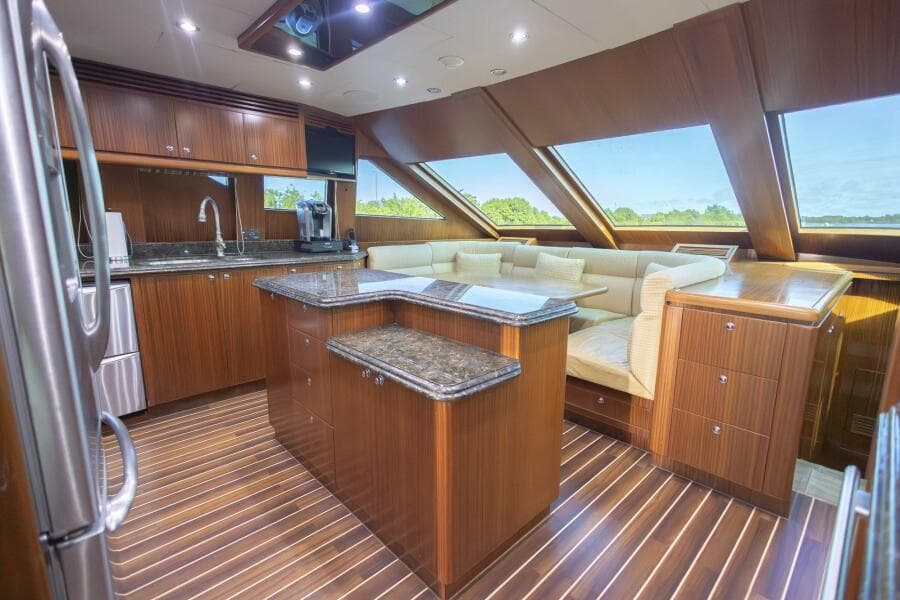

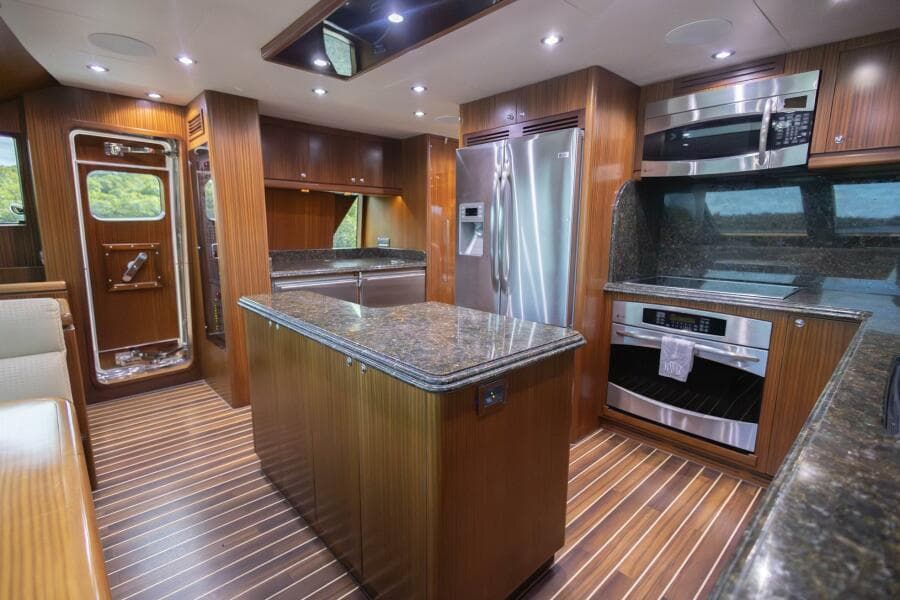

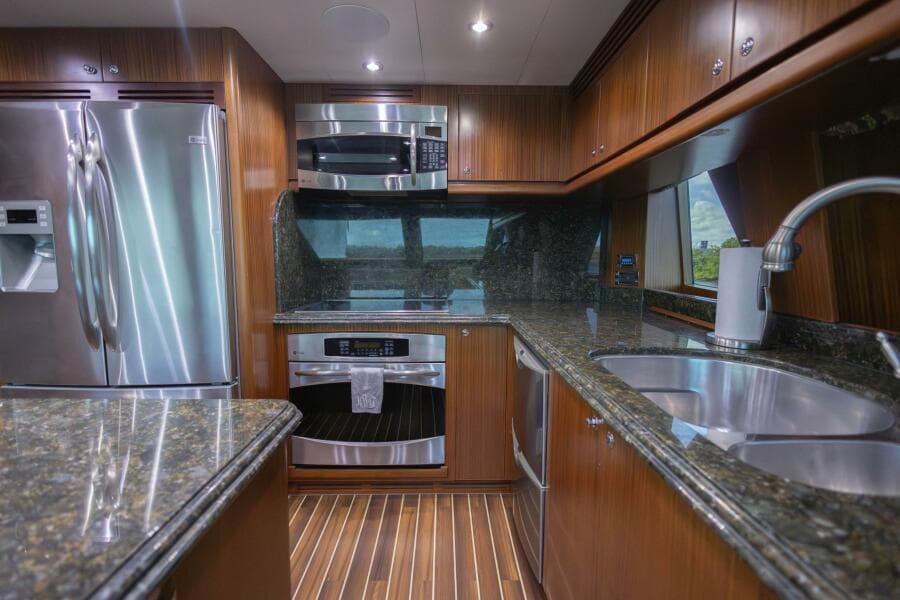

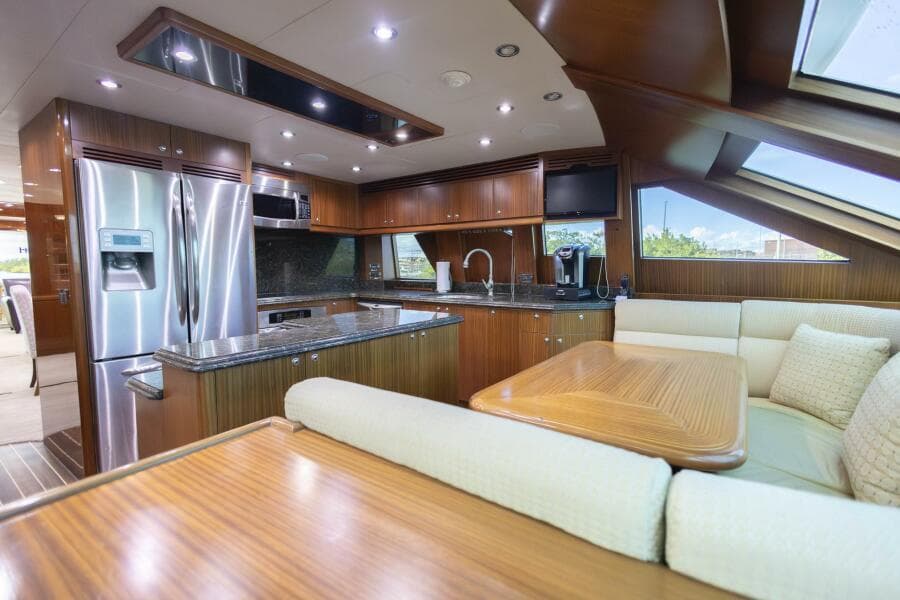

A Hargrave signature feature is a very large, full beam country kitchen style galley with a layout designed especially for a chef that enjoys entertaining guests while stirring up delectable cuisine. There is a settee forward with ample seating. The galley has Amtico –Rosewood/tick finish plank flooring and green butterfly granite countertops.

At the forward end of the galley is a staircase to the VIP and Guest Staterooms.

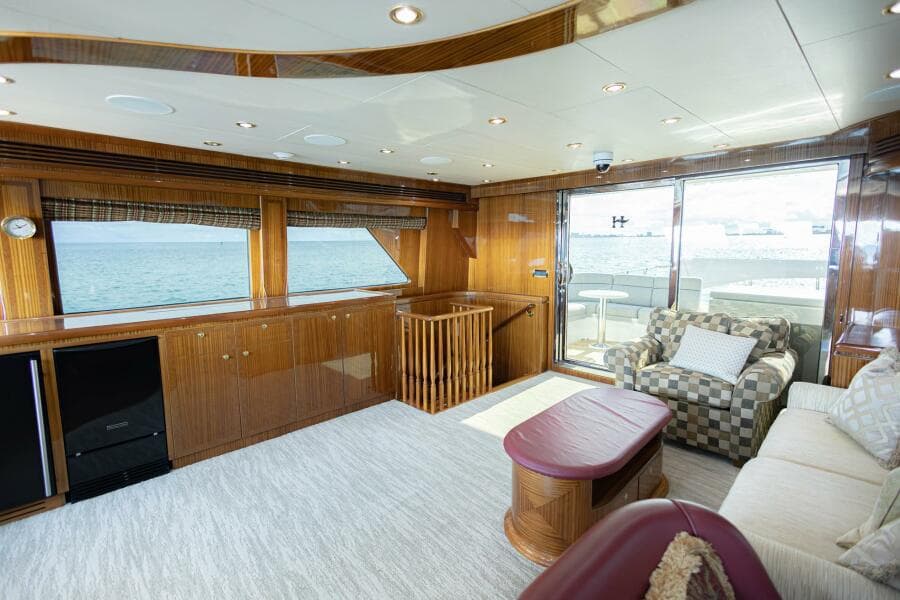

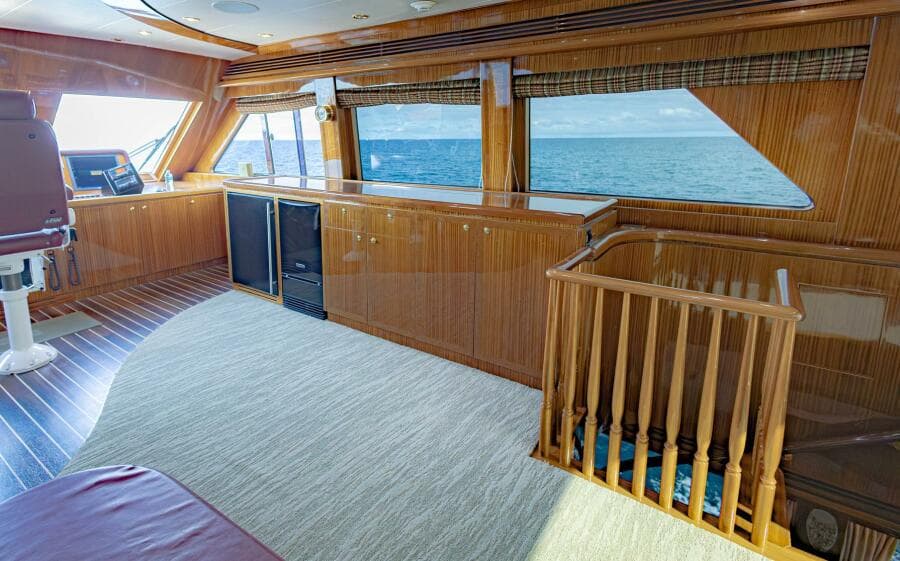

SKY LOUNGE:

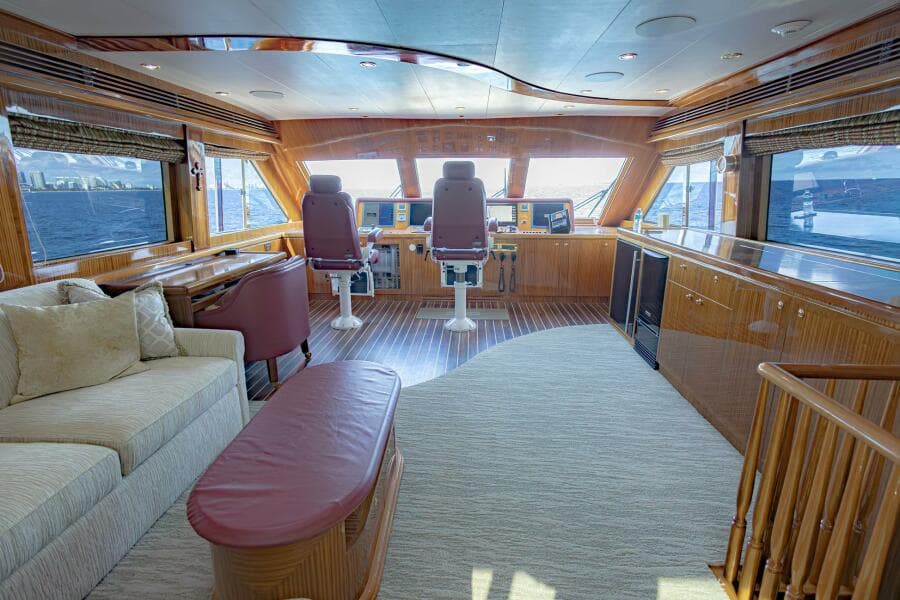

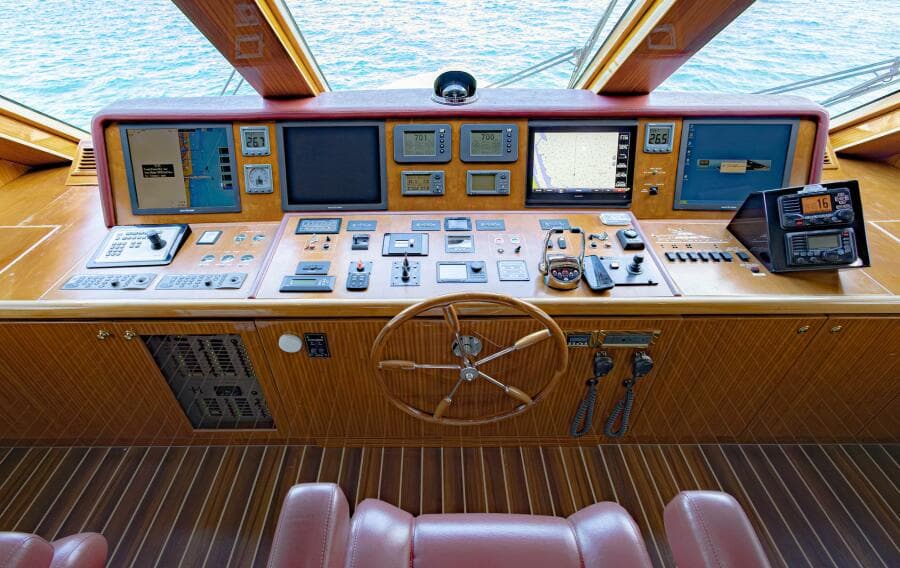

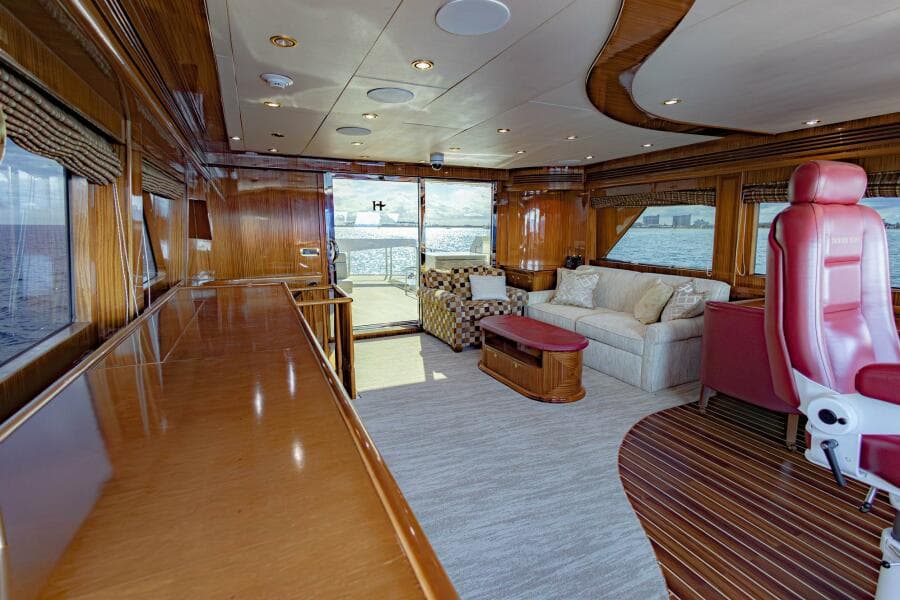

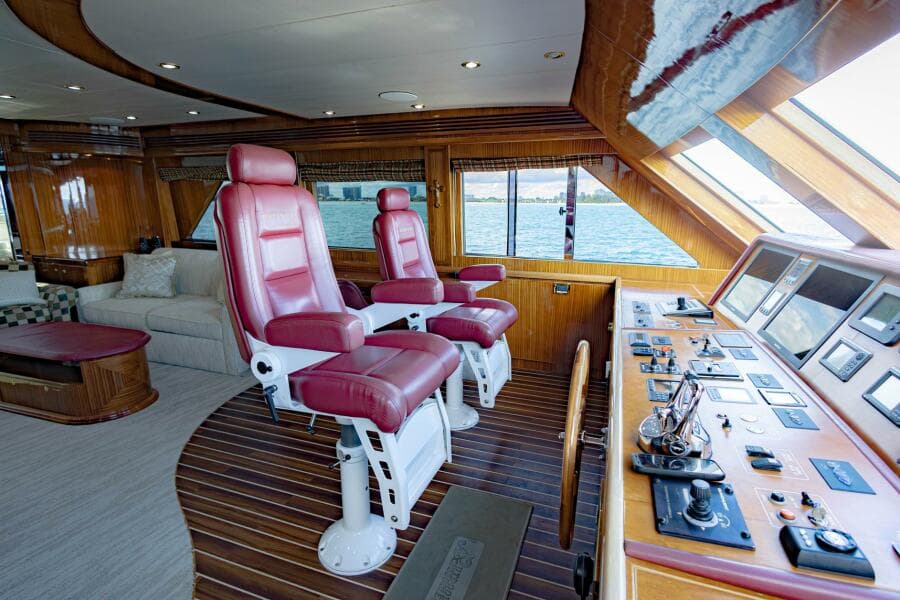

This well-designed gathering space is designate for masculine appeal. Utilizing rich tones and leather upholstery we have created a warm and fabulous space for entertaining guests. The helm station is forward with an impressive instrument console, Stidd chairs and a ships desk.

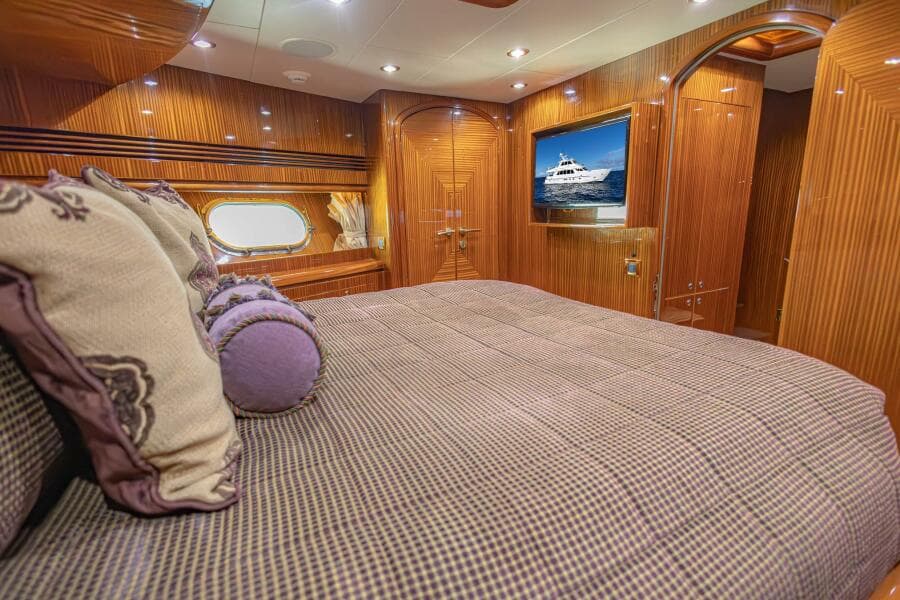

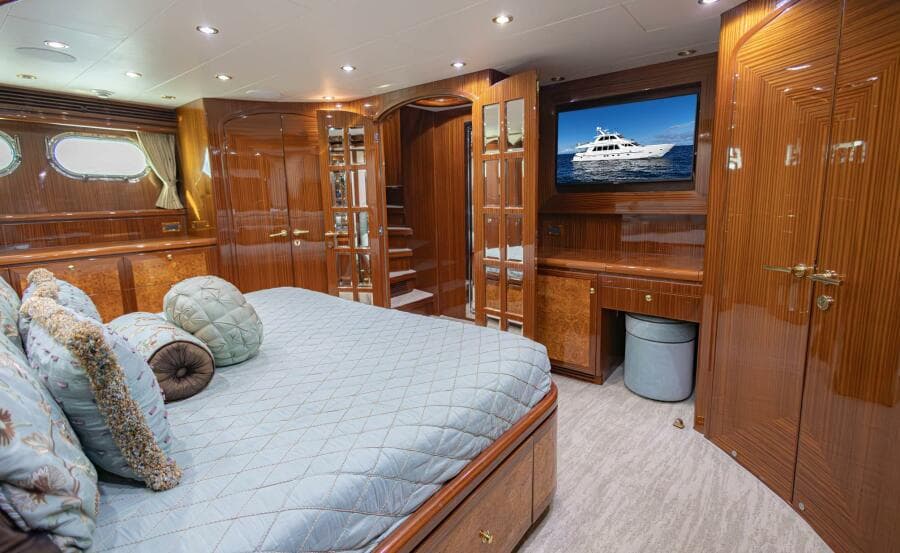

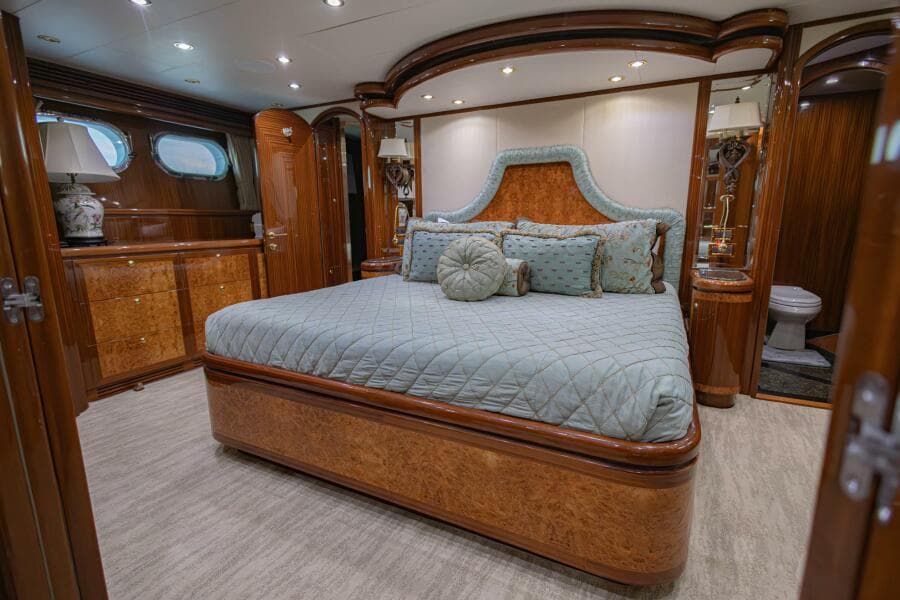

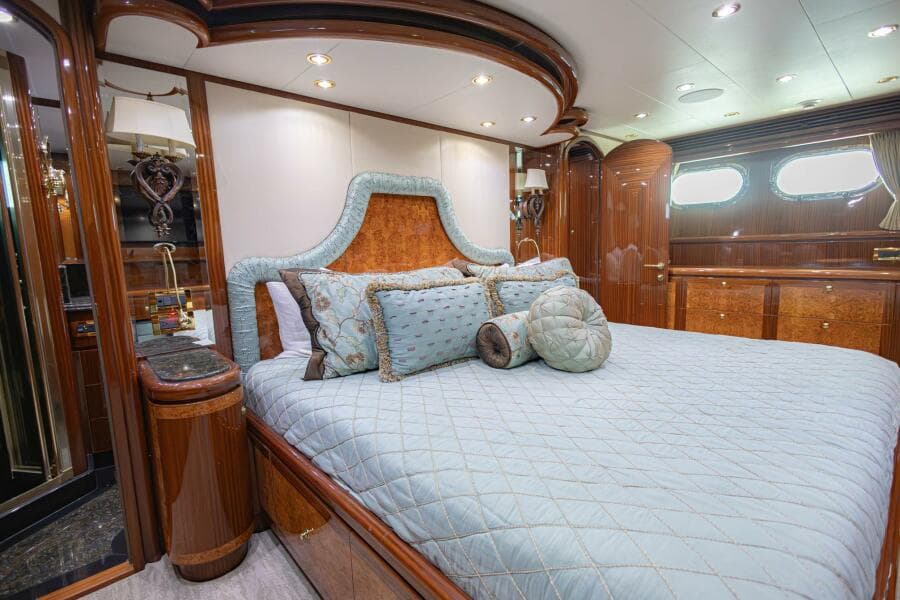

MASTER STATE ROOM:

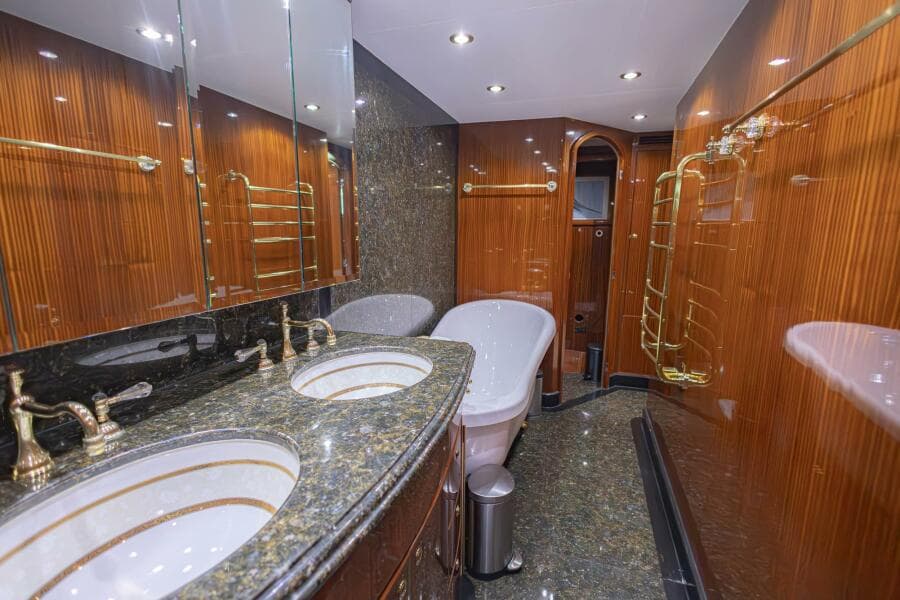

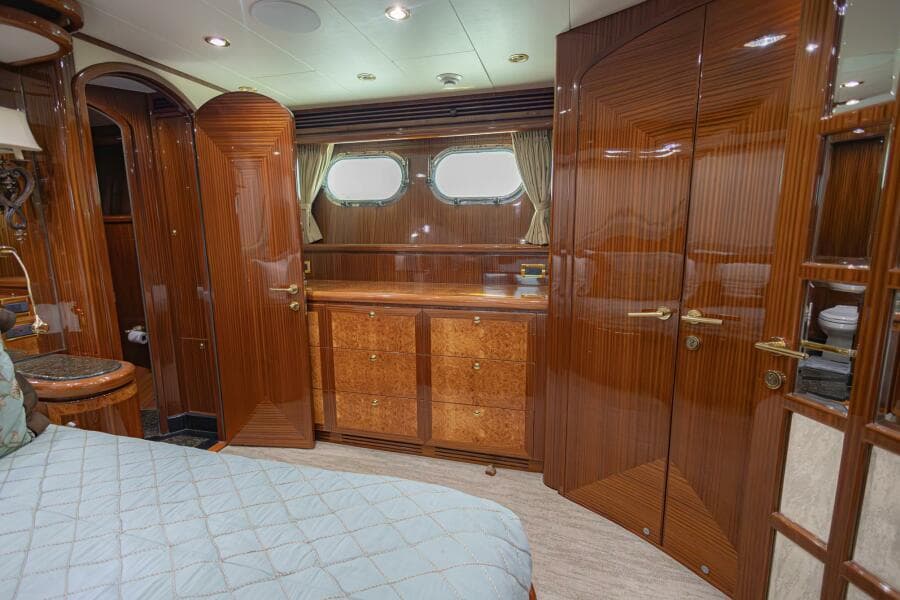

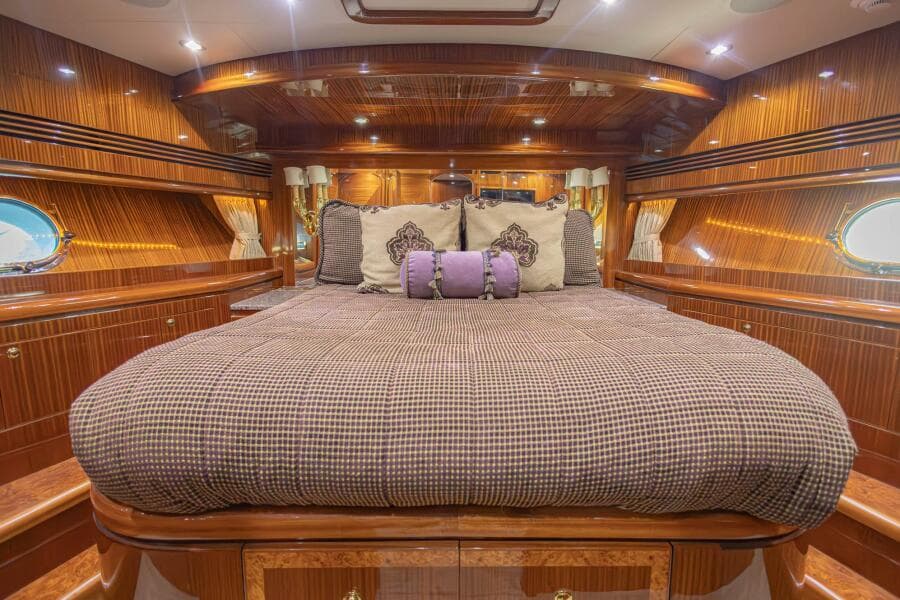

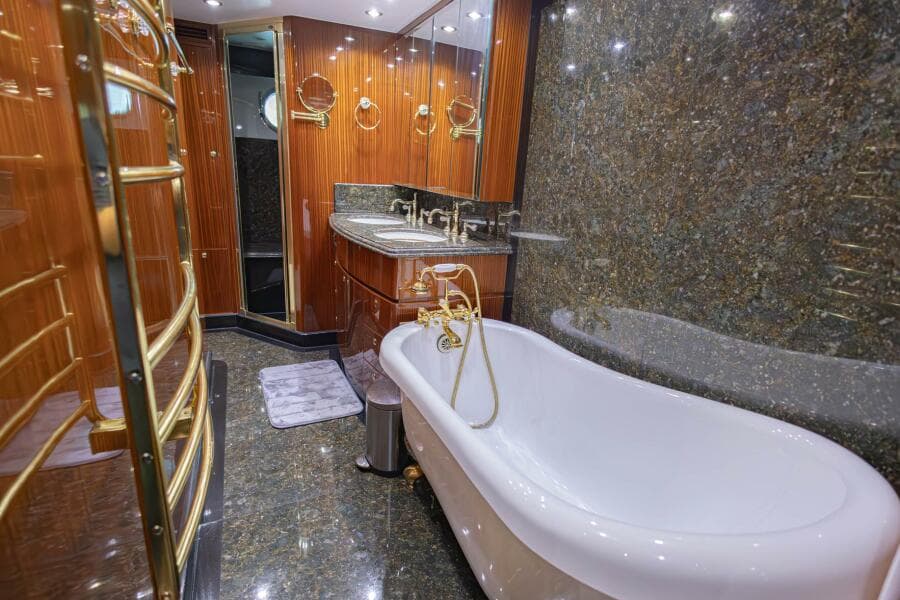

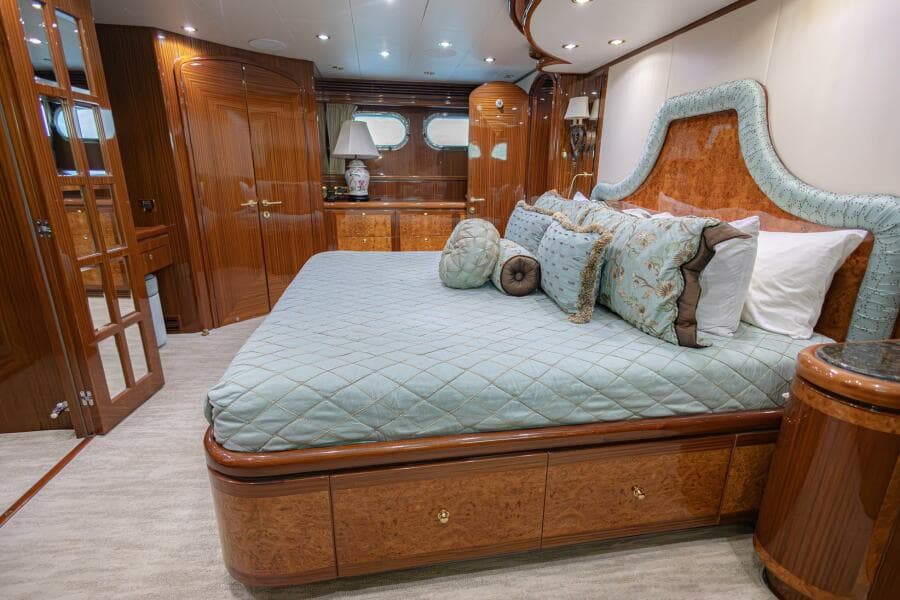

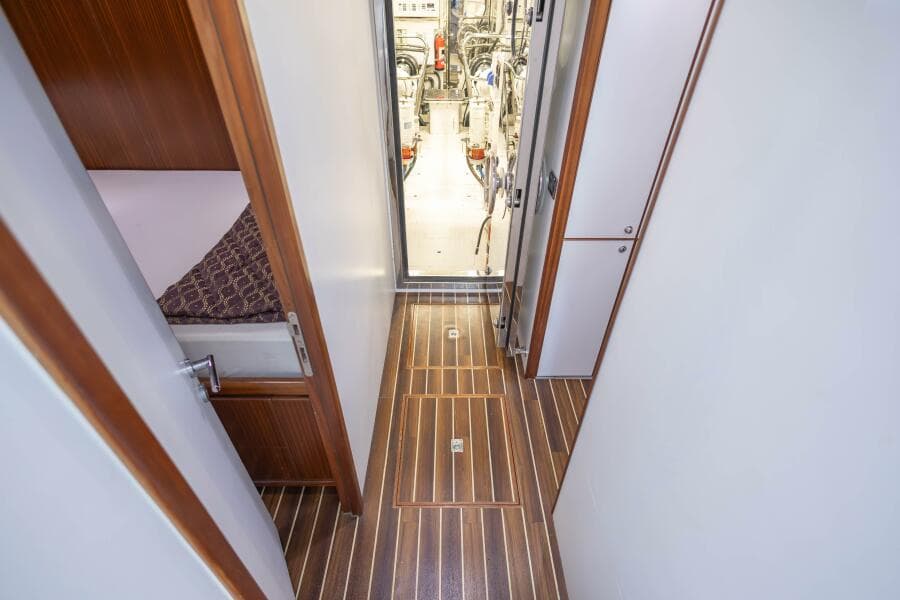

The entrance doors to the master are stunning with a Gloss Sapeli frame and Clear mirror inserts. The King-Sized headboard top roll upholstery with nightstand topped in Green Butterfly granite on both sides. The master head has a granite shower, towel warmer, and a tub. The Engine room can be accessed from both the crew area after and off the master stateroom.

CREW QUARTERS:

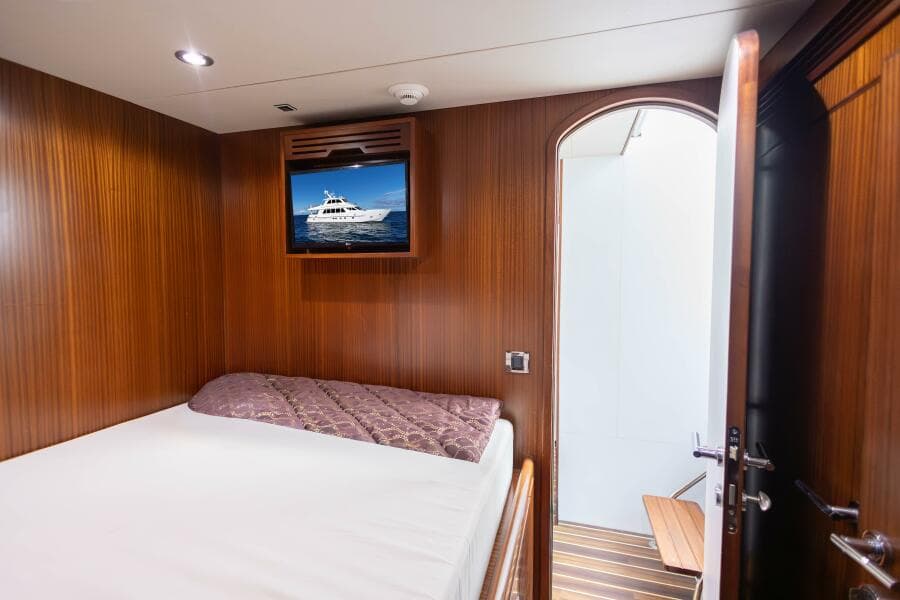

Queen berth captains quarters with wardrobe and tv. Full head and shower.

600 Gallon Stainless Steel Water Tank

V-Shaped Keel w/ Longitudinal stringers

Fiberglass hand laid hull & stringers vacuum bagged w/foam core reinforcement

FRP Bulkheads

FRP Main Deck and floors

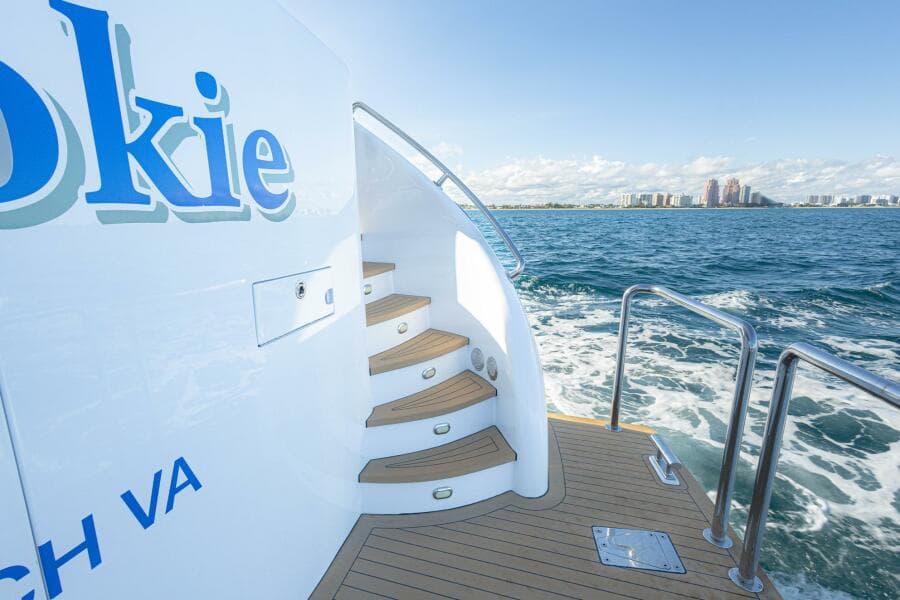

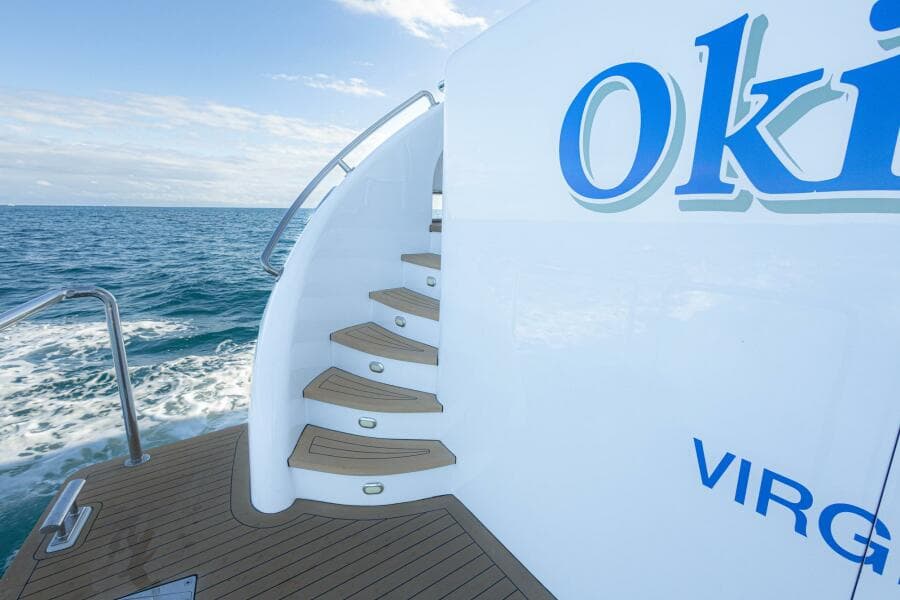

Fiberglass swim platform w/ ladder

Stainless steel 316 plow anchor (200 lbs),w/300' chain & Nilsson V4000 24v windlass

Built in hand held shower on swim platform

4" stainless steel 617 shafts equivalent to Aquamet 22

4 Blade Faster bronze propellers

Emergency tiller

Stainless steel rudders

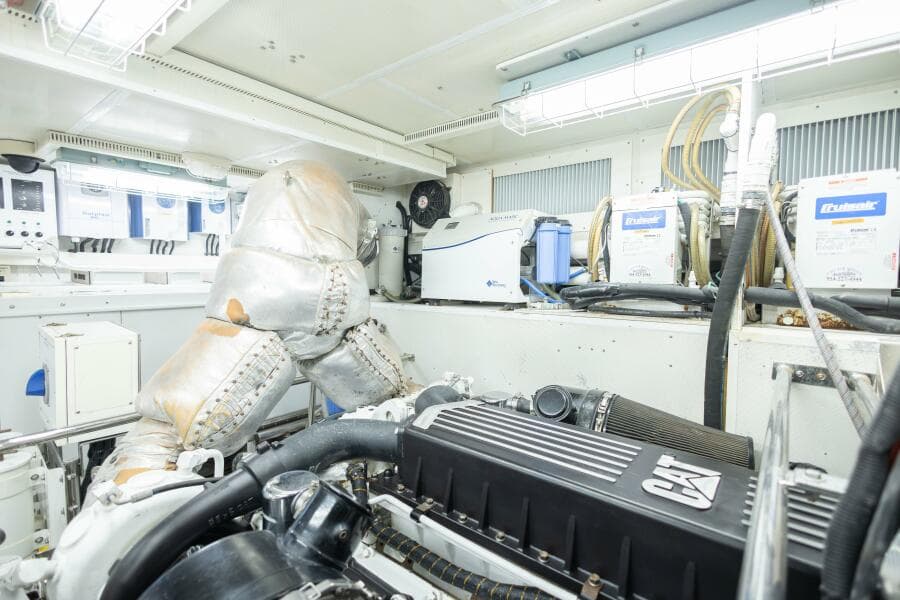

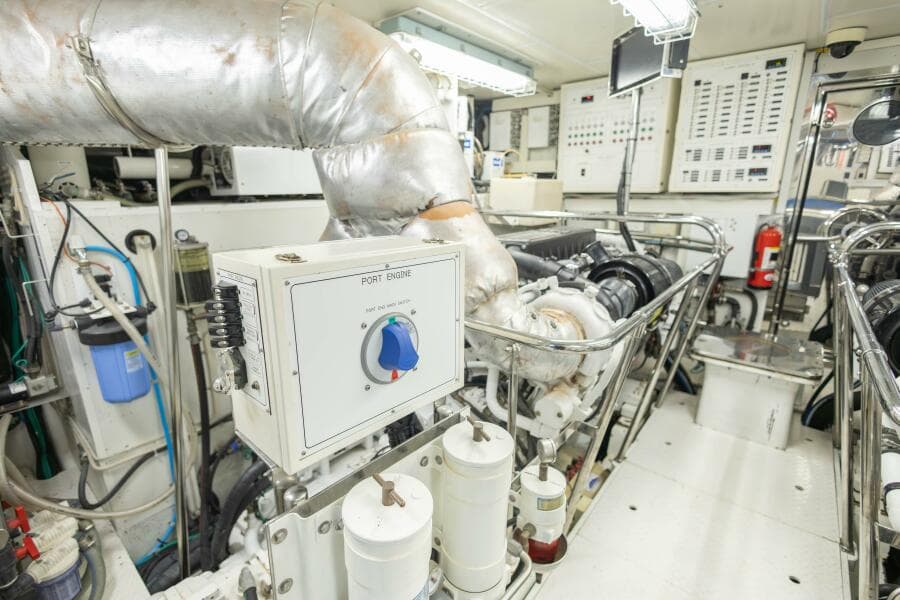

Sound and heat insulation in ER bulkhead fwd, aft & ceiling

Remote windlass operation from Skylounge

Hydraulic Bow Thruster HPS-36hp

Hydraulic steering by Hynautic, adaptable to auto-pilot

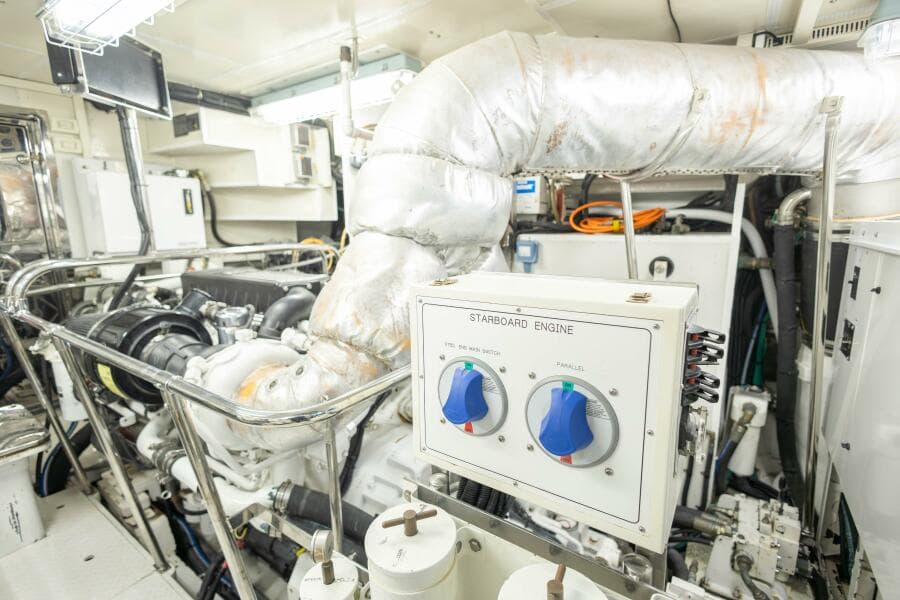

Engine Alarm System for low pressure & high temperature supplied by Cat

24v lights and 110v power receptacles in Engine room (4 each)

Custom underwater engine exhaust w/idle by-pass

High volume 24v Groco Water Pressure Pump (30lb)

100 Gallon Holding Tank w/ indicator

Fresh water filling faucet in Engine room

220v,110v and 60Hz Electrical System

Lovett Sump Pumps (4)

Y-Valve for dockside pump out

(8) 200 amp/hr batteries for engine & ship power

Separate 120 amp/hr battery for generator

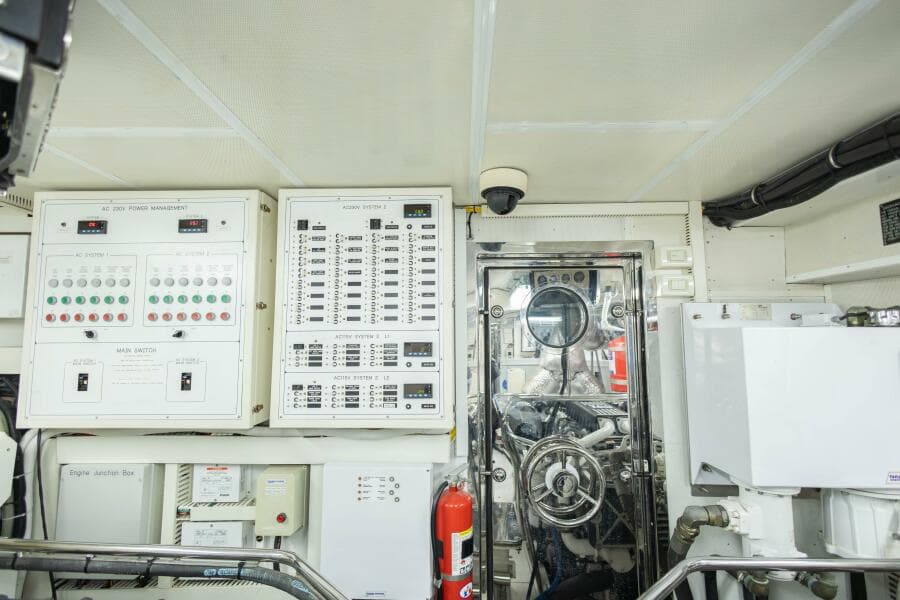

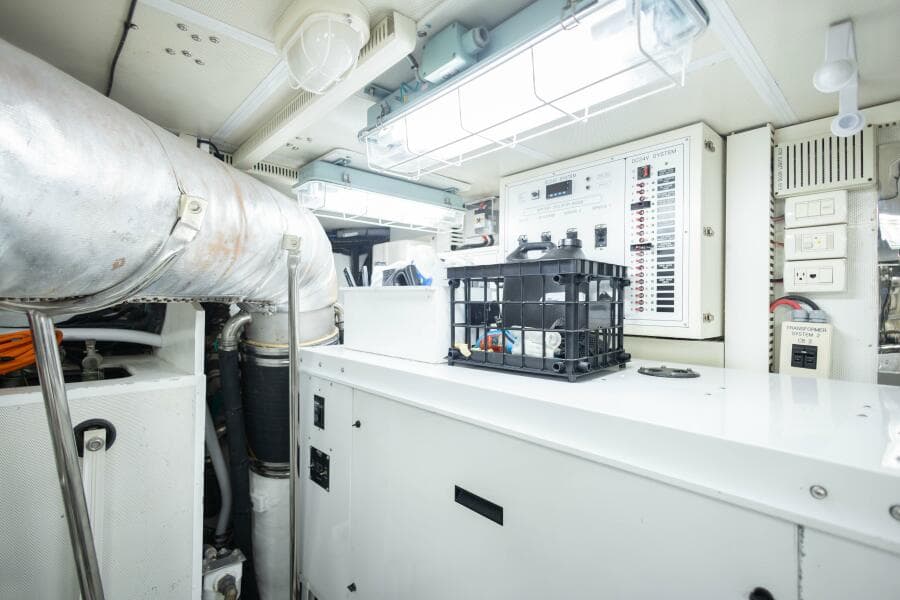

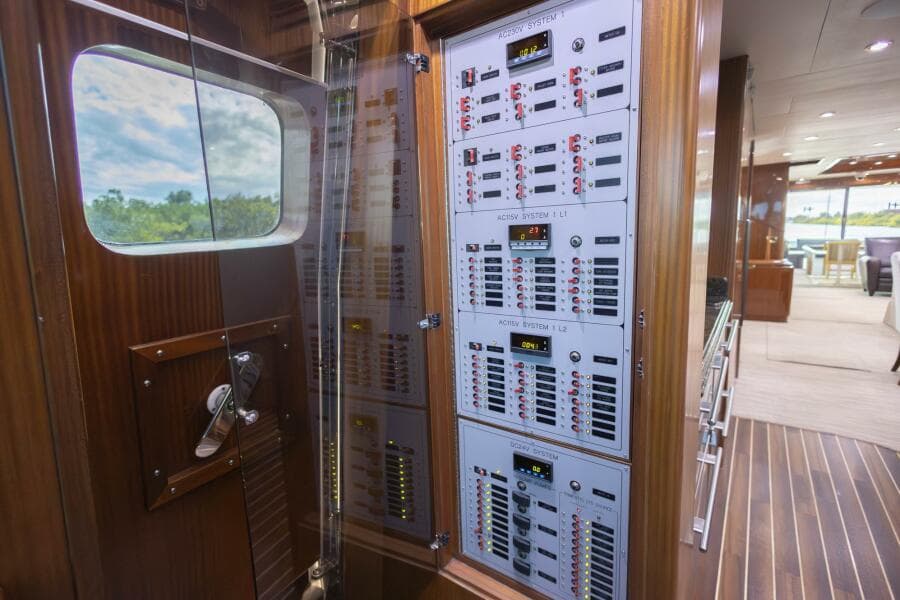

Main electrical panel w/ separate AC Power control and circuit breaker panel

110 volt duplex receptacles located throughout vessel, including engine room

Italian door handle package

Recessed Tray ceiling in salon

Canaloupe 24v ceiling lights

Large Storage areas forward deck

Granite counter top in galley

(3) Freeman Hatches

Cat instruments at helm (Tach/Oil Pressure/Engine Temp/TransPressure/Hrs)

Fresh water washdown (3) three locations - Bow / aft deck / Skylounge

Sea Chest

White perforated insulation panels in Engine Room

Double Racor 75/1000 MA filters / Water Separator on main engines

Glendining Engine Control with Dual Fixed Stations & Remote w/2 plugs

100 amp Glendinning CM8 Cablemaster Systems 2 each 1/100' cord

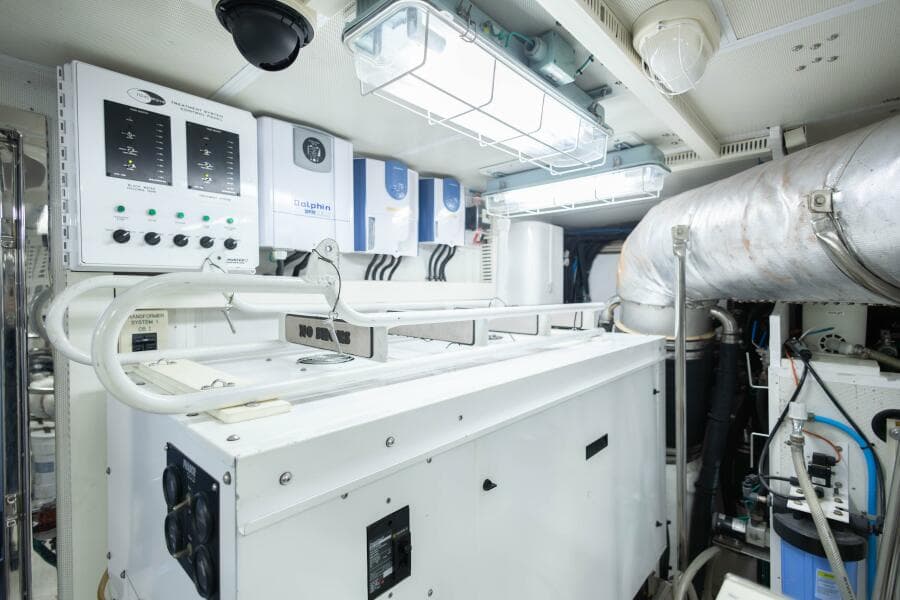

32 KW 60HZ Single Phase Phasor Generators w/ gauges and sound shields x2 Port: 3,800 Stbd: 4495

Water Drop Exhaust for Generators (2)

Cruiseair A/C 159,000 BTU (1) 24,000 BTU Blower in Salon, (2) 24,000 BTU Blower in F/B, (1) 16,000 BTU Blower in Galley, (1) 16,000 BTU in

Dining Area, (1) 7,000 BTU Blower in Aft crew, (2) 12,000 BTU Blower in Master, (1) 7,000 BTU Blower in Prt Guest, (1) 7,000 BTU Stbd Guest,

(1) 10,000 BTU Blower in Fwd VIP

Security Breaker switches for AC Power

Naiad Stabilizer System Model 302 w/ 9 sq. ft. fins, Datum control

Naiad HPS Stern Thruster 10HT 38HP w/Single Reservoir Tank

Double stabilizer & bow thruster backup pump on back of prt & stb engine

SST 38" x 16" Trim Tab with Dual Acting Pumps EIC5000 Trim Indicators and Accessories

Tide marine drip less shaft logs

Tide marine seal Dripless Rudders

In-Line Recirculation Hot Water Pump

Fuel capacity total 3000 gallons

Dolphin Battery Charger - 80 AMP x 1, 30 AMP x 2

(3) 100 amp Sentry / Dolphin AC/DC light transformer 110/24V

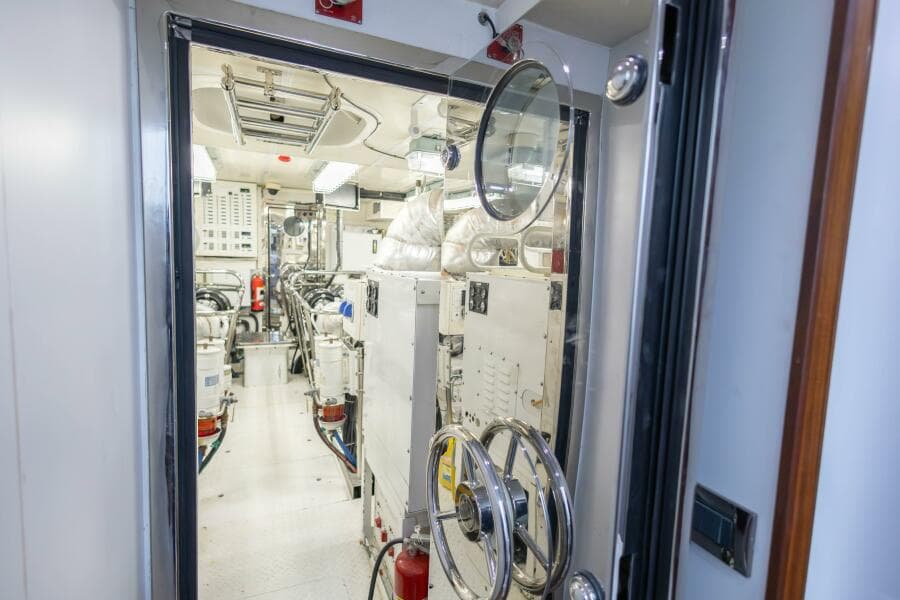

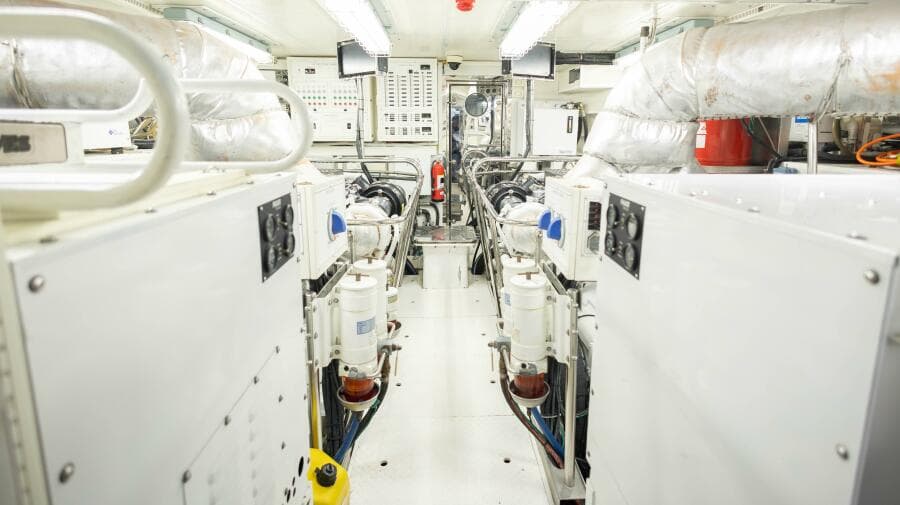

Watertight bulkheads in engine room

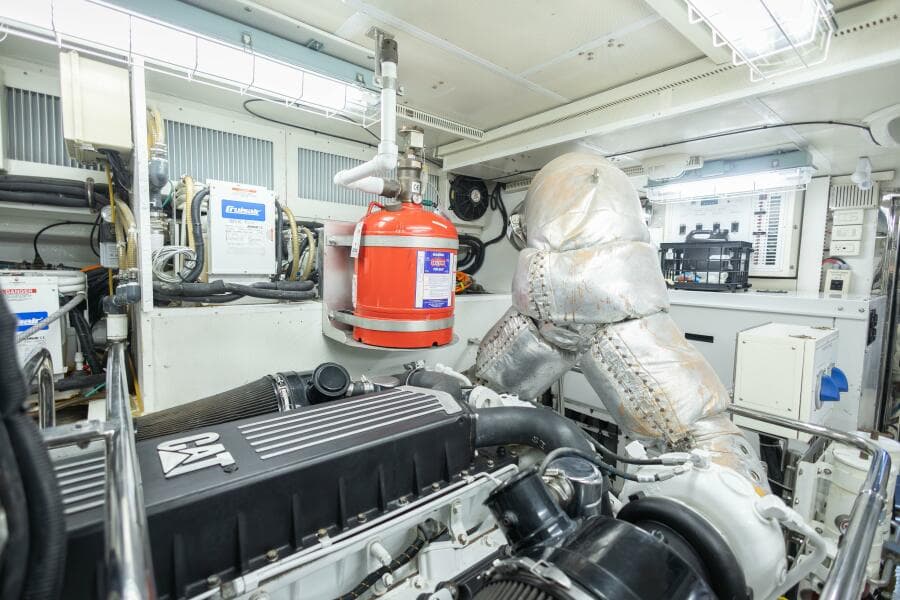

Seafire Extinguishing System w/manual pull in Crew

Reverso oil change system (Mains/Gens/Transmissions)

Newmar Converter 50A 24V/12V

Fill-rite #901-1.5 flow meter w/Oberdorfer fuel transfer pump

Jabsco Emergency Crash Clutch Pump 18330-0000 w/4-pick up in ER

Torrid 30 Gallon Hot Water Tanks x 2

Safety rails around twin engines

Seafire Smoke Detection and Alarm System

Headhunter Waste Treatment Center

(2) Headhunter PR-1000 Pressure Regulators behind shore water connectors at fwd stbd bow & port wing of Swim Platform

Delta-T Engine room ventilation system with fans and moisture eliminator

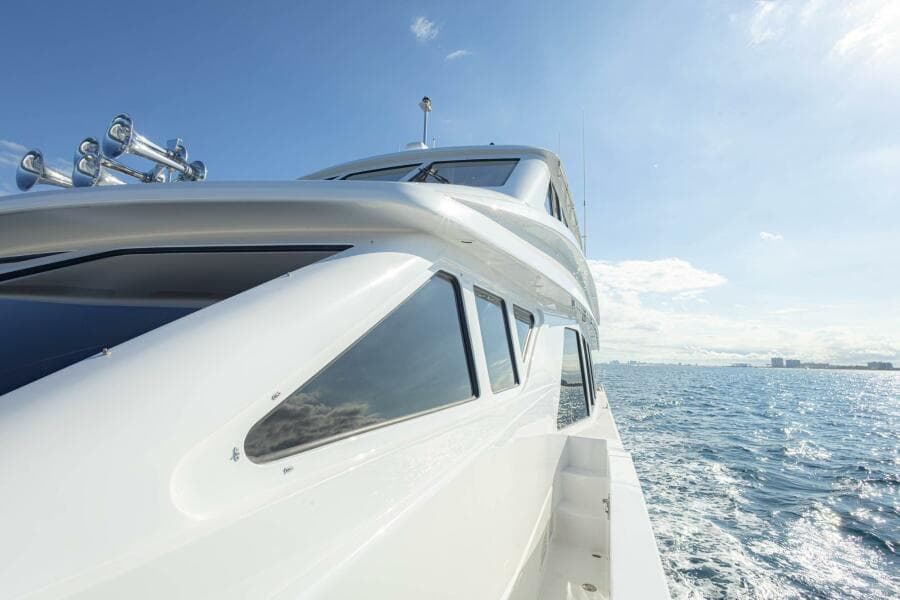

(5) Kahlenberg Trumpet air horns w/compressors w/installation & GRP modification

Interior Equipment:

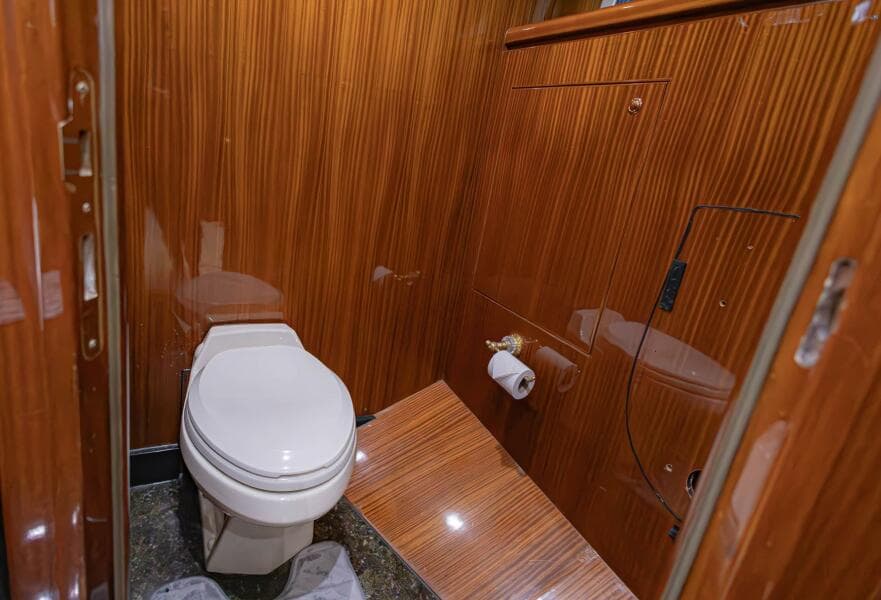

6 Headhunter heads w/2 Mach 5 110 pumps & 24 Headhunter

Vimar Light Switches w/18 Dimmers

Custom soffit in Main Salon

Custom Entry Door -French Style Glass panels in Master

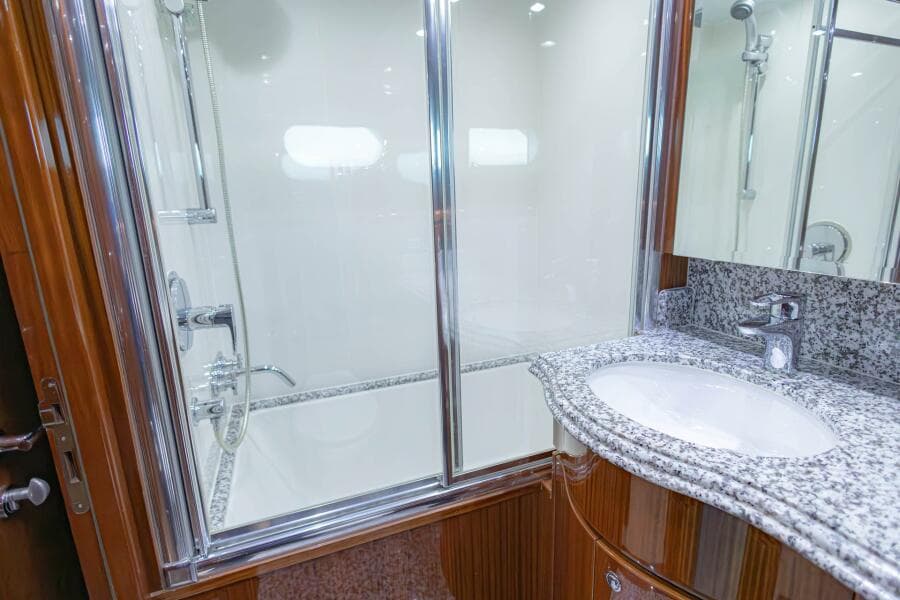

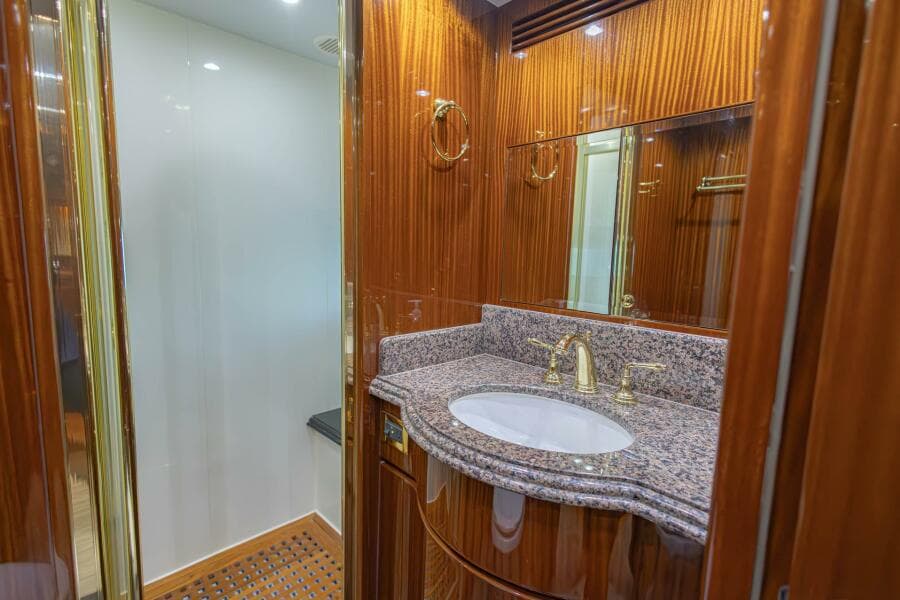

Granite shower wall and floors in master shower & master floor

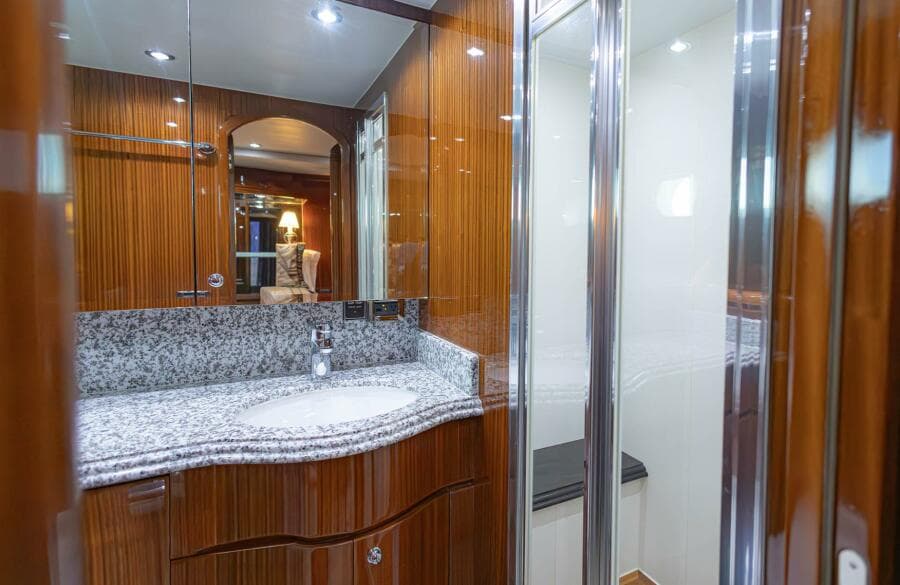

Granite Shower Seat and marble floor in VIP Bathroom

Granite and marble floor in Port Guest Bathroom

Granite Shower Seat and marble floor in Stbd Guest Bathroom

White tub with chrome Grohe tub faucet in Master

Towel warmer in Master bath

Marble night stand tops in Master

(2) Custom pantry Tall B)1130 in Galley

Digit Key Pad Safe in Master Stateroom & Crew

(4) Kohler Caxton K2210-96 Bone sinks in VIP, Prt & Stbd Guest, Master, Crew

Marble night stand tops in VIP

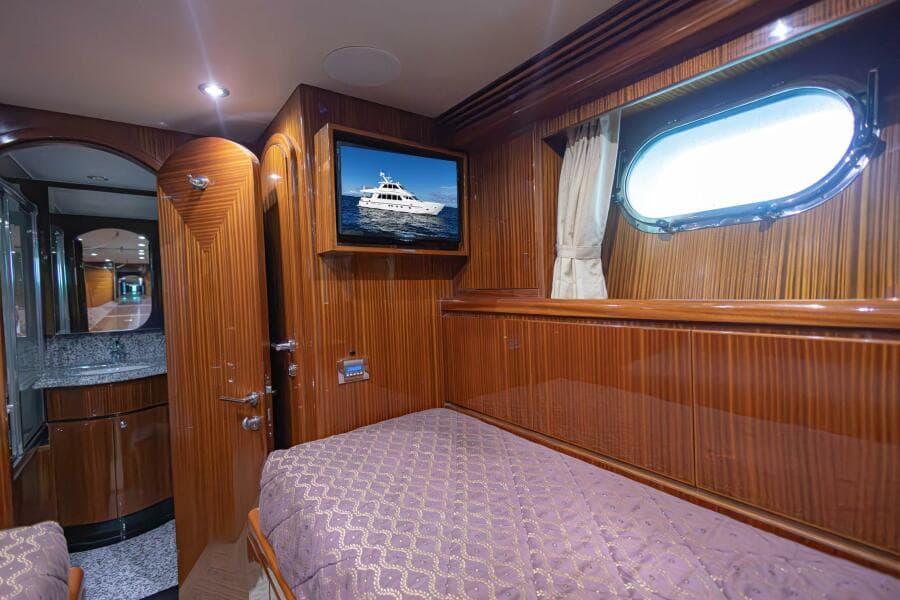

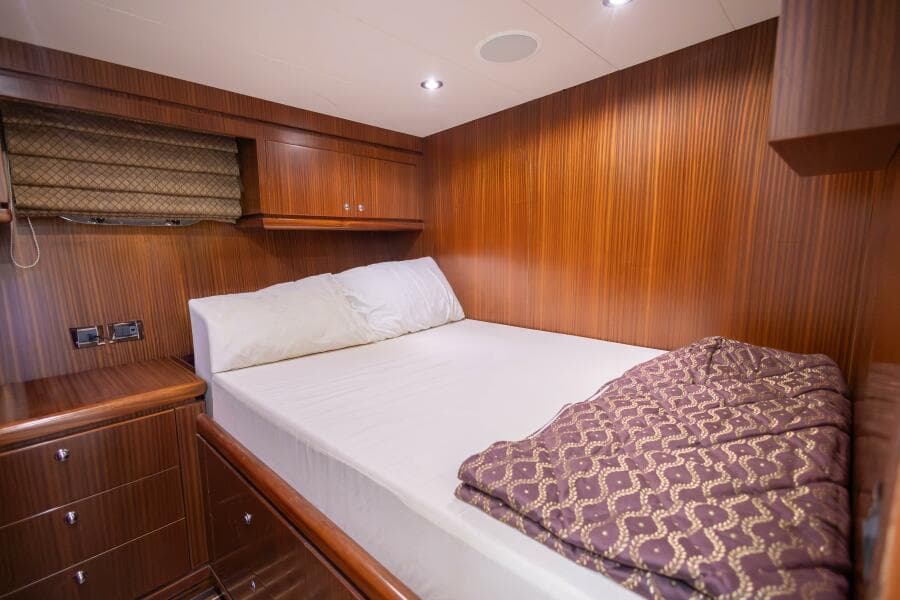

Pullman berth in Port Guest Stateroom

2 Stidd Helm Chairs in Skylounge

Pioneer PDP 4280 HD Plasma TV mounted in Skylounge

Motivated Design 42" Pop Up Lift mounted in Skylounge

Marantz SR50027 7.1 Home Theater mounted in Skylounge

Pioneer PDP 4280 HD Plasma TV mounted in Main Salon

Marantz SR5002 7.1 Home Theater mounted in Main Salon

KVH HDTV Tri-Sat Receiver Kit mounted in Main Salon/Sky Lounge

HD-Blue Ray Player mounted in Salon

Niles SVL 4 volume Control to aft deck, dining area and bow

MB Quart NKA speakers mounted at the bow and aft deck

Sharp LCD 37" HD LCD Bottom Speakers mounted in Master

KVH HDTV Tri-SAT Receiver Kit in Master

HD-Blue-Ray Player mounted in Master

Sharp LCD 20" LCD TV Slim- Black in Guest x 2, Capt., and Galley

DirecTV DSS Receiver in Guest x 2, Capt. And Galley, VIP

VD/CD Receiver in Guest x 2, Capt. And Galley

Sharp LCD 26" LCD HDTV/LCD Bottom Speakers in VIP

NAD L53 DVD/CD Receiver in VIP

KVH Tracvision M7 W/Control Panel USA at Mast

KVH HDTV Kit Trac TV4/G4/6/G6 & M5/M7

Tropica 5" KVH TV6/G6 Tower at Mast

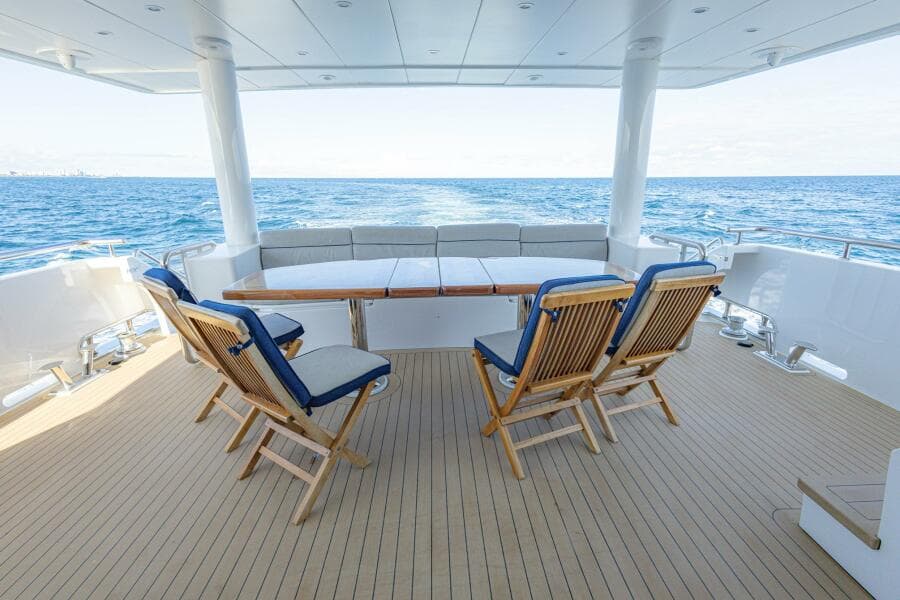

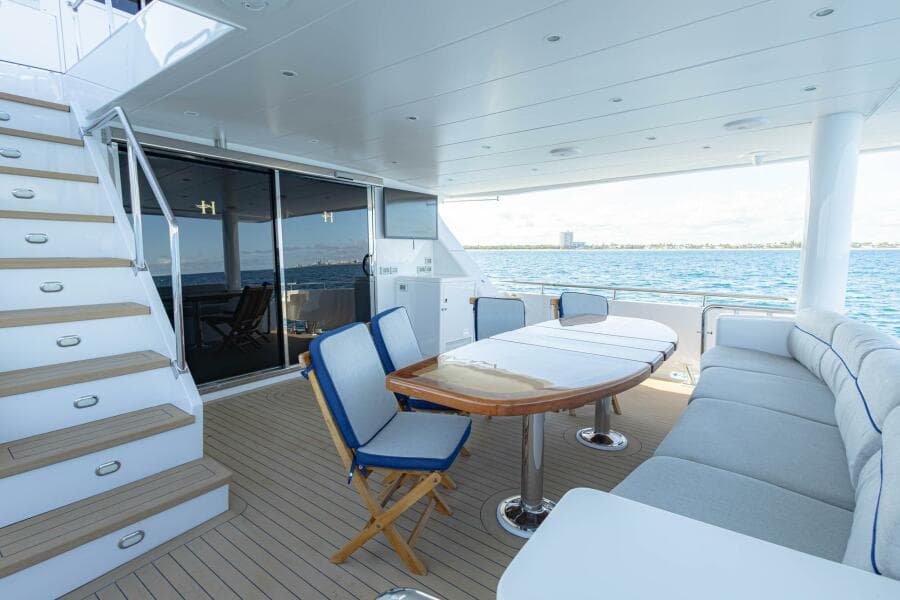

Aft Deck - New Teak Synthetic Decking

2” stainless steel oval hull banding w/wooden insert & extra 4" offset

Auto/Manual Override Air Door for aft deck

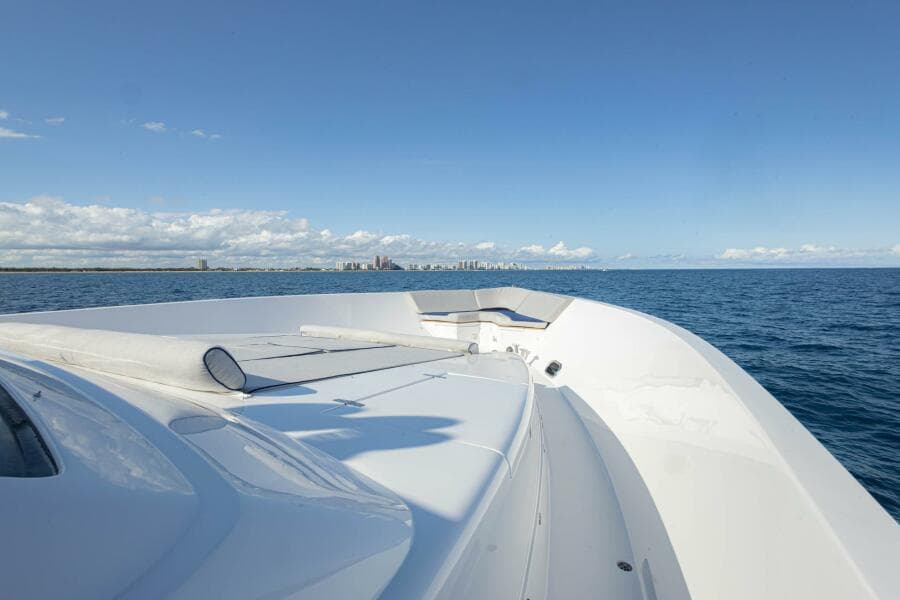

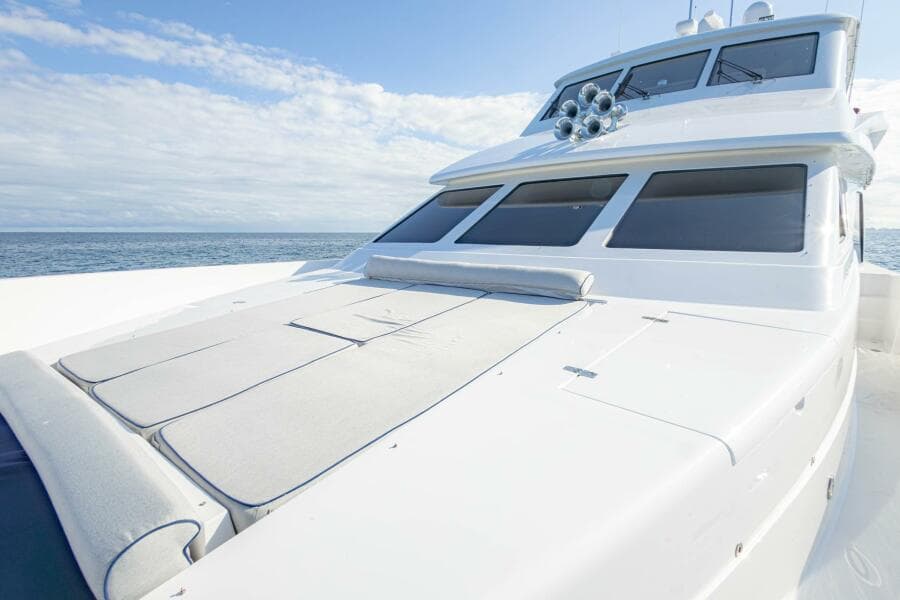

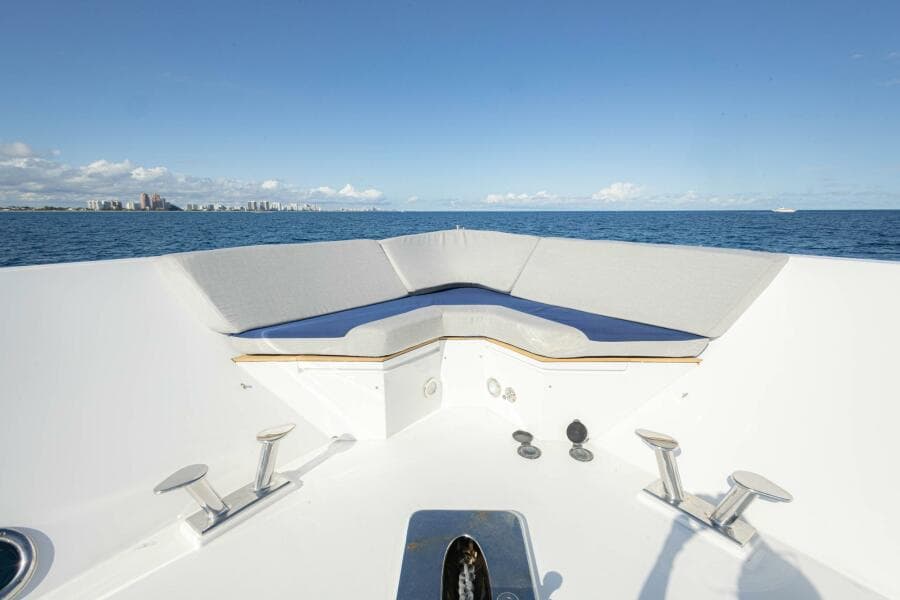

Fiberglass seat on bow w/teak top

(8) Exterior waterproof lights on bow

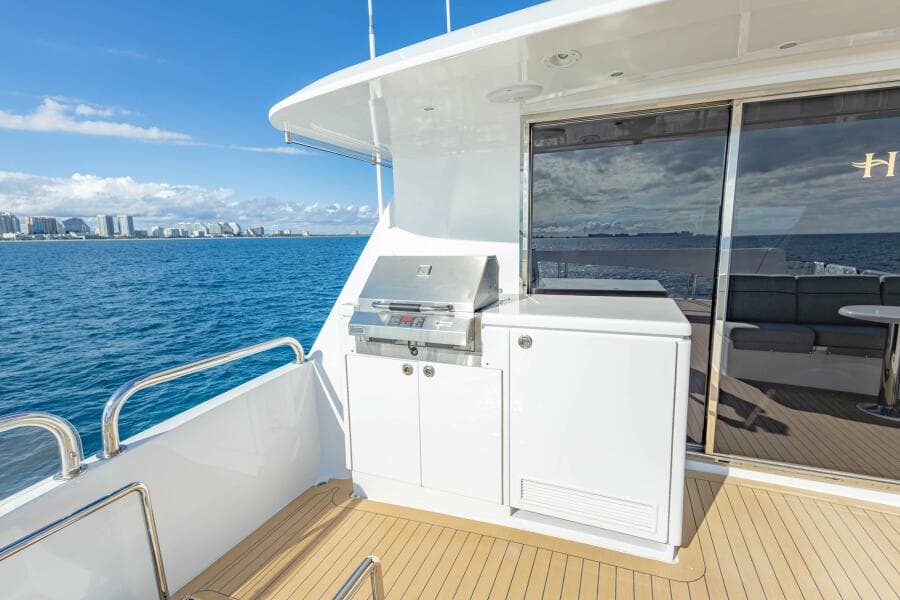

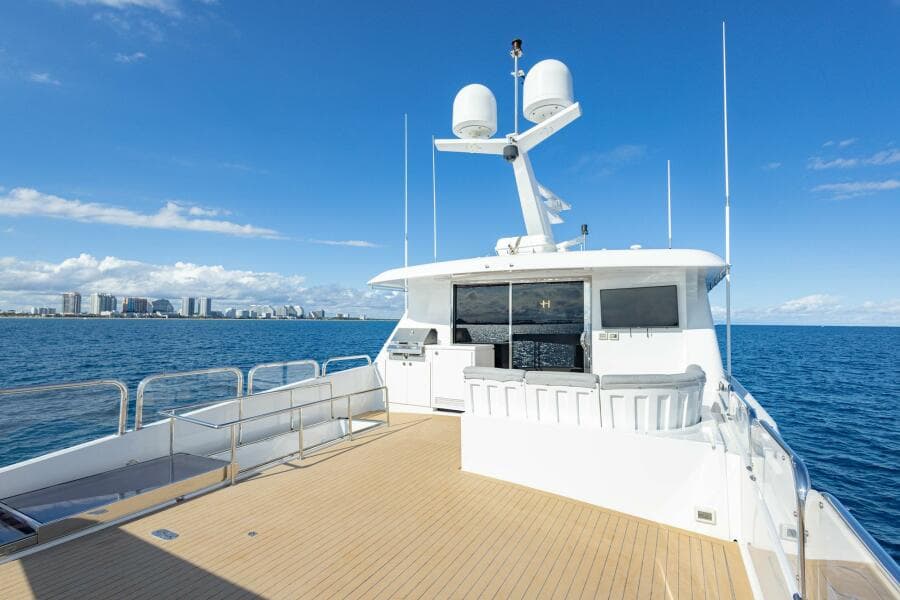

FRP Cabinet for Grill at Skylounge w/24" Electric-Chef

Electric-Chef S/S Grill w/hood on boat deck

FRP Box Ref/Ice Maker Combo at Aft deck

Aft deck storage for Marquipt Ladder

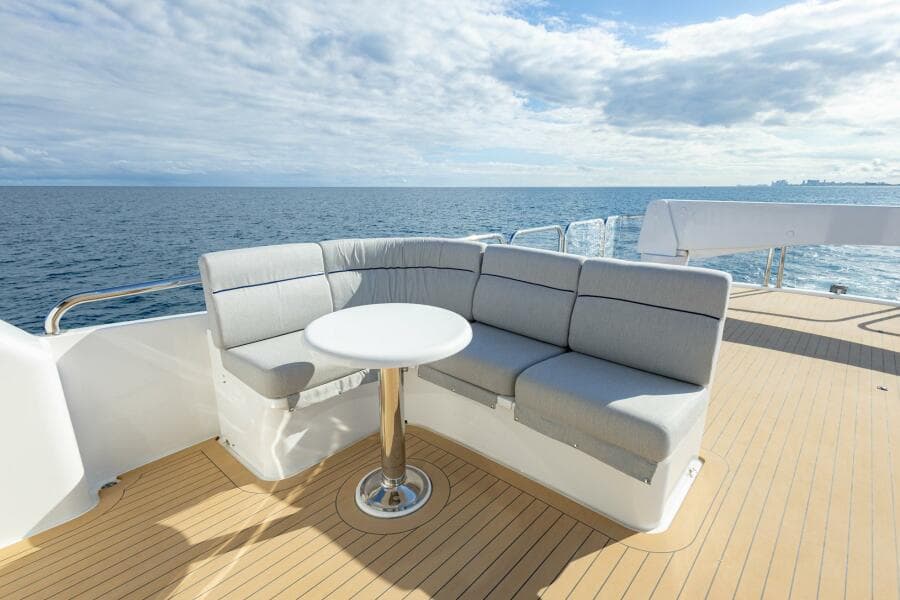

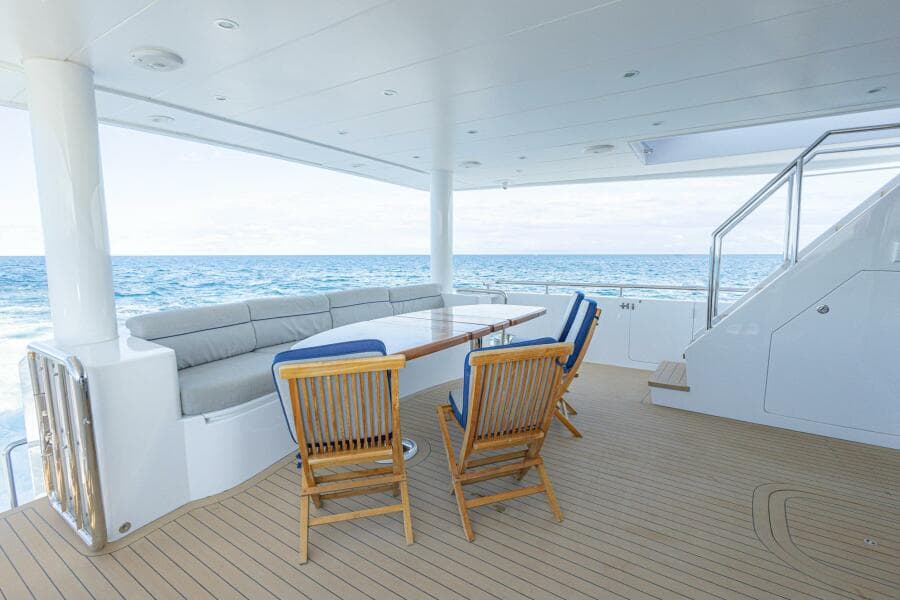

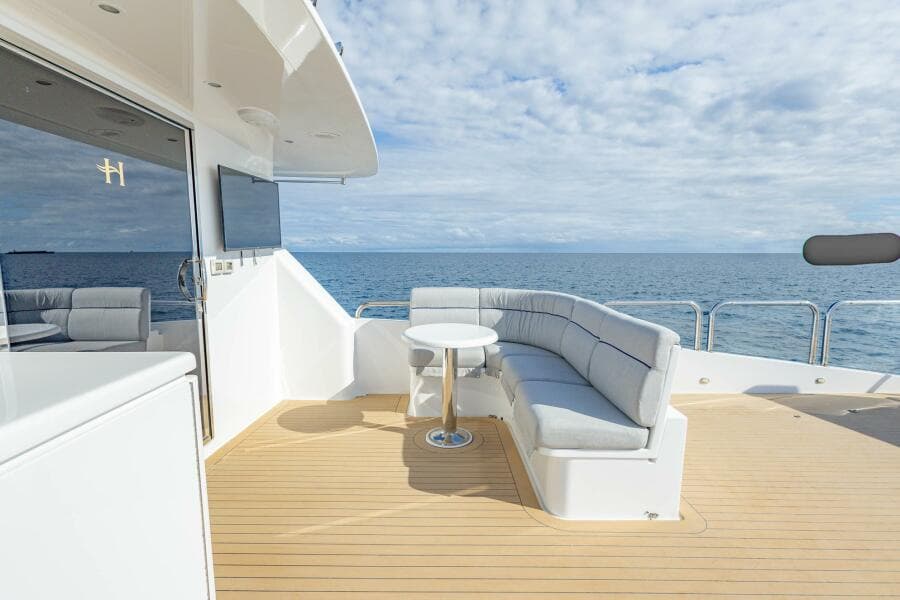

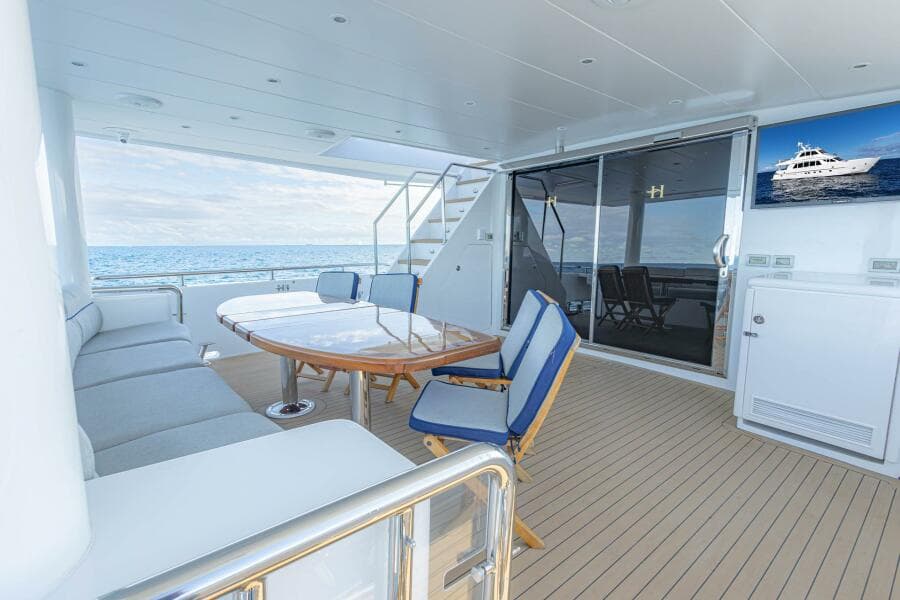

Aft deck bench seating

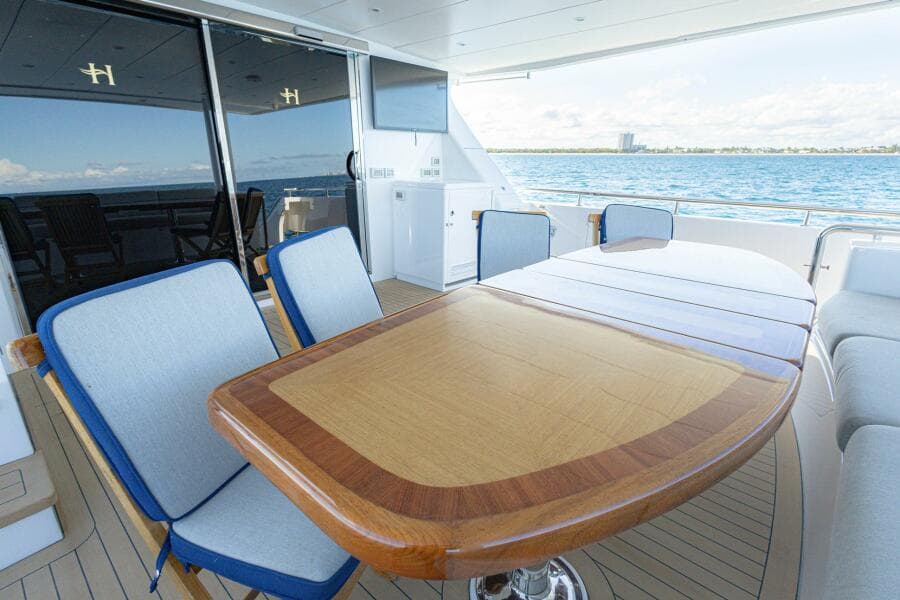

Aft deck teak table

Settee with S/S foot Rail on port side of Skylounge

Removable "U" shape Hand rails on boat deck

100 AMP Shore Power Outlets, (1) port (1) stbd in wing lockers

Sea Recovery 1400 GPD Watermaker

Marquipt Sea Stairs

Aritex watertight door with "HARGRAVE" backlit nameplate (2)

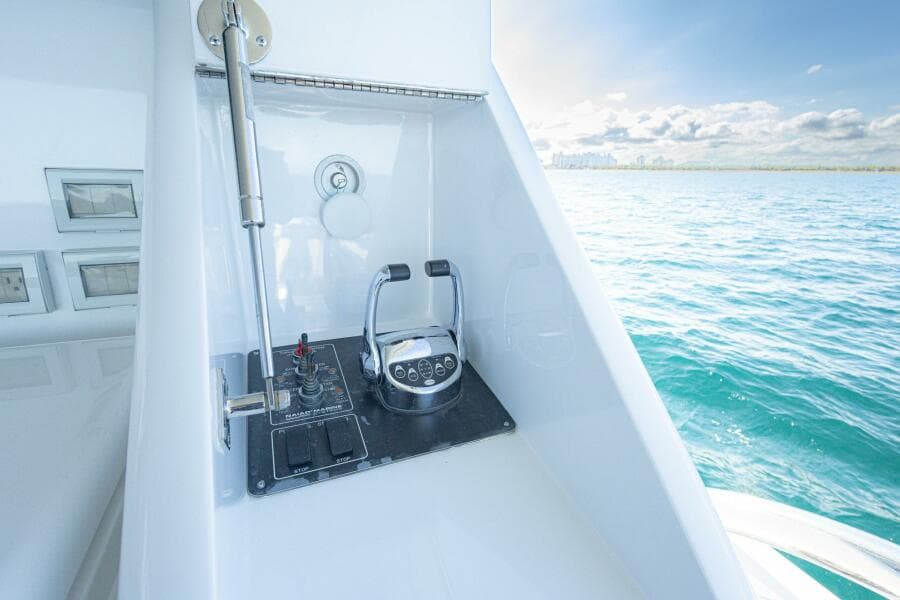

(2) Maxwell Nilson Ster Capstan VC2200

(4) Teak Aft Deck chairs

Appliances:

GE White Washer/Dryer in Foyer

Avanti Black Fridge in lower Foyer

U-Line 29R Black W/Sapelli Panel Fridge in Master Stateroom

GE White Washer/Dryer in Crew Quarters

GE Profile S/S Fridge in Galley

GE Profile S/S Cooktop in Galley

GE Profile S/S Microwave in Galley

Fisher & Paykel Double Drawers Dish Washer in Galley

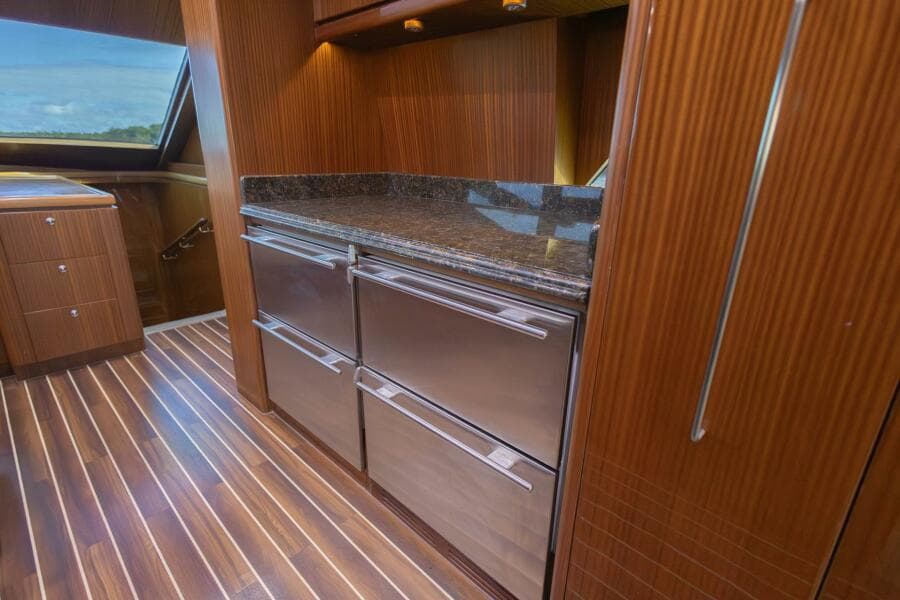

Sub-Zero S/S Fridge Drawers in Galley

Sub-Zero S/S Freezer Drawers without Ice Maker in Galley

Franke PRX160 S/S Sink in Galley

GE 3/4 HP Disposal in Galley

U-Line Black w/Glass Wine Cooler in Salon

Kitchen Aid Black w/Sapelli Panel Ice Maker in Salon

Over standard to Sub-Zero UC-24RO White Fridge at Aft Deck

U-Line Black w/Sapelli Panel Fridge in Skylounge

Kitchen Aid Black w/Sapelli Panel Ice Maker in Skylounge

Sub-Zero S/S Fridge on Boat Deck

Furuno FA 150 AIS System with Ant Ext 15M

GPS mounted at hard top

Nauticomp GLS 19" Daylight Screen

Furuno 1954CBB NT 6' O.A. 12KW mounted

Furuno ARP 11 Target Plotter installed in Processor

Furuno 1934 CBB NT Radar/Plotter

Furuno BBWGPS Antenna

Furuno GP 37 DGP5+WAAS Combination

Nauticomp GLS 19" Daylight Screen 3

ICOM IC-M504 Black mounted at helm x 2

Raymarine ST 60 + Depth Display mounted at helm x 2

Simrad AP 28 W/AC42, RC42 - No Drive mounted at helm

Simrad WR 2D WIFI Remote Control

Nauticomp GLS 19" Daylight Screen 4, for Cam System

Pelco Dome Cam Indoor Flush Ptz mounted in Engine Room x 2

Pelco Environmental In-Ceiling Camera mounted in wings facing aft x 2

Speco Color Dome Camera Auto Iris mounted inside facing doors x 2

Digimerge 16 Channel PTZ Net DVR

Crestron Screen Selector Switch mounted in Salon and Capt x 2

Panasonic PH T-7731-B Speaker Phone system x 9

M-Tech 3GWifi mounted in the galley

M-Tech AMP 190070 mounted in Skylounge

Tropica 5" KVH TV6/G6 Tower

5" Danforth Compass

Cmap Superwide + Furuno US East Coast and Bahamas x 2

Nobeltec Admiral 9.0

Nobeltec ZR08 Extra LG: Caribbean & East Coast US, Great Lakes

RF Keyboard / Mouse Interlink

VGA to NTSC Conv radar x 2, and nobeltec x 2

Channel Plus Modulator Quad
