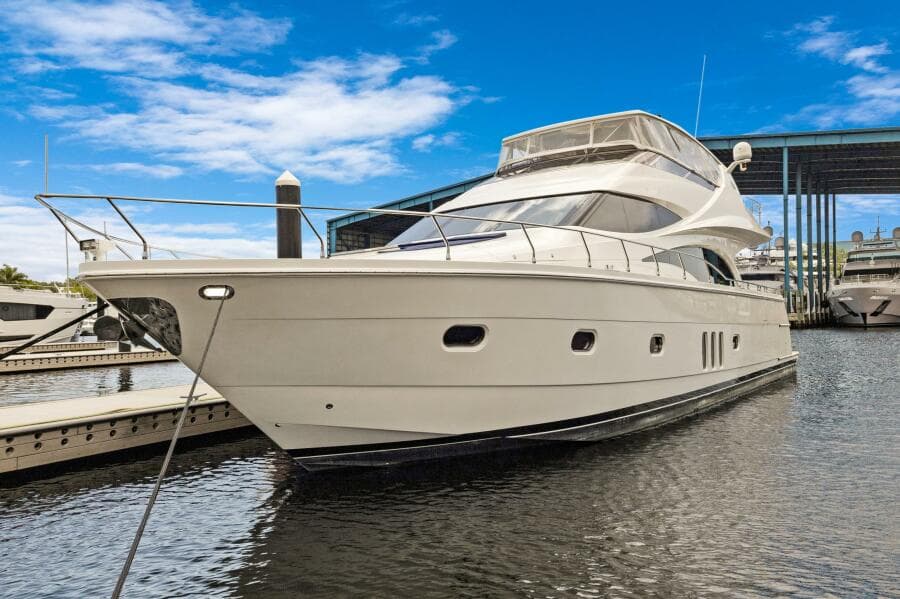

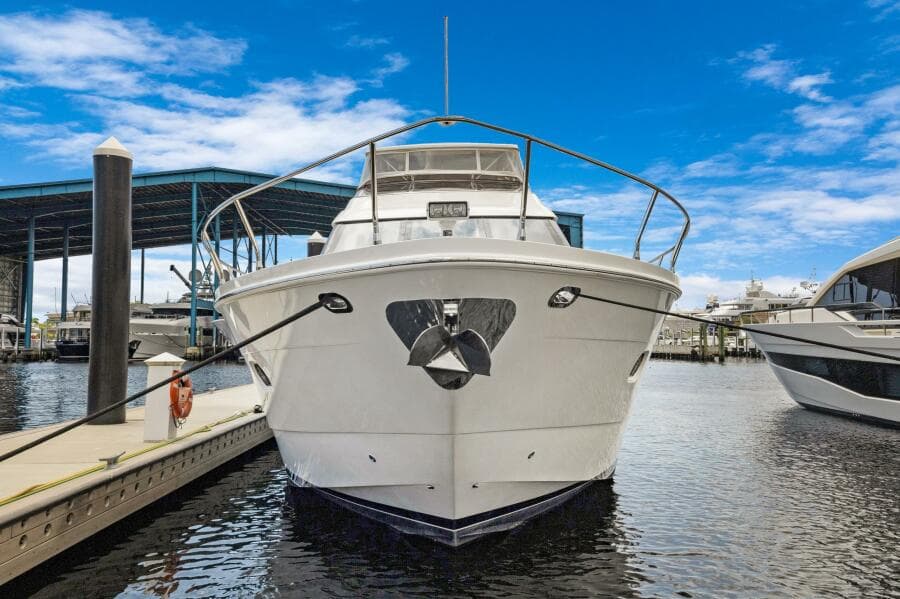

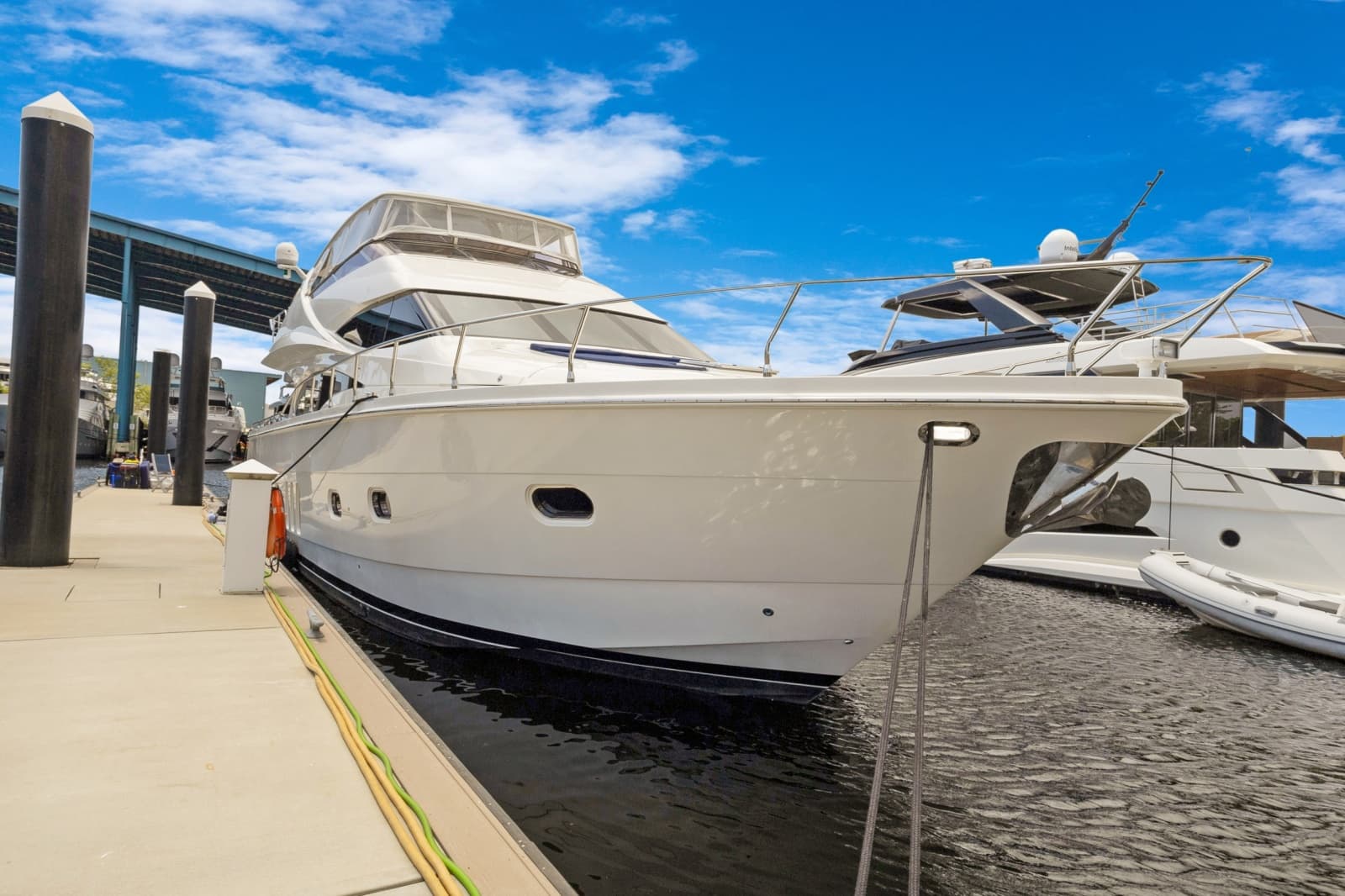

2008 Marquis 690

MAIN SPECIFICATIONS

Length Overall: 69’ 0” (21.03m)

Beam: 18’0” (5.49m)

Draft: 5’ 4” (1.63m)

Year Completed: 2008

Model Year: 2009

Refit: 2014

Type: Semi-displacement V-Hull

HIN: CDRV2088D809

Official # 839349

Tonnage: Gross 82 GRT, Net 66 NRT

Hull Config: Modified V-Hull

Guests: 6

Crew: 1

CONSTRUCTION

Builder: Marquis Yachts LLC, Wisconsin, USA

Hull Material: Fiberglass

Deck Material: Teak & Fiberglass

SPEED

Maximum: 19 knots

Cruising: 14 knots

Economical: 10.25 Kts @ 30 GPH

Economical range: 375 NM

CAPACITIES

Fuel: 2 x 600 g Tanks =1,200 g (4,542 I)

Water: 2 Tanks 370 g (1,401 I)

Grey Water: 3 Tanks direct discharge

Black Water: 3 Tanks, MSD III Waste System

CLASSIFICATION & CERTIFICATIONS

Flag: Canadian

Official #: 839349

Certification of Registry: Canada

Certification of Documentation: USA

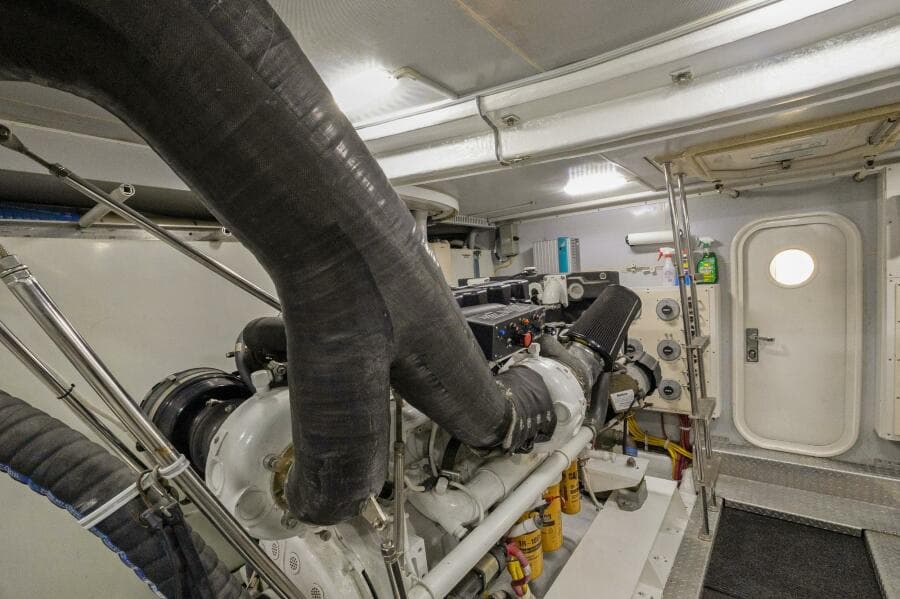

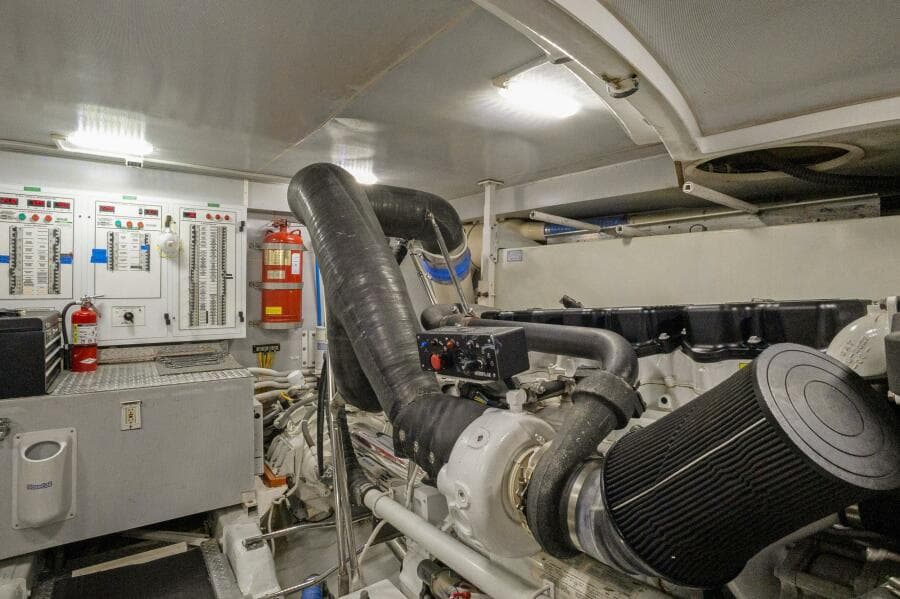

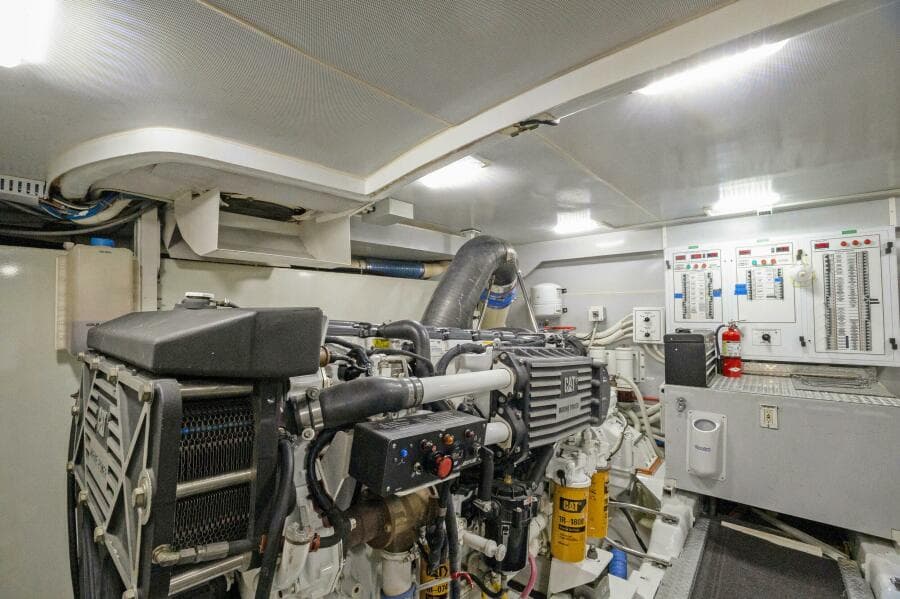

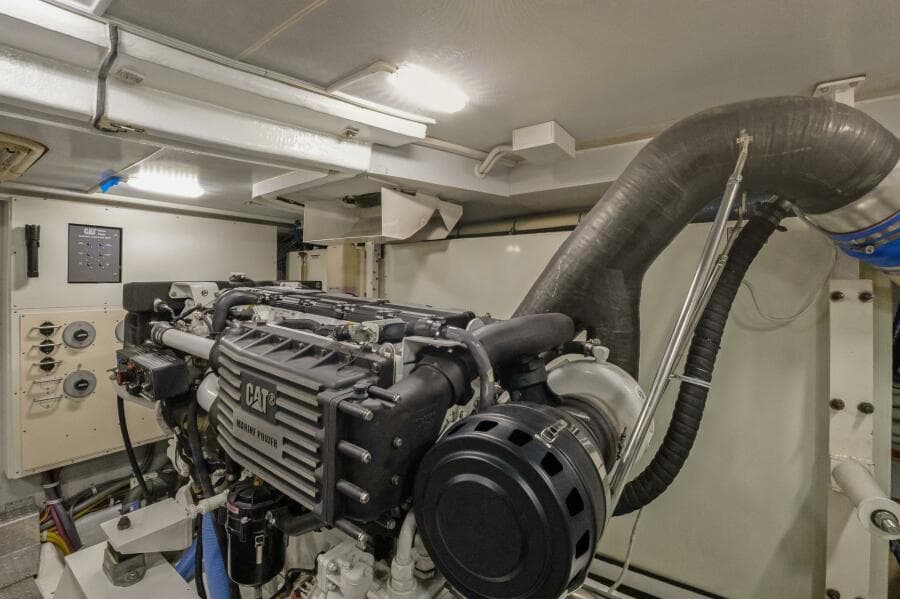

MAIN ENGINES

Engine Type: Twin Caterpillar C - 18

Horsepower: (1000hp @ 2300 rpm)

Main Engine Hours (Port): 2236

Main Engine Hours (Stbd): 2309

GENERATORS & ELECTRICITY

Generators: 28 KW Kohler Model 28EOZD, Serial 2168235

Generator Fuel Consumption: 3. gph

Generator Hours: 4581

Shore power: 2 x 50 amp, single phase 120/240 volt

Generator Starting: Remote & local

Fuel: Diesel

BATTERIES

Batteries: Main Engines 4 x 8D (24 Volt)

Generator 1 x 12 Volt

House Bank 6 x 8D (24 Volt)

PROPULSION

Drive System: V-Drive

Main Engine Transmission: Gears ZF Friedrichshafen ZF-550-1V

Steering System: Hydraulic Power Steering

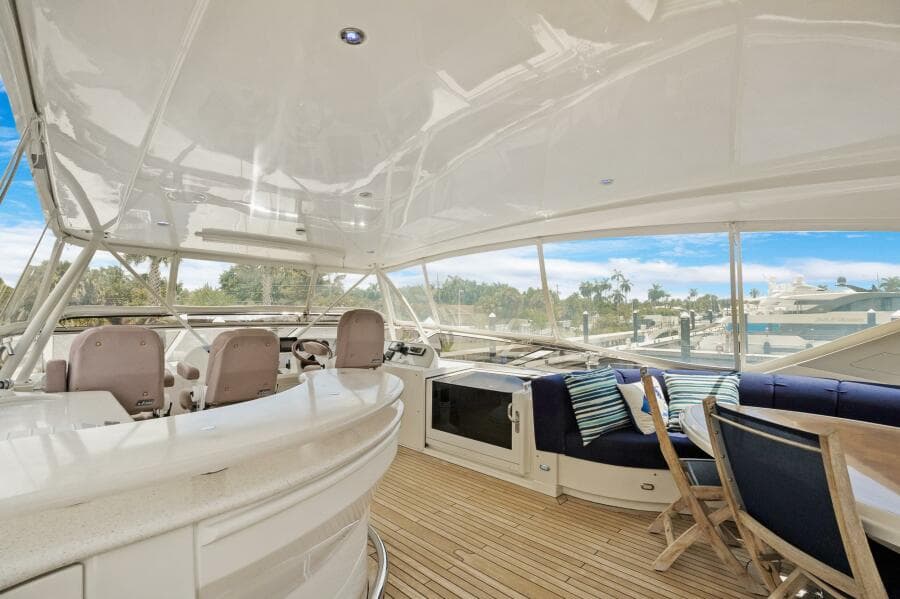

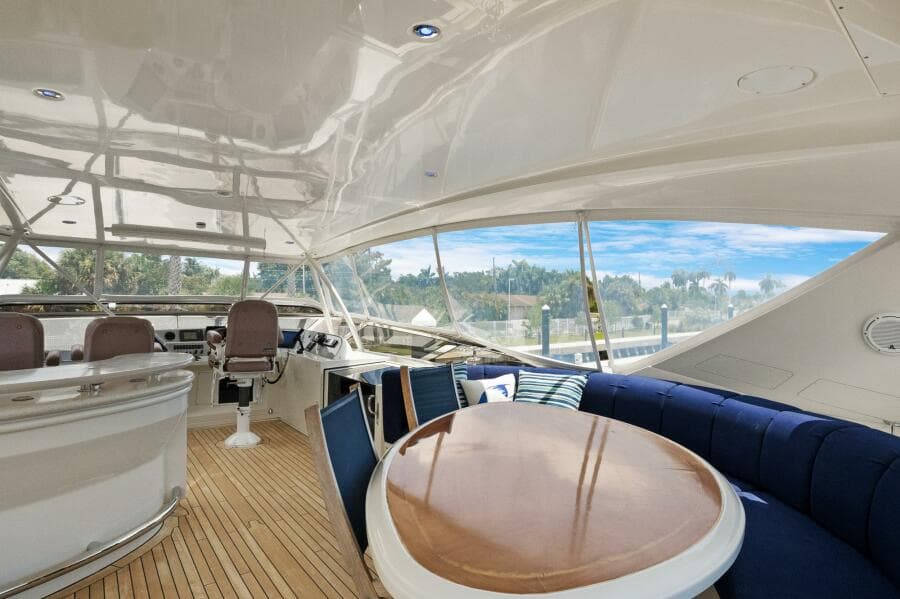

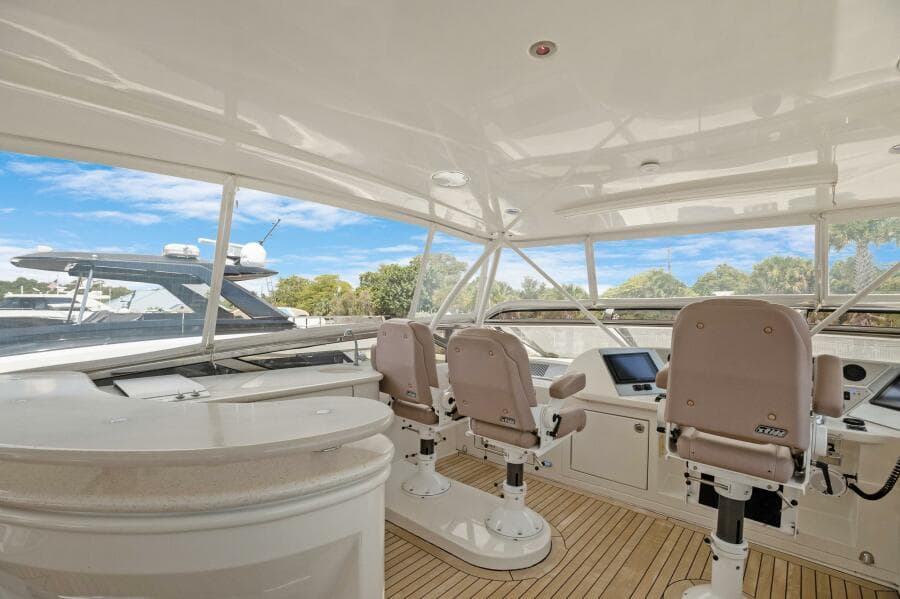

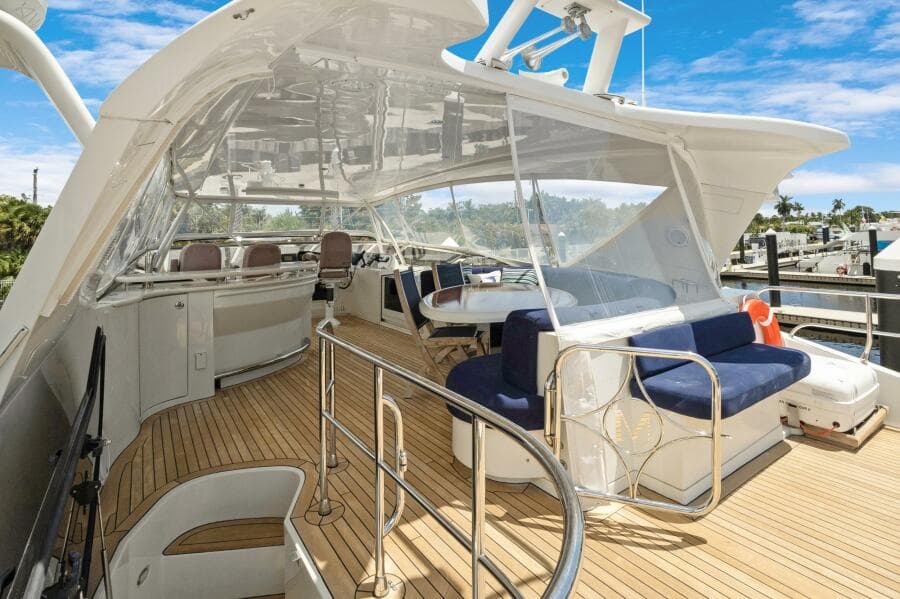

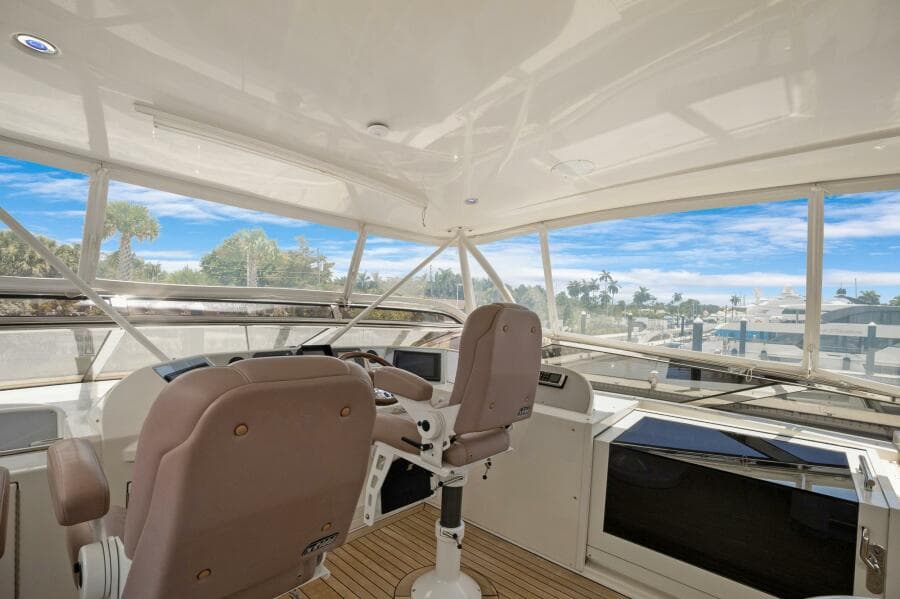

Helm Station: Bridge deck

Docking Station: STBD aft deck

Trim Tabs: Stainless steel

OTHER MACHINERY

Water Makers: 1 x Matrix Emerald Series

Water Softeners: In line with membrane

Bow & Stern Thruster: Side Power

Fuel Filtration: 4 x Racors (mains), generator 1 x racor

Sewage System: MSD III

Fresh Water System: 2 x 120 / 240 volt Mach 5

Air Conditioning: Cruisair split system

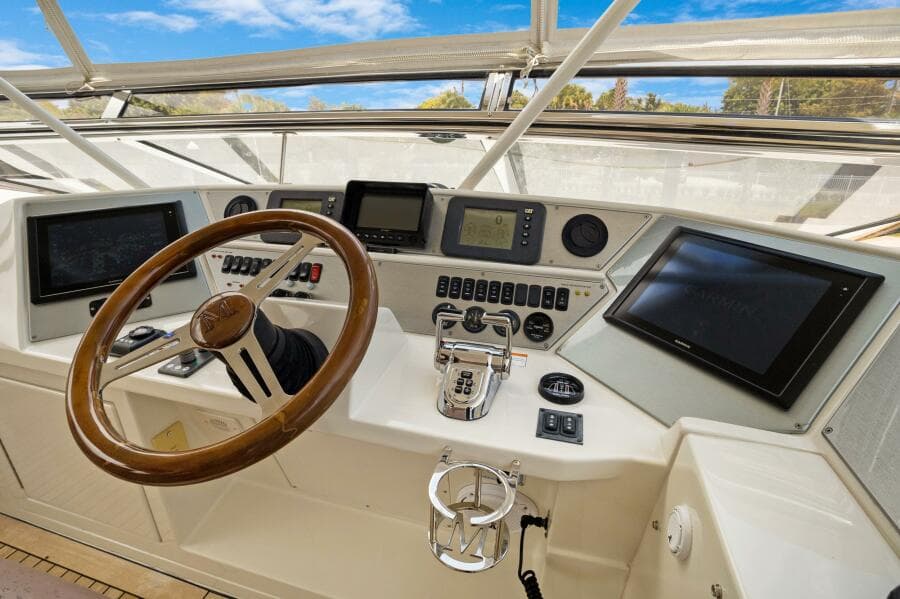

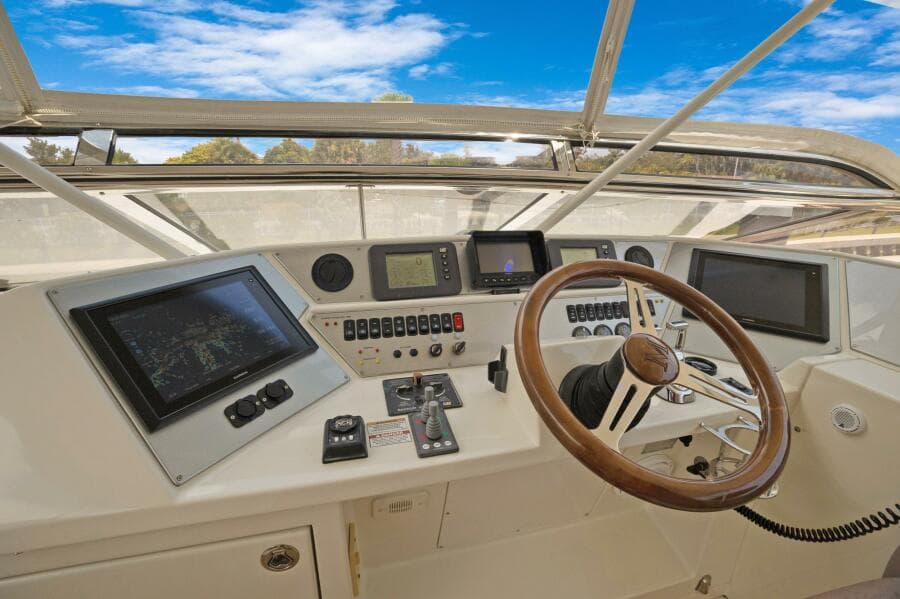

NAVIGATION SYSTEMS

Radar: Garmin

Magnetic Compass: Richie 4”

Auto Pilot: Raymarine Wireless Auto-Pilot with remote

Depth Sounder: Garmin 8020 Depth Sounder-interfaced

GPS Display Garmin 8020- 2 x Multi -Function interfaced with AIS

Electronic Charts: interfaced with Garmin 8020

MAIN GALLEY EQUIPMENT

Cooktop: Electric 3 burner, flush top, brushed stainless

Oven: Full size, Electric,

Microwave: Sharp, built in, brushed stainless

Refrigerator/ Freezer: Jenn-Air, Full size French door, bottom freezer, brushed stainless

Additional Refrigerator: Sub-Zero two drawer

Dishwasher: Miele 6833

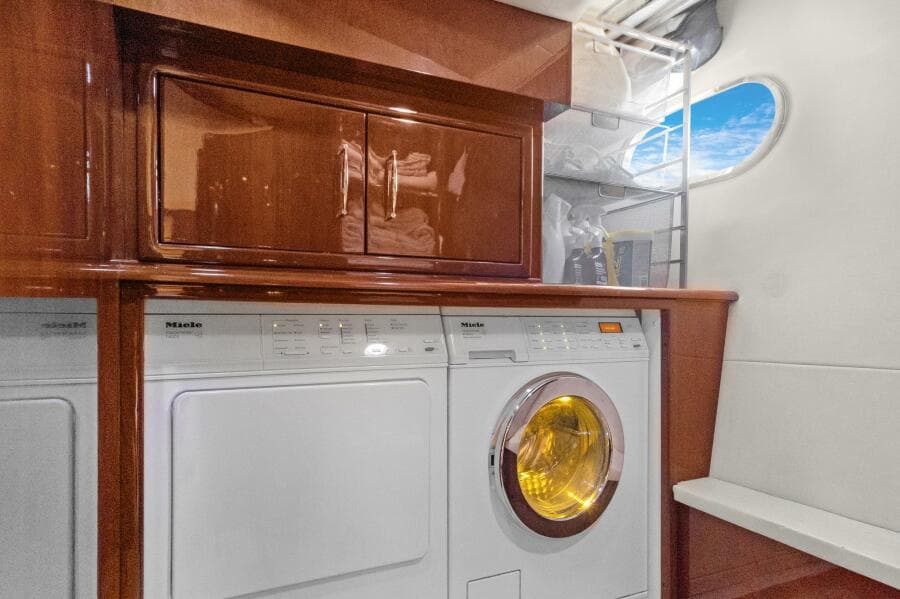

LAUNDRY

Washing Machines: 1 x Miele W-3033

Dryers: Touchtronic T-8003

DECK EQUIPMENT

Anchor Windlass: Maxwell 4000, 24 volt

Aft Capstans: 2 X 24vdc warping

Anchor: Stainless Steel Plow Anchor

Anchor Chain: 3/8 Galvanized connected to Anchor via stainless swivel

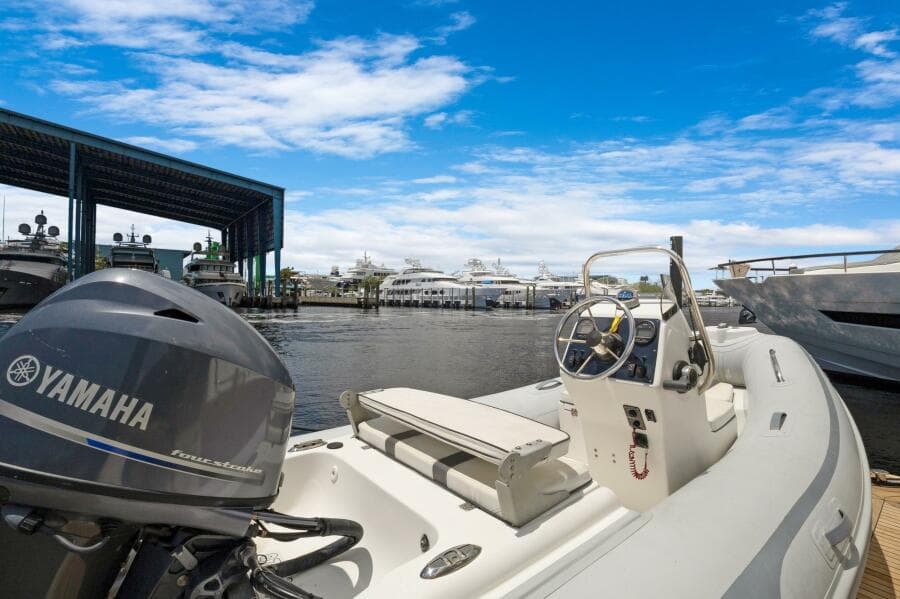

TENDER & TOYS

Note: Subject to change and/or negotiation during the buying process.

FIRE FIGHTING EQUIPMENT

Fire Control System: Emergency fire suppression manual system control

Fire Extinguishers: 5 x extinguishers–USCG approved

Alarms: Bilge high water

SAFETY EQUIPMENT

PFDs (33 CFR) -7 Type 2 USCG approved

Life Rafts: 1 x 8 person, USCG approved

Life Rings: 1-USCG approved

Life Raft: 8 person USCG approved

Designated Ditch Bag- Flares, First Aid, Sound Signaling device

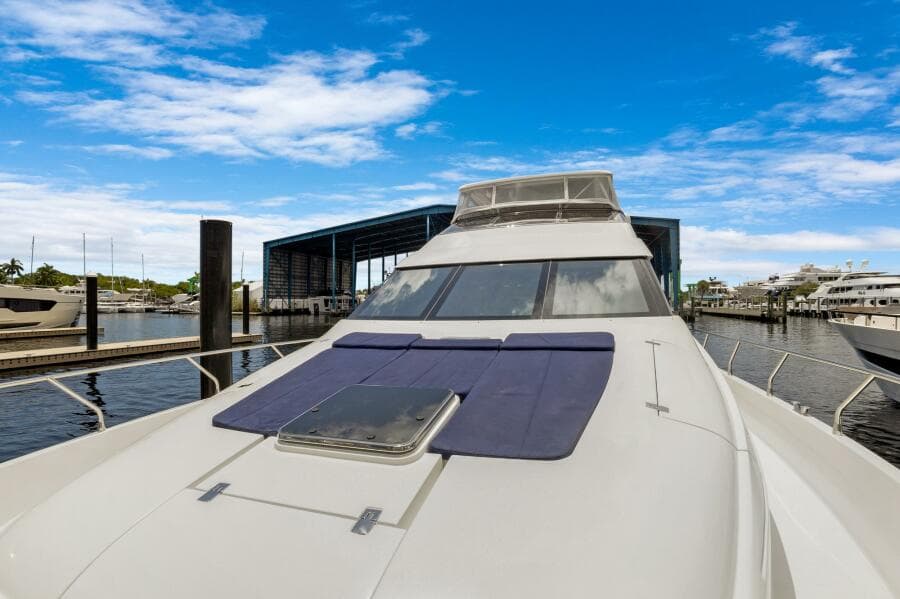

HULL & DECK FEATURES

·        Low Profile Bridge Hardtop

·        Windlass: Capstan VC500 24V (2)

·        Hard panel side enclosure

·        Exterior Upgrade Pkg high gloss finish

·        Anchor plate - Polished stainless steel, with stainless steel clad recessed anchor channel & nylon rollers

·        Marquipt 5 Step Gangway

·        Beverage holder recess

·        Bow rail - Stainless steel

·        Bulwark - Fiberglass

·        Drain grates (2) - Polished stainless steel, with insignia

·        Engine Room Air Vents - Concealed in superstructure

·        Gutters (2) - Port & starboard, direct water from canted walk surface to grated trap, then overboard

·        Anchor Hawse Pipes (2) - Polished stainless steel, port & starboard

·        Lights (6) - 18W Xenon, mini spotlights, illuminated cabin & bridge sides

·        Lights - Accent, courtesy, recessed

·        Lights (6) - Overhead, recessed

·        Locker - Contains windlass & bollard-style anchor cleat, polished stainless steel

·        Lockers (2) - Fender & line, polished stainless steel

·        Mooring Cleats (2) - Bollard-style, stainless steel

·        Pilothouse doors x 2, exterior & interior

·        Rub Rail Molding - High-impact, heavy-duty, stainless-steel

·        Spring cleats (4) - Bollard-style, stainless steel

·        Sun pad forward deck- Double

·        Windshield weather cover - Black mesh

SPORT DECK / SWIM DECK

·        Hydraulic swim platform with control

·        Flush mounted chocks for tender on swim platform

·        4 x Underwater blue lights

·        Teak decking

·        Fresh water washdown

·        Cockpit Stairways (2) - Integral to deck

·        Mooring Cleats (2) - Bollard-style, stainless steel

·        Grab Stair Rails (2) - Stainless steel

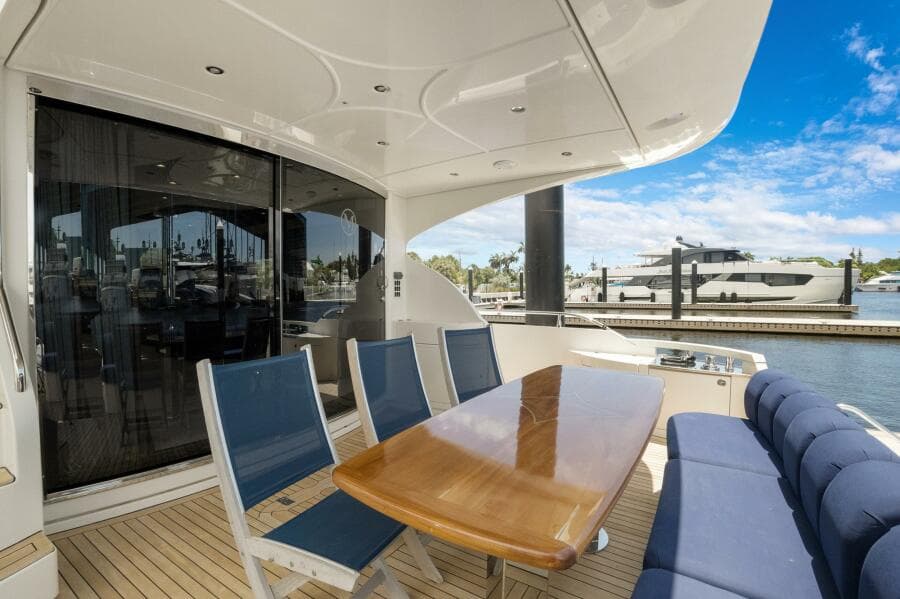

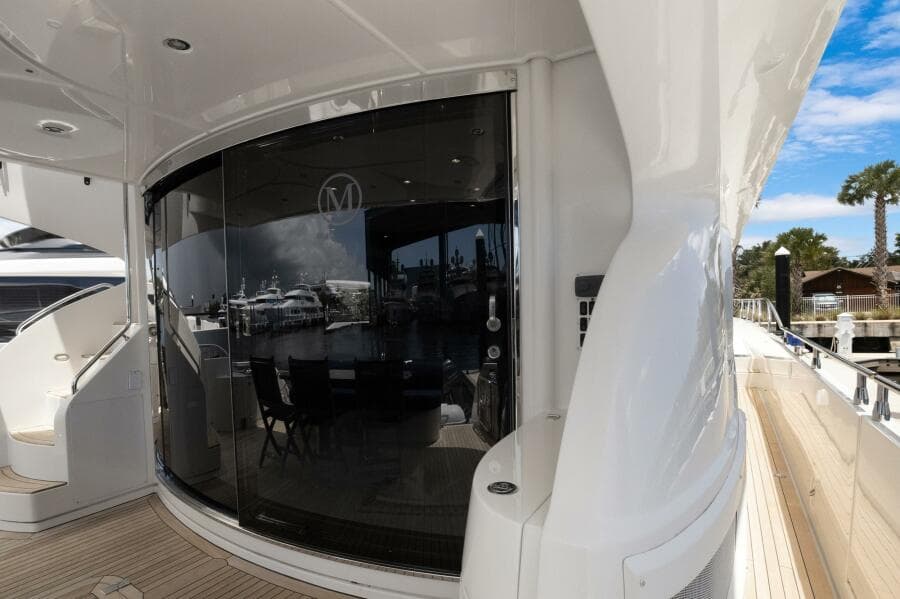

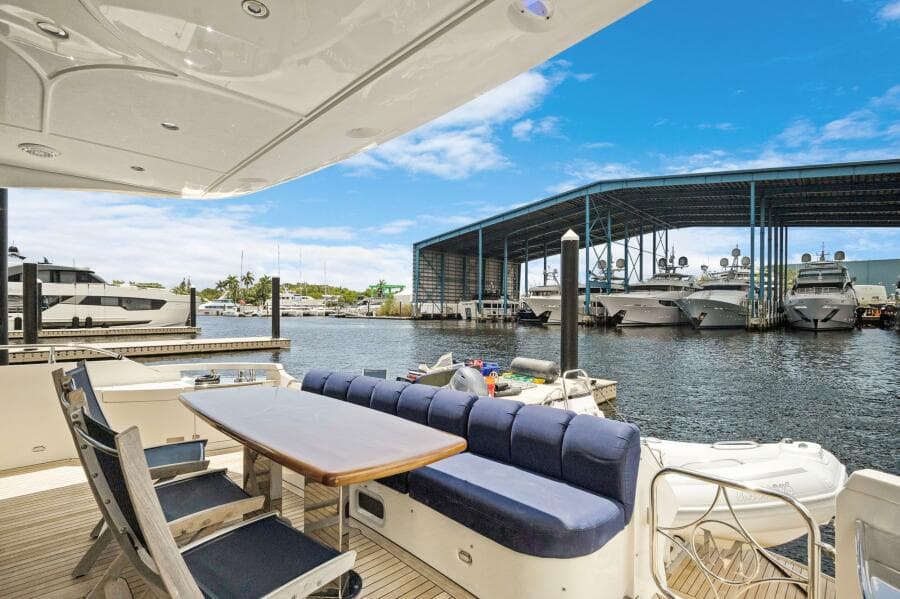

AFT MAIN DECK

·        Custom High Gloss Teak Table

·        JL Audio Speakers

·        Teak Decking

·        Lounge – accommodates 6 adults, across transom, with cover

·        Mooring Cleats (2) - Bollard-style, stainless steel

·        Windlass: Capstan VC500 24V Maxwell 4000VWC

·        Side deck access door

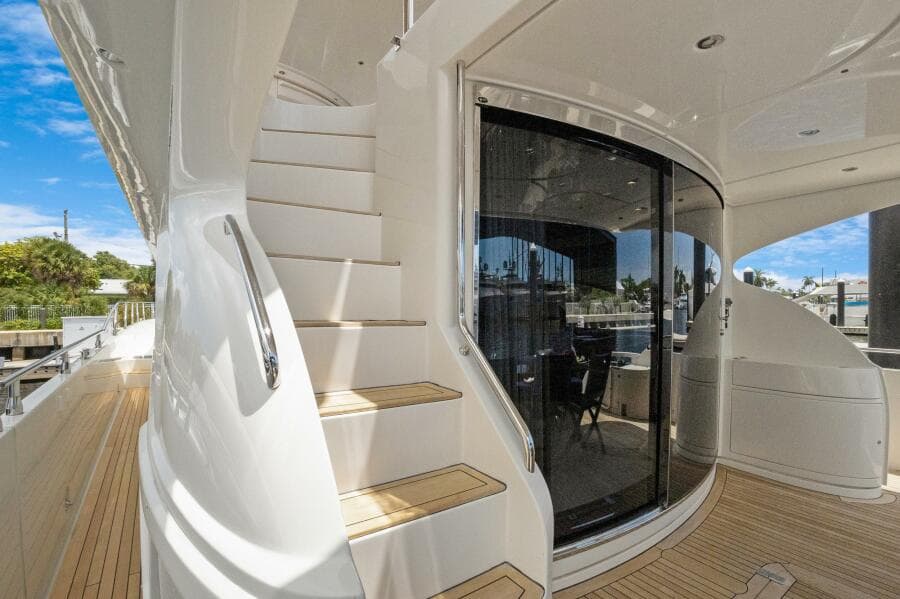

·        Bridge Stairway w/stainless steel handrails, 3 recessed courtesy lights

·        Emergency fire suppression system controls - starboard quarter locker

·        Engine room hatch - Guttered, watertight, polished stainless steel hardware

·        Fairleads (2) - Polished stainless steel, port & starboard

·        Lights (9) - Overhead, recessed, with exterior-mounted switch

·        Aft Lockers (2) – Port & stbd, fresh raw water washdown in each

·        Overhead sun/weather protection – with mirrored inset

·        Transom Gates (2) - Stainless steel, Marquis monogrammed, with magnetic catches, at the top of the cockpit stairways

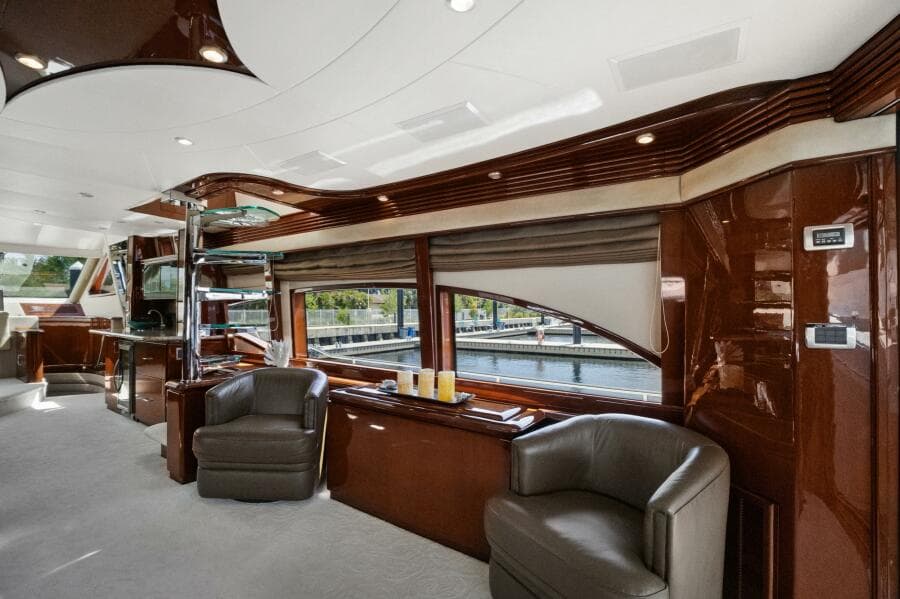

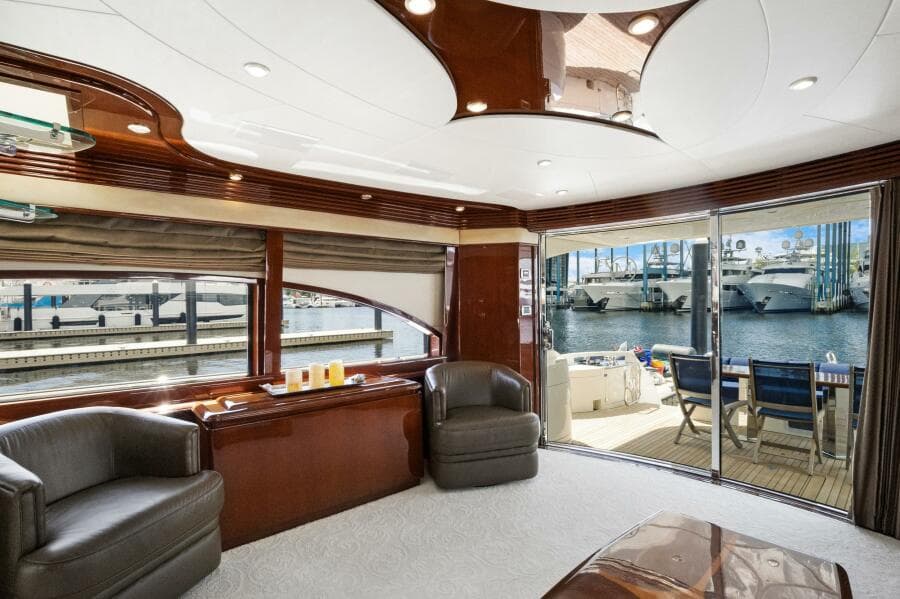

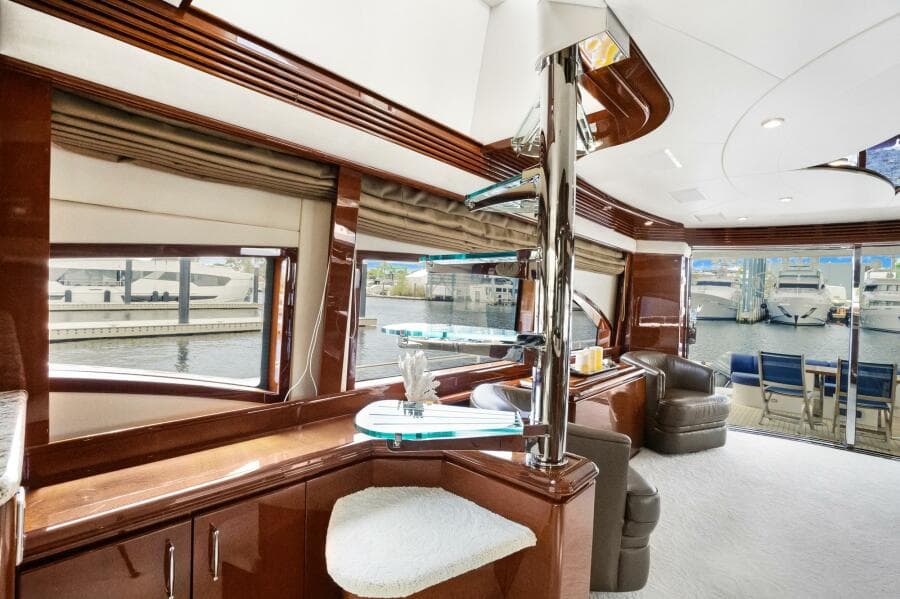

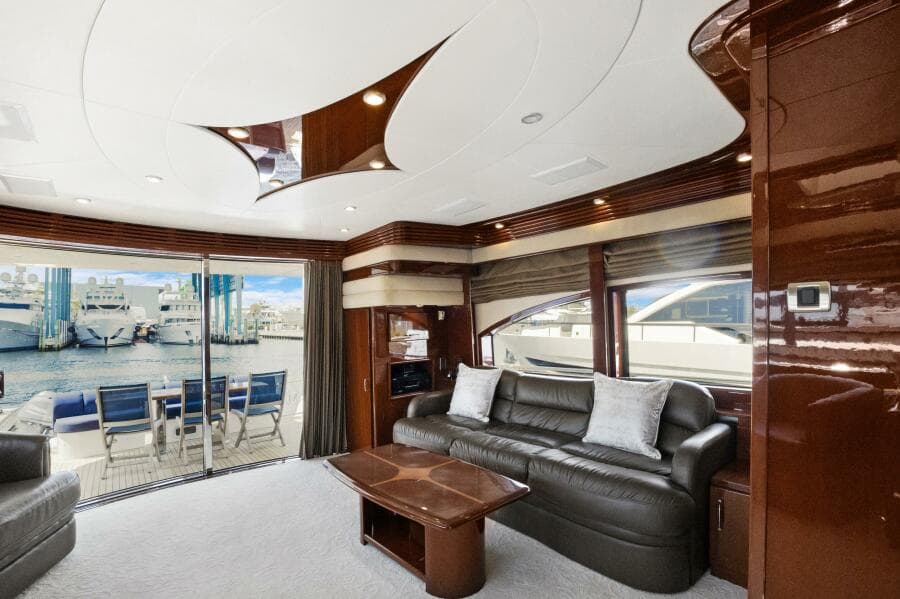

SALON

·        46” Samsung LED TV

·        Sony Network Blue Ray Player

·        Sofa - Ultra-leather upholstery turns into sleeper sofa

·        Sony Receiver

·        Apple docking station

·        Cherry wood high gloss interior

·        Coffee Table

·        Entertainment Group – 46” LED TV w/electric lift, enclosed in cabinet, Sony Blu Ray, Stereo w/Surround Sound

·        Entrance Door - Stainless steel frame, fully vertical, convex, sliding, handle latch, keyed deadbolt, secures open, neutral density glass with mirrored exterior, interior sliding screen

·        Carpet - Patterned cut & loop saxony

·        Chairs (4) - 2 recliners and 2 ultra-leather swivel

·        Cabinets (5) - Sapele wood inlay top, high gloss finish, with cherry wood sea rail

·        Window Treatment - Roman shades with recessed headrails

·        Sliding Door Curtain Décor matched, slides horizontally in top & bottom tracks,

·        Designer Décor Consisting of premium wall coverings & fabrics

·        Hardware Highlights – Stainless steel, polished & brushed light sconce, brushed nickel cover

·        Soffits (2) - Cherry wood, port & starboard outboard

·        Overhead architectural feature - Stylized cherry wood inlay

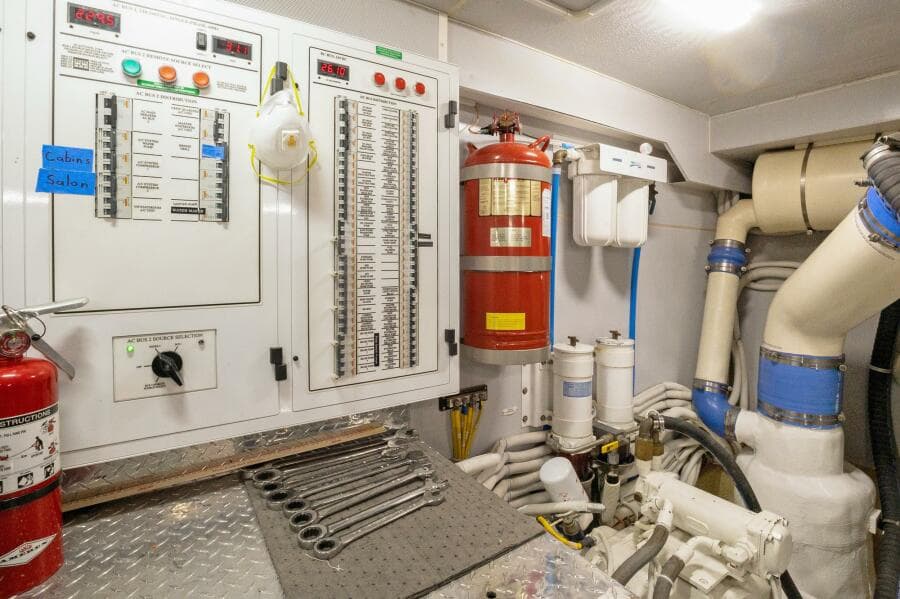

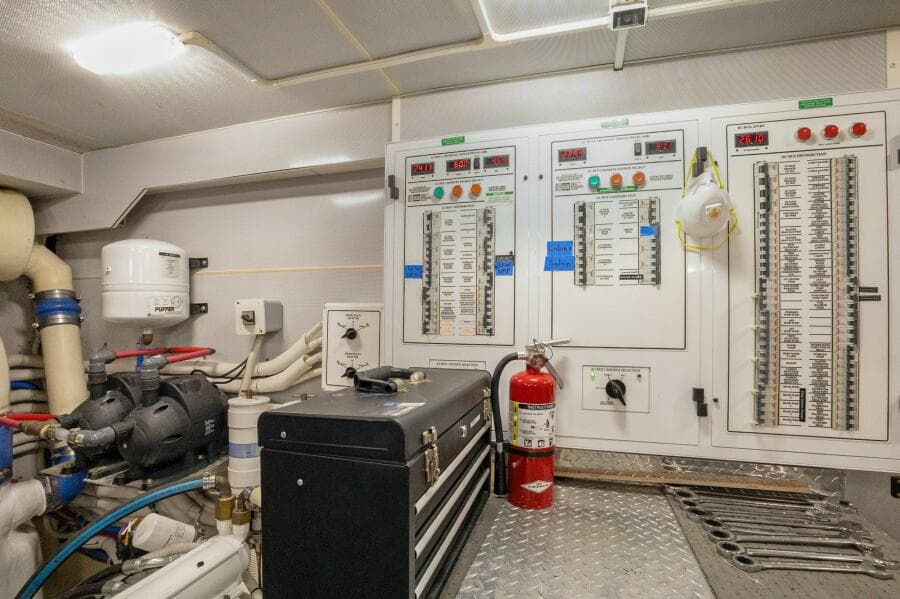

·        AC & DC Distribution panels

·        Lights (6) - In soffit, recessed, with electronic dimmer control

·        Lights (10) - Overhead, recessed, with electronic dimmer control

·        Electrical outlets

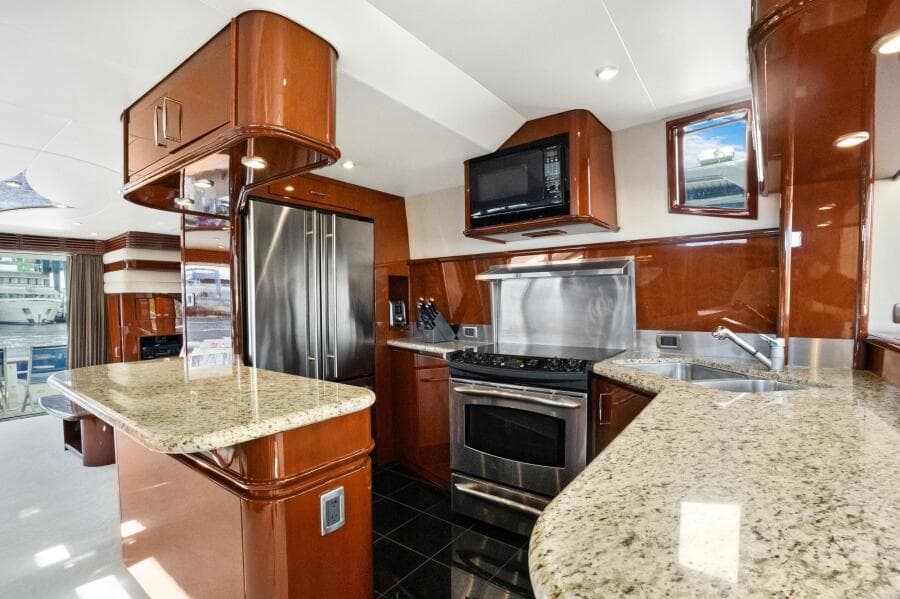

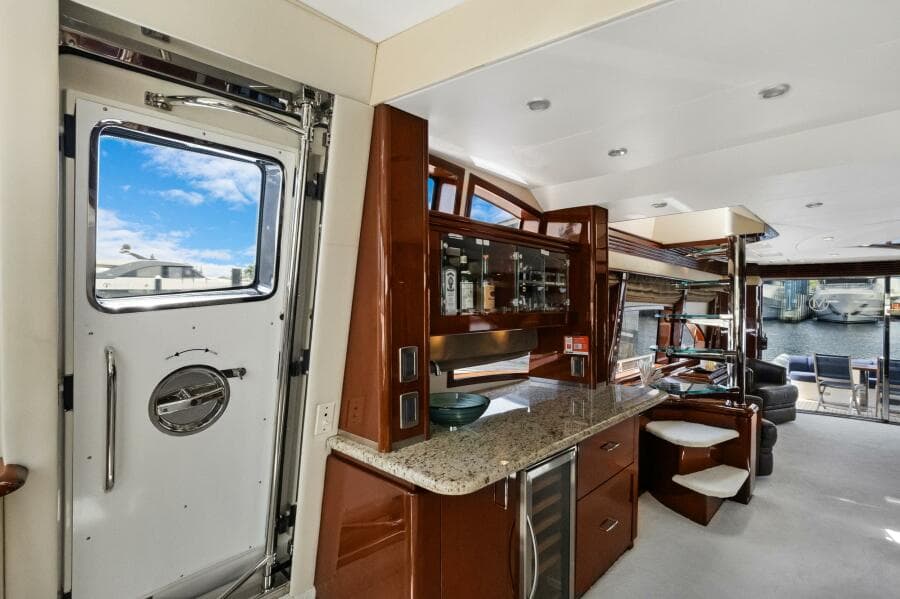

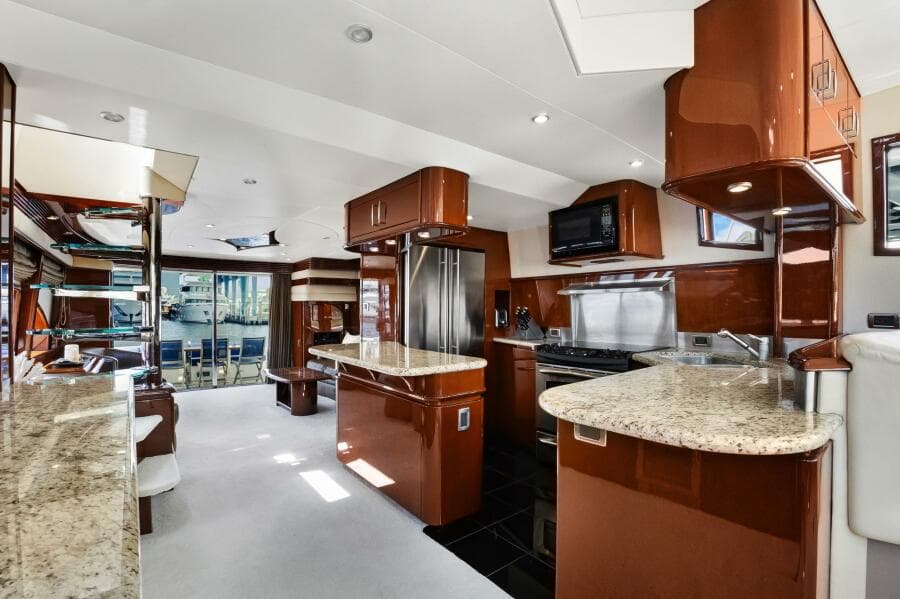

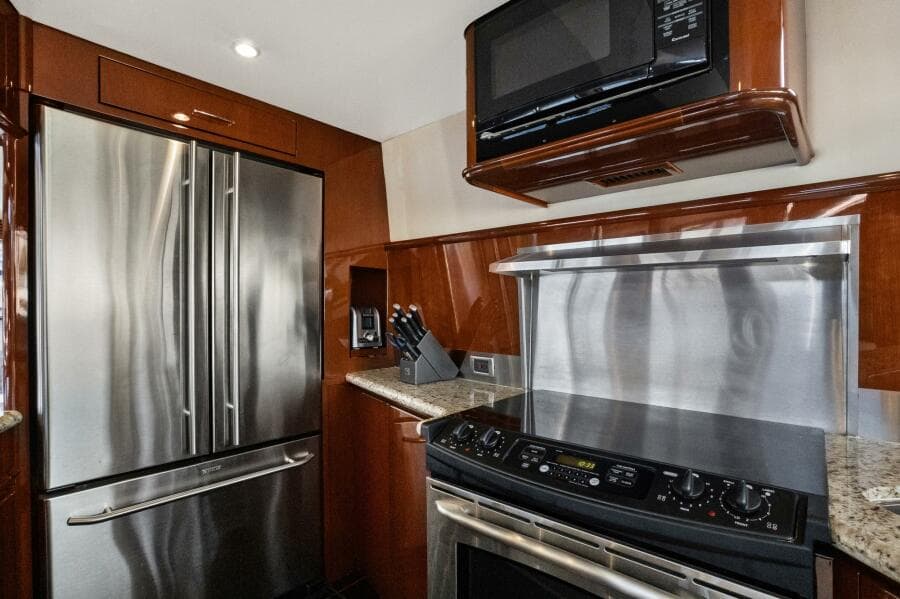

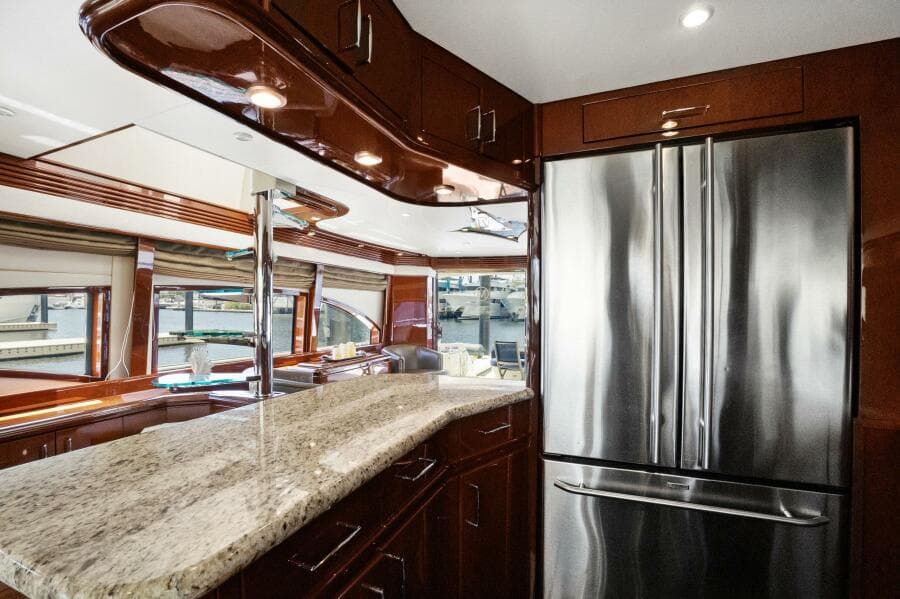

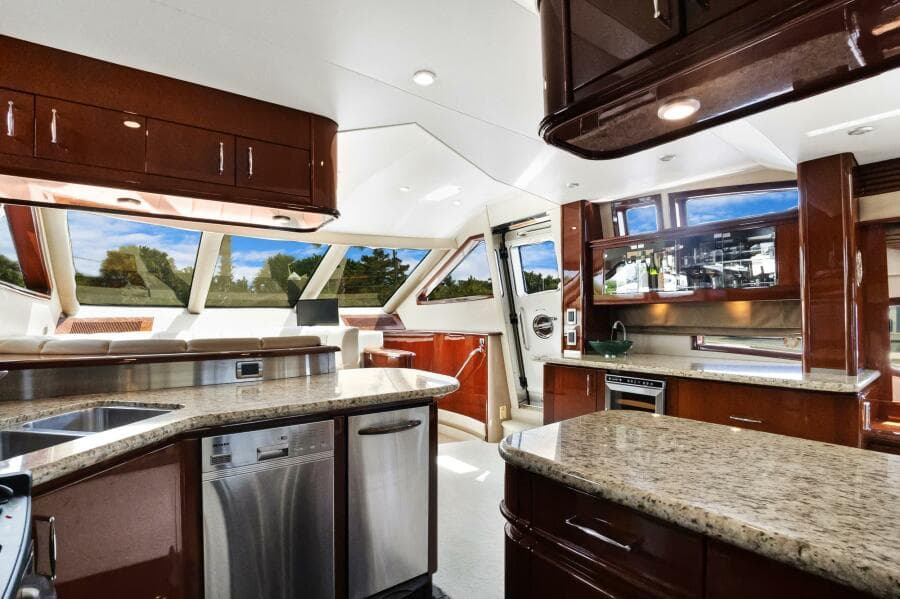

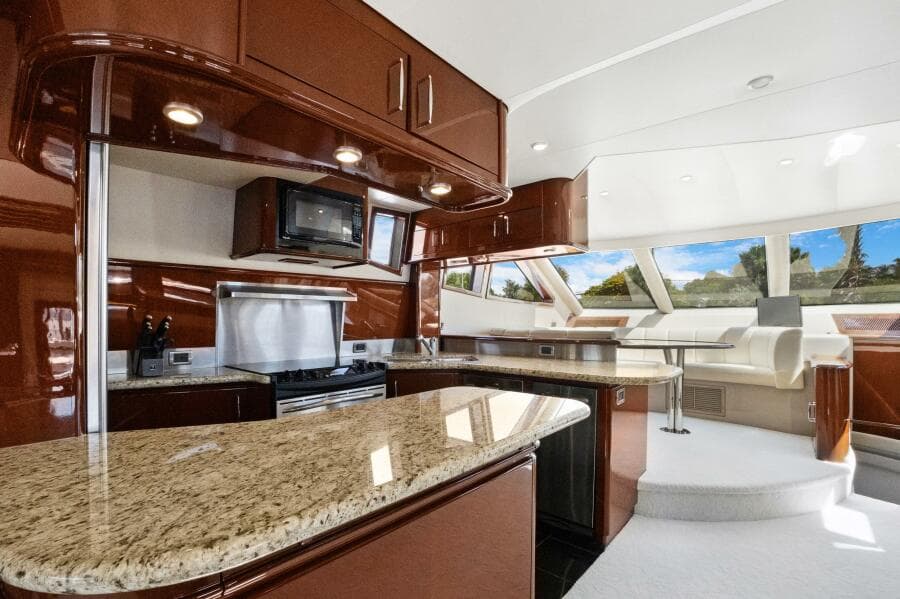

GALLEY & GALLEY BAR AREA

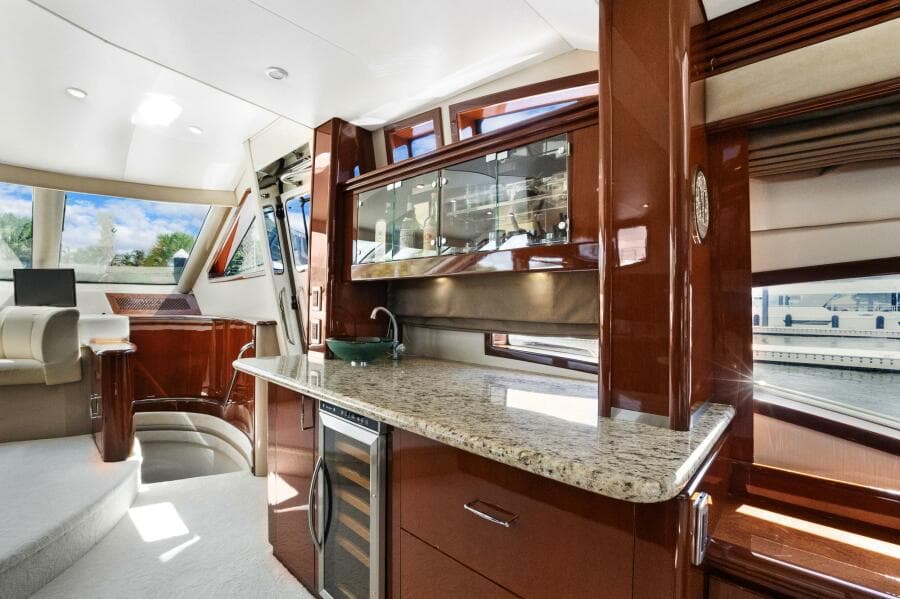

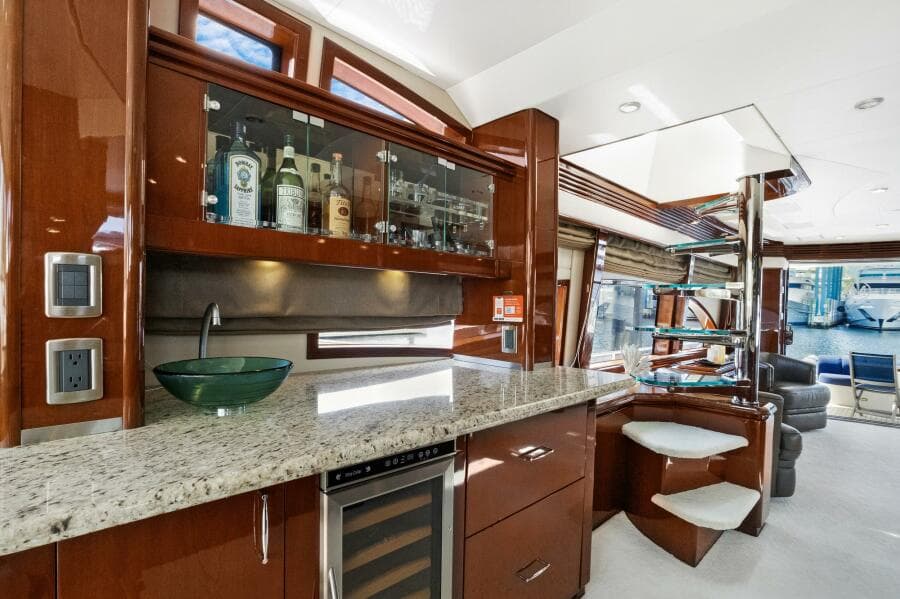

·        Serving Bar w/wine cooler & two Sub-Zero refrigerators

·        Serving bar has a glass bowl sink on the forward end of the countertop

·        Serving bar custom storage above with glass doors

·        Bridge stairway - Circular, polished stainless steel post & step supports, etched glass steps

·        Carpet - Patterned cut & loop saxony, new 2025

·        China Cabinets (2) - Sapele wood inlay top, high gloss jewel finish, double doors on each, 2 shelves inside with sea rail

·        Flatware Storage - 3 drawers inside cabinet, built-in flatware holders

·        Window treatment - Roman shade

·        Bullnose granite countertop in the galley

·        Custom cabinetry

·        Galley Flooring - Black Granite

·        Microwave/convection oven/broiler - Sharp, built-in, brushed stainless steel finish

·        Oven/Range - Electric, 3-burner, Ceran top, with brushed stainless steel backsplash

·        Range hood - Brushed stainless steel, with 2 lights, exhaust fan, outside vent

·        Refrigerator/Freezer - Jenn-Air, full-size french door, bottom freezer, brushed stainless steel finish

·        Dishwasher

·        Designer Décor Consisting of premium wall coverings & fabrics

·        Polished stainless steel hardware

·        Lights (4) - Overhead, recessed

·        Lights (5) - Recessed in bottom of overhead cabinets

·        Rocker light switches

·        Galley Sink - Two basin, stainless steel, under mounted

·        Storage cabinets (9)

·        Storage drawers (8)

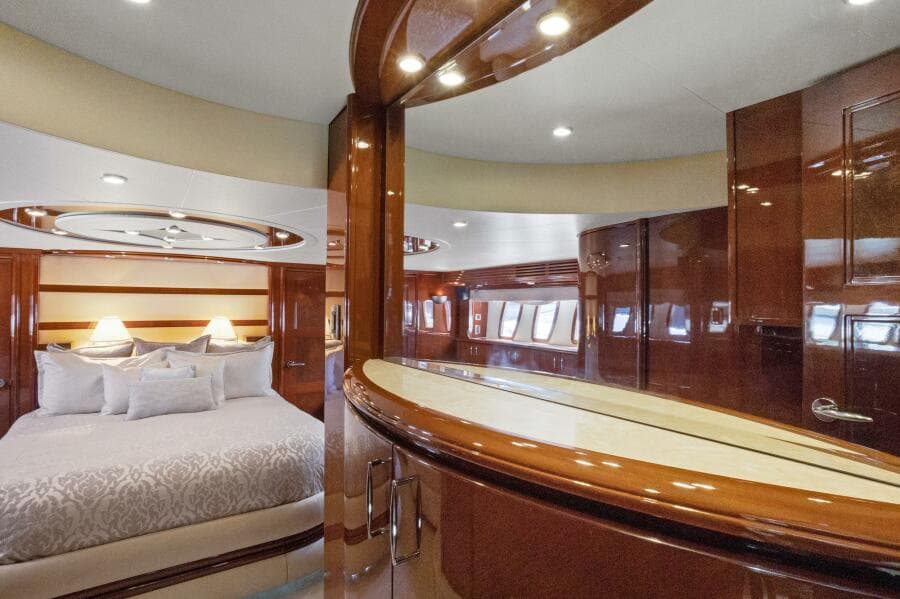

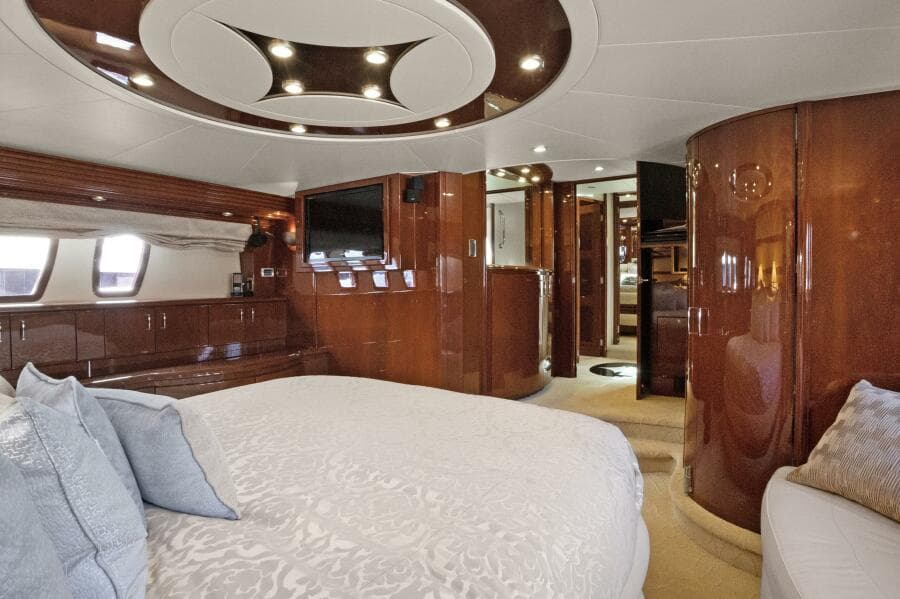

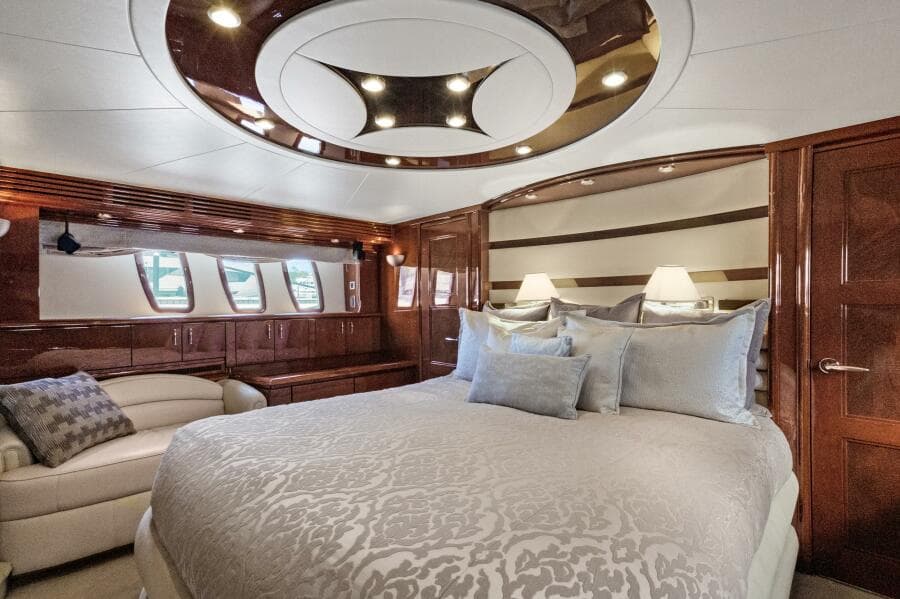

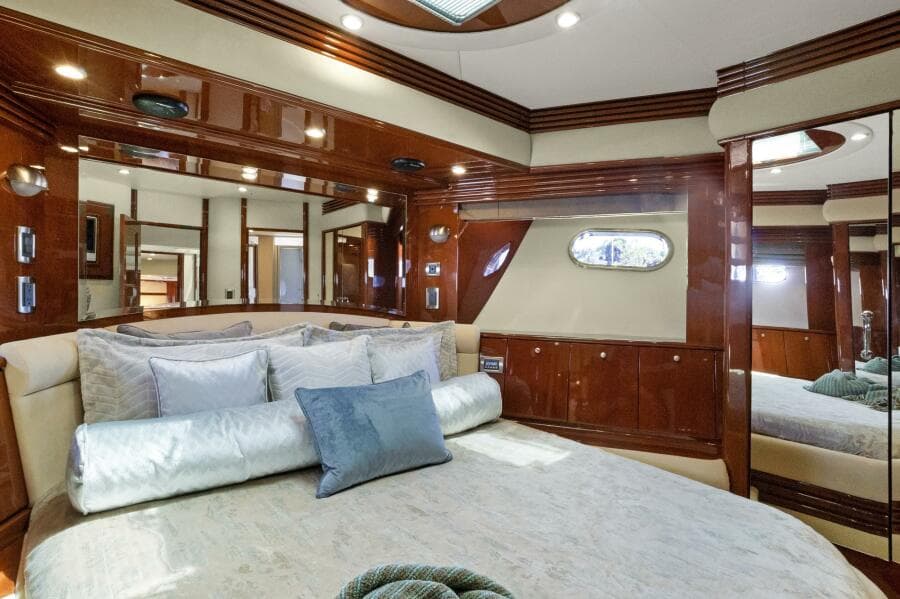

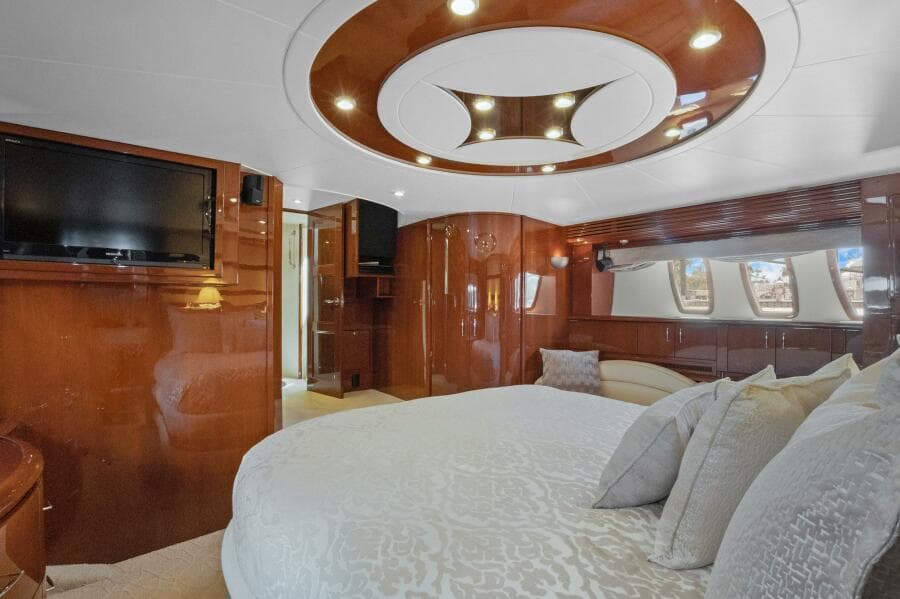

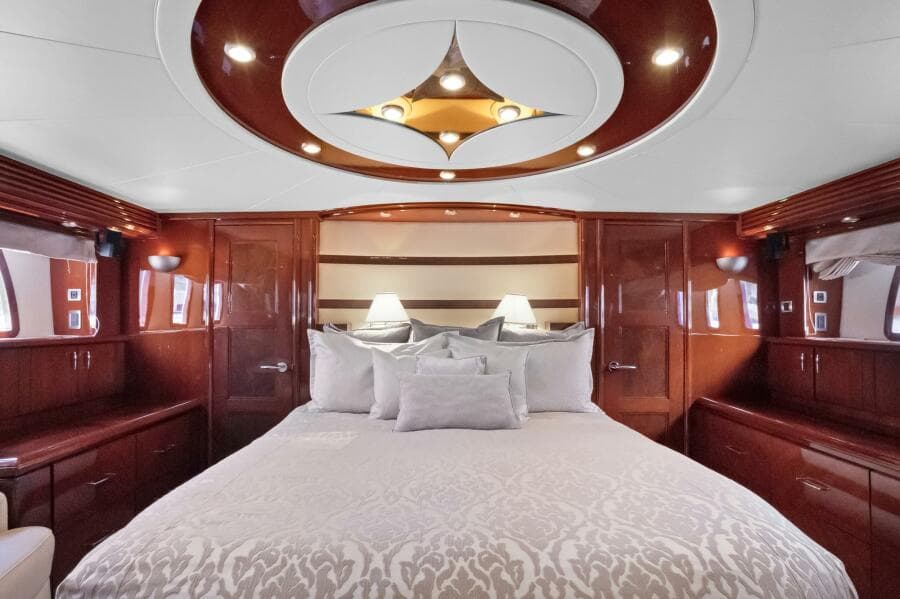

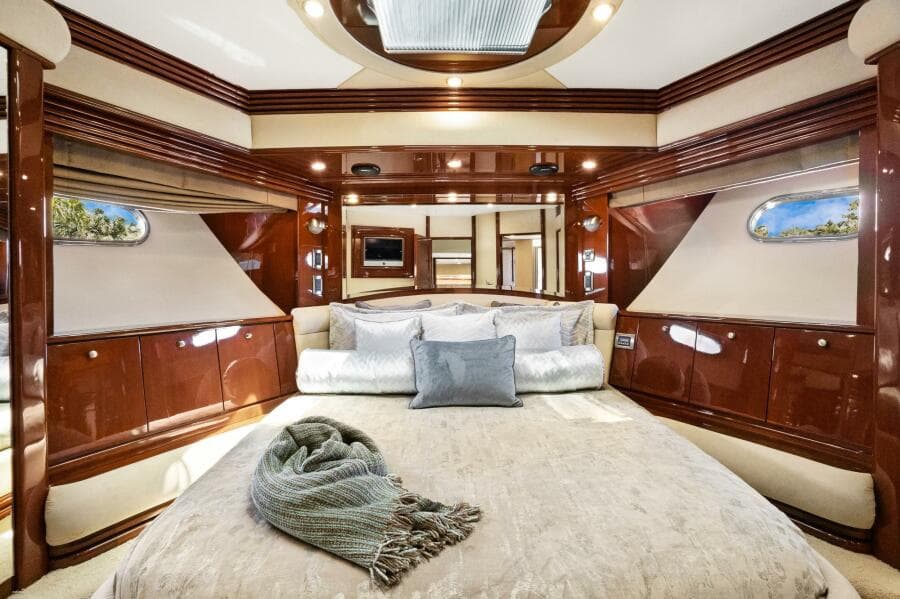

MASTER STATEROOM & HEAD

·        Full Beam Layout w/King bed, Beam to Beam

·        King Bed & Upgraded Mattress

·        Upgraded wood doors

·        Master berth 32’ flat screen TV installed

·        Stereo with surround sound

·        Cabinets to Port

·        Ultra-leather settee on starboard side

·        Added cabinets in the Master on top of the outboard cabinets

·        Dresser for Master with a curved front (face) Port & Starboard

·        Swing out reading lights on the Master headboard w/small shelves for remotes

·        Shelf behind the Master headboard

·        Medallion light in Master over the center of the bed

·        Dresser - High gloss jewel finish, sapele wood inlay top with cherry wood sea rail, 4 drawers, cherry wood herringbone pattern drawer faces

·        Bulkhead architectural feature - curved upholstered horizontal panels, high gloss jewel finish recessed curved cherry wood backdrop, accent lighting behind each panel

·        Carpet - Patterned cut & loop saxony

·        Designer Décor Consisting of premium wall coverings & fabrics

·        Electrical outlets

·        Entrance Door - Solid cherry wood, herringbone pattern, secures open & closed, stainless steel hardware

·        Lights (3) - Over entry dais, recessed

·        Lights (10) - In overhead architectural feature

·        Lights (3) - In soffit over berth head, recessed

·        Lights (3) - In starboard soffit, recessed

·        Lights (3) - Over bulkhead architectural feature, recessed

·        Lights (4) - Sconce, brushed nickel cover

·        Mirror - Beveled edges, above entry dais cabinet

·        Sheet set embroidered with Marqui logo - fitted sheet, flat sheet, two pillow cases

·        Soffit - Cherry wood grille, around stateroom perimeter

·        Windows (2) w/ screens

·        Window Treatments - Roman shades

·        Walk-In Closet with Washer & Dryer

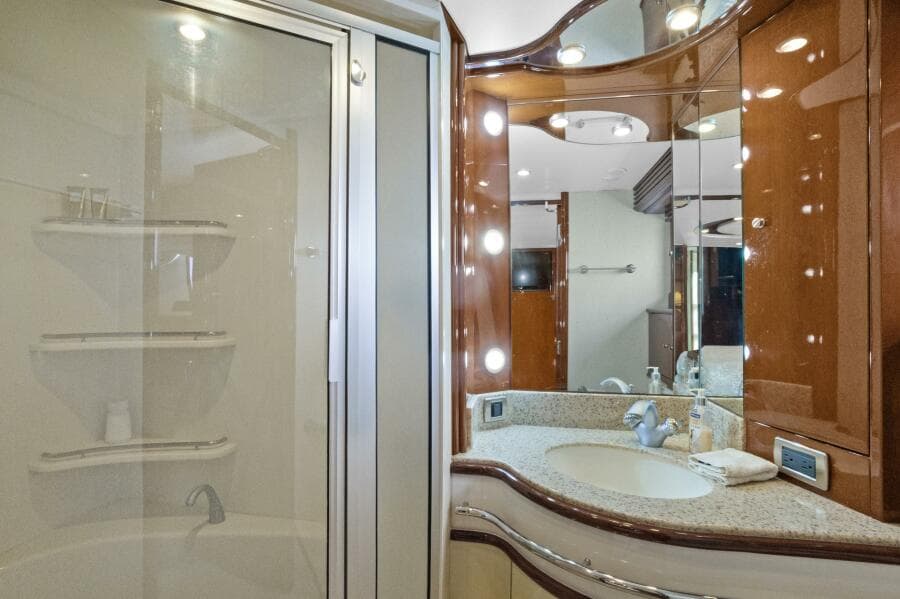

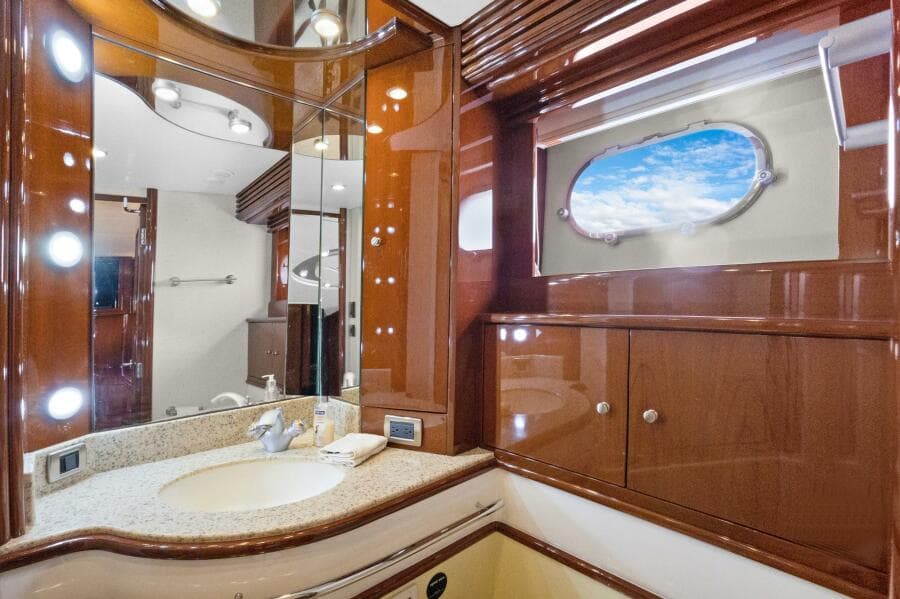

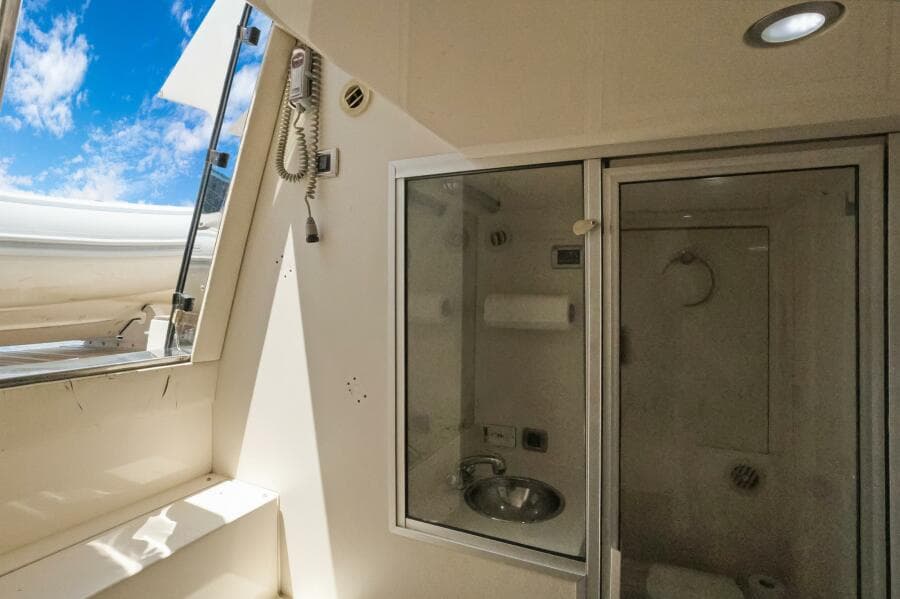

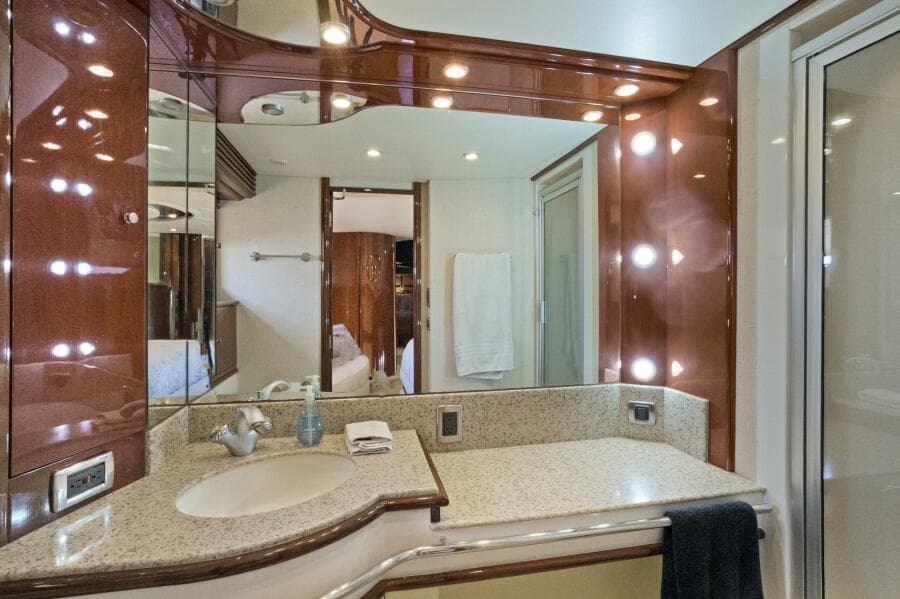

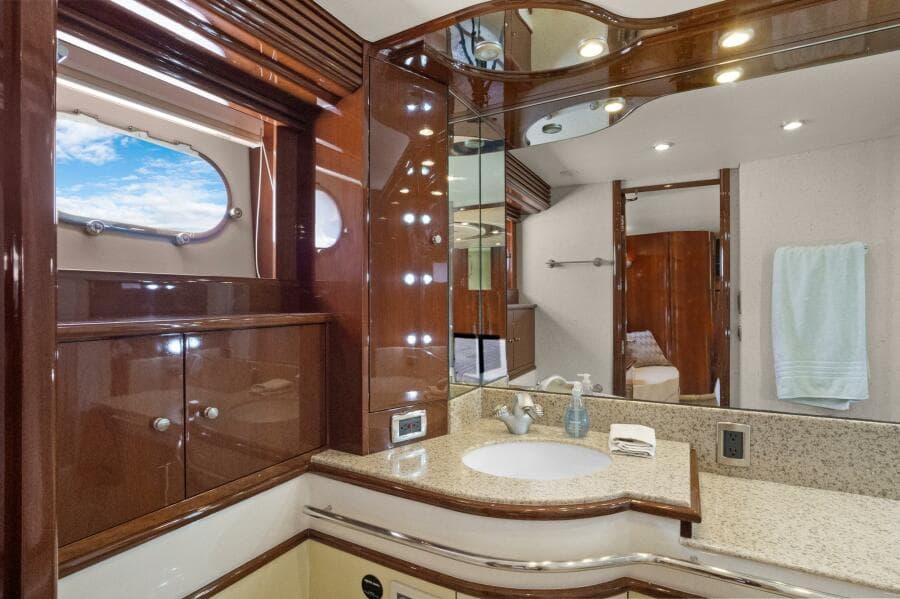

MASTER HEAD

·        His & Hers Heads with shower/tub in between

·        Head Flooring - Marble

·        Head Exhaust fan for both sides

·        Hardware Highlights – Stainless steel, polished & brushed

·        Hull Portlight - Frosted privacy glass with screen

·        Lights (2) - Overhead, recessed

·        Lights (7) - Over & next to vanity mirror, recessed

·        Medicine Cabinet - 4 shelves with sea rails

·        Mirror - On bulkhead & ceiling over vanity

·        Rocker light switches

·        Soffit - High gloss jewel finish, cherry wood grille

·        Toilet - Tecma Silence, full-size, electric pump flush

·        Toilet Paper Holder - Wall-mounted

·        Towel bars (2)

·        Vanity - Marble countertop & backsplash, stainless steel grab rail across front, his & hers under mounted solid surface molded sinks, 2 cabinets beneath with sea rails

·        Wall Covering - Silk/cotton blend

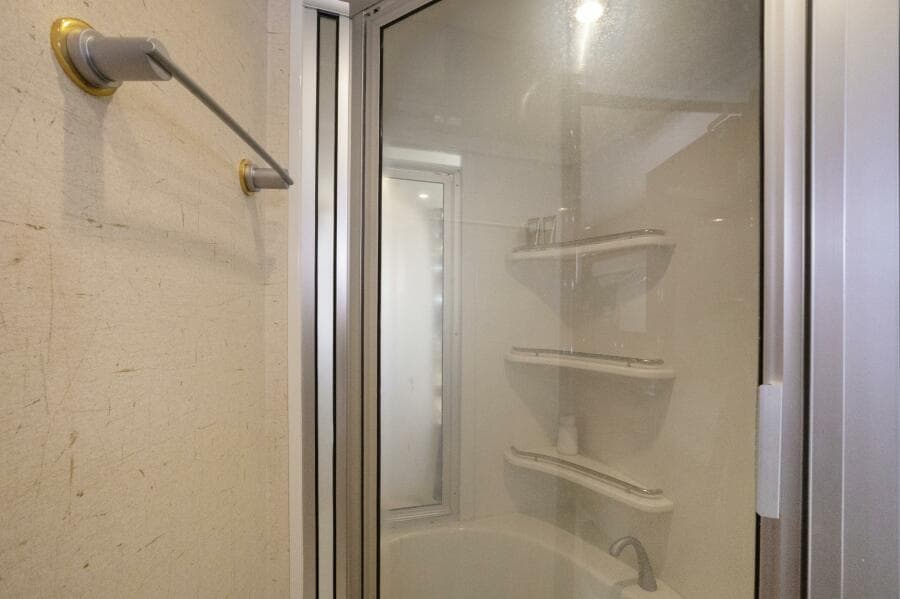

·        Tub/Shower Compartment between His & Her Heads

·        Light - Overhead, recessed

·        Shelves (3) - Fiberglass, with stainless steel sea rails

·        Shower Door - Clear glass in gasketed polished aluminum frame, electrically-activated fogging feature for privacy

·        Soap dish

·        Towel bar

·        Tub - Full-size, fiberglass

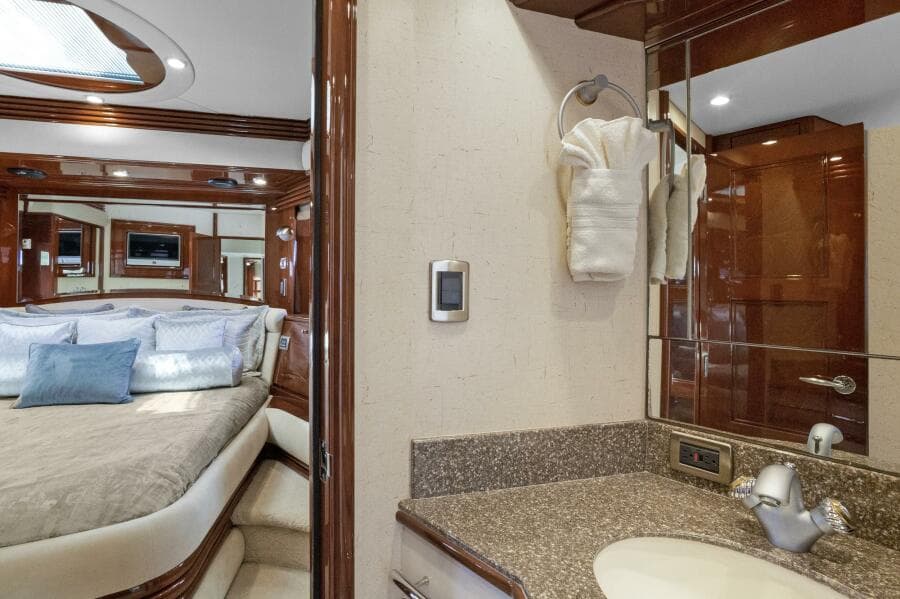

VIP Forward STATEROOM & HEAD

·        Upgraded wood doors & Carpeted

·        Cherry wood high gloss finish interior

·        Berth - Queen-size, pillow-top inner-spring mattress, island, with Ultra leather upholstered bolsters around berth

·        Window Treatments - Roman shades

·        Mirrored headboard - beveled edges

·        Berth nightstands (2) - high gloss jewel finish, sapele wood inlay top with cherry wood sea rail,

·        (3) cabinets beneath

·        (2) – Carpeted

·        20" TV/DVD

·        Rocker light switches

·        Hull Portlights (2) - Fixed, non-opening

·        Lights (6) - Overhead, recessed

·        Lights (2) – Sconces

·        Storage cabinets (6)

·        Storage Drawer - Extra-large

·        Surround Shelves - High gloss jewel finish, sapele wood inlay top with ultra-leather upholstered bolster sea rail

·        Wardrobe Lockers (2) - Full-height, cedar-lined, carpeted, automatic light, mirrored doors

·        Upgraded wood doors

·        Head Exhaust fan

·        Head Flooring - Marble

·        Head Hardware Highlights –stainless steel, polished & brushed

·        Toilet - Tecma Silence

·        Towel bars (2)

·        Towel ring

·        Vanity - Marble countertop & backsplash, stainless steel grab rail across front, undermounted solid surface molded sink, cabinet beneath with sea rail

(VIP Shower Stall)

·        Corner Bench seat

·        Hull Portlight - Frosted privacy glass

·        Light - Overhead, recessed

·        Nonskid sole

·        Shower Head - Detachable for use as hand shower

·        Towel bar

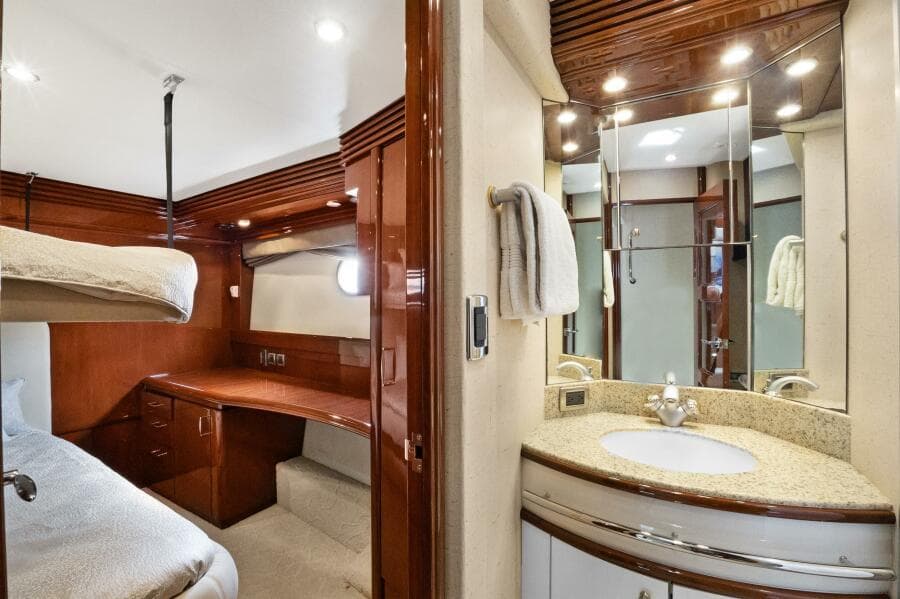

GUEST STATEROOM -Port Side

·        Upgraded wood doors

·        Desk in place of the outboard bunk

·        Pullman bunk over the inboard bunk

·        Additional Cabinets for Storage

·        Window Treatment - Roman shade

·        Designer décor

·        15" TV

·        Hanging Locker - Full-height, cedar-lined, automatic light

·        Hull Portlight

·        Lights 4 recessed over head

·        Light – Sconce x 2

·        Private door for guest head access

·        Storage – Beneath bottom berth mattress

GUEST DAY HEAD

·        Upgraded 2 x wood doors

·        Shared with Guest Stateroom

·        Cabinet - High gloss jewel finish, 3 shelves

·        Exhaust fan

·        Flooring – Marble

·        Lights (2) - Overhead, recessed

·        Lights (2) - Over vanity, recessed

·        Medicine Cabinet

·        Mirrored Bulkhead - Over vanity

·        Rocker light switch

·        Toilet - Tecma Silence

·        Towel bar & ring

·        Towel Set - Bath towel, hand towel, washcloth

·        Vanity - Marble countertop & backsplash, stainless steel grab rail across front, undermounted solid surface molded sink, cabinet beneath with sea rail

(Shower Stall)

·        Bench seat

·        Hull Portlight - Frosted privacy glass w/screen

·        Light - Overhead, recessed

·        Nonskid sole

·        Shower Head - Detachable for use as hand shower

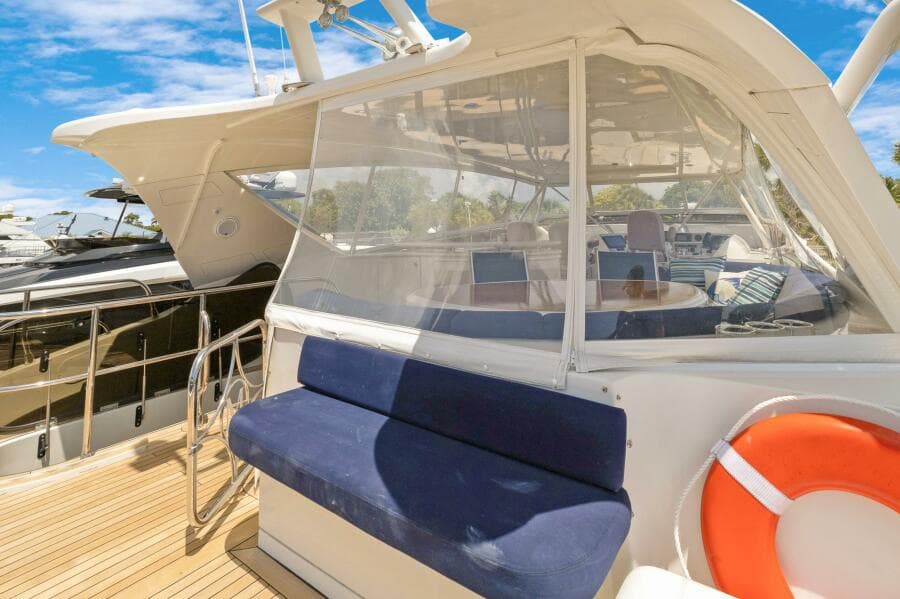

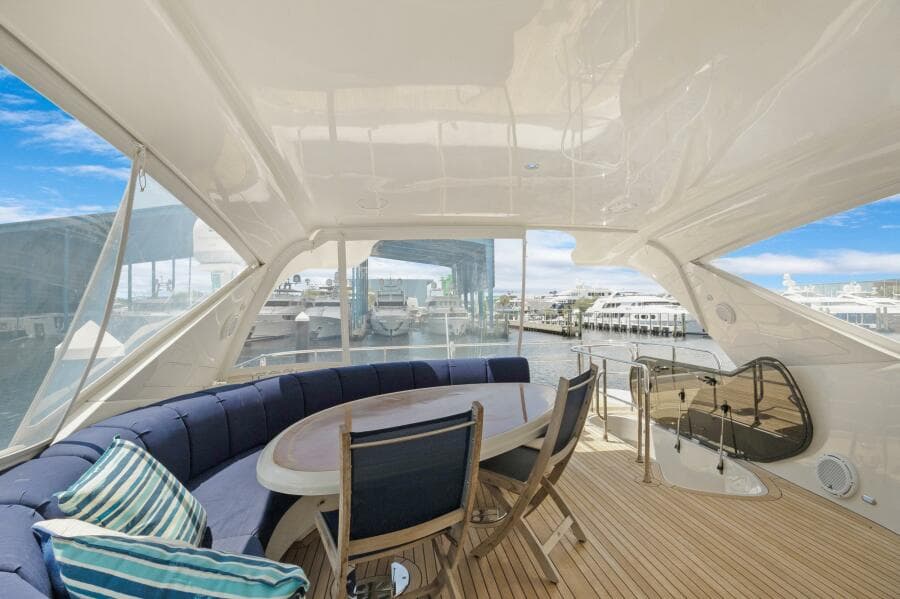

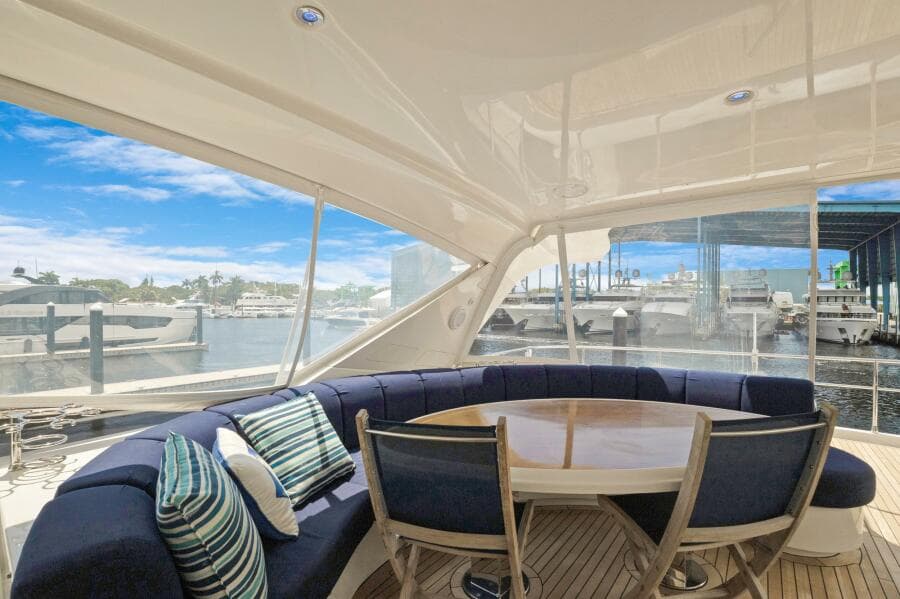

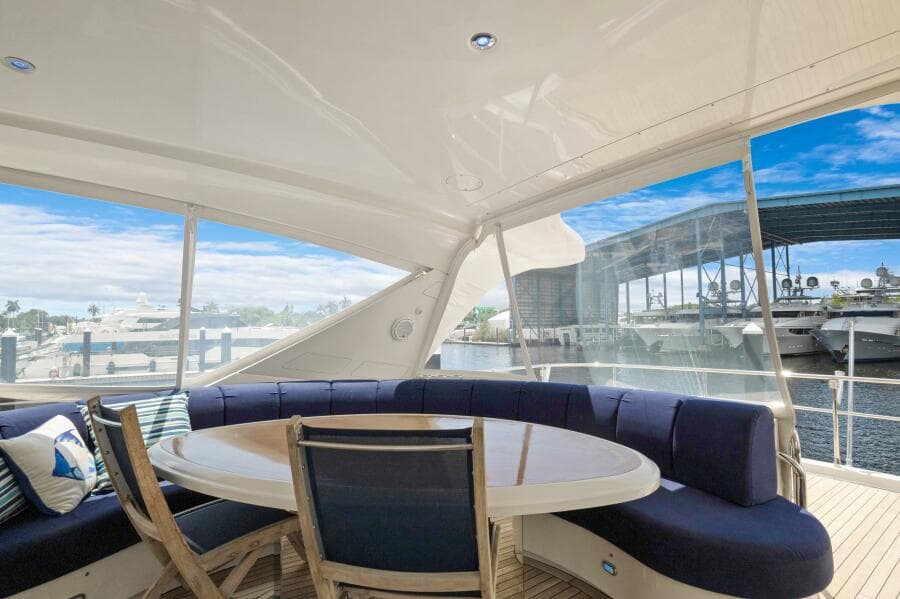

FLYBRIDGE & BRIDGE Aft DECK

·         Bridge Hardtop over enclosed air conditioned flybridge

·        Bridge A/C own control unit

·        Full side enclosure – with 15 zipped plexiglass removable sections

·        Pedestal Seating - (3) NEW helm Stidd chairs

·        Custom High Gloss table bases on Bridge table

·        Exterior overhead lights, landscape lights, courtesy lights & rope lighting

·        Teak decks on the Bridge - Forward and aft area

·        JL Audio speakers

·        Helm control station

·        Entrance Doors are stainless steel frame with tinted tempered glass, interior & exterior grab handles & latch handles

·        Bar - Curved, translucent solid surface countertop with under lighting, stainless steel foot rail, cabinet beneath with bottle holders

·        Wood inlay bridge table

·        Built-In Grill /Ice maker/wet bar

·        Bridge Stereo Blue Tooth Fusion

·        Bridge Monitor System

·        Aft Bridge sun pad w/Rail

·        Beverage Holders (8) – stainless steel, self-draining

·        Lights (2) - Courtesy, recessed

·        Lights (5) - Courtesy, recessed, with exterior-mounted switch

·        Lights - In electronics arch, recessed, with exterior-mounted switch

·        Lights - Accent, courtesy, recessed under bar

·        Safety Rail - Stainless steel

·        Teak deck self-draining walk surface

HELM & ELECTRONICS

·         Garmin Electronics added in 2014

·        Garmin Radar XHD 6k

·         Garmin x 2 , model 8020 touchscreen chart plotter

·        Garmin AIS integrated with chart plotter

·        Garmin Depth Sounder integrated with chart plotter

·        Raymarine Wireless Auto-

·        Bow & Stern Thrusters

·        Raymarine Ray240 VHF Handset Only

·        A/C Vents

·        Sony Bluetooth Module for Fusion Stereo

·        Emergency Controls - Shift & throttle

·        Gauges - Analog; rudder angle, fuel level (1 for each tank)

ENGINE & MECHANICAL EQUIPMENT

·        Engines: CAT C-18 – 1000hp / Hours: 750 at 2300 RPM

·        Last Engine Service Performed - 12/2014

·        Generator: 28 Kohler – Hours: 4560

·        Last Generator Service Performed - 12/2014

·        Marquis Docking System includes 13 hp, 9.8” (25 cm) diameter Side Power bow & stern thrusters

·        Matrix Emerald Series Water Maker 500-gal day

·        Main AC & DC distribution panels

·        Catwalk - Polished diamond plate, over lay with outdoor carpet

·        Cockpit Hatch Access Ladder - Stainless steel, nonskid steps

·        Entrances – hatch and aft water tight sea door/hatch

·        Insulation – Sound-Down

·        Lights x 5 - Overhead, fluorescent

·        Air Conditioning Chillers -Cruise air dual system -total 80,000 BTU

·        In line shore power breakers before Main A/C D/C panel

·        Exhaust Mufflers – Engines & generator

·        Fresh Water Cooling –main engines, generator, air conditioning

·        Fuel Tanks (2) - 600 gallons

·        Propellers – alloy NiBral 38’, 5 blade

·        Propeller Shafts - Aquamet

·        Rudders & struts

·        Seawater strainers-mains, generator, air con., water maker

·        Ship’s systems control panel ( main panel and inverter d/c panel)

·        Shaft Seals – Tides Sure Seal self-aligning Nitrile lip seal, maintenance free

·        Trim Tabs - Stainless steel

The Company offers the details of this vessel in good faith but cannot guarantee or warrantee the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Listing MLS by Yachtr.com
