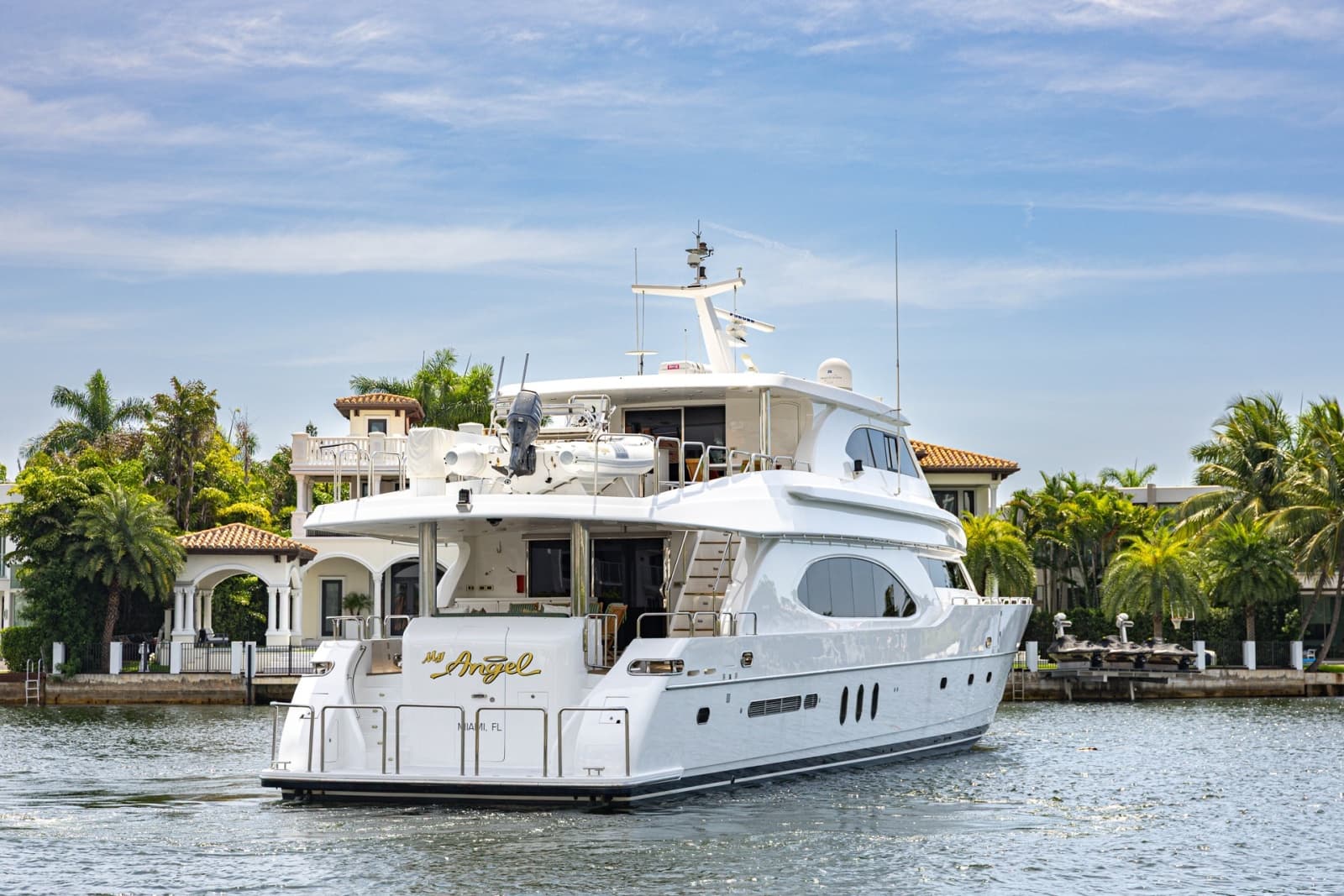

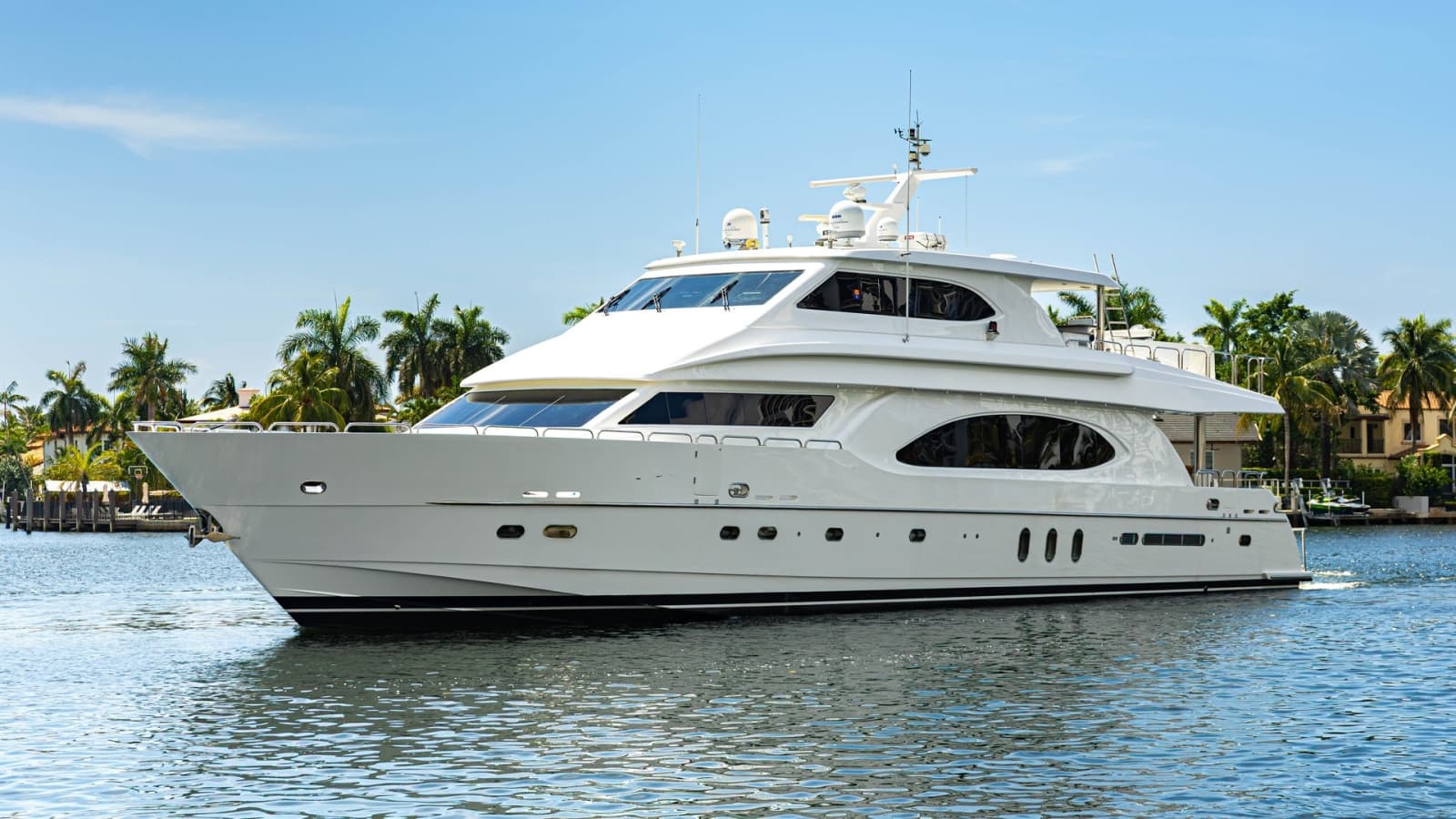

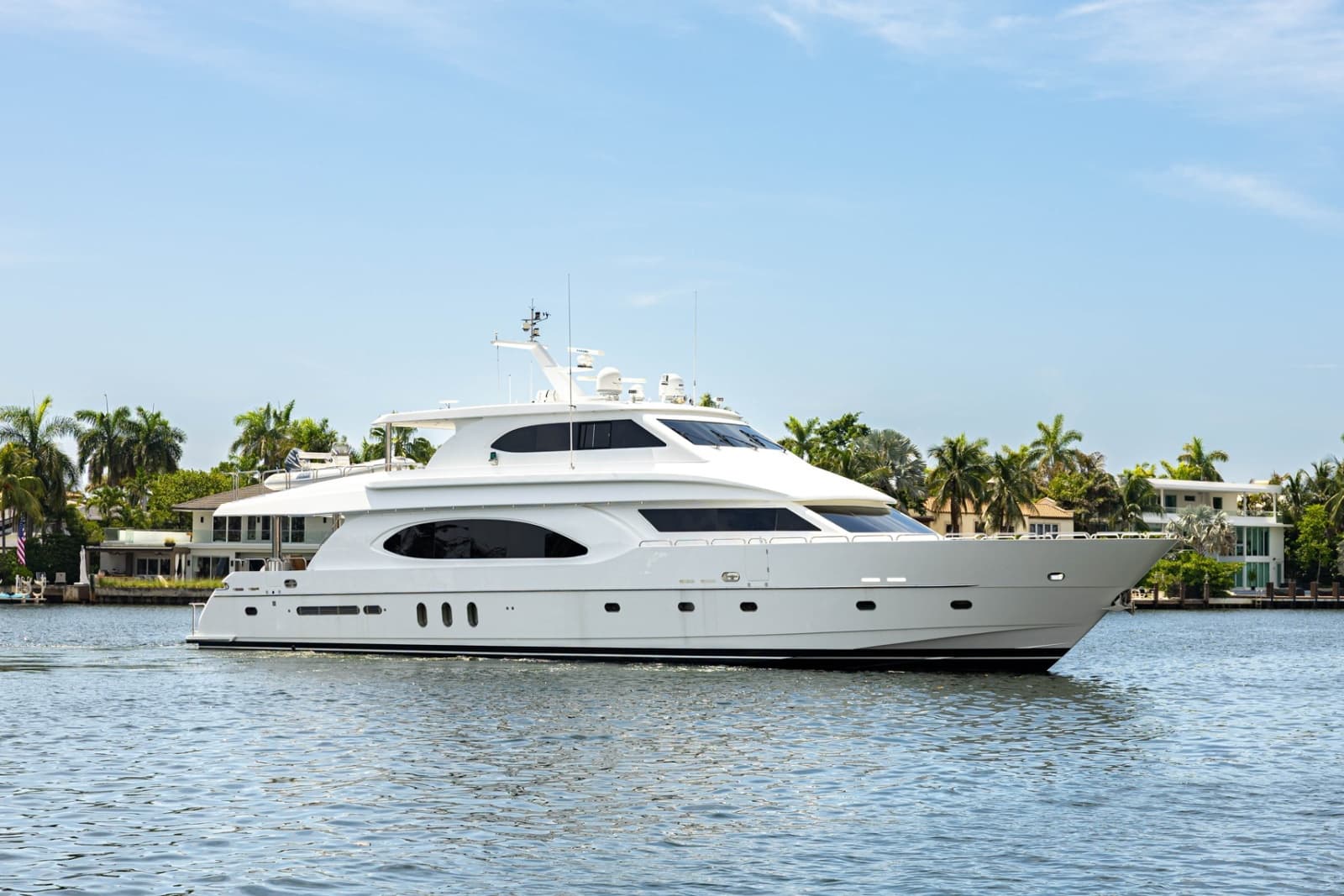

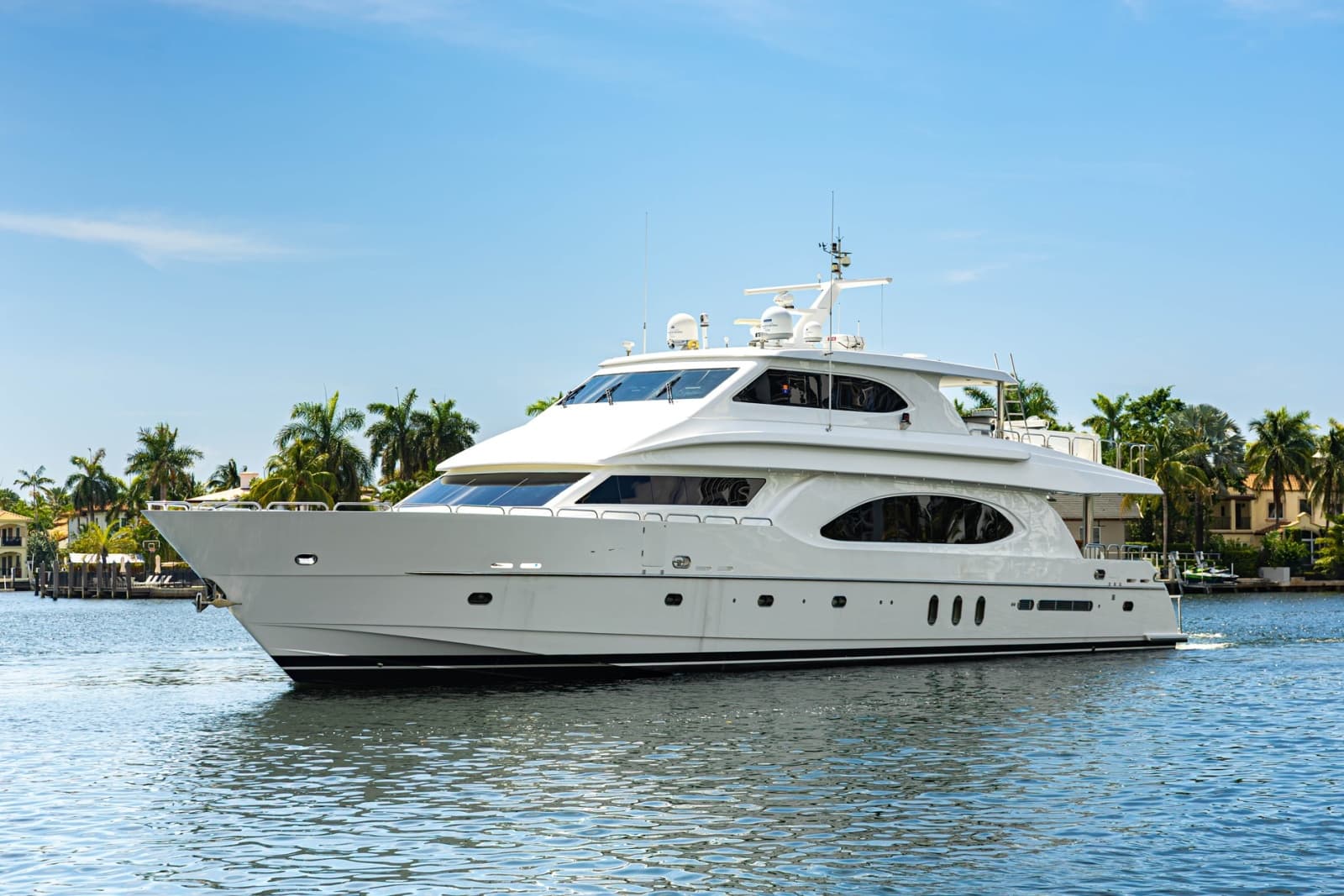

2008 Hargrave Enclosed Skylounge

• Interior soft goods replaced 2013
• Italian door handle package (gold)
• Push/Pull German latches (gold)
• Removable white vinyl headliner panel system
• Recessed Tray ceiling in salon
• Lights in closet on micro switches
• Canaloupe 24v LED ceiling lights (gold)
• Roman Shades in each stateroom, main salon & galley

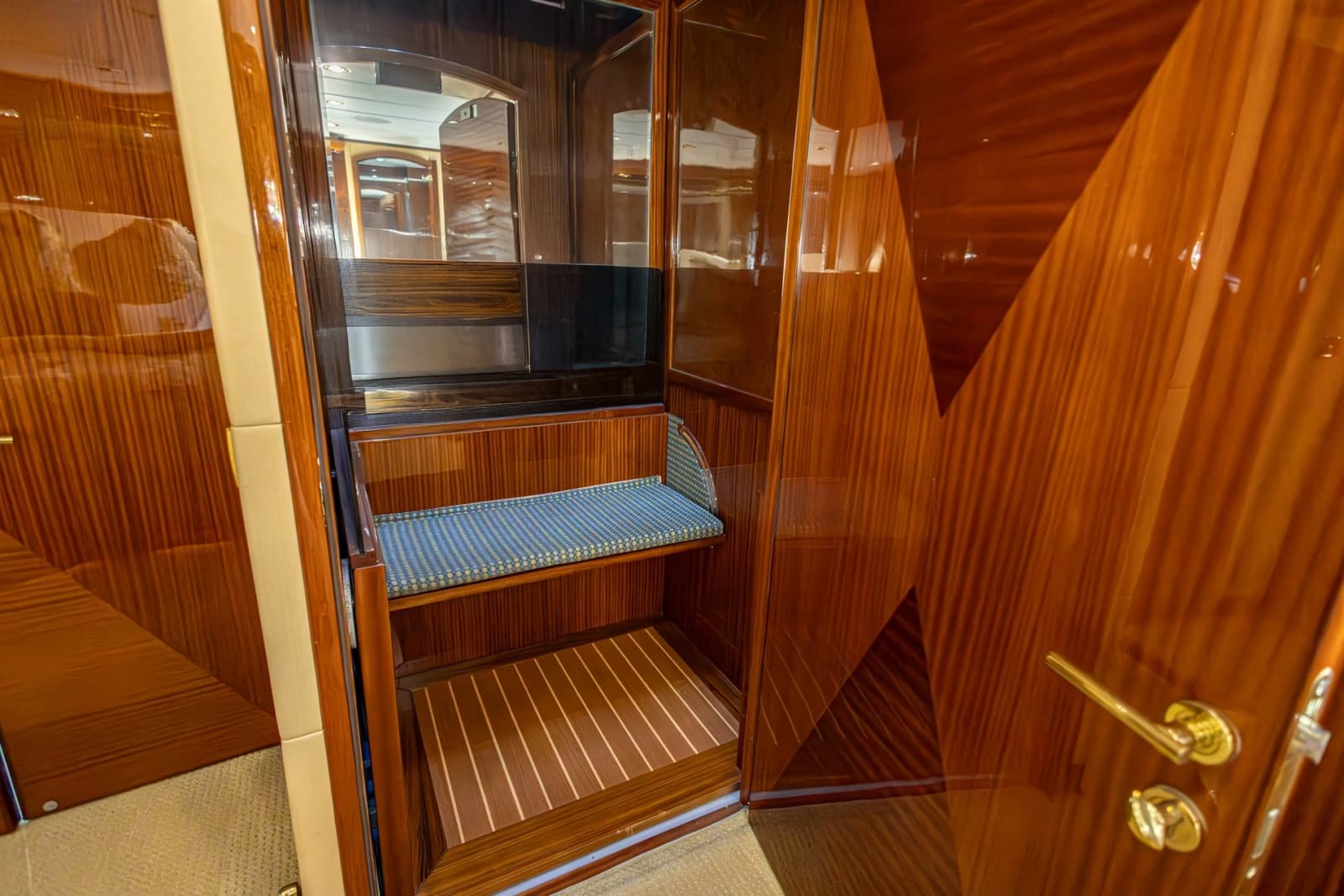

• Quicklift Custom Elevator to all 3 decks w/one folding chair (serviced 8/2016)
• Sapele wood interior
• Headliner w/Foam throughout vessel
• Sapele wood in Main Deck & Lower Cabins
• (12) Additional Cantalupi Viareggio Interior Lights
• Custom upholstery throughout
• Vimar light switches w/ 9 dimmers
• Personal interior upgrade & additions over standard

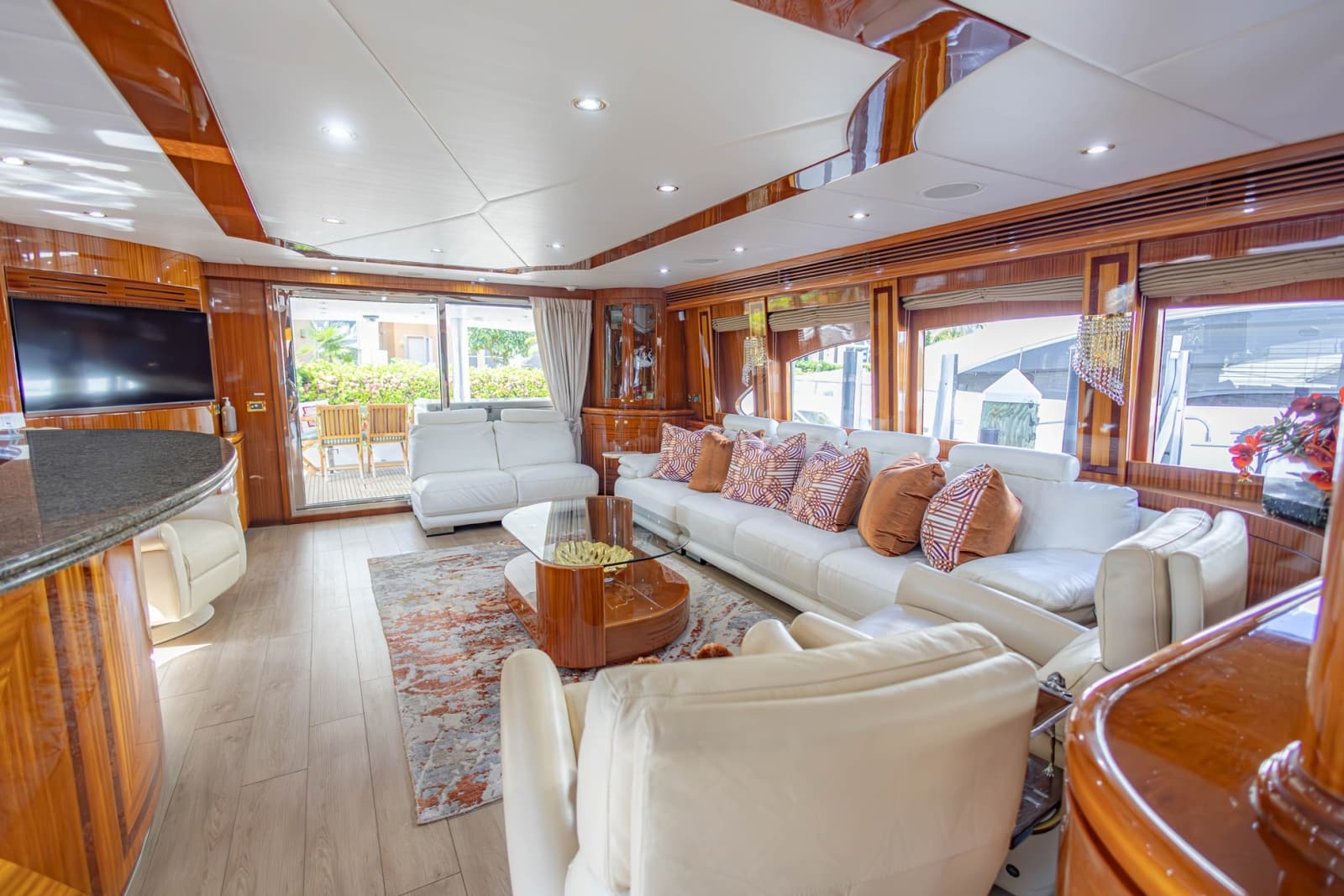

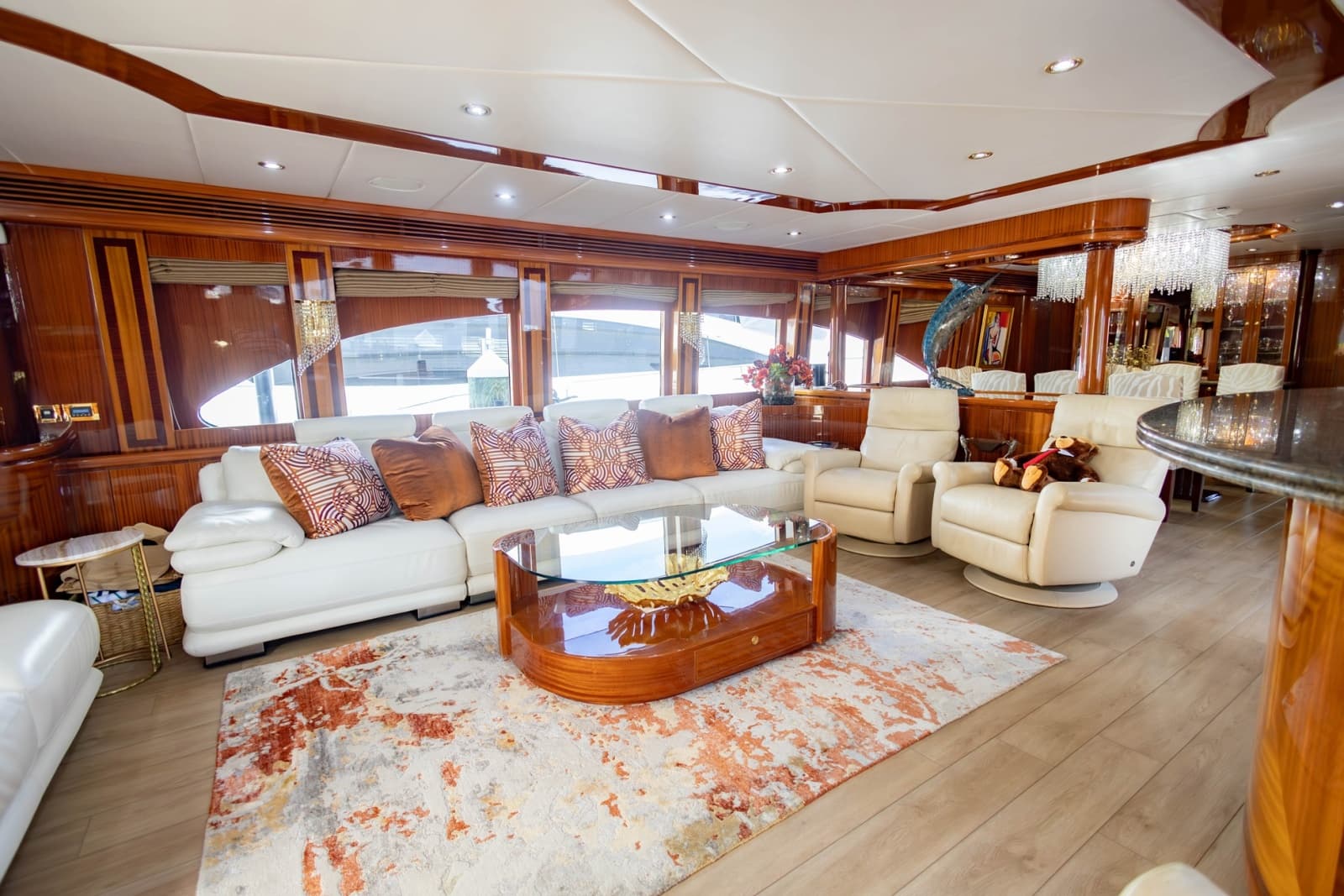

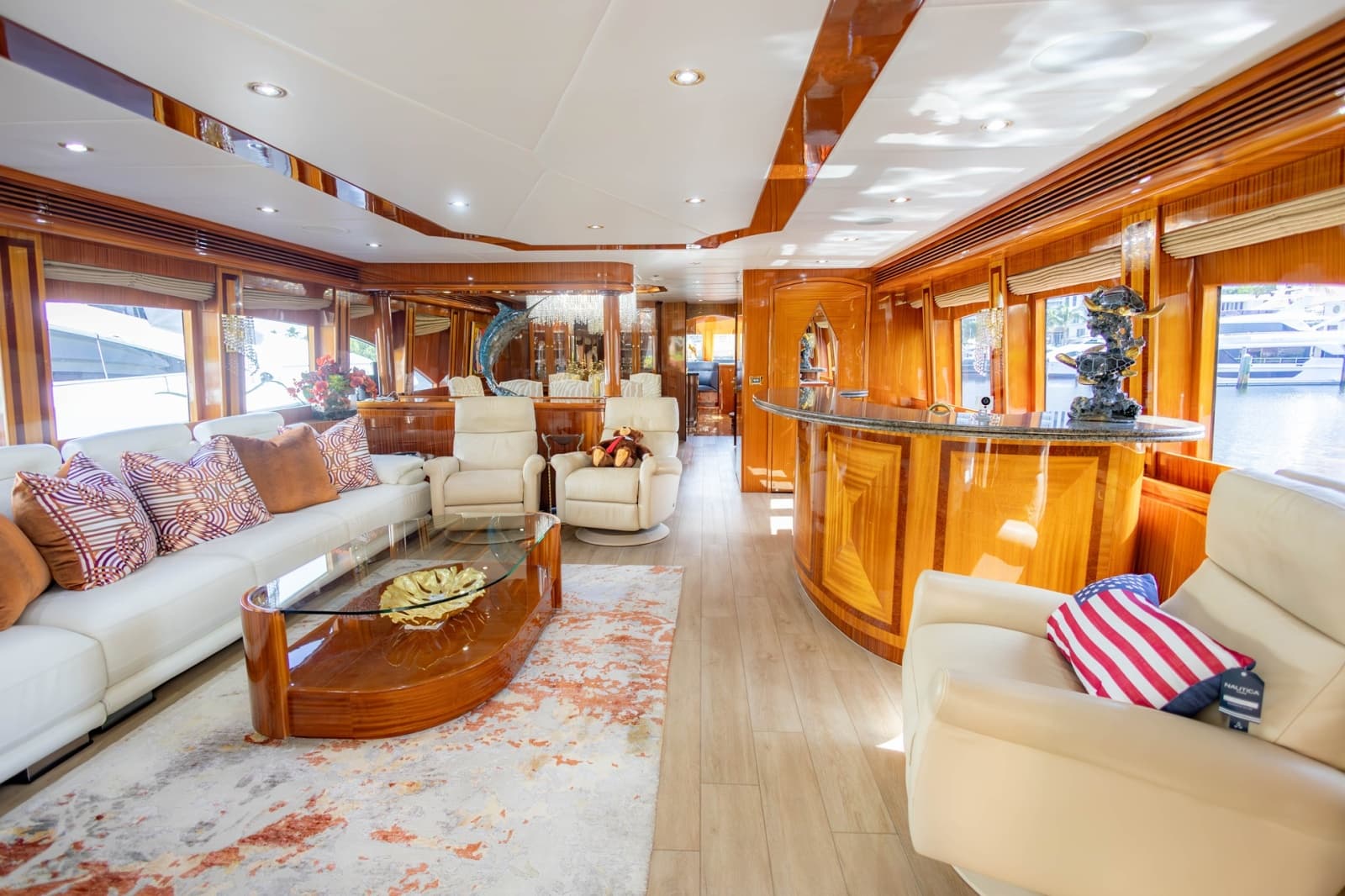

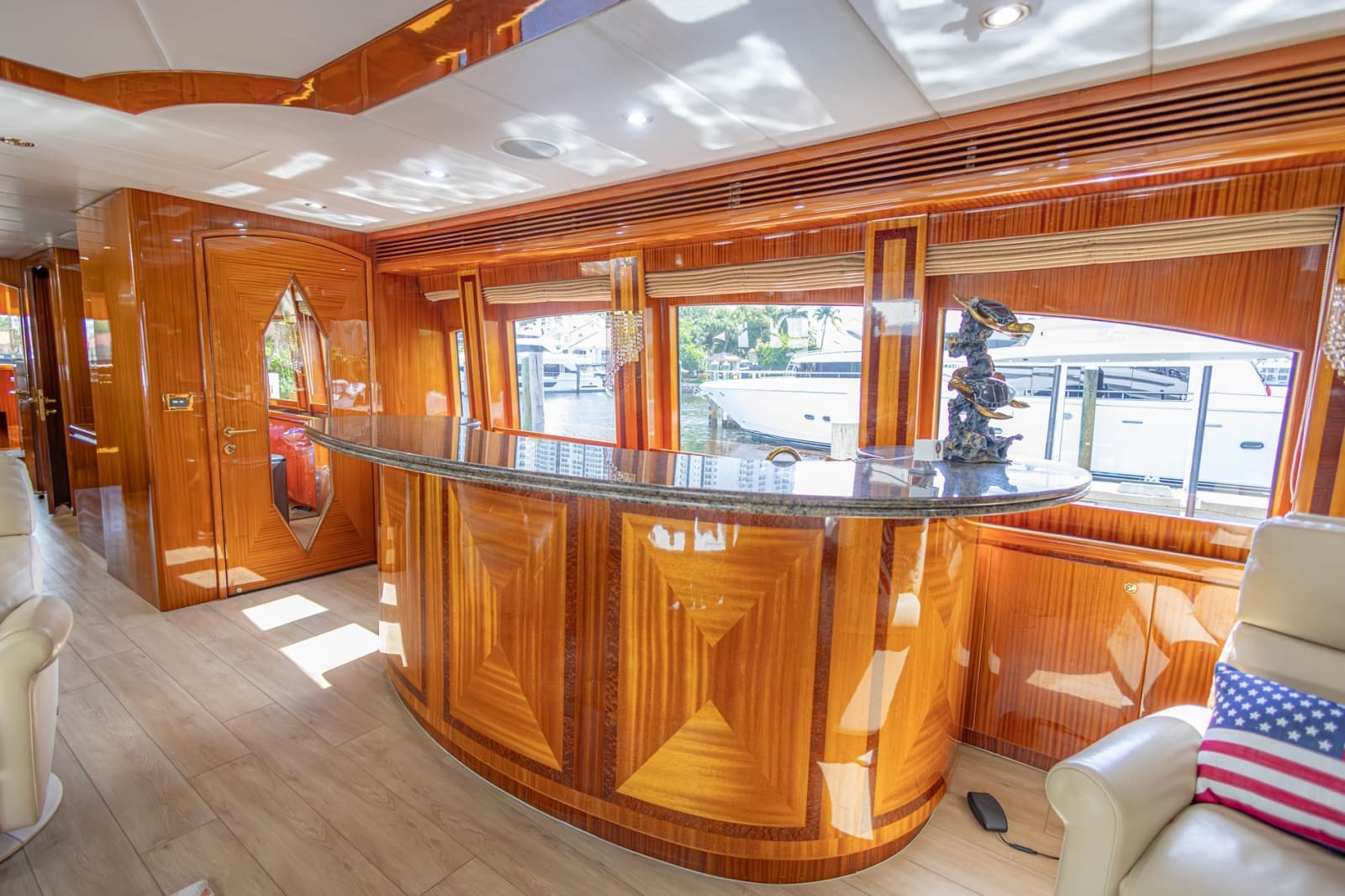

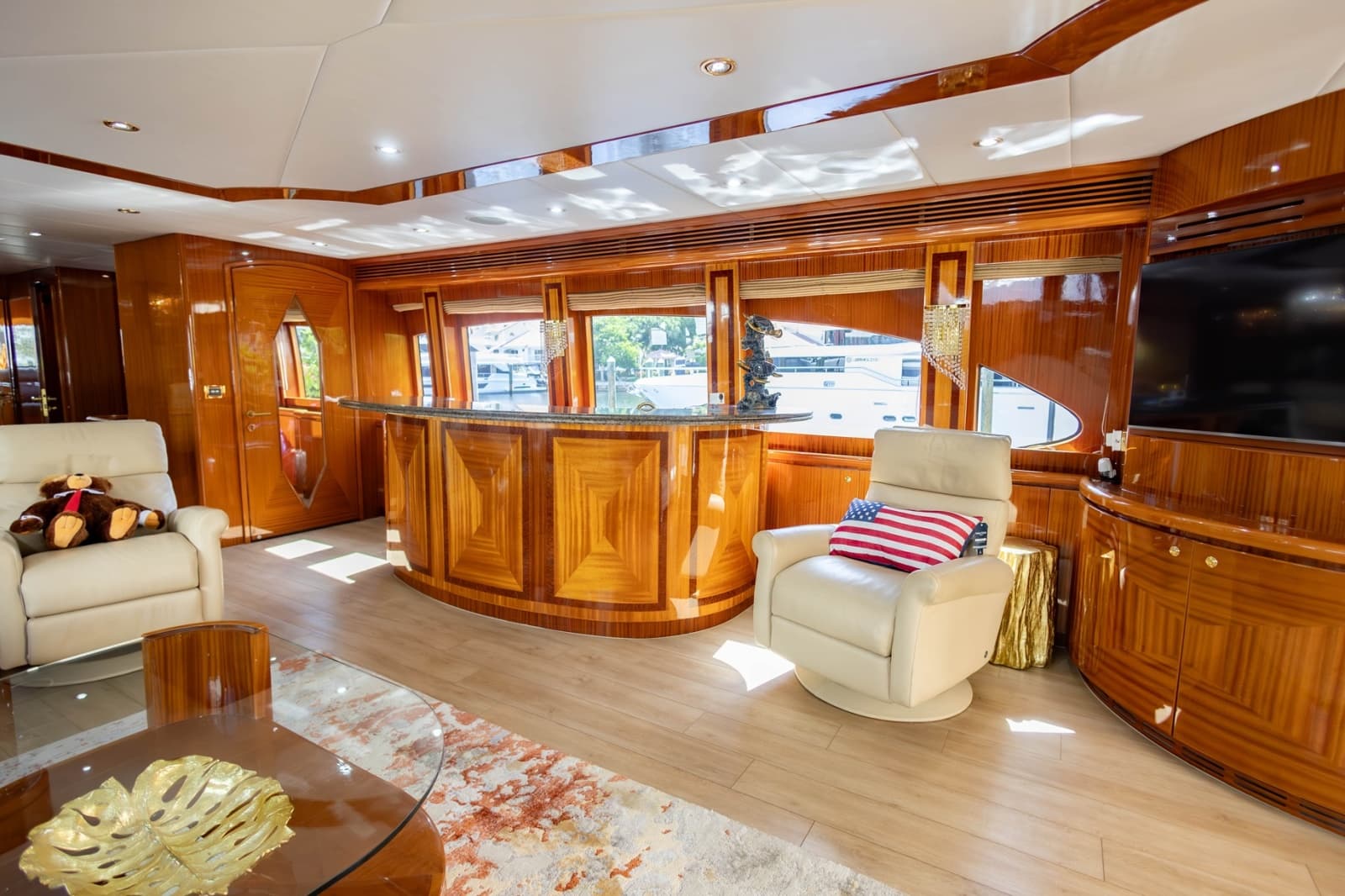

• Granite Credenza & Bar Top in Salon
• Glass Cocktail Table in Salon
• Granite Bar Floor in Salon
• (2) Wooden Columns in Salon
• (2) 6" Columns at center console & buffet in Salon
• Marble Console Top w/columns in Foyer
• GE White Washer/Dryer in Foyer
• U-Line Black with Sapele Panel Ice Maker in Salon
• U-Line Wine Cooler S/S Glass Front w/Retractable Doors

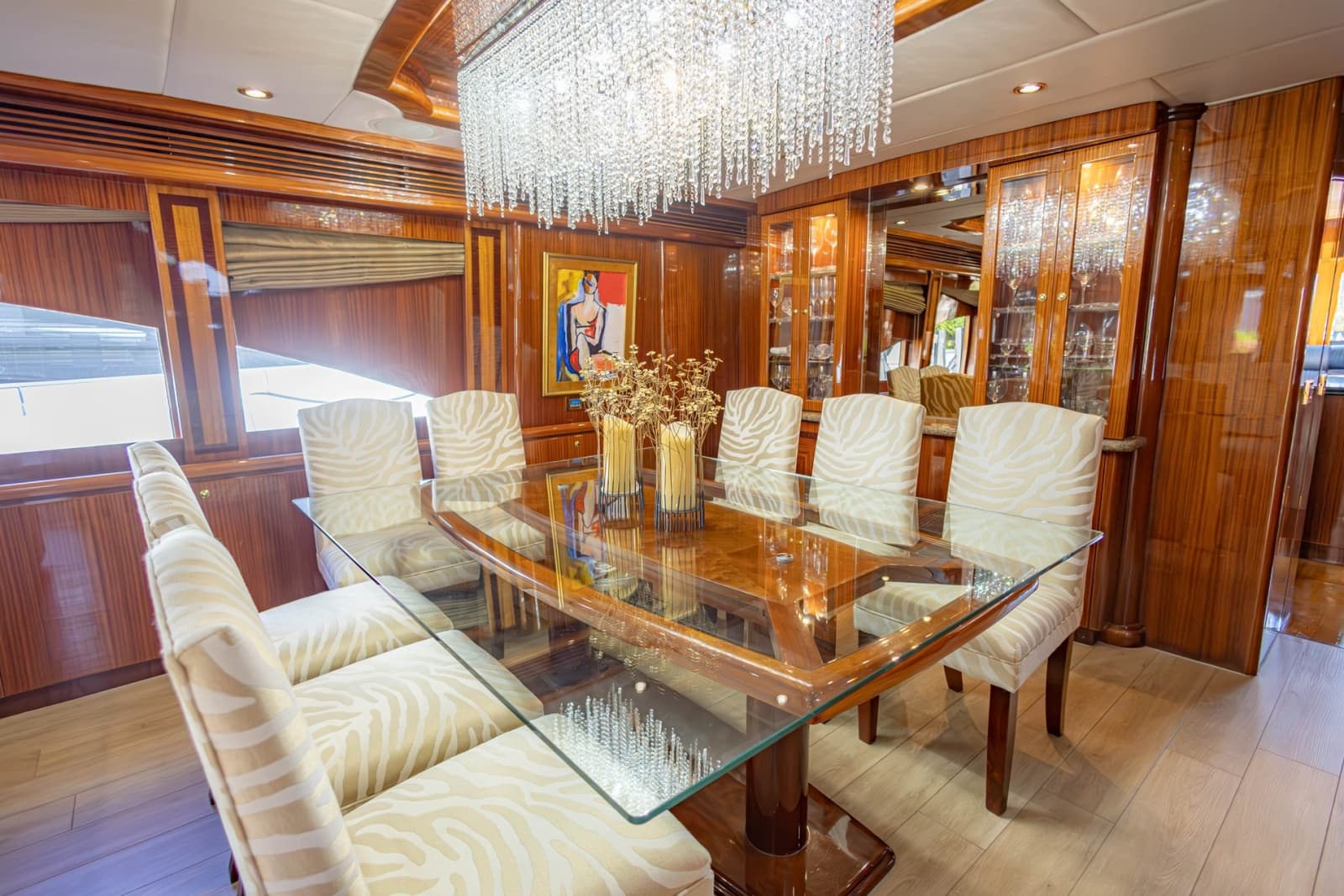

• Glass Top for Dining Room Table
• (8) Dining Chairs

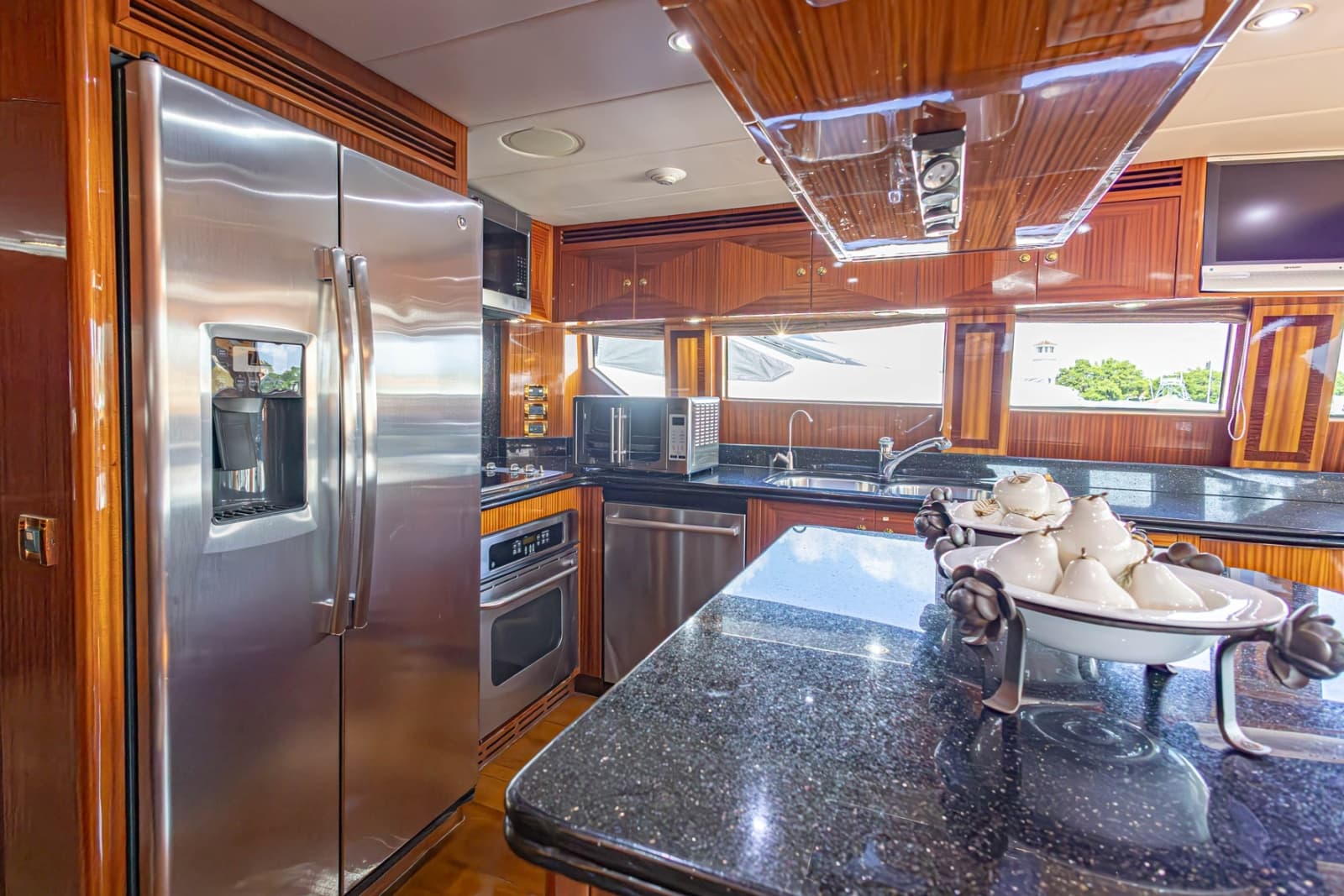

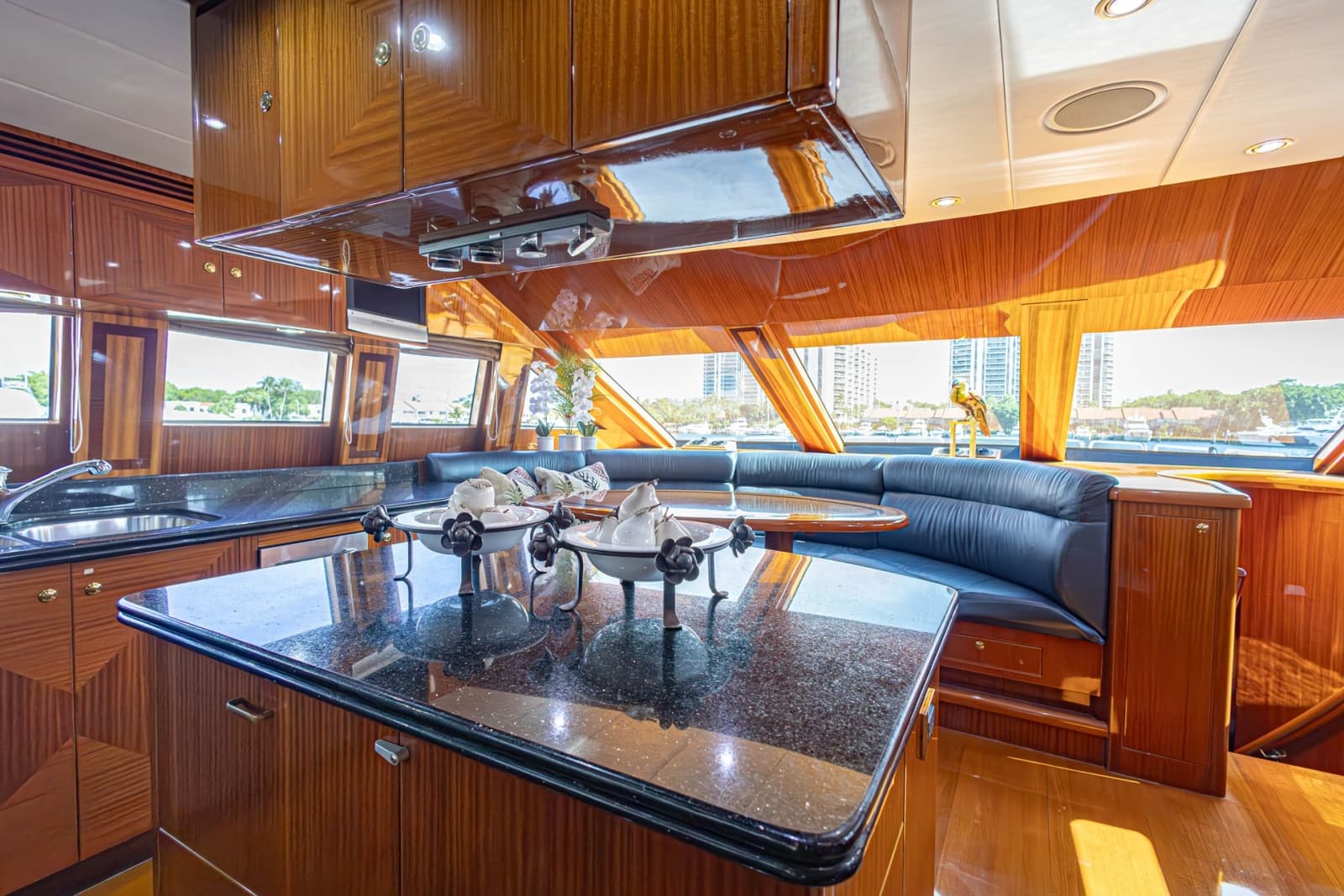

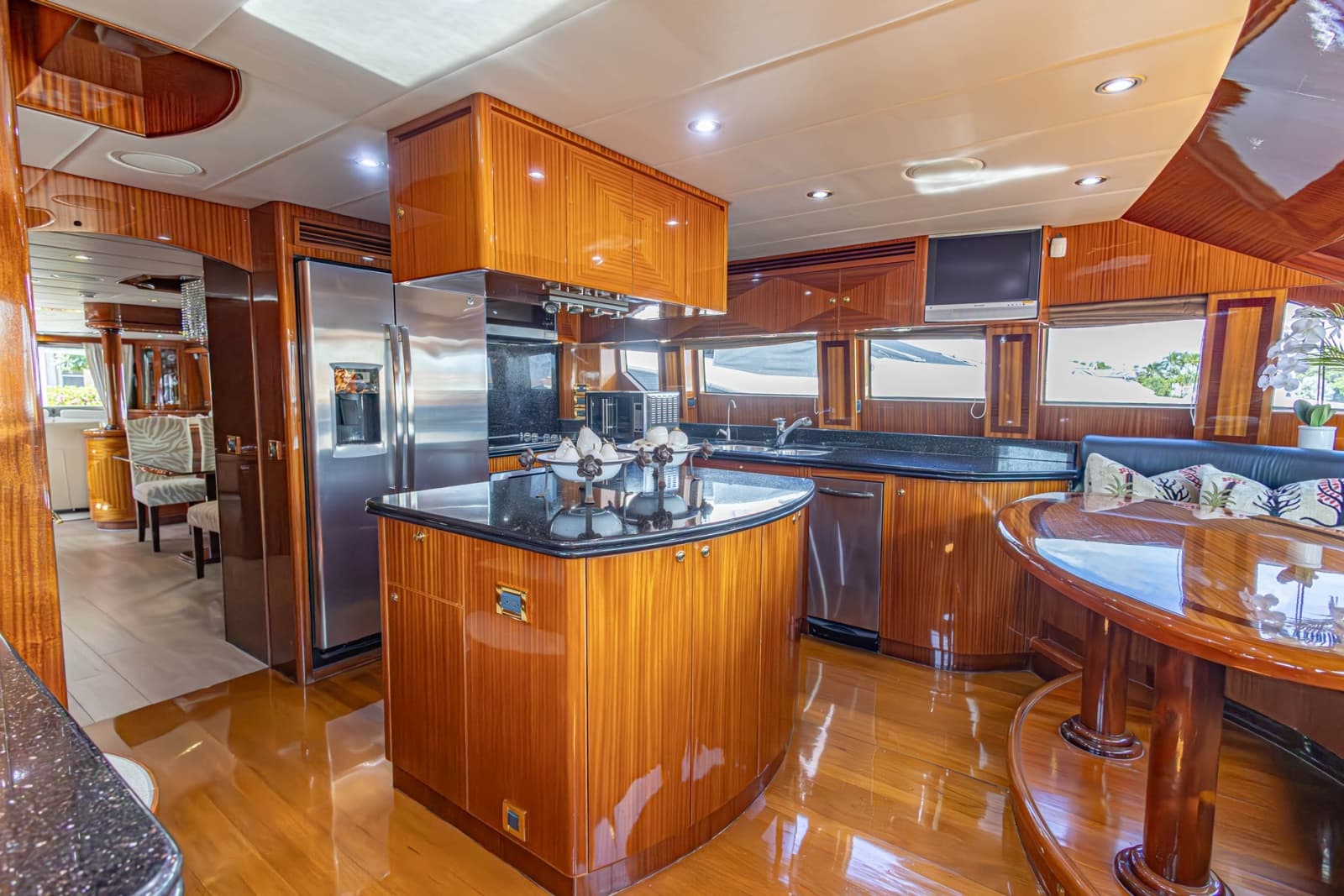

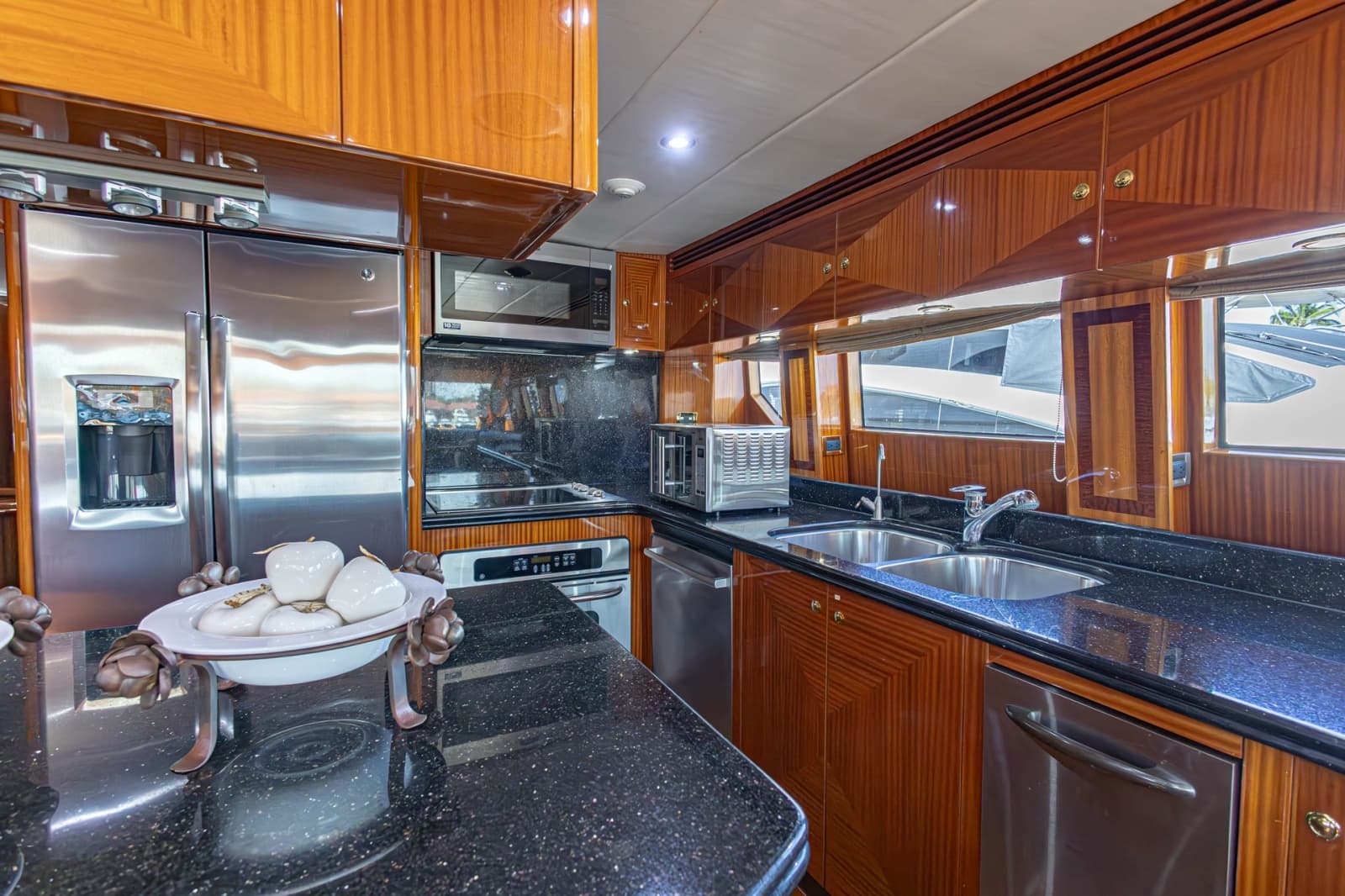

• Granite counter top in galley
• Double S/S Sink in Galley
• Slider on Table in Galley
• Pocket Sliding Doors in Galley
• Custom Pantry in Galley
• Upgrade to GE Profile S/S Fridge above standard
• (2) Sub-Zero with Sapele Panel Fridge Drawers in Galley
• (2) Sub-Zero with Sapele Panel Fridge Freezer Drawers in Galley
• Upgrade to GE Profile S/S Cooktop with S/S Oven in Galley above standard
• GE Profile S/S Telescopic Hood in Galley
• GE Spacemaker S/S Microwave in Galley
• Bosch Dishwasher in Galley
• ISE Instant Hot Water Dispenser Chrome with S/S Hot Water Tank in Galley
• GE S/S Trash Compactor in Galley
• GE Black Disposal in Galley

• Full Walk-in Shower
• Additional layer of Insulation on Master Stateroom bulkhead
• Sliding Shoji Screens
• Lights on vanity lift-up Mirrored Top
• Mirror on back of double doors on the closets
• Full extension slide for drawers
• Rain Head shower head
• (2) Shelf in Shower for shampoos and bottles x 2
• Marble floor in head
• Grab Bars in Master Bath

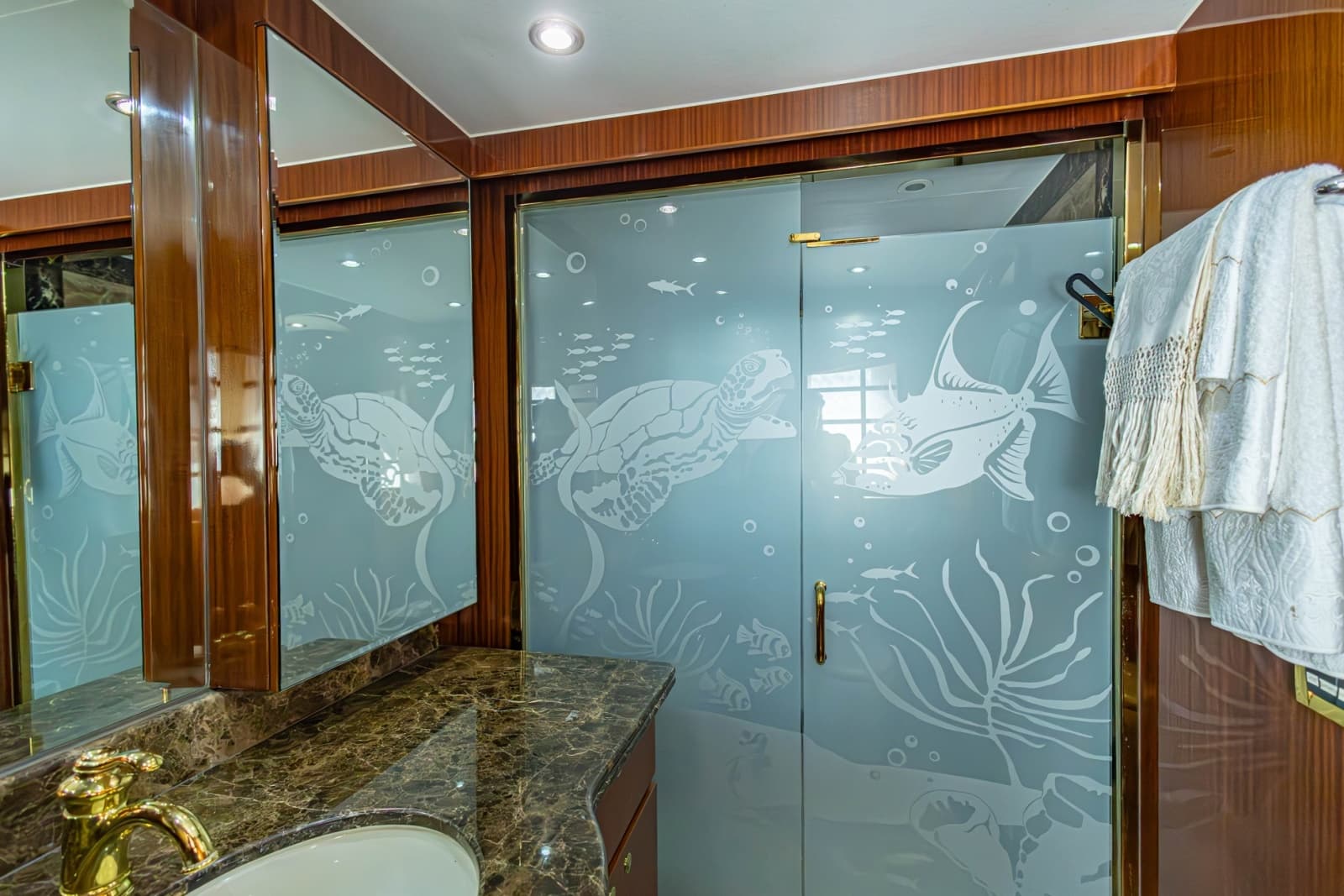

• Custom Shower w/marble walls & glass doors
• (2) His/Hers Headhunter toilets remote control
• Safe

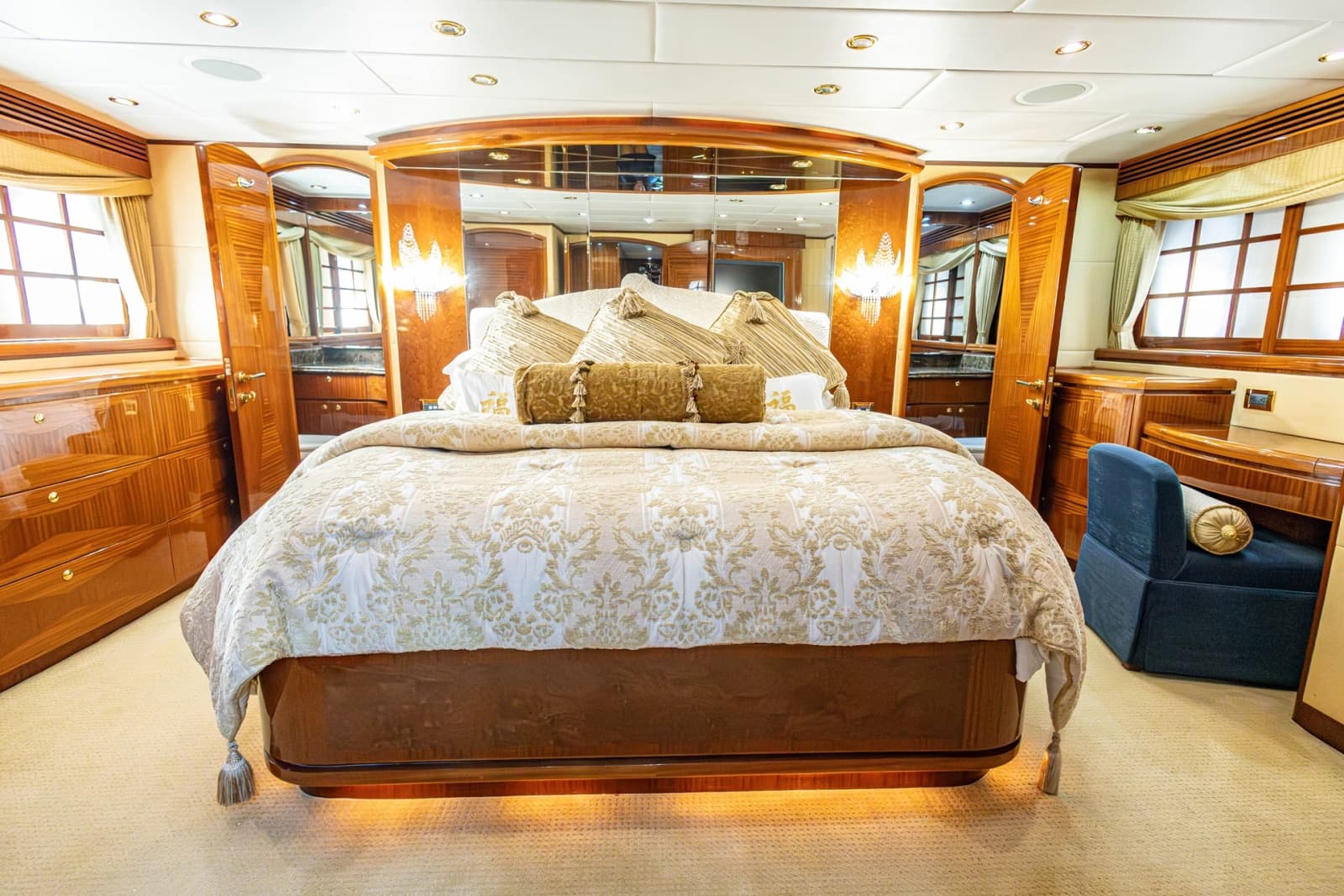

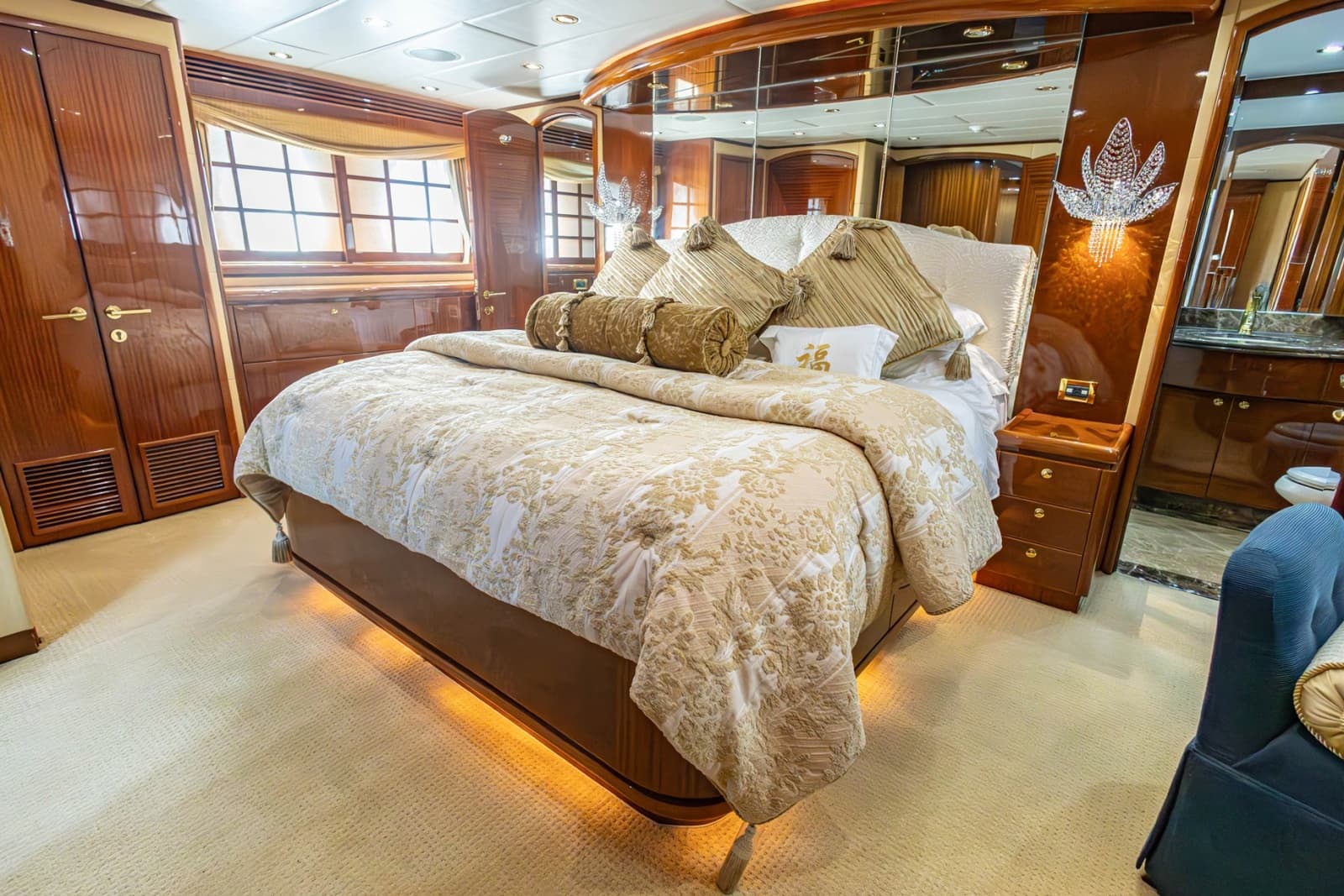

• Walk-around Bed Majilite
• Bombay-Rattan with 1/8" Foam wall upholstery
• Full extension slide for drawers
• Rain Head shower head
• (2) Shelves in Shower

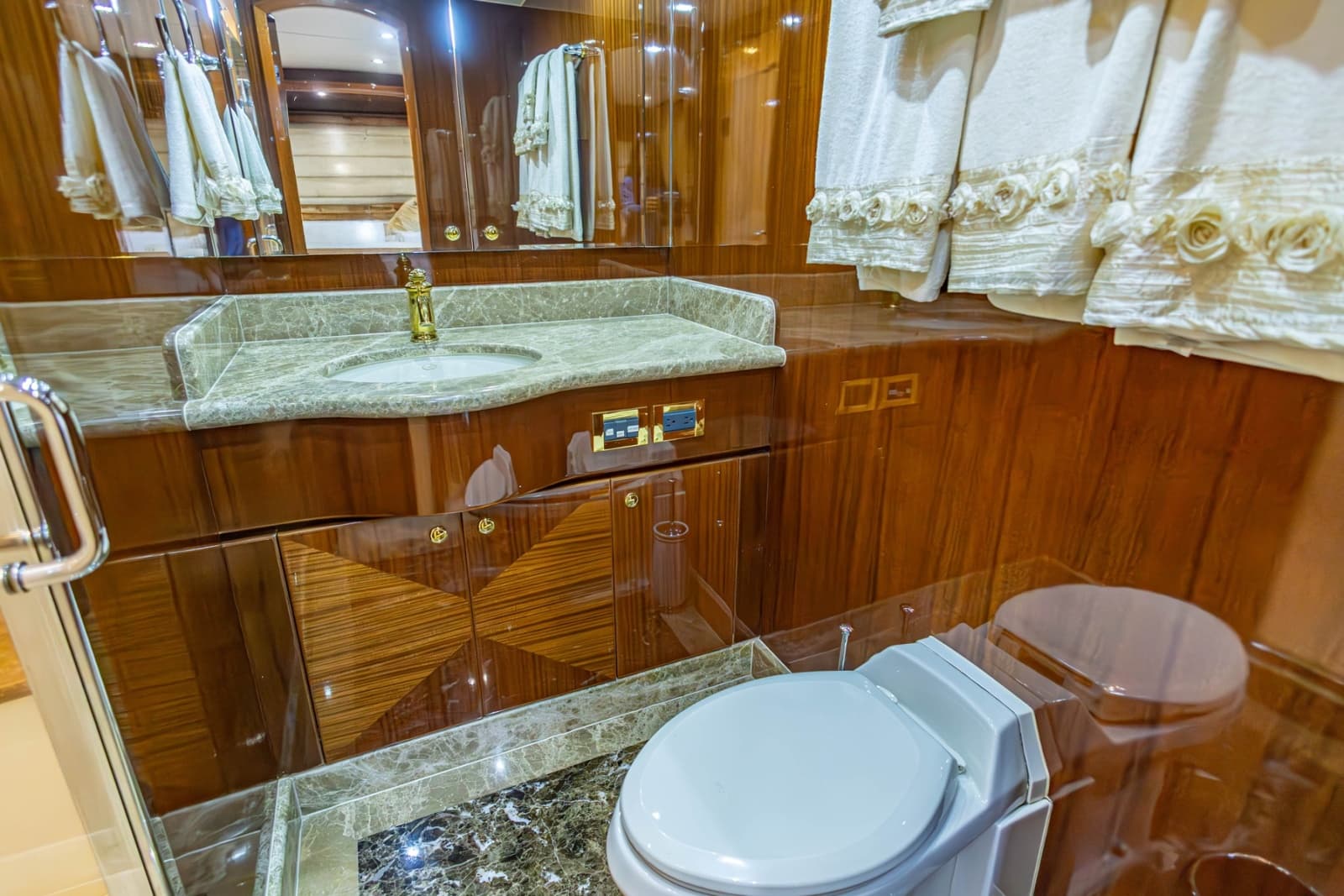

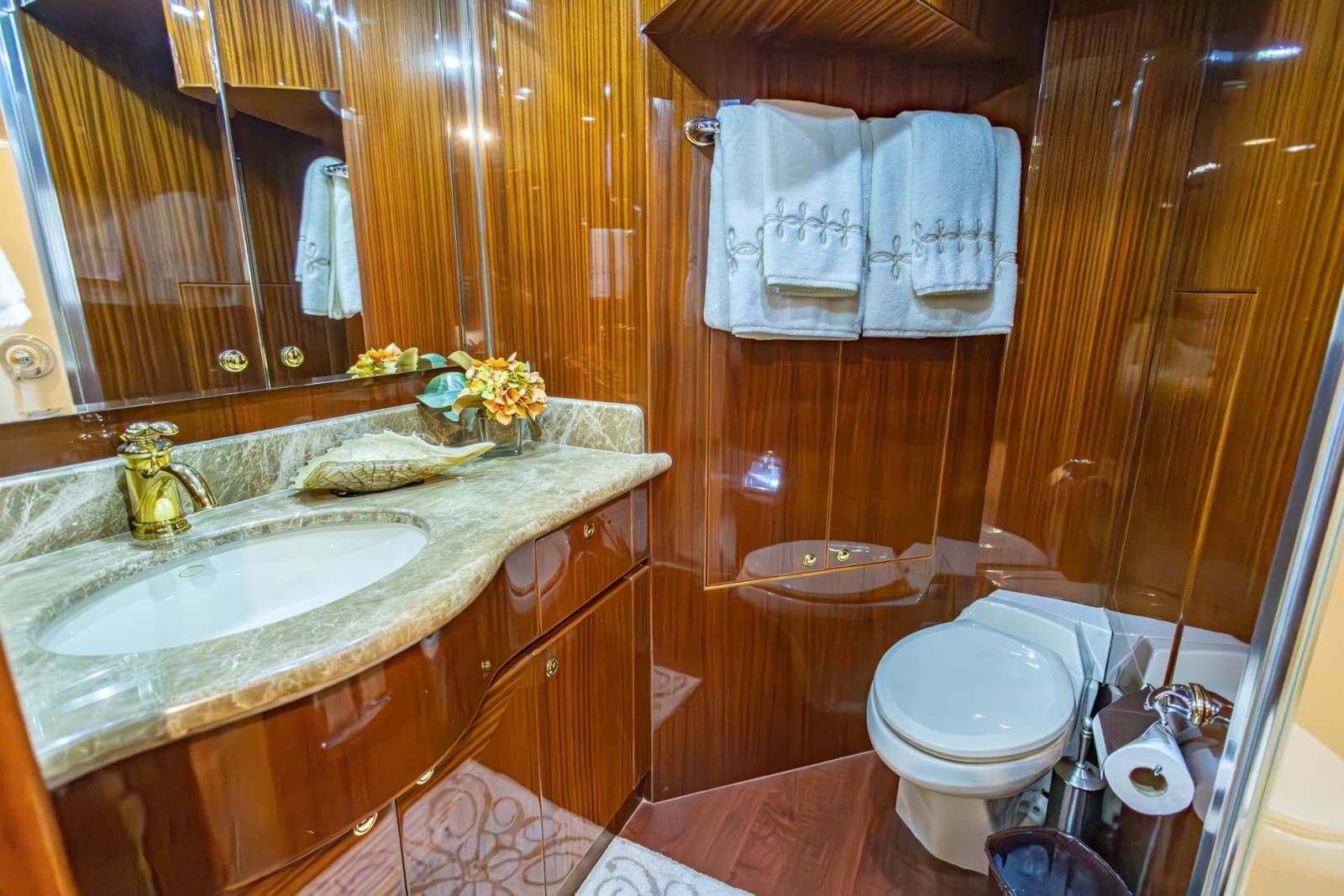

• Marble floor in head

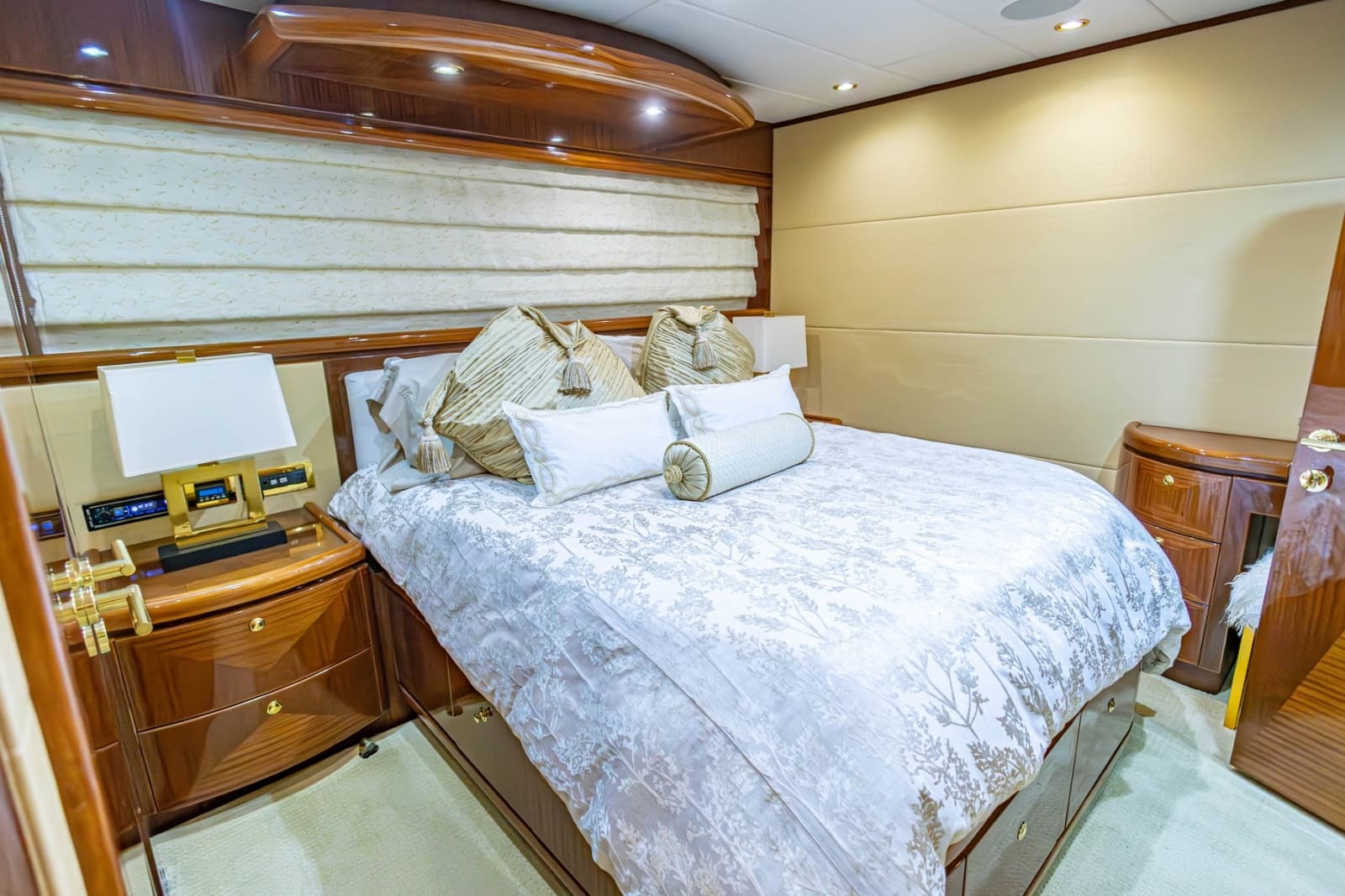

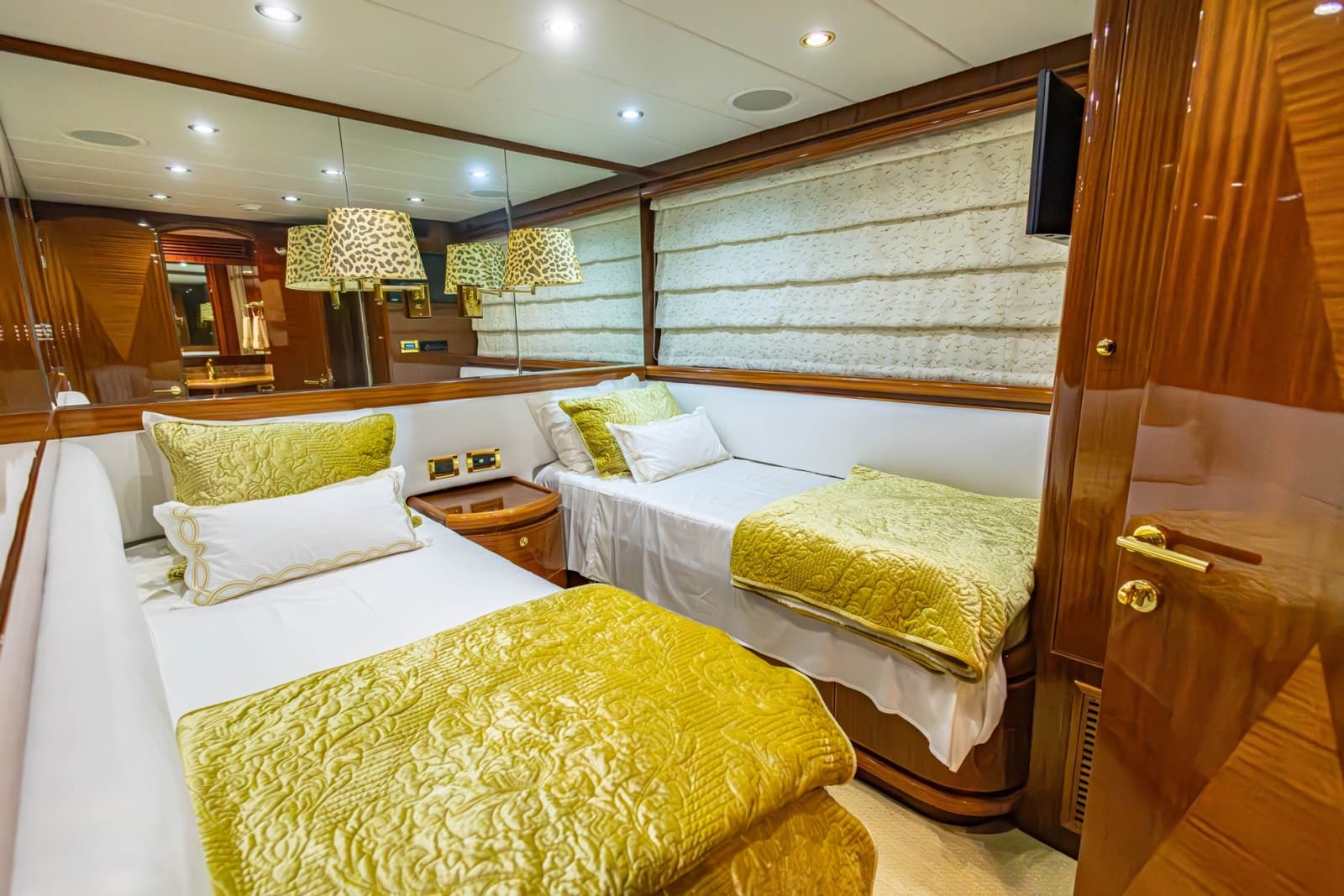

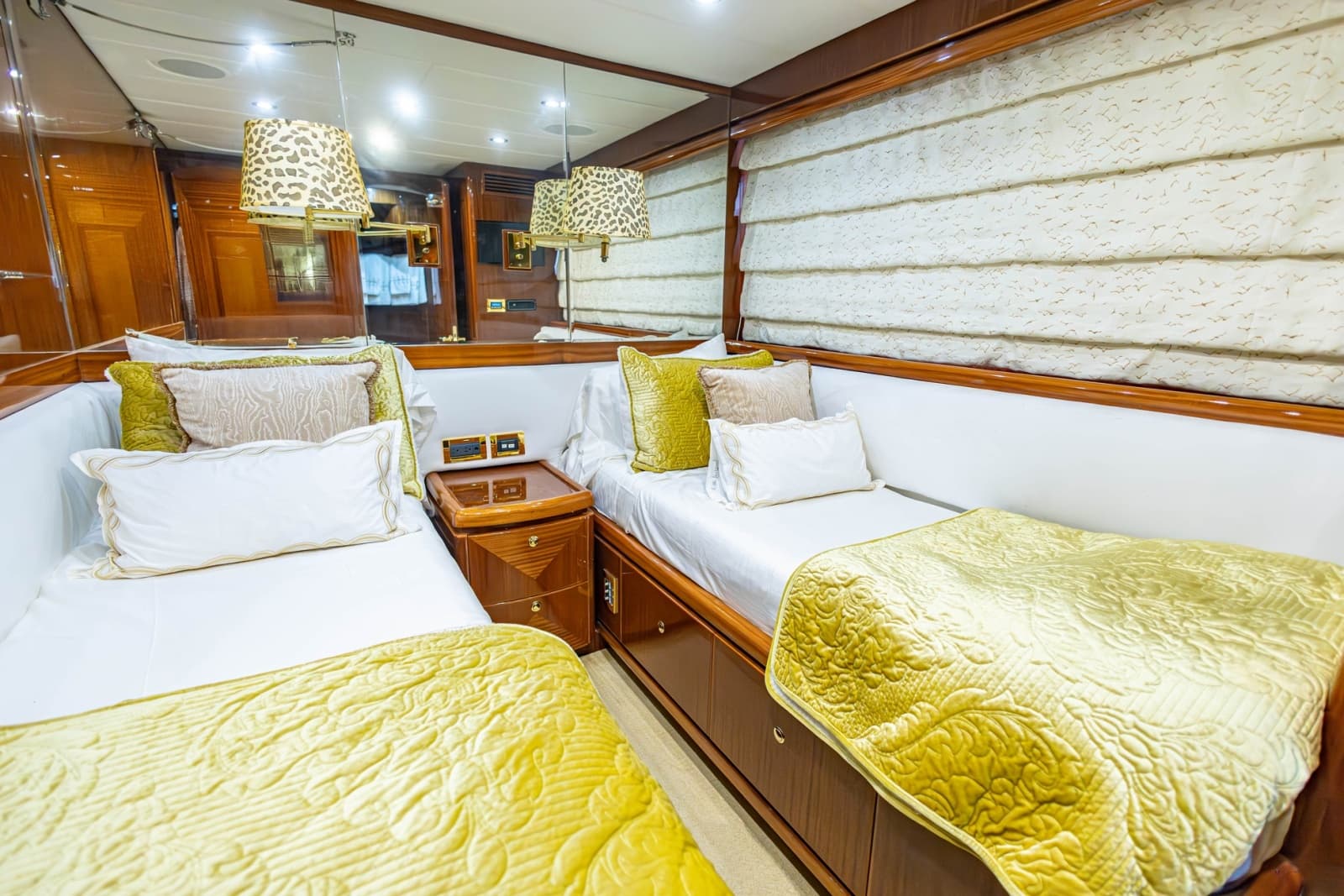

• Twin beds in starboard & guest cabins
• Pullman berth in Starboard guest cabin
• Marble floor in head

Aft Crew Cabin:

• Single berth
• Pocket Door in Aft Crew Cabin
• Lift Up Steps to access storage under stairway in Crew Cabin
• Hanging Locker in Crew Quarters

Forward Crew Area:

• Kitchenette with L-shaped seating
• GE White Washer/Dryer
• GE S/S Ice Maker/Fridge
• Bunk Cabin
• Double Captain's Cabin
• Shared head with shower

• Dayhead
• Built in corner couch w/storage
• (1) Mirror on the elevator door

• Fiberglass swim platform w/ ladder
• All handrails, stanchions and fittings made of stainless steel 316 alloy
• 1 1/2" stanchions
• Stainless steel cleats (8)
• Stainless Steel frame hatch on fore deck w/ grey lexan cover
• Dual chrome plated horn
• Built in hand held shower on swim platform

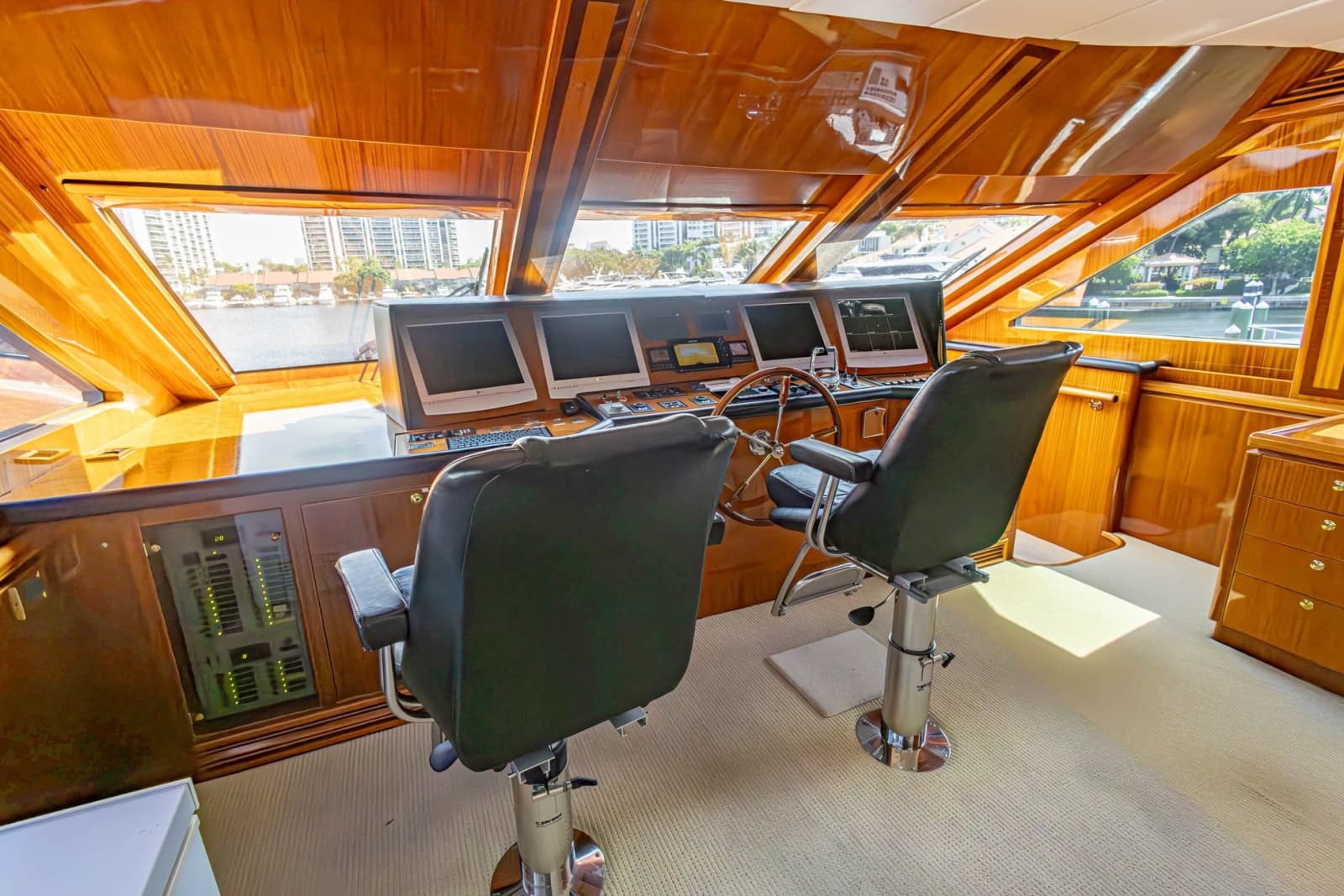

• Easy access to all helm dashboard controls and gauges
• Remote windlass operation from Pilothouse and Flybridge

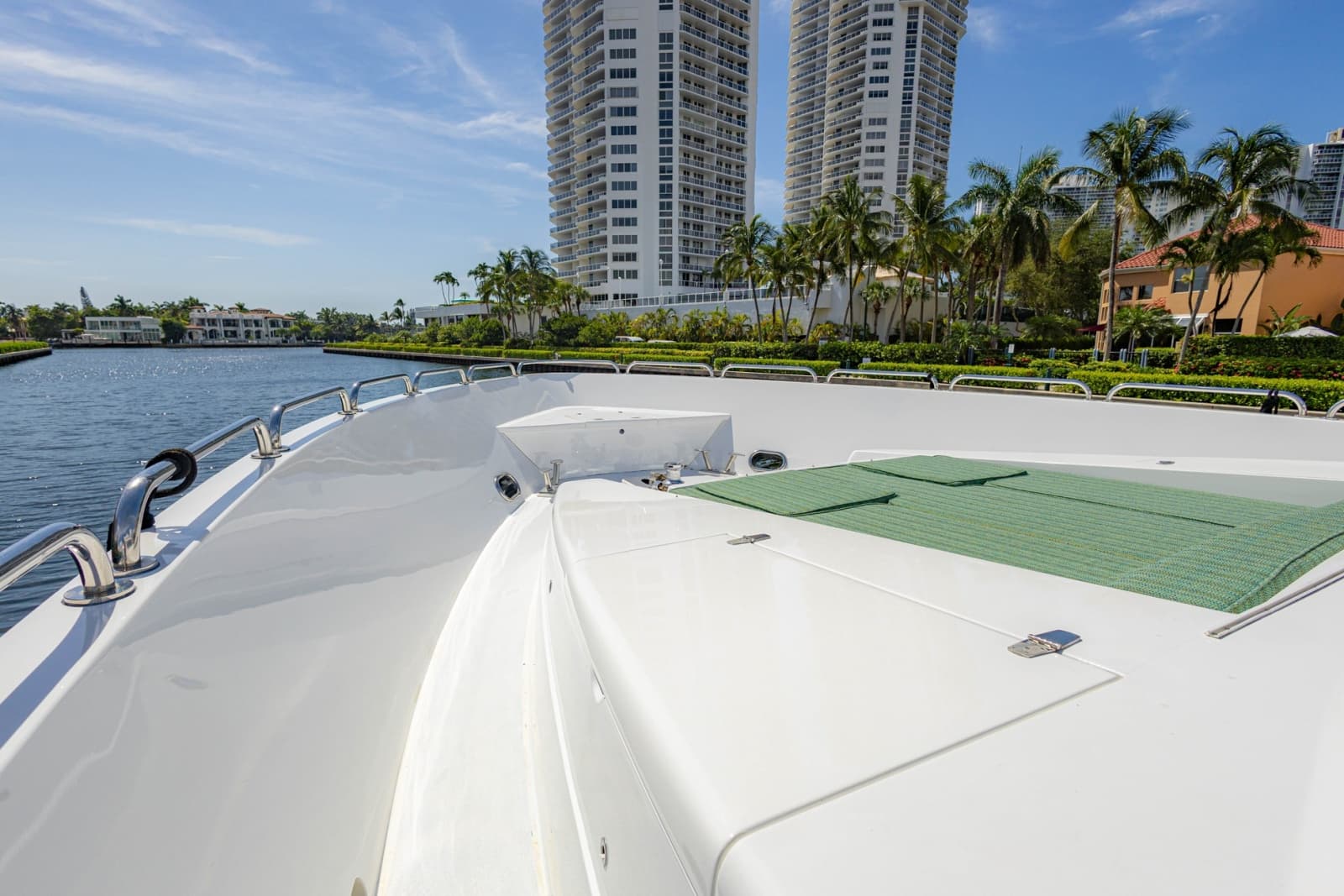

• Large Storage areas forward deck
• Fiberglass main and lower decks
• Stainless steel aft deck door frame
• Black Textile front window covers
• Flybridge Vinyl seat covers
• Lexan hatch from aft deck to Fly Bridge deck
• (3) Freeman Hatches
• City water inlets (2)
• TV / telephone inlet (2)
• Fresh water washdown (3) three locations - Bow / aft deck / flybridge
• (3) Windshield wipers with blades

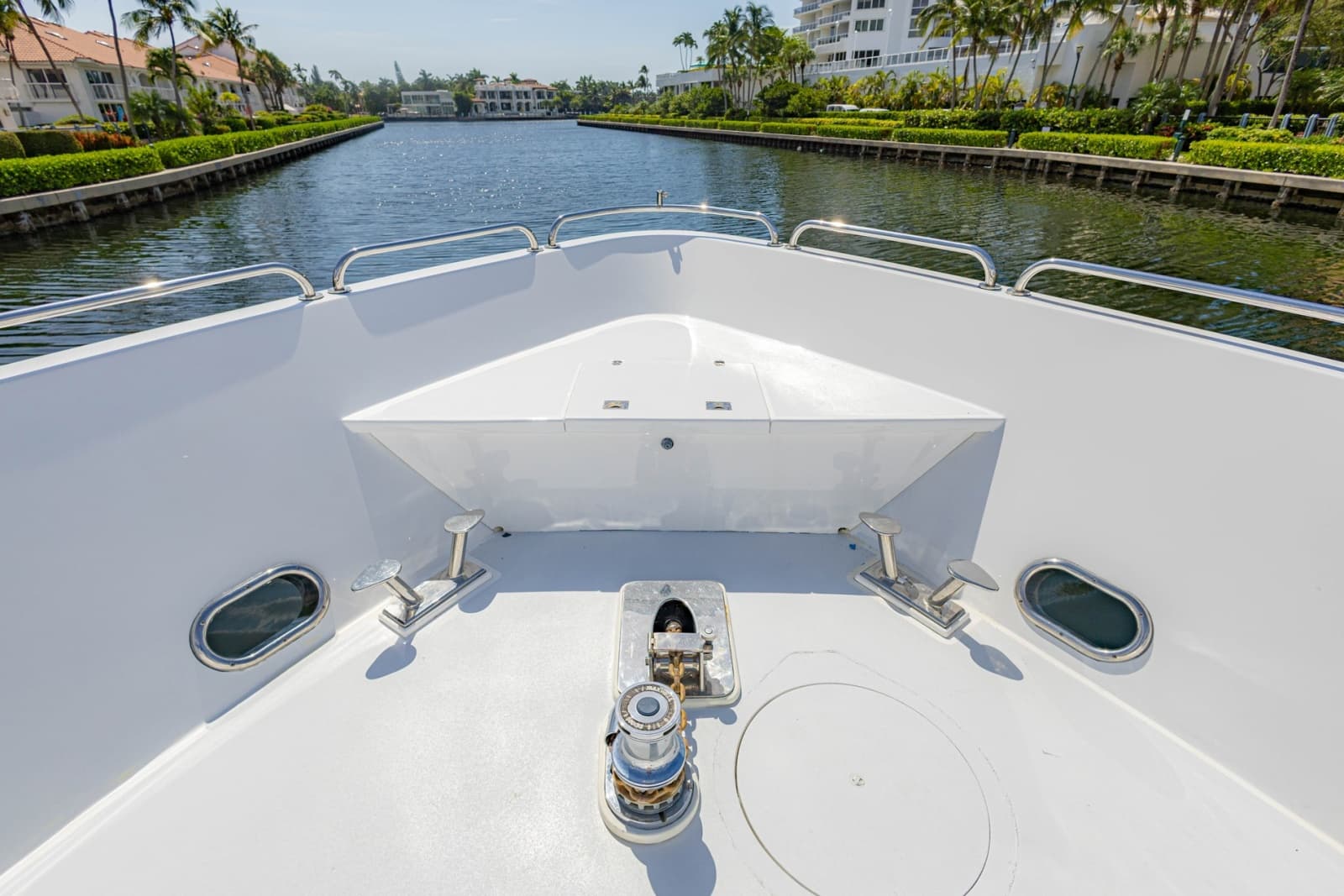

• Maxwell Nilson Bow Windlass 4000 w/250 lb Stainless Steel 316 plow Anchor & 300' Hi-Tensil Chain
• (2) Electric Chef stainless grills one at aft deck and one on boat deck

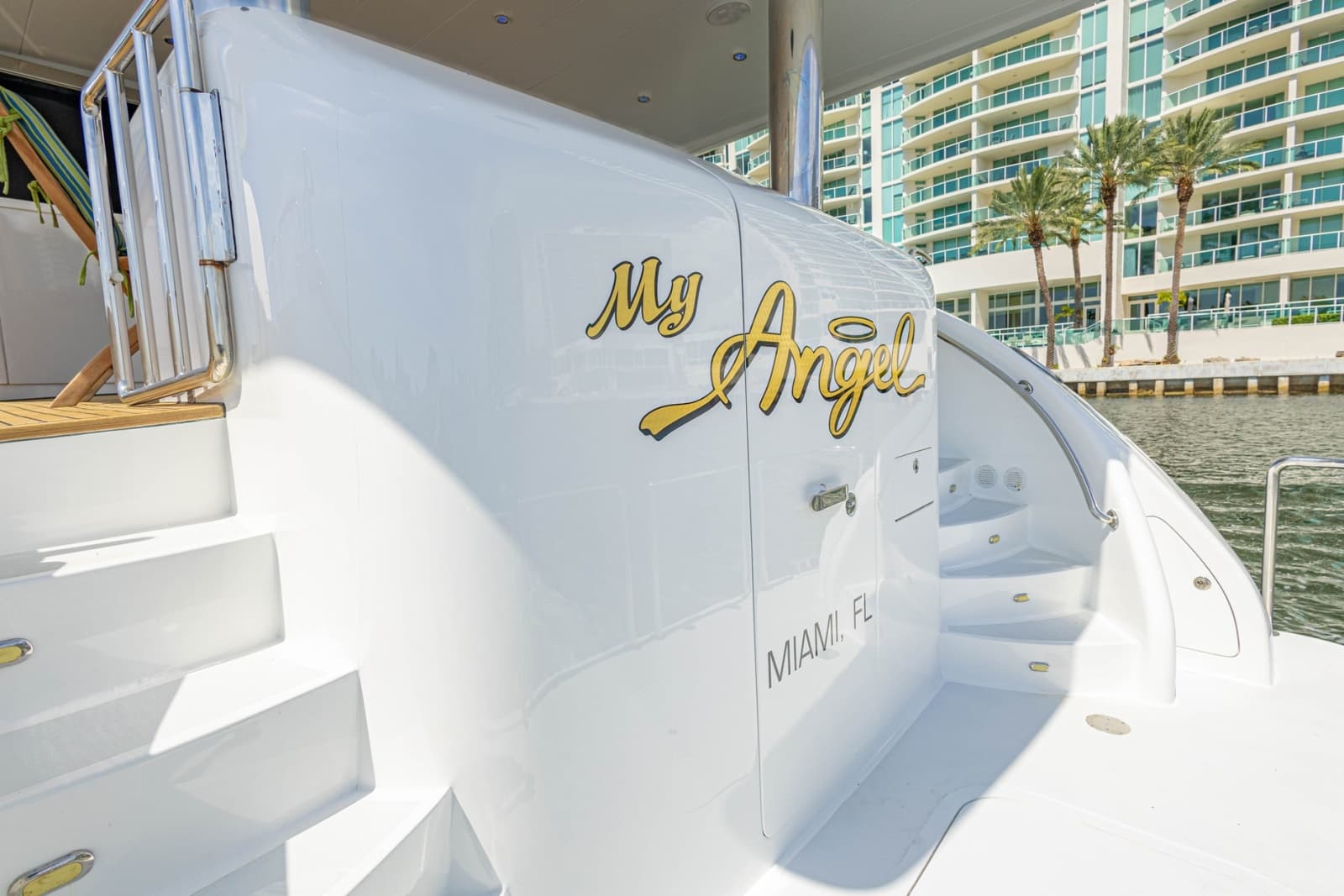

• Watertight Door w/Hargrave Backlit Name Plate at Transom
• Hard top extention aft of Skylounge with (2) SS Supports

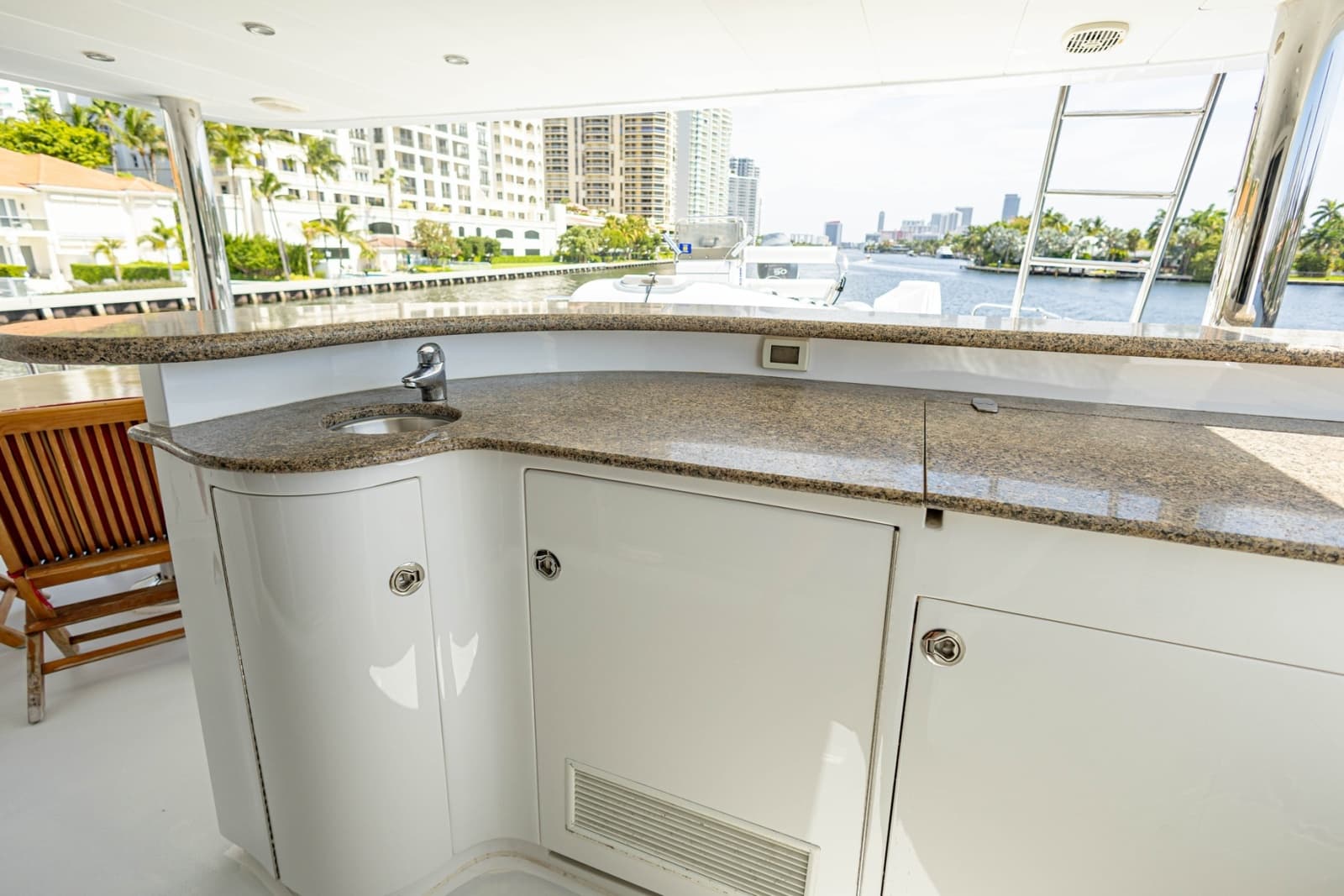

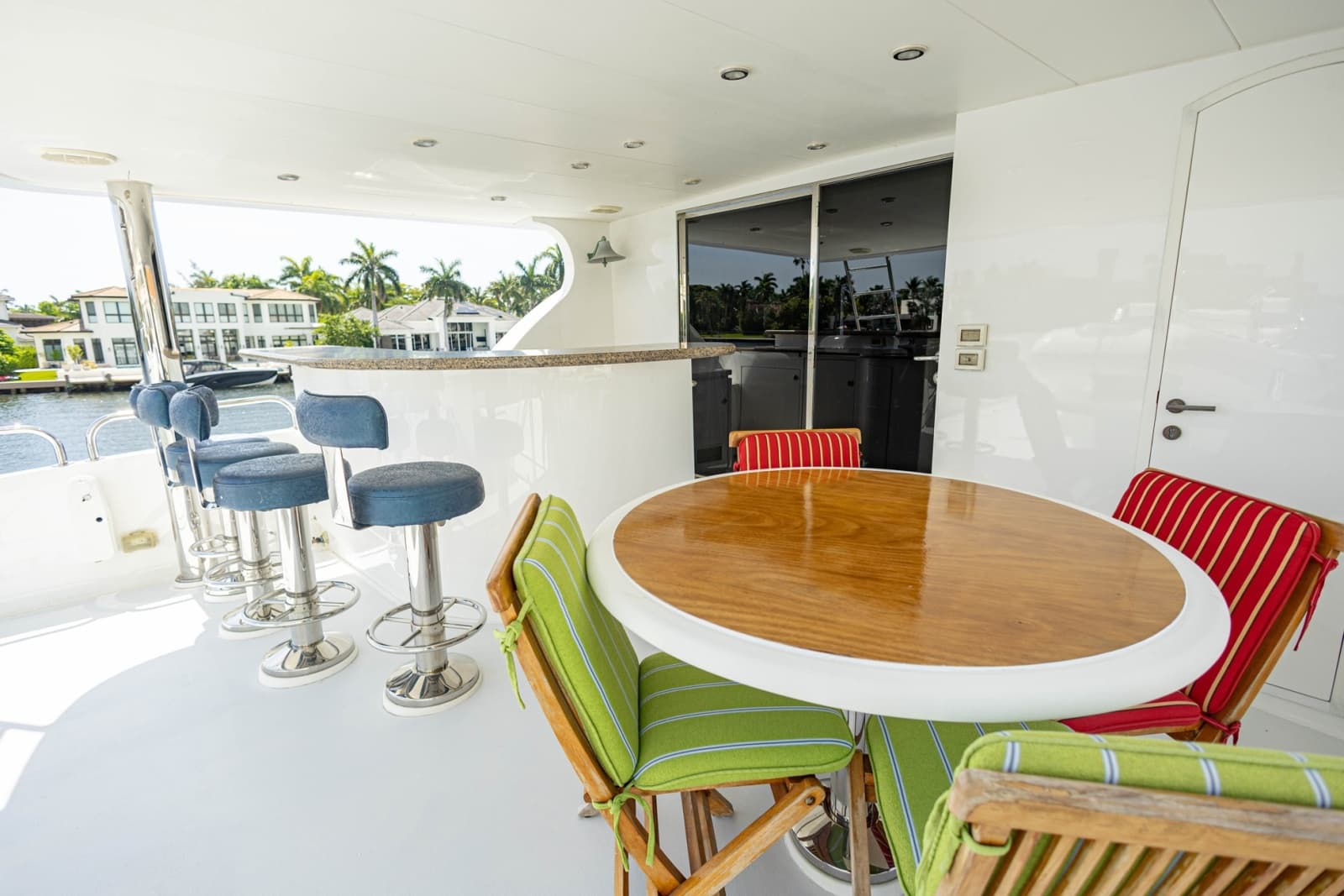

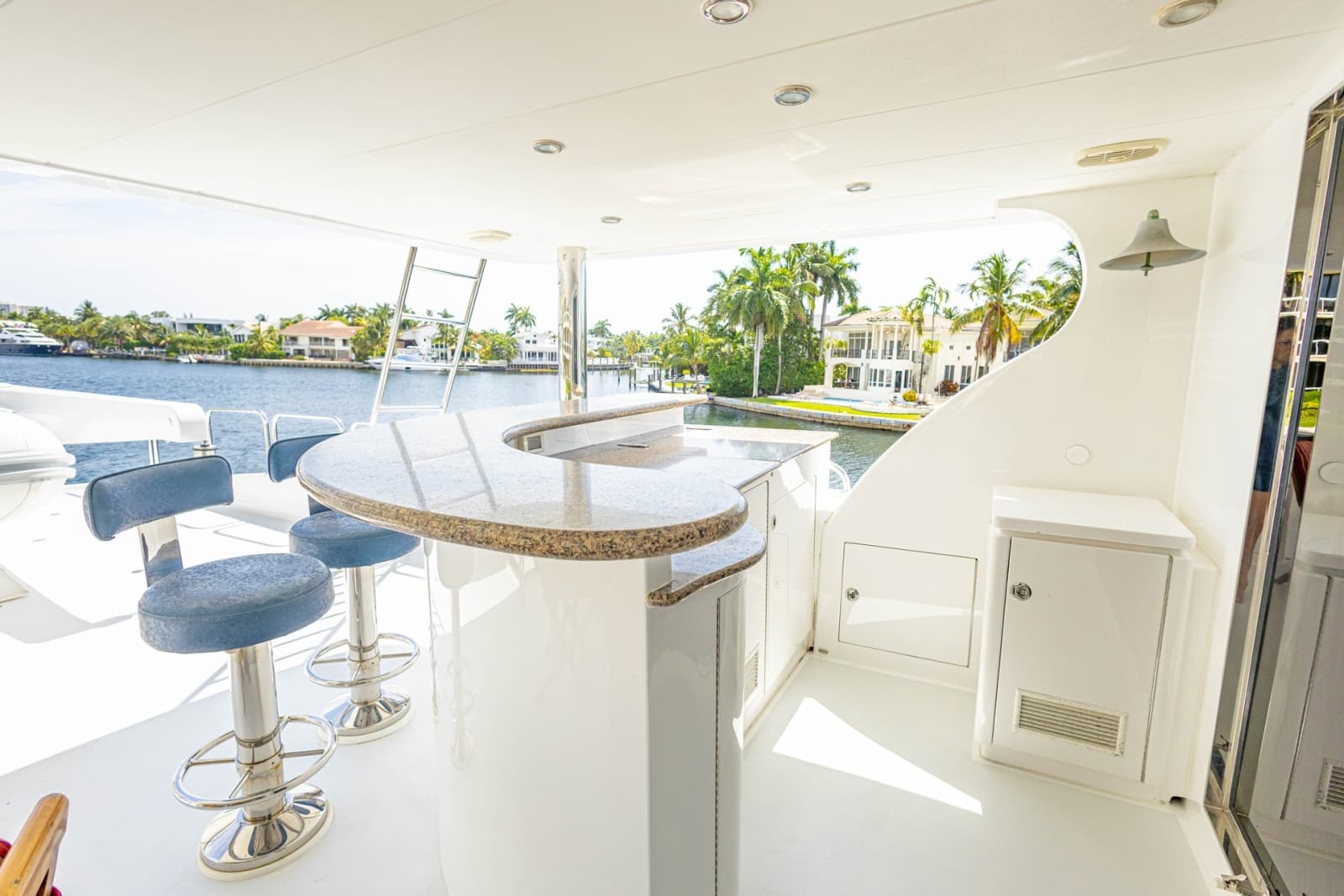

• Flybridge bar
• SS 6" Base for Table in Boat Deck
• (2) Handrails to slope downward from Boat Deck
• S/S Ladder from Boat Deck to Roof
• Teak Table Top in Boat Deck
• (6) Teak Chairs on Boat Deck
• Non-skid decks (forward, upper aft, transom)
• 10" Wide Non-Skid Brow above windshield

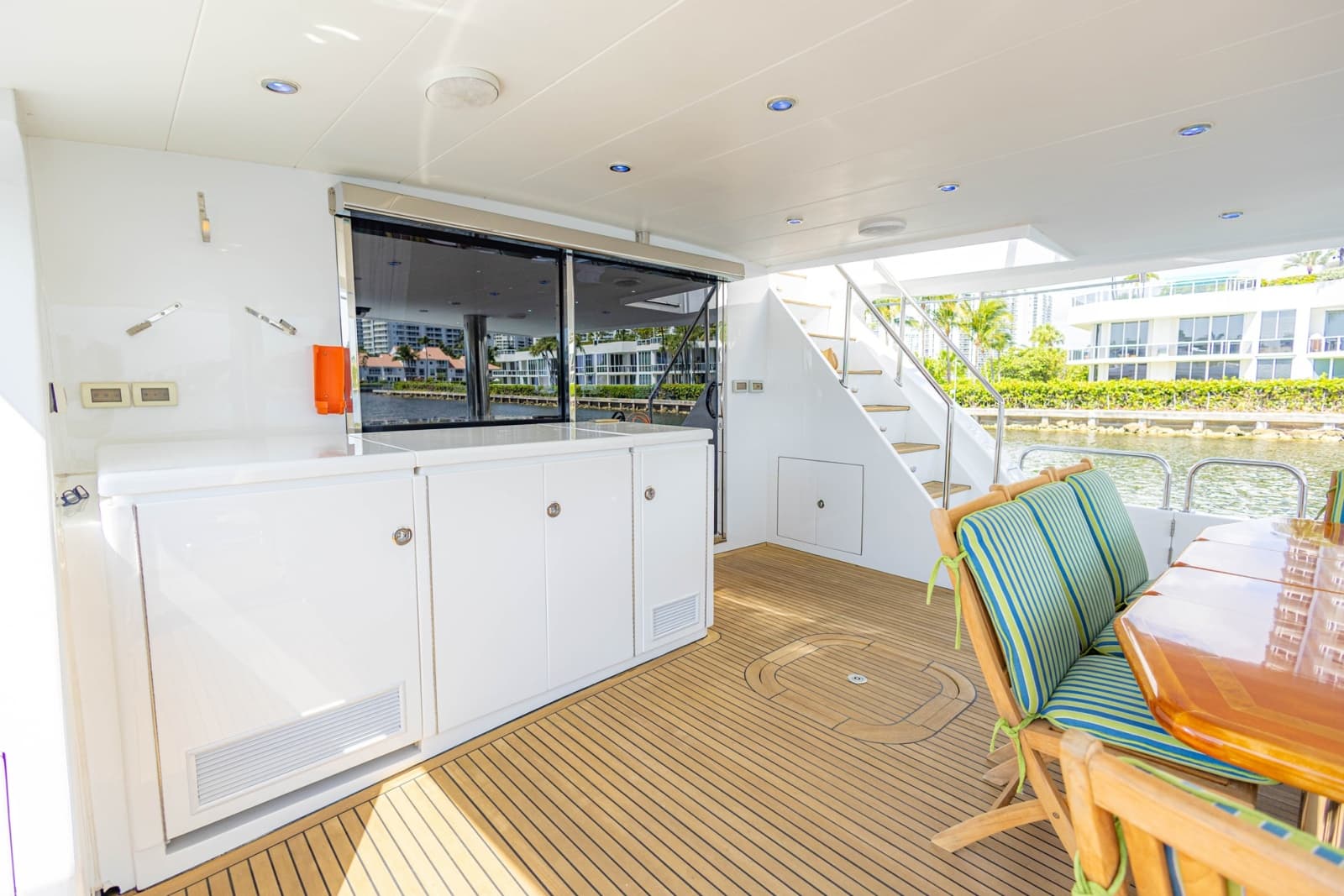

• Aft deck bar cabinet w/GRP top
• Teak aft deck chairs x 5

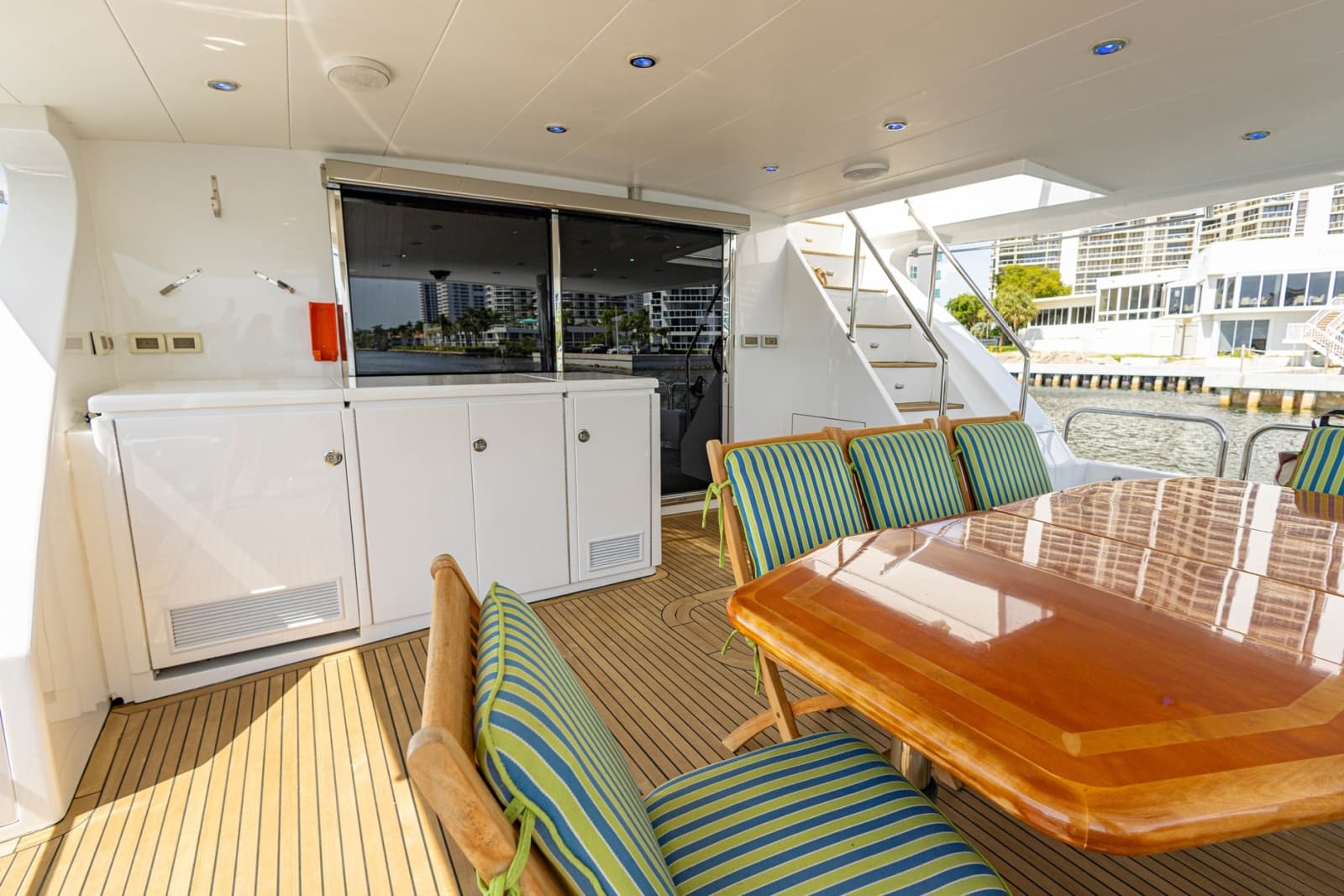

• Aft deck Teak table with fixed pedestal and sliding hardware w/ hi-lo mechanism
• Aft deck bench seating
• Automatic Electric Sliding Door on Aft Deck
• Additional Divider at Chain Locker
• SS Backing Plate for anchor locker hatches, bow locker hatches and inspection hatch at swim platform
• Custom Storage Locker for Boarding Ladder
• (5) U shaped hand rails on swim platform
• (2) U shaped stanchions at the corners of the Swim Platform
• Pop-Up Cleat in center of Swim Platform
• (2) L shaped corner cleats at Swim Platform
• LED Lights under fins of radar arch and on aft deck
• Outside Chrome Lights on outer deck overhang x 2 (one on each side)
• Roller Hawsers on Aft Deck (2)
• (6) Underwater lights
• Hargrave Style Mast
• Freezer Box with 120 volt Power Outllet (new 2015)
• U-Line White Fridge at Aft Deck
• U-Line White Ice Maker at Boat Deck
• (2) 8 person Life Rafts
• Safety Package-Life Jackets/Fenders/Fire Extinguishers/Dock Lines/Flares/Dual plug phone/TV cord

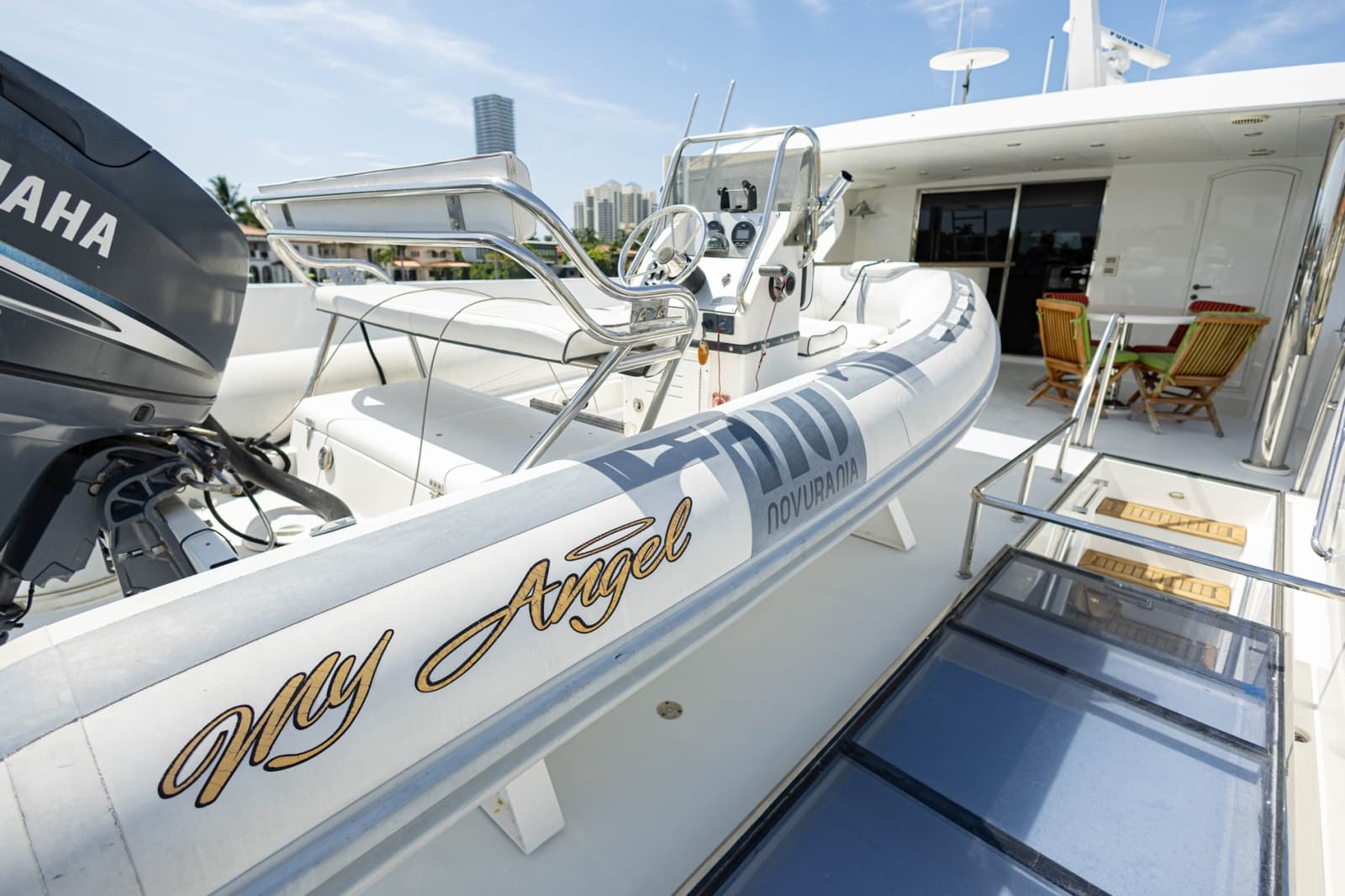

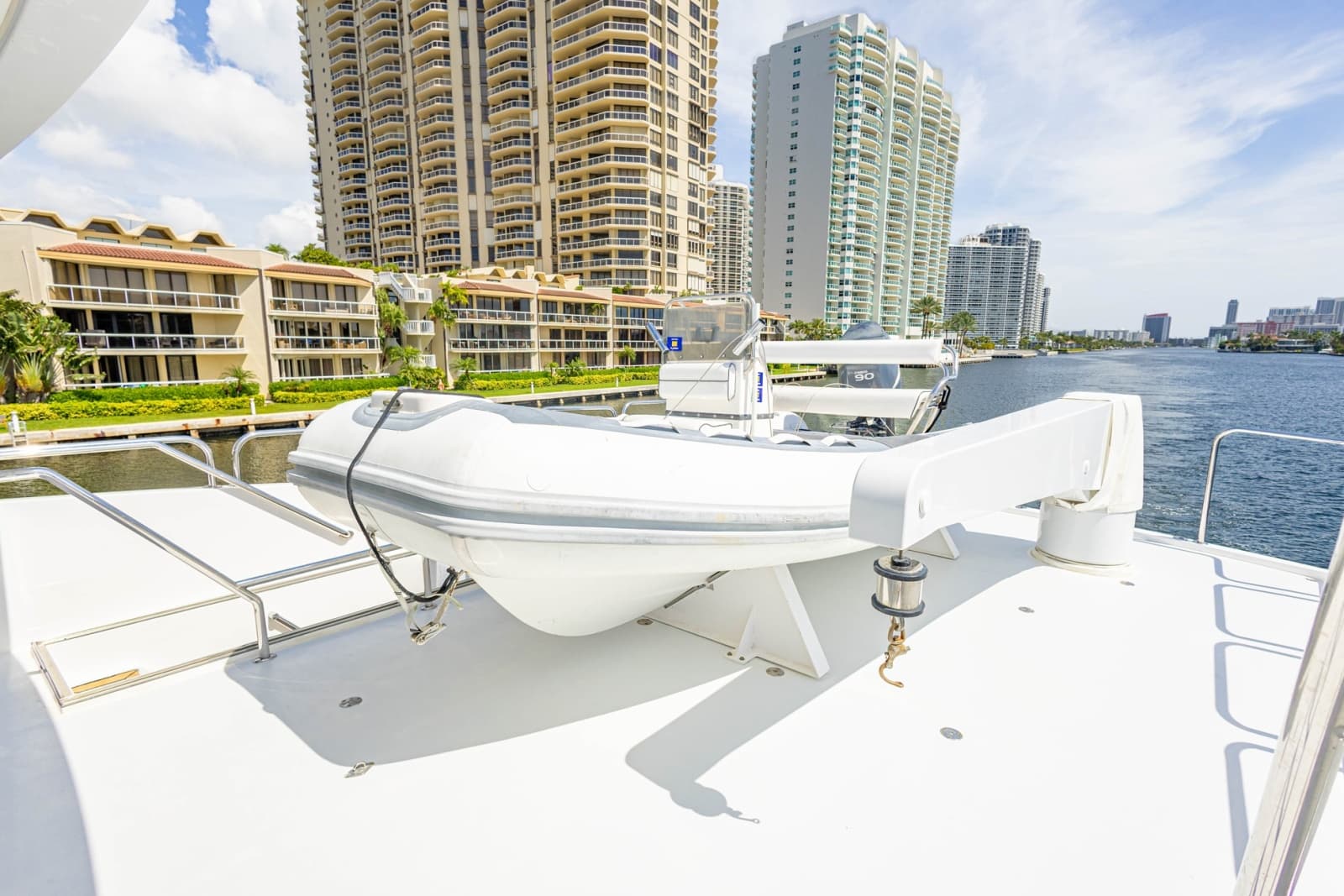

• Quick Lift 2000 lb. Low profile davit w/hydraulic rotation (serviced 8/2016)
• Marquipt Sea Stairs
• Kahlenberg Air Horns

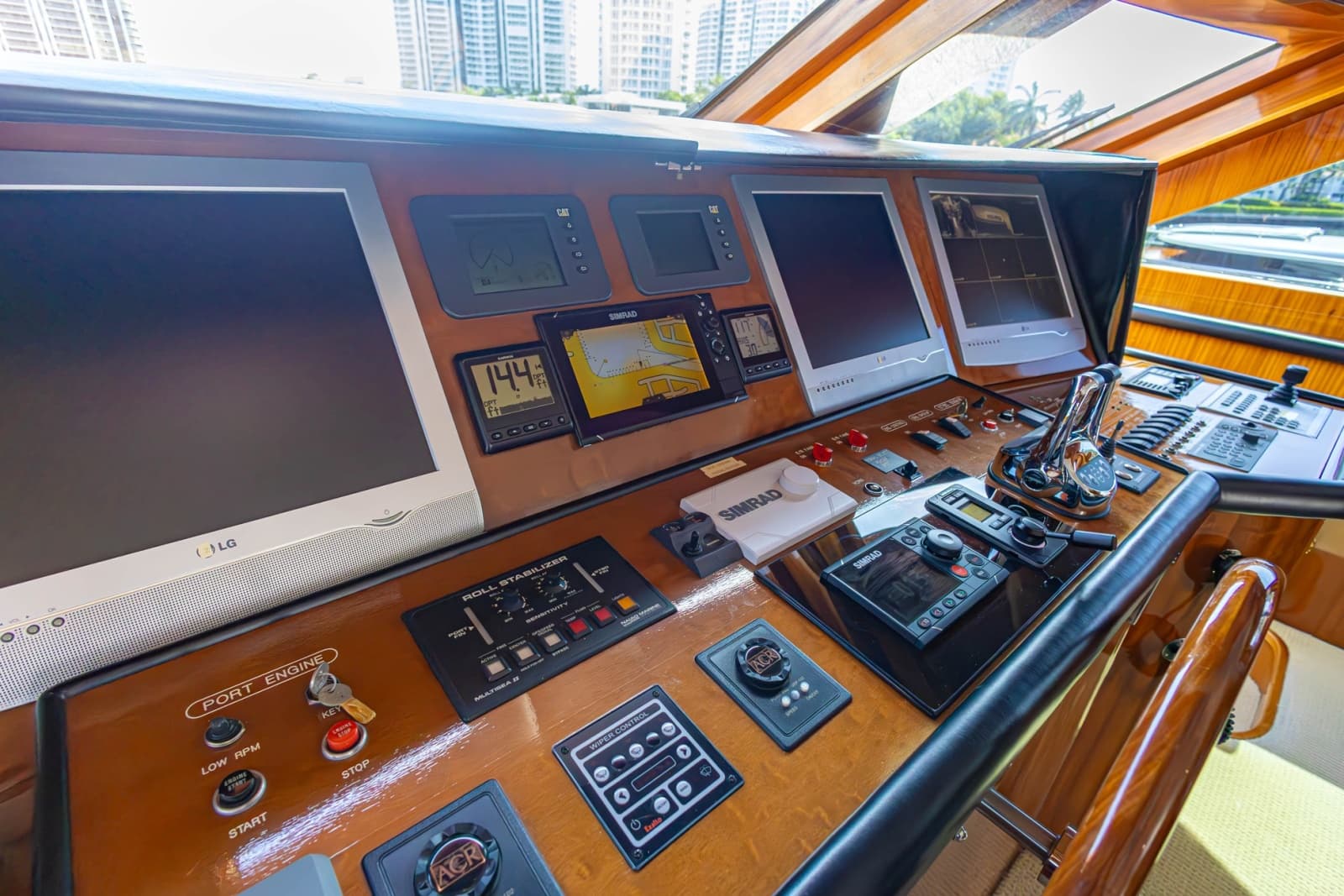

• Simrad FU80 autopilot NEW 2025
• Danforth 6" compass

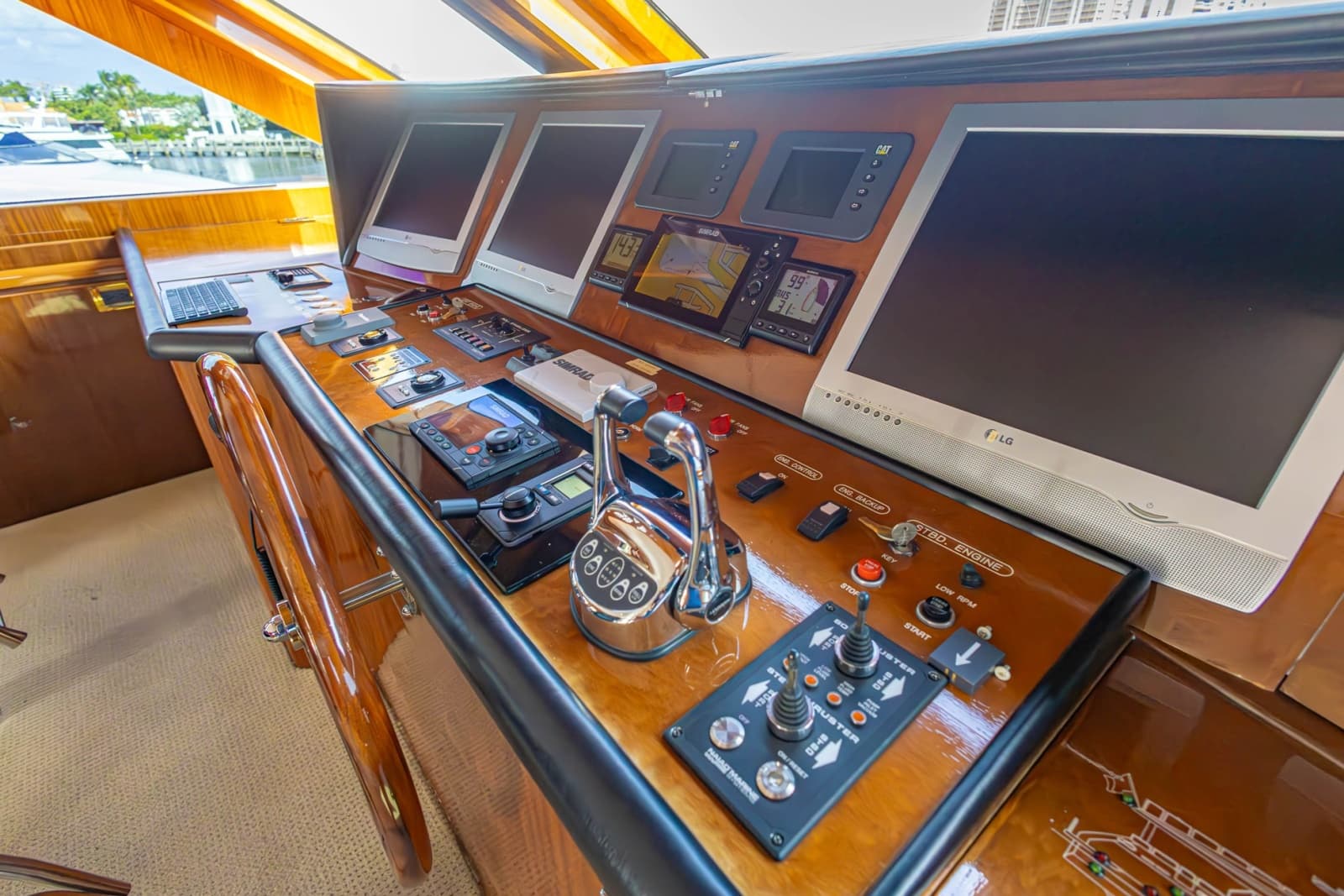

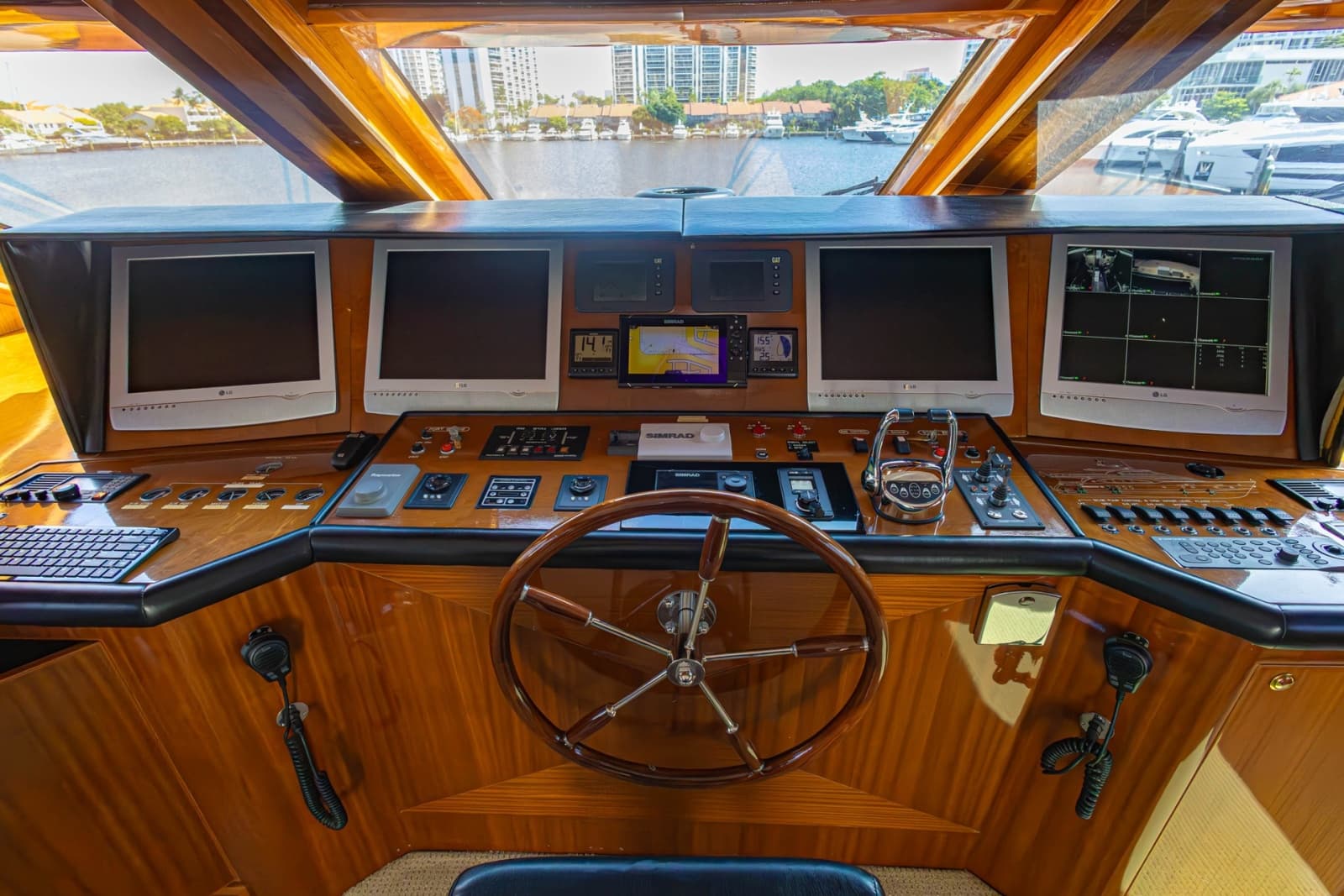

• (4) LG 24" Navigation Displays
• Furuno 48 mile radar
• (2) ICOM IC-M604
• (3) ICOM 72 VHF
• Rudder angle indicator
• Wind/speed indicator
• Nobeltec GPS
• Garmin 545 GPS
• Nobeltec speed & distance logs
• Cat instruments at helm (Tach/Oil Pressure/Engine Temp/TransPressure/Hrs)
• ACR spotlights
• (4) monitors for electronics
• Factory installation of all Audio Visual and Navigational Equipment
• Direct TV Satellite
• KVH Satellite for Wifi and phones
• Wave Wifi system
• Televisions throughout
• Garmin Depth Display 2025
• Garmin Wind Speed Direction Display 2025

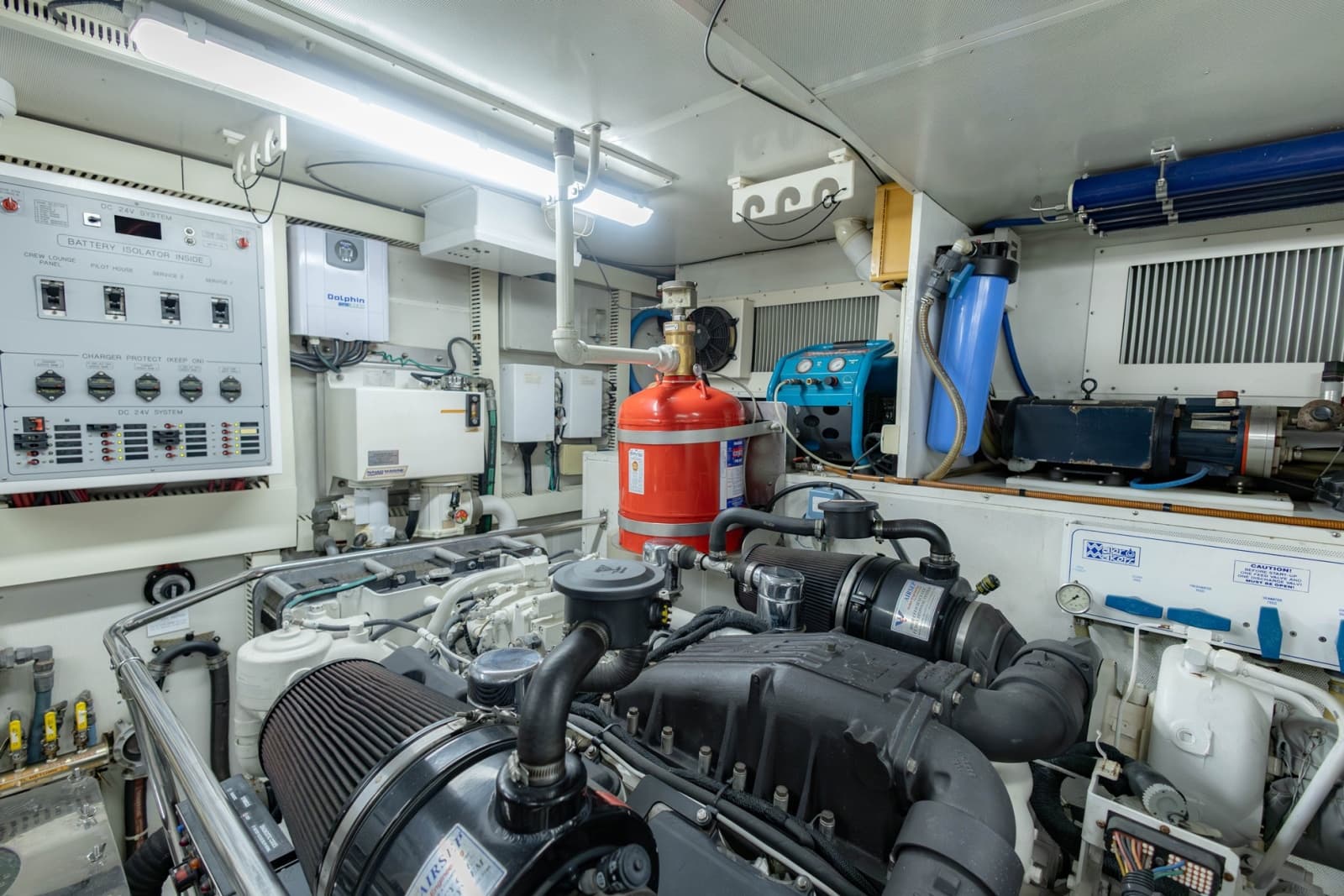

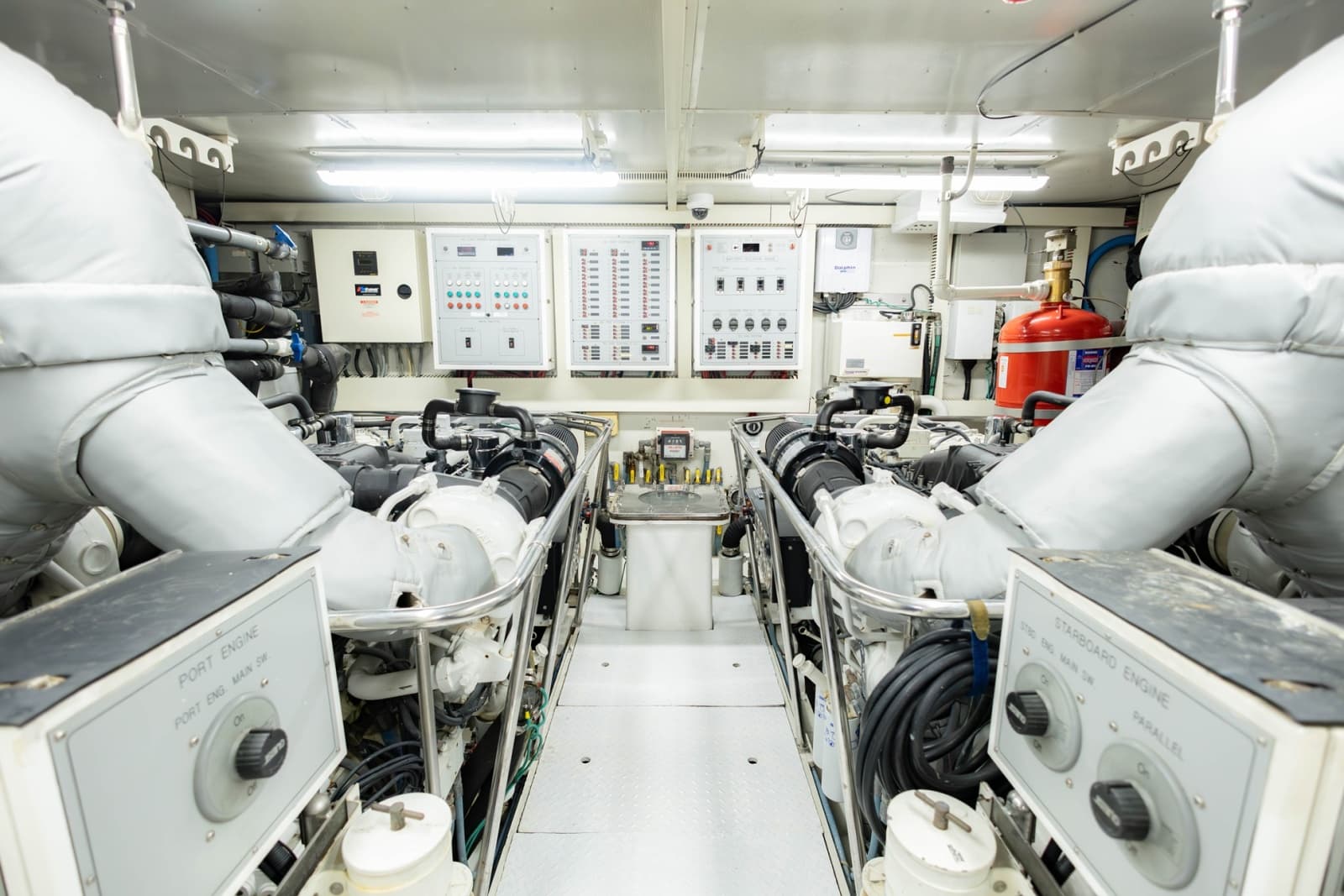

Warranties are good through Feb., 21, 2018 or 3,955 hours.  Full 2500 hour service has was completed 2/2016. Oil, air, and fuel filters just completed on engines 8/2016.

• 1 7/8 Deckfills for fuel and water
• 600 Gallon Stainless Steel Water Tank
• Single layer of sound and heat insulation in Engine room bulkhead fwd, aft & ceiling
• (2) Raycor 1000 FG fuel filter/water separator for each engine
• (2) Racor 75/1000 MA fuel filter/ water separator for main engines
• Vaiad Hydraulic Bow Thruster HPS-36hp
• Stern Thruster - 36 hp
• Hydraulic steering by Hynautic, adaptable to auto-pilot
• Engine Alarm System for low pressure & high temperature supplied by Cat
• Four (4) Jabsco Engine compartment blowers
• 24v lights and 110v power receptacles in Engine room (4 each)
• Custom underwater engine exhaust w/idle by-pass
• High volume 24v Groco Water Pressure Pump (30lb)
• 100 Gallon Holding Tank w/ indicator
• Fresh water filling faucet in Engine room
• Lovett Sump Pumps (4)
• Y-Valve for dockside pump out

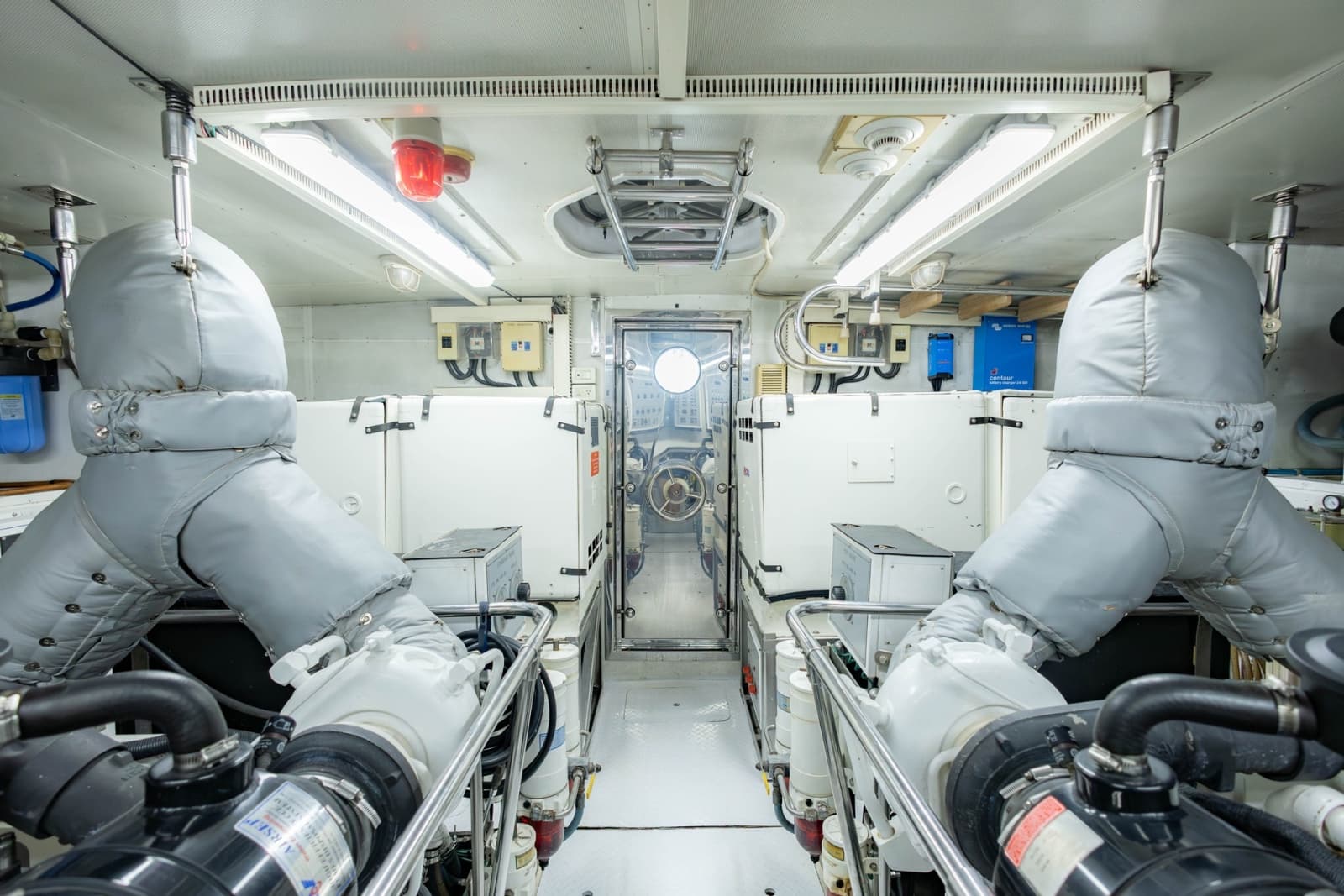

• White perforated insulation panels in Engine Room

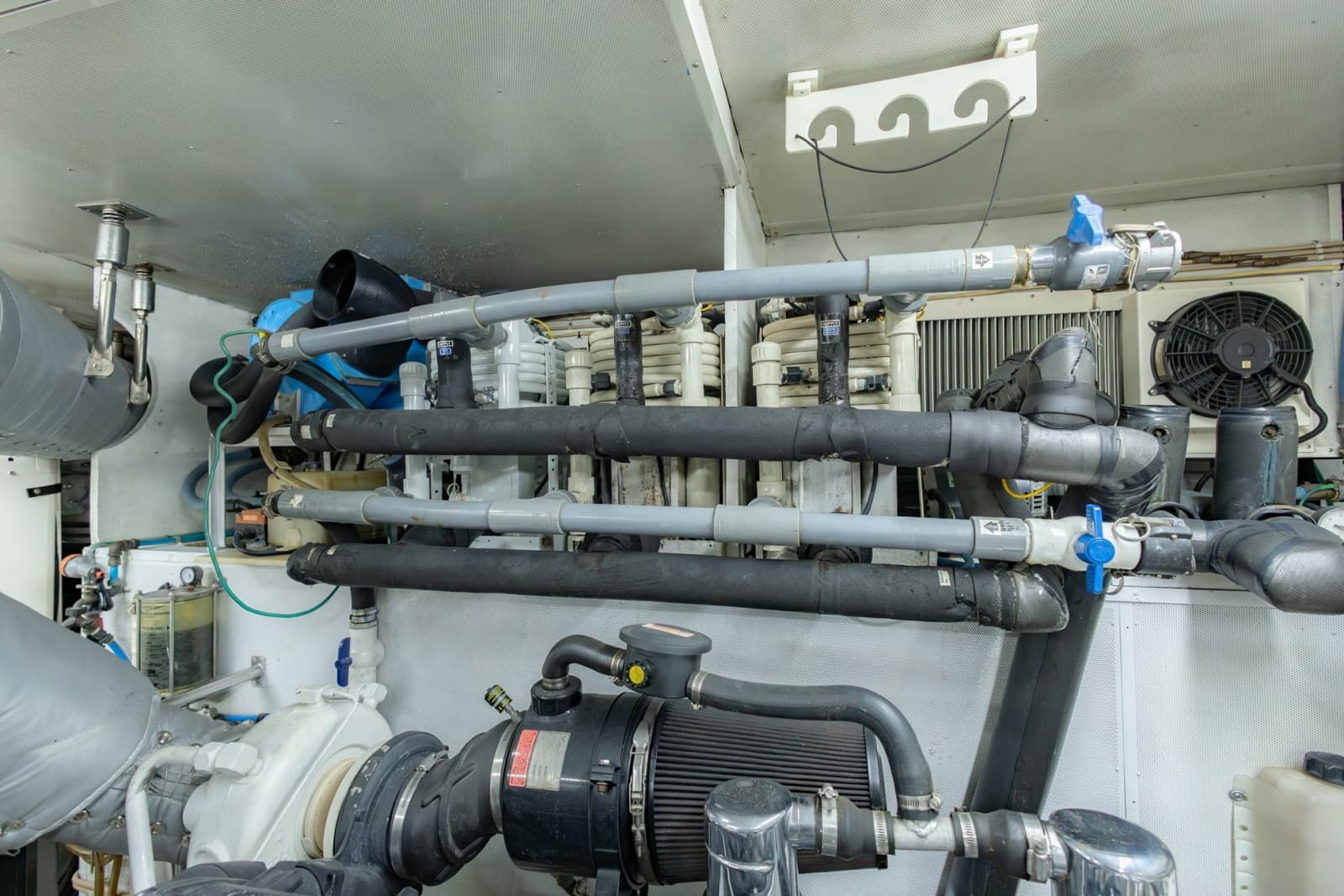

• Upgrade AC System from Standard to Cruise Air Chilled Water System (4) 3 Ton Compressors
• Install muffler on the exhaust By-Pass
• Double insulated engine room
• Watertight bulkheads in engine room
• Naiad stabilizer system Model 302 with 9 sq. ft. fin w/multisea 2000
• To Fit FRP Pipes for Stern Thruster at transom
• Engine room Seafire
• Fire & Smoke Detectors, total 10 throughout boat
• FM 200 fire suppression system
• Water Heaters x 2 to 40 Gal.
• Sump Tanks with Covers x 5
• Headhunter MSD system with jet pump waste water treatment
• (1) Glendinning CM8 100Amp Cablemaster w/ 125’ Cord Port side (new 8/2016)
• Glendinning remote control (new 8/2016)
• Tide Seal Dripless Rudders
• Tide Seal dripless shaft logs
• In-Line Recirculating "Hot Water" pump
• Jabsco Emergency Bilge Pump w/3 pick-ups
• Safety Handrails at sides of Main Engines

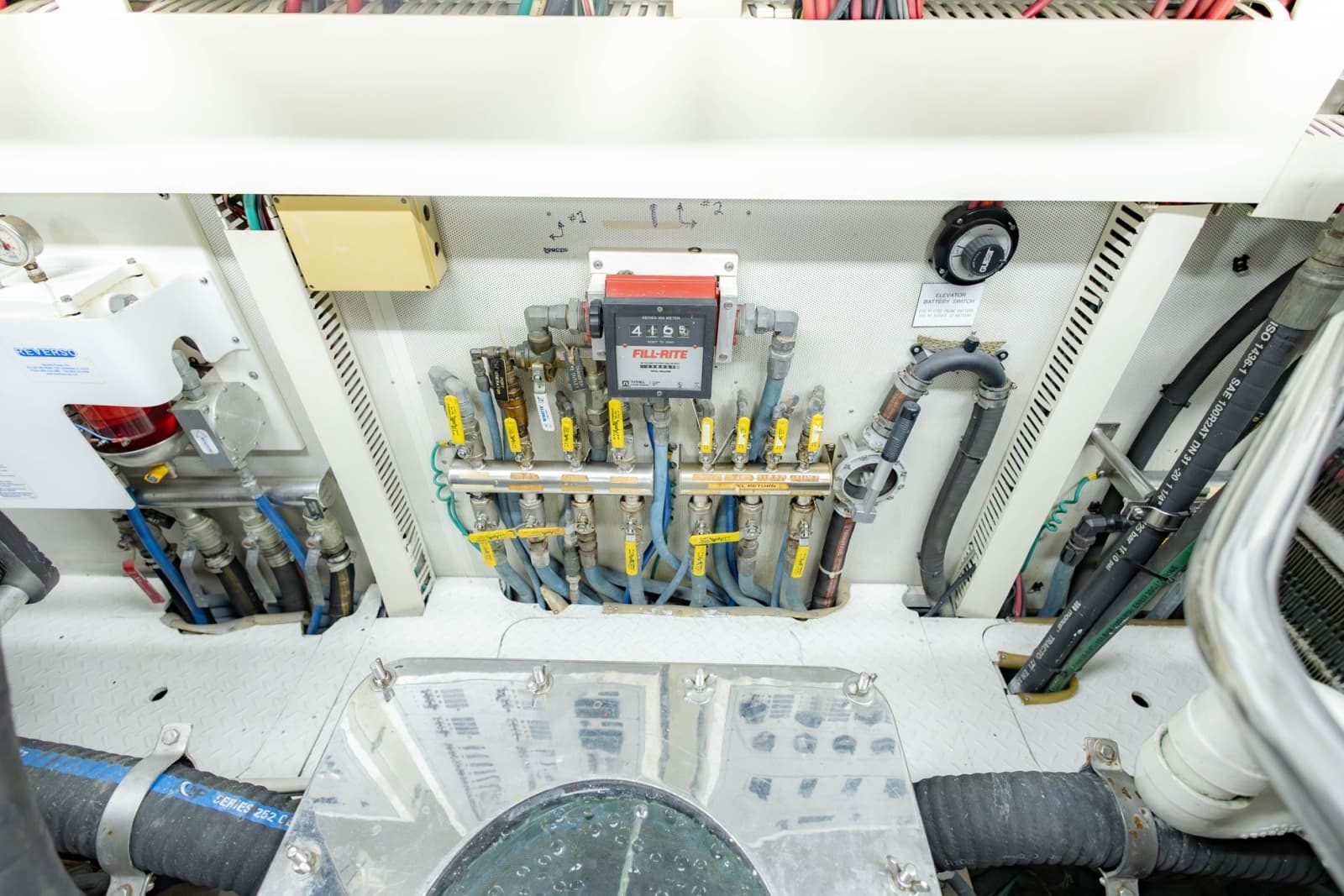

• (1) Fuel Transfer pumps, Orberdorfer PSRO 80
• (1) Additional Oberdorfer PSRO Fuel Transfer pump
• Reverso GP706-24 Oil Transfer pump for engines and generators
• Water Drop Exhaust to 2 generators
• 4 engine room blowers
• Engine Room entry hatch w/ Ladder on Aft Deck
• Sea Recovery Inc. 1400 GPD water maker
• Sea Chest
• Glendenning Electronic Clutch Controls

• V-Shaped Keel w/ Longitudinal stringers
• Fiberglass hand laid hull & stringers vacuum bagged w/foam core reinforcement
• Stringers bonded to hull encapsulated in several layers of glass cloth & resin
• Deck & superstructure w/ foam cored reinforcement under fiberglass
• FRP Bulkheads
• Interior structural components bonded to hull including bulkheads and frames
• FRP Main Deck and floors
• Non-Skid on main exterior decks (except teak aft deck)
• Stainless Steel exterior Portholes
• 3 1/2" stainless steel shafts equivalent to Aquamet 22
• Zincs on shafts, rudders and transom as needed
• 4 Blade Faster bronze propellers with 3 1/2" spurs
• Main bronze struts
• Emergency tiller
• Stainless steel rudders
• Fiberglass engine beds, bonded to hull w/ load distributed on steel channels
• 2 Coats International Gel shield
• 100 amp galvanic isolator
• Oval 24" x 12" Port Holes x 6
• Hand rails to 1 1/2" SS hoop in main and on boat deck

• Leviton High quality sockets and switches in all rooms
• 220v,110v and 60Hz Electrical System
• Color coded wiring throughout
• Custom -built Helm Console when electronics
• (8) 200 amp/hr batteries for engine & ship power
• (3) Professional Mariner battery chargers
• Separate 120 amp/hr battery for generator
• All batteries in FRP battery boxes
• All batteries replaced 7/2015

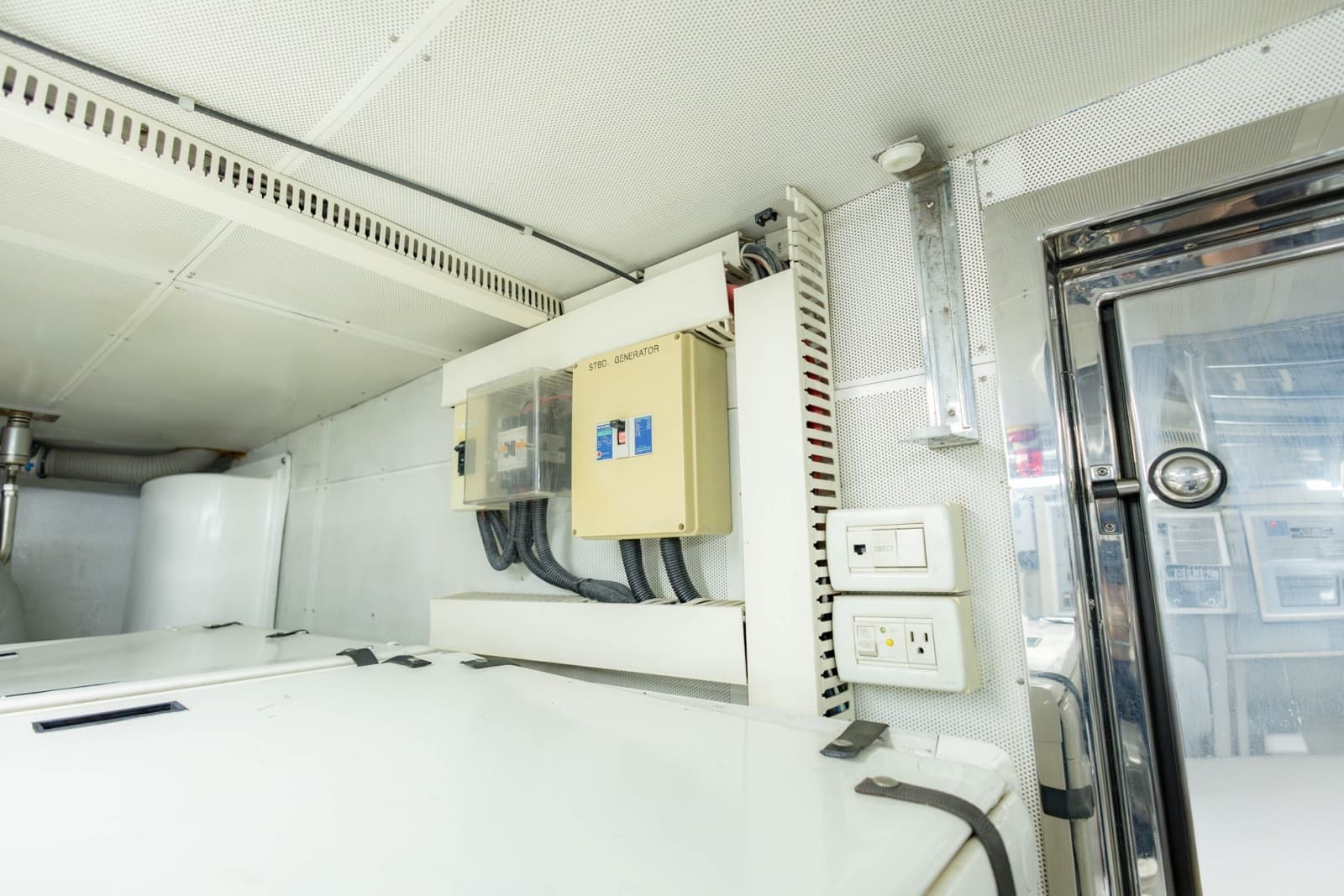

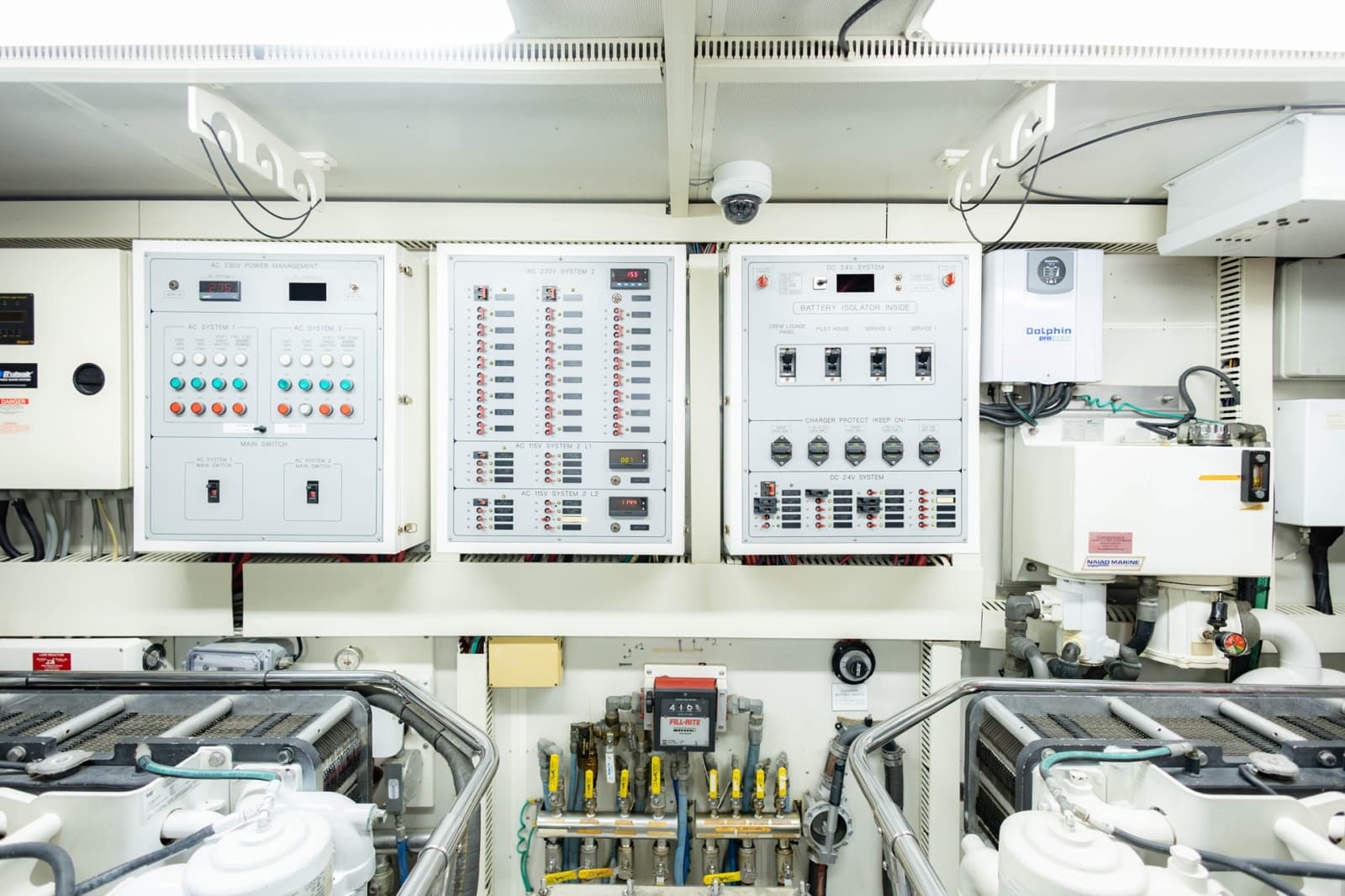

• Main electrical panel w/ separate AC Power control and circuit breaker panel
• 110 volt duplex receptacles located throughout vessel, including engine room
• 100 amp shore power cable - 75' cord
• (2) shore power outlets - 1 forward and 1 aft
• Indirect rope lighting under valances in salon staterooms, sky lounge and galley
• Boat panel indicator
• Security breaker for AC power

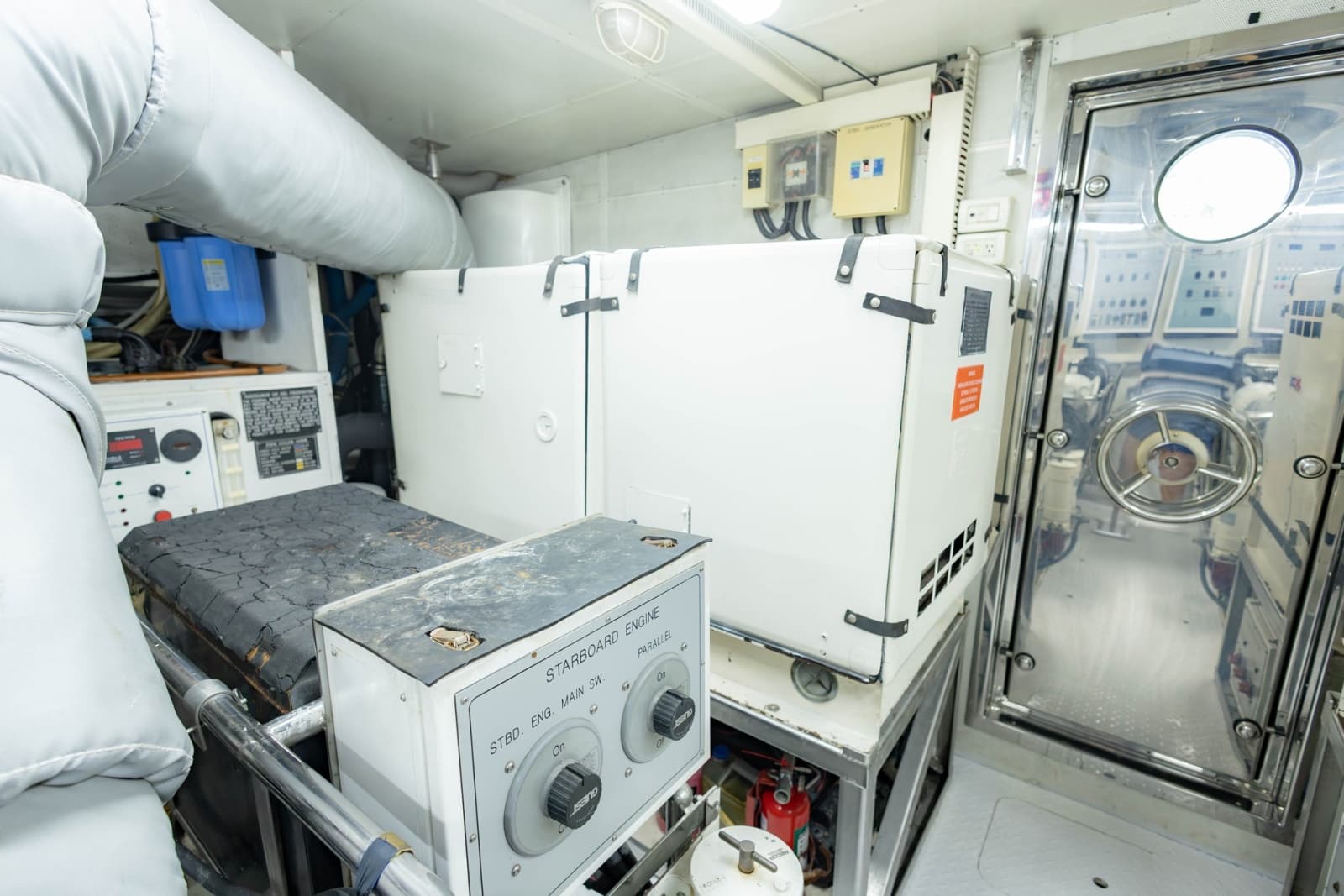

• (2) 40 kW 60Hz Westerbeke 4.OBEDA Single Phase with soundshield (PORT: 3713, STBD: 3713)
• Stbd Side Forward Shore Power 100 Amp Connection w/75' of 100 amp cord
• Wiring for TV under bunk in Crew and TV at aft deck
• (3) 120 AMP Sentry / Dolphin AC/DC light transformer 110 / 24V
• Sentry battery chargers:1-80Amp (24V) / 1-30Amp (24V) / 1-30Amp (12V)
• (2) Newmar 50 Amp DC 24V to DC 12V converter
• Underwater lights in stern

Personal items, tools, artwork. Full list to be supplied upon offer.
