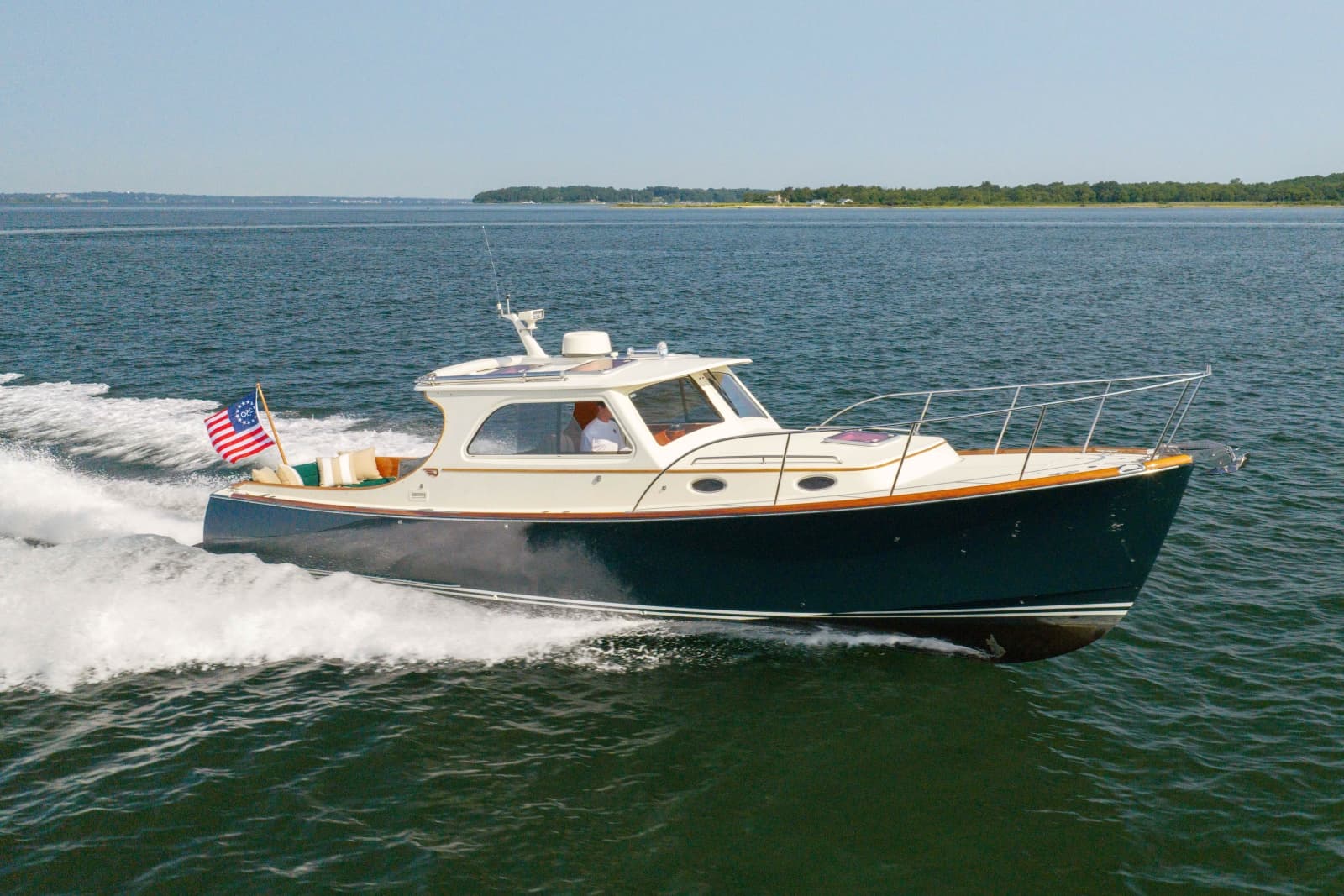

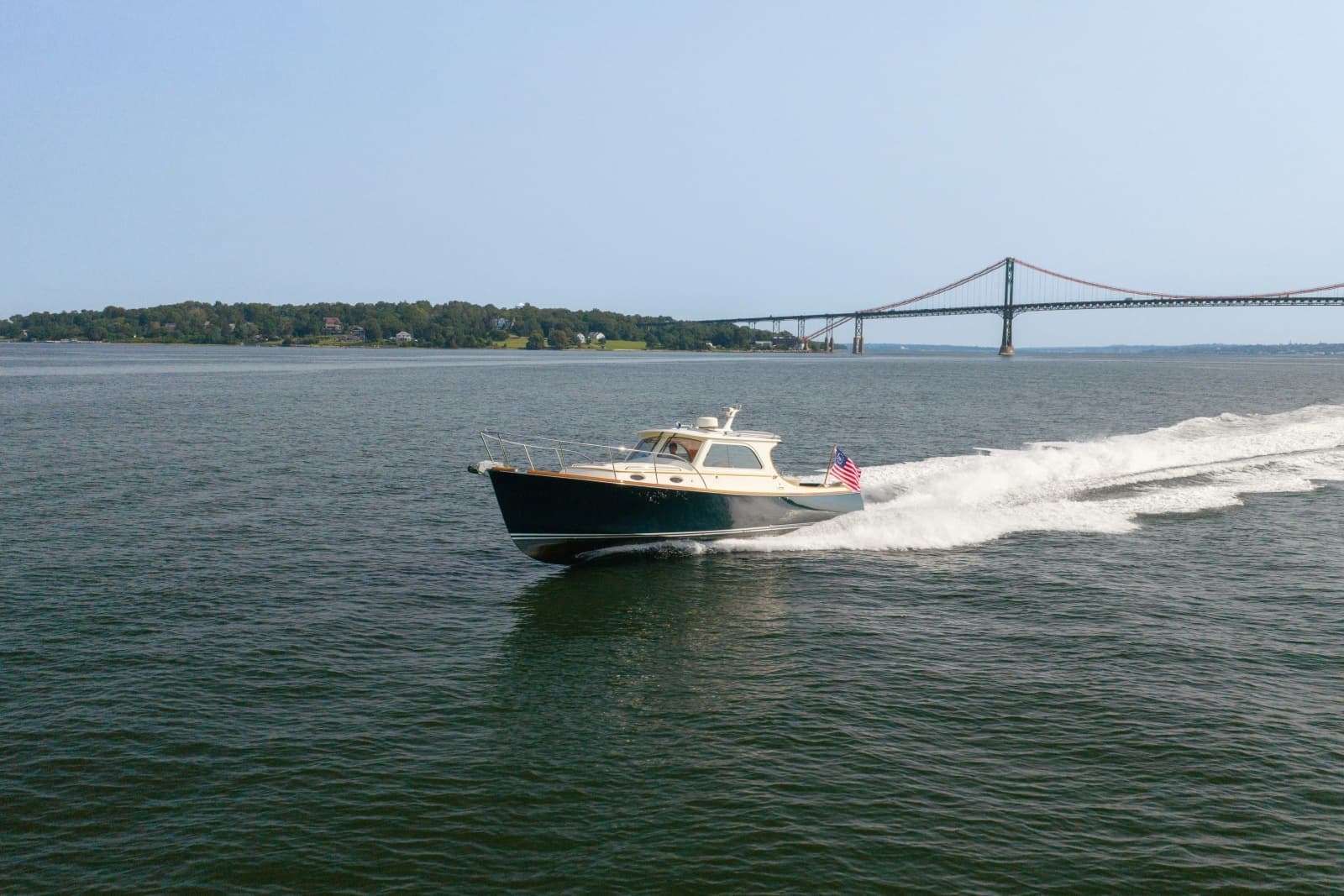

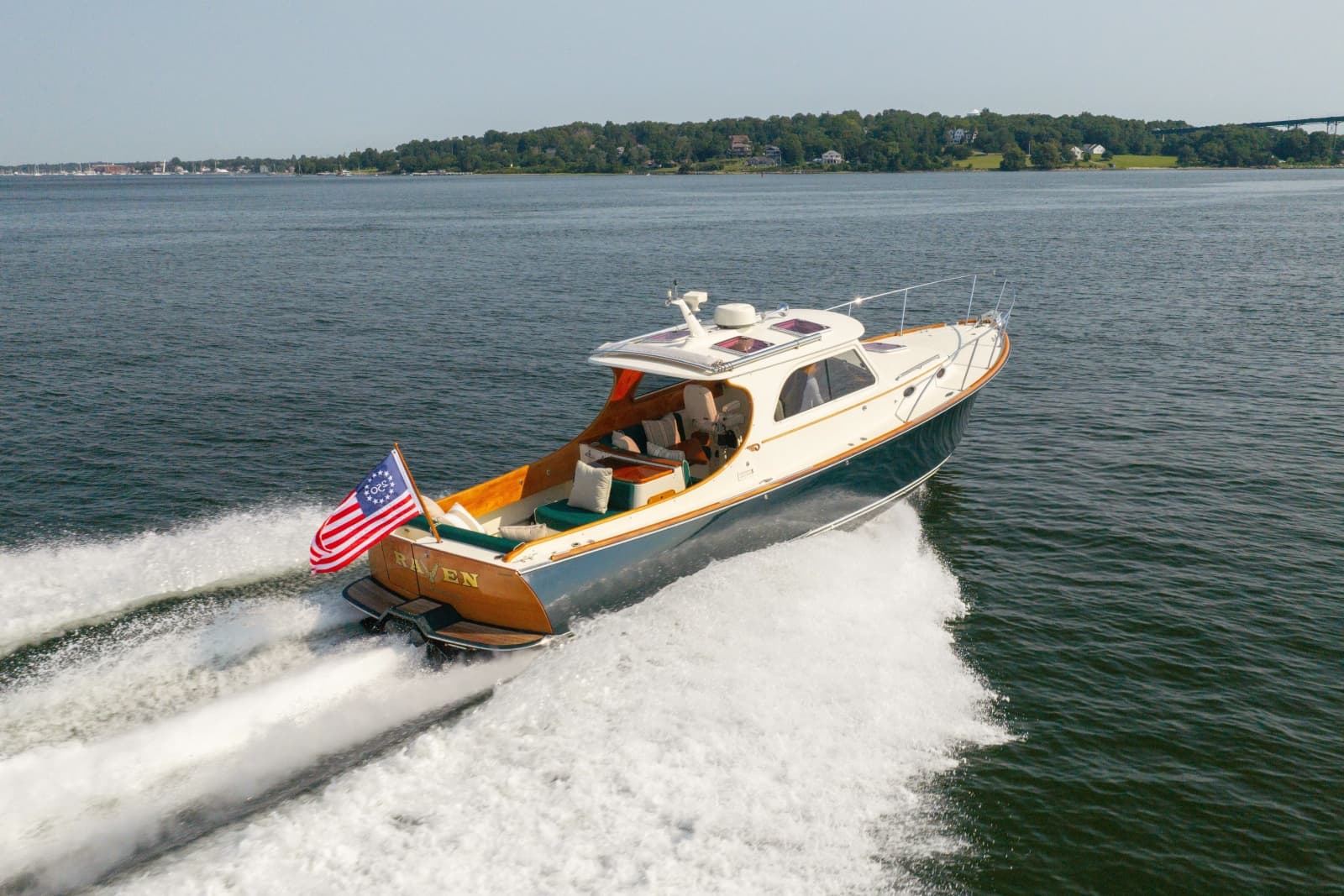

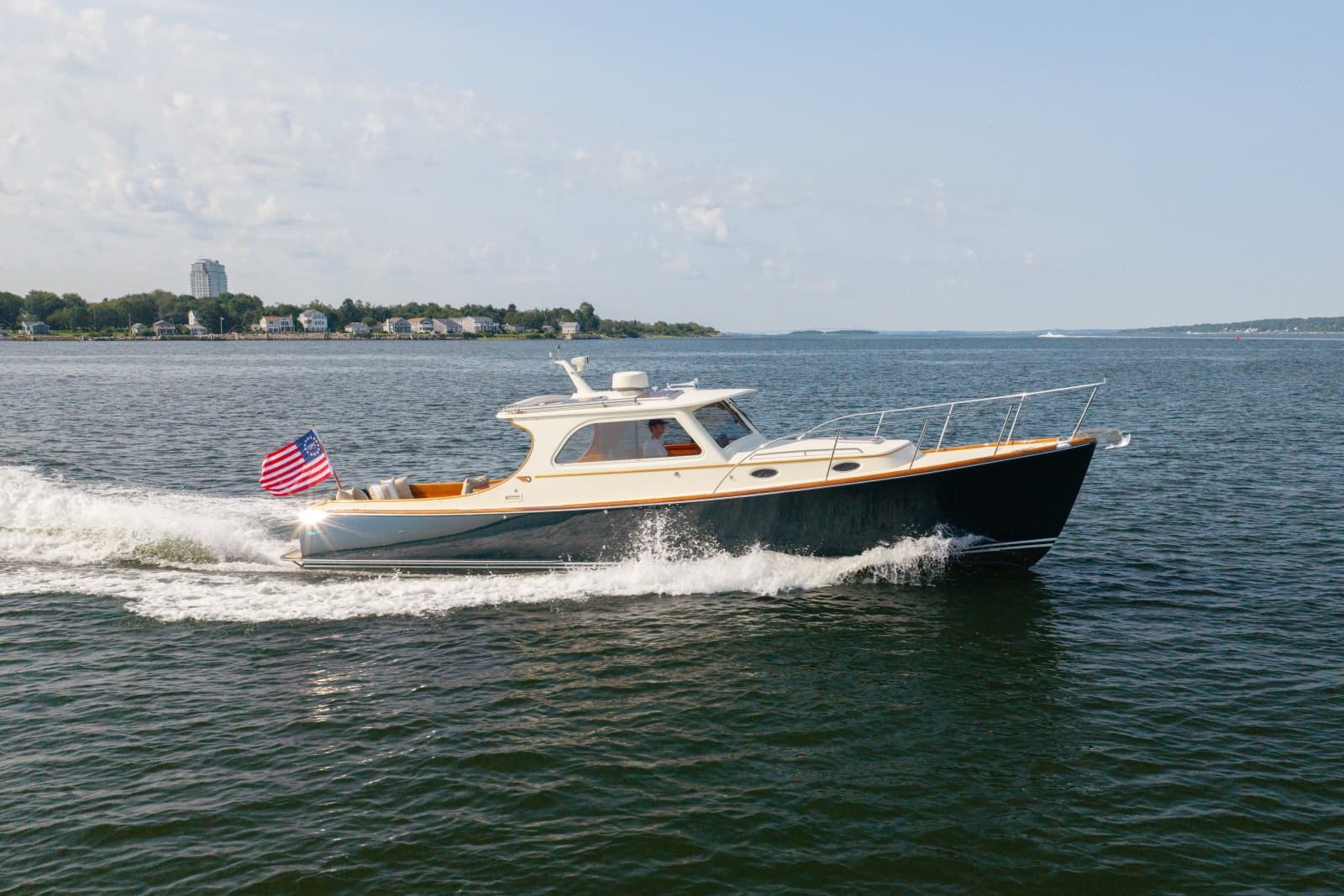

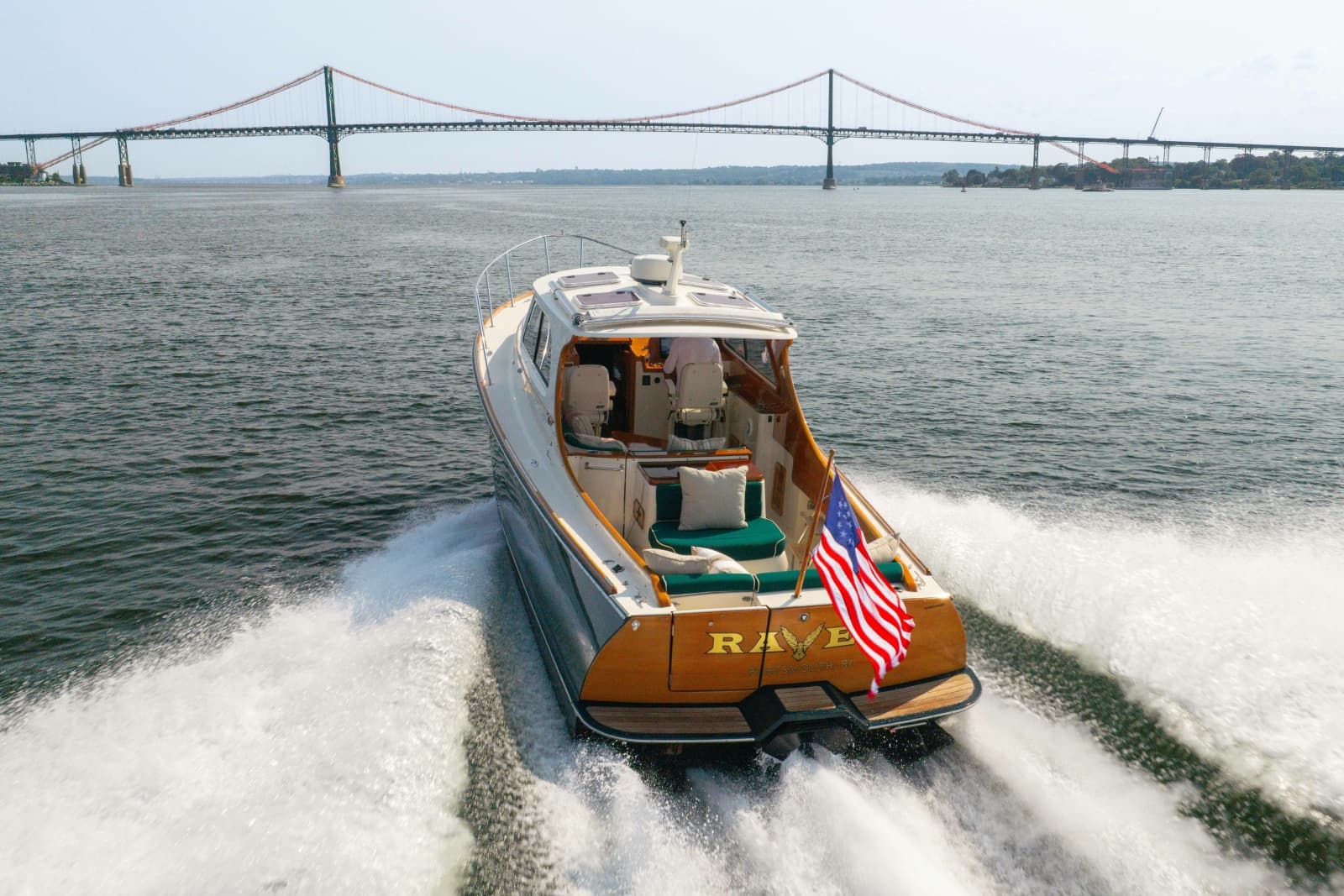

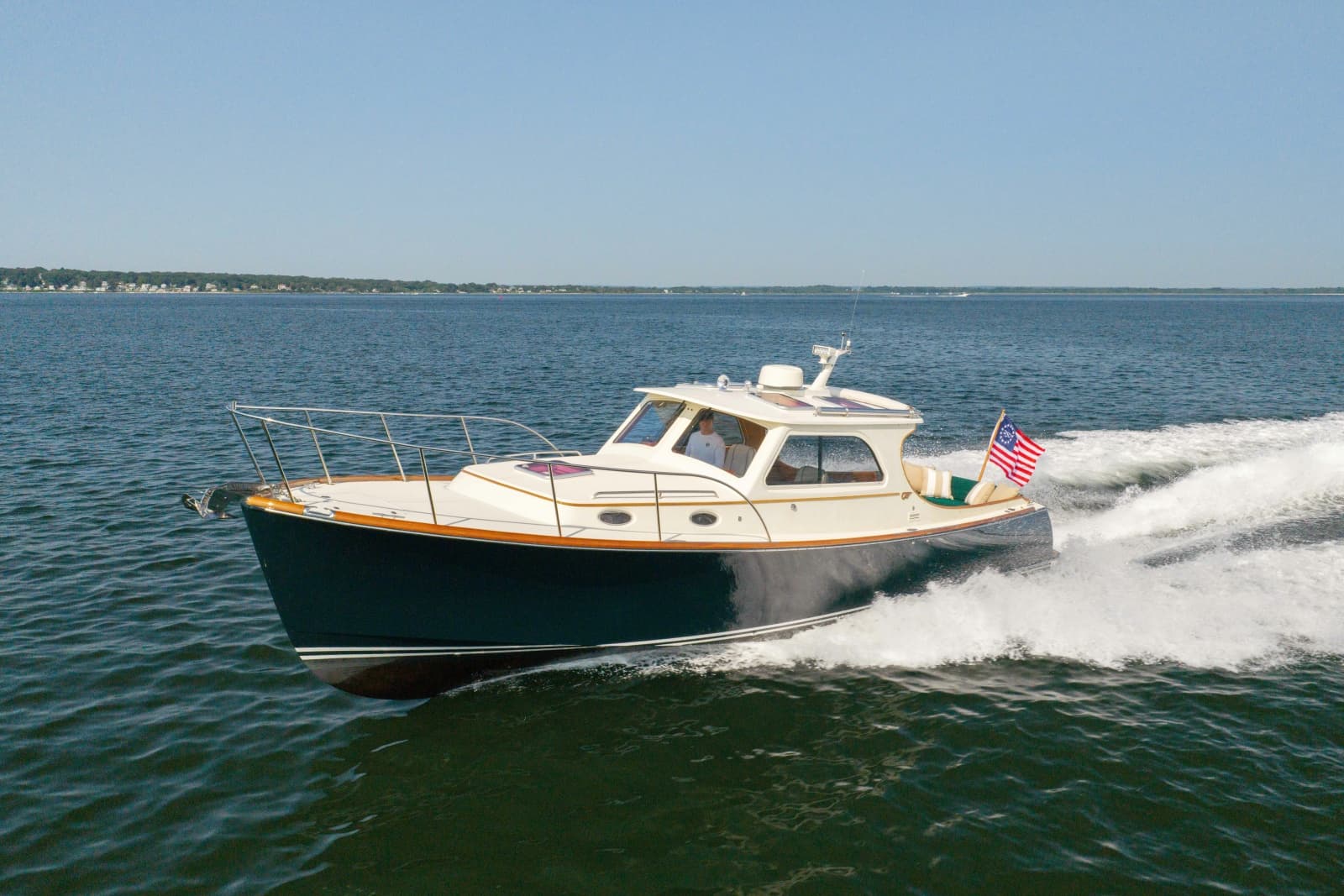

2007 Hinckley 36 EP

• Dark Green Awlgrip topsides

• Light Cream Gelcoat cabin house and deck

• Light Cream Awlgrip painted non-skid

• Matterhorn White double boot stripe

• Black bottom

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin and Carbon-fiber inner skin.

SCRIMP® laminated with Vinylester resin. Deck and cockpit are E-glass with closed-cell foam core, SCRIMPED with Vinylester resin.

• Marelon ball-valve seacocks with thru-hulls below waterline and Marelon thru-hulls above the waterline

• Stainless steel half-round on fiberglass molded rub rail

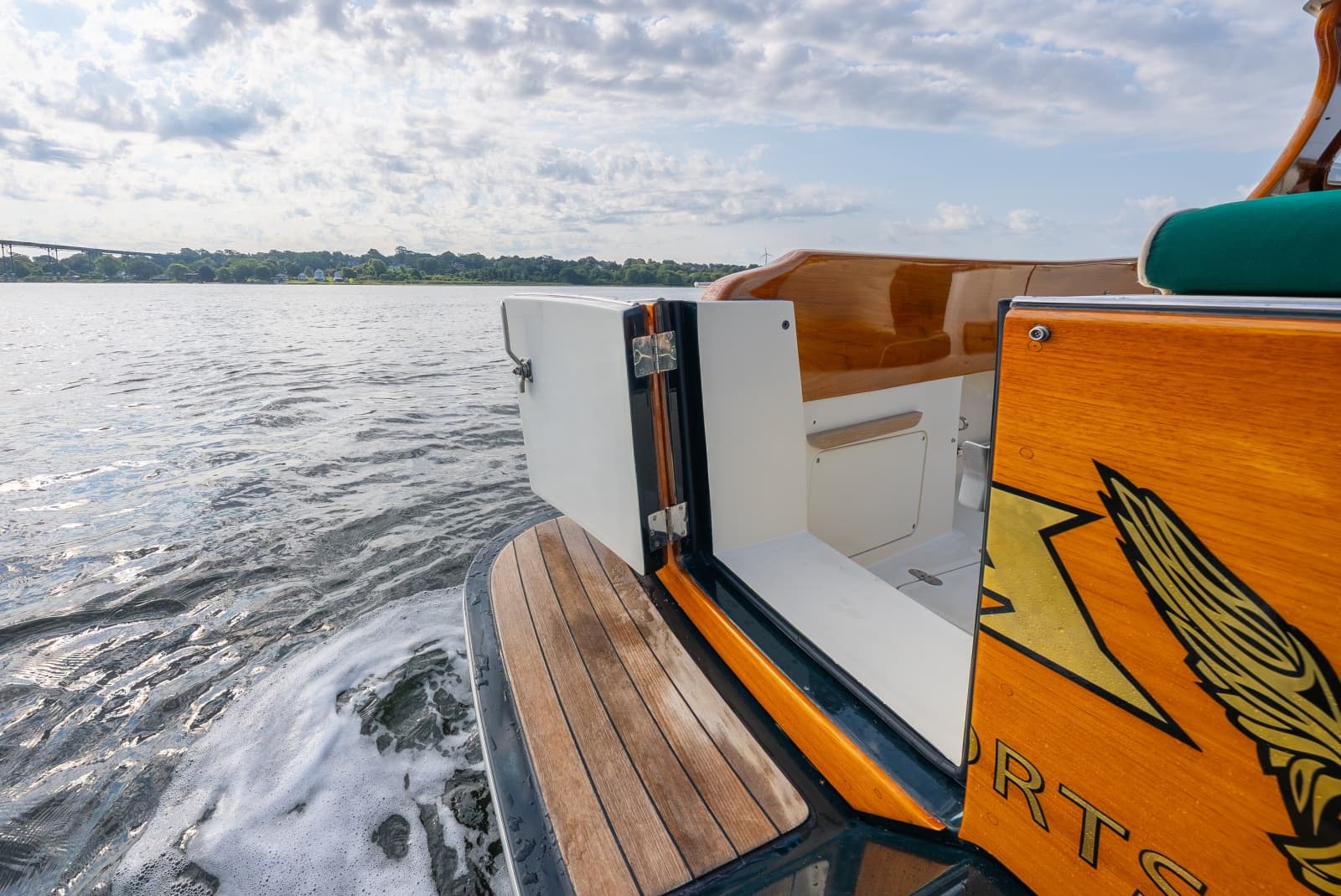

• Custom teak transom with walk-through door to swim platform

• Heavy-duty fiberglass swim platform has teak insert treads, stainless steel bracket and half-round

• Stainless handrail on transom, painted to match the hull

• Stainless steel telescoping 3-step folding swim ladder, stores under platform

Deck Features:

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller

• Rounded, tapered, varnished teak toe rail with Hinckley profile

• Varnished teak eyebrow molding around cabin top

• Stainless steel handrails on forward port and starboard cabin top

• 4 x Elliptical opening ports with screens, on house sides

• Hinckley pilothouse mast and radome painted to match deck, on pilothouse top

• 5 x Low-profile opening aluminum hatches: 4 x on pilothouse top and 1 x on cabin house top

• Ocean Air Sky screens/blinds for each hatch

• Fender padeyes with toe rail chafe strips

• Stainless steel chafe strip across transom to prevent chafing on transom/deck corner

• ACR spotlight is masthead-mounted, with helm-mounted electric remote control

• Fishing rod holders on side decks

• Opening transom door with removable filler seat and cushion

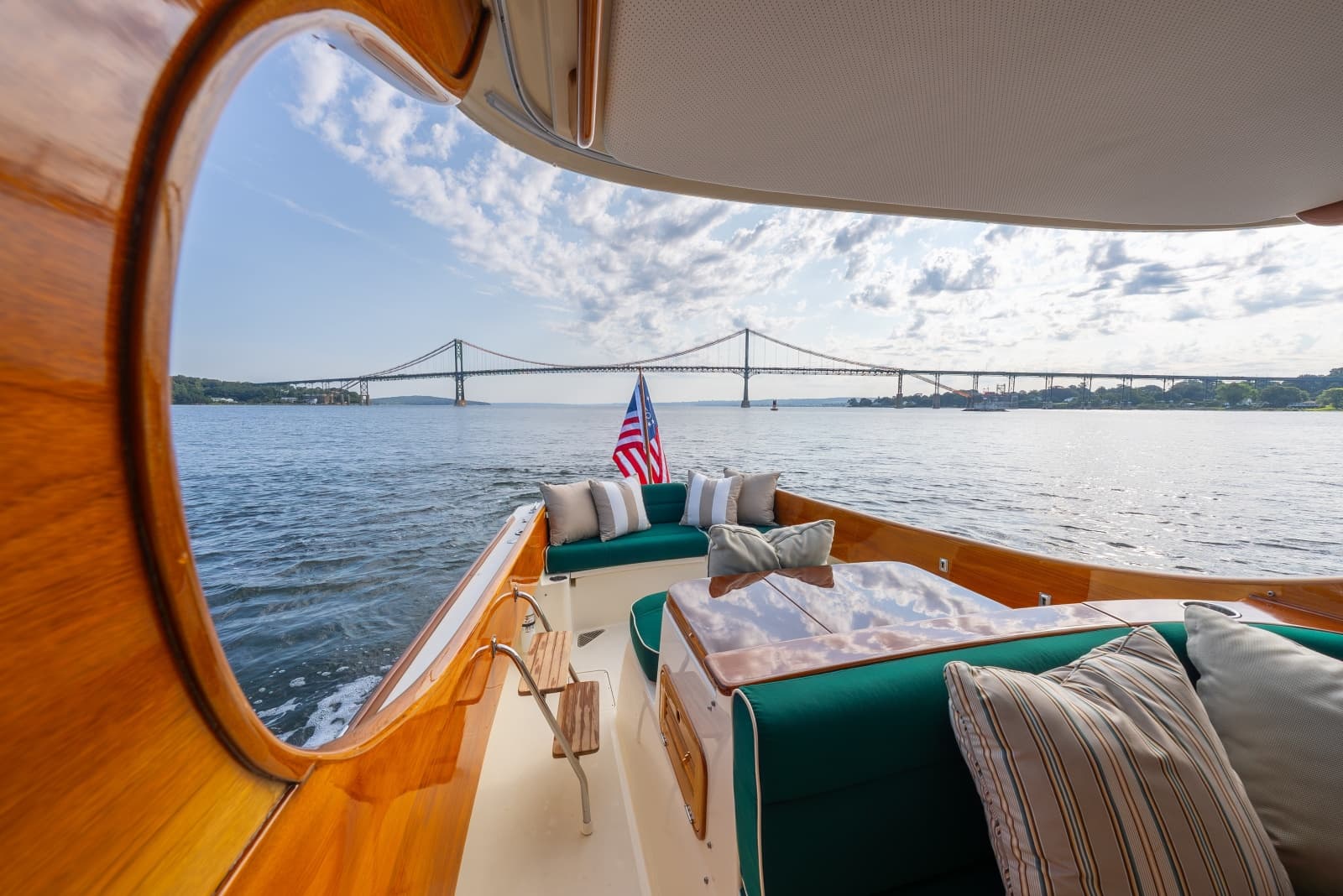

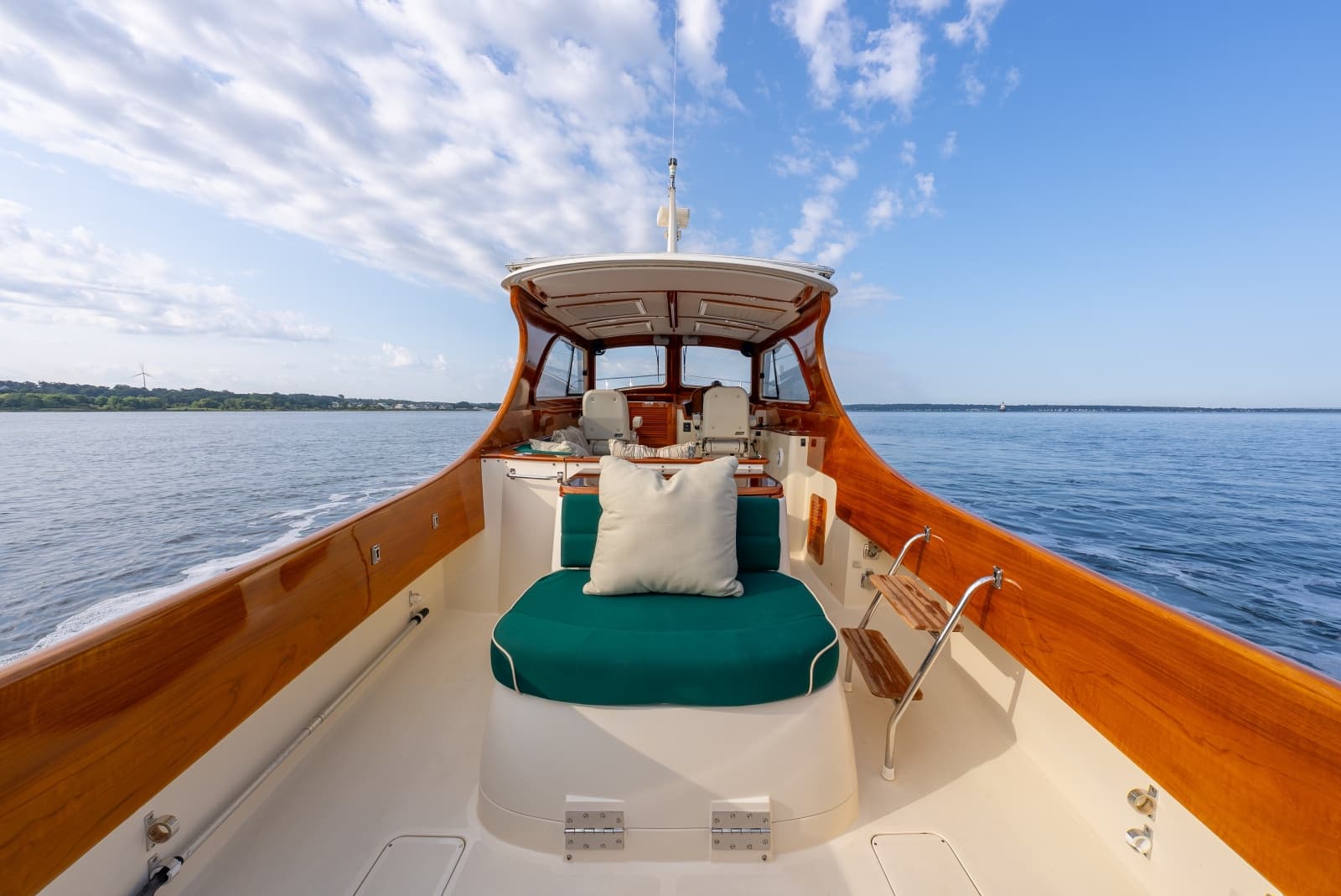

The cockpit features forward-facing seat at the transom, and aft-facing seating on the engine box.

• Varnished teak coaming verticals and coaming cap

• Exterior cushions are recent Green Sunbrella fabric with Off-White piping

• Transom door extends from swim platform to cockpit portside

• Transom walk-through has a removable filler and cushion

• Stainless steel cockpit step ladder with teak treads, mounts port or starboard with stainless steel brackets

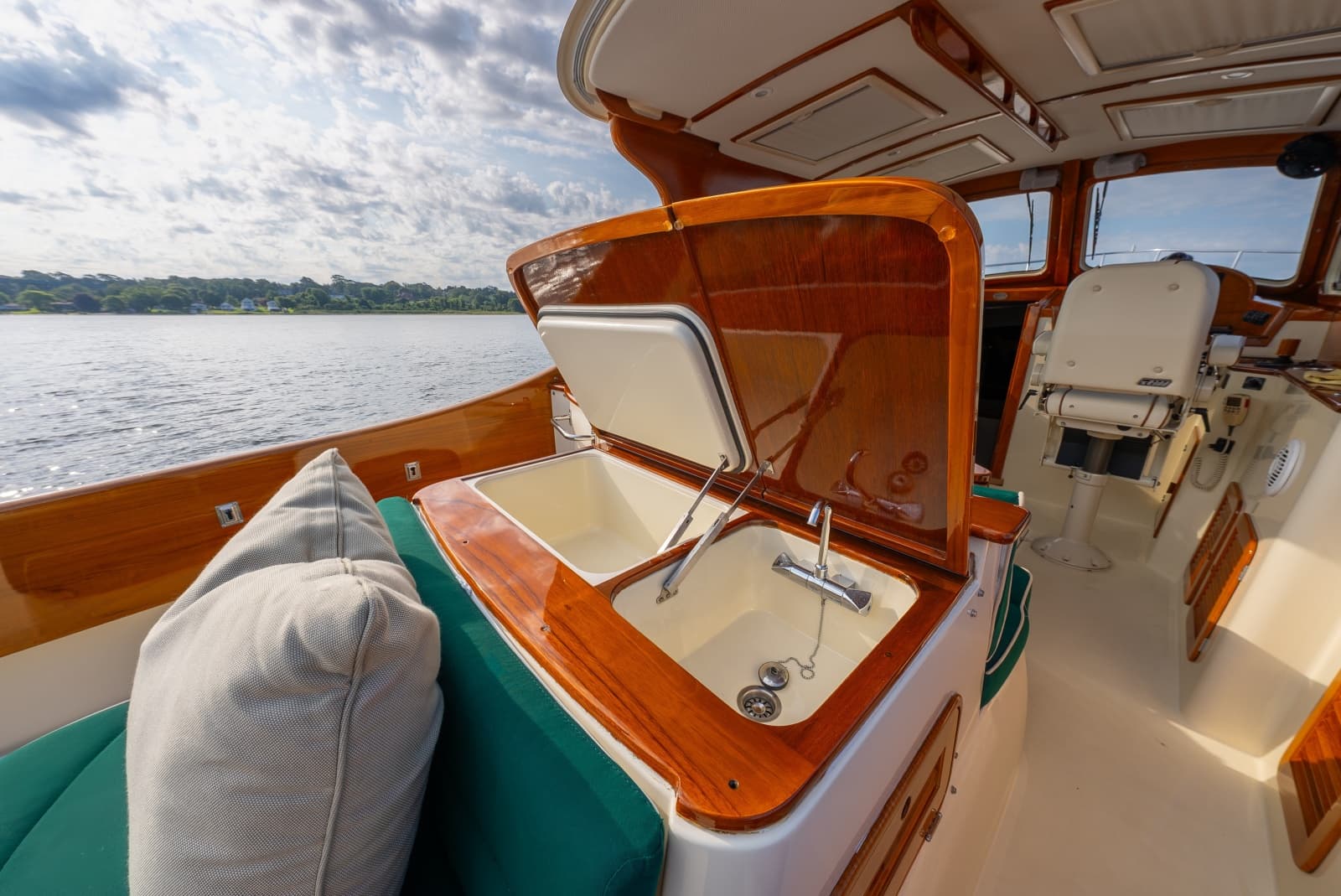

• Engine box with aft-facing seating, and a wet bar and cooler, both with varnished teak tops.

• Wet bar includes a stainless steel sink with foldaway faucet and hot and cold pressure water, insulated and self-draining icebox, a storage drawer, and additional storage under the sink

• The entire engine box/wet bar and seat is hinged on the aft end and has electric lift for easy access to the engine

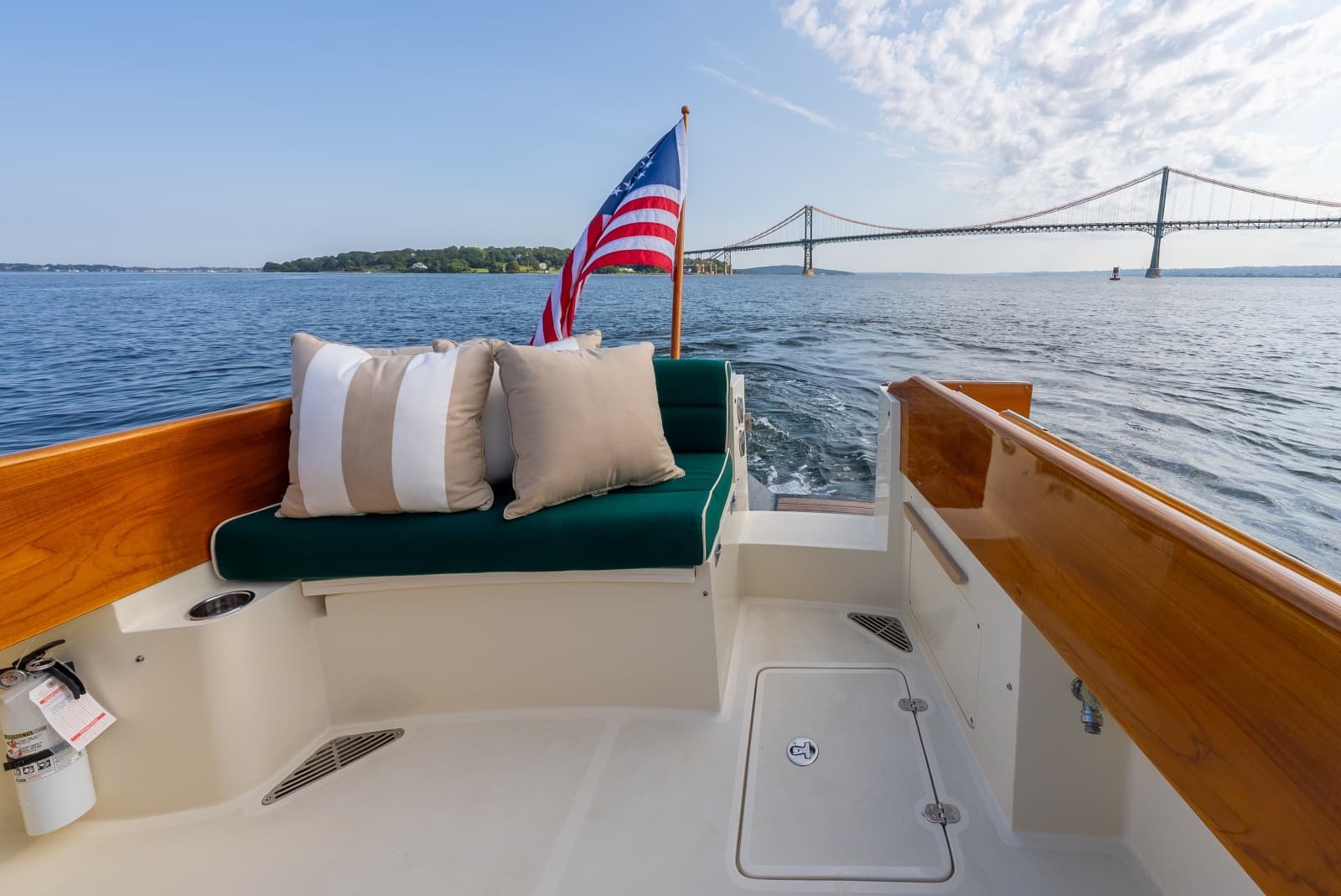

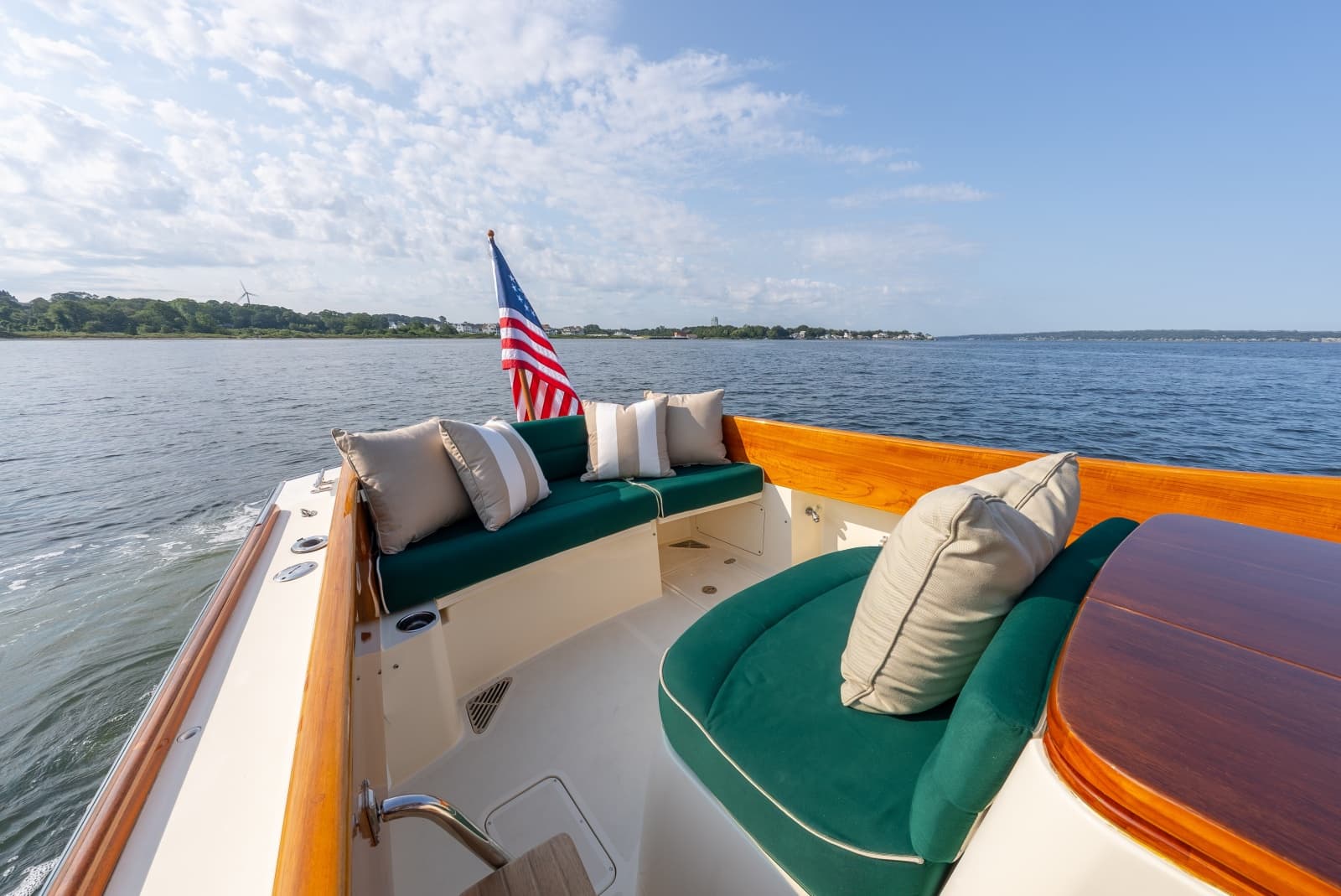

• Aft is a full-width settee with back and seat cushions finished in recent green Sunbrella fabric with off-white piping

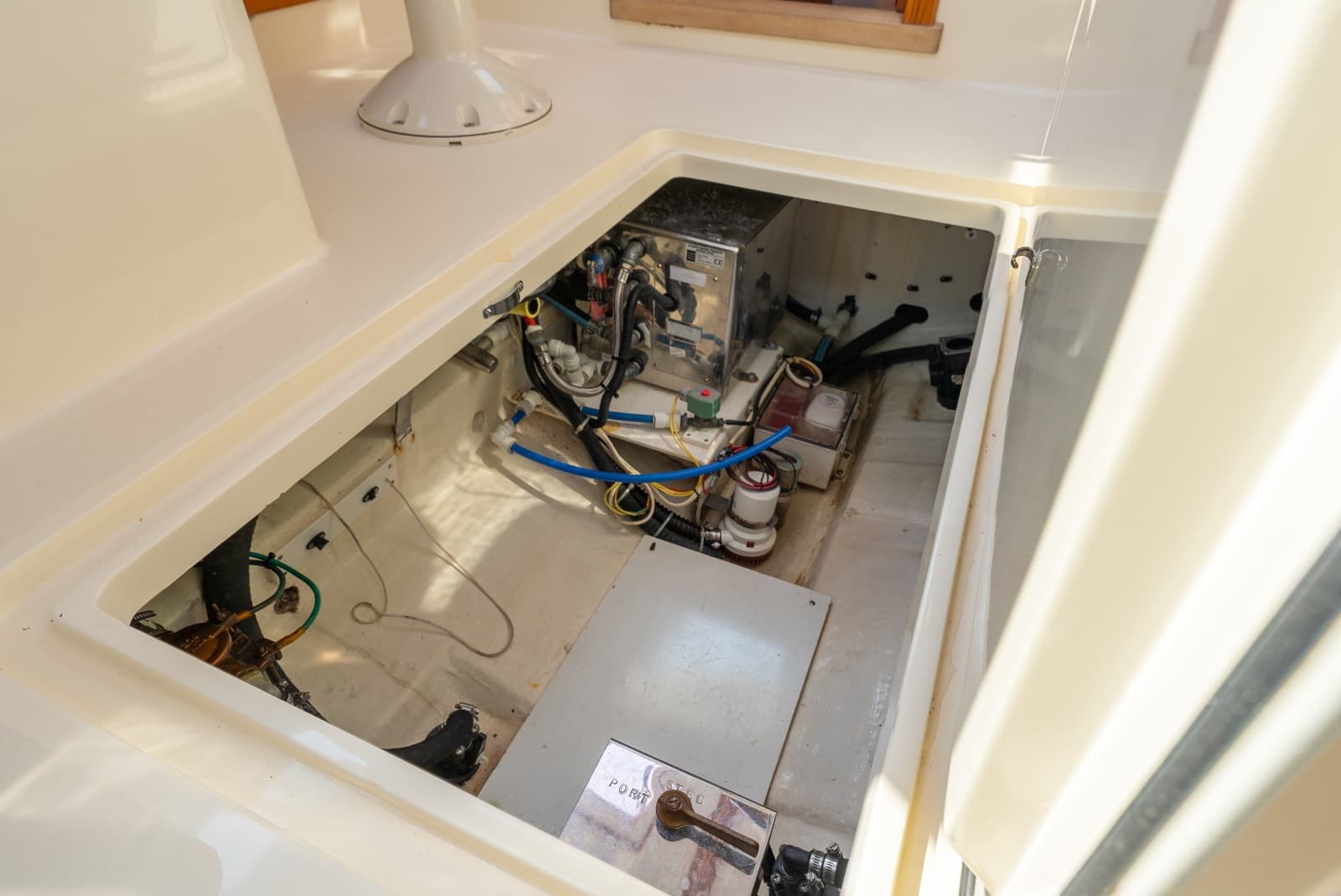

• Hinged lid under the cushion to allow access to removable storage tub and to access bilge areas

• Portside transom door with a removable folding seat section

• Port and starboard cup holders just forward of cushions

Other cockpit amenities include:

• Cockpit and pilothouse sole have non-skid in light cream

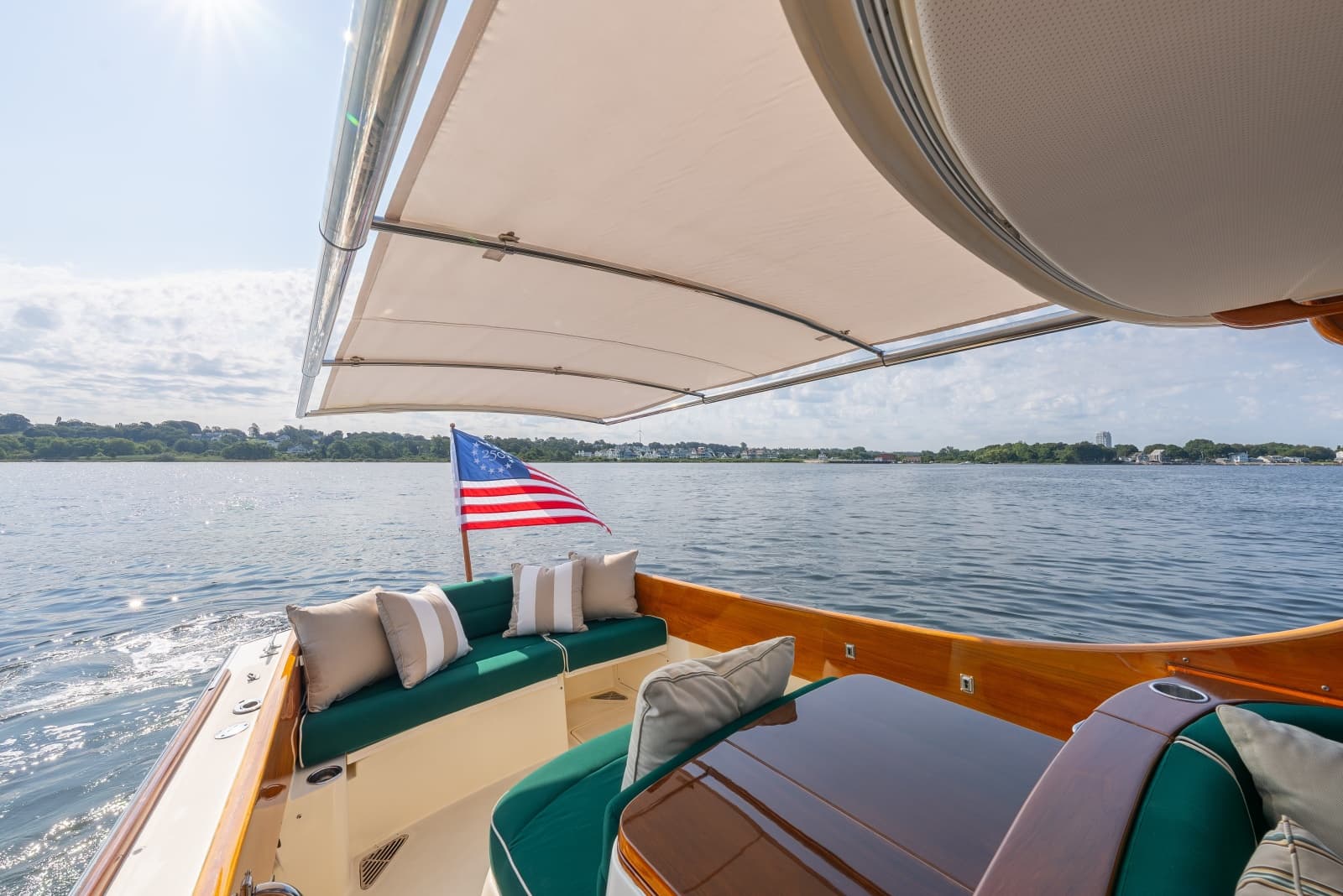

• Recent SureShade telescopic cockpit awning

• There are cockpit lockers with varnished louvered teak doors

• Cockpit shower with mixing valve is located in transom walk-through

• Direct overboard drainage scuppers

• Drink holder

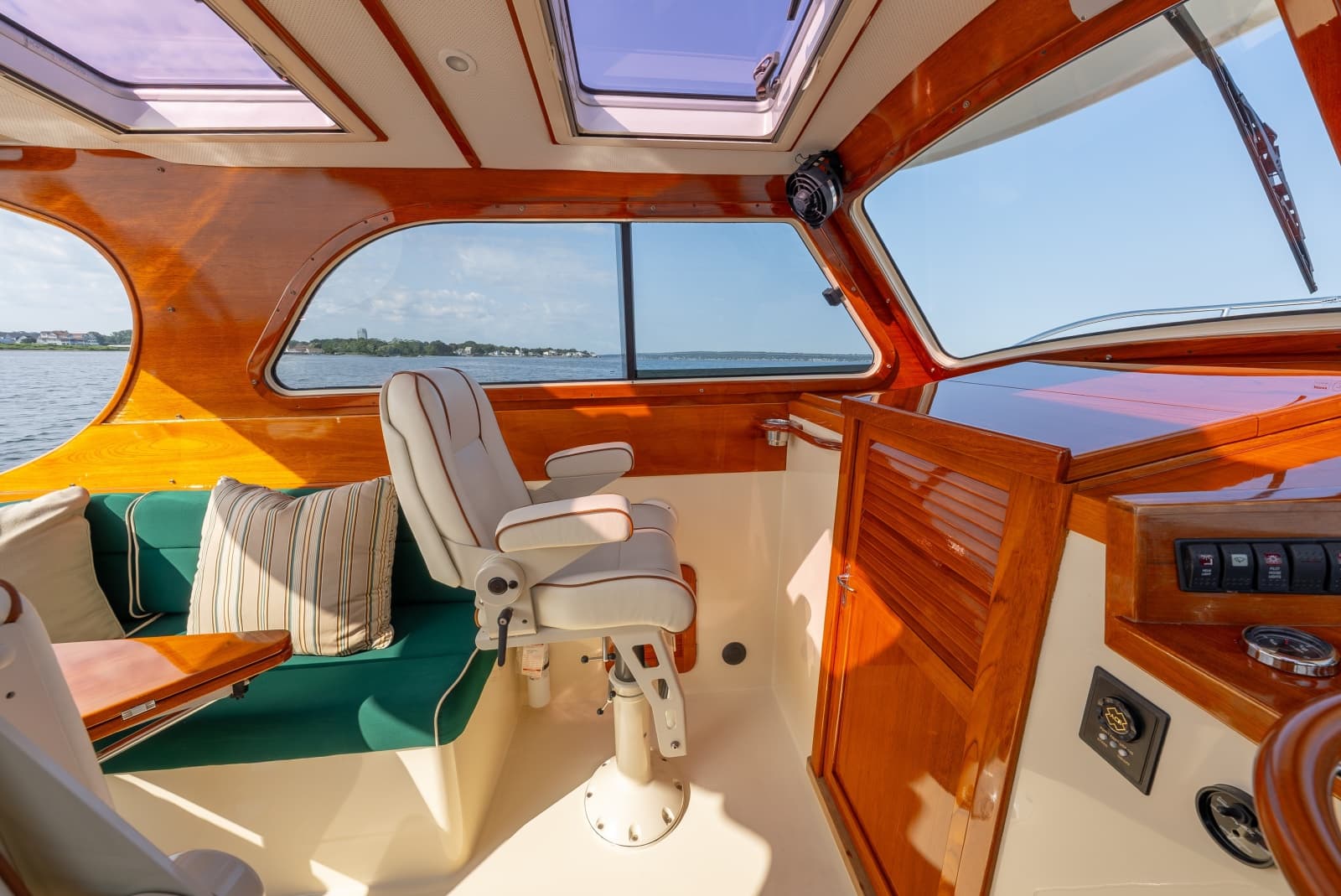

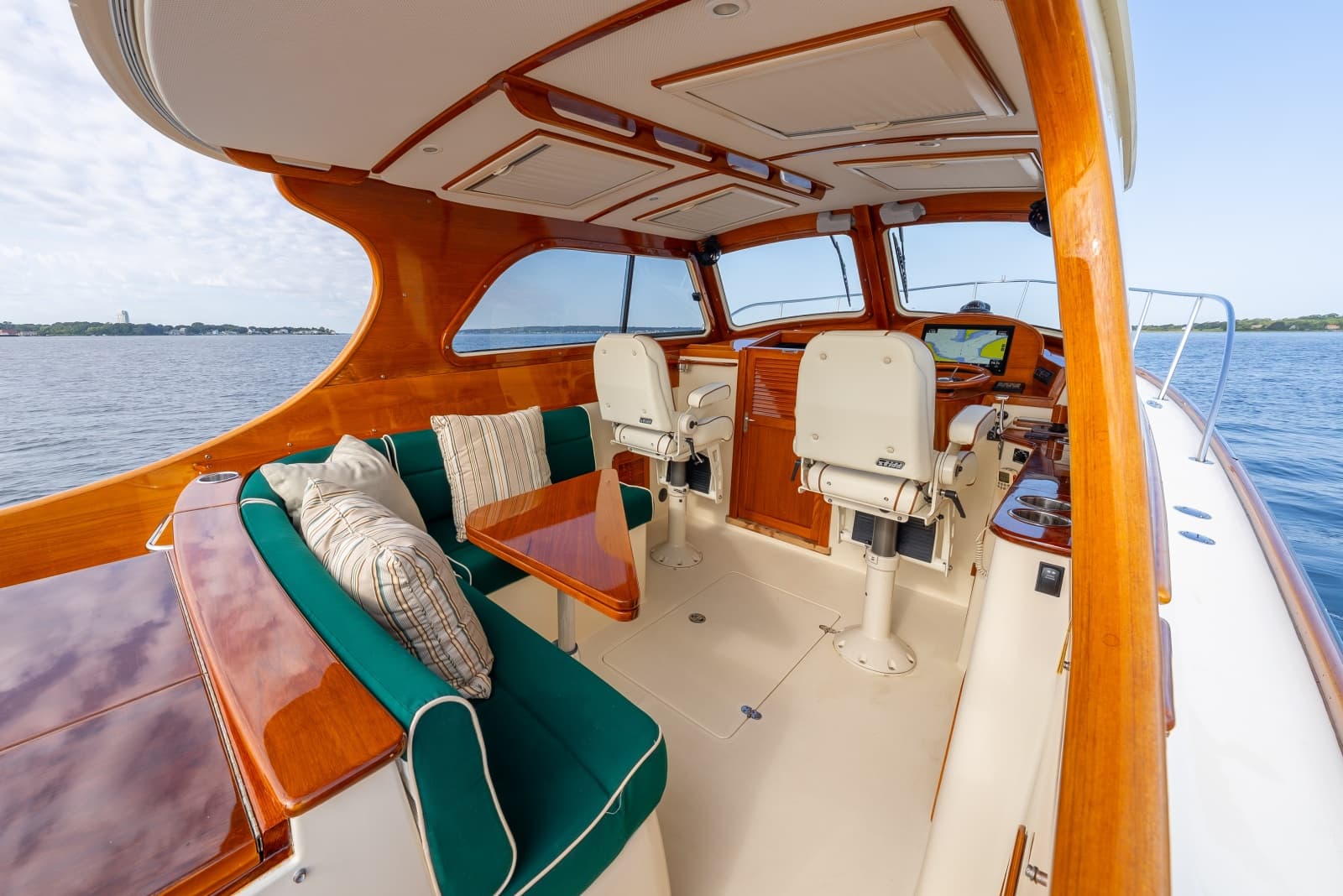

Extended Pilothouse model with Hinckley teak package: varnished teak dash area, pilothouse window surrounds, around L-settee, and cockpit coamings.

• Varnished teak pilothouse sideliners and dash

• 4 x Pilothouse windows include: 2 x Sliding side windows and 2 x Forward fixed windows with grey tint

• Forward windows have heavy duty, self-parking, intermittent windshield wipers and fresh water washers

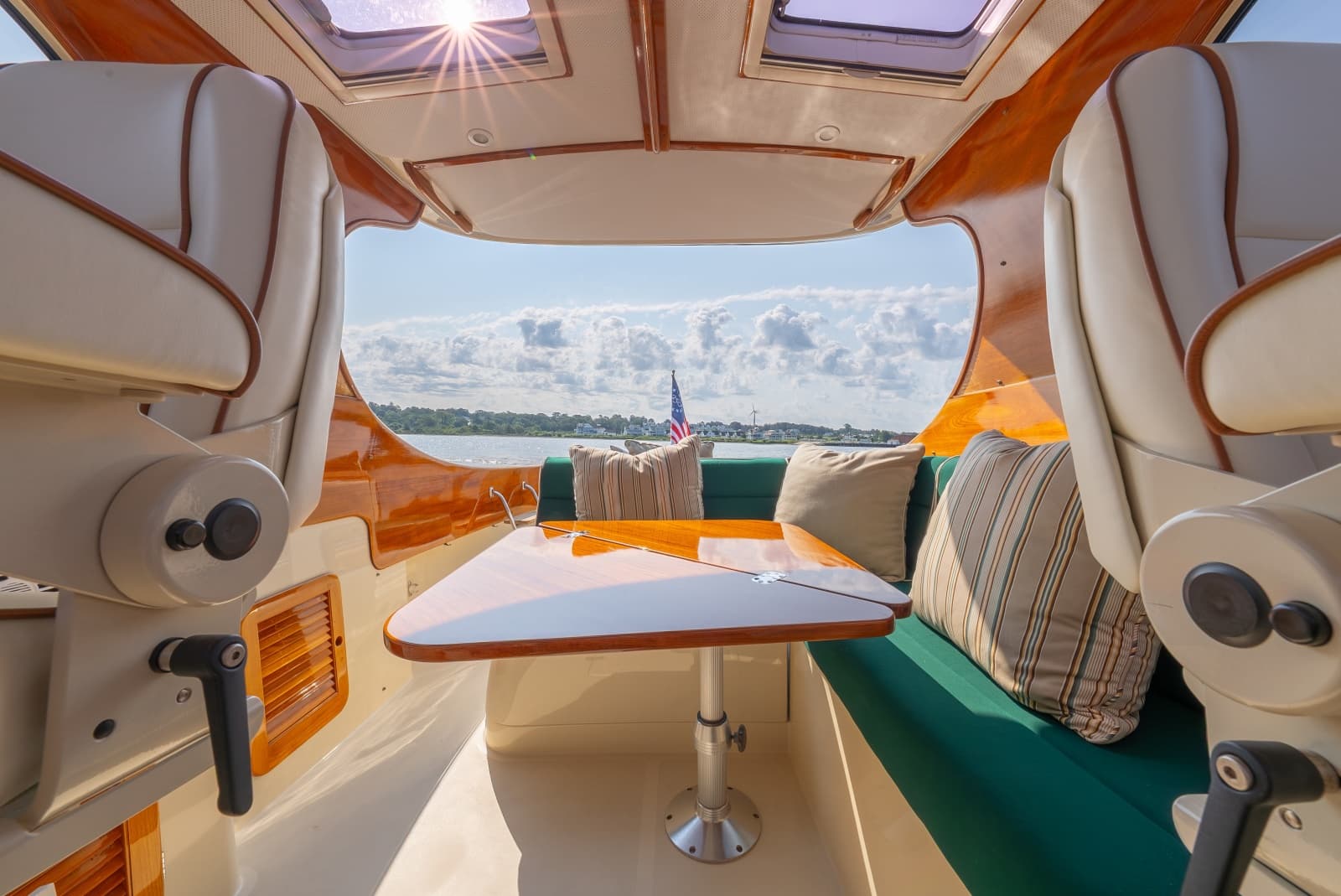

• Stidd helm and passenger seats upholstered in Off-White UltraLeather with Tobacco piping

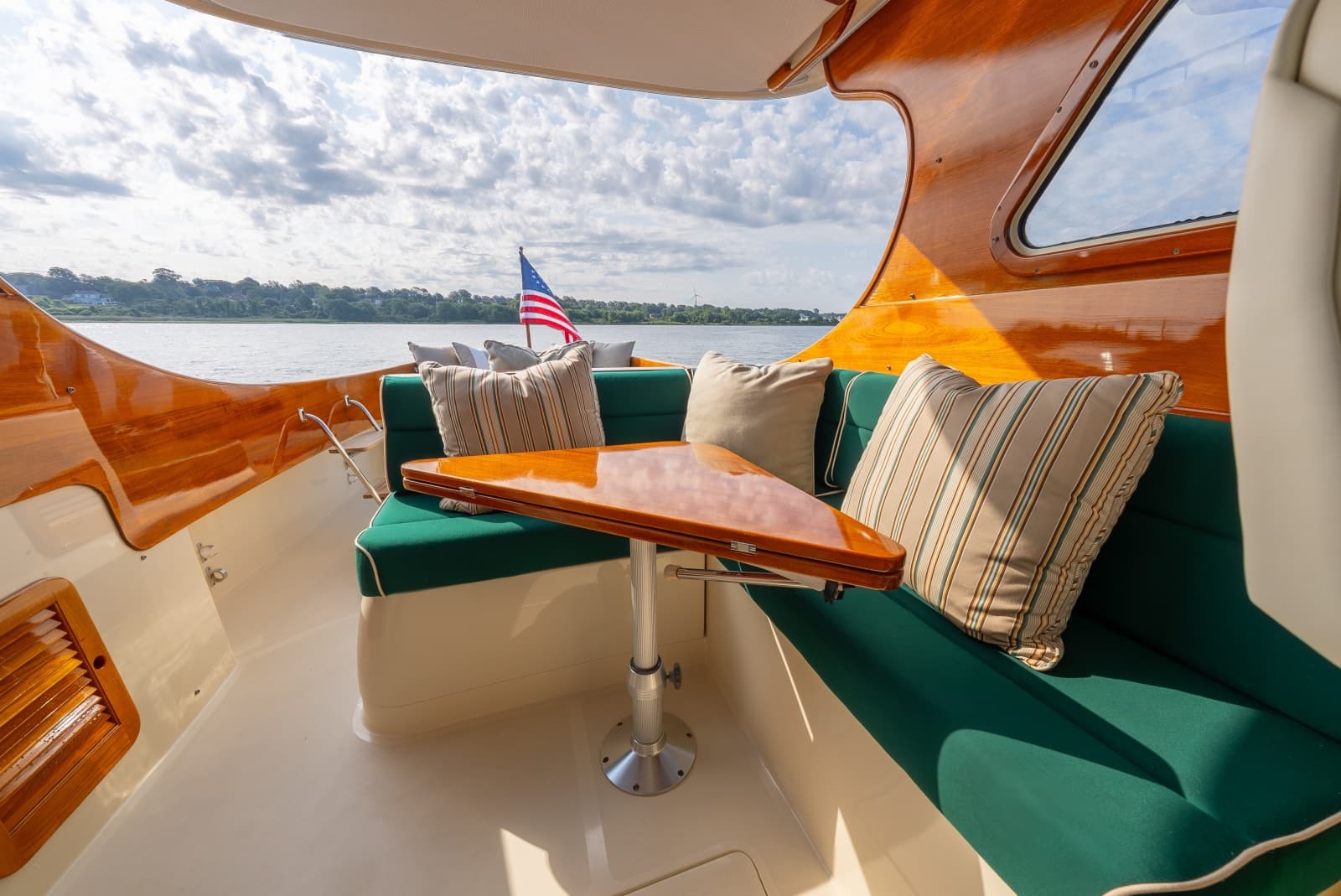

• Cushioned L-shaped settee aft to port

• Varnished teak pilothouse table is triangular, with folding leaf that extends to a square

• Insulated white overhead has four 4 x acrylic opening hatches with Ocean Air Sky screens/shades

• Lighting provided by 4 x overhead halogen lights with dimmer

• Storage locker under pilothouse settee

• 2 x Hella fans, mounted port and starboard

• 5 x Cup holders

• Varnished teak locking companionway door

• 2 x Varnished teak handrails: 1 x under the aft outboard ends of the pilothouse cabin top and 1 x on centerline

• Stamoid window covers snap on the inside of pilothouse windows

• Stamoid 3-piece drop curtain with Eisenglass windows to enclose the pilothouse

• Heater Craft heater controls

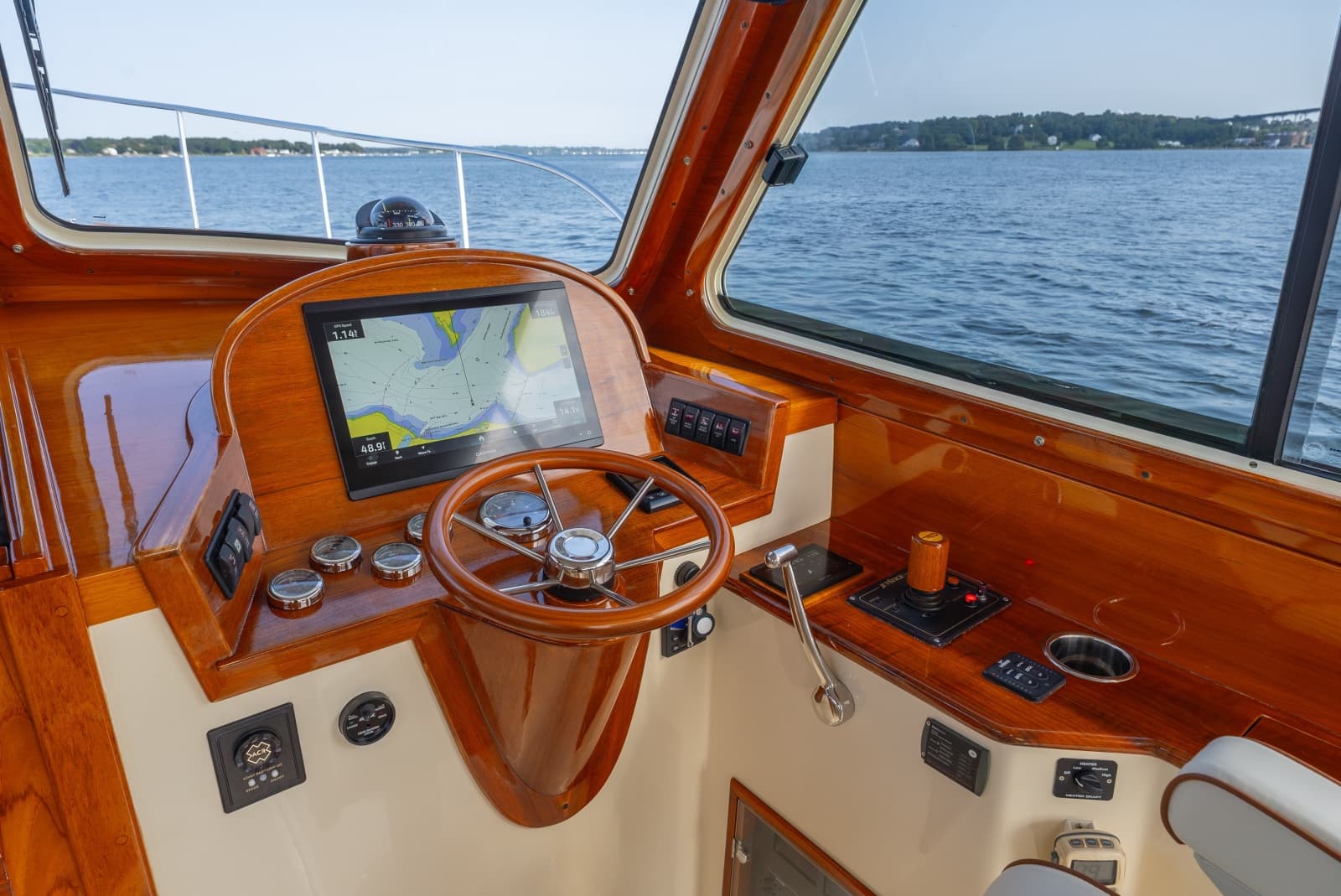

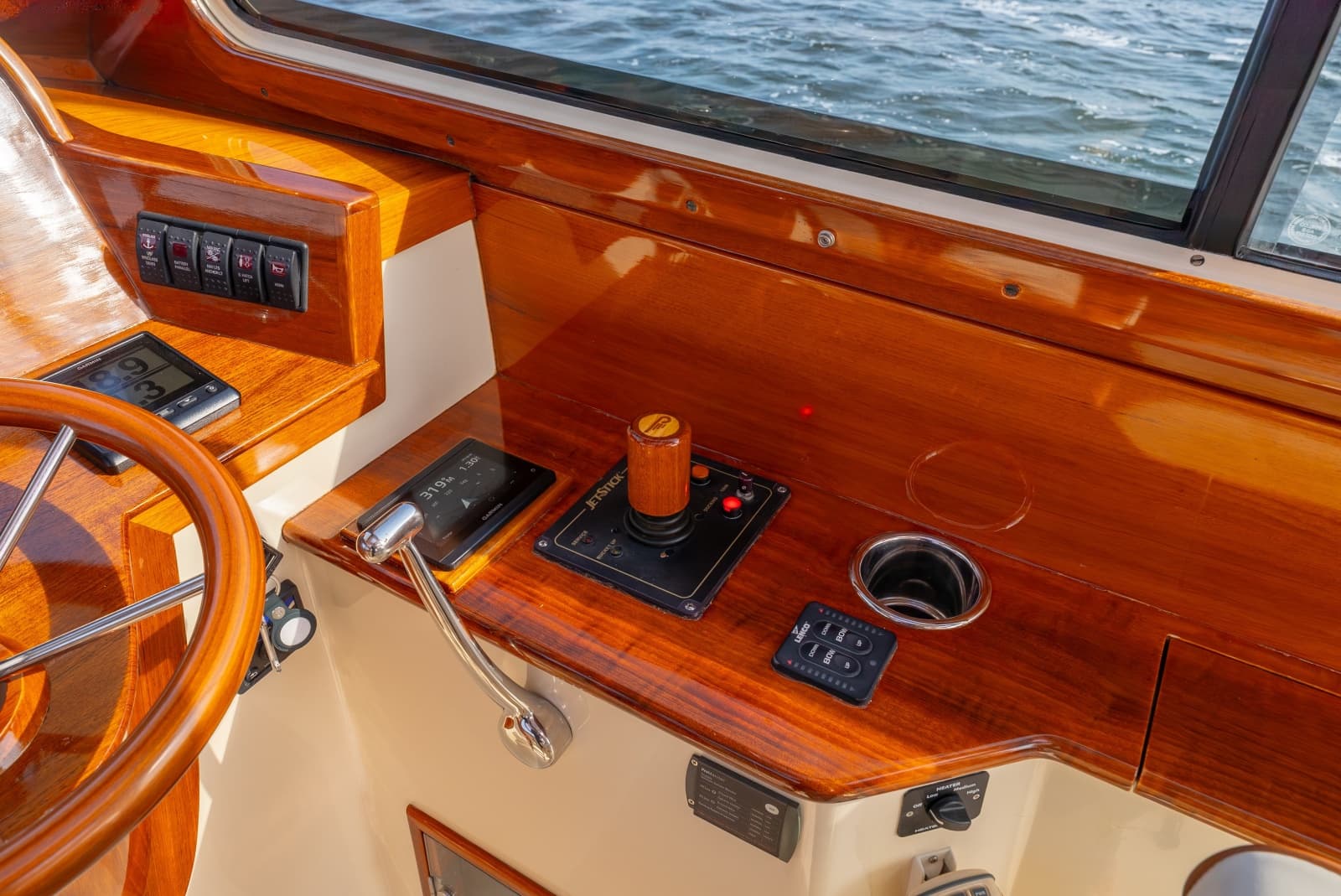

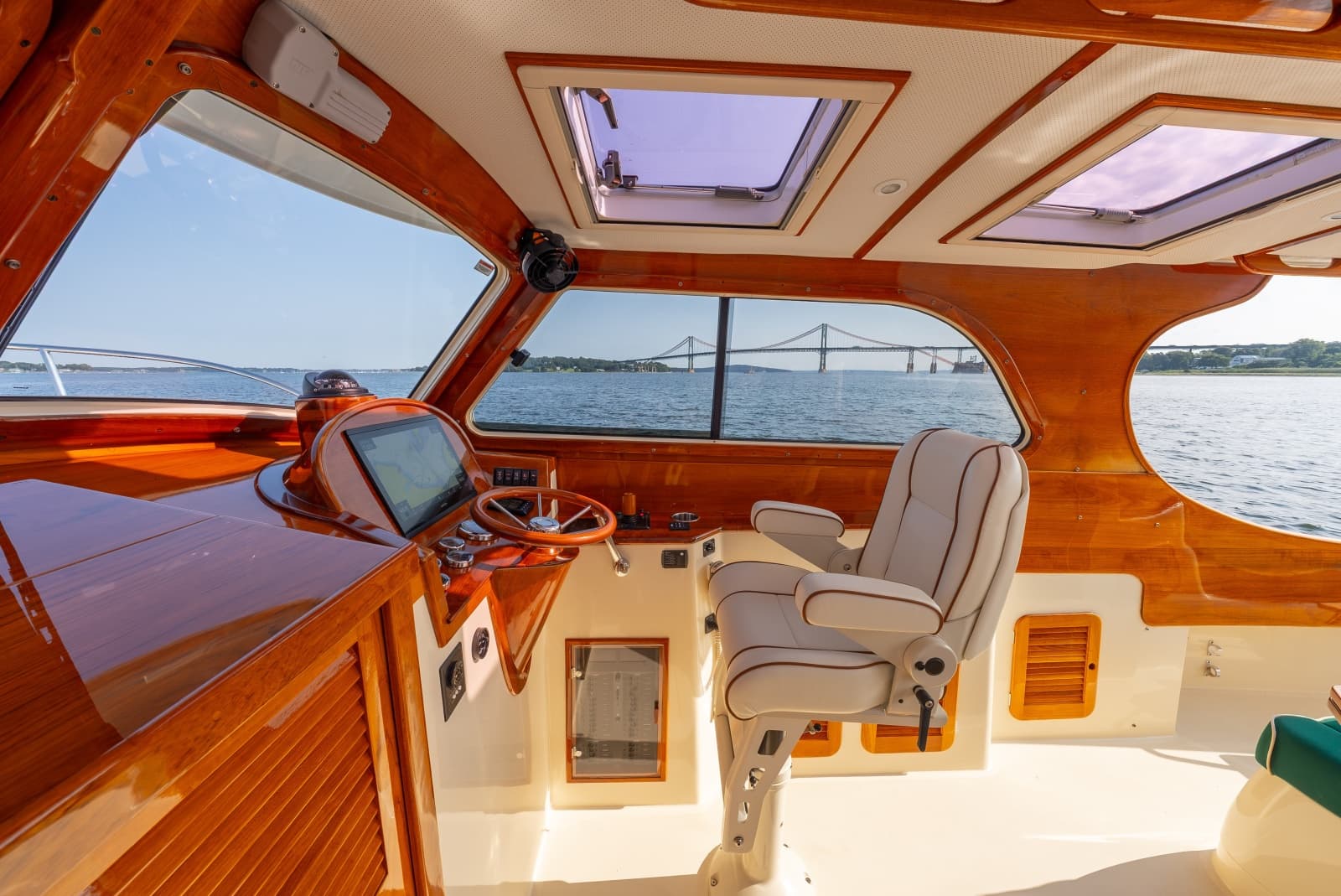

Helm Station (Starboard):

• Varnished teak instrument pod

• Stainless steel steering wheel with varnished wood rim

• Hinckley JetStick® control

• Electronic engine controls and vessel system switches

• Volvo Engine systems monitor

• Top-opening chart pocket with chart storage outboard to starboard

• 12-volt cigarette-style outlet in chart pocket

• Pro Mariner galvanic isolator monitor

• 2 x Stereo speakers, mounted in combings

• Recent Garmin chart plotter and radar

• Recent Garmin repeater display for information like depth and speed

• Recent Garmin autopilot

• Standard Horizon Command mic VHF

• Ritchie binnacle compass

• Lenco trim tab controls

• High water bilge alarm

• ACR spotlight

• Recent stereo receiver

The interior is finished in satin-varnished cherry, including sheathing. It features air conditioning with reverse-cycle heat, a varnished teak and tulipwood cabin sole, louvered cherry locker doors and (5) Frigast stainless steel bulkhead lights. There is an opening overhead hatch above the V-berth with an Ocean Air blind/screen and teak trim, and 4 x opening ports: 1 x in galley, 1 x in head, and 2 x above the V-berth, all with removable screens.

From the pilothouse companionway is the galley to port, private head to starboard and the V-berth accommodations forward.

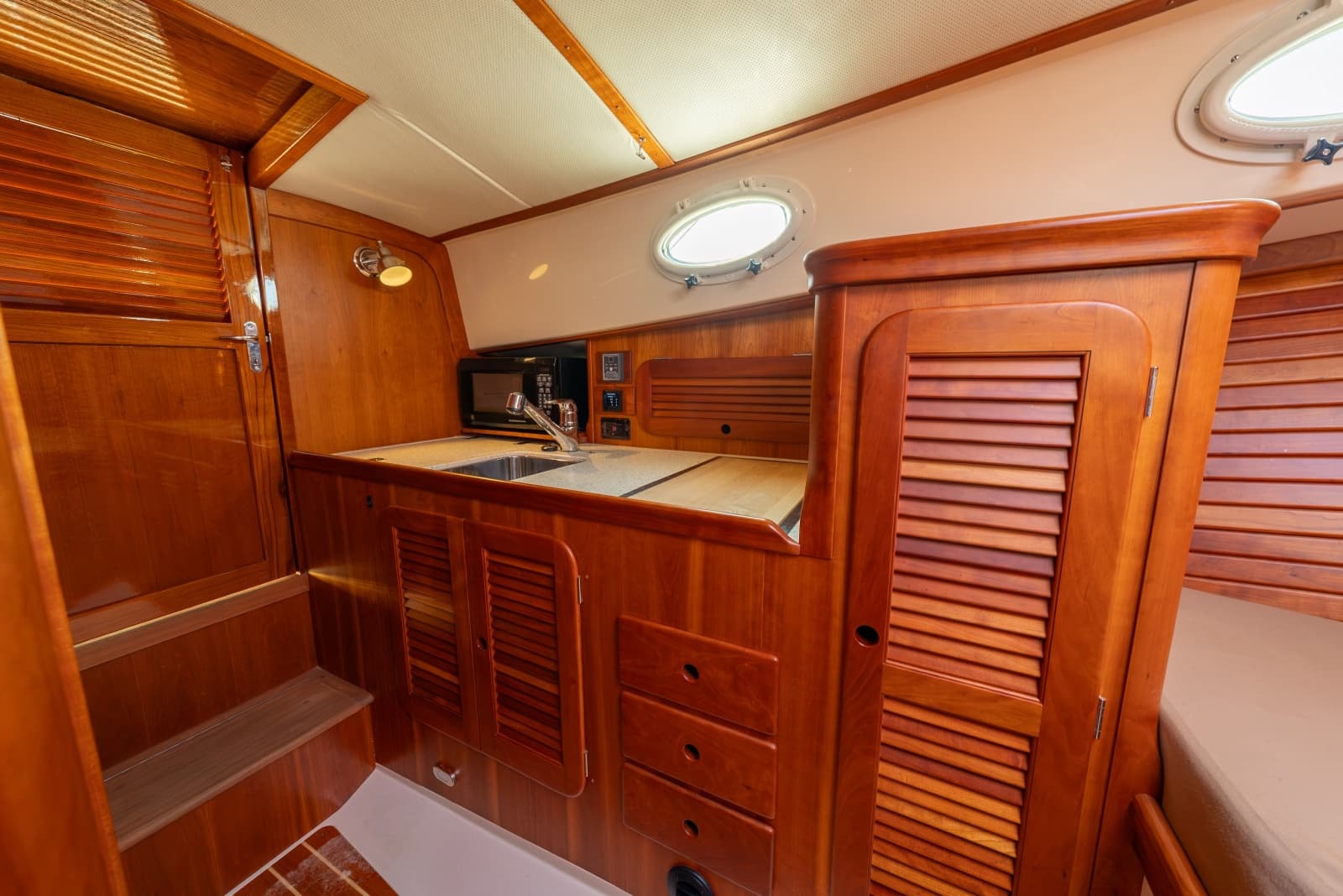

GALLEY (Port):

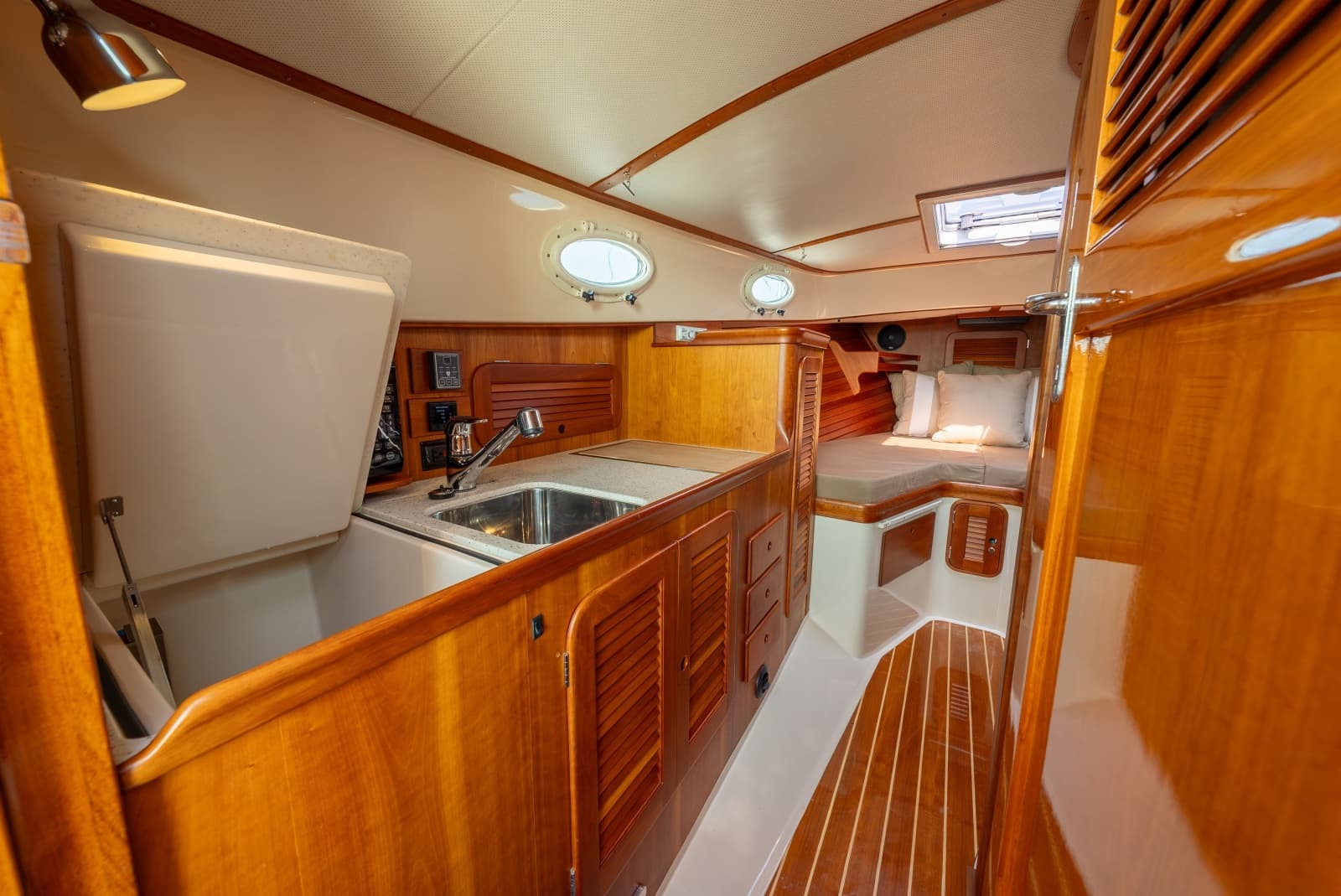

The refrigerator box is aft and has a lift-up top. Next forward is the single bowl stainless steel sink with Grohe faucet. A two-burner propane stove with wooden cover is forward, with a built-in microwave outboard. A pantry-like locker with louvered door, several shelves, and lift-up top separates the galley from the forward V-berth area.

• Cream Fleck Corian countertop

• Stainless steel sink with Grohe fixture and spray nozzle

• Hot and cold pressure water

• Sea Frost 12-volt cold plate refrigerator in a self-draining insulated box

• Microwave oven 110-volt 950 watt

• Force 10 2-burner propane stove

• 110-volt outlet

• 3 x Cherry pull-out drawers

• Red step-light in galley

• Under counter pull-out garbage receptacle

• Opening port with screen

• Storage provided outboard and under the galley sink

• Overhead is sound absorbent material with cherry battens

• Trident Marine LP gas control and detection system

• Mastervolt inverter/charger control

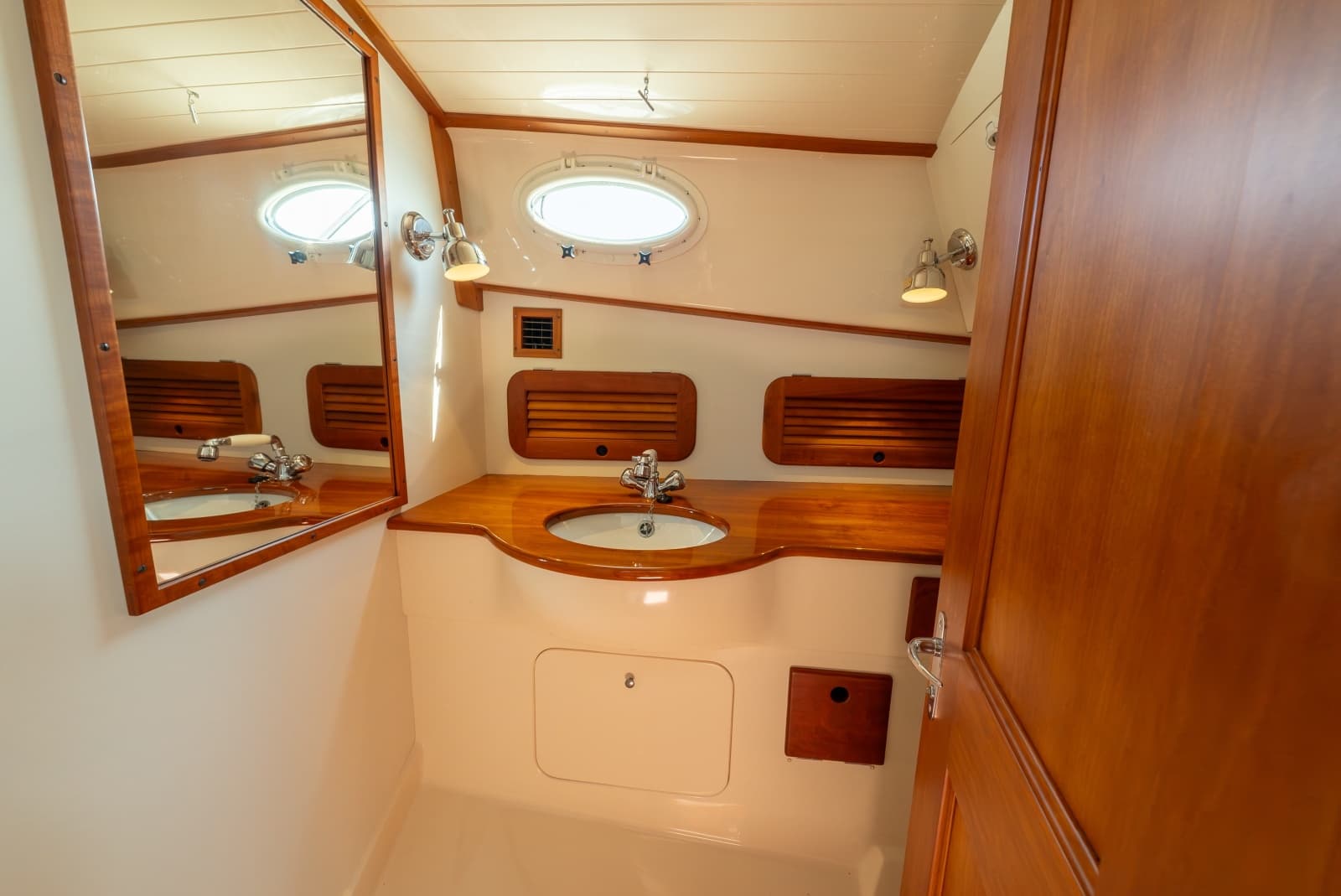

HEAD (Next aft starboard):

• Solid cherry panel door

• Molded fiberglass sole for easy cleaning

• Varnished cherry countertop with an undermounted porcelain sink

• Grohe faucet/hand-held shower provides hot and cold pressure water

• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon aluminum holding tank with overboard discharge

• Mirror on the forward bulkhead with cherry frame

• Storage is provided by cherry-faced lockers above and outboard the vanity, a drawer beside the marine head, and a locker access under the vanity

• 110-volt outlet

• Opening port with screen, as well as forced ventilation

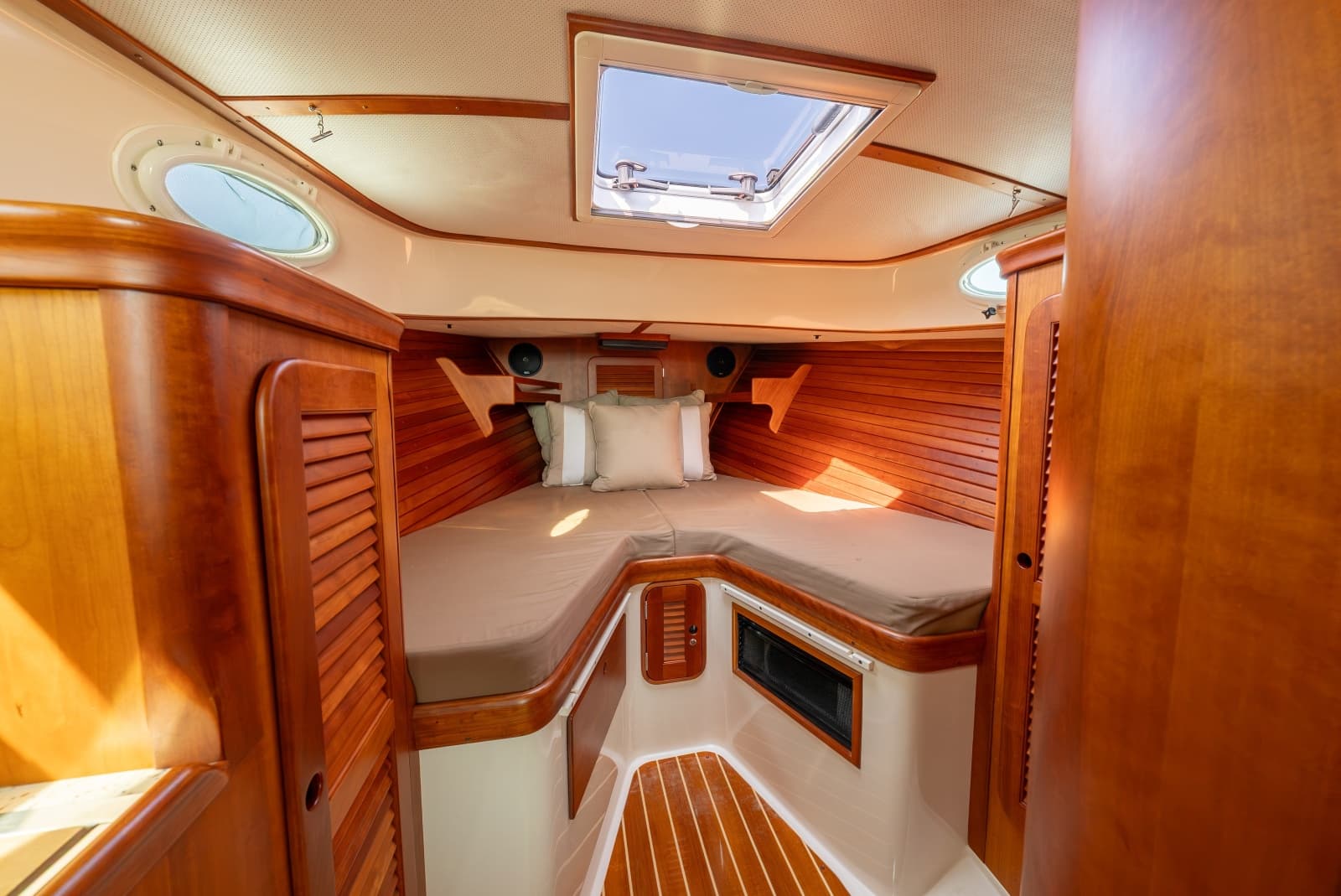

V-BERTH (Forward):

• A very comfortable double berth is formed with an insert

• Varnished cherry shelves above berths

• Storage under the V-berths, with easy access cherry drop-front door to port

• Storage in forepeak behind a louvered cherry door

• Cedar lined hanging locker to starboard just aft of the V-berths, with custom pull-out bar for easier hanging of clothes

• 2 x Stereo speakers are mounted port and starboard on the forward bulkhead

• 2 x Hella fans, port and starboard bulkhead facing aft

• Overhead opening hatch with Ocean Air Sky screen/shade

Low resistance, heavy copper and sacrificial zinc anode electrical bonding system.

12-volt DC electrical system:

• 3 x 12-volt AGM 4D batteries for a total of 606 amp-hours

• 80-amp battery alternator on engine

• Heavy-duty battery parallel switch also allows emergency starting

110-volt 30-amp AC electrical system:

• AC electrical distribution panel, volt and amp meters and DC sub-panel

• 2 x 110-volt shore power inlet, relay and shore power cords: 1 x for house and 1 x for air conditioning

• MasterVolt inverter/battery charger

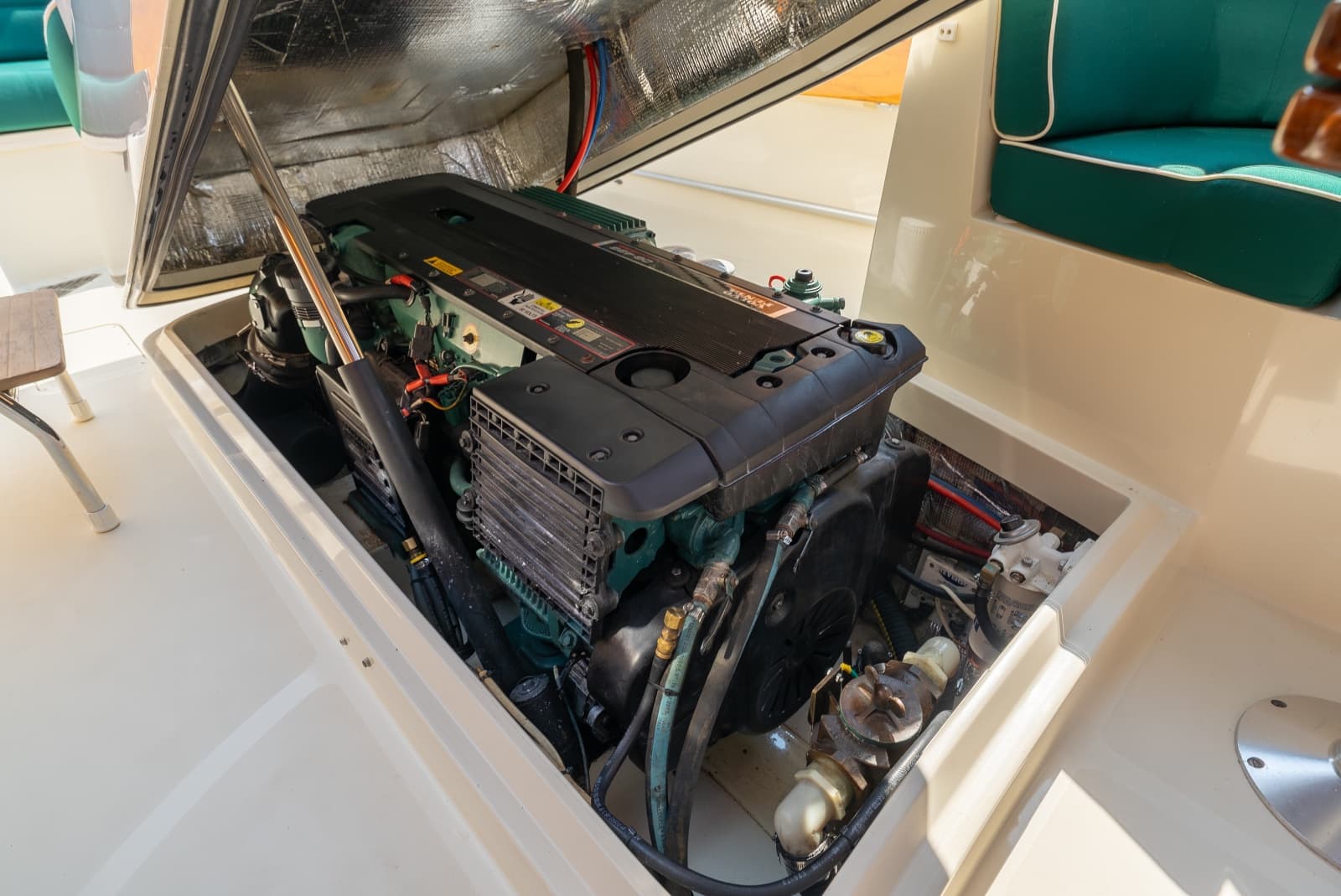

2007 Volvo D6-435 hp diesel engine with common rail technology, Hamilton 292 Jet Drive, ZF IRM220PL transmission and Vetus 7 12-volt bow thruster. Hinckley custom JetStick® control system is integrated with the bow thruster.

• Volvo tachometer with digital display with multiple engine data available

• Alarms for high/low oil pressure, and high water temperature

• Custom wet exhaust muffler system

• Bennett trim tabs

• Racor fuel filter/water separator filter

• Oil transfer pump for engine and transmission

• Manual hydraulic steering helm pump

• 2 x Electric 1500 GPH 12-volt bilge pumps, with float switches

• Whale emergency bilge pump mounted in cockpit locker

• In-line 12-volt automatic shower sump pump

• ProMariner Galvanic Isolator monitor

• High water bilge alarm

• Heater for pilothouse and cabin

• 27-gallon holding tank with overboard discharge

• Stainless steel 6-gallon hot water heater, shore power and engine heated

• Acoustic lined foam engine box insulation and double gaskets on engine box cover, with electric riser

• Custom engine exhaust silencer

• Engine box exhaust fan

• 16,000 BTU air conditioning system with reverse-cycle heat

Ground tackle system:

Muir electric windlass package: Flush foredeck anchor locker houses a Muir electric windlass with polished stainless steel Delta 22 lb. anchor and 15’ stainless steel chain, 150’ anchor rode, and polished stainless steel folding bow roller. The windlass can be operated from the helm station or via a hand-held wired remote at anchor locker.

Equipment:

• Varnished burgee pennant staff with flush socket, at bow

• Stern-mounted 4 ft. varnished teak ensign pole and socket

• Dock lines

• Fenders

• Deck shower/water outlet with hot and cold mixing valve

• Life jackets

• Hand-held flare kit

• 3 x 2.5 lb. Dry chemical fire extinguishers

• 12-volt air horn with switch on dash

• Masthead and running lights

• Hand-held flare kit

• 3 x 2.5 lb. Dry chemical fire extinguishers

• 12-volt air horn with switch on dash

• Masthead and running lights
