2006 Sabreline 36 Flybridge

OPTIONAL EQUIPMENT

FACTORY OPTIONS

Upgraded Windlass LEWMAR V3

Stereo System with 4 speakers and remote

Inverter with remote and two extra batteries

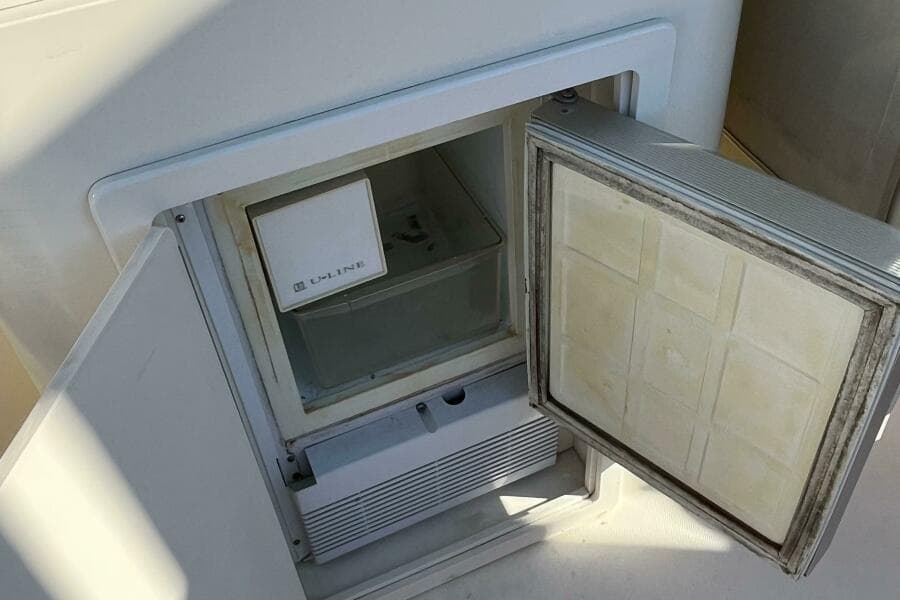

Ice maker in cockpit wetbar

Hinged top on island berth with gas struts

Overhead hand rail in salon

Corian counter top in galley

Ultra suede upholstery

Upgrade engines from 315 hp to 370 hp

Sturdy Accusync engine synchronizer

Side Power bow thruster with upgrade to SP95i

Onan 9.0 kW eQD 9.0 kW

16K BTU AC in salon

12K BTU AC in master

 Level indicator gauge on holding tank

Fresh water wash down in anchor locker

Shore water inlet

CUSTOM OPTIONS

Galley up style 2nd refrigerator with cabinet

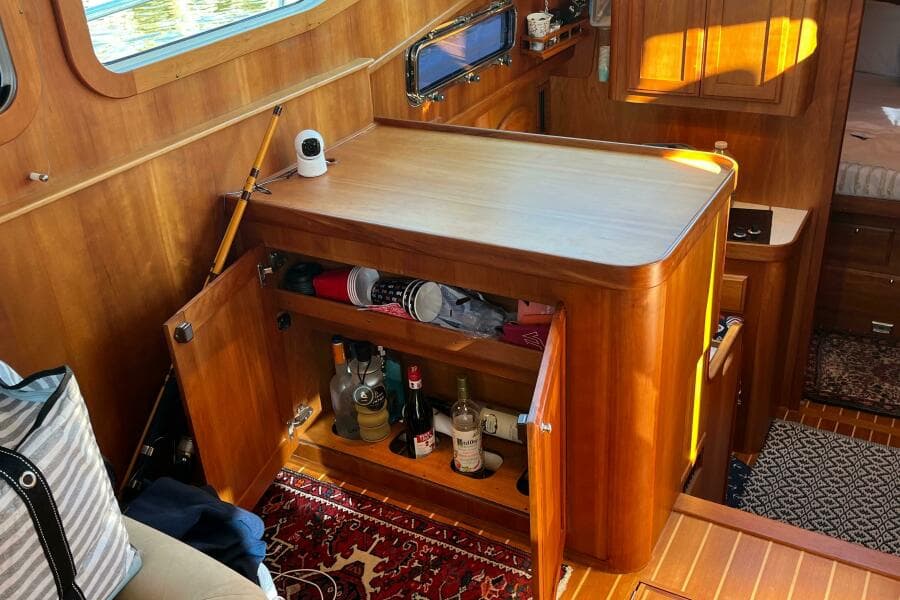

Fitted bar cabinet

Delete all exterior teak (low maintenance)

Custom wall mounted galley cabinet

Digital volt and amp meters in lieu of STD

Add Hawse Pipes to transom

Salt water wash down fore and aft

12" cleats in lieu of std

Add fuel level gauge to bridge

Central water filter

Add second fuel fill, starboard side

Add selectable racor filter set for each engine

Make head wet locker water tight

FLOSCAN fuel flow monitoring system

Extra light, engine space

45 lb anchor, 50' Chain, 200' road

4 docklines

4 fenders

4 PFD

HULL

FLAG BLUE AWLGRIP FINISH

Modified “V” hull design with 18 degree deadrise at transom.

ISO-NPG Sport Yacht white gel coat and vinylester back- up resin.

Knitted, bi-axial fiberglass laminates.

Divinycell PVC foam core in hull running surfaces. Foam is held back beneath engines and running gear and in way of all thru hulls.

Solid fiberglass hull side laminate.

Foam/plywood cored fiberglass stringer system.

Fiberglass swim platform with telescoping SS swim ladder.

Hull side rubbing strakes.

PVC rub rail with stainless steel cap.

Imron, split boot stripe.

Ablative bottom paint (2 coats in 2025)

DECK

Isopthalic gel coat.

Knitted E glass laminate with end grain balsa core.

Molded-in anti-skid deck surfaces.

1-1/4” diameter type 316 stainless steel rail system.

Fiberglass bow pulpit with anchor roller.

Two foredeck lockers with central chain locker.

Recessed side deck walkways.

Starboard side sliding door to main salon.

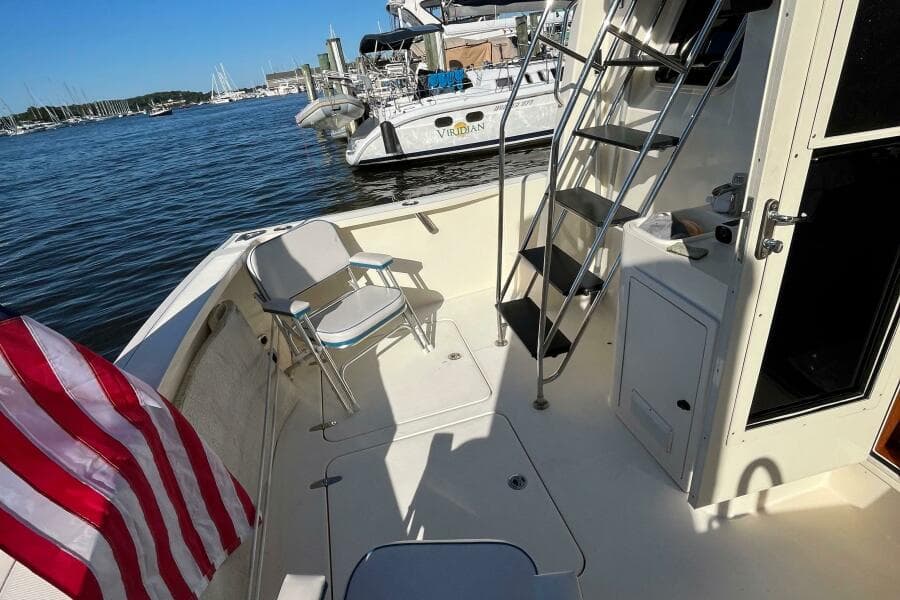

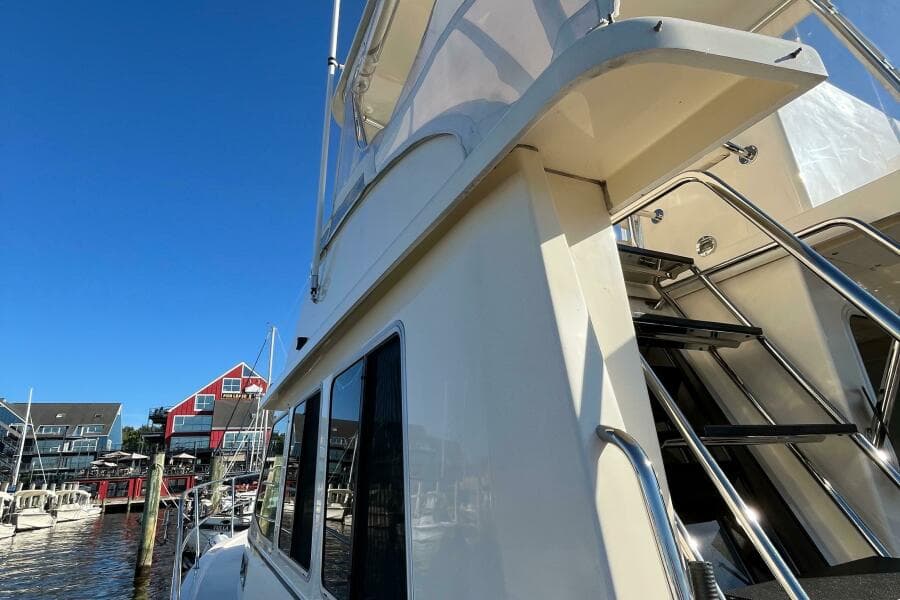

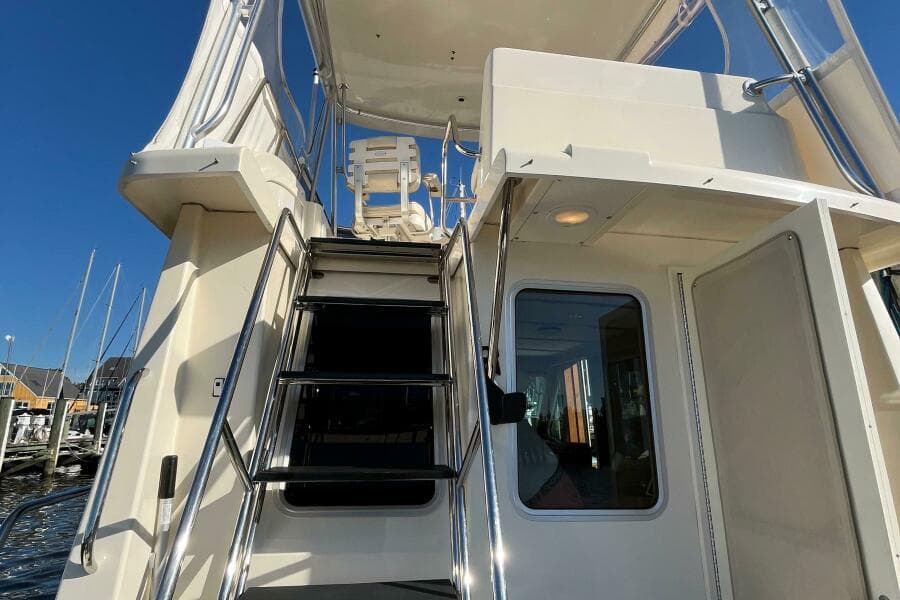

Stainless steel stair with handrail and treads to command bridge.

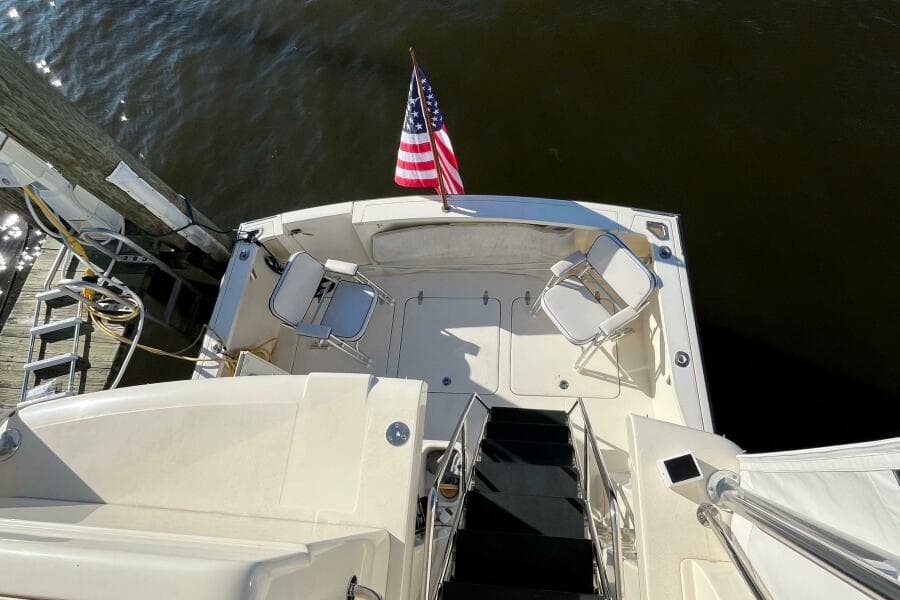

(3) Hinged cockpit locker hatches with gas strut supports. Hinged transom door to swim platform.

Flag pole holder and teak flag staff

Lewmar polished aluminum hatches with screens.

Custom stainless steel opening ports with screens.

Custom stainless steel bow chocks.

Custom cast aluminum spring line and stern hawse pipes and custom transom hawse pipes

DELETE Teak toe rail.

DELETE Teak cabin side eyebrow.

FRP cockpit coamings

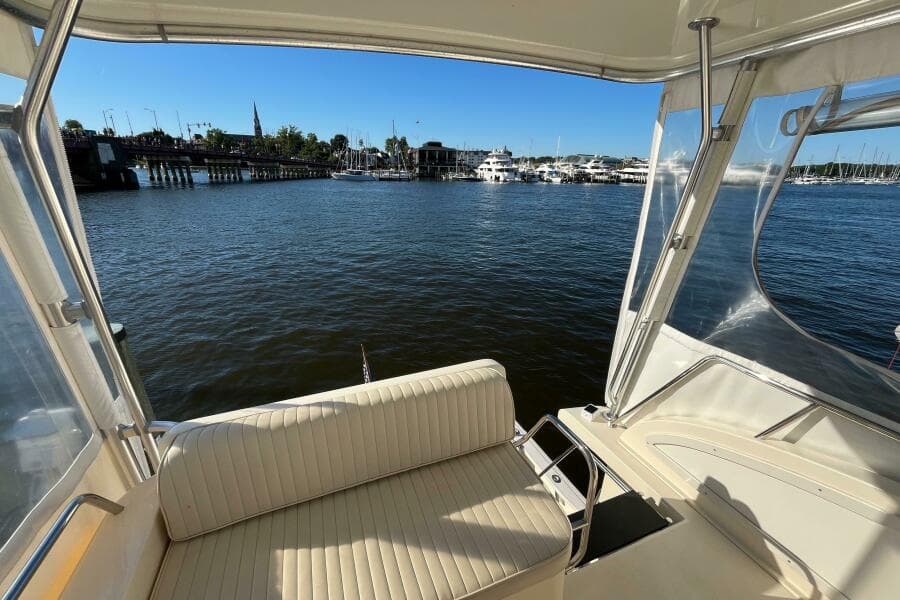

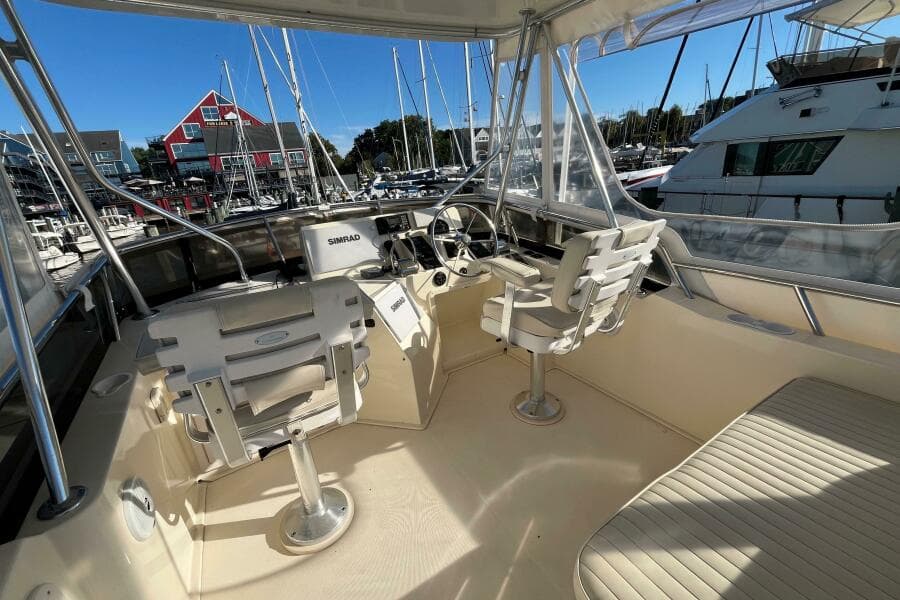

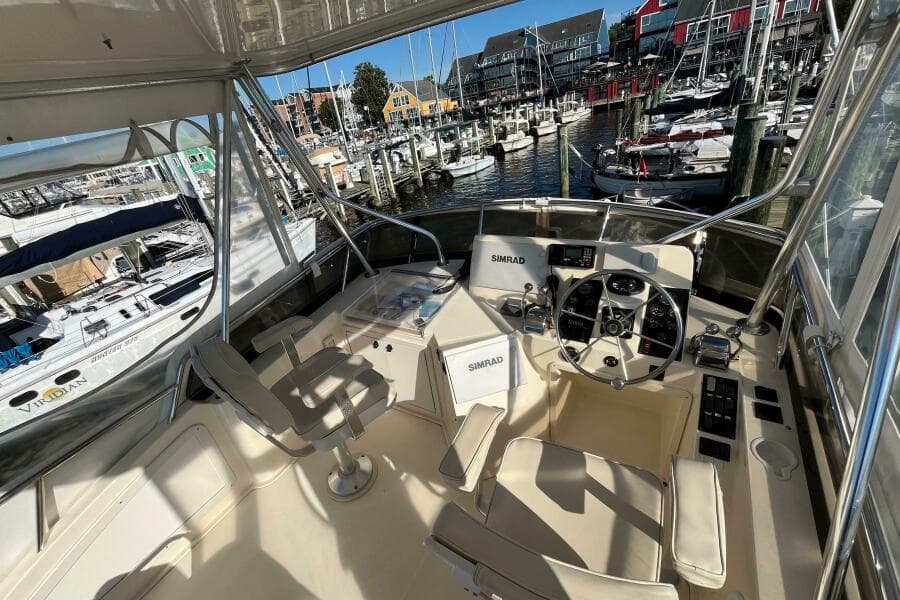

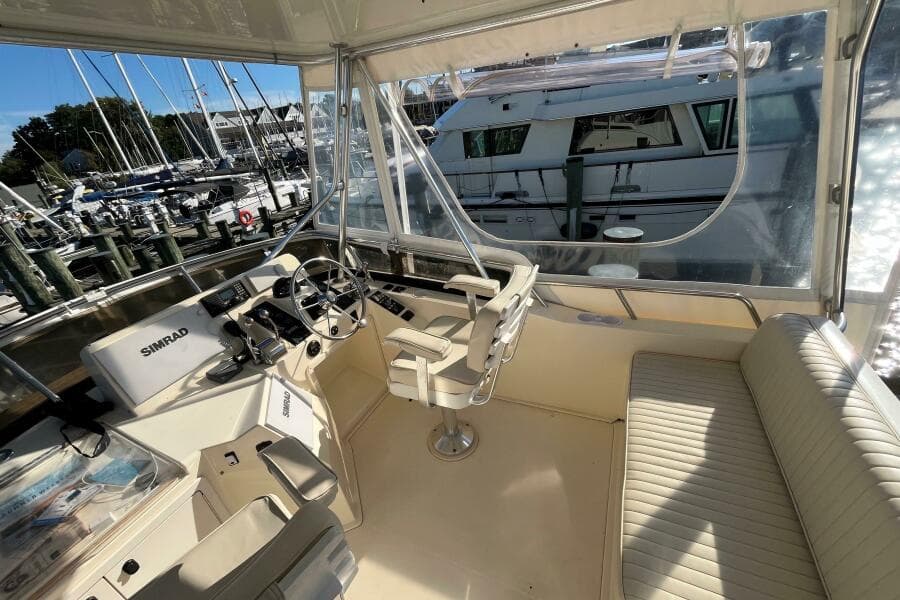

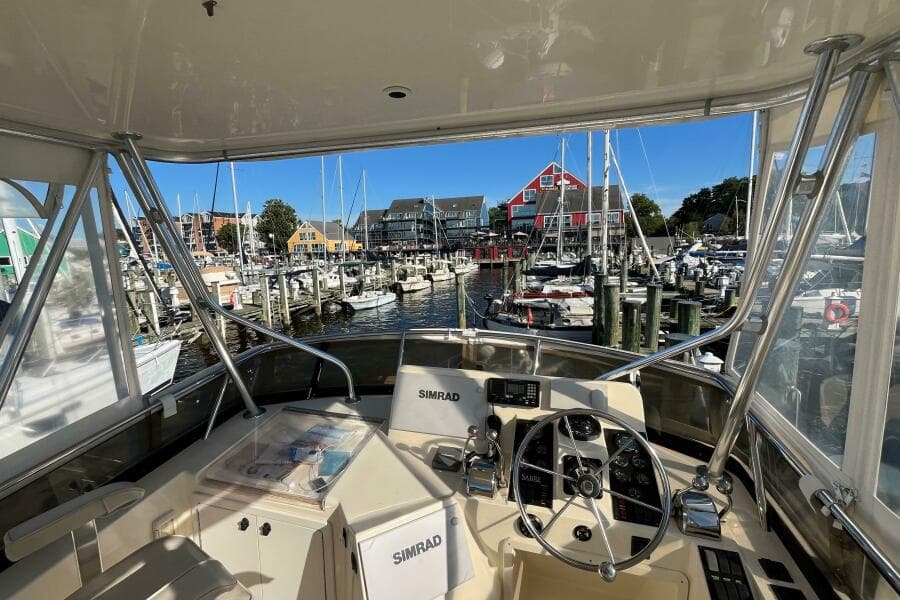

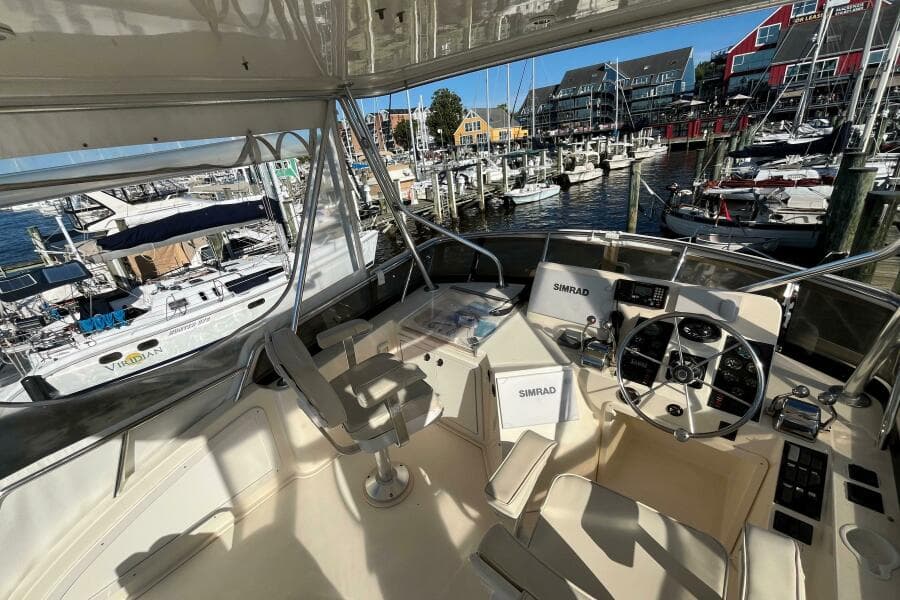

FLYBRIDGE

Molded control station console for electronics with storage below.

Settee with 3” cushions and storage lockers below.

Pompanette helm and mate seats, model P2000, 18” pedestals.

Stainless steel perimeter hand rail.

Plexiglass windscreen.

Built-in fiberglass helm footrest in bridge face.

Flybridge access doors King Starboard.

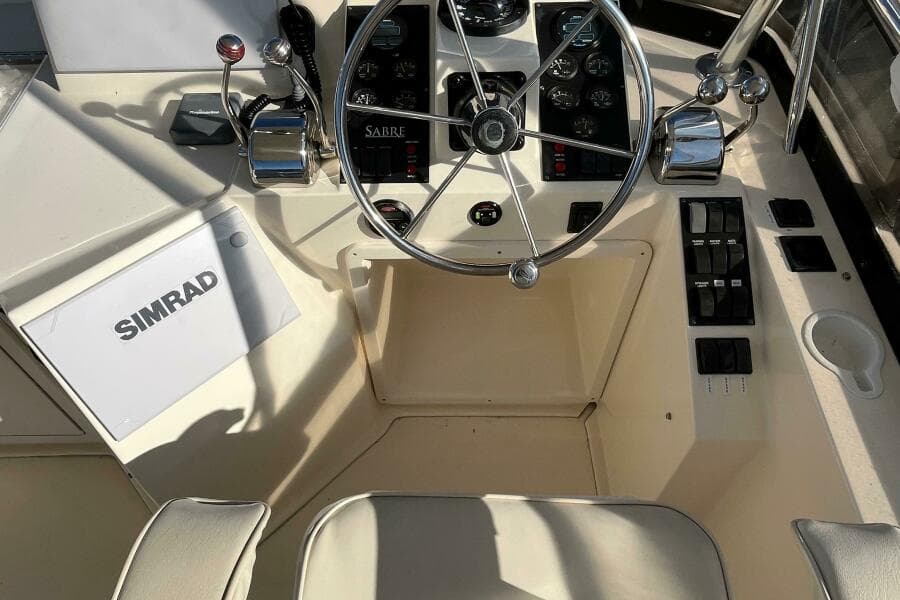

Start/stop rocker switches with ignition circuit breaker.

Separate throttle and transmission controls.

Digital gauges. Tachometer, voltmeter, engine oil pressure, transmission oil pressure, engine water temperature.

Engine alarms (light and buzzer) for high water temperature and low oil pressure.

Trim tab controls.

4-1/2” Ritchie compass.

Switch panel with Carlingswitch Contura rocker switches.

Includes switches for horn, blower, optional synchronizer, running, anchor and instrument lights, and (3) accessories.

18” Schmitt stainless steel steering wheel w/tilt.

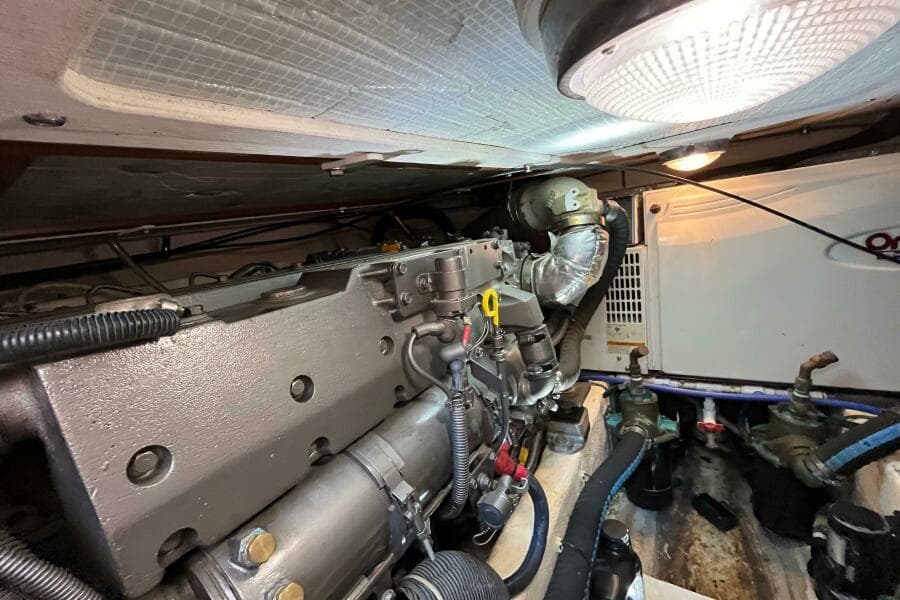

MACHINERY

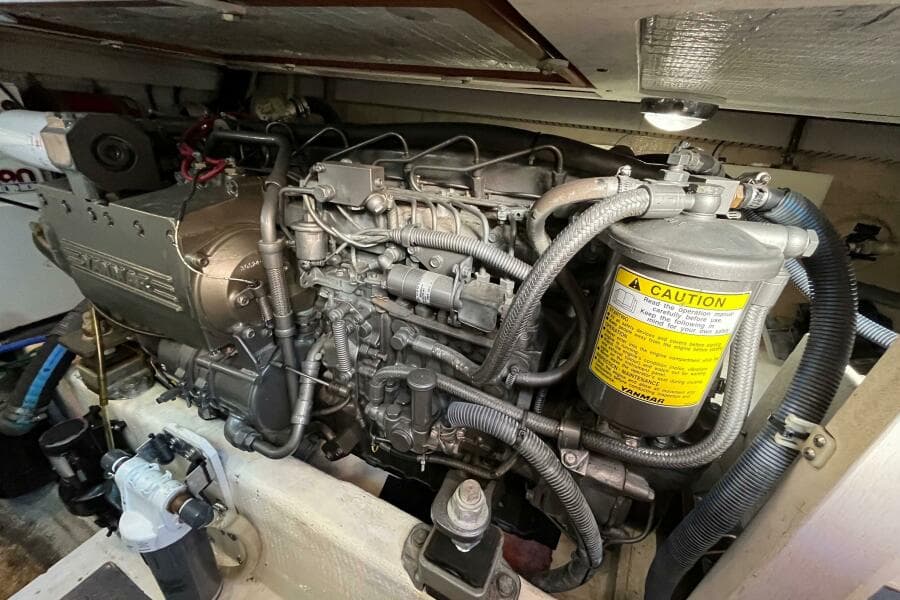

Twin Yanmar 6LY, 6-cylinder, 370-bhp diesels, gray finish, fresh water cooled.

ZF IRM marine gears.

80-amp, 12-volt alternator on each engine.

1-3/4” Aquamet 22 stainless steel shafts.

PSS drip-less shaft seals.

4-blade NiBrAl propellers to ISO Class S standards

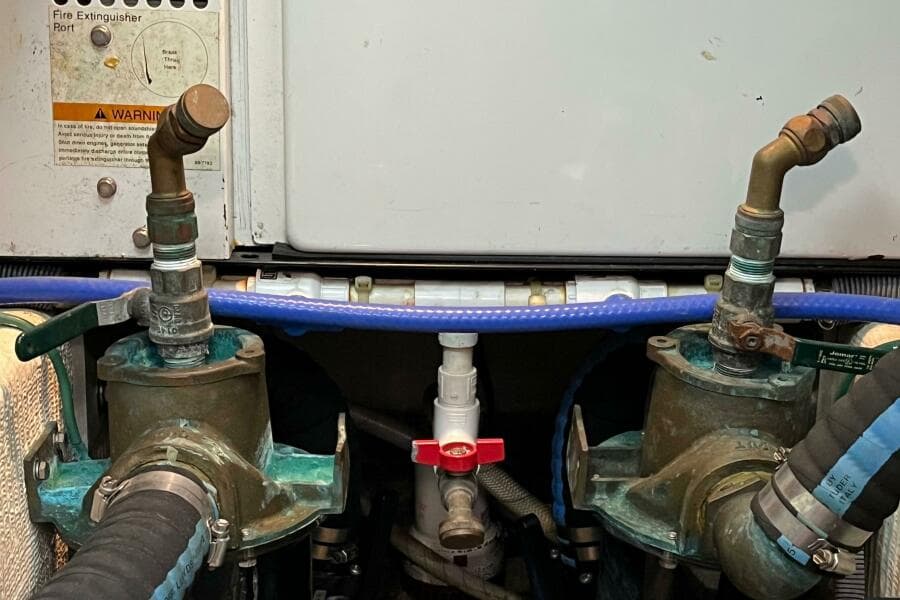

Groco engine intake strainers.

Sea water cooled exhaust system with in-line mufflers and side exhaust outlets.

Manganese bronze struts with rubber cutlass bearings.

Engine room blowers.

White painted engine room.

FUEL SYSTEM

T shaped Aluminum fuel tank with side deck fill (port and Starboard)

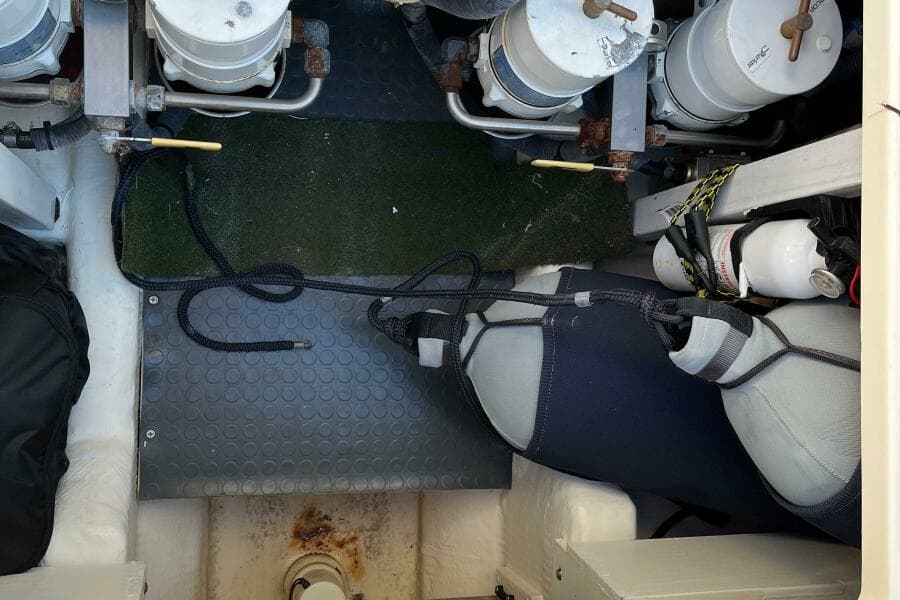

Racor fuel/water separators with water in fuel alarms (2 per engine)

Electric fuel tank level indicator at lower helm station with optional indicator at bridge

STEERING AND TRIM SYSTEMS

SABRELINE 36 SEDAN

Teleflex hydraulic steering system lower and upper control stations.

Twin bronze rudders with bronze stuffing boxes.

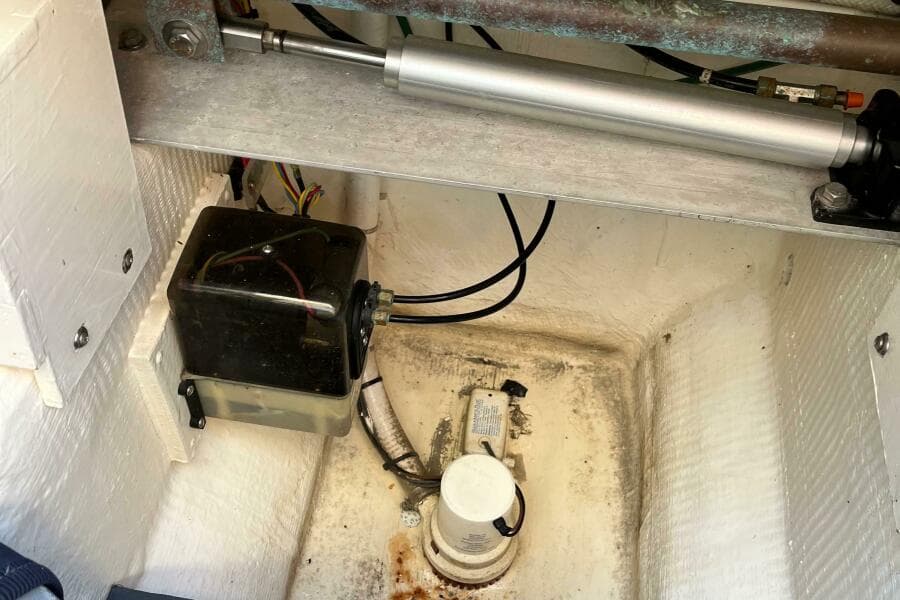

Twin Bennett drop-fin trim tabs with single actuators.

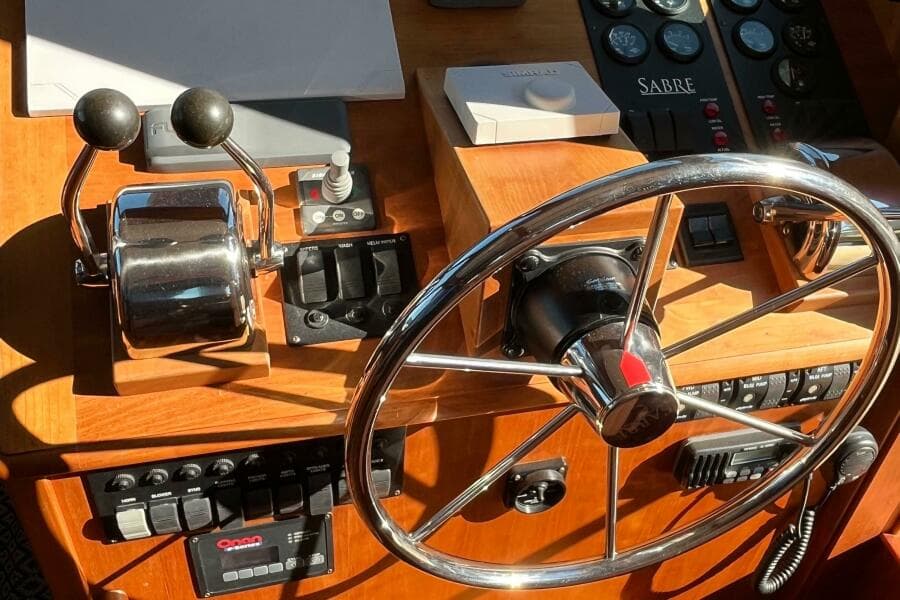

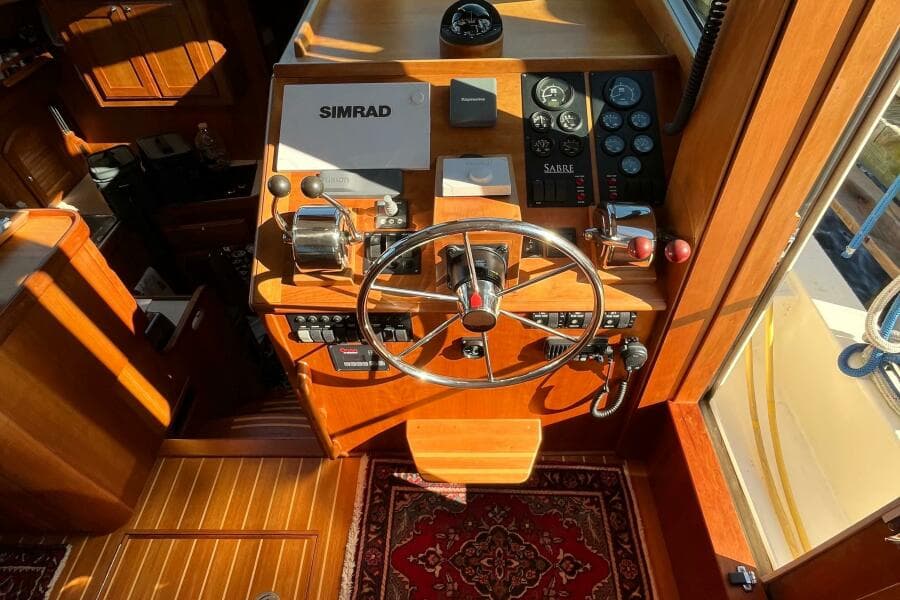

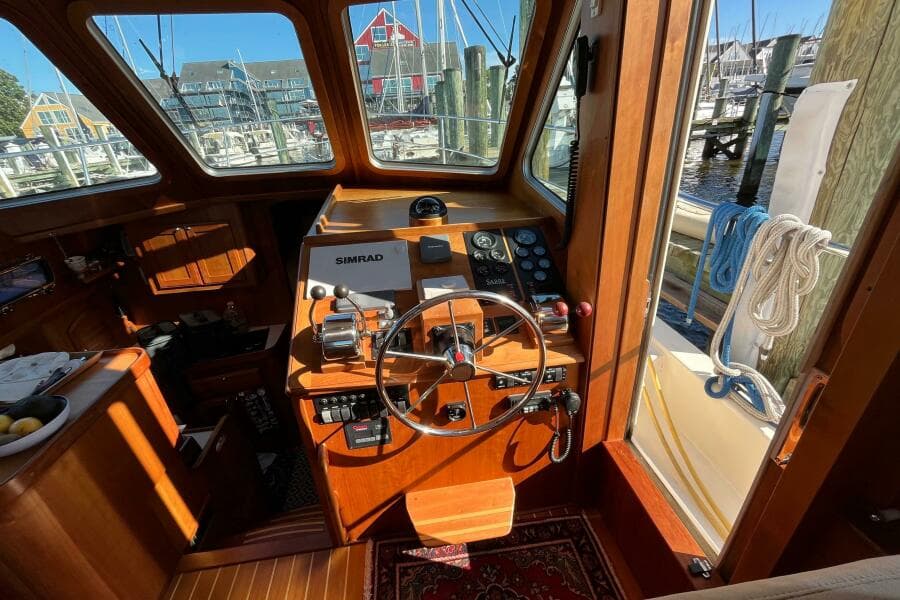

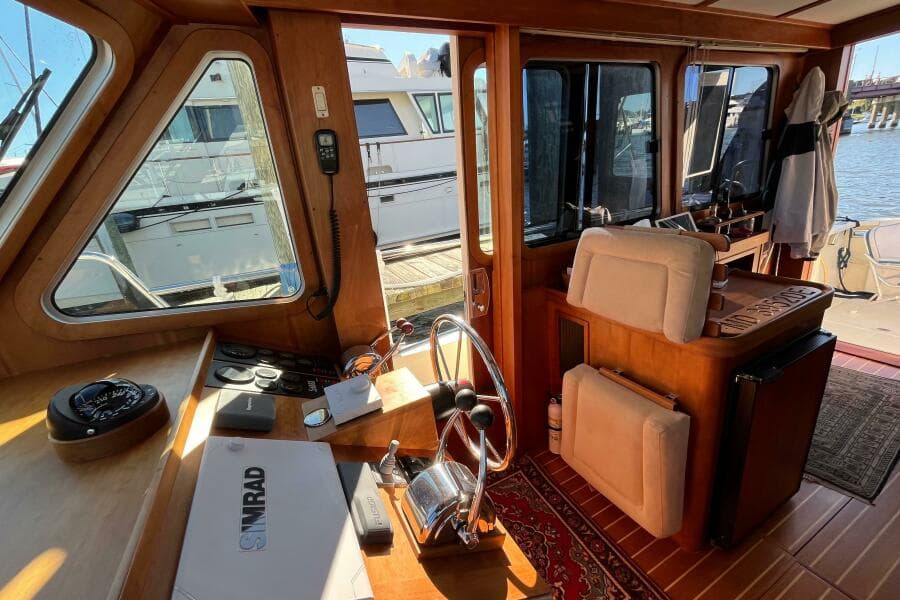

LOWER CONTROL STATION

Start/stop rocker switches with ignition circuit breaker.

Separate throttle and transmission controls.

Digital gauges: Tachometer with hour meter, voltmeter, engine oil pressure, transmission oil pressure, engine water temperature.

Engine alarms (light and buzzer) for high water temperature and low oil pressure.

Trim tab controls.

Triple windshield wipers with washers

4-1/2” compass.

Switch panel with Carlingswitch Contura rocker switches. Includes switches for horn, blower, optional synchronizer, running, anchor and instrument lights, and (3) accessories.

18” Schmitt stainless steel steering wheel.

SAFETY

Four 2-1/2 lb. fire extinguishers.

Bonding system for protection against galvanic corrosion.

Propeller shaft brushes

Xintex Fireboy automatic fire extinguishing discharge system with dual override

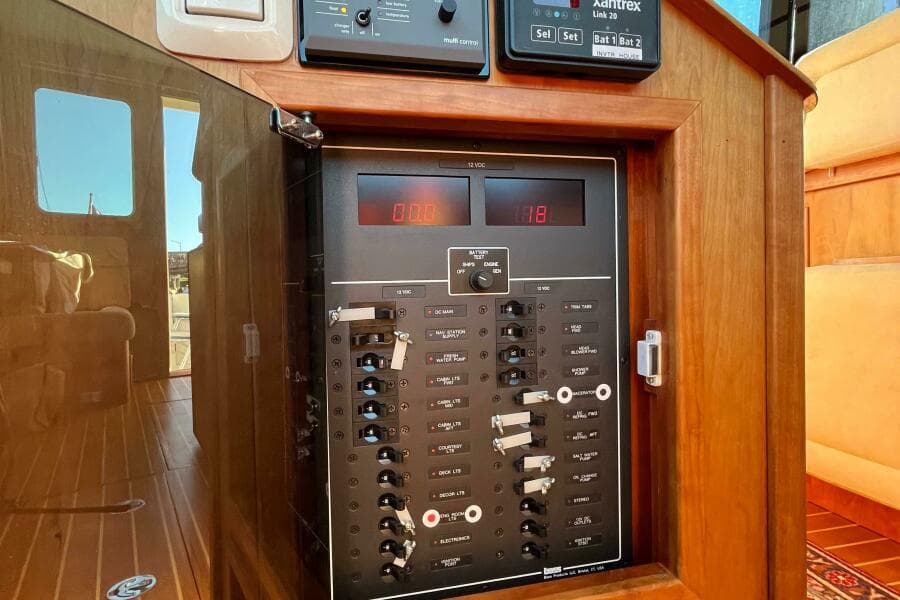

12V DC ELECTRICAL SYSTEM

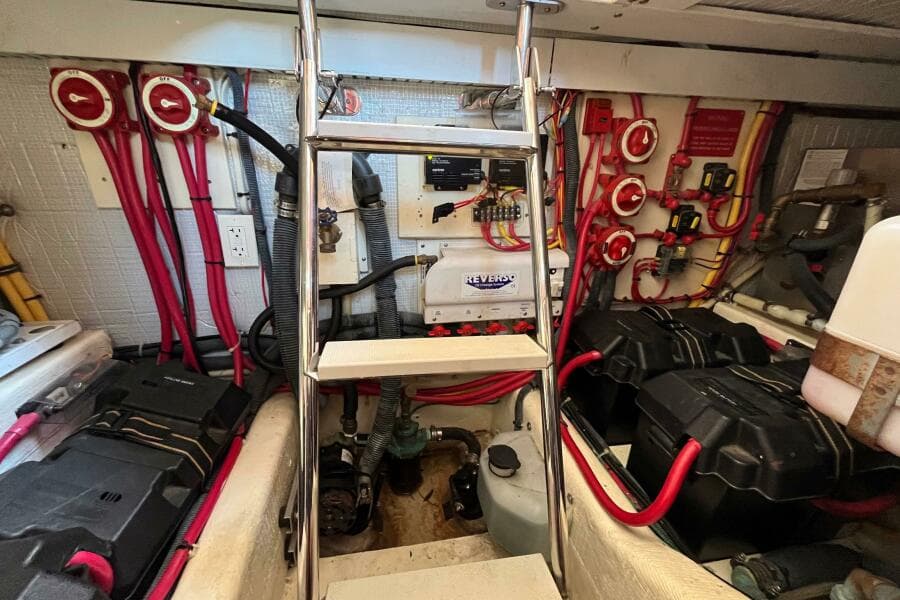

Two group 31, dedicated, AGM, engine start batteries.

Two group 31 AGM ship’s batteries.

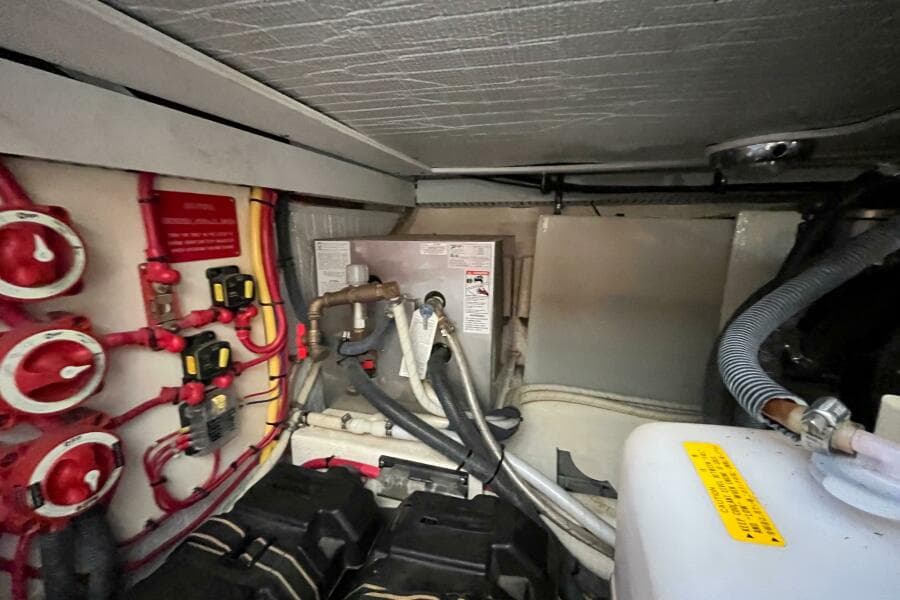

Battery disconnect and crossover switches in engine room.

Illuminated main circuit breaker distribution panel.

12-volt lighting system with Cantalupi Jeny overhead lights and Danish Cabin reading lights.

Valance accent lighting with dimmer switch.

Flybridge and cockpit courtesy lights.

12-volt DC horn.

Navigation lights: side, steaming, stern and 360 degree anchor light.

Marinco Sealink 12-volt DC outlet on flybridge. Tinned wire throughout.

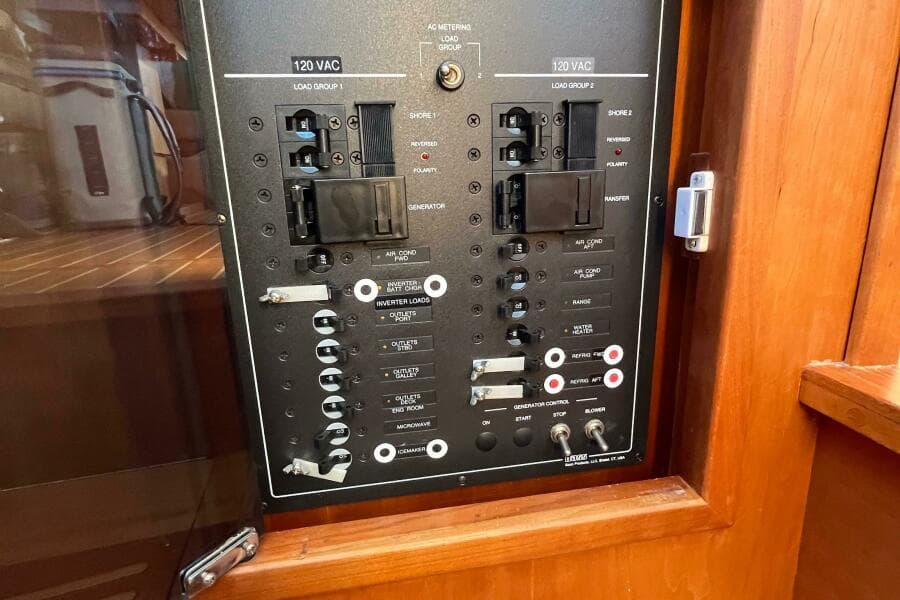

120V AC ELECTRICAL SYSTEM

(2) 30-amp, 120-volt AC shore power inlets and (2) 50 ft. cord.

Bass illuminated main circuit breaker distribution panel.

120-volt AC outlets in each cabin, engine room and bridge.

Galley, head, engine room and bridge receptacles are GFI protected.

Professional Mariner 50-amp/3-bank battery charger.

Inverter with 2 extra batteries

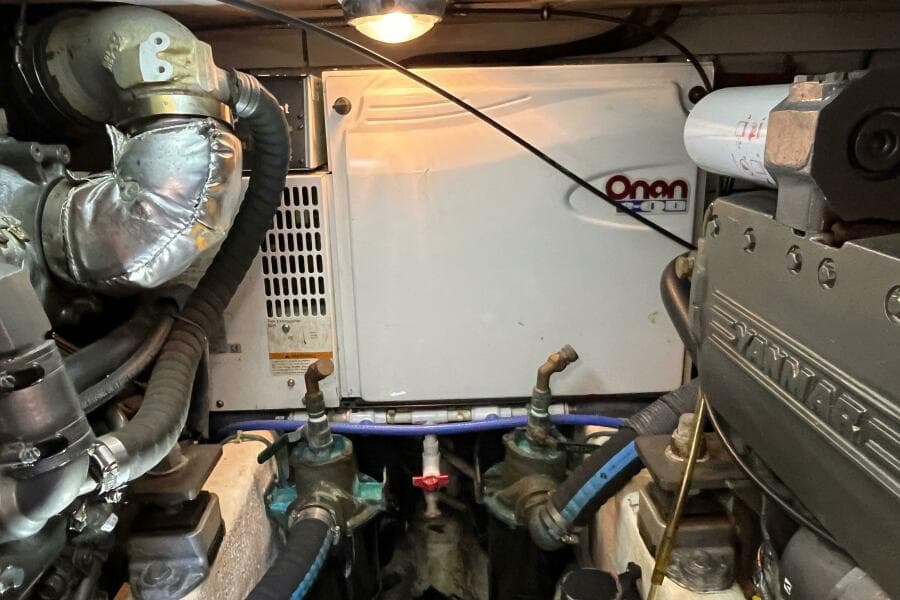

Onan eQD 9.0 kW Generator

New VICTRON CHARGER / Inverter

PLUMBING

Wet bar in cockpit. Includes sink with hot/cold pressure water, fold-down Scandvik faucet.

(1) Rule 2000 (2000 gph), automatic 12-volt DC bilge pump.

(1) Rule 1100 (1100 gph), automatic 12-volt DC bilge pump.

Fresh water spigot in engine room.

Two, roto-molded, polyethylene water tanks.

Roto-molded, polyethylene holding tank. Marelon sea valves on thru-hull fittings below the waterline.

Marelon holding tank discharge seacock.

Macerator pump on holding tank

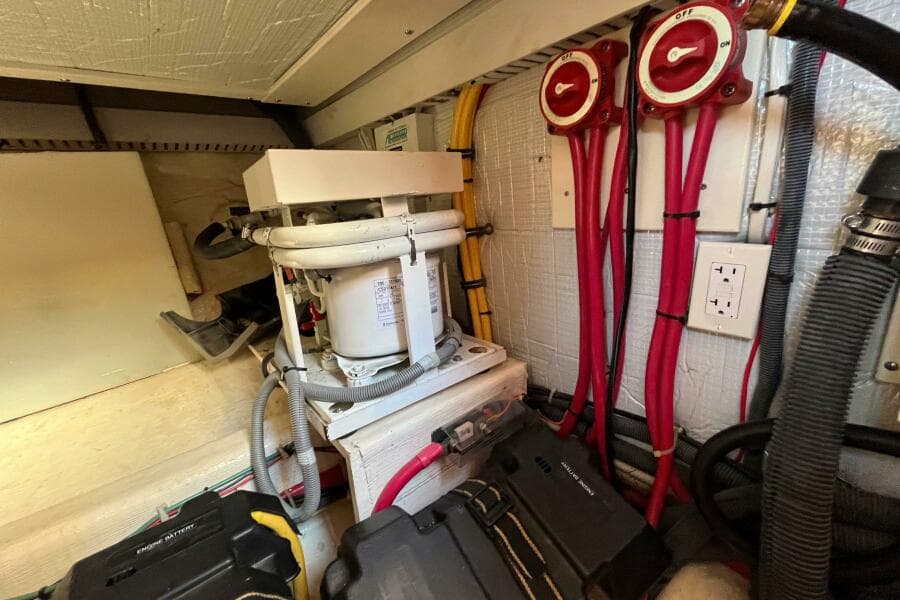

11 gal. water heater operates on both 120-volt AC and engine heat.

Temperature control valve on hot water system.

12-volt DC hot and cold pressure water w/accumulator tank.

Electric water tank level indicator.

Holding tank full indicator.

Extra whole boat fresh water filter system

DECOR

Hand varnished cherry interior.

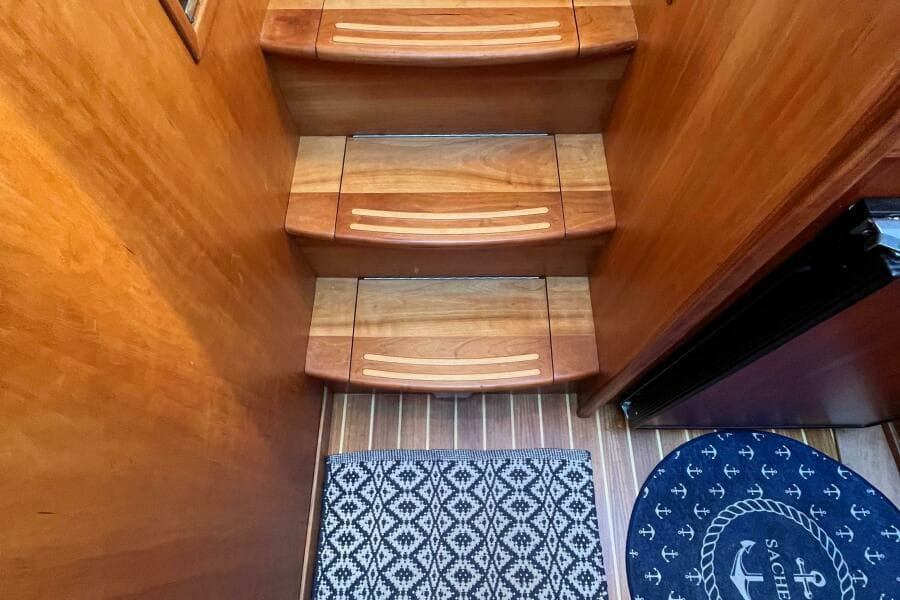

Teak and holly cabin soles with two coats of sealer and two coats of satin varnish

Soft headliner panels (except head and shower stall).

Screens on all opening windows, ports and hatches. O

Optional fabric and drapery selections.

Dovetailed maple drawers boxes throughout.

Laminated trims on counters and berth tops

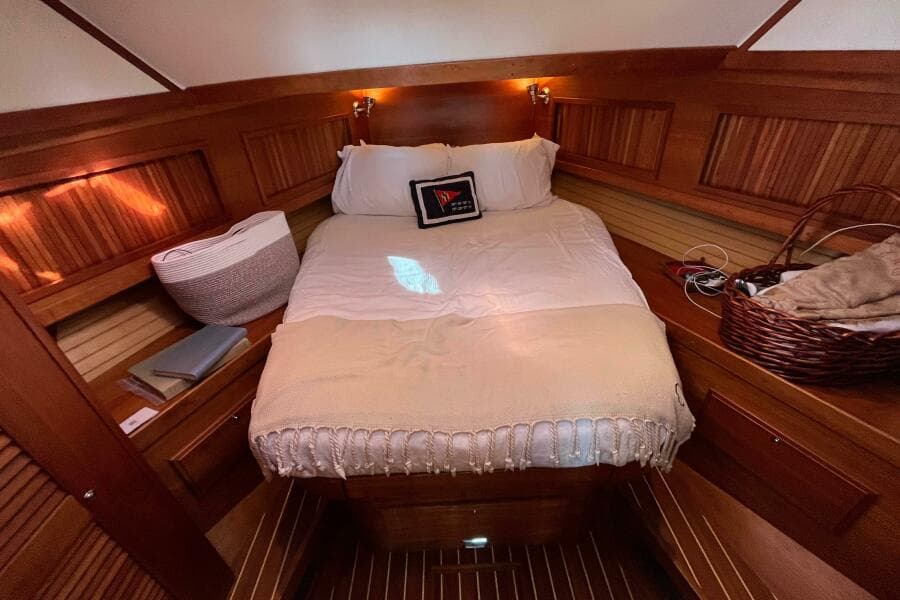

OWNER STATEROOM

Island berth with 8” new custom foam mattress.

Drawers and locker storage under berth.

Direct access to head.

Storage lockers outboard and above berth.

Hanging locker (cedar lined) with louvered door.

Passageway door to main salon.

Full-length, bulkhead mirror.

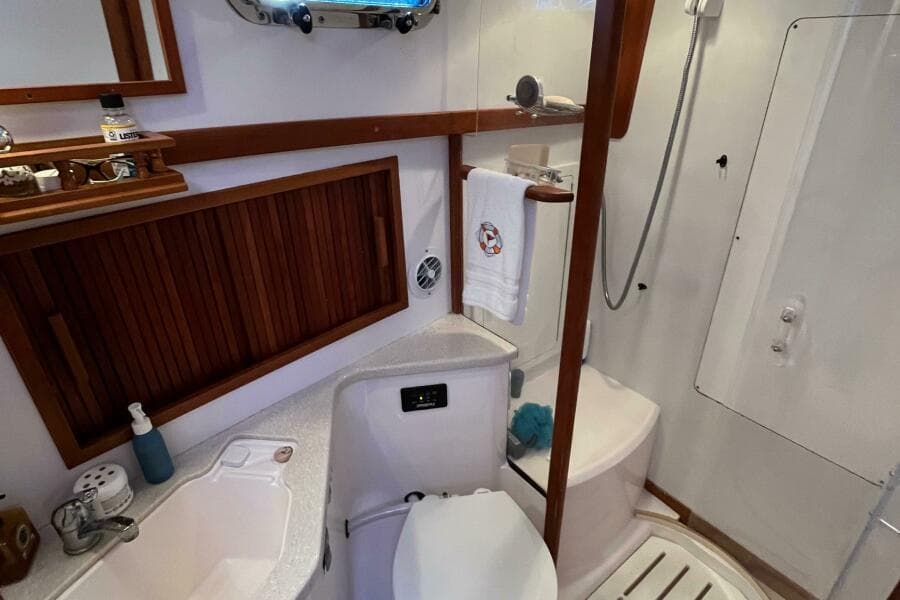

HEAD

FRP vanity sink with Delta single-lever faucet.

Corian vanity countertop.

Wood trimmed mirror.

Shower stall with curved clear plexiglass door.

Shower seat and wet locker (water-tight)

Scandvik shower mixer control.

Electric shower sump pump.

Fiberglass sole with anti-skid in head compartment.

Teak towel bars

Ventilation blower (12-volt DC).

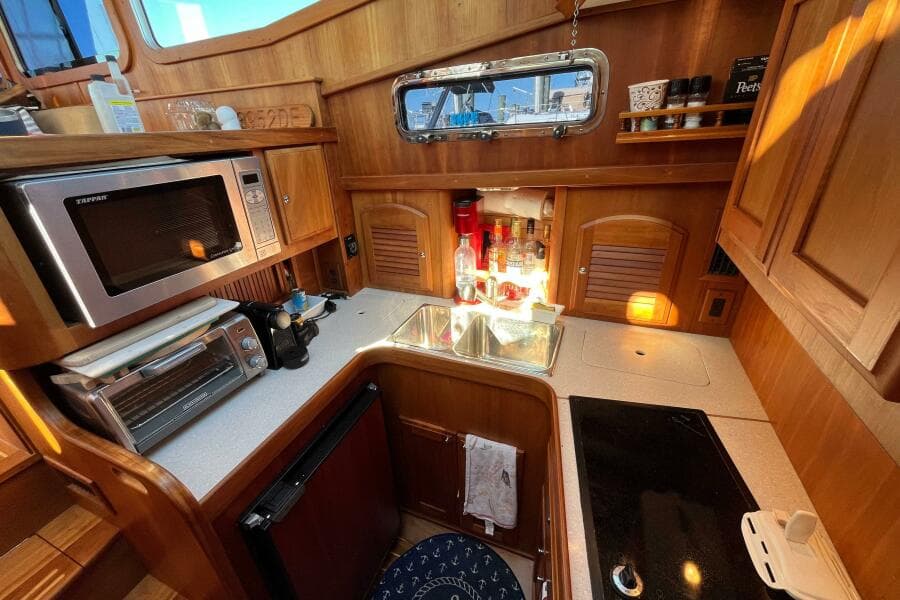

GALLEY

U-shaped galley down standard.

High-pressure laminate galley countertop.

Double Scandvik stainless steel sink with single lever Scandvik faucet.

Built-in waste basket.

Drawers and locker storage below counter.

Lockers outboard and above counter with louvered doors.

Seaward, Gourmet 2-burner electric cook top (#G2247D).

Convection microwave oven.

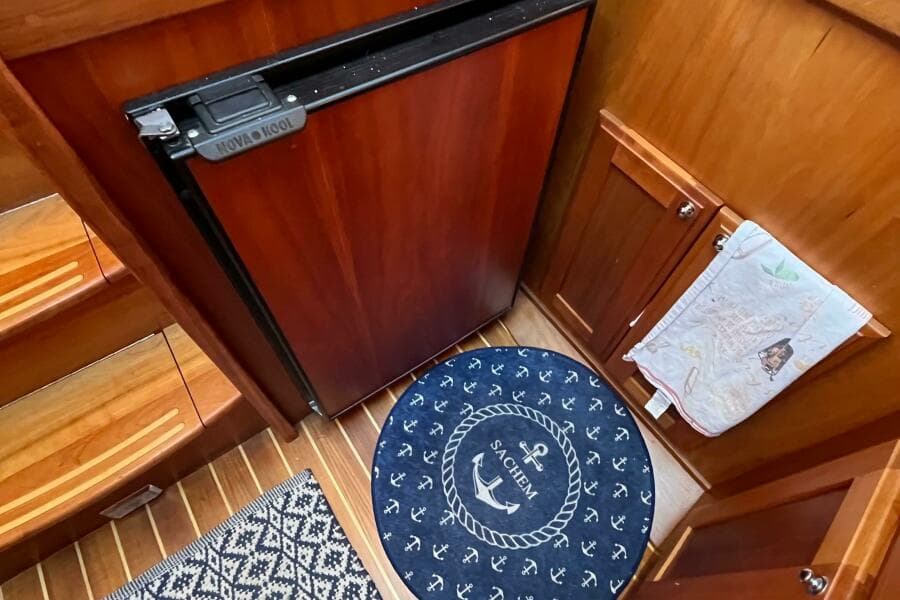

Norcold, under counter, AC/DC refrigerator/freezer.

Powered (12-volt DC) galley ventilator.

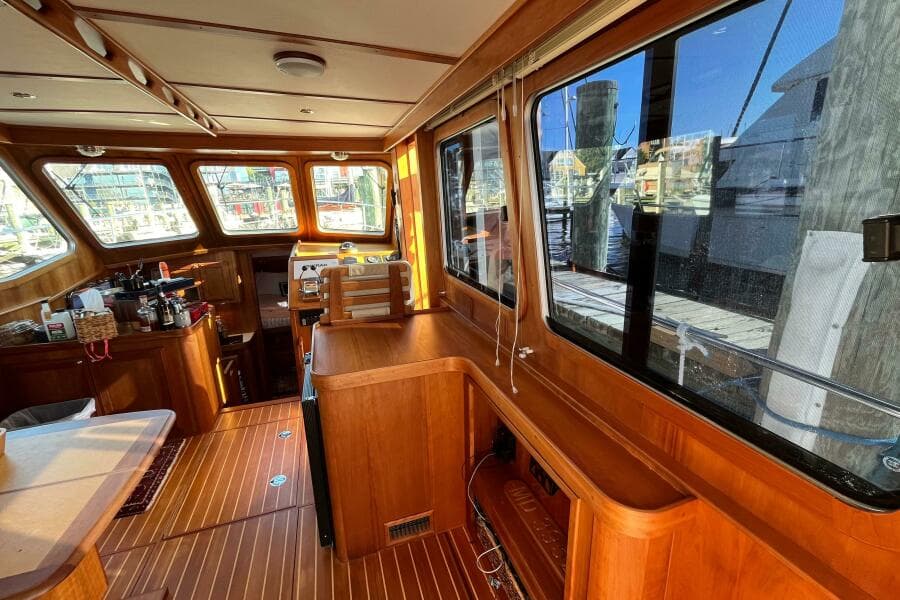

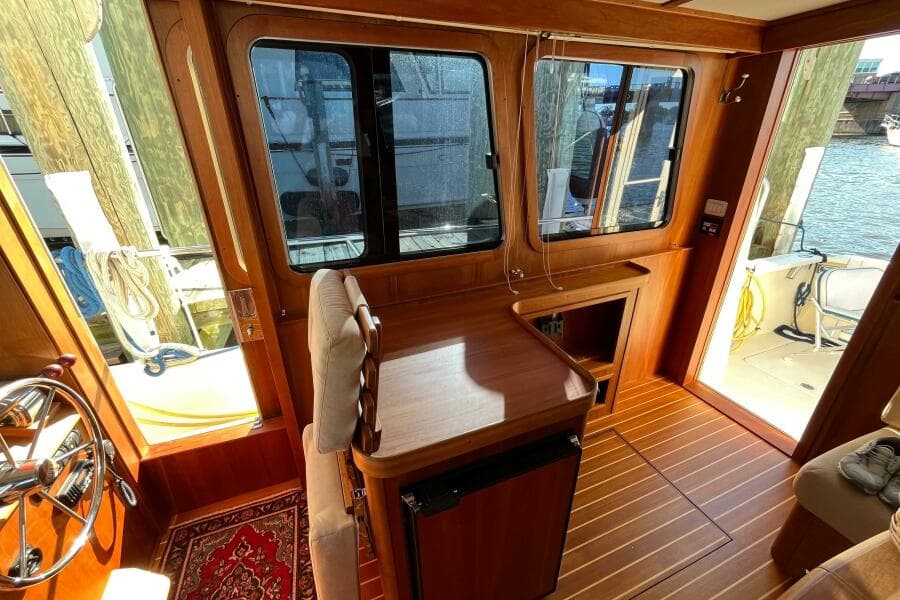

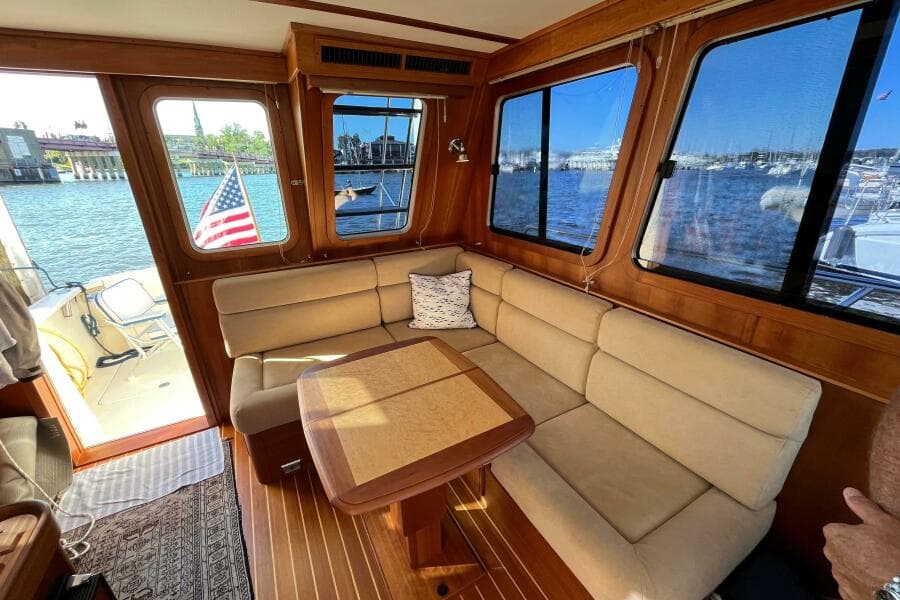

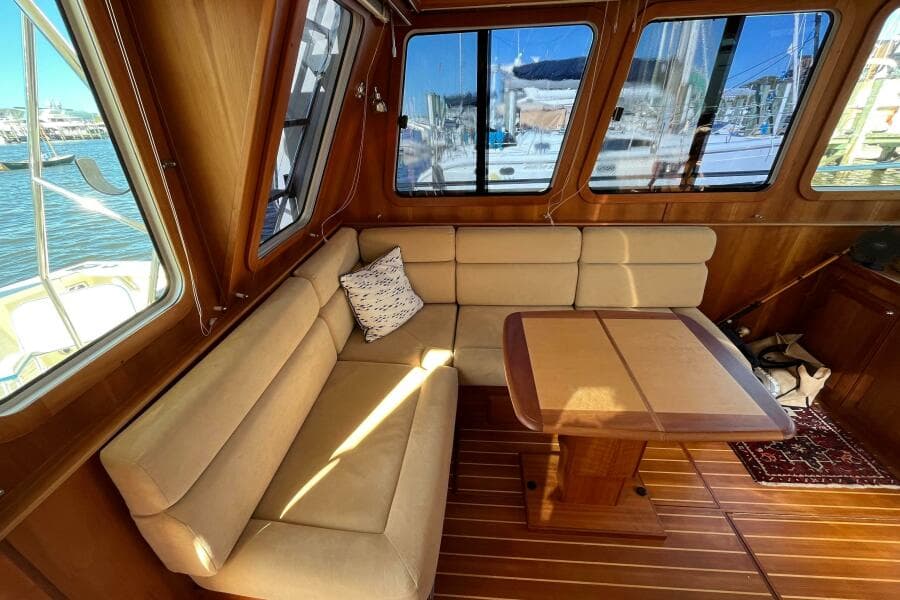

MAIN SALON

Counter/chart table with bottle storage under.

“L” settee with Hi-Lo table with removable center leaf.

Settee converts to double berth with filler cushion.

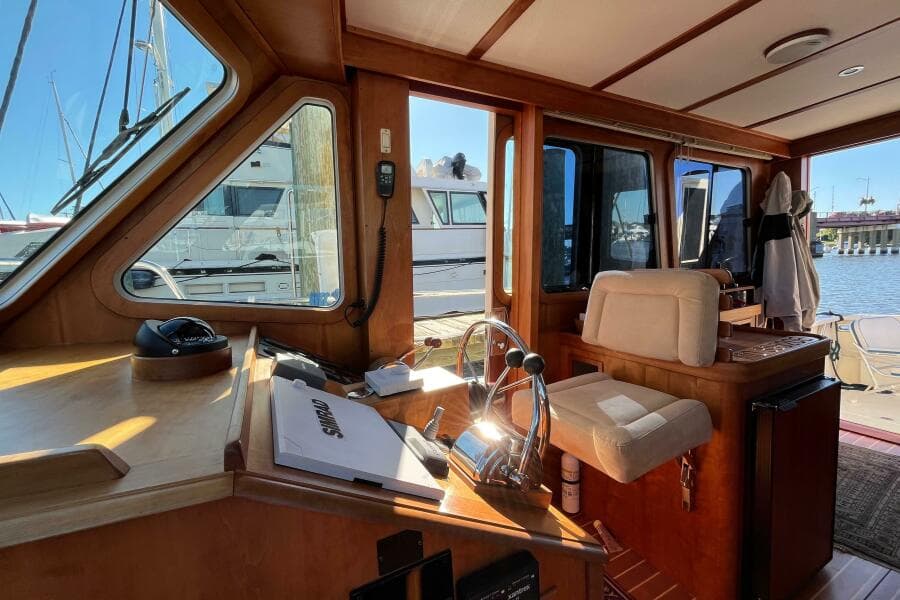

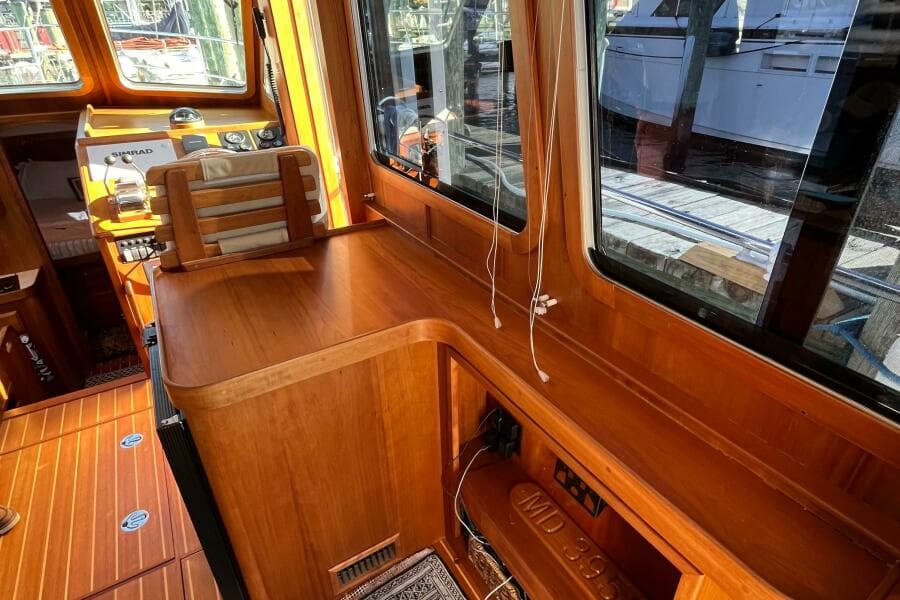

Lower helm station forward with swing up helm seat

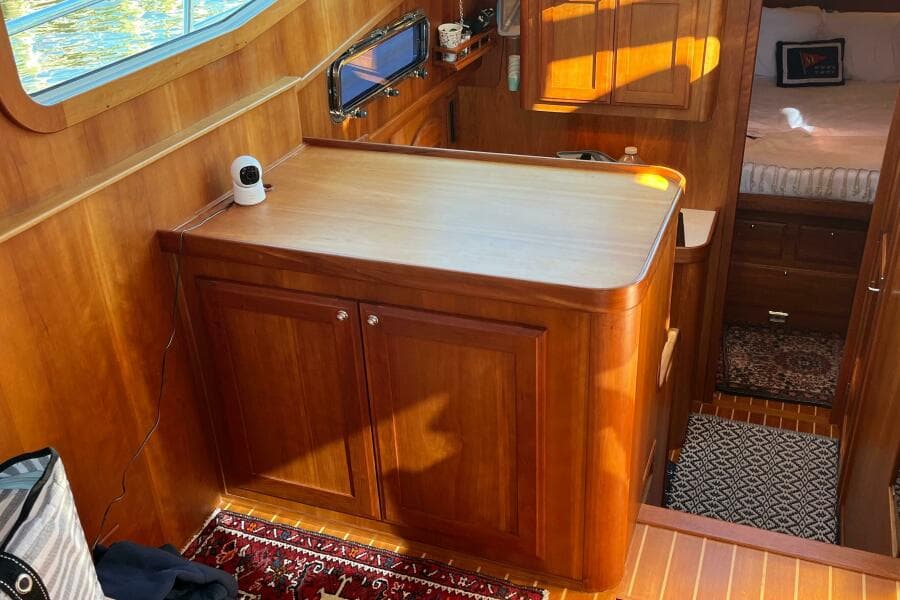

Custom cabinet aft of helm with refrigeration

Bomon, painted, aluminum-framed windows with interior wood trim.

Sliding, screened windows port and starboard. Sliding access door to starboard side deck.

Sound deadening headliner panels.

Cantalupi halogen lights in overhead

Danish Cabin reading lights

Mini-blinds on aft side and back windows. (Mini-blinds not provided on aft door, sliding door or forward side windows.)

Aluminum 2000 hinged access door to aft cockpit. Includes top-drop window with screen

ELECTRONICS

(2) SIMRAD Charplotters

(2) SIMRAD digital depth display

(2) ICOM VHF

(2) GPS Antennae

(1) SIMRAD Radar Dome

(2) Depth transducers

(2) 16' VHF Antenna with adjustable brackets

(2) SIMRAD Autopilot

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
