2005 Shannon
“Jody Mae”
Description

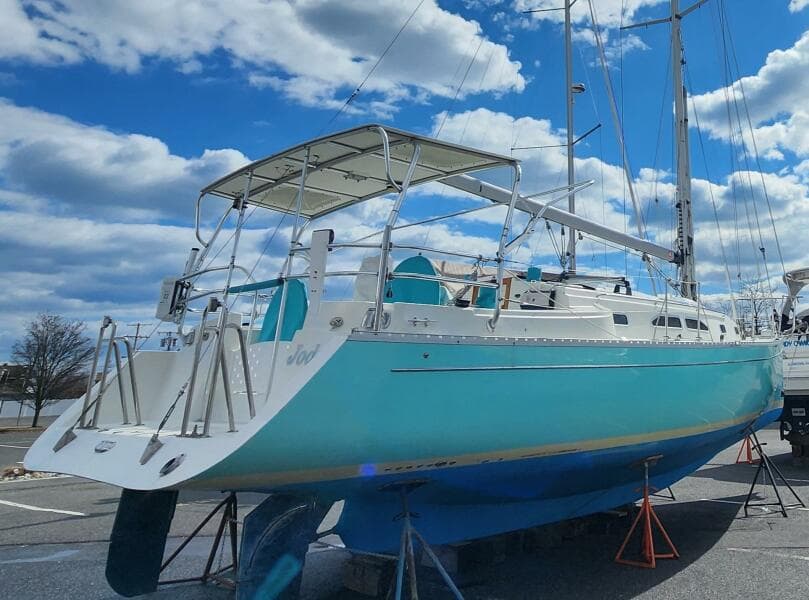

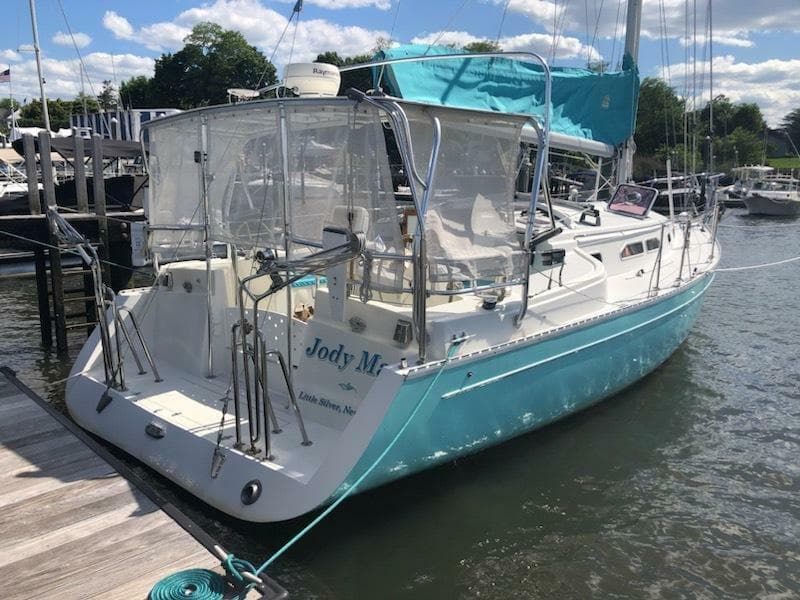

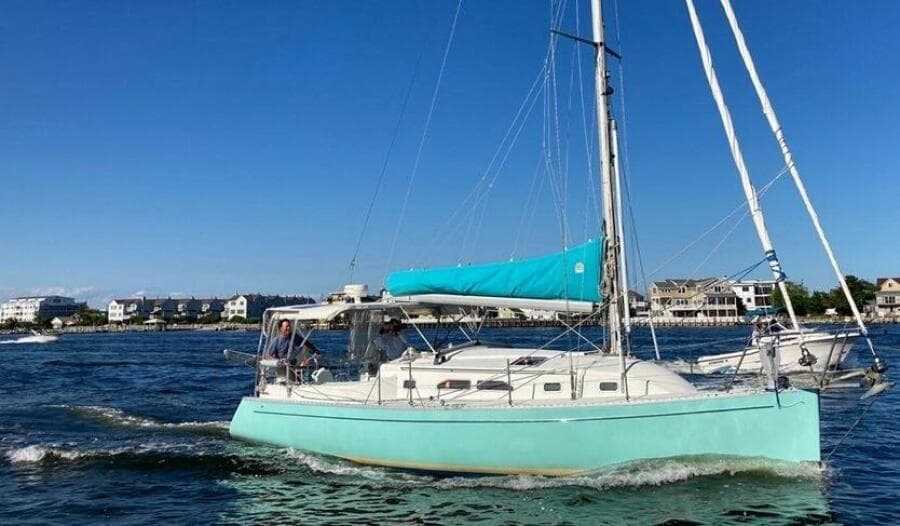

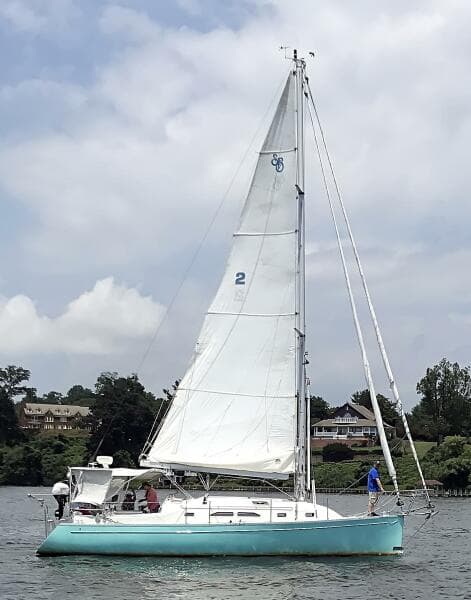

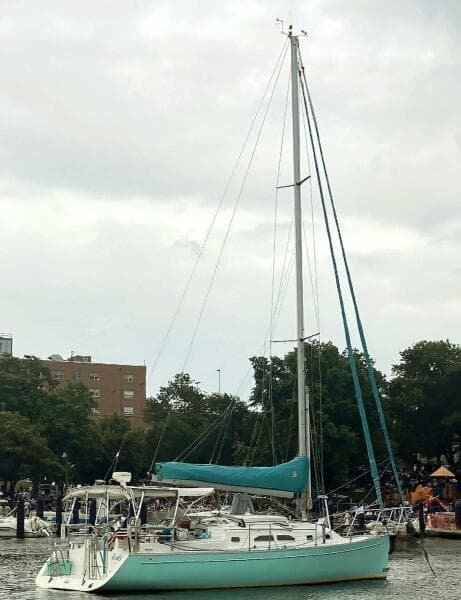

The Shannon Shoalsailer 35, with a mere 30 inches of draft, makes gunkhole cruising an accessible pleasure. It artfully combines elements of both power and sailing vessels, yet it distinctly stands apart from motorsailers. Ideal for navigating the shallow waters of Barnegat Bay, the Chesapeake, or the Bahamas, it boasts the speed necessary for a swift return home. The Shoalsailer 35 is equipped with an optional High-Speed Package, featuring a powerful 120-hp engine, a hydraulically operated trim tab beneath the swim platform, and a bow thruster, allowing it to achieve speeds of 8-10 knots under power. Designed to safely endure groundings, this boat is specifically intended to be beached, enhancing its versatility. One of its standout features is the expansive cockpit, with a maximum beam of 12' 9" positioned well aft, creating a spacious area typically found on much larger sailboats. This generous cockpit also includes twin steering stations, a swim platform and dinghy davits. The Shannon Shoalsailer 35 stands out as a beachable cruising sailboat, offering a cruising interior and an unusually large cockpit for its size. With many upgrades in recent years, this boat is ready for new adventures
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by East Coast Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Full Details

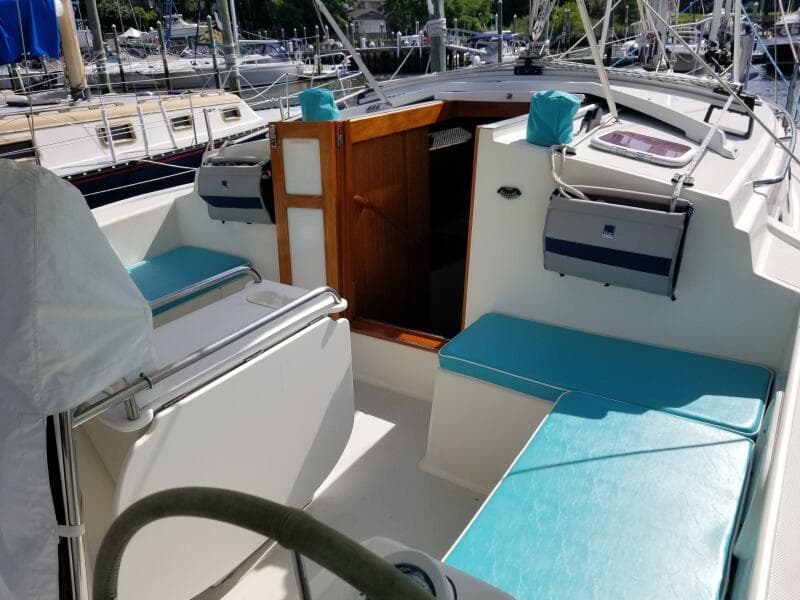

Hull, Deck & Cockpit

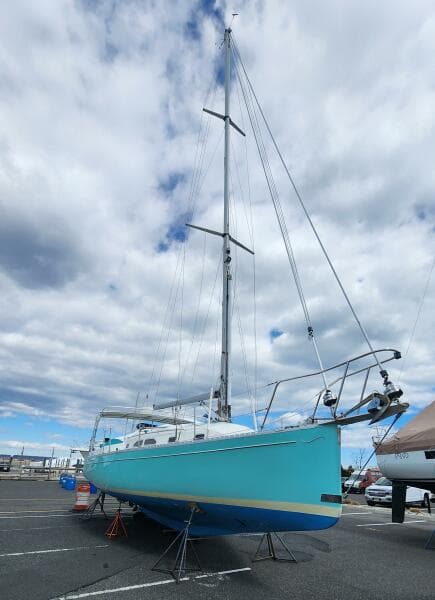

Patented Shoalsailer Hull
Internal Lead Keel
One Piece Hull Construction
PVC Linear Foam Cored Hull with Biaxial Laminates
All Hand Laid Fiberglass Laminate
Vinylester Resin Skin Coat
Special Crash Sole in the Bow for Beaching
NPG Isophthalic Gelcoat
Full Length Hull Stringer Grid Glassed and Reinforced
Boot top, Anti-fouling Bottom Paint and Epoxy Undercoat

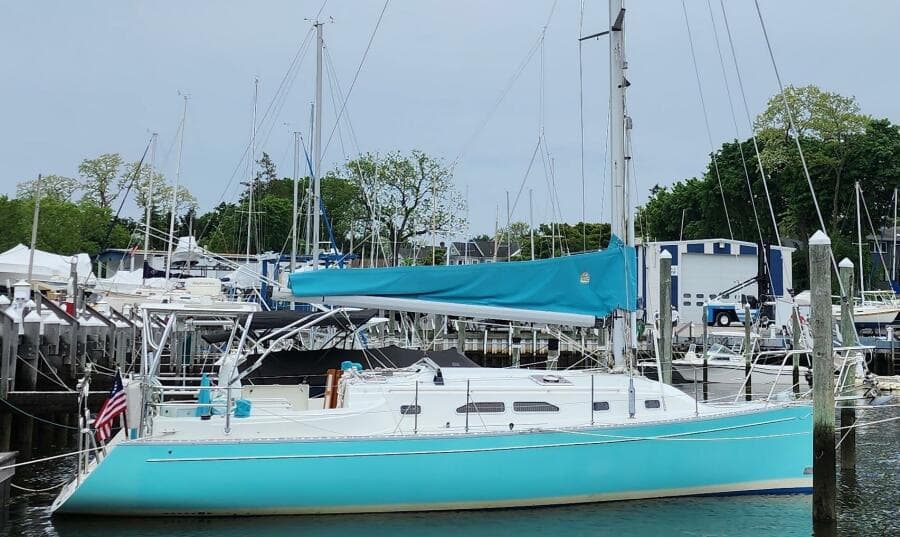

Painted topsides “Aruba Green”
Hand Laid Closed Cell PVC Foam Core for Rigidity and Insulation
Molded-in Nonskid Deck Surface with Recessed Waterways
Hull to Deck Joint with Mechanical Fasteners and Adhesive/Sealant
Heavy Duty Anodized Aluminum Toerail
Two Cockpit Scuppers and Two Recessed Deck Scuppers

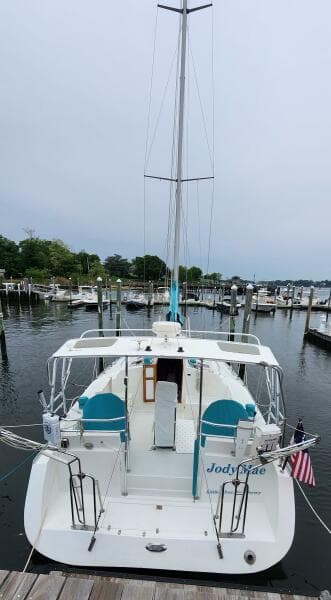

Transom Swim Platform with ladder and H/C shower

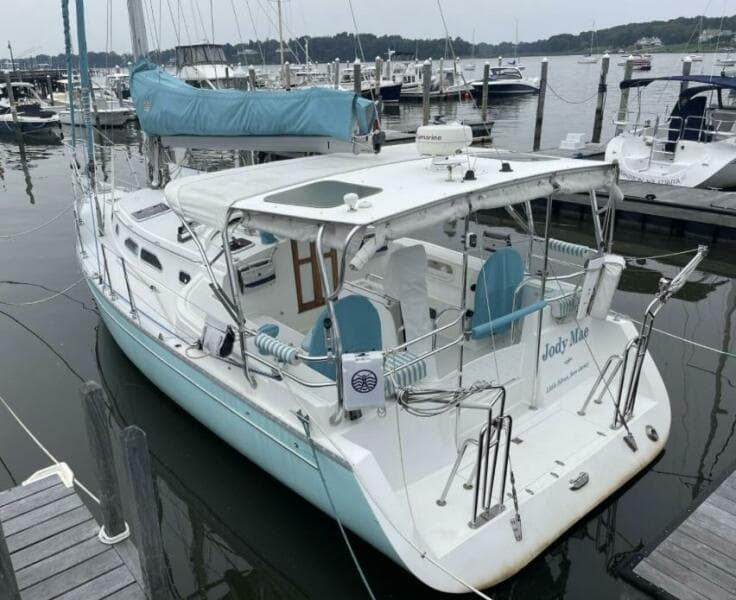

Hardtop bimini with clear plastic connectors and drop sun shades

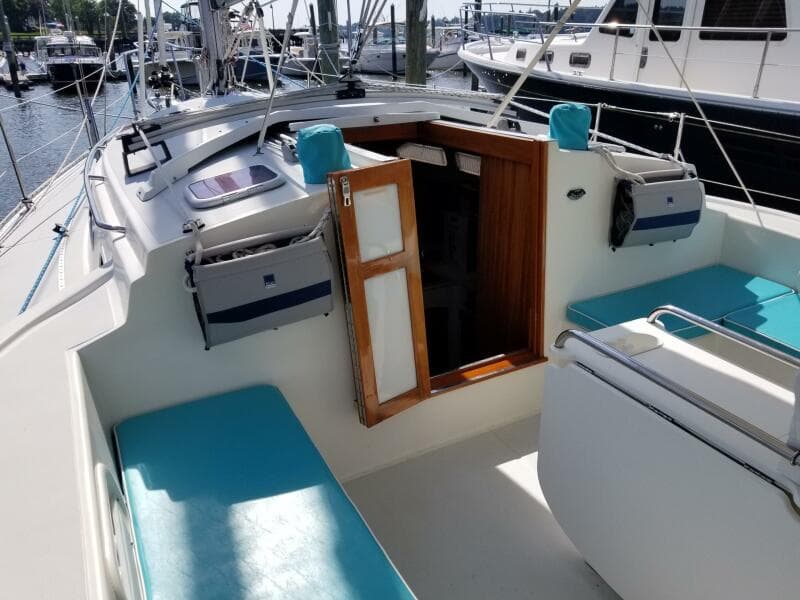

Hinged Companionway Doors
Large Cockpit and Swim Platform Storage Lockers

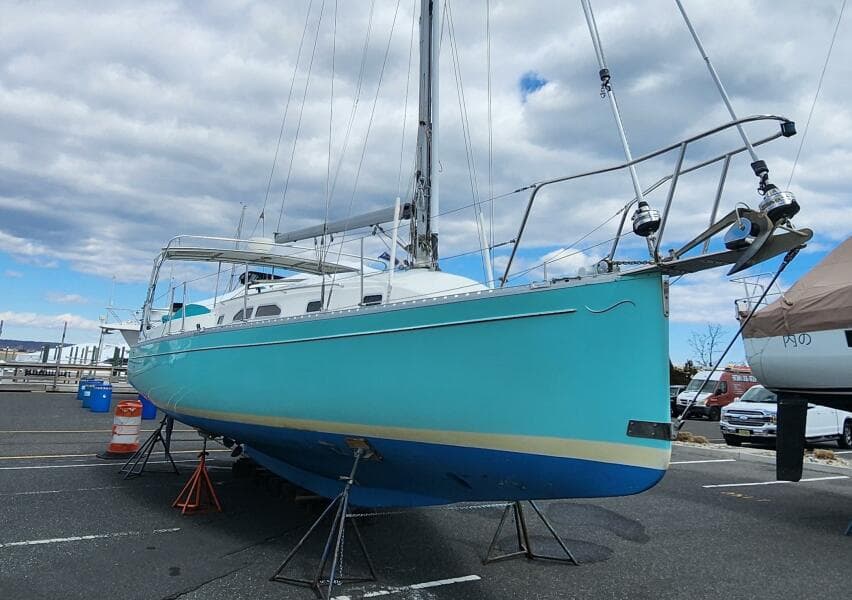

Custom stainless steel Dual Anchor Rollers
Anchor Rode Deck Pipe
Custom Welded Stainless-Steel Bow and Stern Rails
Stainless Steel Stanchions with Double Lifelines
Boarding Gates Port and Starboard
Dinghy davits and outboard motor crane
Four 10" Mooring Cleats and Two 10" Spring Cleats - Stainless Steel
Seven Opening Ports with Screens
Four Large Fixed Ports

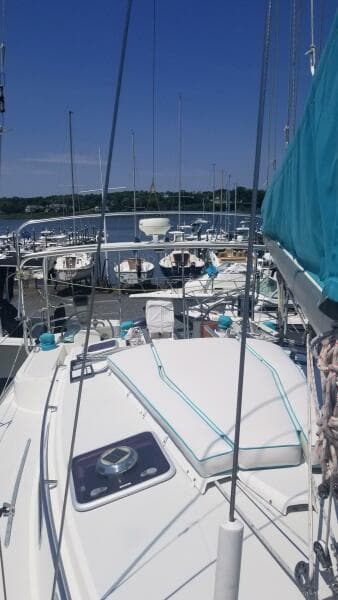

Five Deck Hatches with Screen
Custom Molded Storm Hood/Line Cover for Insulation
Stainless Steel Grab Rails
Cockpit and deck cushions
Sails & Rigging
Custom Aluminum Selden Mast
1 X 19 Stainless Steel Standing Rigging with Open Turnbuckles
Stainless Steel Chain Plates thru-bolted to Transverse Knees
Heavy Duty Ball Bearing Mainsheet Traveler
Genoa Track with Adjustable Oversized Genoa Cars and Sheets
Continuous One-Line Mainsail Dual Reefing and Halyard Led Aft

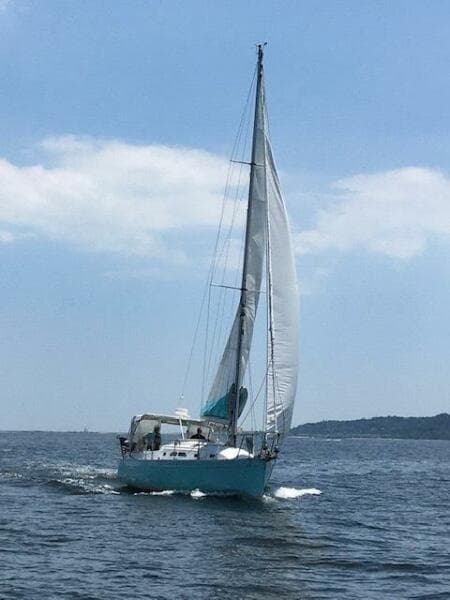

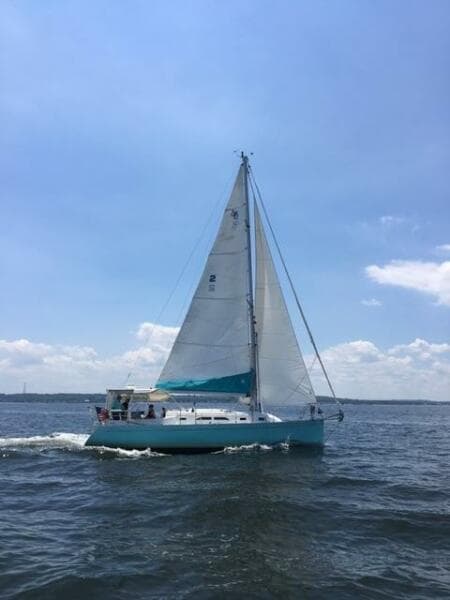

Shannon Custom Cutter rig
Four Lewmar Winches
Two 46ST Two-speed Self-tailing Primary Sheet Winches
One 40ST Two-speed Self-tailing Main Halyard/Reefing Winch
One 40ST Two-speed Self-tailing Main Sheet Winch
Winch Handles

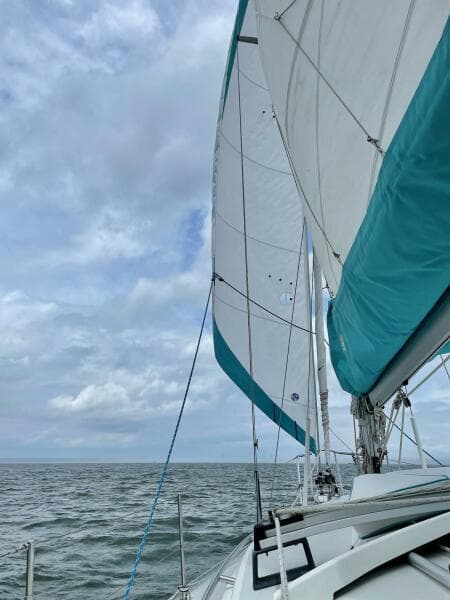

Main: North Sails - 2023
Genoa: North Sails - 2022
Yankee: North Sails – 2021

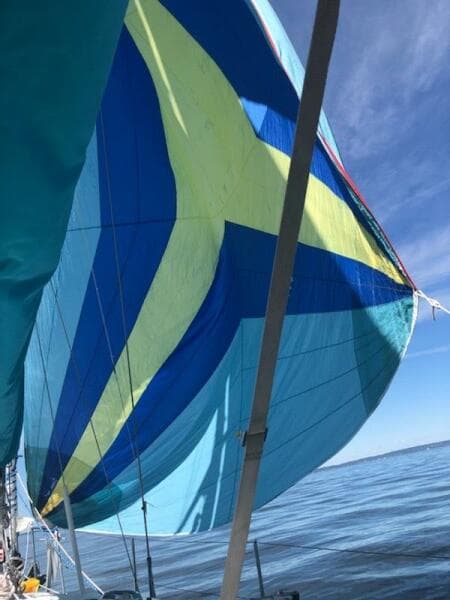

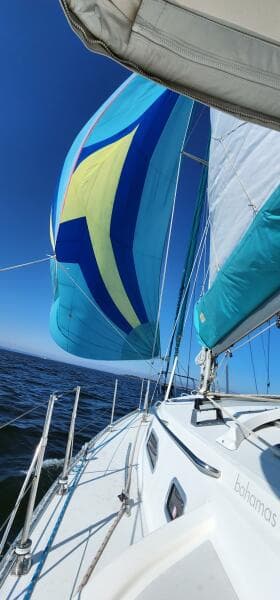

Spinnaker: asym with snuffer sock
Main Cover: Doyle Stack Pack with lazy jacks - 2020
CQR anchor with Nylon Rode and Chain Leader
Fenders, Dock Lines, Fire Extinguishers, Life Jackets
I (genoa height) 52 feet
J (genoa foot) 9 feet
P (mainsail luff) 41 feet
E (mainsail foot) 14 feet

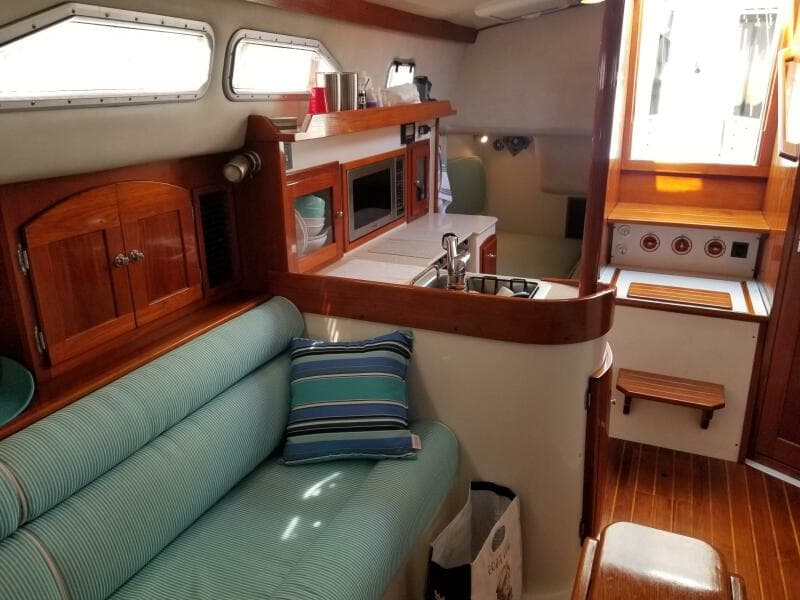

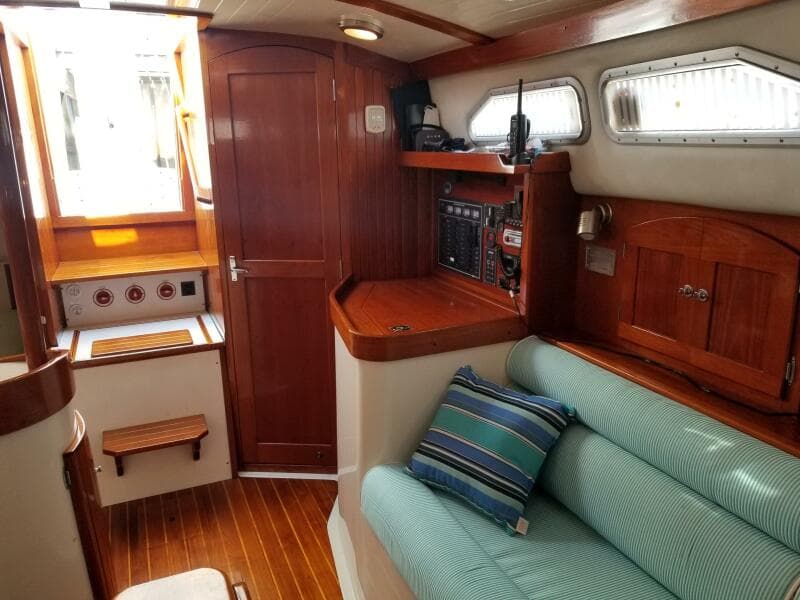

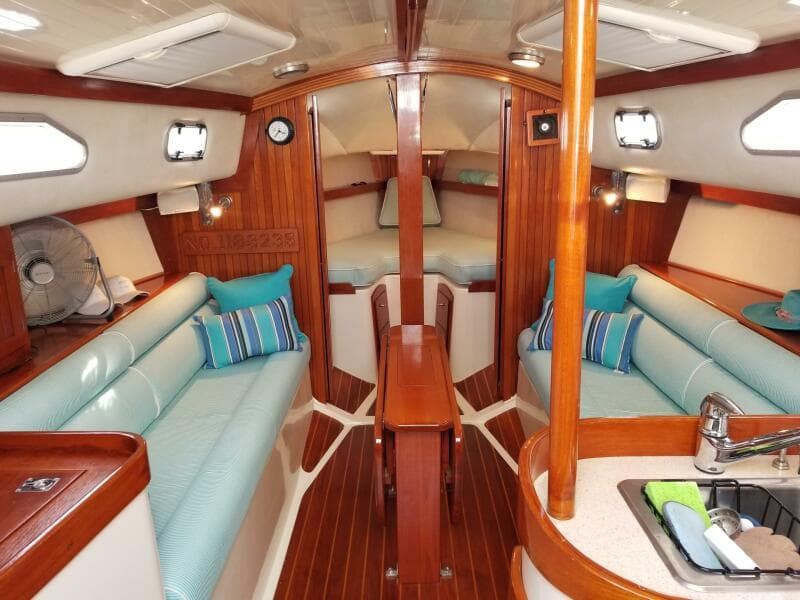

Interior
Marine-Lite Bulkheads with Herreshoff white laminate and Oiled Teak Trim
Varnished Teak and Holly Cabin Sole with Hatches
Fabric Hull Lining and Padded Foam Overhead

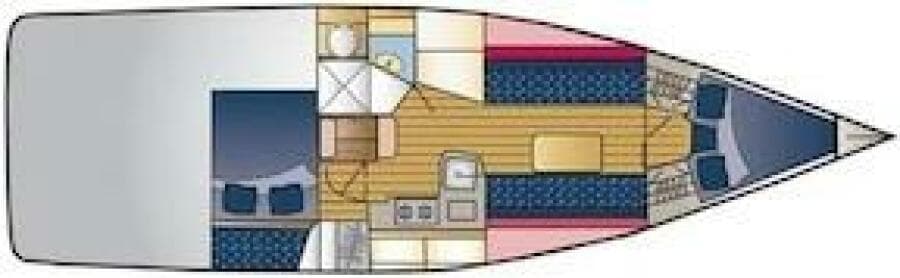

Accommodations for 6 people
Double V Berth with Filler in the Forward Cabin with Two Drawers Under, Two Hanging Lockers, and Privacy Doors

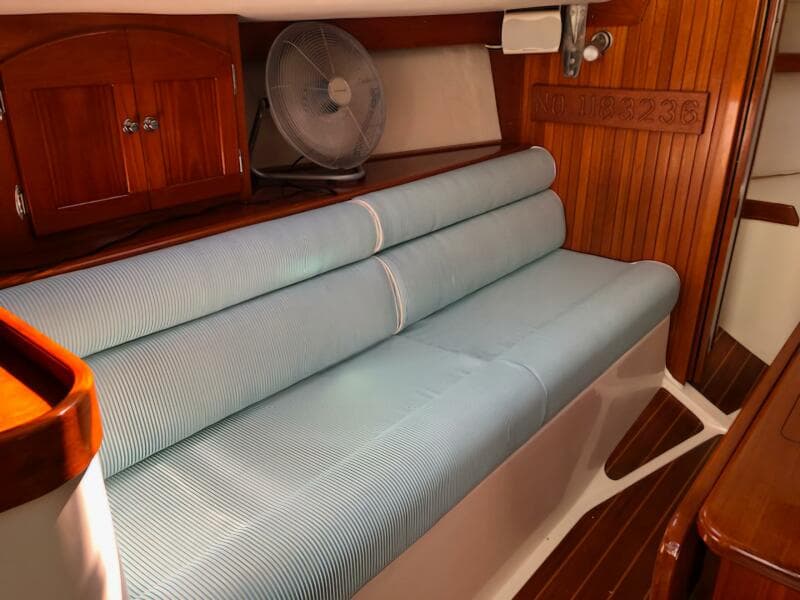

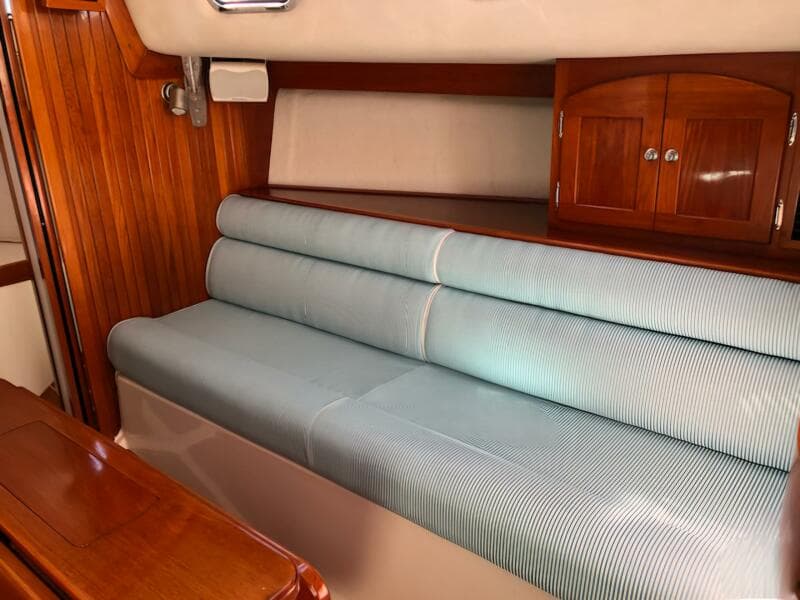

Built-in Convertible "Pullman" style Settee Single Berths to Starboard and to Port
Double Berth in the Private Aft Cabin With Hanging Locker
Teak Drop Leaf Salon Table
Fabric Covered Cushions
6'4" Headroom

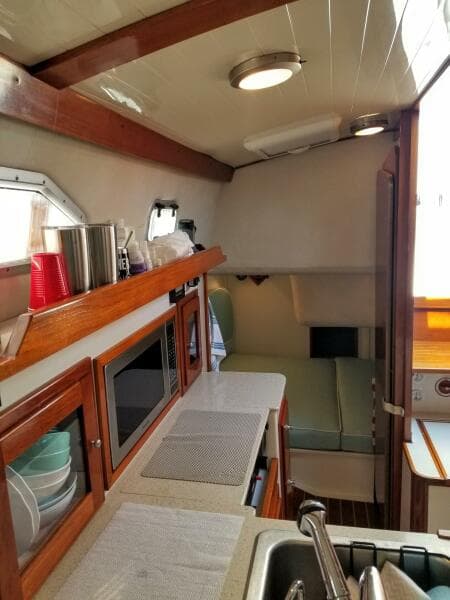

Stainless 2 Burner Propane Stove
Insulated Icebox
Large Stainless-Steel Sink
Single Lever Hot and Cold Pressure Water Faucet
Large Pots and Pans Storage Locker and Trash Bin
Food Pantry Locker
Cutlery/Utensil/Dishes/Glasses Storage

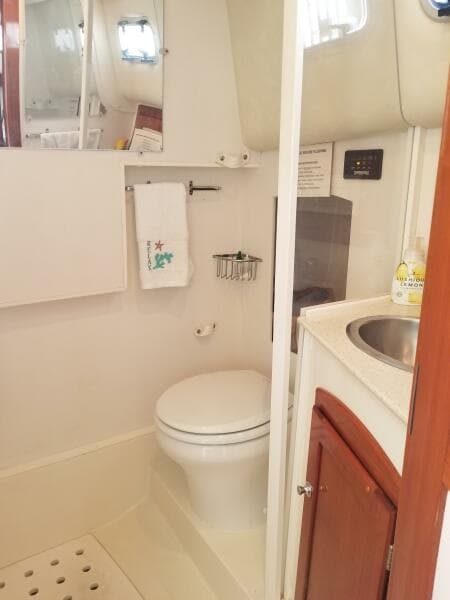

Head Vanity top with Stainless Steel Sink
Hot/Cold Pressure Water System
Marine Head: electric with freshwater flush - 2022
Sanitary system hoses replaced 2022

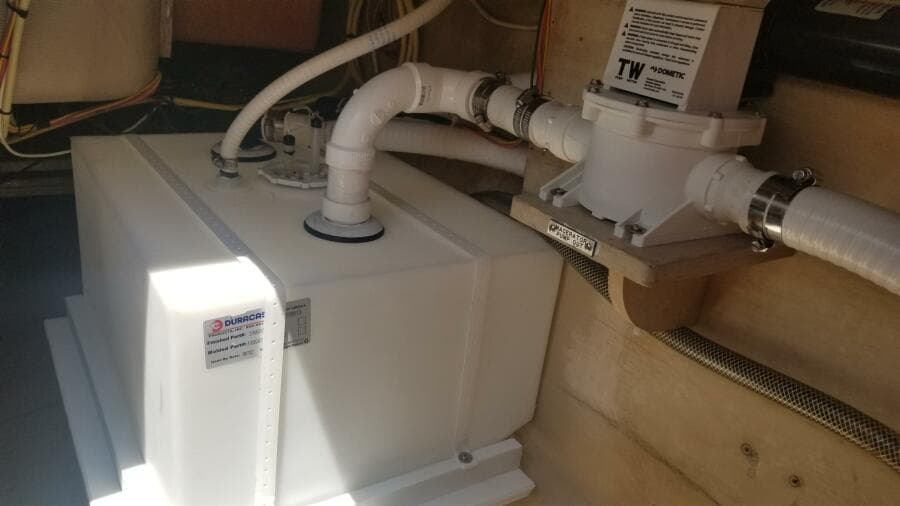

Holding tank 20 gal and macerator replaced 2022
Holding Tank Deck Pump Out
Handheld Hot/Cold Shower Fixture
Shower Sump Pump
Medicine Cabinet Outboard with Shelf and Door
Bulkhead Mirror over Sink
Opening Port with Screen
Mechanical/Plumbing
Yanmar 120 HP Diesel Engine (Fresh Water Cooled)
Kanzaki Reduction Gear
Exhaust hoses replaced 2023
Engine Panel with Gauges and Audible Alarms

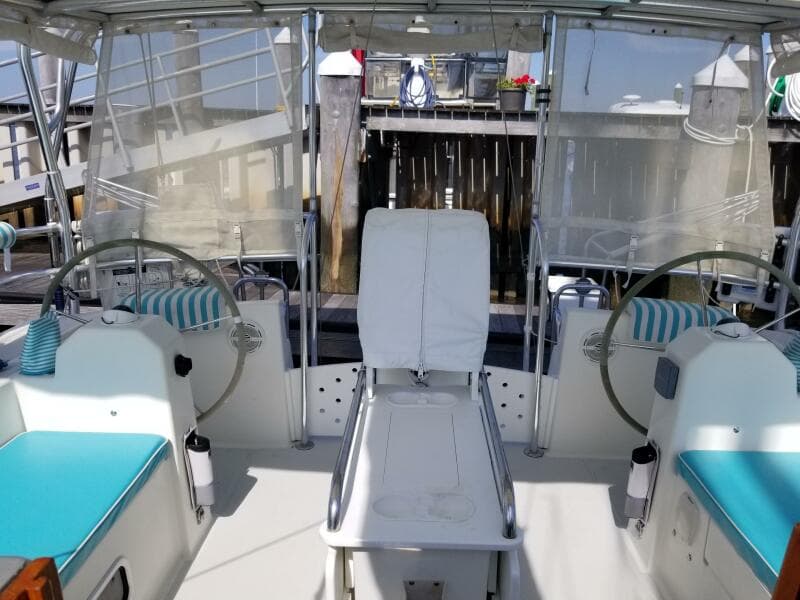

Dual Station Edson Steering System with Stainless Steel Wheels with leather cushioned wheel wraps
Engine Controls
Bow Thruster (new motor – 2022 and prop, gear, bearing & mount – 2023)
Dual Ritchie 4" Compasses
Racor Fuel Filter/Water Separator
Raw Water Intake Strainer
Heavy Duty Engine Room Sound Insulation
Stainless Steel Propeller Shaft
4-Blade Feathering Bronze Propeller
Twin Rudders Set Up for Lifting when Beaching
Forespar Seacocks on all Thru Hulls below the Waterline
Six Gallon Hot Water Heater (110V and Engine Heat Exchanger)
Alloy Fuel Tanks
Rigid PVC Water Tanks
Prepped for generator: fuel line, exhaust hose and electrical
Air conditioner – new unit & replaced all AC hoses 2023
Electrical & Electronics
Three 120ah Heavy Duty Gel Cell Group 31 Marine Batteries - 2020
Battery Parallel Switch

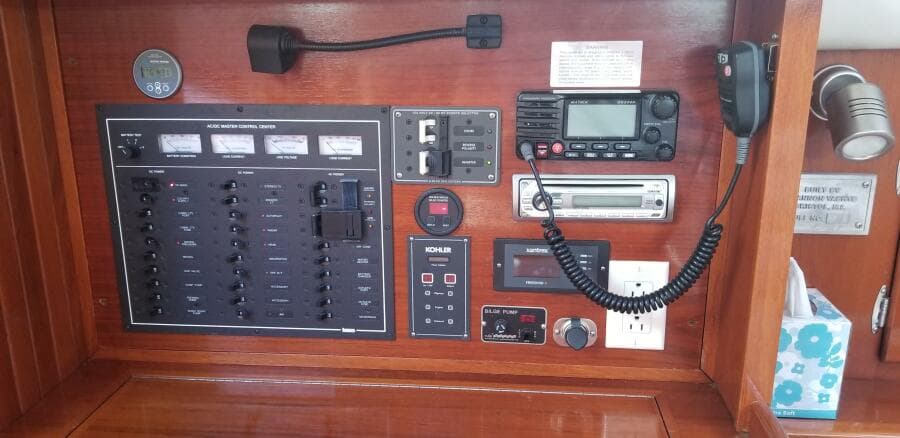

AC/DC Control Panel with Circuit Breakers, Voltmeter and Ammeter
AC Shore Power 30 AMP Shore Service Inlet and 50' Shore Power Cord and Reverse Polarity Indicator
All Wiring Color Coded to ABYC Codes
Navigation Lights with Anchor Light
Automatic Bilge Pump
Three 110 VT AC GFI Outlets in Interior
Eight 12 VDC Dome Lights and Six 12 VDC Reading Lights
Raymarine C-80 GPS chartplotter
Radar dome (unknown operating condition)
Stereo AM/FM/CD/Bluetooth w/ interior speakers - 2022
