2005 Garcia Passoa

ROULEAU II’s interior is finished in solid and laminated light maple wood with a white laminate overhead. The sole is very durable faux teak and black with locking floor boards.  Cabin doors are arched and paneled. “Lift off” hinges allow easy door removal. Ovearhead spotlights are wall-switched and reading lights are located at each berth. Interior lighting has been upgraded to LEDs. There are roll up Oceanair blinds for the fixed portlights and insulated interior, clear covers for deck hatches and salon windows to minimize condensation. The interior shows no evidence of leaks around the hatches and portlights. In fact, the interior shows very little wear and tear for a boat of this vintage. A hydronic diesel heating system has radiators with individual fan controls in each stateroom and the salon.

Starting all the way forward and aft of the bow locker, is a sail locker.  This space is finished in white laminate with select wood trim. Access to the bow thruster motor, tunnel, and batteries is through a hatch in the forward bulkhead. A wired windlass remote is mounted on the forward bulkhead. Copious storage for spares and other gear and room for sails is found in top-opening bins and storage cabinets with sliding doors. This sail locker is accessed from a door in the foward stateroom or from deck through a large deck hatch. Running sails and other gear can be hoisted and stowed without dragging them through the interior.

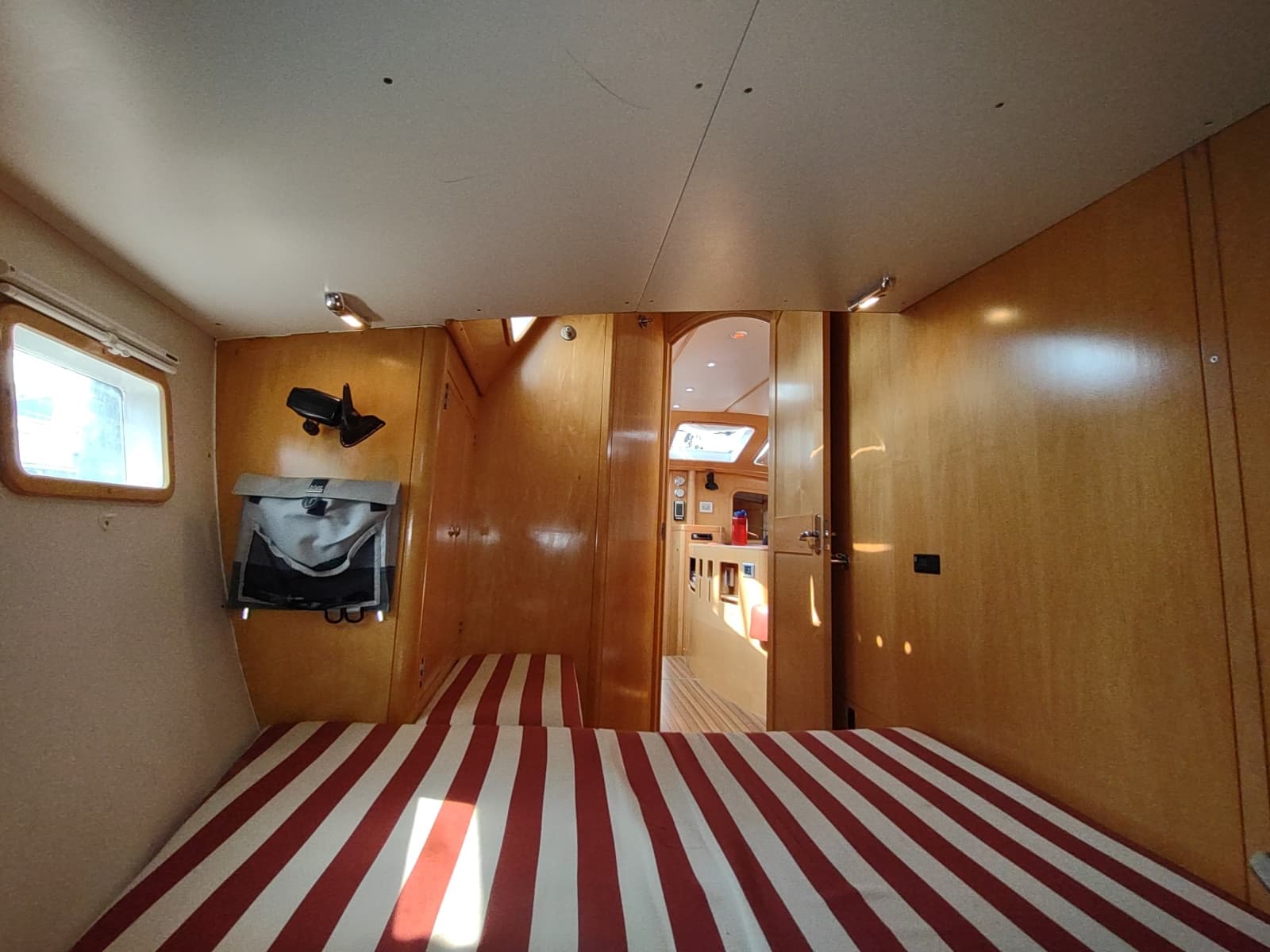

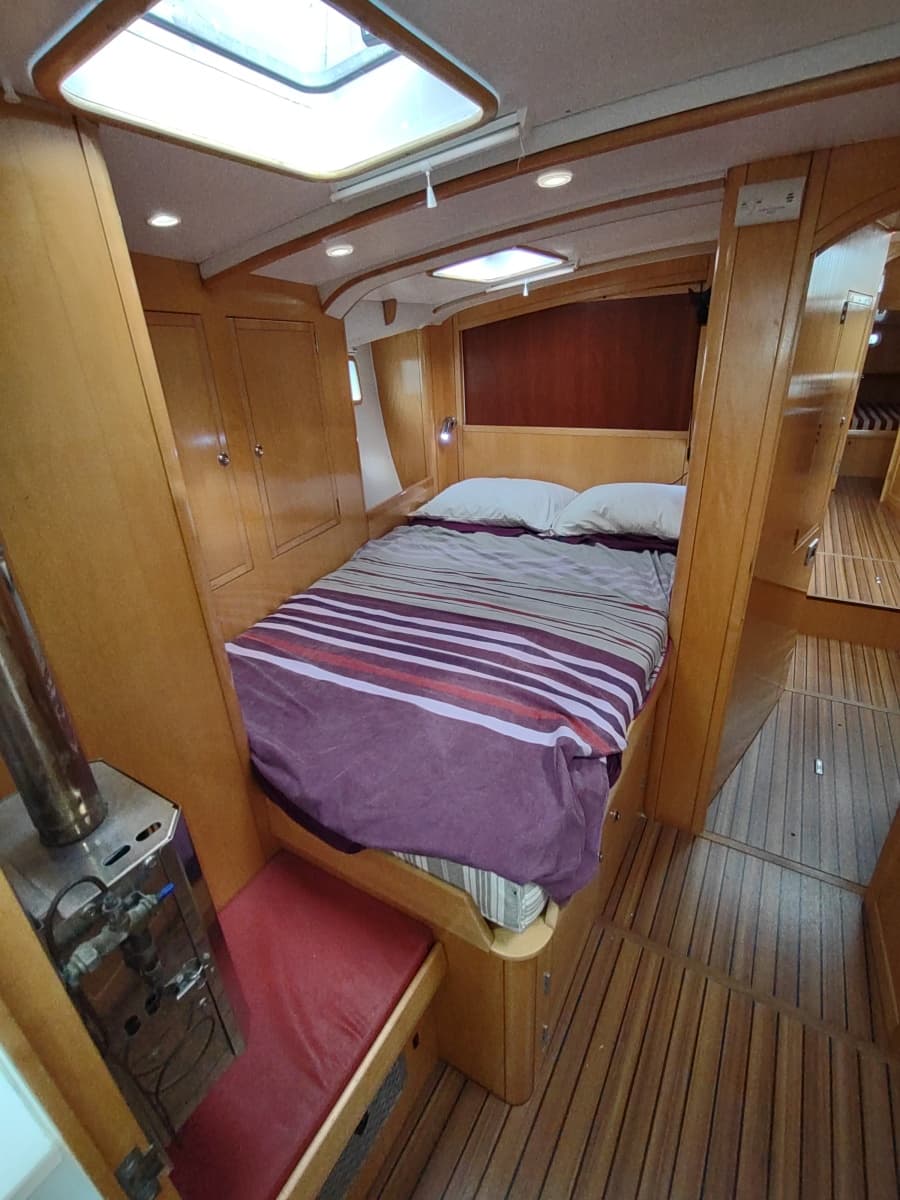

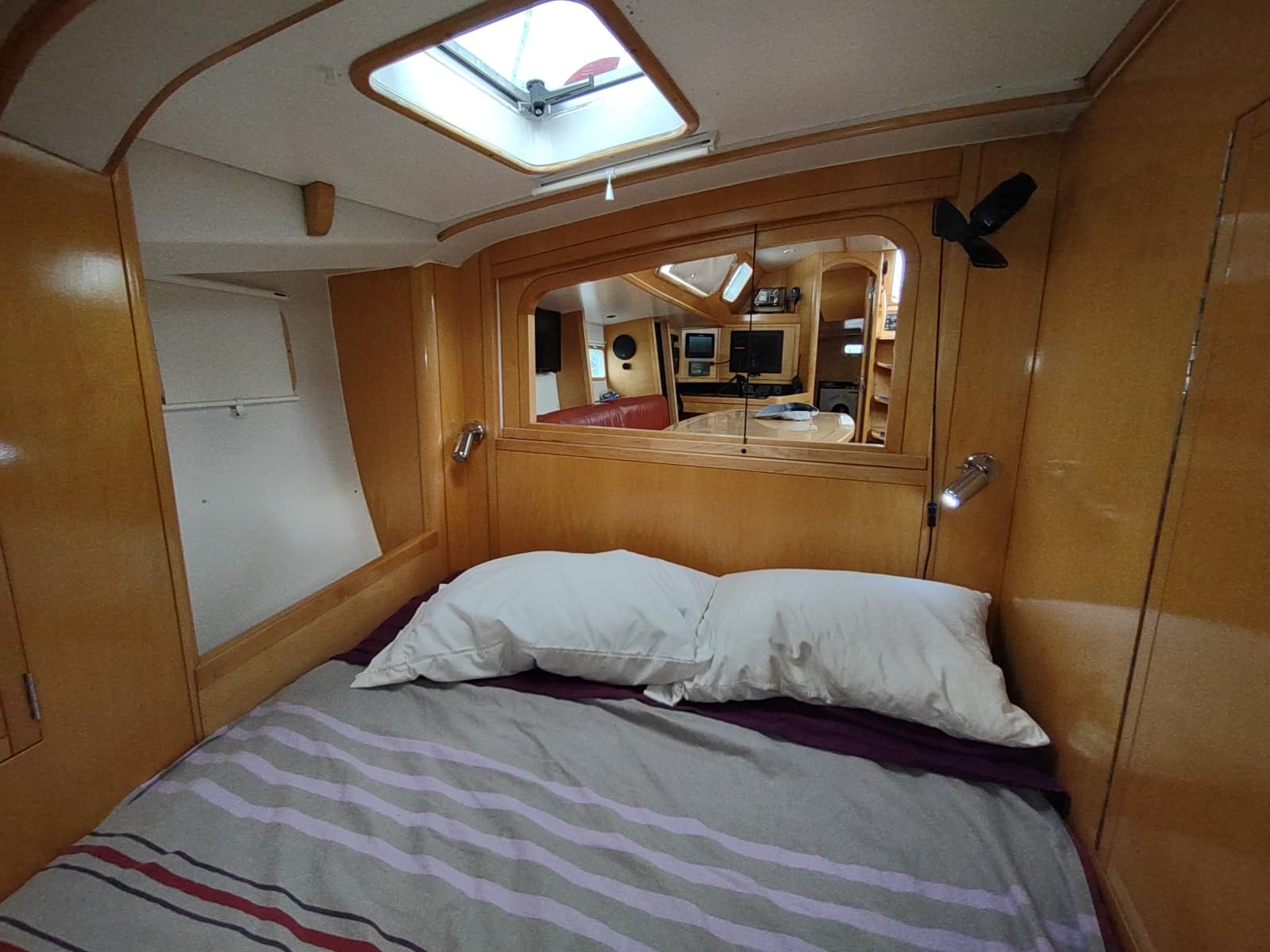

Continuing aft, the owner’s stateroom features a pullman berth offset to starboard (dimensions: head 53”/135cm, foot 39”/100cm, length 78”/198cm) with wood laths below the mattress (new 2017) to minimize moisture. On the forward bulkhead is a Taylor's 4kw diesel heater (model 079DS). A drop-down panel at the head of the berth opens this owner’s cabin to the salon. There is a desk/workstation to port and, as usual on these vintage Garcia’s, lots of storage. On the overhead, there are three opening hatches that have plexiglass inserts for cold weather. There are two reading lights and a Caframo cabin fan over the berth.

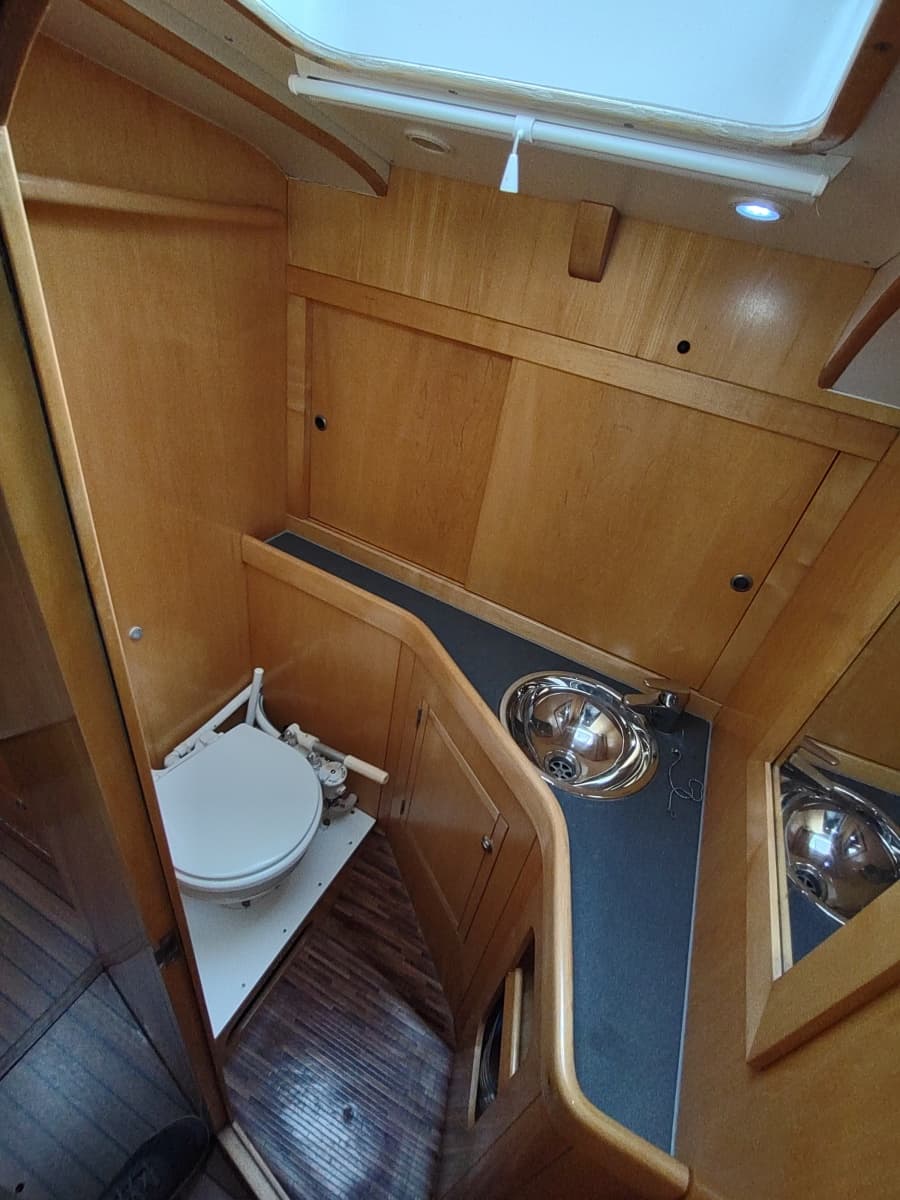

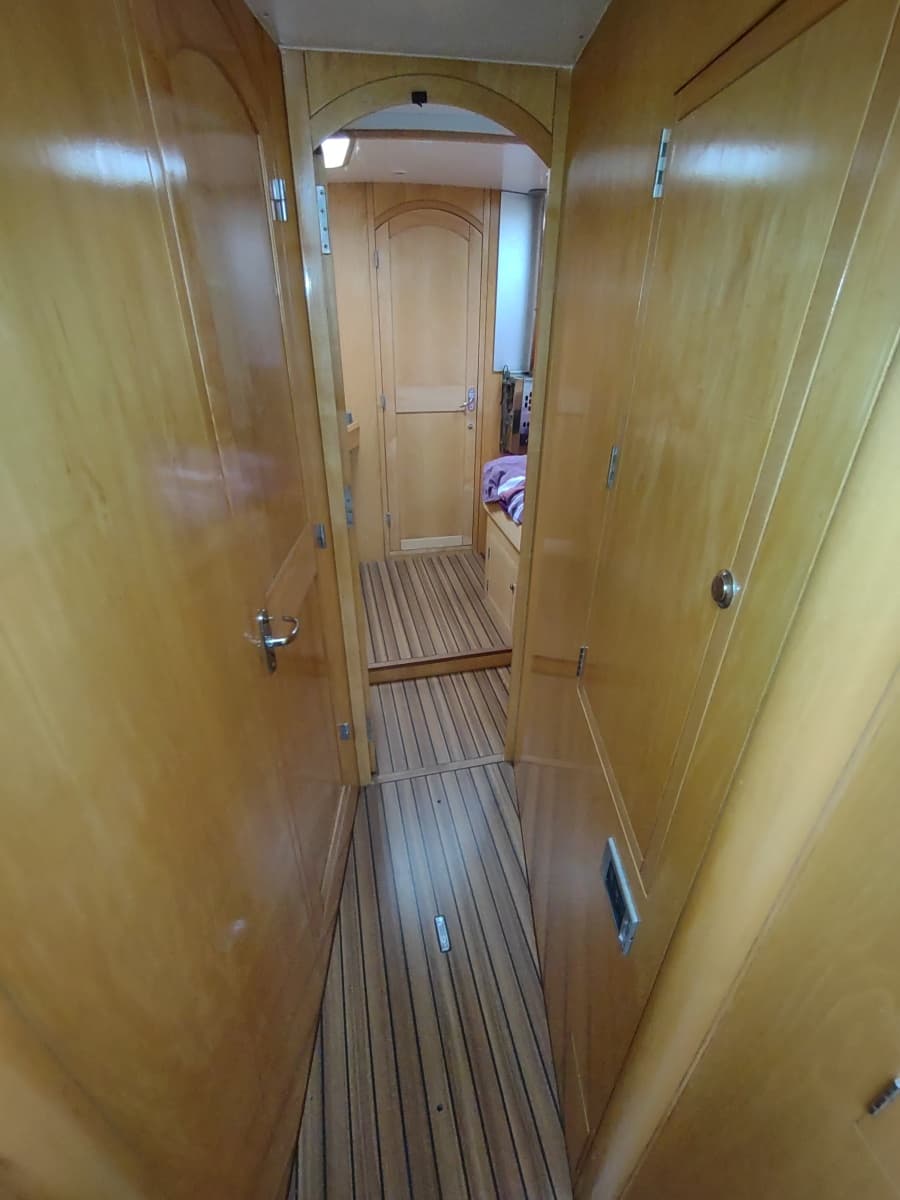

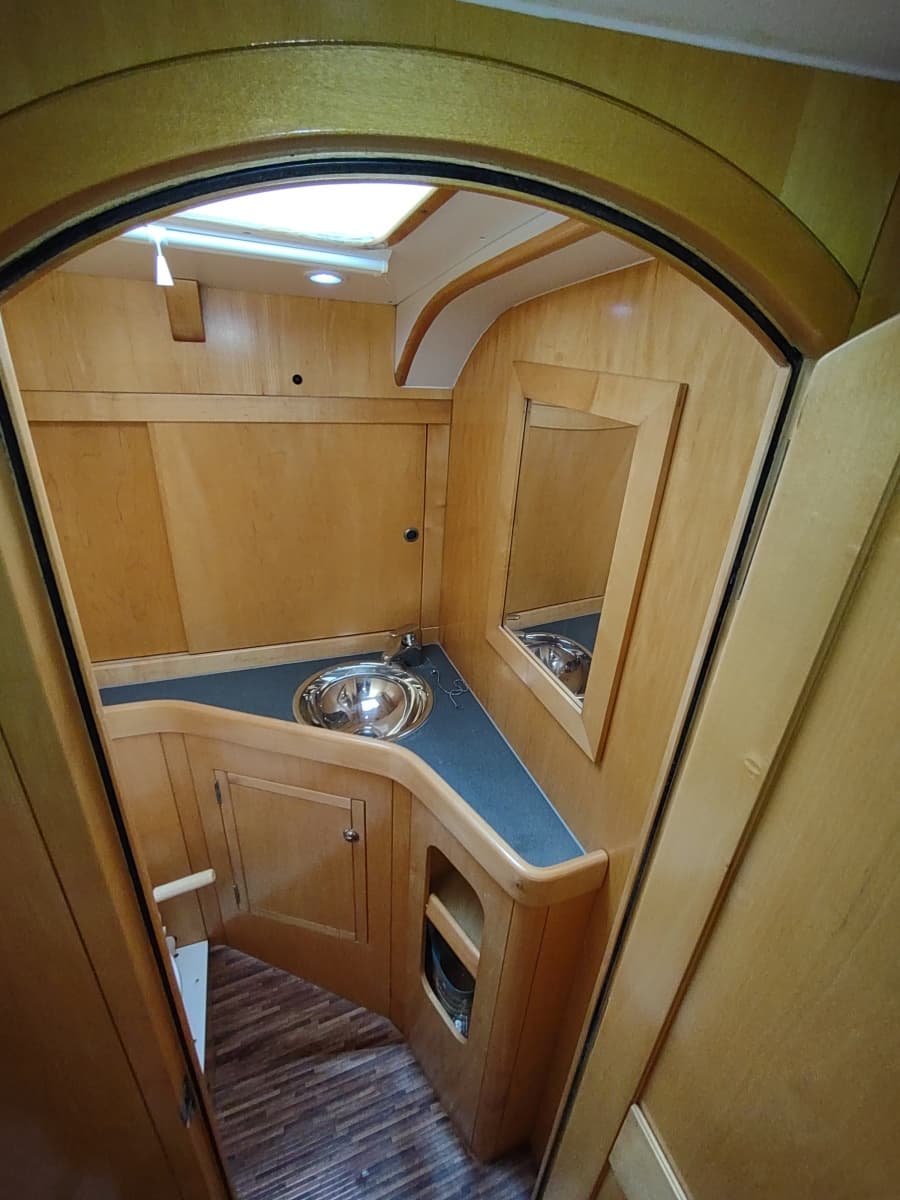

Following the passageway aft and outboard is the head compartment with a manual Raritan marine toilet. A round stainless steel sink with single lever faucet is located in a curved vanity outboard/forward. A storage cabinet is outboard, below the deck edge and fitted with sliding doors. A wood-trimmed mirror is on the forward bulkhead.

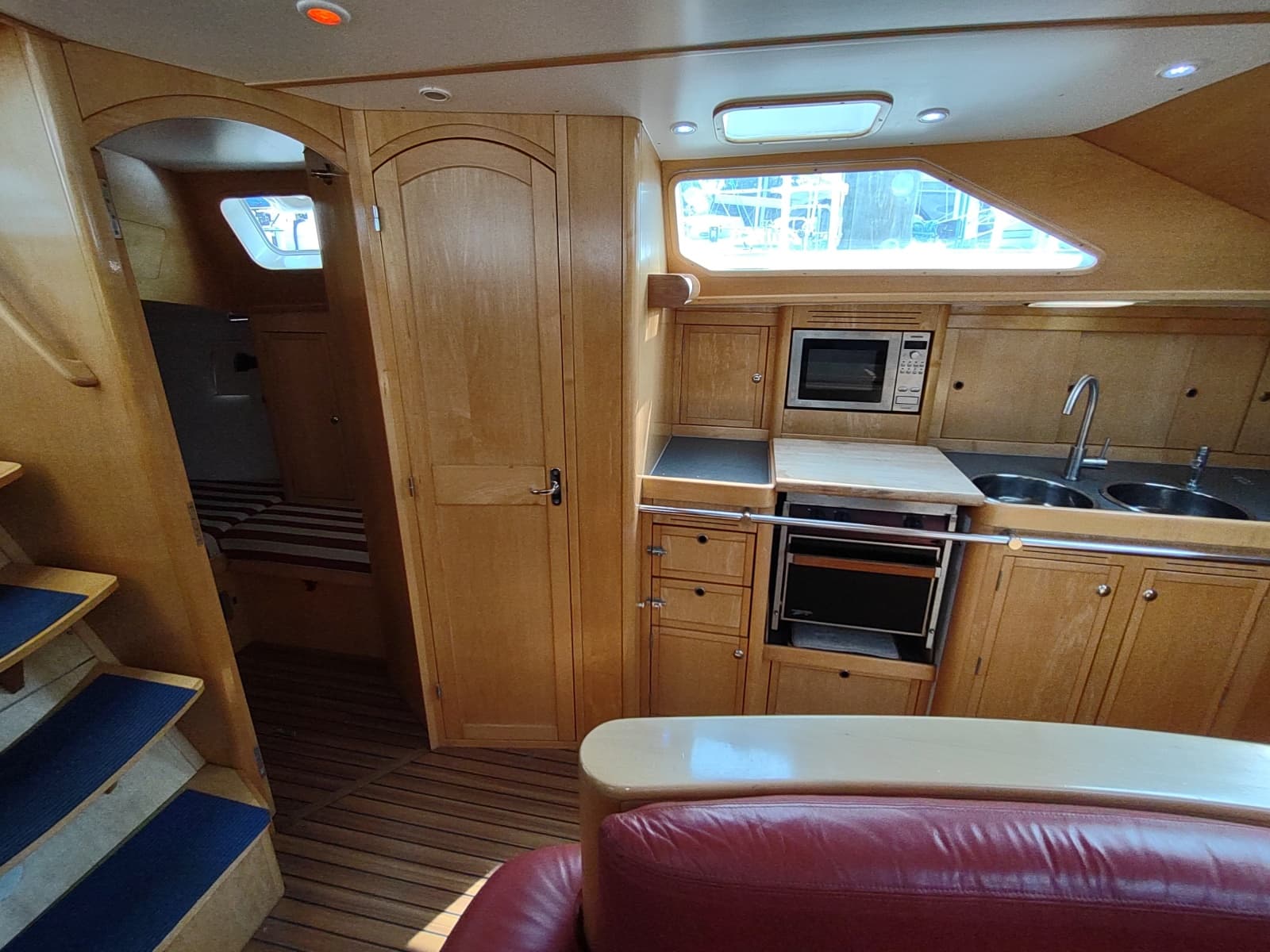

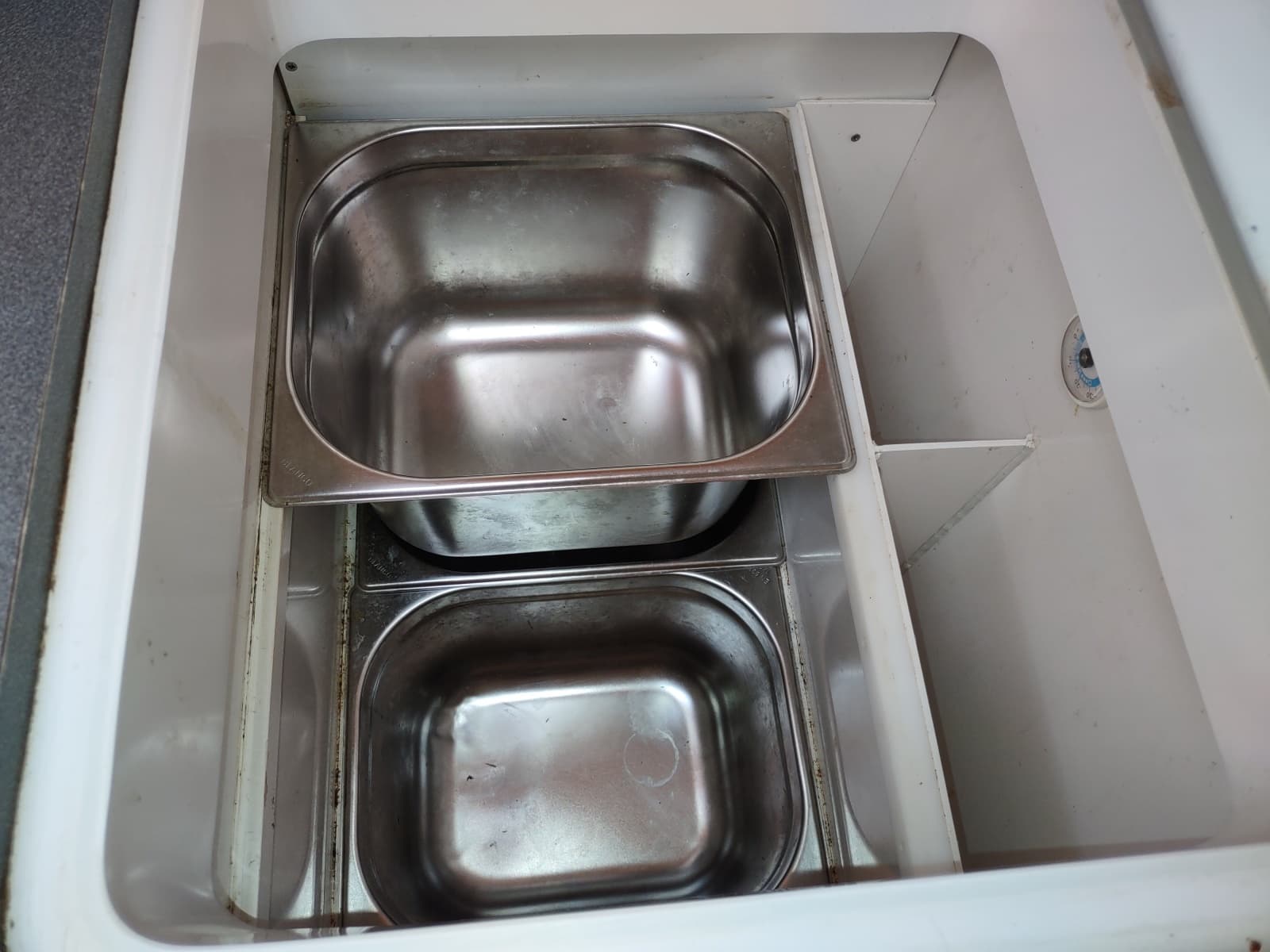

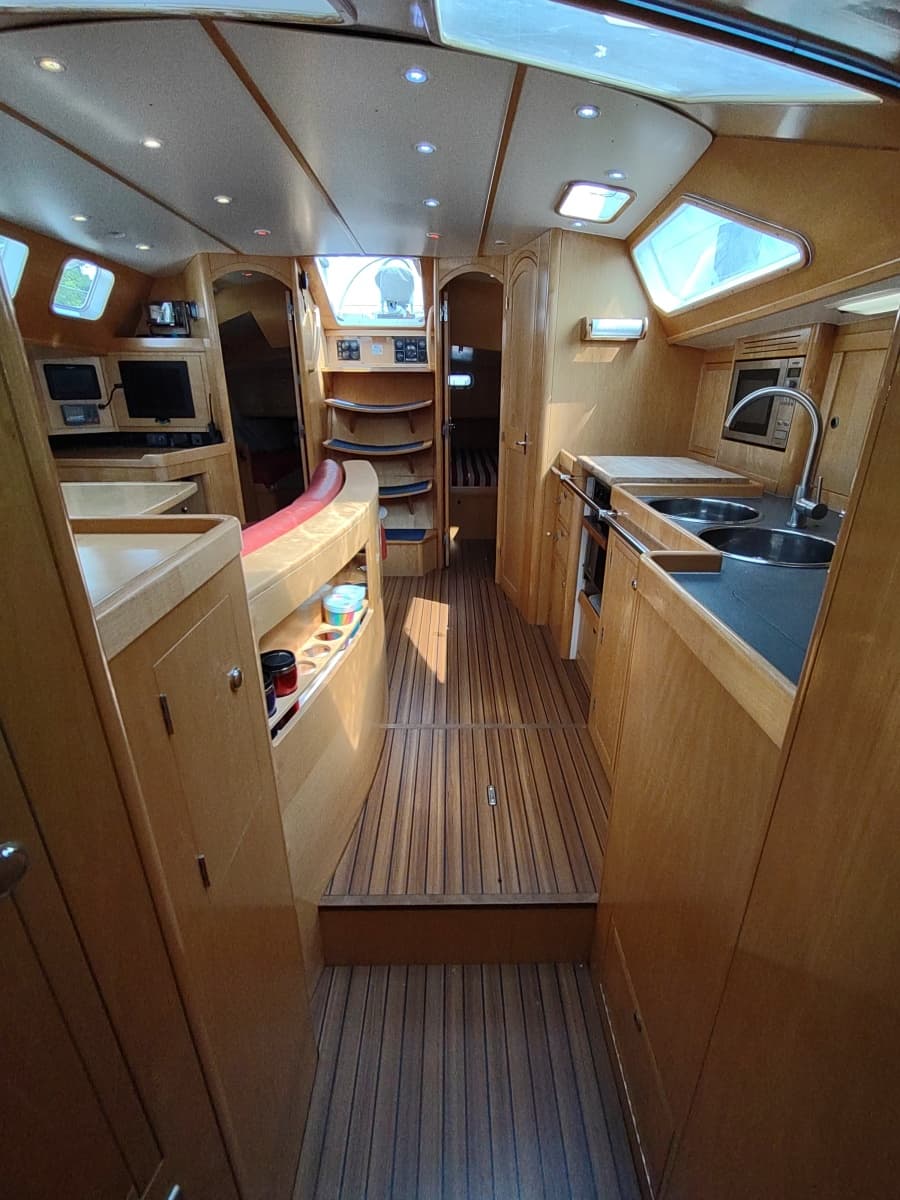

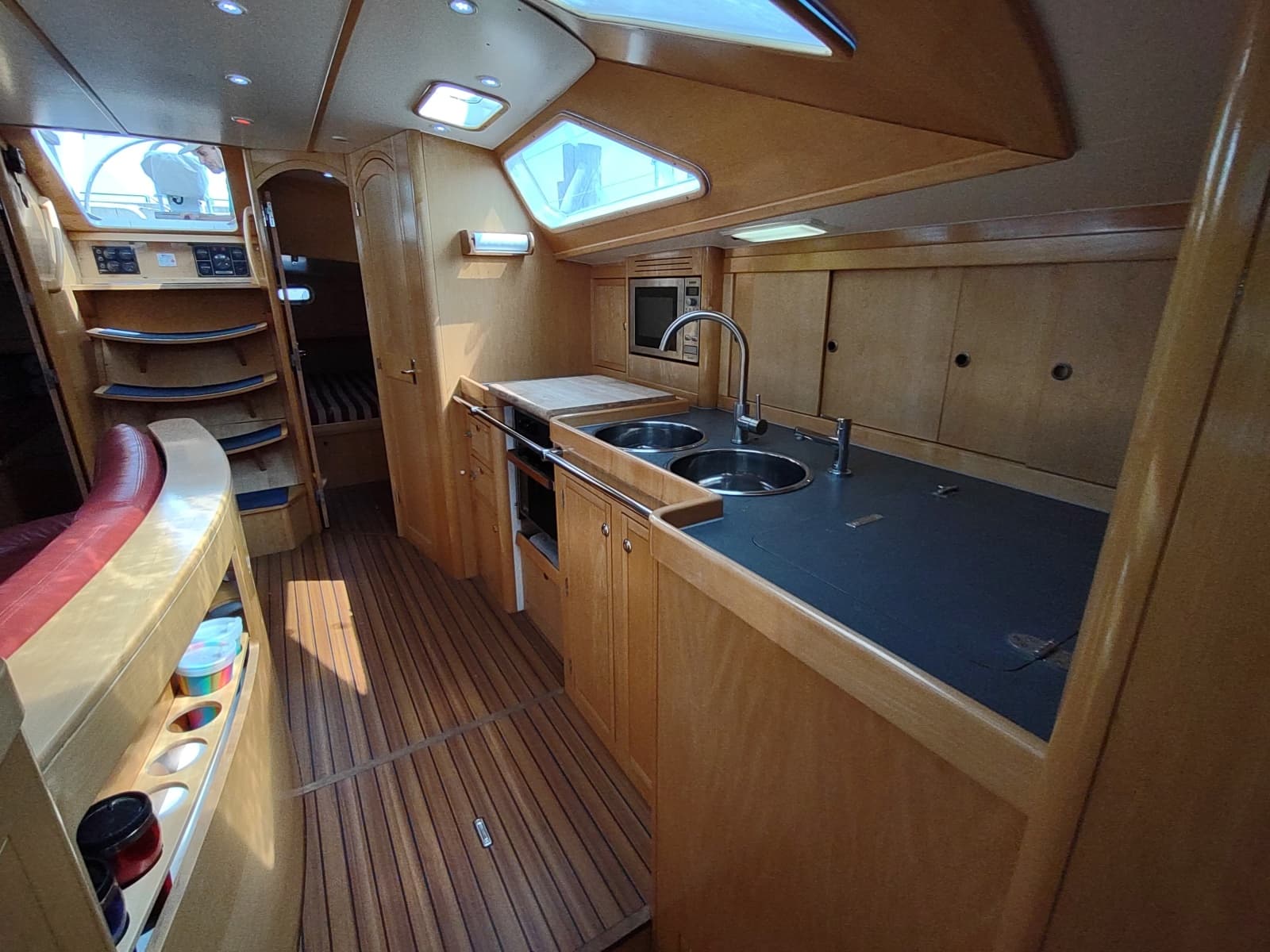

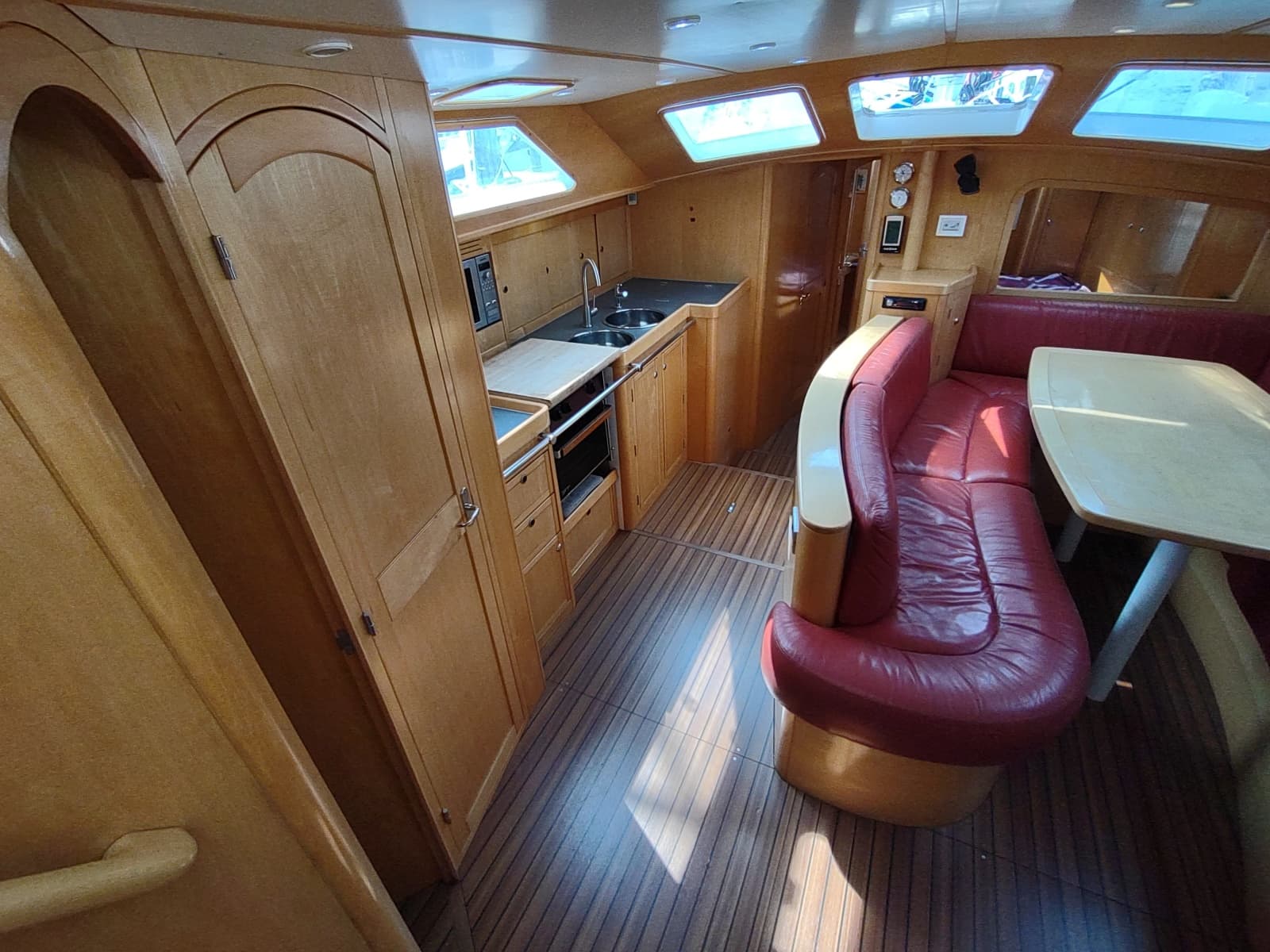

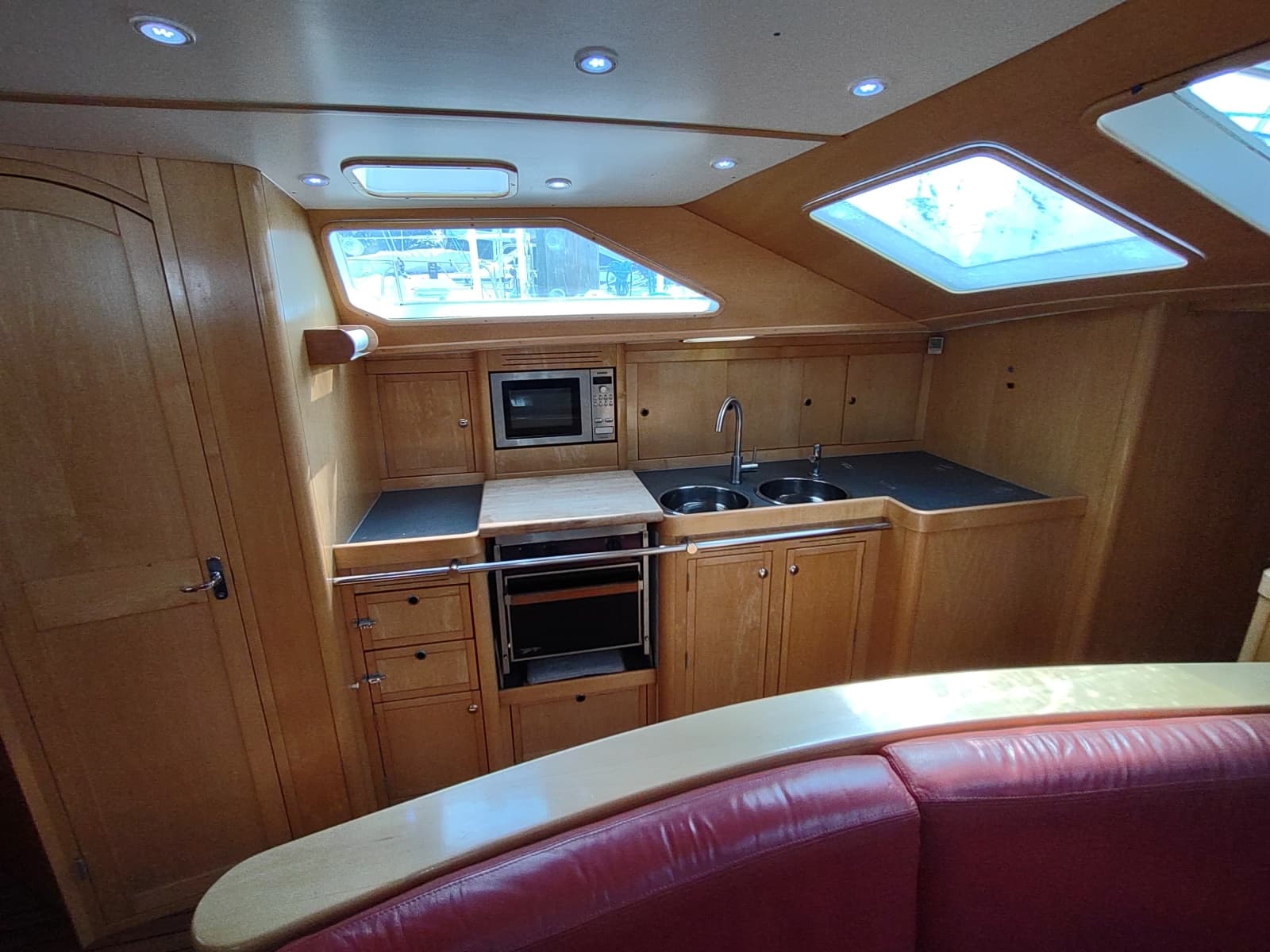

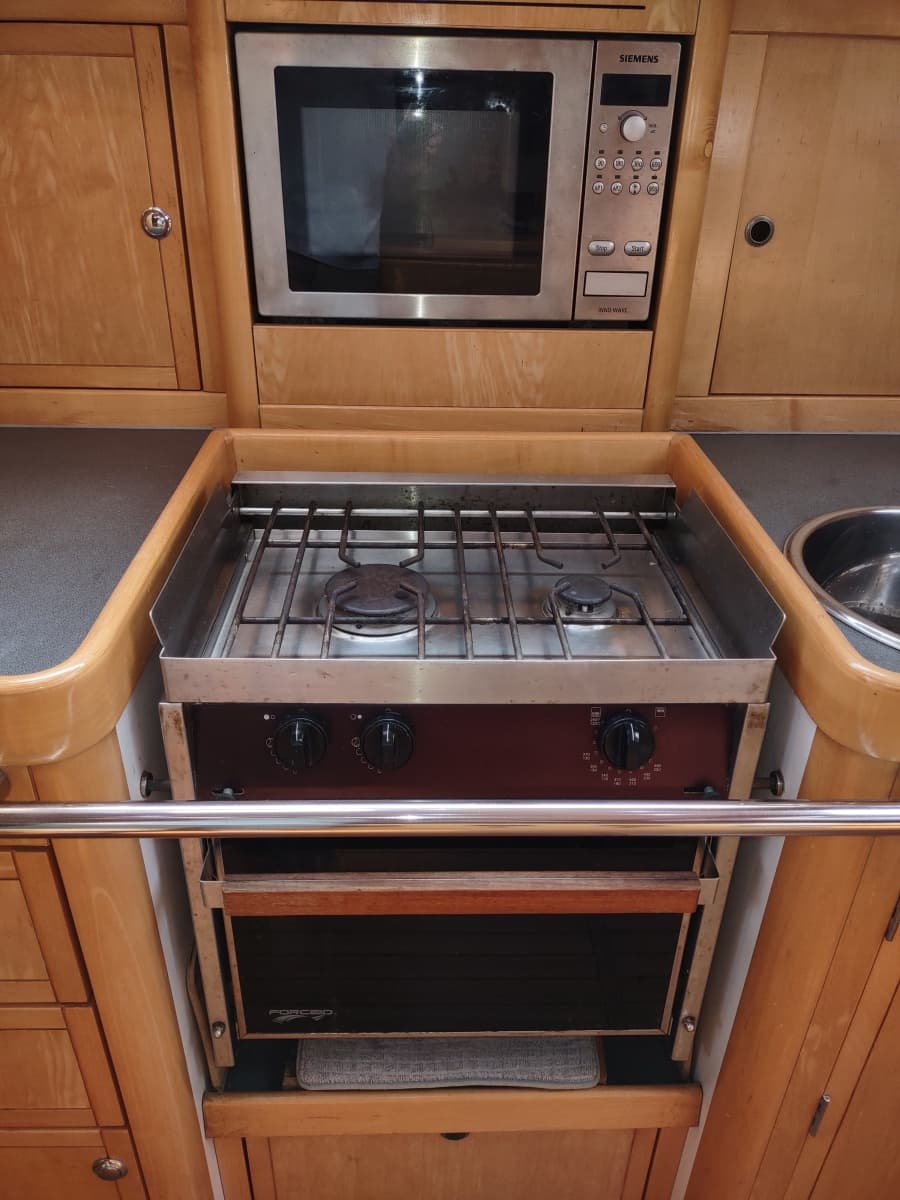

Continuing aft, the linear galley has a deep top-loading fridge (Frigoboat 12v) with holding plate cooling, twin stainless-steel sinks with mixer valve and separate saltwater spigot fed from a foot pump, a Force 10 two burner stove/oven with cutting board cover and a Siemens microwave oven. There is ample storage outboard and under the counter and even more inboard in the seat back of the salon settee. Pantry storage is forward in the passageway. Dedicated cup and plate holders are inboard behind the settee back.

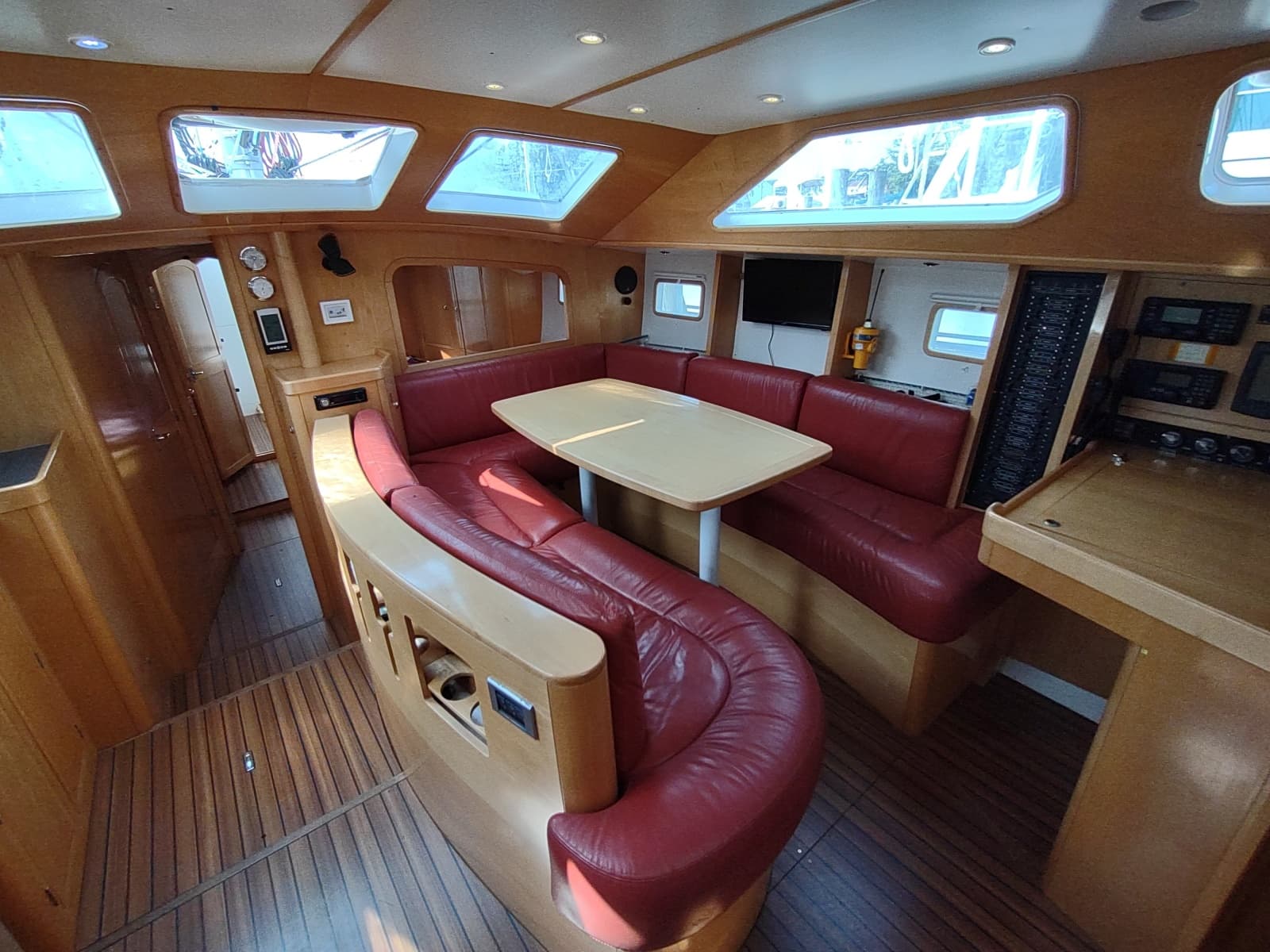

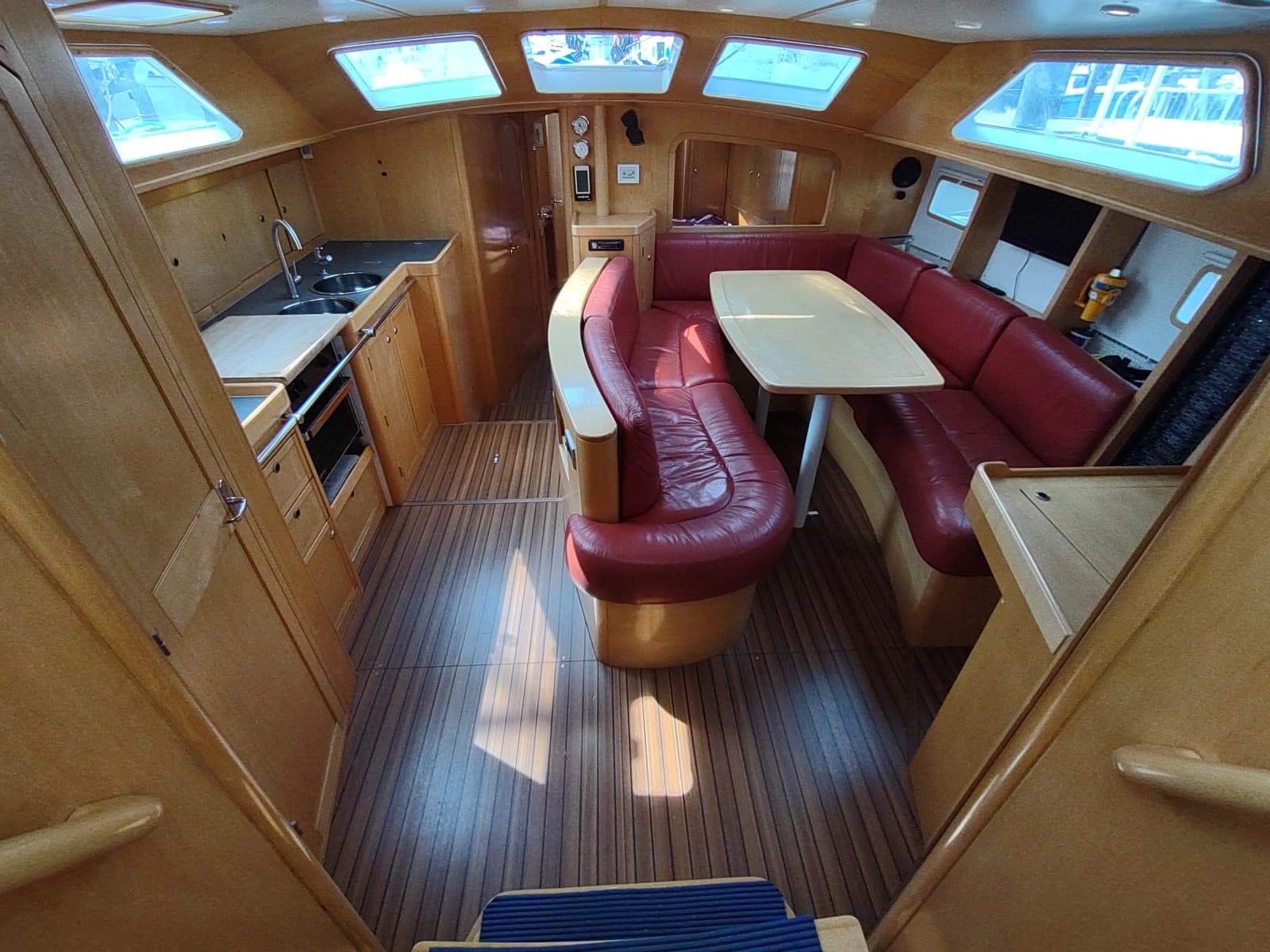

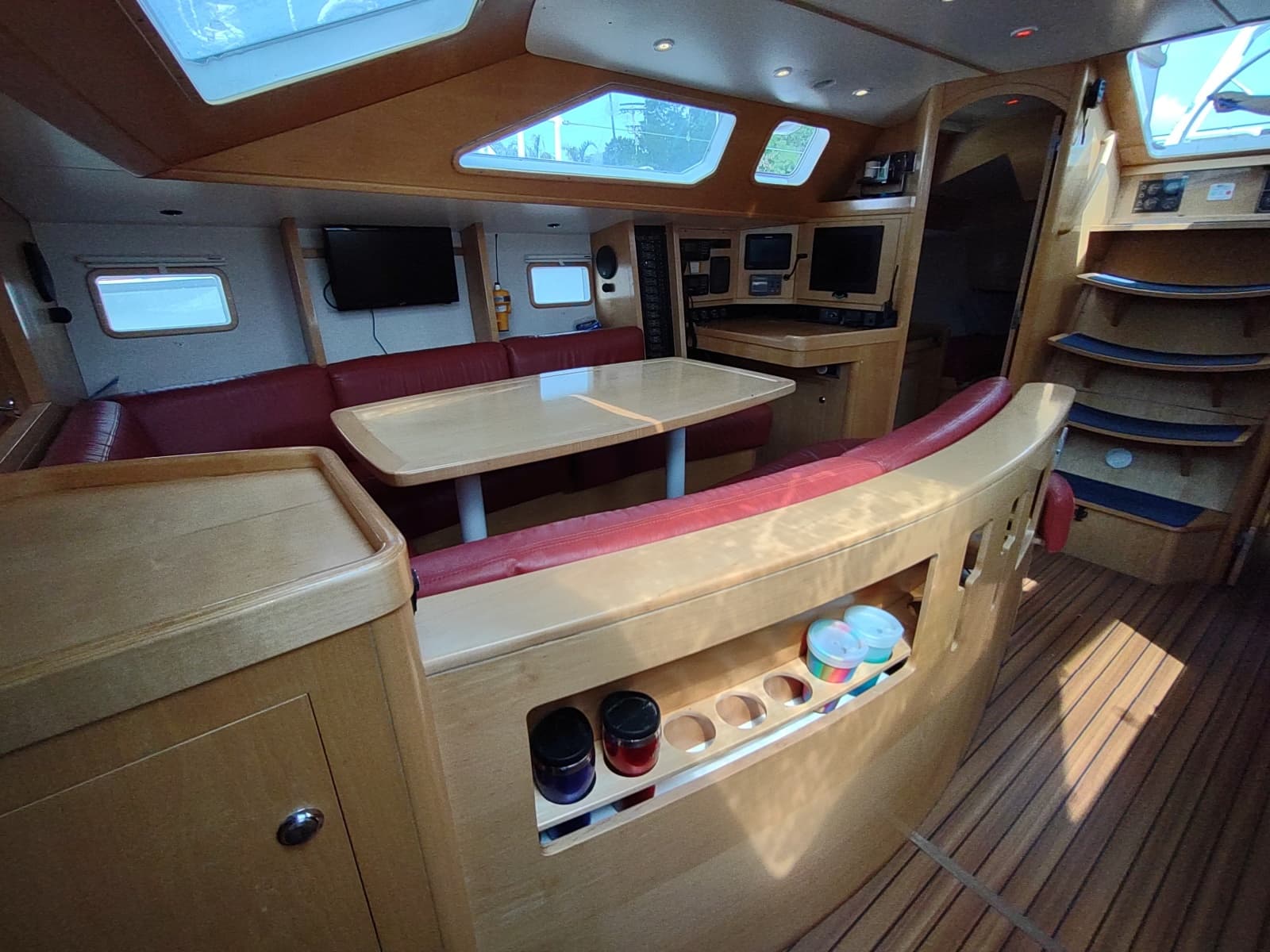

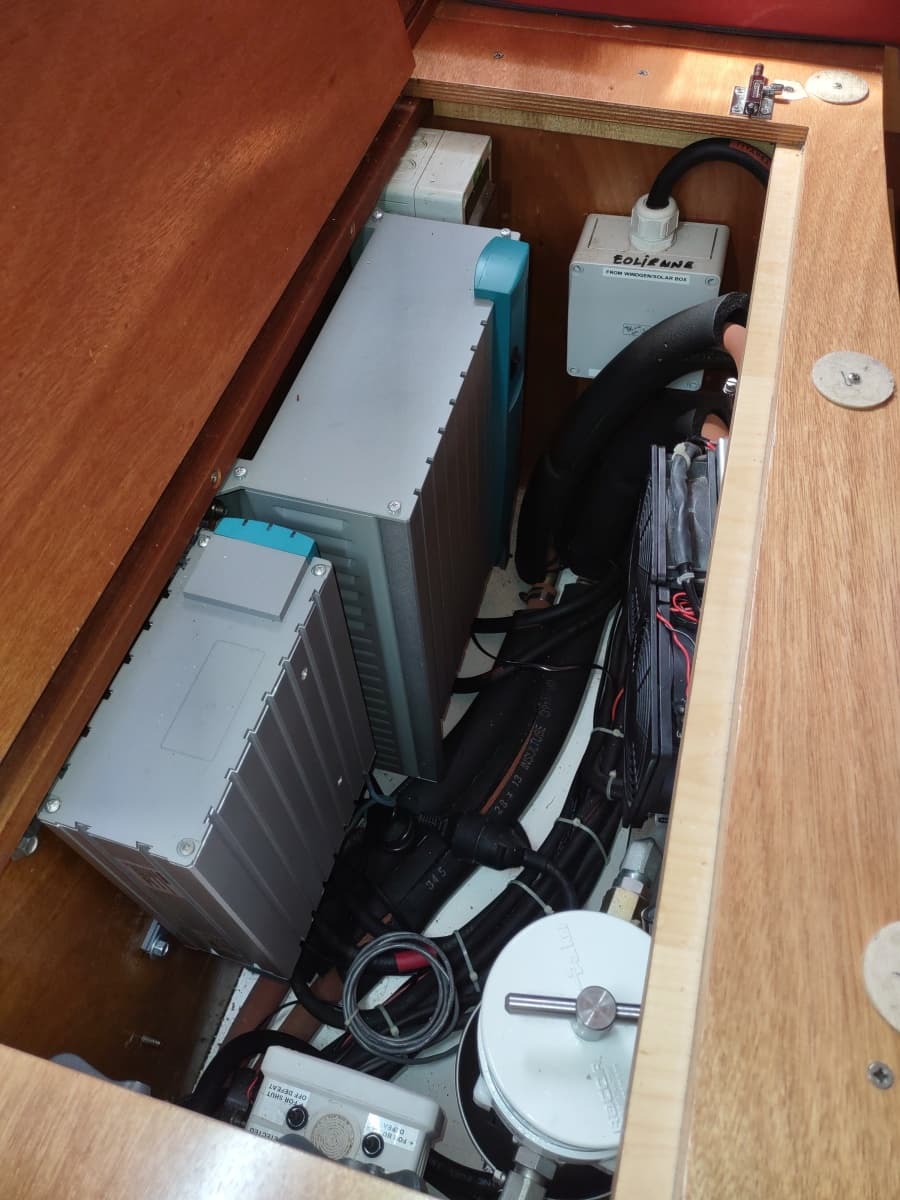

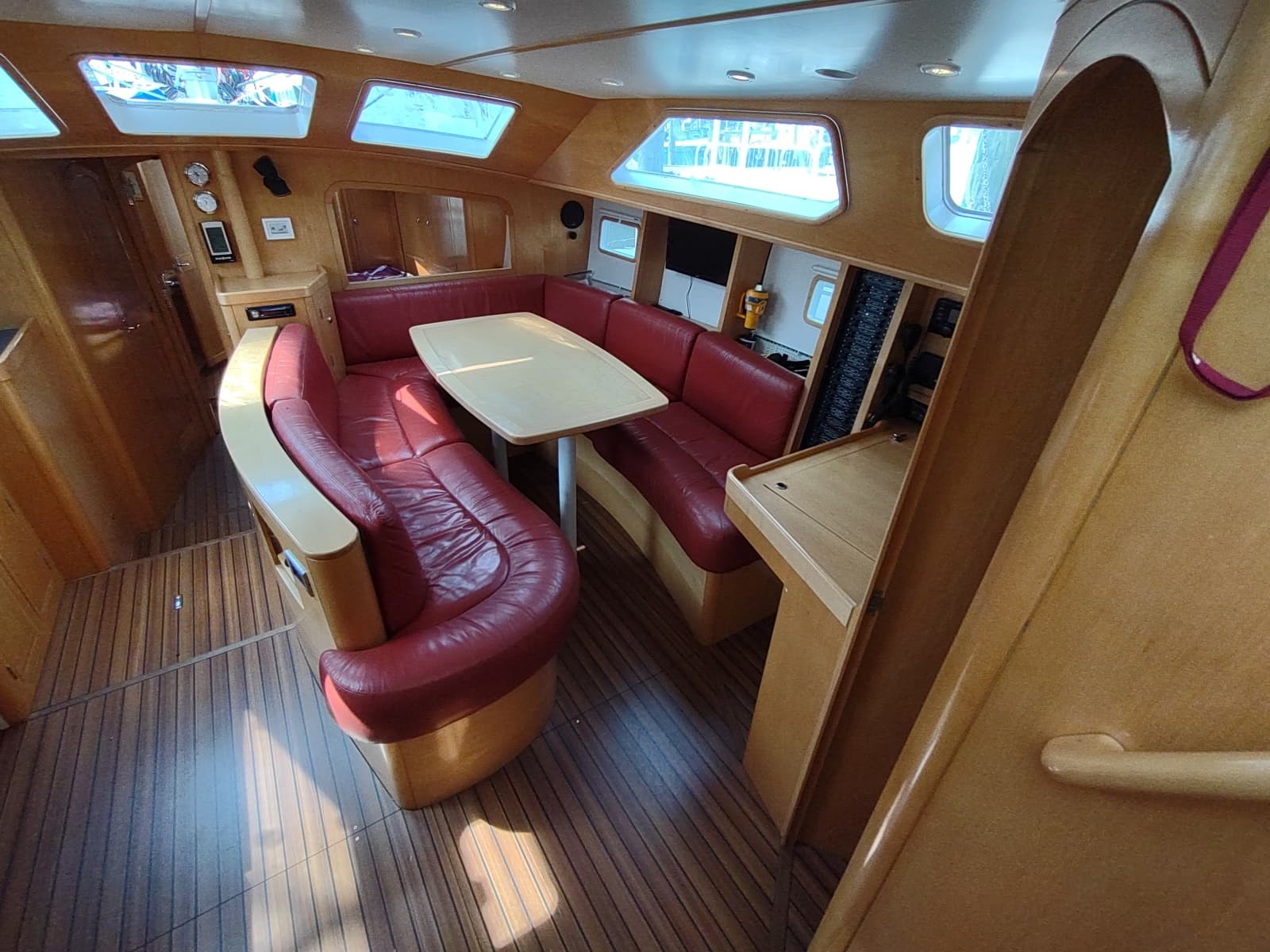

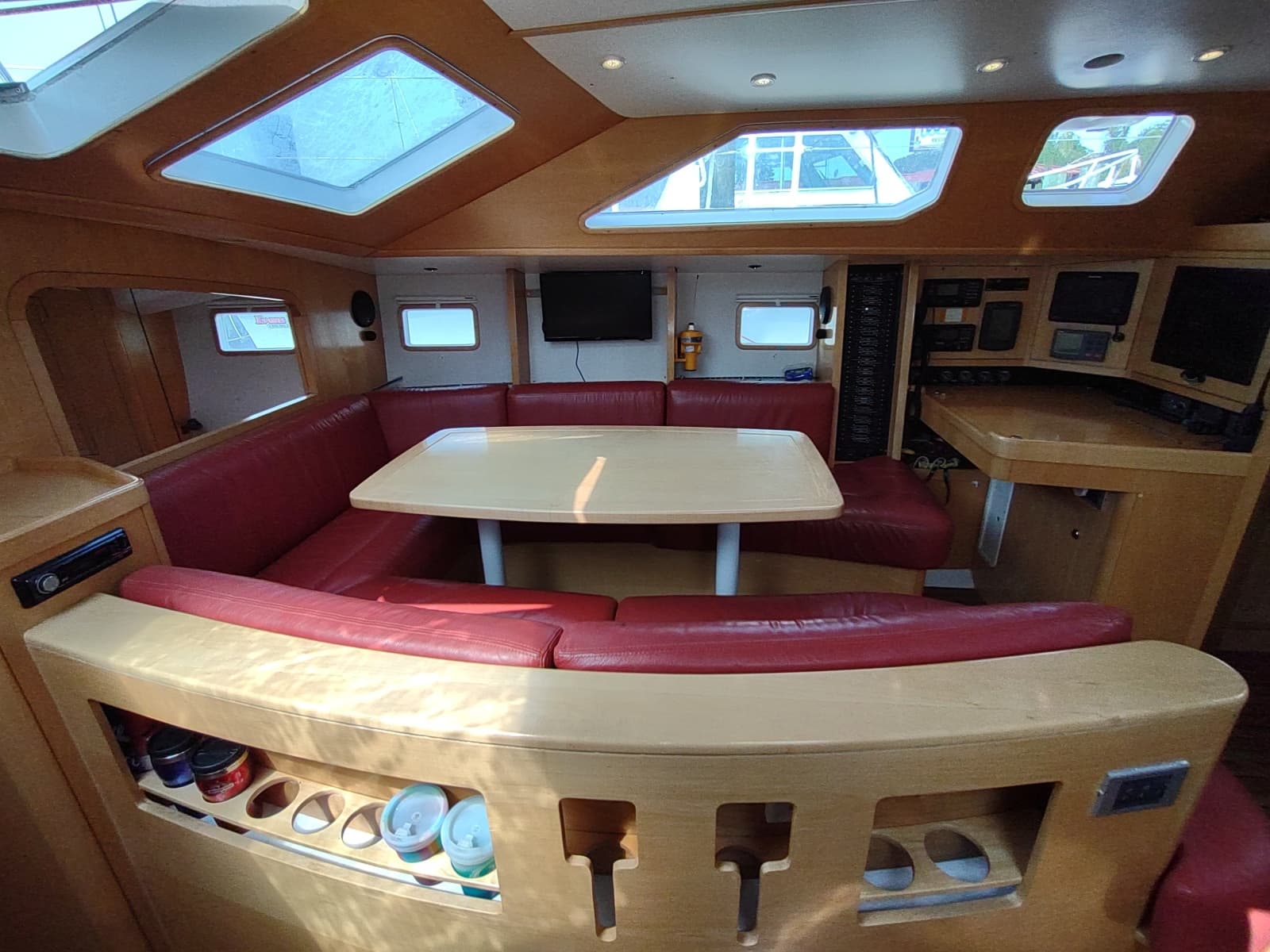

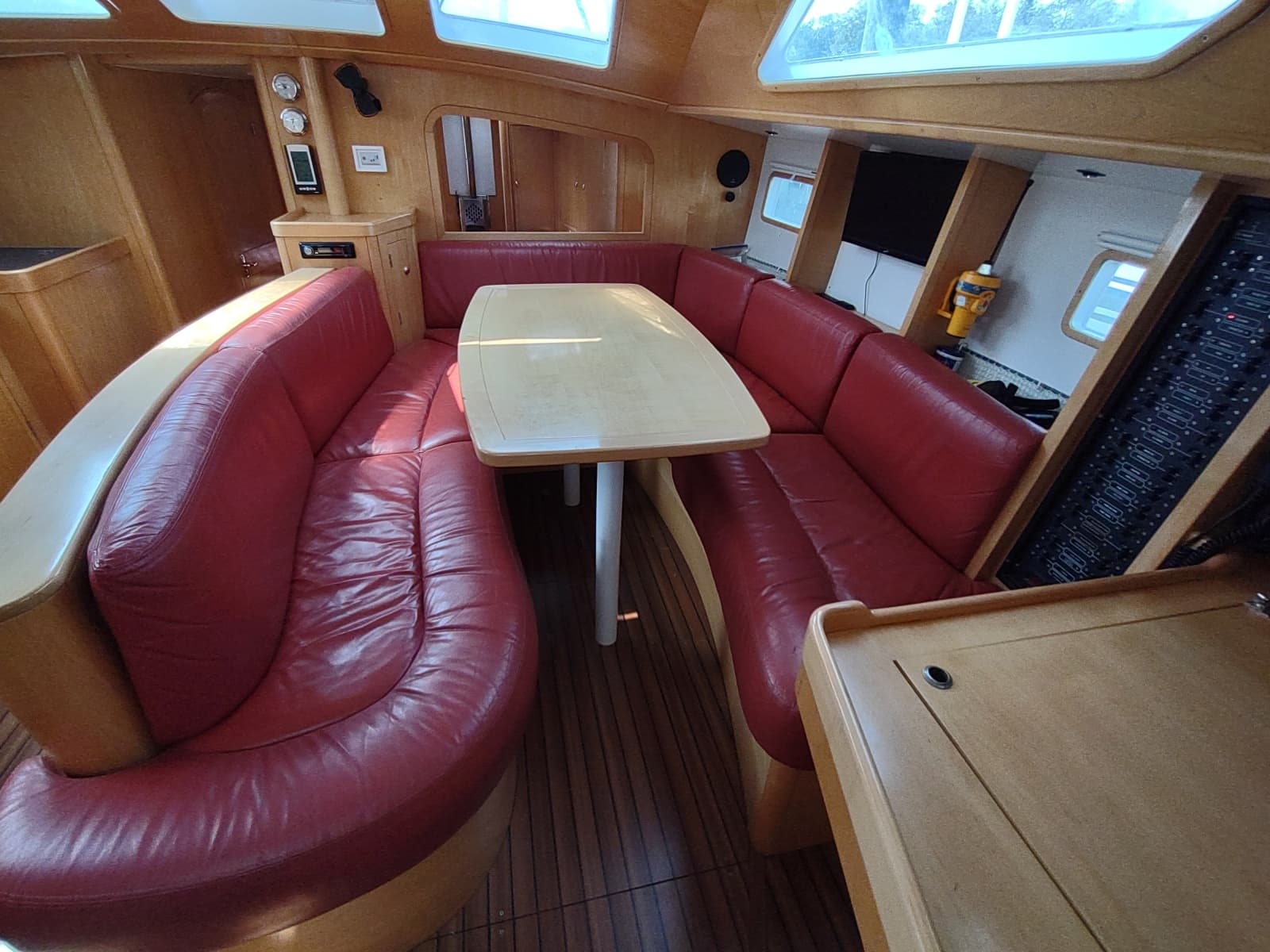

The salon features a slightly-rounded dinette that will comfortably accommodate six adults for dinner. The settee cushions are upholstered in burgundy-colored leather. Under the center line side of the settee is the service battery bank and more storage. The forward and outboard settee seats have bin storage below them. There are two deck hatches and one opening port light in the salon/galley and a Caframo fan in the salon.

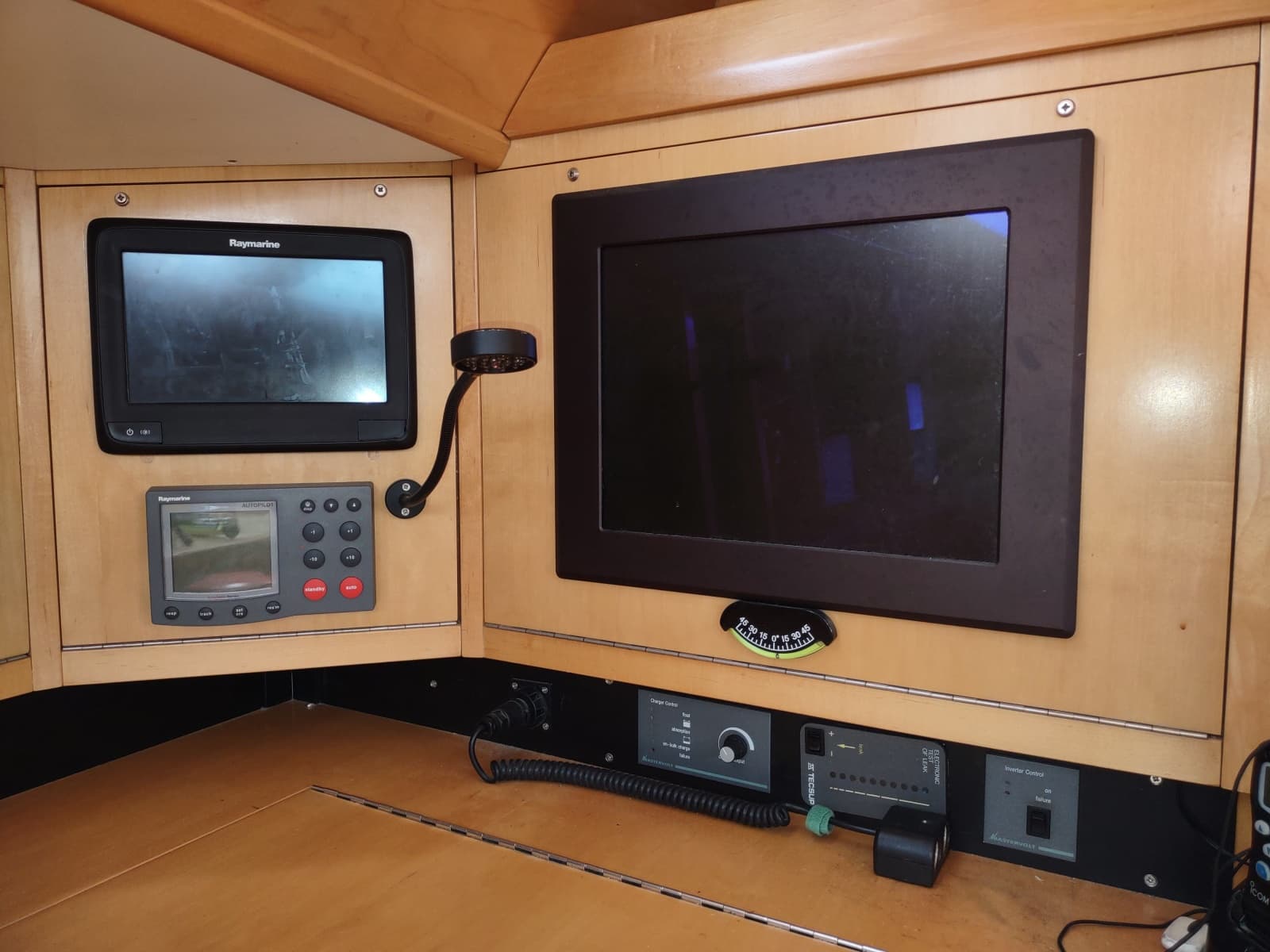

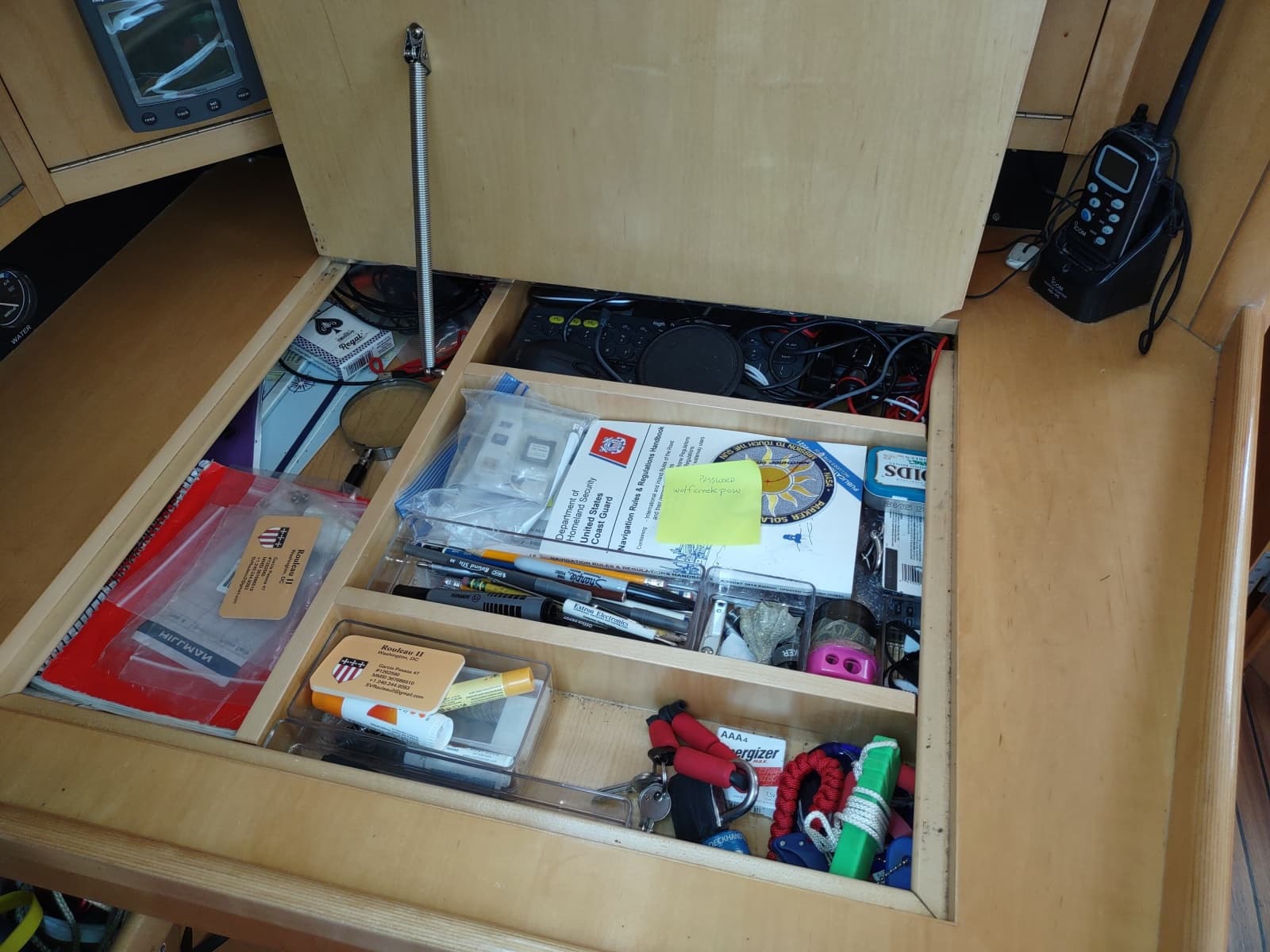

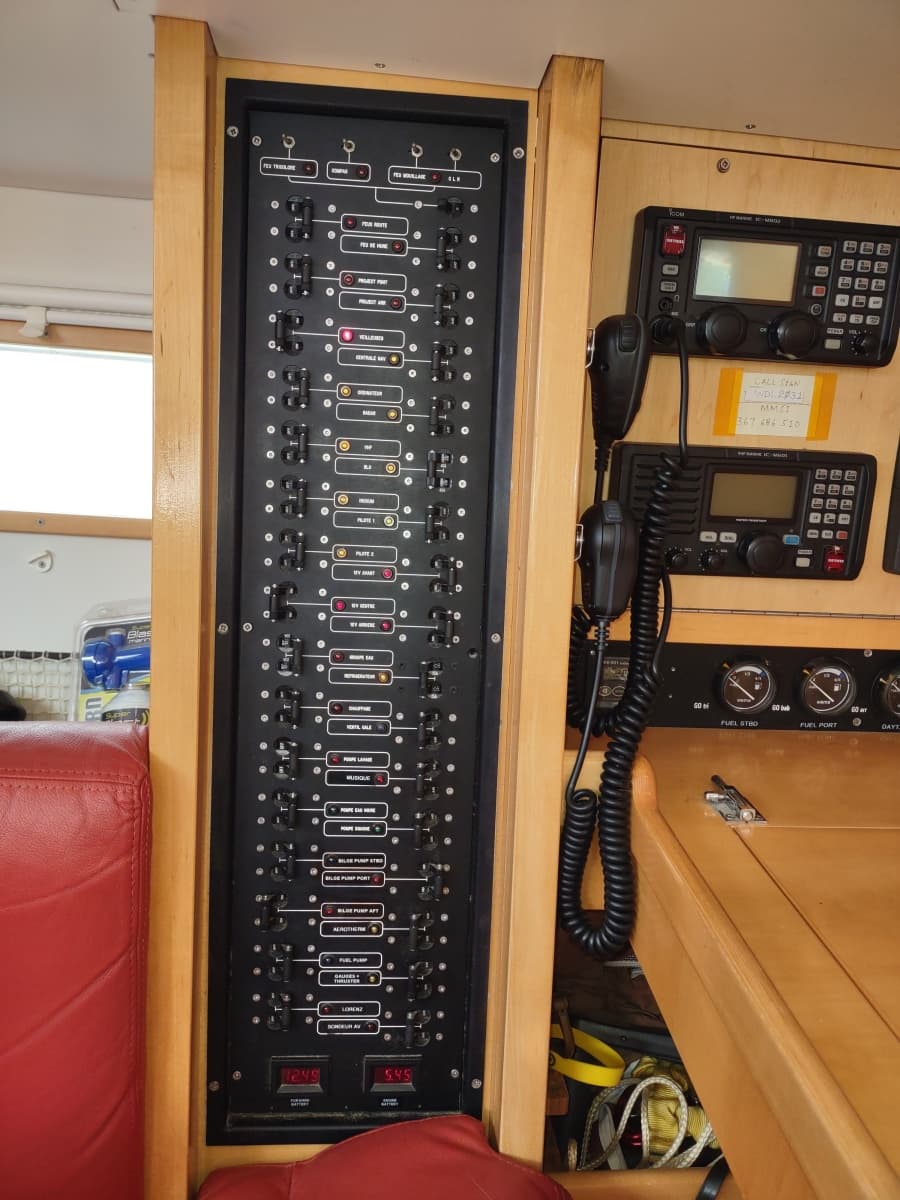

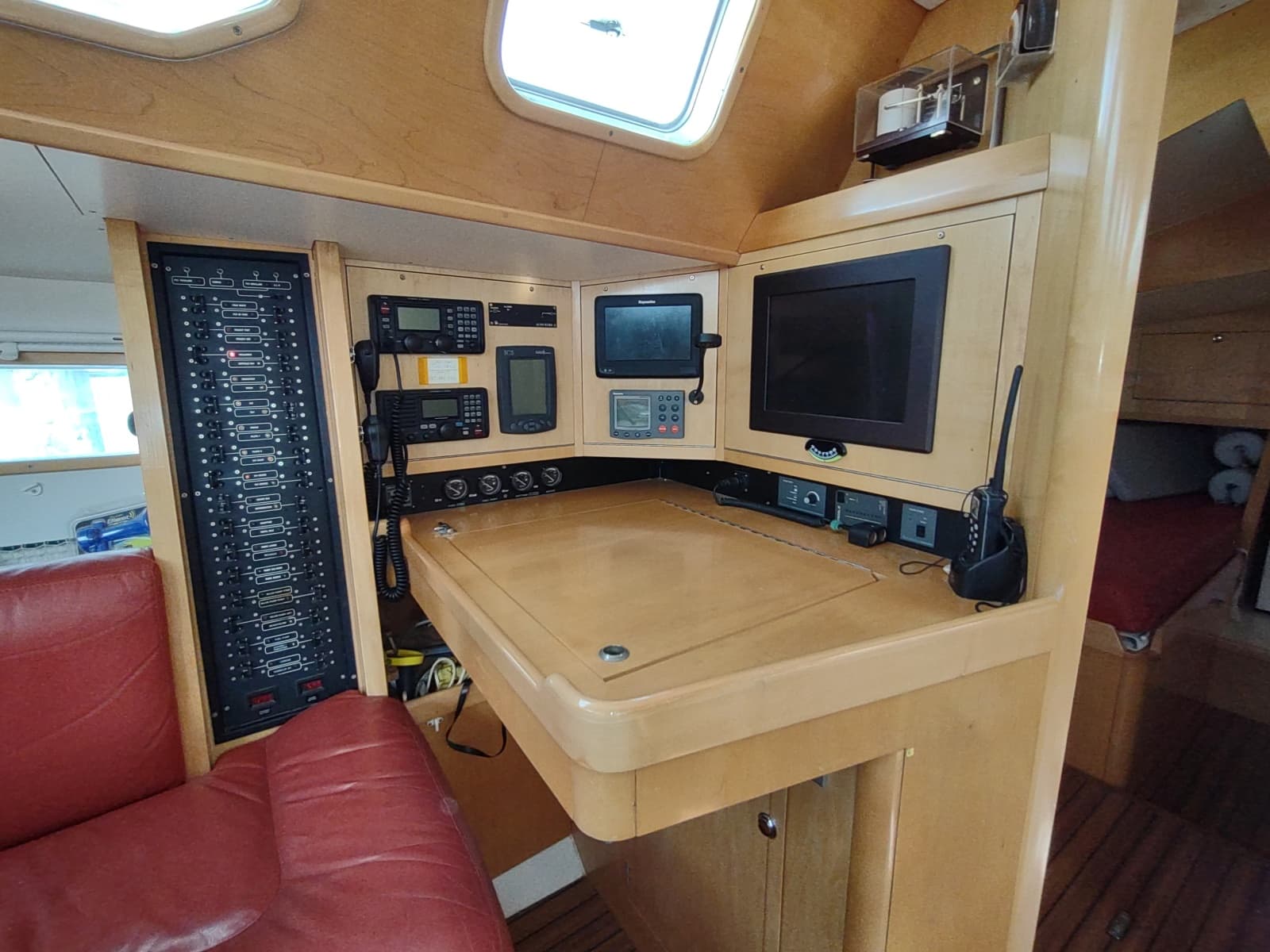

The aft-facing navigation station includes a chart table with hinged chart drawer, a switch/breaker panel, tank gauges, VHF and SSB controls, a 9” chart/radar screen, auto pilot control, computer screen, battery monitor, and inverter control. And again, there is more storage outboard and under the chart table.

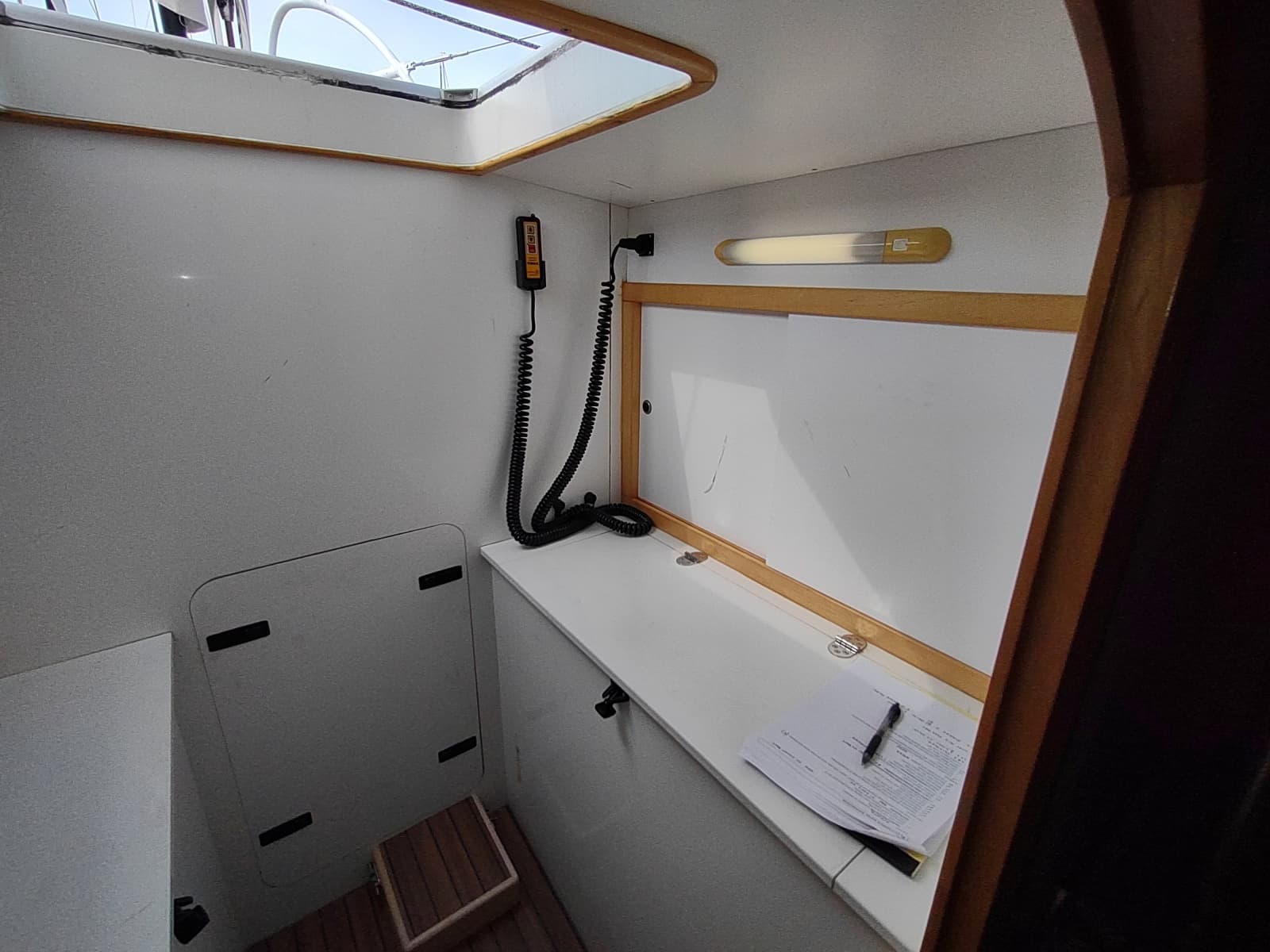

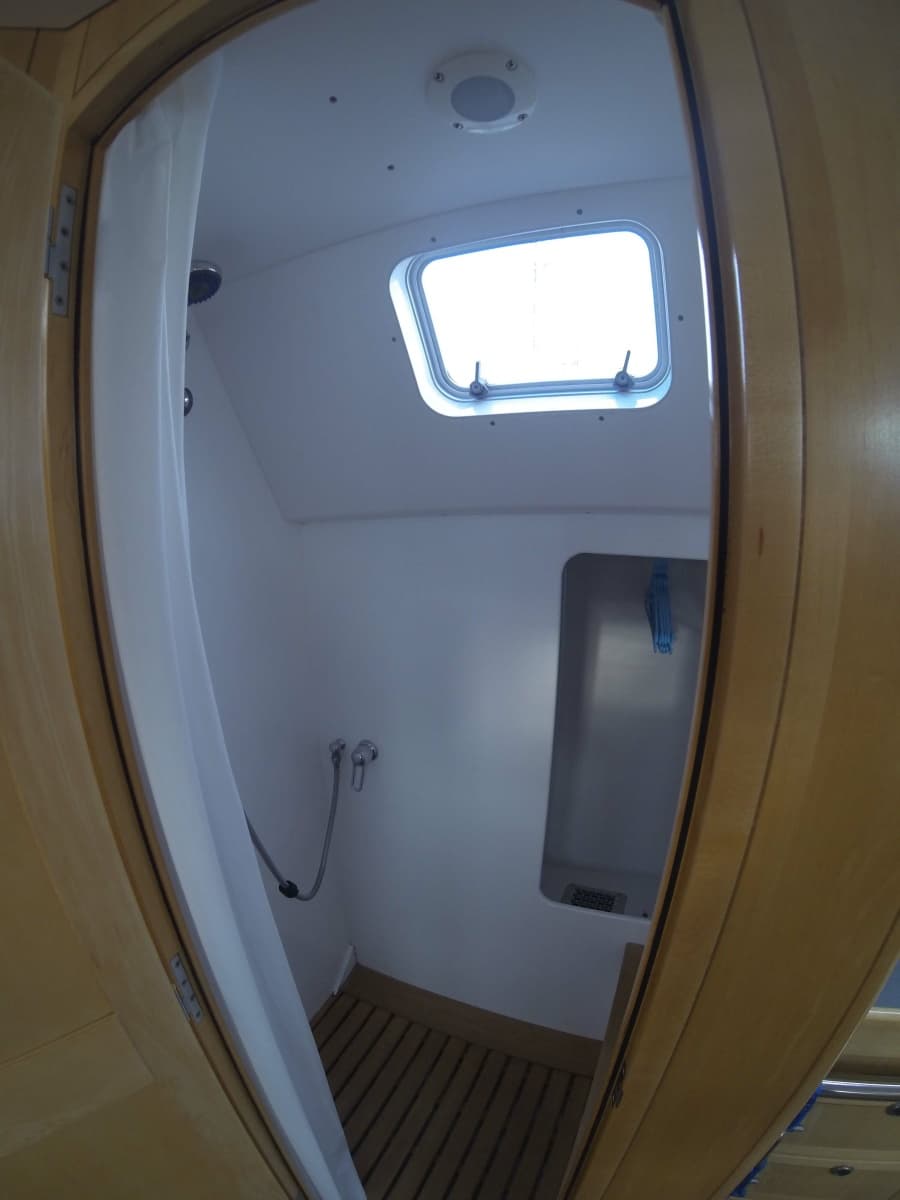

Located immediately to port of the companionway is the shower, where one can quickly remove and hang wet foul weather gear. This space is finished in white laminate for easy cleaning and water resistance. A removable teak grate covers the shower pan. An adjustable nozzle bar, spray head, and single lever mixer allow one to shower standing up or seated on a teak bench. A wet gear hanging locker is forward and outboard. The opening cabin-side port allows light and ventilation.

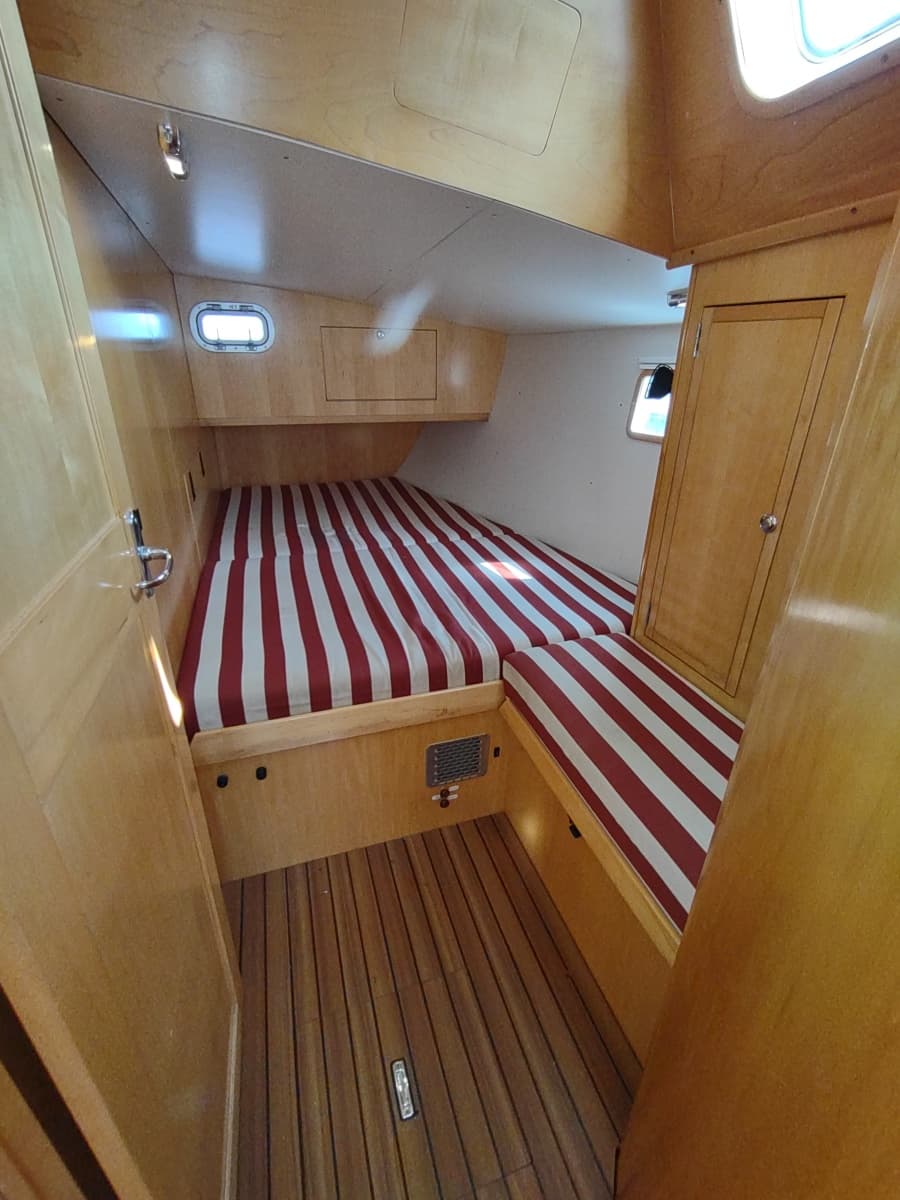

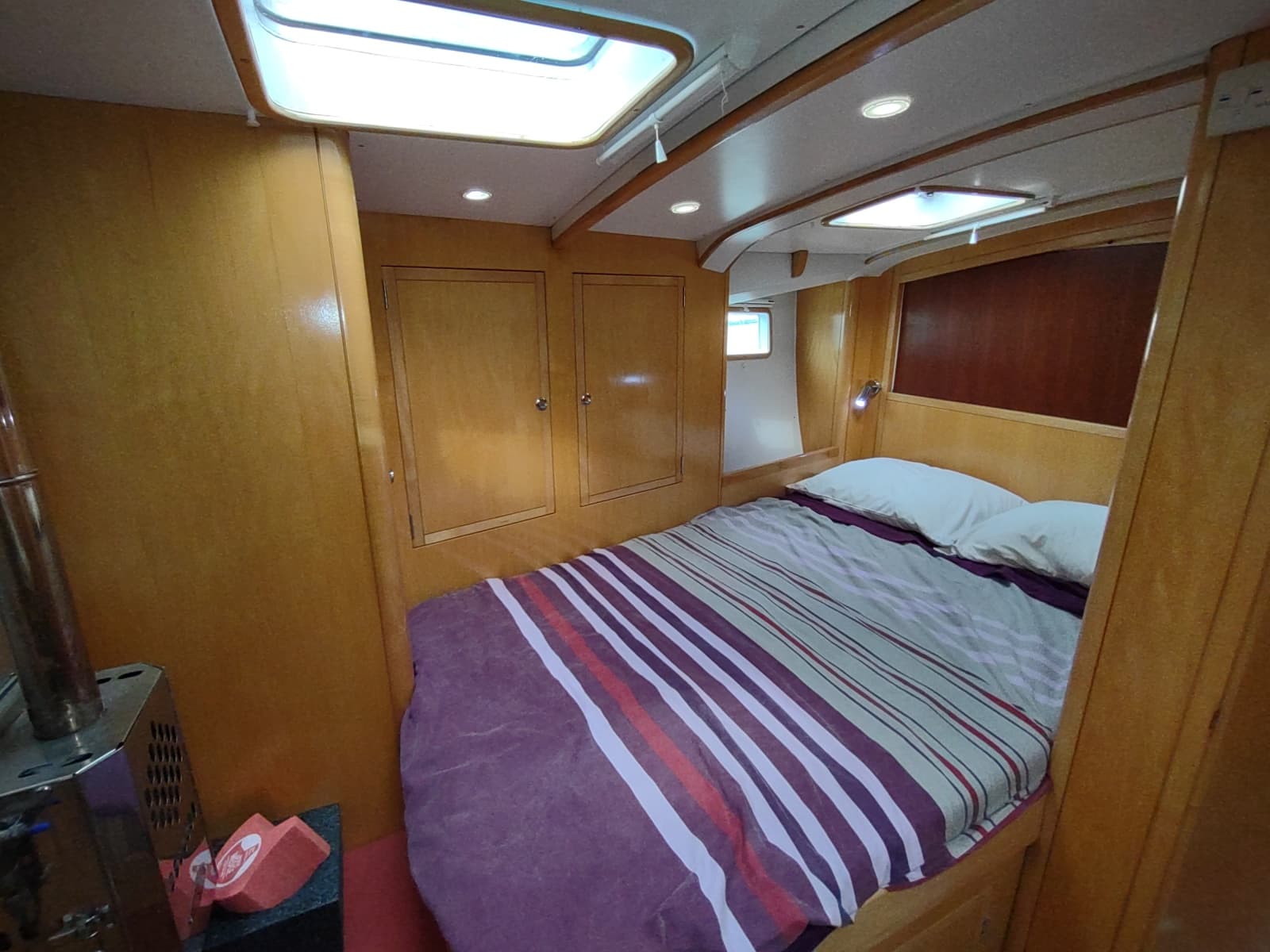

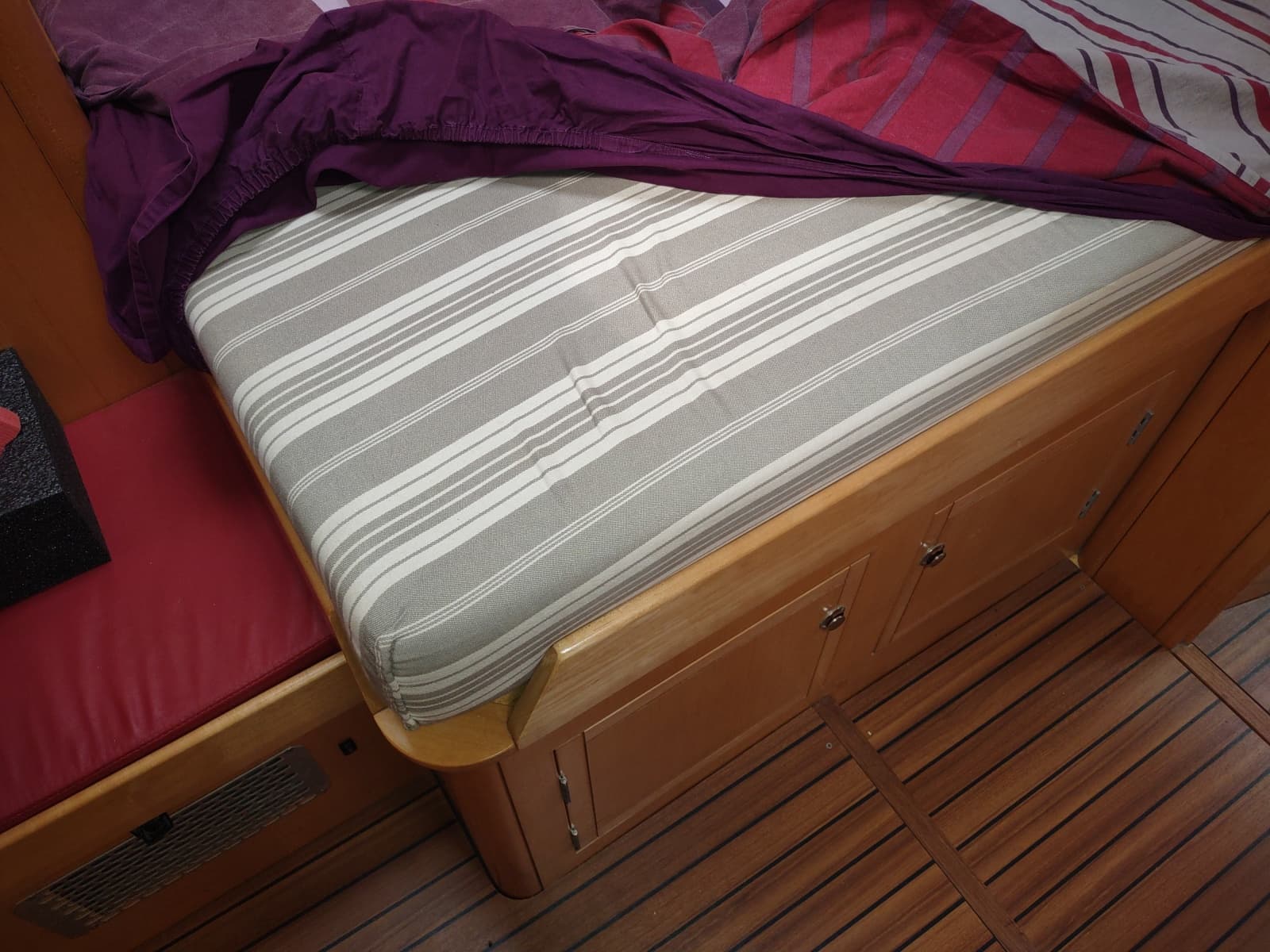

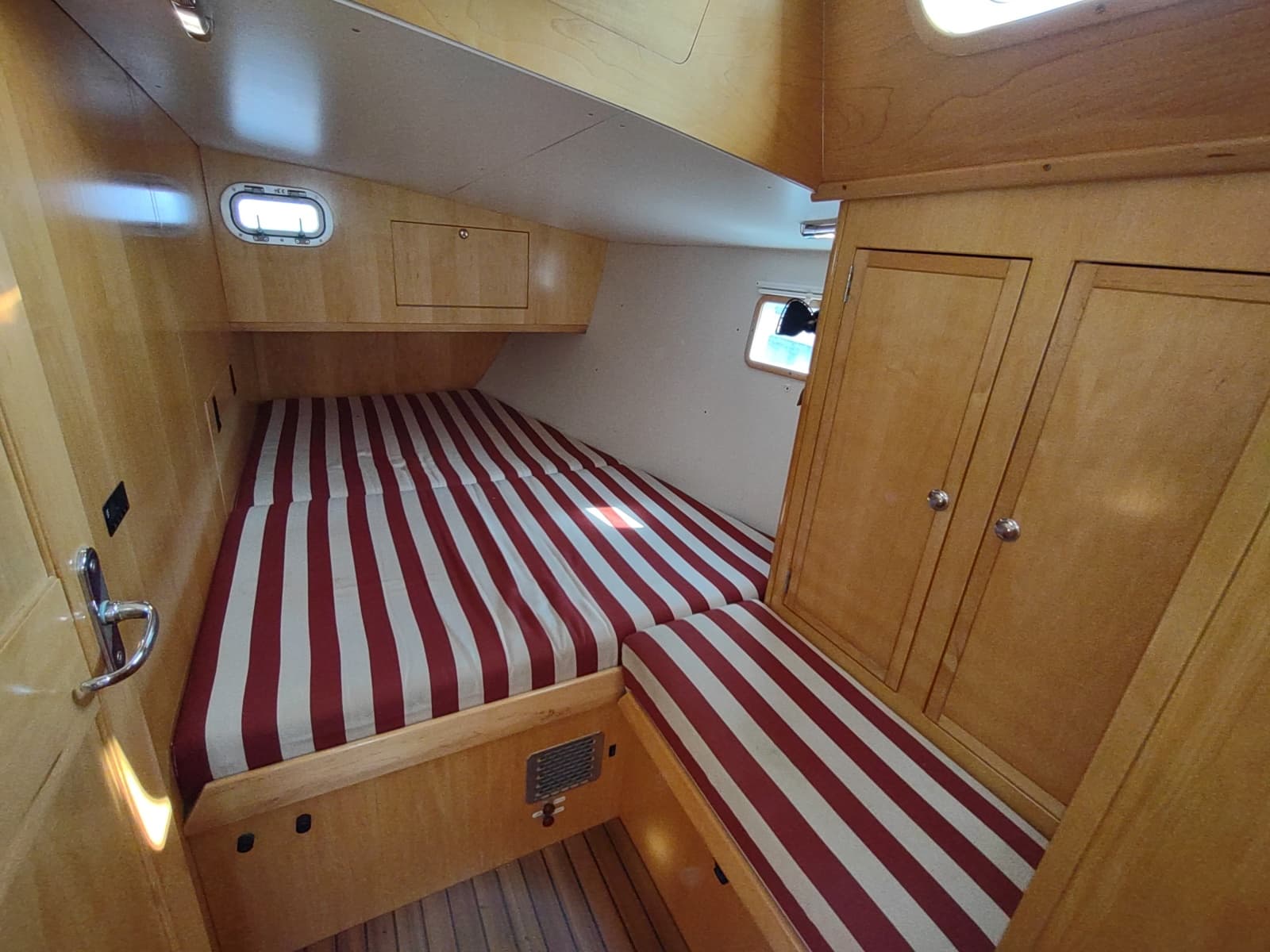

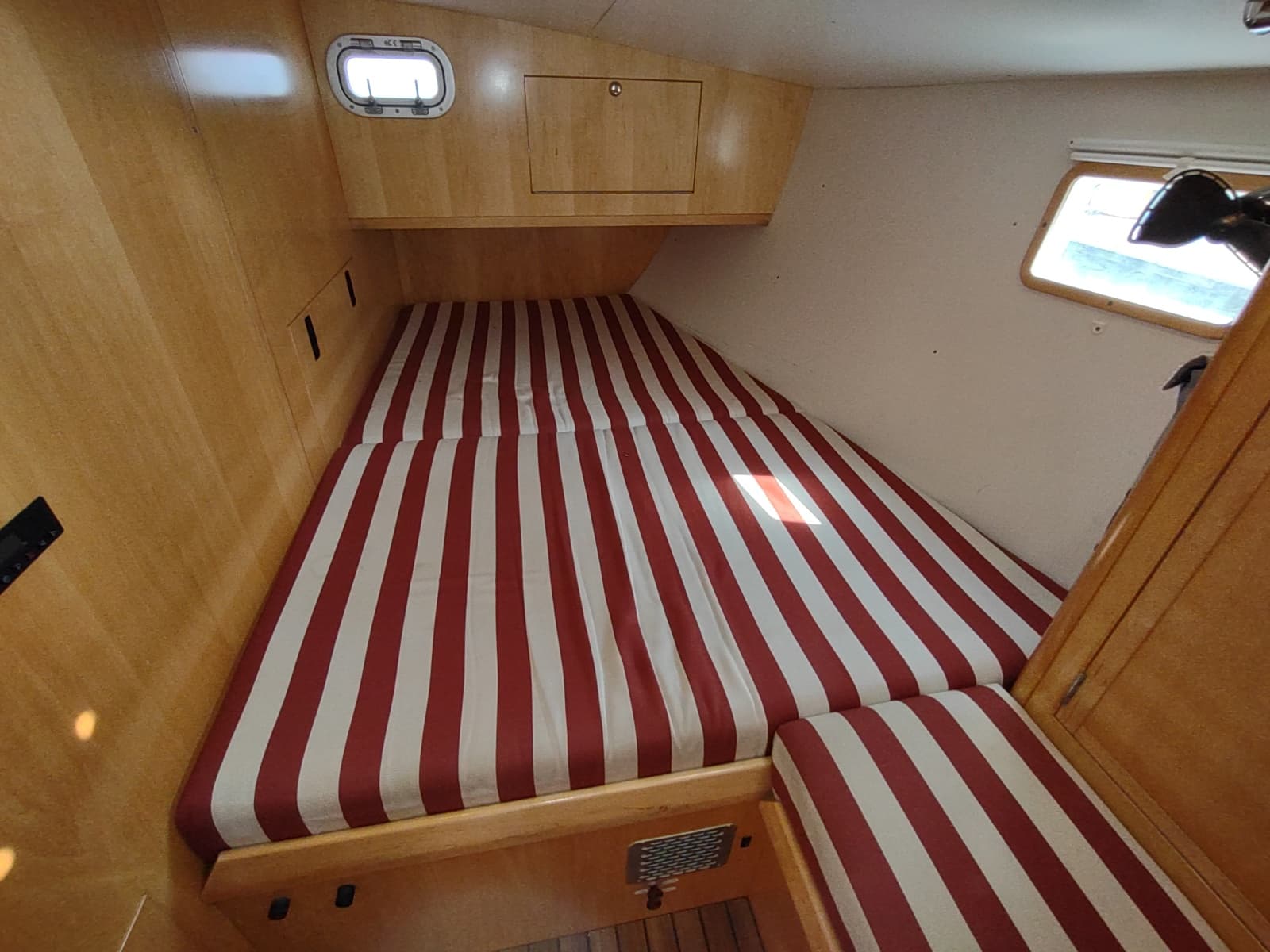

The aft port stateroom has a double berth (dimensions: head 53”/135cm, foot 39”/100cm, length 78”/198cm) with storage below the berth. An upholstered dressing seat is forward/outboard, below a hanging locker. Removable panels inboard access the engine and genset. There are two opening ports with shades, a small opening port to the cockpit, and a fixed hull side port.

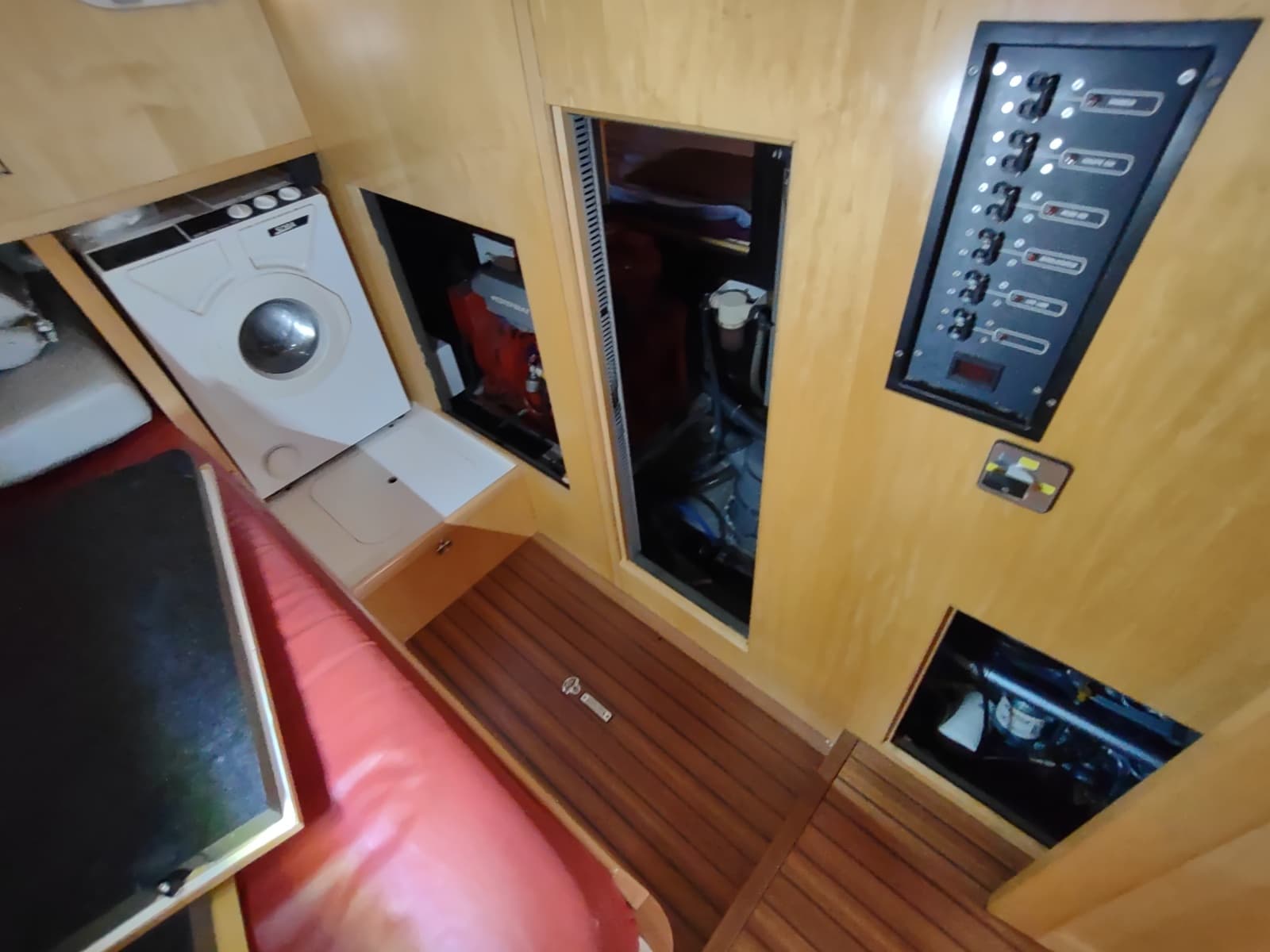

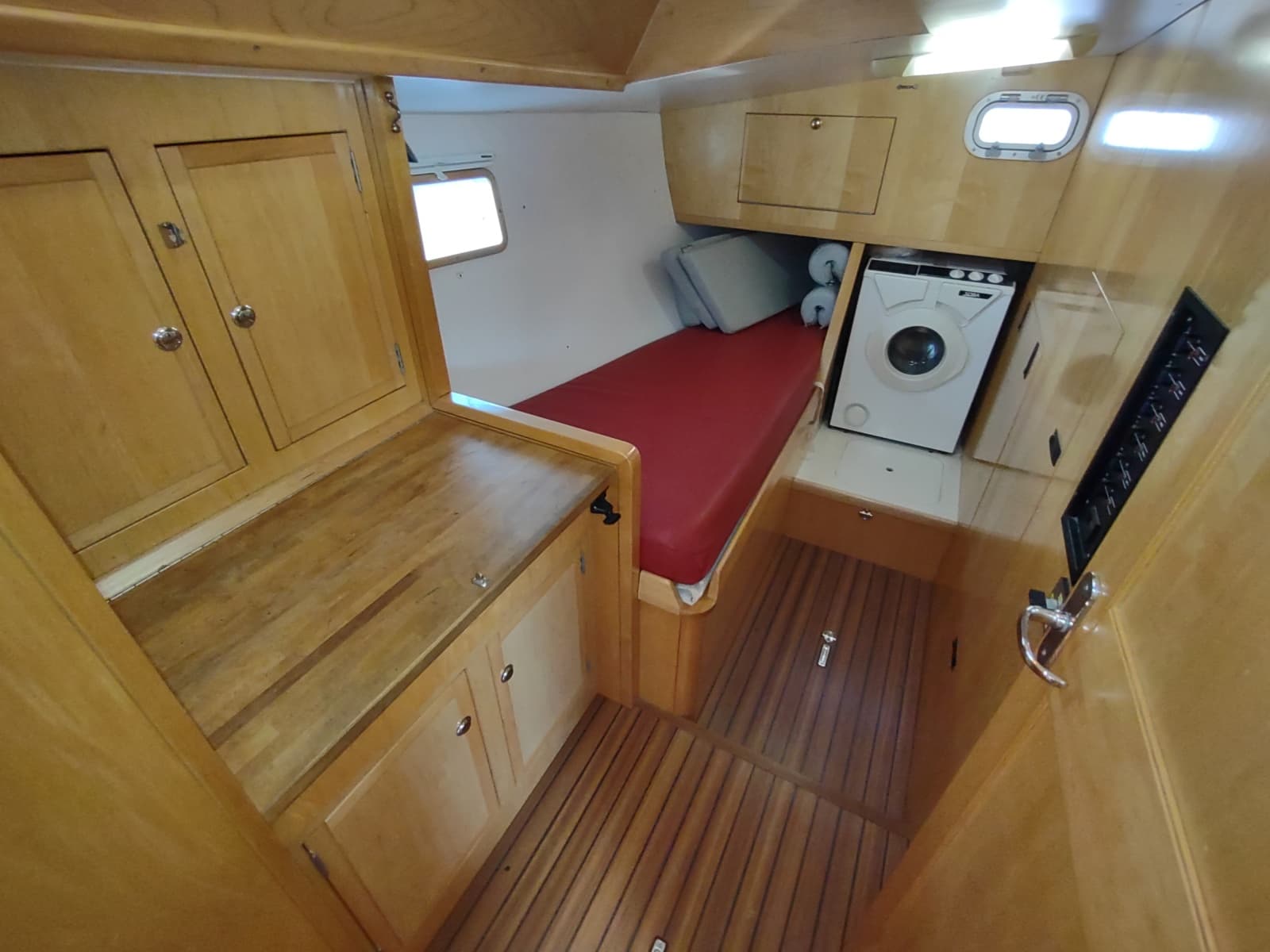

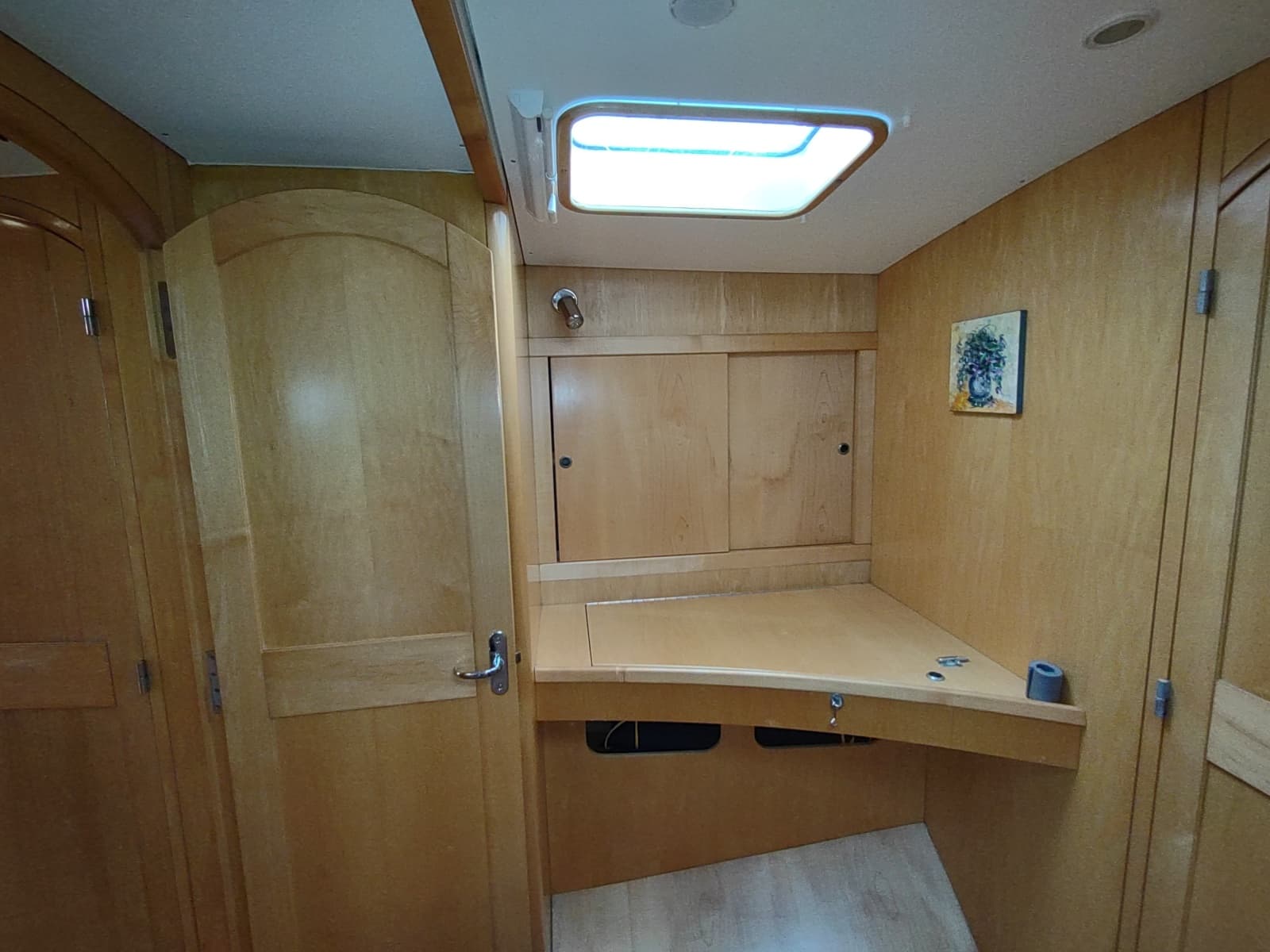

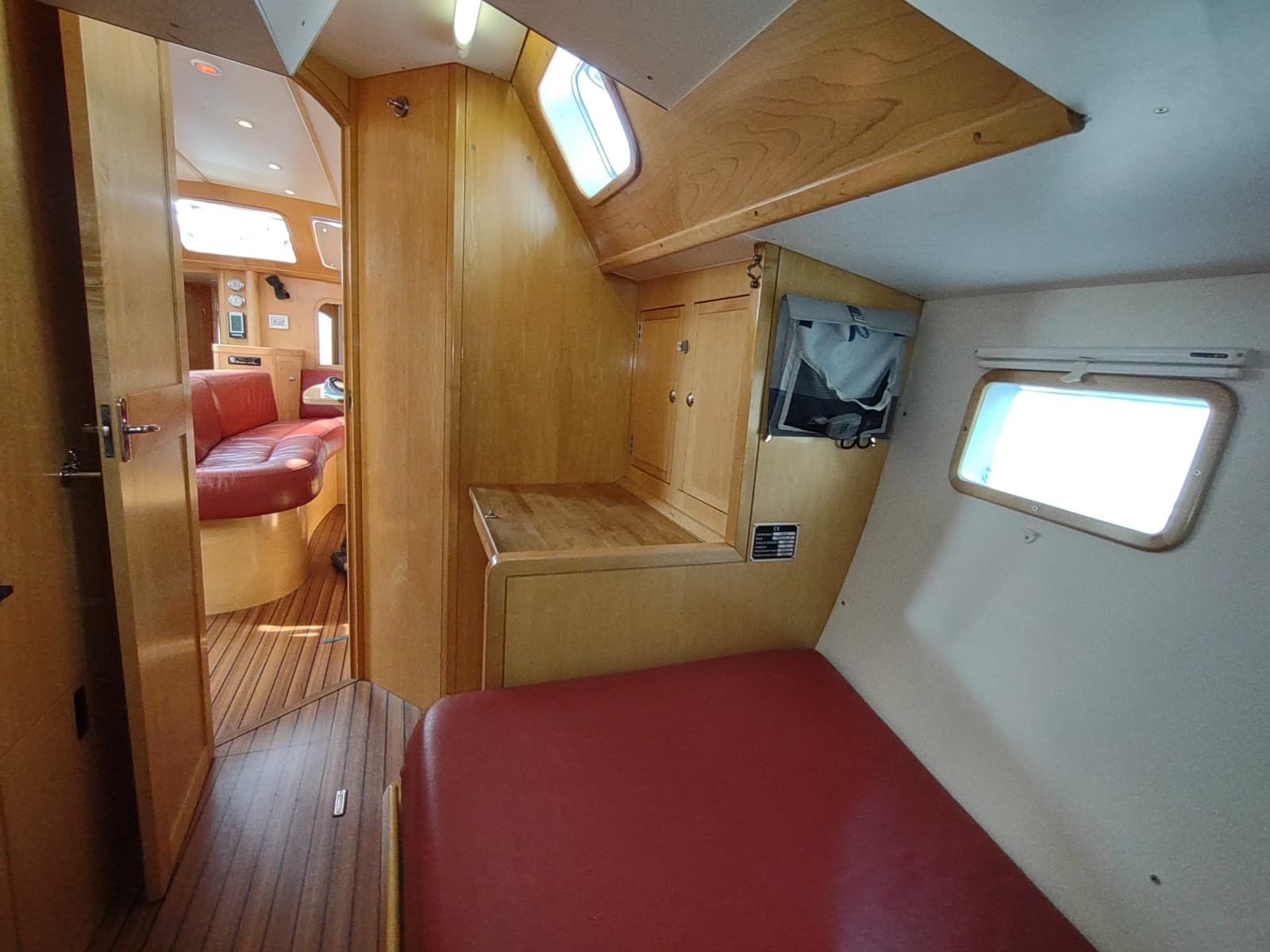

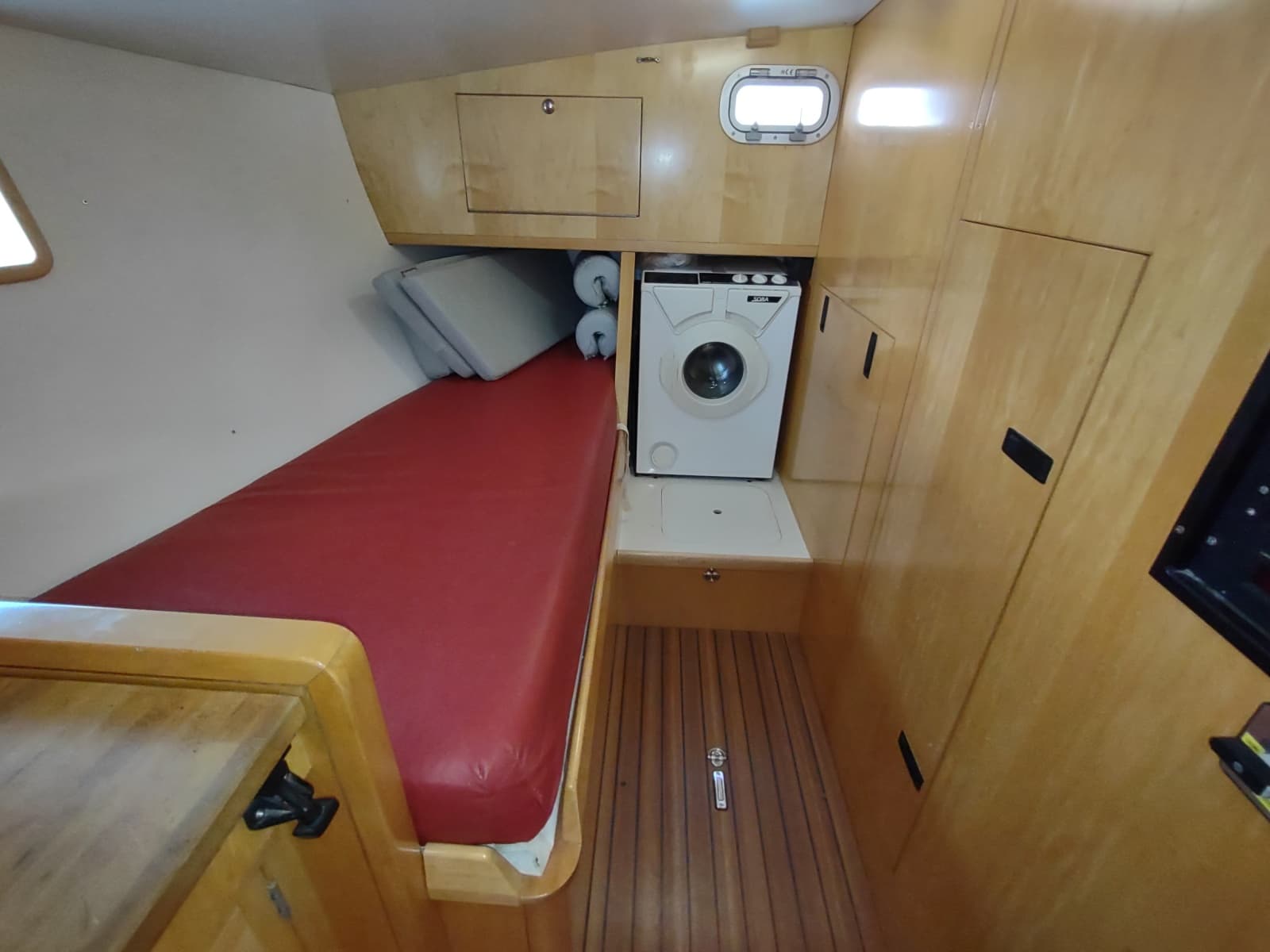

The aft starboard stateroom has a single berth (dimensions: head 32”/81cm, foot 14”/35cm, length 75”/190cm) with lee cloth and Naugahyde upholstered cushion. This space also doubles as a utility room. There is a small work bench and tool storage in a locker forward/outboard. The SOBA washing machine is inboard and aft in this cabin. The machinery space is accessed through removable panels inboard/below the cockpit. There are two opening ports and the ship’s AC breaker panel and ship/shore selector switch.

Standing headroom as follows:

• Owner’s cabin, 71”/180cm
• Galley, 75”/191cm
• Salon, 76”/193cm
• Quarter berths, 75”/191

Any yacht designed and built for long distance cruising should have ample storage on deck and inside. ROULEAU II meets that demand. The overboard draining bow locker is accessed through two hinged and gasketed hatches just aft of the anchor windlass. The chain locker is all the way forward and storage for fenders, lines, buckets and other deck gear is right below the openings. Two propane tanks are located in a overboard draining compartment in the port bow locker. The most voluminous and impressive storage locker is the full-beam, full height stern locker located beneath hatches in the helm seat. Welded rungs allow one to climb down into this locker. An outboard storage bracket, emergency tiller, removable non-slip sole, and access to the steering system are located in this huge space.

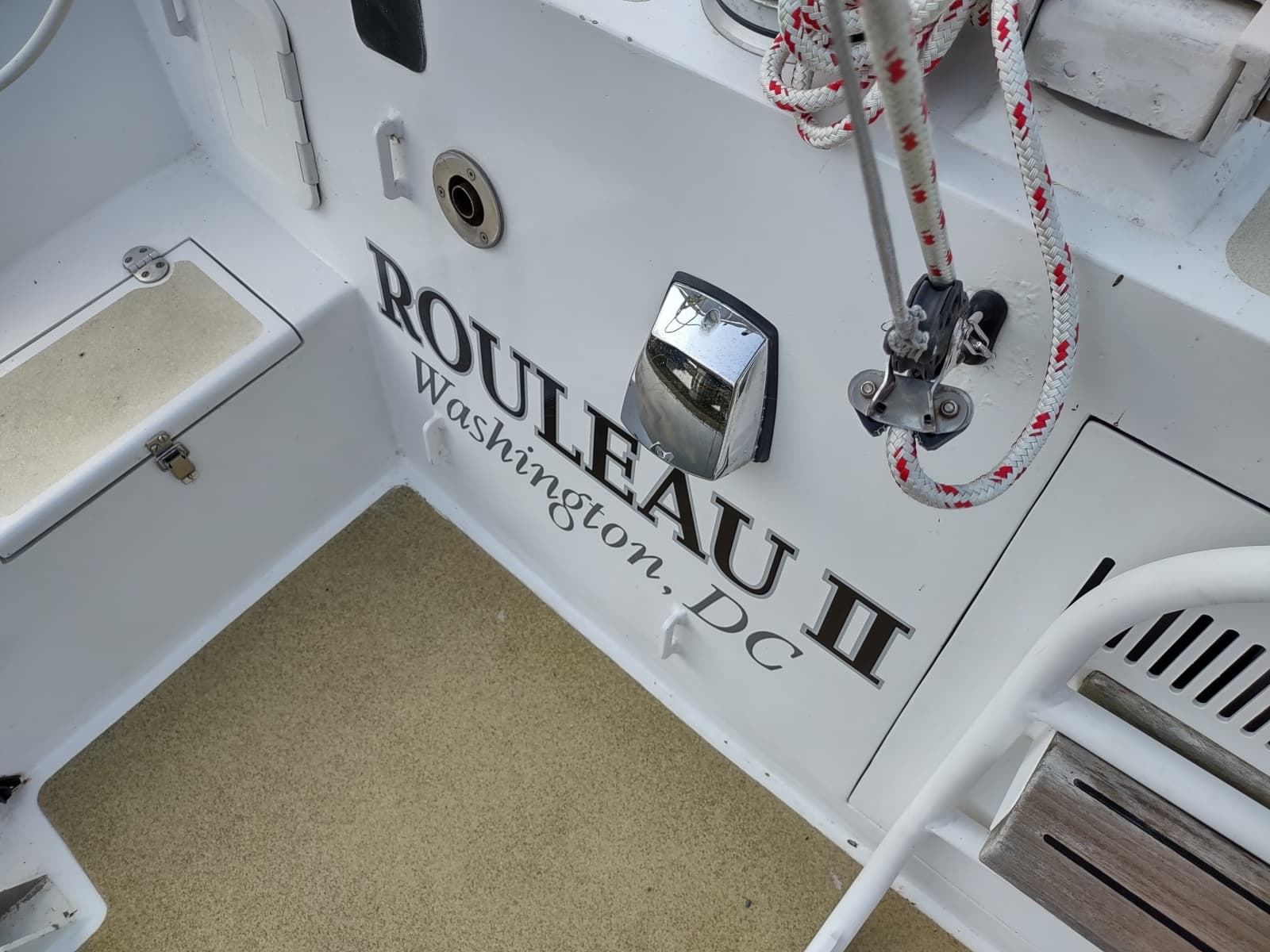

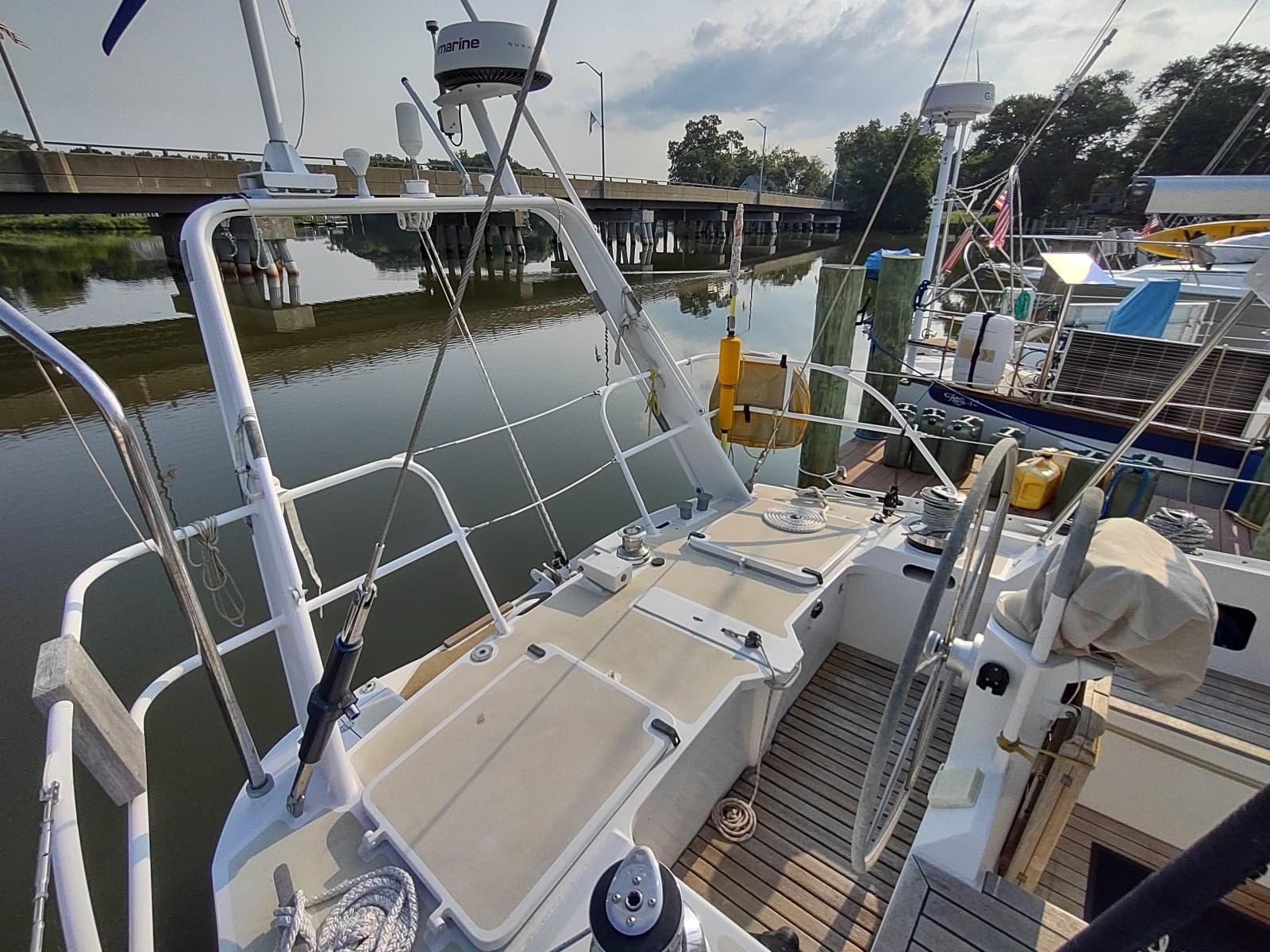

A large, scoop stern should be high on any list of positive cruising yacht features. The Garcia Passoa has one of the best cruising sterns found on any boat. A sturdy fold-down dive ladder is offset to starboard and the stern anchor roller and large mooring cleat are to port. Port and starboard overboard draining lockers are ideal locations to store outboard gas, snorkel gear, trash and fishing gear. The life raft is located in a compartment behind the step up into the cockpit. The swim platform is ideal for outdoor showering, fish cleaning, or lounging at water level. A hot/cold freshwater shower is mounted in the transom.

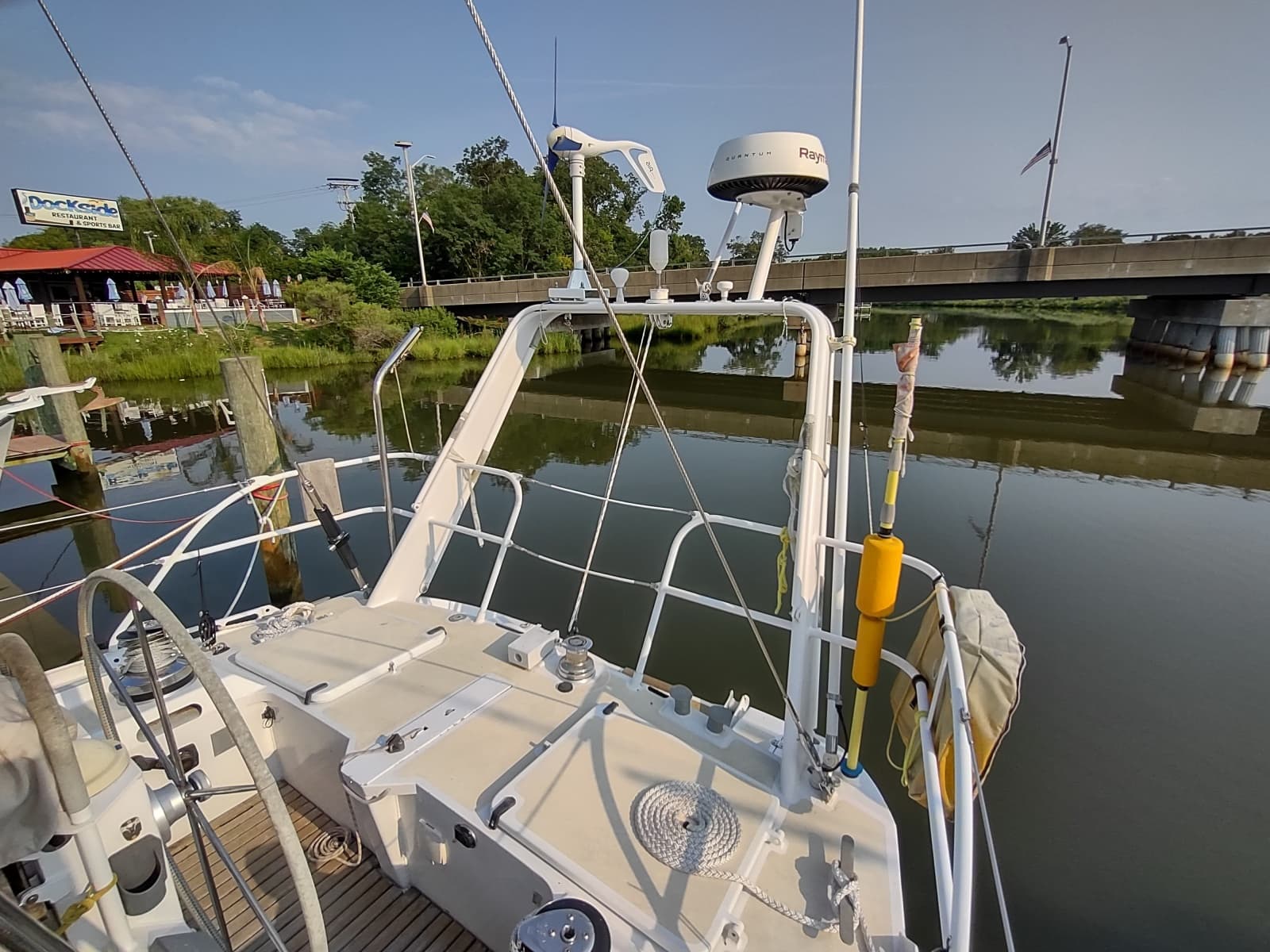

A welded stern arch is another sensible design detail. ROULEAU II’s welded aluminum arch is common to the Garcia Passoa design. The arch is an ideal location for the wind generator and an antenna array which includes the Raymarine radome, 7 meter SSB whip, GPS, satphone and Iridium antennas. A large, hinged bow aft of the arch serves as a dinghy davit swinging the dinghy clear of the transom when lowered. A smaller hinged bow is forward to support the cockpit bimini.

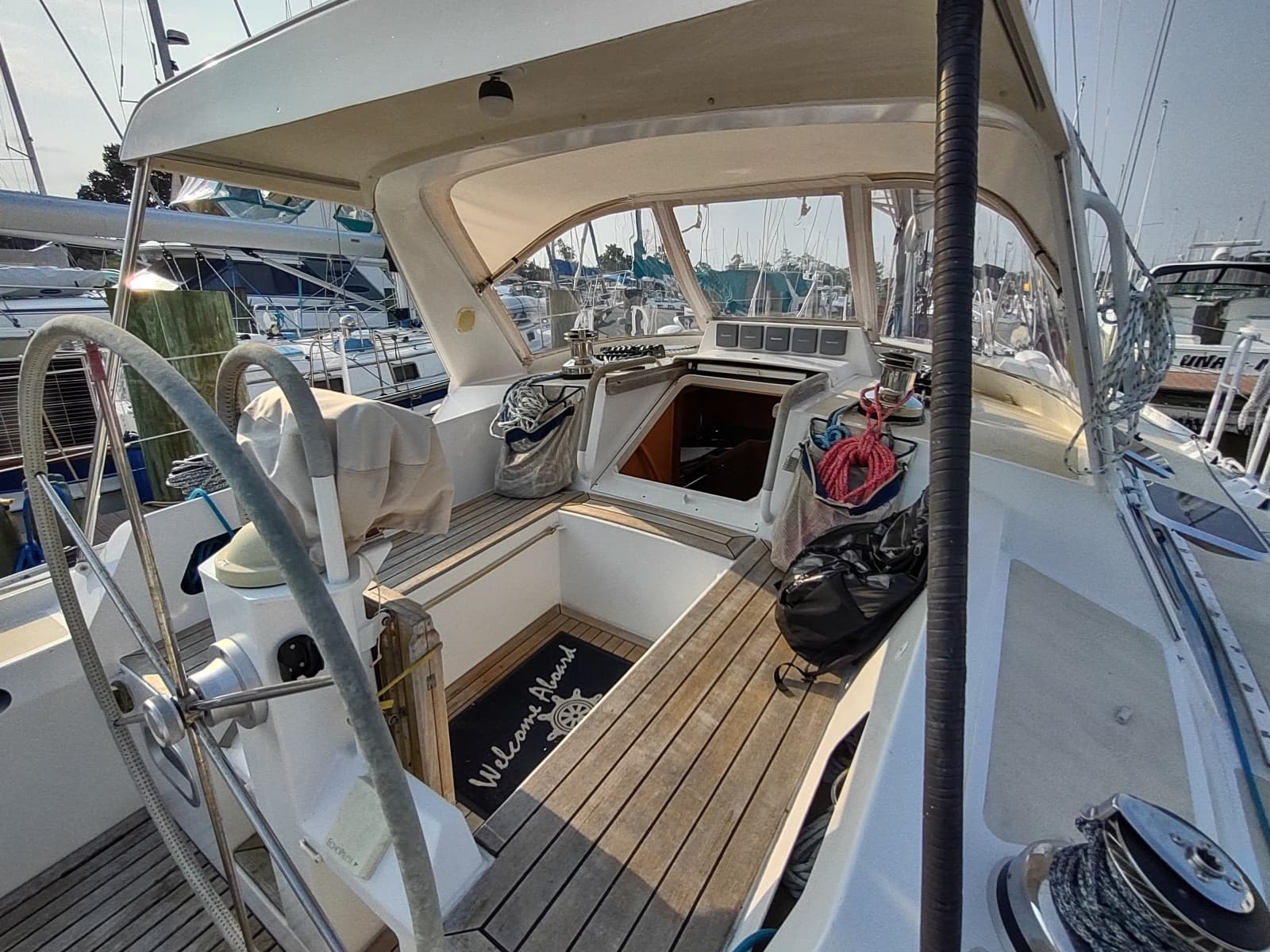

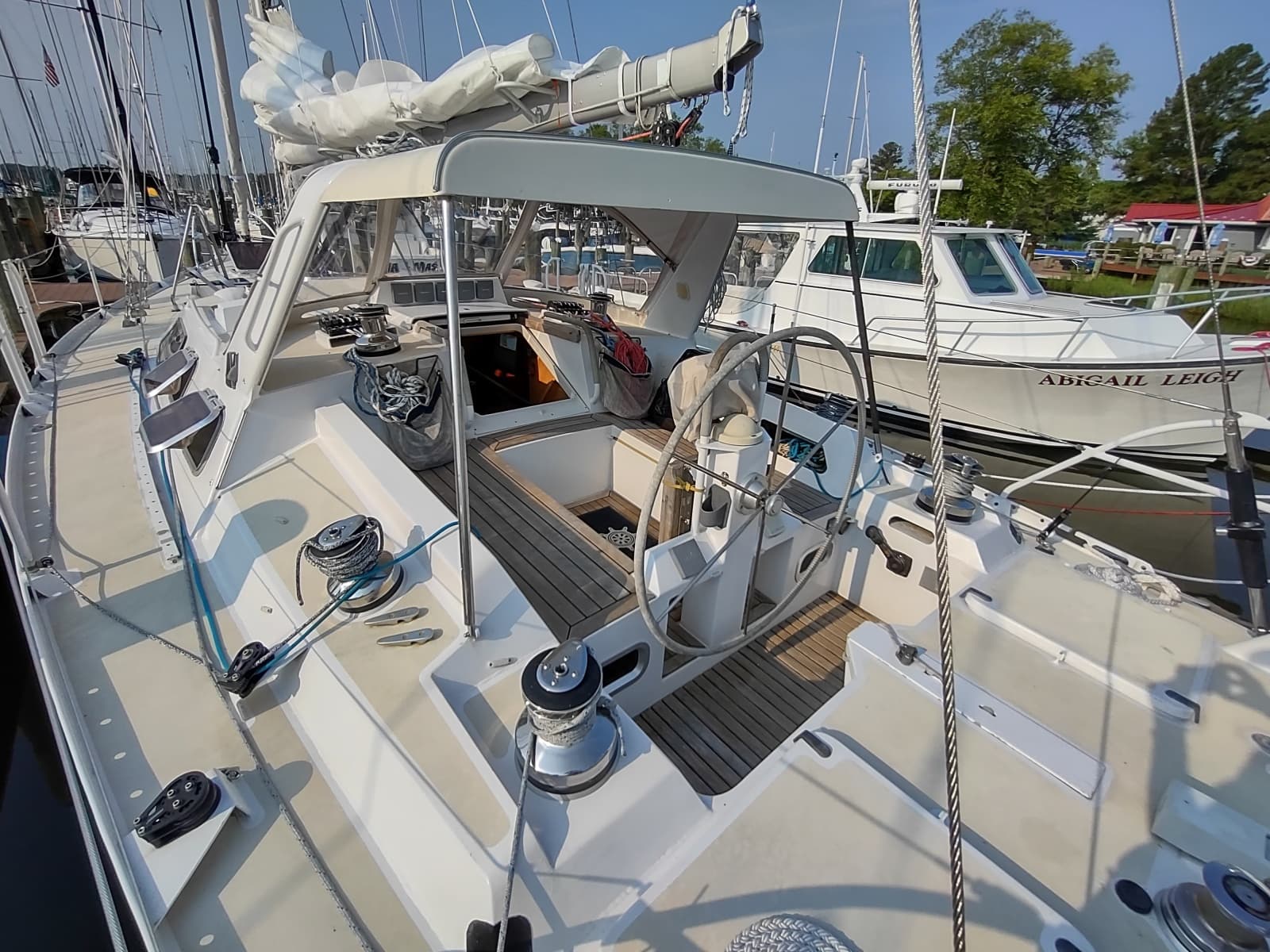

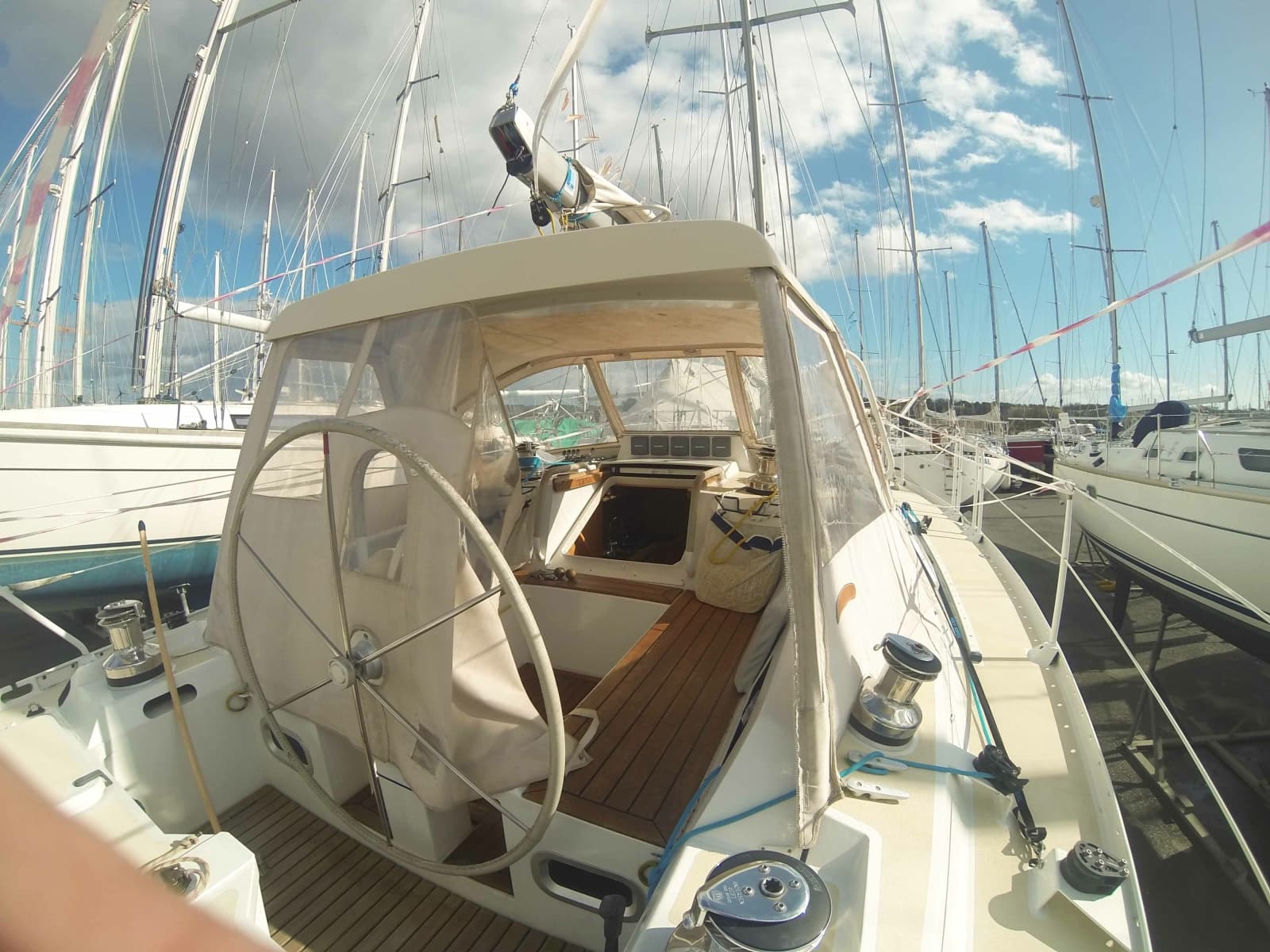

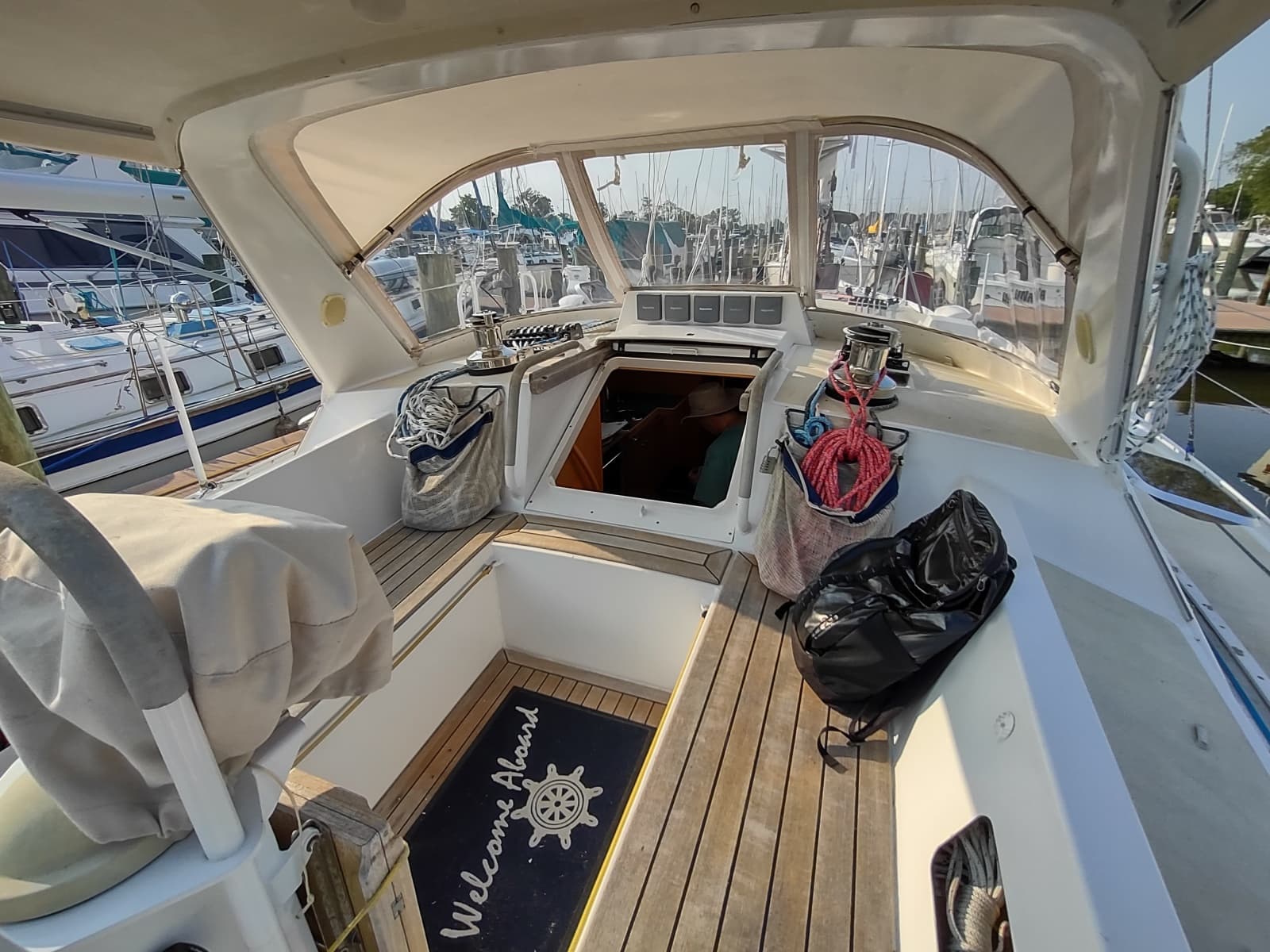

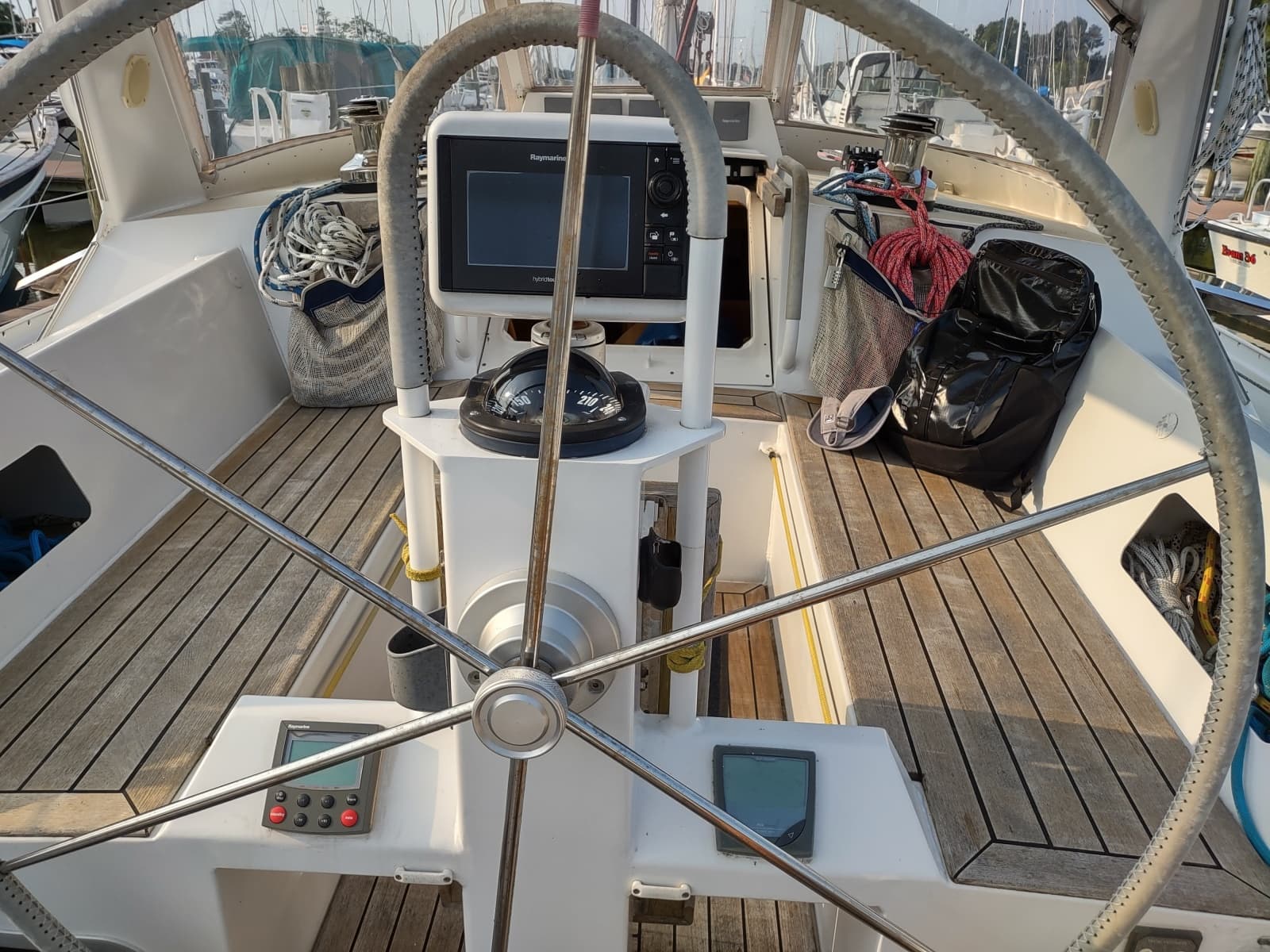

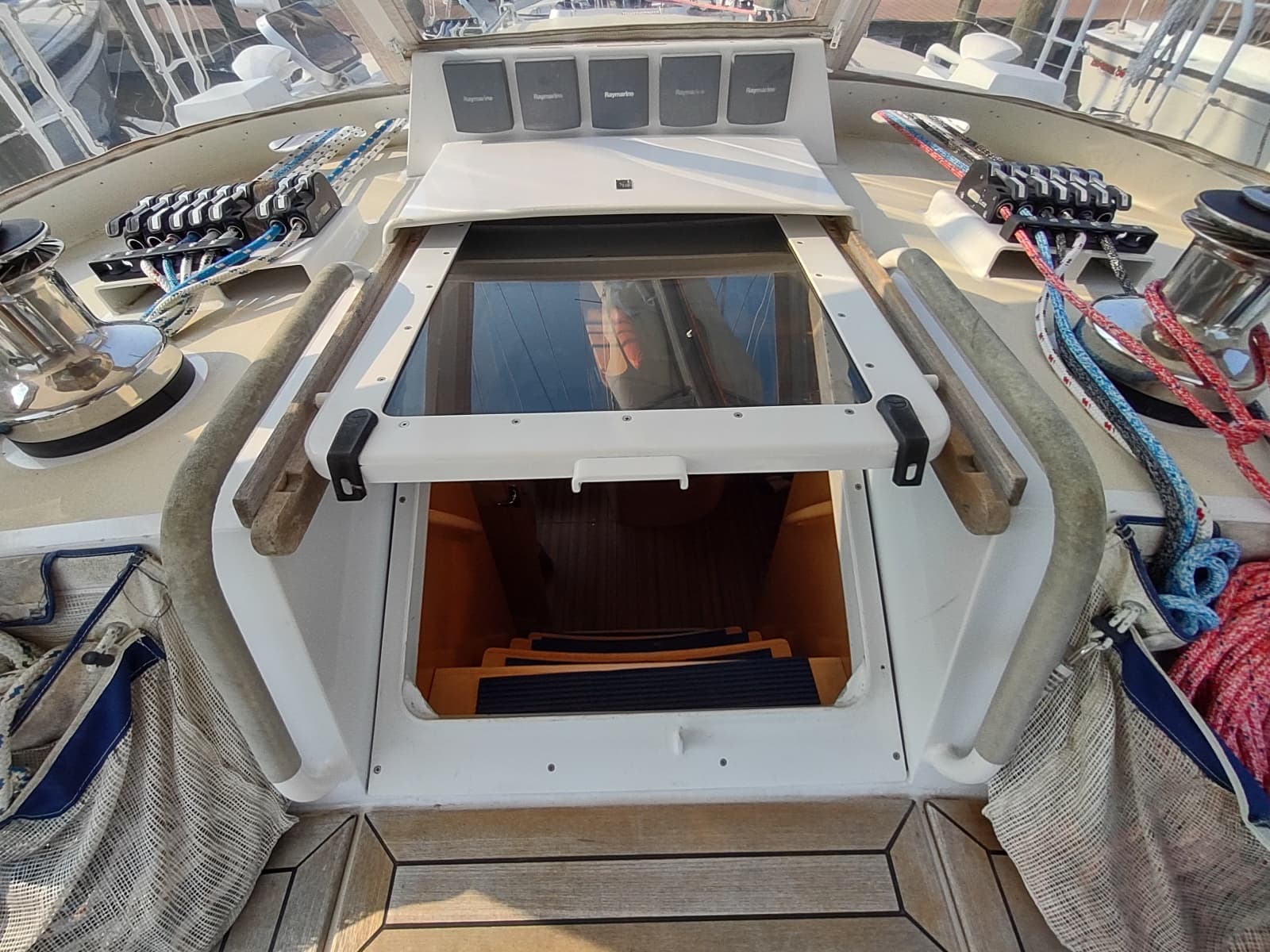

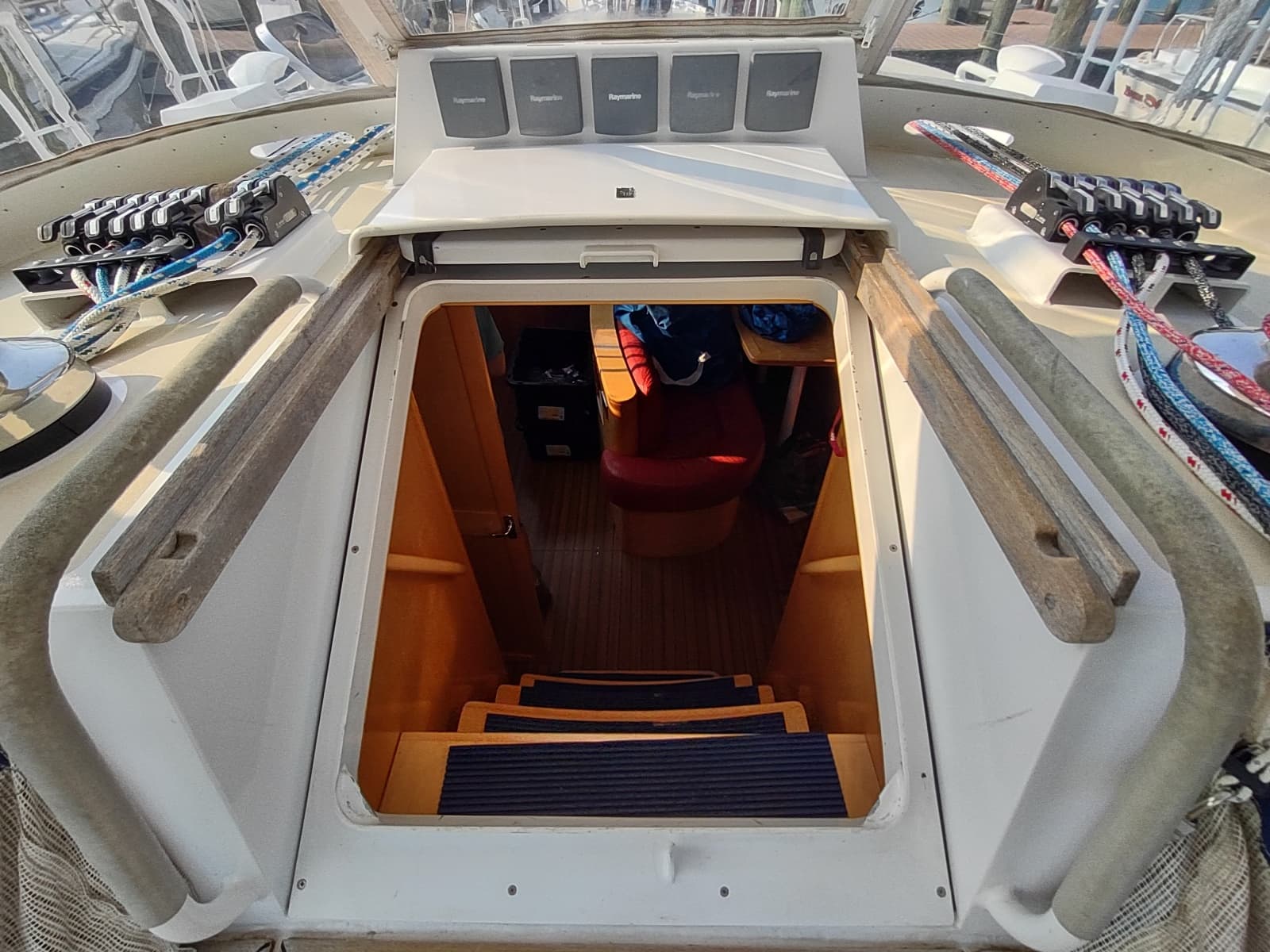

ROULEAU II’s T-shaped cockpit is well-configured for sailing and lounging. A welded aluminum arch with mainsheet traveler on top locates the mainsheet well aft on the boom for sheeting efficiency while removing it from harm's way in the cockpit. This arch also features a rigid overhead section where the solar panels are mounted. Forward of this arch is a new dodger/sprayhood. The cockpit is also protected with an easily deployed bimini top and has a removable enclosure and sunshades. The cockpit seats and sole are clad with teak for comfort and helm seating is outboard and aft of the wheel. Visibility from the helm is excellent.

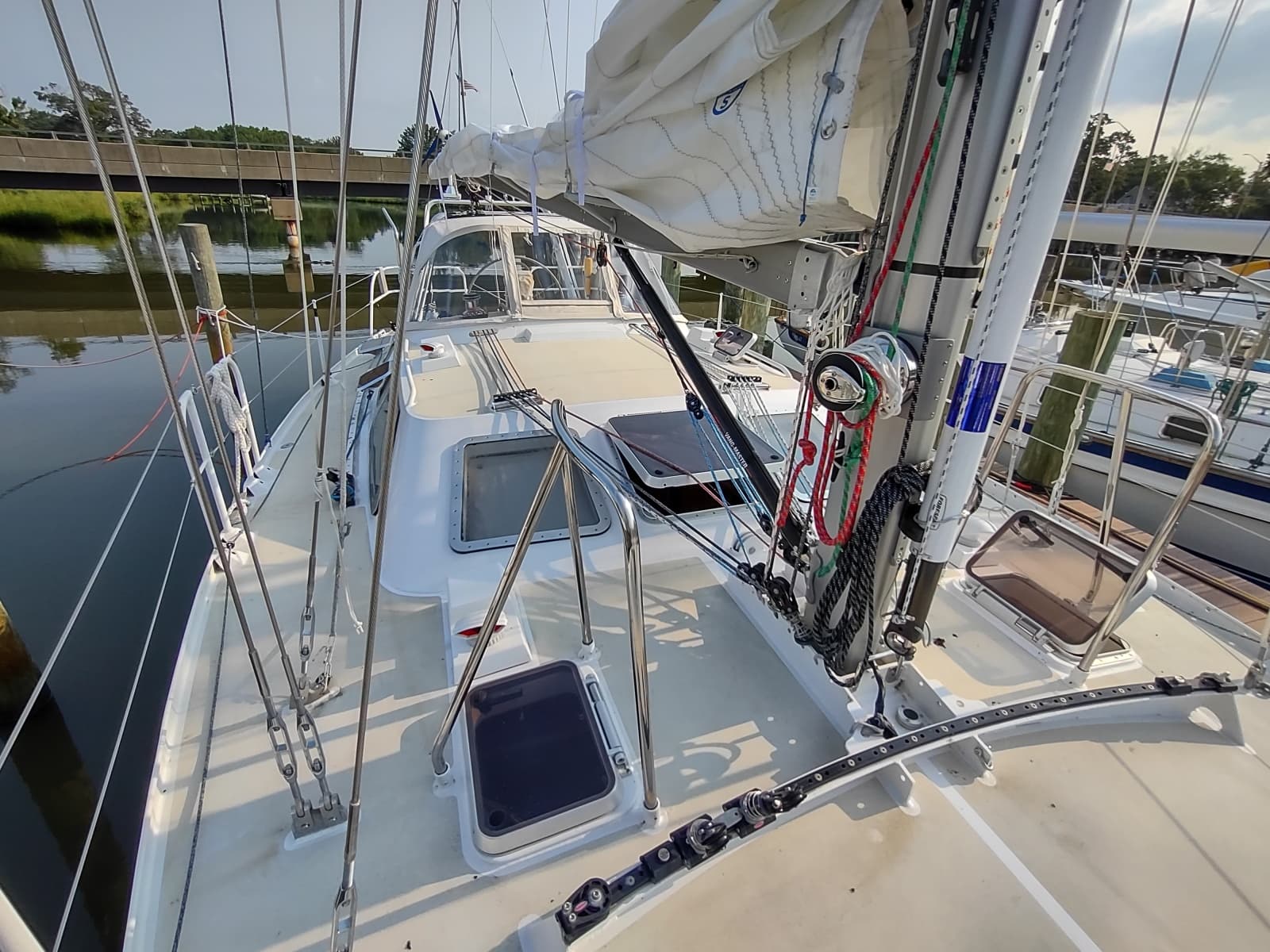

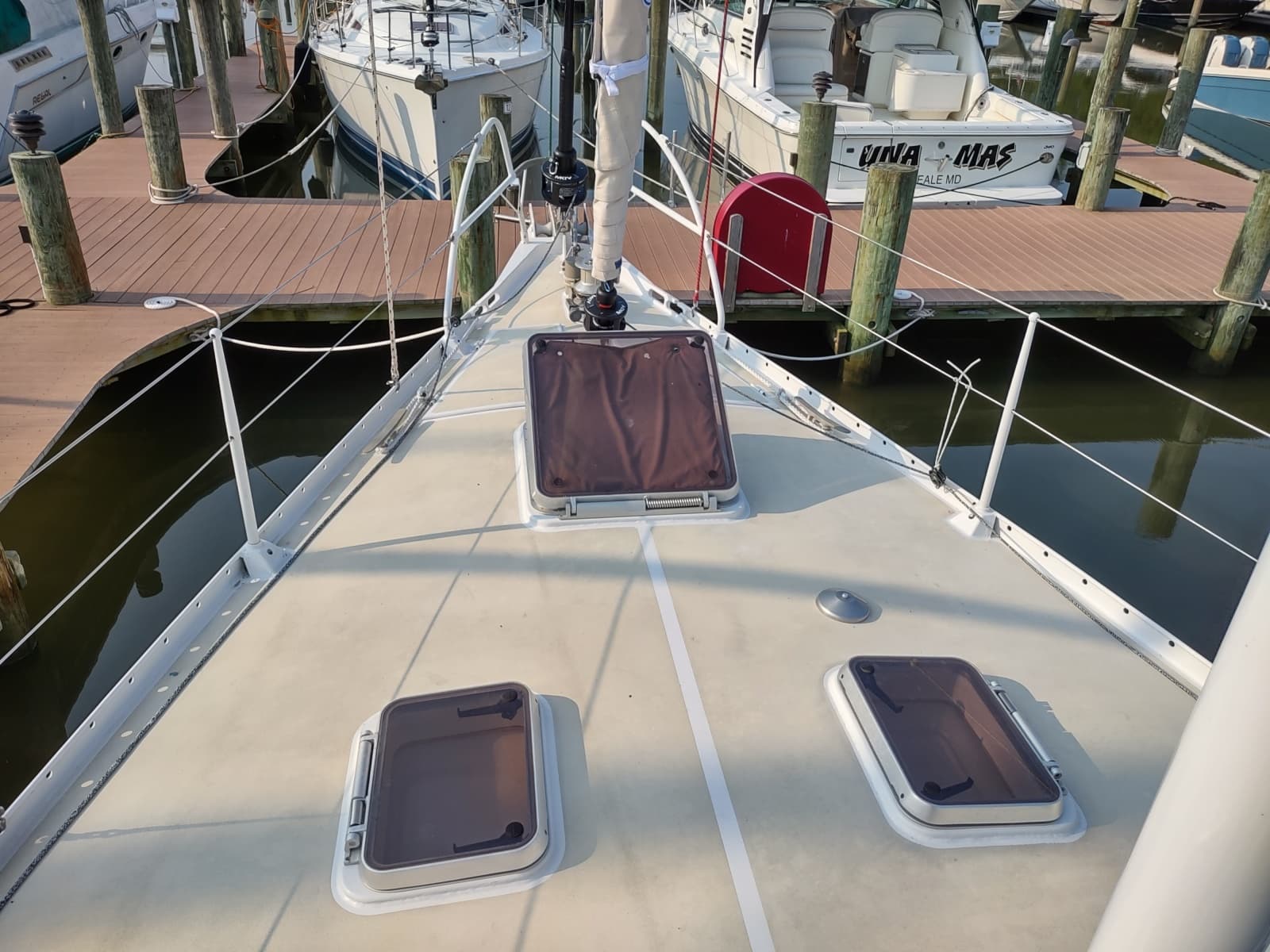

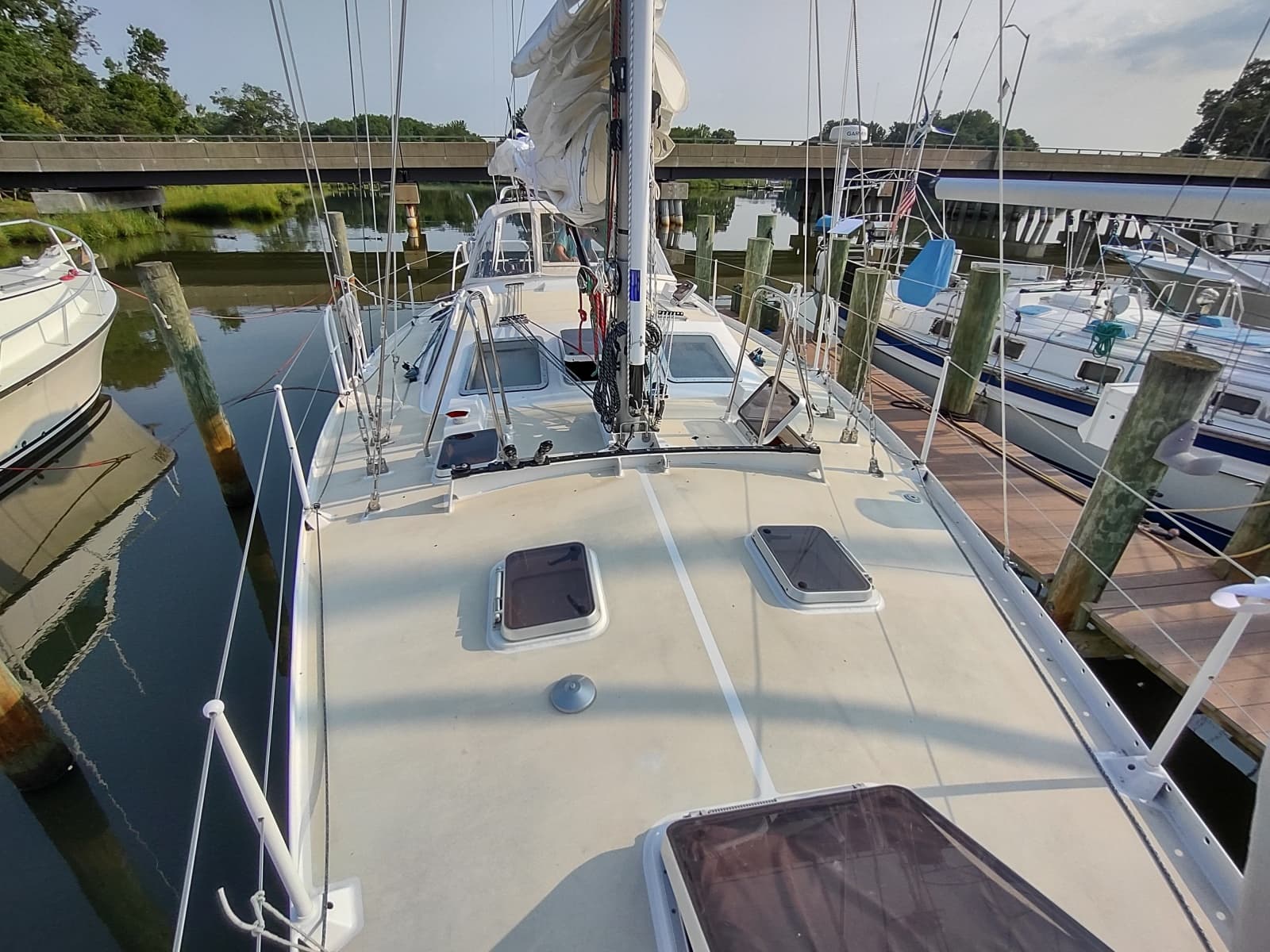

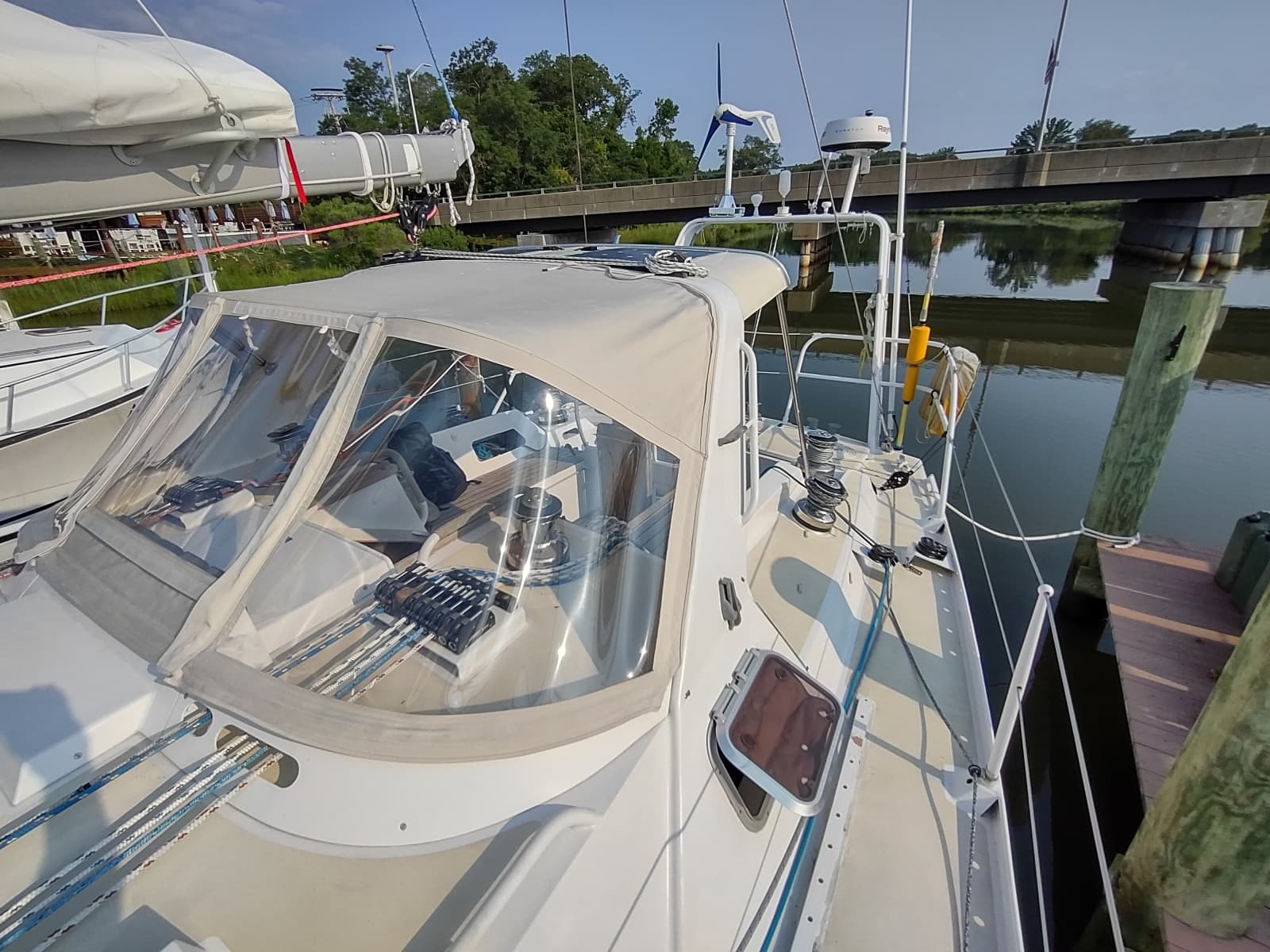

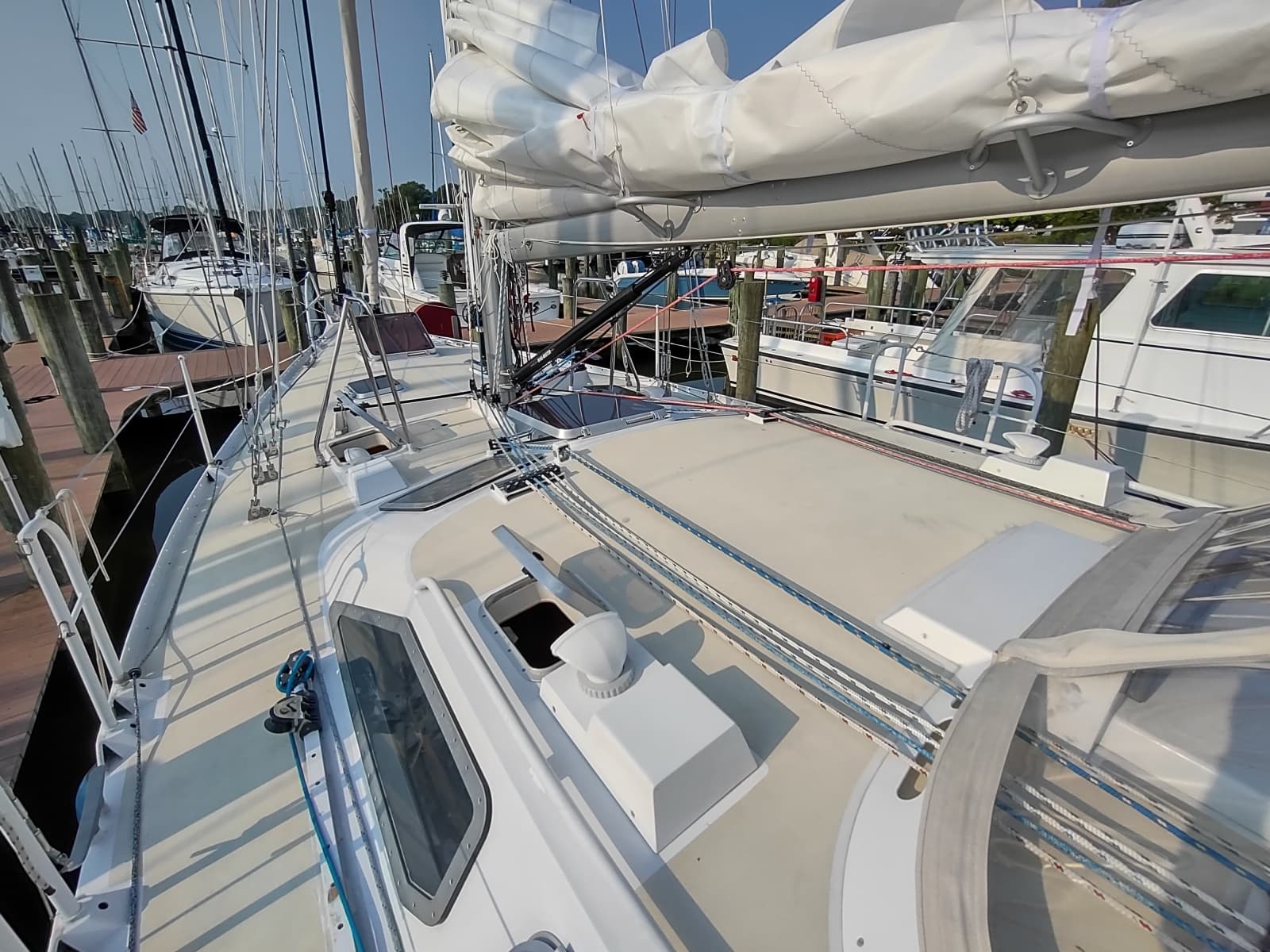

ROULEAU II’s deck has fresh cream-colored non-skid and double lifelines attached to sturdy stanchions and bow and stern rails with boarding gates, port and starboard. "Granny bars" at the mast give crew stability while reefing in a seaway. The six 13"/33cm cleats are welded to the aluminum deck and a beefy bollard is just forward of the windlass. There is also an oversize cleat just aft of the cockpit to assist in stern-to anchoring.

Coachroof and foredeck:

• Wide side decks for ease of movement fore and aft
• Lofrans Albatross 1500 watt vertical windlass
• Bollard forward of windlass
• Bow sprit set up for two anchors, each with double rollers
• Passerelle mount on bow sprit (passerelle stowed in cockpit locker)
• Two foredeck lockers with room for fenders and dock lines
• The port side locker has an overboard vented propane locker with room for two 20 lb propane tanks
• Goiot deck hatches and portlights
• Four dorade vents

Cockpit:

• Leather-wrapped binnacle guard and companionway railings
• Multiple harness attachment points
• Folding Teak Cockpit Table
• Teak seats and sole and teak grate at the helm
• Cockpit cushions
• Lofrans 700 watt capstan on aft deck
• Arch with mainsail sheet traveler and hardtop (aft on arch) with solar panels
• Sunbrella dodger, color “oyster” attached to arch (new 2025)
• Rigid fiberglass extension aft of arch with 2x52W solar panels
• Full enclosure and sun shades for cockpit
• Outboard engine bracket, boom, and hoist
• The passerelle and inflatable dinghy are stored in the starboard cockpit locker
• There is room for a folding bike in the port cockpit locker

Anchors & Mooring:

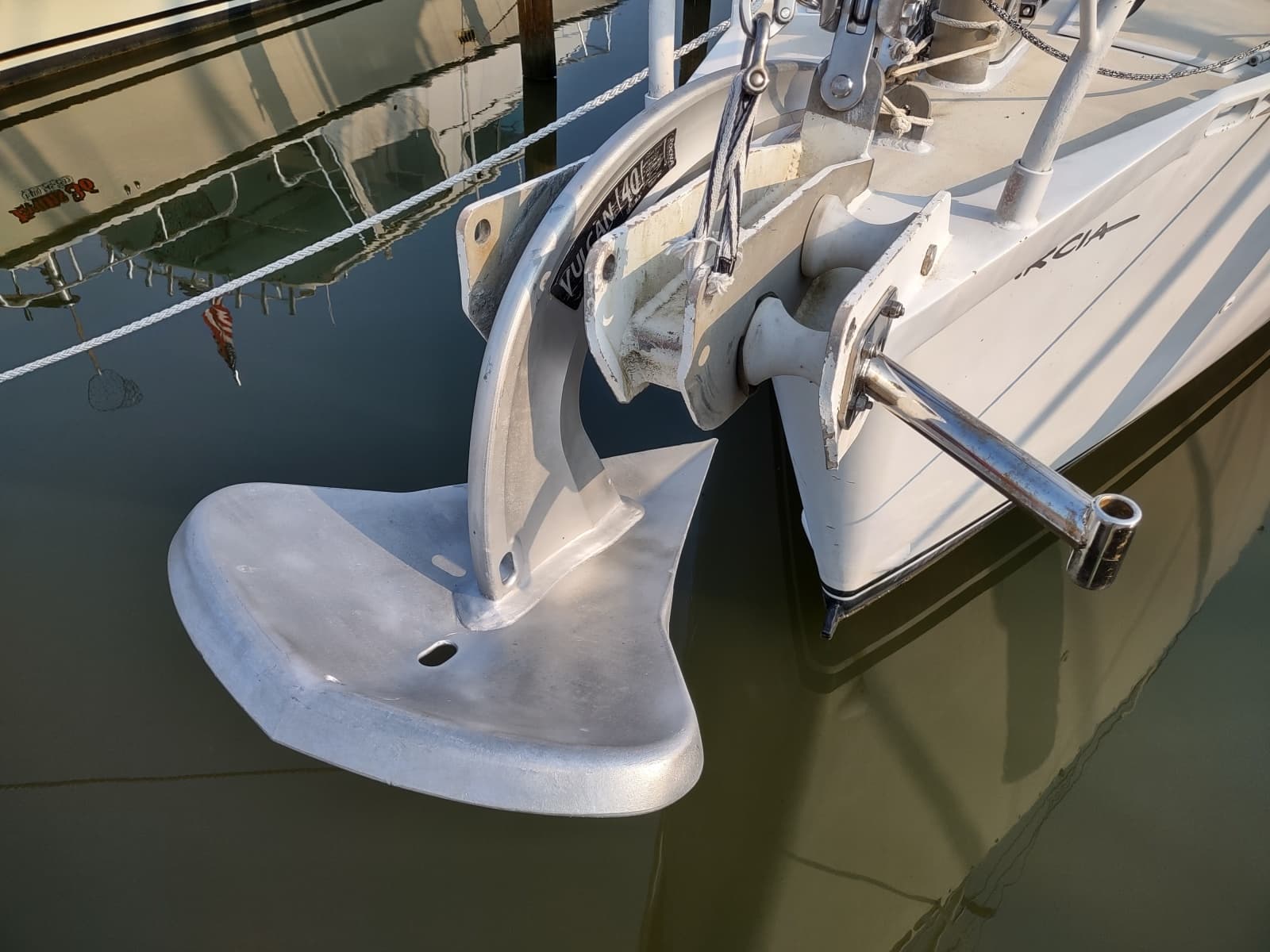

• 40kg Vulcan anchor on 100m of 8mm G80 chain
• Chain snubber with stainless chain hook
• 60m spool of 20mm square line
• 20kg Spade anchor
• Fortress 55 anchor
• Docklines and fenders
• (8) Extra-large spherical fender

ROULEAU II is a staysail sloop with self-tacking staysail and full-battened main. Reefing is done from the cockpit and granny bars at the mast assist with attaching the reef tacks at the mast in a seaway. Headsail lead car adjustment is also done from the safety of the cockpit. The mast, standing rigging, running rigging, and working sails were replaced in 2026 by Eastport Spars & Rigging in Annapolis. Antal rope clutches are used throughout and there is a mix of Antal, Frederiksen and Ronstan blocks for handling the running rigging.

Sail inventory:

• North NPC Radian Ultra 9.6 radialcut full batten mainsail with 3 reefs, Frederiksen headboard car and batten cars on mast luff track. (all new in 2026)
• North NPC Radian Ultra 8.6 genoa (2026)
• North NPC Radian Ultra 8.6 staysail (2026)
• Incidence gennaker with Facnor furler

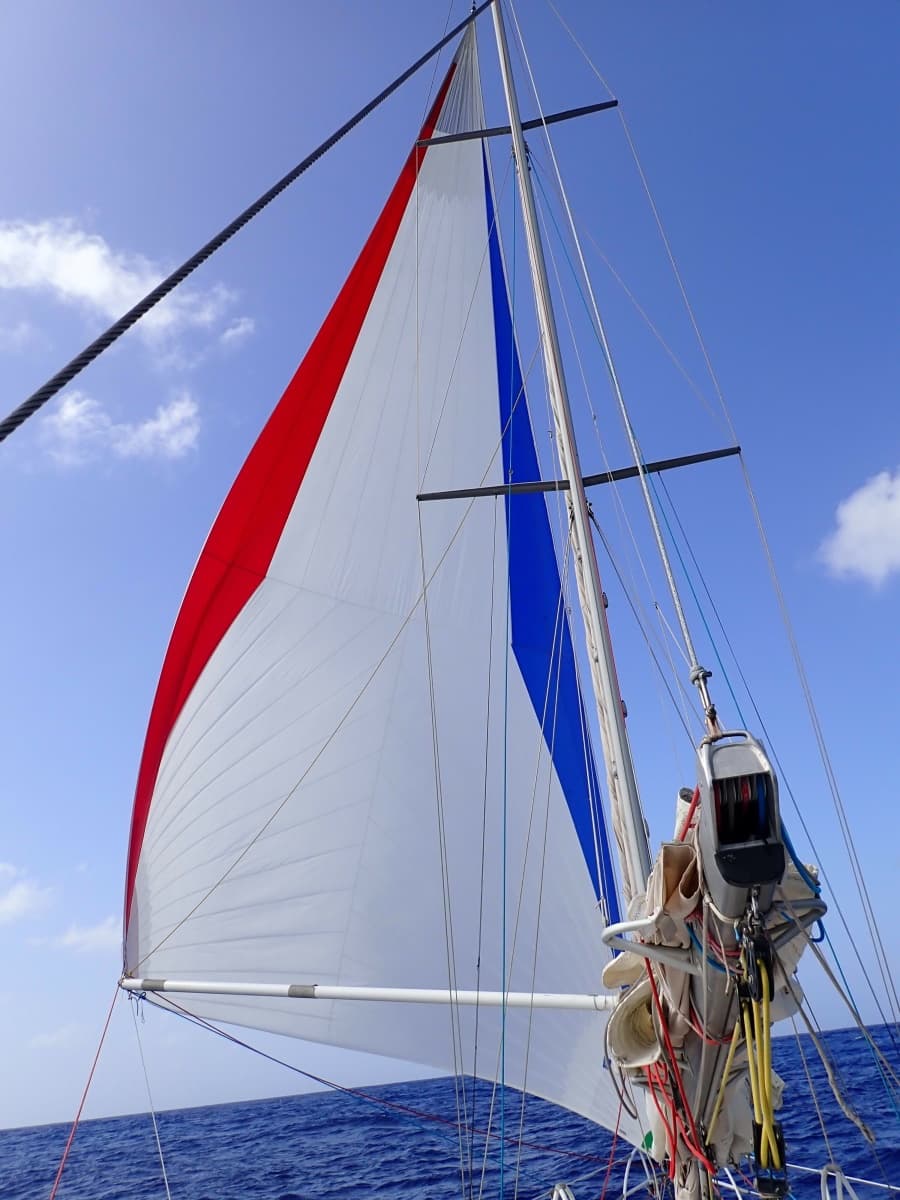

• Sails Concept asymetrical spinnaker with snuffer

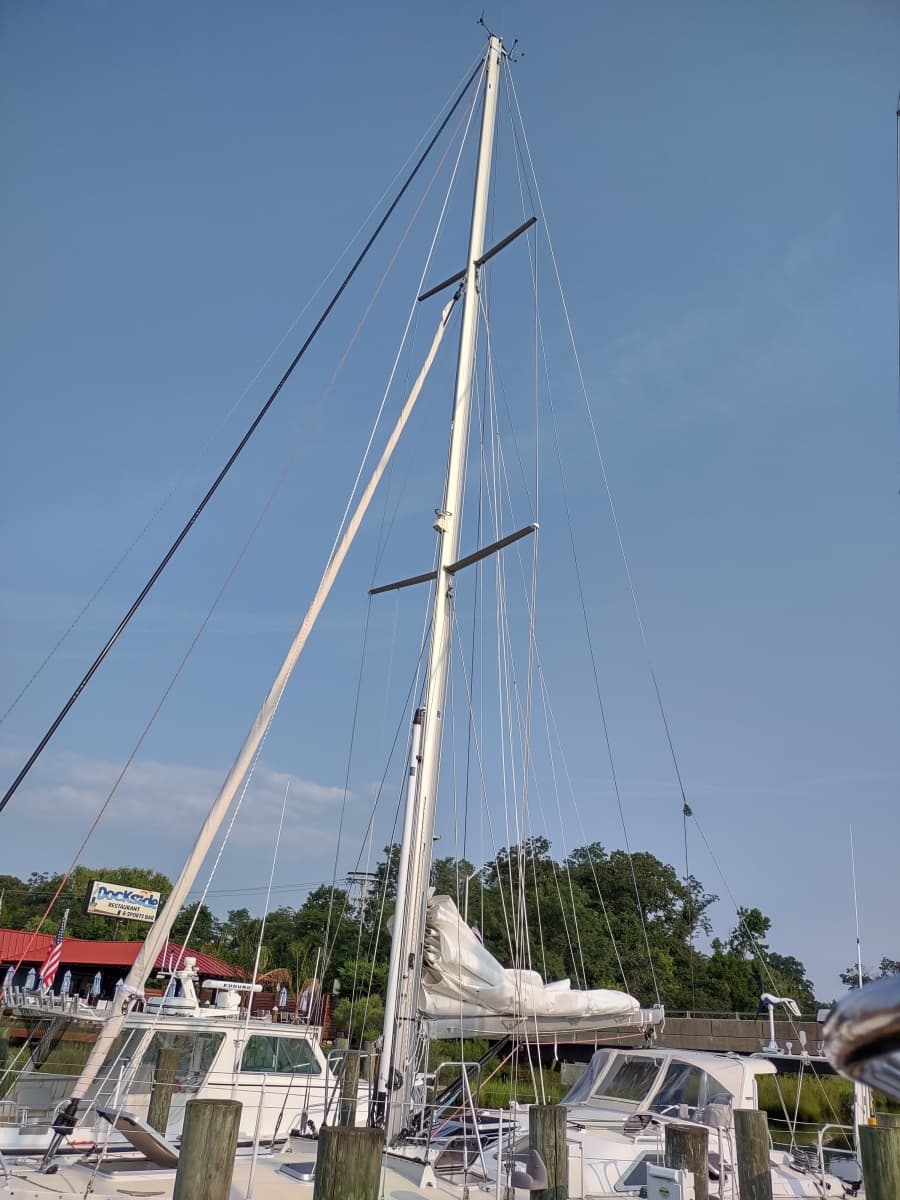

Mast and rigging:

• Sparcraft anodized aluminum double spreader mast (new 2026)
• Sparcraft anodized aluminum boom with mainsail support brackets with lazy jacks and spectra/dynema preventer lines ready to deploy
• All standing rigging replaced in 2026
• Harken Vangmaster rigid boom vang (new 2026)
• Two downwind sails halyards
• Main, staysail, and jib halyards
• Running backstays and pull back lines for stowing
• Topping lift (spare mainsail halyard)
• Antal manual backstay adjuster
• Gennaker tack line
• Harken MK IV unit 3 genoa furler (new 2026)
• Harken Mk IV unit 1 staysail furler (new 2026)
• Forespar telescoping carbon fiber whisker pole; stored on mast (new 2026)
• Mainsail cover (new 2026) and winter cover

Winches:

• Anderson 46x1 on mast
• Anderson 52x2 for halyards, reefs, etc. on coach roof flanking companionway
• Anderson 52x2 secondaries for spi sheets, genoa and staysail furlers
• Anderson 62x2 primaries for genoa sheets

Cockpit:

• Suunto compass on binnacle
• Icom VHF Command-Mic
• Raymarine eS75 Hybrid Touch display in ScanStrut pod
• Raymarine ST6001 Autopilot control
• Echo Pilot forward looking sonar display
• Over the companionway: Raymarine ST60 depth, speed, auto pilot, wind and close hauled displays

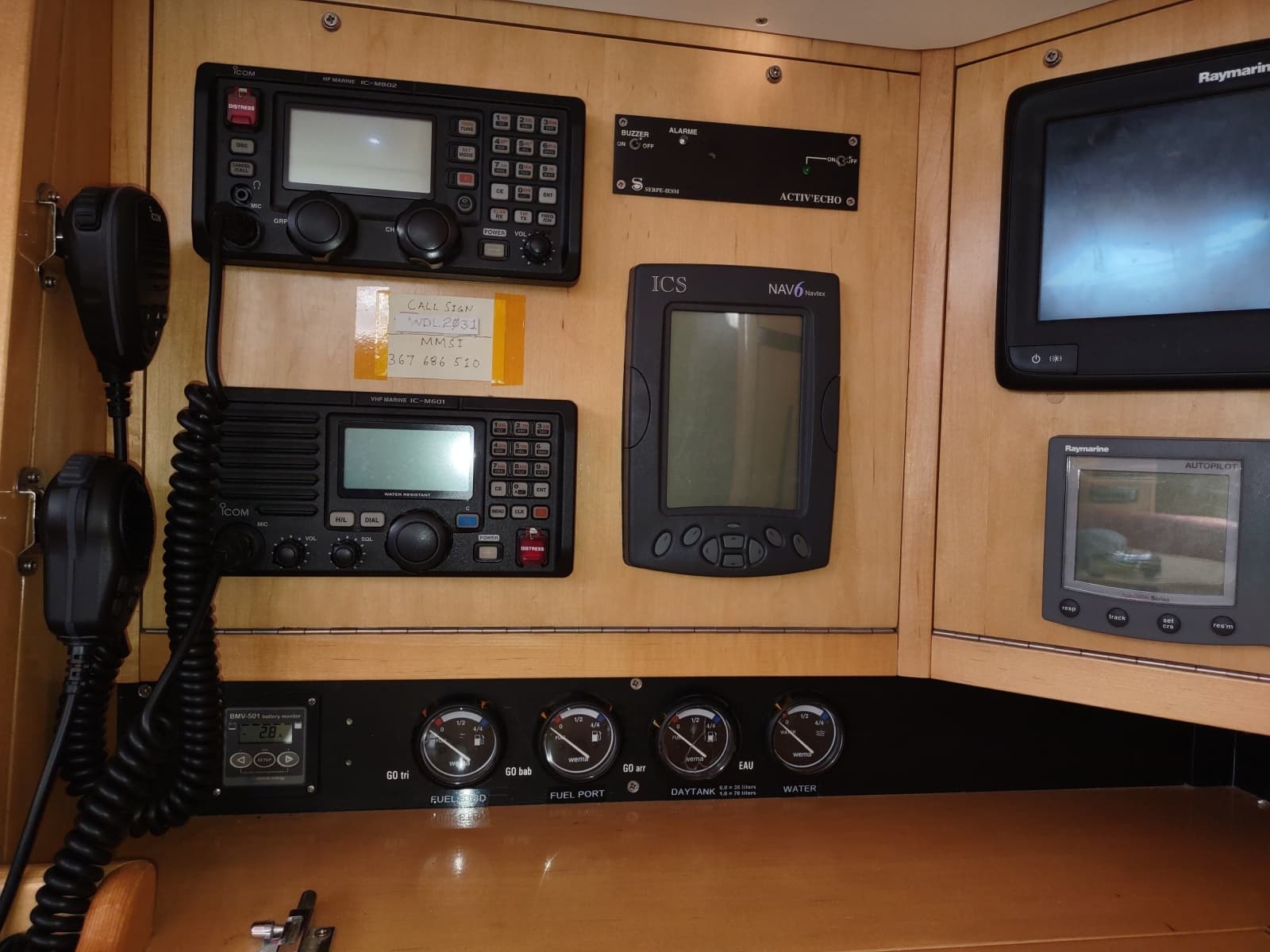

Nav station:

• Raymarine wireless S100 autopilot remote (cradle in companionway)
• Raymarine 9" multi-function display
• Raymarine AIS tranceiver
• Raymarine ST 7000+ auto pilot head
• Icom IC-M-601 VHF
• Icom IC-M802 SSB with Pactor III modem
• ICS NAV6 NAVTEX
• Iridium Go with antenna on stern arch
• Raymarine Quantum radar on stern arch (new July 2022)
• Ship’s computer screen
• Portable VHF Icom IC-M1V in charging cradle
• Tescup DC leakage detector
• Mastervolt battery charger controller
• Mastervolt inverter controller
• Victron BMV 501 battery monitor
• Recording barometer
• Wema fuel and water tank gauges
• Xintex M-1 fume detector

Additional:

• Lecomble & Schmidt autopilot hydraulic pump and cylinder, second/spare pilot
• JVC KD-DV7302 stereo with Focal brand speakers in salon an speakers in cockpit
• 12v television
• Vion ship’s clock and thermometer with humidity sensor
• HAMA digital radio-controlled weather station
• LED navigation lights and masthead tricolor light
• LED anchor light on stern arch
• Foredeck light on mast

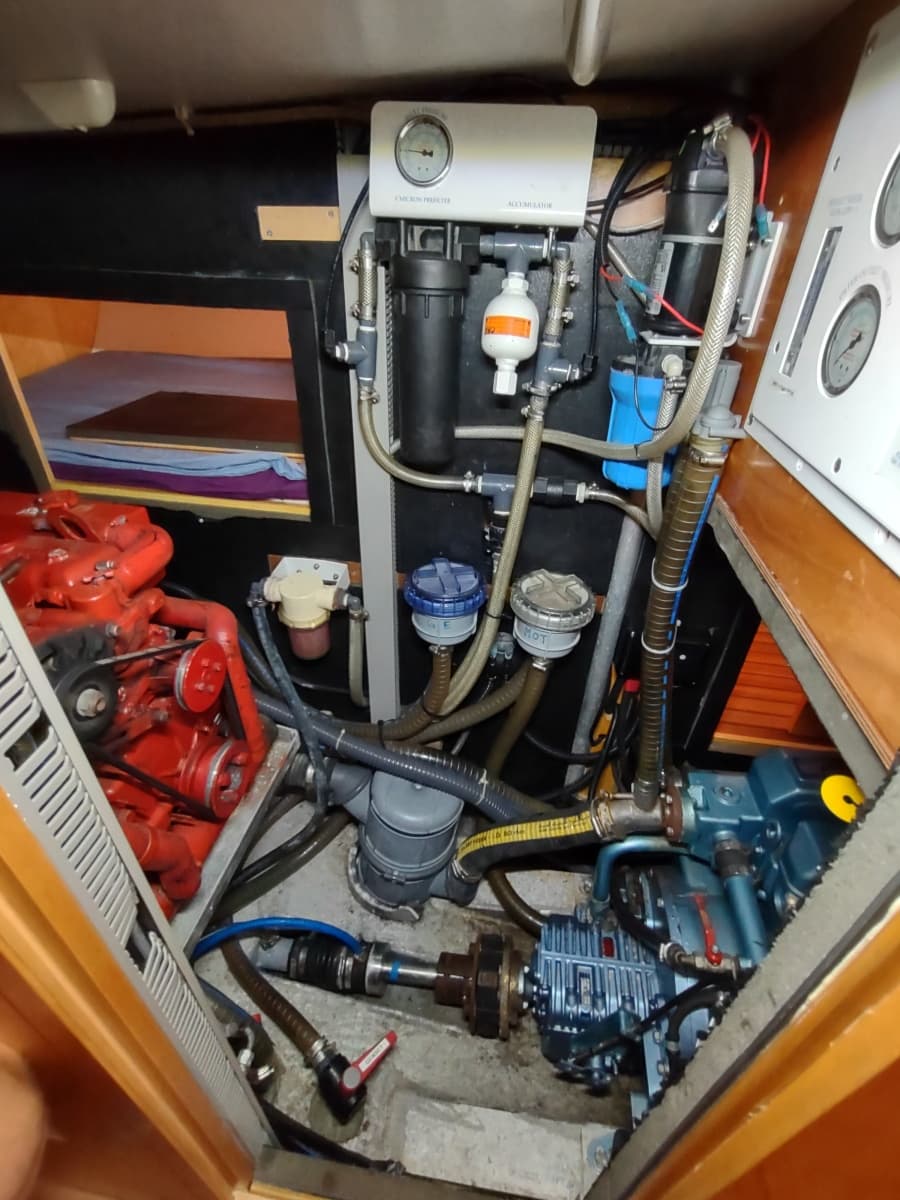

Systems design and installation are impressive. There is superb access to mechanical systems for routine maintenance and repair. Foam lines the overhead and sides of engine space, located below the cockpit, to minimize noise and heat. Panels and doors from the aft staterooms as well as removal of the companionway ladder facilitate access to the mechanical space.

Propulsion:

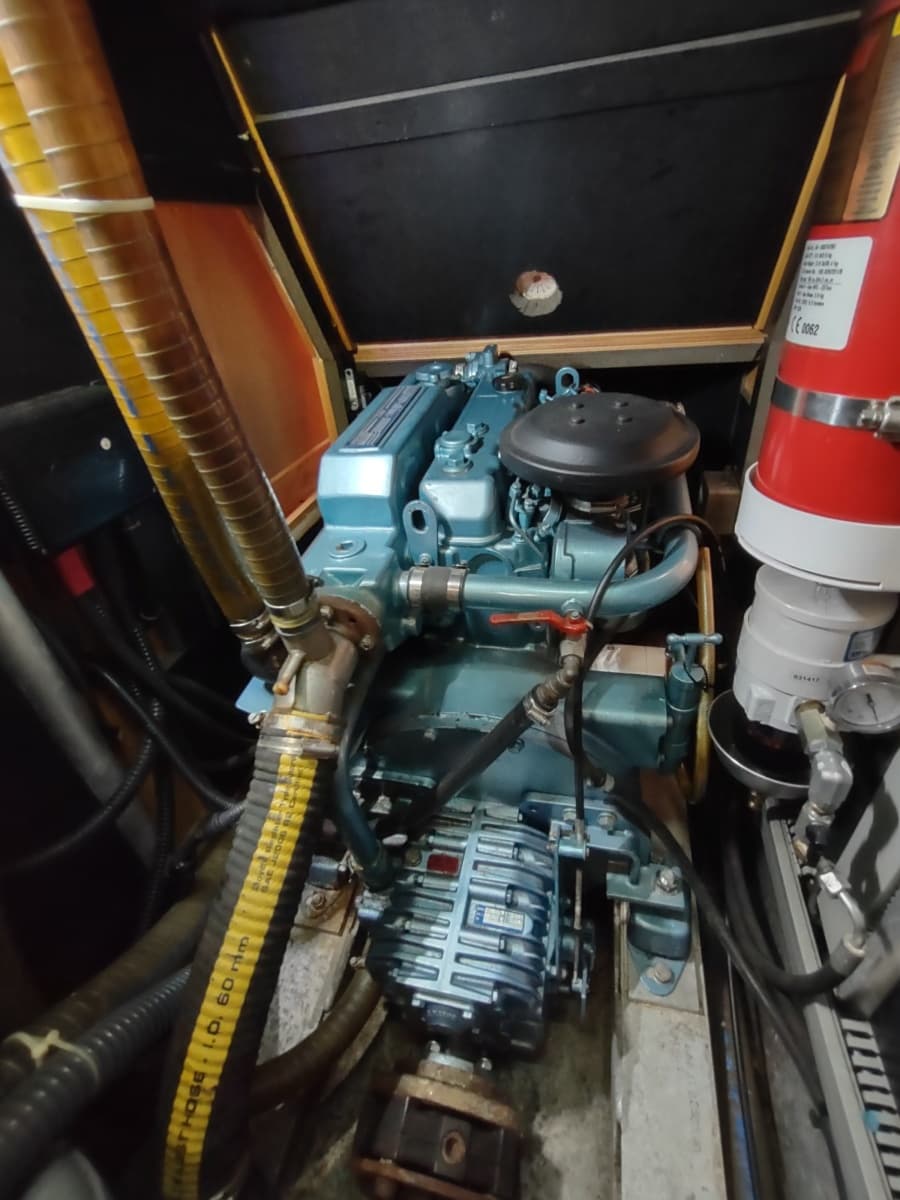

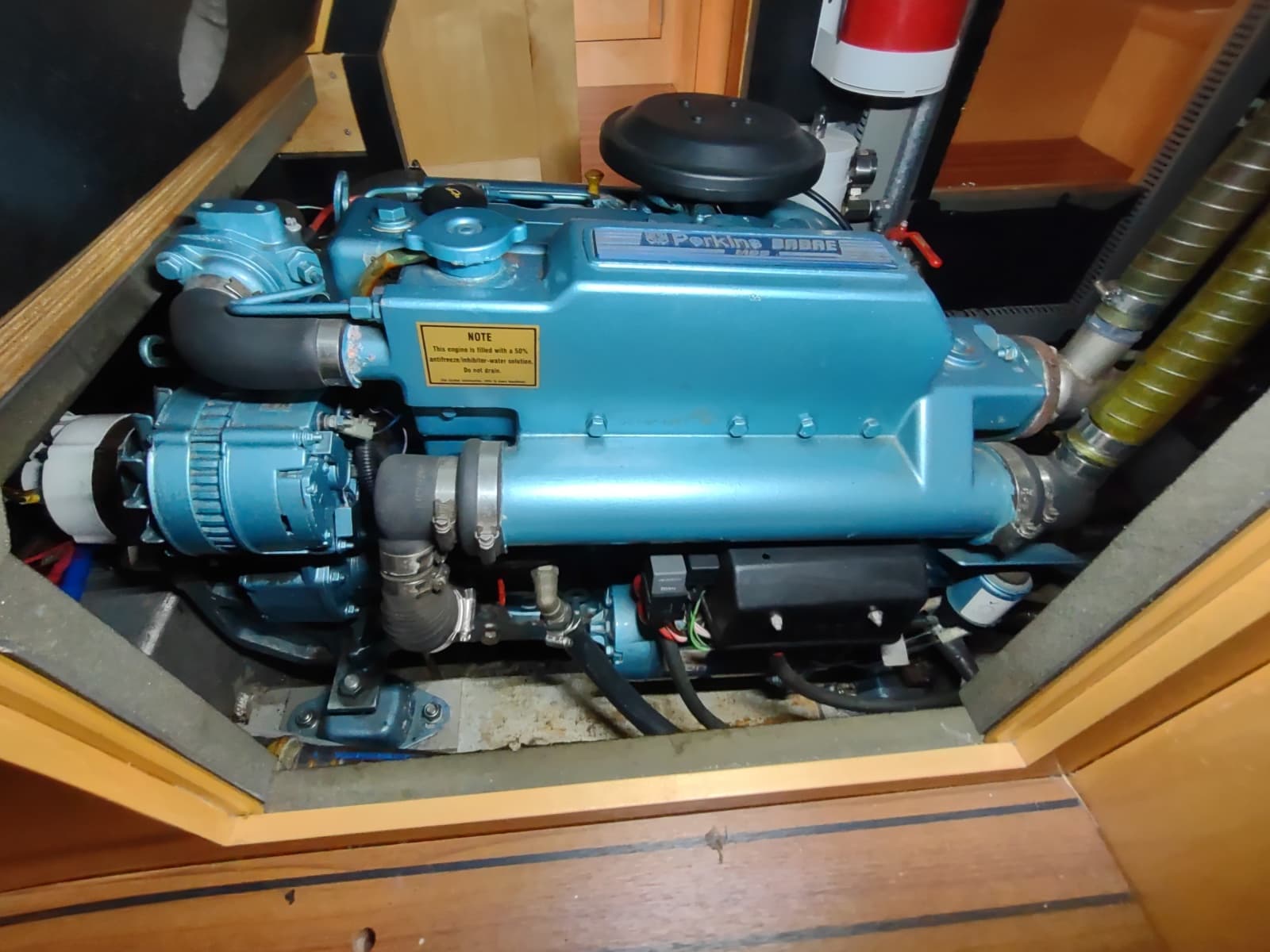

• Perkins M65 65hp engine with 3005 hours
• Racor MA-500 fuel filter on with vacuum gauge.
• PSS dripless shaft seal, replaced in 2021
• Vibration damping shaft coupling
• MaxProp three blade feathering propeller with SPURS line cutter
• Secondary alternator, Mastervolt 90 amp with 3 phase regulator
• Optima starting battery for engine and genset
• Fuel stored in two large tanks and one 26g (100l) day tank

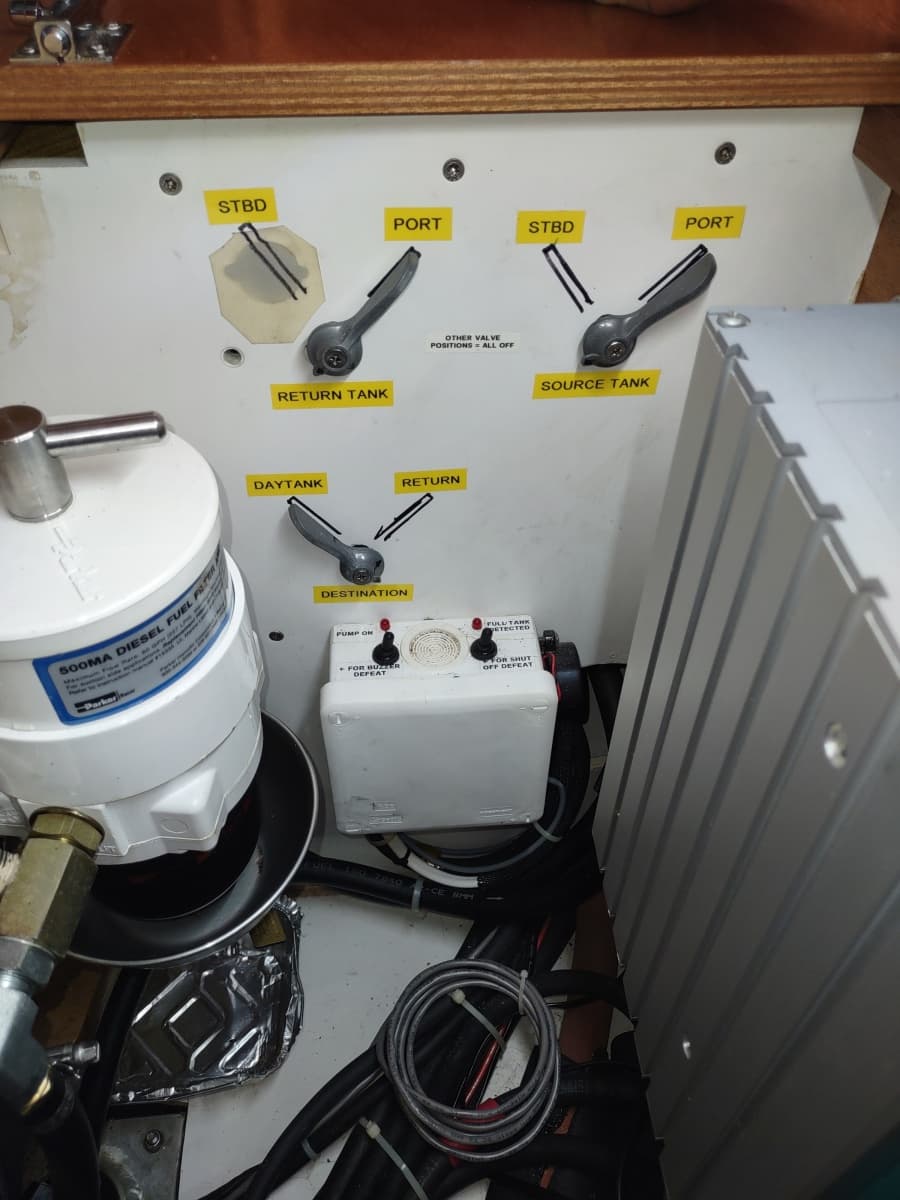

• Fuel transfer/polishing system with Racor MA-500 fuel filter and vacuum gauge Other:
• Side-Power 8.4hp bow thruster (2018)

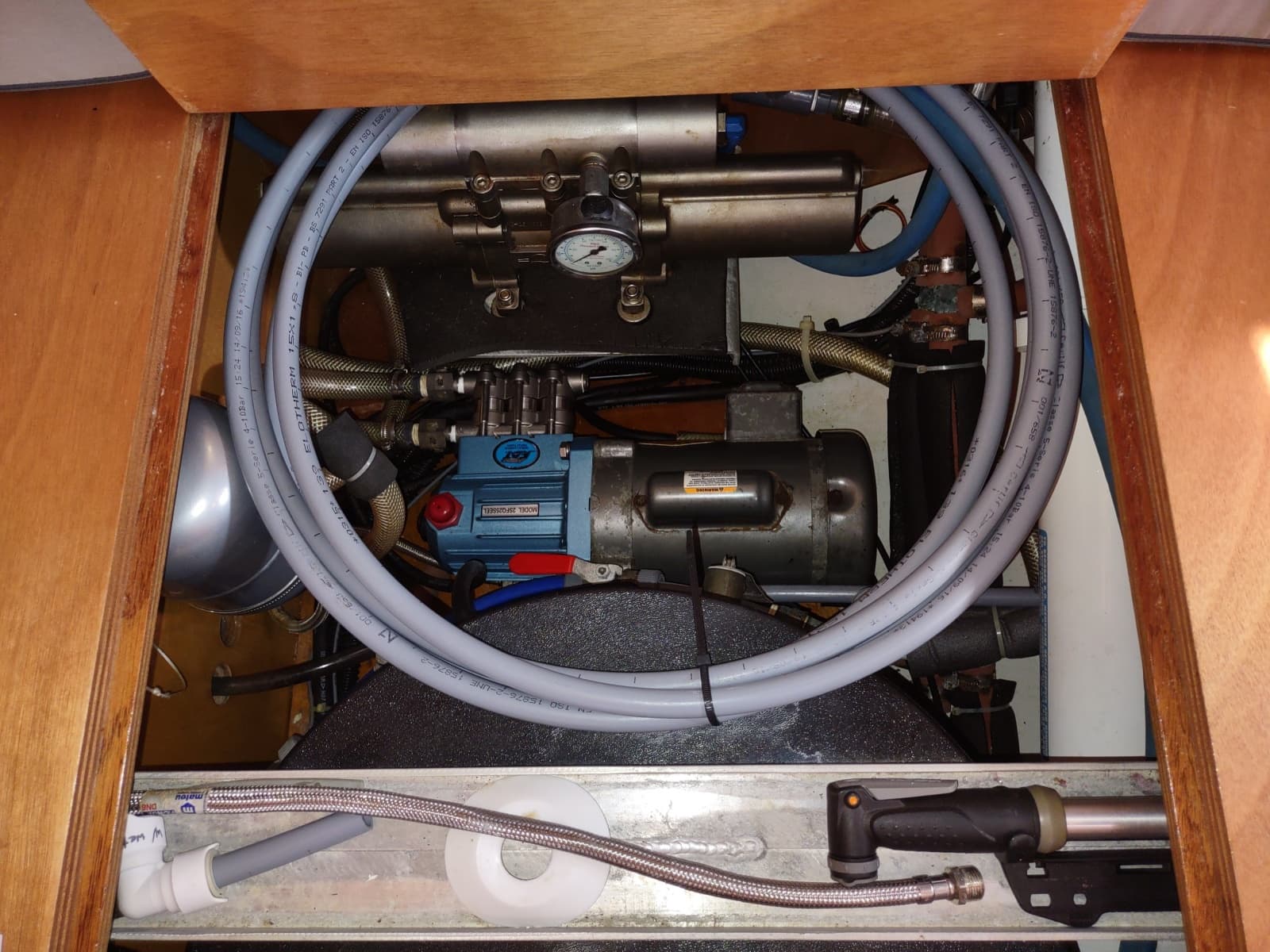

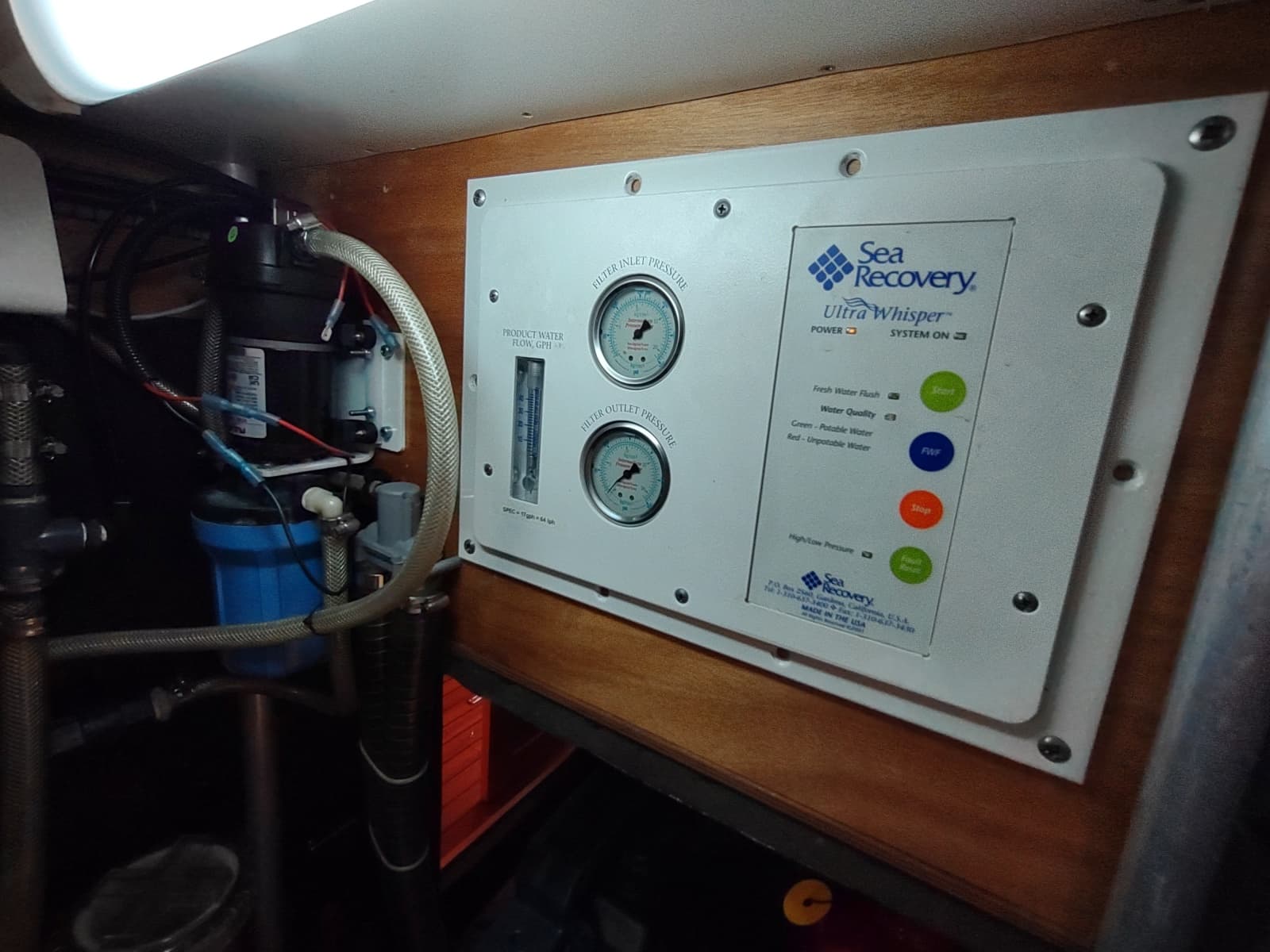

• Sea Recovery water maker, 60 lph/15.8 gph 220V
• Eberspacher Hydronic 10 diesel fueled heater with three outlets

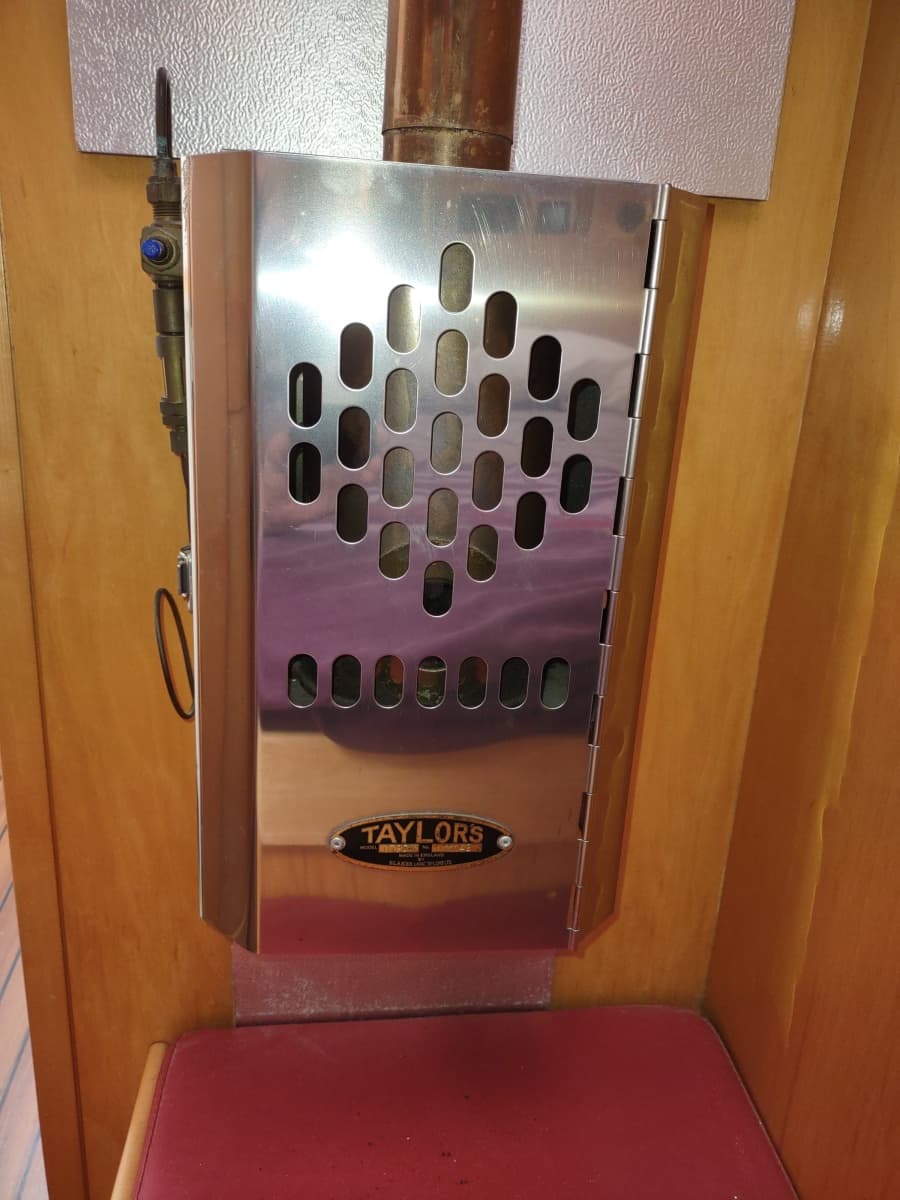

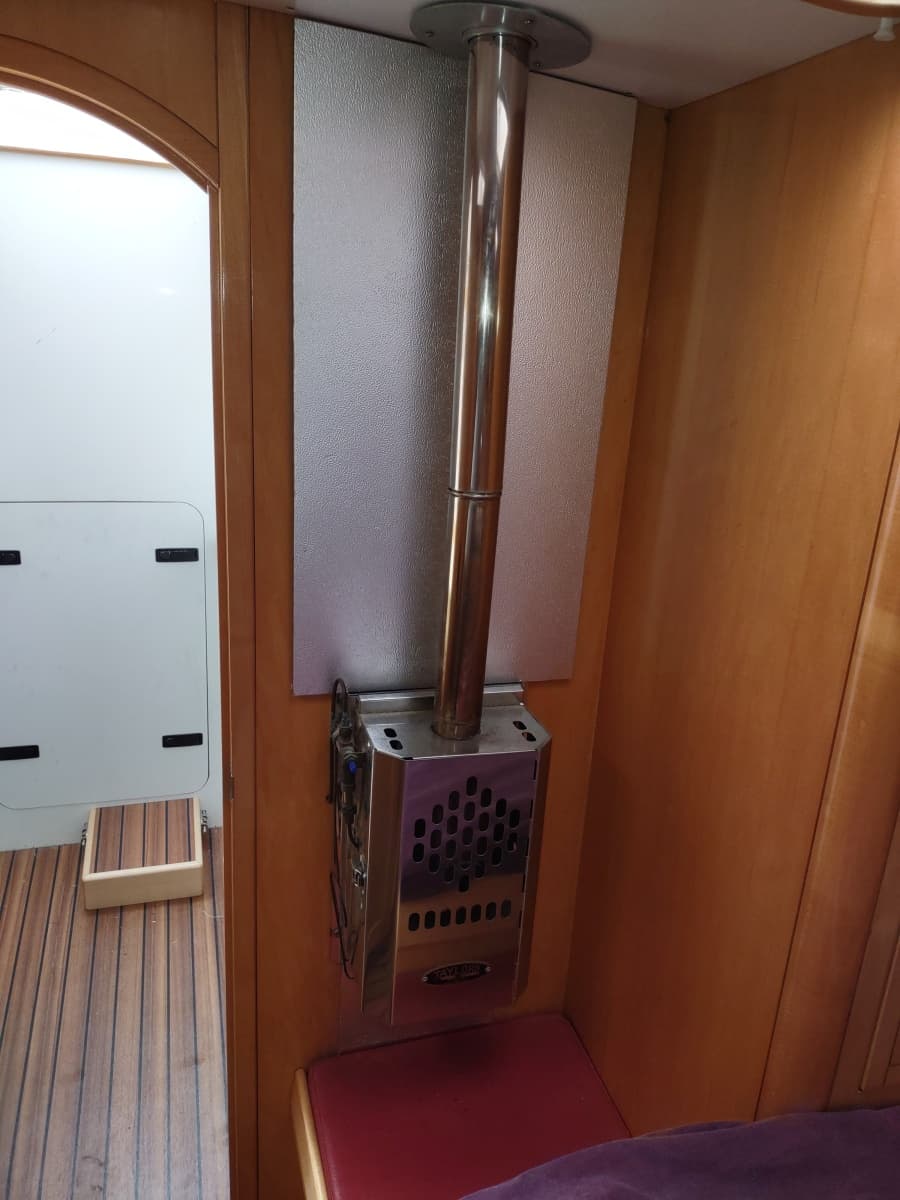

• Taylor’s bulkhead mounted “drip stove” cabin heater with gravity feed tank
• 12V Frigoboat holding plate refrigeration with air and closed loop water cooling

ROULEAU II is set up for extended autonomy with the following:

• Ship's AC power 220v/50hz
• Mastervolt 50 amp 12V battery charger
• Mastervolt MASS Sine 12/2000 220v/50hz inverter

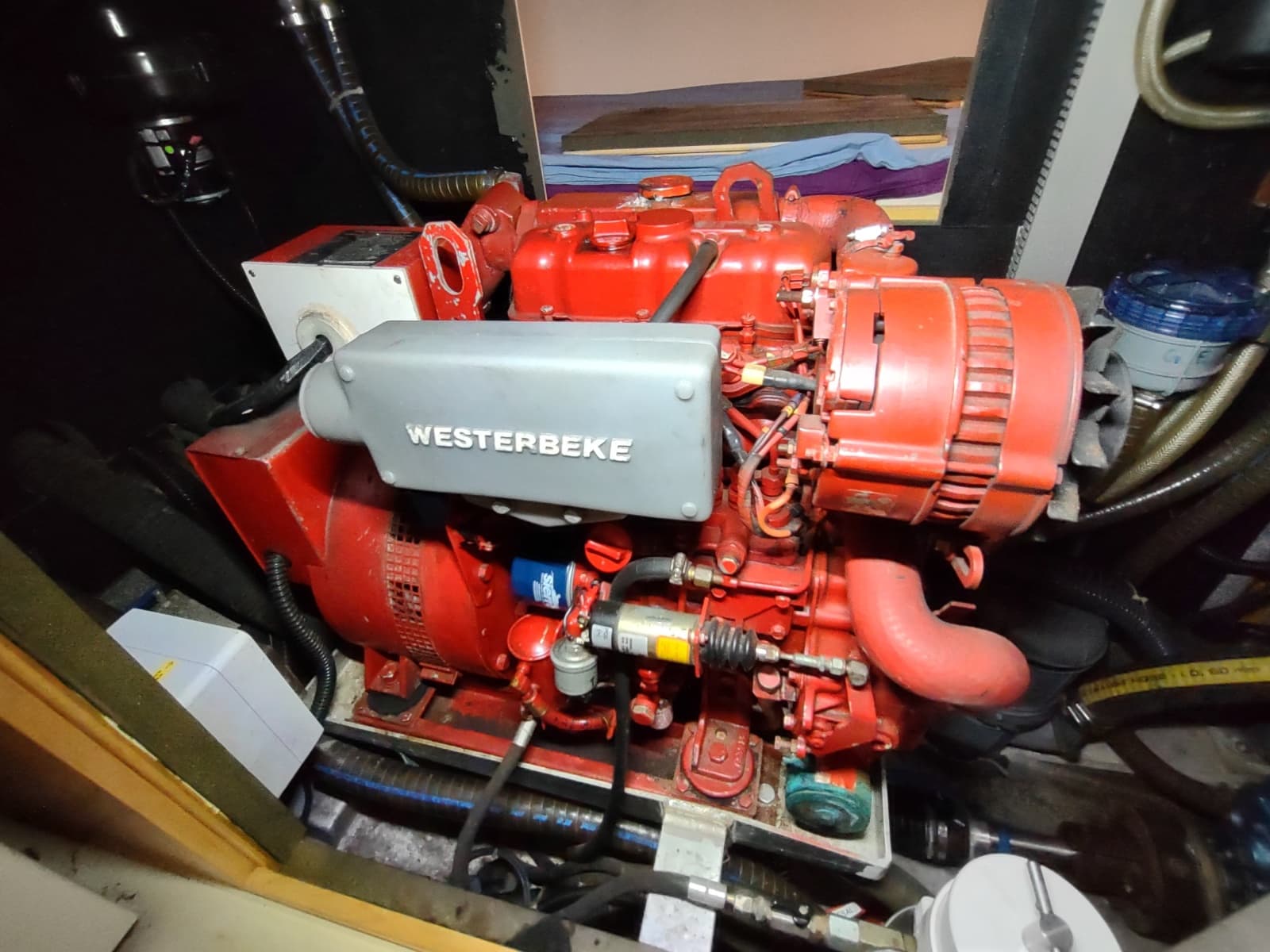

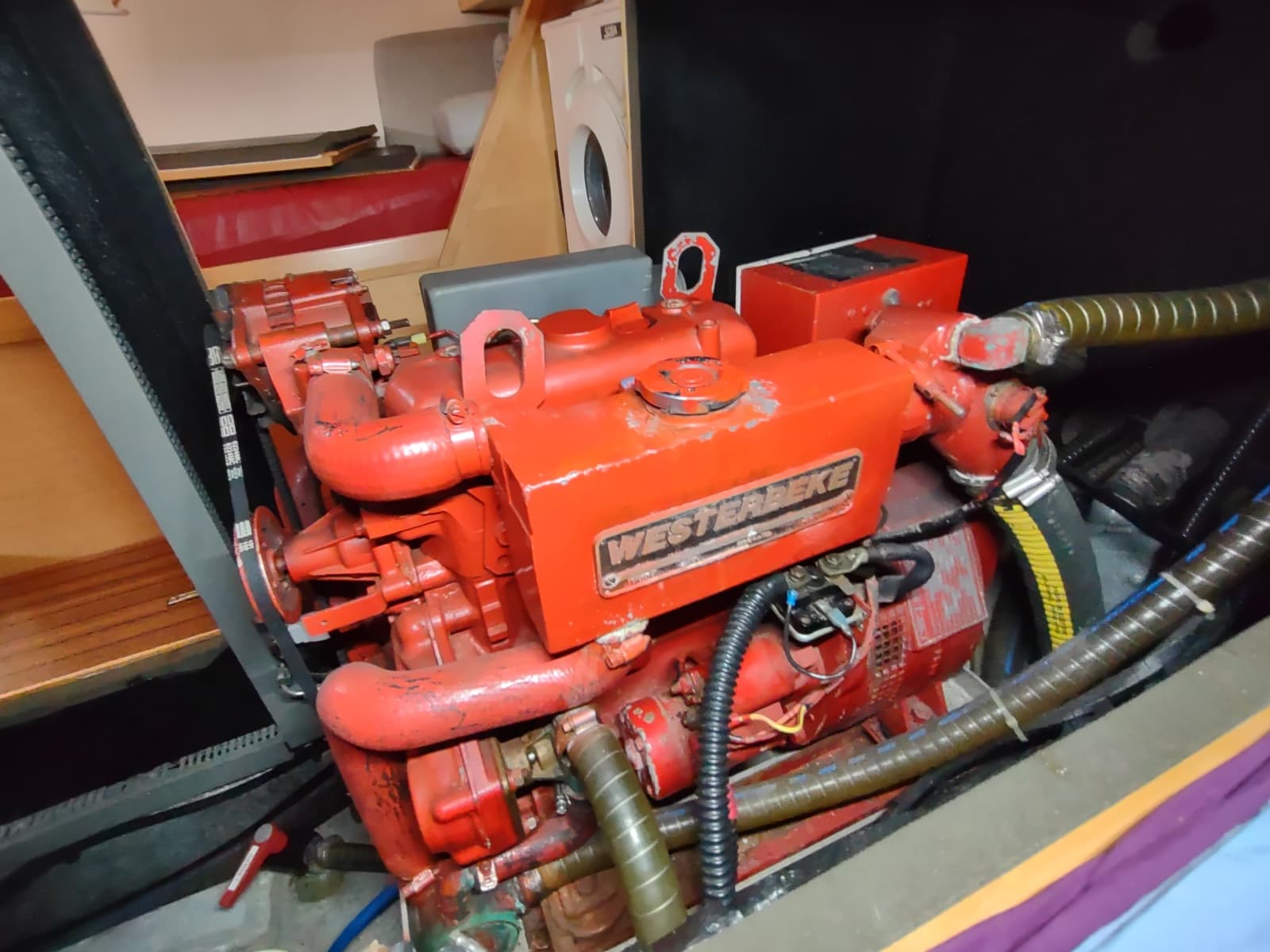

• Westerbeke 220V/50hz 6kw genset with 1598 hours

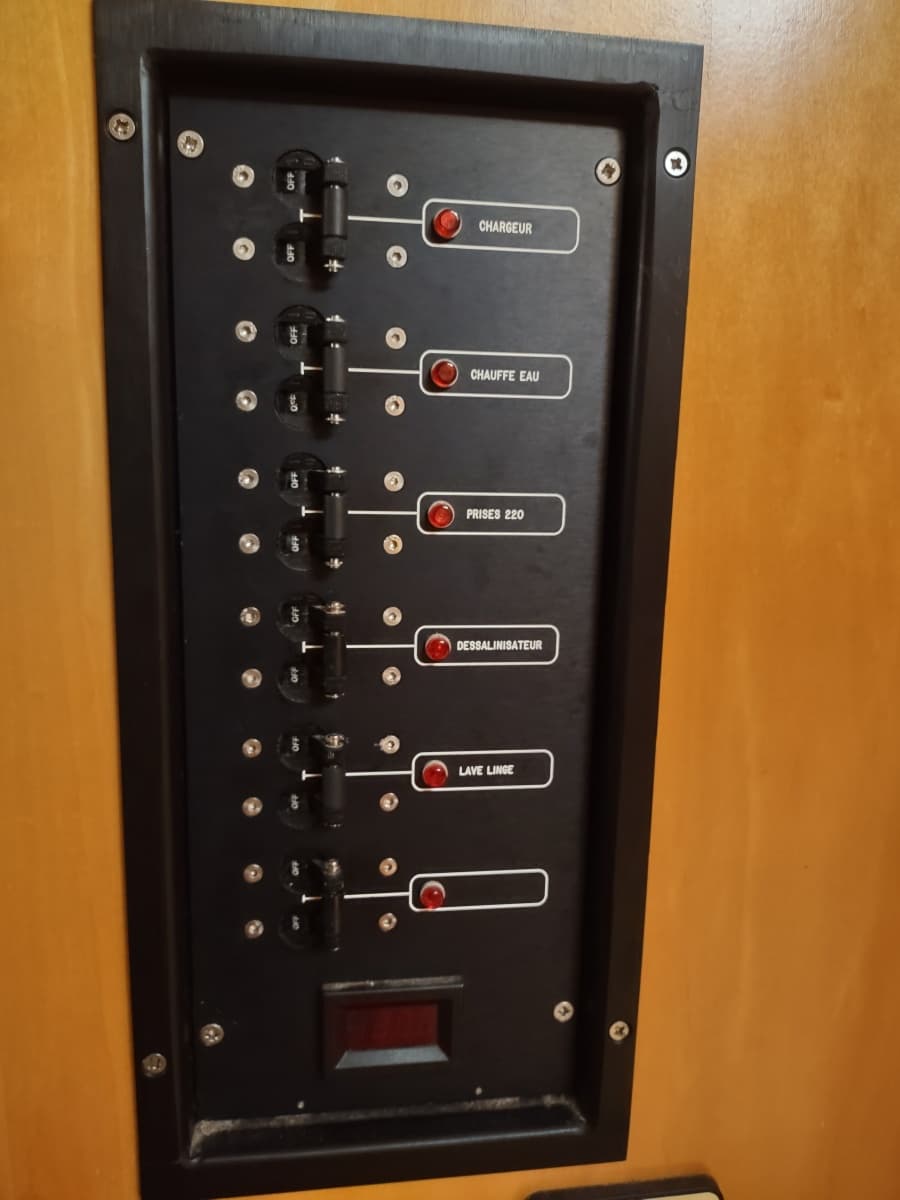

• AC and DC dual pole breaker panels
• Secondary alternator, Mastervolt 90 amp with 3 phase regulator
•  House Batteries Enersys 7 OPzV 490AH VRLA, new June 2021
• Air Breeze 25 amp, 160w marine wind generator on rubber isolation mounts
• (2) 50w flexible solar panels on hardtop (aft of arch) with MPPT charge controller

Safety gear:

• Emergency tiller in port side cockpit locker
• Ocean Safety, Ocean ISO 6 Person Liferaft, new January 2021, due for service
• Ocean Brake, Jordan Series Drogue, new July 2021
• Plastimo horseshoe buoy with light mounted on stern rail
• Accastillage Diffusion Rescuer (Life Sling) with 50m floating line
• Fire blanket under galley sink
• Plastimo horn
• Softwood bungs at all visible thru-hulls
• (3) Red flare
• Smoke, parachute and other flares
• Signal mirror
• (2) Boat hooks, one stowed in boom
• Anchor day shape (ball)
• Motor sailing day shape (cone)
• Plastimo bosun's chair

Life vests and harnesses:

• (2) Big-Ship, inflatable with integral harness and tether, 1 ea. small , 1 ea. medium
• (2) KONG tether with elastic short and long straps.
• (2) Plastimo automatic inflatable life vest and dual strap tether
• Plastimo harness
• (2) Spinlock deck pro harness, one size
• Black Diamond climbing harness
• (2) Plastimo Storm 2 foam life vests, size, L

Fire extinguishers:

• Under nav desk
• Stbd quarter berth
• Port side cockpit locker
• Fireboy automatic extinguisher in engine room

Additional:

• Extensive ship's spares aboard
• Achilles 10’ 2” roll-up dinghy, new 2018
• Yamaha 2.5 hp outboard engine
