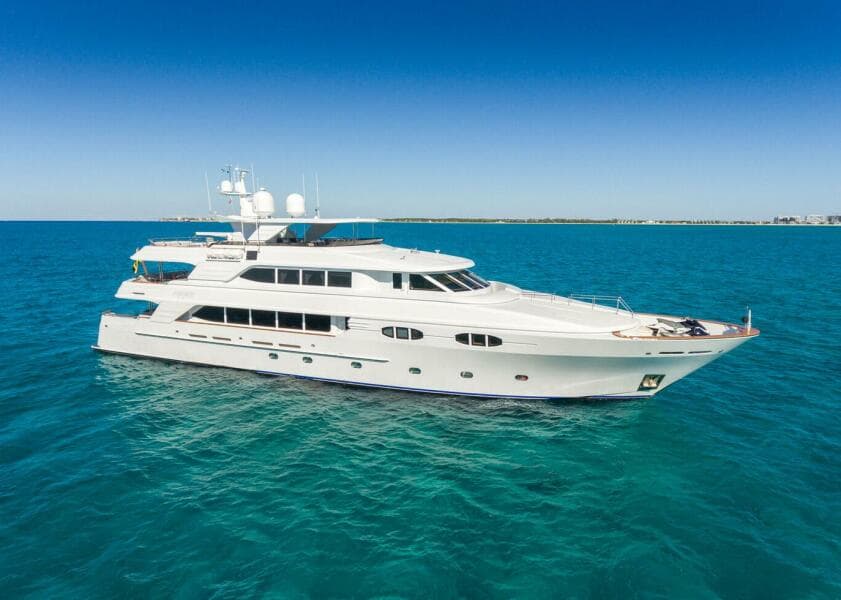

2004 Richmond Yachts

The formal foyer entrance in the main salon can be reached by boarding the boat via steps on

the starboard side forward. However, the more popular way to enter the vessel is through the

boarding steps on either side aft or by using the passerelle to access the large covered aft deck.

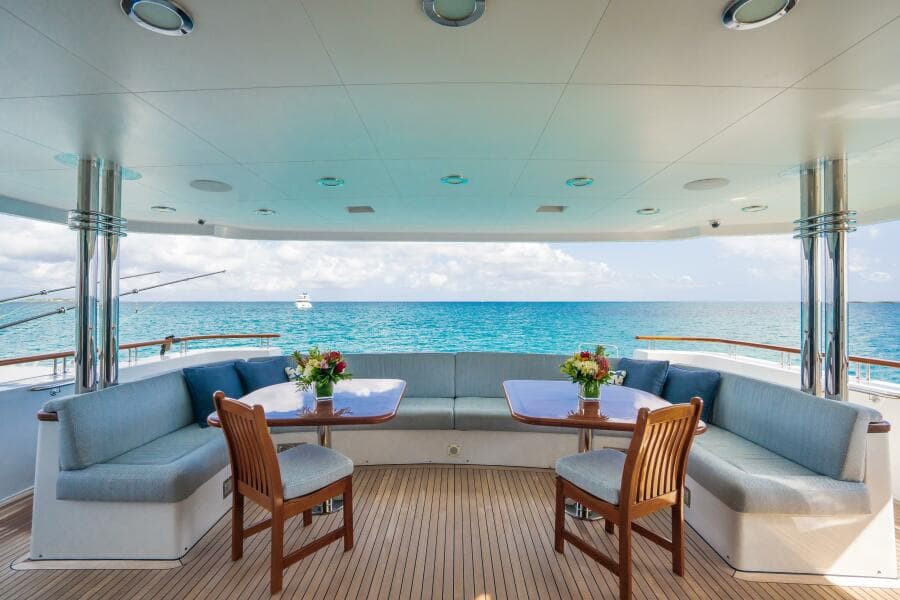

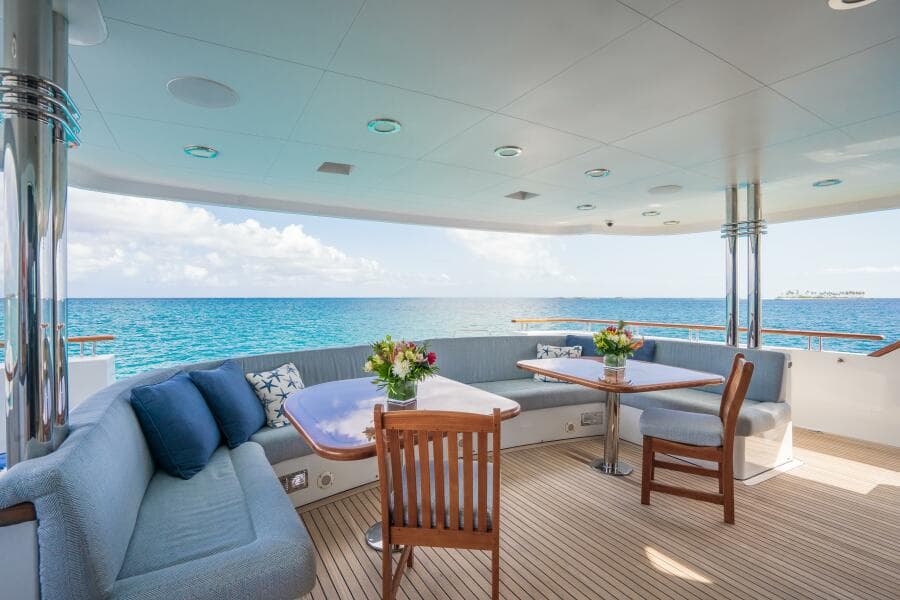

This deck is equipped with casual seating, making it an ideal spot for gathering and watching

water sports activities that take place on the large swim platform. The swim platform can be

accessed from either the port or starboard side, whether the boat is docked stern to a floating

dock or approached by tender.

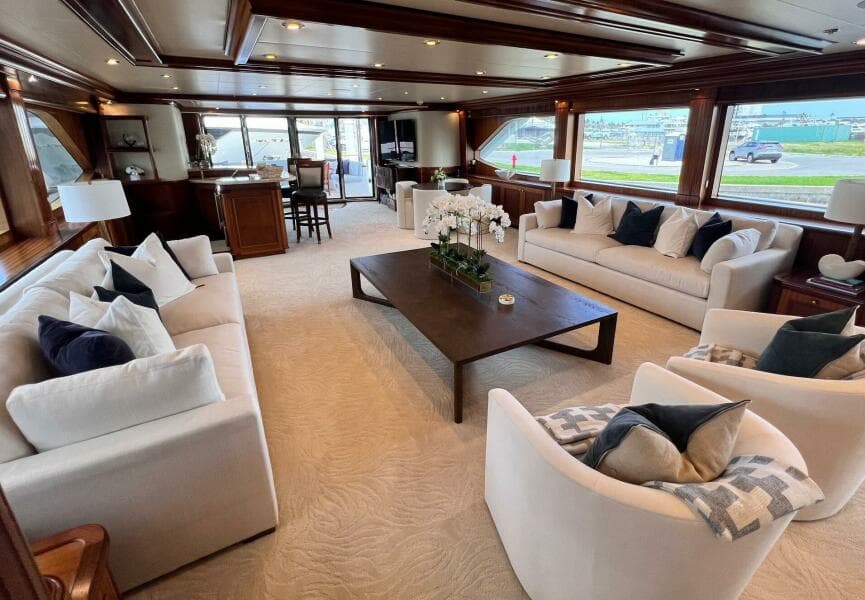

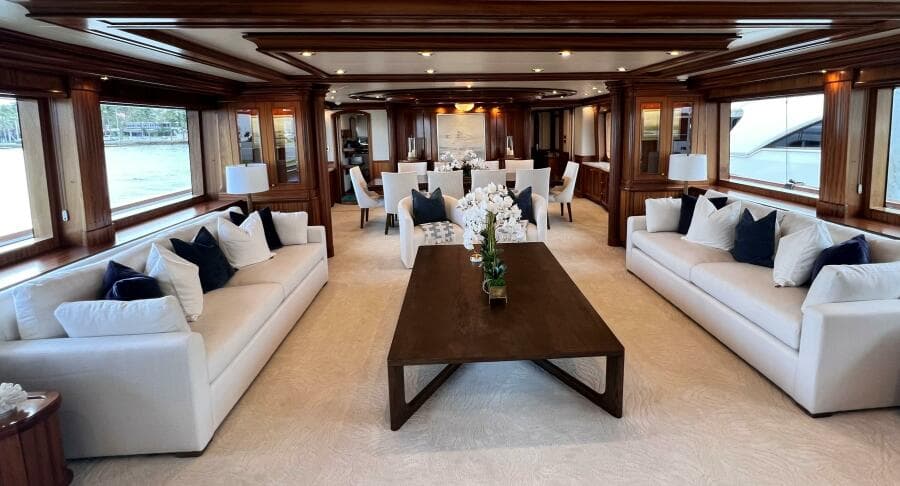

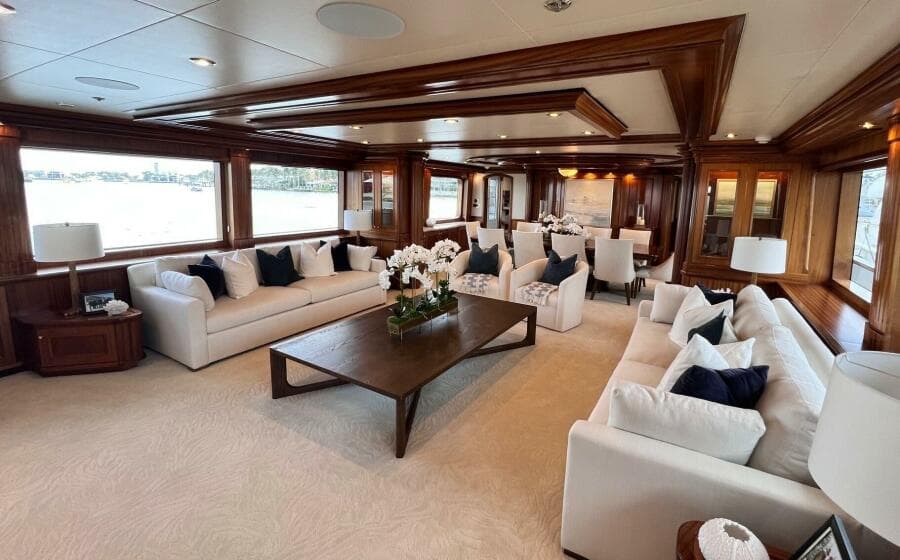

Once you enter the main salon from the aft deck through the custom-built double glass sliding

doors, you will be greeted by an elegant and stylish lounge area that is perfect for entertaining

guests. The entire space is spacious and offers excellent visibility, allowing you to enjoy the

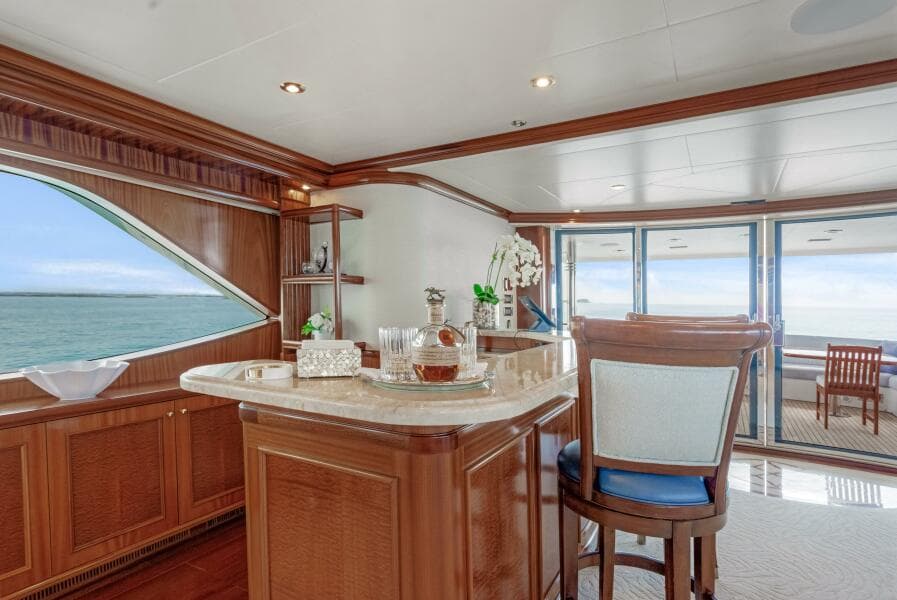

views while socializing. The lounge area also features a well-equipped bar, where you can enjoy

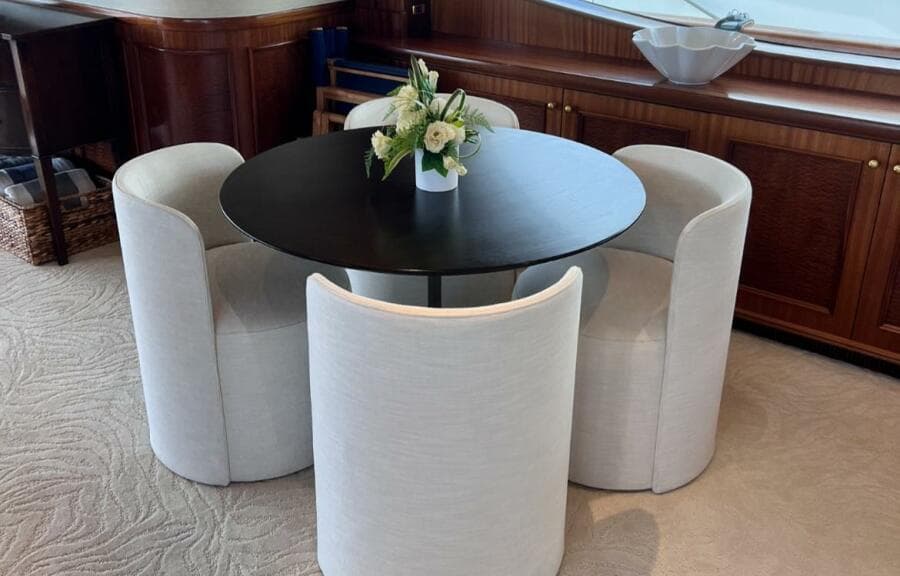

your favorite drinks. Additionally, there is a seating area consisting of two large custom sofas,

four comfortable armchairs that match the sofas, two lounge chairs with ottomans, and a table

to the port aft. This seating arrangement provides a cozy spot for intimate conversations away

from the larger group.

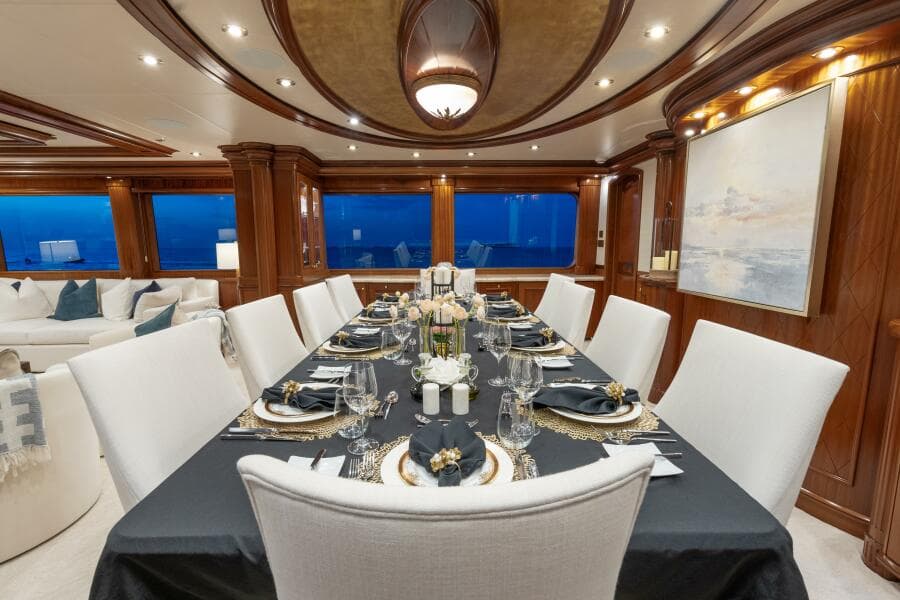

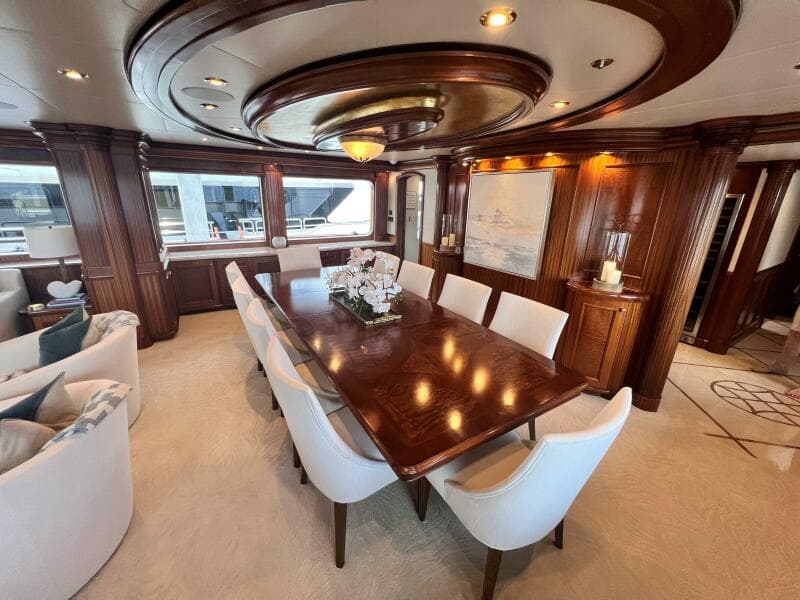

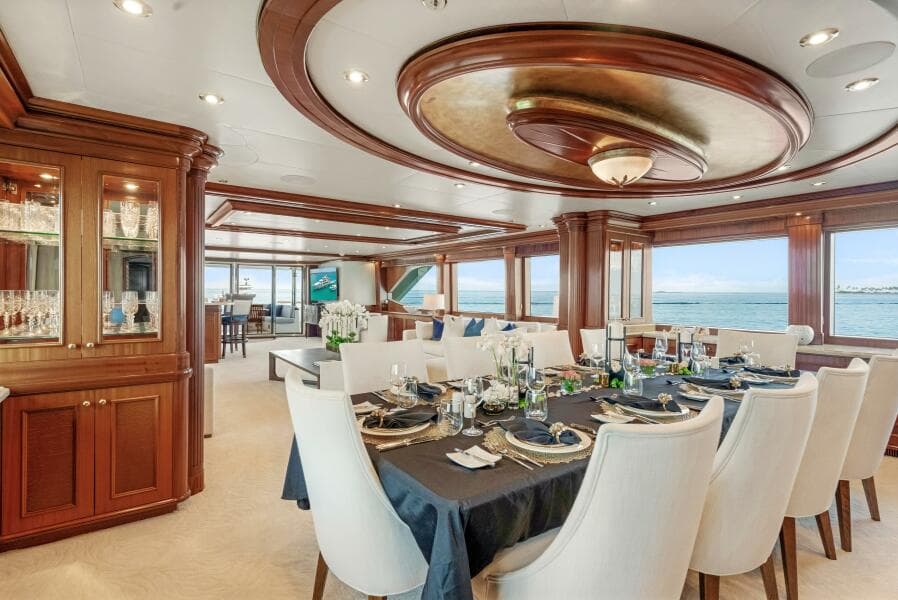

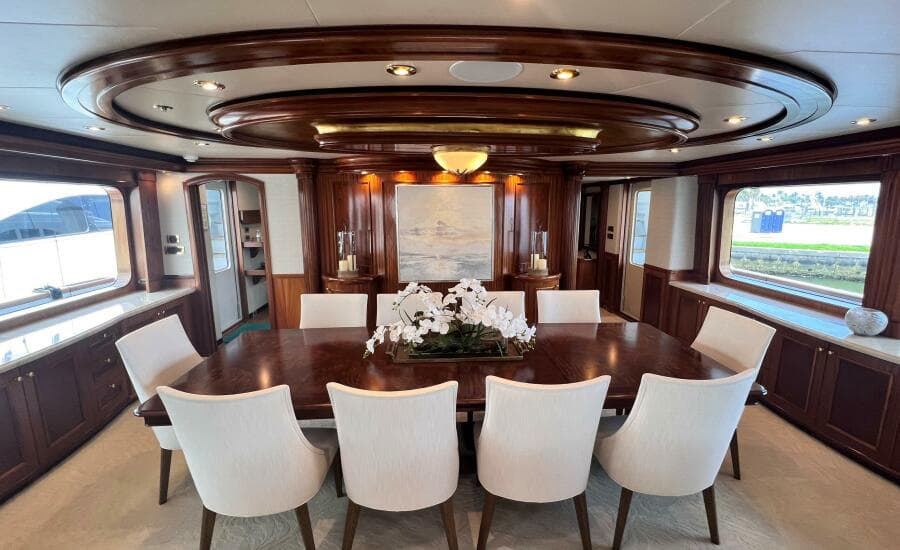

On this deck, you will also find the formal dining area, which is one of three options for dining

aboard. A custom rectangular dining table that can accommodate up to ten guests, allows for

enjoyable meals together. The dining area provides ample storage for China, crystal, and

stemware in the glassware cabinet and buffet. Moreover, there is an automatic door to the

port, serving as a service entrance between the galley and the dining salon, ensuring

convenient and efficient service during meals.

Located forward to the port of the dining salon, you will find the large and well-equipped galley.

This professional-grade kitchen is designed with functionality in mind and offers a seamless

experience for the crew. The galley can be accessed from the mid-ship port side deck, allowing

for easy access for the crew and stocking of galley supplies.

As you enter the butler's pantry from the dining area, you will find essential appliances such as

an ice machine and a dishwasher. Moving into the galley itself, you will notice that all the

appliances are stainless steel, giving the space a sleek and modern look. The galley is equipped

with two large side-by-side Subzero refrigerators, ensuring ample storage for food and

ingredients. Other appliances in the galley include a trash compactor, a steamer oven,

dishwashers, a 2-drawer freezer, a cooktop, two double wall ovens, and a microwave. These

high-quality appliances make it easy for the crew to prepare delicious meals and snacks for

guests on board.

Heading forward to the starboard side on the main deck, you will come across the on-deck

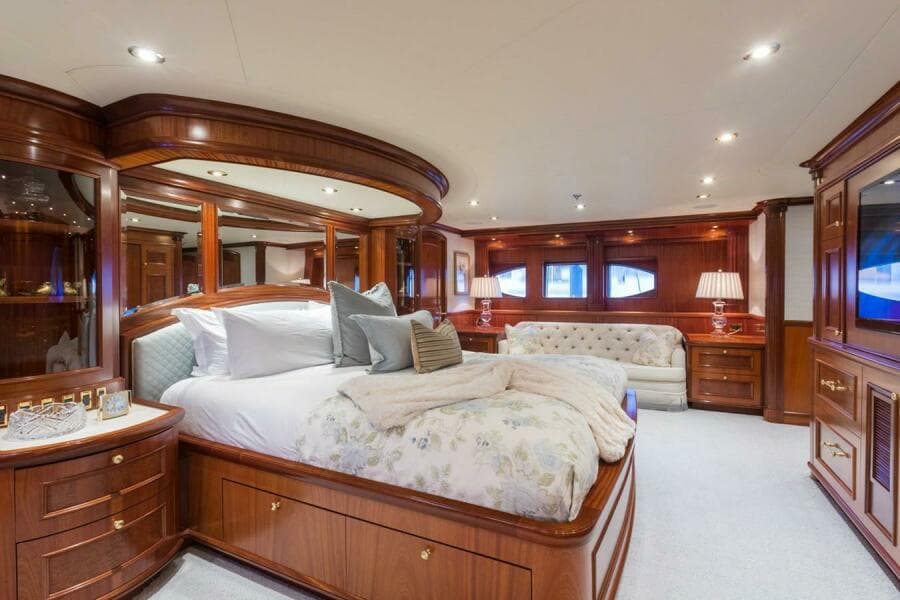

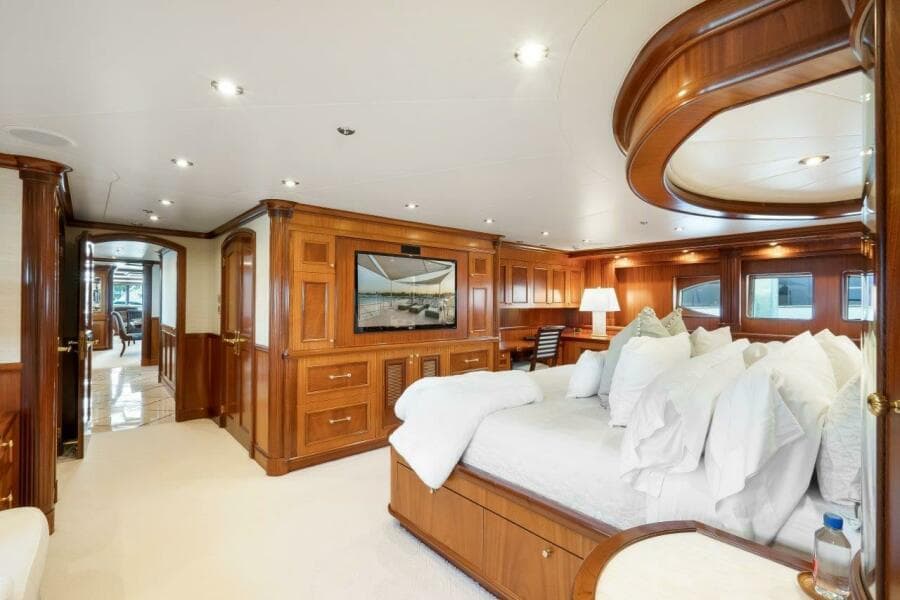

powder room, providing convenience for guests. Continuing into the on-deck Master Suite, you

will find a settee to the starboard side, a king-size berth with a bedside table, and a built-in desk

to the port side forward. The suite offers ample storage and closet space. The ensuite

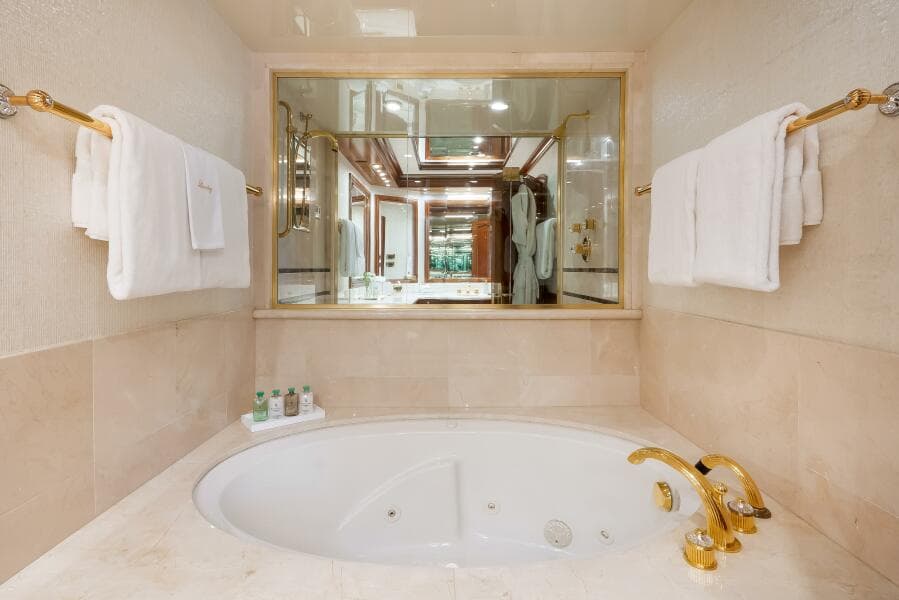

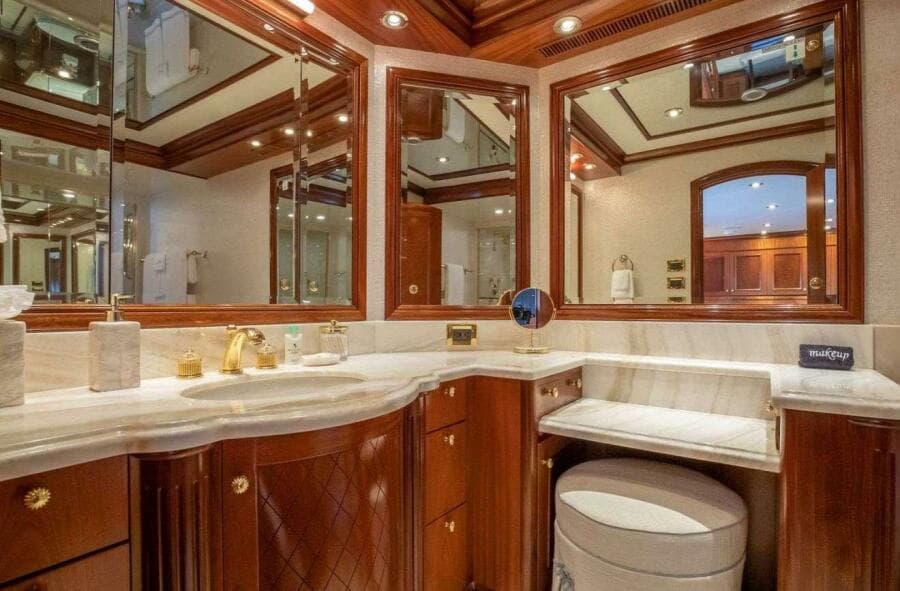

bathroom is spacious and features a his and hers layout, complete with a shower and tub. The

master suite also includes a 50" TV for entertainment.

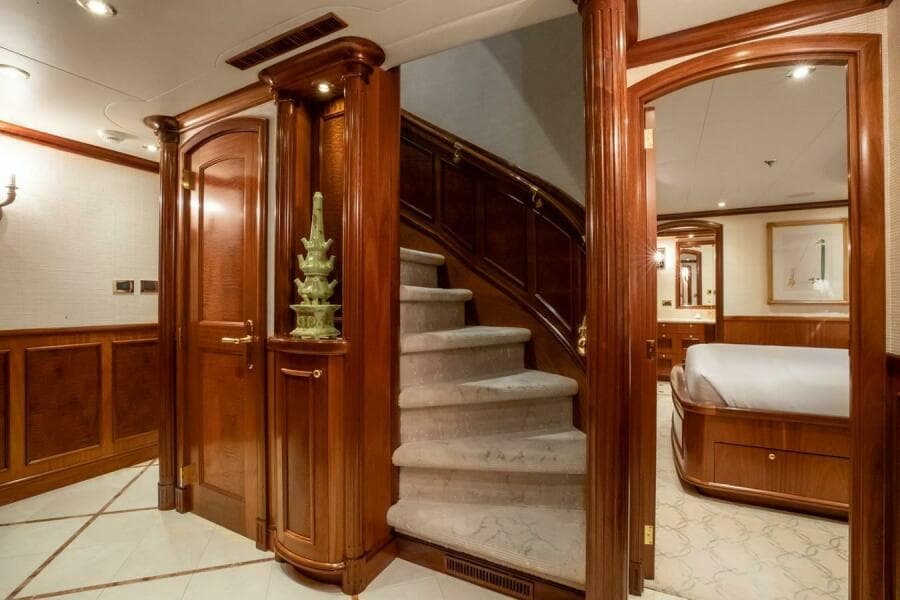

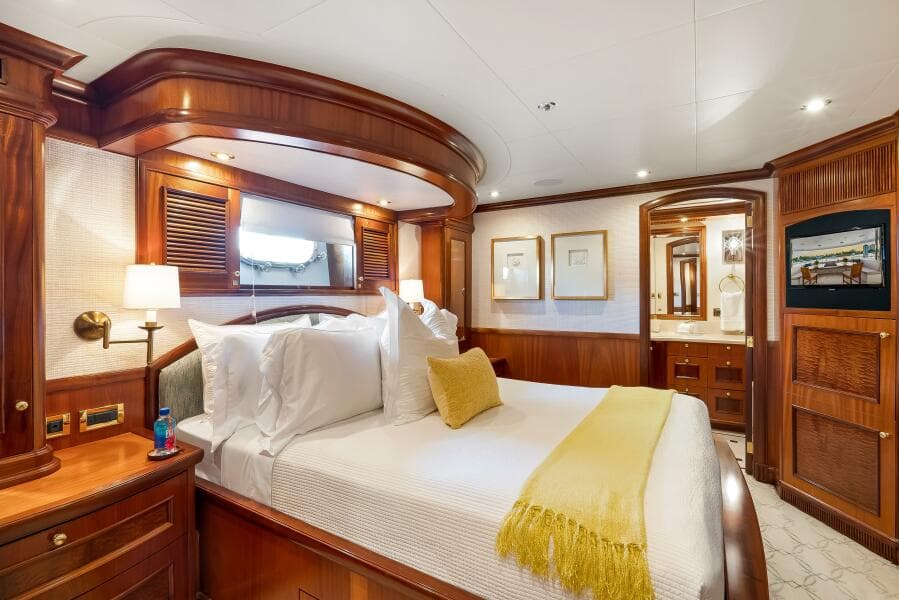

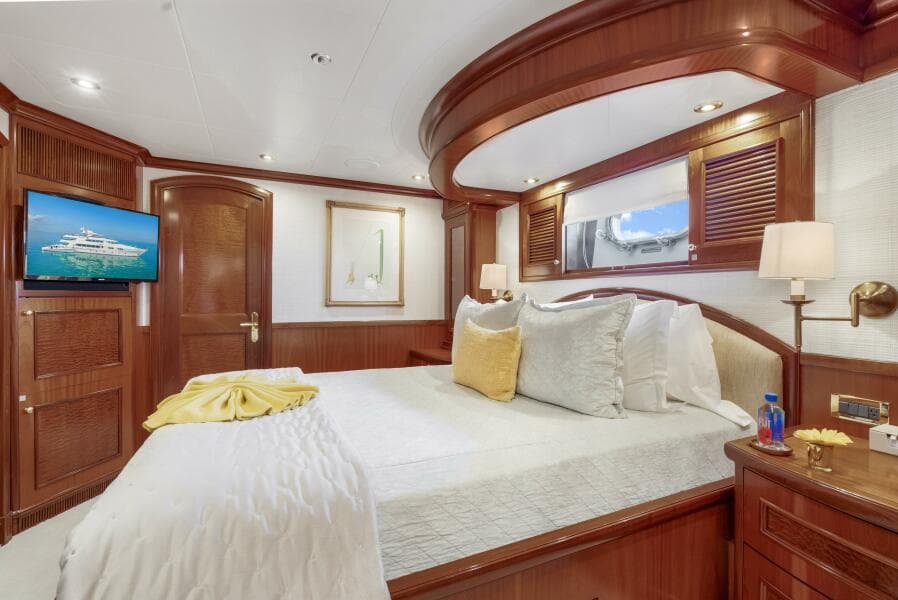

Descending from the starboard main foyer to the lower foyer, you will find access to four large

guest staterooms. Two of these staterooms have queen-size beds, mirror images of each other,

and ensuite bathrooms with a shower/tub combination. These staterooms offer plentiful

storage and closet space. Additionally, there are mirror twin cabins with two twin berths in

each, as well as ensuites featuring a shower/tub combination.

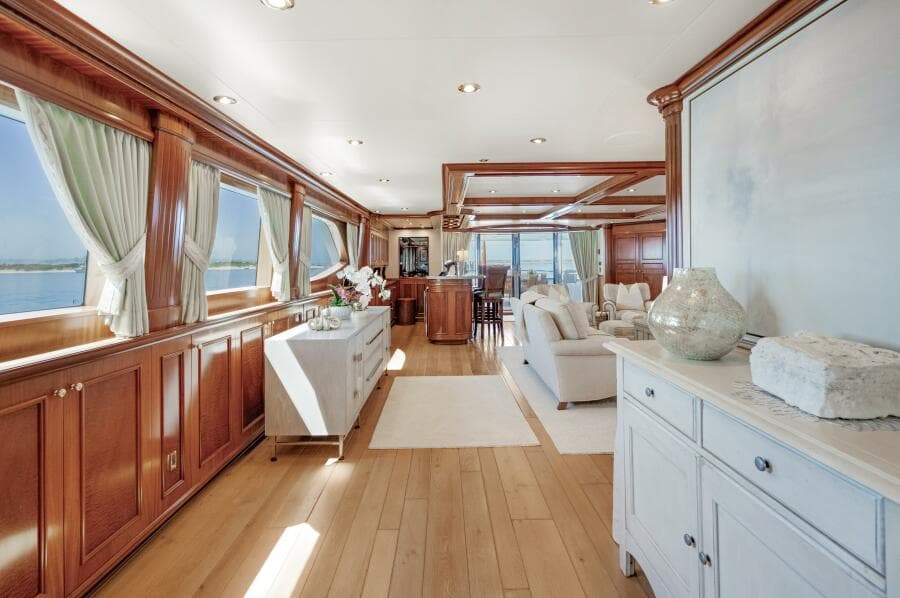

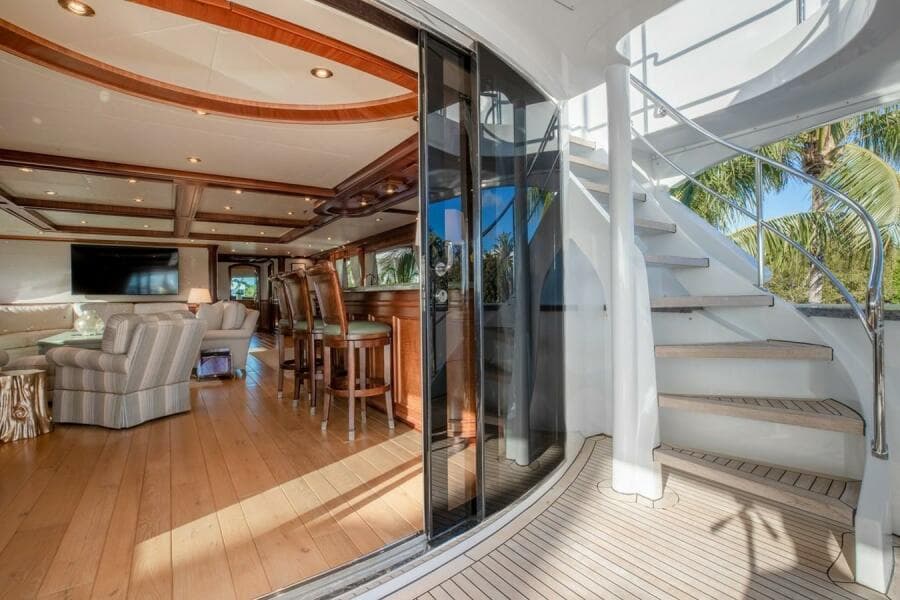

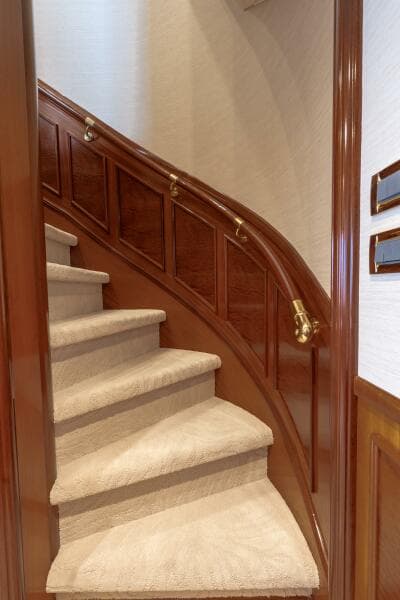

Moving up the winding stairs from the guest foyer, you will reach the bridge deck, where you'll

discover the bridge deck salon. Continuing aft from the salon, you'll pass a well-appointed

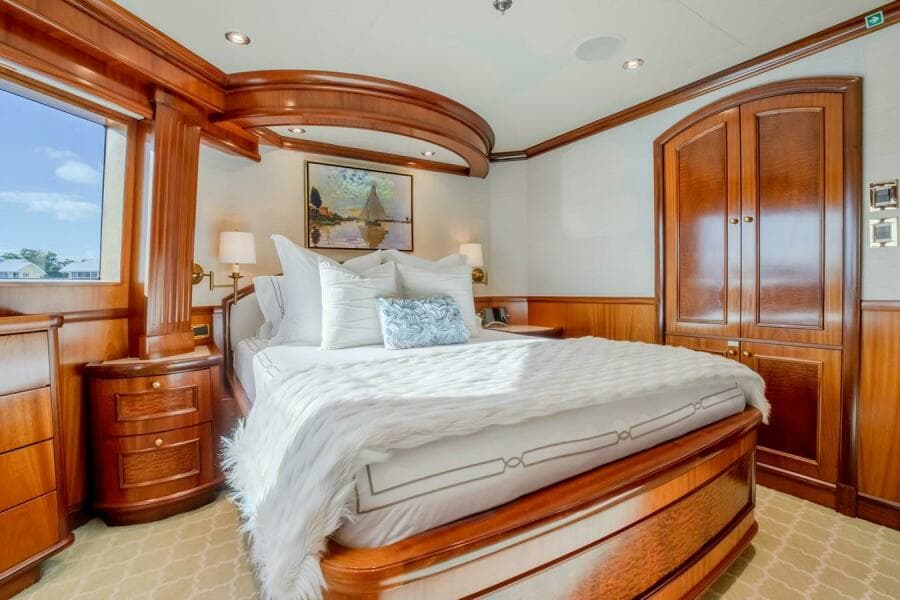

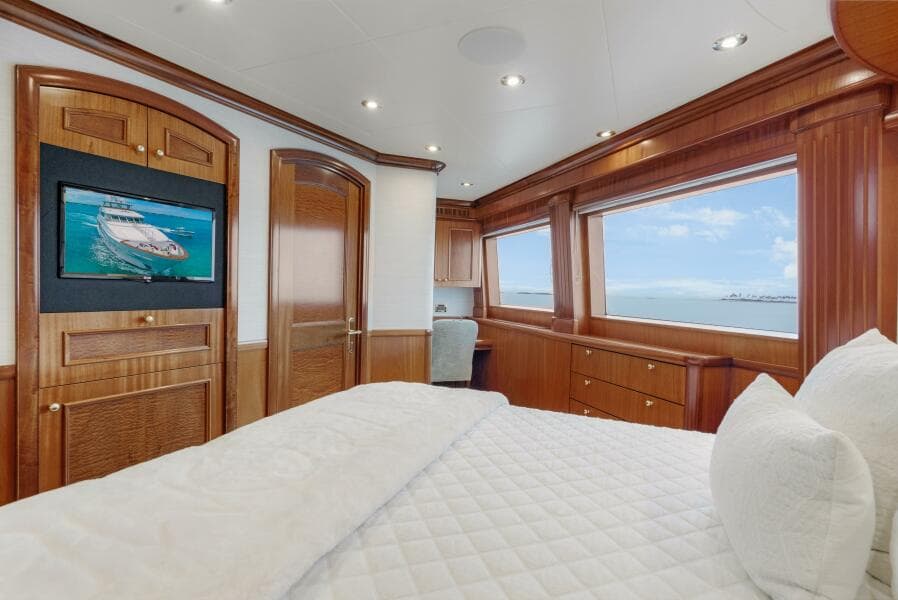

powder room before entering the private VIP stateroom to the port side. The VIP stateroom

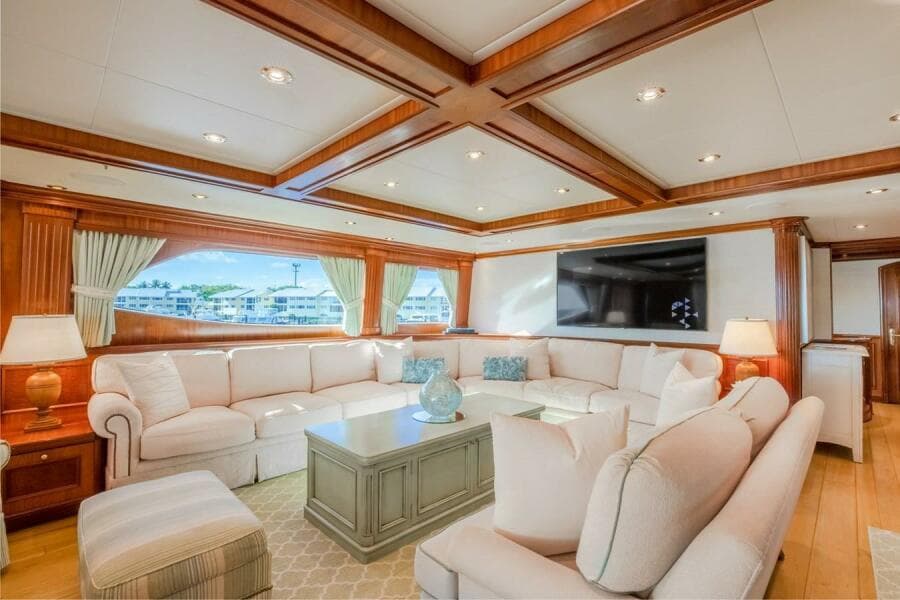

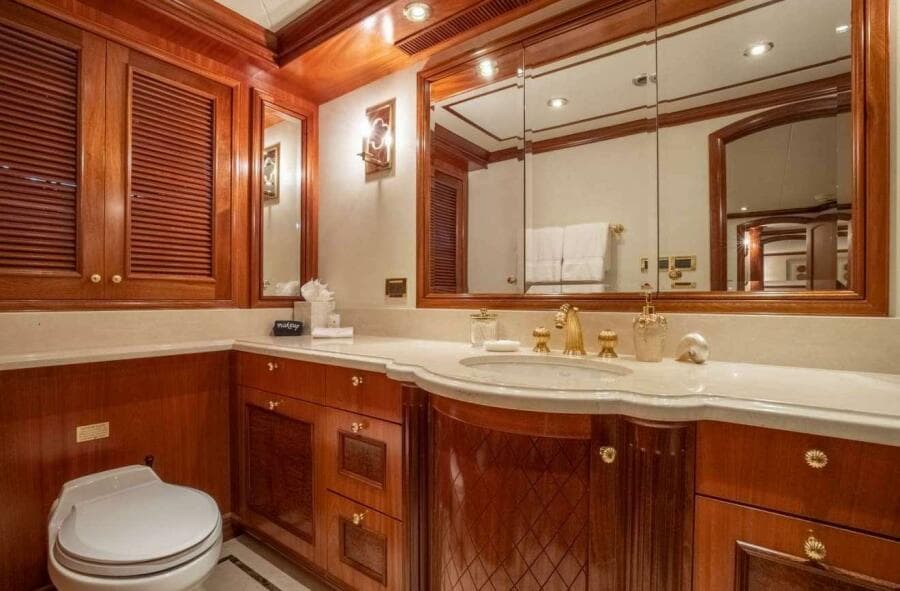

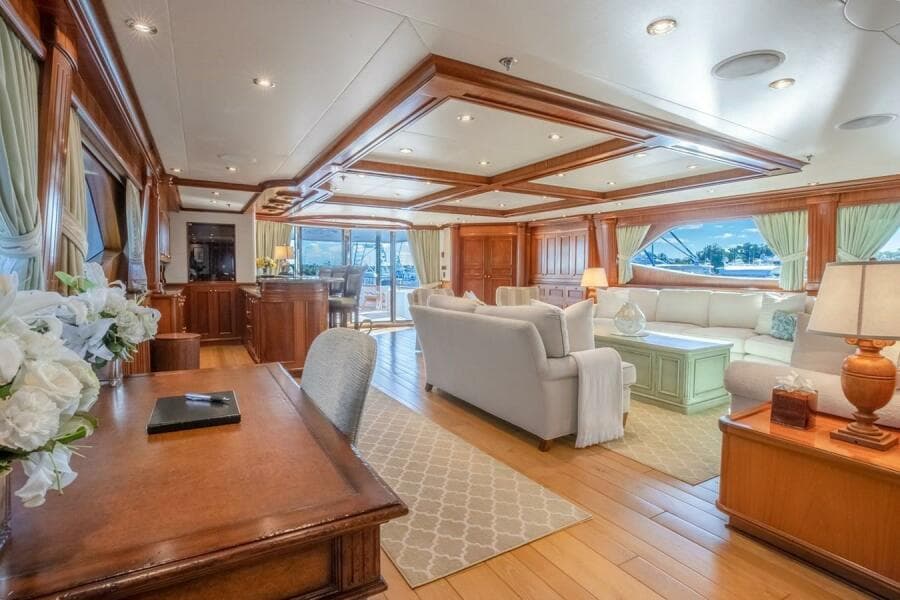

features a queen-size berth and an ensuite bathroom. Further aft is the expansive skylounge,

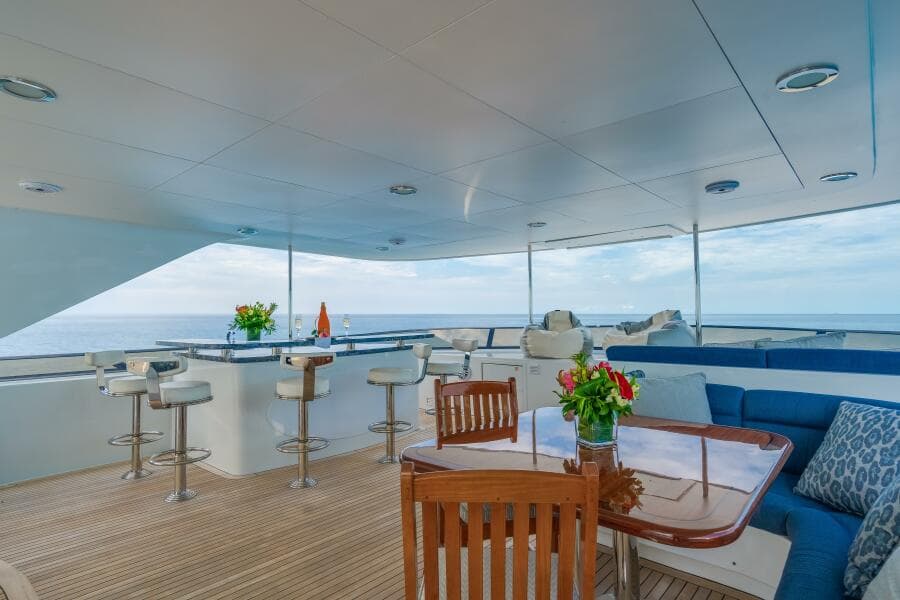

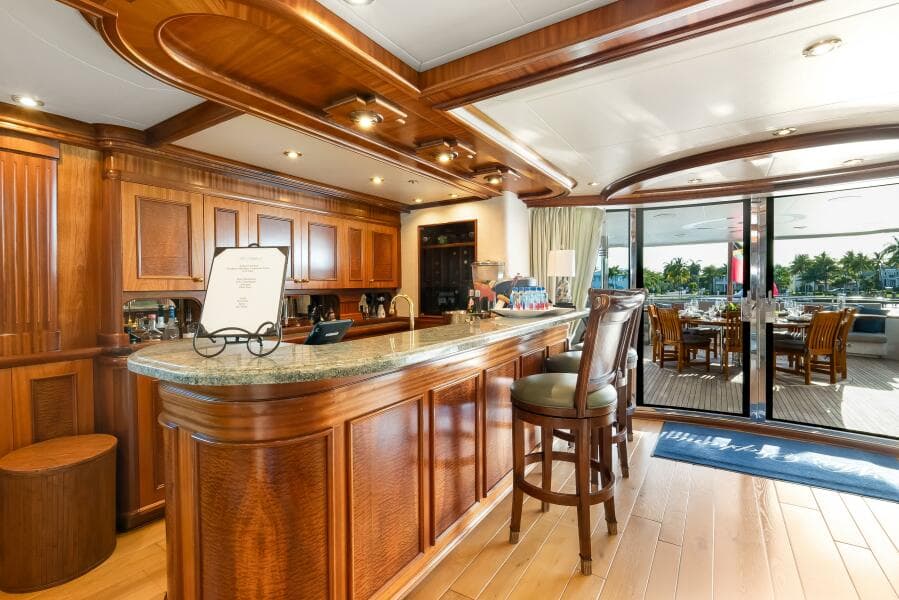

which features a large bar to the starboard side. On the port side, there is a large half-circle

settee with a centerline settee, two chairs, an ottoman, and a cocktail table. To the starboard

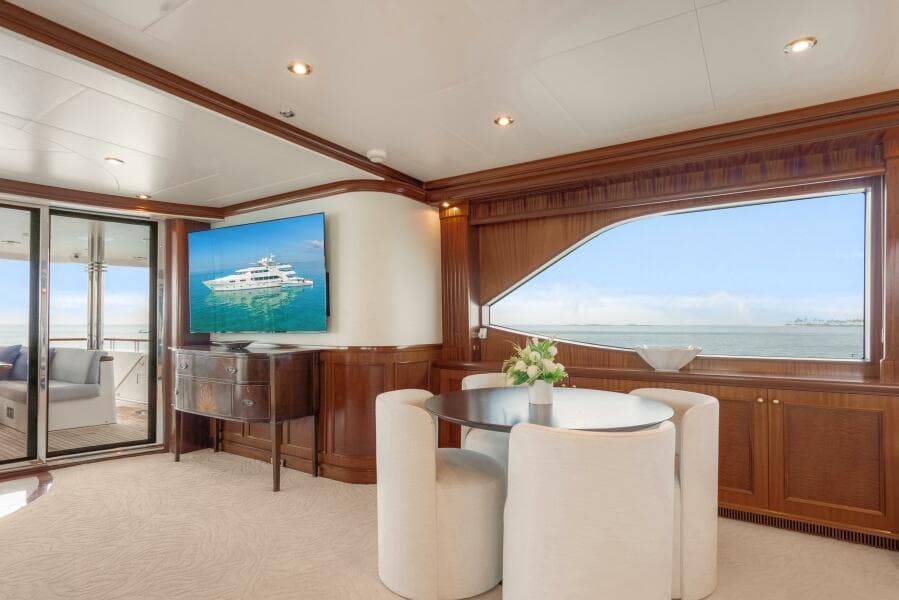

side, there is a small table with two chairs, which is an ideal spot for card games or chess. A

large TV is located on the forward bulkhead, allowing for movie nights. Walking through a set of

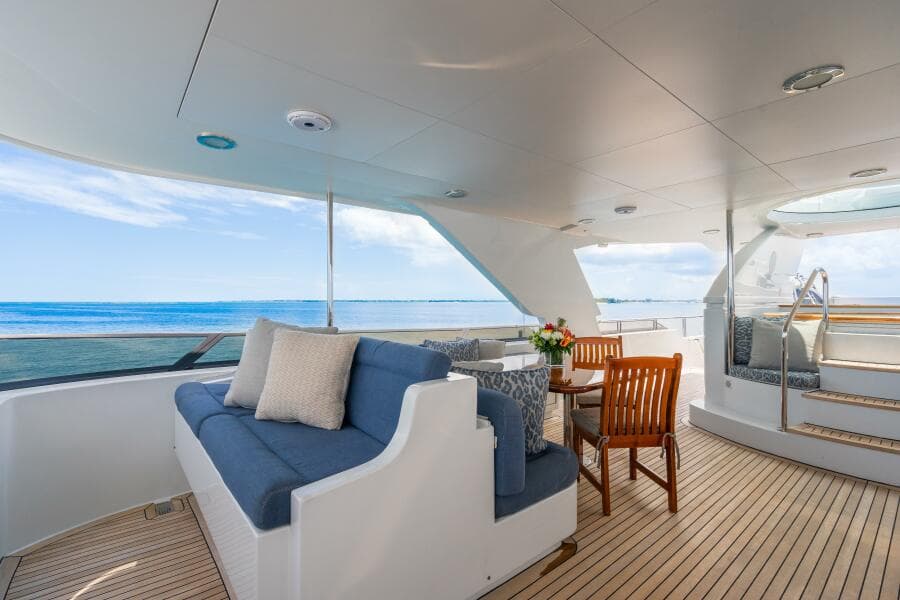

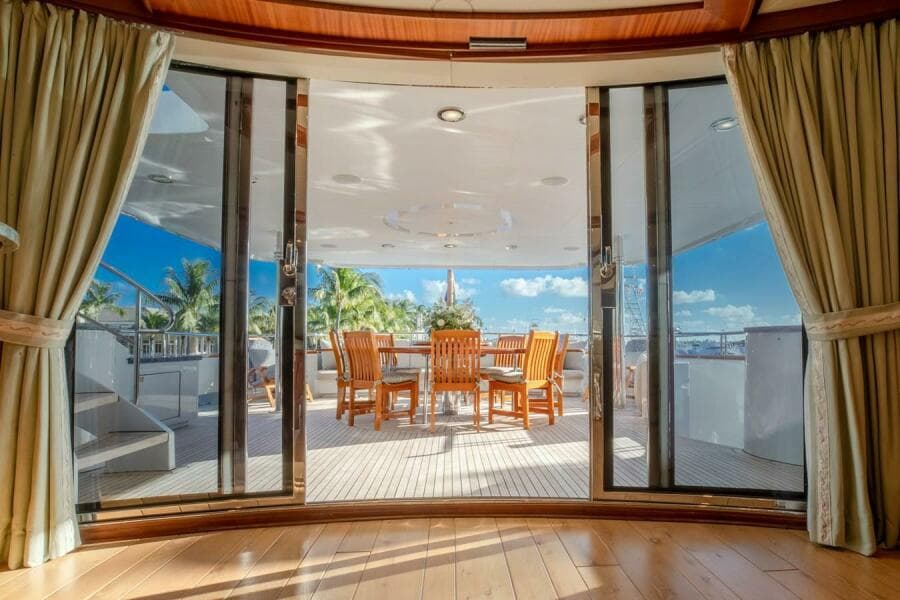

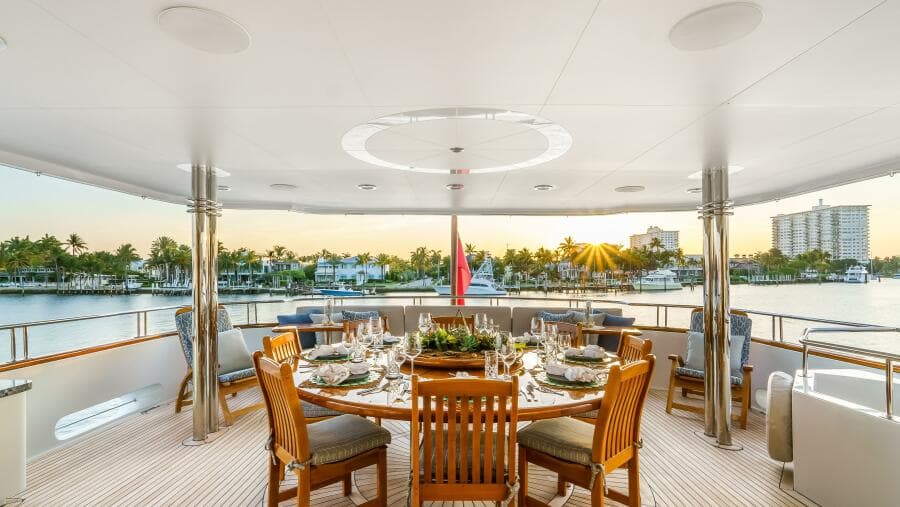

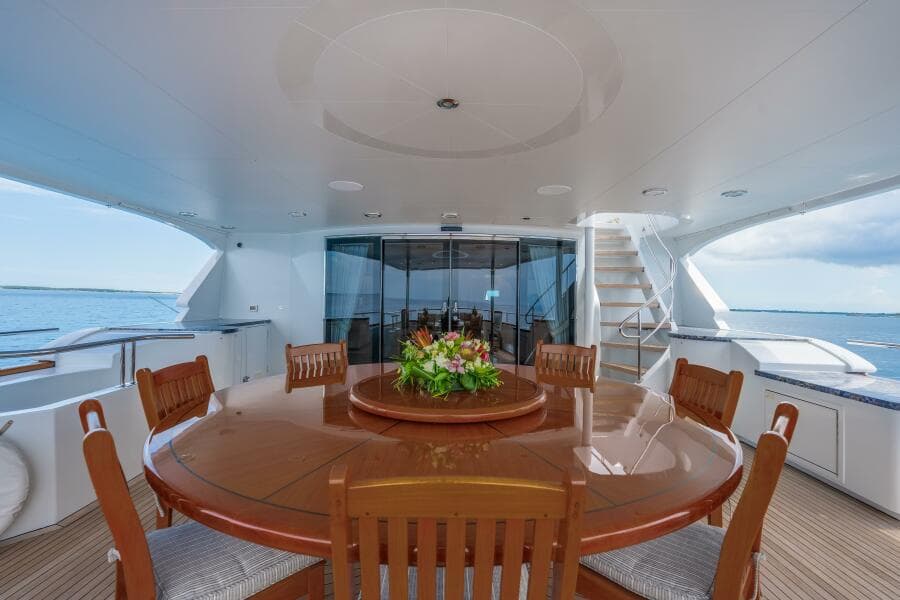

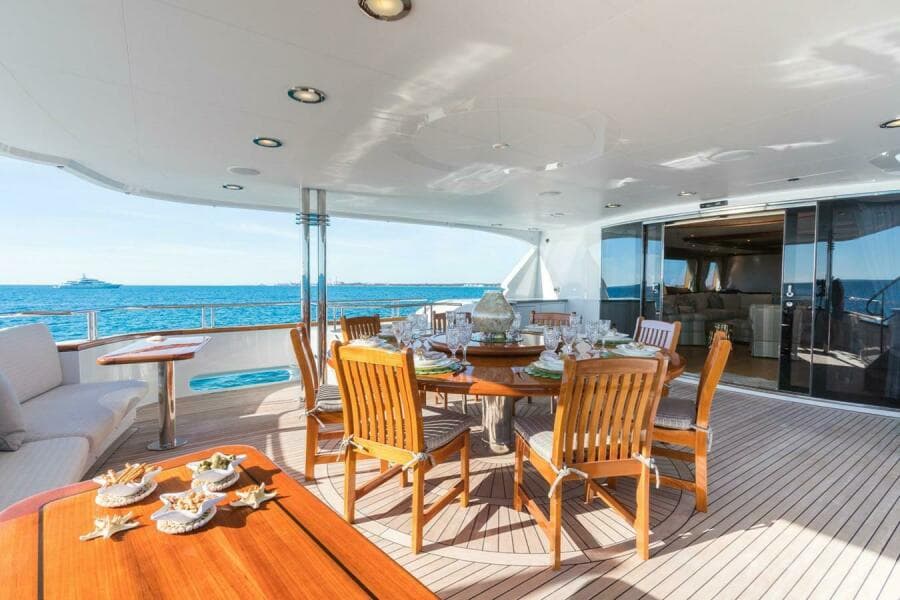

glass double doors leads to the second dining area on the spacious upper aft deck, which boasts

a custom round teak table accommodating ten guests.

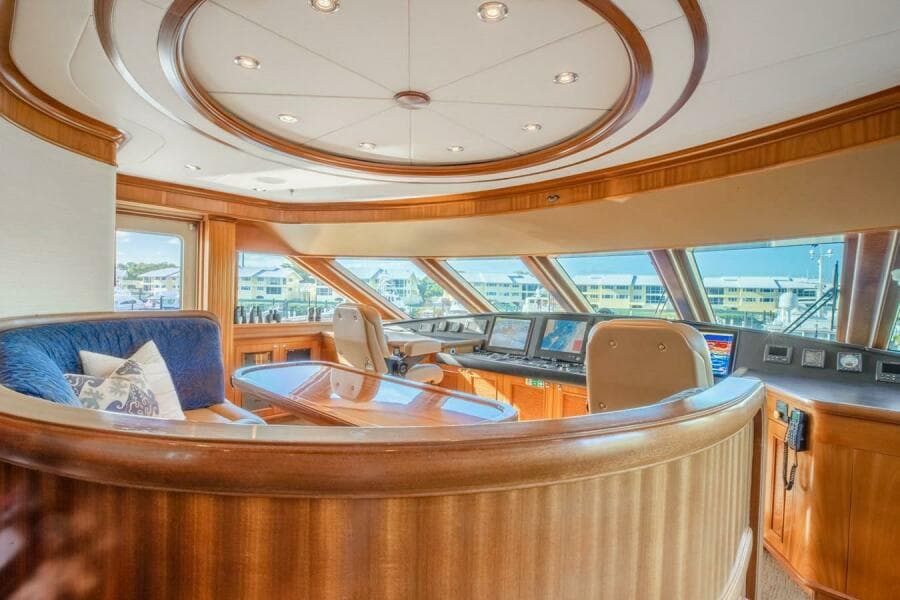

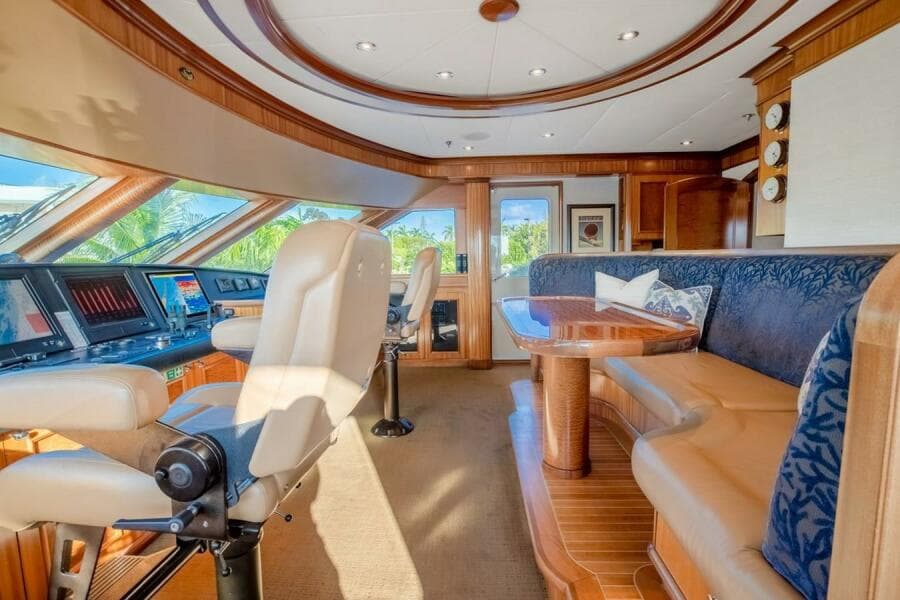

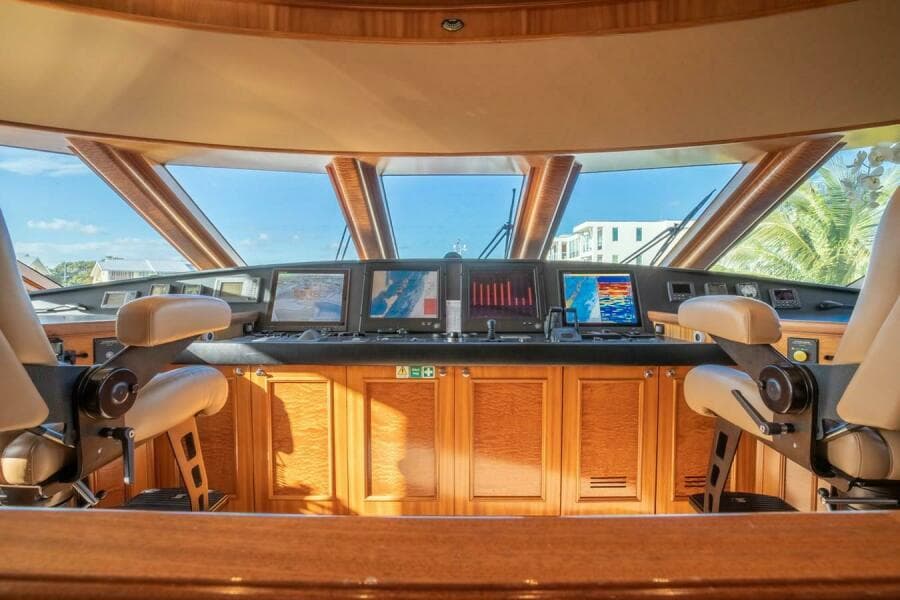

The pilothouse, located on the bridge deck, offers a spacious and comfortable space. It includes

a leather settee with a mahogany inlaid table, providing guests with a place to enjoy the view

without disturbing the captain. The pilothouse also features a large navigation work desk, a

chart table, drawers, two Stidd captain's chairs, and plenty of storage. The bridge wings offer

docking stations on both the port and starboard sides. Access to the working foredeck is

possible via the Portuguese bridge by crossing a central catwalk in the deckhouse.

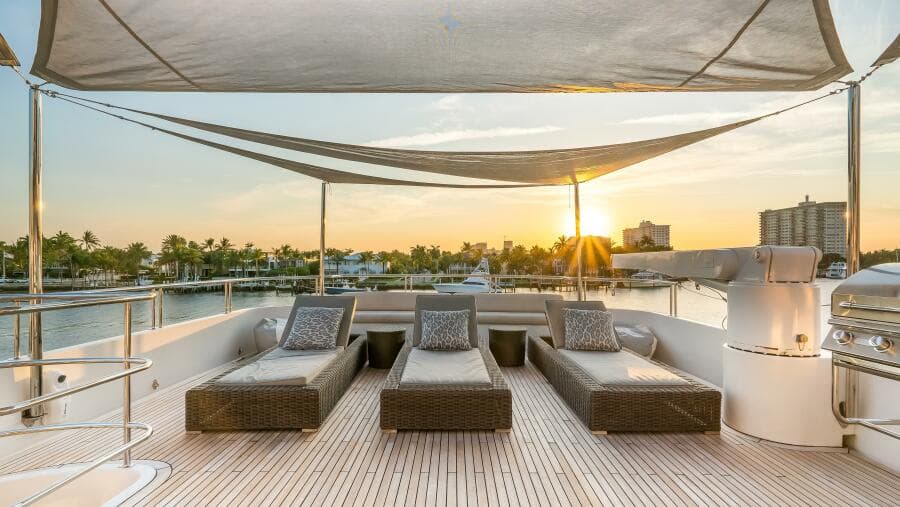

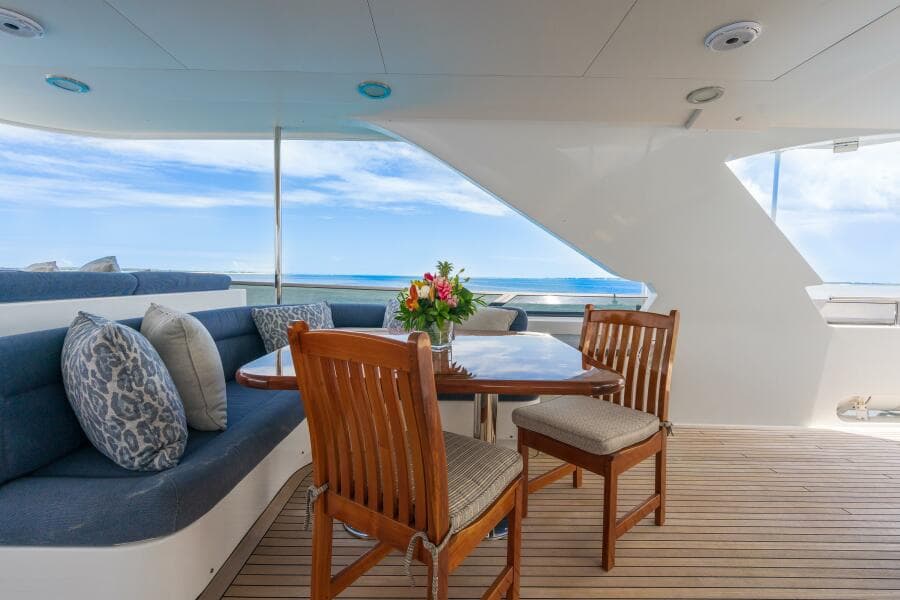

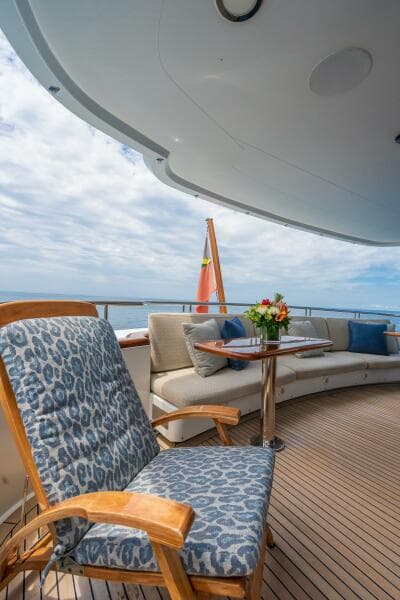

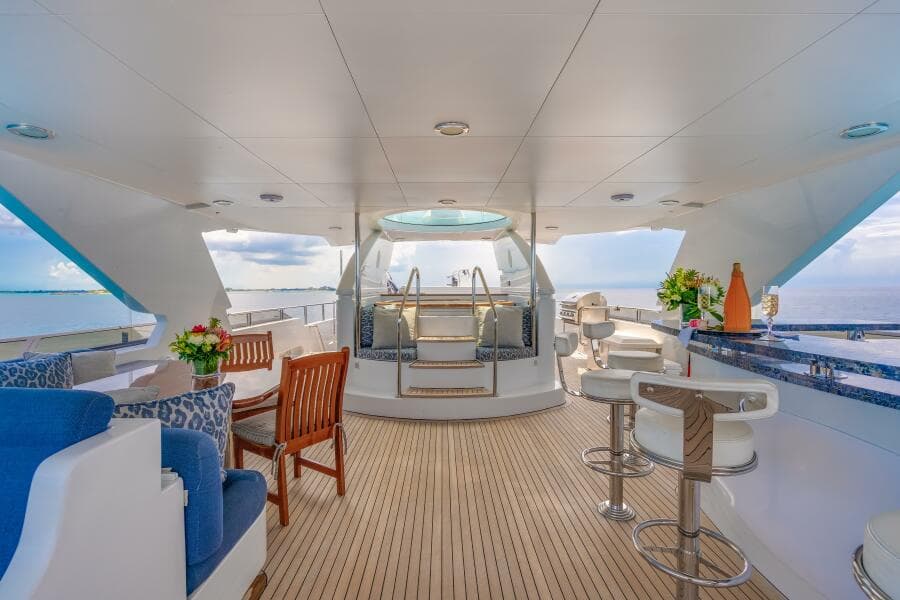

To reach the sundeck, follow the stairs up from the bridge deck aft, located to the starboard

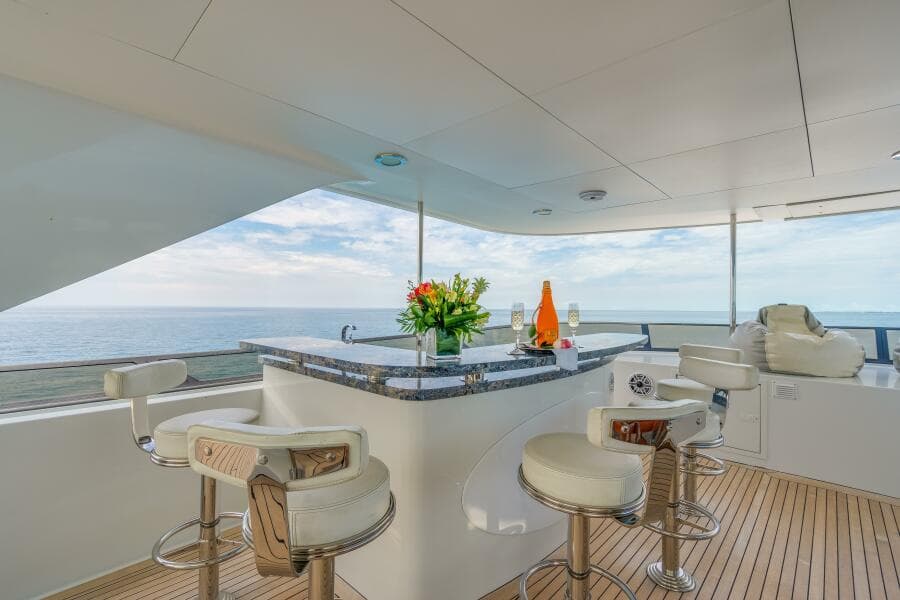

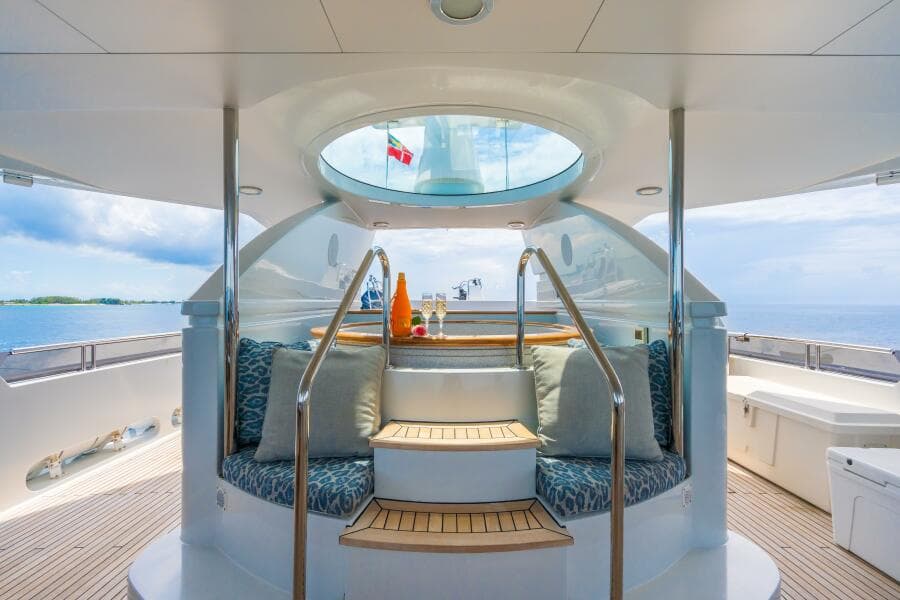

side. On this deck, you will find a large Jacuzzi in the middle, a beautiful large bar with four bar

stools to the port side forward, and a forward-facing settee to starboard. There is also a dining

area towards the aft. The sundeck is complete with several comfortable lounge chairs for

ultimate relaxation.

Main Engines

• Engine Type: (2) CAT 3512B @ 2250hp (1680 kW) each

• Starboard Engine Hours: 5,471 since rebuilt - as of May 30, 2024

• Port Engine Hours: 2,861 since rebuilt - as of May 30, 2024

• Total Engine Hours:11,812 total hours including rebuilt hours as of May 30, 2024

• Transmissions: ZF BW755

• Engine Controls: Prime Mover controls MPCD @ 4 Stations

• Shafts: 5” Aquamet 22HS stainless steel shafts with Tides Marine seals – Reconditioned and balance (July 2023)

• Propellers: Osborne 5 blade bronze 52”x 59”. Reconditioned and balanced in July 2023

Generators & Electricity

• Type: (2) Northern Lights MP668H 99 KW (New 2018)

• Hours: Port 6,115, Stbd. 6,296 as of May 30, 2024

Other Machinery

• Stabilizers: ABT Trac Zero Speed (Overhauled 2023)

• Steering: Jastram (Overhauled 2023)

• Bow Thruster: American Bow thruster 87hp hydraulic (Serviced in July 2023)

• Fuel Separator: Alpha Laval MIB 303 (Rebuilt on 2022)

• Watermakers: (1) 5,500 gal per day, (2) 1,900 gal per day (Both rebuilt on 2022)

• Black Water: 800 US Gallons (3,028 liters)

• Gray Waters: 500 US Gallons (1,892 liters)

• Air Conditioning: Marine Air Chiller (Completely replaced in 2018 & major serviced on 2022)

• Shore power: Atlas 75kva 480VAC 50/60hz (Total serviced & replaced parts in July 2023)

• Sewage Treatment: Tidal Wave (Full serviced on 2022)

• Shaft Seals: Tides Marine Sure Seal (New 2023)

• Cathodic Protect: Cathelco (New rods 2023)

Communication Systems

• (1) HP Office jet pro 8600 printer scanner

• Via Sat – Satellite communication voice and data

• Sailor RT4822 VHF DSC

• Furuno Time Zero Nav.

• Simrad HS90 VHF’s with four hand helds

• ICOM M85 crew radios

• Starlink dual system (2023)

• Updated Kerio network control & Netgear NG310

• Wi-Fi access points throughout vessel 12 points (New 2022)

Navigation Systems

• Updated Radar: Furuno 96-mile RCU014 radar

• Furuno NavNet 3D BB radar & electronic chart system

• Updated Gyro/autopilot: Simrad AP50 Gyro and Simrad

• Chart Plotter: Nav computer – Noble tech software

• GPS: Furuno GP150

• Updated Furuno GP33

• Updated depth sounder: Furuno DFF1 BB Sounder

• Instruments: Furuno FI Series wind, boat speed & depth displays RD33 (2023)

• Updated watchkeeping: Furuno BR510 BNWAS

• AIS: Furuno FA170 (2023)

• Furuno Satellite Compass SC702

Entertainment System

• Seatel series 04 KuBand antenna (Europe & Caribbean)

• KVH Trac Vision HD7 antenna (USA HD TV)

• Plex movie system – 1300 movies

• “Control 4” iPad controls

• TV Receivers

• US Direct TV HD receivers (x10)

TVs

• 42” Sony LED TV (Sundeck)

• 65” LG TV (Skylounge)

• 26” Samsung LED TV (Bridge deck aft)

• 42” Samsung LCD TV (Master stateroom)

• 26” Samsung LED TV (5 Guest staterooms)

• 42” Sony LED TV (Crew mess)

• 32” Sony LED TV (Capt. cabin)

• 22” LG LCD TV (3 Crew cabins)

Main Galley

• (1) Bosch 5 burner cooktop (New, Nov 2022)

• (1) Bosch oven (New, Nov 2022)

• (1) Subzero double door fridge - (Serviced Nov 2023)

• (1) Subzero double drawer fridge - (Serviced Nov 2023)

• (1) Subzero double drawer freezer - (Serviced Nov 2023)

• (1) Microwave

• (1) Kenmore dishwasher

Laundry

• (2) Miele PW6065 washers - Updated

• (2) Miele PT7136 dryers

Crew Mess

• (2) Uline refrigerators - Updated

• (1) LG microwave - Updated

Skylounge

• (1) True refrigerator (Sept 2022)

• (1) True icemaker (Sept 2022)

Main Foyer

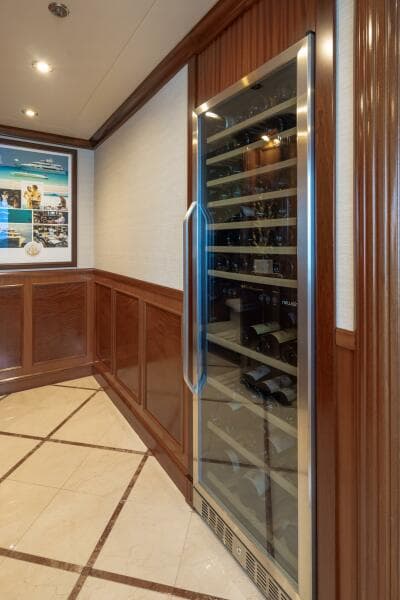

• (1) New dual temperature full height wine fridge (Sept 2022)

Main Salon

• (1) True refrigerator (Sept 2022)

• (1) True icemaker (Sept 2022)

Guest Foyer

• (1) Subzero double drawer fridge

Bridge Aft Deck

• (1) Nurxiovo icemaker - Updated

Sundeck

• (1) Nurxiovo fridge - Updated

• (1) Scotsman icemaker - Updated

Lazarette

• (2) Danvy standup freezers (Sept 2022)

• (1) Vevor ice machine (Sept 2022)

Master

• Double subzero refrigerator

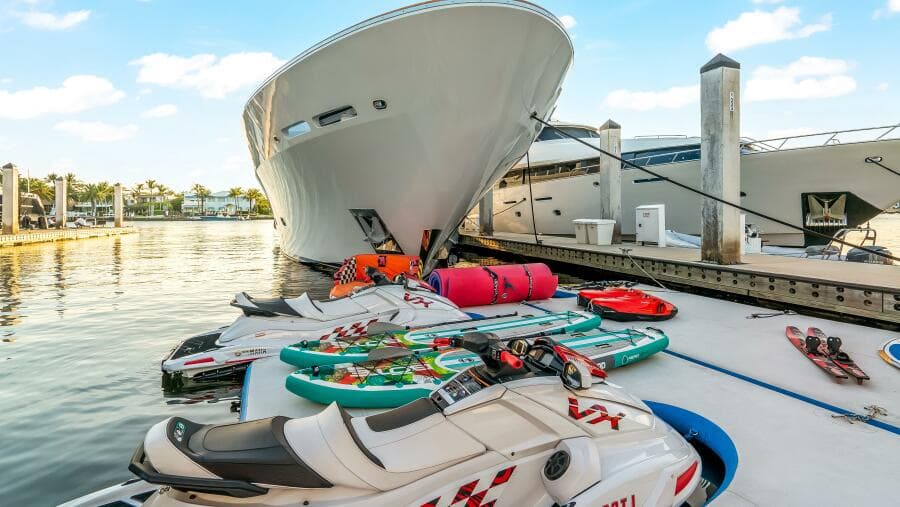

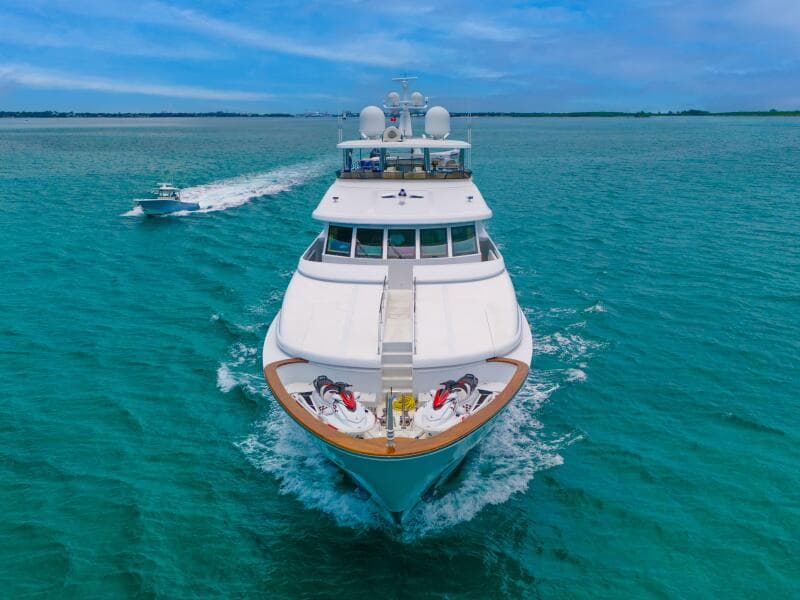

• 4 Jet skis – (New, Nov 2022)

• 15’ Gemini inflatable with 115 Yamaha

• Anchor Windless: (2) Maxwell 6000 Series hydraulic windless/capstans. (Rebuilt in July 2023)

• Anchor: (2) 150 kg Stockless galvanized anchors

• (2) 5/8” 500ft ISO galvanized anchor chain – New port chain (July 2023) -Stbd. replaced years before

• Capstans: (2) Maxwell 3500 Series hydraulic (Rebuilt in July 2023)

• Boat Davits: (2) 1000kg hydraulic davits (Serviced in Nov 2023)

• Passerelle: Besenzoni P1390 hydraulic Passerelle (Inoperative) Power pack needed

Out of water inspection in July 2023

Security Equipment – CCTV System

• Cameras: 4

• Monitors: 3 – Crew quarters, PH and Galley

Fire Fighting Equipment

• Fire Control System: Fire Shield

• Alarms: yes

Safety Equipment:

• All up to date

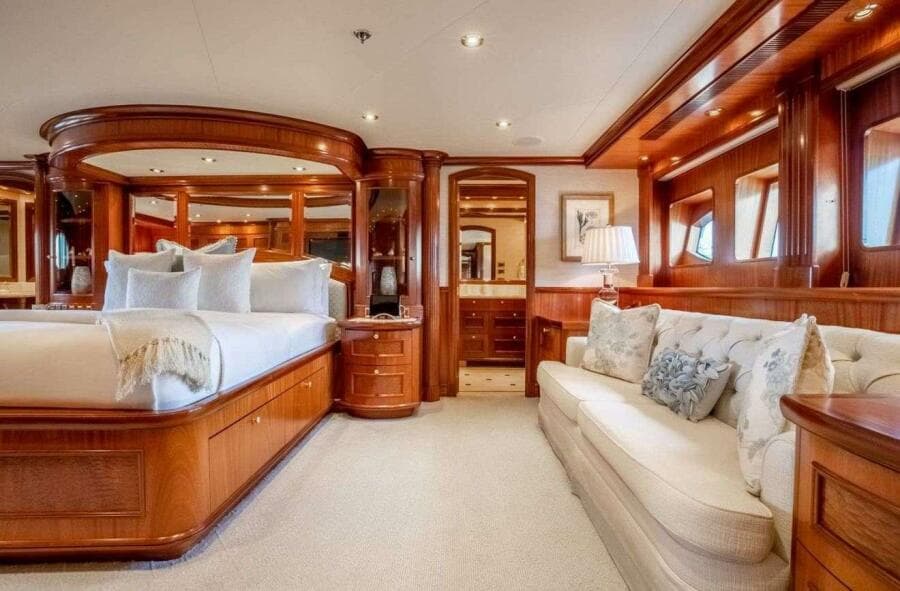

Master Stateroom

• Full beam master bedroom located on the main deck forward

• King bed, writing desk, and settee

• His and her ensuite bathrooms

• His and her closets with a safe

• Full AV system Including satellite TV & access to Plex Movie System. Streaming capable

VIP Stateroom

• Large cabin located just aft of the bridge with panoramic views

• Queen-size bed

• Ensuite bathroom

• Writing desk

• Full AV system Including satellite TV & access to Movies

(4) Four Guest Stateroom

• Spacious cabins located on the lower deck

• 2 Queen staterooms and 2 twin staterooms

• Ensuite bathroom

• Full AV system Including satellite TV & access to Movies

Crew

• Accommodation for 8 crew in 4 cabins

• All crew cabins have TVs with access to Movies

• Captain’s cabin fitted with satellite TV and ability to display radars on TV

Skylounge

• Surround system

• PS-5 gaming console

• Plex Movie System

2025

·        Nonskid foredeck (8/2025)

·        Rebuilt passerelle (8/2025)

·        Engine room painted (8/2025)

·        Complete ceramic hull and superstructure (8/2025)Generator Hydraulic Hose Maintenance: Replaced old and rusted hydraulic hoses. $6,380.20 (5/6/25)

·        Main Engine 6000hr Service: $101,752.77 (4/9/25)

·        Shipyard Period Updates: Includes bottom paint and Propspeed application on propellers and bow thruster. $86,011.02 (3/26/25)

·        Tank Cleaning Service: Comprehensive cleaning of greywater, blackwater, and MSD systems.$5,538 (3/12/25)

·        Bow Anchor Winch Rebuild: Complete hydraulic system overhaul. $7,400 (3/11/25)

·        Steering System Maintenance: Replaced hydraulic hoses, cylinders, and over-center valve. $16,400 (3/11/25)

·        Power Synchronization Correction: Improved power distribution and corrected synchronization issues. $7,860 (2/23/25)

2024

•    HVAC System: Complete System Overhaul: Descaled chillers, serviced air handlers, replaced ducting, and addressed mold issues. $55,173.23 (11/23/24)

•        Generator Overhaul: Extensive component replacements and system upgrades. $47,222.04 (11/15/24)

•        Main Engine Battery Replacement: $10,920 (11/9/24)

•        PTO Hose Replacement: Upgraded all hydraulic hoses to prevent leaks. $9,040 (8/23/24)

•        Port Anchor Winch Rebuilt: Comprehensive hydraulic system rebuilt to address leaks and rust.$7,400 (8/13/24)

•       Garage Seal Repair: Addressed leaks with new seals.$2,740 (8/13/24)

•        Stainless Steel Pipe Fabrication for Main Engine: Enhanced resilience against rust. $520 (8/13/24)

•        Sundeck Davits Repair: Maintenance on hydraulic cylinders and safety valve. $8,490 (7/30/24)

•        Starboard Generator Injector Replacement: $7,147.60 (7/5/24)

•        Garage Davits Service: Includes hydraulic cylinder repairs, safety valve replacement, and actuator service. $26,780 (6/27/24)

•        New sofas in salon (May)

•        New coffee tables in Salon (May)

•        New dining room chairs (May)

•        New True Freezer and refrigerators’ drawers in galley (May)

•        Port and Stbd. exhaust leaks repaired (May)

•        New gray water Bellow Pump (May)

•        (2) New auxiliary cooling pumps for main engines (May)

•        (2) New AC SeaWater pumps (May)

•        Recertification of all fire equipment (May)

•        Yearly Jamaican Flag survey (4/28/24)

•        New switch gears for seamless transfer and Atlas

•        (2) New PLC shore cord selectors

2022

·        4 new Jet skis (Nov)

·        Replaced ceiling in control room and rebuilt shelving (Nov)

·        All 3 crew showers rebuilt (Nov)

·        Engineer’s cabin, head and shower rebuilt (Oct)

·        Both water makers completely rebuilt (Oct)

·        New headliner - entire vessel / $160,000 (July)

·        New TV and Audio system / $130,000

·        Ceramic coated Wax on entire vessel

2021

·        New cathodic protection system

·        New main engine exhaust from motor to the back of boat

·        New generator exhaust

·        All tanks professionally cleaned

·        All raw water replaced, repaired, or serviced including sea chests, crossover, and all feed lines from crossover

·        All air fuel vales serviced

·        Air system flushed, and new air compressors installed with auto drains alarms and DC back up

·        Rebuilt lazarette

·        Atlas invertor on order to be replaced

·        New engine room intake fans and dampers

·        Starboard main engine overhaul at 6341 hours. Prior to present ownership

·        New cell system with high-powered antennas and Kerio system

2020

·        Port main engine rebuilt at 8951 hours. Prior to present ownership

·        New water maker membranes

·        New chiller plant and control system

·        New raw water pumps

·        New generator power system

·        Bottom job and prop speed completed

·        New master carpet

·        New engine fuel heat exchangers, water pumps and fuel coolers

·        New sat dish (V11)

·        Full up to date engine, transmission, and generator service

·        New engine room fire system and panel

·        All air handlers replace with exception of sky lounge

·        All cranes service and updated

·        Replaced most of ac chiller lines

·        All fuel values rebuilt

·        New bottom paint, with prop speed

·        All raw water replaced, repaired, or serviced including sea chests, crossover, and all feed lines from crossover

·        Passerelle power pack removed, it is inoperative

2019

·        New exhaust clean system

·        New water maker system

·        New customs beach club

·        New motor mounts

·        Shafts serviced, props balanced and cutlass bearings

·        New customs beach club

2018

·        Rebuilt hardtop – closed in

·        Starboard transmission – Major service

·        Sundeck new take decking

·        Rebuilt electrical panels

·        Shafts serviced and props balanced and brought to s-class

·        New water maker system

·        Annual maintenance & surveys carried out at Rybovich, Florida

·        (3) New 10-ton chillers

·        (43) New air handlers - every single one aboard was replaced

·        New circulation line for air conditioning

·        (2) New 99 kW Northern Lights generators

·        Most of the yacht was rewired including all-new breaker panels

·        New teak deck on sun deck

·        Revamp of the hydraulic systems including new PTO’s

·        Engine room was repainted and had a wrap added to walls and ceiling panels

·        New hydraulics added to large forward Bosuns hatch

·        New shaft seals

·        All exterior cushions re-covered

·        New spa controls

2015

·        Annual maintenance & surveys carried out at Rybovich, Florida

·        Haul-out, bottom paint, prop speed & zincs

·        Stabilizers removed and new seals fitted (rams rebuilt in June)

·        Thruster seals changed

·        Rudders removed, bearings checked, seals replaced, and rams rebuilt

·        All seawater inlet and overboard discharge valves replaced with new

·        Fuel and water tanks opened and cleaned

·        Sewage treatment system overhauled

·        Electrical mega tests completed on generators and pumps

·        5-year hi fog factory service completed

Refit 2014

·        An extensive refit was carried out in Ft. Lauderdale during the Summer of 2014 which included:

Exterior

·        Complete repaint from mast to waterline

·        Reconfiguration of sundeck to include a new bar area, larger table, and elimination of helm station

·        Replacement of all old Corian countertops with new granite tops

·        Upgrade of all exterior lighting to LED

Interior

·        Complete re-decoration of the interior including all-new fabrics, upholstery, wall coverings, and furnishings

·        Throughout the entire interior

·        All new bedding and towels

·        New ceilings and carpets in all areas

·        Replacement of all stone countertops with new marble in all guest areas

·        Modification of main salon bar area

·        Installation of hardwood floor in the sky lounge

·        Upgrade of all interior lighting to latest generation LEDs

·        Extensive carpentry modifications and installations

Entertainment

·        Complete overhaul of the AV system including new TVs and install of Crestron/iPad control system

·        Upgrade of satellite TV systems

·        Installation of 100” open-air movie projector system on the sundeck

Electronics

·        Extensive rewiring and rearrangement of bridge equipment & Nema network

·        Installation of new radar and depth sounder

·        Installation of new Wi-Fi network through the yacht and new network control system

·        Replacement of all radio and cell antennas

Engineering

·        Top-end overhaul of main engines

·        Full overhaul of transmissions

·        Service work on generators

·        Engine realignment

·        Overhaul of watermakers

·        New engine room and lazarette floor plates

·        Extensive engine room painting and detailing

All of the Owner’s personal items and 39’ Yellowfin Tow Tender with Tow Harness.

Listing MLS by Yachtr.com
