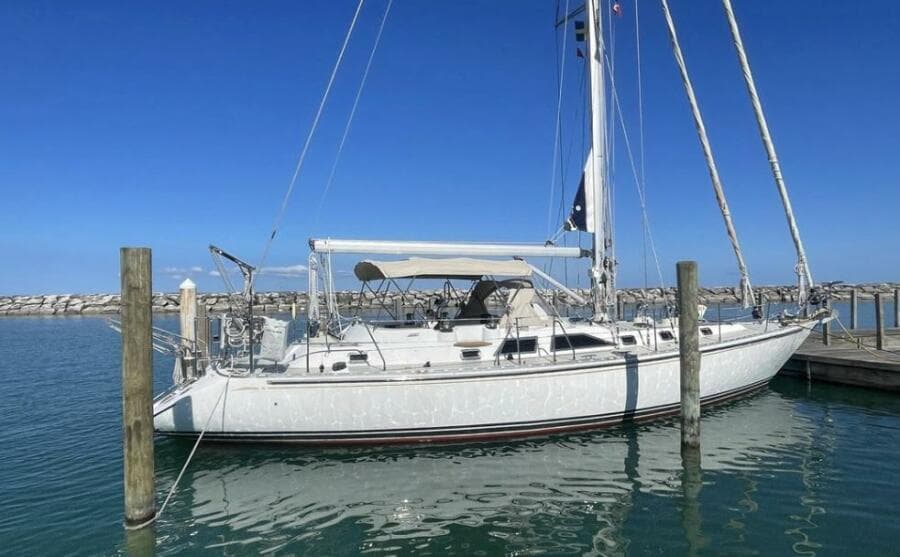

2004 Hylas 49
Description
The 2004 Hylas 49 is the embodiment of timeless bluewater cruising excellence — a vessel where classic lines and modern performance come together in a way that satisfies even the most discerning sailors. Designed by Sparkman and Stephens, one of the world’s most respected naval architects, and built by Queen Long Marine , this 49-foot, center Cockpit, cutter is revered for her sea-kindly motion, robust construction, and elegant presence both at anchor and under sail.
From the moment you step aboard, the Hylas 49 makes a striking first impression. Her graceful sheer, sugar-scoop stern, and balanced hull lend an air of understated sophistication, while the cutter rig with dual headsails gives sailors powerful sail options in varying conditions. With an emphasis on ease of handling, she accommodates short-handed crews just as confidently as a full complement, thanks to thoughtful deck layouts and sail control led aft.
Below, the interior is a testament to craftsmanship and livability. Warm teak joinery and fine veneer work create an inviting, yacht-like environment. The spacious salon features deep settees, generous storage, and abundant natural light — perfect for long passages or relaxed evenings at anchor. The galley is well-appointed for serious provisioning and meal preparation, and the private cabins forward and aft provide comfortable retreats.
The engineering spaces are intelligently laid out, giving easy access to systems and encouraging conscientious maintenance. With a dependable 100hp Yanmar Diesel and 8 kw Phaser Generator, the Hylas 49 is built to go the distance with confidence.
Whether you’re planning a circumnavigation or year-round cruising, the 2004 Hylas 49 stands out as a vessel that combines performance, comfort, and quality craftsmanship. She offers not just a sailboat, but an enduring platform for adventure on the high seas — a boat to make memories and cross oceans with style.
DH Yacht Sales is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Integrity Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Highlights
- Yanmar 100HP Diesel Engine (Factory Upgrade)
- Cruise Air (3) zone A/C
- Phaser 8KW generator
- Vetus bow thruster
- Selden Electric In-mast mailsail furling
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Generators
Full Details
Recent Improvements
- 2019 replaced throttle cable system
- 2019 new Cruise A/C in forepeak
- 2019 soda blasted bottom
- 2019 new 5 cote Interlux epoxy bottom

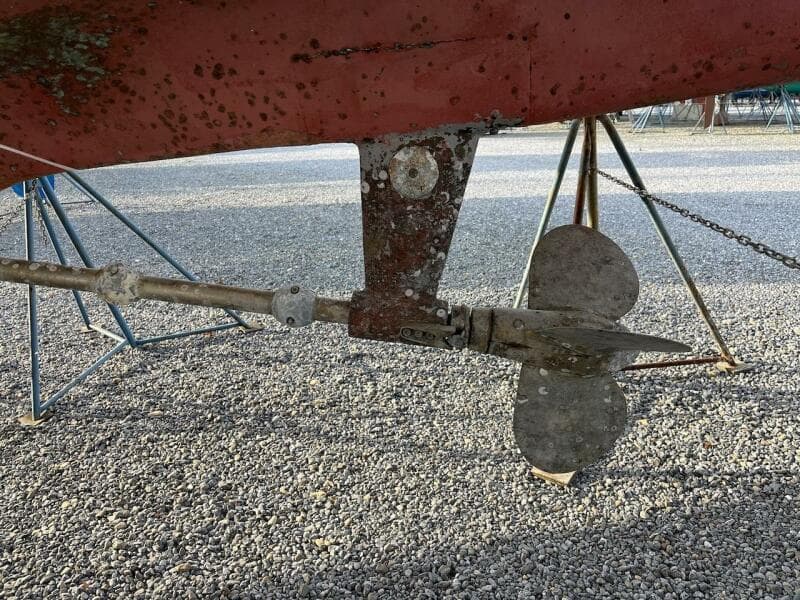

- 2019 both cutlass bearings replaced
- 2019 prop shaft and coupler inspected by machine shop
- 2019 Max Prop removed and sent to PYI for inspection and reconditioned
- 2019 serviced all seacocks and replaced 8 w/ Grocos
- 2019 1,000 hr service performed on Yanmar 4JH3-UTE
- 2019 replaced two primary bilge pumps
- 2019 Reconditioned Vetus Bowthruster
- 2020 mast and rigging inspection Oxford Boat Yard
- 2020 cleaned water SS water tanks
- 2021 purchased a used asymmetrical chute w/carbornfiber snuffer
- 2021 replaced Bimini and dodger w Makrolon Polycarbonate glass
- 2021 new Nordac Furling North Main
- 2022 replaced all Mainship deck hatches from Queen Long Marine
- 2022 replaced additional 165 amp Balmar alternator
- 2023 recharged/serviced A/C & refrigeration/freezer units
- 2022 replaced 4 house batteries and 1engine battery
- 2023 fall new bottom paint
- 2023 New Suntape on Genoa,Cutter and Main.
- 2023 new Glomex TV antenna
- 2024 new TV
- 2025 Starlink
Accommodations

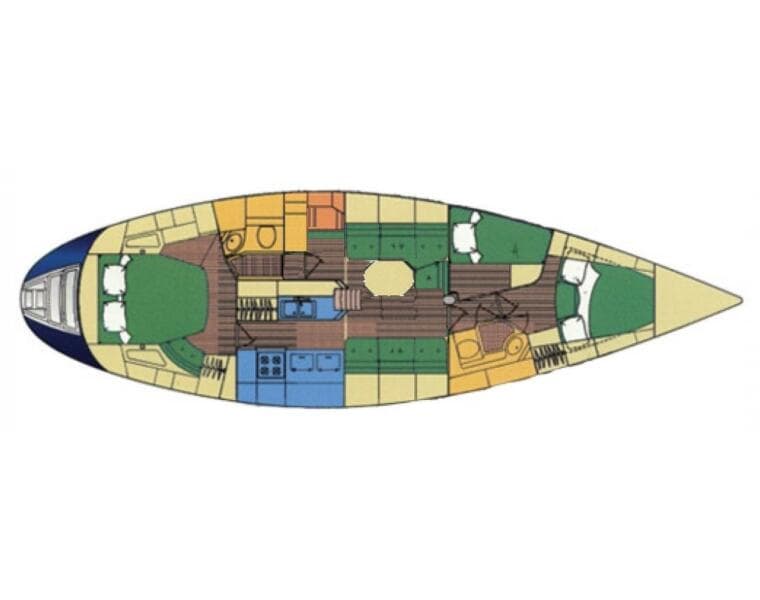

The Hylas 49' offers an open, spacious interior layout filled with natural light and great ventilation. Corian countertops and off-white headliner provide a nice contrast to the warmth of her varnished teak woodwork and cabin sole. Large fixed windows in the main salon, fourteen opening ports and six opening hatches provide extra visibility and excellent ventilation which is further enhanced by four dorade vents. She has superior storage and appropriately placed handholds throughout the interior.
- Varnished teak interior
- Sole with high gloss finish
- Corian galley counters and both forward and aft heads vanity counters
- Overhead padeyes for port dinette, starboard settee and port cabin
- Overhead fold down screens
- Red LED foot lights
- Ultra suede upholstery throughout the vessel
- Solid teak handrails throughout
- All cabin sole sections are positive locking
- All cabinets are finished throughout

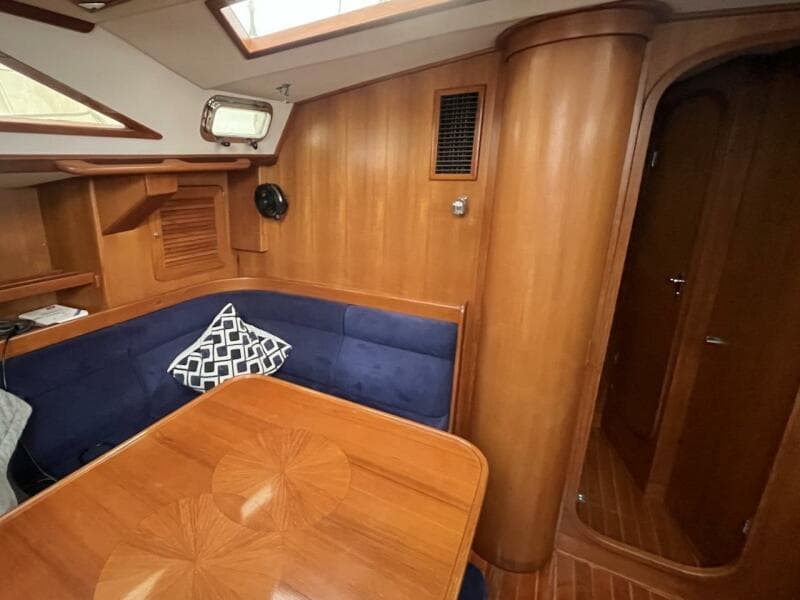

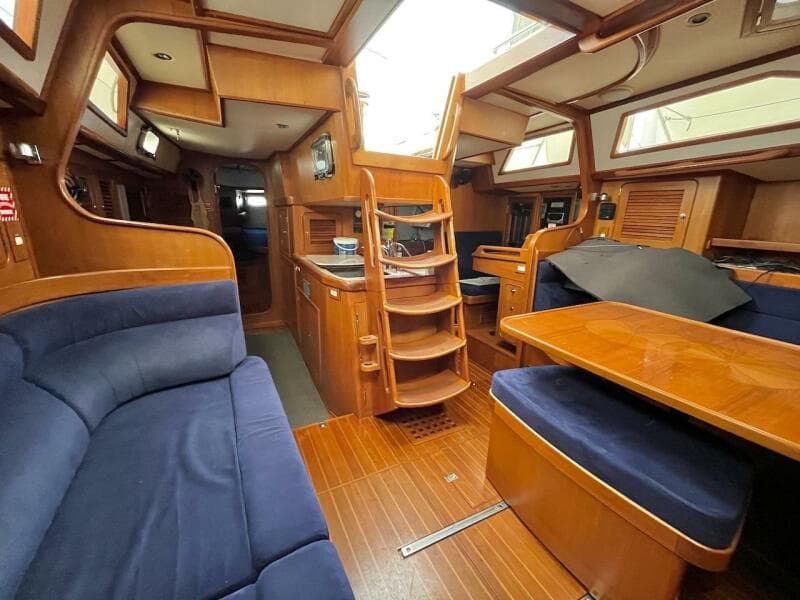

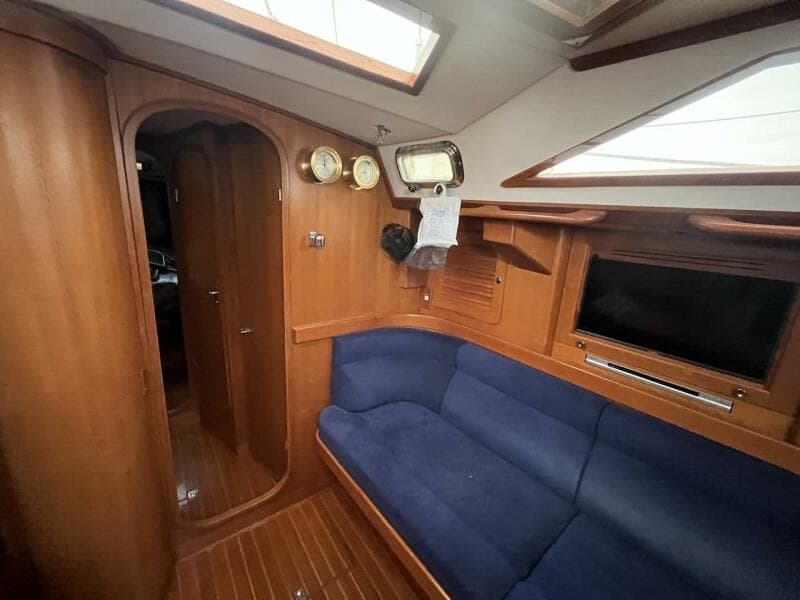

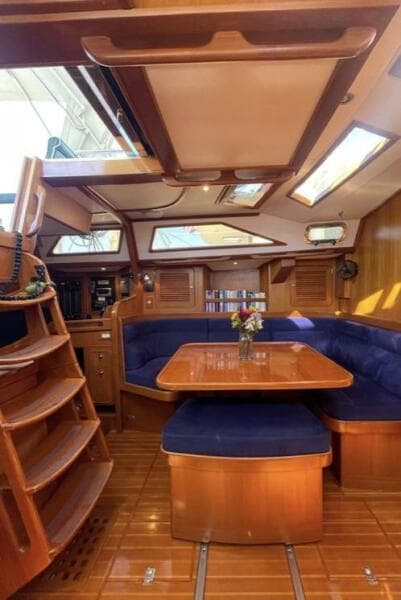

Main Salon

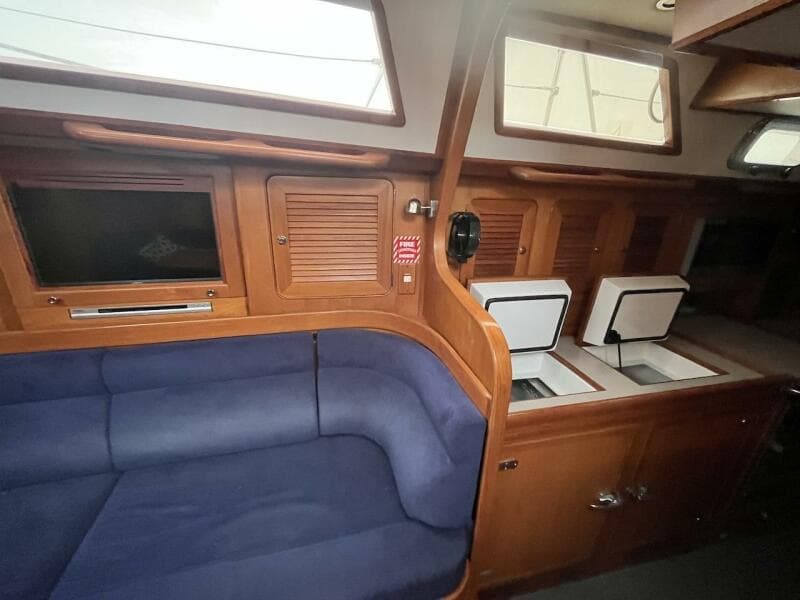

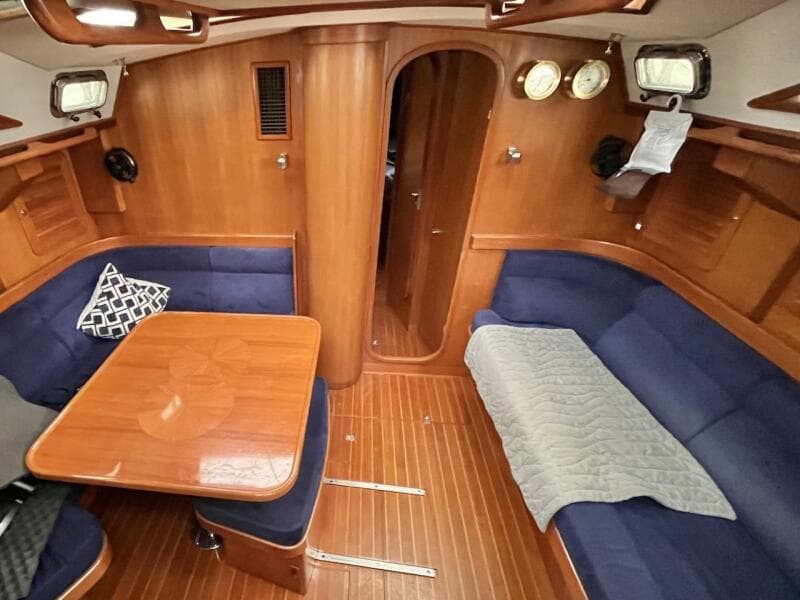

The spacious main salon is amidships with a slightly raised sole and beautifully varnished companionway stairs. On the port side there is a teak dinette table with folding leaves. The dinette has a slide out seat with custom built storage below. While underway, this seat can easily slide under the table. The dinette table is a squared off which drops down to create a full double berth. On the starboard side there is a full length settee that also functions as a sea berth. The settee can be pulled out to make a wider berth. Water tankage is starboard and port and fuel tankage is centerline under the salon sole and master berth aft. Additional storage is behind the dinette and settee. Headroom throughout the main salon is just under 6'7". There is plenty of ventilation from two overhead hatches plus two opening ports. There are both overhead lights and reading lights at the forward and aft ends of the settees.
- Air Conditioning with Digital Thermostatic Controller
- Main salon upholstery Ultra Suede
- Mast wrap with locker door behind
- Lockers with single shelf between port and starboard
- Liquor cabinet in forward starboard locker above settee
- Fans located outboard

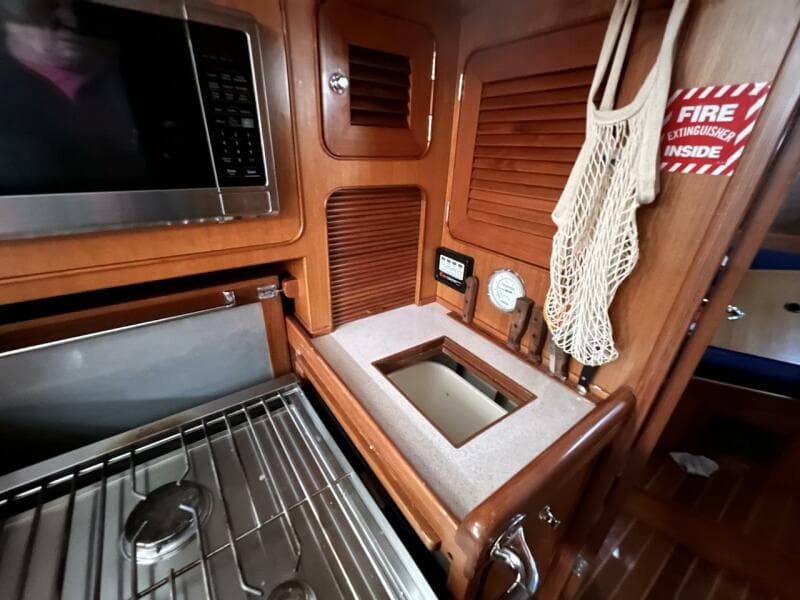

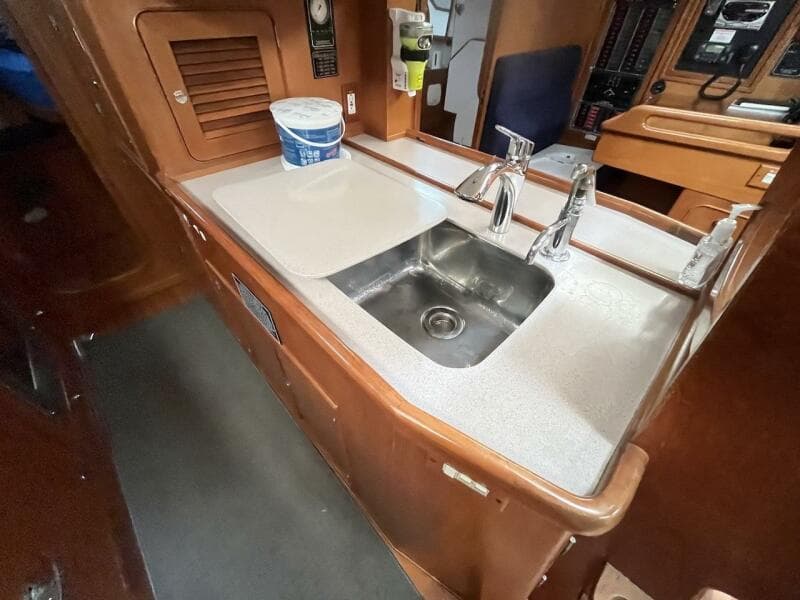

Galley

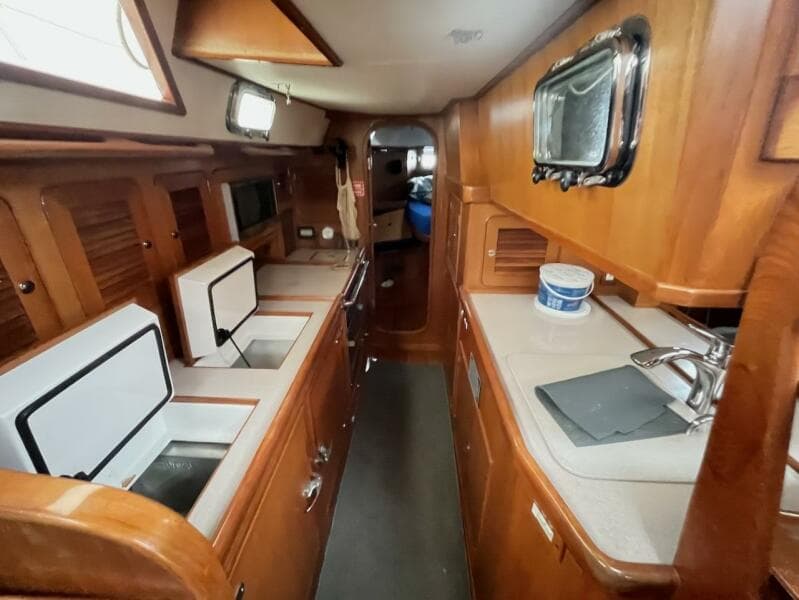

The galley is over 7' in length with a walk through to the aft cabin. It offers total safety with room to brace on either tack while offshore. Storage is exceptional. The outboard side of the galley includes top and front loading refrigerator and freezer, three burner stove with oven and pots and pan storage below, and a stowable Corian top. There are ample cabinets, storage lockers and drawers for food storage outboard of the counter. The space is ventilated by two opening ports. Inboard is a wide sink counter.

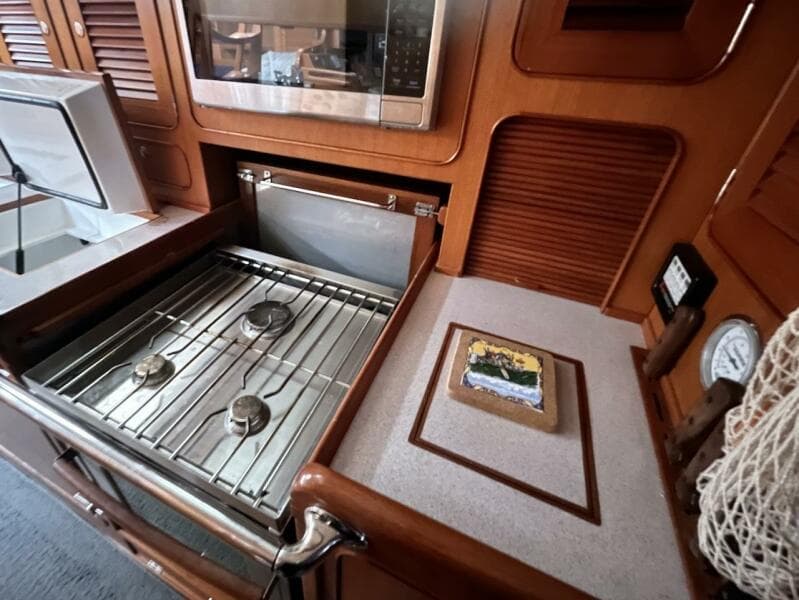

- Force 10 three burner stove with Xintex propane monitor and two sensors

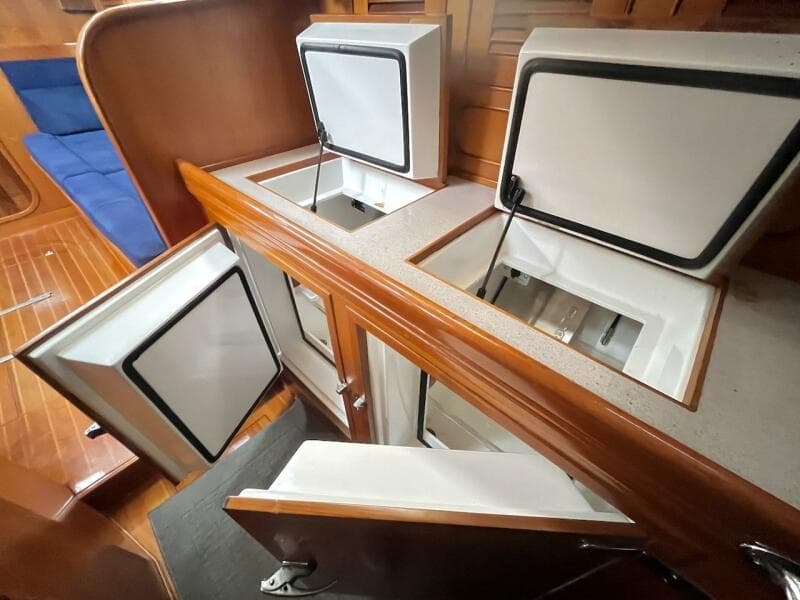

- SeaFrost 12 volt holding Gurnert Plate system for refrigeration and freezer boxes
- Refrigeration/freezer systems thermostatically controlled
- Both boxes have electric drain pump
- Large counter aft of sink
- Engine room access doors
- Single stainless steel sink on centerline of vessel
- Two cabinets aft of stove with single drawer at counter.
- Pullout Trash can
- Sharp Microwave 2019
- Excellent engine and generator access

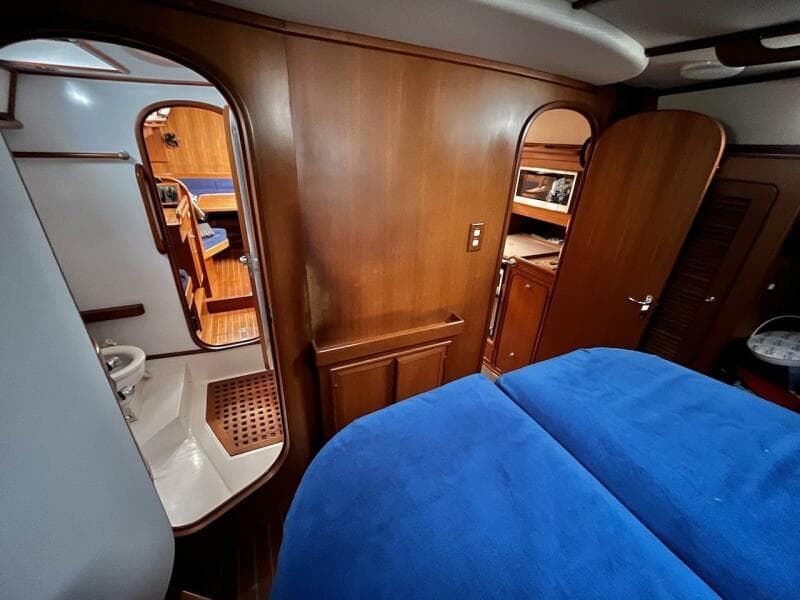

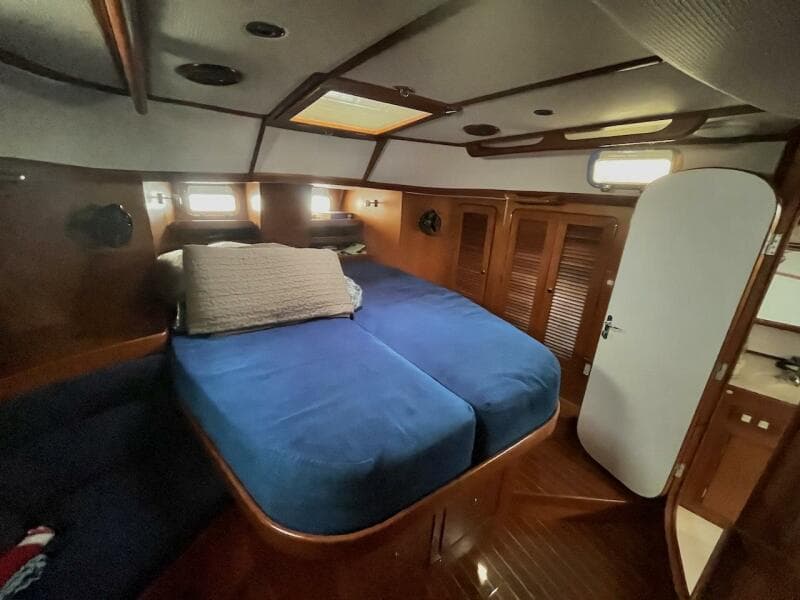

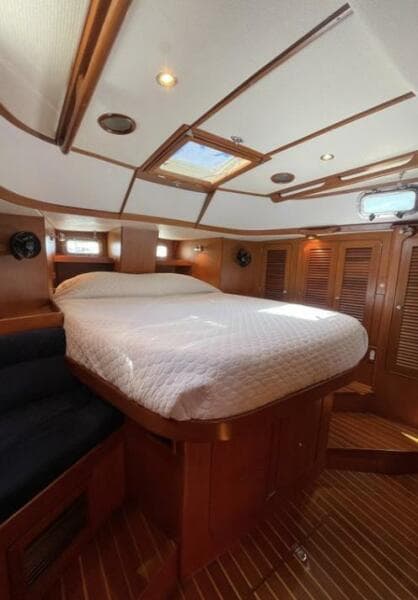

Owner's Stateroom Aft
The aft stateroom is luxurious by any measure and will ensure her owners the best in accommodations whether at sea or at anchor. There is a centerline queen sized berth with six drawers below, and an upholstered dressing settee is to starboard. Two opening ports as well as shelves with cubbies are located on the aft bulkhead. There are two additional opening ports, a large opening deck hatch, two dorade vents. Overhead and reading lights are well placed.
- Hylas factory mattress
- Starboard hanging locker with two removable shelves
- Portside forward hanging locker with single louvered door
- Custom designed port-side cabinets and lockers
- (6) Pullout drawers under owner's berth
- Hella fans over port and starboard side of the berth
- Mirror on back of owner head door on cabin side
- Ultra Suede cabin seat with storage below
- Addition storage under sole floor panels on this stateroom
Aft Stateroom Head
The private owner's head has white laminate bulkheads and a teak vanity with inset sink and storage locker below. There is a mirrored cabinet above the vanity, teak shower grate and aft facing locker. An opening port provides ventilation.
- Raritan electric head
- Fold down teak shower seat
- White Formica bulkheads
- Mirrored upper cabinet with storage behind
- Dedicated holding tank with Y valve
- GFI 110 AC outlet
- Dedicated shower drain pump
- Shower fixture with hot and cold water

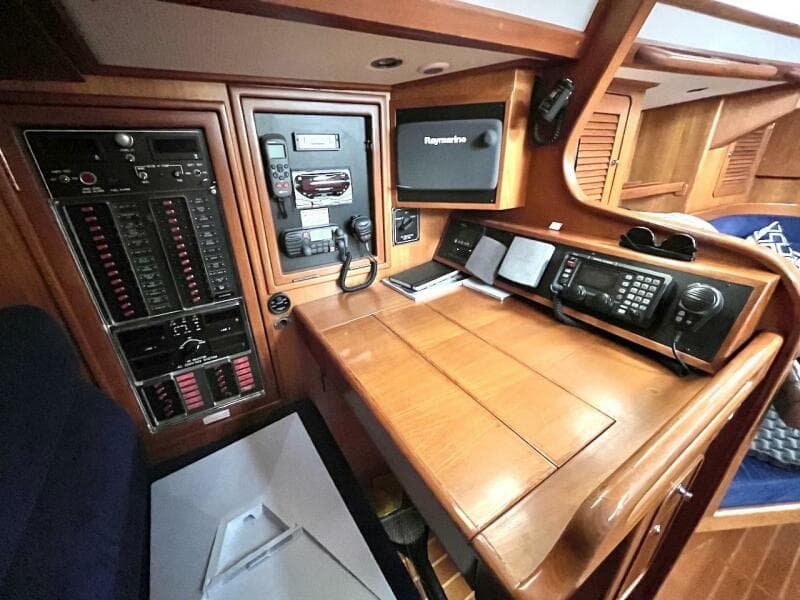

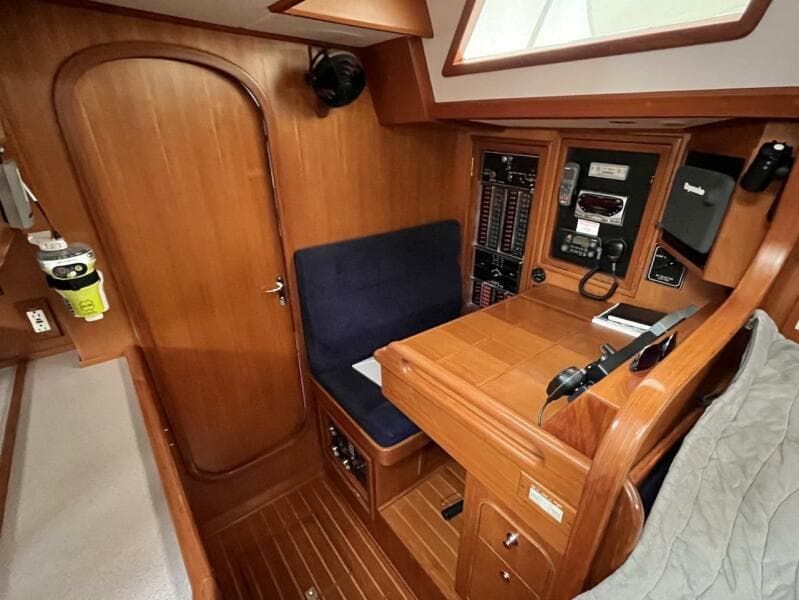

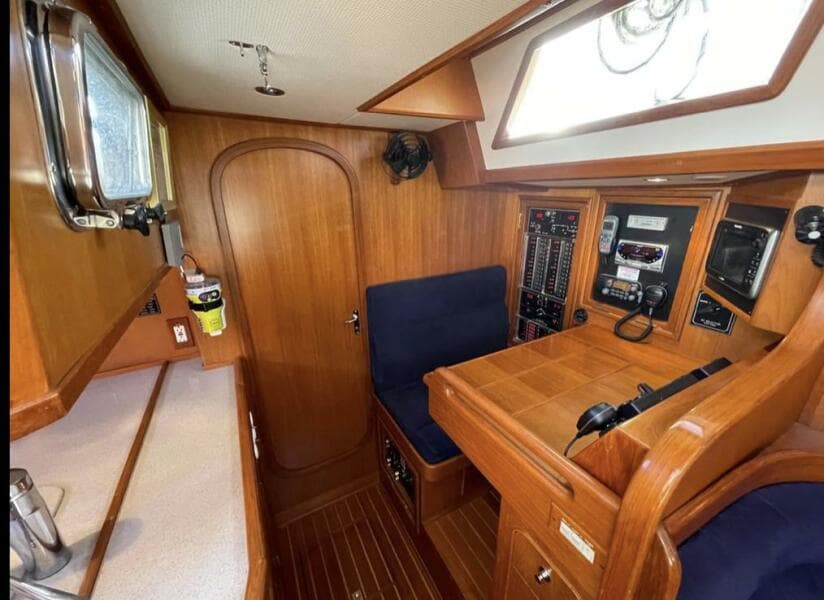

Navigation Station & Instruments

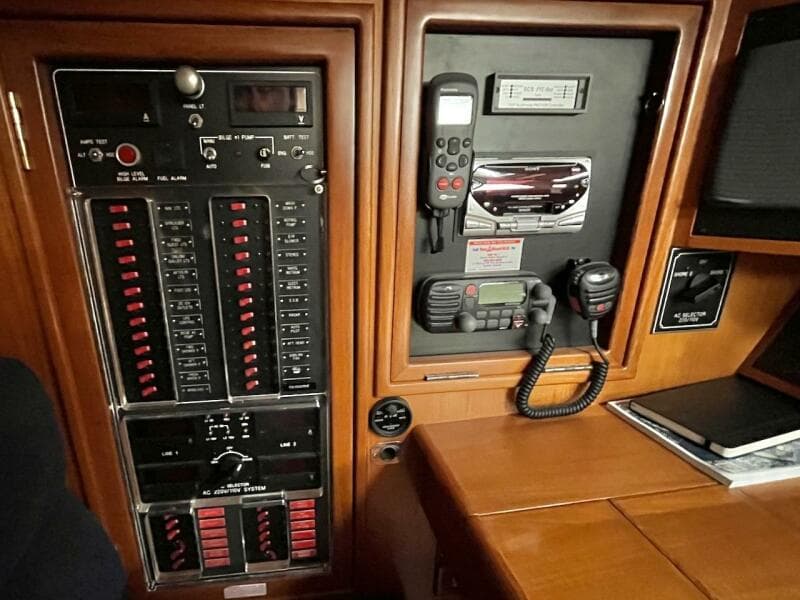

Opposite the galley to port is the nav station with forward facing chart table and nav seat. Instruments are mounted to face the nav seat and the 12 volt and 110 volt electrical panels are in this space. The chart table is top loading and is of sufficient size to accommodate full size charts. There are two drawers below the chart table that face inboard. The centerline counter that is aft of the companionway stairs provides additional space for chart work or storage.
- Instrument panel hinged at outboard side for access to panel
- Nav station desk with opening top
- Electrical panel aft facing with cut away underneath to allow charts to slide underneath
- GFI 110 outlet
- Shallow cabinet below the inboard counter
- 12v cigarette lighter outlet
- Nav seat
- Hella fan
- Night vision light

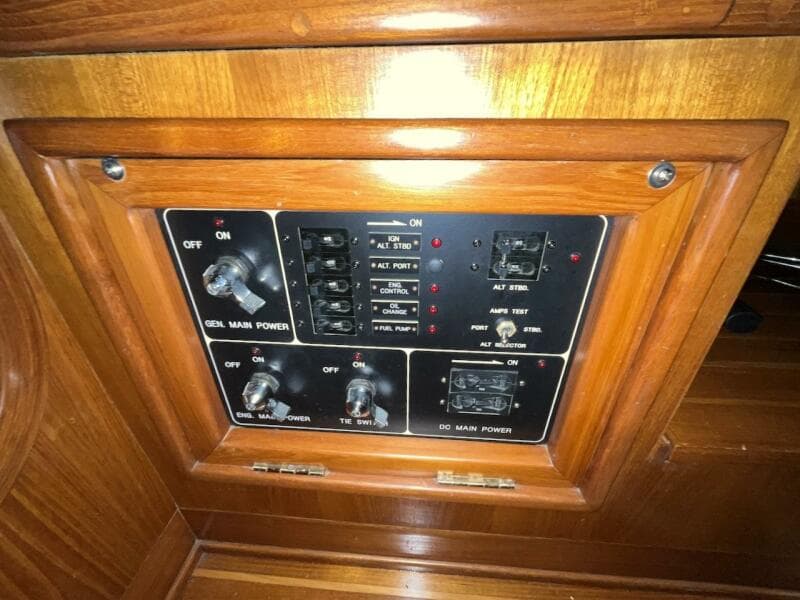

- Battery switches
- 12 volt breakers
- 110 volt breakers
Navigation Instruments:
- Raymarine e127 12" Hybrid-Touch Color Chart plotter w Radar and AIS Display mounted above the companionway
- Raymarine e127 8" Hybrid-Touch Color Chart plotter w Radar and AIS Display mounted at the navigation station
- Raymarine 24" 4KW 48nm RD24HD Radar Scanner
- Raymarine ST60 Wind, Speed and Depth
- Raymarine AIS 350 Receiver / Class B AIS 650 Transceiver
- Raymarine ST6001+ Autopilot display with Hydraulic Pump
- Remote plug in control for autopilot
- Standard Horizon Spectrum VHF Radio with RAM Mic at the Helm position
- ICOM IC-M802 SSB radio with SP-24 Speaker

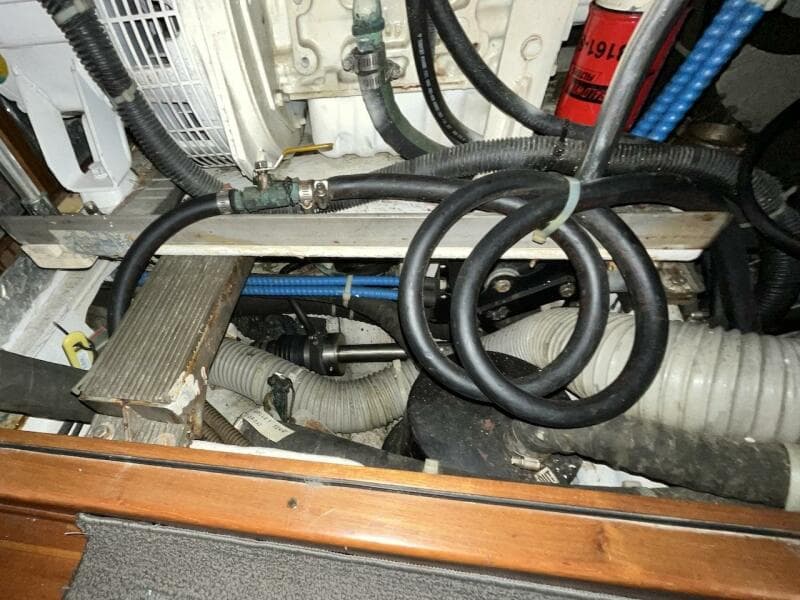

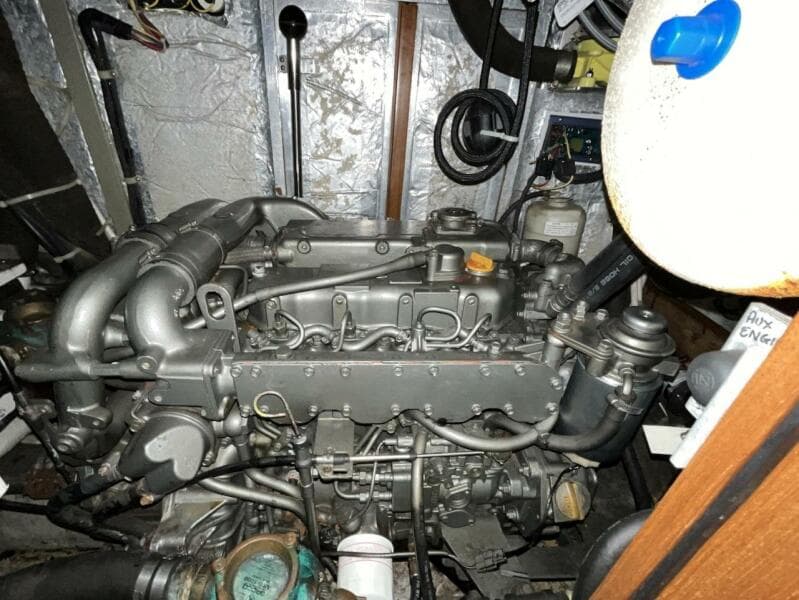

Engine & Mechanical
The engine room has exceptionally good access. Large panels open along the inboard side of the galley with opening panels inboard of the nav station as well. The lower section of the companionway stairs is hinged for front engine access and the dual Racor filters are mounted here for easy access.
- Yanmar 100HP (Upgrade!!) main engine
- Spurs prop shaft line cutter
- PSS Dripless Shaft Seal
- Dual Racor filtration system for the Yanmar
- Racor 200K spin on Filter for the generator
- Balmar 165 Amp alternator New 2022
- Vetus bow thruster
- 3 Cruise Air A/C Units with digital SMX II thermostatic controls
- Oil change pump plumbed into the engine, genset and transmission
- Engine room lights
- Extra engine start switch inside companionway door
- Fuel transfer pump
- Perko Bronze seacocks
- Perko sea strainers for AC, Main engine and genset

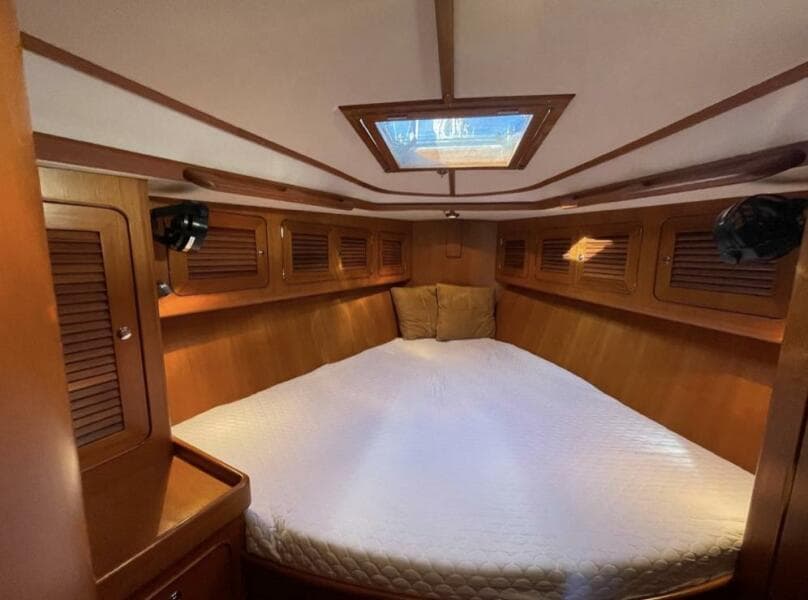

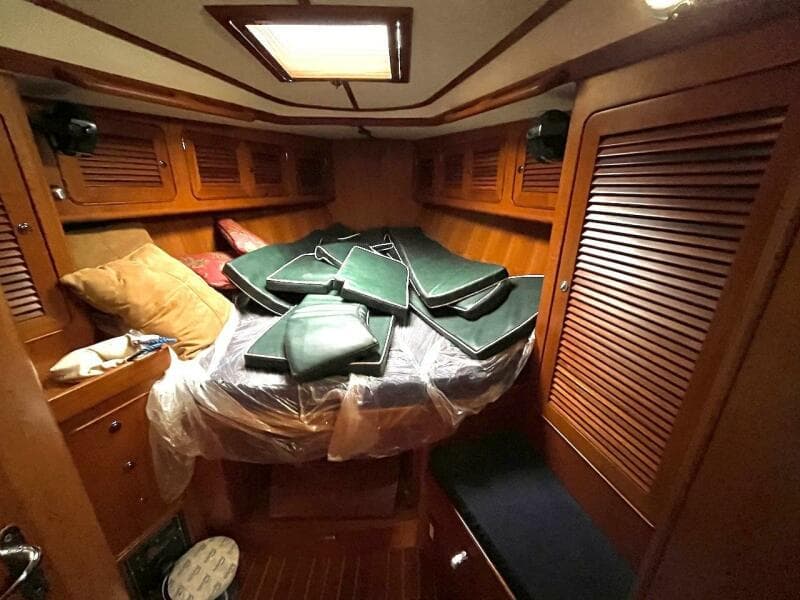

Forward Guest Stateroom
Starting forward is the "V" Berth stateroom. There is a comfortable V-berth (6'9" length) with filler insert to form a double berth, bookshelves and cabinets to port and starboard, and large hanging locker aft and to starboard. An upholstered dressing settee is inboard of the hanging locker. A locker is located below the infill section of the V-berth. There is access to the forward air conditioning unit through the center and port lockers. There are two reading lights, two overhead lights, opening hatch, opening port and dorade vent. The bow thruster can be accessed under the forward end of the berth.
- Hylas factory mattress
- All cabinets include removable shelves
- Forward cabin seat
- Shallow book shelf on forward bulkhead
- Set of three drawers
- Full length mirror on cabin door
- Hella fans
- Reading lights

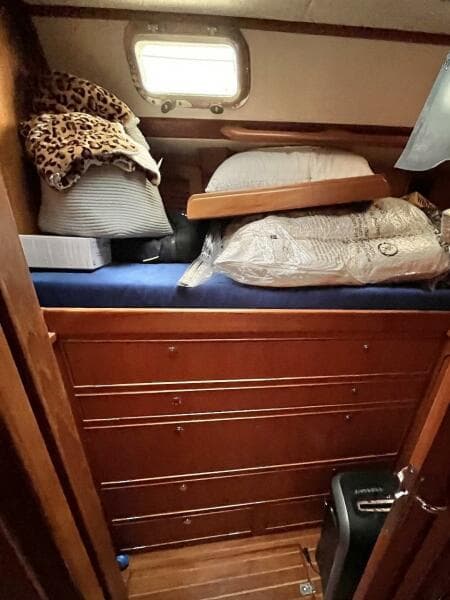

Forward Port Pullman Stateroom
Aft and to port is the second guest cabin that features a single berth. There are multiple cabinets and drawers for storage, a reading light, overhead light, ventilation delivered by two opening ports and an overhead hatch. Under the berth are multiply very large storage compartments.
- Upper and lower cabinets inboard of berth, with hanging bar and two removable shelves Cabinets with solid doors
- Lockers below berth with front access to storage areas
- Reading light
- Cabinets outboard of upper berth with louvered doors and a single removable shelf
- 110 v receptacle GFI
- Stainless steel surface under cushions that acts as workbench
Forward Head
Aft and to starboard of the guest stateroom is the forward head which opens to both the guest stateroom and the passageway forward. The molded teak vanity has a sink set into the Corian countertop and storage cabinet below. Above the vanity are lockers with mirrored doors. All wall surfaces are finished in white laminate for ease of cleaning. There are teak handholds and towel bar, an opening hatch and port, and overhead and mirror lights.
- Raritan manual head
- Mirrored upper compartments (3) offering ample storage
- Fold down teak shower seat
- Teak shower grating
- 110 GFI outlet
- Corian vanities with FRP sinks
- Dedicated 27 gallon holding tank with Y valve
- Manual overboard holding tank discharge
Plumbing & Tankage
- Two independent Shurlow freshwater systems pumps and accumulator
- Third manual freshwater pump at the galley sink
- All tankage for water and fuel is stainless steel
- Torrid 10 gallon hot water heater heated via AC supply and engine
- (2) Rule 3700 Bilge Pumps with Ultra Bilge Electric Switches
- High Water Bilge Alarm
- Manual Whale bilge pump
- Jabsco remote bilge pump for lazarette stern locker with auto float switch and manual switch
Electrical

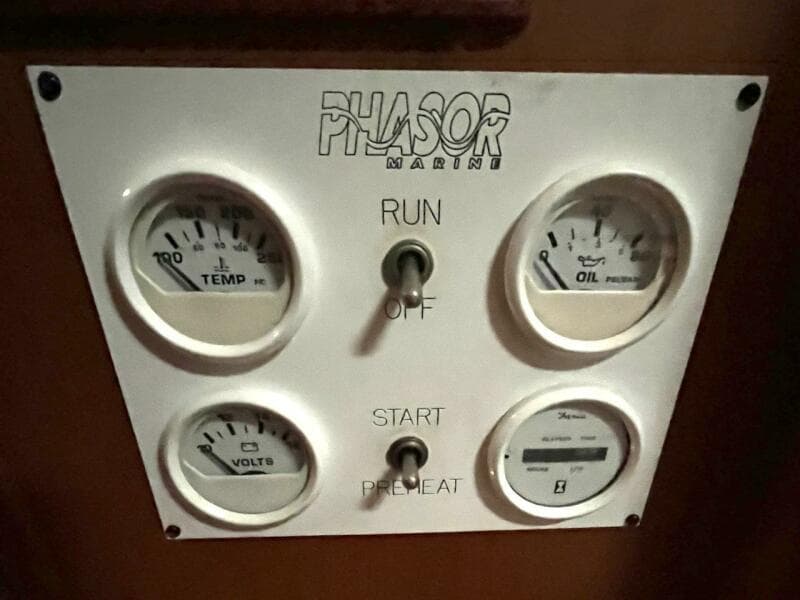

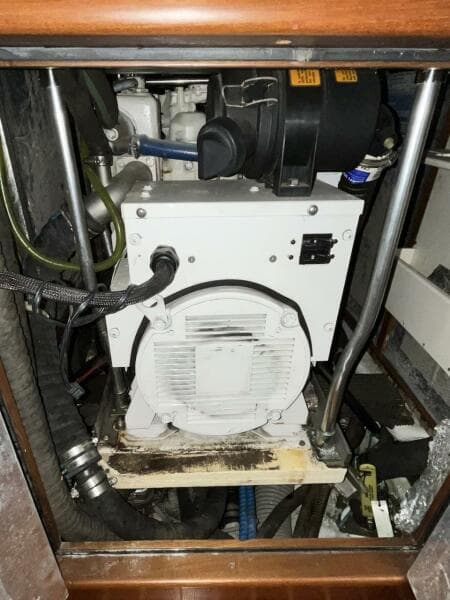

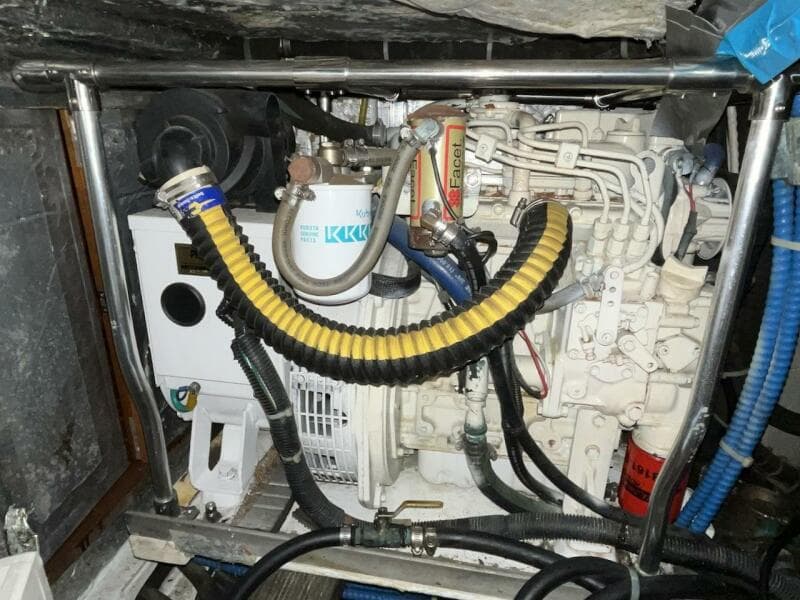

- Onan 8.0 KW Generator with 498 hours- remote starting panel at the Nav station
- Balmar 165 amp Alternator New 2022
- Prosine 2000 watt inverter
- Dual shore power plugs - 1in the bow anchor locker and 1 at the stern
- Shore power connector: 50 amp/125 v.
- House batteries: (4) - 8D AMG batteries New 2022
- Starting battery: (1) - 4D AGM engine and generator starting battery New 2022
- All thru hull fittings are solid bronze and bonded

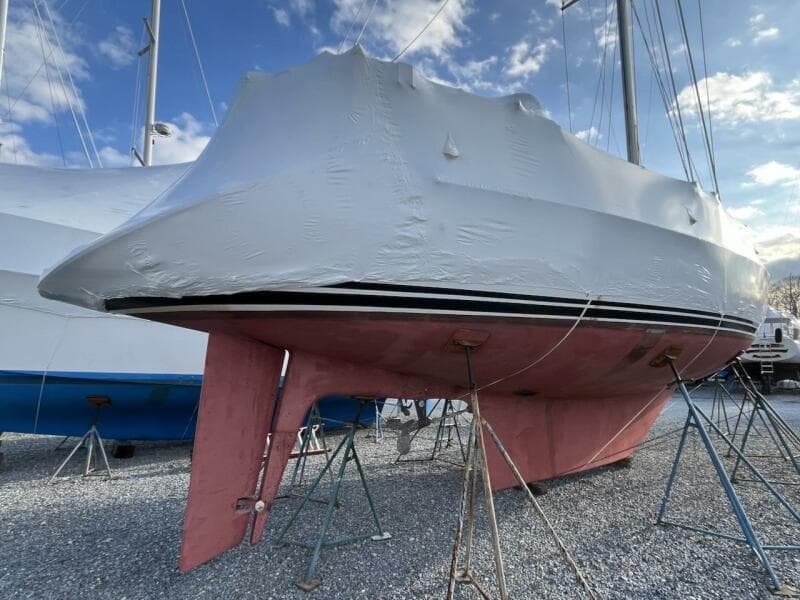

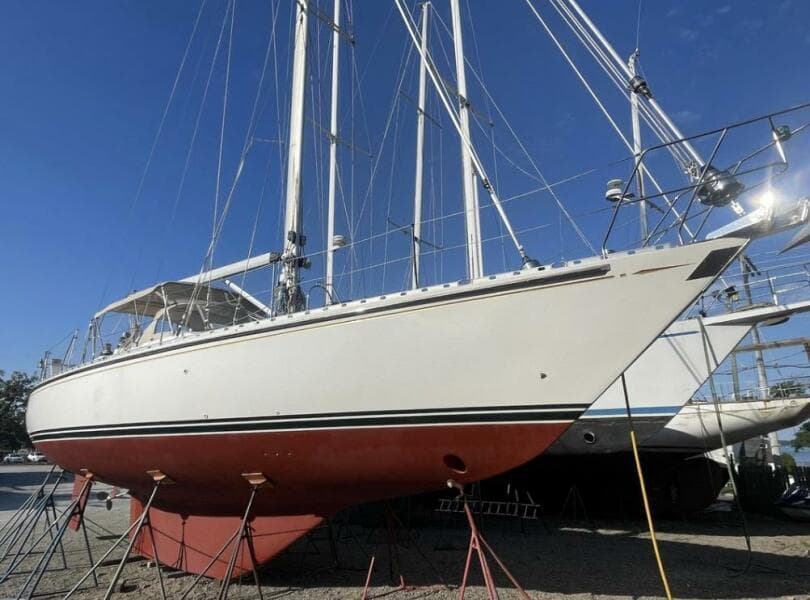

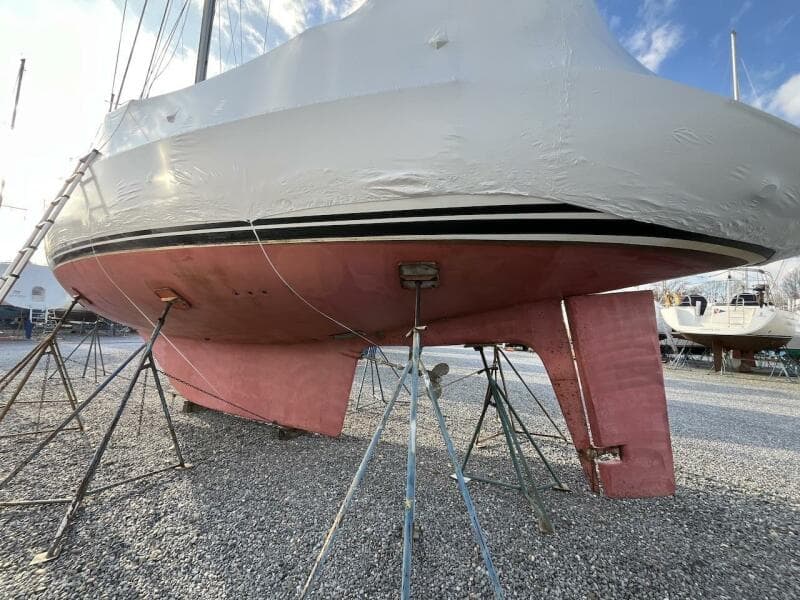

Hull
- Solid handlaid fiberglass layup with no core using vinylester resins and Isophthalic gel coat
- Fully encapsulated keel
- Watertight collision bulkhead forward of forward cabin with independent overboard drainage
- Divided anchor locker

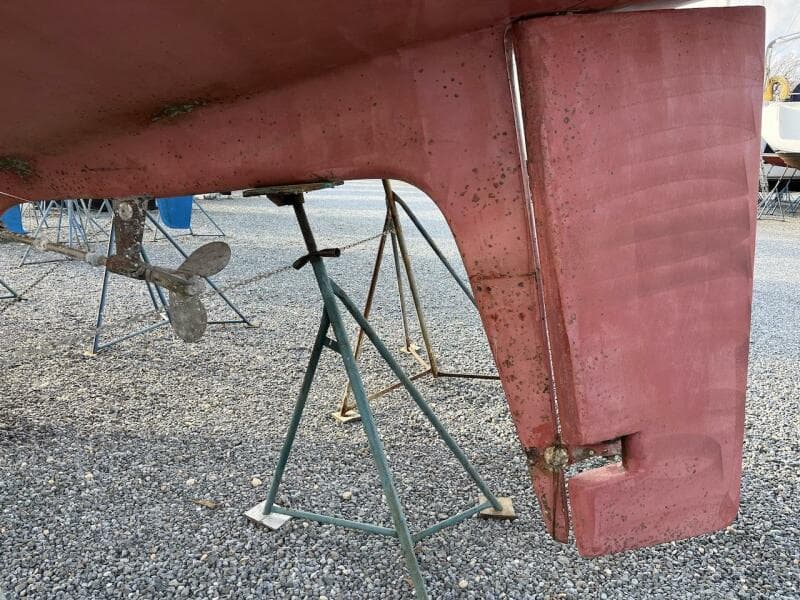

- Fully skegged rudder
- Transom storage with dedicated Rule auto bilge pump
- Integral stern steps and swim platform
- Factory white exterior gelcoat
- Bottom painted 2026
- 5 part epoxy system 2021
Mast & Rigging
- Selden Electric In-mast furling mainsail system
- Furlex 400 series roller furling head sail unit
- Furlex 300 series staysail furling unit
- Selden compression vang, Rodkicker
- Running backstays
- Forward and aft lowers for rig stability
- New England Rope running rigging
- Rigging had full inspection and was approved 2021

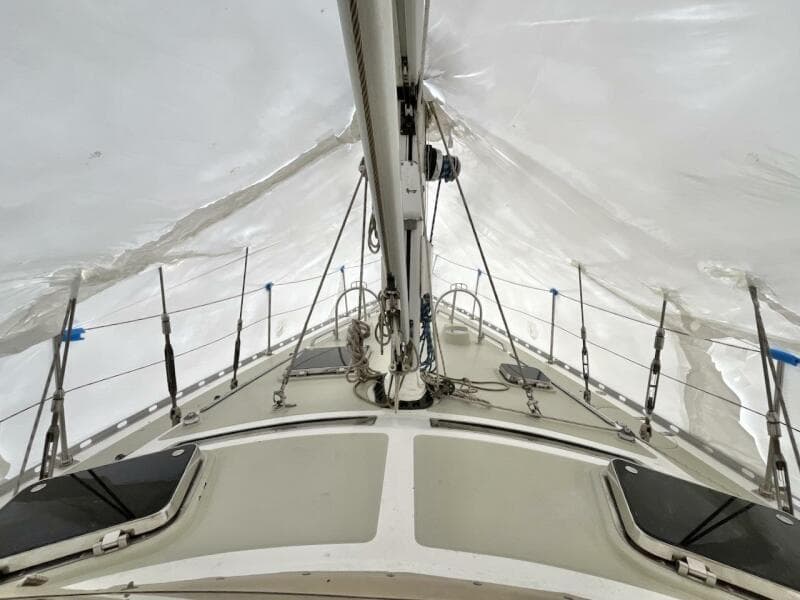

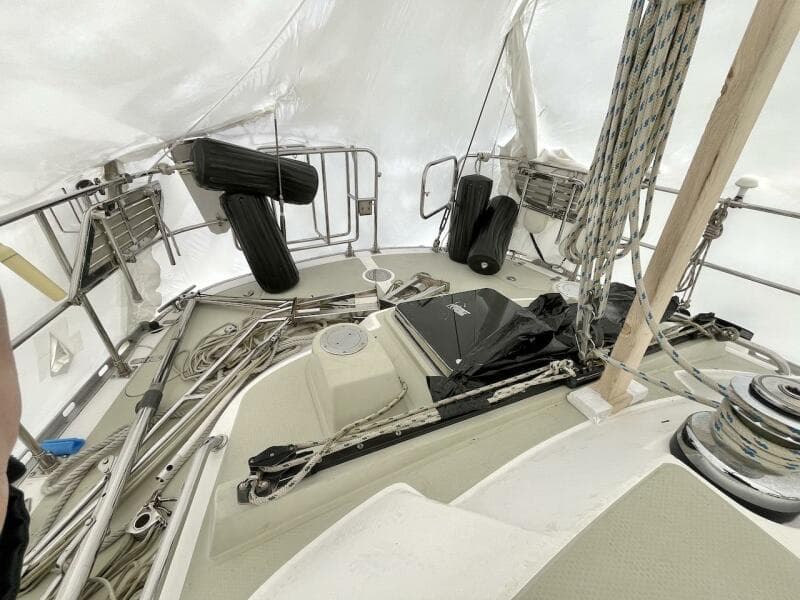

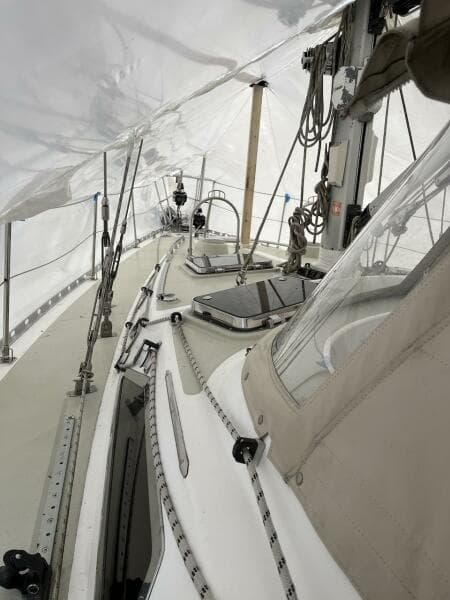

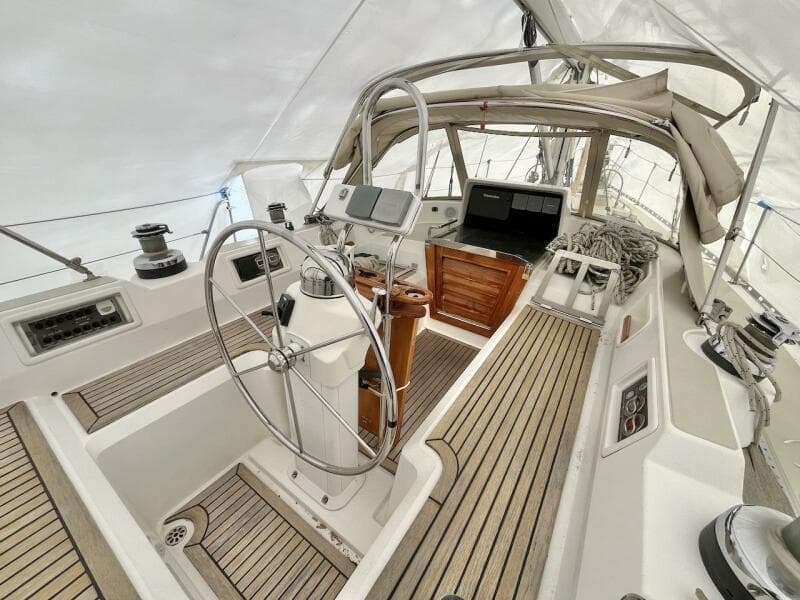

Deck
- Fiberglass sandwich deck
- Standard molded beige nonskid deck with aluminum toe-rail
- Dingy davits - removable on stern deck
- Teak rub-rail with stainless 1/2 oval strike plate
- Teak planking in cockpit in lieu of cockpit grating
- Maxwell 2200 electric windlass with deck switches and cockpit switch
- Stainless Steel deck handrails (Upgrade)
- Solid stainless stem head fitting with split bow roller
- 320' 3/8" High Tensile Chain
- Delta Anchor with chain and nylon rode - secondary
- Danforth anchor with chain and rode - stern lazarrete locker
- Saltwater wash down pump for anchor wash down
- 31" high stanchions with double vinyl covered lifelines
- Mainship 316 stainless overhead hatches and ports throughout replaced 2022
- Ritchie 5" compass
- Solid teak varnished cockpit table with teak drink holders
- Folding seats for backrest
- Freshwater hot and cold shower on stern platform
- Fold down stainless stern ladder
- Fold down stern pushpit seats
- Two Wichard padeyes, one forward, one aft in cockpit
- Single opening cockpit port over galley
- 12v plug next to companionway port side as standard
- Fresh water receptacle aft for shore use
Sails and Canvas
The primary and secondary winches on Special Lady are all larger than the Hylas specified winches. This feature makes sail handling very easy.
- North Main
- Doyle In-mast mainsail
- Doyle Staysail
- Doyle 130% headsail
- Almer Gennaker
- Bimini and Dodger
- Cockpit cushions green with white piping
- Bimini & Dodger polycarbonate glass replaced 2021
Safety
- Trilens Radar Reflector
- Lifelines Stainless Steel
- Horseshoes buoy - port
- Fireboy FE241 automatic fire extinguisher in engine compartment
- 3 Fire extinguishers
- ACR - Global Fix EPIRB
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
