Description

1. CONSTRUCTION

Steel hull, aluminum superstructure, teak decks

2. DIMENSIONS

2.1 General

Length Overall (L.O.A.): 170.61 feet (52.00 meters)

Beam (molded): 29.60 feet ( 9.00 meters)

Draft (loaded): 10.00 feet ( 3.05 meters)

Tonnage: 628 gross tons; 188 net tons; 653 displacement tons

2.2 Capacities

Fuel Capacity: 31,176 US Gallons (118,000 liters)

Water Capacity: 4,755 US Gallons ( 17,997 liters)

Watermakers: (1) @ 4,808 US Gallons ( 18,200 liters)

(1) @ 2,404 US Gallons ( 9,100 liters)

Lube Oil: 557 US Gallons ( 2,110 liters)

Waste Oil: 520 US Gallons ( 1,970 liters)

Waste Water: 1,442 US Gallons ( 5,460 liters)

2.3 Speed Consumption per hours Range RPM

Maximum: 15.0 knots 400 liters/hr 3,200 NM 385

Cruising: 12.5 knots 280 liters/hr 3,950 NM 325

Economical: 11.0 knots 220 liters/hr 5,000 NM 290

3. MACHINERY

3.1 Main Engines

Engine Type: (2) Cummins KTA 38-M2 diesels @ 1,200 Hp each

Gearboxes for Main Engines: Reintjes WAF 542 Ratio: 4.45:1

Drive: Lips Fixed pitch propellers

3.2 Generators & Electricity

Generators: (2) 145 kW John Deer Generators (New July 2014)

(1) 50 kW Cummins 4B 3.9 emergency generator

Generator Fuel Consumption: 520 liters/day per Generator

Shore Power: (2) 62.5 KVA Atlas shore power SPA 3 Phase

Output volts 400 output amps: 230/400/50 Hz

Input Volt: Atlas shore power conversion system

Batteries: Main engine start: air; charged: compressors

Generator start: 24V batteries charged Mastervolt charger

3.3 Air Conditioning:

Type: Marine Air – 52 Air handlers

3.4 Other Machinery

Watermakers: (1) Watermakers WMSQ-45000 (rebuilt Feb/2024)

(1) Watermaker WMSQ-3000 (rebuilt Feb/2024)

Stabilizers: Koopnautic SR3575/4080 SVA (At Anchor)

Bow Thruster: HRP 200-60E 110 kW Hp (rebuilt 02/2024)

Steering System: Rolls Royce/Tenjford JR 2.160 ram type

Fuel Separator & Filtration: Alfa Laval MIB 303

Sewage System: Headhunter

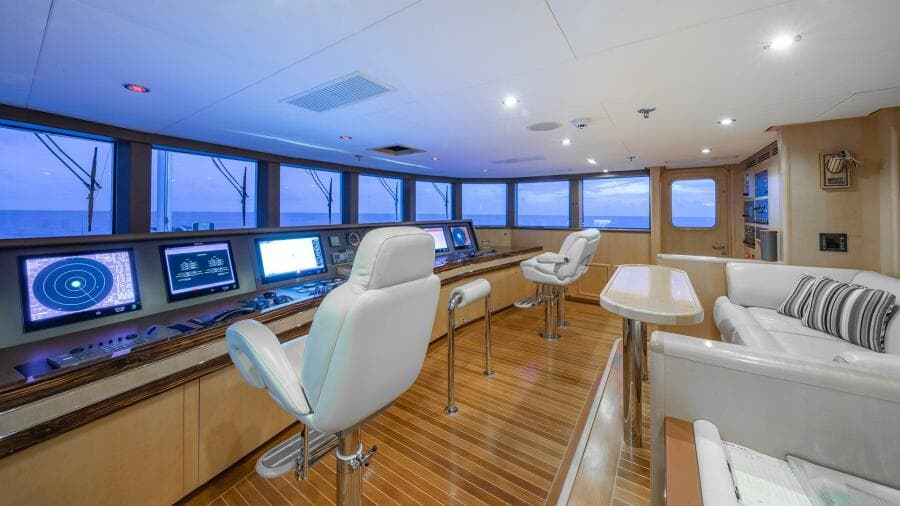

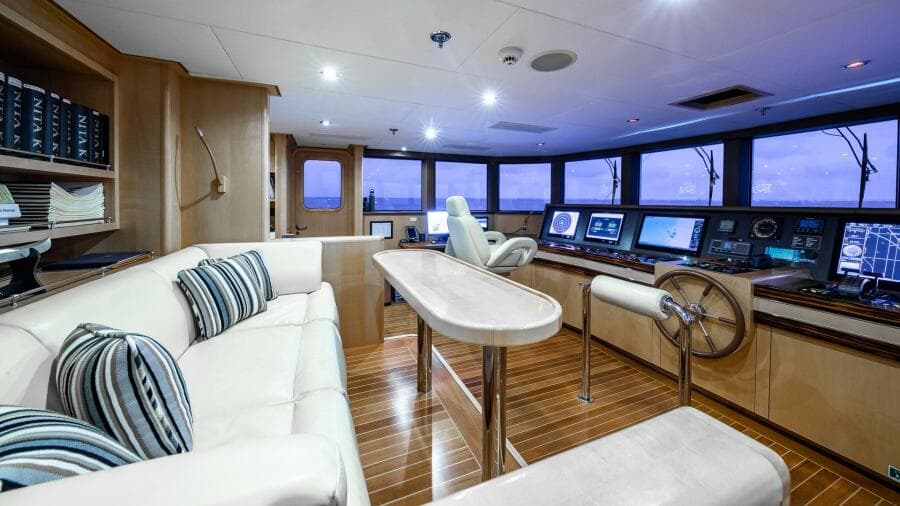

Helm/Control Stations: (4) Located bridge/Port wing station/Stbd wing station/

Emergency Local Engine Control

Completely renewed new control system (Oct/2022)

4. COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

VSAT SeaTel VSAT

SATcom: (1) new 2022 Iridium LT-3100s GMDSS system

Starlink: (2) new 2022 Starlink Maritime installed onboard

GSM internet: (2) new 2022 PEPWAVE 5G antennas

Telephone System: Panasonic

SSB: Sailor 6301 MF/HF

VHF Fixed: (1) Furuno FM8800S DSC-VHF

(1) Sailor RT4822 VHF-DSC

VHF Handheld: (2) Icom IC-M87

Cellular Phone System: (3) + Globesurfer

Intercom: Panasonic

Internal Ship’s Communication: Phontech

Hattera Screens: (1) 22” Touch screen, (4) 19” screens

Furuno Sat C: (1) new 2017 with Furuno printer

4.2 Navigation Systems

Radar: (1) Furuno 2110 X-Band; Range 120 nm

(1) Furuno 2110 S-Band; Range 120 nm

Gyrocompass: (1) C-Plath Navigat MK1 (new Nov 2015)

Magnetic Compass: (1) C-Plath

Auto Pilot: (1) C-Plath Navipilot V HSC

Depth Sounder: (1) Furuno ED2200 wing station repeaters

Video Sounder: (2) Furuno FCV-585 with (2) transducers fwd and (1) aft

GPS: (2) Simrad MX 612

Ships Computer: (2) Nav PC Custom; (4) HP PC; (1) HP PC

IT Server: (3) New servers and complete new state of the art IT/WI-FI throughout vessel

Printers: (4) HP

Chart Plotter: (2) new 2023 Wartsila RS8 full ECDIS

Chart Plotter (1) Maxsea new September 2017

Wind Indicator: (1) Thomas Walker (relative) + Furuno RD-30 weather station

Speed Indicator: (1) C-Plath Naviknot III speed log

Navtex: (1) Furuno NX-500

AIS: (1) Furuno FA-150 universal

4.3 Entertainment System:

Central Ship’s Audio: Complete new A/V throughout vessel e.g. Central system includes a Kaleidescape server linked to a new RTI control system. In addition there are new Mini iPads throughout the vessel for controlling the

A/V and music server in addition to public areas (Party Mode), Apple TV, airplay.

All lower Guest cabins A/V systems are in two individual racks with dual SAT TV/DVD/Kaleidescape

(Complete new AV system July 2014)

All Apple TV devices renewed Mar/2023

All-access points renewed Mar/2023

Audio/Video Equipment

TV’s:

(2) KVH HD 11 TV antenna’s (new 2016)

(1) Samsung Flatscreen 26’ – Captain cabin (multisystem)

(12) Samsung 22’ LCD/DVD – 6 Crew cabins (multisystem)

(1) Samsung 50” curve – Crew mess

(1) Samsung 85” – Skylounge

(1) Samsung65” – Main salon

(1) Samsung 55” – Master cabin

(1) Samsung 55” Master office

(2) Samsung 42” – Guest cabins

(2) Samsung 33” – Guest cabins

(1) Marantz – Crew mess

(1) Marantz – Skylounge (new 2017)

(4) Marantz – Guest cabins

Stereos: (1) Marantz – Skylounge

(1) Marantz – Master cabin

(1) Marantz – Main salon

iPod Stations: (2) Bridge

5. GALLEY & LAUNDRY EQUIPMENT

5.1 Main Galley Equipment

Cooking Equipment: (1) Schott 4-burner range

(1) Wolf 30’’ E Series convection steam oven (CSO30PE/S/PH) (new Feb/2024)

(1) Mielie oven H 2455 BP active

Refrigeration/Freezer: (2) Metos MMC 600 refrigerators

(1) Liebherr Freezer

(1) Dometic wine fridge (Pantry)

Dishwasher: (1) Winterhalter UC Series dishwasher

Other: (1) Dumbwaiter located galley/pantry/Sundeck

General Galley: Built in deep fryer, built in grill, Kitchen Aid mixer, Hans Dampf Combi steamer 6.23, Paco Jet ice cream maker

5.2 Crew Galley/Mess Equipment

Cooking Equipment: (1) Severin 900 microwave

Refrigeration/Freezer: (1) Smeg fridge

(1) Liebherr 4177 wine cooler

Other: (1) Miele 67856 dishwasher

(1) Uson Marine AB trash compactor

5.3 Additional Galley Equipment

Refrigeration/Freezer: Fridina BV built in walk-in 2.7m2 refrigerator

Fridina BV built in walk-in 1.65m2 freezer

Other: (4) Ice machines

(1) main deck aft

(1) sundeck

(1) pantry

(1) Lazerette

5.4 Laundry Equipment:

Main Laundry Equipment (3) Miele Professional dryers

(1) Sanuzzi Lindo 100 Washers

(2) Miele Washers

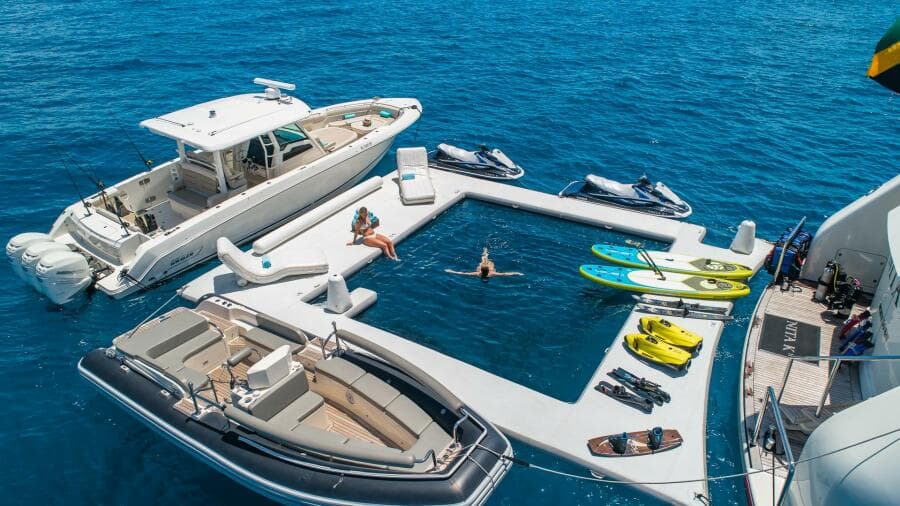

6. TENDERS & TOYS

Tenders: (1) Novurania 24’ with diesel Volvo Inboard

(Fully refurbished 2023. New pontoon, engine, drive train, electronics including wiring)

Dive Gear and Toys: (1) Bauer C2E dive compressor with 5 full dive sets

(2) Yamaha Delux 3 seater wave runners 2016

(1) New FunAir 26ft slide

(1) New Inflatable Sea pool with jellyfish net

(4) Inflatable paddleboards

(4) brand new Inflatable kyaks

(2 x 2 person / 2 x 1 person)

(2) Seabob F5

(2) Lyft E-foil boards

(2) Towable chariots

(2) Wakeboards

(1) pair water skis

(8) Deep sea and jigging Fishing gear

7. DECK EQUIPMENT

Anchor Windlass System: Steen, single motor horizontal axis

Aft Warping Capstans: (4) Steen; (2) Fwd and (2) Aft

Anchors: (2) Pool

Anchor Chain: 22mm X 630’ (192m)

Boat Crane and Davits: (2) Vandriel (1 fwd, 1 aft) – 2000 kg capacity

Accommodation Ladders: Stbd side electric-hydraulic (Overhauled 2022)

Stern Boarding Gangway: Aljo Yacht equipment, electric-hydraulic

(Overhauled, including paint, new teak and lights 2024)

Spotlights: (2) Handheld Fenix LR80R

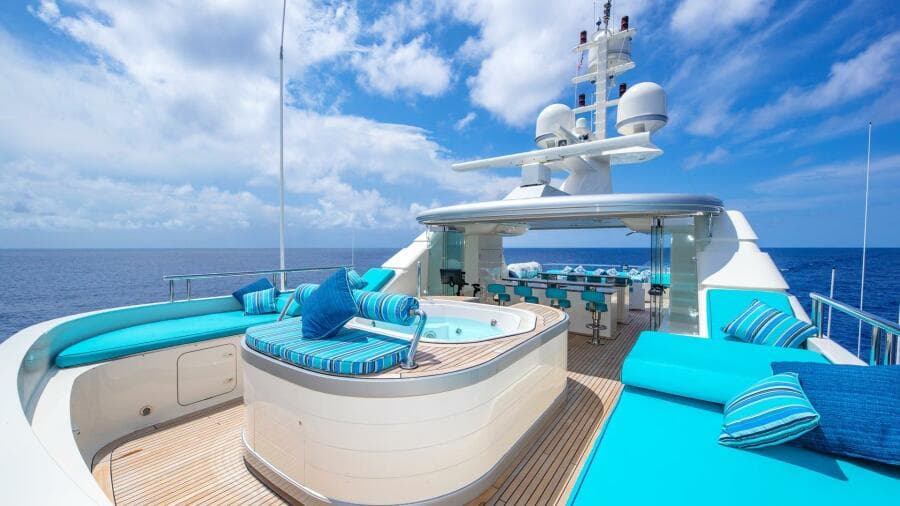

Jacuzzi: Located on Sundeck for 6-8 people (Fully refurbished 2023 including paint, jets, lights, all pumps, motors, heater, wiring, plumbing)

8. SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment:

CCTV System: Luma surveillance system (New 2020)

Cameras: (16) Engine room, Port/Stbd side decks, Aft deck, Mast, Bridge deck fwd and aft, Swim platform

Monitors: (3) Radio room, Crew mess, Bridge

Deck Sensors: Palladium Technologies; Three zones of deck sensors

Biometric Door Locks: (2) Biometric door entrances, Guest door, Crew door

Ship’s Safe: (6) Guest cabins, Master cabin, Captain’s cabin

8.2 Fire Fighting Equipment:

Fire Control System: (2) Fixed CO2, engine room + galley range hood

Various smoke detectors, (41) smoke, (5) heat, (3) gas

(1) Sprinkler system throughout vessel (All machinery, control, and salient components renewed

Including new sprinkler pump and new stainless steel

Freshwater water tanks 2024)

(2) Asbestos firefighting suits – Viking Professional fire fighting suits, BA locker

(14) Seawater firefighting stations within 15m of any point on the vessel

Fire and Bilge Fixed Systems: (2) Fire/Bilge pumps (renewed Feb/2024)

(1) Emergency Fire/Bilge pump (renewed Feb/2024)

(15) Pneumatic control valves (renewed 2024)

Portable CO2: (9) Near major electrical installations

Fire Extinguishers: (25) Various locations throughout vessel

Alarms: All door entries are connected to the Palladium Technologies, alarm system with door sensors

Alarm Key Pad: (2) Monitors, Crew door and Radio room

8.3 Safety Equipment

Life Rafts: (4) RFD Surviva MKII, 16-person, Class A

Life Rings: (8) Solas approved

EPIRBS: (2) ACR Globalfix with built in GPS

Flares: Assorted

Line Throwers: (4) Pains Wessex linethrower 250

Medical Equipment: Medlink supplied and approved first aid and medical kits

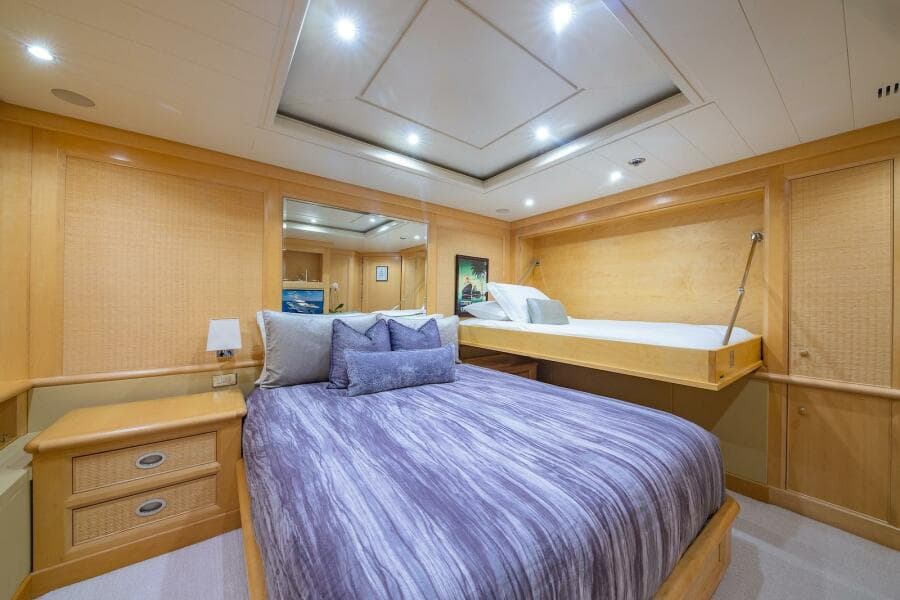

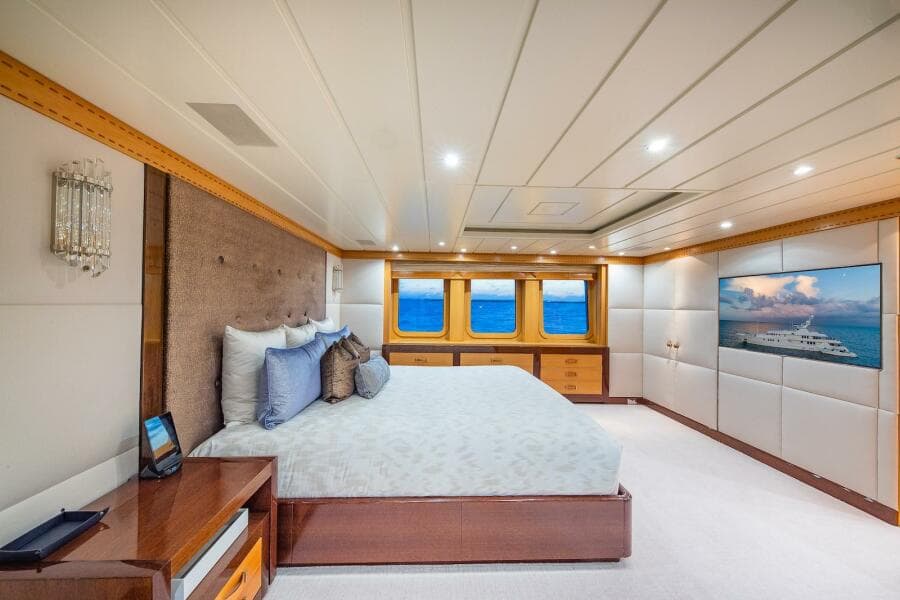

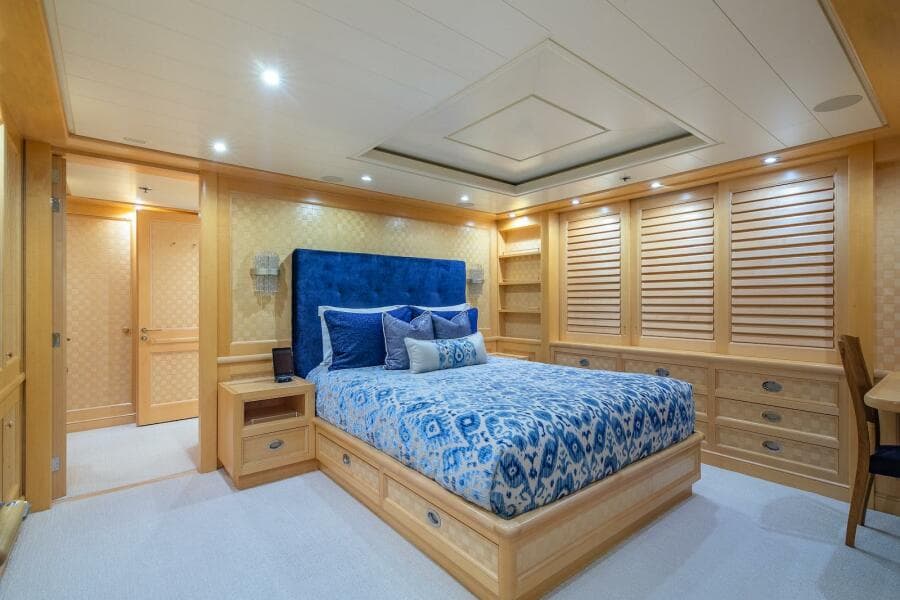

9. ACCOMMODATIONS

Sleeps up to 12 in the owner’s party in 5 staterooms with crew accommodations for up to 14 in 7 cabins
