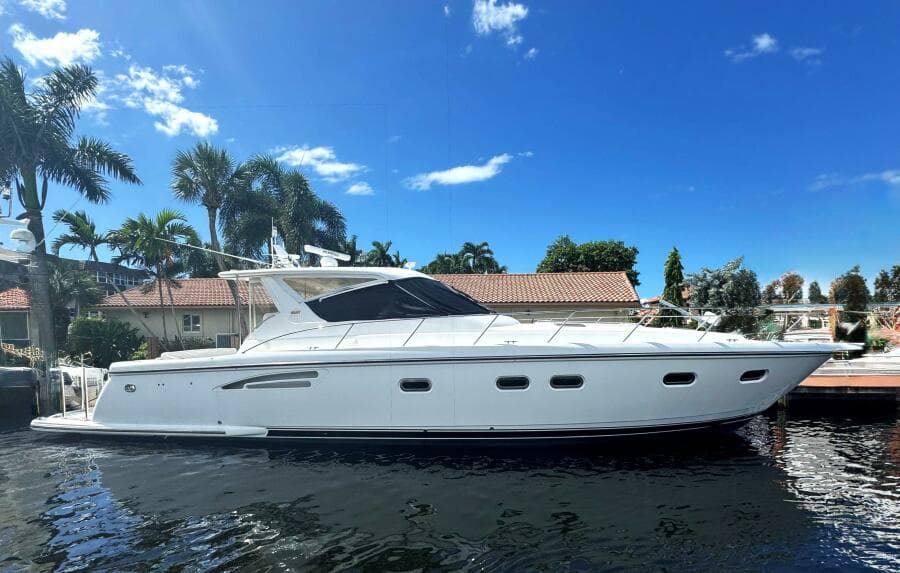

2003 Tiara Yachts 5200 Express

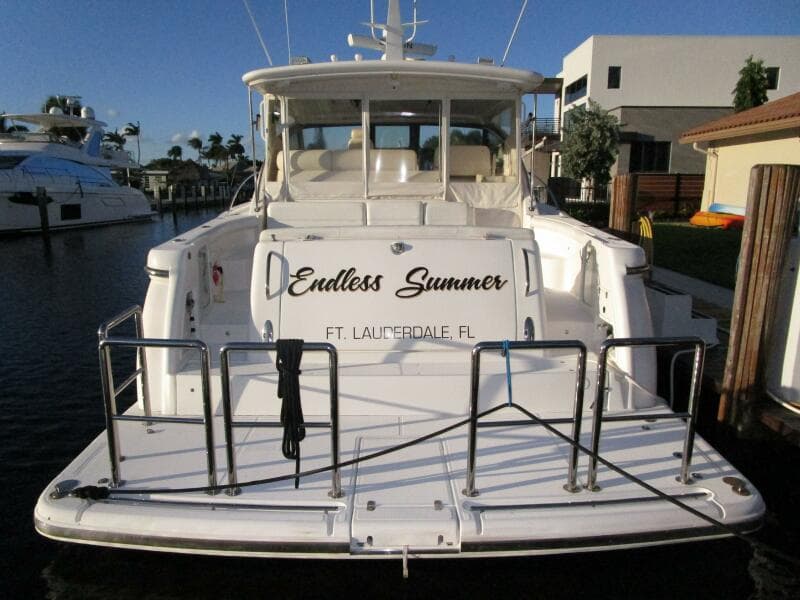

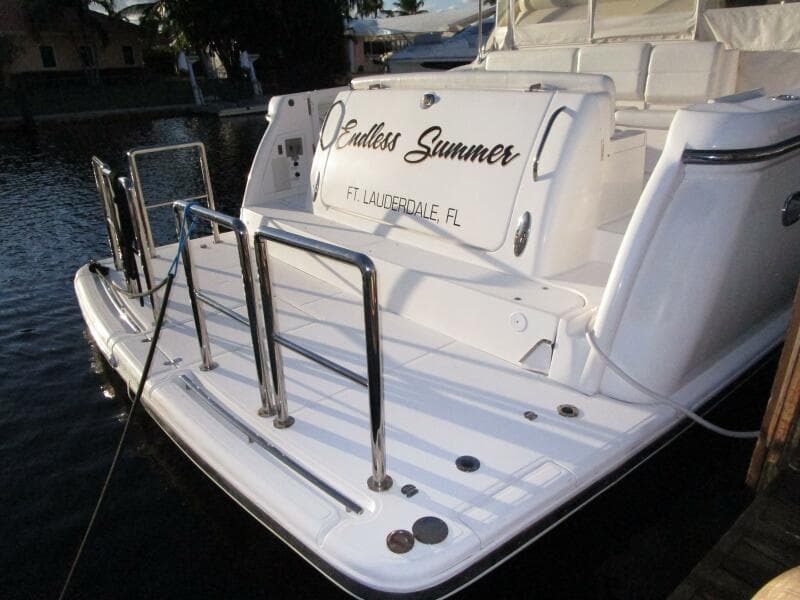

From the oversized integrated non-skid swim platform with six recess and removable U-shaped safety rails and a concealed tender davit, one can access the aft cockpit area through two molded steps (port or starboard) equipped with safety / child gates.

There is huge “garage style” storage (hydraulically operated) across the transom area for fenders, docking lines, cleaning supplies, diving and fishing equipment.

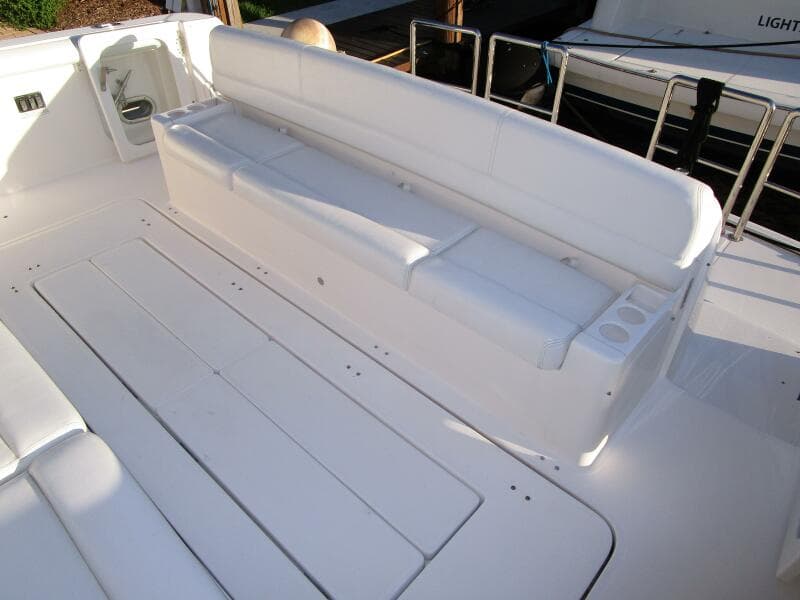

The aft cockpit area features built-in upholstered seating facing fore and aft plus two electrically operated hi/low tables that become part of the non-skid deck when not in use. There is generous storage under the aft bench and a gas shock assisted engine room access at center of the forward bench seat.

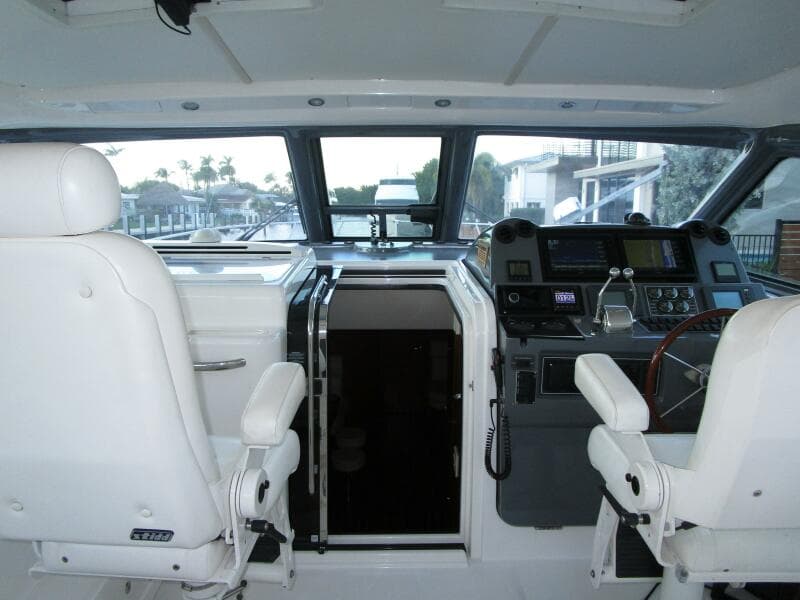

Up two steps is the upper cockpit/helm area with a large L-shaped raised seating to port (with lots of storage under) and molded foot rest. A single Stidd companion chair with fold out foot rest is to port with a navigation chart storage with secondary compass. The helm station to starboard can accommodate two persons on a double adjustable Stidd seat with two fold out foot rests. This upper cockpit area is fully air conditioned, offers a great 360 view, and a full wet bar.

The fully equipped helm area is mounted on hinges on the deck to allow to tilt the whole console for easy access and service to all electronics, navigation and communication equipment.

Weather permitting, the center forward window and two overhead hatches open remotely for fresh air flow to the complete area.

Coming down at centerline, through a curved sliding hatch with sliding screen, one can immediately appreciate the warm looking cherry and holly flooring and inviting satin finish cherry wood cabinetry combined with the tan leather upholstered dinette and built-in settee to starboard. The overhead perimeter soffit has rope lighting and there are two stowable seats to be added to the dinette seating.

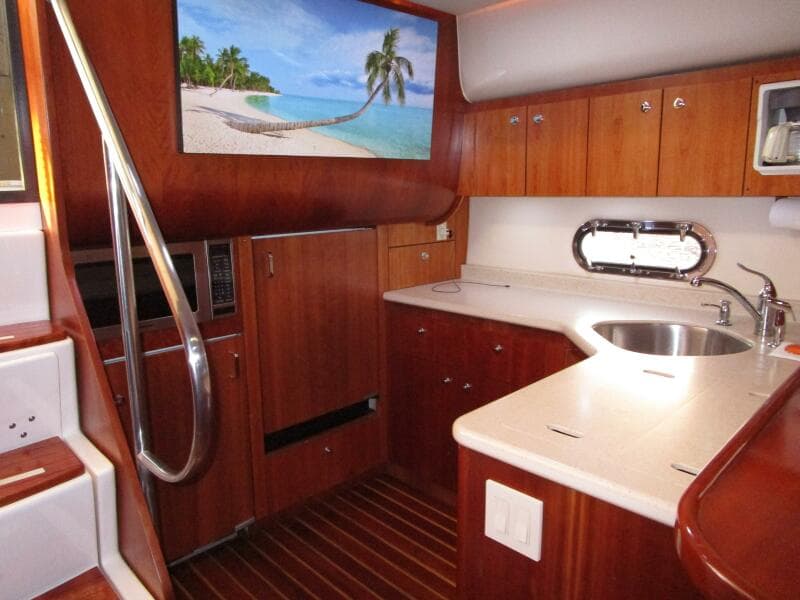

The fully equipped galley is open and to port aft of the dinette that features a hi/low table convertible into additional sleeping accommodation.

The twin berth (convertible to king size berth) guest cabin is to starboard with private access to a full head with shower forward that doubles as the Day Head with a secondary access to the main cabin.

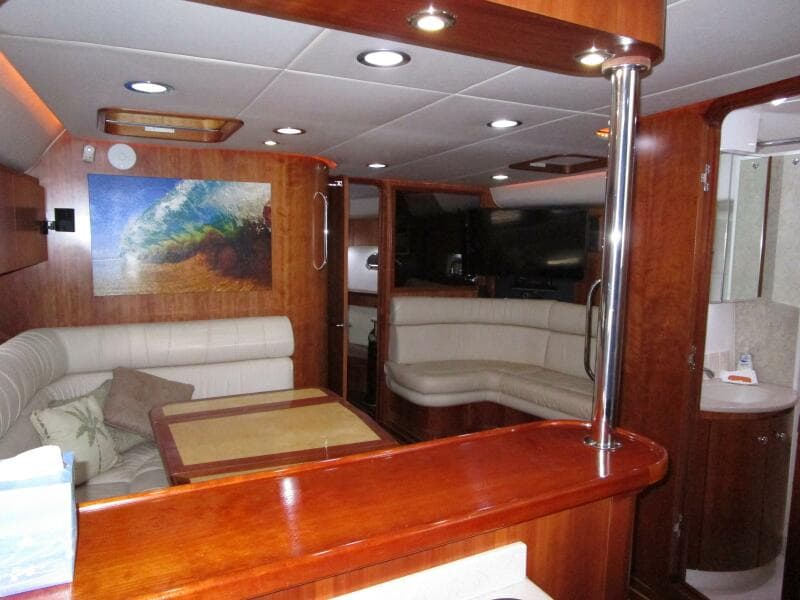

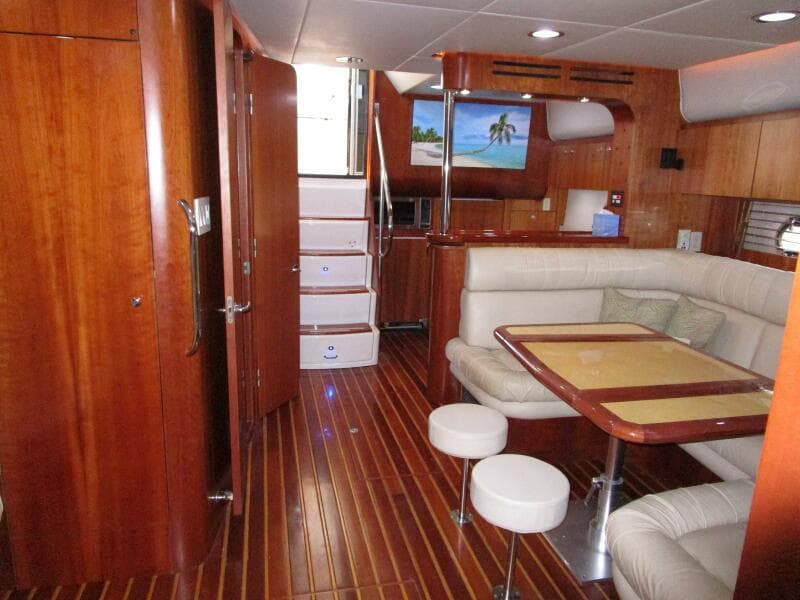

The dinette/salon area features a large screen color TV and full A/V system, including a Bose Surround Sound system. There are two overhead large hatches combined with two stainless steel portholes to bring in sunlight and fresh air.

The master stateroom is forward with a raised queen sized berth at centerline with undermount rope lighting. The berth is mounted to a hinged platform that opens up hydraulically to access an oversized storage area with built-in drawers and undermount wire baskets for the central vacuum accessories storage. There is a vanity to starboard with mirror, storage drawer and a swing-out upholstered stool. Two generous cedar lined hanging closets are port and starboard and an additional closet with four shelves to starboard. Three storage cabinets are also on each side of the cabin. A large, curved door to port gives access to a spacious head compartment with a large shower offering a molded seat and built-in shelves with keepers for toiletries. A vanity with molded sink, storage cabinet below and a 3-sided mirror on piano hinges for pharmacy storage with multiple shelves is above. A large stainless steel porthole brings in daylight and the Corian sole features a unique Compass Rose design. The head system in both heads is fresh water operated and manufactured by VacuFlush.

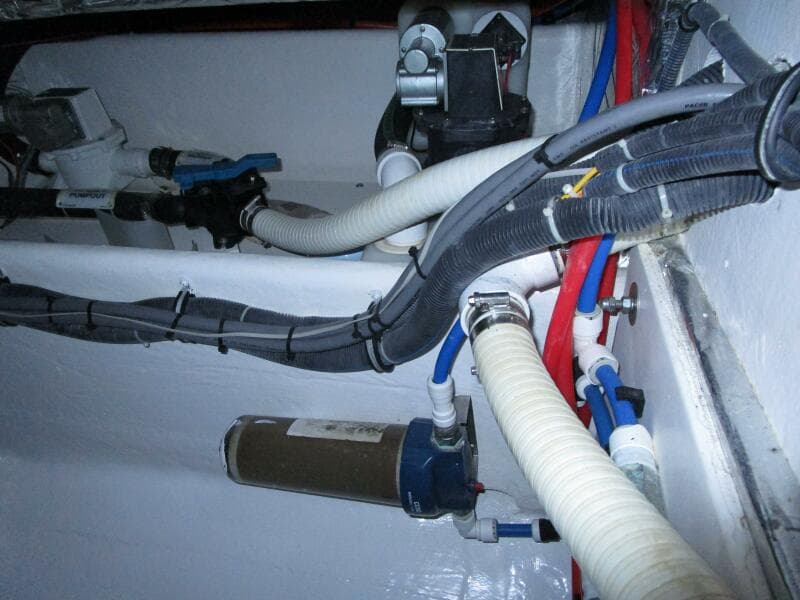

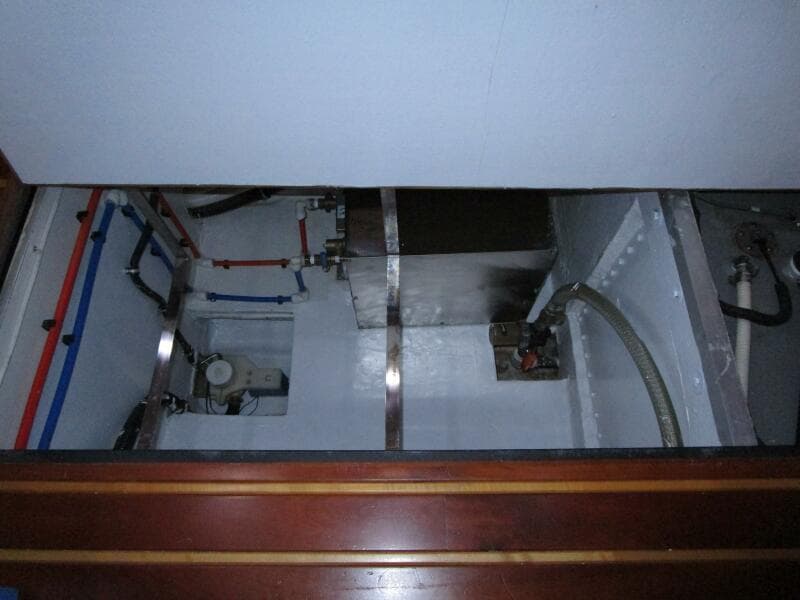

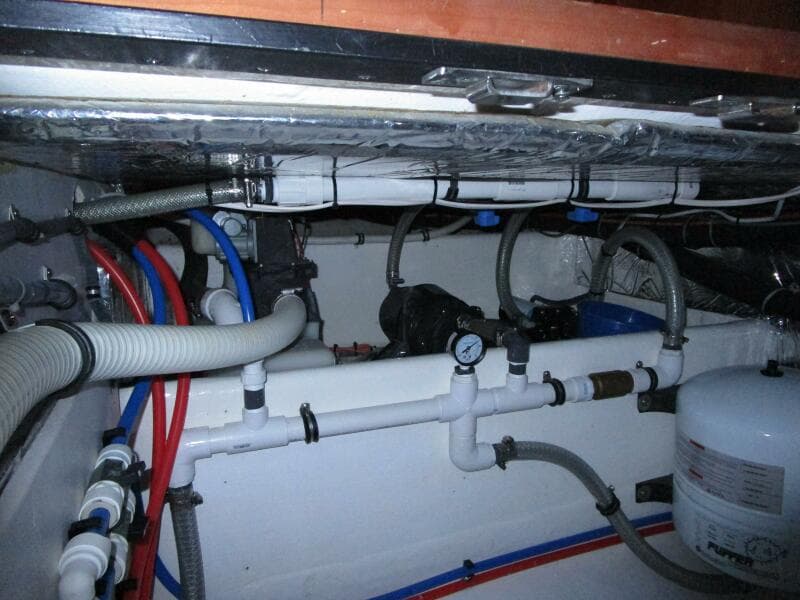

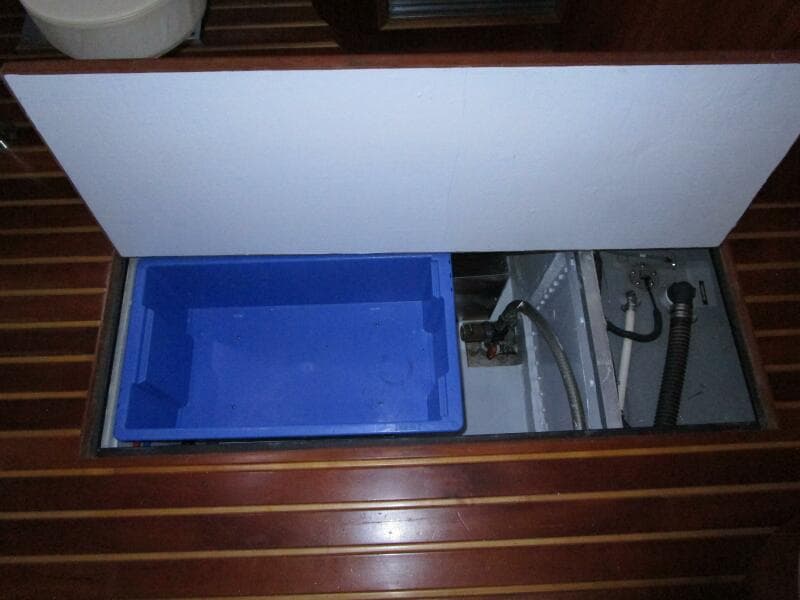

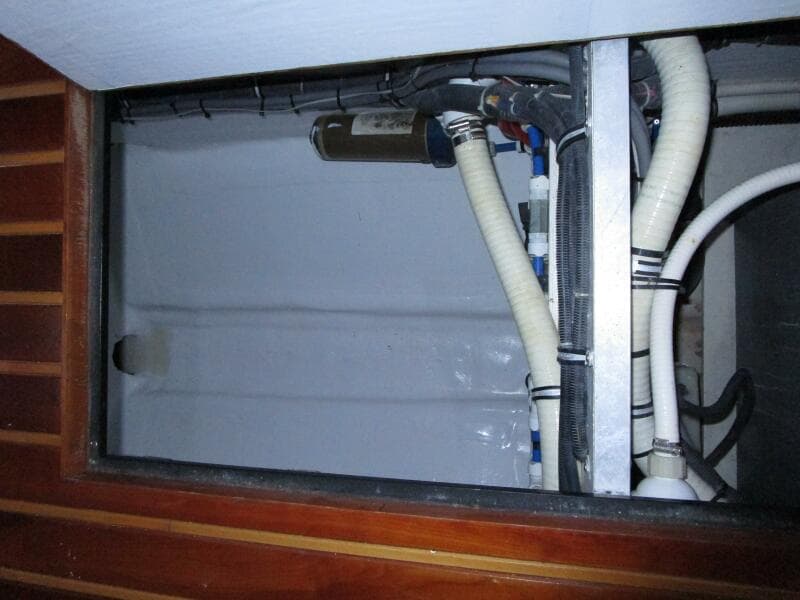

There are also three opening hatches in the sole at centerline for access to the bow thruster forward and storage aft.

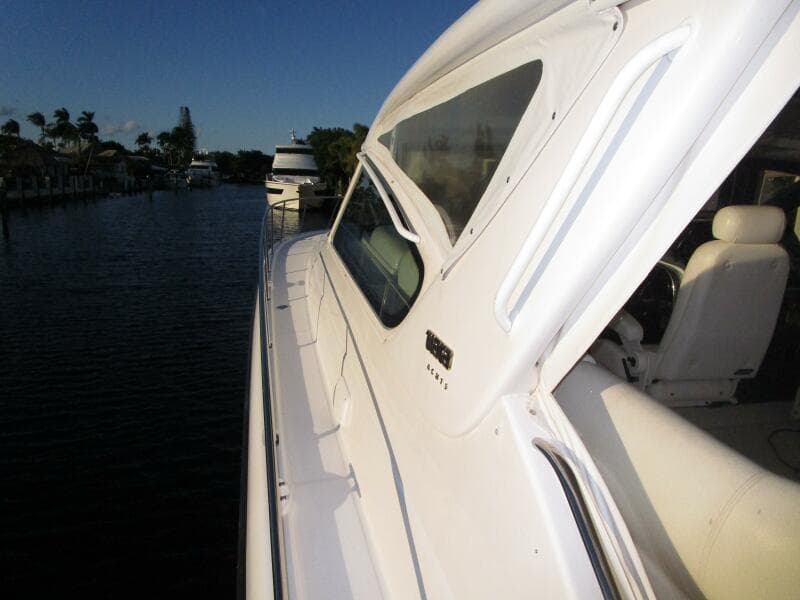

Back to the exterior aft cockpit area, easy access to the walkaround non-skid decks and the bow is thru molded steps and easy multiple grab rails each side of the cockpit area. The two oversized stainless steel bow railings ensures secure passage to the bow forward that features a centerline “Bunny Pad” for sunbathing with safety grab rails around and built-in glass holders and cover.

Foot switches forward on deck allows operation of the windlass and high polish stainless steel anchor secured to the pulpit underside.

Centerline from the helm deck area is a lockable sliding curved plexiglass door with five wood tread steps down to the salon area.

Immediately to port is the galley. To starboard is the twin convertible guest cabin and guest/day head.

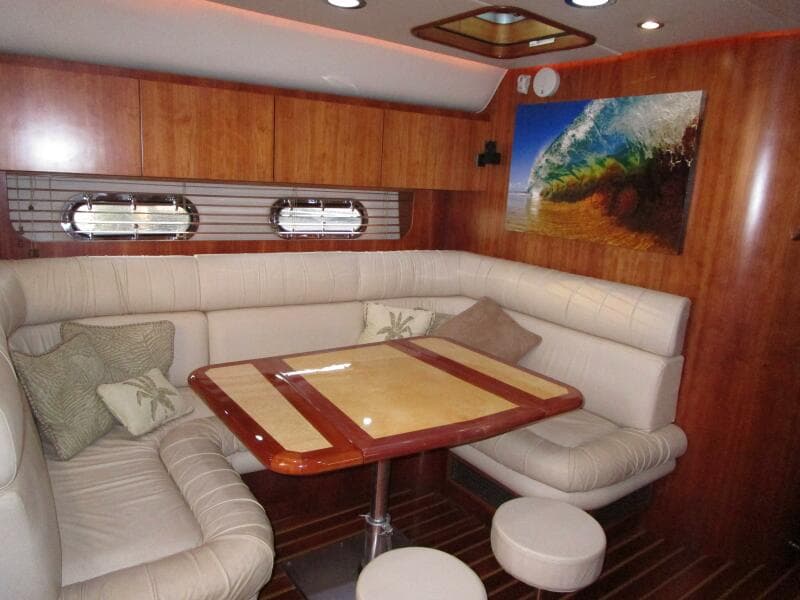

Forward to port is a C-shaped ultra-leather settee to seat five people. A hi-lo table lies in front. Two removable stools add additional seating. Outboard of the settee are four top opening cherry cabinets with two opening stainless steel portholes and wood blinds below.

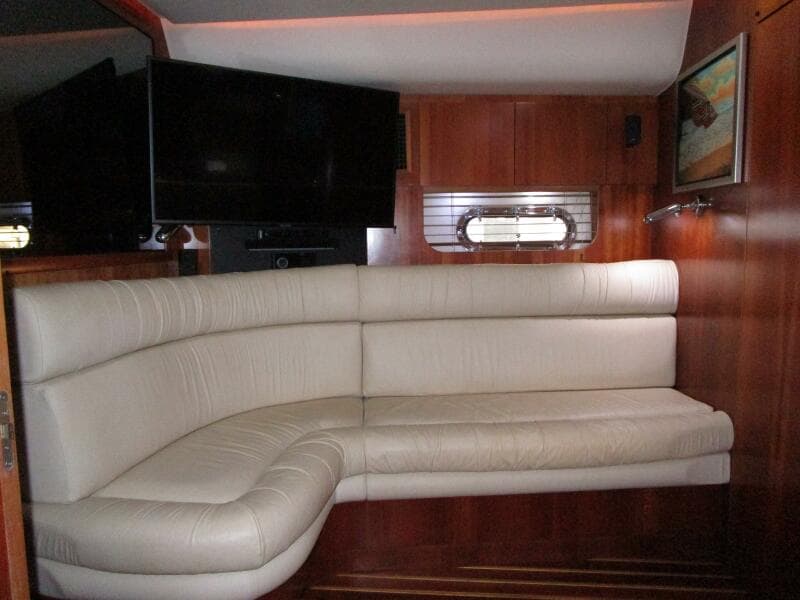

Opposite and slightly forward is a matching L-shaped ultra-leather settee with a 36” Samsung TV, Samsung Blu-ray player and a Fusion stereo above the settee. Next aft are two cherry cabinets over an opening stainless steel porthole behind wood mini blinds.

Also in this area is a locker with storage and the cabin’s electrical panel.

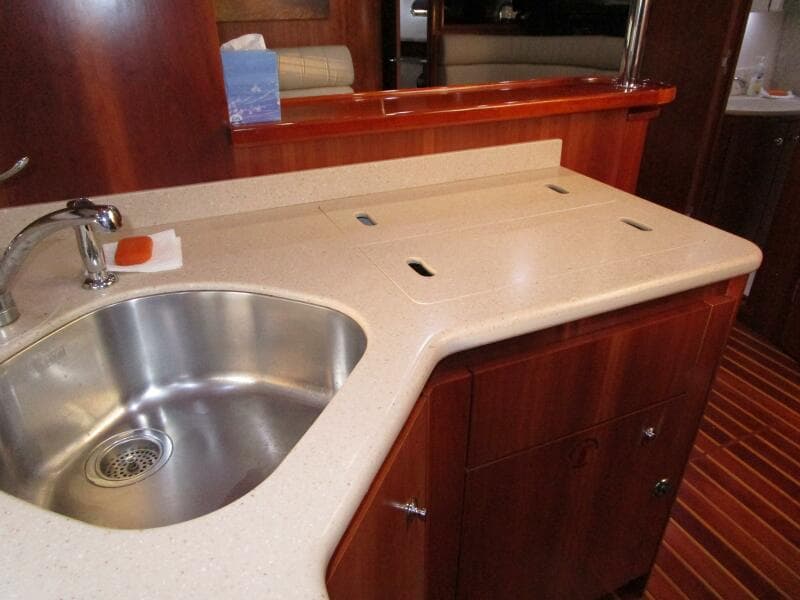

• Cherry and holly sole
• Corian countertops
• Undermount stainless steel sink
• Single lever faucet with spray attachment
• Soap dispenser

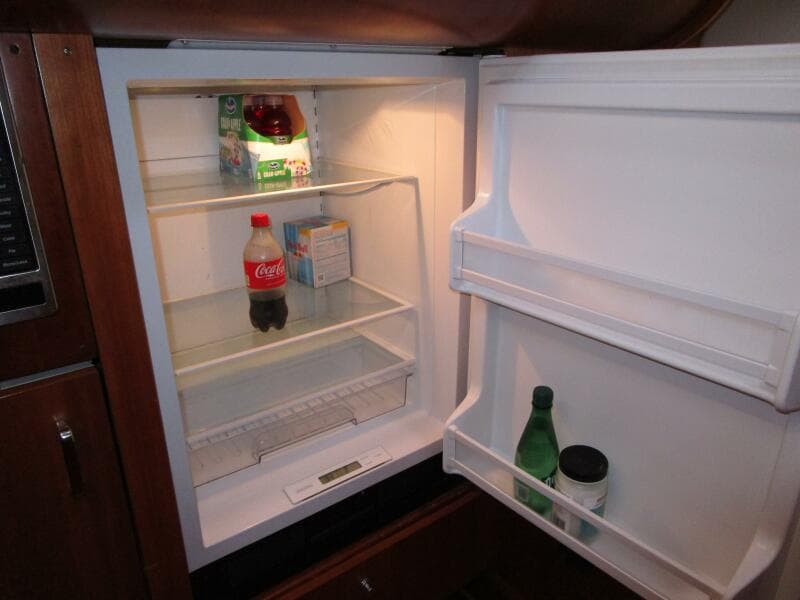

• Sub-zero refrigerator with cherry front

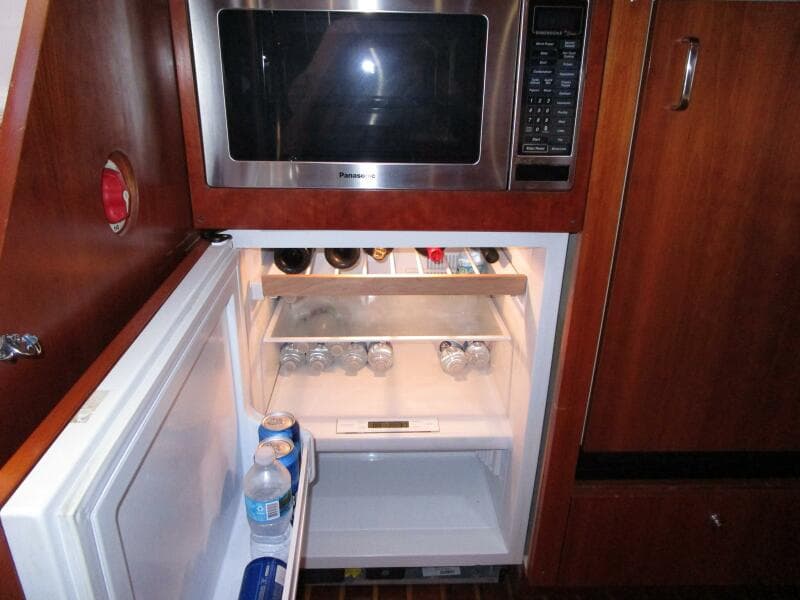

• Sub-Zero drink fridge with lower freezer area, cherry front

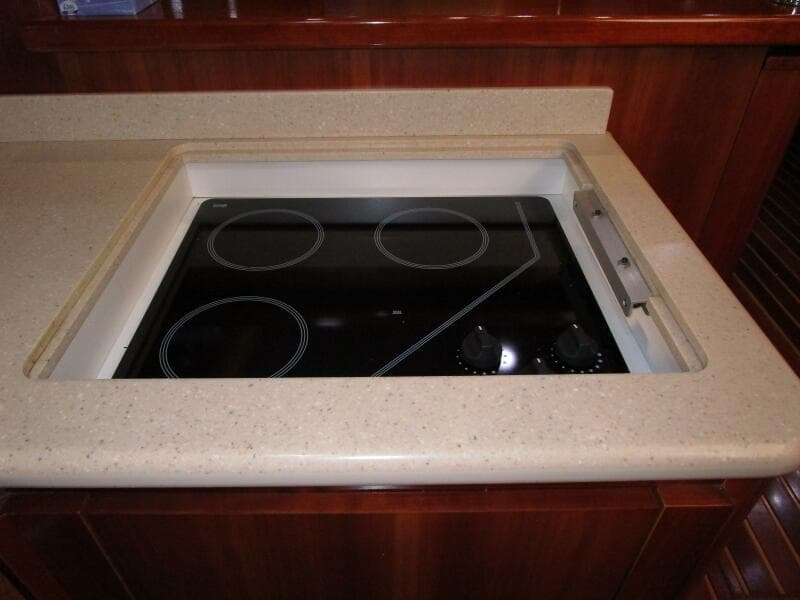

• Force 10 glass top 3 burner cooktop with cover
• Panasonic micro convection oven
• (8) cherry cabinet drawers
• (3) cherry drawers

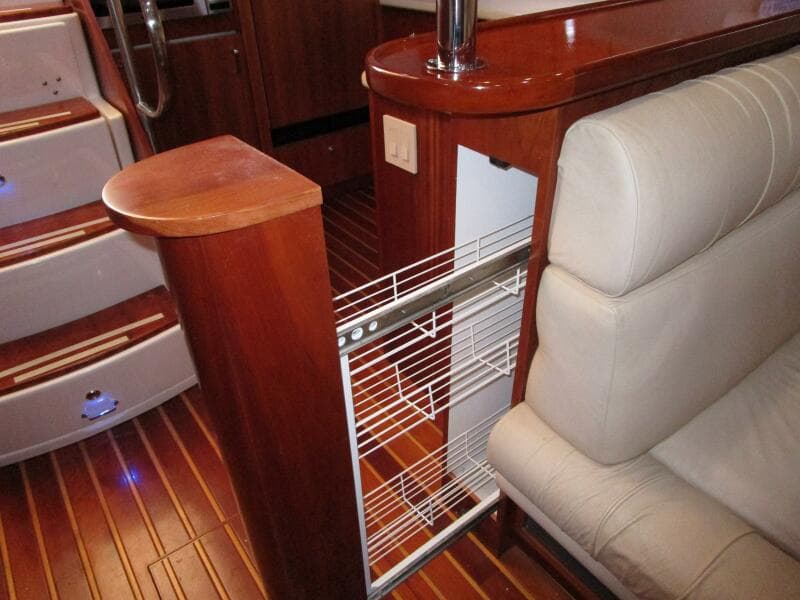

• Pull-out cabinet, forward end of galley
• Opening stainless steel porthole
• Indirect rope lighting
• DC under cabinet lighting
• LED overhead lighting
• Black and Decker built-in coffeemaker

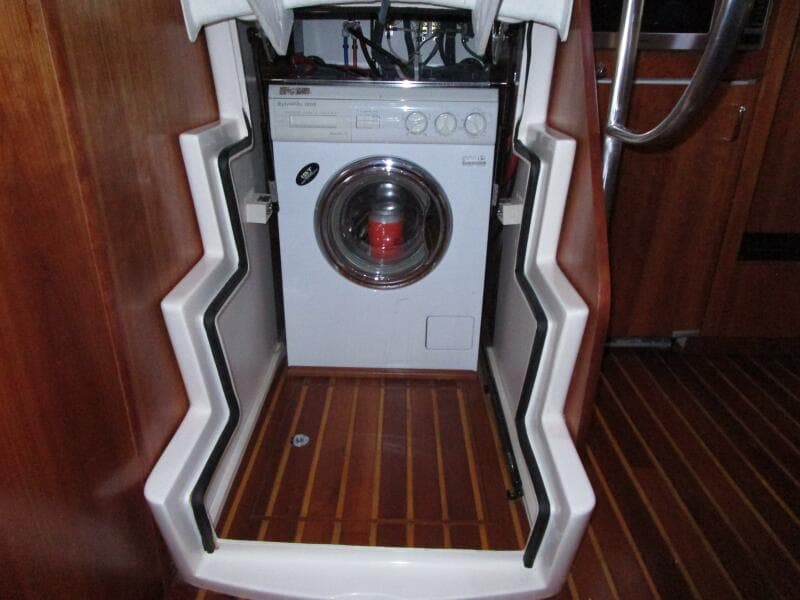

• Splendide 2000 washer/dryer combo under stairs to upper cockpit

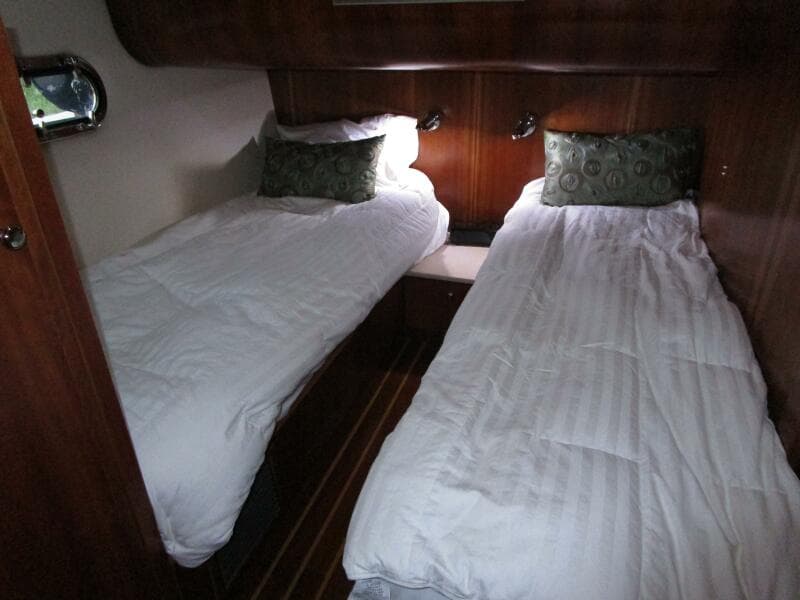

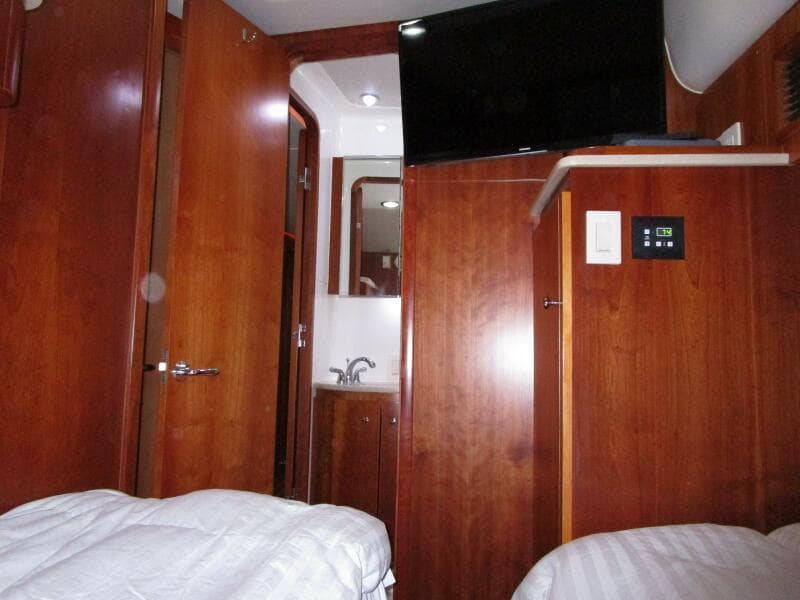

Accessed via the centerline opposite the galley is the twin berth guest cabin with berths that can slide together to form a queen size berth. Each berth has a reading light. Between is a one drawer Corian topped nightstand.

Outboard are two cherry cabinets with lights below that are above an opening stainless steel porthole. Forward of the outboard berth is a half-height, cedar lined, auto lit, hanging locker and a 30” Samsung TV. Forward is a door into the guest/day head.

Also in this cabin is a cherry sole, smoke/CO alarm detector and digital A/C controls with a new A/C unit (2025).

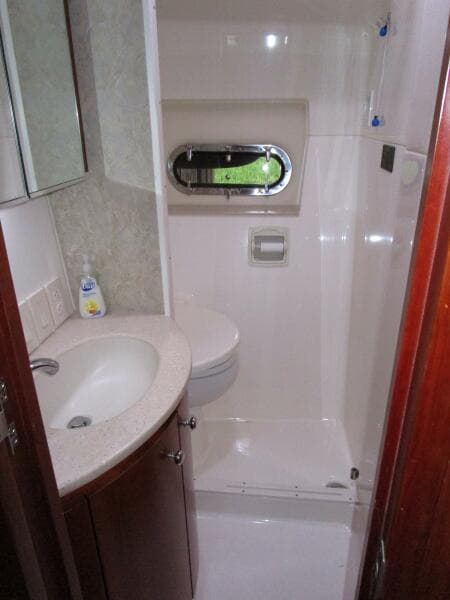

Accessed from the guest cabin or the centerline cabin area is the guest head that with its’ second door doubles as the day head. The cherry vanity has two doors below and a Corian seamless sink and countertop above. Two mirrored medicine cabinets are above.

The stall shower has a curtain enclosure, a hand held or wall mounted fixture and within the shower is a VacuFlush toilet under a hinged seat/cover.

Also in the head is an opening stainless steel porthole, an A/C vent, an exhaust fan and three overhead LED lights. The entire head area is molded fiberglass for ease of cleaning.

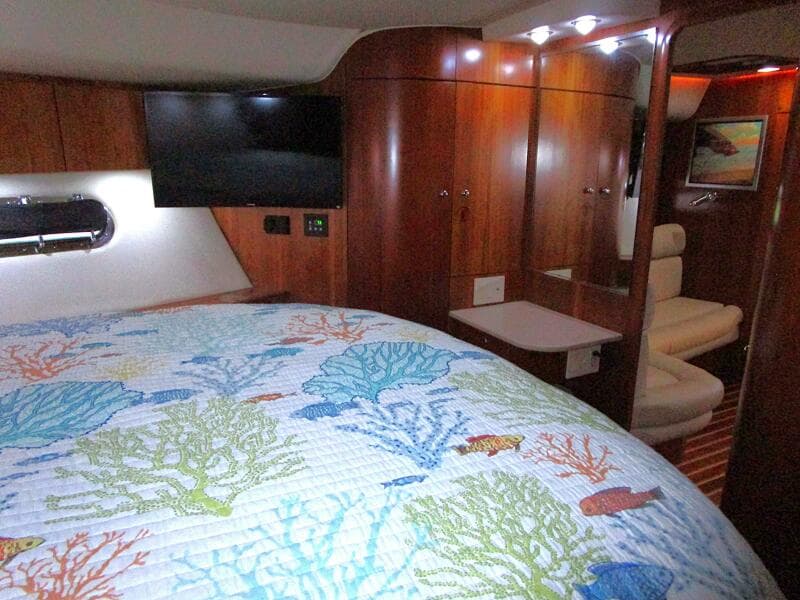

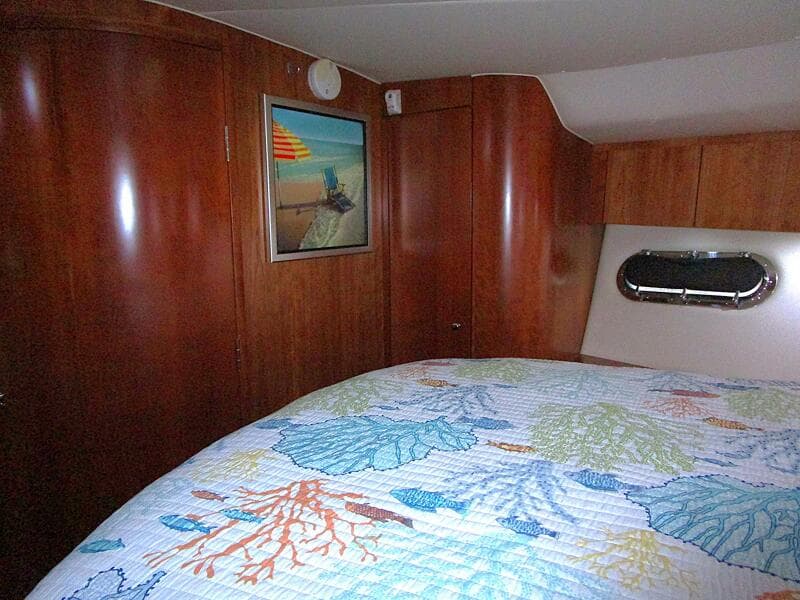

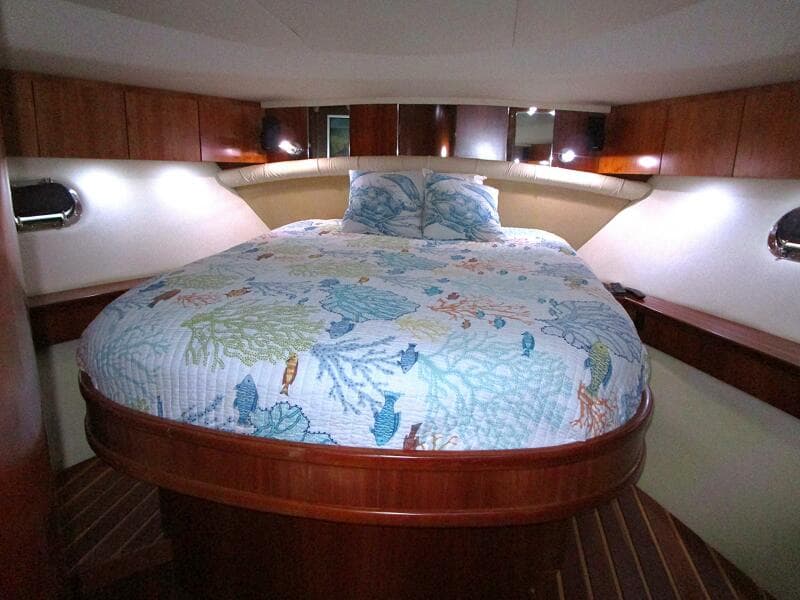

Located all the way forward is the master cabin with a centerline queen size island berth. Cherry shelves, set into the padded hull liner, serve as nightstands. Each side has an opening stainless steel porthole. Above are four cherry cabinets port and starboard.

The raised berth is accessed via cherry and holy steps port and starboard. The upholstered headboard has two reading lights and three mirrored panels flanked by Bose stereo speakers.

Aft to port is a cedar lined, auto lit, hanging locker and access to the private head. Aft to starboard is a 30” Samsung TV, a curved cabinet with four shelves within and another smaller cedar lined autolit hanging locker. Below is a vanity with Corian top, a drawer and a swivel out stool with a mirror above.

Also in this cabin is an overhead deck hatch, CO detector, smoke detector, digital A/C controls and rope lights under the berth.

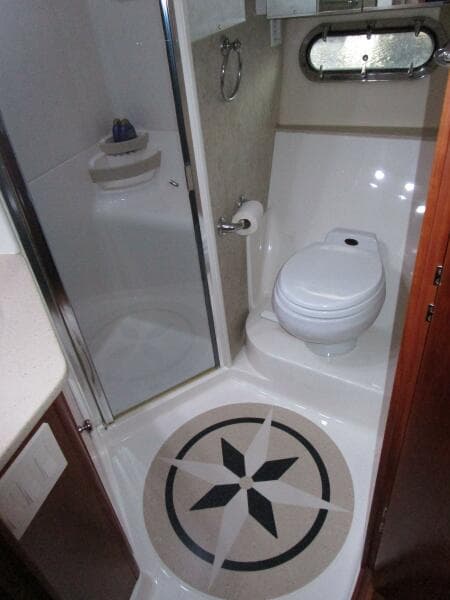

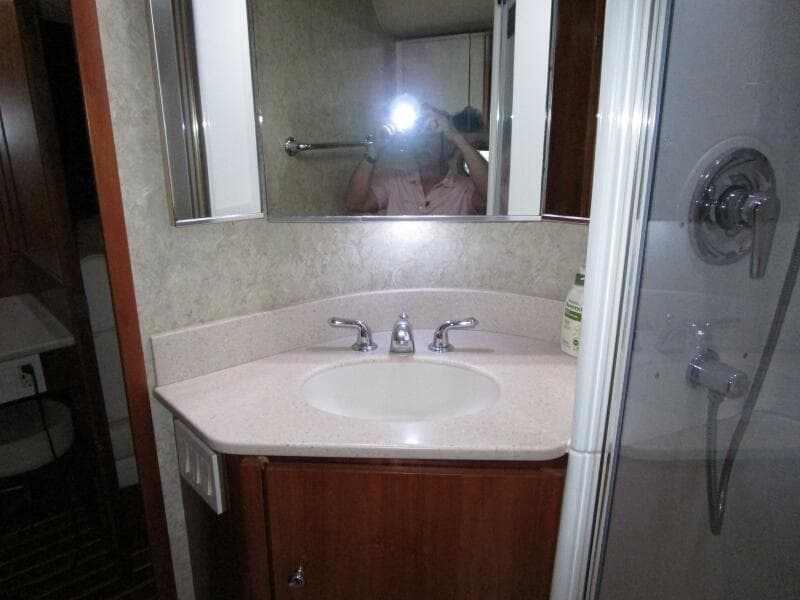

Accessed solely from the master cabin, the head has a cherry vanity with a cabinet below a seamless Corian sink and countertop.

Above is a three panel mirror with one center mirror hinged as a medicine cabinet. The VacuFlush toilet is on a raised pedestal. The stall shower has a seat, a storage area, a handheld or wall mounted fixture, an LED light and a clear glass door.

Also in the head are two overhead LED lights, an opening stainless steel porthole and two mirrored cabinets over the porthole. The sole has an attractive Compass Rose Corian inlay. The bulkheads are wallpapered. There is an A/C outlet and an exhaust vent for this area.

• Fiberglass deck with Tiara molded non-skid
• Athwartship seating with cushions, cover and storage below
• Interior stern mooring cleats port and starboard with hawse holes on deck and hull sides
• ‘Smith’ gunnel rod holders, port and starboard
• Low level courtesy light sport and starboard
• Padded cockpit bolsters

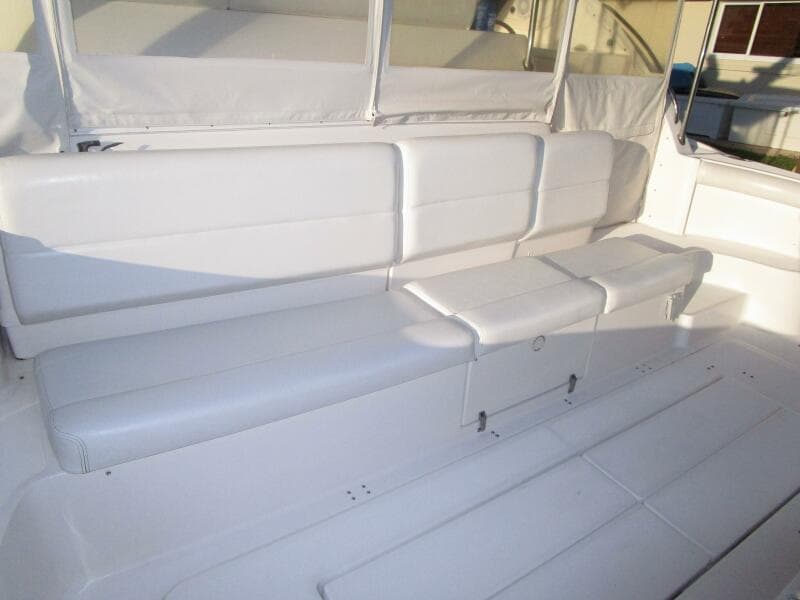

• Forward athwartship seating with cushions and cover
• FRP safety gates to swim platform port and starboard with plexi inserts
• (2) JL stereo speakers overhead port and starboard

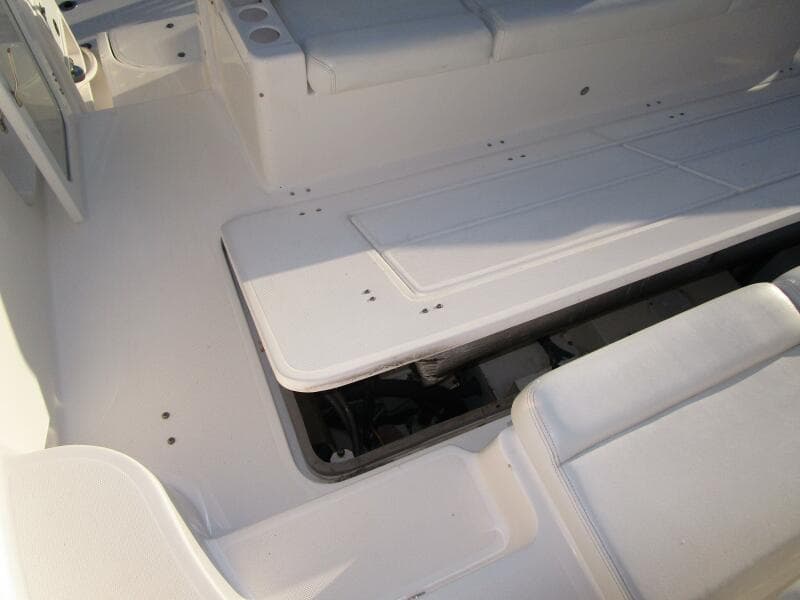

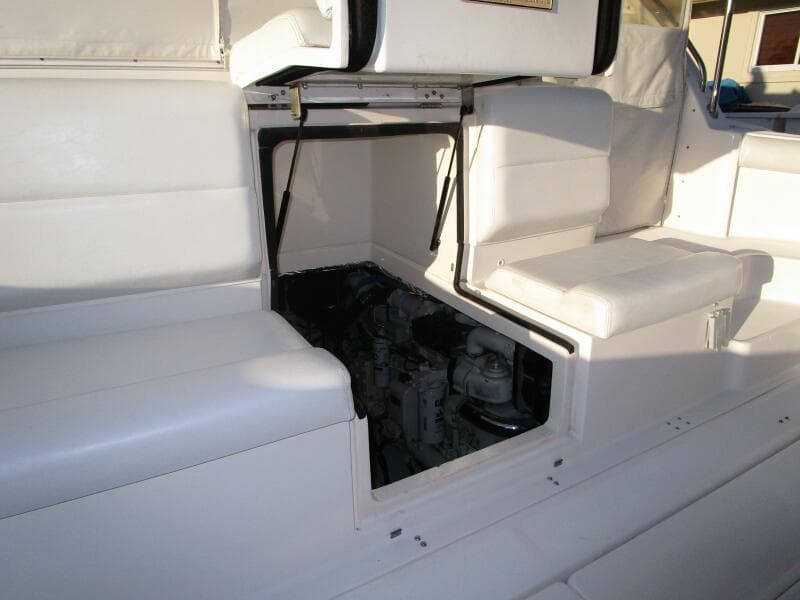

• Centerline forward seating section opens for easy access to engine room from outside the upper cockpit area
• Removable 4-step stainless steel ladder into engine room
• (2) FRP tables lower flush to deck when not in use and raise hydraulically to cocktail or dining height.
• 110V outlet
• Integral FRP swim platform, two seps down from cockpit
• Stainless steel folding swim ladder, centerline
• Stainless steel grab rails port and starboard

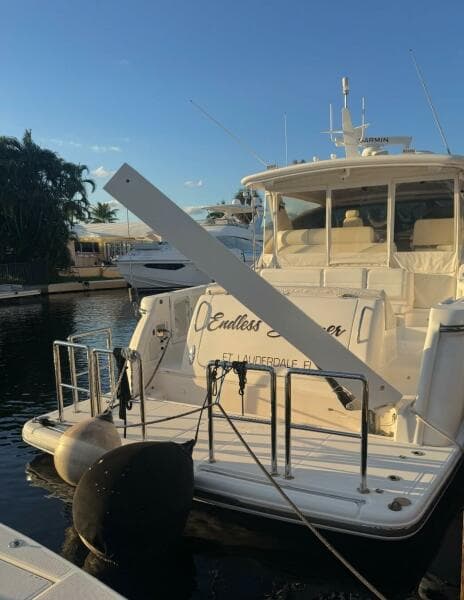

• Recessed hydraulic approximately 750 lbs. tender davit
• Hot and cold shower in port locker
• Cablemaster starboard
• Access to rudder area in trunk
• (6) Removable U-shaped stainless steel rails
• (4) Stainless steel tender tie downs
• Integral grab rails at swim platform end
• (2) pop-up transom cleats
• TACO flush mount outrigger receivers
• Port and starboard stainless steel support poles
• (2) clamp on rod holders on support poles for hard top
• Rear facing Garmin CCTV camera

• Hydraulically operated hatch with controls on port side

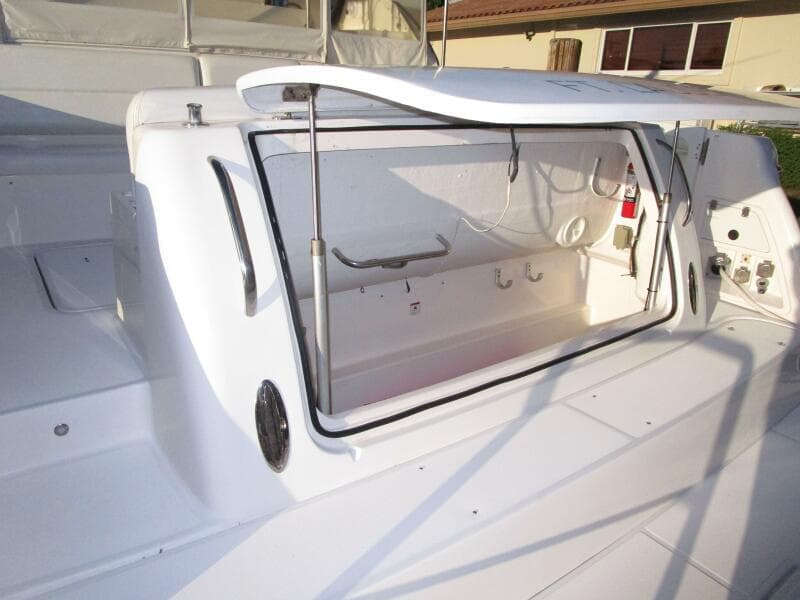

• Large garage style storage, nearly full beam
• (2) spare 3-blade 32” x 39” props - stored off boat
• Fluorescent light centerline
• Multiple hooks for dock line storage
• Access hatch to rudder area
• Fire extinguisher in trunk
• Seawater washdown pump in rudder area
• Trim tab reservoir and pump in rudder area
• Hydraulic steering activator in rudder area with two double cylinder trim tab actuator
• (2) underwater lights
• Steering cylinder rebuilt (2023)

• Fiberglass molded Tiara non-skid

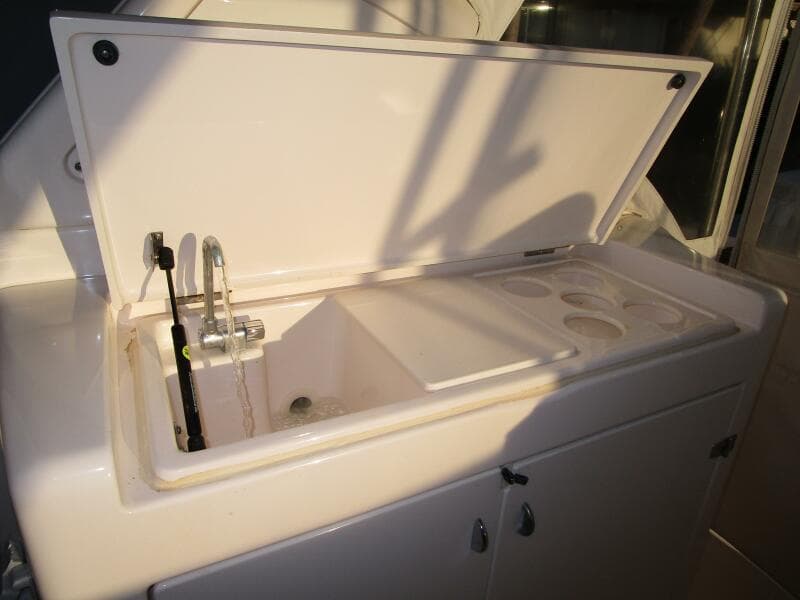

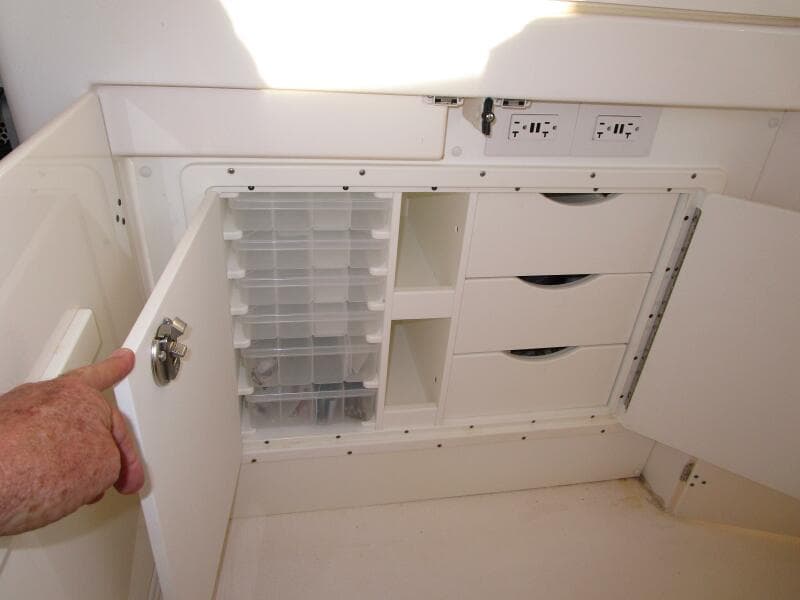

• Aft to starboard, wet bar with sink, faucet, storage locker, (5) recessed bottle holders, USB charger and tackle/storage drawers below

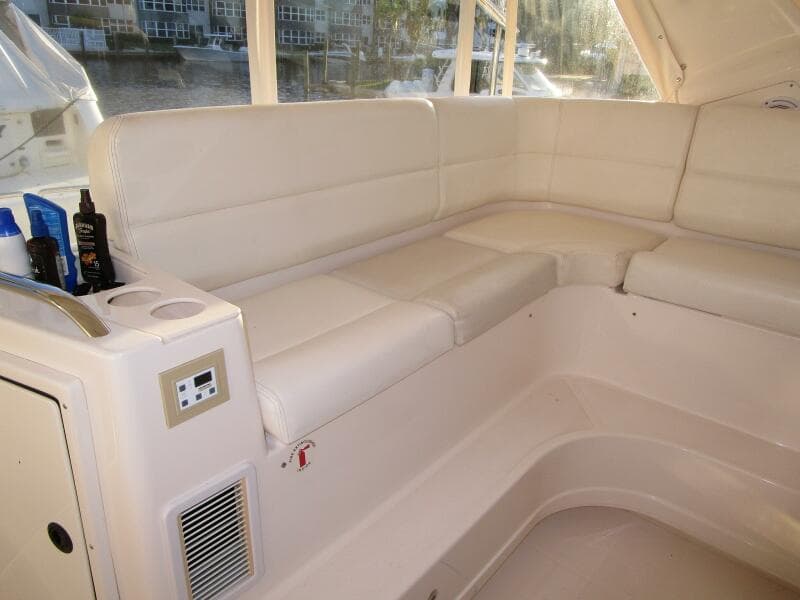

• L-shaped bench seat to port for 5-6 people with storage below and FRP foot rest
• Grab rail to port forward
• (2) recessed drink and gear holders, port forward
• Port side companion Ritchie PowerDamp compass
• Port side Stidd companion seat

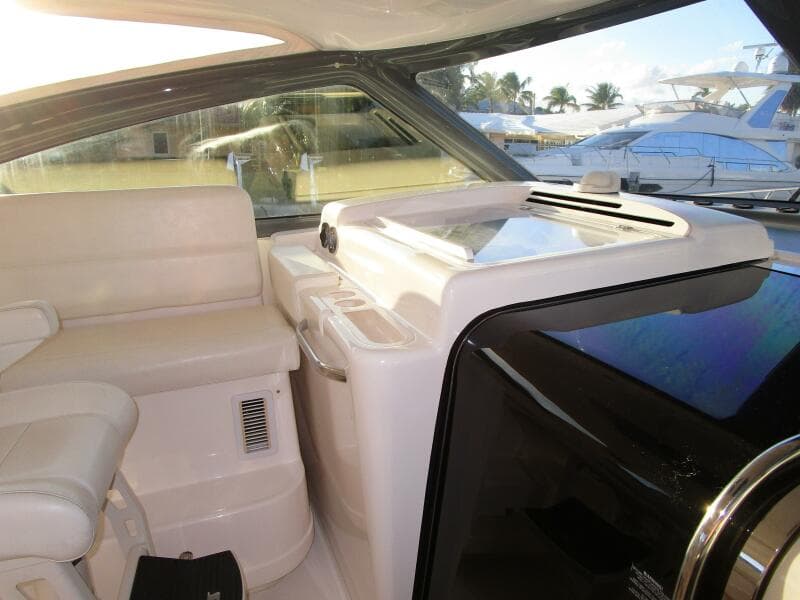

• Plexiglass chart locker, port forward
• (2) Clarion stereo speakers
• A/C vents from 18,000 BTU Tiara Helm air system

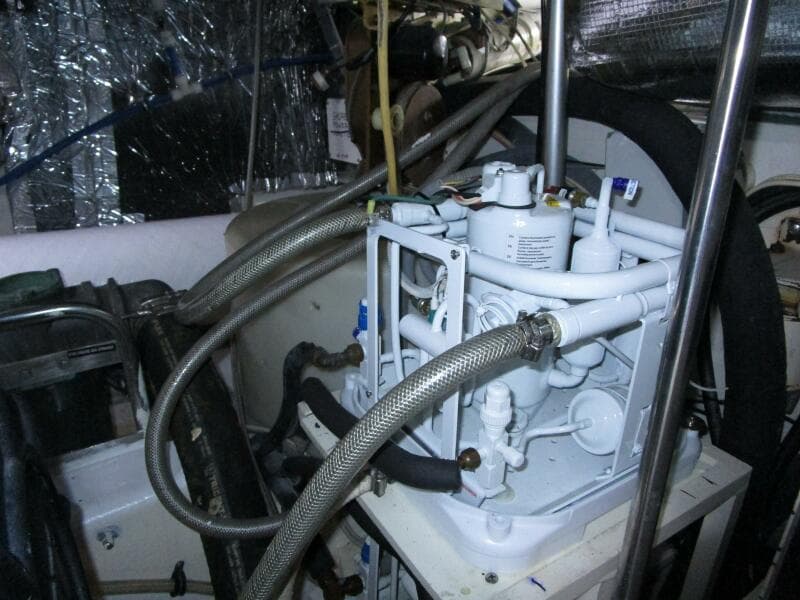

• Additional Dometic A/C controls with 2025 18,000 BTU dedicated helm deck A/C
• Port side locker at L-shaped seat
• ACR EPIRB
• (4) JC audio stereo speakers
• JL audio subwoofer

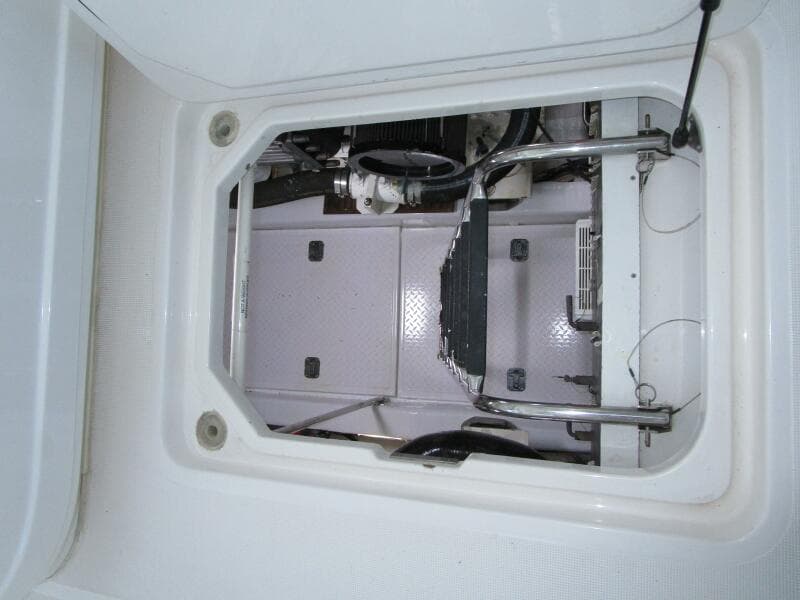

• Hatch to engine room with 7-step removable stainless steel ladder

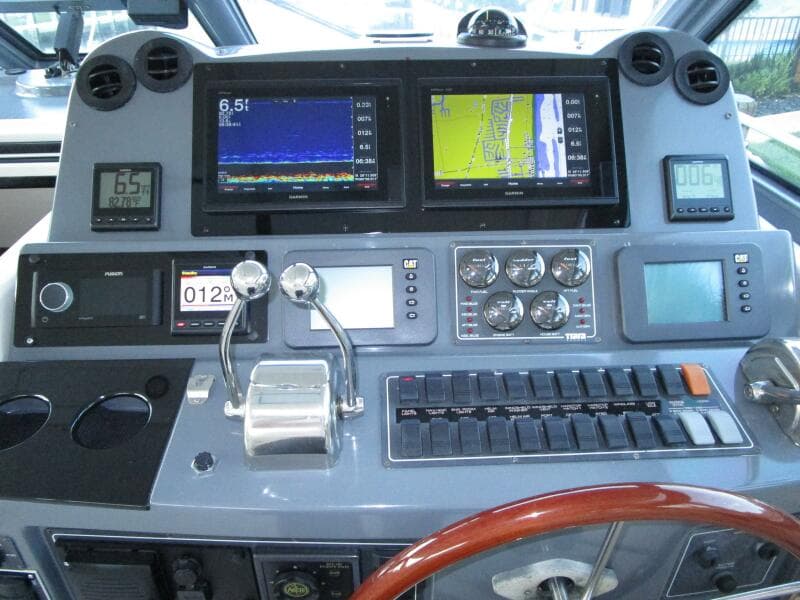

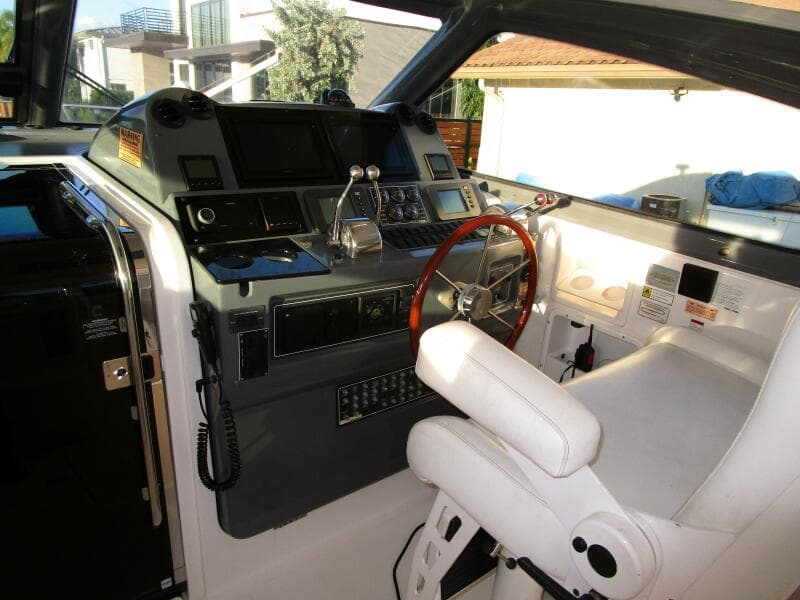

• Helm is to starboard with FRP molded Tiara helm
• Helm pod tilts aft for service to equipment

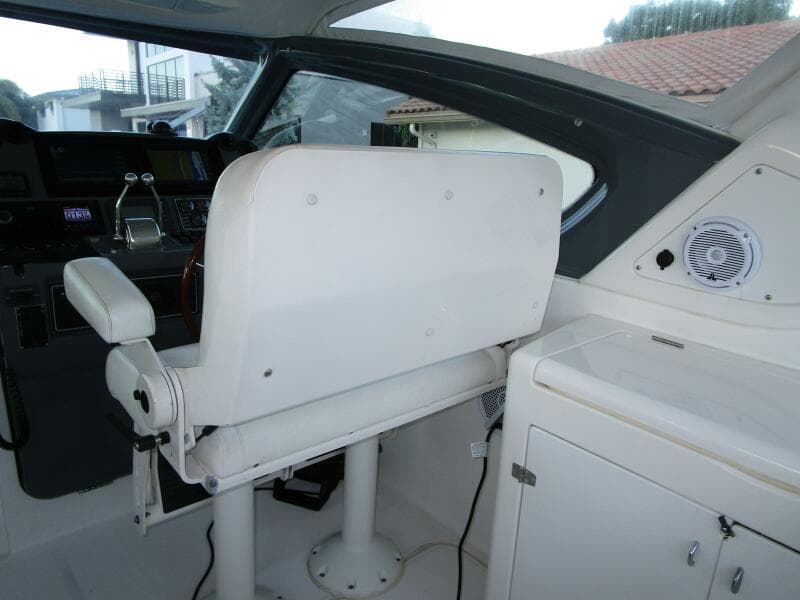

• 2-person STIDD adjustable helm seat
• Ritchie PowerDamp compass
• Morse cable engine controls
• Garmin 12” GPS map
• Garmin 12” GPSxsvwith sounder module
• LCD CAT engine displays (new 2024)
• Garmin 4” data - depth/speed
• Garmin GLS 10 black box VHF with remote speaker
• Garmin 4” autopilot head
• Fusion stereo with SiriusXM, networked to salon and master S.R. fusions
• Bennett trim tab control
• ACR searchlight control
• Fireboy override switch with indicator light
• Side-Power bow thruster control
• Stainless steel and wood steering wheel
• Fuse panel with 30 pop out DC fuses

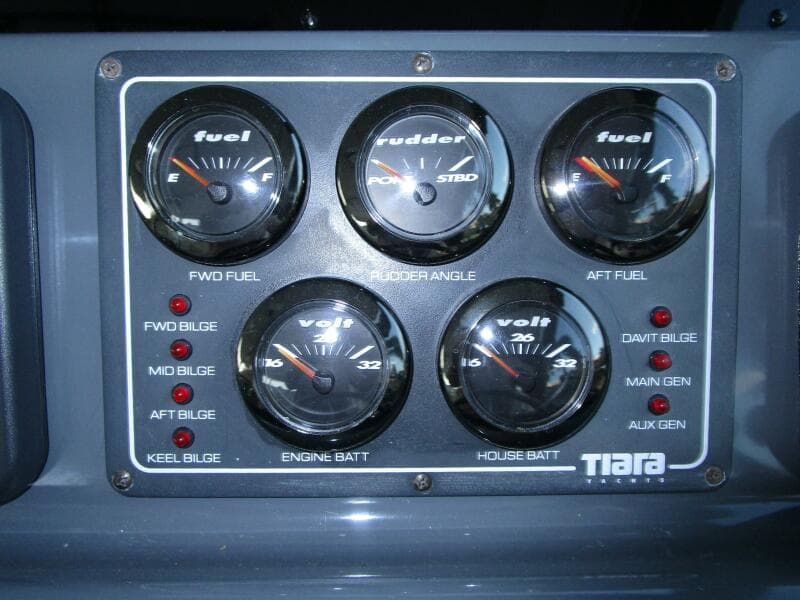

• (2) fuel gauges
• Rudder angle indicator
• (2) DC volt meters
• Windshield defogger
• (3) USB outlets
• 12V outlet
• Fireboy emergency manual pull for fire bottle
• (3) drink holders

Switches for:

• Horn
• Navigation lights
• Panel lights
• Courtesy lights
• (3) bilge pumps
• Windshield vent
• Blowers
• Battery parallel
• Engine start/stop key switches
• Windshield wipers/washers
• Helm air
• Overhead hatches
• Low idle
• Synchronizer

• Fiberglass deck with Tiara molded non-skid
• Welded stainless steel bow rails
• Integral fiberglass bow pulpit with burgee staff
• Stainless steel anchor roller
• Muir windlass with up/down foot switches
• Stainless steel Delta anchor
• Approximate 250’ of anchor chain with chain lock
• (2) Anchor locker hatches
• (3) foredeck hatches
• International navigation lights
• Triple stainless steel spring line cleats port and starboard
• Raw water washdown connection at anchor locker
• Fresh water washdown connection at anchor locker

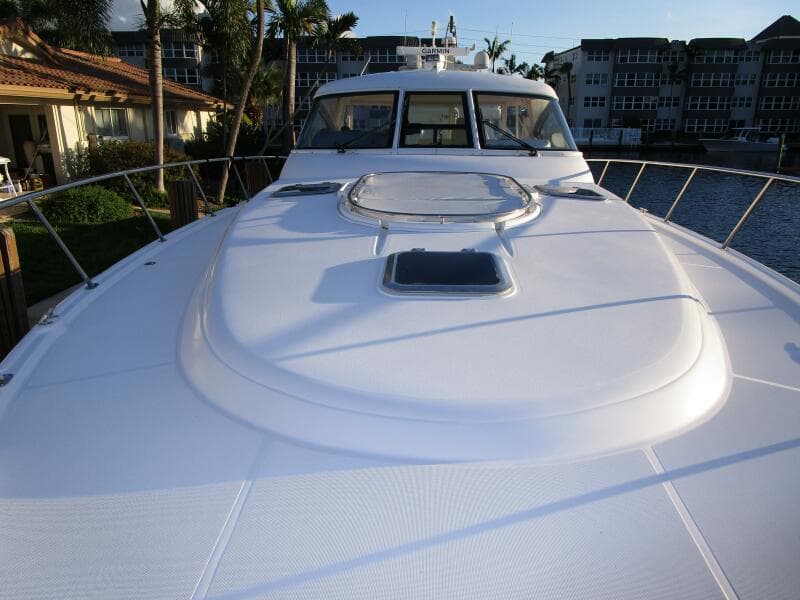

• Bow sunlounge with cushions, cover and stainless steel handrail surrounding plus 2 drink holders
• (2) windshield wiper/washers
• Hydraulically operated center windshield window
• (4) diesel deck fills: (2) port, (2) starboard allow for single side filling
• Water tank fill forward to starboard
• Waste pump at starboard side deck
• Black textilene windshield cover

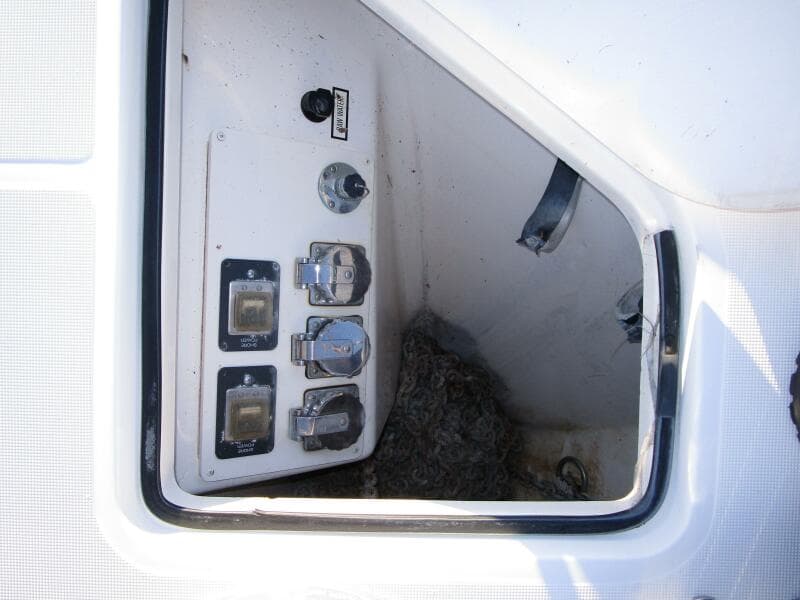

Forward power inlets in anchor locker:

• Marinco 125V/30amp shore power inlet
• Marino 250V/50 amp shore power inlet
• Marinco TV/Tel inlet
• (2) shore power connection breakers

• Optional FRP hardtop
• Side and aft enclosure curtains

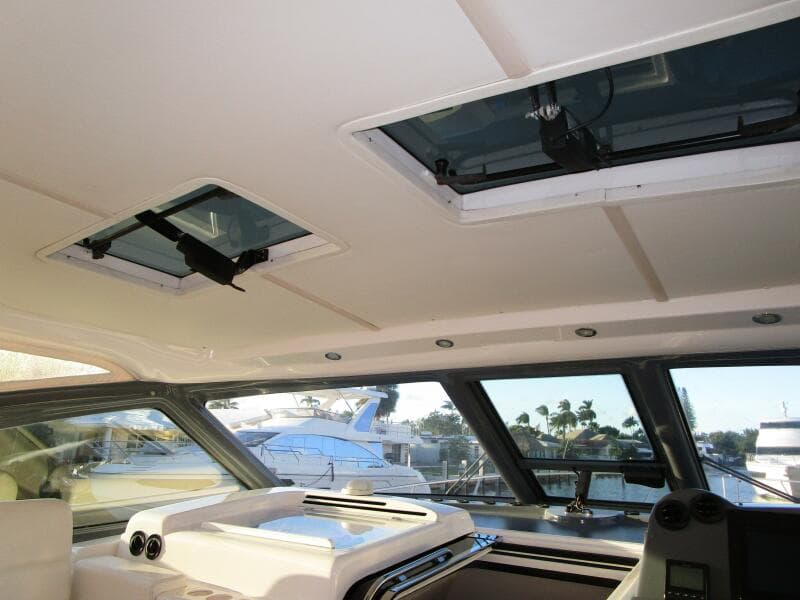

• (2) Hatches overhead with hydraulic remote opening feature
• Over the air TV antennae
• (3) Trumpet horns

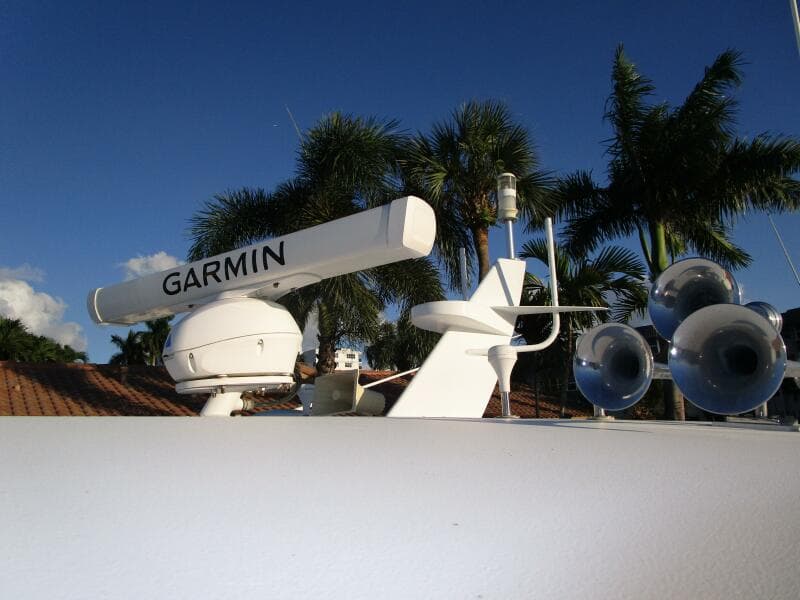

• Tiara signal mast centerline, aft
• Garmin radar scanner – open array 4’
• (3) GPS sensors
• ACR searchlight
• Satellite radio antenna
• Alarm system strobe light on under side
• (2) VHF antennaes
• Hailer horn
• (2) Aft facing LED flood lights, oversized

• Automatic/manual bilge pump
• Shower sump tank with remote pump
• Galley Maid DC fresh water pump - with new plumbing
• Back up DC fresh water pump
• (2) electric hot water heaters
• (2) VacuFlush head pumps
• Water pressure accumulator tank, new
• Y valve for holding tank
• Waste discharge pump
• Aluminum waste tank – 86 gallons
• Aluminum fresh water tank – 200 gallons
• Aluminum Fuel tank – 330 gallons

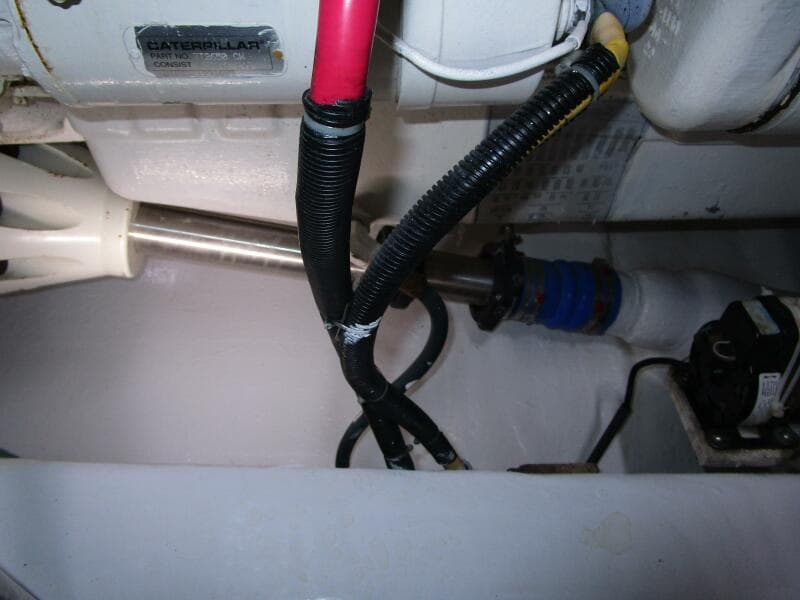

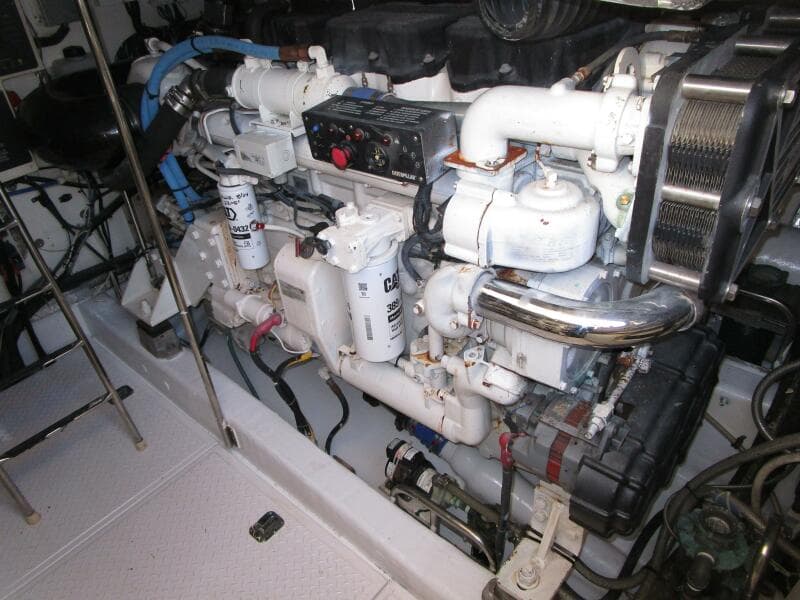

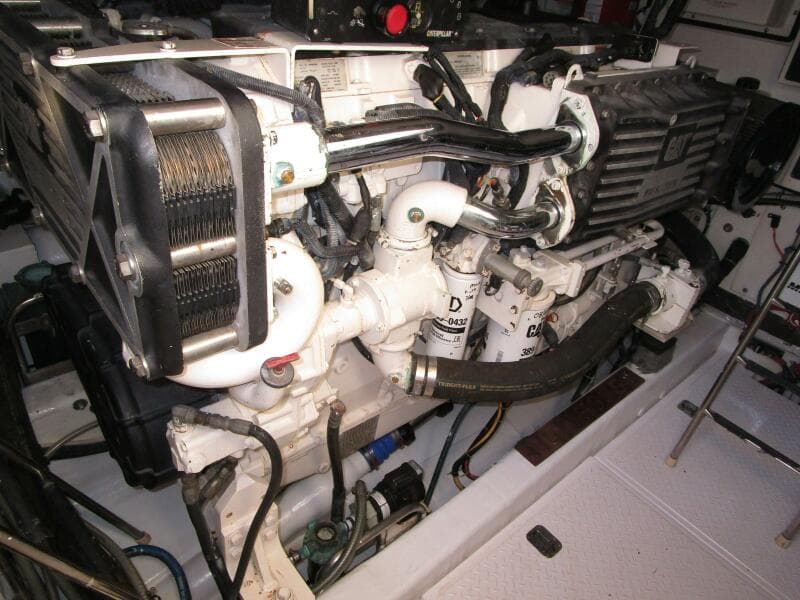

• T/CAT 3406E diesel engines 800HP
• Twin Disc model 514VT gears with 1.98 to 1 reduction V drives
• Dual Racor primary fuel filters for engines
• Secondary CAT fuel filters
• (2) water collector type mufflers
• 24V alternators port and starboard
• Dripless shaft seals with 2 spares on shafts, (all new 2023)
• (3) automatic/manual bilge pumps
• (2) 24V fresh water pumps
• Electric air compressor

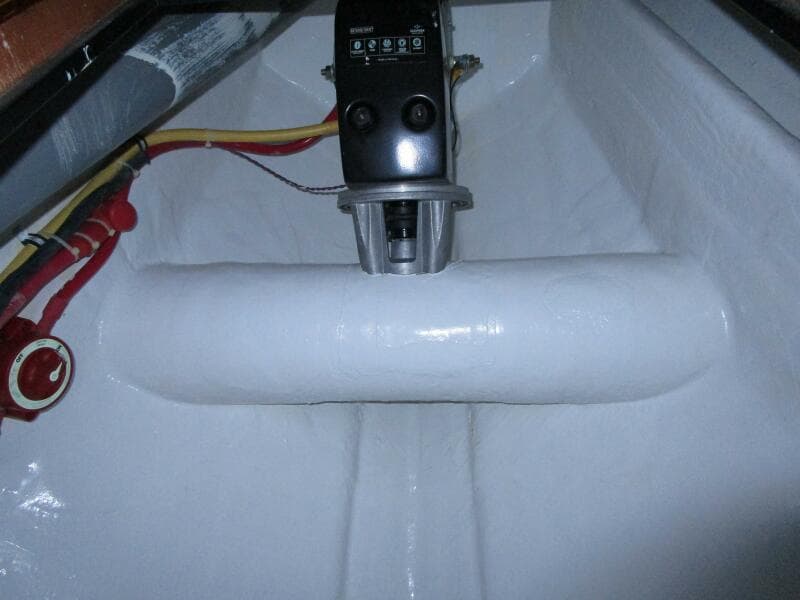

• Side power bow thruster, (new 2023)
• 43 lb. FE241 Fireboy fire suppression system
• (2) 350 gallon fuel tanks – (1) cockpit, (1) main cabin under sole
• (1) 200 gallon aluminum water tank under main cabin sole
• (1) 80 gallon aluminum waste tank under main cabin sole
• Fuel manifold forward in engine room
• Fresh water quick disconnect fitting in engine room
• (4) Marine Air A/C compressors
• New cockpit A/C compressor (2025)
• (2) A/C raw water circulation pumps
• (4) DC blowers
• Remote keel mounted bilge pump with float switch
• (2) Hydraulic pumps centerline under deck
• Reverso oil change pump – 6 position
• Racor 500 fuel filter for generator
• Fiberglass muffler for generator
• (5) DC LED engine room lights
• (2) LED lights under engines
• SeaLand Vacuflush pump
• (2) engine hour meters
• (3) Coolant recovery bottles, CAT bottles, new
• Emergency engine stop buttons
• Airsep crankcase ventilation system
• Starboard engine exhaust (new 2021)
• Block heaters
• Hard coat exhaust
• LED engine room lights
• Garmin CCTV camera

• 12V/24V DC electrical system
• 120V/240V AC 60 Hz electrical system

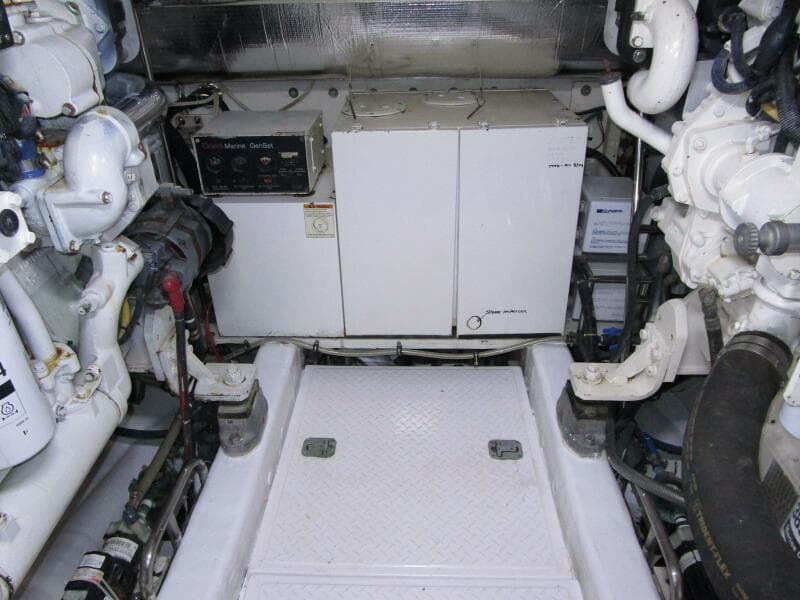

• Onan 21.5 kW generator 4 cylinder 1800 RPM - 2710 hours (Oct. 2025)

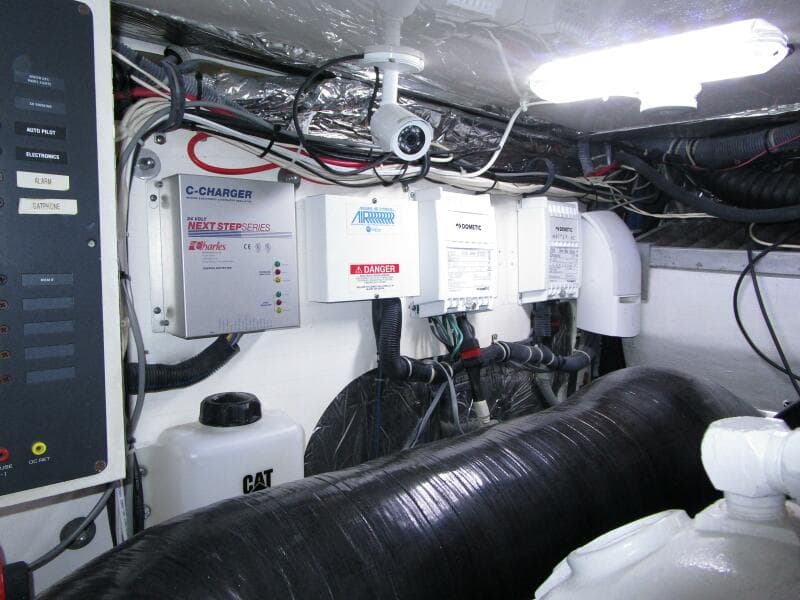

• (2) 24V Charles battery chargers
• (12) AGM 12V engine/house batteries Group 31 in battery trays (New Oct. 2025)
• (2) 12V Deka 8D batteries for inverter system (new Oct. 2025)
• (3) Battery cut-off switches
• C-power A/C power automatic switching unit, no longer in use
• C-power – isolation transformer
• Cablemaster with collector bin
• Hybrid MagnaSine Magnum inverter system
• Battery parallel switch
• 120V 30 amp shore cord inlet, aft
• 240V 50 amp Cablemaster inlet with 75’ of cord
• Shore power breakers aft in starboard locker
• Generator start/stop switches

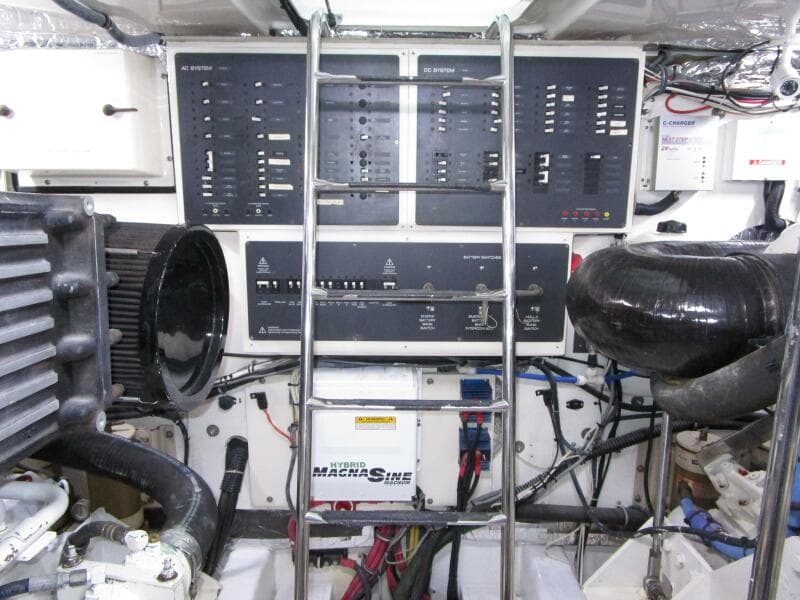

Engine room electrical panel with:

• AC breaker panel with 32 breaker protected circuits
• DC breaker panel with 47 breaker protected circuits

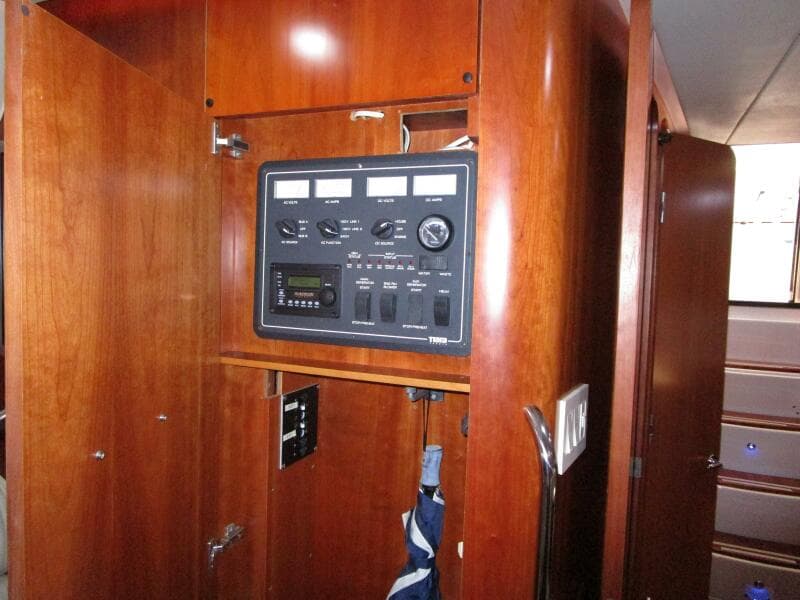

Salon electrical panel with:

• (2) AC analog volt meters - 120/240 selector switch for meter
• (2) DC analog volt meters - house engine battery selector switch
• Magnum inverter controls
• Analog water and waste meter

• Actual LOA with pulpit is 58'3"
• Deadrise aft is 17˚ degrees

ENDLESS SUMMER is a great find! She boasts newer Garmin electronics, reasonable hours on reliable CAT 3406E engines, a shiny gel coat exterior and beautiful cherry joinery on the preferred Plan A – two cabin interior.

Her hidden crane makes launching a tender a breeze without the complexity of an underwater mechanism of hydraulic platforms.

Updates throughout by an owner who spends ten times more time improving the boat than using the boat!

Clean and ready to travel, ENDLESS SUMMER is dialed in and priced to sell!

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
