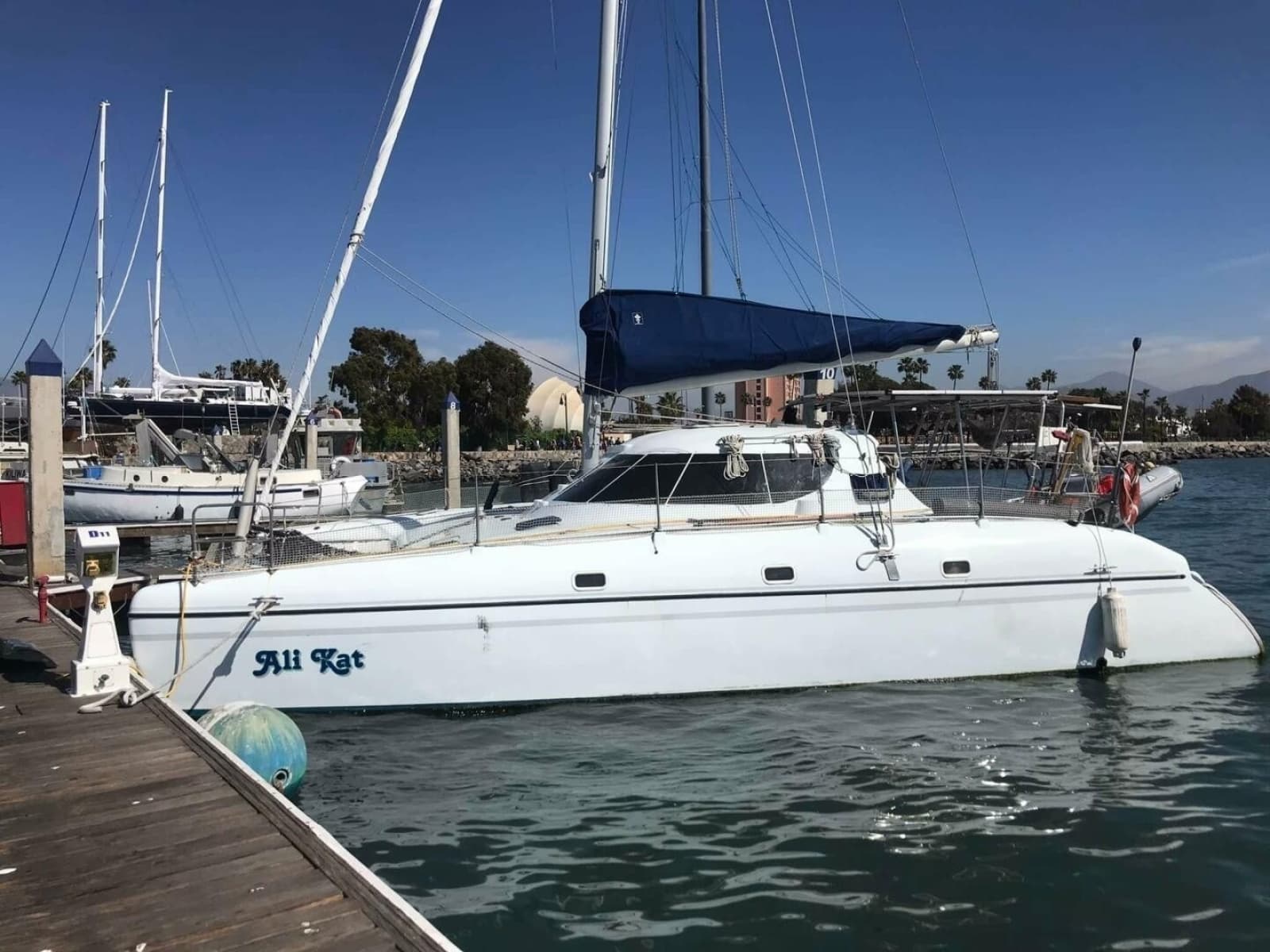

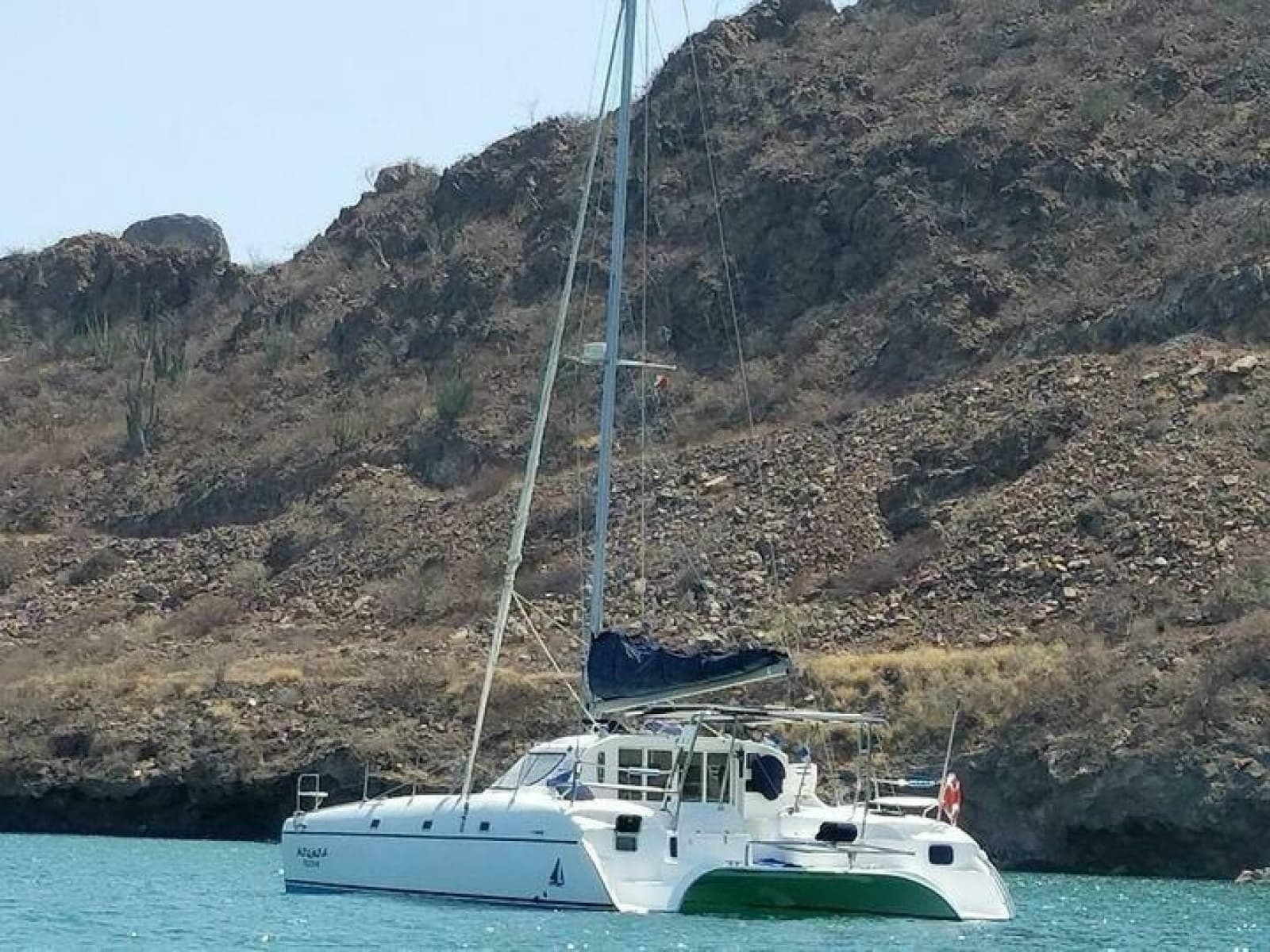

2002 Wildcat MKIII

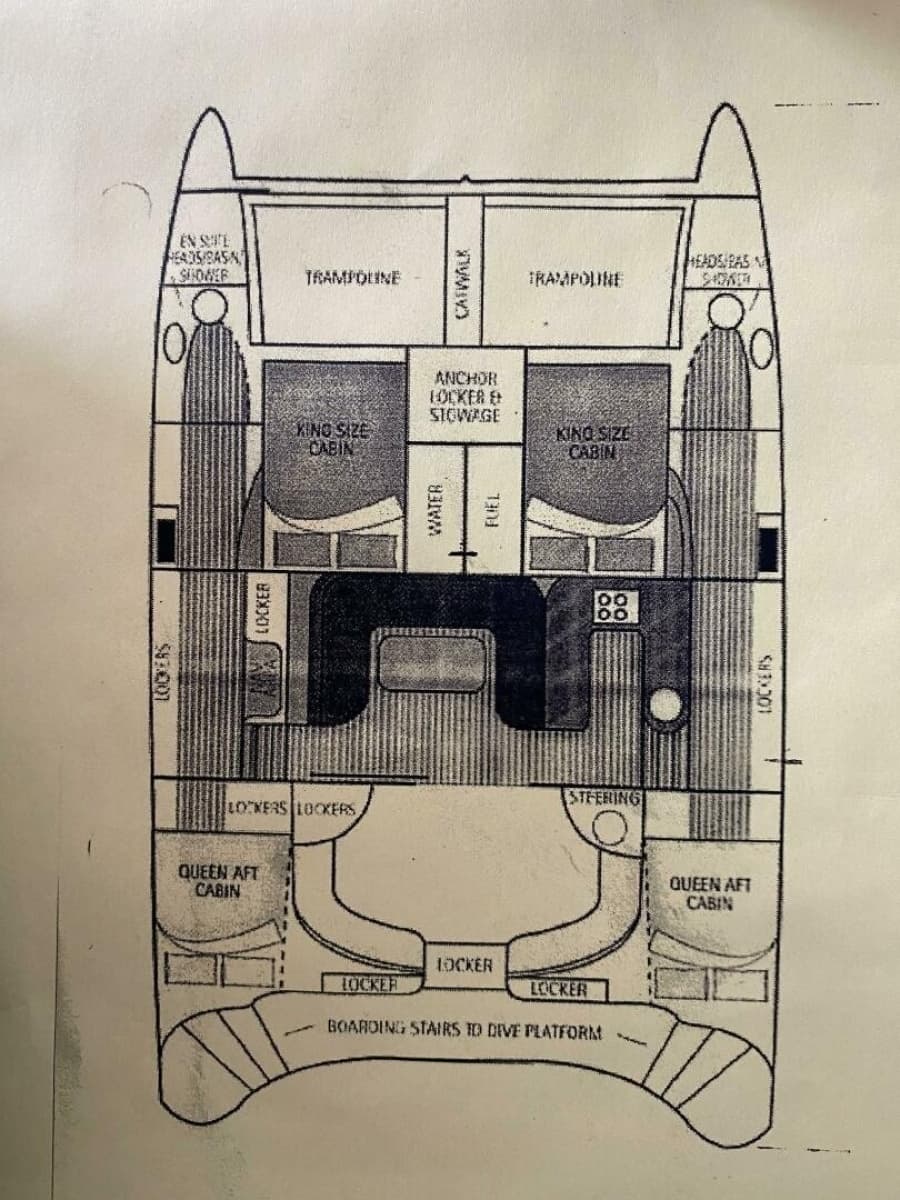

DESIGN FEATURES

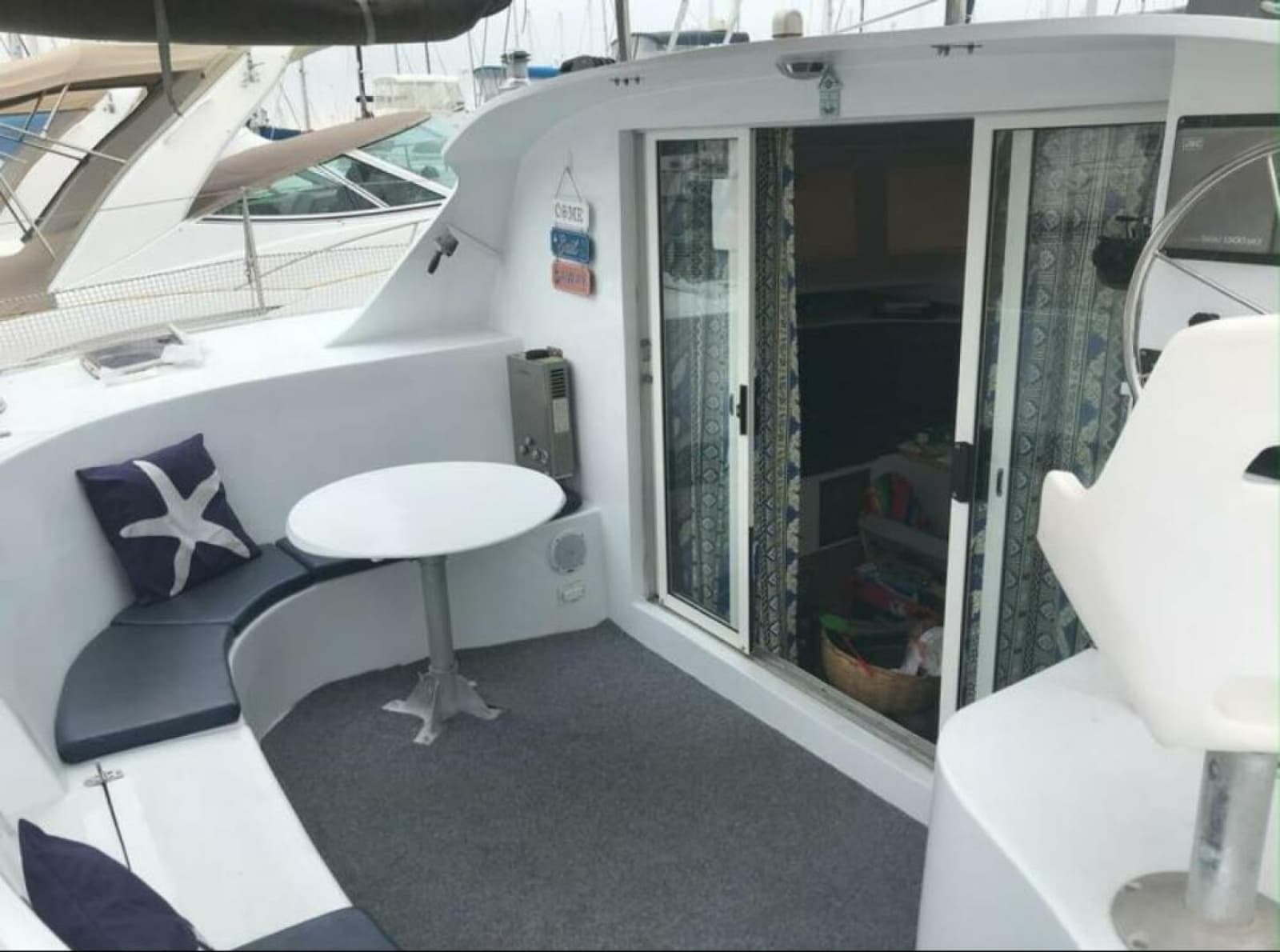

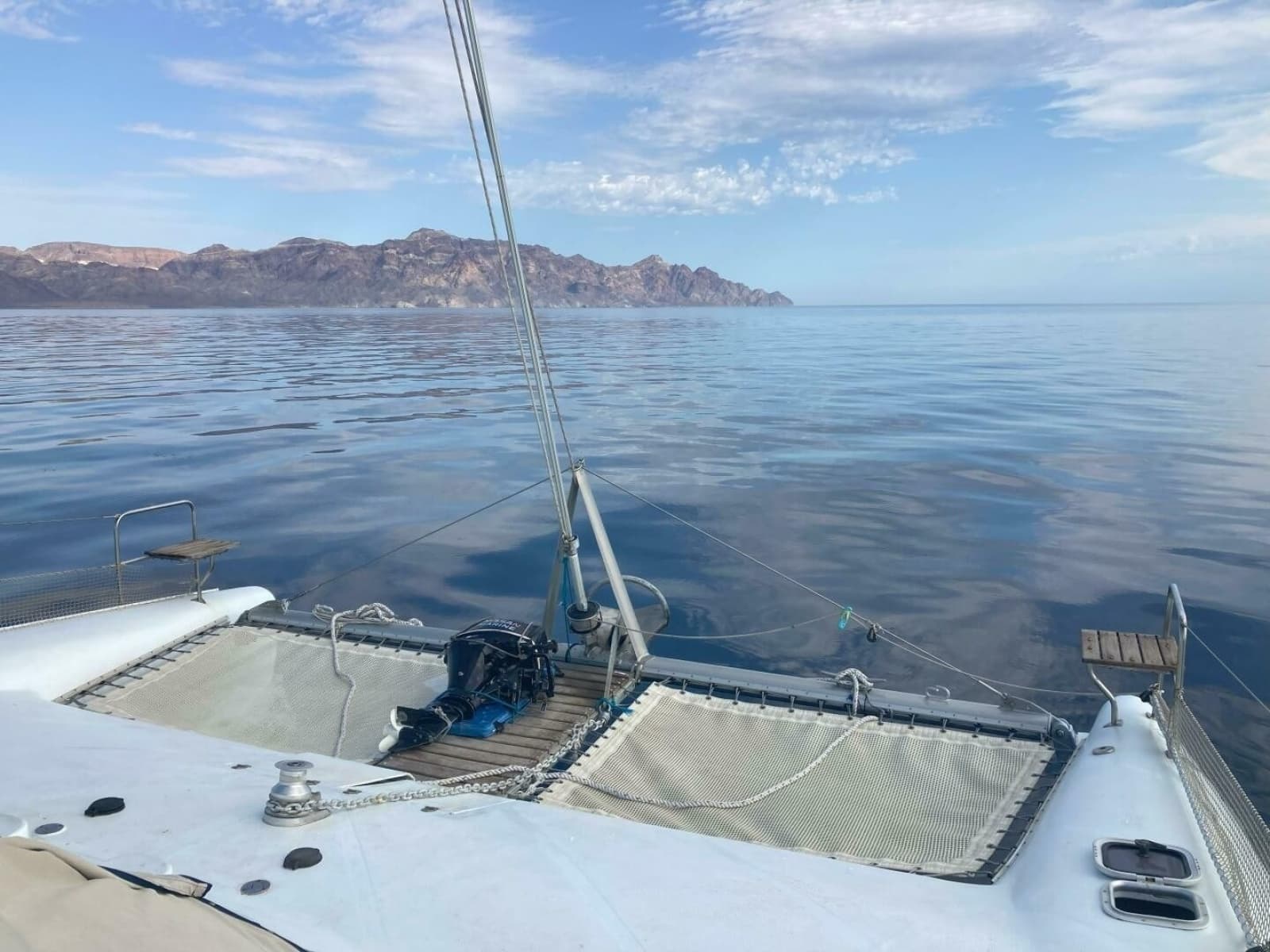

Kitchen (up) on the bridge deck next to salon Rounded deck enhances deck drainage, reduces freeboard, and the wind effect. Catwalk over cockpit to service mainsail and traveler. Wrap-around cockpit combing for enhanced safety. Anti-skid molded into deck and coach roof. Kiwigrip non-skid for further safety. Trampolines - SLO Ferarri 492 White w/ teflon thread (lifetime warranty)

ELECTRICAL SYSTEM

1300 KW Solar Array over Cockpit consists of:

3-160KW panels, 3-180 KW panels plus 1-80 KW half panel to House Batteries; and,

2-100 KW panels and controller to start battery.SolarEpic Tracer-AN MPPT 40 Amp Solar Charge Controller to House batteries from the 3-180KW plus 1-80 KW "half" panelHQ Solar 40 Amp HP Series PWM Smart Controller to House batteries from 3-160 KW solar panels20 Amp RoHS Solar Controller from 2-100 KW panels to Start Battery5 KW Hitachi NexGen Diesel Gen set (the unit has only 750 hours, however recommend removal due to new solar and alternator power generation and unnecesary weight (250 lbs) at station -17' (aft of mast = 4250 ft-lbs negative moments at stern).House Batteries: 2 - Ampere Time 12.8V 190Ah (340 Ah available @ 90% drawdown) LiFePO4 Deep Cycle Battery, Built-in 150A BMS, 2432Wh Energy, 4000+ Cycles, 1920W Load Power.Start Batteries: 2 - 6V Wet Cell 235AH (120 AH available @ 50% drawdown) Wet Cell Lead Acid in parallel to provide 12V engine start.

*These batteries are charged from 2 -100 kW Solar panels over a dinghy davit and/or engine alternators while running either or both engines.

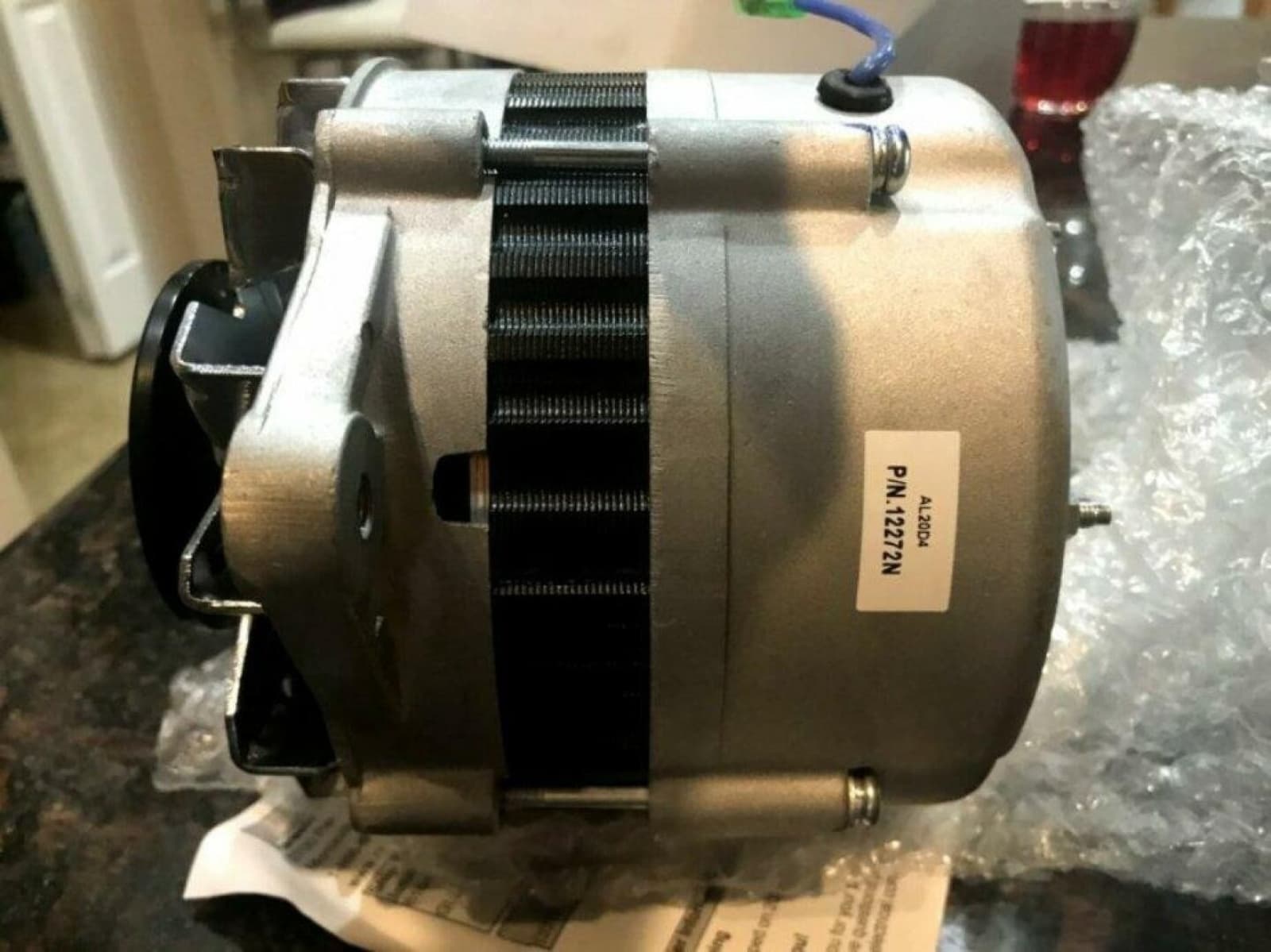

These batteries in turn charge the house batteries via voltage equalization.System note: Start batteries charge via solar and/or engine alternator(s). Engine alternators are wired directly to the start battery to protect the alternator from over-demand from LiFePo house batteries. In other words, start batteries buffer (protect) engine alternators which charge the start batteries which then backfeed charge house battery via voltage equalization through existing 1/0 start wiring. Voltvert CJ-4000W Pure Sine Wave Inverter Steren INV-1000W Inverter (for TV/DVD)NOCO Genius Smart Battery Charger from Shore Power to both batteries Distribution panel located at the Nav station for 12V and 110V power circuits12 Volt circuits include main breaker, 18 breakers 5-15 AMP, and combined digital meter110 Volt circuits include volt meter and main breaker with GFI (earth leak) and GFI on each circuit.

ELECTRONICS & NAV/COMM

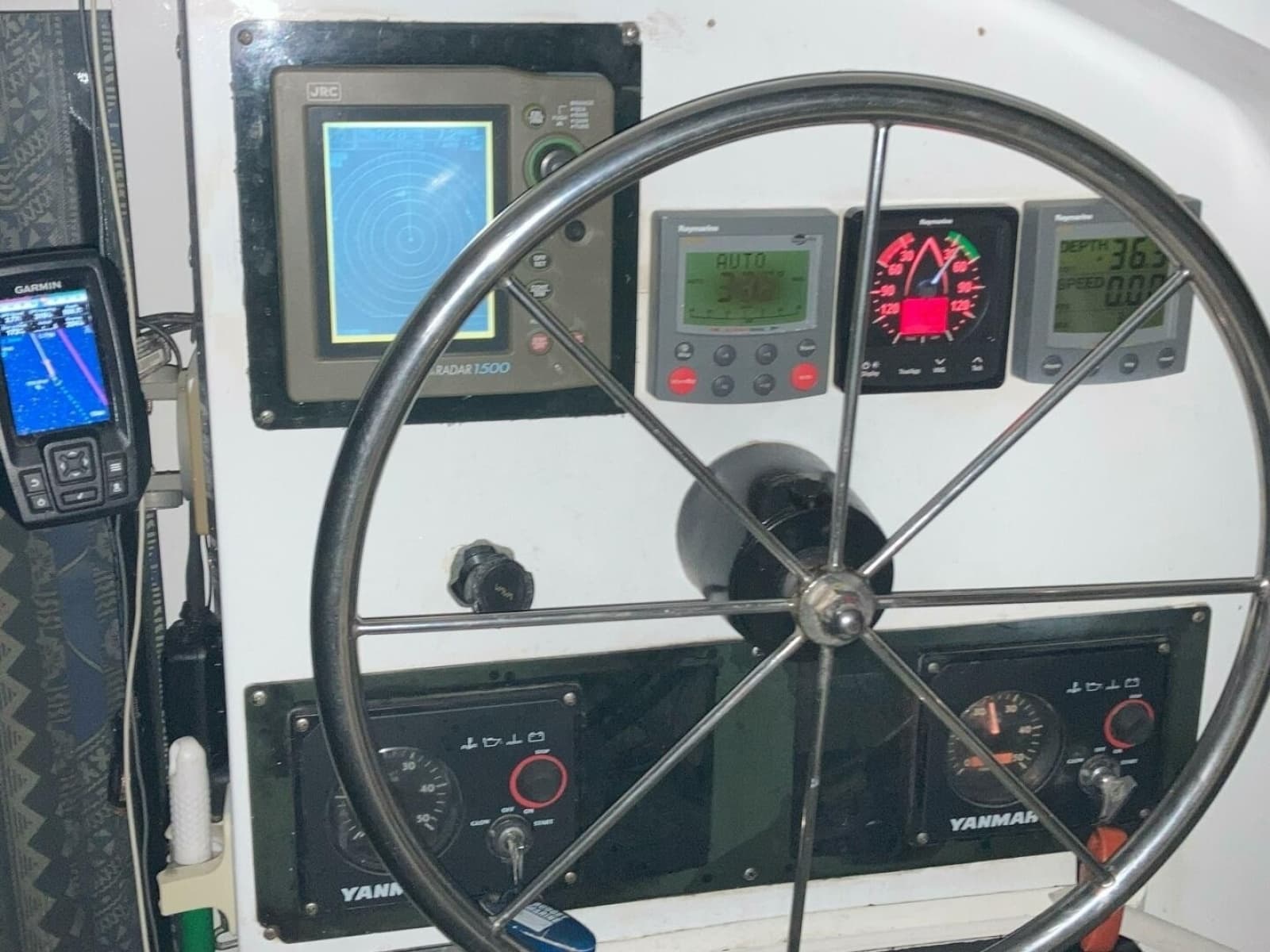

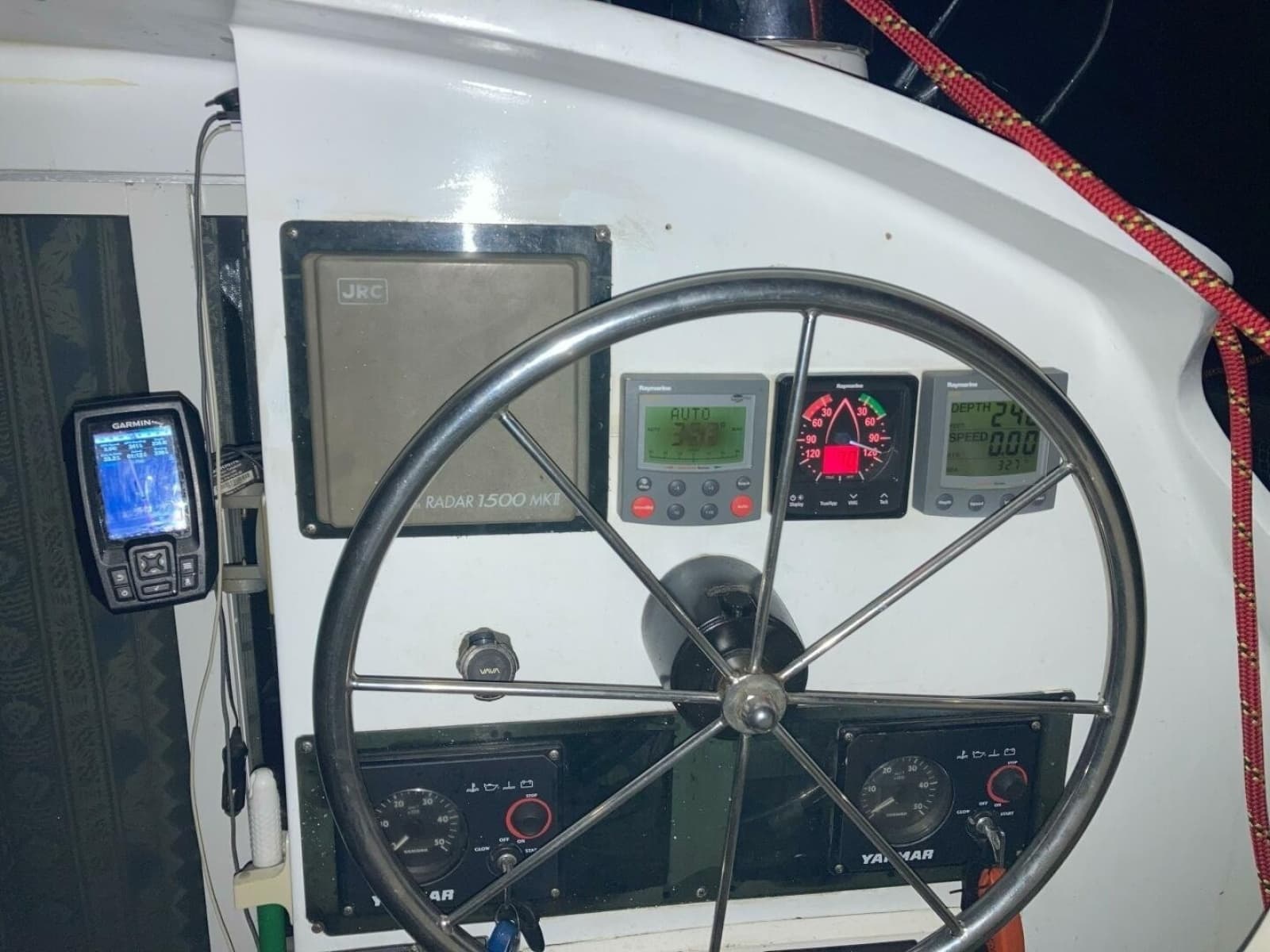

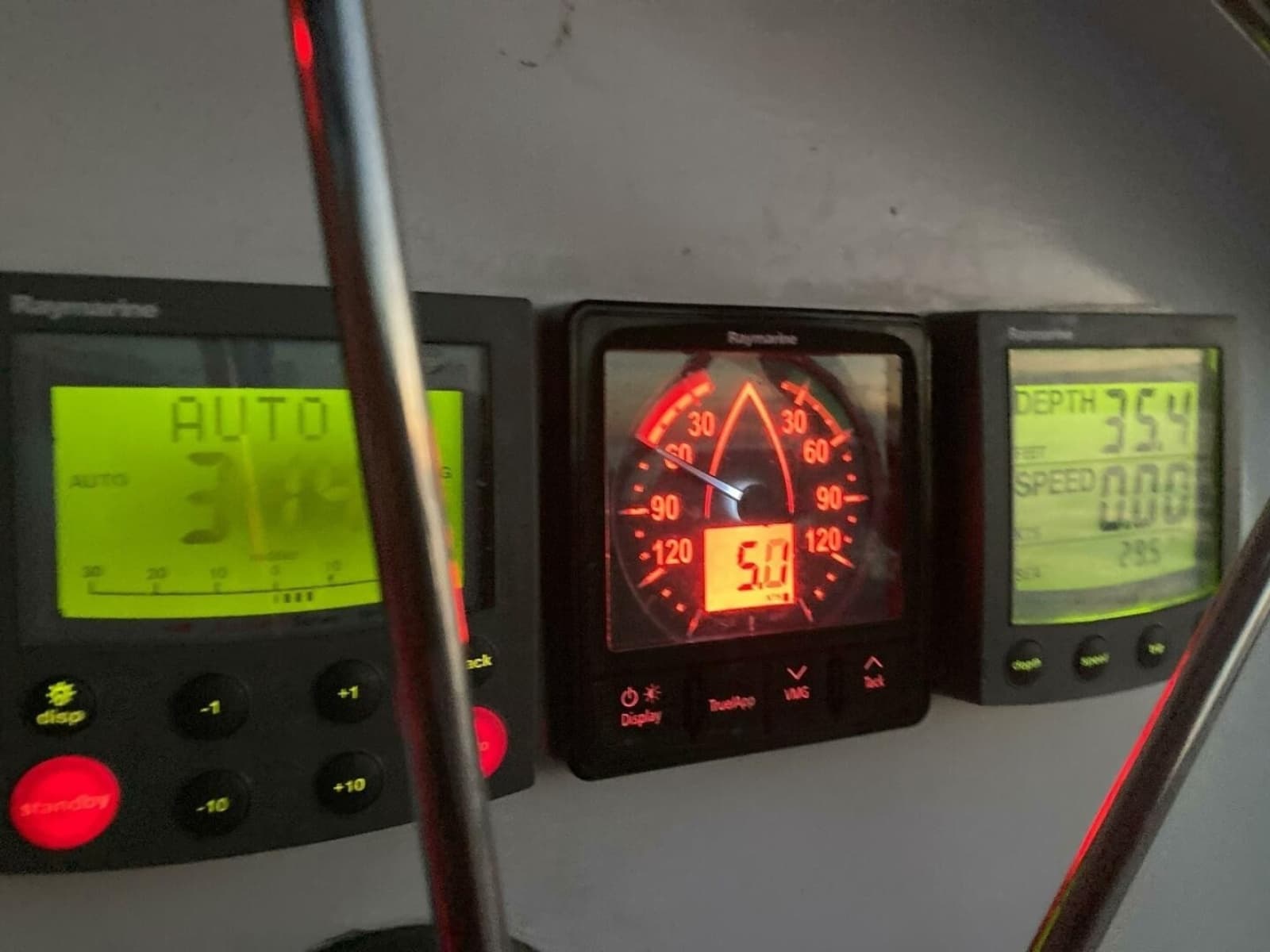

Raymarine I-60 System with Autopilot, Windspeed, Sonar with trip logger, Furuno Radar with proximity alert, West Marine 580 VHFEPIRB, Garmin GPS Navigator with aft-mounted depth transducer and water temperature sensor, Garmin In-Reach Mini Emergency Satellite positioner and communicator (requires subscription). GPS communication (texting) with shore is easiest via the notebook.Quark AIS Receiver Toscido notebook with OPN CPN navigation. (I use Navionics, the Garmin GPS, and OPN CPN on the notebook for navigation)

LIGHTS

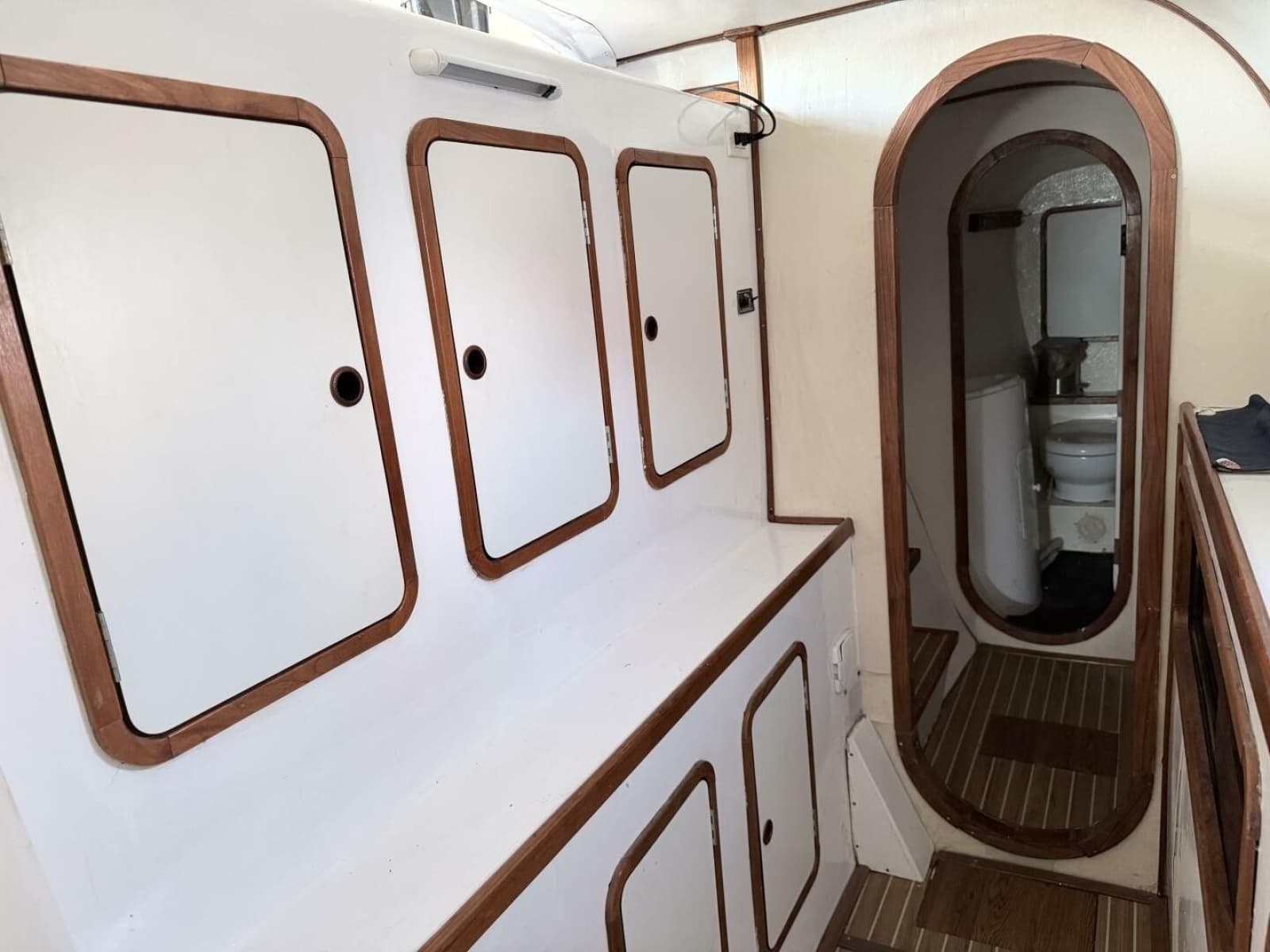

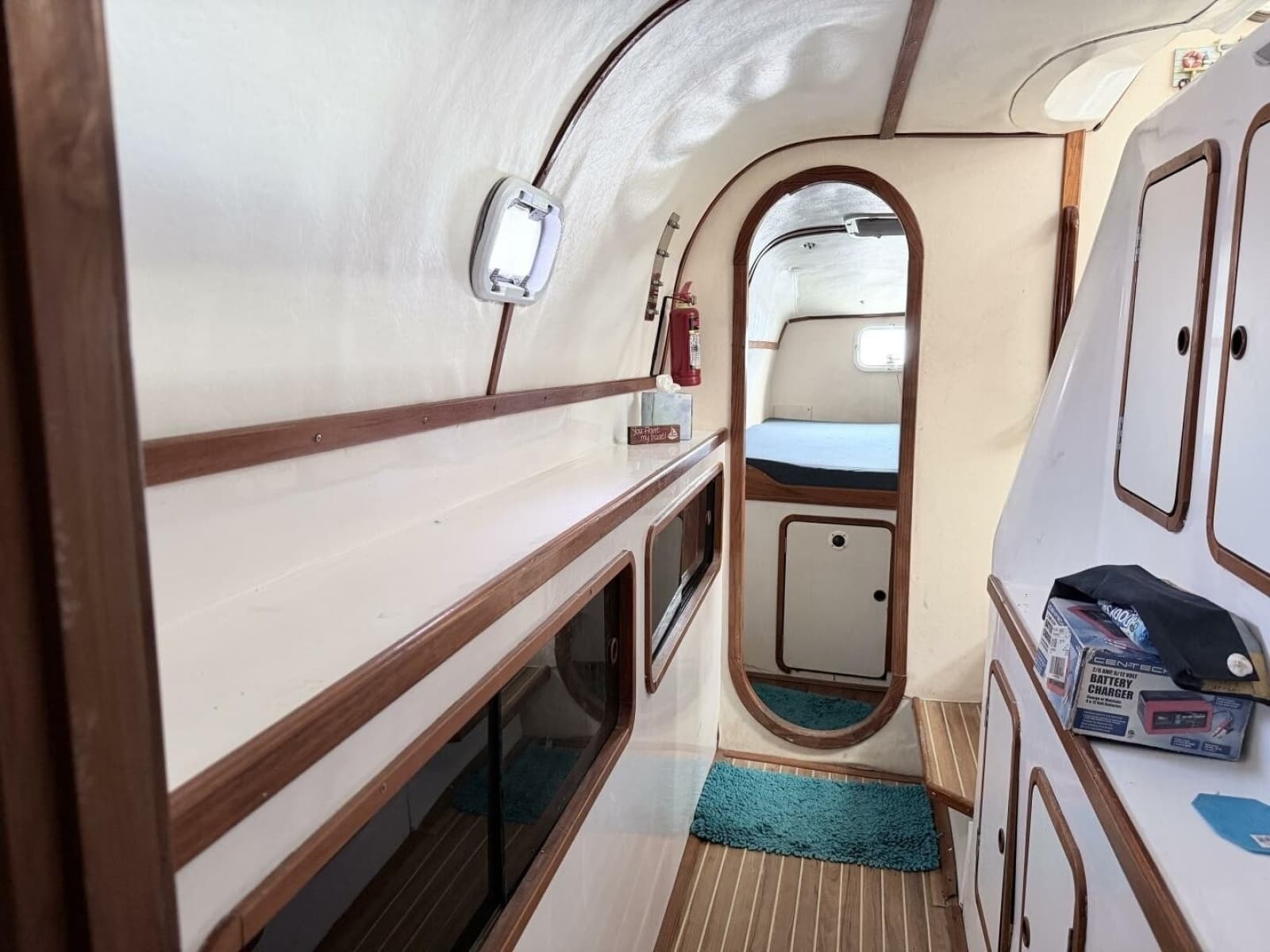

2 forward cabins, each with LED light on bulkhead2 heads, each with one cabinet mounted LED lights2 Passageway LED lights (one in each ama)2 Aft cabins - each with one fluorescent light on bulkheadGalley - 1 Halogen lamp over stove and one motion sensing LED light located in lower cupboard Saloon - 3 overhead down lighters on dimmer swith and 2 fitted reading lamps Navigation station - 1 LED light below overhead cupboard Steaming, deck and compass lights, Anchor light & running lights, Under Water Lights (Blue)

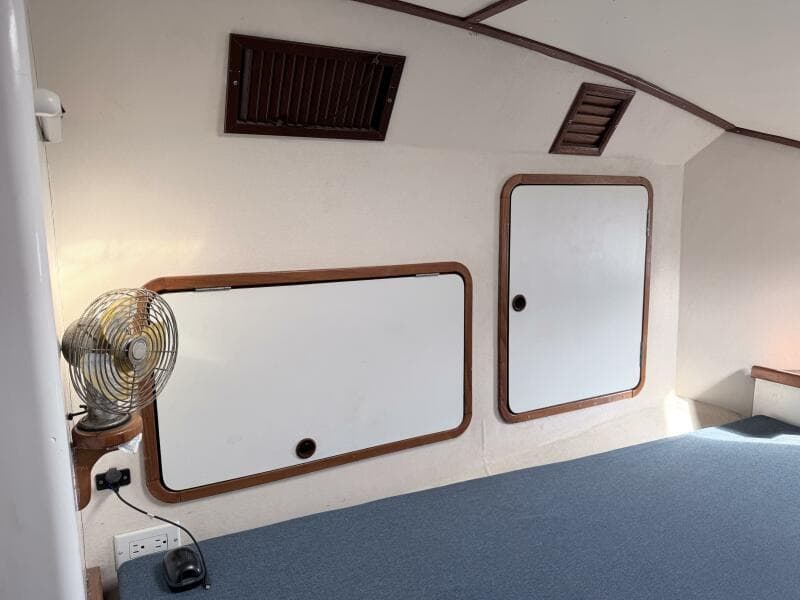

FORWARD CABINS(2)

1.55 x 2 meter berths - 1 each Hanging lockers - 1 each Cupboards and bookshelf - 1 each Ceiling liners finished in white GRP moulds and white vinyl with oak trims Large overhead egress hatch and opening port - 1 each Bulkheads and partitioning in oak veneer

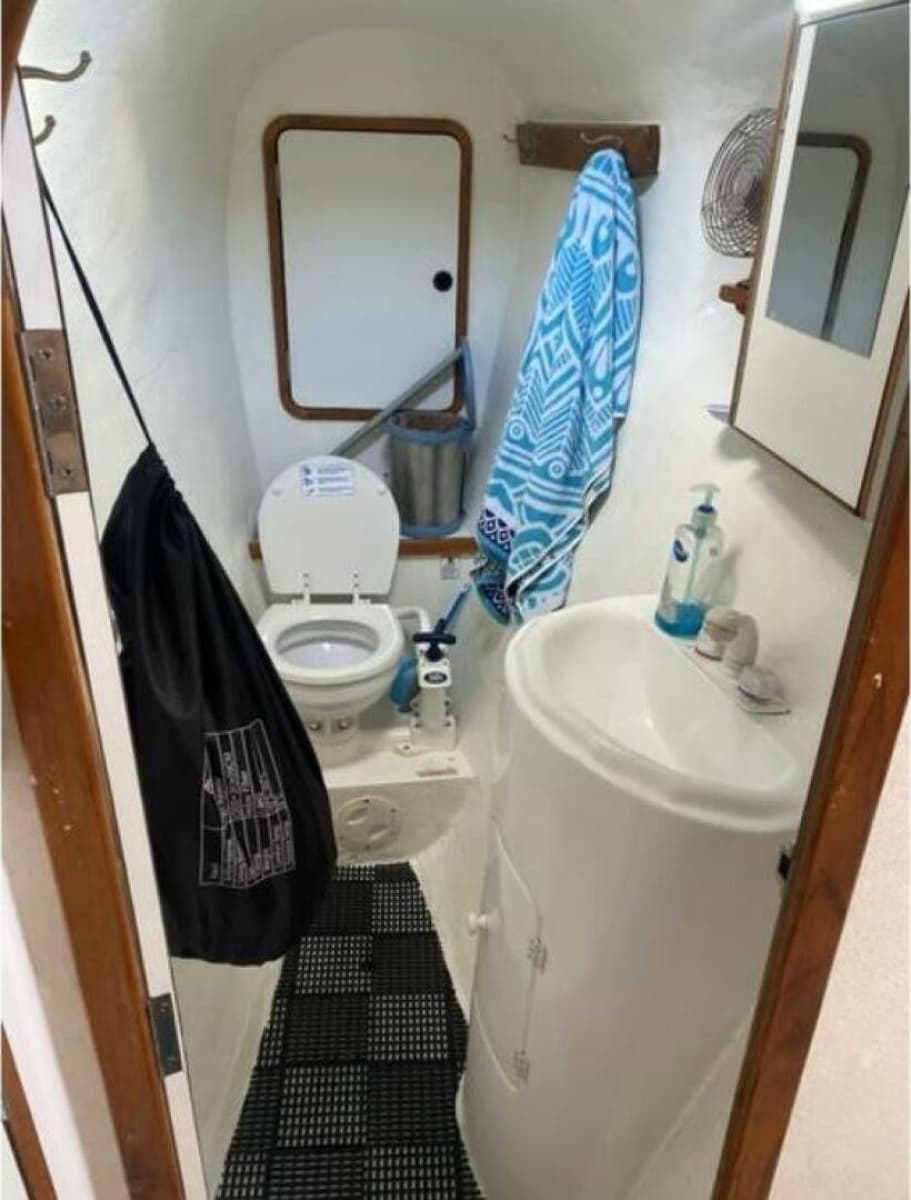

HEADS(2)

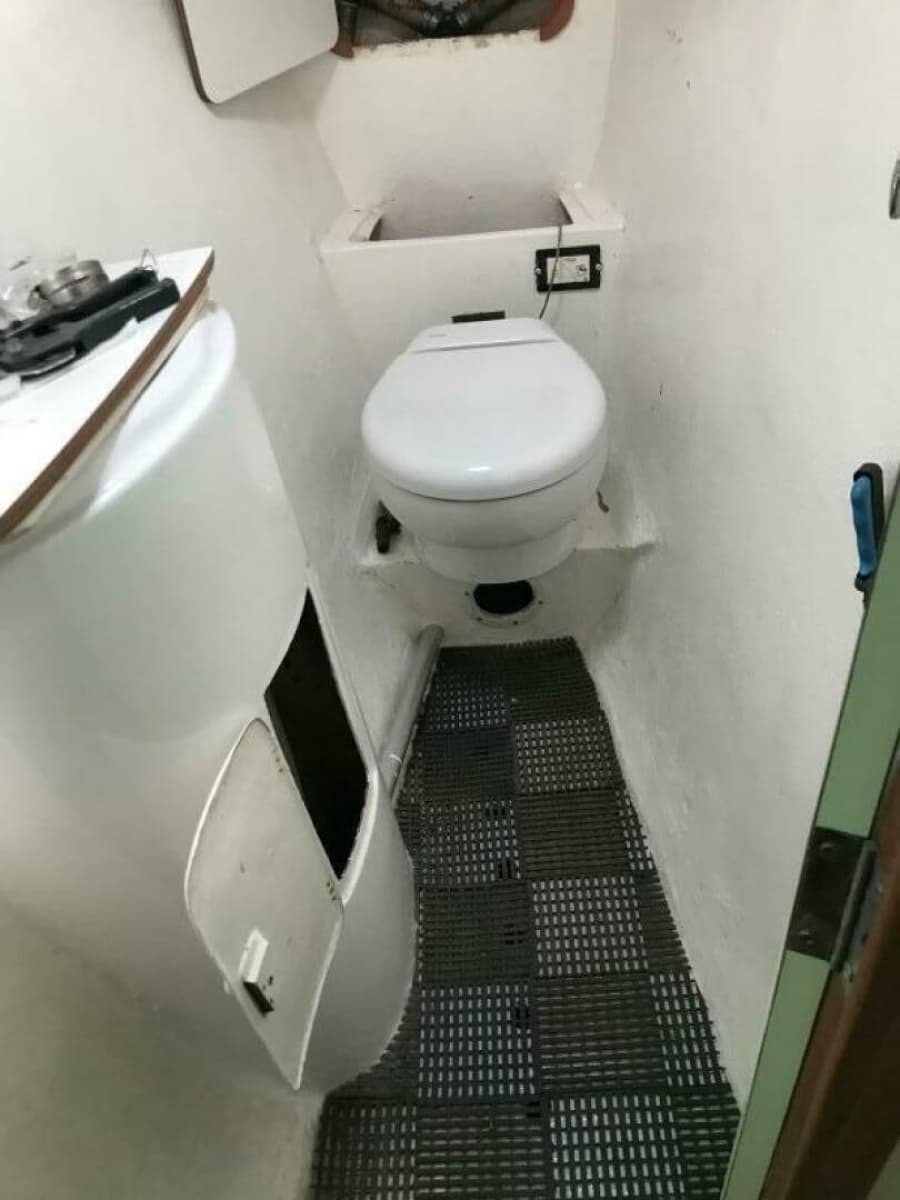

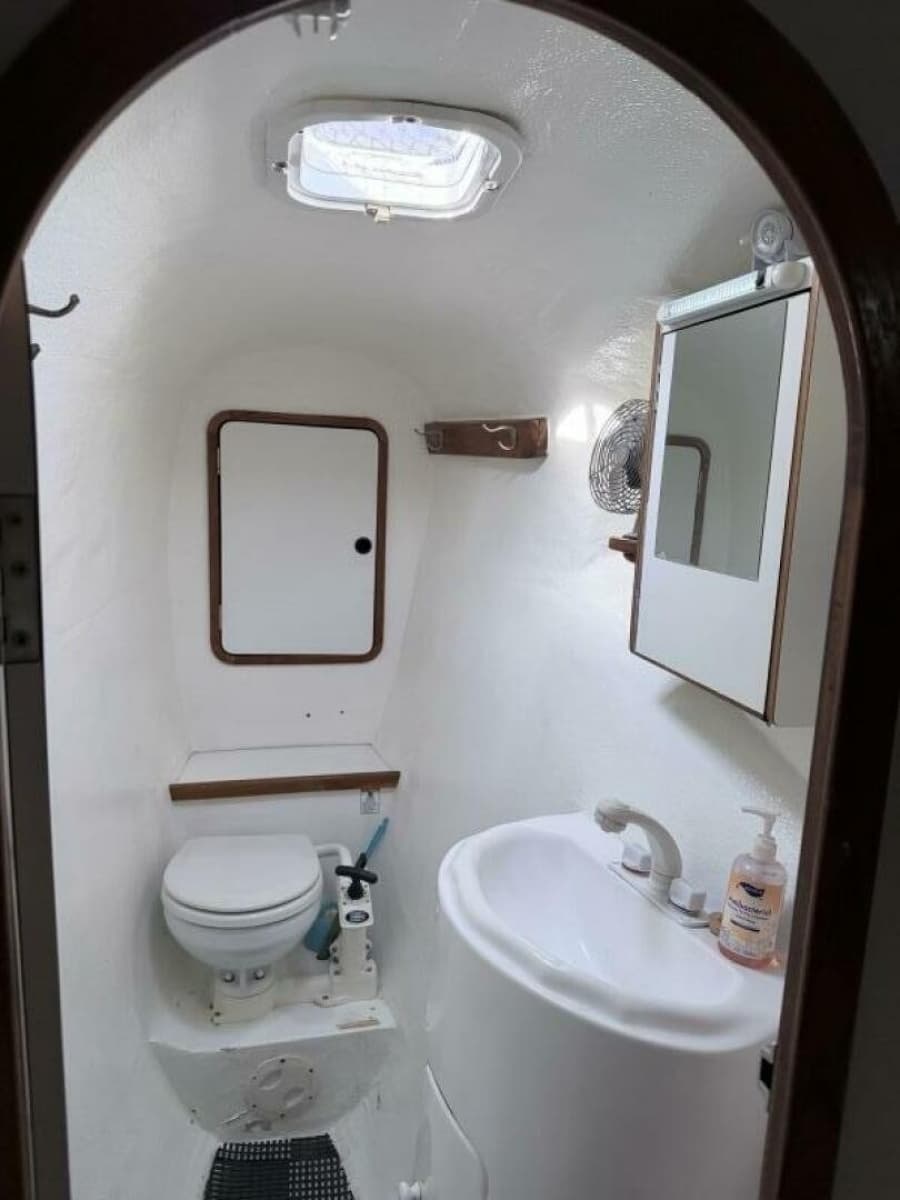

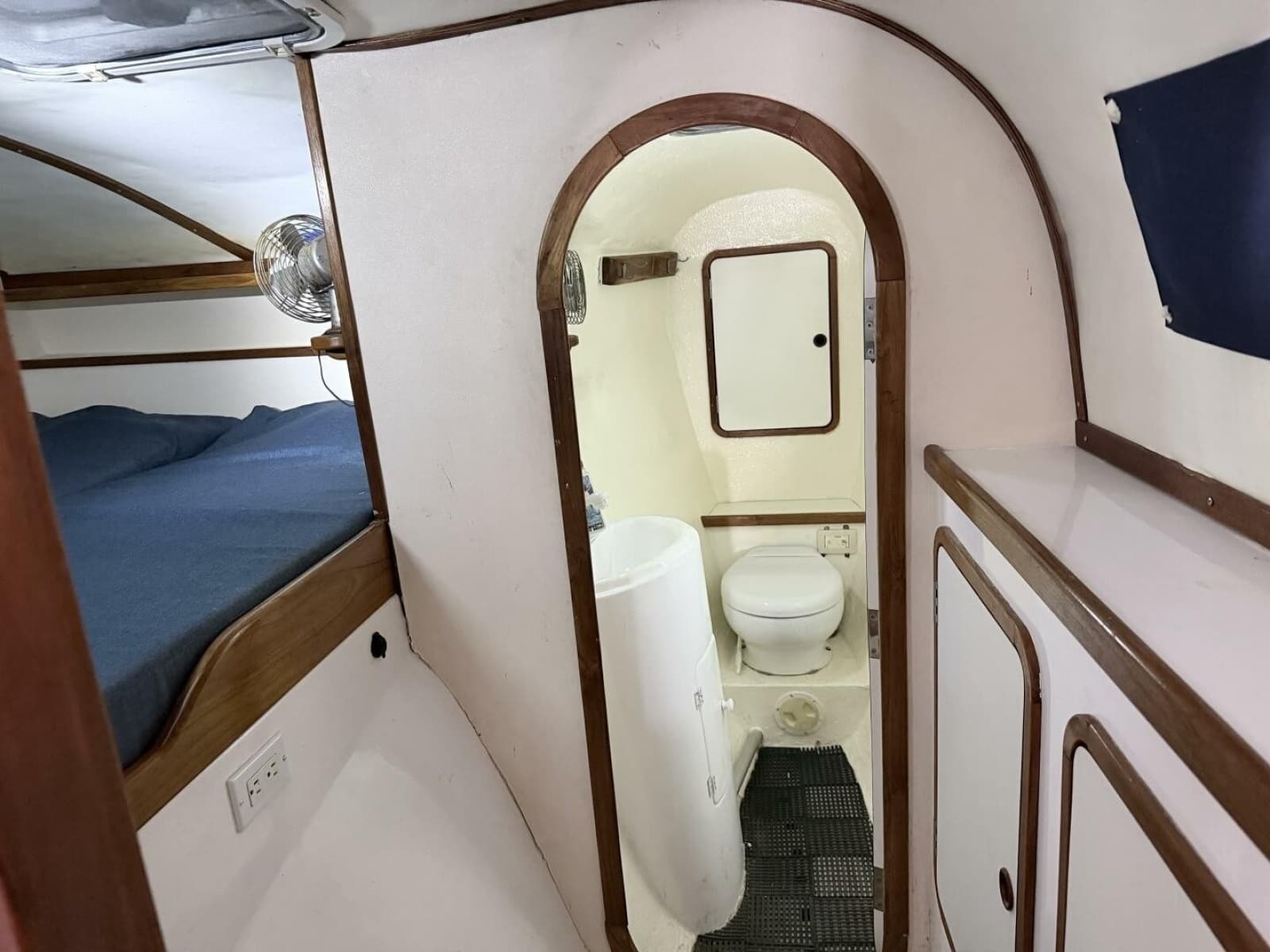

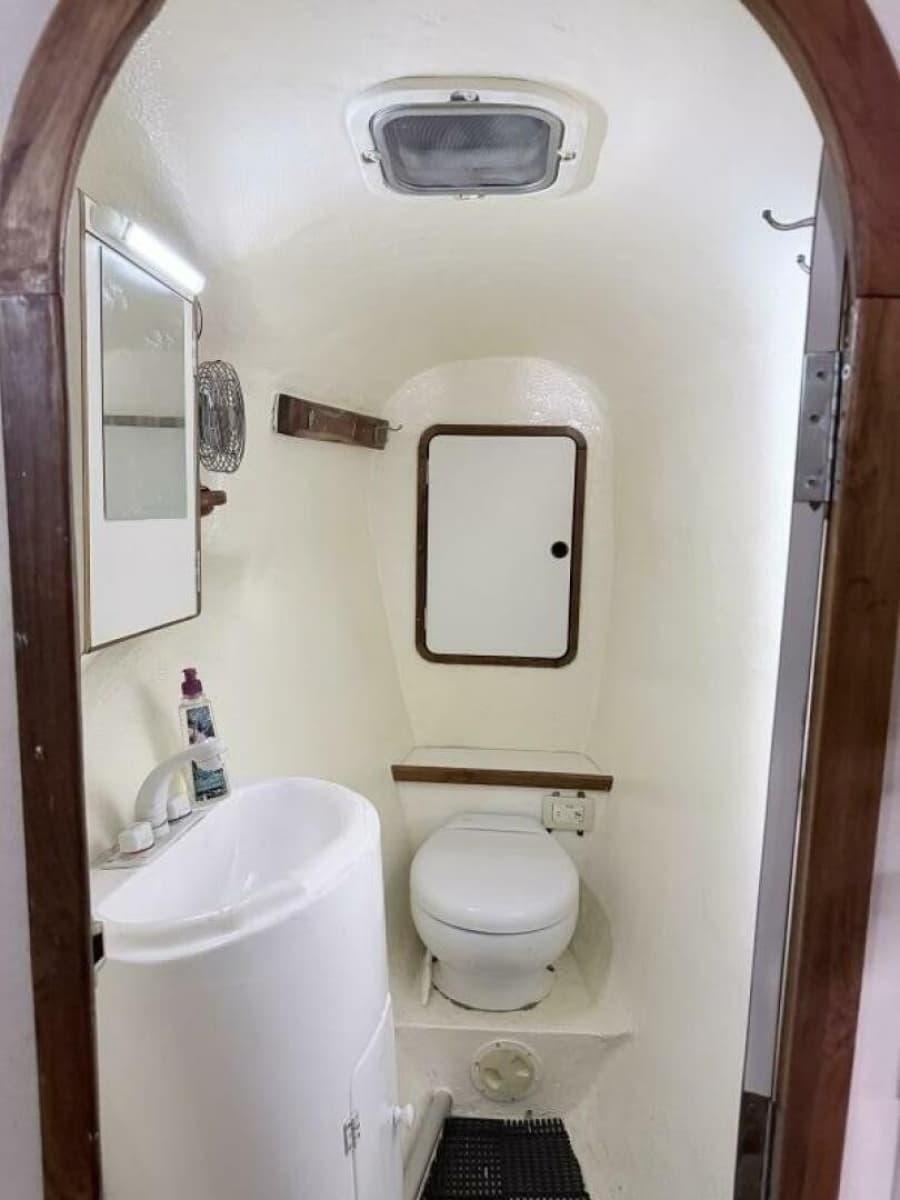

Starboard - En-suite Thetford Tecma Nano electric fresh water head with telephone shower forward of the forward cabins, with large wet locker-storage area. 25 gallon holding tank.Port - En-suite Jabsco manual head with telephone shower forward of the forward cabins, with large wet locker-storage area.(4"x4") Lewmar overhead ventilation hatch

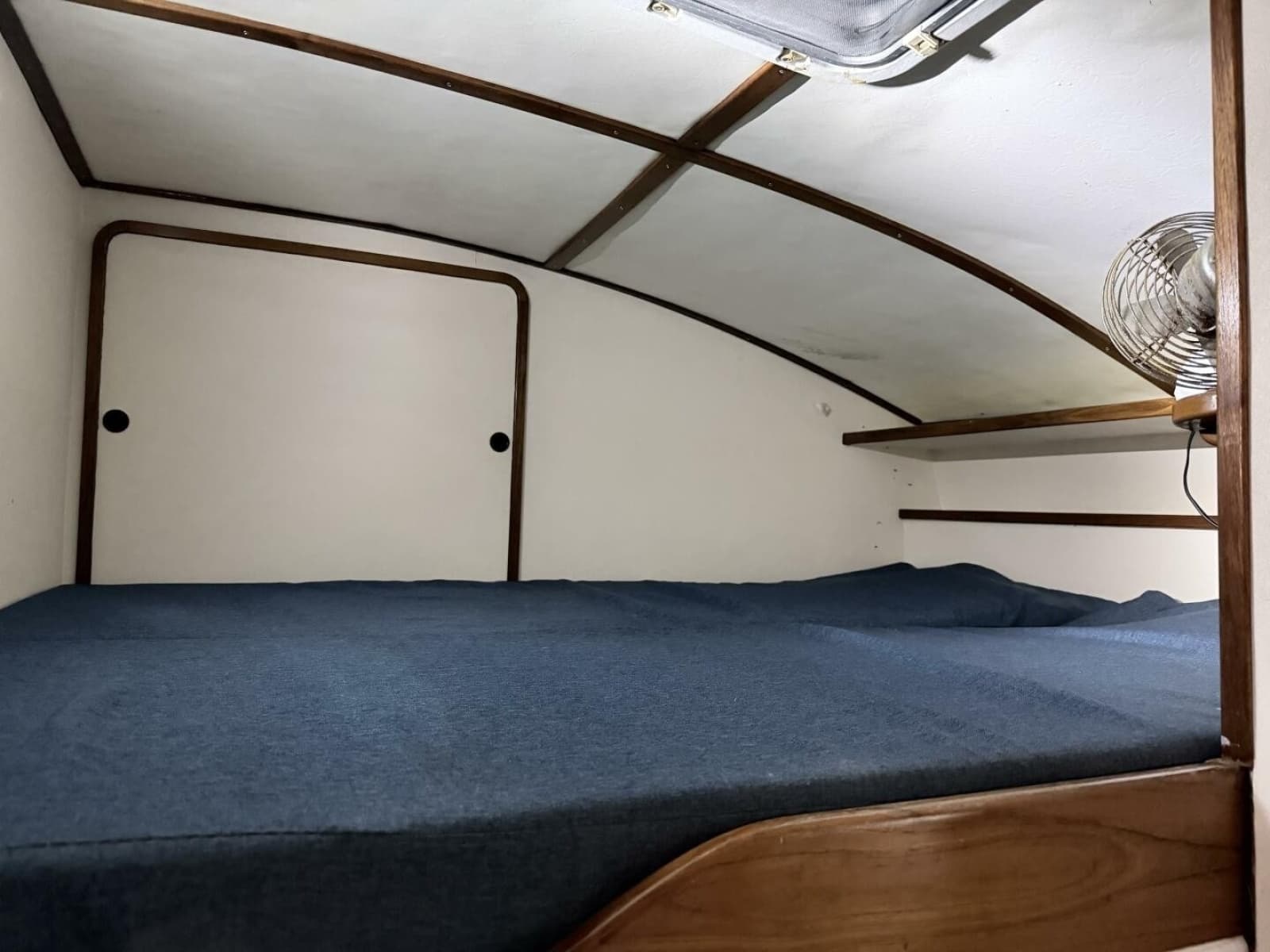

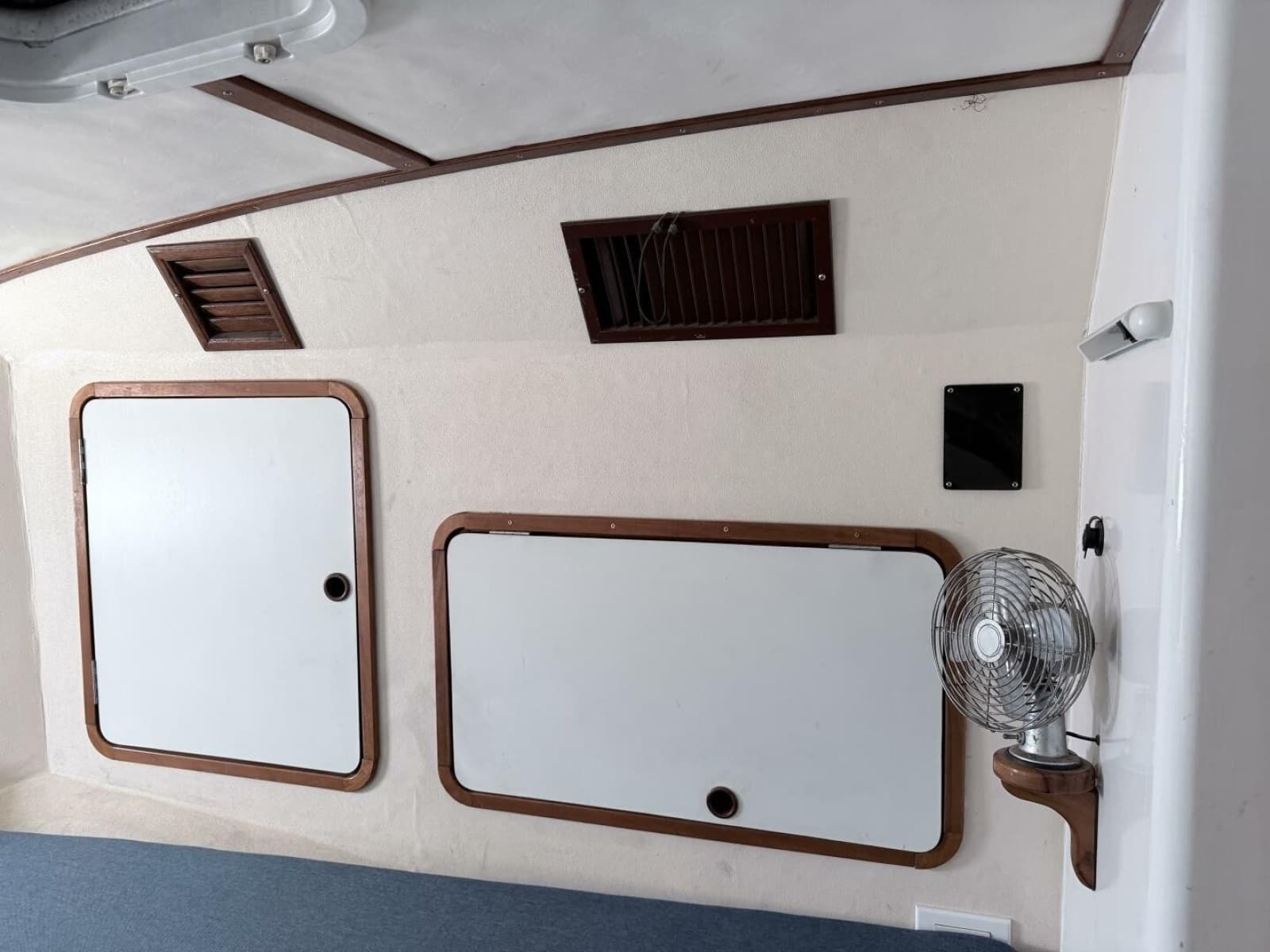

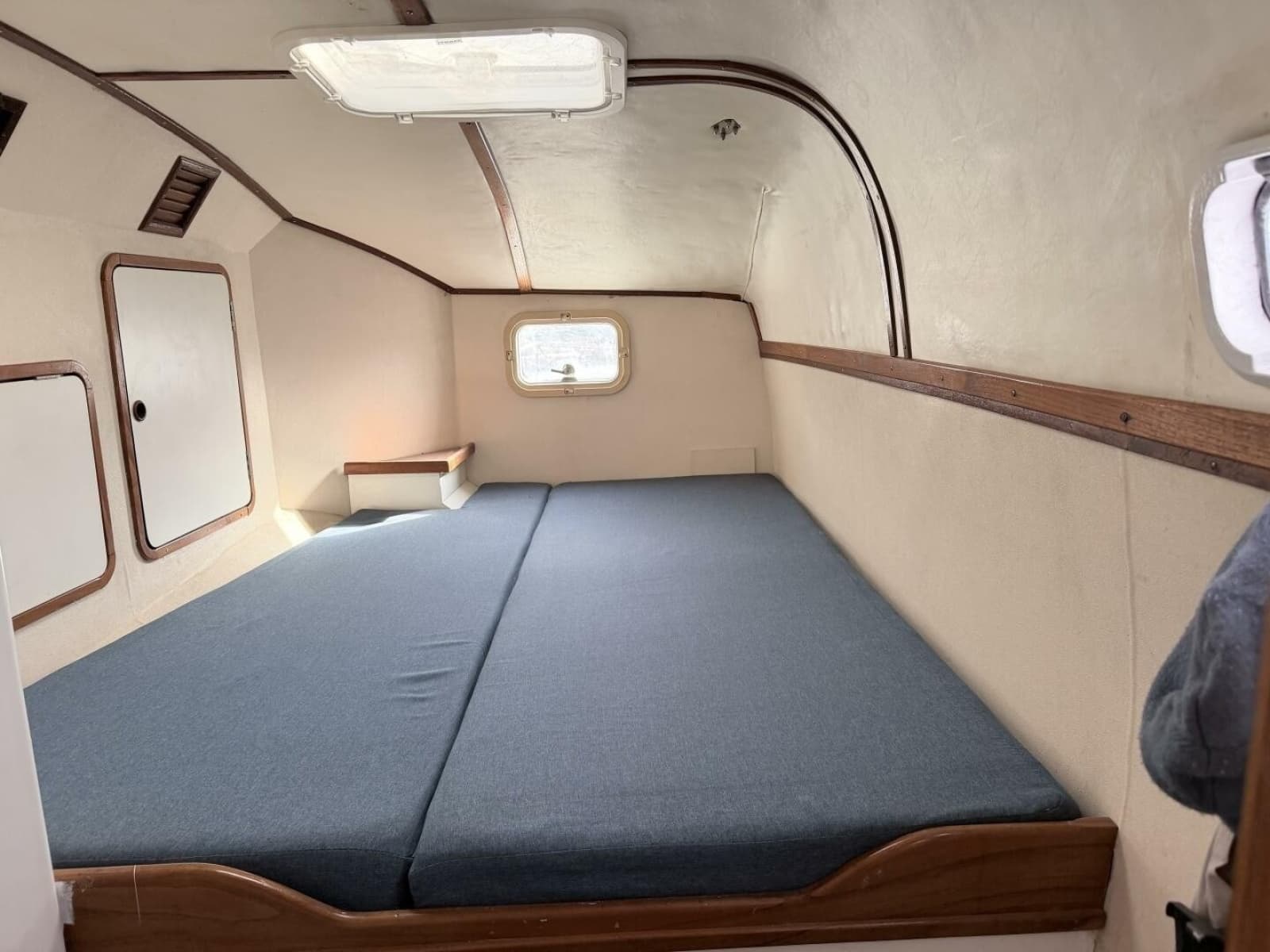

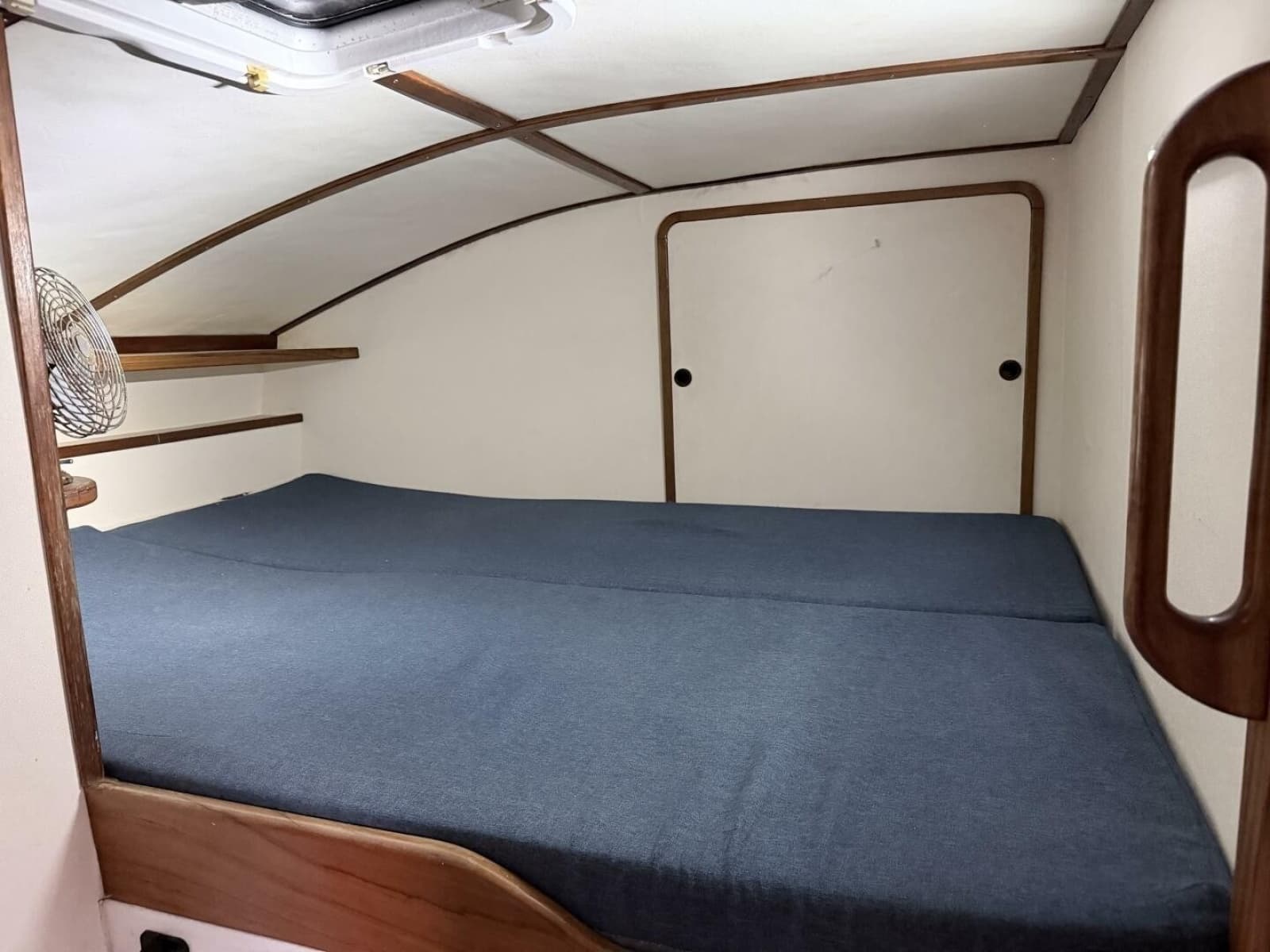

AFT CABIN(2)

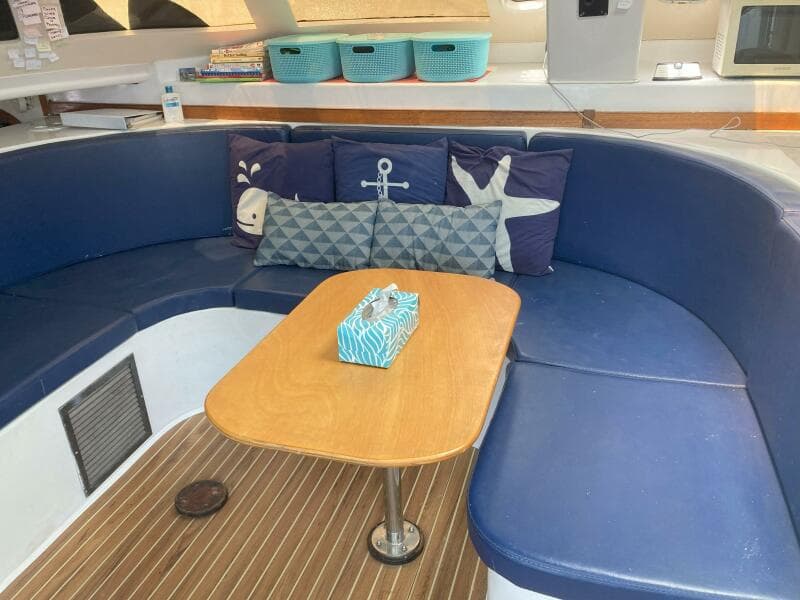

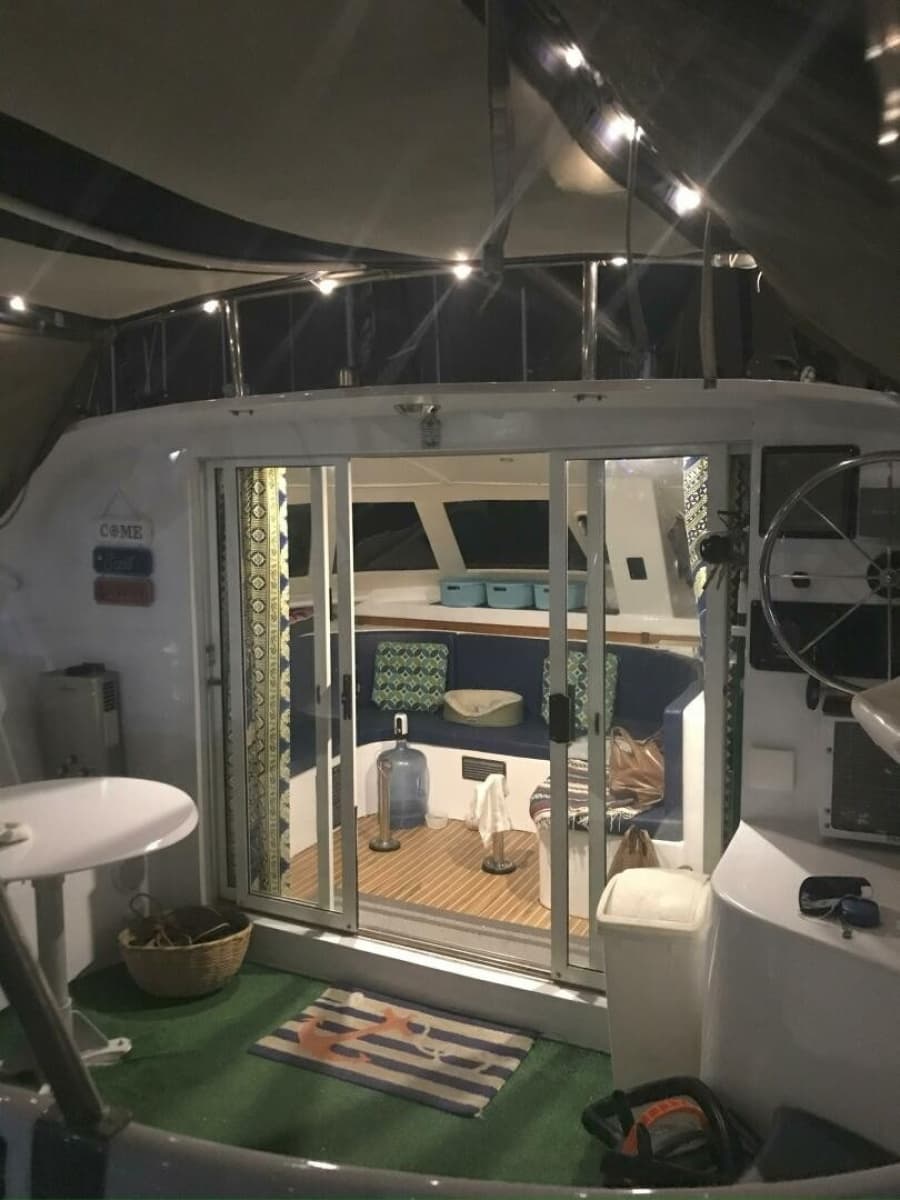

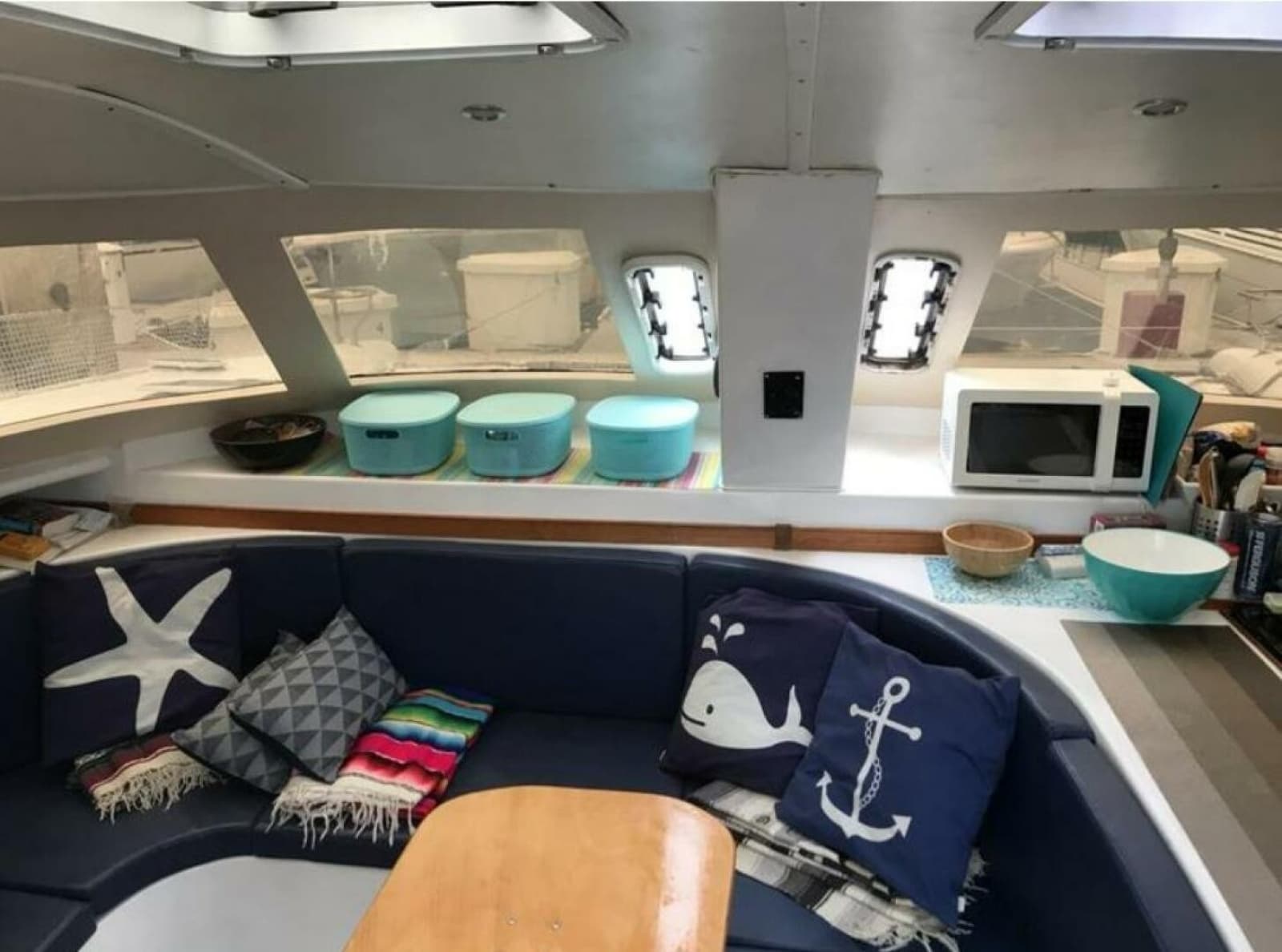

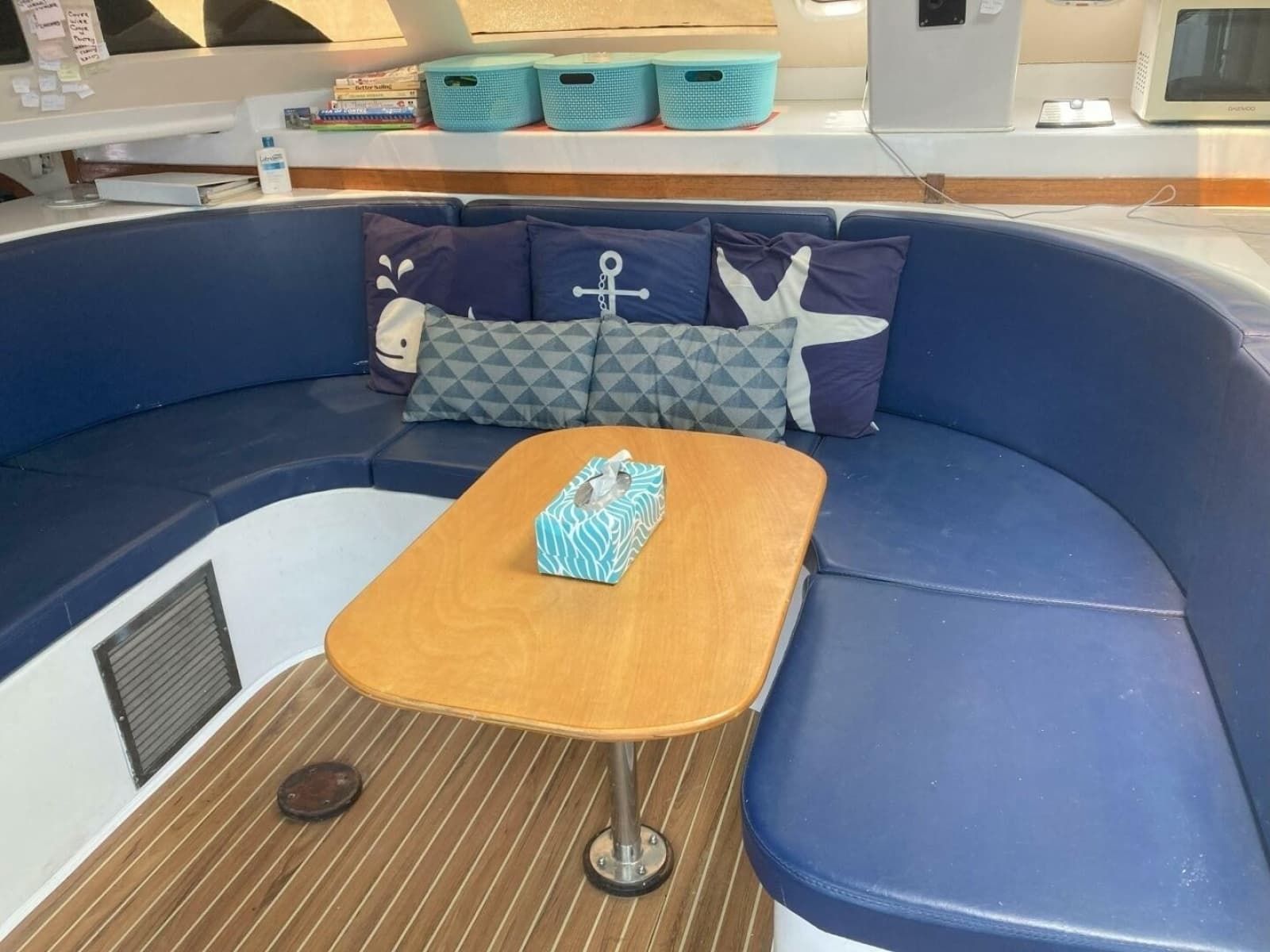

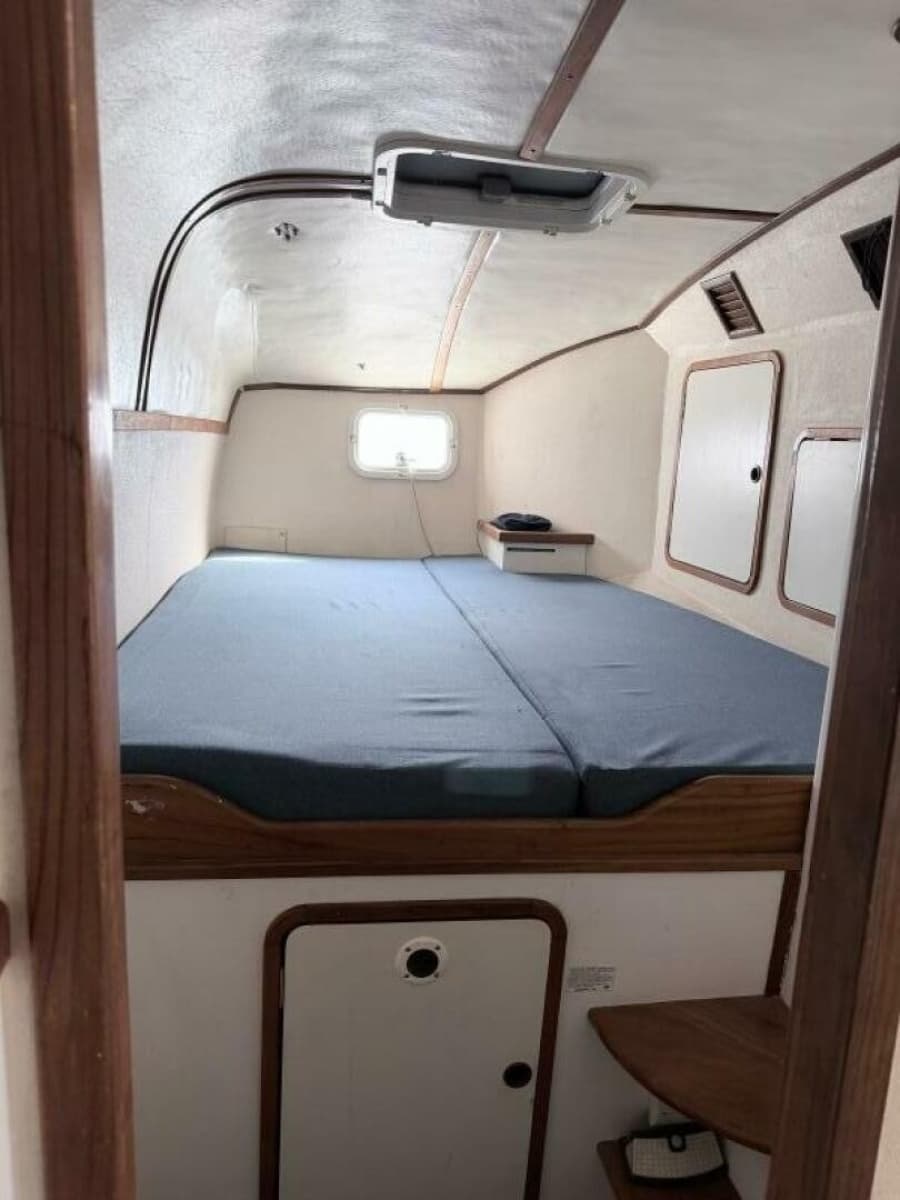

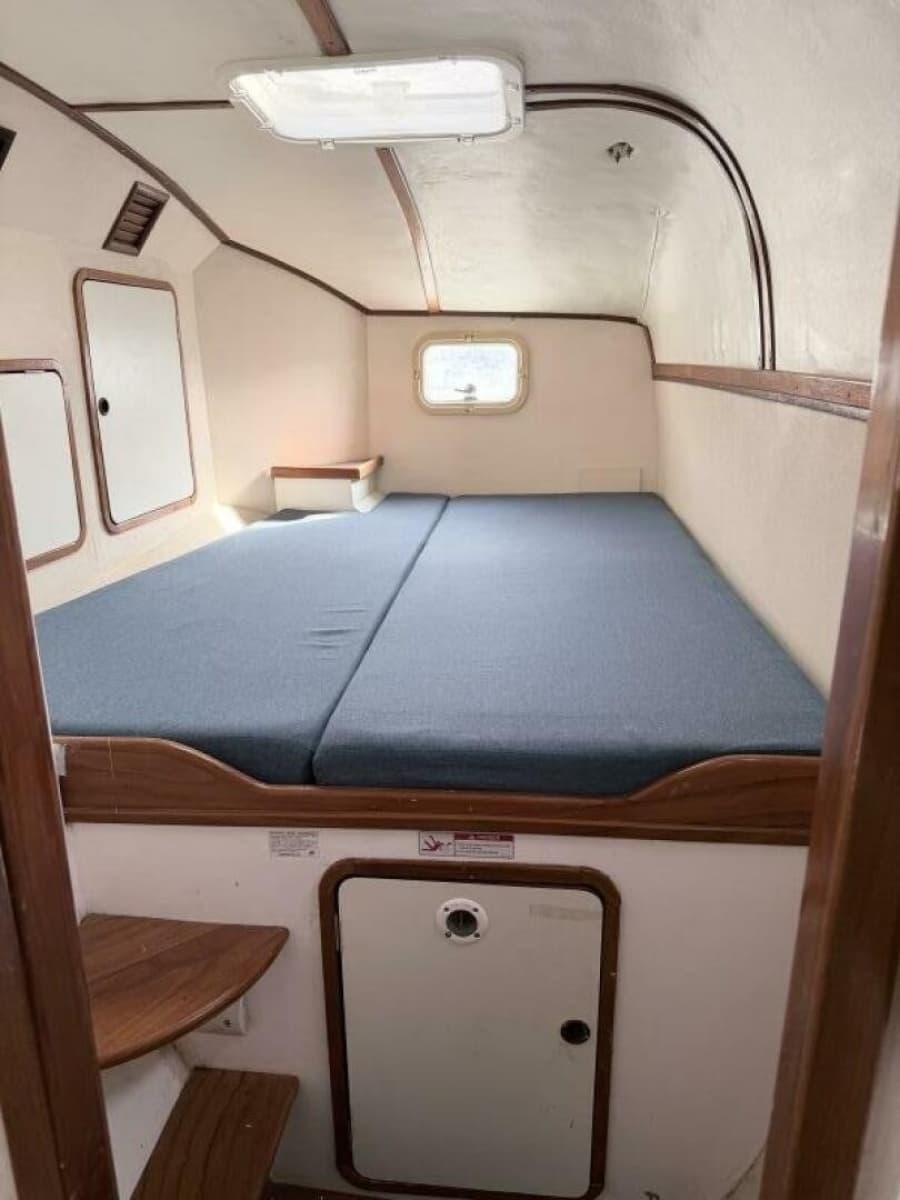

1.44 x 2.00 meter beds - 1 each3 Large locker units in each Shelves at foot of each berth (saildrive yachts only)Large (17"x20") Lewmar overhead egress hatches and one opening port to rear - 1 eachSaloonSeats 8 for comfortable formal dining or just lounging surrounding acrylic tinted windows give an open, airy feeling2 vertical forward wiindow hatches to ventilate while underway2 large Lewmar (20"x20") coach roof hatches face forward to provide ventilation at anchor Large 4 panel armored glass sliding cockpit door for convenient outdoor/indoor living4 Counter sunk lights in ceiling over kitchen, dining and entry (2)

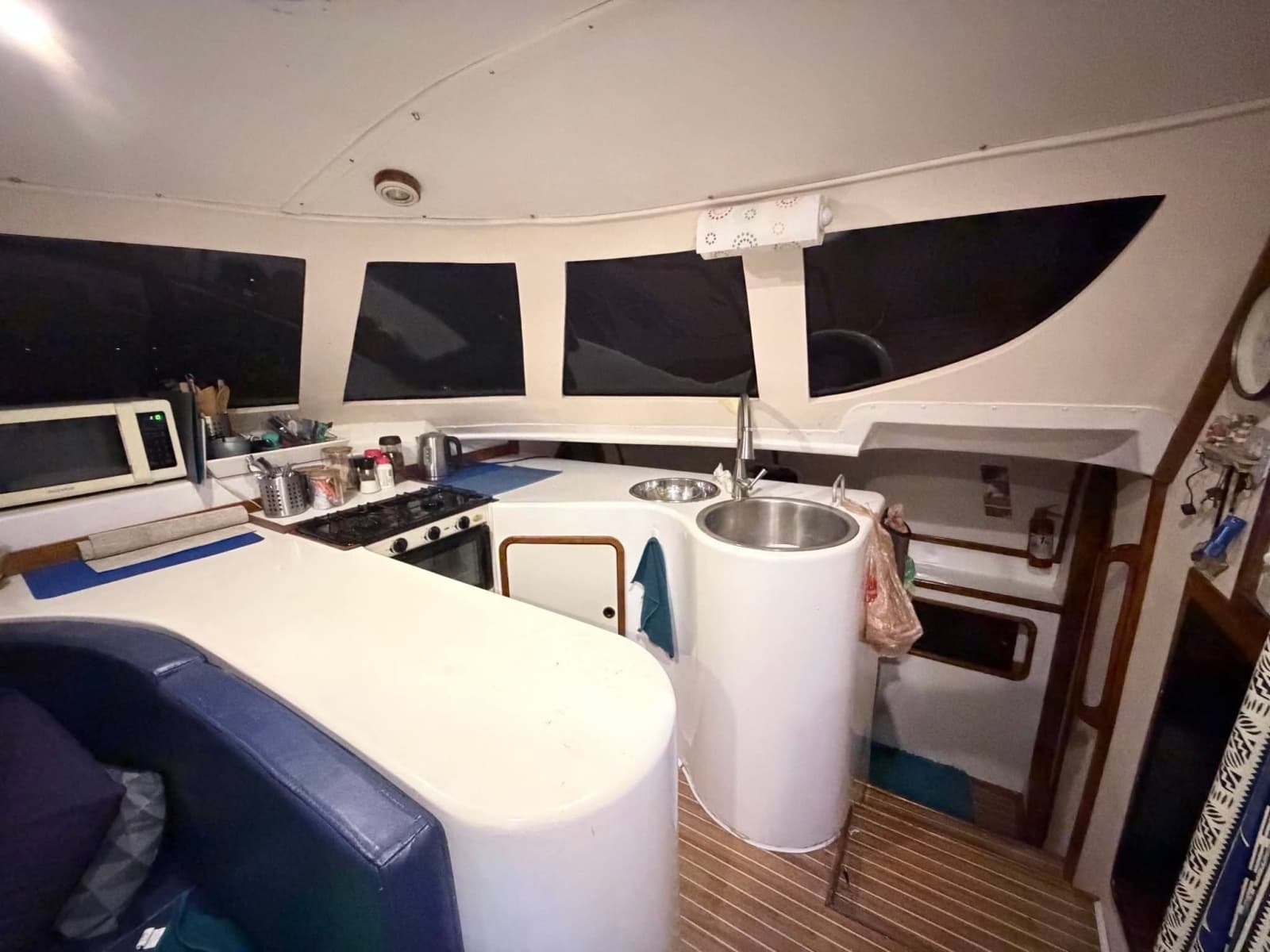

GALLEY

Galley located (up) on the bridge deck next to the salon. LP Oven with 2-burner propane stove, Electric convection oven, and range. Large 3m cupboards on the inside of the hull with sliding doors. Sink galley with hot & cold pressurized water system. The galley is a one-piece unit allowing for ease of cleaning. All corners are rounded to create a safe, easily maintained workspace

Navigation Station

Chart table with 3 cupboards plus 3 3-meter cupboards with sliding doors, the length on nav side with 1 LED light over Nav station Ample room for the electric panels and electronics

Upholstery

The saloon, forward and aft cabins are upholstered in heavy-duty vinyl - marine blue

Plumbing & Heads

Village Marine Lil Wonder 12V Water Maker - 4 gph78 Gallon Water Storage Tank (650 lbs)Pressurized fresh water (spare fresh water pump)Cockpit mounted LP gas water heater2 Manual bilge pumps (one each side)2 electric pumps in shower sump (2 spare shower bilge pumps)Electric pumps in ama bilges (1 spare bilge pump)Electric pump in ama Aft compartment (1 spare pump)

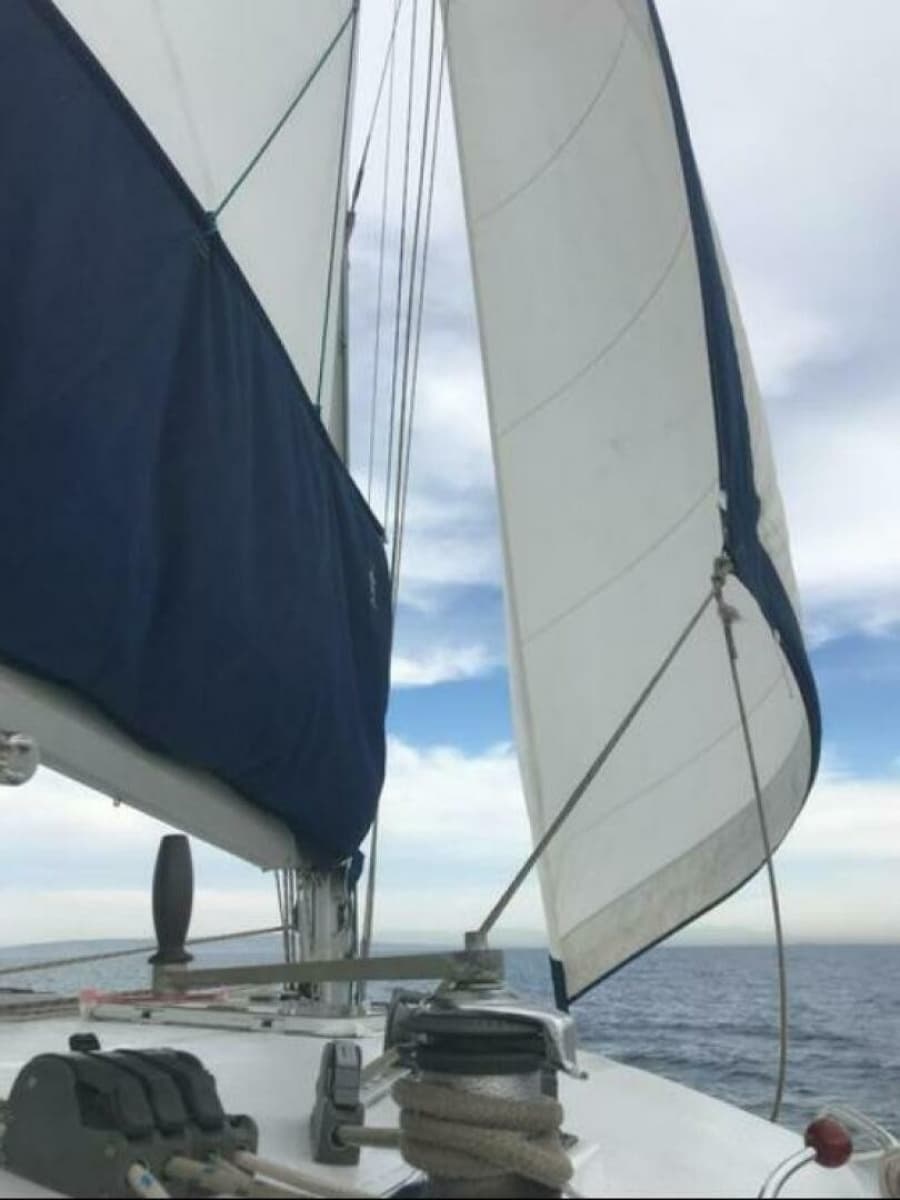

SAILS

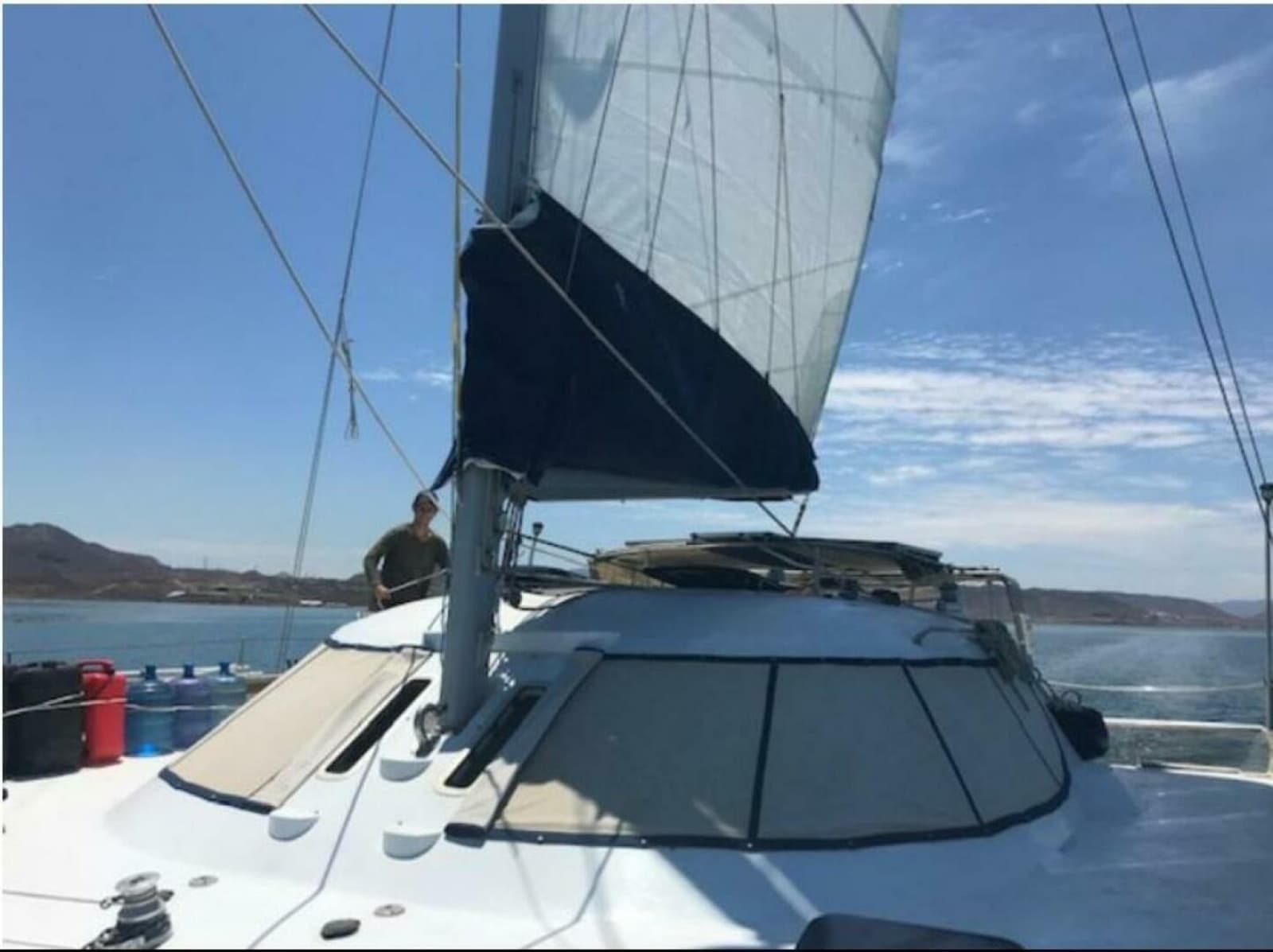

110% - 7.8 oz Dacron Jib with Sunbrella; on Profurl 35B roller furler, winches, cars, deck organizers, and jammers located on coach roof40.076 sq/m Mainsail & Hardware - Fully battened 9.4 oz. Quantum Sails Supercruise Dacron Cross-Cut 2000 Mainsail; Lewmar Mainsail sheet double traveler with car and controls for stoppers; three reef points; adjustable topping lift; All lines led through jammers on the coach roof for ease of shorthanded sailing. Sunbrella Stackpal for mainsail UV protection 43 sq/m Mainsail & Hardware - Fully battened 10 oz. Dacron Mainsail; Harken or Lewmar Mainsail sheet double traveler with car and controls for stoppers; curved heavy-duty track; three reefing points; adjustable topping lift; All lines led through jammers on the coach roof for ease of shorthanded sailing.

GROUND TACKLE

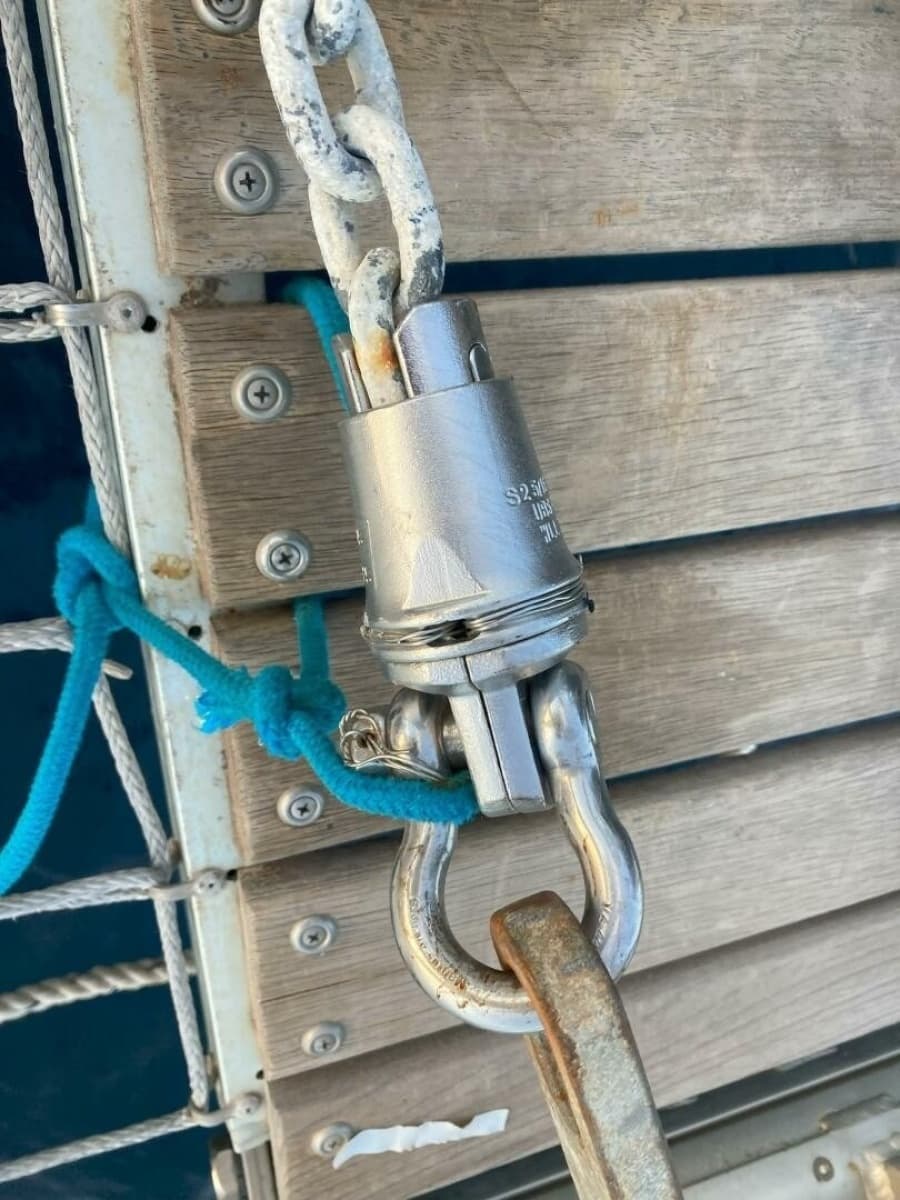

55 lb Galvanized Rocna Anchor with 230 ft 3/8" Galvanized chain and SS Mantus swivel; driven by Lofrans vertical chain/rope windless from up/down foot stations at bow . 120 ft braided anchor line with chain connection to be used as bridle (extra footage for wave offset and additional rode if needed). Aluminum Fortress emergency anchor with 20 lf chain rode and 100 lf braided rope

MAST & RIGGING

Mast - Deck mounted painted aluminum alloy extrusion; 14.5 m. single spreader mast; All halyards are internal; Conduit for all wiring; Wired with combo steaming/deck light and anchor light Boom - Painted aluminum alloy extrusion; Welded in 4 sheaves box for outhaul and reefing lines; Standing Rigging - One forestay; Two side stays; Stays consist of swaged terminals on 1X19 stainless steel wire with open turnbuckles; Running Rigging - Main halyard 2, 1 with a headboard shackle; Topping lift (doubles as a spare halyard); One pair of Dacron Jib a sheets; One Jib halyard; One spinnaker halyard;

DECK FITTINGS & EQUIPMENT

Front Beam - Forestay and Bridle - The front beam is an aluminum compression member that supports the forestay bridle, with walkway from forward hatch to front beam with two trampolines Fairleads - 2 forward Mooring Cleats - 2 on cross beam; 2 on outside forward hull; 2 amidships outside hull; 2 aft outside hull; 2 aft on diving platform; Stanchions - 4 stainless steel stanchion with double wire per side Trampolines - 2 x plastic coated nylon trampolines Opening Hatches 8 - 2 in saloon; 2 in heads; one per state room; all complete with fly screens and all can be used as escape hatches except head; Windows - plexiglass in saloon; six opening ports with fly screens; Chain plates - 316 stainless steel bolted into primary reinforcements Steering Gear - Stainless steel destroyer type wheel linked to two balanced rudders linked by hydraulic system; accommodation for emergency steering. Emergency Steering Tiller Deck Fill Inlets - Fresh water and diesel Deck lockers - one in bow and one in cockpit

TENDER

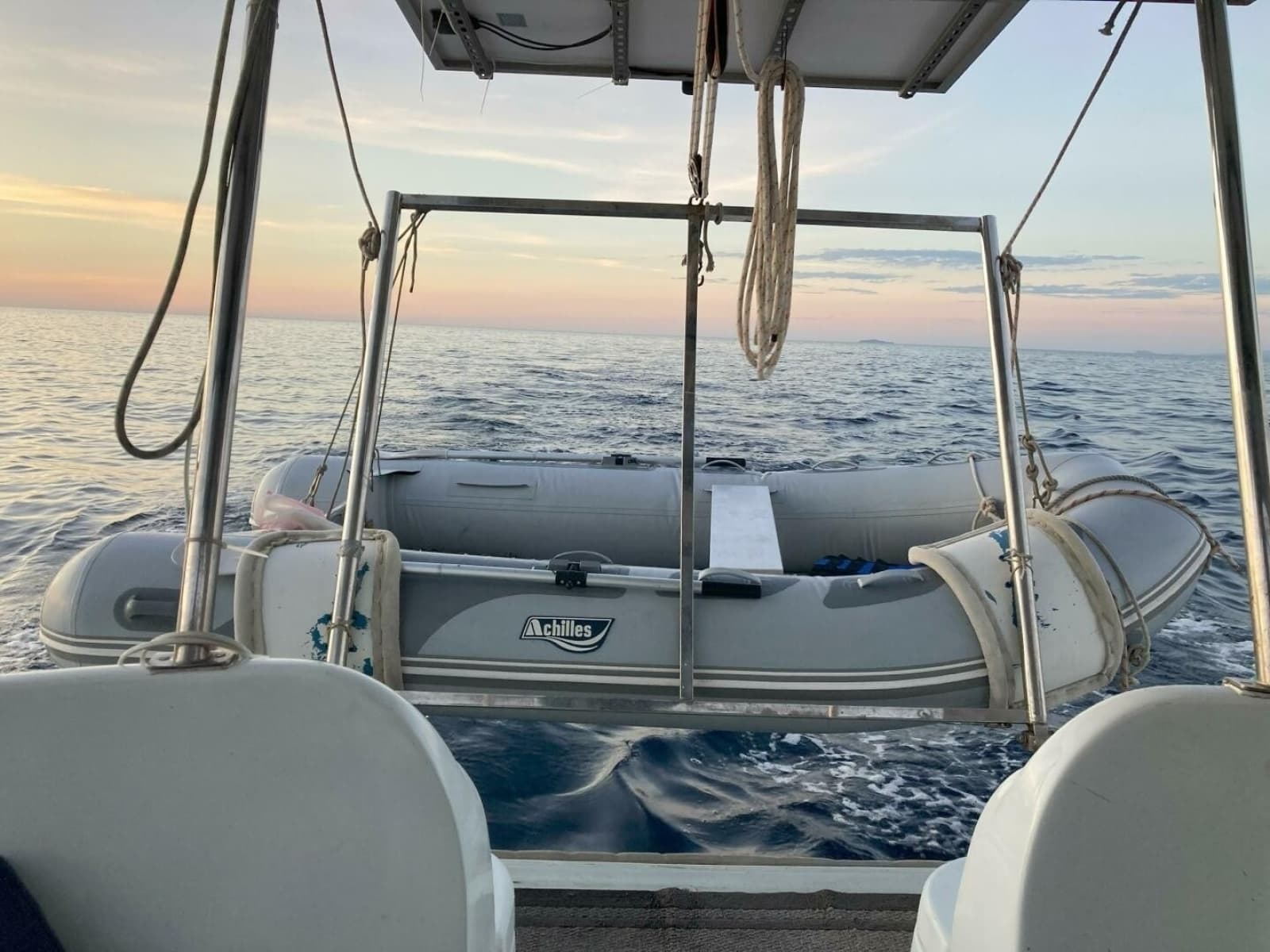

Achilles LSI-330E LGY Air Firm Floor hypalon 5 person- 1340 lb payload dinghy rated for 15 HP, with oars (104 lbs)Nissan Marine NSF9 9.9 HP 4 cycle Outboard motor (83 lbs) w/ fuel tank Collapsible anchor, 30 lf rode, and painter with buoy Hinged rear dinghy davit

SAFETY

Kidde Fire Extinguishers - 6 total: 1 in each fore and aft ensuite bathroom, one outside each aft cabin, one electric rated at the kitchen, and 1 20 lb aft of the cockpit Smoke Alarms (5) - One (mounted high) in each stateroom and one in the galley. Fire Ports at Engine Compartments (Marine East 6860)Carbon Monoxide detectors - (4) 1 (mounted low) in each stateroom, Jack Lines - (90 lf - 3500 lb strap to run cockpit to fore deck, each side)Radar Ball on mast spreader Boatswains Chair for mast climb26 Gauge Flare Gun12 Gauge Flare Gun with flares, Emergency kit

CREATURE FEATURES

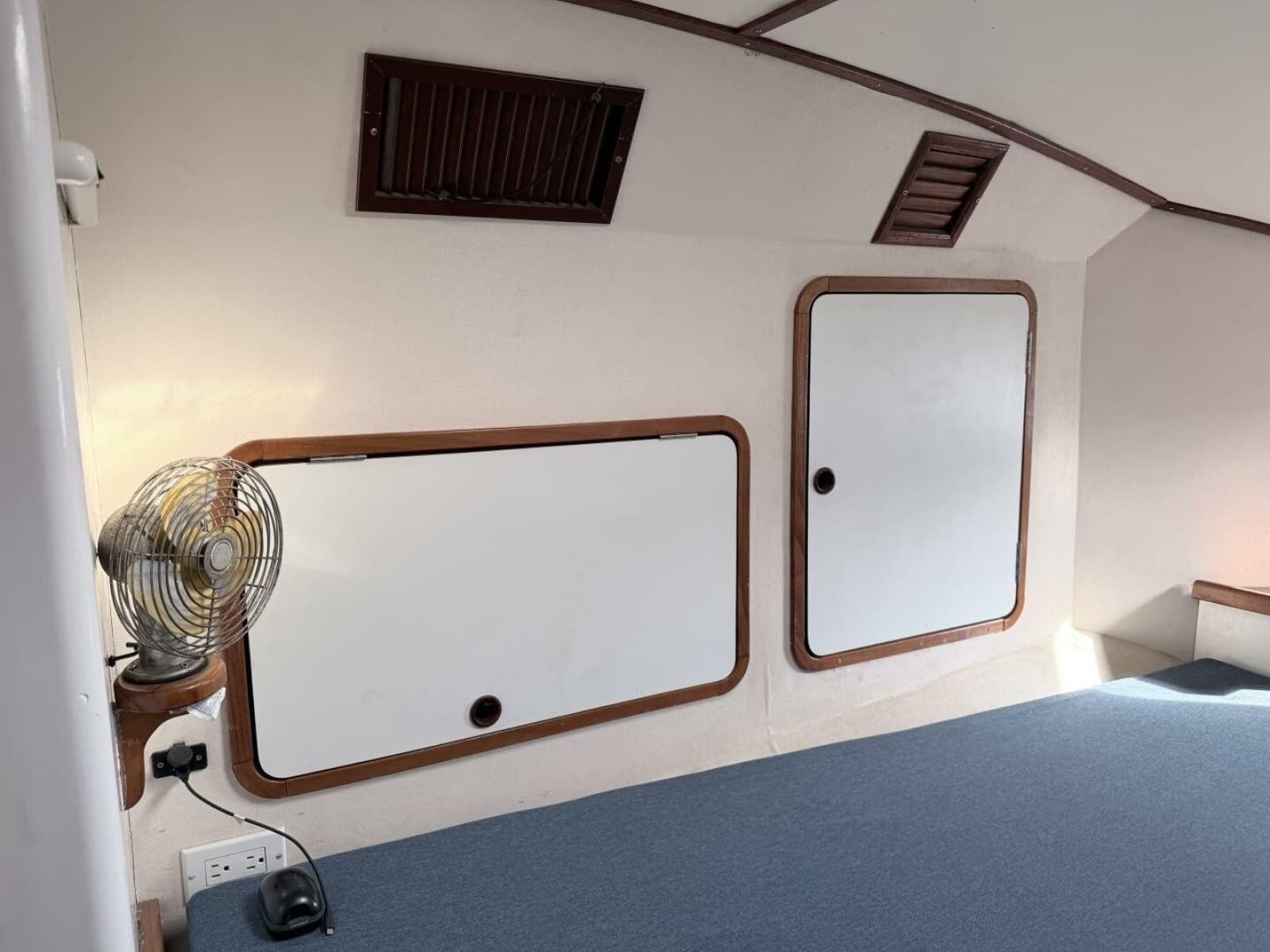

AM/FM/CD/Flashdrive Stereo Radio with Bluetooth to interior speakers and wire to Weatherproof cockpit Speakers Smart TV with Blue Ray CD Player Range Finder (to check distance between boats at anchorage)Star gazing binoculars, Microwave Dissolved Solids Water Analyzer, Fans in all Staterooms & Bathrooms, Electric Head in Starboard ensuite cabin, LPG Hot Water Heater - JSD 13 Gas Geyser Virtfrigo 12V DC/120V AC Refrigerator Frigidaire 5050 BTU Air Conditioner Coach (Sun Shade) Window Covers Cockpit Sun Screens Ceramic Heaters (2) - Brightown PTC 905

EXTRAS

Mexico & Central America Courtesy Flags and Yellow Q Flag, US Ensign, Fenders and dock lines, Boat Hooks, Cleat grabber, Shore Power cords & adapters, Water Jug Pump ,DC Fan in Salon, Pots, pans, dishes, knives, cookware & flatware Cockpit Ambiance Solar lights3 gallon Wet/Dry Vac Hypalon Dinghy Repair Kit

SPARE PARTS

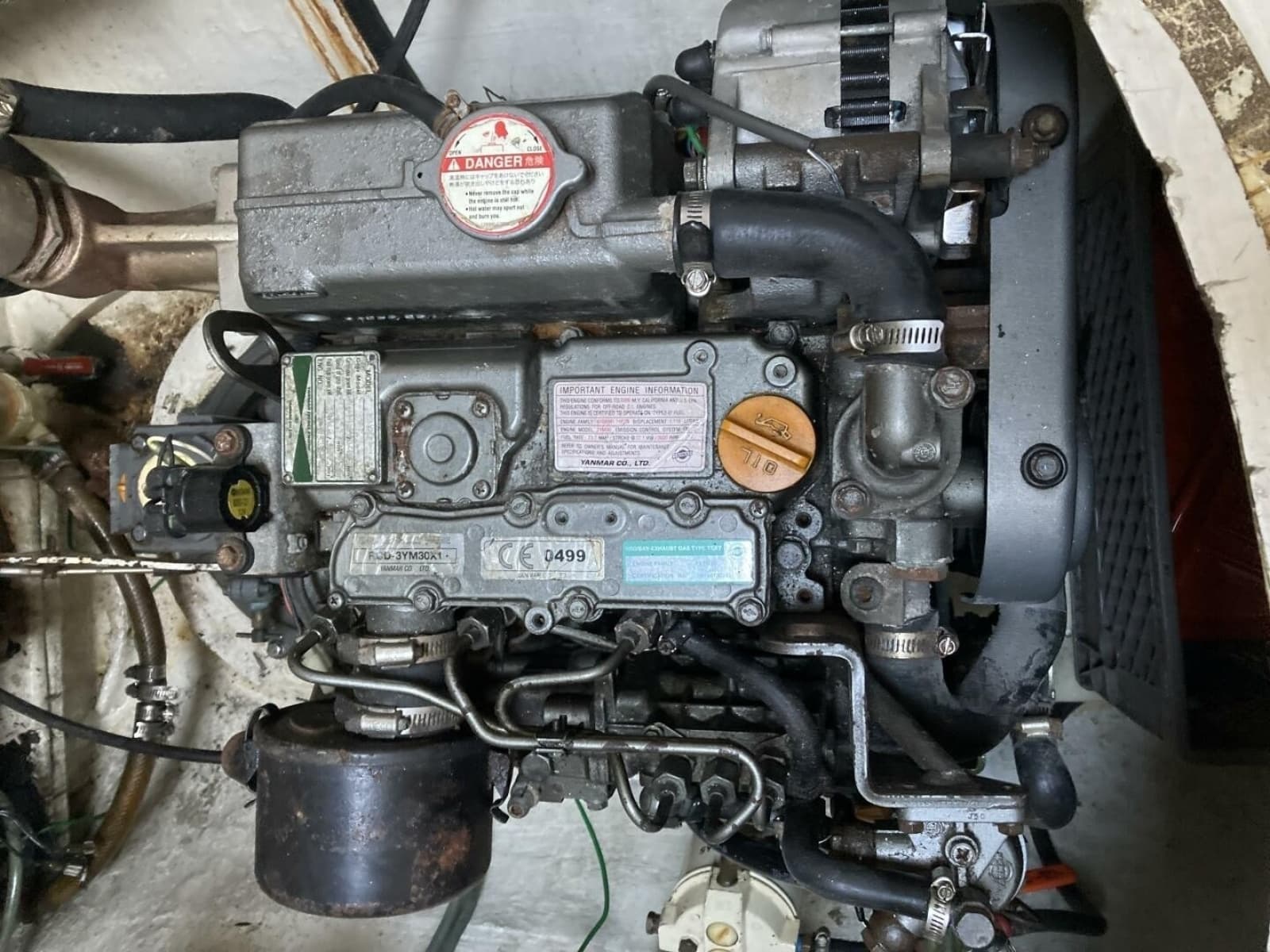

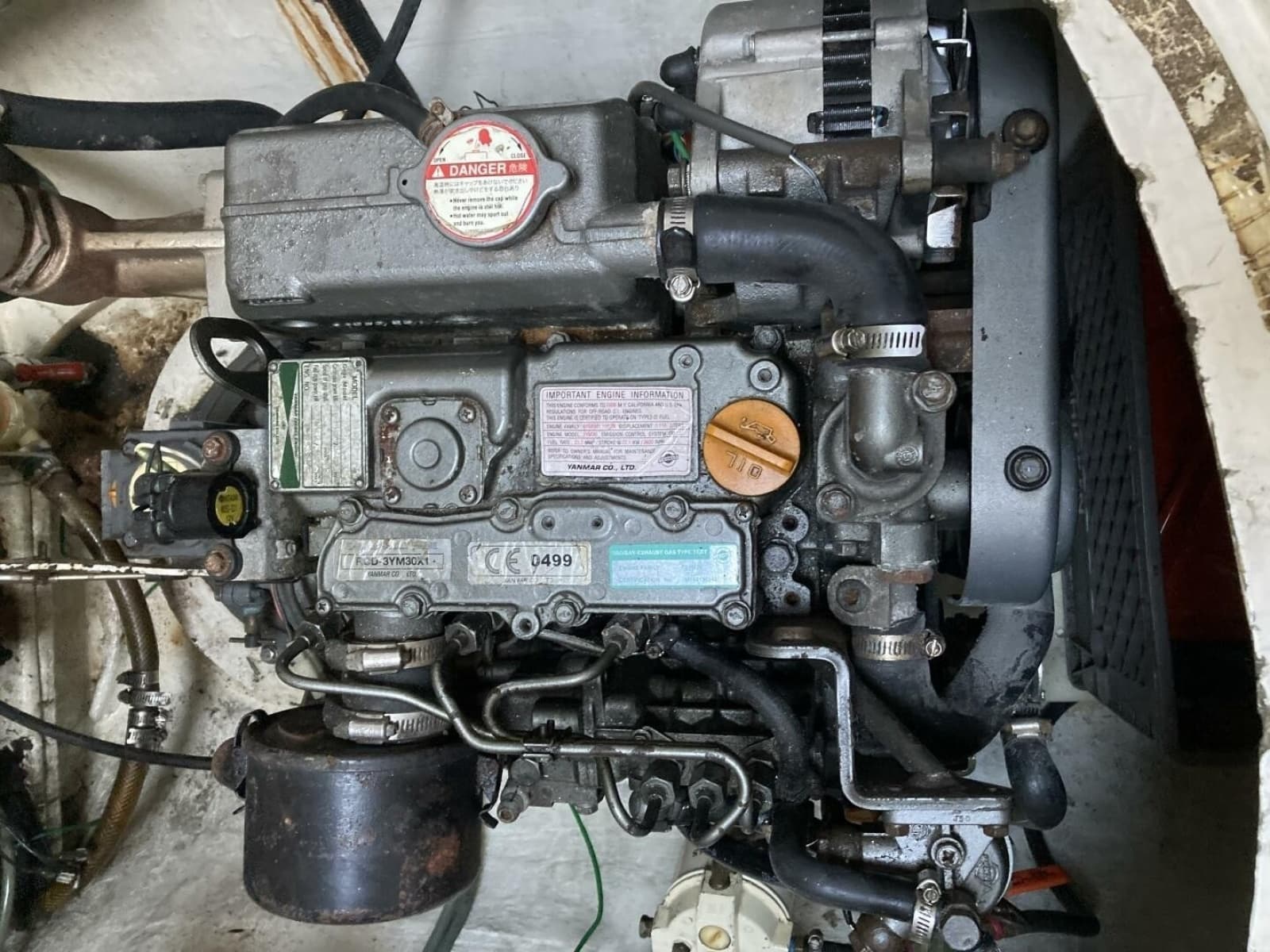

Yanmar 3YM30 Parts: Sea Water Pump/Alternator Belts, Sea Water Pump Impellers Front Coolant hose Assorted Yanmar Metric Machine Bolts, Saildrive Water Intake Cocks Engine Fuel Filters Engine Oil Filters Saildrive Water Intake Cocks
