Description

Overview & Design

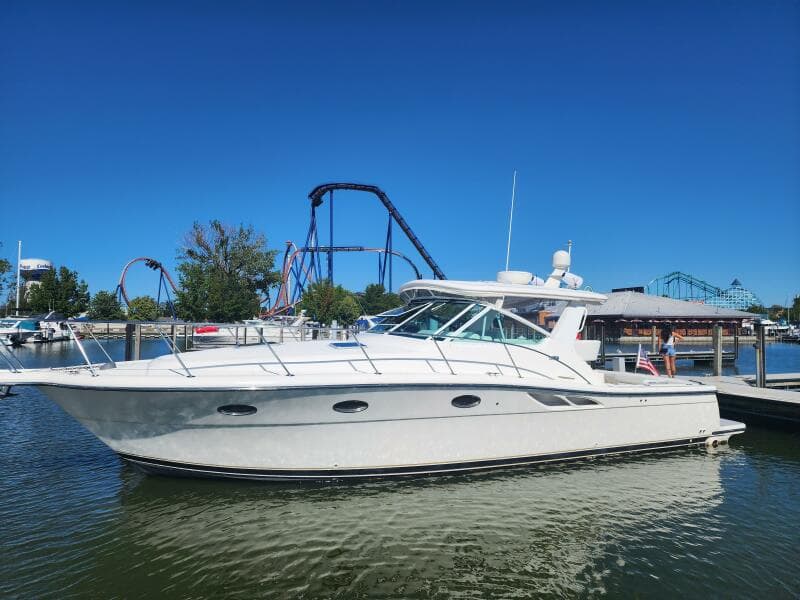

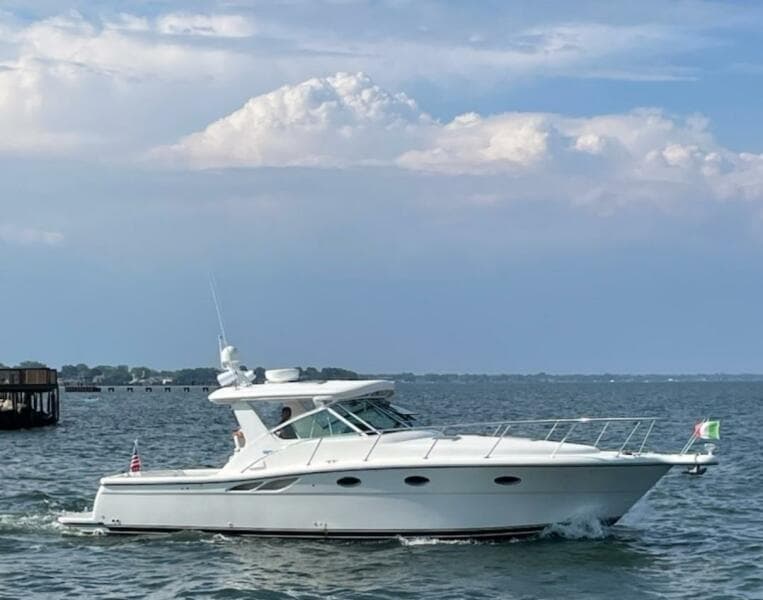

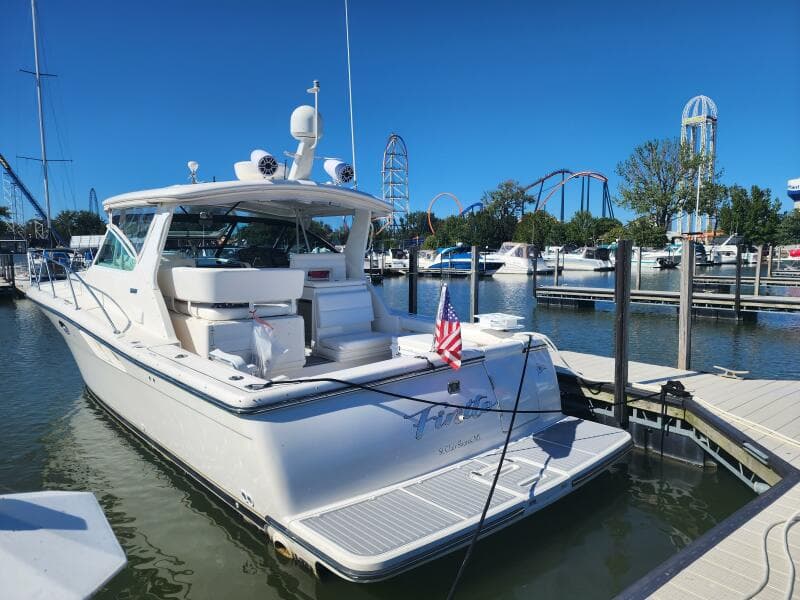

The Tiara 3500 Open is a 35-foot express cruiser / sport-fishing yacht.
It has a curved reverse transom with a molded transom door and gate, plus an integrated swim platform and a bow pulpit.
The hull is a modified V-berth (V-hull), giving a good balance of performance and seakeeping.
Construction is hand-laid fiberglass with a water-barrier outer gelcoat, and the stringers are vacuum-sealed wood/foam core.
Underwater fittings (through-hulls) are bronze; exhaust is hull-side.

Dimensions & Capacities

Length Overall (LOA): ~35′ (about 10.67 m)
Beam: ~13′3″
Draft: ~3′4″
Displacement / Dry Weight: ~14,000 lb (as per some broker listings)
Fuel Capacity: ~360 US gallons (which is very generous for its size)
Fresh Water: ~70 gallons
Holding Tank (Head): ~30 gallons

Propulsion / Performance

Powered by twin Cummins 6BTA 5.9-M3 inboard diesel engines.
Each engine is rated at 370 hp.
Steering: Teleflex system, with a 20″ stainless steel “destroyer” wheel.
Rudders / Struts: Bronze “axe-head” rudders.
Engine room has good insulation, plus hydraulic (or electric) lift for the engine hatch for service access.

Accommodations (Interior)

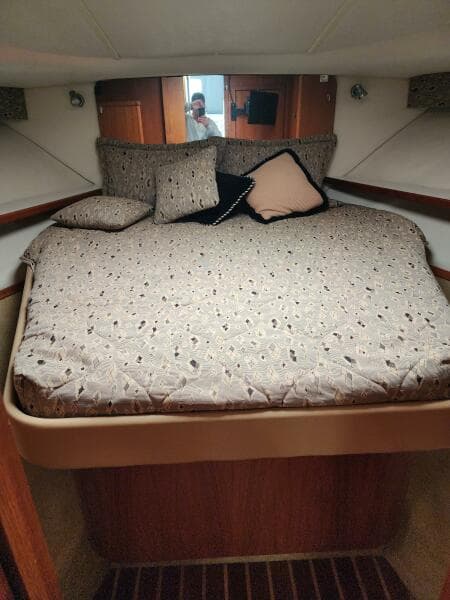

Cabins: One main cabin: forward stateroom with a queen-size pedestal berth.
Salon / Dinette: Convertible lounge / dinette. The lounge backrest can flip up to become a “pullman-style” upper berth.

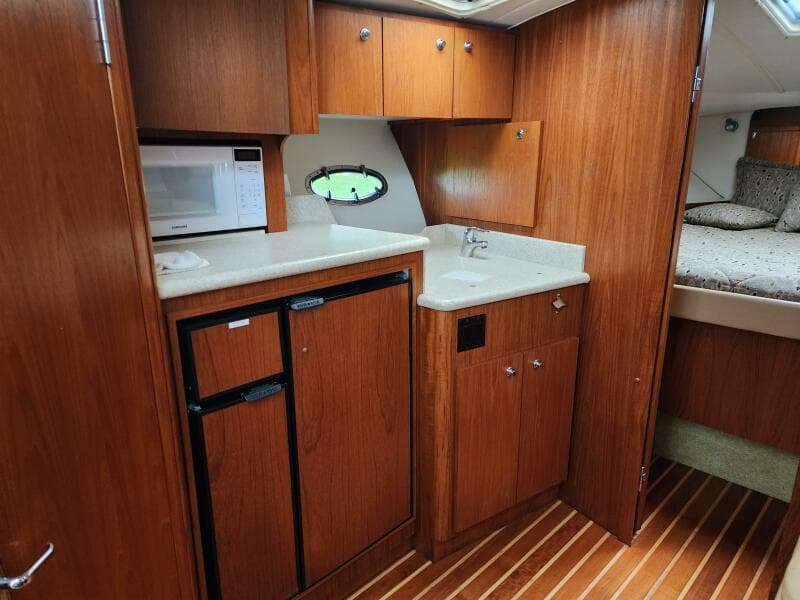

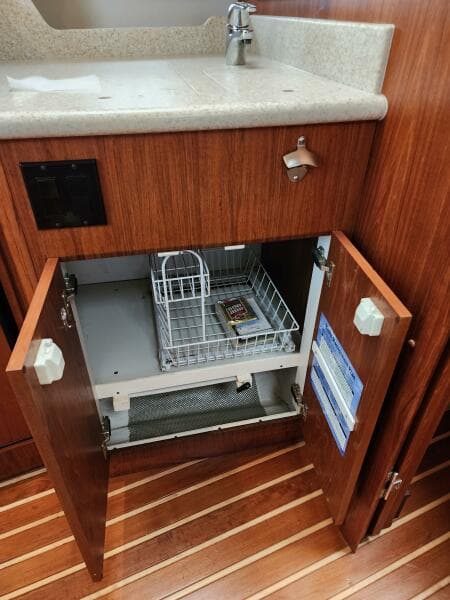

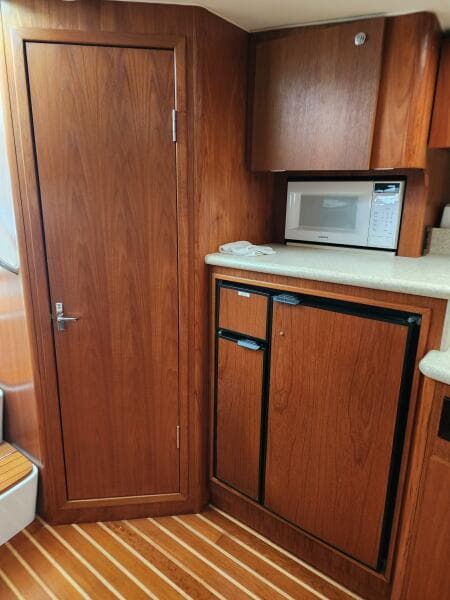

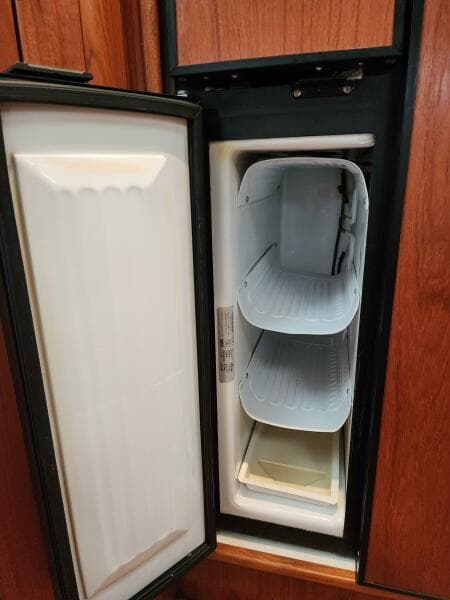

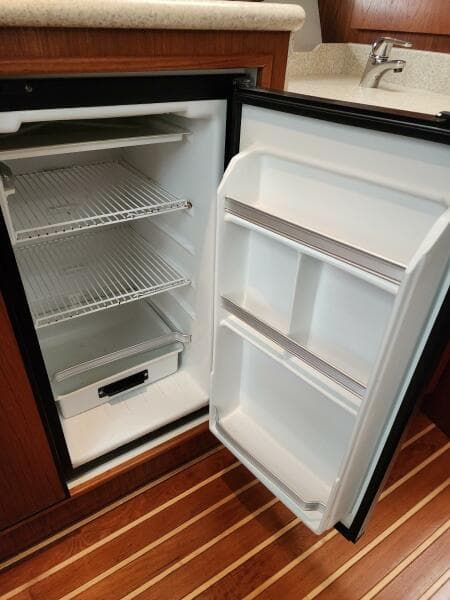

Galley: Full galley with Corian countertops, stainless sink, microwave, two-burner electric stove, refrigerator / freezer, good storage.

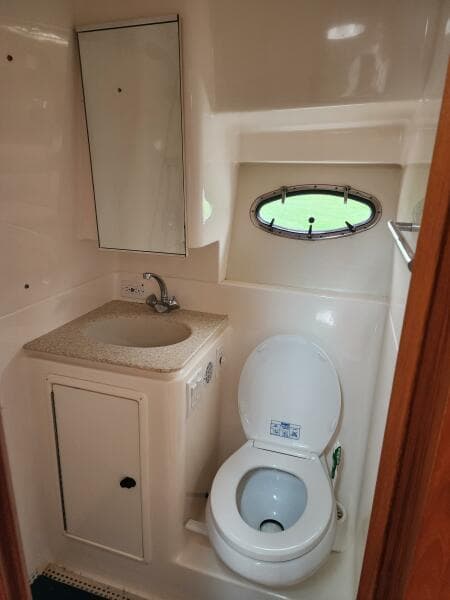

Head / Bathroom: One enclosed head with a VacuFlush toilet and a molded fiberglass shower.
Interior Finish: Teak joinery, teak-and-holly sole, good-quality woodwork.
Ventilation / Light: Six oval portlights (with screens) for natural light.
Headroom: About 6′6″ in the salon; 6′4″ in the stateroom area.

Deck / Cockpit Features

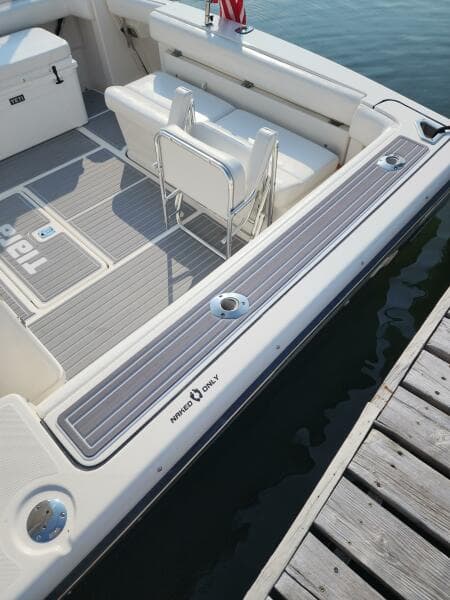

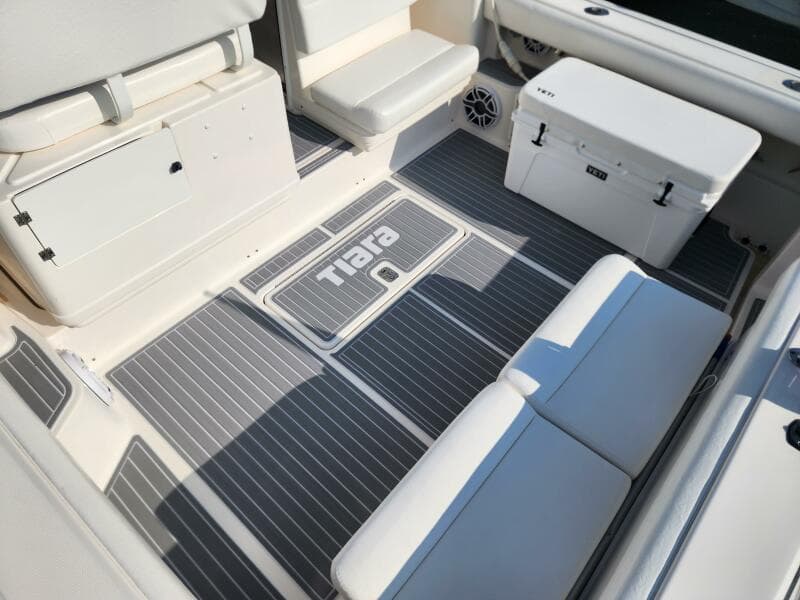

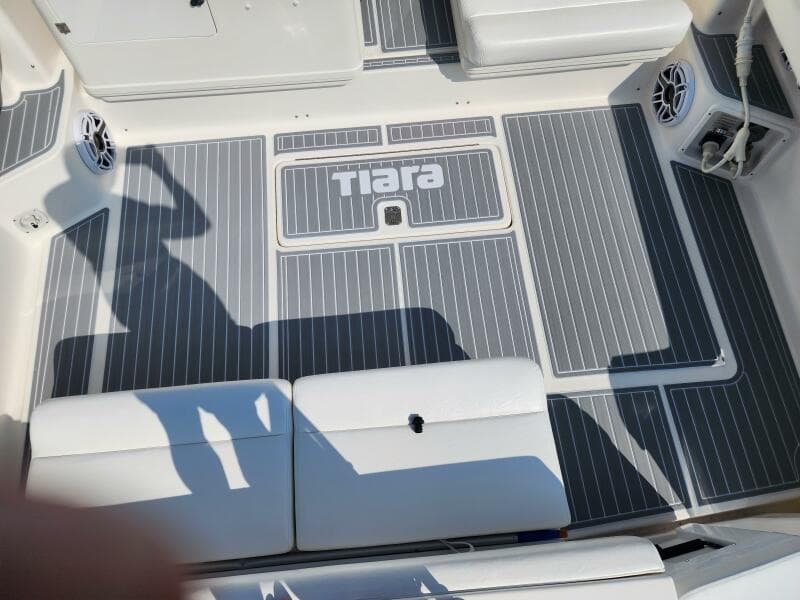

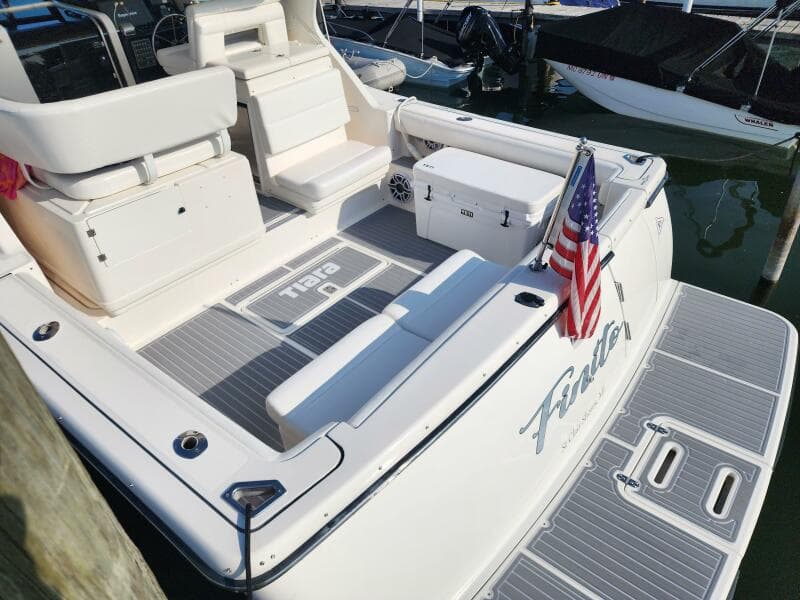

The cockpit is roomy: it includes a double-wide back-to-back helm seat + L-shaped companion seat.
There's a wet bar aft of the helm, and (optional) an ice maker.
Helm station: “Heads-up” fiberglass tilt-away helm, which helps with visibility and ergonomics, and allows full flush-mount electronics.

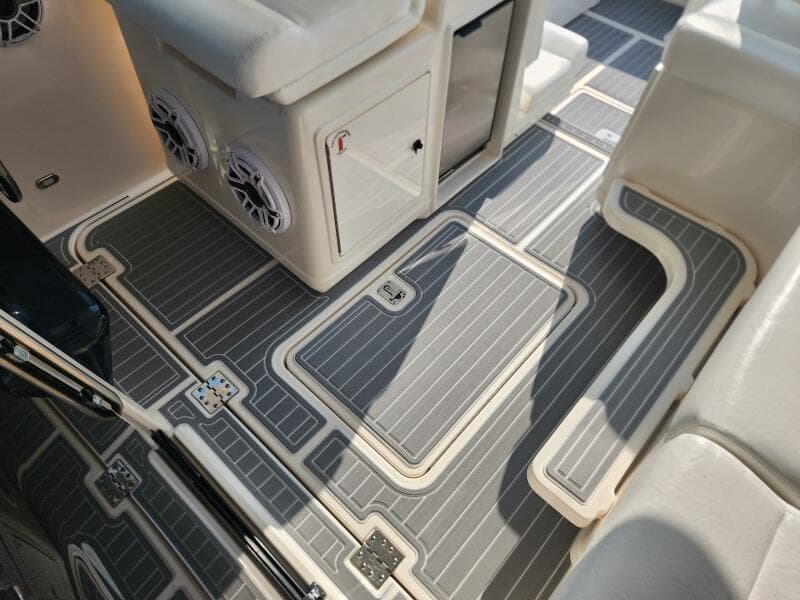

Deck surface non-skid: Tiara’s custom diamond-pattern non-skid, for safer footing.
Windshield: Welded aluminum frame + 1/4″ safety glass, with wipers / washers, plus a center vent section.
Bow access: Wide side decks with welded rails + a molded bow pulpit.

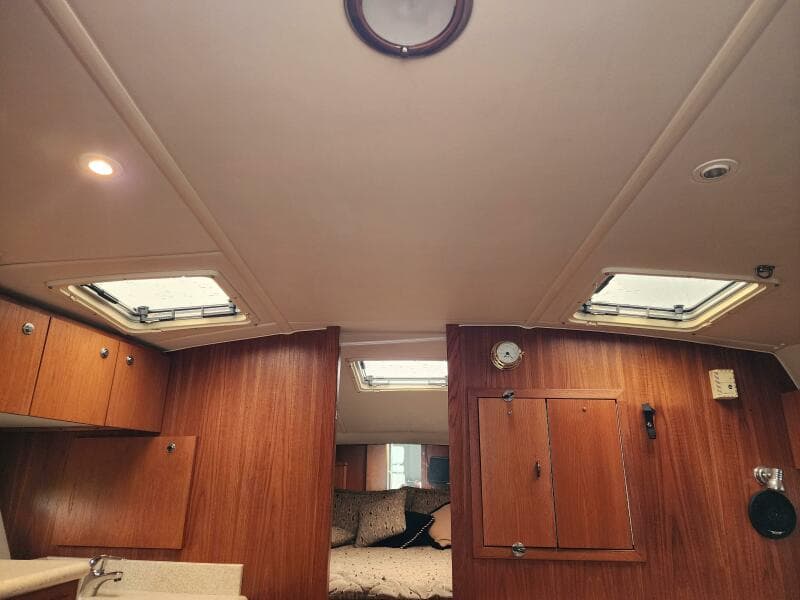

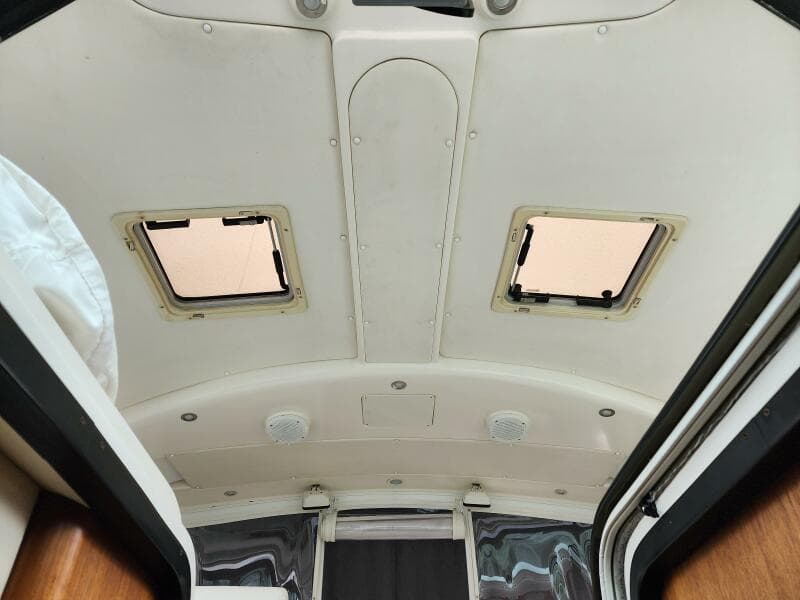

Deck hatches: Three aluminum deck hatches with screens and privacy covers.

Mechanical / Systems

Freshwater cooling for the engines, which is beneficial for longevity.
Electric dual engine hatch lifters (for accessing the engine room).
Automatic fire suppression system in the engine room (per some brokers).
Trim tab system installed.
Fuel filtration: Racor filters.
Electrical: 12V DC + 120V AC systems; shore power hookup; battery charger; battery switches.
Generator: Some listings have a Westerbeke 5.0 kW genset (depends on specific boat).
Heat / AC: Air conditioning / heat system (reverse-cycle in some).

Strengths / Advantages

Fuel-efficient long-range propulsion: The Cummins diesels give good range, making this boat suitable for longer cruises.
Solid construction: With hand-laid fiberglass, sealed stringers, and bronze thru-hulls, it's built for durability.
Good liveaboard / cruising comfort: The interior is well laid out, with good headroom, a proper galley, and enclosed head.
Versatile cockpit: Whether for cruising or fishing, the cockpit layout is flexible.
Serviceability: Good access to the engine room, and the tilt-away helm helps with electronics installation / accessibility.

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by South River Marine. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

This Beautiful 2001 Tiara 3500 Open is a spectacular Yacht ! She is powered with the Cummins diesels which provide strong performance and ver efficient fuel consumption ! This boat is a must see ! She is located at South River Marne for easy viewing !
